User Installation

Nokia RoofTop™ Wireless Router
(R240/ R240A) Hardware Installation
Guide (self-install)
COPYRIGHT
© 2000 Nokia Corporation. All rights reserved.
Rights reserved under the copyright laws of the United States.
RESTRICTED RIGHTS LEGEND
Use, duplication, or disclosure by the Government is subject to restrictions as set forth in subparagraph (c)(1)(ii) of the Rights in
Technical Data and Computer Software clause at DFARS 252.227-7013.
TRADEMARKS
Nokia is a registered trademark of Nokia Corporation. Nokia RoofTop™ is a registered trademark of Nokia Networks.
Other products mentioned in this document are trademarks or registered trademarks of their respective holders.
COMPLIANCE STATEMENTS
This hardware complies with the standards listed in this section.
Compliance in the United States
Emission Standards
UNINTENTIONAL EMISSIONS: FCC Part 15 CLASS B
INTENTIONAL EMISSIONS: FCC Part 15, Section 15.247
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC
rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This
equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruc-
tions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur
in a particular installation. If this equipment does cause harmful interference to radio or television reception which can be deter-
mined by turning the equipment off and on, the user is encouraged to try and correct the interference by one or more of the fol-
lowing measures:
—Reorient or locate the receiving antenna.
—Increase the separation between the equipment and receiver.
—Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
—Consult the dealer or an experienced radio/TV technician for help.
Any modifications made to the unit, unless expressly approved by Nokia could void the user’s authority to operate the equip-
ment.
FCC Rules and Regulations - Part 68
This equipment complies with Part 68 of the FCC Rules. The FCC Part 68 Label is located on the rear panel of the Network/
Power Unit. This label contains, among other information, the FCC Registration Number and Ringer Equivalency Number (REN)
for this equipment. You must, upon request, provide this information to your telephone company. The REN is useful to determine
the quantity of devices you may connect to your telephone line and still have all those devices ring when your telephone number
is called. In most but not all areas, the sum of the RENs of all devices connected to one line should not exceed five (5.0). To be
certain of the number of devices you may connect to your line, as determined by the REN, you should contact your local tele-
phone company to determine the maximum REN for your calling area.
Connection to the telephone network should be made by using standard modular telephone jacks, type RJ11. The plug and/or
jacks used must comply with FCC Part 68 rules. If your telephone equipment causes harm to the telephone network, the
telephone company may discontinue your service temporarily. If possible, they will notify you in advance, but if advance notice is
not practical, you will be notified as soon as possible. You will be informed of your right to file a complaint with the FCC.
Your telephone company may make changes in its facilities, equipment, operations or procedures that could affect the proper
functioning of your equipment, If they do, you will be notified' in advance to give you an opportunity to maintain uninterrupted
telephone service.
This equipment may not be used on coin service provided by the telephone company. Connection to party lines is subject to
tariffs.
If trouble is experienced with this unit, for repair or warranty information, please contact customer service at the address and
phone listed below. If the equipment is causing harm to the network, the telephone company may request that you disconnect
the equipment until the problem is resolved.
DO NOT DISASSEMBLE THIS EQUIPMENT. It does not contain any user serviceable components.
Compliance in Canada
Canadian compliance (Industry Canada) When tested with at least one intended host: This digital apparatus does not exceed
the Class B limits for radio noise emissions from digital apparatus set out in the interference-causing equipment entitled "Digital
Apparatus", ICES-003 of the Canadian Department of Communications.
Cet appareil numérique respecte les limites bruits radioélectriques applicables aux appareils numériques de Class B prescrites
dans la norme sur le matériel brouilleur: "Appareils Numériques", NMB-003 édictée par le Ministre Canadien des Communica-
tions.
Notice: The Industry Canada (IC) label identifies certified equipment. This certification means that the equipment meets tele-
communications network protective, operational and safety requirements as prescribed in the appropriate Terminal Equipment
Technical document(s). The department does not guarantee the equipment will operate to the user's satisfaction.
Before installing this equipment, users should ensure that it is permissible to be connected to the facilities of the local telecom-
munications company. The equipment must also be installed using an acceptable method of connection. The customer should
be aware that compliance with the above conditions may not prevent degradation of service in some situations.
Repairs to certified equipment should be coordinated by a representative designated by the supplier. Any repairs or alterations
made by a user to this equipment, or equipment malfunctions, may give the telephone communications company cause to
request the user to disconnect the equipment.
Notice: The Ringer Equivalent Number (REN) assigned to each terminal device provides an indication of the maximum number
of terminals allowed to be connected to a telephone interface. The termination on an interface may consist of any combination of
devices subject only to the requirement that the sum of the Ringer Equivalence Numbers of all the devices does not exeed 5.
REN: See the equipment for REN information.
DISCLAIMER:
TO THE INSTALLER: THE INSTRUCTIONS PROVIDED IN THIS GUIDE ARE PROVIDED “AS IS” WITHOUT WARRANTY OF
ANY KIND EXPRESSED OR IMPLIED. NOKIA MAKES NO REPRESENTATIONS OR WARRANTIES, EXPRESS OR
IMPLIED, INCLUDING BUT NOT LIMITED TO THE WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICU-
LAR PURPOSE OR INFRINGEMENT, INCLUDING ANY THIRD PARTY PATENTS, COPYRIGHTS, TRADEMARKS OR
OTHER RIGHTS. THERE IS NO WARRANTY BY NOKIA THAT THE INSTRUCTIONS CONTAINED IN THE GUIDE WILL
MEET YOUR REQUIREMENTS. THERE IS NO WARRANTY BY NOKIA THAT THE INSTRUCTIONS AND STATEMENTS
CONTAINED IN THE GUIDE OR ITS CONTENT ARE TRUE, ACCURATE OR COMPLETE.
LIMITATION OF LIABILITY: TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, IN NO EVENT SHALL NOKIA,
ITS EMPLOYEES OR AFFILIATES BE LIABLE FOR ANY LOST PROFITS, REVENUE, SALES, DATA, OR COSTS OF PRO-
CUREMENT OF SUBSTITUTE GOODS OR SERVICES, PROPERTY DAMAGE, PERSONAL INJURY, INTERRUPTION OF
BUSINESS, LOSS OF BUSINESS INFORMATION OR FOR ANY SPECIAL, DIRECT, INDIRECT, INCIDENTAL, ECONOMIC,
COVER, PUNITIVE, SPECIAL OR CONSEQUENTIAL DAMAGES HOWEVER CAUSED, AND WHETHER ARISING UNDER
CONTRACT, TORT, NEGLIGENCE, OR OTHER THEORY OF LIABILITY ARISING OUT OF THE USE OF OR INABILITY TO
USE THE GUIDE, EVEN IF NOKIA OR AFFILIATES ARE ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.
Nokia RoofTop™ Wireless Router Installation Guide 7
Contents
CHAPTER 1 About this document . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
1.1 Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
1.1.1 Task flowchart . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
CHAPTER 2 Safety issues . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
2.1 Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
2.2 Hazard warnings . . . . . . . . . . . . . . . . . . . . . . . . 14
2.3 Regulatory safety requirements . . . . . . . . . . . . . 15
CHAPTER 3 Planning the installation . . . . . . . . . . . . . . . . . . . . . . 17
3.1 Main installation steps. . . . . . . . . . . . . . . . . . . . 17
3.1.1 To find a location for the router . . . . . . . . . . . . . 18
3.1.2 To plan the Network/Power Unit location . . . . . 19
3.1.3 To plan the cable routing . . . . . . . . . . . . . . . . . . 19
3.1.4 To plan the grounding. . . . . . . . . . . . . . . . . . . . . 19
CHAPTER 4 Outdoor installation . . . . . . . . . . . . . . . . . . . . . . . . . . 21
4.1 Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
4.1.1 Components to be installed . . . . . . . . . . . . . . . . 21
4.2 To install the router . . . . . . . . . . . . . . . . . . . . . . 22
4.2.1 To prepare and install grounding . . . . . . . . . . . . 28
CHAPTER 5 Routing the cable into the property . . . . . . . . . . 31
5.1 General guidelines on cable routing . . . . . . . . . 31
CHAPTER 6 Indoor installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
6.1 Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
6.1.1 Components to be installed . . . . . . . . . . . . . . . . 33

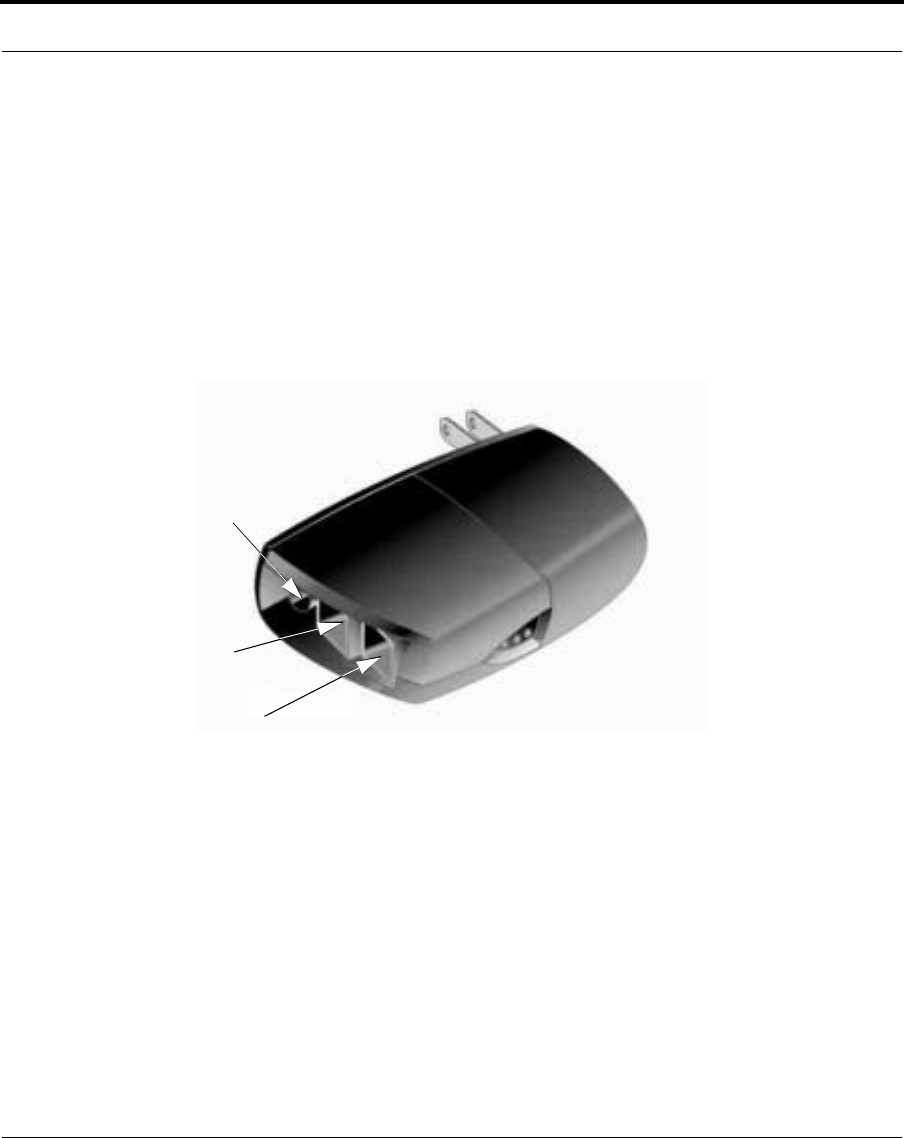

6.2 Network/ Power Unit (NPU). . . . . . . . . . . . . . . 34
8 Nokia RoofTop™ Wireless Router Installation Guide
Contents
6.3 To install the Network/ Power Unit . . . . . . . . . 35
6.3.1 Connection options. . . . . . . . . . . . . . . . . . . . . . . 38
6.3.2 Network . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
6.3.3 Direct personal computer connection. . . . . . . . . 39
6.3.4 Home PNA connection. . . . . . . . . . . . . . . . . . . . 40
CHAPTER 7 Configuring the end user PC . . . . . . . . . . . . . . . . . 41
7.1 Introduction. . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
7.1.1 To configure the your personal computer. . . . . . 42
CHAPTER 8 Post installation testing . . . . . . . . . . . . . . . . . . . . . . 43
8.1 Introduction. . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
8.1.1 Functional testing . . . . . . . . . . . . . . . . . . . . . . . . 43
APPENDIX A Cables . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
APPENDIX B Technical Specifications . . . . . . . . . . . . . . . . . . . . . 47
Nokia RoofTop™ Wireless Router Installation Guide 9
CHAPTER 1 About this document
1.1 Introduction
This document explains the procedures necessary to install the Nokia
Rooftop Wireless Router.
10 Nokia RoofTop™ Wireless Router Installation Guide
Nokia RoofTop™ Wireless Router Installation Guide 13
CHAPTER 2 Safety issues
2.1 Introduction
It is important, when installing the Nokia Wireless Router, that the unit is
not installed where it could be either damaged by its environment, or pose
a hazard for the user. In this respect, when installing the unit be aware of
the following Hazard Warnings and Regulatory Safety Requirements
14 Nokia RoofTop™ Wireless Router Installation Guide
2.2 Hazard warnings
•Environment - Do not place the Network Power Unit (NPU) in a
very cold, dusty, wet or high humidity environment. The unit should
be situated away from all heat sources such as radiators, heat
registers, stoves, amplifiers and other heat producing
appliances.
• Fire or electric shock - Do not expose the NPU to any type of
moisture, including rain. Do not use or install near water-related
environments such as sinks, bathtubs, laundry areas, spas, swimming
pools, or in wet basements. Take care not to spill any liquids on the
unit.
•Use extreme caution when installing antennas in areas with overhead
power lines. Outdoor antennas and their supporting masts, guy wires,
and cables are electrical conductors. Contact with high-voltage
electrical wires can cause serious injury or death.
•Because antennas and wireless routers are elevated metal objects with
connections to ground, they attract lightning. Attach a grounding wire
to the antenna and router to provide a safe path to ground for
lightning.
•Do not install the router near medical equipment or in a hospital or
medical environment without ensuring that there will be no
interference with such equipment.
•Persons with pacemakers should not go close to the router on the roof.
If you have any reason to suspect that interference is taking place
with a pacemaker, switch off the router immediately.
• Co-location - In certain situations, multiple wireless routers may be
co-located on the rooftop of a residential subscriber. To comply with
RF safety requirements, there must be a minimum distance of one
meter (either horizontally or vertically, depending on the rooftop
environment) between each wireless router. Wireless routers may not
be co-located with or work in conjunction with other transmitting
devices without professional installation.
•RF exposure - To comply with RF safety requirements, do not go
closer than 20 cm of the antenna on the roof when the Network/Power
Unit is plugged in.
Nokia RoofTop™ Wireless Router Installation Guide 17
CHAPTER 3 Planning the installation
3.1 Main installation steps

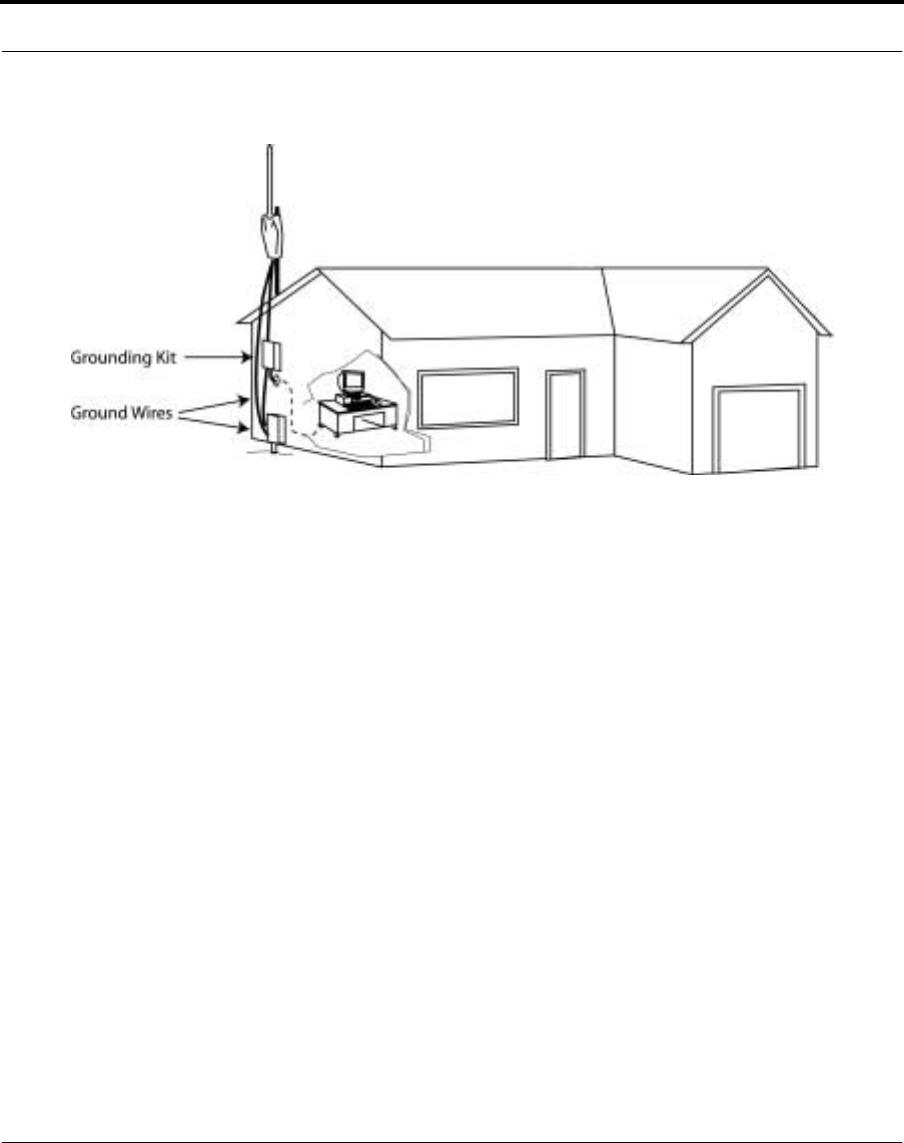

The complete wireless router installation consists of five basic steps:
1. The Nokia roofTop Wireless Router
2. The Multiwire connection (between the router and the Network/
Power Unit)
3. The Network/ Power Unit
4. The grounding (where required)
5. The indoor connections between the Network/Power Unit and the
computer(s) in the property.
18 Nokia RoofTop™ Wireless Router Installation Guide
When planning the installation the following needs to be considered:
•The hardware and tools required to complete the installation.
•Wireless router installation location.
•Multiwire routing between the router and the NPU.
•The power source location for the NPU.
•The routing path for the ethernet cabling.
•Antenna grounding and lightning arrestor requirements.
3.1.1 To find a location for the router
When planning the location of the router the highest point on the roof
should be used to ensure a clear line of sight. Existing structures like
chimneys, pipes, tv antenna poles etc. should be used for mounting the
router. Only if there is no suitable mounting point, should a mounting pole
be used.
Height of the antenna is often limited to physical limitations of the site.
For example, an antenna mast can be placed on a rooftop or installed on
an existing structure or tower. Avoid using a mast if at all possible, but be
sure that the antenna clears the roof line.
It is acceptable to use the TV antenna pole already installed. If the TV
antenna is used, be sure to loosen the antenna mounting, slide the TV
antenna down the pole leaving sufficient room to mount the router at the
top of the pole.
Nokia RoofTop™ Wireless Router Installation Guide 19
Main installation steps

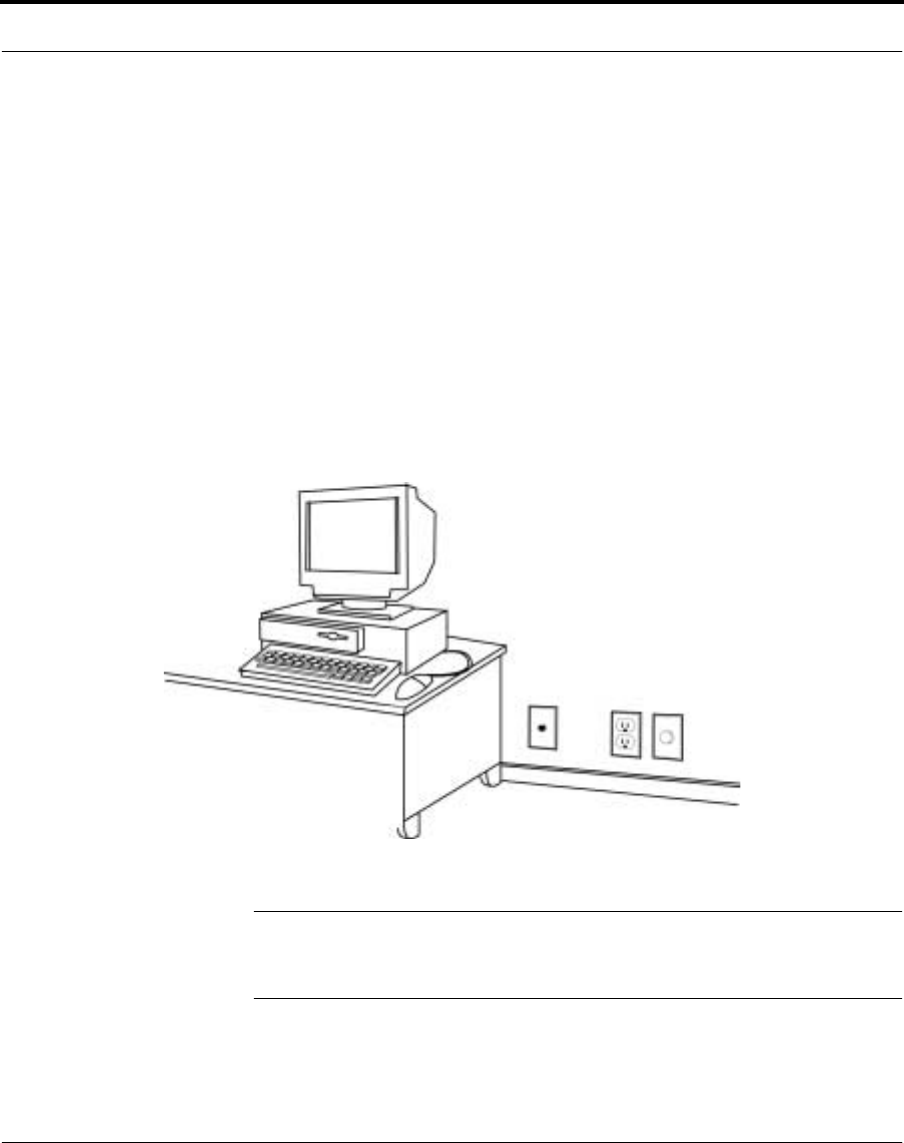

3.1.2 To plan the Network/Power Unit location
The Network/ Power Unit can only be physically located by being
plugged into an AC outlet. When locating the AC outlet for the Network/
Power Unit consider:
•The route of the multiwire cabling
•The proximity of a telephone connection point (where applicable for
HomePNA) or routing of the Ethernet cable
3.1.3 To plan the cable routing
•Avoid pipes, downspouts and possible areas which may abrade the
cabling.
For further details see Chapter 6, Routing the cable into the property.
3.1.4 To plan the grounding
Test the existing grounding system at the property. Where the existing
grounding is not acceptable, consider:
•Route of the grounding cable from the router, avoiding other pipes,
down spouts etc
•Location for the grounding rod
20 Nokia RoofTop™ Wireless Router Installation Guide
Nokia RoofTop™ Wireless Router Installation Guide 21
CHAPTER 4 Outdoor installation
4.1 Introduction
4.1.1 Components to be installed
The Outdoor portion of the Nokia RoofTop Wireless Router system
comprises:
•Wireless router with integral antenna
•Grounding kit for router (if required)
•Router mounting hardware
•A shielded multiwire cable containing 7 twisted pairs of wires.
This is used to connect the wireless router with the NPU. Nokia
provides several different lengths of cable with D-Connectors
already installed on the end of the cable.
•RF Cable adaptor, Nokia Code WR 46899A
22 Nokia RoofTop™ Wireless Router Installation Guide
4.2 To install the router
1. Mount the wireless router bracket to the mounting point, ensuring that
the bracket is fixed securely.

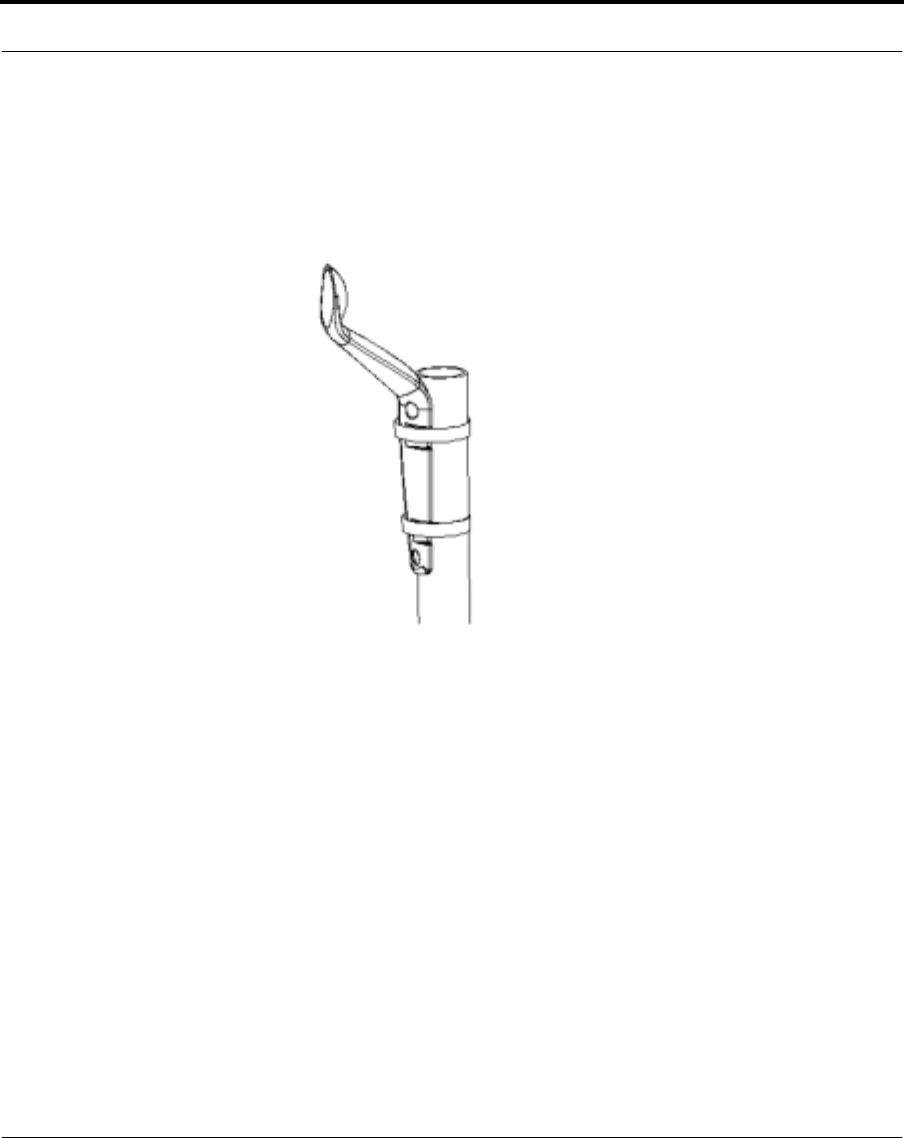

Router bracket fixed to mast
Nokia RoofTop™ Wireless Router Installation Guide 23
To install the router
2. Attach the antenna by screwing it into the top of the wireless router.
Carefully guide the antenna down onto the RF pin to prevent the pin
being bent out of shape. Ensure secure connection, but do not
overtighten.

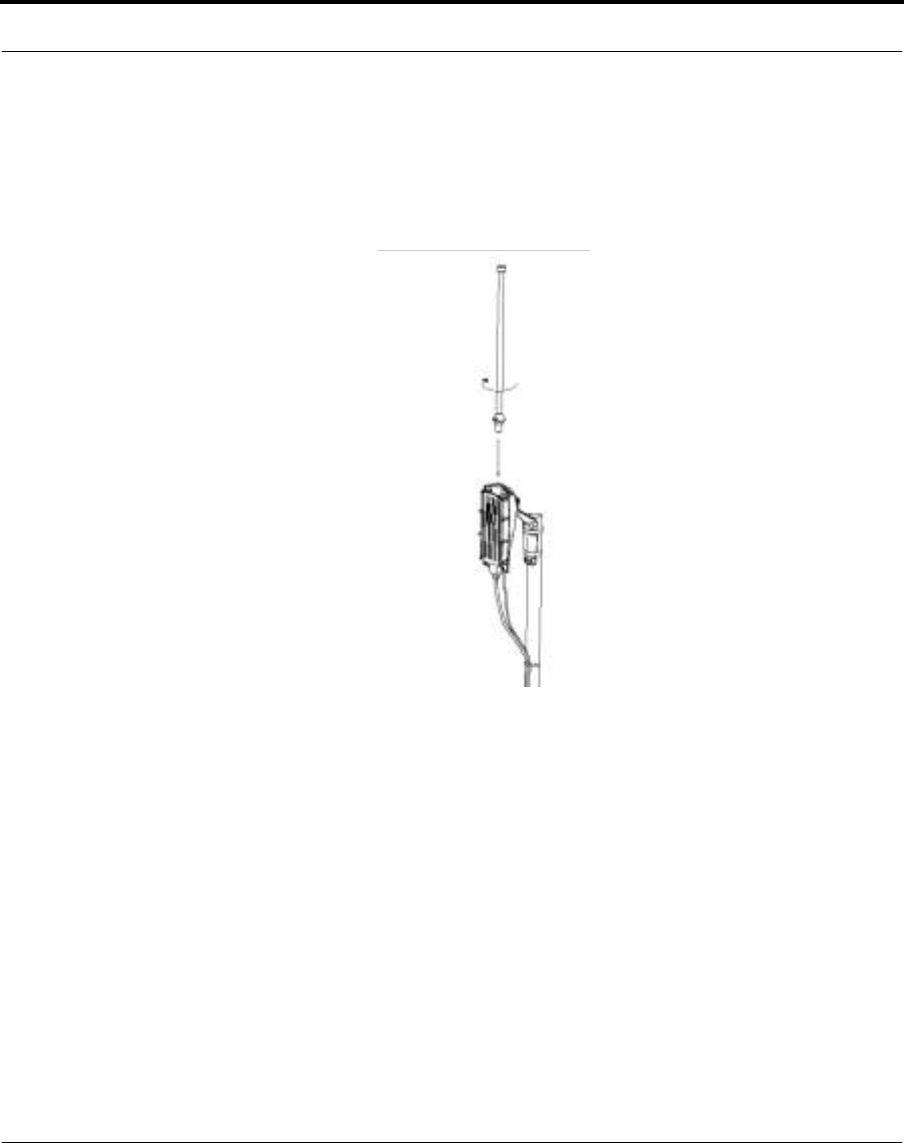

Attach the omni-directional antenna
24 Nokia RoofTop™ Wireless Router Installation Guide
3. Connect the multiwire connection to the D-Connector in the bottom
of the wireless router. Tighten the two screws on the connector and
slide the rubber sleeve over the connections to prevent the ingress of
water.

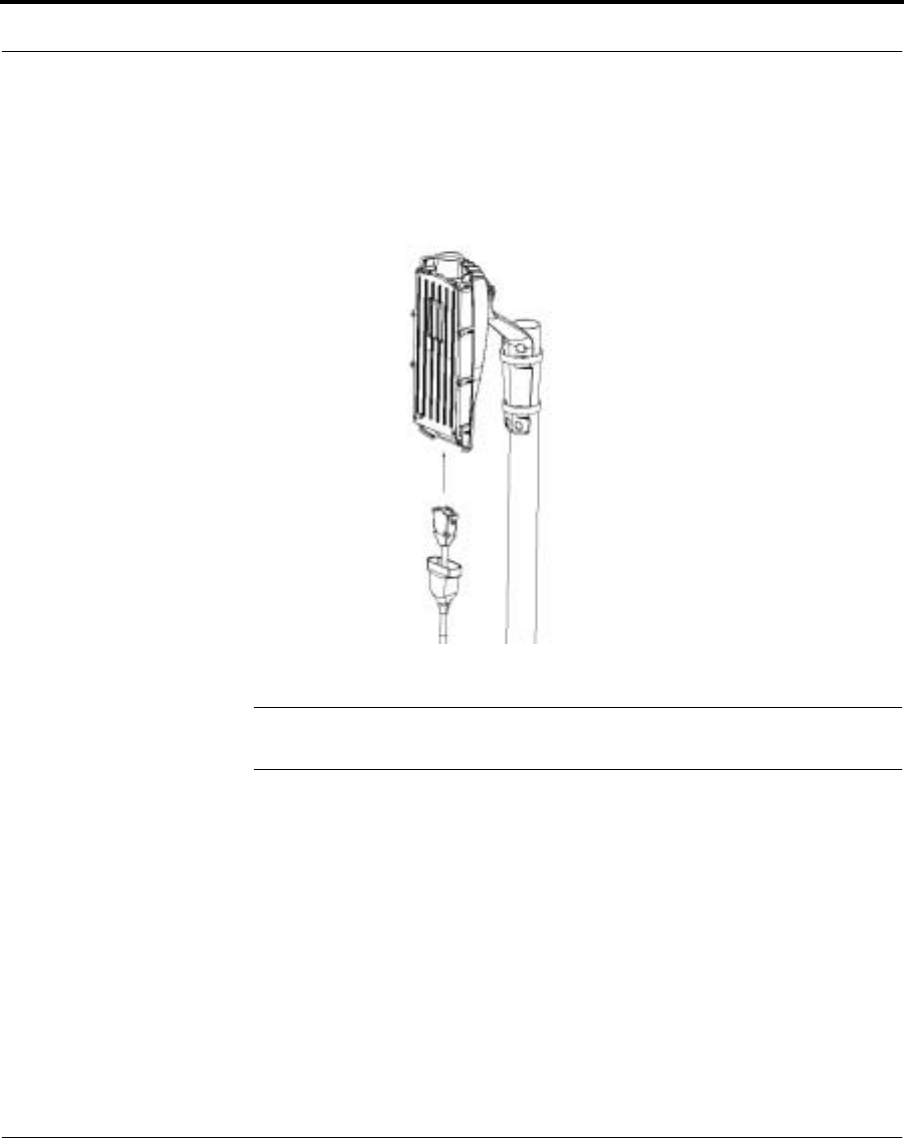

Attach multiwire connection and Ground wire
NOTE: Take care when tightening the D-Connector to the router. It is
easy to damage the router casing if the screws are overtightened.
4. Using cable ties and/ or adhesive tape, secure the multiwire
connection and ground wire (where used) to the mast. Take care to
avoid placing strain on the connectors when securing the cables to the
mast. Use ties/ tape about every two feet down the length of the mast.
Always cover the cable ties with electrical tape to prevent excess
pressure on the D-connector should the cable tie fail.
5. Attach mounting bracket to back of router. Ensure that the bolt fits
correctly and is not cross threaded. There is no need to tighten the
bolt, play is required to attach the router to the mast mounting
bracket.
Nokia RoofTop™ Wireless Router Installation Guide 25
To install the router

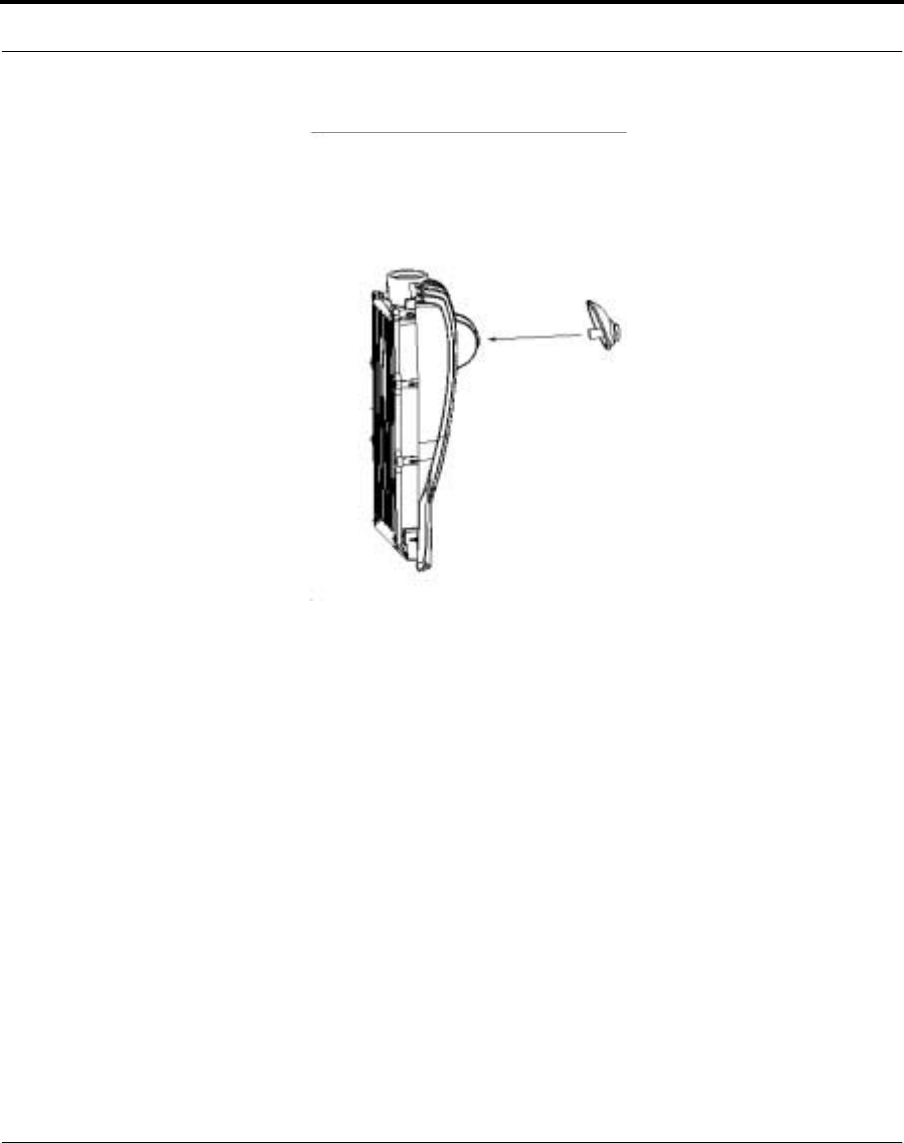

Attach mounting bracket to router
26 Nokia RoofTop™ Wireless Router Installation Guide

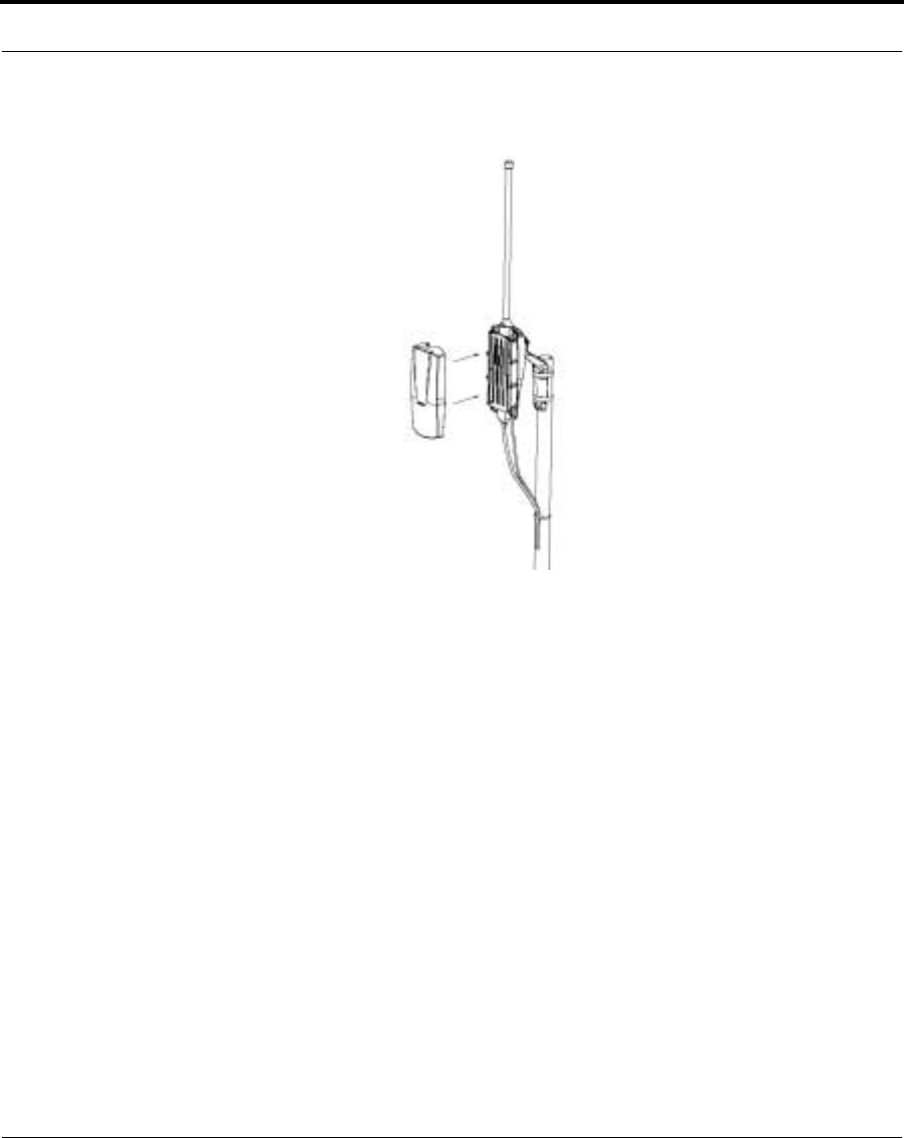

6. Attach the front panel of the wireless router.
Attach front panel of wireless router
Nokia RoofTop™ Wireless Router Installation Guide 27
To install the router

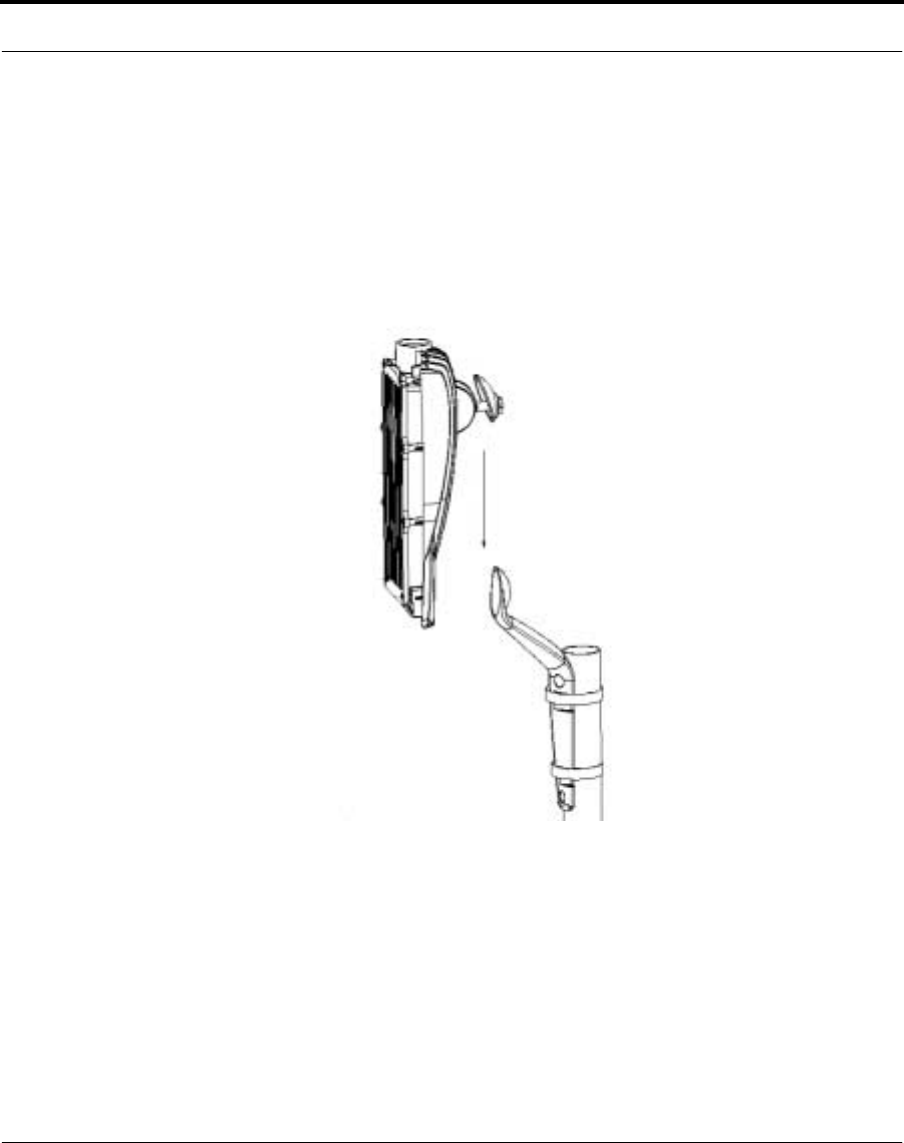

7. Slide the router and its bracket onto the router mount. Make sure that
the router is mounted perfectly vertical on the mount, using a level as
necessary, and tighten the bolt in the back of the router. Be careful not
to overtighten the bolt. Overtightening of the bolt will strip the thread
in the back of the aluminum casting of the wireless router.
Slide the router mount onto the mast bracket
28 Nokia RoofTop™ Wireless Router Installation Guide
4.2.1 To prepare and install grounding
NOTE: Grounding is only installed where the existing grounding system
is not sufficient for router grounding purposes.
Because antennas are elevated metal objects with connections to ground,
they attract lightning.
Attaching an effective ground to the router provides a path for the
lightning.
1. Connect the grounding box connector marked “Surge” towards the
antenna and the connector marked “Protected” to the Network/ Power
Unit (NPU) end of the cabling.
2. Protect the connections as previously described, using
weatherproofing tape.
3. Locate the lightning arrestor close to the point of entry to the home.
4. Provide a good, very low resistance wire connection from the
wireless router to the ground.
5. Use #12 copper wire connected to the router grounding clamp and a
ground rod next to the building.
Nokia RoofTop™ Wireless Router Installation Guide 29
To install the router
Grounding of router and NPU
30 Nokia RoofTop™ Wireless Router Installation Guide
Nokia RoofTop™ Wireless Router Installation Guide 31
CHAPTER 5 Routing the cable into the property
5.1 General guidelines on cable routing
•Where possible, route the cables inside the wall/ roof spaces
•THINK where the cables are going to go! Avoid air ducts, water and
gas pipes.
•Try to use existing entries into your home to avoid having to drill
holes.
•Try to make the cable entry to the computer connections as close to
the your PC as possible, using the shortest cable possible.
•Where wires have to be routed outside of the building, make sure that
they are supported with cable clips at 18 to 24 inch intervals and are
not unsightly. Make sure that there is a “drip loop” at the point of
entry to prevent water ingress into the property. Seal any drilled holes
using silicone sealant.
32 Nokia RoofTop™ Wireless Router Installation Guide
Nokia RoofTop™ Wireless Router Installation Guide 33
CHAPTER 6 Indoor installation
6.1 Introduction
6.1.1 Components to be installed
The Indoor portion of the Nokia Wireless Router System consists of:
•Network Power Unit (NPU)
•Ethernet or home PNA connection cable
34 Nokia RoofTop™ Wireless Router Installation Guide
6.2 Network/ Power Unit (NPU)
1. HomePNA 2.0 interface, a standard phone jack (RJ-11)
2. Ethernet interface, a standard 10/100 BaseT Ethernet jack (RJ-45)
3. Router outdoor unit connection: A multiwire cable from Router unit
is connected to this.
The connector is a punch down connector inside the unit.
1
3
2
Nokia RoofTop™ Wireless Router Installation Guide 35
To install the Network/ Power Unit
6.3 To install the Network/ Power Unit
1. Trim back the multiwire cable insulation taking care not to cut any of
the smaller wires in the cable.
2. Remove the Network/Power Unit from its’ packaging and loosen the
strain relief (the unit is already disassembled).
3. Place the cable through the strain relief and slot the appropriate wire
into the appropriate slot in the connection. Using the punch down
tool, fix the wire into the Network/ Power Unit.
4. When all wires are connected securely, reconnect the cable strain
relief in the unit to prevent the multiwire cable from being pulled out
of the unit.
5. Replace the Network/Power Unit cover and replace the screws. Do
not overtighten the screws.

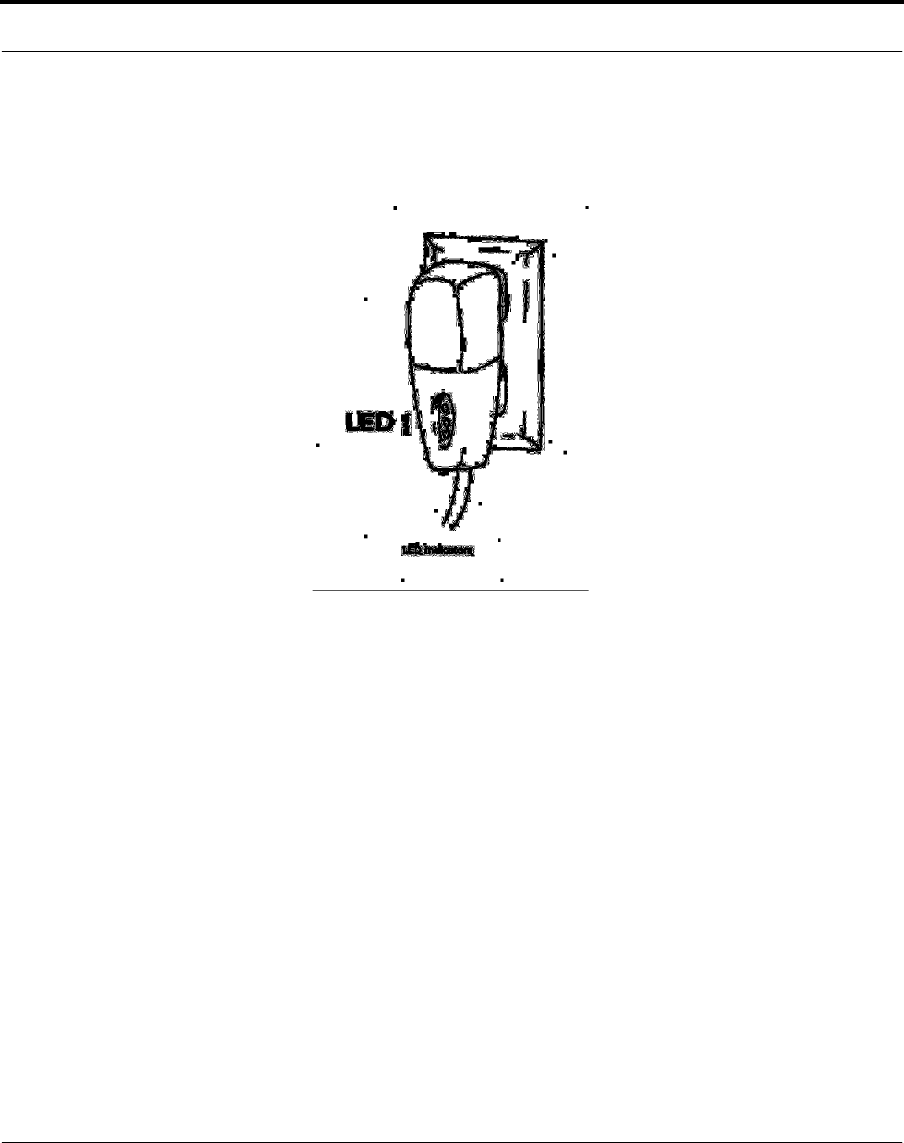

6. Plug the Network/Power Unit into the wall AC outlet. The LEDs on
the unit should flash three times to indicate that the unit is connected
to the router.
36 Nokia RoofTop™ Wireless Router Installation Guide
7. Connect the ethernet cable from the Network/ Power Unit to the PC
or home PNA adapter or network hub.
NOTE: Shielded ethernet cables must be used on all installations.
The LEDs indicate the following information:
LED Description
Power/ LAN Solid On
Power on, but no ethernet packets seen
Slow Flash
Waiting for the router to complete boot cycle
Intermittent Flash
Off during packet transmit or receive. Otherwise ON
Off
No power or the router is not functioning (IROS is off)
Nokia RoofTop™ Wireless Router Installation Guide 37
To install the Network/ Power Unit
Anchor Solid On
The link to the neighbor in the path to the AirHead has an uplink and downlink
speed of 2Mb and the path to the AirHead is less than, or equal to3 hops
Slow Flash
The link to the neighbor in the path to the AirHead has an uplink and downlink
speed of 1Mb and the path to the AirHead is less than, or equal to 3 hops
Fast Flash
More than 3 hops to the AirHead or
The unit has neighbors but there is no path to the AirHead
Off
The router has no neighbors
Network Solid On
More than, or equal to 2 independent neighbors, with at least one 2Mbps path to
the AirHead and the path to the AirHead is less than or equal to3 hops
Slow Flash
Greater than, or equal to 2 independent neighbors with a 1 Mbps path to the Air-
Head and the AirHead is less than, or equal to 3 Hops
Fast Flash
The unit has 1 neighbor with a 2 Mbps path to the AirHead and the AirHead is
less than, or equal to 3 Hops
Off
None of the above
LED Description
38 Nokia RoofTop™ Wireless Router Installation Guide
6.3.1 Connection options
There are three ways to connect the Wireless Router to the computer
system:
•Network Hub Connection, using 10/ 100bT ethernet interface.
•Direct Personal Computer Connection, using 10/ 100bT ethernet
crossover cable.
•Home PNA Connection.
The Router automatically activates the ethernet or Home PNA, depending
upon which connector is used. If the cable is connected to both
connectors, the ethernet port is activated.
All these options are described in more detail below.

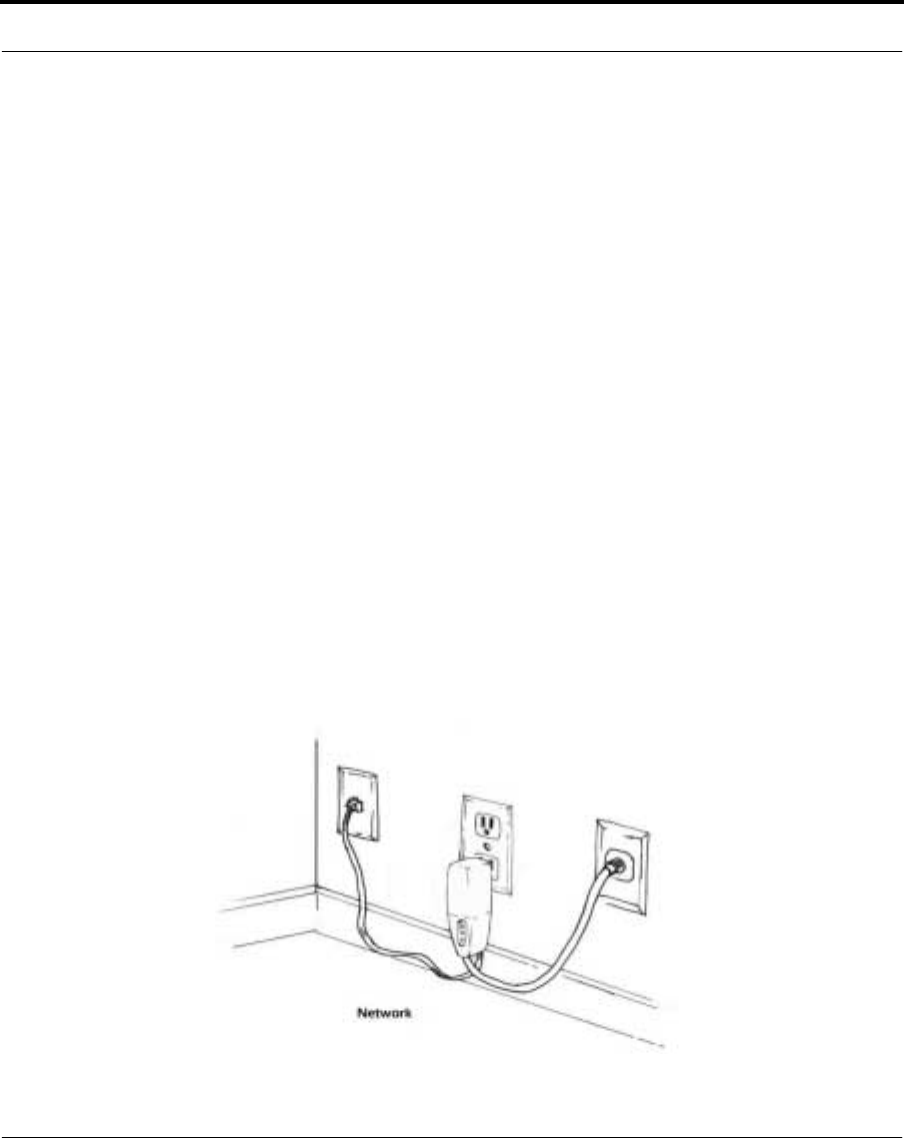

6.3.2 Network
Use a standard Ethernet Cable with an RJ45 connector at the Wireless
Router and the appropriate connector at the LAN Ethernet connection.
Network Connection
Nokia RoofTop™ Wireless Router Installation Guide 39
To install the Network/ Power Unit
6.3.3 Direct personal computer connection
Connect an Ethernet crossover cable between the Network Interface and
Power Supply Unit and the Personal Computer Ethernet connection. Use
an RJ45 connector at the Network/ Power Unit and the appropriate
connector for the Personal Computer Ethernet connection. See appendix
for wiring diagram for crossover cable.
Connect the Network/ Power Unit, computer and LAN as shown in the
following diagram.
Use one crossover cable whenever a network hub is not being used and
always use it at the PC.
Direct PC connection
NOTE: Changing the Ethernet configuration from a LAN connection to a
direct PC connection requires changing from a standard Ethernet cable to
a crossover cable.
40 Nokia RoofTop™ Wireless Router Installation Guide

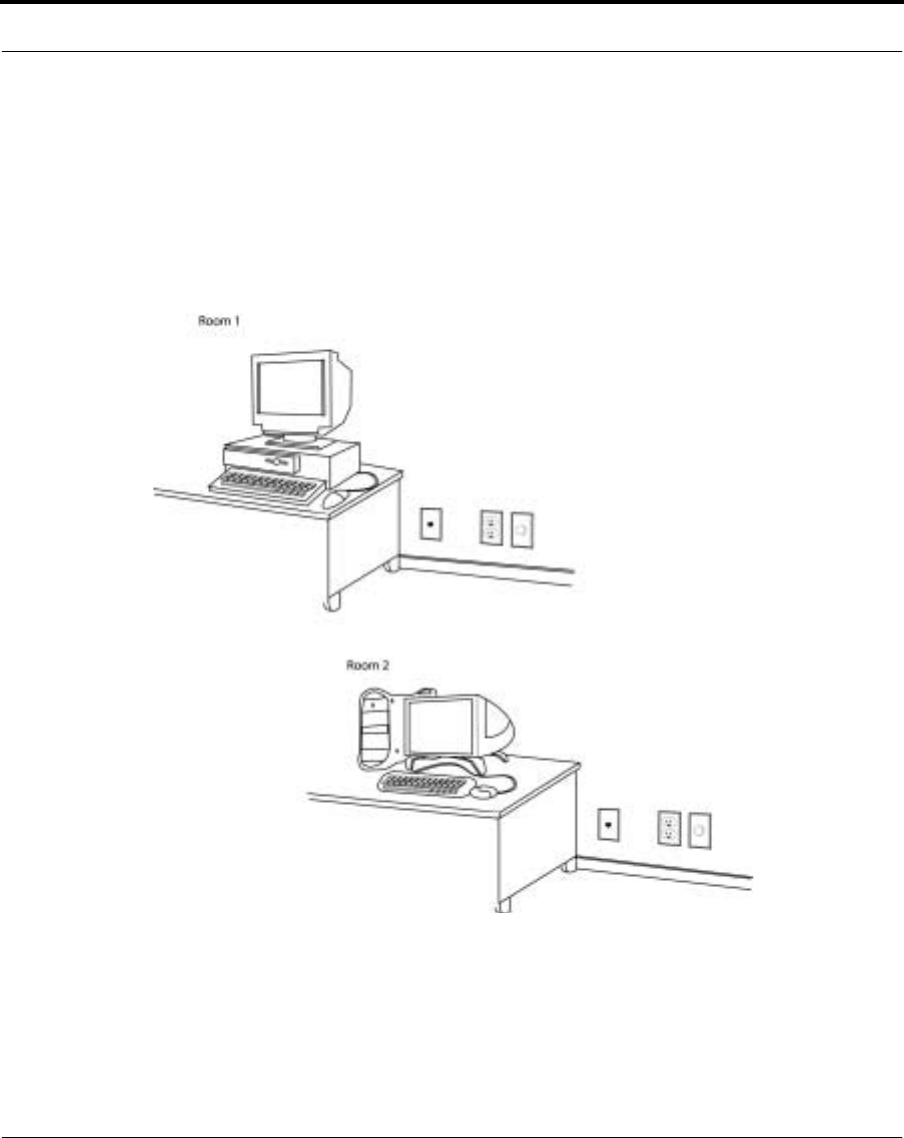

6.3.4 Home PNA connection
•Connect the phone cable between a Network/ Power Unit
HomePNA connection and RJ11 phone jack or directly to the PC-
HomePNA adapter.
•Connect PC to adapter according to manufacturers instructions.
Nokia RoofTop™ Wireless Router Installation Guide 41
CHAPTER 7 Configuring the end user PC
7.1 Introduction
After the router installation is complete, your PC needs to be configured
for use with the Nokia Wireless Router system. The ISP provides all the
information required prior to installation.
42 Nokia RoofTop™ Wireless Router Installation Guide
7.1.1 To configure the your personal computer
This section covers the Microsoft WindowsTM operating system.
1. Check that the PC has a network interface card (NIC).
If the PC does not have a NIC, install it.
2. Define the TCP/IP Properties. In the IP Address field, either select the
"Obtain IP Address Automatically" or enter the IP Address and
Subnet Mask in accordance with information provided by the ISP.
3. In the Default Gateway field, enter the IP address of the default
gateway, provided by the ISP.
Nokia RoofTop™ Wireless Router Installation Guide 43
CHAPTER 8 Post installation testing
8.1 Introduction
It is necessary to ensure that the system is working correctly after full
wireless router, Network/ Power Unit installations and PC configuration
are complete.
To carry out the test, follow the procedure shown below.
8.1.1 Functional testing
Ensure that the router functions correctly by carrying out the following:
1. Ensure that the NPU is inserted properly into the AC-outlet. The
LEDs flash three times to indicate that the router is functioning
correctly.
2. Turn on your PC. Wait for 3-5 minutes to allow the router to
anchor to the network.
3. Check that the LEDs indicate an active internet connection (according
to Chapter 6 - Indoor installation).
44 Nokia RoofTop™ Wireless Router Installation Guide
4. Open a web-browser and browse a few Internet pages to ensure
that the system downloads web sites.
NOTE: AOL customers will need to use dial-up connections for the AOL
browser to perform correctly. The router supports only Netscape and
Internet Explorer browsers.
5. Check the data speed by placing a “throughput test” to
www.2wire.com. Generally, speeds of 200kb are acceptable.
6. Where there are problems with download or speed of
connection, check the installation first. If this does not solve the
problem, then contact the ISP.
Nokia RoofTop™ Wireless Router Installation Guide 47
APPENDIX A Cables
Ethernet crossover cable
The wiring for an Ethernet Crossover cable for 10Base-T is as follows:
RJ45 Plug
Pin 1 (Tx+) to Pin 3 (Rx+)
Pin 2 (Tx-) to Pin 6 (Rx-)
Pin 3 (Rx+) to Pin 1 (Tx+)
Pin 6 (Rx-) to Pin 2 (Tx-)
48 Nokia RoofTop™ Wireless Router Installation Guide
Nokia RoofTop™ Wireless Router Installation Guide 47
APPENDIX B Technical Specifications
This appendix describes technical specifications for Nokia RoofTop™
Wireless Router Models R240 & 240A Outdoor-Mounted Unit.
Data Capacity per Cell 12 Mbps
(6x2 Mbps per channel)
AirHeads (master routers that are connected
to the wired Internet via backhaul) per Cell
Routers per Cell
Routers per AirHead
Up to 6
Up to 240
Up to 40
Antenna Type 8 dBi Omnidirectional (integrated)
Link Range (typical)
1 Mbps Data Rate
2 Mbps Data Rate
1.75 Miles
0.50 Miles
48 Nokia RoofTop™ Wireless Router Installation Guide
Radio/ Modem Specifications
Frequency Band (GHz)
Radio Type
Modulation
2.4000 - 2.4835
Frequency Hopping
Spread Spectrum
2 and 4 level GF SK
Transmit Power (typical)
Receiver Sensitivity(10-5 BER)
1Mbps Data Rate
2 Mbps Data Rate
12 dBm - 27.5 dBm (Dynamically adjusts in
1dB steps)
- 82 dBm (typical)
-72 dBm (typical)
Interfaces and Connectors
Ethernet
Phoneline Networking
10/100 Base -TX, autosensing, RJ-45
Home PNA 2.0/ 1.0, RJ-11
Router Environment
Operational Temperature
Relative Humidity
- 40o C to 55o C (-40o to 131o F)
100%
Weight
Router
Dimensions
3.3 lbs (inluding antenna and mount)
Router 4"W x 23/8"D x 81/4"H
NPU 13/4"W x 23/4"D x 51/2"H
Antenna (8dBi) 211/2"H x 3/4" Diameter
Power Consumption 16 Watts @ 120 VAC
Management Nokia Wireless Router Manager, SNMP MIB II,
Telnet
Nokia RoofTop™ Wireless Router Installation Guide 49
Internet Protocols IP, TCP, UDP, ICMP, RIPv1, RIPv2, SNMP,
TFTP, IGMP, ARP, Proxy-ARP, Telnet, DHCP
Relay, DHCP Server, NAT.
Agency Compliance FCC Class B, FCC CFR 47 Part 15, FCC Part 68
ICES-003, RSS-210, CS-03
50 Nokia RoofTop™ Wireless Router Installation Guide

Navigation menu
