User Manual (System)
Flexi Zone Multiband Indoor
Pico BTS Quick Guide
This is a quick reference guide for Flexi Zone Multiband Indoor Pico BTS installations.
The Flexi Zone Multiband Indoor Pico BTS is designed for indoor installations on walls or ceilings.
Prepare the installation
Preparing for
installation
2
Check the site
1Contents of delivery
Wall installation
Ceiling installation
Installation
3
4

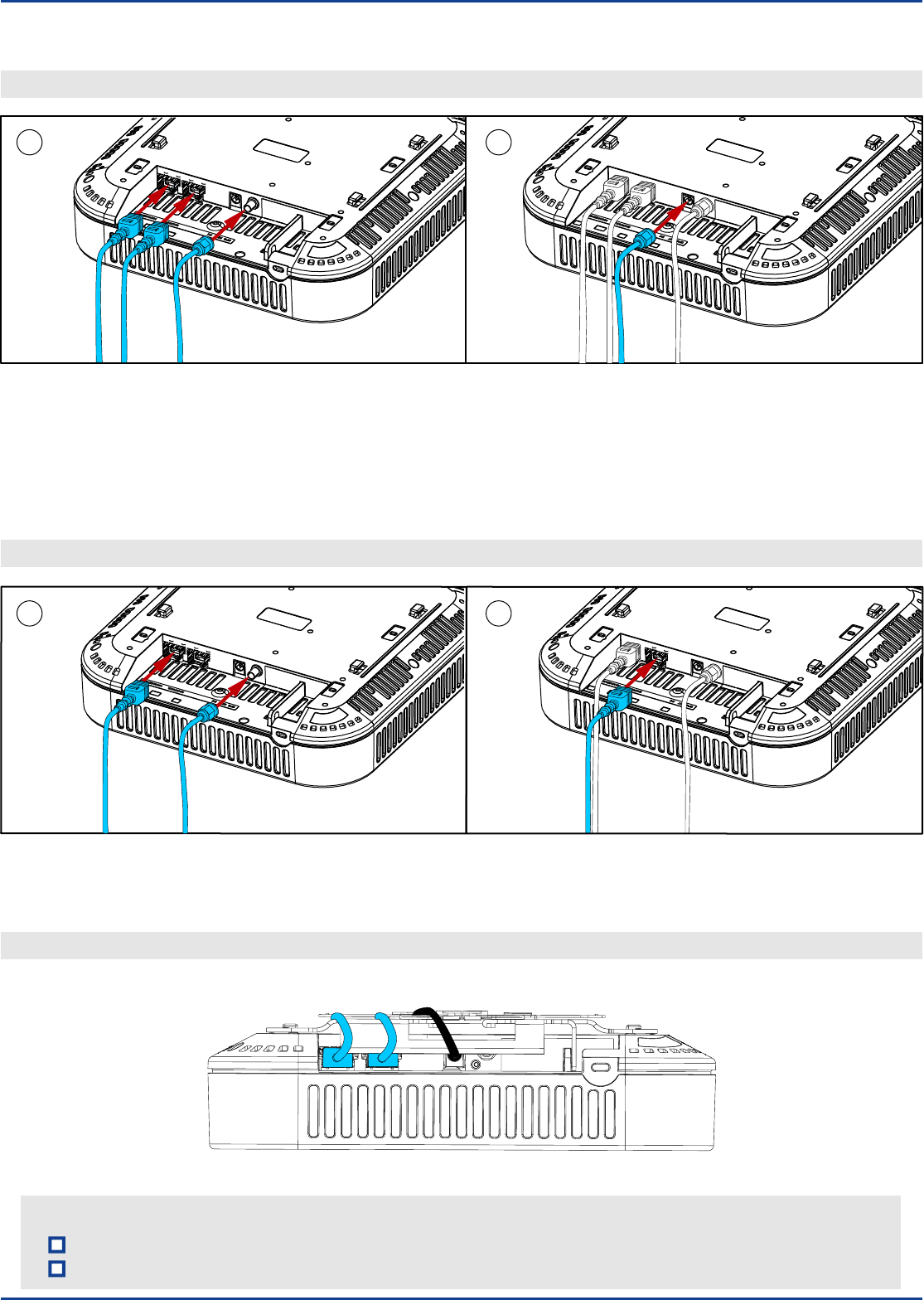

Cabling
Connecting cables
5
The information in this document applies solely to the hardware/software product (“Product”) specified herein, and only as specified herein.
This document is intended for use by Nokia Solutions and Networks' customers (“You”) only, and it may not be used except for the purposes defined in the agreement between
You and Nokia Solutions and Networks (“Agreement”) under which this document is distributed. No part of this document may be used, copied, reproduced, modified or
transmitted in any form or means without the prior written permission of Nokia Solutions and Networks. If you have not entered into an Agreement applicable to the Product, or
if that Agreement has expired or has been terminated, You may not use this document in any manner and You are obliged to return it to Nokia Solutions and Networks and
destroy or delete any copies thereof.
The document has been prepared to be used by professional and properly trained personnel, and You assume full responsibility when using it. Nokia Solutions and Networks
welcome Your comments as part of the process of continuous development and improvement of the documentation.
This document and its contents are provided as a convenience to You. Any information or statements concerning the suitability, capacity, fitness for purpose or performance of
the Product are given solely on an “as is” and “as available” basis in this document, and Nokia Solutions and Networks reserves the right to change any such information and
statements without notice. Nokia has made all reasonable efforts to ensure that the content of this document is adequate and free of material errors and omissions, and Nokia
Solutions and Networks will correct errors that You identify in this document. But, Nokia Solutions and Networks' total liability for any errors in the document is strictly limited to
the correction of such error(s). Nokia Solutions and Networks does not warrant that the use of the software in the Product will be uninterrupted or error-free.
NO WARRANTY OF ANY KIND, EITHER EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO ANY WARRANTY OF AVAILABILITY, ACCURACY, RELIABILITY, TITLE, NON-
INFRINGEMENT, MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, IS MADE IN RELATION TO THE CONTENT OF THIS DOCUMENT. IN NO EVENT WILL NOKIA
SOLUTIONS AND NETWORKS BE LIABLE FOR ANY DAMAGES, INCLUDING BUT NOT LIMITED TO SPECIAL, DIRECT, INDIRECT, INCIDENTAL OR CONSEQUENTIAL OR ANY LOSSES,
SUCH AS BUT NOT LIMITED TO LOSS OF PROFIT, REVENUE, BUSINESS INTERRUPTION, BUSINESS OPPORTUNITY OR DATA THAT MAY ARISE FROM THE USE OF THIS DOCUMENT
OR THE INFORMATION IN IT, EVEN IN THE CASE OF ERRORS IN OR OMISSIONS FROM THIS DOCUMENT OR ITS CONTENT.
This document is Nokia Solutions and Networks’ proprietary and confidential information, which may not be distributed or disclosed to any third parties without the prior written
consent of Nokia Solutions and Networks.
Nokia is a registered trademark of Nokia Corporation. Other product names mentioned in this document may be trademarks of their respective owners, and they are mentioned
for identification purposes only.
Copyright © 2016 Nokia Solutions and Networks. All rights reserved.
Important Notice on Product Safety
This product may present safety risks due to laser, electricity, heat, and other sources of danger.
Only trained and qualified personnel may install, operate, maintain or otherwise handle this product and only after having carefully read the safety information applicable to this
product.
The safety information is provided in the Safety Information section in the “Legal, Safety and Environmental Information” part of this document or documentation set.
Nokia Solutions and Networks is continually striving to reduce the adverse environmental effects of its products and services. We would like to encourage you as our customers
and users to join us in working towards a cleaner, safer environment. Please recycle product packaging and follow the recommendations for power use and proper disposal of
our products and their components.
If you should have questions regarding our Environmental Policy or any of the environmental services we offer, please contact us at Nokia Solutions and Networks for any
additional information.
DN09218794, Issue 03, Approval date: 2016-04-22
-2-
Federal Communication Commission Interference Statement
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device does not cause harmful
interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
This equipment has been tested and complies with the Class B digital device limits, pursuant to Part 15 of the FCC Rules. These
limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses
and can radiate radio frequency energy and, if not installed and used according to the instructions, may cause harmful interference to
radio communications. However, there is no guarantee that interference cannot occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by taking one of the following actions:
· Reorient or relocate the receiving antenna.
· Increase the separation between the equipment and the receiver.
· Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
· Consult the dealer or an experienced radio/TV technician for help.
FCC Caution
Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority
to operate this equipment.
RF Modules installed in this product must not be co-located or operating in conjunction with any other antenna or transmitters, except when
installed in accordance with FCC multi-transmitter product guidelines..
Operation within the 5.15 ~ 5.25 GHz / 5.47 ~5.725 GHz frequency ranges are restricted to indoor environment. The band from 5600-5650 MHz is
disabled by the software during manufacturing and cannot be changed by the end user. This device meets all other requirements specified in
Part 15E, Section 15.407 of the FCC Rules.
FCC Radiation Exposure Statement
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environments. This equipment should be installed
and operated in accordance with the minimum distance Compliance Boundaries table located on Page 3.
Federal Communication Commission Interference Statement
FCC Caution
Radiation Exposure StatementFCC
-3-
Industry Canada Statement
This device complies with RSS-247 of the Industry Canada Rules. Operation is subject to the following two conditions: (1) This device does not cause harmful
interference, and (2) this device must accept any interference received, including interference that can cause undesired operation. Ce dispositif est conforme à
la norme CNR-247 d'Industrie Canada applicable aux appareils radio exempts de licence. Son fonctionnement est sujet aux deux conditions suivantes: (1) le
dispositif ne doit pas produire de brouillage préjudiciable, et (2) ce dispositif doit accepter tout brouillage reçu, y compris un brouillage susceptible de provoquer
un fonctionnement indésirable.
Caution:
(I) the device for operation in the band 5150-5250 MHz is only for indoor use to reduce the potential for harmful interference to co-channel mobile satellite
systems;
(II) the maximum antenna gain permitted for devices in the bands 5250-5350 MHz and 5470-5725 MHz comply with the e.i.r.p. limit; and
(III) the maximum antenna gain permitted for devices in the band 5725-5825 MHz shall comply with the e.i.r.p. limits specified for point-to-point and non point-
to-point operation as appropriate.
(IV) Users are also advised that high-power radars are allocated as primary users (for example priority users) of the bands 5250-5350 MHz and 5650-5850 MHz
and that these radars can cause interference and/or damage to LE-LAN devices.
Avertissement
Le guide d'utilisation des dispositifs pour réseaux locaux doit inclure des instructions précises sur les restrictions susmentionnées, notamment:
(I) les dispositifs fonctionnant dans la bande 5150-5250 MHz sont réservés uniquement pour une utilisation à l'intérieur afin de réduire les risques de brouillage
préjudiciable aux systèmes de satellites mobiles utilisant les mêmes canaux;
(II) le gain maximal d'antenne permis pour les dispositifs utilisant les bandes 5250-5350 MHz et 5470-5725 MHz doit se conformer à la limite de p.i.r.e.;
(III) le gain maximal d'antenne permis (pour les dispositifs utilisant la bande 5725-5825 MHz) doit se conformer à la limite de p.i.r.e. spécifiée pour l'exploitation
point à point et non point à point, selon le cas.
(IV) De plus, les utilisateurs devraient aussi être avisés que les utilisateurs de radars de haute puissance sont désignés utilisateurs principaux (c.-à-d., qu'ils ont la
priorité) pour les bandes 5250-5350 MHz et 5650-5850 MHz et que ces radars pourraient causer du brouillage et/ou des dommages aux dispositifs LAN-EL.
Radiation Exposure Statement
Flexi Zone Indoor Pico Mulitband BTS is compliant with the cited standards at every point outside the FINAL boundary (CB) as described in the IC REL. The
antenna types actually configured in the product determine the minimum safe distance. (See Compliance Boundaries Table.) Provisions must be taken to
guarantee that no public access is possible to regions within the compliance boundaries.
Déclaration d’exposition aux radiations
La BTS Flexi Zone Indoor Pico Multiband est conforme aux normes citées en chaque point à l'extérieur de la limite FINALE (CB), telles que décrites dans la
publication REL de l'IC. Les types d'antennes réellement configurées dans le produit déterminent la distance de sécurité minimale (se référer au tableau des
Limites de Conformité). Des dispositions doivent être prises pour garantir qu'aucun accès public n'est possible dans les zones situées dans ces limites.
NOTE: The operating temperature range of the device is 0°C (32°F) - 40°C (104°F).NOTE:
Model list
Sales Item Model Approved LTE RF Module(s) FCC/IC IDs
2AD8UFW2FADPM01, 2AD8UFW2IADPM01,
109D-FW2FADPM01, 109D-FW2IADPM01
2AD8UNBTM01,
109D-NBTM01
2AD8UFW2FADPM01, 2AD8UFW2IADPM01,
109D-FW2FADPM01, 109D-FW2IADPM01
2AD8UNBTM01,
109D-NBTM01
FW2FIA Multiband
Indoor Pico BTS
FW2FIWA Multiband
Indoor Pico BTS
473123A
473124A
NOTICE: This product must only be used with the Nokia-specified power supply or Power-over-Ethernet solution.NOTICE: This product must only be used with the Nokia-specified power supply or Power-over-Ethernet solution.
NOTICE: Power-over-Ethernet (PoE) cables must only be connected to Safety Extra Low Voltage (SELV) circuits and must
not be routed outside the building structure.
NOTICE:
Compliance Boundaries
Sales Item Model Uncontrolled environment
20 cm
27 cm
FW2FIA Multiband Indoor Pico BTS
FW2FIWA Multiband Indoor Pico BTS
473123A
473124A
473851A FW2FIWC Multiband Indoor Pico BTS
Controlled environment
22 cm
20 cm
20 cm
20 cm
Approved WiFi RF
Module(s) FCC/IC IDs
Approved BT RF
Module(s) FCC/IC IDs
N/A
109D-FZCWM2A01
473851A FW2FIWC Multiband
Indoor Pico BTS 2AD8UFZCWM2A1
2AD8UFW2FADPM01, 2AD8UFW2IADPM01,
109D-FW2FADPM01, 109D-FW2IADPM01
2AD8UNBTM01,
109D-NBTM01

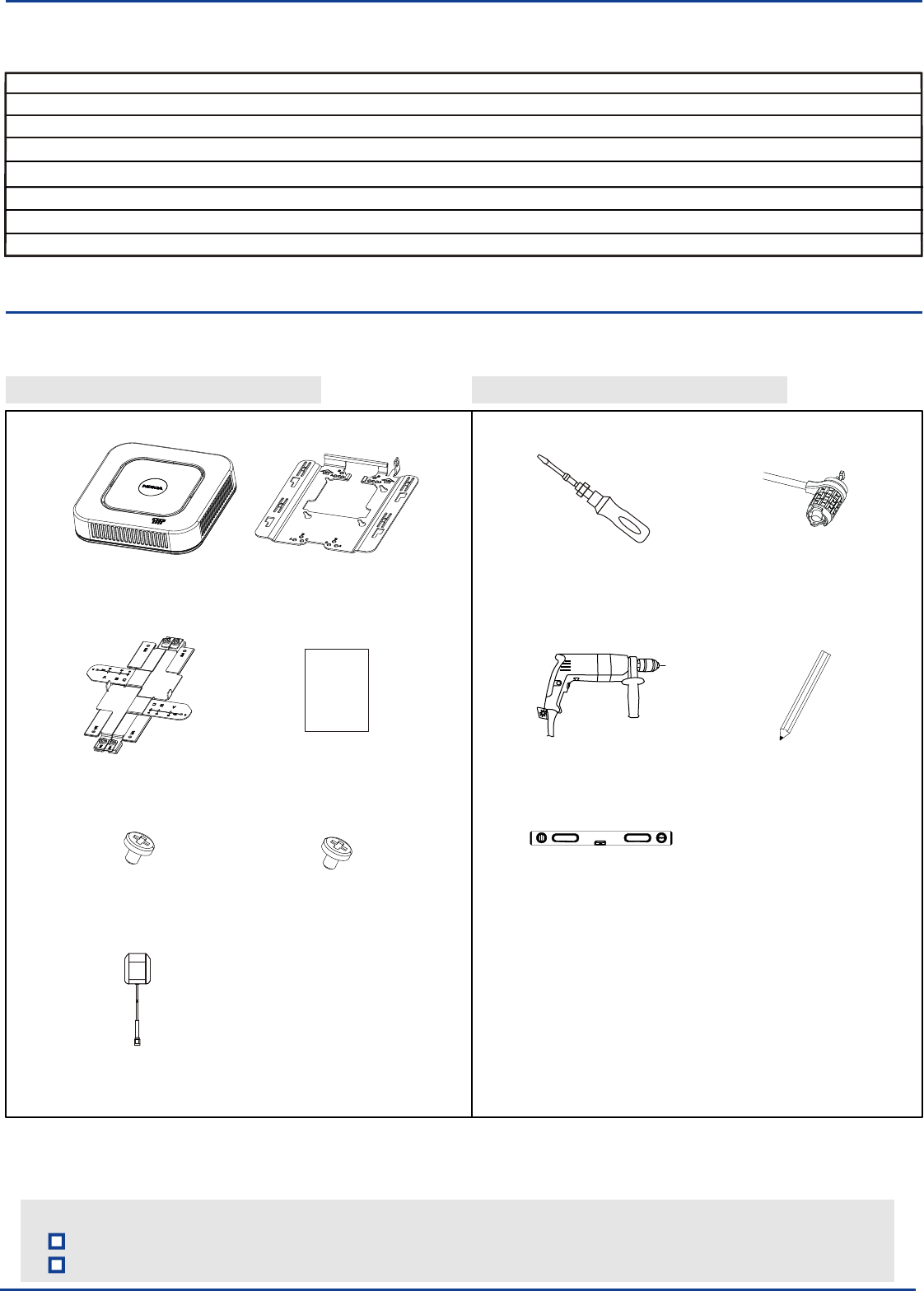

Contents of delivery
ItemsItems
1x Flexi Zone Multiband Indoor Pico BTS Module1x Flexi Zone ModuleMultiband Indoor Pico BTS
1x Ceiling clip1x Ceiling clip
1 Contents of delivery
Flexi Zone Multiband Indoor Pico BTS Quick Guide
2 Preparing the installation
Installation tools and materials
-4-
1x Flexi Zone Multiband Indoor Pico BTS Quick Guide1x Flexi Zone Multiband Indoor Pico BTS Quick Guide
1x Mounting bracket1x Mounting bracket
1x Flexi Zone Multiband
Indoor Pico BTS Quick Guide
1x Ceiling clip
1x Mounting bracket
Delivery is complete.
Checklist
Equipement is not damaged.
1x Flexi Zone Multiband
Indoor Pico BTS Module
4x M4 screw
4x Screw for the ceiling clip (used to attach the ceiling clip to the ceiling grid)4x Screw for the ceiling clip (used to attach the ceiling clip to the ceiling grid)
4x M4 screw for the mounting bracket (used to attach the mounting bracket to the ceiling clip)4x M4 screw for the mounting bracket (used to attach the mounting bracket to the ceiling clip)
4x Screw for the
mounting bracket
Level
Philips Screwdriver (PH2)
Drill
Cabled lock or pad-lock
Pencil
1x GPS/GLONASS antenna
1x GPS/GLONASS antenna1x GPS/GLONASS antenna
2 Preparing the installation (continued)
Flexi Zone Multiband Indoor Pico Quick Guide
-5-
Dimensions and weight
3 kg
6.61 lbs
3 kg
6.61 lbs
62 mm (2.44 in.)
247 mm (9.72 in.)
247 mm (9.72 in.)
Before you start
This guide provides instruction on Flexi Zone Multiband Indoor Pico BTS installation. The Pico module is designed to be installed
on walls or ceilings.
Before you start
NOTE: Flexi Zone Multiband Indoor Pico BTS modules might differ in appearance from what is shown in this guide. NOTE: Flexi Zone Multiband Indoor Pico BTS modules might differ in appearance from what is shown in this guide.
NOTE: The mounting bracket is delivered preattached to the ceiling clip with two M4 screws. Before you start a wall
installations, make sure to disassamble the bracket from the ceiling clip first.
NOTE: The mounting bracket is delivered preattached to the ceiling clip with two M4 screws. Before you start a wall
installations, make sure to disassamble the bracket from the ceiling clip first.
NOTICE: Provide 50 mm (2.0 in.) clearance on all sides of the unit to ensure proper air flow and heat dissipation. Install
the unit away from any potential sources of moisture or condensation (away from heating or cooling ducts,
doors/window).
NOTICE:
NOTICE: The unit should be located away from any RF radiation sources, out of direct sun exposure, and away from
areas of potential salt spray.
NOTICE:
NOTICE: When installing the mounting bracket onto a wall, ensure that the arrows on the bracket points upwards.NOTICE:
NOTICE: Avoid installing the device near windows to minimize external interference.NOTICE:
3 Installing
Flexi Zone Multiband Indoor Pico BTS Quick Guide
Checklist

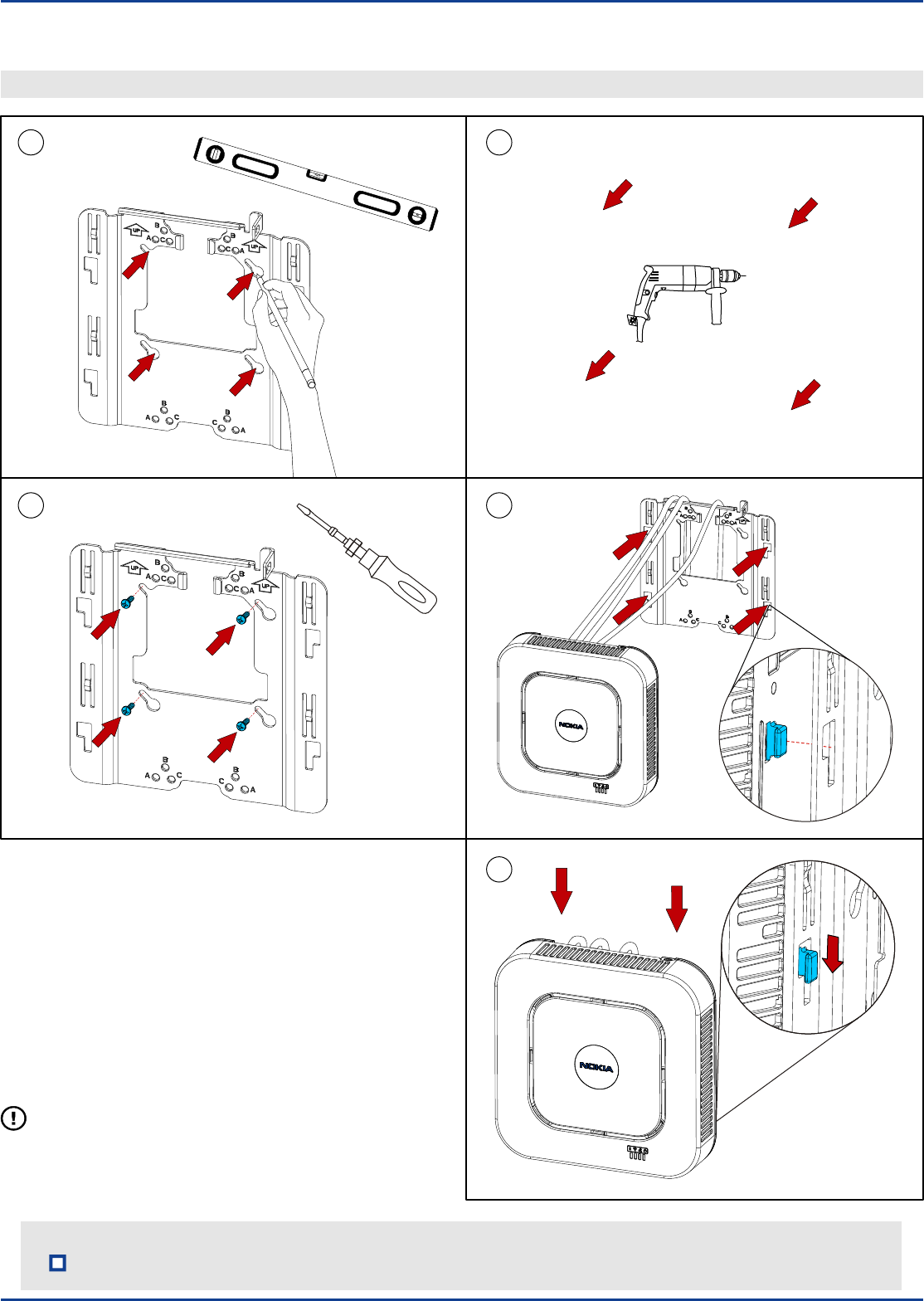

Installing Flexi Zone Multiband Indoor Pico BTS onto walls
1.
2.
3.
Mark four screw holes on the designated wall. Check that the
mounting bracket is level.
Drill holes in the marked places.
Secure the bracket onto the wall with four screws. Tighten
screws according to the wall mount hardware manufacturer's
instructions. Ensure that the bracket is secure and immovable.
4. Attach the module (with required cables connected) to the
bracket.
5. Slide the module down onto the bracket so that it hangs safely.
The unit will click into place when fully secured on the bracket.
The mounting screw and anchor hardware are not
included. Be sure to select the appropriate mounting screw and
anchor hardware specific to your installation surface.
NOTICE: NOTICE:
-6-
12
43
5
xx
x
x
Unit is attached to the mounting bracket and cannot slide off the mounting.
4 Installing
Flexi Zone Multiband Indoor Pico BTS Quick Guide
Checklist

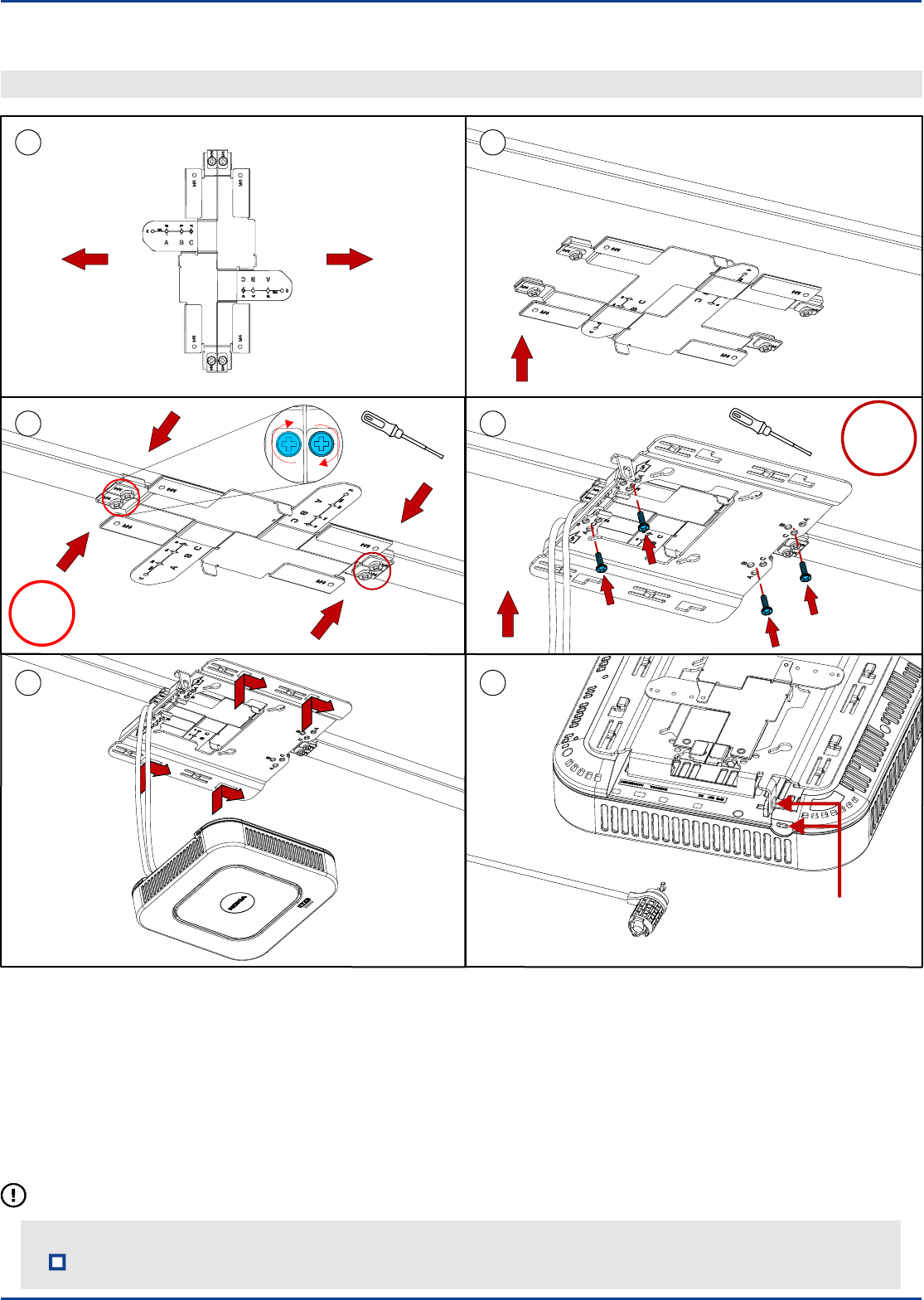

Installing Flexi Zone Multiband Indoor Pico BTS onto a ceiling grid
1.
2.
3.
Expand the ceiling clip to the maximum width.
Lift the ceiling clip to the ceiling.
Compress the clip to one of the three possible ceiling widths: A = 38 mm (1.5 in.), B = 24 mm (0.94 in.), C = 15 mm (0.59 in.)
and tighten it with four M4 screws to the ceiling (1.7 Nm (15.0 in-lbs) to 2.3 Nm (20.0 in-lbs)).
4. Lift the mounting bracket to the ceiling clip and fix it with four M4 screws (1.7 Nm (15.0 in-lbs) to 2.3 Nm (20.0 in-lbs)) matching the
corresponding screw holes (A, B or C) from step 3.
5. Lift the Pico module (with required cables connected) and attach it to the bracket until the module clicks into place.
6. Secure the module with a cable lock or pad-lock (Customer supplied).
-7-
1
3
2
NOTICE: Make sure that the ceiling grid location is well supported.NOTICE: Make sure that the ceiling grid location is well supported.
4
56
cable lock or
pad-lock slots
!
1.7 Nm
to
2.3 Nm
!
!
1.7 Nm
to
2.3 Nm
!
!
!
1.7 Nm
to
2.3 Nm
Lock is in place.
1. C
2.
onnect the required GPS, Backhaul and Management cables, if
needed.
Connect the DC power cable.
Cabling Flexi Zone Multiband Indoor Pico BTS with DC Power Input
Flexi Zone Multiband Indoor Pico BTS Quick Guide
5 Cabling
-8-
12
5 Cabling
Cabling Flexi Zone Multiband Indoor Pico BTS with PoE Power Input
1.
2.
Connect the required GPS and Management cables, if needed.
Connect the Backhaul cable (PoE).
Checklist
All cables are connected.
Unit is powered on (LED status green).
Cabling result after the installation is completed
2
1
