Abbreviated (All–inclusive) Acceptance Tests 68P64115A18–1
Mar 2003
1X SC 4812T Lite BTS Optimization/ATP Software Release R2.16.1.x
DRAFT
4-14
Table 4-7: All RX ATP Test Procedure
Step Action
11 NOTE
When testing diversity RX paths on companion frames, be sure to follow the RX test cable connection
information in Table 4-1 or Table 4-2, as applicable, during this step.
Follow cable connection directions as they are displayed, and click the Continue button to begin
testing.
– When the ATP process is completed, results will be displayed in the status report window.
12 Click the Save Results or Dismiss button.
NOTE
If Dismiss is used, the test results will not be saved in the test report file.
4
Individual Acceptance Tests68P64115A18–1
Mar 2003 1X SC 4812T Lite BTS Optimization/ATP Software Release R2.16.1.x
DRAFT
4-15
Individual Acceptance Tests
The following individual ATP tests can be used to evaluate specific
aspects of BTS operation against individual performance requirements.
All testing is performed using the LMF GUI environment.
TX Testing
TX tests verify any given transmit antenna path and output power
control. All tests are performed using the external, calibrated test
equipment. All measurements are made at the appropriate BTS TX OUT
connector(s).
TX tests verify TX operation of the entire CDMA forward link using
selected BBXs assigned to respective sector antennas. Each BBX is
keyed up to generate a CDMA carrier (using both bbxlevel and BLO)
at the CDF file–specified carrier output power level.
RX Testing
RX testing verifies receive antenna paths for BBXs selected for the test.
All tests are performed using the external, calibrated test equipment to
inject a CDMA RF carrier with all zero longcode at the specified RX
frequency at the appropriate BTS RX IN connector(s).
RX tests verify RX operation of the entire CDMA reverse link using all
equipped MCCs assigned to all respective sector/antennas.
Individual Tests
Spectral Purity TX Mask
This test verifies that the transmitted CDMA carrier waveform generated
on each sector meets the transmit spectral mask specification (as defined
in IS–97) with respect to the assigned CDF file values.
Waveform Quality (Rho)
This test verifies that the transmitted Pilot channel element digital
waveform quality (rho) exceeds the minimum specified value in IS–97.
Rho represents the correlation between the actual and perfect CDMA
modulation spectrums. 1.0000 represents 100% (or perfect correlation).
Pilot Time Offset
The Pilot Time Offset is the difference between the communications
system test set measurement interval (based on the BTS system time
reference) and the incoming block of transmitted data from the BTS
(Pilot only, Walsh code 0).
Code Domain Power/Noise Floor
This test verifies the code domain power levels, which have been set for
all ODD numbered Walsh channels, using the OCNS command. This is
done by verifying that the ratio of PILOT divided by OCNS is equal to
10.2 + 2 dB, and, that the noise floor of all EVEN numbered “OFF”
Walsh channels measures < –27 dB for IS–95A/B and CDMA2000 1X
with respect to total CDMA channel power.
4
Individual Acceptance Tests 68P64115A18–1
Mar 2003
1X SC 4812T Lite BTS Optimization/ATP Software Release R2.16.1.x
DRAFT
4-16
BTS FER
This test verifies the BTS receive FER on all traffic channel elements
currently configured on all equipped MCCs (full rate at one percent
FER) at an RF input level of –119 dBm on the main RX antenna paths
using operator–selected, CDF–equipped MCCs and BBXs at the site.
Diversity RX antenna paths are also tested using the lowest equipped
MCC channel element ONLY.
NOTE There are no pass/fail criteria associated with FER readings
taken at levels below –119 dBm, other than to verify that the
FER measurement reflects changes in the RX input signal level.
4
TX Spectral Purity Transmit Mask Acceptance Test68P64115A18–1
Mar 2003 1X SC 4812T Lite BTS Optimization/ATP Software Release R2.16.1.x
DRAFT
4-17
TX Spectral Purity Transmit Mask Acceptance Test
Background
Overview – This test verifies the spectral purity of each
operator–selected BBX carrier keyed up at a specific frequency specified
in the current CDF. All tests are performed using the external, calibrated
test equipment controlled by the same command. All measurements are
made at the appropriate BTS TX antenna connector.
Test Patterns – There are four operator–selectable test patterns with
which this acceptance test can be performed. The patterns, along with the
channels tested and gain setting for each, are listed in Table 3-34. Refer
to “TX Calibration and the LMF” in the Bay Level Offset Calibration
section of Chapter 3 for more information on the test patterns.
Equipment Operation During Testing – At least one MCC must be
selected to perform the Standard, CDF Pilot, and CDF test patterns. For
these test patterns, forward links will be enabled for synch channel
(SCH), paging channel (PCH), and traffic channel (TCH) elements from
the selected MCC(s), as shown in Table 3-34. Gain will be set for the
applicable channels on each antenna as shown in the table. The
operator–selected BBXs will be keyed using a BLO–corrected bbxlvl
value to generate a CDMA carrier. RF output power, as measured at the
appropriate frame TX antenna connector, will be set to one of the
following depending on the operating frequency spectrum:
S800 MHz: 33.5 dBm
S1.9 GHz: 31.0 dBm
Test Measurements – The test equipment will measure and return the
attenuation level in dB of all spurious and IM products with respect to
the mean power of the CDMA channel measured in a 1.23 MHz
bandwidth, verifying that results meet system tolerances at the following
test points (see also Figure 4-2):
SFor 800 MHz:
– At least –45 dB @ + 750 kHz from center frequency
– At least –45 dB @ – 750 kHz from center frequency
– At least –60 dB @ – 1980 kHz from center frequency
– At least –60 dB @ + 1980 kHz from center frequency
SFor 1.9 GHz:
– At least –45 dB @ + 885 kHz from center frequency
– At least –45 dB @ – 885 kHz from center frequency
– At least –55 dB @ – 1980 kHz from center frequency
– At least –55 dB @ + 1980 kHz from center frequency
Redundant BBX Testing – The BBX will then de–key, and if selected,
the redundant BBX will be assigned to the current TX antenna path
under test. The test will then be repeated.
4
TX Spectral Purity Transmit Mask Acceptance Test 68P64115A18–1
Mar 2003
1X SC 4812T Lite BTS Optimization/ATP Software Release R2.16.1.x
DRAFT
4-18
Spectral Purity TX Mask Acceptance Test
Follow the steps in Table 4-8 to verify the transmit spectral mask
specification on the TX antenna paths for the selected BBXs.
Table 4-8: Test Spectral Purity Transmit Mask
Step Action
1Set up the test equipment for TX acceptance tests per Table 4-3.
2Select the BBXs to be tested.
3If the Test Pattern to be used is Standard, CDFPilot, or CDF; select at least one MCC (Refer to
“Test Pattern Drop–down Pick List” on page 3-90.)
4Click on Tests in the BTS menu bar, and select TX > TX Mask... from the pull–down menus.
5Select the appropriate carrier(s) and sector(s) (carrier-bts#-sector#-carrier#) from those displayed in the
Channels/Carrier pick list.
NOTE
To select multiple items, hold down the Shift or Ctrl key while clicking on pick list items to select
multiple carrier(s)–sector(s).
6Verify that the correct channel number for the selected carrier is shown in the Carrier # Channels
box. If it is not, obtain the latest bts–#.cdf (or bts–#.necf) and cbsc–#.cdf files from the CBSC.
NOTE
If necessary, the correct channel number may be manually entered into the Carrier # Channels box.
7If at least one MCC was selected in Step 3, select the appropriate transfer rate (1 = 9600, 3 = 9600 1X)
from the drop–down list in the Rate Set box.
NOTE
The Rate Set selection of 3 is only available if 1X cards are selected for the test.
8In the Test Pattern box, select the test pattern to use for the calibration from the drop–down list (refer
to “Test Pattern Drop–down Pick List” under “TX Calibration and the LMF” in the Bay Level Offset
Calibration section of Chapter 3).
9 Click OK to display a status bar followed by a Directions pop-up window.
10 Follow the cable connection directions as they are displayed, and click the Continue button to begin
testing.
– As the ATP process is completed, results will be displayed in a status report window.
11 Click the Save Results or Dismiss button.
NOTE
If Dismiss is used, the test results will not be saved in the test report file.
4
TX Spectral Purity Transmit Mask Acceptance Test68P64115A18–1
Mar 2003 1X SC 4812T Lite BTS Optimization/ATP Software Release R2.16.1.x
DRAFT
4-19

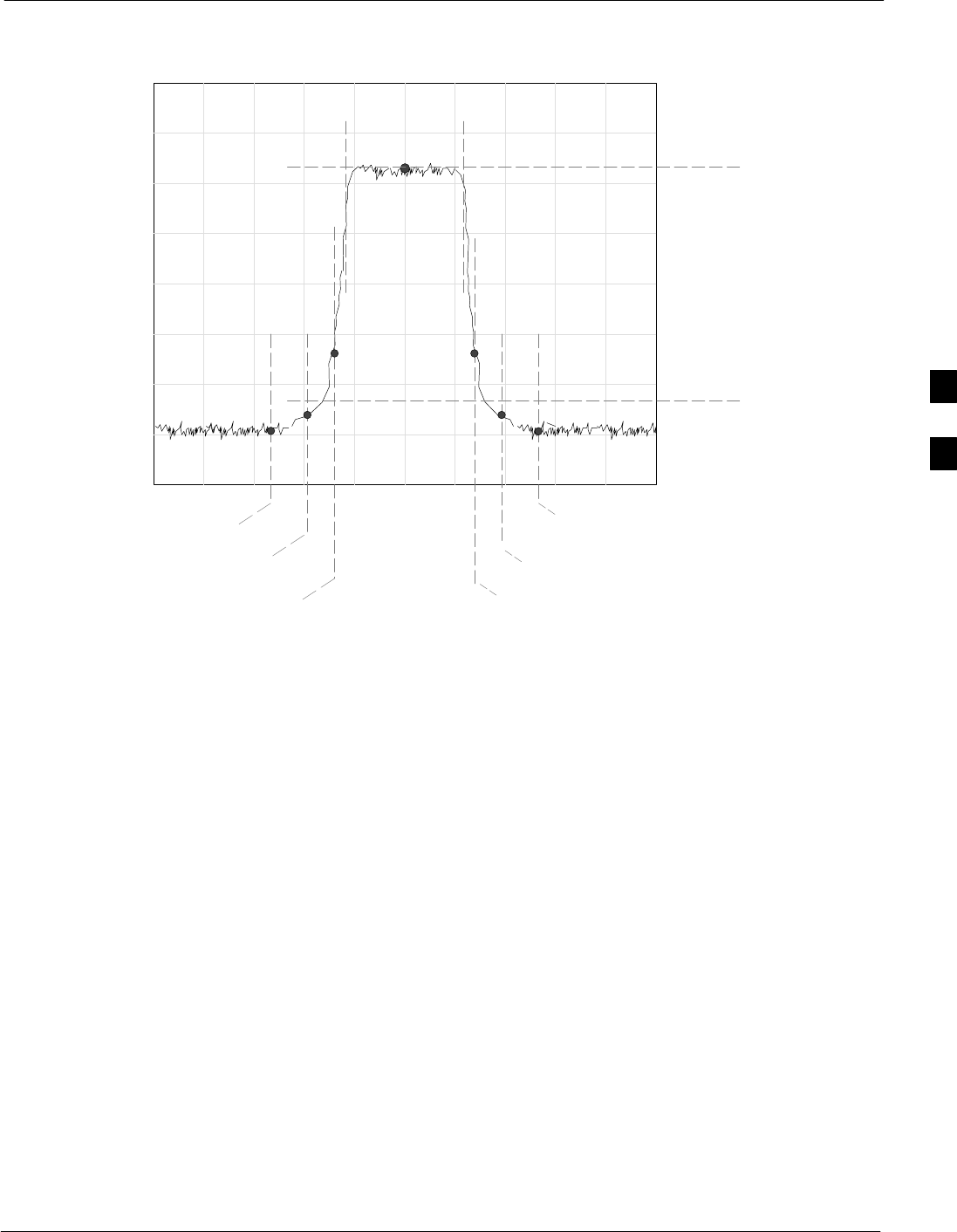

Figure 4-2: TX Mask Verification Spectrum Analyzer Display
– 885 kHz + 885 kHz
Center Frequency Reference
Attenuation level of all
spurious and IM products
with respect to the mean
power of the CDMA channel
.5 MHz Span/Div
Ampl 10 dB/Div
Mean CDMA Bandwidth
Power Reference
– 1980 kHz
+750 kHz
+ 1980 kHz
– 750 kHz
4
TX Waveform Quality (Rho) Acceptance Test 68P64115A18–1
Mar 2003
1X SC 4812T Lite BTS Optimization/ATP Software Release R2.16.1.x
DRAFT
4-20
TX Waveform Quality (Rho) Acceptance Test
Background
Overview – This test verifies the transmitted pilot channel element
digital waveform quality of each operator–selected BBX carrier keyed up
at a specific frequency specified in the current CDF. All tests are
performed using the external, calibrated test equipment controlled by the
same command. All measurements are made at the appropriate TX
antenna connector.
Equipment Operation During Testing – Pilot gain will be set to 262
for each antenna, and all TCH elements from the MCCs will be
forward–link disabled. The selected BBXs will be keyed up using both
bbxlvl and BLO to generate a CDMA carrier (with pilot channel
element only, Walsh code 0). RF output power is set at 40 dBm as
measured at the appropriate BTS TX antenna connector.
Test Measurements – The test equipment will measure and return the
pilot channel element digital waveform quality (rho) percentage,
verifying that the result meets the following specification:
Waveform quality (Rho) should be > 0.912.
Redundant BBX Testing – The BBX will then de–key, and if selected,
the redundant BBX will be assigned to the current TX antenna path
under test. The test will then be repeated for the redundant BBX.
4
TX Waveform Quality (Rho) Acceptance Test68P64115A18–1
Mar 2003 1X SC 4812T Lite BTS Optimization/ATP Software Release R2.16.1.x
DRAFT
4-21
Waveform Quality (Rho) Acceptance Test
Follow the steps in Table 4-9 to verify the pilot channel element
waveform quality (rho) on the TX antenna paths for the selected BBXs.
Table 4-9: Test Waveform Quality (Rho)
Step Action
1Set up the test equipment for TX acceptance tests per Table 4-3.
2Select the BBXs to be tested.
3Click on Tests in the BTS menu bar, and select TX > Rho... from the pull–down menus.
4Select the appropriate carrier(s) and sector(s) (carrier-bts#-sector#-carrier#) from those displayed in the
Channels/Carrier pick list.
NOTE
To select multiple items, hold down the Shift or Ctrl key while clicking on pick list items to select
multiple carrier(s)–sector(s).
5Verify that the correct channel number for the selected carrier is shown in the Carrier # Channels
box. If it is not, obtain the latest bts–#.cdf (or bts–#.necf) and cbsc–#.cdf files from the CBSC.
NOTE
If necessary, the correct channel number may be manually entered into the Carrier # Channels box.
6 Click OK to display a status bar followed by a Directions pop-up window.
7Follow the cable connection directions as they are displayed, and click the Continue button to begin
testing.
– As the ATP process is completed, results will be displayed in a status report window.
8Click the Save Results or Dismiss button.
NOTE
If Dismiss is used, the test results will not be saved in the test report file.
4
TX Pilot Time Offset Acceptance Test 68P64115A18–1
Mar 2003
1X SC 4812T Lite BTS Optimization/ATP Software Release R2.16.1.x
DRAFT
4-22
TX Pilot Time Offset Acceptance Test
Background
Overview – This test verifies the transmitted pilot channel element Pilot
Time Offset of each operator–selected BBX carrier keyed up at a specific
frequency specified in the current CDF. All tests will be performed using
the external, calibrated test equipment controlled by the same command.
All measurements will be made at the BTS TX antenna connector.
Equipment Operation During Testing – The pilot gain will be set to
262 for each antenna and all TCH elements from the MCCs will be
forward–link disabled. The selected BBXs will be keyed using both
bbxlvl and BLO to generate a CDMA carrier (with pilot channel
element only, Walsh code 0). TX power output is set at 40 dBm as
measured at the TX output.
Test Measurements – The test equipment will measure and return the
Pilot Time Offset in ms, verifying that results meet the following
specification:
Pilot Time Offset should be within 3 ms of the target PT Offset
(zero ms).
Redundant BBX Testing – The BBX will then de–key, and if selected,
the redundant BBX will be assigned to the current TX antenna path
under test. The test will then be repeated for the redundant BBX.
NOTE This test also executes and returns the TX Frequency and TX
Waveform Quality (rho) ATP tests, however, only Pilot Time
Offset results are written to the ATP test report.
4
TX Pilot Time Offset Acceptance Test68P64115A18–1
Mar 2003 1X SC 4812T Lite BTS Optimization/ATP Software Release R2.16.1.x
DRAFT
4-23
Pilot Time Offset Acceptance Test
Follow the steps in Table 4-10 to verify the Pilot Time Offset on the TX
antenna paths for the selected BBXs.
Table 4-10: Test Pilot Time Offset
Step Action
1Set up the test equipment for TX acceptance tests per Table 4-3.
2Select the BBXs to be tested.
3Click on Tests in the BTS menu bar, and select TX > Pilot Time Offset... from the pull–down menus.
4Select the appropriate carrier(s) and sector(s) (carrier-bts#-sector#-carrier#) from those displayed in the
Channels/Carrier pick list.
NOTE
To select multiple items, hold down the Shift or Ctrl key while clicking on pick list items to select
multiple carrier(s)–sector(s).
5Verify that the correct channel number for the selected carrier is shown in the Carrier # Channels
box. If it is not, obtain the latest bts–#.cdf (or bts–#.necf) and cbsc–#.cdf files from the CBSC.
NOTE
If necessary, the correct channel number may be manually entered into the Carrier # Channels box.
6 Click OK to display a status bar followed by a Directions pop-up window.
7Follow the cable connection directions as they are displayed, and click the Continue button to begin
testing.
– As the ATP process is completed, results will be displayed in a status report window.
8Click the Save Results or Dismiss button.
NOTE
If Dismiss is used, the test results will not be saved in the test report file.
4
TX Code Domain Power/Noise Floor Acceptance Test 68P64115A18–1
Mar 2003
1X SC 4812T Lite BTS Optimization/ATP Software Release R2.16.1.x
DRAFT
4-24
TX Code Domain Power/Noise Floor Acceptance Test
Background
Overview – This test verifies the Code Domain Power and Noise Floor
of each operator–selected BBX carrier keyed at a specific frequency
specified in the current CDF. All tests are performed using the external,
calibrated test equipment controlled by the same command. All
measurements are made at the appropriate BTS TX antenna connector.
CDMA Channel Test Set–up – Pilot gain will be set to 262 for each
antenna and the selected MCCs will be configured to supply all
odd–numbered Walsh code traffic channel elements by enabling
Orthogonal Channel Noise Source (OCNS) on all odd MCC channel
elements (maximum 32 full rate channels with an OCNS gain of 81). All
even–numbered Walsh code traffic channel elements will not have
OCNS enabled, and are considered “OFF”. Selected MCCs will be
forward–link enabled for the antenna (sector) under test.
Equipment Operation During Testing – The BBX will be keyed up
using a BLO–corrected bbxlvl value to generate a CDMA carrier
consisting of pilot and OCNS channels. RF output power, as measured at
the appropriate frame TX antenna connector, is set at one of the
following values depending on the operating frequency spectrum:
S800 MHz: 33.5 dBm
S1.9 GHz: 31.0 dBm
Test Measurements – The test equipment will measure and return the
channel element power in dB of all specified Walsh channels within the
CDMA spectrum. Additional calculations will be performed to verify the
following parameters are met (refer to Figure 4-3 for graphic
representations):
STraffic channel element power level will be verified by calculating the
ratio of Pilot power to OCNS gain of all traffic channels (root sum of
the square (RSS) of each OCNS gain divided by the Pilot power).
This value should be 10.2 dB + 2.0 dB.
SNoise floor (unassigned “OFF” even–numbered Walsh channels) is
verified to be < –27 dB for IS–95A/B and CDMA2000 1X with
respect to total CDMA channel power.
NOTE When performing this test using the LMF and the MCC is an
MCC8E or MCC24E, the redundant BBX may fail or show
marginal performance. This is due to a timing mismatch that the
LMF does not address. Performing this test from the CBSC will
not have this timing problem.
Redundant BBX Testing – The BBX will then de–key, and if selected,
the redundant BBX will be assigned to the current TX antenna path
under test. The test will then be repeated for the redundant BBX. Upon
completion of the test, OCNS channels will be disabled on the specified
MCC channel elements.
4
TX Code Domain Power/Noise Floor Acceptance Test68P64115A18–1
Mar 2003 1X SC 4812T Lite BTS Optimization/ATP Software Release R2.16.1.x
DRAFT
4-25
Code Domain Power/Noise Floor Test
Follow the steps in Table 4-11 to verify the Code Domain Power/Noise
floor of each selected BBX carrier keyed up at a specific frequency.
Table 4-11: Test Code Domain Power/Noise Floor
Step Action
1Set up the test equipment for TX acceptance tests per Table 4-3.
2Select the BBXs and MCCs to be tested.
3Click on Tests in the BTS menu bar, and select TX > Code Domain Power... from the pull–down
menus.
4Select the appropriate carrier(s) and sector(s) (carrier-bts#-sector#-carrier#) from those displayed in the
Channels/Carrier pick list.
NOTE
To select multiple items, hold down the Shift or Ctrl key while clicking on pick list items to select
multiple carrier(s)–sector(s).
5Verify that the correct channel number for the selected carrier is shown in the Carrier # Channels
box. If it is not, obtain the latest bts–#.cdf (or bts–#.necf) and cbsc–#.cdf files from the CBSC.
NOTE
If necessary, the correct channel number may be manually entered into the Carrier # Channels box.
6If at least one MCC was selected in Step 3, select the appropriate transfer rate (1 = 9600, 3 = 9600 1X)
from the drop–down list in the Rate Set box.
NOTE
The Rate Set selection of 3 is only available if 1X cards are selected for the test.
7 Click OK to display a status bar followed by a Directions pop-up window.
8Follow the cable connection directions as they are displayed, and click the Continue button to begin
testing.
– As the ATP process is completed, results will be displayed in a status report window.
9Click the Save Results or Dismiss button.
NOTE
If Dismiss is used, the test results will not be saved in the test report file.
4
TX Code Domain Power/Noise Floor Acceptance Test 68P64115A18–1
Mar 2003
1X SC 4812T Lite BTS Optimization/ATP Software Release R2.16.1.x
DRAFT
4-26
Pilot Channel
Active channels
PILOT LEVEL
MAX OCNS SPEC.
MIN OCNS SPEC.
MAXIMUM NOISE FLOOR:
< –27 dB FOR IS–95A/B AND
CDMA2000 1X
Inactive channels
Walsh 0 1 2 3 4 5 6 7 ... 64
MAX OCNS
CHANNEL
MIN OCNS
CHANNEL
8.2 dB 12.2 dB
MAX NOISE
FLOOR
Pilot Channel
Active channels
PILOT LEVEL
MAX OCNS SPEC.
MIN OCNS SPEC.
MAXIMUM NOISE FLOOR:
< –27 dB FOR IS–95A/B AND
CDMA2000 1X
Inactive channels
Walsh 0 1 2 3 4 5 6 7 ... 64
FAILURE – DOES NOT
MEET MIN OCNS SPEC.
FAILURE – EXCEEDS
MAX OCNS SPEC. 8.2 dB 12.2 dB
FAILURE – EXCEEDS MAX
NOISE FLOOR SPEC.

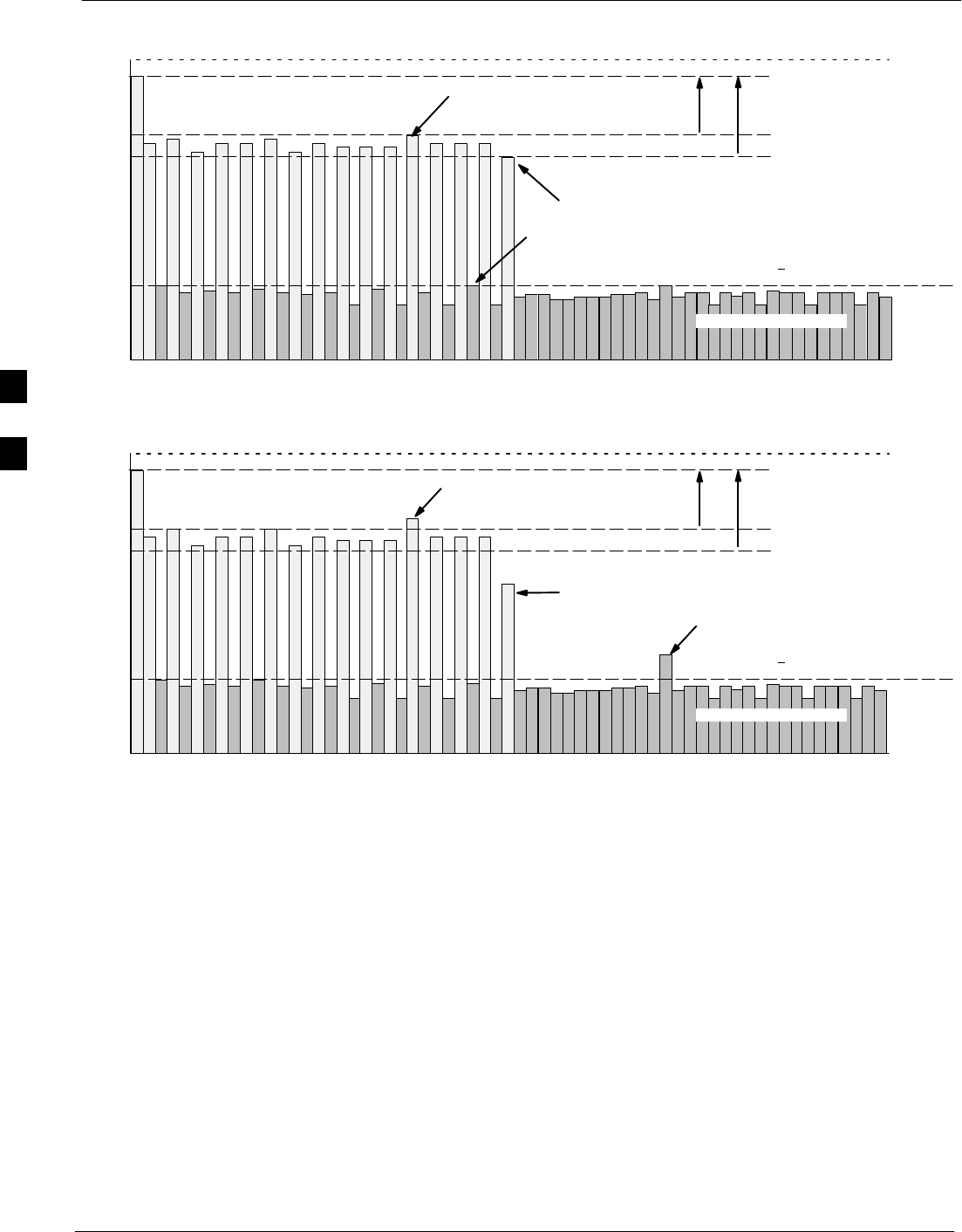

Code Domain Power/Noise Floor (OCNS Pass) Example
Figure 4-3: Code Domain Analyzer CD Power/Noise Floor Display Examples
Code Domain Power/Noise Floor (OCNS Failure) Example
4
RX FER Acceptance Test68P64115A18–1
Mar 2003 1X SC 4812T Lite BTS Optimization/ATP Software Release R2.16.1.x
DRAFT
4-27
RX FER Acceptance Test
Background
Overview – This test verifies the BTS Frame Erasure Rate (FER) on all
TCHs currently configured on operator–selected MCCs (full rate at 1%
FER) at –119 dBm. All tests are performed using the external, calibrated
test equipment as the signal source controlled by the same command.
Measurements are made at the specified BTS RX antenna connection.
Equipment Operation During Testing – The pilot gain on each MCC
will be set to 262 for each TX antenna, and the forward link for all TCH
elements from the MCCs will be enabled. Appropriate BBX(s) must be
keyed in order to enable the RX receive circuitry. Operator–selected
BBXs will be keyed using only bbxlvl, to generate a CDMA carrier
with pilot channel element only. Transmit power output is set at –40
dBm. Test equipment output power is set so that the received power at
the BBX is –119 dBm. The final output power setting of the test
equipment takes into account the MPC type, BTS RF path losses, and
test cable losses. If selected, the redundant BBX will be assigned to the
current RX antenna paths under test.
Test Measurements – The LMF will prompt the MCC channel element
under test to measure all–zero longcode and provide the FER report on
the selected active MCC on the reverse link for the main and, if selected,
diversity RX antenna paths. Results are evaluated to ensure they meet
the following specification:
FER returned less than 1% and Total Frames measured is 1500
Redundant BBX Testing – After the test, the BBX and the test
equipment will be de–keyed to shut down the pilot signal and the active
channel element, respectively. If the redundant BBX was tested, BBXR
assignment to an active sector will also be reset.
Antenna Connections for Companion Frame RX Diversity Tests – At
a site equipped with companion frames, RX diversity for each
SC4812ET Lite frame is provided by the receive antennas for the
collocated companion frame. Because of this, performing FER on
companion frame diversity RX requires different RX test cable
connections than on a starter frame. When performing companion frame
diversity RX FER, use Figure 4-1 and Table 4-1 or Table 4-2 to
determine the correct location for the RX test cable connections.
4
RX FER Acceptance Test 68P64115A18–1
Mar 2003
1X SC 4812T Lite BTS Optimization/ATP Software Release R2.16.1.x
DRAFT
4-28
FER Acceptance Test
Follow the steps in Table 4-12 to verify the FER on RX antenna paths
using selected MCCs and BBXs.
Table 4-12: Test FER
Step Action
1Set up the test equipment for RX acceptance tests per Table 4-3.
2If a companion frame is being tested and either BOTH or DIV is to be selected in step NO TAG,
perform the additional test equipment set–up in Table 4-4 for the diversity RX portion of the ATP.
NOTE
If the LMF has been logged into the BTS with a different Multi–Channel Preselector setting than the
one to be used for this test, the LMF must be logged out of the BTS and logged in again with the new
Multi–Channel Preselector setting. Using the wrong MPC setting can cause a false test failure.
3Select the BBXs and MCCs to be tested.
4Click on Tests in the BTS menu bar, and select RX > FER... from the pull–down menu.
5Select the appropriate carrier(s) and sector(s) (carrier-bts#-sector#-carrier#) from those displayed in the
Channels/Carrier pick list.
NOTE
To select multiple items, hold down the Shift or Ctrl key while clicking on pick list items to select
multiple carrier(s)–sector(s).
6Verify that the correct channel number for the selected carrier is shown in the Carrier # Channels
box. If it is not, obtain the latest bts–#.cdf (or bts–#.necf) and cbsc–#.cdf files from the CBSC.
NOTE
If necessary, the correct channel number may be manually entered into the Carrier # Channels box.
7Select the appropriate RX branch (Both, Main, or Diversity) in the drop–down list.
NOTE
If a companion frame with the inter–frame diversity RX cabling disconnected is being tested do not
select BOTH in this step. The RX main and diversity paths must be tested separately for this
configuration because each requires a different Multi–Coupler Preselector type to provide the proper
test signal gain.
8In the Rate Set box, select the appropriate data rate (1=9600, 2=14400, 3=9600 1X) from the
drop–down list.
NOTE
The Rate Set selection of 2 is only available if non–1X cards are selected for the test.
The Rate Set selection of 3 is only available if 1X cards are selected for the test.
9 Click OK to display a status bar followed by a Directions pop-up window.
10 NOTE
When testing diversity RX paths on companion frames, be sure to follow the RX test cable connection
information in Table 4-1 or Table 4-2, as applicable, during this step.
Follow cable connection directions as they are displayed, and click the Continue button to begin
testing. As the ATP process is completed, results will be displayed in the status report window.
11 Click the Save Results or Dismiss button. If Dismiss is used, the test results will not be saved in the
test report file.
4
Generating an ATP Report68P64115A18–1
Mar 2003 1X SC 4812T Lite BTS Optimization/ATP Software Release R2.16.1.x
DRAFT
4-29
Generating an ATP Report
Background
Each time an ATP test is run, ATP data is updated and must be saved to
an ATP report file using the Save Results button to close the status
report window. The ATP report file will not be updated if the status
reports window is closed using the Dismiss button.
ATP Report
A separate report is created for each BTS and includes the following for
each test:
STest name
SPASS or FAIL
SDescription information (if applicable)
SBBX number
SChannel number
SCarrier number
SSector number
SUpper test limit
SLower test limit
STest result
STime stamp
SDetails/Warning information (if applicable)
Follow the procedures in the Table 4-13 to view and create a printable
file for the ATP report.
Table 4-13: Generating an ATP Report
Step Action
1Click on the Login tab (if not in the forefront).
2Click on the desired BTS in the Available Base Stations pick
list to select it.
3Click on the Report button.
4If a printable file is not needed, click on the Dismiss button.
5If a printable file is required, perform the following:
5a – Select the desired file type (text, comma–delimited,
HTML) for the report file from the drop–down list at the
bottom of the screen.
5b – Click the Save button to save the file.
–– The file will be saved in the selected format in the
bts–# folder for the BTS selected.
4
Generating an ATP Report 68P64115A18–1
Mar 2003
1X SC 4812T Lite BTS Optimization/ATP Software Release R2.16.1.x
DRAFT
4-30
Notes
4
Mar 2003 1X SC 4812T Lite BTS Optimization/ATP Software Release R2.16.1.x
DRAFT
5-1
Chapter 5
Leaving the Site
5
Updating Calibration Data Files 68P64115A18–1
Mar 2003
1X SC 4812T Lite BTS Optimization/ATP Software Release R2.16.1.x
DRAFT
5-2
Updating Calibration Data Files
After completing the TX calibration and audit, updated CAL file
information must be moved from the LMF Windows environment back
to the CBSC, a Unix environment. The following procedures detail
moving files from one environment to the other.
Copying CAL files from LMF to a Diskette
Follow the procedures in Table 5-1 to copy the CAL files from an LMF
computer to a 3.5 diskette.
Table 5-1: Copying CAL Files to a Diskette
Step Action
1 With Windows running on the LMF computer, insert a disk into Drive A:\.
2Launch the Windows Explorer application program from the Start > Programs menu list.
3Select the applicable <x>:\<lmf home directory/cdma/bts–# folder.
4Drag the bts–#.cal file to Drive A.
5Repeat Steps 3 and 4, as required, for other bts–# folders.
Copying CAL Files from Diskette to the CBSC
Follow the procedures in Table 5-2 to copy CAL files from a diskette to
the CBSC.
Table 5-2: Copying CAL Files from Diskette to the CBSC
Step Action
1Log into the CBSC on the OMC–R Unix workstation using your account name and password.
2Place the diskette containing calibration file(s) in the workstation diskette drive.
3Type in eject –q and press the Enter key.
4Type in mount and press the Enter key.
NOTE
SCheck to see that the message “floppy/no_name” is displayed on the last line.
SIf the eject command was previously entered, floppy/no_name will be appended with a number.
Use the explicit floppy/no_name reference displayed.
5Type in cd /floppy/no_name and press the Enter key.
6Type in ls –lia and press the Enter key.
– Verify the bts–#.cal file filename appears in the displayed directory listing.
7Type in cd and press the Enter key.
8Type in pwd and press the Enter key.
– Verify the displayed response shows the correct home directory (/home/<user’s name>).
9 With Solaris versions of Unix, create a Unix–formatted version of the bts–#.cal file in the home
directory by performing the following:
. . . continued on next page
5
Updating Calibration Data Files68P64115A18–1
Mar 2003 1X SC 4812T Lite BTS Optimization/ATP Software Release R2.16.1.x
DRAFT
5-3
Table 5-2: Copying CAL Files from Diskette to the CBSC
Step Action
9a – Type the following command:
dos2unix /floppy/no_name/bts–#.cal bts–#.cal
Where: # = BTS number for which the CAL file was created
9b – Press the Enter key.
NOTE
Other versions of Unix do not support the dos2unix command. In these cases, use the Unix cp
(copy) command. The copied files will contain DOS line feed characters which must be edited out
with a Unix text editor.
10 Type in ls –l *.cal and press the Enter key. Verify the CAL files have been copied.
– Verify all CAL files to be transferred appear in the displayed listing.
11 Type eject, and press the Enter key.
12 Remove the diskette from the workstation.
5
Prepare to Leave the Site 68P64115A18–1
Mar 2003
1X SC 4812T Lite BTS Optimization/ATP Software Release R2.16.1.x
DRAFT
5-4
Prepare to Leave the Site
Removing External Test Equipment
Perform the procedure in Table 5-3 to disconnect the test equipment and
configure the BTS for active service.
Table 5-3: Remove External Test Equipment
Step Action
1n WARNING
Be sure no BBXs are keyed before performing this step. Failure to do so can result in personal injury
and damage to BTS LPAs.
Disconnect all external test equipment from all TX and RX connectors at the rear of the frame.
2Reconnect and visually inspect all TX and RX antenna feed lines at the frame RF interface panel.
NOTE
Verify that all sector antenna feed lines are connected to the correct antenna connectors on the frame.
Crossed antenna cables will degrade call processing.
Reset All Devices and Initialize Site Remotely
Generally, devices in the BTS should not be left with data and code
loaded from the LMF. The configuration data and code loads used for
normal operation could be different from those stored in the LMF files.
By resetting all devices, the required data and code can be loaded from
the CBSC using the DLM when spans are again active.
To reset all devices and have the OMCR/CBSC bring up the site
remotely, perform the procedure in Table 5-4.
Table 5-4: Reset BTS Devices and Remote Site Initialization
Step Action
1Terminate the LMF session by following the procedures in Table 5-6.
2Cycle BTS power off, as specified in Table 2-9 and Table 2-10, and on, as specified in Table 2-11 and
Table 2-12.
3Reconnect spans by following the procedure in Table 5-7.
4Notify the OMCR/CBSC to take control of the site and download code and data to the BTS.
5Verify the CBSC can communicate with the GLIs.
5
Prepare to Leave the Site68P64115A18–1
Mar 2003 1X SC 4812T Lite BTS Optimization/ATP Software Release R2.16.1.x
DRAFT
5-5
Bringing Modules into Service with the LMF
NOTE Whenever possible, have the CBSC/MM bring up the site and
enable all devices at the BTS.
If there is a reason code and/or data should or could not be loaded
remotely from the CBSC, follow the steps outlined in Table 5-5 as
required to bring BTS processor modules from OOS to INS state.
Table 5-5: Bring Modules into Service
Step Action
1In the LMF GUI environment, select the device(s) to be enabled by clicking on each one.
NOTE
SThe MGLI and CSM must be INS_ACT (bright green) before an MCC can be enabled.
SProcessors which must be enabled and the order of enabling are as follows:
1. MGLI
2. CSMs
3. MCCs
2Click on Device in the BTS menu bar, and select Enable from the pull–down list.
– A status report window is displayed.
NOTE
If a BBX is selected, a transceiver parameters window is displayed to collect keying information. Do
not enable the BBX.
3 Click Cancel to close the transceiver parameters window, if applicable.
4 Click OK to close the status report window.
– The color of devices which successfully change to INS will change bright green.
Terminating LMF Session/Removing Terminal
Perform the procedure in Table 5-6 as required to terminate the LMF
GUI session and remove the LMF computer.
Table 5-6: Remove LMF
Step Action
1! CAUTION
Do not power down the LMF terminal without performing the procedure below. Corrupted/lost
data files may result.
Log out of all BTS sessions and exit LMF by clicking on File in the LMF window menu bar and select-
ing Logout and Exit from the pull–down list.
2In the Windows Task Bar, click Start and select Shutdown.
3 Click Yes when the Shut Down Windows message appears
4Wait for the system to shut down and the screen to go blank.
. . . continued on next page
5
Prepare to Leave the Site 68P64115A18–1
Mar 2003
1X SC 4812T Lite BTS Optimization/ATP Software Release R2.16.1.x
DRAFT
5-6
Table 5-6: Remove LMF
Step Action
5Disconnect the LMF terminal Ethernet port from the BTS frame.
6Disconnect the LMF terminal serial port, the RS–232–to–GPIB interface box, and the GPIB
cables as required for equipment transport.
Connecting BTS T1/E1 Spans
Before leaving the site, connect any T1 or E1 span connectors removed
previously to allow the LMF to control the BTS. Refer to Table 5-7 and
Figure 3-2.
Table 5-7: Connect T1 or E1 Spans
Step Action
1Re–connect any disconnected span connectors to the Span I/O A and B boards.
2If equipped, ensure the CSU is powered on.
3Verify span status, ensuring the OMC–R/CBSC can communicate with the BTS.
Before Leaving the site
Be sure all requirements listed in Table 5-8 are completed before leaving
the site.
Table 5-8: Check Before Leaving the Site
Step Action
1When backup batteries are installed, all battery circuit breakers are ON (pushed in).
2Both heat exchanger circuit breakers on the DC PDA are set to ON (pushed in), and the heat
exchanger blowers are running.
3The External Blower Assembly (EBA) power cable is connected, and the EBA is running.
4The MAP power switch is set to ON, and the POWER (green) LED is lighted.
5The MAP TCP switch is set to ON.
6The BATT TEST switch on the MAP is set to OFF, and the BATT. TEST (amber) LED is not lighted.
7No alarm conditions are being reported to the CBSC with all frame doors closed.
5
Mar 2003 1X SC 4812T Lite BTS Optimization/ATP Software Release R2.16.1.x
DRAFT
6-1
Chapter 6
Basic Troubleshooting
6
Basic Troubleshooting: Overview 68P64115A18–1
Mar 2003
1X SC 4812T Lite BTS Optimization/ATP Software Release R2.16.1.x
DRAFT
6-2
Basic Troubleshooting: Overview
Overview
The information in this chapter addresses some of the scenarios likely to
be encountered by Customer Field Engineering (CFE) team members
while performing BTS optimization and acceptance testing. This
troubleshooting guide was created as an interim reference document for
use in the field. It provides “what to do if” basic troubleshooting
suggestions when the BTS equipment does not perform according to the
procedures documented in the manual.
Comments are consolidated from inputs provided by CFEs and
information gained from experience in Motorola labs and classrooms.
6
Troubleshooting: Installation68P64115A18–1
Mar 2003 1X SC 4812T Lite BTS Optimization/ATP Software Release R2.16.1.x
DRAFT
6-3
Troubleshooting: Installation
Cannot Log into Cell-Site
Table 6-1: Login Failure Troubleshooting Procedures
nStep Action
1If the MGLI LED is solid RED, it implies a hardware failure. Reset MGLI by re-seating it. If this
persists, install GLI card in MGLI slot and retry. A Red LED may also indicate no termination on
an external LAN connector (power entry compartment at rear of frame).
2Verify that the span line is disconnected at the Span I/O card. If the span is still connected, verify
the CBSC has disabled the BTS.
3Try to ‘ping’ the MGLI.
4Verify the LMF is connected to the primary LAN (LAN A) at the LAN shelf below the SCCP
cage. If LAN A is not the active LAN, force a LAN switch to LAN A by following the procedure
in Table 6-2.
5Verify the LMF was configured properly.
6If a Xircom parallel BNC LAN interface is being used, verify the BTS-LMF cable is RG-58
(flexible black cable less than 2.5 feet in length).
7Verify the external LAN connectors are properly terminated (power entry compartment at rear of
frame).
8Verify a T-adapter is not used on LMF computer side connector when connected to the primary
LAN at the LAN shelf.
9Try connecting to the Ethernet Out port in the power entry compartment (rear of frame). Use a
TRB–to–BNC (triax–to–coax) adapter at the LAN connector for this connection.
10 Re-boot the LMF and retry.
11 Re-seat the MGLI and retry.
12 Verify GLI IP addresses are configured properly by following the procedure in Table 6-3.
Table 6-2: Force Ethernet LAN A to Active State as Primary LAN
nStep Action
1If LAN A is not the active LAN, make certain all external LAN connectors are either terminated
with 50Ω loads or cabled to another frame.
2If it has not already been done, connect the LMF computer to the stand–alone or starter frame, as
applicable (Table 3-5).
3If it has not already been done, start a GUI LMF session and log into the BTS on the active LAN
(Table 3-6).
4Remove the 50Ω termination from the LAN B IN connector in the power entry compartment at the
rear of the stand–alone or starter frame. The LMF session will become inactive.
5Disconnect the LMF computer from the LAN shelf LAN B connector and connect it to the LAN A
connector.
. . . continued on next page
6
Troubleshooting: Installation 68P64115A18–1
Mar 2003
1X SC 4812T Lite BTS Optimization/ATP Software Release R2.16.1.x
DRAFT
6-4
Table 6-2: Force Ethernet LAN A to Active State as Primary LAN
nActionStep
6If the LAN was successfully forced to an active state (the cards in any cage can be selected and
statused), proceed to step 13.
7With the 50Ω termination still removed from the LAN B IN connector, remove the 50Ω
termination from LAN B OUT connector. If more than one frame is connected to the LAN,
remove the termination from the last frame in the chain.
8If the LAN was successfully forced to an active state (the cards in any cage can be selected and
statused), proceed to step 13.
9With the 50Ω terminations still removed from LAN B, unseat each GLI card in each frame
connected to the LAN, until all are disconnected from the shelf backplanes.
10 Reseat each GLI card until all are reconnected.
11 Allow the GLIs to power up, and attempt to select and status cards in the CCP shelves. If LAN A
is active, proceed to step 13.
12 If LAN A is still not active, troubleshoot or continue troubleshooting following the procedures in
Table 6-1.
13 Replace the 50Ω terminations removed from the LAN B IN and OUT connectors.
Table 6-3: GLI IP Address Setting
nStep Action
1If it has not previously been done, establish an MMI communication session with the GLI card as
described in Table 3-10.
2Enter the following command to display the IP address and subnet mask settings for the card:
config lg0 current
A response similar to the following will be displayed:
GLI2>config lg0 current
lg0: IP address is set to
DEFAULT (configured based on card location)
lg0: netmask is set to
DEFAULT (255.255.255.128)
. . . continued on next page
6
Troubleshooting: Installation68P64115A18–1
Mar 2003 1X SC 4812T Lite BTS Optimization/ATP Software Release R2.16.1.x
DRAFT
6-5
Table 6-3: GLI IP Address Setting
nActionStep
3If the IP address setting response shows an IP address rather than “Default (configured
based on card location),” enter the following:
config lg0 ip default
A response similar to the following will be displayed:
GLI2>config lg0 ip default
_param_config_lg0_ip(): param_delete(): 0x00050001
lg0: ip address set to DEFAULT
4If the GLI subnet mask setting does not display as “DEFAULT (255.255.255.128),” set it to
default by entering the following command:
config lg0 netmask default
A response similar to the following will be displayed:
GLI2>config lg0 netmask default
_param_config_lg0_netmask(): param_delete(): 0x00050001
lg0: netmask set to DEFAULT
5Set the GLI route default to default by entering the following command:
config route default default
A response similar to the following will be displayed:
GLI2>config route default default
_esh_config_route_default(): param_delete(): 0x00050001
route: default gateway set to DEFAULT
6NOTE
Changes to the settings will not take effect unless the GLI is reset.
When changes are completed, close the MMI session, and reset the GLI card.
. . . continued on next page
6
Troubleshooting: Installation 68P64115A18–1
Mar 2003
1X SC 4812T Lite BTS Optimization/ATP Software Release R2.16.1.x
DRAFT
6-6
Table 6-3: GLI IP Address Setting
nActionStep
7Once the GLI is reset, re–establish MMI communication with it and issue the following command
to confirm its IP address and subnet mask settings:
config lg0 current
A response similar to the following will be displayed:
GLI2>config lg0 current
lg0: IP address is set to
DEFAULT (configured based on card location)
lg0: netmask is set to
DEFAULT (255.255.255.128)
8Repeat steps 1 through 7 for all remaining GLIs, including those in any additional,
inter–connected frames.
Cannot Communicate with Power Meter
Table 6-4: Troubleshooting a Power Meter Communication Failure
nStep Action
1Verify power meter is connected to LMF with GPIB adapter.
2Verify cable connections as specified in Chapter 3.
3Verify the GPIB address of the power meter is set to the same value displayed in the applicable
GPIB address box of the LMF Options window Test Equipment tab. Refer to Table 3-23 or
Table 3-24 and the Setting GPIB Addresses section of Appendix NO TAG for details.
4Verify the GPIB adapter DIP switch settings are correct. Refer to Test Equipment Preparation
section of Appendix NO TAG for details.
5Verify the GPIB adapter is not locked up. Under normal conditions, only 2 green LEDs must be
‘ON’ (Power and Ready). If any other LED is continuously ‘ON’, then cycle GPIB box power and
retry.
6Verify the LMF computer COM1 port is not used by another application; for example, if a
HyperTerminal window is open for MMI, close it.
7 Reset all test equipment by clicking Util in the BTS menu bar and selecting Test Equipment >
Reset from the pull–down lists.
6
Troubleshooting: Installation68P64115A18–1
Mar 2003 1X SC 4812T Lite BTS Optimization/ATP Software Release R2.16.1.x
DRAFT
6-7
Cannot Communicate with Communications System Analyzer
Table 6-5: Troubleshooting a Communications System Analyzer Communication Failure
nStep Action
1Verify analyzer is connected to LMF with GPIB adapter.
2Verify cable connections as specified in Chapter 3.
3Verify the analyzer GPIB address is set to the same value displayed in the applicable GPIB
address box of the LMF Options window Test Equipment tab. Refer to Table 3-23 or Table 3-24
and the Setting GPIB Addresses section of Appendix F for details.
4Verify the GPIB adapter DIP switch settings are correct. Refer to Test Equipment Preparation
section of Appendix NO TAG for details.
5Verify the GPIB adapter is not locked up. Under normal conditions, only 2 green LEDs must be
‘ON’ (Power and Ready). If any other LED is continuously ‘ON’, then cycle GPIB box power and
retry.
6Verify the LMF computer COM1 port is not used by another application; for example, if a
HyperTerminal window is open for MMI, close it.
7 Reset all test equipment by clicking Util in the BTS menu bar and selecting Test Equipment >
Reset from the pull–down lists.
Cannot Communicate with Signal Generator
Table 6-6: Troubleshooting a Signal Generator Communication Failure
nStep Action
1Verify signal generator is connected to LMF with GPIB adapter.
2Verify cable connections as specified in Chapter 3.
3Verify the signal generator GPIB address is set to the same value displayed in the applicable GPIB
address box of the LMF Options window Test Equipment tab. Refer to Table 3-23 or Table 3-24
and the Setting GPIB Addresses section of Appendix NO TAG for details.
4Verify the GPIB adapter DIP switch settings are correct. Refer to Test Equipment Preparation
section of Appendix NO TAG for details.
5Verify the GPIB adapter is not locked up. Under normal conditions, only 2 green LEDs must be
‘ON’ (Power and Ready). If any other LED is continuously ‘ON’, then cycle GPIB box power and
retry.
6Verify the LMF computer COM1 port is not used by another application; for example, if a
HyperTerminal window is open for MMI, close it.
7 Reset all test equipment by clicking Util in the BTS menu bar and selecting Test Equipment >
Reset from the pull–down lists.
6
Troubleshooting: Download 68P64115A18–1
Mar 2003
1X SC 4812T Lite BTS Optimization/ATP Software Release R2.16.1.x
DRAFT
6-8
Troubleshooting: Download
Table 6-7: Troubleshooting Code Download Failure
nStep Action
1Verify T1 or E1 span is disconnected from the BTS at Site I/O boards (Figure 3-2).
2Verify LMF can communicate with the BTS devices using the LMF Status function.
3Communication with MGLI must first be established before trying to communicate with any other
BTS device. MGLI must be INS_ACT state (bright green).
4Verify the target card is physically present in the cage and powered-up.
5If the target card LED is solid RED, it implies hardware failure. Reset card by re-seating it. If LED
alarm persists, replace with same type of card from another slot and retry.
6Re-seat card and try again.
7If a BBX reports a failure message and is OOS_RAM, the code load was OK. Use the LMF
Status function to verify the load.
8If the download portion completes and the reset portion fails, reset the device by selecting the
device and Reset.
9If a BBX or an MCC remains OOS_ROM (blue) after code download, use the LMF
Device > Status function to verify that the code load was accepted.
10 If the code load was accepted, use LMF Device > Download > Flash to load RAM code into flash
memory.
Cannot Download DATA to Any Device (Card)
Table 6-8: Troubleshooting Data Download Failure
nStep Action
1Re-seat card and repeat code and data load procedure.
2Verify the ROM and RAM code loads are of the same release by statusing the card. Refer to
Download the BTS section of Chapter G for more information.
6
Troubleshooting: Download68P64115A18–1
Mar 2003 1X SC 4812T Lite BTS Optimization/ATP Software Release R2.16.1.x
DRAFT
6-9
Cannot ENABLE Device
Before a device can be enabled (placed in service), it must be in the
OOS_RAM state (yellow in LMF display) with data downloaded to the
device. The color of the device on the LMF changes to green once it is
enabled.
The four device states that can be displayed by the LMF are:
SEnabled (bright green, INS_ACT)
SStand–by (olive green, INS_SBY – redundant CSM and GLI only)
SDisabled (yellow, OOS_RAM)
SReset (blue, OOS_ROM)
Table 6-9: Troubleshooting Device Enable (INS) Failure
nStep Action
1Re-seat card and repeat code and data load procedure.
2If CSM cannot be enabled, verify the CDF has correct latitude and longitude data for cell site
location and GPS sync.
3Ensure primary CSM is in INS_ACT (bright green) state.
NOTE
MCCs will not enable without the CSM being INS.
4Verify 19.6608 MHz CSM clock is present; MCCs will not enable without it.
5BBXs should not be enabled for ATP tests.
6If MCCs give “invalid or no system time,” verify the CSM is enabled.
7Log out of the BTS, exit the LMF, restart the application, log into the BTS, and re–attempt
device–enable actions.
LPA Errors
Table 6-10: LPA Errors
nStep Action
1If LPAs give continuous alarms, cycle power with the applicable DC PDA circuit breakers.
2Establish an MMI session with the LPA (Table 3-10), connecting the cable to the applicable MMI
port on the ETIB.
2a – Type alarms at the HyperTerminal window prompt and press Enter.
–– The resulting display may provide an indication of the problem.
2b – Call Field Support for further assistance.
6
Troubleshooting: Calibration 68P64115A18–1
Mar 2003
1X SC 4812T Lite BTS Optimization/ATP Software Release R2.16.1.x
DRAFT
6-10
Troubleshooting: Calibration
Bay Level Offset Calibration Failure
Table 6-11: Troubleshooting BLO Calibration Failure
nStep Action
1Verify the power meter or communications system analyzer is configured correctly (see the Test
Equipment Set–up section of Chapter 3), and is connected to the proper BTS TX antenna
connector.
2If a power meter is being used:
2a – Re-calibrate the Power Meter and verify it is calibrated correctly with cal factors from the
power sensor (refer to Appendix F).
2b – Verify the power sensor is functioning properly by checking it with the 1–mW (0 dBm) Power
Ref signal.
2c – Verify communication between the LMF and Power Meter is working by checking that the
meter display is showing RES :
3Verify the parameters in the bts–#.cdf file are set correctly for the BTS operating band as
follows:
For 1900 MHz:
Bandclass=1; Freq_Band=16
For 800 MHz:
Bandclass=0; Freq_Band=8
4Verify that no LPA on the carrier is in alarm state (rapidly flashing red LED).
4a – If any are, reset the LPA(s) by pulling the applicable circuit breaker on the DC PDA, and,
after 5 seconds, pushing back in.
5Verify GPIB adapter is not locked up. Under normal conditions, only 2 green LEDs must be ‘ON’
(Power and Ready). If any other LED is continuously ‘ON’, power-cycle (turn power off and on)
the GPIB Box and retry.
6
Troubleshooting: Calibration68P64115A18–1
Mar 2003 1X SC 4812T Lite BTS Optimization/ATP Software Release R2.16.1.x
DRAFT
6-11
Calibration Audit Failure
Table 6-12: Troubleshooting Calibration Audit Failure
nStep Action
1Verify the power meter or communications system analyzer is configured correctly (see the Test
Equipment Set–up section of Chapter 3), and is connected to the proper BTS TX antenna
connector.
2If a power meter is being used:
2a – Re-calibrate the Power Meter and verify it is calibrated correctly with cal factors from the
power sensor (refer to Appendix F).
2b – Verify the power sensor is functioning properly by checking it with the 1–mW (0 dBm) Power
Ref signal.
2c – Verify communication between the LMF and Power Meter is working by checking that the
meter display is showing RES :
3Verify that no LPA on the carrier is in alarm state (rapidly flashing red LED).
3a – If any are, reset the LPA(s) by pulling the applicable circuit breaker on the DC PDA, and,
after 5 seconds, pushing back in.
4After calibration, the BLO data must be re-loaded to the BBXs before auditing. Click on the
BBX(s), and in the BTS menu bar select Device > Download >BLO.
Re-try the audit.
5Verify GPIB adapter is not locked up. Under normal conditions, only 2 green LEDs must be ‘ON’
(Power and Ready). If any other LED is continuously ‘ON’, power-cycle (turn power off and on)
the GPIB Box and retry.
6If calibration was being performed for the redundant BBX, be sure the Single–Sided BLO
checkbox was not checked in the CDMA Test Parameters test set–up window.
7If additional items, such as directional couplers or combiners, have been installed in the TX path,
be sure that one of the following has been done:
SVerify BLO checkbox in the CDMA Test Parameters test set–up window is unchecked.
SThe additional path losses have been added into each applicable sector using the Util > Edit >
TX Coupler Loss... function.
6
Basic Troubleshooting: RF Path Fault Isolation 68P64115A18–1
Mar 2003
1X SC 4812T Lite BTS Optimization/ATP Software Release R2.16.1.x
DRAFT
6-12
Basic Troubleshooting: RF Path Fault Isolation
Overview
The optimization (RF path characterization or calibration) and
post-calibration (audit) procedures measure and limit-check the BTS
reported transmit and receive levels of the path from each BBX to the
back of the frame. When a fault is detected, it is specific to a receive or
transmit path. The troubleshooting process in this section determines the
most probable cause of the fault.
As the calibration and audit tests are performed, results are displayed in
the LMF test status report window. When faults are encountered, the test
procedure in progress continues running and displaying any further
faults. If it appears that there are major faults, the test can be aborted.
The test results can be saved to a bts–#.rpt file in the<x>:\<lmf home
directory \cdma\bts–# folder. To do this, close the test status report
window using the Save Results button.
NOTE Closing the test status report window with the Dismiss button
will delete the test results without saving them.
If a test is re–run or a new calibration, audit, or test is run and the results
are saved, the previous test results in the bts–#.rpt file are
overwritten. To prevent losing previous test results in the bts–#.rpt
file, refer to the procedure in Table 4-13 before performing further
testing with the LMF.
If there are major faults, recheck the test equipment attachments for
errors. If none are found, close the test status report window using the
Save Results button, and save the contents of the resulting bts–#.rpt
file as described in Table 4-13. Also, note other specifics about the
failure, and proceed with the fault isolation procedure.
If Every Test Fails
Check the calibration equipment for proper operation by manually
setting the signal generator output attenuator to the lowest output power
setting. Connect the output port to the spectrum analyzer RF input port.
Set the signal generator output attenuator to –90 dBm, and switch on the
RF output. Verify that the spectrum analyzer can receive the signal,
indicate the correct signal strength (accounting for the cable insertion
loss), and indicate the approximate frequency.
Verify BLO Checkbox
When performing a calibration with the TX Calibration... or All
Cal/Audit... functions, the Verify BLO checkbox should normally be
checked. When a calibration fails, determine if any items such as
directional couplers or combiners have been added to the TX path. If
additional items have been installed in the path, try re–running the
calibration with Verify BLO unchecked. If calibration still does not
pass, refer to the following paragraphs and use the TX output fault
isolation flowchart to identify the most probable cause of the failure.
6
Basic Troubleshooting: RF Path Fault Isolation68P64115A18–1
Mar 2003 1X SC 4812T Lite BTS Optimization/ATP Software Release R2.16.1.x
DRAFT
6-13
Single–Sided BLO Checkbox
When performing a calibration with the TX Calibration... or All
Cal/Audit... functions, the Single–Sided BLO checkbox should not be
checked when the redundant BBX is being calibrated. When a
calibration fails with the redundant BBX selected, try re–running the
calibration with the Single–Sided BLO checkbox unchecked. If the
calibration still fails, refer to the following paragraphs and use the TX
output fault isolation flowchart to identify the most probable cause of the
failure.
If Faults Are Isolated
If the fault reports are isolated between successful path checks, the root
cause of the faults most likely lies with one or more of the Field
Replaceable Unit (FRU) modules. If more than one failure was reported,
look for a common denominator in the data. For example, if any TX test
fails on one sector only, the BBX assigned to that sector (Table 1-6) is a
likely cause. Also, look at the severity of the failure. If the path loss is
just marginally out of the relaxed specification limit during the
post-calibration TX audit, suspect excessive cable loss. If limits are
missed by a wide margin, suspect mis–wired cables or total device
failure. Use the TX output fault isolation flowchart in Figure 6-1 to
identify the strongest possible cause for a failed TX test.
Fault Isolation Flowchart
The flowchart covers the transmit path. Transmit paths usually fail the
lower test limit, indicating excessive loss in some component in the BTS
site or mis–wiring. A failure of an upper limit usually indicates a
problem with the test setup or external equipment. Before replacing a
suspected FRU, always repeat and verify the test results to rule out a
transient condition. If a BBX fails an upper limit in the post–calibration
audit procedure, re–calibrate and verify the out–of–tolerance condition
for that BBX and/or sector before replacement.
Flowchart Prerequisites
Before entering the fault isolation sequence outlined in the flowchart, be
sure the following have been completed:
SGLIs, MCCs, and BBXs have been downloaded with the correct ROM
code, RAM code, and data (Table 3-12, Table 3-13, and Table 3-14).
SMGLI, CSMs, and MCCs are enabled (Table 3-13, Table 3-16, and
Table 3-17, respectively)
SBe sure the LED on the correct CCD card is solid green.
SBe sure no alarms are being reported by opening an LMF alarm
window as outlined in Table 3-47.
6
Basic Troubleshooting: RF Path Fault Isolation 68P64115A18–1
Mar 2003
1X SC 4812T Lite BTS Optimization/ATP Software Release R2.16.1.x
DRAFT
6-14
TX Power Output Fault Isolation Flowchart

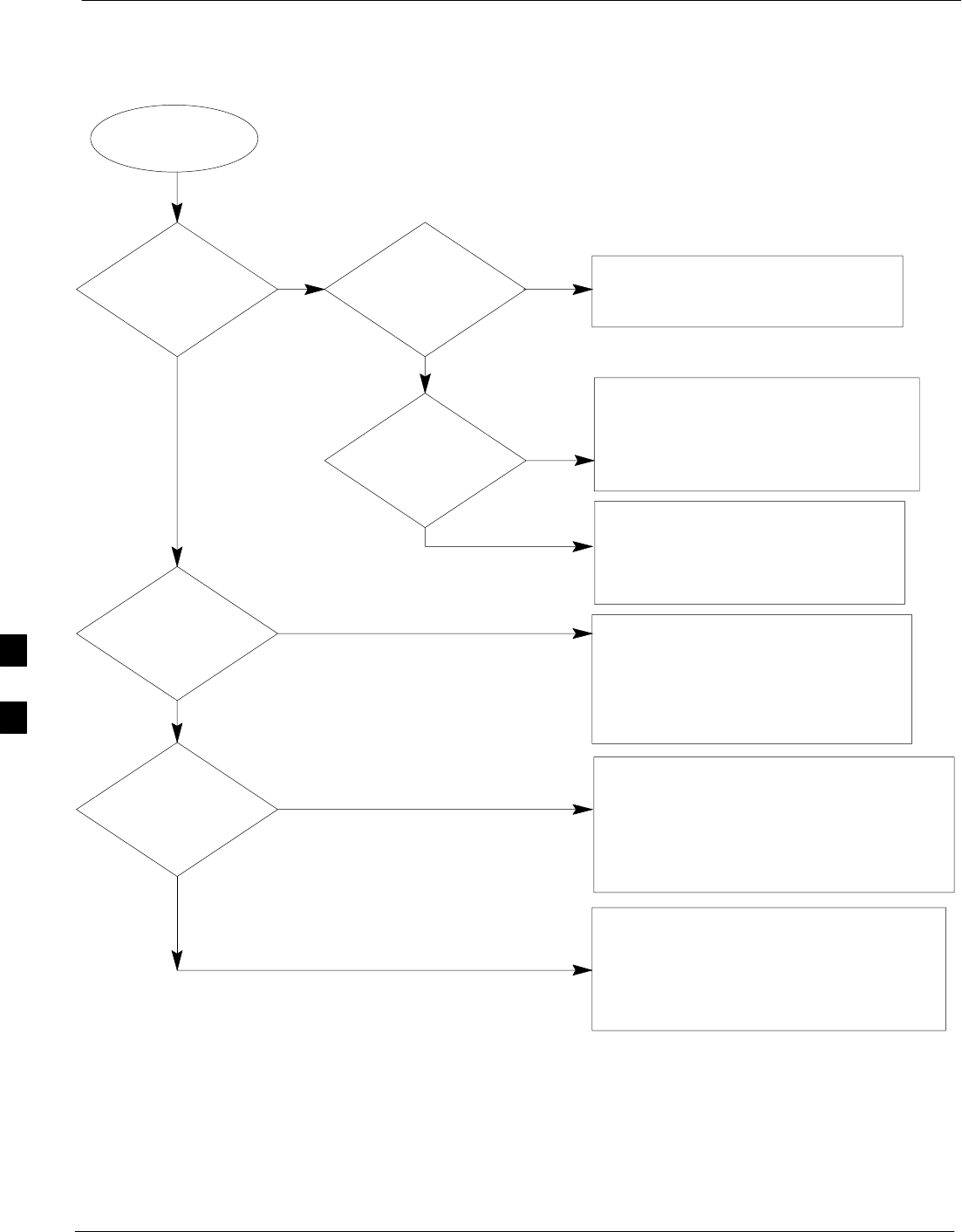

Figure 6-1: TX Output Fault Isolation Flowchart
Start
TX Power
Out of Limits
No
No, everything fails
If equipped, does a
BBX on a different
carrier but for the
same sector
pass?
Yes, it passes.
Likely Cause: Crossed TX cabling to include:
– CIO–trunking module,
– Trunking module–filter/combiner,
– Filter/combiner–DRDC/TRDC
Carrier LPAs
Also check: Carrier trunking module
CIO card.
Did TX Output
fail the High or
Low limit?
High limit
failure. Does
redundant BBX
have the same
problem on the
same sector?
Likely Cause: BBX card
Attempt re–calibration
before replacement.
No
Does any other
sector have the
same problem?
Likely Cause: CIO card
Carrier trunking module
Also check: CIO–trunking module cabling
TX filter/combiner cabling
TX DRDC/TRDC cabling
Likely Cause: External Power Measurement
Equipment and/or Set–up.
Also check: Switch card
External Attenuators & Pads,
Check Site Documentation.
Yes
Yes
Low limit
failure.
Likely Cause: CIO card not fully seated
External Power Measurement
Equipment and/or Set–up
Crossed TX cabling to include:
– CIO–trunking module,
– Trunking module–filter/combiner,
– Filter/combiner–DRDC/TRDC
Yes, it passes.
If equipped, does a
BBX on the same
carrier but for a
different sector
pass?
No, next BBX on same carrier
fails on different sector.
Likely Cause: BBX card
Loose connections on
CIO–trunking module cabling,
TX filter/combiner cabling, or
TX DRDC/TRDC cabling
Also check: CIO card
Carrier trunking module
6
Troubleshooting: Transmit ATP68P64115A18–1
Mar 2003 1X SC 4812T Lite BTS Optimization/ATP Software Release R2.16.1.x
DRAFT
6-15
Troubleshooting: Transmit ATP
BTS Passed Reduced ATP Tests but Has Forward Link Problem in Normal
Operation
Follow the procedure in Table 6-13 to troubleshoot a forward link
problem during normal operation after passing a reduced ATP.
Table 6-13: Troubleshooting Forward Link Failure (BTS Passed Reduced ATP)
nStep Action
1Perform the following additional tests to troubleshoot a forward link problem:
1a – TX mask
1b – TX rho
1c – TX code domain
Cannot Perform TX Mask Measurement
Table 6-14: Troubleshooting TX Mask Measurement Failure
nStep Action
1Verify that TX audit passes for the BBX(s).
2If performing manual measurement, verify analyzer setup.
3Verify that no LPA in the sector is in alarm state (flashing red LED). Re-set the LPA by pulling the
circuit breaker, and, after 5 seconds, pushing it back in.
Cannot Perform Rho or Pilot Time Offset Measurement
Table 6-15: Troubleshooting Rho and Pilot Time Offset Measurement Failure
nStep Action
1Verify presence of RF signal by switching to spectrum analyzer screen.
2Verify PN offsets displayed on the analyzer is the same as the PN offset in the CDF file.
3Re–load MGLI code and data and repeat the test.
4If performing manual measurement, verify analyzer setup.
5Verify that no LPA in the sector is in alarm state (flashing red LED). Reset the LPA by pulling the
circuit breaker, and, after 5 seconds, pushing back in.
6If Rho value is unstable and varies considerably (e.g. .95,.92,.93), this may indicate that the GPS
is still phasing (trying to reach and maintain 0 freq. error). Go to the freq. bar in the upper right
corner of the Rho meter and select Hz. Press <Shift–avg> and enter 10, to obtain an average Rho
value. This is an indication the GPS has not stabilized before going INS and may need to be
re-initialized.
6
Troubleshooting: Transmit ATP 68P64115A18–1
Mar 2003
1X SC 4812T Lite BTS Optimization/ATP Software Release R2.16.1.x
DRAFT
6-16
Cannot Perform Code Domain Power and Noise Floor Measurement
Table 6-16: Troubleshooting Code Domain Power and Noise Floor Measurement Failure
nStep Action
1Verify presence of RF signal by switching to spectrum analyzer screen on the communications
system analyzer.
2Verify PN offset displayed on analyzer is same as PN offset being used in the CDF file.
3Disable and re-enable MCC (one or more MCCs based on extent of failure).
6
Troubleshooting: Receive ATP68P64115A18–1
Mar 2003 1X SC 4812T Lite BTS Optimization/ATP Software Release R2.16.1.x
DRAFT
6-17
Troubleshooting: Receive ATP
Multi–FER Test Failure
Table 6-17: Troubleshooting Multi-FER Failure
nStep Action
1Verify test equipment is configured correctly for a FER test.
2Verify test equipment is locked to 19.6608 and even second clocks. On the HP 8921 analyzer, the
yellow LED (REF UNLOCK) must be OFF.
3Verify MCCs have been loaded with data and are INS_ACT.
4Disable and re-enable the MCC (1 or more based on extent of failure).
5Disable, re-load code and data, and re-enable MCC (one or more MCCs based on extent of
failure).
6Verify antenna connections to frame are correct based on the LMF directions messages.
7For diversity RX FER failures in companion frame configurations, verify the following:
7a – Inter–frame diversity RX cables are correctly connected between RX EXPANSION
connectors on each frame (refer to SC4812ET Lite Installation; 68P09253A36.
7b – The RX test cable is connected to the correct RX antenna connector on the opposite
companion frame (refer to Table 4-1).
6
Troubleshooting: CSM Check–list 68P64115A18–1
Mar 2003
1X SC 4812T Lite BTS Optimization/ATP Software Release R2.16.1.x
DRAFT
6-18
Troubleshooting: CSM Check–list
Problem Description
Many Clock Synchronization Manager (CSM) board problems may be
resolved in the field before sending the boards to the factory for repair.
This section describes known CSM problems identified in field returns,
some of which are field-repairable. Check these problems before
returning suspect CSM boards.
Intermittent 19.6608 MHz Reference Clock / GPS Receiver Operation
If having any problems with CSM board kit numbers, SGLN1145 or
SGLN4132, check the suffix with the kit number. If the kit has version
“AB,” then replace with version ‘‘BC’’ or higher, and return model AB
to the repair center.
No GPS Reference Source
Correct Hardware
Check the CSM boards for proper hardware configuration for the type of
GPS in use and the cage slot where they are installed.
RF–GPS (Local GPS) – CSM kit SGLN1145, which should be installed
in Slot l, has an on-board GPS receiver; while kit SGLN4132, in Slot 2,
does not have a GPS receiver.
Remote GPS (RGPS) – Kit SGLN4132ED or later, which should be
installed in both Slot 1 and Slot 2, does not have a GPS receiver.
Any incorrectly configured board must be returned to the repair center.
Do not attempt to change hardware configuration in the field. Also,
verify the GPS antenna is not damaged and is installed per recommended
guidelines.
RGPS Expansion Cabling
20–pair Punchblock Connections – For companion frame installations
with RGPS, verify the 20–pair punchblock RGPS distribution
connections in the RGPS expansion primary frame are correctly punched
down in accordance with NO TAG.
50–pair Punchblock Connections – For companion frame installations
with RGPS, verify the 50–pair punchblock RGPS distribution
connections in both the RGPS expansion primary and secondary frames
are correctly punched down in accordance with NO TAG and NO TAG.
Checksum Failure The CSM could have corrupted data in its firmware resulting in a
non-executable code. The problem is usually caused by either electrical
disturbance, or interruption of data during a download. Attempt another
download with no interruptions in the data transfer. Return CSM board
back to repair center if the attempt to reload fails.
6
Troubleshooting: CSM Check–list68P64115A18–1
Mar 2003 1X SC 4812T Lite BTS Optimization/ATP Software Release R2.16.1.x
DRAFT
6-19
GPS Bad RX Message Type
This is believed to be caused by a later version of CSM software (3.5 or
higher) being downloaded, via LMF, followed by an earlier version of
CSM software (3.4 or lower), being downloaded from the CBSC.
Download again with CSM software code 3.5 or higher. Return CSM
board back to repair center if attempt to reload fails.
CSM Reference Source Configuration Error
This is caused by incorrect reference (clock) source configuration
performed in the field by software download. CSM kit SGLN1145 and
SGLN4132 must have proper reference sources configured, as shown in
Table 6-18, to function correctly.
Table 6-18: CSM Reference (Clock) Sources by GPS Type and Kit Number
GPS Type CSM Kit No. Hardware
Configuration CSM
Slot No. Reference Source Configuration
RF GPS
SGLN1145 With GPS Receiver 1Primary = Local GPS
Backup = Either LFR or HSO
RF GPS
SGLN4132 Without GPS
Receiver 2Primary = Mate GPS
Backup = Either LFR or HSO
REMOTE
SGLN4132ED
or later Without GPS
Receiver 1Primary = Remote GPS
Backup = Either LFR or HSO
REMOTE
GPS 2Primary = Remote GPS
Backup = Either LFR or HSO
Takes Too Long for CSM to Come INS
This may be caused by a delay in GPS acquisition. Check the accuracy
flag status and/or current position. Refer to the CSM System Time/GPS
and LFR/HSO Verification section of Chapter 3. At least one satellite
should be visible and tracked for the “surveyed” mode, and four
satellites should be visible and tracked for the “estimated” mode. Also,
verify correct base site position data used in “surveyed” mode.
6
Troubleshooting: SCCP Backplane 68P64115A18–1
Mar 2003
1X SC 4812T Lite BTS Optimization/ATP Software Release R2.16.1.x
DRAFT
6-20
Troubleshooting: SCCP Backplane
Introduction
The SCCP backplane is a multi–layer printed circuit board that
interconnects all the SCCP modules. The complexity of this board lends
itself to possible improper diagnoses when problems occur.
Connector Functionality
The following connector overview describes the major types of
backplane connectors along with the functionality of each. This will
assist the CFE to:
SDetermine which connector(s) is associated with a specific problem
type.
SIsolate problems to a specific cable or connector.
Span Line Connector
The span line input is an 8 pin RJ–45 connector that provides a primary
and secondary (if used) span line interface to each GLI in the SCCP
shelf. The span line is used for MM/EMX switch control of the Master
GLI and also all the BBX traffic.
Power Input (Return A and B connectors)
Provides 27 volt input for use by the power supply modules.
Power Supply Module Interface
Each power supply module has a series of three different connectors to
provide the needed inputs/outputs to the SCCP backplane. These include
a VCC/Ground input connector, a Harting–style multiple pin interface,
and a +15V/Analog Ground output connector. The Transceiver Power
Module converts 27/48 Volts to a regulated +15, +6.5, +5.0 volts to be
used by the SCCP shelf cards.
GLI Connector
This connector consists of a Harting 4SU digital connector and a
6–conductor coaxial connector for RDM distribution. The connectors
provide inputs/outputs for the GLIs in the SCCP backplane.
GLI Ethernet “A” and “B” Connections
These SMB connectors are located on the SCCP backplane and connect
to the GLI board. This interface provides all the control and data
communications over the Ethernet LAN between the master GLI, the
redundant GLI, and the LMF.
BBX Connector
Each BBX connector consists of a Harting 2SU/1SU digital connector
and two 6–conductor coaxial connectors. These connectors provide DC,
digital, and RF inputs/outputs for the BBXs in the SCCP backplane.
6
Troubleshooting: SCCP Backplane68P64115A18–1
Mar 2003 1X SC 4812T Lite BTS Optimization/ATP Software Release R2.16.1.x
DRAFT
6-21
CIO Connectors
SRF RX antenna path signal inputs are routed through RX paths of the
DRDCs or TRDCs at the RF interface panel (rear of frame), and
through coaxial cables to the two MPC modules. The three “A” (main)
signals go to one MPC; the three “B” (diversity) to the other. The
MPC outputs the low–noise–amplified signals through the SCCP
backplane to the CIO where the signals are split and sent to the
appropriate BBX.
SA digital bus then routes the baseband signal through the BBX, to the
backplane, and then on to the MCC slots.
SDigital TX antenna path signals originate at the MCCs. Each output is
routed from the MCC slot through the backplane to the appropriate
BBX.
STX RF path signal originates from the BBX, travels through the
backplane to the CIO, through the CIO, and then through
multi-conductor coaxial cabling to the trunking module and LPAs in
the LPA shelf.
SCCP Backplane Troubleshooting Procedure
The following tables provide standard procedures for troubleshooting
problems that appear to be related to a defective SCCP backplane. The
tables are broken down into possible problems and steps which should
be taken in an attempt to find the root cause.
NOTE All steps in all tables should be followed before any attempt to
replace the SCCP backplane.
6
Troubleshooting: SCCP Backplane 68P64115A18–1
Mar 2003
1X SC 4812T Lite BTS Optimization/ATP Software Release R2.16.1.x
DRAFT
6-22
Digital Control Problems
No GLI Control via LMF (all GLIs)
Table 6-19: No GLI Control Through LMF (All GLIs)
Step Action
1Check the Ethernet LAN for proper connection, damage, shorts, or opens.
2Be sure the LAN IN and OUT connectors in the power entry compartment are properly terminated.
3Be sure the proper IP address is entered in the Network Login tab of the LMF login screen.
4Logout and Exit the LMF, restart the LMF, and re–login to the BTS.
5Verify SCCP backplane Shelf ID DIP switch is set correctly.
6Visually check the master GLI connectors (both module and backplane) for damage.
7Replace the master GLI with a known good GLI.
No GLI Control through Span Line Connection (All GLIs)
Table 6-20: No GLI Control Through Span Line Connection (Both GLIs)
Step Action
1Verify SCCP backplane Shelf ID DIP switch is set correctly.
2Verify that the BTS and GLIs are correctly configured in the OMCR/CBSC database.
3Verify the span configurations set in the GLIs match those in the OMC–R/CBSC database (refer to
Table 6-31).
4Visually check the master GLI connectors (both module and backplane) for damage.
5Replace the master GLI with a known good GLI.
6Check the span line cabling from the punchblock to the master GLI for proper connection and damage.
Table 6-21: MGLI Control Good – No Control Over Co–located GLI
Step Action
1Verify that the BTS and GLIs are correctly configured in the OMCR/CBSC data base.
2Check the ethernet for proper connection, damage, shorts, or opens.
3Visually check all GLI connectors (both module and backplane) for damage.
4Replace the remaining GLI with a known good GLI.
No AMR Control (MGLI good)
Table 6-22: MGLI Control Good – No Control Over AMR
Step Action
1Visually check the master GLI connectors (both module and backplane) for damage.
2Replace the master GLI with a known good GLI.
3Replace the AMR with a known good AMR.
6
Troubleshooting: SCCP Backplane68P64115A18–1
Mar 2003 1X SC 4812T Lite BTS Optimization/ATP Software Release R2.16.1.x
DRAFT
6-23
No BBX Control in the Shelf
Table 6-23: MGLI Control Good – No Control over Co–located BBXs
Step Action
1Visually check all GLI connectors (both module and backplane) for damage.
2Replace the remaining GLI with a known good GLI.
3Visually check BBX connectors (both module and backplane) for damage.
4Replace the BBX with a known good BBX.
No (or Missing) Span Line Traffic
Table 6-24: BBX Control Good – No (or Missing) Span Line Traffic
Step Action
1Visually check all GLI connectors (both module and backplane) for damage.
2Replace the remaining GLI with a known good GLI.
3Visually check all span line distribution (both connectors and cables) for damage.
4If the problem seems to be limited to one BBX, replace the BBX with a known good BBX.
No (or Missing) MCC24E/MCC8E Channel Elements
Table 6-25: No MCC–1X/MCC24E/MCC8E Channel Elements
Step Action
1Verify channel elements on a co–located MCC of the same type (CDF MccType codes: MCC8E = 0;
MCC24E = 2; MCC–1X = 3)
2Check MCC connectors (both module and backplane) for damage.
3If the problem seems to be limited to one MCC, replace it with a known good MCC of the same type.
4If no channel elements on any MCC, verify clock reference to CIO.
6
Troubleshooting: SCCP Backplane 68P64115A18–1
Mar 2003
1X SC 4812T Lite BTS Optimization/ATP Software Release R2.16.1.x
DRAFT
6-24
DC Power Problems
WARNING Potentially lethal voltage and current levels are routed to the
BTS equipment. This test must be carried out with a second
person present, acting in a safety role. Remove all rings, jewelry,
and wrist watches prior to beginning this test.
No DC Input Voltage to SCCP Shelf Power Supply
Modules
Table 6-26: No DC Input Voltage to Power Supply Module
Step Action
1Verify DC power is applied to the frame. Determine if any circuit breakers are tripped.
NOTE
If a breaker has tripped, remove all modules from the SCCP shelf and attempt to reset it.
– If breaker trips again, there is probably a cable or breaker problem within the frame or DC PDA.
– If breaker does not trip, there is probably a defective module or sub–assembly within the shelf.
Perform the tests in Table 2-3 to attempt to isolate the module.
2Verify that the PS1 and PS2 circuit breakers on the DC PDA are functional.
3Remove the frame rear access panel (Figure 2-2), and use a voltmeter to determine if the input voltage
is being routed to the SCCP backplane. Measure the DC voltage level between:
SThe PWR_IN_A and PWR_RTN_A contacts on the extreme right side at the rear of the backplane
SThe PWR_IN_B and PWR_RTN_B contacts on the extreme right side at the rear of the backplane
– If the voltage is not present, there is probably a cable or circuit breaker problem within the frame
or DC PDA.
4If everything appears to be correct, visually inspect the PS1 and PS2 power supply module connectors.
5Replace the power supply modules with known good modules.
6If steps 1 through 4 fail to indicate a problem, an SCCP backplane failure has occurred (possibly an
open trace).
6
Troubleshooting: SCCP Backplane68P64115A18–1
Mar 2003 1X SC 4812T Lite BTS Optimization/ATP Software Release R2.16.1.x
DRAFT
6-25
No DC Voltage (+5, +6.5, or +15 Volts) to a Specific GLI,
BBX, or Switch Module
Table 6-27: No DC Input Voltage to any SCCP Shelf Module
Step Action
1If it has not been done, perform the steps in Table 6-26.
2Inspect SCCP shelf module connectors (both module and backplane) for damage.
3Replace suspect modules with known good module.
TX and RX Signal Routing Problems
Table 6-28: TX and RX Signal Routing Problems
Step Action
1Inspect all Harting cable connectors and backplane connectors for damage in all the affected board
slots.
2Perform steps outlined in the RF path troubleshooting flowchart in Figure 6-1.
6
Troubleshooting: RFDS 68P64115A18–1
Mar 2003
1X SC 4812T Lite BTS Optimization/ATP Software Release R2.16.1.x
DRAFT
6-26
Troubleshooting: RFDS
Introduction
The RFDS is used to perform Pre–Calibration Verification and
Post-Calibration Audits which limit-check the RFDS-generate and
reported receive levels of every path from the RFDS through the
directional coupler coupled paths. In the event of test failure, refer to the
following tables.
All Tests Fail
Table 6-29: RFDS Fault Isolation – All Tests Fail
Step Action
1Check the TX calibration equipment for proper operation by manually setting the signal generator
output attenuator to the lowest output power setting and connecting the output port to the spectrum
analyzer RF input port.
2Set the signal generator output attenuator to –90 dBm, and switch on the RF output. Verify that the
spectrum analyzer can receive the signal, indicate the correct signal strength, (accounting for the cable
insertion loss), and the approximate frequency.
3Visually inspect RF cabling. Make sure each directional coupler forward and reflected port connects to
the RFDS antenna select unit on the RFDS.
4Check the wiring against the site documentation wiring diagram or the SC4812ET Lite Installation;
68P09253A36.
5Verify any changes to the RFDS parameter settings have been downloaded.
6Status the TSU to verify the TSIC and SUA software versions are correct.
7Check to see that all RFDS boards show green on the front panel LED indicators. Visually check for
external damage.
8If any board LEDs do not show green, replace the RFDS with a known–good unit. Re–test after
replacement.
6
Troubleshooting: RFDS68P64115A18–1
Mar 2003 1X SC 4812T Lite BTS Optimization/ATP Software Release R2.16.1.x
DRAFT
6-27
All RX and TX Paths Fail
If every receive or transmit path fails, the problem most likely lies with
the rf converter board or the transceiver board. Replace the RFDS with a
known–good unit and retest.
All Tests Fail on a Single Antenna
If all path failures are on one antenna port, forward and/or reflected,
make the following checks.
Table 6-30: RFDS Fault Isolation – All Tests Fail on Single Antenna Path
Step Action
1Visually inspect the frame internal RFDS cabling to the suspect TRDC or DRDC.
2Verify the forward and reflected ports connect to the correct RFDS antenna select unit positions on the
RFDS ASU card. Refer to the RFDS installation manual for details.
3Replace the RFDS with a known–good unit.
4Replace the RF cables between the affected TRDC or DRDC and the RFDS.
6
Module Front Panel LED Indicators and Connectors 68P64115A18–1
Mar 2003
1X SC 4812T Lite BTS Optimization/ATP Software Release R2.16.1.x
DRAFT
6-28
Module Front Panel LED Indicators and Connectors
Module Status Indicators
Each of the non-passive plug-in modules has a bi-color (green and red)
LED status indicator located on the module front panel. The indicator is
labeled PWR/ALM. If both colors are turned on, the indicator is yellow.
Each plug-in module, except for the fan module, has its own alarm
(fault) detection circuitry that controls the state of the PWR/ALM LED.
The fan TACH signal of each fan module is monitored by the AMR.
Based on the status of this signal the AMR controls the state of the
PWR/ALM LED on the fan module.
Module LED Status (except GLI2, CSM, BBX, MCC)
PWR/ALM LED
The following list describes the states of the module status indicator.
SSolid GREEN – module operating in a normal (fault free) condition.
SSolid RED – module is operating in a fault (alarm) condition due to
electrical hardware failure.
Note that a fault (alarm) indication may or may not be due to a complete
module failure and normal service may or may not be reduced or
interrupted.
DC/DC Converter LED Status Combinations
The PWR CNVTR has its own alarm (fault) detection circuitry that
controls the state of the PWR/ALM LED.
PWR/ALM LED
The following list describes the states of the bi-color LED.
SSolid GREEN – module operating in a normal (fault free) condition.
SSolid RED – module is operating in a fault (alarm) condition due to
electrical hardware problem.
6
Module Front Panel LED Indicators and Connectors68P64115A18–1
Mar 2003 1X SC 4812T Lite BTS Optimization/ATP Software Release R2.16.1.x
DRAFT
6-29
CSM LED Status Combinations
PWR/ALM LED
The CSMs include on-board alarm detection. Hardware and
software/firmware alarms are indicated via the front panel indicators.
After the memory tests, the CSM loads OOS–RAM code from the Flash
EPROM, if available. If not available, the OOS–ROM code is loaded
from the Flash EPROM.
SSolid GREEN – module is INS_ACT or INS_SBY no alarm.
SSolid RED – Initial power up or module is operating in a fault (alarm)
condition.
SSlowly Flashing GREEN – OOS_ROM no alarm.
SLong RED/Short GREEN – OOS_ROM alarm.
SRapidly Flashing GREEN – OOS_RAM no alarm or
INS_ACT in DUMB mode.
SShort RED/Short GREEN – OOS_RAM alarm.
SLong GREEN/Short RED – INS_ACT or INS_SBY alarm.
SOff – no DC power or on-board fuse is open.
SSolid YELLOW – After a reset, the CSMs begin to boot. During
SRAM test and Flash EPROM code check, the LED is yellow. (If
SRAM or Flash EPROM fail, the LED changes to a solid RED and
the CSM attempts to reboot.)

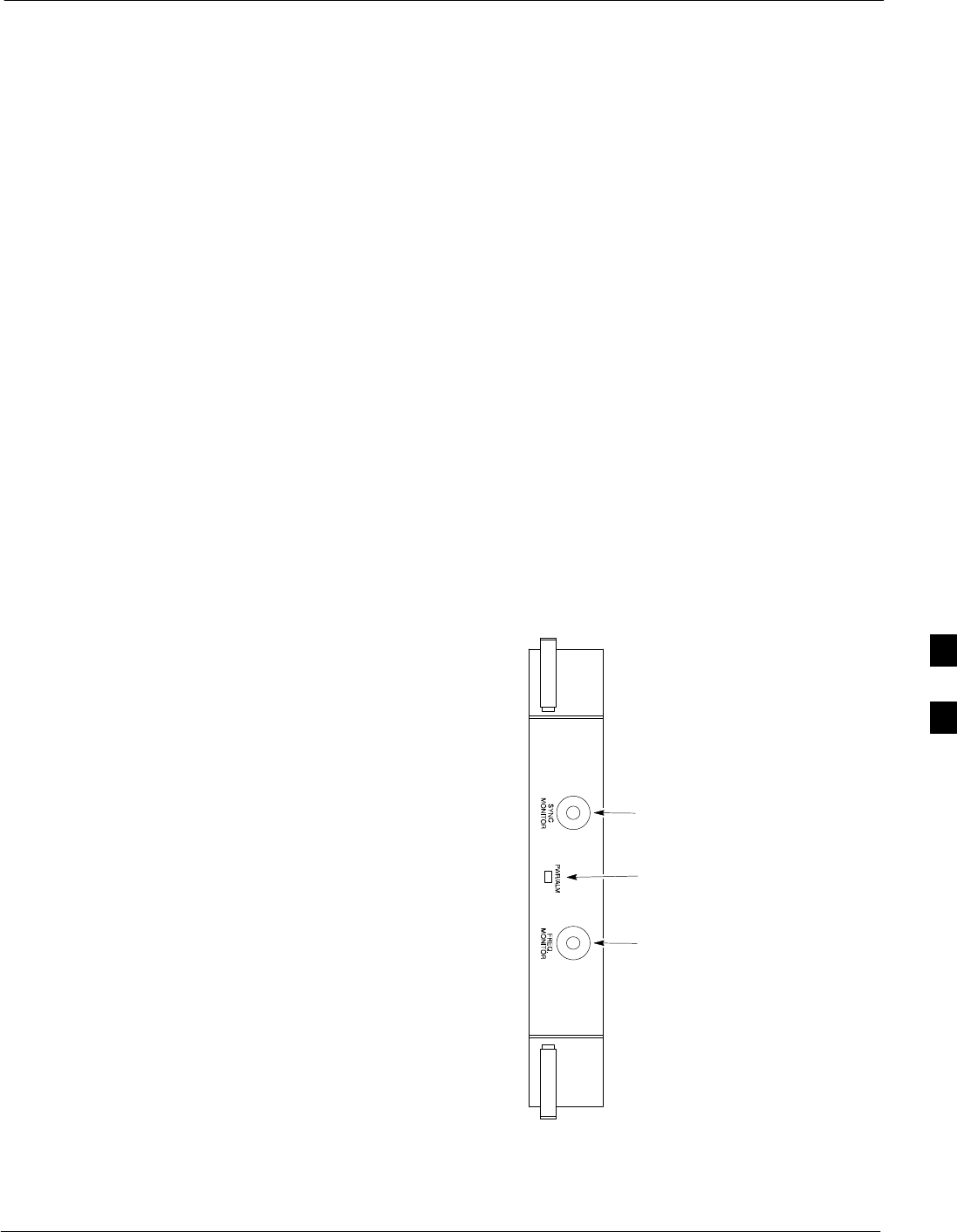

Figure 6-2: CSM Front Panel Indicators & Monitor Ports
PWR/ALM
Indicator
FREQ
MONITOR
SYNC
MONITOR
FW00303
6
Module Front Panel LED Indicators and Connectors 68P64115A18–1
Mar 2003
1X SC 4812T Lite BTS Optimization/ATP Software Release R2.16.1.x
DRAFT
6-30
FREQ Monitor Connector
A test port provided at the CSM front panel via a BNC receptacle allows
monitoring of the 19.6608 MHz clock generated by the CSM. When
both CSM 1 and CSM 2 are in an in-service (INS) condition, the CSM 2
clock signal frequency is the same as that output by CSM 1.
The clock is a sine wave signal with a minimum amplitude of +2 dBm
(800 mVpp) into a 50 Ω load connected to this port.
SYNC Monitor Connector
A test port provided at the CSM front panel via a BNC receptacle allows
monitoring of the “Even Second Tick” reference signal generated by the
CSMs.
At this port, the reference signal is a Transistor–Transistor Logic (TTL)
active–high signal with a pulse width of 153 nanoseconds.
MMI Connector
Behind front panel – only accessible when card is partially extended
from SCCP shelf slot. The RS–232 MMI port connector is intended to
be used primarily in the development or factory environment, but may
be used in the field for debug/maintenance purposes.
6
Module Front Panel LED Indicators and Connectors68P64115A18–1
Mar 2003 1X SC 4812T Lite BTS Optimization/ATP Software Release R2.16.1.x
DRAFT
6-31
GLI2 LED Status Combinations
The GLI2 module indicators, controls, and connectors are described
below and shown in Figure 6-3.
The indicators and controls consist of:
SFour LEDs
SOne pushbutton
ACTIVE LED
Solid GREEN – GLI2 is active. This means that the GLI2 has shelf
control and is providing control of the digital interfaces.
Off – GLI2 is not active (i.e., Standby). The mate GLI2 should be
active.
MASTER LED
SSolid GREEN – GLI2 is Master (sometimes referred to as MGLI2).
SOff – GLI2 is non-master (i.e., Slave).
ALARM LED
SSolid RED – GLI2 is in a fault condition or in reset.
SWhile in reset transition, STATUS LED is OFF while GLI2 is
performing ROM boot (about 12 seconds for normal boot).
SWhile in reset transition, STATUS LED is ON while GLI2 is
performing RAM boot (about 4 seconds for normal boot).
SOff – No Alarm.
STATUS LED
SFlashing GREEN– GLI2 is in service (INS), in a stable operating
condition.
SOn – GLI2 is in OOS RAM state operating downloaded code.
SOff – GLI2 is in OOS ROM state operating boot code.
SPANS LED
SSolid GREEN – Span line is connected and operating.
SSolid RED – Span line is disconnected or a fault condition exists.
6
Module Front Panel LED Indicators and Connectors 68P64115A18–1
Mar 2003
1X SC 4812T Lite BTS Optimization/ATP Software Release R2.16.1.x
DRAFT
6-32
GLI2 Pushbuttons and Connectors
RESET Pushbutton – Depressing the RESET pushbutton causes a
partial reset of the CPU and a reset of all board devices. GLI2 will be
placed in the OOS_ROM state (blue).
MMI Connector – The RS–232MMI port connector is intended
primarily for development or factory use but may be used in the field for
debug/maintenance purposes.

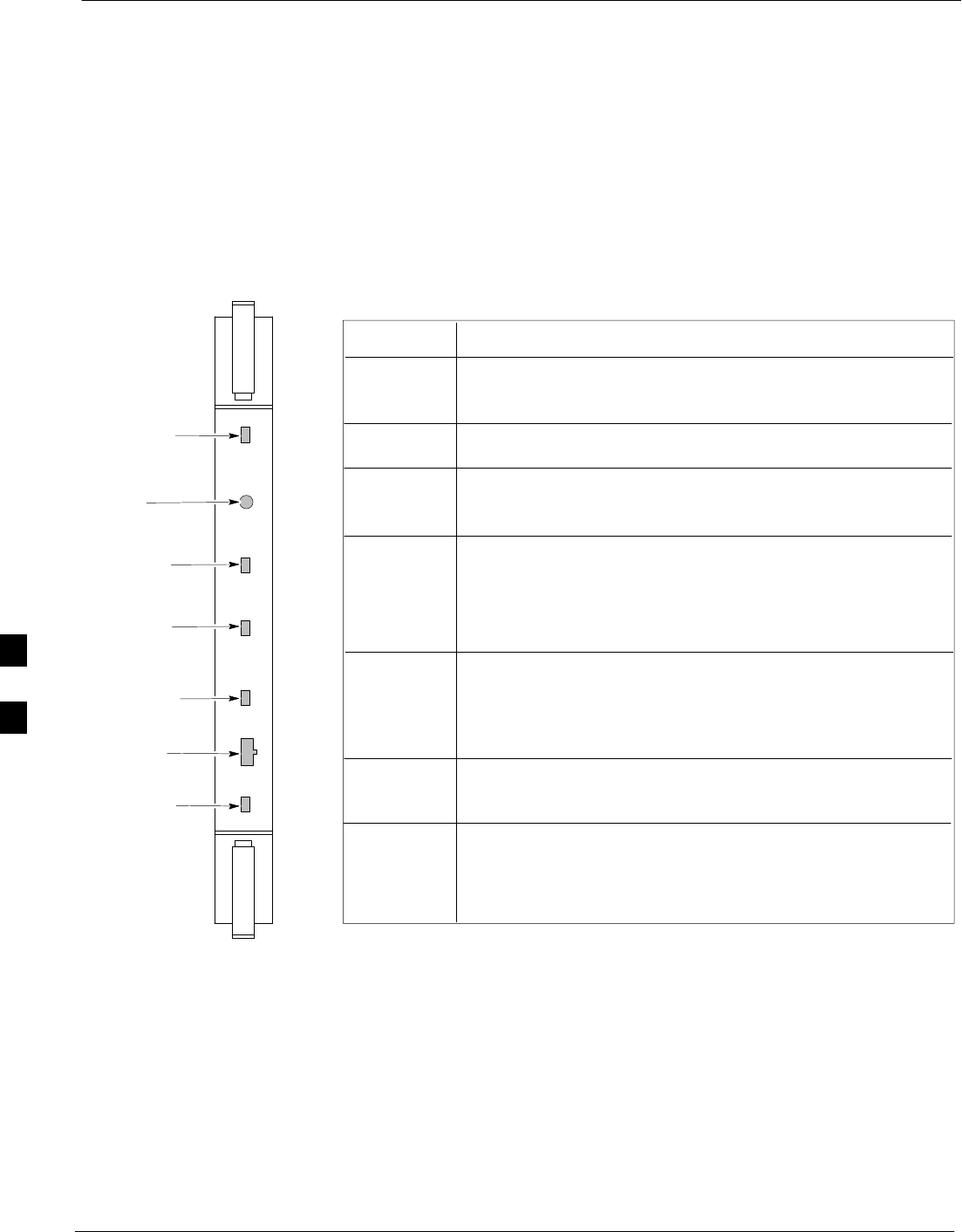

Figure 6-3: GLI2 Front Panel Operating Indicators
MMI PORT
CONNECTOR
ACTIVE LED
STATUS RESET ALARM SPANS MASTER MMI ACTIVE
STATUS LED
RESET
PUSHBUTTON
ALARM LED
SPANS LED
MASTER LED
STATUS OFF − operating normally
ON − briefly during powerĆup when the Alarm LED turns OFF.
SLOW GREEN − when the GLI2 is INS (inĆservice)
RESET
ALARM OFF − operating normally
ON − briefly during powerĆup when the Alarm LED turns OFF.
SLOW GREEN − when the GLI2 is INS (inĆservice)
SPANS
MASTER
MMI PORT
CONNECTOR
ACTIVE
LED OPERATING STATUS
All functions on the GLI2 are reset when pressing and releasing
the switch.
ON − operating normally as active card
OFF − operating normally as standby card
Shows the operating status of the redundant cards. The redundant
card toggles automatically if the active card is removed or fails
ON − active card operating normally
OFF − standby card operating normally
The pair of GLI2 cards include a redundant status. The card in the
top shelf is designated by hardware as the active card; the card in
the bottom shelf is in the standby mode.
OFF − card is powered down, in initialization, or in standby
GREEN − operating normally
YELLOW − one or more of the equipped initialized spans is receiving
a remote alarm indication signal from the far end
RED − one or more of the equipped initialized spans is in an alarm
state
An RSĆ232, serial, asynchronous communications link for use as
an MMI port. This port supports 300 baud, up to a maximum of
115,200 baud communications.
FW00225
6
Module Front Panel LED Indicators and Connectors68P64115A18–1
Mar 2003 1X SC 4812T Lite BTS Optimization/ATP Software Release R2.16.1.x
DRAFT
6-33
BBX LED Status Combinations
PWR/ALM LED
The BBX2 and BBX–1X modules have their own alarm (fault) detection
circuitry that controls the state of the PWR/ALM LED.
The following list describes the states of the bi-color PWR/ALM LED
for both BBX2 and BBX–1X cards:
SSolid GREEN – INS_ACT no alarm
SSolid RED Red – initializing or power-up alarm
SSlowly Flashing GREEN – OOS_ROM no alarm
SLong RED/Short GREEN – OOS_ROM alarm
SRapidly Flashing GREEN – OOS_RAM no alarm
SShort RED/Short GREEN – OOS_RAM alarm
SLong GREEN/Short RED – INS_ACT alarm
MCC LED Status Combinations
The MCC24E and MCC–1X modules have bi–color LED indicators and
two connectors as described below. See Figure 6-4. Note that the figure
does not show the connectors because they are concealed by the
removable lens.
The LED indicators and their states are as follows:
PWR/ALM LED
SRED – fault on module
ACTIVE LED
SOff – module is inactive, off-line, or not processing traffic.
SSlowly Flashing GREEN – OOS_ROM no alarm.
SRapidly Flashing Green – OOS_RAM no alarm.
SSolid GREEN – module is INS_ACT, on-line, processing traffic.
PWR/ALM and ACTIVE LEDs
SSolid RED – module is powered but is in reset or the Board Control
Processor (BCP) is inactive.
MMI Connectors
SThe RS–232 MMI port connector (four-pin) is intended primarily for
development or factory use but may be used in the field for debugging
purposes.
SThe RJ–45 Ethernet port connector (eight-pin) is intended primarily
for development use but may be used in the field for high data rate
debugging purposes.
. . . continued on next page
6
Module Front Panel LED Indicators and Connectors 68P64115A18–1
Mar 2003
1X SC 4812T Lite BTS Optimization/ATP Software Release R2.16.1.x
DRAFT
6-34

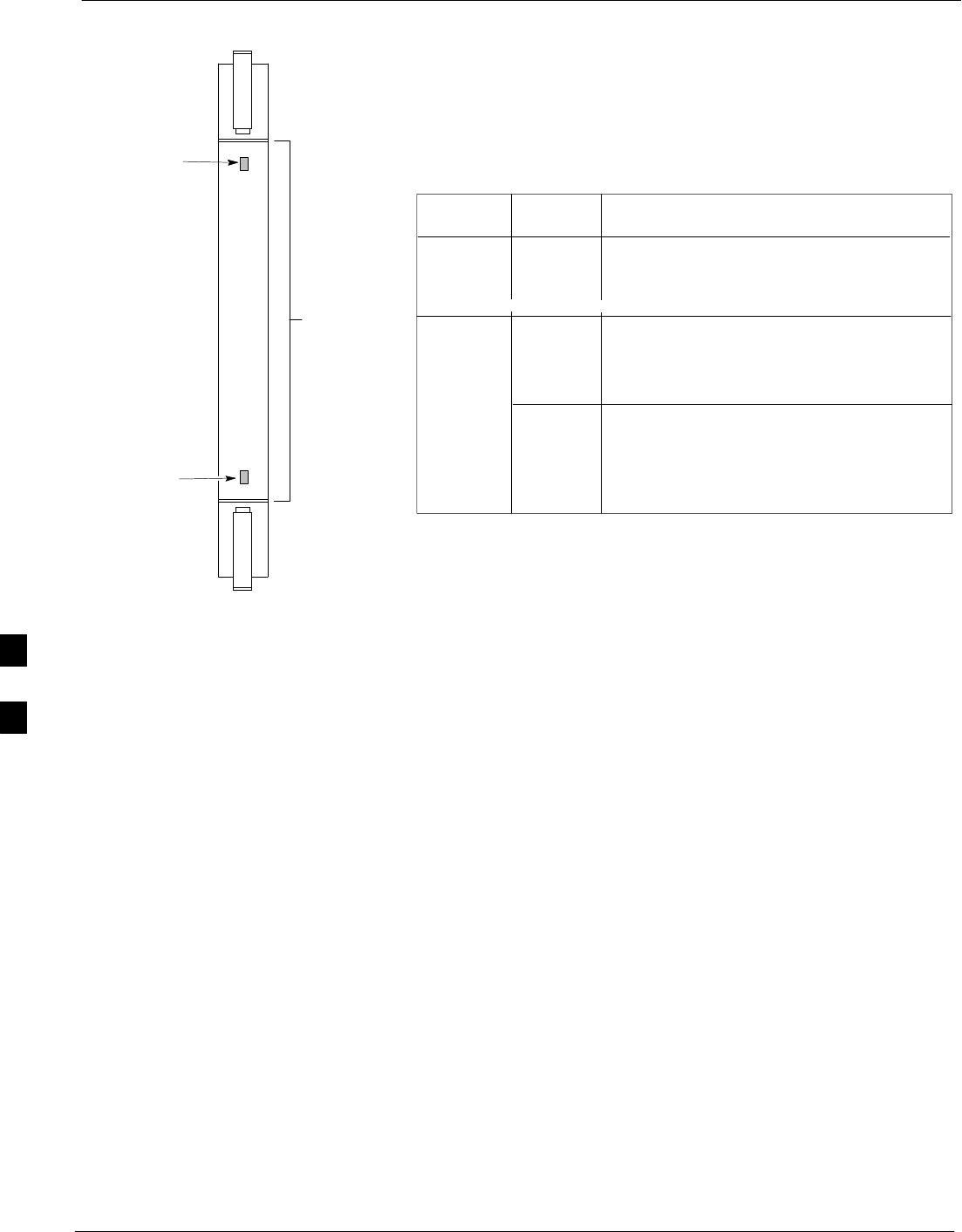

Figure 6-4: MCC24 and MCC–1X Front Panel LEDs and LED Indications
PWR/ALM LED
LENS
(REMOVABLE)
ACTIVE LED
PWR/ALM ACTIVE
LED OPERATING STATUSCOLOR
An alarm is generated in the event of a failure
2) Continuously during fault conditions
ON – 1) Briefly during power–up
SLOW FLASHING (alternately with green) –
Concentration Highway Interface (CHI) bus
inactive on power–up
RED
RED
GREENACTIVE
PWR/ALM OFF – Operating normally
ON – Briefly during power–up and during
failure conditions
RAPIDLY FLASHING – Card is code–loaded but
not enabled
ON – Card is code–loaded and enabled (INS_ACT)
SLOW FLASHING – Card is not code–loaded
4812ETL0030–1
LPA LED Status Combinations
LPA Module LED
Each LPA module is provided with a bi–color LED on the ETIB module
next to the MMI connector. Interpret this LED as follows:
SGREEN — LPA module is active and is reporting no alarms (Normal
condition).
SFlashing GREEN/RED — LPA module is active but is reporting an
low input power condition. If no BBX is keyed, this is normal and
does not constitute a failure.
SFlashing RED — LPA is in alarm.
6
Troubleshooting: Span Control Link68P64115A18–1
Mar 2003 1X SC 4812T Lite BTS Optimization/ATP Software Release R2.16.1.x
DRAFT
6-35
Troubleshooting: Span Control Link
Span Problems (No Control Link)
Table 6-31: Troubleshoot Control Link Failure
nStep Action
1Connect the LMF computer to the MMI port on the applicable MGLI2/GLI2 as shown in
Figure 6-5.
2Start an MMI communication session with the applicable MGLI2/GLI2 by using the Windows
desktop shortcut icon (refer to Table 3-10).
3Once the connection window opens, press the LMF computer Enter key until the GLI2> prompt
is obtained.
4At the GLI2> prompt, enter:
config ni current <cr> (equivalent of span view command)
The system will respond with a display similar to the following:
The frame format in flash is set to use T1_2.
Equalization:
Span A – Default (0–131 feet for T1/J1, 120 Ohm for E1)
Span B – Default (0–131 feet for T1/J1, 120 Ohm for E1)
Span C – Default (0–131 feet for T1/J1, 120 Ohm for E1)
Span D – Default (0–131 feet for T1/J1, 120 Ohm for E1)
Span E – Default (0–131 feet for T1/J1, 120 Ohm for E1)
Span F – Default (0–131 feet for T1/J1, 120 Ohm for E1)
Linkspeed: Default (56K for T1 D4 AMI, 64K otherwise)
Currently, the link is running at the default rate
The actual rate is 0
NOTE
Defaults for span equalization are 0–131 feet for T1/J1 spans and 120 Ohm for E1.
Default linkspeed is 56K for T1 D4 AMI spans and 64K for all other types.
There is no need to change from defaults unless the OMCR/CBSC span configuration requires it.
5The span configurations loaded in the GLI must match those in the OMCR/CBSC database for the
BTS. If they do not, proceed to Table 6-32.
6Repeat steps 1 through 5 for all remaining GLIs.
7If the span settings are correct, verify the edlc parameters using the show command.
Any alarm conditions indicate that the span is not operating correctly.
STry looping back the span line from the DSX panel to the MM, and verify that the looped signal
is good.
SListen for control tone on the appropriate timeslot from the Base Site and MM.
8Exit the GLI MMI session and HyperTerminal connection by selecting File from the connection
window menu bar, and then Exit from the pull–down menu.
6
Troubleshooting: Span Control Link 68P64115A18–1
Mar 2003
1X SC 4812T Lite BTS Optimization/ATP Software Release R2.16.1.x
DRAFT
6-36

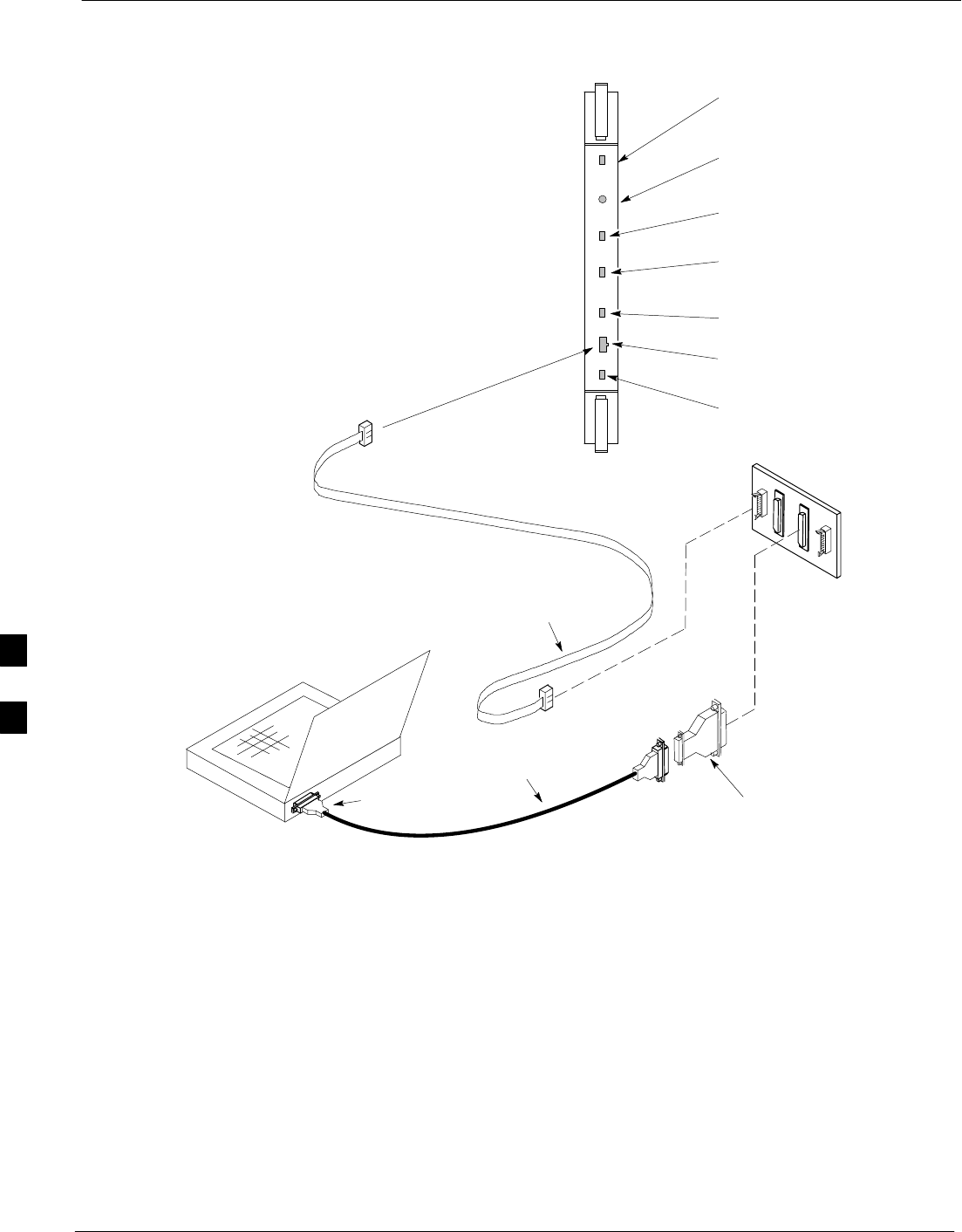

Figure 6-5: MGLI/GLI Board MMI Connection Detail
NULL MODEM
BOARD
(TRN9666A)
8–PIN TO 10–PIN
RS–232 CABLE (P/N
30–09786R01)
RS–232 CABLE
8–PIN
LMF
COMPUTER
To MMI port
DB9–TO–DB25
ADAPTER
COM1
OR
COM2
ACTIVE LED
STATUS LED
ALARM LED
MASTER LED
MMI Port
Connector
STATUS RESET ALARM SPANS MASTER MMI ACTIVE
SPANS LED
RESET
Pushbutton
6
Troubleshooting: Span Control Link68P64115A18–1
Mar 2003 1X SC 4812T Lite BTS Optimization/ATP Software Release R2.16.1.x
DRAFT
6-37
Set BTS Site Span Configuration
NOTE Perform the following procedure ONLY if span configurations
loaded in the MGLI2/GLI2s do not match those in the
OMCR/CBSC data base, AND ONLY when the exact
configuration data is available. Loading incorrect span
configuration data will render the site inoperable.
Table 6-32: Set BTS Span Parameter Configuration
nStep Action
1If not previously done, connect the LMF computer to the MMI port on the applicable
MGLI2/GLI2 as shown in Figure 6-5.
2If there is no MMI communication session in progress with the applicable MGLI2/GLI2, initiate
one by using the Windows desktop shortcut icon (refer to Table 3-10).
3At the GLI2> prompt, enter:
config ni format <option> <cr>
The terminal will display a response similar to the following:
COMMAND SYNTAX: config ni format option
Next available options:
LIST – option : Span Option
E1_1 : E1_1 – E1 HDB3 CRC4 no TS16
E1_2 : E1_2 – E1 HDB3 no CRC4 no TS16
E1_3 : E1_3 – E1 HDB3 CRC4 TS16
E1_4 : E1_4 – E1 HDB3 no CRC4 TS16
T1_1 : T1_1 – D4, AMI, No ZCS
T1_2 : T1_2 – ESF, B8ZS
J1_1 : J1_1 – ESF, B8ZS (Japan) – Default
J1_2 : J1_2 – ESF, B8ZS
T1_3 : T1_3 – D4, AMI, ZCS>
NOTE
With this command, all active (in–use) spans will be set to the same format.
4To set or change the span type, enter the correct option from the list at the entry prompt (>), as
shown in the following example:
> T1_2 <cr>
NOTE
The entry is case–sensitive and must be typed exactly as it appears in the list. If the entry is typed
incorrectly, a response similar to the following will be displayed:
CP: Invalid command
GLI2>
5An acknowledgement similar to the following will be displayed:
The value has been programmed. It will take effect after the next reset.
GLI2>
. . . continued on next page
6
Troubleshooting: Span Control Link 68P64115A18–1
Mar 2003
1X SC 4812T Lite BTS Optimization/ATP Software Release R2.16.1.x
DRAFT
6-38
Table 6-32: Set BTS Span Parameter Configuration
nActionStep
6If the current MGLI/GLI span rate must be changed, enter the following MMI command:
config ni linkspeed <cr>
The terminal will display a response similar to the following:
Next available options:
LIST – linkspeed : Span Linkspeed
56K : 56K (default for T1_1 and T1_3 systems)
64K : 64K (default for all other span configurations)
>
NOTE
With this command, all active (in–use) spans will be set to the same linkspeed.
7To set or change the span linkspeed, enter the required option from the list at the entry prompt (>),
as shown in the following example:
> 64K <cr>
NOTE
The entry is case–sensitive and must be typed exactly as it appears in the list. If the entry is typed
incorrectly, a response similar to the following will be displayed:
CP: Invalid command
GLI2>
8An acknowledgement similar to the following will be displayed:
The value has been programmed. It will take effect after the next reset.
GLI2>
9If the span equalization must be changed, enter the following MMI command:
config ni equal <cr>
The terminal will display a response similar to the following:
COMMAND SYNTAX: config ni equal span equal
Next available options:
LIST – span : Span
a : Span A
b : Span B
c : Span C
d : Span D
e : Span E
f : Span F
>
. . . continued on next page
6
Troubleshooting: Span Control Link68P64115A18–1
Mar 2003 1X SC 4812T Lite BTS Optimization/ATP Software Release R2.16.1.x
DRAFT
6-39
Table 6-32: Set BTS Span Parameter Configuration
nActionStep
10 At the entry prompt (>), enter the designator from the list for the span to be changed as shown in
the following example:
> a <cr>
The terminal will display a response similar to the following:
COMMAND SYNTAX: config ni equal a equal
Next available options:
LIST – equal : Span Equalization
0 : 0–131 feet (default for T1/J1)
1 : 132–262 feet
2 : 263–393 feet
3 : 394–524 feet
4 : 525–655 feet
5 : LONG HAUL
6 : 75 OHM
7 : 120 OHM (default for E1)
>
11 At the entry prompt (>), enter the code for the required equalization from the list as shown in the
following example:
> 0 <cr>
The terminal will display a response similar to the following:
> 0
The value has been programmed. It will take effect after the next reset.
GLI2>
12 Repeat steps 9 through 11 for each in–use span.
13 * IMPORTANT
After executing the config ni format, config ni linkspeed, and/or config ni equal
commands, the affected MGLI/GLI board MUST be reset and reloaded for changes to take effect.
Although defaults are shown, always consult site specific documentation for span type and
linkspeed used at the site.
Press the RESET button on the MGLI2/GLI2 for changes to take effect.
. . . continued on next page
6
Troubleshooting: Span Control Link 68P64115A18–1
Mar 2003
1X SC 4812T Lite BTS Optimization/ATP Software Release R2.16.1.x
DRAFT
6-40
Table 6-32: Set BTS Span Parameter Configuration
nActionStep
14 Once the MGLI/GLI has reset, execute the following command to verify span settings are as
required:
config ni current <cr> (equivalent of span view command)
The system will respond with a display similar to the following:
The frame format in flash is set to use T1_2.
Equalization:
Span A – 0–131 feet
Span B – 0–131 feet
Span C – Default (0–131 feet for T1/J1, 120 Ohm for E1)
Span D – Default (0–131 feet for T1/J1, 120 Ohm for E1)
Span E – Default (0–131 feet for T1/J1, 120 Ohm for E1)
Span F – Default (0–131 feet for T1/J1, 120 Ohm for E1)
Linkspeed: 64K
Currently, the link is running at 64K
The actual rate is 0
15 If the span configuration is not correct, perform the applicable step from this table to change it and
repeat steps 13 and 14 to verify required changes have been programmed.
16 Return to step 6 of Table 6-31.
6
Mar 2003 1X SC 4812T Lite BTS Optimization/ATP Software Release R2.16.1.x
DRAFT
A-1
Appendix A
Data Sheets
A
Optimization (Pre–ATP) Data Sheets 68P64115A18–1
Mar 2003
1X SC 4812T Lite BTS Optimization/ATP Software Release R2.16.1.x
DRAFT
A-2
Optimization (Pre–ATP) Data Sheets
Verification of Test Equipment Used
Table A-1: Verification of Test Equipment Used
Manufacturer Model Serial Number
Comments:________________________________________________________
__________________________________________________________________
A
Optimization (Pre–ATP) Data Sheets68P64115A18–1
Mar 2003 1X SC 4812T Lite BTS Optimization/ATP Software Release R2.16.1.x
DRAFT
A-3
Site Checklist
Table A-2: Site Checklist
OK Parameter Specification Comments
−Deliveries Per established procedures
−Floor Plan Verified
−
−
−
Inter Frame Cables:
Ethernet
Frame Ground
Power
Per procedure
Per procedure
Per procedure
−
−
−
Factory Data:
BBX
Test Panel
RFDS
Per procedure
Per procedure
Per procedure
−Site Temperature
−Dress Covers/Brackets
Preliminary Operations
Table A-3: Preliminary Operations
OK Parameter Specification Comments
−Frame ID DIP Switches Per site equipage
−Ethernet LAN verification Verified per procedure
Comments:_________________________________________________________
A
Optimization (Pre–ATP) Data Sheets 68P64115A18–1
Mar 2003
1X SC 4812T Lite BTS Optimization/ATP Software Release R2.16.1.x
DRAFT
A-4
Pre–Power and Initial Power Tests
Table A3a: Pre–power Checklist
OK Parameter Specification Comments
−Pre–power–up tests Table 2-3
Table 2-4
−
−
−
−
−
−
−
−
−
−
Internal Cables:
Span
CSM
Power
Ethernet Connectors
LAN A ohms
LAN B ohms
LAN A shield
LAN B shield
LAN A IN & OUT terminators
LAN B IN & OUT terminators
Ethernet Boots
verified
verified
verified
verified
verified
isolated
isolated
installed
installed
installed
−Air Impedance Cage (single cage) installed
−Initial power–up tests Table 2-4
Table 2-6
Table 2-7
−
−
Frame fans
LEDs
operational
illuminated
Comments:_________________________________________________________
A
Optimization (Pre–ATP) Data Sheets68P64115A18–1
Mar 2003 1X SC 4812T Lite BTS Optimization/ATP Software Release R2.16.1.x
DRAFT
A-5
General Optimization Checklist
Table A3b: General Optimization Checklist
OK Parameter Specification Comments
−
−
−
Preparing the LMF
Load LMF software
Create site–specific BTS directory
Create HyperTerminal connection
Table 3-1
Table 3-2
Table 3-3
−
−
−
−
LMF–to–BTS Connection
Verify GLI2 ethernet address settings
Ping LAN A
Ping LAN B
Table 3-5
Table 6-3
Table 3-11
Table 3-11
−
−
−
−
−
−
−
−
−
Verify ROM code loads for software
release
Download/Enable MGLI2
Download/Enable GLI2
Set Site Span Configuration
Set CSM clock source
Enable CSMs
Download/Enable MCCs (24/8E/1X)
Download BBXs (2 or 1X)
Program TSU NAM
Table 3-12
Table 3-13
Table 3-13
Table 6-31
Table 3-15
Table 3-16
Table 3-14
Table 3-14
Table 3-46
−
−
Test Set Calibration
Test Cable Calibration
Table 3-25
Table 3-26
Comments:_________________________________________________________
A
Optimization (Pre–ATP) Data Sheets 68P64115A18–1
Mar 2003
1X SC 4812T Lite BTS Optimization/ATP Software Release R2.16.1.x
DRAFT
A-6
GPS Receiver Operation
Table A-4: GPS Receiver Operation
OK Parameter Specification Comments
−GPS Receiver Control Task State:
tracking satellites
Verify parameter
−Initial Position Accuracy: Verify Estimated
or Surveyed
−Current Position:
lat
lon
height
RECORD in
msec and cm also
convert to deg
min sec
−Current Position: satellites tracked
Estimated:
(>4) satellites tracked,(>4) satellites visible
Surveyed:
(>1) satellite tracked,(>4) satellites visible
Verify parameter
as appropriate:
−GPS Receiver Status:Current Dilution of
Precision
(PDOP or HDOP): (<30)
Verify parameter
−Current reference source:
Number: 0; Status: Good; Valid: Yes Verify parameter
Comments:_________________________________________________________
A
Optimization (Pre–ATP) Data Sheets68P64115A18–1
Mar 2003 1X SC 4812T Lite BTS Optimization/ATP Software Release R2.16.1.x
DRAFT
A-7
LFR Receiver Operation
Table A-5: LFR Receiver Operation
OK Parameter Specification Comments
−Station call letters M X Y Z
assignment. As specified in site
documentation
−SN ratio is > 8 dB
−LFR Task State: 1fr
locked to station xxxx
Verify parameter
−Current reference source:
Number: 1; Status: Good; Valid: Yes
Verify parameter
Comments:_________________________________________________________
A
Optimization (Pre–ATP) Data Sheets 68P64115A18–1
Mar 2003
1X SC 4812T Lite BTS Optimization/ATP Software Release R2.16.1.x
DRAFT
A-8
LPA IM Reduction
Table A-6: LPA IM Reduction
Parameter Comments
OK
LPA
CARRIER
Specification
OK
LPA
#2:1
3–Sector BP
3–Sector
Specification
−1A C1 C1 No Alarms
−1B C1 C1 No Alarms
−1C C1 C1 No Alarms
−1D C1 C1 No Alarms
−3A C2 C2 No Alarms
−3B C2 C2 No Alarms
−3C C2 C2 No Alarms
−3D C2 C2 No Alarms
Comments:_________________________________________________________
A
Optimization (Pre–ATP) Data Sheets68P64115A18–1
Mar 2003 1X SC 4812T Lite BTS Optimization/ATP Software Release R2.16.1.x
DRAFT
A-9
TX Bay Level Offset / Power Output Verification for 3–Sector Configurations
1–Carrier
2–Carrier Non–adjacent Channels
Table A-7: TX BLO Calibration (3–Sector: 1–Carrier and 2–Carrier Non–adjacent Channels)
OK Parameter Specification Comments
−BBX2–1, ANT–1A = dB
BBX2–r, ANT–1A = dB
−Calibrate
carrier 1 TX Bay Level Offset = 42 dB (+5 dB)
prior to calibration
BBX2–2, ANT–2A = dB
BBX2–r, ANT–2A = dB
−BBX2–3, ANT–3A = dB
BBX2–r, ANT–3A = dB
−BBX2–4, ANT–1B = dB
BBX2–r, ANT–1B = dB
−Calibrate
carrier 2 TX Bay Level Offset = 42 dB (+5 dB)
prior to calibration
BBX2–5, ANT–2B = dB
BBX2–r, ANT–2B = dB
−BBX2–6, ANT–3B = dB
BBX2–r, ANT–3B = dB
−BBX2–1, ANT–1A = dB
BBX2–r, ANT–1A = dB
−
Calibration
Audit
carrier 1
0 dB (+0.5 dB) for gain set resolution
post–calibration
BBX2–2, ANT–2A = dB
BBX2–r, ANT–2A = dB
−
carrier 1
BBX2–3, ANT–3A = dB
BBX2–r, ANT–3A = dB
−BBX2–4, ANT–1B = dB
BBX2–r, ANT–1B = dB
−
Calibration
Audit
carrier 2
0 dB (+0.5 dB) for gain set resolution
post–calibration
BBX2–5, ANT–2B = dB
BBX2–r, ANT–2B = dB
−
carrier 2
BBX2–6, ANT–3B = dB
BBX2–r, ANT–3B = dB
Comments:________________________________________________________
__________________________________________________________________
A
Optimization (Pre–ATP) Data Sheets 68P64115A18–1
Mar 2003
1X SC 4812T Lite BTS Optimization/ATP Software Release R2.16.1.x
DRAFT
A-10
2–Carrier Adjacent Channel
Table A-8: TX Bay Level Offset Calibration (3–Sector: 2–Carrier Adjacent Channels)
OK Parameter Specification Comments
−BBX2–1, ANT–1A = dB
BBX2–r, ANT–1A = dB
−Calibrate
carrier 1 TX Bay Level Offset = 42 dB (typical),
38 dB (minimum) prior to calibration
BBX2–2, ANT–2A = dB
BBX2–r, ANT–2A = dB
−BBX2–3, ANT–3A = dB
BBX2–r, ANT–3A = dB
−BBX2–4, ANT–1B = dB
BBX2–r, ANT–1B = dB
−Calibrate
carrier 2 TX Bay Level Offset = 42 dB (typical),
38 dB (minimum) prior to calibration
BBX2–5, ANT–2B = dB
BBX2–r, ANT–2B = dB
−BBX2–6, ANT–3B = dB
BBX2–r, ANT–3B = dB
−BBX2–1, ANT–1A = dB
BBX2–r, ANT–1A = dB
−
Calibration
Audit
carrier 1
0 dB (+0.5 dB) for gain set resolution
post calibration
BBX2–2, ANT–2A = dB
BBX2–r, ANT–2A = dB
−
carrier 1
BBX2–3, ANT–3A = dB
BBX2–r, ANT–3A = dB
−BBX2–4, ANT–1B = dB
BBX2–r, ANT–1B = dB
−
Calibration
Audit
carrier 2
0 dB (+0.5 dB) for gain set resolution
post calibration
BBX2–5, ANT–2B = dB
BBX2–r, ANT–2B = dB
−
carrier 2
BBX2–6, ANT–3B = dB
BBX2–r, ANT–3B = dB
Comments:________________________________________________________
__________________________________________________________________
TX Antenna VSWR
Table A-9: TX Antenna VSWR
OK Parameter Specification Data
−VSWR –
Antenna 1A < (1.5 : 1)
−VSWR –
Antenna 2A < (1.5 : 1)
A
Optimization (Pre–ATP) Data Sheets68P64115A18–1
Mar 2003 1X SC 4812T Lite BTS Optimization/ATP Software Release R2.16.1.x
DRAFT
A-11
Table A-9: TX Antenna VSWR
OK DataSpecificationParameter
−VSWR –
Antenna 3A < (1.5 : 1)
−VSWR –
Antenna 1B < (1.5 : 1)
−VSWR –
Antenna 2B < (1.5 : 1)
−VSWR –
Antenna 3B < (1.5 : 1)
Comments:________________________________________________________
__________________________________________________________________
A
Optimization (Pre–ATP) Data Sheets 68P64115A18–1
Mar 2003
1X SC 4812T Lite BTS Optimization/ATP Software Release R2.16.1.x
DRAFT
A-12
RX Antenna VSWR
Table A-10: RX Antenna VSWR
OK Parameter Specification Data
−VSWR –
Antenna 1A < (1.5 : 1)
−VSWR –
Antenna 2A < (1.5 : 1)
−VSWR –
Antenna 3A < (1.5 : 1)
−VSWR –
Antenna 1B < (1.5 : 1)
−VSWR –
Antenna 2B < (1.5 : 1)
−VSWR –
Antenna 3B < (1.5 : 1)
Comments:_________________________________________________________
Alarm Verification
Table A-11: CDI Alarm Input Verification
OK Parameter Specification Data
−
Verify CDI alarm input
operation per NO TAG. BTS Relay #XX –
Contact Alarm
Sets/Clears
Comments:_________________________________________________________
A
Site Serial Number Check List68P64115A18–1
Mar 2003 1X SC 4812T Lite BTS Optimization/ATP Software Release R2.16.1.x
DRAFT
A-13
Site Serial Number Check List
Date Site
SCCP Shelf
NOTE: For BBXs and MCCs, enter the type as well as serial number;
for example, BBX2, BBX–1X, MCC8, MCC24, MCC–1X.
Site I/O A & B
SCCP Shelf
CSM–1
CSM–2
HSO/LFR
CCD–1
CCD–2
AMR–1
AMR–2
MPC–1
MPC–2
Fans 1–2
GLI2–1
GLI2–2
BBX–1
BBX–2
BBX–3
BBX–4
BBX–5
BBX–6
BBX–R1
MCC–1
MCC–2
MCC–3
MCC–4
CIO
SWITCH
PS–1
PS–2
A
Site Serial Number Check List 68P64115A18–1
Mar 2003
1X SC 4812T Lite BTS Optimization/ATP Software Release R2.16.1.x
DRAFT
A-14
LPAs
LPA 1A
LPA 1B
LPA 1C
LPA 1D
LPA 3A
LPA 3B
LPA 3C
LPA 3D
A
Mar 2003 1X SC 4812T Lite BTS Optimization/ATP Software Release R2.16.1.x
DRAFT
B-1
Appendix B
PN Offset/I & Q Offset Register
Programming Information
B
PN Offset Programming Information 68P64115A18–1
Mar 2003
1X SC 4812T Lite BTS Optimization/ATP Software Release R2.16.1.x
DRAFT
B-2
PN Offset Programming Information
PN Offset Background
All channel elements transmitted from a BTS in a particular 1.25 MHz
CDMA channel are orthonogonally spread by 1 of 64 possible Walsh
code functions; additionally, they are also spread by a quadrature pair of
PN sequences unique to each sector.
Overall, the mobile uses this to differentiate multiple signals transmitted
from the same BTS (and surrounding BTS) sectors, and to synchronize
to the next strongest sector.
The PN offset per sector is stored on the BBXs, where the
corresponding I & Q registers reside.
The PN offset values are determined by BTS sector (antenna) based on
the applicale CDF data field content. A breakdown of this information is
found in Table B-1.
PN Offset Usage
There are three basic RF chip delays currently in use. It is important to
determine what RF chip delay is valid to be able to test the BTS
functionality. This can be done by ascertaining if the CDF FineTxAdj
value was set to “on” when the MCC was downloaded with “image
data”. The FineTxAdj value is used to compensate for the processing
delay (approximately 20 mS) in the BTS using any type of mobile
meeting IS–97 specifications.
Observe the following guidelines:
SIf the FineTxAdj value in the CDF is 101 (65 HEX), the FineTxAdj
has not been set. The I and Q values from the 0 table MUST be used.
If the FineTxAdj value in the cdf file is 213 (D5 HEX), FineTxAdj has
been set for the 14 chip table.
SIf the FineTxAdj value in the CDF file is 197 (C5 HEX), FineTxAdj
has been set for the 13 chip table.
NOTE CDF file I and Q values can be represented in DECIMAL or
HEX. If using HEX, add 0x before the HEX value. If necessary,
convert HEX values in Table B-1 to decimal before comparing
them to cdf file I & Q value assignments.
– If a Qualcomm mobile is used, select I and Q values from the 13
chip delay table.
– If a mobile is used that does not have the 1 chip offset problem,
(any mobile meeting the IS–97 specification), select from the 14
chip delay table.
NOTE If the wrong I and Q values are used with the wrong FineTxAdj
parameter, system timing problems will occur. This will cause
the energy transmitted to be “smeared” over several Walsh codes
(instead of the single Walsh code that it was assigned to),
causing erratic operation. Evidence of smearing is usually
identified by Walsh channels not at correct levels or present
when not selected in the Code Domain Power Test.
B
PN Offset Programming Information68P64115A18–1
Mar 2003 1X SC 4812T Lite BTS Optimization/ATP Software Release R2.16.1.x
DRAFT
B-3
Table B-1: PnMaskI and PnMaskQ Values for PilotPn
14–Chip Delay 13–Chip Delay 0–Chip Delay
Pilot I Q I Q I Q I Q I Q I Q
PN (Dec.) (Hex.) (Dec.) (Hex.) (Dec.) (Hex.)
0 17523 23459 4473 5BA3 29673 25581 73E9 63ED 4096 4096 1000 1000
1 32292 32589 7E24 7F4D 16146 29082 3F12 719A 9167 1571 23CF 0623
2 4700 17398 125C 43F6 2350 8699 092E 21FB 22417 7484 5791 1D3C
3 14406 26333 3846 66DD 7203 32082 1C23 7D52 966 6319 03C6 18AF
4 14899 4011 3A33 0FAB 19657 18921 4CC9 49E9 14189 2447 376D 098F
5 17025 2256 4281 08D0 28816 1128 7090 0468 29150 24441 71DE 5F79
6 14745 18651 3999 48DB 19740 27217 4D1C 6A51 18245 27351 4745 6AD7
7 2783 1094 0ADF 0446 21695 547 54BF 0223 1716 23613 06B4 5C3D
8 5832 21202 16C8 52D2 2916 10601 0B64 2969 11915 29008 2E8B 7150
9 12407 13841 3077 3611 18923 21812 49EB 5534 20981 5643 51F5 160B
10 31295 31767 7A3F 7C17 27855 28727 6CCF 7037 24694 28085 6076 6DB5
11 7581 18890 1D9D 49CA 24350 9445 5F1E 24E5 11865 18200 2E59 4718
12 18523 30999 485B 7917 30205 29367 75FD 72B7 6385 21138 18F1 5292
13 29920 22420 74E0 5794 14960 11210 3A70 2BCA 27896 21937 6CF8 55B1
14 25184 20168 6260 4EC8 12592 10084 3130 2764 25240 25222 6298 6286
15 26282 12354 66AA 3042 13141 6177 3355 1821 30877 109 789D 006D
16 30623 11187 779F 2BB3 27167 23525 6A1F 5BE5 30618 6028 779A 178C
17 15540 11834 3CB4 2E3A 7770 5917 1E5A 171D 26373 22034 6705 5612
18 23026 10395 59F2 289B 11513 23153 2CF9 5A71 314 15069 013A 3ADD
19 20019 28035 4E33 6D83 30409 30973 76C9 78FD 17518 4671 446E 123F
20 4050 27399 0FD2 6B07 2025 31679 07E9 7BBF 21927 30434 55A7 76E2
21 1557 22087 0615 5647 21210 25887 52DA 651F 2245 11615 08C5 2D5F
22 30262 2077 7636 081D 15131 18994 3B1B 4A32 18105 19838 46B9 4D7E
23 18000 13758 4650 35BE 9000 6879 2328 1ADF 8792 14713 2258 3979
24 20056 11778 4E58 2E02 10028 5889 272C 1701 21440 241 53C0 00F1
25 12143 3543 2F6F 0DD7 18023 18647 4667 48D7 15493 24083 3C85 5E13
26 17437 7184 441D 1C10 29662 3592 73DE 0E08 26677 7621 6835 1DC5
27 17438 2362 441E 093A 8719 1181 220F 049D 11299 19144 2C23 4AC8
28 5102 25840 13EE 64F0 2551 12920 09F7 3278 12081 1047 2F31 0417
29 9302 12177 2456 2F91 4651 23028 122B 59F4 23833 26152 5D19 6628
30 17154 10402 4302 28A2 8577 5201 2181 1451 20281 22402 4F39 5782
31 5198 1917 144E 077D 2599 19842 0A27 4D82 10676 21255 29B4 5307
32 4606 17708 11FE 452C 2303 8854 08FF 2296 16981 30179 4255 75E3
33 24804 10630 60E4 2986 12402 5315 3072 14C3 31964 7408 7CDC 1CF0
34 17180 6812 431C 1A9C 8590 3406 218E 0D4E 26913 115 6921 0073
35 10507 14350 290B 380E 17749 7175 4555 1C07 14080 1591 3700 0637
36 10157 10999 27AD 2AF7 16902 23367 4206 5B47 23842 1006 5D22 03EE
37 23850 25003 5D2A 61AB 11925 32489 2E95 7EE9 27197 32263 6A3D 7E07
38 31425 2652 7AC1 0A5C 27824 1326 6CB0 052E 22933 1332 5995 0534
39 4075 19898 0FEB 4DBA 22053 9949 5625 26DD 30220 12636 760C 315C
40 10030 2010 272E 07DA 5015 1005 1397 03ED 12443 4099 309B 1003
41 16984 25936 4258 6550 8492 12968 212C 32A8 19854 386 4D8E 0182
42 14225 28531 3791 6F73 18968 31109 4A18 7985 14842 29231 39FA 722F
43 26519 11952 6797 2EB0 25115 5976 621B 1758 15006 25711 3A9E 646F
44 27775 31947 6C7F 7CCB 26607 28761 67EF 7059 702 10913 02BE 2AA1
45 30100 25589 7594 63F5 15050 32710 3ACA 7FC6 21373 8132 537D 1FC4
46 7922 11345 1EF2 2C51 3961 22548 0F79 5814 23874 20844 5D42 516C
47 14199 28198 3777 6E26 19051 14099 4A6B 3713 3468 13150 0D8C 335E
48 17637 13947 44E5 367B 29602 21761 73A2 5501 31323 18184 7A5B 4708
49 23081 8462 5A29 210E 31940 4231 7CC4 1087 29266 19066 7252 4A7A
50 5099 9595 13EB 257B 22565 23681 5825 5C81 16554 29963 40AA 750B
. . . continued on next page
B
PN Offset Programming Information 68P64115A18–1
Mar 2003
1X SC 4812T Lite BTS Optimization/ATP Software Release R2.16.1.x
DRAFT
B-4
Table B-1: PnMaskI and PnMaskQ Values for PilotPn
14–Chip Delay 13–Chip Delay 0–Chip Delay
Pilot I Q I Q I Q I Q I Q I Q
PN (Dec.) (Hex.) (Dec.) (Hex.) (Dec.) (Hex.)
51 32743 4670 7FE7 123E 28195 2335 6E23 091F 22575 6605 582F 19CD
52 7114 14672 1BCA 3950 3557 7336 0DE5 1CA8 31456 29417 7AE0 72E9
53 7699 29415 1E13 72E7 24281 30543 5ED9 774F 8148 22993 1FD4 59D1
54 19339 20610 4B8B 5082 29717 10305 7415 2841 19043 27657 4A63 6C09
55 28212 6479 6E34 194F 14106 17051 371A 429B 25438 5468 635E 155C
56 29587 10957 7393 2ACD 26649 23386 6819 5B5A 10938 8821 2ABA 2275
57 19715 18426 4D03 47FA 30545 9213 7751 23FD 2311 20773 0907 5125
58 14901 22726 3A35 58C6 19658 11363 4CCA 2C63 7392 4920 1CE0 1338
59 20160 5247 4EC0 147F 10080 17411 2760 4403 30714 5756 77FA 167C
60 22249 29953 56E9 7501 31396 29884 7AA4 74BC 180 28088 00B4 6DB8
61 26582 5796 67D6 16A4 13291 2898 33EB 0B52 8948 740 22F4 02E4
62 7153 16829 1BF1 41BD 23592 28386 5C28 6EE2 16432 23397 4030 5B65
63 15127 4528 3B17 11B0 19547 2264 4C5B 08D8 9622 19492 2596 4C24
64 15274 5415 3BAA 1527 7637 17583 1DD5 44AF 7524 26451 1D64 6753
65 23149 10294 5A6D 2836 31974 5147 7CE6 141B 1443 30666 05A3 77CA
66 16340 17046 3FD4 4296 8170 8523 1FEA 214B 1810 15088 0712 3AF0
67 27052 7846 69AC 1EA6 13526 3923 34D6 0F53 6941 26131 1B1D 6613
68 13519 10762 34CF 2A0A 19383 5381 4BB7 1505 3238 15969 0CA6 3E61
69 10620 13814 297C 35F6 5310 6907 14BE 1AFB 8141 24101 1FCD 5E25
70 15978 16854 3E6A 41D6 7989 8427 1F35 20EB 10408 12762 28A8 31DA
71 27966 795 6D3E 031B 13983 20401 369F 4FB1 18826 19997 498A 4E1D
72 12479 9774 30BF 262E 18831 4887 498F 1317 22705 22971 58B1 59BB
73 1536 24291 0600 5EE3 768 24909 0300 614D 3879 12560 0F27 3110
74 3199 3172 0C7F 0C64 22511 1586 57EF 0632 21359 31213 536F 79ED
75 4549 2229 11C5 08B5 22834 19046 5932 4A66 30853 18780 7885 495C
76 17888 21283 45E0 5323 8944 26541 22F0 67AD 18078 16353 469E 3FE1
77 13117 16905 333D 4209 18510 28472 484E 6F38 15910 12055 3E26 2F17
78 7506 7062 1D52 1B96 3753 3531 0EA9 0DCB 20989 30396 51FD 76BC
79 27626 7532 6BEA 1D6C 13813 3766 35F5 0EB6 28810 24388 708A 5F44
80 31109 25575 7985 63E7 27922 32719 6D12 7FCF 30759 1555 7827 0613
81 29755 14244 743B 37A4 27597 7122 6BCD 1BD2 18899 13316 49D3 3404
82 26711 28053 6857 6D95 26107 30966 65FB 78F6 7739 31073 1E3B 7961
83 20397 30408 4FAD 76C8 30214 15204 7606 3B64 6279 6187 1887 182B
84 18608 5094 48B0 13E6 9304 2547 2458 09F3 9968 21644 26F0 548C
85 7391 16222 1CDF 3F5E 24511 8111 5FBF 1FAF 8571 9289 217B 2449
86 23168 7159 5A80 1BF7 11584 17351 2D40 43C7 4143 4624 102F 1210
87 23466 174 5BAA 00AE 11733 87 2DD5 0057 19637 467 4CB5 01D3
88 15932 25530 3E3C 63BA 7966 12765 1F1E 31DD 11867 18133 2E5B 46D5
89 25798 2320 64C6 0910 12899 1160 3263 0488 7374 1532 1CCE 05FC
90 28134 23113 6DE6 5A49 14067 25368 36F3 6318 10423 1457 28B7 05B1
91 28024 23985 6D78 5DB1 14012 24804 36BC 60E4 9984 9197 2700 23ED
92 6335 2604 18BF 0A2C 23951 1302 5D8F 0516 7445 13451 1D15 348B
93 21508 1826 5404 0722 10754 913 2A02 0391 4133 25785 1025 64B9
94 26338 30853 66E2 7885 13169 29310 3371 727E 22646 4087 5876 0FF7
95 17186 15699 4322 3D53 8593 20629 2191 5095 15466 31190 3C6A 79D6
96 22462 2589 57BE 0A1D 11231 19250 2BDF 4B32 2164 8383 0874 20BF
97 3908 25000 0F44 61A8 1954 12500 07A2 30D4 16380 12995 3FFC 32C3
98 25390 18163 632E 46F3 12695 27973 3197 6D45 15008 27438 3AA0 6B2E
99 27891 12555 6CF3 310B 26537 22201 67A9 56B9 31755 9297 7C0B 2451
100 9620 8670 2594 21DE 4810 4335 12CA 10EF 31636 1676 7B94 068C
. . . continued on next page
B
PN Offset Programming Information68P64115A18–1
Mar 2003 1X SC 4812T Lite BTS Optimization/ATP Software Release R2.16.1.x
DRAFT
B-5
Table B-1: PnMaskI and PnMaskQ Values for PilotPn
14–Chip Delay 13–Chip Delay 0–Chip Delay
Pilot I Q I Q I Q I Q I Q I Q
PN (Dec.) (Hex.) (Dec.) (Hex.) (Dec.) (Hex.)
101 6491 1290 195B 050A 23933 645 5D7D 0285 25414 12596 6346 3134
102 16876 4407 41EC 1137 8438 18087 20F6 46A7 7102 19975 1BBE 4E07
103 17034 1163 428A 048B 8517 19577 2145 4C79 20516 20026 5024 4E3A
104 32405 12215 7E95 2FB7 28314 23015 6E9A 59E7 19495 8958 4C27 22FE
105 27417 7253 6B19 1C55 25692 16406 645C 4016 17182 19143 431E 4AC7
106 8382 8978 20BE 2312 4191 4489 105F 1189 11572 17142 2D34 42F6
107 5624 25547 15F8 63CB 2812 32729 0AFC 7FD9 25570 19670 63E2 4CD6
108 1424 3130 0590 0C3A 712 1565 02C8 061D 6322 30191 18B2 75EF
109 13034 31406 32EA 7AAE 6517 15703 1975 3D57 8009 5822 1F49 16BE
110 15682 6222 3D42 184E 7841 3111 1EA1 0C27 26708 22076 6854 563C
111 27101 20340 69DD 4F74 25918 10170 653E 27BA 6237 606 185D 025E
112 8521 25094 2149 6206 16756 12547 4174 3103 32520 9741 7F08 260D
113 30232 23380 7618 5B54 15116 11690 3B0C 2DAA 31627 9116 7B8B 239C
114 6429 10926 191D 2AAE 23902 5463 5D5E 1557 3532 12705 0DCC 31A1
115 27116 22821 69EC 5925 13558 25262 34F6 62AE 24090 17502 5E1A 445E
116 4238 31634 108E 7B92 2119 15817 0847 3DC9 20262 18952 4F26 4A08
117 5128 4403 1408 1133 2564 18085 0A04 46A5 18238 15502 473E 3C8E
118 14846 689 39FE 02B1 7423 20324 1CFF 4F64 2033 17819 07F1 459B
119 13024 27045 32E0 69A5 6512 31470 1970 7AEE 25566 4370 63DE 1112
120 10625 27557 2981 6BA5 17680 31726 4510 7BEE 25144 31955 6238 7CD3
121 31724 16307 7BEC 3FB3 15862 20965 3DF6 51E5 29679 30569 73EF 7769
122 13811 22338 35F3 5742 19241 11169 4B29 2BA1 5064 7350 13C8 1CB6
123 24915 27550 6153 6B9E 24953 13775 6179 35CF 27623 26356 6BE7 66F4
124 1213 22096 04BD 5650 21390 11048 538E 2B28 13000 32189 32C8 7DBD
125 2290 23136 08F2 5A60 1145 11568 0479 2D30 31373 1601 7A8D 0641
126 31551 12199 7B3F 2FA7 27727 23023 6C4F 59EF 13096 19537 3328 4C51
127 12088 1213 2F38 04BD 6044 19554 179C 4C62 26395 25667 671B 6443
128 7722 936 1E2A 03A8 3861 468 0F15 01D4 15487 4415 3C7F 113F
129 27312 6272 6AB0 1880 13656 3136 3558 0C40 29245 2303 723D 08FF
130 23130 32446 5A5A 7EBE 11565 16223 2D2D 3F5F 26729 16362 6869 3FEA
131 594 13555 0252 34F3 297 21573 0129 5445 12568 28620 3118 6FCC
132 25804 8789 64CC 2255 12902 24342 3266 5F16 24665 6736 6059 1A50
133 31013 24821 7925 60F5 27970 32326 6D42 7E46 8923 2777 22DB 0AD9
134 32585 21068 7F49 524C 28276 10534 6E74 2926 19634 24331 4CB2 5F0B
135 3077 31891 0C05 7C93 22482 28789 57D2 7075 29141 9042 71D5 2352
136 17231 5321 434F 14C9 28791 17496 7077 4458 73 107 0049 006B
137 31554 551 7B42 0227 15777 20271 3DA1 4F2F 26482 4779 6772 12AB
138 8764 12115 223C 2F53 4382 22933 111E 5995 6397 13065 18FD 3309
139 15375 4902 3C0F 1326 20439 2451 4FD7 0993 29818 30421 747A 76D5
140 13428 1991 3474 07C7 6714 19935 1A3A 4DDF 8153 20210 1FD9 4EF2
141 17658 14404 44FA 3844 8829 7202 227D 1C22 302 5651 012E 1613
142 13475 17982 34A3 463E 19329 8991 4B81 231F 28136 31017 6DE8 7929
143 22095 19566 564F 4C6E 31479 9783 7AF7 2637 29125 30719 71C5 77FF
144 24805 2970 60E5 0B9A 24994 1485 61A2 05CD 8625 23104 21B1 5A40
145 4307 23055 10D3 5A0F 22969 25403 59B9 633B 26671 7799 682F 1E77
146 23292 15158 5AFC 3B36 11646 7579 2D7E 1D9B 6424 17865 1918 45C9
147 1377 29094 0561 71A6 21344 14547 5360 38D3 12893 26951 325D 6947
148 28654 653 6FEE 028D 14327 20346 37F7 4F7A 18502 25073 4846 61F1
149 6350 19155 18CE 4AD3 3175 27477 0C67 6B55 7765 32381 1E55 7E7D
150 16770 23588 4182 5C24 8385 11794 20C1 2E12 25483 16581 638B 40C5
. . . continued on next page
B
PN Offset Programming Information 68P64115A18–1
Mar 2003
1X SC 4812T Lite BTS Optimization/ATP Software Release R2.16.1.x
DRAFT
B-6
Table B-1: PnMaskI and PnMaskQ Values for PilotPn
14–Chip Delay 13–Chip Delay 0–Chip Delay
Pilot I Q I Q I Q I Q I Q I Q
PN (Dec.) (Hex.) (Dec.) (Hex.) (Dec.) (Hex.)
151 14726 10878 3986 2A7E 7363 5439 1CC3 153F 15408 32087 3C30 7D57
152 25685 31060 6455 7954 25594 15530 63FA 3CAA 6414 97 190E 0061
153 21356 30875 536C 789B 10678 29297 29B6 7271 8164 7618 1FE4 1DC2
154 12149 11496 2F75 2CE8 18026 5748 466A 1674 10347 93 286B 005D
155 28966 24545 7126 5FE1 14483 25036 3893 61CC 29369 16052 72B9 3EB4
156 22898 9586 5972 2572 11449 4793 2CB9 12B9 10389 14300 2895 37DC
157 1713 20984 06B1 51F8 21128 10492 5288 28FC 24783 11129 60CF 2B79
158 30010 30389 753A 76B5 15005 30054 3A9D 7566 18400 6602 47E0 19CA
159 2365 7298 093D 1C82 21838 3649 554E 0E41 22135 14460 5677 387C
160 27179 18934 6A2B 49F6 25797 9467 64C5 24FB 4625 25458 1211 6372
161 29740 23137 742C 5A61 14870 25356 3A16 630C 22346 15869 574A 3DFD
162 5665 24597 1621 6015 23232 32310 5AC0 7E36 2545 27047 09F1 69A7
163 23671 23301 5C77 5B05 32747 25534 7FEB 63BE 7786 26808 1E6A 68B8
164 1680 7764 0690 1E54 840 3882 0348 0F2A 20209 7354 4EF1 1CBA
165 25861 14518 6505 38B6 25426 7259 6352 1C5B 26414 27834 672E 6CBA
166 25712 21634 6470 5482 12856 10817 3238 2A41 1478 11250 05C6 2BF2
167 19245 11546 4B2D 2D1A 29766 5773 7446 168D 15122 552 3B12 0228
168 26887 26454 6907 6756 25939 13227 6553 33AB 24603 27058 601B 69B2
169 30897 15938 78B1 3E42 28040 7969 6D88 1F21 677 14808 02A5 39D8
170 11496 9050 2CE8 235A 5748 4525 1674 11AD 13705 9642 3589 25AA
171 1278 3103 04FE 0C1F 639 18483 027F 4833 13273 32253 33D9 7DFD
172 31555 758 7B43 02F6 27761 379 6C71 017B 14879 26081 3A1F 65E1
173 29171 16528 71F3 4090 26921 8264 6929 2048 6643 21184 19F3 52C0
174 20472 20375 4FF8 4F97 10236 27127 27FC 69F7 23138 11748 5A62 2DE4
175 5816 10208 16B8 27E0 2908 5104 0B5C 13F0 28838 32676 70A6 7FA4
176 30270 17698 763E 4522 15135 8849 3B1F 2291 9045 2425 2355 0979
177 22188 8405 56AC 20D5 11094 24150 2B56 5E56 10792 19455 2A28 4BFF
178 6182 28634 1826 6FDA 3091 14317 0C13 37ED 25666 19889 6442 4DB1
179 32333 1951 7E4D 079F 28406 19955 6EF6 4DF3 11546 18177 2D1A 4701
180 14046 20344 36DE 4F78 7023 10172 1B6F 27BC 15535 2492 3CAF 09BC
181 15873 26696 3E01 6848 20176 13348 4ED0 3424 16134 15086 3F06 3AEE
182 19843 3355 4D83 0D1B 30481 18609 7711 48B1 8360 30632 20A8 77A8
183 29367 11975 72B7 2EC7 26763 22879 688B 595F 14401 27549 3841 6B9D
184 13352 31942 3428 7CC6 6676 15971 1A14 3E63 26045 6911 65BD 1AFF
185 22977 9737 59C1 2609 32048 23864 7D30 5D38 24070 9937 5E06 26D1
186 31691 9638 7BCB 25A6 27701 4819 6C35 12D3 30300 2467 765C 09A3
187 10637 30643 298D 77B3 17686 30181 4516 75E5 13602 25831 3522 64E7
188 25454 13230 636E 33AE 12727 6615 31B7 19D7 32679 32236 7FA7 7DEC
189 18610 22185 48B2 56A9 9305 25960 2459 6568 16267 12987 3F8B 32BB
190 6368 2055 18E0 0807 3184 19007 0C70 4A3F 9063 11714 2367 2DC2
191 7887 8767 1ECF 223F 24247 24355 5EB7 5F23 19487 19283 4C1F 4B53
192 7730 15852 1E32 3DEC 3865 7926 0F19 1EF6 12778 11542 31EA 2D16
193 23476 16125 5BB4 3EFD 11738 20802 2DDA 5142 27309 27928 6AAD 6D18
194 889 6074 0379 17BA 20588 3037 506C 0BDD 12527 26637 30EF 680D
195 21141 31245 5295 7A0D 30874 29498 789A 733A 953 10035 03B9 2733
196 20520 15880 5028 3E08 10260 7940 2814 1F04 15958 10748 3E56 29FC
197 21669 20371 54A5 4F93 31618 27125 7B82 69F5 6068 24429 17B4 5F6D
198 15967 8666 3E5F 21DA 20223 4333 4EFF 10ED 23577 29701 5C19 7405
199 21639 816 5487 0330 31635 408 7B93 0198 32156 14997 7D9C 3A95
200 31120 22309 7990 5725 15560 26030 3CC8 65AE 32709 32235 7FC5 7DEB
. . . continued on next page
B
PN Offset Programming Information68P64115A18–1
Mar 2003 1X SC 4812T Lite BTS Optimization/ATP Software Release R2.16.1.x
DRAFT
B-7
Table B-1: PnMaskI and PnMaskQ Values for PilotPn
14–Chip Delay 13–Chip Delay 0–Chip Delay
Pilot I Q I Q I Q I Q I Q I Q
PN (Dec.) (Hex.) (Dec.) (Hex.) (Dec.) (Hex.)
201 3698 29563 0E72 737B 1849 30593 0739 7781 23557 30766 5C05 782E
202 16322 13078 3FC2 3316 8161 6539 1FE1 198B 17638 5985 44E6 1761
203 17429 10460 4415 28DC 29658 5230 73DA 146E 3545 6823 0DD9 1AA7
204 21730 17590 54E2 44B6 10865 8795 2A71 225B 9299 20973 2453 51ED
205 17808 20277 4590 4F35 8904 27046 22C8 69A6 6323 10197 18B3 27D5
206 30068 19988 7574 4E14 15034 9994 3ABA 270A 19590 9618 4C86 2592
207 12737 6781 31C1 1A7D 18736 17154 4930 4302 7075 22705 1BA3 58B1
208 28241 32501 6E51 7EF5 26360 28998 66F8 7146 14993 5234 3A91 1472
209 20371 6024 4F93 1788 30233 3012 7619 0BC4 19916 12541 4DCC 30FD
210 13829 20520 3605 5028 19154 10260 4AD2 2814 6532 8019 1984 1F53
211 13366 31951 3436 7CCF 6683 28763 1A1B 705B 17317 22568 43A5 5828
212 25732 26063 6484 65CF 12866 31963 3242 7CDB 16562 5221 40B2 1465
213 19864 27203 4D98 6A43 9932 31517 26CC 7B1D 26923 25216 692B 6280
214 5187 6614 1443 19D6 23537 3307 5BF1 0CEB 9155 1354 23C3 054A
215 23219 10970 5AB3 2ADA 31881 5485 7C89 156D 20243 29335 4F13 7297
216 28242 5511 6E52 1587 14121 17663 3729 44FF 32391 6682 7E87 1A1A
217 6243 17119 1863 42DF 24033 28499 5DE1 6F53 20190 26128 4EDE 6610
218 445 16064 01BD 3EC0 20750 8032 510E 1F60 27564 29390 6BAC 72CE
219 21346 31614 5362 7B7E 10673 15807 29B1 3DBF 20869 8852 5185 2294
220 13256 4660 33C8 1234 6628 2330 19E4 091A 9791 6110 263F 17DE
221 18472 13881 4828 3639 9236 21792 2414 5520 714 11847 02CA 2E47
222 25945 16819 6559 41B3 25468 28389 637C 6EE5 7498 10239 1D4A 27FF
223 31051 6371 794B 18E3 28021 16973 6D75 424D 23278 6955 5AEE 1B2B
224 1093 24673 0445 6061 21490 32268 53F2 7E0C 8358 10897 20A6 2A91
225 5829 6055 16C5 17A7 23218 17903 5AB2 45EF 9468 14076 24FC 36FC
226 31546 10009 7B3A 2719 15773 23984 3D9D 5DB0 23731 12450 5CB3 30A2
227 29833 5957 7489 1745 27540 17822 6B94 459E 25133 8954 622D 22FA
228 18146 11597 46E2 2D4D 9073 22682 2371 589A 2470 19709 09A6 4CFD
229 24813 22155 60ED 568B 24998 25977 61A6 6579 17501 1252 445D 04E4
230 47 15050 002F 3ACA 20935 7525 51C7 1D65 24671 15142 605F 3B26
231 3202 16450 0C82 4042 1601 8225 0641 2021 11930 26958 2E9A 694E
232 21571 27899 5443 6CFB 31729 30785 7BF1 7841 9154 8759 23C2 2237
233 7469 2016 1D2D 07E0 24390 1008 5F46 03F0 7388 12696 1CDC 3198
234 25297 17153 62D1 4301 24760 28604 60B8 6FBC 3440 11936 0D70 2EA0
235 8175 15849 1FEF 3DE9 24103 20680 5E27 50C8 27666 25635 6C12 6423
236 28519 30581 6F67 7775 26211 30086 6663 7586 22888 17231 5968 434F
237 4991 3600 137F 0E10 22639 1800 586F 0708 13194 22298 338A 571A
238 7907 4097 1EE3 1001 24225 17980 5EA1 463C 26710 7330 6856 1CA2
239 17728 671 4540 029F 8864 20339 22A0 4F73 7266 30758 1C62 7826
240 14415 20774 384F 5126 19959 10387 4DF7 2893 15175 6933 3B47 1B15
241 30976 24471 7900 5F97 15488 25079 3C80 61F7 15891 2810 3E13 0AFA
242 26376 27341 6708 6ACD 13188 31578 3384 7B5A 26692 8820 6844 2274
243 19063 19388 4A77 4BBC 29931 9694 74EB 25DE 14757 7831 39A5 1E97
244 19160 25278 4AD8 62BE 9580 12639 256C 315F 28757 19584 7055 4C80
245 3800 9505 0ED8 2521 1900 23724 076C 5CAC 31342 2944 7A6E 0B80
246 8307 26143 2073 661F 16873 32051 41E9 7D33 19435 19854 4BEB 4D8E
247 12918 13359 3276 342F 6459 21547 193B 542B 2437 10456 0985 28D8
248 19642 2154 4CBA 086A 9821 1077 265D 0435 20573 17036 505D 428C
249 24873 13747 6129 35B3 24900 21733 6144 54E5 18781 2343 495D 0927
250 22071 27646 5637 6BFE 31435 13823 7ACB 35FF 18948 14820 4A04 39E4
. . . continued on next page
B
PN Offset Programming Information 68P64115A18–1
Mar 2003
1X SC 4812T Lite BTS Optimization/ATP Software Release R2.16.1.x
DRAFT
B-8
Table B-1: PnMaskI and PnMaskQ Values for PilotPn
14–Chip Delay 13–Chip Delay 0–Chip Delay
Pilot I Q I Q I Q I Q I Q I Q
PN (Dec.) (Hex.) (Dec.) (Hex.) (Dec.) (Hex.)
251 13904 1056 3650 0420 6952 528 1B28 0210 23393 1756 5B61 06DC
252 27198 1413 6A3E 0585 13599 19710 351F 4CFE 5619 19068 15F3 4A7C
253 3685 3311 0E65 0CEF 22242 18507 56E2 484B 17052 28716 429C 702C
254 16820 4951 41B4 1357 8410 18327 20DA 4797 21292 31958 532C 7CD6
255 22479 749 57CF 02ED 31287 20298 7A37 4F4A 2868 16097 0B34 3EE1
256 6850 6307 1AC2 18A3 3425 17005 0D61 426D 19538 1308 4C52 051C
257 15434 961 3C4A 03C1 7717 20444 1E25 4FDC 24294 3320 5EE6 0CF8
258 19332 2358 4B84 0936 9666 1179 25C2 049B 22895 16682 596F 412A
259 8518 28350 2146 6EBE 4259 14175 10A3 375F 27652 6388 6C04 18F4
260 14698 31198 396A 79DE 7349 15599 1CB5 3CEF 29905 12828 74D1 321C
261 21476 11467 53E4 2CCB 10738 22617 29F2 5859 21415 3518 53A7 0DBE
262 30475 8862 770B 229E 27221 4431 6A55 114F 1210 3494 04BA 0DA6
263 23984 6327 5DB0 18B7 11992 16999 2ED8 4267 22396 6458 577C 193A
264 1912 7443 0778 1D13 956 16565 03BC 40B5 26552 10717 67B8 29DD
265 26735 28574 686F 6F9E 26087 14287 65E7 37CF 24829 8463 60FD 210F
266 15705 25093 3D59 6205 20348 32574 4F7C 7F3E 8663 27337 21D7 6AC9
267 3881 6139 0F29 17FB 22084 17857 5644 45C1 991 19846 03DF 4D86
268 20434 22047 4FD2 561F 10217 25907 27E9 6533 21926 9388 55A6 24AC
269 16779 32545 418B 7F21 28949 29100 7115 71AC 23306 21201 5B0A 52D1
270 31413 7112 7AB5 1BC8 27786 3556 6C8A 0DE4 13646 31422 354E 7ABE
271 16860 28535 41DC 6F77 8430 31111 20EE 7987 148 166 0094 00A6
272 8322 10378 2082 288A 4161 5189 1041 1445 24836 28622 6104 6FCE
273 28530 15065 6F72 3AD9 14265 21328 37B9 5350 24202 6477 5E8A 194D
274 26934 5125 6936 1405 13467 17470 349B 443E 9820 10704 265C 29D0
275 18806 12528 4976 30F0 9403 6264 24BB 1878 12939 25843 328B 64F3
276 20216 23215 4EF8 5AAF 10108 25451 277C 636B 2364 25406 093C 633E
277 9245 20959 241D 51DF 17374 26323 43DE 66D3 14820 21523 39E4 5413
278 8271 3568 204F 0DF0 16887 1784 41F7 06F8 2011 8569 07DB 2179
279 18684 26453 48FC 6755 9342 32150 247E 7D96 13549 9590 34ED 2576
280 8220 29421 201C 72ED 4110 30538 100E 774A 28339 22466 6EB3 57C2
281 6837 24555 1AB5 5FEB 23690 25033 5C8A 61C9 25759 12455 649F 30A7
282 9613 10779 258D 2A1B 17174 23345 4316 5B31 11116 27506 2B6C 6B72
283 31632 25260 7B90 62AC 15816 12630 3DC8 3156 31448 21847 7AD8 5557
284 27448 16084 6B38 3ED4 13724 8042 359C 1F6A 27936 28392 6D20 6EE8
285 12417 26028 3081 65AC 18832 13014 4990 32D6 3578 1969 0DFA 07B1
286 30901 29852 78B5 749C 28042 14926 6D8A 3A4E 12371 30715 3053 77FB
287 9366 14978 2496 3A82 4683 7489 124B 1D41 12721 23674 31B1 5C7A
288 12225 12182 2FC1 2F96 17968 6091 4630 17CB 10264 22629 2818 5865
289 21458 25143 53D2 6237 10729 32551 29E9 7F27 25344 12857 6300 3239
290 6466 15838 1942 3DDE 3233 7919 0CA1 1EEF 13246 30182 33BE 75E6
291 8999 5336 2327 14D8 16451 2668 4043 0A6C 544 21880 0220 5578
292 26718 21885 685E 557D 13359 25730 342F 6482 9914 6617 26BA 19D9
293 3230 20561 0C9E 5051 1615 26132 064F 6614 4601 27707 11F9 6C3B
294 27961 30097 6D39 7591 26444 29940 674C 74F4 16234 16249 3F6A 3F79
295 28465 21877 6F31 5575 26184 25734 6648 6486 24475 24754 5F9B 60B2
296 6791 23589 1A87 5C25 23699 24622 5C93 602E 26318 31609 66CE 7B79
297 17338 26060 43BA 65CC 8669 13030 21DD 32E6 6224 22689 1850 58A1
298 11832 9964 2E38 26EC 5916 4982 171C 1376 13381 3226 3445 0C9A
299 11407 25959 2C8F 6567 18327 31887 4797 7C8F 30013 4167 753D 1047
300 15553 3294 3CC1 0CDE 20400 1647 4FB0 066F 22195 25624 56B3 6418
. . . continued on next page
B
PN Offset Programming Information68P64115A18–1
Mar 2003 1X SC 4812T Lite BTS Optimization/ATP Software Release R2.16.1.x
DRAFT
B-9
Table B-1: PnMaskI and PnMaskQ Values for PilotPn
14–Chip Delay 13–Chip Delay 0–Chip Delay
Pilot I Q I Q I Q I Q I Q I Q
PN (Dec.) (Hex.) (Dec.) (Hex.) (Dec.) (Hex.)
301 17418 30173 440A 75DD 8709 29906 2205 74D2 30380 10924 76AC 2AAC
302 14952 15515 3A68 3C9B 7476 20593 1D34 5071 15337 23096 3BE9 5A38
303 52 5371 0034 14FB 26 17473 001A 4441 10716 22683 29DC 589B
304 27254 10242 6A76 2802 13627 5121 353B 1401 13592 10955 3518 2ACB
305 15064 28052 3AD8 6D94 7532 14026 1D6C 36CA 2412 17117 096C 42DD
306 10942 14714 2ABE 397A 5471 7357 155F 1CBD 15453 15837 3C5D 3DDD
307 377 19550 0179 4C5E 20844 9775 516C 262F 13810 22647 35F2 5877
308 14303 8866 37DF 22A2 19007 4433 4A3F 1151 12956 10700 329C 29CC
309 24427 15297 5F6B 3BC1 32357 21468 7E65 53DC 30538 30293 774A 7655
310 26629 10898 6805 2A92 26066 5449 65D2 1549 10814 5579 2A3E 15CB
311 20011 31315 4E2B 7A53 30405 29461 76C5 7315 18939 11057 49FB 2B31
312 16086 19475 3ED6 4C13 8043 26677 1F6B 6835 19767 30238 4D37 761E
313 24374 1278 5F36 04FE 12187 639 2F9B 027F 20547 14000 5043 36B0
314 9969 11431 26F1 2CA7 17064 22639 42A8 586F 29720 22860 7418 594C
315 29364 31392 72B4 7AA0 14682 15696 395A 3D50 31831 27172 7C57 6A24
316 25560 4381 63D8 111D 12780 18098 31EC 46B2 26287 307 66AF 0133
317 28281 14898 6E79 3A32 26348 7449 66EC 1D19 11310 20380 2C2E 4F9C
318 7327 23959 1C9F 5D97 24479 24823 5F9F 60F7 25724 26427 647C 673B
319 32449 16091 7EC1 3EDB 28336 20817 6EB0 5151 21423 10702 53AF 29CE
320 26334 9037 66DE 234D 13167 24474 336F 5F9A 5190 30024 1446 7548
321 14760 24162 39A8 5E62 7380 12081 1CD4 2F31 258 14018 0102 36C2
322 15128 6383 3B18 18EF 7564 16971 1D8C 424B 13978 4297 369A 10C9
323 29912 27183 74D8 6A2F 14956 31531 3A6C 7B2B 4670 13938 123E 3672
324 4244 16872 1094 41E8 2122 8436 084A 20F4 23496 25288 5BC8 62C8
325 8499 9072 2133 2370 16713 4536 4149 11B8 23986 27294 5DB2 6A9E
326 9362 12966 2492 32A6 4681 6483 1249 1953 839 31835 0347 7C5B
327 10175 28886 27BF 70D6 16911 14443 420F 386B 11296 8228 2C20 2024
328 30957 25118 78ED 621E 28070 12559 6DA6 310F 30913 12745 78C1 31C9
329 12755 20424 31D3 4FC8 18745 10212 4939 27E4 27297 6746 6AA1 1A5A
330 19350 6729 4B96 1A49 9675 17176 25CB 4318 10349 1456 286D 05B0
331 1153 20983 0481 51F7 21392 26311 5390 66C7 32504 27743 7EF8 6C5F
332 29304 12372 7278 3054 14652 6186 393C 182A 18405 27443 47E5 6B33
333 6041 13948 1799 367C 23068 6974 5A1C 1B3E 3526 31045 0DC6 7945
334 21668 27547 54A4 6B9B 10834 31729 2A52 7BF1 19161 12225 4AD9 2FC1
335 28048 8152 6D90 1FD8 14024 4076 36C8 0FEC 23831 21482 5D17 53EA
336 10096 17354 2770 43CA 5048 8677 13B8 21E5 21380 14678 5384 3956
337 23388 17835 5B5C 45AB 11694 27881 2DAE 6CE9 4282 30656 10BA 77C0
338 15542 14378 3CB6 382A 7771 7189 1E5B 1C15 32382 13721 7E7E 3599
339 24013 7453 5DCD 1D1D 32566 16562 7F36 40B2 806 21831 0326 5547
340 2684 26317 0A7C 66CD 1342 32090 053E 7D5A 6238 30208 185E 7600
341 19018 5955 4A4A 1743 9509 17821 2525 459D 10488 9995 28F8 270B
342 25501 10346 639D 286A 24606 5173 601E 1435 19507 3248 4C33 0CB0
343 4489 13200 1189 3390 22804 6600 5914 19C8 27288 12030 6A98 2EFE
344 31011 30402 7923 76C2 27969 15201 6D41 3B61 2390 5688 0956 1638
345 29448 7311 7308 1C8F 14724 16507 3984 407B 19094 2082 4A96 0822
346 25461 3082 6375 0C0A 24682 1541 606A 0605 13860 23143 3624 5A67
347 11846 21398 2E46 5396 5923 10699 1723 29CB 9225 25906 2409 6532
348 30331 31104 767B 7980 27373 15552 6AED 3CC0 2505 15902 09C9 3E1E
349 10588 24272 295C 5ED0 5294 12136 14AE 2F68 27806 21084 6C9E 525C
350 32154 27123 7D9A 69F3 16077 31429 3ECD 7AC5 2408 25723 0968 647B
. . . continued on next page
B
PN Offset Programming Information 68P64115A18–1
Mar 2003
1X SC 4812T Lite BTS Optimization/ATP Software Release R2.16.1.x
DRAFT
B-10
Table B-1: PnMaskI and PnMaskQ Values for PilotPn
14–Chip Delay 13–Chip Delay 0–Chip Delay
Pilot I Q I Q I Q I Q I Q I Q
PN (Dec.) (Hex.) (Dec.) (Hex.) (Dec.) (Hex.)
351 29572 5578 7384 15CA 14786 2789 39C2 0AE5 13347 13427 3423 3473
352 13173 25731 3375 6483 18538 31869 486A 7C7D 7885 31084 1ECD 796C
353 10735 10662 29EF 29A6 17703 5331 4527 14D3 6669 24023 1A0D 5DD7
354 224 11084 00E0 2B4C 112 5542 0070 15A6 8187 23931 1FFB 5D7B
355 12083 31098 2F33 797A 17993 15549 4649 3CBD 18145 15836 46E1 3DDC
356 22822 16408 5926 4018 11411 8204 2C93 200C 14109 6085 371D 17C5
357 2934 6362 0B76 18DA 1467 3181 05BB 0C6D 14231 30324 3797 7674
358 27692 2719 6C2C 0A9F 13846 19315 3616 4B73 27606 27561 6BD6 6BA9
359 10205 14732 27DD 398C 16958 7366 423E 1CC6 783 13821 030F 35FD
360 7011 22744 1B63 58D8 23649 11372 5C61 2C6C 6301 269 189D 010D
361 22098 1476 5652 05C4 11049 738 2B29 02E2 5067 28663 13CB 6FF7
362 2640 8445 0A50 20FD 1320 24130 0528 5E42 15383 29619 3C17 73B3
363 4408 21118 1138 527E 2204 10559 089C 293F 1392 2043 0570 07FB
364 102 22198 0066 56B6 51 11099 0033 2B5B 7641 6962 1DD9 1B32
365 27632 22030 6BF0 560E 13816 11015 35F8 2B07 25700 29119 6464 71BF
366 19646 10363 4CBE 287B 9823 23041 265F 5A01 25259 22947 62AB 59A3
367 26967 25802 6957 64CA 25979 12901 657B 3265 19813 9612 4D65 258C
368 32008 2496 7D08 09C0 16004 1248 3E84 04E0 20933 18698 51C5 490A
369 7873 31288 1EC1 7A38 24240 15644 5EB0 3D1C 638 16782 027E 418E
370 655 24248 028F 5EB8 20631 12124 5097 2F5C 16318 29735 3FBE 7427
371 25274 14327 62BA 37F7 12637 21959 315D 55C7 6878 2136 1ADE 0858
372 16210 23154 3F52 5A72 8105 11577 1FA9 2D39 1328 8086 0530 1F96
373 11631 13394 2D6F 3452 18279 6697 4767 1A29 14744 10553 3998 2939
374 8535 1806 2157 070E 16763 903 417B 0387 22800 11900 5910 2E7C
375 19293 17179 4B5D 431B 29822 28593 747E 6FB1 25919 19996 653F 4E1C
376 12110 10856 2F4E 2A68 6055 5428 17A7 1534 4795 5641 12BB 1609
377 21538 25755 5422 649B 10769 31857 2A11 7C71 18683 28328 48FB 6EA8
378 10579 15674 2953 3D3A 17785 7837 4579 1E9D 32658 25617 7F92 6411
379 13032 7083 32E8 1BAB 6516 17385 1974 43E9 1586 26986 0632 696A
380 14717 29096 397D 71A8 19822 14548 4D6E 38D4 27208 5597 6A48 15DD
381 11666 3038 2D92 0BDE 5833 1519 16C9 05EF 17517 14078 446D 36FE
382 25809 16277 64D1 3F95 25528 20982 63B8 51F6 599 13247 0257 33BF
383 5008 25525 1390 63B5 2504 32742 09C8 7FE6 16253 499 3F7D 01F3
384 32418 20465 7EA2 4FF1 16209 27076 3F51 69C4 8685 30469 21ED 7705
385 22175 28855 569F 70B7 31391 30311 7A9F 7667 29972 17544 7514 4488
386 11742 32732 2DDE 7FDC 5871 16366 16EF 3FEE 22128 28510 5670 6F5E
387 22546 20373 5812 4F95 11273 27126 2C09 69F6 19871 23196 4D9F 5A9C
388 21413 9469 53A5 24FD 30722 23618 7802 5C42 19405 13384 4BCD 3448
389 133 26155 0085 662B 20882 32041 5192 7D29 17972 4239 4634 108F
390 4915 6957 1333 1B2D 22601 17322 5849 43AA 8599 20725 2197 50F5
391 8736 12214 2220 2FB6 4368 6107 1110 17DB 10142 6466 279E 1942
392 1397 21479 0575 53E7 21354 26575 536A 67CF 26834 28465 68D2 6F31
393 18024 31914 4668 7CAA 9012 15957 2334 3E55 23710 19981 5C9E 4E0D
394 15532 32311 3CAC 7E37 7766 28967 1E56 7127 27280 16723 6A90 4153
395 26870 11276 68F6 2C0C 13435 5638 347B 1606 6570 4522 19AA 11AA
396 5904 20626 1710 5092 2952 10313 0B88 2849 7400 678 1CE8 02A6
397 24341 423 5F15 01A7 32346 20207 7E5A 4EEF 26374 15320 6706 3BD8
398 13041 2679 32F1 0A77 18600 19207 48A8 4B07 22218 29116 56CA 71BC
399 23478 15537 5BB6 3CB1 11739 20580 2DDB 5064 29654 5388 73D6 150C
400 1862 10818 0746 2A42 931 5409 03A3 1521 13043 22845 32F3 593D
. . . continued on next page
B
PN Offset Programming Information68P64115A18–1
Mar 2003 1X SC 4812T Lite BTS Optimization/ATP Software Release R2.16.1.x
DRAFT
B-11
Table B-1: PnMaskI and PnMaskQ Values for PilotPn
14–Chip Delay 13–Chip Delay 0–Chip Delay
Pilot I Q I Q I Q I Q I Q I Q
PN (Dec.) (Hex.) (Dec.) (Hex.) (Dec.) (Hex.)
401 5850 23074 16DA 5A22 2925 11537 0B6D 2D11 24457 28430 5F89 6F0E
402 5552 20250 15B0 4F1A 2776 10125 0AD8 278D 17161 8660 4309 21D4
403 12589 14629 312D 3925 18758 21166 4946 52AE 21314 2659 5342 0A63
404 23008 29175 59E0 71F7 11504 30407 2CF0 76C7 28728 8803 7038 2263
405 27636 13943 6BF4 3677 13818 21767 35FA 5507 22162 19690 5692 4CEA
406 17600 11072 44C0 2B40 8800 5536 2260 15A0 26259 22169 6693 5699
407 17000 29492 4268 7334 8500 14746 2134 399A 22180 8511 56A4 213F
408 21913 5719 5599 1657 31516 17687 7B1C 4517 2266 17393 08DA 43F1
409 30320 7347 7670 1CB3 15160 16485 3B38 4065 10291 11336 2833 2C48
410 28240 12156 6E50 2F7C 14120 6078 3728 17BE 26620 13576 67FC 3508
411 7260 25623 1C5C 6417 3630 31799 0E2E 7C37 19650 22820 4CC2 5924
412 17906 27725 45F2 6C4D 8953 30746 22F9 781A 14236 13344 379C 3420
413 5882 28870 16FA 70C6 2941 14435 0B7D 3863 11482 20107 2CDA 4E8B
414 22080 31478 5640 7AF6 11040 15739 2B20 3D7B 25289 8013 62C9 1F4D
415 12183 28530 2F97 6F72 17947 14265 461B 37B9 12011 18835 2EEB 4993
416 23082 24834 5A2A 6102 11541 12417 2D15 3081 13892 16793 3644 4199
417 17435 9075 441B 2373 29661 24453 73DD 5F85 17336 9818 43B8 265A
418 18527 32265 485F 7E09 30207 28984 75FF 7138 10759 4673 2A07 1241
419 31902 3175 7C9E 0C67 15951 18447 3E4F 480F 26816 13609 68C0 3529
420 18783 17434 495F 441A 30079 8717 757F 220D 31065 10054 7959 2746
421 20027 12178 4E3B 2F92 30413 6089 76CD 17C9 8578 10988 2182 2AEC
422 7982 25613 1F2E 640D 3991 31802 0F97 7C3A 24023 14744 5DD7 3998
423 20587 31692 506B 7BCC 31205 15846 79E5 3DE6 16199 17930 3F47 460A
424 10004 25384 2714 6328 5002 12692 138A 3194 22310 25452 5726 636C
425 13459 18908 3493 49DC 19353 9454 4B99 24EE 30402 11334 76C2 2C46
426 13383 25816 3447 64D8 19443 12908 4BF3 326C 16613 15451 40E5 3C5B
427 28930 4661 7102 1235 14465 18214 3881 4726 13084 11362 331C 2C62
428 4860 31115 12FC 798B 2430 29433 097E 72F9 3437 2993 0D6D 0BB1
429 13108 7691 3334 1E0B 6554 16697 199A 4139 1703 11012 06A7 2B04
430 24161 1311 5E61 051F 32480 19635 7EE0 4CB3 22659 5806 5883 16AE
431 20067 16471 4E63 4057 30433 28183 76E1 6E17 26896 20180 6910 4ED4
432 2667 15771 0A6B 3D9B 21733 20721 54E5 50F1 1735 8932 06C7 22E4
433 13372 16112 343C 3EF0 6686 8056 1A1E 1F78 16178 23878 3F32 5D46
434 28743 21062 7047 5246 27123 10531 69F3 2923 19166 20760 4ADE 5118
435 24489 29690 5FA9 73FA 32260 14845 7E04 39FD 665 32764 0299 7FFC
436 249 10141 00F9 279D 20908 24050 51AC 5DF2 20227 32325 4F03 7E45
437 19960 19014 4DF8 4A46 9980 9507 26FC 2523 24447 25993 5F7F 6589
438 29682 22141 73F2 567D 14841 25858 39F9 6502 16771 3268 4183 0CC4
439 31101 11852 797D 2E4C 28014 5926 6D6E 1726 27209 25180 6A49 625C
440 27148 26404 6A0C 6724 13574 13202 3506 3392 6050 12149 17A2 2F75
441 26706 30663 6852 77C7 13353 30175 3429 75DF 29088 10193 71A0 27D1
442 5148 32524 141C 7F0C 2574 16262 0A0E 3F86 7601 9128 1DB1 23A8
443 4216 28644 1078 6FE4 2108 14322 083C 37F2 4905 7843 1329 1EA3
444 5762 10228 1682 27F4 2881 5114 0B41 13FA 5915 25474 171B 6382
445 245 23536 00F5 5BF0 20906 11768 51AA 2DF8 6169 11356 1819 2C5C
446 21882 18045 557A 467D 10941 27906 2ABD 6D02 21303 11226 5337 2BDA
447 3763 25441 0EB3 6361 22153 32652 5689 7F8C 28096 16268 6DC0 3F8C
448 206 27066 00CE 69BA 103 13533 0067 34DD 8905 14491 22C9 389B
449 28798 13740 707E 35AC 14399 6870 383F 1AD6 26997 8366 6975 20AE
450 32402 13815 7E92 35F7 16201 21703 3F49 54C7 15047 26009 3AC7 6599
. . . continued on next page
B
PN Offset Programming Information 68P64115A18–1
Mar 2003
1X SC 4812T Lite BTS Optimization/ATP Software Release R2.16.1.x
DRAFT
B-12
Table B-1: PnMaskI and PnMaskQ Values for PilotPn
14–Chip Delay 13–Chip Delay 0–Chip Delay
Pilot I Q I Q I Q I Q I Q I Q
PN (Dec.) (Hex.) (Dec.) (Hex.) (Dec.) (Hex.)
451 13463 3684 3497 0E64 19355 1842 4B9B 0732 17460 5164 4434 142C
452 15417 23715 3C39 5CA3 20428 24685 4FCC 606D 17629 17126 44DD 42E6
453 23101 15314 5A3D 3BD2 31950 7657 7CCE 1DE9 10461 21566 28DD 543E
454 14957 32469 3A6D 7ED5 19686 29014 4CE6 7156 21618 21845 5472 5555
455 23429 9816 5B85 2658 31762 4908 7C12 132C 11498 28149 2CEA 6DF5
456 12990 4444 32BE 115C 6495 2222 195F 08AE 193 9400 00C1 24B8
457 12421 5664 3085 1620 18834 2832 4992 0B10 16140 19459 3F0C 4C03
458 28875 7358 70CB 1CBE 27061 3679 69B5 0E5F 13419 7190 346B 1C16
459 4009 27264 0FA9 6A80 22020 13632 5604 3540 10864 3101 2A70 0C1D
460 1872 28128 0750 6DE0 936 14064 03A8 36F0 28935 491 7107 01EB
461 15203 30168 3B63 75D8 19553 15084 4C61 3AEC 18765 25497 494D 6399
462 30109 29971 759D 7513 27422 29877 6B1E 74B5 27644 29807 6BFC 746F
463 24001 3409 5DC1 0D51 32560 18580 7F30 4894 21564 26508 543C 678C
464 4862 16910 12FE 420E 2431 8455 097F 2107 5142 4442 1416 115A
465 14091 20739 370B 5103 19029 26301 4A55 66BD 1211 4871 04BB 1307
466 6702 10191 1A2E 27CF 3351 24027 0D17 5DDB 1203 31141 04B3 79A5
467 3067 12819 0BFB 3213 21549 22325 542D 5735 5199 9864 144F 2688
468 28643 19295 6FE3 4B5F 26145 27539 6621 6B93 16945 12589 4231 312D
469 21379 10072 5383 2758 30737 5036 7811 13AC 4883 5417 1313 1529
470 20276 15191 4F34 3B57 10138 21399 279A 5397 25040 8549 61D0 2165
471 25337 27748 62F9 6C64 24748 13874 60AC 3632 7119 14288 1BCF 37D0
472 19683 720 4CE3 02D0 30625 360 77A1 0168 17826 8503 45A2 2137
473 10147 29799 27A3 7467 16897 29711 4201 740F 4931 20357 1343 4F85
474 16791 27640 4197 6BF8 28955 13820 711B 35FC 25705 15381 6469 3C15
475 17359 263 43CF 0107 28727 20159 7037 4EBF 10726 18065 29E6 4691
476 13248 24734 33C0 609E 6624 12367 19E0 304F 17363 24678 43D3 6066
477 22740 16615 58D4 40E7 11370 28239 2C6A 6E4F 2746 23858 0ABA 5D32
478 13095 20378 3327 4F9A 18499 10189 4843 27CD 10952 7610 2AC8 1DBA
479 10345 25116 2869 621C 17892 12558 45E4 310E 19313 18097 4B71 46B1
480 30342 19669 7686 4CD5 15171 26710 3B43 6856 29756 20918 743C 51B6
481 27866 14656 6CDA 3940 13933 7328 366D 1CA0 14297 7238 37D9 1C46
482 9559 27151 2557 6A0F 17275 31547 437B 7B3B 21290 30549 532A 7755
483 8808 28728 2268 7038 4404 14364 1134 381C 1909 16320 0775 3FC0
484 12744 25092 31C8 6204 6372 12546 18E4 3102 8994 20853 2322 5175
485 11618 22601 2D62 5849 5809 25112 16B1 6218 13295 26736 33EF 6870
486 27162 2471 6A1A 09A7 13581 19183 350D 4AEF 21590 10327 5456 2857
487 17899 25309 45EB 62DD 29477 32594 7325 7F52 26468 24404 6764 5F54
488 29745 15358 7431 3BFE 27592 7679 6BC8 1DFF 13636 7931 3544 1EFB
489 31892 17739 7C94 454B 15946 27801 3E4A 6C99 5207 5310 1457 14BE
490 23964 12643 5D9C 3163 11982 22157 2ECE 568D 29493 554 7335 022A
491 23562 32730 5C0A 7FDA 11781 16365 2E05 3FED 18992 27311 4A30 6AAF
492 2964 19122 0B94 4AB2 1482 9561 05CA 2559 12567 6865 3117 1AD1
493 18208 16870 4720 41E6 9104 8435 2390 20F3 12075 7762 2F2B 1E52
494 15028 10787 3AB4 2A23 7514 23341 1D5A 5B2D 26658 15761 6822 3D91
495 21901 18400 558D 47E0 31510 9200 7B16 23F0 21077 12697 5255 3199
496 24566 20295 5FF6 4F47 12283 27039 2FFB 699F 15595 24850 3CEB 6112
497 18994 1937 4A32 0791 9497 19956 2519 4DF4 4921 15259 1339 3B9B
498 13608 17963 3528 462B 6804 27945 1A94 6D29 14051 24243 36E3 5EB3
499 27492 7438 6B64 1D0E 13746 3719 35B2 0E87 5956 30508 1744 772C
500 11706 12938 2DBA 328A 5853 6469 16DD 1945 21202 13982 52D2 369E
. . . continued on next page
B
PN Offset Programming Information68P64115A18–1
Mar 2003 1X SC 4812T Lite BTS Optimization/ATP Software Release R2.16.1.x
DRAFT
B-13
Table B-1: PnMaskI and PnMaskQ Values for PilotPn
14–Chip Delay 13–Chip Delay 0–Chip Delay
Pilot I Q I Q I Q I Q I Q I Q
PN (Dec.) (Hex.) (Dec.) (Hex.) (Dec.) (Hex.)
501 14301 19272 37DD 4B48 19006 9636 4A3E 25A4 11239 25039 2BE7 61CF
502 23380 29989 5B54 7525 11690 29870 2DAA 74AE 30038 24086 7556 5E16
503 11338 8526 2C4A 214E 5669 4263 1625 10A7 30222 21581 760E 544D
504 2995 18139 0BB3 46DB 21513 27985 5409 6D51 13476 21346 34A4 5362
505 23390 3247 5B5E 0CAF 11695 18539 2DAF 486B 2497 28187 09C1 6E1B
506 14473 28919 3889 70F7 19860 30279 4D94 7647 31842 23231 7C62 5ABF
507 6530 7292 1982 1C7C 3265 3646 0CC1 0E3E 24342 18743 5F16 4937
508 20452 20740 4FE4 5104 10226 10370 27F2 2882 25857 11594 6501 2D4A
509 12226 27994 2FC2 6D5A 6113 13997 17E1 36AD 27662 7198 6C0E 1C1E
510 1058 2224 0422 08B0 529 1112 0211 0458 24594 105 6012 0069
511 12026 6827 2EFA 1AAB 6013 17257 177D 4369 16790 4534 4196 11B6
B
PN Offset Programming Information 68P64115A18–1
Mar 2003
1X SC 4812T Lite BTS Optimization/ATP Software Release R2.16.1.x
DRAFT
B-14
Notes
B
Mar 2003 1X SC 4812T Lite BTS Optimization/ATP Software Release R2.16.1.x
DRAFT
C-1
Appendix C
FRU Optimization/ATP Test Matrix
C
FRU Optimization/ATP Test Matrix 68P64115A18–1
Mar 2003
1X SC 4812T Lite BTS Optimization/ATP Software Release R2.16.1.x
DRAFT
C-2
FRU Optimization/ATP Test Matrix
Usage & Background
Periodic maintenance of a site may also mandate re–optimization of
specific portions of the site. An outline of some basic guidelines is
included in the following tables.
NOTE Re–optimization steps listed for any assembly detailed in the
tables below must be performed anytime an RF cable associated
with it is replaced.
Detailed Optimization/ATP Test Matrix
Table C-1 outlines in more detail the tests that would need to be
performed if one of the BTS components were to fail and be replaced. It
is also assumes that all modules are placed OOS–ROM via the LMF
until full redundancy of all applicable modules is implemented.
The following guidelines should also be noted when using this table:
NOTE Not every procedure required to bring the site back in service is
indicated in Table C-1. It is meant to be used as a guideline
ONLY. The table assumes that the user is familiar enough with
the BTS Optimization/ATP procedure to understand which test
equipment set ups, calibrations, and BTS site preparation will be
required before performing the Table # procedures referenced.
Passive BTS components (such as the bandpass filters and 2:1
combiners) only require a TX calibration audit to be performed in lieu of
a full path calibration. If the TX path calibration audit fails, the entire RF
path calibration will need to be repeated. If the RF path calibration fails,
further troubleshooting is warranted.
NOTE If any significant change in signal level results from any
component being replaced in the RX or TX signal flow paths, it
would be identified by re–running the RX and TX calibration
audit command.
When the CIO is replaced, the SCCP shelf remains powered up. The
BBX boards may need to be removed, then re–installed into their
original slots, and re–downloaded (code and BLO data). RX and TX
calibration audits should then be performed on the affected carrier
sectors.
C
FRU Optimization/ATP Test Matrix68P64115A18–1
Mar 2003 1X SC 4812T Lite BTS Optimization/ATP Software Release R2.16.1.x
DRAFT
C-3
Table C-1: SC 4812ET Lite BTS Optimization and ATP Test Matrix
Doc
Tbl
#Description
DRDC or TRDC
RX Cables
TX Cables
MPC / EMPC
CIO
SCCP Shelf Assembly (Backplane)
BBX2/BBX–1X
MCC24E/MCC8E/MCC–1X
CSM/GPS
LFR
HSO/HSOX
50–pair Punchblock (with RGPS)
RGD/20–pair Punchblock with RGD
CCD Card
GLI2
ETIB or Associated Cables
LPAC Cable
LPA or LPA Trunking Module
LPA Bandpass Filter or Combiner
Switch Card
RFDS Cables
RFDS
Table 3-13/
Table 3-14/ Download Code/Data D D D D D D
Table 3-16 Enable CSMs D D D D 9
Table 3-19 GPS & HSO Initialization
/ Verification D DDDDDD 9
Table 3-20 LFR Initialization /
Verification D D D
Table 3-35 TX Path Calibration 4 4 1 1 4 * 3 3 4 7
Table 3-36 Download Offsets to
BBX 4 1 4 *
Table 3-37 TX Path Audit 4 4 1 1 4 * 3 4 7
Table 3-45 RFDS Path Calibration
and Offset Data
Download 6541 1 6 * 3 46 6
Table 4-8 Spectral Purity TX Mask 4 1 4 * * * *
Table 4-9 Waveform Quality (rho) 4 * 1 4 * ** 10 * *
Table 4-10 Pilot Time Offset 4 * 1 4 * ** * *
Table 4-11 Code Domain Power /
Noise Floor 4 1 4 8 8 8 8 * * *
Table 4-12 FER Test 5 5 5 2 2 5 8 8 8 8 * 7
NO TAG
through
NO TAG Alarm Tests D
. . . continued on next page
C
FRU Optimization/ATP Test Matrix 68P64115A18–1
Mar 2003
1X SC 4812T Lite BTS Optimization/ATP Software Release R2.16.1.x
DRAFT
C-4
Table C-1: SC 4812ET Lite BTS Optimization and ATP Test Matrix
Doc
Tbl
#
RFDS
RFDS Cables
Switch Card
LPA Bandpass Filter or Combiner
LPA or LPA Trunking Module
LPAC Cable
ETIB or Associated Cables
GLI2
CCD Card
RGD/20–pair Punchblock with RGD
50–pair Punchblock (with RGPS)
HSO/HSOX
LFR
CSM/GPS
MCC24E/MCC8E/MCC–1X
BBX2/BBX–1X
SCCP Shelf Assembly (Backplane)
CIO
MPC / EMPC
TX Cables
RX Cables
DRDC or TRDC
Description
OPTIMIZATION AND TEST LEGEND:
D Required
* Perform if determined necessary for addtional fault isolation, repair assurance, or required for site
certification.
1. Perform on all carrier and sector TX paths to the SCCP cage.
2. Perform on all carrier and sector main and diversity RX paths to the SCCP cage.
3. Perform on all primary and redundant TX paths of the affected carrier. (LPAC replacement affects
all carriers.)
4. Perform on the affected carrier and sector TX path(s) (BBXR replacement affects all carrier and
sector TX paths).
5. Perform on the affected carrier and sector RX path(s) (BBXR replacement affects all carrier RX
paths).
6. Perform on all RF paths of the affected carrier and sector (RFDS replacement affects all
carriers).
7. Perform with redundant BBX for at least one sector on one carrier.
8. Verify performance by performing on one sector of one carrier only.
9. Perform only if RGD/RGPS, LFR antenna, or HSO or LFR expansion was installed.
10. Verify performance by performing testing on one sector of each carrier.
C
Mar 2003 1X SC 4812T Lite BTS Optimization/ATP Software Release R2.16.1.x
DRAFT
D-1
Appendix D
BBX Gain Set Point vs. BTS Output
D
BBX Gain Set Point vs. BTS Output 68P64115A18–1
Mar 2003
1X SC 4812T Lite BTS Optimization/ATP Software Release R2.16.1.x
DRAFT
D-2
BBX Gain Set Point vs. BTS Output
Usage & Background
Table D-1 outlines the relationship between the total of all code domain
channel element gain settings (digital root sum of the squares) and the
BBX Gain Set Point between 33.0 dBm and 44.0 dBm. The resultant
RF output (as measured in dBm at the BTS antenna connector) is shown
in the table. The table assumes that the BBX Bay Level Offset (BLO)
values have been calculated.
As an illustration, consider a BBX keyed up to produce a CDMA carrier
with only the Pilot channel (no MCCs forward link enabled). Pilot gain
is set to 262. In this case, the BBX Gain Set Point is shown to correlate
exactly to the actual RF output anywhere in the 33 to 44 dBm output
range. (This is the level used to calibrate the BTS).
Table D-1: BBX Gain Set Point vs. Actual BTS Output (in dBm)
dBm’
Gainb
44 43 42 41 40 39 38 37 36 35 34 33
541 – – – – – – – 43.3 42.3 41.3 40.3 39.3
533 – – – – – – – 43.2 42.2 41.2 40.2 39.2
525 – – – – – – – 43 42 41 40 39
517 – – – – – – – 42.9 41.9 40.9 39.9 38.9
509 – – – – – – – 42.8 41.8 40.8 39.8 38.8
501 – – – – – – – 42.6 41.6 40.6 39.6 38.6
493 – – – – – – 43.5 42.5 41.5 40.5 39.5 38.5
485 – – – – – – 43.4 42.4 41.4 40.4 39.4 38.4
477 – – – – – – 43.2 42.2 41.2 40.2 39.2 38.2
469 – – – – – – 43.1 42.1 41.1 40.1 39.1 38.1
461 – – – – – – 42.9 41.9 40.9 39.9 38.9 37.9
453 – – – – – – 42.8 41.8 40.8 39.8 38.8 37.8
445 – – – – – 43.6 42.6 41.6 40.6 39.6 38.6 37.6
437 – – – – – 43.4 42.4 41.4 40.4 39.4 38.4 37.4
429 – – – – – 43.3 42.3 41.3 40.3 39.3 38.3 37.3
421 – – – – – 43.1 42.1 41.1 40.1 39.1 38.1 37.1
413 – – – – – 43 42 41 40 39 38 37
405 – – – – – 42.8 41.8 40.8 39.8 38.8 37.8 36.8
397 – – – – 43.6 42.6 41.6 40.6 39.6 38.6 37.6 36.6
389 – – – – 43.4 42.4 41.4 40.4 39.4 38.4 37.4 36.4
. . . continued on next page
D
BBX Gain Set Point vs. BTS Output68P64115A18–1
Mar 2003 1X SC 4812T Lite BTS Optimization/ATP Software Release R2.16.1.x
DRAFT
D-3
Table D-1: BBX Gain Set Point vs. Actual BTS Output (in dBm)
dBm’
Gainb
333435363738394041424344
381 – – – – 43.3 42.3 41.3 40.3 39.3 38.3 37.3 36.3
374 – – – – 43.1 42.1 41.1 40.1 39.1 38.1 37.1 36.1
366 – – – – 42.9 41.9 40.9 39.9 38.9 37.9 36.9 35.9
358 – – – – 42.7 41.7 40.7 39.7 38.7 37.7 36.7 35.7
350 – – – 43.5 42.5 41.5 40.5 39.5 38.5 37.5 36.5 35.5
342 – – – 43.3 42.3 41.3 40.3 39.3 38.3 37.3 36.3 35.3
334 – – – 43.1 42.1 41.1 40.1 39.1 38.1 37.1 36.1 35.1
326 – – – 42.9 41.9 40.9 39.9 38.9 37.9 36.9 35.9 34.9
318 – – – 42.7 41.7 40.7 39.7 38.7 37.7 36.7 35.7 34.7
310 – – 43.5 42.5 41.5 40.5 39.5 38.5 37.5 36.5 35.5 34.5
302 – – 43.2 42.2 41.2 40.2 39.2 38.2 37.2 36.2 35.2 34.2
294 – – 43 42 41 40 39 38 37 36 35 34
286 – – 42.8 41.8 40.8 39.8 38.8 37.8 36.8 35.8 34.8 33.8
278 – 43.5 42.5 41.5 40.5 39.5 38.5 37.5 36.5 35.5 34.5 33.5
270 – 43.3 42.3 41.3 40.3 39.3 38.3 37.3 36.3 35.3 34.3 33.3
262 – 43 42 41 40 39 38 37 36 35 34 33
254 – 42.7 41.7 40.7 39.7 38.7 37.7 36.7 35.7 34.7 33.7 32.7
246 43.4 42.4 41.4 40.4 39.4 38.4 37.4 36.4 35.4 34.4 33.4 32.4
238 43.2 42.2 41.2 40.2 39.2 38.2 37.2 36.2 35.2 34.2 33.2 32.2
230 42.9 41.9 40.9 39.9 38.9 37.9 36.9 35.9 34.9 33.9 32.9 31.9
222 42.6 41.6 40.6 39.6 38.6 37.6 36.6 35.6 34.6 33.6 32.6 31.6
214 42.2 41.2 40.2 39.2 38.2 37.2 36.2 35.2 34.2 33.2 32.2 31.2
D
BBX Gain Set Point vs. BTS Output 68P64115A18–1
Mar 2003
1X SC 4812T Lite BTS Optimization/ATP Software Release R2.16.1.x
DRAFT
D-4
Notes
D
Mar 2003 1X SC 4812T Lite BTS Optimization/ATP Software Release R2.16.1.x
DRAFT
E-1
Appendix E
CDMA Operating Frequency
Information
E
CDMA Operating Frequency Programming Information 68P64115A18–1
Mar 2003
1X SC 4812T Lite BTS Optimization/ATP Software Release R2.16.1.x
DRAFT
E-2
CDMA Operating Frequency Programming Information
Introduction
Programming of each of the BTS BBX synthesizers is performed by the
BTS GLI2s via the Concentration Highway Interface (CHI) bus. This
programming data determines the transmit and receive transceiver
operating frequencies (channels) for each BBX.
1900 MHz PCS Channels
Figure E-1 shows the valid channels for the North American PCS
1900 MHz frequency spectrum. There are 10 CDMA wireline or
non–wireline band channels used in a CDMA system (unique per
customer operating system).

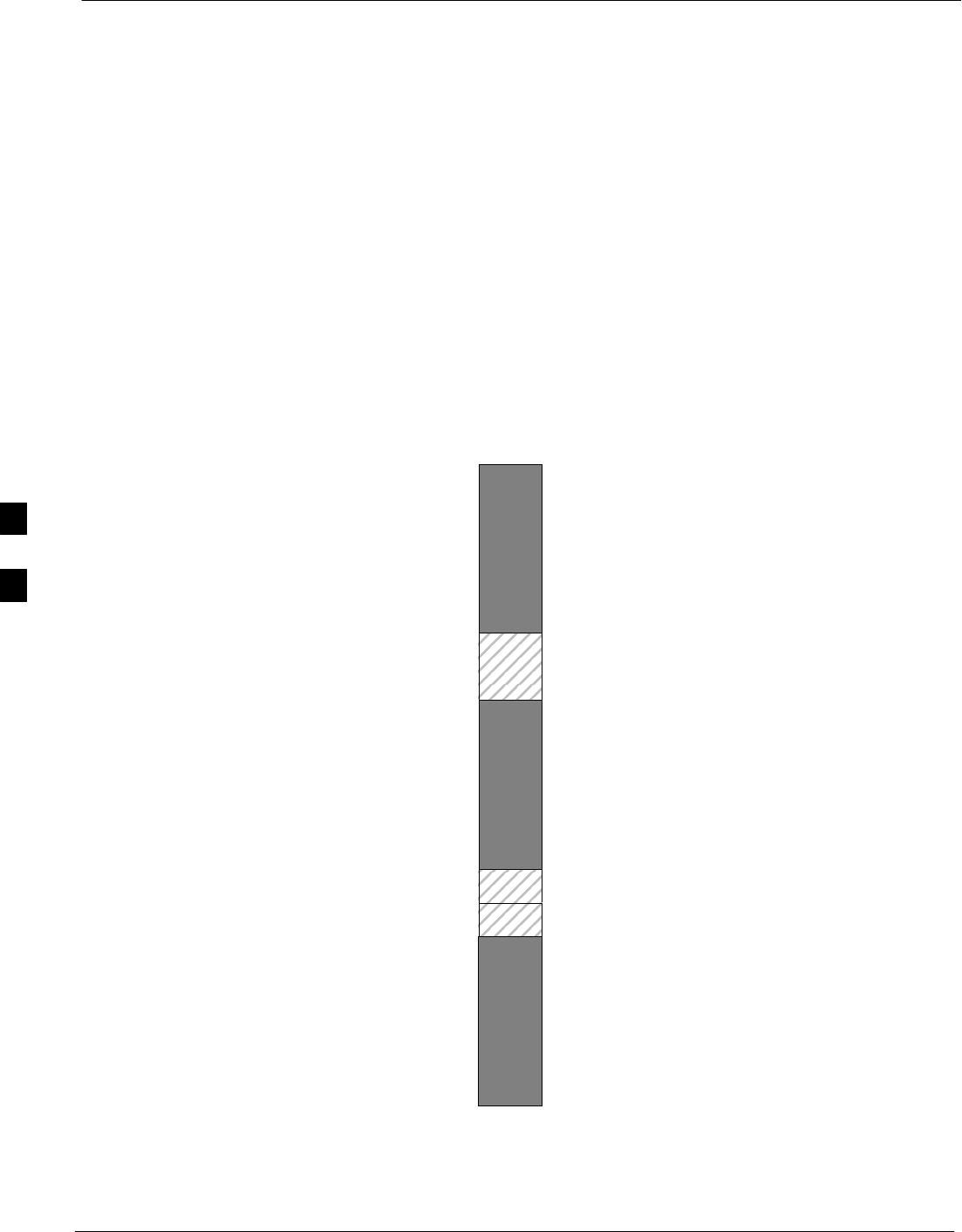

Figure E-1: North America PCS Frequency Spectrum (CDMA Allocation)
FREQ (MHz)
RX TX
275
1175
CHANNEL
1863.75
925
1851.2525
1871.25425
675 1883.75
1896.25
1908.75
1943.75
1931.25
1951.25
1963.75
1976.25
1988.75
A
D
B
E
F
C
FW00463
E
CDMA Operating Frequency Programming Information68P64115A18–1
Mar 2003 1X SC 4812T Lite BTS Optimization/ATP Software Release R2.16.1.x
DRAFT
E-3
Calculating 1900 MHz Center Frequencies
Table E-1 shows selected 1900 MHz CDMA candidate operating
channels, listed in both decimal and hexadecimal, and the corresponding
transmit, and receive frequencies. Center frequencies (in MHz) for
channels not shown in the table may be calculated as follows:
STX = 1930 + 0.05 * Channel#
Example: Channel 262
TX = 1930 + 0.05 * 262 = 1943.10 MHz
SRX = TX – 80
Example: Channel 262
RX = 1943.10 – 50 = 1863.10 MHz
Actual frequencies used depend on customer CDMA system frequency
plan.
Each CDMA channel requires a 1.77 MHz frequency segment. The
actual CDMA carrier is 1.23 MHz wide, with a 0.27 MHz guard band on
both sides of the carrier.
Minimum frequency separation required between any CDMA carrier and
the nearest NAMPS/AMPS carrier is 900 kHz (center-to-center).
Table E-1: 1900 MHz TX and RX Frequency vs. Channel
Channel Number
Decimal Hex Transmit Frequency (MHz)
Center Frequency Receive Frequency (MHz)
Center Frequency
25 0019 1931.25 1851.25
50 0032 1932.50 1852.50
75 004B 1933.75 1853.75
100 0064 1935.00 1855.00
125 007D 1936.25 1856.25
150 0096 1937.50 1857.50
175 00AF 1938.75 1858.75
200 00C8 1940.00 1860.00
225 00E1 1941.25 1861.25
250 00FA 1942.50 1862.50
275 0113 1943.75 1863.75
300 012C 1945.00 1865.00
325 0145 1946.25 1866.25
350 015E 1947.50 1867.50
375 0177 1948.75 1868.75
400 0190 1950.00 1870.00
425 01A9 1951.25 1871.25
450 01C2 1952.50 1872.50
475 01DB 1953.75 1873.75
500 01F4 1955.00 1875.00
525 020D 1956.25 1876.25
550 0226 1957.50 1877.50
575 023F 1958.75 1878.75
600 0258 1960.00 1880.00
625 0271 1961.25 1881.25
650 028A 1962.50 1882.50
. . . continued on next page
E
CDMA Operating Frequency Programming Information 68P64115A18–1
Mar 2003
1X SC 4812T Lite BTS Optimization/ATP Software Release R2.16.1.x
DRAFT
E-4
Table E-1: 1900 MHz TX and RX Frequency vs. Channel
Channel Number
Decimal Hex Receive Frequency (MHz)
Center Frequency
Transmit Frequency (MHz)
Center Frequency
675 02A3 1963.75 1883.75
700 02BC 1965.00 1885.00
725 02D5 1966.25 1886.25
750 02EE 1967.50 1887.50
775 0307 1968.75 1888.75
800 0320 1970.00 1890.00
825 0339 1971.25 1891.25
850 0352 1972.50 1892.50
875 036B 1973.75 1893.75
900 0384 1975.00 1895.00
925 039D 1976.25 1896.25
950 03B6 1977.50 1897.50
975 03CF 1978.75 1898.75
1000 03E8 1980.00 1900.00
1025 0401 1981.25 1901.25
1050 041A 1982.50 1902.50
1075 0433 1983.75 1903.75
1100 044C 1985.00 1905.00
1125 0465 1986.25 1906.25
1150 047E 1987.50 1807.50
1175 0497 1988.75 1908.75
E
CDMA Operating Frequency Programming Information68P64115A18–1
Mar 2003 1X SC 4812T Lite BTS Optimization/ATP Software Release R2.16.1.x
DRAFT
E-5
800 MHz CDMA Channels
Figure E-2 shows the valid channels for the North American cellular
telephone frequency spectrum. There are 10 CDMA wireline or
non–wireline band channels used in a CDMA system (unique per
customer operating system).
Figure E-2: North American Cellular Telephone System Frequency Spectrum (CDMA Allocation).
RX FREQ
(MHz)
991
1023
1
333
334
666
667
716
717
799
CHANNEL
OVERALL NON–WIRELINE (A) BANDS
OVERALL WIRELINE (B) BANDS
824.040
825.000
825.030
834.990
835.020
844.980
845.010
846.480
846.510
848.970
869.040
870.000
870.030
879.990
880.020
889.980
890.010
891.480
891.510
893.970
TX FREQ
(MHz)
1013
694
689
311
356
644
739
777
CDMA NON–WIRELINE (A) BAND
CDMA WIRELINE (B) BAND
FW00402
Calculating 800 MHz Center Frequencies
Table E-2 shows selected 800 MHz CDMA candidate operating
channels, listed in both decimal and hexadecimal, and the corresponding
transmit, and receive frequencies. Center frequencies (in MHz) for
channels not shown in the table may be calculated as follows:
SChannels 1–777
TX = 870 + 0.03 * Channel#
Example: Channel 262
TX = 870 + 0.03*262 = 877.86 MHz
SChannels 1013–1023
TX = 870 + 0.03 * (Channel# – 1023)
Example: Channel 1015
TX = 870 +0.03 *(1015 – 1023) = 869.76 MHz
SRX = TX – 45 MHz
Example: Channel 262
RX = 877.86 –45 = 832.86 MHz
Table E-2: 800 MHz TX and RX Frequency vs. Channel
Channel Number
Decimal Hex Transmit Frequency (MHz)
Center Frequency Receive Frequency (MHz)
Center Frequency
1 0001 870.0300 825.0300
25 0019 870.7500 825.7500
50 0032 871.5000 826.5000
. . . continued on next page
E
CDMA Operating Frequency Programming Information 68P64115A18–1
Mar 2003
1X SC 4812T Lite BTS Optimization/ATP Software Release R2.16.1.x
DRAFT
E-6
Table E-2: 800 MHz TX and RX Frequency vs. Channel
Channel Number
Decimal Hex Receive Frequency (MHz)
Center Frequency
Transmit Frequency (MHz)
Center Frequency
75 004B 872.2500 827.2500
100 0064 873.0000 828.0000
125 007D 873.7500 828.7500
150 0096 874.5000 829.5000
175 00AF 875.2500 830.2500
200 00C8 876.0000 831.0000
225 00E1 876.7500 831.7500
250 00FA 877.5000 832.5000
275 0113 878.2500 833.2500
300 012C 879.0000 834.0000
325 0145 879.7500 834.7500
350 015E 880.5000 835.5000
375 0177 881.2500 836.2500
400 0190 882.0000 837.0000
425 01A9 882.7500 837.7500
450 01C2 883.5000 838.5000
475 01DB 884.2500 839.2500
500 01F4 885.0000 840.0000
525 020D 885.7500 840.7500
550 0226 886.5000 841.5000
575 023F 887.2500 842.2500
600 0258 888.0000 843.0000
625 0271 888.7500 843.7500
650 028A 889.5000 844.5000
675 02A3 890.2500 845.2500
700 02BC 891.0000 846.0000
725 02D5 891.7500 846.7500
750 02EE 892.5000 847.5000
775 0307 893.2500 848.2500
NOTE
Channel numbers 778 through 1012 are not used.
1013 03F5 869.7000 824.7000
1023 03FF 870.0000 825.0000
E
Mar 2003 1X SC 4812T Lite BTS Optimization/ATP Software Release R2.16.1.x
DRAFT
F-1
Appendix F
Test Equipment Preparation
F
Test Equipment Preparation 68P64115A18–1
Mar 2003
1X SC 4812T Lite BTS Optimization/ATP Software Release R2.16.1.x
DRAFT
F-2
Test Equipment Preparation
Purpose
This appendix provides information on pre–testing set–up for the
following test equipment items (not required for the Cybertest test set):
SAgilent E4406A transmitter test set
SAgilent E4432B signal generator
SAdvantest R3267 spectrum analyzer
SAdvantest R3562 signal generator
SAgilent 8935 analyzer (formerly HP 8935)
SHP 8921 with PCS interface analyzer
SAdvantest R3465 analyzer
SMotorola CyberTest
SHP 437 power meter
SGigatronics 8541C power meter
SGPIB adapter
Pre–testing set–up information covered includes verification and setting
GPIB addresses, inter–unit cabling, connectivity testing, pre–test control
settings, and equipment calibration for items which are not calibrated
with the Calibrate Test Equipment function of the LMF.
The following procedures cover verification and changing GPIB
addresses for the various items of CDMA test equipment supported by
the LMF.
F
Verifying and Setting GPIB Addresses68P64115A18–1
Mar 2003 1X SC 4812T Lite BTS Optimization/ATP Software Release R2.16.1.x
DRAFT
F-3
Verifying and Setting GPIB Addresses
Agilent E4406A Transmitter Tester GPIB Address
Refer to Figure F-1 and follow the procedure in Table F-1 to verify and,
if necessary, change the Agilent E4406A GPIB address.

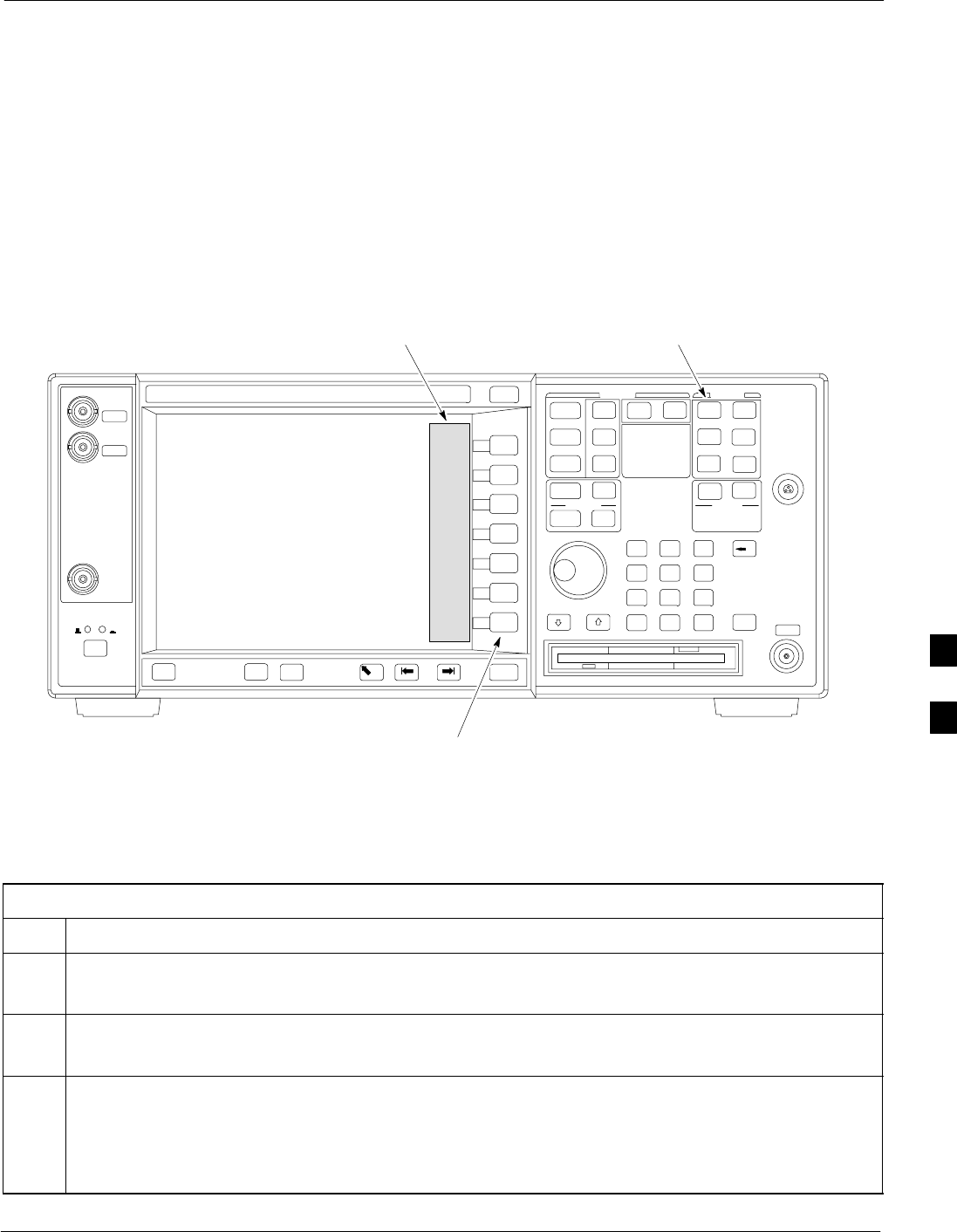

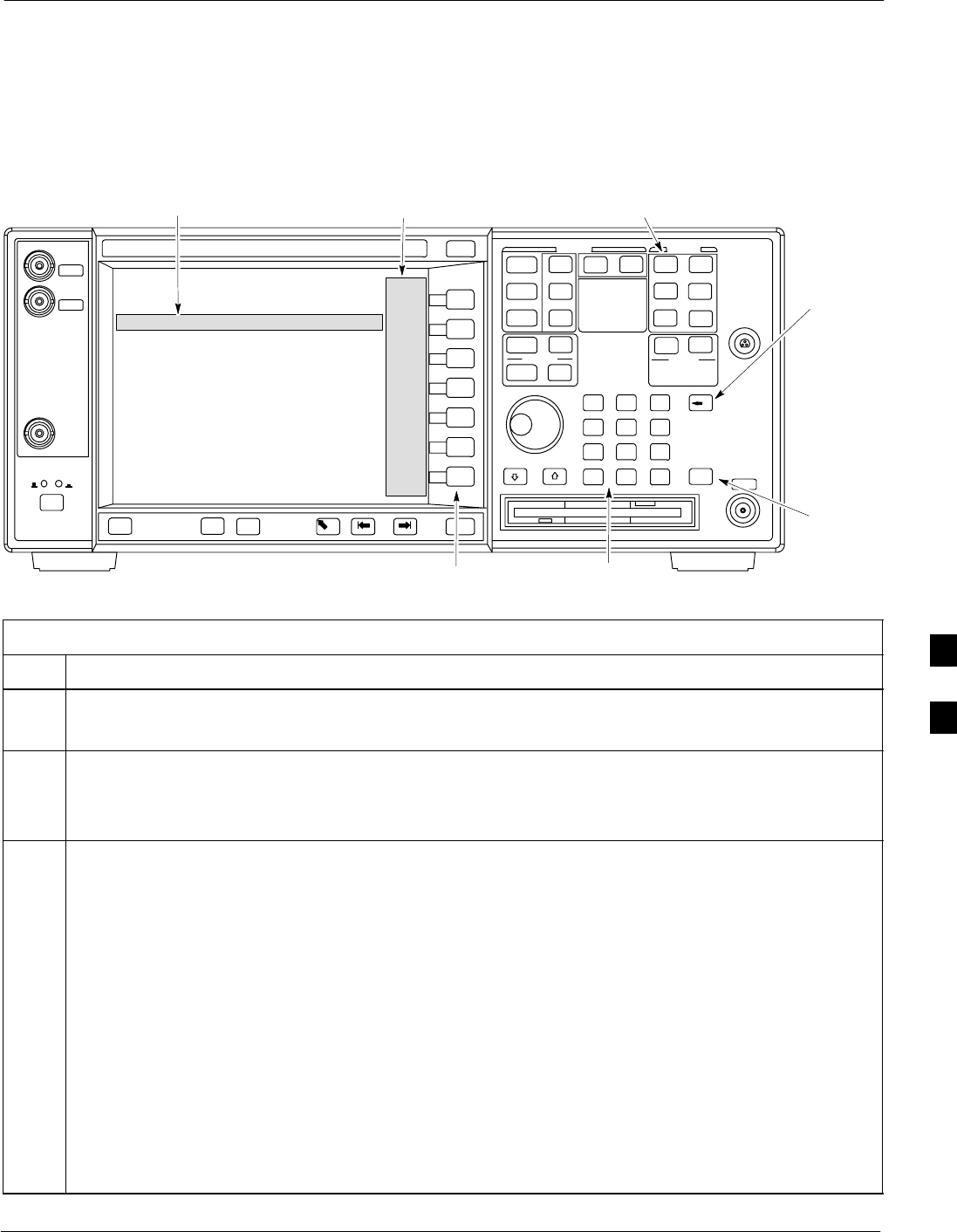

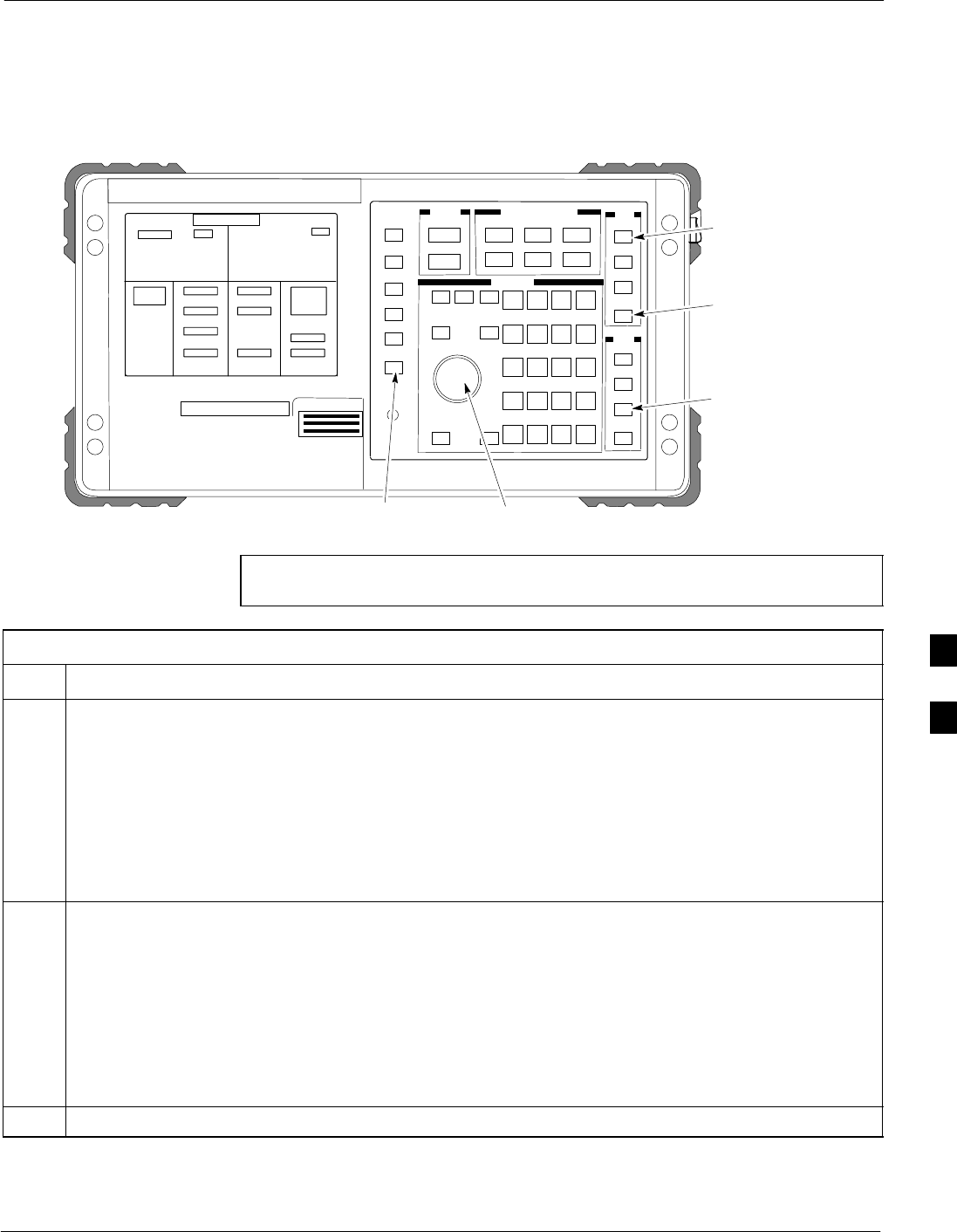

Figure F-1: Setting Agilent E4406A GPIB Address
System Key
Bk Sp Key
Enter Key
Data Entry KeypadSoftkey Buttons
Softkey Label Display AreaActive Function Area
ti-CDMA-WP-00085-v01-ildoc-ftw
Table F-1: Verify and Change Agilent E4406A GPIB Address
Step Action
1In the SYSTEM section of the instrument front panel, press the System key.
– The softkey labels displayed on the right side of the instrument screen will change.
2Press the Config I/O softkey button to the right of the instrument screen.
– The softkey labels will change.
– The current instrument GPIB address will be displayed below the GPIB Address softkey label.
3If the current GPIB address is not set to 18, perform the following to change it:
3a Press the GPIB Address softkey button. In the on–screen Active Function Area, GPIB Address will
be displayed followed by the current GPIB address.
3b On front panel Data Entry keypad, enter the communications system analyzer GPIB address of 18.
– The GPIB Address label will change to Enter.
– Characters typed with the keypad will replace the current GPIB address in the Active Function
Area.
NOTE
To correct an entry, press Bk Sp key to delete one character at a time.
3c Press the Enter softkey button or the keypad Enter key to set the new GPIB address.
– The Config I/O softkey labels will reappear.
– The new GPIB address will be displayed under the GPIB Address softkey label.
F
Verifying and Setting GPIB Addresses 68P64115A18–1
Mar 2003
1X SC 4812T Lite BTS Optimization/ATP Software Release R2.16.1.x
DRAFT
F-4
Agilent E4432B Signal Generator GPIB Address
Refer to Figure F-2 and follow the procedure in Table F-2 to verify and,
if necessary, change the Agilent E4432B GPIB address.

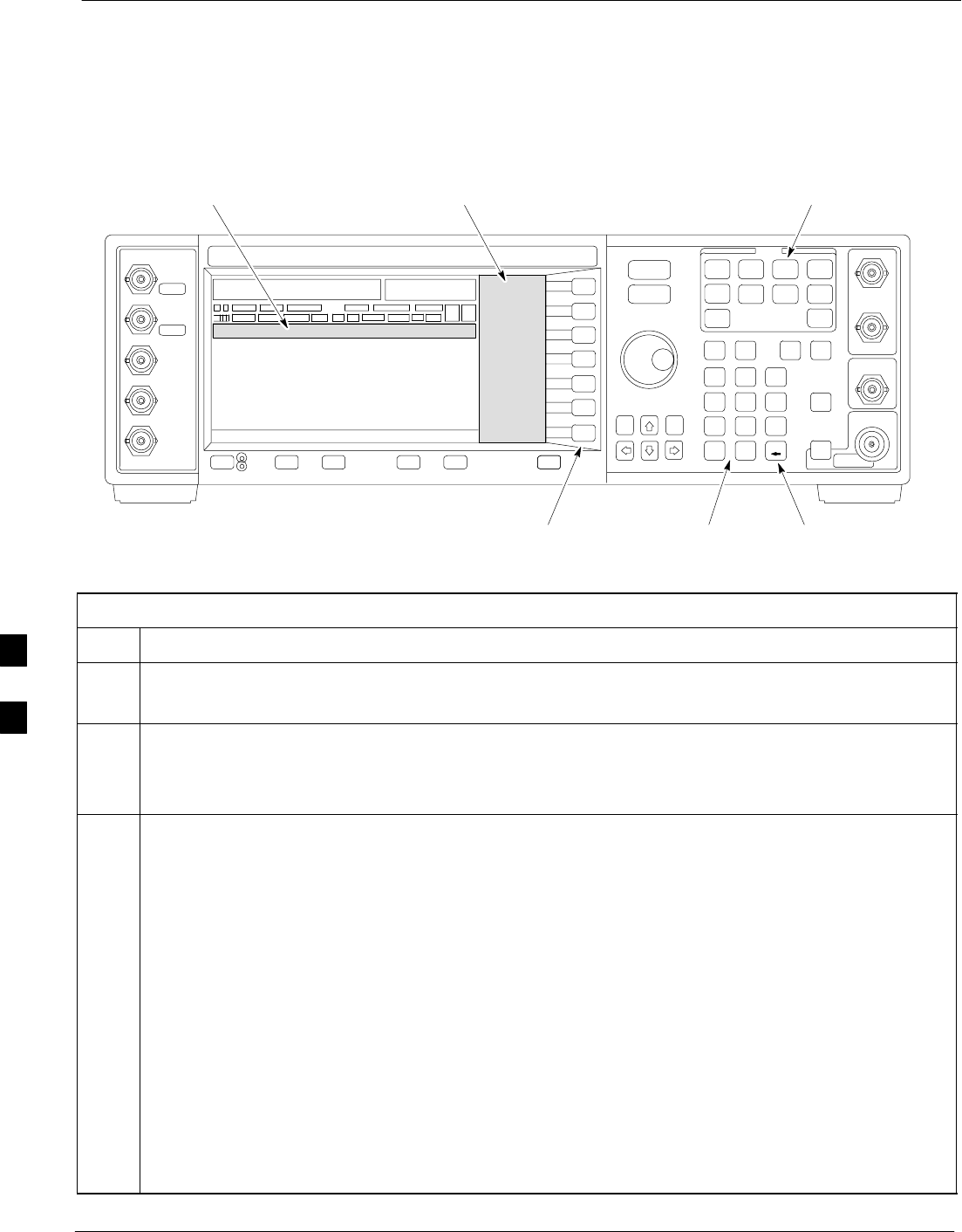

Figure F-2: Setting Agilent E4432B GPIB Address
Numeric
Keypad
Softkey
Buttons
Softkey Label
Display Area
Active Entry
Area
Backspace
Key
Utility
Key
Table F-2: Verify and Change Agilent E4432B GPIB Address
Step Action
1In the MENUS section of the instrument front panel, press the Utility key.
– The softkey labels displayed on the right side of the instrument screen will change.
2Press the GPIB/RS232 softkey button to the right of the instrument screen.
– The softkey labels will change.
– The current instrument GPIB address will be displayed below the GPIB Address softkey label.
3If the current GPIB address is not set to 1, perform the following to change it:
3a Press the GPIB Address softkey button.
– The GPIB Address label and current GPIB address will change to boldface.
– In the on–screen Active Entry Area, Address: will be displayed followed by the current GPIB
address.
3b On the front panel Numeric keypad, enter the signal generator GPIB address of 1.
– The GPIB Address label will change to Enter.
– Characters typed on the keypad will replace the current GPIB address in the Active Entry display.
NOTE
To correct an entry, press the backspace key at the lower right of the keypad to delete one character at
a time.
3c Press the Enter softkey button to set the new GPIB address.
– The new GPIB address will be displayed under the GPIB Address softkey label.
F
Verifying and Setting GPIB Addresses68P64115A18–1
Mar 2003 1X SC 4812T Lite BTS Optimization/ATP Software Release R2.16.1.x
DRAFT
F-5
Advantest R3267 Spectrum Analyzer GPIB Address
Refer to Figure F-3 and perform the procedure in Table F-3 to verify
and, if necessary, change the Advantest R3267 spectrum analyzer GPIB
address.

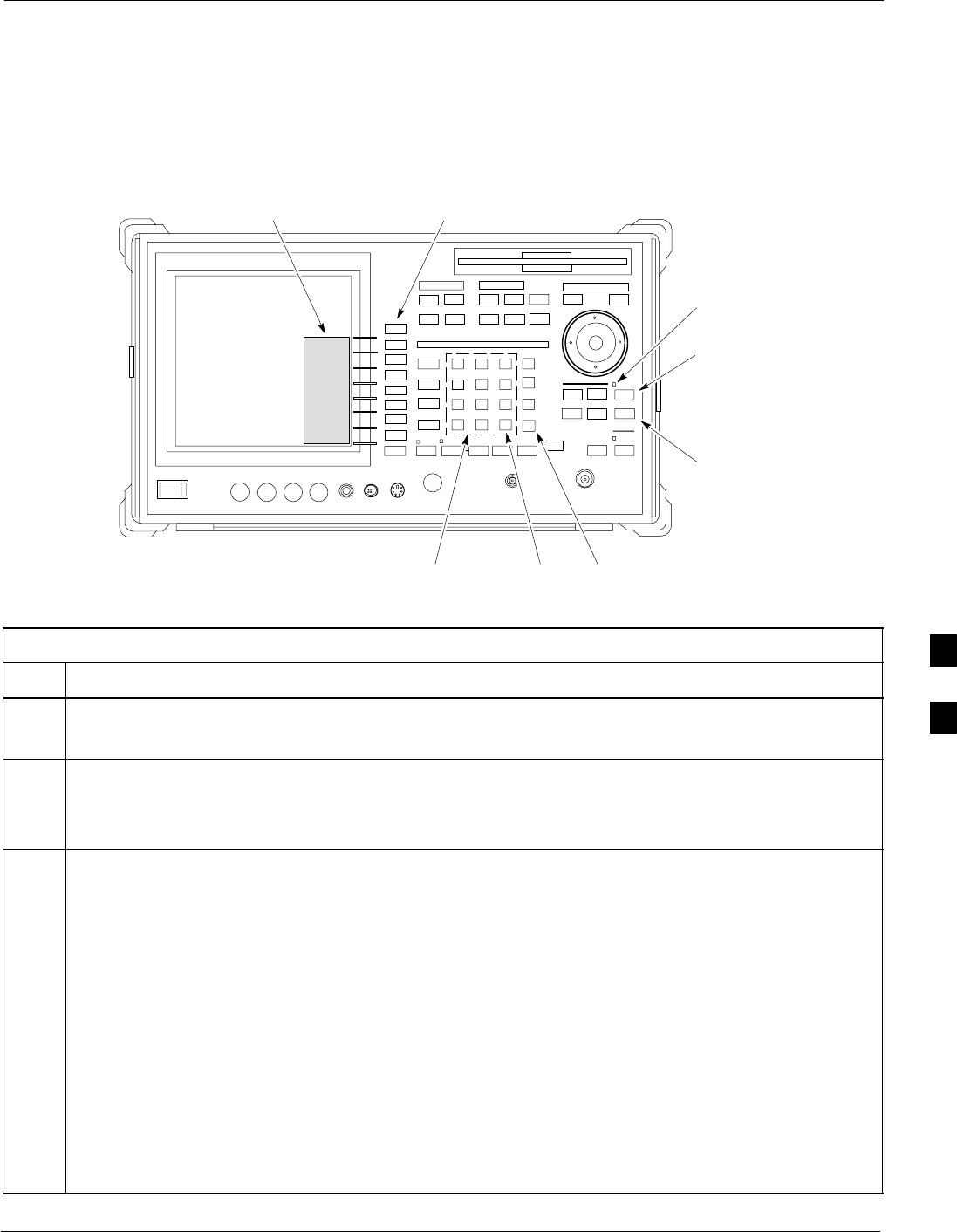

Figure F-3: Setting Advantest R3267 GPIB Address
onREMOTE
LED
LCL Key
CONFIG
Key
Softkey Lable
Display Area Softkey
Buttons
Keypad BS
Key ENTR
Key
Table F-3: Verify and Change Advantest R3267 GPIB Address
Step Action
1If the REMOTE LED is lighted, press the LCL key.
– The LED extinguishes.
2Press the CONFIG key.
–CONFIG softkey labels will appear in the softkey label display area of the instrument display.
– The current GPIB address will be displayed below the GPIB Address softkey label.
3If the current GPIB address is not set to 18, perform the following to change it:
3a Press the GPIB Address softkey. A GPIB Address entry window will open in the instrument display
showing the current GPIB address.
3b Enter 18 on the keypad in the ENTRY section of the instrument front panel.
– Characters typed on the keypad will replace the address displayed in the GPIB Address entry
window.
NOTE
To correct an entry, press the BS (backspace) key at the lower right of the keypad to delete one
character at a time.
3c Press the ENTR key to the lower right of the keypad to set the new GPIB address.
– The GPIB Address entry window closes.
– The new address is displayed in the bottom portion of the GPIB Address softkey label.
F
Verifying and Setting GPIB Addresses 68P64115A18–1
Mar 2003
1X SC 4812T Lite BTS Optimization/ATP Software Release R2.16.1.x
DRAFT
F-6
Advantest R3562 Signal Generator GPIB Address
Set the GP–IB ADDRESS switch on the rear of the Advantest R3562
signal generator to address 1 as shown in Figure F-4.

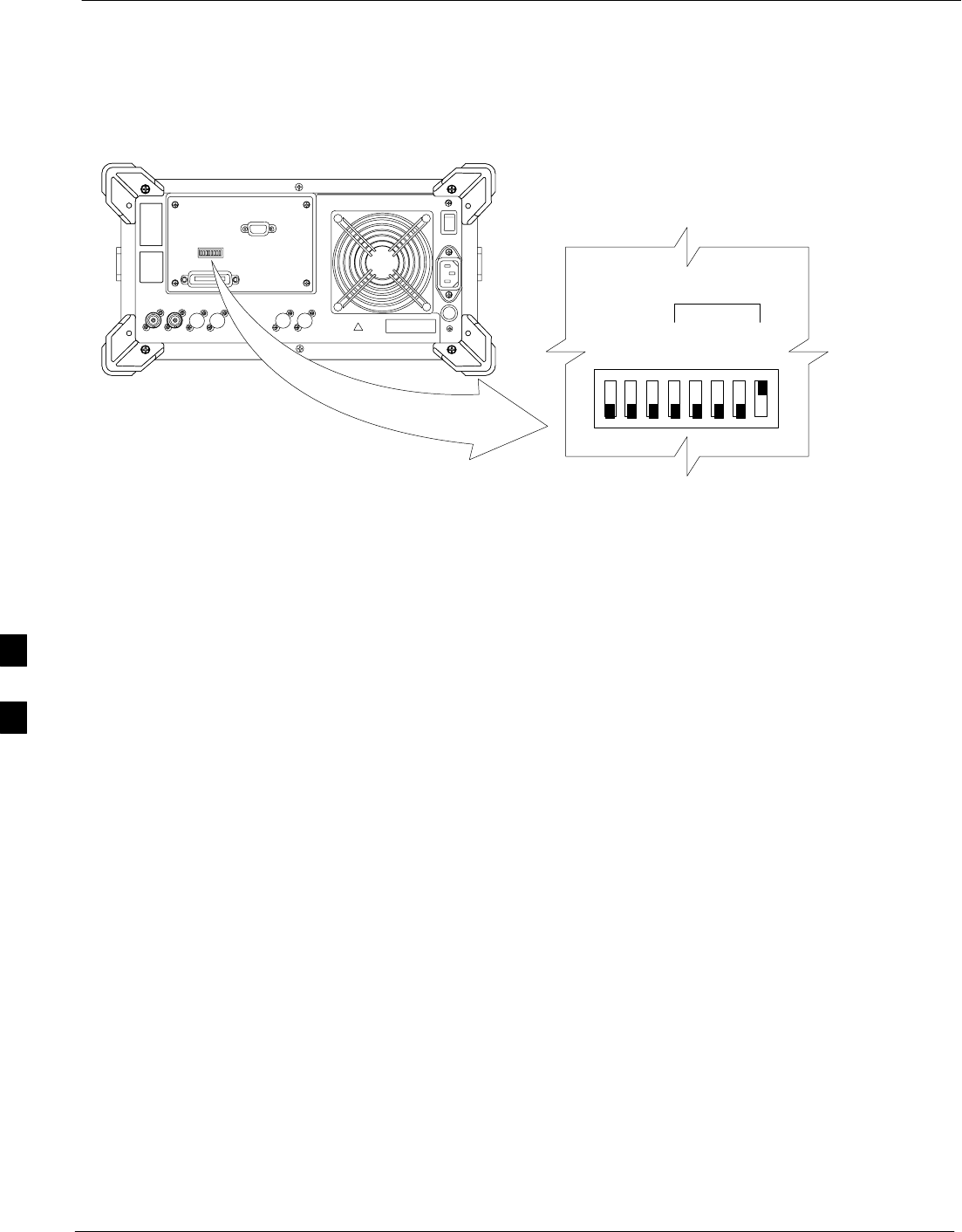

Figure F-4: Advantest R3562 GPIB Address Switch Setting
1234567 8
54321
GP–IP ADDRESS
1
0
GPIB Address set to “1”
F
Verifying and Setting GPIB Addresses68P64115A18–1
Mar 2003 1X SC 4812T Lite BTS Optimization/ATP Software Release R2.16.1.x
DRAFT
F-7
Agilent 8935 Series E6380 (formerly HP 8935) Test Set GPIB Address
Refer to Figure F-5 and follow the procedure in Table F-4 to verify and,
if necessary, change the Agilent 8935 GPIB address.
Figure F-5: Agilent 8935 Test Set
Preset
Cursor Control
Shift
Inst Config
Local
FW00885
NOTE This procedure assumes that the test equipment is set up and
ready for testing.
Table F-4: Verify and/or Change Agilent 8935 (formerly HP 8935) GPIB Address
Step Action
1NOTE
The HP I/O configuration MUST be set to Talk & Listen, or no device on the GPIB will be
accessible. (Consult test equipment OEM documentation for additional information as required.)
To verify that the GPIB addresses are set correctly, press Shift and LOCAL on the Agilent 8935.
– The current HP–IB address is displayed at the top of the screen.
NOTE
HP–IB is the same as GPIB.
2If the current GPIB address is not set to 18, perform the following to change it:
2a – Press Shift and Inst Config.
2b – Turn the Cursor Control knob to move the cursor to the HP–IB Adrs field.
2c – Press the Cursor Control knob to select the field.
2d – Turn the Cursor Control knob as required to change the address to 18.
2e – Press the Cursor Control knob to set the address.
3 Press Preset to return to normal operation.
F
Verifying and Setting GPIB Addresses 68P64115A18–1
Mar 2003
1X SC 4812T Lite BTS Optimization/ATP Software Release R2.16.1.x
DRAFT
F-8
Hewlett Packard HP8921A and HP83236A/B GPIB Address
Refer to Figure F-6 and follow the procedure in Table F-5 to verify and,
if necessary, change the HP 8921A HP 83236A GPIB addresses.

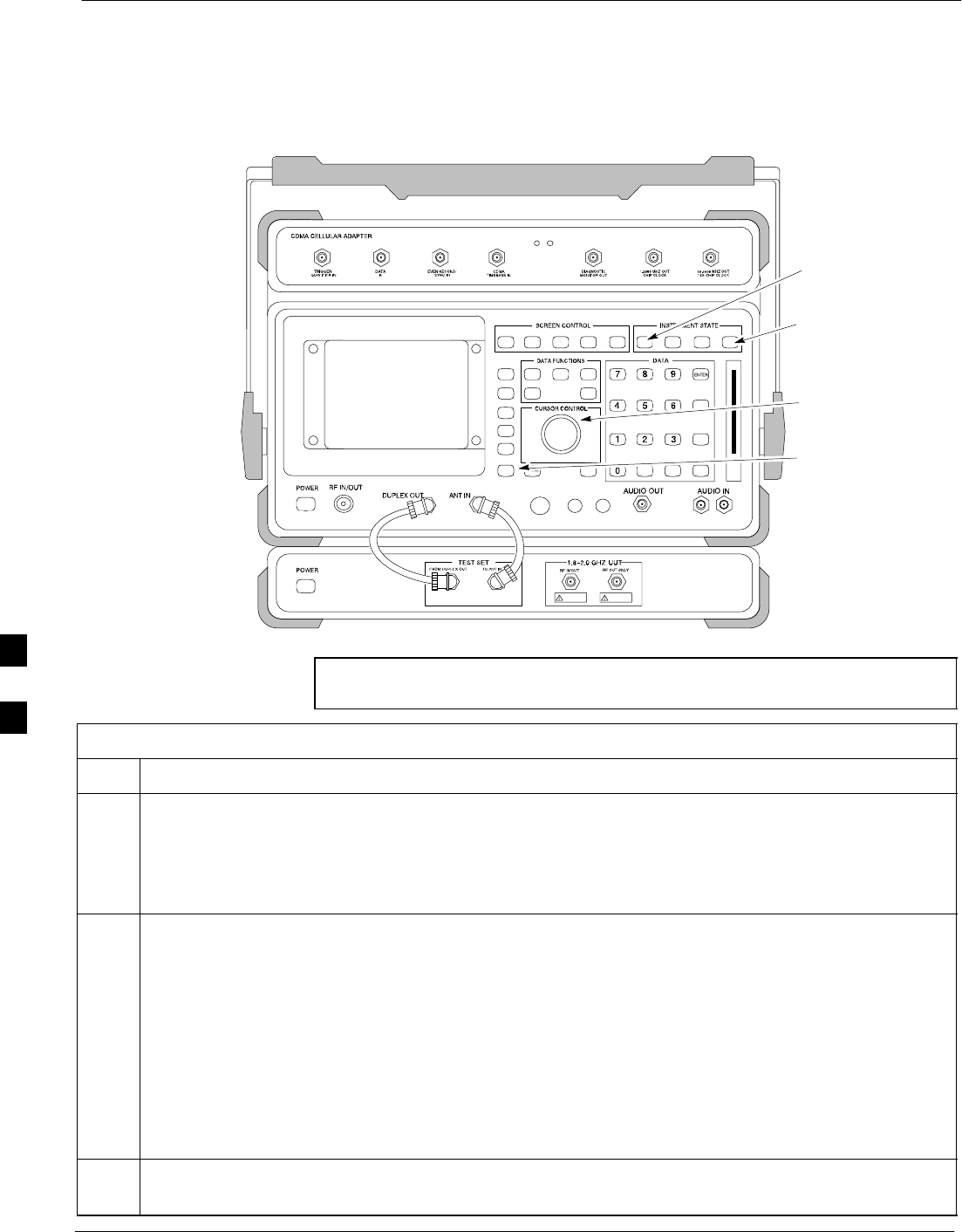

Figure F-6: HP 8921A and HP 83236A/B
Preset
Cursor Control
Shift
Local
NOTE This procedure assumes that the test equipment is set up and
ready for testing.
Table F-5: Verify and/or Change HP 8921A and HP 83236A GPIB Addresses
Step Action
1To verify that the GPIB addresses are set correctly, press Shift and LOCAL on the HP 8921A.
– The current HP–IB address is displayed at the top of the screen.
NOTE
HP–IB is the same as GPIB.
2If the current HP–IB address is not set to 18, perform the following to change it:
2a – Turn the Cursor Control knob to move the cursor to More and press the knob to select the field.
2b – Turn the Cursor Control knob to move the cursor to I/O Config and press the knob to select the
field.
2c – Turn the Cursor Control knob to move the cursor to Adrs and press the knob to select the field.
2d – Turn the Cursor Control knob to change the HP–IB address to 18 and press the knob to set the
address.
2e – Press Shift and Preset to return to normal operation.
3To set the HP 83236A (or B) PCS Interface GPIB address=19, set the DIP switches as follows:
– A1=1, A2=1, A3=0, A4=0, A5=1, HP–IB/Ser = 1
F
Verifying and Setting GPIB Addresses68P64115A18–1
Mar 2003 1X SC 4812T Lite BTS Optimization/ATP Software Release R2.16.1.x
DRAFT
F-9
Advantest R3465 Communications Test Set GPIB Address
Refer to Figure F-7 and follow the procedure in Table F-6 to verify and,
if necessary, change the GPIB address for the Advantest R3465.

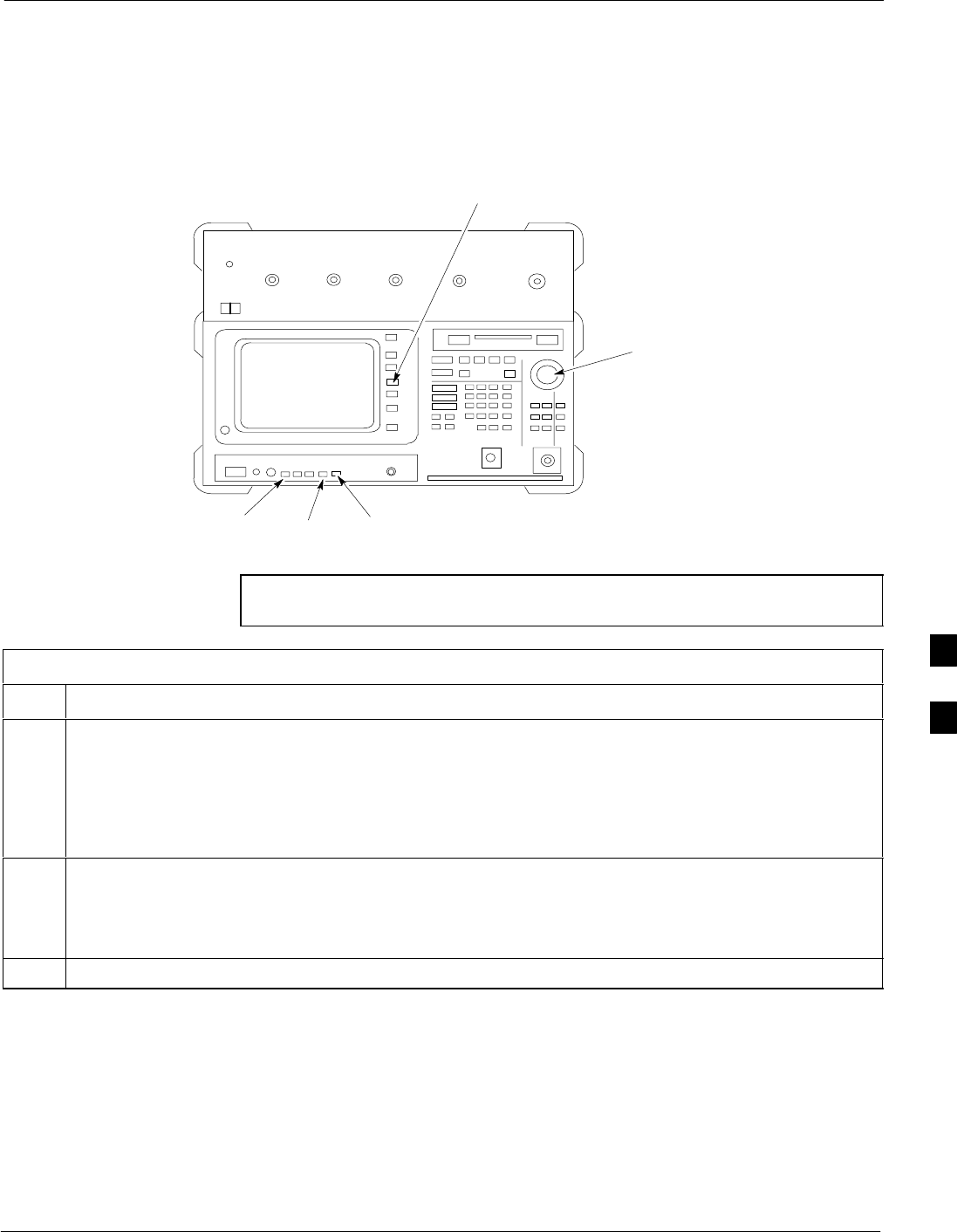

Figure F-7: R3465 Communications Test Set
BNC
“T”
REF UNLOCK EVEN
SEC/SYNC IN CDMA
TIME BASE IN
POWER
OFF ON
REF FW00337
LCL Shift Preset
GPIB and others
Vernier
Knob
NOTE This procedure assumes that the test equipment is set up and
ready for testing.
Table F-6: Verify and/or Change Advantest R3465 GPIB Address
Step Action
1To verify that the GPIB address is set correctly, perform the following:
1a – Press SHIFT then PRESET.
1b – Press LCL.
1c – Press the GPIB and Others CRT menu key to view the current address.
2If the current GPIB address is not set to 18, perform the following to change it:
2a – Turn the vernier knob as required to select 18.
2b – Press the vernier knob to set the address.
3To return to normal operation, press Shift and Preset.
F
Verifying and Setting GPIB Addresses 68P64115A18–1
Mar 2003
1X SC 4812T Lite BTS Optimization/ATP Software Release R2.16.1.x
DRAFT
F-10
Motorola CyberTest GPIB Address
Follow the steps in Table F-7 to verify and, if necessary, change the
GPIB address on the Motorola CyberTest. Changing the GPIB address
requires the following items:
SMotorola CyberTest communications analyzer.
SComputer running Windows 3.1/Windows 95.
SMotorola CyberTAME software program “TAME”.
SParallel printer port cable (shipped with CyberTest).
NOTE This procedure assumes that the test equipment is set up and
ready for testing.
Table F-7: Verify and/or Change Motorola CyberTest GPIB Address
Step Action
1On the LMF desktop, locate the CyberTAME icon. Double click on the icon to run the CyberTAME
application.
2In the CyberTAME window taskbar, under Special, select IEEE.488.2.
3CyberTAME software will query the CyberTest Analyzer for its current GPIB address. It then will
open the IEEE 488.2 dialog box. If the current GPIB address is not 18, perform the following
procedure to change it:
3a Use the up or down increment arrows or double–click in the field and type the number to set the
address to 18.
3b Click on the OK button. The new address will be written to the CyberTest through the parallel port
and saved.
4Verify that the address has been set by repeating steps 2 and 3. The new address should now appear in
the IEEE 488.2 dialog box Address field.
F
Verifying and Setting GPIB Addresses68P64115A18–1
Mar 2003 1X SC 4812T Lite BTS Optimization/ATP Software Release R2.16.1.x
DRAFT
F-11
HP 437 Power Meter GPIB Address
Refer to Figure F-8 and follow the steps in Table F-8 to verify and, if
necessary, change the HP 437 GPIB address.
Figure F-8: HP 437 Power Meter
ENTER
PRESET
SHIFT (BLUE) PUSHBUTTON –
ACCESSES FUNCTION AND
DATA ENTRY KEYS IDENTIFIED
WITH LIGHT BLUE TEXT ON
THE FRONT PANEL ABOVE
THE BUTTONS
FW00308REF
NOTE This procedure assumes that the test equipment is set up and
ready for testing.
Table F-8: Verify and/or Change HP 437 Power Meter GPIB Address
Step Action
1 Press Shift and PRESET.
2Use the y arrow key to navigate to HP–IB ADRS and press ENTER.
The HP–IB address is displayed.
NOTE
HP–IB is the same as GPIB.
3If the current GPIB address is not set to 13, perform the following to change it:
– Use the y b arrow keys to change the HP–IB ADRS to 13.
– Press ENTER to set the address.
4 Press Shift and ENTER to return to a standard configuration.
F
Verifying and Setting GPIB Addresses 68P64115A18–1
Mar 2003
1X SC 4812T Lite BTS Optimization/ATP Software Release R2.16.1.x
DRAFT
F-12
Gigatronics 8541C Power Meter GPIB Address
Refer to Figure F-9 and follow the steps in Table F-9 to verify and, if
necessary, change the Gigatronics 8541C power meter GPIB address.

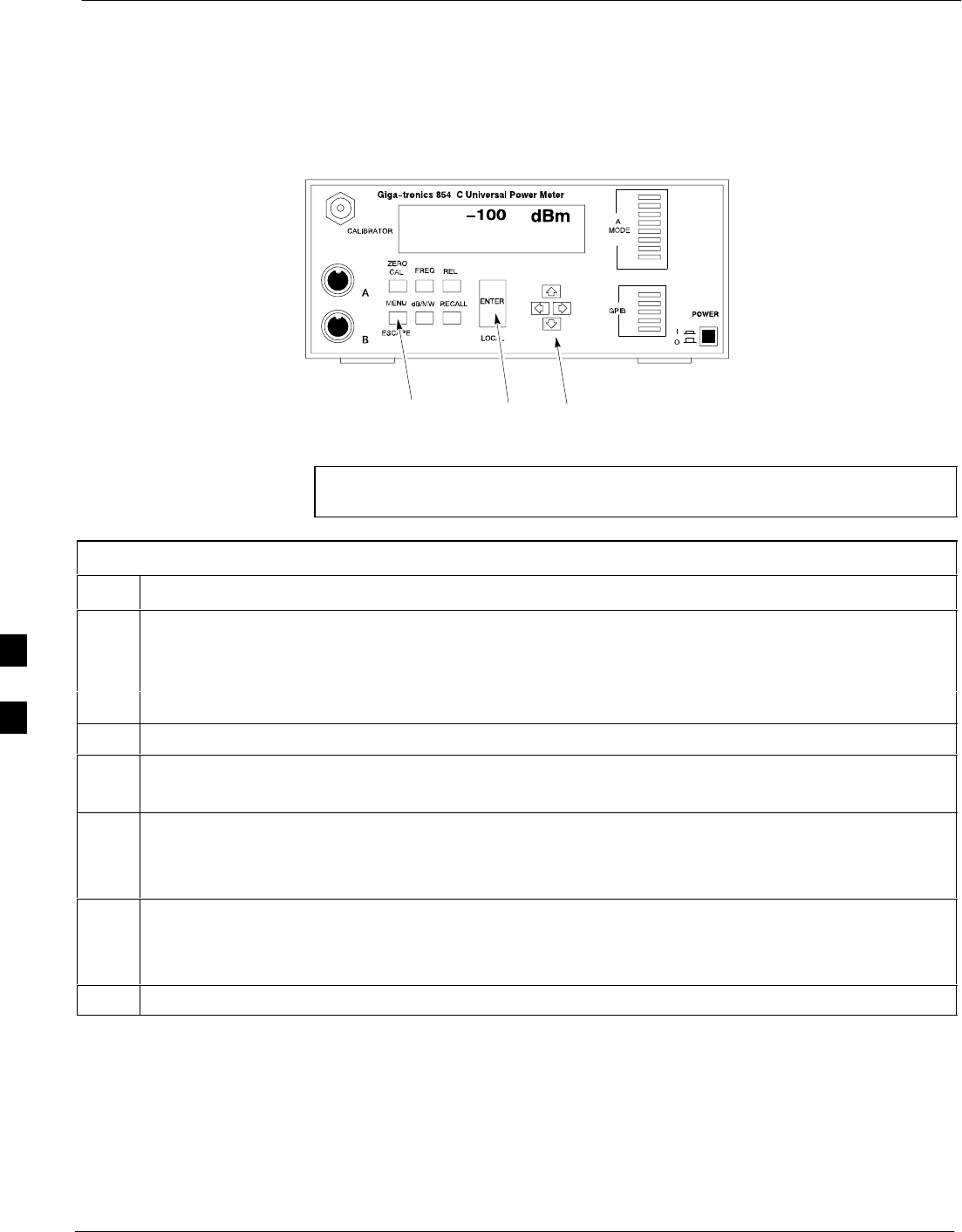

Figure F-9: Gigatronics 8541C Power Meter Detail
MENU ENTER ARROW
KEYS
1
REF FW00564
NOTE This procedure assumes that the test equipment is set up and
ready for testing.
Table F-9: Verify and/or Change Gigatronics 8541C Power Meter GPIB Address
Step Action
1! CAUTION
Do not connect/disconnect the power meter sensor cable with AC power applied to the meter.
Disconnection could result in destruction of the sensing element or miscalibration.
Press MENU.
2Use the b arrow key to select CONFIG MENU and press ENTER.
3Use the b arrow key to select GPIB and press ENTER.
The current Mode and GPIB Address are displayed.
4If the Mode is not set to 8541C, perform the following to change it:
Use the a ’ arrow keys as required to select MODE.
Use the by arrow keys as required to set MODE to 8541C.
5If the GPIB address is not set to 13, perform the following to change it:
Use the ’ arrow key to select ADDRESS.
Use the by arrow keys as required to set the GPIB address to 13.
6 Press ENTER to return to normal operation.
F
Verifying and Setting GPIB Addresses68P64115A18–1
Mar 2003 1X SC 4812T Lite BTS Optimization/ATP Software Release R2.16.1.x
DRAFT
F-13
RS232 GPIB Interface Adapter
Be sure that the RS–232 GPIB interface adapter DIP switches are set as
shown in Figure F-10.

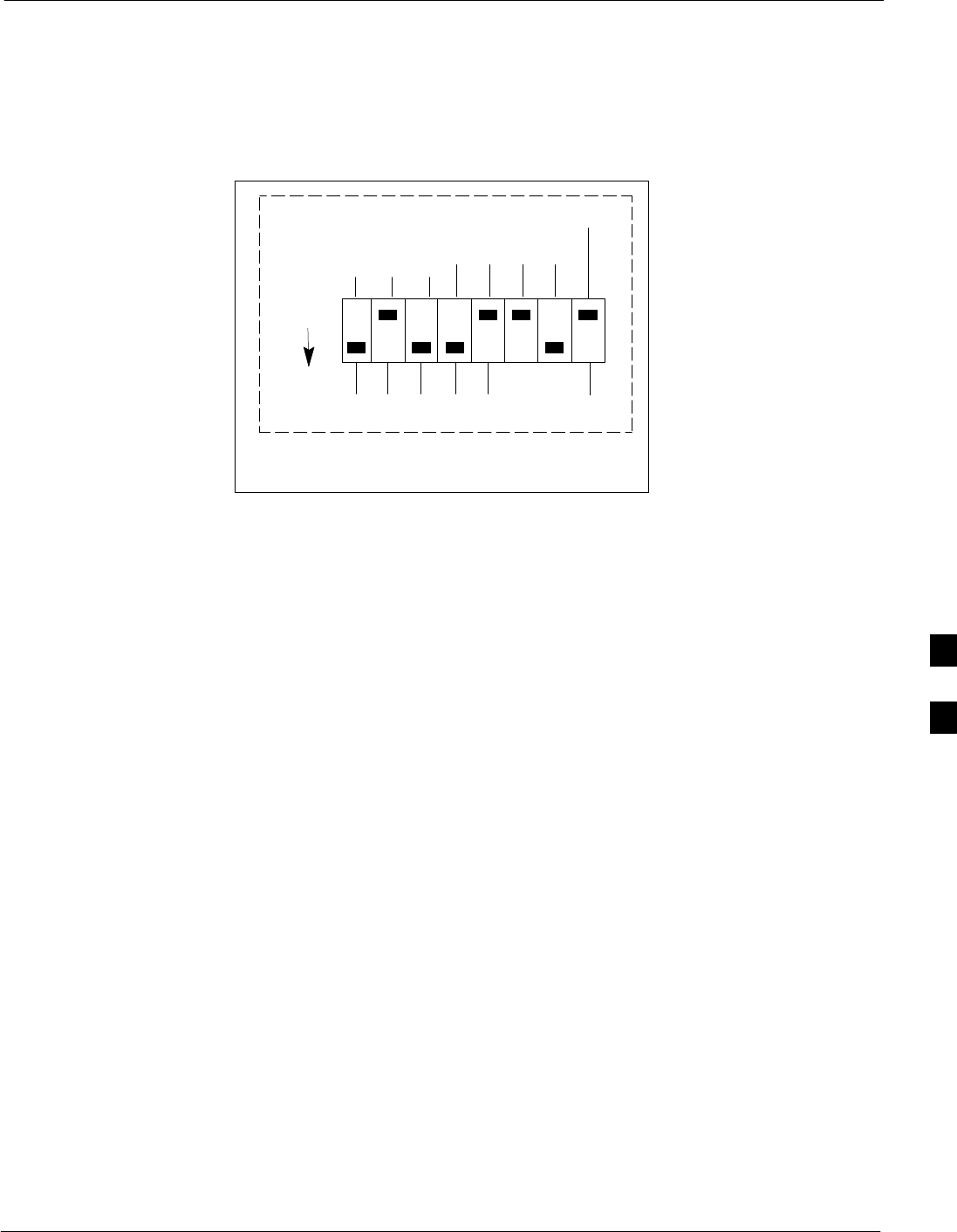

Figure F-10: RS232 GPIB Interface Adapter
RS232–GPIB
INTERFACE BOX
S MODE
DATA FORMAT
BAUD RATE
GPIB ADRS
ON
DIP SWITCH SETTINGS
G MODE
F
Test Equipment Inter–unit Connection, Testing, and Control 68P64115A18–1
Mar 2003
1X SC 4812T Lite BTS Optimization/ATP Software Release R2.16.1.x
DRAFT
F-14
Test Equipment Inter–unit Connection, Testing, and Control
Inter–unit Connection, Testing, and Control Settings
The following illustrations, tables, and procedures provide the
information necessary to prepare various items of CDMA test equipment
supported by the LMF for BTS calibration and/or acceptance testing.
HP 8921A with PCS Interface Test Equipment Connections
The following diagram depicts the rear panels of the HP 8921A test
equipment as configured to perform automatic tests. All test equipment
is controlled by the LMF via an IEEE–488/GPIB bus. The LMF expects
each piece of test equipment to have a factory-set GPIB address (refer to
Table F-5 and Figure F-6). If there is a communications problem
between the LMF and any piece of test equipment, verify that the GPIB
addresses have been set correctly and that the GPIB cables are firmly
connected to the test equipment.
Figure F-11 shows the connections when not using an external 10 MHz
Rubidium reference.
Table F-10: HP 8921A/600 Communications Test Set Rear Panel Connections Without Rubidium Reference
From Test Set: To Interface:
Connector Type
8921A 83203B CDMA 83236A PCS
C
onnector
T
ype
CW RF OUT CW RF IN SMC–female – SMC–female
114.3 MHZ IF OUT 114.3 MHZ IF IN SMC–female – SMC–female
IQ RF IN IQ RF OUT SMC–female – SMC–female
DET OUT AUX DSP IN SMC–female – SMC–female
CONTROL I/O CONTROL I/O 45–pin custom BUS
10 MHZ OUT SYNTH REF IN BNC–male – BNC–male
HPIB INTERFACE HPIB INTERFACE HPIB cable
10 MHZ OUT REF IN BNC–male – BNC–male
F
Test Equipment Inter–unit Connection, Testing, and Control68P64115A18–1
Mar 2003 1X SC 4812T Lite BTS Optimization/ATP Software Release R2.16.1.x
DRAFT
F-15

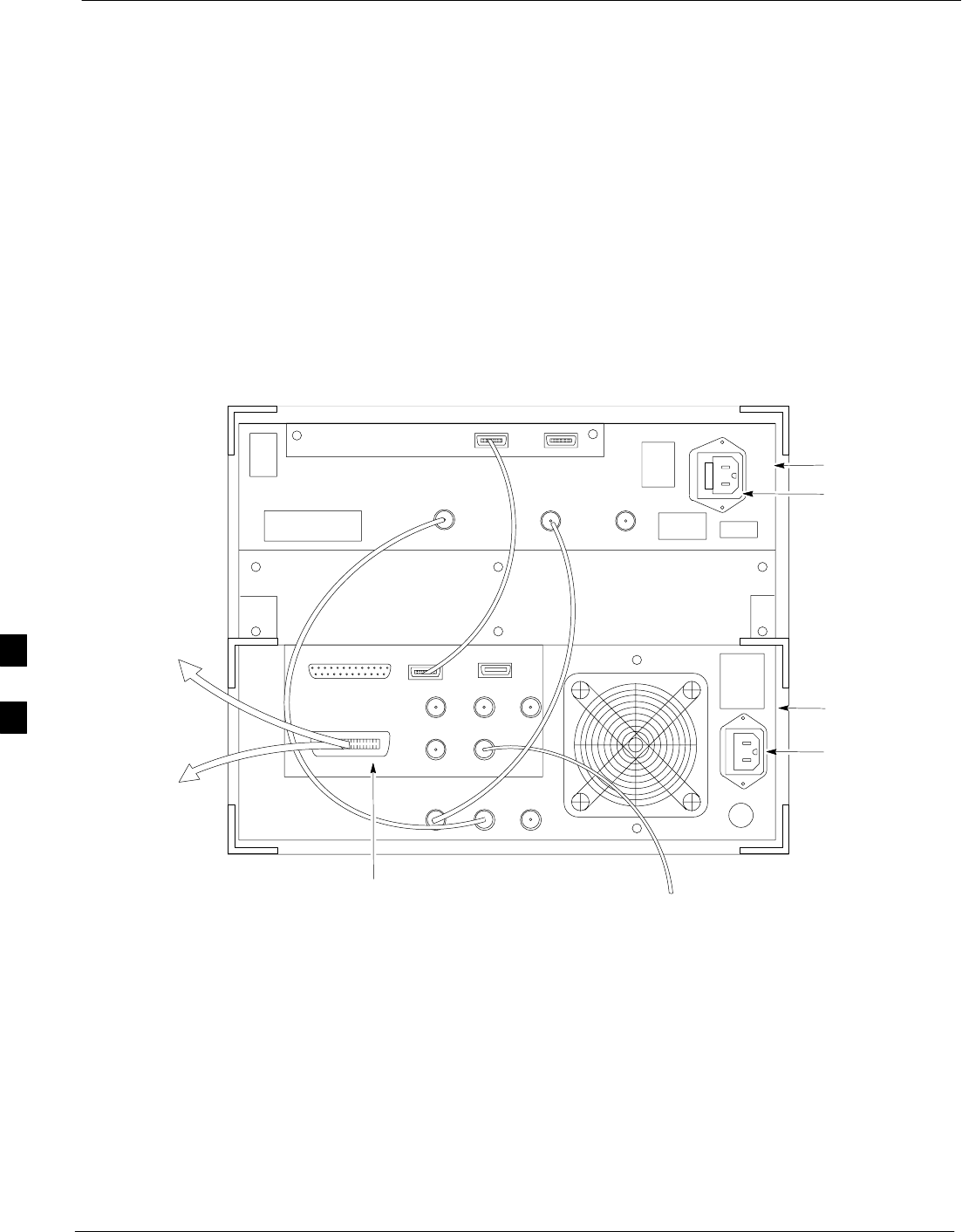

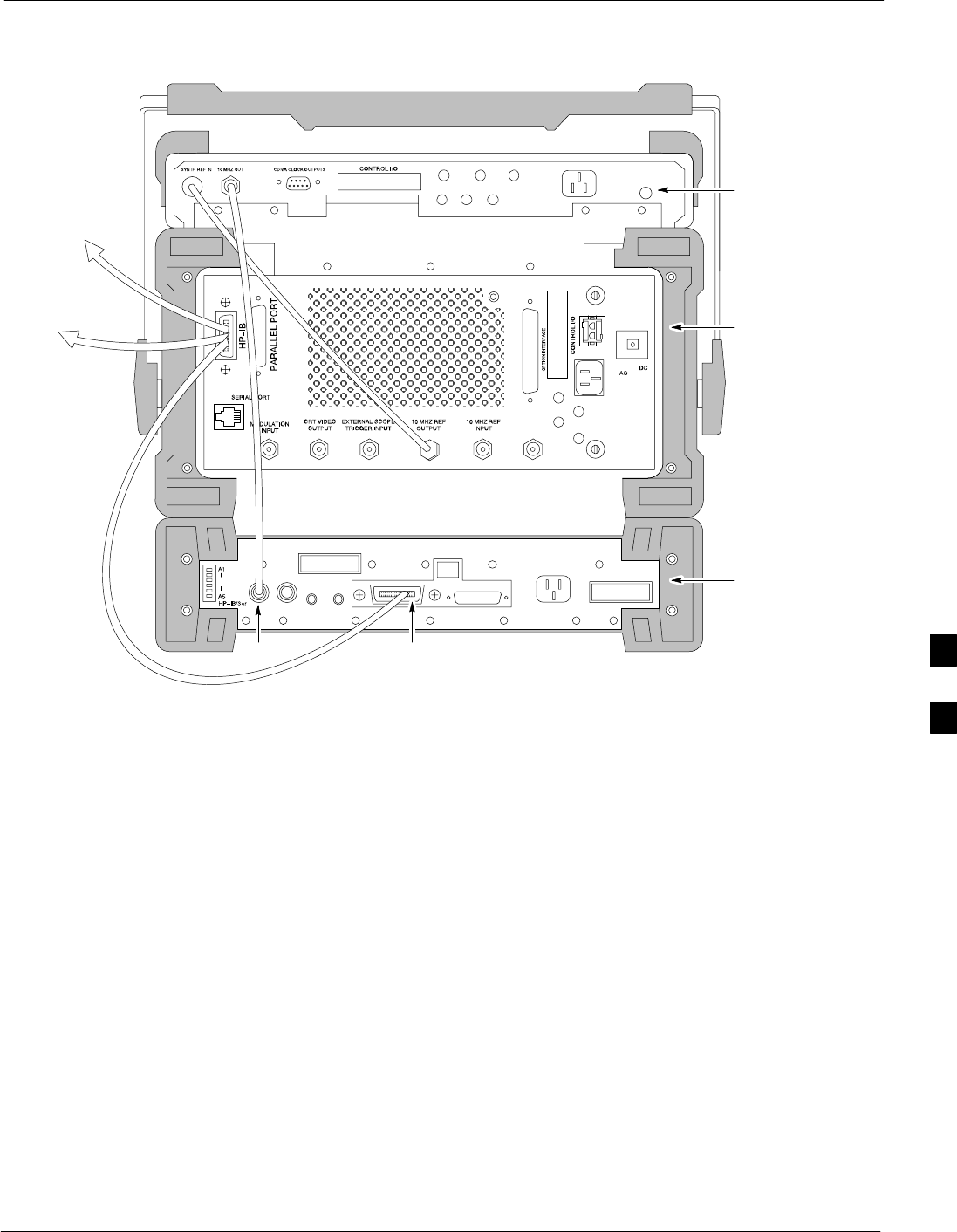

Figure F-11: HP 8921A/600 Cable Connections for 10 MHz Signal and GPIB without Rubidium Reference
REAR PANEL
COMMUNICATIONS TEST SET
REF IN
HP 83203B CDMA
CELLULAR ADAPTER
HP 8921A CELL
SITE TEST SET
HP 83236A PCS
INTERFACE
HP–IB
TO GPIB
INTERFACE
BOX
TO POWER
METER GPIB
CONNECTOR
FW00368 F
Test Equipment Inter–unit Connection, Testing, and Control 68P64115A18–1
Mar 2003
1X SC 4812T Lite BTS Optimization/ATP Software Release R2.16.1.x
DRAFT
F-16
Figure F-12 shows the connections when using an external 10 MHz
Rubidium reference.
Table F-11: HP 8921A/600 Communications Test Set Rear Panel Connections With Rubidium Reference
From Test Set: To Interface:
Connector Type
8921A 83203B CDMA 83236A PCS
C
onnector
T
ype
CW RF OUT CW RF IN SMC–female – SMC–female
114.3 MHZ IF OUT 114.3 MHZ IF IN SMC–female – SMC–female
IQ RF IN IQ RF OUT SMC–female – SMC–female
DET OUT AUX DSP IN SMC–female – SMC–female
CONTROL I/O CONTROL I/O 45–pin custom BUS
10 MHZ OUT REF IN BNC–male – BNC–male
HPIB INTERFACE HPIB INTERFACE HPIB cable
10 MHZ INPUT 10 MHZ OUT BNC–male – BNC–male
F
Test Equipment Inter–unit Connection, Testing, and Control68P64115A18–1
Mar 2003 1X SC 4812T Lite BTS Optimization/ATP Software Release R2.16.1.x
DRAFT
F-17

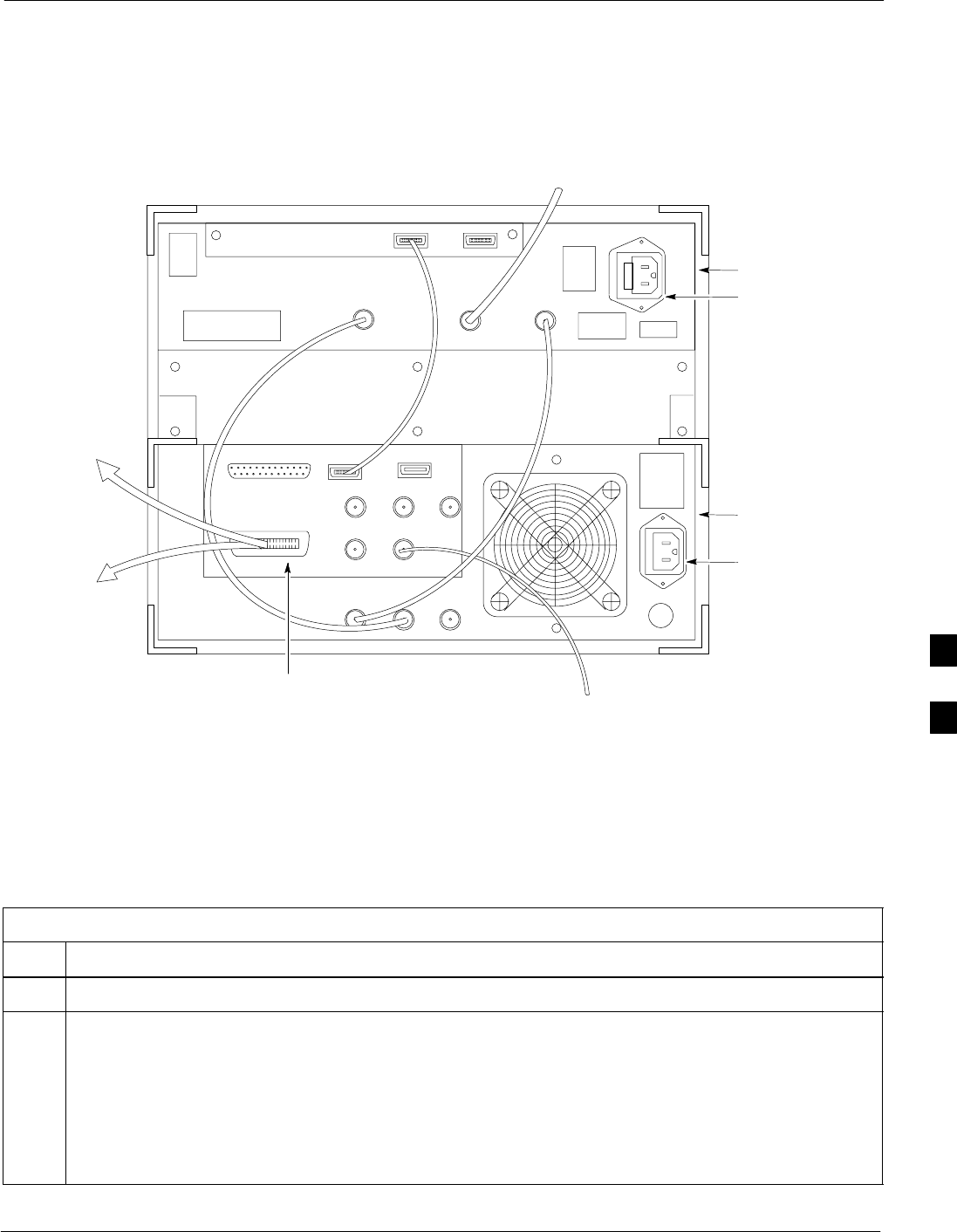

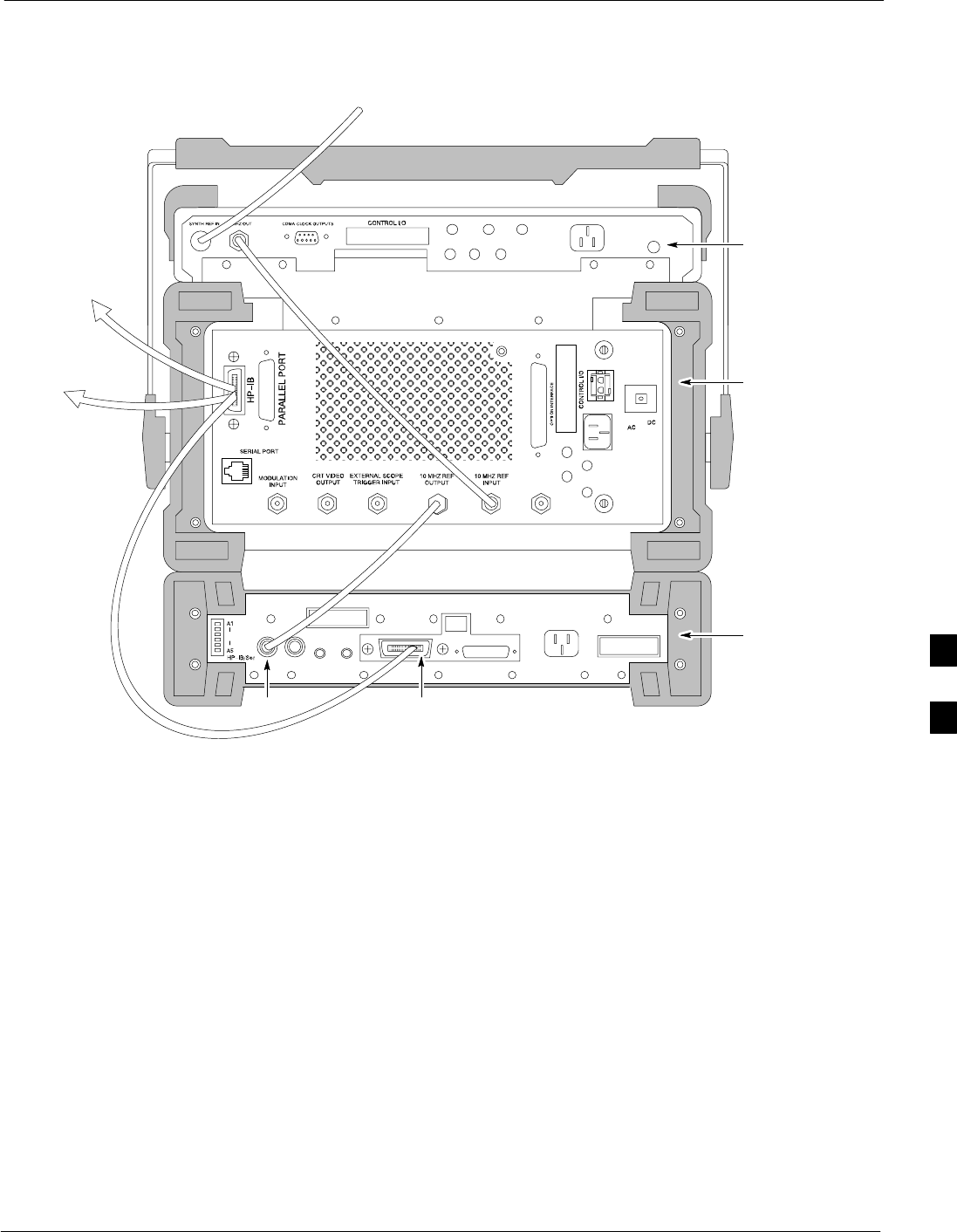

Figure F-12: HP 8921A Cable Connections for 10 MHz Signal and GPIB with Rubidium Reference
REF IN
REAR PANEL
COMMUNICATIONS TEST SET
TO POWER
METER GPIB
CONNECTOR
TO GPIB
INTERFACE
BOX
10 MHZ WITH
RUBIDIUM STANDARD
HP 83203B CDMA
CELLULAR ADAPTER
HP 8921A CELL
SITE TEST SET
HP 83236A PCS
INTERFACE
HP–IB
FW00369
F
Test Equipment Inter–unit Connection, Testing, and Control 68P64115A18–1
Mar 2003
1X SC 4812T Lite BTS Optimization/ATP Software Release R2.16.1.x
DRAFT
F-18
HP 8921A with PCS Interface System Connectivity Test
Follow the steps outlined in Table F-12 to verify that the connections
between the PCS Interface and the HP 8921A are correct and cables are
intact. The software also performs basic functionality checks of each
instrument.
NOTE Table:note. Note 10pt Helvetica
Disconnect other GPIB devices, especially system controllers,
from the system before running the connectivity software.
Table F-12: System Connectivity
Step Action
NOTE
– Perform this procedure after test equipment has been allowed to warm–up and stabilize for a
minimum of 60 minutes.
1Insert HP 83236A Manual Control/System card into memory card slot.
2Press the [PRESET] pushbutton.
3Press the Screen Control [TESTS] pushbutton to display the “Tests” Main Menu screen.
4Position the cursor at Select Procedure Location and select it by pressing the cursor control knob. In
the Choices selection box, select Card.
5Position the cursor at Select Procedure Filename and select it by pressing the cursor control knob. In
the Choices selection box, select SYS_CONN.
6Position the cursor at RUN TEST and select it. The software will provide operator prompts through
completion of the connectivity setup.
7Do the following when the test is complete,
Sposition cursor on STOP TEST and select it
SOR press the [K5] pushbutton.
8To return to the main menu, press the [K5] pushbutton.
9Press the [PRESET] pushbutton.
Pretest Setup for HP 8921A
Before the HP 8921A CDMA analyzer is used for LMF–controlled
testing it must be set up correctly for automatic testing.
Table F-13: Pretest Setup for HP 8921A
Step Action
1Unplug the memory card if it is plugged in.
2Press the CURSOR CONTROL knob.
3Position the cursor at IO CONFIG (under To Screen and More) and select it.
4Select Mode and set for Talk&Lstn.
F
Test Equipment Inter–unit Connection, Testing, and Control68P64115A18–1
Mar 2003 1X SC 4812T Lite BTS Optimization/ATP Software Release R2.16.1.x
DRAFT
F-19
Pretest Setup for Agilent 8935
Before the Agilent 8935 analyzer is used for LMF controlled testing it
must be set up correctly for automatic testing.
Table F-14: Pretest Setup for Agilent 8935
Step Action
1Unplug the memory card if it is plugged in.
2Press the Shift button and then press the I/O Config button.
3Press the Push to Select knob.
4Position the cursor at IO CONFIG and select it.
5 Select Mode and set for Talk&Lstn.
F
Test Equipment Inter–unit Connection, Testing, and Control 68P64115A18–1
Mar 2003
1X SC 4812T Lite BTS Optimization/ATP Software Release R2.16.1.x
DRAFT
F-20
Advantest R3465 Connection
The following diagram depicts the rear panels of the Advantest R3465
test equipment as configured to perform automatic tests. All test
equipment is controlled by the LMF via an IEEE–488/GPIB bus. The
LMF expects each piece of test equipment to have a factory-set GPIB
address (refer to Table F-6 and Figure F-7). If there is a communications
problem between the LMF and any piece of test equipment, verify that
the GPIB addresses have been set correctly and that the GPIB cables are
firmly connected to the test equipment.
Figure F-13 shows the connections when not using an external 10 MHz
Rubidium reference.

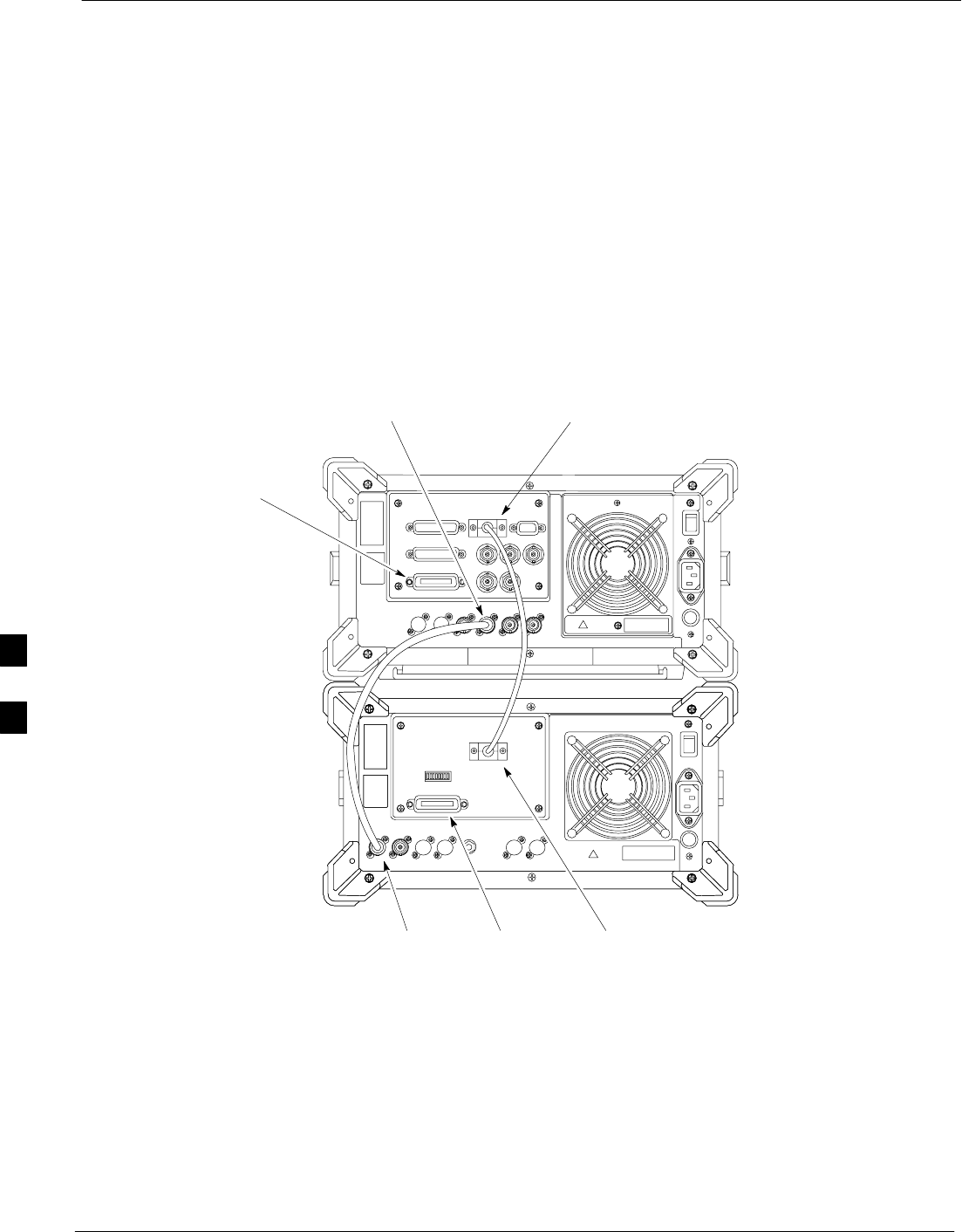

Figure F-13: Cable Connections for Test Set without 10 MHz Rubidium Reference
ADVANTEST R3465
REAR PANEL
GPIB
CONNECTOR
SERIAL I/O
LOCAL IN
SERIAL I/O
SYN REF IN 10 MHZ OUT
PARALLEL
EXT TRIGGER
10 MHZ REF
GATE IN
GPIB
CDMA CLOCK OUT
AC POWER
AC POWER
R3561L
REAR PANEL
R3465
REAR PANEL
TO T–CONNECTOR
ON FRONT PANEL
(EVEN/SEC/SYNC IN)
XYZ
IF OUT
421 MHZ
TO POWER METER
GPIB CONNECTOR
TO GPIB
INTERFACE BOX
FW00370
F
Test Equipment Inter–unit Connection, Testing, and Control68P64115A18–1
Mar 2003 1X SC 4812T Lite BTS Optimization/ATP Software Release R2.16.1.x
DRAFT
F-21
Figure F-14 shows the connections when using an external 10 MHz
Rubidium reference.
Figure F-14: Cable Connections for Test Set with 10 MHz Rubidium Reference
SERIAL I/O
GPIB
CONNECTOR ADVANTEST R3465
REAR PANEL
FROM 10 MHZ
RUBIDIUM REFERENCE
LOCAL IN
SERIAL I/O
IF OUT
SYN REF IN 10 MHZ OUT
PARALLEL
EXT TRIGGER
10 MHZ REF
GATE IN
GPIB
CDMA CLOCK OUT
AC POWER
AC POWER
R3465/3463
REAR PANEL
R3561L
REAR PANEL
TO T–CONNECTOR
ON FRONT PANEL
(EVEN SEC/SYNC IN)
XYZ
421 MHZ
TO POWER METER
GPIB CONNECTOR
TO GPIB
INTERFACE BOX
FW00371
R3465 GPIB Clock Set–up
Table F-15 describes the steps to set the clock for the Advantest R3465
equipment.
Table F-15: Advantest R3465 Clock Setup
Step Action
1Observe the current date and time displayed in upper right of the CRT display.
2If the date and time are incorrect, perform the following to change them:
2a – Push the Date/Time CRT menu key.
2b – Rotate the vernier knob to select and set.
2c – Push the vernier knob to enter.
2d – Push the SHIFT then PRESET pushbutton (just below the CRT display).
F
Test Equipment Inter–unit Connection, Testing, and Control 68P64115A18–1
Mar 2003
1X SC 4812T Lite BTS Optimization/ATP Software Release R2.16.1.x
DRAFT
F-22
Pretest Setup for Advantest R3465
Before the Advantest R3465 analyzer is used for LMF–controlled testing
it must be set up correctly for automatic testing.
Table F-16: Pretest Setup for Advantest R346
Step Action
1Press the SHIFT button so the LED next to it is illuminated.
2Press the RESET button.
Agilent 8932/E4432B Test Equipment Interconnection
To perform FER testing on a 1X BTS with the Agilent 8935, a
1X–capable signal generator, such as the Agilent E4432B, must be used
in conjunction with the CDMA base station test set. For proper
operation, the test equipment items must be interconnected as follows:
10 MHz reference signal – Connect a BNC (M)–BNC (M) cable from
the 8935 10 MHz REF OUT connector to the E4432B 10MHz IN
connector as shown in Figure F-15
Even second pulse reference – Refer to Figure F-15, and connect a
BNC “T” connector to the 8935 EVEN SEC SYNC IN connector.
Connect a BNC (M)–BNC (M) cable from one side of the BNC “T” to
the E4432B PATTERN TRIG IN connector. Connect the other side of
the BNC “T” to the CSM board SYNC MONITOR connector using a
BNC (M)–BNC (M) cable.

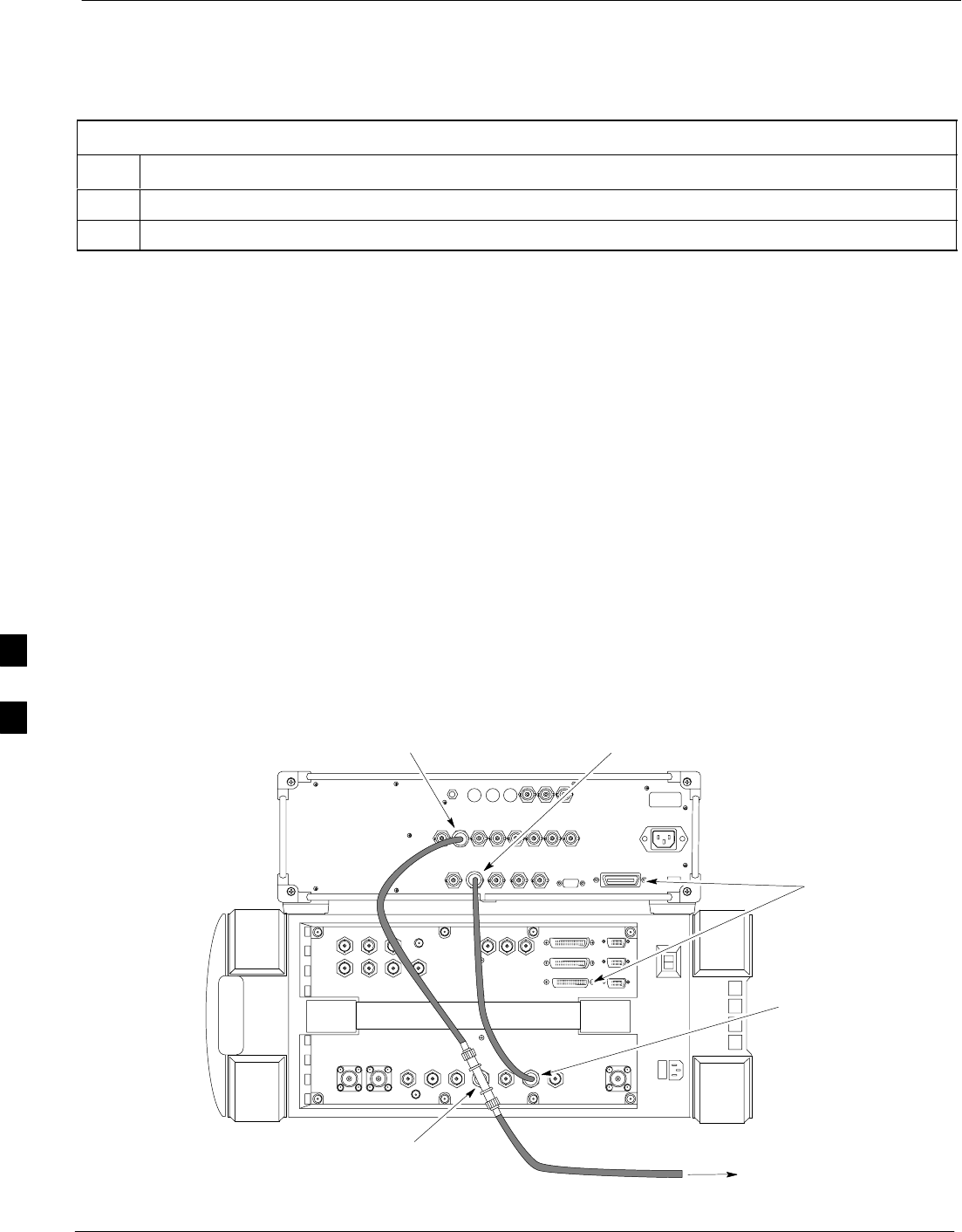

Figure F-15: Agilent 8935/E4432B 10MHz Reference and Even Second Tick Connections
E4432B
10 MHz IN
TO GPIB
E4432B
PATTERN TRIG IN
TO CSM BOARD
SYNCH MONITOR
(EVEN SEC TICK)
8935
10 MHz
REF OUT
8935
EVEN SECOND
SYNC IN
WITH BNC “T” TDME0011–1
F
Test Equipment Inter–unit Connection, Testing, and Control68P64115A18–1
Mar 2003 1X SC 4812T Lite BTS Optimization/ATP Software Release R2.16.1.x
DRAFT
F-23
Agilent E4406A/E4432B Test Equipment Interconnection
To provide proper operation during testing when both units are required,
the 10 MHz reference signal from the E4406A transmitter test set must
be provided to the E4432B signal generator. Connect a BNC (M)–BNC
(M) cable from the E4406A 10 MHz OUT (SWITCHED) connector to
the E4432B 10MHz IN connector as shown in Figure F-16.

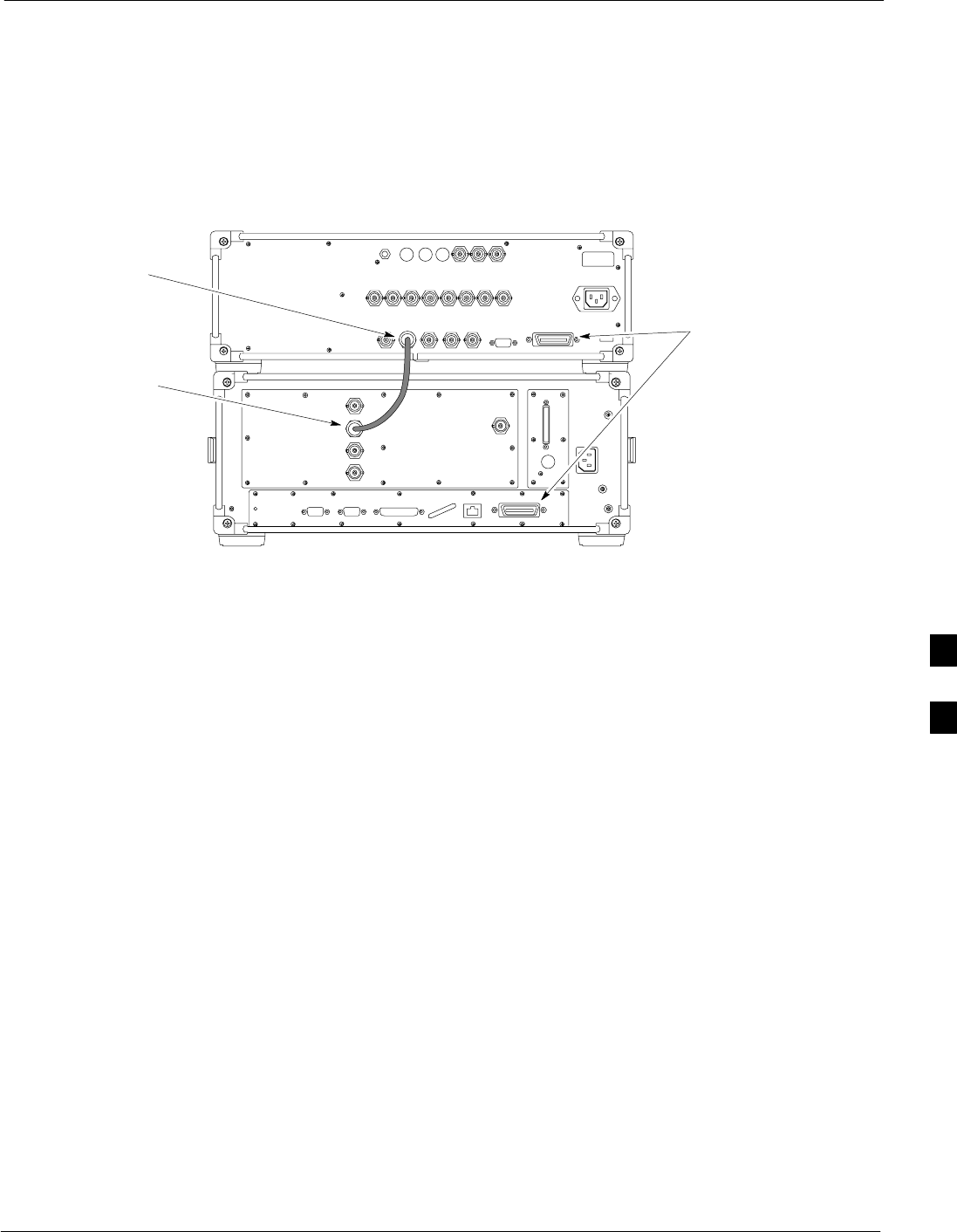

Figure F-16: Agilent 10 MHz Reference Connections
E4406A
10 MHz OUT
(SWITCHED)
E4432B
10 MHz IN
TO GPIB BOX
TDME0009–1
F
Test Equipment Inter–unit Connection, Testing, and Control 68P64115A18–1
Mar 2003
1X SC 4812T Lite BTS Optimization/ATP Software Release R2.16.1.x
DRAFT
F-24
Advantest R3267/R3562 Test Equipment Interconnection
To provide proper operation during testing when both units are required,
the R3257 spectrum analyzer must be interconnected with the R3562
signal generator as follows:
10 MHz reference signal – Connect a BNC (M)–BNC (M) cable
between the R3562 SYNTHE REF IN connector and the R3267 10
MHz OUT connector as shown in Figure F-17.
Serial I/O – Using the Advantest cable provided, connect the R3267
SERIAL I/O connector to the R3562 SERIAL I/O connector as shown
in Figure F-17.

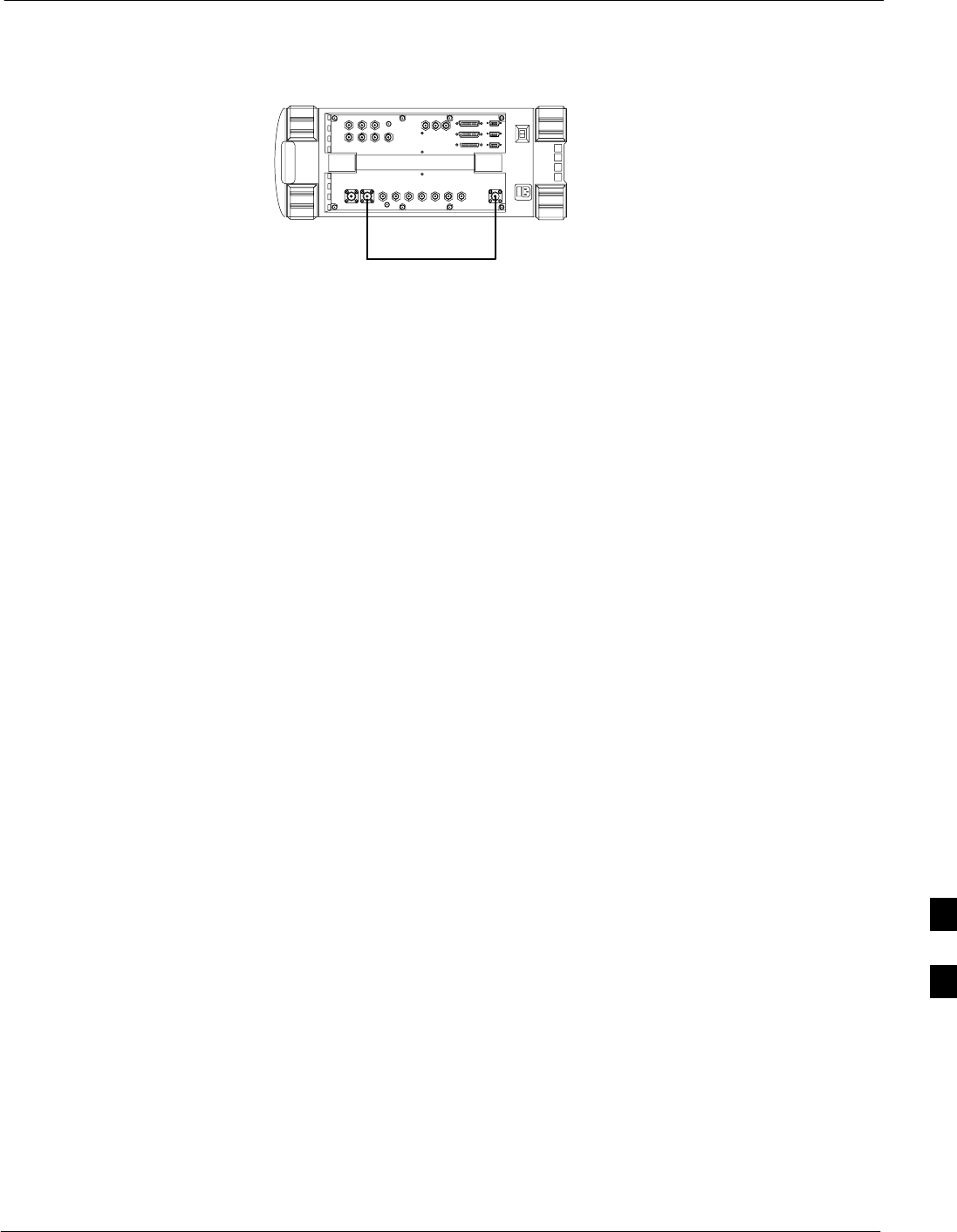

Figure F-17: Advantest 10 MHz Reference and Serial I/O Connections
TDME0010–1
R3562
SYNTHE REF IN TO GPIB
BOX R3562
SERIAL I/O
TO GPIB BOX
R3267
10 MHZ OUT R3267
SERIAL I/O
F
Equipment Calibration68P64115A18–1
Mar 2003 1X SC 4812T Lite BTS Optimization/ATP Software Release R2.16.1.x
DRAFT
F-25
Equipment Calibration
Calibration Without the LMF
Several test equipment items used in the optimization process require
pre–calibration actions or calibration verification which are not
supported by the LMF. Procedures to perform these activities for the
applicable test equipment items are covered in this section.
Agilent E4406A Transmitter Tester Self–alignment (Calibration)
System
Key
Softkey
Buttons
Softkey Label
Display Area
n
g Agilent E4406A
a
tion)
Refer to Figure F-18 and follow the procedure in Table F-17 to perform
the Agilent E4406A self–alignment (calibration).
Table F-17: Perform Agilent E4406A Self–alignment (Calibration)
Step Action
1In the SYSTEM section of the instrument front panel, press the System key.
– The softkey labels displayed on the right side of the instrument screen will change.
2Press the Alignments softkey button to the right of the instrument screen.
– The softkey labels will change.
3Press the Align All Now softkey button.
– All other instrument functions will be suspended during the alignment.
– The display will change to show progress and results of the alignments performed.
– The alignment will take less than one minute.
F
Equipment Calibration 68P64115A18–1
Mar 2003
1X SC 4812T Lite BTS Optimization/ATP Software Release R2.16.1.x
DRAFT
F-26
Calibrating HP 437 Power Meter
Precise transmit output power calibration measurements are made using
a bolometer–type broadband power meter with a sensitive power sensor.
Follow the steps outlined in Table F-18 to enter information unique to
the power sensor before calibrating the test setup. Refer to Figure F-19
as required.
NOTE This procedure must be done before the automated calibration to
enter power sensor specific calibration values.

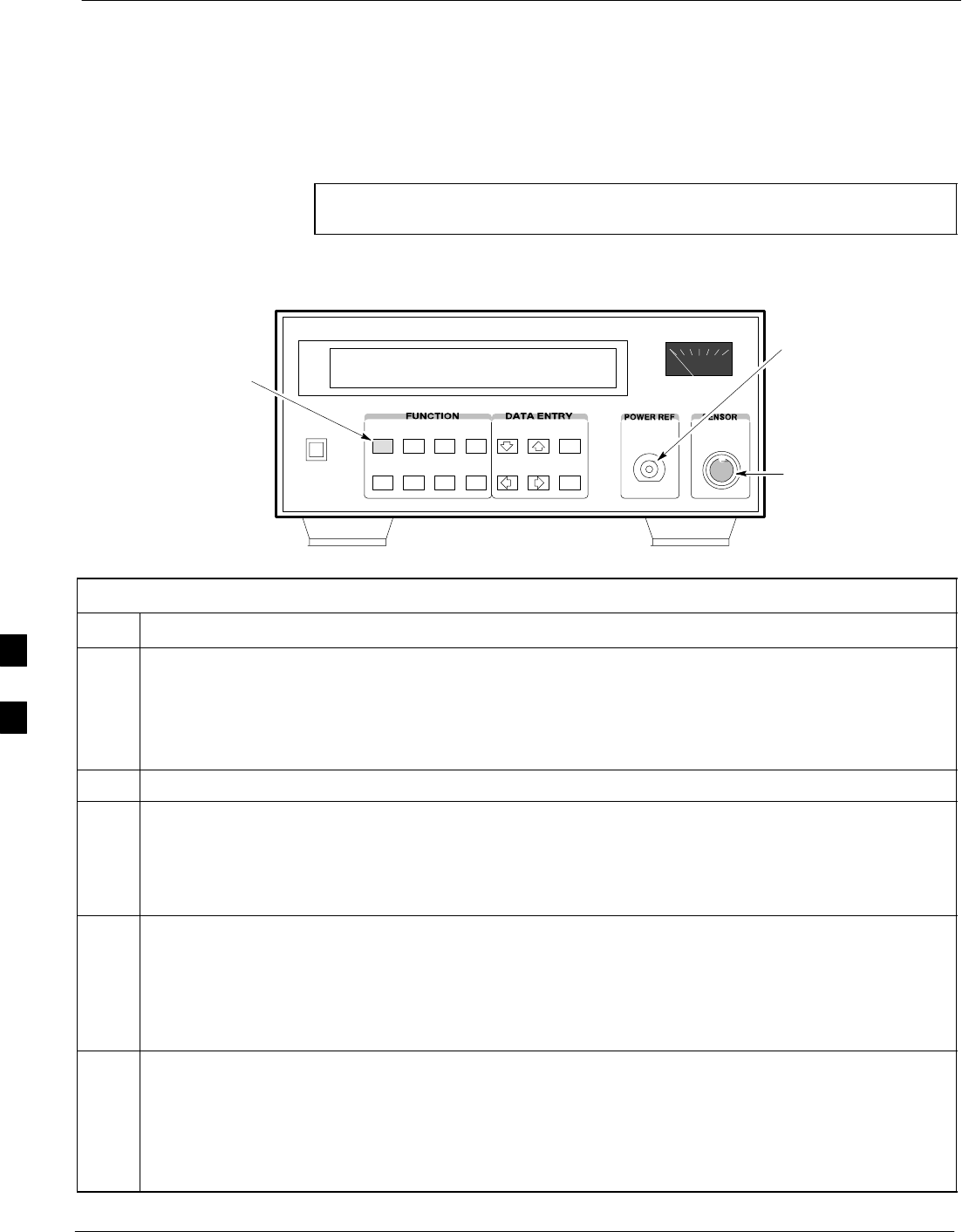

Figure F-19: Power Meter Detail
CONNECT POWER
SENSOR WITH POWER
METER TURNED OFF
CONNECT POWER SENSOR
TO POWER REFERENCE
WHEN CALIBRATING UNIT.
POWER REFERENCE IS
ENABLED USING THE SHIFT ’
KEYS
SHIFT (BLUE) PUSHBUTTON –
ACCESSES FUNCTION AND
DATA ENTRY KEYS IDENTIFIED
WITH LIGHT BLUE TEXT ON
THE FRONT PANEL ABOVE
THE BUTTONS
FW00308
Table F-18: HP 437 Power Meter Calibration Procedure
Step Action
1! CAUTION
Do not connect/disconnect the power meter sensor cable with AC power applied to the meter.
Disconnection could result in destruction of the sensing element or mis–calibration.
Make sure the power meter AC LINE pushbutton is OFF.
2Connect the power sensor cable to the SENSOR input.
3Set the AC LINE pushbutton to ON.
NOTE
The calibration should be performed only after the power meter and sensor have been allowed to
warm–up and stabilize for a minimum of 60 minutes.
4Perform the following to set or verify the correct power sensor model:
4a – Press [SHIFT] then [a] to select SENSOR.
4b – Identify the power sensor model number from the sensor label.
4c – Use the [y] or [b] button to select the appropriate model; then press [ENTER].
5Refer to the illustration for step 8, and perform the following to ensure the power reference output is
OFF:
5a – Observe the instrument display and determine if the triangular indicator over PWR REF is
displayed.
5b – If the triangular indicator is displayed, press [SHIFT] then [’] to turn it off.
. . . continued on next page
F
Equipment Calibration68P64115A18–1
Mar 2003 1X SC 4812T Lite BTS Optimization/ATP Software Release R2.16.1.x
DRAFT
F-27

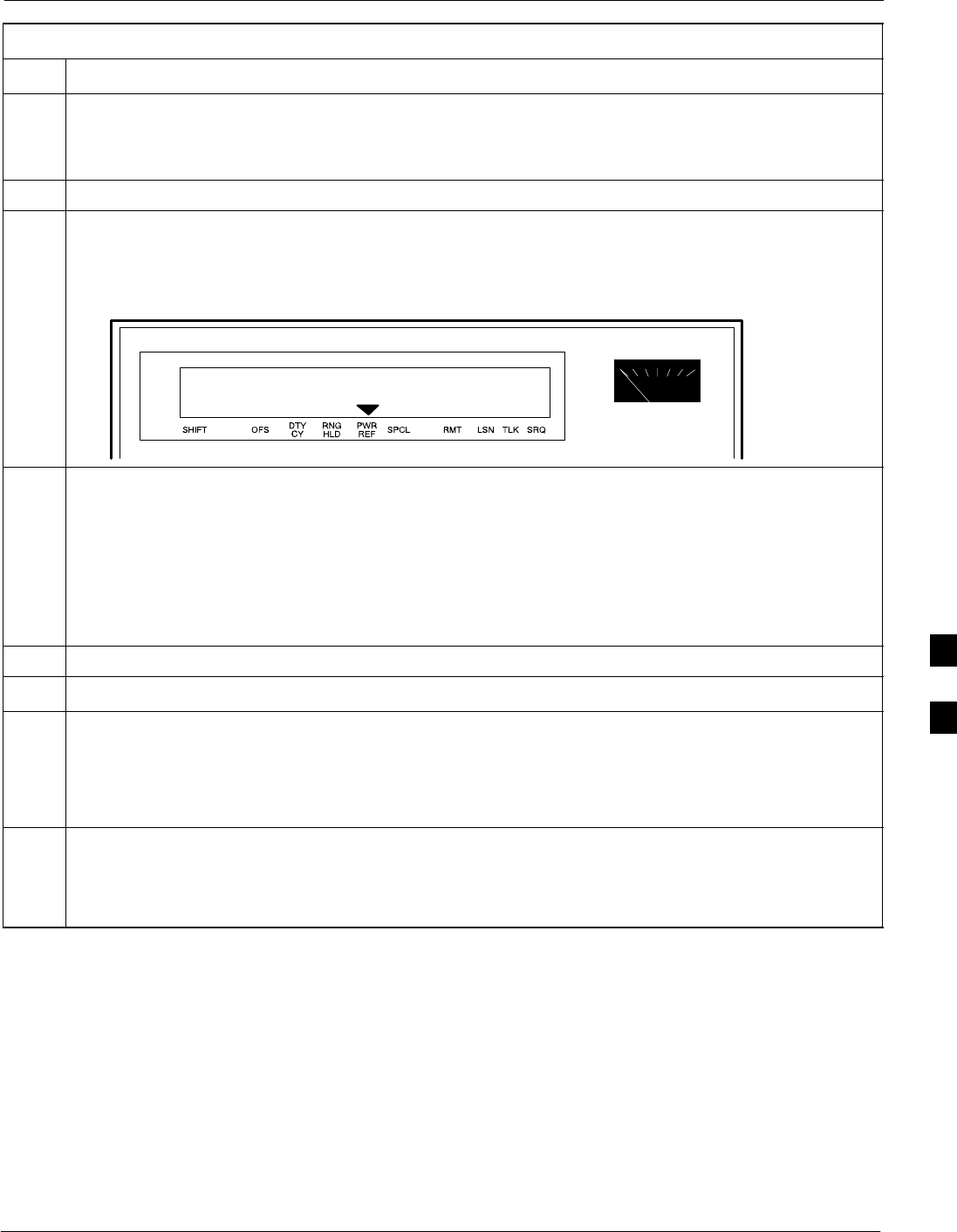

Table F-18: HP 437 Power Meter Calibration Procedure
Step Action
6 Press [ZERO].
– Display will show “Zeroing ******.”
– Wait for process to complete.
7Connect the power sensor to the POWER REF output.
8Turn on the PWR REF by performing the following:
8a – Press [SHIFT] then [’].
8b – Verify that the triangular indicator (below) appears in the display above PWR REF.
9Perform the following to set the REF CF%:
9a – Press ([SHIFT] then [ZERO]) for CAL.
9b – Enter the sensor’s REF CF% from the sensor’s decal using the arrow keys and press [ENTER].
(The power meter will display ”CAL *****” for a few seconds.)
NOTE
If the REF CAL FACTOR (REF CF) is not shown on the power sensor, assume it to be 100%.
10 Perform the following to set the CAL FAC %:
10a – Press [SHIFT] then [FREQ] for CAL FAC.
10b – On the sensor’s decal, locate an approximate calibration percentage factor (CF%) at 2 GHz.
10c – Enter the sensor’s calibration % (CF%) using the arrow keys and press [ENTER].
–– When complete, the power meter will typically display 0.05 dBm. (Any reading between
0.00 and 0.10 is normal.)
11 To turn off the PWR REF, perform the following:
11a – Press [SHIFT] then [’].
11b – Disconnect the power sensor from the POWER REF output.
F
Equipment Calibration 68P64115A18–1
Mar 2003
1X SC 4812T Lite BTS Optimization/ATP Software Release R2.16.1.x
DRAFT
F-28
Calibrating Gigatronics 8541C Power Meter
Precise transmit output power calibration measurements are made using
a bolometer–type broadband power meter with a sensitive power sensor.
Follow the steps in Table F-19 to enter information unique to the power
sensor.
Table F-19: Calibrate Gigatronics 8541C Power Meter
Step Action
1! CAUTION
Do not connect/disconnect the power meter sensor cable with AC power applied to the meter.
Disconnection could result in destruction of the sensing element or miscalibration.
Make sure the power meter POWER pushbutton is OFF.
2Connect the power sensor cable to the SENSOR input.
3Set the POWER pushbutton to ON.
NOTE
Allow the power meter and sensor to warm up and stabilize for a minimum of 60 minutes before
performing the calibration procedure.
4Connect the power sensor to the CALIBRATOR output connector.
5 Press ZERO.
– Wait for the process to complete. Sensor factory calibration data is read to power meter during this
process.
6When the zeroing process is complete, disconnect the power sensor from the CALIBRATOR output.
Figure F-20: Gigatronics 8541C Power Meter Detail
CONNECT POWER SENSOR
WITH POWER METER
TURNED OFF
CONNECT POWER SENSOR TO
CALIBRATOR POWER REFERENCE
WHEN CALIBRATING/ZEROING UNIT
FRONT View REAR View
GPIB CONNECTIONAC POWER
FW00564
F
Manual Cable Calibration68P64115A18–1
Mar 2003 1X SC 4812T Lite BTS Optimization/ATP Software Release R2.16.1.x
DRAFT
F-29
Manual Cable Calibration
Calibrating Test Cable Setup
Using HP PCS Interface (HP83236)
Table F-20 covers the procedure to calibrate the test equipment using the
HP8921 Cellular Communications Analyzer equipped with the HP83236
PCS Interface.
NOTE This calibration method must be executed with great care. Some
losses are measured close to the minimum limit of the power
meter sensor (–30 dBm).
Prerequisites
Ensure the following prerequisites have been met before proceeding:
STest equipment to be calibrated has been connected correctly for cable
calibration.
STest equipment has been selected and calibrated.
Table F-20: Calibrating Test Cable Setup (using the HP PCS Interface)
Step Action
NOTE
Verify that GPIB controller is turned off.
1Insert HP83236 Manual Control System card into memory card slot.
2Press the Preset pushbutton.
3 Under Screen Controls, press the TESTS pushbutton to display the TESTS (Main Menu) screen.
4Position the cursor at Select Procedure Location and select it. In the Choices selection box, select
CARD.
5Position the cursor at Select Procedure Filename and select it. In the Choices selection box, select
MANUAL.
6Position the cursor at RUN TEST and select it. HP must be in Control Mode Select YES.
7If using HP83236A:
Set channel number=<chan#>:
– Position cursor at Channel
Number and select it.
– Enter the chan# using the numeric
keypad; press [Enter] and the
screen will go blank.
– When the screen reappears, the
chan# will be displayed on the
channel number line.
If using HP83236B:
Set channel frequency:
– Position cursor at Frequency Band and press Enter.
– Select User Defined Frequency.
– Go Back to Previous Menu.
– Position the cursor to 83236 generator frequency and
enter actual RX frequency.
– Position the cursor to 83236 analyzer frequency and
enter actual TX frequency.
8Set RF Generator level:
– Position the cursor at RF Generator Level and select it.
– Enter –10 using the numeric keypad; press [Enter] and the screen will go blank.
– When the screen reappears, the value –10 dBm will be displayed on the RF Generator Level line.
. . . continued on next page
F
Manual Cable Calibration 68P64115A18–1
Mar 2003
1X SC 4812T Lite BTS Optimization/ATP Software Release R2.16.1.x
DRAFT
F-30
Table F-20: Calibrating Test Cable Setup (using the HP PCS Interface)
Step Action
9Set the user fixed Attenuation Setting to 0 dBm:
– Position cursor at Analyzer Attenuation and select it
– Position cursor at User Fixed Atten Settings and select it.
– Enter 0 (zero) using the numeric keypad and press [Enter].
10 Select Back to Previous Menu.
11 Record the HP83236 Generator Frequency Level:
Record the HP83236B Generator Frequency Level:
– Position cursor at Show Frequency and Level Details and select it.
– Under HP83236 Frequencies and Levels, record the Generator Level.
– Under HP83236B Frequencies and Levels, record the Generator Frequency Level (1850 – 1910
MHz).
– Position cursor at Prev Menu and select it.
12 Click on Pause for Manual Measurement.
13 Connect the power sensor directly to the RF OUT ONLY port of the PCS Interface.
14 On the HP8921A, under To Screen, select CDMA GEN.
15 Move the cursor to the Amplitude field and click on the Amplitude value.
16 Increase the Amplitude value until the power meter reads 0 dBm ±0.2 dB.
NOTE
The Amplitude value can be increased coarsely until 0 dBM is reached; then fine tune the amplitude
by adjusting the Increment Set to 0.1 dBm and targeting in on 0 dBm.
17 Disconnect the power sensor from the RF OUT ONLY port of the PCS Interface.
NOTE
The Power Meter sensor’s lower limit is –30 dBm. Thus, only components having losses ≤30 dB
should be measured using this method. For further accuracy, always re-zero the power meter
before connecting the power sensor to the component being calibrated. After connecting the
power sensor to the component, record the calibrated loss immediately.
18 Disconnect all components in the test setup and calibrate each one separately by connecting each
component, one-at-a-time, between the RF OUT ONLY PORT and the power sensor. Record the
calibrated loss value displayed on the power meter.
SExample: (A) Test Cable(s) = –1.4 dB
(B) 20 dB Attenuator = –20.1 dB
(B) Directional Coupler = –29.8 dB
19 After all components are calibrated, reassemble all components together and calculate the total test
setup loss by adding up all the individual losses:
SExample: Total test setup loss = –1.4 –29.8 –20.1 = –51.3 dB.
This calculated value will be used in the next series of tests.
20 Under Screen Controls press the TESTS button to display the TESTS (Main Menu) screen.
21 Select Continue (K2).
22 Select RF Generator Level and set to –119 dBm.
. . . continued on next page
F
Manual Cable Calibration68P64115A18–1
Mar 2003 1X SC 4812T Lite BTS Optimization/ATP Software Release R2.16.1.x
DRAFT
F-31
Table F-20: Calibrating Test Cable Setup (using the HP PCS Interface)
Step Action
23 Click on Pause for Manual Measurement.
24 Verify the HP8921A Communication Analyzer/83203A CDMA interface setup is as follows (fields
not indicated remain at default):
SVerify the GPIB (HP–IB) address:
– under To Screen, select More
– select IO CONFIG
– Set HP–IB Adrs to 18
– set Mode to Talk&Lstn
SVerify the HP8921A is displaying frequency (instead of RF channel)
– Press the blue [SHIFT] button, then press the Screen Control [DUPLEX] button; this switches to
the CONFIG (CONFIGURE) screen.
– Use the cursor control to set RF Display to Freq
25 Refer toChapter 3 for assistance in setting the cable loss values into the LMF.
F
Manual Cable Calibration 68P64115A18–1
Mar 2003
1X SC 4812T Lite BTS Optimization/ATP Software Release R2.16.1.x
DRAFT
F-32

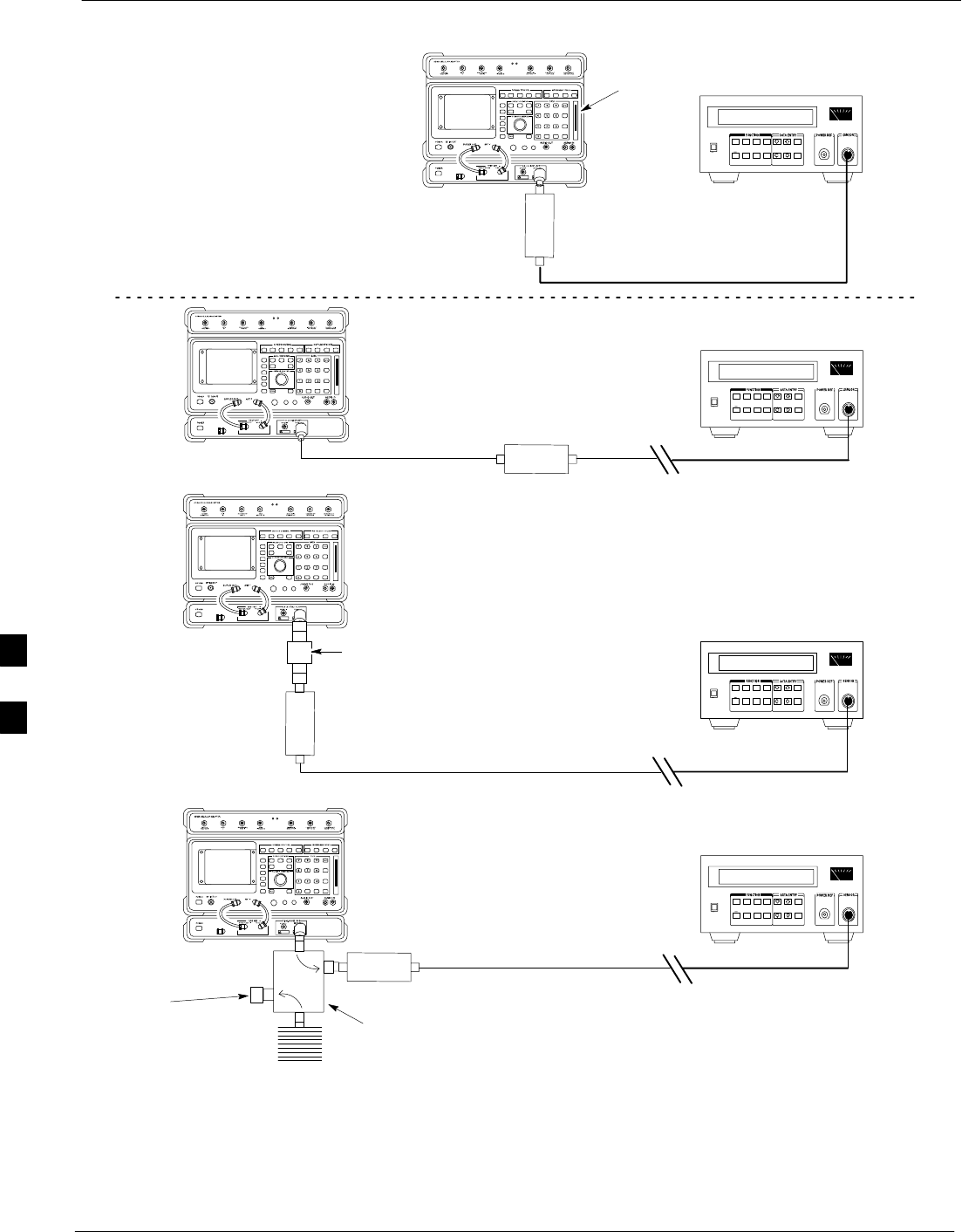

Figure F-21: Cable Calibration Using HP8921 with PCS Interface
(A)
(C)
(A)
POWER
SENSOR
(C)
30 dB
DIRECTIONAL
COUPLER
150 W
NON–RADIATING
RF LOAD
POWER
SENSOR
(B)
POWER
SENSOR
(B)
MEMORY
CARD
SLOT
20 dB / 20 WATT
ATTENUATOR
FW00292
50 Ω
TERMINATION
POWER
SENSOR
F
Manual Cable Calibration68P64115A18–1
Mar 2003 1X SC 4812T Lite BTS Optimization/ATP Software Release R2.16.1.x
DRAFT
F-33

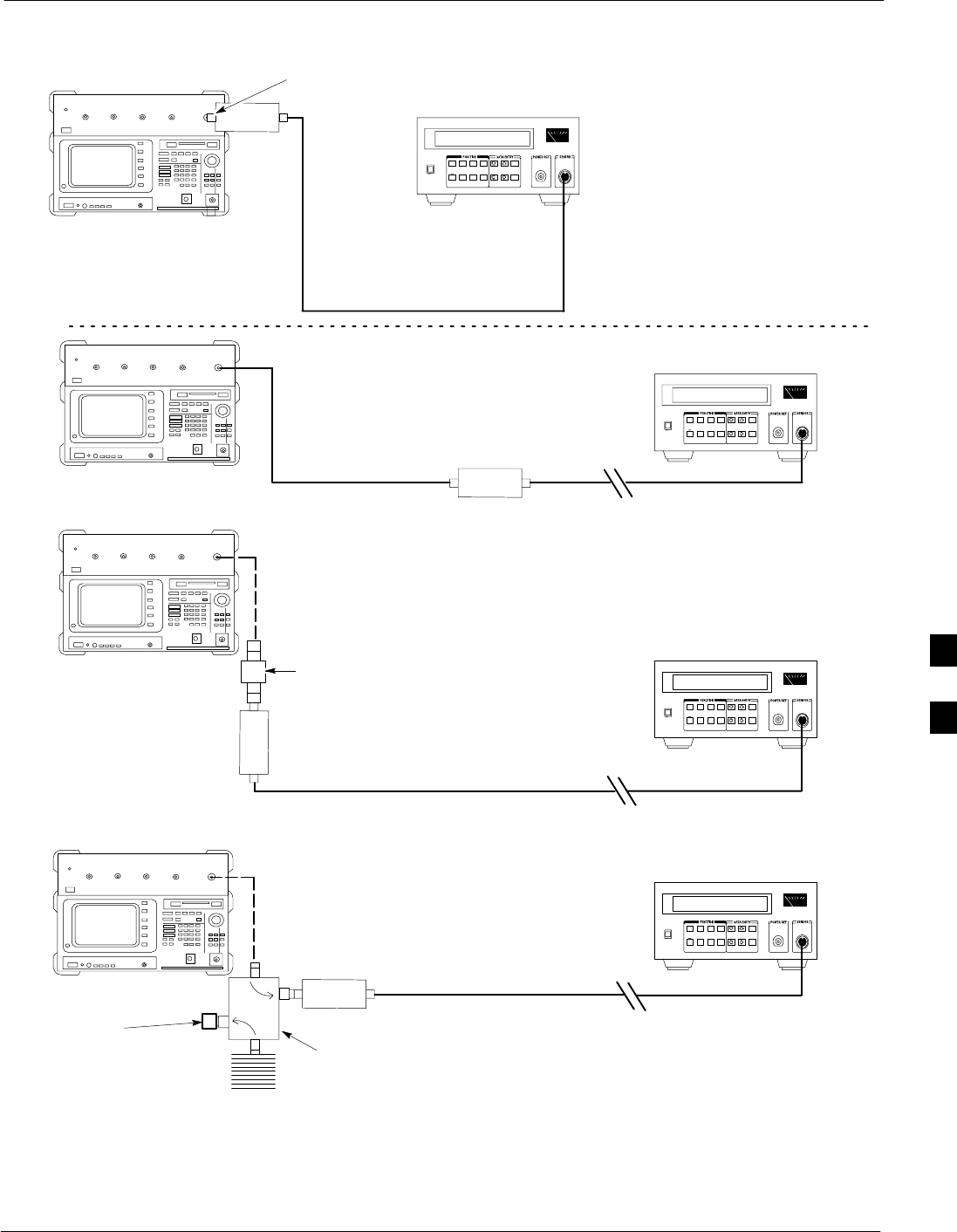

Calibrating Test Cable Setup Using Advantest R3465
NOTE Be sure the GPIB Interface is OFF for this procedure.
Advantest R3465 Manual Test setup and calibration must be performed
at both the TX and RX frequencies.
Table F-21: Procedure for Calibrating Test Cable Setup Using Advantest R3465
Step Action
* IMPORTANT
– This procedure can only be performed after test equipment has been allowed to warm–up and
stabilize for a minimum of 60 minutes.
1Press the SHIFT and the PRESET keys located below the display
2Press the ADVANCE key in the MEASUREMENT area of the control panel.
3Select the CDMA Sig CRT menu key
4Select the Setup CRT menu key
5Using the vernier knob and the cursor keys set the following parameters
NOTE
Fields not listed remain at default
Generator Mode: SIGNAL
Link: FORWARD
Level Unit: dBm
CalCorrection: ON
Level Offset: OFF
6Select the return CRT menu key
7 Press FREQ key in the ENTRY area
8Set the frequency to the desired value using the keypad entry keys
9Verify that the Mod CRT menu key is highlighting OFF; if not, press the Mod key to toggle it OFF.
10 Verify that the Output CRT menu key is highlighting OFF; if not, press the Output key to toggle it
OFF.
11 Press the LEVEL key in the ENTRY area.
12 Set the LEVEL to 0 dBm using the key pad entry keys.
13 Zero power meter. Next connect the power sensor directly to the “RF OUT” port on the R3561L
CDMA Test Source Unit.
14 Press the Output CRT menu key to toggle Output to ON.
15 Record the power meter reading ________________________
. . . continued on next page
F
Manual Cable Calibration 68P64115A18–1
Mar 2003
1X SC 4812T Lite BTS Optimization/ATP Software Release R2.16.1.x
DRAFT
F-34
Table F-21: Procedure for Calibrating Test Cable Setup Using Advantest R3465
Step Action
16 Disconnect the power meter sensor from the R3561L RF OUT jack.
* IMPORTANT
The Power Meter sensor’s lower limit is –30 dBm. Thus, only components having losses < 30 dB
should be measured using this method. For best accuracy, always re–zero the power meter before
connecting the power sensor to the component being calibrated. Then, after connecting the
power sensor to the component, record the calibrated loss immediately.
17 Disconnect all components in the the test setup and calibrate each one separately. Connect each
component one–at–a–time between the “RF OUT” port and the power sensor (see Figure F-22,
“Setups A, B, and C”). Record the calibrated loss value displayed on the power meter for each
connection.
Example: (A) 1st Test Cable = –0.5 dB
(B) 2nd Test Cable = –1.4 dB
(C) 20 dB Attenuator = –20.1 dB
(D) 30 dB Directional Coupler = –29.8 dB
18 Press the Output CRT menu key to toggle Output OFF.
19 Calculate the total test setup loss by adding up all the individual losses:
Example: Total test setup loss = 0.5 + 1.4 + 20.1 + 29.8 = 51.8 dB
This calculated value will be used in the next series of tests.
20 Press the FREQ key in the ENTRY area
21 Using the keypad entry keys, set the test frequency to the RX frequency
22 Repeat steps 9 through 19 for the RX frequency.
23 Refer to Chapter 3 for assistance in setting the cable loss values into the LMF.
F
Manual Cable Calibration68P64115A18–1
Mar 2003 1X SC 4812T Lite BTS Optimization/ATP Software Release R2.16.1.x
DRAFT
F-35
Figure F-22: Cable Calibration Using Advantest R3465
POWER
SENSOR
20 DB / 2 WATT
ATTENUATOR
(A)
(C)
POWER
SENSOR
(D)
30 DB
DIRECTIONAL
COUPLER
(C)
100 W
NON–RADIATING
RF LOAD
POWER
SENSOR
RF OUT
POWER
SENSOR
& (B)
FW00320
50 Ω
TERMINATION
F
Manual Cable Calibration 68P64115A18–1
Mar 2003
1X SC 4812T Lite BTS Optimization/ATP Software Release R2.16.1.x
DRAFT
F-36
Notes
F
Mar 2003 1X SC 4812T Lite BTS Optimization/ATP Software Release R2.16.1.x
DRAFT
G-1
Appendix G
Download ROM Code
G
Downloading ROM Code 68P64115A18–1
Mar 2003
1X SC 4812T Lite BTS Optimization/ATP Software Release R2.16.1.x
DRAFT
G-2
Downloading ROM Code
Exception Procedure – Downloading ROM Code
This procedure is not part of a normal optimization.
Perform this procedure only on an exception basis when no alternative
exists to load a BTS device with the correct version of ROM code.
NOTE One GLI must be INS_ACT (bright green) before ROM code
can be downloaded to non–GLI devices.
CAUTION The correct ROM and RAM codes for the software release used
on the BSS must be loaded into BTS devices. To identify the
correct device ROM and RAM code loads for the software
release being used on the BSS, refer to the Version Matrix
section of the SCt CDMA Release Notes (supplied on the tapes
or CD–ROMs containing the BSS software).
All devices in a BTS must be loaded with the ROM and RAM
code specified for the software release used on the BSS before
any optimization or ATP procedures can be performed.
If a replacement device is loaded with ROM code which is not
compatible with the BSS software release being used, the device
ROM code can be changed using the LMF before performing the
BTS optimization and ATPs. A device loaded with later release
ROM code can not be converted back to a previous release ROM
code in the field without Motorola assistance
If it is necessary to download ROM code to a device from the LMF, the
procedure in Table G-1 includes steps for both ROM and RAM code
download using the LMF.
Prerequisites
Prior to performing this procedure, ensure the correct ROM and RAM
code files exist in the LMF computer’s applicable <x>:\<lmf home
directory>\cdma\loads\<codeload#>\code folder for each of the devices
to be loaded (refer to NO TAG).
CAUTION The Release level of the ROM code to be downloaded must be
the one specified for the software release installed in the BSS.
The release level of the ROM code resident in the other devices
in the BTS must also be correct for the BSS software release
being used. ROM code must not be downloaded to a frame
loaded with code for a BSS software release with which it is not
compatible.
This procedure should only be used to upgrade replacement
devices for a BTS. It should NOT be used to upgrade all devices
in a BTS. If a BTS is to be upgraded from R15.x to R16.0, the
upgrade should be done by the OMC–R using the DownLoad
Manager.
G
Downloading ROM Code68P64115A18–1
Mar 2003 1X SC 4812T Lite BTS Optimization/ATP Software Release R2.16.1.x
DRAFT
G-3
Table G-1: Download ROM and RAM Code to Devices
Step Action
1Click on the device to be loaded.
NOTE
More than one device of the same type can be selected for download by either clicking on each one to
be downloaded or from the BTS menu bar Select pull–down menu, select the device item that applies.
Where: device = the type of device to be loaded (BBX, CSM, GLI, MCC)
2From the BTS menu bar Device pull–down menu, select Status.
– A status report window will appear.
3Make a note of the number in the HW Bin Type column.
NOTE
“HW Bin Type” is the Hardware Binary Type for the device. This code is used as the last four digits in
the filename of a device’s binary ROM code file. Using this part of the filename, the ROM code file
can be matched to the device in which it is to be loaded.
4 Click OK to close the status window.
5Click on the device to be loaded.
NOTE
ROM code is automatically selected for download from the <x>:\<lmf home
directory>\version folder>\<code folder> specified by the NextLoad property in
the bts–#.cdf file. To check the value of the NextLoad property, click on Util > Examine >
Display Nextload. A pop–up message will show the value of the NextLoad.
6From the BTS menu bar Device pull–down menus, select Download > ROM.
– If the file matching the Hardware Binary Type of the device is found in the code folder, a status
report shows the result of the download. Proceed to Step 11.
– If a file selection window appears, select the ROM code file manually.
7Double–click on the version folder with the desired version number for the ROM code file (for
example 2.16.0.x).
8Double–click the Code folder.
– A list of ROM and RAM code files will be displayed.
9! CAUTION
A ROM code file with the correct HW Bin Type must be chosen. Using a file with the wrong HW Bin
Type can result in unpredictable operation and damage to the device.
Click on the ROM code file with the filename which matches the device type and HW Bin Type
number noted in step 3 (for example, file bbx_rom.bin.0604 is the ROM code file for a BBX with a
HW Bin Type of 0604).
– The file should be highlighted.
10 Click on the Load button.
– A status report window is displayed showing the result of the download.
NOTE
If the ROM load failed for some devices, load them individually by clicking on one device, perform
steps 6 through 10 for it, and repeat the process for each remaining device.
11 Click OK to close the status window.
. . . continued on next page
G
Downloading ROM Code 68P64115A18–1
Mar 2003
1X SC 4812T Lite BTS Optimization/ATP Software Release R2.16.1.x
DRAFT
G-4
Table G-1: Download ROM and RAM Code to Devices
Step Action
12 From the LMF window menu bar Tools pull–down menus, select Update NextLoad > CDMA.
13 In the left–hand pane of the window which opens, click on the BTS number for the frame being loaded
(for example, BTS–14).
14 On the list of versions displayed in the right–hand pane, click the button next to the version number of
the folder that was used for the ROM code download (for example, 2.16.0.x) and click Save.
– A pop–up message will appear showing the CDF has been updated.
15 Click on the OK button to dismiss the pop–up message.
16 Click on the device that was loaded with ROM code.
17 NOTE
RAM code is automatically selected for download.
From the BTS menu bar Device pull–down menus, select Download > Code/Data to download RAM
code and dds file data.
– A status report is displayed showing the result of the download.
18 Click OK to close the status window.
19 Observe the downloaded non–GLI device to ensure it is OOS_RAM (yellow).
20 Click on the device which was loaded with code.
21 From the BTS menu bar Device pull–down menu, select Status.
Verify that the correct ROM and RAM version numbers are displayed in the status report window.
22 Click OK to close the status window.
G
Mar 2003 1X SC 4812T Lite BTS Optimization/ATP Software Release R2.16.1.x
DRAFT
H-1
Appendix H
In–service Calibration
H
Introduction 68P64115A18–1
Mar 2003
1X SC 4812T Lite BTS Optimization/ATP Software Release R2.16.1.x
DRAFT
H-2
Introduction
Purpose
This procedure is a guide to performing calibration of new BTS
expansion carriers while the system remains in service. This procedure
also supports BTS recalibration following replacement of RF chain
components while the remainder of the site stays in service.
Motorola recommends performing this procedure during a maintenance
window.
This procedure cannot be performed on BTSs with 2–to–1 combiners.
The procedure can only be performed on one carrier of the BTS at a
time. That is, LPAs 1A, 1B, 1C, and 1D can be calibrated while LPAs
3A, 3B, 3C, and 3D remain in service and vice versa.
Equipment Stabilization and Calibration
NOTE Calibration of the communications test set (or equivalent test
equipment) must be performed at the site before calibrating the
overall test equipment set. Calibrate the test equipment after it
has been allowed to warm-up and stabilize for a minimum of 60
minutes.
CAUTION If any component of the test equipment set (for example, a test
cable, RF adapter, signal generator) has been replaced, the test
equipment set must be recalibrated. Failure to do so could
introduce measurement errors which ultimately result in
degradation of system performance.
1X Test Equipment Requirements
In–Service Calibration (ISC) of 1X carrier functions requires using the
following test equipment for the purposes indicated:
SAn Advantest R3267 spectrum analyzer to perform TX calibration
SAn Advantest R3562 signal generator for R3267 Delta Power
Calibration
SAn Agilent E4406A Transmitter Test Set to perform TX calibration
SAn Agilent E4432A signal generator for E4406A Delta Power
Calibration
SAn Agilent 8935 series E6380A equipped with option 200 (if
purchased new) or option R2K (if retrofitted) to perform TX
calibration
The CDMA communications system analyzers listed above are capable
of calibrating the BTS for both IS–95 A and B mode operation as well as
CDMA2000 1X operation.
NOTE IS–95A/B communication test sets such as the HP8921A/600
and Advantest R3561L can not calibrate 1X carrier functions.
Calibration and test set–up for the HP 8921A/600 and Advantest
R3561L test sets is included only for situations where it is necessary to
use them for calibration of IS–95A/B mode operation.
H
Power Delta Calibration68P64115A18–1
Mar 2003 1X SC 4812T Lite BTS Optimization/ATP Software Release R2.16.1.x
DRAFT
H-3
Power Delta Calibration
Introduction
The ISC procedure has several differences from a normal calibration
procedure. One of these is the use of a spectrum
analyzer/communications test set instead of a power meter to measure
power. Power meters are broadband measurement devices and cannot be
used to measure power during ISC because other carriers are operating.
A spectrum analyzer can be used because it measures power at a given
frequency. Measuring power using a spectrum analyzer is less accurate
than using a power meter, therefore, compensation is required for the
accuracy difference (delta) between the power meter and the spectrum
analyzer.
Agilent E4406A Power Delta Calibration
The Agilent E4406A transmitter tester and E4432B signal generator test
equipment combination can be used for ISC of IS–2000 CDMA 1X as
well as IS–95A/B operation modes. The power delta calibration is
performed on the E4406A, but the E4432B is required to generate the
reference signal used to calculate the power delta offset. After the offset
value has been calculated, add it to the TX cable loss value in the LMF.
Preliminary Agilent Test Equipment Set–up
To provide proper operation during power delta calibration, be sure the
E4406A and E4432B are connected as shown in Figure F-16.
Power Delta Calibration
Follow the procedure in Table H-1 to perform the Agilent E4406A
Power Delta Calibration procedure.
Table H-1: Agilent E4406A Power Delta Calibration Procedure
Step Action
NOTE
Perform this procedure after test equipment has been allowed to warm–up and stabilize for a minimum
of 60 minutes. After it is warmed up and stabilized, calibrate the test equipment as described in the
“Test Set Calibration” section of Chapter NO TAG.
1Zero the Power Meter prior to connecting the power sensor to the RF cable from the signal generator.
NOTE
For best accuracy, always re–zero the power meter before connecting the power sensor to the
component being calibrated.
2Be sure the E4406A and E4432B are connected as shown in Figure F-16.
3Connect a short RF cable from the E4432B RF OUTPUT connector the HP437 power meter power
sensor (see Figure H-1).
. . . continued on next page
H
Power Delta Calibration 68P64115A18–1
Mar 2003
1X SC 4812T Lite BTS Optimization/ATP Software Release R2.16.1.x
DRAFT
H-4
Table H-1: Agilent E4406A Power Delta Calibration Procedure
Step Action
4Set the E4432B signal generator as follows:
– Press Preset to exit any modes for which the signal generator is configured
– Press Frequency and enter the frequency of the channel to be calibrated on the numeric keypad
– Using the soft keys to the right of the screen, select the frequency range to be measured; for
example MHz
– Press Amplitude and, using the numeric keypad, set signal amplitude to 0 (zero)
– Using the soft keys, set the measurement type to dBm
5On the E4432B, press RF On/Off to toggle the RF output to RF ON.
– Note that the RF On/Off status in the screen display changes.
6Measure and record the value reading on the HP437 power meter as result A____________________.
7On the E4432B, press RF On/Off to toggle the RF output to RF OFF.
– Note that the RF On/Off status in the screen display changes.
8Disconnect the short RF cable from the HP437 power meter power sensor, and connect it to the RF
INPUT connector on the E4406A transmitter tester (see Figure H-2).
9NOTE
Do not change the frequency and amplitude settings on the E4432B when performing the following
steps.
Set the E4406A as follows:
– Press Preset to exit any modes for which the transmitter tester is configured
– Press MODE and, using the soft keys to the right of the screen, select cdmaOne
– Press MEASURE and, using the soft keys, select spectrum
– Press Frequency and, using the soft keys, select Center Frequency
– Enter the frequency of the channel to be calibrated using the numeric keypad
– Using the soft keys, select the frequency range to be measured; for example, MHz
– Press Input/Output and, using the soft keys, select Input Atten
– Using the numeric keypad, set Input Atten to 0 (zero) and, using the soft keys, select dB
– Using the soft keys, select External Atten and then select Mobile
– Using the numeric keypad, set Mobile to 0 (zero) and, using the soft keys, select dB
– Using the soft keys, select Base
– Using the numeric keypad, set Base to 0 (zero) and, using the soft keys, select dB
– Press MEASURE and, using the soft keys, select Channel Power
10 On the E4432B signal generator, press RF On/Off to toggle the RF output to RF ON.
– Note that the RF On/Off status in the screen display changes.
11 Read the measured Channel Power from the E4406A screen display and record it as
result B____________________.
12 On the E4432B, press RF On/Off to toggle the RF output to RF OFF.
– Note that the RF On/Off status in the screen display changes.
. . . continued on next page
H
Power Delta Calibration68P64115A18–1
Mar 2003 1X SC 4812T Lite BTS Optimization/ATP Software Release R2.16.1.x
DRAFT
H-5
Table H-1: Agilent E4406A Power Delta Calibration Procedure
Step Action
13 Calculate the Power Calibration Delta value. The delta value is the power meter measurement minus
the Agilent measurement.
Delta = A – B
Example: Delta = –0.70 dBm – (–1.25 dBm) = 0.55 dBm
Example: Delta = 0.26 dBm – 0.55 dBm = –0.29 dBm
These examples are included to show the mathematics and do not represent actual readings.
NOTE
Add this delta value to the TX Cable Loss value during In–Service Calibration (see step 4 in
Table H-6).
Figure H-1: Delta Calibration Setup – Agilent E4432B to HP437
Power
Sensor
Agilent E4432B and E4406A
Short RF Cable
HP437B
SENSOR
RF OUTPUT
Figure H-2: Delta Calibration Setup – Agilent E4432B to Agilent E4406A
Short RF Cable
RF INPUT
Agilent E4432B and E4406A
RF OUTPUT
H
Power Delta Calibration 68P64115A18–1
Mar 2003
1X SC 4812T Lite BTS Optimization/ATP Software Release R2.16.1.x
DRAFT
H-6
Advantest R3267 Power Delta Calibration
The Advantest R3267 spectrum analyzer and R3562 signal generator test
equipment combination can be used for ISC of IS–2000 CDMA 1X as
well as IS–95A/B operation modes. The power delta calibration is
performed on the R3267. After the offset value has been calculated, add
it to the TX cable loss value.
Preliminary Advantest Test Equipment Set–up
To provide proper operation during power delta calibration, be sure the
R3267 is connected to the R3562 as shown in Figure F-17.
Power Delta Calibration
Follow the procedure in Table H-2 to perform the Advantest R3267
Power Delta Calibration procedure.
Table H-2: Advantest R3267 Power Delta Calibration Procedure
Step Action
1NOTE
Warm-up test equipment for a minimum of 60 minutes prior to this procedure. After it is warmed up
and stabilized, calibrate the test equipment as described in the “Test Set Calibration” section of
Chapter NO TAG.
Be sure the R3267 and R3562 are connected as shown in Figure F-17.
2Press the SHIFT and the PRESET keys located on the right side of the control panel.
3Press the ADVANCE key in the MEASUREMENT area of the control panel.
4On the CRT, select RX Control by pressing ACTIVE key 1.
5On the CRT, select Frequency Setup by pressing ACTIVE key 3.
6On the CRT, highlight Frequency by adjusting the DISPLAY CONTROL knob.
7 Press FREQ key in the ENTRY section of the control panel.
8Set the frequency to the desired value using the keypad ENTRY section keys.
9Press the LEVEL key in the ENTRY section of the control panel.
10 Set the level to 0 dBm using the keypad ENTRY section keys.
11 On the CRT, verify OFF is highlighted in Modulation, if not press the ACTIVE key 5 to toggle it
OFF.
12 On the CRT, verify OFF is highlighted in Output, if not press the ACTIVE key 6 to toggle it OFF.
13 Zero the Power Meter prior to connecting the power sensor to the RF cable from the signal generator.
NOTE
For best accuracy, always re–zero the power meter before connecting the power sensor to the
component being calibrated.
14 Connect the RF cable from the R3562 signal generator RF OUT port to the power sensor, refer to
Figure H-4.
15 On the R3562 CRT, set the Output to ON by pressing ACTIVE key 6.
. . . continued on next page
H
Power Delta Calibration68P64115A18–1
Mar 2003 1X SC 4812T Lite BTS Optimization/ATP Software Release R2.16.1.x
DRAFT
H-7
Table H-2: Advantest R3267 Power Delta Calibration Procedure
Step Action
16 Record the Power Meter reading as result A________________________
17 On the R3562 CRT, set the Output to OFF by pressing ACTIVE key 6.
18 Connect the RF cable from R3562 signal generator RF OUT port to the R3267 spectrum analyzer
INPUT Port, refer to Figure H-5.
19 On the R3562 CRT, set the Output to ON by pressing ACTIVE key 6.
20 On the R3267, press the POWER key in the MEASUREMENT section of the control panel.
21 Press the LEVEL key in the ENTRY section of the control panel.
22 Set the REF LEVEL to 10 dBm using the keypad ENTRY section keys.
23 On the CRT, select dB/div by pressing ACTIVE key 1.
24 On the CRT, select 10 dB/div by pressing ACTIVE key 1.
25 Press the FREQ key in ENTRY section of the control panel.
26 Set the frequency to the desired value using the keypad ENTRY section keys.
27 On the CRT, select more 1/2 by pressing ACTIVE key 7.
28 Press the Preselector CRT menu key to highlight 3.66G.
29 Press the POWER key in the MEASUREMENT section of the control panel.
30 Press the SPAN key in the ENTRY section of the control panel.
31 On the CRT, select Zero Span by pressing ACTIVE key 2.
32 Press the COUPLE key in the ENTRY section of the control panel.
33 On the CRT, select RBW and highlight MNL by pressing ACTIVE key 3.
34 Set RBW to 30 kHz using keypad ENTRY section keys.
35 On the CRT, select VBW and highlight MNL by pressing ACTIVE key 2.
36 Set VBW to 1 MHz using keypad ENTRY section keys.
37 Press the MKR key in the DISPLAY CONTROL section of the control panel.
38 On the CRT, select Normal Marker by pressing ACTIVE key 1.
39 Record the Marker Level reading as result B________________________
40 Press Single in ENTRY section of control panel.
. . . continued on next page
H
Power Delta Calibration 68P64115A18–1
Mar 2003
1X SC 4812T Lite BTS Optimization/ATP Software Release R2.16.1.x
DRAFT
H-8
Table H-2: Advantest R3267 Power Delta Calibration Procedure
Step Action
41 Calculate the Power Calibration Delta value. The delta value is the power meter measurement minus
the Advantest measurement.
Delta = A – B
Example: Delta = –0.7 dBm – (–1.25 dBm) = 0.55 dB
Example: Delta = 0.26 dBm – 0.55 dBm = –0.29 dBm
These examples are included to show the mathematics and do not represent actual readings.
NOTE
Add this delta value to the TX Cable Loss value during In–Service Calibration (see step 4 in
Table H-6).
Figure H-3: Delta Calibration Setup – Advantest R3562 to HP437
Power
Sensor
Advantest R3562 and R3267
Short RF Cable
HP437B
SENSOR
RF OUT
Figure H-4: Delta Calibration Setup –
Advantest R3562 to HP437
Figure H-5: Delta Calibration Setup – Advantest R3562 to R3267
Advantest R3562 and R3267
Short RF Cable
RF OUT
RF IN
H
Power Delta Calibration68P64115A18–1
Mar 2003 1X SC 4812T Lite BTS Optimization/ATP Software Release R2.16.1.x
DRAFT
H-9
Agilent 8935 series E6380A Power Delta Calibration
The Agilent 8935 (formerly HP 8935) communications test set modified
with either option 200 or R2K and E4432B signal generator test
equipment combination can be used for ISC of IS–2000 CDMA 1X as
well as IS–95A/B operation modes. The power delta calibration is
performed on the Agilent 8935. After the offset value has been
calculated, add it to the TX cable loss value.
Follow the procedure in Table H-3 to perform the Agilent 8935 Power
Delta Calibration procedure.
Table H-3: Agilent 8935 Power Delta Calibration Procedure
Step Action
NOTE
Perform this procedure after test equipment has been allowed to warm–up and stabilize for a minimum
of 60 minutes. After it is warmed up and stabilized, calibrate the test equipment as described in the
“Test Set Calibration” section of Chapter NO TAG.
1Zero the Power Meter prior to connecting the power sensor to the RF cable from the signal generator.
NOTE
For best accuracy, always re–zero the power meter before connecting the power sensor to the
component being calibrated.
2Connect a short RF cable between the Agilent 8935 Duplex Out port and the HP437 power sensor
(see Figure H-6).
3Set the Agilent 8935 signal source as follows:
– Measure mode to CDMA Gen
– Frequency to the CDMA Calibration target frequency
– CW RF Path to IQ
– Output Port to Dupl
– Data Source to Random
– Amplitude to 0 dBm
4Measure and record the power value reading on the HP437 Power Meter.
5Record the Power Meter reading as result A ________________________.
6Turn off the Agilent 8935 signal source output, and disconnect the HP437.
NOTE
Leave the settings on the source Agilent 8935 for convenience in the following steps.
7Connect the short RF cable between the Agilent 8935 Duplex Out port and the RF–IN/OUT port (see
Figure H-7).
8Ensure that the source Agilent 8935 settings are the same as in Step 3.
. . . continued on next page
H
Power Delta Calibration 68P64115A18–1
Mar 2003
1X SC 4812T Lite BTS Optimization/ATP Software Release R2.16.1.x
DRAFT
H-10
Table H-3: Agilent 8935 Power Delta Calibration Procedure
Step Action
9Set the Agilent 8935 as follows:
– Measure mode to CDMA Anl
– Frequency to the CDMA calibration target frequency
– Input Attenuation to 0 dB
– Input port to RF–IN
– Gain to Auto
– Anl Dir to Fwd
10 Turn on the Agilent 8935 signal output.
11 Set the Chn Pwr Cal to Calibrate and select to calibrate.
12 Measure and record the channel power reading on the measuring Agilent 8935 as result
B ________________________.
13 Turn off the Agilent 8935 signal output and disconnect the equipment.
14 Calculate the Power Calibration Delta value. The delta value is the power meter measurement minus
the Advantest measurement.
Delta = A – B
Example: Delta = –0.70 dBm – (–1.25 dBm) = 0.55 dBm
Example: Delta = 0.26 dBm – 0.55 dBm = –0.29 dBm
These examples are included to show the mathematics and do not represent actual readings.
NOTE
Add this delta value to the TX Cable Loss value during In–Service Calibration (see Step 4 in
Table H-6).
Figure H-6: Delta Calibration Setup – Agilent 8935 to HP437
Power
Sensor
Agilent Agilent
8935
DUPLEX OUT
Short RF Cable
HP437B
SENSOR
FW00805
H
Power Delta Calibration68P64115A18–1
Mar 2003 1X SC 4812T Lite BTS Optimization/ATP Software Release R2.16.1.x
DRAFT
H-11
Figure H-7: Delta Calibration Setup – Agilent 8935 to Agilent 8935
Agilent E6380A
Short RF Cable
DUPLEX OUT RF IN/OUT
FW00806
H
Power Delta Calibration 68P64115A18–1
Mar 2003
1X SC 4812T Lite BTS Optimization/ATP Software Release R2.16.1.x
DRAFT
H-12
HP8921A Power Delta Calibration
Use the HP8921A communications test set to measure power during ISC
only for IS–95A and B operation of 800 MHz systems. After the offset
value has been calculated, add it to the TX cable loss value.
Follow the procedure in Table H-4 to perform the HP8921A Power Delta
Calibration procedure.
NOTE This procedure requires two HP8921A communication test sets.
Table H-4: HP8921A Power Delta Calibration Procedure
Step Action
NOTE
Perform this procedure after test equipment has been allowed to warm–up and stabilize for a minimum
of 60 minutes. After it is warmed up and stabilized, calibrate the test equipment as described in the
“Test Set Calibration” section of Chapter NO TAG.
1Zero the Power Meter prior to connecting the power sensor to the RF cable from the signal generator.
NOTE
For best accuracy, always re–zero the power meter before connecting the power sensor to the
component being calibrated.
2Connect a short RF cable between the HP8921A Duplex Out port and the HP437 power sensor (see
Figure H-8).
3Set the HP8921A signal source as follows:
– Measure mode to CDMA Generator
– Frequency to the CDMA Calibration target frequency
– CW RF Path to IQ
– Output Port to Dupl
– Data Source to Random
– Amplitude to 0 dBm
4Measure and record the power value reading on the HP437 Power Meter.
5Record the Power Meter reading as result A ________________________.
6Turn off the source HP8921A signal output, and disconnect the HP437.
NOTE
Leave the settings on the source HP8921A for convenience in the following steps.
7Connect the short RF cable between the source HP8921A Duplex Out port and the measuring
HP8921A RF–IN port (see Figure H-9).
8Ensure that the source HP8921A settings are the same as in Step 3.
. . . continued on next page
H
Power Delta Calibration68P64115A18–1
Mar 2003 1X SC 4812T Lite BTS Optimization/ATP Software Release R2.16.1.x
DRAFT
H-13
Table H-4: HP8921A Power Delta Calibration Procedure
Step Action
9Set the measuring HP8921A as follows:
– Measure mode to CDMA Anl
– Frequency to the CDMA calibration target frequency
– Input Attenuation to 0 dB
– Input port to RF–IN
– Gain to Auto
– Analyzer Direction to Fwd
10 Turn on the source HP8921A signal output.
11 Measure and record the channel power reading on the measuring HP8921A as result
B ________________________.
12 Turn off the source HP8921A signal output and disconnect the equipment.
13 Compute the delta between HP437 and HP8921A using the following formula:
Delta = A – B
Example: Delta = –0.70 dBm – (–1.25 dBm) = 0.55 dBm
Example: Delta = 0.26 dBm – 0.55 dBm = –0.29 dBm
These examples are included to show the mathematics and do not represent actual readings.
NOTE
Add this delta value to the TX Cable Loss value during In–Service Calibration (see Step 4 in
Table H-6).
Figure H-8: Delta Calibration Setup – HP8921A to HP437
Short RF Cable
HP 8921A
DUPLEX
OUT
HP437B
Power
Sensor
SENSOR
FW00801
H
Power Delta Calibration 68P64115A18–1
Mar 2003
1X SC 4812T Lite BTS Optimization/ATP Software Release R2.16.1.x
DRAFT
H-14
Figure H-9: Delta Calibration Setup – HP8921A to HP8921A
Measurement HP8921A Source HP8921A
Short RF Cable
DUPLEX
OUT
RF
IN/OUT
FW00802
H
Power Delta Calibration68P64115A18–1
Mar 2003 1X SC 4812T Lite BTS Optimization/ATP Software Release R2.16.1.x
DRAFT
H-15
Advantest R3465 Power Delta Calibration
Use the Advantest R3465 spectrum analyzer to measure power during
ISC only for IS–95A and B operation. After the offset value has been
calculated, add it to the TX cable loss value.
Follow the procedure in Table H-5 to perform the Advantest 3465 Power
Delta Calibration procedure.
Table H-5: Advantest Power Delta Calibration Procedure
Step Action
NOTE
Perform this procedure after test equipment has been allowed to warm–up and stabilize for a minimum
of 60 minutes. After it is warmed up and stabilized, calibrate the test equipment as described in the
“Test Set Calibration” section of Chapter NO TAG.
1Press the SHIFT and the PRESET keys located below the CRT display.
2Press the ADVANCE key in the Measurement area of the control panel.
3Press the CDMA Sig CRT menu key.
4Press the FREQ key in the Entry area of the control panel.
5Set the frequency to the desired value using the keypad entry keys.
6Press the LEVEL key in the Entry area of the control panel.
7Set the LEVEL to 0 dBm using the keypad entry keys.
8Verify the Mod CRT menu key is highlighting OFF, if not press the Mod key to toggle it OFF.
9Verify the Output CRT menu key is highlighting OFF, if not press the Output key to toggle it OFF.
10 Zero the Power Meter prior to connecting the power sensor to the RF cable from the signal generator.
NOTE
For best accuracy, always re–zero the power meter before connecting the power sensor to the
component being calibrated.
11 Connect the RF cable from the R3561L CDMA signal generator RF OUT port to the power sensor,
refer to Figure H-10.
12 Press the Output CRT menu key to toggle the Output to ON.
13 Record the Power Meter reading as result A________________________.
14 Press the Output CRT menu key to toggle the Output to OFF.
15 Connect the RF cable from the R3561L signal generator RF OUT port to the R3465 INPUT Port,
refer to Figure H-11.
16 Press the Output CRT menu key to change the Output to ON.
17 Press the CW key in the Measurement area of the control panel.
18 Press the LEVEL key in the Entry area of the control panel.
19 Set the REF LEVEL to 10 dBm using the keypad entry keys.
20 Press the dB/div CRT menu key.
21 Press the 10 dB/div CRT menu key.
. . . continued on next page
H
Power Delta Calibration 68P64115A18–1
Mar 2003
1X SC 4812T Lite BTS Optimization/ATP Software Release R2.16.1.x
DRAFT
H-16
Table H-5: Advantest Power Delta Calibration Procedure
Step Action
22 Press the FREQ key in Entry area of the control panel.
23 Set the frequency to the desired value using the keypad entry keys.
24 Press the more 1/2 CRT menu key.
25 Press the Preselector CRT menu key to highlight 3.0G.
26 Press the FORMAT key in the Display Control area of the control panel.
27 Press the TRACE CRT menu key.
28 Press the AVG A CRT menu key.
29 Set AVG to 20 using keypad entry keys.
30 Press the return CRT menu key.
31 Press the SPAN key in the Entry area of the control panel.
32 Press the Zero Span CRT menu key.
33 Press the BW key in the Entry area of the control panel.
34 Press the RBW CRT menu key to highlight MNL. using keypad entry keys enter 30 kHz.
35 Set RBW to 30 kHz using keypad entry keys.
36 Press the VBW CRT menu key to highlight MNL.
37 Set VBW to 1 MHz using keypad entry keys.
38 Press the Marker ON key in the Display Control area of the control panel.
39 Record the Marker Level reading as result B________________________.
40 Calculate the Power Calibration Delta value. The delta value is the power meter measurement minus
the Advantest measurement.
Delta = A – B
Example: Delta = –0.70 dBm – (–1.25 dBm) = 0.55 dBm
Example: Delta = 0.26 dBm – 0.55 dBm = –0.29 dBm
These examples are included to show the mathematics and do not represent actual readings.
NOTE
Add this delta value to the TX Cable Loss value during In–Service Calibration (see Step 4 in
Table H-6).
H
Power Delta Calibration68P64115A18–1
Mar 2003 1X SC 4812T Lite BTS Optimization/ATP Software Release R2.16.1.x
DRAFT
H-17
Figure H-10: Delta Calibration Setup – R3561L to HP437
Advantest Power
Sensor
RF OUT
Short RF Cable
HP437B
SENSOR
R3561L
FW00803
Figure H-11: Delta Calibration Setup – R3561L to R3465
R3561L
RF OUT
INPUT
Short RF Cable
R3465
FW00804
H
In–Service Calibration 68P64115A18–1
Mar 2003
1X SC 4812T Lite BTS Optimization/ATP Software Release R2.16.1.x
DRAFT
H-18
In–Service Calibration
CAUTION This feature does NOT have fault tolerance at this time. The
system has no safe–guards to prevent actions which will put the
BTS out of service. If possible, perform this procedure during a
maintenance window.
Follow the procedures in this section precisely, otherwise the
entire BTS will most likely go OUT OF SERVICE.
At the CBSC, only perform operations on expansion hardware
when it is in the OOS_MANUAL state.
The operator must be trained in the LMF operation prior to
performing this procedure.
Prerequisites
SAny applicable expansion hardware has been added in the CBSC
database, and a CDF which includes the additions has been generated.
SAny expansion devices have been inserted into the SCCP cage and are
in the OOS_MANUAL state at the CBSC MM.
SThe site specific CDF (with any expansion hardware) and CAL files
have been loaded onto the LMF.
SThe LMF has the same device binary code and dds files as the CBSC.
CAUTION Do not download code or data to any cards other than those
being worked on. Downloading code or data to other cards will
take the site OUT OF SERVICE.
The code file version numbers must match the current BSS
software release version numbers required for the equipped
devices (refer to NO TAG). If the numbers do not match, the site
may go OUT OF SERVICE.
It is mandatory that the bts–#.cdf and cbsc–#.cdf files
on the LMF computer for this BTS are copies of the
corresponding files created in the CBSC database (see
Table 3-2).
The CAL file loaded on the LMF computer for this BTS must
have come from the CBSC.
STest equipment has been connected as shown in Figure H-12 or
Figure H-13.
SAn RFDS (or as a minimum, a directional coupler), whose loss is
already known, must be in the applicable TX antenna path to perform
the in–service calibration.
STest equipment has been calibrated after a 60–minute warm up.
SA short RF cable and two BNC–N adapters are available to perform
Cable Calibration.
SN–SMA cable adapters are available to connect to TRDC or DRDC
BTS CPLD connectors, and are included in cable loss measurements.
H
In–Service Calibration68P64115A18–1
Mar 2003 1X SC 4812T Lite BTS Optimization/ATP Software Release R2.16.1.x
DRAFT
H-19
SThe Power Delta Calibration has been performed (see Table H-1,
Table H-2, Table H-3, Table H-4, or Table H-5).
Figure H-12: TX Calibration Test Setup – Agilent E4406A, Advantest R3267, and Agilent 8935 with Option
200 or R2K (IS–95A/B and 1X CDMA 2000)
TEST SETS TRANSMIT (TX) SET UP
TO
MPC
TO LPA
TRUNKING
MODULE
RS232–GPIB
INTERFACE BOX
INTERNAL PCMCIA
ETHERNET CARD
GPIB
CABLE
UNIVERSAL TWISTED PAIR (UTP)
CABLE (RJ45 CONNECTORS)
RS232 NULL
MODEM
CABLE
S MODE
DATA FORMAT
BAUD RATE
GPIB ADRS G MODE
ON
BTS
INTERNAL
TX
CABLE
CDMA
LMF
DIP SWITCH SETTINGS
10BASET/
10BASE2
CONVERTER
LAN
B
LAN
A
GPIB
RF INPUT 50Ω,
INPUT 50Ω,
OR RF IN/OUT
FREQ
MONITOR
SYNC
MONITOR
CSM
INTERNAL
RX
CABLE
TX
ANT
CPLD
RX
BTS
CPLD
TRDC
TX
BTS
CPLD
RX
ANT
CPLD
COMMUNICATIONS
SYSTEM ANALYZER
* BLACK RECTANGLES
REPRESENT THE RAISED
PART OF SWITCHES
NOTE: IF BTS IS EQUIPPED
WITH DRDCS (DUPLEXED
RX/TX SIGNALS), CONNECT
THE TX TEST CABLE TO
THE DRDC BTS CPLD
CONNECTOR.
RF INPUT
50 Ω
Agilent E4406A
INPUT 50 Ω
Advantest R3267
RX
ANTENNA
CONNECTOR
TX
ANTENNA
CONNECTOR
2O DB
IN–LINE
ATTENUATOR
ANTENNAANTENNA
Agilent 8935 Series E6380A (formerly HP 8935)
RF IN/OUT
HP–IB
TO GPIB
BOX
GPIB CONNECTS
TO BACK OF UNIT
GPIB CONNECTS
TO BACK OF UNIT
NOTE:
THE AGILENT 8935 MUST BE EQUIPPED WITH OPTION 200 OR R2K
TO PERFORM 1X TX TESTING .
H
In–Service Calibration 68P64115A18–1
Mar 2003
1X SC 4812T Lite BTS Optimization/ATP Software Release R2.16.1.x
DRAFT
H-20
Figure H-13: TX Calibration Test Setup – HP 8921A/600 w/PCS Interface (1.9 GHz),
HP 8921A/600 (800 MHz), and Advantest R3465 (IS–95A/B only)
TEST SETS TRANSMIT (TX) SET UP
TO
MPC
TO LPA
TRUNKING
MODULE
RS232–GPIB
INTERFACE BOX
INTERNAL PCMCIA
ETHERNET CARD
GPIB
CABLE
UNIVERSAL TWISTED PAIR (UTP)
CABLE (RJ45 CONNECTORS)
RS232 NULL
MODEM
CABLE
S MODE
DATA FORMAT
BAUD RATE
GPIB ADRS G MODE
ON
BTS
INTERNAL
TX
CABLE
CDMA
LMF
DIP SWITCH SETTINGS
10BASET/
10BASE2
CONVERTER
LAN
B
LAN
A
GPIB
RF IN/OUT
OR INPUT 50Ω
FREQ
MONITOR
SYNC
MONITOR
CSM
INTERNAL
RX
CABLE
TX
ANT
CPLD
RX
BTS
CPLD
TRDC
TX
BTS
CPLD
RX
ANT
CPLD
COMMUNICATIONS
SYSTEM ANALYZER
* BLACK RECTANGLES
REPRESENT THE RAISED
PART OF SWITCHES
NOTE: IF BTS IS EQUIPPED
WITH DRDCS (DUPLEXED
RX/TX SIGNALS), CONNECT
THE TX TEST CABLE TO
THE DRDC BTS CPLD
CONNECTOR.
RX
ANTENNA
CONNECTOR
TX
ANTENNA
CONNECTOR
2O DB
IN–LINE
ATTENUATOR
ANTENNAANTENNA
Hewlett Packard Model HP 8921A W/PCS Interface
(for 1900 MHz)
GPIB
CONNECTS
TO BACK OF
UNITS
RF
IN/OUT
GPIB
CONNECTS
TO BACK OF
UNIT
Hewlett Packard Model HP 8921A
(for 800 MHz)
RF
IN/OUT
Advantest Model R3465
INPUT 50Ω
GPIB CONNECTS
TO BACK OF UNIT
H
In–Service Calibration68P64115A18–1
Mar 2003 1X SC 4812T Lite BTS Optimization/ATP Software Release R2.16.1.x
DRAFT
H-21
Follow the procedure in Table H-6 to perform the In–Service
Calibration.
Table H-6: In–Service Calibration
Step Action
NOTE
Perform this procedure after test equipment has been allowed to warm–up and stabilize for a minimum
of 60 minutes.
1Set up the LMF for In–Service Calibration:
– Start the LMF by double–clicking the LMF icon on the Windows desktop.
– Click Tools > Options from the menu bar at the LMF application window.
– In the LMF Options window, check only the applicable communications system analyzer check
box on the Test Equipment tab.
– Ensure that the GPIB address is 18.
– Uncheck any other other equipment that is selected.
– Click the Apply button.
– Select the BTS Options tab in the LMF Options window.
– Check the In–Service Calibration check box.
– Click the Apply button.
– Click the Dismiss button to close the LMF Option window.
2Log into the target BTS:
– Select the target BTS icon.
– Click the Login button at the login screen.
3Measure the Cable Loss using the Cable Calibration function:
– Click Util > Cable Calibration... in the BTS menu bar at the main window.
– Set the desired channel(s) and select TX and RX CABLE CAL from the Cable Calibration
window drop–down list.
– Click the OK button to perform cable calibration.
– Follow the on–screen instructions to complete the cable loss measurement.
NOTE
– The measured value is input automatically to the cable loss file.
– To view the cable loss file, click Util > Examine > Cable Loss from the BTS menu bar.
4Add the communications system analyzer power delta to the TX Cable Loss.
– In the BTS menu bar, click Util > Edit > Cable Loss... > TX.
– Add the value computed in Table H-4, Table H-5, or Table H-3 to the TX Cable Loss.
NOTE
Be sure to include the sign of the value. The following examples are included to show the mathematics
and do not represent actual readings:
– Example: 5.65 dBm + 0.55 dBm = 6.20 dBm
– Example: 5.65 dBm + (–0.29 dBm) = 5.36 dBm
– Example: –5.65 dBm + 0.55 dBm = –5.10 dBm
– Example: –5.65 dBm + (–0.29 dBm) = –5.94 dBm
. . . continued on next page
H
In–Service Calibration 68P64115A18–1
Mar 2003
1X SC 4812T Lite BTS Optimization/ATP Software Release R2.16.1.x
DRAFT
H-22
Table H-6: In–Service Calibration
Step Action
5Input the Coupler Loss for the TX tests:
– In the BTS menu bar, click Util > Edit > Coupler Loss... from the menu bar at the main window.
– Select the TX Coupler Loss tab if not in the foreground.
– Enter the appropriate coupler loss for the target carrier(s) by referring to the information taken at
the time of BTS installation.
– Click the Save button.
– Click the Dismiss button to close the window.
– To view the coupler loss file, click Util > Examine > Coupler Loss in the BTS menu bar.
6Input the Coupler Loss for the RX tests:
– In the BTS menu bar, click Util > Edit > Coupler Loss... from the menu bar at the main window.
– Select the RX Coupler Loss tab if not in the foreground.
– Enter the appropriate coupler loss for the target carrier(s) by referring to the information taken at
the time of BTS installation.
– Click the Save button.
– Click the Dismiss button to close the window.
– To view the couper loss file, click Util > Examine > Coupler Loss in the BTS menu bar.
7If it was not previously done, have the CBSC operator put the redundant BBX OOS_MANUAL.
! CAUTION
Be sure to download OOS devices only. Loading in–service devices takes them OUT OF SERVICE
and can result in dropped calls.
The code file version numbers must match the version numbers on the other cards in the frame. If the
numbers do not match, the site may go OUT OF SERVICE.
NOTE
Be sure to include the redundant BBX in steps 8, 9, and 10.
8Download code and data to the target devices:
– In the LMF window menu bar, click Tools > Update NextLoad > CDMA to set the code version
that will be downloaded.
– Check the appropriate code version in the popup window and click the Save button to close.
– Select the target BBX(s) on the SCCP cage picture.
– In the BTS menu bar, click Device > Download > Code/Data to start downloading code and data.
. . . continued on next page
H
In–Service Calibration68P64115A18–1
Mar 2003 1X SC 4812T Lite BTS Optimization/ATP Software Release R2.16.1.x
DRAFT
H-23
Table H-6: In–Service Calibration
Step Action
9! CAUTION
Perform the All Cal/Audit procedure on OOS devices only.
Run the All Cal/Audit procedure:
– Select the target BBX(s) on the SCCP cage picture.
– In the BTS menu bar, click Tests > All Cal/Audit... from the menu bar at the main window.
– Select the target carrier and confirm the channel number in the pop up window.
– Leave the Verify BLO check box checked.
– Be sure the Test Pattern box shows Pilot.
– Click the OK button to start calibration.
– Follow the on–screen instructions, except, do not connect to the BTS antenna port. Connect to the
DRDC or TRDC BTS CPL port associated with the on–screen prompted antenna port.
10 Save the result, and download the BLO data to the target BBX(s):
– Click the Save Result button on the result screen.
–– The window closes automatically.
11 Logout from the BTS and close the LMF session:
– In the BTS menu bar, click Select > Logout to close the BTS connection.
– Close the LMF application program by selecting File > Exit from the window menu bar.
12 Disconnect all test cables from the BTS, and reconnect RFDS cables or termination loads, as
applicable, to the DRDC or TRDC BTS CPL ports used for the calibration.
13 Advise the CBSC to enable the target device(s).
14 Restore the new “bts–*.cal” file to the CBSC (refer to Table 5-2).
H
In–Service Calibration 68P64115A18–1
Mar 2003
1X SC 4812T Lite BTS Optimization/ATP Software Release R2.16.1.x
DRAFT
H-24
Notes
H
DRAFT
Mar 2003 1X SC 4812T Lite BTS Optimization/ATP Software Release R2.16.1.x Index-1
Index
Index 68P64115A18–1
1X SC 4812T Lite BTS Optimization/ATP Software Release R2.16.1.x
DRAFT
Mar 2003
Index-2
Numbers
10 MHz Rubidium Standard, optional test equipment,
1-12
10BaseT/10Base2 Converter, 1-8
10BaseT/10Base2 converter
LMF to BTS connection, 3-17
remove from BTS, 5-5
2:1 combiners, description, 1-22
2–way splitter, optional test equipment, 1-11
A
Abbreviated
RX acceptance test, all–inclusive, 4-9
TX acceptance test, all–inclusive, 4-9
Acceptance Test Procedure. See ATP
ACTIVE LED
GLI, 6-31
MCC, 6-33
Advantest R3267 Spectrum Analyzer GPIB Address,
F-5
Advantest R3465 Communications Test Set GPIB
Address, F-9
Advantest R3562 Signal Generator GPIB Address,
F-6
Agilent 8935 Series E6380 (formerly HP 8935) Test
Set GPIB Address, F-7
Agilent E4406A, calibration, F-25
Agilent E4406A Transmitter Tester GPIB Address,
F-3
Agilent E4432B Signal Generator GPIB Address, F-4
ALARM LED, GLI, 6-31
Alarm Monitor window, 3-109
Alarm Reporting Display, 3-109
All Cal/Audit procedure, 3-92
All RX ATP Test Procedure, 4-12
All tests fail on a single antenna, Troubleshooting,
RFDS, 6-27
All TX ATP Test Procedure, 4-12
All TX/RX ATP Test Procedure, 4-10
Applying AC Power, 2-11
ATP
all inclusive TX acceptance test outline, 4-9
automated introduction, 4-2
code domain noise floor acceptance test procedure,
4-25
code domain power acceptance test procedure, 4-25
failure report generation, 4-29
FER test, frame error rate testing, 4-28
pilot time offset, 4-23
prerequisites, 4-3
spectral purity TX mask, 4-18
test matrix/detailed optimization, C-2
test set–up, 3-66
Advantest R3267/R3562
DRDCs, 3-69
TRDCs, 3-71
Advantest R3465, 3-66
Agilent 8935, DRDCs, 3-66
Agilent 8935/E4432B, DRDCs, 3-68, 3-70
Agilent E4406A/E4432B
DRDCs, 3-68
TRDCs, 3-70
CyberTest, 3-66
HP 8921A, 1.9 GHz, 3-67
HP 8921A, 800 MHz, 3-67
waveform quality (Rho), 4-21
waveform quality (RHO) acceptance test procedure,
4-21
ATP – Reduced, 4-2
Attenuator, required test equipment, 1-10
B
Basic Troubleshooting Overview, 6-2
Battery Charge Test (Connected Batteries), 2-13
Battery Discharge Test, 2-14
Bay Level Offset calibration
description, 3-83
purpose, 3-83
when to calibrate, 3-84
Bay Level offset calibration failure, 6-10
BBX
carrier spectral purity, 4-17
gain set point vs SIF output considerations, D-2
primary and redundant, TX tests to be performed,
4-15
BBX LED status combinations, 6-33
BBX2 Connector, 6-20
BLO. See Bay Level Offset calibration
Bringing modules into service, prepare to leave the
site, 5-5
Index
68P64115A18–1
DRAFT
Mar 2003 1X SC 4812T Lite BTS Optimization/ATP Software Release R2.16.1.x Index-3
Broad Band Receiver. See BBX
BTS
download, 3-36
Ethernet LAN interconnect diagram, 3-33
LMF connection, 3-16, 3-17
log out of session, 5-5
RX sensitivity/frame error rate, 4-16
system software download, 3-4
BTS Frame Erasure Rate. See FER
BTS Log In Procedure, GUI, 3-26
BTS login
CLI environment, 3-28
General, 3-26
GUI environment, 3-26
BTS Logout
CLI environment, 3-30
GUI environment, 3-29
Create CAL File, 3-97
C
cable calibration, automatic, test set–up, 3-60, 3-61
Advantest R3267/R3562, 3-61
Advantest R3465, 3-60
Agilent 8935, 3-60
Agilent E4406A/E4432B, 3-61, 3-62, 3-71
CyberTest, 3-60
HP 8921A, 3-60
CAL file. See calibration data file
Calibrate Test Cabling Using Signal Generator &
Spectrum Analyzer, 3-79
Calibrating, Test Equipment, 3-76
Calibrating Cables, Overview, 3-77
Calibrating Test Cable Setup, PCS Interface
HP83236B, F-29
Calibrating Test Cabling using Communications
System Analyzer, 3-78
Calibration, In–Service, H-21
calibration
calibration data file, 3-84
Gigatronics 8542B, F-28
Calibration Audit failure, 6-11
calibration data file, description of, 3-84
Cannot communicate to Communications Analyzer,
6-7
Cannot communicate to Power Meter, 6-6
Cannot Download DATA to any device card, 6-8
Cannot ENABLE device, 6-9
Cannot Log into cell–site, 6-3
Cannot perform Code Domain Noise Power
measurement, 6-16
Cannot perform Rho or pilot time offset
measurement, 6-15
Cannot perform Txmask measurement, 6-15
CDF, 3-3
site equipage verification, 3-4
site type and equipage data information, 2-2
CDMA
allocation diagram for the North American, cellular
telephone frequency spectrum, E-5
optimization/ATP test matrix, C-2
subscriber mobile radiotelephone, optional test
equipment, 1-12
Cell Site
equipage verification, 2-2
types configuration, 3-3
Cell Site Data File. See CDF
CIO Connectors, 6-21
CLI, 3-25
Clock Sync Module. See CSM
Code domain power/noise floor
acceptance test, 4-25
analyzer display, 4-26
Command Line Interface, 3-25
Communication test set, rear panel, F-15, F-17
Communications test set. See Test equipment
communications test set, TX acceptance tests, 4-7
Connect BTS E1/T1 spans, 5-6
Connect BTS T1/E1 spans, 5-6
Connecting test equipment to the BTS, 3-55
Connector Functionality
Backplane, Troubleshooting, 6-20
Troubleshooting, Backplane, 6-20
Control, TX output verification, 4-7
Copy CBSC CDF Files to the LMF, 3-11
Copying CAL files from CDMA LMF to the CBSC,
5-2
Copying CAL files to the CBSC, 5-2
CSM
clock source, select, 3-41
enable, 3-42
LEDs, 3-45
system description, 3-44
CSM clock source, select, 3-41
Index 68P64115A18–1
1X SC 4812T Lite BTS Optimization/ATP Software Release R2.16.1.x
DRAFT
Mar 2003
Index-4
CSM frequency verification, 3-47
CSM LED Status Combinations, 6-29
D
DC Power Pre–test (BTS Frame), 2-6
DC Power Problems, SCCP Backplane
Troubleshooting, 6-24
DC/DC Converter LED Status Combinations, 6-28
Detailed, optimization/ATP test matrix, C-2
Devices, download. See Download
Digital Control Problems, 6-22
SCCP Backplane Troubleshooting, 6-22
Digital multimeter, required test equipment, 1-10
Directional coupler, required test equipment, 1-10
diversity receive path, definition, 3-83
companion frame, 3-83
stand–alone frame, 3-83
diversity RX path. See diversity receive path
Documents, required, 1-13
Download
See also Devices
BTS, 3-36
BTS system software, 3-4
Download BLO Procedure, 3-94
Download from the CBSC, prepare to leave the site,
5-4
download ROM and RAM code. See ROM code
Download/Enable MCCs, 3-43
Download/Enable MGLIs, 3-39
Duplexer, optional test equipment, 1-11
E
E1, isolate BTS from the E1 spans, 3-15
E4406A, calibration, F-25
Enable CSMs. See CSM
End LMF session, 5-5
Equipment Overview, 1-17
Equipment warm-up, 3-59
establish MMI communication, 3-31
Ethernet LAN
interconnect diagram, 3-33
transceiver, 1-8
Ethernet LAN termination, 2-5
Every test fails, Troubleshooting, RFDS, 6-26
F
Failure report generation, 4-29
FER, acceptance test, 4-28
Files, intermediate file, 4-29
files, calibration data, 3-84
Filtronics, low IM Duplexer (Cm035–f2) or
equivalent, optional test equipment, 1-11
Fluke, model 8062A with Y8134 test lead kit, test
equipment, 1-10
Folder Structure Overview, 3-7
Foreword, xx
forward link problem after passing reduced ATP, 6-15
Frame, equipage preliminary operations, 2-2
FREQ Monitor Connector, CSM, 6-30
Frequency counter, optional test equipment, 1-11
G
Gain set point, D-2
General Safety, xxii
Generating an ATP Report, 4-29
General optimization checklist, test data sheets, A-5
Gigatronics 8541C Power Meter GPIB Address, F-12
Gigatronics 8542 power meter, calibration, F-28
GLI Connector, 6-20
GLI Ethernet A and B Connections, 6-20
GLI LED Status Combinations, 6-31
GLI Pushbuttons and Connectors, 6-32
GLI2 Front Panel Operating Indicators, 6-32
Index
68P64115A18–1
DRAFT
Mar 2003 1X SC 4812T Lite BTS Optimization/ATP Software Release R2.16.1.x Index-5
GPIB, F-14, F-18, F-20
cables, 1-10
set address, HP 437B, F-11
GPIB Address
Advantest R3267, F-5
Advantest R3465, F-9
Advantest R3562, F-6
Agilent (formerly HP) 8935, F-7
Agilent E4406A, F-3
Agilent E4432B, F-4
Gigatronics 8541C Power Meter, F-12
Hewlett Packard HP8921a & HP83236A/B, F-8
Motorola CyberTest, F-10
GPIB Interface Box, RS232, F-13
GPS, receiver operation, test data sheets, A-6
GPS Initialization/Verification
estimated position accuracy, 3-48
surveyed position accuracy, 3-48
GPS satellite system, 3-42
Graphical User Interface, 3-19
Group Line Interface. See GLI
GUI, 3-19
H
Hardware Requirements, 1-7
Hewlett Packard HP8921A and HP83236A/B GPIB
Address, F-8
High Stability 10 MHz Rubidium Standard, optional
test equipment, 1-12
High–impedance conductive wrist strap, required test
equipment, 1-10
HP 437
Pre–calibration, F-26
setting GPIB address, F-11
HP 83236A, F-18
HP 8921A PCS interface, Cables Connection for 10
MHz Signal and GPIB , F-15, F-17
HP8921A, F-18
Test equipment connections , F-14
HSO Initialization/Verification, 3-46
Huber & Suhner, required test equipment, 1-10
HyperTerminal, Creating named HyperTerminal
connection, 3-13
HyperTerminal , create named connection, 3-13
I
I and Q values, B-2
In–Service Calibration, H-21
preliminary Agilent test equipment set–up, H-3,
H-6
test set–up diagrams
DRDC, Advantest, 3-69
TRDC, Advantest, 3-71
Initial HP8921A setup, F-29
Initial Installation of Boards/Modules, preliminary
operations, 2-3
Initial power tests, test data sheets, A-4
Intermediate file, generate ATP file using, 4-29
Internal Assemblies and FRUs, 1-20
IS–97 specification, B-2
L
LAN, optional test equipment, 1-11
LAN connectors, external, 2-5
LAN termination, 2-5
LED, CSM, 3-45
LED Status Combinations for all Modules except
GLI2 CSM BBX2 MCC24 MCC8E, 6-28
LFR, receiver operation, test data sheets, A-7
LIF, Load Information File, 3-9
LMF, F-14, F-20
1X FER acceptance test, 4-7
1X upgrade preparation, home directory, 3-8
BTS connection, 3-17
logout procedure, 5-5
platform requirements, 1-7
remove from BTS, 5-5
to BTS connection, 3-15, 3-16
TX acceptance tests, 4-7
view CDF information, 3-4
LMF BTS displays, 3-19
LMF computer and software, 1-7
Load Information File, 3-9
Local Maintenance Facility. See LMF
Log out
of BTS, 5-5
of LMF PC, 5-5
Logging Into a BTS, 3-26
Logging Out, 3-29
Logical BTS, 1-17
Numbering, 1-18
LORAN–C Initialization/Verification, 3-53
Index 68P64115A18–1
1X SC 4812T Lite BTS Optimization/ATP Software Release R2.16.1.x
DRAFT
Mar 2003
Index-6
LPA errors, 6-9
LPA Module LED, 6-34
LPA Shelf LED Status Combinations, 6-34
M
MASTER LED, GLI, 6-31
MCC LED Status Combinations, 6-33
MMI common connections, 3-32
MMI Connector
CSM, 6-30
GLI, 6-32
MMI Connectors, MCC, 6-33
MMI equipment setup, 3-32
Module status indicators, 6-28
Motorola CyberTest GPIB Address, F-10
Multi Channel Card. See MCC
Multi–FER test Failure, 6-17
N
NECF, 3-3
New installations, 1-5
No AMR control, 6-22
No BBX2 control in the shelf, 6-23
No DC input voltage to Power Supply Module, 6-24
No DC voltage +5 +65 or +15 Volts to a specific
GLI2 BBX2 or Switch board, 6-25
No GLI2 Control through span line connection, 6-22
No GLI2 Control via LMF, 6-22
No or missing MCC24 channel elements, 6-23
No or missing span line traffic, 6-23
North American, cellular telephone system frequency
spectrum, CDMA allocation, E-5
O
Online Help, 3-32
optimization/ATP, test set–up
HP 8921A, 800 MHz, H-20
HP 8921A, 1.9 GHz, H-20
Optional test equipment, 1-11
10 MHz rubidium standard, 1-12
2–way splitter, 1-11
CDMA subscriber mobile or portable
radiotelephone, 1-12
duplexer, 1-11
frequency counter, 1-11
LAN tester, 1-11
oscilloscope, 1-11
RF circular, 1-12
RF test cable, 1-11
spectrum analyzer, 1-11
Oscilloscope, optional test equipment, 1-11
P
PCMCIA, Ethernet adapter
LMF to BTS connection, 3-17
remove from BTS, 5-5
Periodic optimization, 1-5
Pilot Time Offset. See PN
Pilot time offset, acceptance test, 4-23
Ping, 3-33
PN
offset programming information, B-2
offset usage, B-2
PN offset per sector, B-2
PN Offset Usage , B-2
power
applying, 2-18
AC, 2-18
DC, 2-19
removal, 2-16
AC power, 2-17
DC power, 2-16
Power Delta Calibration
Advantest, H-15
Agilent 8935, H-9
HP8921A, H-12
Power Input, 6-20
Power Meter, setting GPIB address, HP437B, F-11
Power meter, TX acceptance tests, 4-7
Power Supply Module Interface, 6-20
Index
68P64115A18–1
DRAFT
Mar 2003 1X SC 4812T Lite BTS Optimization/ATP Software Release R2.16.1.x Index-7
power–up, BTS. See power, applying
Pre–calibration, HP 437, F-26
Pre–power tests, test data sheets, A-4
Preliminary operations
cell Site types, 2-2
test data sheets, A-3
Prepare to leave site
connect BTS E1/T1 spans, 5-6
connect BTS T1/E1 spans, 5-6
remove external test equipment, 5-4
Prepare to leave the site
bringing modules into service, 5-5
download code and data from CBSC, 5-4
Prerequisites, automated acceptance tests, 4-3
Procedures to Copy CAL Files From Diskette to the
CBSC, 5-2, 6-8
Procedures to Copy Files to a Diskette, 5-2
Pseudorandom Noise. See PN
PWR/ALM and ACTIVE LEDs, MCC, 6-33
PWR/ALM LED
BBX–1X, 6-33
BBX2, 6-33
CSM, 6-29
DC/DC Converter, 6-28
generic, 6-28
MCC, 6-33
R
RAM code, described, 3-36
receive path
calibration, 3-83
component verification, 3-84
definition, 3-83
Reduced ATP, 4-2
Report generation, ATP report, 4-29
Required test equipment
communications system analyzer, 1-9
digital multimeter, 1-10
directional coupler, 1-10
GPIB cables, 1-10
high–impedance conductive wrist strap, 1-10
RF adapters, 1-10
RF attenuator, 1-10
RF load, 1-10
RS232 to GPIB interface, 1-8
timing reference cables, 1-10
Required Test Equipment and Software, 1-6
RESET Pushbutton, GLI, 6-32
Revision History, xxiv
RF
attenuator, 1-10
Circular – optional test equipment, 1-12
load for required test equipment, 1-10
required test equipment load, 1-10
test cable, 1-10
RF path, fault isolation, 6-12
RF path calibration. See Bay Level Offset calibration
RFDS – Fault Isolation, 6-26
RFDS calibration
description, 3-106
procedure, 3-107
RFDS Location, 1-23
RFDS parameters, 3-98
checking, 3-99
setting, 3-99
RFDS Test Subscriber Unit, 3-37
RFDS TSU Calibration Channel Frequencies, 3-106
Rho
TX waveform quality acceptance test, 4-20
waveform quality requirements, 4-20
ROM code
described, 3-36
downloading, G-2
procedure, G-3
RS232 GPIB Interface Box, F-13
RS232 to GPIB interface
modifications required for Automated Testing, 1-8
required test equipment, 1-8
RX
acceptance tests, FER, 4-27
antenna VSWR, test data sheets, A-12
sensitivity/frame error rate, 4-16
RX and TX paths fail, Troubleshooting, RFDS, 6-27
Index 68P64115A18–1
1X SC 4812T Lite BTS Optimization/ATP Software Release R2.16.1.x
DRAFT
Mar 2003
Index-8
RX path. See receive path
S
SC 4812 BTS Optimization/ATP Test Matrix, C-3
SCCP Backplane Troubleshooting, Procedure, 6-21
SCLPA, convergence test data sheets, A-8
Selecting Test Equipment, 3-73
Set Antenna Map Data, 3-104
Set RFDS Configuration Data, 3-105
Setting Cable Loss Values, 3-81
Setting TX Coupler Loss Value, 3-82
shut–down, BTS power. See power, removal
SIF, output considerations vs BBX gain set point, D-2
signal generator, 1X FER acceptance test, 4-7
Site, equipage verification, 3-4
Site checklist, verification data sheets, A-3
Site documents, 1-13
Site equipage, CDF/NECF, 3-3
Site expansion, 1-5
Span I/O board
E1 span isolation, illustration, 3-15
T1 span isolation, illustration, 3-15
Span line
T1/E1 verification equipment, 1-11
troubleshooting, 6-35
Span line configuration, troubleshooting, 6-37
Span Line connector , 6-20
SPANS LED, 6-31
Spectral purity, TX mask – primary and redundant
BBX, 4-15
Spectral purity transmit mask, acceptance test, 4-18
Spectrum analyzer, optional test equipment, 1-11
STATUS LED, GLI, 6-31
Supported Test Sets, 3-56
SYNC Monitor Connector, CSM, 6-30
System Connectivity Test, F-18
T
T1, isolate BTS from the T1 spans, 3-15
Tektronics model 2445 test equipment, 1-11
Test data sheets
Alarm verification, A-12
general optimization checklist, A-5
GPS receiver operation, A-6
initial power tests, A-4
LFR receiver operation, A-7
pre–power tests, A-4
preliminary operations, A-3
RX antenna VSWR, A-12
SCLPA convergence, A-8
site checklist, A-3
TX antenna VSWR, A-10
TX BLO, A-9
verification of test equipment used, A-2
Test Equipment, Calibrating, 3-76
Test equipment
See also Optional test equipment; Required test
equipment
set up, TX output verification/control, 4-7
system analyzer, 1-9
TX acceptance tests, 4-7
verification data sheets, A-2
Test equipment connections , preliminary Agilent
E4406A/E4432B set–up, F-23
Test Equipment Setup Calibration for TX Bay Level
Offset, F-33
Test Equipment Setup Chart, 3-57
Test equipment setup RF path calibration, 3-88
Timing reference cables, required test equipment
Model SGLN1145A/4132A CSMs, 1-10
Model SGLN4132B CSMs, 1-10
transmit path
calibration, 3-83
component verification, 3-84
definition, 3-83
Transmit TX path audit, 3-95
Transmit TX path calibration, 3-88
Index
68P64115A18–1
DRAFT
Mar 2003 1X SC 4812T Lite BTS Optimization/ATP Software Release R2.16.1.x Index-9
Troubleshooting
DC Power Problems, 6-24
RF path fault isolation, 6-12
Set span configuration, 6-37
span problems, 6-35
TX and RX Signal Routing, 6-25
TX level accuracy fault isolation, 6-14
troubleshooting
communications system analyzer communication,
6-7
Ethernet LAN, 6-3
GLI IP address, 6-4
LMF login failure, 6-3
power meter communication, 6-6
signal generator communication, 6-7
TSU NAM, programming
description, 3-102
parameter ranges, 3-103
parameters, 3-102
procedure, 3-108
TX
acceptance tests
code domain power/noise floor, 4-24
equipment setup, 4-7
pilot time offset, 4-22
spectral purity mask, 4-17
spectrum analyzer display, 4-19
waveform quality (rho), 4-20
all inclusive TX ATP test, 4-9
antenna VSWR, test data sheets, A-10, A-12
BLO test data sheets, A-9
level accuracy fault isolation, 6-14
output acceptance tests
code domain power noise, 4-15
pilot time offset, 4-15
waveform quality, 4-15
TX and RX Frequency vs Channel , E-3
TX and RX Signal Routing, SCCP Backplane
Troubleshooting, 6-25
TX Audit Test, 3-95
TX calibration, 3-91
All Cal/Audit, 3-92
set–up, 3-63
Advantest R3267, 3-65, H-19
Advantest R3465, 3-64
Agilent 8935, 3-63
Agilent E4406A, 3-65, H-19
CyberTest, 3-63
HP 8921A, 3-64
TX combiners. See 2:1 combiners
tx fine adjust, B-2
TX path. See transmit path
TX path calibration, 3-91
TX/RX OUT Connections, 4-4
U
Updating CDMA LMF Files, 5-2
UTP, LMF to BTS connection, 3-17
V
verification during calibration, 3-84
Verify
test equipment used, test data sheets, A-2
TX output, 4-7
Verify GLI ROM code load, 3-38
W
Waveform quality (Rho), acceptance test procedure,
4-21
X
XCVR Backplane Troubleshooting, 6-20
Xircom Model PE3–10B2
LMF to BTS connection, 3-17
remove from BTS, 5-5
