Nokia of America BBTRX-05 PCS Wireless Base Station Transceiver User Manual RRH PCS UserMan exh3

APPLICANT: Alcatel-Lucent EXHIBIT 3 FCC ID: AS5BBTRX-05

Page 1 of 1

EXHIBIT 3

Section 2.1033 (c)(3) INSTALLATION AND OPERATING INSTRUCTIONS

A copy of the installation and operating instructions to be furnished to the user. A draft copy of the

instructions may be submitted if the actual document is not available. The actual document shall be

furnished to the FCC when it becomes available.

Response

A copy of the “Alcatel-Lucent 9927 Distributed Base Station Outdoor Site Preparation Guidelines” manual

is attached to this exhibit.

Title page

Alcatel-Lucent 9927 Distributed Base Station

Outdoor Site Preparation Guidelines

401-703-516

Issue 1 | March 2012

Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements

Legal notice

Alcatel, Lucent, Alcatel-Lucent and the Alcatel-Lucent logo are trademarks of Alcatel-Lucent. All other trademarks are the property of their respective

owners.

The information presented is subject to change without notice. Alcatel-Lucent assumes no responsibility for inaccuracies contained herein.

Contains proprietary/trade secret information which is the property of Alcatel-Lucent and must not be made available to, or copied or used by anyone outside

Alcatel-Lucent without its written authorization.

Not to be used or disclosed except in accordance with applicable agreements.

Notice

Every effort was made to ensure that the information in this Information Product (IP) was complete and accurate at the time of printing. However,

information is subject to change.

Ordering information

The ordering number for this document is 401-703-516. To order this or other Alcatel-Lucent information products, see “To obtain documentation, training,

and technical support or submit feedback” on the Flexent®/AUTOPLEX®Wireless Networks System Documentation CD-ROM, 401-010-001 or the

documentation web site at (https://wireless.support.lucent.com/amps/rls_info/rls_doc/cd_docs/customer.support/customer.support_toc.pdf.wen).

Technical support

For technical support, see “To obtain documentation, training, and technical support or submit feedback” on the Flexent®/AUTOPLEX®Wireless Networks

System Documentation CD-ROM, 401-010-001 or the documentation web site at ( (https://wireless.support.lucent.com/amps/rls_info/rls_doc/cd_docs/

customer.support/customer.support_toc.pdf.wen).

Use pursuant to applicable agreements

Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements

About this documentAbout this document

Purpose

This Information Product (IP) describes the basic site requirements that should be used to

plan a Alcatel-Lucent 9927 Distributed Base Station outdoor site. This document includes

specific tasks that should be completed at the job site before an installation can begin.

Reason for reissue

This document is Alcatel-Lucent 9927 Distributed Base Station Outdoor Site Preparation

Guidelines, document number 401-703-516, Issue 1. This issue incorporates information

available as of December 2011.

This is the second issue of this document. Whenever this document is reissued, the

reasons for reissue will be provided in this section.

The reasons for reissue are shown in the table below.

Issue Reason

2

Intended audience

This IP is intended for customers preparing a 9927 Distributed Base Station outdoor site.

Conventions used

The following conventions are used in this IP:

Measurements

All measurements are shown in metric form, and are followed by the English conversion

in parentheses.

...................................................................................................................................................................................................................................

9927 Dist BTS Outdoor

401-703-516

Issue 1 March 2012

Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements xi

Naming conventions

In this IP, the Alcatel-Lucent 9927 Distributed Base Station Outdoor Cabinet is referred

to as 9927 Distributed Base Station Outdoor Cabinet.

Standard cross-sections and wire diameters of round copper conductors

The following table is from CEI/IEC 60947-1:2004, Table 1, Standard cross-sections of

round copper conductors and approximate relationship between mm2and AWG/kcmil

sizes for reference. Additional wire sizes are included in this information product as

appropriate for the topic.

ISO rated cross-sectional area (mm2) AWG/kcmil size

0.2 24

0.34 22

0.5 20

0.75 18

1-

1.5 16

2.5 14

412

610

10 8

16 6

25 4

35 2

-1

50 0 (1/0)

70 00 (2/0)

95 000 (3/0)

- 0000 (4/0)

120 250 kcmil

150 300 kcmil

185 350 kcmil

- 400 kcmil

240 500 kcmil

300 600 kcmil

About this document

....................................................................................................................................................................................................................................

xii Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements

9927 Dist BTS Outdoor

401-703-516

Issue 1 March 2012

ISO rated cross-sectional area (mm2) AWG/kcmil size

NOTE: The dash, when it appears, counts as a size when considering connecting capacity (see

7.1.7.2 in the standard).

Other documents (required)

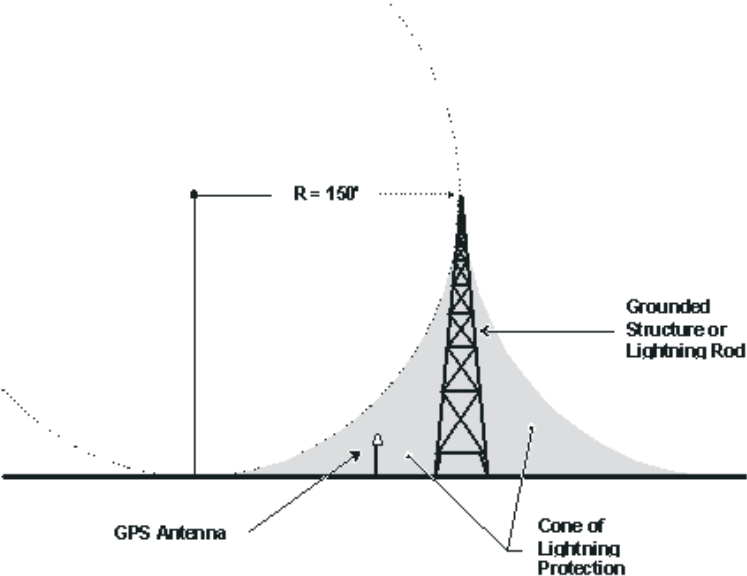

•Standard for Installation of Lightning Protection Systems, NFPA 780

•Recommended Practices on Surge Voltages in Low Voltage AC Power Circuits, IEEE

C62.41 (Latest Edition)

•GR-487-CORE, Telcordia

•GR-63-CORE, Telcordia

Alcatel-Lucent documents (not required)

The following documents are related but not required for a 9927 Distributed Base Station

Outdoor Cabinet outdoor site.

•Alcatel-Lucent 9927 Distributed Base Station System Description, 401-703-729

•Alcatel-Lucent CDMA Operations, Administration and Maintenance, 401-703-407

•Engineering Rules/Guidelines Flexent™9927 4.0, ER_XXXX_XXXX

•Power & Battery Engineering Rules for Alcatel-Lucent 9927 Distributed Base

Station, ER_XXXX_XXXX_PWR

About this document

....................................................................................................................................................................................................................................

9927 Dist BTS Outdoor

401-703-516

Issue 1 March 2012

Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements xiii

Related training

Alcatel-Lucent offers the following product-related training for the 9927 Distributed Base

Station Outdoor Cabinet:

•______________________________________________________________

To obtain technical support, documentation, and training or submit feedback

The Online Customer Support (OLCS) web site, http://support.lucent.com, provides

access to technical support, related documentation, related training and feedback tools.

On the right side of the page is a technical support telephone number lookup tool. The site

also provides account registration for new users.

Site preparation checklists

All site preparation activities, as well as adherence to the guidelines, should be verified

before the installation of the cell site equipment.

Checklists and punchlists have been provided in Appendix A, “9927 Distributed Base

Station Outdoor Cabinet site preparation checklists”. These checklists and punchlists are

intended to aid customers and Alcatel-Lucent personnel during a base station site Method

of Procedure (MOP) walk-through before equipment installation. Utilization of the

checklists helps ensure a quality installation and provides a base station site history file

for later reference. The punchlist sheets are used to track completion of any outstanding

site preparation items, and to aid in the project management of installation resources.

Base station configuration sheets

Configuration sheets are provided in Appendix C, “ 9927 Distributed Base Station

Outdoor Cabinet cell site information” to aid the Customer, Equipment Engineering, and

Wireless Project Management during the various stages of product deployment. The

configuration sheets are used to document the base station equipment configuration,

conditions, and other pertinent information for reference during product deployment, and

future additions. The configuration sheets should be completed during the equipment

engineering phase. Reference to this information during MOP walk-through assists with

completion of the site preparation checklists.

Safety information

For your safety, this document contains safety statements. Safety statements are given at

points where risks of damage to personnel, equipment, and operation may exist. Failure to

follow the directions in a safety statement may result in serious consequences.

About this document

....................................................................................................................................................................................................................................

xiv Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements

9927 Dist BTS Outdoor

401-703-516

Issue 1 March 2012

How to comment

To comment on this document, go to the Online Comment Form (http://infodoc.alcatel-

lucent.com/comments/) or e-mail your comments to the Comments Hotline

(comments@alcatel-lucent.com).

About this document

....................................................................................................................................................................................................................................

9927 Dist BTS Outdoor

401-703-516

Issue 1 March 2012

Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements xv

11Safety

Overview

Purpose

This chapter covers safety precautions for the 9927 Distributed Base Station Outdoor

Cabinet installation.

Contents

Structure of safety statements 1-2

Safety - specific hazards 1-5

Product safety 1-8

...................................................................................................................................................................................................................................

9927 Dist BTS Outdoor

401-703-516

Issue 1 March 2012

Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements 1-1

Structure of safety statements

Overview

This topic describes the components of safety statements that appear in this document.

General structure

Safety statements include the following structural elements:

Item Structure element Purpose

1 Safety alert symbol Indicates the potential for personal injury

(optional)

2 Safety symbol Indicates hazard type (optional)

3 Signal word Indicates the severity of the hazard

4 Hazard type Describes the source of the risk of damage or

injury

5 Safety message Consequences if protective measures fail

6 Avoidance message Protective measures to take to avoid the hazard

7 Identifier The reference ID of the safety statement

(optional)

SAMPLE

BC D

EF

G

H

Lifting this equipment by yourself can result in injury

due to the size and weight of the equipment.

Always use three people or a lifting device to transport

and position this equipment. [ABC123]

CAUTION

Lifting hazard

Safety Structure of safety statements

....................................................................................................................................................................................................................................

1-2 Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements

9927 Dist BTS Outdoor

401-703-516

Issue 1 March 2012

Signal words

The signal words identify the hazard severity levels as follows:

Signal word Meaning

DANGER Indicates an extremely hazardous situation which, if not avoided, will

result in death or serious injury.

WARNING Indicates a hazardous situation which, if not avoided, could result in

death or serious injury.

CAUTION Indicates a hazardous situation which, if not avoided, could result in

minor or moderate injury.

NOTICE Indicates a hazardous situation not related to personal injury.

Within this IP, the safety label typically includes additional information such as the hazard

type, a description of the damage that can be caused, and the steps that should be taken to

avoid the hazard.

Safety Structure of safety statements

....................................................................................................................................................................................................................................

9927 Dist BTS Outdoor

401-703-516

Issue 1 March 2012

Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements 1-3

WARNING

Personal Injury or Damage to Equipment

Failure to observe these safety precautions may result in personal injury or damage to

equipment.

•Read and understand all instructions.

•Follow all warnings and instructions marked on this product.

•Installation and maintenance procedures must be followed and performed by trained

personnel only.

•Grounding and circuit continuity is vital for safe operation of the equipment. Never

operate the equipment with grounding/bonding conductor disconnected.

•Install only equipment identified in the product's installation manual. Use of other

equipment may result in an improper connection which could lead to fire or injury.

•Use caution when installing or modifying telecommunications lines.

•The product has multiple power inputs. Before servicing, Disconnect all inputs to

reduce the risk of energy hazards.

•For continued protection against risk of fire, all fuses used in this product must be

replaced only with fuses of the same type and rating.

•Never install telecommunications wiring during a lightning storm.

•Never install telecommunications connections in wet locations.

•Never touch uninsulated telecommunications wiring or terminals unless the

telecommunications line has been disconnected at the interface.

•Never push objects of any kind into the product through slots, as they may touch

dangerous voltage points or short-out parts that could result in a fire or an electrical

short.

•Never spill liquids of any kind on the product.

•Slots and openings in the product are provided for ventilation. To protect it from

overheating, these openings must not be blocked or covered. The product should not

be placed in a built-in installation unless proper ventilation is provided.

•To reduce the risk of an electrical shock, do not disassemble the product. Opening and

removing covers and/or circuit boards may expose you to dangerous voltages or other

risks. Incorrect reassembly can cause electrical shock when the unit is subsequently

used.

Safety Structure of safety statements

....................................................................................................................................................................................................................................

1-4 Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements

9927 Dist BTS Outdoor

401-703-516

Issue 1 March 2012

Safety - specific hazards

DANGER

Lightning Strikes!

Lightning strikes are possible during stormy weather and could result in death or severe

injury.

Do not work on the installation itself or on the power supply lines or antenna feeders of a

9927 during stormy weather.

WARNING

Energy Hazard!

Some parts of all electrical installations are energized. Failure to observe this fact and

the safety warnings may lead to bodily injury and property damage.

For this reason, only trained and qualified personnel may install or service the

installation.

WARNING

Energy Hazard!

The power supply lines to the network element are energized. Short circuits can cause

burns to the face and hands.

Open the load disconnect switch in the distribution box to completely de-energize the

network element.

Safety Safety - specific hazards

....................................................................................................................................................................................................................................

9927 Dist BTS Outdoor

401-703-516

Issue 1 March 2012

Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements 1-5

WARNING

Beryllium Oxide Poisoning Hazard!

The transmitter units include components which contain beryllium oxide (BeO). In this

form, BeO ceramics do not constitute a hazardous material as long as this material is not

destroyed by external mechanical forces.

In the event that repair work is carried out by the customer or by third parties, the

following regulations must be observed:

•Applicable version of the Regulation on Hazardous Materials in the Workplace

•Appropriate accident prevention regulations

The following must be specifically observed:

•Eating, drinking, and smoking are not permitted in workplaces where BeO ceramic

components are being worked on.

•Wash your hands carefully under running water after working with BeO ceramic

components.

If the following symptoms occur, contact a physician:

•Irritation of the respiratory organs

•Difficulty breathing or skin irritation

NOTICE

Condensation may cause a short circuit!

Sudden changes in the weather may lead to the formation of condensation on

components. Operating the unit when condensation moisture is present can destroy the

unit.

Units which show signs of condensation must be dried before installation.

Safety Safety - specific hazards

....................................................................................................................................................................................................................................

1-6 Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements

9927 Dist BTS Outdoor

401-703-516

Issue 1 March 2012

NOTICE

ESD hazard

Semiconductor elements can be damaged by static discharges.

The following rules must be complied with when handling any module containing

semiconductor components:

•Wear conductive or antistatic work clothes (for example, coat made of 100% cotton).

•Wear grounded ESD wrist strap.

•Wear shoes with conductive soles.

•Leave the modules in their original packaging until ready for use.

•Make sure there is no difference in potential between yourself, the workplace, and the

package before removing, unpacking, or packing a module.

•Hold the module only by the grip without touching the connection pins, tracks, or

components.

•Place modules removed from the equipment on a conductive surface.

•Test or handle the module only with grounded tools on grounded equipment.

•Handle defective modules exactly like new ones to avoid causing further damage.

DANGER

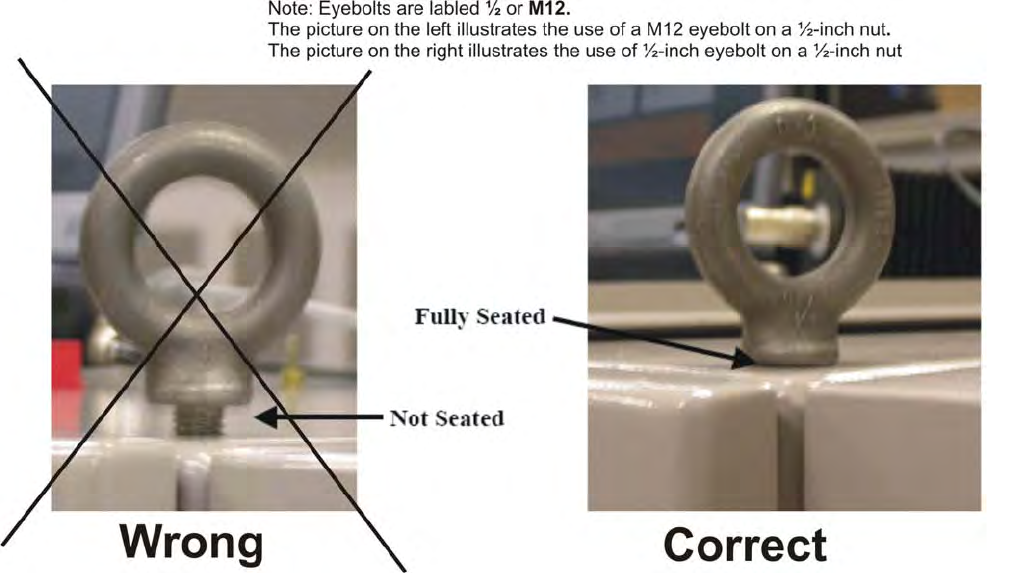

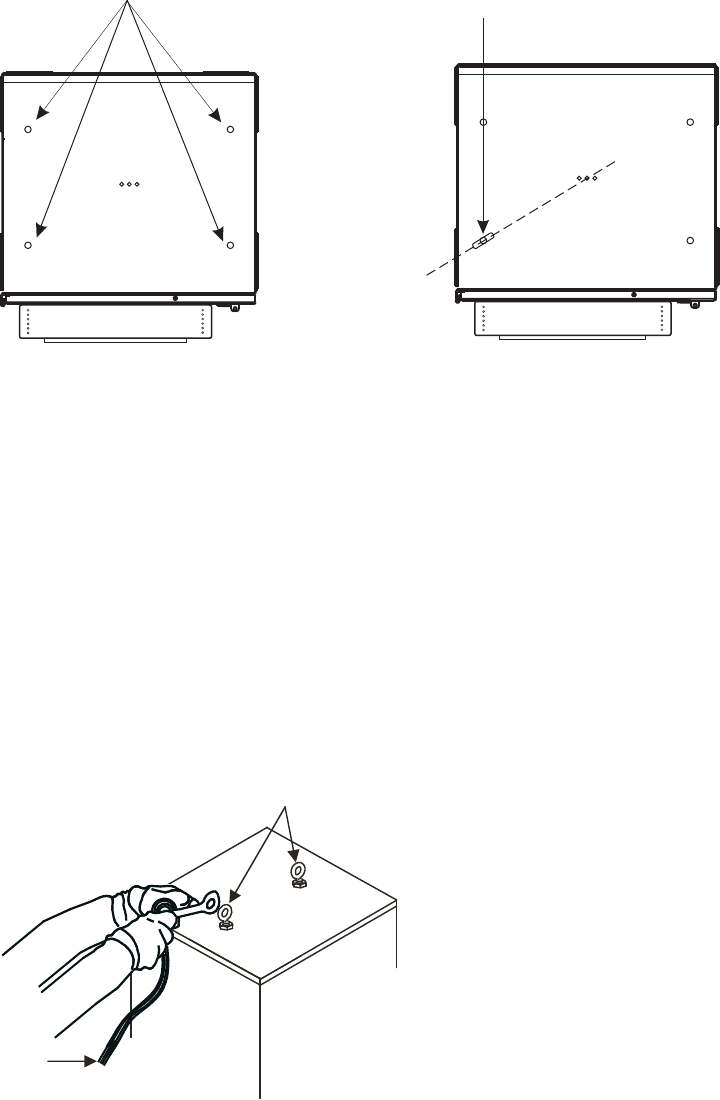

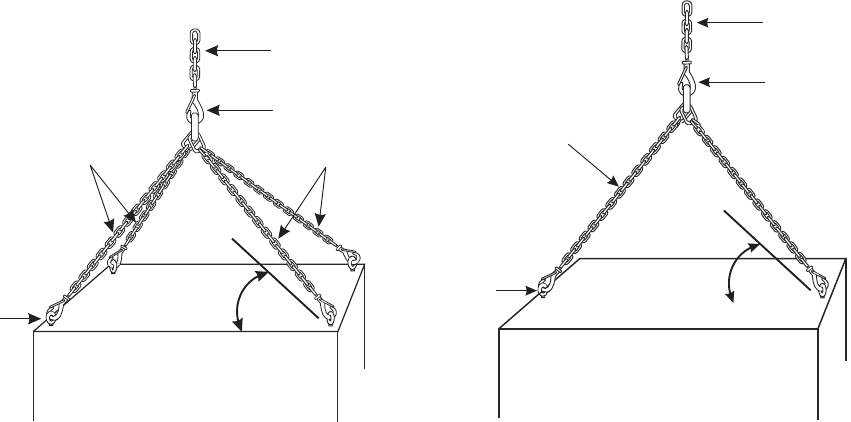

Cabinet lifting hazard!

When lifting cabinets, incorrect or improperly installed eyebolts will fail endangering

personnel to bodily injury and destroying the equipment.

Avoid using the wrong eyebolts by following these guideline:

•If a ½- inch eyebolt threads easily and fully into a lifting nut on the top of the cabinet,

then use the ½- inch eyebolts.

•If not, check the threads for 12 mm eyebolts. The 12 mm eyebolt should thread all the

way down without binding, until it bottoms out.

•A 12-mm eyebolt is too small for a ½-inch lifting nut, but will not hand thread all the

way into the ½-inch nut unless forced. It will cross thread if forced, and may pull out

when hoisting, presenting a serious danger. Do NOT force 12-mm eyebolts into

½-inch lifting nuts. Doing so will damage the threads of the lifting nuts.

•A ½-inch eyebolt will thread less than half a thread into a 12-mm lifting nut. Do NOT

force ½-inch eyebolts into 12-mm lifting nuts. Doing so will damage the threads of

the lifting nuts.

Safety Safety - specific hazards

....................................................................................................................................................................................................................................

9927 Dist BTS Outdoor

401-703-516

Issue 1 March 2012

Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements 1-7

Product safety

Conformance statements

See Appendix G, “Product conformance statements” for all conformance statements that

apply to this product.

Equipment safety

Safety information for this equipment can be found on various Caution, Warning, Danger,

information labels or instructions affixed to or included with the cabinet, its internal

assemblies or included within this document. Informational and cautionary labels may

appear near the item they address or may be grouped in a single location on the

equipment. Warnings are typically adjacent to the hazard that is noted on the label. The

instructions, cautions and warnings found on these labels must be understood and

observed by all personnel involved with the equipment installation and maintenance.

Important! Refer to “Structure of safety statements” (p. 1-2) for definitions of safety

labels.

Equipment safety for 1900 MHz, 4x45W (65 MHz) RRH

The message below applies to the 1900 MHz, 4x45W (65 MHz) RRH.

Important! These units are intended for installation only in restricted access areas,

where access can only be gained by trained service personnel and through the use of a

tool, lock and key or other means of security, and where access is controlled by the

authority responsible for the location

Safety Product safety

....................................................................................................................................................................................................................................

1-8 Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements

9927 Dist BTS Outdoor

401-703-516

Issue 1 March 2012

22Product overview for 9927

Distributed Base Station

Outdoor cabinet

Overview

Purpose

This chapter provides an overview of the 9927 Distributed Base Station Outdoor Cabinet.

Contents

Network view 2-2

Configurations 2-3

Product overview 2-4

Physical description 2-6

Components inside cabinet 2-13

Weights and dimensions of equipment 2-14

60ECv2 battery cabinet overview 2-19

...................................................................................................................................................................................................................................

9927 Dist BTS Outdoor

401-703-516

Issue 1 March 2012

Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements 2-1

Network view

Overview

The 9927 Distributed Base Station is a Multi-Technology, Multi-Band BTS that supports

multiple access technologies. The RRHs are multi-functional and support both CDMA

and LTE.

For CDMA, the MT-BBU interfaces with the RRHs via optical link.

The 1900 MHz (PCS) RRH operates in BC1 band and supports both LTE and CDMA.

The 800 MHz RRH operates in BC10 band and supports CDMA only.

The LTE RRH is hardware ready to support PCS in the G-Block.

LTE in the BC10 band is not supported in initial deployment.

Backhaul to the network is provided via the SAR-7705, either as:

•Fiber optic cable

•Microwave cable

•T1/E1 line

•OC3

•DS3

The -48 VDC power source inside the cabinet provides -48 VDC to the components

inside the cabinet and to the RRHs.

Signal flow block diagram

The high-level signal flow diagram below shows how signals flow within the

Alcatel-Lucent 9927 Distributed Base Station outdoor cabinet and to the RRHs and

Backhaul Network. (4G Backhaul is assumed to be available at the cell site.)

Product overview for 9927 Distributed Base Station

Outdoor cabinet

Network view

....................................................................................................................................................................................................................................

2-2 Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements

9927 Dist BTS Outdoor

401-703-516

Issue 1 March 2012

Configurations

In FID 15364.0, the 9927 Distributed BTS supports the following configurations:

•Up to 4 carriers/3 sectors PCS (1x-A and EVDO) with 4-BR, if PCS RRH is shared

with LTE [5 MHz on G block (band class 25)].

•Up to 1 carrier/3 sectors BC10 (1x-A) 2- BR .

If a higher CDMA carrier count is needed, a second PCS RRH may be required.

The 9927 Distributed BTS supports the following configurations:

•One MT-BBU, 8 Carriers/3 Sectors (4 Carriers 1x/1x Advance and 4 Carriers EVDO)

— 3 BC1, 4x40W RRH with 4 branch Rx

— 3 BC10, 2x50W RRH with 2 branch Rx

— No daisy chaining

•One MT-BBU and one LTE BBU, 10 Carriers/3 Sectors (4 Carriers 1x/1x Advance

and 4 Carriers EVDO)

— 3 BC1, 4x40W LTE RRH with 4 branch Rx

— 3 BC10, 2x50W RRH with 2 branch Rx

— Daisy chaining

Product overview for 9927 Distributed Base Station

Outdoor cabinet

Configurations

....................................................................................................................................................................................................................................

9927 Dist BTS Outdoor

401-703-516

Issue 1 March 2012

Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements 2-3

Product overview

Introduction

This document supports the following product:

•Alcatel-Lucent 9927 Distributed Base Station outdoor cabinet

Product description for Alcatel-Lucent 9927 Distributed Base Station

The Alcatel-Lucent 9927 Distributed Base Station is a multi-modal baseband cabinet,

configured with Remote Radio Heads (RRHs), which provides:

•CDMA in the PCS band (Bandclass 1 or 14) and 800 MHz band (Bandclass 10)

•Optional LTE in the PCS band (typically Block G). Resources are shared with

CDMA.

The signal flow diagram below shows how CDMA, 1xEV-DO, and LTE signals are

routed from the baseband cabinet to the RRHs. One sector is shown.

CDMA is processed by the Digital Shelf, which uses 9927 common platform architecture.

Backhaul to the Network is accomplished with T1/E1 lines, fiber optic cable, or

microwave.

The RRHs that are used are as follows:

•1900 MHz, 4x40W (25 MHz)

•1900 MHz, 4x45W (65 MHz)

•800 MHz, 2x50W

The cabinet is equipped with a top solar shield. See Chapter 4, “Site configurations for

9927 Distributed BTS Outdoor Cabinet” for line-up configurations.

Requirements

The following table lists the requirements for the 9927 Distributed Base Station Outdoor

Cabinet.

Requirements Values

Frequency Bands •3GPP2 Band Class 1 (1900 MHz – United States PCS frequency

band spectrum). Blocks A,B,C,D,E,F. [FID 15597.0]

•3GPP2 Band Class 10 [FID 15599.0]

•PCS – G Block (band class 25) used only for LTE.

Operating Temperature •-40 °C to +46 °C (-40 °F to +115 °F) standard

•-40 °C to 50 °C (-40 °F to 122 °F) extended

Product overview for 9927 Distributed Base Station

Outdoor cabinet

Product overview

....................................................................................................................................................................................................................................

2-4 Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements

9927 Dist BTS Outdoor

401-703-516

Issue 1 March 2012

Requirements Values

Power Integrated Power

Battery backup Up to two 60ECv2 battery cabinets

Operating Voltage -48 VDC

Sectors 3,sector

T1/E1 Facilities Up to 16 T1/E1s (optional)

User Alarms 32 for external User Alarms

GPS Antenna Yes

Product overview for 9927 Distributed Base Station

Outdoor cabinet

Product overview

....................................................................................................................................................................................................................................

9927 Dist BTS Outdoor

401-703-516

Issue 1 March 2012

Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements 2-5

Physical description

Diagram

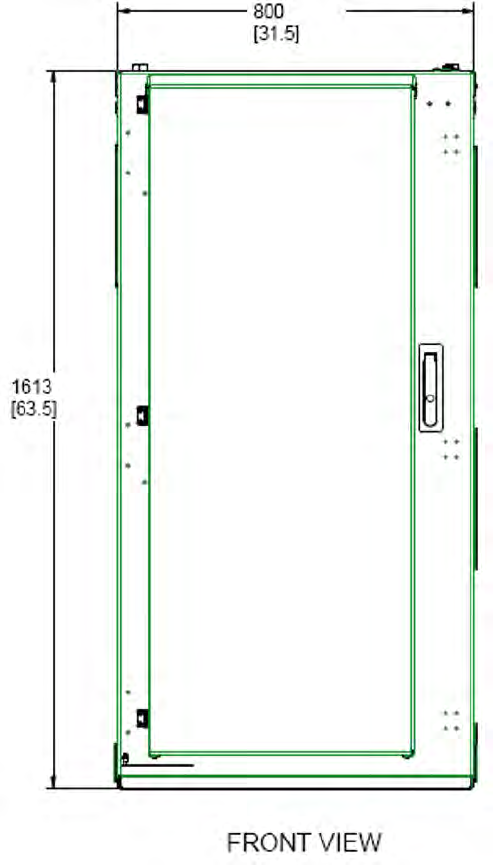

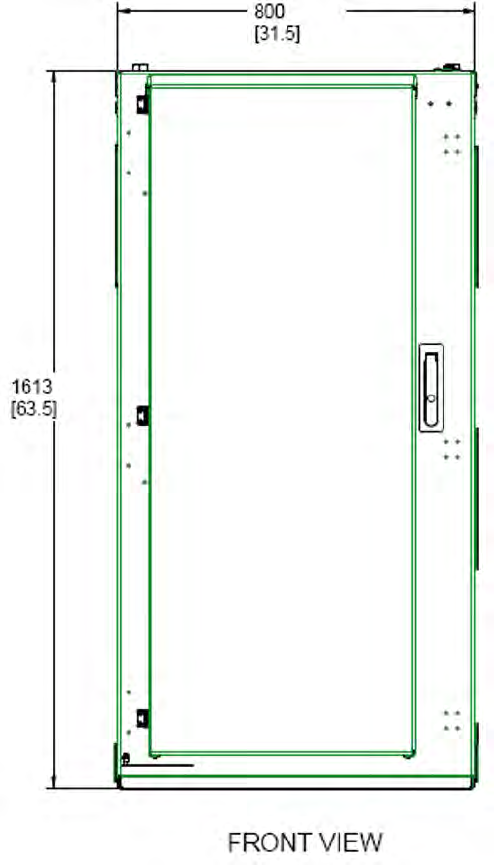

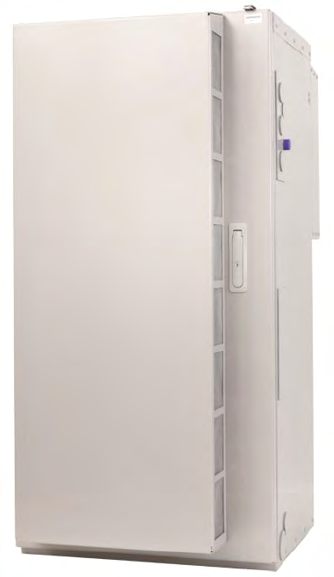

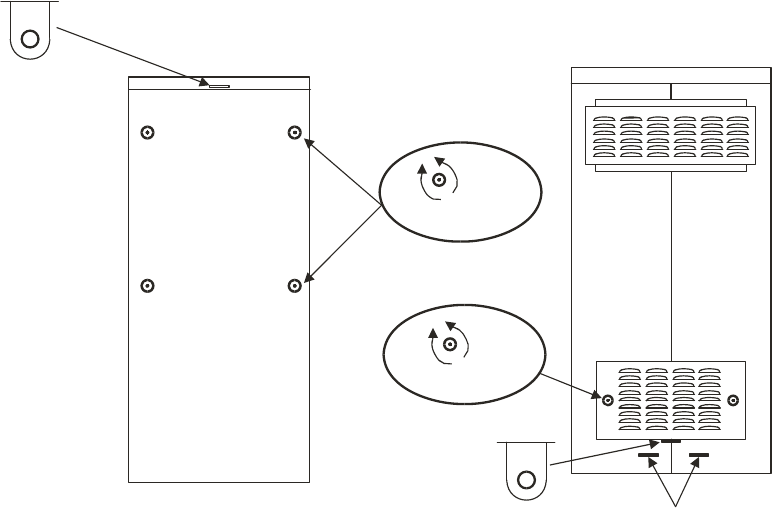

The figure below shows the 9927 Distributed BTS outdoor cabinet with the front door

closed.

Product overview for 9927 Distributed Base Station

Outdoor cabinet

Physical description

....................................................................................................................................................................................................................................

2-6 Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements

9927 Dist BTS Outdoor

401-703-516

Issue 1 March 2012

Product overview for 9927 Distributed Base Station

Outdoor cabinet

Physical description

....................................................................................................................................................................................................................................

9927 Dist BTS Outdoor

401-703-516

Issue 1 March 2012

Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements 2-7

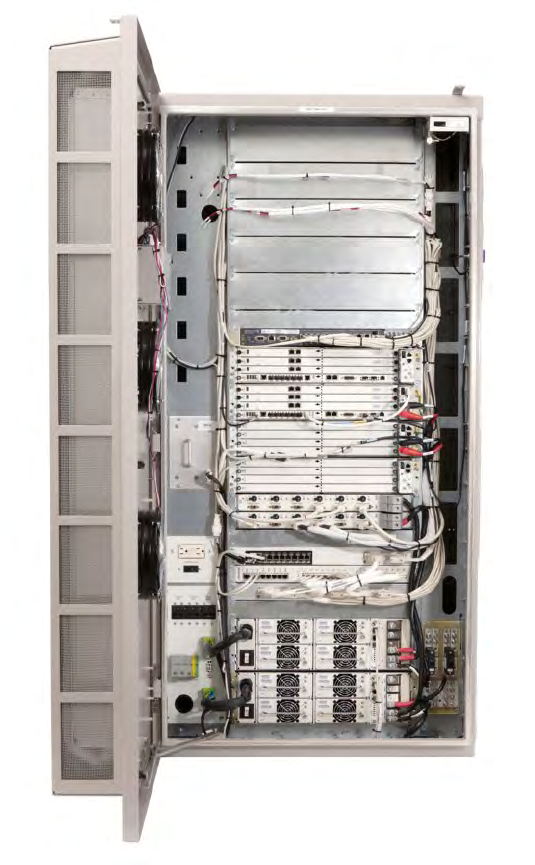

The figure below illustrates the position of each component inside the 9927 Distributed

BTS cabinet.

Product overview for 9927 Distributed Base Station

Outdoor cabinet

Physical description

....................................................................................................................................................................................................................................

2-8 Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements

9927 Dist BTS Outdoor

401-703-516

Issue 1 March 2012

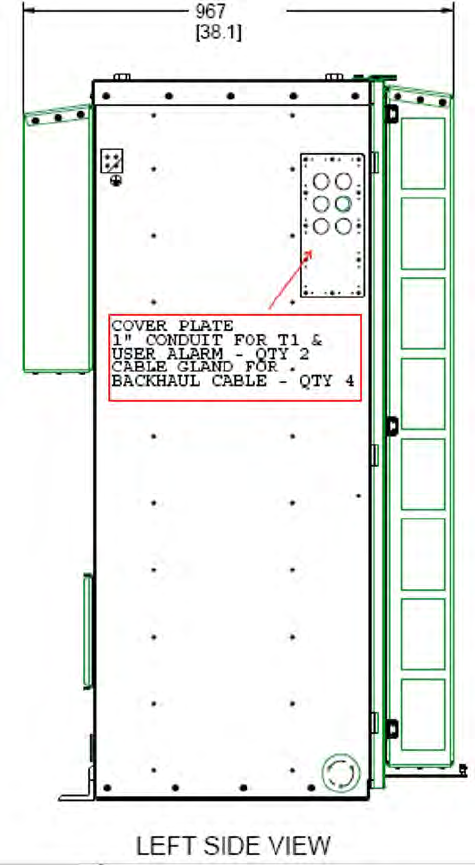

The following figure is a left-side view of the 9927 Distributed Base Station Outdoor

Cabinet. The dimensions are shown in mm and inches.

Product overview for 9927 Distributed Base Station

Outdoor cabinet

Physical description

....................................................................................................................................................................................................................................

9927 Dist BTS Outdoor

401-703-516

Issue 1 March 2012

Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements 2-9

The following figure is a front view of the 9927 Distributed Base Station Outdoor

Cabinet. The dimensions are shown in mm and inches.

Product overview for 9927 Distributed Base Station

Outdoor cabinet

Physical description

....................................................................................................................................................................................................................................

2-10 Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements

9927 Dist BTS Outdoor

401-703-516

Issue 1 March 2012

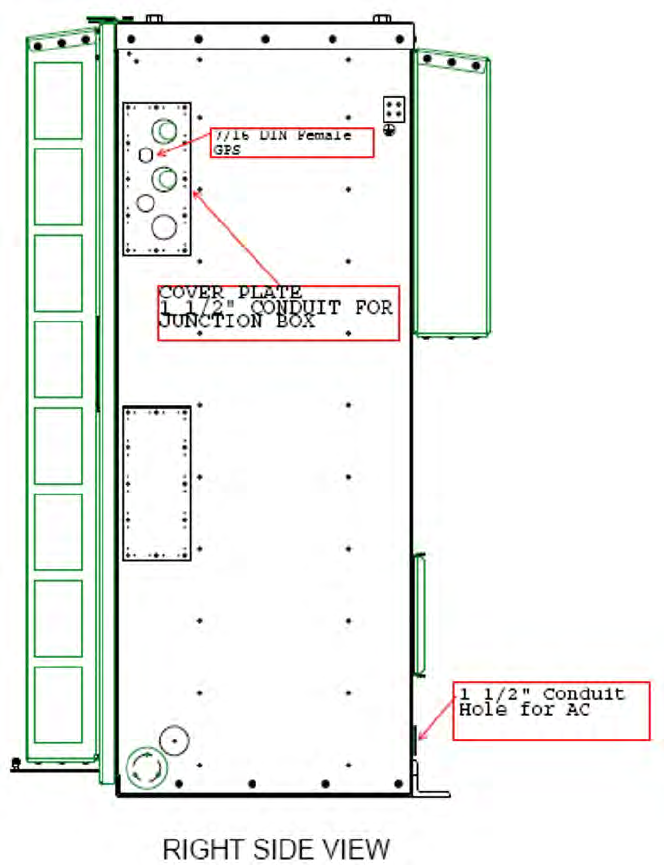

The following figure is a right-side view of the 9927 Distributed Base Station Outdoor

Cabinet. The dimensions are shown in mm and inches.

Description

This 9927 Distributed Base Station Outdoor Cabinet features Fresh Air Cooling (FAC).

The FAC uses filter membrane technology to achieve clean-room conditions inside the

baseband cabinet.

Product overview for 9927 Distributed Base Station

Outdoor cabinet

Physical description

....................................................................................................................................................................................................................................

9927 Dist BTS Outdoor

401-703-516

Issue 1 March 2012

Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements 2-11

The 9927 Distributed Base Station Outdoor Cabinet is equipped with the following

features:

•Filter Life Alarm - The cabinet has a pressure sensing alarm that sends an alarm when

more than the normal amount of suction is needed to draw air into the baseband

cabinet.

The interior of the baseband cabinet is held at negative pressure (lower than ambient air

pressure). All openings on the cabinet must be sealed to maintain negative pressure inside

the baseband cabinet when the baseband cabinet is in operation.

Important! Refer to Appendix D, “Guidelines for lifting and moving cabinets ” for

guidelines regarding lifting and moving of the cabinet.

Product overview for 9927 Distributed Base Station

Outdoor cabinet

Physical description

....................................................................................................................................................................................................................................

2-12 Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements

9927 Dist BTS Outdoor

401-703-516

Issue 1 March 2012

Components inside cabinet

Purpose

This section lists the components that can be populated in the 9927 Distributed Base

Station Outdoor Cabinet.

9927 Distributed Base Station Outdoor Cabinet components

The table below lists the components inside the 9927 Distributed Base Station Outdoor

Cabinet.

Components inside 9927 Distributed Base Station Outdoor Cabinet

The 9927 Distributed Base Station Outdoor Cabinet can contain the following modules:

•SAR 7705 SAR-8 (expandable) or 7705 SAR-F (fixed). 7705 SAR-M (future).

•Two 7210 SAS M (-48 VDC) -- only for microwave backhaul

•LTE TDD, 2.6 GHz (Optional) or

•CDMA MT-BBU

•CDMA MT-BBU Growth

•One or two -48 VDC PDPs -- second unit is optional. Needed only for cabinet is upgrade.

•4-Position SEC-B Tray (ETSI) -- used only with T1/E1 Backhaul. T1/E1 Backhaul is via the SAR.

•Thermal Switch for Power Injectors

•Microwave Power Injector (PIB), -48 VDC

•ACPDA

•GFCI Convenience Outlet

•Heater Assembly

•User Alarm interface

•Alarms

Product overview for 9927 Distributed Base Station

Outdoor cabinet

Components inside cabinet

....................................................................................................................................................................................................................................

9927 Dist BTS Outdoor

401-703-516

Issue 1 March 2012

Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements 2-13

Weights and dimensions of equipment

Introduction

This section provides physical specifications for one configuration of the 9927

Distributed Base Station Outdoor Cabinet.

The weights and dimensions, listed in the table below, include the top solar shield.

9927 Distributed Base Station Outdoor Cabinet weights and dimensions

The table below lists the weights and dimensions for a half-loaded and fully-loaded 9927

Distributed Base Station Outdoor Cabinet.

Cabinets Configuration Shipped Weight

including pallet

(estimate)

Maximum

Installed Weight

(estimate)

Reference Dimensions

(Width x Depth x Height)

9927 Distributed Base

Station Outdoor

Cabinet with Integrated

Power

Half loaded

•CDMA

•One BBU

•One 7210

•One SAR 8

•Three DC-DC convertors

470 kg

(1033 lbs)

430 kg

(945 lbs)

900 mm x 960 mm x 1925

mm

(35.4 inches x 37.8 inches x

75.8 inches)

Fully loaded

•CDMA

•Four BBUs

•Two 7210s

•One SAR 8

•Six DC-DC convertors

•8 Injectors

529 kg

(1162 lbs)

489 kg

(1074 lbs)

60ECv2 battery cabinet weights and dimensions

The table below provides the weights and dimensions of the 60ECv2 battery cabinet.

Cabinets Configuration Shipped Weight

including pallet

(estimate)

Maximum

Installed Weight

(estimate)

Reference Dimensions

(Width x Depth x Height)

60ECv2 Battery System 60ECv2 battery cabinet

equipped with 20 12IR145

batteries

195 (430) 1284 (2830) 760x790x1500 (30 x 31 x

60)

Product overview for 9927 Distributed Base Station

Outdoor cabinet

Weights and dimensions of equipment

....................................................................................................................................................................................................................................

2-14 Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements

9927 Dist BTS Outdoor

401-703-516

Issue 1 March 2012

Component weights

The following table provides approximate weights for batteries and other miscellaneous

hardware.

Item Weight

12IR145 battery 45 kg (100 lbs)

KS24734 Rectifier 6 kg (14 lbs)

Pallet 40 kg (88 lbs)

Product overview for 9927 Distributed Base Station

Outdoor cabinet

Weights and dimensions of equipment

....................................................................................................................................................................................................................................

9927 Dist BTS Outdoor

401-703-516

Issue 1 March 2012

Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements 2-15

9927 Distributed Base Station Outdoor Cabinet dimensions

The following figure is a left-side view of the 9927 Distributed Base Station Outdoor

Cabinet. The dimensions are shown in mm and inches.

Product overview for 9927 Distributed Base Station

Outdoor cabinet

Weights and dimensions of equipment

....................................................................................................................................................................................................................................

2-16 Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements

9927 Dist BTS Outdoor

401-703-516

Issue 1 March 2012

The following figure is a front view of the 9927 Distributed Base Station Outdoor

Cabinet. The dimensions are shown in mm and inches.

Product overview for 9927 Distributed Base Station

Outdoor cabinet

Weights and dimensions of equipment

....................................................................................................................................................................................................................................

9927 Dist BTS Outdoor

401-703-516

Issue 1 March 2012

Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements 2-17

The following figure is a right-side view of the 9927 Distributed Base Station Outdoor

Cabinet. The dimensions are shown in mm and inches.

Product overview for 9927 Distributed Base Station

Outdoor cabinet

Weights and dimensions of equipment

....................................................................................................................................................................................................................................

2-18 Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements

9927 Dist BTS Outdoor

401-703-516

Issue 1 March 2012

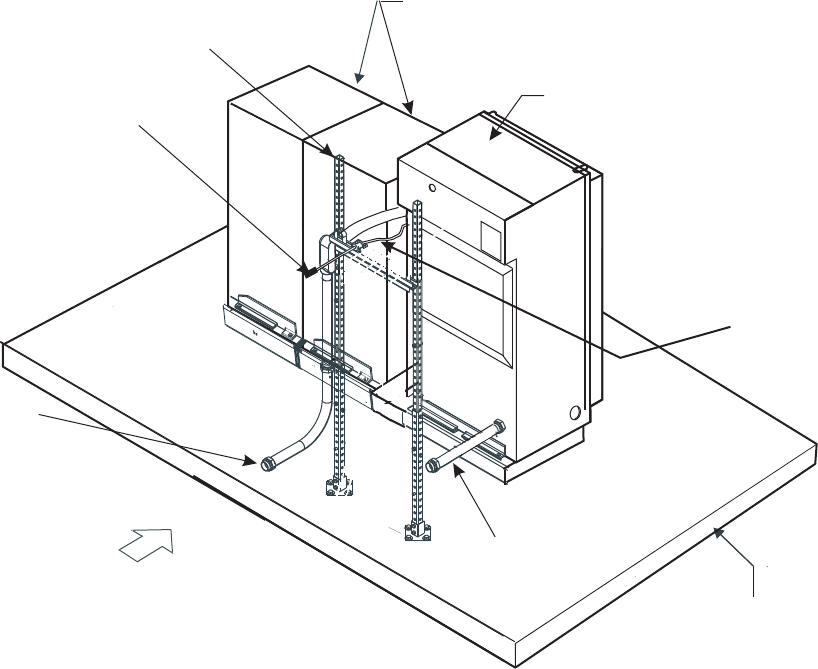

60ECv2 battery cabinet overview

60ECv2 description

This topic provides a description of the 60ECv2 battery cabinet.

The optional 60ECv2 battery cabinet provides battery backup for the 9927 Distributed

Base Station Outdoor Cabinet. The 60ECv2 battery cabinet can contain up to (20)

12IR-145 batteries. Up to two 60ECv2 battery cabinets can be installed to the right of the

9927 Distributed Base Station Outdoor Cabinet.

Hole for

Padlock

(Top View)

Unlock

Lock (4 Places)

Hole for

Padlock

(Top View)

Unlock

Lock (2 Places)

25 mm # 2 AWG( ) Ground/Earth Lug

to Ground/Earth Bar (2 Places)

2

View

Front Rear

View

Product overview for 9927 Distributed Base Station

Outdoor cabinet

60ECv2 battery cabinet overview

....................................................................................................................................................................................................................................

9927 Dist BTS Outdoor

401-703-516

Issue 1 March 2012

Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements 2-19

Product overview for 9927 Distributed Base Station

Outdoor cabinet

60ECv2 battery cabinet overview

....................................................................................................................................................................................................................................

2-20 Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements

9927 Dist BTS Outdoor

401-703-516

Issue 1 March 2012

33Product overview for RRHs

Overview

Purpose

This chapter provides an overview of the Alcatel-Lucent Remote Radio Head, with

optional power and battery back up.

Contents

Typical RRH/antenna array 3-2

External views of RRHs 3-3

Detailed physical description 3-6

Functional description of RRHs 3-18

Antenna Remote Electronic Tilt (RET) — FID 13019.36 3-19

RRH mounting configurations 3-20

RRHs and related equipment 3-23

...................................................................................................................................................................................................................................

9927 Dist BTS Outdoor

401-703-516

Issue 1 March 2012

Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements 3-1

Typical RRH/antenna array

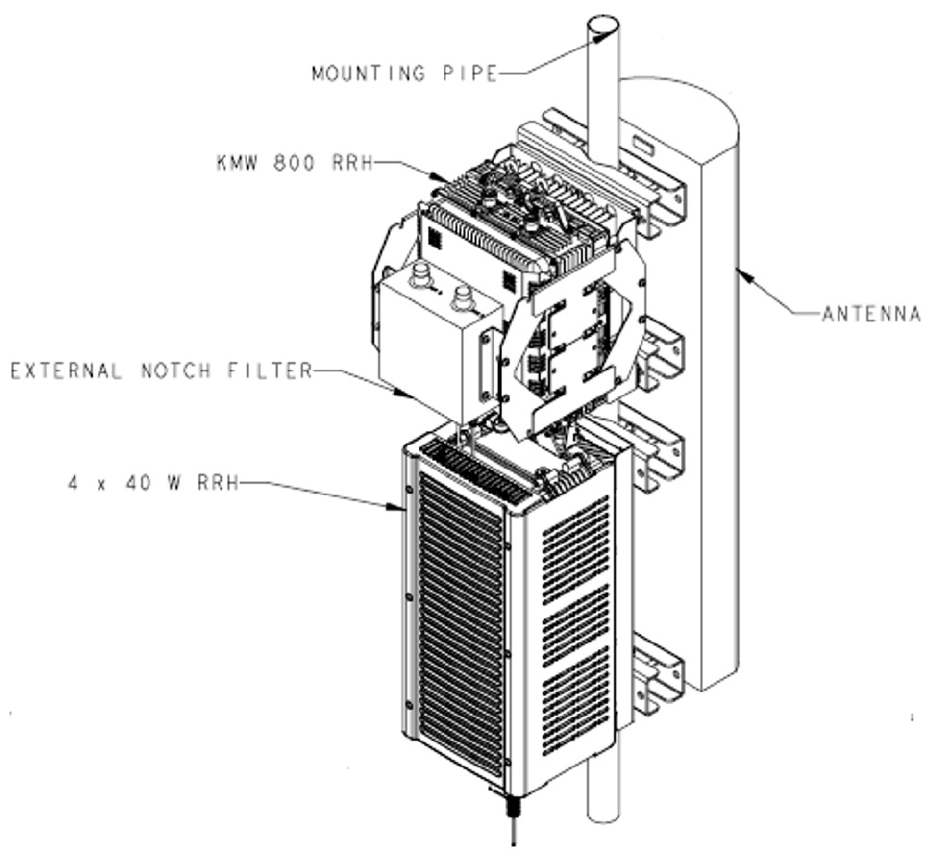

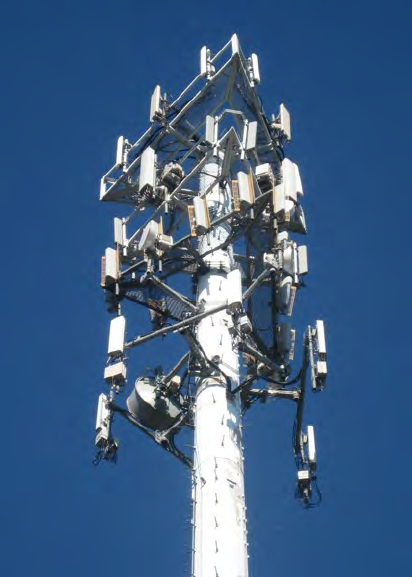

Typical RRH/antenna arrays on tower

The figure below shows a typical RRH/antenna array on a tower.

Product overview for RRHs Typical RRH/antenna array

....................................................................................................................................................................................................................................

3-2 Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements

9927 Dist BTS Outdoor

401-703-516

Issue 1 March 2012

External views of RRHs

Orthogonal view of 1900 MHz, PCS, 4x40W (25 MHz) RRH

The following figure is an orthogonal view of the 1900 MHz, PCS, 4x40W (25 MHz)

RRH. Dimensions are shown in mm.

440

(17.3)

330

(13.0)

580

(22.8)

Product overview for RRHs External views of RRHs

....................................................................................................................................................................................................................................

9927 Dist BTS Outdoor

401-703-516

Issue 1 March 2012

Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements 3-3

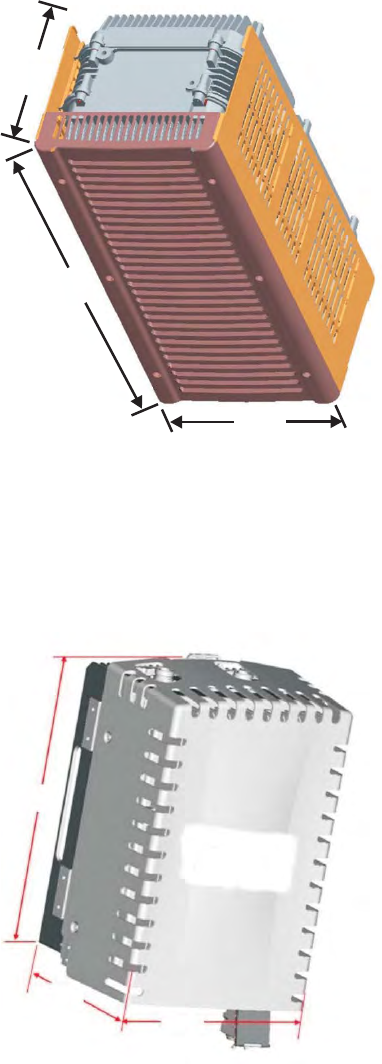

Orthogonal view of 1900 MHz, PCS, 4x45W (65 MHz) RRH

The following figure is an orthogonal view of the 1900 MHz, PCS, 4x45W (65 MHz)

RRH. Dimensions are shown in mm.

Orthogonal view of 800 MHz, 2x50W RRH (OEM1)

The following figure is an orthogonal view of the OEM1, 800 MHz, 2x50W RRH.

Dimensions are shown in mm.

637

272

282

500

385

330

800 Mhz

(23 kg/50.6 lbs)

Product overview for RRHs External views of RRHs

....................................................................................................................................................................................................................................

3-4 Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements

9927 Dist BTS Outdoor

401-703-516

Issue 1 March 2012

Orthogonal view of 800 MHz, 2x50W RRH (OEM2)

The following figure is an orthogonal view of the OEM2, 800 MHz, 2x50W RRH.

Dimensions are shown in mm.

330

400

255

800 Mhz

(23 kg/50.6 lbs)

Product overview for RRHs External views of RRHs

....................................................................................................................................................................................................................................

9927 Dist BTS Outdoor

401-703-516

Issue 1 March 2012

Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements 3-5

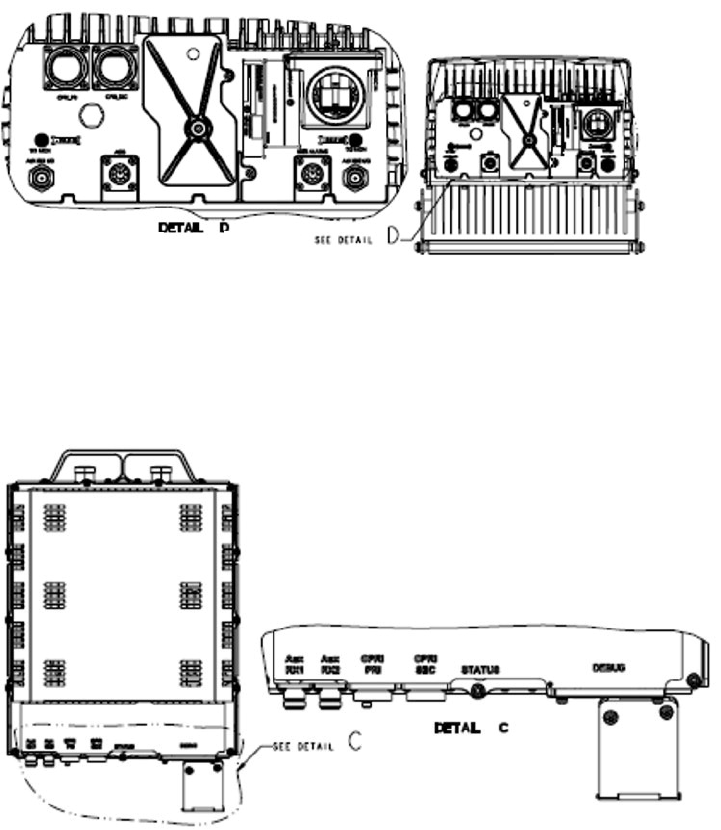

Detailed physical description

Identify RRHs according to front, top and bottom views

Use the table below to identify each RRH using the front, top and bottom views.

Front, top and bottom views of RRHs-- for identification

Frequency Front View Top View Bottom View

1900 MHz PCS Refer to “Front view of 1900

MHz, PCS, 4x40W (25 MHz)

RRH” (p. 3-7)

Refer to “Top view of 1900

MHz, PCS, 4x40W (25

MHz) RRH ” (p. 3-8)

Refer to “Bottom view of

1900 MHz, PCS, 4x40W

(25 MHz) RRH ” (p. 3-9)

1900 MHz PCS

4X45W,65

MHz

Refer to “Front view of 1900

MHz, PCS, 4x45W (65 MHz)

RRH” (p. 3-10)

Refer to“Top view of 1900

MHz, PCS, 4x45W (65

MHz) RRH ” (p. 3-11)

Refer to“Bottom view of

1900 MHz, PCS, 4x45W

(65 MHz) RRH ” (p. 3-12)

OEM1, 800

MHz, 2x50W

Refer to “Front view of

OEM1, 800 MHz, 2x50W

RRH” (p. 3-13)

Refer to “Top view of

OEM1, 800 MHz, 2x50W

RRH” (p. 3-13)

Refer to “Bottom view of

OEM1, 800 MHz, 2x50W

RRH” (p. 3-14)

OEM2, 800

MHz, 2x50W

Refer to “Front view of

OEM2, 800 MHz, 2x50W

RRH” (p. 3-14)

Refer to “Top view of

OEM2, 800 MHz, 2x50W

RRH” (p. 3-15)

Refer to “Bottom view of

OEM2, 800 MHz, 2x50W

RRH” (p. 3-15)

Product overview for RRHs Detailed physical description

....................................................................................................................................................................................................................................

3-6 Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements

9927 Dist BTS Outdoor

401-703-516

Issue 1 March 2012

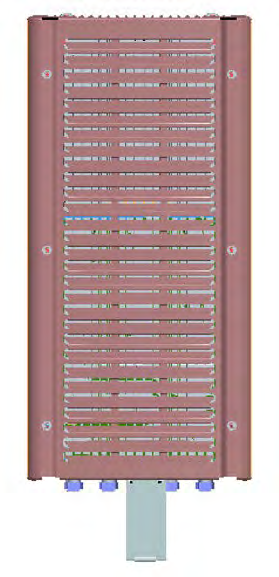

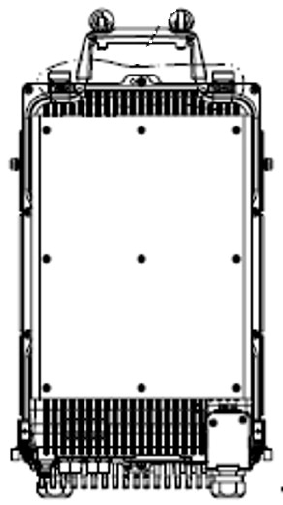

Front view of 1900 MHz, PCS, 4x40W (25 MHz) RRH

The following figure is a front view of the 1900 MHz PCS, 4x40W (25 MHz) RRH.

Product overview for RRHs Detailed physical description

....................................................................................................................................................................................................................................

9927 Dist BTS Outdoor

401-703-516

Issue 1 March 2012

Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements 3-7

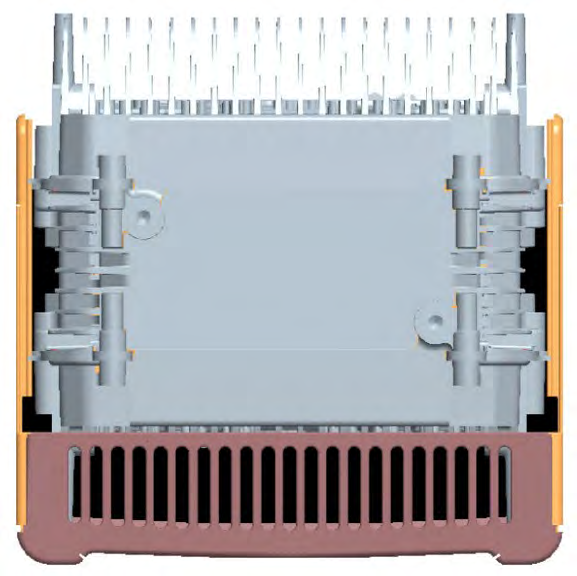

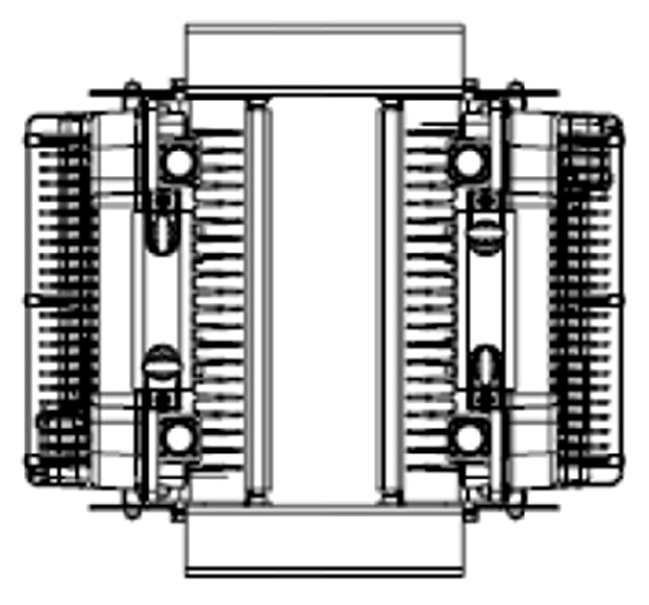

Top view of 1900 MHz, PCS, 4x40W (25 MHz) RRH

The following figure is a top view of the 1900 MHz PCS, 4x40W (25 MHz) RRH.

Product overview for RRHs Detailed physical description

....................................................................................................................................................................................................................................

3-8 Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements

9927 Dist BTS Outdoor

401-703-516

Issue 1 March 2012

Bottom view of 1900 MHz, PCS, 4x40W (25 MHz) RRH

The following figure shows the connectors on the bottom of the 1900 MHz, PCS, 4x40W

(25 MHz) RRH.

AUX Rx2

AUX Rx1

CPRI PRI

CPRI SEC

ASIG

ALM

Tx2 MON

Product overview for RRHs Detailed physical description

....................................................................................................................................................................................................................................

9927 Dist BTS Outdoor

401-703-516

Issue 1 March 2012

Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements 3-9

Front view of 1900 MHz, PCS, 4x45W (65 MHz) RRH

The following figure is a front view of the 1900 MHz, PCS, 4x45W (65 MHz) RRH.

Product overview for RRHs Detailed physical description

....................................................................................................................................................................................................................................

3-10 Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements

9927 Dist BTS Outdoor

401-703-516

Issue 1 March 2012

Top view of 1900 MHz, PCS, 4x45W (65 MHz) RRH

The following figure is a top view of the 1900 MHz, PCS, 4x45W (65 MHz) RRH.

Product overview for RRHs Detailed physical description

....................................................................................................................................................................................................................................

9927 Dist BTS Outdoor

401-703-516

Issue 1 March 2012

Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements 3-11

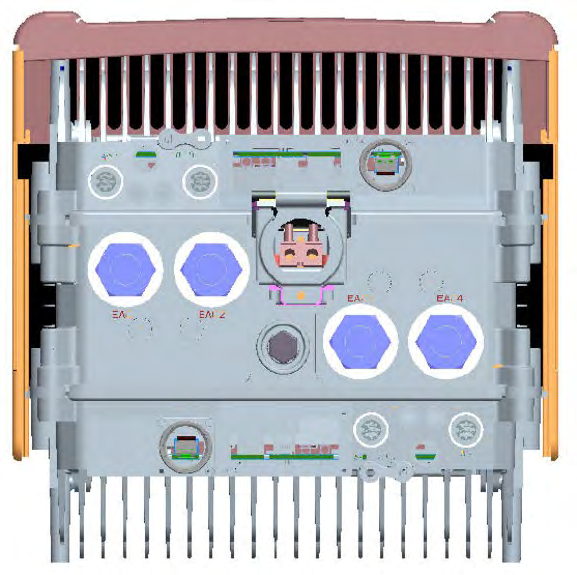

Bottom view of 1900 MHz, PCS, 4x45W (65 MHz) RRH

The following figure shows the connectors on the bottom of the 1900 MHz, PCS, 4x45W

(65 MHz) RRH.

Product overview for RRHs Detailed physical description

....................................................................................................................................................................................................................................

3-12 Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements

9927 Dist BTS Outdoor

401-703-516

Issue 1 March 2012

Front view of OEM1, 800 MHz, 2x50W RRH

The following figure is a front view of the OEM1, 800 MHz, 2x50W RRH.

Top view of OEM1, 800 MHz, 2x50W RRH

The following figure is a top view of the OEM1, 800 MHz, 2x50W RRH.

Product overview for RRHs Detailed physical description

....................................................................................................................................................................................................................................

9927 Dist BTS Outdoor

401-703-516

Issue 1 March 2012

Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements 3-13

Bottom view of OEM1, 800 MHz, 2x50W RRH

The following figure is a bottom view of the OEM1, 800 MHz, 2x50W RRH.

Front view of OEM2, 800 MHz, 2x50W RRH

The following figure is a front view of the OEM2, 800 MHz, 2x50W RRH.

Product overview for RRHs Detailed physical description

....................................................................................................................................................................................................................................

3-14 Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements

9927 Dist BTS Outdoor

401-703-516

Issue 1 March 2012

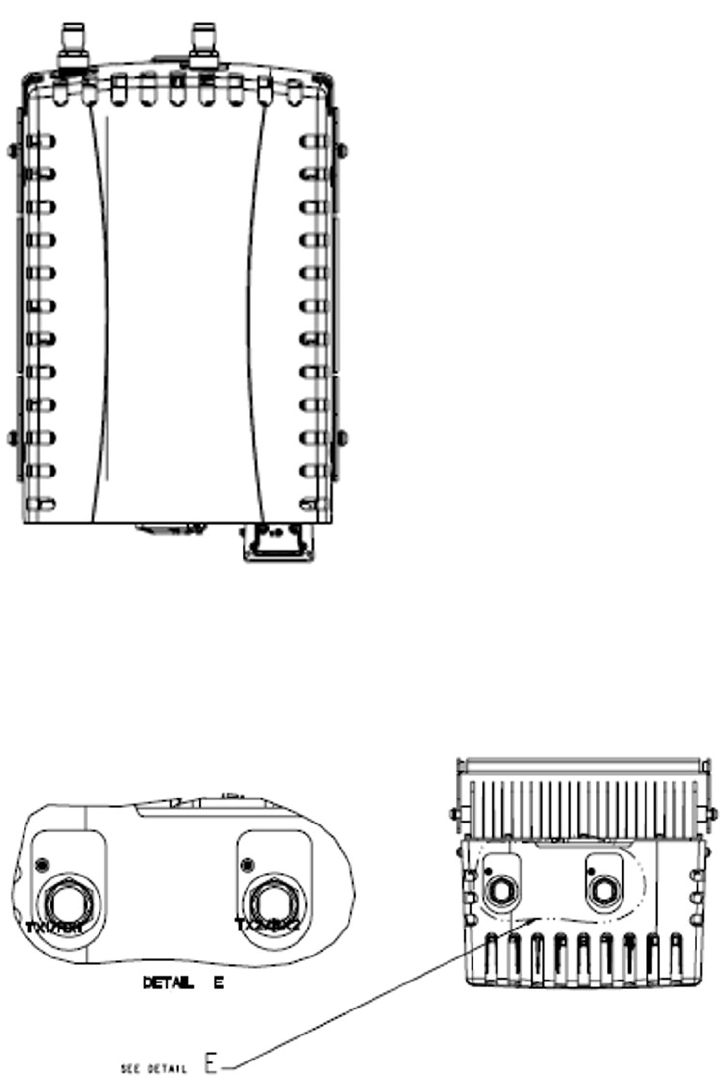

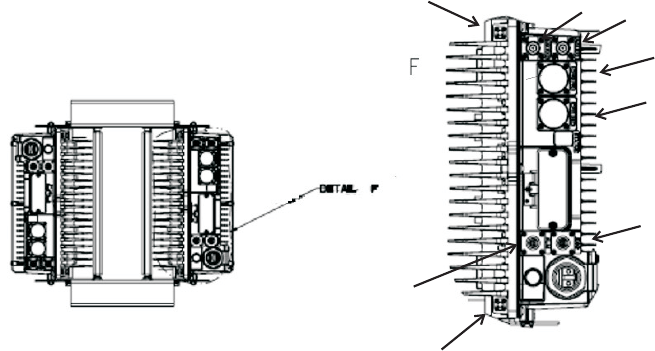

Top view of OEM2, 800 MHz, 2x50W RRH

The following figure is a top view of the OEM2, 800 MHz, 2x50W RRH.

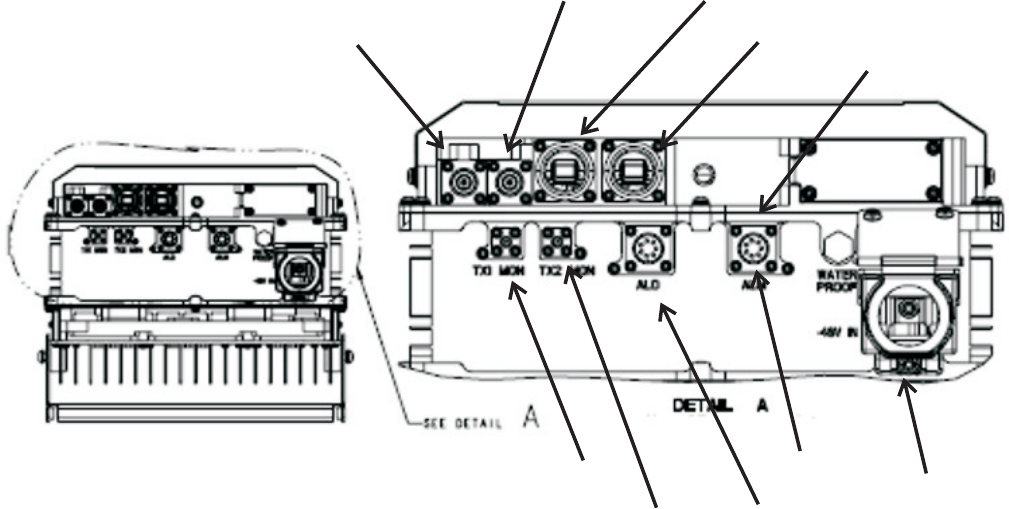

Bottom view of OEM2, 800 MHz, 2x50W RRH

The following figure shows the connectors on the bottom of the OEM2, 800 MHz,

2x50W RRH.

Bottom view of 1900 MHz, 4x40W (65 MHz) RRH

Get figs from attachment!

AUX Rx1

AUX RX2 CPRI PRI

CPRI PRI

STATUS

Tx1 MON

Tx2 MON ALD

ALM -48VIN

Product overview for RRHs Detailed physical description

....................................................................................................................................................................................................................................

9927 Dist BTS Outdoor

401-703-516

Issue 1 March 2012

Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements 3-15

Connectors on 1900 MHz RRH

The following table lists the connectors on the 1900 MHz RRH and the function of each

connector.

Connectors on 1900 MHz RRH

Connector Function

TX1/RX1 (25 MHz — top of RRH/ 65 MHz

— bottom of RRH)

Transmit and receive, antenna path 1

TX2/RX2 (25 MHz — top of RRH/ 65 MHz

— bottom of RRH)

Transmit and receive, antenna path 2

TX3/RX3 (25 MHz — top of RRH/ 65 MHz

— bottom of RRH)

Transmit and receive, antenna path 3

TX4/RX4 (25 MHz — top of RRH/ 65 MHz

— bottom of RRH)

Transmit and receive, antenna path 4

Grounding Points (on left and right side of 25

MHz RRH)RRH grounding points [Left and

Right for 25 MHz / Bottom for 65 MHz]

Connect 6 AWG (outdoor) or 2 AWG (indoor)

ground wire terminated with 2–hole lug to

RRH.

AUX RX1 Antenna-sharing port

AUX RX2 N/A

CPRI PRI CPRI optical main port

CPRI SEC CPRI optical daisy-chained port

AISG Remote Electronic Tilt (RET)

ALM 2 x 8 pin circular

TX1 MON

TX2 MON

-48 V

RRH connectors on OEM2 RRH

The following table lists the connectors on the OEM2 RRH and the function of each

connector.

Connectors on OEM2 RRH

Connector Function

TX/RX1 (at top of RRH) Transmit and receive, antenna path 1

TX/RX2 (at top of RRH) Transmit and receive, antenna path 2

Product overview for RRHs Detailed physical description

....................................................................................................................................................................................................................................

3-16 Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements

9927 Dist BTS Outdoor

401-703-516

Issue 1 March 2012

Connector Function

Grounding Points (on left and right sides of

RRHs)RRH grounding points

Grounding point

AUX RX1 Antenna-sharing port

AUX RX2 Antenna-sharing port

CPRI PRI CPRI optical main port

CPRI SEC CPRI optical daisy-chained port

STATUS

ALM 2 x 8 pin circular

TX1 MON

TX2 MON

ALD

-48 V IN –48 VDC input power

Product overview for RRHs Detailed physical description

....................................................................................................................................................................................................................................

9927 Dist BTS Outdoor

401-703-516

Issue 1 March 2012

Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements 3-17

Functional description of RRHs

General description

The three RRHs pictured below are used with 800 MHz CDMA, PCS CDMA, and LTE

technologies.

Product configurations

The configurations offered in this release are as follows:

•One sector (consists of two 1900 MHz RRHs and one 800 MHz RRH per sector)

Product capabilities

The product capabilities for the RRHs are as follows:

•1900 MHz

— PCS CDMA

—LTE

— Outdoor, -48 VDC

•800 MHz

— CDMA

— Outdoor, -48 VDC

Product overview for RRHs Functional description of RRHs

....................................................................................................................................................................................................................................

3-18 Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements

9927 Dist BTS Outdoor

401-703-516

Issue 1 March 2012

Antenna Remote Electronic Tilt (RET) — FID 13019.36

General description

FID-13019.36 introduces a Remote Radio Head (RRH) with an associated RET/ALD

controller that operates the RET.

The RET consists of an actuator motor with supporting control electronics. The RET

adjusts the antenna down-tilt angle by electrically changing the antenna phase angle. By

altering the phase of the antenna signal, the RET also tilts the antenna beam.. This results

in decreased main, side and backward lobes. This overcomes the shortcomings of

mechanical tilt antennas, where the whole antenna is physically tilted. This system moves

the backward lobe in upward direction and distorts the side-lobe patterns.

AISG interface on RRH

The RRHs are equipped with an Antenna Interface Standards Group (AISG) power and

signaling interface connector that supports third party Antenna Remote Electronic Tilt

(RET) equipment. The PCS RRH 4x and 800 MHz RRH 2x are hardware ready to

support the third party RET.

Product overview for RRHs Antenna Remote Electronic Tilt (RET) — FID 13019.36

....................................................................................................................................................................................................................................

9927 Dist BTS Outdoor

401-703-516

Issue 1 March 2012

Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements 3-19

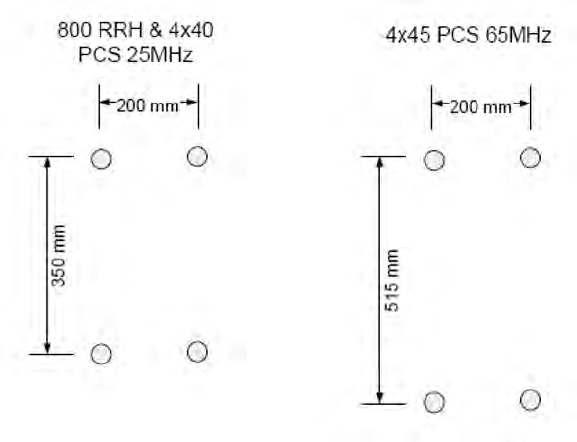

RRH mounting configurations

The RRHs can be mounted on a:

•Pole

•Wall

•Floor Stand.

Pole mounted RRHs

The following figure shows the 800 MHz/1900 MHz RRH configuration mounted on a

pole. The 800 MHz RRH is mounted directly above the 1900 MHz RRH. Each RRH is

equipped with a lifting handle. The antenna assembly is mounted opposite the RRHs.

Wall mounted RRHs

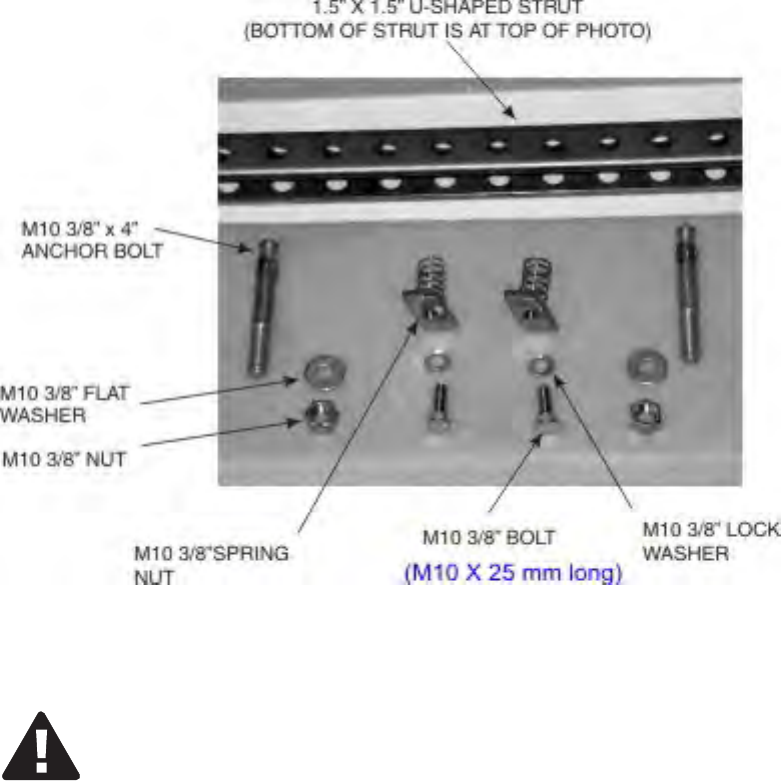

The following figure shows a typical RRH mounted on a wall with Unitstruts.

Product overview for RRHs RRH mounting configurations

....................................................................................................................................................................................................................................

3-20 Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements

9927 Dist BTS Outdoor

401-703-516

Issue 1 March 2012

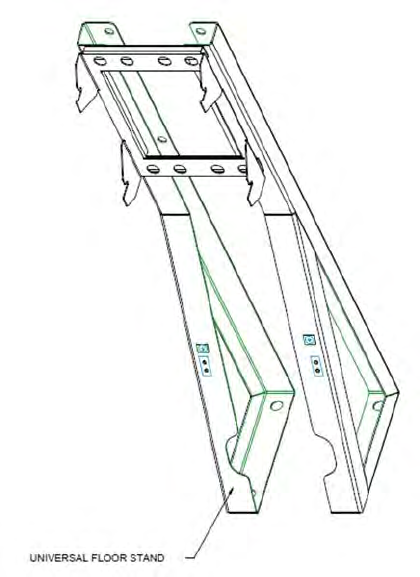

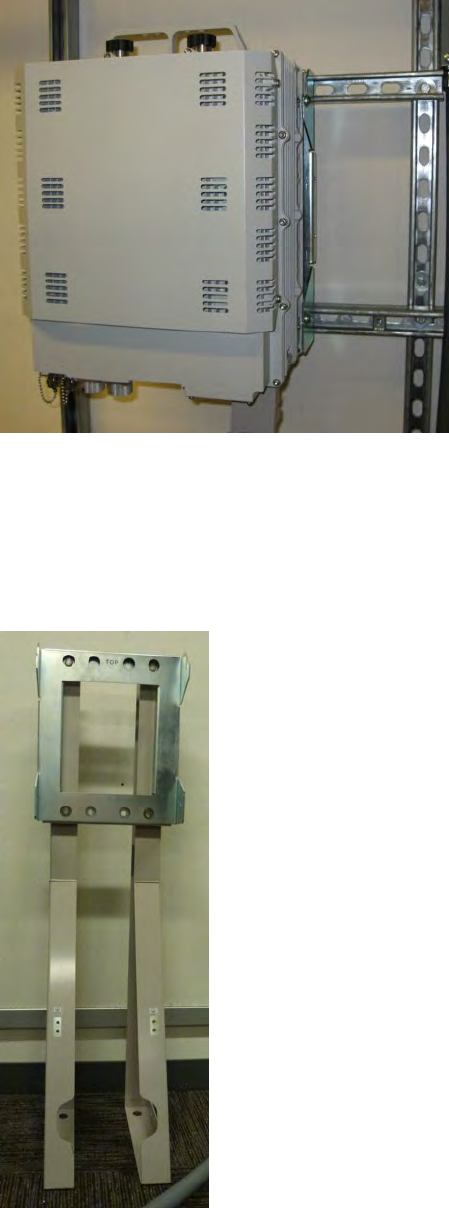

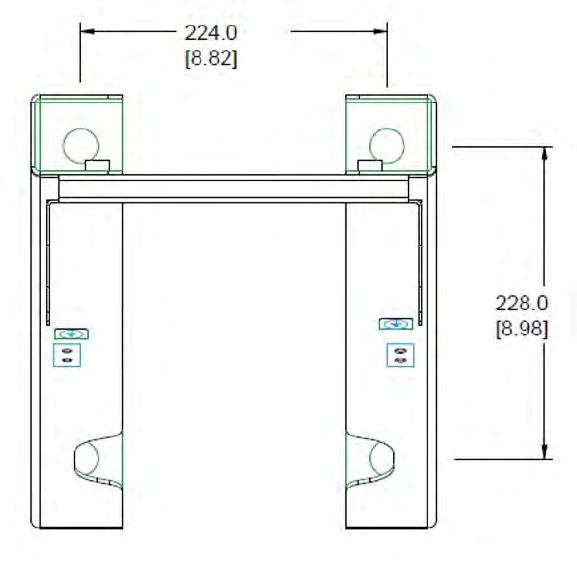

Floor Stand mounted RRHs [800 MHz and 4x40W (25 MHz) PCS]

he following figure shows the floor stand that is used with 800 MHz and 4x40W (25

MHz) PCS RRHs. The wall mounting bracket is shown attached.

Product overview for RRHs RRH mounting configurations

....................................................................................................................................................................................................................................

9927 Dist BTS Outdoor

401-703-516

Issue 1 March 2012

Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements 3-21

Product overview for RRHs RRH mounting configurations

....................................................................................................................................................................................................................................

3-22 Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements

9927 Dist BTS Outdoor

401-703-516

Issue 1 March 2012

RRHs and related equipment

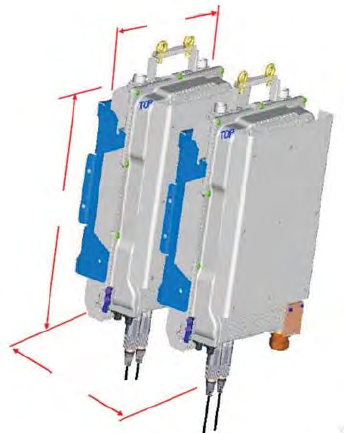

Weights and dimensions

This topic covers the weights and dimensions for RRHs and related equipment.

Weights and dimensions of RRHs and accessories

The following table provides weights and dimensions for the RRHs and floor stand.

RRH type or accessory Description Estimated

maximum

installed

weight

without

mounting

brackets

kg (lbs)

Height

mm

(inches)

Width

mm

(inches)

Depth

mm

(inches)

RRH, 800 MHz, OEM1 CDMA/LTE,

Dual

Technology, 2

x 50 Watts

23 (50.6) 500 (19.7) 330 (13.0 ) 385 (15.2 )

RRH, 800 MHz, OEM2 23 (50.6) 400 (15.8) 330 (13.0 ) 255 (10.0 )

RRH, 1900 MHz, 25 MHz

per Tx port

CDMA/LTE,

Dual

Technology, 4

x 40 Watts

47 (104)

[includes 2

RRHs and

mounting

brackets]

580 (22.8) 330 (13.0 ) 440 (17.3)

RRH. 1900 MHz, 65 MHz

per Tx port

CDMA/LTE,

Dual

Technology, 4

x 45 Watts

60 (132) 637 (25.1 ) 282 (11.1 ) 272 (10.7 )

Notch Filter 4 ( 8.8)

Floor Stand n/a 23 (51) 509 (20.1) 360 (14.2) 1226 (48.3)

Miscellaneous hardware weights

The following table provides approximate weights for miscellaneous hardware.

Item Weight kg (lbs)

Pallet ____ (___)

Wall Bracket (RRH) 3.5 (7.7)

Side Support Bracket 3.5 (7.7)

Pole Bracket (Low Profile) 4.3 (9.5)

Product overview for RRHs RRHs and related equipment

....................................................................................................................................................................................................................................

9927 Dist BTS Outdoor

401-703-516

Issue 1 March 2012

Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements 3-23

Item Weight kg (lbs)

Floor Stand (RRH) 23 (50)

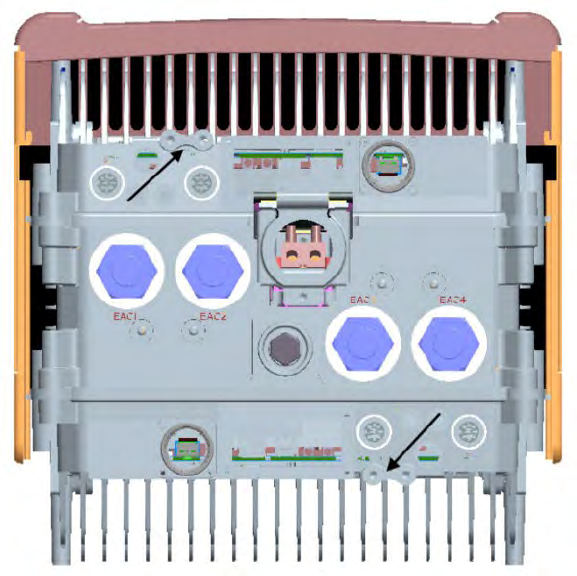

Grounding points on RRHs

The grounding points on the 1900 MHz and 800 MHz RRHs are located at the bottom, on

the left and right sides.

Product overview for RRHs RRHs and related equipment

....................................................................................................................................................................................................................................

3-24 Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements

9927 Dist BTS Outdoor

401-703-516

Issue 1 March 2012

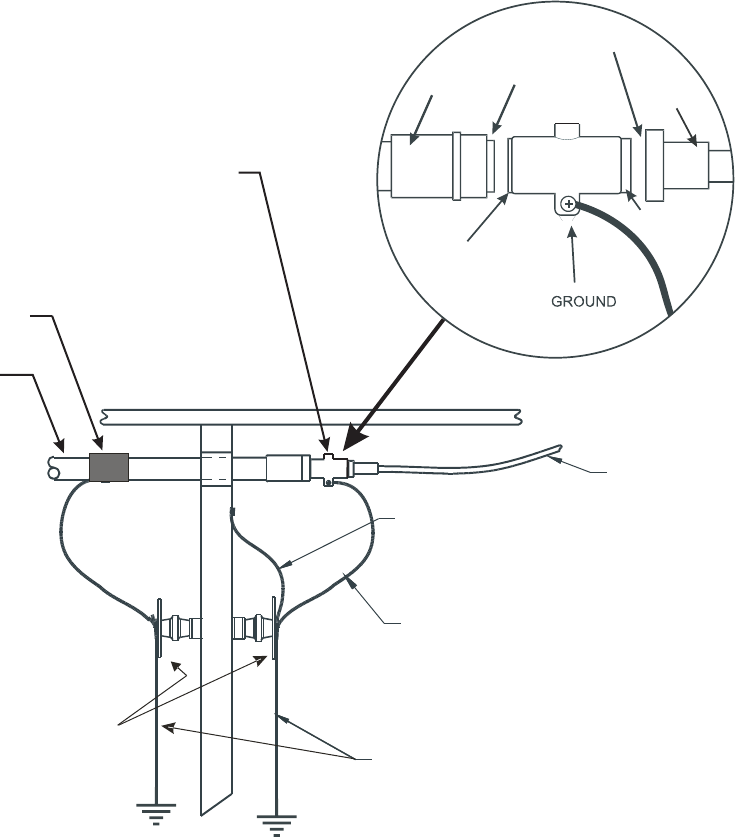

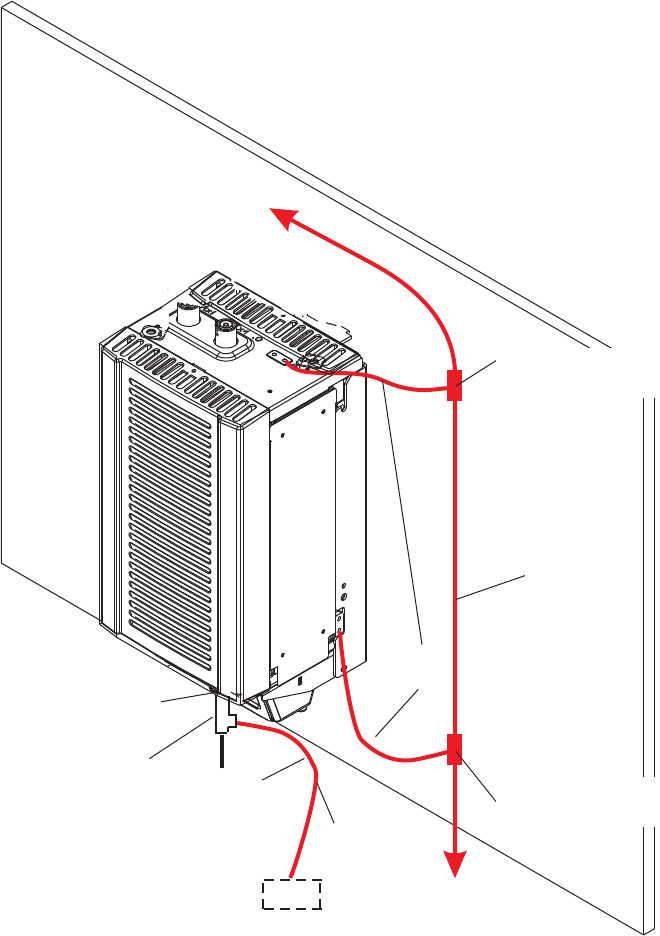

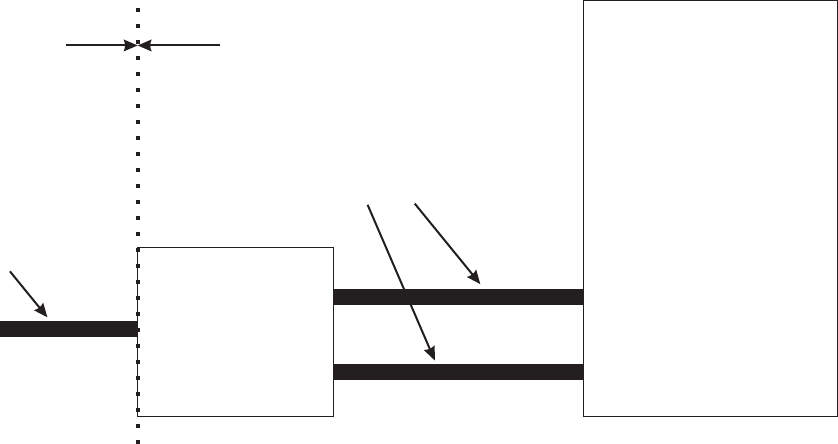

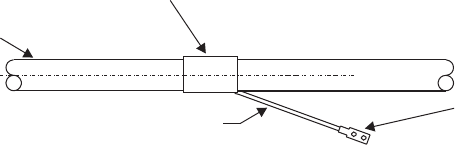

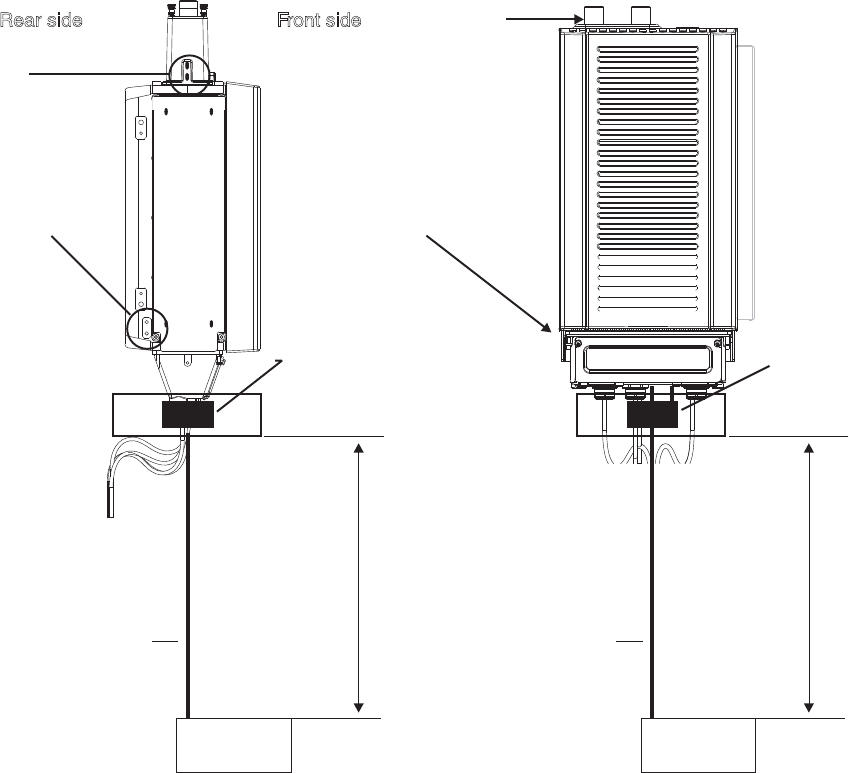

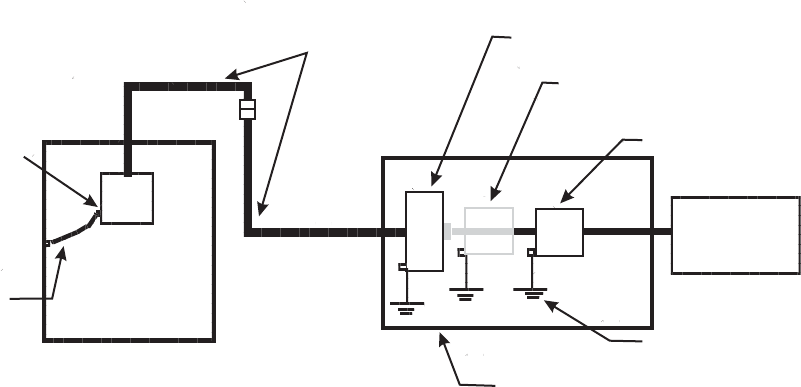

The following figure shows how grounding wire is routed to the RRHs.

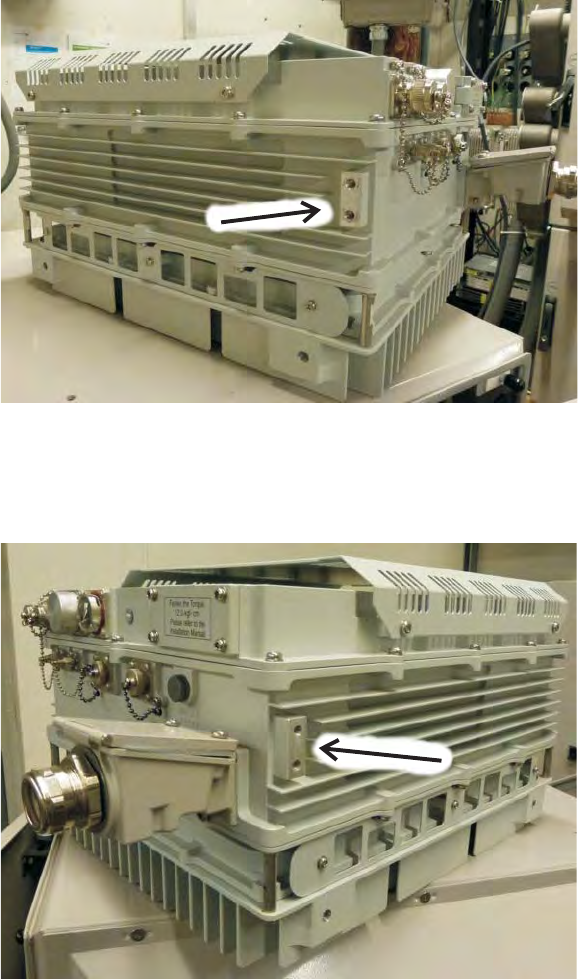

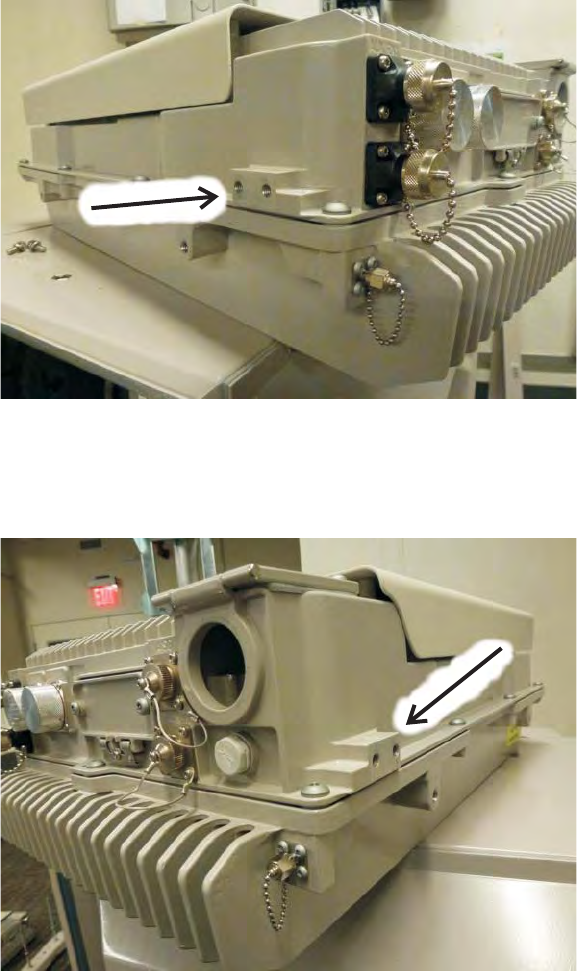

The following figures show the grounding points on the OEM2 RRH.

Front sideRear side

850 RRH

(Side View)

Ground connection

at bottom of RRH

(left or right side may

be used)

AWS, PCS RRH

(Front View)

Ground connection

at top of RRH

(on left side)

Ground connection

at top of RRH

(on right side)

Ground connection

at bottom of RRH

(left or right side may

be used)

Surge protector Surge protector

Ground bus bar Ground bus bar

Ground cable, #6 AWG

Ground bus barGround bus bar

Ground cable, #6 AWG

Note: For antenna sharing 850, AWS, PCS RRHs,

ground connection for surge protector

must be within 6 feet of a ground bus bar.

6ft 6ft

Product overview for RRHs RRHs and related equipment

....................................................................................................................................................................................................................................

9927 Dist BTS Outdoor

401-703-516

Issue 1 March 2012

Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements 3-25

The left–side grounding point on the OEM2 RRH is located at the left bottom, as shown

in the figure below.

The right–side grounding point on the OEM2 RRH is located at the right bottom, as

shown in the figure below.

The following figures show the grounding points on the 1900 MHz RRH.

Product overview for RRHs RRHs and related equipment

....................................................................................................................................................................................................................................

3-26 Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements

9927 Dist BTS Outdoor

401-703-516

Issue 1 March 2012

The left-side grounding point on the 1900 MHz, 4x40W RRH is located at the left

bottom, as shown in the figure below.

The right–side grounding point on the 1900 MHz, 4x40W RRH is located at the right

bottom, as shown in the figure below.

The following figures shows the grounding points on the 1900 MHz, 4x45W RRH.

Product overview for RRHs RRHs and related equipment

....................................................................................................................................................................................................................................

9927 Dist BTS Outdoor

401-703-516

Issue 1 March 2012

Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements 3-27

The grounding points on the 1900 MHz, 4x45W RRH are located on the bottom, as

shown in the figure below.

Product overview for RRHs RRHs and related equipment

....................................................................................................................................................................................................................................

3-28 Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements

9927 Dist BTS Outdoor

401-703-516

Issue 1 March 2012

44Site configurations for

9927 Distributed BTS

Outdoor Cabinet

Overview

Purpose

This chapter describes configurations and site layouts for the 9228 Distributed Base

Station site.

Contents

Line-up configuration 4-2

Line-up configuration 4-3

Site layout 4-4

9927 Distributed Base Station Outdoor Cabinet site layout 4-5

...................................................................................................................................................................................................................................

9927 Dist BTS Outdoor

401-703-516

Issue 1 March 2012

Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements 4-1

Line-up configuration

Overview

Purpose

This section discusses the line-up configuration for the 9927 Distributed Base Station

Outdoor Cabinet.

Contents

Line-up configuration 4-3

Site configurations for 9927 Distributed BTS Outdoor

Cabinet

Line-up configuration

Overview

....................................................................................................................................................................................................................................

4-2 Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements

9927 Dist BTS Outdoor

401-703-516

Issue 1 March 2012

Line-up configuration

Purpose

This section describes the only line-up that is available for the 9927 Distributed Base

Station Outdoor Cabinet.

Line-up

At the present time, the only line-up available for the 9927 Distributed Base Station

Outdoor Cabinet consists of the 9927 Distributed Base Station Outdoor Cabinet and up to

two 60ECv2 battery cabinets.

The block diagram below shows the line-up for the 9927 Distributed Base Station

Outdoor Cabinet and two 60ECv2 battery cabinets.

60ECv2

Battery

Cabinet

60ECv2

Battery

Cabinet

PPower Optional

LEGEND

P

9927 Distributed BTS

Outdoor Cabinet

Site configurations for 9927 Distributed BTS Outdoor

Cabinet

Line-up configuration

....................................................................................................................................................................................................................................

9927 Dist BTS Outdoor

401-703-516

Issue 1 March 2012

Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements 4-3

Site layout

Overview

Purpose

This section shows the site layout for the 9927 Distributed Base Station Outdoor Cabinet.

Contents

9927 Distributed Base Station Outdoor Cabinet site layout 4-5

Site configurations for 9927 Distributed BTS Outdoor

Cabinet

Site layout

Overview

....................................................................................................................................................................................................................................

4-4 Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements

9927 Dist BTS Outdoor

401-703-516

Issue 1 March 2012

9927 Distributed Base Station Outdoor Cabinet site layout

Purpose

This section shows how the 9927 Distributed Base Station Outdoor Cabinet and two

60ECv2 battery cabinets can be arranged on a concrete pad.

Mounting options

The 9927 Distributed Base Station Outdoor Cabinet can be mounted in the following

manner:

•On a concrete pad (with optional mounting bases)

•On a rooftop (may be supported by a mounting structure or raised platform provided

by the customer)

Site configurations for 9927 Distributed BTS Outdoor

Cabinet

Site layout

9927 Distributed Base Station Outdoor Cabinet site layout

....................................................................................................................................................................................................................................

9927 Dist BTS Outdoor

401-703-516

Issue 1 March 2012

Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements 4-5

New site installation of 9927 Distributed Base Station Outdoor Cabinet

9927 Distributed Base Station Outdoor Cabinet and two 60ECv2 battery cabinets

The figure below shows how the 9927 Distributed Base Station Outdoor Cabinet and two

60ECv2 battery cabinets can be situated on a concrete pad. Shown also are the conduits,

cables, and support structure associated with the installation. (This configuration applies

to a new site installation.)

JUMPER CABLE

SUPPORT STRUCTURE

ASSEMBLY

(CUSTOMER-PROVIDED)

1 ½ INCH AC CONDUIT

GPS SURGE PROTECTOR

REAR

GPS ANTENNA CABLE

WITH SURGE PROTECTION

1 ½ INCH CONDUIT

(FOR -48 VDC AND

FIBER OPTIC CABLE

TO DC DISTRIBUTION/

POWER MANAGEMENT BOX )

9927 DISTRIBUTED BTS OUTDOOR CABINET

1 OR 2 60ECv2

BATTERY CABINETS

(2nd BATTERY CABINET

IS OPTIONAL)

CONCRETE PAD

OR ROOFTOP PLATFORM

(CUSTOMER-SUPPLIED)

Site configurations for 9927 Distributed BTS Outdoor

Cabinet

Site layout

9927 Distributed Base Station Outdoor Cabinet site layout

....................................................................................................................................................................................................................................

4-6 Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements

9927 Dist BTS Outdoor

401-703-516

Issue 1 March 2012

55Basic site preparation

requirements and

footprints for 9927

Distributed Base Station

outdoor cabinet

...................................................................................................................................................................................................................................

9927 Dist BTS Outdoor

401-703-516

Issue 1 March 2012

Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements 5-1

Overview

Purpose

This chapter provides the site requirements for the installation site for 9927 Distributed

Base Station Outdoor Cabinet and the procedures that may be performed to prepare the

installation site.

Contents

Site requirements for 9927 Distributed Base Station Outdoor cabinet 5-3

Environmental requirements 5-4

Site requirements 5-6

Mounting options 5-9

Support structure, ice bridge and service access clearances 5-11

Anchoring requirements 5-12

Anchoring footprints 5-13

Site preparation procedures 5-15

Drill anchor holes 5-16

Basic site preparation requirements and footprints for 9927

Distributed Base Station outdoor cabinet

Overview

....................................................................................................................................................................................................................................

5-2 Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements

9927 Dist BTS Outdoor

401-703-516

Issue 1 March 2012

Site requirements for 9927 Distributed Base

Station Outdoor cabinet

Overview

Purpose

This section describes the requirements for the installation site for the 9927 Distributed

Base Station Outdoor Cabinet.

Contents

Environmental requirements 5-4

Site requirements 5-6

Mounting options 5-9

Support structure, ice bridge and service access clearances 5-11

Anchoring requirements 5-12

Anchoring footprints 5-13

Basic site preparation requirements and footprints for 9927

Distributed Base Station outdoor cabinet

Site requirements for 9927 Distributed Base Station

Outdoor cabinet

Overview

....................................................................................................................................................................................................................................

9927 Dist BTS Outdoor

401-703-516

Issue 1 March 2012

Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements 5-3

Environmental requirements

Environmental requirements for outdoor installations

Outdoor cabinet installations are exposed to variations in temperature, humidity, and

ventilation.

The 9927 Distributed Base Station cabinet has been weather-hardened. When equipped

with a heat exchanger, the cabinet will operate under the conditions described in the table

below.

Condition Specification

Operating

temperature

-40 °C to +46 °C (-40 °F to +115 °F)

Extended operating

temperature

-40 °C to 50 °C (-40 °F to 122 °F)

Relative humidity 5 to 100% (non-condensing but not to exceed 0.024 kg water/kg of dry

air)

Enclosure rating Type 3R (NEMA)

IP35 (IEC 60529)

Acoustic noise

suppression

65 dBA at 25 °C (77 °F) and sea level

Operating altitude -60.96 to 1798 m (-200 to 5,900 ft.) above sea level

Extended operating

altitude

-60.96 to 3048 m (-200 to 10,000 ft.). An operating temperature

de-rating of 1 °C per 1000 feet above 6000 feet is allowed

Wind driven rain Refer to Telcordia GR-487-CORE

Dust and water

ingress

Refer to Telcordia GR-487-CORE

Bullet resistance Refer to Telcordia GR-487-CORE

Wind resistance Refer to Telcordia GR-487-CORE

Storage requirements Refer to Telcordia GR-63-CORE, Section 4.1.1

Minimum installation temperatures

Insulation on power cables tends to crack when handled at extremely cold temperatures.

Minimum installation temperatures have been established for this reason.

The following wire insulation types are affected :

•Class B: THHN type insulation (T90 NYLON type insulation in Canada).

Basic site preparation requirements and footprints for 9927

Distributed Base Station outdoor cabinet

Site requirements for 9927 Distributed Base Station

Outdoor cabinet

Environmental requirements

....................................................................................................................................................................................................................................

5-4 Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements

9927 Dist BTS Outdoor

401-703-516

Issue 1 March 2012

The minimum storage and working temperatures are as follows:

•Storage prior to installation: 20 °C (68 °F)

•Working (Installation): -25 °C (-13 °F)

Installations at -25 °C (-13 °F) or below

If shelter is available, do the following:

•Store cables in a heated area (20 °C [68 °F] or higher) for 24 hours prior to

installation.

•Keep cables sheltered from wind and temperatures below -25 °C (-13 °F) during

installation.

•It is recommended to perform the installation in a heated tent.

If shelter cannot be provided, the following cable along with the associated hardware is

recommended. The size of the cable determines the correct tool to use, as well as the

inside diameter of the lug and the insulating sleeve.

•Industrial Wire & Cable Corp. Type MTW Machine Tool Wire

•FCI Terminal Lug (or equivalent), 3/8" Bolt Size, Straight, 2-Hole, 1" Center to

Center

•FCI Terminal Lug (or equivalent), 1/4" Bolt Size, Straight, 2-Hole, 5/8" Center to

Center

•FCI Terminal Lug (or equivalent), 5/16 Bolt Size, Straight, One-Hole

•Panduit (or equivalent) Type HSTTV 75-T2 Insulating Sleeve, Heat Shrink, Red

•Panduit (or equivalent) Type HSTTV 75-T Insulating Sleeve, Heat Shrink, Black

Basic site preparation requirements and footprints for 9927

Distributed Base Station outdoor cabinet

Site requirements for 9927 Distributed Base Station

Outdoor cabinet

Environmental requirements

....................................................................................................................................................................................................................................

9927 Dist BTS Outdoor

401-703-516

Issue 1 March 2012

Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements 5-5

Site requirements

General requirements

The following general requirements must be met before the installation of the 9927

Distributed Base Station site can be started:

•An appropriate installation site must be selected. For more information, see

“Mounting options” (p. 5-9).

•Adequate clearance must be provided for service access, as described in “Support

structure” (p. 5-11).

•The environment must comply with “Environmental requirements for outdoor

installations” (p. 5-4).

•Cabinet anchor holes must be drilled, as described in “Drill anchor holes” (p. 5-16).

•Support structure and ice bridge (if required) must be installed, as described in

“Support structure, ice bridge and service access clearances” (p. 5-11).sss

•Tower light power must be installed (if required).

•Tower light alarm must be installed (if required).

•Conduits must be installed, as described in “Conduit requirements” (p. 5-7).

•AC electric service for the 9927 Distributed Base Station Outdoor Cabinet must be

installed as described in Chapter 8, “Electrical power requirements for 9927

Distributed Base Station Outdoor Cabinet”.

•DC electric service for the RRHs must be installed as described in Chapter 8,

“Electrical power requirements for 9927 Distributed Base Station Outdoor Cabinet”.

•GPS antenna runs must be installed, as described in Chapter 10, “Site preparation

requirements for 9927 Distributed Base Station Outdoor cabinet GPS antenna and

microwave antenna cable”.

•Surge protection for antennas must be installed, as described in Chapter 10, “Site

preparation requirements for 9927 Distributed Base Station Outdoor cabinet GPS

antenna and microwave antenna cable”

•Grounding electrode system must be installed with sufficient pigtails, as described in

Chapter 12, “Grounding and lightning protection requirements for 9927 Distributed

Base Station Outdoor Cabinet”.

•T1/E1 and User Alarm facilities must be installed at demarcation point as described in

Chapter 14, “Site preparation -- T1/E1 and User Alarm facilities for 9927 Distributed

Base Station Outdoor Cabinet”.

Refer to Appendix A, “9927 Distributed Base Station Outdoor Cabinet site preparation

checklists” of this document for checklists of detailed requirements.

Basic site preparation requirements and footprints for 9927

Distributed Base Station outdoor cabinet

Site requirements for 9927 Distributed Base Station

Outdoor cabinet

Site requirements

....................................................................................................................................................................................................................................

5-6 Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements

9927 Dist BTS Outdoor

401-703-516

Issue 1 March 2012

Conduit requirements

Rigid conduits

Rigid conduits are used to bring various types of cables to the installation site. It is the

responsibility of the customer to provide the rigid conduit and install it as part of site

preparation.

The following table describes the rigid conduits that are required:

Required

conduit

Purpose Conduit specifications

AC power

supply conduit

AC power cables are brought to the

installation site in the AC power

supply conduit.

1 1/2-inch rigid conduit must be steel

NIU conduit T1/E1 cables and the User Alarm

cable are terminated at the Network

Interface Unit (NIU) and brought to

the installation site in the NIU

conduit.

1-inch rigid conduit must be steel

Flexible conduit

Flexible conduit is used in installation to connect cables to the 9927 Distributed Base

Station Outdoor Cabinet. It is the responsibility of the customer to provide all flexible

conduit and associated fittings to the installer.

The following table describes the flexible conduits that are required:

Required

conduit

Purpose Required Supplies

AC conduit Connects AC power supply to 9927

Distributed Base Station Outdoor

Cabinet.

1 1/2-inch liquid-tight flexible metal

conduit and 2 inch connectors

T1/E1 conduit Connects T1/E1 and User Alarms to

9927 Distributed Base Station

Outdoor Cabinet

1-inch liquid-tight flexible metal

conduit and 2 inch connectors

Architectural considerations

All architectural considerations shall comply with all applicable national and local codes,

including the following:

•Uniform Building Code (UBC)

•Building Officials and Code Administrators (BOCA)

•Southern Uniform Building Code (SUBC)

Basic site preparation requirements and footprints for 9927

Distributed Base Station outdoor cabinet

Site requirements for 9927 Distributed Base Station

Outdoor cabinet

Site requirements

....................................................................................................................................................................................................................................

9927 Dist BTS Outdoor

401-703-516

Issue 1 March 2012

Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements 5-7

•American Concrete Institute (ACI)

•American National Standard Institute (ANSI)

•American Standard Testing Methodology (ASTM)

•National Fire Protection Association (NFPA)

Basic site preparation requirements and footprints for 9927

Distributed Base Station outdoor cabinet

Site requirements for 9927 Distributed Base Station

Outdoor cabinet

Site requirements

....................................................................................................................................................................................................................................

5-8 Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements

9927 Dist BTS Outdoor

401-703-516

Issue 1 March 2012

Mounting options

Purpose

This topic describes the mounting options for 9927 Distributed Base Station Outdoor

Cabinet.

Structural requirements

Floor loading, roof loading, and foundations must be considered during site preparation.

In some cases, the cell site equipment will not rest directly on the concrete pad, floor, or

rooftop. In those cases, the cell equipment will need to be supported by an intermediate

structure that is fastened directly to the mounting surface. The cabinets must be supported

along all four edges. The support structure must be designed in compliance with BOCA

national building codes and all other applicable codes.

If the cabinets are elevated more than 152.4 mm (6 inches) above the floor surface, it is

recommended that a platform be placed under the cabinets to provide a safe and

convenient work surface for technicians. The customer may use a custom-designed

platform and will be responsible for supplying the 12 mm (1/2 inch.) bolt size hardware.

A platform bolt-down kit is available from Alcatel-Lucent.

Concrete pad requirements

If cabinets will be installed on a concrete pad, the concrete pad must be supplied as part

of site preparation and must meet the following requirements:

•Minimum pressure = 175 kg/cm2(2500 psi)

•Minimum thickness = 114 mm (4.5 inches)

•The surface of the concrete pad must comply with national and local building codes.

•The concrete pad must be able to support the maximum weight of the cabinets.

•The concrete pad must be able to allow drilling of up to 100 mm anchor holes to

secure the cabinets to the pad.

•The concrete pad must be level and the total variation of the top flat surface must be

±1/4 inch.

Rooftop requirements

The following requirements must be met when cabinets are installed on the roof of a

building:

•The building must comply with Building Officials and Code Administrators (BOCA)

building codes.

•Additional support structure is required.

Basic site preparation requirements and footprints for 9927

Distributed Base Station outdoor cabinet

Site requirements for 9927 Distributed Base Station

Outdoor cabinet

Mounting options

....................................................................................................................................................................................................................................

9927 Dist BTS Outdoor

401-703-516

Issue 1 March 2012

Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements 5-9

•The rooftop must be able to support the maximum weight of the cabinets and other

auxiliary equipment.

•Adequate clearance must be provided to transport the cabinet to the roof.

Raised platform

Rooftop installations must be supported by a customer-provided mounting structure or

raised platform. It is the responsibility of the customer to design the rooftop platform.

Basic site preparation requirements and footprints for 9927

Distributed Base Station outdoor cabinet

Site requirements for 9927 Distributed Base Station

Outdoor cabinet

Mounting options

....................................................................................................................................................................................................................................

5-10 Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements

9927 Dist BTS Outdoor

401-703-516

Issue 1 March 2012

Support structure, ice bridge and service access clearances

Purpose

This topic describes the site preparation requirements with regard to the support structure

and ice bridge for the 9927 Distributed Base Station Outdoor Cabinet.

Support structure

Support brackets and support structures must meet the requirements specified in this

document and all current applicable ASTM specifications.

A customer-supplied support structure shall be used to support GPS antenna cable,

hybriflex cables, microwave cables, the ice bridge, and grounding cables.

Ice bridge

At installations where falling ice can damage cables, a customer-supplied ice bridge

should be used to support the Hybriflex and microwave cable runs, and to protect them

from falling ice. The height and position of the ice bridge must not interfere with access

to the connections at the left or right of the 9927 Distributed Base Station cabinet.

Service access clearances

Proper clearance must be provided around the cabinet to allow for service access.

The following minimum clearances are recommended around the 9927 Distributed BTS

outdoor cabinet. The clearances are given when looking at the front of the cabinet.

Side Clearance Reason

Front 36 inches Front connections, opening of door

Left 6 inches T1, User Alarm, cable gland connections

Right 6 inches DC Distribution/Fiber Management Box, 60ECv2

Rear 36 inches Rear connections

Basic site preparation requirements and footprints for 9927

Distributed Base Station outdoor cabinet

Site requirements for 9927 Distributed Base Station

Outdoor cabinet

Support structure, ice bridge and service access clearances

....................................................................................................................................................................................................................................

9927 Dist BTS Outdoor

401-703-516

Issue 1 March 2012

Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements 5-11

Anchoring requirements

Overview

Cabinet anchoring must meet all requirements of the local codes, taking into

consideration the seismic zone of the installation site.

Anchor specifications

Use the following table to determine the type of anchor to use, and the hole size and depth

required for the anchor hole.

Equipment Seismic

Zone

Anchor Type Number of

Anchors

Required

Hole Size/Depth Anchor set

before or

after unit

placement?

9927

Distributed

Base Station

Outdoor

Cabinet

0, 1, 2 1/2" drop-in

anchor

4 16 mm (5/8 inch) bit /50

mm (2 inches) deep

Before

3, 4 12 mm

expansion stud

anchor

4 18 mm (11/16 inch) bit

/101 mm (4 inches)

minimum deep1

After

60ECv2

battery cabinet

0, 1, 2 1/2 inch

drop-in anchor

4 16 mm bit (5/8 inch) /50

mm (2 inches) deep

Before

3, 4 12 mm

expansion stud

anchor

4 18 mm (11/16 inch) bit /

minimum 101 mm (4

inches) deep1

After

Notes:

1. If a 101 mm (4 inch) hole depth cannot be attained for a 12 mm expansion stud anchor, a 76 mm (3 inch)

hole depth can be used. To make the anchor fit the shorter depth, a spacer may be removed from the anchor

assembly and 25 mm (1 inch) may be cut from the end of the threaded rod prior to setting the anchor.

Basic site preparation requirements and footprints for 9927

Distributed Base Station outdoor cabinet

Site requirements for 9927 Distributed Base Station

Outdoor cabinet

Anchoring requirements

....................................................................................................................................................................................................................................

5-12 Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements

9927 Dist BTS Outdoor

401-703-516

Issue 1 March 2012

Anchoring footprints

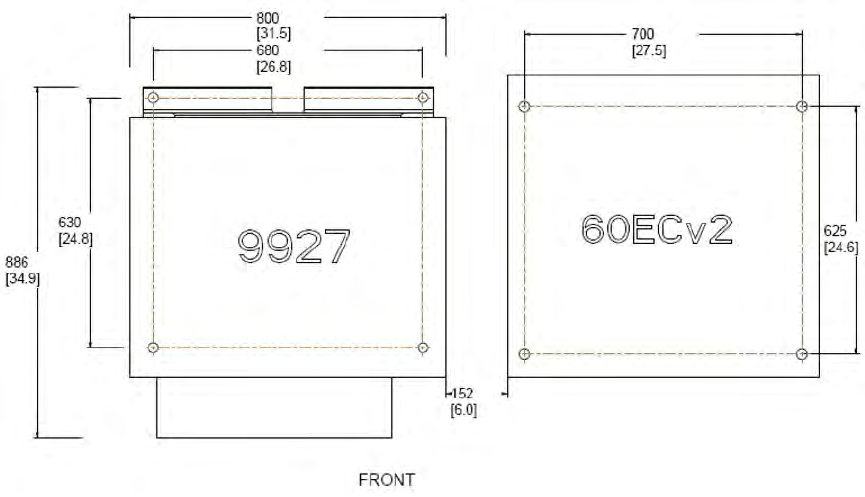

New site anchoring footprint for 9927 Distributed Base Station Outdoor Cabinet and 60ECv2

battery cabinet

The diagram below is an anchoring footprint for the 9927 Distributed Base Station

Outdoor Cabinet and 60ECv2 battery cabinet when located side by side.

Anchoring footprint for 60ECv2 battery cabinet

The following diagram shows the 60ECv2 battery cabinet anchoring footprint required

for site preparation.

Basic site preparation requirements and footprints for 9927

Distributed Base Station outdoor cabinet

Site requirements for 9927 Distributed Base Station

Outdoor cabinet

Anchoring footprints

....................................................................................................................................................................................................................................

9927 Dist BTS Outdoor

401-703-516

Issue 1 March 2012

Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements 5-13

Basic site preparation requirements and footprints for 9927

Distributed Base Station outdoor cabinet

Site requirements for 9927 Distributed Base Station

Outdoor cabinet

Anchoring footprints

....................................................................................................................................................................................................................................

5-14 Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements

9927 Dist BTS Outdoor

401-703-516

Issue 1 March 2012

Site preparation procedures

Overview

Purpose

This section contains the procedures that must be performed to prepare the site for

installation of the 9927 Distributed Base Station Outdoor Cabinet.

Contents

Drill anchor holes 5-16

Basic site preparation requirements and footprints for 9927

Distributed Base Station outdoor cabinet

Site preparation procedures

Overview

....................................................................................................................................................................................................................................

9927 Dist BTS Outdoor

401-703-516

Issue 1 March 2012

Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements 5-15

Drill anchor holes

Purpose

Use this procedure to drill anchor holes in a concrete surface for the following:

•9927 Distributed Base Station Outdoor Cabinet

•Mounting bases

Related information

See the following topics in this document:

•“Anchoring requirements” (p. 5-12)

•“Anchoring footprints” (p. 5-13)

Steps

Use the following procedure to drill the anchor holes in a concrete surface.

...................................................................................................................................................................................................

1If using the optional drilling template, place the template in position.

...................................................................................................................................................................................................

2Mark the surface for all cabinets to be installed. Refer to “Anchoring footprints”

(p. 5-13) for cabinet anchoring dimensions.

...................................................................................................................................................................................................

3If using the optional drilling template, remove the template.

...................................................................................................................................................................................................

4Drill the anchor holes to the proper size and depth as specified in “Anchoring

requirements” (p. 5-12). Refer to the following figure for the anchor hole drilling method.

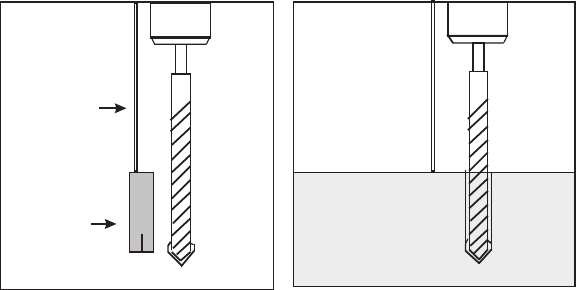

12

DEPTH

GAUGE

ANCHOR

Basic site preparation requirements and footprints for 9927

Distributed Base Station outdoor cabinet

Site preparation procedures

Drill anchor holes

....................................................................................................................................................................................................................................

5-16 Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements

9927 Dist BTS Outdoor

401-703-516

Issue 1 March 2012

...................................................................................................................................................................................................

5Vacuum out the holes.

...................................................................................................................................................................................................

6Tape over the open holes to prevent debris from falling inside.

Important! Do not install the anchors at this time. Anchors will be installed as part of

cabinet installation by equipment installers.

Basic site preparation requirements and footprints for 9927

Distributed Base Station outdoor cabinet

Site preparation procedures

Drill anchor holes

....................................................................................................................................................................................................................................

9927 Dist BTS Outdoor

401-703-516

Issue 1 March 2012

Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements 5-17

END OF STEPS

...................................................................................................................................................................................................

Basic site preparation requirements and footprints for 9927

Distributed Base Station outdoor cabinet

Drill anchor holes

....................................................................................................................................................................................................................................

5-18 Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements

9927 Dist BTS Outdoor

401-703-516

Issue 1 March 2012

66Basic site preparation

requirements and

footprints for RRHs

Overview

Purpose

This chapter discusses how to prepare the site for installation of RRHs.

Contents

Site requirements for RRHs 6-2

Storing RRHs in non-powered state 6-3

Environmental requirements 6-4

Site requirements for RRHs 6-5

RRH cabinet clearances 6-6

Site requirements for pole mount installations 6-8

Site requirements for wall mount installations 6-11

Site requirements for floor stand installations 6-16

...................................................................................................................................................................................................................................

9927 Dist BTS Outdoor

401-703-516

Issue 1 March 2012

Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements 6-1

Site requirements for RRHs

Overview

Purpose

This section describes the site requirements at the installation site for RRHs

Contents

Storing RRHs in non-powered state 6-3

Environmental requirements 6-4

Site requirements for RRHs 6-5

RRH cabinet clearances 6-6

Site requirements for pole mount installations 6-8

Site requirements for wall mount installations 6-11

Site requirements for floor stand installations 6-16

Basic site preparation requirements and footprints for

RRHs

Site requirements for RRHs

Overview

....................................................................................................................................................................................................................................

6-2 Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements

9927 Dist BTS Outdoor

401-703-516

Issue 1 March 2012

Storing RRHs in non-powered state

Purpose

Important! Alcatel-Lucent does not provide support for RRHs that have been left

non-powered for an extended period of time and not stored in an environmentally-

controlled space. The Alcatel-Lucent Design Team provides the following guidelines

to minimize the build-up of moisture inside RRHs that must remain in the

non-powered state for an extended period of time.

This section describes how to properly store RRHs that have been delivered to an

installation site but have not been yet installed. The main concern with non-powered

cabinets is condensation inside the cabinet, which can result in corrosion or electrical

shorts. The location and length of storage time determine the severity of the problem.

These guidelines include prevention and drying steps.

Moisture problem prevention

To prevent moisture from collecting inside non-powered RRHs that are in storage, all

openings and connectors must be tightly sealed. The units should also be covered with a

waterproof tarp. The tarp should be sealed with duct tape. A desiccant packet should be

placed under the tarp to absorb moisture. The amount of desiccant is related to storage

time and to size of the unit. A visual check should be made to check for condensation

after uncovering the tarp.

Additional storage requirements

After performing the procedures above, ensure that the following steps are taken:

•The cabinet must be properly grounded.

•RF cables should not be connected to the RRH.

•Any connectors must be sealed with watertight plugs.

•All holes must be plugged with watertight plugs.

Basic site preparation requirements and footprints for

RRHs

Site requirements for RRHs

Storing RRHs in non-powered state

....................................................................................................................................................................................................................................

9927 Dist BTS Outdoor

401-703-516

Issue 1 March 2012

Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements 6-3

Environmental requirements

Environmental requirements for outdoor installations

In an outdoor installation temperature, humidity, and ventilation cannot be controlled.

The RRH cabinets are weather-hardened to operate under the environmental conditions

listed in the table below.

Condition Specification

Operating

temperature

-40 °C to +46 °C (-40 °F to +115 °F)

Extended operating

temperature

-40 °C to 50 °C (-40 °F to 122 °F)

Relative humidity 5 to 100% (non-condensing but not to exceed 0.024 kg water/kg of dry

air)

Enclosure rating Type 3R (NEMA)

IP35 (IEC 60529)

Acoustic noise

suppression

65 dBA at 25 °C (77 °F) at sea level

Operating altitude -60.96 to 1798 m (-200 to 5,900 ft.) above sea level

Extended operating

altitude

-60.96 to 3048 m (-200 to 10,000 ft.). An operating temperature

de-rating of 1 °C per 1000 feet above 6000 feet is allowed

Wind driven rain Refer to Telcordia GR-487-CORE

Dust and water

ingress

Refer to Telcordia GR-487-CORE

Bullet resistance Refer to Telcordia GR-487-CORE

Wind resistance Refer to Telcordia GR-487-CORE

Storage requirements Refer to Telcordia GR-63-CORE, Section 4.1.1

RRH heat dissipation

The following table provides heat dissipation information for the various types of RRHs.

RRH type Estimated DC heat dissipation [typical/maximum]

1900 MHz 750 watts

800 MHz 425 watts

Basic site preparation requirements and footprints for

RRHs

Site requirements for RRHs

Environmental requirements

....................................................................................................................................................................................................................................

6-4 Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements

9927 Dist BTS Outdoor

401-703-516

Issue 1 March 2012

Site requirements for RRHs

General requirements

The following general requirements must be met before the installation of the RRH can

begin at the site:

•Adequate clearance must be provided for service access.

•Grounding electrode system must be installed.

•RF antenna runs must be installed .

•Tower light power must be installed (if required).

•Tower light alarm must be installed (if required).

•Cable supports must be installed.

Refer to Appendix A, “9927 Distributed Base Station Outdoor Cabinet site preparation

checklists” of this document for checklists of detailed requirements.

Structural requirements

Pole, wall loading, and wind must be considered during site preparation.

In some cases, cell site equipment may not be mounted directly to a wall without a plate

or Unistrut. A plate or Unistrut is necessary to properly distribute the weight of the RRHs.

The support structure must be in compliance with national building and other applicable

codes.

Basic site preparation requirements and footprints for

RRHs

Site requirements for RRHs

....................................................................................................................................................................................................................................

9927 Dist BTS Outdoor

401-703-516

Issue 1 March 2012

Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements 6-5

RRH cabinet clearances

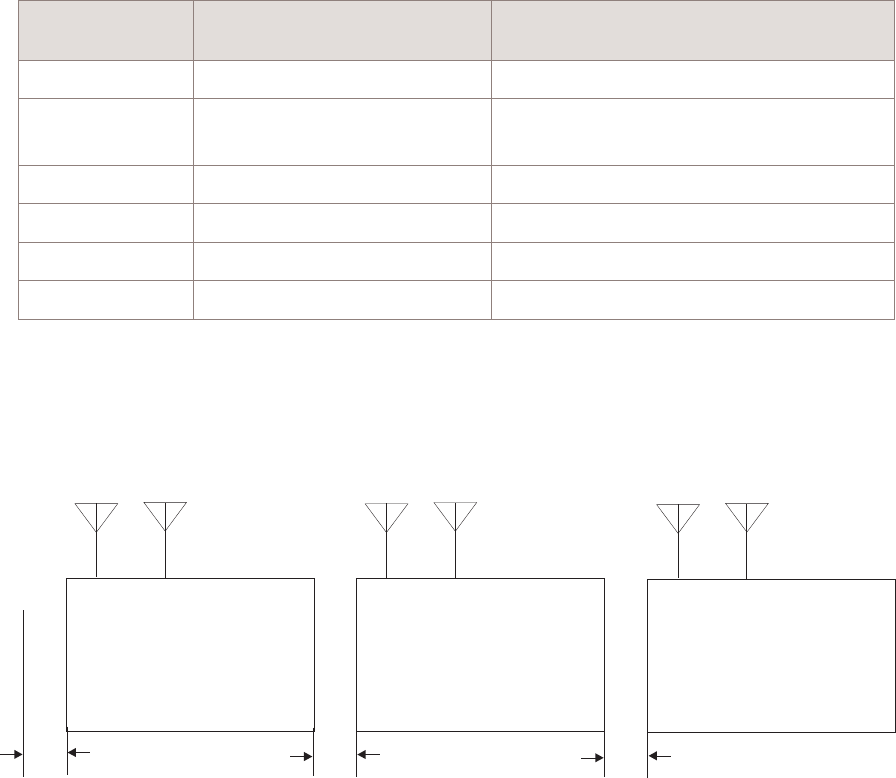

Minimum clearances table

The following table provides the minimum wall mount clearances recommended around

RRHs.

Side of RRH

cabinet

Clearance in mm (inches) Comments

Front 914 (36) Installation access

Rear 50 (1.97) Zero rear clearance is allowed using

supplied mounting brackets.

Right 300 (11.82) Air flow

Left 300 (11.82) Air flow

Top 300 (11.82) Air flow

Bottom 355 (14) Conduit routing

Minimum clearances for wall mounted RRHs

The following figure shows an example of typical distances between adjacent RRH

cabinets. These clearances satisfy the minimum clearance requirements.

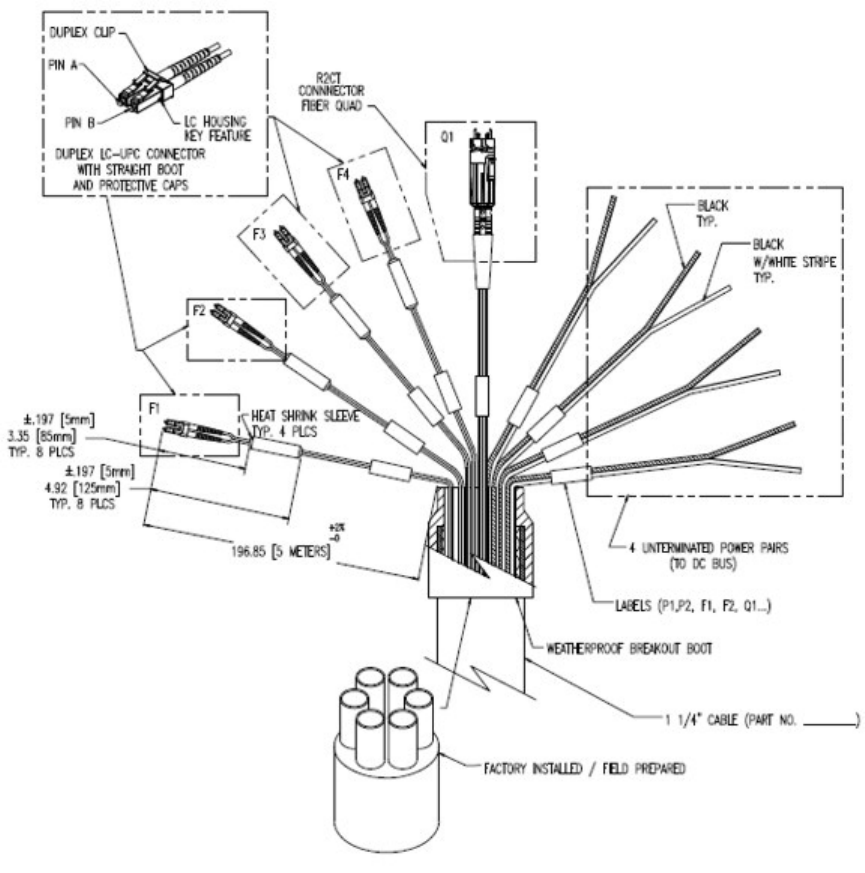

Cables provided by Alcatel-Lucent

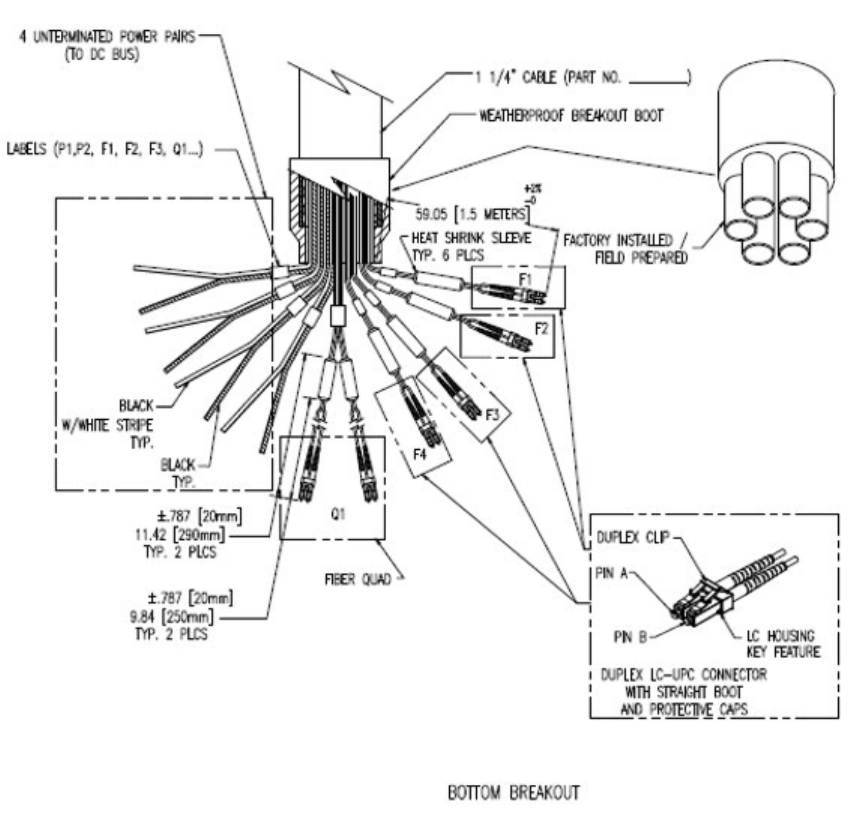

Hybriflex cable shall be provided by Alcatel-Lucent to connect the RRHs to the DC

Distribution/Fiber Management Box. The Hybriflex cable contains fiber optic and DC

power cables.

TX/RX 0

RX 1

RRH

TX/RX 0

RX 1 TX/RX 0

RX 1

RRHRRH

To wall

or

obstruction

300 mm

(11.82 in.)300 mm

(11.82 in.)

Basic site preparation requirements and footprints for

RRHs

Site requirements for RRHs

RRH cabinet clearances

....................................................................................................................................................................................................................................

6-6 Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements

9927 Dist BTS Outdoor

401-703-516

Issue 1 March 2012

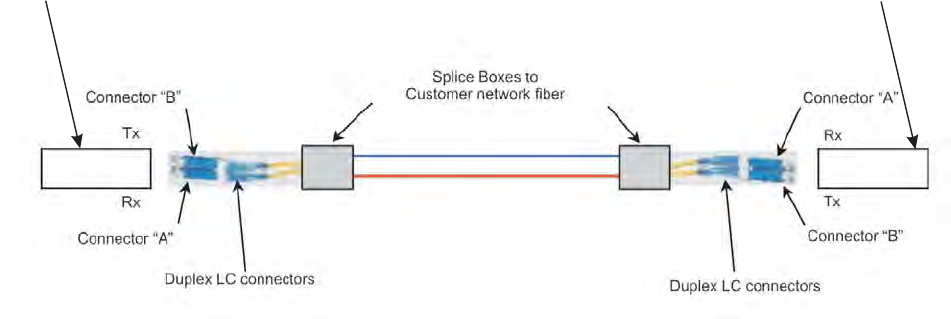

Fiber optic cable shall be provided by Alcatel-Lucent to connect the 9927 Distributed

BTS outdoor cabinet to the DC Distribution/Fiber Management Box.

Basic site preparation requirements and footprints for

RRHs

Site requirements for RRHs

RRH cabinet clearances

....................................................................................................................................................................................................................................

9927 Dist BTS Outdoor

401-703-516

Issue 1 March 2012

Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements 6-7

Site requirements for pole mount installations

Prepare site for pole mounting installation

The following are required to prepare a site for pole mounting installation of the cabinet.

•Install grounding system

•Install RF runs

•DC Distribution/Fiber Management Box provided by Alcatel-Lucent.

•Hybriflex cable provided by Alcatel-Lucent

Pole mounting installation requirements

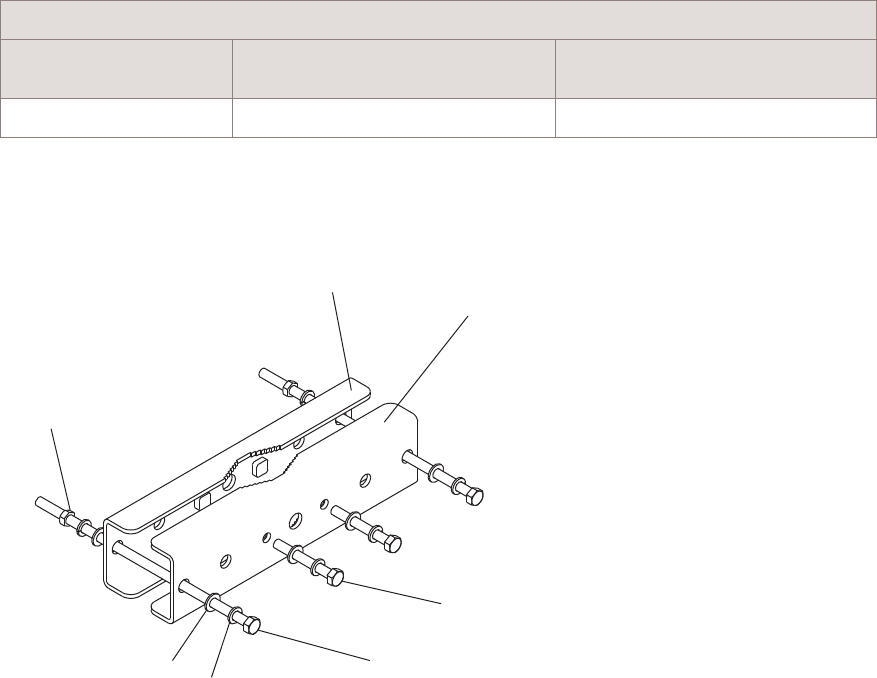

The following table provides the specifications for the low profile pole mount.

Low profile small pole mount specifications

Standoff mm

(inches)

Application Pole diameter mm

40 (1.6) Single cabinet installation 50 -152

The following figure shows the pole brackets needed for small diameter poles (50 mm to

152 mm).

Pole bracket

Opposite bracket

300 mm M10 hex bolt

25 mm M10 hex bolt

Lockwasher

Flatwasher

M10 nut

Basic site preparation requirements and footprints for

RRHs

Site requirements for RRHs

Site requirements for pole mount installations

....................................................................................................................................................................................................................................

6-8 Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements

9927 Dist BTS Outdoor

401-703-516

Issue 1 March 2012

Pole mounting example

The 800 MHz RRH and 1900 MHz, PCS, 4x40W RRH shall be mounted on a pole, as

shown in the figure below.

1900 MHz,4x40W RRH

Basic site preparation requirements and footprints for

RRHs

Site requirements for RRHs

Site requirements for pole mount installations

....................................................................................................................................................................................................................................

9927 Dist BTS Outdoor

401-703-516

Issue 1 March 2012

Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements 6-9

The 800 MHz RRH and 1900 MHz, PCS, 4x45W RRH shall be mounted on a pole, as

shown in the figure below.

Basic site preparation requirements and footprints for

RRHs

Site requirements for RRHs

Site requirements for pole mount installations

....................................................................................................................................................................................................................................

6-10 Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements

9927 Dist BTS Outdoor

401-703-516

Issue 1 March 2012

Site requirements for wall mount installations

Overview

This topic describes site requirements for installing RRHs on a wall.

Prepare site for wall mount installation

The following are required to prepare a site for wall mount installation of the cabinet.

•Install DC power runs

•Install grounding system

•Install RF runs

•DC Distribution/Fiber Management Box provided by Alcatel-Lucent

•fiber cable

Wall mounting shall comply with the applicable architectural codes listed on listed earlier

in this chapter.

Holes shall be pre-drilled with (customer supplied) anchor hardware, if mounting to a

concrete wall.

Unistruts shall be in place, if required for mounting cabinet.

Cabinet wall mounting hardware

The following is an example of customer-supplied mounting hardware that is required to

mount struts to a solid concrete wall:

•1.5 inch x 1.5 inch Unistrut® or equivalent struts (2)

•M10 (3/8 inch) x 100 mm (4inch) long Power-Stud™ (formerly called Rawl-Stud®)

or equivalent anchor bolts for solid concrete walls (4)

•M10 (3/8 inch) nuts (4)

•M10 (3/8 inch) flat washers (8)

•M10 (3/8 inch) spring nuts from the same manufacturer as the struts (4)

•M10 (3/8 inch) x 80 mm (1 inch) long hex-head bolts (4)

•M10 (3/8 inch) lock washers (4).

Basic site preparation requirements and footprints for

RRHs

Site requirements for RRHs

Site requirements for wall mount installations

....................................................................................................................................................................................................................................

9927 Dist BTS Outdoor

401-703-516

Issue 1 March 2012

Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements 6-11

Wall mount hole pattern

The figure below show how holes should be drilled in the wall for mounting the 800

MHz, 2x50W RRH, 1900 MHz, 4x40W (25 MHz) RRH and the 1900 MHz, 4x45W (65

MHz) RRH.

Basic site preparation requirements and footprints for

RRHs

Site requirements for RRHs

Site requirements for wall mount installations

....................................................................................................................................................................................................................................

6-12 Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements

9927 Dist BTS Outdoor

401-703-516

Issue 1 March 2012

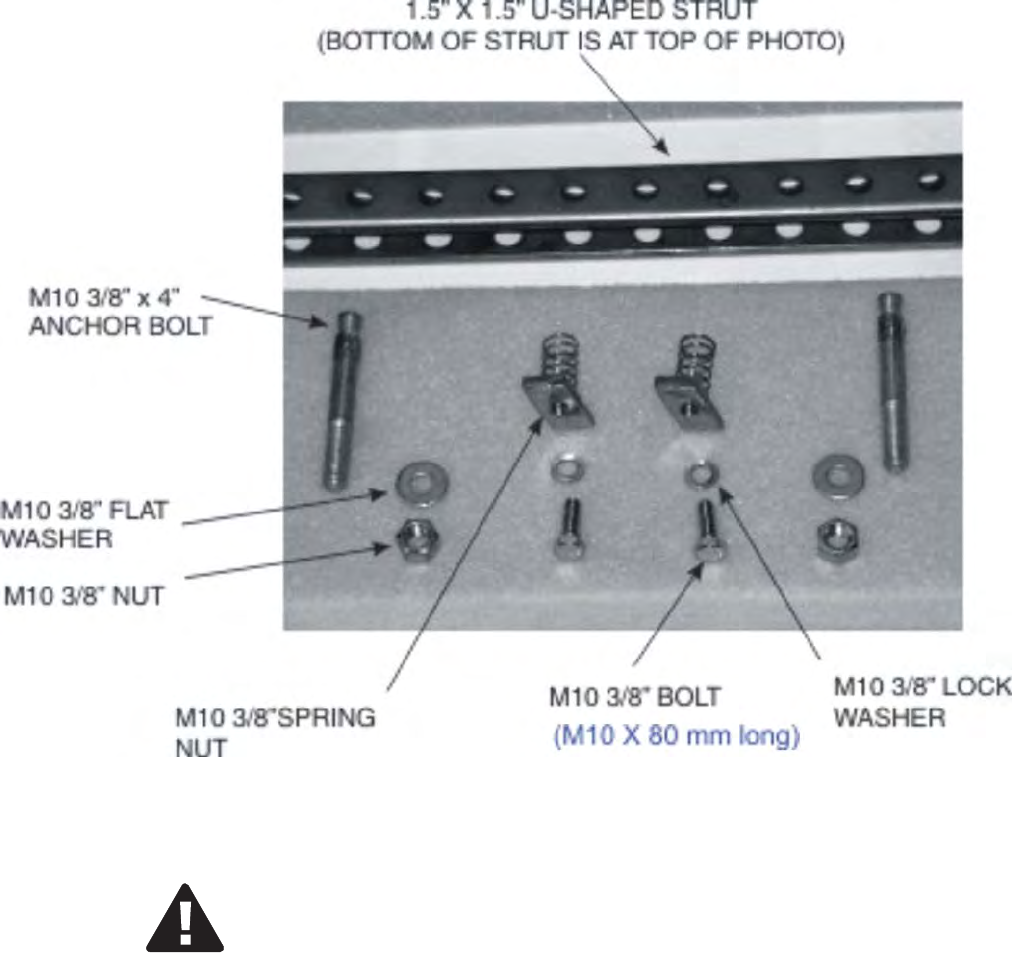

RRH Unistrut mounting hardware

The following figure illustrates the hardware that is required to mount a Unistrut on a

concrete wall and the cabinet to the Unistrut.

Steps for installing Unistruts

CAUTION

Damage to equipment may result.

Prior to drilling holes in a wall, consult with the customer as to the location of gas, water,

and electrical pipes or conduits to minimize accidental hazard and equipment damage.

Also consult with the building engineer as to local code requirements and wall loading

information.

Basic site preparation requirements and footprints for

RRHs

Site requirements for RRHs

Site requirements for wall mount installations

....................................................................................................................................................................................................................................

9927 Dist BTS Outdoor

401-703-516

Issue 1 March 2012

Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements 6-13

Install the Unistruts as follows:

...................................................................................................................................................................................................

1Determine the layout of the struts that will support the cabinet.

...................................................................................................................................................................................................

2Place the top strut on the wall and make sure that the strut is level. Use the holes at the

ends of the strut as a template to mark the positions of the holes to be drilled in the wall.

...................................................................................................................................................................................................

3Place the bottom strut against the wall [350 mm (13.8 inches) for 4x40W and 800 MHz

RRHs] [515 mm for 4x45W 65 MHz RRH], measured center to center, from the top strut.

Use the holes in the strut as a template to mark the positions of the holes to be drilled in

the wall. See the figure below.

...................................................................................................................................................................................................

4Drill holes in the wall at the marked positions using an appropriate concrete drill bit for

selected anchor.

...................................................................................................................................................................................................

5To install the top strut, place the top strut against the wall. Drive the anchor bolts into the

holes of the strut until nut and washer are flush with the strut.

...................................................................................................................................................................................................

6Tighten the nut to proper torque requirement.

...................................................................................................................................................................................................

7Repeat Steps 5 and 6 to install the bottom strut.

Basic site preparation requirements and footprints for

RRHs

Site requirements for RRHs

Site requirements for wall mount installations

....................................................................................................................................................................................................................................

6-14 Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements

9927 Dist BTS Outdoor

401-703-516

Issue 1 March 2012

END OF STEPS

...................................................................................................................................................................................................

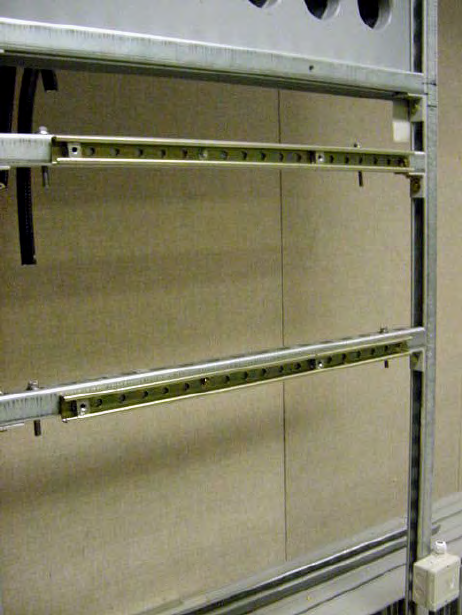

RRH wall mount bracket assembly

The following figure shows the completed installation of a wall mount bracket on a

Unistrut assembly.

Basic site preparation requirements and footprints for

RRHs

Site requirements for RRHs

Site requirements for wall mount installations

....................................................................................................................................................................................................................................

9927 Dist BTS Outdoor

401-703-516

Issue 1 March 2012

Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements 6-15

Site requirements for floor stand installations

Overview

This topic describes site requirements for cabinet installation on a floor, such as the

location and drilling of anchor holes for the floor stand.

Anchor hole specifications for Floor Stand

The following table provides anchoring specifications for floor stands installed in seismic

zones 0 through 4.

Seismic

zone(s)

Anchor type Number of

holes

Hole size

mm (inches)

Hole depth

mm (inches)

Torque Nm

(lbf in)

0, 1, 2 1/2inch Dia

drop-in

416mm

(5/8 in.)

50 mm

(2 in.)

24 (212)

3, 4 M12 x 125 mm 4 18 mm

(11/16 in.)

100 mm

(4 in.)

79 (700)

Basic site preparation requirements and footprints for

RRHs

Site requirements for RRHs

Site requirements for floor stand installations

....................................................................................................................................................................................................................................

6-16 Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements

9927 Dist BTS Outdoor

401-703-516

Issue 1 March 2012

Floor stand

The floor stand in the figure below is for installing an 800 MHz, 2x50W or 1900 MHz,

4x40W (25 MHz) RRH on a floor.

Basic site preparation requirements and footprints for

RRHs

Site requirements for RRHs

Site requirements for floor stand installations

....................................................................................................................................................................................................................................

9927 Dist BTS Outdoor

401-703-516

Issue 1 March 2012

Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements 6-17

The figure below shows the anchor hole, drill pattern template for the floor stand.

Mark and drill the anchor holes

Important! The marking and drilling of the anchor holes shall be performed as part of

site preparation. Anchor holes must be properly covered to prevent debris from falling

inside. Before marking or drilling the anchor holes, refer toDrill anchor holes for

more detail.

Proceed as follows to mark and drill the anchor holes in a concrete surface:

...................................................................................................................................................................................................

1Measure and mark the location where the Floor Stand anchors will be installed. Refer to

the above figure for anchoring footprint.

...................................................................................................................................................................................................

2Drill the anchor holes to the proper size and depth as specified in the previous table.

Important! If a 100 mm (4.00 inch) hole depth cannot be attained for a 12-mm

expansion stud anchor, a spacer may be removed from the anchor assembly when it is

installed. The minimum depth of the hole is 76.2 mm (3.00”).

Basic site preparation requirements and footprints for

RRHs

Site requirements for RRHs

Site requirements for floor stand installations

....................................................................................................................................................................................................................................

6-18 Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements

9927 Dist BTS Outdoor

401-703-516

Issue 1 March 2012

...................................................................................................................................................................................................

3If then

floor stand is not available on site Tape over the open holes to prevent debris

from falling inside.

Do not install the anchors at this time. Anchors

will be installed later by equipment installers.

Procedure ends here.

floor stand is available on site Continue with next step.

...................................................................................................................................................................................................

4Center floor stand over the drilled anchor holes.

...................................................................................................................................................................................................

5Set and torque the anchor bolts.

Basic site preparation requirements and footprints for

RRHs

Site requirements for RRHs

Site requirements for floor stand installations

....................................................................................................................................................................................................................................

9927 Dist BTS Outdoor

401-703-516

Issue 1 March 2012

Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements 6-19

END OF STEPS

...................................................................................................................................................................................................

Basic site preparation requirements and footprints for

RRHs

Site requirements for floor stand installations

....................................................................................................................................................................................................................................

6-20 Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements

9927 Dist BTS Outdoor

401-703-516

Issue 1 March 2012

77Basic site preparation

requirements and

footprints for DC

Distribution/Fiber

Management Box

...................................................................................................................................................................................................................................

9927 Dist BTS Outdoor

401-703-516

Issue 1 March 2012

Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements 7-1

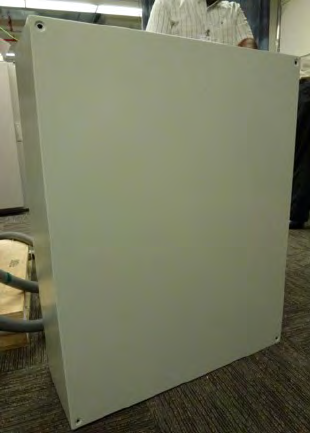

Overview

Purpose

This chapter describes basic site preparation requirements for the DC Distribution/Fiber

Management Box, which interfaces the RRHs with the baseband cabinet. Two 1-1/2 inch

liquid-tight flexible conduits enter the DC Distribution/Fiber Management Box from the

baseband cabinet. One Hybriflex cable leaves the DC Distribution/Fiber Management

Box and goes to the RRHs.

Contents

Cabinet clearances for DC Distribution/Fiber Management Box 7-3

Site requirements for wall mount installation of DC Distribution/Fiber

Management Box

7-4

Basic site preparation requirements and footprints for DC

Distribution/Fiber Management Box

Overview

....................................................................................................................................................................................................................................

7-2 Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements

9927 Dist BTS Outdoor

401-703-516

Issue 1 March 2012

Cabinet clearances for DC Distribution/Fiber Management Box

Minimum clearances table

The following table provides the minimum wall mount clearances recommended around

the DC Distribution/Fiber Management Box.

DC

Distribution/Fiber

Management

Box

Clearances mm (inches) Comments

Front 914 (36) Installation access

Rear 50 (1.97) Zero rear clearance is allowed using

supplied mounting brackets.

Right 152.4 (6) Installation access

Left 152.4 (6) Installation access

Top 152.4 (6) Installation access

Bottom 304.8 (12) Conduit routing

Basic site preparation requirements and footprints for DC

Distribution/Fiber Management Box

Cabinet clearances for DC Distribution/Fiber Management

Box

....................................................................................................................................................................................................................................

9927 Dist BTS Outdoor

401-703-516

Issue 1 March 2012

Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements 7-3

Site requirements for wall mount installation of DC

Distribution/Fiber Management Box

Overview

This topic describes the requirements for installing the DC Distribution/Fiber

Management Box on a wall.

Prepare site for wall mount installation

The following are required to prepare a site for wall mount installation of the DC

Distribution/Fiber Management Box.

•Install grounding system

•Wall mounting

Wall mounting shall comply with the applicable architectural codes listed earlier in this

chapter.

Holes shall be pre-drilled with (customer supplied) anchor hardware, if mounting to a

concrete wall.

Unistrut shall be in place, if it is required for mounting cabinet.

Cabinet wall mounting hardware

The following is a sample of customer-supplied mounting hardware that is required for

mounting struts to a solid concrete wall:

•1.5 inch x 1.5 inch Unistrut® or equivalent struts (2)

•M10 (3/8 inch) x 100 mm (4 inch) long Power-Stud™ (formerly called Rawl-Stud®)

or equivalent anchor bolts for solid concrete walls (4)

•M10 (3/8 inch) nuts (4)

•M10 (3/8 inch) flat washers (8)*

•M10 (3/8 inch) spring nuts from the same manufacturer as the struts (4)

•M10 (3/8 inch) x 25 mm (1 inch) long hex-head bolts (4)

•M10 (3/8 inch) lock washers (4).

Location of DC Distribution/Fiber Management Box

The DC Distribution/Fiber Management Box should be installed within a 25 foot conduit

distance from the 9927 Distributed BTS outdoor cabinet.

Basic site preparation requirements and footprints for DC

Distribution/Fiber Management Box

Site requirements for wall mount installation of DC

Distribution/Fiber Management Box

....................................................................................................................................................................................................................................

7-4 Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements

9927 Dist BTS Outdoor

401-703-516

Issue 1 March 2012

Strut mounting hardware

The following figure illustrates the hardware that is required to mount the strut on a

concrete wall and the DC Distribution/Fiber Management Box to the strut.

Steps to install Unistrut

CAUTION

Damage to equipment may result.

Prior to drilling holes in a wall, consult with the customer as to the location of gas, water,

and electrical pipes or conduits to minimize accidental hazard and equipment damage.

Also consult with the building engineer as to local code requirements and wall loading

information.

Proceed as follows to install the Unistrut.

...................................................................................................................................................................................................

1Determine the layout of the struts that will support the cabinet.

Basic site preparation requirements and footprints for DC

Distribution/Fiber Management Box

Site requirements for wall mount installation of DC

Distribution/Fiber Management Box

....................................................................................................................................................................................................................................

9927 Dist BTS Outdoor

401-703-516

Issue 1 March 2012

Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements 7-5

...................................................................................................................................................................................................

2Place the top strut on the wall and make sure that the strut is level. Use the holes at the

ends of the strut as a template to mark the positions of the holes to be drilled in the wall.

...................................................................................................................................................................................................

3Place the bottom strut against the wall below the top strut according to the figure below.

Use the holes in the strut as a template to mark the positions of the holes to be drilled in

the wall.

...................................................................................................................................................................................................

4Drill holes in the wall at the marked positions using an appropriate concrete drill bit for

selected anchor.

...................................................................................................................................................................................................

5To install the top strut, place the top strut against the wall. Drive the anchor bolts into the

holes of the strut until nut and washer are flush with the strut.

...................................................................................................................................................................................................

6Tighten the nut to proper torque requirement.

Basic site preparation requirements and footprints for DC

Distribution/Fiber Management Box

Site requirements for wall mount installation of DC

Distribution/Fiber Management Box

....................................................................................................................................................................................................................................

7-6 Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements

9927 Dist BTS Outdoor

401-703-516

Issue 1 March 2012

...................................................................................................................................................................................................

7Repeat Steps 5 and 6 to install the bottom strut.

Wall mount strut assembly

The following figure shows a completed wall mount strut assembly.

Basic site preparation requirements and footprints for DC

Distribution/Fiber Management Box

Site requirements for wall mount installation of DC

Distribution/Fiber Management Box

....................................................................................................................................................................................................................................

9927 Dist BTS Outdoor

401-703-516

Issue 1 March 2012

Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements 7-7

END OF STEPS

...................................................................................................................................................................................................

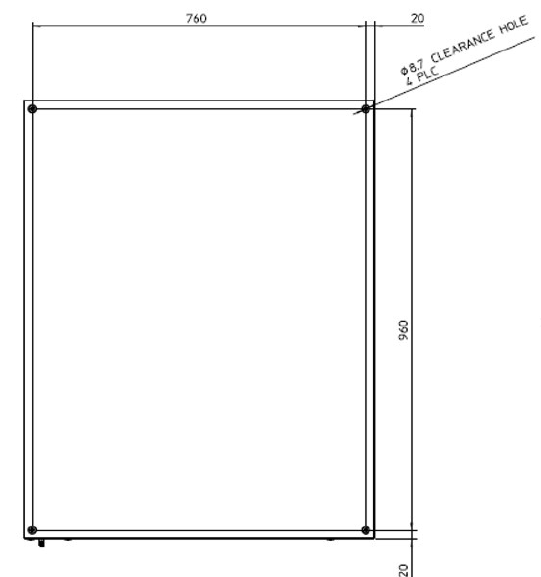

DC Distribution/Fiber Management Box

The following figure shows the back side of the DC Distribution/Fiber Management Box.

There is a hole for a bolt in each corner of the DC Distribution/Fiber Management Box.

The DC Distribution/Fiber Management Box is fastened to the wall with bolts via

Unistruts.

Basic site preparation requirements and footprints for DC

Distribution/Fiber Management Box

Site requirements for wall mount installation of DC

Distribution/Fiber Management Box

....................................................................................................................................................................................................................................

7-8 Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements

9927 Dist BTS Outdoor

401-703-516

Issue 1 March 2012

88Electrical power

requirements for 9927

Distributed Base Station

Outdoor Cabinet

Overview

Purpose

This chapter provides AC electrical power requirements for the 9927 Distributed Base

Station cabinets when installed at a new site.

Contents

Power overview 8-2

Power systems 8-3

Backup power systems 8-4

Electrical service requirements for 9927 Distributed Base Station outdoor

cabinet

8-5

Power requirements for 9927 Distributed Base Station Outdoor

Cabinet

8-6

General requirements 8-7

AC convenience outlet, AC PDA, and AC line surge protection 8-8

AC feeder cable and service panel requirements 8-10

Power requirements for new site installation of 9927 Distributed Base Station

Outdoor Cabinet

8-11

Battery Reserve Times for batteries inside 60ECv2 battery cabinet 8-12

...................................................................................................................................................................................................................................

9927 Dist BTS Outdoor

401-703-516

Issue 1 March 2012

Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements 8-1

Power overview

Overview

Purpose

This section provides an overview of the power requirements for 9927 Distributed Base

Station Outdoor Cabinet.

Contents

Power systems 8-3

Backup power systems 8-4

Electrical service requirements for 9927 Distributed Base Station outdoor

cabinet

8-5

Electrical power requirements for 9927 Distributed Base

Station Outdoor Cabinet

Power overview

Overview

....................................................................................................................................................................................................................................

8-2 Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements

9927 Dist BTS Outdoor

401-703-516

Issue 1 March 2012

Power systems

Integrated power

The 9927 Distributed Base Station Outdoor Cabinet that is equipped with integrated

power. A rectifier module converts site AC power to -48 VDC, which powers the cabinet.

The rectifier module is located inside the cabinet.

Electrical power requirements for 9927 Distributed Base

Station Outdoor Cabinet

Power overview

Power systems

....................................................................................................................................................................................................................................

9927 Dist BTS Outdoor

401-703-516

Issue 1 March 2012

Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements 8-3

Backup power systems

About backup power

The 9927 Distributed Base Station Outdoor Cabinet with integrated power requires a

backup power system (a battery system) that can provide power to the cabinet in the event

of a power failure.

Battery backup options

The following table provides battery backup options for the 9927 Distributed Base Station

Outdoor Cabinet. The cabinet is not equipped with internal batteries.

Battery options Description

60ECv2 battery

cabinet

Battery backup is provided by up to two 60ECv2 battery cabinets.

Supported battery cabinets

This topic describes the 60ECv2 battery cabinet.

60ECv2 battery cabinet

The 60ECv2 Battery Cabinet provides -48 VDC battery backup for the 9927 Distributed

Base Station Outdoor Cabinet.

One or two 60ECv2 battery cabinets can be connected to the 9927 Distributed Base

Station Outdoor Cabinet. The batteries are charged by the rectifier module inside the 9927

Distributed Base Station Outdoor Cabinet. Shelf heaters heat the batteries in cold weather.

The shelf heaters are controlled by temperature sensors inside the battery cabinet.

For information on how to install the 60ECv2 battery cabinet refer to the Installation

Instructions Interface Kit for Standard Attachment of 60ECv2 Battery Cabinet to 9927

Distributed cabinets, CC 109-779-678.

Electrical power requirements for 9927 Distributed Base

Station Outdoor Cabinet

Power overview

Backup power systems

....................................................................................................................................................................................................................................

8-4 Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements

9927 Dist BTS Outdoor

401-703-516

Issue 1 March 2012

Electrical service requirements for 9927 Distributed Base

Station outdoor cabinet

Electrical service requirements for the 9927 Distributed Base Station Outdoor Cabinet

The electrical service requirements for the 9927 Distributed Base Station Outdoor

Cabinet are listed on the cabinet nameplate. They are as follows:

•120/208 VAC, 120/240 VAC, 3 wire + Gnd, 80 A, 50/60 Hz

Electrical power requirements for 9927 Distributed Base

Station Outdoor Cabinet

Power overview

Electrical service requirements for 9927 Distributed Base

Station outdoor cabinet

....................................................................................................................................................................................................................................

9927 Dist BTS Outdoor

401-703-516

Issue 1 March 2012

Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements 8-5

Power requirements for 9927 Distributed Base

Station Outdoor Cabinet

Overview

Purpose

This section describes the power requirements for the 9927 Distributed Base Station

Outdoor Cabinet.

Contents

General requirements 8-7

AC convenience outlet, AC PDA, and AC line surge protection 8-8

AC feeder cable and service panel requirements 8-10

Power requirements for new site installation of 9927 Distributed Base Station

Outdoor Cabinet

8-11

Battery Reserve Times for batteries inside 60ECv2 battery cabinet 8-12

Electrical power requirements for 9927 Distributed Base

Station Outdoor Cabinet

Power requirements for 9927 Distributed Base Station

Outdoor Cabinet

Overview

....................................................................................................................................................................................................................................

8-6 Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements

9927 Dist BTS Outdoor

401-703-516

Issue 1 March 2012

General requirements

Purpose

This section describes the AC power requirements for the Alcatel-Lucent equipment at the

site.

AC power requirements

AC power must also be provided for lighting, AC convenience outlets, and any additional

AC-powered equipment that will be present at the site. The appropriate product

information must be consulted to determine the total AC power required for the

equipment at the site.

As part of site preparation, the site must be equipped with an appropriate AC service

panel board or AC branch circuit load center for supplying power to the AC equipment at

the site. All AC power wiring, distribution, and protection equipment must be installed

during site preparation. The site must be ready to accept installation of the 9927

Distributed Base Station Outdoor Cabinet.

CAUTION

Personnel Safety and/or Electrical Damage to Equipment

All AC wiring and over-current protection must be installed in accordance with the

National Electric Code (NFPA-70), the Canadian Electrical Code, Part 1 (CSA C22.1) or

the local electrical code in effect.

An appropriate equipment ground connection is required before commercial AC service

can be connected to any equipment at the site.

Conduit requirements

A rigid conduit for AC power supply conduit is required. It is the responsibility of the

customer to provide the rigid conduit and install it as part of site preparation.

A flexible conduit for AC is also required. It is the responsibility of the customer to

purchase the flexible conduits as part of site preparation, and hold them for the installer,

who will install them during installation.

See “Conduit requirements” (p. 5-7) for specifications for the required conduits.

Electrical power requirements for 9927 Distributed Base

Station Outdoor Cabinet

Power requirements for 9927 Distributed Base Station

Outdoor Cabinet

General requirements

....................................................................................................................................................................................................................................

9927 Dist BTS Outdoor

401-703-516

Issue 1 March 2012

Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements 8-7

AC convenience outlet, AC PDA, and AC line surge protection

AC convenience outlet

Cell sites must be equipped with at least one duplex AC convenience outlet, which is

needed for installation and maintenance procedures. The outlet is required to power test

equipment and installation tools. The duplex outlet must be protected in accordance with

national and local electrical codes. An outlet must be installed within 1.5 meters (5 feet)

of the 9927 Distributed Base Station cabinets. Ground Fault Circuit Interrupters (GFCI)

or Residual Current Devices (RCD), used in non-North American type installations, are

recommended and must be used where required by code.

For NAR installations, this AC convenience outlet is provided in the 9927 Distributed

Base Station Outdoor Cabinet. There is no need for the customer to provide an additional

AC convenience outlet at the site.

AC PDA

The AC Power Distribution Assembly (AC PDA) is inside the 9927 Distributed Base

Station cabinet with integrated power. AC power to the 9927 Distributed Base Station

Outdoor Cabinet must be supplied from an external AC service panel board or branch

circuit load center capable of supplying a two-pole single-phase circuit to power the 9927

Distributed Base Station Outdoor Cabinet at the site.

The AC PDA is equipped with a terminal block rail populated with “strip and poke”

terminals for connection of the AC input conductors and the equipment grounding

conductor. The terminals are configured for either North American 120/240 V, 3-wire

single-phase connections, 120/208 V, 3-wire single-phase connections, or for single-phase

230 V (line-to-neutral) connections used in other locations around the globe.

When a North American NEMA 15A-240V duplexed AC convenience outlet is equipped,

a terminal is provided for the connection of the neutral conductor for this outlet.

The AC PDA in the 9927 Distributed Base Station cabinet can only be used for

distributing AC power to Alcatel-Lucent equipment.

AC line surge protection

Important! The 9927 Distributed Base Station Outdoor Cabinet is not equipped with

AC line surge protection. AC line surge protection is required at the site's main AC

panel.

A surge protection device capable of discharging the surge waveforms as defined in IEEE

C62.41 (1991), Recommended Practice on Surge Voltage in Low-Voltage AC Power

Circuits, for Location Category "C3" and "High System Exposure" must be installed in

the AC panel board or load center supplying AC power to the power cabinet and/or

basestand frame with integrated power. The AC panel board or load center, surge

Electrical power requirements for 9927 Distributed Base

Station Outdoor Cabinet

Power requirements for 9927 Distributed Base Station

Outdoor Cabinet

AC convenience outlet, AC PDA, and AC line surge

protection

....................................................................................................................................................................................................................................

8-8 Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements

9927 Dist BTS Outdoor

401-703-516

Issue 1 March 2012

protector, and AC wires from the service panel to the applicable cabinet, are not supplied

with the power cabinet. They must be procured and installed as part of site preparation.

Electrical power requirements for 9927 Distributed Base

Station Outdoor Cabinet

Power requirements for 9927 Distributed Base Station

Outdoor Cabinet

AC convenience outlet, AC PDA, and AC line surge

protection

....................................................................................................................................................................................................................................

9927 Dist BTS Outdoor

401-703-516

Issue 1 March 2012

Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements 8-9

AC feeder cable and service panel requirements

AC power requirements

The 9927 Distributed Base Station cabinet requires a single-phase branch circuit from an

external service panel. The service panel must be installed during site preparation.

AC feeder cable and service panel requirements for a fully configured system (North American

installation)

For a fully configured system, the AC panel must be rated at 100 A. If additional AC

equipment is installed at the site, the total power consumption for all site equipment must

not exceed the service rating.

The AC power feeders are class B stranded, insulated cable with THHN type insulation

(T90 NYLON type insulation in Canada). The installation should not be performed in

extremely cold temperatures (-15 °C / -5 °F or less).

The following table provides AC input requirements for a fully configured system with

100-A service panel (North American installation). The following table provides the

recommended wire sizes.

9927 Distributed Base Station

Component Rating/Gauge

Circuit breaker 100 Amp, 2 pole

Wire for L1 and L2 42.4 mm2(1 AWG) 1

Neutral wire 8.4 mm2(8 AWG) 2

Equipment grounding conductor 8.4 mm2(8 AWG) 2

Notes:

1. 27 mm2(3-AWG) wire may be used if the terminals on each end of the input conductors are

marked “75° C.” The AC input terminal block in the 9927 cabinet is rated at 75° C.

2. In Canada, 13.3 mm2(6 AWG) wire is required for telecommunications primary protector

grounding. Supplementary ground conductors, sized between 13.3 mm2(6 AWG) and 33.6

mm2(2-AWG) are provided with this equipment. Refer to “Grounding electrode system”

(p. 12-6).

Electrical power requirements for 9927 Distributed Base

Station Outdoor Cabinet

Power requirements for 9927 Distributed Base Station

Outdoor Cabinet

AC feeder cable and service panel requirements

....................................................................................................................................................................................................................................

8-10 Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements

9927 Dist BTS Outdoor

401-703-516

Issue 1 March 2012

Power requirements for new site installation of 9927

Distributed Base Station Outdoor Cabinet

How to determine power requirements for 9927 Distributed Base Station Outdoor Cabinet

The primary source for power requirements is Engineering Rules for Factory and Field

Installation Kits for 9927 Distributed Base Station, ER_0105_0006.

How to calculate power requirements for different 9927 Distributed Base Station Outdoor

Cabinet configurations

The typical and maximum DC power requirement and number of rectifiers required for

various 9927 Distributed Base Station Outdoor Cabinet configurations are provided in

Engineering Rules for Factory and Field Installation Kits for 9927 Distributed Base

Station, ER_0105_0006.

Electrical power requirements for 9927 Distributed Base

Station Outdoor Cabinet

Power requirements for 9927 Distributed Base Station

Outdoor Cabinet

Power requirements for new site installation of 9927

Distributed Base Station Outdoor Cabinet

....................................................................................................................................................................................................................................

9927 Dist BTS Outdoor

401-703-516

Issue 1 March 2012

Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements 8-11

Battery Reserve Times for batteries inside 60ECv2 battery

cabinet

Battery Reserve Times for battery strings inside 60ECv2 battery cabinet

The table below lists the Battery Reserve Times for 12IR145 battery strings inside the

60ECv2 battery cabinet. Various numbers of battery strings are connected in parallel. The

provided values are for battery strings powering a 10,500 watt load. One battery string

consists of two 12IR145 (145 Ah) batteries connected in series.

Battery Reserve Times for battery strings inside 60ECv2 battery cabinet powering 10,500 watt

load

(One string = Two 12IR145 (145 Ah) batteries connected in series)

Number

of battery

strings

con-

nected in

parallel

2468101214

Battery

Reserve

Time

(Hours)

0.8 1.9 3.2 4.6 6.1 7.7 9.4

Electrical power requirements for 9927 Distributed Base

Station Outdoor Cabinet

Power requirements for 9927 Distributed Base Station

Outdoor Cabinet

Battery Reserve Times for batteries inside 60ECv2 battery

cabinet

....................................................................................................................................................................................................................................

8-12 Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements

9927 Dist BTS Outdoor

401-703-516

Issue 1 March 2012

99Electrical power

requirements for RRHs

Overview

Purpose

This chapter provides guidelines for running electrical power to the RRHs, when the

RRHs are up to 15 m from the 9927 Distributed Base Station Outdoor Cabinet.

Contents

Power requirements (general) 9-2

Power consumption 9-3

DC power requirements for RRHs 9-4

...................................................................................................................................................................................................................................

9927 Dist BTS Outdoor

401-703-516

Issue 1 March 2012

Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements 9-1

Power requirements (general)

General requirements

.

This section provides the DC power requirements for the RRHs.

Electrical power requirements for RRHs

The electrical power requirements for the RRHs, at full rated output power, are as

follows.

RRH Full rated output power at -48 VDC

1900 MHz, 4x40 W 690 Watts, 15 Amps

1900 MHz, 4x45 W 750 Watts, 17 Amps

800 MHz, 2x50 W 450 Watts, 9.0 Amps

Electrical power requirements for RRHs Power requirements (general)

....................................................................................................................................................................................................................................

9-2 Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements

9927 Dist BTS Outdoor

401-703-516

Issue 1 March 2012

Power consumption

General

This section provides input power requirements for RRHs. The term "typical" implies the

site is operating with "busy hour" traffic and at normal room temperatures, with the

batteries on float charge. End-of-life battery reserve times are typically 80% of the initial

battery capacity.

The maximum levels in the table represent expected maximum load when the heater in

the RRH is turned on.

Power consumption for RRHs

The table below lists the power consumption values for the two types of RRHs.

Power Consumption for RRHs

RRH type Power Draw Typical (watts)

1900 MHz, PCS, 4x40W (25 MHz) 655

1900 MHz, PCS, 4x45W (65 MHz) 715

800 MHz, 2x50W 425

Electrical power requirements for RRHs Power consumption

....................................................................................................................................................................................................................................

9927 Dist BTS Outdoor

401-703-516

Issue 1 March 2012

Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements 9-3

DC power requirements for RRHs

DC feeders between 9927 Distributed Base Station Outdoor Cabinet and RRHs

The DC feeder cable, from the 9927 Distributed BTS outdoor cabinet to the DC

Distribution/Fiber Management Box, is routed in flexible metallic conduit.

Hybriflex cable is routed from the DC Distribution/Fiber Management Box to the RRHs.

The Hybriflex cable contains four 8 AWG feeders for the RRHs.

The following table lists the circuit breaker size, wire gauge, and maximum length for

copper DC feeders from the 9927 Distributed BTS outdoor cabinet to the DC

Distribution/Fiber Management Box.

DC feeders from 9927 Distributed BTS outdoor cabinet to DC Distribution/Fiber

Management Box

Voltage DC, Nominal Feeders 1 and 2

Circuit Breaker

(AMPS)

Wire Gauge Max. Length

–48 VDC 90 35 mm² (2 AWG) 10.7 m (35 feet)

The table below lists the wire gauges for various maximum lengths of copper DC feeder

cable from the DC Distribution/Fiber Management Box to the RRHs.

DC feeders from DC Distribution/Fiber Management Box to RRHs

Max Length Wire Gauge (AWG) Max Power (watts) RRH Type

380 6 450 2x50

240 8 450 2x50

150 10 450 2x50

400 4 690 4x40

250 6 690 4x40

160 8 690 4x40

100 10 690 4x40

4x45

Electrical power requirements for RRHs DC power requirements for RRHs

....................................................................................................................................................................................................................................

9-4 Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements

9927 Dist BTS Outdoor

401-703-516

Issue 1 March 2012

10 10Site preparation

requirements for 9927

Distributed Base Station

Outdoor cabinet GPS

antenna and microwave

antenna cable

...................................................................................................................................................................................................................................

9927 Dist BTS Outdoor

401-703-516

Issue 1 March 2012

Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements 10-1

Overview

Purpose

This chapter discusses site preparation requirements for GPS and microwave antennas at

the 9927 Distributed Base Station Outdoor Cabinet.

Contents

General requirements 10-3

Site preparation for GPS antenna 10-4

Site preparation for microwave antenna cables 10-6

Site preparation requirements for 9927 Distributed Base

Station Outdoor cabinet GPS antenna and microwave

antenna cable

Overview

....................................................................................................................................................................................................................................

10-2 Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements

9927 Dist BTS Outdoor

401-703-516

Issue 1 March 2012

General requirements

Introduction

This section describes site preparation guidelines for the GPS antenna.

Requirements

The following are general requirements for the GPS antenna.

•All materials for outdoor antenna cables must be rated for outdoor use.

•Alcatel-Lucent recommended antenna jumper cables, or equivalent, must be used.

•All antenna cable runs must be appropriately supported, in accordance to the

connector and cable manufacturer's instructions.

•Antenna and cable sweeps must be made before start of installation.

Site preparation requirements for 9927 Distributed Base

Station Outdoor cabinet GPS antenna and microwave

antenna cable

General requirements

....................................................................................................................................................................................................................................

9927 Dist BTS Outdoor

401-703-516

Issue 1 March 2012

Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements 10-3

Site preparation for GPS antenna

Introduction

This section describes how to perform site preparation for the GPS antenna.

Connection overview for GPS antenna

The GPS antenna is a receive-only antenna that requires only one antenna run. The GPS

antenna cable is terminated at the antenna support structure with a 7/16 DIN female

connector. At the antenna it is terminated with a 7/16 DIN-male connector. A gas tube

surge protector with DIN male/female connectors must also be installed. A jumper cable

connects the GPS antenna surge protector to the GPS antenna connector on the 9927

Distributed Base Station Outdoor Cabinet.

GPS cable connectors and surge protectors must be rated IP-67 or better. (IP-67 rating

requirement, as defined in IEC 60529, specifies total protection against dust and

protection against submersion in water.)

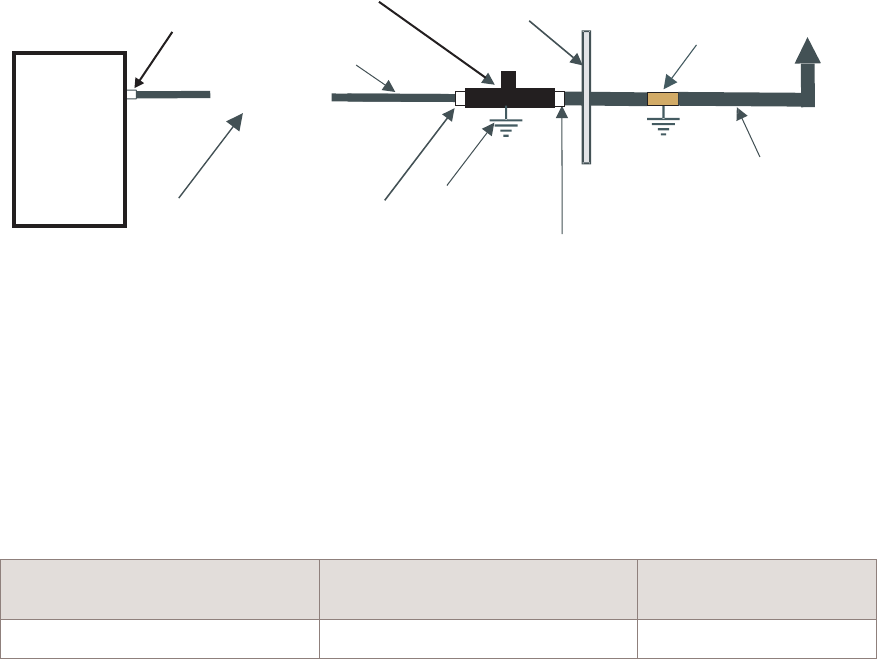

A side view of the GPS antenna connections are shown in the following diagram.

Recommended GPS antenna cable

Important! The recommended cable type should be outdoor (UV) and riser (fire

retardant) rated.

The following table provides information for the recommended GPS antenna cable type.

Product Specification Manufacturer (Reference) Cable P/N

(Reference)

WP-93807 L3 OEM1 LDF4-RN-50A

On Antenna Cable

Antenna cable support

Jumper Cable

7/16 DIN-Male Connector

on Jumper Cable

7/16 DIN-Male Connector

on Jumper Cable 7/16 DIN-Female Connector

Antenna Cable

To

Antenna

Tower

Ground

Coaxial Cable Shield

Grounding

Ground

Surge Protector

*BB

(See Note)

Drip loop

* GPS jumper cable and field installed surge protector to 9927 Distributed BTS outdoor cabinet GPS port (1 place)

(

*Surge Protector at GPS port

9927

Distributed

BTS

Site preparation requirements for 9927 Distributed Base

Station Outdoor cabinet GPS antenna and microwave

antenna cable

Site preparation for GPS antenna

....................................................................................................................................................................................................................................

10-4 Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements

9927 Dist BTS Outdoor

401-703-516

Issue 1 March 2012

Surge protection for GPS antenna jumper cables

Surge protectors are required for the GPS antenna. Gas tube surge protectors are used,

and must be installed as part of site preparation.

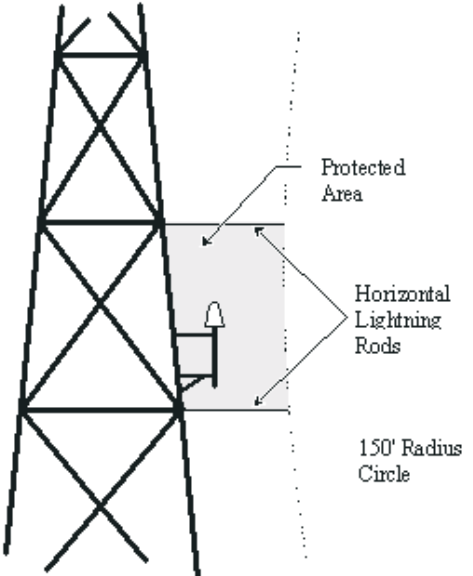

Antenna shield grounding for GPS antenna jumper cables

The GPS antenna cable coaxial cable shield shall be bonded at least at one point close to

the equipment, providing the GPS antenna is installed in the cone of protection with short

(shorter than 60 foot) coaxial cable.

Grounding of the antenna cable outer shield must be performed in accordance with the

ground kit manufacturer's instructions, as outlined in Grounding and Lightning Protection

Guidelines for Alcatel-Lucent Network Wireless System Cell Sites, 401-200-115.

GPS antenna cable lengths

The following table provides GPS antenna cable lengths information for various

configurations.

Cable type GPS antenna gain

(dB)

Maximum cable length 1

m (feet)

LDF4 26 75 (245)

Notes:

1. Cable lengths are based on typical applications. Cable length includes antenna and jumper

cable.

Verify GPS antenna installation

It is recommended that a Garmin 45XL (or equivalent) GPS should be used to verify GPS

antenna installation and line-of-site before installing the 9927 Distributed Base Station

Outdoor Cabinet.

For detailed GPS antenna installation instructions, refer to Appendix E, “GPS antenna

installation”.

Site preparation requirements for 9927 Distributed Base

Station Outdoor cabinet GPS antenna and microwave

antenna cable

Site preparation for GPS antenna

....................................................................................................................................................................................................................................

9927 Dist BTS Outdoor

401-703-516

Issue 1 March 2012

Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements 10-5

Site preparation for microwave antenna cables

Introduction

This section discusses how to prepare the microwave antenna cables so can be connected

to the 9927 Distributed Base Station Outdoor Cabinet.

Connection overview for microwave antenna cables

The microwave cable is supplied by the customer. It will be routed and connected to the

9927 Distributed Base Station Outdoor Cabinet at a later date.

There can be up to 16 microwave cables (4 sets of 4–pack cables) entering the top-rear of

the 9927 Distributed Base Station Outdoor Cabinet. In site preparation, approximately 10

feet of each microwave cable must be coiled about six feet from the top-rear of the

cabinet.

Each microwave cable is terminated with an RJ-45 connector and must be connected to

the appropriate injector module inside the 9927 Distributed Base Station Outdoor

Cabinet.

Label each end microwave cable

During site preparation, it is the customer's responsibility to label the end of each

microwave cable so that the installer can easily identify each cable and connect it

properly at installation.

Label each microwave cable at the baseband cabinet end as follows: Microwave Ant 1,

Microwave Ant 2,Microwave Ant 3, etc.

Recommended microwave antenna cable

Important! The recommended cable type is outdoor (UV) as well as riser (fire

retardant) rated. The recommended cable is Nexans SF/UTP CAT5E 4PR in&Out .

The following table provides information for the recommended microwave antenna cable

type.

Product Specification Manufacturer (Reference) Product Family

(Reference)

Indoor/Outdoor cable suitable

for:

•Fast Ethernet

•Gagabit Ethernet

•Power over Ethernet

Nexans LAN CAT5E 4PR

In&Out

IEC 61156

ISO/IEC 11801

Site preparation requirements for 9927 Distributed Base

Station Outdoor cabinet GPS antenna and microwave

antenna cable

Site preparation for microwave antenna cables

....................................................................................................................................................................................................................................

10-6 Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements

9927 Dist BTS Outdoor

401-703-516

Issue 1 March 2012

Antenna shield grounding for microwave antenna jumper cables

The microwave antenna cable shield shall be bonded every _________ feet.

Grounding of the antenna cable outer shield must be performed in accordance with the

ground kit manufacturer's instructions, as outlined in Grounding and Lightning Protection

Guidelines for Alcatel-Lucent Network Wireless System Cell Sites, 401-200-115.

Site preparation requirements for 9927 Distributed Base

Station Outdoor cabinet GPS antenna and microwave

antenna cable

Site preparation for microwave antenna cables

....................................................................................................................................................................................................................................

9927 Dist BTS Outdoor

401-703-516

Issue 1 March 2012

Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements 10-7

Site preparation requirements for 9927 Distributed Base

Station Outdoor cabinet GPS antenna and microwave

antenna cable

Site preparation for microwave antenna cables

....................................................................................................................................................................................................................................

10-8 Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements

9927 Dist BTS Outdoor

401-703-516

Issue 1 March 2012

11 11RF antenna cable

requirements for RRHs

Overview

Purpose

This chapter provides an overview of RF antenna interface requirements for RRHs.

Contents

Antenna requirements 11-2

Surge protection requirements 11-3

General antenna cable requirements 11-4

...................................................................................................................................................................................................................................

9927 Dist BTS Outdoor

401-703-516

Issue 1 March 2012

Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements 11-1

Antenna requirements

General requirements

The customer can order 1/2 inch coaxial jumper cable to interface the RRH with the

antenna. It is the customer's responseability to arrange for the construction of the RF path.

This includes providing for grounding, surge protection and construction of the support

structure.

Constraints on the antenna position

In order to support location-based services, all antennas that serve a sector must be within

a circle no more than 15 m in diameter.

RF antenna cable requirements for RRHs Antenna requirements

....................................................................................................................................................................................................................................

11-2 Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements

9927 Dist BTS Outdoor

401-703-516

Issue 1 March 2012

Surge protection requirements

General requirements

The RF Filter inside the RRH is already equipped with a surge protector. RF surge

protection is not required for standard star configurations (one RRH per sector).

RF antenna cable requirements for RRHs Surge protection requirements

....................................................................................................................................................................................................................................

9927 Dist BTS Outdoor

401-703-516

Issue 1 March 2012

Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements 11-3

General antenna cable requirements

General requirements

All cable runs must be supported appropriately, in accordance with connector and cable

manufacturer's instructions.

The appropriate type, length, and number of antenna jumper cables should be available at

the site when starting installation.

Grounding of the antenna feeder cable outer shield must be performed in accordance with

the manufacturer's grounding kit instructions.

The following are general antenna requirements:

•Alcatel-Lucent recommended antenna cables should be used.

•All antenna cable runs must be appropriately supported in accordance with the

connector and cable manufacturer instructions.

•All antenna connectors must be rated IP-67 or better.

Important! All RF connectors must be at least IP67 rated. (IP67 rating requirement,

as defined by IEC 60529, calls for total protection against dust and protection against

submersion in water.)

Antenna installation

Antenna installations shall be performed in accordance with all applicable manufacturer's

recommendations, and national laws and regulations.

To ensure correct antenna installation, all necessary calculations and/or field

measurements shall be evaluated for compliance with applicable national laws or

regulations regarding exposure to electromagnetic fields. The antenna manufacturer or

supplier shall deliver all technical data necessary to perform this compliance evaluation

(e.g., antenna gain pattern, antenna dimensions, etc.). Information about methodology and

results of compliance evaluation shall be available for inspection by officials of governing

authorities.

Antenna cable grounding

Grounding of the antenna cable outer shield must be performed in accordance with the

ground kit manufacturer's instructions, as outlined in Grounding and Lightning Protection

Guidelines for Wireless System Cell Sites, 401-200-115.

RF antenna cable requirements for RRHs General antenna cable requirements

....................................................................................................................................................................................................................................

11-4 Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements

9927 Dist BTS Outdoor

401-703-516

Issue 1 March 2012

The following figure shows a typical method for connecting an antenna cable.

RF antenna connections

The RRH accepts two RF antenna cables on top of the unit.

The connectors are 7/16 DIN. One 7/16 DIN connector is for Tx/Rx, the other is Rx-only.

An external RF surge protector is not required.

RF antenna cable requirements

The RRH can support up to two RF antennas per one-sector configuration with

transmit/receive diversity. The RF antenna cable must satisfy the following requirements:

•Impedance: 50 ohms

•Attenuation:<3dB

•

Antenna jumper cable at the baseband cabinet end must be equipped with a 7-16 DIN

center pin straight male connector.

•Surge protection (not required for outdoor)

•properly grounded.

DOUBLEHOLELUG

TO BUS BAR

#6 AWG STRANDEDINSULATED

COPPER GROUNDWIRE

ANTENNA CABLE

CABLEGROUNDKIT

RF antenna cable requirements for RRHs General antenna cable requirements

....................................................................................................................................................................................................................................

9927 Dist BTS Outdoor

401-703-516

Issue 1 March 2012

Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements 11-5

RF antenna cable requirements for RRHs General antenna cable requirements

....................................................................................................................................................................................................................................

11-6 Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements

9927 Dist BTS Outdoor

401-703-516

Issue 1 March 2012

12 12Grounding and lightning

protection requirements

for 9927 Distributed Base

Station Outdoor Cabinet

Overview

Purpose

This chapter provides information on grounding and lightning protection requirements for

a 9927 Distributed Base Station Outdoor Cabinet site.

Contents

Grounding requirements 12-2

Surge protection requirements 12-3

Grounding electrode system 12-6

...................................................................................................................................................................................................................................

9927 Dist BTS Outdoor

401-703-516

Issue 1 March 2012

Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements 12-1

Grounding requirements

General requirements

The 9927 Distributed Base Station Outdoor Cabinet must be grounded by means of an

integrated (multipoint) grounding system. The equipment is susceptible to lightning

surges because it is associated with towers and antennas. It is therefore imperative that the

cell site be properly grounded and that a low impedance path to earth be provided. The

grounding conductors must be as straight and short as possible. No sharp bends or loops

are permitted for grounding conductors.

NOTICE

Equipment Warranty

The equipment warranty can be voided if the guidelines in the National Electrical Code

(NFPA 70), the Canadian Electrical Code, Part 1 (CSA C22.1), or the local code in effect,

as well as the Standard for Installation of Lighting Protection Systems (NFPA 780, latest

edition), and Grounding and Lightning Protection Guidelines for Alcatel-Lucent Network

Wireless System Cell Sites, 401-200-115 are not followed.

Grounding and lightning protection requirements for 9927

Distributed Base Station Outdoor Cabinet

Grounding requirements

....................................................................................................................................................................................................................................

12-2 Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements

9927 Dist BTS Outdoor

401-703-516

Issue 1 March 2012

Surge protection requirements

General surge protection requirements

Commercial AC power and T1/E1 facilities are susceptible to lightning surges and must

be properly protected. An appropriate surge protection device must be installed at the

service entry point and be connected directly to the grounding electrode system.

The GPS antenna coaxial cables are also susceptible to lightning surges and must be

protected.

As part of site preparation, a surge protection device must be installed between each

antenna coaxial cable and jumper cable, approximately 1 meter (3 ft.) away from the

equipment. They can be obtained from Alcatel-Lucent (KS24577, L-3A for GPS and

KS24577, L-4A for RF), or an Alcatel-Lucent-approved equivalent can be used.

The surge protectors must be bonded to a nearby ground bus bar that is connected directly

to the grounding electrode system at two points.

Grounding and lightning protection requirements for 9927

Distributed Base Station Outdoor Cabinet

Surge protection requirements

....................................................................................................................................................................................................................................

9927 Dist BTS Outdoor

401-703-516

Issue 1 March 2012

Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements 12-3

Diagram of a typical surge protector installation

The following diagram shows a typical surge protector installation.

Antenna cable shield grounding for GPS antenna

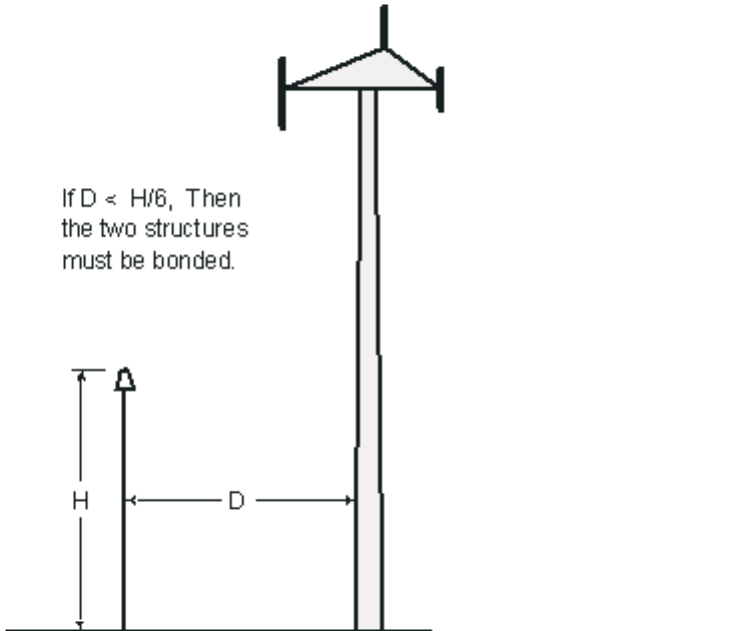

The tower or metallic support for the antenna must also be bonded to the grounding

electrode system.

The GPS antenna coaxial cable shield shall also be bonded at one point (minimum), near

the equipment, before entering a building, provided the GPS antenna is installed in Zone

of protection with short (60 feet / 18 meters or less) coaxial cable.

BUS BARS

JUMPER TO

CABINET

#6 AWG STRANDED INSULATED

COPPER WIRE (INSULATION TO

BE UV RESISTENT) FOR GROUNDING

SUPPORT STRUCTURE

#6 AWG STRANDED INSULATED COPPER

WIRE FOR GROUNDING SURGE PROTECTION

DEVICE (INSULATION TO BE UV RESISTANT)

#2 AWG BARE SOLID TINNED

COPPER WIRE TO GROUNDING

ELECTRODE SYSTEM

SURGE PROTECTOR DETAIL

Ground Ground

ANTENNA

CABLE DIN FEMALE

DIN MALE

JUMPER

CABLE

DIN MALE

DIN FEMALE

SURGE PROTECTION DEVICE

(GAS TUBE PROTECTOR)

COAXIAL CABLE

SHIELD GROUNDING

TO ANTENNA

Grounding and lightning protection requirements for 9927

Distributed Base Station Outdoor Cabinet

Surge protection requirements

....................................................................................................................................................................................................................................

12-4 Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements

9927 Dist BTS Outdoor

401-703-516

Issue 1 March 2012

Important! If the coaxial run along the tower is more than 60 feet / 18 meters, then

the coaxial cable shields to be grounded at multiple points near the antenna and

equipment at 100 foot (30 meter) intervals.

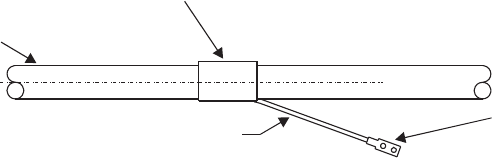

The following diagram shows a typical method for grounding an antenna cable outer

shield.

DOUBLE HOLE LUG

TO BUS BAR

#6 AWG STRANDED INSULATED

COPPER GROUND WIRE

ANTENNA CABLE

CABLE GROUND KIT

Grounding and lightning protection requirements for 9927

Distributed Base Station Outdoor Cabinet

Surge protection requirements

....................................................................................................................................................................................................................................

9927 Dist BTS Outdoor

401-703-516

Issue 1 March 2012

Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements 12-5

Grounding electrode system

Grounding electrode system requirements

9927 Distributed Base Station Outdoor Cabinet sites must be equipped with a grounding

electrode system (that is, buried ring ground, copper clad rod, electrolytic rods, metallic

water pipe, etc.). The cell site grounding, including all cabinets and antenna cable shields,

must be bonded to the grounding electrode system.

The grounding electrode system shall be installed as part of site preparation with a

sufficient number of pigtails. Electrically conductive materials in the vicinity that are

likely to become energized must be connected together and to the grounding electrode

system in a manner that establishes an effective ground-fault current path.

Buried ground conductors must be, at a minimum, 33.6 mm2(2 AWG) bare, solid, tinned

copper wire. Exterior ground conductors must be, at a minimum, 33.6 mm2(2 AWG)

either solid, bare, tinned copper or stranded, insulated (outdoor insulation to be

sunlight-resistant) copper cable.

Exothermic weld

Exothermic weld is recommended for grounding connections where practical. All

below-grade connections must be exothermically welded. Compression type, two-hole

(0.75-inch center) lugs or double crimp “C” taps are acceptable for above-ground

connections. The contact area where connections are made shall be prepared to a bare

bright finish, and be coated with an anti-oxidation material before connections are made.

Important! All grounding system material (cable, connectors, buses, etc.) must be of

high quality materials that resist deterioration and require little or no maintenance.

Grounding and lightning protection requirements for 9927

Distributed Base Station Outdoor Cabinet

Grounding electrode system

....................................................................................................................................................................................................................................

12-6 Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements

9927 Dist BTS Outdoor

401-703-516

Issue 1 March 2012

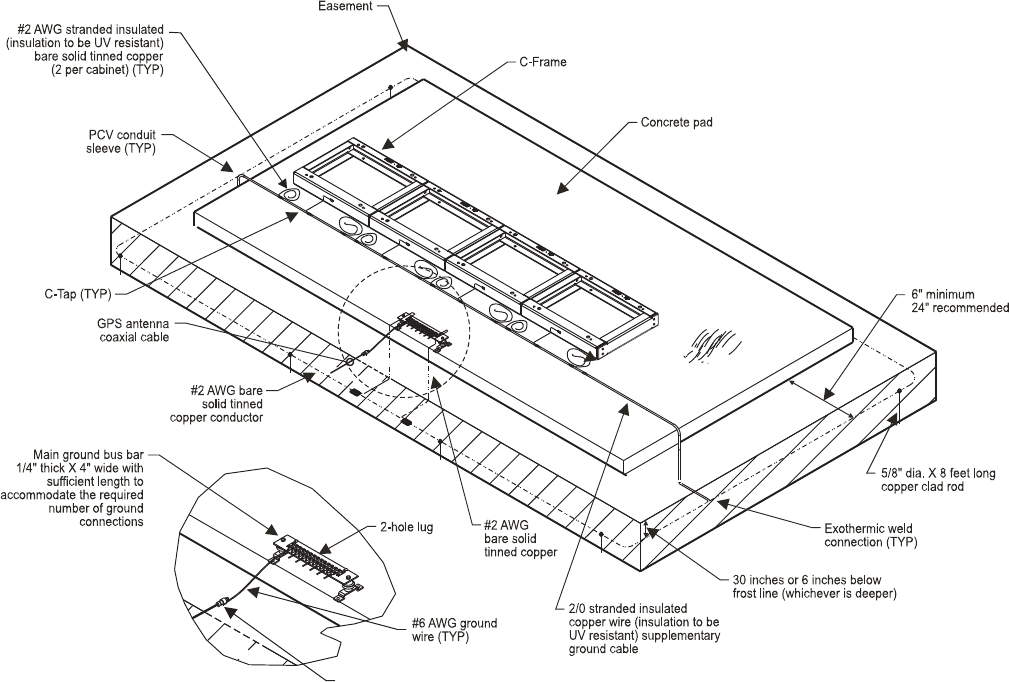

Typical grounding configuration (concrete pad)

The following diagram shows the typical grounding configuration for a 9927 Distributed

Base Station Outdoor Cabinet site on a concrete pad.

Surge Protection Device

Grounding and lightning protection requirements for 9927

Distributed Base Station Outdoor Cabinet

Grounding electrode system

....................................................................................................................................................................................................................................

9927 Dist BTS Outdoor

401-703-516

Issue 1 March 2012

Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements 12-7

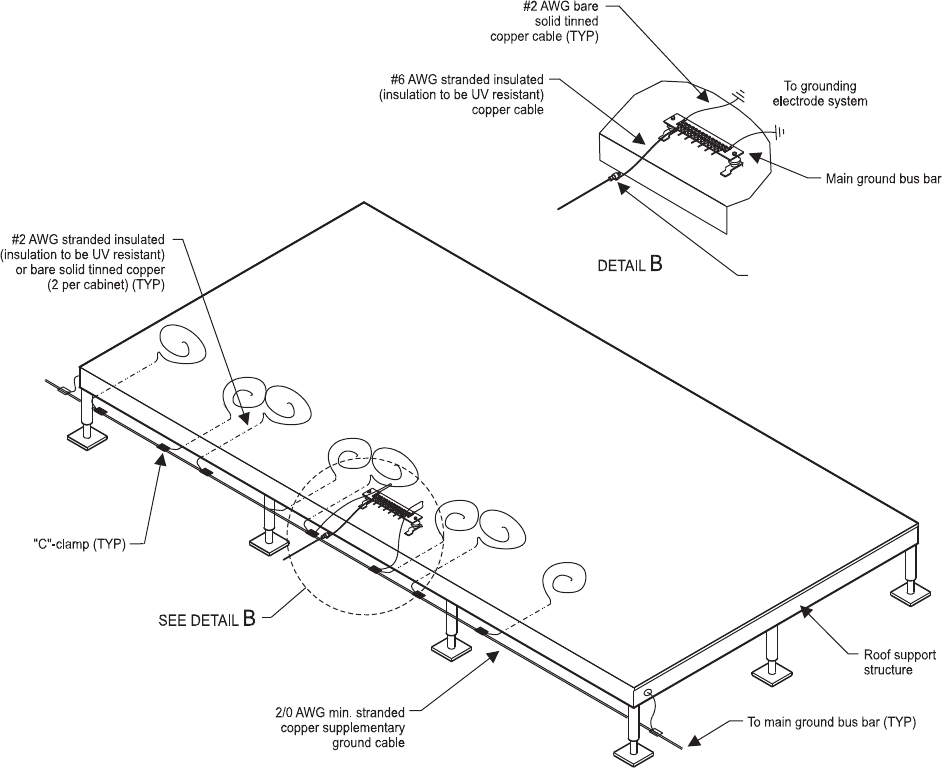

Typical grounding configuration (rooftop)

The following diagram shows the typical grounding configuration for a 9927 Distributed

Base Station Outdoor Cabinet site on a rooftop.

Surge Protection Device

Grounding and lightning protection requirements for 9927

Distributed Base Station Outdoor Cabinet

Grounding electrode system

....................................................................................................................................................................................................................................

12-8 Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements

9927 Dist BTS Outdoor

401-703-516

Issue 1 March 2012

13 13Grounding and lightning

protection requirements

for RRHs

Overview

Purpose

This chapter discusses grounding and lightning protection requirements for the RRHs.

Contents

Grounding and surge protection requirements 13-2

Grounding examples - Remote Radio Head 13-3

...................................................................................................................................................................................................................................

9927 Dist BTS Outdoor

401-703-516

Issue 1 March 2012

Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements 13-1

Grounding and surge protection requirements

Surge protection in RRHs

The RRHs are equipped with internal surge protectors. No external surge protectors are

required.

Grounding and lightning protection requirements for RRHs Grounding and surge protection requirements

....................................................................................................................................................................................................................................

13-2 Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements

9927 Dist BTS Outdoor

401-703-516

Issue 1 March 2012

Grounding examples - Remote Radio Head

Wall mount grounding

Each RRH cabinet must be grounded.

The RRH cabinet must be grounded as follows:

1. At the top of cabinet

2. At the right side of cabinet.

Grounding and lightning protection requirements for RRHs Grounding examples - Remote Radio Head

....................................................................................................................................................................................................................................

9927 Dist BTS Outdoor

401-703-516

Issue 1 March 2012

Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements 13-3

The figure shows how 6 AWG ground cable can be routed from a wall mounted RRH to

the system ground.

Important! In order to connect an antenna sharing surge protector to ground, a

grounding bus bar must be installed within 6 feet of RRHs. This applies to antenna

sharing/daisy chain installations (two RRHs per sector).

35 mm

(2 AWG)

2

To system

grounding

35 mm

(2 AWG)

2

2AWGto2AWG

2 AWG to 2 AWG

To system

Grounding

electrode/

ground rod

See Important! Note

Surge protector for

antenna sharing

Ground

bus bar

#6 AWG

ground cable

6ftmax

distance

Grounding and lightning protection requirements for RRHs Grounding examples - Remote Radio Head

....................................................................................................................................................................................................................................

13-4 Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements

9927 Dist BTS Outdoor

401-703-516

Issue 1 March 2012

Pole mount grounding

Each RRH cabinet must be grounded.

Each RRH cabinet must be grounded as follows:

•At the top of the cabinet

•At the left or right side of the cabinet.

The figure below shows how 2 AWG ground cable can be routed, along the pole, from the

RRH to the ground rod.

Important! For antenna sharing/daisy chain installations (two RRHs per sector), a

grounding bus bar must be installed within 6 feet of the RRHs, to ground the antenna

sharing surge protector.

35 mm

(2 AWG)

2

2 AWG to 2 AWG

To grounding

electrode/

ground rod

35 mm

(2 AWG)

2

35 mm

(2 AWG)

2

2 AWG to 2 AWG

Ground

bus bar

#6 AWG

ground cable

See Important! Note

Surge protector for

antenna sharing

6ftmax

distance

Grounding and lightning protection requirements for RRHs Grounding examples - Remote Radio Head

....................................................................................................................................................................................................................................

9927 Dist BTS Outdoor

401-703-516

Issue 1 March 2012

Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements 13-5

Grounding and lightning protection requirements for RRHs Grounding examples - Remote Radio Head

....................................................................................................................................................................................................................................

13-6 Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements

9927 Dist BTS Outdoor

401-703-516

Issue 1 March 2012

14 14Site preparation -- T1/E1

and User Alarm facilities

for 9927 Distributed Base

Station Outdoor Cabinet

Overview

Purpose

This chapter describes the site preparation requirements related to T1/E1 and User Alarm

facilities for 9927 Distributed Base Station Outdoor Cabinet.

Contents

Balun Block requirements 14-2

Site preparation for T1/E1 and User Alarm cables 14-3

Specify assignments for T1/E1 lines 14-6

Site preparation for User Alarm cables 14-9

...................................................................................................................................................................................................................................

9927 Dist BTS Outdoor

401-703-516

Issue 1 March 2012

Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements 14-1

Balun Block requirements

Overview

The customer is responsible to convert the 75 ohm unbalanced coaxial cable to 120 ohm

balanced twisted pairs. The conversion of the coaxial cable to twisted pairs may be

accomplished with Alcatel-Lucent balun or equivalent.

Important! The customer shall provide primary protection and the appropriate

hardware to mount and ground the Balun Block.

Balun Block connections

Important! The Balun Block must be installed within 10 m (35 feet) of the 9927

cabinet. The T1/E1 cable will be connected directly to the Balun Block. Four RJ-45

loose connectors will be provided with each Balun Block. The RJ-45 connectors will

be connected to T1/E1 cables during installation of the 9927 Distributed Base Station

Outdoor cabinet. An RJ-45 connector crimping tool is needed to connect RJ-45

connectors to T1/E1 cable twisted-wire pairs. The part number for the RJ-45

connector crimping tool is R-5520.

T1/E1

Input Lines

NIU

T1/E1 lines to Balun Block

Maximum

distance =

10 m

(Provided as

part of site

prep.)

(From service

provider)

Balun

Block

Note 1

T1/E1 Cable

(See Note 2)

(Coaxial cable)

NOTE 1: The Balun Block must be located within a 10 m (35 foot) cable length distance from the

radio cabinet.

NOTE 2: RJ-45 connectors must be installed on T1/E1 cables before T1/E1 cables can be

connected to a Balun Block. There can be up to two T1/E1 cables. Each T1/E1 cable

contains 24 twisted-wire pairs. Three branch cables can go to a Balun Block. Each branch

cable contains 8 twisted-wire pairs. Each balun block accepts 8 twisted-wire pairs or 4 T1 lines.

Each T1 line contains 2 twisted-wire pairs. Therefore, a cable with 24 twisted-wire pairs

contains 12 T1 lines and requires 3 Balun Blocks.

A 9927 Distributed BTS Outdoor Cabinet

populated with URC-IIIs (which allow up to 20 lines). In this case, 16 of the 24 twisted-wire

pairs would be used. Refer to Balun Blocks #4 and #5 in the following table.

second 24 twisted-wire pair cable is required for a

(35 feet)

with

primary

protection

To 9927 Distributed

BTS Outdoor Cabinet

Site preparation -- T1/E1 and User Alarm facilities for 9927

Distributed Base Station Outdoor Cabinet

Balun Block requirements

....................................................................................................................................................................................................................................

14-2 Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements

9927 Dist BTS Outdoor

401-703-516

Issue 1 March 2012

Site preparation for T1/E1 and User Alarm cables

Purpose

This section describes how to perform site preparation for T1/E1 and User Alarm cables.

T1/E1 and User Alarm cables are both twisted-pair cables that are connected on one side

to the Network Interface Unit (NIU) and on the other side to the 9927 Distributed Base

Station Outdoor Cabinet. The site preparation for T1/E1 and User Alarm cables is

performed at the same time.

Connection overview for T1/E1 and User Alarm cables

The following diagram shows the installation of the twisted-pair cable from the NIU to

the EFIM inside the 9927 Distributed Base Station Outdoor Cabinet.

Number of T1/E1 cables

The number of T1/E1 cables, which can be connected to a 9927 Distributed Base Station

cabinet varies depending upon the number of SEC-B installed in the cabinet. Four T1/E1

lines go to each SEC-B.

Number of User Alarm cables

The 9927 Distributed BTS is equipped with an M5PM alarm module, which can accept

up o 32 User Alarms. One alarm cable supports 16 alarms.

NETWORKINTERFACE UNIT

(supplied and installed

as part of site preparation)

6 AWG GROUND

CUSTOMER-SUPPLIED

PROTECTION DEVICE

T1/E1 CABLE

(twisted-pair cable

within conduits)

M5PM

(supplied w/ cabinet)

WIRE (TYP)

TELEPHONE

SERVICE

6 AWG STRANDED

INSULATED

GROUND WIRE

9927 DISTRIBUTED

BTS OUTDOOR

CABINET

CROSS-CONNECT

BLOCK

BALUN BLOCKBOX AND

CONNECTOR (if required)

Rigid NIU

Conduit

Flexible T1/E1

Conduit

Site preparation -- T1/E1 and User Alarm facilities for 9927

Distributed Base Station Outdoor Cabinet

Site preparation for T1/E1 and User Alarm cables

....................................................................................................................................................................................................................................

9927 Dist BTS Outdoor

401-703-516

Issue 1 March 2012

Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements 14-3

Connect T1/E1 cables and User Alarm cables to NIU

The T1/E1 and User Alarm facilities must be in place prior to installation of the 9927

Distributed Base Station Outdoor Cabinet. The service provider usually supplies a carbon

or gas tube protector for the T1/E1 facility. The 9927 Distributed Base Station Outdoor

Cabinet is already equipped with Listed primary surge protection. If required, a Balun

Block must also be installed to balance the impedance of the coaxial cable with the

impedance of the twisted-wire pairs at the Network Interface Unit (NIU).

The required twisted-pair cable must be supplied and connected to the T1/E1 facility at

the NIU, as part of site preparation. Sufficient cable length must be coiled to allow for

future connection to the Enhanced Facility Interface Module (EFIM) inside the 9927

Distributed Base Station Outdoor Cabinet. The appropriate number of T1/E1 cables must

be available at the site prior to installation.

Important! In the United States, refer to Article 800 of the National Electrical Code,

NFPA 70, for selection and installation of the primary protector. In Canada, refer to

Section 60 of the Canadian Electrical Code, Part 1, CSA C22.1 for selection and

installation of the primary protector.

For international applications, refer to ITU K.11, “Principles of Protection Against

Over-voltages and Over-currents.”

Important! Unused or spare T1/E1 cables at the NIU must not be looped back

towards the 9927 Distributed Base Station Outdoor Cabinet while the cabinet is in

operation.

The twisted-pair cable must be installed in a dry location with minimal humidity. The

installation must not be performed in extremely cold temperatures [-15 °C (5 °F) or less]

(see “Minimum installation temperatures” (p. 5-4)).

It is recommended that the T1/E1 cable shield be bonded at the end that connects to the

NIU.

Install rigid NIU conduit and flexible T1/E1 conduit

This topic describes the conduits required for T1/E1 and User Alarm cables. T1/E1 and

User Alarm cables are routed through the conduits that are already in place for the 9927

Distributed Base Station cabinet.

Rigid NIU conduit is required to bring T1/E1 and User Alarm cables to the site. It is the

customer's responsibility to provide rigid conduit and all required connectors and fittings.

The customer must also install these in site preparation.

Site preparation -- T1/E1 and User Alarm facilities for 9927

Distributed Base Station Outdoor Cabinet

Site preparation for T1/E1 and User Alarm cables

....................................................................................................................................................................................................................................

14-4 Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements

9927 Dist BTS Outdoor

401-703-516

Issue 1 March 2012

The recommendations for NIU conduit are as follows:

•The rigid NIU conduit must be installed from the NIU to the 9927 Distributed Base

Station Outdoor Cabinet.

•Use PVC conduit instead of rigid NIU conduit if it is to be buried. Use metal conduit

if it is to be exposed. The NIU end of the conduit must be bonded if it is metallic.

Flexible T1/E1 conduit is also required. It is the responsibility of the customer to provide

flexible conduit and all required connectors and fittings, and to hold them for the installer.

See “Conduit requirements” (p. 5-7) for specifications for the required conduits.

Route the T1/E1 and User Alarm cables through the conduits

After the T1/E1 and User Alarm cables have been connected to the NIU, and the conduits

have been installed, the T1/E1 and User Alarm cables must be routed through the NIU

conduit, and coiled approximately 6 meters (20 ft.) at the end of the conduit.

To prevent damage to the twisted-pair cable inside the conduit, the conduit end must be

properly protected against the environment, rodents, and other interferences. This can be

done by stuffing the twisted-pair cable into the conduit, and capping the end of the

conduit.

Site preparation -- T1/E1 and User Alarm facilities for 9927

Distributed Base Station Outdoor Cabinet

Site preparation for T1/E1 and User Alarm cables

....................................................................................................................................................................................................................................

9927 Dist BTS Outdoor

401-703-516

Issue 1 March 2012

Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements 14-5

Specify assignments for T1/E1 lines

Purpose

This section describes how to determine the T1/E1 line assignments for T1/E1 cables, and

record them in a table that will be used during installation.

T1/E1 line assignments for 9927 Distributed Base Station Outdoor Cabinet with SEC-B (20 T1/E1

lines, maximum)

The following table provides the installer with T1/E1 line assignments for 9927

Distributed Base Station Outdoor Cabinet with four SEC-Bs. Because each SEC-B

supports four T1/E1 lines, the cabinet can support up to 16 T1/E1 lines. The table below

must be completed as part of site preparation.

SEC-B T1/E1 Line # Function Tx/Rx RJ-45 Pinout # Wire Color

1 1 Rx ____-T 1 White-Orange

Rx ____-R 2 Orange-White

Tx ____-T 4 White-Blue

Tx ____-R 5 Blue-White

2 Rx ____-T 1 White-Brown

Rx ____-R 2 Brown-White

Tx ____-T 4 White-Green

Tx ____-R 5 Green-White

3 Rx ____-T 1 Red-Blue

Rx ____-R 2 Blue-Red

Tx ____-T 4 White-Gray

Tx ____-R 5 Gray-White

4 Rx ____-T 1 Red-Green

Rx ____-R 2 Green-Red

Tx ____-T 4 Red-Orange

Tx ____-R 5 Orange-Red

Site preparation -- T1/E1 and User Alarm facilities for 9927

Distributed Base Station Outdoor Cabinet

Specify assignments for T1/E1 lines

....................................................................................................................................................................................................................................

14-6 Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements

9927 Dist BTS Outdoor

401-703-516

Issue 1 March 2012

SEC-B T1/E1 Line # Function Tx/Rx RJ-45 Pinout # Wire Color

2 5 Rx ____-T 1 White-Orange

Rx ____-R 2 Orange-White

Tx ____-T 4 White-Blue

Tx ____-R 5 Blue-White

6 Rx ____-T 1 White-Brown

Rx ____-R 2 Brown-White

Tx ____-T 4 White-Green

Tx ____-R 5 Green-White

7 Rx ____-T 1 Red-Blue

Rx ____-R 2 Blue-Red

Tx ____-T 4 White-Gray

Tx ____-R 5 Gray-White

8 Rx ____-T 1 Red-Green

Rx ____-R 2 Green-Red

Tx ____-T 4 Red-Orange

Tx ____-R 5 Orange-Red

3 9 Rx ____-T 1 White-Orange

Rx ____-R 2 Orange-White

Tx ____-T 4 White-Blue

Tx ____-R 5 Blue-White

10 Rx ____-T 1 White-Brown

Rx ____-R 2 Brown-White

Tx ____-T 4 White-Green

Tx ____-R 5 Green-White

11 Rx ____-T 1 Red-Blue

Rx ____-R 2 Blue-Red

Tx ____-T 4 White-Gray

Tx ____-R 5 Gray-White

12 Rx ____-T 1 Red-Green

Rx ____-R 2 Green-Red

Tx ____-T 4 Red-Orange

Tx ____-R 5 Orange-Red

Site preparation -- T1/E1 and User Alarm facilities for 9927

Distributed Base Station Outdoor Cabinet

Specify assignments for T1/E1 lines

....................................................................................................................................................................................................................................

9927 Dist BTS Outdoor

401-703-516

Issue 1 March 2012

Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements 14-7

SEC-B T1/E1 Line # Function Tx/Rx RJ-45 Pinout # Wire Color

4 13 Rx ____-T 1 White-Orange

Rx ____-R 2 Orange-White

Tx ____-T 4 White-Blue

Tx ____-R 5 Blue-White

14 Rx ____-T 1 White-Brown

Rx ____-R 2 Brown-White

Tx ____-T 4 White-Green

Tx ____-R 5 Green-White

15 Rx ____-T 1 Red-Blue

Rx ____-R 2 Blue-Red

Tx ____-T 4 White-Gray

Tx ____-R 5 Gray-White

16 Rx ____-T 1 Red-Green

Rx ____-R 2 Green-Red

Tx ____-T 4 Red-Orange

Tx ____-R 5 Orange-Red

Site preparation -- T1/E1 and User Alarm facilities for 9927

Distributed Base Station Outdoor Cabinet

Specify assignments for T1/E1 lines

....................................................................................................................................................................................................................................

14-8 Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements

9927 Dist BTS Outdoor

401-703-516

Issue 1 March 2012

Site preparation for User Alarm cables

User Alarm requirements

Each generated User Alarm is generated by a set of isolated dry relay contacts.

An “alarm state” may be indicated by a “closed circuit” or an “open circuit.”

•If an alarm condition is indicated by a “closed circuit,” the alarm contacts must

present a contact closure when the alarm circuit fails or loses power.

•If an alarm condition is indicated by an “open circuit,” the alarm contacts must

present an “open circuit” when the alarm circuit fails or loses power.

The resistance of a “closed circuit” is less than 100 ohms. The resistance of an “open

circuit” is greater than 1 megohm.

The User Alarm switches (if desired) must be installed as part of site preparation. The

9927 Distributed Base Station Outdoor Cabinet cabinet is equipped with primary surge

protection.

User Alarm cable connections

The table below provides the pin numbers, wire colors, and functions for the User Alarm

cables in the 9927 Distributed BTS outdoor cabinet.

Site preparation -- T1/E1 and User Alarm facilities for 9927

Distributed Base Station Outdoor Cabinet

Site preparation for User Alarm cables

....................................................................................................................................................................................................................................

9927 Dist BTS Outdoor

401-703-516

Issue 1 March 2012

Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements 14-9

Facilities

cable

37 pin

D-Sub

Wire Color Cable 1 function Cable 2 function

User Alarm

cable

1 White-Blue USERALM0 (+) USERALM16 (+)

20 Blue-White USERALM0 (-) USERALM16 (-)

2 White-Orange USERALM1 (+) USERALM17 (+)

21 Orange-White USERALM1 (-) USERALM17 (-)

3 White-Green USERALM2 (+) USERALM18 (+)

22 Green-White USERALM2 (-) USERALM18 (-)

4 White-Brown USERALM3 (+) USERALM19 (+)

23 Brown-White USERALM3 (-) USERALM19 (-)

5 White-Gray USERALM4 (+) USERALM20 (+)

24 Gray-White USERALM4 (-) USERALM20 (-)

6 Red-Blue USERALM5 (+) USERALM21 (+)

25 Blue-Red USERALM5 (-) USERALM21 (-)

7 Red-Orange USERALM6 (+) USERALM22 (+)

26 Orange-Red USERALM6 (-) USERALM22 (-)

8 Red-Green USERALM7 (+) USERALM23 (+)

27 Green-Red USERALM7 (-) USERALM23 (-)

9 Red-Brown USERALM8 (+) USERALM24 (+)

28 Brown-Red USERALM8 (-) USERALM24 (-)

10 Red-Gray USERALM9 (+) USERALM25 (+)

29 Gray-Red USERALM9 (-) USERALM25 (-)

11 Black-Blue USERALM10 (+) USERALM26 (+)

30 Blue-Black USERALM10 (-) USERALM26 (-)

12 Black-Orange USERALM11 (+) USERALM27 (+)

31 Orange-Black USERALM11 (-) USERALM27 (-)

13 Black-Green USERALM12 (+) USERALM28 (+)

32 Green-Black USERALM12 (-) USERALM28 (-)

14 Black-Brown USERALM13 (+) USERALM29 (+)

33 Brown-Black USERALM13 (-) USERALM29 (-)

15 Black-Gray USERALM14 (+) USERALM30 (+)

34 Gray-Black USERALM14 (-) USERALM30 (-)

16 Yellow-Blue USERALM15 (+) USERALM31 (+)

Site preparation -- T1/E1 and User Alarm facilities for 9927

Distributed Base Station Outdoor Cabinet

Site preparation for User Alarm cables

....................................................................................................................................................................................................................................

14-10 Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements

9927 Dist BTS Outdoor

401-703-516

Issue 1 March 2012

Facilities

cable

37 pin

D-Sub

Wire Color Cable 1 function Cable 2 function

35 Blue-

Yellow

USERALM15 (-) USERALM31 (-)

Site preparation -- T1/E1 and User Alarm facilities for 9927

Distributed Base Station Outdoor Cabinet

Site preparation for User Alarm cables

....................................................................................................................................................................................................................................

9927 Dist BTS Outdoor

401-703-516

Issue 1 March 2012

Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements 14-11

Site preparation -- T1/E1 and User Alarm facilities for 9927

Distributed Base Station Outdoor Cabinet

Site preparation for User Alarm cables

....................................................................................................................................................................................................................................

14-12 Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements

9927 Dist BTS Outdoor

401-703-516

Issue 1 March 2012

15 15Hybriflex cable

specifications

Overview

Purpose

This chapter discusses the fiber optic cable requirements for the RRHs. The fiber optic

cables are contained within the Hybriflex cable.

Contents

General facilities requirements 15-2

Facilities requirements 15-3

Requirements for Hybriflex cable 15-4

...................................................................................................................................................................................................................................

9927 Dist BTS Outdoor

401-703-516

Issue 1 March 2012

Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements 15-1

General facilities requirements

General requirements

One fiber optic cable (from Hybriflex cable) is connected to each RRH.

The fiber optic cables that exit the Hybriflex cable are terminated with LC connectors.

All facilities must be available before the RRHs can be installed.

Hybriflex cable specifications General facilities requirements

....................................................................................................................................................................................................................................

15-2 Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements

9927 Dist BTS Outdoor

401-703-516

Issue 1 March 2012

Facilities requirements

Hybriflex connection at DC Distribution/Fiber Management Box

The Hybriflex cable enters the DC Distribution/Fiber Management Box via a 1–1/2 inch

knockout.at the bottom panel of the DC Distribution/Fiber Management Box.

Connectors on bottom of RRHs

The figure below shows the cable entry points on the bottom of the 800 MHz RRH.

AUX Rx1

AUX RX2 CPRI PRI

CPRI PRI

STATUS

Tx1 MON

Tx2 MON ALD

ALM -48VIN

Hybriflex cable specifications Facilities requirements

....................................................................................................................................................................................................................................

9927 Dist BTS Outdoor

401-703-516

Issue 1 March 2012

Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements 15-3

Requirements for Hybriflex cable

Overview

This section specifies the requirements for the Hybriflex cable, which connects the DC

Distribution/Fiber Management Box to the RRH. The Hybriflex cable contains fiber optic

and DC power cables.

Hybriflex cable between DC Distribution/Fiber Management Box and RRHs

The fiber optic and DC power cables branch out at the pole end from the Hybriflex cable.

The individual cables are 4.6 m (15 feet) long.

The Hybriflex cable provided by Alcatel-Lucent meets the following requirements:

•Outdoor rated

•Temperature rating: operation -40 to +85 °C (-40 to 185 °F), storage -55 to +85 °C

(-67 to 185 °F)

•Bend radius: 15 x outside diameter (15 x ___ mm = _____ mm)

•Fiber count: 5

•DC power wire count: 4 pairs

•Fiber type: multi-mode

•Attenuation: 0.5 dB/km

•Rugged cable

•Connectors: LC duplex connectors are provided at both ends of fiber cables.

•Maximum tensile load; 800 newtons for installation

•Maximum tensile load; 500 newtons for operation

•UL 1666, flame retardent

•UL listed type OFNR

An excess cable length must be coiled at one or both ends and properly protected.

Note: To avoid damage to the fiber optic cable, extra care must be exercised by using

fiber management paper and loosely fastening the fiber optic cable to the cable rack.

The fiber optic cable bend radius must be as gradual as possible [15 x diameter of

cable (15x7mm=105mm)].

Description of Hybriflex cable (supplied by Alcatel-Lucent)

The Hybriflex cable is routed from the DC Distribution/Fiber Management Box to the

RRHs. It provides -48 VDC power and fiber optic links to each RRH.

The Hybriflex cable consists of a plastic coated, flexible metallic jacket that is weather

and sunlight resistant. It contains six multi-mode fiber optic cables and four 8 AWG,

stranded copper conductor pairs.

Hybriflex cable specifications Requirements for Hybriflex cable

....................................................................................................................................................................................................................................

15-4 Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements

9927 Dist BTS Outdoor

401-703-516

Issue 1 March 2012

The fiber optic cables and DC cable pairs exit from each end of the Hybriflex cable. At

the RRH end, the fiber optic cables and DC cable pairs are about 15 feet long. At the DC

Distribution/Fiber Management Box end, they are about ___ feet long. Each fiber optic

cable is terminated at each end with an LC connector. All cables are weather and sunlight

resistant.

Shown in the figure below is the RRH end (or top end) of the Hybriflex cable.

Hybriflex cable specifications Requirements for Hybriflex cable

....................................................................................................................................................................................................................................

9927 Dist BTS Outdoor

401-703-516

Issue 1 March 2012

Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements 15-5

Shown in the figure below is the DC Distribution/Fiber Management Box end (or bottom

end) of the Hybriflex cable.

DC Distribution/Fiber Management Box

The DC Distribution/Fiber Management Box goes between the baseband cabinet and the

RRHs.

The DC Distribution/Fiber Management Box contains:

•DC surge protectors

•DC circuit breakers

•DC terminal blocks

•Fiber optic cable interface connectors

Hybriflex cable specifications Requirements for Hybriflex cable

....................................................................................................................................................................................................................................

15-6 Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements

9927 Dist BTS Outdoor

401-703-516

Issue 1 March 2012

The fiber optic cable interface connectors couple the fiber optic cables from the 9927

Distributed BTS outdoor cabinet with the fiber optic cables in the Hybriflex cable

The DC Distribution/Fiber Management Box must be located at the bottom of the tower,

within 20 feet of the 9927 Distributed BTS outdoor cabinet.

The requirements for the DC Distribution/Fiber Management Box are as follows:

•Outdoor rated

•UL listed

•Contains six round holes for Hybriflex and 1-1/2 inch liquid-tight flexible metallic

conduit from the 9228 Distributed BTS outdoor cabinet.

•Contains 48 fiber optic (LC connector) interface connectors (connect fiber optic cable

from Hybriflex cable to fiber optic cable from 9927 Distributed BTS)

•Two DC surge protectors with the option to go up to four.

•Contains 12 25 Amp, DC circuit breakers (can go up to 24)

•DC terminal block

•Must be Installed within 6.1 m (20 feet) of the 9927 Distributed BTS outdoor cabinet.

The block diagram below shows two 1–1/2 liquid-tight flexible metallic conduits and one

Hybriflex cable entering the DC Distribution/Fiber Management Box.

Optical links between 9927 Distributed BTS cabinet and RRHs

The optical links between the baseband cabinet and DC Distribution/Fiber Management

Box and DC Distribution/Fiber Management Box and RRHs are via multi-mode duplex

fibers: two fibers -- one for Transmit (Tx) and one for Receive (Rx). When connecting the

DC DISTRIBUTION/

FIBER

MANAGEMENT

BOX FOR FIBER

OPTIC CABLE

AND -48 VDC

9927 DISTRIBUTED

BASE STATION

OUTDOOR CABINET

HYBRIFLEX CABLE

BY OTHERS ALCATEL-LUCENT

1-1/2 INCH LIQUID-TIGHT

FLEXIBLE METALLIC CONDUIT

WITH FIBER OPTIC AND -48 VDC

POWER CABLES

Hybriflex cable specifications Requirements for Hybriflex cable

....................................................................................................................................................................................................................................

9927 Dist BTS Outdoor

401-703-516

Issue 1 March 2012

Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements 15-7

9927 Distributed BTS cabinet to the RRHs, make certain fiber cable connector “B” is

connected to Tx on the 9927 Distributed BTS cabinet and fiber cable connector “A” is

connected to Rx on the RRH.

Important! “A” and “B” designations are typically imprinted on the LC connector

clip.

The following figure shows a typical fiber cable with LC duplex connectors at the

baseband cabinet and RRH end.

Base station

cabinet end RRH end

Hybriflex cable specifications Requirements for Hybriflex cable

....................................................................................................................................................................................................................................

15-8 Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements

9927 Dist BTS Outdoor

401-703-516

Issue 1 March 2012

Appendix A: 9927 Distributed

Base Station Outdoor Cabinet

site preparation checklists

Overview

Purpose

This section is for use by authorized personnel to verify completion of cell site

preparation activities prior to installation of base station equipment.

Contents

SP-GEN Cell site general information form A-2

SP-1 Site preparation general checklist A-3

SP-2 Site preparation power source checklist A-5

SP-3 Site preparation grounding checklist A-6

SP-5 Site preparation GPS antenna checklist A-9

SP-6 Site preparation punchlist sheet A-11

SP-6A Site preparation punchlist sheet A-12

...................................................................................................................................................................................................................................

9927 Dist BTS Outdoor

401-703-516

Issue 1 March 2012

Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements A-1

SP-GEN Cell site general information form

Purpose

The following form must be completed prior to the installation of the cell site equipment.

Form

Complete the following information about the cell site.

•Cell Site Name: ________________________________

•Cell Site Address: ________________________________

•Cell Site Access Contact Name: ________________________________

•MTA Name: ________________________________

•Cell Site # : ________________________________

•Contact Phone # : ________________________________

9927 Distributed Base Station Outdoor Cabinet site

preparation checklists

SP-GEN Cell site general information form

....................................................................................................................................................................................................................................

A-2 Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements

9927 Dist BTS Outdoor

401-703-516

Issue 1 March 2012

SP-1 Site preparation general checklist

Purpose

The following items must be completed prior to the installation of the cell site equipment.

Circle the correct letter for the corresponding item descriptions.

Checklist

Item # Description Yes (Y) No (N) N/A Comments

1. Is the work site free of environmental,

health and safety (EH&S) hazards?

Y N N/A

2. Are cell site environmental conditions

within equipment specified operating

range?

Y N N/A

3. Has the optional ice bridge been installed? Y N N/A

4. Has the required space been provided

around equipment (that is, maintenance

access, cabinets, heat dissipation, safety) ?

Y N N/A

5. Is support structure properly secured and

anchored per earthquake zoning

requirements?

Y N N/A

6. Will structure support cabinets/equipment

(including batteries, etc.) ?

Y N N/A

7. Are all site permits completed? Y N N/A

8. Has a Method of Procedure (MOP) been

developed with the installation

supervisor?

Y N N/A

9. Is cell translations information available? Y N N/A

10. Has installer cell site equipment

parameter sheet been completed and

reviewed with the installation supervisor?

Y N N/A

11. Are the ECP/Switch and cell software

generics compatible?

Y N N/A

12. Are T1/E1 and User Alarm facilities

available and active?

Y N N/A

13. If T1/E1 facility is 75 ohms coaxial, has

the protection/conversion of coaxial cable

to twisted-pair cable been provided?

Y N N/A

9927 Distributed Base Station Outdoor Cabinet site

preparation checklists

SP-1 Site preparation general checklist

....................................................................................................................................................................................................................................

9927 Dist BTS Outdoor

401-703-516

Issue 1 March 2012

Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements A-3

Item # Description Yes (Y) No (N) N/A Comments

14. Is adequate primary surge protection

provided for the T1/E1 service entrance?

Y N N/A

15. Are the T1/E1 long enough to reach from

the T1/E1 service entrance to the

punchdown block or conversion block?

Y N N/A

16. Is the conduit for routing T1/E1 and User

Alarm cables to the basestand frame in

place?

Y N N/A

17. Is the twisted-pair cable installed and

protected for T1/E1?

Y N N/A

18. Is the twisted-pair cable installed and

protected for User Alarm?

Y N N/A

19. Has all equipment been ordered and has

delivery to site been scheduled?

Y N N/A

20. Have all necessary arrangements been

made for access to the site?

Y N N/A

21. Have all necessary arrangements been

made to get equipment onto the site

(crane, etc.) ?

Y N N/A

Completed by: _______________________________________________________

Date: _______________________________________________________

9927 Distributed Base Station Outdoor Cabinet site

preparation checklists

SP-1 Site preparation general checklist

....................................................................................................................................................................................................................................

A-4 Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements

9927 Dist BTS Outdoor

401-703-516

Issue 1 March 2012

SP-2 Site preparation power source checklist

Purpose

The following items must be completed prior to the installation of the cell site equipment.

Circle the correct letter for the corresponding item descriptions.

Checklist

Item # Description Yes (Y) No (N) N/A Comments

1. Is AC service available? Y N N/A

2. Have AC service and conduits been

approved by local code?

Y N N/A

3. Is AC service equipped with surge

protection at service entry point?

Y N N/A

4. Is AC power source appropriate for

equipment being installed?

Y N N/A

5. Does AC service have proper circuit

breaker rating(s) and labeling?

Y N N/A

6. Is AC circuit breaker(s) available and

labeled for power system?

Y N N/A

7. Is AC circuit breaker(s) available and

labeled for listed ancillary equipment?

Y N N/A

A. Y N N/A

B. Y N N/A

C. Y N N/A

8. Do tower lighting, intrusion lighting, etc.

feeds have proper lightning protection?

Y N N/A

9. If not supplied with the cabinets, have at

least two AC duplex convenience outlets

been provided within 1.5 meters (5 feet)

of basestand frame(s)?

NOTE: A Ground Fault Circuit Interrupt

(GFCI) type is recommended, and must

be used when required by code.

Y N N/A

10. Is each outlet protected by a UL/CSA

listed, or approved 15 A circuit breaker?

Y N N/A

9927 Distributed Base Station Outdoor Cabinet site

preparation checklists

SP-2 Site preparation power source checklist

....................................................................................................................................................................................................................................

9927 Dist BTS Outdoor

401-703-516

Issue 1 March 2012

Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements A-5

SP-3 Site preparation grounding checklist

Purpose

The following items must be completed prior to the installation of the cell site equipment.

Circle the correct letter for the corresponding description items.

Checklist

Item # Description Yes (Y) No (N) N/A Comments

1. Is soil resistivity and site resistance test on

file?

Y N N/A

2. Has connection been provided to

grounding electrode system?

If yes, circle all that apply:

1. Via a buried ring ground and driven

rod(s)

2. Via a buried metallic and electrically

continuous water pipe

3. Via driven ground rod(s) and/or

plate(s)

4. Via electrolytic ground rod(s)

5. Via grounded building steel

6. Via grounded grid or radial

Y N N/A

3. Is lighting mast(s) or air terminal(s)

provided and bonded?

Y N N/A

4. Is antenna support structure(s) grounded? Y N N/A

5. Is antenna tower bonded to grounding

electrode system?

Y N N/A

6. Are guy wires bonded to grounding

electrode system?

Y N N/A

7. Are antenna cable shields grounded at both

ends?

Y N N/A

8. If tower is greater than 60 meters (200

feet) high, are antenna cable shields

grounded at midpoint and both ends?

Y N N/A

9. Is ice bridge bonded at both ends and

7.62-meter (25-foot) intervals?

9927 Distributed Base Station Outdoor Cabinet site

preparation checklists

SP-3 Site preparation grounding checklist

....................................................................................................................................................................................................................................

A-6 Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements

9927 Dist BTS Outdoor

401-703-516

Issue 1 March 2012

Item # Description Yes (Y) No (N) N/A Comments

10. Are all ground connections in compliance

with Alcatel-Lucent requirements

(exothermic weld, compression type with

2-hole lugs; properly secured; antioxidant

used on contact surface area) ?

Y N N/A

11. Are all grounding conductors routed as

straight as possible with no loops or sharp

bends?

Y N N/A

12. Is cabinet support structure grounded? Y N N/A

13. Are metallic conduits bonded at both ends

and 7.62 meter (25 foot) intervals?

Y N N/A

14. Are all fence corner posts and gate posts

properly grounded (including fence fabric

and barbed wire, as applicable) ?

Y N N/A

15. Are all metallic objects in the vicinity

bonded to the grounding system?

Y N N/A

16. Is AC power supply equipped with a surge

protection device and is the device

properly connected to the ground system?

Y N N/A

17. Is T1/E1 line equipped with a surge

protection device and is the device

properly connected to the ground system?

Y N N/A

18. Is tower light system (if installed)

equipped with a surge protection device

and is the device properly connected to the

ground system?

Y N N/A

19. Are the GPS antenna cable shields

properly grounded? Is surge protection in

place and properly grounded GPS

antenna?

Y N N/A

21. Is supplementary conductor connected to

grounding electrode system? (Exposed

end, if any, must be taped.)

Y N N/A

9927 Distributed Base Station Outdoor Cabinet site

preparation checklists

SP-3 Site preparation grounding checklist

....................................................................................................................................................................................................................................

9927 Dist BTS Outdoor

401-703-516

Issue 1 March 2012

Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements A-7

Item # Description Yes (Y) No (N) N/A Comments

22. Are down conductors in compliance with

Alcatel-Lucent specifications?

(If building is less than 23 meters (75 ft.)

high, use two 33.6 mm2(2 AWG) copper

conductors. If higher than 23 meters (75

feet), use two 2/0 copper conductors).

Y N N/A

23. Is steel column used as one down

conductor?

Y N N/A

Concrete Pad Cell Site Installation Only

24. Is supplementary conductor connected to

grounding electrode system at both ends

(if applicable) ?

Y N N/A

25. Were buried ring ground and its

connections inspected before the trench

was backfilled?

Y N N/A

26. Was a photo taken of the buried ring

ground and its connections prior to back-

filling for reference file?

Y N N/A

Completed by: _______________________________________________________

Date: _______________________________________________________

9927 Distributed Base Station Outdoor Cabinet site

preparation checklists

SP-3 Site preparation grounding checklist

....................................................................................................................................................................................................................................

A-8 Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements

9927 Dist BTS Outdoor

401-703-516

Issue 1 March 2012

SP-5 Site preparation GPS antenna checklist

Purpose

The following items must be completed prior to the installation of the cell site equipment.

Circle the correct letter for the corresponding item descriptions.

Checklist

Item # Description Yes (Y) No (N) N/A Comments

1. Is antenna installed with base level within

two degrees?

Y N N/A

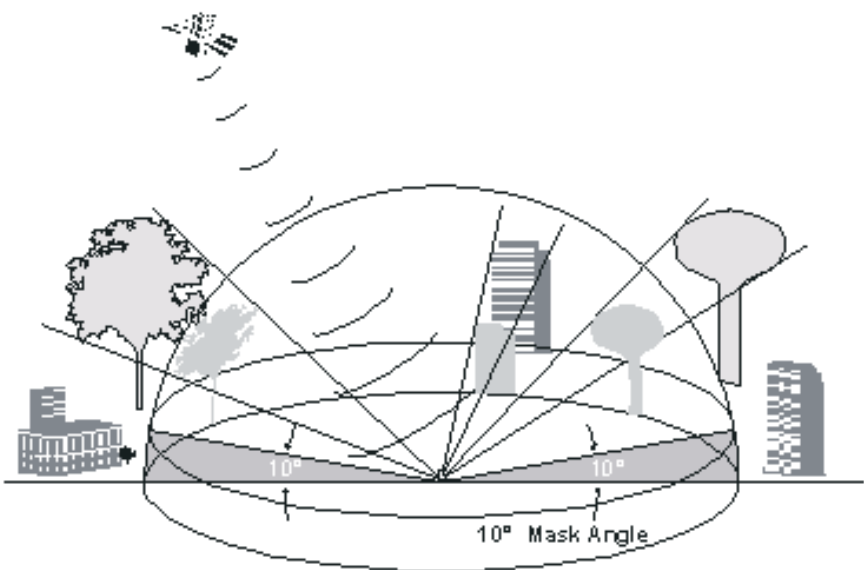

2. Is antenna installed with less than 25% of

the sky masked by obstruction?

Y N N/A

3. Is GPS antenna located at least 3.05 m (10

feet) vertically and horizontally from any

active transmit antenna?

Y N N/A

4. Are aggregate cable loss, cable Voltage

Standing Wave Ratio (VSWR), total cable

length, cable type, GPS antenna gain, KS

list and serial numbers recorded in the site

installation records?

Y N N/A

5. Is proper gain antenna installed for the

total aggregate cable loss and length?

Y N N/A

6. Is measured cable VSWR within its

specified value?

Y N N/A

7. Is GPS antenna cable properly grounded,

and equipped with proper surge protection

device?

Y N N/A

8. Are proper service loops provided near

antenna?

Y N N/A

9. Is proper drip loop provided at the 9927

Distributed Base Station Outdoor Cabinet

antenna cable cover?

Y N N/A

10. Are cable connections torqued to the

appropriate value?

Y N N/A

12. Are all external cables UV rated? Y N N/A

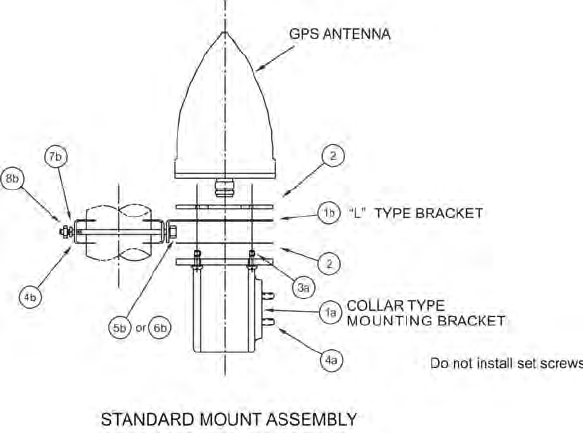

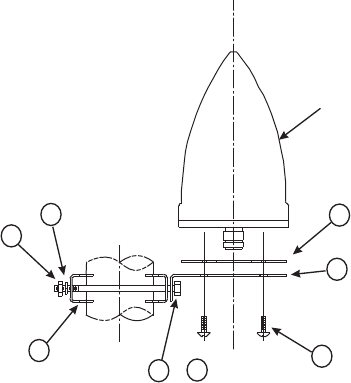

13. Are antenna bracket, pipes, and antenna

properly secured?

Y N N/A

9927 Distributed Base Station Outdoor Cabinet site

preparation checklists

SP-5 Site preparation GPS antenna checklist

....................................................................................................................................................................................................................................

9927 Dist BTS Outdoor

401-703-516

Issue 1 March 2012

Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements A-9

Item # Description Yes (Y) No (N) N/A Comments

14. Was GPS antenna location verified for line

of sight using a Garmin 45XL test unit or

equivalent?

Y N N/A

15. Is GPS antenna location free of external

interference (i.e., radio stations, collocated

equipment, etc.) ?

Y N N/A

Completed by: _______________________________________________________

Date: _______________________________________________________

9927 Distributed Base Station Outdoor Cabinet site

preparation checklists

SP-5 Site preparation GPS antenna checklist

....................................................................................................................................................................................................................................

A-10 Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements

9927 Dist BTS Outdoor

401-703-516

Issue 1 March 2012

SP-6 Site preparation punchlist sheet

Purpose

The following punchlist is used to track any outstanding site preparation items.

Punchlist

Item # Comment/Description Severity

(1/2/3)

Corrective Action

Required

(Y/N) Completed Date

Severity Column Definitions:

1. Equipment installation cannot occur until outage is rectified and will void warranty or

potentially cause personal injury.

2. Equipment installation can occur but issue must be rectified prior to hand-off to

customer or service turn-up so that the warranty is not voided.

3. Equipment installation, hand-off to customer, or service turn-up can occur but not per

Alcatel-Lucent recommendations.

Inspection Checklist Completion Sign-Off

Was the punchlist

continuation sheet on the

next page used?

□ Yes □ No

Inspector's Name: _________________________________________________

Inspector's Signature: _________________________________________________

Date: _________________________________________________

9927 Distributed Base Station Outdoor Cabinet site

preparation checklists

SP-6 Site preparation punchlist sheet

....................................................................................................................................................................................................................................

9927 Dist BTS Outdoor

401-703-516

Issue 1 March 2012

Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements A-11

SP-6A Site preparation punchlist sheet

Purpose

The following punchlist is used to track any outstanding site preparation items.

Punchlist

Item

#

Comment/Description Severity

(1/2/3)

Corrective Action

Required

(Y/N) Completed

Date

9927 Distributed Base Station Outdoor Cabinet site

preparation checklists

SP-6A Site preparation punchlist sheet

....................................................................................................................................................................................................................................

A-12 Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements

9927 Dist BTS Outdoor

401-703-516

Issue 1 March 2012

Appendix B: Site preparation

checklists for RRHs

Overview

Purpose

This section is for use by authorized personnel to verify completion of cell site

preparation activities prior to installation of base station equipment.

Contents

SP-GEN cell site general information B-2

SP-1 Site preparation general checklist B-3

SP-2 Site preparation power source checklist B-6

SP-3 Site preparation grounding checklist B-7

SP-4 Site preparation RF antenna checklist B-9

SP-5 Site preparation punchlist sheet B-11

SP-5A Site preparation punchlist sheet B-12

...................................................................................................................................................................................................................................

9927 Dist BTS Outdoor

401-703-516

Issue 1 March 2012

Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements B-1

SP-GEN cell site general information

Complete the following information about the cell site:

•Cell Site Name: ______________________

•Cell Site Address: ______________________

•Cell Site Access Contact Name: ______________________

•MTA Name: ______________________

•Cell Site #: ______________________

•Contact Phone #: ______________________.

Site preparation checklists for RRHs SP-GEN cell site general information

....................................................................................................................................................................................................................................

B-2 Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements

9927 Dist BTS Outdoor

401-703-516

Issue 1 March 2012

SP-1 Site preparation general checklist

Purpose

The following items must be completed prior to the installation of the cell site equipment.

Circle the correct letter for the corresponding item descriptions.

Item # Description Yes

(Y)

No

(N)

N/A Comments

1. Are cell site environmental conditions

within equipment specified operating

range?

Y N N/A

2. Has the required space been provided

around equipment [i.e., maintenance

access, cabinet(s), heat dissipation,

safety]?

Y N N/A

3. Has a Method of Procedure (MOP) been

developed with the installation

supervisor?

Y N N/A

4. Is cell translations information

available?

Y N N/A

5. Has installer cell site equipment

parameter sheet been completed and

reviewed with the installation

supervisor?

Y N N/A

6 Are the ECP/Switch and cell software

generics compatible?

Y N N/A

7. Are user alarm facilities available and

active?

Y N N/A

8. Is adequate primary surge protection

provided for the user alarms?

Y N N/A

9. Have the user alarm cables been

installed and terminated in the alarm

interface and alarm block (or

equivalent)?

Y N N/A

10. Are fiber optic facilities (splicing/DC

Distribution/Fiber Management Box)

available and active?

Y N N/A

Site preparation checklists for RRHs SP-1 Site preparation general checklist

....................................................................................................................................................................................................................................

9927 Dist BTS Outdoor

401-703-516

Issue 1 March 2012

Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements B-3

Item # Description Yes

(Y)

No

(N)

N/A Comments

11. Have the fiber optic cables been

installed for termination at the ALU

equipment or at the demarcation point

(slicing/DC Distribution/Fiber

Management Box)?

Y N N/A

12. Is the RRH and distributed base station

(9234 d2U or 9222 or 9228) going to be

co-located or within 328 ft.?

Y N N/A

13. Is the Standard Fiber Cable assembly

(15 ft., 50 ft., 100 ft., etc.) installed and

available at the site?

Y N N/A

14. Is the RRH and distributed base station

(9234 d2U or 9222 or 9228) installed as

non-co-located separated more than 328

ft.?

Y N N/A

15. Has the customer supplied and installled

Splicing/Junction Boxes at both RRH

and distributed base station (9234 d2U

or 9222 or 9228) sides?

Y N N/A

16. Has the customer supplied and installled

proper fiber between the

Splicing/Junction Boxes ?

Y N N/A

17. Is there a standard 50 ft. fiber cable

assembly installed and available from

Splicing/DC Distribution/Fiber

Management Box to near the distributed

base station (9234 d2U or 9222 or 9228)

and RRH frames?

Y N N/A

18, Is the fiber cable properly protected and

extra length (if any) coiled up and stored

properly?

19. Has all equipment been ordered and has

delivery to site been scheduled?

Y N N/A

20. Have all necessary arrangements been

made for access to the site?

Y N N/A

21. Have all necessary arrangements been

made to get equipment onto the site

(crane, etc.)?

Y N N/A

Site preparation checklists for RRHs SP-1 Site preparation general checklist

....................................................................................................................................................................................................................................

B-4 Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements

9927 Dist BTS Outdoor

401-703-516

Issue 1 March 2012

Notes:

1. Completed by: ______________________

2. Date: _______

Site preparation checklists for RRHs SP-1 Site preparation general checklist

....................................................................................................................................................................................................................................

9927 Dist BTS Outdoor

401-703-516

Issue 1 March 2012

Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements B-5

SP-2 Site preparation power source checklist

Purpose

The following items must be completed prior to the installation of the cell site equipment.

Circle the correct letter for the corresponding item descriptions.

Item

#

Description Yes

(Y)

No

(N)

N/A Comments

1. Is AC / DC service available? Y N N/A

2. Have AC / DC service and conduits been

approved by local code?

Y N N/A

3. Is AC / DC service equipped with surge

protection at service entry point?

Y N N/A

4. Is AC / DC power source appropriate for

equipment being installed?

Y N N/A

5. Does AC / DC service have proper circuit

breaker rating(s) and labeling?

Y N N/A

6. Is AC / DC circuit breaker(s) available

and labeled for power system?

Y N N/A

7. Is AC / DC circuit breaker(s) available

and labeled for listed ancillary

equipment?

Y N N/A

A. Y N N/A

B. Y N N/A

C. Y N N/A

8. Do tower lighting, intrusion lighting, etc.

feeds have proper lightning protection?

Y N N/A

9. If not supplied with the cabinets, have at

least two AC duplex convenience outlets

been provided within 1.5 meters (5 feet)

of radio cabinet(s)?

NOTE: A Ground Fault Circuit Interrupt

(GFCI) type is recommended, and must

be used when required by code.

Y N N/A

10. Is each outlet protected by a UL/CSA

listed, or approved 15 A circuit breaker?

Y N N/A

Site preparation checklists for RRHs SP-2 Site preparation power source checklist

....................................................................................................................................................................................................................................

B-6 Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements

9927 Dist BTS Outdoor

401-703-516

Issue 1 March 2012

SP-3 Site preparation grounding checklist

Purpose

The following items must be completed prior to the installation of the cell site equipment.

Circle the correct letter for the corresponding description items.

Item

#

Description Yes

(Y)

No

(N)

N/A Comments

1. Is soil resistivity and site resistance test

on file?

Y N N/A

2. Has connection been provided to

grounding electrode system?

If yes, circle all that apply:

A. Via a buried ring ground anddriven

rod(s)

B. Via a buried metallic and electrically

continuous water pipe

C. Via driven ground rod(s) and/or

plate(s)

D. Via electrolytic ground rod(s)

E. Via grounded building steel

F. Via grounded grid or radial

Y N N/A

3. Is lighting mast(s) or air terminal(s)

provided and bonded?

Y N N/A

4. Is antenna support structure(s) grounded? Y N N/A

5. Is antenna tower bonded to grounding

electrode system?

Y N N/A

6. Are guy wires bonded to grounding

electrode system?

Y N N/A

7. Are antenna cable shields grounded at

both ends?

Y N N/A

8. If tower is greater than 60 meters (200 ft.)

high, are antenna cable shields grounded

at mid-point and both ends?

Y N N/A

9. Is ice bridge bonded at both ends and

7.62-meter (25-foot) intervals?

Y N N/A

Site preparation checklists for RRHs SP-3 Site preparation grounding checklist

....................................................................................................................................................................................................................................

9927 Dist BTS Outdoor

401-703-516

Issue 1 March 2012

Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements B-7

Item

#

Description Yes

(Y)

No

(N)

N/A Comments

10. Are all ground connections in compliance

with Alcatel-Lucent requirements

(exothermic weld, compression type with

2-hole lugs; properly secured;

anti-oxidant used on contact surface

area)?

Y N N/A

11. Are all grounding conductors routed as

straight as possible with no loops or sharp

bends?

Y N N/A

12. Is cabinet support structure grounded? Y N N/A

13. Are metallic conduits bonded at both ends

and 7.62 meter (25 foot) intervals?

Y N N/A

14. Are all fence corner posts and gate posts

properly grounded (including fence fabric

and barbed wire, as applicable)?

Y N N/A

15. Are all metallic objects within 1.8 meters

(6 feet) bonded to the grounding system?

Y N N/A

16. Is AC / DC power supply equipped with a

surge protection device and is the device

properly connected to the ground system?

Y N N/A

17. Is tower light system (if installed)

equipped with a surge protection device

and is the device properly connected to

the ground system?

Y N N/A

18. Are the RF surge protection devices

properly connected to the ground system?

Y N N/A

Notes:

1. Completed by: ______________________

2. Date: _______

Site preparation checklists for RRHs SP-3 Site preparation grounding checklist

....................................................................................................................................................................................................................................

B-8 Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements

9927 Dist BTS Outdoor

401-703-516

Issue 1 March 2012

SP-4 Site preparation RF antenna checklist

Purpose

The following items must be completed prior to the installation of the RF cell site

equipment. Circle the correct letter for the corresponding item descriptions.

Item

#

Description Yes

(Y)

No

(N)

N/A Comments

1. Is tower properly installed and secured? Y N N/A

2. Are all antenna cable runs installed? Y N N/A

3. Are all antenna cable runs properly

terminated with 7/16 DIN female

connectors on the equipment side?

Y N N/A

4. Are all cable connections torqued to the

appropriate value?

Y N N/A

5. Are the RF antenna cables equipped with

surge protection devices?

6. Are all external cables UV rated? Y N N/A

7. Are antenna cable runs' demarcation

points in proper location?

Y N N/A

8. Are antenna cable runs marked and in

proper sequence per applicable equipment

drawings?

Y N N/A

9. Are appropriate type, length and number

of antenna cable jumpers available?

Y N N/A

10. Are appropriate drip loops provided for

antenna cable runs at turns and

demarcation point?

Y N N/A

11. Have antenna and cable sweeps been

performed?

Y N N/A

12. Are antennas properly installed and

secured?

Y N N/A

13. Are all antennas the proper type? Y N N/A

14. Are all antennas at proper azimuth?

(0,120 or 240 degrees)

Y N N/A

15. Are antennas at proper height? Y N N/A

16. Are antennas at proper tilt? Y N N/A

Site preparation checklists for RRHs SP-4 Site preparation RF antenna checklist

....................................................................................................................................................................................................................................

9927 Dist BTS Outdoor

401-703-516

Issue 1 March 2012

Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements B-9

Item

#

Description Yes

(Y)

No

(N)

N/A Comments

17. Have diversity antennas been properly

separated?

Y N N/A

18. Are antenna hatchplate and cable boots

properly installed?

Y N N/A

Notes:

1. Completed by: ______________________

2. Date: _______

Site preparation checklists for RRHs SP-4 Site preparation RF antenna checklist

....................................................................................................................................................................................................................................

B-10 Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements

9927 Dist BTS Outdoor

401-703-516

Issue 1 March 2012

SP-5 Site preparation punchlist sheet

Purpose

The following punchlist is used to track any outstanding site preparation items.

Item # Comment/Description Severity (1/2/3) Corrective Action Required

(Y/N) Completed Date

Notes:

1. Equipment installation cannot occur until outage is rectified and will void warranty or potentially cause

personal injury.

2. Equipment installation can occur but issue must be rectified prior to handoff to customer or service turn-up

so that the warranty is not voided.

3. Equipment installation, handoff to customer, or service turn-up can occur but not per Lucent

recommendations.

4. Inspection Checklist Completion Sign-Off (complete below)

5. Was the punchlist continuation sheet on the next page used? Yes or No

6. Inspector's Name: ______________________

7. Inspector's Signature: _____________________ Date: _________

Site preparation checklists for RRHs SP-5 Site preparation punchlist sheet

....................................................................................................................................................................................................................................

9927 Dist BTS Outdoor

401-703-516

Issue 1 March 2012

Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements B-11

SP-5A Site preparation punchlist sheet

Purpose

The following punchlist is used to track any outstanding site preparation items.

Item # Comment/Description Severity

(1/2/3)

Corrective Action

Required

(Y/N) Completed

Date

Site preparation checklists for RRHs SP-5A Site preparation punchlist sheet

....................................................................................................................................................................................................................................

B-12 Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements

9927 Dist BTS Outdoor

401-703-516

Issue 1 March 2012

Appendix C: 9927 Distributed

Base Station Outdoor Cabinet

cell site information

Overview

Purpose

This section is for use by Customer Project Management to document cell site

configuration information.

Contents

CSC-1 Cell site configuration information C-2

...................................................................................................................................................................................................................................

9927 Dist BTS Outdoor

401-703-516

Issue 1 March 2012

Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements C-1

CSC-1 Cell site configuration information

General base station information

Complete the following cell site information:

Cell Site information (provided by inspector)

Name

Address

Contact name

MTA name

Cell Site #

Contact Phone & Pager #

Installation type

Check all that apply:

•□ Indoor

•□ Outdoor

•□ Controlled Environment

•□ Uncontrolled Environment

•□ Concrete Pad

•□ Rooftop

•□ Other (Specify) : ___________________________________________

Base station substructure

Check all that apply:

•□ Concrete

•□ Wood floor

•□ Raised floor

•□ Non-Penetrating

•□ I-beam

•□ C-beam

•□ Platform

9927 Distributed Base Station Outdoor Cabinet cell site

information

CSC-1 Cell site configuration information

....................................................................................................................................................................................................................................

C-2 Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements

9927 Dist BTS Outdoor

401-703-516

Issue 1 March 2012

Earthquake zone rating

Check one:

•□ Zone 0

•□ Zone 1

•□ Zone 2

•□ Zone 3

•□ Zone 4

Base station equipment

Complete the information for the 9927 Distributed Base Station Outdoor Cabinet

equipment:

Cabinet Type Serial # # of sector Duplex/

Triplex/

Dual

Duplex

Primary cabinet

Growth cabinets

Battery cabinet

Antennas

Complete the following (if required) :

PCS Channel # (1-1999) ___________________________________________

# of Carriers (1-9) ___________________________________________

GPS Antenna KS/Model ___________________________________________

PCS Freq. Block (A-F) ___________________________________________

GPS Cable Length (ft.) ___________________________________________

GPS Antenna Gain (dB) ___________________________________________

Microwave Antenna Type (_____) ___________________________________________

Power

Total # of Battery Strings ___________________________________________

Power source, if any

•□ -48 VDC

9927 Distributed Base Station Outdoor Cabinet cell site

information

CSC-1 Cell site configuration information

....................................................................................................................................................................................................................................

9927 Dist BTS Outdoor

401-703-516

Issue 1 March 2012

Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements C-3

Integrated power?

•□Yes

•□No

External power?

•□Yes

•□No

Power collocated with base station equipment?

•□Yes

•□No

Other cell site equipment

Complete the following:

Equipment description Yes (Y) No (N) N/A

Antenna Tower? Y N N/A

FAA Lighting? Y N N/A

Tower Light Alarm? Y N N/A

Ice Bridge?

Covering: (check one)

____ Cables Only

____ Cables and Equipment

Y N N/A

Cable Tray or Ladder Racks?

Type of Ladder: (check one)

____ 5' Ladders

____ 12' Ladders

____ Other: ____

Y N N/A

Antenna Cable Hatch Plate? Number of Entry

Holes ____

Y N N/A

Facilities Ancillary Equipment?

Power Source: (check one)

____ AC

____ DC

Voltage: (check one)

____ DC

____ rms

Y N N/A

9927 Distributed Base Station Outdoor Cabinet cell site

information

CSC-1 Cell site configuration information

....................................................................................................................................................................................................................................

C-4 Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements

9927 Dist BTS Outdoor

401-703-516

Issue 1 March 2012

Equipment description Yes (Y) No (N) N/A

AC Service:

Size (amps) ____

Voltage (v) ____

Phase (1 or 3) ____

Customer-supplied Power System?

NOTE: If YES, the customer is responsible for the

configuration of the power system.

YN

Earthquake Bracing Required? Y N N/A

Tx/Rx Antenna?

(mounting location)

____ Tower

____ Steel Structure

____ Building

____ Antenna Support Structure

Y N N/A

Cell Site Grounding?

If YES, select all that apply:

____ Buried ring ground and driven rods

____ Buried metallic and electrically continuous

water pipe

____ Down conductors (Quantity: ____)

____ Electrolytic ground rod(s) (Quantity :____)

____ Driven ground rod(s) (Quantity :____)

____ Grounded building steel

____ Ground grid

____ Ground radial(s)

(Quantity :____)

YN

Collocated non-PCS equipment?

Existing grounding system:

____ Single Point

____ Integrated

YN

Ground Bus?

If YES, quantity: ____

YN

9927 Distributed Base Station Outdoor Cabinet cell site

information

CSC-1 Cell site configuration information

....................................................................................................................................................................................................................................

9927 Dist BTS Outdoor

401-703-516

Issue 1 March 2012

Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements C-5

9927 Distributed Base Station Outdoor Cabinet cell site

information

CSC-1 Cell site configuration information

....................................................................................................................................................................................................................................

C-6 Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements

9927 Dist BTS Outdoor

401-703-516

Issue 1 March 2012

Appendix D: Guidelines for

lifting and moving cabinets

Overview

Purpose

This Appendix provides guidelines for lifting and moving the 9927 Distributed Base

Station Outdoor Cabinet cabinets and the 60ECv2 battery cabinet.

Contents

Lifting and moving cabinets D-2

...................................................................................................................................................................................................................................

9927 Dist BTS Outdoor

401-703-516

Issue 1 March 2012

Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements D-1

Lifting and moving cabinets

Purpose

Cabinets are usually shipped to the customer via truck and are delivered to the installation

site. During installation, it may be necessary to lift the cabinet to move it to a new

location. This section describes how to safely lift the cabinets. Use this information as

you perform the lifting procedures.

WARNING

Equipment damage

A dolly with straps can damage the front air filter cover and the rear muffler cover of the

9927 cabinet if too much tension is applied to the straps.

When a dolly with straps is used to move the 9927 Distributed Base Station Outdoor

Cabinet, adjust the straps and the tension so that the air filter cover and the rear muffler

cover are not damaged by the straps.

Lifting machinery

To lift the cabinet, do one of the following:

•Use a forklift with forks that are at least 4 feet long to lift a cabinet attached to a pallet

from the bottom.

•Install lifting eyebolts on the top of the cabinet, and use a derrick and slings to lift the

cabinet from its top.

Safety precautions for using lifting machinery

WARNING

Personnel injury or equipment damage

Cabinets are too heavy to move without appropriate lifting devices.

Derrick equipment or a forklift must be used to lift the cabinet. Do not attempt to move

the cabinet manually, or remove it from the pallet manually.

Comply with the following guidelines when using lifting machinery:

•Only operators who are specifically trained and meet company requirements should

be permitted to operate derrick or forklift equipment.

•All persons working with derricks or forklifts must wear standard safety headgear,

footwear, eye protection, and insulated gloves (if required).

Guidelines for lifting and moving cabinets Lifting and moving cabinets

....................................................................................................................................................................................................................................

D-2 Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements

9927 Dist BTS Outdoor

401-703-516

Issue 1 March 2012

•Do not operate a derrick until both stabilizers are extended and firmly supported. Do

not extend stabilizers after a load is suspended from the derrick.

•While raising the derrick from the stowed position, be alert for overhead obstructions,

such as power lines, that may interfere.

•At all times, keep bystanders away from the work area.

•Operators must not suspend loads over people, nor can any person be permitted to

work, stand, or pass under a suspended load.

•When a cabinet is being lifted with slings, it is unsafe to lift the cabinet when lifting

sling angle is less than 45 degrees to the top of the cabinet.

Guidelines for using a derrick

When a derrick is used to move a cabinet, lifting eyebolts and slings are used to attach the

cabinet to the derrick.

Lifting eyebolts

DANGER

Cabinet lifting hazard!

When lifting cabinets, incorrect or improperly installed eyebolts will fail endangering

personnel to bodily injury and destroying the equipment.

Avoid using the wrong eyebolts by following these guideline:

•If a ½ inch eyebolt threads easily and fully into a lifting nut on the top of the cabinet,

then use the ½ inch eyebolts.

•If not, check the threads for 12 mm eyebolts. The 12 mm eyebolt should thread all the

way down without binding, until it bottoms out.

•A 12 mm eyebolt is too small for a ½ inch lifting nut, but will not hand thread all the

way into the ½-inch nut unless forced. It will cross thread if forced, and may pull out

when hoisting, presenting a serious danger. Do NOT force 12 mm eyebolts into ½

inch lifting nuts. Doing so will damage the threads of the lifting nuts.

•A ½ inch eyebolt will thread less than half a thread into a 12 mm lifting nut. Do NOT

force ½ inch eyebolts into 12 mm lifting nuts. Doing so will damage the threads of the

lifting nuts.

Install lifting eyebolts on 9927 cabinets

Four R-ITE-6110 M12, or Four R-ITE-6113 1/2-inch lifting eyebolts are screwed into the

lifting nuts on the top of the cabinet, as shown in the following figure.

Guidelines for lifting and moving cabinets Lifting and moving cabinets

....................................................................................................................................................................................................................................

9927 Dist BTS Outdoor

401-703-516

Issue 1 March 2012

Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements D-3

Position each lifting eyebolt so that the plane of the eyebolt points at the center of the top

of the cabinet, as shown in the previous figure. When this is done, and the load is applied,

the plane of the eyebolt will align with the load. Eyebolts that are not aligned with the

load can bend as the load pulls on them sideways. Refer to the following figure for the

correct method to install the lifting eyebolts.

Install lifting eyebolts on 60ECv2 cabinet

Two R-ITE-6113 1/2 inch lifting eyebolts are screwed into the lifting nuts on the top of

the cabinet, as shown in the following figure.

Important! Do NOT use R-ITE-6110 M12 eyebolts to lift the 60ECv2 cabinet.

TOP VIEW

Lifting nuts

for Eyebolts

TOP VIEW

Lifting Eyebolt

Plane of

Eyebolt

Sling

Lifting

eyebolts

Guidelines for lifting and moving cabinets Lifting and moving cabinets

....................................................................................................................................................................................................................................

D-4 Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements

9927 Dist BTS Outdoor

401-703-516

Issue 1 March 2012

Secure each lifting eyebolt at the top of the cabinet, as shown in the previous figures, and

ensure the shoulder of the eyebolts is properly seated. Refer to the following figure for the

correct method to install the lifting eyebolts.

Install lifting eyebolts

Slings

Attach the slings to the boom line with a B connecting link or clevis. Attach the other

ends of the slings to the lifting eyebolts with a B connecting link or clevis.

When a cabinet is being lifted with slings, it is unsafe to lift the cabinet when the lifting

sling angle is less than 45 degrees to the top of the cabinet. At closer than 45 degrees,

there is too much side stress on the lifting eyebolts. Use slings that are long enough to

keep the lifting sling angle at greater than 45 degrees from the top of the cabinet.

Guidelines for lifting and moving cabinets Lifting and moving cabinets

....................................................................................................................................................................................................................................

9927 Dist BTS Outdoor

401-703-516

Issue 1 March 2012

Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements D-5

Control the cabinet while it is being lifted

NOTICE

When Moving Cabinet

When moving a cabinet, do not tilt the cabinet beyond 30 degrees from vertical. Do not

stand under the cabinet.

A rope tied to the pallet attached to the cabinet should be used to guide the cabinet while

it is being lifted. The rope must be sufficiently long. As the cabinet is being lifted and

transported, use the rope to guide the cabinet and prevent the cabinet from tilting or

swinging.

Always lift cabinets carefully. Also, keep the boom line tight to prevent the cabinet from

tipping while the cabinet is being moved. At the end of the lift, slowly place the cabinet

on the ground.

Unsafe if lifting sling angle is

less than 45 degrees

to the top of the cabinet.

Lifting sling

angle

Boom line

B connecting link or clevis

Slings

Lifting

Eyebolt

Slings

Unsafe if lifting sling angle is

Less than 45 degrees

To the top of the cabinet.

Lifting sling

angle

Boom line

B connecting link or clevis

Slings

Lifting

Eyebolt

Modular Cell cabinet 60ECv2 battery cabinet

Guidelines for lifting and moving cabinets Lifting and moving cabinets

....................................................................................................................................................................................................................................

D-6 Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements

9927 Dist BTS Outdoor

401-703-516

Issue 1 March 2012

Appendix E: GPS antenna

installation

Overview

Purpose

This appendix contains the information needed to install the GPS antenna.

Contents

GPS antenna installation (general) E-2

RF interference considerations E-4

Lightning interference consideration E-5

GPS antenna mount kit E-9

GPS antenna mounting instructions E-11

Active GPS antenna Standard Wave Ratio (SWR) test E-15

...................................................................................................................................................................................................................................

9927 Dist BTS Outdoor

401-703-516

Issue 1 March 2012

Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements E-1

GPS antenna installation (general)

Site selection

The GPS antenna installation site should be selected such that the maximum aggregate of

all blockages above the 10 degree mask angle, such as buildings or mountains, does not

exceed 25% of the surface area of a hemisphere around the GPS antenna. This blockage

should not be in one contiguous quadrant of the hemisphere. Each contiguously blocked

quadrant should be less than 12.5% of the sphere's surface area.

The following diagram shows the mask angle definition for the GPS antenna.

Important! Do not install the GPS antenna directly under structures that may

accumulate or shed snow or ice.

It is desirable that the antenna has the clearest view to the south, east, and west in the

northern hemisphere and to the north, east, and west in the southern hemisphere.

GPS antenna installation GPS antenna installation (general)

....................................................................................................................................................................................................................................

E-2 Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements

9927 Dist BTS Outdoor

401-703-516

Issue 1 March 2012

Obstructions and interference

The following types of obstructions and possible sources of interference need to be

considered:

•Hills, mountains, trees and surrounding plant life.

•Adjacent buildings or any large sky obstructing structures such as grain elevators,

airplane hangers, bridges, overhead roadways, etc.

•Water towers or any close range large metal objects that could cause excessive sky

obstruction.

•Any locations where birds or animals may easily nest or build on or around the

antenna.

•Any collocated RF transmission antennas, TV stations, cable television cables, or

arc-welding equipment.

•High-voltage lines will not cause interference with GPS signal reception.

•Self-supporting or guyed towers will generally not block the GPS signal.

•Trees do not totally block but rather degrade GPS reception, especially during periods

of heavy rain or snow. Consider if increased summer plant life could also become a

problem.

•If a GPS antenna is mounted to a monopole antenna mast, it must be mounted a

minimum distance (D) from the monopole such that less than 12.5% of a contiguous

surface area of a hemisphere around the antenna is blocked by the monopole. The

GPS antenna must be spaced a minimum distance D = 1.61 x R (where R is the radius

of the monopole at the attachment point of the GPS antenna), from the outside surface

of the monopole.

Example:

Monopole radius (inches)R=12

D = (1.61 x 12)

D = 19.3" minimum

This example assumes, of course, that the monopole is the only obstruction to be

considered, and constitutes a contiguous 12.5% blockage of the sky. This condition would

constitute a contiguous blockage in one quadrant of the hemisphere.

GPS antenna installation GPS antenna installation (general)

....................................................................................................................................................................................................................................

9927 Dist BTS Outdoor

401-703-516

Issue 1 March 2012

Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements E-3

RF interference considerations

The GPS antenna installation site should be chosen such that it is not in a direct radiation

pattern of the cell site transmit antennas, and situated such that no other antennas,

microwave transmit dishes, and other sources of RF radiation that could affect GPS

reception are in close proximity. The GPS antenna should not be located within 10 feet

horizontally and 10 feet vertically from any actively transmitting antenna.

GPS antenna installation RF interference considerations

....................................................................................................................................................................................................................................

E-4 Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements

9927 Dist BTS Outdoor

401-703-516

Issue 1 March 2012

Lightning interference consideration

Lightning considerations

Industry standard practices for lightning protection should be followed for GPS antenna

installations. Several sources for such information are:

•Grounding and Lightning Protection Guidelines for Alcatel-Lucent Network Wireless

System Cell Sites, 401-200-115

•National Fire Protection Association (NFPA), NFPA 780, Standard for Installation of

Lightning Protection Systems

•Poly Phaser Corporation “The Grounds” for lightning protection and grounding

solutions for communication sites.

The GPS antenna should be installed such that it is not the highest point in an installation

(The GPS antenna must not be a lightning rod). The GPS antenna must be within the

“protective cone” (see Figure on the following page) of any grounded structure such as an

antenna tower or ancillary lightning rod. The “protective cone” is the area between the

circumference of a circle with a 150 foot radius that tangentially touches the ground and

the side or top of a grounded structure and the ground or structure.

Protective cone installation

The following diagram shows the GPS antenna installed within the protective cone.

GPS antenna installation Lightning interference consideration

....................................................................................................................................................................................................................................

9927 Dist BTS Outdoor

401-703-516

Issue 1 March 2012

Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements E-5

Important! The percentage of protection for the shaded zone is 96%.

Lightning rod installation

If the GPS antenna is mounted to the side of an antenna tower above the 150 foot point,

then horizontal lightning rods must be employed such that the antenna is within the area

of a 150 foot sphere that touches both lightning rods, as shown in the following diagram.

GPS antenna installation Lightning interference consideration

....................................................................................................................................................................................................................................

E-6 Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements

9927 Dist BTS Outdoor

401-703-516

Issue 1 March 2012

In addition, the GPS antenna coaxial cable shield shall be bonded at one point minimum

near the equipment and/or hatch plate, provided the GPS antenna is installed in the cone

of protection using short (less than 60 feet) coaxial cable.

Important! If the coaxial cable run along the tower is more than 60 feet, then the

coaxial cable shield shall be grounded at multiple points near the antenna and

equipment, at 100 foot intervals.

Preventing Arc-over between structures and antenna

If the GPS antenna is mounted on a separate pole or structure of height (H) near an

antenna tower or other grounded structure, and the distance (D) from the pole or structure

to the tower or other grounded structure is less than the height of the pole divided by six

(H/6), then the pole or structure and the antenna tower must be bonded together eliminate

possible arc over during a lightning strike.

Example:

If the pole is 50 feet tall, then D=8.3 feet. (50/6 = 8.3).

Refer to the following diagram for more detail.

GPS antenna installation Lightning interference consideration

....................................................................................................................................................................................................................................

9927 Dist BTS Outdoor

401-703-516

Issue 1 March 2012

Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements E-7

GPS antenna installation Lightning interference consideration

....................................................................................................................................................................................................................................

E-8 Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements

9927 Dist BTS Outdoor

401-703-516

Issue 1 March 2012

GPS antenna mount kit

General

GPS antenna mount kit are available from Andrews in several forms. The standard mount

kit (denoted by the letters MS at the end of the part number) contains two separate kits

that can be used together or separately in the installation of the mount. These separate kits

are the Collar Bracket Mount Kit (part number 602214) and the L-Bracket Mount Kit

(part number 602215). Alternatively, any one of these kits may be installed if the user

requires. Remaining mount kit material may be retained for later use.

GPS-QBW-26NMS

The GPS-QBW-26NMS is a self contained GPS antenna and mount kit. The kit includes a

right hand circularly polarized antenna that incorporates a 26 dB high performance low

noise amplifier as well as mounting hardware to attach the antenna to vertical pipe within

a range of diameter.

Pipe diameter

The L-Bracket Mount Kit will attach the GPS antenna onto a customer-supplied vertical

pipe of diameter ranging between 3/4" to 1/12".

Important! Before installing any components ensure that the mounting pipe is the

correct diameter and free of any components from previous installations.

This kit contains two mounting bracket types. The two brackets can be used together,

as the standard mount kit, or separately as the L-Bracket Mount or the Collar Bracket

Mount. The three mounting arrangements are covered in the following section.

NOTICE

Equipment Damage

Twisting a cable can damage the cable.

DO NOT TWIST ANTENNA TO ATTACH OR REMOVE CABLE.

Bracket mount kits parts lists

The following table provides description of the mounting kit parts.

Collar Bracket Mount Kit (Part #602214)

Item # Part # Quantity Description

1a 602186 1 Collar

GPS antenna installation GPS antenna mount kit

....................................................................................................................................................................................................................................

9927 Dist BTS Outdoor

401-703-516

Issue 1 March 2012

Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements E-9

Collar Bracket Mount Kit (Part #602214)

Item # Part # Quantity Description

2 602190 1 Gasket

3a 602189 4 #10-32 UNF x 0.5" Captive Screw

4a 9978-78 2 0.25" - 20 UNC-3A x 1.0" Set Screw

5a 9903-7 1 Allen Wrench

L- Bracket Mount Kit (Part #602215)

Item # Part # Quantity Description

1b 602187-2 1 L - Bracket

2 602190 1 Gasket

3b 9845-2 4 #10-32 UNF x 0.312" Screw

4b 726042 2 Cleat

5b 9963-131 2 0.25" - 20 UNCx2.5" Hex Head Cap Screw

6b 9963-256 2 0.25" - 20 UNCx3.25" Hex Head Cap Screw

7b 9974-15 2 0.25" Lockwasher

8b 9999-57 2 0.25" - 20 Hex Nut

GPS antenna installation GPS antenna mount kit

....................................................................................................................................................................................................................................

E-10 Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements

9927 Dist BTS Outdoor

401-703-516

Issue 1 March 2012

GPS antenna mounting instructions

Standard mount kit

Perform the following steps and refer to the following diagram to mount the GPS

antenna. (See “Bracket mount kits parts lists” (p. E-9) on the previous page for part's

description).

...................................................................................................................................................................................................

1Attach L-Bracket, Item 1b, to customer-supplied vertical pipe using bolts (Items 5b or 6b

to suit) and Items 4b, 7b and 8b. Locate in desired position.

...................................................................................................................................................................................................

2Tighten 0.25 inch hardware.

...................................................................................................................................................................................................

3Insert the cable assembly, fitted with N male connector, through the Collar, Item 1a, and

Gasket, Item 2. Install Captive Screws, Item 3a. Do not install set screws, Items 4a, for

this configuration.

...................................................................................................................................................................................................

4With Gasket, Item 2, on top of the L- Bracket, insert cable assembly through L-Bracket

and Gasket. Attach the cable assembly to the GPS antenna and tighten the connector as

required.

GPS antenna installation GPS antenna mounting instructions

....................................................................................................................................................................................................................................

9927 Dist BTS Outdoor

401-703-516

Issue 1 March 2012

Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements E-11

...................................................................................................................................................................................................

5Slide the Collar and Gasket up to the antenna and attach to the antenna by pushing

through the four Captive screws through the Gaskets and tighten them into the antenna

base.

...................................................................................................................................................................................................

6Install weatherproofing that extends from directly underneath the flange on the collar

bracket to at least 3 inches below the bottom of the collar measured on the cable

assembly. The unused set screw holes will be covered.

Important! Weatherproofing is not provided with this kit.

L-bracket mount kit

Perform the following steps and refer to the following diagram to mount the GPS

antenna.

...................................................................................................................................................................................................

1Attach L-Bracket, Item 1b, to customer-supplied vertical pipe using bolts (Items 5b or v

6b to suit) and Items 4b, 7b and 8b. Locate in desired position.

...................................................................................................................................................................................................

2Tighten 0.25 inch hardware.

GPS ANTENNA

2

“L” TYPE BRACKET

1b

3b

“L” - BRACKET MOUNT

6b5b or

5b

4b

8b

7b

SHORT SCREWS

GPS antenna installation GPS antenna mounting instructions

....................................................................................................................................................................................................................................

E-12 Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements

9927 Dist BTS Outdoor

401-703-516

Issue 1 March 2012

END OF STEPS

...................................................................................................................................................................................................

3With a Gasket, Item 2, on top of the L-Bracket, insert cable assembly through L-Bracket

and Gasket. Attach the cable assembly to the GPS antenna and tighten the connector as

required.

...................................................................................................................................................................................................

4Insert the four short, Item 3b, screws through the L-Bracket and Gasket and attach

antenna and tighten screws. Do not use the Captive Screws for this configuration.

...................................................................................................................................................................................................

5Install weatherproofing that extends at least 2 inch below the bottom of the connector on

the cable assembly to directly underneath the base plate of the antenna.

Important! Weatherproofing is not provided with this kit.

Collar mount kit

Perform the following steps and refer to the following diagram to mount the GPS

antenna.

...................................................................................................................................................................................................

1Install Captive Screws, Item 3a, and Set Screws, Item 4a, in Collar, Item 1a, then push

Captive Screws, Item 3a, through Gasket, Item 2, holes in order to retain Gasket.

COLLAR TYPE

MOUNTING BRACKET

GPS ANTENNA

COLLAR MOUNT BRACKET

2

1a

3a

4a

GPS antenna installation GPS antenna mounting instructions

....................................................................................................................................................................................................................................

9927 Dist BTS Outdoor

401-703-516

Issue 1 March 2012

Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements E-13

END OF STEPS

...................................................................................................................................................................................................

2Insert the cable assembly fitted with N male connector through the customer-supplied

vertical mounting pipe, and Collar and Gasket assembly previously prepared.

...................................................................................................................................................................................................

3Attach cable assembly to the GPS antenna and tighten connector as required.

...................................................................................................................................................................................................

4Attach Collar and Gasket assembly to antenna and tighten Captive Screws, Item 3a, into

antenna base.

...................................................................................................................................................................................................

5Slide assembly down so that the Collar slides over the mounting pipe. Tighten Set

Screws, Item 4a.

...................................................................................................................................................................................................

6Install weatherproofing that extends from directly underneath the flange on the collar

bracket to at least 3 inches below the bottom of the collar measured on the cable

assembly.

Important! Weatherproofing is not provided with this kit.

GPS antenna installation GPS antenna mounting instructions

....................................................................................................................................................................................................................................

E-14 Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements

9927 Dist BTS Outdoor

401-703-516

Issue 1 March 2012

END OF STEPS

...................................................................................................................................................................................................

Active GPS antenna Standard Wave Ratio (SWR) test

SWR test

The RF signals from the GPS satellites are extremely low-level microwave signals that

must reach the RFTG with minimal distortion and loss. To verify the RF integrity of the

complete antenna and cable system, a Standing Wave Ratio (SWR) or Distance-to-Fault

(DTF) test should be performed.

Since the GPS antenna is an active device, a standard SWR or DTF test setup cannot be

used. A Bias-T must be employed to inject +5 VDC into the RF line to power the

antenna's Low Noise Amplifier (see Figure below).

Important! The antenna will meet it's specified SWR only when powered in this way.

Calibrate the Wiltron as shown and per the manufacturer's instructions. Perform the SWR

or DTF measurement as shown and per the manufacturer's instructions. Record the MAX

SWR indicated and/or DTF data. If it MAX SWR is greater than 2.5, the fault must be

repaired and the antenna and cable retested.

Bias-T

Mini-Circuits

ZFBT-4R2G-FT

GPS

Antenna

5VDC

Power

Supply

Wiltron Site

Master

DC

RF

Digi-Key

T309-ND

RF & DC

GPS Antenna Cable

Calibrate Wilton at

output of Bias-T

F1=1570.0 MHz

F2=1580.0 MHz

Antenna SWR spec.

MAX SWR = 2.5 (7.4 dB return loss)

Digi-Key(800) 344-4539

Mini-Circuits (800) 654-7949

GPS antenna installation Active GPS antenna Standard Wave Ratio (SWR) test

....................................................................................................................................................................................................................................

9927 Dist BTS Outdoor

401-703-516

Issue 1 March 2012

Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements E-15

GPS antenna installation Active GPS antenna Standard Wave Ratio (SWR) test

....................................................................................................................................................................................................................................

E-16 Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements

9927 Dist BTS Outdoor

401-703-516

Issue 1 March 2012

Appendix F: Power and Battery

Engineering Rules for 9927

Distributed Base Station

Outdoor Cabinet

Overview

Purpose

This appendix contains a copy of the document Power & Battery Engineering Rules for

Alcatel-Lucent CDMA Modular Cell 4.0B, ER_0102_0004_PWR, which is the primary

source for power requirements and battery backup information for the 9927 Distributed

Base Station Outdoor Cabinet.

Contents

Engineering Rules Document F-2

...................................................................................................................................................................................................................................

9927 Dist BTS Outdoor

401-703-516

Issue 1 March 2012

Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements F-1

Engineering Rules Document

Description

The remaining pages of this appendix are the pages of the Power & Battery Engineering

Rules for Alcatel-Lucent CDMA Modular Cell 4.0B, ER_0102_0004_PWR.

Power and Battery Engineering Rules for 9927 Distributed

Base Station Outdoor Cabinet

Engineering Rules Document

....................................................................................................................................................................................................................................

F-2 Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements

9927 Dist BTS Outdoor

401-703-516

Issue 1 March 2012

Appendix G: Product

conformance statements

Overview

Purpose

This section presents the product conformance statements that apply to the 9228 Base

Station cabinet.

In regions such as North America and the European Union, the statements that are

required are determined primarily by national or multinational regulations. However, in

some regions, contract terms determine which statements are required.

The presence of the statement indicates that the product does comply with that statement

wherever it is required to do so.

Contents

Canada G-2

European Union G-5

United States G-10

...................................................................................................................................................................................................................................

9927 Dist BTS Outdoor

401-703-516

Issue 1 March 2012

Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements G-1

Canada

Introduction

The statements that follow are the product conformance statements that apply to the 9228

Base Station sMacro cabinet when deployed in Canada.

Industry Canada

ICES-003: Interference-Causing Equipment Standard Digital Apparatus

This Class A digital apparatus complies with Canadian ICES-003.

Cet appareil numérique de la classe A est conforme à la norme NMB-003 du Canada.

IC CS-03: Specification for Terminal Equipment, Terminal Systems, Network

Protection Devices, Connection Arrangements and Hearing Aids Compatibility

This product meets the applicable Industry Canada technical specifications.

RF approval

RSS-132: Cellular Telephones Employing New Technologies Operating in the Bands

824-849 MHz and 869-894 MHz

The term “IC” before the certification/registration number only signifies that the Industry

Canada technical specifications were met.

RSS-133: PCS Radio Standards Specifications

The term “IC” before the certification/registration number only signifies that the Industry

Canada technical specifications were met.

Product safety conformance

The 9228 Base Station cabinet is Safety Certified ITE by Underwriters Laboratories (UL)

and UL Canada.

This Certification is marked on the equipment main nameplate label. Should the local

Authority Having Jurisdiction (AHJ) require prior or additional verification of this

Certification, a Product Certificate of Compliance can be obtained from the specific

Certification Body by the Business/Product Unit Applicant for the product or by

contacting:

Technical Support Services, within Canada: +1 630 224 4672, prompt 2

Any modifications to this equipment are not permitted without review and official written

authorization from the specific Certification Body. Unauthorized changes may violate the

Product Safety Certification. Modifications or changes authorized by official CN/CNN

are assumed to have received prior approval from this Lab.

Product conformance statements Canada

....................................................................................................................................................................................................................................

G-2 Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements

9927 Dist BTS Outdoor

401-703-516

Issue 1 March 2012

Antenna exposure

Antenna installations for the 9228 Base Station cabinet shall be performed in accordance

with all applicable manufacturer's recommendations, and national laws and regulations.

To ensure correct antenna installation, the antenna installer shall perform all necessary

calculations and/or field measurements to evaluate compliance with applicable national

laws or regulations regarding exposure to electromagnetic fields. The supplier of radio

equipment, the supplier of antenna equipment and the integrator and builder of the site

must provide sufficient information so that the limits of the exclusion zones can be

determined. Any changes to the antenna or other equipment in the transmit path may

require re-evaluation of the exposures to electromagnetic fields.

Human exposure

Pursuant to Health Canada Safety Code 6, Limits of Human Exposure to Radio frequency

Electromagnetic Fields in the Frequency Range from 3 kHz to 300 GHz, all installations

must be evaluated against the Maximum Exposure Limits as described in Chapter 2,

Health Canada 99-EHD-237.

Optical transmitters

Alcatel-Lucent declares that 9228 Base Station cabinet complies with the International

Electrotechnical Commission (IEC) standards IEC 60825-1 Edition 2.0 (2007) and IEC

60825-2 Edition 3.1 (2007). It is a Class I/1 laser optical fiber communication systems

"product" under the IEC classifications.

This product is designed to ensure that personnel operating the product are not

endangered by laser radiation during normal operation and fault conditions. This product

does not present a risk of eye injury because it is fully enclosed and does not contain

embedded lasers greater than Class I/1 unless otherwise noted.

CAUTION

Laser hazard

Use of controls or adjustments or performance of procedures other than those specified

herein may result in hazardous laser radiation exposure.

Do not view directly into the laser beam with optical instruments such as a fiber

microscope because viewing of laser emission in excess of Class 1 limits significantly

increases the risk of eye damage.

Never look into the end of an exposed fiber or an open connector as long as the optical

source is switched on.

Ensure that the optical source is switched off before disconnecting optical fiber

connectors.

Product conformance statements Canada

....................................................................................................................................................................................................................................

9927 Dist BTS Outdoor

401-703-516

Issue 1 March 2012

Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements G-3

Packaging collection and recovery requirements

Countries, states, localities, or other jurisdictions may require that systems be established

for the return and/or collection of packaging waste from the consumer, or other end user,

or from the waste stream. Additionally, reuse, recovery, and/or recycling targets for the

return and/or collection of the packaging waste may be established.

For more information regarding collection and recovery of packaging and packaging

waste within specific jurisdictions, please contact the Alcatel-Lucent Services -

Environmental Health and Safety organization. For installations not performed by

Alcatel-Lucent Technologies, please contact the Alcatel-Lucent Customer Support Center

at:

Technical Support Services, within Canada: +1 630 224 4672, prompt 2

Product conformance statements Canada

....................................................................................................................................................................................................................................

G-4 Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements

9927 Dist BTS Outdoor

401-703-516

Issue 1 March 2012

European Union

Introduction

The statements that follow are the product conformance statements that apply to the 9228

Base Station cabinet bearing the CE Marking and when deployed in the European Union.

Declaration of Conformity for radio and telecommunication terminal equipment under the scope

of Directive 1999/5/EC

Hereby, Alcatel-Lucent declares that the equipment documented in this publication is in

compliance with the essential requirements and other relevant provisions of Directive

1999/5/EC.

The technical documentation as required by the Conformity Assessment procedure is kept

at the Alcatel-Lucent location which is responsible for this product. For more information

please contact your local Alcatel-Lucent Customer Service Organization.

CE marking

This product has been CE-marked in accordance with the following European Directive:

•Radio and Telecommunication Terminal Equipment (R&TTE) 1999/5/EC

EMC and radio spectrum compliance for the 850 MHz product

The equipment complies with the following EMC and radio spectrum specifications:

•EN 300 339 V1.1.1 (1998-06)

•ETSI EN 301 489-1 V1.6.1 (2005-09)

•ETSI EN 301 489-26 V2.3.1 (2005-07)

•ETSI EN 301 908-1 V2.2.1 (2003-10)

•Code of Federal Regulations FCC part 24(E)

•IS 3GPP2 - C.S0010-B

Product safety conformance

The equipment complies with the following product safety specifications:

•EN 60950-1:2001

•EN 60215:1989

Telecommunications Standards

The equipment complies with the following telecommunication specifications:

•Technical Basis Regulation TBR 13

Product conformance statements European Union

....................................................................................................................................................................................................................................

9927 Dist BTS Outdoor

401-703-516

Issue 1 March 2012

Alcatel-Lucent – Proprietary

Use pursuant to applicable agreements G-5
