Nokia of America BBTRX-07 Light Radio-9768 Metro Radio Outdoor User Manual Exhibit D Users Manual per 2 1033 c3

APPLICANT: Alcatel-Lucent FCC ID: AS5BBTRX-07

Section 2.1033(C)(3)

USERS MANUAL

Alcatel-Lucent Use pursuant to Company Instructions

APPLICANT: Alcatel-Lucent FCC ID: AS5BBTRX-07

USERS MANUAL

SECTION 2.1033(c) (3)

A copy of the installation and operating instructions to be furnished the user. A draft copy of the instructions may

be submitted if the actual document is not available. The actual document shall be furnished to FCC when it

becomes available.

RESPONSE: A copy of

(1) Light Radio Metro outdoor Installation Manual

is attached.

Alcatel-Lucent Use pursuant to Company Instructions

P

RELIMINARY

P

RELIMINARY

Alcatel-Lucent 9768

lightRadio™ Metro Radio Outdoor V1.0 B13

Installation

3MN-01751-0002-RJZZA

September 2012

Alcatel-Lucent – Proprietary

Use pursuant to applicable

agreements

P

RELIMINARY

P

RELIMINARY

Legal notice

Alcatel, Lucent, Alcatel-Lucent and the Alcatel-Lucent logo are trademarks of

Alcatel-Lucent.

All other trademarks are the property of their respective

owners.

The information presented is subject to change without notice. Alcatel-Lucent assumes no responsibility for inaccuracies contained herein.

Alcatel-Lucent.

Contains proprietary/trade secret information which is the property of Alcatel-Lucent and must not be made available to, or copied or used by anyone outside

Alcatel-Lucent without its written authorization.

Not to be used or disclosed except in accordance with applicable agreements.

P

RELIMINARY

P

RELIMINARY

P

RELIMINARY

P

RELIMINARY

About this document

Purpose

.............................................................................................................................................................................................

Supported systems

........................................................................................................................................................................

Safety information

.............................................................................................................................................................................

1 Safety

Structure of safety

statements

...............................................................................................................................................

1-1

General safety

considerations

...............................................................................................................................................

1-2

Specific safety hazards and RF Safety Statements

........................................................................................................

1-3

2 Metro Radio Outdoor features

Power

.............................................................................................................................................................................................

2-2

Physical properties

...................................................................................................................................................................

2-3

3 Installing an 9768 MRO

Procedure 3-1: Installing the 9768 MRO onto a wall or pole ................................................................................... 3-1

A Product conformance statements

RoHS compliance

....................................................................................................................................................................

A-1

General safety

...........................................................................................................................................................................

A-1

Emissions

....................................................................................................................................................................................

A-1

AC power supply conformance

..........................................................................................................................................

A-3

B Other statements

Product safety

............................................................................................................................................................................

B-1

Glossary

Index

List of tables

....................................................................................................................................................................................................................................

Alcatel-Lucent – Proprietary 9768 lR MRO V1.0 B13

Use pursuant to applicable agreements 3MN-01751-0002-RJZZA

September 2012

P

RELIMINARY

P

RELIMINARY

1 RF safe distances for different power levels

....................................................................................................

1-2

2 AC power system wiring color codes

................................................................................................................

2-1

3 List of major components and subassemblies

..................................................................................................

3-1

List of figures

9768 lR MRO V1.0 B13

3MN-01751-0002-RJZZA

September 2012

Alcatel-Lucent –

Proprietary

Use pursuant to applicable

agreements

1-1

P

RELIMINARY

P

RELIMINARY

P

RELIMINARY

P

RELIMINARY

2-1 Form factor

..................................................................................................................................................................

2-3

2-2 Front view and side view of the drill hole pattern

.........................................................................................

2-6

3-1 Example of 9768 MRO orientation, right-side up

.........................................................................................

3-4

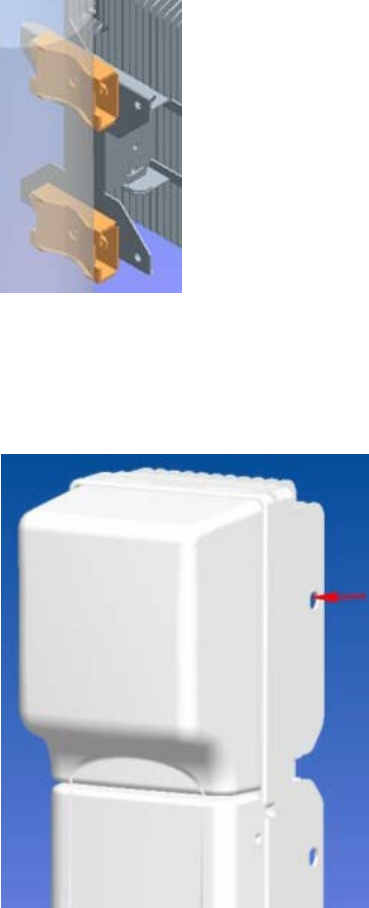

3-2 Pole-mount bracket attachment to a wide pole

...............................................................................................

3-5

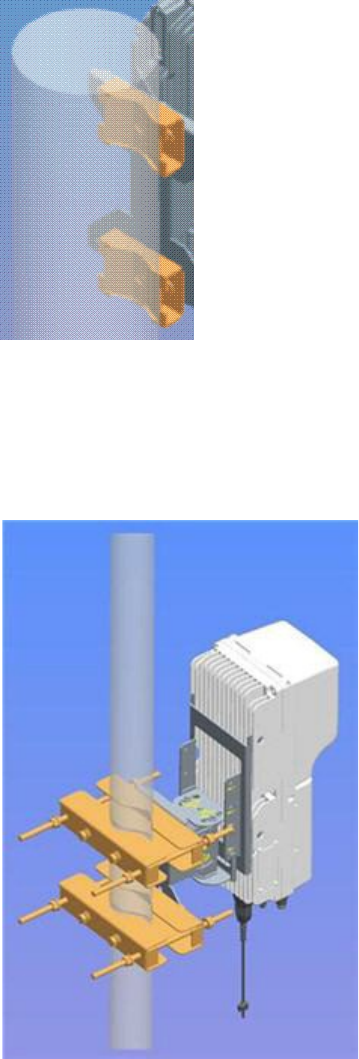

3-3 Pole-mount bracket attachment to a small pole

..............................................................................................

3-5

3-4 Wall-mount bracket to pole-mount bracket

......................................................................................................

3-6

3-5 Upper screws for attachment to wall-mount bracket

.....................................................................................

3-9

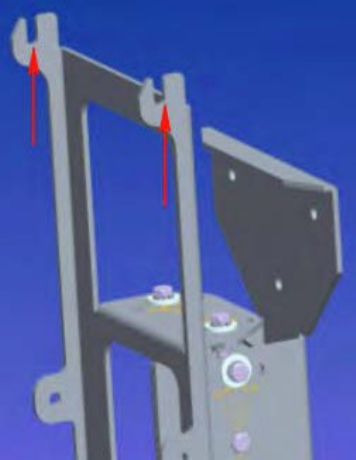

3-6 Bracket ears of the wall-mount bracket ........................................................................................................... 3-99

3-7 Lower screws for attachment to wall-mount bracket

................................................................................. ...

3-10

List of procedures

9768 lR MRO V1.0 B13

3MN-01751-0002-RJZZA

September 2012

Alcatel-Lucent –

Proprietary

Use pursuant to applicable

agreements

P

RELIMINARY

P

RELIMINARY

3 Installing an 9768 MRO

3-1 Installing the 9768 MRO onto a wall or pole

..................................................................................................

3-3

About this document

9768 lR MRO V1.0 B13

3MN-01751-0002-RJZZA

September 2012

Alcatel-Lucent –

Proprietary

Use pursuant to applicable

agreements

P

RELIMINARY

P

RELIMINARY

Purpose

This document describes how to install the Alcatel-Lucent 9768 lightRadio™ Metro

Radio Outdoor V1.0 B13 (9768 MRO) product.

Supported systems

This document assumes that a continuous stream of connected devices already delivers

secure connectivity to the public network from one or more reachable places in the venue.

With this assumption, the scope of the document is only the 9768 MRO and what is

required to connect it to the network, meet its power needs, and ensure that it can

be placed

into reliable service.

Safety information

For your safety, this document contains safety statements. Safety statements are given at

points where risks of damage to personnel, equipment, and operation may exist. Failure to

follow the directions in a safety statement may result in serious consequences.

Safety

9768 lR MRO V1.0 B13

3MN-01751-0002-RJZZA

September 2012

Alcatel-Lucent –

Proprietary

Use pursuant to applicable

agreements

1-1

P

RELIMINARY

P

RELIMINARY

P

RELIMINARY

P

RELIMINARY

1 Safety

Structure of safety statements

Overview

This topic describes the components of safety statements that appear in this document.

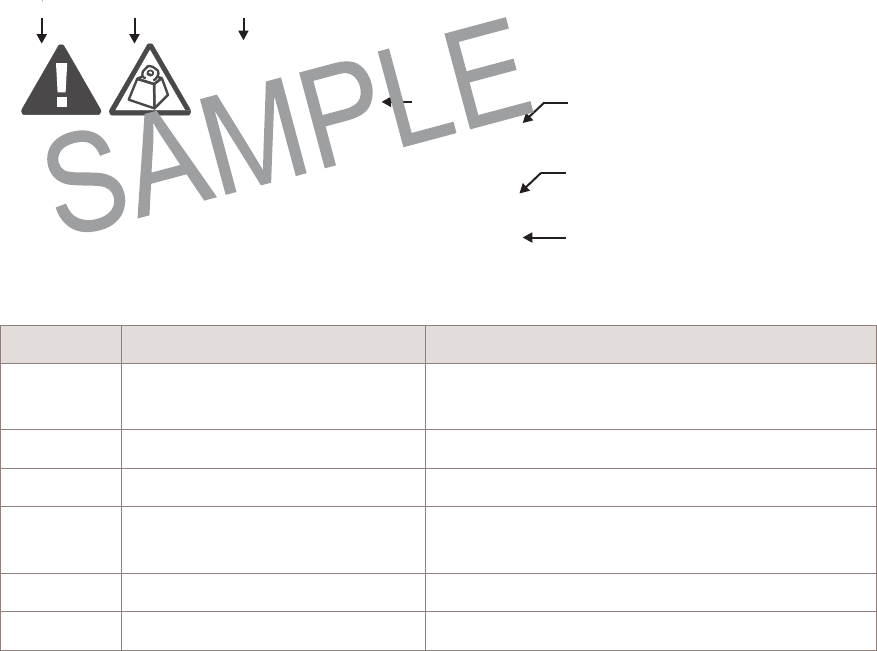

General structure

Safety statements include the following structural elements:

B C D

CAUTION

Lifting hazard E F

Lifting this equipment by yourself can result in injury

due to the size and weight of the equipment. G

Always use three people or a lifting device to transport

and position this equipment. [ABC123] H

Item Structure element Purpose

1 Safety alert symbol Indicates the potential for personal injury

(optional)

2 Safety symbol Indicates hazard type (optional)

3 Signal word Indicates the severity of the hazard

4 Hazard type Describes the source of the risk of damage or

injury

5 Safety message Consequences if protective measures fail

6 Avoidance message Protective measures to take to avoid the hazard

1-2

9768 lR MRO V1.0 B13

3MN-01751-0002-RJZZA

September 2012

Alcatel-Lucent –

Proprietary

Use pursuant to applicable

agreements

Safety Structure of safety statements

Item Structure element Purpose

7 Identifier The reference ID of the safety statement

(optional)

Signal words

The signal words identify the hazard severity levels as follows:

Signal word Meaning

DANGER Indicates an extremely hazardous situation which, if not avoided, will

result in death or serious injury.

WARNING Indicates a hazardous situation which, if not avoided, could result in

death or serious injury.

CAUTION Indicates a hazardous situation which, if not avoided, could result in

minor or moderate injury.

NOTICE Indicates a hazardous situation not related to personal injury.

General safety considerations

Shock hazards

WARNING

Electric-shock hazard

Some parts of all electrical installations are energized. Failure to follow safe work

practices and the safety warnings may lead to bodily injury and property damage.

For this reason, only trained and qualified personnel (electrical workers as defined in

IEC 60215 or EN 60215 + A1 or in the National Electrical Code or in ANSI/NFPA No.

10) may install or service the installation.

WARNING

Electric-shock hazard

There is a danger of electric shock if the grounding system is

inadequate.

You

must comply with the grounding requirements for the grounding system.

P

RELIMINARY

P

RELIMINARY

Safety Specific safety hazards

....................................................................................................................................................................................................................................

Specific safety hazards

Human irradiation by RF transmissions

The Federal Communications Commission (FCC) establishes and from time to

time

revises

guidelines for human exposure to RF electromagnetic fields in the USA. Its Office

of Engineering and Technology then publishes these guidelines in bulletins to allow

companies, such as Alcatel-Lucent, who develop products that transmit non-ionizing RF

waves to calculate safe human exposure distances, based on a corresponding amount of

time spent within those distances.

Safe separation distance

The product complies with RF exposure limits of FCC Part 1.1310 Table 1 (B) Limits for

General Population/Uncontrolled Exposure

The equipment must be installed and operated with a minimum separation distance as

stated in the following power levels and operational modes.

Table 1-1 RF safe distance for different power levels

Power

input to

antenna

RF safe

distance from

antenna for

SISO mode

RF safe distance from

cabinet RADOM for

SISO mode

RF safe distance

from antenna

for 2x2 MIMO

mode

RF safe distance

from cabinet

RADOM for 2x2

MIMO mode

1000 mW

8.8” (22.34 cm)

8.3” (21 cm)

12.4” (31.6 cm)

11.9” (30.3 cm)

500 mW

6.2” (15.8 cm)

5.7” (14.5 cm)

8.8” (22.34 cm)

8.3” (21 cm)

At greater distances from the 9768 MRO, any duration of exposure is considered safe.

...................................................................................................................................................................................................................................

2-1

9768 lR MRO V1.0 B13

3MN-01751-0002-RJZZA

September 2012

Alcatel-Lucent –

Proprietary

Use pursuant to applicable

agreements

P

RELIMINARY

P

RELIMINARY

2 Metro Radio Outdoor

features

Functional features

Air interface and carrier band

The 9768 MRO is a dual transmit/dual receive path radio supporting frequency division

duplex (FDD) LTE air interface. The 9768 MRO is ideally suited to support dense metro

hot spots, with multiple-input multiple-output (MIMO) 2x2 operation in up to 10 MHz of

bandwidth.

Note: 9768 MRO also supports a single Tx antenna (SIMO).

Antenna characteristics

The 9768 MRO comprises an integrated dual polarized Tx/Rx panel antenna.

•

Frequency of operation 746 MHz - 787 MHz

....................................................................................................................................................................................................................................

2-2

Alcatel-Lucent –

Proprietary

Use pursuant to applicable

agreements

9768 lR MRO V1.0 B13

3MN-01751-0002-

RJZZA

September 2012

Metro Radio Outdoor features

Power

....................................................................................................................................................................................................................................

P

RELIMINARY

P

RELIMINARY

Power

Power system

The 9768 MRO requires a single phase, three-wire power source to provide nominal

120-V

AC/

208-V

AC (measured at the input), line to neutral.

The following table summarizes the color codes:

Table 2-1 AC power system wiring color codes

Color Function

Black Line

White Neutral

Green Ground / Protective earth (PE)

Power factor

The minimum power factor (ratio of working power to apparent power) is 0.92.

Although this value is above the typical power factor penalty threshold, it is

unlikely to have a true impact on rates for power consumption.

AC frequency from source

The power supply of the 9768 MRO demands frequency of 47 Hz to 63 Hz

from the voltage source, at any allowable level of voltage.

Metro Radio Outdoor features

Physical properties

...................................................................................................................................................................................................................................

2-3

9768 lR MRO V1.0 B13

3MN-01751-0002-RJZZA

September 2012

Alcatel-Lucent –

Proprietary

Use pursuant to applicable

agreements

P

RELIMINARY

P

RELIMINARY

P

RELIMINARY

P

RELIMINARY

P

RELIMINARY

P

RELIMINARY

....................................................................................................................................................................................................................................

Physical properties

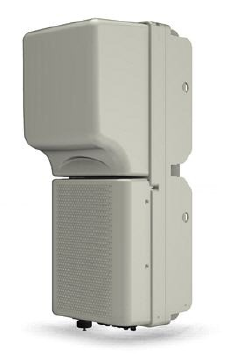

Form factor

The form factor of the 9768 MRO is as shown in Figure 2-1, “Form factor” (p. 2-3).

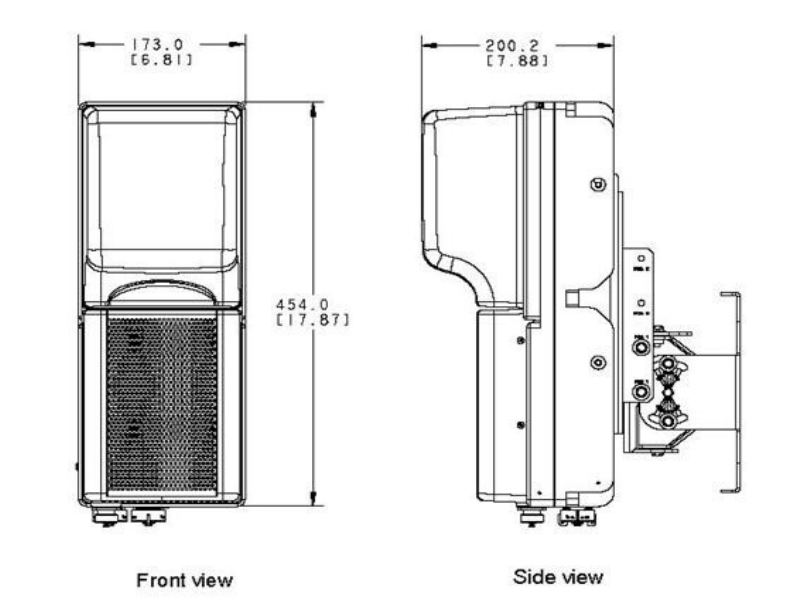

Figure 2-1 Form factor

Dimensions

The approximate dimensions of the 9768 MRO without its mounting hardware are as follows:

•

17.9 inches (454 mm) high

•

6.8 inches (173 mm) wide

•

7.9 inches (200 mm) deep

•

13 inches (332 mm) deep with its wall-mount bracket

Drill hole pattern

Following is an image providing a front view and side view of the drill hole pattern:

Figure 2-3 Front view and side view of the drill hole pattern

Metro Radio Outdoor features

Power

....................................................................................................................................................................................................................................

2-4

Alcatel-Lucent –

Proprietary

Use pursuant to applicable

agreements

9768 lR MRO V1.0 B13

3MN-01751-0002-

RJZZA

Issue 0.05 September 2012

Measurements are in mm [inches].

....................................................................................................................................................................................................................................

2-3

9768 lR MRO V1.0 B13

3MN-01751-0002-RJZZA

September 2012

Alcatel-Lucent –

Proprietary

Use pursuant to applicable

agreements

Installing an 9768 MRO

Procedure 3-1: Installing the 9768 MRO onto a wall or pole

....................................................................................................................................................................................................................................

3 Installing an 9768 MRO

Table 3-1 List of major components and subassemblies

CC Description

109791186 9768 MRO B13 (700U)

849172283 Antenna, KS24844

849168794 Filter, KS24799 L5

201376472

Amplifier, BNJ888, CDY-B13 P1.1

201376480

Radio, BNJ887, NG3e-B13 P1.1

1AF24959AAAA

Power Supply Unit, LCC250-12U-4P-401 (w/ Class

A conducted emissions chokes)

1AF26285AAAA

Power Supply Unit, LCC250-12U-4P-402 (w/ Class

B conducted emissions chokes)

....................................................................................................................................................................................................................................

2-4

Alcatel-Lucent –

Proprietary

Use pursuant to applicable

agreements

9768 lR MRO V1.0 B13

3MN-01751-0002-

RJZZA

Issue 0.05 September 2012

Installing an 9768 MRO

Procedure 3-1: Installing the 9768 MRO onto a wall or pole

....................................................................................................................................................................................................................................

P

RELIMINARY

P

RELIMINARY

P

RELIMINARY

P

RELIMINARY

Procedure 3-1: Installing the 9768 MRO onto a wall or pole

Overview

This procedure includes guidelines for fastening the bracket, making the data connection, making the

power connection, and rough-tuning the aim. It does not extend to

bringing the

9768 MRO into operation,

reading the status of the connected 9768 MRO, and optimizing its RF communications.

The 9768 MRO is designed to be installed with the right-side up orientation, as shown in the following

image:

Figure 3-1 Example of 9768 MRO orientation, right-side up

Installing the 9768 MRO

Perform the following steps:

...................................................................................................................................................................................................

1 If this is a pole-mount installation, attach the standard RRH pole-mount hardware to the

pole.

....................................................................................................................................................................................................................................

2-5

9768 lR MRO V1.0 B13

3MN-01751-0002-RJZZA

September 2012

Alcatel-Lucent –

Proprietary

Use pursuant to applicable

agreements

Installing an 9768 MRO

Procedure 3-1: Installing the 9768 MRO onto a wall or pole

....................................................................................................................................................................................................................................

P

RELIMINARY

P

RELIMINARY

The following image shows a pole with a wider diameter (152 mm - 380 mm).

Figure 3-2 Pole-mount bracket attachment to a wide pole

The following image shows a pole with a low diameter (50 mm - 152 mm). A separate

pole-mount kit is available for poles measuring between 50 mm - 152 mm.

Figure 3-3 Pole-mount bracket attachment to a small pole

....................................................................................................................................................................................................................................

2-6

Alcatel-Lucent –

Proprietary

Use pursuant to applicable

agreements

9768 lR MRO V1.0 B13

3MN-01751-0002-

RJZZA

Issue 0.05 September 2012

Installing an 9768 MRO

Procedure 3-1: Installing the 9768 MRO onto a wall or pole

....................................................................................................................................................................................................................................

P

RELIMINARY

P

RELIMINARY

P

RELIMINARY

P

RELIMINARY

...................................................................................................................................................................................................

2 Attach the wall-mount bracket

•

to the pole-mount bracket, if this is a pole-mount installation, using M10 hardware

provided with the pole mount kit.

•

to the venue wall or façade, if this is a wall-mount installation, using M10 or 3/8

hardware.

Figure 3-4 Wall-mount bracket to pole-mount bracket

Figure 3-5 Upper screws for attachment to wall-mount bracket

...................................................................................................................................................................................................

3 Push the 9768 MRO into the wall-mount bracket so that the top ears of the bracket slide

....................................................................................................................................................................................................................................

2-7

9768 lR MRO V1.0 B13

3MN-01751-0002-RJZZA

September 2012

Alcatel-Lucent –

Proprietary

Use pursuant to applicable

agreements

Installing an 9768 MRO

Procedure 3-1: Installing the 9768 MRO onto a wall or pole

....................................................................................................................................................................................................................................

into the slots that run along the sides of the back of the 9768 MRO.

...................................................................................................................................................................................................

4 Slide the 9768 MRO downward until the tops of the slots in the mounting bracket ears

meet the screws that you threaded into the side flanges of the 9768 MRO.

....................................................................................................................................................................................................................................

2-8

Alcatel-Lucent –

Proprietary

Use pursuant to applicable

agreements

9768 lR MRO V1.0 B13

3MN-01751-0002-

RJZZA

Issue 0.05 September 2012

Installing an 9768 MRO

Procedure 3-1: Installing the 9768 MRO onto a wall or pole

....................................................................................................................................................................................................................................

P

RELIMINARY

P

RELIMINARY

Figure 3-6 Bracket ears of the wall-mount bracket

...................................................................................................................................................................................................

5 Thread an M6x20 TR30 screw through each of the lower side flange holes

...................................................................................................................................................................................................

6 Tighten all four mounting screws.

....................................................................................................................................................................................................................................

2-1

9768 lR MRO V1.0 B13

3MN-01751-0002-RJZZA

September 2012

Alcatel-Lucent –

Proprietary

Use pursuant to applicable

agreements

....................................................................................................................................................................................................................................

P

RELIMINARY

P

RELIMINARY

P

RELIMINARY

P

RELIMINARY

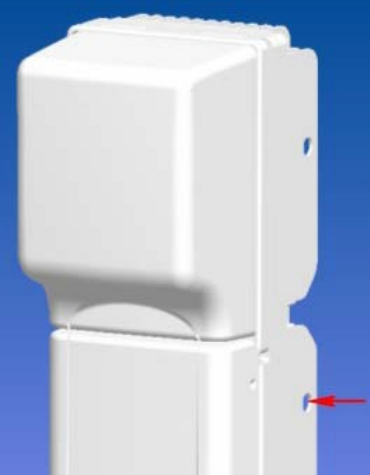

Figure 3-7 Lower screws for attachment to wall-mount bracket

E

...N

...

D

.....O

...F

......

S..

T

...

E

..P

...S

.....................................................................................................................................................................

...................................................................................................................................................................................................................................

Q.

Issue 0.05 September 2012

P

RELIMINARY

P

RELIMINARY

P

RELIMINARY

P

RELIMINARY

Powering up the device

Perform the following steps:

...................................................................................................................................................................................................

1 Test the power from the outlet of the junction box.

...................................................................................................................................................................................................

2 If power to the junction box has been shut off, turn it on.

...................................................................................................................................................................................................

3 Attach the customer-supplied waterproof plug (suitable for the supply voltage,

120-V

AC,

208-V

AC or

240-V

AC) to the far end.

...................................................................................................................................................................................................

4 Plug the power cord into the junction box outlet.

...................................................................................................................................................................................................

5 Begin observing and noting the changes that occur in the LED indications of the 9768

MRO.

...................................................................................................................................................................................................

6 When a steady-lit green indication has been achieved, inform the commissioning and

integration team that the replacement has been successfully completed.

E

...N

...

D

.....O

...F

......

S..

T

...

E

..P

...S

.....................................................................................................................................................................

A-1

9768 lR MRO V1.0 B13

3MN-01751-0002-RJZZA

Issue 0.05 September 2012

Alcatel-Lucent –

Proprietary

Use pursuant to applicable

agreements

P

RELIMINARY

P

RELIMINARY

Appendix A: Product

conformance statements

RoHS compliance

Statement of compliance

This product complies with EU RoHS Directive “6 of 6”, including the China version

(Ref E3).

General safety

Statement of compliance

This product complies with CAN/CSA-C22.2

No.60950-1-07/UL-60950-1,

Second

Edition, Information Technology Equipment – Safety, Part 1: General Requirements. This

covers safety requirements in the USA.

Emissions

Intentional radiator, statement of compliance

This product meets FCC Part 1.1310, Part 2 and FCC Part 27 requirements.

This product complies with EEC Directive 89/336/EEC for radiated emissions, which

references FCC Part 15 Subpart B.

Unintentional radiator, statement of compliance

This product complies with FCC Part 15 Subpart B, Class B radiated and power line

conducted emissions limit.

This product complies with CISPR 22 for radiated emissions, Class B. This standard

addresses unintentional radiators.

...................................................................................................................................................................................................................................

Q.

Issue 0.05 September 2012

P

RELIMINARY

P

RELIMINARY

P

RELIMINARY

P

RELIMINARY

Product conformance statements Radiated interference..

Radiated interference

Statement of compliance

In accordance with FCC rules 15. 19 this product is labeled as follows “This device

complies with part 15 of the FCC Rules. Operation is subject to the condition that

this device does not cause harmful interference”.

This product complies with FCC Part 15 Subpart B, Class B radiated and power line

conducted emissions limit.

This equipment has been tested and found to comply with the limits for a Class B digital

device, pursuant to Part 15 of the FCC Rules.

These limits are designed to provide reasonable protection against harmful interference

in a residential installation. This equipment generates, uses, and can radiate radio

frequency energy and, if not installed and used in accordance with the instructions, may

cause harmful interference to radio communications. However, there is no guarantee that

interference will not occur in a particular installation. If this equipment does cause

harmful interference to radio or television reception, which can be determined by turning

the equipment off and on, the user is encouraged to try to correct the interference by one

or more of the following measures:

•

Reorient or relocate the receiving antenna.

•

Increase the separation between the equipment and receiver.

•

Connect the equipment into an outlet on a circuit different from that to which the

receiver is connected.

•

Consult the dealer or an experienced radio/TV technician for help.

AC power supply conformance

IEC standard, statement of compliance

The AC power supply of this product complies with IEC 60364-1.

Telcordia standard, statement of compliance

The AC power supply of this product complies with Telcordia GR-1089 Section 7.

Appendix B:

Other statements

9768 lR MRO V1.0 B13

3MN

-01751-0002-RJZZA

September 2012

Alcatel-Lucent –

Proprietary

Use pursuant to applicable

agreements

B-1

...................................................................................................................................................................................................................................

Product safety

Safety conformance statement

The 9768 MRO is safety certified by [Placeholder].

This Certification is marked on the equipment main nameplate label. Should the local

Authority Having Jurisdiction (AHJ) require prior or additional verification of this

Certification, a Product Certificate of Compliance can be obtained from the specific

Certification Body by the Business/Product Unit Applicant for the product or

by

contacting Technical Support Services at (630) 224 4762, prompt 2. Any modifications to

this equipment are not permitted without review and official written authorization

from the

specific Certification Body. Unauthorized changes may violate the Product Safety

Certification. Modifications or changes authorized by official CN/CNN are assumed to

have received prior approval from this Lab.

Collection and recovery

Eco-environmental statement

Packaging collection and recovery requirements. Countries, states, localities, or other

jurisdictions may require that systems be established for the return and/or collection of

packaging waste from the consumer, or other end user, or from the waste stream.

Additionally, reuse, recovery, and/or recycling targets for the return and/or collection of

the packaging waste may be established. For more information regarding collection and

recovery of packaging and packaging waste within specific jurisdictions, contact the

Alcatel-Lucent Environment, Health and Safety organization or Alcatel-Lucent

Hazardous Waste Center technical support at (888) 539-2783.

Glossary

....................................................................................................................................................................................................................................

GL-1

9768 lR MRO V1.0 B13

3MN-01751-0002-RJZZA

September 2012

Alcatel-Lucent –

Proprietary

Use pursuant to applicable

agreements

P

RELIMINARY

P

RELIMINARY

...................................................................................................................................................................................................................................

A AHJ

The agency or authority having

jurisdiction.

Article 100 of the National Electrical Code (NEC) for

the United States defines AHJ with greater specificity, stating that it may be a federal, state, local

government, or individual such as a fire chief, fire marshal, chief of a fire prevention bureau,

labor department or health department, building official or electrical inspector, or others having

statutory authority. In some circumstances, the property owner or his/her agent assumes the roles,

and at government installations, the commanding officer or departmental official may be the AHJ.

...................................................................................................................................................................................................................................

B BBU

Baseband unit, the digital signal processor that connects the MRO to the network and provides the

timing and logic for periodic sync signals. In this context, the BBU is the master, and the MRO is

the slave. Thus, the fiber optic cable from the BBU should be connected to the slave port of the

MRO.

...................................................................................................................................................................................................................................

C CAN/CSA

Canadian Standards Association. See http://www.csa.ca (http://www.csa.ca).

CE Mark

The official logo that substantiates the manufacturer whose product bears it has complied with all

EEC directives that apply. See also EEC directive.

CFR

Code of Federal

Regulations.

Among these regulations, Title 47, “Telecommunication,” conveys

the rules of the FCC companies operating networks in the USA. See also FCC.

CPRI

Common Public Radio Interface. Alcatel-Lucent was one of several major companies who

participated in defining the specification for this interface between the radio (the MRO in this

case) and the radio equipment controller (the BBU in this case). See also BBU.

...................................................................................................................................................................................................................................

D d2U

The BBU system supporting two controller and two modems. See also BBU.

Glossary

....................................................................................................................................................................................................................................

GL-2

Alcatel-Lucent –

Proprietary

Use pursuant to applicable

agreements

9768 lR MRO V1.0 B13

3MN-01751-0002-

RJZZA

September 2012

P

RELIMINARY

P

RELIMINARY

E EEC directive

A law enacted by the European Union for enforcement by its Common Market. The terms of such

a law have been used as a point of reference against which to compare the intentional RF

emissions of the MRO.

EIRP

The equivalent isotropically radiated power. The density of the peak power of a radio in the

direction of its greatest amount of gain. This is typically expressed in dBm, a measure relative to

power out per mW.

ESD

Electrostatic discharge, a hazard that electronic equipment such as the MRO can suffer by way of

exposure to static electricity or proximity to something that has no connection to ground.

...................................................................................................................................................................................................................................

F FCC

Federal Communications Commission. Its Wireless Communications Service (WCS) bureau

regulates, among other services, commercial services in the upper 700-MHz frequency band in

the USA.

FDD

Frequency-division duplexing, a radio indexing system whose transmit and receive signals are on

differing carrier frequencies.

FRU

Field-replaceable unit, a designation connoting that the part can be removed in favor of a new one

when diagnostic exercises seem to have isolated a fault to the part. The overall implication is that,

if those exercises point to either no particular part, then the entire unit should be replaced. In the

case of the MRO, the only FRUs are the SFP port modules (see also SFPs) and the whole MRO

itself.

...................................................................................................................................................................................................................................

G GR

Generic requirements published by Telcordia Technologies. See also Core.

...................................................................................................................................................................................................................................

I IEC

International Electrotechnical Commission. The MRO complies with numerous standards that this

independent body has propagated.

...................................................................................................................................................................................................................................

L LC

A small connector that terminates a fiber optic cable and snaps into its mate.

....................................................................................................................................................................................................................................

GL-3

9768 lR MRO V1.0 B13

3MN-01751-0002-RJZZA

September 2012

Alcatel-Lucent –

Proprietary

Use pursuant to applicable

agreements

P

RELIMINARY

P

RELIMINARY

Glossary

....................................................................................................................................................................................................................................

lR A member of the Alcatel-Lucent lightRadio™ family of wireless products. The MRO belongs to

this family.

LTE

3GPP Long Term Evolution wireless standard for high-speed data devices. Evolution implies that

the air interface has evolved from GSM/UMTS standards to an OFDM-based air interface that

realizes peak rates of 300 Mbps downlink and 75 Mbps uplink at less than 5 ms latency. See also

3GPP and OFDM.

...................................................................................................................................................................................................................................

O OFDM

Orthogonal frequency-division multiplexing, the multi-carrier modulation scheme that overcomes

many commonly experienced wireless communications problems, such as multipath and signal

attenuation.

...................................................................................................................................................................................................................................

P PDCP

Packet Data Convergence Protocol, which provides security to both the air interface and the fiber

optic interface of the MRO by compressing and decompressing the IP headers, as specified in the

UMTS protocol stack.

...................................................................................................................................................................................................................................

R Radiall

The proprietary name of an enterprise that produces components for device interconnections.

These components include the R2CT weatherized connector kit by which the MRO installer

retrofits the LC fiber optic connector on the backhaul cable to the SFP port module of the MRO.

The proper name of this company is Radiall USA, Inc. See also SFP.

RoHS

The Restriction of Hazardous Substances Directive, a law enacted by the European Union for

enforcement by its Common Market in order to restrict six particular materials in electrical and

electronic products. These materials are the elements lead, mercury, and cambium, and three

compounds. More broadly, the standard QC 080000 propagates RoHS specifications throughout

the world and thus impacts the choice of regions, nations, and states and provinces selected to

regulate the same substances. The MRO is fully compliant with the RoHS directive.

RRH

Remote RF head consisting of a radio, a receive filter, a transmit amplifier, and a CPRI link to a

BBU. The MRO is an RRH. See also BBU and CPRI.

...................................................................................................................................................................................................................................

S SFP

A small form-factor pluggable module, which serves as the connector in the MRO for the fiber

Glossary

....................................................................................................................................................................................................................................

GL-4

Alcatel-Lucent –

Proprietary

Use pursuant to applicable

agreements

9768 lR MRO V1.0 B13

3MN-01751-0002-

RJZZA

September 2012

optic

interfac

e to the

BBU.

This

module

is an

FRU.

Nokia of America BBTRX-07 Light Radio-9768 Metro Radio Outdoor User Manual Exhibit D Users Manual per 2 1033 c3

Alcatel-Lucent USA Inc. Light Radio-9768 Metro Radio Outdoor Exhibit D Users Manual per 2 1033 c3

Exhibit D Users Manual per 2 1033 c3

Navigation menu

Namespaces

Views

Navigation
