User Manual final_rev.01

M1 - 19/04/2017 10:38:00

USER INSTRUCTIONS AND SAFETY

Congratulations on your purchase of an N-Com product.

N-Com M1 was made using the most advanced technologies and the best

materials. Long-running tests and thorough system development have allowed

the highest audio quality to be achieved.

For additional information about M1 visit the website www.n-com.it

Firmware Version: 1.0x

REFERENCE STANDARDS

The products of the N-Com line are in compliance with standards as per the table below:

The Bluetooth system complies with the main safety requirements and

other applicable provisions of Directive 99/5/CE, Directive 2009/65/EC,

Directive 2011/65/CE, Directive 2012/19/EU

Battery

charger

Direct

ive 2006/95, 2004/108,

2009/65/EC

2011/65/CE,

2012/19/EU

2009/125/CE

Battery

Directive 2006/66

The Declarations of Compliance can be downloaded from the website www.n-com.it

(Download section).

FCC ID: Y6MNCOM14 IC: 9455A-NCOM14

R-NZ

Bluetooth is a registered trademark property of Bluetooth SIG, Inc.

Contents

1. WARNINGS AND SAFETY ................................................................................................. 5

1.1.Road safety ................................................................................................................................................................ 5

1.2.Switching on the system in safe environments ......................................................................................... 5

1.3.Interferences.............................................................................................................................................................. 5

1.4.Appropriate use ....................................................................................................................................................... 5

1.5.Qualified personnel ................................................................................................................................................ 6

1.6.Accessories and batteries .................................................................................................................................... 6

1.7. Disposal ..................................................................................................................................................................... 6

2. CONTENT OF THE PACKAGING ...................................................................................... 7

3. INSTALLATION .................................................................................................................... 8

3.1.Positioning the microphone............................................................................................................................... 8

3.2.Installing the system .............................................................................................................................................. 9

3.3.Installing the adhesive keypad........................................................................................................................ 11

3.4.Positioning the speakers .................................................................................................................................... 11

3.5.Removing the system .......................................................................................................................................... 12

4. FUNCTION KEYS ............................................................................................................... 12

5. BASIC FUNCTIONS ........................................................................................................... 13

5.1.N-Com Wizard and N-Com App .................................................................................................................... 13

6. PAIRING UP BLUETOOTH DEVICES .............................................................................. 14

6.1.Affiliation reset function .................................................................................................................................... 14

7. MOBILE PHONE FUNCTIONS......................................................................................... 15

8. GPS SATELLITE NAVIGATOR FUNCTIONS ................................................................... 15

9. BLUETOOTH A2DP MUSIC PLAYER .............................................................................. 16

10. AUDIO DEVICES WITH CABLE CONNECTION ............................................................ 16

11. RIDER-PASSENGER INTERCOM MODE ........................................................................ 17

11.1.Intercom affiliation............................................................................................................................................. 17

11.2.Intercom function ............................................................................................................................................... 17

12. EMERGENCY STOP SIGNAL (ESS).................................................................................. 18

13. BATTERY ............................................................................................................................. 19

13.1.Battery discharged signal................................................................................................................................ 19

13.2.Recharging the system..................................................................................................................................... 19

14. SUMMARY TABLE OF CONTROLS ................................................................................ 20

15. LIMITED WARRANTY ....................................................................................................... 21

15.1.Warranty coverage............................................................................................................................................. 21

15.2.Exclusions and limitations of the coverage ............................................................................................ 21

15.3.Validity of this limited warranty ................................................................................................................... 21

15.4.Procedure for the forwarding of claims ................................................................................................... 22

15.5.Product identification ....................................................................................................................................... 22

16. WARRANTY REGISTRATION FORM .............................................................................. 23

1. WARNINGS AND SAFETY

Read this User Manual carefully, as well as the simple rules listed below. Failure to comply with these rules may lead

to dangerous situations.

Caution: The product cannot be used in official or non-official competitions, motordromes, circuits, racing tracks and

the like.

Caution: Installation of the N-Com M1 system results in a weight increase of approximately 100 g, which is added to

the weight of the helmet and of the other accessories.

Warning: The electronic components of the N-Com system mounted inside the helmet are not waterproof.

Consequently, make sure the inside of the helmet, including the comfort padding, does not get wet in order to

avoid damage to the system. If it does, remove the N-Com system and the helmet comfort padding and let it

air dry. Disconnect the battery connector and let it dry as well.

1.1. Road safety

Always obey all Traffic Regulations in force. While riding the motorcycle, your hands should always be engaged in

actually riding the vehicle. Any operation to the N-Com system must be carried out with the vehicle stopped.

Specifically:

 Set your cell phone on automatic answer (see the cell phone instructions to do this).

 If your cell phone is not equipped with this function, first stop your vehicle in a safe area, in compliance with

Traffic Regulations and then answer the call.

 Do not make any calls while riding. Stop your vehicle in a safe place in compliance with Traffic Regulations,

and then make the call.

 Adjust the volume so that it does not cause a disturbance or distraction while riding and at the same time

allows you to distinctively hear background noises.

 Do not operate your cell phone or other devices connected to N-Com while riding your motorcycle.

 In all cases, obey the Traffic Regulations and remember that riding the motorcycle has absolute priority over

any other maneuver.

 The M1 system is equipped with an emergency brake light (ESS – Emergency Stop Signal). The ESS system IS

NOT intended to replace the stop or brake lights fitted on the motorcycle, consequently its operation alone is

not enough for proper brake signaling.

 Make sure that the use of the emergency brake light (ESS – Emergency Stop Signal) is not in conflict with the

regulations in force in the country where you will be travelling.

1.2. Switching on the system in safe environments

 When using the N-Com system, comply with all limitations and instructions related to the use of cell phones.

 Do not turn on your cell phone or the N-Com system whenever their use is forbidden or when the devices

can cause interference or dangerous situations.

 Turn off while refueling. Do not use the N-Com system in filling stations. Do not use the device near

combustible materials or chemical products.

 Turn off in proximity to explosive materials.

1.3. Interferences

All phones and devices with wireless signal transmission are subject to interferences that may affect the

performance of the device connected to them. These interferences are not ascribable to a defect of the N-Com

system.

1.4. Appropriate use

Use the device only in the normal position, as described in the product documentation. Do not attempt to

disassemble, tamper with or modify any part of the N-Com system.

Caution: Adjust the volume of the N-Com system (where provided) and of the audio sources connected to it before

you use the system on the road.

Caution: Adjusting the volume to very high levels may cause damage to your hearing.

Caution: Adjust the volume of the N-Com system (where provided) and of the audio sources connected to it so as to

avoid audio reproduction at high volumes. Constant exposure to high audio volumes may damage your

hearing.

Caution: An incorrect installation of the system in the helmet may alter the aerodynamic and safety characteristics of

the helmet itself, thus creating dangerous conditions. Install the N-Com system according to the instructions

provided in the product documentation. In case of doubt, please contact your local N-Com dealer.

Warning: Listening to other equipment should not interfere with driving the vehicle, which must be the top priority

at all times. Carry out all operations on the electronic equipment and on the N-Com system with the vehicle

stopped, in compliance with Traffic Regulations.

1.5. Qualified personnel

 Only qualified personnel can carry out technical assistance on this product. In case of any malfunction, always

turn to your local dealer.

 The helmet is a safety device. Tampering with it and/or with the electronic system inside the helmet, in

addition to invalidating the product warranty, can also lead to dangerous situations.

1.6. Accessories and batteries

 Only use the type of batteries, battery chargers and accessories approved by Nolan for the specific model.

 The use of a battery type different from the recommended one may lead to dangerous situations and

invalidate the warranty.

 Contact your local dealer to see about the availability of approved accessories.

 When disconnecting the power supply cable of any accessory or of the battery charger, always grab and pull

the plug not the cable.

 Do not use batteries for purposes other than the prescribed ones.

 Never use batteries or battery chargers that turn out to be damaged.

 Do not short-circuit the battery.

 Keep the battery at a temperature between 0° / +32°C (charging); -20° / +55°C (in use).

 Danger of fire or explosion: do not throw the batteries into a fire nor expose them to high temperatures!

 Do not throw out batteries together with household refuse. The batteries should be disposed of in

compliance with local regulations.

 Do not wear the helmet while the battery is recharging.

 The helmet should never be left within the reach of unsupervised children in order to prevent damage to

their health caused by access to the batteries.

system battery

LP513434

Litio 3,7V

–

1000 mAh

Battery charger

009L

100/240V

–

50/60 Hz

0.5 A

1.7. Disposal

Refer to this user manual and to manuals related to other parts of the N-Com system in order to disassemble the

system from the helmet. Once the system has been disassembled, dispose of it according to the following

instructions:

 The presence of a crossed-out wheelie bin indicates that in the European Union the product is

subject to separate collection at the end of its useful life.

 Do not dispose of these products together with undifferentiated urban waste.

 The proper disposal of obsolete equipment contributes to preventing possible negative consequences on

people’s health and on the environment.

 For more detailed information on the disposal of obsolete equipment, contact your municipality, a waste

disposal service or the store where the product was purchased.

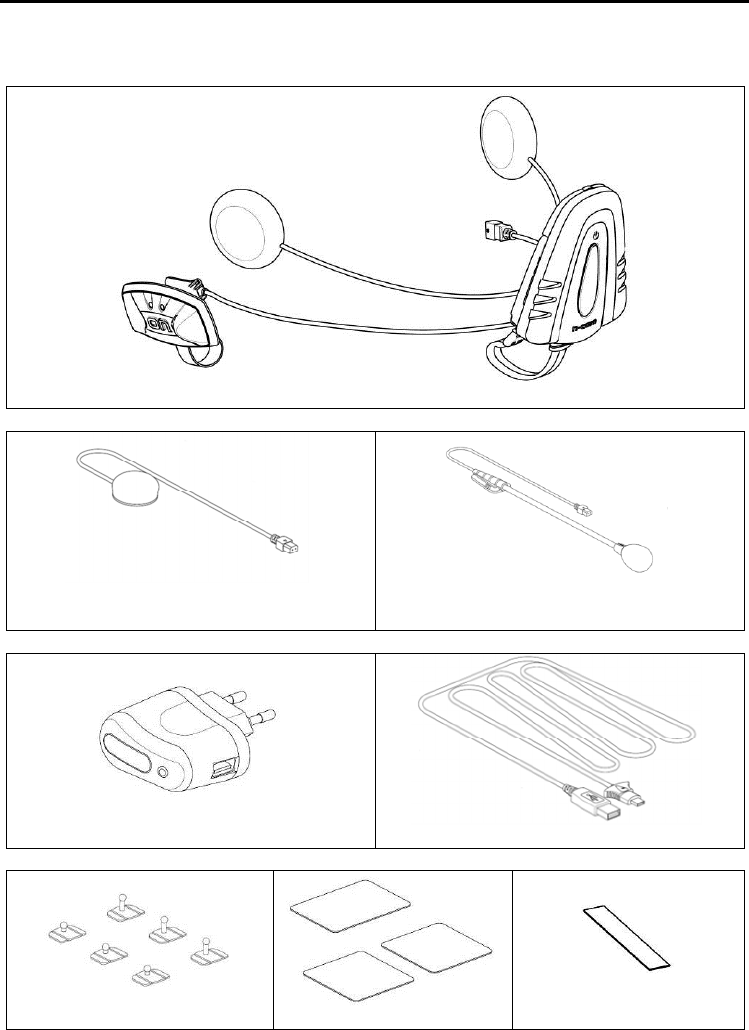

2. CONTENT OF THE PACKAGING

The N-Com M1 package contains:

M1 system

Microphone for

full-face helmets Flexible boom microphone

USB battery charger

connection cable

Fixing feet kit

Velcro kit

M1 wiring bi

adhesive

3. INSTALLATION

3.1. Positioning the microphone

Flexible boom microphone – recommended



Position the swivel part of the microphone with

the Velcro/adhesive part between helmet shell

and the padding, so that the microphone is

properly positioned in front of your mouth.

Caution: make sure that the side of the

microphone support with the writing “N-Com” is

facing inward.

Fig.

Wire microphone



In case it is not possible to use the swivel

microphone, install a wire microphone.



Use the Velcro/adhesive to secure the

microphone inside the helmet, so that it is in

front of your mouth.

N.B.: This type of microphone is more

recommended for full-face helmets.

Fig.

3.2. Installing the system

The M1 system must be positioned in the back of the helmet, using the adhesive feet supplied as

standard equipment.

 Thoroughly clean the surface of the helmet where the feet will be applied;

 Make sure the safety block is properly listed, as shown in Fig. 3. If the safety block is closed, lift it as

explained in the chapter entitled “Removal”;

 Insert the fixing feet in the device (Fig. 4);

 Make sure the system is properly positioned on the helmet shell.

Fig. 3

Fig. 4

If necessary, depending on the different types of helmets, replace one or more thin feet with thicker

ones, until you find the combination that allows the e-box to properly stick to the helmet (Fig. 5-8).

Fig. 5

Fig. 6

Fig. 7

Fig. 8

Important: Should you wish to use the emergency brake light (see Chapter 12), you need to position

the M1 system so that it is vertical or with an inclination of +/-30° with respect to the vertical axis

while you are riding, so as to allow the triaxial accelerometer to properly measure the motorcycle

deceleration. Based on the type of helmet used and the riding style, choose the combination of

feet (thick-thin) that allows proper positioning.

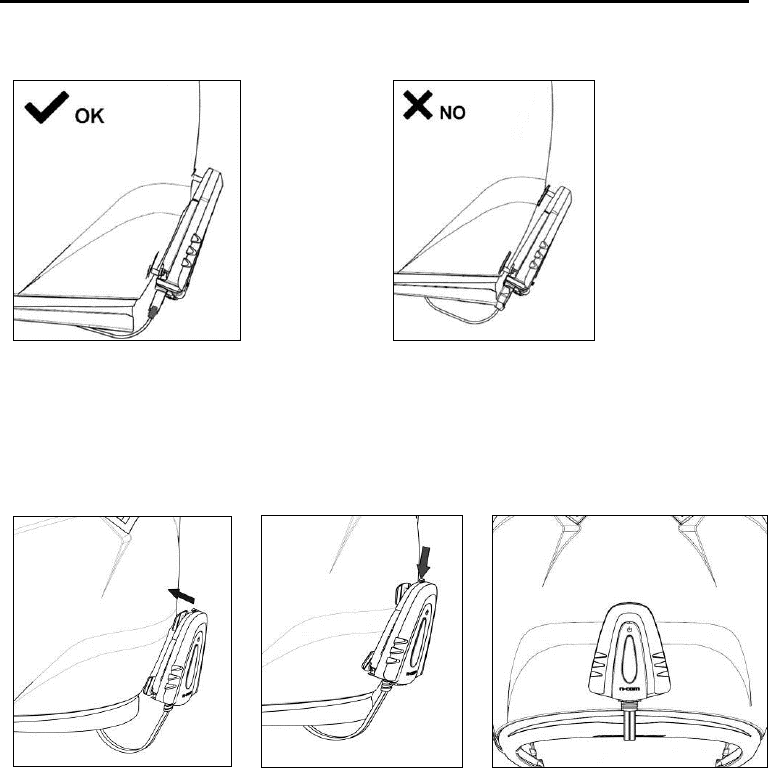

Important: When positioning the e-box on the helmet, the wiring connector must not stick out from

the edge of the helmet or be twisted (fig. 9 and 10).

Fig.

Fig. 1

 Remove the protective film from the feet and apply the system to the helmet (Fig. 11-13);

 Close the safety block by pressing it downward, as shown in Fig. 12;

Important: If the position is less than perfect, remove the foot from the helmet immediately and try

again. See the following chapter for instructions on how to remove the system.

Fig. 11

Fig. 12

Fig. 13

NB: It will take up to 24 hours for the adhesive to stick completely. During this time, do not expose

the helmet to atmospheric agents. During the first 12 hours, do not remove the system from the

feet.

Caution: Once the adhesive is applied, it cannot be reused in a different position and will have to be

replaced once removed.

3.3. Installing the adhesive keypad

 Thoroughly clean the helmet surface to which the keypad will be applied;

 For better grip to the helmet, if necessary, apply the “M1 wiring bi-adhesive” supplied as standard

equipment to the back of the keypad flex cable. Fig. 14

 Remove the protective film on the keypad and apply it to the helmet.

 Remove the protective film of the “M1 wiring bi-adhesive” and make it stick to the shell.

Fig. 14

Fig. 15

Important: If the position is less than perfect, remove the foot from the helmet immediately and try

again.

NB: It will take up to 24 hours for the adhesive to stick completely. During this time, do not expose

the helmet to atmospheric agents.

Caution: Once the adhesive is applied, it cannot be reused in a different position and will have to be

replaced once removed.

3.4. Positioning the speakers



Remove the protective film from the Velcro of

the speakers;



Position the speakers near your ears, so that

they stick perfectly to the helmet.

N.B.: If possible, position the speakers

underneath the comfort padding of the

helmet.

Fig. 1



Connect the microphone cable to its

counterpart located on the speakers

wiring.

Fig. 1

3.5. Removing the system

 Lift the safety block of upper foot using a flat head screwdriver (or a similar tool), as indicated in Fig.

18.

 Release the M1 system from the fixing feet (Fig. 19);

 Remove the feet from the helmet.

Fig. 18

Fig. 19

4. FUNCTION KEYS

“ESS” BUTTON

EMERGENCY STOP

SIGNAL LED

KEYPAD LED

5. BASIC FUNCTIONS

System ON

Press “

” and keep it pressed fo

r about 3 seconds, until the LEDs turn

on and you hear a beep in the headset.

System OFF

Press “

” and keep it pressed for about 4 seconds, until the LEDs turn

off and you hear a beep in the headset.

Increase Volume

Briefly press “

” to increase the vo

lume. A double tone signals the

highest volume level.

Decrease Volume

Briefly press “

” to decrease the volume. A double tone signals the

lowest volume level.

5.1. N-Com Wizard and N-Com App

“N

Com Wizard” is the PC application that can be used to manage a

nd configure the

system.

The program can be downloaded from the Internet site www.n-com.it, in the “Download”

section. In order to use it, a helmet equipped with M1 must be connected to the PC, using

the USB cable supplied with the system.

The functions that can also be managed from the N-Com Wizard are listed here below

with the specific icon.

The N

Com system is preset to be hooked up to the “N

Com App”, the application

compatible with Android that can be used to configure and operate the N-Com system

directly from a Smartphone.

With the N-Com App, you can carry out most of the functions included in the N-Com

Wizard program or, alternatively, it can be used as a wireless Bluetooth keypad.

The N-Com APP can be downloaded free of charge from Google Play.

For additional details, please visit the website www.n-com.it

The functions that can also be managed from the N-Com Wizard are listed here below

with the specific icon.

6. PAIRING UP BLUETOOTH DEVICES

In order for the M1 system to be connected to another Bluetooth device, the latter needs to be first

paired up with the N-Com system.

The pairing up procedure is the same for all Bluetooth devices: mobile phones, MP3 Bluetooth

players, satellite navigators, etc.

1. Make sure the M1 is turned off;

2. Press “on” and keep it pressed (for more than 4 seconds), until the keypad LEDs start to

flash quickly and you hear a sharp beep in the headset, indicating the “Pair-up mode”;

3. On the Bluetooth device, turn on the search for Bluetooth devices (refer to the instructions

manual of your device for the proper pairing up procedure, as it varies depending on the

brand and model of the device);

4. After a few seconds, the device will display the name “N-Com M1 v.X.XX”, followed by the

manufacturer’s identification data;

5. Select the N-Com device. If a password is requested, enter 0000 (four zeros);

6. M1 will confirm the pairing up by means of a tone in the headset, and the keypad LEDs will

stop flashing;

7. Turn off and on both the device and the M1 to store the pairing up data.

Note: The affiliation is stored in the helmet and in the cell phone and it is not lost when the two

devices are turned off. As a result it needs to be carried out only once.

Note: If a Bluetooth device (mobile phone or GPS) equipped with music player with Bluetooth A2DP

player has already been paired up, the pairing up DOES NOT have to be repeated as the A2DP

protocol has already been stored in the M1.

Once the Bluetooth device has been paired up, connection is automatic when the system is turned

on.

6.1. Affiliation reset function

You can remove all affiliated devices from the system memory. This operation is not reversible; right

after resetting, you will have to repeat the affiliation procedure for the cell phone (or for other

compatible Bluetooth devices).

To erase all devices previously affiliated, proceed as follows:

 Press “on” and keep it pressed (for more than 4 seconds), until the keypad LEDs start to flash

quickly and you hear a sharp beep in the headset, indicating the “Pair-up mode”;

 Press “+” and “-” at the same time for 4 seconds, and release them when you hear a beep. The N-

Com will emit a special acoustic signal to confirm and will then turn itself off.

This function can also be turned on through PC using the “N-Com Wizard” programme.

7. MOBILE PHONE FUNCTIONS

Answering a phone call Briefly press any key when you hear the incoming call signal

Hanging up/rejecting a

phone call

Press “

” and keep it pressed for ab

out 2 seconds (until you hear the

acoustic signal)

Voice call (if equipped)

Press “

” and keep it pressed for about 2 seconds (until you hear the

acoustic signal)

Redial last number Briefly press “+” and “-” at the same time

Transferring a call from

helmet to mobile phone

To transfer an ongoing call from the helmet to the mobile phone, press

both “+” and “-” at the same time and keep them pressed for 4 seconds

Conference call function

M1 allows a conference call with Rider and Pillion Passenger.

When a call comes in on a mobile phone connected via Bluetooth to M1, the Rider-Pillion Passenger

intercom is temporarily turned off. However, if you wish to share the phone call with the other helmet,

simply turn on the intercom manually during the phone call (by briefly pressing “on”).

Caution: this function is available only if the Pillion Passenger helmet is also equipped with a N-Com

system provided with the same function.

8. GPS SATELLITE NAVIGATOR FUNCTIONS

M1 is compatible with the most common satellite navigators for motorcycles.

By connecting the N-Com system to the GPS, all instructions will be transferred to the helmet.

Every time the navigator communicates instructions, the intercom via Bluetooth with the Pillion

Passenger is cut off and automatically restored at the end of the communication.

Note: If the navigator is pre-set for connection to a Bluetooth mobile phone, you will be able to

receive the phone call audio directly in the helmet through the GPS. In this case, you can answer

the call directly from the navigator.

GPS Conference Call Function

The Conference function allows you to keep the “Rider-Pillion Passenger” intercom open even while

the satellite navigator is giving instructions, thus preventing the intercom mode to be turned off every

time the navigator gives instructions. However, if you wish to activate the Conference GPS function,

simply turn on the intercom manually during the GPS directions (by briefly pressing “on”).

Caution: this function is available only if the Pillion Passenger helmet is also equipped with a N-Com

system provided with the same function.

At the end of the GPS communication, the intercom with the second helmet stays open and the

"Conference" setting is stored for future GPS communications.

9. BLUETOOTH A2DP MUSIC PLAYER

You can listen to high quality music by connecting M1 to a device equipped with Bluetooth A2DP

(Advanced Audio Distribution Profile) protocol.

The M1 system is also equipped with Bluetooth AVRCP (Audio Video Remote Control Profile)

protocol, which allows you to stop and resume music reproduction directly from the helmet (with

devices equipped with AVRCP).

Connection to A2DP music

player

The connection is automatic when you turn on the system.

Wait

a few seconds for the connection.

Play music (Play) Press the “+” button and keep it pressed for 2 seconds.

Pause function (Pause)

When the player is connected and playing music, press “

” for 2

seconds.

Next track (Skip) When the player is playing music, press “+” for 4 about seconds.

Stop playing music (Stop) Press “-” for 2 seconds.

Note: The Bluetooth intercom does not work while listening to an A2DP audio source or an un Mp3

player connected via cable.

10. AUDIO DEVICES WITH CABLE CONNECTION

N-Com M1 allows connection via cable (sold separately) to audio sources equipped with the 3.5mm

output generally used by these devices for the headsets.

To listen to the audio source, connect the cable to the helmet using the mini-USB port, then start

playing the audio file on the device, then activate the audio peripheral device using the specific key.

You can turn on or off listening in the helmet by pressing the “-” and “on” key at the same time.

N.B. : You cannot stay connected in intercom mode with the pillion passenger while using the audio

source via cable.

11. RIDER-PASSENGER INTERCOM MODE

In order to use M1 in wireless intercom mode, both helmets have to be equipped with a N-Com

Bluetooth system.

In order for two N-Com systems to communicate with one another, they have to be paired up first.

11.1. Intercom affiliation

1. Make sure both N-Com Bluetooth systems are turned off;

2. Set both N-Com Bluetooth systems in Pairing up mode by pressing “on” (for more than 4

seconds), until the keypad LEDS start to flash quickly;

3. On either one of the two helmets, press “on” briefly;

4. After a few seconds, the helmets “recognize” each another, a beep is emitted to signal the pair up

was successful and intercom communication is activated;

5. Turn off both N-Com Bluetooth systems and turn them back on to store the pair up data.

11.2. Intercom function

To activate the intercom connection, turn on the two N-Com systems and briefly press “on” on one of

the helmets.

Intercom activation With M1 turned on, briefly press “on”.

Intercom deactivation With M1 turned on, briefly press “on”.

12. EMERGENCY STOP SIGNAL (ESS)

The M1 system is equipped with a LED system to assist emergency braking. In case of sudden

braking, the LEDs on the M1 flash for a few seconds.

Switching on the emergency

stop signal

Briefly press the

ESS

key. The ESS key

starts to flash to confirm that

the signal has been switched on.

Switching off the emergency

stop signal

Briefly press the

ESS

key. The ESS key will flash 4 times to conform

that the signal has been switched off.

The sensitivity of the stop signal can be adjusted in 3 different levels:

 Low: the stop signal turns on during sudden braking only

 Medium

 High: the stop signal turns on during slight braking as well

The ESS system is pre-set on HIGH.

To change levels, proceed as follows:

 put the system in the Setting mode (starting with the M1 system turned on, press the ESS

key and keep it pressed for more than 6 seconds, until the braking LEDs start to flash

quickly);

 SETTING THE LOW LEVEL: press the ESS key and keep it pressed until the braking LEDs flash

once. Release the key to confirm your choice.

 SETTING THE MEDIUM LEVEL: press the ESS key and keep it press until the braking LEDs

flash twice. Release the key to confirm your choice.

 SETTING THE HIGH LEVEL: press the ESS key and keep it press until the braking LEDs flash

three times. Release the key to confirm your choice.

The switch from one level to the other

occurs according to the following

sequence:

If there is no helmet movement for more than 60 seconds, the Emergency Stop Signal will go into

“stand by” mode, indicated by a long flashing of the LEDs. As soon as movement is detected, the

Emergency Stop Signal will switch on again, confirmed by the LEDs flashing twice.

N.B.: We recommend turning off the Emergency Stop Signal on the Rider’s helmet in case a Pillion

Passenger is riding on the back.

13. BATTERY

Before using the N-Com device for the first time, recharge the battery completely for at least 10

hours. To obtain best performances from the battery, it is recommended to completely recharge the

battery the first few times. Afterwards, you can recharge the battery for shorter periods. Whenever

possible, it is best to recharge the battery completely.

13.1. Battery discharged signal

While the system is operating, it indicates when the battery has about 1 hour of charge left. The

system LEDs stat to flash to indicate the “RESERVE” status. This warning is repeated every 10 minutes.

When the battery operates in “Reserve”, the system automatically turns itself off in case no button is

pressed for 30 minutes. The shutting off is signaled by a series of beeps in the helmet. This function

makes it possible to always have a small reserve of energy to use it again in case you forget to turn

off your helmet.

13.2. Recharging the system

Fig. 20

To recharge the M1 system, connect the USB cable to a battery charger

or to a powered USB port. Charging occurs as follows:

M1 system turned off

When you connect the

system to the battery charger, the blue LED on

the keypad begins to flash.

When the battery is fully charged, the blue LED stops flashing and stays on.

M1 system turned on

When you connect the

system to the battery charger, the red LED on

the keypad begins to flash.

When the battery is fully charged, the red LED on the keypad turns off.

N.B.: If the device has not been charged for a long time (a few months), it may not be possible to turn

on the system during the first few minutes of the charging, as the voltage may drop below the

minimum limit.

14. SUMMARY TABLE OF CONTROLS

Button on + -

- ESS

Basic Functions

Turning on X (3s)

Turning off X (4s)

Increase Volume X

Decrease Volume X

Activate / Deactivate audio via

cable* X X

Activate intercom X

Deactivate intercom X

Turning on ESS X

Turning off ESS X

Turning on/off the Emergency

Stop Signal X

Bluetooth device

Answer phone call X X X

Voice call X (2s)

Hang up/reject a phone call X (2s)

Redial last number X

Mobile phone connection X (2s)

Mobile phone disconnection X (4s)

Call transfer X (4s)

Activate Conference Mode X

Mp3 player

Disconnect A2PD device X (2s)

Play music (Play) X (2s)

Pause Function (Pause) X (2s)

Next track (Forward) X (4s)

Setting

Pairing up mode

system

turned off

(4s)

Rider

Passenger intercom pair

up** X

Erase pair ups**

(4s)

*Briefly press at the same time.

**With N-Com system in Pairing up Mode.

15. LIMITED WARRANTY

With this LIMITED WARRANTY CERTIFICATE, Nolangroup warrants this Product to be free from defects in material

and workmanship at the time of its original purchase by the buyer. We invite you to:

- Read the cautions pertaining to safety and proper use.

- Read the warranty terms and conditions.

- Keep the originals sales receipt. This must be shown in case of repairs covered by warranty. In these cases, the

product has to be taken back to the dealer where it was purchased.

15.1. Warranty coverage

If any defect covered by this limited warranty certificate is discovered within 2 (two) years from the purchase date

shown on the tax receipt, Nolangroup shall repair or replace the defective product through its distribution network

after having verified the defect. Nolangroup shall supply all the material and labor that is reasonably required to

remedy the defect, except in those cases where the damage is caused by one of the items listed in the following

paragraph “Exclusions and limitations of the Coverage”.

15.2. Exclusions and limitations of the coverage

This warranty only covers defects in materials and manufacturing. Nolangroup shall not be considered responsible

for product defects that can be attributed, either partially or in full, to any other cause, including but not limited to:

 Defects or damages resulting from using the Product in conditions that differ from the usual ones.

 Damages caused by improper use not conforming with normal operation in accordance with the product

operating and maintenance instructions provided by Nolangroup.

 Negligence and normal wear of internal and external parts.

 Any damage caused by an accident;

 Any change or modification made to the helmet or to the N-Com system by the user or by third parties.

 Color changes or damages caused by exposure to harmful chemical products.

 The use of incompatible accessories that are not part of the N-Com product range.

 Moreover, the warranty does not cover product defects caused by fortuitous events, modifications or

adjustments, causes of

force majeure

or damages deriving from the product coming in contact with liquids.

 The internal helmet components are not and cannot be waterproof. Consequently, any improper exposure to

rain, humidity, food spillages or other liquids can result in damages to the N-Com electronic devices, damages

for which Nolangroup shall not be responsible.

 This warranty does not include those parts subject to wear and tear such as, for example, the rechargeable

battery and the cables used for connection between the various N-Com systems or between the N-Com

systems and other devices.

 Since Nolangroup does not supply the system on which the cell phones work, it shall not be responsible for

the operation, availability, coverage, services or range pertaining to the aforementioned system.

 Whenever the product is used in conjunction with accessories or equipment not supplied by Nolangroup,

Nolangroup shall not guarantee proper operation of the product/device combination, nor will it accept

requests for repairs or replacements under warranty in case the product is used in such a way.

Nolangroup shall not be responsible in case the product presents limited capabilities due to the operating mode of

cell phones or of other accessories or equipment not supplied by Nolangroup.

Tampering with the internal electronic card or with other parts of the N-Com system shall invalidate the warranty.

Moreover, the defects covered by this warranty do not include all those specific and subjective situations that may

come up during the active use of the helmet such as, for example, comfort problems while riding or aerodynamic

noises.

Nolangroup shall not be held responsible in any case for incidental or consequential damages (including, without

any limitation whatsoever, damages to one or more persons) resulting from non-fulfillment of the obligations

arising from this warranty as it pertains to Nolangroup products.

15.3. Validity of this limited warranty

This warranty is valid only if the enclosed warranty form is duly and completely filled out with the following

information:

 Product identification code

 Name and stamp of the authorized dealer.

 Product purchase date.

 Buyer’s name and address.

Nolangroup reserves itself the right to not carry out repairs under warranty if the aforementioned information is

removed or modified after the original purchase of the product from the dealer.

15.4. Procedure for the forwarding of claims

To forward a claim covered by this warranty, the buyer has to directly notify the dealer where the helmet was

purchased with regards to the defect, presenting at the same time the defective product, a copy of the sales receipt

and the Warranty registration form, duly filled out as instructed above.

PRIOR TO CONTACTING THE DEALER, WE RECOMMEND THAT YOU READ CAREFULLY THE USER MANUAL

ENCLOSED WITH THE PRODUCT.

AFTER 2 (TWO) YEARS FROM THE DATE OF PURCHASE, THIS LIMITED WARRANTY IS VOID FOR ALL EFFECTS AND

PURPOSES.

Repairs or maintenance under warranty do not extend the period of the warranty itself. Therefore, in case the

product or one of its components is replaced, this does not initiate a new warranty period, as the purchase date of

the original product shall be taken into account for warranty purposes.

Only for repairs or replacement of electronic components, in the event that Nolangroup proceeds to repairing or

replacing the product, said product shall enjoy a warranty period equal to the residual portion of the original

warranty or ninety (90) days from the repair date (the longer period being considered).

The repair or replacement can be carried out even with regenerated components with equivalent functions.

The replaced parts or components shall become property of Nolangroup.

THIS WARRANTY VOIDS AND REPLACES ANY OTHER WRITTEN OR VERBAL WARRANTIES PROVIDED FOR BY THE

LAW THAT CAN BE DEROGATED AT THE PARTIES’ WILL; SPECIFICALLY, NOLANGROUP DOES NOT GRANT SPECIFIC

WARRANTS OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. IN NO CASE SHALL NOLAN BE

LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES INCLUDING BUT NOT LIMITED TO LOST PROFITS OR

COMMERCIAL DAMAGES, TO THE FULL EXTENT THOSE DAMAGES CAN BE DISCLAIMED BY THE LAW.

NOLANGROUP RESERVES ITSELF THE RIGHT TO MODIFY, AT ANY TIME AND WITHOUT ADVANCE NOTICE, THE

PRODUCT CHARACTERISTICS, FUNCTIONS, COMPATIBILITY AND SOFTWARE.

Some Countries do not allow the exclusion or limitation of incidental or consequential damages, or the limitation of

the duration of implied warranties; as a result of this, the previous limitations and exclusions may not be applicable

to you.

This warranty does not have any effect on the customer’s legal rights under the national jurisdiction in force or on

the consumer’s rights towards the dealer sanctioned by the purchase/sale contract.

This warranty is valid throughout the European territory, and it represents the only express warranty provided by

Nolangroup in relation to the sale of its own products. This warranty does not affect the rights to which the buyer is

entitled and which are expressly provided for by Directive 1999/44/CE.

This warranty does not affect the consumer’s rights provided for by the law, and specifically by the provisions of

Legislative Decree 2 February 2002 n. 24.

15.5. Product identification

N-Com products are identified by means of a code that allows product traceability

and identification.

The identification code is listed on the Bluetooth M1 control unit and on the outside

of the sales package.

16.

WARRANTY REGISTRATIO

N FORM

Product name:

Identification code

Buyer’s Information

Name

Last name

Address

Phone

mail

Dealer’s stamp

Date

of purchase

www.n-com.it

FOR USA AND CANADA MARKET ONLY -

SPECIAL WARNING

------------------------------------------------------------------------

POUR LE MARCHE US ET CANADIEN UNIQUEMENT -

MISE EN GARDE SPECIALE

------------------------------------------------------------------------

SÓLO PARA EL MERCADO USA Y CANADÁ -

ADVERTENCIAS IMPORTANTES

FOR USA AND CANADA MARKET ONLY: SPECIAL WARNING

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device

may not cause harmful interference, and (2) this device must accept any interference received,, including interference that

may cause undesired operation of the device.

Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority

to operate the equipment.

NOTE: The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications to this

equipment. Such modifications could void the user’s authority to operate the equipment.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the

FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential

installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in

accordance with the instructions, may cause harmful interference to radio communications. However, there is no

guarantee that interference will not occur in a particular installation.

If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the

equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

 Reorient or relocate the receiving antenna.

 Increase the separation between the equipment and receiver.

 Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

 Consult the dealer or an experienced radio/TV technician for help.

This model meets the government’s requirements for exposure to radio waves. Your wireless device is a radio transmitter

and receiver. It is designed and manufactured not to exceed limits for exposure to radio frequency (RF) energy set by the

Federal Communications Commission (FCC) of the U.S. Government and by the Canadian regulatory authorities.

RF Radiation Exposure Statement - The device has been evaluated to meet FCC and RSS-102 general RF exposure

requirement. The device can be used in portable exposure condition without restriction.

For Canada market only: This device complies with Industry Canada license‐exempt RSS standard(s). Operation is subject

to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any

interference, including interference that may cause undesired operation of the device.

Model: M1.5 FCC ID: Y6MNCOM14 IC: 9455A-NCOM14 R-NZ

Bluetooth is a registered trademark property of Bluetooth SIG, Inc.

FOR USA AND CANADA MARKET ONLY: LIMITED WARRANTY

Limited warranty certificate valid for 2 (two) years from the date of purchase.

Dear Customer,

Thank you for choosing a Nolangroup N-Com device.

PLEASE READ CAREFULLY ALL THE CLAUSES AND CONDITIONS OF THIS LIMITED WARRANTY CERTIFICATE.

By this LIMITED WARRANTY CERTIFICATE, Nolangroup guarantee to the original purchaser of the N-Com that the product

is free from all material and manufacturing defects at the time of purchase.

COVER PROVIDED BY THE WARRANTY

If any defect covered by this limited warranty certificate comes to light within 2 (two) years from the date of purchase,

Nolangroup shall proceed, through their distribution networks and after verifying the defect, to repair or replace the

defective product. Nolangroup shall supply all the materials and provide all the labor reasonably necessary to remedy the

reported defect, except for cases in which the damage is attributable to one of the reasons listed in the paragraph below,

entitled “Exclusions and limitations of cover”.

EXCLUSIONS AND LIMITATIONS OF COVER

This warranty covers only material and manufacturing defects. Nolangroup cannot be held liable for damages to the

product which are either wholly or partially attributable to any other cause, including, but not limited to:

a) damage caused by improper use, lack of due care, normal wear and tear of internal and external components;

b) scratches, abrasions, or other damage caused to the external parts of the N-Com by accidental impacts;

c) damage caused by the application of stickers and/or adhesives;

d) any damage caused by an accident;

e) any modification or change made to the device by the user or by third parties;

fl) use of incompatible accessories not sold by Nolangroup.

Defects covered by this warranty likewise do not include all the specific and subjective situations which may arise during

dynamic use of the N-Com equipped helmet, such as problems of comfort due to improper sizing, or wind noise while

riding. Nolangroup cannot in any case be held liable for accidental or consequential damage (including, with no limitation

whatsoever, injuries to a person or persons) resulting from the failure to comply with the obligations stipulated in this

warranty regarding Nolangroup products.

Some states do not allow the exclusion or limitation of implied warranties, incidental or consequential damages, so the

above limitations and exclusions may not apply to you. This warranty gives you specific legal rights, and you may also

have other rights which vary from state to state

VALIDITY OF THIS LIMITED WARRANTY

This warranty is valid only if all the sections of the attached REGISTRATION FORM are completed in full and the

registration is returned to the address indicated on the card within 10 (ten) days from the date of purchase:

1) Identification code;

2) Name of the authorized dealer;

3) Date of purchase of the N-Com;

4) Name, address and telephone number of the purchaser.

PROCEDURE TO BE FOLLOWED TO MAKE POSSIBLE CLAIMS

To proceed with any claim covered by this warranty, the purchaser must notify directly Nolangroup’s agent in the USA of

the alleged defect encountered by him. In agreement with Nolangroup’s agent, the purchaser may have to return the

device to which complains refer, at the purchaser’s expense, along with the sales receipt or other proof of purchase (and

date of purchase) and a copy of the warranty registration form.

BEFORE REFERRING THE MATTER TO THE AGENT, WE ADVISE YOU TO READ CAREFULLY THE USER’ MANUAL INCLUDED

WITH THE DEVICE WHICH MUST BE FOLLOWED SCRUPULOUSLY FOR YOUR OWN PROTECTION AND THAT OF THIRD

PARTIES.

2 (TWO) YEARS AFTER THE DATE OF PURCHASE THIS LIMITED WARRANTY SHALL LAPSE ENTIRELY.

This warranty is valid in the entire territory of the United States and Canada is the only express warranty given by

Nolangroup in relation to the sales of their own devices.

Any service provided under the warranty does not have the effect of extending the warranty period itself. If any device or

any of its components are replaced a new warranty period does not begin to run on the product or on individual

components supplied by the way of replacement; the date of purchase of the original device remains the deciding factor.

For further information, please contact the following address or telephone numbers:

USA

CIMA INTERNATIONAL

1585 Beverly court #118

Aurora IL 60502

Ph: (630) 701-1601

Fax: (630) 701-1606

E-mail: info@cimaint.com

Toll-free (USA only): 866-243-5638

CANADA

CLARY SPORTS LOISIRS

67 ROUTE 329

ST DONAT (QC) J0T 2C0 – CANADA

Ph: 001 8194244545

Fax: 001 819 424 7859

E-mail: clary@st-donat.net

POUR LE MARCHE US et CANADIEN UNIQUEMENT: MISE EN GARDE SPECIALE

Cet appareil est conforme à la section 15 de la réglementation FCC. Son fonctionnement est soumis aux deux conditions

suivantes : (1) Cet appareil ne doit pas créer d’interférences nuisibles, et (2) cet appareil doit accepter les interférences

reçues, y compris les interférences pouvant provoquer des dysfonctionnements de l’appareil.

Les changements ou modifications non expressément approuvés par les autorités compétentes en matière de conformité

peuvent priver l'utilisateur du droit d'utiliser l'équipement en question.

REMARQUE : Le fabriquant n’est pas responsable de l’interférence radio ou TV causée par les modifications apportées à cet

équipement sans autorisation préalable. De telles modifications pourraient annuler l’autorisation de l’utilisateur de faire

fonctionner cet équipement.

A l’issue des tests dont il a fait l’objet, ce produit est conforme à la section 15 de la réglementation FCC applicable aux

appareils numériques de classe B. Ces limites sont conçues pour fournir une protection suffisante contre les interférences

nuisibles dans les installations résidentielles.

Cet équipement génère, utilise et peut émettre des ondes radioélectriques susceptibles de créer des interférences nuisibles

dans les communications radioélectriques si l'équipement est installé incorrectement. Cependant, il n'est pas garanti

qu'aucune interférence ne se produise dans une installation particulière.

Dans le cas où cet équipement créerait des interférences avec la réception radio ou télévisée, ce qui peut être vérifié en

éteignant et en rallumant l'appareil, il est conseillé d'essayer de corriger ces interférences en appliquant une ou plusieurs

des mesures suivantes :

 Réorienter ou déplacer l'antenne de réception.

 Augmenter la distance entre l'équipement et les équipements.

 Relier l'équipement à une prise de courant différente de celle du récepteur.

 Prendre conseil auprès d'un distributeur ou d'un technicien radio/TV qualifié.

Ce modèle répond aux exigences gouvernementales en matière d'exposition aux ondes radio. Votre appareil est un

émetteur-récepteur radio. Il est conçu et fabriqué pour ne pas dépasser les limites d'exposition aux radiofréquences (RF)

définies par la Federal Communications Commission (FCC) du gouvernement des États-Unis et par les autorités

réglementaires canadiennes.

Déclarations sur l’exposition aux radio-fréquences RF: Le dispositif est conforme aux standards FCC et RSS-102 en ce qui

concerne les limites des expositions aux radio-fréquences.Le dispositif peut etre utilisé sur les dispositifs portables sans

aucune restriction.

Uniquement pour le marché canadien :

Le present appareil est conforme aux CNR d’Industrie Canada applicables auxappareils radio exempts de licence. L’exploitat

ion est autorisée aux deux conditions suivantes: (1) l’appareil ne doit pas produire de brouillage, et (2) l’utilisateur de l’appa

reil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d’en compromettre le fonction

nement.

Model: M1.5 FCC ID: Y6MNCOM14 IC: 9455A-NCOM14 R-NZ

Bluetooth est une marque déposée de Bluetooth SIG, Inc.

POUR LE MARCHE US ET CANADIEN UNIQUEMENT: GARANTIE LIMITEE

Certificat de garantie limitee 2 (deux) ans, a compter de la date d’achat.

Cher Client, Merci d’avoir choisi un appareil Nolangroup N-Com.

VEUILLER LIRE SOIGNEUSEMENT L’ENSEMBLE DES CLAUSES ET DES CONDITIONS DE CE CERTIFICAT DE GARANTIE

LIMITEE. Par le présent CERTIFICAT DE GARANTIE LIMITEE, Nolangroup assure à l’acheteur initial du N-Com que le produit

ne présente au moment de l’achat, aucun défaut quant aux matériaux utilisés ou à la fabrication.

COUVERTURE DE LA GARANTIE

Si un quelconque défaut couvert par le présent certificat de garantie limitée est découvert d’ici 2 (deux) ans, à compter de

la date d’achat, Nolangroup s’engage par le biais de ses réseaux de distribution et après avoir vérifié la nature du défaut, à

réparer ou a remplacer le produit défectueux. Nolangroup fournira tout le matériel et le travail raisonnablement requis

pour réparer le défaut signalé, sauf si le dommage est dû à l’une des raisons indiquées au paragraphe suivant, intitulé

« Exclusions et limites de la couverture ».

EXCLUSIONS ET LIMITES DE LA COUVERTURE

Cette garantie couvre uniquement les défauts des matériaux et de fabrication. Nolangroup ne saurait être tenue pour

responsable des défauts du produit, imputables, en tout ou en partie, à une des causes reportée dans la liste – non

exhaustive – ci-après :

a) Dommages dûs à un usage incorrect, manque d’entretien, usure normale des parties internes et externes.

b) Rayures, abrasions, ou tout autre dommage causé aux parties externes du N-Com par des impacts accidentels.

c) Dommages causés par l’installation d’adhésifs.

d) Dommages dûs à un accident.

e) Modifications ou changements apportés à l’appareil par l’utilisateur ou des tiers ;

f) Utilisation d’accessoires incompatibles non vendus par Nolangroup.

La garantie ne couvre pas les défauts liés à toutes les situations particulières qui pourrait se présenter pendant l’utilisation

dynamique du casque équipé N-Com, tels que des problèmes de confort dûs à la taille inappropriée, ou au bruissement du

vent au cours du pilotage.

Nolangroup ne pourra en aucun cas être tenu pour responsable des dommages accidentels ou conséquentiels (y compris,

sans limitation aucune, les lésions corporelles provoqués aux personnes) dûs au non respect des obligations dérivant de

cette garantie concernant les produits Nolangroup.

Certains Pays ne permettent pas l’exclusion ou la restriction des garanties implicites, des dommages accidentels ou

conséquentiels, par conséquent les restrictions ou les exclusions précédentes pourraient ne pas être applicables. Cette

présente garantie vous confère des droits juridiques spécifiques, et vous pouvez également jouir d’autres droits qui

peuvent varier d’une juridiction à une autre.

VALIDITE DE CETTE GARANTIE LIMITEE

Cette garantie n’est valable que si toutes les sections de la fiche d’enregistrement ci-jointe sont remplies dans leur totalité

et que l’enregistrement est retourné à l’adresse indiquée sur la carte dans les 10 (dix) jours à partir de la date d’achat :

1) Code d'identification ;

2) Nom du revendeur agréé ;

3) Date d’achat du N-Com ;

4) Nom, adresse et numéro de téléphone de l’acheteur.

PROCEDURE POUR L’ENVOI DES RECLAMATIONS EVENTUELLES

Pour toute réclamation couverte par la présente garantie, l’acheteur devra communiquer directement au revendeur de

Nolangroup aux Etats-Unis le défaut présumé constaté. En accord avec le revendeur de Nolangroup, l’acheteur peut avoir

à retourner l’appareil dont la plainte se réfère, aux frais de l’acheteur, accompagné du reçu de caisse ou autre preuve

d’achat (et date d’achat) et d’une copie de la fiche d’enregistrement.

AVANT DE VOUS ADRESSER A VOTRE REVENDEUR, NOUS VOUS RECOMMANDONS DE LIRE ATTENTIVEMENT LES

INSTRUCTIONS D’UTILISATION FOURNIES AVEC L’APPAREIL QUI DOIVENT ETRE SCRUPULEUSEMENT SUIVIES POUR

VOTRE PROTECTION ET CELLES DES TIERS.

LA GARANTIE EXPIRE ENTIEREMENT 2 (DEUX) ANS APRES LA DATE D’ACHAT.

La présente garantie est valable sur l’ensemble du territoire des Etats-Unis et du Canada est constitue la seule garantie

expresse fournie par Nolangroup concernant les ventes de ses appareils.

Les interventions au titre de la garantie ne sauraient avoir pour effet de prolonger la durée de celle-ci. Par conséquent, en

cas de remplacement d’un appareil ou de l’un de ses composants, ledit appareil ou ledit composant fourni en

remplacement ne déclenchera pas une nouvelle période de garantie sur le produit et il faudra au contraire tenir compte de

la date d’achat de l’appareil d’origine.

Pour plus d’informations, contacter les adresses ou numéros de téléphone suivants :

POUR ETATS

UNIS

CIMA INTERNATIONAL

1585 Beverly court #118 - Aurora IL 60502

Tél : (630) 701-1601 Fax : (630) 701-1606

E-mail : info@cimaint.com

Numéro vert (Etats-Unis uniquement) : 866-243-5638

POUR LE CANADA

CLARY SPORTS LOISIRS

67 ROUTE 329

ST DONAT (QC) J0T 2C0 –CANADA

Tél : 001 8194244545 Fax : 001 819 424 7859

E-mail : clary@st-donat.net

SÓLO PARA EL MERCADO USA y CANADÁ: ADVERTENCIAS IMPORTANTES

Este dispositivo cumple con el apartado 15 de las normas FCC. El funcionamiento está sujeto a las dos condiciones

siguientes: (1) Este dispositivo no debe ocasionar interferencias dañinas, y (2) este dispositivo debe poder soportar

cualquier interferencia recibida, incluidas las posibles interferencias que provoquen mal funcionamiento.

Cualquier cambio o modificación que no esté expresamente aprobado por la parte responsable podría anular el derecho

del usuario a manipular el equipo.

NOTAS: El fabricante no será responsable de cualquier interferencia radio o TV ocasionada por modificaciones no

aprobadas para este equipo. Dichas modificaciones podrían anular el derecho del usuario a utilizar el equipo.

Este producto ha sido probado y se ha determinado que cumple con los límites establecidos en el apartado 15 de las

normas FCC para un dispositivo digital de clase B. Estos límites se han diseñado para brindar un grado de protección

razonable contra las interferencias dañinas en una instalación de carácter residencial. Este equipo genera, utiliza y puede

irradiar energía de radiofrecuencia y, de no ser instalado y utilizado según las instrucciones, podría provocar

interferencias dañinas a comunicaciones de radio. No obstante, no existe ninguna garantía de que no se producirá

interferencia en una instalación específica.

Si este equipo causa interferencias dañinas a la recepión de radio o televisión, que se pueden detectar apagando y

encendiendo los equipos, el usuario puede intentar solucionar dichas interferencias con una o algunas de las siguientes

medidas:

 Volver a orientar o colocar la antena de recepción

 Aumentar la distancia entre el equipo o los dispositivos

 Conectar el equipo a una toma de corriente que no sea la del receptor

 Contactar al distribuidor o a un técnico radio /TV experto para asistencia técnica

Este modelo cumple con las exigencias del gobierno para la exposición a ondas de radio. Su dispositivo inalámbrico es un

transmisor y receptor de radio. Ha sido diseñado y fabricado para no exceder los límites de exposición a radiofrecuencia

(RF) establecidos por la Federal Communications Commission (FCC) del gobierno de EE.UU y por las autoridades

normativas de Canadá.

Declaración de exposición a la radiación por radio frecuencia (RF): El dispositivo cumple con los límites de exposición a

radiofrecuencia FCC y RSS-102. El dispositivo se puede utilizar en condiciones de exposición para dispositivos portátiles

sin restricciones.

Sólo para el mercado en Canadá: Este producto cumple con los límites de exposición a RSS para dispositivos portátiles

fijados por Canadá. El uso del dispositivo está sujeto a las siguientes condiciones: 1) este dispositivo no debe ocasionar

interferencias, y (2) este dispositivo debe aceptar cualquier interferencia recibida, incluidas aquellas interferencias que

puedan ocasionar un funcionamiento indebido del aparato.

Model: M1.5 FCC ID: Y6MNCOM14 IC: 9455A-NCOM14 R-NZ

Bluetooth es una marca registrada de propiedad de Bluetooth SIG, Inc.

SÓLO PARA EL MERCADO USA y CANADÁ: GARANTÍA LIMITADA

Garantía limitada - 2 (dos) años a partir de la fecha de compra.

Estimado consumidor, Le agradecemos por haber escogido un dispositivo Nolangroup N-Com.

POR FAVOR, LEA DETENIDAMENTE LAS CLÁUSULAS Y LAS CONDICIONES DEL PRESENTE CERTIFICADO DE GARANTÍA

LIMITADA.

Con el presente CERTIFICADO DE GARANTÍA LIMITADA, Nolangroup garantiza al comprador original del dispositivo N-

Com que el producto está libre de defectos por materiales y de fabricación en el momento de la compra del mismo.

COBERTURA PREVISTA POR LA GARANTÍA

Si se manifestara algún tipo de defecto cubierto por la presente garantía durante los 2 (dos) años a partir de la fecha de

compra, Nolangroup deberá, mediante las redes de distribución pertinentes y luego de haber constatado el defecto,

reparar o sustituir el producto defectuoso. Nolangroup suministrará todo el material y la mano de obra necesaria para

solucionar dicho defecto, a menos que la causa del daño sea atribuible a una de las excepciones mencionadas en el

párrafo siguiente : “Exclusiones y Limitaciones de la Cobertura”.

EXCLUSIONES Y LIMITACIONES DE LA COBERTURA

La presente garantía cubre solamente los defectos por materiales o de fabricación. Nolangroup no será responsable por

defectos del producto atribuibles en todo o en parte alguna a cualquier otra causa, comprendida y no solo limitada a:

a) Defectos o daños causados por el uso incorrecto del producto, por descuido, por el deterioro o desgaste normal

del interior o exterior de sus componentes;

b) Arañazos, abrasiones, u otro daño ocasionado en las partes exteriores del N-Com como consecuencia de impactos

accidentales;

c) Daños ocasionados por la aplicación de etiquetas y/o adhesivos;

d) Cualquier daño ocasionado por un accidente;

e) Cualquier modificación o cambio aportados al dispositivo por parte del usuario o de terceros;

f) Uso de accesorios incompatibles y no vendidos por Nolangroup.

Los defectos cubiertos por la presente garantía no incluyen aquellas situaciones específicas y subjetivas que pudieran

ocurrir durante el uso dinámico del casco equipado con el sistema N-Com, por ejemplo los problemas causados por el

uso de una talla incorrecta, o por el ruido del viento durante la conducción. Nolangroup no podrá ser considerado

responsable por daños accidentales o consecuentes (incluyendo, sin limitaciones algunas, las lesiones a personas)

ocasionados por el incumplimiento de las obligaciones derivadas de la presente garantía hacia los productos Nolangroup.

Algunas naciones no aceptan la exclusión o la limitación de los daños accidentales o consecuentes, o la limitación de la

duración de la garantía implícita. Por lo tanto puede que las limitaciones y exclusiones anteriores no sean aplicables. La

presente garantía otorga al usuario derechos legales específicos, el usuario pudiera disponer de otros derechos aplicables

según la nación.

VALIDEZ DE LA PRESENTE GARANTÍA LIMITADA

La presente garantía es válida sólamente si se rellenan todas las partes de la TARJETA DE GARANTÍA adjunta y se envía a

la dirección indicada en la tarjeta dentro de los 10 (diez) días a partir de la fecha de compra:

1) Código de identificación;

2) Nombre del distribuidor autorizado ;

3) Fecha de compra del N-Com;

4) Nombre, dirección y número de teléfono del comprador.

PROCEDIMIENTO ANTE POSIBLES RECLAMACIONES

Para enviar cualquier tipo de reclamación cubierta por la garantía, el comprador debe informar directamente al vendedor

Nolangroup en USA del presunto defecto encontrado. De acuerdo con el vendedor Nolangroup, el comprador, a su

cargo, deberá devolver el dispositivo objeto de reclamación, junto con el recibo de compra u otra prueba de compra ( y

la fecha de compra) y una copia de la tarjeta de garantía.

ANTES DE DIRIGIRSE AL VENDEDOR, RECOMENDAMOS QUE EL USUARIO LEA DETENIDAMENTE EL MANUAL DE

INSTRUCCIONES DEL DISPOSITIVO Y LO CUMPLA ESTRICTAMENTE PARA SU PROPIA PROTECCIÓN Y PARA EL BIEN DE

TERCEROS. PASADOS 2 (DOS) AÑOS DESPUÉS DE LA FECHA DE COMPRA, LA PRESENTE GARANTÍA PERDERÁ SU

VALIDEZ A TODOS LOS EFECTOS.

La presente garantía tiene validez en todo el territorio de los Estados Unidos y de Canadá y es la única garantía otorgada

por Nolangroup en relación a la venta de sus dispositivos.

Cualquier reparación o sustitución durante la garantía no extenderá el plazo de validez de la misma. Por lo tanto, en caso

de sustitución del producto o de uno de sus componentes, no tendrá efecto un nuevo período de garantía para el

producto ni para el componente suministrado en sustitución, sino que será válida la fecha de compra del producto

original para indicar el plazo de garantía.

Para más información, por favor contáctenos a la siguiente dirección o a los números telefónicos a continuación:

ARA

ETATS

UNIS

CIMA INTERNATIONAL

1585 Beverly court #118 - Aurora IL 60502

Tél : (630) 701-1601 Fax : (630) 701-1606

E-mail : info@cimaint.com

Numéro vert (Etats-Unis uniquement) : 866-243-5638

PARA

CANADA

CLARY SPORTS LOISIRS

67 ROUTE 329 - ST DONAT (QC) J0T 2C0 –CANADA

Tél : 001 8194244545

Fax : 001 819 424 7859

E-mail : clary@st-donat.net

REGISTRATION FORM /

FICHE D’ENREGISTREMENT DE LA GARANTIE

TARJETA DE REGISTRO DE LA GARANTÍA

DEVICE INFORMATION / INFORMATION DU PRODUIT / DATOS DEL PRODUCTO

Serial Number (as printed on the box)

Numéro de série (situé à l’arrière de la boîte)

Número de serie (en la parte trasera del Box)

Designation of the model

Nom du produit

Denominación del producto

DEALER INFORMATION / COORDONNÉES DU REVENDEUR /

DATOS DEL DISTRIBUIDOR

Name of the authorized dealer

Nom du revendeur agréé

Nombre del distribuidor autorizado

Address

Adresse

Dirección

PURCHASE INFORMATION / INFORMATIONS D’ACHAT /

DATOS DE COMPRA

Date of purchase of the device

Date d’achat du N

Com

Fecha de compra del producto

PURCHASER INFORMATION / COORDONNÉES DE L’ACHETEU

R /

DATOS DEL COMPRADOR

Name of the purchaser

Nom de l’acheteur

Nombre del comprador

Address

Adresse

Domicilio del comprador

Telephone Number

Numéro de téléphone

Número de telefono

mail address

mail

OTHER INFORMATION / AUTRES I

NFORMATIONS /

OTRAS INFORMACIONES

How did you hear about this model of Nolangroup N

Com?

Comment avez-vous découvert ce modèle Nolangroup N-Com?

Como ha conocido este modelo de Nolangroup N-Com?

What do you mainly use your N

Com for (communication,

music, phone, GPS,etc..)?

Quelle est votre principale utilisation du produit (communication, musique, téléphone, GPS, etc…)?

Como utiliza pricipalmente su sistema N-Com (comunicación, musica, movil, GPS)?

What brand and model of motorcycle do you ride

? / Quelle marque et modèle de moto conduisez

vous? / Cual marca y modelo de moto

conduce?

What is your favourite motorcycle magazine? / Quel est votre magazine moto préféré?

Cual es su revista de moto preferida?

USA

CANADA

Forward to: / En

voyer a: / Enviar a:

Forward to: / Envoyer a: / Enviar a:

CIMA INTERNATIONAL, INC.

CLARY SPORTS LOISIRS

1585 Beverly Court # 118

67 ROUTE 329

Aurora, IL 60502

ST DONAT (QC) J0T 2C0

–

CANADA

Nolangroup S p A NCOM14 Bluetooth Headset with Intercom function User Manual final rev 01

Nolangroup S.p.A. Bluetooth Headset with Intercom function final rev 01

User Manual final_rev.01

Navigation menu

Namespaces

Views

Navigation
