NordrcTrack

Patent Pending E 3200

Model No. NTL16920

Serial No.

Findthe serial number in the location

shown below. Write the serial number

in the space above for reference.

Serial Number Decal

QUESTIONS?

If you have questions, or if there

are missing parts, we will guar-

antee complete satisfaction

through direct assistance from

our factory.

TO AVOID DELAYS, PLEASE

CALL DIRECT TO OUR TOLL-

FREE CUSTOMER HOT LINE.

The trained technicians on our

Customer Hot Line will provide

immediate assistance, free of

charge to you.

CUSTOMER HOT LINE:

1-888-825-2588

Mon.-Fri., 6 a.m.-6 p.m. MST

USER'S MANUAL

www.nordictrack.com

new products, prizes,

fitness tips, and much more!

Nordlc'l'rack E3200

TABLE OF CONTENTS

IMPORTANT PRECAUTIONS ................................................................. 3

BEFORE YOU BEGIN ....................................................................... 5

ASSEMBLY ............................................................................... 6

OPERATION AND ADJUSTMENT ............................................................. 8

HOW TO FOLD AND MOVE THE TREADMILL .................................................. 25

TROUBLESHOOTING ...................................................................... 27

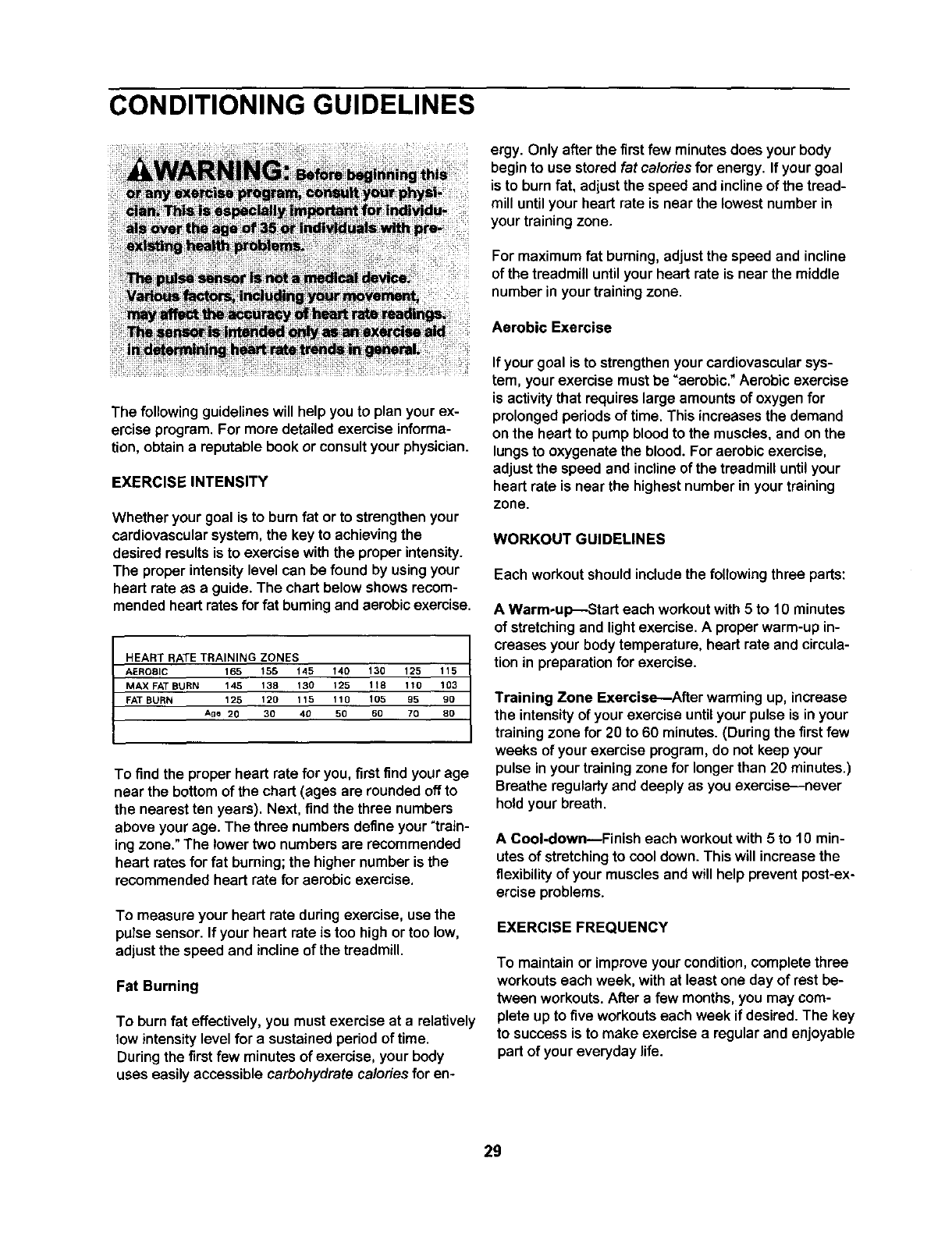

CONDITIONING GUIDELINES ............................................................... 29

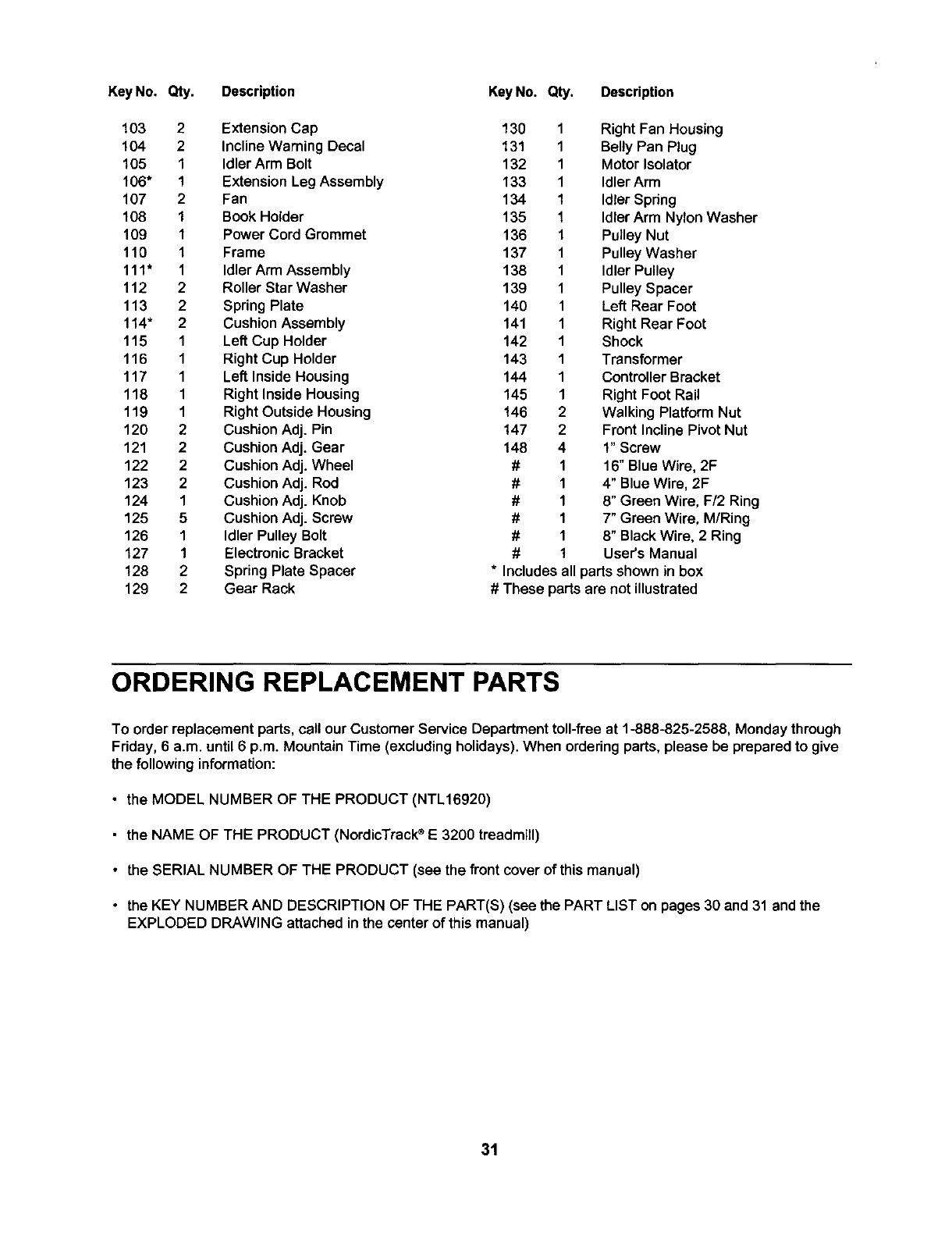

PART LIST ............................................................................... 30

ORDERING REPLACEMENT PARTS .......................................................... 31

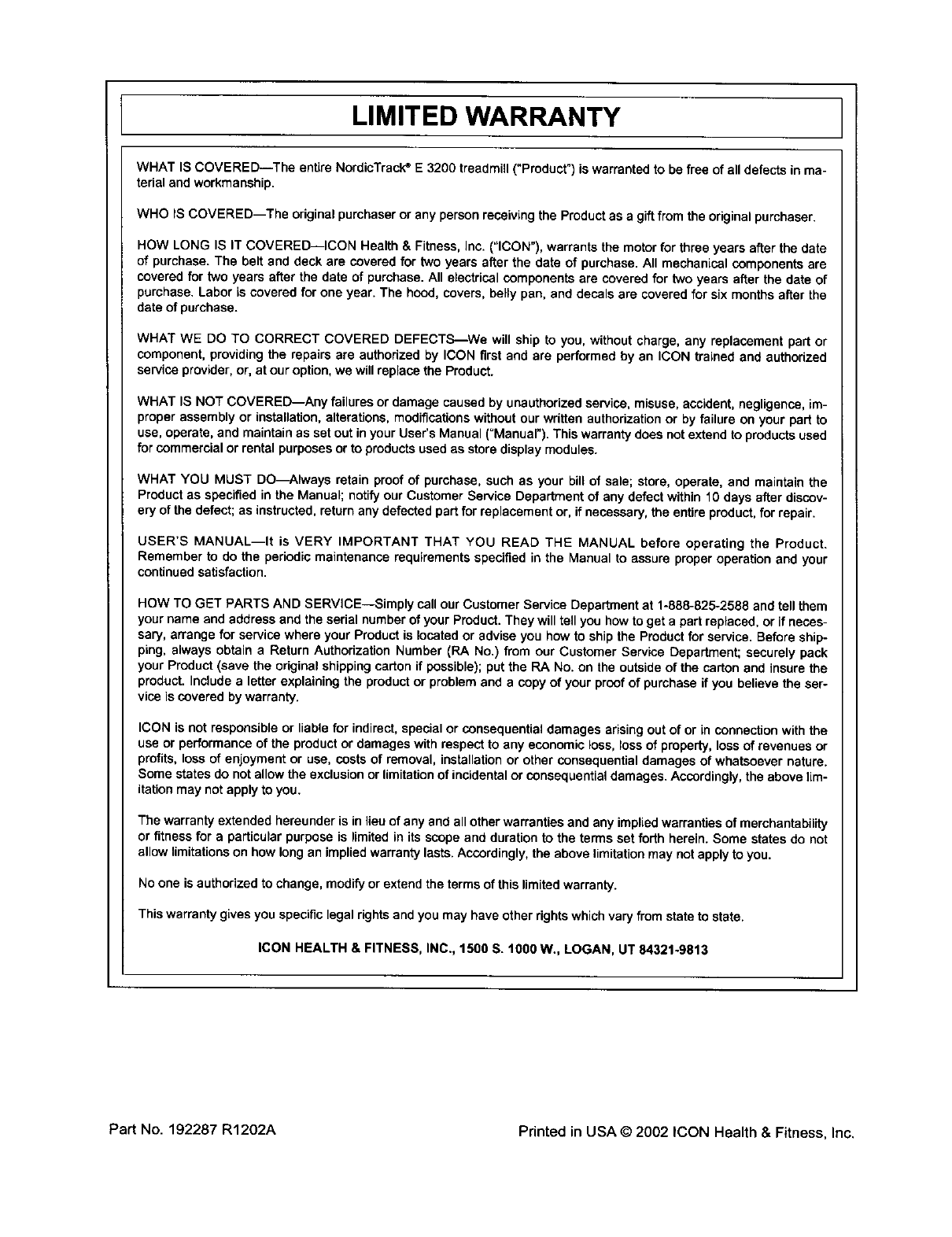

LIMITED WARRANTY ............................................................... Back Cover

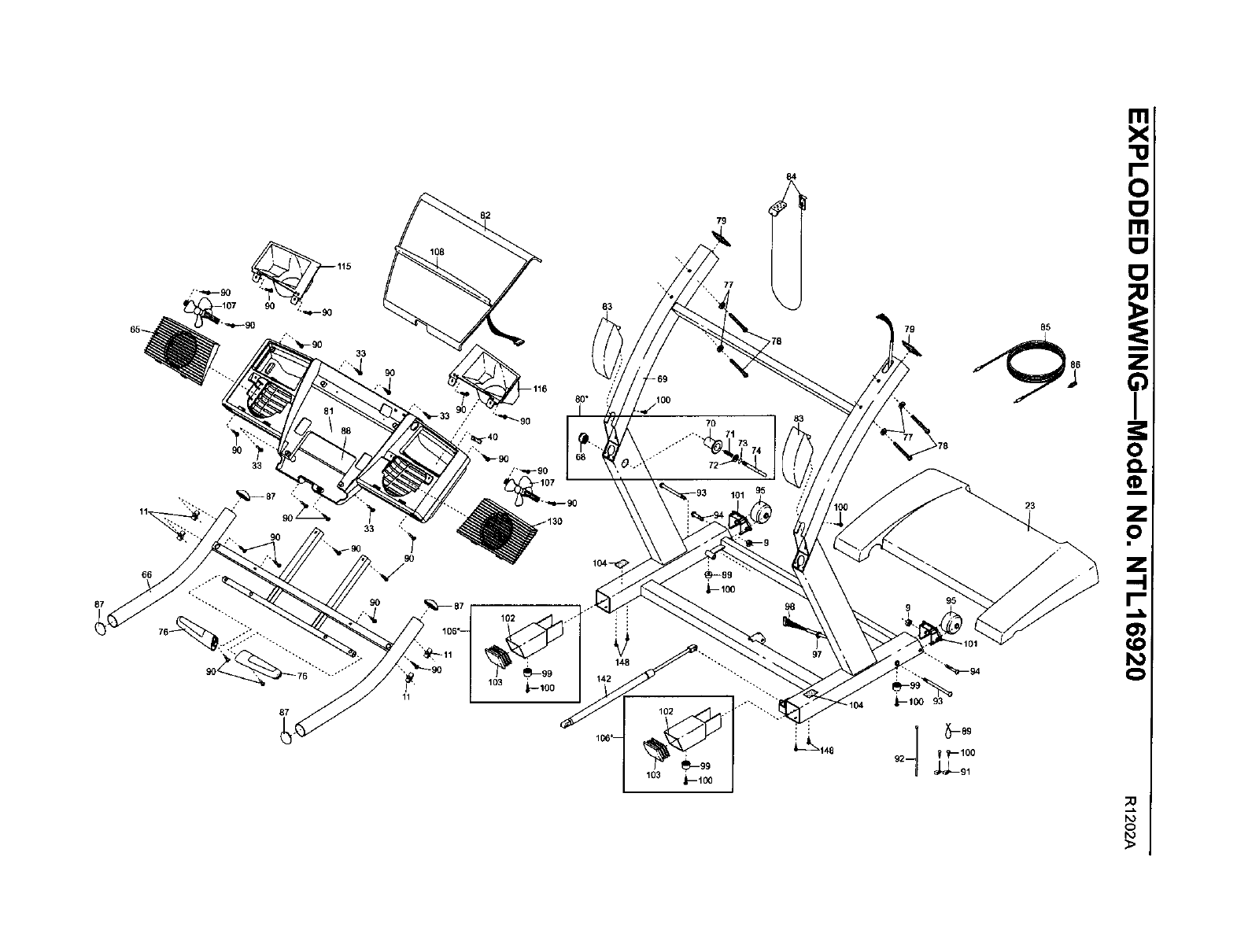

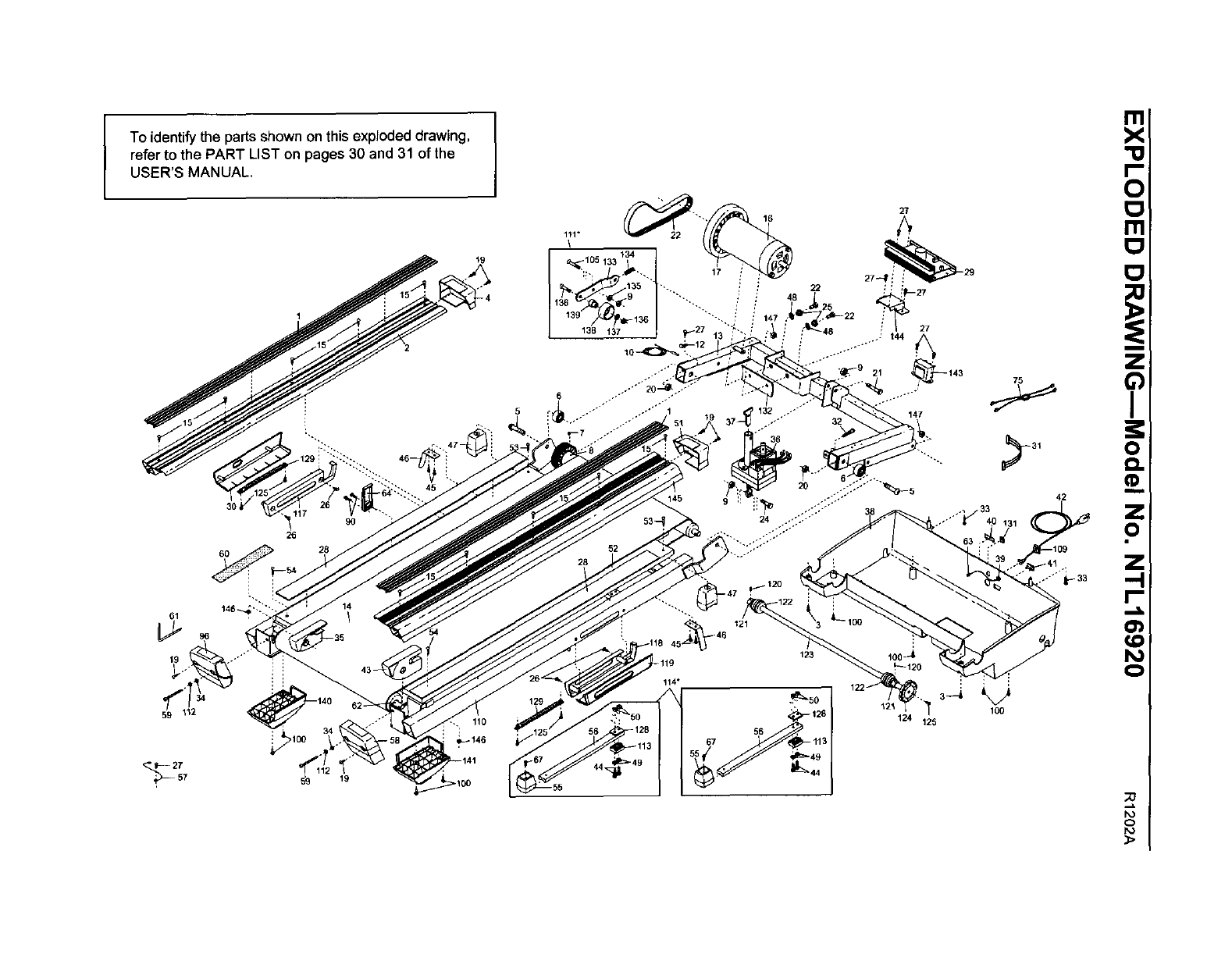

Note: An EXPLODED DRAWING is attached in the center of this manual.

NordicTrack is a registered trademark of ICON Health & Fitness, Inc.

IMPORTANT PRECAUTIONS

WARNING: To reduce the risk of bums, fire, electdc shock, or injury to parsons, read the

following important precautions and information before operating the treadmill.

1. It is the responsibility of the owner to ensure

that all usem of this treadmill are adequately

informed of all wamings and precautions.

2. Use the treadmill only as dsacdbed.

3. Place the b'eadmill on a level surface, with at

least eight feet of clearance behind It and two

feat on each side. Do not place the treadmill

on any surface that blocks air openings. To

protect the floor or carpet from damage, place

a mat under the treadmill.

4. Keep the treadmill indoors, away from mole-

ture and dust. Do not put the treadmill in a

garage or covered patio, or near water.

12. Failure to use a properly functioning surge

suppressor could result in damage to the con-

trol system of the treadmill. If the control sys-

tem is damaged, the walking belt may change

speed or stop unexpectedly, which may result

in a fall and sudous injury.

13. Keep the power cord and the surge suppres-

sor away from heated surfaces.

14. Never move the walking belt while the power

is fumed off. Do not operate the treadmill if

the power cord or plug is damaged, or if the

treadmill is not working properly. (Sea

BEFORE YOU BEGIN on page 5 if the tread-

mill Is not working properly.)

5. Do not operate the treadmill where aerosol

products are used or where oxygen is being

administered.

15. Never start the treadmill while you are stand-

ing on the walking belt. Always hold the

handrails while using the treadmill.

6. Keep children under the age of 12 and pats

away from the treadmill at all times.

7. The treadmill should not be used by parsons

weighing more than 250 pounds.

8. Never allow more than one parson on the

treadmill at a time.

9. Wear appropriate exercise clothes when

using the treadmill. Do not wear loose clothes

that could become caught in the treadmill.

Athletic support clothes are recommended for

both men and women. Always wear athletic

shoes. Never use the treadmill with bare feet,

wearing only stockings, or in sandals.

10. When connecting the power cord (see page 8),

plug the power cord into a surge suppressor

(not included) and plug the surge suppressor

into a grounded circuit capable of carrying 15

or more amps. No other appliance should he on

the same circuit. Do not use an extension cord.

11. Use only a single-outlet surge suppressor that

meets all of the specifications described on

page 8. To purchase a surge suppressor, see

your local NordicTrack dealer or call 1-800-

806-3651 and order part number 145148.

16. The treadmill is capable of high speeds.

Adjust the speed in small increments to avoid

sudden jumps in speed.

17. The pulse sensor is not a medical device.

Vadous factors, including the user's move-

ment, may affect the accuracy of heart rate

readings. The pulse sensor Is intended only

as an exercise aid in determining heart rate

trends in general.

15. Never leave the treadmill unattended while it

is running. Always remove the key and un-

plug the power cord when the treadmill is not

in usa.

19. Do not attempt to raise, lower, or move the

treadmill until it is propedy assembled. (See

ASSEMBLY on page 6, and HOW TO FOLD

AND MOVE THE TREADMILL on page 25.) You

must he able to safely lilt 45 pounds (20 kg) in

order to raise, lower, or move the treadmill.

20. Do not change the incline of the treadmill by

placing objects under the treadmill.

21. When folding or moving the treadmill, make

sure that the storage latch is fully closed.

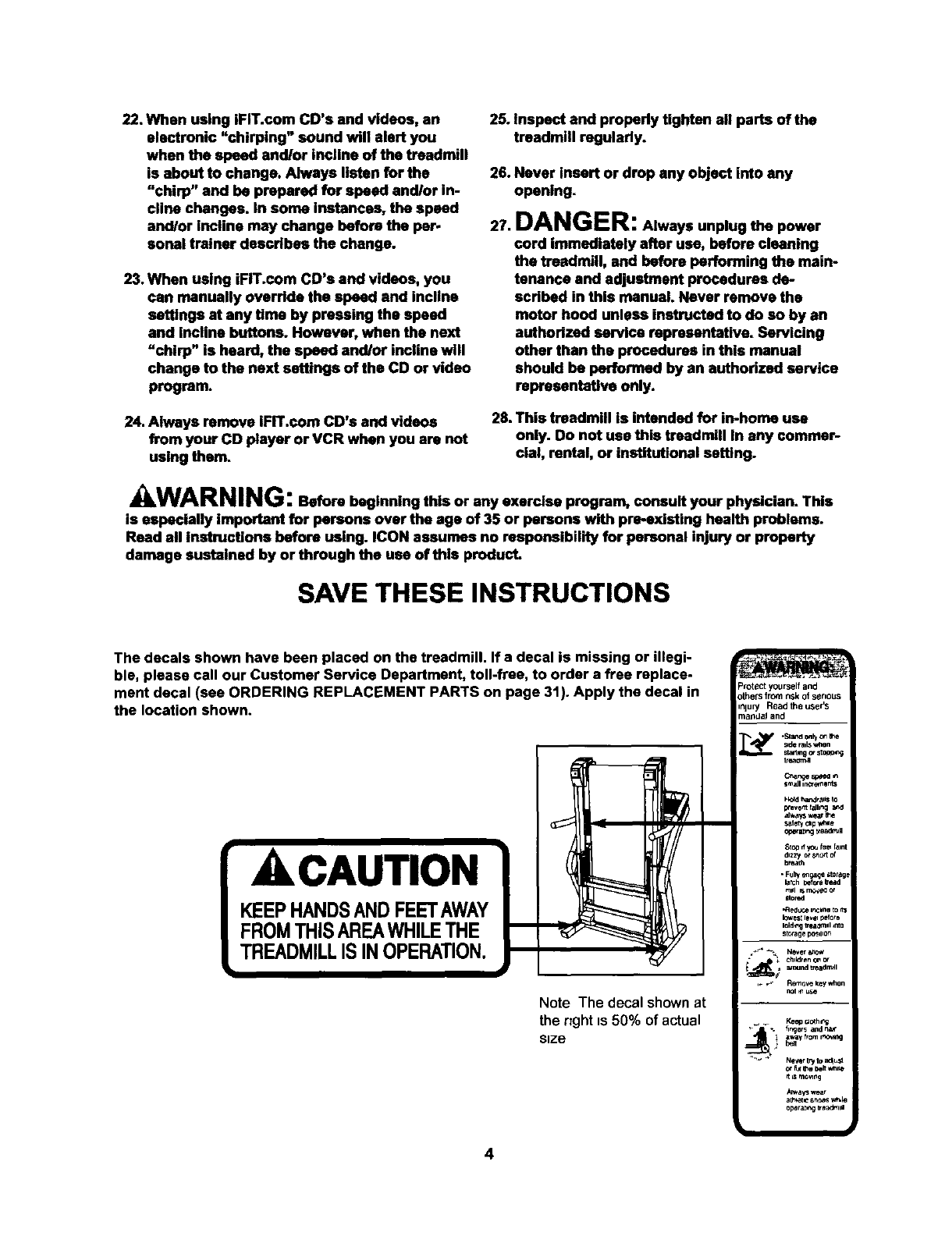

22. When using iFIT.com CD's and videos, an

electronic "chirping" sound will alert you

when the speed and/or incline of the treadmill

is about to change. Always listen for the

"chirp" and be prepared for speed and/or in-

cline changes, in some instances, the speed

and/or incline may change before the per-

sonal trainer describes the change.

23. When using iFlT.com CD's and videos, you

can manually override the speed and incline

settings at any time by pressing the speed

and incline buttons. However, when the next

"chirp" is heard, the speed and/or incline will

change to the next settings of the CD or video

program.

24. Always remove iFIT.com CD's and videos

from your CD player or VCR when you are not

using them.

25. Inspect and properly tighten all parts of the

treadmill regularly.

26. Never insert or drop any object Into any

opening.

27DANGER: way,unplug thepower

cord immediately after use, before cleaning

the treadmill, and before performing the main-

tenance and adjustment procedures de-

scribed in this manual. Never remove the

motor hood unless instructed to do so by an

authorized service representative. Servicing

other than the procedures in this manual

should be performed by an authorized service

repreeantathte only.

28. This treadmill is intended for in-home use

only. Do not use this treadmill In any commer-

cial, rental, or institutional setting.

WARNING: e._. beginning this or any exercise program, consult your physician. This

is especislly important for persons over the age of 35 or persons with pre-existing health problems.

Read all InsfrucUons before using, ICON assumes no responsibility for personal injury or property

damage sustained by or through the use of this product.

SAVE THESEINSTRUCTIONS

The decals shown have been placed on the treadmill. If a decal is missing or illegi-

ble, please call our Customer Service Department, toll-free, to order a free replace-

ment decal (see ORDERING REPLACEMENT PARTS on page 31). Apply the decal in

the location shown.

AkCAUTION

KEEPHANDSANDFEETAWAY

FROMTHISAREAWHILETHE

TREADMILLISINOPERATION.

Note The decal shownat

the right is 50% of actual

size

Protect yourself and

othelS from nsk of senous

injury Read the use{'s

ma[_daJand

C_e spceo _

Small in_vnlnts

H_d ;,andraltS to

prevent fall_g

aJ_ays _ the

Salet_ _p _'_e

Op_sl_g "_eadr_R

Slop d _ tsm f_.nt

dlz;-/ o__*_c.I of

brea_h

• Ful_enga_ *lorage

_afCh Defoe Bead

toNI _rr_._o or

stored

-Reduce incmne_o

k;w_ IB_el_elore

_/_ i ch_kl.....

_ _¥ from _

dmm_lng

ol_rat _,_ _eal:_lll

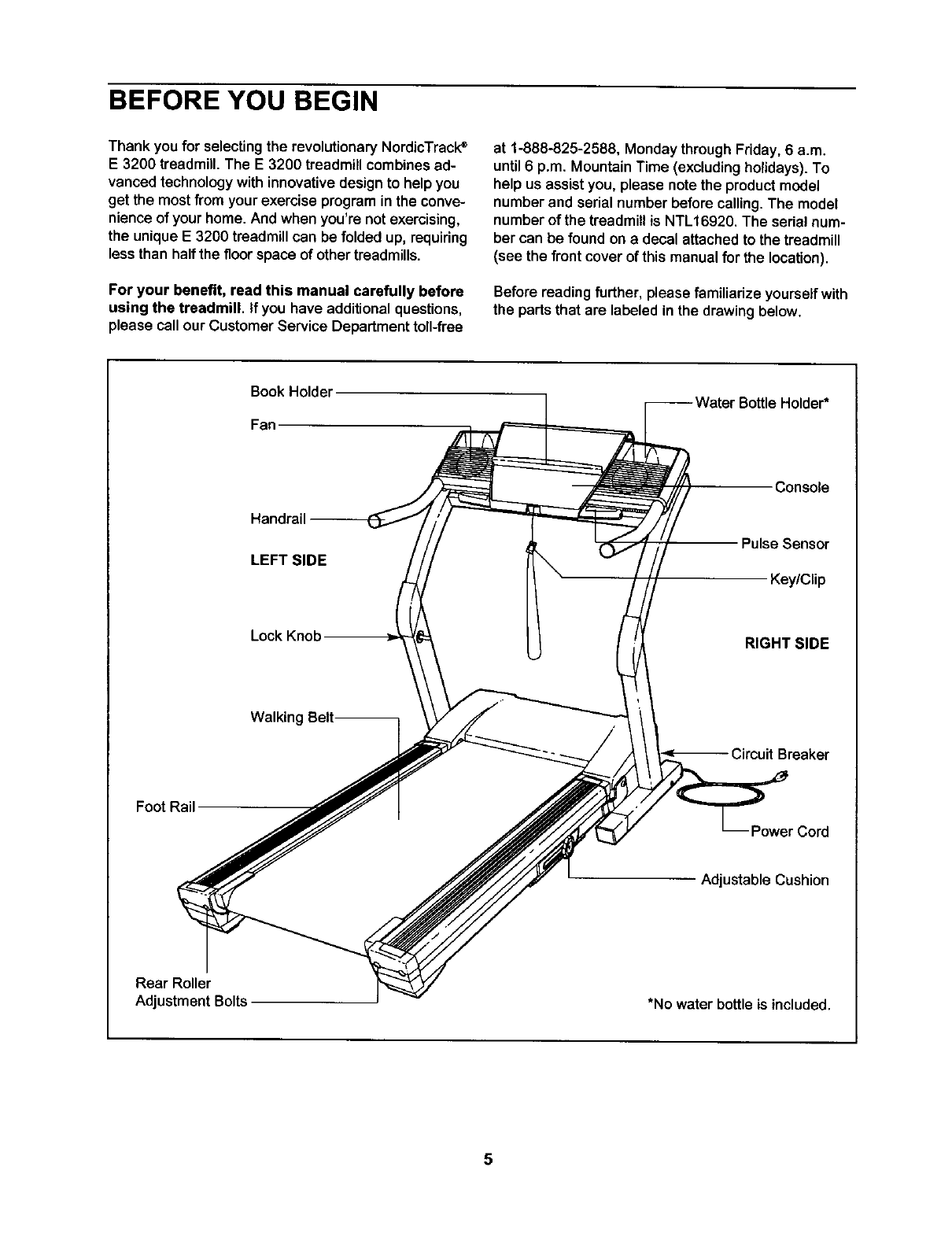

BEFORE YOU BEGIN

Thank you for selectingthe revolutionary NordicTrack*

E 3200 treadmill. The E 3200 treadmill combines ad-

vanced technology with innovative design to help you

get the most from your exercise program in the conve-

nience of your home. And when you're not exercising,

the unique E 3200 treadmill can be folded up, requiring

less than half the floorspace of other treadmills.

For your benefit, read this manual carefully before

using the treadmill, if you have additional questions,

please call our Customer Service Department toll-free

at 1-888-825-2588, Monday through Friday, 6 a.m.

until 6 p.m. Mountain Time (excluding holidays). To

help us assist you, please note the product model

number and serial number before calling. The model

number of the treadmill is NTL16920. The serial num-

ber can be found on a decal attached to the treadmill

(see the front cover of this manual for the location).

Before reading further, please familiarize yourself with

the parts that are labeled in the drawing below.

Book Holder

Fan

Bottle Holder*

Console

LEFT SIDE Pulse Sensor

Key/Clip

Lock Knob RIGHT SIDE

Walking

Circuit Breaker

Foot Rail

Adjustable Cushion

Rear Roller

Adjustment Bolts *No water bottle is included.

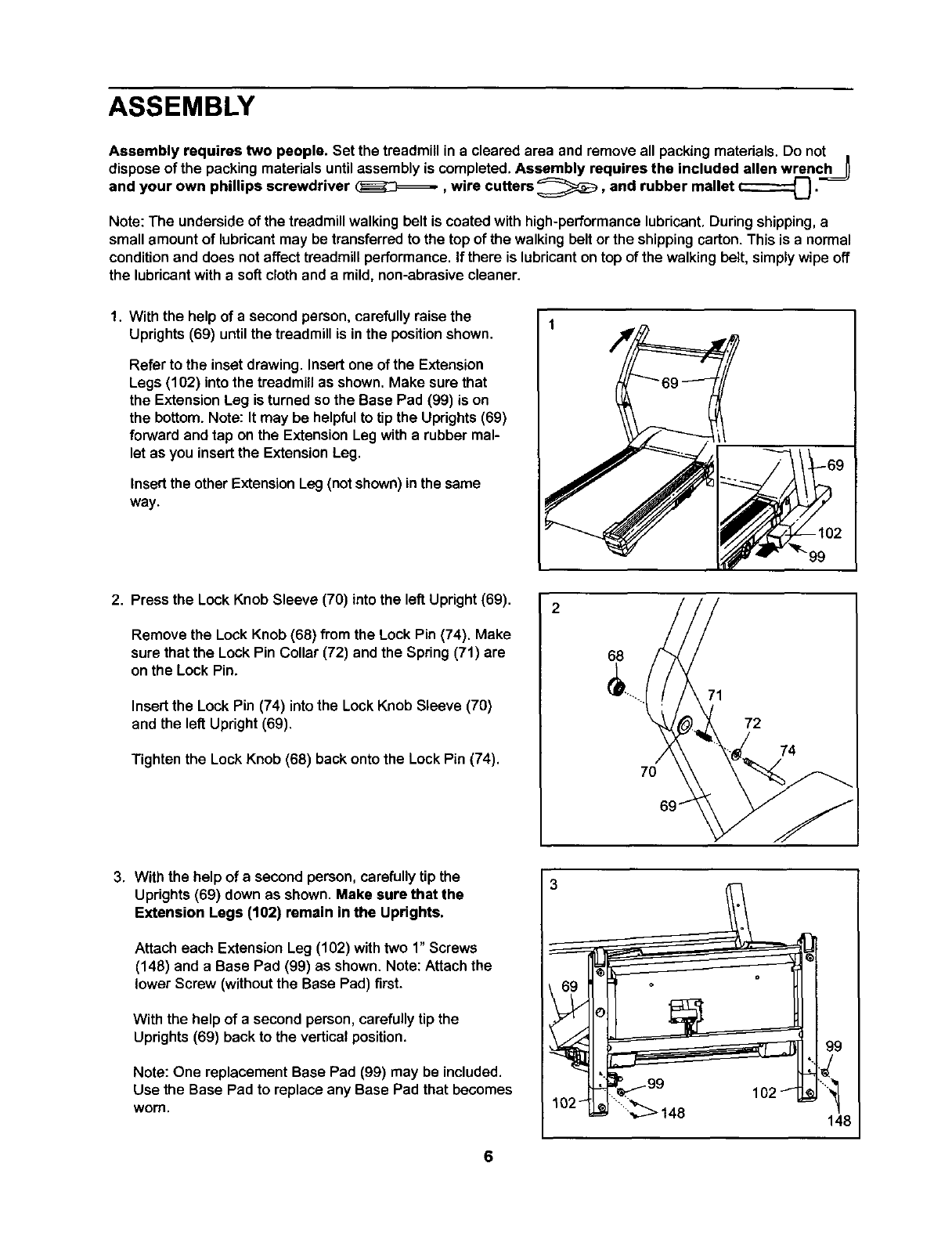

ASSEMBLY

Assembly requires two people. Set the treadmill in a cleared area and remove all packing matedals. Do not

dispose of the packing materials until assembly is completed. Assembly requires the included allen wrench.._

and your own phillips screwdriver _, wire cutters _, and rubber mallet c::::_:_.

Note: The undersideof the treadmillwalking belt is coated with high-performance lubricant. During shipping,a

small amount of lubricant may be transferred to the top of the walking belt or the shipping carton. This is a normal

condition and does not affect treadmill performance. If there is lubricant on top of the walking belt, simply wipe off

the lubricant with asoft cloth and a mild, non-abrasive cleaner.

1. With the help of a second person, carefully raise the

Uprights (69) until the treadmill is in the position shown.

Refer to the inset drawing. Insert one of the Extension

Legs (102) into the treadmill as shown. Make sure that

the Extension Leg is turned so the Base Pad (99) is on

the bottom. Note: It may be helpful to tip the Uprights (69)

forward and tap on the Extension Leg with a rubber mal-

let as you insert the Extension Leg.

Insert the other Extension Leg (not shown) in the same

way.

2. Press the Lock Knob Sleeve (70) intothe left Upright (69).

Remove the Lock Knob (68) from the Lock Pin (74). Make

sure that the Lock Pin Collar (72) and the Spring (71) are

on the Lock Pin.

Insert the Lock Pin (74) into the Lock Knob Sleeve (70)

and the left Upright (69).

Tighten the Lock Knob (68) back onto the Lock Pin (74).

3. With the help of a second person, carefullytip the

Uprights (69) down as shown. Make sure that the

Extension Legs (102) remain in the Uprights.

Attach each Extension Leg (102) with two 1"Screws

(148) and a Base Pad (99) as shown. Note: Attach the

lower Screw (without the Base Pad) first.

With the help of a second person, carefully tip the

Uprights (69) back to the vertical position.

Note: One replacement Base Pad (99) may be included.

Use the Base Pad to replace any Base Pad that becomes

worn,

*_tq

148

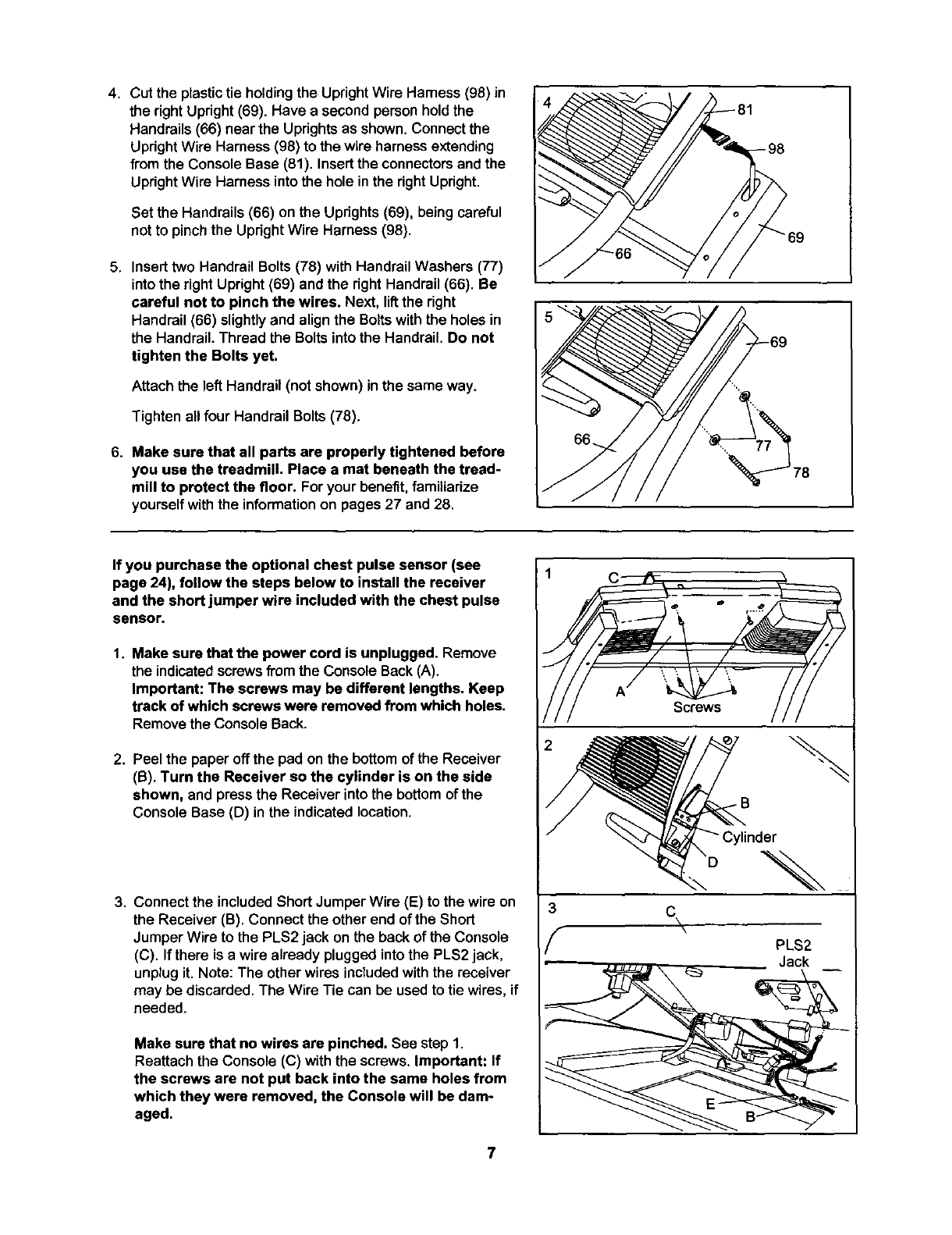

4. Cut the plastic tie holding the Upright Wire Harness (96) in

the right Upright (69). Have a second person hold the

Handrails (66) near the Uprights as shown. Connect the

Upright Wire Harness (98) to the wire harness extending

from the Console Base (81). Insert the connectors and the

Upright Wire Harness into the hole in the right Upright.

Set the Handrails (66) on the Updghts (69), being careful

not to pinch the Upright Wire Harness (98).

5. Insert two Handrail Bolts (78) with Handrail Washers (77)

into the right Upright (69) and the right Handrail (66). Be

careful not to pinch the wires. Next, liftthe right

Handrail (66) slightlyand align the Boltswiththe holes in

the Handrail. Thread the Bolts intothe Handrail, Do not

tighten the Bolts yet.

Attach the left Handrail (not shown) in the same way.

Tighten all four Handrail Bolts (78).

6. Make sure that all parts are properly tightened before

you use the treadmill. Place a mat beneath the tread-

mill to protect the floor. For your benefit, familiarize

yourself with the information on pages 27 and 28,

If you purchase the optional chest pulse sensor (see

page 24), follow the steps below to install the receiver

and the short jumper wire included with the chest pulse

sensor.

1. Make sure that the power cord is unplugged. Remove

the indicatedscrewsfromthe Console Back(A).

Important: The screws may be different lengths. Keep

track of which screws were removed from which holes.

Removethe Console Back.

2. Peel the paper off the pad on the bottom of the Receiver

(B). Turn the Receiver so the cylinder is on the side

shown, and press the Receiver intothe bottomofthe

Console Base (D) in the indicated location.

3. Connect the included Short Jumper Wire (E) to the wire on

the Receiver (B). Connect the other end of the Short

Jumper Wire to the PLS2 jack on the back of the Console

(C). If there is awire already plugged into the PLS2 jack,

unplug it. Note: The other wires included with the receiver

may be discarded. The Wire Tie can be used to tie wires, if

needed.

Make sure that no wires are pinched. See step 1.

Reattach the Console (C) with the screws. Important: If

the screws are not put back into the same holes from

which they were removed, the Console will be dam-

aged.

Screws

C\\

PLS2

Jack

OPERATION AND ADJUSTMENT

THE PERFORMANT LUBETM WALKING BELT

Your treadmill features a walking belt coated with

PERFORMANT LUBETM, a high-performance lubricant.

IMPORTANT: Never apply silicone spray or other

substances to the walking belt or the walking plat-

form. Such substances will deteriorate the walking

belt and cause excessive wear.

HOW TO PLUG IN THE POWER CORD

an equipment-grounding conductor and a grounding

plug, Plug the power cord into a surge suppressor,

and plug the surge suppressor into an appropriate

outlet that is properly installed and grounded in

accordance with all local codes and ordinances.

Important: The treadmill is not compatible with

GFCI-equipped outlets.

This product is for use on a nominal 120-voltcircuit,

and has a grounding plug that lookslike the plug illus-

trated in drawing 1below. Atemporary adapter that

looks like the adapter illustrated in drawing 2 may be

used to connect the surge suppressor to a2-pole

receptacle as shown in drawing 2 if a properly

grounded outlet is not available.

Your treadmill, like any other type of sophisticated

electronic equipment, can be seriously damaged by

sudden voltage changes in your home's power.

Voltage surges, spikes, and noise interference can

result from weather conditions or from other appliances

being turned on or off. To decrease the possibility of

your treadmill being damaged, always usa a surge

suppressor with your treadmill (sea drawing 1 at

the right). To purchase asurge suppressor, see

your local NordicTrack dealer or call 1-800-806-

3651 and order part number 146148.

Use only a single-outlet surge suppressor that is

UL 1449 listed as a transient voltage surge sup-

pressor (TVSS). The surge suppressor must have a

UL suppressed voltage rating of 400 volts or less

and a minimum surge dissipation of 450 joules.

The surge suppressor must be electrically rated

for 120 volts AC and 15 amps. There must be a

monitodng light on the surge suppressor to indi-

cate whether it is functioning properly. Failure to

use a properly functioning surge suppressor could

result In damage to the control system of the

treadmill. If the control system is damaged, the

walking belt may change speed or stop unexpect-

edly, which may result in a fall and serious injury.

This product must be grounded. If it should malfunc-

tion or break down,grounding providesa path of least

resistance for electric currentto reduce the risk of elec-

tric shock. This product is equipped with a cord having

_Grounded Outlet Box

[_._ _ Surge Suppressor

[L_ _" _. Grounding Pin

G ounding Pin_

Grounded Outlet GIrounding Plug"_

Grounded Outlet Box

Adapter ^

II { °./" _P,,.-,,_I Surge _uppressor

Metal Screw

The temporary adapter should be used only untila

properly grounded outlet (drawing 1) can be installed

by a qualified electrician.

The green-colored dgid ear, lug, or the like extending

from the adapter must be connected to a permanent

ground such as a propedy grounded outlet box cover.

Whenever the adapter is used it must be held in place

by ametal screw, Some 2-pole receptacle outlet box

covers are not grounded. Contact a qualified elec-

trician to determine if the outlet box cover is

grounded before using an adapter.

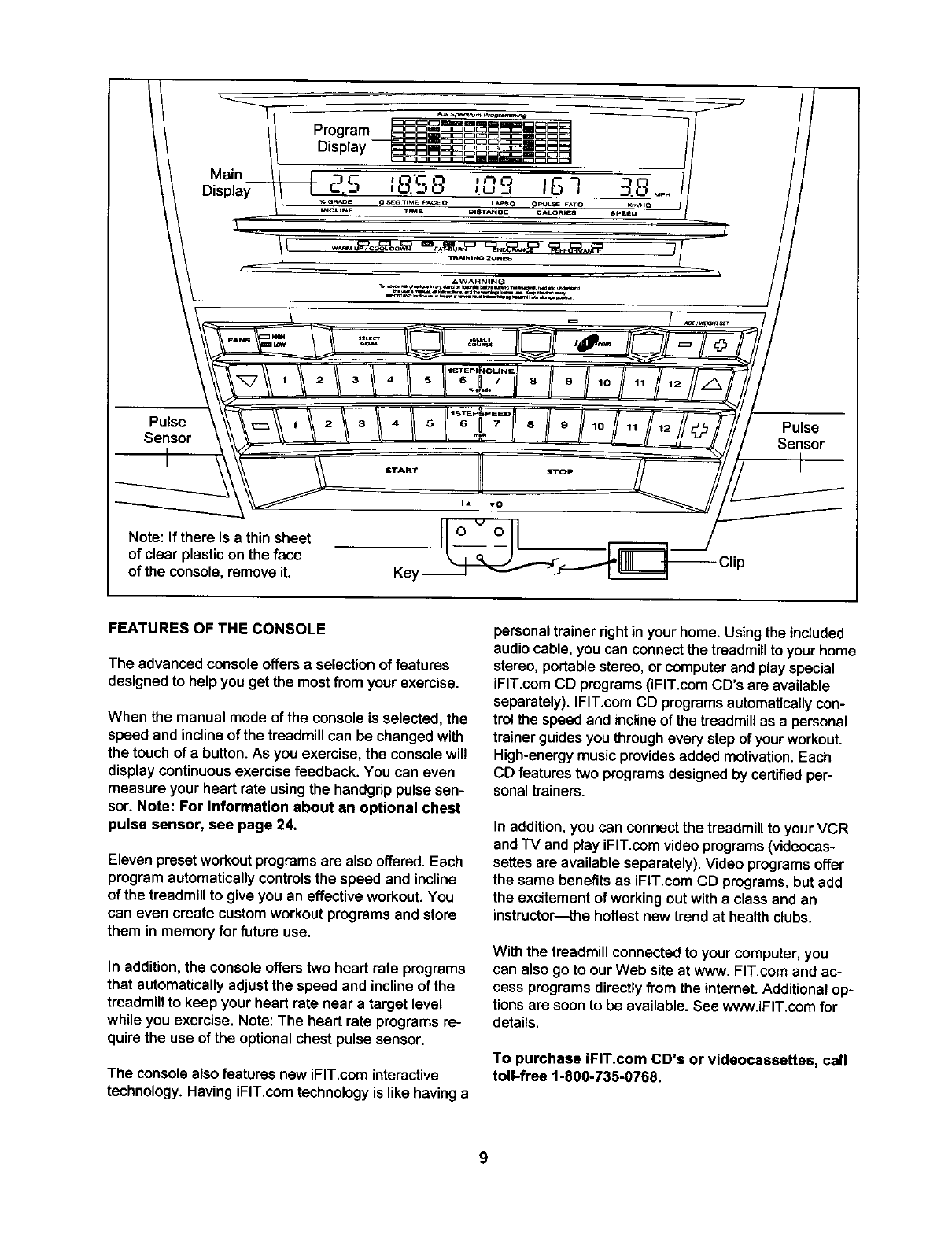

Pulse Pulse

Sensor Sensor

Note: If there is a thin sheet

of clear plastic on the face

of the console, remove it. Key

FEATURES OF THE CONSOLE

The advanced console offers a selection of features

designed to help you get the most from your exercise.

When the manual mode of the console is selected, the

speed and incline of the treadmill can be changed with

the touch of a button. As you exercise, the console will

display continuous exercise feedback. You can even

measure your heart rate using the handgrip pulse sen-

sor. Note: For information about an optional chest

pulse sensor, see page 24.

Eleven preset workoutprograms are also offered.Each

program automaticallycontrols the speed and incline

of the treadmill to giveyou an effectiveworkout. You

can even create customworkout programsand store

them in memoryfor future use.

In addition,the consoleoffers two heart rate programs

that automaticallyadjustthe speed and incline of the

treadmill to keep your heart rate near a target level

while you exercise. Note: The heart rate programs re-

quire the use of the optional chest pulse sensor.

The console also featuresnew iFIT.com interactive

technology.HavingiFIT.com technologyis likehavinga

personal trainer right in your home. Usingthe included

audio cable, you can connect the treadmill to your home

stereo, portable stereo, or computer and play special

iFIT.com CD programs (iFIT.com CD's are available

separately). IFIT.com CD programs automatically con-

trol the speed and incline of the treadmill as apersonal

trainer guides you through every step of your workout.

High-energy music provides added motivation. Each

CD features two programs designed by certified per-

sonal trainers.

In addition,you can connectthe treadmillto your VCR

and TV and play iFIT.com video programs (videocas-

settes are available separately). Video programs offer

the same benefits as iFIT.com CD programs, but add

the excitement of working out with a class and an

instructor--the hottest new trend at health clubs.

With the treadmill connected to your computer,you

can also go to our Web site at www.iFIT.com and ac-

cess programs directly from the internet. Additional op-

tions are soon to be available. See www.iFIT.com for

details.

To purchase iFIT.com CD's or videocassettes, call

toll-free 1-800-735-0768.

GETTING STARTED

DAttach the clip to the waistband of your clothes.

Stand on the footrails

of the treadmill.Find

the clip attachedto the

key and slide the clip

ontothe waistbandof

your clothes. Next, in-

sert the key intothe

console. Test the clip by carefully taking a few

steps backward until the key is pulled from the

console. If the key is not pulled from the con-

sole, adjust the position of the clip as needed.

Then, remove the key fromthe console.

B Plug in the power cord.

See page 8.

[]Move the circuit breaker to the reset position.

Locatethe circuit

breaker on the treadmill

near the power cord.

Make sure the breaker is

in the reset position.

Reset

Position

L_ Insert the key fully into the console.

Stand on the footrails of the treadmill.Attach the

clip securely to the waistband of your clothes.

Next, insertthe key into the console.After a

moment, the program displayand the main display

will light.Note: When the key is inserted,the

treadmill inclinesystem may automatically

calibrateitself--the treadmillwillriseto the highest

incline level and then returnto the lowest incline

level. Dudng calibration,the left side of the main

displaywill showtwo dashes (- -) and the seg-

ment time indicatorwillflash.

[]Enter your weight.

Althoughyou can use the consolewithoutenter-

ing your weight, the consolewill count your calorie

expendituremore accurately if you enter your

weight. To enteryour weight,press either of the

Age/Weight Set buttons.The words =ENTER

WEIGHT" and the currentweight settingwill ap-

pear in the main display. Press the Age/Weight

Set buttonsagain to enter your weight. The but-

tonscan be held down to enteryour weight

quickly.Your weightwill then be saved in memory.

I[E _ TL_ i= Tt" L= Ti_C

To use the manual mode of the console, followthe

steps beginningon page 11. To use a preset program,

see page 13. To create and use a custom program,

see pages 15 and 16. To use a heart rate program,

see page 17. To use an iFIT.com CD or video pro-

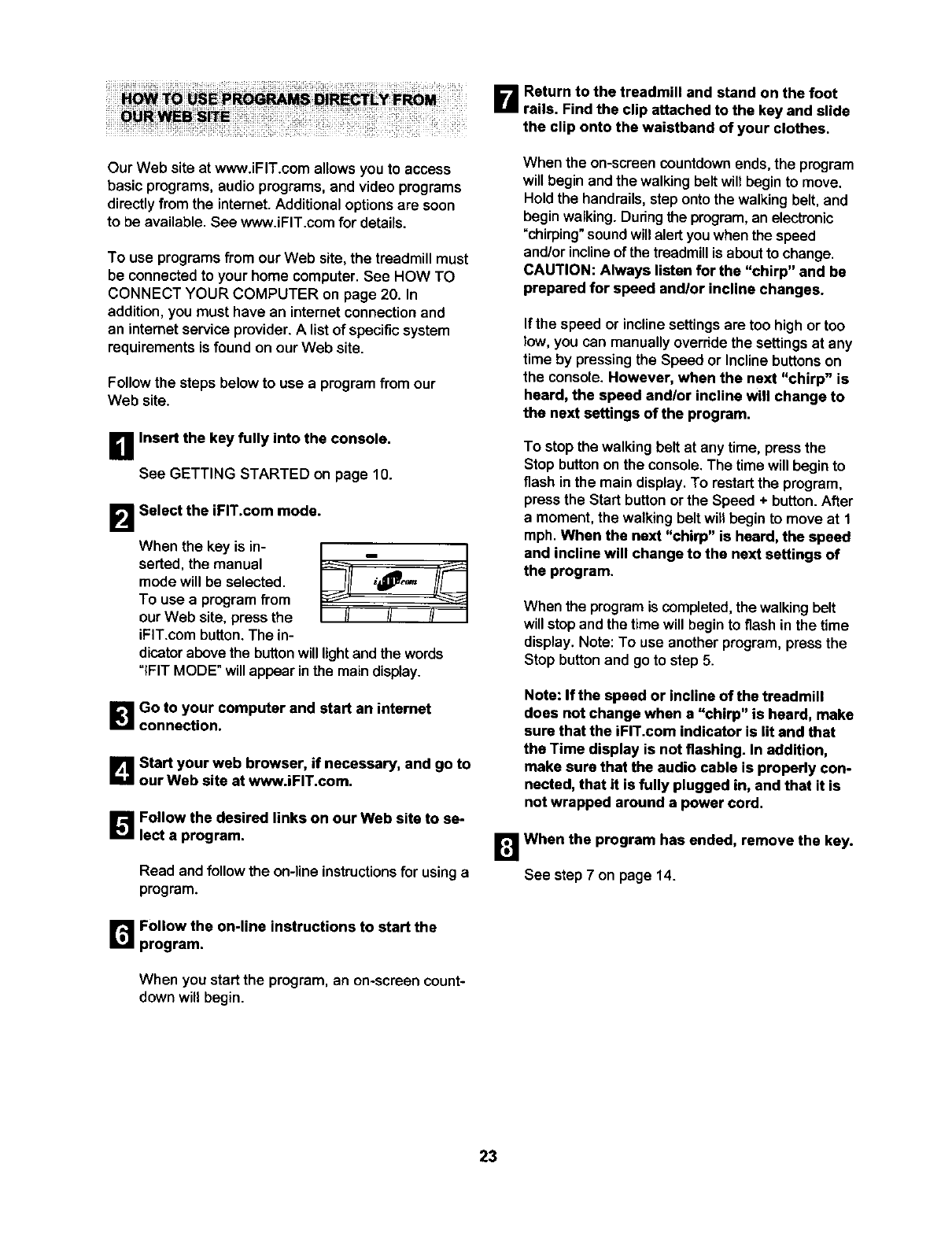

gram, see page 21. To use an iFIT.com program di-

rectly from our Web site, see page 23.

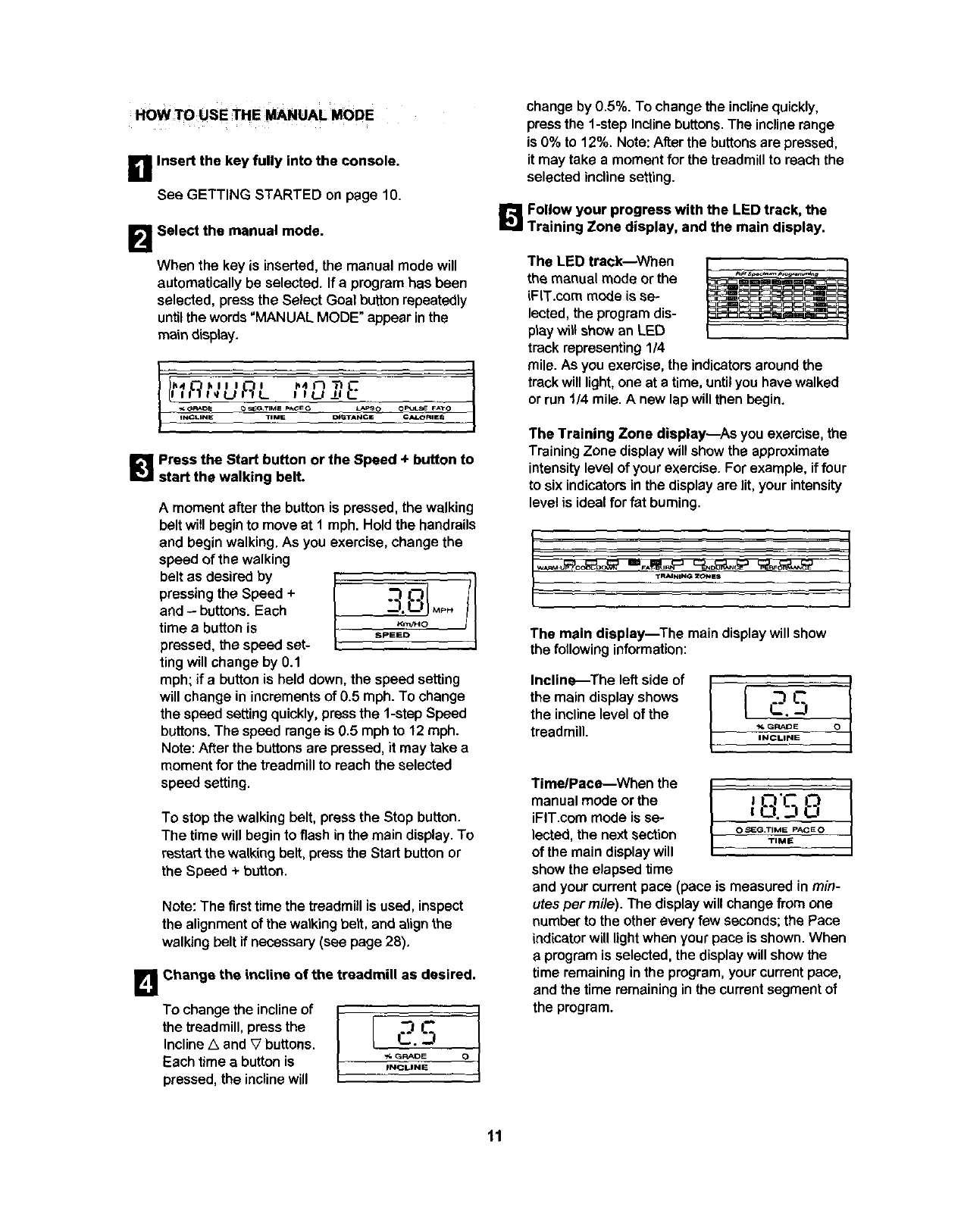

HOW TOUSE _HE MANUAL MODE

DInsert the key fully into the console.

See GETTING STARTED on page 10.

BSelect the manual mode.

When the key is inserted,the manual mode will

automatically be selected. If a program has been

selected, press the Select Goal button repeatedly

until the words "MANUAL MODE" appear in the

main display.

_4 kill I

II I I!"_I_U IL_L 1_4 f--I Tl_"__I U J-I C

_FU_[_II O_TIME P_GEO L_PS OOP*JLSE FAYO

iI_CLINI_ TIME Ot_tAl_lCm C/_.OmmS

[]Press the Start button or the Speed + button to

start the walking belt.

A moment after the button is pressed, the walking

belt will begin to move at Imph. Hold the handrails

and begin walking. As you exercise, change the

speed of the walking

pressingthe Speed +"1 L--J

and -battens. Each MP.

time a button is I_ ==_-"'_ °

pressed, the speed set-

ting will change by 0.1

mph; if a button is held down, the speed setting

will change in increments of 0.5 mph. To change

the speed setting quickly, press the 1-step Speed

buttons. The speed range is 0.5 mph to 12 mph.

Note: After the buttons are pressed, it may take a

moment for the treadmill to reach the selected

speed setting.

To stop the walking belt, press the Stop button.

The time will begin to flash in the main display. To

restart the walking belt, pressthe Start button or

the Speed + button.

Note: The first time the treadmill is used, inspect

the alignment of the walking belt, and align the

walking belt if necessary (see page 28),

B Change the inCline of the treadmill as desired.

To change the incline of

the treadmill, press the

Incline A and Wbuttons.

Each time abutton is

pressed, the incline will

.'3.C

C.J

_/. GRADE O

INCLINE

change by 0.5%. To change the inclinequickly,

press the 1-step Incline buttons. The incline range

is 0% to 12%. Note: After the buttons are pressed,

it may take a moment for the treadmill to reach the

selected incline setting.

_._ Follow your progress with the LED track, the

Training Zone display, and the main display.

The LED track--When

the manual mode orthe

iFIT.cem mode is se-

lected, the program dis-

play wit! show an LED

track representing 1/4

mmm Ilim

mile. As you exercise, the indicators around the

track will light, one at a time, until you have walked

or run 1/4 mile. A new lap will then begin.

The Training Zone display--As you exercise, the

Training Zone display will showthe approximate

intensitylevel of your exercise. For example, if four

to six indicatorsinthe display are lit,your intensity

level is ideal for fat burning.

t .... ;

The main display--The main display will show

the following information:

Incline_The left side of

the main displayshows

the inclinelevel of the

treadmill.

L..J

%GRAI_E 0

INCLINE

Time/Pace--When the

manual mode orthe

iFIT.cem mode is se-

lected,the nextsection

of the maindisplaywill

showthe elapsed time

and your current pace (pace is measured in min-

utes permile). The displaywill change from one

number to the other every few seconds; the Pace

indicator will light when your pace is shown. When

a program is selected, the display will show the

time remaining in the program, your current pace,

and the time remaining in the current segmentof

the program.

OstanceLapsTheL L

center section of the !1"3 !.--J

[U"!

main display shows the

distance that you have o ",STA"CE_"SOOP

walked and the number

of 1/4-mile laps you

have completed. The display will change from one

number to the other every few seconds; the Laps

indicator will light when the number of laps is

shown.

Calories/Puls_

When you are not _ I._ "-I

using the handgrip !

pulse sensor, the next OPUL_FATO

CALORIES

sectionof the main dis-

play will show the ap-

proximate numbers of calories and fat calories

you have burned (see FAT BURNING on page

29). The display will change from one number to

the other every few seconds; the Fat indicator will

light when the number of fat calodes is shown.

When you are using the handgdp pulse sensor,

the display will show your heart rate (see step 6 at

the right).

Speed--The right side

of the main display

shows the speed of the

walking belt.

ISpEIEO

Noteecons°nt, J1

display speed and dis-

tance in either miles or MP

kilometers. To find ATO pE_

which unit of measure-

ment is selected, hold

down the Stop button while insertingthe key into

the console. An "E" for Englishmiles or an "M" for

metric kilometers will appear on the right side of

the main display. Press the Speed + button to

change the unit of measurement. When the de-

sired unit of measurement is selected, remove the

key and then reinsert it. Note: For simplicity, all

instructions in this manual refer to miles.

To reset the main display, press the Stop button,

remove the key, and then reinsert the key.

BMeasure your heart rate, if desired.

To measure your

heart rate, stand

on the foot rails

and place your

hands on the metal

contacts on the

handrail. Your Metal Contact.,

palms must be rest-

ing on the upper _ _ 9

contacts, and your OpULSE FATO

fingers must be CALO.,ES

touching the lower

contacts---avoid

moving your hands. When your pulse is detected,

the Pulse indicator will light and then your heart

rate will be shown in the main display, For the

most accurate heart rate reading, continue to

hold the contacts for about 15 seconds.

B Turn on the fans if desired.

To turn on the fans at low speed, press the Fans

button. To turn on the fans at highspeed, press

the Fans buttonasecond time. To turn off the

fans, press the Fans buttons athirdtime. Note:

Any time that the walkingbelt is stoppedfor afew

minutes,the fans will automatically turn off.

B When you are finished exercising, stop the

walking belt and remove the key.

Step ontothe foot rails, press the Stop button, and

adjust the inclineof the treadmill to the lowest level.

The incline must be at the lowest level when

the treadmill is raised to the storage position or

the treadmill will be damaged. Next, removethe

key from the consoleand putit in a secureplace.

Note: If the displays and indicators on the con-

sole remain lit after the key is removed, the

console is in the "dsmo" mode. See page 24

and turn off the demo mode.

When you are finished using the treadmill,move

the on/off switch near the power cord to the off

position and unplug the power cord.

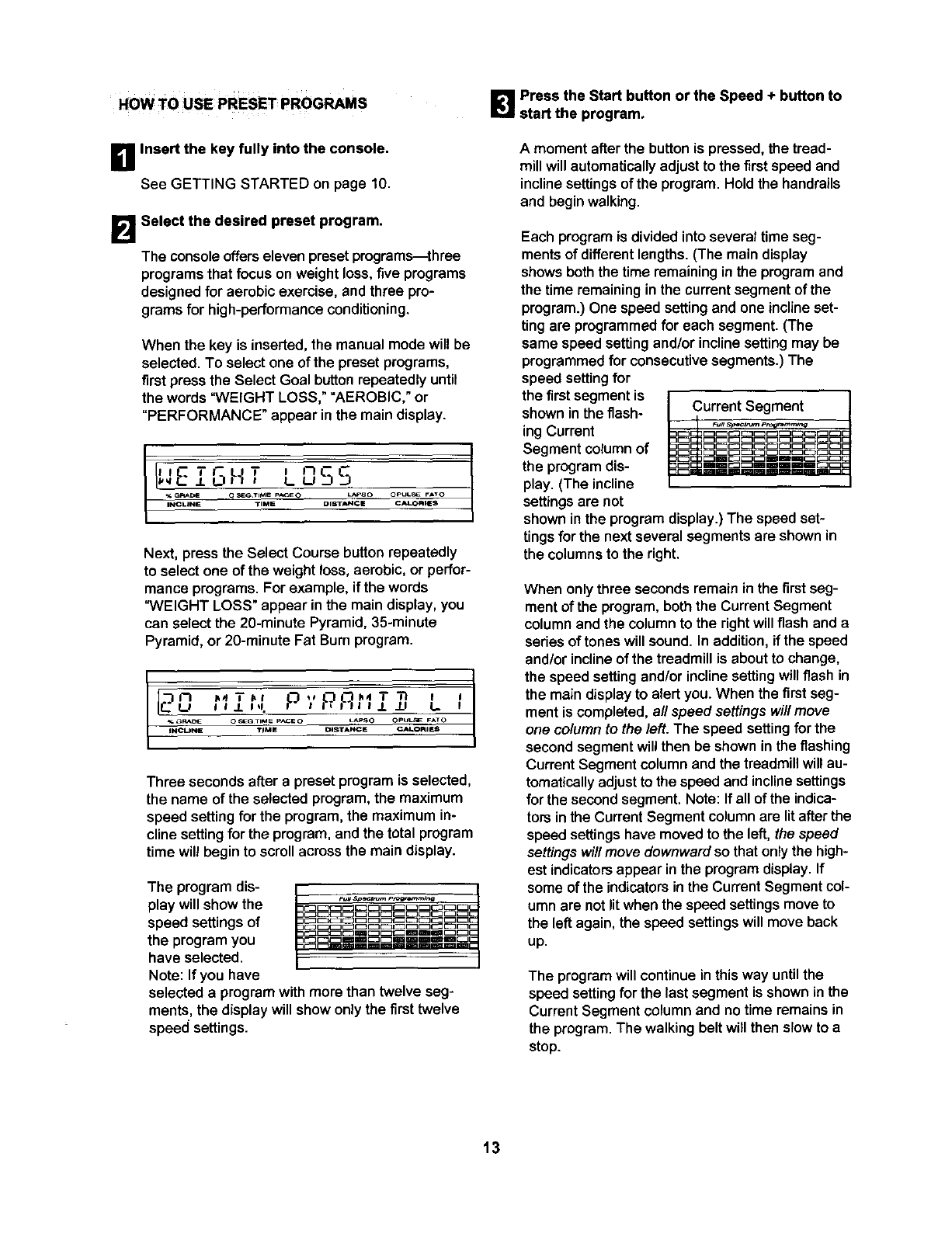

_! Insert the key fully into the console.

See GETTING STARTED on page 10.

_1 Select the desired preset program.

The consoleofferseleven presetprograms_three

programsthat focuson weight loss,five programs

designed for aerobic exercise, and three pro-

grams for high-performanceconditioning,

When the key is inserted, the manual mode will be

selected. To select one of the preset programs,

first press the Select Goal button repeatedly until

the words "WEIGHT LOSS," "AEROBIC," or

"PERFORMANCE" appear in the main display.

£1GH 055

% GP_t_s O_GTtMS P_CEO L_,PSO OPULSE F_'TO

INCUNS TIME DIST_CE C_OmlES

Next, press the Select Course button repeatedly

to select one of the weight loss, aerobic, or perfor-

mance programs. For example, if the words

"WEIGHT LOSS" appear in the main display, you

can select the 20-minute Pyramid, 35-minute

Pyramid, or 20-minute Fat Burn program.

_ _Fl*_J_ll. O_GTIME P_EQ t_SO OpULSE FAI'O

Three seconds after a preset program is selected,

the name of the selected program, the maximum

speed setting for the program, the maximum in-

cline setting for the program, and the total program

time will begin to scroll across the main display.

The program dis-

play will showthe

speed settings of

the program you

have selected.

Note: If you have Foo°.o°o,..ko

selected a program with more than twelve seg-

ments,the display will show only the first twelve

speed settings.

1_1 Press the Start button or the Speed + button to

start the program.

A moment after the button is pressed, the tread-

mill will automaticallyadjust to the first speed and

incline settings of the program. Hold the handrails

and begin walking.

Each program is divided into several time seg-

ments of different lengths. (The main display

shows both the time remaining in the program and

the time remaining in the current segment of the

program.) One speed setting and one incline set-

ting are programmed for each segment. (The

same speed setting and/or incline setting may be

programmed for consecutive segments.) The

speed setting for

the first segment is

shown in the flash- Current Segment

ing Current

Segment column of

the program dis-

play. (The incline

settings are not

shown in the program display.) The speed set-

tings for the next several segments are shown in

the columns to the right.

When onlythree seconds remain in the firstseg-

ment of the program, both the Current Segment

column and the column to the right will flash and a

series of tones will sound. In addition, if the speed

and/or incline of the treadmill is about to change,

the speed setting and/or incline setting will flash in

the main display to alert you. When the first seg-

ment is completed, all speed settings will move

one column to the left. The speed setting for the

second segment will then be shown in the flashing

Current Segment column end the treadmill will au-

tomatically adjust to the speed and incline settings

for the second segment. Note: If all of the indica-

tors in the Current Segment column are lit after the

speed settings have moved to the left, the speed

settings will move downward so that only the high-

est indicators appear in the program display. If

some of the indicators in the Current Segment col-

umn are not lit when the speed settings move to

the left again, the speed settings will move back

up.

The program will continue in this way until the

speed setting for the last segment is shown in the

Current Segment column and no time remains in

the program. The walking belt will then slow to a

stop.

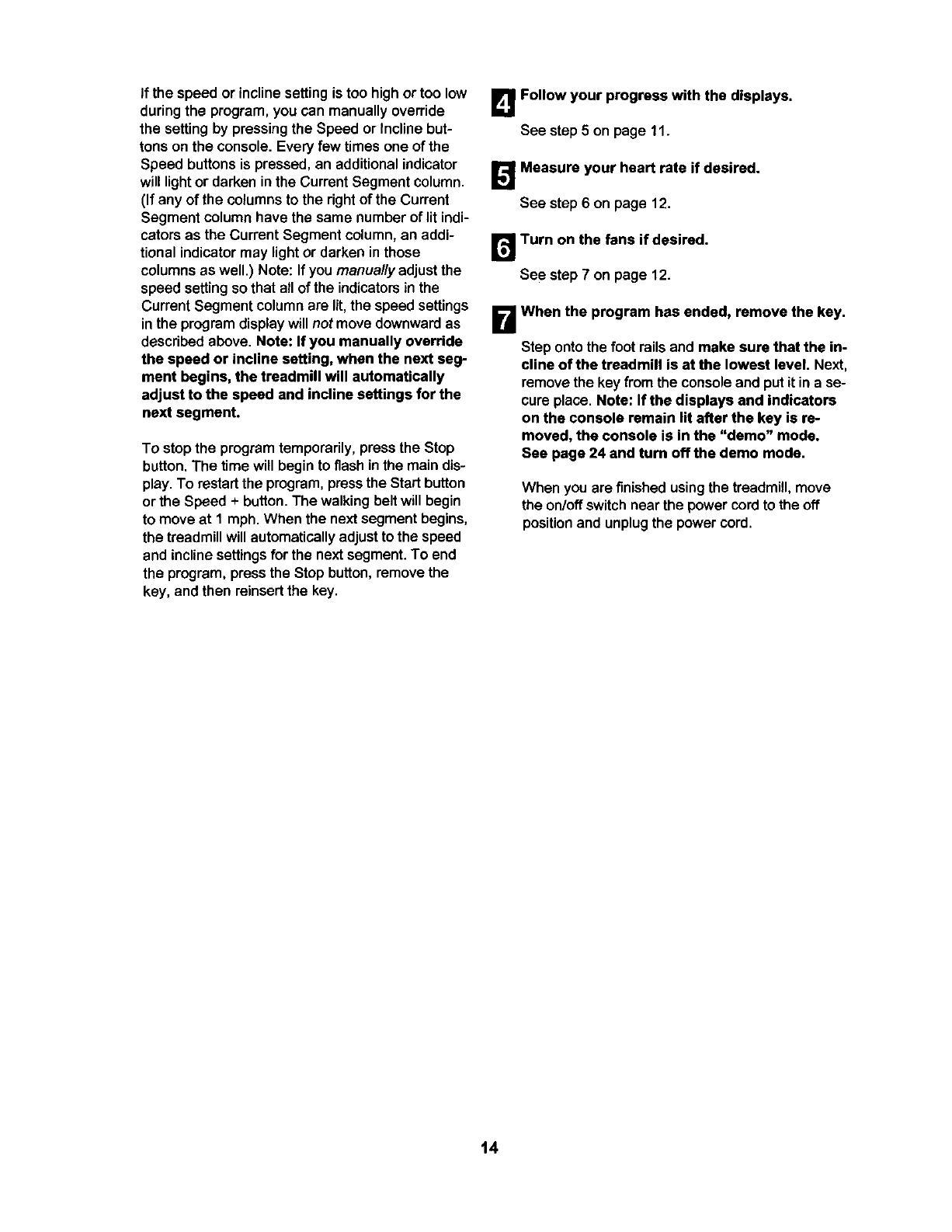

If the speed or incline setting is too high or too low

during the program, you can manually override

the setting by pressing the Speed or incline but-

tons on the console. Every few times one of the

Speed buttons is pressed, an additional indicator

will light or darken in the Current Segment column.

(If any of the columns to the right of the Current

Segment column have the same number of lit indi-

cators as the Current Segment column, an addi-

tional indicator may light or darken in those

columns as well.) Note: If you manually adjust the

speed settingso that all of the indicators in the

Current Segment column are Ut,the speed settings

in the program display will not move downward as

described above. Note: If you manually override

the speed or incline setting, when the next seg-

ment begins, the treadmill will automatically

adjust to the speed and incline settings for the

next segment.

To stopthe program temporarily,press the Stop

button. The time will begin to flash inthe main dis-

play. To restart the program, press the Start button

or the Speed + button. The walking belt will begin

to move at 1 mph. When the next segment begins,

the treadmill will automatically adjust to the speed

and incline settings for the next segment. To end

the program, press the Stop button, remove the

key, and then reinsert the key.

L_ Follow your progress with the displays.

See step 5 on page 11.

1_! Measure your heart rate if desired.

See step 6 on page 12.

r_Turn on the fans if desired.

See step 7 on page 12.

B When the program has ended, remove the key.

Step onto the foot rails and make sure that the in-

cline of the treadmill is at the lowest level. Next,

removethe key from the consoleand putit in a se-

cure place, Note: If the displays and indicators

on the console remain lit after the key is re-

moved, the console is in the "demo" mode.

See page 24 and tum offthe demo mode.

When you are finished usingthe treadmill, move

the on/off switchnear the power cord to the off

position and unplug the power cord.

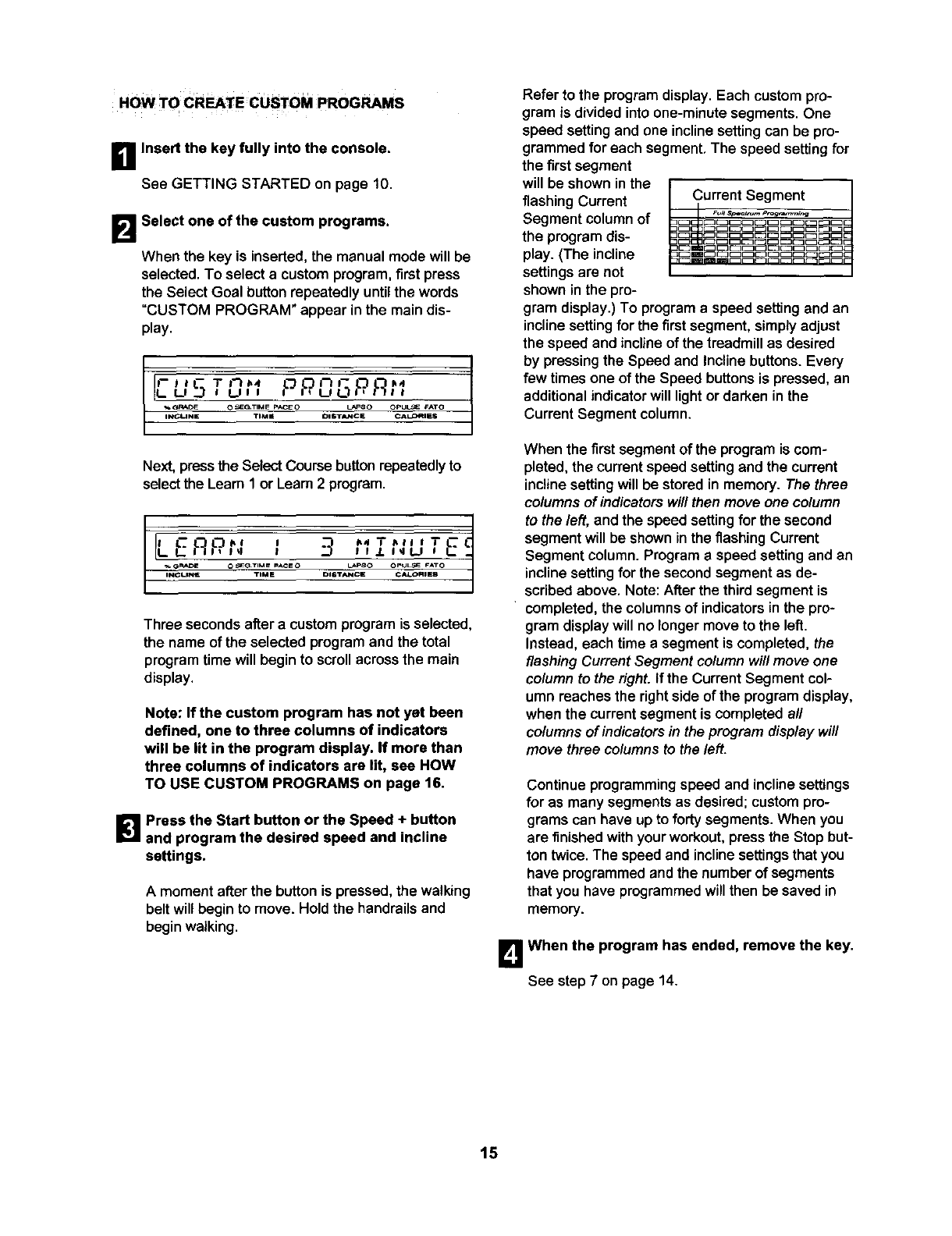

HOW TO CREATE CUSTOM PROGRAMS

B Insert the key fully into the console.

See GETTING STARTED on page 10.

B Select one of the custom programs.

When the key is inserted,the manual mode will be

selected. To select a customprogram,first press

the Select Goal buttonrepeatedly untilthe words

"CUSTOM PROGRAM" appear inthe main dis-

play.

PP,OGP t; l

I-US i Ull

_o_ O_TIM_ PAtiO _50 OPUL_ FAT_

INGUNE TIME DISTDJ4CE CALORI_

Next, press the Select Course button repeatedly to

select the Leam 1 or Learn 2 program.

EnP"' ' -3 ,, ,. ,

! _1 l J. l.J

IN_LIN_ TiME DIGT_ICE CAI_O_I EB

Three secondsafter a custom program is selected,

the name of the selected program and the total

program time will begin to scroll across the main

display.

Note: If the custom program has not yet been

defined, one to three columns of indicators

will be lit in the program display. If more than

three columns of indicators are lit, see HOW

TO USE CUSTOM PROGRAMS on page 16.

B Prees the Start button or the Speed + button

and program the desired speed and incline

settings.

Amoment after the button is pressed, the walking

belt will begin to move. Hold the handrails and

begin walking.

Refer to the program display. Each custom pro-

gram is divided into one-minute segments. One

speed setting and one incline setting can be pro-

grammed for each segment. The speed setting for

the first segment

will be shown in the

flashing Current Current Segment

Segment column of

the program dis-

play. (The incline

settings are not

shown in the pro-

gram display.) To program a speed setting and an

incline setting for the first segment, simply adjust

the speed and incline of the treadmill as desired

by pressing the Speed and Incline buttons. Every

few times one of the Speed buttons is pressed, an

additional indicator will light or darken in the

Current Segment column.

When the first segmentof the program is com-

pleted, the current speed setting and the current

incline setting will be stored in memory. The three

columns of indicators will then move one column

to the left, and the speed setting for the second

segment will be shown in the flashing Current

Segment column. Program a speed setting and an

incline setting for the second segment as de-

scribed above. Note: After the third segment is

completed, the columns of indicators in the pro-

gram display will no longer move to the left.

Instead, each time a segment is completed, the

flashing Current Segment column will move one

column to the right. If the Current Segment col-

umn reaches the right side of the program display,

when the current segment is completed all

columns of indicators in the program display will

move three columns to the left.

Continue programming speed and incline settings

for as many segments as desired; custom pro-

grams can have up to forty segments. When you

are finished with your workout, press the Stop but-

ton twice. The speed and incline settings that you

have programmed and the number of segments

that you have programmed will then be saved in

memory.

B When the program has ended, remove the key.

See step 7 on page 14.

B Insert the key fully into the console.

See GETTING STARTED on page 10.

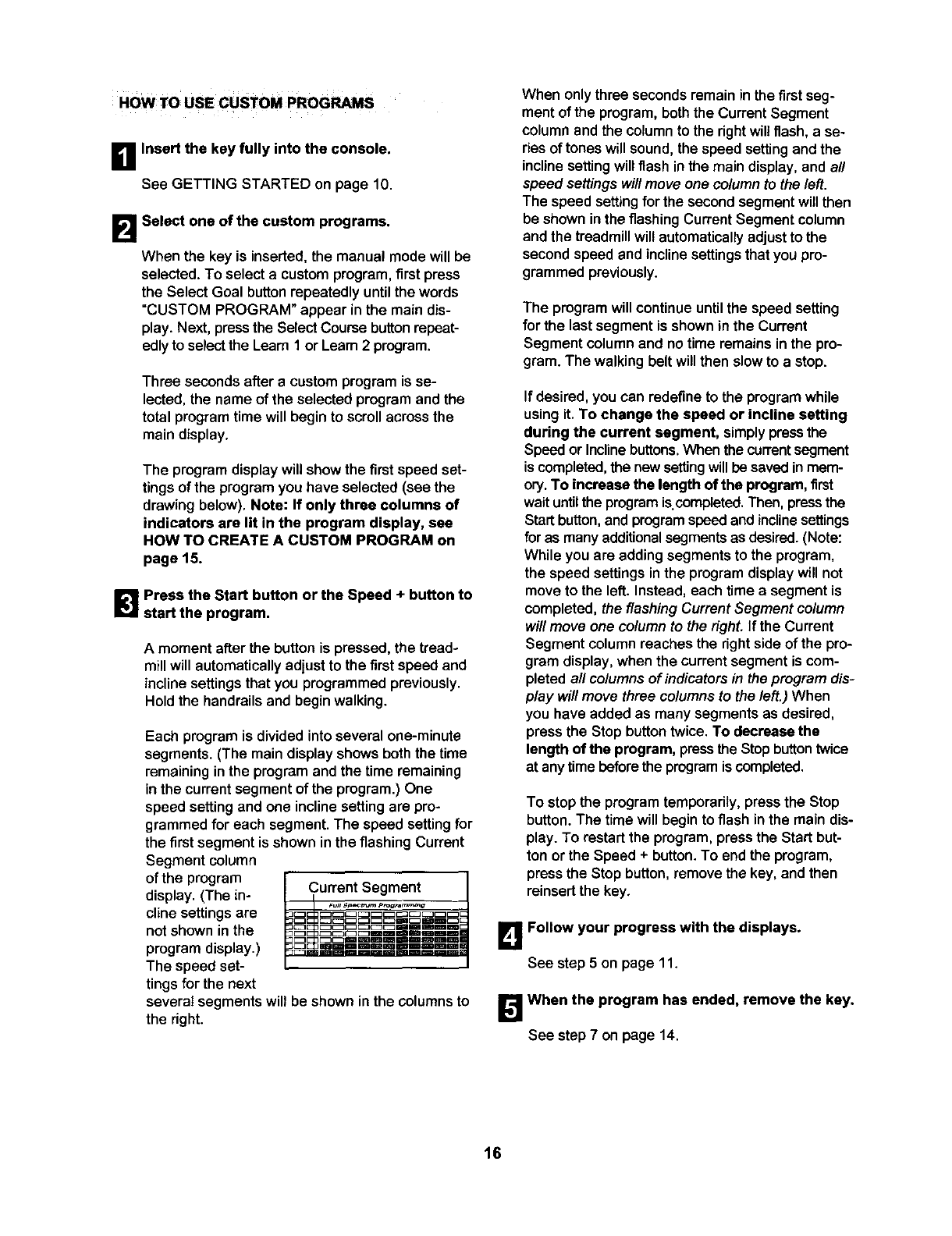

B Select one of the custom programs.

When the key is inserted,the manual mode will be

selected. To select a customprogram,first press

the Select Goal buttonrepeatedly untilthe words

=CUSTOM PROGRAM" appear inthe main dis-

play. Next, pressthe Select Coursebuttonrepeat-

edlyto selectthe Learn 1 or Learn 2 program.

Three seconds after acustom program is se-

lected, the name of the selected program and the

total programtime will begin to scrollacrossthe

main display.

The program display will show the firstspeed set-

tings of the program you have selected (see the

drawing below). Note: If only three columns of

indicators are lit in the program display, see

HOW TO CREATE A CUSTOM PROGRAM on

page 15.

B Press the Start button or the Speed + button to

start the program.

Amoment after the button is pressed, the tread-

mill will automaticallyadjust to the first speed and

incline settingsthat you programmedpreviously.

Holdthe handrailsand beginwalking.

Each program is divided into several one-minute

segments. (The main display shows both the time

remaininginthe program and the time remaining

inthe currentsegment of the program.)One

speed setting and one inclinesetting are pro-

grammed for each segment. The speed settingfor

the firstsegment is shown inthe flashing Current

Segment column

of the program

display. (The in- Current Segment

cline settings are

not shown in the

program display.)

The speed set-

tings for the next

several segmentswill be shown inthe columns to

the right.

When only three seconds remain inthe firstseg-

ment of the program, both the Current Segment

columnand the columnto the rightwiltflash, a se-

riesof tones willsound, the speed settingand the

inclinesettingwill flash inthe main display, and all

speed settings will move one columnto the left.

The speed setting for the second segmentwill then

be shown in the flashing Current Segment column

and the treadmill wil! automatically adjust to the

second speed and incline settings that you pro-

grammed previously.

The program willcontinue until the speed setting

for the last segment is shown in the Current

Segment columnand notime remains in the pro-

gram. The walkingbelt willthen slow to a stop.

If desired, you can redefineto the program while

using it. To change the speed or incline setting

during the current segment, simplypressthe

Speedor Inclinebuttons.When the currentsegment

iscompleted,the new settingwillbe saved inmem-

ory. To increase the length of the program, first

wait untilthe programis completed.Then, pressthe

Startbutton,and programspeedand inclinesettings

for as manyadditionalsegmentsas desired.(Note:

While you are adding segments to the program,

the speed settings inthe programdisplaywill not

move to the left. Instead, each time a segment is

completed, the flashing Current Segment column

will move one column to the dght. If the Current

Segment columnreaches the rightside of the pro-

gram display,when the currentsegment is com-

pleted all columnsof indicatorsin the program dis-

play willmove three columnsto the left.) When

you have added as many segmentsas desired,

press the Stop button twice. To decrease the

length of the program, pressthe Stopbuttontwice

at anytime beforethe programis completed.

To stopthe program temporarily, press the Stop

button. The time will begin to flash inthe main dis-

play. To restart the program, press the Start but-

ton or the Speed + button. To end the program,

press the Stop button, remove the key, and then

reinsert the key.

B Follow your progress with the displays.

See step 5 on page 11.

[]When the program has ended, remove the key.

See step 7 on page 14.

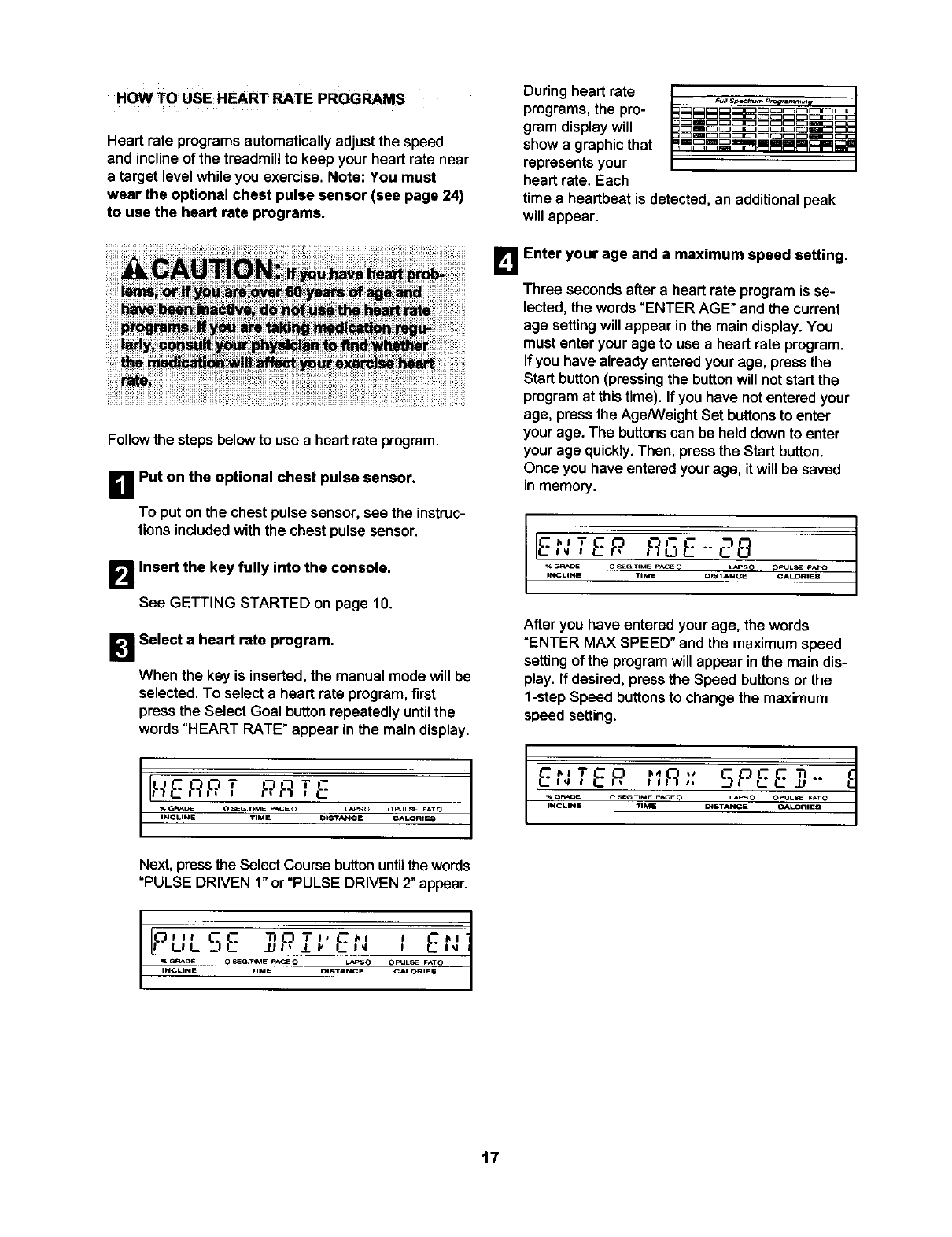

HOW TO USE HEART PATE PROGRAMS

Heart rate programs automatically adjust the speed

and incline of the treadmill to keep your heart rate near

a target level while you exercise. Note: You must

wear the optional chest pulse sensor (see page 24)

to use the heart rate programs.

Followthe steps below to use a heart rate program.

_lPut on the optional chest pulse sensor.

To put on the chest pulse sensor, see the instruc-

tions included with the chest pulse sensor.

F_I Insert the key fully into the console.

See GETTING STARTED on page 10.

1_1 Select a heart rate program.

When the key is inserted, the manual mode will be

selected. To select aheart rate program,first

press the Select Goal buttonrepeatedly untilthe

words "HEART RATE" appear in the main display.

IHEnPT RRTE ]

% GRAE"E OS_GT_MC P_so LAFsO OPUL_E FATO

INCLIN_ TIME DI_TN_ _ CAI_)R[E_

Next, press the Select Course button until the words

"PULSE DRIVEN 1" or "PULSE DRIVEN 2" appear.

liP'" 5E Et

IlL 11 t,I I --t,I

-_ G_DE o_G.TIMF _,cE o L_'_ o m

o PULSe FATO

INCLINE TIME _I_'I*A_IC E _ JLLOR i S6/

During heart rate

programs, the pro-

gram display will

show a graphic that

represents your

heart rate. Each

_mD_D_OD_ID_

m_m_m_mEmm_mD

time a heartbeat is detected, an additional peak

will appear.

L_ Enter your age and a maximum speed setting.

Three seconds after a heart rate program is se-

lected, the words "ENTER AGE" and the current

age setting will appear in the main display. You

must enter your age to use a heart rate program.

If you have already entered your age, press the

Start button (pressing the button will not start the

program at this time). If you have not entered your

age, press the AgeANeight Set buttons to enter

your age. The buttons can be held down to enter

your age quickly. Then, press the Start button.

Once you have entered your age, it will be saved

in memory.

IEttTER nGE--28

_, OR*_D_ O_GT6ME PACE O _S O OPtJL_ FAt O

INCLINE _ME D_STANCE CALOm_

After you have entered your age, the words

"ENTER MAX SPEED" and the maximum speed

setting of the program will appear in the main dis-

play. If desired, press the Speed buttons or the

1-step Speed buttons to change the maximum

speed setting.

IEt:TE,q r;,q" SPEEd-- t

_GRAD_ O_G.IME P"CEO L_PSO OPUL_SE _:ATo

INC_NE _IME _STANCE CALOmES

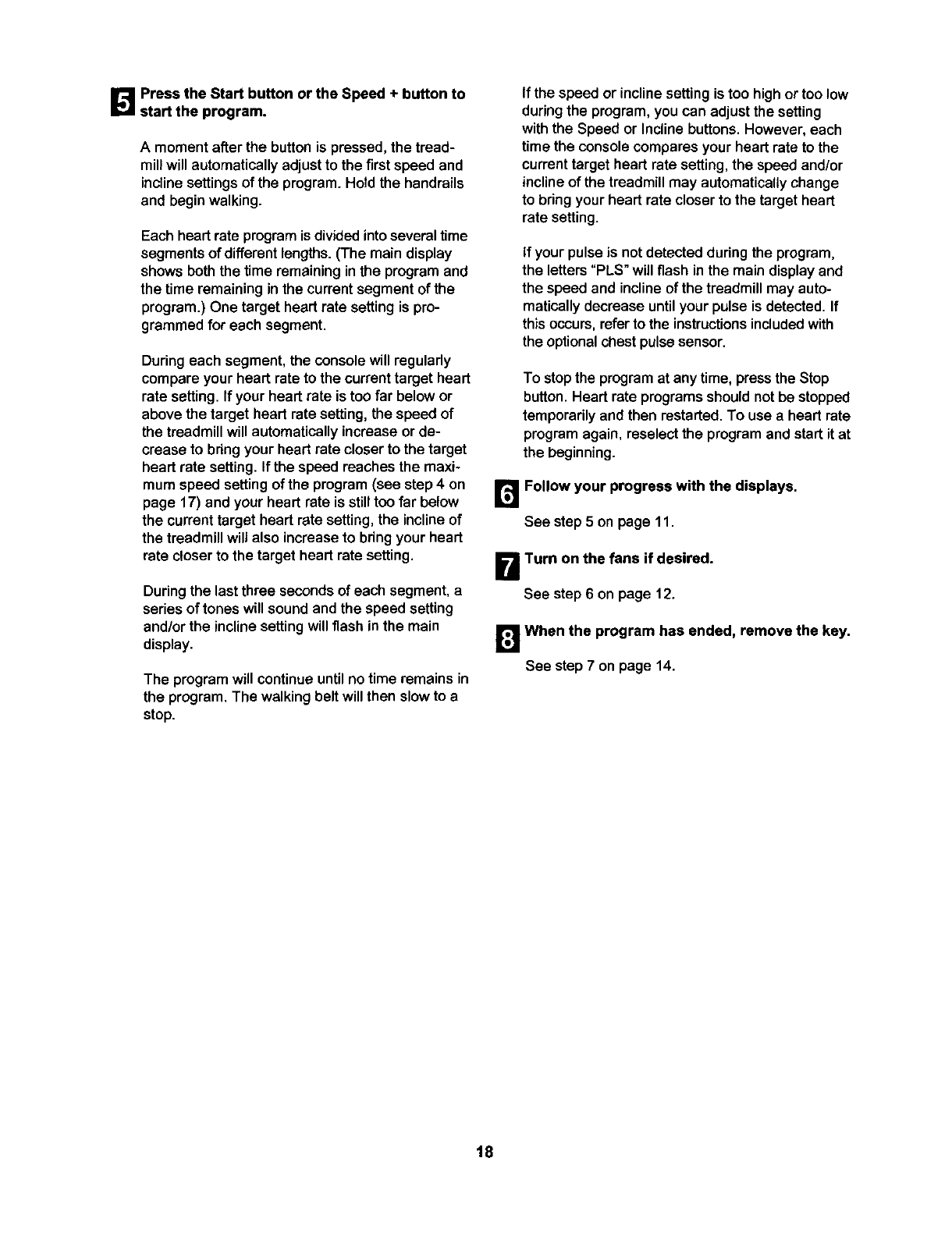

_.'._ Press the Start button or the Speed + button to

start the program.

Amoment after the button is pressed, the tread-

mill will automatically adjust to the first speed and

incline settings of the program. Hold the handrails

and begin walking.

Each heartrate program is divided into severaltime

segments of different lengths. (The main display

shows both the time remaining in the program and

the time remaining in the current segment of the

program.) One target heart rate setting is pro-

grammed for each segment.

During each segment, the console will regularly

compare your heart rate to the current target heart

rate setting. If your heart rate is too far below or

above the target heart rate setting, the speed of

the treadmill will automatically increase or de-

crease to bring your heart rate closer to the target

heart rate setting. If the speed reaches the maxi-

mum speed setting of the program (see step 4 on

page 17) and your heart rate is still too far below

the current target heart rate setting, the incline of

the treadmill wildalso increase to bring your heart

rate closer to the target heart rate setting.

During the last three secondsof each segment, a

series of tones will sound and the speed setting

and/or the incline setting will flash in the main

display.

The program will continueuntil no time remains in

the program. The walking belt will then slow to a

stop.

If the speed or incline setting is too high or too low

during the program, you can adjust the setting

with the Speed or Incline buttons. However, each

time the console compares your heart rate to the

current target heart rate setting, the speed and/or

incline of the treadmill may automatically change

to bring your heart rate closer to the target heart

rate setting.

If your pulse is not detected during the program,

the letters "PLS" will flash in the main display and

the speed and incline of the treadmill may auto-

matically decrease until your pulse is detected. If

this occurs, refer to the instructions included with

the optional chest pulse sensor.

To stopthe program at any time, press the Stop

button. Heart rate programs shouldnot be stopped

temporarily and then restarted. To use a heart rate

program again, reselect the program and start it at

the beginning.

Follow your progress with the displays.

See step 5 on page 11.

B Turn on the fans if desired.

See step 6 on page 12.

_] When the program has ended, remove the key.

See step 7 on page 14.

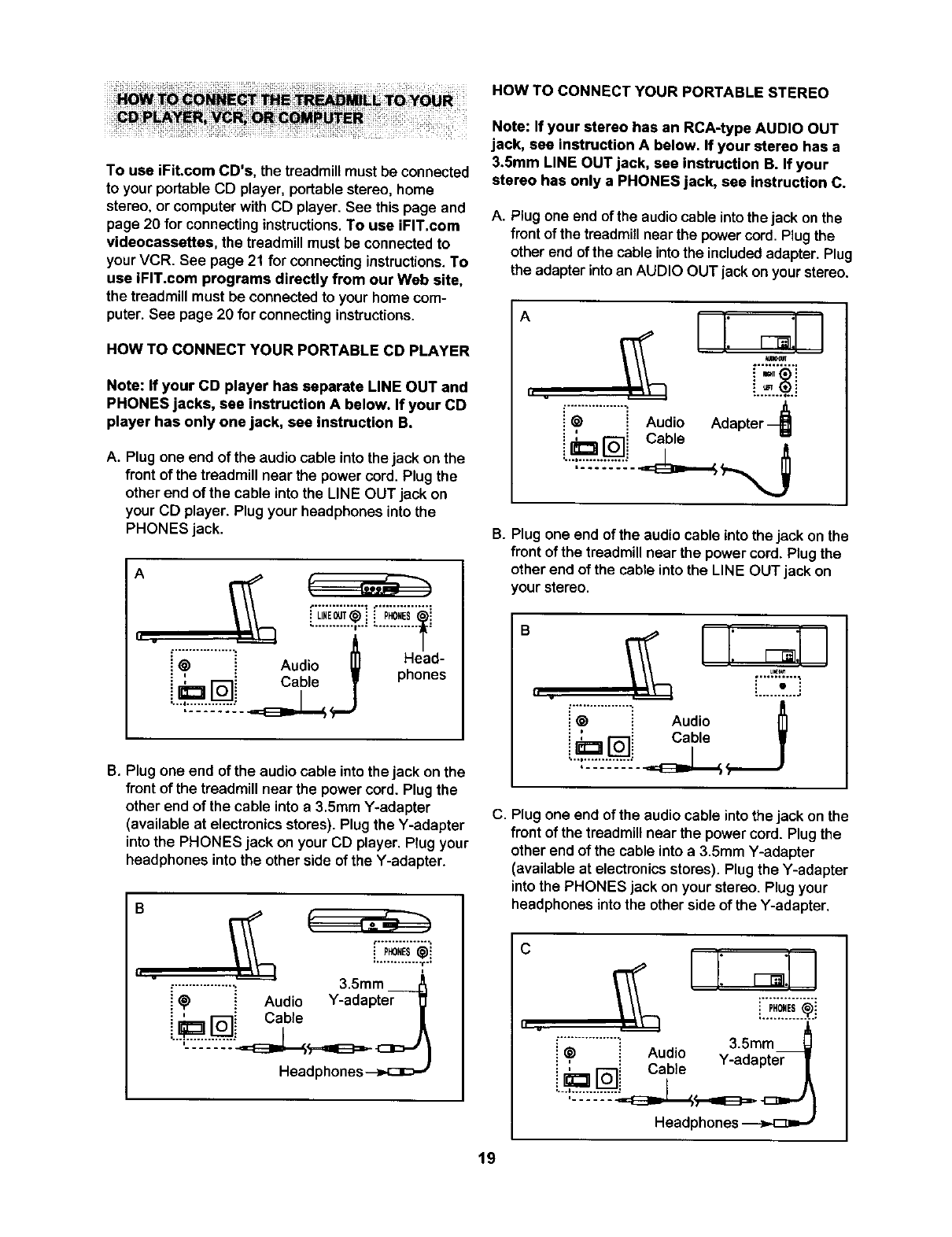

HOW TO CONNECT YOUR PORTABLE STEREO

Note: If your stereo has an RCA-type AUDIO OUT

jack, see instruction A below. If your stereo has a

To use iFit.com CD's, the treadmillmustbe connected

to your portable CD player,portable stereo, home

stereo, or computerwith CD player. See this page and

page 20 for connectinginstructions.To use iFIT.com

videocaesettes, the treadmill must be connectedto

your VCR. See page 21 for connectinginstructions.To

use iFIT.com programs directly from our Web site,

the treadmill must be connectedto your home com-

puter.See page 20 for connectinginstructions.

HOW TO CONNECT YOUR PORTABLE CD PLAYER

Note: If your CD player has separate LINE OUT and

PHONES jacks, see instruction A below. If your CD

player has only one jack, see instruction B.

A. Plug one end of the audio cable intothe jack on the

front of the treadmill near the power cord. Plug the

other end of the cable into the LINE OUT jack on

your CD player. Plug your headphones into the

PHONES jack.

LINEC4JT@ i _ PHONES i

........................

i@i Audio LU . "

i:ri_ i--o-iI Cable pnones

L::

B. Plug one end of the audio cable intothe jack onthe

front of the treadmill near the power cord. Plug the

other end of the cable into a 3.5mm Y-adapter

(available at electronics stores). Plug the Y-adapter

into the PHONES jack on your CD player. Plug your

headphones into the other side of the Y-adapter.

il v

iPHONES@i

.............. f.,

o................. 3.5mm A

it i Audio Y-adapter_l

i '----- r'_i Cable /

3.5mm LINE OUT jack, see instruction B. If your

stereo has only a PHONES jack, see instruction C.

A. Plug one end of the audiocable intothe jack on the

front of the treadmill near the power cord. Plug the

other end of the cable into the included adapter. Plug

the adapter into an AUDIO OUT jack on your stereo.

!@Audio Adapter

i: r"_"_: Cable

""",'."_'"'"'".".

B. Plug one end of the audio cable into the jack on the

front of the treadmill near the power cord. Plug the

other end of the cable into the LINE OUT jack on

your stereo.

TI v

i......;...]

! .................

i@Audio

i @i Cab,e

C. Plug one end of the audio cable into the jack on the

front of the treadmill near the power cord. Plug the

other end of the cable into a 3.5mm Y-adapter

(available at electronics stores). Plug the Y-adapter

into the PHONES jack on your stereo. Plug your

headphones into the other side of the Y-adapter.

bl v

[

................".' 3.5mm_

: O :Audio

E! .... Y-adapte_

ir_=.gi-_-ii _uu,u /

:.-.::,.:-:.--:__ _

Headphones

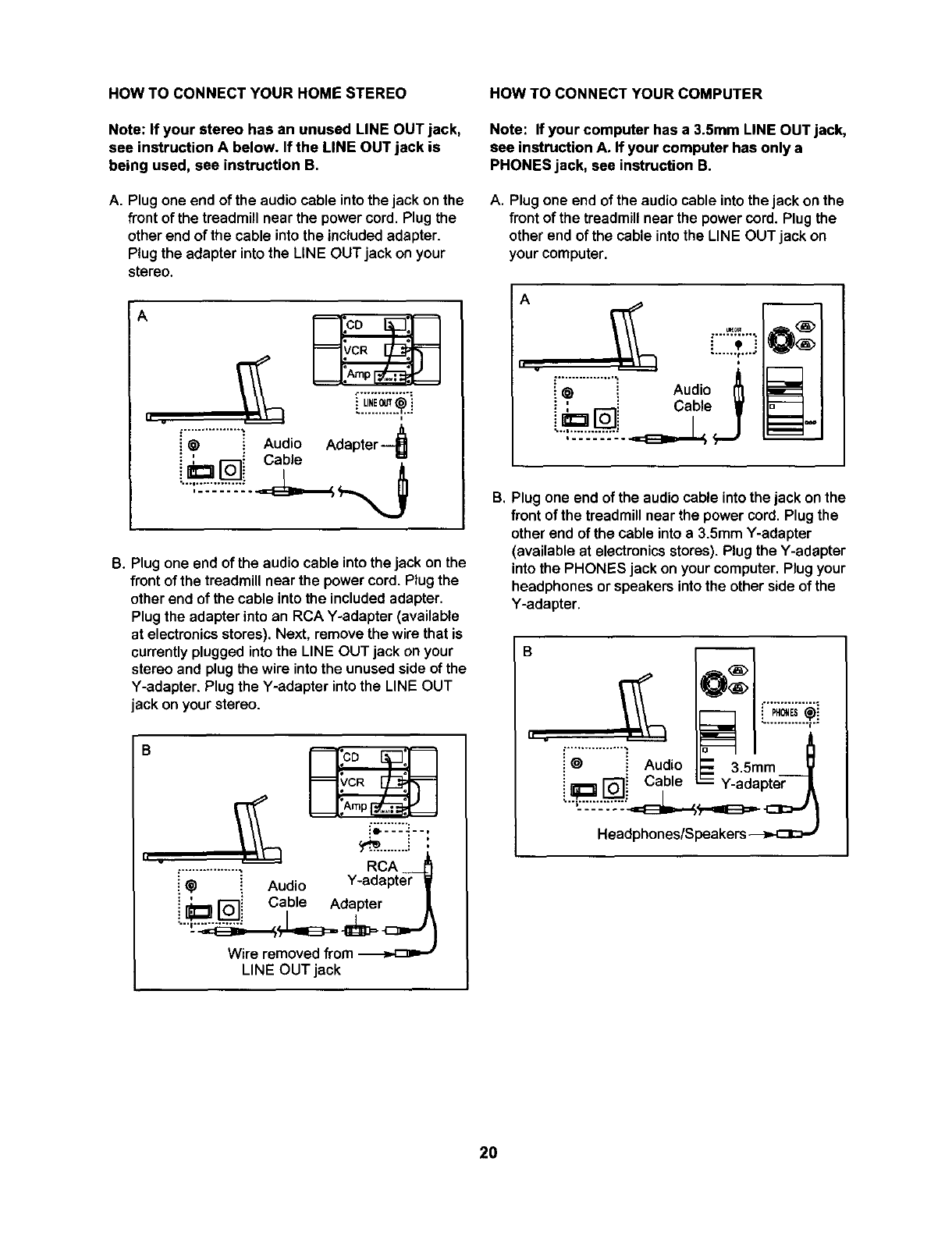

HOW TO CONNECT YOUR HOME STEREO

Note: If your stereo has an unused LINE OUT jack,

see instruction A below. If the LINE OUT jack is

being used, see instruction B.

A. Plug one end of the audio cable into the jack on the

front of the treadmill near the power cord. Plug the

other end of the cable into the includedadapter.

Plug the adapter into the LINE OUT jack on your

stereo.

II v

i@}Audio

..:

Adapter -_

:, _--_: Cable

B. Plug one end of the audio cable into the jack on the

front of the treadmill near the power cord. Plug the

other end of the cable into the included adapter.

Plug the adapter into an RCA Y-adapter (available

at electronics stores). Next, remove the wire that is

currently plugged into the LINE OUT jack on your

stereo and plug the wire into the unused side of the

Y-adapter. Plug the Y-adapter into the LINE OUT

jack on your stereo.

II v

._ i;:-"-_ --,

o................. RCA __

i @ i Audio Y-adapter

! m _! Cable Adapter

LY.J!

Wire removed from

LINE OUT jack

HOW TO CONNECT YOUR COMPUTER

Note: If your computer has a 3.5ram LINE OUT jack,

see instruction A. If your computer has only a

PHONES jack, see instruction B.

A. Plug one end of the audio cable into the jack on the

front of the treadmill near the power cord. Plug the

other end of the cable into the LINE OUT jack on

your computer.

B. Plug one end of the audio cable into the jack onthe

front of the treadmill near the power cord. Plug the

other end of the cable into a 3.5mm Y-adapter

(available at electronicsstores). Plug the Y-adapter

intothe PHONES jack on your computer. Plug your

headphones orspeakers into the other side of the

Y-adapter.

h:................i _ I ............i"

i@ i Audio _- 3.5mm.____l'

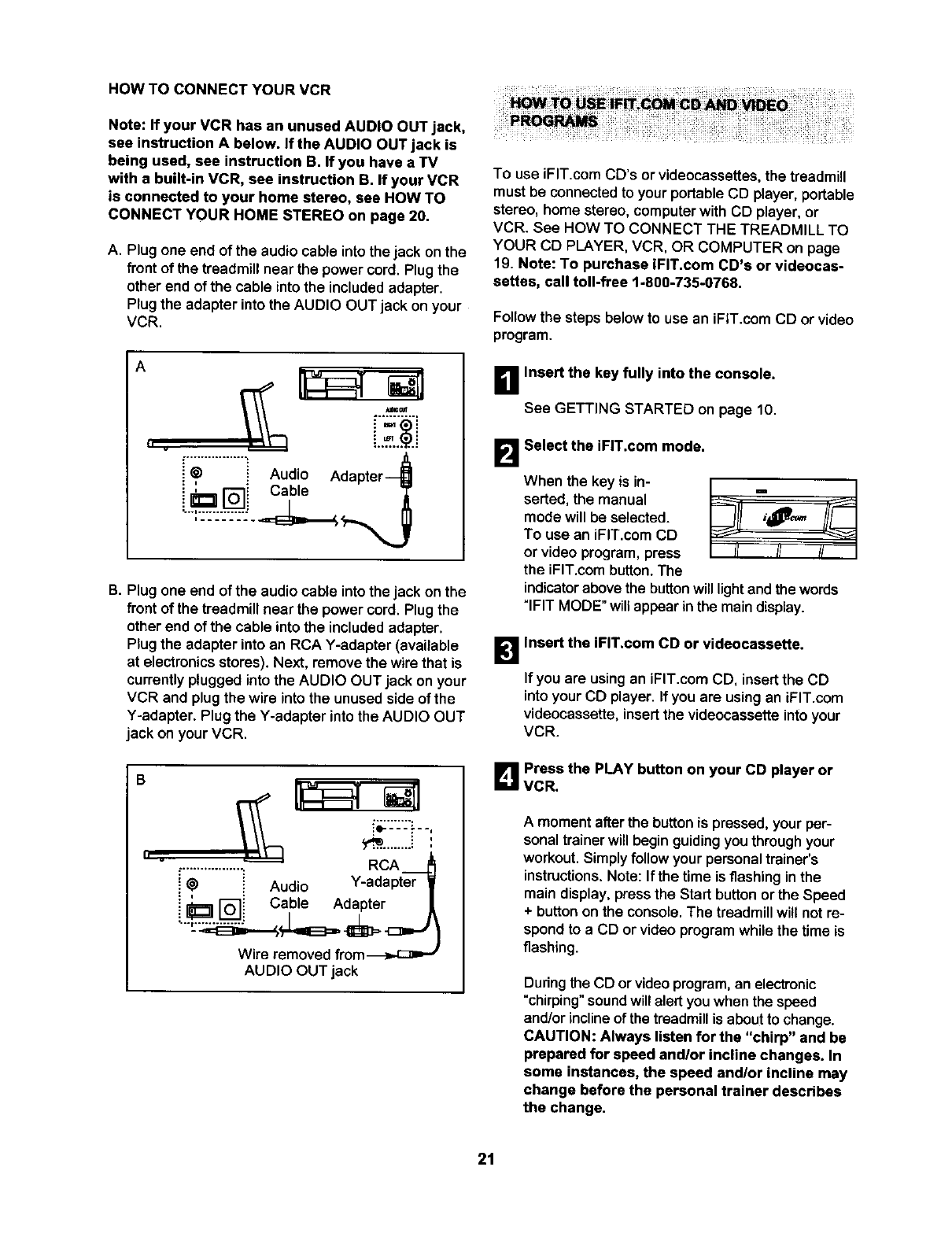

HOW TO CONNECT YOUR VCR

Note: If your VCR has an unused AUDIO OUT jack,

see instruction A below. If the AUDIO OUT jack is

being used, see instruction B. If you have a TV

with e built-in VCR, see instruction B. If your VCR

is connected to your home stereo, see HOW TO

CONNECT YOUR HOME STEREO on page 20.

A. Plug one end of the audio cabFeinto the jack on the

front of the treadmill near the power cord. Plug the

other end of the cable into the included adapter.

Plug the adapter into the AUDIO OUT jack on your

VCR.

flv

motif

i ,@ Audio Adapter

i r_ I-_i Cable _'

B. Plug one end of the audio cable intothe jack on the

front of the treadmill near the power cord. Plug the

other end of the cable into the included adapter.

Plug the adapter into an RCA Y-adapter (available

at electronics stores). Next, remove the wire that is

currently plugged into the AUDIO OUT jack on your

VCR and plug the wire into the unused side of the

Y-adapter. Plug the Y-adapter into the AUDIO OUT

jack on your VCR.

h v

__-:--:-.:...,

..................: RCA__

@ i Audio Y-adapter

!a_===r_=ai'_! Cable Adapter

Wire removed from_

AUDIO OUT jack

To use iFIT.com CD's or videocassettes, the treadmill

must be connected to your portable CD player, portable

stereo, home stereo, computer with CD player, or

VCR. See HOW TO CONNECT THE TREADMILL TO

YOUR CD PLAYER, VCR, OR COMPUTER on page

19. Note: To purchase iFIT.com CD's or videocas-

settes, call toil-free 1-800-735-0768.

Follow the steps below to use an iFIT.com CD or video

program.

B Insert the key fully into the console.

See GETTING STARTED on page 10.

B Select the iFIT.com mode.

When the key is in-

serted, the manual

mode will be selected.

To use an iFIT.com CD

or video program, press

the iFIT.com button. The

indicatorabove the button willlight and the words

"IFIT MODE" will appear in the main display.

B Insert the iFIT.com CD or videocassette.

If you are using an iFIT.com CD, insertthe CD

intoyour CD player. If you are usingan iFIT.com

videocassette, insertthe videocassetteinto your

VCR.

B Press the PLAY button on your CD player or

VCR.

Amoment afterthe button is pressed, your per-

sonal trainer will begin guiding you throughyour

workout.Simplyfollow your personaltrainer's

instructions.Note: If the time is flashingin the

main display,pressthe Start buttonor the Speed

+button on the console.The treadmillwill not re-

spond to a CD or video programwhile the time is

flashing.

During the CD or videoprogram, an electronic

"chirping" soundwillalert you when the speed

and/or incline of the treadmill is about to change.

CAUTION: Always listen for the "chirp" and be

prepared for speed andlor incline changes. In

some instances, the speed andlor incline may

change before the personal trainer describes

the change.

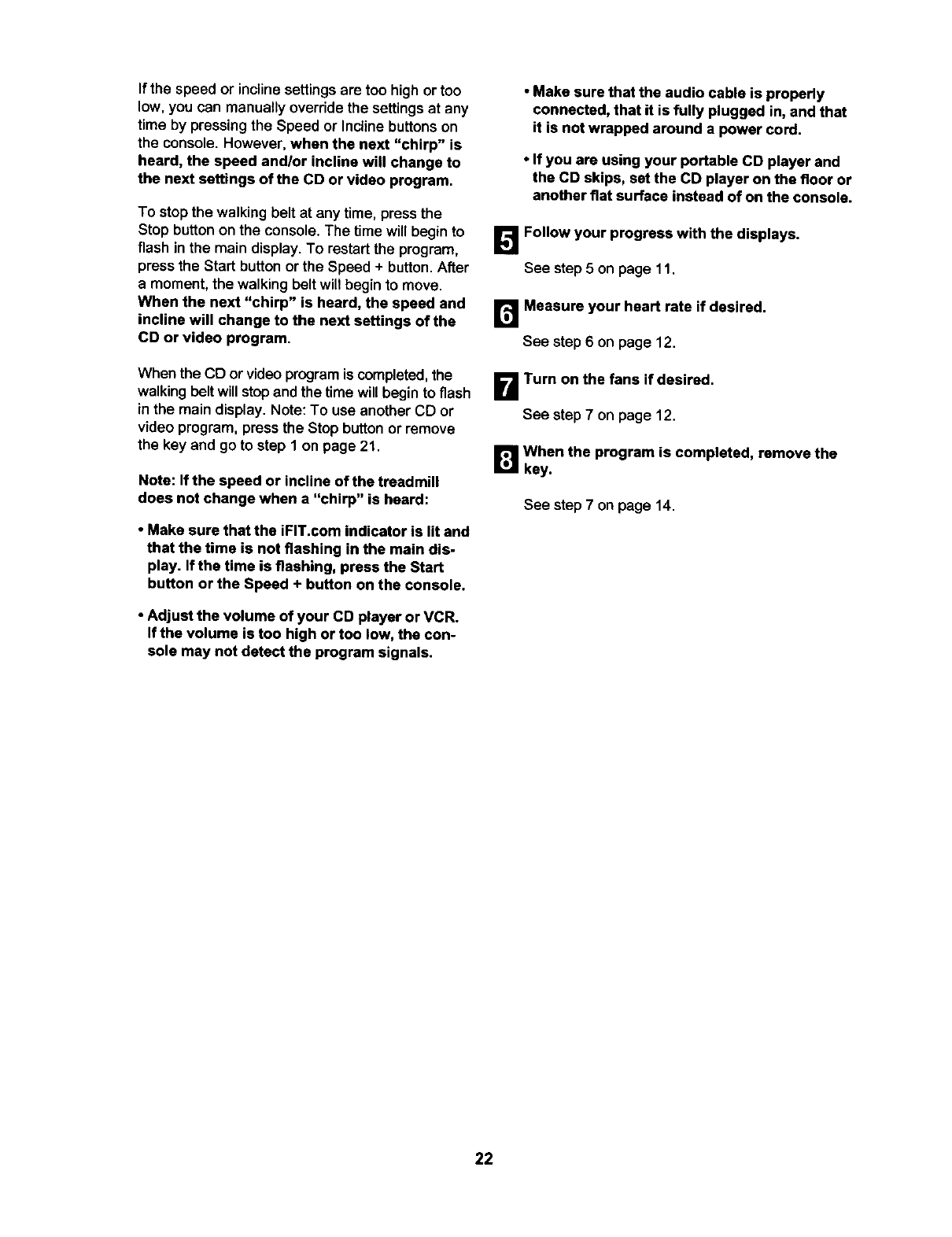

If the speed or incline settings are too high or too

low, you can manually override the settings at any

time by pressing the Speed or Incline buttons on

the console. However, when the next "chirp" is

heard, the speed and/or incline will change to

the next settings of the CD or video program.

To stop the walking belt at any time, press the

Stop button on the console. The time will begin to

flash in the main display. To restart the program,

press the Start button or the Speed + button. After

a moment, the walking belt will begin to move.

When the next "chirp" is heard, the speed and

incline will change to the next settings of the

CD or video program.

When the CD or video program is completed,the

walkingbelt willstopand the time willbegin to flash

in the main display. Note: To use another CD or

video program, press the Stop button or remove

the key and go to step 1 on page 21.

Note: If the speed or incline of the treadmill

does not change when a "chirp" is heard:

• Make sure that the iFIT.com indicator is lit and

that the time is not flashing in the main dis-

play. If the time is flashing, press the Start

button or the Speed ÷ button on the console.

•Adjust the volume of your CD player or VCR.

If the volume is too high or too low, the con-

sole may not detect the program signals.

•Make sure that the audio cable is properly

connected, that it is fully plugged in, and that

it is not wrapped around a power cord.

• If you are using your portable CD player and

the CD skips, set the CD player on the floor or

another flat surface instead of on the console.

_._ Follow your progress with the displays.

See step 5 on page 11,

r_ Measure your heart rate if desired.

See step 6 on page 12.

B Turn on the fans if desired.

See step 7 on page 12.

[]When the program is completed, remove the

key.

See step 7 on page 14.

Our Web site at www.iFIT.com allows you to access

basic programs, audio programs, and video programs

directlyfrom the intemet. Additionaloptionsare soon

to be available. See www.iFIT.comfor details.

To use programs from our Web site, the treadmill must

be connected to your home computer. See HOW TO

CONNECT YOUR COMPUTER on page 20. In

addition, you must have an interest connection and

an internet service provider. A list of specific system

requirements is found on our Web site.

Follow the steps below to use a program from our

Web site.

_1 Insert the key fully into the console.

See GETTING STARTED on page 10.

B Select the iFIT.com mode.

When the key is in-

serted, the manual

mode will be selected.

To use a program from

our Web site, press the

iFIT.com button. The in-

dicator abovethe button willlight and the words

"IFIT MODE" will appear inthe main display.

l_lGo to your computer and start an internet

connection.

Lq Start your web browser, if necessary, and go to

our Web site at www.iFIT.com.

!_'._Follow the desired links on our Web site to se-

lect a program.

Read and follow the on-line instructions for using a

program.

r_ Follow the on-line instructions to start the

program.

When you start the program, an on-screen count-

down will begin.

B Return to the treadmill and stand on the foot

rails. Find the clip attached to the key and slide

the clip onto the waistband of your clothes.

When the on-screencountdownends, the program

will begin and the walking pelt will begin to move.

Holdthe handrails,step ontothe walkingbelt, and

beginwalking. Dudngthe program,an electronic

"chirping" soundwillalertyouwhen the speed

and/or inclineof the treadmillis aboutto change.

CAUTION: Always listen for the "chirp" and be

prepared for speed andlor incline changes.

If the speed or incline settings are too high or too

low, you can manually override the settings at any

time by pressing the Speed or Incline buttons on

the console. However, when the next "chirp" is

heard, the speed andlor incline will change to

the next settings of the program.

To stop the walking belt at any time, press the

Stop button on the console. The time will begin to

flash in the main display. To restart the program,

press the Start button or the Speed + button. After

a moment, the walking belt will begin to move at 1

mph. When the next "chirp" is heard, the speed

and incline will change to the next settings of

the program.

When the program is completed, the walking belt

will stopand the time will begin to flashin the time

display.Note: To use another program,pressthe

Stop buttonand go to step 5.

Note: If the speed or incline of the treadmill

does not change when a "chirp" is heard, make

sure that the iFIT.com indicator is lit and that

the Time display is not flashing. In addition,

make sure that the audio cable is properly con-

nected, that it is fully plugged in, and that it is

not wrapped around a power cord.

[]When the program has ended, remove the key.

See step 7on page 14.

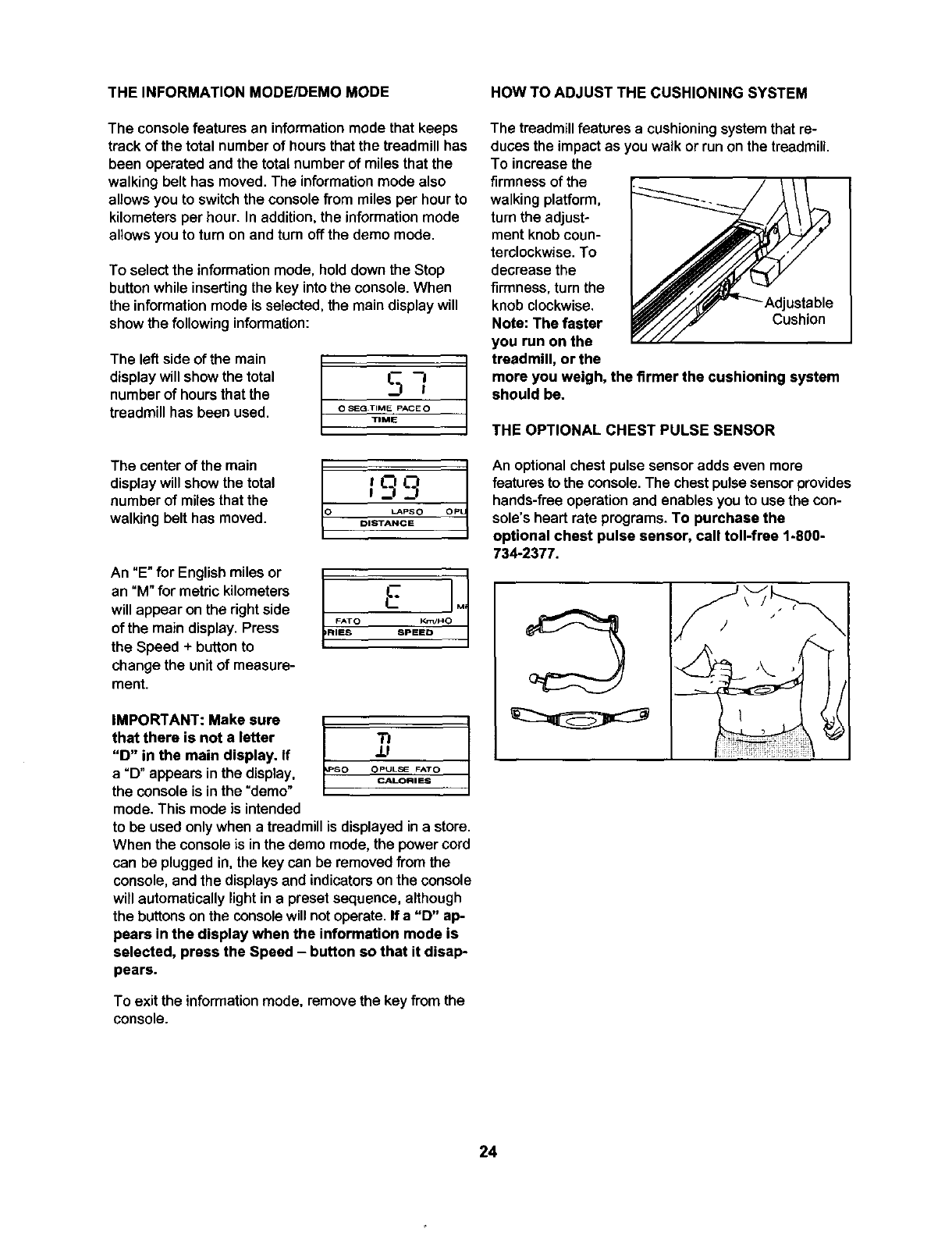

THE INFORMATION MODE/DEMO MODE

The console features an informationmode that keeps

track of the total number of hours that the treadmill has

been operated and the total number of miles that the

walking belt has moved. The information mode also

allows you to switch the console from miles per hour to

kilometers per hour. In addition, the information mode

allows you to turn on and turn off the demo mode.

To select the information mode, hold down the Stop

button while inserting the key into the console. When

the information mode is selected, the main display will

show the following information:

The left side of the main

display will show the total

number of hours that the

treadmill has been used.

0SEG.TIME PACEO

TIME

s_q9 I

_PSO OP

DISTANCE

SO OPULSE FATO

CALOFIIES

The center of the main

display will show the total

number of miles that the

walking belt has moved.

An "E"for English miles or

an "M"for metric kilometers

will appear on the right side

of the main display. Press

the Speed + button to

change the unit of measure-

ment.

IMPORTANT: Make sure

that there is not a letter

"D" in the main display. If

a=D"appears inthe display,

the console is inthe =demo"

mode. This modeis intended

to be used only when a treadmill is displayed in a store.

When the console is in the demo mode, the power cord

can be plugged in, the key can be removed from the

console, and the displays and indicators on the console

will automatically lightin a preset sequence, although

the buttons on the console will not operate. If a"D" ap-

pears in the display when the information mode is

selected, press the Speed - button so that it disap-

pears.

To exit the informationmode, removethe key from the

console.

HOW TO ADJUST THE CUSHIONING SYSTEM

The treadmill features a cushioningsystem that re-

duces the impactas youwalk or run on the treadmill.

To increase the

firmness of the

walking platform,

turn the adjust-

ment knob coun-

terclockwise. To

decrease the

firmness, turn the

knob clockwise, ustable

Note: The faster Cushion

you run on the

treadmill, or the

more you weigh, the firmer the cushioning system

should be.

THE OPTIONAL CHEST PULSE SENSOR

An optionalchest pulse sensor adds even more

features to the console.The chestpulse sensor provides

hands-freeoperationand enables you to use the con-

sole's heart rate programs.To purchase the

optional chest pulse sensor, call toll-free 1-800-

734-2377.

HOW TO FOLD AND MOVE THE TREADMILL

HOW TO FOLD THE TREADMILL FOR STORAGE

Before folding the treadmill, adjust the incline to the

lowest position. If this is not done, the treadmill may be-

come damaged. Remove the key and unplug the power

cord. CAUTION: You must be able to safely lift 45 pounds

(20 kg) to raise, lower, or move the treadmill.

1. Hold the treadmill withyour hands inthe locations shown

at the right. CAUTION: To decrease the possibility of in-

jury, bend your legs and keep your back straight. As

you raise the treadmill, make sure to lift with your legs

rather than your back. Raise the treadmill about halfway

to the vertical position.

2. Move your righthand to the position shown and hold the

treadmill firmly. Using your left hand, pull the lock knob to

the left and hold it. Raise the treadmill until the lock pin is

aligned with the hole in the housing. Insert the lock pin

into the housing. Make sure that the lock pin is fully in-

serted into the housing. Note: If the adjustment knob

(not shown) hits the upright, press on the knob.

To protect the floor or carpet from damage, place a

mat under the treadmill. Keep the treadmill out of

direct sunlight. Do not leave the treadmill in the stor-

age position in temperatures above 85°Fahrenheit.

HOW TO MOVE THE TREADMILL

Before moving the treadmill,convertthe treadmill to the stor-

age position as described above. Make sure that the lock

pin is fully inserted into the housing.

1. Hold the handrailsas shown and place one foot against a

wheel.

2. Tilt the treadmillback until it rollsfreely on the front wheels.

Carefully move the treadmillto the desired location.Never

move the treadmill without tipping it back. To reduce

the risk of injury, use extreme caution while moving

the treadmill. Do not attempt to move the treadmill

over an uneven surface.

3. Place one foot on wheel, and carefully lower the treadmill

until it is resting in the storage position. Front Wheels

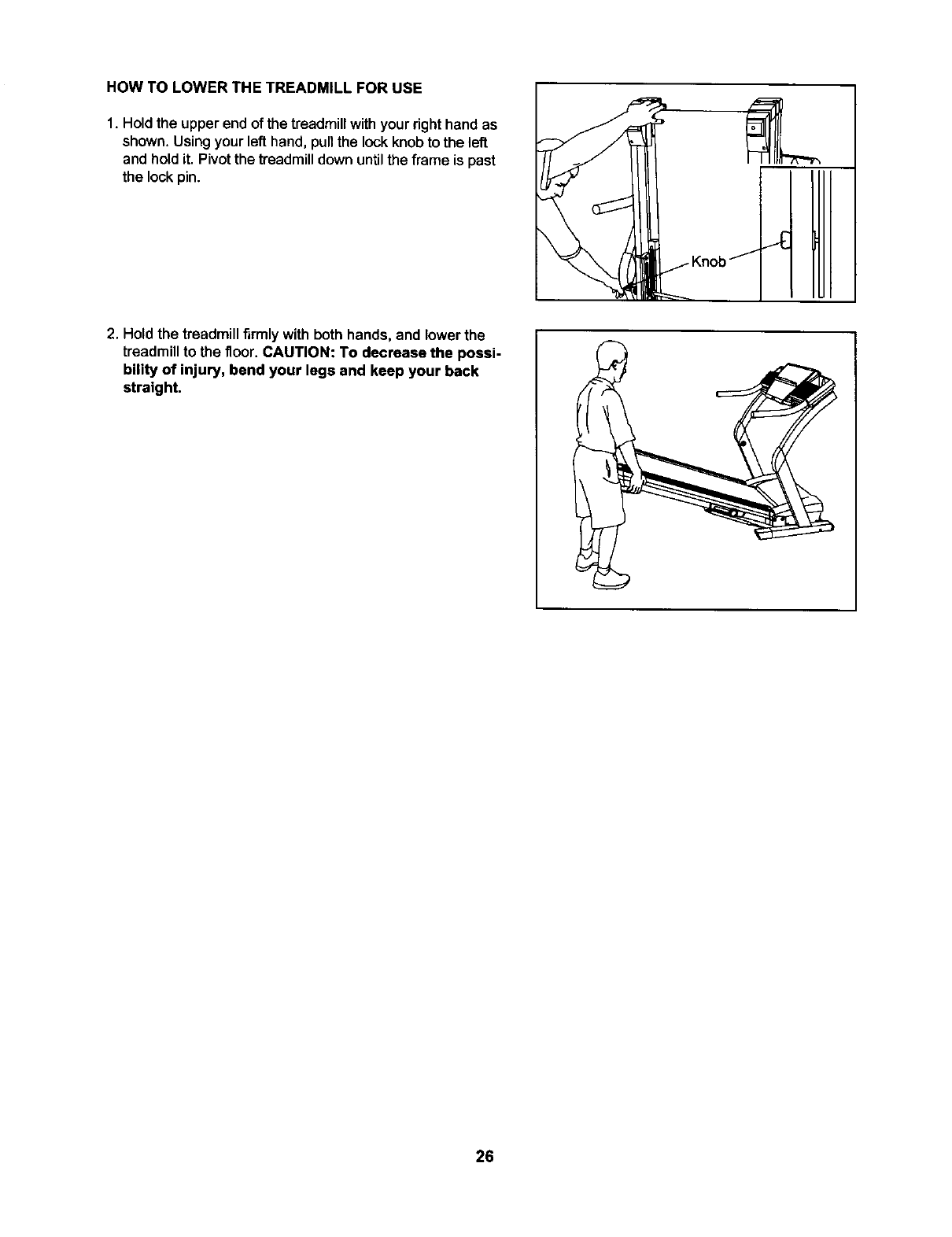

HOW TO LOWER THE TREADMILL FOR USE

1. Hold the upperend of the treadmill with your dght hand as

shown. Using your left hand, pull the lock knob to the left

and hold it. Pivot the treadmill down until the frame is past

the lock pin.

2. Hold the treadmill firmlywith both hands, and lower the

treadmill to the floor. CAUTION: To decrease the possi-

bility of injury, bend your legs and keep your back

straight.

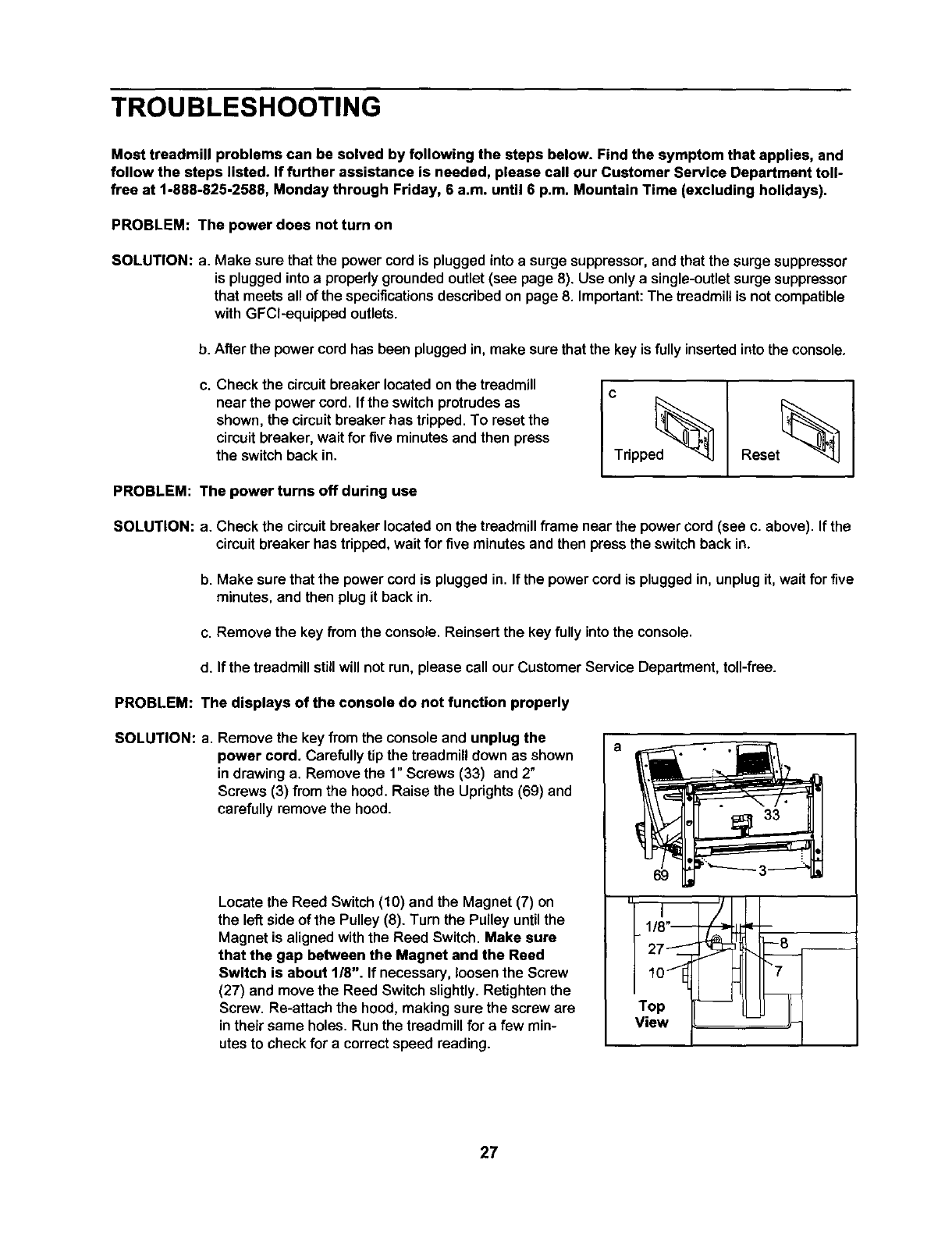

TROUBLESHOOTING

Most treadmill problems can be solved by following the steps below. Find the symptom that applies, and

follow the steps listed. If further assistance is needed, please call our Customer Service Department toll-

free at 1-888-825-2588, Monday through Friday, 6 a.m. until 6 p.m. Mountain Time (excluding holidays).

PROBLEM: The power does not turn on

SOLUTION: a. Make sure that the power cord is plugged into asurge suppressor,and that the surge suppressor

is pluggedintoa properlygroundedoutlet(see page 8). Use onlya single-outletsurge suppressor

that meets all of the specificationsdescribed on page 8. Important:The treadmillis notcompatible

with GFCI-equipped outlets.

b. After the power cord has been plugged in, make sure that the key isfully insertedintothe console.

c. Check the circuitbreaker located on the treadmill

near the power cord. If the switch protrudesas

shown, the circuitbreaker has tripped.To reset the

circuitbreaker, wait for five minutes and then press

the switchback in.

PROBLEM: The power turns off during use

Reset_ I

SOLUTION: a. Check the circuit breaker located on the treadmill frame near the power cord (see c. above). If the

circuitbreaker has tdpped, wait for five minutes and then pressthe switchback in.

b. Make sure that the power cord is plugged in. If the power cord is plugged in, unplug it,wait for five

minutes, and then plug it back in.

c. Remove the key from the console. Reinsert the key fully into the console.

d. If the treadmill stillwill not run, please call our Customer Service Department, toll-free.

PROBLEM: The displays of the console do not function properly

SOLUTION: a. Remove the key from the console and unplug the

power cord. Carefullytip the treadmill down as shown

in drawing a. Remove the 1"Screws (33) and 2"

Screws (3) from the hood. Raise the Uprights(69) and

carefully removethe hood.

Locate the Reed Switch (10) and the Magnet (7) on

the left side of the Pulley (8). Turn the Pulley until the

Magnet is aligned with the Reed Switch. Make sure

that the gap between the Magnet and the Reed

Switch is about 1/8". If necessary, loosen the Screw

(27) and move the Reed Switchslightly.Retightenthe

Screw. Re-attach the hood, making sure the screw are

in their same holes. Run the treadmill for a few min-

utes to check for a correct speed reading.

| 27_

/10"

Top

View

PROBLEM: The walking belt slows when walked on

SOLUTION: a. Use only asingle-outlet surge suppressorthat meets all of the specificationsdescribed on page 8.

b. If the walking belt is overtightened,treadmill perfor-

mance may decrease and the walking belt may be-

come damaged. Remove the key and UNPLUG THE

POWER CORD. Using the allen wrench, turn both

rear roller adjustment bolts counterclockwise, 1/4 of a

turn. When the walking belt is properly tightened, you

should be able to lift each side of the walking belt 3 to

4 inches off the walking platform. Be careful to keep

the walking belt centered. Plug in the power cord, in-

sert the key, and run the treadmill for a few minutes.

Repeat until the walking belt is properly tightened.

Rear Roller Adjustment Bolts

c. If the walking bert still slows when walked on, please call our Customer Service Department, toll-

free.

PROBLEM: The walking belt is off-center or slips when walked on

SOLUTION: a. If the walking belt is off-center,remove the key and UN-

PLUG THE POWER CORD. If the walking belt has

shifted to the left, use the allenwrench to turnthe left

rear rollerboltclockwise1/2 of a turn; if the walking belt

has shifted to the right, turn the left rear miler boltcoun-

terclockwise1/2 of a turn. Be carefulnotto overtightenthe

walking belt. Plug in the power cord,insert the key, and

run the treadmillfor afew minutes. Repeat untilthe walk-

ing belt is centered.

b. If the walking belt slips when walked on, first remove the

key and UNPLUG THE POWER CORD. Using the allen

wrench, turn both rear roller bolts clockwise, 1/4 of a turn,

When the walking belt is correctly tightened, you should

be able to lift each side of the walking belt 3 to 4 inches off

the walking platform. Be careful to keep the walking belt

centered. Plug in the power cord, insert the key, and care-

fully walk on the treadmill for a few minutes. Repeat until

the walking belt is propedy tightened.

PROBLEM: The incline of the treadmill does not change correctly or does not change when iFIT.com

CD's and videos are played

SOLUTION: a. With the key in the console, press one of the Incline buttons. While the incline is changing, re-

move the key. After a few seconds, re-insertthe key. The treadmillwill automaticallyriseto the

maximum incline leveland then retum to the minimumlevel. This will recalibrate the incline.

CONDITIONING GUIDELINES

The following guidelines will help you to plan your ex-

ercise program. For more detailed exercise informa-

tion, obtain a reputable book or consult your physician.

EXERCISE INTENSITY

Whether your goal is to burn fat or to strengthen your

cardiovascular system, the key to achieving the

desired results is to exercise with the proper intensity.

The proper intensity level can be found by using your

heart rate as a guide. The chart below shows recom-

mended heart rates for fat burning and aerobicexercise.

HEART RATE TRAINING ZONES

AEROBIC 165 155 145 140 130 125 115

MAX FAT BURN 145 138 130 125 lt8 lt0 103

FAT BURN 125 120 115 110 105 95 90

Age 20 30 40 50 60 70 80

To find the proper heart rate for you, first find your age

near the bottom of the chart (ages are rounded off to

the nearest ten years). Next, find the three numbers

above your age. The three numbers define your "train-

ing zone." The lower two numbers are recommended

heart rates for fat burning; the higher number is the

recommended heart rate for aerobic exercise.

To measure your heart rate during exercise, use the

pulse sensor. If your heart rate is too high or too low,

adjust the speed and incline of the treadmill.

Fat Burning

To burn fat effectively, you must exercise at a relatively

low intensitylevel for a sustained period of time.

During the first few minutes of exercise, your body

uses easily accessible carbohydrate calories for en-

ergy. Only after the first few minutes does your body

begin to use stored fat calories for energy. If your goal

is to burn fat, adjust the speed and incline of the tread-

mill until your heart rate is near the lowest number in

your training zone.

For maximum fat burning, adjust the speed and incline

of the treadmill until your heart rate is near the middle

number in your training zone.

Aerobic Exercise

If your goal is to strengthen your cardiovascularsys-

tem, your exercise mustbe "aerobic." Aerobic exercise

is activitythat requires large amounts of oxygen for

prolongedperiods of time. This increasesthe demand

on the heart to pump bloodto the muscles, and on the

lungsto oxygenate the blood.For aerobicexercise,

adjustthe speed and inclineof the treadmill untilyour

heart rate is near the highestnumberin your training

zone.

WORKOUT GUIDELINES

Each workout should includethe following three parts:

A Warm-up--.Start each workoutwith 5to 10 minutes

of stretchingand light exercise. A proper warm-up in-

creases your body temperature, heart rate and circula-

tion in preparationfor exercise.

Training Zone Exercise--After warmingup, increase

the intensityof your exerciseuntilyour pulse is inyour

trainingzone for 20 to 60 minutes.(Duringthe firstfew

weeks of your exercise program,do not keep your

pulse inyour trainingzone for longerthan 20 minutes.)

Breathe regularly and deeply as you exercise--never

holdyour breath.

A Cool-down--Finish each workoutwith 5 to 10 min-

utes of stretchingto cool down. This will increase the

flexibilityof your musclesand will help prevent post-ex-

ercise problems.

EXERCISE FREQUENCY

To maintainor improveyour condition,complete three

workouts each week, with at least one day of rest be-

tween workouts. After afew months, you may com-

plete up to five workouts each week if desired. The key

to success is to make exercise a regular and enjoyable

part of your everyday life.

PART LISTmModel NO. NTL16920 R1202A

To locate the parts listed below, refer to the EXPLODED DRAWING attached in the centerof this manual.

Key No. Qty. Description KeyNo. Qty. Description

12 Foot Rail Insert 52 1Walking Platform

2 1 Left Foot Rail 53 2 Front Platform Screw

3 2 2" Hood Screw 54 2 Rear Platform Screw

4 1 FrontLeft Endcap 55 2 Spring Pad

5 2 Frame Pivot Bolt 56 2 Spring

6 2 Frame Pivot Spacer 57 1 Ground Wire

7 1 Magnet 58 1 Rear Endcap (Right)

8 1 Front Roller/Pulley 59 2 Rear Roller Adj, Bolt

9 5 Frame Pivot Nut 60 1 Warning Decal

10 1 Reed Switch/Sensor Wire 61 I AllenWrench

11 4 U-nut 62 1 Rear Roller

12 1 Reed Switch Clip 63 I Audio Wire

13 1 LiftFrame 64 1Catch

14 1 Walking Belt 65 1 Left Fan Housing

15 10 Foot Rail Screw 66 1 Handrail

16 1 Motor 67 2 Spring Pad Screw

17 1 Pulley/Flywheel/Fan 68 1 Lock Knob

18 1 Motor Belt 69 1 Upright

19 6 Endcap Screw 70 1 Lock Knob Sleeve

20 5 Incline Pivot Nut 71 1 Spring

21 1 Top Incline Bolt 72 1 LockPin Collar

22 1 Motor Belt 73 1 Pin Clip

23 1 Hood 74 1 LockPin

24 1 Incline Motor Bolt 75 1 FilterWire

25 2 Motor Bushing 76 2 Pulse Grip

26 4 CushionAdj. HousingScrew 77 4 HandrailWasher

27 12 ElectronicScrew 78 4 Handrail Bolt

28 2 Foam Pad 79 2 UprightEndcap

29 1 Controller 80* 1 LatchAssembly

30 1 Left Outside Housing 81 1 Console Base

31 1 Motor ControllerWire 82 1 Console

32 1 Front Roller Adj. Bolt 83 2 UprightCap

33 6 1" Screw 84 1 Key/Clip

34 6 Roller Washer 85 1 IFIT.com Wire

35 1 Left Roller Guard 86 1 Jack

36 1 Incline Motor 87 4 Handrail Endcap

37 1 Incline Motor Stop 88 1 Console Back

38 1 Motor Belly Pan 89 1 Releaseable Tie

39 1 Audio Wire Nut 90 23 Console Screw

40 2 Static Decal 91 2 Cable Tie Clamp

41 1 Circuit Breaker 92 5 8" Cable Tie

42 1 Power Cord 93 2 LiftPivot Bolt

43 1 Right Roller Guard 94 2 Wheel Bolt

44 4 Spring Bolt 95 2 Wheel

45 4 Belt Guide Screw 96 1 Rear Endcap (Left)

46 2 Belt Guide 97 1 Grommet

47 2 Isolator 98 1 UprightWire Harness

48 2 Motor Star Washer 99 4 Base Pad

49 4 Spring Washer 100 16 314"Screw

50 4 Spring Nut 101 2 Wheel Endcap

51 1 Front Right Endcap 102 2 ExtensionLeg

Key No. Qty. Description KeyNo. Qty. Description

103 2 ExtensionCap 130

104 2Incline Warning Decal 131

105 1 Idler Arm Bolt 132

106" 1 Extension Leg Assembly 133 1

107 2 Fan 134 1

108 1 Book Holder 135 1

109 1 Power Cord Grommet 136 1

110 1 Frame 137 1

111" 1 Idler Arm Assembly 138 1

112 2 Roller Star Washer 139 1

113 2 Spring Plate 140 1

114" 2 Cushion Assembly 141 1

115 1 Left Cup Holder 142 1

116 1 RightCup Holder 143 1

117 1 Left Inside Housing 144 1

118 1 Right Inside Housing 145 1

119 1 Right Outside Housing 146 2

120 2 Cushion Adj. Pin 147 2

121 2 Cushion Adj. Gear 148 4

122 2 Cushion Adj. Wheel # 1

123 2 Cushion Adj. Rod # 1

124 1 Cushion Adj. Knob # 1

125 5 Cushion Adj. Screw # 1

126 1 Idler Pulley Bolt # 1

127 1 Electronic Bracket # !

128 2 Spring Plate Spacer

129 2 Gear Rack

1 Right Fan Housing

1 Belly Pan Plug

1 Motor Isolator

Idler Arm

Idler Spdng

Idler Arm Nylon Washer

Pulley Nut

Pulley Washer

Idler Pulley

Pulley Spacer

Left Rear Foot

Right Rear Foot

Shock

Transformer

Controller Bracket

Right Foot Rail

Walking Platform Nut

Front Incline Pivot Nut

1" Screw

16" Blue Wire, 2F

4" Blue Wire, 2F

8" Green Wire, F/2 Ring

7" Green Wire, MIRing

8" Black Wire, 2 Ring

User's Manual

* Includes all parts shown in box

#These parts are not illustrated

ORDERING REPLACEMENT PARTS

To order replacement parts, call our Customer Service Department toll-free at 1-888-825-2588, Monday through

Friday, 6 a.m. until 6 p.m. Mountain Time (excluding holidays). When ordering parts, please be prepared to give

the following information:

•the MODEL NUMBER OF THE PRODUCT (NTL16920)

• the NAME OF THE PRODUCT (NordicTrack _ E 3200 treadmill)

•the SERIAL NUMBER OF THE PRODUCT (seethe front cover ofthis manual)

• the KEY NUMBER AND DESCRIPTION OF THE PART(S) (see the PART LIST on pages 30 and 31 and the

EXPLODED DRAWING attached in the center of this manual)

Tothe°a.sshow.ont.ex°,o°e°0raw,n0

refer to the PART LIST on pages 30 and 31 of the

USER'S MANUAL.

,,' , " st 37_ ..-- 3z

114"

108

102

_99

103 _--I00

ILIMITED WARRANTY 1

WHAT IS COVERED--The entire NordicTrack_ E 3200 treadmill ("Product")is warranted to be free of alldefects inma-

terial and workmanship.

WHO IS COVERED--The original purchaser or any person receiving the Productas a giftfrom the originalpurchaser.

HOW LONG IS IT COVERED--ICON Health & Fitness, Inc. ("ICON"), warrants the motor for three years after the date

of purchase. The belt and deck are covered for two years after the date of purchase. All mechanical components are

covered for two years after the date of purchase. All electrical components are covered for two years after the date of

purchase. Labor is covered for one year. The hood, covers, belly pan, and decals are covered for six months after the

date of purchase.

WHAT WE DO TO CORRECT COVERED DEFECTS--We will ship to you, without charge, any replacement part or

component, providing the repairs are authodzed by ICON first and are performed by an ICON trained and authorized

service provider, or, at our option, we will replace the Product.

WHAT IS NOT COVERED--Any failures or damage caused by unauthorized service, misuse, accident, negligence, im-

proper assembly or installation, alterations, modifications without our written authorization or by failure on your part to

use, operate, and maintain as set out in your User's Manual ("Manual"). This warranty does not extend to products used

for commercial or rental purposes or to products used as store display modules.

WHAT YOU MUST DO_iways retain proof of purchase, such as your bill of sale; store, operate, and maintainthe

Product as specified in the Manual; notify our Customer Service Department of any defect within 10 days after discov-

ery of the defect; as instructed, return any defected part for replacement or, if necessary, the entire product, for repair.

USER'S MANUAL--It is VERY IMPORTANT THAT YOU READ THE MANUAL before operating the Product.

Remember to do the periodic maintenance requirements specified in the Manual to assure proper operation and your

continued satisfaction.

HOW TO GET PARTS AND SERViCE--Simply call our Customer Service Department at 1-888-825-2588 and tell them

your name and address and the serial number of your Product. They will tell you how to get a part replaced, or if neces-

sary, arrange for service where your Product is located or advise you how to ship the Product for service. Before ship-

ping, always obtain a Return Authorization Number (RA No.) from our Customer Service Department; securely pack

your Product (save the original shipping carton if possible); put the RA No. on the outside of the carton and insure the

product. Include a letter explaining the product or problem and a copy of your proof of purchase if you believe the ser-

vice is covered by warranty.

ICON is not responsible or liable for indirect, special or consequential damages arising out of or in connection with the

use or performance of the product or damages with respect to any economic loss, loss of property, loss of revenues or

profits, loss of enjoyment or use, costs of removal, installation or other consequential damages of whatsoever nature.

Some states do not allow the exclusion or limitation of incidental or consequential damages. Accordingly, the above lim-

itafion may not apply to you.

The warrantyextended hereunder is in lieu of any and allotherwarranties and any impliedwarrantiesof merchantability

or fitness for a particular purpose is limited in its scope and duration to the terms set forth herein. Some states do not

allow limitations on how long an implied warranty lasts. Accordingly, the above limitation may not apply to you.

No one is authorized to change, modify or extend the terms of this limited warranty.

This warranty gives you specific legal rights and you may have other rights which vary from state to state.

ICON HEALTH & FITNESS, INC., 1500 S. 1000 W., LOGAN, UT 84321-9813

Nordictrack 831293130 User Manual NORDIC TRACK E3200 Manuals And Guides L0312106

NORDICTRACK Treadmill Manual L0312106 NORDICTRACK Treadmill Owner's Manual, NORDICTRACK Treadmill installation guides

Navigation menu

Versions of this User Manual:

Views

Navigation
