Nortek Security and Control 2GIG FT1345 Flood and Temp Sensor User Manual 10008993A indd

2GIG Technologies, Inc. Flood and Temp Sensor 10008993A indd

Users Manual

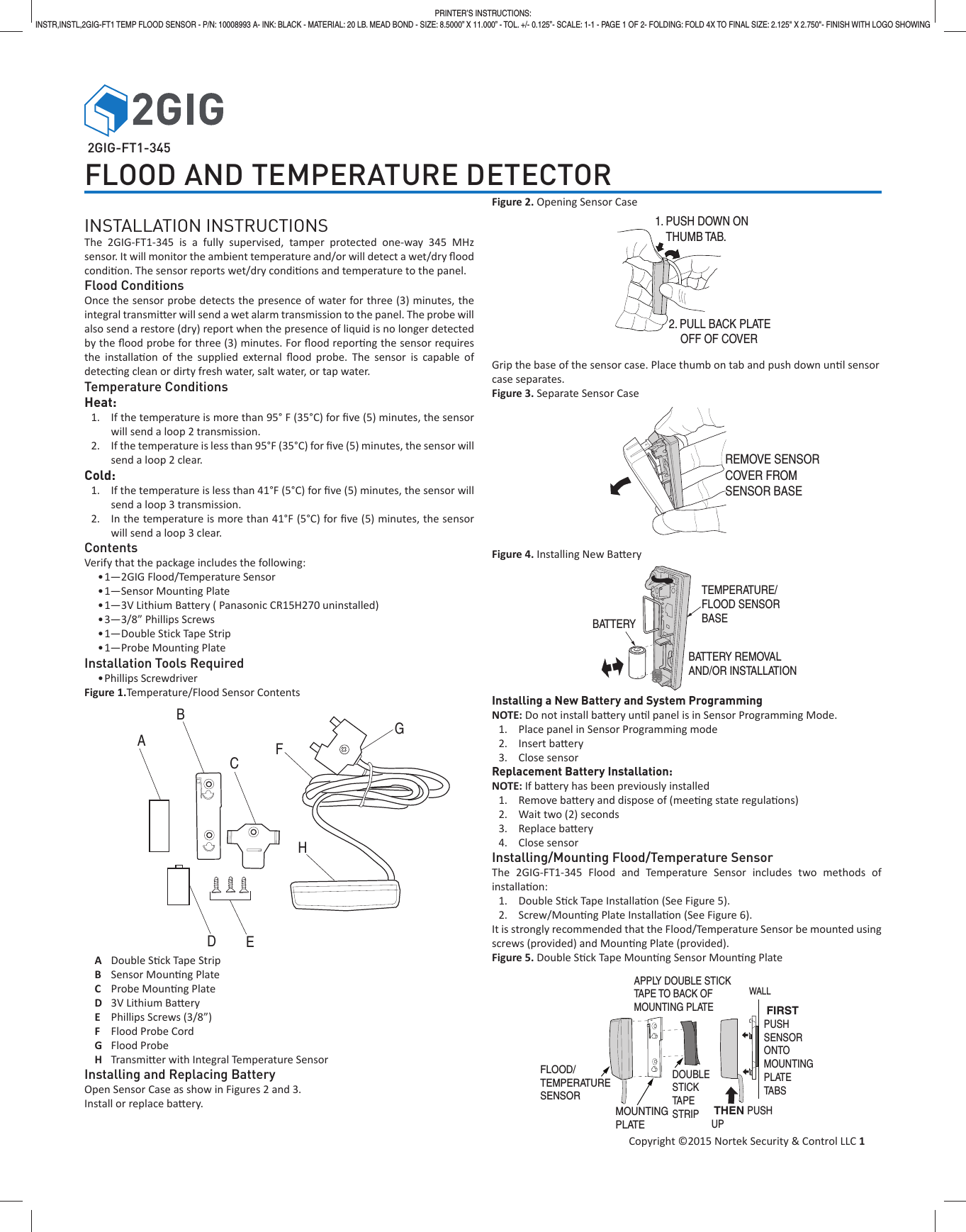

Copyright ©2015 Nortek Security & Control LLC 1PRINTER’S INSTRUCTIONS:INSTR,INSTL,2GIG-FT1 TEMP FLOOD SENSOR - P/N: 10008993 A- INK: BLACK - MATERIAL: 20 LB. MEAD BOND - SIZE: 8.5000” X 11.000” - TOL. +/- 0.125”- SCALE: 1-1 - PAGE 1 OF 2- FOLDING: FOLD 4X TO FINAL SIZE: 2.125" X 2.750"- FINISH WITH LOGO SHOWING 2GIG-FT1-345FLOOD AND TEMPERATURE DETECTORINSTALLATION INSTRUCTIONSThe 2GIG-FT1-345 is a fully supervised, tamper protected one-way 345 MHz sensor. It will monitor the ambient temperature and/or will detect a wet/dry fl ood condi on. The sensor reports wet/dry condi ons and temperature to the panel.Flood ConditionsOnce the sensor probe detects the presence of water for three (3) minutes, the integral transmi er will send a wet alarm transmission to the panel. The probe will also send a restore (dry) report when the presence of liquid is no longer detected by the fl ood probe for three (3) minutes. For fl ood repor ng the sensor requires the installa on of the supplied external fl ood probe. The sensor is capable of detec ng clean or dirty fresh water, salt water, or tap water.Temperature ConditionsHeat:1. If the temperature is more than 95° F (35°C) for fi ve (5) minutes, the sensor will send a loop 2 transmission.2. If the temperature is less than 95°F (35°C) for fi ve (5) minutes, the sensor will send a loop 2 clear.Cold:1. If the temperature is less than 41°F (5°C) for fi ve (5) minutes, the sensor will send a loop 3 transmission.2. In the temperature is more than 41°F (5°C) for fi ve (5) minutes, the sensor will send a loop 3 clear.ContentsVerify that the package includes the following:• 1—2GIG Flood/Temperature Sensor• 1—Sensor Mounting Plate• 1—3V Lithium Battery ( Panasonic CR15H270 uninstalled)• 3—3/8” Phillips Screws • 1—Double Stick Tape Strip• 1—Probe Mounting PlateInstallation Tools Required• Phillips ScrewdriverFigure 1.Temperature/Flood Sensor Contents A Double S ck Tape StripB Sensor Moun ng PlateC Probe Moun ng PlateD 3V Lithium Ba eryE Phillips Screws (3/8”)F Flood Probe Cord G Flood ProbeH Transmi er with Integral Temperature SensorInstalling and Replacing BatteryOpen Sensor Case as show in Figures 2 and 3. Install or replace ba ery.Figure 2. Opening Sensor CaseGrip the base of the sensor case. Place thumb on tab and push down un l sensorcase separates.Figure 3. Separate Sensor CaseFigure 4. Installing New Ba eryInstalling a New Battery and System ProgrammingNOTE: Do not install ba ery un l panel is in Sensor Programming Mode.1. Place panel in Sensor Programming mode 2. Insert ba ery3. Close sensorReplacement Battery Installation:NOTE: If ba ery has been previously installed1. Remove ba ery and dispose of (mee ng state regula ons)2. Wait two (2) seconds3. Replace ba ery4. Close sensorInstalling/Mounting Flood/Temperature SensorThe 2GIG-FT1-345 Flood and Temperature Sensor includes two methods of installa on:1. Double S ck Tape Installa on (See Figure 5).2. Screw/Moun ng Plate Installa on (See Figure 6).It is strongly recommended that the Flood/Temperature Sensor be mounted using screws (provided) and Moun ng Plate (provided).Figure 5. Double S ck Tape Moun ng Sensor Moun ng PlateABCDEFGH1. PUSH DOWN ON THUMB TAB.2. PULL BACK PLATE OFF OF COVERBATTERY REMOVALAND/OR INSTALLATIONBATTERYTEMPERATURE/FLOOD SENSORBASEREMOVE SENSORCOVER FROM SENSOR BASEMOUNTING PLATEDOUBLESTICK TAPESTRIPFLOOD/TEMPERATURESENSOR FIRSTPUSHSENSORONTOMOUNTINGPLATETABS THEN PUSHUPAPPLY DOUBLE STICKTAPE TO BACK OFMOUNTING PLATEWALL

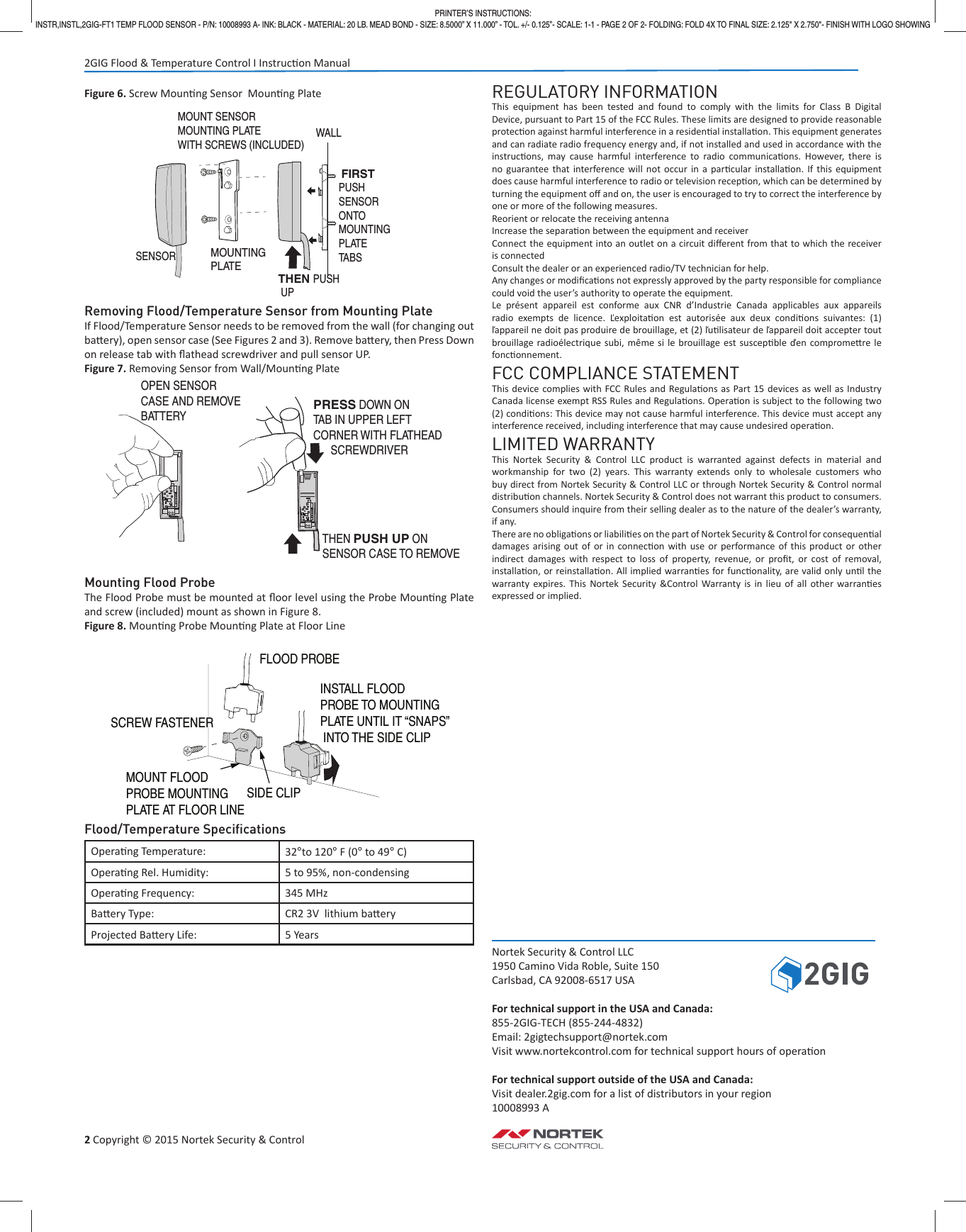

2 Copyright © 2015 Nortek Security & ControlFigure 6. Screw Moun ng Sensor Moun ng PlateRemoving Flood/Temperature Sensor from Mounting PlateIf Flood/Temperature Sensor needs to be removed from the wall (for changing out ba ery), open sensor case (See Figures 2 and 3). Remove ba ery, then Press Down on release tab with fl athead screwdriver and pull sensor UP.Figure 7. Removing Sensor from Wall/Moun ng PlateMounting Flood ProbeThe Flood Probe must be mounted at fl oor level using the Probe Moun ng Plate and screw (included) mount as shown in Figure 8.Figure 8. Moun ng Probe Moun ng Plate at Floor LineFlood/Temperature Specifi cationsOpera ng Temperature: 32°to 120° F (0° to 49° C)Opera ng Rel. Humidity: 5 to 95%, non-condensingOpera ng Frequency: 345 MHzBa ery Type: CR2 3V lithium ba eryProjected Ba ery Life: 5 YearsREGULATORY INFORMATIONThis equipment has been tested and found to comply with the limits for Class B Digital Device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protec on against harmful interference in a residen al installa on. This equipment generates and can radiate radio frequency energy and, if not installed and used in accordance with the instruc ons, may cause harmful interference to radio communica ons. However, there is no guarantee that interference will not occur in a par cular installa on. If this equipment does cause harmful interference to radio or television recep on, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures.Reorient or relocate the receiving antennaIncrease the separa on between the equipment and receiverConnect the equipment into an outlet on a circuit diff erent from that to which the receiver is connectedConsult the dealer or an experienced radio/TV technician for help.Any changes or modifi ca ons not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux appareils radio exempts de licence. Ľexploita on est autorisée aux deux condi ons suivantes: (1) ľappareil ne doit pas produire de brouillage, et (2) ľu lisateur de ľappareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est suscep ble ďen comprome re le fonc onnement.FCC COMPLIANCE STATEMENTThis device complies with FCC Rules and Regula ons as Part 15 devices as well as Industry Canada license exempt RSS Rules and Regula ons. Opera on is subject to the following two (2) condi ons: This device may not cause harmful interference. This device must accept any interference received, including interference that may cause undesired opera on.LIMITED WARRANTYThis Nortek Security & Control LLC product is warranted against defects in material and workmanship for two (2) years. This warranty extends only to wholesale customers who buy direct from Nortek Security & Control LLC or through Nortek Security & Control normal distribu on channels. Nortek Security & Control does not warrant this product to consumers. Consumers should inquire from their selling dealer as to the nature of the dealer’s warranty, if any.There are no obliga ons or liabili es on the part of Nortek Security & Control for consequen al damages arising out of or in connec on with use or performance of this product or other indirect damages with respect to loss of property, revenue, or profi t, or cost of removal, installa on, or reinstalla on. All implied warran es for func onality, are valid only un l the warranty expires. This Nortek Security &Control Warranty is in lieu of all other warran es expressed or implied.Nortek Security & Control LLC1950 Camino Vida Roble, Suite 150 Carlsbad, CA 92008-6517 USAFor technical support in the USA and Canada:855-2GIG-TECH (855-244-4832)Email: 2gigtechsupport@nortek.comVisit www.nortekcontrol.com for technical support hours of opera onFor technical support outside of the USA and Canada:Visit dealer.2gig.com for a list of distributors in your region10008993 ASENSORMOUNTING PLATE FIRSTPUSHSENSORONTOMOUNTINGPLATETABS THEN PUSH UPMOUNT SENSOR MOUNTING PLATEWITH SCREWS (INCLUDED)WALLMOUNT FLOOD PROBE MOUNTING PLATE AT FLOOR LINEFLOOD PROBESCREW FASTENERINSTALL FLOODPROBE TO MOUNTING PLATE UNTIL IT “SNAPS” INTO THE SIDE CLIPSIDE CLIPPRINTER’S INSTRUCTIONS:INSTR,INSTL,2GIG-FT1 TEMP FLOOD SENSOR - P/N: 10008993 A- INK: BLACK - MATERIAL: 20 LB. MEAD BOND - SIZE: 8.5000” X 11.000” - TOL. +/- 0.125”- SCALE: 1-1 - PAGE 2 OF 2- FOLDING: FOLD 4X TO FINAL SIZE: 2.125" X 2.750"- FINISH WITH LOGO SHOWING2GIG Flood & Temperature Control I Instruc on ManualOPEN SENSORCASE AND REMOVEBATTERYPRESS DOWN ONTAB IN UPPER LEFTCORNER WITH FLATHEAD SCREWDRIVER THEN PUSH UP ONSENSOR CASE TO REMOVE
