CallPilot 150
Telephone Administration Guide

Part No. P0919416 03

CallPilot 150

Telephone Administration

Guide

Return

to Menu

P0919416 03

CallPilot 150 Telephone

Administration Guide

The information in this document is subject to change without notice. The statements, configurations, technical data, and

recommendations in this document are believed to be accurate and reliable, but are presented without express or implied

warranty. Users must take full responsibility for their applications of any products specified in this document. The information in

this document is proprietary to Nortel Networks NA Inc.

The software described in this document is furnished under a license agreement and may be used only in accordance with the

terms of that license. The software license agreement is included in this document.

Trademarks

NORTEL NETWORKS is a trademark of Nortel Networks.

All other trademarks and registered trademarks are the property of their respective owners.

Contents 3

CallPilot 150 Telephone Administration Guide

Contents

Chapter 1

Getting started with CallPilot . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

About CallPilot . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

CallPilot features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Voicemail . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Automated Attendant . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Custom Call Routing (CCR) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

CallPilot options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Message Networking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Call Center . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

How to get help . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Chapter 2

Using CallPilot . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Who can use CallPilot . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

System timeout . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Using CallPilot with a two line display telephone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Using the dialpad . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Symbols and conventions used in this guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

About telephone buttons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Chapter 3

CallPilot mailboxes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

About installing mailboxes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

System Administrator Mailbox . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

General Delivery Mailbox . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Subscriber mailboxes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Guest mailboxes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Information mailboxes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Mailbox Class of Service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Class of Service values . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Mailbox properties . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

Restricting outdialing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Initializing a mailbox . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

4 Contents

P0919416 03

Chapter 4

Working with mailboxes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

Adding a Subscriber mailbox . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

Adding a Guest mailbox . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

Adding an Information mailbox . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

Adding many mailboxes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

About mailbox passwords . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

Changing a mailbox . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

Deleting a mailbox . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

About Group Lists . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

About Sending Group List messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

About Group List Numbers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

Adding a Group List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

Changing a Group List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

Deleting a Group List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40

Chapter 5

Setting up the Automated Attendant . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41

About the Automated Attendant . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41

Greeting Tables . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42

About Company Greetings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43

Recording a Greeting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44

Setting up a Greeting Table . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45

Configuring line answering . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49

Changing line configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50

To change or view how a line is answered . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50

Assigning the number of rings before CallPilot answers . . . . . . . . . . . . . . . . . . . . . . . 51

Setting up Touchtone Gate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52

About the CLID Routing Table . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54

Chapter 6

Custom Call Routing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57

About Custom Call Routing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57

Planning and designing a CCR Tree . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58

Components of a CCR Tree . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58

The Home node . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58

Information Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59

Sub-menus . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59

Mailbox nodes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60

Transfer nodes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60

Destination types . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60

Paths . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60

An example of a CCR Tree . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61

Contents 5

CallPilot 150 Telephone Administration Guide

Chapter 7

Working with CCR Trees . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63

Building a CCR Tree . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63

Creating a Home node . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64

Adding nodes to the Home node . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65

Adding a Menu node . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66

Adding an Information node . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68

Adding a Mailbox node . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70

Adding a Transfer node . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72

About transfers to external numbers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73

Adding special characters to an external transfer number . . . . . . . . . . . . . . . . . . . . . . 75

Assigning a CCR Tree to a Greeting Table . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 76

Testing a CCR Tree . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77

Disabling a CCR Tree . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77

Deleting a CCR Tree . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 78

Changing a CCR Tree message . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79

Changing a Mailbox node . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80

Changing a destination type . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 81

Changing a Transfer node . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 82

Deleting a Path . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 83

Chapter 8

Broadcast and Information messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 85

About Broadcast messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 85

Information mailbox messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 87

About recording an Information mailbox message . . . . . . . . . . . . . . . . . . . . . . . . 87

Recording an Information mailbox message . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 88

Chapter 9

CallPilot operations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 89

About resetting CallPilot . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 89

Initializing CallPilot . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 90

Resetting the System Administrator password . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 91

Operator settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 92

Setting the Operator status . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 92

Changing the Operator password . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 93

Resetting the Operator password . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 93

Changing the Operator default extension . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 94

Setting the Business Status . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 94

Changing greetings or the Business Status from a remote telephone . . . . . . . . . 95

Setting up line answering . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 95

Setting the Automated Attendant status . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 96

6 Contents

P0919416 03

CallPilot default system options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 97

Language availability . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 97

Group List leading digit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 98

Voicemail . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 99

Company Directory . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 100

Outdialing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 101

General Delivery Mailbox . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 102

Enabling a software authorization code . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 103

External Mailbox Initialization . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 104

Chapter 10

Dialing Translation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 105

About Dialing Translation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 105

How the Dialing Translation Table works . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 105

Examples of Dialing Translation Tables . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 106

Setting Dialing Translation properties . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 108

Building a Dialing Translation Table . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 109

Reviewing entries in the Dialing Translation Table . . . . . . . . . . . . . . . . . . . . . . . . . . . 110

Changing a Dialing Translation Table entry . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 111

Deleting a Dialing Translation Table entry . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 112

Chapter 11

Troubleshooting CallPilot . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 113

CallPilot error messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 117

Chapter 12

CallPilot configuration tips . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 121

Delayed answering by the Automated Attendant . . . . . . . . . . . . . . . . . . . . . . . . . . . . 121

Ringing lines and answer buttons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 121

Ringing Answer button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 121

Using Call Forward All Calls (CFAC) and Call Forward No Answer (CFNA) . . . . . . . 122

How to set up CallPilot for different businesses . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 123

CallPilot for a small business . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 123

CallPilot for a medium business . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 125

Feature Compatibility . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 128

Chapter 13

Default configuration values. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 133

Glossary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 137

Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 145

CallPilot 150 Telephone Administration Guide

Chapter 1

Getting started with CallPilot

About CallPilot

CallPilot is a versatile business communications tool that you can use to:

• answer incoming calls

• offer callers a selection of options to route their calls or access information

• provide advanced voicemail, Automated Attendant and call handling capabilities

This guide leads a System Administrator through setting up and operating CallPilot on a CallPilot

150 system. You can program CallPilot using any two-line display telephone on your Norstar

system. You can also use the web-based CallPilot Manager to set up and operate CallPilot.

CallPilot features

CallPilot includes:

Voicemail

Records messages and stores them in a mailbox for easy retrieval. Business telephones on your

system can have their own mailbox and greeting. Information can be distributed quickly to

departments and workgroups.

Automated Attendant

Answers your business calls promptly, 24 hours a day, with a Company Greeting. Callers can

direct their own calls by using the Company Directory.

Custom Call Routing (CCR)

Enhances the Automated Attendant menu with customized menus and information messages. With

CCR you can determine the menu options and record the voice prompts that guide callers along

call paths.

8 Chapter 1 Getting started with CallPilot

P0919416 03

CallPilot options

CallPilot has two options to enhance your office communications. You need a software

authorization code to enable a CallPilot option. Contact your vendor if you want to trial or

purchase a software authorization code.

CallPilot options are:

Message Networking

Message Networking links the CallPilot system with other voicemail systems and allows the

exchange of voice messages between users at different sites. CallPilot supports Digital networking

and Audio Messaging Interchange Specification (AMIS) networking. For information about

Message Networking refer to the CallPilot Message Networking Set Up and Operation Guide.

Call Center

CallPilot is an application that handles incoming calls as efficiently and economically as possible.

Call Center answers calls, then routes the calls to agents in a skillset that most closely matches the

needs of the caller. Calls can be routed based on the origin of the call, the destination of the call, or

the information entered by the caller. Callers can be given high or low priorities. Callers can

overflow to different groups or skillsets of agents, transfer out of the system, leave a message, and

hear announcements or informative messages. For information about Call Center refer to the

Nortel Networks Call Center Set Up and Operation Guide.

For CallPilot 150, you have the option of choosing either CallPilot or Call Center as your primary

application.

Desktop Messaging

With Desktop Messaging subscribers can access their CallPilot mailbox from their personal

computer. Subscribers can manage all of their voice messages from one graphical interface.

Chapter 1 Getting started with CallPilot 9

CallPilot 150 Telephone Administration Guide

How to get help

USA and Canada

Authorized Distributors - ITAS Technical Support

Telephone:

1-800-4NORTEL (1-800-466-7835)

If you already have a PIN Code, you can enter Express Routing Code (ERC) 196#.

If you do not yet have a PIN Code, or for general questions and first line support, you can enter

ERC 338#.

Website:

http://www.nortelnetworks.com/itas/

email:

naitas@nortelnetworks.com

Presales Support (CSAN)

Telephone:

1-800-4NORTEL (1-800-466-7835)

Use Express Routing Code (ERC) 1063#

EMEA (Europe, Middle East, Africa)

Technical Support - CTAS

Telephone:

00800 800 89009 or 33 4 9296 1341

Fax:

33 49296 1598

email:

emeahelp@nortelnetworks.com

CALA (Caribbean & Latin America)

Technical Support - CTAS

Telephone:

1-954-858-7777

email:

csrmgmt@nortelnetworks.com

APAC (Asia Pacific)

Technical Support - CTAS

Telephone:

+61 388664627

Fax:

+61 388664644

email:

asia_support@nortelnetworks.com

10 Chapter 1 Getting started with CallPilot

P0919416 03

CallPilot 150 Telephone Administration Guide

Chapter 2

Using CallPilot

Who can use CallPilot

CallPilot can be used by outside callers and mailbox owners (subscribers) in your company.

Subscribers at your office can use CallPilot from any display telephone that is connected to your

telephone system. Subscribers outside your office can use CallPilot from any tone dial telephone.

Incoming calls from a rotary dial telephone are transferred to your company receptionist or

designated operator. If an operator is not available, the call transfers to the General Delivery

Mailbox.

System timeout

If you pause longer than 2 minutes when you program CallPilot, the system times out and ends the

session. This is a safety feature that prevents unauthorized use of the system.

For example, if the system times out before you enter all the settings for a mailbox, you must use

the procedures in “Changing a mailbox” on page 32 to finish setting up the mailbox.

Using CallPilot with a two line display telephone

You cannot use a single line display telephone to set up and administer CallPilot. You must use a

two line display telephone. Two line display phones show CallPilot commands and options. A two

line display can show up to three display options at once. In some instances, an option does not

have a corresponding display button, and you must select the option by pressing buttons on the

diapad.

While you program CallPilot, at any time, you can press • to go back to the previous selections.

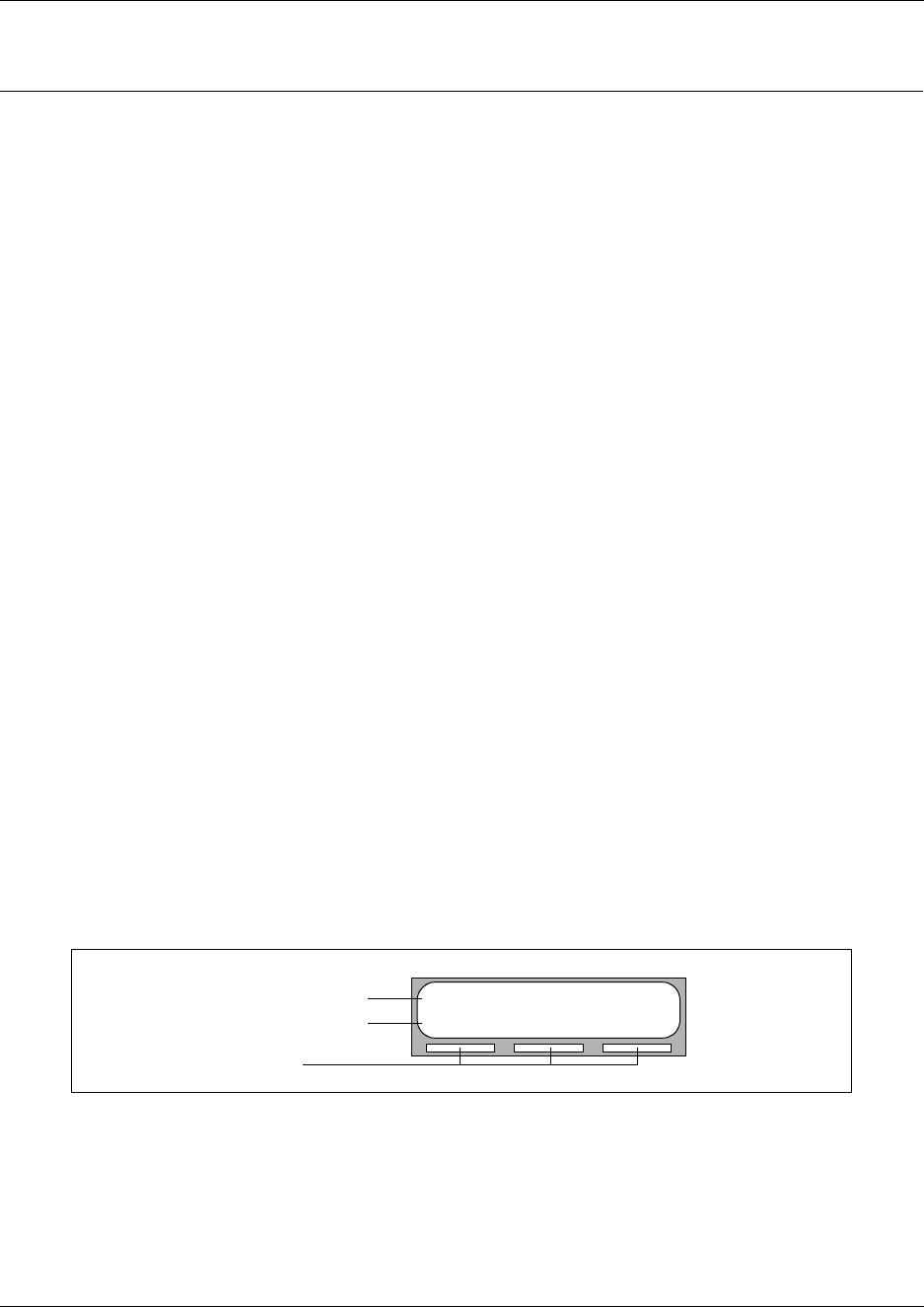

An example of a two line display

Pswd:

OTHR RETRY OK

Display command line

Display button options

Display buttons

12 Chapter 2 Using CallPilot

P0919416 03

Using the dialpad

The buttons on your display telephone dialpad act as both numbers and letters. Each button

represents a number and letters of the alphabet.

Numbers and letters on the dialpad.

The display can show up to 16 characters. Whether the prompt remains on the display depends on

the type of prompt that is displayed.

The prompt disappears for these command line prompts:

•Name:

•Log:

•Dest ph:

To enter a character press the dialpad button that represents the letter or number. Press the

button again to see the next letter or number.

To accept a character press £ or press another button. When you press another button, the

cursor advances and the display shows the first character on the new

button.

To delete a character press the BKSP display button.

⁄ 1 ’ - ¤ A B C 2 a b c ‹ D E F 3 d e f

› G H I 4 g h i ﬁ J K L 5 j k l ﬂ M N O 6 m n o

‡ P Q R S 7 p q r s ° T U V 8 t u v · W X Y Z 9 w x y z

• Quit ‚ Q Z Zero q z £ Accepts the displayed letter and,

(comma)

This is an example of a display with fewer than 16 characters, where

the command line prompt remains on the display.

This display shows the Name: command line prompt.

When you begin to enter the last name, the Name: command line

prompt disappears. For example, if you enter the name Partridge, you

press the pad ‡ for P, and the display drops the Name: prompt.

Although the name is only nine characters long, the command line

prompt is not shown on the display after you enter the entire name.

Pswd:1111

OTHR RETRY OK

Name:

RETRY BKSP OK

PARTRIDGE

RETRY BKSP OK

Chapter 2 Using CallPilot 13

CallPilot 150 Telephone Administration Guide

Symbols and conventions used in this guide

These conventions and symbols are used to represent the Business Series Terminal display and

dialpad.

About telephone buttons

This table shows the Nortel Networks Business Series Terminal buttons. Use the buttons that

pertain to the type of telephone you use.

You can enter ≤, ƒ or Ä and the code to use a feature. For example, press

≤·°⁄ to access your mailbox.

The T7100 works differently from other telephones on your system because it does not have line

buttons. Where other telephones require that you select a line button to answer a call, on the T7100

terminal you pick up the handset. Where other telephones require you to select a line button to take

a call off hold, you press the ú button on the T7100 terminal.

On T7100 terminals, you can answer a second call by pressing ú . Your active call is put on

hold and you connect to the waiting call. You can have no more than two active calls at one time.

Convention Example Used for

Word is in a special font (in the top

line of the display)

Pswd: Command line prompts on display telephones.

Underlined word in capital letters

(on the bottom line of a two line

display telephone)

PLAY Display option. Available on two line display

telephones. Press the button directly below the

option on the display to proceed.

Dialpad buttons £Buttons you press on the dialpad to select a

particular option.

Button name T7100, T7208, T7316 M7100, M7208, M7310,

M7324 M7100N, M7208N,

M7310N, M7324N

Feature ≤ƒÄ

Handsfree Bottom right-hand

button ©©

Hold ≥ú˙ú

Vol ume Control √√Ã

Release ®®¨

14 Chapter 2 Using CallPilot

P0919416 03

CallPilot 150 Telephone Administration Guide

Chapter 3

CallPilot mailboxes

About installing mailboxes

You install mailboxes by enabling a software authorization code. The software authorization code

enables the number of mailboxes that you can add to CallPilot. On CallPilot 150 you can have a

maximum of 200 subscriber mailboxes. Refer to “Enabling a software authorization code” on page

103 for information on how to enable software authorization codes.

System Administrator Mailbox

The System Administrator Mailbox:

• is reserved for the System Administrator

• is created automatically when the system is initialized for the first time

• is where you send Broadcast Messages from

Only the System Administrator can access the System Administrator Mailbox. Remember to

check this mailbox for messages.

The default Class of Service for the System Administrator Mailbox is 7. You can change the Class

of Service any time. For information on changing the Class of Service, refer to “Changing a

mailbox” on page 32.

Warning: Change the System Administrator password as soon as possible to

minimize the risk of unauthorized activity.

Default System Administrator Mailbox number and password combinations

For a mailbox

number length

of...

the default System

Administrator

Mailbox number is...

and the default

System Administrator

Mailbox password is... so the combined mailbox number

and password is...

2 12 0000 120000

3 102 0000 1020000

4 1002 0000 10020000

5 10002 0000 100020000

6 100002 0000 1000020000

7 1000002 0000 10000020000

16 Chapter 3 CallPilot mailboxes

P0919416 03

General Delivery Mailbox

The General Delivery Mailbox is your company mailbox. It is created automatically when the

system is initialized for the first time. The General Delivery Mailbox stores messages from callers

when the Operator is not available, from callers who use a rotary dial telephone, and when a

mailbox is full.

Usually the receptionist or designated Operator checks for messages in the General Delivery

Mailbox.

The default Class of Service for the General Delivery Mailbox is 1. You can change the Class of

Service any time. For information on changing the Class of Service, refer to “Changing a mailbox”

on page 32.

The General Delivery Mailbox can receive messages before it is initialized, but you must initialize

it before you can retrieve messages from it. For information about initializing mailboxes, refer to

“Initializing a mailbox” on page 24.

Subscriber mailboxes

Create a Subscriber mailbox for each person in your organization who needs to be able to receive

messages.

A Subscriber mailbox must be initialized by the mailbox owner before it can receive voice

messages. Until a mailbox is initialized, it cannot receive voice messages, it does not appear in the

Company Directory, and any calls that are directed to it are rerouted to the General Delivery

Mailbox. Tell subscribers to change their mailbox password as soon as they initialize their

mailbox.

Warning: Change the General Delivery Mailbox password as soon as possible to

minimize the risk of unauthorized activity.

Default General Delivery Mailbox number and password combinations

For a mailbox

number length

of...

the default System

Administrator

Mailbox number is...

and the default

System Administrator

Mailbox password is... so the combined mailbox number

and password is...

2 10 0000 100000

3 100 0000 1000000

4 1000 0000 10000000

5 10000 0000 100000000

6 100000 0000 1000000000

7 1000000 0000 10000000000

Chapter 3 CallPilot mailboxes 17

CallPilot 150 Telephone Administration Guide

Guest mailboxes

Create Guest mailboxes for people who do not have an operating extension but require a mailbox.

A Guest mailbox must be initialized by the mailbox owner before it can receive messages.

When you create Guest mailboxes, assign mailbox numbers that begin with the same digit. This

identifies the mailbox type. Create Guest mailbox numbers that begin with a digit that is different

than the Subscriber mailbox numbers. For example, if Subscriber mailbox numbers start with two,

Guest mailboxes can start with the number four.

When to use Guest mailboxes

Guest mailboxes can provide a temporary employee with CallPilot services, give clients access to

internal messaging and call routing, and let customers leave telephone orders.

You can use Guest mailboxes to:

• take personal catalog shopping orders

• list classes or seminars and let callers register by telephone

• give frequent customers access to CallPilot services

Using a Guest mailbox for telephone registration

This example shows how to set up a Guest mailbox with announcement and order-taking

capabilities. When you provide services that let a customer call into a mailbox, include the

mailbox number in the greeting. This lets a caller transfer directly to the mailbox.

To use a Guest mailbox to provide telephone registration, you must first determine a mailbox

number. Make sure that the Guest mailbox number is unique and is not assigned to any display

telephone extension. Next, record the mailbox greeting.

For example:

“This month we are pleased to provide the following courses: Jazz Dancing Made Easy,

Intermediate Jazz Dancing, Warming Up for that Big Performance, and Beginner Ballet. If you are

interested in any of these courses, please leave your name and telephone number after the tone.

One of our instructors will contact you with more information.”

You can include the time and date the classes are being offered. This example is applicable to

Guest mailboxes that are used for taking orders.

After you record the announcement, record a Company Greeting that tells callers about the

mailbox is available. For example:

“Good Morning. This is On Your Toes Dance School. To reach the dance studio, press ›ﬂ. To

Note: The number 46 in this example is an operating telephone extension and the

number 28 is the Guest mailbox.

18 Chapter 3 CallPilot mailboxes

P0919416 03

Make sure the leading digit of Guest mailbox numbers is different from the leading digit of the

extensions. If you must use the same leading digit, ensure the Guest mailbox numbers are

“out-of-range” extension numbers. To test if an extension is out-of-range, dial it from another

extension. If the number is out-of-range, the display shows Invalid number. If the number is

not out-of-range but does not have a set plugged into the corresponding port, the display shows

Not in service.

You must assign a Class of Service to the Guest mailbox. When you assign a Class of Service to a

Guest mailbox used as an order mailbox, choose a Class of Service that has the maximum mailbox

greeting and message time available. Refer to “Mailbox Class of Service” on page 19.

Information mailboxes

Information mailboxes play an informative message to callers who access it. An Information

mailbox must be initialized before it can play an information message. Callers cannot leave

messages in Information mailboxes. Information mailboxes do not have operating extensions. For

more information about Information messages refer to “Information mailbox messages” on page

87.

Information mailboxes are maintained by the System Administrator or a mailbox owner.

You can use Information mailboxes to:

• announce sales

• provide product lists

• announce special events

A caller is disconnected automatically after listening to an Information mailbox. Information

mailbox Greetings can be recorded by you or by the person assigned the Information mailbox.

To let callers know about your company’s Information mailboxes:

• Advertise the Automated Attendant main number, and record a Company Greeting that

mentions the Information mailbox services.

• Provide a list of your company’s Information mailboxes in brochures and telephone directory

advertising.

• Mention the Information mailboxes in the Company Greeting if your company has a small

number of Information mailboxes, such as three or four. Use Custom Call Routing (CCR) if

you have a large number of Information mailboxes.

• Assign the Operator as the transfer point for all Information mailbox inquiries. Record a

statement in the Company Greeting that tells callers to press zero to reach company

information. For example, “Good Afternoon. This is On Your Toes Dance Studio. To reach our

studio, press ›ﬂ. To listen to one of our special announcements, press ‚ to reach the

Operator.”

When a caller presses zero, have the Operator provide a list of the Information mailboxes and

transfer the caller accordingly.

Chapter 3 CallPilot mailboxes 19

CallPilot 150 Telephone Administration Guide

Mailbox Class of Service

Class of Service (COS) values reduce the amount of programming you do when you add a

mailbox. Instead of entering values for several features, you can select the COS appropriate for a

mailbox. You enter the COS when you add the mailbox and the system uses the associated values.

The COS tables, shown in “Class of Service values” on page 20 have preset values. If you use the

web-based CallPilot Manager you can change individual COS values to meet the needs of your

company. For more information about using CallPilot Manager to edit Classes of Service, refer to

the CallPilot Manager Set Up and Operation Guide.

Class of Service features

Prompt language If you select bilingual operation, Classes of Service 1, 3, 5, 7, 9, 11, 13, 15 use the

Primary Language, and Classes of Service 2, 4, 6, 8, 10, 12, 14, 16 use the

Alternate Language.

Mailbox message

time

The total message time available to a mailbox. The maximum message time is 180

minutes. Mailboxes have a Never Full feature that lets a caller leave a message in a

“full” mailbox. The message is stored in the mailbox, but cannot be played, copied

or saved until a saved message is deleted.

Message length The maximum length of an incoming message. Message length is from 1 to 30

minutes.

Message retention

period

The number of days messages are saved in a mailbox. Message retention period is

from one to 365 days or 0 = indefinitely.

Greeting length The maximum length of a mailbox greeting. Greeting length is from 1 to 30 minutes.

Off-premise Message

Notification

Redirects messages to another extension, telephone number or pager. Dialing

restrictions that apply to outdial lines apply to Off-premise Message Notification.

Retry intervals For Off-premise Message Notification, the minutes between attempts to notify the

recipient of a new or urgent message. The retry interval is from 1 to 120 minutes.

Number of attempts For Off-premise Message Notification, the number of attempts the system makes to

notify the recipient of a new or urgent message. The number of attempts is from 1

to 20.

Outbound Transfer Lets a caller who reaches a mailbox transfer to an external telephone number or an

extension.

Incorrect password

attempts

The maximum number of incorrect password attempts before a mailbox owner is

locked out of their mailbox. The incorrect password attempts are from 4 to 20.

Password Expiry The maximum length of time a mailbox password is active. The password expiry is

from 1 to 365 days or 0 = never expire.

Networking If the Message Networking option is installed, lets callers send messages to

mailboxes at various sites on a communication network.

Target Attendant Lets subscribers set up a Personal Target Attendant. Otherwise, callers are

directed to the Target Attendant specified in the Greeting Table.

Call Record Lets subscribers use the Call Record feature. With Call Record (≤·°·) a

subscriber can record an active telephone call. The recorded message is placed in

the subscriber’s mailbox.

User Interface The user interface used for the mailbox. There are two mailbox UI choices: Norstar

Voice Mail (NVM) and CallPilot (CP).

20 Chapter 3 CallPilot mailboxes

P0919416 03

Class of Service values

* If the Message Networking option is installed. 0 = indefinite; never expire, P = Primary Language, A = Alternate Language

Class of Service 12345678

Prompt language PAPAPAPA

Mailbox message time (in minutes) 15 15 15 15 5 5 20 20

Message length (in minutes) 33773322

Message retention period (in days) 30 30 0 0 7 7 15 15

Greeting length (in minutes) 1111111010

Off-premise Message NotificationYYYYNNYY

Retry intervals (in minutes) 5 5 10 10 15 15 30 30

Number of attempts 33557799

Outbound Transfer YYYYNNYY

Incorrect pswd attempts 99996644

Password expiry (in days) 9090909060603030

Networking* YYYYNNYY

Target Attendant YYYYNNYY

Call Record NNNNNNNN

Mailbox UI The interface selected from the Installation Wizard as the primary interface.

Class of Service 9 10 11 12 13 14 15 16

Prompt language PAPAPAPA

Mailbox message time (in minutes) 10 10 30 30 120 120 120 120

Message length (in minutes) 3377101022

Message retention period (in days) 365 365 60 60 90 90 45 45

Greeting length (in minutes) 11223355

Off-premise Message Notification Y Y N N Y Y Y Y

Retry intervals (in minutes) 5 5 10 10 15 15 30 30

Number of attempts 33557799

Outbound Transfer Y Y N N Y Y Y Y

Incorrect pswd attempts 99996644

Password expiry (in days) 9090909060603030

Networking* Y Y N N Y Y Y Y

Target Attendant Y Y N N Y Y Y Y

Call Record NNNNNNNN

Mailbox UI The interface selected from the Installation Wizard as the primary interface.

Chapter 3 CallPilot mailboxes 21

CallPilot 150 Telephone Administration Guide

Mailbox properties

Apart from mailbox Class of Service settings, you can change these mailbox properties:

•Company Directory

•Message Waiting Notification

•Outdial route

•Alternate extensions

•Express Messaging Line

•Call Screening

Mailbox properties are not included in a Class of Service. When you add a mailbox, you can

change these options without changing the Class of Service.

Company Directory

The Company Directory is an internal list that contains the names of mailbox owners with

initialized mailboxes who are assigned to the directory.

When you add a mailbox, you determine whether the mailbox appears in the Company Directory.

Even if you do not include a mailbox in the Company Directory the mailbox owner must still

record their name when they initialize their mailbox.

Message Waiting Notification

Message Waiting Notification gives subscribers a visual indication on their telephone display that

they have new messages. Message Waiting Notification displays Message for you on a

subscriber’s display telephone when they have a message.

Message Waiting Notification is enabled by default. When you create Guest Mailboxes, do not

enable Message Waiting Notification. Guest Mailboxes do not have an operating extension.

Outdial route

The Outdial route determines which line or line pool the system uses when a subscriber uses:

• the Reply feature to reply to a message left by an external caller

• Off-premise Message Notification

• Outbound Transfer

The default for Outdial route is None. The values available are None, Line, Pool or Route. Until

you assign a line or line pool as the Outdial route for a mailbox, the mailbox owner can use the

Reply feature to reply to calls from internal extensions only, Off-premise Message Notification for

internal extensions only and Outbound Transfer for internal extensions only.

When you assign an Outdial route, the dialing is done by the extension the system is connected to,

not by the display telephone.

22 Chapter 3 CallPilot mailboxes

P0919416 03

You can apply dialing restrictions to display telephones and the extensions connected to the

system. For more information on restricting outdialing refer to “Restricting outdialing” on page

23.

If you set the Outdial route to anything but None, there is a potential for unauthorized

long-distance dialing. You can prevent this by creating outdialing restrictions.

Alternate extensions

You can assign up to two alternate extensions to each Subscriber Mailbox. If a caller dials the main

extension (the mailbox that has alternate extensions assigned), the call rings at the main extension

only.

Only extensions that do not have a mailbox assigned can be used as an alternate extension. There

are no default alternate extensions for Subscriber mailboxes.

Alternate extensions receive the same Message Waiting Indication and Caller Display information

as the primary extension. Subscribers can use the Open Mailbox feature (≤·°⁄) from

alternate extensions to access messages from their primary extension.

Subscribers can use the Interrupt feature (≤·°‡) on an alternate extension the same way

the same way they use ≤·°‡ on a primary extension.

Express Messaging Line

When you create a Subscriber mailbox, you can assign an Express Messaging Line to it. Instead of

assigning an extension number to the Subscriber mailbox, assign an Express Messaging Line. If

you assign an Express Messaging Line, voice calls are left in the Subscriber Mailbox without

ringing at the set. Inform the subscriber that they should frequently check their mailbox for

messages because they do not receive Message Waiting Notification.

The line used for Express Messaging must be between 1 and 500. Give the corresponding seven

digit phone number associated with the line you assign as the Express Messaging Line to the

subscriber. For example, if line 20 is the Express Messaging Line and the corresponding phone

number is 555-2424, give this phone number to the subscriber. After you assign a line to a

mailbox, you cannot use the line for another function until you remove it from the mailbox.

The prime set for the Express Messaging Line must be set to the voicemail DN. For more

information refer to your system documentation. The Express Messaging default is none.

Note: The exception to this is if alternate extensions are assigned an Answer DN for the

main extension. Answer DNs are assigned to extensions in system programming.

For more information refer to your system documentation.

Chapter 3 CallPilot mailboxes 23

CallPilot 150 Telephone Administration Guide

Call Screening

Call Screening lets subscribers determine who is calling before they accept a call. Call Screening

is useful if there is no Caller ID available. The system records the caller’s name, calls the

subscriber’s telephone, announces the name of the caller and offers options such as accepting the

call or taking a message.

Call Screening applies to external calls dialed by callers using the extension dialing facilities of the

Automated Attendant or Custom Call Routing (CCR). Call Screening does not apply to internal

calls, or external calls routed using a CCR Transfer node or placed to a mailbox owner’s dedicated

line. If a caller is calling from a line for which the mailbox owner has recorded a Personal Mailbox

Greeting, Call Screening is bypassed and the call transfers without delay.

If Call Screening is enabled, CallPilot calls a mailbox owner’s telephone that is call forwarded.

The default for Call Screening is No, which means that unless subscribers have Calling Line

Identification (CLID) they cannot determine who is calling before they answer the call.

Restricting outdialing

You can apply dialing restrictions to Nortel Networks Business Series Terminals and the

extensions connected to CallPilot 150.

To restrict outdialing

Do one of the following:

• In system programming, assign dialing restrictions to the extension numbers that CallPilot is

connected to. This restricts all outdialing calls including external transfers from CCR trees,

Off-premise Message Notification and Outbound Transfers. Outdialing is done by the

extension that CallPilot is connected to. For more information refer to your system

documentation.

• In system programming, assign dialing restrictions to the extension of the subscriber. For

additional information, refer to your system documentation.

• In system programming, assign dialing restrictions to the lines used for outdialing. For

additional information, refer to your system documentation.

24 Chapter 3 CallPilot mailboxes

P0919416 03

Initializing a mailbox

Initializing a mailbox prepares the mailbox to receive messages. A mailbox cannot receive and

store messages and does not appear in the Company Directory until it is initialized.

Initializing a mailbox involves:

• choosing a password from four to eight digits long that does not start with zero

• changing the default password to the new password

• recording the mailbox owner’s name in the Company Directory

To initialize a mailbox

1Press ≤·°⁄.

2Log on by following the voice prompts.

3This display appears briefly to indicate that you must change your

password.

4Enter a new password from four to eight digits long that does not

start with zero.

Press OK or £.

5Reenter your new mailbox password and press OK or £.

6At the tone, record your name in the Company Directory.

Include your mailbox number in the recording, For example, “Pat

Smith, mailbox 5813.”

Press OK or £ to end the recording.

7Press OK or £ to accept the recording

press PLAY or ⁄ to listen to the recording

press RETRY or ¤ to re-record your name.

8Press ® to end the session.

Must change pswd

Pswd:

RETRY OK

Again:

RETRY OK

Record name:

RETRY OK

Accept name:

RETRY PLAY OK

CallPilot 150 Telephone Administration Guide

Chapter 4

Working with mailboxes

Adding a Subscriber mailbox

Assign all Subscriber mailboxes mailbox numbers that begin with the same digit. This helps you to

identify the mailbox type. If the system times out before you enter all the values for a mailbox, use

the procedures in “Changing a mailbox” on page 32 to finish setting up the mailbox.

To add a Subscriber mailbox

1Press ≤·°‹.

Enter the System Administrator Mailbox number and password,

and then press OK.

2Press MBOX.

3Press ADD.

4Enter the mailbox number.

5Press OK.

6Enter the extension number.

7Enter a Class of Service from 1 to 16.

8Enter the mailbox owner’s last name, press ££, enter the mailbox

owner’s first name or initial, and then press OK.

The name can be a maximum of 16 characters.

For information on entering names using the telephone dialpad,

refer to “Using the dialpad” on page 12.

9Press YES if you want the Subscriber’s name to be included in the

Company Directory.

10 Press YES if you want the Subscriber to have Message Waiting

Notification.

11 Press NEXT if you do not want to assign outdialing and go to step 15

press CHNG.

Log:

QUIT RETRY OK

Admin

MBOX AA OTHR

Mailbox Admin

ADD DEL CHNG

Mbox:

RETRY QUIT

Type:subscriber

NEXT OK

Ext:

RETRY OK

Service class:

RETRY OK

Name:

RETRY BKSP OK

Directory?

YES NO

Msg waiting?

YES NO

Outdial: <none>

CHNG NEXT

26 Chapter 4 Working with mailboxes

P0919416 03

12 Press NEXT if you want to use a line

press CHNG if you want to use a line within a line pool.

13 Enter the Line or Pool number and press OK.

Line numbers must be between 1 and 500.

Although line pools are labelled by a letter such as A, B or C,

CallPilot accepts only numbers. If you enter a line pool use 1 for A,

2 for B, 3 for C, and so on.

14 Press OK.

15 Press CHNG if you want to assign an Alternate extension

press NEXT if you do not want to assign an Alternate extension and

go to step 21.

16 Enter the Alternate extension and press OK.

17 Press NEXT.

18 Press CHNG if you want to assign another Alternate extension

press NEXT and go to step 21.

This display does not appear unless you assigned an Alternate

extension.

19 Enter the second Alternate extension and press OK.

20 Press NEXT.

21 Press CHNG to assign an Express Messaging Line

press NEXT and go to step 24.

22 Enter an Express Messaging Line number between 1 and 500

and press OK.

23 Press NEXT.

24 Press NEXT

press CHNG if you want to enable Call Screening.

25 Press ® to end the session.

Outdial: <line>

CHNG NEXT

xxxx:

RETRY OK

Accept: x

RETRY OK

Alt1 ext:(none)

CHNG NEXT

Alt1 ext:

RETRY OK

Alt1 ext: xx

CHNG NEXT

Alt2 ext: (none)

CHNG NEXT

Alt2 ext:

RETRY OK

Alt2 ext:xx

CHNG NEXT

Msg line: (none)

CHNG NEXT

Msg line:

RETRY OK

Msg line: xx

CHNG NEXT

Xfers:blind

CHNG NEXT

Mailbox Admin

ADD DEL CHNG

Chapter 4 Working with mailboxes 27

CallPilot 150 Telephone Administration Guide

Adding a Guest mailbox

Assign all Guest mailboxes mailbox numbers that begin with the same digit. This helps you to

identify the mailbox type.

To add a Guest mailbox

1Press ≤·°‹.

Enter the System Administrator mailbox number and password,

and then press OK.

2Press MBOX.

3Press ADD.

4Enter the Guest Mailbox number.

5Press OK.

6Press OK or £.

7 Enter a Class of Service from 1 to 16.

8Enter the mailbox owner’s last name, press ££, enter the mailbox

owner’s first name or initial, and then press OK.

For information on entering names using the telephone dialpad,

refer to “Using the dialpad” on page 12.

9Press YES if you want to include the mailbox owner’s name in the

Company Directory.

10 Press NO.

11 Press •.

12 To add another Guest Mailbox, repeat steps 3 through 11

press ® to end the session.

Log:

QUIT RETRY OK

Admin

MBOX AA OTHR

Mailbox Admin

ADD DEL CHNG

Mbox:

RETRY QUIT

Type:subscriber

NEXT OK

Ext:

RETRY OK

Service class:

RETRY OK

Name:

RETRY BKSP OK

Directory?

YES NO

Msg waiting?

YES NO

Outdial:<none>

CHNG NEXT

Mailbox Admin

ADD DEL CHNG

28 Chapter 4 Working with mailboxes

P0919416 03

Adding an Information mailbox

Assign all Information mailboxes mailbox numbers that begin with the same digit. This helps you

identify the mailbox type. Assign a Class of Service that has the maximum message length. To

accommodate an average Information Mailbox recorded message, assign a Class of Service of

either 7 or 8. These Classes of Service have a greeting length of 10 minutes.

To add an Information mailbox

1Press ≤·°‹.

Enter the System Administrator mailbox number and password,

and then press OK.

2Press MBOX.

3Press ADD.

4Enter the Information Mailbox number.

5Press NEXT.

6Press OK.

7Enter a Class of Service from 1 to 16.

8Enter the mailbox name and press OK.

For information on entering names using the telephone dialpad,

refer to “Using the dialpad” on page 12.

9Press YES if you want to include the mailbox name in the Company

Directory.

10 Repeat steps 4 through 10 to add another Information Mailbox

press ® to end the session.

Log:

QUIT RETRY OK

Admin

MBOX AA OTHR

Mailbox Admin

ADD DEL CHNG

Mbox:

RETRY QUIT

Type: subscriber

NEXT OK

Type:information

NEXT OK

Service class:

RETRY OK

Name:

NEXT BKSP OK

Directory?

YES NO

Mailbox Admin

ADD DEL CHNG

Chapter 4 Working with mailboxes 29

CallPilot 150 Telephone Administration Guide

Adding many mailboxes

You can save time by creating multiple mailboxes when you set up CallPilot 150 for the first time,

or when you need to add a large number of mailboxes to the CallPilot system. Adding many

mailboxes creates Subscriber mailboxes for the range of extensions that you define. You must use

extensions that are not already assigned to mailboxes. You can add mailboxes only for the amount

of working telephone numbers that have specific extensions on your system.

To make the most effective use of adding multiple mailboxes, identify people who need a

non-standard Subscriber mailbox. Create these mailboxes individually. Use Add Many Mailboxes

to add the remaining mailboxes.

The mailboxes you create using Add Many Mailboxes have these characteristics:

• the mailbox number is the same as the extension number

• Class of Service is the same for all mailboxes

• the Call Screening setting is the same for all mailboxes

• the mailbox name is taken from the extension names assigned on your system.

If extension names are not programmed, the mailbox number is used

• the Message Waiting Notification property is the same for all mailboxes

• the Outdial route is the same for all mailboxes

• the Display in Directory property is the same for all mailboxes

The mailboxes created are uninitialized and ready for initialization by mailbox owners.

A mailbox is not created if:

• a mailbox with the same number already exists

• the extension is used by another mailbox

• the extension is a CallPilot voice port

To add multiple mailboxes

1Press ≤·°‹.

Enter the System Administrator mailbox number and password,

and then press OK.

2Press ﬂﬂ.

This option does not appear as a display button option.

3This display appears briefly.

4Enter the extension number to start creating mailboxes from.

5Enter the extension number to stop creating mailboxes at.

Log:

QUIT RETRY OK

Admin

MBOX AA OTHR

Create mboxes

From ext:

RETRY QUIT

To ext:

RETRY QUIT

30 Chapter 4 Working with mailboxes

P0919416 03

6Enter a Class of Service from 1 to 16.

7Press NEXT if you do not want to assign outdialing and go to step 11

press CHNG.

8Press NEXT if you want to use a line

press CHNG if you want to use a line within a line pool.

9Enter the Line or Pool number and press OK.

Line numbers must be between 1 and 500.

Although line pools are labelled by a letter such as A, B or C,

CallPilot accepts only numbers. If you enter a line pool use 1 for A,

2 for B, 3 for C, and so on.

10 Press OK.

11 Press NEXT

press CHNG to enable Call Screening for the mailboxes.

12 Press YES.

13 The display shows the numbers of the mailboxes that are being

created.

14 Press OK to end the session.

Service class:

RETRY OK

Outdial: <none>

CHNG NEXT

Outdial: <line>

CHNG NEXT

xxxx:

RETRY OK

Accept: x

RETRY OK

Xfers:blind

CHNG NEXT

Proceed?

YES QUIT

Checking xx

Created x mbox

Chapter 4 Working with mailboxes 31

CallPilot 150 Telephone Administration Guide

About mailbox passwords

Each mailbox is protected by a password established by the mailbox owner. When you add a

mailbox to CallPilot Manager, the password 0000 is assigned. This is the default password.

To use a mailbox, a mailbox owner must change the default password. The new password must be

four to eight digits in length and cannot start with a zero.

If a mailbox owner cannot remember the password, you can reset the password to the default

password 0000. Refer to “To change a mailbox” on page 32.

Incorrect password lock-out

In its Class of Service each mailbox is assigned a maximum number of incorrect password

attempts. CallPilot records the number of incorrect attempts from the last time the mailbox was

accessed successfully. If the number is exceeded, the mailbox owner is “locked-out”. The mailbox

cannot be opened until the password is reset. Refer to “To change a mailbox” on page 32.

Password expiry

In its Class of Service each mailbox is assigned the maximum number of days a password remains

active. If the maximum number of days is exceeded, the mailbox password expires. The mailbox

owner can open the mailbox, but cannot access messages or perform other mailbox functions until

they change the password. Unless the telephone has a two-line display, this announcement plays

when the mailbox is opened after the password expires:

“Your current password has expired. You must change your password.

Please enter your new password and press £.”

After the new password is entered the mailbox returns to normal operation.

Warning: Change the System Administrator password frequently to minimize the

risk of unauthorized activity.

Warning: Set the Class of Service for password expiry to a low value so that mailbox

owners must changed their password frequently. A mailbox with a Class of Service

with a high or indefinite password expiry interval setting is vulnerable to unauthorized

access.

32 Chapter 4 Working with mailboxes

P0919416 03

Changing a mailbox

After you add a mailbox, you can change the mailbox:

• password

•extension

• Class of Service

•display name

• appearance in the Company Directory

• Message Waiting Notification

• outdial route

• Alternate extension

• Express Messaging Line

• Call Screening

To change a mailbox

Note: Reset a password only if the mailbox owner forgets it or is “locked-out”. The

password for a reset mailbox is 0000. Mailbox owners cannot access their messages until

they change the default password. After you reset a mailbox password, tell the mailbox

owner to change the default password as soon as possible. While the mailbox has the

default password, the mailbox is vulnerable to unauthorized access.

1Press ≤·°‹.

Enter the System Administrator mailbox number and password,

and then press OK.

2Press MBOX.

3Press CHNG.

4Enter the mailbox number or press DIR to use the Company

Directory.

5If you want to change the password press RESET

press NEXT to change other mailbox settings and go to step 8.

6The password is reset.

7Press NEXT to change other mailbox settings

press ® to end the session.

Log:

QUIT RETRY OK

Admin

MBOX AA OTHR

Mailbox Admin

ADD DEL CHNG

Mbox:

DIR QUIT

Password

RESET NEXT

Password reset

Password

RESET NEXT

Chapter 4 Working with mailboxes 33

CallPilot 150 Telephone Administration Guide

8If you want to change the extension number, press CHNG

press NEXT and go to step 10.

9Enter the new extension number and press NEXT.

10 If you want to change the Class of Service, press CHNG

press NEXT and go to step 12.

11 Enter a Class of Service from 1 to 16 and press NEXT.

12 If you want to change the mailbox owner’s display name press CHNG

press NEXT and go to step 15.

13 Enter the mailbox owner’s last name, press ££, enter the

mailbox owner’s first name or initial, and then press OK.

For information on entering names using the telephone dialpad,

refer to “Using the dialpad” on page 12.

14 Press NEXT.

15 If you want to change whether the mailbox owner’s name is

included in the Company Directory, press CHNG

press NEXT and go to step 17.

16 Press NEXT.

17 If you want to change message waiting notification for the mailbox

press CHNG

press NEXT.

18 Press CHNG if you want to change the outdial method

press NEXT and go to step 27.

19 Press NEXT if you want to use the outdial method shown on the

display

press CHNG if you want choose another outdial method.

Ext: xx

CHNG NEXT

Ext: xx

RETRY QUIT

Service class:x

CHNG NEXT

Service class: x

RETRY OK

CHNG NEXT

xxxxx, xx

RETRY BKSP OK

xxxxx, xx

CHNG NEXT

Directory:Y

CHNG NEXT

Msg waiting:Y

CHNG NEXT

Outdial: <xxxx>

CHNG NEXT

Outdial: <xxxx>

CHNG NEXT

34 Chapter 4 Working with mailboxes

P0919416 03

20 Enter the Line or Pool number and press OK.

Line numbers must be between 1 and 500. Although line pools have

a letter such as A, B or C, CallPilot accepts only numbers. If you

enter a line pool use 1 for A, 2 for B, 3 for C, and so on.

21 Press OK.

Steps 22 through 26 appear only if the mailbox has Alternate

extensions. If not, go to step 27.

22 If you want to change or delete the first Alternate extension press

CHNG

if you want to change the second Alternate extension press NEXT and

go to step 25.

23 If you want to delete the first Alternate extension, press £

if you want to change the Alternate extension, enter the new

extension number and press OK.

24 Press CHNG to change the second Alternate extension.

25 If you want to delete the second Alternate extension, press £.

The display shows: Alt2 ext: (none)

if you want to change the second Alternate extension number enter

the new extension number and press OK.

Alt2 ext appears only if Alternate extension 1 is assigned.

26 Press NEXT.

27 Press CHNG to change or assign an Express Messaging Line

press NEXT and go to step 29.

28 Enter an Express Messaging Line number between 1 and 500

and press OK.

29 Press NEXT.

30 Press CHNG if you want to change the call screening status

press NEXT and go to step 30.

31 Press NEXT.

32 Press ® to end the session.

xxxx:

RETRY OK

Accept: x

RETRY OK

Alt1 ext: xx

CHNG NEXT

Alt1 ext:

RETRY OK

Alt1 ext: xx

CHNG NEXT

Alt2 ext:xxx

RETRY OK

Alt2 ext:xxx

RETRY OK

Msg line:xxx

CHNG NEXT

Msg line:

RETRY OK

Msg line: xx

CHNG NEXT

Xfers:blind

CHNG NEXT

Xfers:screened

CHNG NEXT

Mailbox Admin

ADD DEL CHNG

Chapter 4 Working with mailboxes 35

CallPilot 150 Telephone Administration Guide

Deleting a mailbox

Before you delete a mailbox, ensure the mailbox owner has listened to all their messages. When a

mailbox is deleted, all messages stored in that mailbox are deleted and the mailbox is deleted

automatically from the Company Directory and all Group Lists.

If you are deleting a mailbox associated with a CCR Tree, make sure you remove the mailbox from

the CCR Tree first. If you do not delete the mailbox, the message Mbox in CCR appears on your

display.

You cannot delete a mailbox if:

• it is currently in use

• it is used in a CLID table or a CCR Tree

• it is the System Administrator or the General Delivery Mailbox

To delete a mailbox

1Press ≤·°‹.

Enter the System Administrator Mailbox number and password,

and then press OK.

2Press MBOX.

3Press DEL.

4Enter the number of the mailbox you want to delete

press DIR to use the Company Directory.

5Press DEL.

6This display appears briefly.

7Press DEL to delete additional mailboxes

press ® to end the session.

Log:

QUIT RETRY OK

Admin

MBOX AA OTHR

Mailbox Admin

ADD DEL CHNG

Mbox:

DIR QUIT

DEL QUIT

Mailbox deleted

Mailbox Admin

ADD DEL CHNG

36 Chapter 4 Working with mailboxes

P0919416 03

About Group Lists

You can create a maximum of 99 Group Lists on your system. Each Group List can contain a

maximum of 300 mailboxes. Before you add Group Lists, prepare a group mailbox member list.

This list must contain:

• the Group List name – maximum 16 characters long

• the mailbox numbers to include in the group

After you create a Group List, you can change the mailboxes included in the list, record a new list

name, view the Group List, or delete the Group List.

About Sending Group List messages

You can send a Group List message whenever you want to notify a group of people about an event

or notice that pertains to them. When a subscriber sends a message to the Group List, the

subscriber does not receive the message.

For instructions on how to send a Group List message to a Voice Group List, refer to the CallPilot

Reference Guide.

About Group List Numbers

During system installation, a number from 0 to 9 (default 9) is assigned as the Group List leading

digit. For example, the default Group List numbers are 901 to 999. If the leading digit is 5, the

Group List numbers are 501 to 599. Group List numbers are three digits long.

You can change the Group List leading digit. For more information on changing the Group List

leading digit, refer to “Group List leading digit” on page 98.

The Group List number acts like a mailbox number when you leave a message for the mailboxes in

the Group List. The table below shows two sample Group Lists.

This table shows an example of a Group List

Group List number Name Mailbox number

901 Sales 224

223

233

902 Shipping 227

221

Chapter 4 Working with mailboxes 37

CallPilot 150 Telephone Administration Guide

Adding a Group List

A mailbox must be initialized before you can add it to a Group List. For information on how to

initialize a mailbox, refer to “Initializing a mailbox” on page 24.

To add a Group List

1Press ≤·°‹.

Enter the System Administrator Mailbox number and password,

and then press OK.

2Press OTHR.

3Press GLIST.

4Press ADD.

5Press OK.

CallPilot assigns a Group List number automatically.

6At the tone, record the Group List name and press OK to end the

recording.

This Group List name is played to any caller who leaves a message

for the mailboxes in the group.

7To listen to your recording, press PLAY

to accept the recording, press OK

to record the name again, press RETRY

8Enter the Group List name (maximum 16 characters) and press OK.

9Enter the number of the first mailbox you want to include in the

Group List.

If you do not know the number of the mailbox, press DIR to search

the Company Directory.

10 Press ADD.

11 This display appears briefly.

12 To add additional mailboxes to the Group List, repeat steps 10

through 12

Press ® to end the session.

Log:

QUIT RETRY OK

Admin

MBOX AA OTHR

Admin

GLIST CCR OTHR

Group List Admin

ADD DEL CHNG

GList: xxx

Record name:

RETRY OK

Accept name?

RETRY PLAY OK

Name:

RETRY BSKP OK

Mbox:

DIR QUIT

xxxx, xx

RETRY ADD

Member added

Mbox:

DIR QUIT

38 Chapter 4 Working with mailboxes

P0919416 03

Changing a Group List

At any time you can:

• change a Group List display name

• add, delete or view Group List members

You cannot change a Group List number. To change a Group List number, you must delete the

Group List and add new member mailbox numbers as a new Group List. For more information,

refer to “Adding a Group List” on page 37.

To change a Group List

1Press ≤·°‹.

Enter the System Administrator Mailbox number and password,

and then press OK.

2Press OTHR.

3Press GLIST.

4Press CHNG.

5Enter the number of the Group List you want to change.

6To change the Group List name, press CHNG.

press NEXT and go to step 9.

7Enter the new Group List name and press OK.

8Press NEXT.

9To change the recorded Group List name, press REC

press NEXT and go to step 12.

10 At the tone, record the new Group List name and press OK.

11 To listen to your recording, press PLAY

to accept the recording, press OK

to re-record the name, press RETRY

Log:

QUIT RETRY OK

Admin

MBOX AA OTHR

Admin

GLIST CCR

Group List Admin

ADD DEL CHNG

GList:

RETRY QUIT

xxxxxxx

CHNG NEXT

Name:

RETRY BKSP OK

xxxxxx

CHNG NEXT

Recorded name:

REC PLAY NEXT

Record name:

RETRY OK

Accept name?

RETRY PLAY OK

Chapter 4 Working with mailboxes 39

CallPilot 150 Telephone Administration Guide

12 Press ADD to add a mailbox number to the Group List

press DEL to delete a mailbox number from the Group List

press VIEW to view the members of the Group List.

13 Enter the number of the mailbox you want to add or delete.

14 After you make the changes you want to the make to the Group List,

press ® to end the session.

GList members

ADD DEL VIEW

Mbox:

DIR QUIT

GList members

ADD DEL VIEW

40 Chapter 4 Working with mailboxes

P0919416 03

Deleting a Group List

You can delete a Group List at any time. When you delete a Group List, the Group List number is

re-assigned by CallPilot the next time you add a Group List. Deleting a Group List does not delete

any mailboxes from the CallPilot system.

To delete a Group List

1Press ≤·°‹.

Enter the System Administrator Mailbox number and password,

and then press OK.

2Press OTHR.

3Press GLIST.

4Press DEL.

5Enter the number of the Group List you want to delete.

6Press DEL.

7This display appears briefly.

8Press ® to end the session.

Log:

QUIT RETRY OK

Admin

MBOX AA OTHR

Admin

GLIST CCR OTHR

Group List Admin

ADD DEL CHNG

GList:

RETRY QUIT

DEL QUIT

GList deleted

Group List Admin

ADD DEL CHNG

CallPilot 150 Telephone Administration Guide

Chapter 5

Setting up the Automated Attendant

About the Automated Attendant

The Automated Attendant answers your company’s incoming phone lines with a prerecorded

greeting selected from the Greeting Table, according to the time of day.

You can record and assign different greetings to the Greeting Table. You can specify which

greetings play for particular lines. For example, you can program the system so that callers hear

one greeting when they call the sales line, and a different greeting when they call the customer

support line.

After the greeting, the Automated Attendant Menu offers a range of options that callers can select

using the dialpad of their phone. If you want to offer a greater range of options and services for

incoming calls, you can assign a Custom Call Routing (CCR) menu to play instead of the

Automated Attendant Menu. See “Planning and designing a CCR Tree” on page 58 for

information on creating a CCR menu.

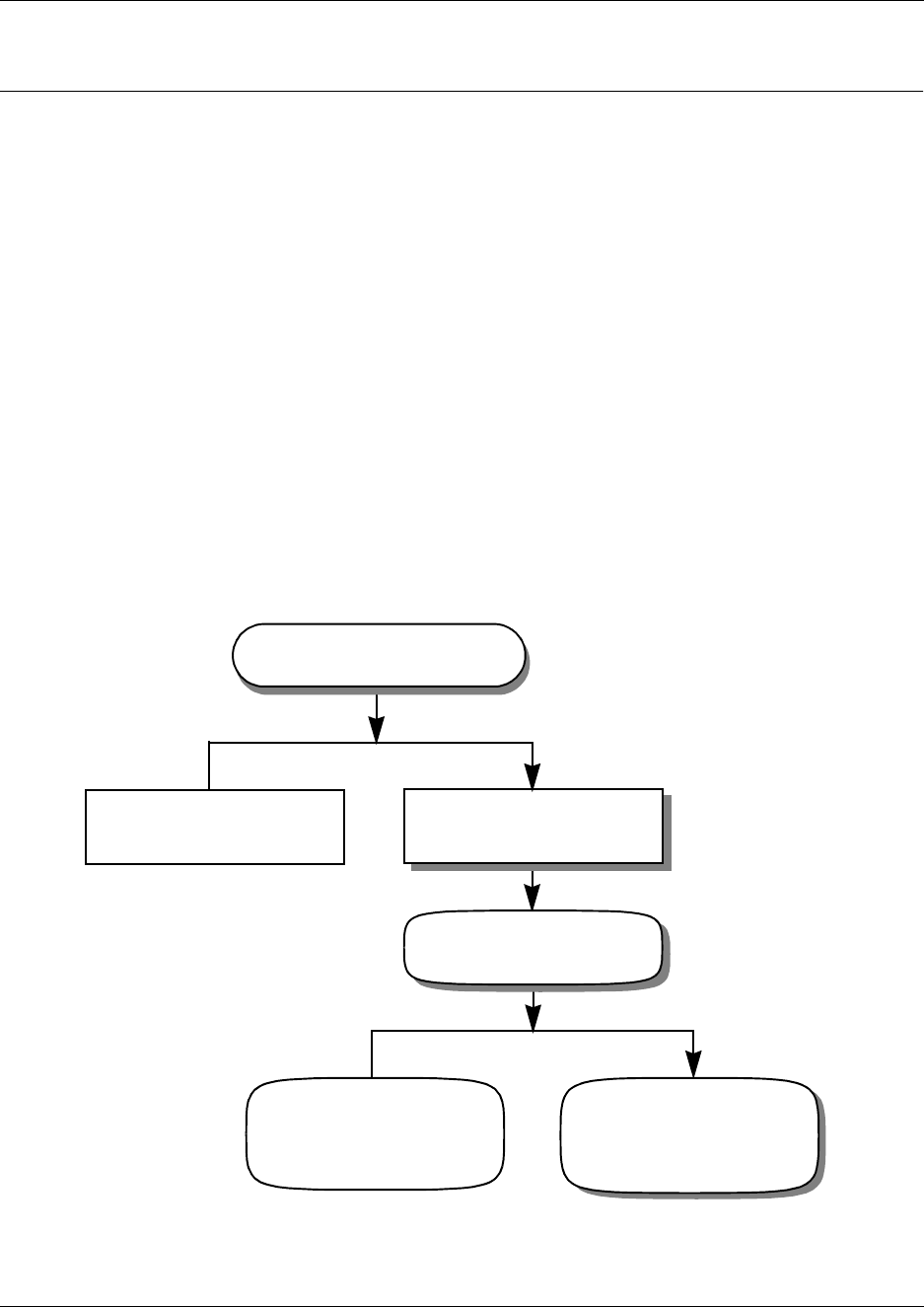

Automated Attendant answering overview

Automated Attendant

answers

Receptionist

Company Greeting

plays

Custom Call Routing

Home Menu plays

Automated Attendant

Menu plays

Incoming call

42 Chapter 5 Setting up the Automated Attendant

P0919416 03

Greeting Tables

Greeting Tables store the recordings played by the Automated Attendant to incoming callers.

CallPilot has four Greeting Tables.

You can record a total of 40 Company Greetings, but only four greetings can be assigned to a

Greeting Table at any one time. You can assign the same four greetings to each table, or you can

assign unique greetings for each table.

This table shows an example of how you can assign Greetings.

We recommend using greetings 1 through 16 as your daily business greetings, and greetings 17

through 40 as special greetings.

Each Greeting Table is divided into four times of day.

This table shows the default times of day.

Greeting Tables using the alternate language

If you use primary and alternate languages, we recommend that you assign one Greeting Table to

the alternate language. For example, if your company has two incoming lines and you want to have

one line assigned to the alternate language, assign the line to the Greeting Table that has greetings

recorded in the alternate language. You can record greetings 5, 6, 7 and 8 in the alternate language

and assign the greetings to Greeting Table 2 for line 2.

Greeting Type Table 1 Table 2 Table 3 Table 4

Morning Greeting 1 Greeting 5 Greeting 9 Greeting 13

Afternoon Greeting 2 Greeting 6 Greeting 10 Greeting 14

Evening Greeting 3 Greeting 7 Greeting 11 Greeting 15

Non-business Greeting 4 Greeting 8 Greeting 12 Greeting 16

Morning Greeting 17 Greeting 21 Greeting 25 Greeting 29

Afternoon Greeting 18 Greeting 22 Greeting 26 Greeting 30

Evening Greeting 19 Greeting 23 Greeting 27 Greeting 31

Non-business Greeting 20 Greeting 24 Greeting 28 Greeting 32

Greeting Type Default start times

Morning 12:00 am

Afternoon 12:00 pm

Evening 6:00 pm

Non-business 6:00 pm

If default hours are used, the Evening Greeting is not played.

The Non-business Greeting can be turned on and off using the Business Status

feature.

Chapter 5 Setting up the Automated Attendant 43

CallPilot 150 Telephone Administration Guide

About Company Greetings

Before you record your Company Greetings, decide what type of greetings you want to use for the

incoming phone lines, and what you want the greetings to say. There are four greeting times that

reflect the Morning, Afternoon, Evening and Non-business hours. You can prepare four greetings,

or you can use the same greeting for each time of day. As you record the greetings, number them

from 1 to 4. An example greetings for each time of day:

1Morning Greeting: “Good morning. You have reached Touchstone Marketing.”

2Afternoon Greeting: “Good afternoon. You have reached Touchstone Marketing.”

3Evening Greeting: “Good evening. You have reached Touchstone Marketing.”

4Non-business Greeting: “You have reached Touchstone Marketing. Our business hours are

Monday to Friday from 8:00 a.m. to 5:00 p.m. Please stay on the line and leave a message.

Thank you for calling.”

Greetings 1 through 4 are assigned by default to all Greeting Tables. This means that Greeting 1

plays as the Morning Greeting for Greeting Table 1, 2, 3 and 4.

If you use only one Greeting Table, the numbered greetings you record from 1 to 4 play

automatically. You do not have to assign Greetings 1 to 4 to the table, but you must select the

language preference.

If you use a Primary and Alternate Language, record the option · instruction in both languages.

For example, if you use English as your Primary Language and French as your Alternate

Language, your main greeting can be in English and the option · instruction can be in French.

For example:

“Good morning. This is Touchstone Marketing. To use our voice messaging service in French,

please press ·

”

Since the default Automated Attendant Menu prompt does not announce an Alternate Language

option, in your greeting you must tell callers to press · to use the Alternate Language.

Company Greetings can be 0 to 10 minutes in duration. If you need to change the greeting

duration, you must change the Class of Service assigned to the System Administrator Mailbox. For

information on how to change the setting, refer to “Changing a mailbox” on page 32.

After you decide what you want your greetings to say, practice recording them. Remember to speak

slowly and clearly at a pace that is easy to understand.

44 Chapter 5 Setting up the Automated Attendant

P0919416 03

Recording a Greeting

Do not use Handsfree to record your company Greetings.

Speak directly into the phone handset.

To record a company Greeting

1Press ≤·°‹.

Enter the System Administrator Mailbox number and password,

and then press OK.

2Press AA.

3Press GRTG.

4Press GRTG.

5Enter the number of the Greeting you want to record (from 1 to 40)

and press OK.

6Press REC. At the tone, record your greeting.

Do not hang up the handset when you are finished recording.

7Press OK to end your recording.

8To listen to the greeting, press PLAY

to accept the recording, press OK

to re-record the greeting, press RETRY

Repeat steps 5 through 9 if you want to record another greeting.

9Press ® to end the session.

Log:

QUIT RETRY OK

Admin

MBOX AA OTHR

Auto Atdt Admin

GRTG TABLE LINES

Greeting admin

GRTG AA

Greeting:

RETRY OK

Greeting <X>

RETRY PLAY REC

Record greeting:

RETRY OK

Accept greeting?

RETRY PLAY OK

Chapter 5 Setting up the Automated Attendant 45

CallPilot 150 Telephone Administration Guide

Setting up a Greeting Table

To set up a Greeting Table you:

• can record a Custom prompt if you want to replace the Automated Attendant Menu

• assign Greetings for each time of day to the Greeting Tables

• assign a language preference if you use bilingual operation

• assign a Greeting Table Attendant

• assign a CCR Tree

• set your company’s Business Hours

Note: You must build a CCR Tree before you can assign it to a Greeting Table. For

information on building a CCR Tree, refer to “Building a CCR Tree” on page 63.

Custom prompts You can record a Custom prompt to replace the Automated Attendant

Menu prompt. We recommend that you record prompts that are at least

eight seconds long.

In the Custom prompt you can provide the caller with a list of options such

as choosing the alternate language, accessing the Company Directory and

reaching an operator. You can record a Primary and an Alternate Custom

prompt for each Greeting Table.

Greeting For each Greeting Table you can assign what Greeting plays for each time

of day.

Language preference You can set the language preference for each Greeting Table. This setting

determines which language the Automated Attendant uses when

answering incoming calls. If the CallPilot bilingual option is not enabled,

you cannot set up a language preference.

Greeting table attendant A Greeting Table Attendant overrides the designated Operator. If the

Attendant does not answer, the call goes to the destination mailbox, or the

General Delivery Mailbox if not destination mailbox is assigned.

CCR Tree For each Greeting Table you can assign a CCR Tree for each time of day.

Assigning a CCR Tree to a Greeting Table is optional. You must build a

CCR Tree before you can assign it to a Greeting Table.

If you do not assign a CCR Tree to a Greeting Table the caller hears the

greeting you assign and then hears the Auto Attendant menu.

If you assign a CCR Tree to a Greeting Table the caller hears the greeting

you assign and then hears the CCR Tree menu.

Business hours Setting the Business Hours determines when each greeting is played for

each Greeting Table. Business Hours are divided into Morning, Afternoon,

Evening, and Non-business categories for each of the seven days of the

week for each Greeting Table.

To set up the days when your business is not open, set all the start times to

12:00 a.m. This ensures that the Non-business greeting plays throughout

the day.

The Non-business greeting can also be turned on and off using the

Business Status feature. When the Business Status is set to Off, the

Non-business greeting continues to play until you set the Business Status

to On.

46 Chapter 5 Setting up the Automated Attendant

P0919416 03

To set up a Greeting Table

1Press ≤·°‹.

Enter the System Administrator Mailbox number and password,

and then press OK.

2Press AA.

3Press TABLE.

4Enter a Greeting Table number from 1 to 4 and press OK.

5Press CHNG.

6Press REC.

At the tone, record your primary Custom prompt. Speak slowly and

clearly, at a pace that is easy to understand.

7Press OK.

8To accept the recording, press OK

to re-record the prompt press, RETRY

9Press OK.

10 Press CHNG to assign a new greeting number to this Greeting Table

press NEXT to go to step 13, the afternoon greeting.

11 Enter a greeting number from 1 to 40 and press OK.

12 Press NEXT.

13 To continue assigning the Afternoon, Evening and Non-business

Greetings to the Greeting Table, repeat steps 10 through 12

if you are finished assigning Greetings, press NEXT until you see the

display in step 14 that you can assign a language preference from.

If you do not have the bilingual option enabled, the steps for setting

a language preference are not available and you go to step 16.

14 If you want to change the language preference for the Greeting

Table, press CHNG

if you do not want to change the language preference press NEXT.

Log:

QUIT RETRY OK

Admin

MBOX AA OTHR

Auto Atdt Admin

GRTG TABLE LINES

Grtg table:

RETRY OK

AA menu prompt: Y

CHNG OK

Prompt: pri

PLAY REC QUIT

Record prompt:

RETRY OK

Accept prompt?

RETRY PLAY OK

AA menu prompt:N

CHNG REC OK

Morning:1

CHNG PLAY NEXT

Greeting:

RETRY OK

Morning:<x>

CHNG PLAY NEXT

Afternoon:2

CHNG PLAY NEXT

Evening:3

CHNG PLAY NEXT

Non-business:4

CHNG PLAY NEXT

Lang pref: pri

CHNG NEXT

Chapter 5 Setting up the Automated Attendant 47

CallPilot 150 Telephone Administration Guide

15 Press NEXT.

16 Press CHNG.

17 Enter the extension of the Greeting Table Attendant.

18 Press NEXT.

To return the Greeting Table Attendant back to none after an

extension has been entered, you must press CHNG and then £.

19 Press NEXT.

You must build a CCR Tree before you can assign it to a Greeting

Table. For more information, refer to “Building a CCR Tree” on

page 63.

20 Press NEXT.

21 Press NEXT.

22 Press NEXT.

23 Press CHNG

press DAY to change the display to the morning of the next day.

24 Enter the Monday Morning start time and

press AM or PM.

This is a four-digit field. Any single-digit hour must be preceded by

a zero.

25 Press NEXT.

26 Press CHNG.

27 Enter the Monday Afternoon start time and

press AM or PM.

28 Press NEXT.

29 Press CHNG.

30 Enter the Monday Evening start time and

press AM or PM.

31 Press NEXT.

Lang pref: alt

CHNG NEXT

Atdt: (none)

CHNG NEXT

Ext:

RETRY QUIT

Atdt: <xx>

CHNG NEXT

Morn CCR tree:NO

CHNG NEXT

Aftn CCR tree:NO

CHNG NEXT

Eve CCR tree:NO

CHNG NEXT

NBus CCR tree:NO

CHNG NEXT

Mo morn:12:00 am

CHNG DAY NEXT

Enter hhmm:

RETRY AM PM

Mo morn:<8:00>am

CHNG DAY NEXT

Mo aftn: 12:00 pm

CHNG DAY NEXT

Enter hhmm:<1201>

RETRY AM PM

Mon aft: 12:01 pm

CHNG DAY NEXT

Mo eve:<06:00>pm

CHNG DAY NEXT

Enter hhmm:<0601>

RETRY AM PM

Mo eve: <0601>pm

CHNG DAY NEXT

48 Chapter 5 Setting up the Automated Attendant

P0919416 03

32 Press CHNG.

33 Enter the Non-business start time and press AM or PM.

34 Press DAY

35 Repeat steps 23 through 34 for each day of the week.

36 Press • to return to the Auto Atdt Admin display and continue

setting up Greeting Tables

press ® to end the session.

Mo nonb: <600> pm

CHNG DAY NEXT

Enter hhmm:<0901>

RETRY AM PM

Mo nonb: <09:01> pm

CHNG DAY NEXT

Tu morn:<12:00am

CHNG DAY NEXT

Chapter 5 Setting up the Automated Attendant 49

CallPilot 150 Telephone Administration Guide

Configuring line answering

CallPilot can answer all of your incoming lines, or just the lines you specify. Before CallPilot can

answer an incoming line, you must assign the line and set the Answer status to Yes. Each line you

add is answered by Greeting Table 1, unless you specify another table.

To configure how a line is answered

1Press ≤·°‹.

Enter the System Administrator Mailbox number and password,

and then press OK.

2Press AA.

3Press LINES.

4Enter the number of the line you want to configure and press OK.

5Press CHNG to toggle the Answer status from N to AA.

6Press TABLE.

7Press CHNG.

8Enter a Greeting Table number from 1 to 4 and press OK.

9If you want to continue adding lines, press NEXT and repeat steps 5

to 9

press ® to end the session.

Log:

QUIT RETRY OK

Admin

MBOX AA OTHR

Auto Atdt Admin

GRTG TABLE LINES

Line number:

RETRY OK

Line:1 Ans:N

CHNG TABLE NEXT

Line:1 Ans:AA

CHNG TABLE NEXT

Line:1 Table:1

CHNG RINGS NEXT

Grtg table:

RETRY OK

Line:1 Table:1

CHNG RINGS NEXT

50 Chapter 5 Setting up the Automated Attendant

P0919416 03

Changing line configuration

You can view or change the answer status of any line that is added to CallPilot.

To change or view how a line is answered

1Press ≤·°‹.

Enter the System Administrator Mailbox number and password,

and then press OK.

2Press AA.

3Press LINES.

4Enter the line number and press OK.

5Use the NEXT and CHNG buttons to view the assigned lines or change

the answer status.

You can press • to return to step 4 and select a line number

without having to go through the entire list.

6When you are finished viewing and changing lines

press ® to end the session.

Log:

QUIT RETRY OK

Admin

MBOX AA OTHR

Auto Atdt Admin

GRTG TABLE LINES

Line number:

RETRY OK

Line:1 Ans: N

CHNG TABLE NEXT

Chapter 5 Setting up the Automated Attendant 51

CallPilot 150 Telephone Administration Guide

Assigning the number of rings before CallPilot answers

You can assign the system to answer incoming calls after a specified number of rings. The number

of rings ranges from 0 to 12. If you leave the number of rings at zero, the system answers

immediately.

For lines equipped with Calling Line Identification (CLID), you must set the number of rings to

two or more if you use analog lines. CLID is not provided until just prior to the second ring, so

assigning the number of rings to 0 or 1 prevents CLID from being relayed. You do not have to set

the number of rings to two or more for CLID if you use BRI/PRI lines. For more information about

the type of lines you use contact your Norstar administrator.

Without CLID, personalized greetings, CLID Routing Table and other features related to CLID do

not work.

To assign or change the number of rings

1Press ≤·°‹.

Enter the System Administrator Mailbox number and password,

and then press OK.

2Press AA.

3Press LINES.

4Enter the line number and press OK.

5Press TABLE.

6Press RINGS.

7Press CHNG.

8Enter a number of rings from 0 to 12 and press OK.

Enter 2 rings or greater if your company subscribes to Caller ID.

9You can use the NEXT and CHNG buttons to view the lines and change

the number of rings.

You can press • to return to step 4 and select a line number

without having to go through the entire list.

10 Press ® to end the session.

Log:

QUIT RETRY OK

Admin

MBOX AA OTHR

Auto Atdt Admin

GRTG TABLE LINES

Line number:

RETRY OK

Line:1 Ans:Y

CHNG TABLE NEXT

Line:1 TABLE:1

CHNG RINGS NEXT

Line:1 Rings:0

CHNG ANS NEXT

No of rings:

RETRY OK

Line:1 Rings:X

CHNG ANS NEXT

52 Chapter 5 Setting up the Automated Attendant

P0919416 03

Setting up Touchtone Gate

With Touchtone Gate incoming calls can be routed more quickly.

With Touchtone Gate you can have the standard voice prompt play or you can record your own

custom prompt. If you choose the standard prompt, the following prompt plays after your company

greeting: “If you are calling from a tone dial telephone, please press ⁄ now. If you are a pulse

dialing caller or if you are calling from a rotary dial phone, please hold and you will be

transferred.”

When the tone for 1 is received, the call goes to the Automated Attendant or CCR Tree. If no tone

is received, the call is sent back to the receptionist or designated Operator specified by the

Greeting Table. If the attendant is not available, the call is directed to the General Delivery

Mailbox. If the General Delivery Mailbox is not available, the call is disconnected.

The Touchtone Gate voice prompt is not presented to internal callers or callers who use Feature

981 or Feature 986.

If you disable Touchtone Gate, re-record the Company Greeting to include “If you are calling from

a tone dial telephone, please dial the extension number or press £ for the Company Directory. If

not, please hold and you will be transferred to the operator.”

To set up Touchtone Gate

Note: If you want to use a custom prompt, you must record it before you enable

Touchtone Gate. It is recommended that you use Greeting 40 as the custom Touchtone

Gate prompt. When Touchtone Gate is enabled, Greeting 40 is the default custom

prompt. For more information on recording Greetings, refer to “Recording a Greeting”

on page 44.

1Press ≤·°‹.

Enter the System Administrator Mailbox number and password,

and then press OK.

2Press AA.

3Enter ⁄.

4Touchtone Gate is not enabled by default.

Press CHNG to change to enable Touchtone Gate or to choose a

custom voice prompt.

5Press OK to accept the standard voice prompt

or.

press CHNG to choose the custom voice prompt or disable Touchtone

Gate.

Log:

QUIT RETRY OK

Admin

MBOX AA OTHR

Auto Atdt Admin

GRTG TABLE LINES

TT gate:none

CHNG OK

TT gate:std

CHNG OK

Chapter 5 Setting up the Automated Attendant 53

CallPilot 150 Telephone Administration Guide

6Press NEXT to choose the custom voice prompt

press CHNG to disable Touchtone Gate.

7Press CHNG to change the custom voice prompt Greeting number

press OK to accept the custom voice prompt Greeting number and

go to step 11.

8Enter the custom voice prompt Greeting number and press OK.

9Press OK to accept the new Greeting number.

10 Press ® to end the session.

TT gate:custom

CHNG NEXT

TT Greeting:40

CHNG OK

Greeting:

RETRY OK

TT Greeting: x

RETRY OK

54 Chapter 5 Setting up the Automated Attendant

P0919416 03

About the CLID Routing Table

Set up a CLID Table to control how calls are routed based on the Caller Identification of callers. To

use a CLID Table, your incoming lines must be equipped with Caller Identification service.

If an incoming call has a CLID value that matches one of the entries in the CLID Table, the call is

directed according to the CLID Routing Table rather than the Greeting Table. After the call is

directed, the call disconnects or returns to the routing according to the Auto Attendant status. For

more information on the Auto Attendant status refer to “Setting the Automated Attendant status”

on page 96.

You can set up the CLID Routing Table to direct frequent callers to a specific extension or

mailbox, CCR Tree or Greeting Table.

A CLID Routing Table can have a maximum of 100 entries. Entries correspond to a unique phone

number or a range of numbers. For example, if you enter 4165960196, the system routes an

incoming call from this number to a specific destination. However, if you make 416 a table entry,

all incoming calls with this prefix are routed to a specific destination.

Entries in the CLID Routing Table are sorted in numerical order, from the longest number to the

shortest. An incoming call is routed by the longest CLID entry that matches the calling number.

For example:

For the CLID Routing Table to work, your company must:

• subscribe to CLID services from your local telephone company

• have the appropriate hardware for your systems (a CI Trunk cartridge for example)

To set up a CLID Routing Table you:

• enter a phone number

• assign a destination. A destination can be a Greeting Table, mailbox, extension, CCR Tree or a

node on a Tree

Destination number Table entry Incoming call example

1 313 Incoming number 3148888 is compared to all of

the table entries, and does not match any

destination.

2 416598 Incoming number 4165981111 matches

destination 2.

3 416 Incoming number 4169998888 matches

destination 3.

4 5198853895 Incoming number 5198853895 matches

destination 4.

5 519 Incoming number 5198853896 matches

destination 5.

Chapter 5 Setting up the Automated Attendant 55

CallPilot 150 Telephone Administration Guide

To route a phone number

1Press ≤·°‹.

Enter the System Administrator Mailbox number and password,

and then press OK.

2Enter ⁄⁄.

3Press ADD.

4Enter the phone number or the leading digits of a phone number

(up to 13 digits) and press OK.

Each phone number assigned to the CLID Routing Table must be

unique.

5Choose a destination.

To route the phone number to a Greeting Table:

•Press TABLE

• Enter a Greeting Table number from 1 to 4

•Press OK

To route the phone number to an extension:

•Press EXT

• Enter the extension number

•Press OK

To route the phone number to a mailbox:

•Press OTHR

•Press MBOX

• Enter the mailbox number

•Press OK

To route the phone number to a CCR Tree:

•Press OTHR

•Press CCR

• Enter the CCR Tree number from 1 to 8

•Press OK

6Repeat steps 3 through 5 for each phone number you want to route.

7Press ® to end the session.

Log:

QUIT RETRY OK

Admin

MBOX AA OTHR

Call id table

ADD CHNG QUIT

Ph:

RETRY OK

Destination

TABLE EXT OTHR

Call id table

ADD CHNG QUIT

56 Chapter 5 Setting up the Automated Attendant

P0919416 03

To change or delete a phone number in the CLID Routing Table

1Press ≤·°‹.

Enter the System Administrator Mailbox number and password,

and then press OK.

2Enter ⁄⁄.

3Press CHNG.

4Enter the phone number you want to change or delete and press OK.

5Press CHNG and follow the display prompts to change the phone

number.

Each phone number assigned to the CLID Routing Table must be

unique

press NEXT to view the next phone number in the table.

press OTHR to delete a phone number and go to step 6.

6Press DEL to delete the phone number from the table.

7Press ® to end the session.

Log:

QUIT RETRY OK

Admin

MBOX AA OTHR

Call id table

ADD CHNG QUIT

Ph:

RETRY OK

Ph:XXXXXX

CHNG NEXT OTHR

Ph:XXXXXX

DEL PH QUIT

CallPilot 150 Telephone Administration Guide

Chapter 6

Custom Call Routing

About Custom Call Routing

With Custom Call Routing (CCR) you can replace Automated Attendant menus with a CCR Tree

that offers callers additional choices. Callers who reach a CCR Tree hear the CCR Home node

immediately after the Company Greeting.

CCR Trees contain paths that callers navigate using their telephone dialpad. By selecting an option

from the prompts callers can:

• hear an Information Message

• leave a message in a mailbox

• transfer to an extension or an external number

• go to a sub-menu

Custom Call Routing overview

To build a CCR Tree you start by creating the options presented in the Home node. You can include

up to eight options in the Home node. You record a prompt that informs callers of the Home node

options. You can build up to eight CCR Trees. After you build a CCR Tree you must assign it to a

Greeting Table.

Automated Attendant

answers

Receptionist

Company Greeting

plays

Custom Call Routing

Home node options play

Automated Attendant

menu options play

Incoming call

58 Chapter 6 Custom Call Routing

P0919416 03

Planning and designing a CCR Tree

To plan and design a CCR Tree you:

• determine the frequently-called departments and extensions that you can include in a CCR

Tree

• make a list of the goods and services you want to mention in Information messages

• create the mailboxes that you will add to a CCR Tree for callers to leave messages in

• determine destination types

• record the prompts and messages

By default, a caller can press · to hear prompts in an alternate language, or ‚ to reach an

operator. Tell callers about these options as part of the Home node prompt.

Components of a CCR Tree

The Home node

After the Company Greeting, a caller hears the Home node. The Home node is the “top” of the

CCR Tree. When a caller selects an option from the Home node, they can access a sub-menu, leave

a message, transfer to an extension or an external number, or play an Information Message. A

Home node can offer up to eight options. By default, 0 is reserved for reaching the Operator, and 9

offers the menu in the alternate language. A menu is a prompt that you record that presents a caller

with a list of up to eight options.

The Home node is on Level 0. As sub-menus are added to one another, the caller progresses

through the levels of the CCR Tree. You can create up to 11 levels (from 0 to 10).

An example of a Home node

For an example of Paths through a CCR Tree, refer to “An example of a CCR Tree” on page 61.

Company Greeting

This is Ideal Office Machines. Our business hours are from

9:00 a.m. to 5:00 p.m. Monday to Friday.

The call is forwarded to the destination the caller chooses.

Home node

To place an order, press

⁄.

To add your name to our mailing list, press ¤.

To reach our Sales Department, press ‹.

To speak with our Support Office, press ›.

To speak with our receptionist, press ‚

Chapter 6 Custom Call Routing 59

CallPilot 150 Telephone Administration Guide

Information Messages

An Information Message is a message you record to tell callers about information about goods or

services available from your company. You can tell callers about information such as sales,

specials, company events, business hours, price lists, and shipping times. For example:

We’re pleased to announce the arrival of the new FaxEasy line of fax machines. FaxEasy is easy to

operate and produces top quality fax images at an affordable price.

You must create an Information mailbox before you can add it to a CCR Tree.

The Home node can be an Information Message

You can program the Home node to play an Information Message. For example:

Come celebrate with us! It’s time for Ideal Office Machines’ annual get-to-know-our-customers

picnic. The annual picnic is on the first Sunday of August from 1:00 to 5:00 p.m. in Thompson

Park. See you there.

If the Home node is an Information Message, the caller disconnects at the end of the message. You

cannot specify another destination. For information on destination types refer to “Destination

types” on page 60.

Using an alternate language for the Home node prompt

If you record an alternate language Home node prompt, you must tell callers about the alternate

language option. In the primary language Home node prompt tell callers to press · if they want

to hear the message in the alternate language. For example:

To hear this message in [the alternate language], press ·. To place an order press

⁄. To add

your name to our mailing list press ¤. To reach our sales department press ‹. To speak with the

receptionist press ‚.

Sub-menus

A sub-menu is any menu that callers hear after the Home node. Sub-menus can lead to other

sub-menus.

A sub-menu is a prompt that provides callers with another list of options. For example, from the

Home node a caller can press ‹to reach the Sales department and hear the sub-menu options:

To place an order press

⁄. To add your name to our mailing list, press ¤. To speak with a

Customer Service Representative press ‹. To speak with the receptionist press ‚.

60 Chapter 6 Custom Call Routing

P0919416 03

Mailbox nodes

You can create Mailbox nodes to give callers a mailbox where they can leave a message.

For example:

You have reached the Ideal Office Machines Order Desk mailbox. After the tone, leave your name,

address, telephone number, and the number of the item you want to order. Thank you.

Transfer nodes

You can create Transfer nodes to transfer callers to an extension or an external number.

Destination types

The destination is where callers go after they listen to an Information Message or leave a message

in a mailbox. Each Information Message and Mailbox node must have a destination:

• Previous: returns the caller to the previous menu

• Home: returns the caller to the Home node

• Disconnect: disconnects the caller

You can assign destinations only to Information and Mailbox nodes. To see an example of how to

use destinations in a CCR Tree, refer to “An example of a CCR Tree” on page 61.

Paths

A Path can be a series of menus, Information Messages, Mailboxes or Transfers. A Path number is

the digit that callers press to go to the next level in a CCR Tree. For an example of how to use Paths

to route callers through a CCR Tree, refer to “An example of a CCR Tree” on page 61.

Chapter 6 Custom Call Routing 61

CallPilot 150 Telephone Administration Guide

An example of a CCR Tree

Mailbox

To be included on

our mailing list leave

your name and

address after the

tone.

Destination: PREV

Sub-menu

To place an order press ⁄

To speak to the order desk

press ¤

Sub-menu

To leave an order

request press ⁄

To speak to the sales

manager press ¤

To hear about our

sales contest press

‹

Transfer

Transfers the call to

the Service

department.

Home node

To place an order press ⁄

To add your name to our mailing list press ¤

To speak to our sales department press ‹

To speak to our service department press ›

To speak to our receptionist press ‚

Information

message

Our weekly

specials are...

Destination:

Transfer

Transfers the call to

the order desk.

Mailbox

Leave your contact

information and a

sales person will

contact you.

Destination: DISC

Transfer

Transfers the call to

the order desk.

Information

message

Ideal Office

Machines is having

a sales contest...

⁄¤⁄¤‹

‹

⁄›

62 Chapter 6 Custom Call Routing

P0919416 03

CallPilot 150 Telephone Administration Guide

Chapter 7

Working with CCR Trees

Building a CCR Tree

To build a CCR Tree

1Create the Home node. The Home node can be either a Menu node or an Information node.

If the Home node is an Information node:

• record an Information message

If the Home node is a Menu node:

• create the sub-nodes. The sub-nodes can be:

— Menu sub-nodes

— Information nodes

— Mailbox nodes

— Transfer nodes

2Assign the CCR Tree to a Greeting Table.

You can assign a CCR Tree for each time of day.

3Test the CCR Tree

Note: To minimize the potential of service disruptions, avoid working on CCR

Trees during periods of peak activity. Callers can experience answering delays

while you are working on a CCR Tree.

64 Chapter 7 Working with CCR Trees

P0919416 03

Creating a Home node

Begin to build a CCR Tree by creating a Home node. Create a Home menu node if you want to

give callers a list of options. Create an Information message Home node if you want callers to

disconnect after they hear the Information message.

To create a Home node

1Press ≤·°‹.

Enter the System Administrator Mailbox number and password,

and then press OK.

2Press OTHR.

3Press CCR.

4Press ADMIN.

5Enter a Tree number from 1 to 8 and press OK.

6Press BUILD.

7Pick up the handset and press REC.

8At the tone, record your Home Menu or Information message and

press OK to end the recording.

Do not replace the handset.

9If you want to listen your recording, press PLAY

if you want to accept your recording, press OK.

10 Press END.

11 Press SAVE.

12 Press YES.

13 This display appears briefly.

14 Press ® to end the session.

Log:

QUIT RETRY OK

Admin

MBOX AA OTHR

Admin

GLIST CCR

CCR Admin

ADMIN

CCR tree:

RETRY OK

New tree: x

BUILD QUIT

0 Home/Menu

REC OTHR OK

Rec pri prompt:

RETRY OK

Accept prompt?

RETRY PLAY OK

Path:

RETRY END OK

Tree: x

SAVE PRINT QUIT

Save as tree x

YES OTHR QUIT

Tree saved

CCR Admin

ADMIN

Chapter 7 Working with CCR Trees 65

CallPilot 150 Telephone Administration Guide

Adding nodes to the Home node

If you create a CCR Tree with a Home menu node, and you have more choices than you can

conveniently fit in the Home menu, you can create sub-nodes. To create sub-node menus, add a

Menu node to your Home menu node.

If the Home node is an Information node, you cannot add a sub-node and the call disconnects

automatically after the Information message plays.

After you determine how many options to offer in a menu, you must determine where each option

directs the caller.

After you assign a Menu sub-node, create another set of nodes in the next level of the tree. The

nodes can be another Menu node, an Information node, a Transfer node or a Mailbox node. You

can assign up to eight nodes to each menu.

A Menu sub-node gives callers single-digit access to another list of options. For example, if your

Home node menu is:

To place an order press ⁄. To add your name to our mailing list press ¤. To reach our sales

department press ‹. To speak with our attendant press ‚.

Callers can press ⁄ to hear more options, such as:

To hear our weekly specials press ⁄. To speak with the Order Desk press ¤.

66 Chapter 7 Working with CCR Trees

P0919416 03

Adding a Menu node

Create a Menu node to organize choices for your callers, or when you have more choices than can

fit on one menu. You can add a menu node to a CCR Tree at any time.

To add a Menu node

1Press ≤·°‹.

Enter the System Administrator Mailbox number and password,

and then press OK.

2Press OTHR.

3Press CCR.

4Press ADMIN.

5Enter the number of the CCR Tree you want to add a Menu node to

and press OK.

6If you have assigned the CCR Tree to a Greeting Table this display

appears briefly.

7Press CHNG,

8Enter the Path number and press OK.

For example, to create a Menu node on the second level of the CCR

Tree, enter ⁄⁄. The first 1 is the path of the first level Menu

node. The second digit is the path where you want to create the new

Menu node.

9Press MENU.

10 Pick up the handset and press REC.

At the tone, record the prompt.

11 Press OK to end the recording. Do not hang up the handset.

12 Press OK to accept the recording

if you want to re-record your message, press RETRY

13 Press NO if you do not want to record an alternate prompt

press YES to record an alternate prompt.

Log:

QUIT RETRY OK

Admin

MBOX AA OTHR

Admin

GLIST CCR

CCR Admin

ADMIN

CCR tree:

RETRY OK

Tree enabled

Tree: x

CHNG QUIT

Path:

RETRY END OK

MENU INFO OTHR

Primary prompt

REC

Rec pri prompt:

RETRY OK

Accept prompt?

RETRY PLAY OK

Rec alt prompt?

YES NO

Chapter 7 Working with CCR Trees 67

CallPilot 150 Telephone Administration Guide

14 Press END.

15 Press SAVE.

16 Press YES.

17 This display appears briefly.

18 Press ® to end the session.

Path:

RETRY END OK

Tree: x

SAVE PRINT QUIT

Save as tree x

YES OTHR QUIT

Tree saved

CCR Admin

ADMIN

68 Chapter 7 Working with CCR Trees

P0919416 03

Adding an Information node

An Information node is an Information mailbox that you add to a CCR Tree. You can use an

Information mailbox to give callers information such as specials, company events, business hours

or price lists. You can add an Information node to a CCR Tree at any time.

To add an Information node

1Press ≤·°‹.

Enter the System Administrator Mailbox number and password,

and then press OK.

2Press OTHR.

3Press CCR.

4Press ADMIN.

5Enter the number of the CCR Tree you want to add an Information

node to and press OK.

6Press CHNG,

7Enter the Path number and press OK.

For example, to create an Information node on the second level of a

CCR Tree, enter ⁄⁄. The first 1 is the path of the first level

Menu node. The second digit is the path where you want to create

the Information node.

8Press INFO.

9Pick up the handset and press REC.

At the tone, record your Information mailbox message.

10 Press OK to end your recording.

Do not replace the handset.

11 Press OK to accept the recording

press RETRY to re-record the message.

12 Press NO if you do not want to record an alternate prompt

press YES to record an alternate prompt.

Log:

QUIT RETRY OK

Admin

MBOX AA OTHR

Admin

GLIST CCR

CCR Admin

ADMIN

CCR tree:

RETRY OK

Tree: x

CHNG QUIT

Path:

RETRY END OK

MENU INFO OTHR

Primary message

REC

Rec pri message:

RETRY PLAY OK

Accept message?

RETRY PLAY OK

Rec alt prompt?

YES NO

Chapter 7 Working with CCR Trees 69

CallPilot 150 Telephone Administration Guide

13 Select a destination:

press PREV if you want to return the caller to the previous menu

press HOME if you want to return the caller to the Home node

press DISC if you want to disconnect the call.

For more information on destinations refer to “Destination types” on

page 60.

14 Press END.

15 Press SAVE.

16 Press YES.

17 This display appears briefly.

18 Press ® to end the session.

Destination?

PREV HOME DISC

Path:

RETRY END OK

Tree: x

SAVE QUIT

Save as tree x

YES OTHR QUIT

Tree saved

CCR Admin

ADMIN

70 Chapter 7 Working with CCR Trees

P0919416 03

Adding a Mailbox node

Adding a mailbox node gives callers a mailbox where they can leave a message or listen to an

Information message, depending on the mailbox type. You create a Mailbox node by giving it a

Path number and assigning a mailbox number. You can add a Mailbox node to a CCR Tree at any

time.

A mailbox cannot receive messages until it is initialized. For information on initializing mailboxes,

see “Initializing a mailbox” on page 24.

To add a Mailbox node

1Press ≤·°‹.

Enter the System Administrator Mailbox number and password,

and then press OK.

2Press OTHR.

3Press CCR.

4Press ADMIN.

5Enter the number of the CCR Tree you want to add a Mailbox node

to and press OK.

6Press CHNG,

7Enter the Path number and press OK.

For example, to create a Mailbox node on the second level of a CCR

Tree, enter ⁄⁄. The first 1 is the path of the first level Menu

node. The second digit is the path where you want to create the

Mailbox node.

8Press OTHR.

9Press LVMSG.

10 Enter the mailbox number

press DIR to access the Company Directory.

Log:

QUIT RETRY OK

Admin

MBOX AA OTHR

Admin

GLIST CCR

CCR Admin

ADMIN

CCR tree:

RETRY OK

Tree: x

CHNG PRINT QUIT

Path:

RETRY END OK

MENU INFO OTHR

XFER LVMSG OTHR

Mbox:

DIR QUIT

Chapter 7 Working with CCR Trees 71

CallPilot 150 Telephone Administration Guide

11 Select a destination:

press PREV if you want to return the caller to the previous menu

press HOME if you want to return the caller to the Home node

press DISC if you want to disconnect the call.

For more information on destinations refer to “Destination types” on

page 60.

12 Press END.

13 Press SAVE.

14 Press YES.

15 This display appears briefly.

16 Press ® to end the session.

Destination?

PREV HOME DISC

Path:

RETRY END OK

Tree: x

SAVE QUIT

Save as tree x

YES OTHR QUIT

Tree saved

CCR Admin

ADMIN

72 Chapter 7 Working with CCR Trees

P0919416 03

Adding a Transfer node

A Transfer node directs a caller to an internal or an external number. You can add a Transfer node

to a CCR Tree at any time.

To add a Transfer to an internal extension

1Press ≤·°‹.

Enter the System Administrator Mailbox number and password,

and then press OK.

2Press OTHR.

3Press CCR.

4Press ADMIN.

5Enter the number of the CCR Tree you want to add a Transfer node

to and press OK.

6Press CHNG,

7Enter the Path number and press OK.

For example, to create a Transfer node on the second level of a CCR

Tree, enter ⁄⁄. The first 1 is the path of the first level Menu

node. The second digit is the path where you want to create the

Transfer node.

8Press OTHR.

9Press XFER.

10 Press INT.

11 Enter the extension.

12 Press END.

13 Press SAVE.

14 Press YES.

15 This display appears briefly.

Log:

QUIT RETRY OK

Admin

MBOX AA OTHR

Admin

GLIST CCR

CCR Admin

ADMIN

CCR tree:

RETRY OK

Tree: x

CHNG QUIT

Path:

RETRY END OK

MENU INFO OTHR

XFER LVMSG OTHR

Transfer

EXT INT

Ext:

RETRY OK

Path:

RETRY END OK

Tree: x

SAVE QUIT

Save as tree x

YES OTHR QUIT

Tree saved

Chapter 7 Working with CCR Trees 73

CallPilot 150 Telephone Administration Guide

About transfers to external numbers

When CallPilot transfers a call using a CCR external transfer, it uses two lines. An incoming line

connects the caller to the CCR Tree and an outgoing line transfers the caller to the external

telephone number. Both lines are used while the caller connects to the external telephone number.

To optimize the use of external lines, the incoming line can be used to make the external transfer.

This type of transfer is called a Link transfer.

Not all phone lines allow Link transfers. Ask your telephone service provider if your lines support

Link transfers before you program CallPilot to use Link transfers.

To perform a Link transfer for a CCR external transfer you must press £ before the telephone

number. For example, for the telephone number:

£ﬁﬁﬁ⁄¤‹›

ﬁﬁﬁ⁄¤‹› is the telephone number dialed

For information on preventing unauthorized calls using outdial, refer to “Outdial route” on page 21.

To add a Transfer to an external number

16 Press ® to end the session.

1Press ≤·°‹.

Enter the System Administrator Mailbox number and password,

and then press OK.

2Press OTHR.

3Press CCR.

4Press ADMIN.

5Enter the number of the CCR Tree you want to add a Transfer node

to and press OK.

6Press CHNG,

7Enter the Path number and press OK.

For example, to create a Transfer node on the second level of a CCR

Tree, enter ⁄⁄. The first 1 is the path of the first level Menu

node. The second digit is the path where you want to create the

Transfer node.

CCR Admin

ADMIN

Log:

QUIT RETRY OK

Admin

MBOX AA OTHR

Admin

GLIST CCR

CCR Admin

ADMIN

CCR tree:

RETRY OK

Tree: x

CHNG QUIT

Path:

RETRY END OK

74 Chapter 7 Working with CCR Trees

P0919416 03

8Press OTHR.

9Press XFER.

10 Press EXT.

11 Press NEXT if you want to use a line as the outdialing method

press CHNG if you want to select a line within a line pool.

Press CHNG again if you want to select a route.

12 Enter the line or pool number and press OK.

Although line pools are labeled by a letter such as A, B, or C, the

system accepts only numbers such as 1, 2, or 3. When you enter a

line pool use 1 for A, 2 for B, 3 for C, and so on.

13 Press OK to accept the line or pool number.

14 Enter a destination telephone number up to 30 digits and press OK.

15 Press OK to accept the destination phone number

press ADD to add more digits.

Refer to “Adding special characters to an external transfer number”

on page 75 for more information.

16 Press END.

17 Press SAVE.

18 Press YES.

19 This display appears briefly.

20 Press ® to end the session.

MENU INFO OTHR

XFER LVMSG OTHR

Transfer

EXT INT

Outdial: <line>

CHNG NEXT

xxxx:

RETRY OK

Accept: x

RETRY OK

Ph:

RETRY OK

xxxxxxx

ADD OK

Path:

RETRY END OK

Tree: x

SAVE PRINT QUIT

Save as tree x

YES OTHR QUIT

Tree saved

CCR Admin

ADMIN

Chapter 7 Working with CCR Trees 75

CallPilot 150 Telephone Administration Guide

Adding special characters to an external transfer number

Special characters are pauses or other dialing instructions that you can add if they are required to

access the network or a destination number.

Adding special characters to a destination number

Press Description

¤ or DI G S to resume adding digits to the destination phone number.

‹or PAUS to enter a timed pause that appears as P on the display. Pauses are four seconds long.

You can press PAUS again to enter another four second pause.

›to recognize dial tone (behind PBX). The Recognize Dial Tone special character

appears as D on the display.

ﬁor OTHR #to enter a #.

ﬂor OTHR *to enter a *.

OTHR then TONE to recognize dial tone (behind PBX). The Recognize Dial Tone special character

appears as D on the display.

•to cancel and retry.

76 Chapter 7 Working with CCR Trees

P0919416 03

Assigning a CCR Tree to a Greeting Table

Before incoming callers can access a CCR Tree, you must assign lines to a Greeting Table.

For information about assigning lines to Greeting Tables, refer to “Configuring line answering” on

page 49.

To assign a CCR Tree to a Greeting Table

1Press ≤·°‹.

Enter the System Administrator Mailbox number and password,

and then press OK.

2Press AA.

3Press TABLE.

4Enter the Greeting Table number and press OK.

5Press OK.

6Press NEXT until you see this display.

7Press CHNG if you want to assign a CCR Tree to the Greeting Table

for the morning

press NEXT if you do not want to assign a CCR Tree and go to step

11.

8Enter the number of the CCR Tree that you want to assign to the

Greeting Table for the morning.

9This display appears briefly.

10 Press NEXT if you want to assign afternoon, evening and

non-business CCR Trees to the Greeting Table

press ® to end the session.

Log:

QUIT RETRY OK

Admin

MBOX AA OTHR

Auto Atdt Admin

GRTG TABLE LINES

Grtg table:

RETRY OK

AA menu prompt:Y

CHNG OK

Morn CCR tree: NO

CHNG OK

Morn CCR tree: NO

CHNG NEXT

Morn CCR tree:

DISABLE

Tree enabled

Morn CCR tree: x

CHNG NEXT

Chapter 7 Working with CCR Trees 77

CallPilot 150 Telephone Administration Guide

Testing a CCR Tree

After you a build a CCR Tree and assign it to a Greeting Table, test the CCR Tree. To test the CCR

Tree, call the company number and test each node.

Check that:

• the Home node routes the call as designated

• each transfer routes the caller to the intended destination

• each prompt has correct information

• messages are courteous and easy to understand

Disabling a CCR Tree

Before you make any changes to a CCR Tree you must ensure service is not disrupted by removing

any references to the CCR Tree from the Greeting Tables and the CLID Routing Table.

To disable a Tree

1Press ≤·°‹.

Enter the System Administrator Mailbox number and password,

and then press OK.

2Press AA.

3Press TABLE.

4Enter the Greeting Table number and press OK twice.

5Press NEXT until the display shows:

6Press CHNG if you want to disable the morning CCR Tree

press NEXT until the CCR Tree you want to disable is displayed.

7Press DISABLE.

8This display appears briefly.

9Press ® to end the session.

Log:

QUIT RETRY OK

Admin

MBOX AA OTHR

Auto Atdt Admin

GRTG TABLE LINES

Grtg table:

RETRY OK

Morning:1

CHNG PLAY NEXT

Morn CCR tree: x

CHNG NEXT

Morn CCR tree:

DISABLE

Tree disabl ed

78 Chapter 7 Working with CCR Trees

P0919416 03

Deleting a CCR Tree

You must disable a CCR Tree before you delete it. For information about disabling a Tree, refer to

“Disabling a CCR Tree” on page 77.

To delete a Tree

1Press ≤·°‹.

Enter the System Administrator Mailbox number and password,

and then press OK.

2Press OTHR.

3Press CCR.

4Press ADMIN.

5Enter the number of the CCR Tree you want to delete and press OK.

6Press °.

7Press YES.

8This display appears briefly.

9Press ® to end the session.

Log:

QUIT RETRY OK

Admin

MBOX AA OTHR

Admin

GLIST CCR OTHR

CCR Admin

ADMIN

CCR tree:

RETRY OK

Tree: x

CHNG QUIT

Delete tree x?

YES NO

Tree deleted

CCR Admin

ADMIN

Chapter 7 Working with CCR Trees 79

CallPilot 150 Telephone Administration Guide

Changing a CCR Tree message

Use this procedure to change the recorded message for a Menu or an Information node.

1Press ≤·°‹.

Enter the System Administrator Mailbox number and password,

and then press OK.

2Press OTHR.

3Press CCR.

4Press ADMIN.

5Enter the number of the CCR Tree that you want to change and press

OK.

6Press CHNG.

7Enter the Path of the node you want to change and press OK.

8Press CHNG.

9Lift the handset and press REC. Do not use handsfree.

At the tone, record the primary language menu.

10 Press OK to end your recording.

11 Press OK to accept your recording.

12 Press NO if you do not want to record an alternate message

press YES to record an alternate message.

13 Press END.

14 Press SAVE.

15 Press YES.

16 This display appears briefly.

17 Press ® to end the session.

Log:

QUIT RETRY OK

Admin

MBOX AA OTHR

Admin

GLIST CCR

CCR Admin

ADMIN

CCR tree:

RETRY OK

Tree: x

CHNG PRINT QUIT

Path:

RETRY END OK

x xxxx

CHNG ERASE OK

Primary rec?

REC PLAY NEXT

Rec pri prompt:

RETRY OK

Accept prompt?

RETRY PLAY OK

Alternate rec?

YES NO

Path:

RETRY END OK

Tree: x

SAVE PRINT QUIT

Save as tree x

YES OTHR QUIT

Tree saved

CCR Admin

ADMIN

80 Chapter 7 Working with CCR Trees

P0919416 03

Changing a Mailbox node

To change a Mailbox node

1Press ≤·°‹.

Enter the System Administrator Mailbox number and password,

and then press OK.

2Press OTHR.

3Press CCR.

4Press ADMIN.

5Enter the number of the CCR Tree that you want to change and press

OK.

6Press CHNG.

7Enter the Path of the node you want to change and press OK.

8Press CHNG.

9Press CHNG.

10 Enter the new mailbox number.

Make sure the mailbox is initialized before you assign it to a CCR

Tree.

11 Press OK if you want to accept the assigned destination type

press CHNG and assign a new destination type.

12 Press END.

13 Press SAVE.

14 Press YES.

15 This display appears briefly.

16 Press ® to end the session.

Log:

QUIT RETRY OK

Admin

MBOX AA OTHR

Admin

GLIST CCR

CCR Admin

ADMIN

CCR tree:

RETRY OK

Tree: x

CHNG QUIT

Path:

RETRY END OK

x LvMsg

CHNG ERASE OK

Mbox: xx

CHNG NEXT

Mbox:

DIR QUIT

Dest: <xxxx>

CHNG OK

Path:

RETRY END OK

Tree: x

SAVE PRINT QUIT

Save as tree x

YES OTHR QUIT

Tree saved

CCR Admin

ADMIN

Chapter 7 Working with CCR Trees 81

CallPilot 150 Telephone Administration Guide

Changing a destination type

You can assign destination types only to Information and Mailbox nodes. For more information

about destination types, refer to “Destination types” on page 60.

To change a destination type

1Press ≤·°‹.

Enter the System Administrator Mailbox number and password,

and then press OK.

2Press OTHR.

3Press CCR.

4Press ADMIN.

5Enter the number of the CCR Tree that you want to change and

press OK.

6Press CHNG.

7Enter the Path number of the node you want to change and press OK.

8Press CHNG.

The display shows Info if you are changing an Information node.

9Press NEXT.

10 Press CHNG.

11 Change the destination type:

press PREV return the caller to the previous menu

press HOME to return the caller to the Home node

press DISC to disconnect the call.

12 Press OK.

13 Press END.

14 Press SAVE.

15 Press YES.

Log:

QUIT RETRY OK

Admin

MBOX AA OTHR

Admin

GLIST CCR

CCR Admin

ADMIN

CCR tree:

RETRY OK

Tree: x

CHNG QUIT

Path:

RETRY END OK

x xxx

CHNG ERASE OK

Mbox: xx

CHNG NEXT

Dest: xxxx

CHNG OK

Destination?

PREV HOME DISC

Dest: xxxx

CHNG OK

Path:

RETRY END OK

Tree: x

SAVE QUIT

Save as tree x

YES OTHR QUIT

82 Chapter 7 Working with CCR Trees

P0919416 03

Changing a Transfer node

To change a Transfer node

16 This display appears briefly.

17 Press ® to end the session.

1Press ≤·°‹.

Enter the System Administrator Mailbox number and password,

and then press OK.

2Press OTHR.

3Press CCR.

4Press ADMIN.

5Enter the number of the CCR Tree that you want to change and

press OK.

6Press CHNG.

7Enter the Path number of the node you want to change and press OK.

8Press CHNG.

9Press CHNG.

10 Press INT if you are changing an internal extension

press EXT if you are changing an external extension.

11 Enter the new extension number you want to transfer to and press

NEXT.

12 Press END.

13 Press SAVE.

14 Press YES.

Tree saved

CCR Admin

ADMIN

Log:

QUIT RETRY OK

Admin

MBOX AA OTHR

Admin

GLIST CCR

CCR Admin

ADMIN

CCR tree:

RETRY OK

Tree: x

CHNG QUIT

Path:

RETRY END OK

x Xfer

CHNG ERASE OK

Ext: xx

CHNG NEXT

Transfer

EXT INT

Ext:

CHNG NEXT

Path:

RETRY END OK

Tree: x

SAVE QUIT

Save as tree x

YES OTHR QUIT

Chapter 7 Working with CCR Trees 83

CallPilot 150 Telephone Administration Guide

Deleting a Path

If you delete a Path, all messages, prompts, and options on the Path are also erased. After you

delete a Path you cannot recover it.

To delete a Path

15 This display appears briefly.

16 Press ® to end the session.

1Press ≤·°‹.

Enter the System Administrator Mailbox number and password,

and then press OK.

2Press OTHR.

3Press CCR.

4Press ADMIN.

5Enter the number of the CCR Tree that you want to change and

press OK.

6Press CHNG.

7Enter the Path number you want to delete and press OK.

8Press ERASE.

9Press YES.

10 This display appears briefly.

11 Press END.

12 Press SAVE.

13 Press YES.

14 This display appears briefly.

Tree saved

CCR Admin

ADMIN

Log:

QUIT RETRY OK

Admin

MBOX AA OTHR

Admin

GLIST CCR

CCR Admin

ADMIN

CCR tree:

RETRY OK

Tree: x

CHNG QUIT

Path:

RETRY END OK

x xxx

CHNG ERASE OK

Erase path?

YES NO

Path erased

Path:

RETRY END OK

Tree: x

SAVE QUIT

Save as tree x

YES OTHR QUIT

Tree saved

84 Chapter 7 Working with CCR Trees

P0919416 03

15 Press ® to end the session.

CCR Admin

ADMIN

CallPilot 150 Telephone Administration Guide

Chapter 8

Broadcast and Information messages

About Broadcast messages

You can send Broadcast messages if you need to send a message to every initialized mailbox on

your phone system. Broadcast messages play on all mailboxes initialized with CallPilot. You can

send a Broadcast message to announce meetings, special company events, and reminders. Sending

a Broadcast message eliminates recording and sending the same message several times. You can

change the Broadcast message address.

As the System Administrator, you are the only person who can send Broadcast messages.

In order to send a Broadcast message, you must know the Broadcast message address.

• If you use the CallPilot interface ·‚‚ is the default Broadcast message address

• If you use the Norstar Voice Mail interface · is the default Broadcast message address

To send a Broadcast message you must follow the procedures that apply to the interface you use.

For information about checking what interface you use refer to the CallPilot Reference Guide.

To record and send a Broadcast message - Norstar Voice Mail

Note: Broadcast messages are not sent to Information or General Delivery mailboxes.

1Press ≤·°⁄.

If you are recording a Broadcast message from a set that has a

mailbox, press OTHR.

2Enter the System Administrator Mailbox number and password.

3Enter the Broadcast message address.

· is the default Broadcast message address.

4At the tone, record your Broadcast message and

press OK to end your recording.

Log:

QUIT RETRY OK

0 new 0 saved

PLAY REC ADMIN

Record message:

RETRY PAUSE OK

86 Chapter 8 Broadcast and Information messages

P0919416 03

To record and send a Broadcast message - CallPilot

5Press PLAY to listen to your Broadcast message before sending it

press OK to accept your recording

to press RETRY to re-record your Broadcast message.

Your message is delivered to all initialized mailboxes

press ® or • to cancel sending the Broadcast message.

6Press ® to end the session.

1Press ≤·°⁄.

2Enter the System Administrator mailbox number and

press OK or £.

3Enter the System Administrator mailbox password and

press OK or £.

A mailbox summary is announced.

4Press COMP or ‡ﬁ to enter the Compose Message option.

5Enter the Broadcast message address and press OK or £.

·‚‚ is the default Broadcast message address.

The Broadcast message address changes if you change the

Group List leading digit.

6Press REC or ﬁ and record the Broadcast message at the tone.

7Press OK or £ to end your recording

press REREC to erase and re-record the Broadcast message.

8Press PLAY or ¤ to listen to your message

press SEND or ‡· to send the Broadcast message

press DEL or ‡ﬂ to erase and re-record the Broadcast

message.

9Press ® to end the session.

Accept rec?

RETRY PLAY OK

Mbox:

RETRY OK

Pswd:

RETRY OK

To:

NAME SPEC DONE

EMPTY

REC

Recording...

REREC OK

Rec stopped

PLAY DEL SEND

Chapter 8 Broadcast and Information messages 87

CallPilot 150 Telephone Administration Guide

Information mailbox messages

Your business or departments within your business can use Information mailboxes to provide

callers with messages and announcements. You or another person responsible for the Information

mailbox can record and update the Information mailbox message.

You can use Information mailbox messages to:

• announce sales

• provide product lists

• announce special events

Make it easy for callers to access Information mailbox messages by mentioning the Information

mailbox in the Automated Attendant, or by asking the operator to route enquiries to the

Information mailbox.

Callers cannot leave messages in an Information mailbox. Callers automatically disconnect after

they listen to an Information mailbox message.

About recording an Information mailbox message

Before you record an Information mailbox message, you must determine what the message

includes. As you prepare the message, be sure to include important times and dates.

For example: “Paddy’s Dance Studio proudly presents an extravaganza of dance. The

entertainment begins at 8:00 pm on the fourth of July. Toddlers tap is in the White Room. Folk

dance is in the Green Room. Classical ballet is in the Pink Room. Contemporary jazz is in the Blue

Room. The studio and recital rooms are located at 222 Main Street.”

Write the message down and practice reading it aloud. When you are confident the message

includes everything you want it to, record the message. If you use a phone system with bilingual

capability, you must record the Information mailbox message in both languages.

An Information mailbox message can be either a Primary or an Alternate mailbox greeting.

Use the procedure “Recording an Information mailbox message” on page 88 to record an

Information mailbox message.

The messages you record must be longer than three seconds. The system times out after five

seconds of silence.

88 Chapter 8 Broadcast and Information messages

P0919416 03

Recording an Information mailbox message

To record an Information mailbox message you must follow the procedures that apply to the

interface you use. For information about checking what interface you use refer to the CallPilot

Reference Guide.

To record an Information mailbox message

1Press ≤·°⁄.

Follow the voice prompts or the display button options to open the

Information mailbox. Do not enter your mailbox number or

password. Enter the mailbox number and password of the

Information mailbox.

2If you use the CallPilot interface:

•Press °¤ to open the Greetings Options menu

• Go to step 3

If you use the Norstar Voice Mail interface:

•Press ADMIN or °

•Press GREET or ¤

• Go to step 3

3Press REC or ⁄.

4Press PRIME or ⁄ to record the Primary Information mailbox

message

press ALT or ¤ to record the Alternate Information mailbox

message.

5Press YES or ⁄ and record the message at the tone.

6Press OK or £ to end the recording.

7Press OK or £ to accept the recording

press PLAY or ⁄ to listen to the greeting

press RETRY or ¤ to rerecord the greeting.

8Press ® to end the session.

Greeting options

REC CHOOSE CFWD

Greeting options

REC CHOOSE CFWD

Record now?

YES NO QUIT

Record greeting:

RETRY OK

Accept greeting?

RETRY PLAY OK

CallPilot 150 Telephone Administration Guide

Chapter 9

CallPilot operations

You must reset the CallPilot system if you:

• change the type of phone system you use

• change the extension number length

About resetting CallPilot

To reset CallPilot

Warning:

Resetting CallPilot erases all Company Greetings, Greeting Tables and mailbox

information, including mailbox messages. After you reset CallPilot you must

immediately initialize CallPilot.

1Press ≤·°‹.

Enter the System Administrator Mailbox number and password,

and then press OK.

If you reset CallPilot before you do the initial setup, enter the default

password 0000.

2Press ⁄.

This option does not appear as a display button option.

3Enter ‡‹›ﬂ‡°¤ﬁﬁ (Reinstall)

and press OK.

To keep your system secure, keep this password secret.

4Press YES.

5As CallPilot resets the display shows: Resetting …

6After the system reboots, the display shows the time and date.

The CallPilot system takes approximately three minutes to reboot.

Log:

QUIT RETRY OK

Admin

MBOX AA OTHR

Pswd:

RETRY OK

Reset database?

YES NO

Resetting...

90 Chapter 9 CallPilot operations

P0919416 03

Initializing CallPilot

You must initialize CallPilot immediately after you reset the system.

To initialize CallPilot

1Press ≤·°‹.

2Enter ¤ﬂﬂ‹›› (Config) and press OK.

3Press NEXT.

4Press YES or NO.

If you do not choose bilingual operation, step 5 does not appear.

5Select a primary language.

6Press CHNG to toggle between Y and N.

Select Y if you want to enable Group Lists.

7Press NEXT.

If you do not enable Group Lists step 11 does not appear and you go

to step 12.

8The default Group List leading digit is 9.

Press CHNG if you want to enter a new Group List leading digit

press NEXT.

9If you want to change the primary interface press CHNG

Press NEXT.

10 Press NEXT.

11 Press CHNG to toggle the setting between Norstar Voice Mail and

CallPilot

and press NEXT.

12 Press OK.

13 The display shows Configuring...

Initialization takes about three seconds.

Log:

QUIT RETRY OK

App: Voicemail

CHNG NEXT

Bilingual?

YES NO

Primary lang?

ENG FRE

Group lists? Y

CHNG NEXT

Group lists? Y

CHNG NEXT

Leading digit: 9

CHNG NEXT

Primary UI: xxx

CHNG NEXT

Primary UI: CP

CHNG NEXT

Primary UI:NVM

CHNG NEXT

System config

RETRY OK

Configuring...

Chapter 9 CallPilot operations 91

CallPilot 150 Telephone Administration Guide

Resetting the System Administrator password

You can reset the System Administrator password if you forget it. This is the password that you

use for administrative functions. The default password is 0000. After you reset the System

Administrator password, you must log on and change the password immediately to prevent a

security breach.

To reset the System Administrator password

14 When the system is initialized, the display shows:

System ready

and

Exit

and then shows the time and date.

1Press ≤·°ﬁ.

2Press ·.

3Press ‡‹‡‹°‡ﬂ‡‡·‹ (Resetsmpswd)

and press OK or £.

4Press YES or £.

System ready

Exit

Set: xxxx

Pswd:

RETRY OK

Reset Password:

YES NO

92 Chapter 9 CallPilot operations

P0919416 03

Operator settings

With the Operator settings you can:

• set the Operator status to On or Off

• change the Operator password

• reset the Operator password

• set the Business Status

• assign CallPilot Line answering

• change Automated Attendant Status

Setting the Operator status

Set the Operator status to Yes when your receptionist or operator is available to respond to callers.

Set the Operator status to No when your receptionist or designated operator goes for a break,

lunch, or leaves in the afternoon.

When the Operator Status is set to No, a caller who requests an Operator is informed the Operator

is not available, and is transferred to the Automated Attendant to dial another extension or leave a

message.

To set the Operator status

1Press ≤·°¤.

2Enter the default operator password ﬂ‡‹‡¤°ﬂ‡

(Operator)

and press OK.

To change the Operator password, see “Changing the Operator

password” on page 93.

3Press CHNG to select Y or N.

4Press ® to end the session.

Pswd:

RETRY OK

Atdt avail: N

CHNG NEXT

Chapter 9 CallPilot operations 93

CallPilot 150 Telephone Administration Guide

Changing the Operator password

You can change the Operator password at any time. It must be between four and eight digits, and

cannot begin with a zero.

To change the Operator password

Resetting the Operator password

You can reset the Operator password if it is forgotten. Resetting the Operator password

resets the Operator password to the default of ﬂ‡‹‡¤°ﬂ‡ (Operator).

1Press ≤·°¤.

2Enter the Operator password, or the default Operator password

ﬂ‡‹‡¤°ﬂ‡ (Operator) and press OK.

3Press ‡.

4Enter a new Operator password between 4 and 8 digits

and press OK.

5Press ® to end the session.

1Press ≤·°ﬁ.

2Press ‡.

3Press ‡‹‡‹°ﬂ‡‹‡‡‡·‹ (Resetoperpswd)

and press OK or £.

4Press YES or £.

Pswd:

RETRY OK

Atdt avail: N

CHNG NEXT

Pswd:

RETRY OK

Atdt avail: N

CHNG NEXT

Set: xxxx

Pswd:

RETRY OK

Reset Password:

YES NO

94 Chapter 9 CallPilot operations

P0919416 03

Changing the Operator default extension

When callers request to speak to your company Receptionist or Operator, CallPilot transfers the

call to the Operator’s extension. You can change the receptionist or designated Operator extension

number. Callers can request to speak to your company receptionist or designated Operator if the

Automated Attendant voice prompt announces the option and the Operator Status is set to Yes.

To change the Operator default extension

Callers who request the Operator are transferred to the new extension. If the Operator does not

answer, the call is transferred to the General Delivery Mailbox.

Setting the Business Status

The Business Status setting overrides the Morning, Afternoon, and Evening Greeting Tables.

If you set the Business Status to Yes, greetings are played according to the time scheduled in the

Greeting Tables. For example, if Business Status is set to Yes, the Morning, Afternoon and

Evening Greetings play automatically according to the start times programmed in the Greeting

Tables.

When the receptionist sets the Business Status to No at the end of the business day or prior to the

weekend, the Non-business hours Greeting plays until the receptionist sets the Business Status to

Yes.

Have the receptionist or designated Operator change the Business Status to Yes in the morning

when your company opens. At the end of the business day, have the Receptionist or designated

Operator set the Business Status to No.

1Press ≤·°¤.

2Enter the Operator password and press OK.

3Press NEXT until you see the display in step 4.

4Press CHNG.

5Enter the Operator extension.

6Press ® to end the session.

Pswd:

RETRY OK

Atdt avail: Y

CHNG NEXT

Atdt: xxx

CHNG OK

Ext:

RETRY QUIT

Atdt: xxx

CHNG NEXT

Chapter 9 CallPilot operations 95

CallPilot 150 Telephone Administration Guide

To set the Business Status

Changing greetings or the Business Status from a remote

telephone

You can change a greeting or the Business Status from the dialpad of external tone dial telephone.

You must do remote administration through the System Administrator Mailbox. For information

about remote administration, refer to the CallPilot Reference Guide.

Setting up line answering

CallPilot can answer all your Central Office (CO) lines included in line configuration. You can

designate whether or not CallPilot answers your company lines. When Answer Lines is enabled,

CallPilot answers the incoming calls and presents each caller with the Company Greeting and the

Automated Attendant menu. When Answer Lines is disabled, CallPilot does not answer incoming

calls. Your receptionist must answer and route incoming calls.

For more information about line configuration, refer to “Configuring line answering” on page 49.

To assign Answer Lines

1Press ≤·°¤.

2Enter the Operator password and press OK.

3Press NEXT.

4Press CHNG to toggle between Y and N.

5Press ® to end the session.

1Press ≤·°¤.

2Enter the Operator password and press OK.

3Press NEXT.

4Press NEXT.

5Press CHNG.

If you set Answer Lines to N the display shows:Disabling...

If you set Answer Lines is set to Y the display shows: Enabling...

6Press ® to end the session.

Pswd:

RETRY OK

Atdt avail: Y

CHNG NEXT

Business open: N

CHNG NEXT

Pswd:

RETRY OK

Atdt aval: N

CHNG NEXT

Business open: N

CHNG NEXT

Answer lines? N

CHNG NEXT

96 Chapter 9 CallPilot operations

P0919416 03

Setting the Automated Attendant status

The Automated Attendant plays after the Company Greeting and after a caller leaves a message in

a mailbox. The Automated Attendant gives callers a list of options such as entering a mailbox

number, accessing the Company Directory or reaching the Operator. You can turn the default

Automated Attendant off at any time and record a customized menu prompt. For more information

about recording customized menu prompts, refer to “About Company Greetings” on page 43.

When the Return to Automated Attendant status is set to No, callers do not have any options after

they leaving a message. Callers hear the voice prompt “Message delivered. Exiting the system,

good-bye”, and the call ends.

You can set the Automated Attendant prompt to No to prevent callers from having lengthy

CallPilot sessions, or if you use CallPilot behind a private exchange system.

To change the Automated Attendant status

1Press ≤·°‹.

2Enter the System Administrator Mailbox number and password,

then press OK.

3Press AA.

4Press GRTG.

5Press AA.

6Press CHNG.

If you select N callers cannot return to the Automated Attendant

Menu prompt after they leave a message.

7Press ® to end the session.

Log:

QUIT RETRY OK

Admin

MBOX AA OTHR

Auto Atdt Admin

GRTG TABLE LINES

Greeting admin

GRTG AA

Return to AA: Y

CHNG NEXT

Chapter 9 CallPilot operations 97

CallPilot 150 Telephone Administration Guide

CallPilot default system options

You can change these default CallPilot system options:

• Language Availability

• Group List leading digit

•Voicemail

• Company Directory

• Outdialing

• General Delivery Mailbox

• Software Keycode Administration

• External Mailbox Initialization

Language availability

You can disable or enable the CallPilot bilingual option that is assigned during installation.

You can change the Primary Language on a bilingual CallPilot system.

If you disable bilingual operation or change the Primary Language choice on a bilingual system

the change affects:

• the language designations for Greetings that are assigned to the Automated Attendant

• voice prompt selections for callers who use the Automated Attendant

• voice prompt selections for callers who transfer to mailbox greetings

To change the language availability and the Primary and

Alternate Languages

1Press ≤·°‹.

Enter the System Administrator mailbox number and password,

and then press OK.

2Press ¤.

This option does not appear as a display button option.

3Press CHNG if you want to toggle the bilingual option between Y

and N.

Steps 4 and 5 appear only if you have the bilingual option enabled.

4Press NEXT if you want to change the primary language.

5Press CHNG to toggle the primary language choices.

In this example, North American English is the primary language.

6Press NEXT.

Log:

QUIT RETRY OK

Admin

MBOX AA OTHR

Bilingual:Y

CHNG NEXT

Bilingual:Y

CHNG NEXT

Prim lang: NAEng

CHNG NEXT

Prim lang: NAEng

CHNG NEXT

98 Chapter 9 CallPilot operations

P0919416 03

Group List leading digit

When CallPilot is installed, a number from 0 to 9 is assigned as the Group List leading digit.

The default Group List leading digit is 9, and 901 to 999 is your range of Group Lists.

You can change the Group List leading digit. If you change the leading digit to 5, the Group List

numbers change to 501 to 599. The Group List numbers are always three digits long.

To change the Group List leading digit

7Press CHNG to toggle the secondary language choices.

In this example, North American Spanish is the secondary

language.

8Press ® to end the session.

Note: You cannot change the Group List leading digit to a number that conflicts with

mailbox numbers. For example, if your company has mailboxes ranging from 500 to 720,

you cannot choose 5, 6 or 7 as the Group List leading digit.

1Press ≤·°‹.

Enter the System Administrator mailbox number and password,

and then press OK.

2Press ¤.

This option does not appear as a display button option.

3Press NEXT.

4Press NEXT.

5Press NEXT.

6Press NEXT.

7Press CHNG.

8Enter the new leading digit and press OK.

9Press ® to end the session.

Sec lang: NASpa

CHNG NEXT

Log:

QUIT RETRY OK

Admin

MBOX AA OTHR

Bilingual:Y

CHNG NEXT

Prim lang: xxx

CHNG NEXT

Sec lang: xxx

CHNG NEXT

Group lists:Y

CHNG NEXT

Leading digit: 9

CHNG NEXT

Leading digit:

RETRY OK

Chapter 9 CallPilot operations 99

CallPilot 150 Telephone Administration Guide

Voicemail

Voicemail is enabled by default. You can disable or re-enable voicemail at any time. When

voicemail is enabled, callers who reach an extension that is not answered or is busy transfer

to the extension’s mailbox.

If you disable voicemail:

• external callers cannot leave a message in a mailbox

• external callers who use the Automated Attendant can still access Information Mailboxes

or press ‚ to reach the Operator

• Subscribers can still record and send messages from their mailbox to other CallPilot mailboxes

• CallPilot users still can leave a message in a mailbox using the Leave Message feature

(≤·°‚)

• CallPilot users still can transfer internal calls to another mailbox using the Voicemail Transfer

feature (≤·°ﬂ)

To enable or disable voicemail

1Press ≤·°‹.

Enter the System Administrator mailbox number and password,

and then press OK.

2Press ›.

This option does not appear as a display button option.

3Press CHNG to toggle between Y and N.

4Press ® to end the session.

Log:

QUIT RETRY OK

Admin

MBOX AA OTHR

Voice Mail:Y

CHNG NEXT

100 Chapter 9 CallPilot operations

P0919416 03

Company Directory

The Company Directory is an internal voice and text list of the names of mailbox owners with

initialized mailboxes who are included in the directory. Callers can use the Company Directory to

search for mailboxes by a recorded or a text name. The Company Directory is enabled by default.

You can set whether callers can search the Company Directory by first name, last name or first and

last names. For example, if a caller enters James, the names Jesse James and James Bond appear if

the Company Directory option specifies both first and last names.

If you disable the Company Directory:

•the DIR button option does not appear on two line display telephones when a subscriber sends

a message from their mailbox or uses the Leave Message feature (≤·°‚)

• the prompt “Press £ to use the Directory” does not play:

• to callers who use the Automated Attendant

• to subscribers who send a message from their mailbox or use the Leave Message feature

(≤·°‚)

To enable or disable the Company Directory

1Press ≤·°‹.

Enter the System Administrator mailbox number and password,

and then press OK.

2Press ›.

This option does not appear as a display button option.

3Press NEXT.

4Press NEXT to choose a search mode

press CHNG to toggle between Y and No.

5Press OK to search by first name

press CHNG to select last name or first and last names.

6Press ® to end the session.

Log:

QUIT RETRY OK

Admin

MBOX AA OTHR

Voice Mail:Y

CHNG NEXT

Dir avail:Y

CHNG NEXT

Match: Firstname

CHNG OK

Chapter 9 CallPilot operations 101

CallPilot 150 Telephone Administration Guide

Outdialing

You can designate the maximum number of voice channels that CallPilot can use at one time to

place outgoing calls. The default number of voice channels assigned for outdialing is one (1).

Outdialing calls are placed when you use Off-premise Message Notification, Outbound Transfer or

AMIS networking.

Set Outdialing channels to no more than half of the total channels available on CallPilot.

Ensure you reserve enough channels to accommodate incoming calls.

For more information on Off-premise Message Notification and Outbound Transfer features, refer

to “Class of Service values” on page 20.

To designate the number of channels for outdialing

Note: Enable Outbound Transfer only for users who require this feature. Outbound

Transfer increases the likelihood of unauthorized use of the CallPilot system.

1Press ≤·°‹.

Enter the System Administrator mailbox number and password,

and then press OK.

2Press ﬁ.

This option does not appear as a display button option.

3Press CHNG.

4Enter the number of channels, between 1 and 4, that you want to

use for outdialing and press OK.

5Press ® to end the session.

Log:

QUIT RETRY OK

Admin

MBOX AA OTHR

Num of chans: 1

CHNG OK

Num of chans:

RETRY OK

102 Chapter 9 CallPilot operations

P0919416 03

General Delivery Mailbox

The General Delivery Mailbox is your company mailbox. Messages can be left in the General

Delivery Mailbox for:

• employees who do not have their own mailbox

• external callers using a a rotary dial telephone

The General Delivery Mailbox is enabled by default. You can enable or disable the General

Delivery Mailbox as required by your company.

If you disable the General Delivery Mailbox:

• external calls that are usually directed to the General Delivery Mailbox are not allowed

• the Automated Attendant does not transfer external callers to the General Delivery mailbox.

External callers are directed back to the Automated Attendant or a CCR prompt, or their call is

disconnected after they leave a message.

To enable or disable the General Delivery Mailbox

1Press ≤·°‹.

Enter the System Administrator mailbox number and password,

and then press OK.

2Press ﬂ.

This option does not appear as a display button option.

3Press CHNG to toggle between Y and N

press OK to accept the setting.

4Press ® to end the session.

Log:

QUIT RETRY OK

Admin

MBOX AA OTHR

Gen Delivery:Y

CHNG OK

Chapter 9 CallPilot operations 103

CallPilot 150 Telephone Administration Guide

Enabling a software authorization code

With software authorization codes you can add more CallPilot mailboxes or options to your

system. Contact your vendor if you want to trial or purchase a software authorization code.

To enable a software authorization code

1Press ≤·°‹.

Enter the System Administrator mailbox number and password,

and then press OK.

2Press ››.

This option does not appear as a display button option.

3Press ADD to display the system identification number

press VIEW to view the options that are enabled on the CallPilot

system.

4The display shows the system identification number.

Press OK.

5Enter the first eight numbers of the software authorization code and

then press OK.

6Enter the second eight numbers of the software authorization code

and then press OK.

7Enter the last eight numbers of the software authorization code and

then press OK.

8Press ACCEPT to enable the keycode.

9The display shows that the software authorization code is enabled.

Log:

QUIT RETRY OK

Admin

MBOX AA OTHR

Options admin

ADD VIEW

SN: xxxxxxxxxxx

Key1:

RETRY OK

Key2:

RETRY OK

Key3:

RETRY OK

ACCEPT QUIT

Enabled

104 Chapter 9 CallPilot operations

P0919416 03

External Mailbox Initialization

External mailbox initialization is not enabled by default. This is a security feature that makes it

more difficult to tamper with or gain access to the mailboxes fraudulently. When external mailbox

initialization is disabled, mailboxes can be initialized only from an internal telephone.

Subscribers who try to access an uninitialized mailbox from an external number are denied access.

After the subscriber initializes their mailbox from an internal telephone, they can access their

mailbox from any tone dial telephone.

To enable or disable External Mailbox Initialization

1Press ≤·°‹.

Enter the System Administrator mailbox number and password, and

then press OK.

2Press ‡‡.

This option does not appear as a display button option.

3Press CHNG to toggle between Y and N.

4Press OK.

5Press ® to end the session.

Log:

QUIT RETRY OK

Admin

MBOX AA OTHR

External init:N

CHNG OK

External init:Y

CHNG OK

105

CallPilot 150 Telephone Administration Guide

Chapter 10

Dialing Translation

About Dialing Translation

Dialing translation is a process by which the number of an incoming call from a public network is

translated by a translation table into a number that can be recognized and dialed on the local

network using the Reply feature.

For Dialing Translation to occur, you must create a Dialing Translation Table that recognizes the

digits of an external number and translates them into a number that can be dialed by the system.

The business telephone system also consults the restrictions and schedules tables prior to dialing

the number.

The Dialing Translation Tables are necessary only for the Reply feature. CallPilot does not require

the tables in order to function normally.

How the Dialing Translation Table works

A phone number is derived from information attached to an incoming Caller ID message. The

number is then searched for by the CallPilot in the Dialing Translation Table. If the leading digits

of the telephone number match a Dialing Translation Table Input value (the number CallPilot

searches for in the Dialing Translation Table), the Output value is substituted for the Input value.

This change results in a telephone number that can be dialed on the local network. Changing the

number usually involves removing an area code or inserting an access code, based on the dialing

rules of the local network. For example, if a local number is prefixed with the long distance code 1,

it is removed by the Dialing Translation Table.

The Dialing Translation process is immediate so calls do not take any longer to dial. Some

telephone numbers do not need to be changed before dialing. CallPilot functions without a Dialing

Translation Table.

Phone number Translation

The Dialing Translation Table must define each possible case where a change is needed to allow

the number to be dialed on the local network.

The Dialing Translation Table changes Network extensions into numbers that can be dialed on the

local network. The Network extension form of a phone number is the usual form in which the

number appears. For example, the phone number 403-555-5050, in its Network extension form,

must be translated into a number that can be dialed on the local telephone network. The Dialing

Translation Table follows the rules required to make the call.

106 Chapter 10 Dialing Translation

P0919416 03

Examples of Dialing Translation Tables

The following tables are examples of Dialing Translation Tables and how they function. Every

Dialing Translation Table entry consists of an Input value column and an Output value column.

The values in the Input column represent the leading digits of the Network extensions which, if

matched, are replaced by the corresponding value in the Output column. The * after a value

signifies any digits in the telephone number that remain to be dialed. CallPilot automatically adds

the * after every Input and Output value. The longest input value that matches the CLID

information is used for translation.

A telephone number either matches or does not match a specific Input value.

An example of a Dialing Translation Table from a site in metropolitan Toronto

A sample Dialing Translation Table from a site with area code 206 near the border with area code 360

INPUT OUTPUT Explanation

011* 011* The Table does not attempt to translate international telephone numbers.

416* * The Table removes the 416 area code and dials all calls as 7 digits.

905206*

90527*

etc.

(135 more

entries)

905206*

90527*

etc.

(135 more

entries)

These telephone exchanges can be dialed as local (no long distance charges)

10 digit calls from the 416 area.

905* 1905* All other 905 numbers not listed in the Input column above are long distance

numbers and must be dialed as 11 digit long distance numbers.

* 1* Any numbers that start with digits other than 011, 416 and 905 are long

distance, and have 1 added as a prefix.

INPUT OUTPUT Explanation

011* 011* The Table does not attempt to translate international telephone numbers.

20644*

206626*

etc.

(40 more

entries)

44*

626*

etc.

(40 more

entries)

Due to the site location, some calls can be dialed as local 7 digit numbers.

206* 1206* All other 206 numbers require 11 digit long distance dialing.

360224*

360227*

360472*

360224*

360227*

360472*

These 360 numbers can be dialed as 10 digit local numbers...

360* 1360* ... but all other 360 numbers are 11 digits long distance numbers.

* 1* All numbers starting with other than 011, 206 and 360 are long distance and

have 1 added as a prefix.

Chapter 10 Dialing Translation 107

CallPilot 150 Telephone Administration Guide

An example of a Dialing Translation Table from a site in Mountainview, California

Network Access

The Dialing Table Translation results in a number that can be dialed on the local network. The final

step is to prefix any digits required to reach the local network from your Norstar system. For

systems that are behind a PBX or PABX, typically in North America · must be prefixed to the

telephone number. For systems attached to Central Office (CO) lines no digits need to be prefixed.

Dialing Translation properties

Dialing Translation is controlled by four properties:

Long distance access code

This prefix, if specified, is removed from any numbers entered by the subscriber if it is not needed

to make the call. This simplifies the creation of the Dialing Translation Table. For North America,

set the long distance access code to 1. The default for this parameter is none. The field for this

parameter is a maximum of 1 digit.

Area code

If the phone number entered appears to be missing an area code, an area code is prefixed to the

number. The area code is considered missing if the number has fewer than 10 digits. The default

for this parameter is none. The field for this parameter is a maximum of 6 digits. If this parameter

is set to none, no area code is prefixed to the telephone number.

Access code

In North America, the access code is usually 9. This number is prefixed to all numbers after

Translation to access the local telephone network. If your system is attached directly to CO lines,

set the Access Code to none. The default for this parameter is none. The field for this parameter is

a maximum of 2 digits.

Reply translation

If set to N (no), the caller must manually trim the Caller ID message information for the number to

be dialed on the local network. If the reply translation is set to Y (yes), then the Reply feature uses

the Dialing Translation Table to dial the call. The default for this parameter is N.

To make it easier for subscribers, set the Reply Translation to Y if a Dialing Translation Table is

created. If a Dialing Translation Table is not created, set the Reply Translation to N.

INPUT OUTPUT Explanation

The Dialing Translation Table is empty. The local network in

Mountainview supports 10 digit national dialing with recognized long

distance charging.

In situations like the Mountainview example, there is no need to build a

Dialing Translation Table.

108 Chapter 10 Dialing Translation

P0919416 03

Setting Dialing Translation properties

Setting the Dialing Translation properties makes it easier to build a Dialing Translation Table. It is

not a prerequisite to set the Dialing Translation properties to operate CallPilot.

To set the Dialing Translation properties

1Press ≤·°‹.

Enter the System Administrator Mailbox number and password,

then press OK.

2Press °°. This option does not appear as a display button option.

3Press PARM.

4Press CHNG and enter the long distance access code

press NEXT if you do not want to set this property and go to step 7.

5Press OK to accept the long distance access code.

6Press NEXT.

7Press CHNG and enter the area code

press NEXT if you do not want to set this property and go to step 10.

8Press OK to accept the area code.

9Press NEXT.

10 Press CHNG and enter the access code

press NEXT if you do not want to set this property and go to step 13.

11 Press OK to accept the access code.

12 Press NEXT.

13 Press CHNG to toggle the settings between Y and N.

14 Press OK to accept the reply translation setting.

15 Press ® to end the session.

Log:

QUIT RETRY OK

Admin

MBOX AA OTHR

Dialing

PARM TABLE QUIT

Lg dst ac: none

CHNG NEXT

Lg dst ac: X

RETRY OK

Lg dst ac: X

CHNG NEXT

Area code: none

CHNG NEXT

Area code: x

RETRY OK

Area code: x

CHNG NEXT

Access cd: none

CHNG NEXT

Access code: X

RETRY OK

Access code: X

CHNG NEXT

Reply trans: N

CHNG OK

Reply trans: N

RETRY OK

Dialing

PARM TABLE QUIT

Chapter 10 Dialing Translation 109

CallPilot 150 Telephone Administration Guide

Building a Dialing Translation Table

To build a Dialing Translation Table, you must enter an Input value and an Output value for each

entry. The Input value is the number that the CallPilot 150 looks up in the Dialing Translation

Table. If the corresponding entry matches, the system substitutes the Output value for the Input

value. The resulting number is ready to dial on the local network. Refer to “An example of a

Dialing Translation Table from a site in metropolitan Toronto” on page 106.

To build a Dialing Translation Table

1Press ≤·°‹.

Enter the System Administrator Mailbox number and password,

then press OK.

2Press °°. This option does not appear as a display button option.

3Press TABLE.

4Press ADD.

5Enter an input value up to 14 digits.

6Press OK to accept the input value

press RETRY and enter a new input value.

7Enter an output value up to 15 digits.

8Press OK to accept the output value

press RETRY and enter a new output value.

9Press ® to end the session.

Log:

QUIT RETRY OK

Admin

MBOX AA OTHR

Dialing

PARM TABLE QUIT

Dial Table

ADD CHNG QUIT

In: xxx

RETRY OK

xxx

RETRY OK

Out:

RETRY OK

xxx

RETRY OK

Dial Table

ADD CHNG QUIT

110 Chapter 10 Dialing Translation

P0919416 03

Reviewing entries in the Dialing Translation Table

You can review Dialing Translation Table entries at any time.

To review Dialing Translation Table entries

1Press ≤·°‹.

Enter the System Administrator Mailbox number and password,

and then press OK.

2Press °°.

This option does not appear as a display button option.

3Press TABLE.

4Press CHNG.

5Press NEXT to view the next entry in the table.

Inval* outval* is an example of a Table entry.

If there are more than 16 digits for Input and Output values, you can

press VIEW to see the remaining digits.

6Press ® to end the session.

Log:

QUIT RETRY OK

Admin

MBOX AA OTHR

Dialing

PARM TABLE NEXT

Dial Table

ADD CHNG QUIT

Inval* outval*

VIEW NEXT OTHR

Chapter 10 Dialing Translation 111

CallPilot 150 Telephone Administration Guide

Changing a Dialing Translation Table entry

After you build a Dialing Translation Table you can change the Output value of an entry at any

time.

You cannot change the Input value of an entry. You must delete the entry and create a new entry

with new Input and Output values. Refer to “Deleting a Dialing Translation Table entry” on page

112.

To change an entry in the Dialing Translation Table

1Press ≤·°‹.

Enter the System Administrator Mailbox number and password,

and then press OK.

2Press °°.

This option does not appear as a display button option.

3Press TABLE.

4Press CHNG.

5Press OTHR.

Inval* outval* is an example of a Table entry.

6Press CHNG.

7Enter a new output value up to 15 digits.

8Press OK to accept the output value

press RETRY to enter a new output value.

9Press ® to end the session.

Log:

QUIT RETRY OK

Admin

MBOX AA OTHR

Dialing

PARM TABLE NEXT

Dial Table

ADD CHNG QUIT

Inval* outval*

NEXT OTHR

Inval* outval*

CHNG DEL FIND

Out:

RETRY OK

Out: xxx

RETRY OK

112 Chapter 10 Dialing Translation

P0919416 03

Deleting a Dialing Translation Table entry

You can delete an entry in the Dialing Translation Table at any time. To find the entry you want to

delete, refer to “Reviewing entries in the Dialing Translation Table” on page 110.

To delete an entry in the Dialing Translation Table

1Press ≤·°‹.

Enter the System Administrator Mailbox number and password,

then press OK.

2Press °°.

This option does not appear as a display button option.

3Press TABLE.

4Press CHNG.

5Press OTHR.

Inval* outval* is an example of a Table entry.

6Press DEL.

7This display appears briefly.

Repeat steps 6 and 7 for each entry you want to delete.

8Press ® to end the session.

Log:

QUIT RETRY OK

Admin

MBOX AA OTHR

Dialing

PARM TABLE NEXT

Dial Table

ADD CHNG QUIT

Inval* outval*

NEXT OTHR

Inval* outval*

CHNG DEL FIND

Deleted

113

CallPilot 150 Telephone Administration Guide

Chapter 11

Troubleshooting CallPilot

This chapter describes problems that can occur when you operate CallPilot, and possible solutions.

The Automated Attendant does not answer calls

• Verify that you have assigned lines to the Greeting Table.

• All the channels can be busy. Try calling back. Your call is answered when a channel is

available.

• If the channels are frequently busy, it indicates there is too much activity. Contact your advice

line or sales representative.

CLID information is lost or CLID routing is not routing calls

Make sure that the Automated Attendant is set to answer after two or more rings. If you use analog

lines, CLID information is not available until after the second ring. For information about setting

the number of rings, refer to “Configuring line answering” on page 49.

The Automated Attendant transfers some callers to the General Delivery Mailbox

The system requires a tone dial telephone signal and a minimum voice level. The system waits for

a caller to respond. If a response is not received, the call transfers to the receptionist or designated

Operator. If they are not available, the call transfers to the General Delivery Mailbox. Calls also

transfer to the General Delivery Mailbox if an extension does not have a mailbox.

For the system to transfer calls correctly, each mailbox must have a unique extension number. To

verify that mailboxes have a unique extension number, print the Directory Report. You can print

reports using CallPilot Manager. For more information refer to the CallPilot Manager Set Up and

Operation Guide.

Greetings play at the wrong time of day

There are four possible causes for this problem:

1The Business Status is not set to open. Refer to “Setting the Business Status” on page 94 for

information.

2The wrong greeting numbers are assigned to the Greeting Table.

3The business hours are set incorrectly.

4The system time and date are incorrect for your telephone system.

Greetings play on the wrong line

Verify that your lines are assigned correctly. If you find the information is incorrect, you must

reassign lines to the Greeting Table. Refer to “Configuring line answering” on page 49.

114 Chapter 11 Troubleshooting CallPilot

P0919416 03

A telephone cannot be forwarded to the system

If you try to forward your incoming calls to the system and the display shows Forward denied, it is

possible that you are forwarding to the wrong extension number. Use Feature 985 to display the

correct extension number for the system, and compare this number to the extension that you are

trying to forward your telephone to.

Feature 981 produces a Log prompt on the telephone display

Whenever the Log prompt appears on the display, it can be caused by the telephone not having an

assigned mailbox. If the extension does not have an assigned mailbox, CallPilot requests both a

mailbox number and a password.

A subscriber cannot reply to an external caller or use Off-premise Message Notification or

Outbound Transfer

An Outdial method must be assigned before a subscriber can reply to an external caller using the

Reply feature, or use Off-premise Message Notification or Outbound Transfer. Before a subscriber

can reply to a message from an external caller, an Outdial method must be assigned.

The default for Outdial method is None. Until you assign a line, line pool or route as the Outdial

method for a mailbox, a subscriber can use the Reply feature to return calls from internal

extensions only, and Off-premise Message Notification and Outbound Transfer for internal

extensions only. Outbound Transfer capability is part of a subscriber’s Class of Service. Refer to

“Class of Service values” on page 20 for the Class of Service values for Outbound Transfer.

Telephone extension and mailbox numbers are different lengths

The mailbox number length must match the extension number length assigned to the system. If the

extension number length is changed on the system, you must re-initialize and reprogram CallPilot.

The date and time are wrong

If the date and time are wrong, you must reset them through the telephone system. The CallPilot

date and time is taken from the telephone system programming. For additional information, refer

to your system documentation.

You cannot access a line or a line pool

Check that your system supports the feature you are trying to use. If calls are not completed when

you try to reply to a CLID message or reach an Off-premise Message Notification number, ensure

Outdialing is assigned, available and correctly configured. For more information refer to your

system documentation.

Personalized greetings do not play

Personalized greetings do not play if a telephone is on Call Forward Busy or Call Forward All

Calls to the CallPilot extension number. In these cases, Personalized greetings depend on the CLID

information that is received prior to the second ring if you use analog lines. Personalized greetings

do not play if the Auto Attendant is set to answer at 0 or 1 ring. The Primary or Alternate personal

mailbox greeting plays instead. Change the number of rings to 2 or greater.

Chapter 11 Troubleshooting CallPilot 115

CallPilot 150 Telephone Administration Guide

Mailboxes do not accept messages

A mailbox does not accept messages if:

• it is not initialized

• CallPilot message storage capacity is full

Messages are removed from a mailbox

If messages are removed, check the message retention period in the mailbox Class of Service. You

can assign a class of service with a longer message retention period. Refer to “Class of Service

values” on page 20 for the Class of Service values for message retention. To change the Class of

Service to a Class of Service with a longer message retention period, refer to “Changing a

mailbox” on page 32.

A subscriber lost the mailbox password

A forgotten password cannot be recovered. The password associated with the mailbox must be

reset to the default password 0000. After a password has been reset to the default, the mailbox

owner must change it in order to use the mailbox. To reset a password, refer to “Changing a

mailbox” on page 32. A mailbox owner cannot access their mailbox

A subscriber cannot access their mailbox

Each mailbox is assigned a maximum number of incorrect password attempts in its Class of

Service. CallPilot records the number of incorrect attempts from the last time the mailbox was

successfully accessed. If the number is exceeded the mailbox owner is “locked-out” and hears the

message “This mailbox is locked to prevent unauthorized access. Contact your administrator for

assistance.” The mailbox cannot be opened again until the you reset the password. To reset a

password, refer to “Changing a mailbox” on page 32.

A mailbox is not in the Company Directory

Verify the mailbox is initialized. If the mailbox is not initialized, it does not appear in the Company

Directory. Verify the Company Directory setting for the mailbox is set to Yes. Refer to “Changing

a mailbox” on page 32.

Calls are directed to the wrong mailbox

Verify the correct extension is assigned to the mailbox.

A mailbox cannot be added to CallPilot

Ensure the mailbox is not already added. Mailbox numbers must be unique. Check that the number

of mailboxes on your system has not been exceeded. CallPilot 150 can store up to 200 subscriber

mailboxes.

You cannot enter a name for a mailbox

You must enter names as last name, then first name or initial. All names must include a comma (,)

that separates the last name from the first name or initial. The maximum length of the name,

including the comma, is 16 characters. Refer to “Changing a mailbox” on page 32.

116 Chapter 11 Troubleshooting CallPilot

P0919416 03

Incomplete messages are received in a mailbox, or “message delivered” plays while

recording a message or a CallPilot session ends unexpectedly

These situations can be caused by a problem called Talk Off. Talk Off occurs if CallPilot interprets

certain voice patterns as Dual Tone Multi Frequency (DTMF) dialing tones. DTMF dialing tones

are produced when buttons are pressed on a touch dial telephone. When you press a button on the

dialpad, CallPilot receives a DTMF dialing tone and performs the correct operation. For example,

after you enter your mailbox password, you can press the £ button. The DTMF dialing tone sent

to CallPilot indicates you are finished entering your password.

Some voice patterns are the same as DTMF dialing tones. This can make CallPilot function

incorrectly. For example, if in the middle of a message you say something that sounds like a

DTMF dialing tone created by pressing the £ button, the recording session ends. Correcting Talk

Off requires adjustments to your CallPilot system. Call your advice line for more information.

You cannot create a Group List

The maximum number of Group Lists that can be created is 99. The CallPilot Group List must be

enabled during installation. If the Group List feature is not enabled, you cannot create a Group

List. To enable this feature, you must reset CallPilot. For instructions on resetting CallPilot, refer

to “About resetting CallPilot” on page 89.

CallPilot does not accept a Path number for a CCR Tree

If you enter an incorrect digit while you are assigning a Path number, an error message appears.

The possible causes are:

• You entered an incorrect Path number. You can use only numbers 1 through 8 as Path numbers.

Do not use 0 or 9 as Path numbers.

• You tried to exceed the maximum number of levels.

• You are trying to access a level of a Tree whose previous level does not include a Menu node.

You must add a Menu node to the first level to let callers move to the second level.

A CCR Tree cannot be deleted

A Tree cannot be deleted while it is in use. You must disable the Tree before you can delete it.

Interruptions while building or changing a CCR Tree

If you press ® by mistake, if there is a power outage, if the system times out while you are

working on a CCR Tree, or if you exit the system without saving the CCR Tree you are working

on, the CCR Tree data is saved to Tree 9. Tree 9 is designated as the Workspace for building or

changing a Tree. The contents of Tree 9 are overwritten when you start to edit another CCR Tree.

Note: For more information about deleting a CCR Tree, refer to “Deleting a CCR Tree”

on page 78.

Chapter 11 Troubleshooting CallPilot 117

CallPilot 150 Telephone Administration Guide

A mailbox is full

Mailboxes have a Never Full Mailbox feature, which lets callers leave messages in the mailbox,

even if the mailbox is “full”. Messages are stored, but they cannot be accessed until the mailbox

owner deletes some of the messages in the mailbox.

If more message time is required, you can change the mailbox Class of Service. For more

information, refer to “Changing a mailbox” on page 32.

Deleting a mailbox

You cannot delete a mailbox that is used in a CCR Tree. If you delete a Mailbox node, any

incoming messages for the Mailbox node are instead sent to the General Delivery Mailbox.

For more information about the General Delivery Mailbox, refer to “General Delivery Mailbox”

on page 16.

CallPilot error messages

This table explains CallPilot error messages that appear on your display if you perform an

incorrect action.

Message Meaning

Already a member Appears if you try add the same mailbox to a Group List twice.

You cannot assign a mailbox to the same Group List twice.

Cannot delete Appears if you try to delete a Special Mailbox. The System Administrator and

General Delivery Mailboxes cannot be deleted.

Ext assigned Appears if you try to assign an extension twice to the same mailbox, or if you try to

assign an extension to more than one mailbox.

Extension needed Appears if you have not assigned a an extension or if you have not assigned an

extension from a Transfer node.

Incomplete tree Appears if you try to enable a Tree before all the paths are added, or before all the

mailboxes used in the Tree are initialized.

Info mailbox Appears if you try to change an Information Mailbox.

Intro too short Appears if the introduction to a message being forwarded is less than three

seconds long.

Invalid class Appears if you enter an incorrect Class of Service while you are adding or

changing a mailbox Class of Service.

Invalid ext Appears if you enter an incorrect extension. You can check the extension number

length or use the Company Directory.

118 Chapter 11 Troubleshooting CallPilot

P0919416 03

Invalid glist Appears if you enter an incorrect Group List number when you change or delete a

Group List number.

Invalid greeting Appears if you enter an incorrect Greeting Number. Greeting Numbers must be a

number from 1 to 40.

Invalid key Appears if the selected option is not valid for the command display shown.

Invalid line Appears if you enter an incorrect line number. CallPilot supports line numbers

from 1 to 500.

Invalid mailbox Appears if you enter an incorrect mailbox number, or if you have not assigned a

mailbox to the requested extension. These calls are transferred into the General

Delivery Mailbox.

Invalid number Appears if you enter an incorrect line pool number, or an incorrect number of

channels while configuring Outdialing.

Also appears if you enter more than the maximum number of digits allowed for a

telephone number (maximum is 30 digits).

Invalid password Appears if you enter an incorrect mailbox password.

Invalid path Appears if you enter an incorrect number for a Path. The Path number is a series

of numbers where each number must be from 0 to 8. This message also appears

if all the Paths on a Tree are assigned. The maximum number of Paths for a Tree

is eight on each level.

Invalid time Appears if you enter an incorrect time for setting up Off-premise Message

Notification. This message also appears if you specify an invalid time for your

business hours.

Invalid tree Appears if you enter an incorrect number for a CCR Tree. The Tree number must

be from 1 to 8.

Mailbox full Appears if the maximum mailbox message storage time is reached. The mailbox

message time is assigned as a Class of Service. A new message cannot be

listened to until the old messages are deleted. This message appears when a

mailbox owner first logs onto their mailbox.

Mailbox locked Appears if a subscriber surpasses the maximum number of incorrect password

attempts. The mailbox cannot be opened until the password is reset.

Mbox exists Appears if an existing mailbox number is entered while adding a mailbox.

Mbox in CCR Appears if you try to delete a mailbox assigned to a CCR Tree.

Message Meaning

Chapter 11 Troubleshooting CallPilot 119

CallPilot 150 Telephone Administration Guide

Mbox nearly full Appears if the maximum message storage time is almost reached in a mailbox.

This is determined by the Class of Service. Tell the subscriber to delete any

unnecessarily stored messages in the mailbox. This message appears when a

subscriber first logs on to the mailbox. Messages cannot be stored in this mailbox

until some are deleted.

Mbox not init Appears if an attempt is made to access a mailbox that is not initialized.

Must change pswd Appears if you try to access a mailbox that is not initialized. Initializing a mailbox

includes changing the default password.

Must record name Appears if a mailbox owner’s name is not included in the Company Directory.

Name too long Appears if you add or change a mailbox owner’s name and the characters exceed

the allowable limit of 16. The maximum length includes the comma.

No dir available Appears if the Company Directory is empty. Either CallPilot mailboxes have not

been initialized by the subscribers, or there are no mailboxes added to CallPilot.

No glist avail Appears if the maximum number of Group Lists is assigned. The maximum

number of Group Lists is 99.

No match Appears if a mailbox owner is not found that is similar to the characters entered

when using the Company Directory. Check the spelling of the mailbox owner’s

name.

No mbox avail Appears if the maximum number of mailboxes is added to CallPilot. The maximum

number of mailboxes is 300. This number includes the System Administrator and

General Delivery Mailboxes. The maximum number of subscriber mailboxes on

CallPilot 150 is 200.

No msg notify Appears if Off-premise Message Notification is not enabled. Off-premise Message

Notification is assigned in the Class of Service.

No party connect Appears if you try to transfer a call before establishing an active call.

No previous msgs Appears if the first message in a mailbox is playing, you enter the command to

play the previous message.

Vm busy Appears if the maximum number of users are accessing CallPilot.

Message Meaning

120 Chapter 11 Troubleshooting CallPilot

P0919416 03

Not allowed Appears if:

• a subscriber is not allowed access to a feature or Feature Code

• a subscriber tries to access the Configuration or Operator Status feature

codes

• the message recorded has too many Forwards and Replies

• a recorded message reaches its maximum number of segments. This is

caused by repeatedly using “pause” and “continue” while recording a

message

• a Group List number is entered as a mailbox member of another Group List. A

Group List number cannot be added to a Group List.

Not recorded Appears if you try to play a Primary or Alternate Greeting before it is recorded.

Options cancel Appears if you cancel Delivery Options while you are sending a message.

Out of space Appears if the CallPilot Message Storage capacity is full. You must delete old

messages from the General Delivery Mailbox and tell subscribers to delete any

unnecessarily stored messages from their mailboxes.

Party not avail Appears if a subscriber tries to use the Reply feature to reply to an external call,

but there is no Caller ID (CLID) contained in the message left by an external

caller.

Pswd too long Appears if a password exceeds eight digits. A password must be between four

and eight digits long.

Rec too long Appears if a recorded message is too long. Message or greeting length for a

mailbox is determined by the Class of Service.

Rec too short Appears if a recorded message is too short.

Speak up Appears if you record a greeting or message and do not meet the minimum

volume level. Do not use Handsfree. Speak directly into the handset of your

telephone.

Not enabled Appears if Group Lists are not enabled.

Message Meaning

121

CallPilot 150 Telephone Administration Guide

Chapter 12

CallPilot configuration tips

This chapter describes system configuration enhancements that maximize the efficiency of

CallPilot.

Delayed answering by the Automated Attendant

The Automated Attendant can answer any call on specified Central Office (CO) telephone lines

after a specified number of rings. CallPilot answers incoming calls if the Installer programs

CallPilot to be the prime telephone for one or more designated CO lines. The Delay Ring Transfer

(DRT) feature transfers unanswered calls on these lines to the Automated Attendant after the

specified number of rings.

Ringing lines and answer buttons

If two or more telephones have a ringing line appearance of the same incoming telephone line, and

one of these telephones is programmed with the Call Forward All Calls (CFAC) or Call Forward

No Answer (CFNA) forwarded to CallPilot features, incoming calls on the incoming telephone

line are directed to the mailbox of the programmed telephone.

For example, if a marketing receptionist’s telephone has a ringing line appearance of the marketing

director’s telephone, and the receptionist’s telephone is call forwarded to CallPilot, incoming calls

transfer to the receptionist’s mailbox. This is also true if the receptionist’s telephone is CFNA to

CallPilot and the number of specified rings on the receptionist’s telephone is fewer than the

specified rings on the marketing director’s telephone.

Ringing Answer button

If one or more telephones have a Ringing Answer Button for another telephone, and one of these is

CFAC or CFNA to CallPilot, all incoming calls go to the mailbox of the call forwarded telephone.

If two or more of these telephones are CFAC to CallPilot, all calls go to the mailbox of the

telephone that is connected to the lowest numbered station port on the system.

Note: DRT applies only to incoming calls on the assigned line. It does not affect

extension calls between telephones.

Note: CFAC and CFNA do not affect calls on a telephone’s non-ringing lines. For

example, if a receptionist’s telephone has a non-ringing appearance of another

telephone’s CO line, and the receptionist’s telephone is CFAC or CFNA to CallPilot,

incoming calls on this line are not affected.

122 Chapter 12 CallPilot configuration tips

P0919416 03

Using Call Forward All Calls (CFAC) and Call Forward No

Answer (CFNA)

If a subscriber does not want to take any calls for a period of time, they can forward their telephone

to their mailbox using CFAC. When forwarded, all calls to the mailbox owner’s extension transfer

to their mailbox.

To call forward to a mailbox, press ≤·°›.

To cancel call forward:

Press ≤£›

press CANCEL

press ∞

Note: If you use CFAC you cannot have any lines or answer DNs programmed to ring at

your set because these calls will go to your mailbox.

Chapter 12 CallPilot configuration tips 123

CallPilot 150 Telephone Administration Guide

How to set up CallPilot for different businesses

There are several ways to set up CallPilot in your company. How you set up CallPilot depends on

what telephone system, and how many CO lines you use.

Here are examples of CallPilot configurations for a small and a medium company, and some useful

application tips.

CallPilot for a small business

On Your Toes Dance Studio

CallPilot is the Call Forward No Answer (CFNA) extension for all the telephones in the office.

This means that any call that is not answered by a mailbox owner transfers to their mailbox.

Each mailbox owner has buttons programmed on their display telephone for the CallPilot Leave

Message feature (≤·°‚) and the Open Mailbox feature (≤·°⁄). This gives easy

access to these frequently used features.

Employees have a mailbox number that is the same as their telephone extension. All mailbox

owners have initialized their mailbox and recorded a Personal Mailbox Greeting.

The central receptionist

The On Your Toes Dance Studio’s receptionist handles all calls from the studio’s published

telephone number. If the receptionist does not answer the telephone within four rings, the

Automated Attendant answers the call. The receptionist is also the designated Operator. Whenever

a caller presses ‚ to speak with the operator, the call transfers back to the receptionist.

Here is how On Your Toes Dance Studio’s communication system works.

The On Your Toes Dance Studio’s public telephone number is 555-2468. The studio subscribes to

custom calling services from the telephone company. This number forwards to any available

(non-busy) line in a group of six lines. All six lines appear on the receptionist telephone.

CallPilot is the Prime Set for each of the six lines. The Delayed Ring Transfer feature (DRT) to

Prime is set to Yes, and the DRT Delay is set to four. DRT forwards unanswered lines to the

Automated Attendant.

Note: Delayed Ring Transfer is a telephone system-wide call handling feature. All lines

programmed as DRT to Prime are forwarded after four rings. This is done by setting the

Prime Set of the line to the CallPilot extension.

124 Chapter 12 CallPilot configuration tips

P0919416 03

Greeting Table 1 for On Your Toes

CallPilot uses Greeting Table 1 to answer calls after four rings. Depending on the time of day,

different recorded greetings play for Morning, Afternoon, and Evening. When the Business Status

is No, the Non-business Hours Greeting plays.

The Costume Room

The Costume Room has one telephone with a CallPilot mailbox. Calls are directed to the Costume

Room Attendant by the receptionist or the Automated Attendant. When the Attendant is not

available, the caller is forwarded to the Costume Room mailbox. The mailbox primary message

says:

“You have reached the Costume Room. No one is available to take your call. Please leave your

name and number and a brief message after the tone and we will return your call as soon as

possible.”

Greeting 1 “Good morning. You have reached On Your Toes Dance Studio. The studio

is closed at this time. Stay on the line to leave a message.”

The CallPilot voice prompts play after the greeting. You can make

Company Greetings up to five minutes long.

Greeting 2 “Good afternoon. You have reached On Your Toes Dance Studio.”

Greeting 3 “Good evening. You have reached On Your Toes Dance Studio.”

Greeting 4 “You have reached On Your Toes Dance Studio. The studio is closed at this

time. Stay on the line to leave a message.”

Note: Lines must be assigned to a Greeting Table before the Greeting Table greetings

are used.

Chapter 12 CallPilot configuration tips 125

CallPilot 150 Telephone Administration Guide

CallPilot for a medium business

Bridge Stone Engineering

CallPilot is assigned as the Call Forward No Answer (CFNA) extension for all telephones in the

office. This means that any call that is not answered by a mailbox owner transfers to their mailbox.

Subscribers have buttons programmed on their display telephone for the CallPilot Leave Message

(≤·°‚) and Open Mailbox (≤·°⁄). This gives easy access to these frequently

used features.

Employees have a mailbox number that is the same as their telephone extension. Subscribers have

initialized their mailbox and recorded a Personal Mailbox Greeting.

When the receptionist is not available, Custom Call Routing routes callers along a call path.

The central receptionist

Bridge Stone’s receptionist handles all calls from the published telephone number. When the

receptionist is unable to answer the telephone within four rings, the Automated Attendant answers

the call. The receptionist is also the designated Operator. When a caller presses ‚ to speak with

the operator, the caller transfers to the receptionist.

Here is how Bridge Stone’s communication system works.

Bridge Stone’s public telephone number is 555-1234. All lines appear on the receptionist’s

telephone. CallPilot is the Prime Set for each of the six lines. The Delayed Ring Transfer (DRT)

feature forwards unanswered lines to the Automated Attendant.

Note: Delayed Ring Transfer is a telephone system-wide call handling feature. All lines

programmed as DRT to Prime are forwarded after four rings. This is done by setting the

Prime Set of the line to the CallPilot extension.

126 Chapter 12 CallPilot configuration tips

P0919416 03

Greeting Table 1 for Bridge Stone Engineering

CallPilot uses Greeting Table 1 to answer calls after four rings. Depending on the time of day,

different recorded greetings play for the Morning, Afternoon, and Evening. When the Business

Status is No, the Non-business Hours Greeting plays.

Greeting Table 1 answers calls using greetings 1 through 4. Greetings 1 through 4 play unless you

assign different greetings. When the Greeting Table was configured, English was chosen as the

Primary Language.

After the Company Greeting the CCR Home Menu voice prompt plays. This menu gives callers a

list of single digit options. After callers listen to the Home Menu, they select an option by pressing

a number on any tone dial telephone. For example:

“To speak to our customer service representative, press ⁄. To reach our sales department, press

¤. To reach our shipping and receiving department, press ‹. To speak with our receptionist,

press ‚.

The Customer Service and Sales department

This department has two receptionists, two customer service representatives, two sales agents, a

sales manager, and a customer service manager. CallPilot is set up to answer all calls. Callers can

select either customer service or sales from the CCR Home Menu voice prompt.

Incoming calls for customer service transfer directly to the customer service receptionist.

Incoming calls for sales transfer directly to the sales receptionist.

Greeting 1 “Good morning. You have reached Bridge Stone Engineering.”

The CCR Home Menu plays after the greeting. You can make Company

Greetings up to five minutes long.

Greeting 2 “Good afternoon. You have reached Bridge Stone Engineering.”

Greeting 3 “Good evening. You have reached Bridge Stone Engineering.”

Greeting 4 “You have reached Bridge Stone Engineering. The office is closed at this

time. Stay on the line to leave a message.”

Note: Lines used must be assigned to the Greeting Table before the Greeting Table

greetings are used.

Chapter 12 CallPilot configuration tips 127

CallPilot 150 Telephone Administration Guide

The managers

Bridge Stone managers have a personal CO line that appears on their private telephone and their

receptionist’s telephone. The receptionists answer the managers’ calls, and then transfer the calls

to the manager’s telephone. The receptionist’s phone is CFNA to CallPilot.

If a manager is unavailable to take a call, the call rings back at the receptionist’s set. The

receptionist handles the call by asking the caller to leave a voice message in the manager’s

mailbox. If the caller wants to leave a message, the receptionist transfers the caller using the

CallPilot Transfer feature ≤·°ﬂ.

When CallPilot is set up this way, CFNA for the manager’s set is not used. The receptionist

answers the manager’s calls and uses CallPilot’s Transfer feature to transfer the caller to the

manager’s telephone. The CallPilot Transfer Callback Feature returns the call to the receptionist’s

telephone if a manager is not available to take a call.

Shipping and Receiving

The employees in this department share the same telephone. This department uses one telephone

line that is assigned to the loading dock. This extension is assigned to Path 3 of the CCR Home

Menu.

The shipping and receiving department mailbox greeting informs callers they can leave a message

or press ‚ to speak with the receptionist. The receptionist’s phone is CFNA to CallPilot.

Note: The receptionist’s telephone has a ringing line appearance. This telephone cannot

be forwarded to another telephone.

128 Chapter 12 CallPilot configuration tips

P0919416 03

Feature Compatibility

This section describes how system features interact with CallPilot.

ATA 2 and ASM

One or more analog single-line sets can be connected to telephone system using an Analog

Terminal Adapter or an Analog Station Module. This type of set works with DTMF tones to allow

access to CallPilot options through the dialpad only. Rotary dials cannot be used internally with

CallPilot.

Answer buttons

For information about Answer Buttons, refer to “Ringing Answer button” on page 121.

Autodial (internal)

All subscribers on the CallPilot system can program the CallPilot extension. Press

≤·°ﬁto view the CallPilot extension.

You can use autodial for Busy Lamp Field (BLF) indication for all voice channels. This allows

CallPilot channels to be monitored during busy periods.

Automatic Set Relocation

Must be set to No when changing the CallPilot extension and connections between the telephone

system.

Call Forward All Calls (CFAC)

Any ringing line or answer button appearance on a set forwards to the extension specified by the

call forwarded set. If CFAC is used a caller immediately transfers to the mailbox of the CFAC

extension.

Call Forward No Answer (CFNA)

Any ringing line appearance on a set can be CFNA to the extension specified after the programmed

number of rings.

CFNA is not applicable in an Automated Attendant application. If Delayed Ring Transfer (DRT) is

being used for CallPilot answering, ensure that the number of rings for CFNA on any of the sets

with ringing appearances of lines to be answered by the Automated Attendant is equal to or higher

than the number of rings for DRT.

CFNA takes precedence over DRT and Transfer Callback if it has a lower number of rings.

Camp On

The Camp On Feature cannot be used to access CallPilot. If a caller calls the extension and there is

no answer, the caller cannot use the Camp On Feature. Ask the caller to wait a few moments and

try the CallPilot extension again.

Chapter 12 CallPilot configuration tips 129

CallPilot 150 Telephone Administration Guide

Delayed Ring Transfer (DRT)

To use CallPilot as a secondary line answering position, set DRT:

1Assign the CallPilot extension as the prime extension for the specified lines that are to be DRT

to CallPilot.

2Set DRT to Yes.

3Set DRT Delay from one to ten rings.

4Assign a Greeting Table to each line that is to be DRT to CallPilot.

5Set the CallPilot Answer option to No for the lines that are DRT to CallPilot.

Disconnect Supervision

With Line Disconnect Supervision, if a caller hangs up after reaching the Automated Attendant,

CallPilot immediately breaks the connection. Disconnect Supervision results in fewer blank

messages in the General Delivery Mailbox and prevents CallPilot ports from being occupied. You

must use Disconnect Supervision if you use Outbound Transfers.

Do Not Disturb (DND)

Stops all tones and ringing to a set. When a call transfers to a set with DND activated, the call

appears as a flashing indicator on an available line. The Automated Attendant transfers the caller

to the mailbox associated with the telephone.

Feature timeout

CallPilot has a timeout of up to two minutes. This feature is independent of the CallPilot 150

system timeout.

Hold

You cannot put a session on hold. If the hold button is pressed during a CallPilot programming

session, CallPilot disconnects, except if Automatic Hold is used to transfer a caller to a mailbox or

an extension. CallPilot ignores Held Line Reminder tones.

Intercom Numbers

Inside callers can access CallPilot by pressing an intercom button and entering the extension.

Access to the CallPilot feature codes and “Message for you” indication requires an intercom button

on the set.

An intercom button is required to notify an extension of an incoming transfer.

Note: If DRT is used for CallPilot Answering, and telephones with a ringing line

appearance forward to CallPilot, a caller immediately transfers to the mailbox of the

CFAC set.

130 Chapter 12 CallPilot configuration tips

P0919416 03

Language choice

The CallPilot language capability is independent of the telephone system’s language selection for a

set. CallPilot language availability is determined by the Class of Service assigned to a mailbox.

Lines

If a line programmed to be answered by the Automated Attendant appears on a set, it rings when

CallPilot transfers the call. If a line programmed to be answered by the Automated Attendant does

not appear on a set, a call is transferred to an intercom line appearing on the intercom button.

Message Send/Reply/Waiting

Any message notification left by an internal caller can be replied to using the CallPilot message

reply options. After listening to a message, a subscriber can forward a copy of the message to

another mailbox or call the message sender.

Night Service

When Night Service is activated and the CallPilot prime extension is specified as the Night Ring

extension for an incoming line, a caller immediately hears the CallPilot Automated Attendant.

Prime Set

When you configure lines on your system, you can designate CallPilot as the prime extension.

CallPilot answers with the Automated Attendant.

Private line

When private lines are assigned to a set programmed to ring, CFNA to CallPilot is answered by the

set’s mailbox. If a private line is the only appearance on that set, CallPilot transfers calls through

the intercom button.

Ringing line preference

Lines programmed as “Ring only” to telephone extensions are recognized by CallPilot. Features

such as CFNA and CFAC to CallPilot are not recognized by non-ringing lines programmed to a

telephone extension. Refer to “Call Forward No Answer (CFNA)” on page 128, “Call Forward All

Calls (CFAC)” on page 128 and “Answer buttons” on page 128.

Note: The CallPilot language option is enabled after a subscriber starts a session.

Note: If a subscriber replies to a message from a one line display phone, they must

press · after listening to the message.

Note: If the private line is not programmed to appear but not to ring, CFNA is not

activated.

Chapter 12 CallPilot configuration tips 131

CallPilot 150 Telephone Administration Guide

Service Modes

With the Service Modes feature you can program the telephone system to forward all incoming

calls to CallPilot during specific time periods such as lunch time or non-business hours. CallPilot

answers with the Automated Attendant.

Transfer Callback

Calls through the Automated Attendant that transfer to an extension without CFNA are routed by

Transfer Callback to CallPilot after the designated number of rings. The CFNA/Transfer Callback

feature is programmed so that the fewest rings take precedence.

132 Chapter 12 CallPilot configuration tips

P0919416 03

133

CallPilot 150 Telephone Administration Guide

Chapter 13

Default configuration values

The following tables list CallPilot default configuration values.

*If the Group List leading digit is 1, the System Administrator and General Delivery Mailboxes

default to 20 and 22. The extension number length defaults to the telephone system extension

number l length. For more information, refer to your system documentation.

Value or range Default

System Administrators password

Special Mailbox types:

General Delivery Mailbox

System Administrator Mailbox

Automated Attendant Extension Number

CO Line Greeting assignment:

Line number

Greeting Table:

Greeting Table number

Number of rings

Greeting used:

Morning

Afternoon

Evening

Language

four to eight digits in length

Two-digit to Seven-digit

10 1000000

12 1000002

any valid CallPilot Extension

Number

1 - 500

1 - 4

0 - 12

1 - 40

0000 (four zeros)

Two-digit *

none

Value or range Default

Extension/mailbox:

Extension leading digit 0 - 9 none

Digits in extension

Mailbox leading digit

two to seven digits

0 - 9

none

Digits in mailbox two to seven digits none

134 Chapter 13 Default configuration values

P0919416 03

*Including Special Mailboxes

**Group List numbers are always three digits long

Value or range Default

Maximum number of subscriber mailboxes 200

Classes of Service:

Class of Service number 1-16 none

Mailbox message time 5-120 min none

Message length 2-10 min none

Greeting length 1-10 min none

Message retention time 0 days - indefinite none

Group Lists:

Group List number ** 001 - 099 - 901-999 901 - 999

Number of members 1-125 none

Hardware Specifications CallPilot 150

Number of ports 1 to 2

Number of voice channels 8

Message storage 16 hours

Value

Response time at the Home Menu 2.5 seconds

Number of Trees 8

Number of levels 10

Number of Paths per level 8

Group List leading digit Group List range

0 001 - 099

1 101 - 199

2 201 - 299

3 301 - 399

4 401 - 499

5 501 - 599

6 601 - 699

7 701 - 799

8 801 - 899

9 901 - 999

Chapter 13 Default configuration values 135

CallPilot 150 Telephone Administration Guide

Default Feature Codes

Leave Message Feature 980

Open Mailbox Feature 981

Operator Status Feature 982

Configuration Feature 983

CallPilot extension number Feature 985

Transfer to mailbox Feature 986

Interrupt Feature 987

Call Record Feature 989

Message storage times

96 M Compact Flash card 24 hours

192 M upgrade Compact Flash card 60 hours

136 Chapter 13 Default configuration values

P0919416 03

137

CallPilot 150 Telephone Administration Guide

Glossary

See Automated Attendant.

Administration

The tasks involved in setting up and maintaining Mailboxes, Greetings, CCR Trees and

CallPilot configuration.

Alternate extensions

When a caller dials an extension that is programmed to have one or more alternate

extensions, CallPilot rings at all of the sets simultaneously. The first set to answer accepts

the call. The other sets cannot access the line or use the Interrupt Feature (Feature 987) to

access the answered line. Alternate extensions are available only on Subscriber mailboxes.

Alternate Greeting

A greeting that is recorded for a Personal Mailbox and played only on exceptional

occasions, such as absence.

Alternate Language

A secondary language used for greetings and prompts. To use an Alternate Language, you

must enable the Bilingual Option. The Alternate Language cannot be the same as the

Primary Language.

Attendant sign ON/OFF

A task performed by a company Receptionist or designated Operator that indicates to

CallPilot when an Operator is available to answer calls.

Automated Attendant

The CallPilot answering service that answers incoming calls with a Company Greeting,

plays a menu of options to a caller, and performs call routing functions in response to a

caller’s selections.

Blind Call

An incoming call where the caller transfers directly to the extension requested.

Broadcast Message

A message that can be sent by the System Administrator. This type of message plays in all

initialized Subscriber Mailboxes.

Business Status

A setting that overrides the schedule of the Greeting Table and plays the Non-business

greeting until turned off.

138 Glossary

P0919416 03

Call Screening

When you change a mailbox owner’s Personal Mailbox Call Screening feature to

Screened, the feature allows the mailbox owner to determine who is calling before

accepting the call.

CCR

See Custom Call Routing.

Channel configuration

The number of channels on the CallPilot unit that are designated for outdialing.

Class of Service

A Class of Service defines the values for the special features of a Mailbox. When adding a

mailbox, the System Administrator programs several special features at once by choosing

the number from the Class of Service table that provides the level of service most

appropriate for the subscriber.

A mailbox cannot be added without a Class of Service.

Company Directory

The Company Directory is an internal voice and text list of the names of mailbox owners

with initialized mailboxes who are designated to appear in the directory.

Configuration

The tasks involved in setting up the different parameters of CallPilot. For example,

configuring the Central Office (CO) lines answered by CallPilot.

Configuring CallPilot lines

The tasks involved in determining which external lines are answered by CallPilot and

which Greeting Table is assigned.

Custom Call Routing Tree

Call Paths that let subscribers select options to direct their calls along the paths you create.

Defaults

The preset parameters for CallPilot.

Destination

On a CCR Tree, the Destination determines where the caller is directed after they listen to

an Information message or leave a message in a mailbox. The Destination types are:

•PREV: returns the caller to the Previous menu

•HOME: returns the caller to the Home Menu

•DI S C : disconnects the call

You can assign destinations only to Information and Mailbox nodes.

Glossary 139

CallPilot 150 Telephone Administration Guide

Display

A one-line or two-line display on a business telephone that shows CallPilot commands and

options.

Display buttons

The three buttons that appear below a two line display telephone. When pressed, these

buttons select the specified CallPilot option.

Display options

The choices available to a mailbox owner that appear on a two line display. You select

options that appear on the display from the display or dialpad buttons.

ATA 2

A Nortel product that allows the connection of an analog device, such as a single-line

telephone or a facsimile machine, to a telephone system.

Envelope information

A date and time stamp that appears on all messages left in a mailbox. When a message is

left by another mailbox owner, envelope information includes the message sender’s name.

Extensions

A two to seven-digit number that is used to reach a designated telephone.

Extension length

The number of digits in an extension and an CallPilot mailbox number. The extension

length ranges from two to seven digits.

Feature code

A unique three-digit code that is used to access CallPilot Features and options.

General Delivery Mailbox

One of the two Special Mailboxes that hold messages for individuals who are not assigned

a Subscriber Mailbox.

Greetings

There are three types of CallPilot Greetings: Company Greetings, Personal Mailbox

Greetings and Information Mailbox Greetings. Company Greetings are played by the

Automated Attendant to incoming callers. Personal Mailbox Greetings are played to

callers who want to leave a message in a selected mailbox. Information Mailbox Greetings

are played to describe goods or services available to callers.

Greeting Tables

A table for storing recorded Company Greetings, start times assigned to the greetings, and

the lines that are answered by CallPilot. There are four Greeting Tables.

140 Glossary

P0919416 03

Group Lists

A collection of mailbox numbers that are assigned a special “Group” number by CallPilot.

When a message is sent to a Group List, all the mailboxes in the list receive the message.

Guest Mailbox

A Guest Mailbox is a type of Subscriber mailbox for people who do not have a permanent

extension, but require a mailbox. Guest mailboxes receive and store messages the same

way that Subscriber mailboxes do.

Home Menu

The Home Menu is the first CCR menu that callers hear after they hear the Company

Greeting. The Home Menu provides a list of single-digit options to a caller. A caller, after

listening to the Home Voice Menu, selects the option by pressing a number on any tone

dial telephone.

A Home Menu can be programmed to offer eight options. By default, Ø is reserved for

reaching the Operator, and · offers the menu in the Alternate Language.The Home

Menu can also be a recorded Information Message that announces information to a caller

and then disconnects the call when the announcement is finished.

Home Menu voice prompt

A voice prompt that provides a list of number options. When pressed, these options route a

caller to: a sub-menu, an Information Message, a Leave Message option, or a transfer to an

extension.

Information Mailbox

A mailbox that provides a caller with a message describing goods or services available

from your company. The Information Mailbox does not take messages and does not have

an extension associated with it.

Information Message

On a CCR Tree, an Information Message is a message you record to provide a caller with

information about goods or services available from your company. Information mailboxes

must be created before the Information Message option can be added to the CCR Tree.

Initialize

Preparing a mailbox to receive messages, which includes changing a mailbox default

password, recording a Company Directory name, and recording Personal Mailbox

Greetings.

Initializing CallPilot

Preparing the CallPilot settings that are used in mailbox number length and language

preference.

Leave Message

The feature code used to leave messages in CallPilot mailboxes.

Glossary 141

CallPilot 150 Telephone Administration Guide

Level

The Home Menu is on Level 0. As sub-menus are added, the caller progresses through the

levels of the CCR Tree. A total of 11 levels can be created (from 0 to 10).

Mailbox

A storage place for messages on the CallPilot system.

Mailbox number length

The number of digits allowed in a mailbox number. The mailbox number length ranges

from two to seven digits.

Mailbox properties

Mailbox properties are optional parameters in addition to the Class of Service values. The

Mailbox properties are: Include in Company Directory, Alternate Extensions, Express

Messaging Line, Call Screening, Message Waiting Notification, and Outdial route.

A menu is a voice prompt you record that provides a caller with a list of up to eight

options. There is one default pre-recorded menu, the Automated Attendant Menu, that

plays after the Company Greeting. You can replace this default menu with a custom menu,

or you can assign the CCR Home Menu to play instead of an Automated Attendant menu.

Message Waiting Notification

Message Waiting Notification provides a mailbox owner with a message notification

Message for you on the display of their telephone.

Never Full Mailboxes

CallPilot mailboxes have a Never Full Mailbox Feature, which lets callers leave messages

in a mailbox, even if the mailbox is “full”. The messages are stored, but cannot be

accessed until at least one saved message is deleted.

Operator

The Operator is the person whose extension rings when the caller is prompted by the

Automated Attendant to “Press Ø for an operator”. If the Operator is not available,

callers who request the Operator transfer to the General Delivery Mailbox.

In Class of Service, the Operator is also known as a Targeted Attendant.

Operator default extension

The Receptionist or CallPilot designated Operator’s default extension. This default is

preset to none, and must be changed to any valid extension on the system.

Operator status

The CallPilot setting that tells the system whether or not a receptionist or designated

Operator is available.

142 Glossary

P0919416 03

Option

A CallPilot choice that is given to a subscriber through voice or display prompts.

Outdial method

The Outdial method determines which line, line pool or route the system uses when a

mailbox owner replies to a message left by an external caller, and for Off-premise

Message Notification.

Password

A four- to eight-digit number that is entered on the dialpad. A password is used to open

mailboxes or perform configuration tasks.

Path

A Path is the course an incoming call takes to or through one or more menus on a CCR

Tree to reach a desired destination.

Path number

A number assigned to a Path on each CCR Tree. The number represents the sequence of

digits that callers enter to route themselves along the Path.

Primary Greeting

The main greeting played in a Personal Mailbox to callers who want to leave a message.

Resetting passwords

A System Administrator task that changes a mailbox password from its current setting

back to the CallPilot default setting 0000.

Resetting CallPilot

Returning CallPilot to its original default settings.

Special Mailboxes

The two mailboxes used by the System Administrator and designated Operator. The two

Special Mailboxes are System Administrator and General Delivery.

Sub-menu

A sub-menu is any menu presented to the caller after the Home Menu. Sub-menus can

lead to other sub-menus. A total of nine sub-menus can be added to a CCR Tree.

Subscriber

A subscriber is a mailbox owner. Subscriber mailboxes include Subscriber and Guest

mailboxes.

Glossary 143

CallPilot 150 Telephone Administration Guide

Subscriber mailboxes

• are assigned to subscriber by the System Administrator

• include both Subscriber and Guest Mailboxes

• are maintained by the mailbox owner

• can be listed in the Company Directory under the subscriber’s name

• are protected by a password that can be changed by the subscriber, or reset to 0000

by the System Administrator if the password is forgotten

System Administrator

The person responsible for configuring, updating, and maintaining the CallPilot system.

System Administrator Mailbox

One of the two Special Mailboxes. Used by the System Administrator for sending

Broadcast Messages. This is the System Administrator’s Personal Mailbox.

Target Attendant

The Target Attendant is assigned to answer a telephone when a caller opens a mailbox to

leave a message and presses ‚ to reach the Operator.

Tone dial telephone

A push button telephone that emits DTMF tones.

Transfer node

On a CCR Tree, a Transfer node provides a caller with access to an extension or an

external number. A Transfer node is assigned a one-digit number that appears in a menu.

When this number is pressed, the caller automatically transfers an extension or external

number.

Voice prompts

The prerecorded voice instructions that are played to callers when they access CallPilot

features and options. Voice prompts guide a caller along the call Path of a CCR Tree.

144 Glossary

P0919416 03

CallPilot 150 Telephone Administration Guide

145

Index

Afternoon Greeting 45

Alternate extensions 22

Alternate Language 42, 43

Analog Station Module 128

Analog Terminal Adapter 128

ATA 2 and ASM

CallPilot Feature Compatibility 128

Autodial

CallPilot Feature Compatibility 128

Automated Attendant

Business Status 94

changing the status 96

greetings 42

troubleshooting 113

Broadcast message

about 85

recording 85

Business Status

setting 94

Call Display Information

troubleshooting 113

Call Forward

All Calls 122

No Answer 122

Call Record

in Class of Service 19

CallPilot

Call answering 51

configuration for medium business 125

configuration for small business 123

default password 24

resetting 89

troubleshooting 113

CallPilot error messages 117

CallPilot Feature Compatibility

ATA 2 and ASM 128

Autodial 128

Camp On 128

Delayed Ring Transfer (DRT) 129

Disconnect Supervision 129

Do Not Disturb (DND) 129

Intercom numbers 129

Language choice 130

Messages 130

Night Service 130

Prime Set 130

Private line 130

Service Modes 131

Set Relocation 128

Timeout 129

Transfer Callback 131

Camp On

CallPilot Feature Compatibility 128

CCR Tree

changing 77

deleting 83

designing 58

Destination Types 81

disabling 77

erasing a Path 83

Leave Message 80

Leave Message Point 70

Menu sub-node

adding 66

overview 58

planning 58

testing 77

Transfer Point 82

Class of Service 19

Call Record 19

default values 20

greeting length 19

mailbox message time 19

message length 19

message retention period 19

networking 19

number of attempts 19

Off-premise Message Notification 19

Outbound Transfer 19

password attempts 19

password expiry 19

prompt language 19

retry intervals 19

summary 20

Target Attendant 19

User Interface 19

Company Directory

recording name in 24

troubleshooting 115

146 Index

P0919416 03

Conventions, guide 13

button options 13

buttons 13

command line 13

Custom Call Routing (CCR) 7, 82

assign CLID number 77

changing CCR 77

deleting a Tree 83

Destination Types 81

Destination types 60

disabling 77

erasing a Path 83

Leave Message 60

Leave Message Point 70, 80

level 47, 57

menu 47, 57

overview 57

Path 47, 57, 60

testing a Tree 77

Tree overview 58

Default extension

Operator DN 94

Default password 24

Delayed Ring Transfer (DRT)

CallPilot Feature Compatibility 129

Deleting a Group List 40

Destination Type 54

assigning 54

Destination Types

changing 81

Destination types, Custom Call Routing (CCR) 60

Dialing Translation

access code 107

area code 107

example table 106, 107

long distance access code 107

Network Access 107

parameters 107

reply translation 107

setting 108

Dialing Translation Table

example 106, 107

reviewing entries 110

Disabling 102

CCR Tree 77

Disconnect Supervision

CallPilot Feature Compatibility 129

Display 13

log prompt 114

two line 11

Display telephone

entering characters 12

Do Not Disturb (DND)

CallPilot Feature Compatibility 129

Enabling

General Delivery Mailbox 102

Erasing a CCR Path 83

Error messages

troubleshooting 117

Evening Greeting 45

Expiry

password 31

Express Messaging Line

about 22

defaults 22

Extension number length

troubleshooting 114

Forwarding calls

troubleshooting 114

General Delivery Mailbox 16, 102, 113

assigning 102

Greeting Table

Alternate Language 43

assigning a greeting 45

overview 42

Primary Language 43

recording Company Greetings 43

setting up 45

using the Alternate Language 42

Greetings

Afternoon 45

assigning to a Greeting Table 45

Evening 45

Morning 45

troubleshooting 113

Group List

delete 40

Group Message 36

numbers 36

troubleshooting 116

Index 147

CallPilot 150 Telephone Administration Guide

Guest Mailbox 27

adding 27

uses 27

using 27

Home node

Custom Call Routing (CCR) 59

Information

Mailbox 28

Information Mailbox

adding 28

setting up 28

uses for 28

Information mailbox greeting

recording 87

Initializing a mailbox 24

Intercom numbers

CallPilot Feature Compatibility 129

Language choice

CallPilot Feature Compatibility 130

Leave Message

Custom Call Routing (CCR) 60

Leave Message Point

adding 70

changing 80

Line configuration 50

Viewing and changing 50

Log prompt

troubleshooting 114

Mailbox

“locked-out” 31, 115

adding 25

cannot be added 115

Class of Service 19

Express Messaging Line 22

General Delivery 16, 102

Guest 27

Information 28

initializing 24

Message length 19

Message Waiting Notification 21

Outdial route 21

password expiry 19

properties 21

alternate extensions 22

Call Screening 23

Express Messaging Line 22

include in Company Directory 21

Message Waiting Notification 21

outdial route 21

troubleshooting 115

Mailbox message time

in Class of Service 19

Mailbox properties

alternate extensions 22

Call Screening 23

Express Messaging Line 22

include in Company Directory 21

Message Waiting Notification 21

Message

sending to group 36

Message length

in Class of Service 19

Message Waiting Notification 21

mailbox 21

Messages

CallPilot Feature Compatibility 130

minimum recording length 87

silence timeout 87

Morning Greeting 45

Name

recording in Company Directory 24

Networking

in Class of Service 19

Night Service

CallPilot Feature Compatibility 130

Off-premise Message Notification

and outdial method 21

Class of Service default values 20

in Class of Service 19

number of attempts 19

retry intervals 19

troubleshooting 114

Operator

password, resetting 93

Operator password

change 93

148 Index

P0919416 03

Operator Status 92

default extension 94

setting 92

Outbound Transfer

and outdial method 21

Class of Service default setting 20

in Class of Service 19

troubleshooting 114

Outdial route

mailbox 21

Parameters

access code 107

area code 107

long distance access code 107

reply translation 107

setting 108

Password

“locked-out” 31, 115

default 24

expiry 31

incorrect lock-out 31

Mailbox 31

Mailbox, expiry 19

Operator 93

resetting Operator 93

resetting System Administrator 91

troubleshooting 115

Password attempts

in Class of Service 19

Password expiry

in Class of Service 19

Path

Custom Call Routing (CCR) 60

Path Number

troubleshooting 116

Personal Mailbox 25

Personal Mailboxes

adding 25

Points, CCR

Leave Message 80

Leave Message Point 70

Transfer 82

Prime Set

CallPilot Feature Compatibility 130

Private line

CallPilot Feature Compatibility 130

Prompt language

in Class of Service 19

Properties

mailbox 21

Recording

Company Greetings 43

Reply Feature

troubleshooting 114

Resetting

CallPilot 89

Operator password 93

System Administrator password 91

Ringing Answer Button 121

Rings

assigning 51

Sending a Group Message 36, 40

Service Modes

CallPilot Feature Compatibility 131

Set Relocation

CallPilot Feature Compatibility 128

Sub-menu

Custom Call Routing (CCR) 59

Symbols 13

System Administrator

password, resetting 91

Target Attendant

in Class of Service 19

Telephone

line display 11

Testing a CCR Tree 77

Time and Date

troubleshooting 114

Timeout

CallPilot Feature Compatibility 129

Touchtone Gate 52

Transfer Callback

CallPilot Feature Compatibility 131

Transfer Point 82

changing 82

Tree

troubleshooting 116

Index 149

CallPilot 150 Telephone Administration Guide

Troubleshooting 113

accessing a line or line Pool 114

Automated Attendant 113

Call Display Information 113

CallPilot 113

Company Directory 115

error messages 117

Extension number length 114

Forward denied 114

General Delivery Mailbox 113

greetings 113

Group List 116

log prompt 114

mailbox not accepting messages 115

message lost in a mailbox 115

password lost 115

Path Number 116

Reply Feature 114

Time and Date 114

Tree 116

Two line display

using 11

User interface

in Class of Service 19

Nortel Networks Answering Machine 150 Users Manual CallPilot Telephone Administration Guide

PDF Call Pilot 150 Telephone Admin T E X T F I L E S

Call Pilot 150 Telephone Admin Call Pilot 150 Telephone Admin

150 to the manual bf60b463-34ce-4394-8d40-b690dab82364

Navigation menu

Versions of this User Manual:

Views

Navigation
