T24 KIM Installation

T24 Key Indicator Module

(KIM) Installation Card

The T24 Key Indicator Module (KIM) is an add-on device which provides 24 extra memory or

line buttons for the T7316E telephone. Up to nine KIMs can be connected to a T7316E

telephone.

A Station Auxiliary Power Supply (SAPS) is required for T7316E telephones that have five to

nine KIMs attached. For SAPS installation instructions, refer to the SAPS Installation Card

provided with the SAPS kit.

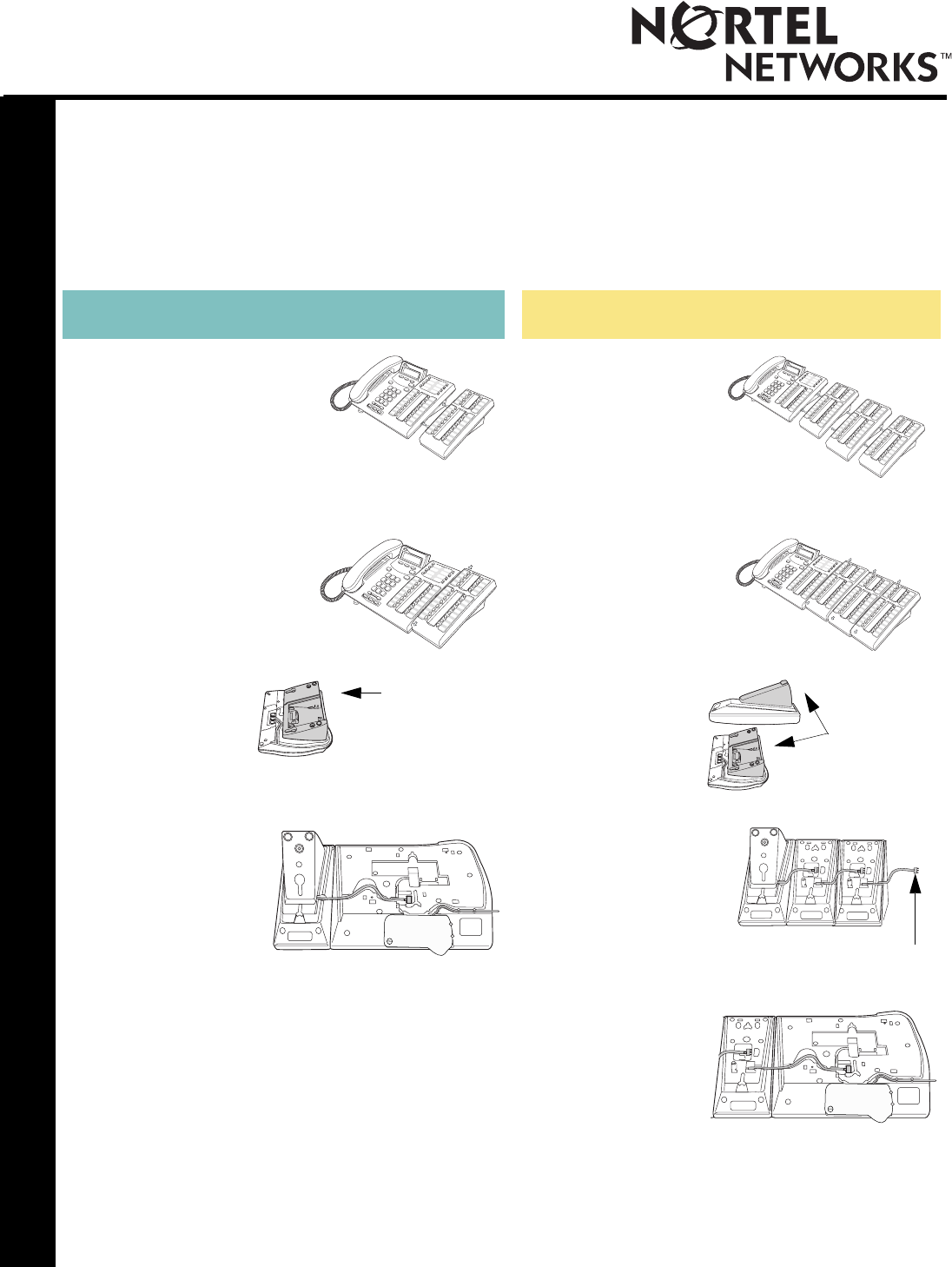

Single T24 KIM installation Multiple T24 KIM installation

1Position the metal hooks

from the left side of the KIM

next to the slots on the right

side of the T7316E

telephone.

Firmly press the T7316E and KIM together.

1Position the T7316E

telephone and KIMs

together. Align the

hooks on each KIM

to the slots on the

next KIM.

Firmly press the T7316E and KIMs together.

2Slide the KIM down until its

aligned with the T7316E

telephone.

2Slide the KIMs down

until they are aligned

with the T7316E

telephone.

3Remove the stand

from the T7316E

telephone.

3Remove the

stands from

KIMs and

the T7316E

telephone.

4Connect the KIM

cord to the accessory

connector port on the

T7316E telephone.

4Connect each KIM

cord to the connector

port on the next KIM

in a daisy-chain

order.

5Replace the stand on the T7316E telephone to

complete the installation. 5Connect the cord

on the first KIM

to the accessory

connector port on

the T7316E

telephone.

6Replace the stands on the KIMs and the

T7316E telephone to complete the installation.

Press here

to remove stand.

Press here

to remove

stands.

KIM 1

KIM 2

KIM 3

KIM 1

Cord to

T7316E

Return

to Menu

2

T24 KIM initialization

KIM indicators turn on and flash during the first ten seconds

after powering up. It can take up to five minutes for the KIM

to initialize.

The default setting for the programmable memory buttons

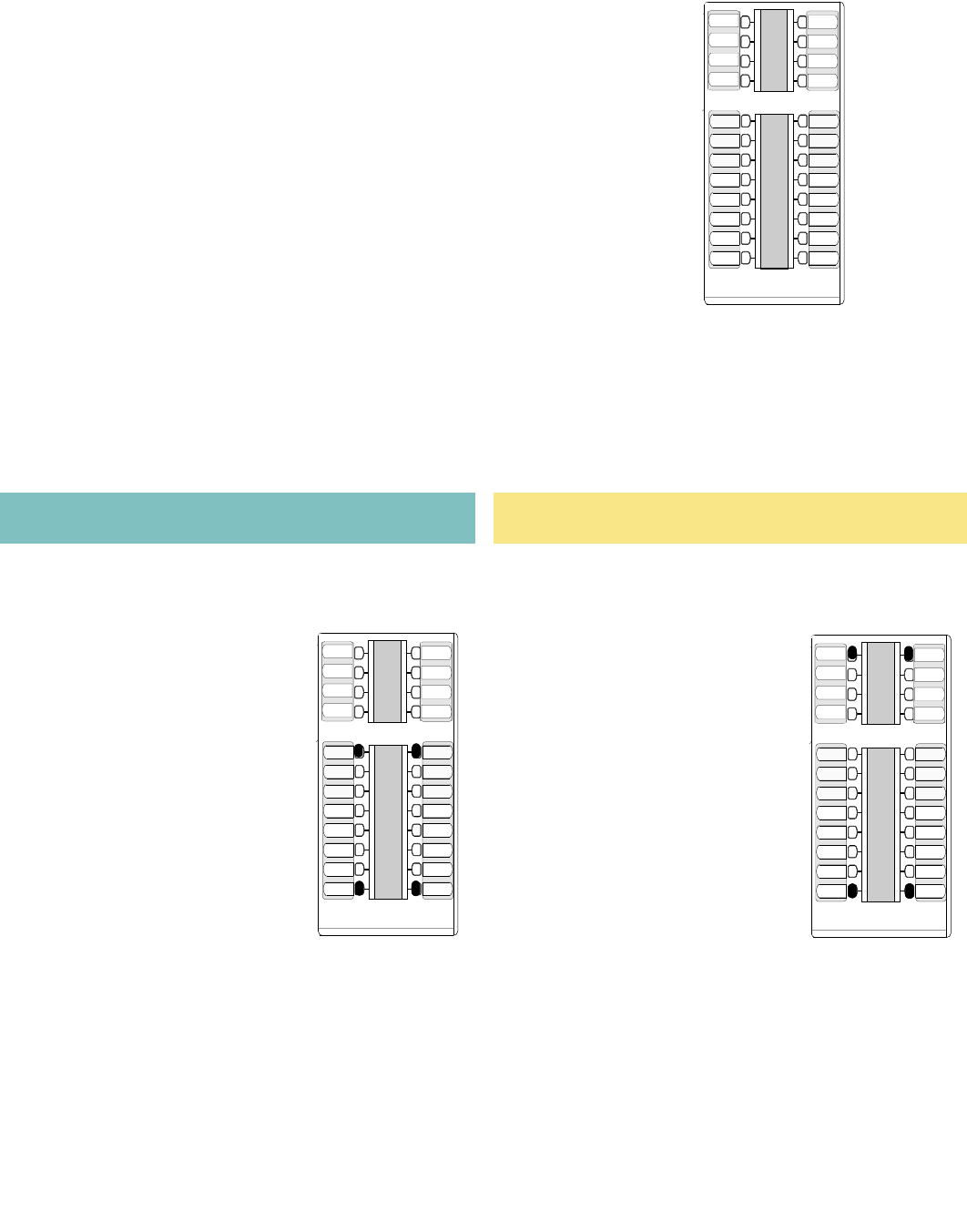

on the KIM is blank. The side illustration shows the button

number assignment on a KIM.

Troubleshooting Tip: An Addon Errormessage appears

on the T7316E telephone display and an error tone is

generated when there is a connector problem with a KIM.

Check that the KIM cord is properly inserted into the

accessory connector port of the T7316E telephone.

T24 KIM coldstarts

Internal autodial numbers can be automatically assigned to the programmable memory buttons on the

KIM when a coldstart is performed. Internal autodial numbers are assigned in ascending order starting

on the top left button (button 01) on the KIM. A coldstart must be performed during the first ten sec-

onds after powering up a KIM.

To coldstart an individual KIM To coldstart all KIMs

1Unplug the T7316E telephone line cord, then

reconnect it to power up. 1Unplug the T7316E telephone line cord, then

reconnect it to power up.

2While the indicators are

flashing on the individual

KIM, simultaneously press

the top two and the bottom

two buttons on the lower

button set of the KIM, as

shown in the illustration

(buttons: 05, 12, 17 and 24).

2While the indicators are

flashing on the first KIM

(next to the telephone),

simultaneously press the

top two buttons and the

bottom two buttons on the

KIM, as shown in the

illustration.

(buttons: 01, 12, 13 and 24)

3At the beginning of the coldstart, indicators beside

each KIM button will briefly flash starting at the

bottom right button (button 24).

3At the beginning of the coldstart, indicators beside

each KIM button will briefly flash starting at the

bottom right button (button 24).

4When the KIM coldstart is completed, the T7316E

telephone display automatically returns to the time

and date.

4When the KIM coldstart is completed, the T7316E

telephone display automatically returns to the time

and date.

B09

B10

B11

B12

B08

B05

B06

B07

B20

B21

B22

B23

B24

B17

B18

B19

B04

B01

B02

B03

B16

B13

B14

B15

1-800-4 NORTEL

www.nortelnetworks.com

P0603481_02

Printed in Canada

KIM button number assignment
