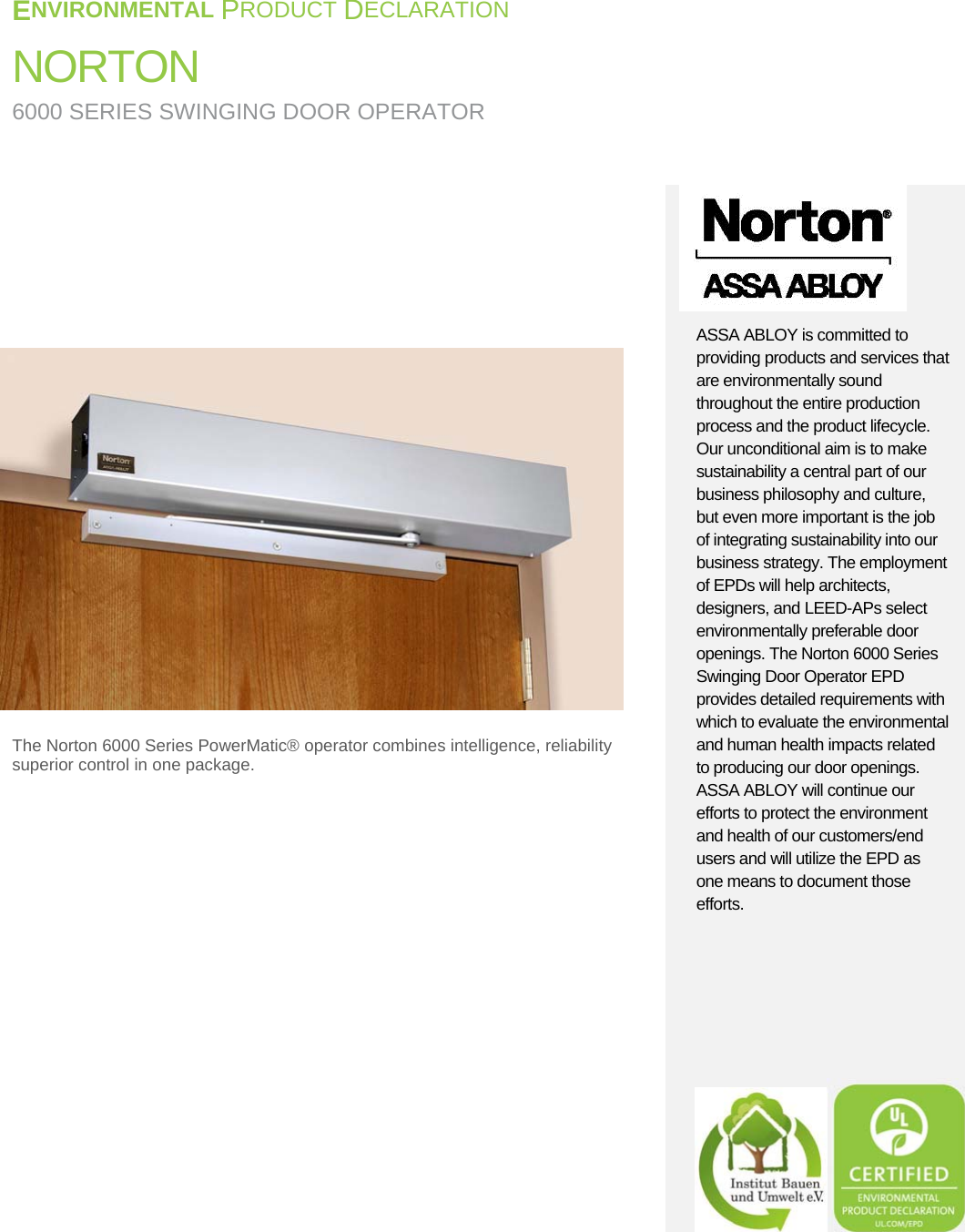

NVIRONMENTAL

RODUCT

ECLARATION

NORTON

6000 SERIES SWINGING DOOR OPERATOR

ASSA ABLOY is committed to

providing products and services that

are environmentally sound

throughout the entire production

process and the product lifecycle.

Our unconditional aim is to make

sustainability a central part of our

business philosophy and culture,

but even more important is the job

of integrating sustainability into our

business strategy. The employment

of EPDs will help architects,

designers, and LEED-APs select

environmentally preferable door

openings. The Norton 6000 Series

Swinging Door Operator EPD

provides detailed requirements with

which to evaluate the environmental

and human health impacts related

to producing our door openings.

ASSA ABLOY will continue our

efforts to protect the environment

and health of our customers/end

users and will utilize the EPD as

one means to document those

efforts.

The Norton 6000 Series PowerMatic® operator combines intelligence, reliability

superior control in one package.

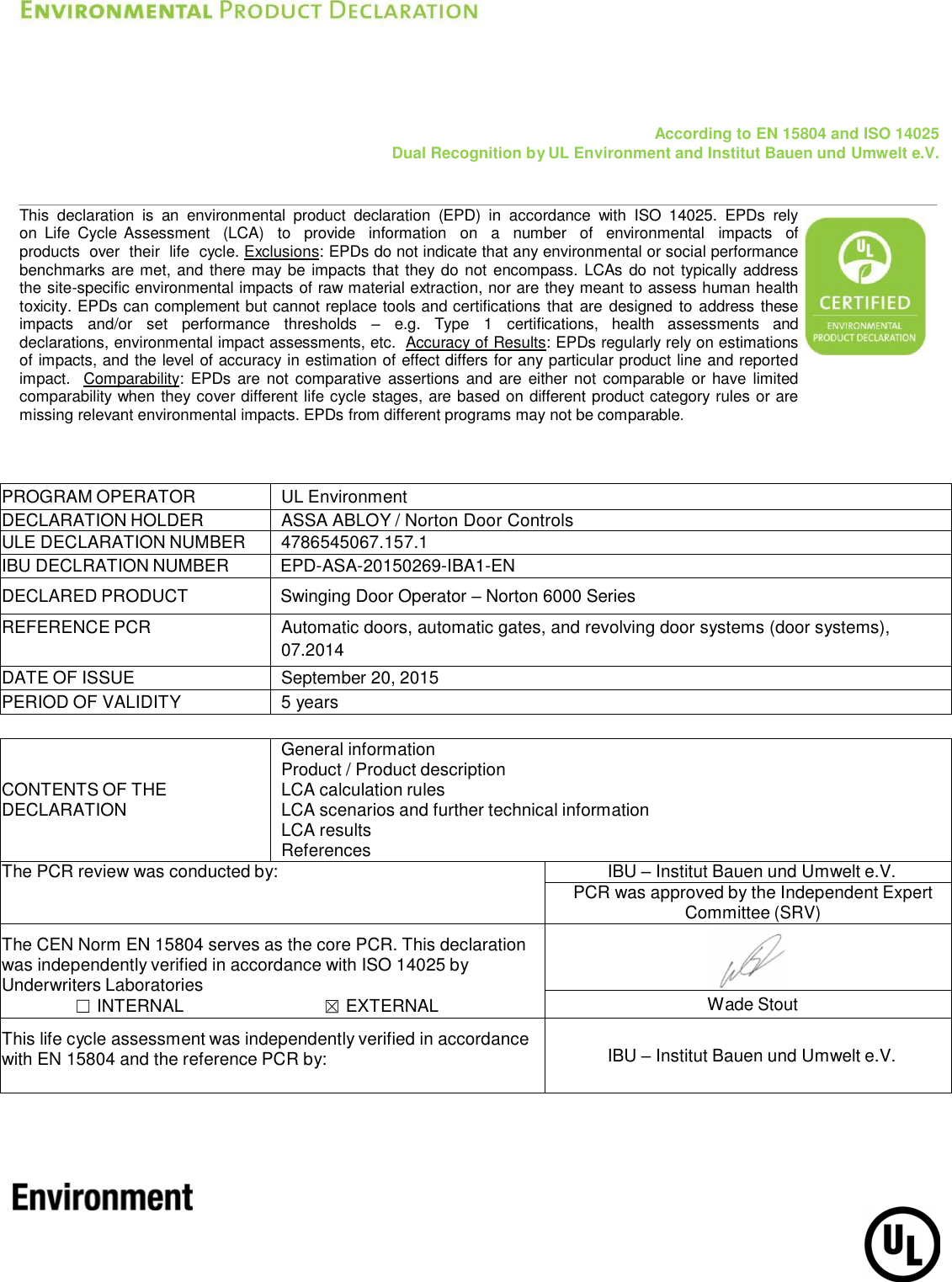

According to EN 15804 and ISO 14025

Dual Recognition by UL Environment and Institut Bauen und Umwelt e.V.

This declaration is an environmental product declaration (EPD) in accordance with ISO 14025. EPDs rely

on Life Cycle Assessment (LCA) to provide information on a number of environmental impacts of

products over their life cycle. Exclusions: EPDs do not indicate that any environmental or social performance

benchmarks are met, and there may be impacts that they do not encompass. LCAs do not typically address

the site-specific environmental impacts of raw material extraction, nor are they meant to assess human health

toxicity. EPDs can complement but cannot replace tools and certifications that are designed to address these

impacts and/or set performance thresholds – e.g. Type 1 certifications, health assessments and

declarations, environmental impact assessments, etc. Accuracy of Results: EPDs regularly rely on estimations

of impacts, and the level of accuracy in estimation of effect differs for any particular product line and reported

impact. Comparability: EPDs are not comparative assertions and are either not comparable or have limited

comparability when they cover different life cycle stages, are based on different product category rules or are

missing relevant environmental impacts. EPDs from different programs may not be comparable.

PROGRAM OPERATOR

UL Environment

DECLARATION HOLDER

ASSA ABLOY / Norton Door Controls

ULE DECLARATION NUMBER

4786545067.157.1

IBU DECLRATION NUMBER

EPD-ASA-20150269-IBA1-EN

DECLARED PRODUCT

Swinging Door Operator – Norton 6000 Series

REFERENCE PCR

Automatic doors, automatic gates, and revolving door systems (door systems),

07.2014

DATE OF ISSUE

September 20, 2015

PERIOD OF VALIDITY

5 years

CONTENTS OF THE

DECLARATION

General information

Product / Product description

LCA calculation rules

LCA scenarios and further technical information

LCA results

References

The PCR review was conducted by:

IBU – Institut Bauen und Umwelt e.V.

PCR was approved by the Independent

Expert

Committee

(SRV)

The CEN Norm EN 15804 serves as the core PCR. This declaration

was independently verified in accordance with ISO 14025 by

Underwriters Laboratories

☐

INTERNAL

☒

EXTERNAL

Wade

Stout

This life cycle assessment was independently verified in accordance

with EN 15804 and the reference PCR by:

IBU – Institut Bauen und Umwelt e.V.

Environmental Product Declaration Assa Abloy /Norton Door Controls/ – Norton 6000

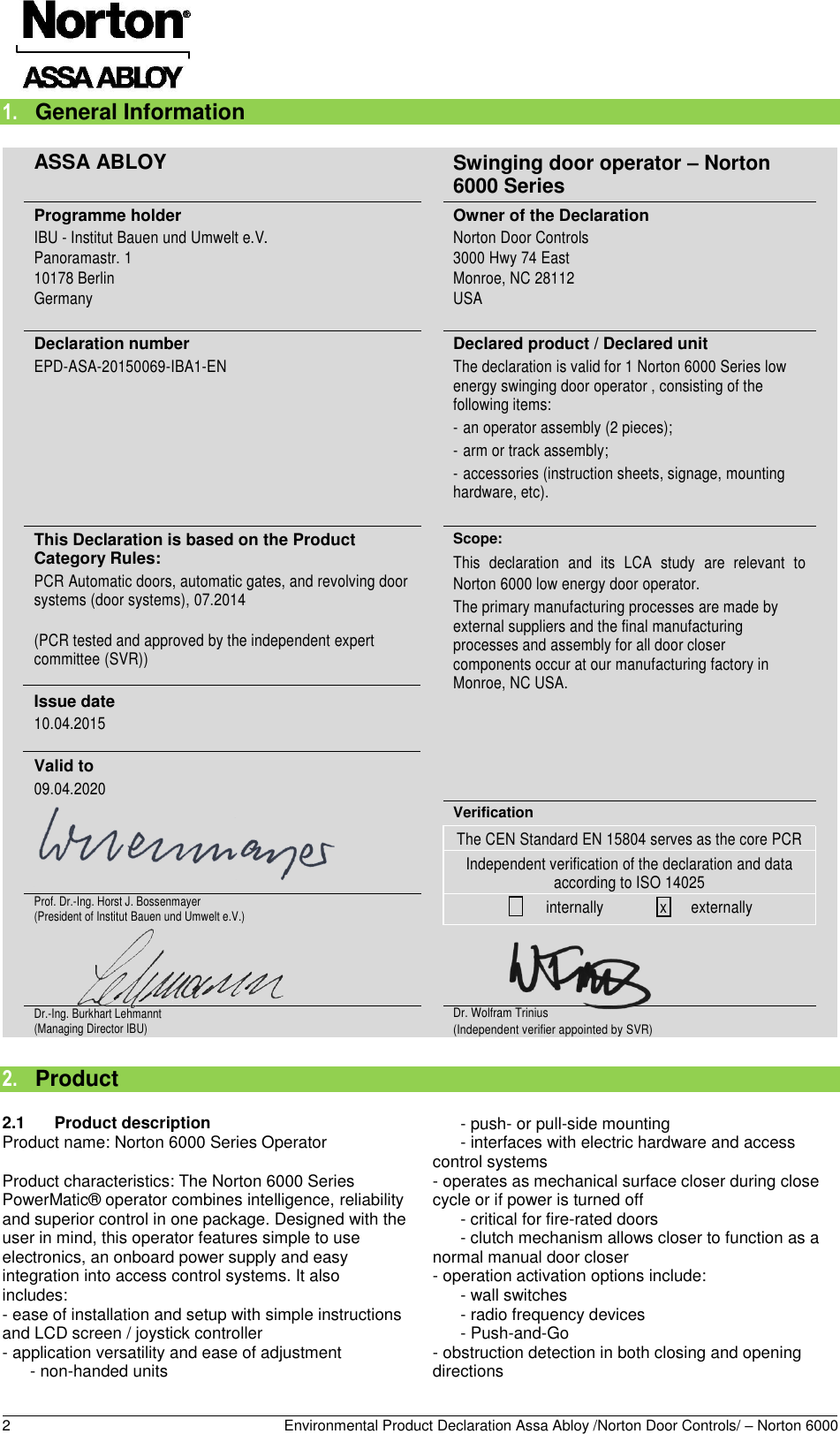

1. General Information

ASSA ABLOY

Swinging door operator – Norton

6000 Series

Programme holder

IBU - Institut Bauen und Umwelt e.V

Panoramastr. 1

10178 Berlin

Germany

Owner of the Declaration

Norton Door Controls

3000 Hwy 74 East

Monroe, NC 28112

USA

Declaration number

EPD-ASA-20150069-IBA1-EN

Declared product / Declared unit

The declaration is valid for 1 Norton 6000 Series low

energy swinging door operator , consisting of the

following items:

an operator assembly (2 pieces);

arm or track assembly;

accessories (instruction sheets, signage, mounting

hardware, etc).

This Declaration is based on the Product

Category Rules:

PCR Automatic doors, automatic gates, and revolving door

systems (door systems), 07.2014

(PCR tested and approved by the independent expert

committee (SVR))

Issue date

10.04.2015

Valid to

09.04.2020

Scope:

This declaration and its LCA study are relevant to

Norton 6000 low energy door operator.

The primary manufacturing processes are made by

external suppliers and the final manufacturing

processes and assembly for all door closer

components occur at our manufacturing factory in

Monroe, NC USA.

Verification

The CEN Standard EN 15804 serves as the core PCR

Independent verification of the declaration and data

according to ISO 14025

Prof. Dr.-Ing. Horst J. Bossenmayer

(President of Institut Bauen und Umwelt e.V.)

internally x externally

Dr.-Ing. Burkhart Lehmannt

(Managing Director IBU)

Dr. Wolfram Trinius

(Independent verifier appointed by SVR)

2. Product

2.1 Product description

Product name: Norton 6000 Series Operator

Product characteristics: The Norton 6000 Series

PowerMatic® operator combines intelligence, reliability

and superior control in one package. Designed with the

user in mind, this operator features simple to use

electronics, an onboard power supply and easy

integration into access control systems. It also

includes:

- ease of installation and setup with simple instructions

and LCD screen / joystick controller

- application versatility and ease of adjustment

- non-handed units

- push- or pull-side mounting

- interfaces with electric hardware and access

control systems

- operates as mechanical surface closer during close

cycle or if power is turned off

- critical for fire-rated doors

- clutch mechanism allows closer to function as a

normal manual door closer

- operation activation options include:

- wall switches

- radio frequency devices

- Push-and-Go

- obstruction detection in both closing and opening

directions

Environmental Product Declaration Assa Abloy /Norton Door Controls/ – Norton 6000

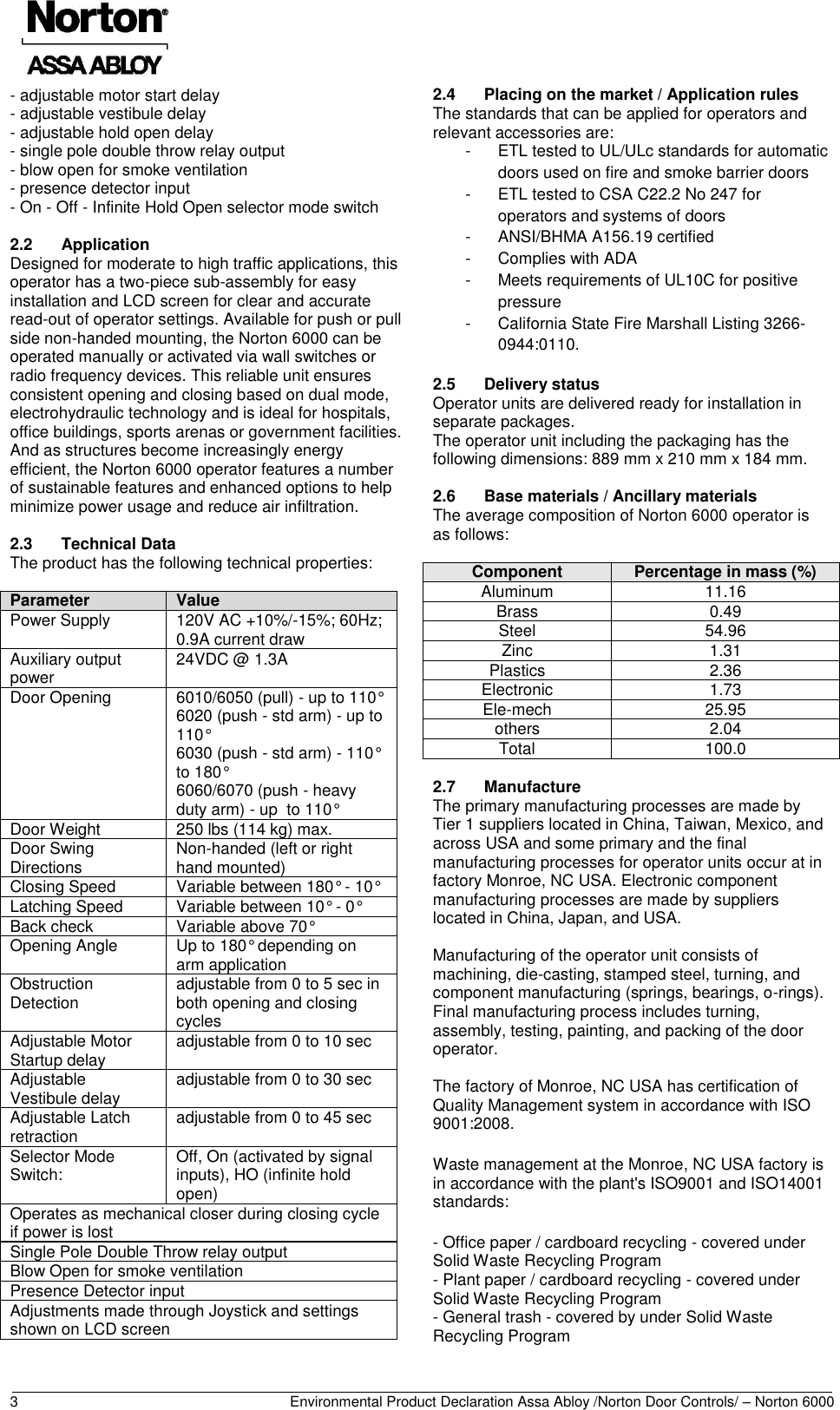

- adjustable motor start delay

- adjustable vestibule delay

- adjustable hold open delay

- single pole double throw relay output

- blow open for smoke ventilation

- presence detector input

- On - Off - Infinite Hold Open selector mode switch

2.2 Application

Designed for moderate to high traffic applications, this

operator has a two-piece sub-assembly for easy

installation and LCD screen for clear and accurate

read-out of operator settings. Available for push or pull

side non-handed mounting, the Norton 6000 can be

operated manually or activated via wall switches or

radio frequency devices. This reliable unit ensures

consistent opening and closing based on dual mode,

electrohydraulic technology and is ideal for hospitals,

office buildings, sports arenas or government facilities.

And as structures become increasingly energy

efficient, the Norton 6000 operator features a number

of sustainable features and enhanced options to help

minimize power usage and reduce air infiltration.

2.3 Technical Data

The product has the following technical properties:

Parameter

Value

Power Supply

120V AC +10%/-15%; 60Hz;

0.9A current draw

Auxiliary output

power

24VDC @ 1.3A

Door Opening

6010/6050 (pull) - up to 110°

6020 (push - std arm) - up to

110°

6030 (push - std arm) - 110°

to 180°

6060/6070 (push - heavy

duty arm) - up to 110°

Door Weight

250 lbs (114 kg) max.

Door Swing

Directions

Non-handed (left or right

hand mounted)

Closing Speed

Variable between 180° - 10°

Latching Speed

Variable between 10° - 0°

Back check

Variable above 70°

Opening Angle

Up to 180° depending on

arm application

Obstruction

Detection

adjustable from 0 to 5 sec in

both opening and closing

cycles

Adjustable Motor

Startup delay

adjustable from 0 to 10 sec

Adjustable

Vestibule delay

adjustable from 0 to 30 sec

Adjustable Latch

retraction

adjustable from 0 to 45 sec

Selector Mode

Switch:

Off, On (activated by signal

inputs), HO (infinite hold

open)

Operates as mechanical closer during closing cycle

if power is lost

Single Pole Double Throw relay output

Blow Open for smoke ventilation

Presence Detector input

Adjustments made through Joystick and settings

shown on LCD screen

2.4 Placing on the market / Application rules

The standards that can be applied for operators and

relevant accessories are:

- ETL tested to UL/ULc standards for automatic

doors used on fire and smoke barrier doors

- ETL tested to CSA C22.2 No 247 for

operators and systems of doors

- ANSI/BHMA A156.19 certified

- Complies with ADA

- Meets requirements of UL10C for positive

pressure

- California State Fire Marshall Listing 3266-

0944:0110.

2.5 Delivery status

Operator units are delivered ready for installation in

separate packages.

The operator unit including the packaging has the

following dimensions: 889 mm x 210 mm x 184 mm.

2.6 Base materials / Ancillary materials

The average composition of Norton 6000 operator is

as follows:

Component

Percentage in mass (%)

Aluminum

11.16

Brass

0.49

Steel

54.96

Zinc

1.31

Plastics

2.36

Electronic

1.73

Ele-mech

25.95

others

2.04

Total

100.0

2.7 Manufacture

The primary manufacturing processes are made by

Tier 1 suppliers located in China, Taiwan, Mexico, and

across USA and some primary and the final

manufacturing processes for operator units occur at in

factory Monroe, NC USA. Electronic component

manufacturing processes are made by suppliers

located in China, Japan, and USA.

Manufacturing of the operator unit consists of

machining, die-casting, stamped steel, turning, and

component manufacturing (springs, bearings, o-rings).

Final manufacturing process includes turning,

assembly, testing, painting, and packing of the door

operator.

The factory of Monroe, NC USA has certification of

Quality Management system in accordance with ISO

9001:2008.

Waste management at the Monroe, NC USA factory is

in accordance with the plant's ISO9001 and ISO14001

standards:

- Office paper / cardboard recycling - covered under

Solid Waste Recycling Program

- Plant paper / cardboard recycling - covered under

Solid Waste Recycling Program

- General trash - covered by under Solid Waste

Recycling Program

Environmental Product Declaration Assa Abloy /Norton Door Controls/ – Norton 6000

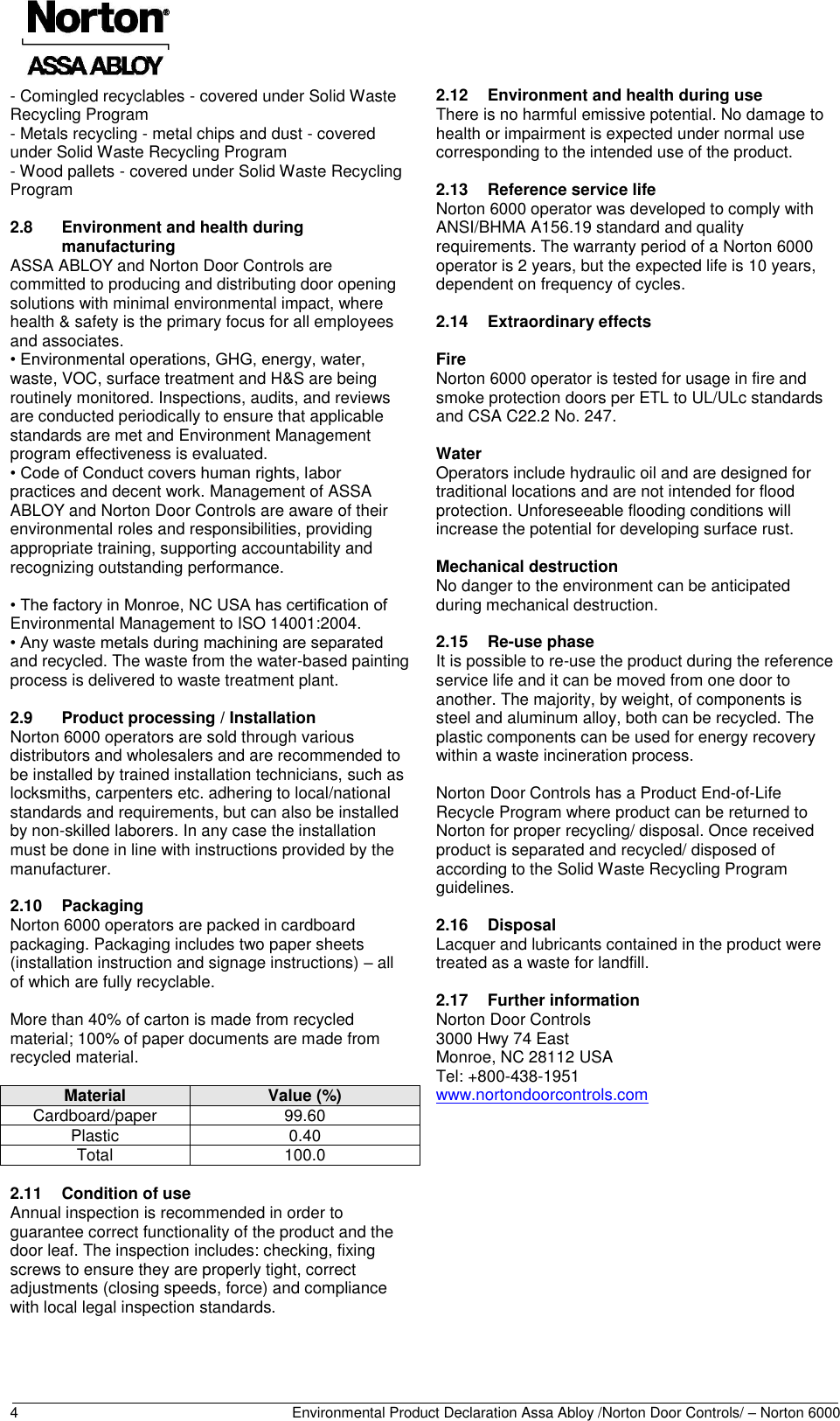

- Comingled recyclables - covered under Solid Waste

Recycling Program

- Metals recycling - metal chips and dust - covered

under Solid Waste Recycling Program

- Wood pallets - covered under Solid Waste Recycling

Program

2.8 Environment and health during

manufacturing

ASSA ABLOY and Norton Door Controls are

committed to producing and distributing door opening

solutions with minimal environmental impact, where

health & safety is the primary focus for all employees

and associates.

• Environmental operations, GHG, energy, water,

waste, VOC, surface treatment and H&S are being

routinely monitored. Inspections, audits, and reviews

are conducted periodically to ensure that applicable

standards are met and Environment Management

program effectiveness is evaluated.

• Code of Conduct covers human rights, labor

practices and decent work. Management of ASSA

ABLOY and Norton Door Controls are aware of their

environmental roles and responsibilities, providing

appropriate training, supporting accountability and

recognizing outstanding performance.

• The factory in Monroe, NC USA has certification of

Environmental Management to ISO 14001:2004.

• Any waste metals during machining are separated

and recycled. The waste from the water-based painting

process is delivered to waste treatment plant.

2.9 Product processing / Installation

Norton 6000 operators are sold through various

distributors and wholesalers and are recommended to

be installed by trained installation technicians, such as

locksmiths, carpenters etc. adhering to local/national

standards and requirements, but can also be installed

by non-skilled laborers. In any case the installation

must be done in line with instructions provided by the

manufacturer.

2.10 Packaging

Norton 6000 operators are packed in cardboard

packaging. Packaging includes two paper sheets

(installation instruction and signage instructions) – all

of which are fully recyclable.

More than 40% of carton is made from recycled

material; 100% of paper documents are made from

recycled material.

Material

Value (%)

Cardboard/paper

99.60

Plastic

0.40

Total

100.0

2.11 Condition of use

Annual inspection is recommended in order to

guarantee correct functionality of the product and the

door leaf. The inspection includes: checking, fixing

screws to ensure they are properly tight, correct

adjustments (closing speeds, force) and compliance

with local legal inspection standards.

2.12 Environment and health during use

There is no harmful emissive potential. No damage to

health or impairment is expected under normal use

corresponding to the intended use of the product.

2.13 Reference service life

Norton 6000 operator was developed to comply with

ANSI/BHMA A156.19 standard and quality

requirements. The warranty period of a Norton 6000

operator is 2 years, but the expected life is 10 years,

dependent on frequency of cycles.

2.14 Extraordinary effects

Fire

Norton 6000 operator is tested for usage in fire and

smoke protection doors per ETL to UL/ULc standards

and CSA C22.2 No. 247.

Water

Operators include hydraulic oil and are designed for

traditional locations and are not intended for flood

protection. Unforeseeable flooding conditions will

increase the potential for developing surface rust.

Mechanical destruction

No danger to the environment can be anticipated

during mechanical destruction.

2.15 Re-use phase

It is possible to re-use the product during the reference

service life and it can be moved from one door to

another. The majority, by weight, of components is

steel and aluminum alloy, both can be recycled. The

plastic components can be used for energy recovery

within a waste incineration process.

Norton Door Controls has a Product End-of-Life

Recycle Program where product can be returned to

Norton for proper recycling/ disposal. Once received

product is separated and recycled/ disposed of

according to the Solid Waste Recycling Program

guidelines.

2.16 Disposal

Lacquer and lubricants contained in the product were

treated as a waste for landfill.

2.17 Further information

Norton Door Controls

3000 Hwy 74 East

Monroe, NC 28112 USA

Tel: +800-438-1951

www.nortondoorcontrols.com

Environmental Product Declaration Assa Abloy /Norton Door Controls/ – Norton 6000

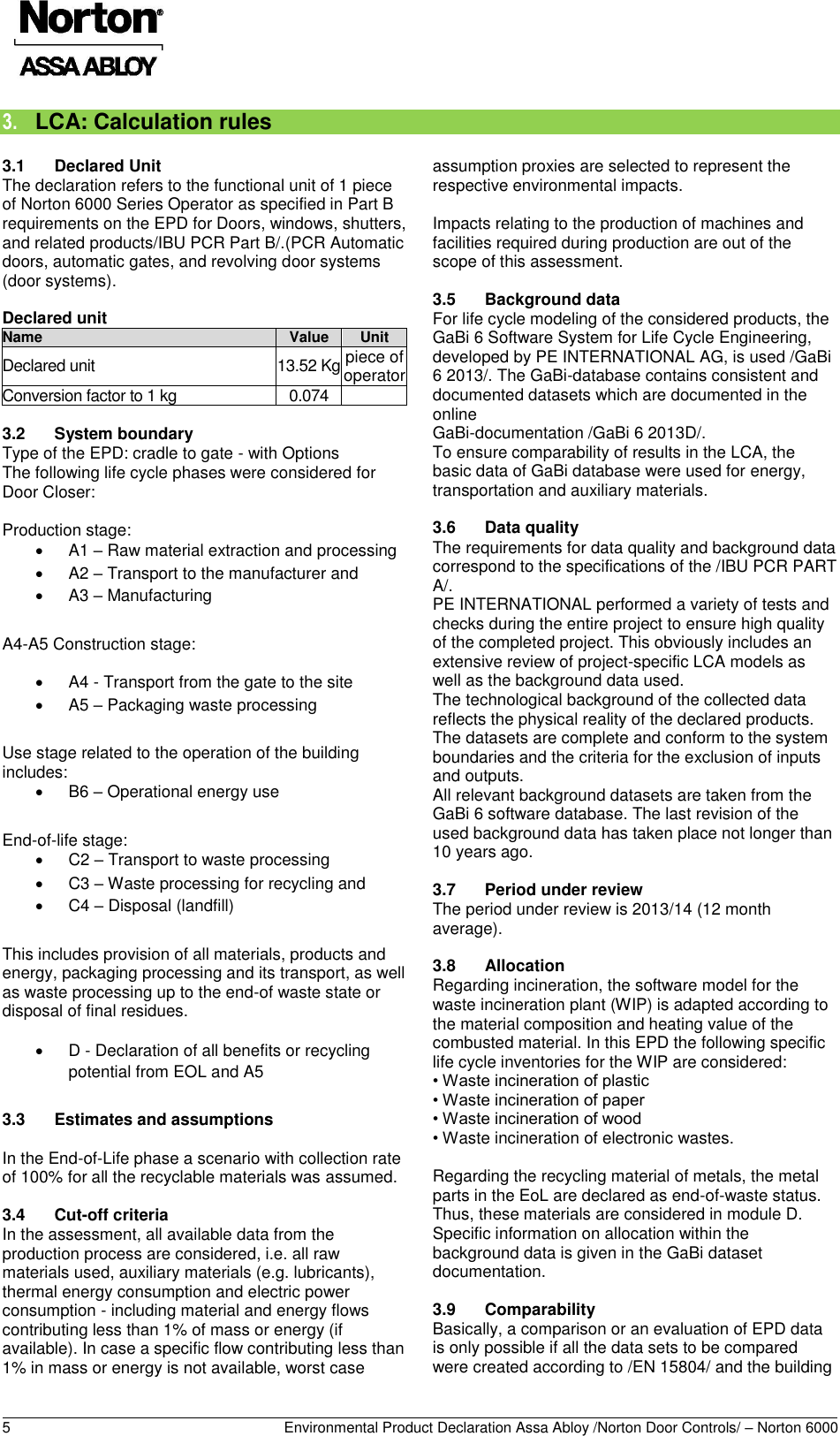

3. LCA: Calculation rules

3.1 Declared Unit

The declaration refers to the functional unit of 1 piece

of Norton 6000 Series Operator as specified in Part B

requirements on the EPD for Doors, windows, shutters,

and related products/IBU PCR Part B/.(PCR Automatic

doors, automatic gates, and revolving door systems

(door systems).

Declared unit

Name

Value

Unit

Declared unit

13.52 Kg

piece of

operator

Conversion factor to 1 kg

0.074

3.2 System boundary

Type of the EPD: cradle to gate - with Options

The following life cycle phases were considered for

Door Closer:

Production stage:

 A1 – Raw material extraction and processing

 A2 – Transport to the manufacturer and

 A3 – Manufacturing

A4-A5 Construction stage:

 A4 - Transport from the gate to the site

 A5 – Packaging waste processing

Use stage related to the operation of the building

includes:

 B6 – Operational energy use

End-of-life stage:

 C2 – Transport to waste processing

 C3 – Waste processing for recycling and

 C4 – Disposal (landfill)

This includes provision of all materials, products and

energy, packaging processing and its transport, as well

as waste processing up to the end-of waste state or

disposal of final residues.

 D - Declaration of all benefits or recycling

potential from EOL and A5

3.3 Estimates and assumptions

In the End-of-Life phase a scenario with collection rate

of 100% for all the recyclable materials was assumed.

3.4 Cut-off criteria

In the assessment, all available data from the

production process are considered, i.e. all raw

materials used, auxiliary materials (e.g. lubricants),

thermal energy consumption and electric power

consumption - including material and energy flows

contributing less than 1% of mass or energy (if

available). In case a specific flow contributing less than

1% in mass or energy is not available, worst case

assumption proxies are selected to represent the

respective environmental impacts.

Impacts relating to the production of machines and

facilities required during production are out of the

scope of this assessment.

3.5 Background data

For life cycle modeling of the considered products, the

GaBi 6 Software System for Life Cycle Engineering,

developed by PE INTERNATIONAL AG, is used /GaBi

6 2013/. The GaBi-database contains consistent and

documented datasets which are documented in the

online

GaBi-documentation /GaBi 6 2013D/.

To ensure comparability of results in the LCA, the

basic data of GaBi database were used for energy,

transportation and auxiliary materials.

3.6 Data quality

The requirements for data quality and background data

correspond to the specifications of the /IBU PCR PART

A/.

PE INTERNATIONAL performed a variety of tests and

checks during the entire project to ensure high quality

of the completed project. This obviously includes an

extensive review of project-specific LCA models as

well as the background data used.

The technological background of the collected data

reflects the physical reality of the declared products.

The datasets are complete and conform to the system

boundaries and the criteria for the exclusion of inputs

and outputs.

All relevant background datasets are taken from the

GaBi 6 software database. The last revision of the

used background data has taken place not longer than

10 years ago.

3.7 Period under review

The period under review is 2013/14 (12 month

average).

3.8 Allocation

Regarding incineration, the software model for the

waste incineration plant (WIP) is adapted according to

the material composition and heating value of the

combusted material. In this EPD the following specific

life cycle inventories for the WIP are considered:

• Waste incineration of plastic

• Waste incineration of paper

• Waste incineration of wood

• Waste incineration of electronic wastes.

Regarding the recycling material of metals, the metal

parts in the EoL are declared as end-of-waste status.

Thus, these materials are considered in module D.

Specific information on allocation within the

background data is given in the GaBi dataset

documentation.

3.9 Comparability

Basically, a comparison or an evaluation of EPD data

is only possible if all the data sets to be compared

were created according to /EN 15804/ and the building

Environmental Product Declaration Assa Abloy /Norton Door Controls/ – Norton 6000

context, respectively the product-specific

characteristics of performance, are taken into account.

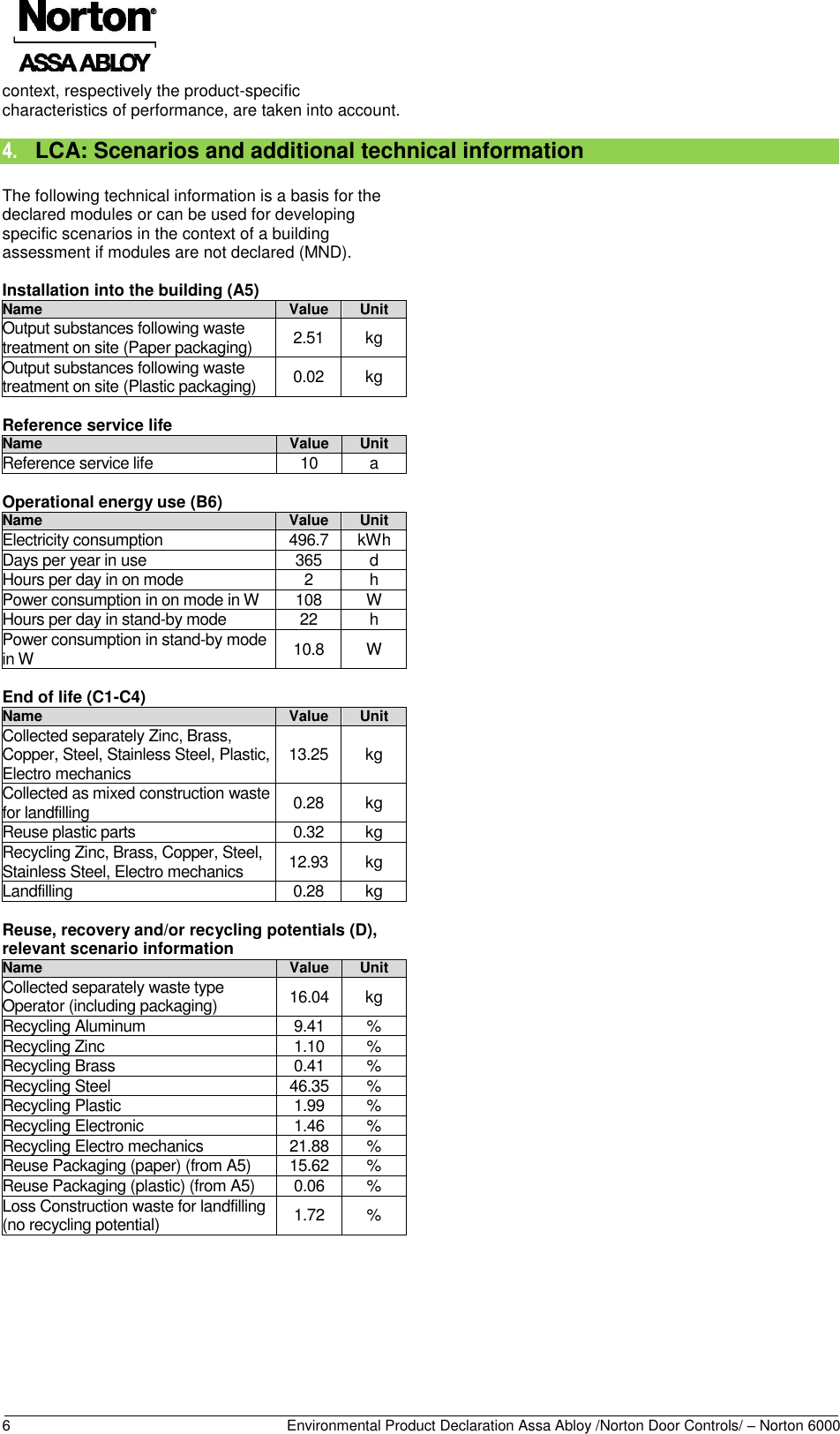

4. LCA: Scenarios and additional technical information

The following technical information is a basis for the

declared modules or can be used for developing

specific scenarios in the context of a building

assessment if modules are not declared (MND).

Installation into the building (A5)

Name

Value

Unit

Output substances following waste

treatment on site (Paper packaging)

2.51

Output substances following waste

treatment on site (Plastic packaging)

0.02

Reference service life

Name

Value

Unit

Reference service life

Operational energy use (B6)

Name

Value

Unit

Electricity consumption

496.7

kWh

Days per year in use

365

Hours per day in on mode

Power consumption in on mode in W

108

Hours per day in stand-by mode

Power consumption in stand-by mode

in W

10.8

End of life (C1-C4)

Name

Value

Unit

Collected separately Zinc, Brass,

Copper, Steel, Stainless Steel, Plastic,

Electro mechanics

13.25

Collected as mixed construction waste

for landfilling

0.28

Reuse plastic parts

0.32

Recycling Zinc, Brass, Copper, Steel,

Stainless Steel, Electro mechanics

12.93

Landfilling

0.28

Reuse, recovery and/or recycling potentials (D),

relevant scenario information

Name

Value

Unit

Collected separately waste type

Operator (including packaging)

16.04

Recycling Aluminum

9.41

Recycling Zinc

1.10

Recycling Brass

0.41

Recycling Steel

46.35

Recycling Plastic

1.99

Recycling Electronic

1.46

Recycling Electro mechanics

21.88

Reuse Packaging (paper) (from A5)

15.62

Reuse Packaging (plastic) (from A5)

0.06

Loss Construction waste for landfilling

(no recycling potential)

1.72

Environmental Product Declaration Assa Abloy /Norton Door Controls/ – Norton 6000

5. LCA: Results

Results shown below were calculated using CML Methodology.

DESCRIPTION OF THE SYSTEM BOUNDARY (X = INCLUDED IN LCA; MND = MODULE NOT DECLARED)

PRODUCT STAGE

CONSTRUCTI

ON PROCESS

STAGE

USE STAGE

END OF LIFE STAGE

BENEFITS AND

LOADS

BEYOND THE

SYSTEM

BOUNDARYS

Raw material

supply

Transport

Manufacturing

Transport from the

gate to the site

Assembly

Use

Maintenance

Repair

Replacement1)

Refurbishment1)

Operational energy

use

Operational water

use

De-construction

demolition

Transport

Waste processing

Disposal

Reuse-

Recovery-

Recycling-

potential

MND

RESULTS OF THE LCA - ENVIRONMENTAL IMPACT: 1 piece of Norton 6000

Parameter

Unit

A1-3

Global warming potential

[kg CO2-Eq.]

1.02E+02

4.58E-01

3.57E+00

3.34E+02

4.58E-01

8.88E-02

1.68E+00

-3.38E+01

Depletion potential of the stratospheric ozone layer

[kg CFC11-

Eq.]

4.08E-07

2.19E-12

1.63E-11

1.15E-07

2.19E-12

6.08E-11

5.45E-12

5.74E-09

Acidification potential of land and water

[kg SO2-Eq.]

6.35E-01

2.10E-03

8.14E-04

1.13E+00

2.09E-03

4.19E-04

7.17E-04

-1.83E-01

Eutrophication potential

[kg (PO4)3--

Eq.]

4.25E-02

4.79E-04

1.41E-04

6.02E-02

4.78E-04

2.36E-05

8.63E-05

-1.01E-02

Formation potential of tropospheric ozone

photochemical oxidants

[kg Ethen

Eq.]

4.26E-02

-6.76E-04

5.76E-05

6.89E-02

-6.76E-04

2.49E-05

4.90E-05

-1.36E-02

Abiotic depletion potential for non fossil resources

[kg Sb Eq.]

7.35E-03

1.73E-08

6.56E-08

4.41E-05

1.73E-08

1.23E-08

1.75E-07

-3.27E-03

Abiotic depletion potential for fossil resources

[MJ]

1.22E+03

6.32E+00

1.00E+00

3.85E+03

6.32E+00

1.01E+00

1.29E+00

-3.21E+02

RESULTS OF THE LCA - RESOURCE USE: 1 piece of Norton 6000

Parameter

Unit

A1-3

Renewable primary energy as energy carrier

[MJ]

2.34E+02

Renewable primary energy resources as material

utilization

[MJ]

0.00E+00

Total use of renewable primary energy resources

[MJ]

2.34E+02

2.49E-01

9.33E-02

3.77E+02

2.49E-01

2.89E-01

1.12E-01

-7.77E+01

Non renewable primary energy as energy carrier

[MJ]

1.39E+03

Non renewable primary energy as material utilization

[MJ]

0.00E+00

Total use of non renewable primary energy

resources

[MJ]

1.39E+03

6.34E+00

1.17E+00

4.87E+03

6.34E+00

1.58E+00

1.42E+00

-3.67E+02

Use of secondary material

[kg]

3.05E+00

0.00E+00

Use of renewable secondary fuels

[MJ]

0.00E+00

Use of non renewable secondary fuels

[MJ]

0.00E+00

Use of net fresh water

[m³]

6.15E-01

1.76E-04

1.04E-02

1.71E+00

1.76E-04

7.13E-04

2.95E-03

-2.33E-01

RESULTS OF THE LCA – OUTPUT FLOWS AND WASTE CATEGORIES:

1 piece of Norton 6000

Parameter

Unit

A1-3

Hazardous waste disposed

[kg]

6.49E-02

1.44E-05

8.08E-05

3.80E-03

1.44E-05

2.19E-04

1.06E-04

-1.70E-03

Non hazardous waste disposed

[kg]

7.68E+00

7.97E-04

9.13E-02

1.55E+00

7.97E-04

5.10E-04

3.11E+00

-3.12E+00

Radioactive waste disposed

[kg]

6.61E-02

8.30E-06

6.85E-05

4.01E-01

8.30E-06

2.28E-04

4.96E-05

-1.82E-02

Components for re-use

[kg]

0.00E+00

Materials for recycling

[kg]

0.00E+00

1.17E+01

0.00E+00

Materials for energy recovery

[kg]

0.00E+00

Exported electrical energy

[MJ]

0.00E+00

4.53E+00

0.00E+00

2.74E+00

Exported thermal energy

[MJ]

0.00E+00

1.28E+01

0.00E+00

7.53E+00

Environmental Product Declaration Assa Abloy /Norton Door Controls/ – Norton 6000

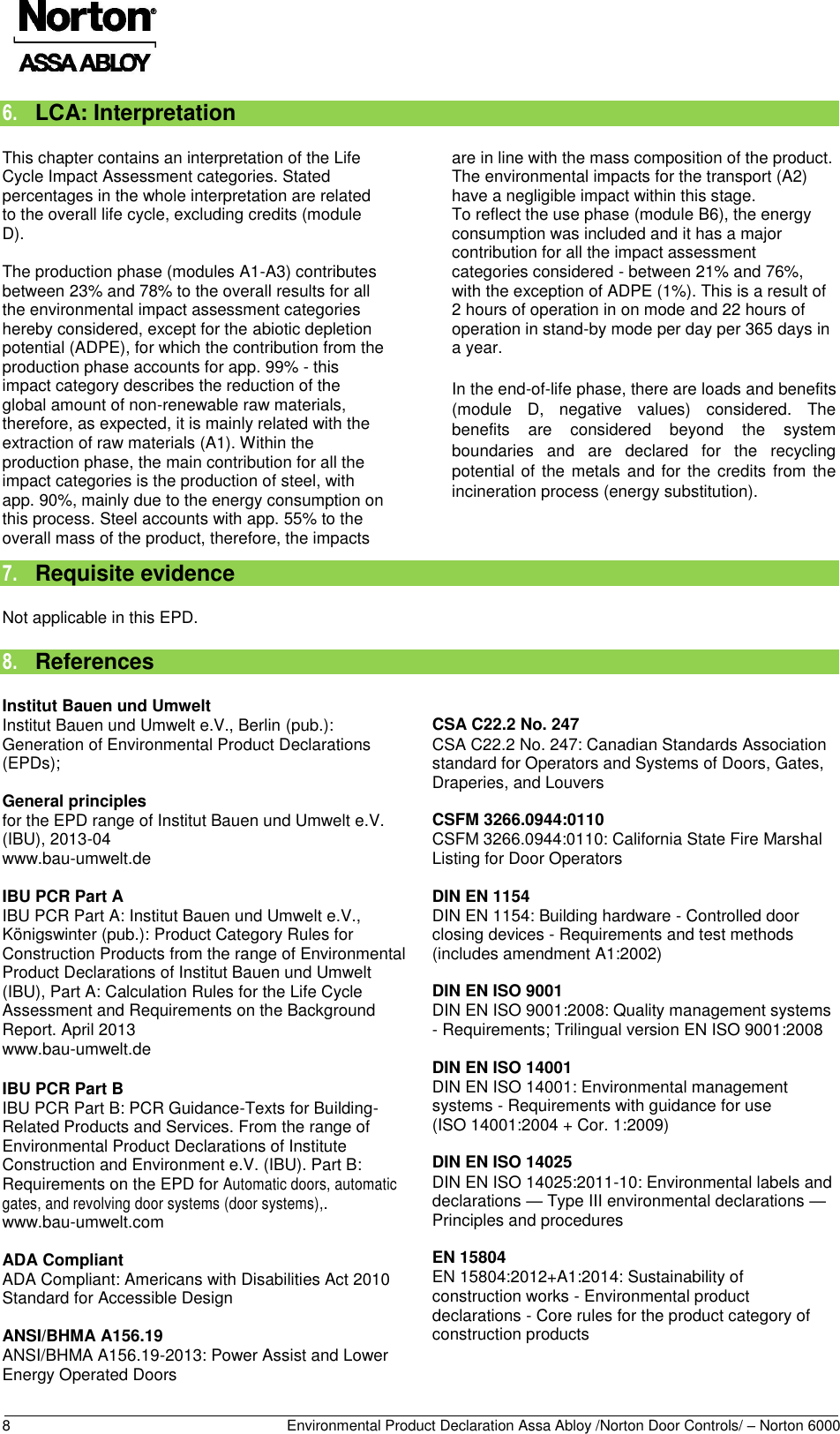

6. LCA: Interpretation

This chapter contains an interpretation of the Life

Cycle Impact Assessment categories. Stated

percentages in the whole interpretation are related

to the overall life cycle, excluding credits (module

D).

The production phase (modules A1-A3) contributes

between 23% and 78% to the overall results for all

the environmental impact assessment categories

hereby considered, except for the abiotic depletion

potential (ADPE), for which the contribution from the

production phase accounts for app. 99% - this

impact category describes the reduction of the

global amount of non-renewable raw materials,

therefore, as expected, it is mainly related with the

extraction of raw materials (A1). Within the

production phase, the main contribution for all the

impact categories is the production of steel, with

app. 90%, mainly due to the energy consumption on

this process. Steel accounts with app. 55% to the

overall mass of the product, therefore, the impacts

are in line with the mass composition of the product.

The environmental impacts for the transport (A2)

have a negligible impact within this stage.

To reflect the use phase (module B6), the energy

consumption was included and it has a major

contribution for all the impact assessment

categories considered - between 21% and 76%,

with the exception of ADPE (1%). This is a result of

2 hours of operation in on mode and 22 hours of

operation in stand-by mode per day per 365 days in

a year.

In the end-of-life phase, there are loads and benefits

(module D, negative values) considered. The

benefits are considered beyond the system

boundaries and are declared for the recycling

potential of the metals and for the credits from the

incineration process (energy substitution).

7. Requisite evidence

Not applicable in this EPD.

8. References

Institut Bauen und Umwelt

Institut Bauen und Umwelt e.V., Berlin (pub.):

Generation of Environmental Product Declarations

(EPDs);

General principles

for the EPD range of Institut Bauen und Umwelt e.V.

(IBU), 2013-04

www.bau-umwelt.de

IBU PCR Part A

IBU PCR Part A: Institut Bauen und Umwelt e.V.,

Königswinter (pub.): Product Category Rules for

Construction Products from the range of Environmental

Product Declarations of Institut Bauen und Umwelt

(IBU), Part A: Calculation Rules for the Life Cycle

Assessment and Requirements on the Background

Report. April 2013

www.bau-umwelt.de

IBU PCR Part B

IBU PCR Part B: PCR Guidance-Texts for Building-

Related Products and Services. From the range of

Environmental Product Declarations of Institute

Construction and Environment e.V. (IBU). Part B:

Requirements on the EPD for

Automatic doors, automatic

gates, and revolving door systems (door systems),

www.bau-umwelt.com

ADA Compliant

ADA Compliant: Americans with Disabilities Act 2010

Standard for Accessible Design

ANSI/BHMA A156.19

ANSI/BHMA A156.19-2013: Power Assist and Lower

Energy Operated Doors

CSA C22.2 No. 247

CSA C22.2 No. 247: Canadian Standards Association

standard for Operators and Systems of Doors, Gates,

Draperies, and Louvers

CSFM 3266.0944:0110

CSFM 3266.0944:0110: California State Fire Marshal

Listing for Door Operators

DIN EN 1154

DIN EN 1154: Building hardware - Controlled door

closing devices - Requirements and test methods

(includes amendment A1:2002)

DIN EN ISO 9001

DIN EN ISO 9001:2008: Quality management systems

- Requirements; Trilingual version EN ISO 9001:2008

DIN EN ISO 14001

DIN EN ISO 14001: Environmental management

systems - Requirements with guidance for use

(ISO 14001:2004 + Cor. 1:2009)

DIN EN ISO 14025

DIN EN ISO 14025:2011-10: Environmental labels and

declarations — Type III environmental declarations —

Principles and procedures

EN 15804

EN 15804:2012+A1:2014: Sustainability of

construction works - Environmental product

declarations - Core rules for the product category of

construction products

Environmental Product Declaration Assa Abloy /Norton Door Controls/ – Norton 6000

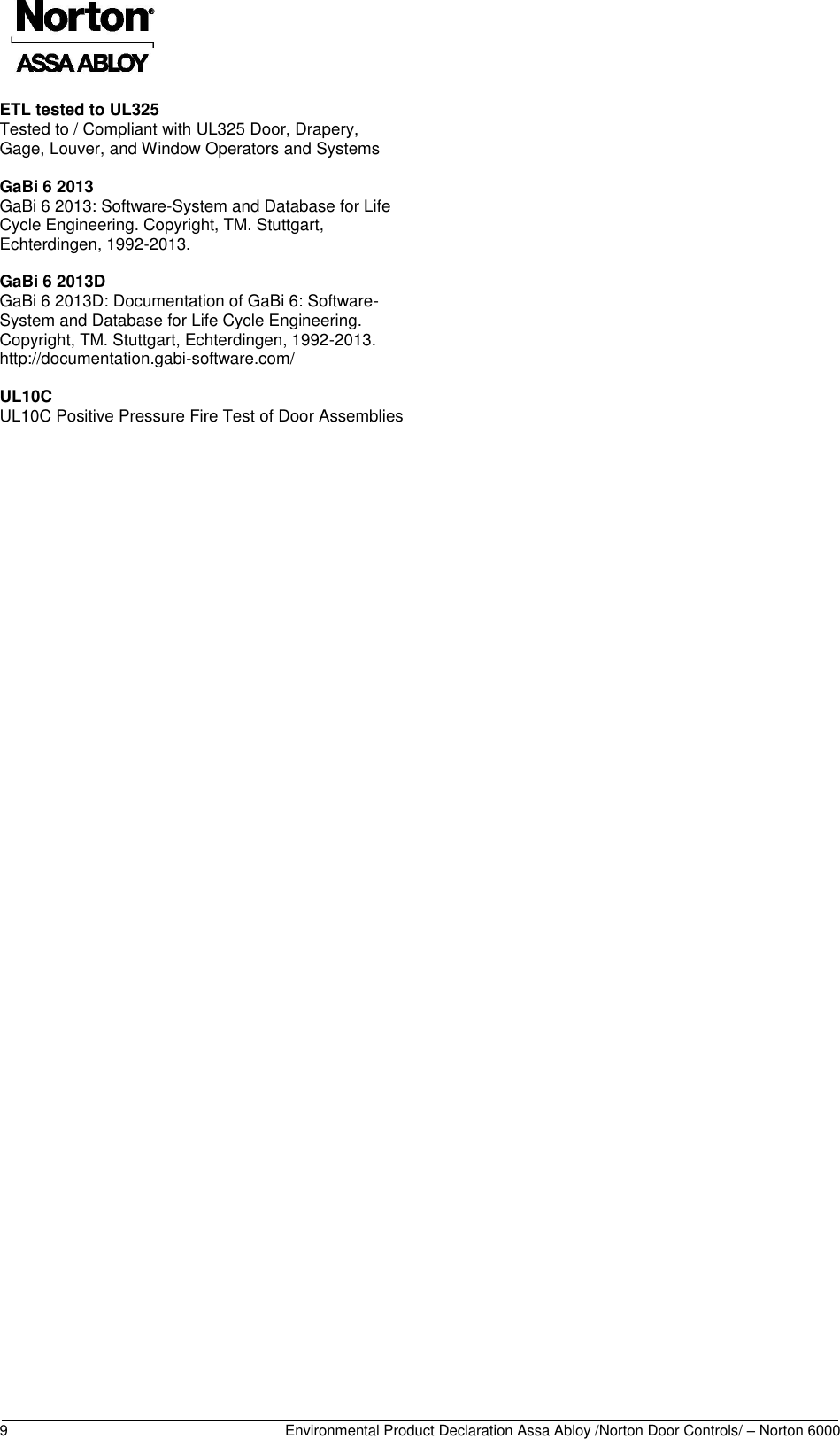

ETL tested to UL325

Tested to / Compliant with UL325 Door, Drapery,

Gage, Louver, and Window Operators and Systems

GaBi 6 2013

GaBi 6 2013: Software-System and Database for Life

Cycle Engineering. Copyright, TM. Stuttgart,

Echterdingen, 1992-2013.

GaBi 6 2013D

GaBi 6 2013D: Documentation of GaBi 6: Software-

System and Database for Life Cycle Engineering.

http://documentation.gabi-software.com/

UL10C

UL10C Positive Pressure Fire Test of Door Assemblies

Environmental Product Declaration Assa Abloy /Norton Door Controls/ – Norton 6000

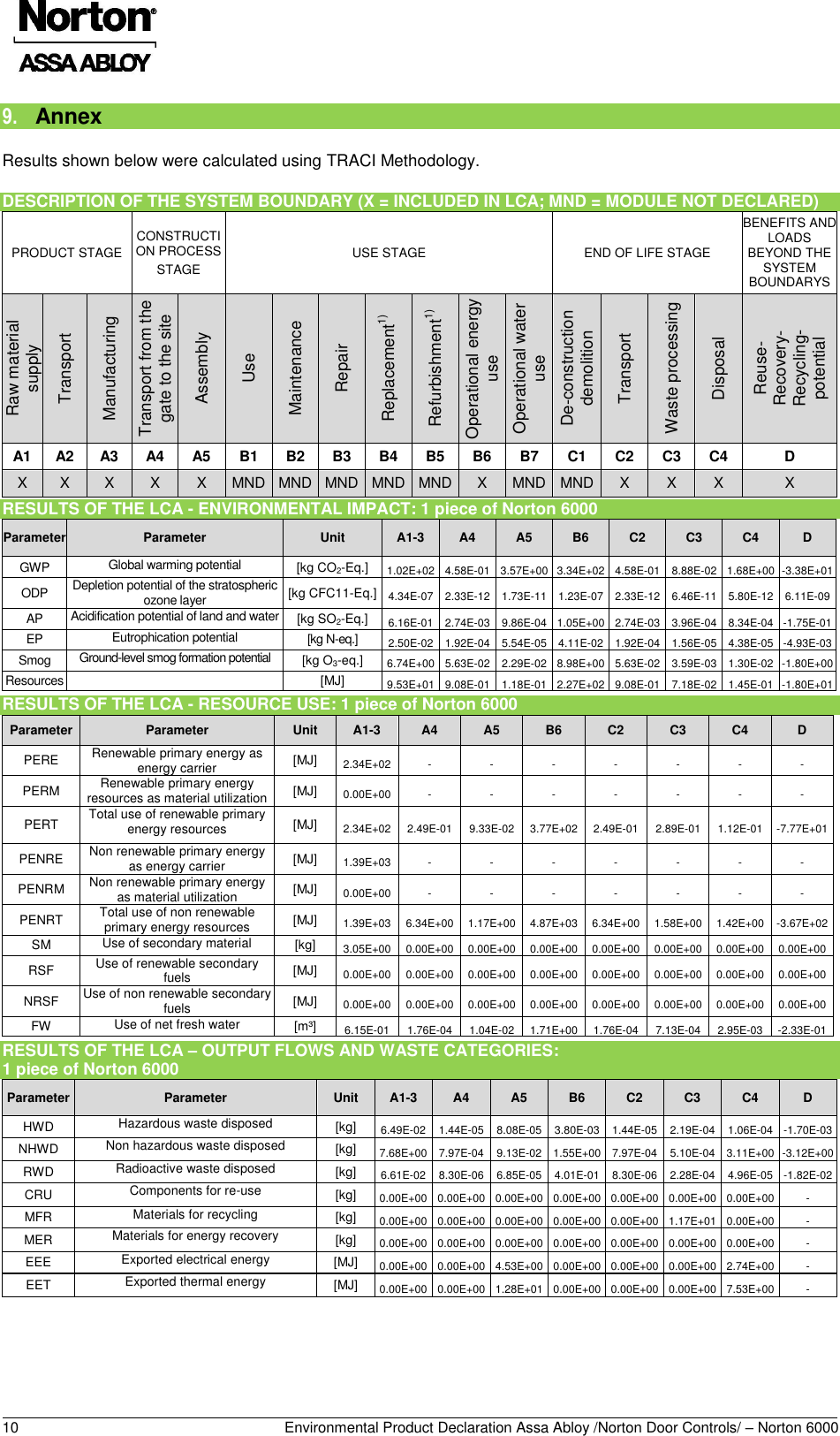

9. Annex

Results shown below were calculated using TRACI Methodology.

DESCRIPTION OF THE SYSTEM BOUNDARY (X = INCLUDED IN LCA; MND = MODULE NOT DECLARED)

PRODUCT STAGE

CONSTRUCTI

ON PROCESS

STAGE

USE STAGE

END OF LIFE STAGE

BENEFITS AND

LOADS

BEYOND THE

SYSTEM

BOUNDARYS

Raw material

supply

Transport

Manufacturing

Transport from the

gate to the site

Assembly

Use

Maintenance

Repair

Replacement1)

Refurbishment1)

Operational energy

use

Operational water

use

De-construction

demolition

Transport

Waste processing

Disposal

Reuse-

Recovery-

Recycling-

potential

MND

RESULTS OF THE LCA - ENVIRONMENTAL IMPACT: 1 piece of Norton 6000

Parameter

Unit

A1-3

GWP

Global warming potential

[kg CO2-Eq.]

1.02E+02

4.58E-01

3.57E+00

3.34E+02

4.58E-01

8.88E-02

1.68E+00

-3.38E+01

ODP

Depletion potential of the stratospheric

ozone layer

[kg CFC11-Eq.]

4.34E-07

2.33E-12

1.73E-11

1.23E-07

2.33E-12

6.46E-11

5.80E-12

6.11E-09

Acidification potential of land and water

[kg SO2-Eq.]

6.16E-01

2.74E-03

9.86E-04

1.05E+00

2.74E-03

3.96E-04

8.34E-04

-1.75E-01

Eutrophication potential

[kg N-eq.]

2.50E-02

1.92E-04

5.54E-05

4.11E-02

1.92E-04

1.56E-05

4.38E-05

-4.93E-03

Smog

Ground-level smog formation potential

[kg O3-eq.]

6.74E+00

5.63E-02

2.29E-02

8.98E+00

5.63E-02

3.59E-03

1.30E-02

-1.80E+00

Resources

[MJ]

9.53E+01

9.08E-01

1.18E-01

2.27E+02

9.08E-01

7.18E-02

1.45E-01

-1.80E+01

RESULTS OF THE LCA - RESOURCE USE: 1 piece of Norton 6000

Parameter

Unit

A1-3

PERE

Renewable primary energy as

energy carrier

[MJ]

2.34E+02

PERM

Renewable primary energy

resources as material utilization

[MJ]

0.00E+00

PERT

Total use of renewable primary

energy resources

[MJ]

2.34E+02

2.49E-01

9.33E-02

3.77E+02

2.49E-01

2.89E-01

1.12E-01

-7.77E+01

PENRE

Non renewable primary energy

as energy carrier

[MJ]

1.39E+03

PENRM

Non renewable primary energy

as material utilization

[MJ]

0.00E+00

PENRT

Total use of non renewable

primary energy resources

[MJ]

1.39E+03

6.34E+00

1.17E+00

4.87E+03

6.34E+00

1.58E+00

1.42E+00

-3.67E+02

Use of secondary material

[kg]

3.05E+00

0.00E+00

RSF

Use of renewable secondary

fuels

[MJ]

0.00E+00

NRSF

Use of non renewable secondary

fuels

[MJ]

0.00E+00

Use of net fresh water

[m³]

6.15E-01

1.76E-04

1.04E-02

1.71E+00

1.76E-04

7.13E-04

2.95E-03

-2.33E-01

RESULTS OF THE LCA – OUTPUT FLOWS AND WASTE CATEGORIES:

1 piece of Norton 6000

Parameter

Unit

A1-3

HWD

Hazardous waste disposed

[kg]

6.49E-02

1.44E-05

8.08E-05

3.80E-03

1.44E-05

2.19E-04

1.06E-04

-1.70E-03

NHWD

Non hazardous waste disposed

[kg]

7.68E+00

7.97E-04

9.13E-02

1.55E+00

7.97E-04

5.10E-04

3.11E+00

-3.12E+00

RWD

Radioactive waste disposed

[kg]

6.61E-02

8.30E-06

6.85E-05

4.01E-01

8.30E-06

2.28E-04

4.96E-05

-1.82E-02

CRU

Components for re-use

[kg]

0.00E+00

MFR

Materials for recycling

[kg]

0.00E+00

1.17E+01

0.00E+00

MER

Materials for energy recovery

[kg]

0.00E+00

EEE

Exported electrical energy

[MJ]

0.00E+00

4.53E+00

0.00E+00

2.74E+00

EET

Exported thermal energy

[MJ]

0.00E+00

1.28E+01

0.00E+00

7.53E+00

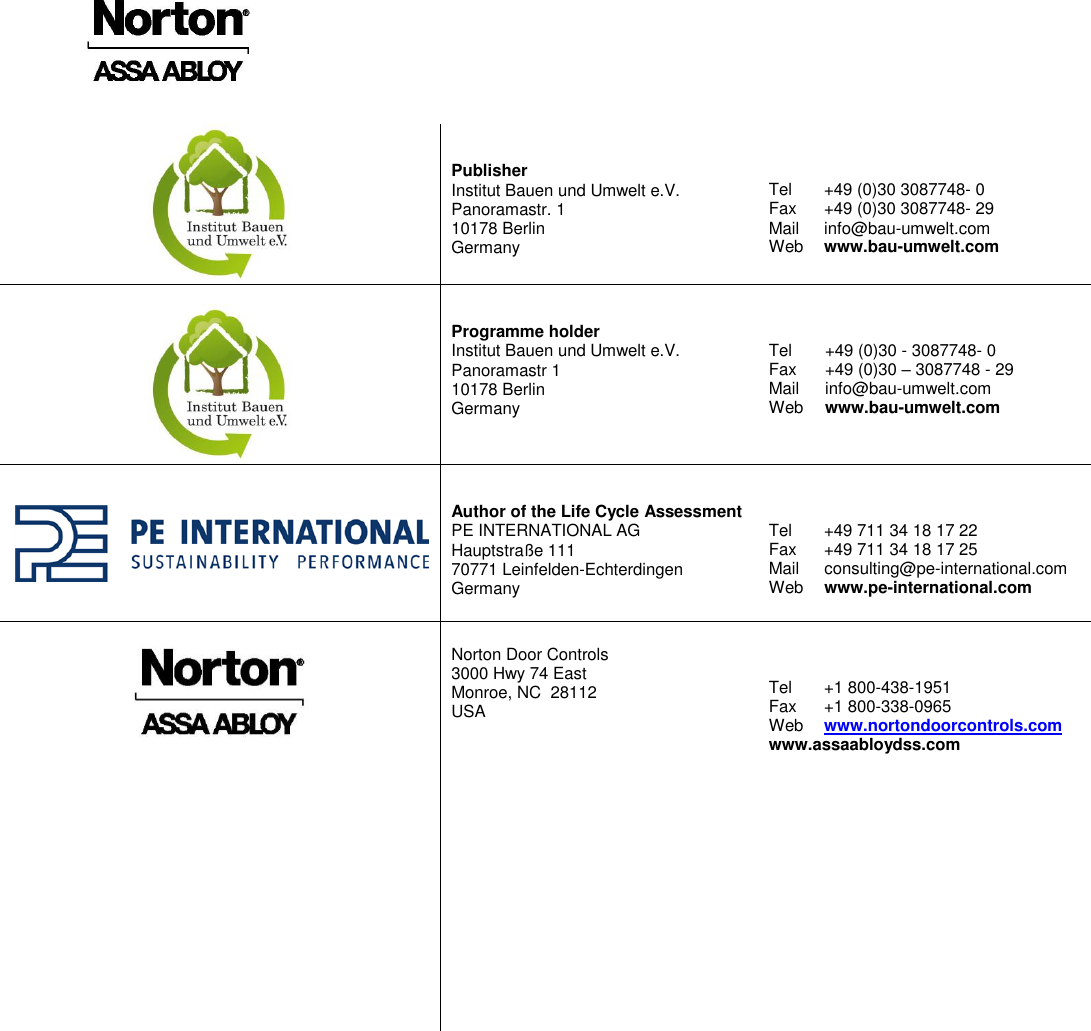

Publisher

Institut Bauen und Umwelt e.V.

Panoramastr. 1

10178 Berlin

Germany

Tel +49 (0)30 3087748- 0

Fax +49 (0)30 3087748- 29

Mail info@bau-umwelt.com

Web www.bau-umwelt.com

Programme holder

Institut Bauen und Umwelt e.V.

Panoramastr 1

10178 Berlin

Germany

Tel +49 (0)30 - 3087748- 0

Fax +49 (0)30 – 3087748 - 29

Mail info@bau-umwelt.com

Web www.bau-umwelt.com

Author of the Life Cycle Assessment

PE INTERNATIONAL AG

Hauptstraße 111

70771 Leinfelden-Echterdingen

Germany

Tel +49 711 34 18 17 22

Fax +49 711 34 18 17 25

Mail consulting@pe-international.com

Web www.pe-international.com

Norton Door Controls

3000 Hwy 74 East

Monroe, NC 28112

USA

Tel +1 800-438-1951

Fax +1 800-338-0965

Web www.nortondoorcontrols.com

www.assaabloydss.com
