Users Manual

AL-1860-EDPB
Deluxe 2-way Alarm & Remote Start
w/ BLADE Technology
July 8, 2013
Operation Guide
Temporary cover. Color cover is in a separate le.
1
Table Of Contents
Controller & Transmitter Overview................................................................................ 3
The 2-Way Controller ............................................................................................... 3
The 1-Way Transmitter ............................................................................................. 3
Controller & Transmitter Functions ............................................................................... 3
Other Remote Start Features ....................................................................................... 7
Low Battery/Low Temp Automatic Starting ............................................................... 7
Turbo Timer Feature ................................................................................................. 8
Pit-Stop Feature ....................................................................................................... 8
Manual Transmission Starting .................................................................................. 8
Security System Features ............................................................................................ 8
Last Door Arming ...................................................................................................... 8
Automatic Rearming ................................................................................................. 9
Pre-Warn Detection .................................................................................................. 9
When The System Triggers ...................................................................................... 9
Using The Valet Switch ............................................................................................... 10
Emergency Override .............................................................................................. 10
Valet Mode .............................................................................................................. 10
SecureCode ........................................................................................................... 10
The Status Light ..........................................................................................................11
Multi-Car Operation .................................................................................................... 12
Selecting CAR #1 or CAR #2 ................................................................................. 12
Controller Options....................................................................................................... 12
LCD Screen Icons .................................................................................................. 12
In-Range Indicator .................................................................................................. 12
Setting The Clock ................................................................................................... 12
Changing remote start melodies ............................................................................ 13
Power Save Mode .................................................................................................. 13
Selecting Melody & Vibrate modes......................................................................... 13
Parking Timer & Remote Start Timer ...................................................................... 13
Button Lock ............................................................................................................ 13
Anti-Carjacking Protection .......................................................................................... 14
Programming Controllers/Transmitters ....................................................................... 15
Programming Features ............................................................................................... 15
User Programmable Features .................................................................................... 16
Installer Programmable Features ............................................................................... 19
Programmable Features Matrix .................................................................................. 23
2

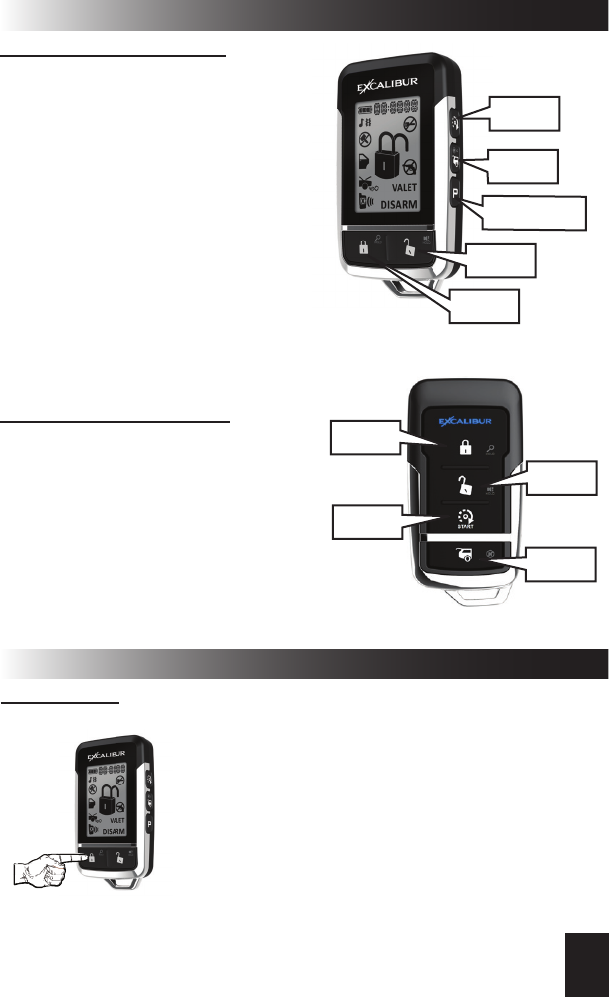

THE 2-WAY CONTROLLER
Controller & Transmitter Overview
Controller part number:
159-03 (w/ 2 CR2032 batteries)
Call your dealer or visit www.caralarm.com to order
replacement transmitters.
Transmitter part number:
1411-03E (w/ 2 CR2016 batteries)
Call your dealer or visit www.caralarm.com to order
replacement transmitters.
Transmitter battery replacement:
Remove the small screw from the lower
back case, and separate the transmitter
halves. Replace the battery with the same
type and reassemble the transmitter case.
THE 1-WAY TRANSMITTER
LOCK / ARM: Press and release the “LOCK” button.
• THE SIREN WILL CHIRP & THE PARKING LIGHTS WILL
FLASH ONCE.
• UPON RECEIVING CONFIRMATION FROM YOUR SYS-
TEM, THE CONTROLLER WILL SHOW THE LOCK/ARM
ICON AND BEEP ONCE
NOTE: PRESSING LOCK TWICE IN 5 SECONDS STARTS
THE PARKING TIMER. THE CLOCK WILL CHANGE TO
0:00 AND START COUNTING IN MINUTES & HOURS.
Controller & Transmitter Functions
Controller battery replacement:
Slide the back cover (do not pry up) off
the back of the case in the direction of the
arrow. Release the small black battery
clips and pull up on the battery from the
inside edge (closest to the other battery).
Sometimes a small tool or the edge of
the back cover is helpful in gently prying
up the batteries. Insert the new batteries,
making sure to insert the edge beneath the
“+”terminalrst.Slidethebackcoverback
onto the case.
“lock”
button
“start”
button
“unlock”
button
“trunk”
button
“start”
button
“unlock”
button
“trunk”
button
programming
button
“lock”
button
3
#159
#1411
Controller & Transmitter Functions (cont’d)
UNLOCK / DISARM: Press and release the “UNLOCK” button.
• THE SIREN WILL CHIRP TWICE & THE PARKING
LIGHTS WILL FLASH TWICE, THEN ILLUMINATE FOR 30
SECONDS.
• UPON RECEIVING CONFIRMATION FROM YOUR
SYSTEM, THE CONTROLLER WILL SHOW THE UNLOCK/
DISARM ICON AND BEEP TWICE.
TRUNK RELEASE / CHANNEL 2: Press the “TRUNK” button for 3
seconds.
• THE SYSTEM WILL DISARM AND THE TRUNK WILL
OPEN (IF EQUIPPED).
• UPON RECEIVING CONFIRMATION FROM YOUR
SYSTEM, THE CONTROLLER WILL PLAY THE TRUNK
RELEASE ANIMATION AND BEEP TWICE.
REMOTE START: Press and release the “START” button twice
within 5 seconds (see user feature #8 for additional options).
• THE PARKING LIGHTS WILL FLASH ONCE AND THE
STATUS LIGHT WILL FLASH RAPID.
• THE SYSTEM WILL TURN ON THE IGNITIONS AND
PROCEED TO START THE ENGINE.
• ONCE THE ENGINE IS RUNNING, THE PARKING
LIGHTS WILL FLASH EVERY 1.5 SECONDS AND THE
STATUS LIGHTS WILL FLASH SLOW.
• UPON RECEIVING CONFIRMATION FROM YOUR
SYSTEM, THE CONTROLLER WILL PLAY THE REMOTE
MELODY AND SHOW THE REMOTE START ICON.
• THE CLOCK WILL CHANGE TO 0:00 TO START THE
REMOTE START TIMER. IT WILL TIME HOW LONG THE
ENGINE RUNS IN MINUTES & HOURS.
• If the engine stalls, the system will make up to 3 more attempts.
• Each time you park, set the climate controls to give you the desired interior
temperature when you use the remote start. (continued on pg 5)
x2
4

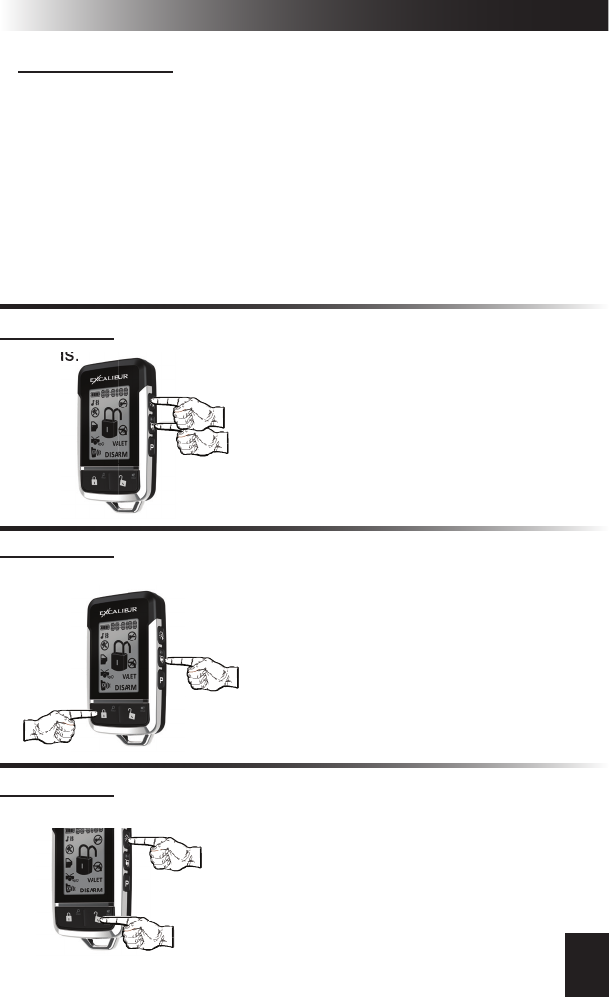

Controller & Transmitter Functions (cont’d)
CHANNEL 3: Press and hold the “TRUNK” & “START“ buttons for 3
seconds.
• YOUR SYSTEM WILL ACTIVATE THE CHANNEL 3
OUTPUT.
• UPON RECEIVING CONFIRMATION FROM YOUR
SYSTEM, THE CONTROLLER WILL SHOW “CH3” ON
THE CLOCK DISPLAY.
CHANNEL 4: Press and hold the “LOCK” & “TRUNK” buttons for 3
seconds.
• YOUR SYSTEM WILL ACTIVATE THE CHANNEL 4
OUTPUT.
• THERE IS NO 2-WAY CONFIRMATION FOR THIS
FUNCTION.
The engine will run for the preset run time (see user feature #1).
• Run Time Extender: Press the “START” button one time during remote start
to restart the engine run timer. The timer will restart at “0:00”.
NOTE: This can only be used once per remote start cycle. The controller will also give you
“run time expiration” warning (2 chirps) 1 minute before the remote start cycle ends.
• If you decide not to drive your vehicle, you can turn off the remote start using
the same method to turn it on (Default = press “START” twice in 5 seconds).
NOTE: If user feature #8 is programmed for 1 press, the 1st press = Run Time Extender so
an additional press is required.
• Upon entering the vehicle during remote start mode, turn the ignition key to
the “ON/RUN” position (NOT START!!). When you press the brake pedal, the
remote start will turn off allowing the ignition key to take over.
seconds.
CHANNEL 5: Press and hold the “UNLOCK” & “START“ buttons for
3 seconds
• YOUR SYSTEM WILL ACTIVATE THE CHANNEL 5
OUTPUT.
• THERE IS NO 2-WAY CONFIRMATION FOR THIS
FUNCTION.
5

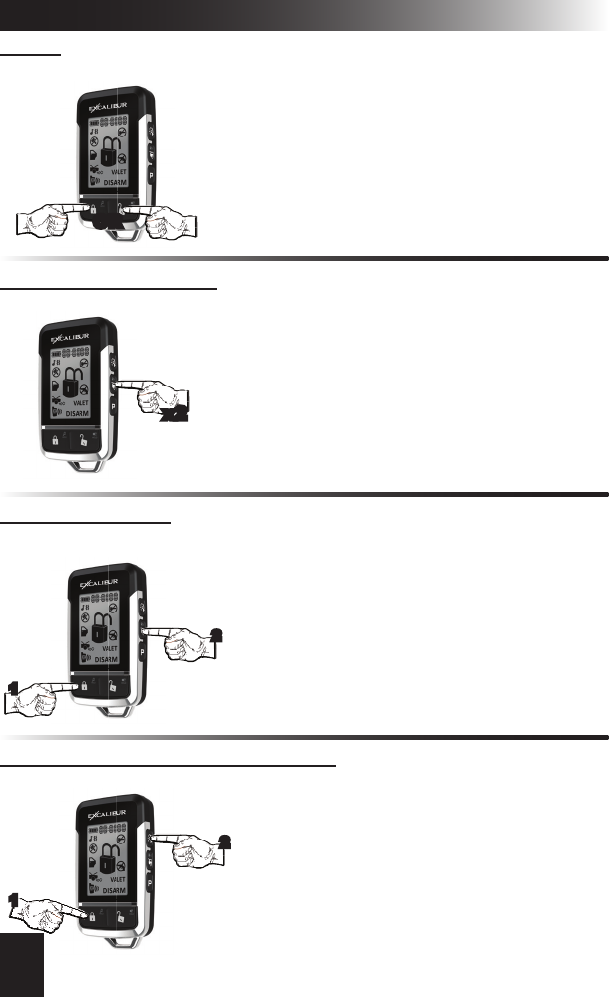

Controller & Transmitter Functions (cont’d)
PANIC: Press and hold the “LOCK” or “UNLOCK” button for 3
seconds.
• THE SIREN/HORN WILL SOUND, THE PARKING
LIGHTS WILL FLASH, AND THE DOORS WILL LOCK OR
UNLOCK DEPENDING WHICH BUTTON IS PRESSED.
OR
SILENT ARM / DISARM: Press and release the “TRUNK” button
twice in 5 seconds.
• THE PARKING LIGHTS WILL FLASH, AND THE
DOORS WILL LOCK/ARM OR UNLOCK/DISARM DE-
PENDING ON THE CURRENT SYSTEM STATUS.
• UPON RECEIVING CONFIRMATION FROM YOUR
SYSTEM, THE CONTROLLER WILL SHOW THE LOCK/
ARM OR UNLOCK/DISARM ICON.
x2
SENSOR BYPASS: Press and release the “TRUNK” button within 5
seconds of locking/arming the alarm system.
• THE SYSTEM WILL GIVE ONE CHIRP TO INDICATE
THE SENSOR IS BYPASSED.
• UPON RECEIVING CONFIRMATION FROM YOUR
SYSTEM, THE CONTROLLER WILL ALSO CHIRP ONCE
& DISPLAY THE SENSOR ICON.
1
LOW VOLTAGE/TEMP AUTO START: Press and release the
“START” button within 5 seconds of locking/arming the system.
• THE SYSTEM WILL GIVE ONE CHIRP TO INDICATE
THE LOW VOLT/LOW TEMP(15 DEGREE ONLY)
AUTOSTART IS ACTIVATED. SEE PAGE 7 FOR MORE
INFO.
• UPON RECEIVING CONFIRMATION, THE CON-
TROLLER WILL CHIRP ONCE AND THE CLOCK WILL
READ “RS AUTO” EVERY 5 SECONDS.
2
1
2
6
Controller & Transmitter Functions (cont’d)
AUXILIARY FUNCTIONS 1-4:
The actual operation of these functions will vary from car to car. They are designed
to operate extra vehicle functions like automatic sliding doors or motorized hatches.
Aux 1-4 are virtual outputs only available on certain vehicles when this system is
integratedwiththevehicle’sdatanetwork.Consultwithyourinstallertondoutifany
ofthesefunctionsareavailableforyourvehicle.Ifso,conrmeachoperationwiththe
controller and write each function in the blank spaces provided below.
- Auxiliary 1 Function (___________________): To activate this function, press
and release the “trunk” and “start” buttons simultaneously).
- Auxiliary 2 Function (___________________): To activate this function, press
and release the “lock” and “trunk” buttons simultaneously).
- Auxiliary 3 Function (___________________): To activate this function, press
and release the “unlock” and “start” buttons simultaneously).
- Auxiliary 4 Function (___________________): To activate this function, press
and release the “unlock” and “trunk” buttons simultaneously).
LOW BATTERY/LOW TEMP AUTOMATIC STARTING
Other Remote Start Features
REMOTE VALET: Press “LOCK” then “UNLOCK” then “TRUNK” +
“START” within 5 seconds.
• THE SYSTEM WILL ENTER VALET MODE.
SEE PAGE 10 FOR MORE INFO ON VALET MODES.
• UPON RECEIVING CONFIRMATION FROM YOUR SYS-
TEM, THE CONTROLLER WILL SHOW THE VALET ICON.
TO EXIT VALET VIA REMOTE, REPEAT THESE STEPS
This feature will automatically start the engine if the vehicle battery drops below 11
volts or the interior temperature drops to 15 (or 32) degrees fahrenheit. You must ac-
tivate these features each time you park your car to use them. They can be activated
one of two ways:
Method 1 - Valet Switch
• Turntheignitionswitch“on”,then“off”(enginenotrunning),andwithin7seconds
press the valet switch twice. If there is a 2 second delay without additional valet but-
ton presses, the horn will honk 3 times activating low voltage start mode.
• Toactivatelowtempstarting,enterlowvoltagestartmodeasdescribedabove
then, immediately after the horn honks, press the valet switch 1 time (15 degrees) or
2times(32degrees)within5seconds.Thehornwillhonktoconrmyourselection.
Method 2 - With The Controller (Low Volt + Low Temp - 15 Degrees Only)
• Within5secondsofpressingLOCK,presstheSTARTbutton.Youwillgetonechirp
and the 2-way controller will alternate between “ARM” and “RS AUTO”.
NOTE: When low temp start mode is activated, low voltage start is also activated.
These features will operate once every two hours until the ignition key is
turned “ON”.
12
3
7
Other Remote Start Features (cont’d)
It is typically recommended that vehicles equipped with turbocharged engines allow
the engine to idle after driving to cool the turbocharger. When Installer Programmable
Feature #10 is ON, the system will automatically keep the engine running as follows:
• Withtheenginerunning,holdthebrakepedalandengagetheparking
brake. When the brake pedal is released, the system will keep the engine running for
the programmed time (1, 2, or 3 minutes), and then automatically turn it off.
• Thesystemmaybelockedwhiletheengineisrunning.TurboTimercanbe
prevented from engaging, or “bypassed” if desired, by turning the engine off before
engaging the parking brake, or if it’s already engaged, step on the brake pedal to turn
the engine off.
TURBO TIMER FEATURE
PIT-STOP FEATURE
This feature allows you to leave your engine running for making quick errands. To
use this feature, have the engine running normally from the ignition switch and your
footoffthebrakepedal.PresstheValetSwitchtwice;theparkinglightswillashand
the horn will chirp 5 times. Turn the key off and the engine will remain running for the
programmed run time.
MANUAL TRANSMISSION STARTING
Remote starting with a manual transmission requires a different installation method
and installer feature #11 must be turned on. Also, a setup procedure that ensures the
transmission was left in neutral must be performed each time you leave your vehicle
and intend to use remote start later. Perform these steps:
1) With the engine running, hold the brake pedal, apply the parking brake, then
release the brake pedal.
2) Use the transmitter as if you were activating remote start (default: press START
twice).Thegreenstatuslightwillstarttoashslow.
3) Turn off the ignition key and exit the vehicle.
4) Press LOCK on the transmitter. The engine will shut down (unless turbo timer is
on)andthestatuslightwillashgreenevery2secondstoindicateitisreadytobe
remote started.
NOTE: Manual transmission starting is canceled if you enter the vehicle after
performing the setup procedure.
LAST DOOR ARMING
 Thissystemcanbeconguredtoarmautomaticallywhenallthevehicle’sdoors
are closed (see user feature #9). When this feature is utilized, the siren/horn will chirp
once when all of the doors are closed. At that point, it will start a 30 second count-
down(indicatedbyafastashingstatuslight).After30seconds,thesystemwillarm
(andlockthedoorsifconguredtodoso).Duringthe30secondarmingdelay,ifa
point of entry is opened, the countdown will pause until all entry points are closed
again. Turning ON the ignition key will cancel the last door arming sequence until the
key is turned off and the doors are all closed once again.
Security System Features
8
Security System Features (cont’d)
AUTOMATIC REARMING
This automatically rearms the alarm if the system is disarmed from the remote
(see user feature #10). When disarmed by remote, the system will start a 90 second
countdown(fastashingstatuslight)toarmthesystem.Thisisusefulifthecontroller
accidentally disarms the system when it’s kept in a purse or pocket where other items
could potentially press the buttons. ENHANCED AUTO REARM allows you to cancel
thecountdownbypressingUNLOCKasecondtimewithin5secondsoftherstpress
to disarm the alarm.
WHEN THE SYSTEM TRIGGERS
If the system were to be compromised while armed, it will trigger by sounding the
siren/hornandashingtheparkinglightsfor30seconds(programmable).Atthispoint
youwillalsobenotiedonthecontrollerastowhichzoneisviolated(ifinrangeofthe
system). When disarming the system after a trigger event, the siren/horn will chirp 4
timesandtheparkinglightswillash4timesinsteadofthestandard2times.
LOCK ON TRIGGER: If a door is opened when the system is triggered, it will wait
until the door is closed again, then lock the doors. This patented feature is useful to
further deny a thief of further access to the vehicle.
STORM SAFE MODE: When the system is triggered, pressing the “UNLOCK” button
will stop the alarm from sounding but will leave the doors locked. This function is use-
ful if you have a false triggering situation due to violent weather.
ZONE VIOLATION RECALL: The system is capable of telling you which zones were
triggeredlast.Thesystem’sstatuslightwillashtoindicatewhichzonewastriggered.
This occurs during the alarm cycle AND after disarming. The system will store the last
triggered zone until the vehicle’s ignition key is turned on. See “The Status Light” sec-
tion of this manual for further explanation of this feature.
NUISANCE PREVENTION: If the system prewarns 5 times within 15 minutes, it will
bypass the zone for the remainder of the 15 minutes before rearming the pre-warn
zone. Additionally, if a full trigger zone is left open, the system will trigger a total of 3
times before bypassing the zone. Once the zone is closed again, it will re-arm that
zone.
PRE-WARN DETECTION
This system’s impact sensor is designed, in addition to detecting a full impact, will
warn away potential violators when it detects a light impact to the vehicle. The system
will respond by chirping the siren/horn 3 times and locking the doors. This is very use-
ful when an intruder attempts to unlock the door with “slim jim” types of devices.
9
Using The Valet Switch
SECURECODE
SecureCode allows you to customize the number of valet presses required to per-
form an emergency override. This is an extra layer of security that prevents anyone
from overriding the alarm even if they have a key to the vehicle. SecureCode has 2
stageswiththerstrequiring1-9buttonvaletpressesandthesecondrequiring0-9
valet button presses. This gives you 99 possible combinations. To program a custom
SecureCode, please refer to user feature #13 on Page 18.
To perform an emergency override with SecureCode, use the following steps:
STEP 1 - With the system armed, enter the vehicle (the alarm will activate).
STEP 2 - Turn the ignition switch to the “ON” position.
STEP 3 - Within5secondsofstep2,pressthevaletswitchtoentertherstdigitof
your programmed code.
STEP 4 - Afterafewseconds,thesirenwillstopsoundingandchirponce(conrming
stage 1). The siren will then continue sounding.
STEP 5 - Now, within 5 seconds of step 4, press the valet switch to enter the second
digit of your code. If the code is correct, the alarm will disarm.
If the code is entered incorrectly, you must turn the ignition key OFF, then back
ON to try again. Additionally, if 2 failed attempts are made, the alarm will ignore any
further attempts for 2 minutes.
VALET MODE
Valet mode completely disables all security & remote start functions. Keyless entry
is still operable. To enter valet mode, perform the following steps:
STEP 1 - Disarm the system by remote or by performing an emergency override.
STEP 2 - Press and hold the valet switch for 2 seconds. The system will chirp once
and the status light will turn on.
EXITING VALET MODE - Press and release the valet switch once. The status light
will turn off.
EMERGENCY OVERRIDE
If you were to lose or break your controller, you’d need to perform an emergency
override to disarm the system and use your vehicle. To do so, use the following steps:
STEP 1 - Enter the vehicle (the alarm should sound).
STEP 2 - Turn the ignition key to the “ON” position.
STEP 3 - Press the valet switch (located in the window-mount antenna) once.
NOTE: Enter your SecureCode at this time if programmed via user feature #13
STEP 4 - Turn the ignition key “OFF”.
10
The Status Light
The status lights, located in the window-mount antenna, provide a visual indication
of the system’s status.
SECURITY SYSTEM STATUS
OFF: The alarm is disarmed and not performing any automatic functions.
ON: The alarm is in valet mode.
FLASHING SLOW: The alarm is armed and monitoring all entry points.
FLASHING FAST: One of the automatic arming features is in progress.
AUTOMATIC TRANSMITTER VERIFICATION
 Everytimeyouturnontheignitionkey,thestatuslightwillashanumberoftimes
equal to the number of transmitters programmed to the system. This unique security
feature combats potential thieves (valet attendant, mechanic, etc.) from adding their
own transmitter without your knowledge and accessing your vehicle at a later time.
ALARM ZONE VIOLATION RECALL
 Ifthesecuritysystemistriggered,upondisarming,thestatuslightswillash
a number of times to indicate exactly which zone(s), has been violated. It will
storethelast2violatedcircuitsandcontinuallyrepeattheashpatternuntilthe
vehicle’s ignition key is turned ON.
2 FLASHES: Hood trigger
3 FLASHES: Door trigger
4 FLASHES: Sensor port trigger
REMOTE START STATUS
FLASHING SLOW: The engine was remote started successfully and is running.
FLASHING FAST: The remote start sequence has begun and is in process of starting
the vehicle’s engine.
2 FLASHES, PAUSE: The engine is running while the alarm is armed.
REMOTE START DIAGNOSTICS
The remote start system can also indicate which zone caused the last remote start
cycle to end. To see this indicator, place the system into alarm valet mode. Immedi-
atelyafterthechirp,thestatuslightwillashtoindicatewhichzoneviolationoccured.
1 FLASH: Run time expired.
2 FLASHES: Brake pedal was pressed or the hood was opened.
3 FLASHES: Engine stalled or a bad tach signal.
4 FLASHES: Received transmitter command to stop.
5 FLASHES: The neutral safety circuit was triggered.
6 FLASHES: The alarm was triggered or low battery voltage.
11

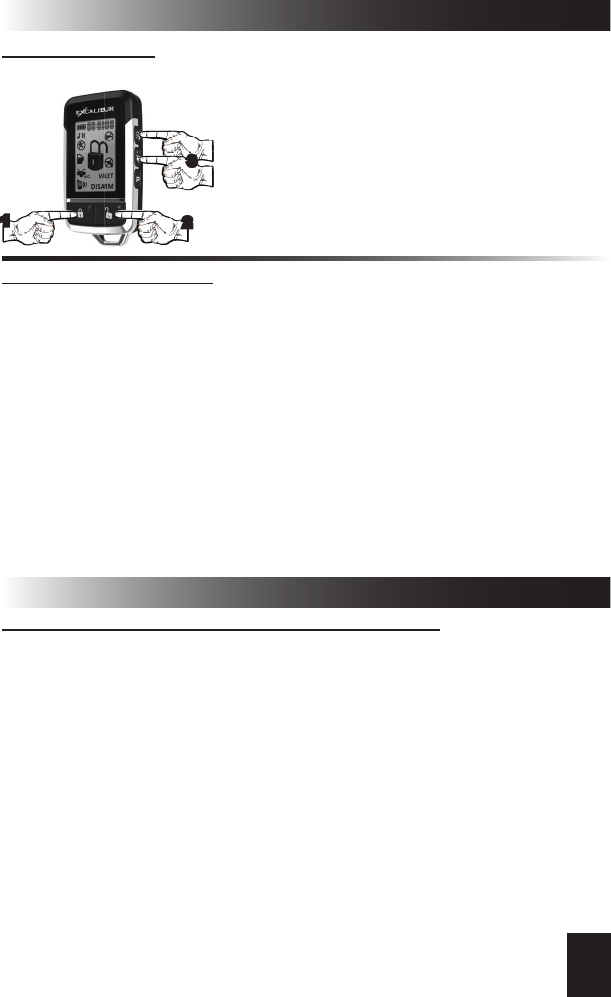

The controller can operate up to 2 different systems. When controlling 2 systems, it
willreceiveallstatusupdatesonthecurrentlyselectedvehicleproleandwillreceive
only trigger alerts for the 2nd vehicle. You can switch from one car to the other at
anytime. Use the following steps to change vehicles.
SELECTING CAR #1 OR CAR #2
Vehicle #1: Press the “P” and “LOCK” buttons for 1 second to select Car #1. The
controller will beep/vibrate once and the clock will change to “CAR 1”.
Vehicle #2: Press the “P” and “UNLOCK” buttons for 1 second to select Car #2. The
controller will beep/vibrate twice and the clock will change to “CAR 2”.
Multi-Car Operation
Controller Options
LCD SCREEN ICONS
Battery Level
Melody/Vibrate
Valet Mode
Hood
Trigger
Carjack Mode
Alarm Status
Remote Start
Shutdown
Clock / Timer
Door Trigger
In Range
Indicator
Sensor
Trigger
1) Press the “P” button for 5 seconds to access the controller features. The controller
will beep twice.
2)Pressandreleasethe“P“buttononcetoselecttheclock(hourdigitswillash).
3) Press the “TRUNK“ button to scroll up or the “START“ button to scroll down.
4) Press the “P” button to switch to the minute digits.
5) Press the “TRUNK“ button to scroll up or the “START” button to scroll down.
6) Wait 10 seconds or press the “P” button for 5 seconds to exit programming. The
controller will beep once.
SETTING THE CLOCK
 Allprimarycommandssenttothesystemhaveaconrmationresponsethatis
sent to the controller to indicate that the command was successful. If the command is
successful, the icon will not display the “X” in the middle of the icon. If no response is
received within a few seconds, the “X” will be displayed indicating that you may be out
of range of your system.
IN-RANGE INDICATOR
Remote Start
Indicator
12
The controller has 5 different melodies to choose from for remote start ON and 5
melodiesforremotestartOFFconrmation.
1) Press the “P” button for 5 seconds to access the controller features. The controller
will beep twice.
2) Press and release the “P“ button 3 times to select the melody settings. The clock
will change to “01 STRT” indicating “start melody #1” for the remote start ON melody.
3) Press the “TRUNK“ button or the “START“ button to scroll through the melodies.
4) Press the “P” button to switch to the remote start OFF melody selection.
5) Press the TRUNK button or the “START“ button to scroll through the melodies.
6) Wait 10 seconds or press the “P” button for 5 seconds to exit programming. The
controller will beep once.
CHANGING REMOTE START MELODIES
Controller Options (cont’d)
SELECTING MELODY & VIBRATE MODES
Whenever 2-way alerts are received from the system, the controller can alert you
with a melody, vibration, or both. By default, the controller is set for melody only.
Press the “P” and “TRUNK“ buttons simultaneously for 1 second to change the
setting.
The controller has 2 convenient timer functions. The PARKING TIMER tells you
how long you’ve been parked in case you are at a parking meter or other parking
areas with time restrictions. The REMOTE START TIMER tells you how long your
engine has been running in remote start mode.
PARKING TIMER: Press LOCK twice within 5 seconds. When the controller receives
bothLOCKconrmations,itwillstartthetimer.
REMOTE START TIMER: This turns on every time you remote start.
Note: Pressing the “P” during either timer will switch to the clock.
PARKING TIMER & REMOTE START TIMER
You can lock the buttons on the controller to prevent accidental button presses. To
lock the buttons, press “P” and “START“ simultaneously for 1 second. Repeat this to
unlock the buttons.
BUTTON LOCK
This feature turns off the screen after 15 seconds of no activity to save battery life.
1) Press the “P” button for 5 seconds to access features. The controller beeps twice.
2) Press the “P“ button 5 times to select “Power Save” (clock reads “PS ON”).
3) Press the “TRUNK“ button to change between “PS ON” or “PS OFF”.
4) Wait 10 seconds or press the “P” button for 5 seconds to exit programming.
POWER SAVE MODE
13
Anti-Carjacking Protection
The system is equipped with two separate Anti-Carjacking protection features (igni-
tion, open door, or both). All are programmable, and must be turned on to operate.
Once activated, the user has 60 seconds to cancel the Anti-Carjacking protection
process (described below). If Anti-Carjacking is not cancelled, 53 seconds after being
activated the siren will begin to chirp for 7 seconds to alert the user that the system
is about to enter into an alarm condition. The Valet Switch may still be pressed once
during this period to cancel the Anti-Carjacking process.
If the Anti-Carjacking process is not cancelled before the 60 second countdown
expires,thesystemwillenteranalarmcondition,soundingthesirenandashingthe
parking lights. 30 seconds after this occurs, or should the ignition be turned off in the
meantime, the stater interrupt will engage. Once the system enters the alarm condi-
tion, it will not respond to the transmitter, nor will the system reset automatically after
60 seconds, and it can only be disengaged by:
Step 1 Turning the vehicle’s ignition off.
Step 2 Turning the ignition back on.
Step 3 Within 5 seconds, perform an Emergency Override using the Valet Switch. If
the SecureCode has been customized, the correct number of Valet Switch presses
must be made.
The different types of Anti-Carjacking protection are:
Ignition Activated Anti-Carjacking activates every time the vehicle’s ignition is
turned on. The Valet Switch must be pressed within 60 seconds of activating to can-
cel Anti-Carjacking. This is User Programmable Feature #12.
Door Anti-Carjacking activates when a door is opened after the vehicle is started
and the engine is running. The Valet Switch must be pressed within 60 seconds after
activation to cancel Anti-Carjacking. This is User Programmable Feature #12.
14
If the Unauthorized Transmitter Alert feature is on, programming a transmitter to the
system will activate the “UTA” warning and the extended Status Light indication. For
the next 48 hours, the siren/horn will sound a brief series of chirps every time the
vehicle’s ignition key is turned on.
Special Programming procedure to turn on the UTA feature: Use this method to
program transmitters or optional controllers, and to turn on the Unauthorized Trans-
mitter Alert feature.
Follow the same steps as the Standard Programming, but on any transmitter/con-
troller being programmed instead of pressing the “lock” button, press the “lock” and
the “unlock” buttons together. This action turns on the Unauthorized Transmitter
Alert feature and at the same time programs the transmitter or controller to operate
the system.
Once the Unauthorized Transmitter Alert feature is turned on, the warning will
sound for 48 hours after any transmitter programming, including the programming
session which was used to turn it on. This feature can only be turned off again by
sending the system back to Omega for a reset.
Step 1 Turn the ignition key “ON”, then “OFF”.
Step 2 Within 5 seconds of step 1, press the valet switch 5 times to access user
features (10 times to access installer features).
~ The siren/horn will sound and the status light will turn on.
Step 3 Within 10 seconds of step 2, press the valet switch the number of times cor-
responding with the desired feature’s number.
 ~Thesiren/hornwillchirp,thestatuslights,andtheparkinglightswillashequal
to the selected feature.
Step 4 Change the feature by pressing the transmitter button that corresponds with
the desired setting. The siren/horn will chirp to correspond with the chosen setting.
Programming Features
Standard Programming: Using this method to program additional or replace-
ment transmitters does not turn on or otherwise affect the Unauthorized Transmitter
Alert (UTA) feature. Before you begin, have all transmitters which are to operate the
systemathandandmakesurethecorrectvehicleprole(seepage12)isselectedon
the controller(s).
Step 1 Then, turn the ignition “on”.
Step 2 Within 5 seconds of Step 1, press the Valet Switch 5 times. The siren/horn will
brieysound,conrmingthatthesystemisreadytolearnatransmittercode.
Step 3 Press the “lock” button on each transmitter one at a time. The system will
chirpthesiren/hornoncetoconrmthateachwaslearned.Ifacodeisnotreceived
within 10 seconds of Step 2, the learning process will automatically exit.
Programming Controllers/Transmitters
15
User Programmable Features
Feature #6 - Open Door Bypass of Ignition Locking
On (press “lock” button to program) - DEFAULT
Off (press “unlock” button to program)
This feature cancels the automatic locking or unlocking of the vehicle’s doors if one of
the doors is open when the ignition switch is turned on or off.
Feature #5 - Ignition Controlled Lock/Unlock
Off (press “lock” button to program) - DEFAULT
Lock w/ Ignition On (press “unlock” button to program)
Unlock w/ Ignition Off (press “trunk” button to program)
Lock And Unlock w/ Ignition (press “start” button to program)
This feature controls the lock/unlock operations when the ignition key is turned on/off,
Feature #1 - Remote Start Run Time
10 Minutes (press “lock” button to program) - DEFAULT
5 Minutes (press “unlock” button to program)
15 Minutes (press “trunk” button to program)
20 Minutes (press “start” to program)
This sets the maximum amount of time that the remote start will keep the engine
running if it is not shut down by other methods.
Feature #3 - Conrmation Chirp Volume
Low (softest) (press “lock” button to program)
Medium Low (press “unlock” button to program)
Medium High (press “trunk” button to program) - DEFAULT
High (loudest) (press “start” button to program)
This feature allows the choice different chirp volume levels, and when programming
it,eachselectionwillbeconrmedinthechosenvolumemakingiteasytochoosethe
most suitable setting.
Feature #4 - BROWN Wire Audible Output
Pulsed Horn Low (press “lock” button to program)
Pulsed Horn Medium (press “unlock” button to program)
Pulsed Horn High (press “trunk” button to program)
Steady Siren (press “start” button to program) - DEFAULT
This changes the BROWN wire’s audible output when the alarm is triggered. Steady
siren must be selected when using a siren (other horn outputs stay at the Medium
setting). The horn honk options will affect all horn honk outputs used as well as
change the BROWN wire’s function.
Feature #2 - Flashing Light Conrmations
Unlock: ON, RS: ON (press “lock” button to program)
Unlock: ON, RS: Flash (press “unlock” button to program)
Unlock: Flash, RS: ON (press “trunk” button to program)
Unlock: Flash, RS: Flash (press “start” button to program) - DEFAULT
Thisfeatureaffectstheparkinglightconrmationsforsystemunlock&remotestart
functions. With the above options, you can select any combination of:
Unlock: Flash - Flashes twice after unlock
Unlock: ON - Flashes twice then stays on for 30 seconds after unlock
RS: ON - Stays on during remote start mode
RS: Flash - Flashes once every 1.5 seconds during remote start mode
16
User Programmable Features (cont’d)
Feature #9 - Last Door Arming
Off (press “lock” button to program) - DEFAULT
On w/o doors locking (press “unlock” button to program)
On w/ doors locking (press “trunk” button to program)
“Last Door Arming” has the system automatically arm itself every time you exit the
vehicle (the complete operation is described on page 8).
Feature #10 - Automatic Rearming
Off (press “lock” button to program) - DEFAULT
On w/o doors locking (press “unlock” button to program)
On w/ doors locking (press “trunk” button to program)
Enhanced auto rearm (press “start” button to program)
“Automatic Rearming”, described on page 9, rearms the alarm if accidentally dis-
armed. Options are to have Automatic Rearming operate with or without also locking
the doors when the system does rearm. Enhanced auto rearm allows you to cancel
the rearming sequence by pressing unlock a 2nd time after disarming.
Feature #7 - Unlock w/ Trunk Release
On (press “lock” button to program) - DEFAULT
Off (press “unlock” button to program)
“2nd channel” is most commonly used for trunk release, in which case the alarm
shouldalsodisarm.Thisfeature,whenon,conguresthesystemtounlock/disarm
when the 2nd channel is activated.
Feature #8 - Remote Start Activation From The Remote
Press “start” button 1 time (press “lock” button to program)
Press “start” button 2 times (press “unlock” button to program) - DEFAULT
Press “start” button 3 times (press “trunk” button to program)
Press “start” button 4 times (press start” button to program)
This feature changes how the remote start feature is activated from the remote.
Feature #11 - Conrmation Chirps
Siren + Horn (press “lock” button to program)
Siren Only (press “unlock” button to program) - DEFAULT
On Demand (siren+horn) (press “trunk” button to program)
Off (press “start” button to program)
Thisfeatureselectswhetherthesirenand/orhorngiveconrmationchirps. Both
outputs will always sound when the alarm system is triggered or in panic mode.
Feature #12 - Anti-Carjacking
Ignition Only (press “lock” button to program)
Door Only (press “unlock” button to program)
Ignition + Door (press “trunk” button to program)
Off (press “start” button to program) - DEFAULT
This selects between the 2 forms of anti-carjacking protection. Details on using anti-
carjacking protection are described on page 14.
17
User Programmable Features (cont’d)
Feature #15 - Alarm Trigger Duration
30 Seconds (press “lock” button to program) - DEFAULT
60 Seconds (press “unlock” button to program)
90 Seconds (press “trunk” button to program)
120 Seconds (press “start” button to program)
This feature selects the period of time for which the system sounds the siren (and/or
horn)andashesthelightswhentriggered.Caution: Before lengthening the Alarm
Duration you should always check and determine if there are any local anti-
noise or nuisance ordinances in your area.
Feature #16 - Arming Delay
3 Seconds (press “lock” button to program) - DEFAULT
15 Seconds (press “unlock” button to program)
30 Seconds (press “trunk” button to program)
45 Seconds (press “start” button to program)
This selects how long the alarm waits to monitor trigger zones after arming.
Feature #17 - Open Door Warning Upon Arming
On (press “lock” button to program)
Off (press “unlock” button to program) - DEFAULT
When this feature is turned on, if one of the vehicle’s doors is open at the time that
the system is armed via the controller or transmitter, the siren will chirp 3 times and
theparkinglightswillash3times,insteadofonce.
Feature #14 - Ignition Activated Override
On (press “lock” button to program)
Off (press “unlock” button to program) - DEFAULT
This feature allows an activated system to be overridden and disarmed by simply
turning the ignition switch on within 10 seconds of the system’s activation. After 10
seconds, the Emergency Override must be performed.
Feature #13 - SecureCode
DEFAULT - 1 Press
SecureCode is a unique patented feature which allows you to select the number of
Valet Switch presses in two stages, instead of “1 press”, which would be required in
order to perform an Emergency Override. If any of the three anti-carjacking features
are utilized, a customized SecureCode would also be required to turn it off once it is
fully activated. SecureCode operation is described on page 10.
To custom program a new SecureCode:
Step 1 Access user feature #13 (follow the steps on page 15).
Step 2 Within 10 seconds slowly press and release the transmitter’s “arm/lock”
button the number of times equal to the desired SecureCode for stage 1, allow the
system to respond to each transmitter button press with a siren chirp before press-
ingthebuttonagain.Afewsecondsafterthenalbuttonpress,thesystemwillchirp
conrmingthetotalnumberforstage1.
Step 3Congurestage2oftheSecureCodebypressingandreleasingthe“disarm/
unlock” button the number of times desired for the stage 2. The system will
conrmasitdidforstage1.
18
Installer Programmable Features
This group of Installer Programmable Features are all accessed as a group in the second level of
features’ programming. These features have a direct affect upon the system’s operations related
to the installation and vehicle type AND SHOULD ONLY BE CHANGED BY THE INSTALLER!!!
Feature #1 - Remote Start Activation From The WHITE/BLUE Wire
1 pulse (press “lock” button to program) - DEFAULT
2 pulses (press “unlock” button to program)
3 pulses (press “trunk” button to program)
4 pulses (press start” button to program)
This feature changes how the remote start feature is activated from the (-) activation input wire.
Feature #2 - PINK/WHITE (IGN #2) Wire Function
Ignition (press “lock” button to program) - DEFAULT
Accessory (press “unlock” button to program)
Starter (press “trunk” button to program)
This feature changes the operation of the unit’s large PINK/WHITE output wire. This feature
should only be programmed by the installer.
Feature #3 - Engine Detection Method
Tachless Hi (press “lock” button to program) - DEFAULT
Tachless Lo (press “unlock” button to program)
Tach Wire (press “trunk” button to program)
Data Tach (press “start” button to program)
Crank Only (press “lock” & “unlock” to program)
This feature selects the method in which the remote start monitors the engine’s running condition
in remote start mode.
“Tachless Hi” sensitivity mode uses a preset crank time (see installer feature #7) and monitors
the vehicle’s voltage level to determine if the engine is running. This setting looks for a voltage
increase of 0.3v after cranking.
“Tachless Lo” sensitivity mode operates like the “Tachless Hi” setting but looks for a voltage
increase of 0.5v after cranking.
“Tach Wire” Before this setting is programmed, refer to the “Violet/White wire” section of the
installation manual for proper wiring connection and the Tach Learn Procedure. It will crank the
engine for up to 3 seconds or until a tach signal is detected.
“Data Tach” mode operates just like the “Tach Wire” setting except it takes its reading from the
D2D data port instead of using the Violet/White wire. Before using, make sure this function is sup-
ported by the Databus Interface module.
“Crank Only” AKA “blind start” is similar to the “Tachless” settings however, it only makes one
start attempt and does not monitor engine running conditions. This is useful for many “push-to-
start” vehicles.
Feature #4 - Gasoline Or Diesel Engine
Gasoline (press “lock” button to program) - DEFAULT
Diesel 15 Sec. Delay (press “unlock” button to program)
Diesel 20 Sec. Delay (press “trunk” button to program)
Diesel 30 Sec. Delay (press “start” button to program)
This feature changes the system’s timing of the ignition and starter output sequence for gas or
diesel engines. Gasoline: the starter output will occur 3 seconds after the ignitions turn on. When
in “Tachless” mode, the engine running status is determined 10 seconds after starting. Diesel:
the starter output will occur 15, 20, or 30 seconds after the ignitions turn on (allows for glow plug
warming). When in “Tachless” mode, the engine running status will be determined 40 seconds
after cranking.
19
Installer Programmable Features (cont’d)
Feature #5 - Light Relay Function
Dome Light Output (press “lock” button to program) - DEFAULT
Start (press “unlock” button to program)
Ignition Output (press “trunk” button to program)
Accessory Output (press “start” button to program)
Status (press “lock” & “unlock” button to program)
The system has two built-in relays, which can be programmed to perform several different func-
tions. The primary function of this relay, is to operate the vehicle’s dome, or interior lighting as
part of the system’s operations. Optionally, if desired or needed, this relay can be programmed for
the other functions listed above.
Feature #7 - Starter Cranking Time
0.75 Second (press “lock” button to program) - DEFAULT
1.00 Second (press “unlock” button to program)
1.5 Seconds (press “trunk” button to program)
2.25 Seconds (press “start” button to program)
This feature determines the crank time of the 1st start attempt when in “Tachless” mode. If the
enginedoesn’tstartontherstattempt,itwillretryupto3moretimesextendingthecranktimeby
an additional 0.2 second with each attempt..
Feature #8 - Door Lock/Unlock Outputs
0.8 Second Outputs (press “lock” button to program) - DEFAULT
3 Second Outputs (press “unlock” button to program)
Double Pulse Unlock Output (press “trunk” button to program)
Total Closure Lock Output (press “start” button to program)
This changes the system’s doorlocking outputs to suite different vehicle requirements. The total
closure setting provides a 28 second lock pulse (press LOCK or UNLOCK is during the pulse to
stop it) and a 0.8 second unlock pulse.
Feature #9 Remote Start Lock Control
Off (press “lock” button to program) - DEFAULT
Lock After Start (press “unlock” button to program)
Unlock before start (press “trunk” button to program)
Unlock Before RS & Lock After RS (press “start” button to program)
This feature allows for OEM alarm/lock control in relation to remote start operations thus eliminat-
ing extra wiring for OEM alarm control.
Feature #6 Blue Satellite Port, Blue Wire Function
Ignition (press “lock” button to program)
Status / GWR (press “unlock” button to program) - DEFAULT
Defrost Pulse (press “trunk” button to program)
Pulse After Engine Off (press “start” button to program)
Horn (press “lock” & “unlock” button to program)
This determines the function of the Blue wire on the Blue satellite relay port.
TheStatussettingturnsonbrieybeforetheIgnitionoutputandstaysonduringremotestart
mode. The other pulse settings give a 0.8 second pulse under the selected condition. Defrost
Pulse will send a pulse after start only when the cabin temperature is below freezing (32 degrees
F / 0 degrees C).
20
Installer Programmable Features (cont’d)
Feature #11 - Manual Transmission Mode
On (press “lock” button to program)
Off (press “unlock” button to program) - DEFAULT
This feature changes the parameters of the system’s remote start operation to be suitable for
manual transmission-equipped vehicles via a “setup” procedure which must be followed upon exit-
ing the vehicle to ensure the transmission is in neutral.
Feature #10 - Turbo Timer
Off (press “lock” button to program) - DEFAULT
Run 1 Minute (press “unlock” button to program)
Run 2 Minutes (press “trunk” button to program)
Run 3 Minutes (press “start” button to program)
This feature, the operation of which is described on page 8, when turned on
conguresthesystemtoautomaticallykeeptheenginerunningbrieyafterthekeyisturned
off.Thisoperationisdesignedspecicallyforvehicleswithturbochargedengines.NOTE: This
feature is dependent on the proper wiring of the neutral safety circuit.
Feature #12 Data Port Protocol
Green: DBI, Black: DBI (press “lock” button to program) - DEFAULT
Green: iData, Black: iData (press “unlock” button to program)
Green: DBI, Black: iData (press “trunk” button to program)
Green: iData, Black: DBI (press “start” button to program)
This feature determines which data protocol is used on each data port. Choose this based on the
accessory being connected to the port. NOTE: When a BLADE is inserted, this feature auto-
matically switches to the ADS protocol.
Feature #13 - Alarm Functions
On (press “lock” button to program) - DEFAULT
Off (press “unlock” button to program)
This feature converts the system into a strictly Keyless Entry/Remote Start System by eliminating
all antitheft alarm-oriented operations and features.
Feature #14 - Pulse Ignition On Disarm
On (press “lock” button to program)
Off (press “unlock” button to program) - DEFAULT
This feature will pulse the ignition and activate any attached immobilizer bypass module for
vehicles that require the ignition to be turned on to disarm the OEM alarm.
Feature #15 Lock On Prewarn
On (press “lock” button to program) - DEFAULT
Off (press “unlock” button to program)
This feature will automatically lock the doors to combat unauthorized entry from lock picking when
the prewarn zone is triggered.
Feature #16 - Starter Interrupt Functions
Alarm Only (press “lock” button to program)
Anti-Grind Only (press “unlock” button to program)
Alarm & Anti-Grind (press “trunk” button to program) - DEFAULT
Automatic (press “start” button to program)
Alarm Only - The Starter Interrupt is operable whenever the alarm is armed.
Anti-Grind Only - The Starter Interrupt is operable whenever remote start is on.
Alarm & Anti-Grind - This setting engages starter interrupt when the alarm is armed AND when
the system is in remote start mode. This prevents the starter from grinding if the user accidentally
turns the key to “START” during remote start.
Automatic - This will cause the Starter Interrupt output to automatically engage 90 seconds after
the ignition switch is turned “off”, and after disarming the system. 21
Installer Programmable Features (cont’d)
This device complies with FCC Rules part 15. Operation is subject to the following
two conditions, (1) This device may not cause harmful interference and, (2) This
device must accept any interference that may be received, including interference
that may cause undesired operation.
The manufacturer is not responsible for any radio or TV interference caused by
unauthorizedmodicationstothisequipment.Suchmodicationscouldvoidthe
user’s authority to operate the equipment.
Feature #17 Low Temp Crank Extender
0ms (Off) (press “lock” button to program)
200ms (press “unlock” button to program) - DEFAULT
300ms (press “trunk” button to program)
400ms (press “start” button to program)
When the vehicle’s interior temperature is below freezing, this feature adds extra crank time to the
base timing (see installer feature #7). It applies to tachless modes only (installer feature #3).
Feature #20 Low Current / Motorcycle Mode
On (press “lock” button to program)
Off (press “unlock” button to program) - DEFAULT
This feature, when on, reduces the system’s current draw by as much as 40% to maximize the
vehicle’s battery life while the alarm is armed. It causes the starter interrupt output to only oper-
atewhentheignitionisturnedonandreducesthefrequencyofthe“armed”ashingstatuslight
signicantly.Thisisidealwhenthesystemistobeusedonvehiclesthathavelimitedbattery
capacity and/or may sit for extended periods without charging the battery.
Feature #18 - Arm, Disarm or Additional Channels
Arm / Disarm (press “lock” button to program) - DEFAULT
Arm / Channel 5 (press “unlock” button to program)
Channel 4 / Disarm (press “trunk” button to program)
Channel 4 / Channel 5 (press “start” button to program)
The system has outputs designed for arming and/or disarming a factory-equipped security system.
These wires may be used instead to provide further system outputs, which are remotely operated
by the controller or transmitter. These outputs are in addition to the 2nd channel and 3rd channel
outputs. As shown in the programming assignment, the arm, disarm, channel 4 and channel 5 are
programmable as various combinations. For example, if the disarm output is needed, but not the
arm output, then channel 4 may be made available for use.
Feature #19 - Horn Relay Functions
Horn Output (press “lock” button to program) - DEFAULT
Ignition (press “unlock” button to program)
Trunk Release (press “trunk” button to program)
Pulse After Start (press “start” button to program)
The primary function of this second relay, is to operate the vehicle’s existing horn; either in
conjunction with the electronic siren, or in place of the siren. Using both the siren and the horn
creates an extremely effective security system. Optionally, if desired or needed, this relay can be
programmed for the other functions listed above.
22
CONVENIENCESECURITYINSTALLER ONLY
User Feature Programming: Ignition on, off, press valet 5 times
# Feature Lock Button
(Brake x 1)
Unlock button
(Brake x 2)
Trunk button
(Brake x 3)
Start button
(Brake x 4)
Lock + Unlock
(Brake x 5)
1 Remote Start Run Time 10 min 5 min 15 min 20 min
2 Flashing Light Conrmations Unlock: ON
RS: ON
Unlock: ON
RS: Flash
Unlock: Flash
RS: ON
Unlock: Flash
RS: Flash
3 Conrmation Chirp Volume Low Med-Low Med-High High
4 BROWN Wire: Siren / Pulsed Horn Pulse LOW Pulse MED Pulse HI Steady Siren
5 Ignition Lock / Unlock Off Ign On = Lock Ign. Off = Unlock Lock + Unlock
6 Door Open Bypass for Feat. #5 On Off
7 Unlock w/ Trunk Release On Off
8 RS Activation (Remote) Start x 1 Start x 2 Start x 3 Start x 4
9 Last Door Arming Off On w/o Lock On w/ Lock
10 Automatic Rearming Off On w/o Lock On w/ Lock Enhanced
11 Conrmation Chirps Siren + Horn Siren Only On Demand Off
12 Anti-Carjacking Ignition Door Ignition + Door Off
13 Secure Code Read Page 18 For Programming Instructions
14 Ignition Override On Off
15 Alarm Trigger Duration 30 sec 60 sec 90 sec 120 sec
16 Arming Delay 3 sec 15 sec 30 sec 45 sec
17 Open Door Warning Upon Arming On Off
Installer Feature Programming: Ignition on, off, press valet 10 times
1 RS Activation (WHITE/BLUE wire) 1 Pulse 2 pulses 3 pulses 4 pulses
2 PINK/WHITE Wire Ignition Accessory Starter
3 Engine Detection Tachless Hi Tachless Lo Tach Wire Data-tach Crank Only
4 Gasoline or Diesel Engine Gasoline 15 sec Diesel 20 sec Diesel 30 sec Diesel
5 Light Relay Function Dome Light Start Ignition Accessory Status
6 Blue Sat Port BLUE Wire Ignition Status Pulse After Start
below freezing
Pulse After
Engine Off Horn
7 Crank Time 0.75 sec 1 sec 1.5 sec 2.25 sec
8 Door Lock/Unlock Outputs 0.8 sec 3 sec Double Unlock Total Closure
9 Remote Start Lock Control Off Lock after
Start
Unlock before
Start Lock + Unlock
10 Turbo Timer Off 1 min 2 min 3 min
11 Manual Transmission On Off
12 Data Port Protocol Green: DBI
Black: DBI
Green: iData
Black: iData
Green: DBI
Black: iData
Green: iData
Black: DBI
13 Alarm Functions On Off
14 Pulse Ign. on Disarm On Off
15 Lock On Prewarn On Off
16 Starter Interrupt Alarm Only Anti-grind Only Alarm/Anti-Grind Automatic
17 Low Temp Crank Extender 0 ms 200 ms 300 ms 400 ms
18 Arm/Disarm or CH. 4/5 Arm/Disarm Arm/CH. 5 CH. 4/Disarm CH. 4/CH.5
19 Horn Relay Function Horn Ignition Trunk Release Pulse After
Start
20 Low Current/Motorcycle Mode On Off 23
Back Cover
Color cover is in a
separate le.
24

Navigation menu
