Nyce Sensors Z30111 DOOR CONTACT SWITCH WITH ZIGBEE RADIO User Manual NCZ 3011 manual

Nyce Sensors Inc. DOOR CONTACT SWITCH WITH ZIGBEE RADIO NCZ 3011 manual

Contents

Users Manual

NCZ-3011 DOOR / WINDOW SENSOR
User Guide
Product Summary:
Nyce Control’s NCZ-3011 is a wireless Door / Window sensor using the ZigBee radio protocol. It is used
in conjunction with a low RF transmit power wireless ZigBee network to monitor the open or closed state
of doors or windows. The NCZ-3011 can only detect the state of the item that it is attached to.
• Button functions: Identify/join Network
• Switch functions: Dry reed switch actuated by the movement of an external permanent magnet
• Accurate battery voltage level measurement and reporting back to co-ordinator
• Network operation based on the ZigBee open profile Home Automation
• 4-5 years projected battery life

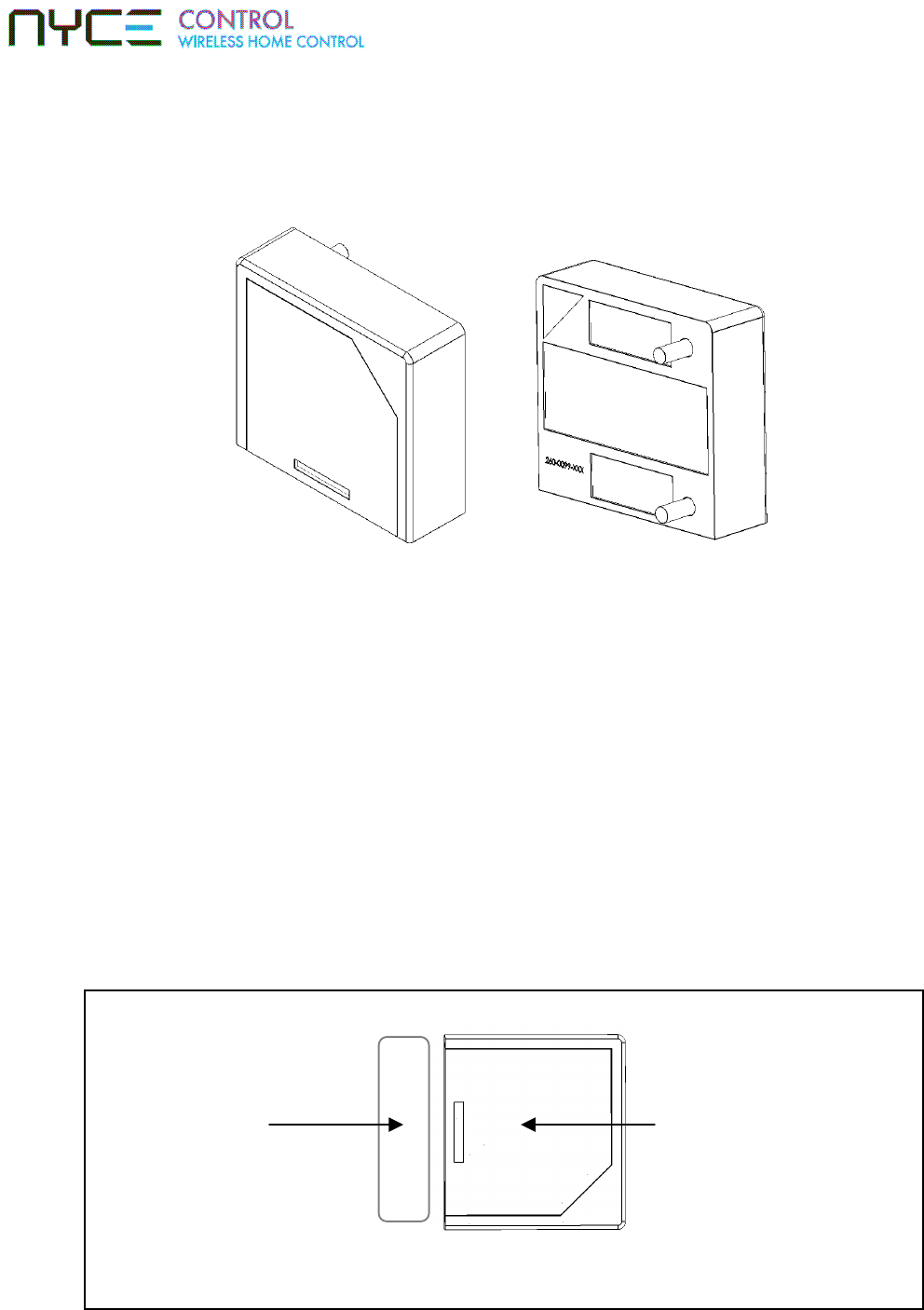

Correct installation orientation of magnet and sensor
Magnet Sensor
Installation Guidelines:
Note: Installing the sensor on metal can reduce its transmission range. Test the sensor from its desired
location prior to permanent installation.
• If using double sided tape for mounting sensor and magnet, thoroughly clean the surface to
ensure proper adhesion because dust and particles can reduce the adhesion of the tape
• Mount the rear cover housing on door frame using double sided tape or supplied screws
• Place the NCZ-3011 indoors and away from sources of water/moisture and extreme weather
conditions
• Mount the magnet on the door such that it is spaced no more than 2 cm from the sensor when the
door is closed. Use double sided tape or screws.
• Insert the coin cell battery into the front cover (see diagram), noting the correct polarity of the
battery
• Press the button once to join the network
• Snap in front cover to mounted rear cover.

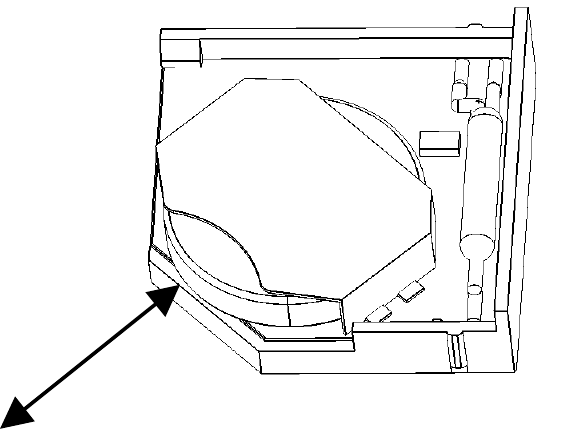

Battery Removal / Replacement
Troubleshooting:
To improve communication:
• Reposition the sensor
• Relocate the sensor
• Move a ZigBee router / range extender closer to the sensor
• If necessary, replace the sensor
Technical Specifications:
• Model Number: NCZ-3011
• Battery Type: 3.0 V CR2032 Lithium coin cell
• RF Frequency: ZigBee channels 11-26, 2.48 GHz
• Operating Temperature: -10
o
C to 50
o
C (14
o
F to 122
o
F)
• Dimensions (LxWxH): 1.2 in. (30mm) x 1.2 in. (30mm) x 0.37 in. (9.4mm)
Battery Replacement:
• Remove front cover to expose battery
• Replace with 3.0 volt CR2032 Lithium coin cell battery, noting the correct polarity of the battery
MODEL #: NCZ-3011
FCC ID: Y8R-Z30111
IC ID: 9488A-Z30111
Compliance Statements:
For complete declarations and certifications please visit:
www.nycecontrol.com/compliance
Notices
This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and (2) this device must accept any interference
received, including interference that may cause undesired operation.
Note: the manufacturer is not responsible for any radio or TV interference caused by unauthorized
modifications to this equipment. Such modifications could void the user’s authority to operate the
equipment.
Changes or modifications not expressly approved by NYCE Control, Inc can void the user’s authority to
operate the equipment.
This device complies with Industry Canada license-exempt RSS standard(s). Operation is Subject to the
following two conditions: (1) this device may not cause interference, and (2) this device must accept any
interference, including interference that may cause undesired operation of the device.
Warranty:
For product warranty information please visit:
www.nycecontrol.com
Support:
For product support please email:
support@nycecontrol.com
