OBI Connect FZE MV1 Worldphone User Manual Obi MV1 QSG AR8 12042015

OBI Connect FZE Worldphone Obi MV1 QSG AR8 12042015

User manual

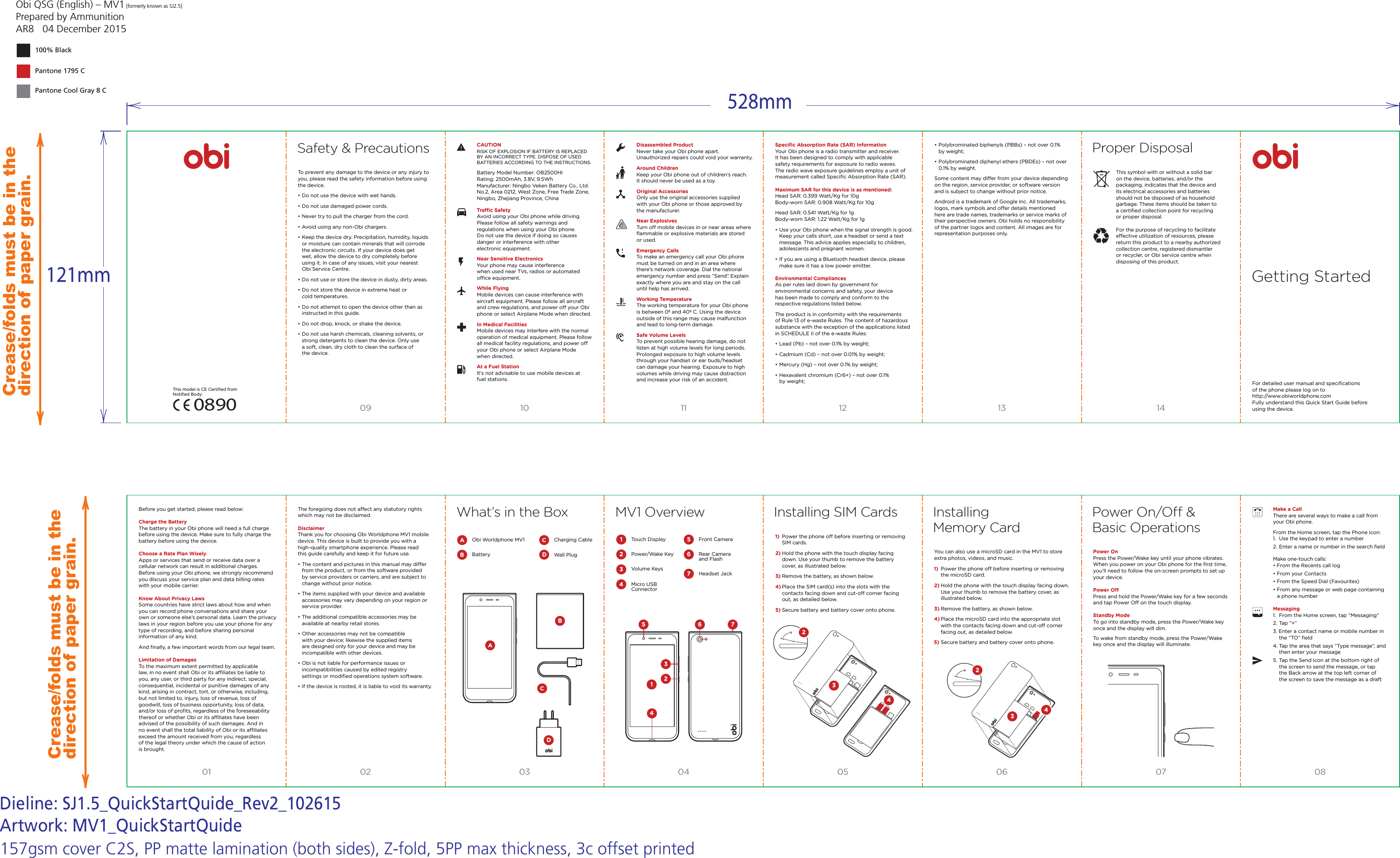

Obi QSG (English) – MV1 [formerly known as SJ2.5]Prepared by AmmunitionAR8   04 December 2015Pantone Cool Gray 8 CPantone 1795 C100% BlackDieline: SJ1.5_QuickStartQuide_Rev2_102615Artwork: MV1_QuickStartQuideCrease/folds must be in the direction of paper grain.Crease/folds must be in the direction of paper grain.157gsm cover C2S, PP matte lamination (both sides), Z-fold, 5PP max thickness, 3c offset printed01 02 03 04 05 06 07 0809 10 11 12 13 14Proper DisposalSafety & PrecautionsTo prevent any damage to the device or any injury to you, please read the safety information before using the device. • Do not use the device with wet hands.• Do not use damaged power cords.• Never try to pull the charger from the cord.• Avoid using any non-Obi chargers.• Keep the device dry. Precipitation, humidity, liquids   or moisture can contain minerals that will corrode   the electronic circuits. If your device does get   wet, allow the device to dry completely before   using it. In case of any issues, visit your nearest   Obi Service Centre.• Do not use or store the device in dusty, dirty areas.• Do not store the device in extreme heat or   cold temperatures.• Do not attempt to open the device other than as   instructed in this guide.• Do not drop, knock, or shake the device.• Do not use harsh chemicals, cleaning solvents, or   strong detergents to clean the device. Only use   a soft, clean, dry cloth to clean the surface of   the device.Trac SafetyAvoid using your Obi phone while driving. Please follow all safety warnings and regulations when using your Obi phone. Do not use the device if doing so causes danger or interference with other electronic equipment.Near Sensitive ElectronicsYour phone may cause interference when used near TVs, radios or automated oce equipment.While FlyingMobile devices can cause interference with aircraft equipment. Please follow all aircraft and crew regulations, and power o your Obi phone or select Airplane Mode when directed.In Medical FacilitiesMobile devices may interfere with the normal operation of medical equipment. Please follow all medical facility regulations, and power o your Obi phone or select Airplane Mode when directed.At a Fuel StationIt’s not advisable to use mobile devices at fuel stations.Make a CallThere are several ways to make a call from your Obi phone.From the Home screen, tap the Phone icon:1.  Use the keypad to enter a number2. Enter a name or number in the search fieldMake one-touch calls: • From the Recents call log• From your Contacts• From the Speed Dial (Favourites)• From any message or web page containing   a phone numberMessaging 1.  From the Home screen, tap “Messaging”2. Tap “+” 3. Enter a contact name or mobile number in   the “TO” field 4. Tap the area that says “Type message”, and   then enter your message 5. Tap the Send icon at the bottom right of   the screen to send the message, or tap   the Back arrow at the top left corner of   the screen to save the message as a draftDisassembled ProductNever take your Obi phone apart. Unauthorized repairs could void your warranty.Around ChildrenKeep your Obi phone out of children’s reach. It should never be used as a toy.Original AccessoriesOnly use the original accessories supplied with your Obi phone or those approved by the manufacturer.Near ExplosivesTurn o mobile devices in or near areas where flammable or explosive materials are stored or used.Emergency CallsTo make an emergency call your Obi phone must be turned on and in an area where there’s network coverage. Dial the national emergency number and press “Send”. Explain exactly where you are and stay on the call until help has arrived.Working TemperatureThe working temperature for your Obi phone is between 0º and 40º C. Using the device outside of this range may cause malfunction and lead to long-term damage.Safe Volume LevelsTo prevent possible hearing damage, do not listen at high volume levels for long periods. Prolonged exposure to high volume levels through your handset or ear buds/headset can damage your hearing. Exposure to high volumes while driving may cause distraction and increase your risk of an accident.Specific Absorption Rate (SAR) InformationYour Obi phone is a radio transmitter and receiver. It has been designed to comply with applicable safety requirements for exposure to radio waves. The radio wave exposure guidelines employ a unit of measurement called Specific Absorption Rate (SAR).Maximum SAR for this device is as mentioned:Head SAR: 0.399 Watt/Kg for 10gBody-worn SAR: 0.908 Watt/Kg for 10gHead SAR: 0.541 Watt/Kg for 1gBody-worn SAR: 1.22 Watt/Kg for 1g• Use your Obi phone when the signal strength is good.   Keep your calls short, use a headset or send a text   message. This advice applies especially to children,   adolescents and pregnant women.• If you are using a Bluetooth headset device, please   make sure it has a low power emitter.Environmental CompliancesAs per rules laid down by government for environmental concerns and safety, your device has been made to comply and conform to the respective regulations listed below.The product is in conformity with the requirements of Rule 13 of e-waste Rules. The content of hazardous substance with the exception of the applications listed in SCHEDULE II of the e-waste Rules:• Lead (Pb) – not over 0.1% by weight;• Cadmium (Cd) – not over 0.01% by weight; • Mercury (Hg) – not over 0.1% by weight;• Hexavalent chromium (Cr6+) – not over 0.1%  by weight;CAUTIONRISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE. DISPOSE OF USED BATTERIES ACCORDING TO THE INSTRUCTIONS.Battery Model Number: OB2500HIRating: 2500mAh, 3.8V, 9.5WhManufacturer: Ningbo Veken Battery Co., Ltd. No.2, Area 0212, West Zone, Free Trade Zone, Ningbo, Zhejiang Province, China Before you get started, please read below:Charge the BatteryThe battery in your Obi phone will need a full charge before using the device. Make sure to fully charge the battery before using the device. Choose a Rate Plan WiselyApps or services that send or receive data over a cellular network can result in additional charges. Before using your Obi phone, we strongly recommend you discuss your service plan and data billing rates with your mobile carrier.Know About Privacy LawsSome countries have strict laws about how and when you can record phone conversations and share your own or someone else’s personal data. Learn the privacy laws in your region before you use your phone for any type of recording, and before sharing personal information of any kind.And finally, a few important words from our legal team. Limitation of DamagesTo the maximum extent permitted by applicable law, in no event shall Obi or its aliates be liable to you, any user, or third party for any indirect, special, consequential, incidental or punitive damages of any kind, arising in contract, tort, or otherwise, including, but not limited to, injury, loss of revenue, loss of goodwill, loss of business opportunity, loss of data, and/or loss of profits, regardless of the foreseeability thereof or whether Obi or its aliates have been advised of the possibility of such damages. And in no event shall the total liability of Obi or its aliates exceed the amount received from you, regardless of the legal theory under which the cause of action is brought.The foregoing does not aect any statutory rights which may not be disclaimed.DisclaimerThank you for choosing Obi Worldphone MV1 mobile device. This device is built to provide you with a high-quality smartphone experience. Please read this guide carefully and keep it for future use.• The content and pictures in this manual may dier   from the product, or from the software provided   by service providers or carriers, and are subject to   change without prior notice.• The items supplied with your device and available   accessories may vary depending on your region or   service provider.• The additional compatible accessories may be   available at nearby retail stores.• Other accessories may not be compatible   with your device; likewise the supplied items   are designed only for your device and may be   incompatible with other devices.• Obi is not liable for performance issues or   incompatibilities caused by edited registry   settings or modified operations system software.• If the device is rooted, it is liable to void its warranty.MV1 Overview Installing SIM Cards Installing Memory Card1)  Power the phone o before inserting or removing   SIM cards. 2) Hold the phone with the touch display facing   down. Use your thumb to remove the battery   cover, as illustrated below.3) Remove the battery, as shown below.4) Place the SIM card(s) into the slots with the   contacts facing down and cut-o corner facing   out, as detailed below.5) Secure battery and battery cover onto phone.You can also use a microSD card in the MV1 to store extra photos, videos, and music.1)  Power the phone o before inserting or removing   the microSD card. 2) Hold the phone with the touch display facing down.   Use your thumb to remove the battery cover, as   illustrated below. 3) Remove the battery, as shown below.4) Place the microSD card into the appropriate slot   with the contacts facing down and cut-o corner   facing out, as detailed below.5) Secure battery and battery cover onto phone.Power On Press the Power/Wake key until your phone vibrates. When you power on your Obi phone for the first time, you’ll need to follow the on-screen prompts to set up your device.Power OPress and hold the Power/Wake key for a few seconds and tap Power O on the touch display.Standby ModeTo go into standby mode, press the Power/Wake key once and the display will dim.To wake from standby mode, press the Power/Wake key once and the display will illuminate.Power On/O & Basic OperationsTouch DisplayPower/Wake Key Volume KeysMicro USB ConnectorFront Camera Rear Camera and Flash Headset Jack• Polybrominated biphenyls (PBBs) – not over 0.1%   by weight;• Polybrominated diphenyl ethers (PBDEs) – not over   0.1% by weight.Some content may dier from your device depending on the region, service provider, or software version and is subject to change without prior notice.Android is a trademark of Google Inc. All trademarks, logos, mark symbols and oer details mentioned here are trade names, trademarks or service marks of their perspective owners. Obi holds no responsibility of the partner logos and content. All images are for representation purposes only.This model is CE Certified from Notified Body:What’s in the BoxCharging CableWall Plug Obi Worldphone MV1Battery This symbol with or without a solid bar on the device, batteries, and/or the packaging, indicates that the device and its electrical accessories and batteries should not be disposed of as household garbage. These items should be taken to a certified collection point for recycling or proper disposal.For the purpose of recycling to facilitate eective utilization of resources, please return this product to a nearby authorized collection centre, registered dismantler or recycler, or Obi service centre when disposing of this product. For detailed user manual and specifications of the phone please log on to http://www.obiworldphone.comFully understand this Quick Start Guide before using the device.Getting Started1567234D0890B142375 6D342342

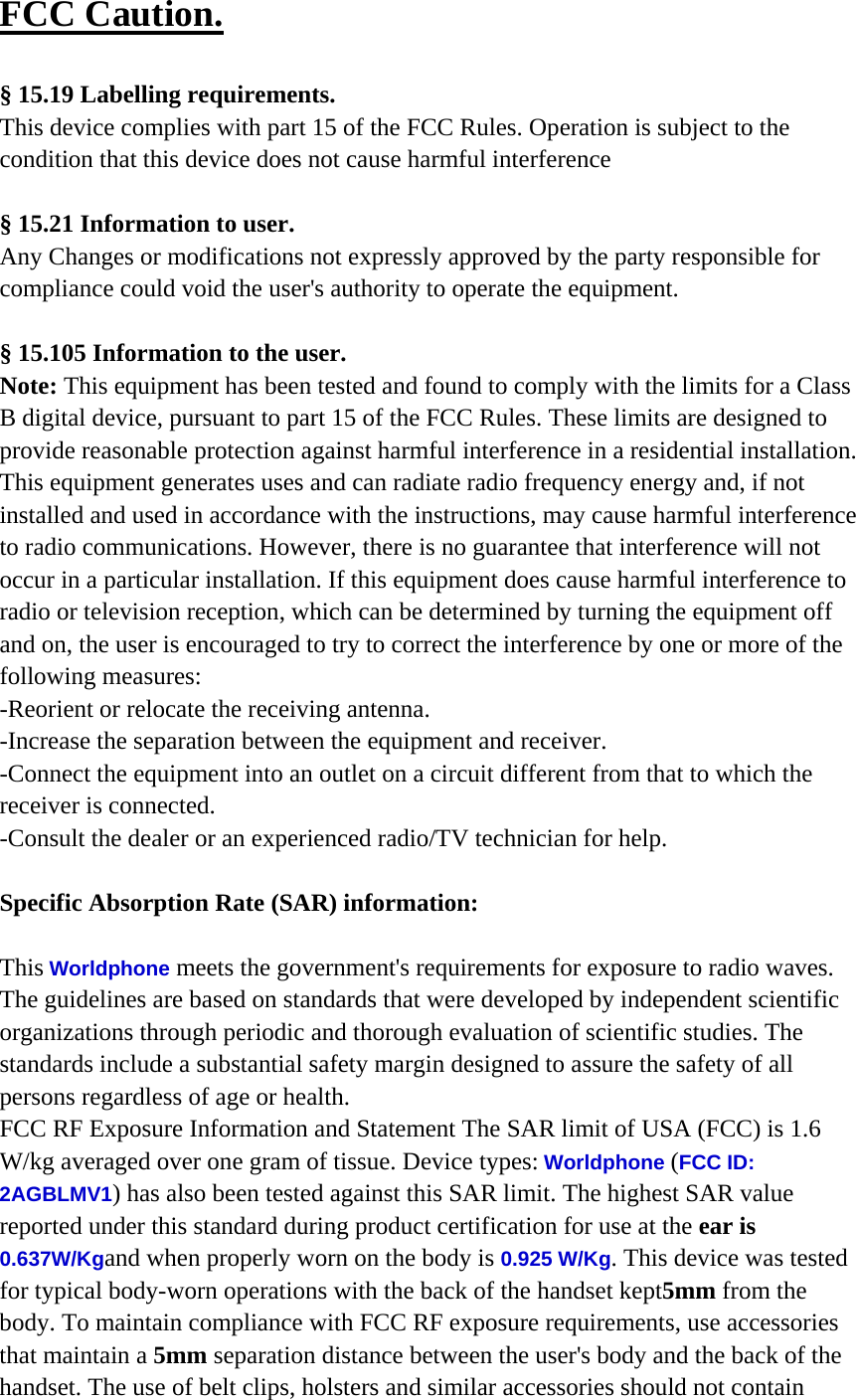

FCC Caution.  § 15.19 Labelling requirements. This device complies with part 15 of the FCC Rules. Operation is subject to the condition that this device does not cause harmful interference  § 15.21 Information to user. Any Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.  § 15.105 Information to the user. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help.  Specific Absorption Rate (SAR) information:   This Worldphone meets the government's requirements for exposure to radio waves. The guidelines are based on standards that were developed by independent scientific organizations through periodic and thorough evaluation of scientific studies. The standards include a substantial safety margin designed to assure the safety of all persons regardless of age or health. FCC RF Exposure Information and Statement The SAR limit of USA (FCC) is 1.6 W/kg averaged over one gram of tissue. Device types: Worldphone (FCC ID: 2AGBLMV1) has also been tested against this SAR limit. The highest SAR value reported under this standard during product certification for use at the ear is 0.637W/Kgand when properly worn on the body is 0.925 W/Kg. This device was tested for typical body-worn operations with the back of the handset kept5mm from the body. To maintain compliance with FCC RF exposure requirements, use accessories that maintain a 5mm separation distance between the user's body and the back of the handset. The use of belt clips, holsters and similar accessories should not contain

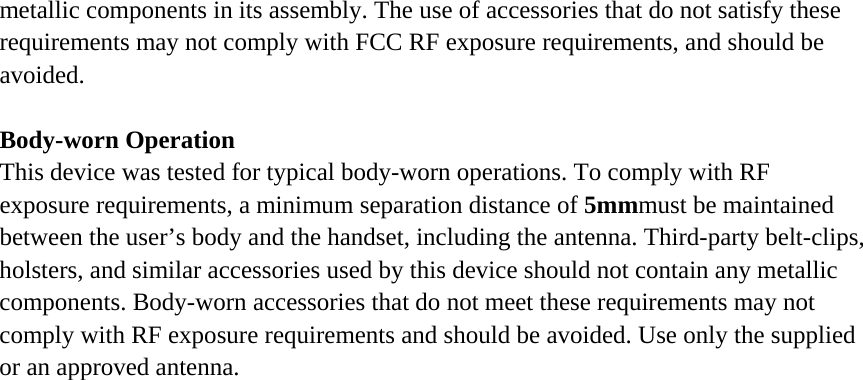

metallic components in its assembly. The use of accessories that do not satisfy these requirements may not comply with FCC RF exposure requirements, and should be avoided.  Body-worn Operation This device was tested for typical body-worn operations. To comply with RF exposure requirements, a minimum separation distance of 5mmmust be maintained between the user’s body and the handset, including the antenna. Third-party belt-clips, holsters, and similar accessories used by this device should not contain any metallic components. Body-worn accessories that do not meet these requirements may not comply with RF exposure requirements and should be avoided. Use only the supplied or an approved antenna.
