User manual

/ RRR-L

Operating instructions

The STABILA REC 410 Line RF is a simple-to-use receiver for the rapid capture

of laser lines. The STABILA REC 410 Line RF can only receive pulse modulated

laser beams. The receiver will not work with rotation lasers. We have ende-

avoured to explain the unit’s handling and functioning in as clear and com-

prehensible manner as possible. If, however, you still have any unanswered

questions, we should be pleased to provide advice over the telephone at any

time on the following telephone number:

0049 / 6346 / 309-0

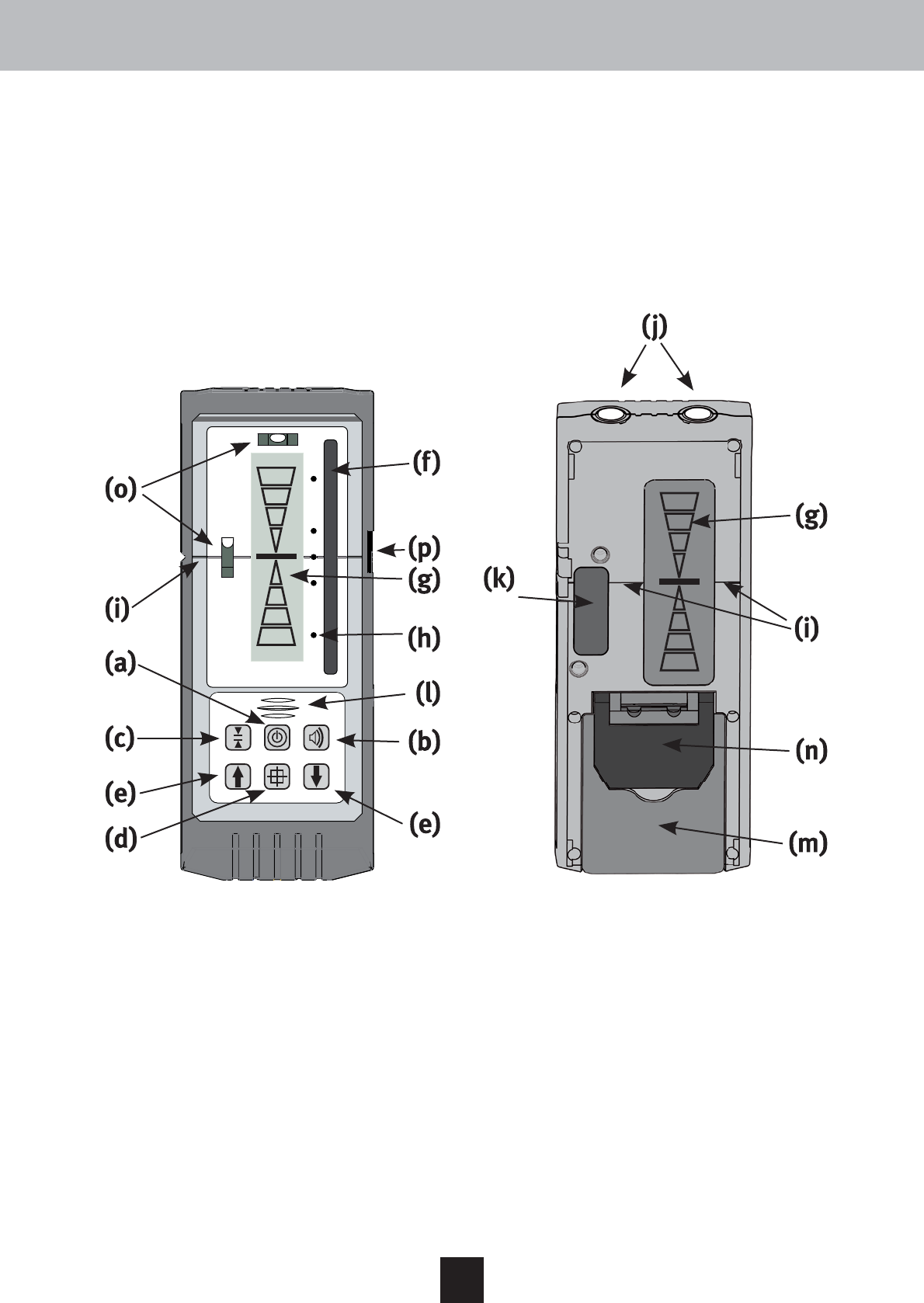

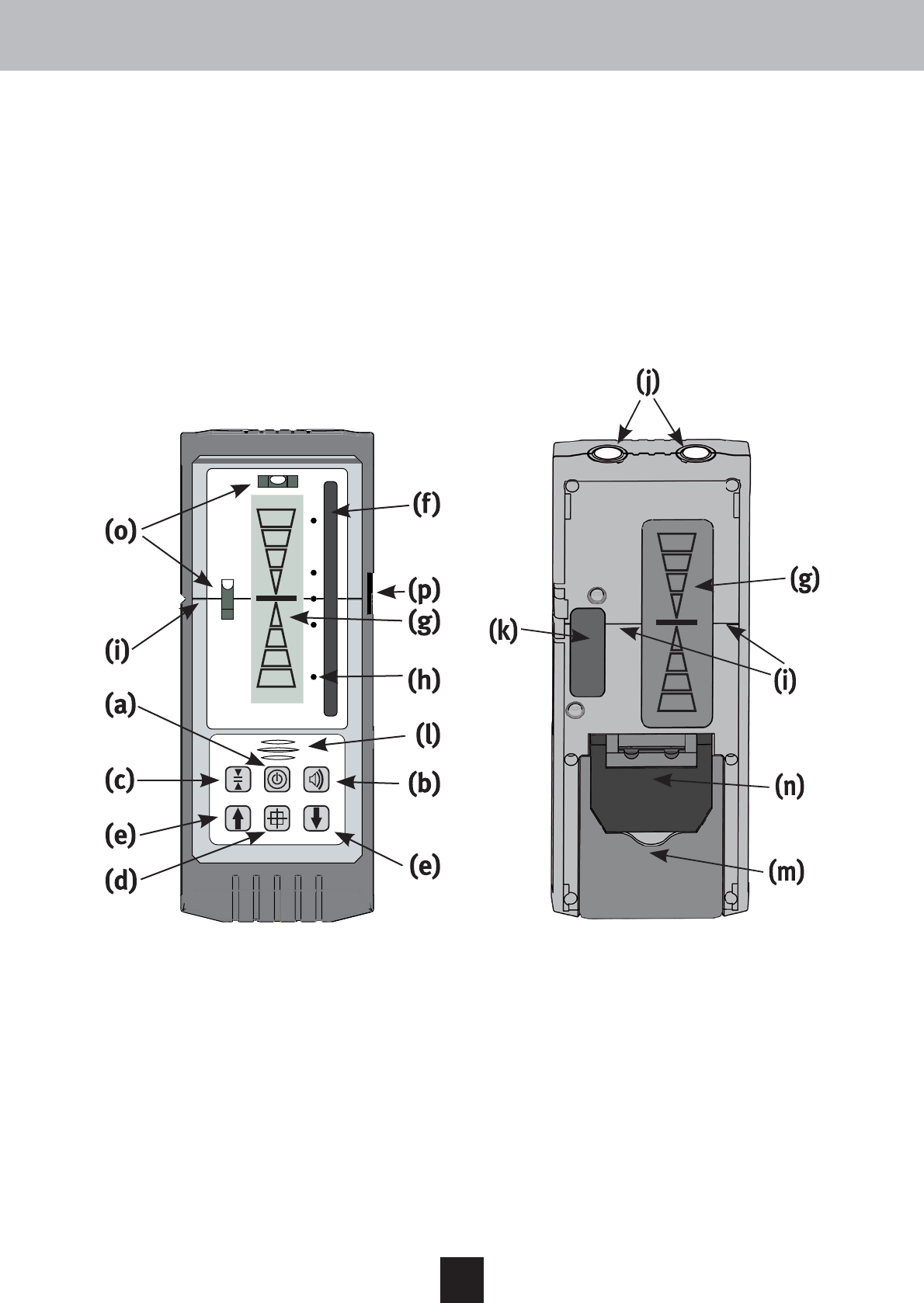

Main components

(a) ON/OFF

(b) Volume

(d) Automatic precision adjustment

(e) Manual precision adjustment

(f) Laser receiver glass

(g) Display

(h) LED display ( red, yellow, green)

(i) „In line“ marks

(j) Magnet for xing the receiver

directly to a metal surface

(k) Integrated steel plate to attach

the receiver directly to the

magnet of the bracket

(l) Beeper

(m) Battery compartment cover

(n) Fold-out support for using the

receiver on a flat surface

(o) Vial

(p) Fold-out indicator notch

REC 410

Line RF

REC 410

Line RF

65 mm

2.50 inch

REC 410

Line RF

REC 410

Line RF

(1) (2) (3)

Getting started

Press the ON/OFF button (a). An audio signal, a brief flash from the display

and the LEDs conrm that the receiver is switched on. Press the ON/OFF but-

ton (a) quickly once to switch the instrument o. If the instrument is not used,

it will automatically switch itself o aer 30 minutes.

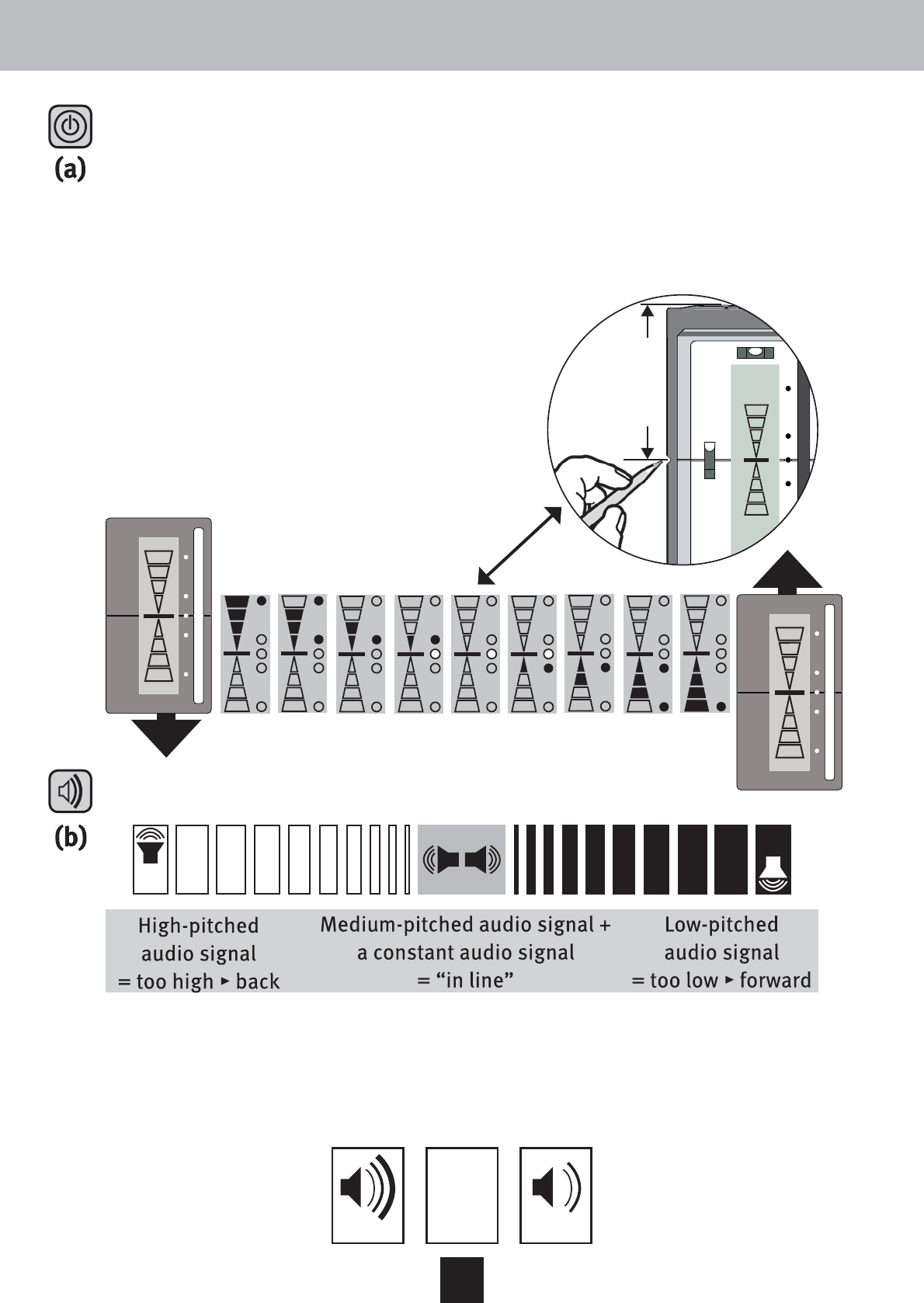

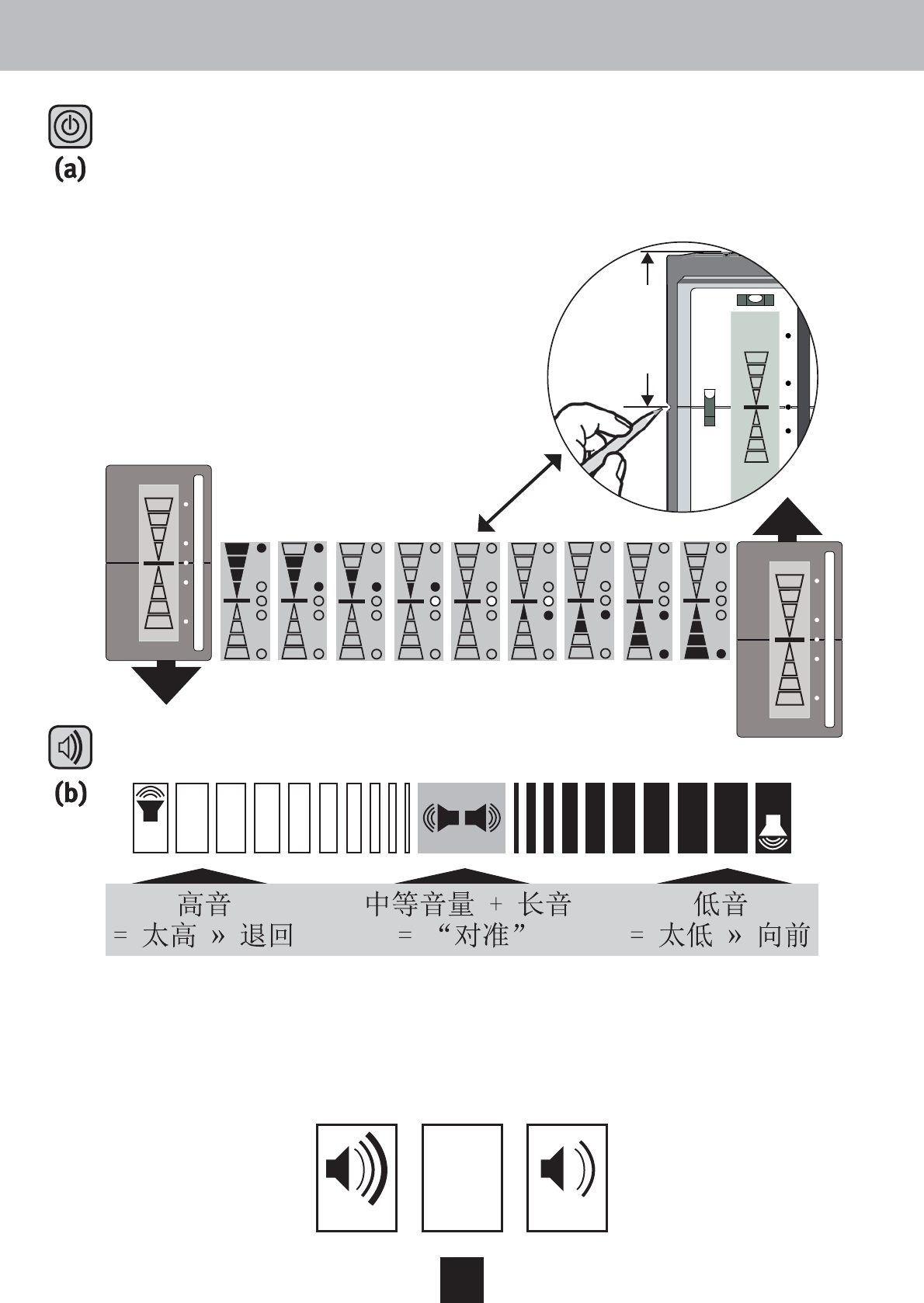

Display

9 display steps indicate the divergence from the

centre of the laser line. The central bar indica-

tes the “in line” position of the REC 410 Line RF.

The arrow increases in size as the distance from

the “in line” position increases.

Audio signals

Setting the volume

The volume is increased/decreased by repeatedly pressing the button (b):

Loud (1),out (2) or so (3). If the instrument is set to “silent” only a short

beep is emitted when the laser beam is received.

≤ 50 m/164 

sec

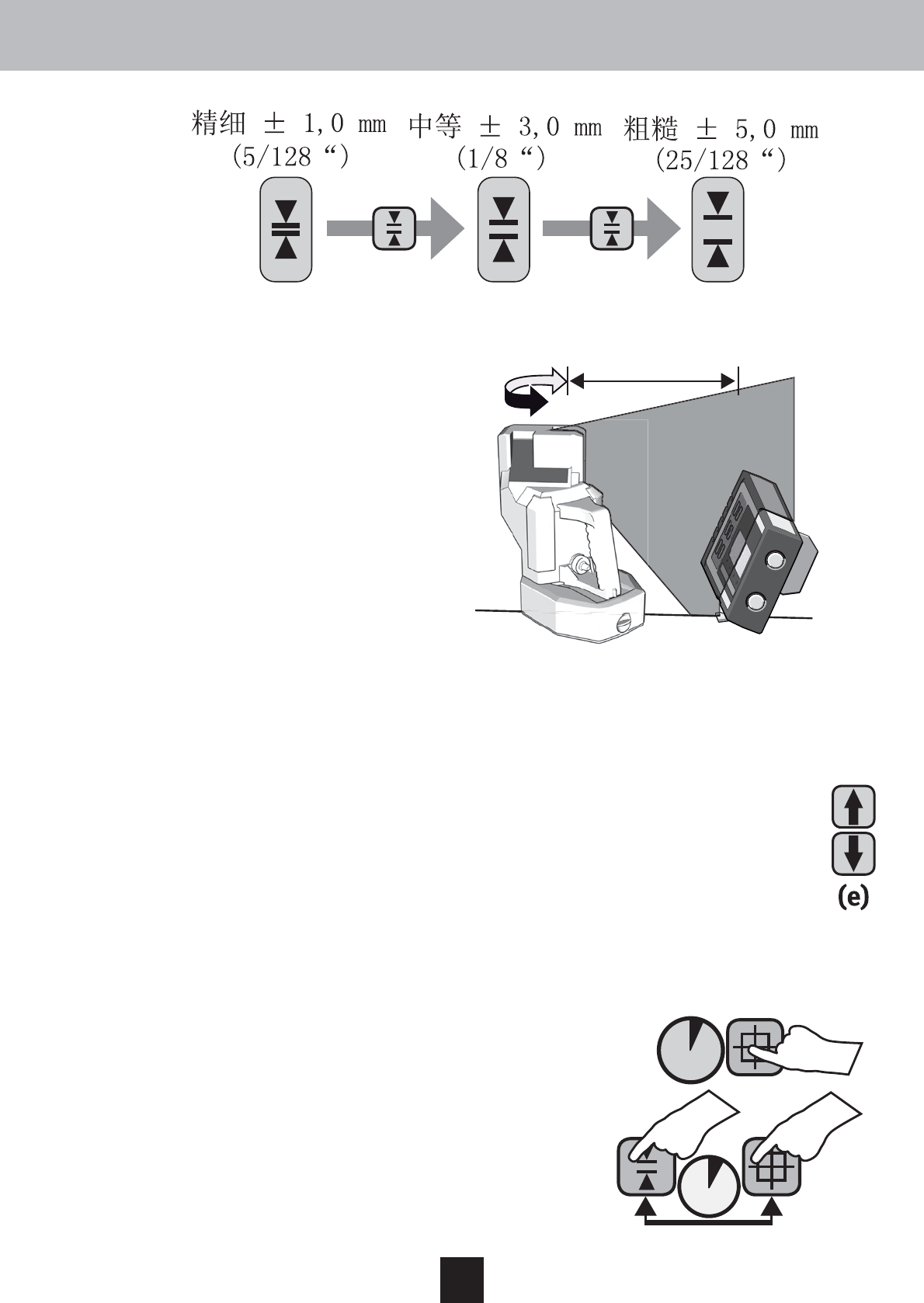

Measuring modes

Accuracy:

Automatic precision adjustment:

Only operates in conjunction with a laser transmitter with the appropriate

features. The precision adjustment

function can be used, for example, to

align laser lines exactly with the requi-

red reference lines, edges, or compo-

nents. The laser transmitter continues

to rotate automatically until the laser

line is precisely “in line“ with the recei-

ver. Using the remote operation func-

tion the laser transmitter can be alig-

ned with the REC 410 Line RF within the

range ± 5°*. The receiver must be registered with the laser for this to be pos-

sible (» Registration). It is only sensible to use this function if the receiver is

positioned on a flat surface*.

* particularly in conjunction with LA180L

1. Align the laser approximately with the receiver.

2. Precision adjustment can be undertaken in two dierent operating modes.

A. Semi-automatic

Use the arrow buttons (e) for precision adjustment in the required direc-

tion. The laser transmitter will rotate in a single movement in the direction

indicated.

B. Fully automatic

The laser transmitter initially rotates to the limit of the operating range (± 5°)

and then moves in the opposite direction until it reaches the position where

the maximum strength of laser signal is received.

B1. Simple mode

The laser transmitter will rotate in a single movement until it reaches the

position where the maximum strength of laser

signal is received.

sec

B2. Continuous mode

Continuous, independent rotation/ tracking of the

receiver by the laser beam.

Registering the receiver with the laser transmitter

Registering the REC 410 Line RF receiver with the laser transmitter

1. Switch o the laser transmitter (button 1a)

2. Press and hold down buttons (1c) and (1d).

3. Switch on the laser transmitter - (button 1a)

4. The laser transmitter is in registration mode

The LEDs (red and green) flash alternately.

5. Press the button “automatic precision alignment“ (d)

on the REC 410 Line RF receiver.

6. The red and green LEDs on the laser transmitter will flash

3 times for 3 seconds: » Registration was successfully completed!

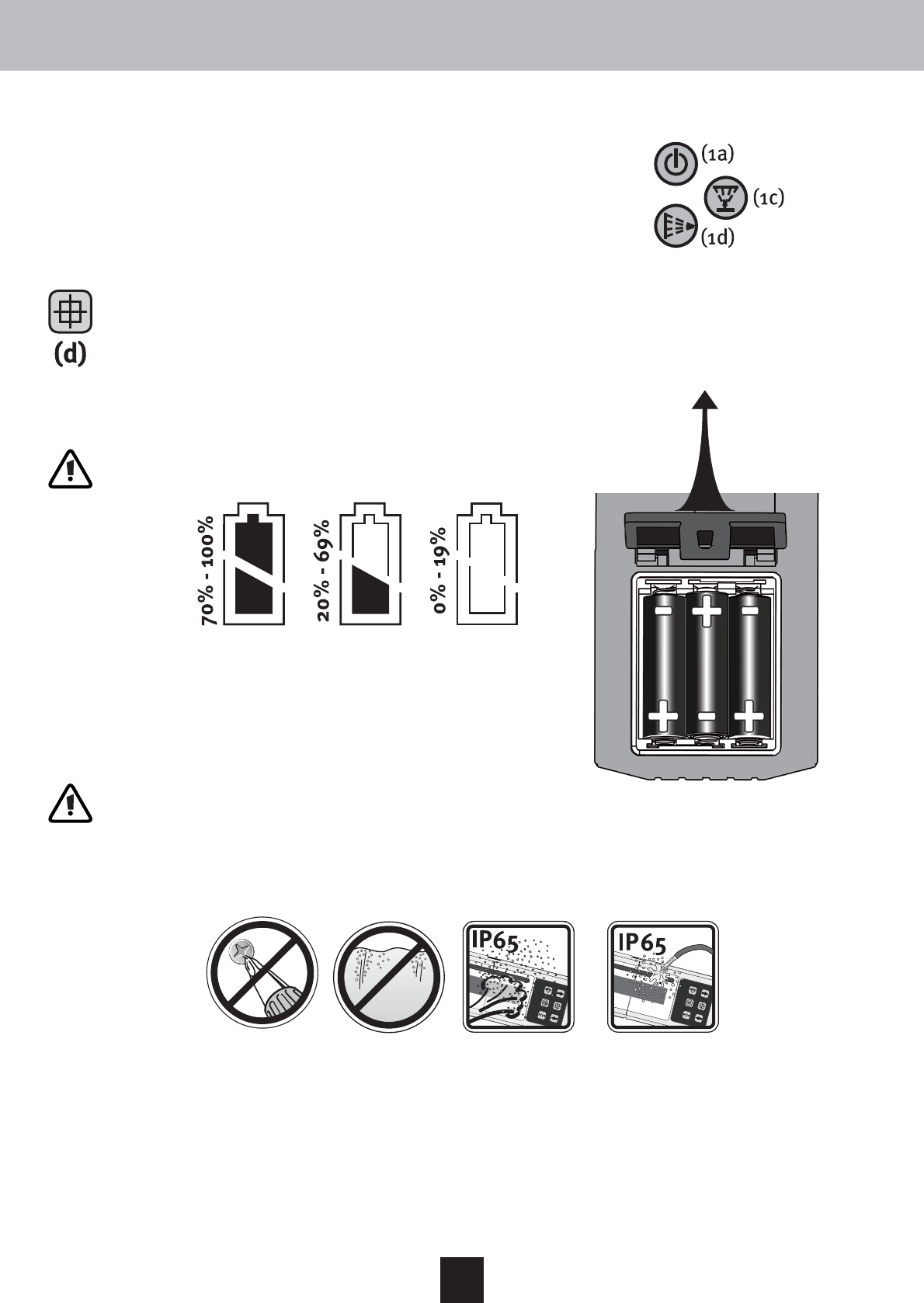

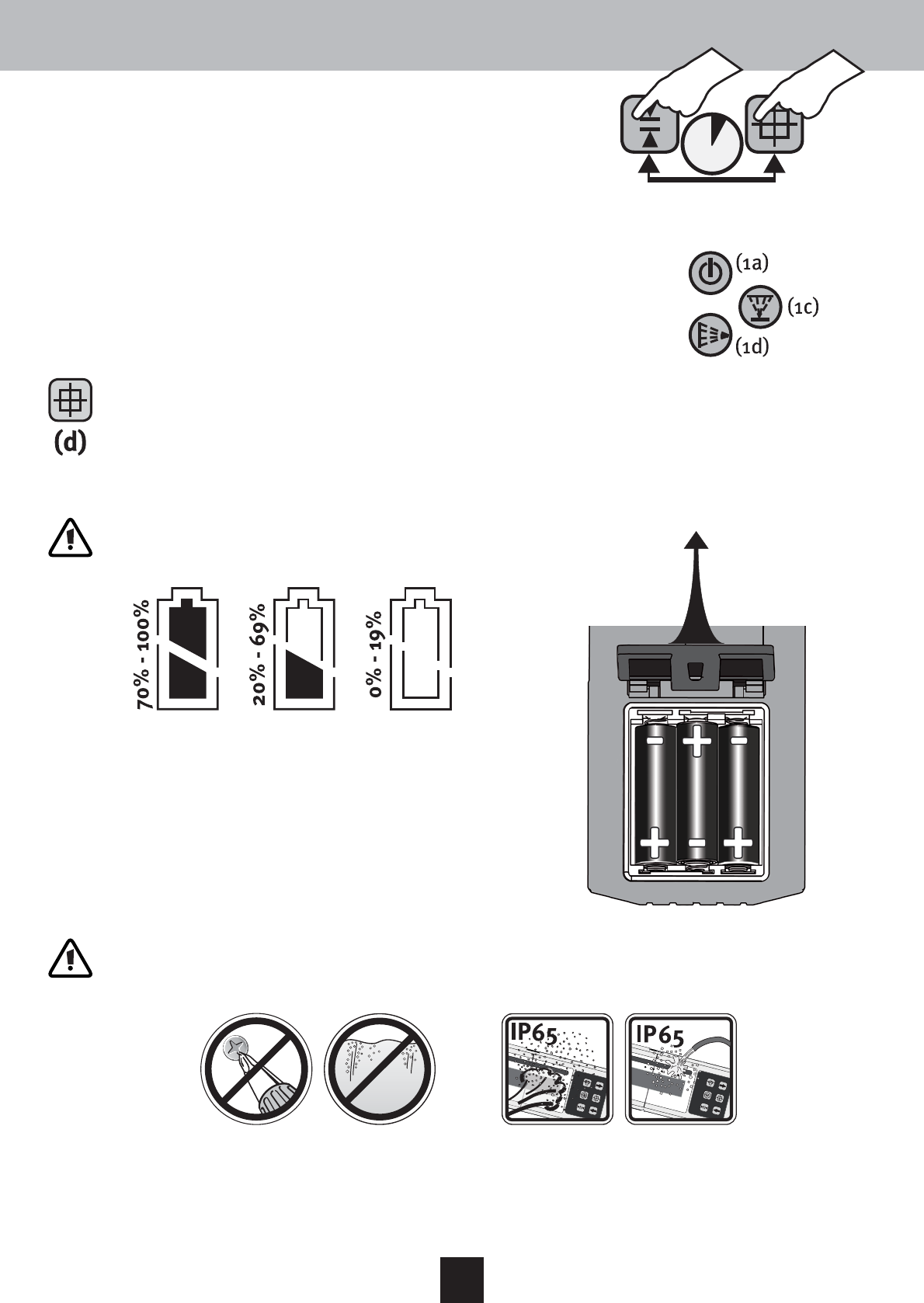

Replacing the batteries

Battery display

Open the battery compartment cover (m) in the

direction of the arrow. Insert new batteries as

indicated by the symbols in the battery com-

partment. 3 x 1.5V miniature alkaline batteries,

size AA, LR6. Remove the batteries if the recei-

ver will not be used for a long period.

Protective casing

Do not unscrew receiver! Do not submerge into water! Protected against dust

penetration and against water jets (from all directions) according to IP65.

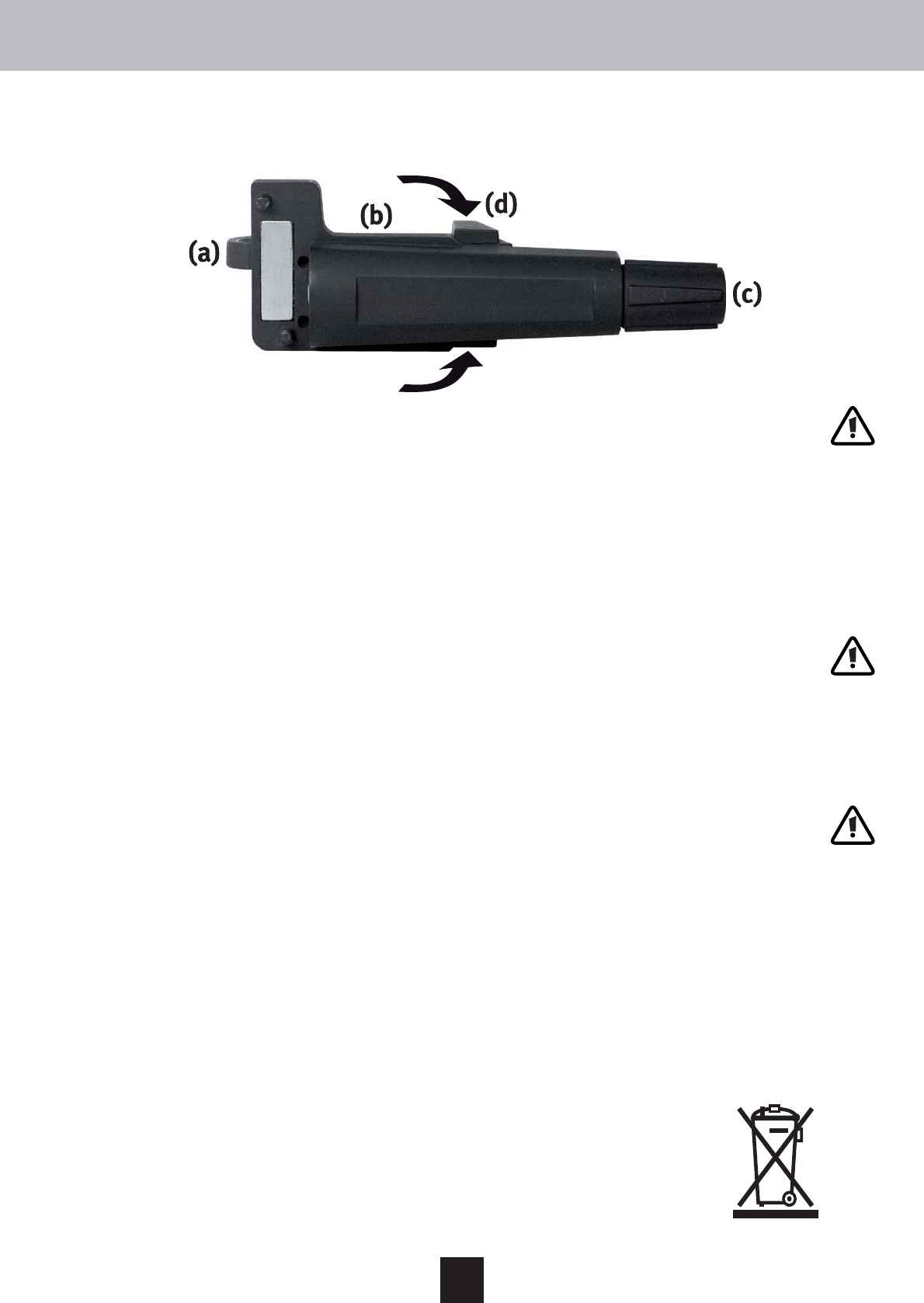

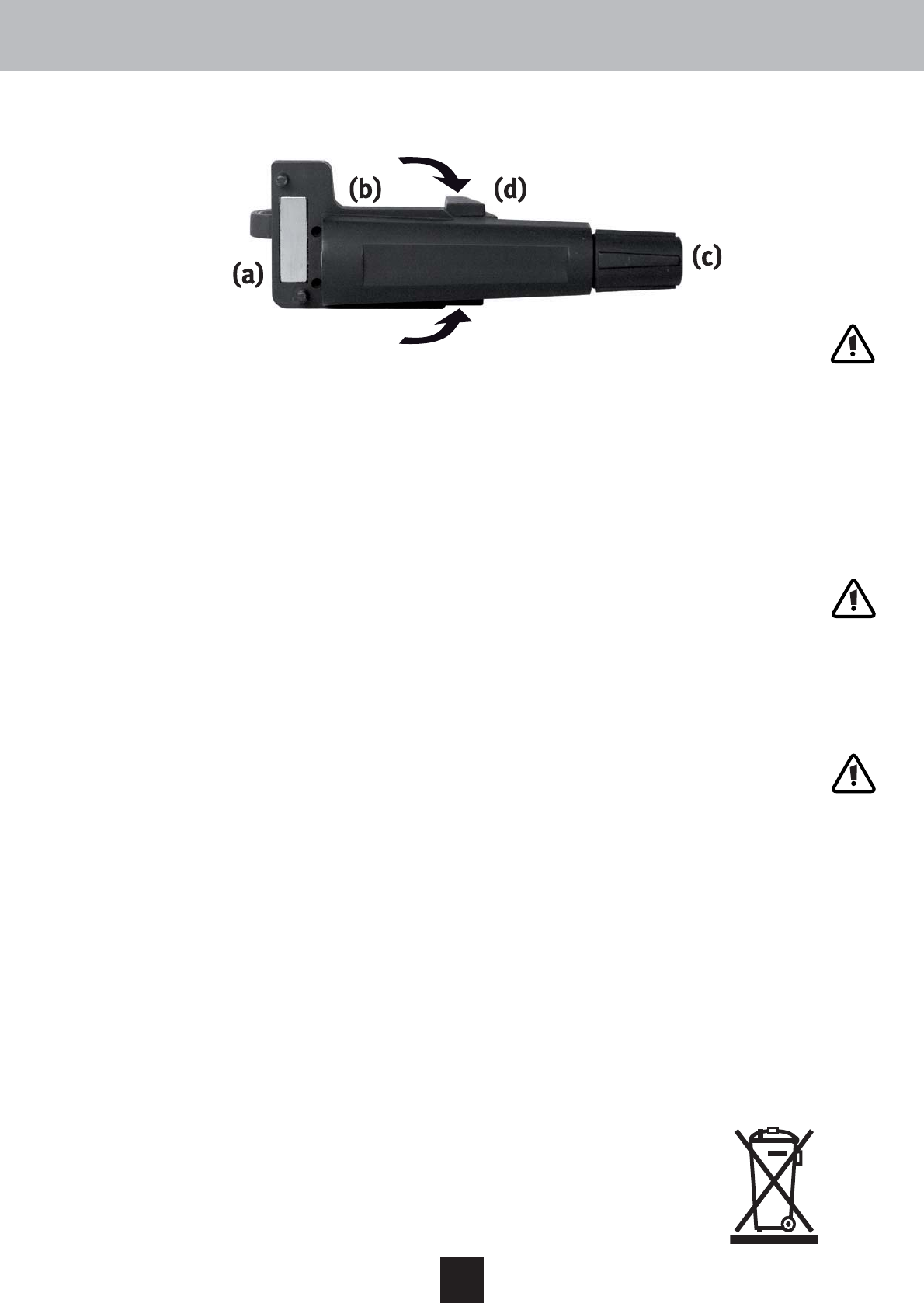

Bracket

(a) Magnet: For securing the receiver.

(b) Reading reference: The edge is “in line“ and can therefore be used

for taking accurate readings on levelling stas.

with the receiver to/from the levelling sta.

(d) Moveable clamping jaw – for xing to the levelling sta.

Care and maintenance  Cleaning

Please do not remove dust and dirt from the receiving or display window by

using dry cloths or abrasive materials as this procedure scratches the win-

dows. A so cloth and mild soap and water are eective. The unit can be

cleaned under a tap or with a hose with a low water pressure. Do not use any

other fluids other than water or glass-cleaner, as they may attack polymer

components.

Prohibited Uses

- Operation without instruction.

- Operation other than the intended uses.

- Opening the detector, except the battery compartment.

- Modication or conversion of the detector.

Important information

The person in charge of the detector must understand the instructions in this

manual and ensure other users do also. Periodically carry out test measure-

ments, particularly aer the detector has been subjected to abnormal use

and before and aer important measurements.

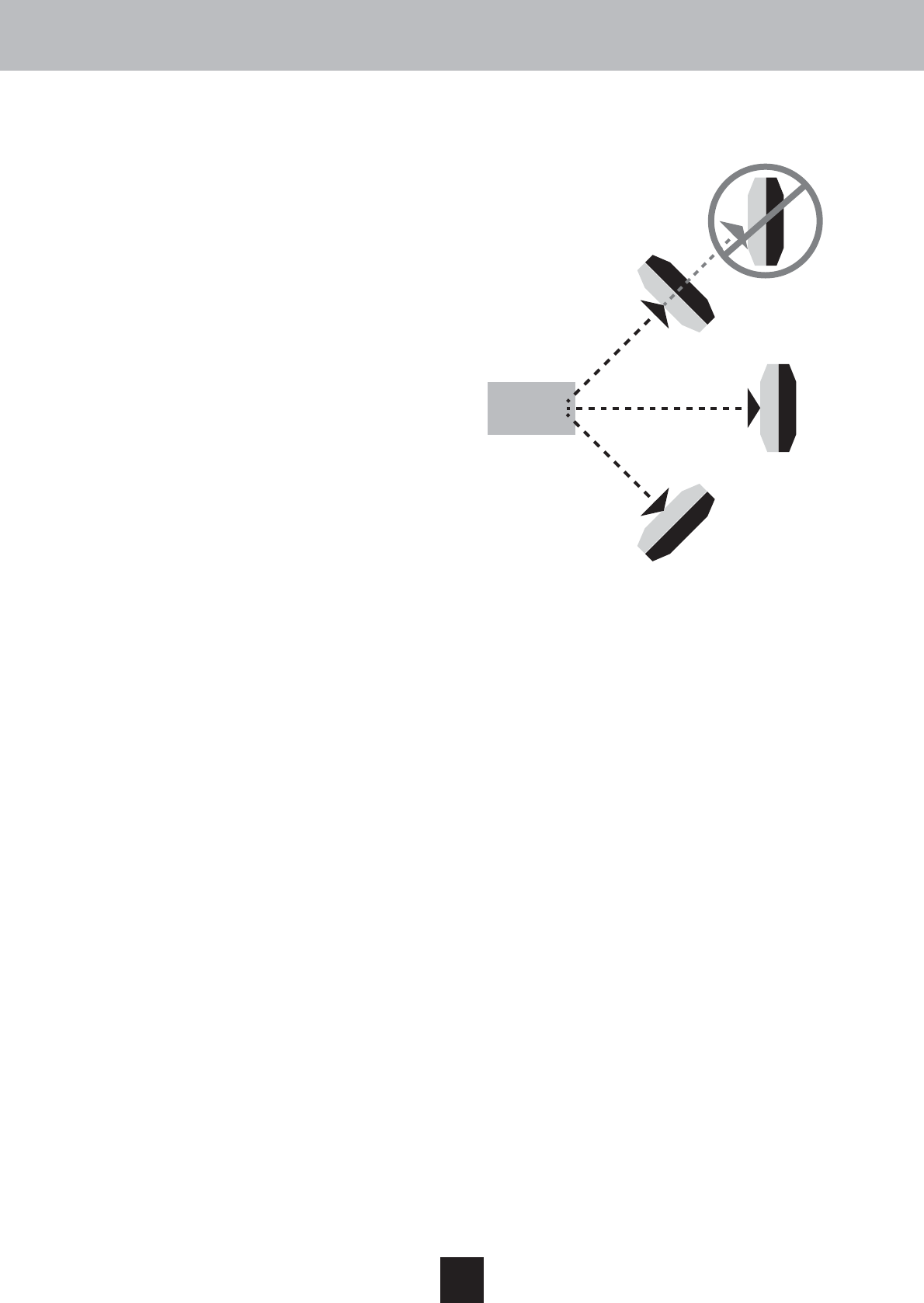

▸ Positioning and adjustment of the instrument:

When setting up the instrument, take care that the laser beam does not pro-

duce any unwanted reflections from reflective surfaces. These reflections

may also be captured by the receiver and produce incorrect readings.

Recycling programme for our EU customers:

In accordance with the WEEE regulations, STABILA provides a dis-

posal programme for electronic products at the end of their service

life. For more details, please contact:

0049 / 6346 / 309-0

Responsibilities

Manufacturer of the product STABILA Messgeräte Gustav Ullrich GmbH her-

einaer referred to as STABILA, is responsible for supplying the product,

including the user manual and original accessories, in a completely safe

condition.

Person in charge of the product

The person in charge of the product has the following duties:

To understand the safety instructions on the product and the instructions in

the user manual. To be familiar with local regulations relating to safety and

accident prevention. To inform STABILA immediately if the product and the

application becomes unsafe.

WARNING

The person responsible for the product must ensure that it is used in

accordance with the instructions. This person is also accountable for the trai-

ning and the deployment of personnel who use the product and for the safety

of the equipment in use.

Hazards of Use

WARNING!

The absence of instruction, or the inadequate imparting of instruction, can

lead to incorrect or adverse use, and can give rise to accidents with far-

reaching human, material, nancial and environmental consequences.

Precautions

All users must follow the safety directions given by the manufacturer and the

directions of the person responsible for the product.

Electromagnetic Compatibility (EMC)

The term Electromagnetic Compatability is taken to mean the capability of

theproduct to function smoothly in an environment where electromagnetic

radiation and electrostatic discharges are present, and without causing elec-

tromagnetic disturbances to other equipment.

WARNING

Electromagnetic radiation can cause disturbances in other equipment. Alt-

hough the product meets the strict regulations and standards which are in

force in this respect, STABILA cannot completely exclude the possibility that

other equipment may be disturbed.

40 m

100 m

328 

131 

CAUTION!

Disturbances caused by electromagnetic radiation can result in erroneous

measurements. Although the product meets the strict regulations and stan-

dards whichin this respect, STABILA cannot completely exclude the possibi-

lity product may be disturbed by very intense electromagnetic radiation, near

radio transmitters, two-way radios or diesel generators.

Precautions

Check the plausibility of results obtained under these conditions.

Technical data

Guarantee terms and conditions

STABILA provides a guarantee against deciencies and faults in the assured

characteristics because of material or manufacturing faults for a period of

24 months from date of purchase. Any faults will be eliminated at STABILA‘s

own discretion either by repairing or replacing the unit. STABILA accepts no

Working radius:

Accuracy:

ne:

medium:

wide:

Detectable spectrum:

Acoustic signals:

Batteries:

Battery display:

Operating life:

Automatic Shut O:

Operation temperature range:

Storage temperature range:

up to 100 m (328 ),

Laser dependent

± 1,0 mm (5/128“)

± 3,0 mm (1/8“)

± 5,0 mm (25/128“)

525 - 700 nm

Loud: 100 dBA, Low: 70 dBA

3 x 1,5V Mignon cells Alkaline,

Size AA, LR6

Yes (LCD symbol)

> 50 hours of receiver operation

+ 1000 activations of the buttons

during remote operation

30 minutes

-10°C to +50°C (14°F to 122°F)

-20°C to +70°C (-4°F to 158°F)

further claims. No liability is accepted for any faults due to inappropriate

treatment (e.g. damage caused by the unit falling, operation with the wrong

voltage or type of current, use of unsuitable current supply sources) or for

any autonomous changes made to the unit by the purchaser or a third party.

Also no claims under guarantee are accepted for natural wear and tear or any

small faults that do not signicantly aect the unit‘s operation. Any guaran-

tee claims must be made via the dealer on the duly completed guarantee

form (see last page) to be returned with the unit.

Notice for Canada

This Class B digital device meets all requirements of Candian Radio Stan-

dards Specication RSS-210.

FCC Statement, Applicable in U.S.

This equipment has been tested and found to comply with the limits for a

Class B digital device, pursuant to part 15 of the FCC Rules. These limits are

designed to provide reasonable protection against harmful interference in

a residential installation. This equipment generates, uses and can radiate

radio frequency energy and, if not installed and used in accordance with the

instructions, may cause harmful interference to radio communications. How-

ever, there is no guarantee that interference will not occur in a particular ins-

tallation. If this equipment does cause harmful interference to radio or tele-

vision reception, which can be determined by turning the equipment o and

on, the user is encouraged to try to correct the interference by one or more of

the following measures:

- Reorient or relocate the receiving antenna.

- Increase the separation between the equipment and receiver.

- Connect the equipment into an outlet on a circuit dierent from that to

which the receiver is connected.

- Consult the dealer or an experienced radio/ TV technician for help.

WARNING!

Changes or modications not expressly approved by the manufacturer for

compliance could void the user’s authority to operate the equipment.

Refer to below web-site for CE details:

www.stabila.de
