Operating Manual of Remote Hand Control

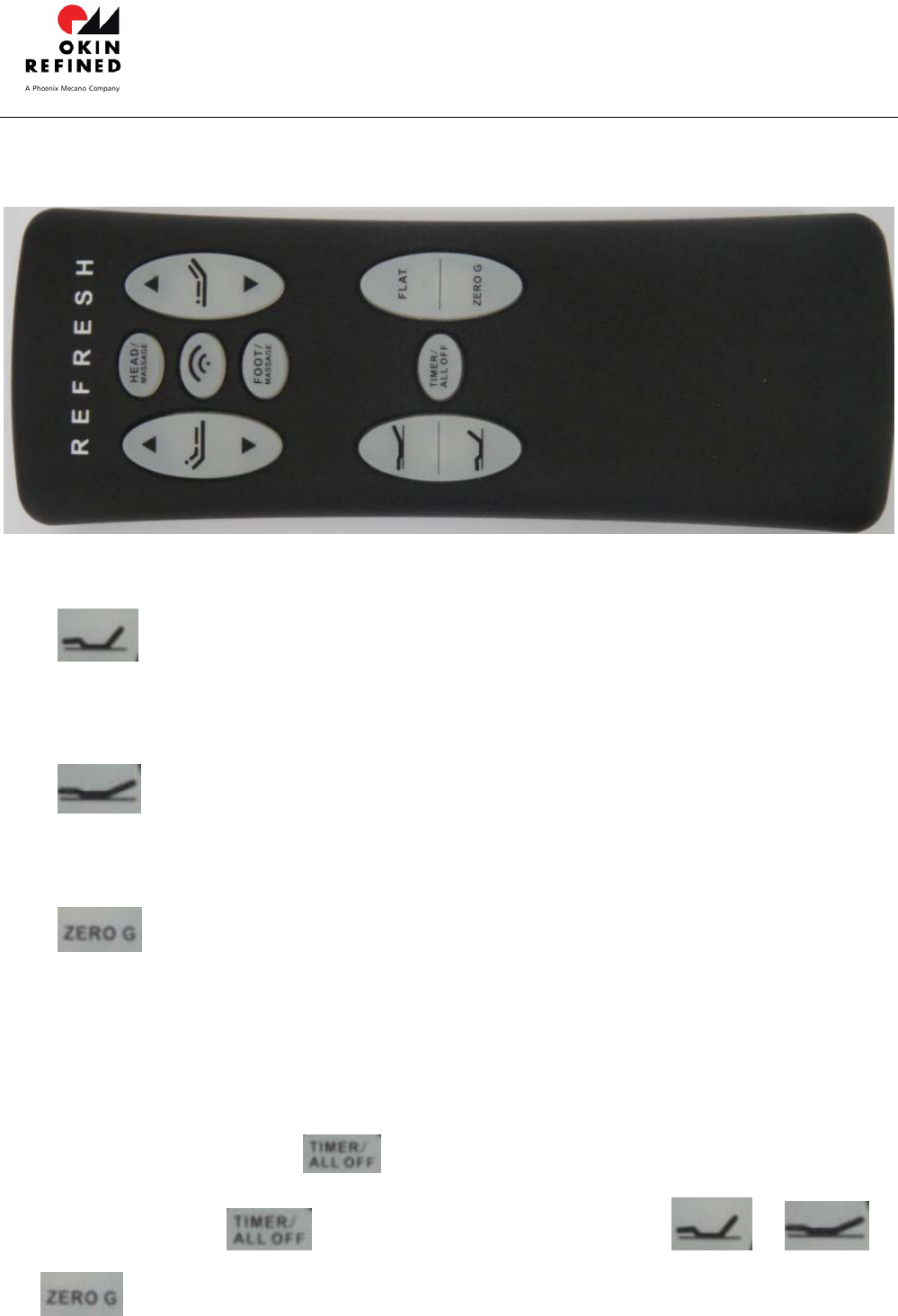

1、Interface of the Handset
2、Button description
A. button: Press the button, the head and foot motor will move simultaneously and
do not stop until return to the position of the system set (reading position). You can press
any button to stop action during moving.
B. button: Press the button, the head and foot motor will move simultaneously and
do not stop until return to the position of the system set (recline position). You can press
any button to stop action during moving.
C. button: Press the button, the head and foot motor will move simultaneously and
do not stop until return to the position of the system set (zero gravity position). You can
press any button to stop action during moving.
The reading, recline and zero gravity position can be changed by the end user.
Step 1: Adjust the head position and feet position to a desired position;
Step 2: Press and hold the button for 3sec, backlight LED start flashing;
Step 3: Release button, during next 1sec, press or or
button, LED stop flashing. Then the corresponding position is updated successfully.
OKIN Refined Electric Technology Co.,Ltd
Page 2 of 5

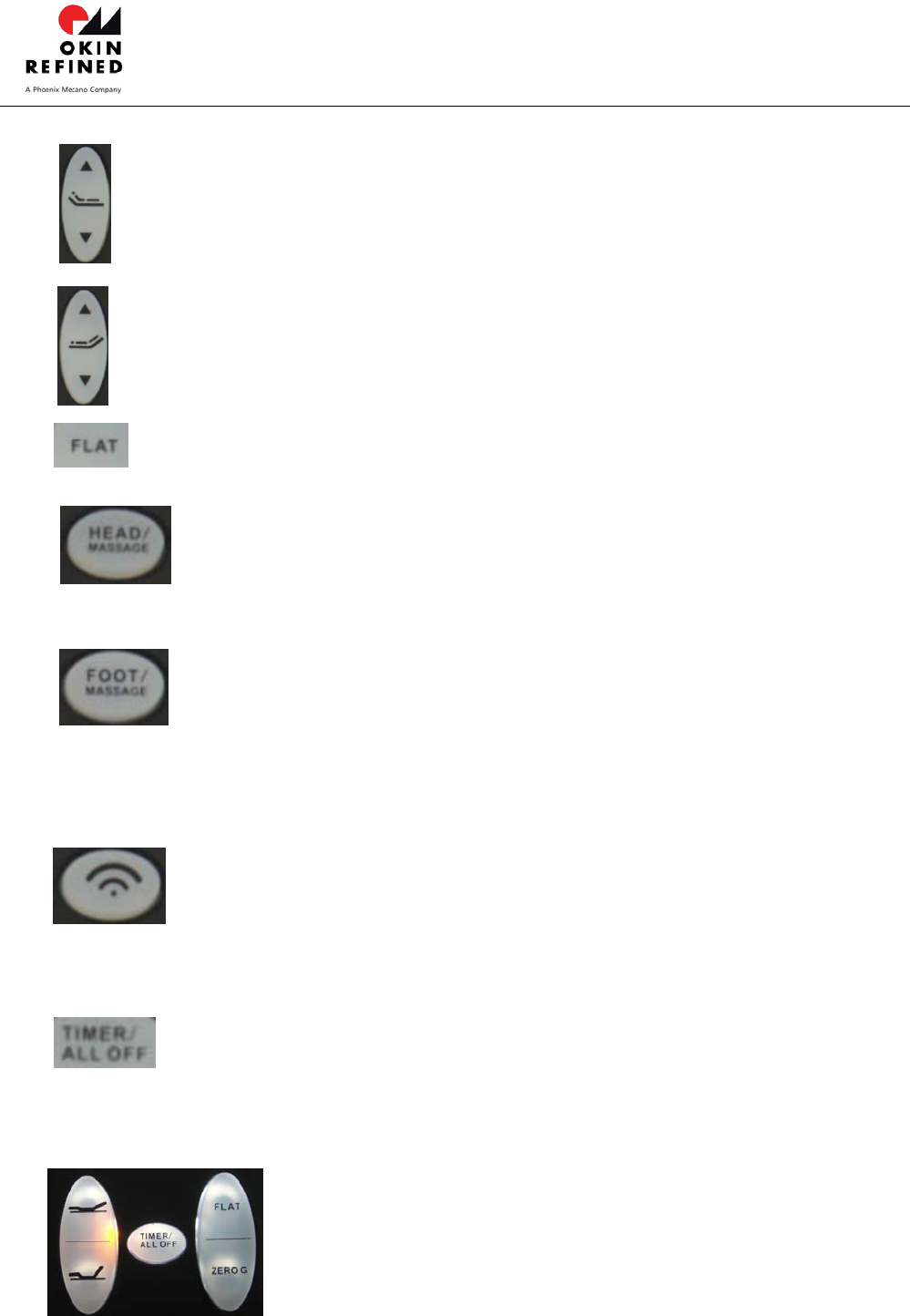

D. HEAD button：Press and hold the button, the head motor will go up or down.
E. FEET button：Press and hold the button, the foot motor will go up or down.
F. FLAT button：Press the button, the head and foot motor will move down to the flat
position simultaneously. You can press any button to stop action during moving.
G. HEAD Massage ON/OFF button：
Press the button to turn on or turn off the vibrating of the head vibrator;
H. FEET Massage ON/OFF button：
Press the button to turn on or turn off the vibrating of the feet vibrator;
I. HEAD and FEET Massage intensity button：
Press the button to change circularly the vibrating intensity of the head and feet
vibrator by one level, total 3 levels;
J. Massage time button：
Press the button and released to stop all moves and change circularly the vibrating
time of the head and feet vibrator by one level, total 4 levels;
The indication of the vibrating time is below:
The yellow LED on-------10minutes
OKIN Refined Electric Technology Co.,Ltd
Page 3 of 5
The blue LED on-------20minutes
Both of the yellow LED and the blue LED on-------30minutes
Both of the yellow LED and the blue LED off-------forever
3、Wireless Matching operation

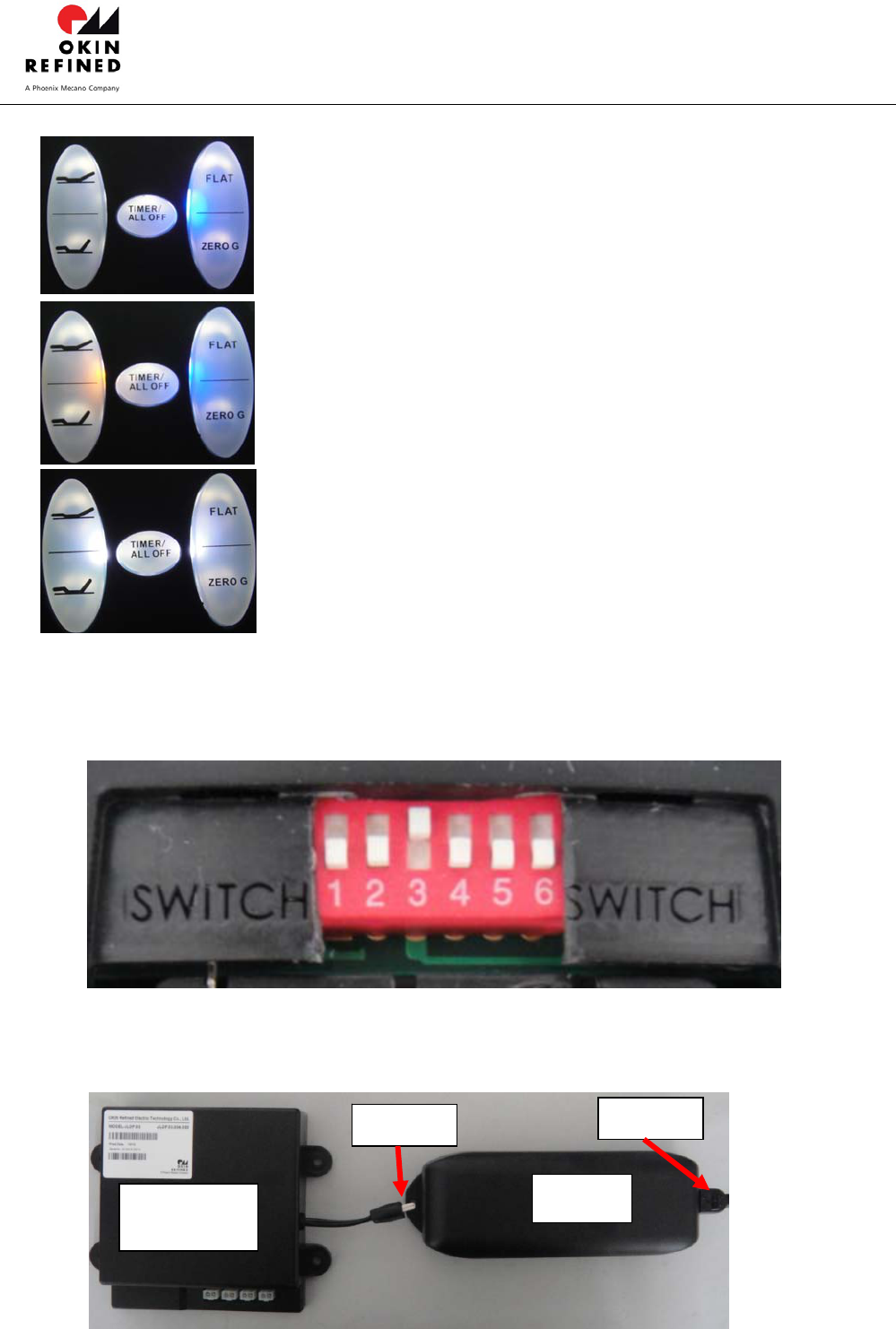

Step 1: Set up DIP switch to a desired channel;
The below is only for example.
Step 2: Disconnect the DC plug (not the AC plug) of the control box from the SMPS to turn off
the power;
DC plug
control box SMPS
AC plug
OKIN Refined Electric Technology Co.,Ltd
Page 4 of 5
Step 3: Two seconds later connect again the DC plug of the control box to the SMPS to turn on
the power.
Step 4: Press simultaneously and hold the head up button and feet up button on the
handset until backlight LED flashing. Release the two buttons and LEDs continue flashing and
search with control box, once the LEDs stop flashing the matching is successful, which means
the control box and the handset can work together.
All matching set up process must finish in two minutes after turning on again the power of the
control box.

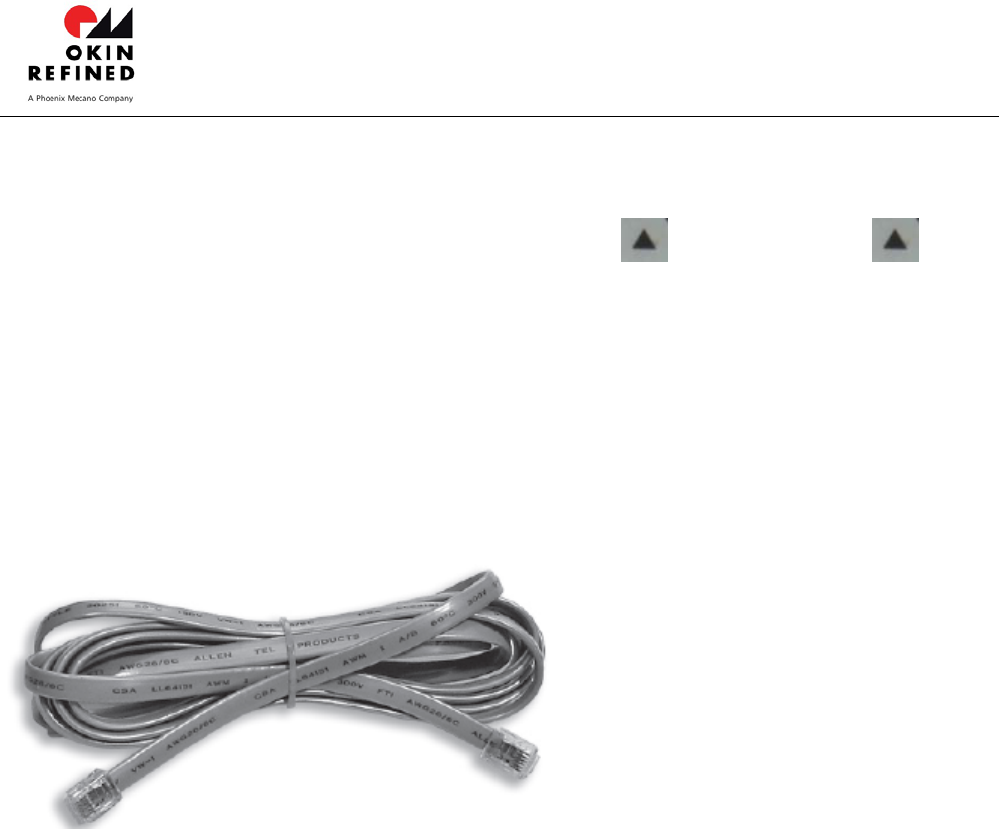

Configuring two beds to a big bed
Connect the two control boxes with the cable as below, as do this, the two beds can work
synchronously.
Usage notice of the Control Box
1. The control box is designed for using the SMPS of 29VDC/ around 2A as the power. It is
necessary to use the SMPS provided by us when normal operation.
2. In the case of the AC power utility failure, the battery box for backup of 18VDC can be used
as the power. It is only for flatting the bed plate without load if the battery box used as the
power and each one of the batteries must be new with 9V voltage. Due to the electric
quantity of the batteries limit it is impossible to move repeatedly the bed plate, it is strongly
recommended to use in turn the button “Head Down” and “Feet Down” to drive the head
motor and feet motor in turn not simultaneously to flat the bed plate. Not to use the button
“Flat” to flat the bed plate, in this way the battery voltage will be pulled down by the bigger
current because the head motor and the feet motor is driven simultaneously, that perhaps
results the motors will not work normally. It isn’t also strongly recommended to start the
massage motors when the battery box used as power.
