OKIN Refined Electric Technology JLDK-21-01 Shenzhou Spaceship2012 Wireless remote handset User Manual
OKIN Refined Electric Technology Co., Ltd. Shenzhou Spaceship2012 Wireless remote handset
User manual
OKIN Refined Electric Technology Co., Ltd
Operating Manual of Remote Hand Control
1、 Interface of the Handset
S3
2、 Button description
A．Press button(S1) and hold until you bring the chair to a seated position. If you
release the button, the motor will immediately shut off.
B．Press button(S2) and hold until you bring the chair to a reclined position. If you
release the button, the motor will immediately shut off.
C．Double press button(S3) and the Remote handset will enter a connecting state
for 30s. During this time, If a nearby Control box is also in connecting state, they
will be connected with each other.
3、 indicator light description
A. Only orange light flashing indicates that the motor is running to a seated
position normally.
B. Only blue light flashing mostly indicates that the motor is running to a reclined
S1 S2
OKIN Refined Electric Technology Co., Ltd
position normally. Sometimes, it indicates the Remote handset being in a
connecting state.
C. Both of the indicator lights flashing 3 times indicates something wrong
happened to the Remote handset during operation, as follows:
a. In connecting state, the Remote handset fail to connect to a Control box.
b. In connected state, if you press button(S1 or S2), the control commands cannot
reach the Control box.
4、 To connect the Remote handset to a Control box
Step1:
Connect the DC plug of the Actuator to the SMPS to turn on the power. Connect
the 5-pin plug of the Control box to the Actuator.

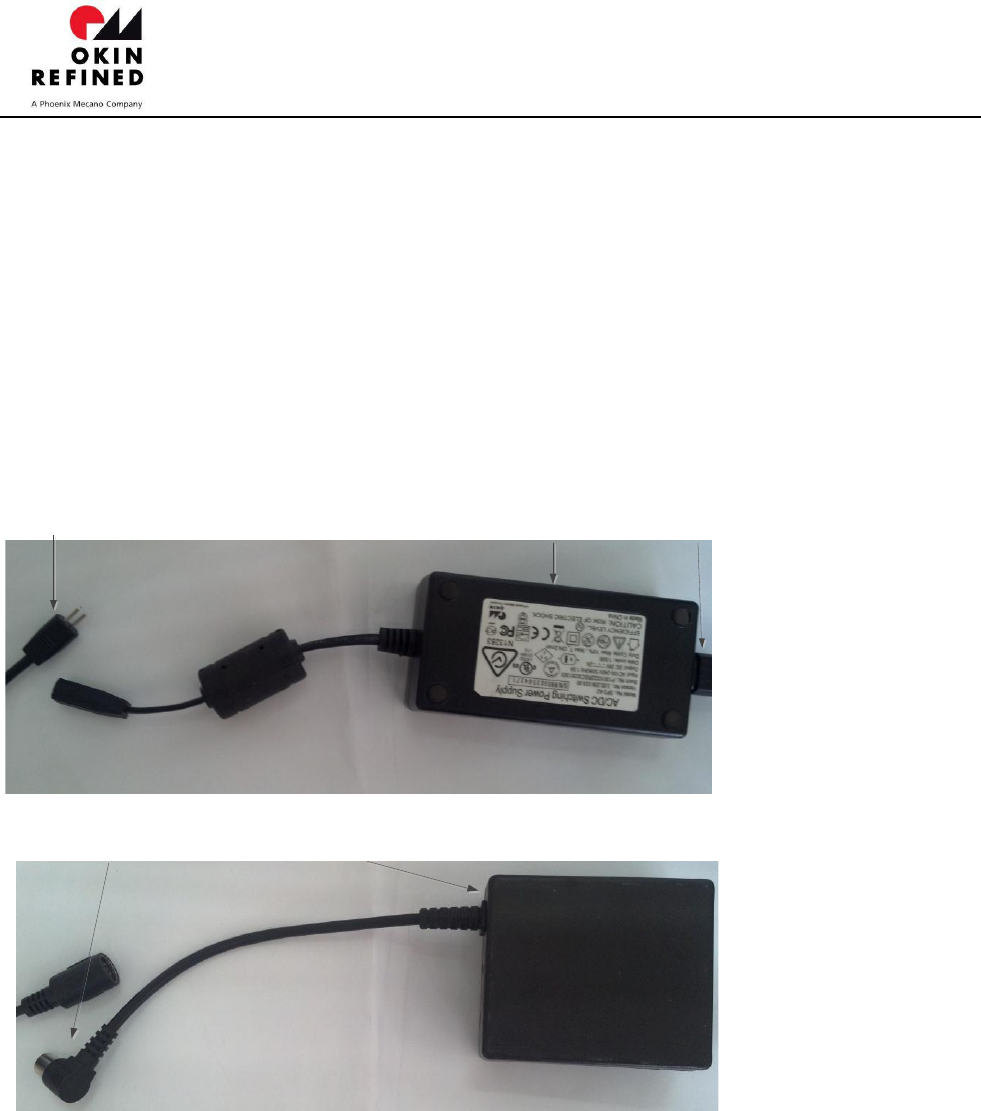

AC plugSMPS
DC plug
5-pin plug Control box
Step2:
Double press the button of the Control box. The light going on indicates the
Control box entered a connecting mode for 30s.
Step3:
Double press button(S3) and the blue light flashing indicates the Remote handset
being in a connecting mode.
Step4:
When flashing blue light goes out, the Remote handset and the Control box are
connected. If blue light flashing state turns to double indicator lights flashing 3
times, it means the Remote handset fails to connect to the Control box. At this
OKIN Refined Electric Technology Co., Ltd
time, you should repeat step2 ~ step4.
