OKIN Refined Electric Technology JLDP-03 Wireless remote controller User Manual Control box x
OKIN Refined Electric Technology Co., Ltd. Wireless remote controller Control box x
User Manual

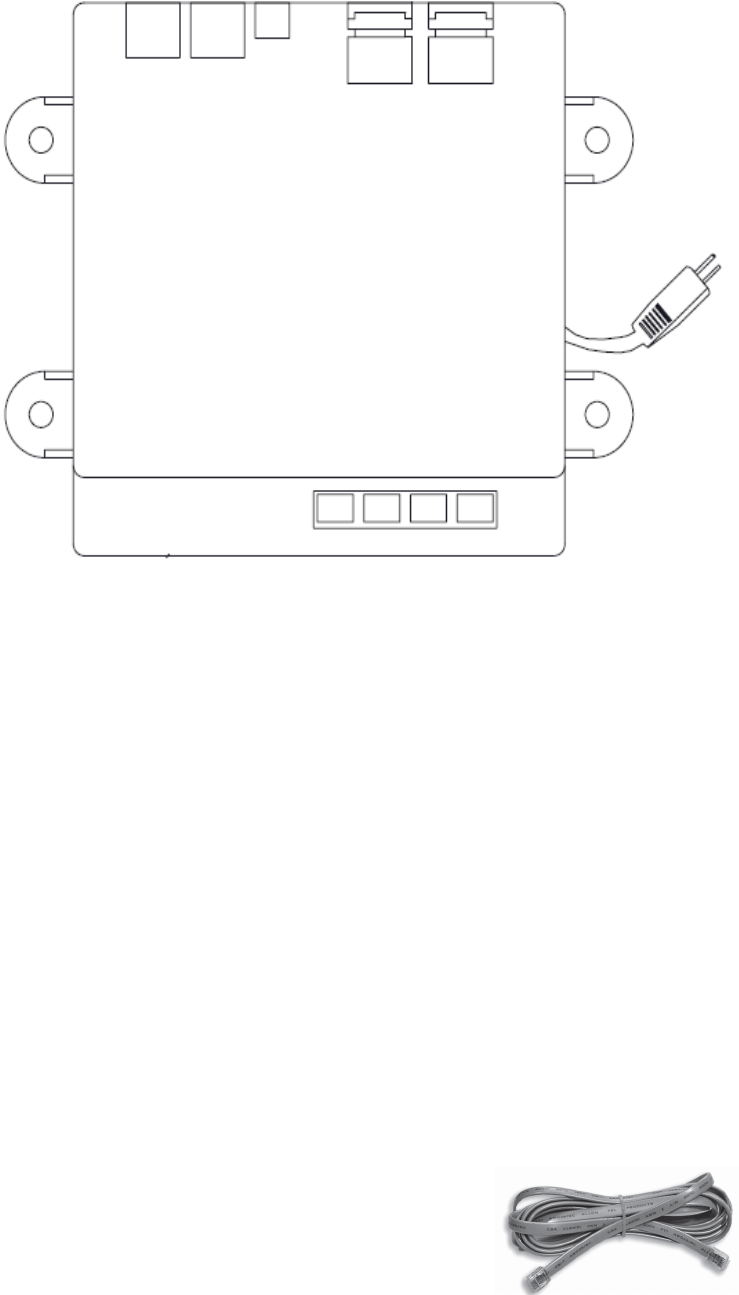

1、 Interface of the Control box
1---connect to 24~29VDC/3A power supply
910 423
1
5678
1---connect to 24~29VDC/3A power supply
2---connect to Head Motor 24~29VDC/3A
3---connect to Feet Motor 24~29VDC/3A
4---connect to LED 12VDC/1A (optional)
5---connect to Feet Massage Motor 24~29VDC/0.3A
6---connect to Feet Massage Motor 24~29VDC/0.3A
7---connect to Head Massage Motor 24~29VDC/0.3A
8---connect to Head Massage Motor 24~29VDC/0.3A
9---wire control (anyone of 9 or 10 connect to another control box)
10--wire control (anyone of 9 or 10 connect to another control box)
2.Function description
The control box must be used with the Remote Hand Control together.
The detail please refer to the "Operating Manual of Remote Hand Control".
3.Preparing two bases for simultaneous operation
The control system is designed to allow (2) split queen or (2) split king bases
to work in unison with a onepiece mattress. In order for (2) adjustable bases to
work simultaneously with one (1) hand control, only connect the two control
boxes in the connector 9 or 10 with the cable.
5
6
7
8
4.FCC STATEMENT FCC ID: PCU-JLDP-03
1. This device complies with Part 15 of the FCC Rules. Operation is subject to
the following two
conditions:
(1) This device may not cause harmful interference.
(2) This device must accept any interference received, including interference
that may cause
undesired operation.
2. Changes or modifications not expressly approved by the party responsible for
compliance could
void the user's authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for a
Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable
protection against harmful interference in a residential installation.
This equipment generates uses and can radiate radio frequency energy and, if not
installed and
used in accordance with the instructions, may cause harmful interference to
radio communications.
However, there is no guarantee that interference will not occur in a particular
installation. If this
installation. If this
equipment does cause harmful interference to radio or television reception, which
determined by turning the equipment off and on, the user is encouraged to try to
correct the
interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which
the receiver is
connected.
Consult the dealer or an experienced radio/TV technician for help.
