OPTOELECTRONICS BC0164AAA390 PDA Phone User Manual H 19R Eng UM 1 970606
OPTOELECTRONICS Co., Ltd. PDA Phone H 19R Eng UM 1 970606
Contents
Users Manual
User Manual
OPTICON Preliminary
Version : 1.0
Date : 2008/05/20
1
H-19R User Manual
User Manual
OPTICON Preliminary
Version : 1.0
Date : 2008/05/20
2
CAUTION: This information is subject to change without prior notice.
Copyright © 2008 Opticon. All Rights Reserved.
This manual may not, in whole or in part, be copied, photocopied, reproduced, translated or
converted to any electronic or machine readable form without prior written consent of Opticon.
Warranty
Unless otherwise agreed in a written contract, all Opticon products are warranted against
defects in materials and workmanship for two years after purchase. Opticon will repair or, at its
option, replace products that are defective in materials or workmanship with proper use during
the warranty period. Opticon is not liable for damages caused by modifications made by a
customer. In such cases, standard repair charges will apply. If a product is returned under
warranty and no defect is found, standard repair charges will apply. Opticon assumes no liability
for any direct, indirect, consequential or incidental damages arising out of use or inability to use
both the hardware and software, even if Opticon has been informed about the possibility of
such damages.
Packaging
The packing materials are recyclable. We recommend that you save all packing material to use
if you need to transport your scanner or send it for service. Damage caused by improper
packaging during shipment is not covered by the warranty.
IMPORTANT SAFETY INFORMATION
Please read the following information carefully before you start using this Opticon device to
avoid any damages caused by improper usage:
z The device is not charged when you take it out of the box. The battery should be charged
for at least 8 hours before first use. Do not remove the battery while charging.
z Do not use batteries which have not been specified by the manufacturer and qualified
with the system per the standard of IEEE-Std-1725-200x, as this may present a risk of fire,
explosion, leakage or other hazard.
z Do not charge the battery with an unspecified AC Adapter, as this may cause damage to
both the device and the battery.
z When discarding the batteries, dispose of them in a proper manner, according to the
battery manufacturer’s instructions and your local laws.
z Power off the device and remove the battery before inserting a SIM card. Make sure the
SIM card snaps correctly into the SIM socket.
z Do not open the device housing or tamper with the device, as it will void your warranty.
User Manual
OPTICON Preliminary
Version : 1.0
Date : 2008/05/20
3
z Do not apply excessive force on this product, as it may cause damage to the screen or the
internal component.
z Do not use the device at gas or refueling stations, chemical plants, and places containing
explosives or flammable materials. Observe local guidelines.
z Use only manufacturer specified stylus. Do not scratch the screen with sharp objects.
z Do not clean the screen with chemical detergents. Only use cloths specifically designed
for cleaning liquid displays or a soft cloth moisturized with water drops, to wipe the device
screen.
z Do not expose the device to direct sunlight or leave the device in a humid environment for
extended periods of time as this may cause damage to the device and battery.
z Do not immerse the device in water.
z The device may interfere with the navigation and/or communication systems on an
aircraft. The use of the device on aircraft is prohibited by laws in most countries. Observe
local guidelines.
z This product may cause medical equipment to malfunction. The use of this device is
forbidden in most hospitals and medical clinics. Observe local guidelines.
z Use hands-free devices if you need to use the telephony services while driving a vehicle.
Observe local guidelines.

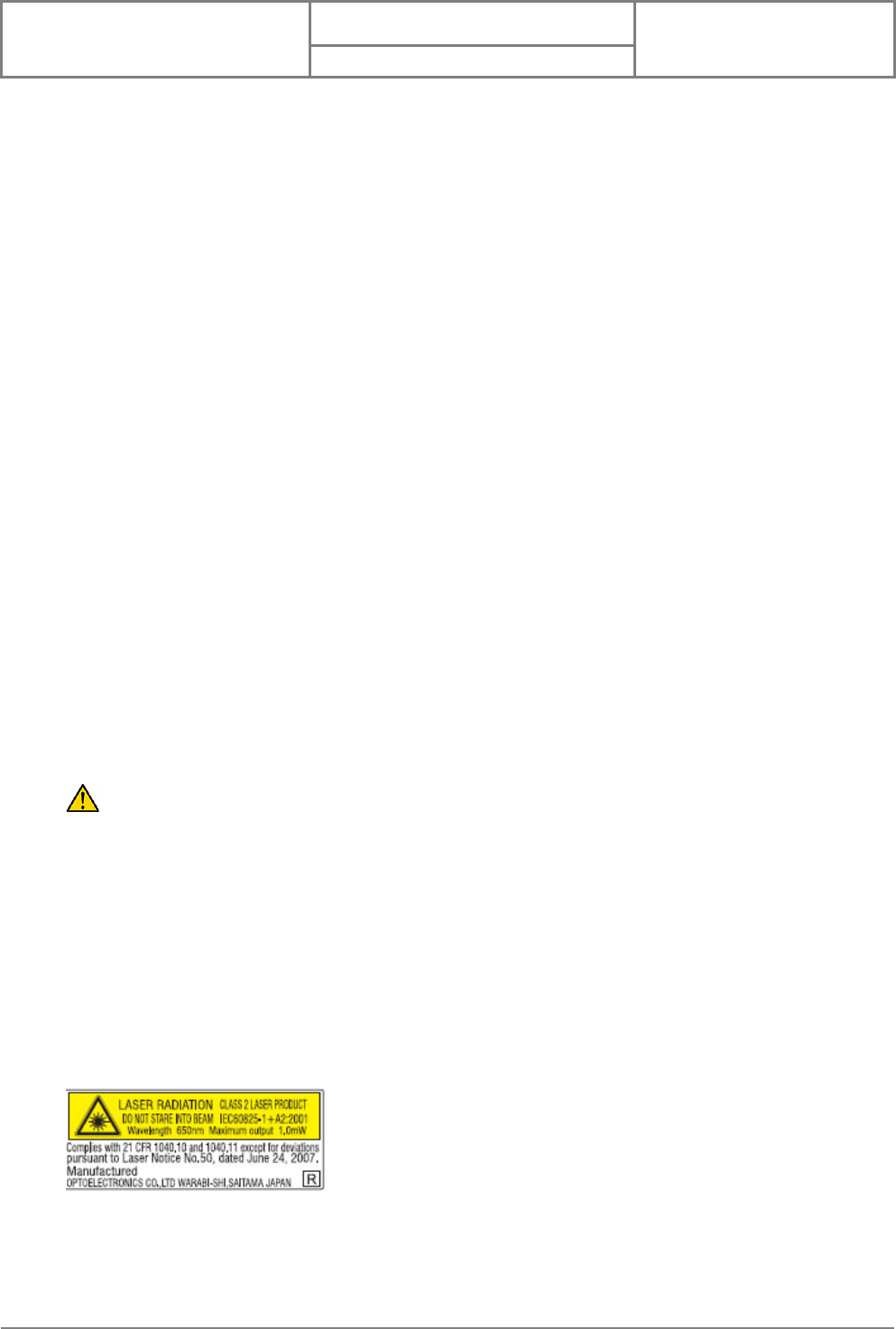

Safety of Laser Products
International Standards Laser Class 1
Precautions about the Laser Device
This product using laser complies with JIS C6802: 2005 Class 1, IEC60825-1+A2: 2001 Class 1
and 21CFR 1040.10 and 1040.11 except for deviations pursuant to Laser Notice No.50, dated
June 24, 2007.
Class 1 Laser devices are not considered to be hazardous when used for their intended purpose.
Use of controls, adjustment of procedures other than those specified herein may result in
hazardous laser light exposure.
The user should not view directly into the light beam with optical instruments, it may pose an
eye hazard.
Trademarks
Trademarks used are the property of their respective owners.
User Manual
OPTICON Preliminary
Version : 1.0
Date : 2008/05/20
4
Opticon is a registered trademark. Microsoft, MS-DOS, Windows, Windows NT, Windows Server,
Windows Mobile, ActiveSync, Excel, Internet Explorer, Windows Live Messenger, Outlook,
PowerPoint, and Word are either registered trademarks or trademarks of Microsoft Corporation
in the United States and/or other countries.
User Manual
OPTICON Preliminary
Version : 1.0
Date : 2008/05/20
5
Table of Contents
Copyright © 2007 Opticon. All Rights Reserved.................2
Warranty.............................................................................2
Packaging ...........................................................................2
IMPORTANT SAFETY INFORMATION..................................2
Safety of Laser Products.....................................................3
Trademarks.........................................................................3
Chapter 1. Knowing Your Device......................................12
1.1 Introduction.............................................................................................13

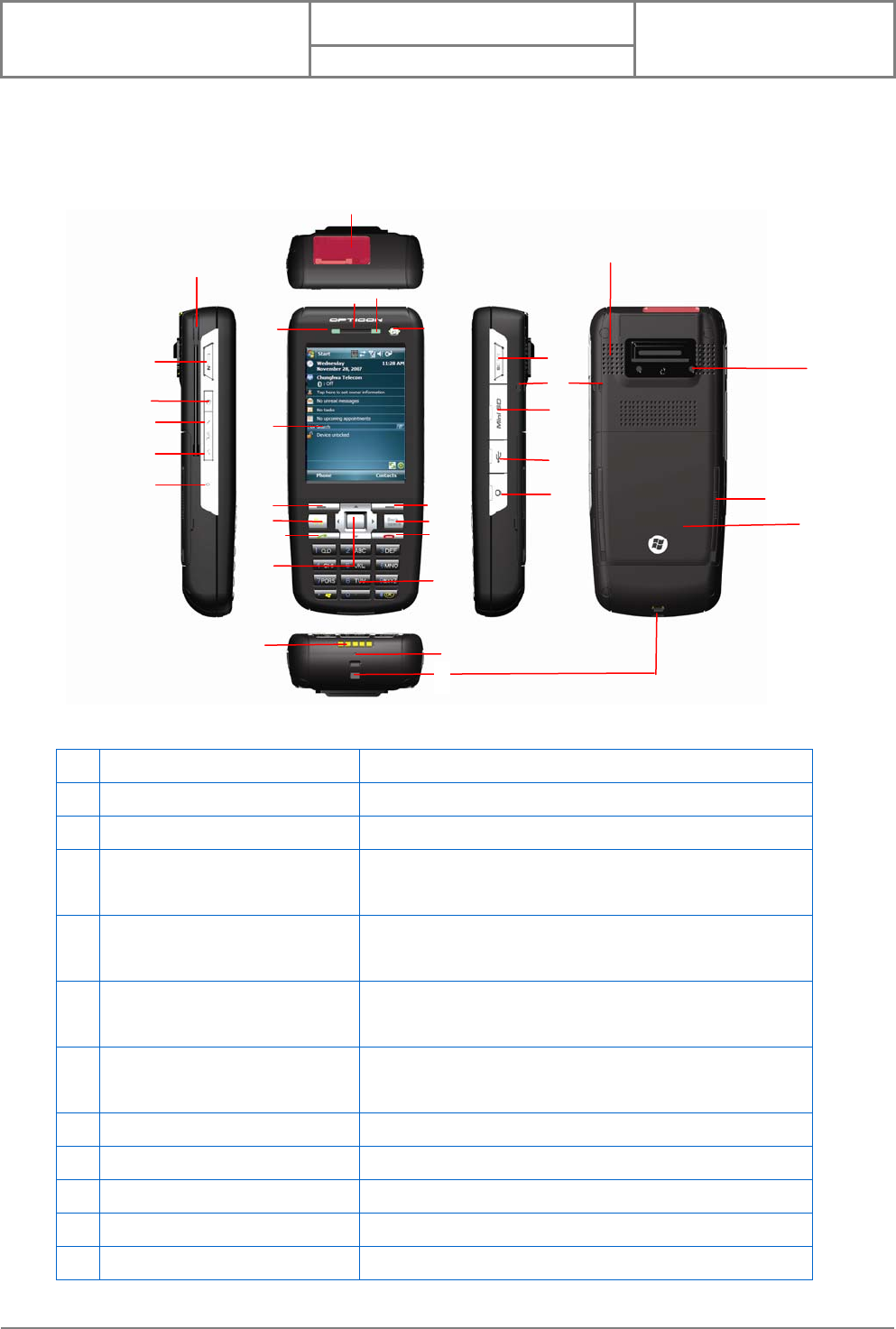

Views of the Device..............................................................................13
The Stylus.................................................................................................15
Notification LEDs...................................................................................15

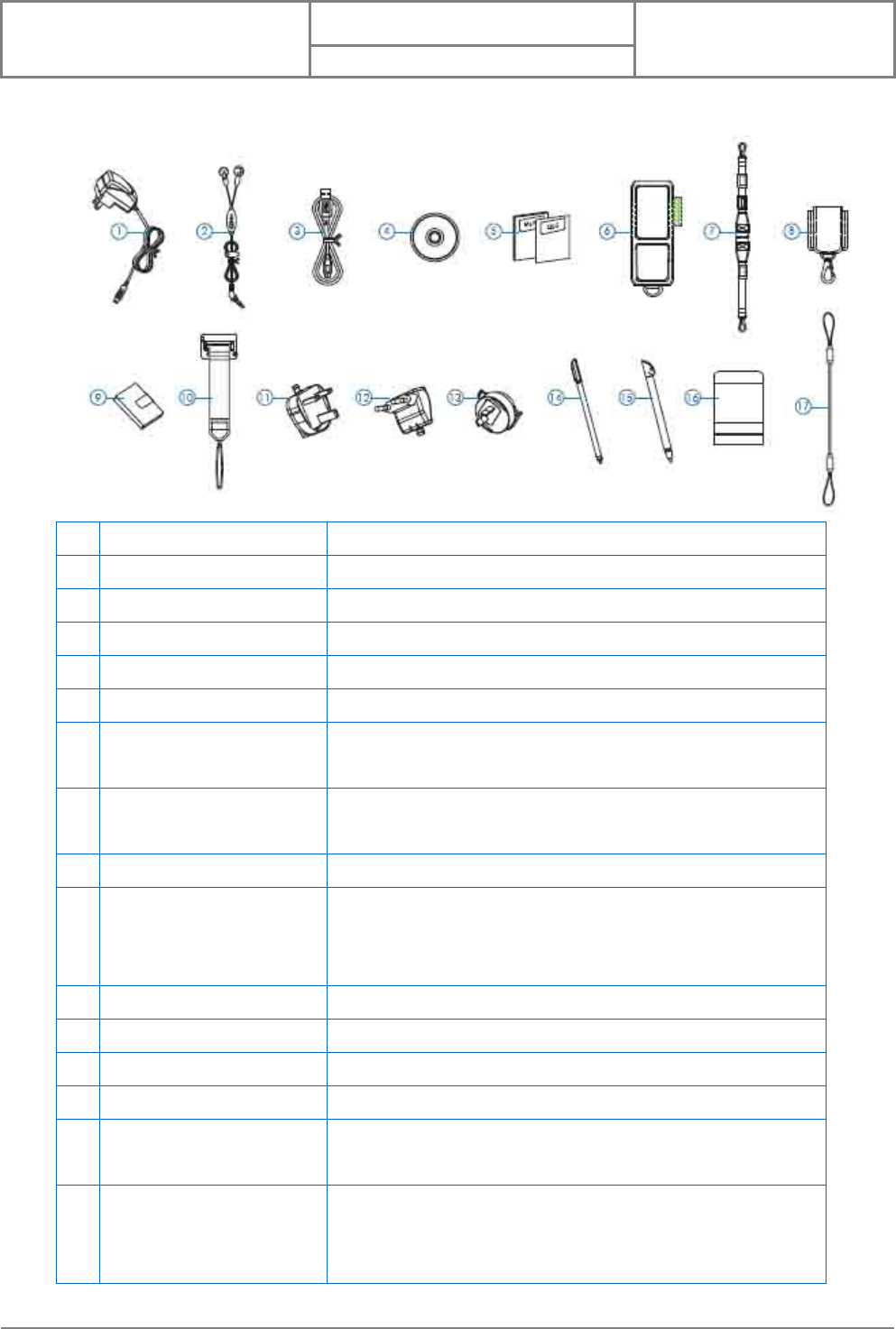

1.2 Accessories...............................................................................................16
1.3 Installing SIM Card and Battery......................................................17

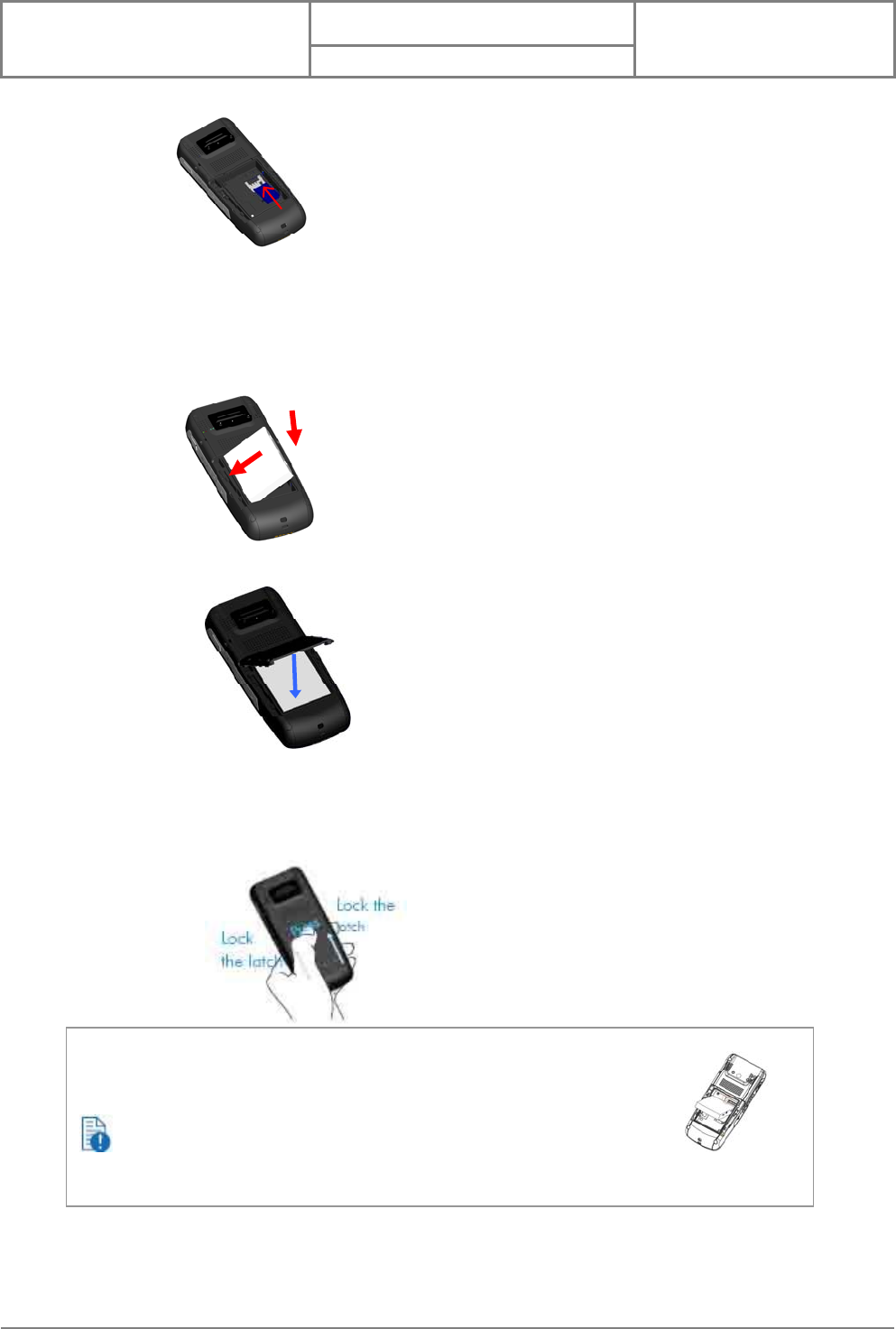

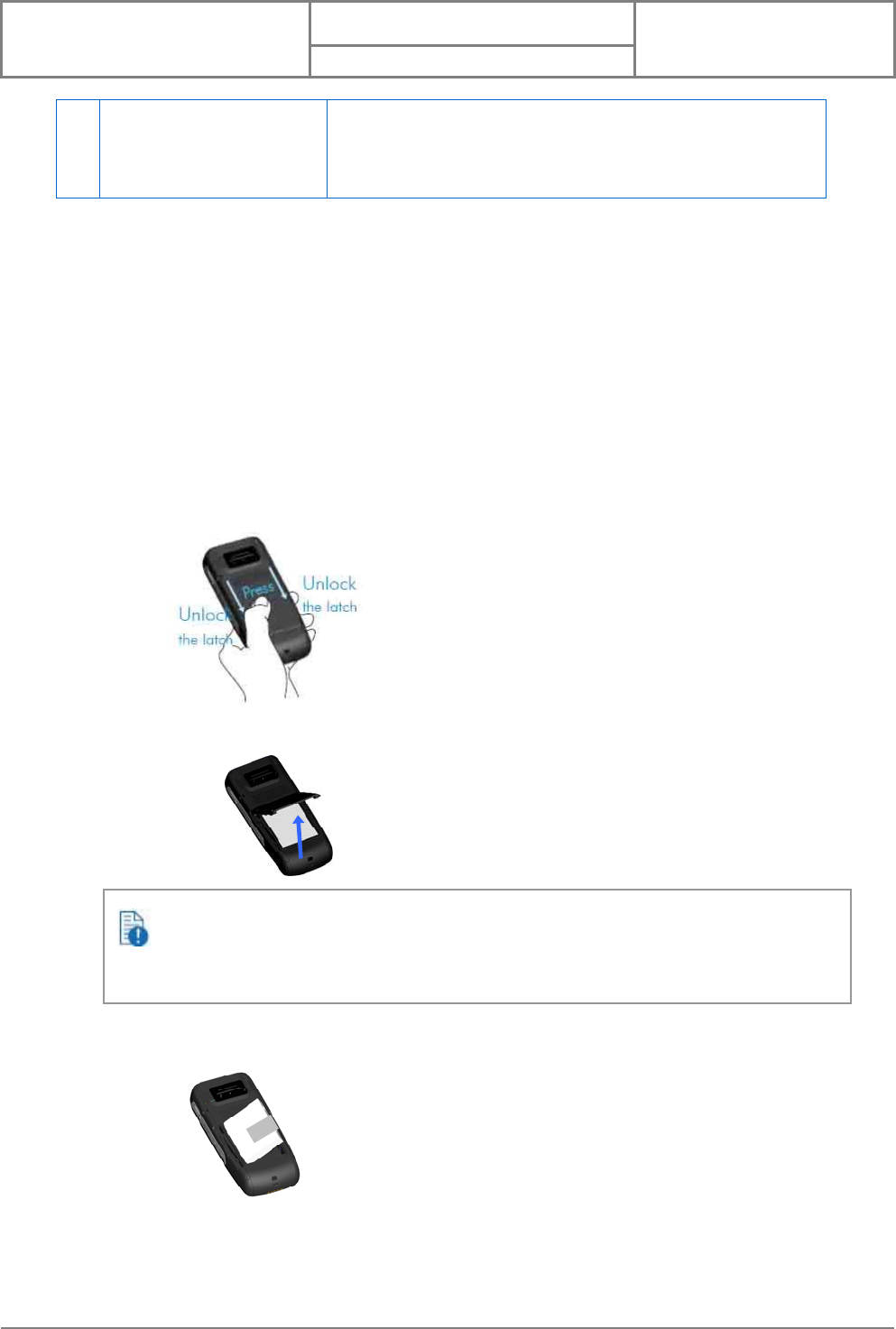

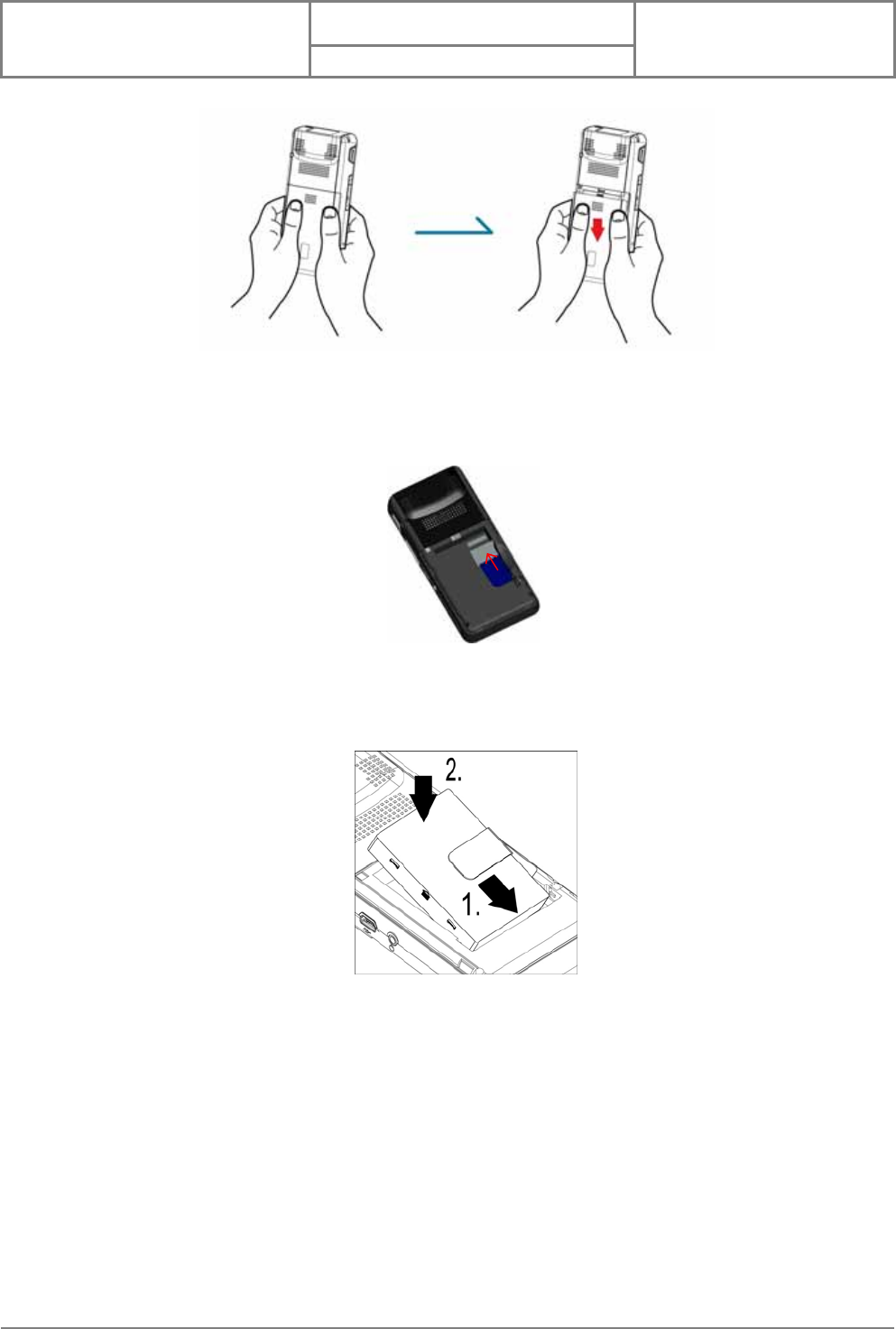

Removing the Battery Cover and Installing the SIM Card....17
Installing the Battery and the Battery Cover.............................18
Replacing the Battery to Keep Your Unsaved Data..................18
Reducing Risk of Fire or Burns.........................................................20

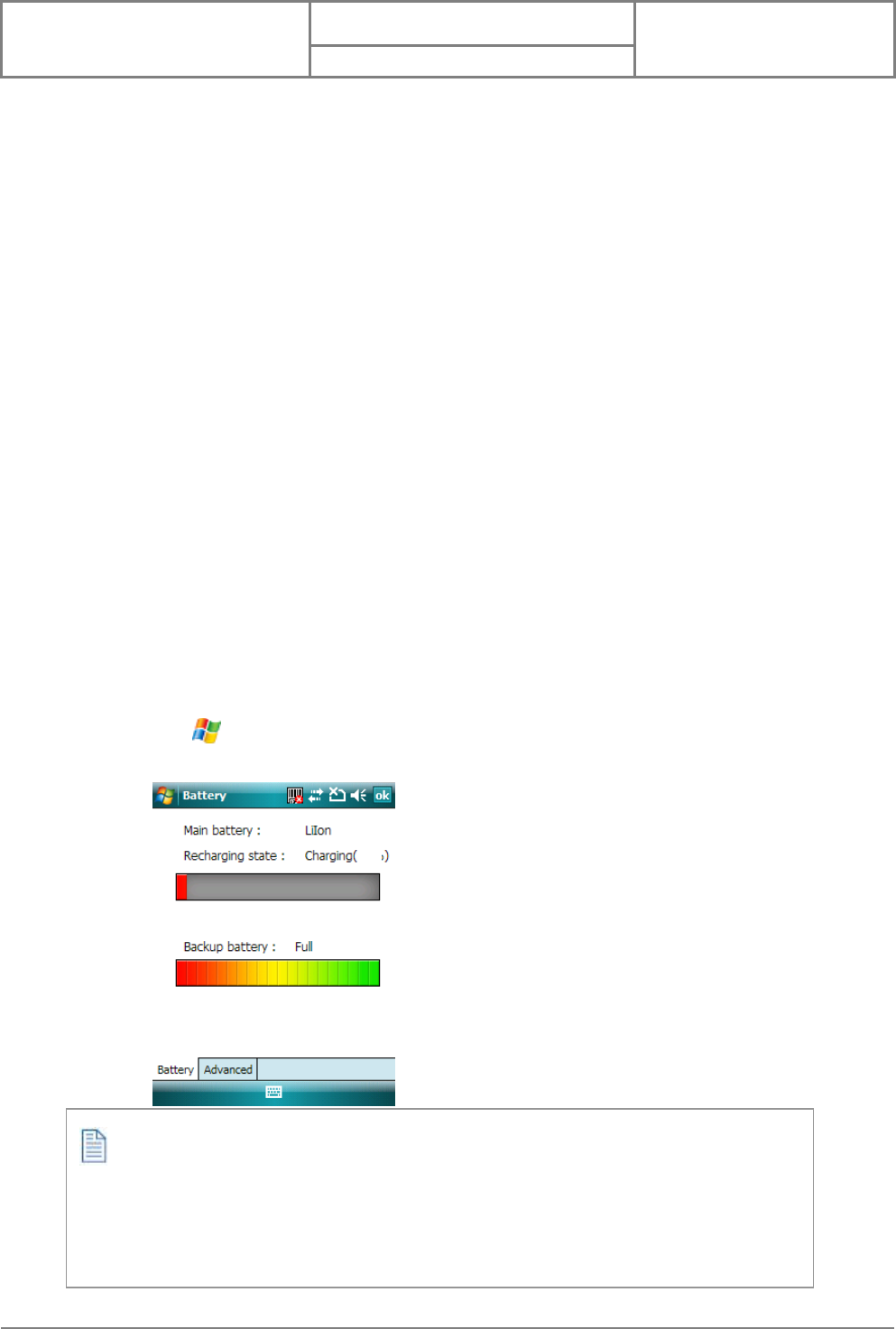

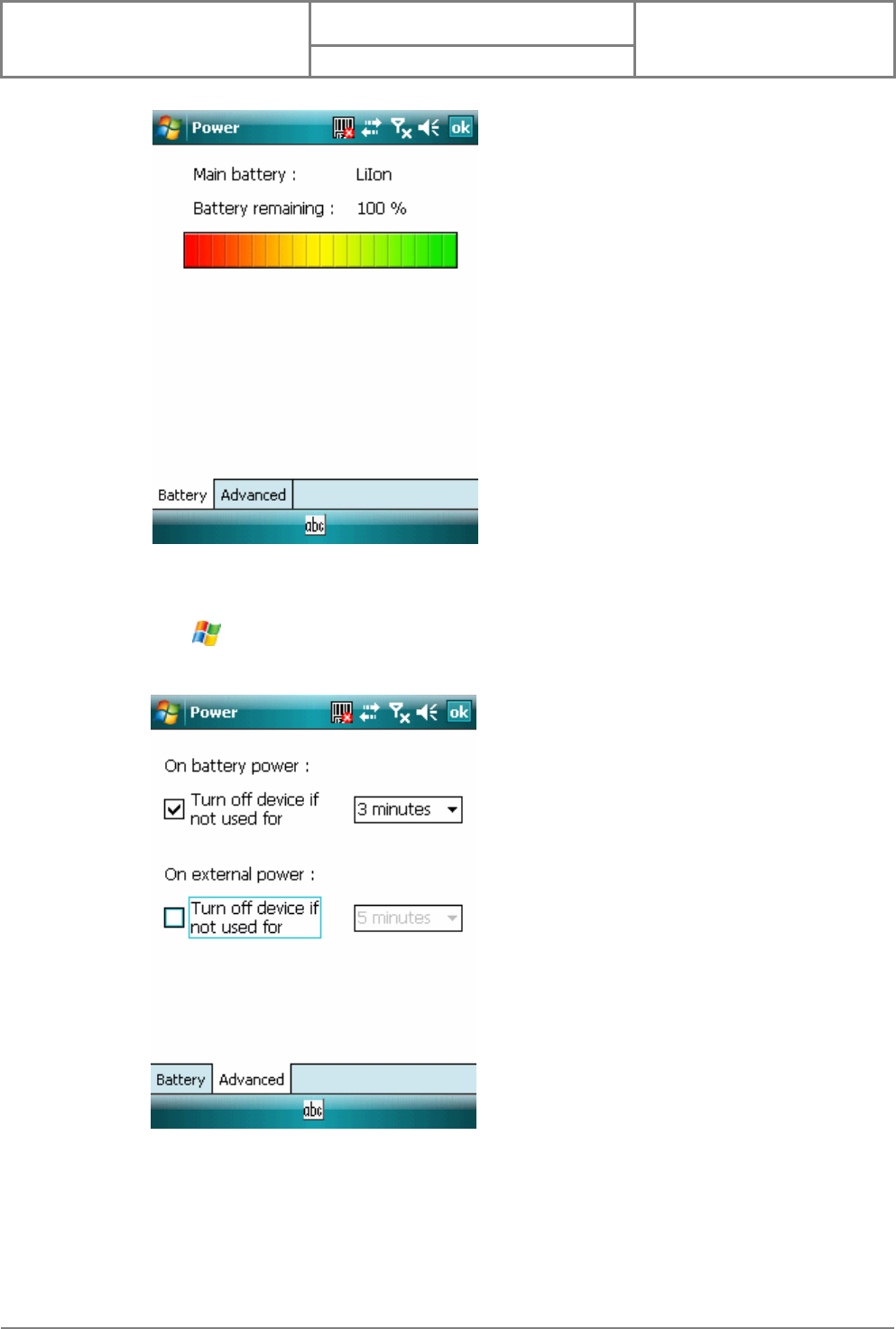

Checking the Battery Power .............................................................20
Managing a Low Battery.....................................................................21
Charging the Battery............................................................................21
1.5 Mini-SD Cards..........................................................................................22
Inserting a Mini-SD Card into the Device ....................................22
Removing a Mini-SD Card from the Device.................................22
Chapter 2. Basic Operations .............................................23
2.1 Getting Started.......................................................................................24

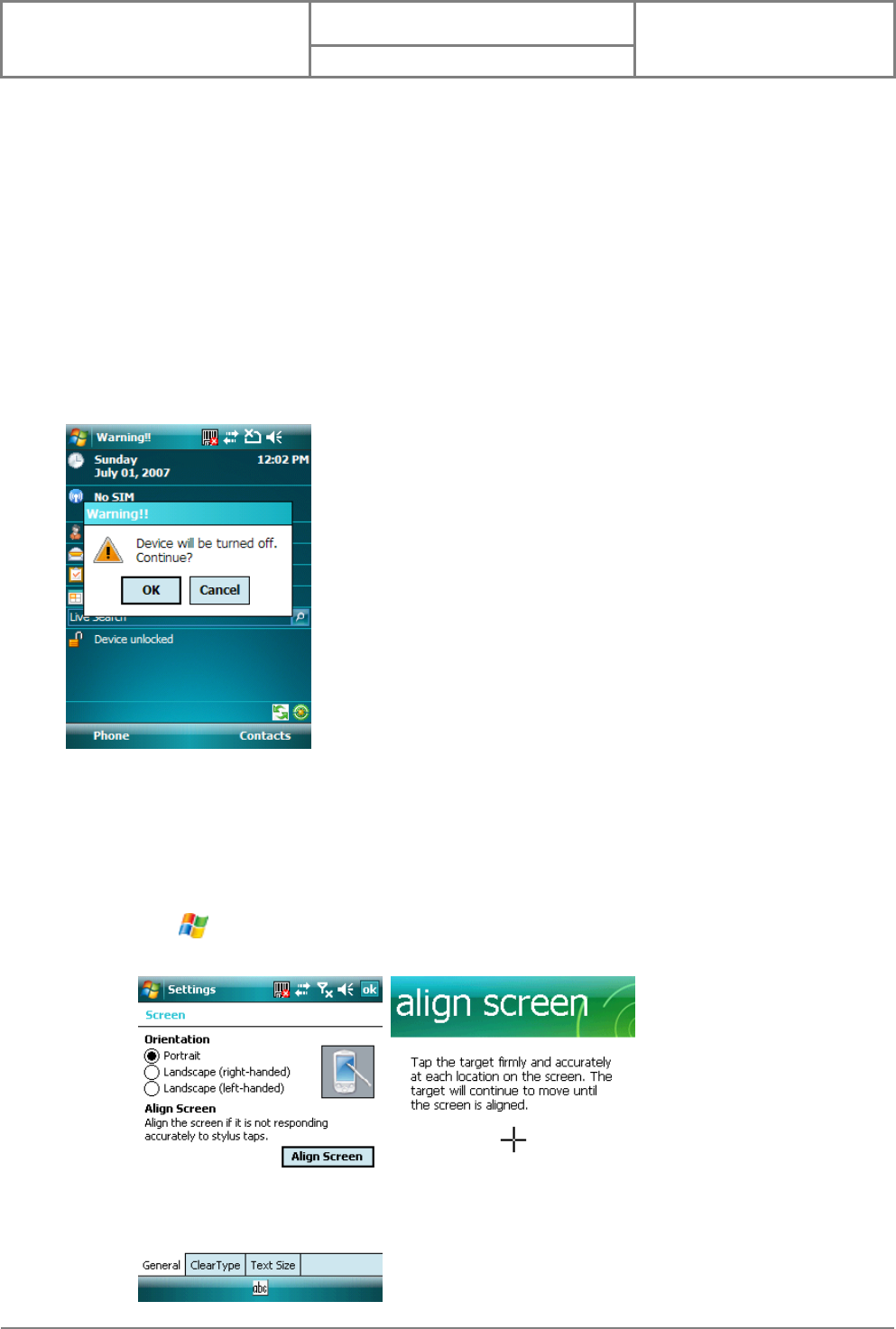

Powering On/Off the Device.............................................................24

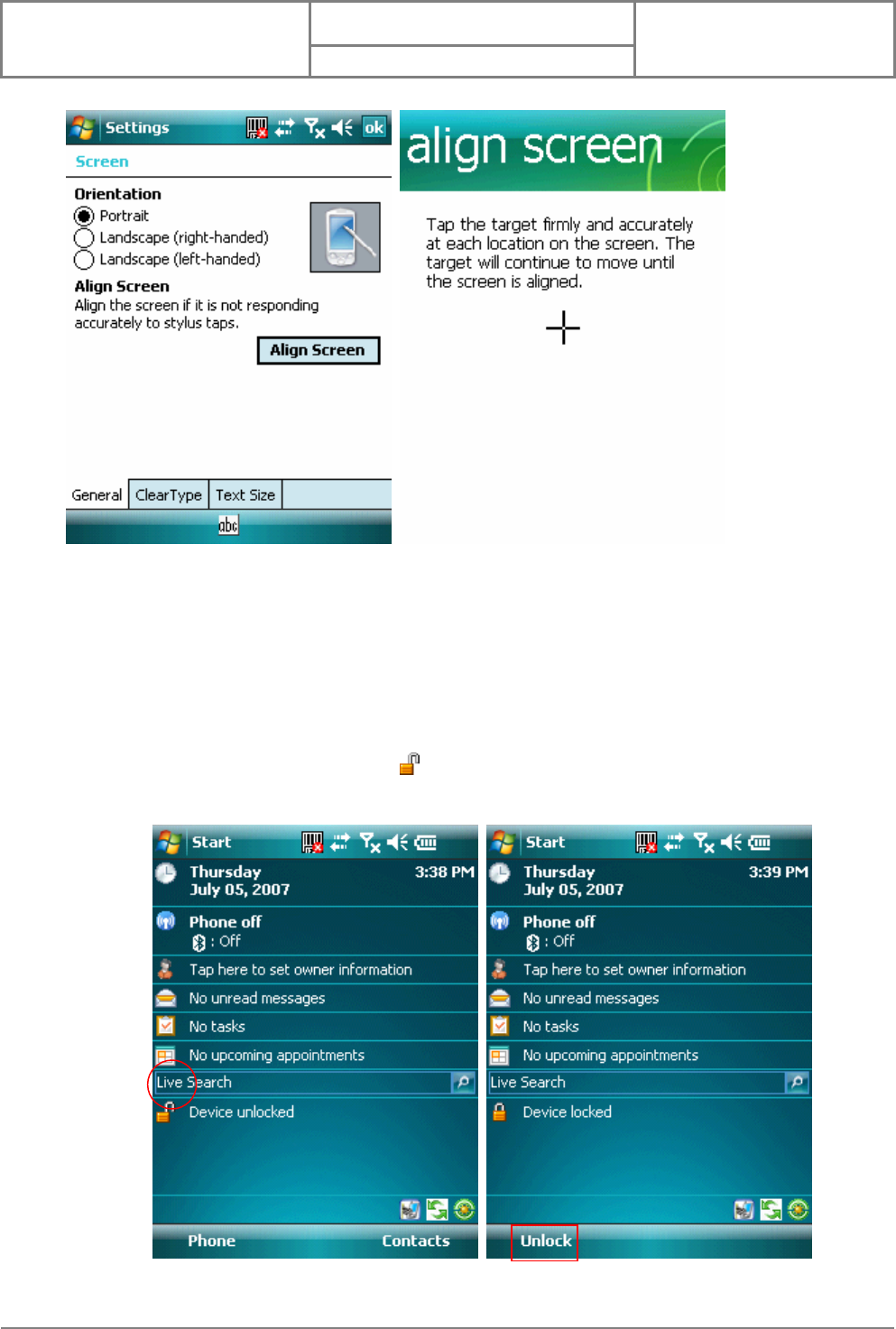

Calibrating Your Device......................................................................24

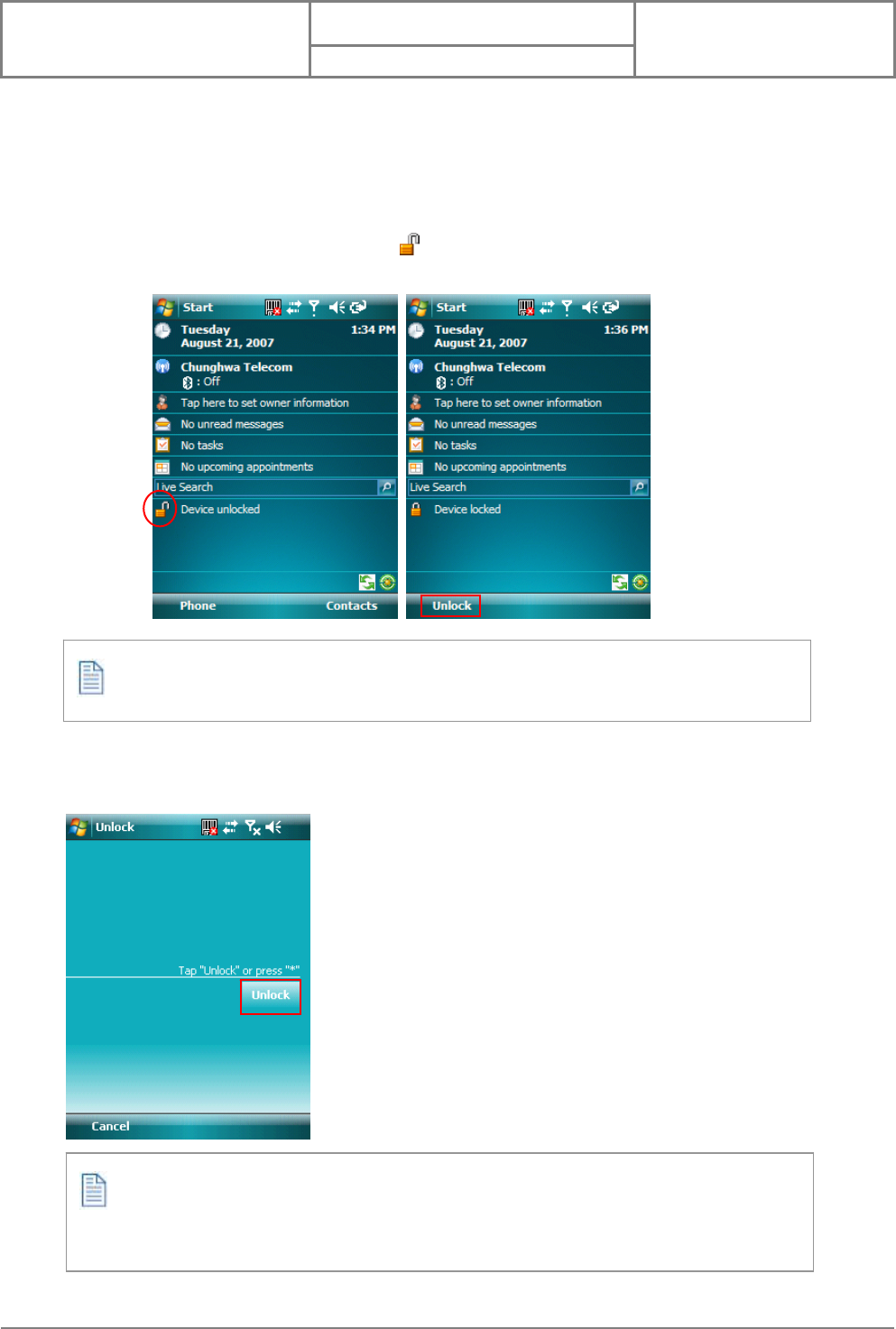

Locking/Unlocking the Device .........................................................25
Setting Buttons......................................................................................26
Changing the Backlight Settings.....................................................26
2.2 Input Methods ........................................................................................26
Using the Touch Screen ......................................................................26
Using the Keypad ..................................................................................28
Tips of Using the Function Key.........................................................29
Entering Symbols ..................................................................................29
User Manual
OPTICON Preliminary
Version : 1.0
Date : 2008/05/20
6
2.3 Today Screen Components.................................................................30

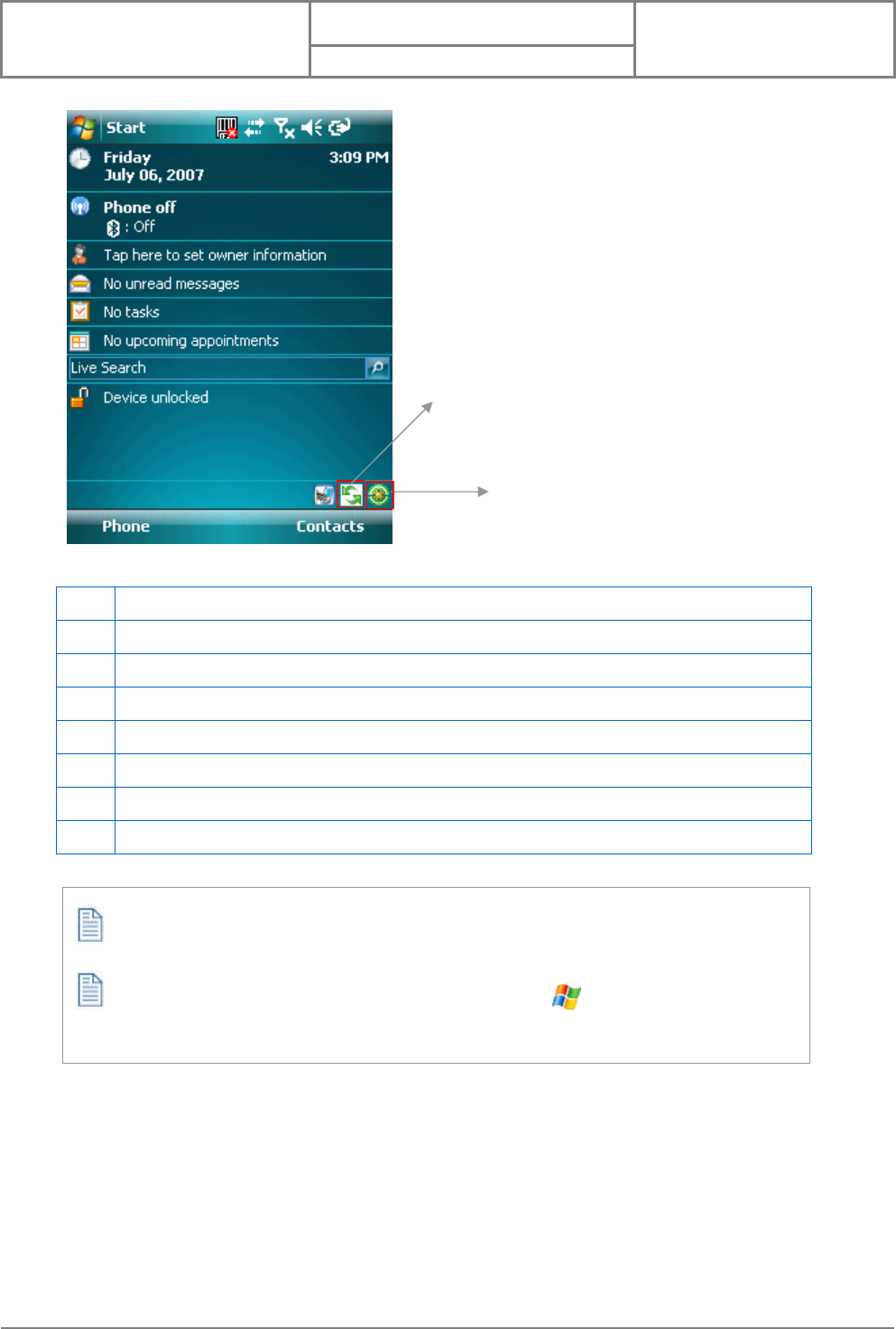

Today Screen...........................................................................................30

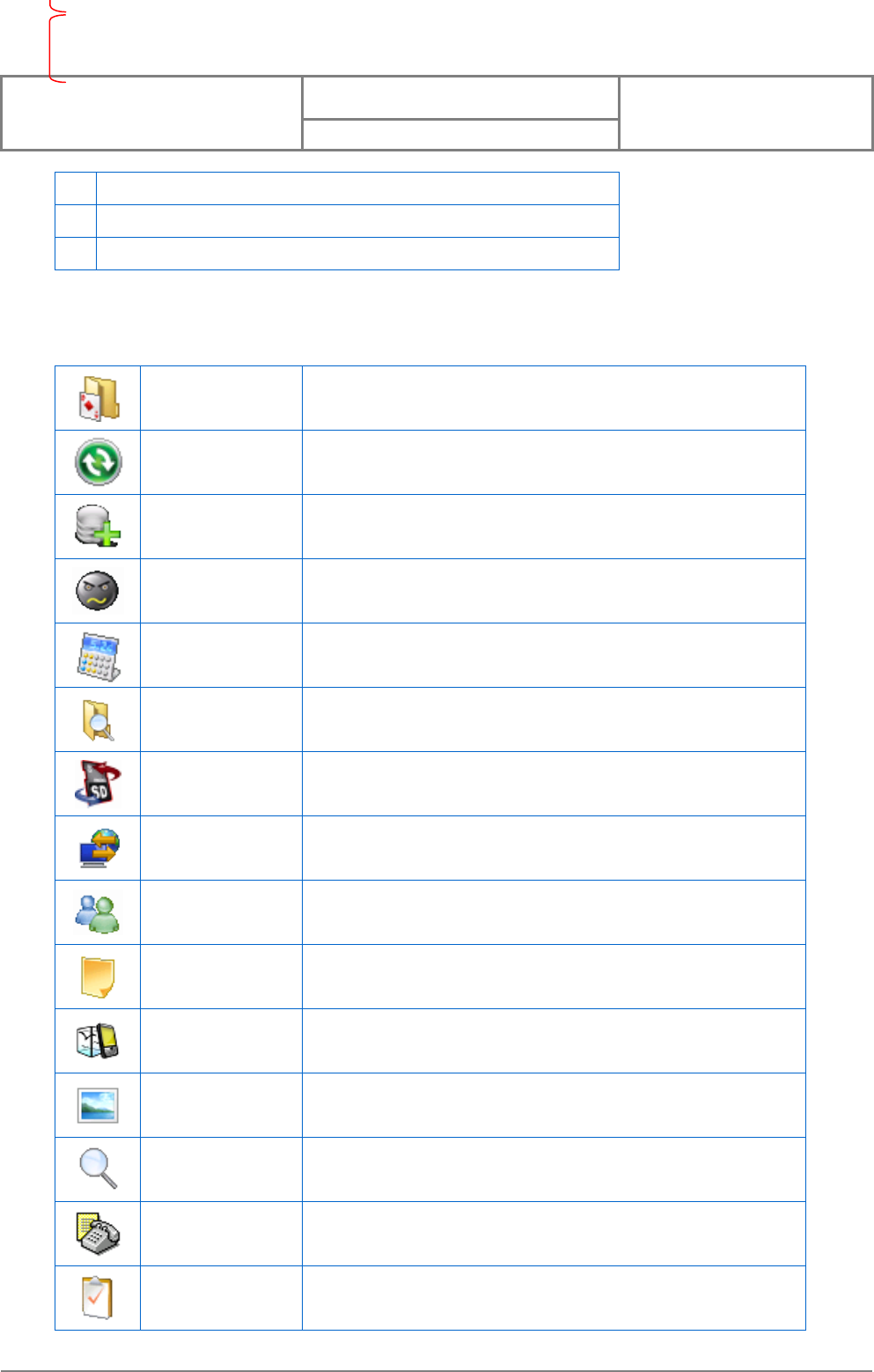

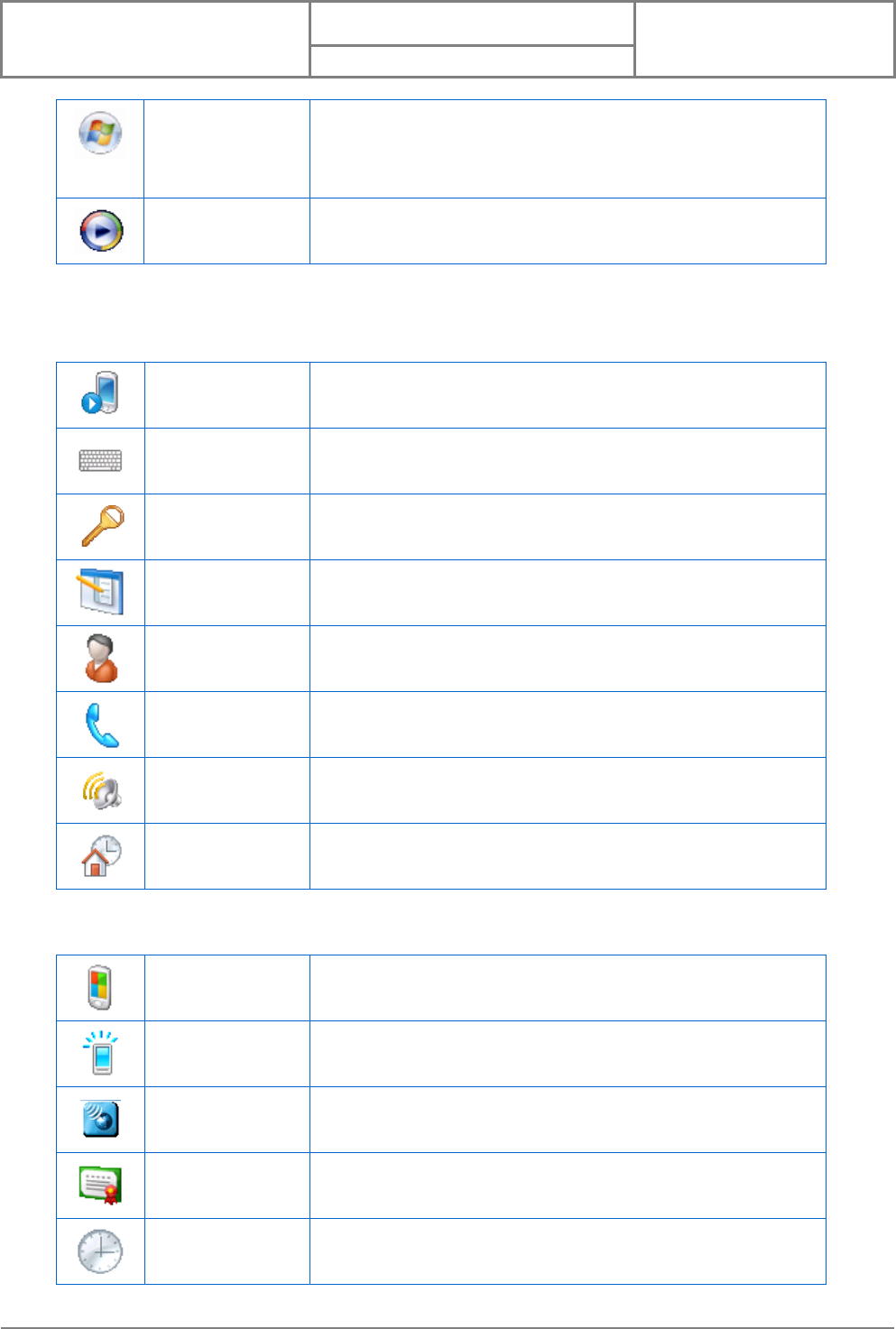

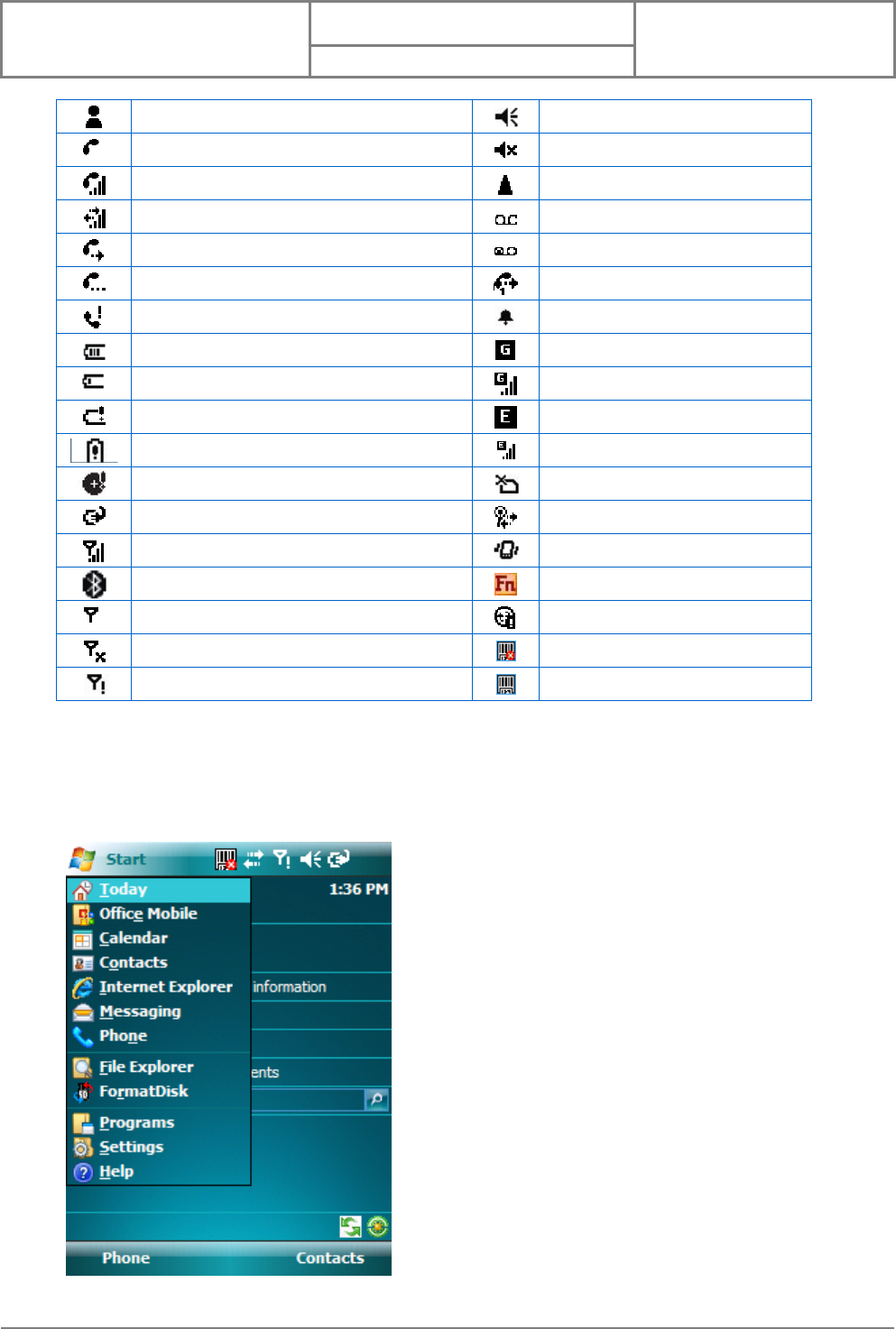

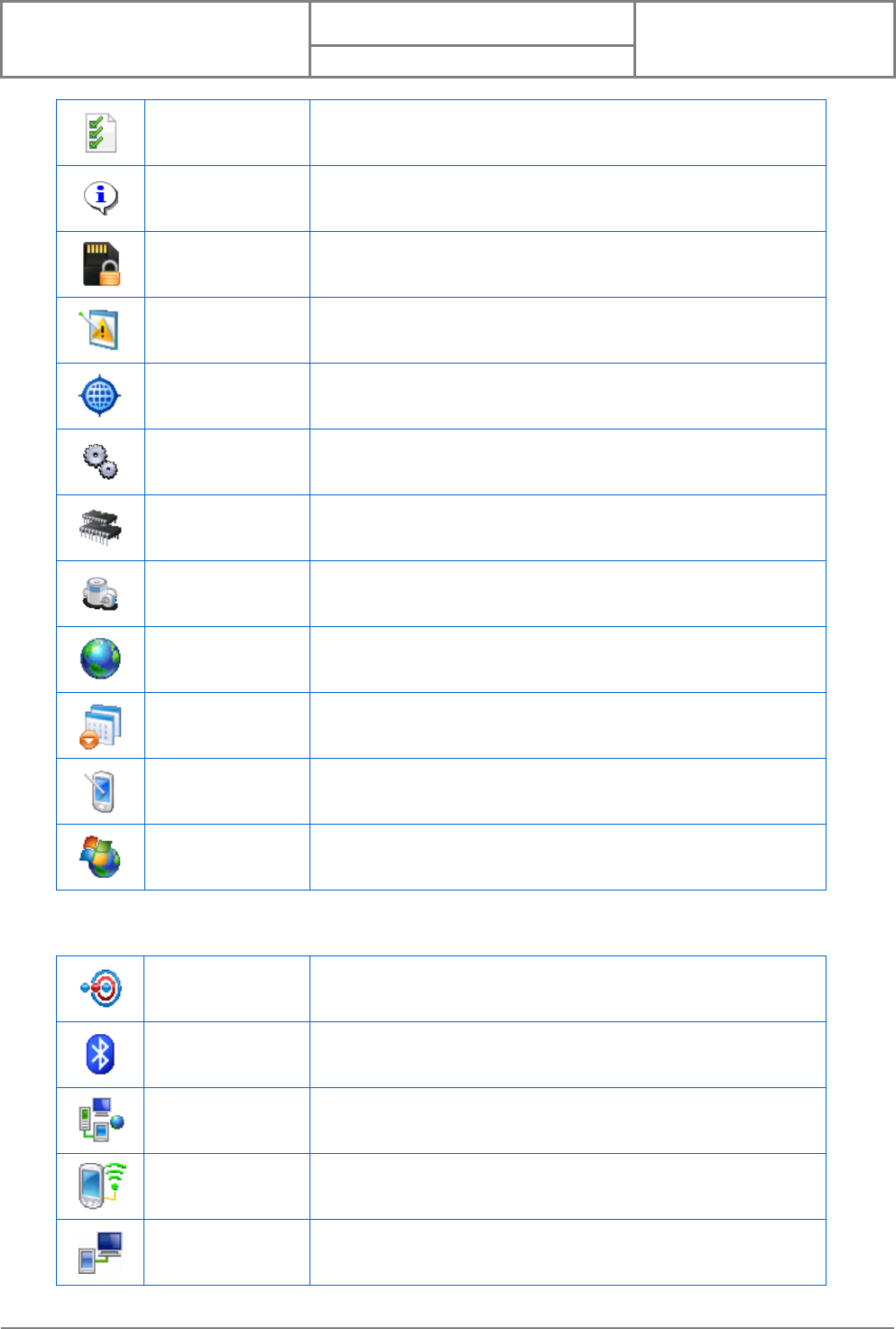

Icon Indicators.......................................................................................31
2.4 The Start Menu.......................................................................................32
List of All Programs..............................................................................33
List of All Settings.................................................................................34

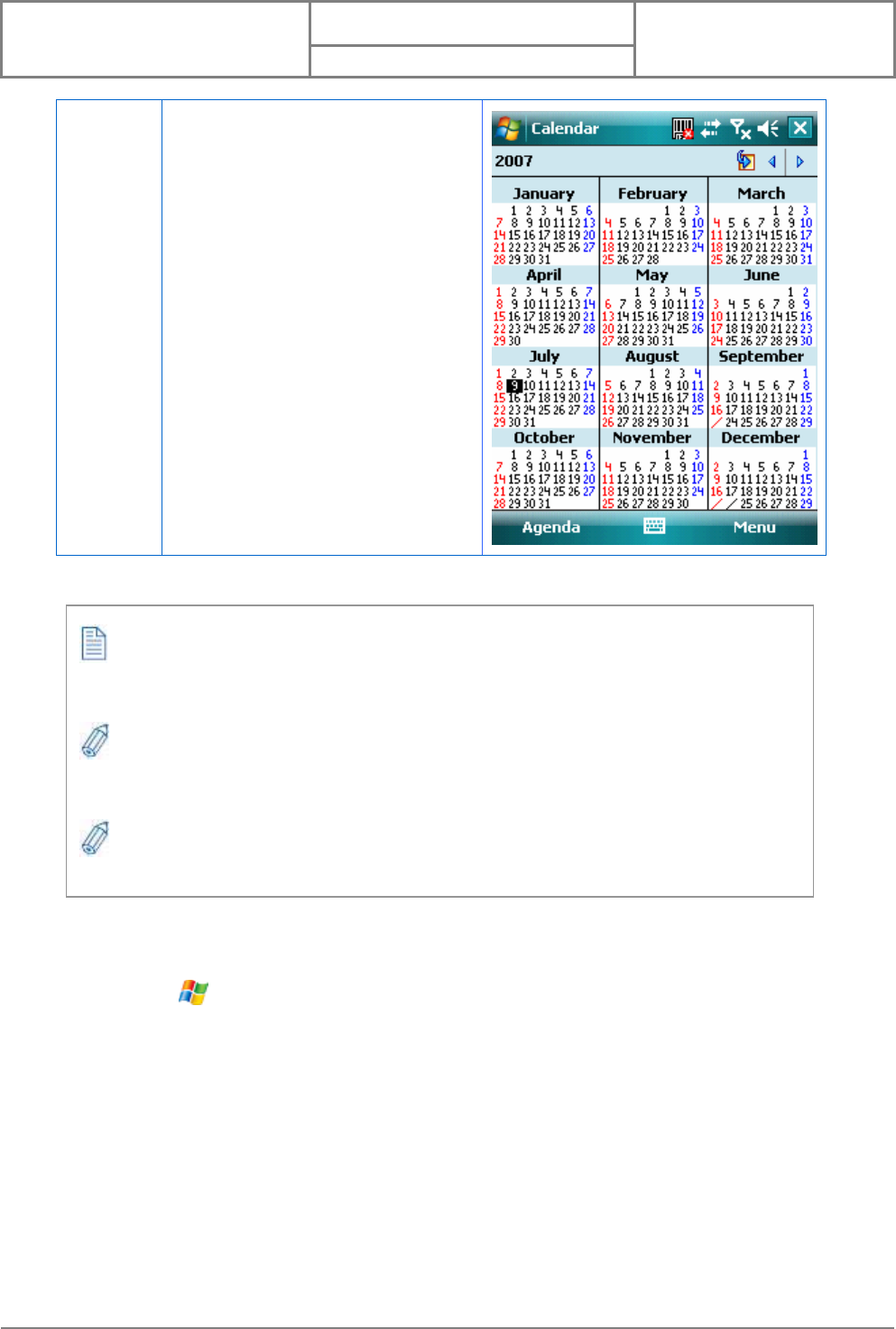

2.5 Using Calendar........................................................................................36

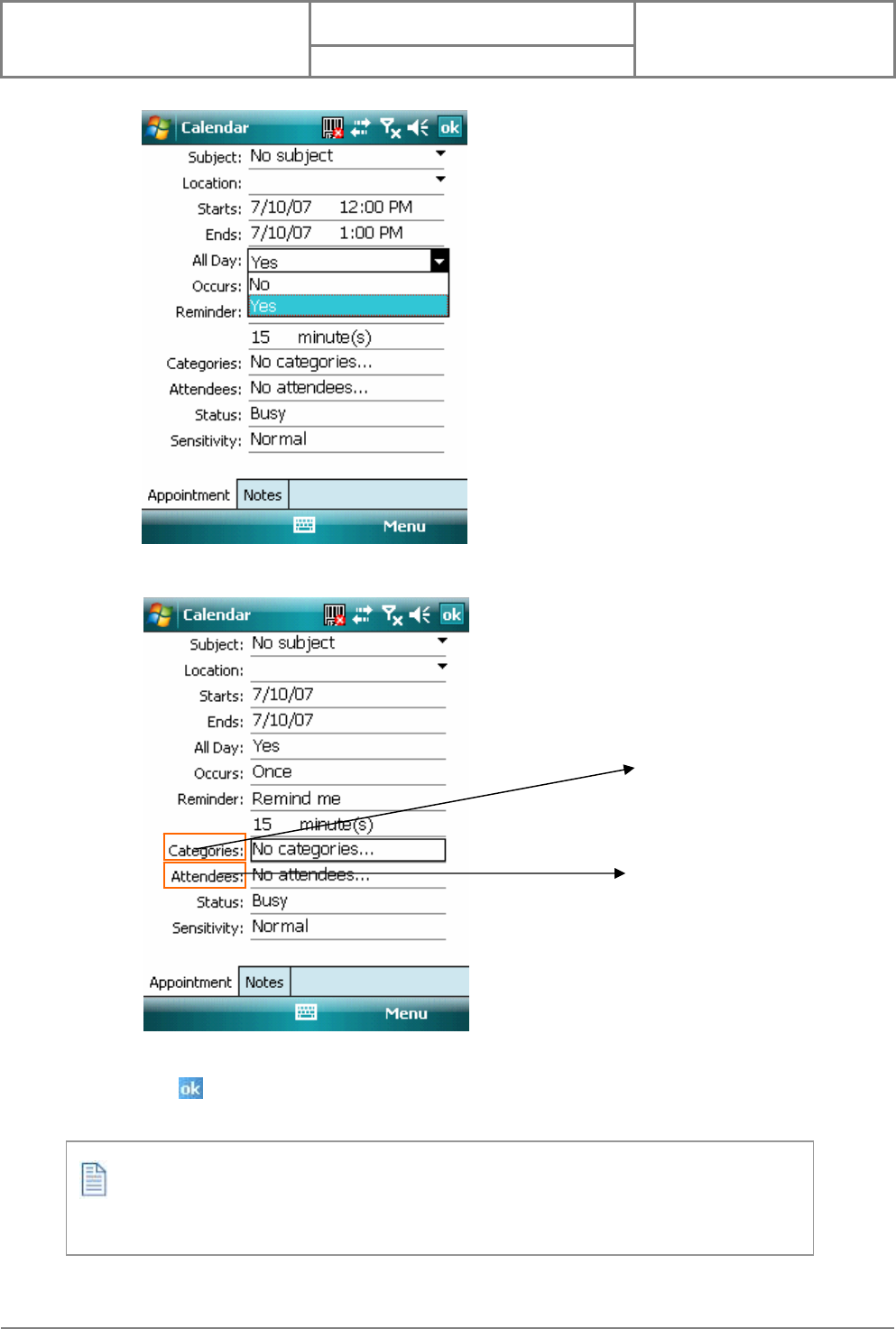

Scheduling an Appointment..............................................................36

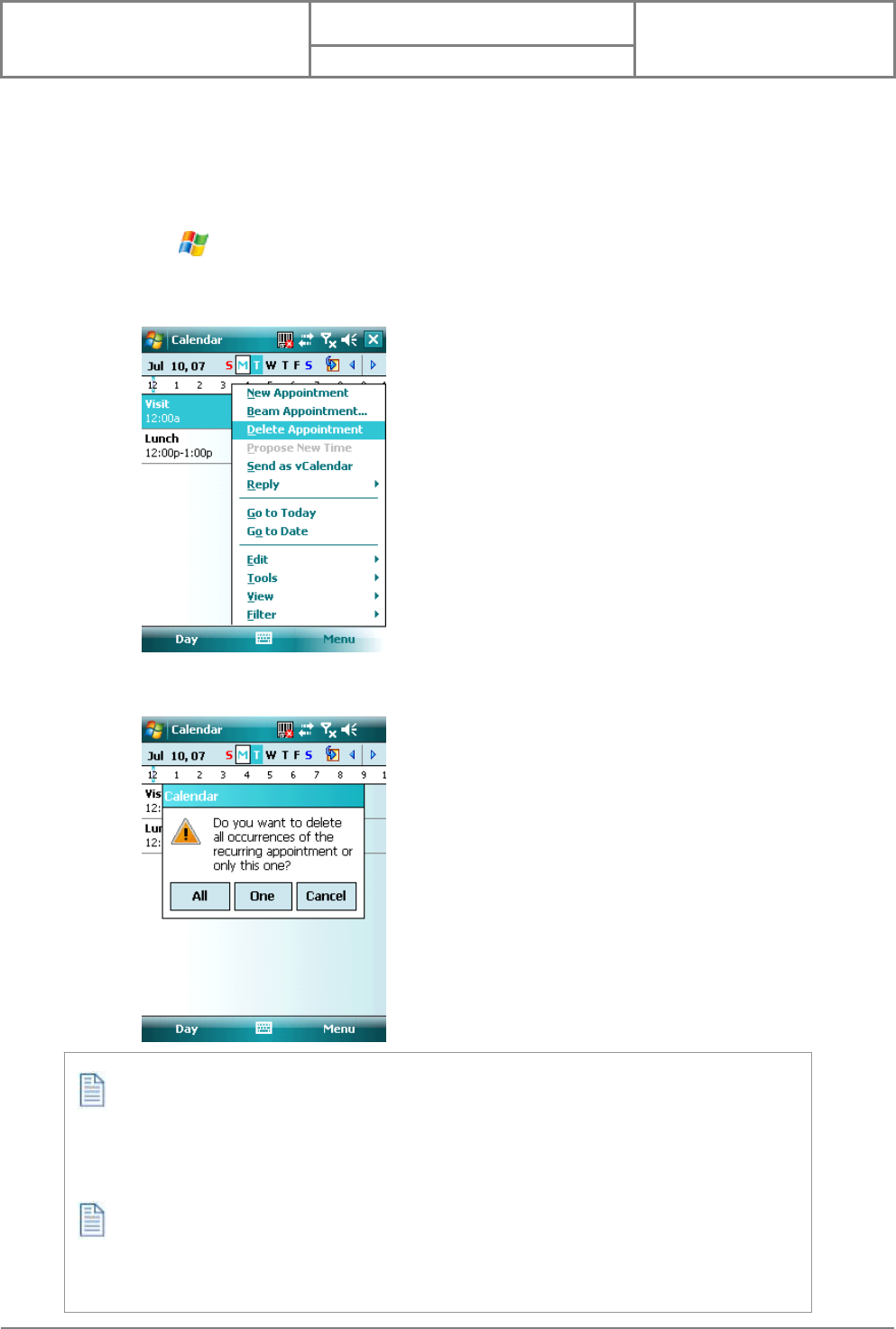

Deleting an Appointment...................................................................38
Changing Calendar Views ..................................................................39
Changing the Display of the Work Week......................................41

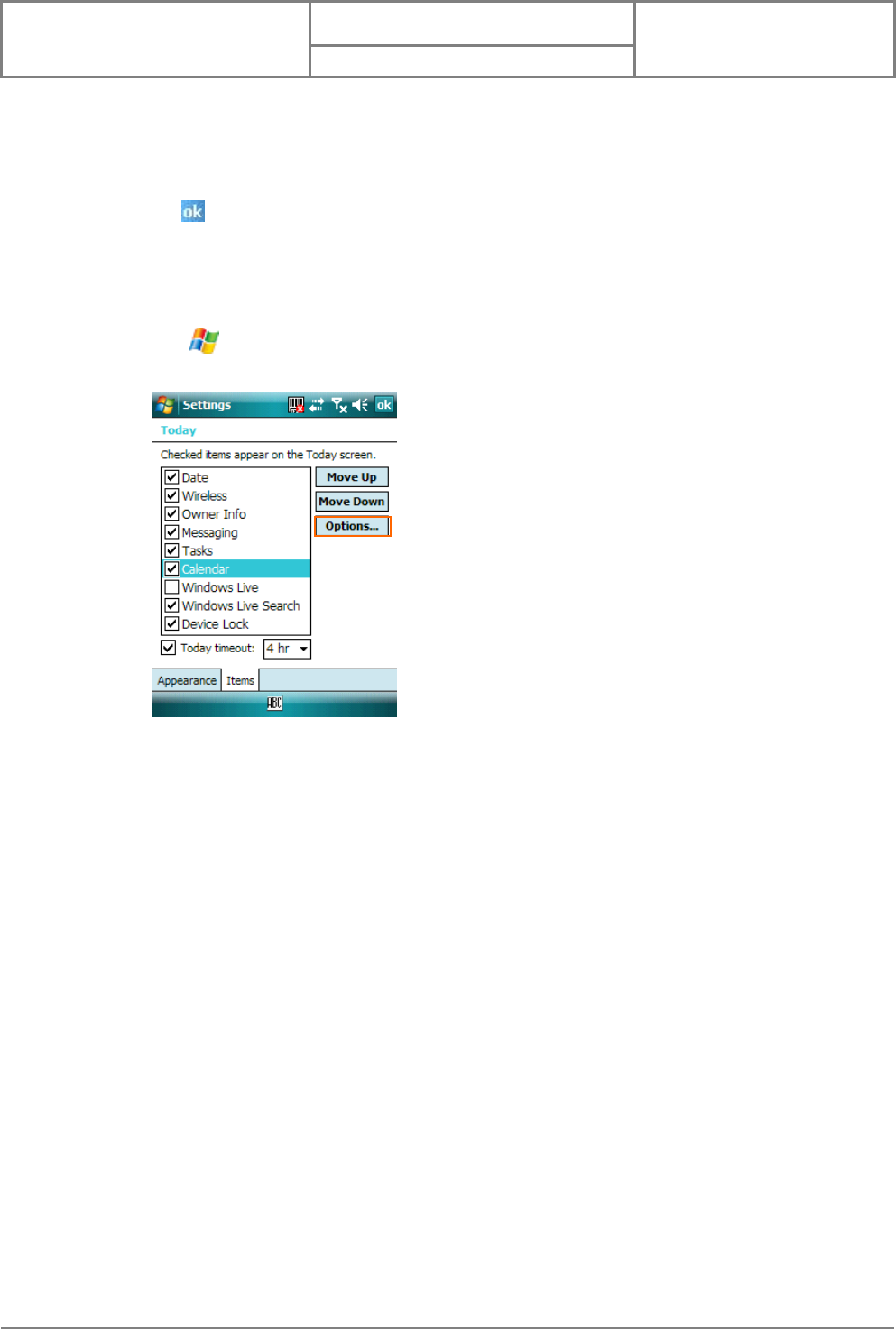

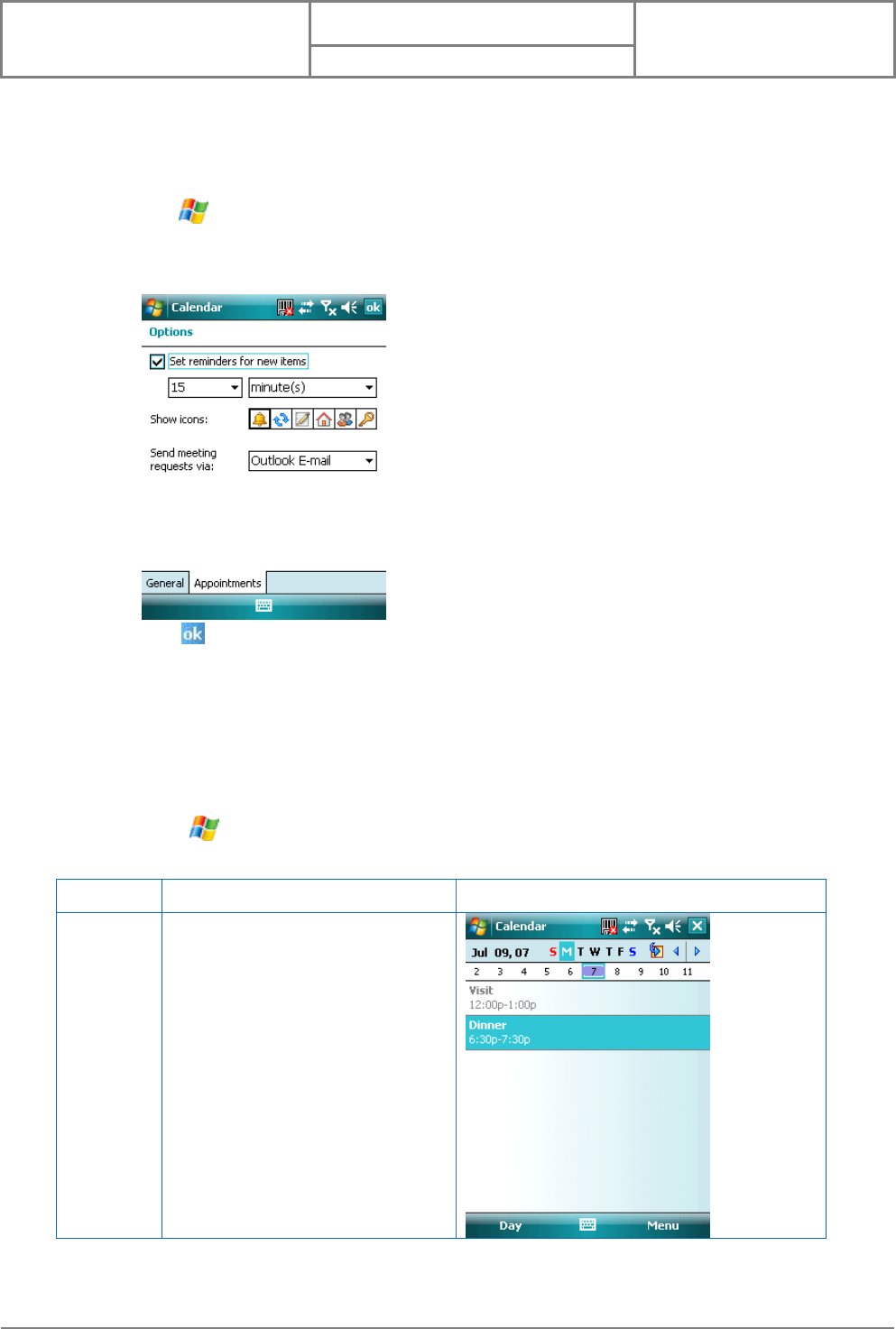

Setting Options for Displaying Appointment on the Today
Screen........................................................................................................42

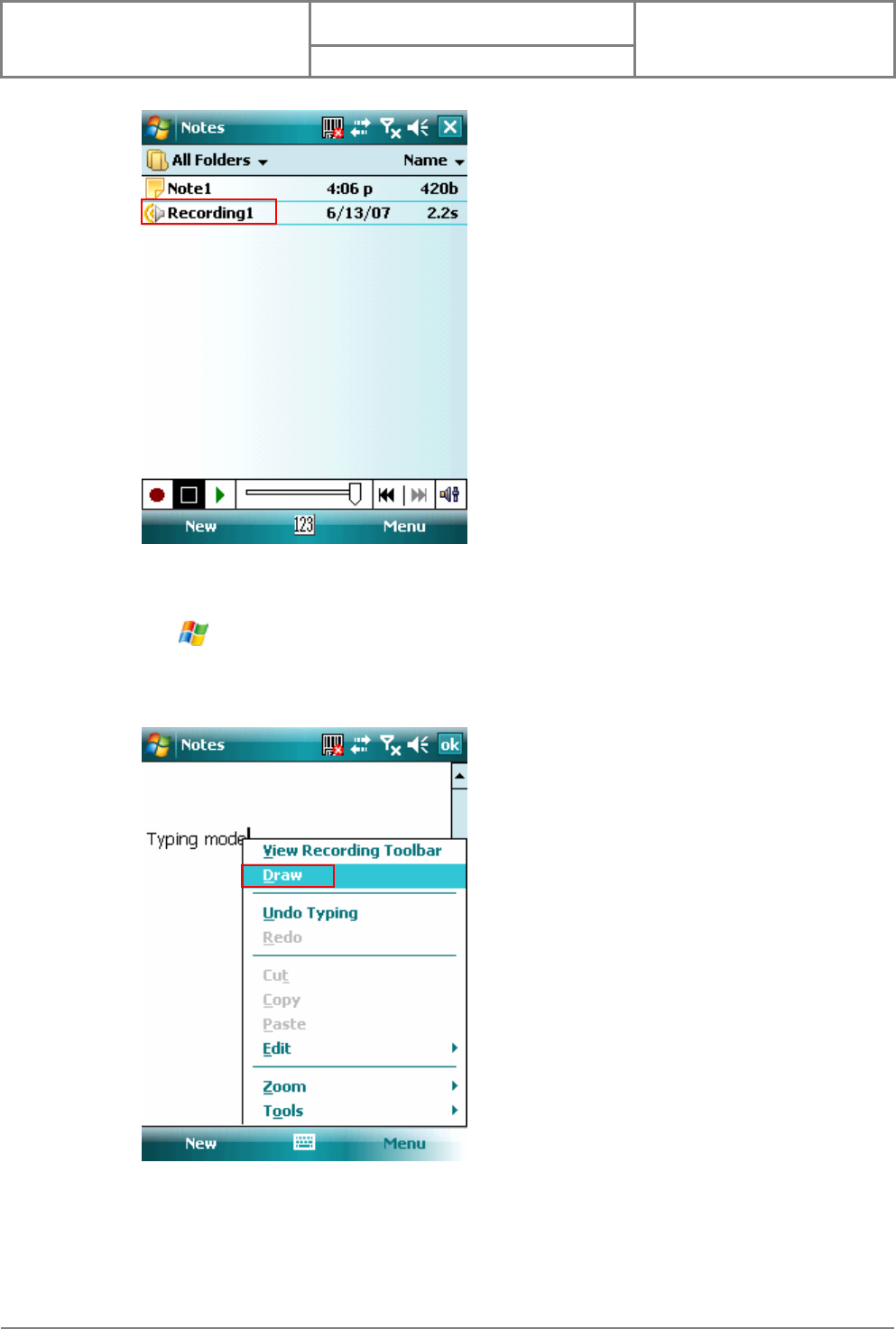

2.6 Using Notes..............................................................................................42

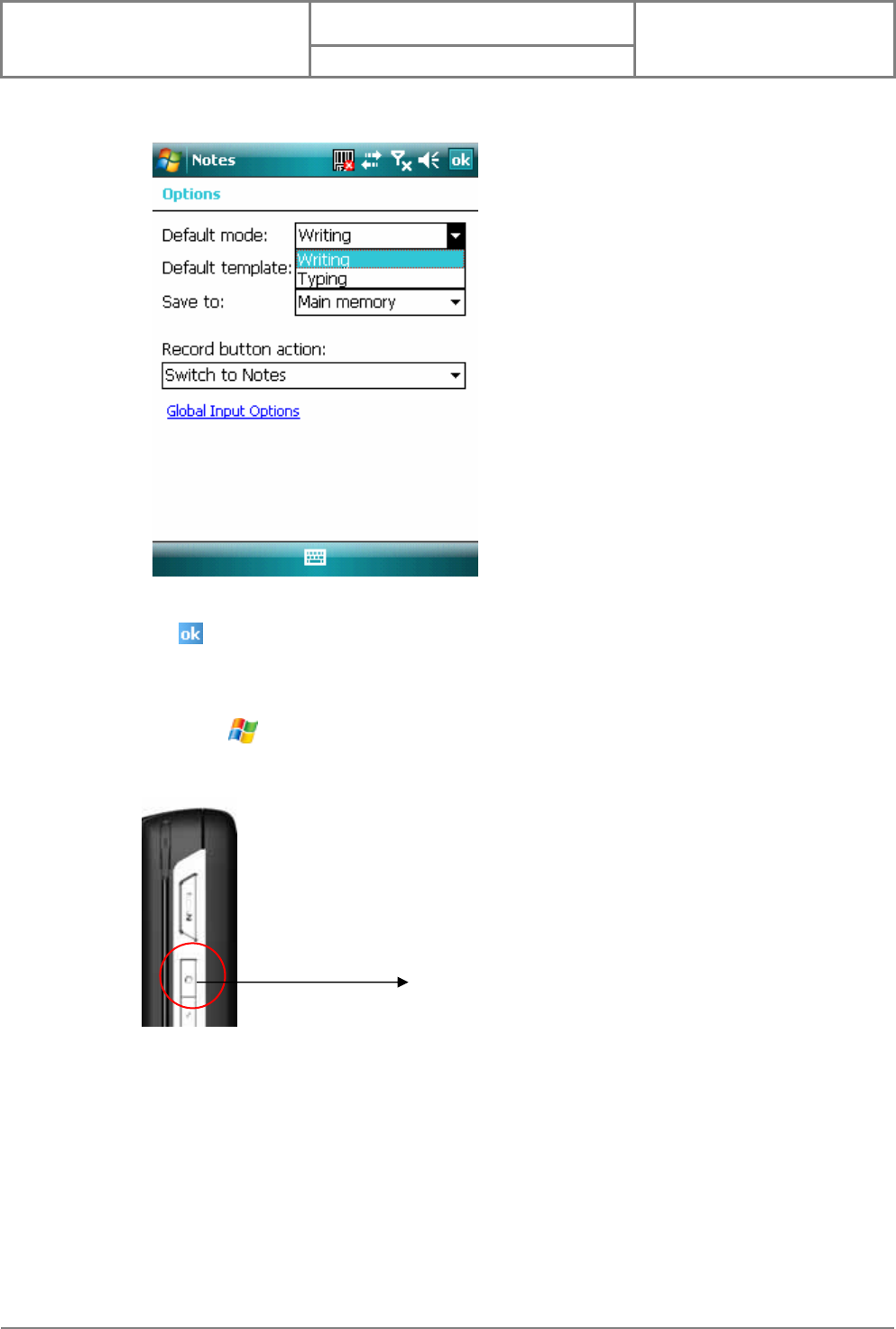

Setting the Default Input Mode.......................................................42
Creating a Note......................................................................................43
Creating a Stand-alone Voice Recording......................................44
Switching between Typing/Writing Modes.................................44

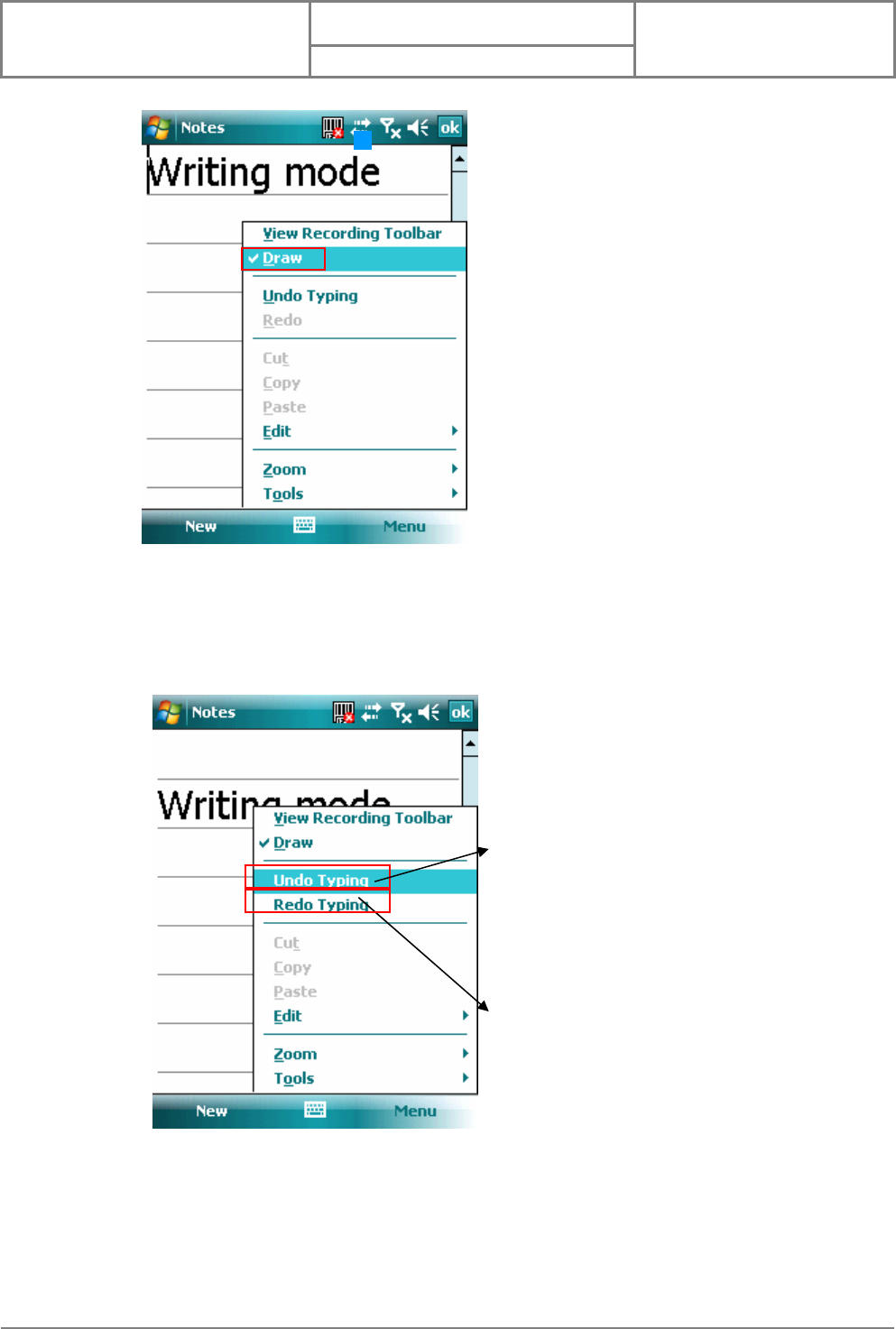

Editing a Handwritten Note...............................................................45
Adding a Voice Recording to a Note...............................................45
Deleting a Note......................................................................................46

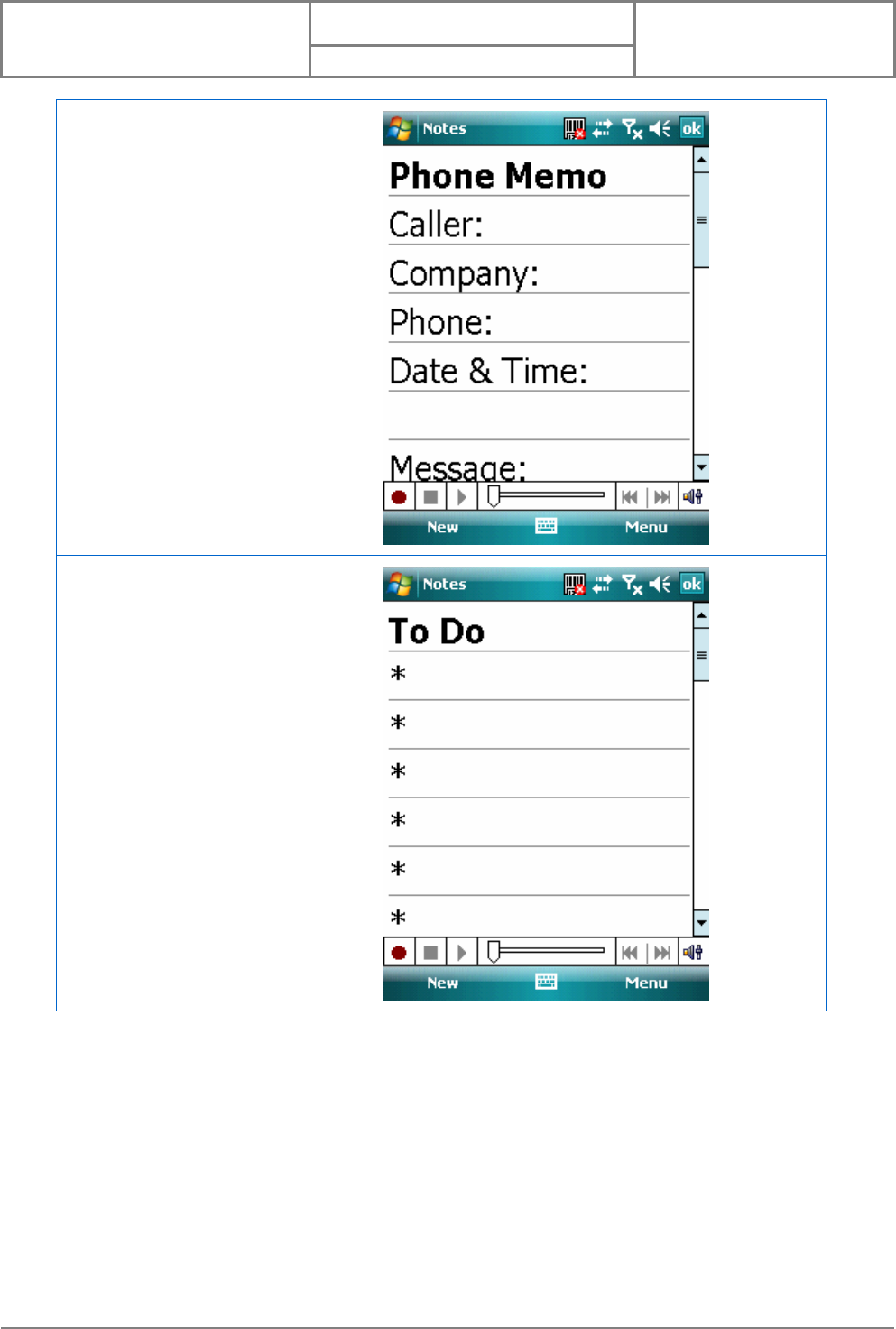

Creating a Default Template.............................................................47
Creating a Note by Using a Template............................................48

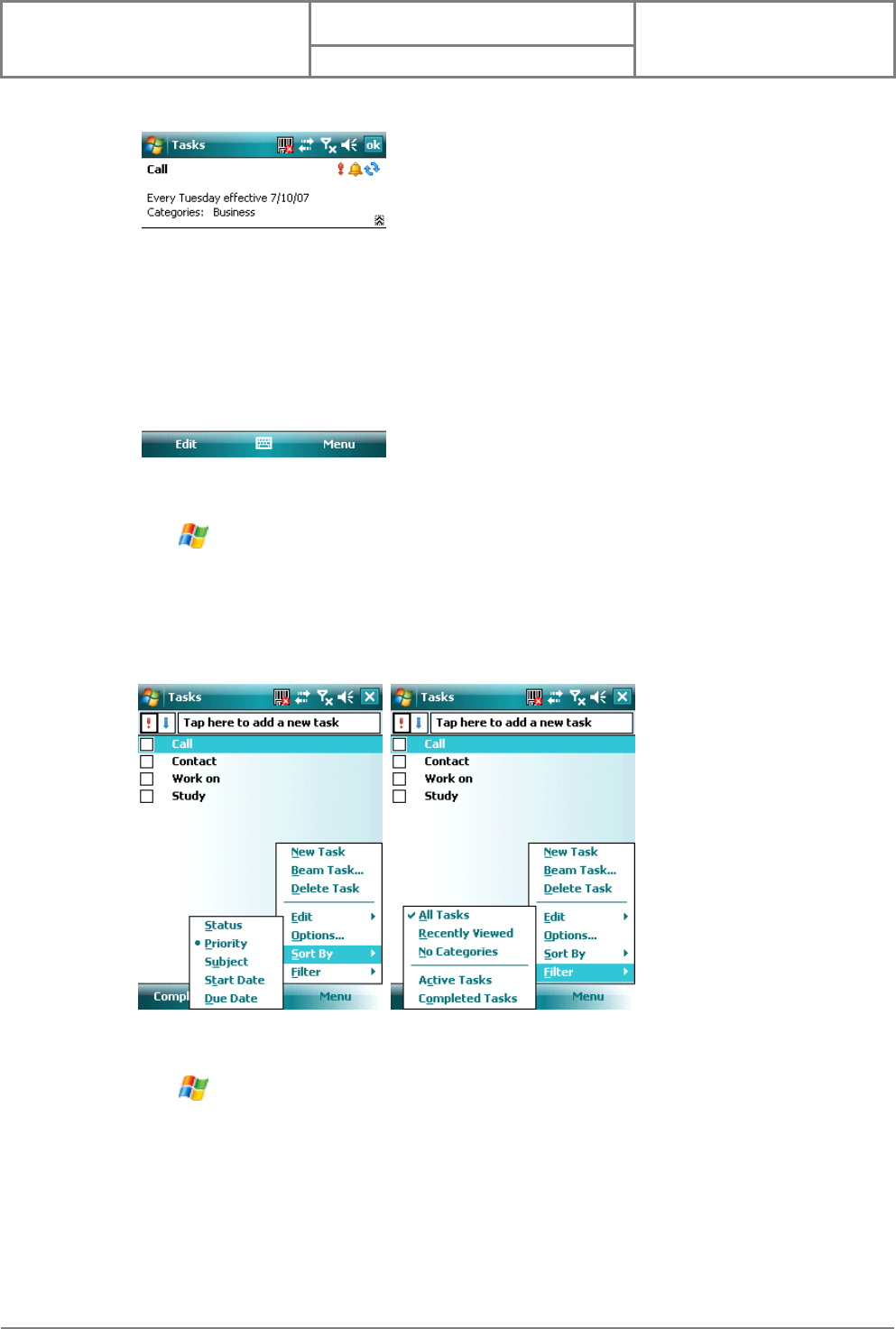

2.7 Using Tasks..............................................................................................49

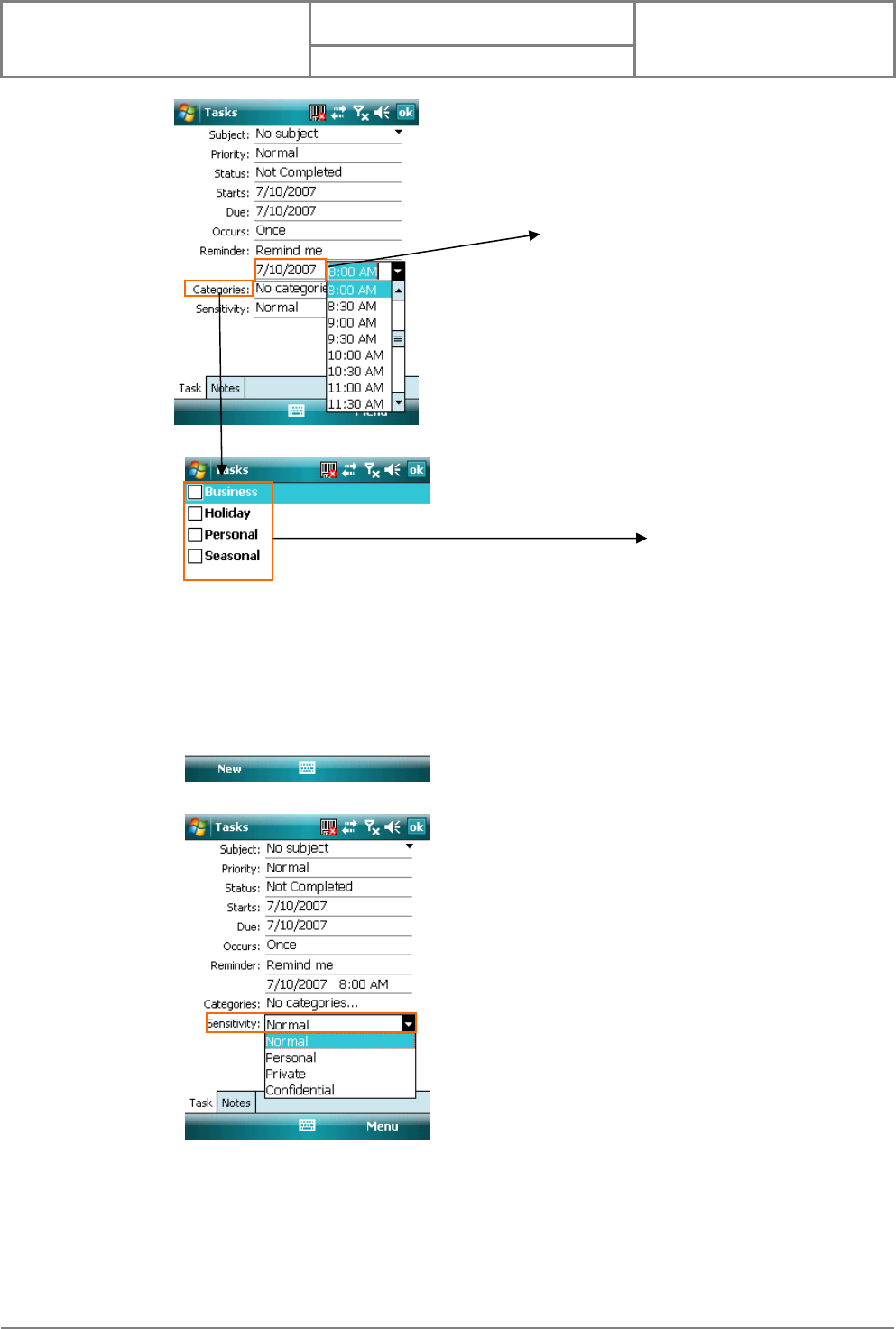

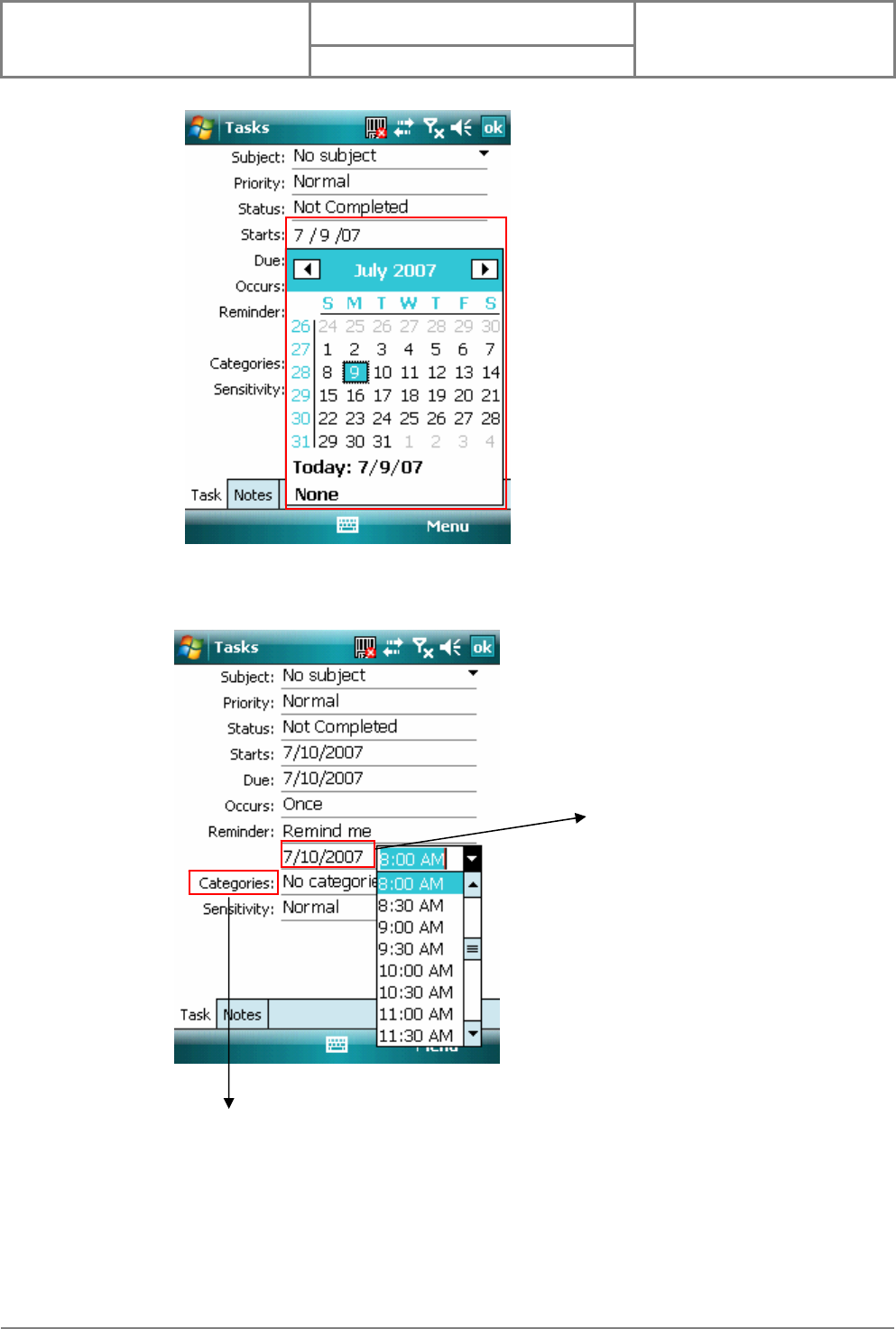

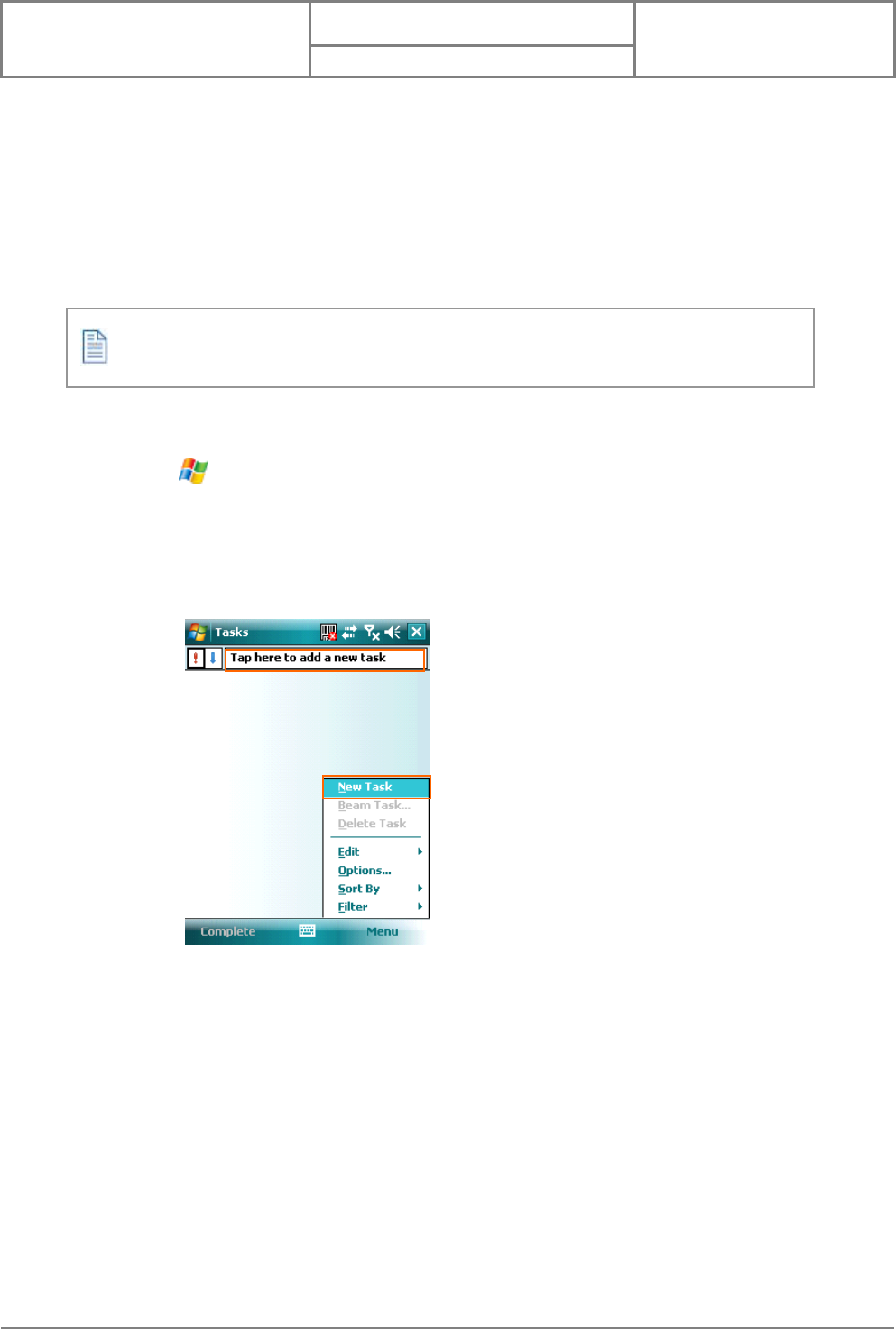

Creating a Task ......................................................................................50
Deleting a Task.......................................................................................53
Changing a Task.....................................................................................53
Viewing Task Details............................................................................53
Sorting/Filtering Your Tasks.............................................................54
Setting Tasks Options..........................................................................54
Setting Options for Displaying Tasks on the Today Screen...55
Charter 3. Phone Features................................................56
3.1 Making a Call...........................................................................................57

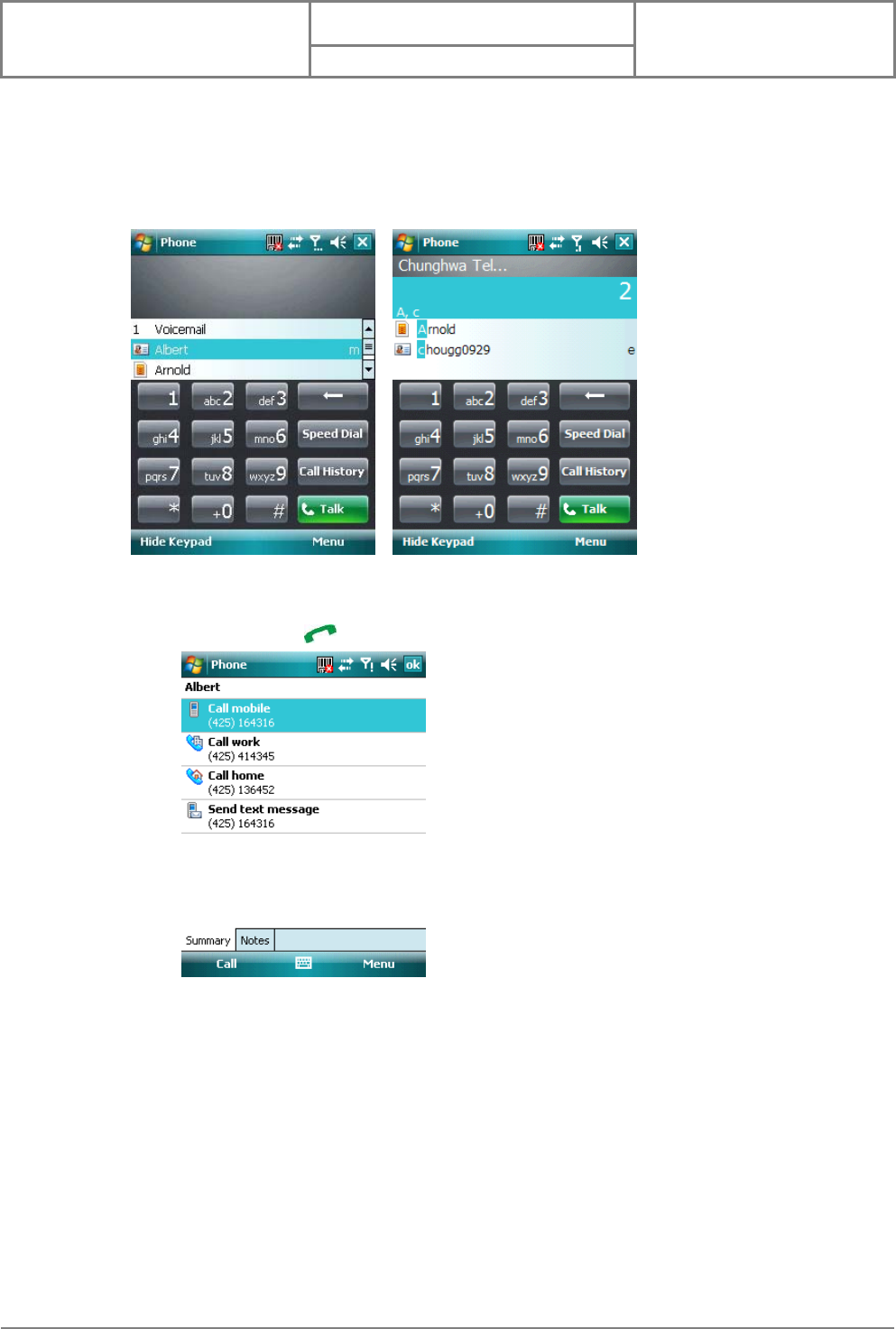

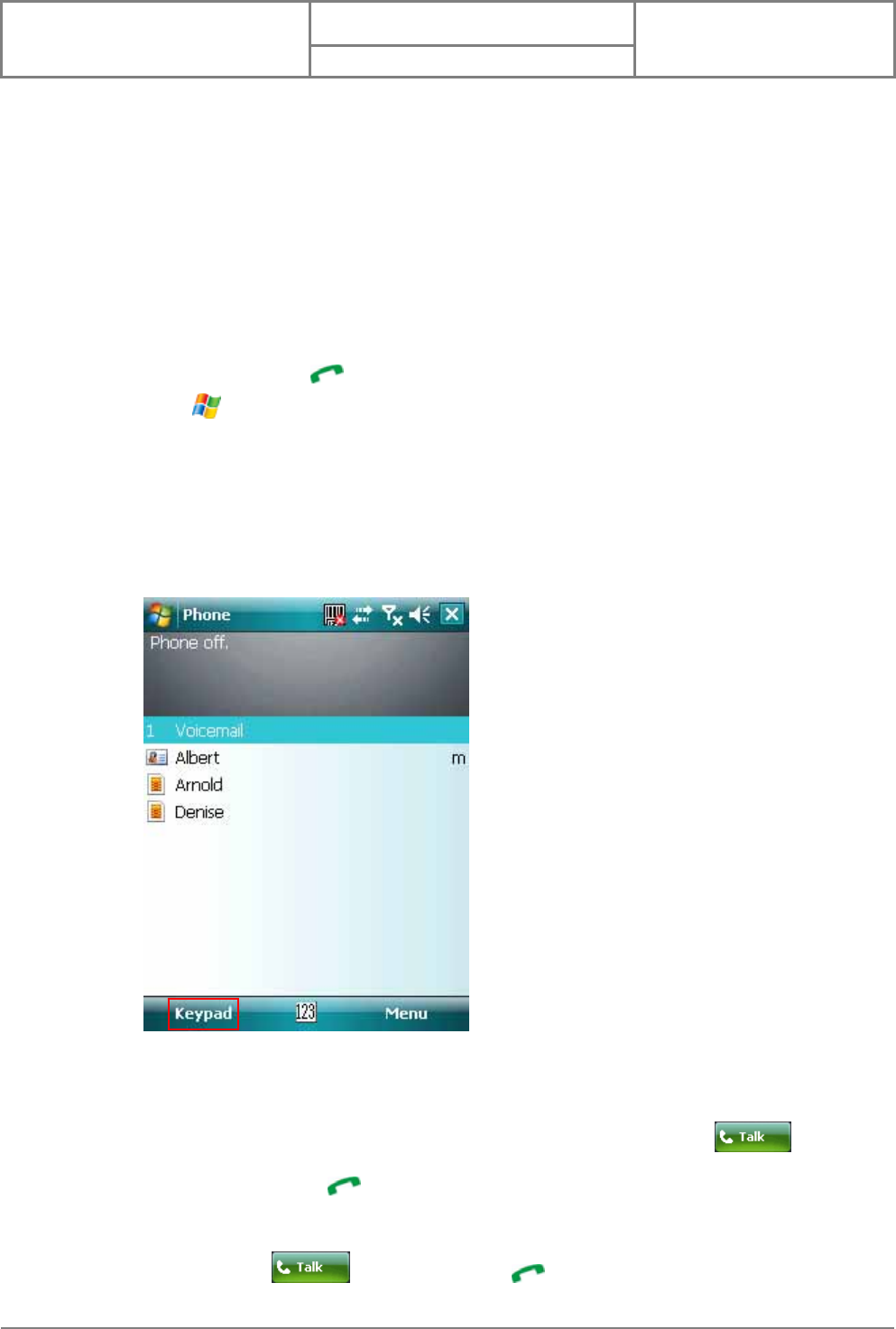

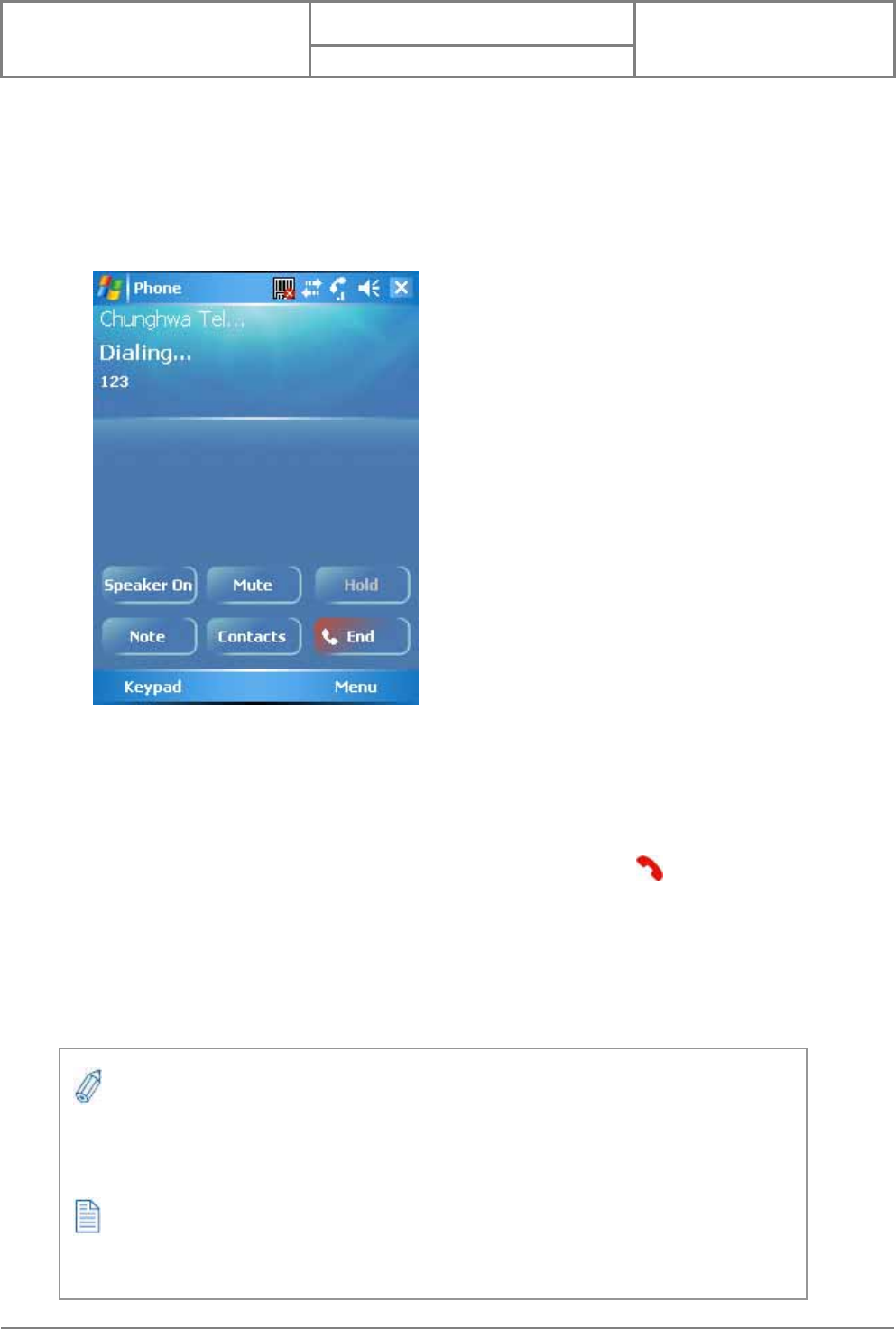

The Phone Screen..................................................................................57
Making a Call by Entering a Phone Number................................57
Making a Call from Call History........................................................58

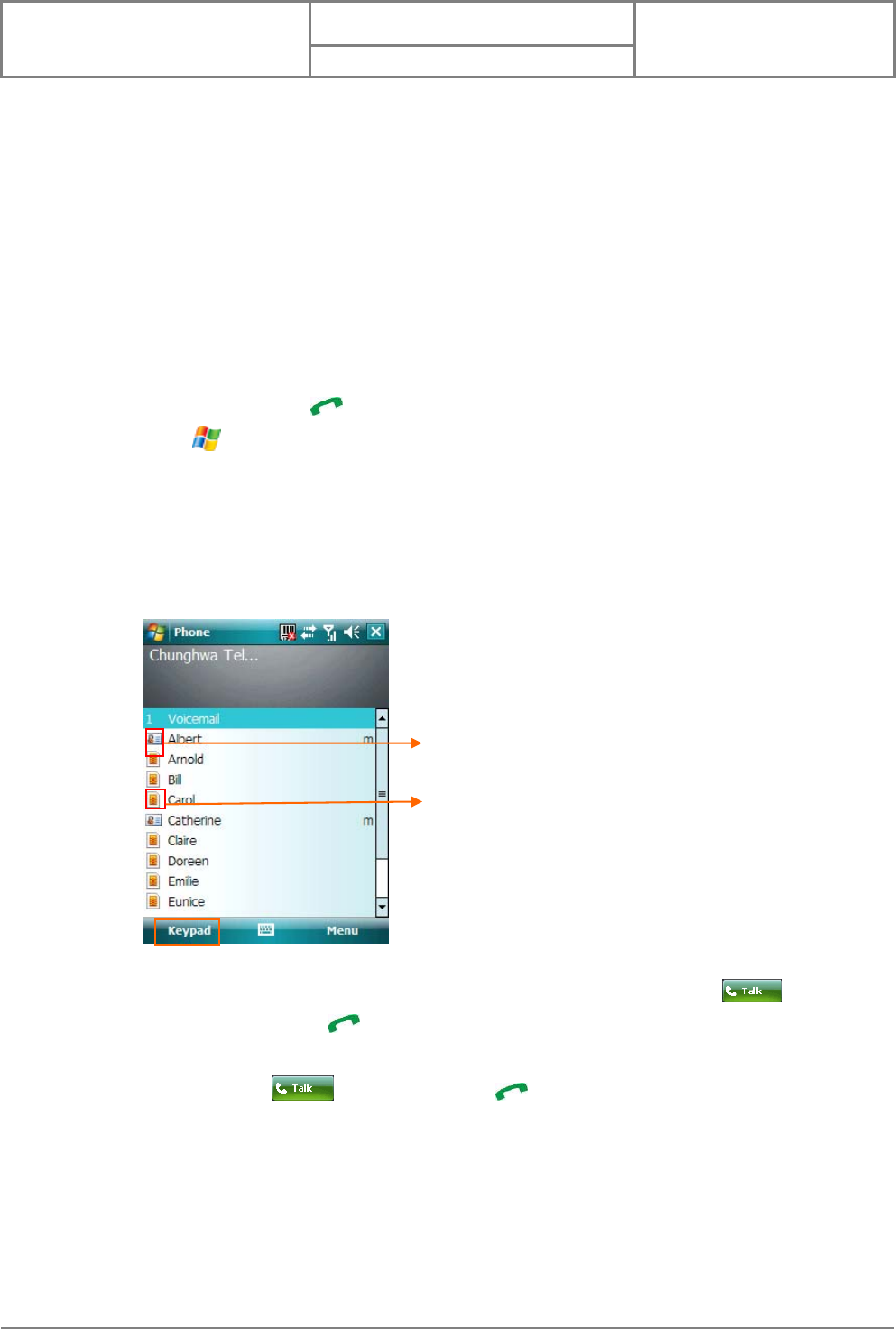

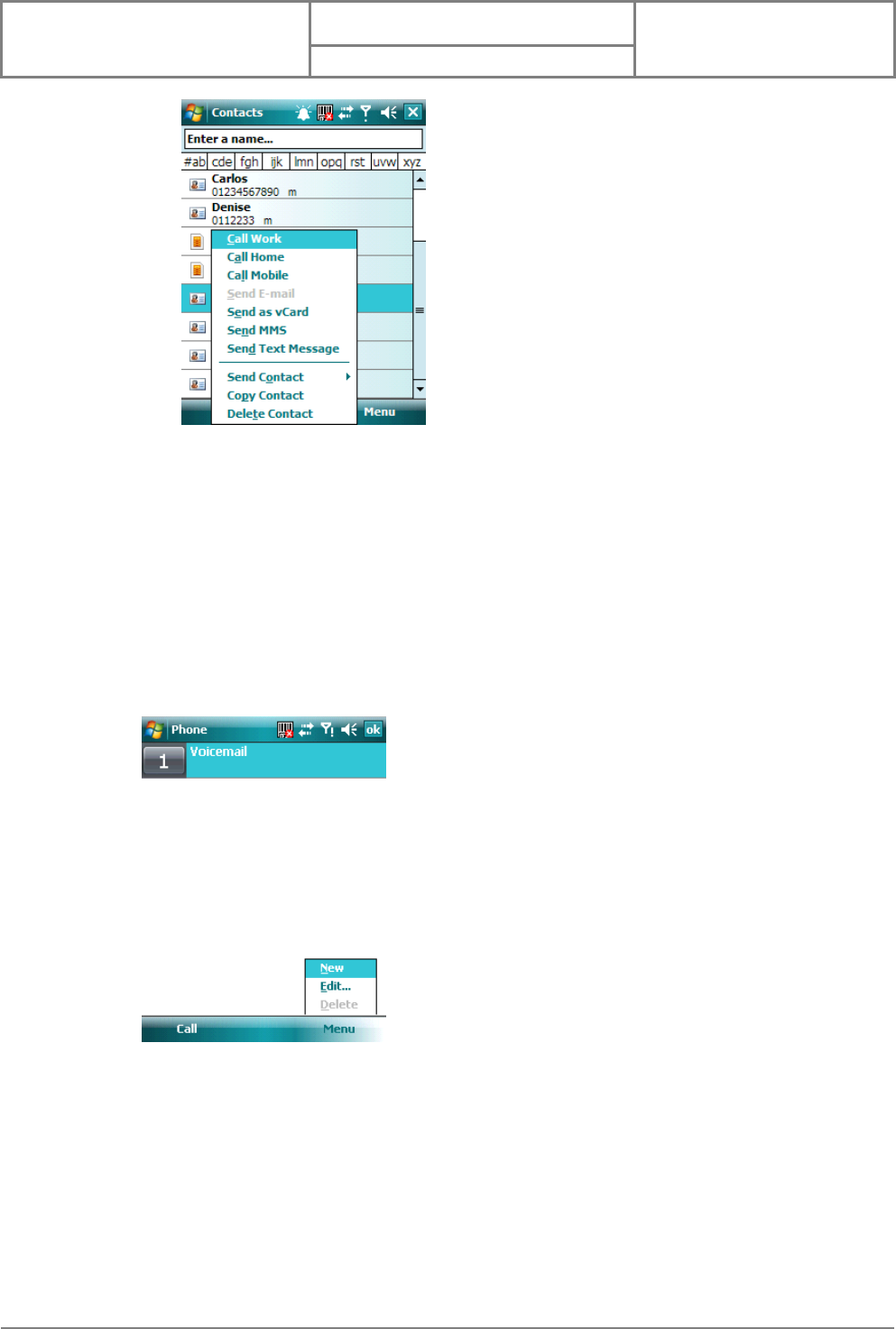

Making a Call from Contacts.............................................................59
User Manual
OPTICON Preliminary
Version : 1.0
Date : 2008/05/20
7

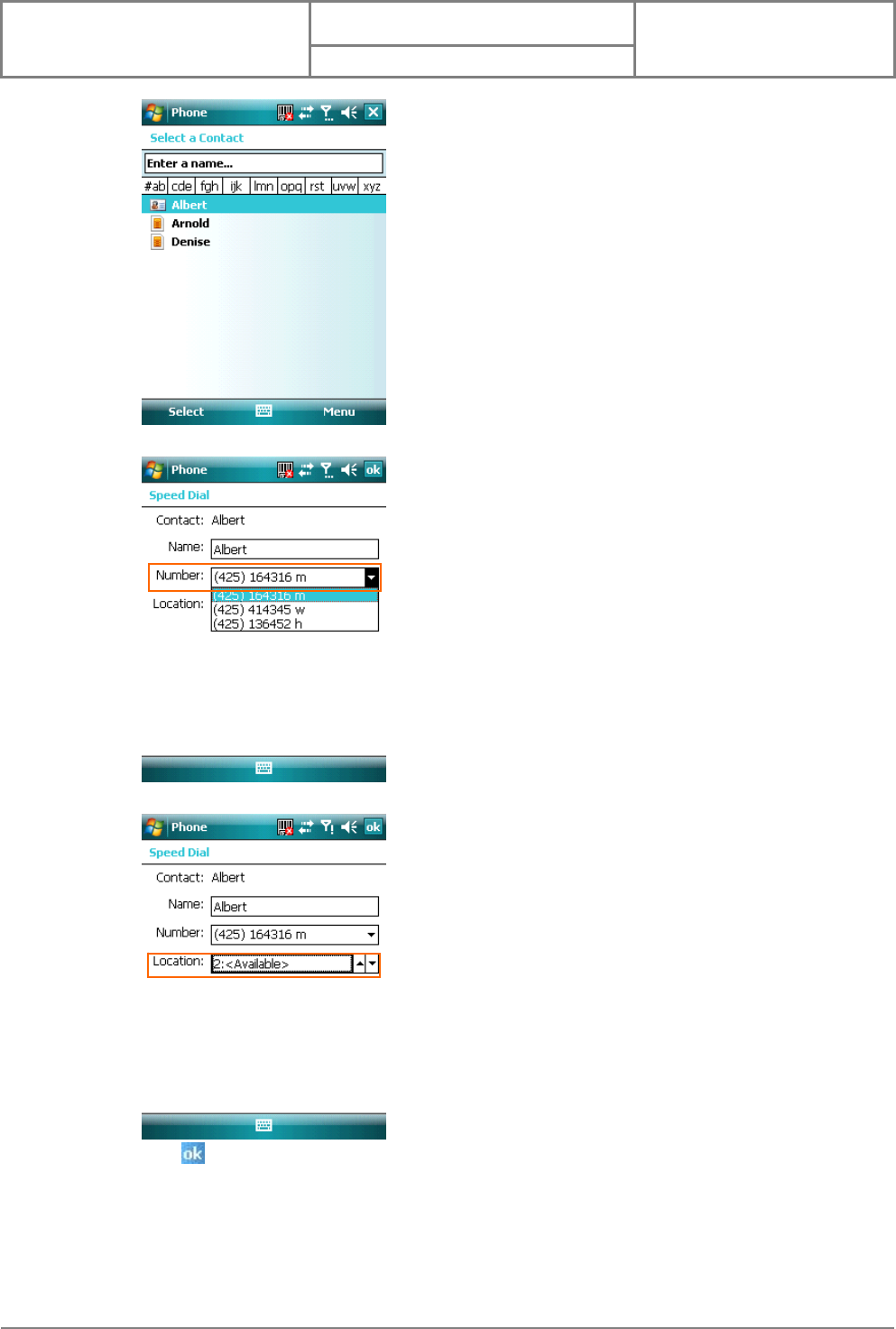

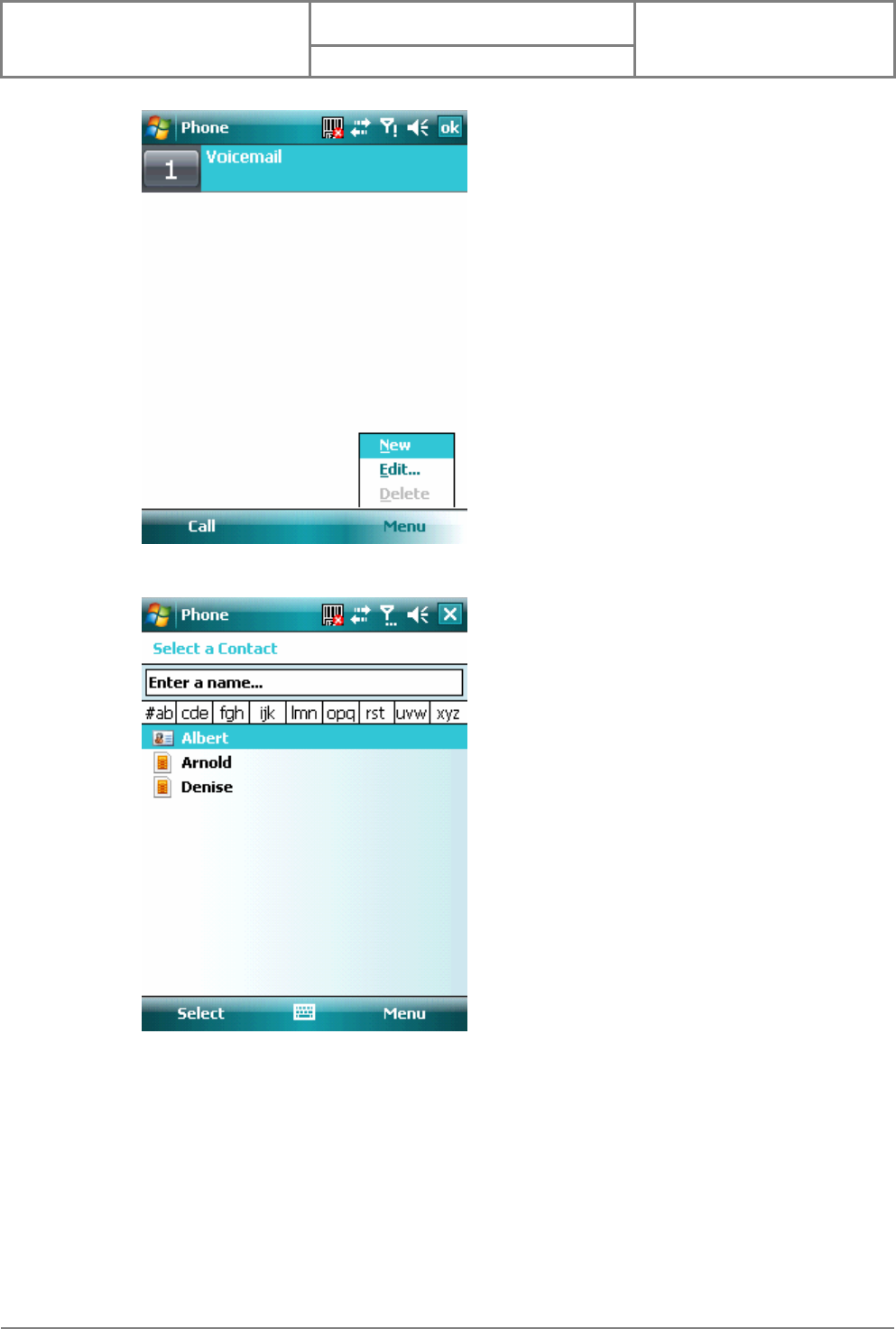

Making a Call from Speed Dial .........................................................60
Receiving/Rejecting a Call................................................................62
3.2 Configuring the Phone.........................................................................62

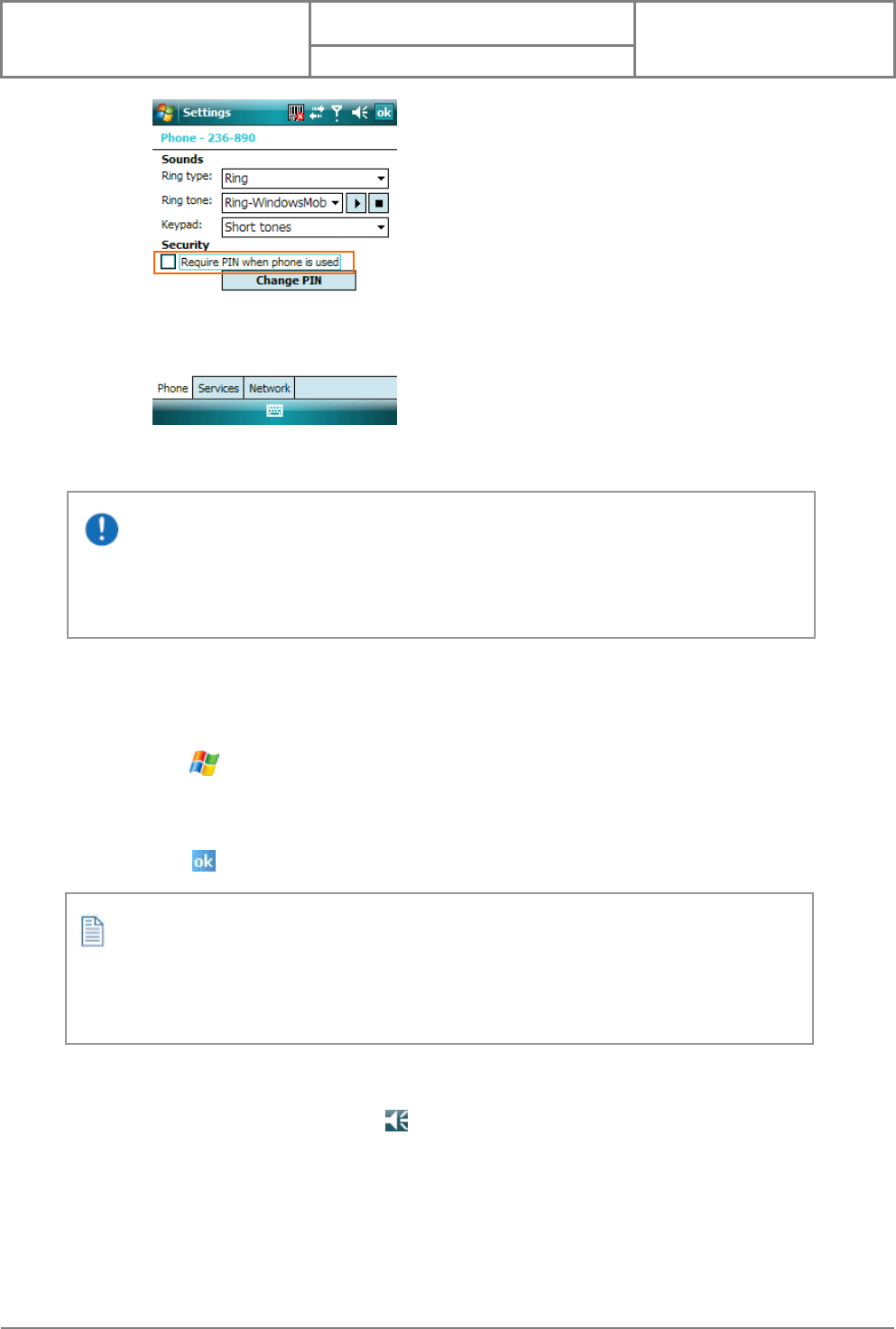

Activating PIN Security.......................................................................62

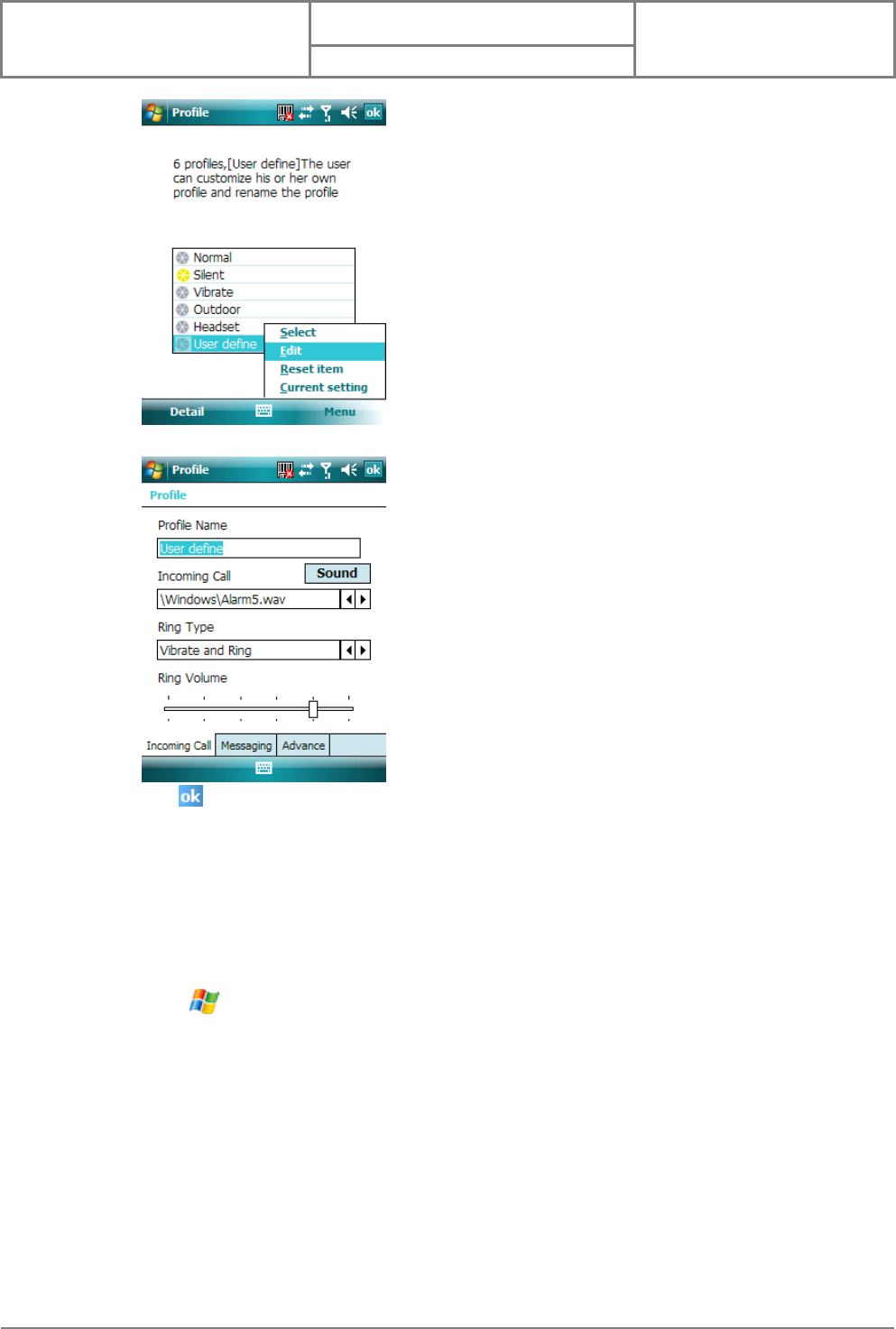

Changing the Ring Type and Ring Tone........................................63
Changing the Ringer Volume............................................................63
Blocking Incoming or Outgoing Calls............................................64
Displaying Caller ID..............................................................................65

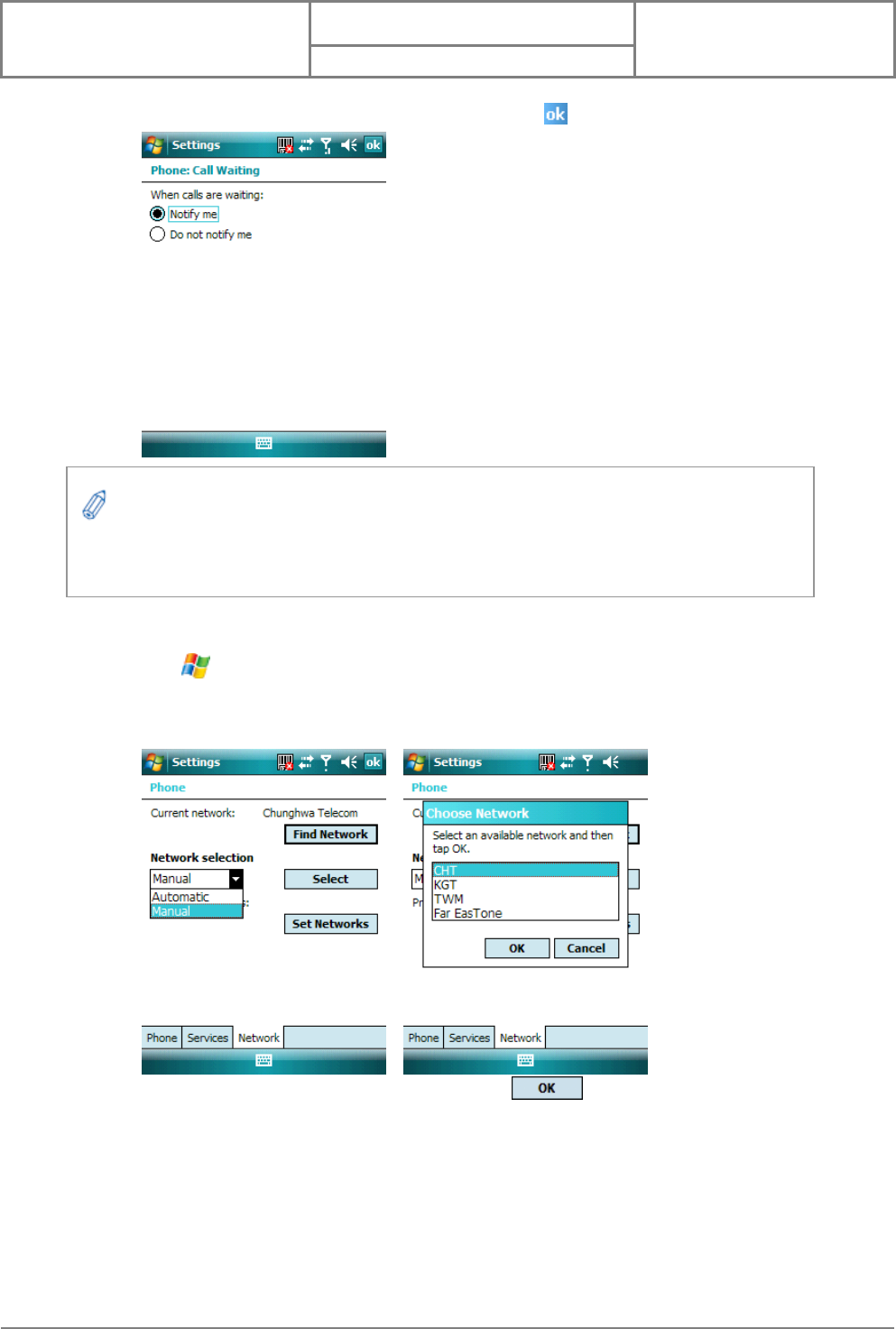

Call Waiting.............................................................................................65
Selecting a Network Manually..........................................................66

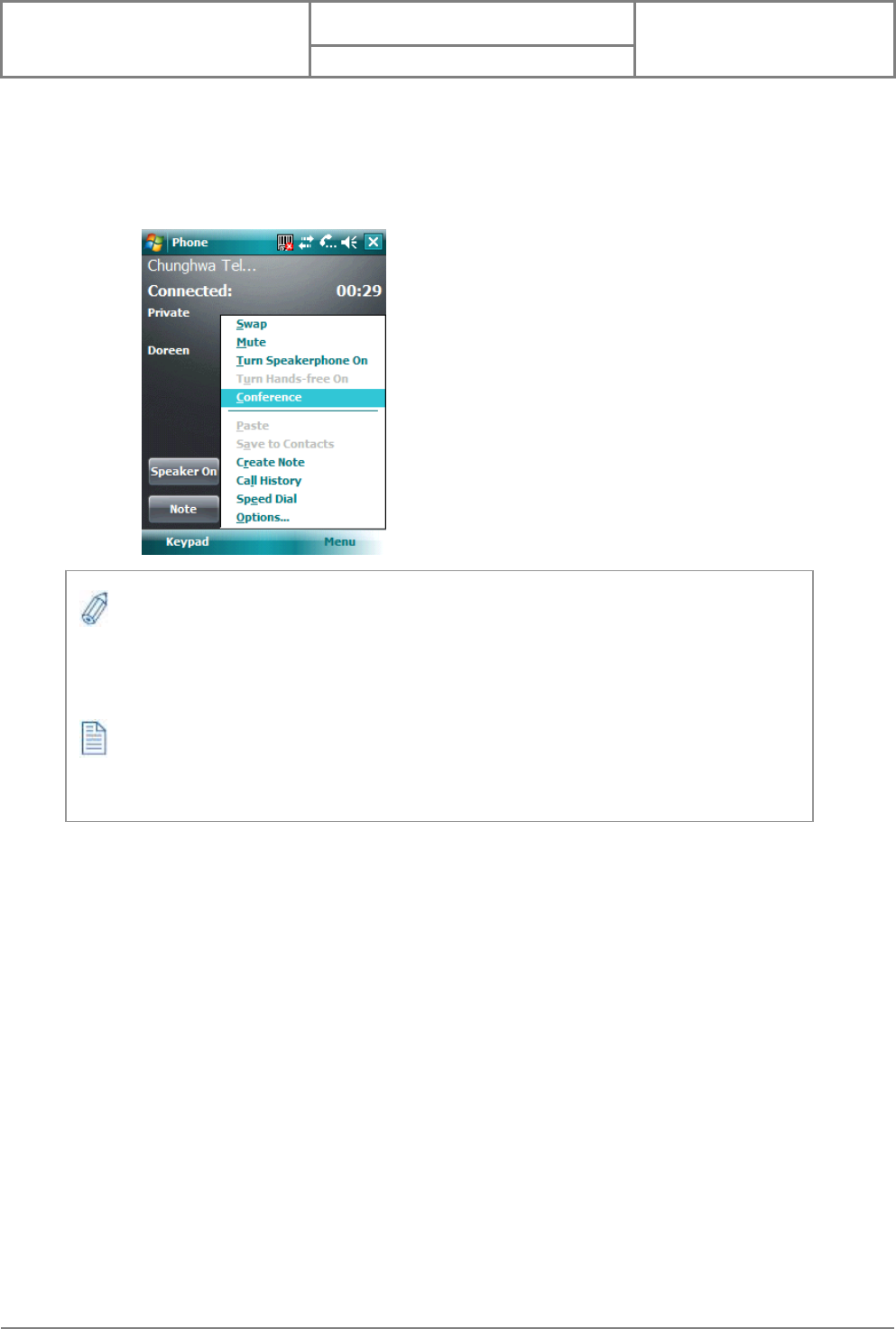

3.3 In-Call Options........................................................................................66

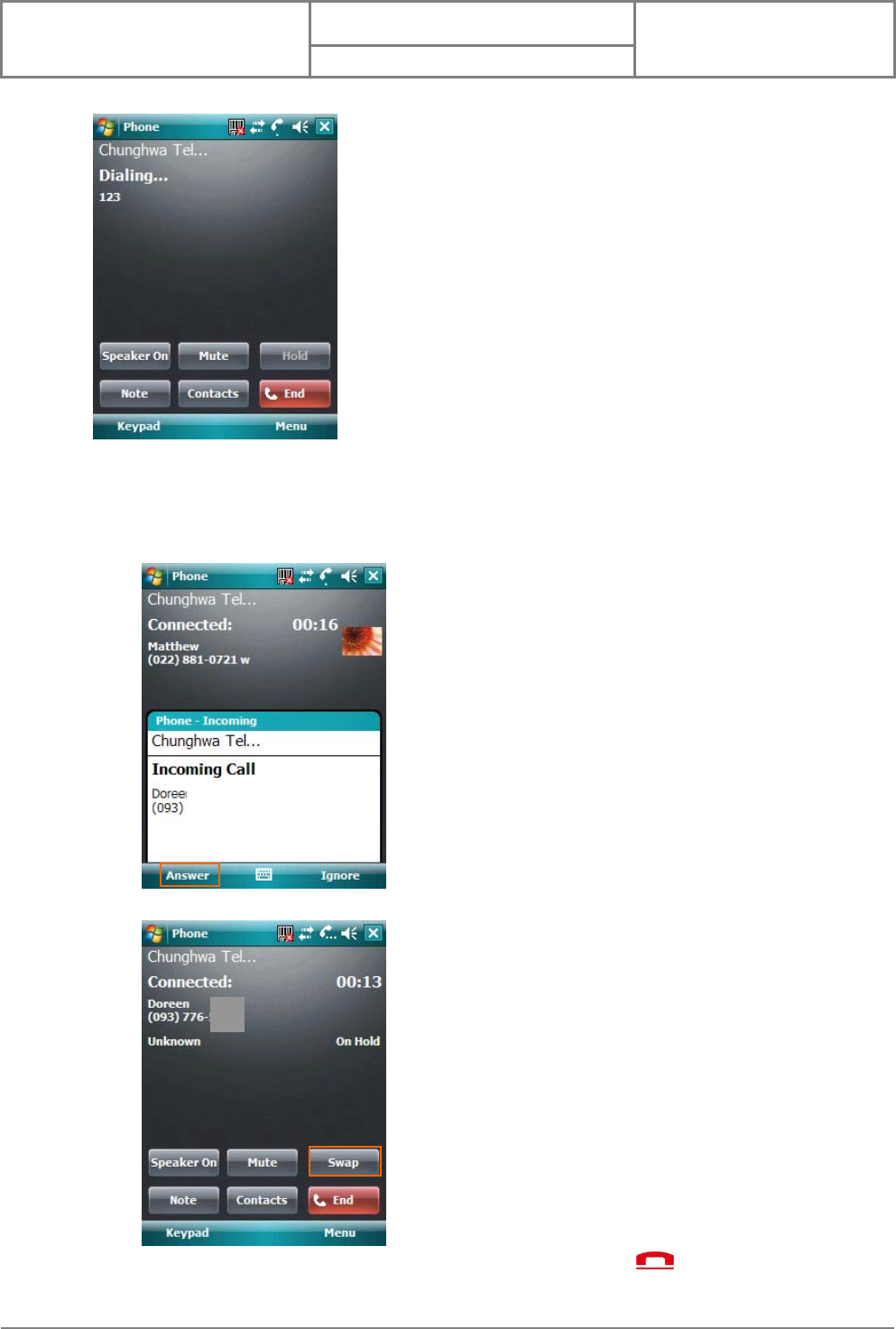

Answering Another Call ......................................................................67
Conference Call......................................................................................68

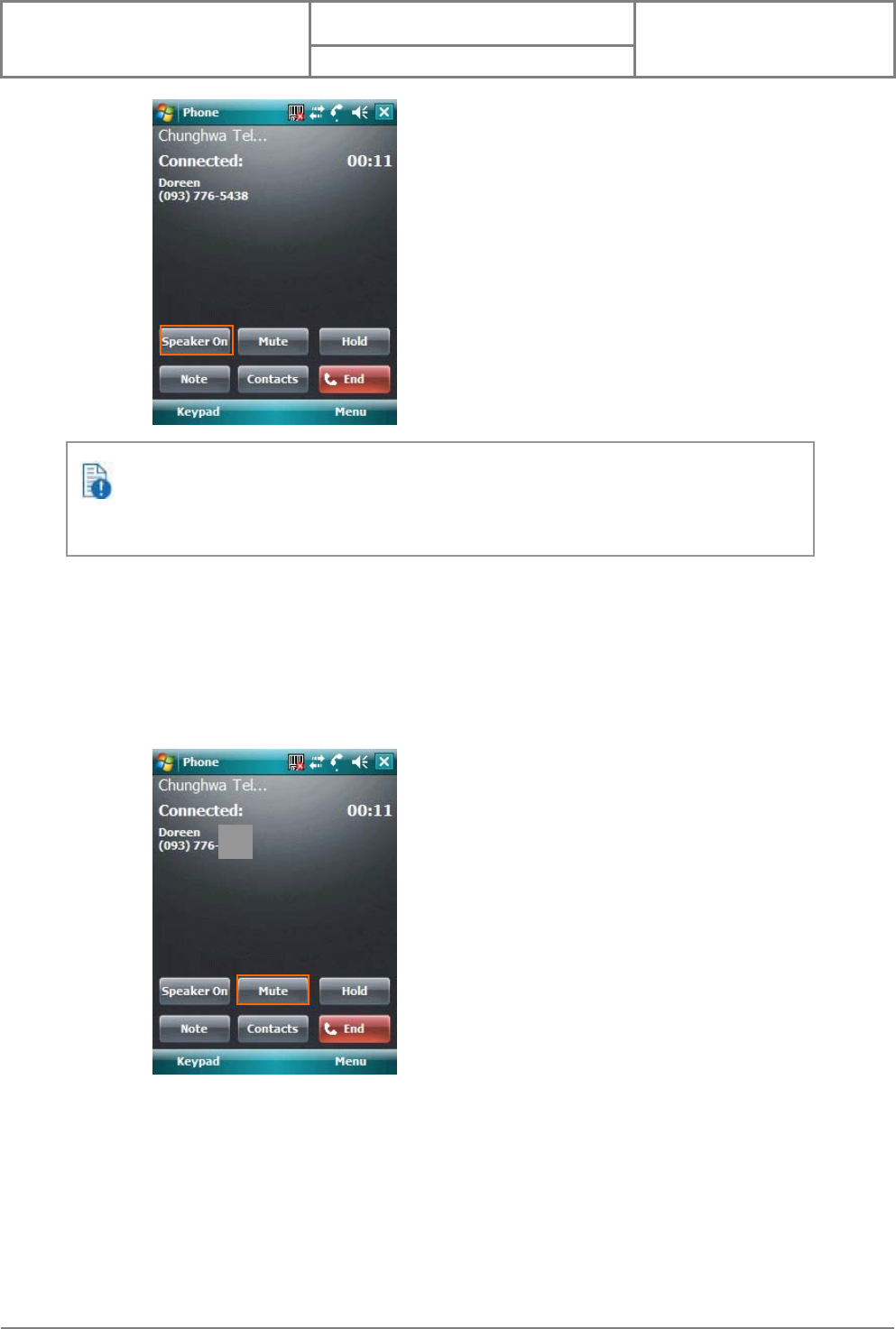

Turning On/Off the Speakerphone.................................................68
Muting the Microphone.......................................................................69
3.4 SIM Manager...........................................................................................69

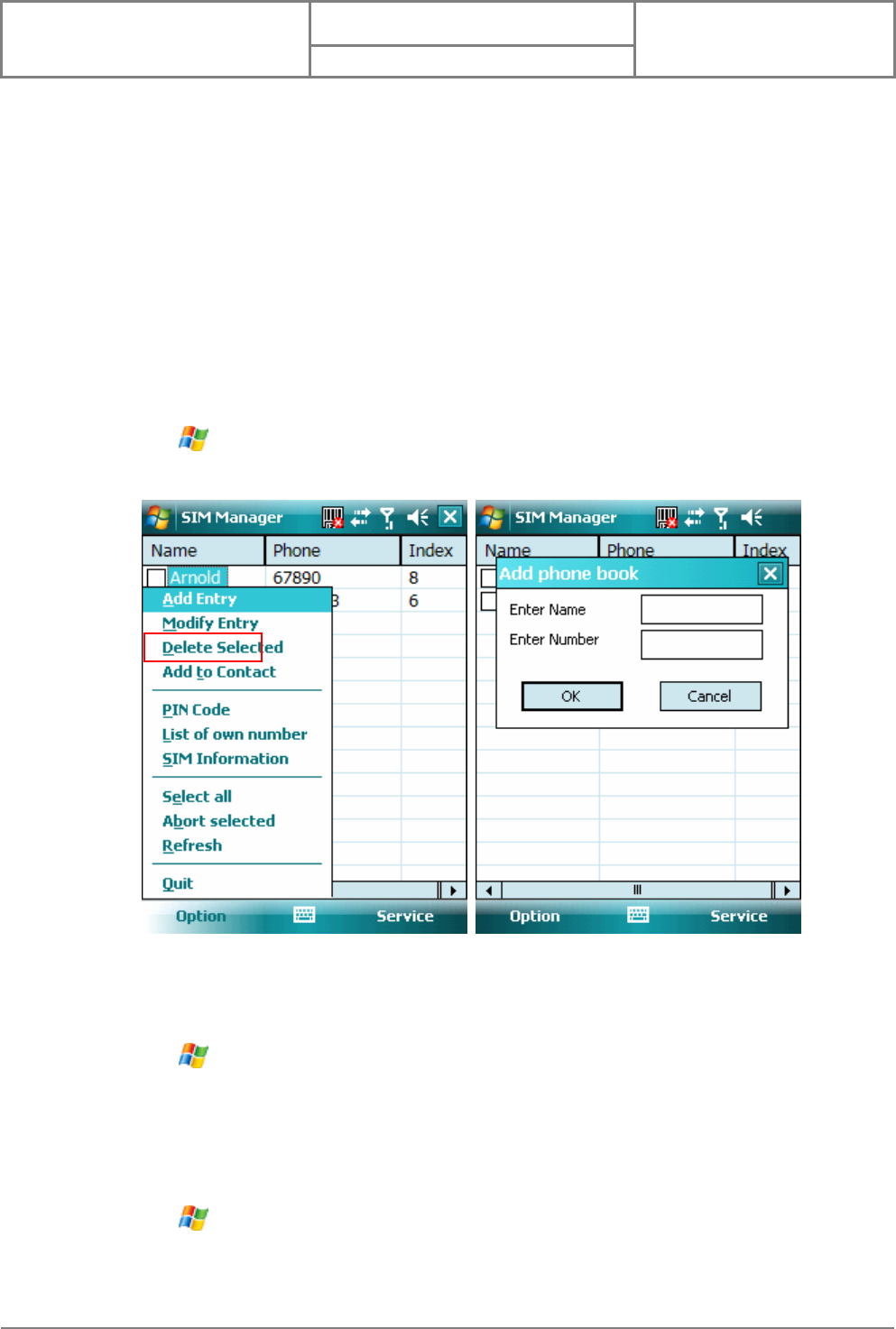

Adding a Phonebook Entry to the SIM Card................................69
Deleting Phonebook Entries from the SIM Card........................70
Saving Phonebook Entries to Contacts.........................................70
3.5 Blocking Unwanted Phone Calls.......................................................70
Rejecting Anonymous Calls...............................................................71
Adding a Phone Number to the Blacklist......................................71
Removing a Phone Number from the Blacklist..........................72
Chapter 4. Synchronizing Information .............................73
4.1 Installing and setting up ActiveSync..............................................74
4.2 Synchronizing Information................................................................74
Starting and Stopping Synchronization Manually.....................75
Changing Which Information is Synchronized...........................75
4.3 Changing Settings for an Information Type................................76
4.4 Synchronizing with Exchange Server.............................................76
4.5 Synchronizing via Bluetooth..............................................................77
Connecting to a PC Using Bluetooth..............................................77
Chapter 5. Bluetooth Connections....................................78
5.1 Overview of Bluetooth.........................................................................79
Bluetooth Modes....................................................................................79

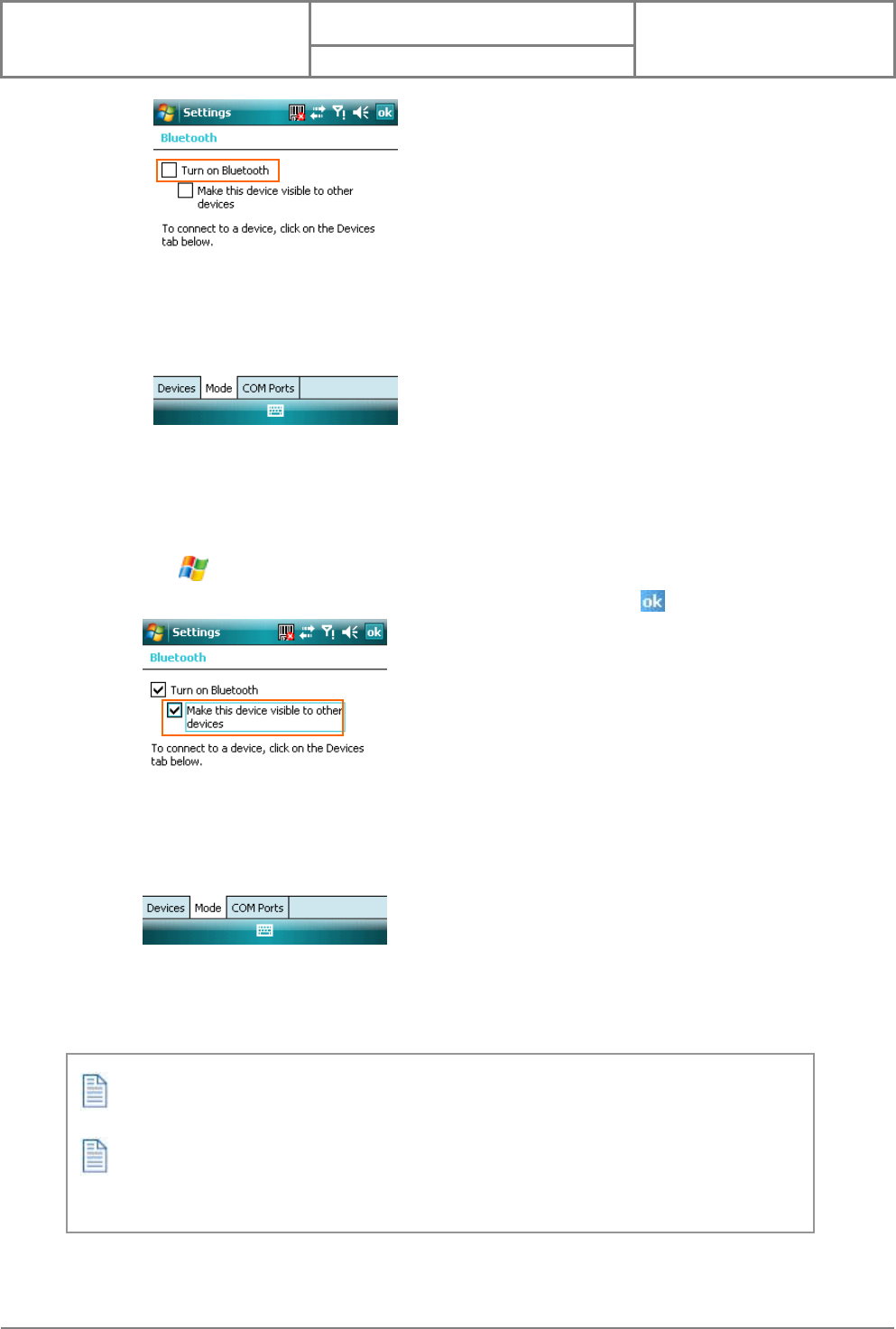

Turning Bluetooth On or Off..............................................................79
Making Your Device Visible...............................................................80
User Manual
OPTICON Preliminary
Version : 1.0
Date : 2008/05/20
8

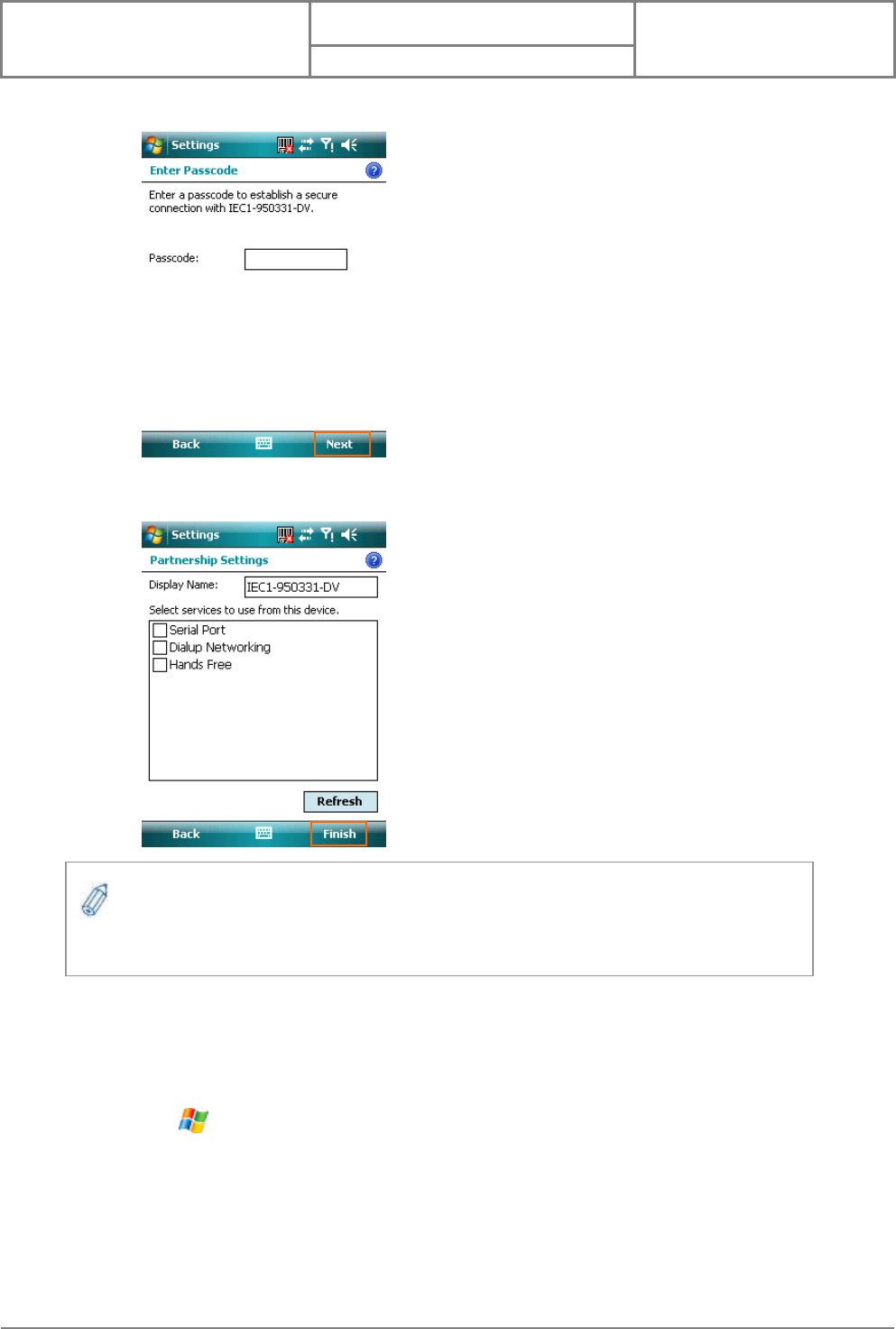

5.2 Bluetooth Partnership (Bonding) ....................................................81

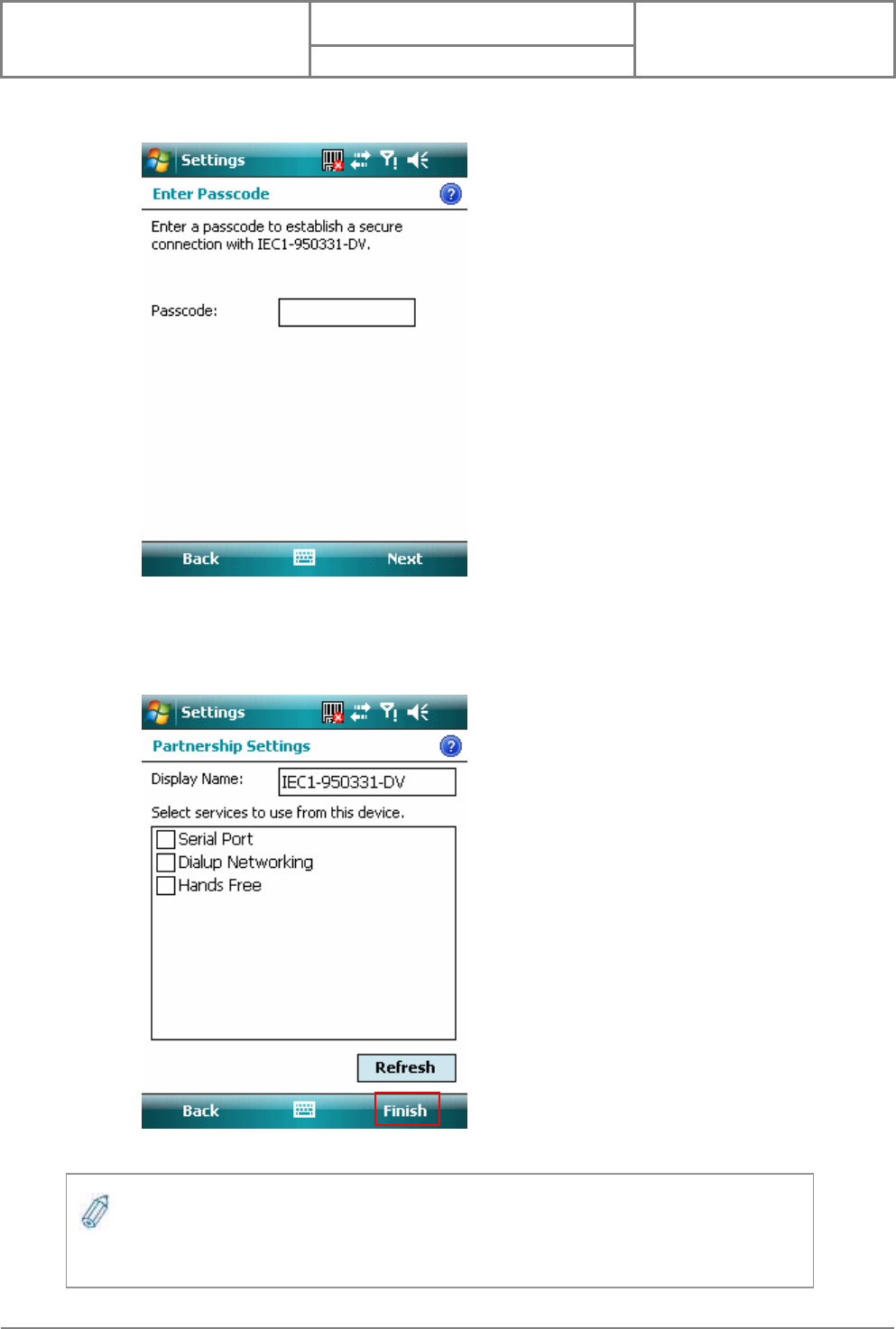

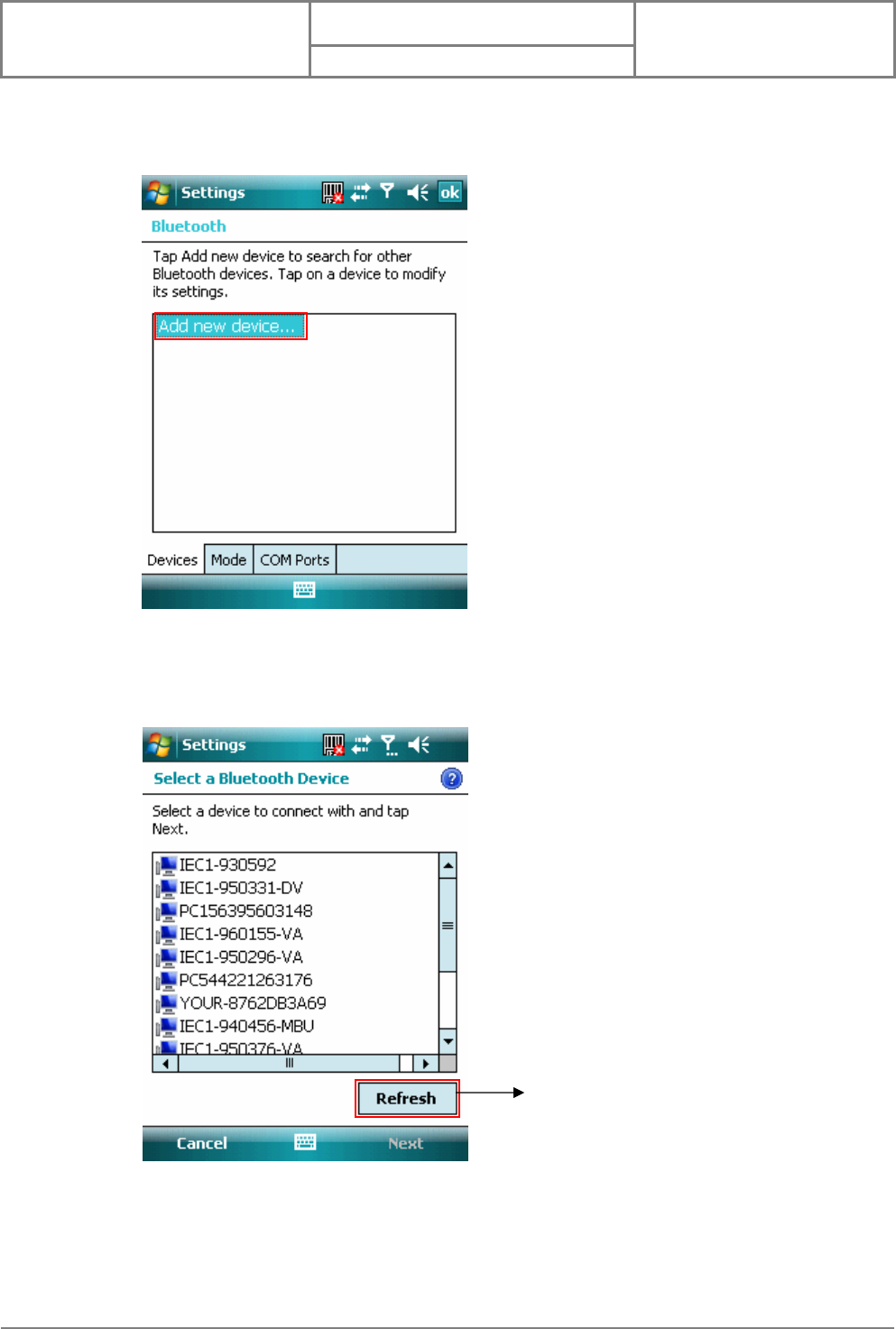

Creating a Bluetooth Partnership ...................................................81

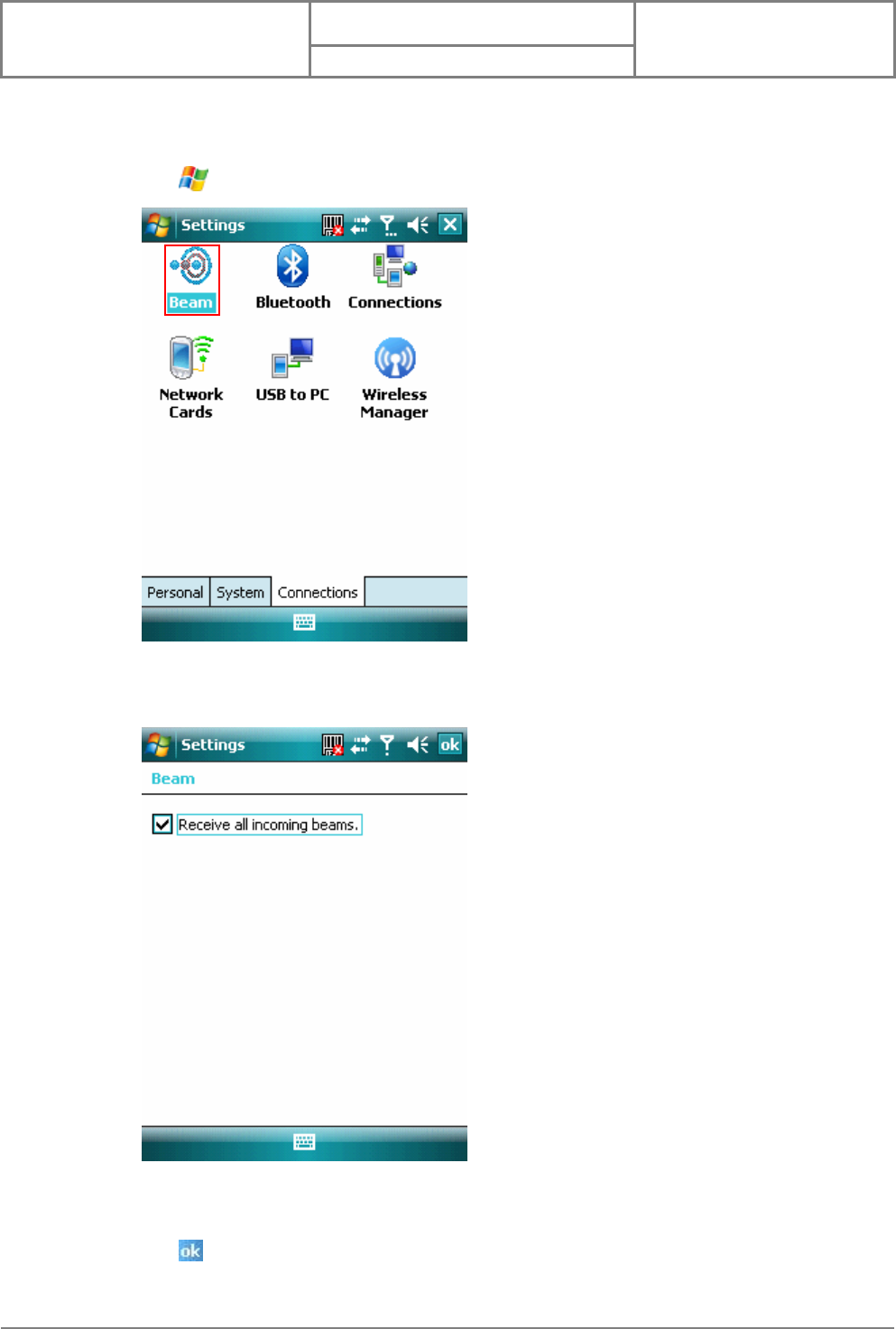

5.3 Beaming Information (Bluetooth) ..................................................82

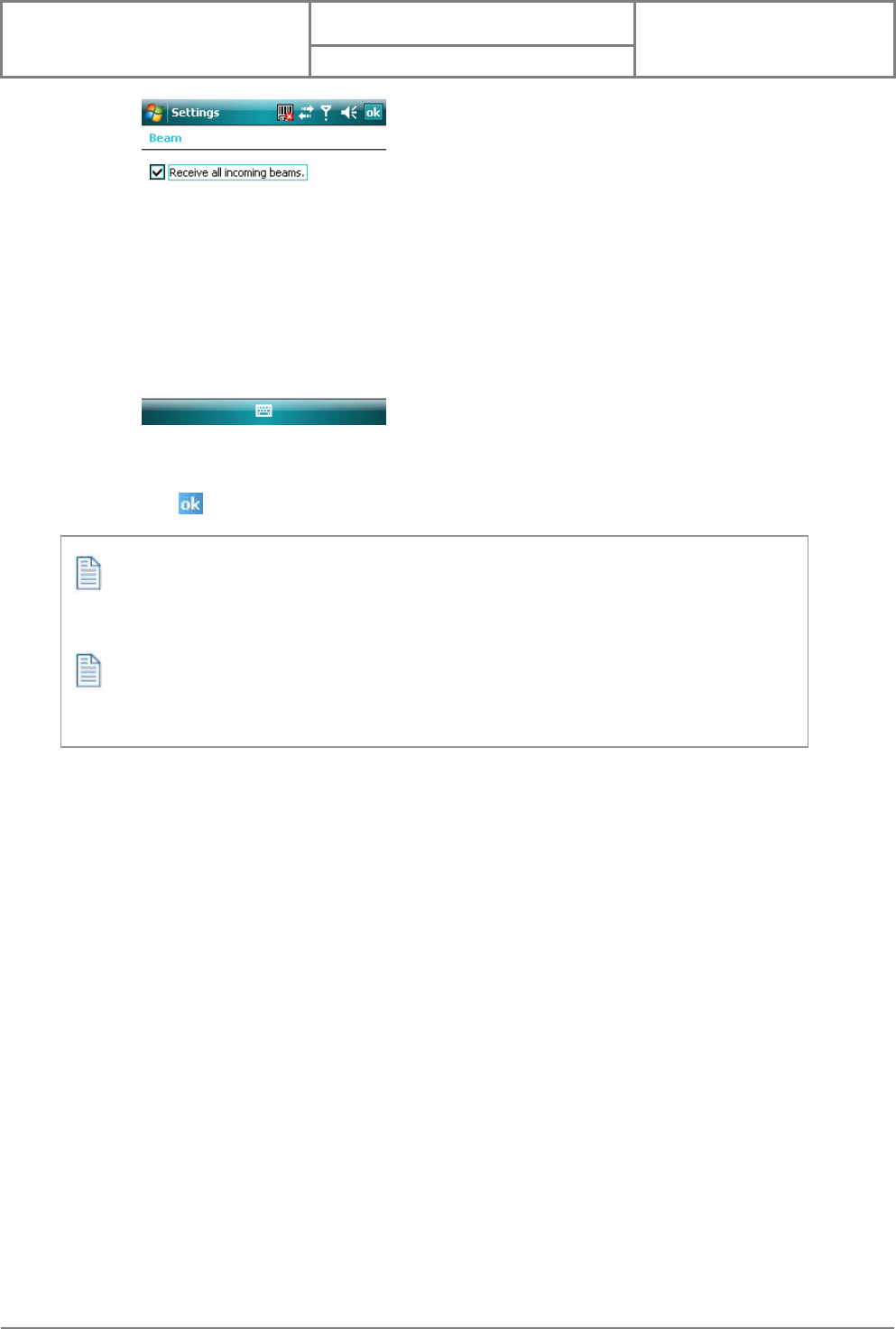

Receiving Beamed Information.......................................................82
Beaming an Item...................................................................................83
Chapter 6. Transferring Files To and From Your Device...85
6.1 Using ActiveSync....................................................................................86
6.2 Transferring from Memory Cards ....................................................86
6.3 Using Bluetooth......................................................................................87
6.4 Transferring to a PC or Other Devices...........................................88
Chapter 7. Connecting to the Internet .............................89

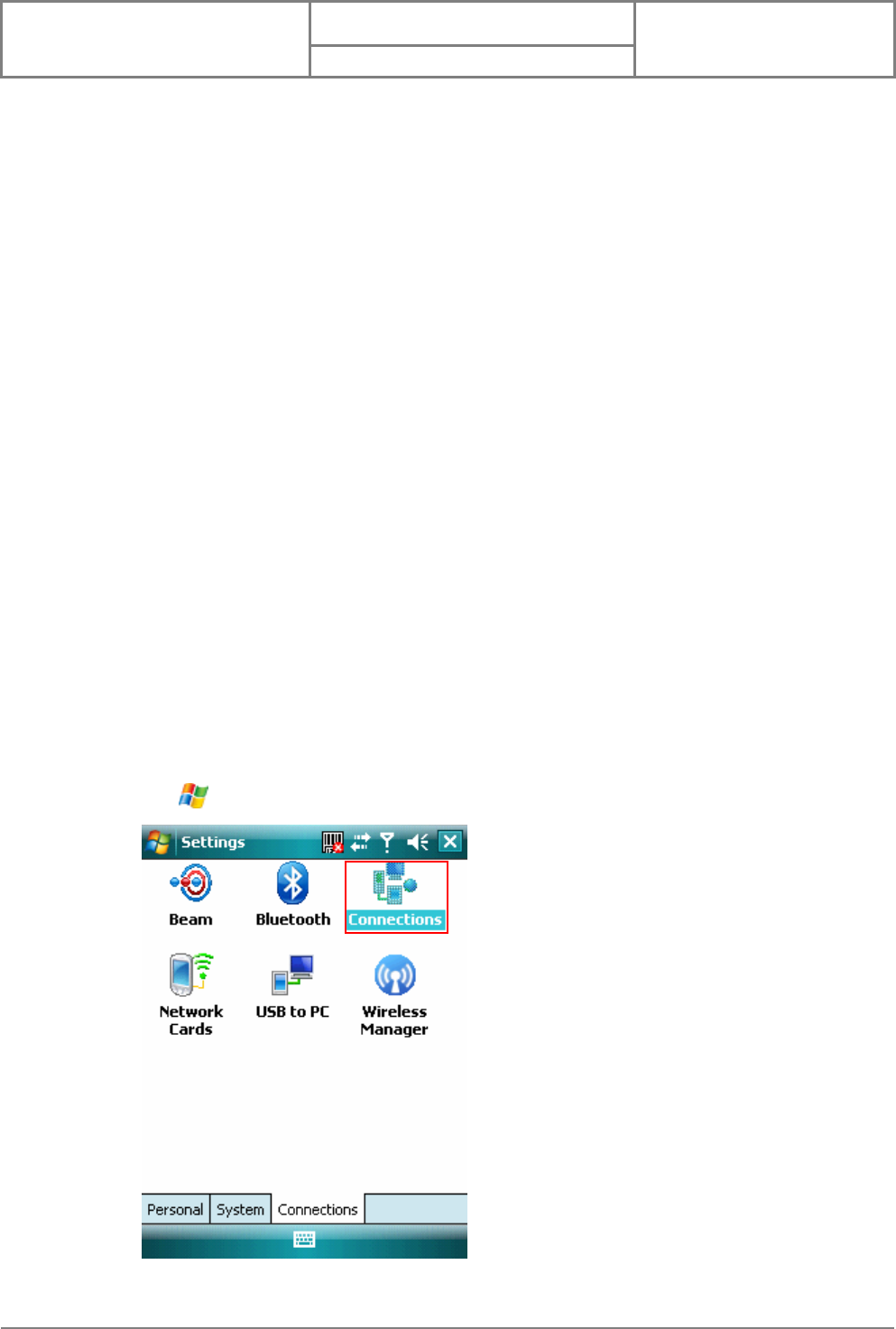

7.1 Setting up Internet connections......................................................90

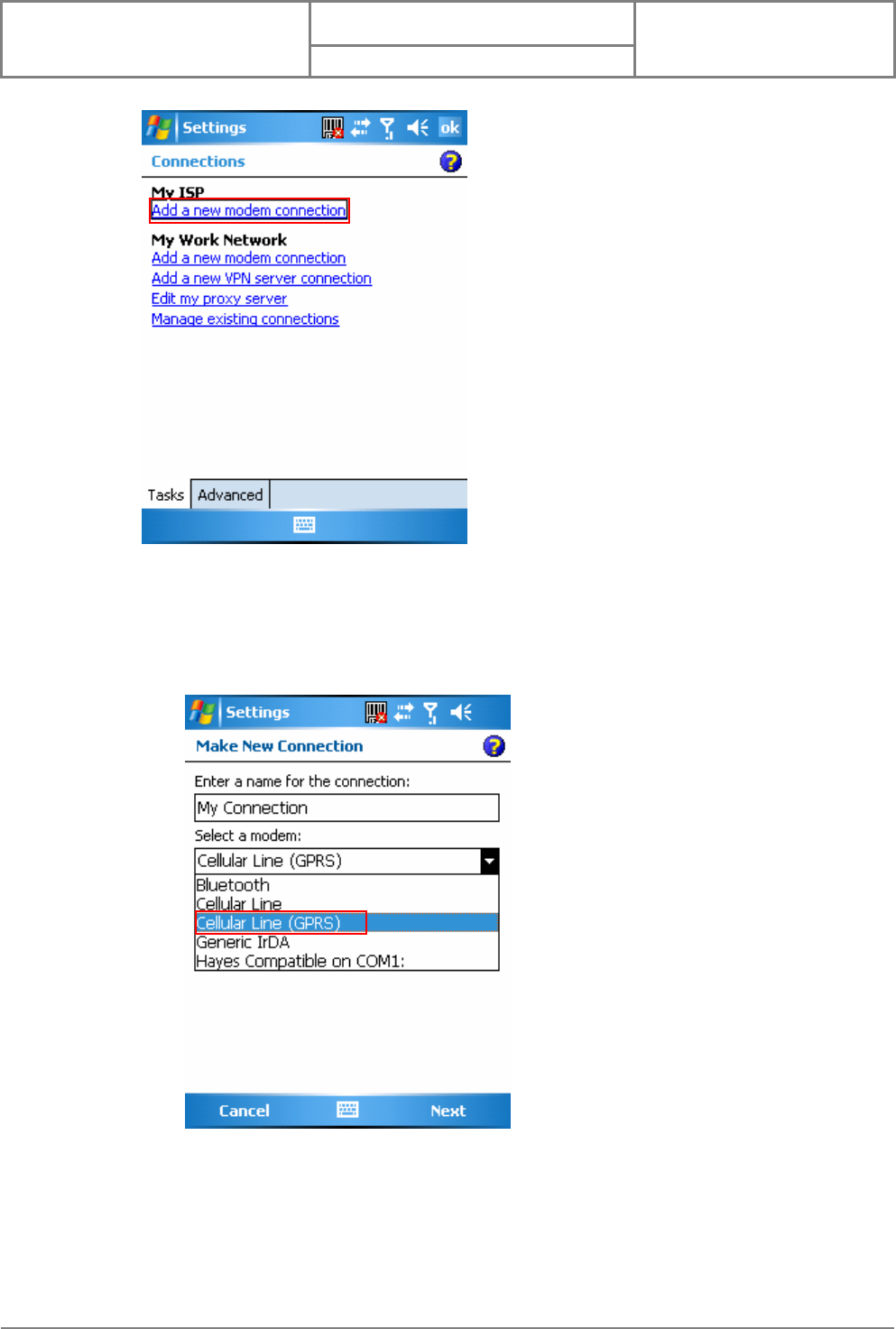

Creating a GPRS Connection.............................................................90
Creating a Proxy Connection ............................................................92
Deleting a Connection.........................................................................92

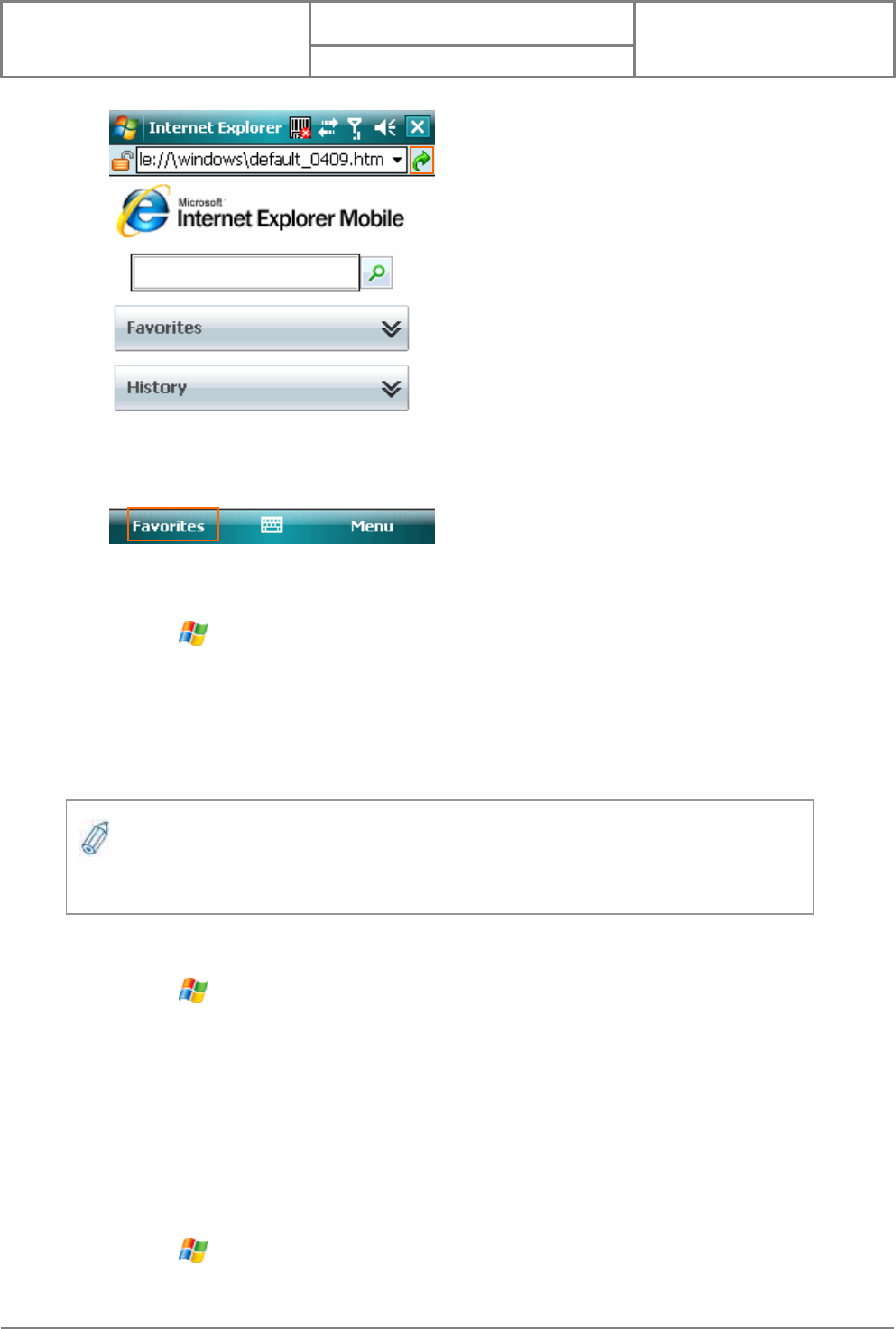

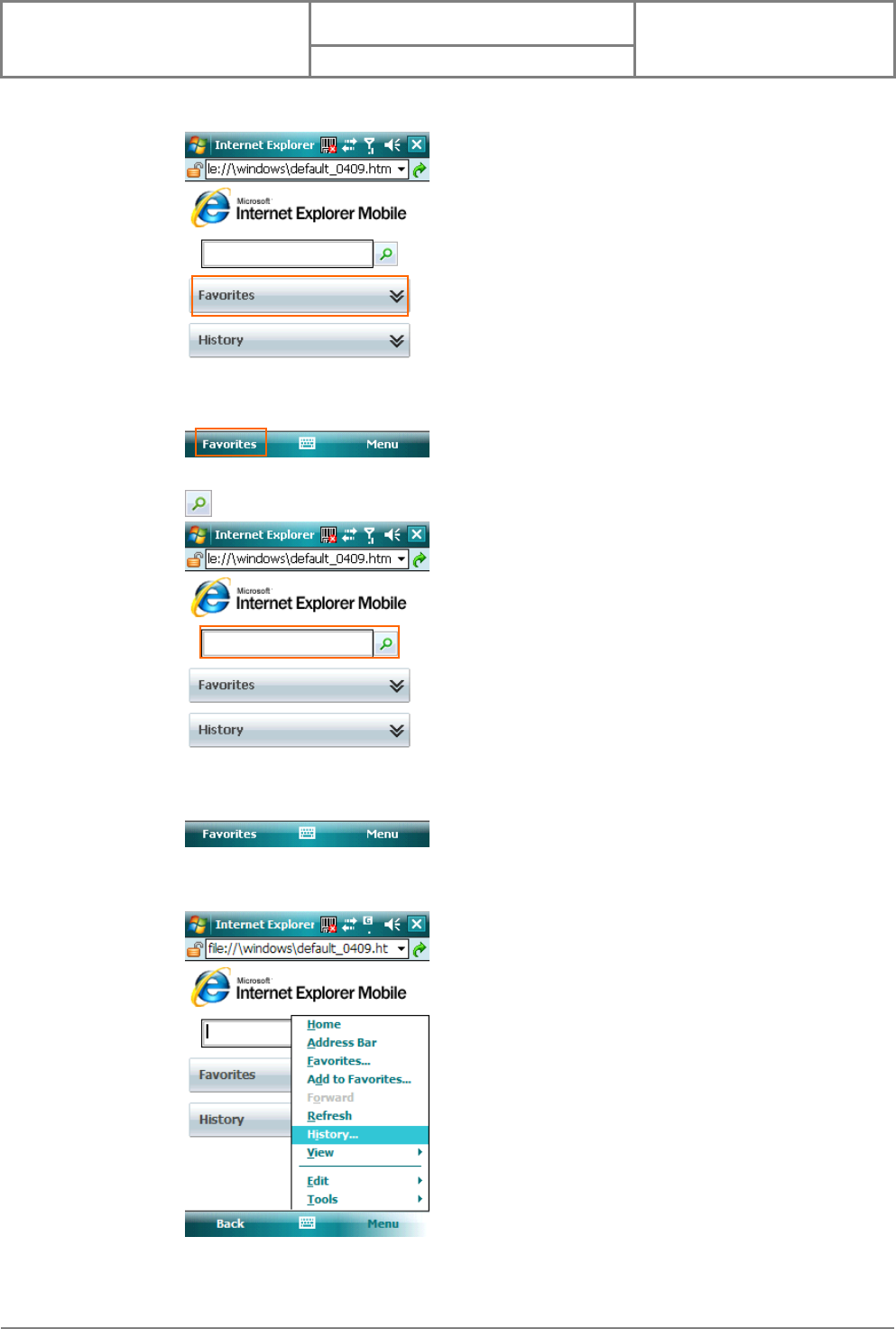

7.2 Using Internet Explorer Mobile........................................................93
Browsing the Internet.........................................................................93
Adding a Web Page to the Favorite List........................................95
Deleting a Favorite ...............................................................................95
Changing the Size of Text on Web Pages.....................................95
Showing or Hiding Pictures on Web Pages .................................95
Changing Web Page Display Options.............................................95
Viewing a Page in Full Screen Mode ..............................................96
Sending a Link via E-mail...................................................................96
Copying Text from a Web Page........................................................97
Clearing History or Temporary Files...............................................98

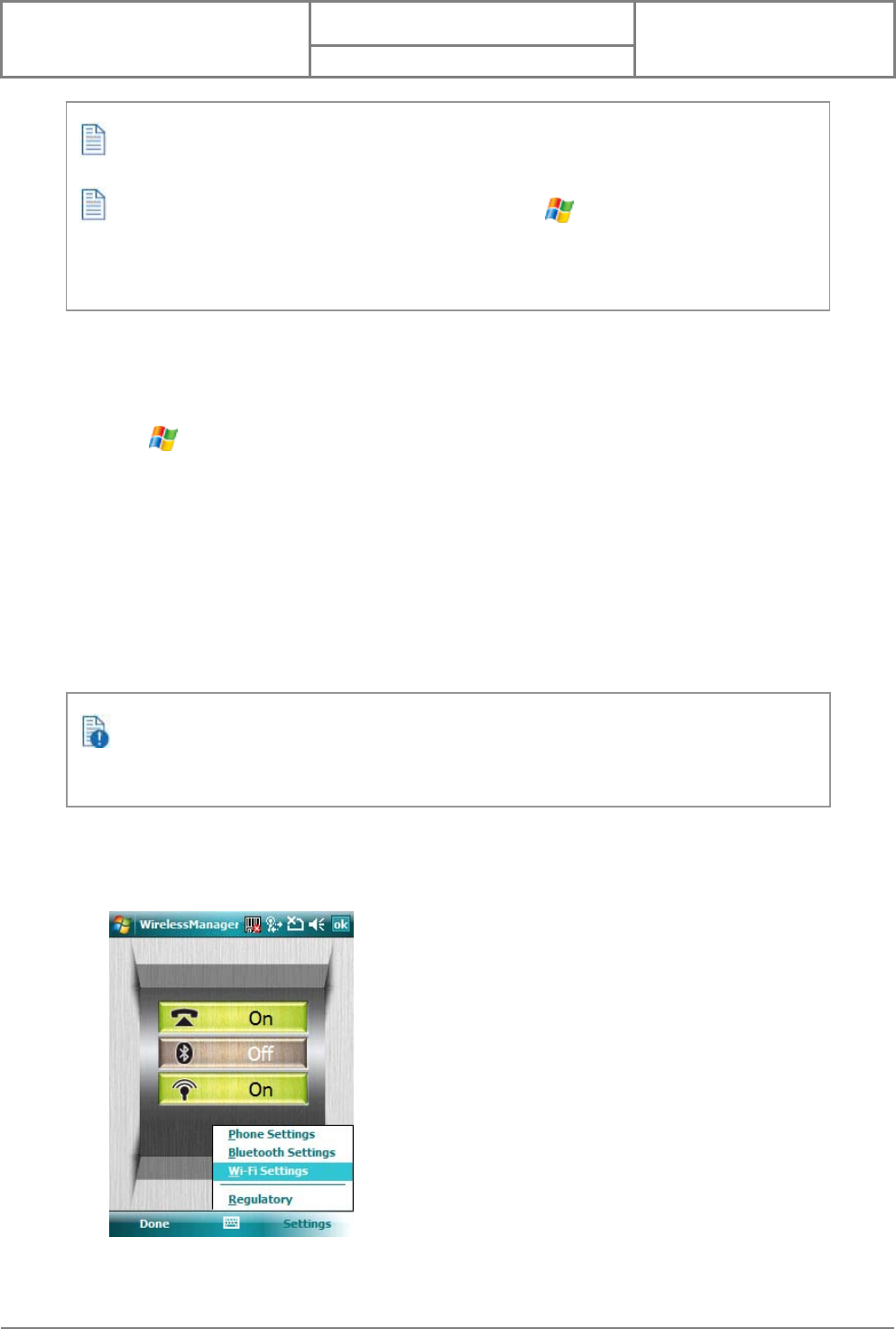

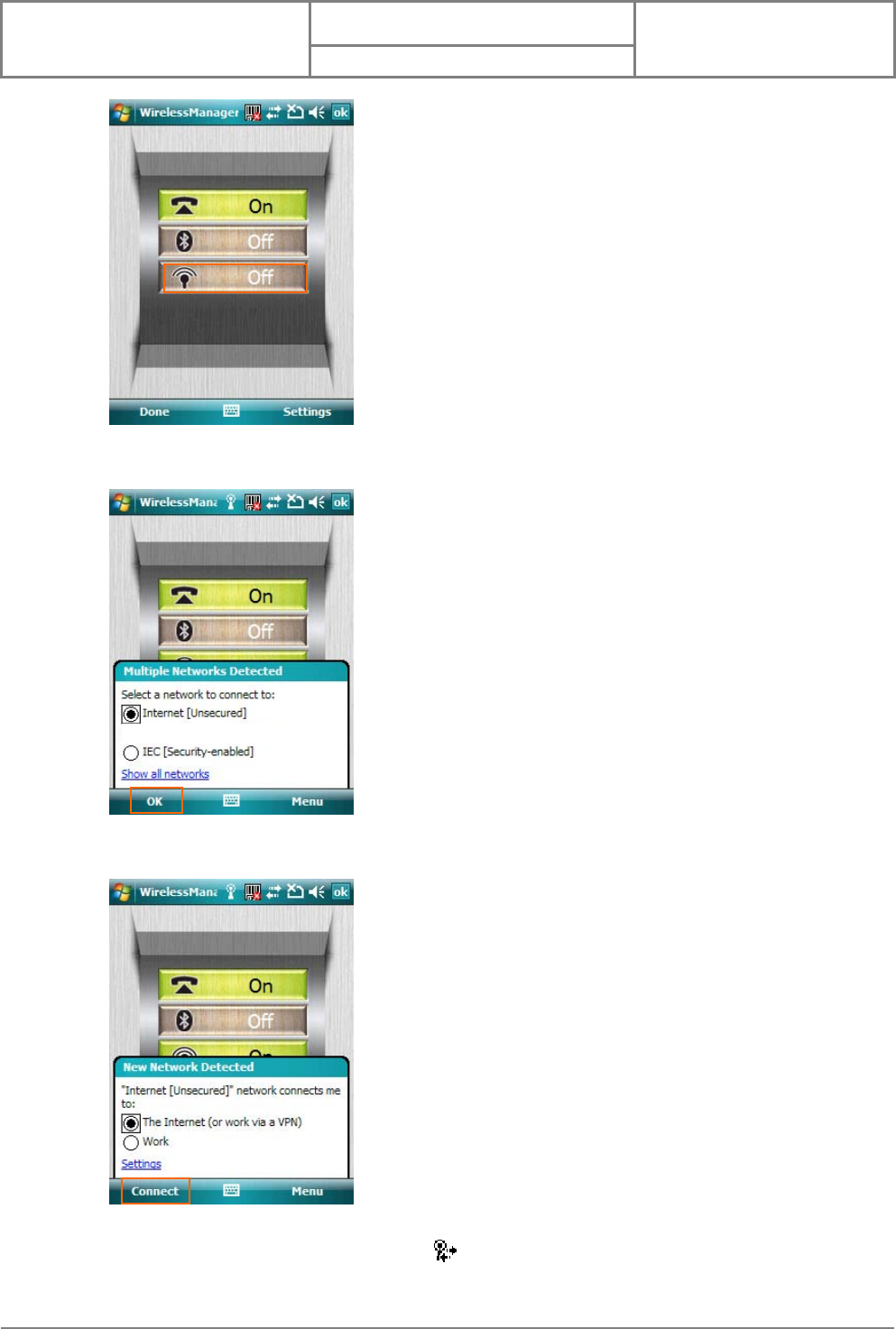

7.3 Using Wireless Manager......................................................................98

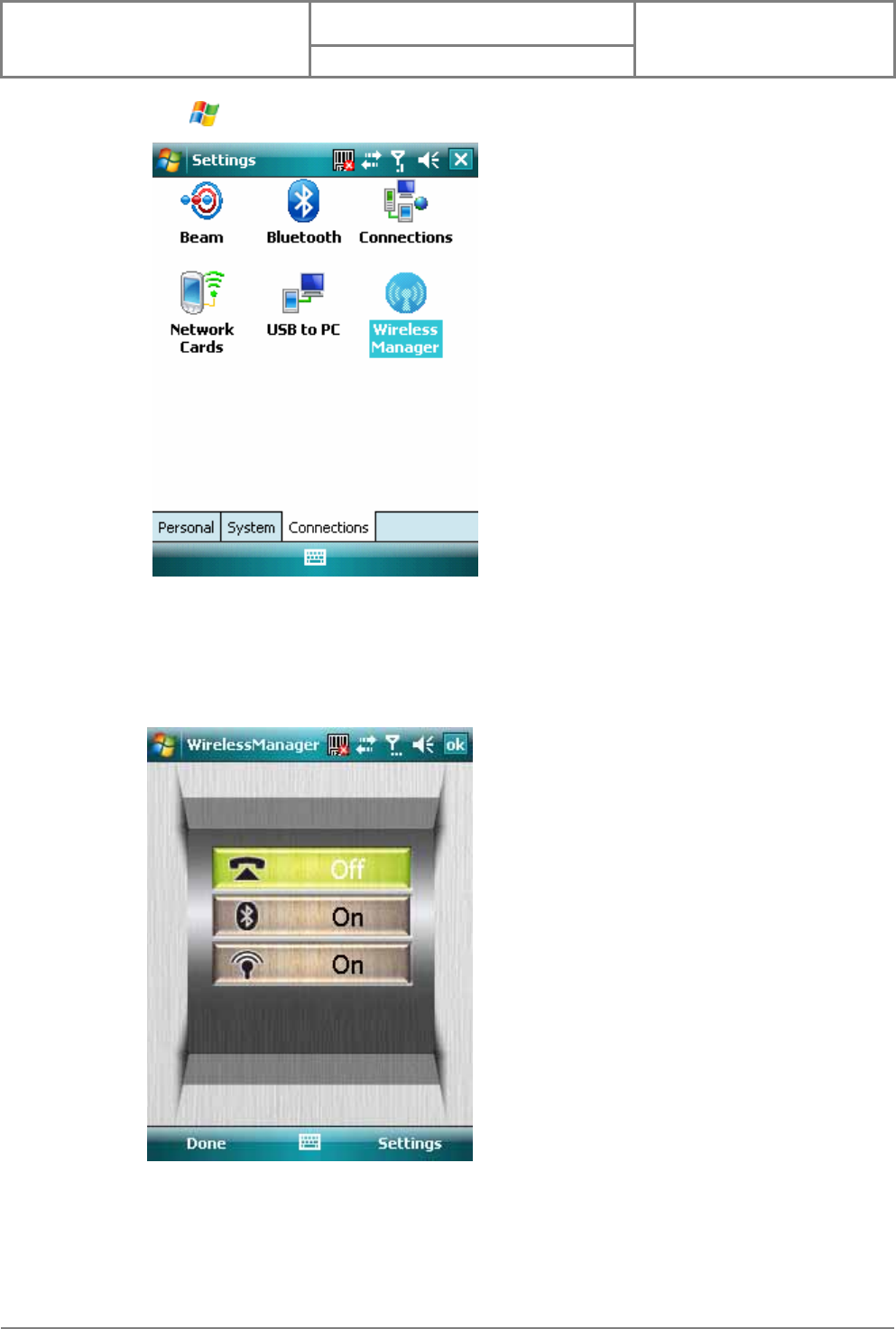

Opening Wireless Manager................................................................98
Enabling and Disabling a Feature ...................................................99
Changing Regulatory Setting............................................................99
7.4 Using a Wi-Fi Connection..................................................................100

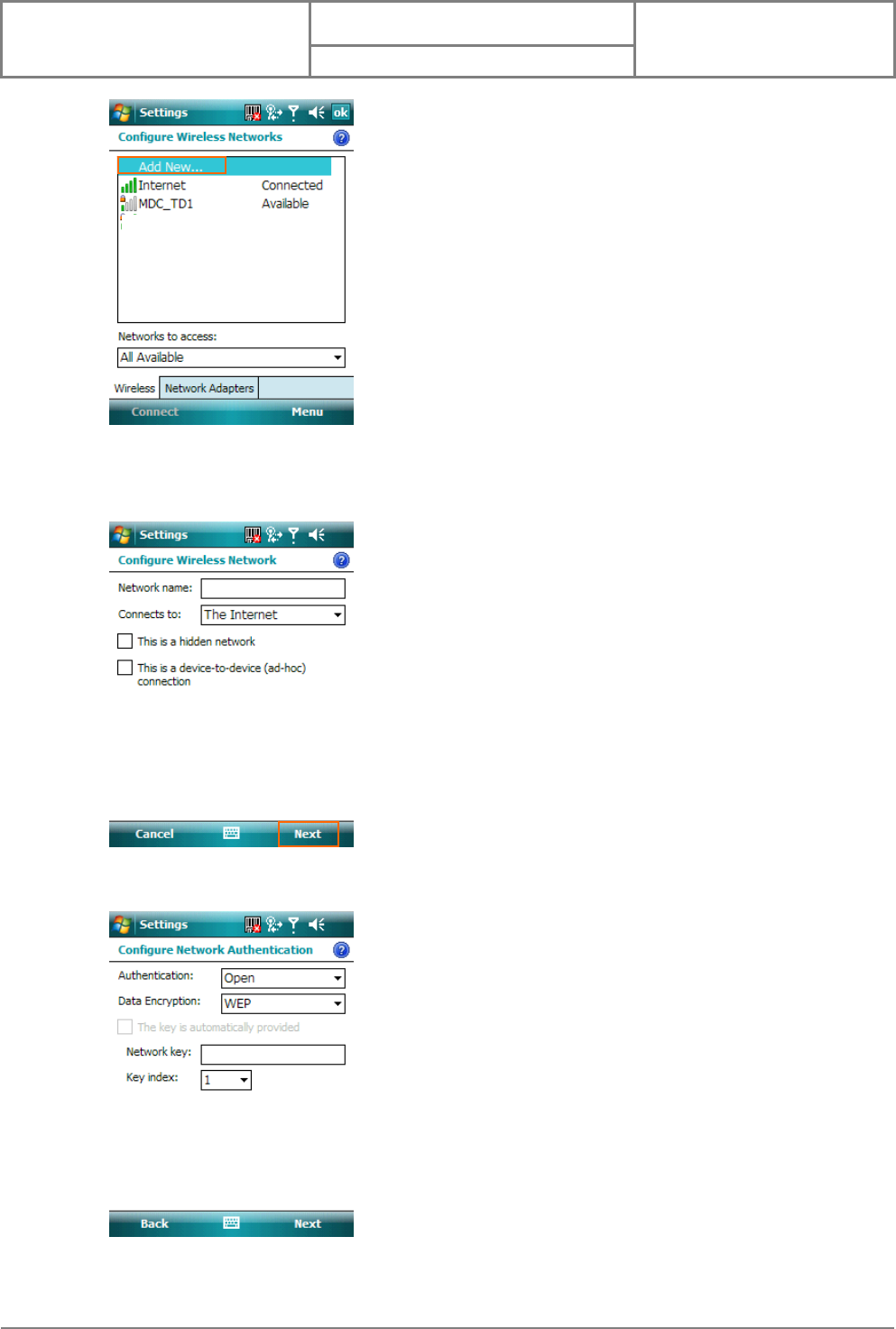

Connecting to a Wi-Fi Network......................................................100
Checking Wi-Fi Connection..............................................................102

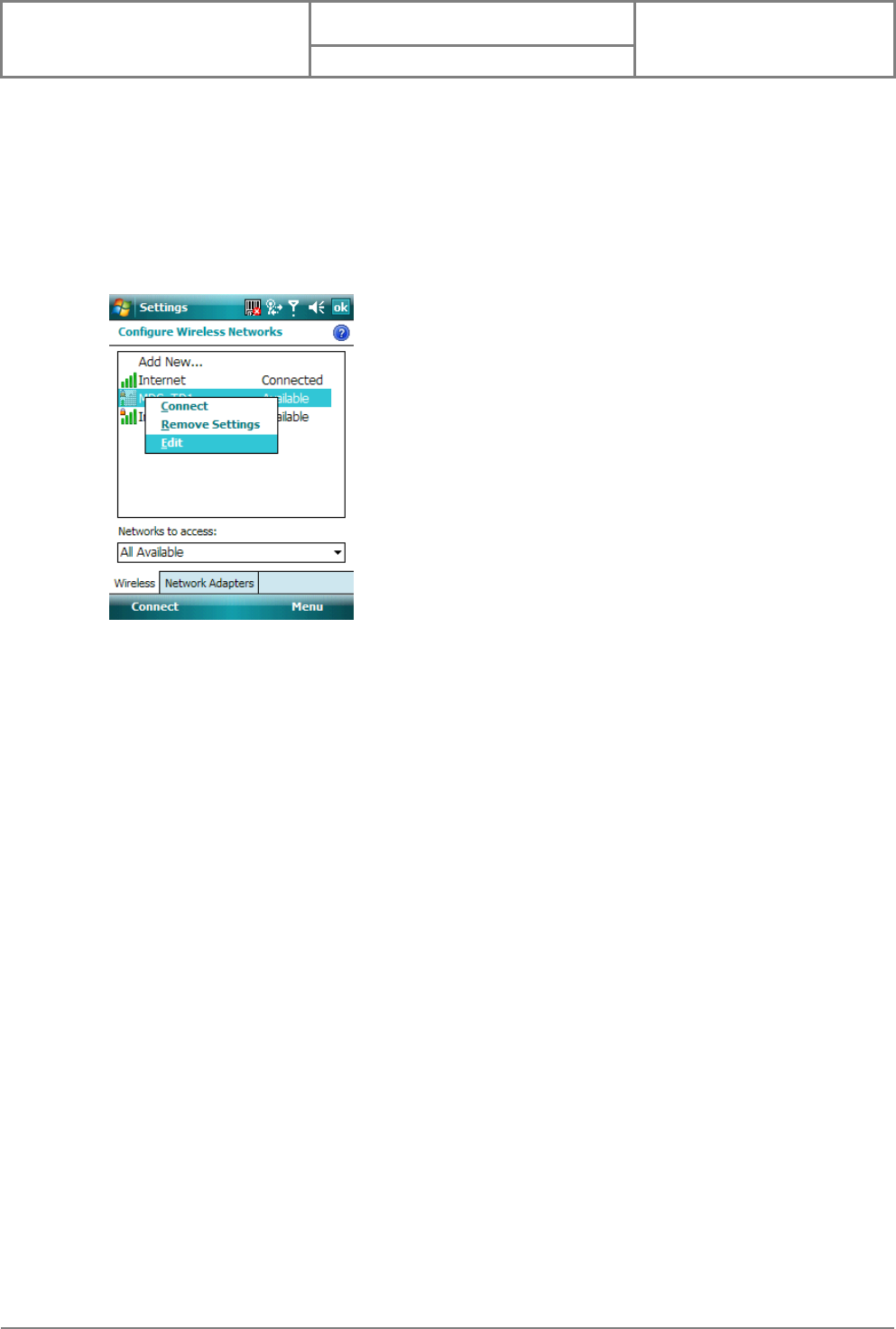

Configuring Wi-Fi Settings...............................................................102
Chapter 8. Messaging & Contacts...................................105
8.1 Text Messaging.....................................................................................106

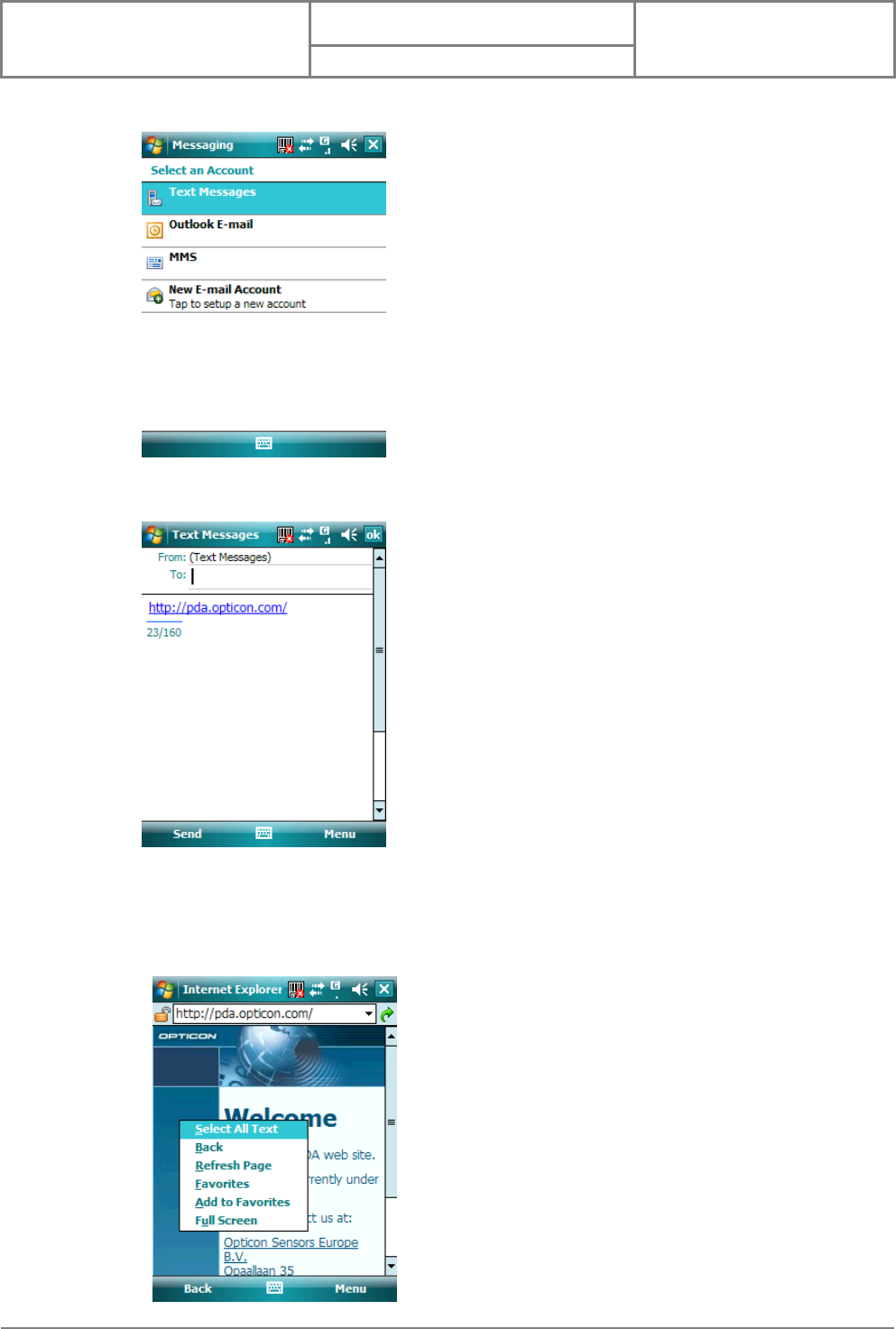

Creating a Text Message..................................................................106
User Manual
OPTICON Preliminary
Version : 1.0
Date : 2008/05/20
9
Using Preset Text Messages............................................................106
Reading a Text Message...................................................................107

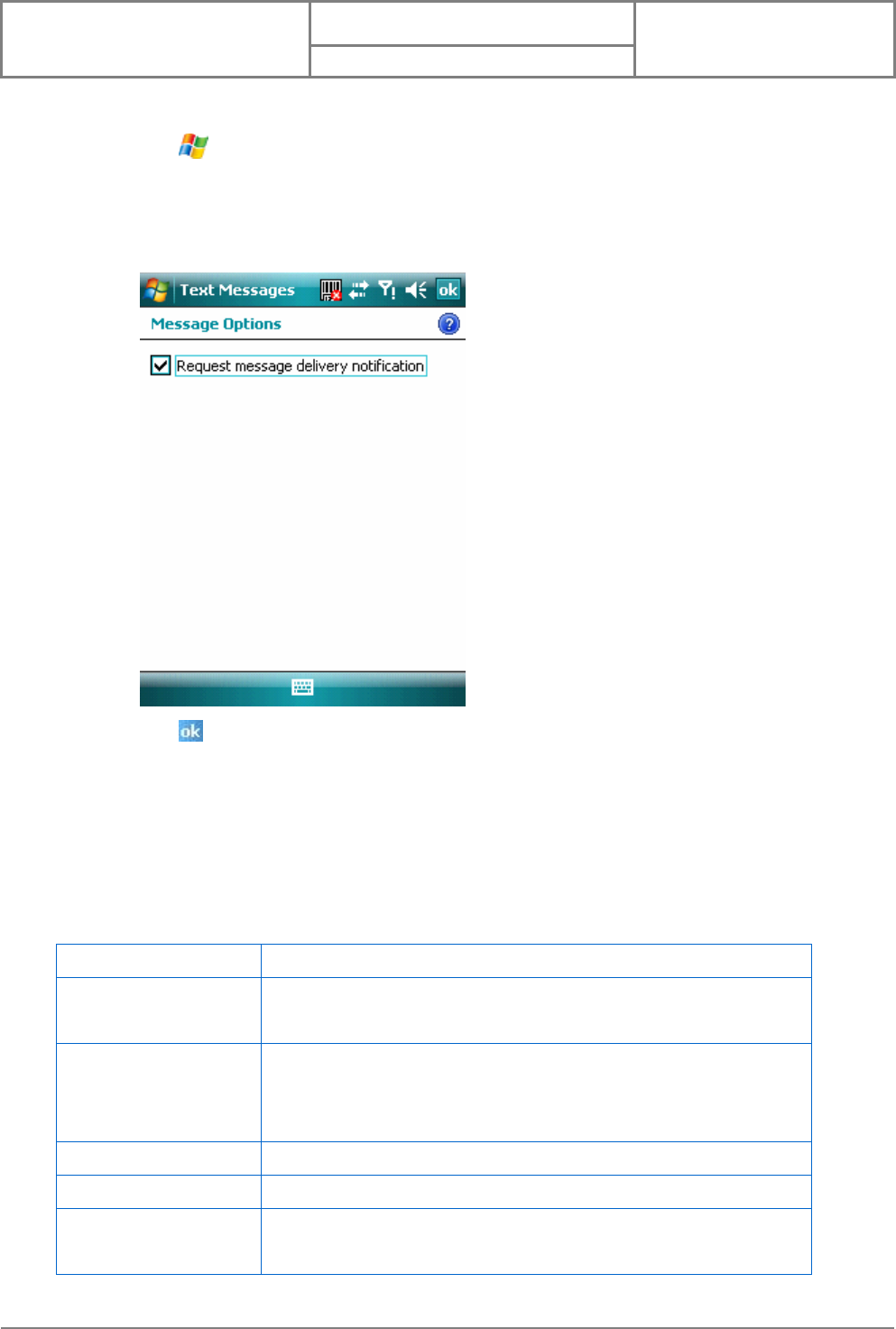

Requesting Message Delivery Notification................................107
8.2 Multimedia Messaging Service.......................................................108
Composing a MMS Message............................................................108
Previewing a MMS Message............................................................109
Reading a MMS Message..................................................................109
Configuring MMS Settings ...............................................................109
8.3 E-mail.......................................................................................................109

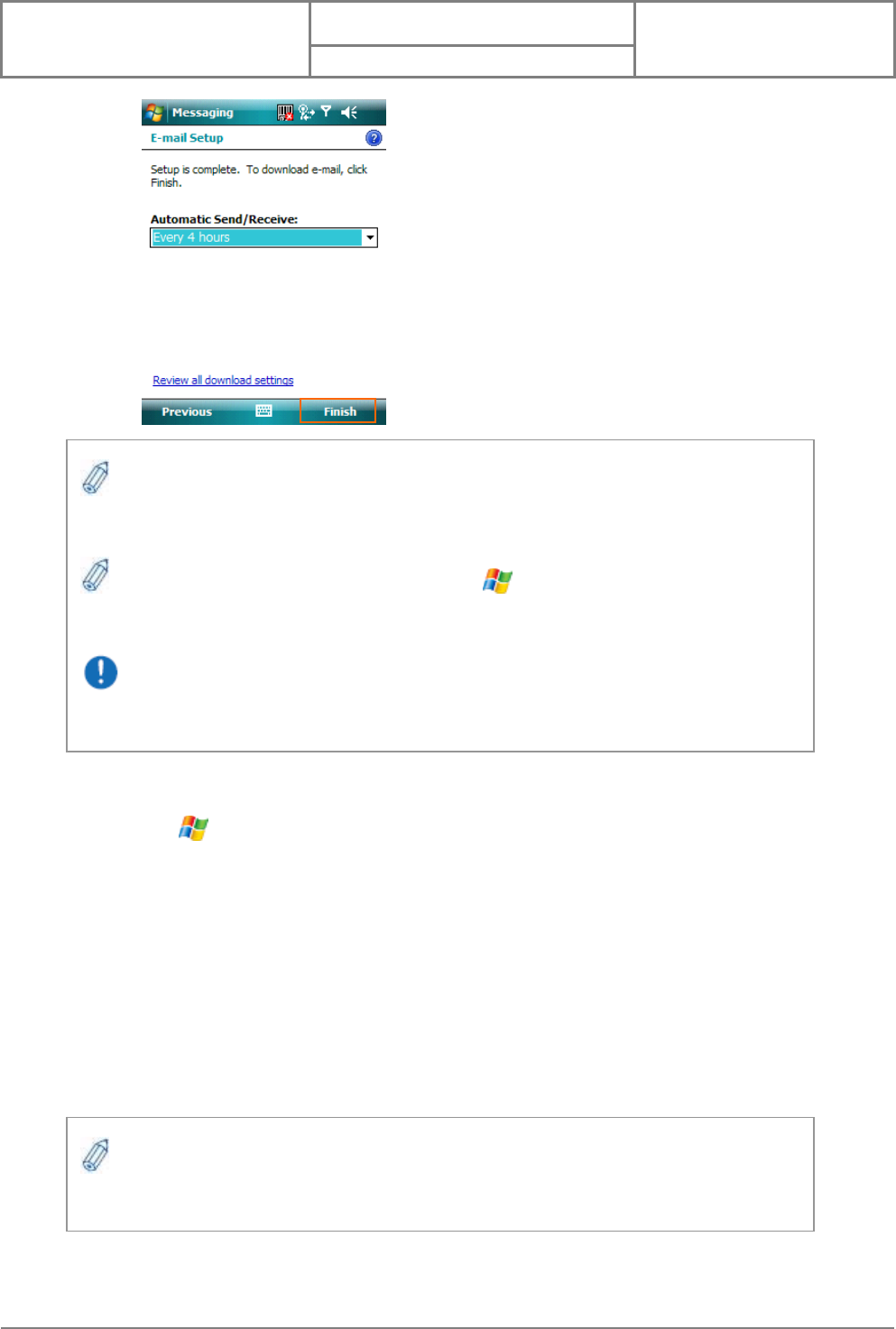

Setting Up an Internet E-mail Account Manually ...................109
Composing an E-mail Message.......................................................112
Reading an E-mail Message ............................................................112
E-mail Message Options ...................................................................113

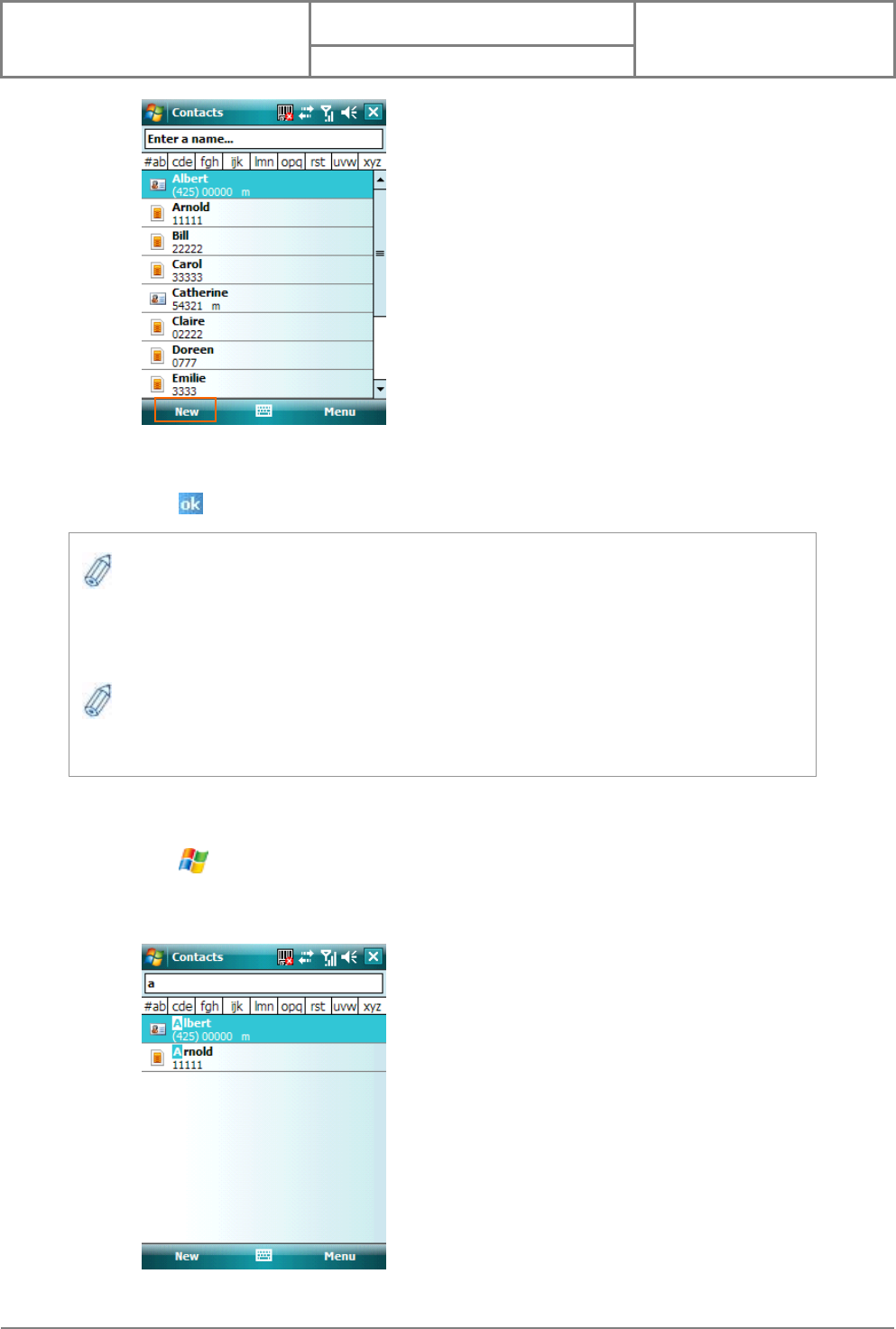

8.4 Using Contacts......................................................................................113

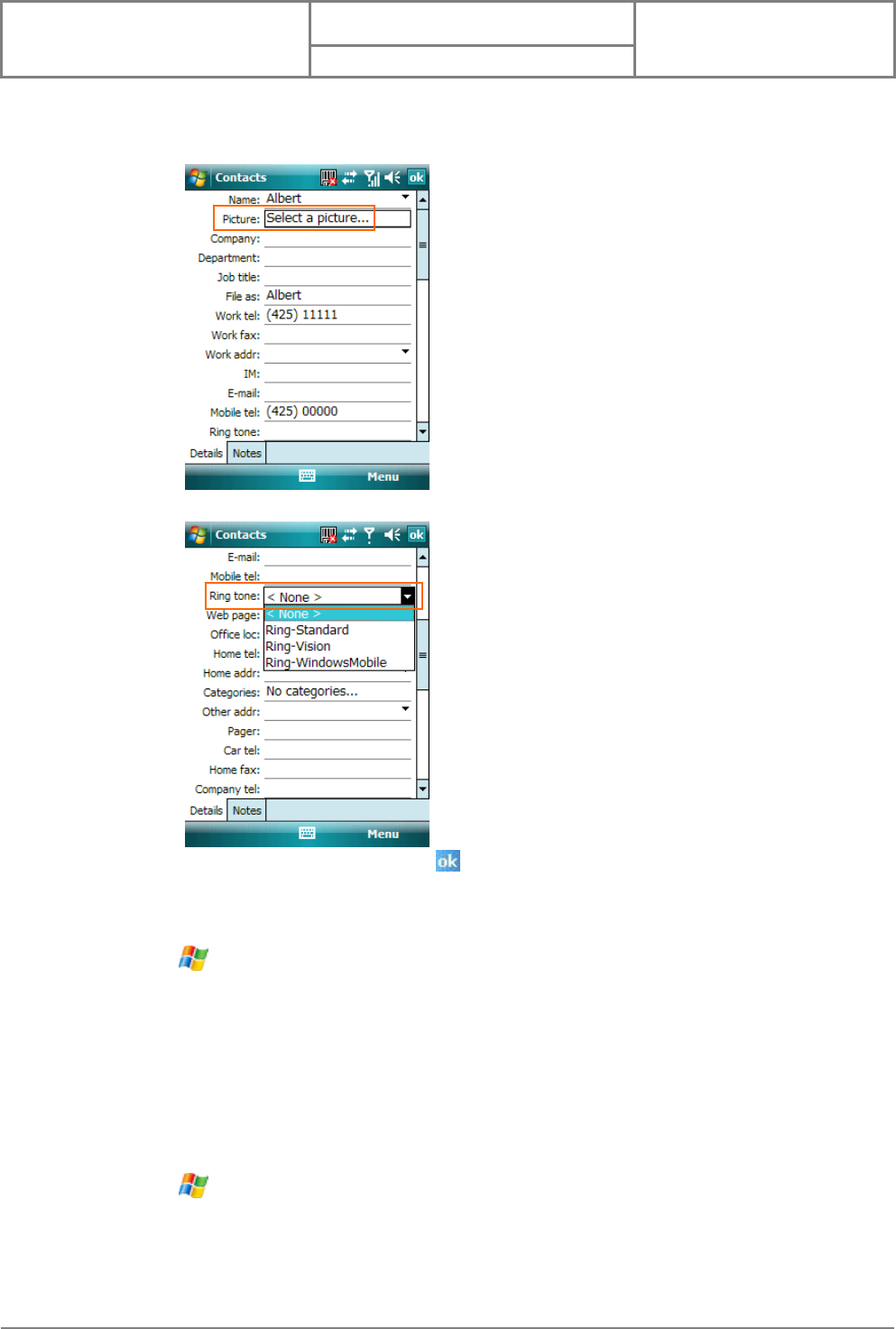

Creating a New Contact....................................................................113
Viewing and Editing Contact Information.................................114
Sending an E-mail to a Contact......................................................115
Sending a Text Message to a Contact..........................................115
Creating a SIM Contact.....................................................................116

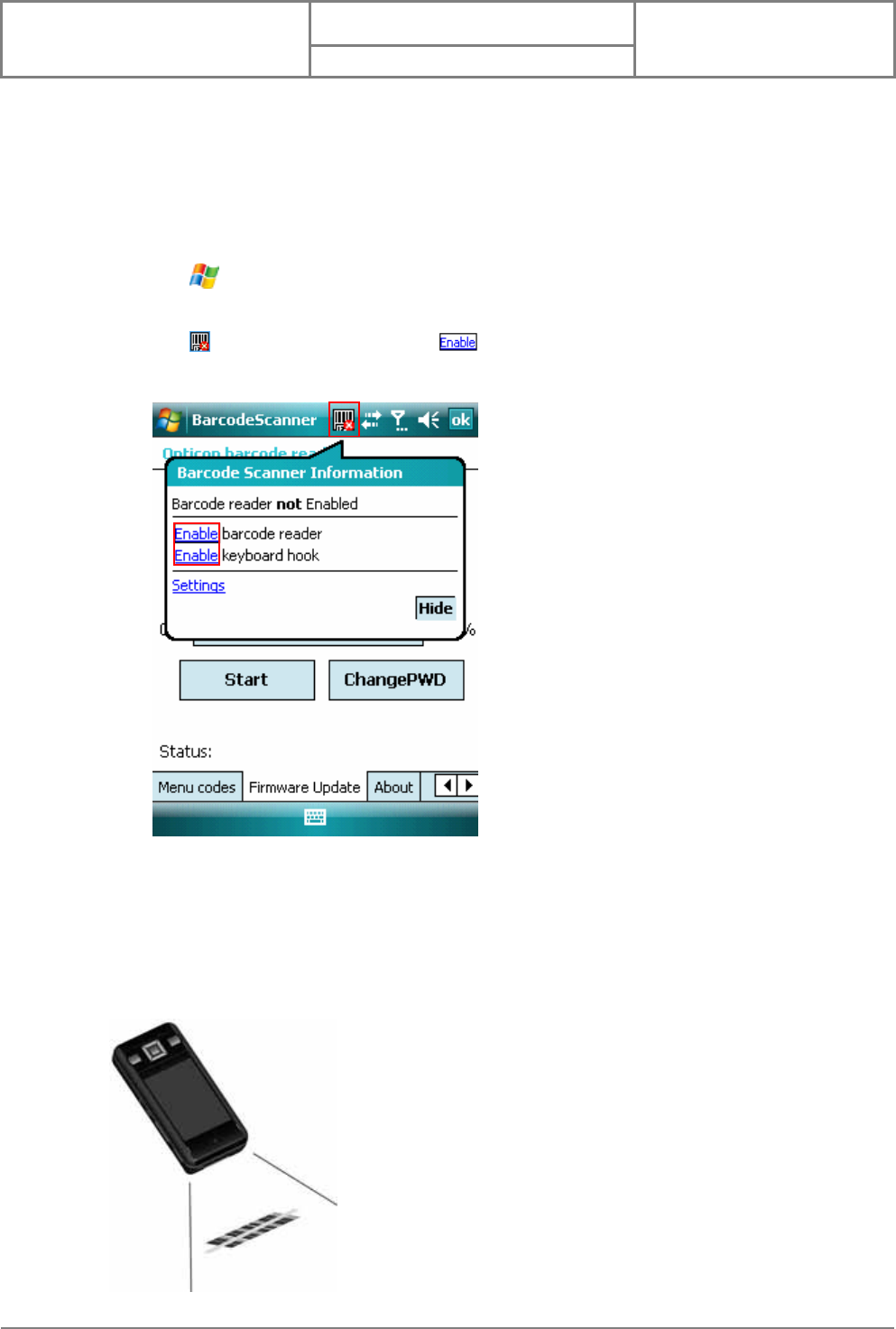

Chapter 9. Using Barcode Reader...................................117

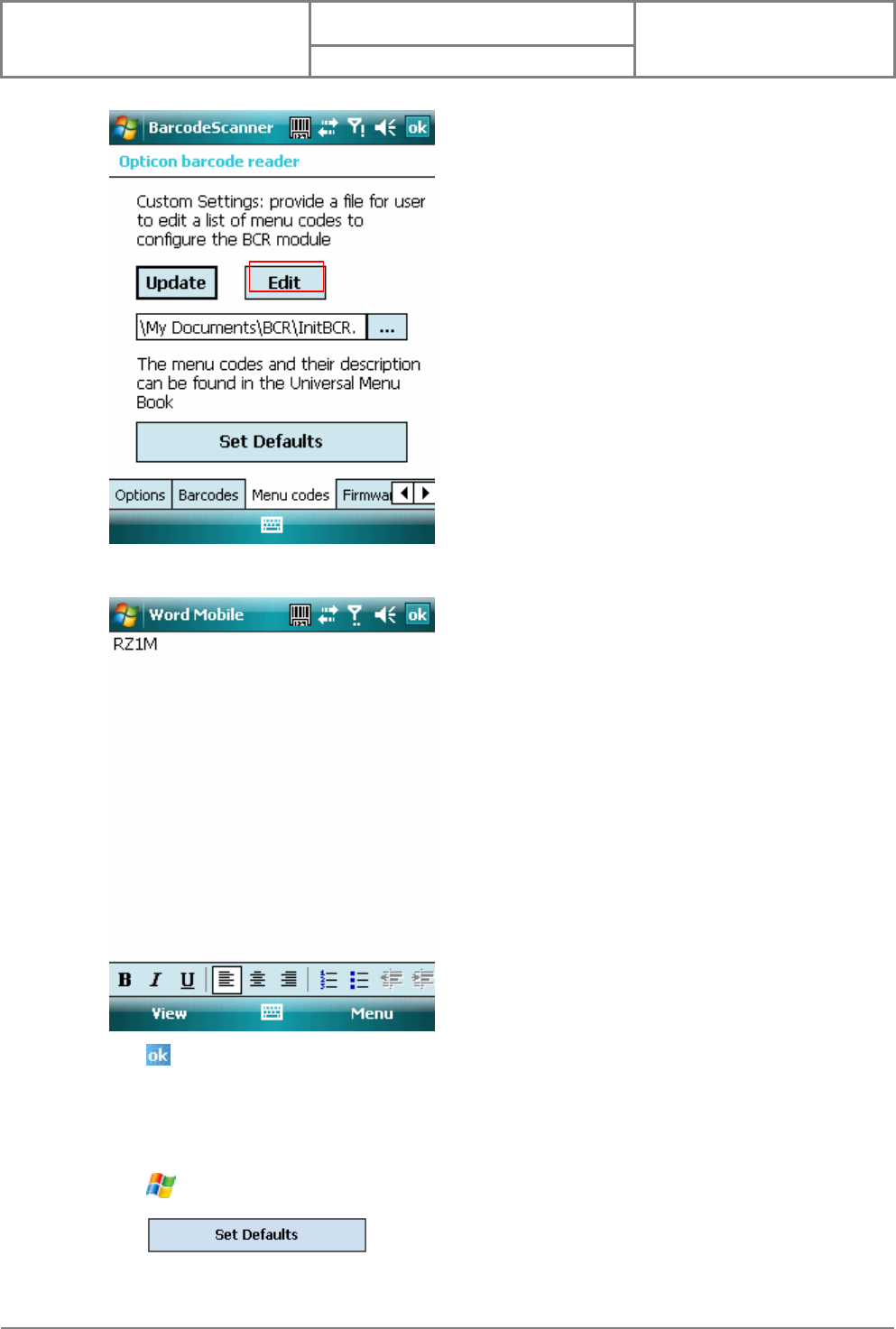

9.1 Setting Barcode Reader.....................................................................118

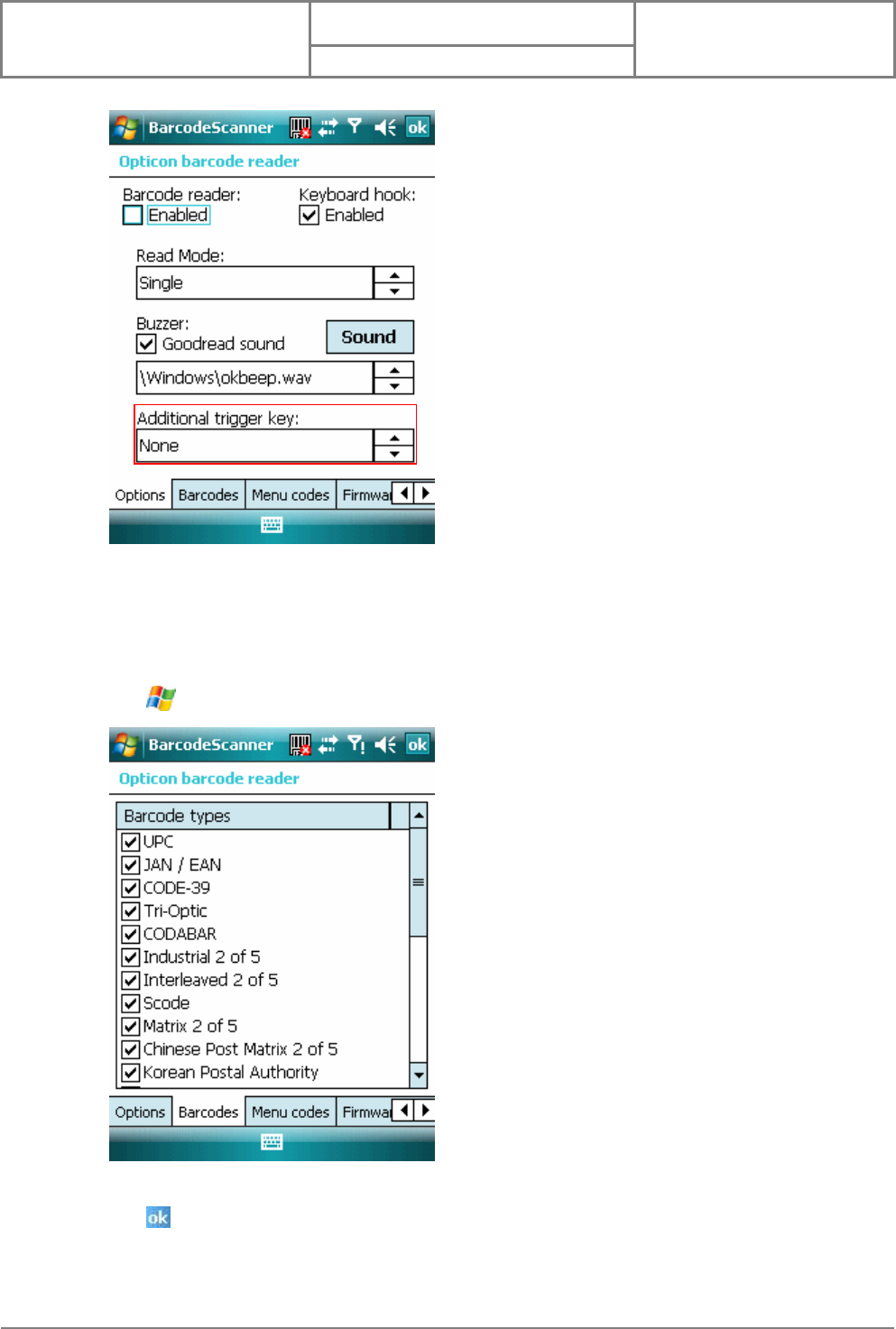

Changing Options in Barcode Reader..........................................118
Choosing Barcode Types...................................................................120

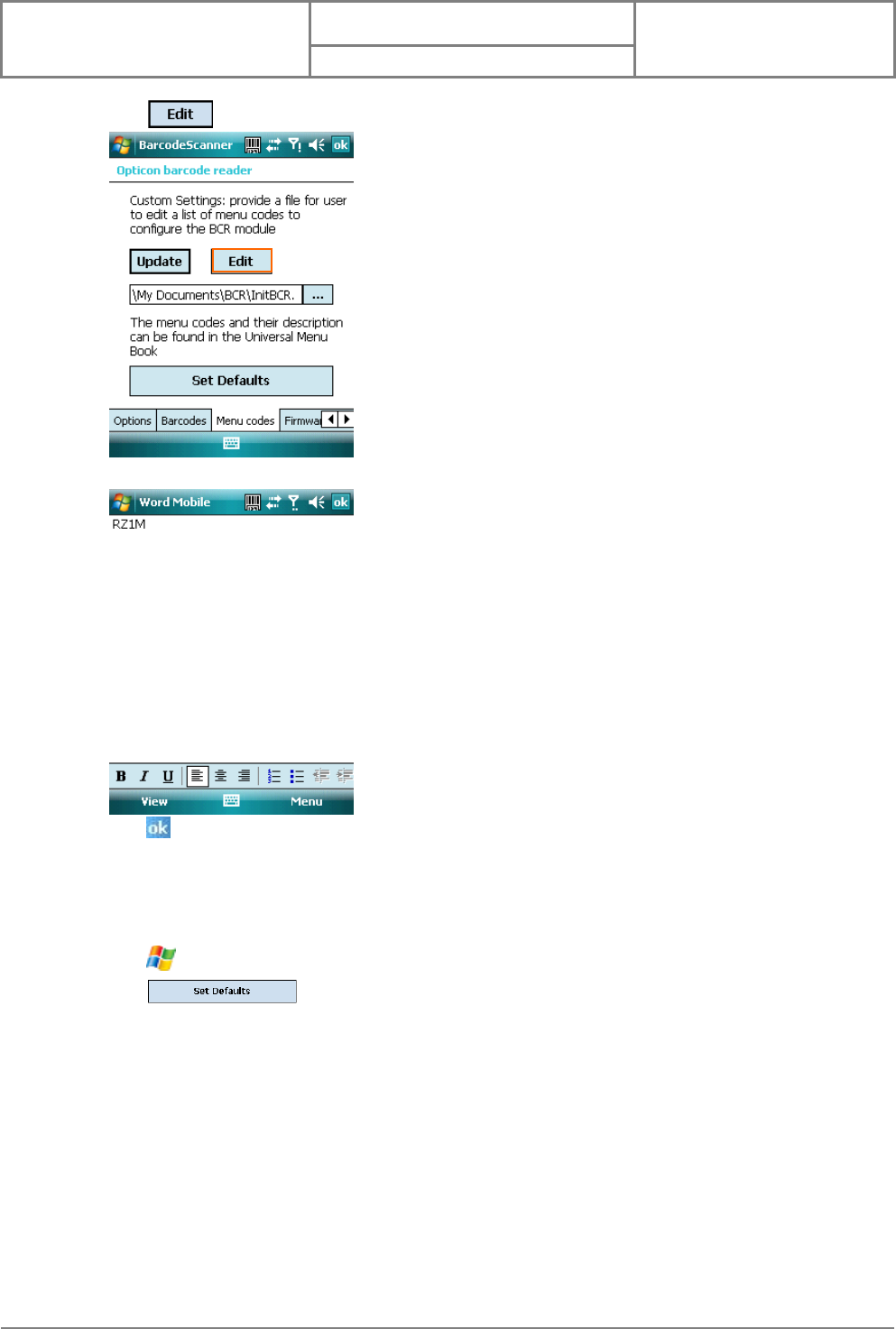

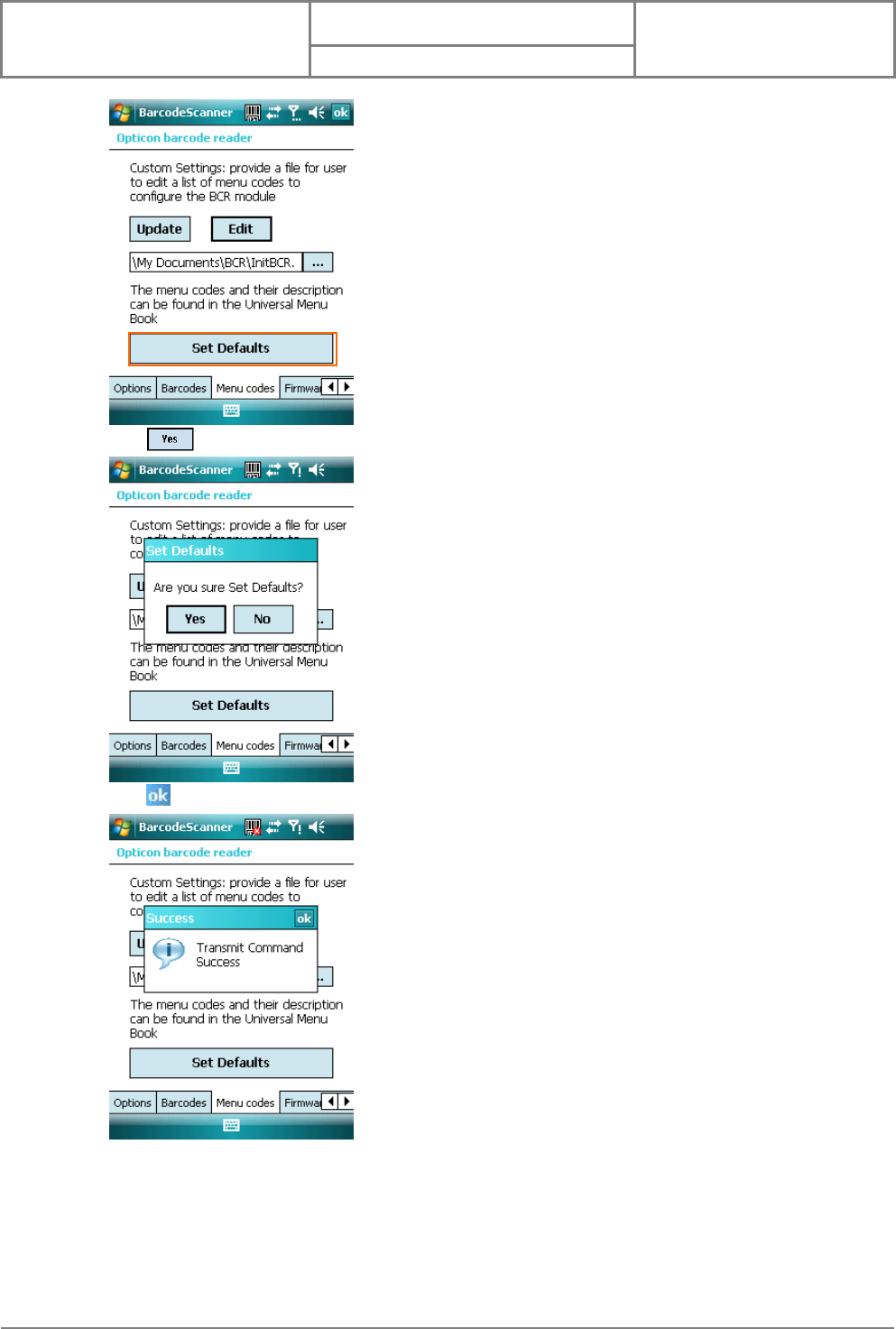

Advanced Setting ................................................................................120

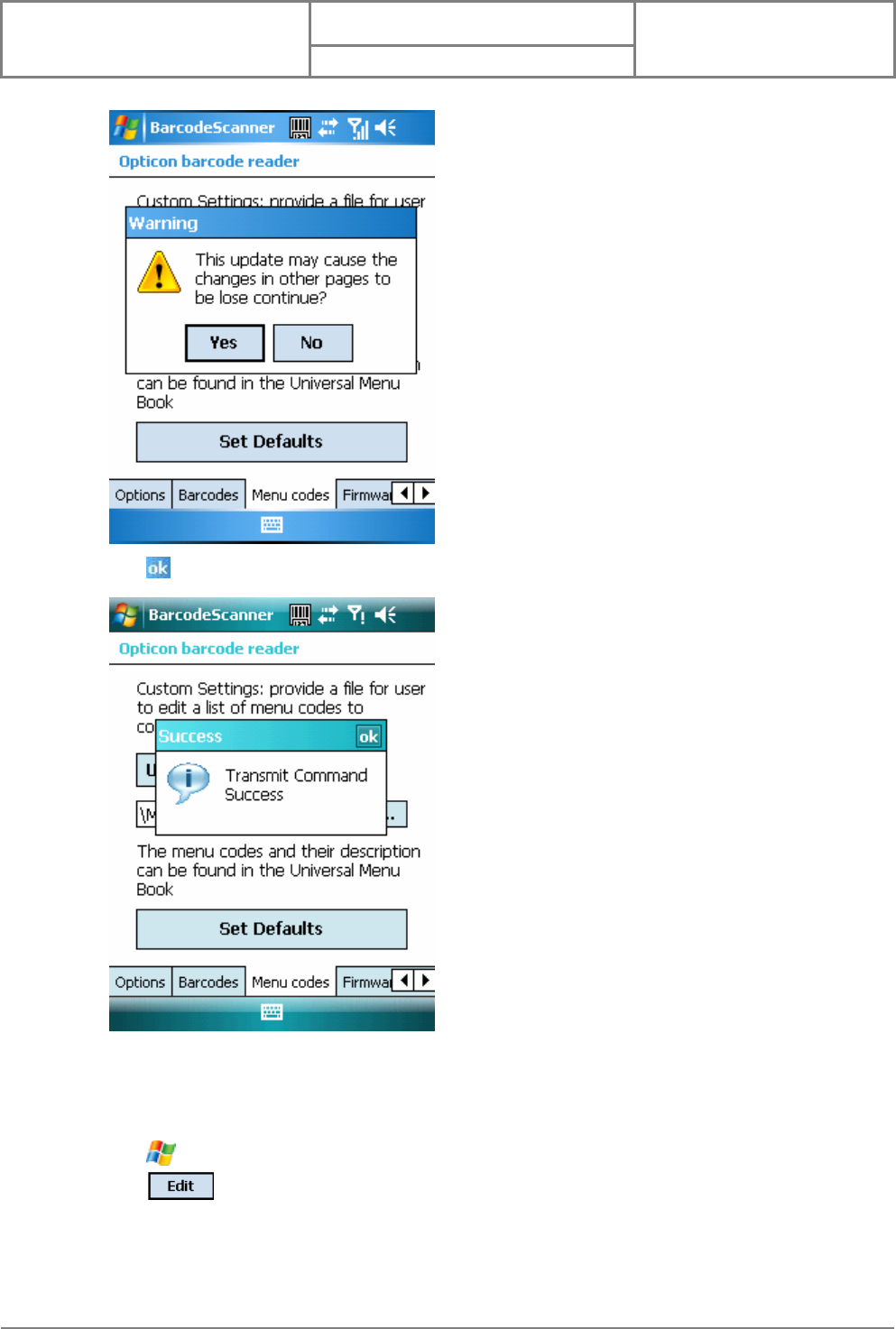

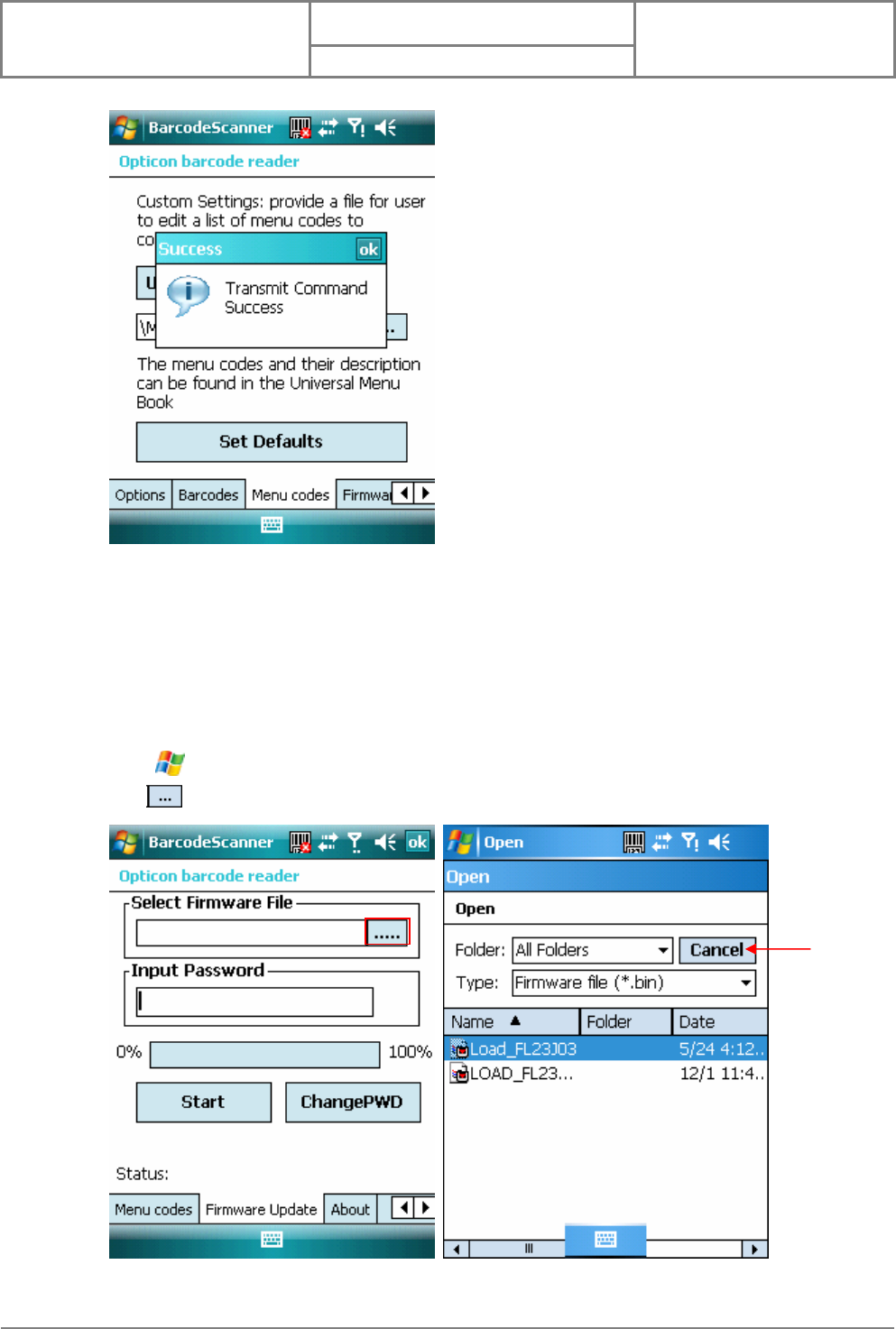

Firmware Update.................................................................................123
9.2 Scanning and Reading Barcode labels.........................................126
Chapter 10. Other Applications.......................................128

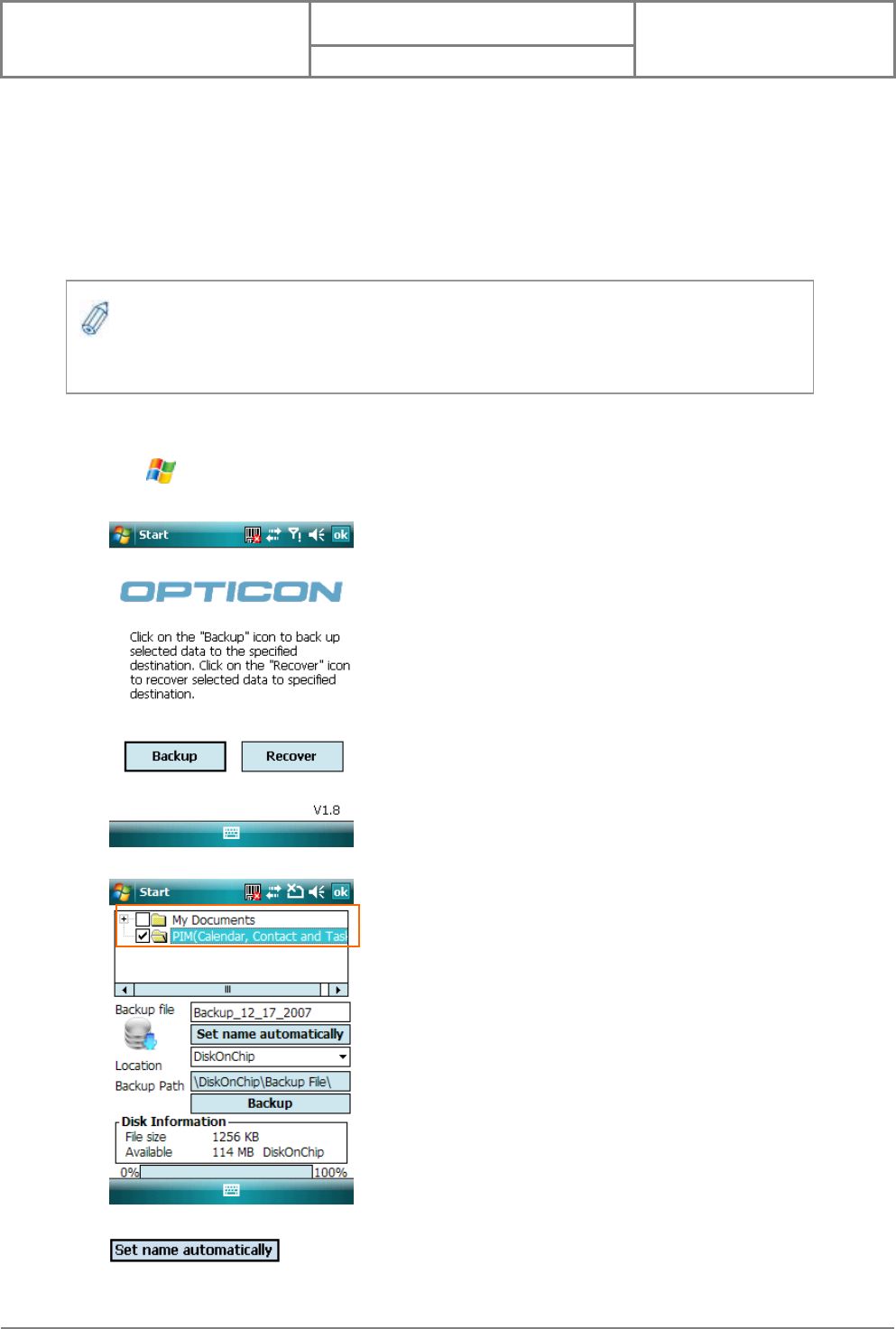

10.1 Backing up/Recovering ..................................................................129

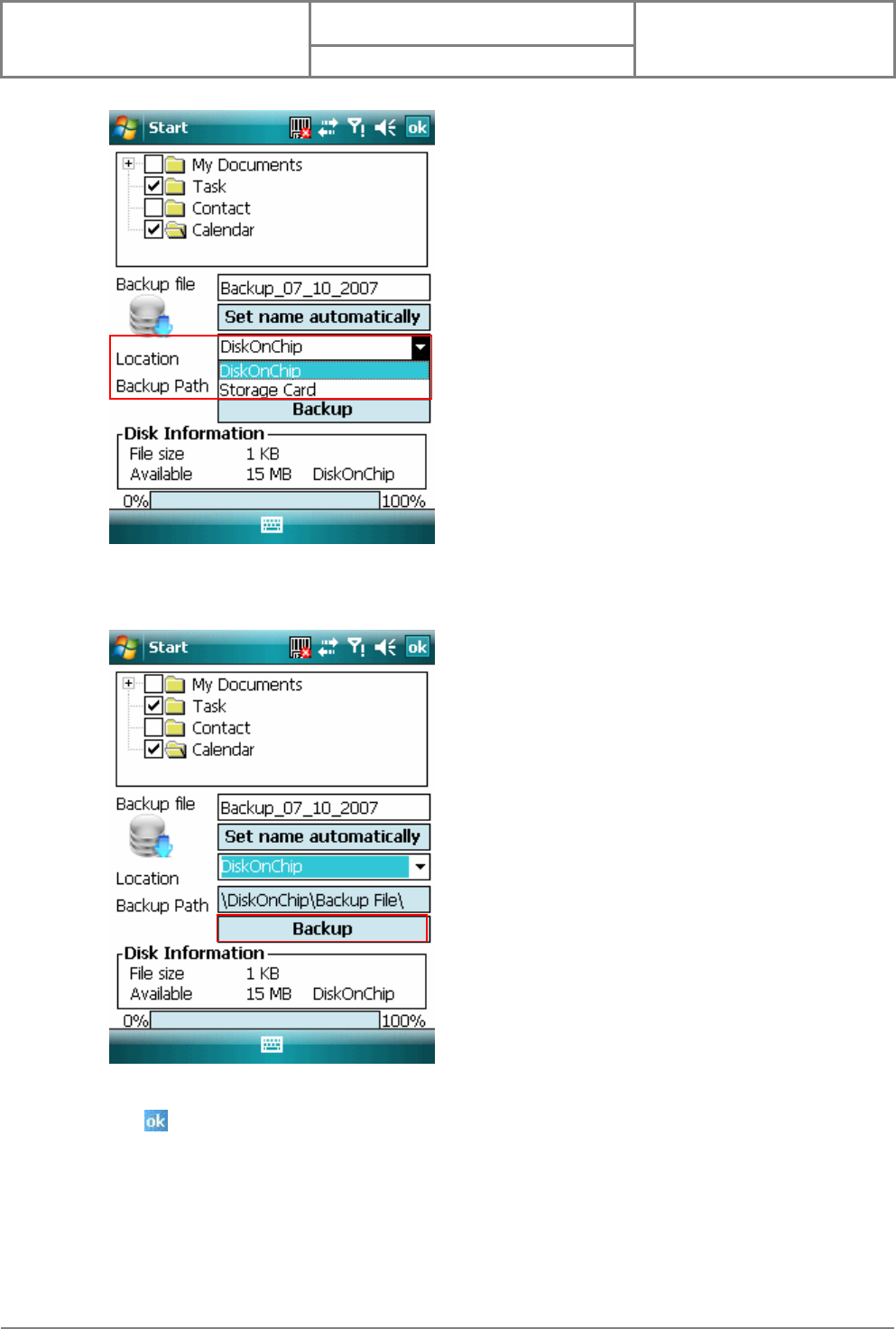

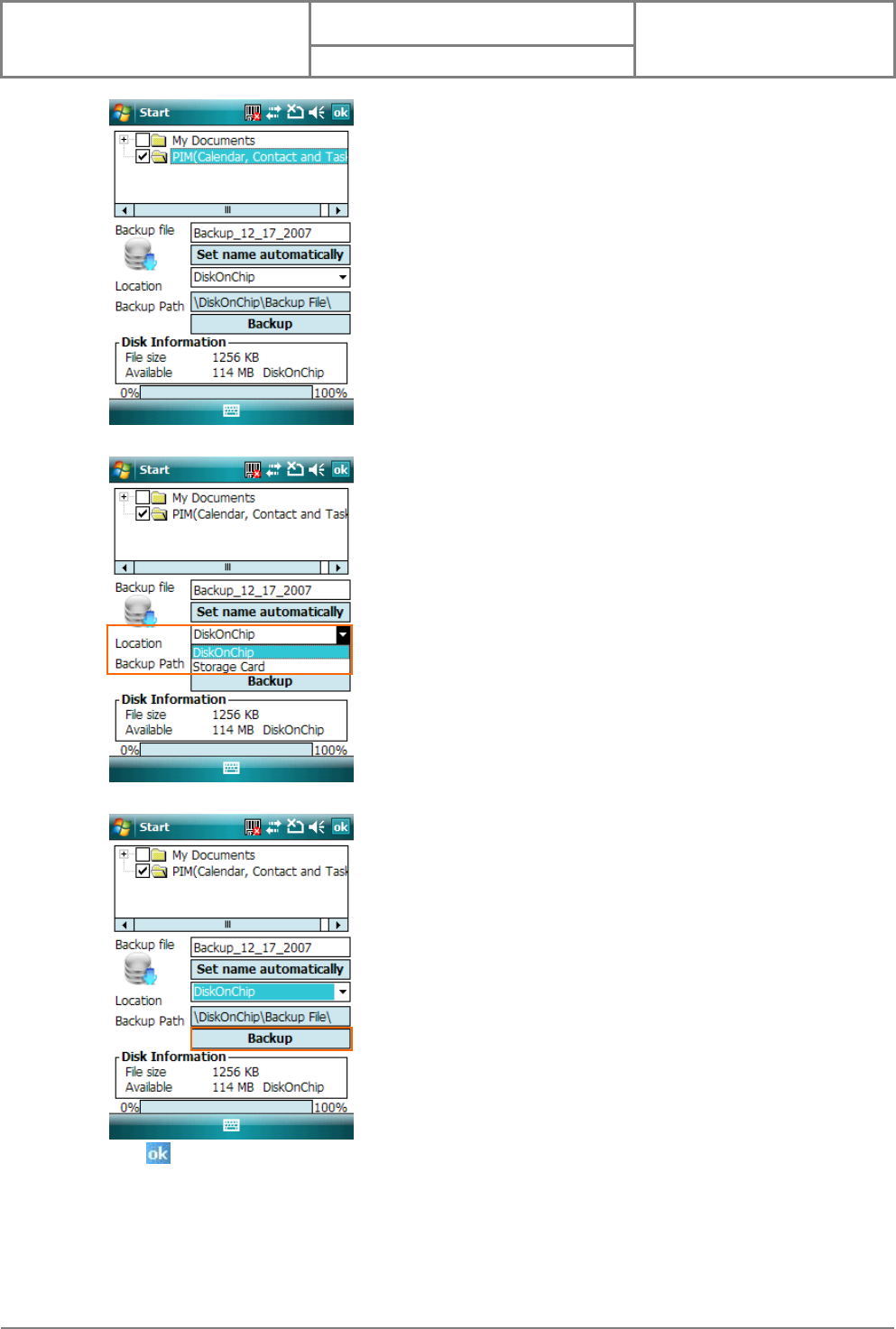

Backing up Data...................................................................................129

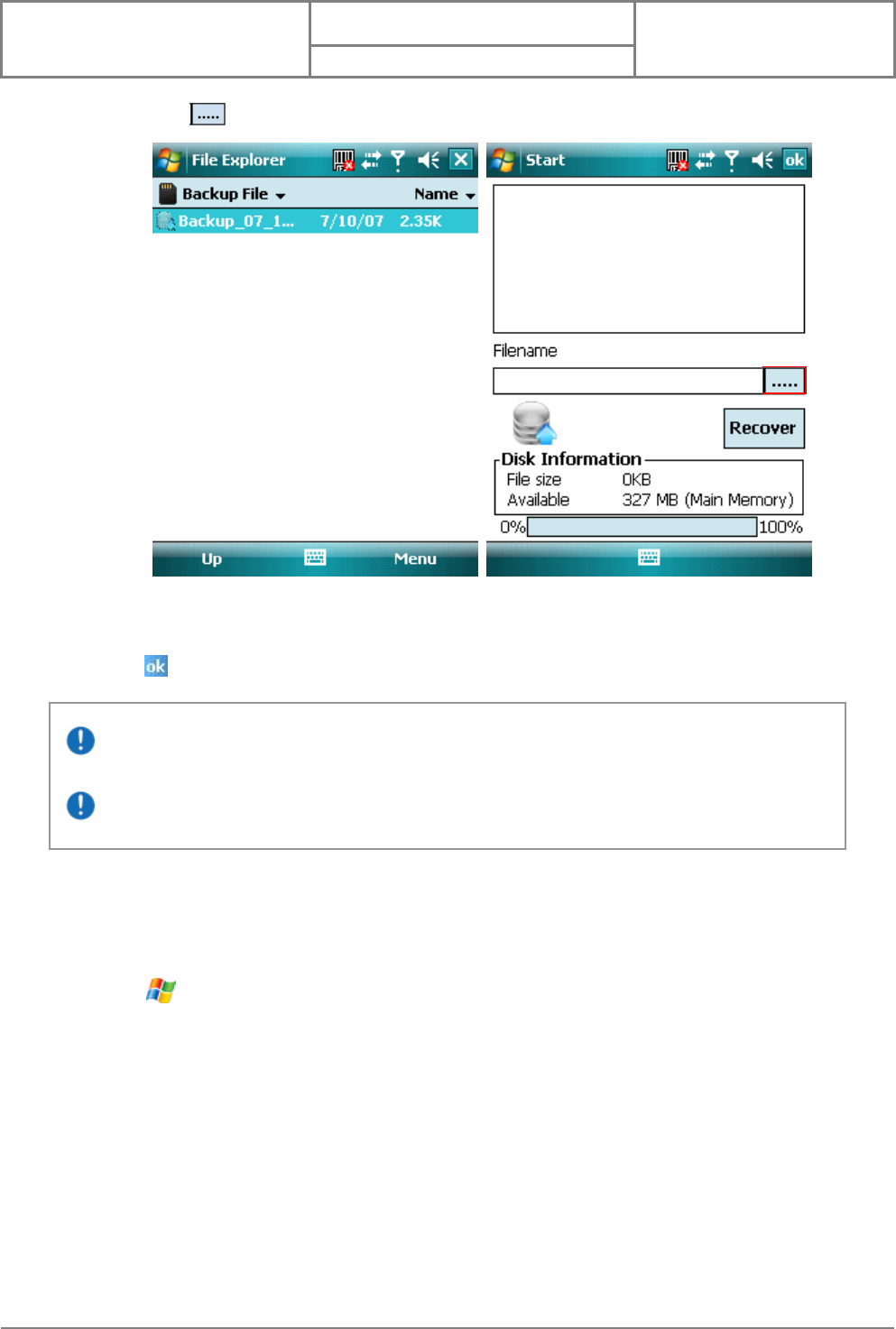

Recovering Data ..................................................................................131

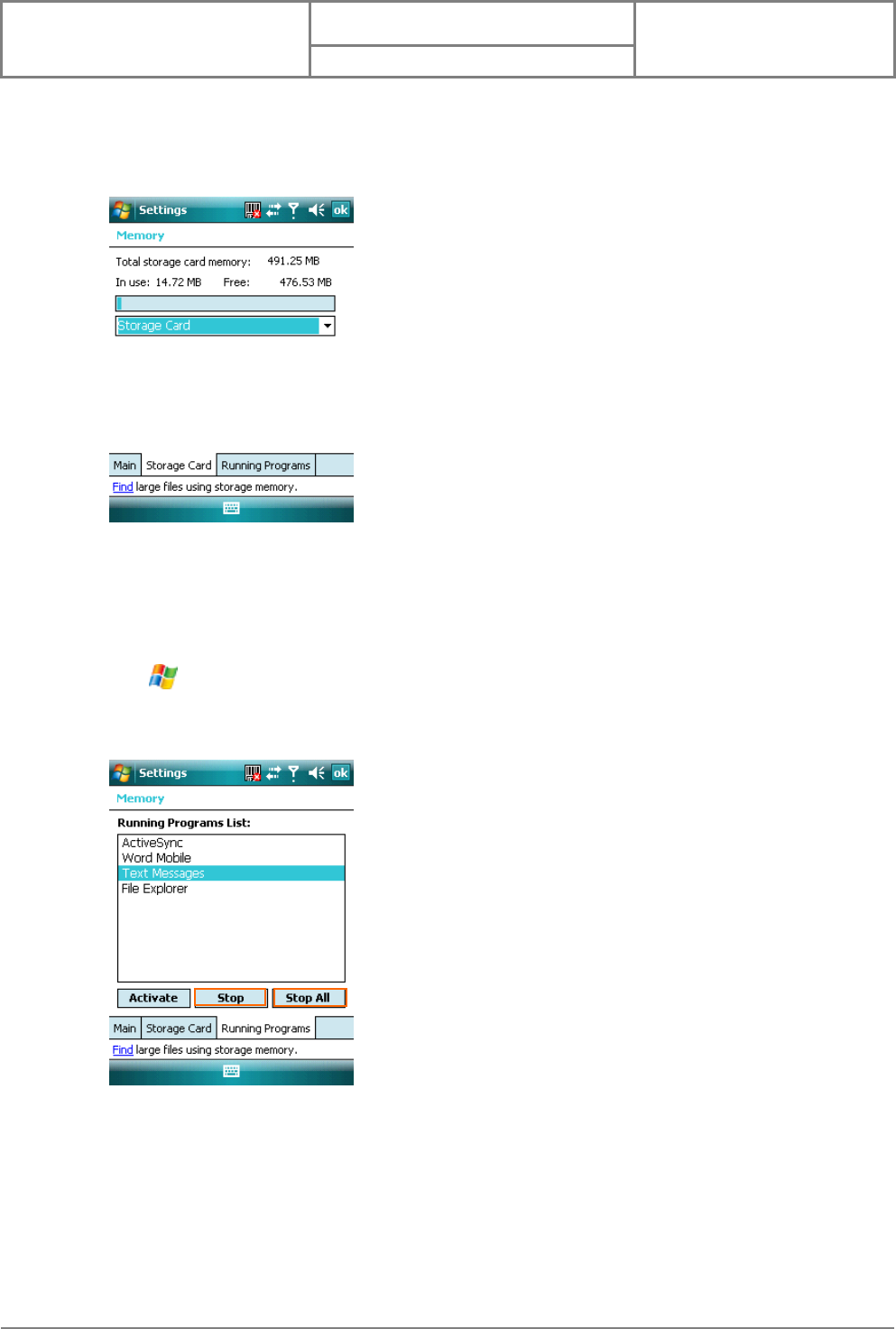

10.2 Managing Memory ............................................................................132
Checking Available Storage.............................................................132

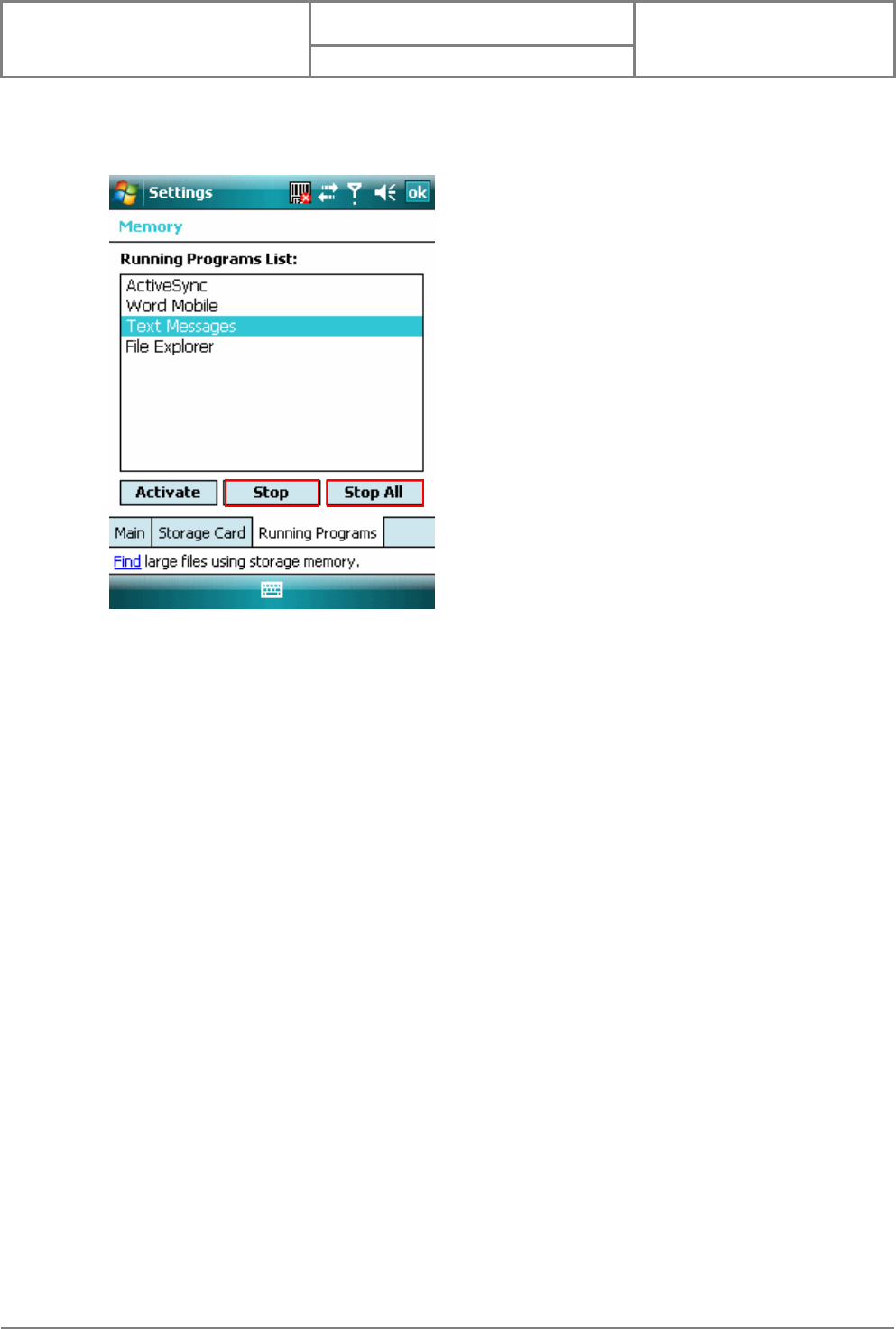

Closing a Running Program.............................................................133

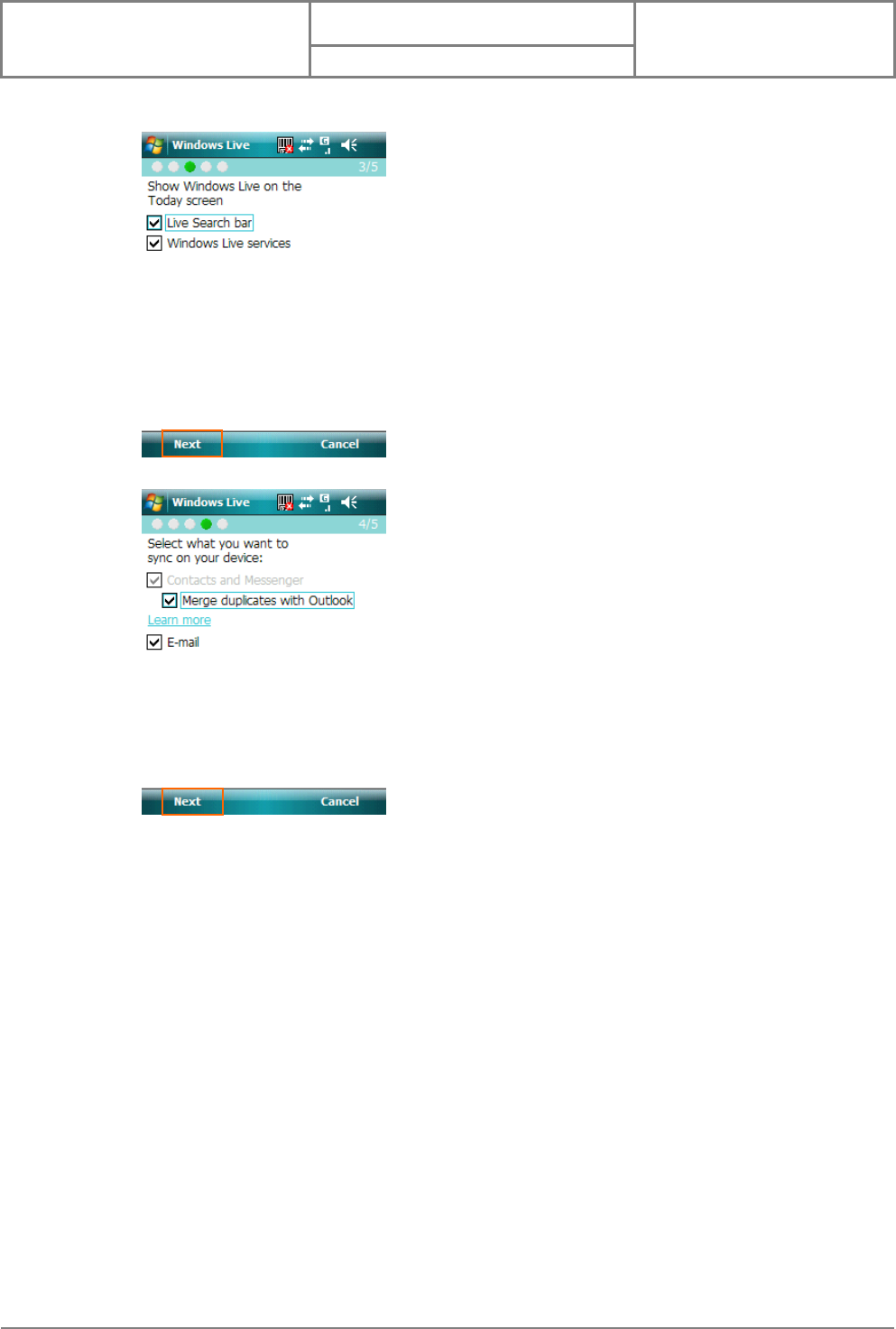

10.3 Windows Live Messenger...............................................................133

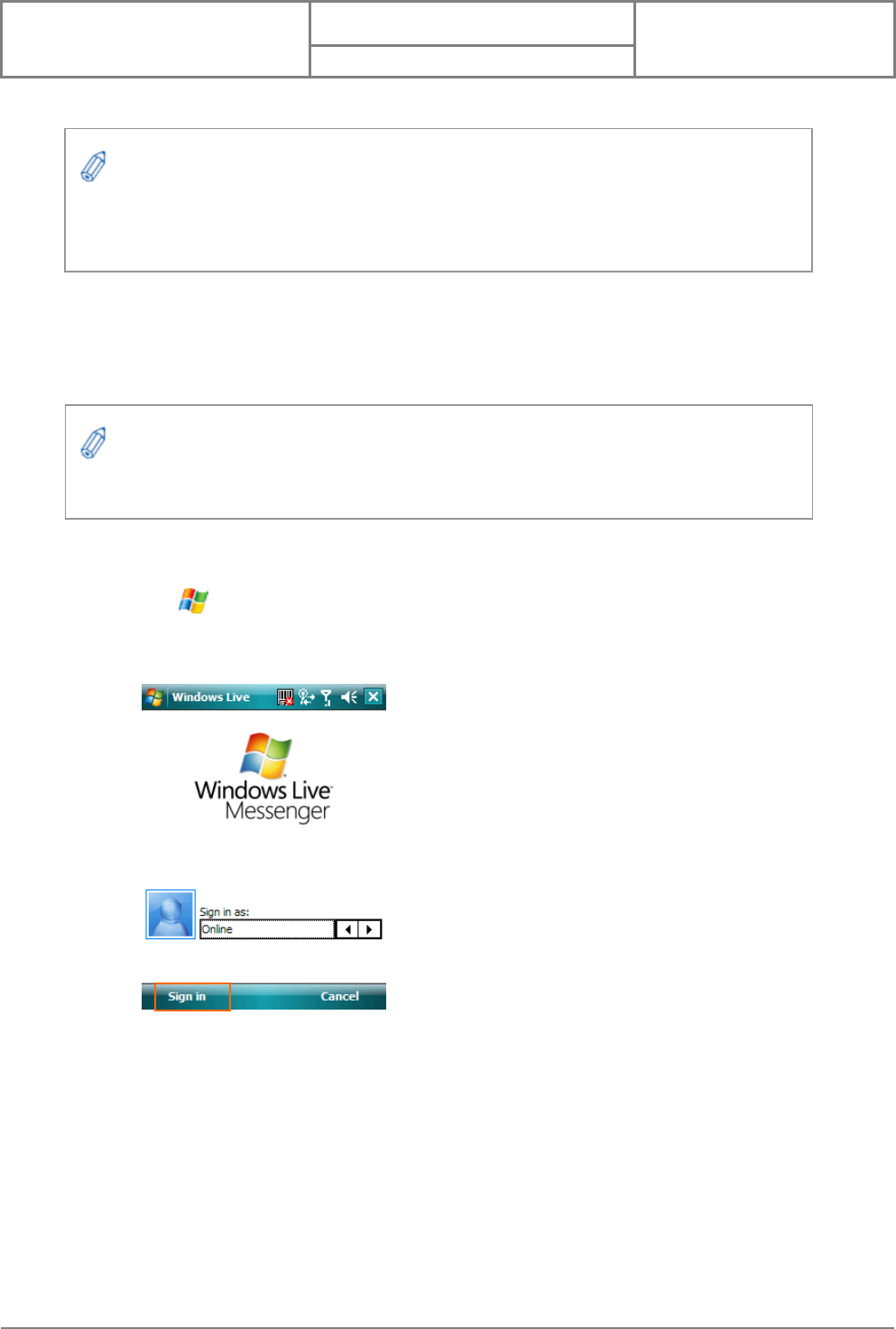

Signing In/Out Windows Live Messenger .................................134
Adding/Deleting a Windows Live Messenger Contact..........136
Sending an Instant Message...........................................................136
User Manual
OPTICON Preliminary
Version : 1.0
Date : 2008/05/20
10
Changing Windows Live Messenger Display Name................137
Blocking/Unblocking a Contact.....................................................137
Changing Windows Live Messenger Settings...........................137

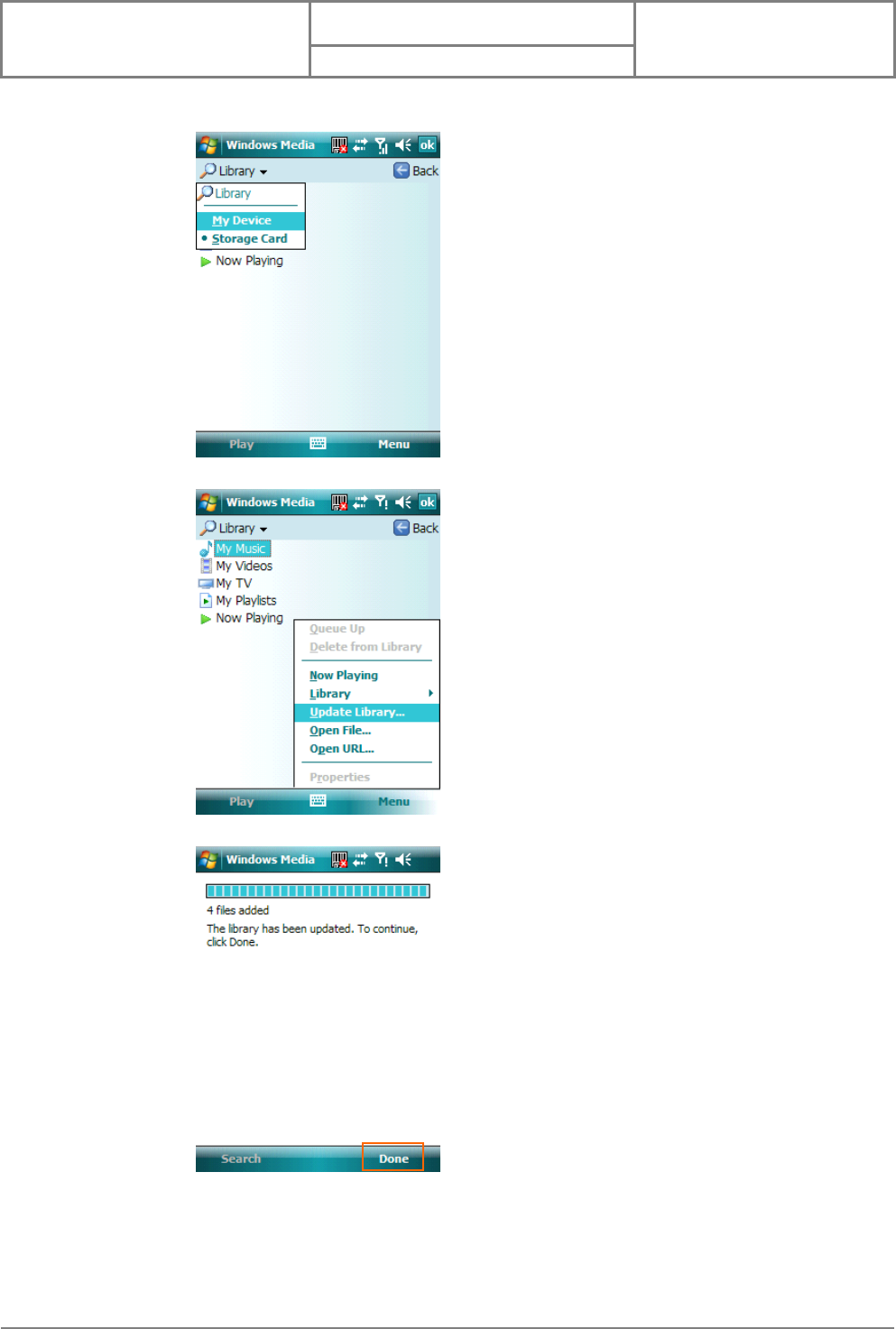

10.4 Windows Media..................................................................................138
Transferring Your Music and Videos to Your Device..............138
Playing Media File on Your Device................................................139
Saving a New Playlist ........................................................................140
10.5 Office Mobile.......................................................................................141
Excel Mobile ..........................................................................................141
PowerPoint Mobile..............................................................................142
Word Mobile..........................................................................................142
10.6 Phone Profile.......................................................................................143
Selecting a Profile...............................................................................144
Viewing Profile Details......................................................................145
Defining Your Own Profile...............................................................145

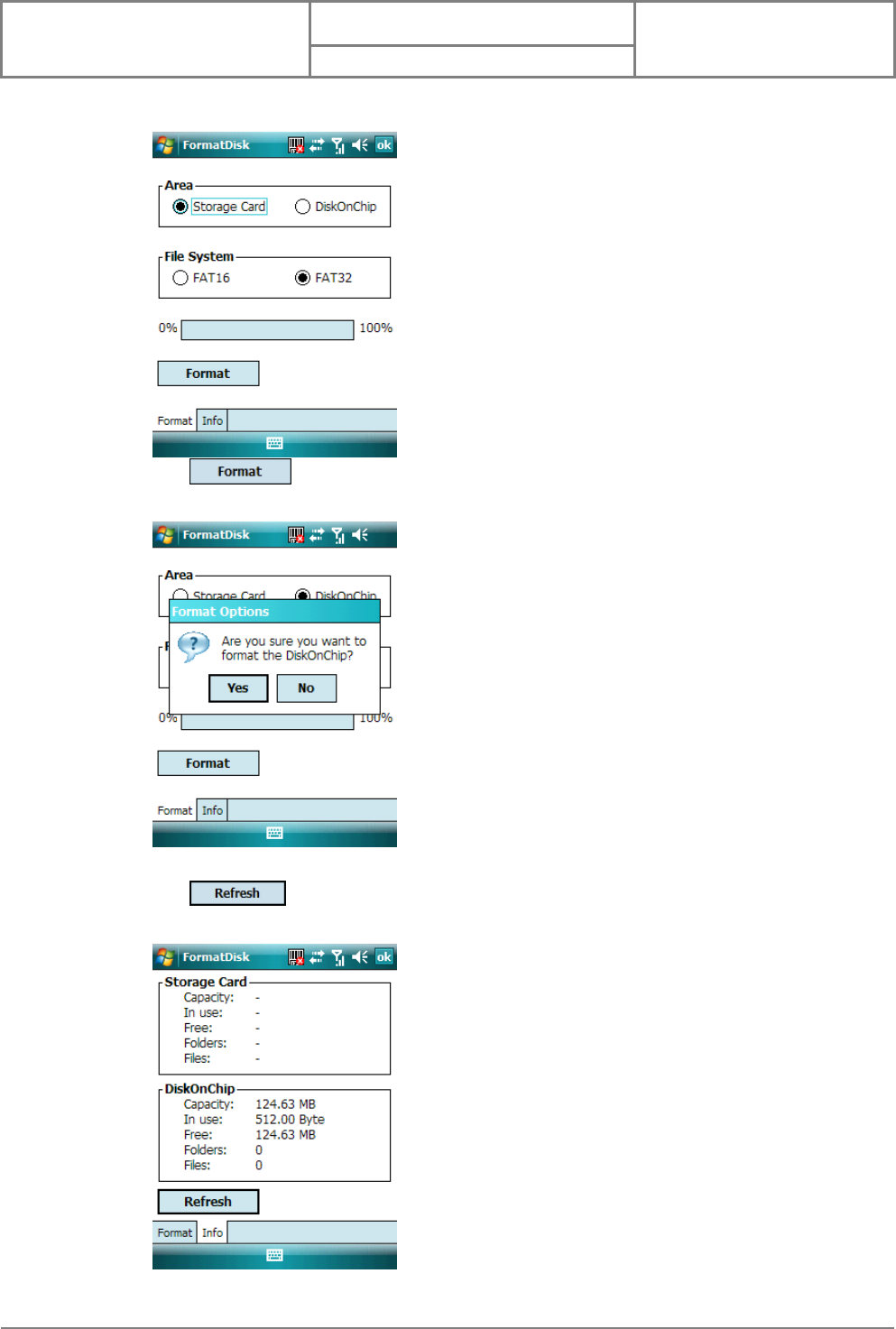

10.7 Formatting Storage Card and DiskOnChip...............................146
10.8 Setting up GPS ...................................................................................148
Receiving Better Satellite Signals.................................................148
Important Notice about Using GPS..............................................148
Appendix.........................................................................150
A.1 Regulatory Notices..............................................................................151
European Union Notice .....................................................................151
Federal Communications Commission Notice..........................152
RF Exposure Information (SAR)....................................................152
SAR Information..................................................................................153
Exposure to Radio Frequency (RF) Signals...............................153
Warning!.................................................................................................154
A.2 PC Requirement to Run ActiveSync 4.5......................................155
A.3 Specifications........................................................................................156
System Information...........................................................................156
Dimensions and Weight....................................................................156
Key and Indication..............................................................................156
Display.....................................................................................................156
Scanner/Barcode Reader.................................................................157
Connectivity ..........................................................................................157
External Memory Card.......................................................................157
Battery and Power..............................................................................157
User Manual
OPTICON Preliminary
Version : 1.0
Date : 2008/05/20
11
WEEE Notice..........................................................................................158
RoHS Compliance................................................................................158
User Manual
OPTICON Preliminary
Version : 1.0
Date : 2008/05/20
12
Chapter 1. Knowing Your Device
User Manual
OPTICON Preliminary
Version : 1.0
Date : 2008/05/20
13
1.1 Introduction
Views of the Device
1 Stylus Write, draw, or make selections on the touch screen.
2 Scan key (left) Press the key to scan and decode bar code/2D code.
3 Record key Press and hold this key to record a voice note.
4 Volume up Press the Volume up button to turn up the PDA receiver
volume.
5 Volume down Press the Volume down button to turn down the PDA
receiver volume.
6 Reset button * Press the Reset button with stylus to soft-reset your
device.
7 Scanner Point the reading window of the scanner in the
direction of bar code/ 2D code.
8 Wi-Fi/Bluetooth LED Indicates Wi-Fi/ Bluetooth Status.
9 Telephone receiver Listen to a phone call here.
10 GSM/Battery LED Indicates GSM/Battery LED.
11 Power button Power on or off the device.
12 Display 2.8-inch TFT LCD with touch screen.
25
11
24
27
29
26
3
2
8
4
5
12
6
15 18
7
1
10
21
13
17
28
14 31
16
19 20
32
23
22
9
30
User Manual
OPTICON Preliminary
Version : 1.0
Date : 2008/05/20
14
13 Soft key (left) Performs the command shown in the label above the
button.
14 Soft key (right) Performs the command shown in the label above the
button.
15 Fn key Helps you to perform special functions by using the
keypad. For more information on how to use the Fn
key, refer to “ch2.2 Input Methods”.
16 Backspace Press this key to erase the letter on the left side of the
cursor.
17 Talk key Press this key to dial or answer a call.
18 End key End a call or close Phone application.
19 5-way navigation key Press the multi directional control up, down, left, or
right to move through menus; carry out the selection
by pressing the center button.
20 Numeric keypad Enter numbers or letters by the numeric keypad.
21 Connect pins Connect the connect pins of the device and the cradle
(if any) for recharging the battery.
22 Microphone Speak into the microphone when talking on the device
or recording a voice note.
23 Eyelet for wrist strap (1) Fix a wrist strap here.
24 Scan key (right) Press the key to scan and decode bar code/ 2D code.
25 Eyelet for wrist strap (2) Fix a wrist strap here.
26 Mini-SD card slot Insert a mini-SD card to expand device memory.
27 Mini USB connector Mini USB connector for PC sync and battery charging.
28 Earphone Jack Connect a 2.5 mm Earphone.
29 Speaker Listen to audio media or listen to a phone call
hands-free.
30 Screw hole Fasten the provided strap set here with screws.
31 Cover latch Slide both of the cover latches to remove the battery
cover.
32 Battery cover Uncover it to place battery and SIM card.
* If you press the Reset button when your device is in use, the unsaved data and settings may
be lost.
Clean Boot Your Device
You can execute a system cold boot to format both user store and DiskOnChip on your device.
User Manual
OPTICON Preliminary
Version : 1.0
Date : 2008/05/20
15
To prompt the instruction for cold boot, press the Reset button, and then press and hold the
Power button immediately until the cold boot screen appears. You can then choose one of the
following steps:
z Pressing the left key of the 5-way navigation key to format user store.
z Pressing the right key of the 5-way navigation key to format DiskOnChip.
z Press the up key of the 5-way navigation key to format both user store and
DiskOnChip.
z Press any other key to exit.
The Stylus
z Use the stylus to tap a selection, to drag-and-drop an item, to write, or to draw on
the touch screen.
z Tap and hold the stylus on the screen, the icon is displayed and then a pop-up
submenu is displayed.
Notification LEDs
The device has 2 notification LEDs: the left is Wi-Fi/Bluetooth LED and the right is GSM/Battery
LED.
Bluetooth/Wi-Fi LED tells you about the device’s Bluetooth/Wi-Fi status:
Color Bluetooth on Wi-Fi on
Green Off Blink
Blue Blink Off
Green and blue blink alternately while both Bluetooth and Wi-Fi are on.
GSM/Battery LED lets you know that you have unanswered calls or tells you about the device’s
GSM/battery status:
Color Missed Call/
Low Power
GSM on
(battery full)
GSM on
(battery low)
Charging
Red Blink Off Blink Off
Orange Off Off Off Constantly on
Green Off Blink Off Off
User Manual
OPTICON Preliminary
Version : 1.0
Date : 2008/05/20
16
1.2 Accessories
1 AC adapter Recharge the device battery.
2 Stereo headset Listen to a phone conversation hands-free.
3 USB cable Connect the device to a PC.
4 Getting started CD Windows MobileTM Getting Started Disc.
5 User manual/Quick guide Provide instructions of device functions.
6 Pouch Protect the device.
7 Neck strap Fasten the neck strap with the pouch’s metal clasp to make
your device easier to carry.
8 Belt clip Fasten the belt clip with your belt and the pouch’s metal
clasp to make your device easier to carry.
9 Battery Rechargeable Li-ion polymer battery.
10 Strap set Attach the thin cord of the strap set to the eyelet on the
bottom of your device, and then fasten the metal plate to the
back of your device. *
11 UK plug Fit the AC adapter for use in United Kingdom.
12 EU plug Fit the AC adapter for use in Europe.
13 AU plug Fit the AC adapter for use in Australia.
14 Stylus Write, draw, or make selections on the touch screen.
15 Additional stylus A big size stylus which makes you easier to write on the
touch screen with it.
16 Stylus holder Wrap this stylus holder around the strap set in order to fasten
it, and then place the additional stylus in the hole of the
stylus holder.
User Manual
OPTICON Preliminary
Version : 1.0
Date : 2008/05/20
17
17 Stylus string In case the additional stylus looses from the stylus holder,
attach this stylus string to the eyelet of additional stylus and
the eyelet (2) ** of your device
* To fasten the metal plate, affix it to the back of your device, and secure it in place by driving
the two provided screws into the screw holes on the back of your device.
** Please see chapter 1.1 for the position of eyelet (2).
1.3 Installing SIM Card and Battery
Removing the Battery Cover and Installing the SIM Card
If you want to use phone features, you must install a valid SIM card.
1. Press the battery cover downward and slide one of the cover latches down at the
same time.
2. Repeat the same steps to unlock another cover latch.
3. Lift the battery cover as the diagram shown below.
4. Pull the plastic ribbon to remove the battery.
5. Place the SIM card in the SIM card slot with the gold contacts facing down. The SIM
card’s cut-off corner should match the cut-off corner in the SIM card slot.
Please do not remove the battery cover when your device is in use; otherwise, the
device power will be shut off automatically and unsaved data may be lost.
User Manual
OPTICON Preliminary
Version : 1.0
Date : 2008/05/20
18
Installing the Battery and the Battery Cover
1. Press the battery down forcefully into the battery slot.
2. Angle the battery cover as shown in the diagram and close the battery cover.
3. Press the battery cover downward and slide one of the cover latches up at the same
time.
4. Repeat the same step to lock another latch.
Replacing the Battery to Keep Your Unsaved Data
When the main battery is low, you can quickly replace the battery by doing the following:
1 2
Please avoid placing the battery as the direction shown in the figure.
This may damage the battery switch (the part circled in red) in the battery slot.
User Manual
OPTICON Preliminary
Version : 1.0
Date : 2008/05/20
19
1. Before replacing the main battery, hold the Fn key and press Power button at the
same time for 3 seconds.
2. A message box pops up on the screen, asking for confirmation to turn the device
into backup mode. Select “OK”. (If select “Cancel”, the device will go back to normal.)
3. A few seconds later, the screen backlight goes off. After the screen is dim, it is safe to
replace the battery.
4. After closing and locking the battery cover, short-press the Power button to recover
your device system to the previous sate.
Please re-install the battery within 5 minutes or unsaved data may be lost.
Please do not close the battery cover while the main battery is not installed as this may
cause loss of data.
All wireless communications will be turned off in backup mode.
It is recommended to follow normal power-off procedure to remove the battery, see
“Chapter 2.1 Powering On/Off the Device”
Please do not connect your device to a PC with a USB cable or charge the battery while
your device is in backup mode as this may cause loss of data.
An alarm set in your device will be turned off when the device is in backup mode.
User Manual
OPTICON Preliminary
Version : 1.0
Date : 2008/05/20
20
1.4 Battery Information
Battery performance depends on many factors, including your wireless service provider’s
network configuration, signal strength, the temperature of the environment in which you
operate your device, the features and/or settings you select and use, items attached to your
device’s connecting ports, and your voice, data, and other program usage patterns.
Battery life estimates (approximations):
z Talk time: 4 hours
z Standby time: 150 hours
Reducing Risk of Fire or Burns
z Do not attempt to open, disassemble, or service the battery pack.
z Do not crush, puncture, short external contacts, or dispose of in fire or water.
z Do not expose to temperatures above 60˚C (140˚F).
z Replace only with the battery pack designated for this product.
z Recycle or dispose of used battery as stipulated by local regulations.
Checking the Battery Power
z Tap > Settings > System tab > Power. You can check the battery power of
both the main battery and the backup battery.
The backup battery powers a real-time clock (RTC) which keeps track of the time even
when your device is turned off. When the backup battery power is normal or full, it can keep
accurate real time for five minutes even if the main battery is removed and for up to 168
hours while the main battery is low.
5%
User Manual
OPTICON Preliminary
Version : 1.0
Date : 2008/05/20
21

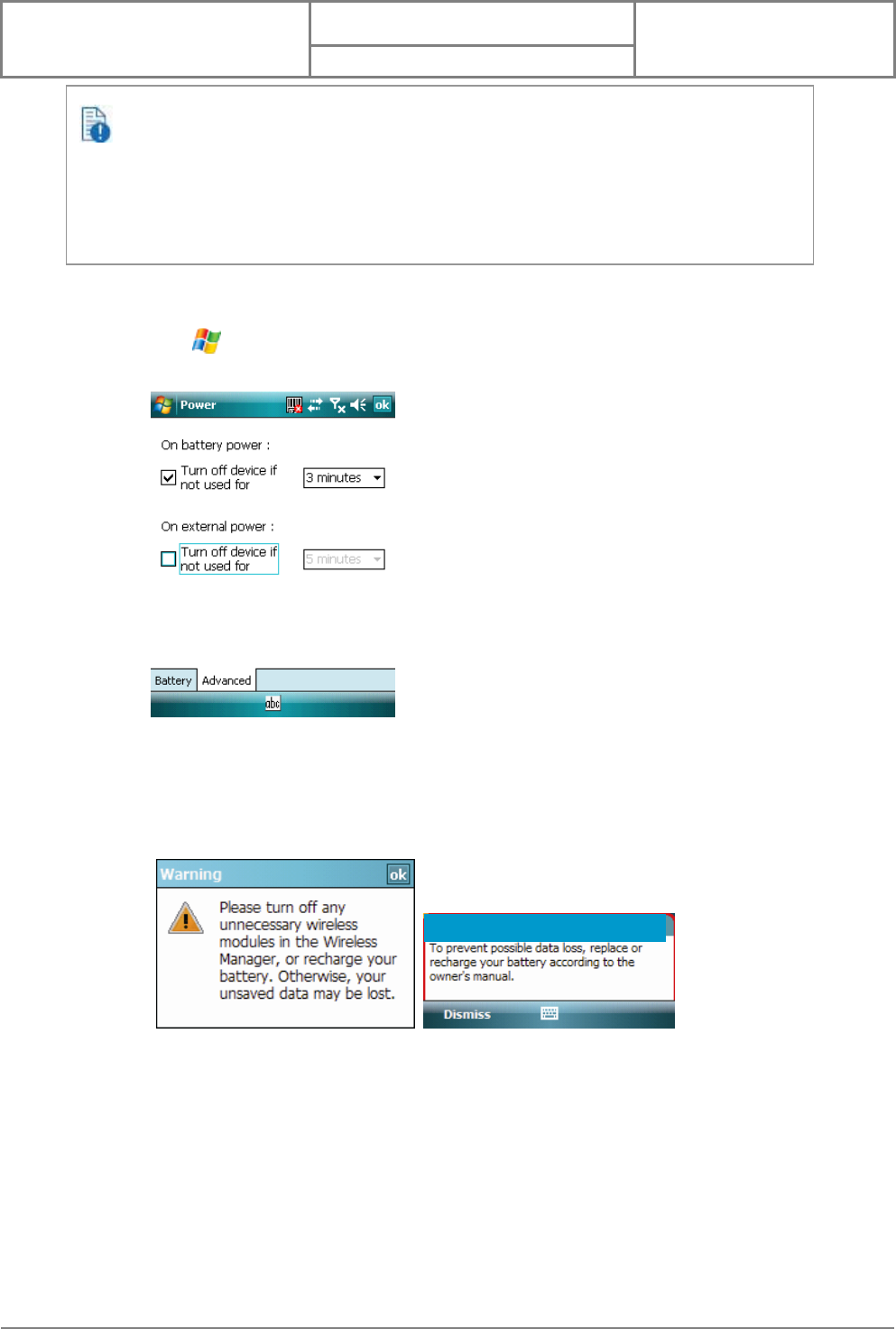

Optimizing the Power Performance
z Tap > Settings > System tab > Power > Advanced, and adjust the time
for turning off the device if it is not in use.
Managing a Low Battery
When the low-battery warnings appear, tap OK or Dismiss to close the warning and do the
following:
z Start charging or replace your battery.
z Turn off any unnecessary wireless module or turn off the device.
Charging the Battery
1. To charge the battery, place the battery into the battery slot correctly. See previous
section for how to install the battery.
2. Do one of the following for charging the battery:
z Connect the device with the AC adapter and plug the AC adapter into a power
Main Battery Low
The device contains a rechargeable Li-ion polymer battery completely discharged and
should be charged for at least 8 hours before first use. Use only manufacturer-specified
original batteries. Damages caused by using batteries not specified by manufacturer are not
covered under warranty.
User Manual
OPTICON Preliminary
Version : 1.0
Date : 2008/05/20
22
outlet.
z Connect the device to a PC with the USB cable.
z Place the device in a specific cradle for H-19 (the cradle is optional) and
connect the cradle to an electrical outlet or a USB port on your PC.
1.5 Mini-SD Cards
Mini-SD is one of the most popular formats for mobile devices. Your device contains a mini-SD
card slot in which you can expand the device’s memory up to 2GB. Mini-SD provides functions
such as built-in security for copyrighted content along with great performance for storing music,
video, and photographs. Please note that mini HCSD (High Capacity SD) is not supported by
this device.
Inserting a Mini-SD Card into the Device
Lift the mini SD card slot cover and insert the mini SD card with the logo side down and push
into place until it clicks down and is held in place.
Removing a Mini-SD Card from the Device
1. Gently press the mini-SD card inward (you may feel some resistance) and the card
will eject itself.
2. Take out the mini-SD card from the card slot by hand.
Mini-SD cards can only be inserted in one direction. Inserting the card in the wrong
direction by force can cause damage to the card and the card slot.
To charge the device with the USB cable, you must connect the device to a functioning
USB port on a PC that is powered on.
Do not operate your device to temperatures above 40˚C (72˚F) while charging the
battery.
Do not leave the battery in a place above 60˚C (140˚F).
User Manual
OPTICON Preliminary
Version : 1.0
Date : 2008/05/20
23
Chapter 2. Basic Operations
User Manual
OPTICON Preliminary
Version : 1.0
Date : 2008/05/20
24
2.1 Getting Started
Powering On/Off the Device
Press the POWER button to turn on the device. The POWER button is located on the top of the
front side of the device. When you power on the device for the first time, you are asked to
calibrate the device. Please refer to the “Calibrating your device” section in this chapter for
calibration steps. Press the POWER button again to switch the device to sleep mode. You can
still receive phone calls and messages when the device is operating in sleep mode. To power off
the device completely, press and hold the POWER button for 3 seconds and the system will
prompt you to power off the device.
Calibrating Your Device
Calibrating the device ensures the tapped item is activated. To calibrate your device, tap the
center of the cross with the stylus as the cross moves around the screen. If you would like to
re-calibrate the device, follow the steps below:
1. Tap > Settings > System tab > Screen.
2. Tap the Align Screen button and follow the on-screen instructions.
User Manual
OPTICON Preliminary
Version : 1.0
Date : 2008/05/20
25

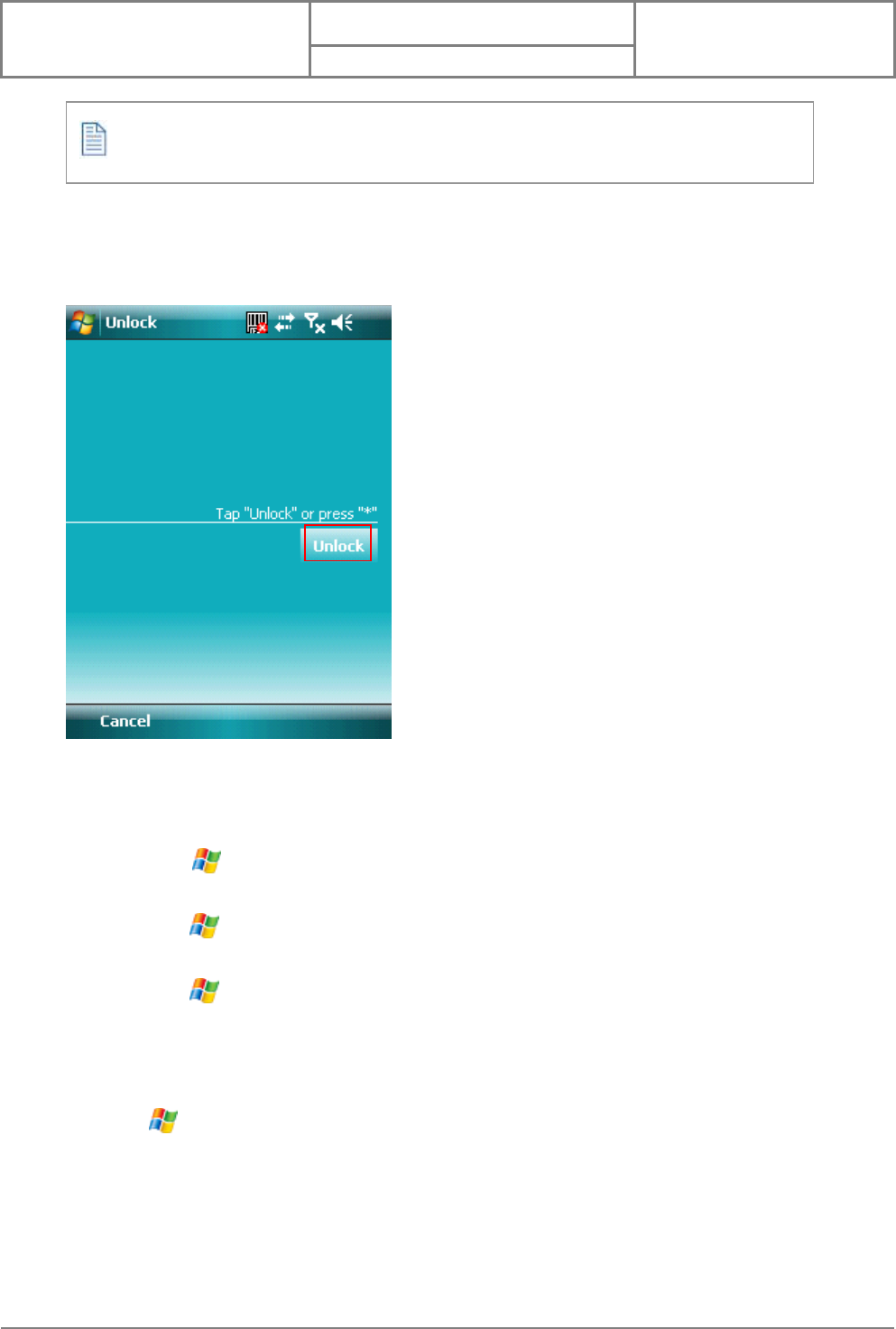

Locking/Unlocking the Device
Locking the device turns off keyboard and touch screen functionality. This is a helpful feature if,
for example, the device is turned on and in your pocket, and you want to prevent accidental key
presses.
z To lock the device, tap on the icon on the Today Screen. Once the device is
locked, the left soft key label changes to Unlock.
To unlock the device, tap the Unlock button on the Today screen first, a screen as below will
show. Press * to unlock the device, or tap the Unlock button on the screen.
You can still receive calls and make emergency calls when the keypad is locked.
You can lock/unlock the device by pressing the Fn key and Record key, refer to chapter
2.2 for more information.
User Manual
OPTICON Preliminary
Version : 1.0
Date : 2008/05/20
26
Setting Buttons
To change functions for specific buttons in your device:
z Tap > Settings > Buttons > Program Buttons tab. Select a button (Button
1, Button 2 or Button 3) and assign a new program to replace the default one.
¾ Button 1: Record button.
¾ Button 2: Fn + .
¾ Button 3: Fn + .
To change Up/Down control and repeat rate:
z Tap > Settings > Buttons > Up/Down Control tab. Drag the slider on the
screen to customize the way your Up/Down control repeats.
To change button locking setting:
z Tap > Settings > Buttons > Keypad Lock tab. Choose to lock all buttons or
not when your device is in sleep mode.
Changing the Backlight Settings
1. Tap > Settings > System tab > Backlight.
2. You can customize the following settings:
z Backlight settings while your device is using battery power.
z Backlight settings while your device is using external power.
z Brightness of backlight.
2.2 Input Methods
The device contains 6 different input modes: Keyboard, Letter Recognizer, Block Recognizer,
Initial capital, Lowercase and Uppercase. You can enter texts and numbers by using the keypad
or the touch screen.
Icon Input Modes
Keyboard
Letter/Block Recognizer
Initial capital
Lowercase
Uppercase
Using the Touch Screen
User Manual
OPTICON Preliminary
Version : 1.0
Date : 2008/05/20
27
Keyboard

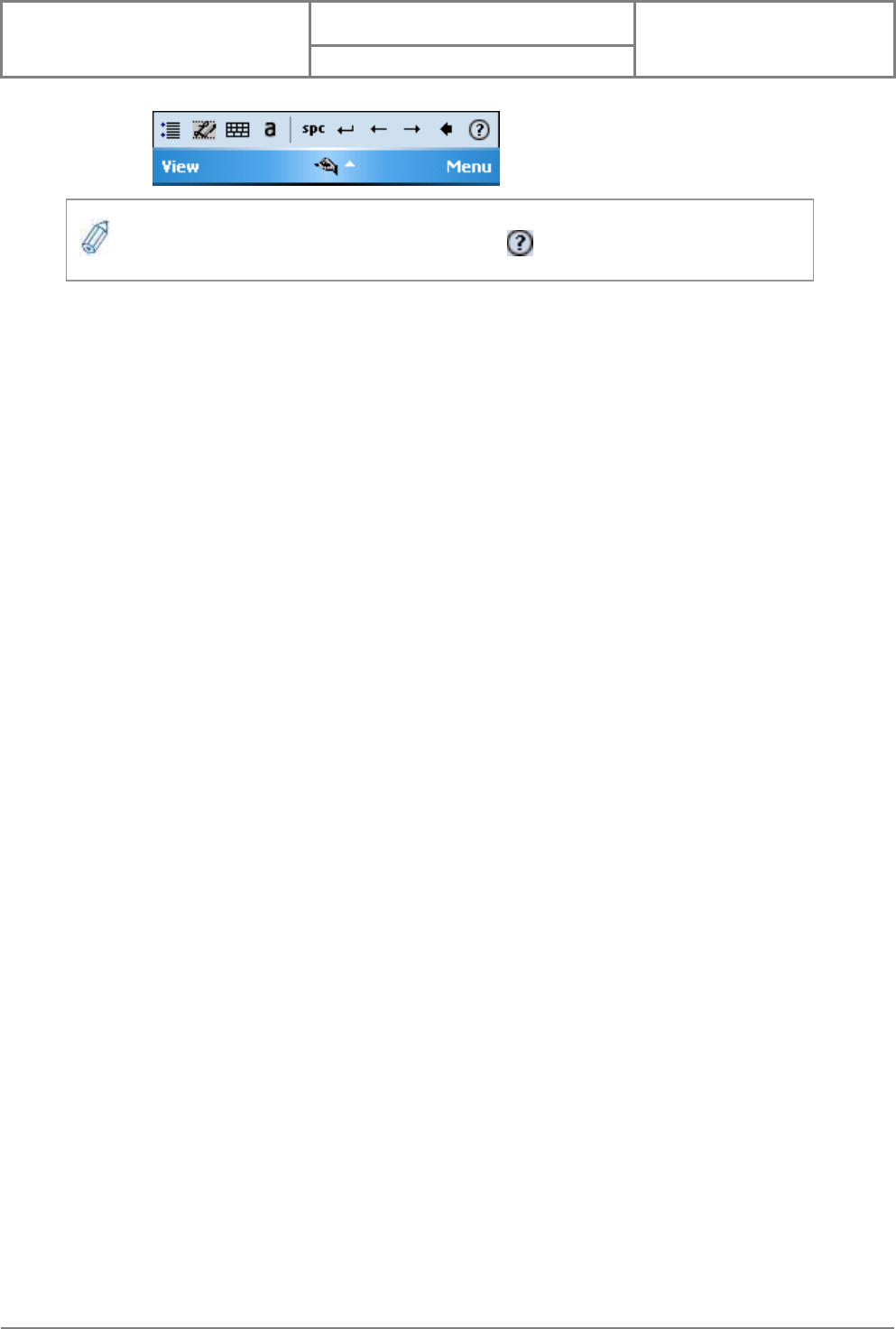

z Tap to launch the on-screen keyboard. If on-screen Keyboard is not the selected
input method, tap the input method selector arrow (the upward arrow next to the
input method icon) and select Keyboard.
z To enter text, tap the keys on the on-screen keyboard.
Letter Recognizer
Letter Recognizer recognizes one letter, number, or symbol at a time.
z To launch Letter Recognizer, tap the input method selector arrow (the upward arrow
next to the input method icon) and select Letter Recognizer.
z Write uppercase letters in the left recognition area (the ABC box).
z Write lowercase letters in the middle recognition area (the abc box).
z Write numbers and symbols in the right recognition area (the 123 box).
Block Recognizer
Block Recognizer recognizes letters written in one stroke.
z To launch Block Recognizer, tap the input method selector arrow (the upward arrow
next to the input method icon) and select Block Recognizer.
z Write lowercase letters in the text recognition area (the abc box).
z Write numbers in the numeric recognition area (the 123 box).
z To input symbols, tap any recognition area, text or numeric, once and write symbols.
Tap ? in Letter or Block Recognizer to see a demo on how to write recognizable
characters.
User Manual
OPTICON Preliminary
Version : 1.0
Date : 2008/05/20
28
Using the Keypad
To enter texts by using the keypad, press a number key repeatedly until desired character
appears. If the next letter you want is located on the same key, wait until the cursor appears
and blinks more than twice, then enter the letter. For corresponding letters/numbers/symbols
of each key, please see the table at the end of this section.

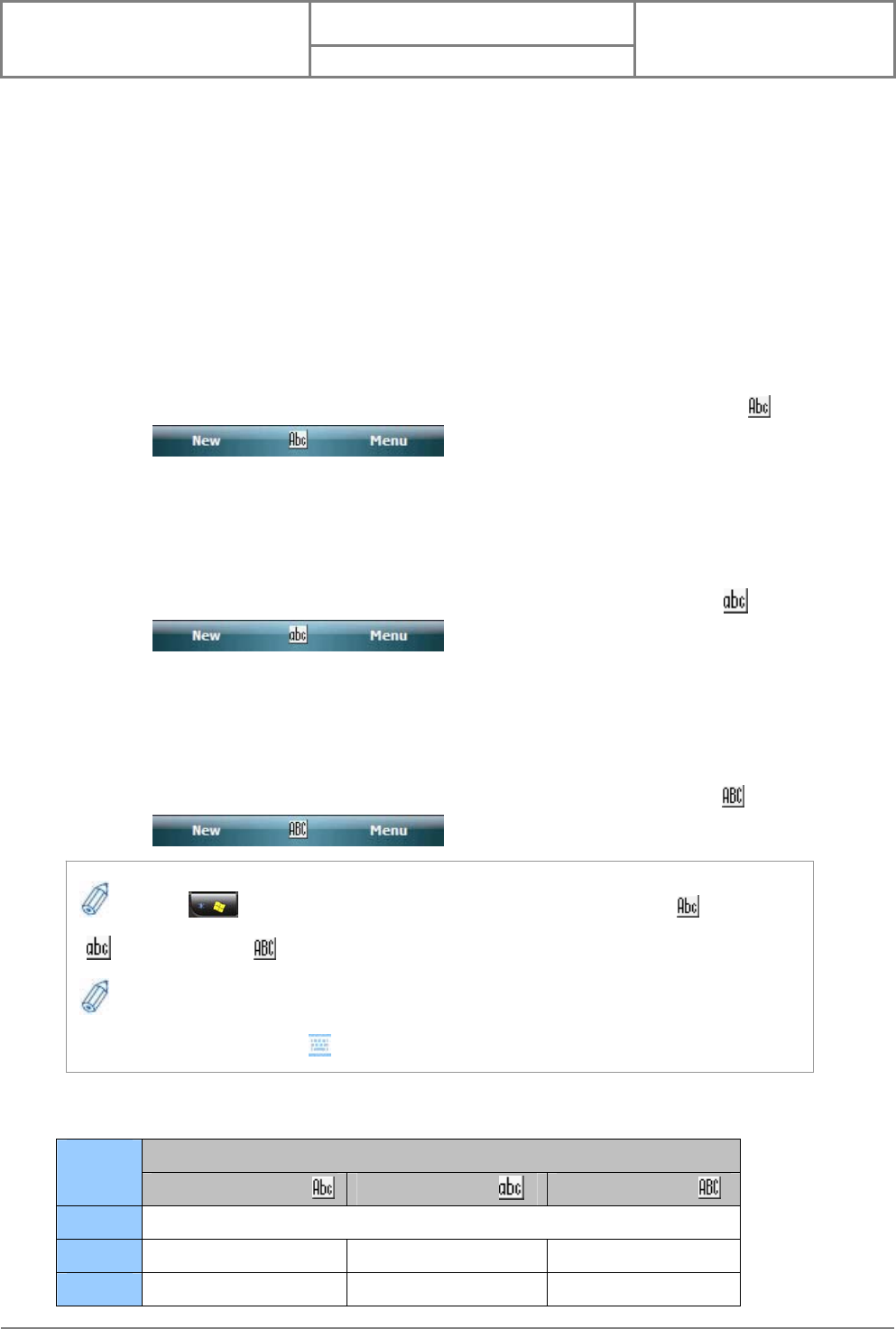

Initial capital
To capitalize the first letter of every sentence you enter by using the keypad, do the following:
z Tap the input method selector arrow (the upward arrow next to the input method
icon) and select Initial capital. You can see the input icon is changed to .
Lowercase
To enter lowercase letters constantly by using the keypad, do the following:
z Tap the input method selector arrow (the upward arrow next to the input method
icon) and select Lowercase. You can see the input icon is changed to .
Uppercase
To enter uppercase letters constantly by using the keypad, do the following:
z Tap the input method selector arrow (the upward arrow next to the input method
icon) and select Uppercase. You can see the input icon is changed to .
Corresponding letters/numbers/symbols for each numeric key:
Input mode Numeric
keys Initial capital mode Lowercase mode Uppercase mode
1 . , ? ! ‘ @ ` - _ ( ) : ; & / \ % # * 1
2 ABC2 abc2 ABC2
3 DEF3 def3 DEF3
Press * () to quickly switch input modes between Initial capital ( ), Lowercase
() and Uppercase ( ).
To quickly switch keypad input modes (Initial capital, Lowercase and Uppercase) and
on-screen Keyboard modes ( ), press and hold * for two seconds.
User Manual
OPTICON Preliminary
Version : 1.0
Date : 2008/05/20
29
4 GHI4 ghi4 GHI4
5 JKL5 jkl5 JKL5
6 MNO6 mno6 MNO6
7 PQRS7 pqrs7 PQRS7
8 TUV8 tuv8 TUV8
9 WXZY9 wxyz9 WXZY9
* Caps lock / Shift
0 + 0
# Space
Tips of Using the Function Key
The Fn key helps you to execute certain actions quickly such as input mode switching and
backlight turning on. To perform these functions by using the Fn key, press it and check if an
icon appears on the screen, and then press another key to execute the following actions:
z Fn + 1: switch to Numeric mode, you can enter numbers 0 to 9 and * and #
constantly by using the keypad.
z Fn + 2: switch to Lowercase mode.
z Fn + 3: switch to Initial capital mode.
z Fn + 4: switch to Uppercase mode.
z Fn + Action key (the central button of the 5-way navigation key): perform Enter.
z Fn + * ( ): this is set to open Start menu by default (Programmable Button 2).
Refer to chapter 2.1 if you want to change it.
z Fn + # ( ): this is set to perform OK/Close by default (Programmable Button 3).
Refer to chapter 2.1 if you want to change it.
z Fn + Record key (on the left side of your device): lock/unlock the device. Press the
Fn key and the Record key at the same time to lock your device; press the Fn key
twice and then the Record key to unlock your device.
z Fn + 9: turn on/off backlight. The backlight is turned on automatically by default
when a button is pressed or the screen is tapped. You can de-activate this function
( tap > Settings > System tab > Backlight and clear the checkbox in front
of Turn on backlight when a button is pressed or the screen is tapped) in
order to turn on/off the backlight manually. After de-activating the function, the
backlight turns off according to the delay you select in the backlight application no
matter the device is in use or not.
z Fn + 0: enter symbols. Please refer to the next section for details.
Entering Symbols
User Manual
OPTICON Preliminary
Version : 1.0
Date : 2008/05/20
30
To enter special symbols and accented letters (e.g. à, Ç, ®…etc.), do the following:
1. After pressing a character (e.g. E), press the Fn key and then the numeric key 0
once to show an accented type of this character (È).
2. To show another accent type, press and hold the Fn key and then press the numeric
key 0 repeatedly until desired type is displayed (e.g. press numeric 0 three times to
show Ê).
Corresponding letters/symbols for each character:
a à á â ä å æ ã ą ă r ®
A À Á Â Ä Å Æ Ã Ą Ă R ®
c ç ć ĉ © s ß ş š
C Ç Ć Ĉ © S ß Ş Š
d ð t ţ
D Đ T Ţ
e è é ê ë ę u ù ú û ü ű ũ µ
E È É Ê Ë Ę U Ù Ú Û Ü Ű Ũ µ
i ì í î ï ĩ ij y ý
I Ì Í Î Ï Ĩ IJ Y Ý
l ł z ź ż
L Ł Z Ź Ż
n ñ 0 º
N Ñ 1 ¹
o ò ó ô õ ö ő ø œ 2 ² ½
O Ò Ó Ô Õ Ö Ő Ø Œ 3 ³
p þ ¶ 4 ¼ ¾
P Þ ¶ 8 ⅛ ⅜ ⅝ ⅞
2.3 Today Screen Components
Today Screen

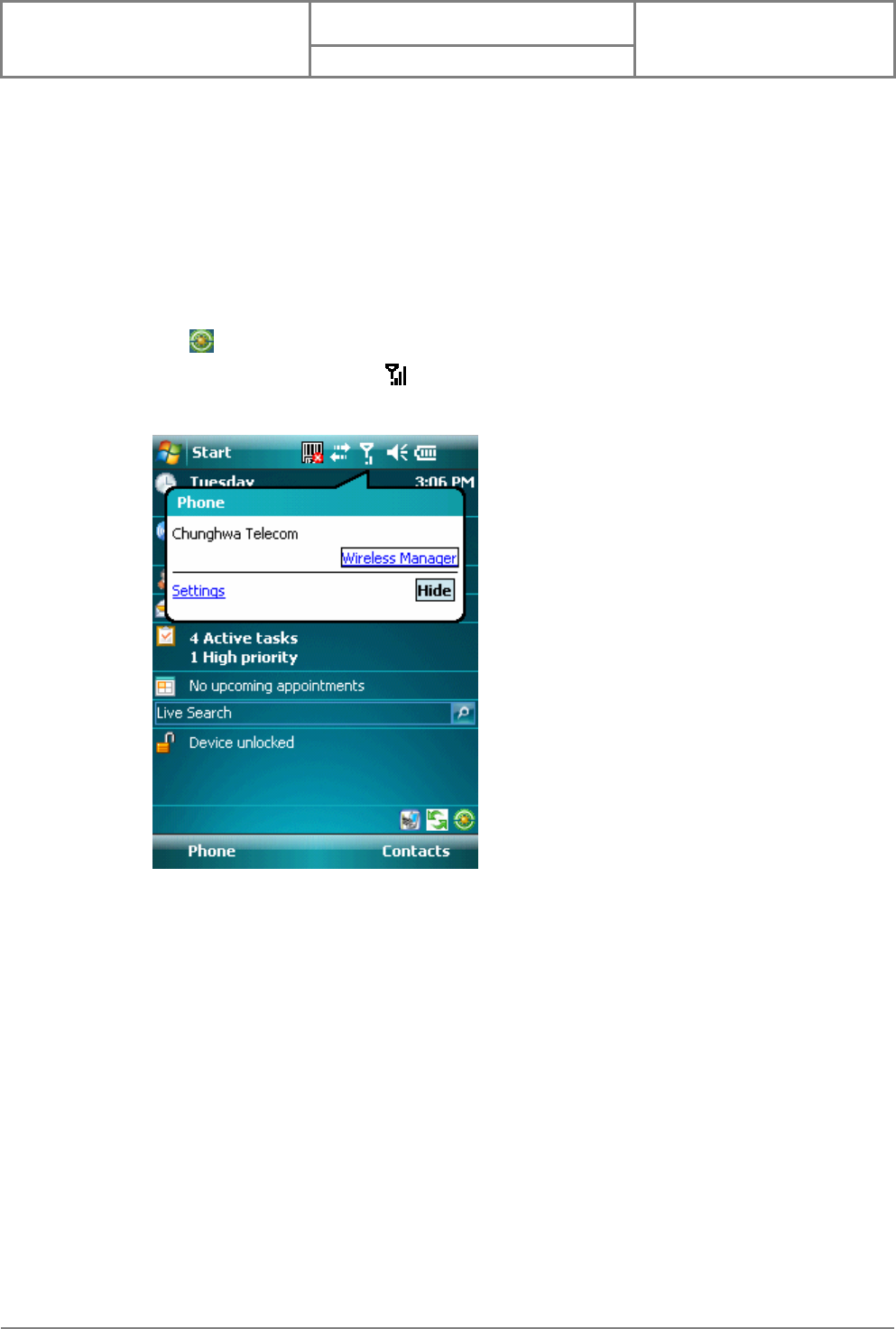

The Today Screen is usually the first screen that appears when you turn on the device for the
first time each day. It displays a summary of information for the day, shows you the system
status and contains a list of shortcuts to programs. The Today screen looks like this:
User Manual
OPTICON Preliminary
Version : 1.0
Date : 2008/05/20
31
1 Date and time
2 Wireless status (GSM, Wi-Fi, and Bluetooth)
3 Owner information
4 Unread messages including text messages, MMS messages, and e-mails
5 Active tasks
6 Upcoming appointments
7 Live Search
8 Device lock status
Icon Indicators
Status indicators appear at the top of the screen and on the Today screen. The following table
lists common status indicators and their meanings.
New e-mail PC Connection is active
New voice mail or text message (SMS) Connection is not active
New notifications Synchronization in progress
You can also access the Today screen by selecting Today from the Start menu.
To change the items showed in the Today screen, tap > Settings > Today >
Items tab.
Tap here to rotate the screen
Tap here to trigger the Wireless Manager
①
②
③
④
⑤
⑦
⑥
⑧
User Manual
OPTICON Preliminary
Version : 1.0
Date : 2008/05/20
32
New instant message Ringer on
Voice call Ringer off
Voice call in progress Roaming
Data call in progress No Voice mail
Calls are forwarded Voice mail Lines 1
Call on hold Call Forwarding Lines 1
Missed call Alarm
Battery level 1 GPRS available
Battery level 2 GRPS in use
Low battery EDGE available
Extremely low battery EDGE in use
Backup battery very low No SIM card installed
Battery charging Wi-Fi connection in progress
Signal strength Ringer in vibration mode
Bluetooth bonding in progress Function key on
No signal Synchronization error
Flight mode Barcode reader off
No service Barcode reader on

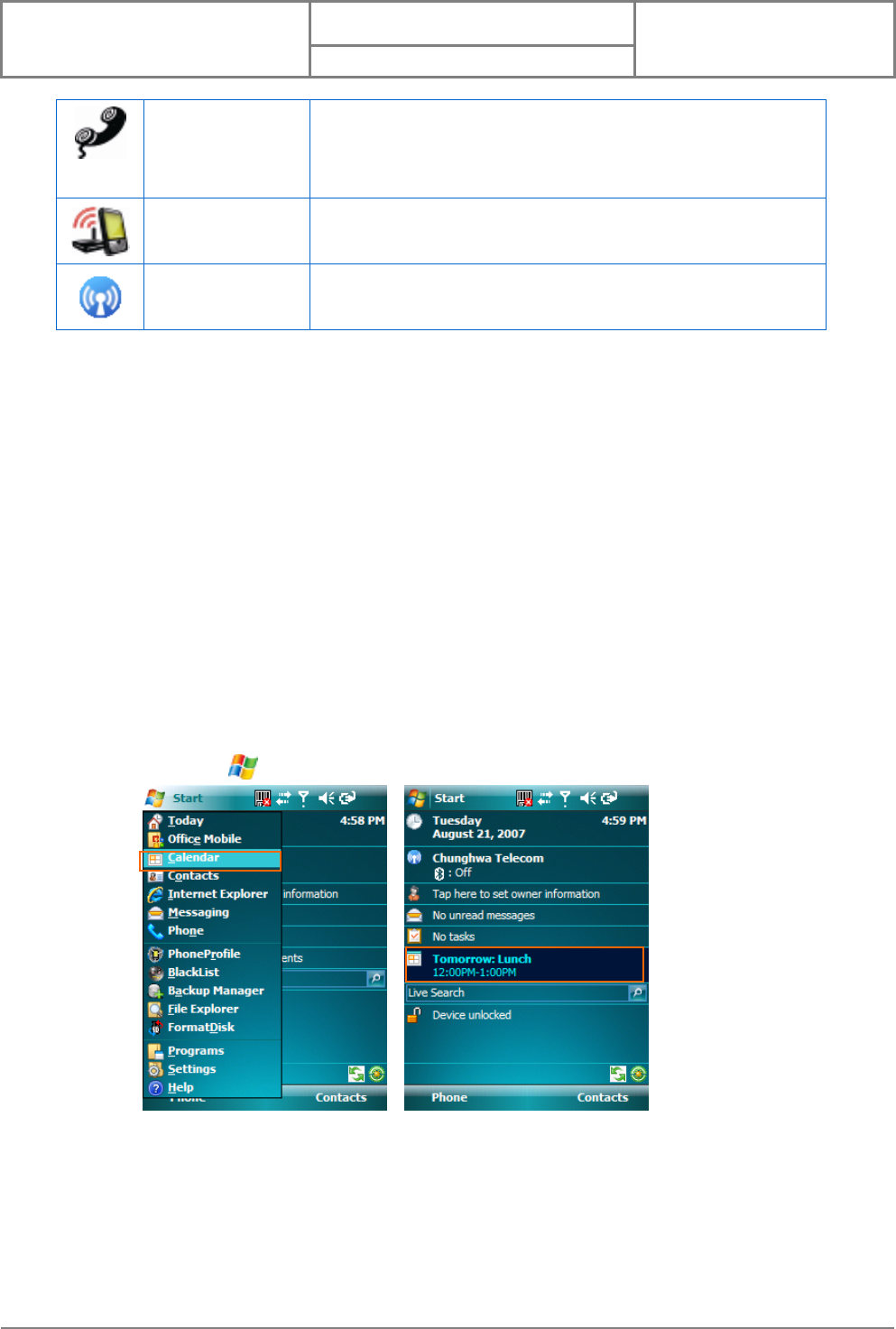

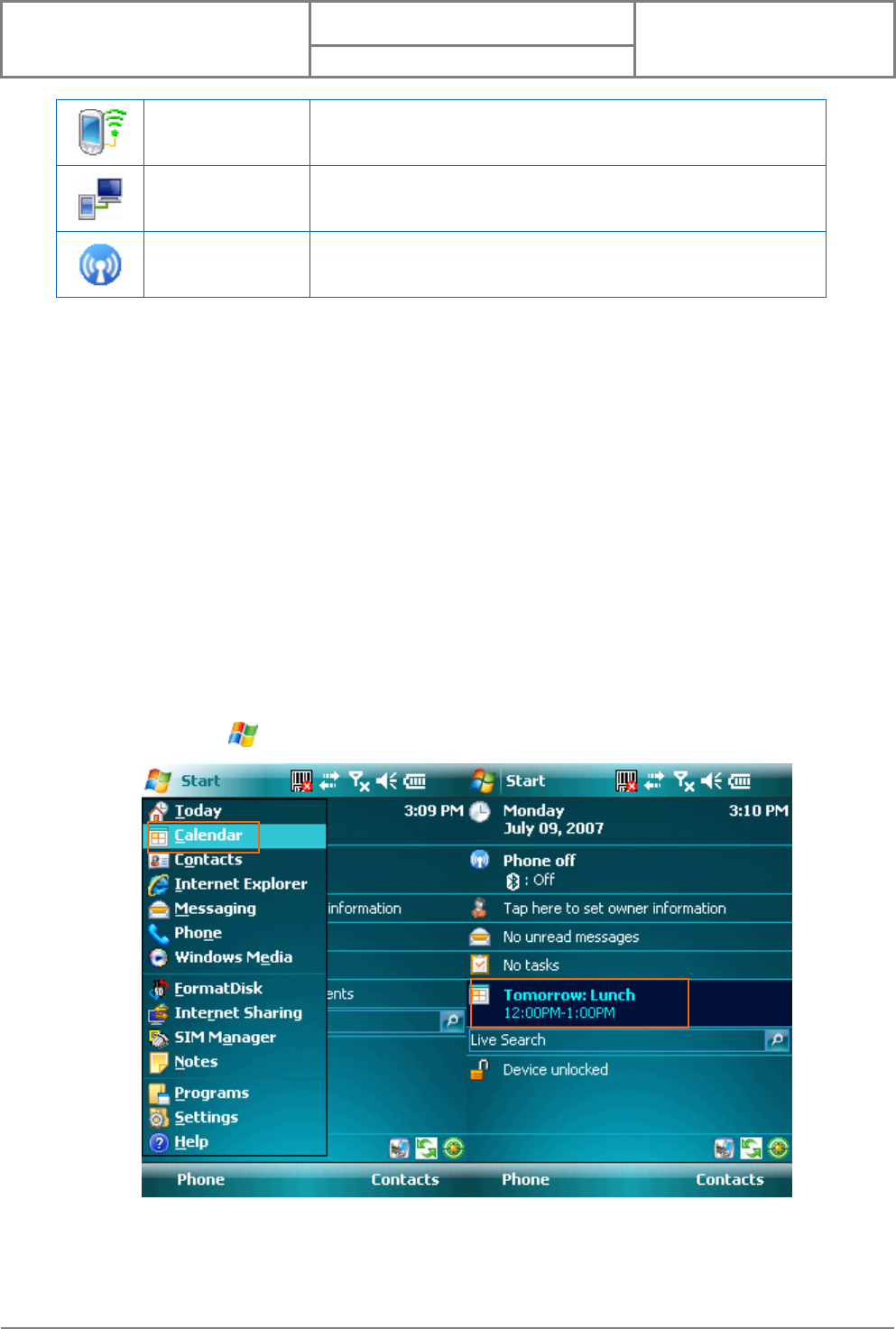

2.4 The Start Menu
The Start menu is divided into 3 groups as described in the following:
User Manual
OPTICON Preliminary
Version : 1.0
Date : 2008/05/20
33
1 Commonly used items
2 Recently accessed applications
3 List of all programs, device settings, and system help
List of All Programs
The following table lists icons of the programs that are already installed on your device.
Games Windows Mobile comes with 2 games: Bubble Breaker and
Solitaire.
ActiveSync Synchronizes information between your device and a PC. See
“Chapter 4. Synchronizing Information” for details.

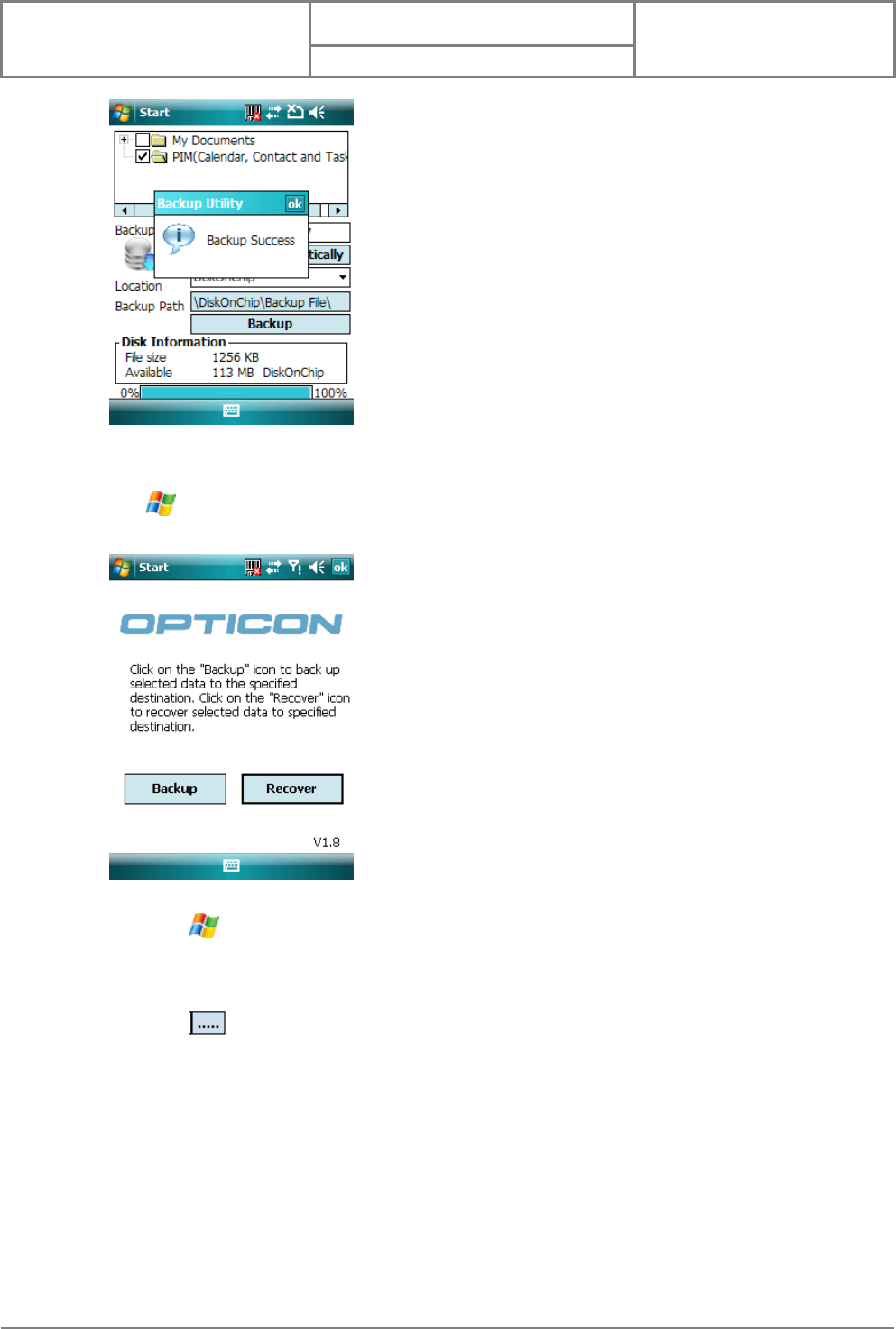

Backup
Manager
Lets you backup and recover your data. See “10.6
Backup/Recover” for details.

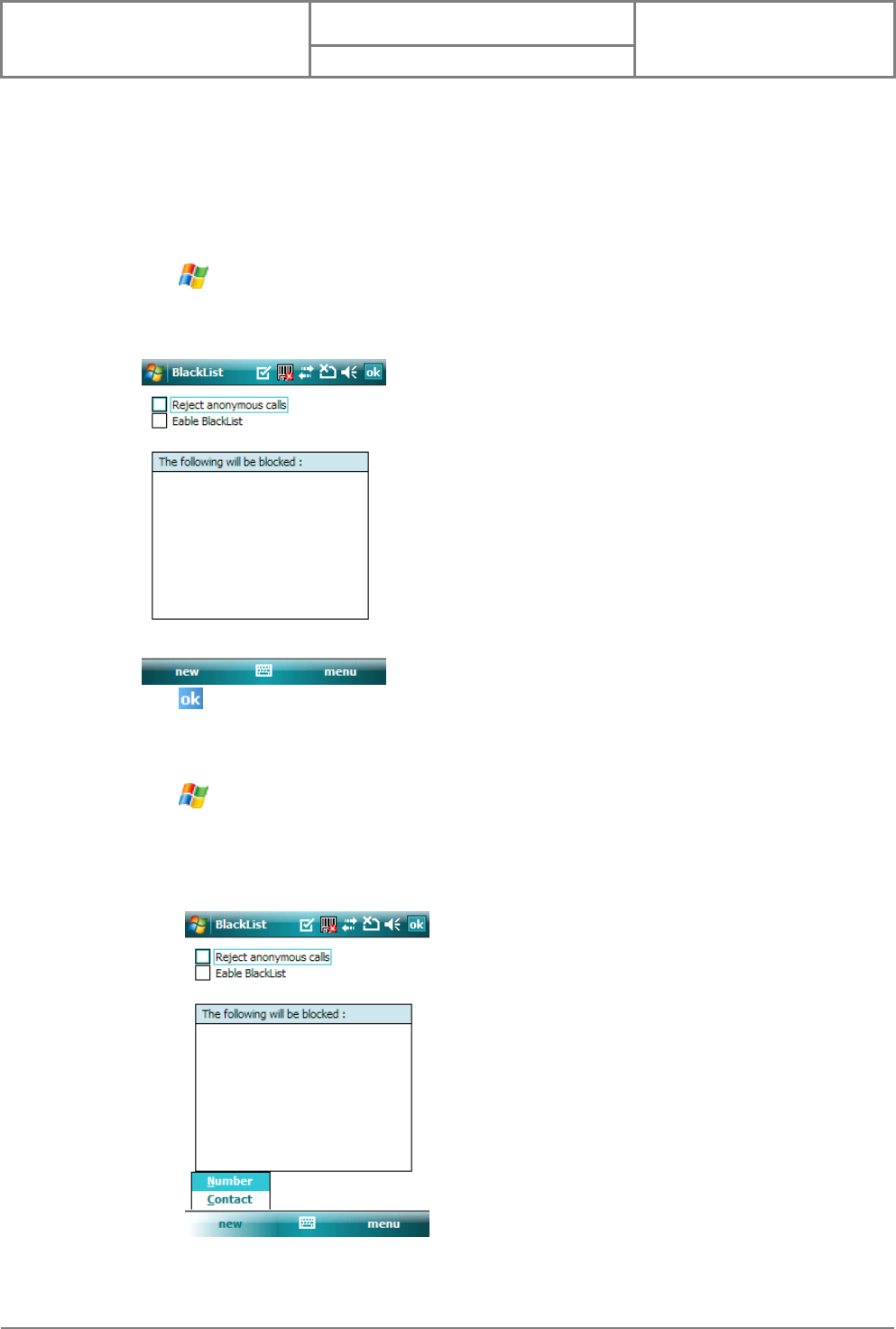

Blacklist Lets you set up a list of phone numbers to block.
Calculator Performs basic arithmetic and calculations such as addition,
subtraction, multiplication, and division.

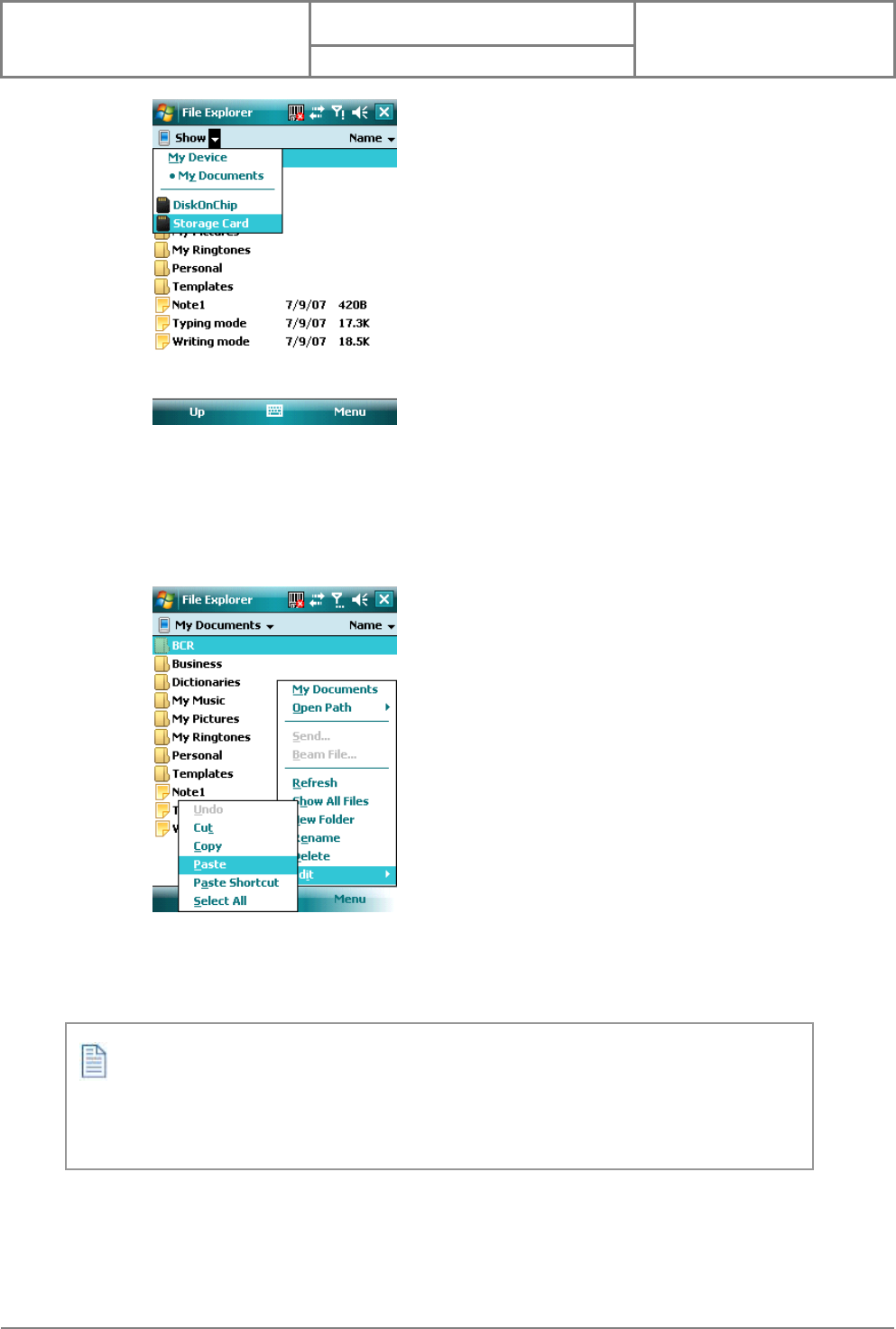

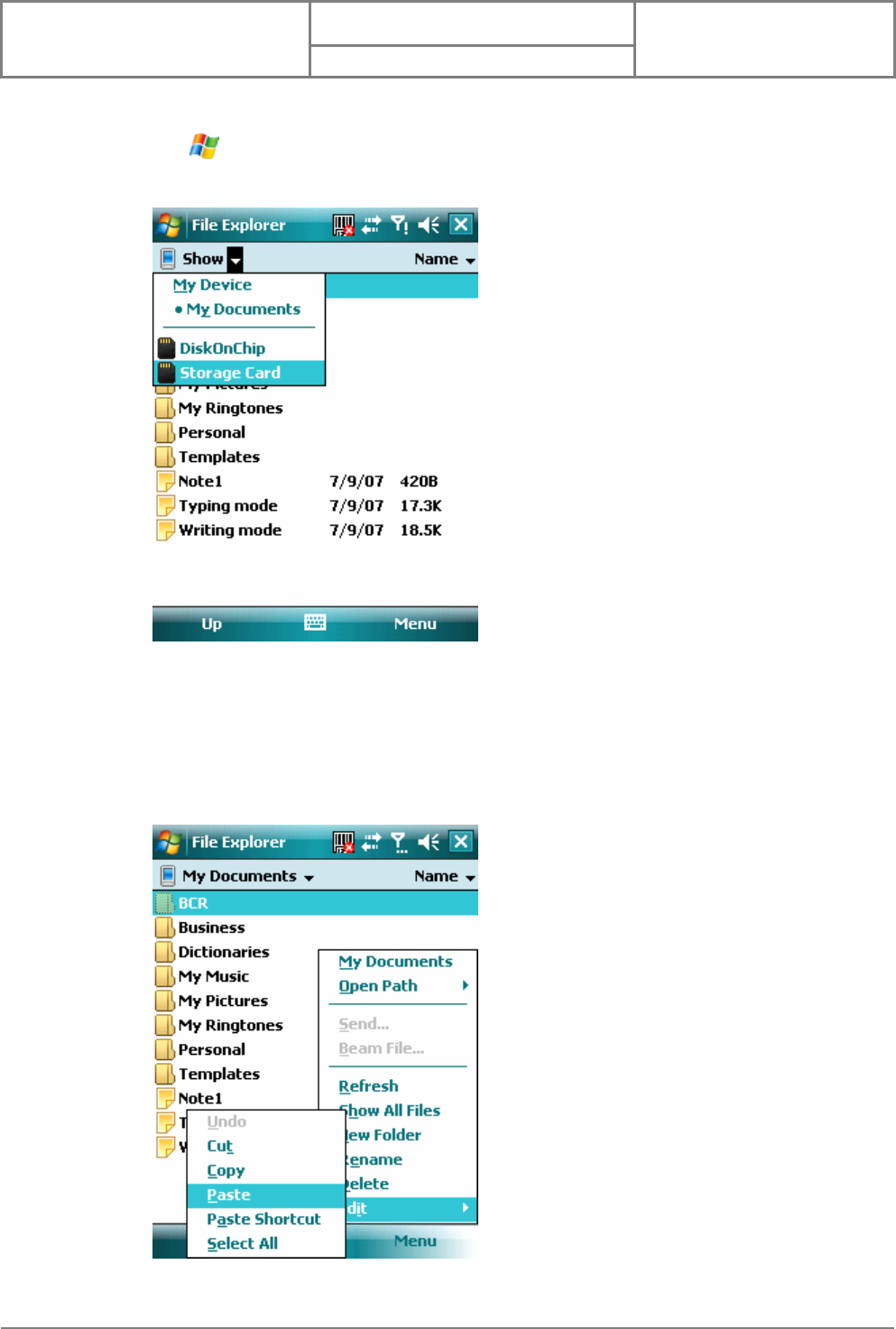

File Explorer Lets you organize and manage the files on your device.
Format Disk Lets you format an inserted mini-SD card and DiskOnChip in
your device.
Internet
Sharing
Lets you use your device as an external modem for a PC,
connecting through an USB port and Bluetooth.
Messenger Lets you send and receive instant messages with your
Windows Live Messenger contacts.

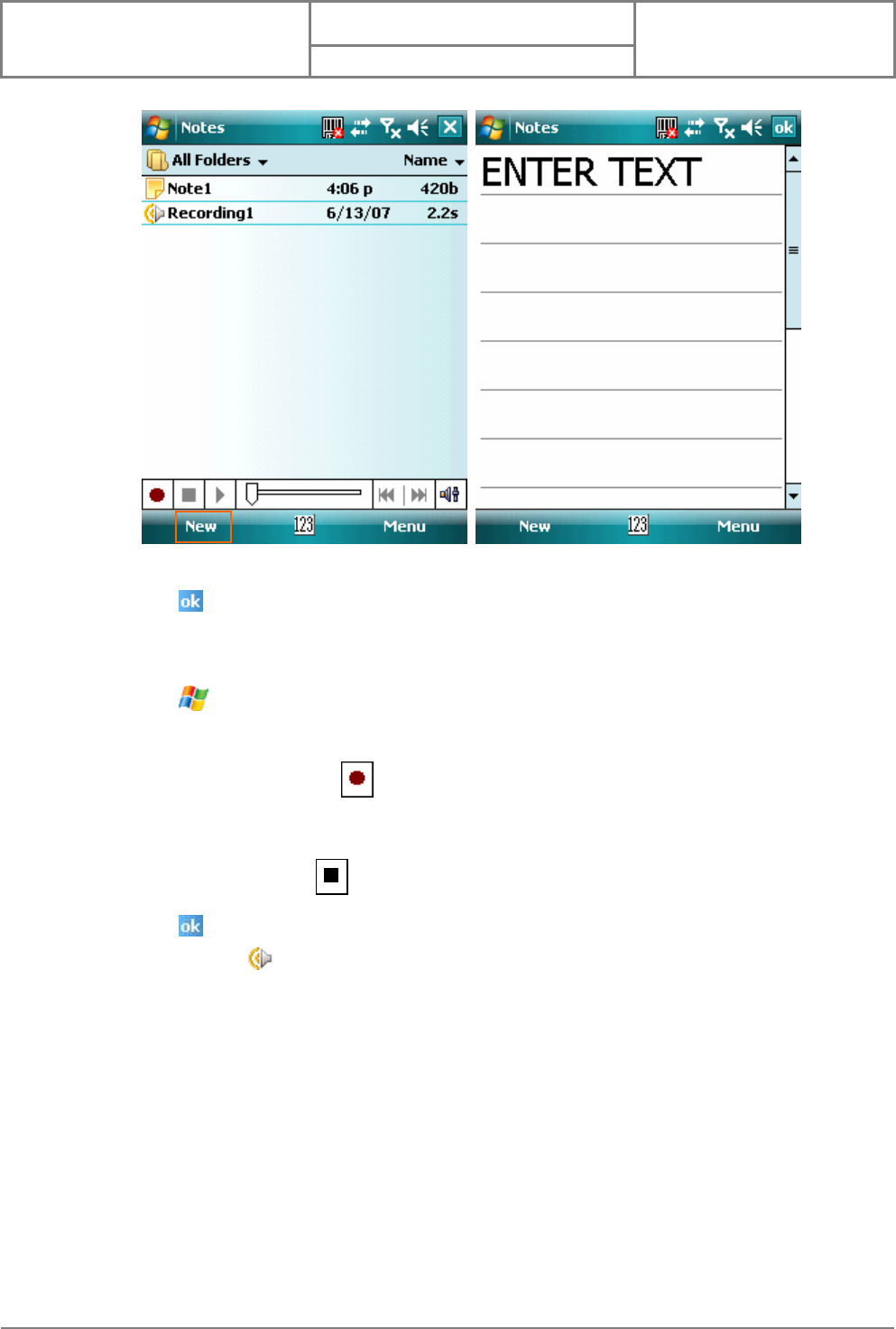

Notes See “2.6 Notes” for details.
Phone Profile Lets you set different profiles for the device in different
situations. See “10.6 Phone Profile” for details.
Pictures &
Video
Collects, organizes, and sorts picture and video files in the My
Pictures folder on your device or on a storage card.
Search Searches the data stored in your device.
SIM Manager Lets you manager your SIM card. See “3.4 SIM Manager” for
details.

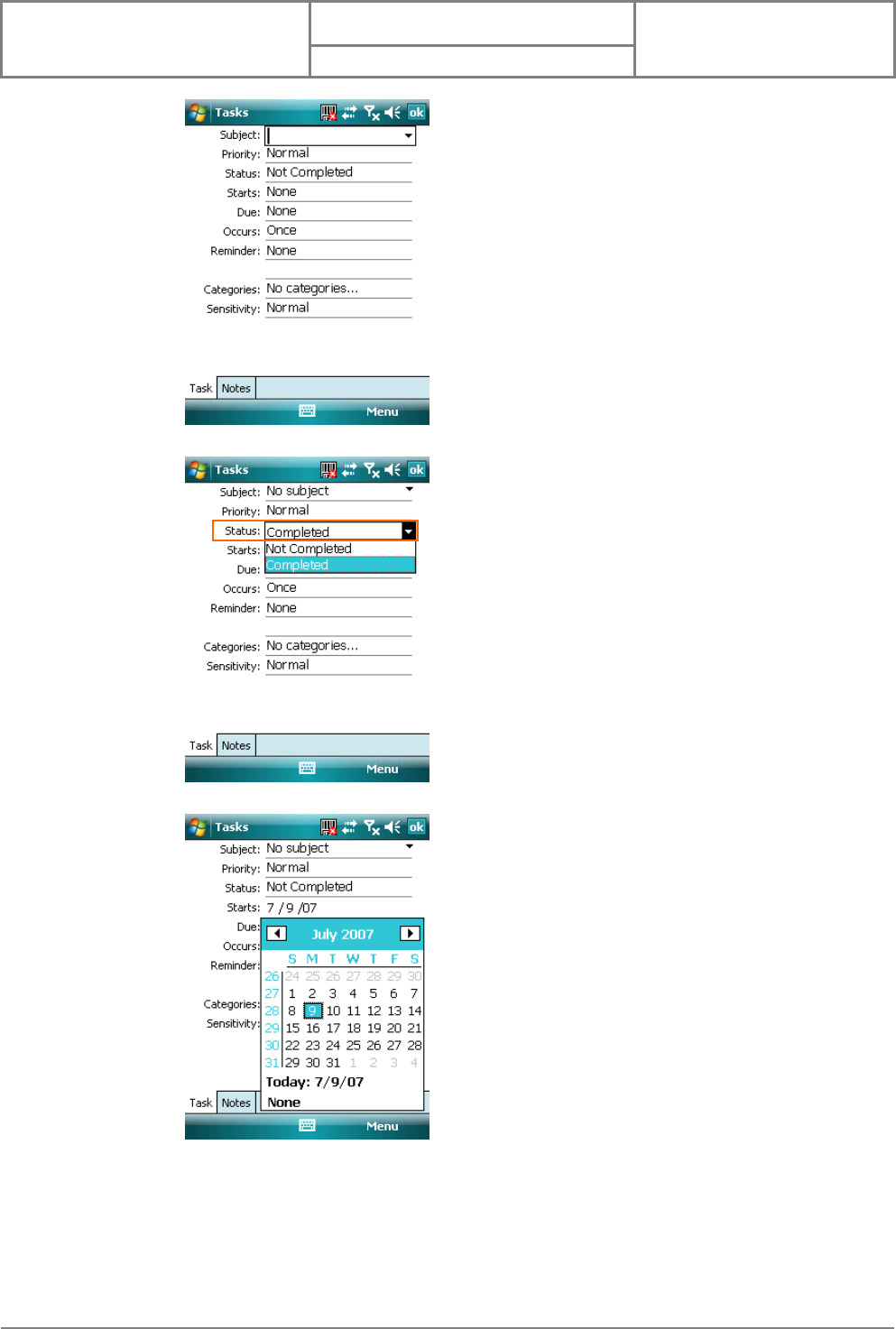

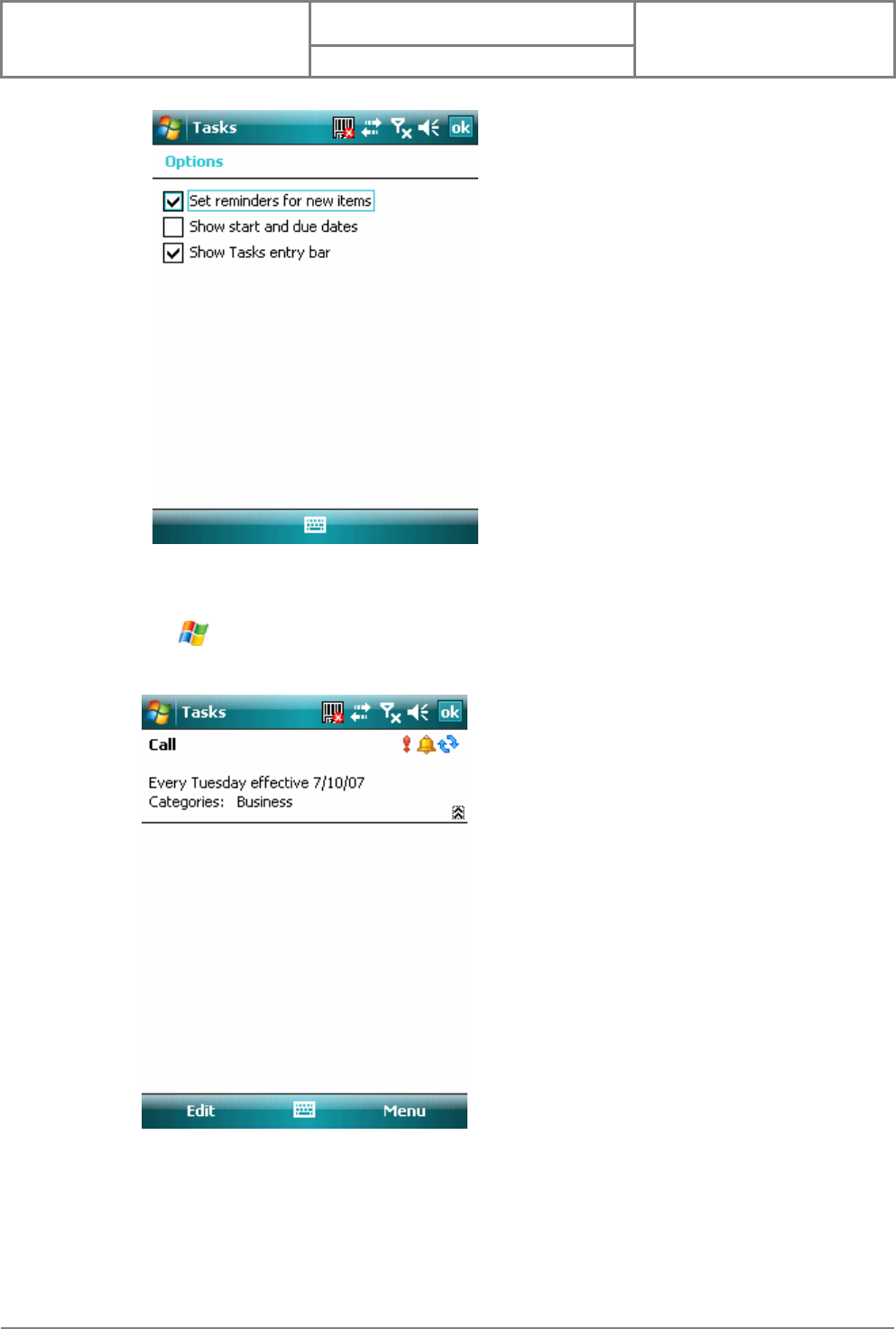

Tasks Keeps track of your tasks. See “2.7 Using Tasks” for details.
③
User Manual
OPTICON Preliminary
Version : 1.0
Date : 2008/05/20
34

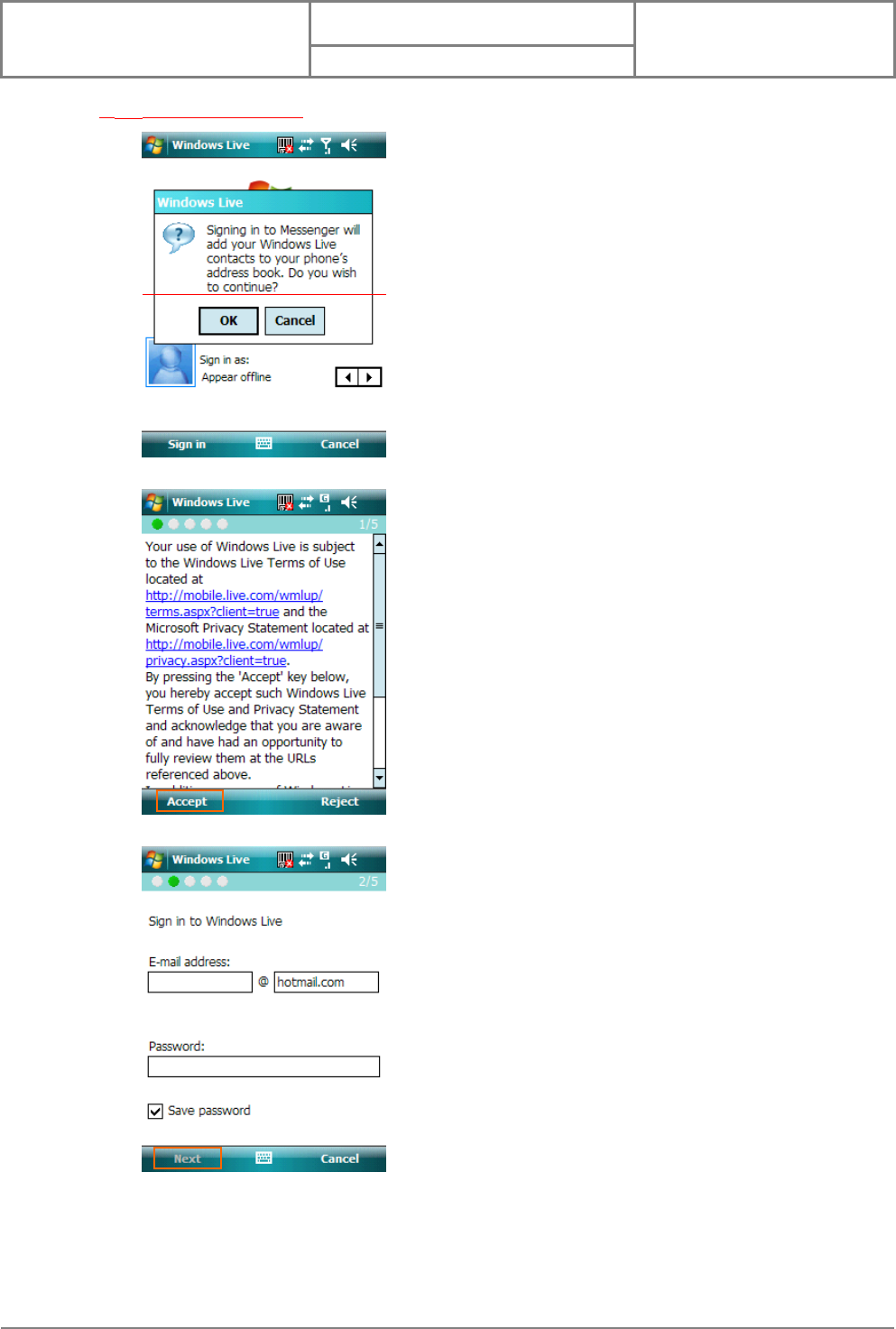

Windows Live A network integration service which allows you to access and
manage various Internet services such as Windows Live
Spaces, Windows Live Messenger, Live Search…etc.
Windows Media Use it to play music and video.
List of All Settings
Personal
Buttons Configure the device’s buttons.
Input Input method configurations.
Lock Set a password to unlock the device.
Menus Configure the Start menu.
Owner
Information
Enter information about the owner of the device.
Phone Configure the Phone features. See “Chapter 3 Phone Features”
for details.
Sounds &
Notifications
Configure program and event sounds.
Today Configure the Today screen items and theme.
System
About Windows Mobile information and device name.
Backlight Configure the display backlight.

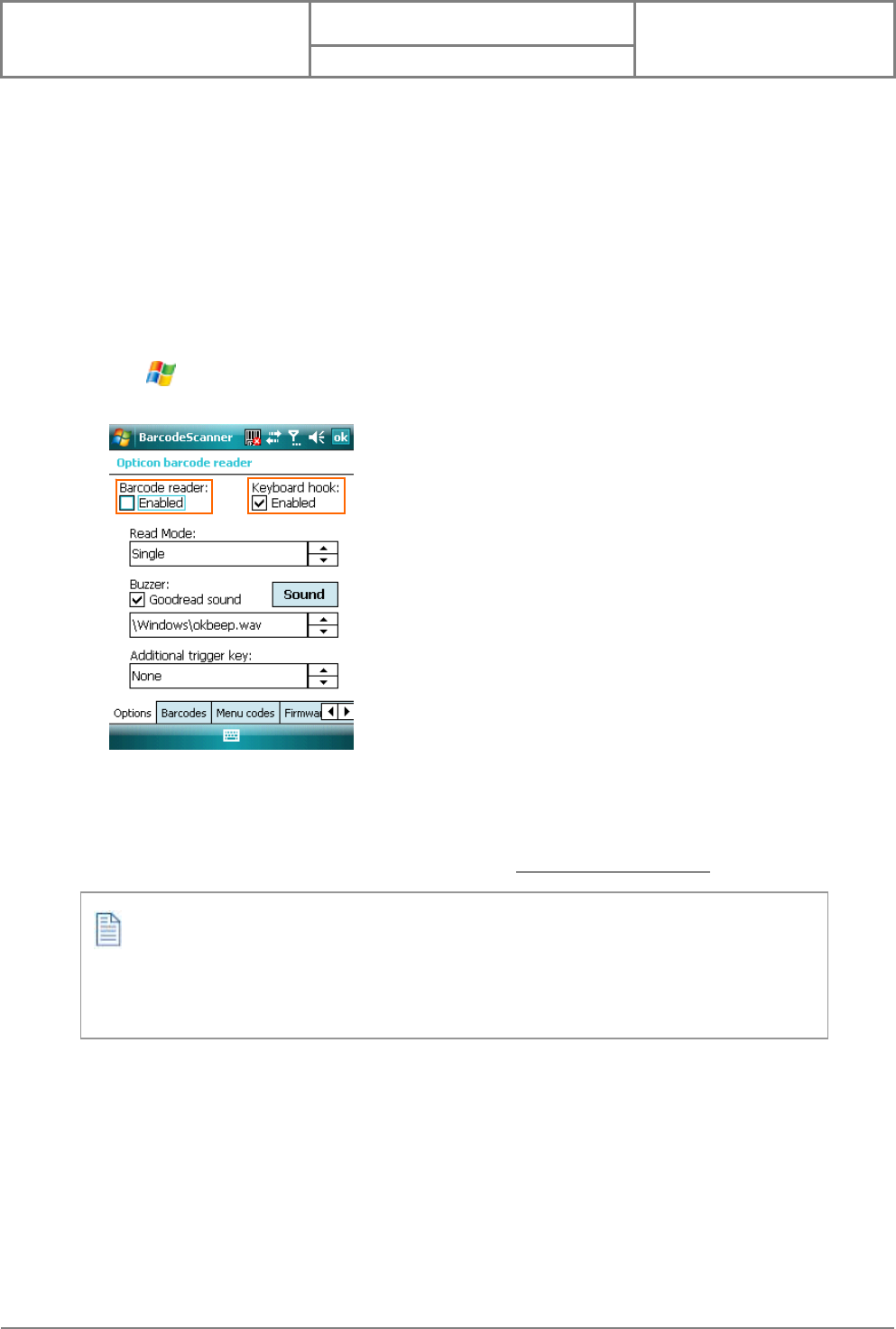

Barcode
Settings
Change settings of barcode scanner
Certificates Manage personal and root certificates.
Clock & Alarms Set time and alarms.
User Manual
OPTICON Preliminary
Version : 1.0
Date : 2008/05/20
35
Customer
Feedback
Allows you to send information about how you use Windows
Mobile software to Microsoft.
Device Info Display the device software and hardware version.
Encryption Encrypt files placed on storage cards.
Error Reporting Enable or disable Microsoft product error reporting.
External GPS Helps you to set up an external GPS device on your device
Factory Reset Lets you reset all settings to manufacturer default.
Memory Memory and process management.
Power Power management settings.
Regional
Settings
Configure the device’s locale.
Remove
Programs
Remove an installed application.
Screen Lets you align the screen. See “ 2.1 Calibrating Your Device”
for details.
Windows
Update
Lets you download Windows Mobile updates such as critical
security fixes.

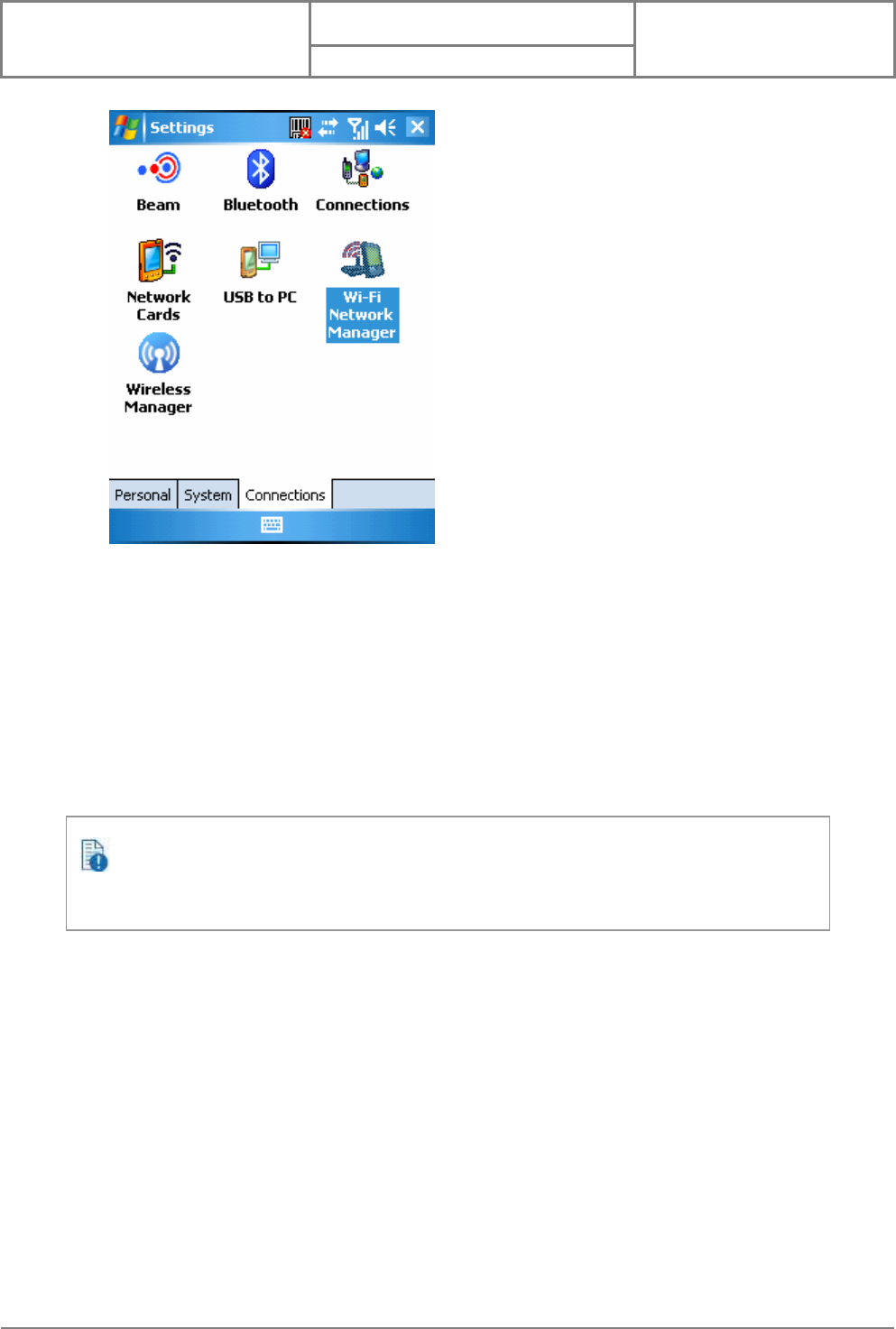

Connections
Beam Turn on/off the beam feature.
Bluetooth Configure Bluetooth settings. See “Chapter 5 Bluetooth
Connections” for detail.
Connections Configure the device’s connections.
Network Cards Configure Network adapter.
USB to PC Enable/Disable advanced network functionality.
User Manual
OPTICON Preliminary
Version : 1.0
Date : 2008/05/20
36
WAN Conf Helps you to change authentication schemes for GPRS setting
(MS-CHAP, CHAP and PAP). Please contact your service
provider for information on which scheme to select.
Wi-Fi Network
Manager
Displays detail information of Wi-Fi Network including MAC
address, signal strength…etc.
Wireless
Manager
Turn on/off wireless and phone features with the Wireless
Manager.
2.5 Using Calendar
Use Calendar to schedule appointments, including meetings and other events. Your
appointments for the day can be displayed on the Today screen. If you use Outlook on your PC,
you can synchronize appointments between your device and PC. You can also set Calendar to
remind you of appointments with a sound or flashing light, for example.
You can look at your appointments in several different views (Day, Week, Month, Year and
Agenda). To see detailed appointment information in any view, tap the appointment. For
information about changing the Calendar view, see Change views in Calendar.
Scheduling an Appointment
1. Either tap > Calendar or tap the appointment reminder on the Today Screen.
2. Tap Menu > New Appointment.
3. Enter information about the appointment.
4. To schedule an all-day event, under All Day, select Yes.
User Manual
OPTICON Preliminary
Version : 1.0
Date : 2008/05/20
37
5. To make the appointment recurring, tap on how often it should recur in the Occurs
drop-down box.
6. Select categories and attendees.
7. Tap Notes tab to add details to the appointment if needed.
8. Tap .
Categories: Business, Holiday,
Personal, Seasonal
Add attendees to the meeting.
All-day events do not occupy blocks of time in Calendar; instead, they appear in
banners at the top of the calendar.
User Manual
OPTICON Preliminary
Version : 1.0
Date : 2008/05/20
38

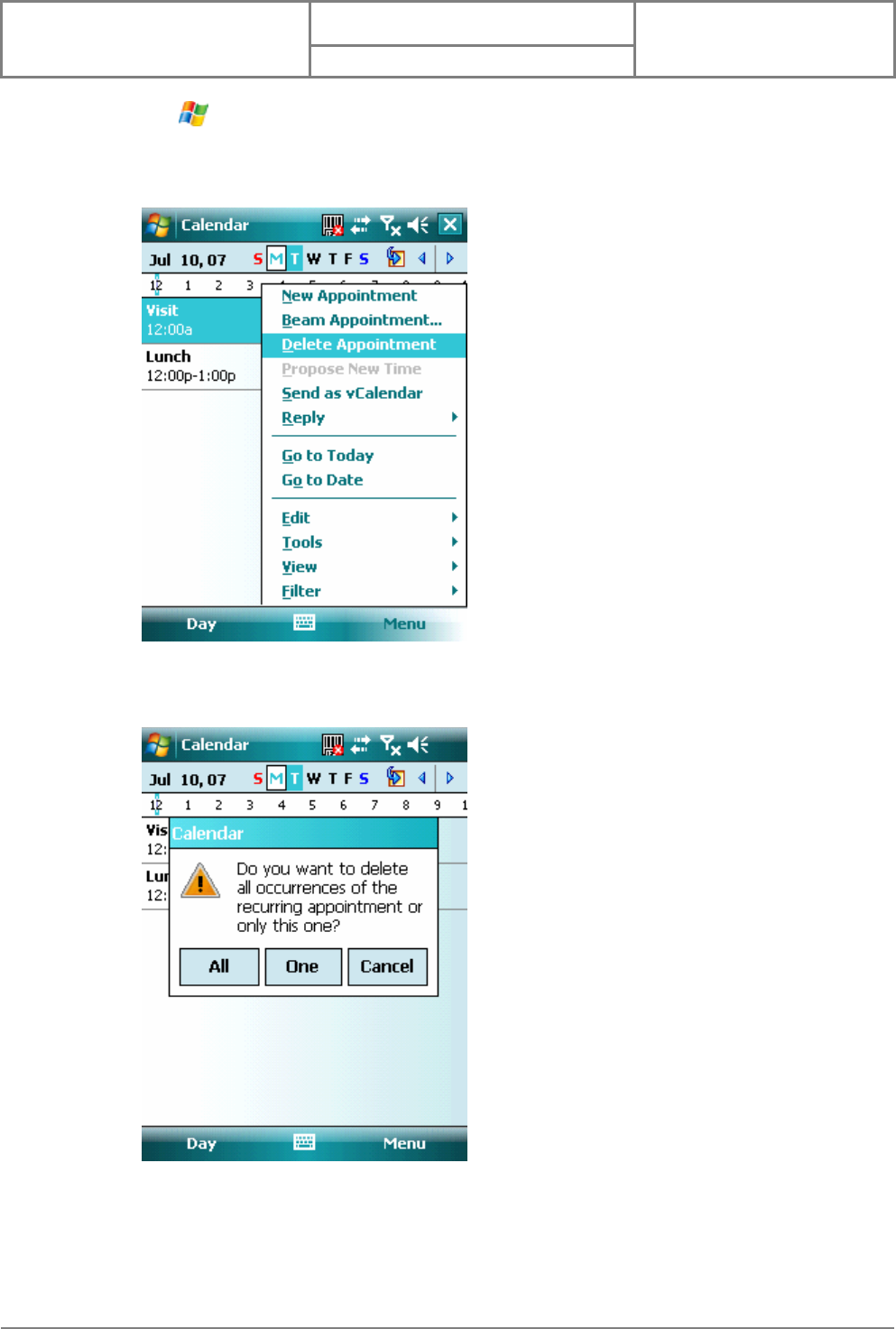

Deleting an Appointment
1. Tap > Calendar.
2. In Agenda view, select the appointment to delete.
3. Tap Menu > Delete Appointment.
4. If the appointment is recurring, tap All to delete the series, or tap One to delete only
the current occurrence.
When you delete an appointment in Calendar on your device, it is also deleted on your
PC the next time you synchronize. If the appointment has not been synchronized with a PC,
it will be deleted only form the device.
Calendar items can be deleted only from Agenda view or from an open calendar
appointment. To delete from other views, open the appointment, and Tap Menu > Delete.
User Manual
OPTICON Preliminary
Version : 1.0
Date : 2008/05/20
39
Changing the Reminder Time
By default, the reminder time is set 15 minutes prior to an appointment.
1. Tap > Calendar.
2. Tap Menu > Tools > Options.
3. Tap Appointment tab and change the time.
4. Tap .
Changing Calendar Views
You can look at your appointments in Agenda, Day, Week, Month or Year view. To see detailed
appointment information in any view, tap the appointment. To see a list of available actions for
an appointment, tap and hold the appointment.
1. Tap > Calendar.
2. Tap Menu > View and select the view you want.

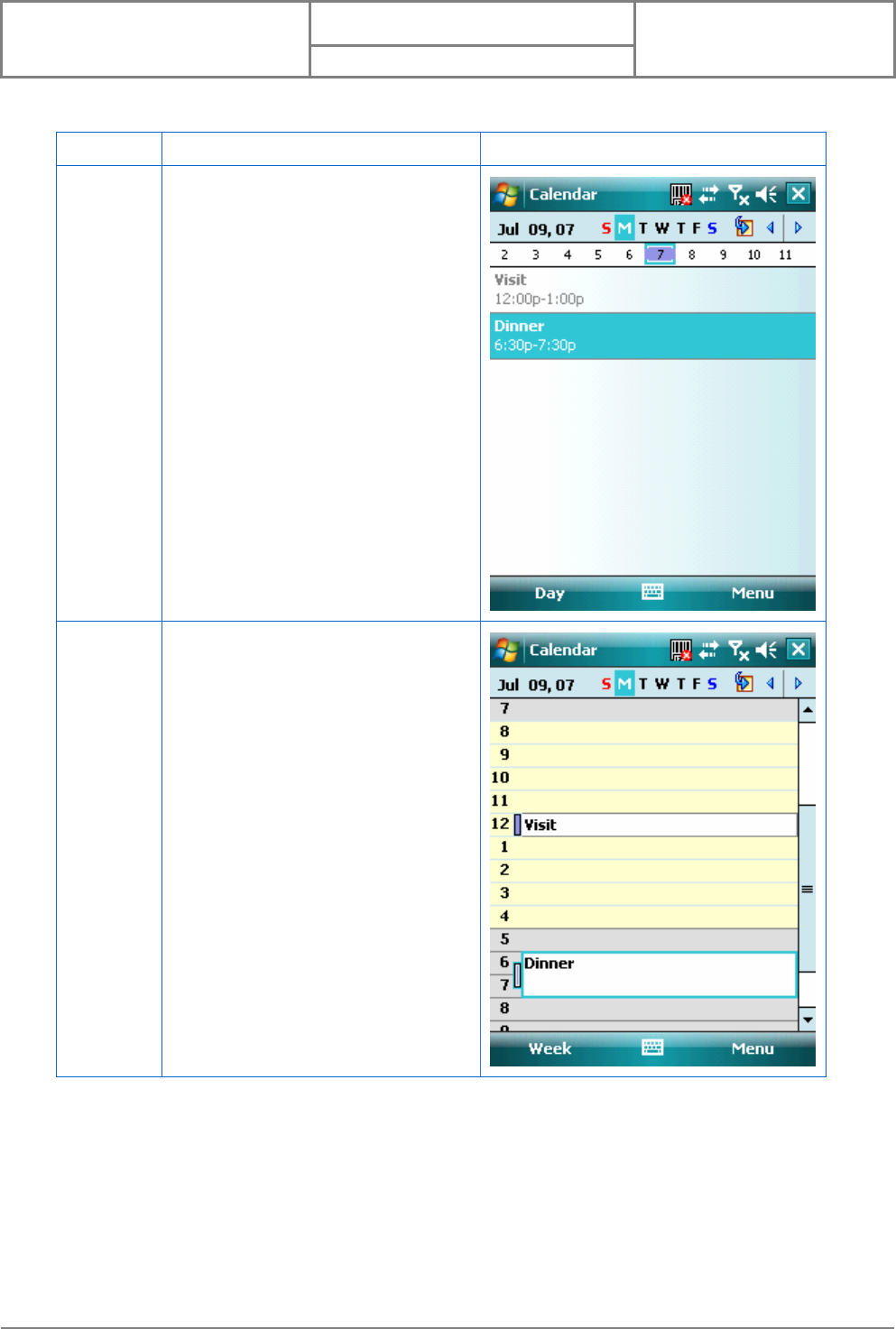

View See Screen
Agenda Your current day's activities at a
glance. Upcoming appointments
are bold; past appointments are
dimmed.
User Manual
OPTICON Preliminary
Version : 1.0
Date : 2008/05/20
40
Day Your schedule for a single day in a
day-planner layout. Free and busy
times in time slots of 1/2 hour or 1
hour.
Week Your schedule for the whole week.
Month Your free and booked days for a
month:
: Current day
: morning appointment
: afternoon appointment
: morning and afternoon
appointments
: all-day event with time not
marked free
User Manual
OPTICON Preliminary
Version : 1.0
Date : 2008/05/20
41
Year A calendar for the entire year.
Changing the Display of the Work Week
1. Tap > Calendar.
2. Tap Menu > Tools > Options and do one of the flowing:
z To assign a default view, in Start in, select Agenda View, Day View, Week
View, Month View or Year View.
z To specify the first day of the week, in 1st day of week, tap Sunday or
In Month view, a date will appear in red when the Holiday category is assigned to any
appointment for that day.
You can also change the view by tapping Agenda, Day, Week, Month, or Year on the
menu bar.
To quickly see your appointments for the current day, tap Start > Today.
User Manual
OPTICON Preliminary
Version : 1.0
Date : 2008/05/20
42
Monday.
z To specify the number of days you want to appear in a week, in Week view,
tap 5-day week, 6-day week, or 7-day week.
3. Tap .
Setting Options for Displaying Appointment on the Today Screen
You can specify the kind of appointment that show on the Today screen.
1. Tap > Settings > Personal tab > Today > Items tab.
2. Select Calendar, and then tap Options.
3. Do any of the following:
z Select Next appointment to show only the next appointment in your
schedule.
z Select Upcoming appointment to show multiple appointments.
z Select the Display all day events check box to show all-day event.
2.6 Using Notes
Notes helps you to quickly capture thoughts, questions, reminders, to-do lists, and meeting
notes. You can create handwritten and typed notes, record voice notes, convert handwritten
notes to text for easy readability, and send notes to others.
Your notes and recordings are displayed in the note list. If you have a long list, tap the sort list
(labeled Name by default), and select the option you want. To open a note or play a recording,
tap it. To see a list of available actions for a note or recording, tap and hold the note or
recording.

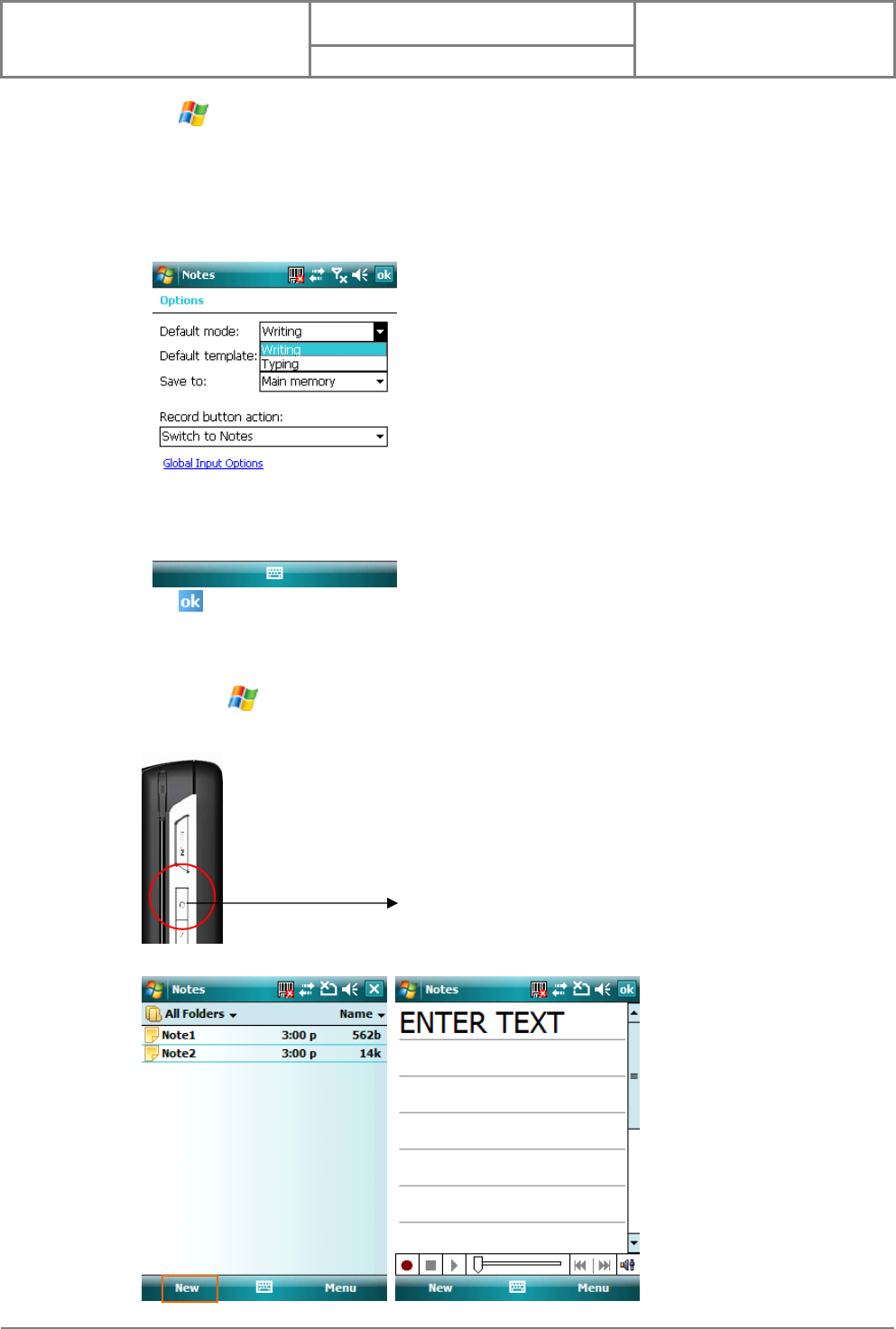

Setting the Default Input Mode
User Manual
OPTICON Preliminary
Version : 1.0
Date : 2008/05/20
43
1. Tap > Programs > Notes.
2. Tap Menu > Options.
3. Select one of the following modes in Default mode:
z Select Writing if you prefer your notes to be handwritten.
z Select Typing if you would like your notes to be typed.
4. Tap .
Creating a Note
1. Either tap > Programs > Notes or press the Voice Record button on the left
side of the device.
2. Tap New and enter text.
Press the Voice Record button on the left side to launch
Notes.
User Manual
OPTICON Preliminary
Version : 1.0
Date : 2008/05/20
44
3. Tap to save your note.
Creating a Stand-alone Voice Recording
1. Tap > Programs > Notes.
2. If the recording toolbar is not shown, tap Menu > View Recording Toolbar.
3. Tap the RECORD button on the recording toolbar and speak into the device’s
microphone to record your voice in the notes list.
4. Tap the STOP button on the recording toolbar when finished.
5. Tap to return to the notes list.
Switching between Typing/Writing Modes
1. Tap > Programs > Notes.
2. Create a new note or open an existing note from the notes list.
3. Tap Menu > Draw to switch to a different mode.
While in typing mode, tap Draw to
switch to writing mode
While in writin
g
mode, tap Draw to
switch to typing mode
User Manual
OPTICON Preliminary
Version : 1.0
Date : 2008/05/20
45
Editing a Handwritten Note
z Tap Menu > Undo/Redo Ink.
z Tap Edit > Select All/Clear.
Adding a Voice Recording to a Note
1. Tap > Programs > Notes.
2. Create a new note or open an existing note from the notes list.
3. If the recording toolbar is not shown, tap Menu > View Recording Toolbar.
Re-execute an undone
action by tapping Redo
Ink.
Tap Undo Ink to cancel or
reverse an action.
Tap Select All to select all handwriting Tap Clear to clear selected handwriting
User Manual
OPTICON Preliminary
Version : 1.0
Date : 2008/05/20
46
4. Tap the RECORD button on the recording toolbar and speak into the device’s
microphone.
5. Tap the STOP button on the recording toolbar when finished.
6. Tap to return to the notes list if you are adding a voice recording to a note.
Deleting a Note
1. Tap > Programs > Notes.
2. Tap and hold the note and tap Delete.
Stop
Record
Play
A
dd a voice recordin
g
to a note
in typing mode
A
dd a voice recordin
g
to a note in
writing mode
User Manual
OPTICON Preliminary
Version : 1.0
Date : 2008/05/20
47
3. Tap the Yes button to delete the selected note.
Creating a Default Template
1. Tap > Programs > Notes.
2. Create a note that you would like to save as a template.
3. In the note list, select the new note and tap Menu > Rename/Move.
4. Enter a name for the new template in the Name box.
User Manual
OPTICON Preliminary
Version : 1.0
Date : 2008/05/20
48
5. In the Folder list, select Templates.
6. Tap to return to the note list.
Creating a Note by Using a Template
1. Tap > Programs > Notes.
2. Tap Menu > Options.
3. Select a template from Default template.
User Manual
OPTICON Preliminary
Version : 1.0
Date : 2008/05/20
49

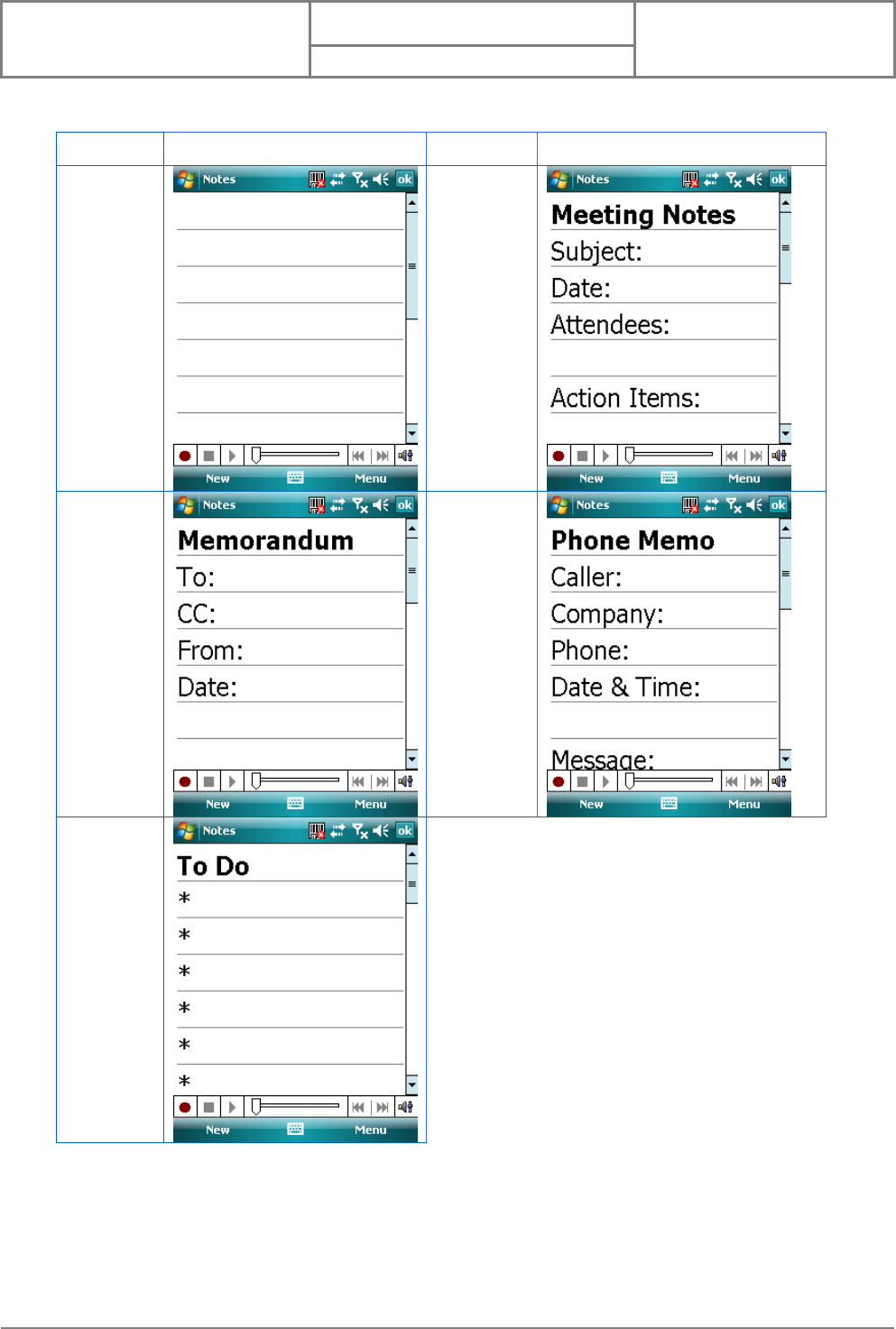

Template Screen Template Screen
Blank Meeting
Notes
Memo Phone
Memo
To Do
2.7 Using Tasks
Use Tasks to keep track of things you need to do. A task can occur once or repeatedly
(recurring). You can set reminders for your tasks and you can organize them by using
User Manual
OPTICON Preliminary
Version : 1.0
Date : 2008/05/20
50
categories.
Your tasks are displayed in a task list. Overdue tasks are displayed in red.
If you use Outlook on your PC, you can synchronize tasks between your device and PC so that
tasks you create or update on your PC will also be updated on your device and vice versa.
Creating a Task
1. Tap > Programs > Tasks.
2. Do one of the following:
z In the Tap here to add a new task box enter the task name and press the
ENTER key.
z Tap Menu > New Task and enter details about the new task.
i. Enter or select a subject.
To quickly see the number of active tasks you have, tap Start > Today.
User Manual
OPTICON Preliminary
Version : 1.0
Date : 2008/05/20
51
ii. Select a completion status.
iii. Pick the start and due time.
iv. Set a reminder date/time and pick a task category.
User Manual
OPTICON Preliminary
Version : 1.0
Date : 2008/05/20
52
v. Select task sensitivity.
Set reminder date and time.
Multi-selection
User Manual
OPTICON Preliminary
Version : 1.0
Date : 2008/05/20
53
Deleting a Task
1. Tap > Programs > Tasks.
2. Select the task, and tap Menu > Delete Task.
Changing a Task
1. Tap > Programs > Tasks.
2. Select the task, and tap Edit.
Viewing Task Details
1. Tap > Programs > Tasks.
You can synchronize information on your device with your PC to keep your task list up
to date in both locations.
If you create a new task with a reminder on your PC and then synchronize tasks with
your device, the reminder will play at the time it was set on your PC.
User Manual
OPTICON Preliminary
Version : 1.0
Date : 2008/05/20
54
2. Tap twice on a task to view the details.
Sorting/Filtering Your Tasks
1. Tap > Programs > Tasks.
2. Do one of the following:
z To sort the tasks, tap Menu > Sort by and select a sorting option.
z To filter the tasks by category, tap Menu > Filter and select a category to
display.

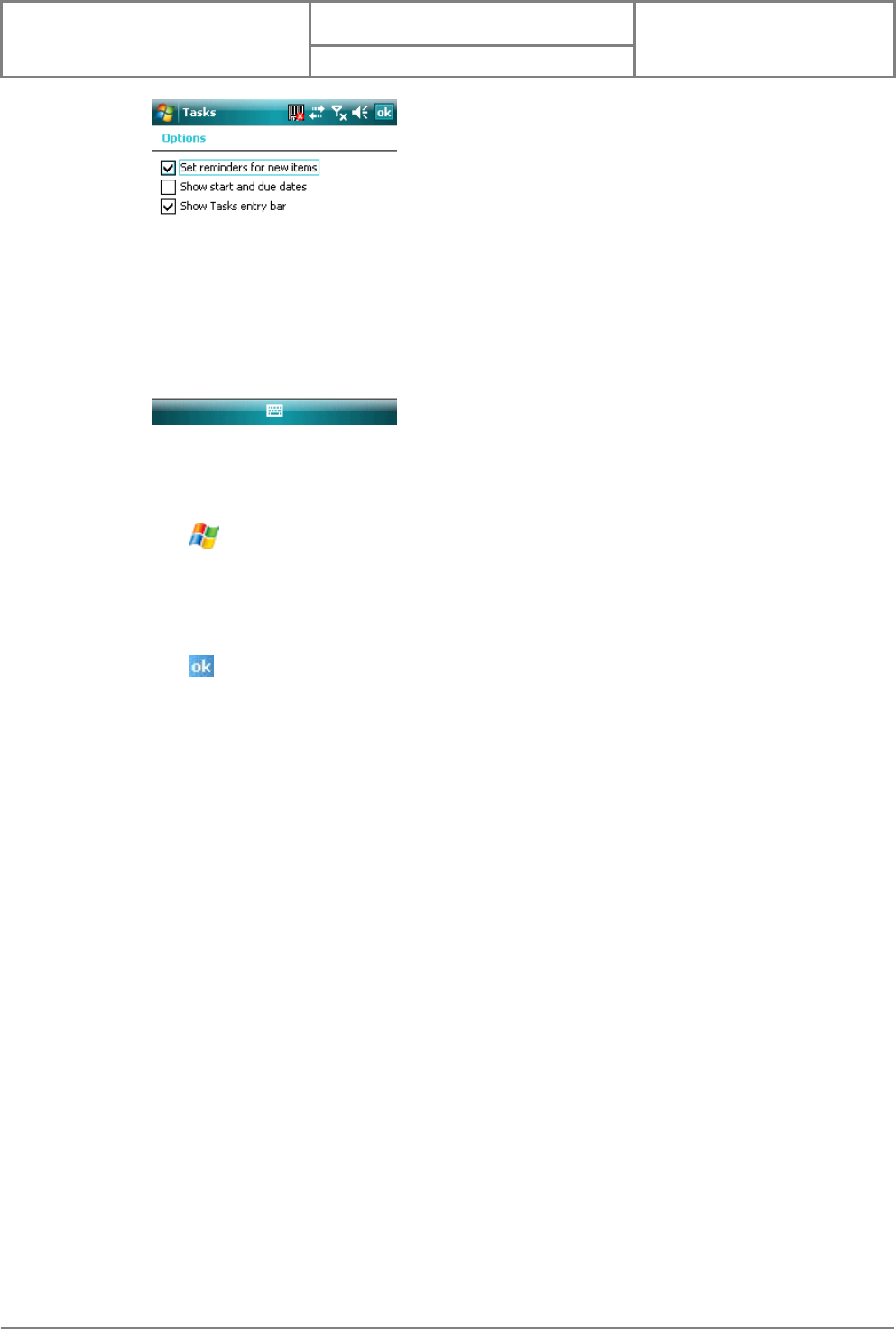

Setting Tasks Options
1. Tap > Programs > Tasks.
2. Tap Menu > Options, there are 3 options you can set:
z Set reminders for new items
z Show start and due dates
z Show Tasks entry bar
User Manual
OPTICON Preliminary
Version : 1.0
Date : 2008/05/20
55
Setting Options for Displaying Tasks on the Today Screen
You can specify the kind of tasks that show on the Today screen.
1. Tap > Settings > Personal tab > Today > Items tab.
2. Select Tasks, and then tap Options.
3. Under Display number of, select the type of task that you want to show on the
Today screen.
4. Tap to save this setting.
User Manual
OPTICON Preliminary
Version : 1.0
Date : 2008/05/20
56
Charter 3. Phone Features
User Manual
OPTICON Preliminary
Version : 1.0
Date : 2008/05/20
57
You can use your device to make, receive, and keep track of calls, and send text messages
(SMS, Short Message Service) and MMS (Multimedia Messaging Service) messages. You can
also dial a phone number directly from Contacts, and easily copy SIM contacts to Contacts on
the device.
3.1 Making a Call
The Phone Screen
From the Phone screen, you can open, call, or find a contact, and even save a new number in
Contacts. To access the Phone screen, do any of the following:
z Press the Talk key ( ).
z Tap > Phone.
Making a Call by Entering a Phone Number
To enter phone numbers by tapping the screen directly, you have to open the Phone Keypad.
1. On the Phone screen, if the Phone Keypad doesn’t show automatically, tap Keypad. A
Phone Keypad will show, you can then enter the phone number.
2. Do one of the following after entering the phone number:
z If you see the number or contact name to call, select it, then tap or
press the TALK ( ) key.
z If you do not see the number or contact name, finish entering the number,
then tap or press the TALK ( ) key.
SIM Contact
Outlook Contact
User Manual
OPTICON Preliminary
Version : 1.0
Date : 2008/05/20
58

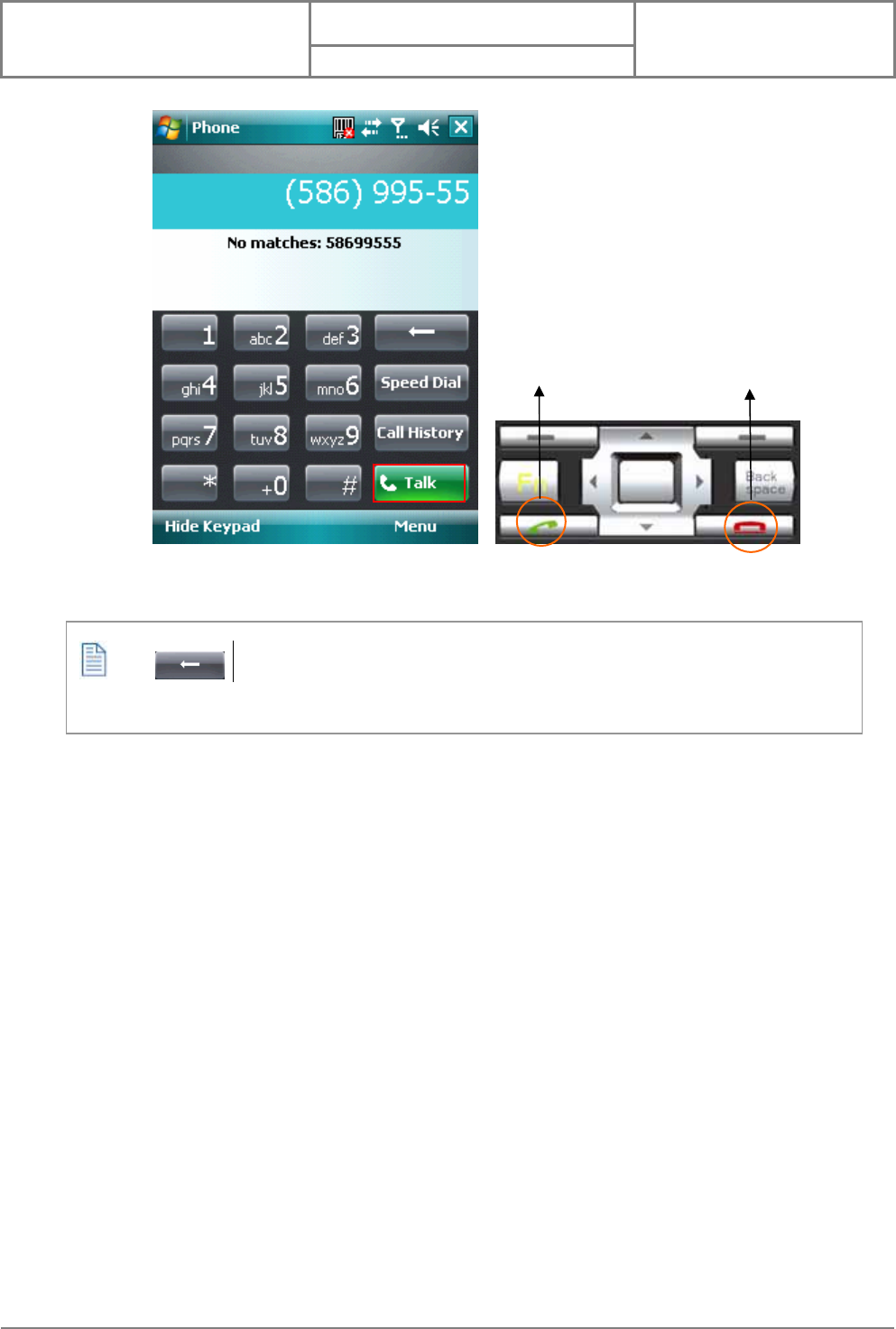

Making a Call from Call History
Call History displays calls you have made, received, and missed.
1. On the Phone screen, tap the Call History button on the Phone keypad.
2. Select the name or phone number to call.
3. Tap Call or press TALK ( ).
TALK Key END Key
Call History
1. Calls you received
2. Calls you made
3. Calls you missed
Tap on the screen once to erase one single number; tap and hold it to erase a
whole string of numbers.
Tap a phone number or a contact in the Call History list displays history on all the calls related
to the contact or the phone number.
When someone who isn’t in your list of contacts calls you, you can create a contact during
the call from or from Call History by tapping Menu > Save to Contacts.
User Manual
OPTICON Preliminary
Version : 1.0
Date : 2008/05/20
59
Making a Call from Contacts
1. On the Phone screen, tap on the desired contact in the list. You can quickly search
through Contacts by entering the first letter of the contact or the first number of
his/her phone number.
2. Do one of the following:
z Tap on the number you want to dial; otherwise, you can tap Call on the screen
or press TALK ( ).
z Tap and hold the contact and select Call Work, Call Home, or Call Mobile
from the pop-up submenu.
User Manual
OPTICON Preliminary
Version : 1.0
Date : 2008/05/20
60
Making a Call from Speed Dial
You can create speed dial entries for frequently called numbers or frequently accessed items so
you can dial a number by pressing a single key. For example, if you assign location 2 to a
contact in Speed Dial, you can simply press and hold 2 on the Phone keypad to dial the
contact’s number. Speed dials can be created only for numbers that are stored in Contacts.
To create a speed dial entry for a contact
1. On the Phone screen, tap Speed Dial.
2. Tap Menu > New.
3. Tap the contact for whom to create a speed dial.
User Manual
OPTICON Preliminary
Version : 1.0
Date : 2008/05/20
61
4. Select the phone number for which to create a speed dial.
5. In Location, select the speed dial number to use.
6. Tap when finished.
User Manual
OPTICON Preliminary
Version : 1.0
Date : 2008/05/20
62
To retrieve a voicemail message
z On the Today screen, press and hold 1 to access your voice mailbox, and follow the
prompts to retrieve your message.
To delete a speed dial entry
z In the Speed Dial list, tap Menu > Delete.
Receiving/Rejecting a Call
When you receive a phone call, you have the option to answer it or ignore it.
To receive a call
z Tap Answer or press the TALK ( ) key to accept an incoming call.
To end a call
z Tap Ignore or press END ( ) to hang up a call.
3.2 Configuring the Phone
Your wireless service provider may provide useful services such as Call Barring, Caller ID, Call
Forwarding, Call Waiting, Voice Mail and Text Messages and Fixed Dialing. You can get their
settings from the Network and change them.
Activating PIN Security
Most Subscriber Identity Module (SIM) cards are preset with a personal identification number
(PIN) that is provided by your wireless service provider. When PIN Security is activated, you
need to enter the PIN whenever you use your device.
1. Tap > Settings > Phone > Select Require PIN when phone is used.
The first speed dial location is generally reserved for your voicemail. Speed Dial uses
the next available location by default. If you want to place a number in a location that is
already used, the new number replaces the existing number.
Tap the Speed Dial button on the phone screen to check the success of creating a
Speed Dial entry.
User Manual
OPTICON Preliminary
Version : 1.0
Date : 2008/05/20
63
2. Enter the preset PIN provided by your wireless service provider.
3. Tap Enter.
Changing the Ring Type and Ring Tone
You can choose how to be notified for incoming calls.
1. Tap > Settings > Phone.
2. In the Ring type list, tap the desired option.
3. In the Ring tone list, select a ring tone.
4. Tap .
Changing the Ringer Volume
1. Tap the volume button on the screen.
2. Move the slider to the desired volume level.
If your PIN is entered incorrectly three times, the SIM card will be blocked. If this
happens, you can unblock it with the PIN Unblocking Key (PUK) obtained from your wireless
service provider.
To use custom .wav, .mid, or .wma files as ring tones, use ActiveSync on your PC to
copy the file to the /Windows/Rings folder on your device. Then select the sound from the
Ring tone list.
User Manual
OPTICON Preliminary
Version : 1.0
Date : 2008/05/20
64
Blocking Incoming or Outgoing Calls
You will not be able to receive or make calls according to the options you choose.
1. Tap > Settings > Phone > Services tab.
2. Tap Call Barring > Get Settings.
3. Choose the calls you want to block, and tap .
z Block incoming calls: All calls, When roaming, Off.
Select On, Vibrate or Off to quickly change both the ringer and system volume and
settings.
To adjust the earpiece volume during a call, press the VOLUME control on the device
side panel. Adjusting the volume at any other time can affect the ring and notification and
MP3 sound levels.
User Manual
OPTICON Preliminary
Version : 1.0
Date : 2008/05/20
65
z Block outgoing calls: All calls, International, International except to home
country, Off.
Displaying Caller ID
You can provide a way for people to know your identity when you are calling them.
1. Tap > Settings > Phone > Services tab.
2. Tap Caller ID > Get Settings.
3. Select Everyone, No one or Only to contact, and tap .
Call Waiting
When you are in another call, you will be notified of an incoming call if this option is selected.
1. Tap > Settings > Phone > Services tab > Call Waiting > Get Settings.
User Manual
OPTICON Preliminary
Version : 1.0
Date : 2008/05/20
66
2. Select Notify me or Do not notify me, and tap .
Selecting a Network Manually
1. Tap > Settings > Phone > Network tab. Alternatively, you can tap Menu >
Options > Network tab from the Phone screen.
2. In the Network selection list, tap Manual. The list of available network is displayed.
3. Select the network you want to use, then tap .
3.3 In-Call Options
Your device provides various options for managing multiple calls at the same time. You are
notified when you have another incoming call, and you have the choice of ignoring or accepting
the call. If you are already on a call and accept the new call, you can choose to switch between
the two callers, or set up a conference call between all three parties.
To change phone settings alternatively, tap Menu > Options > Services tab from the
Phone keypad.
User Manual
OPTICON Preliminary
Version : 1.0
Date : 2008/05/20
67

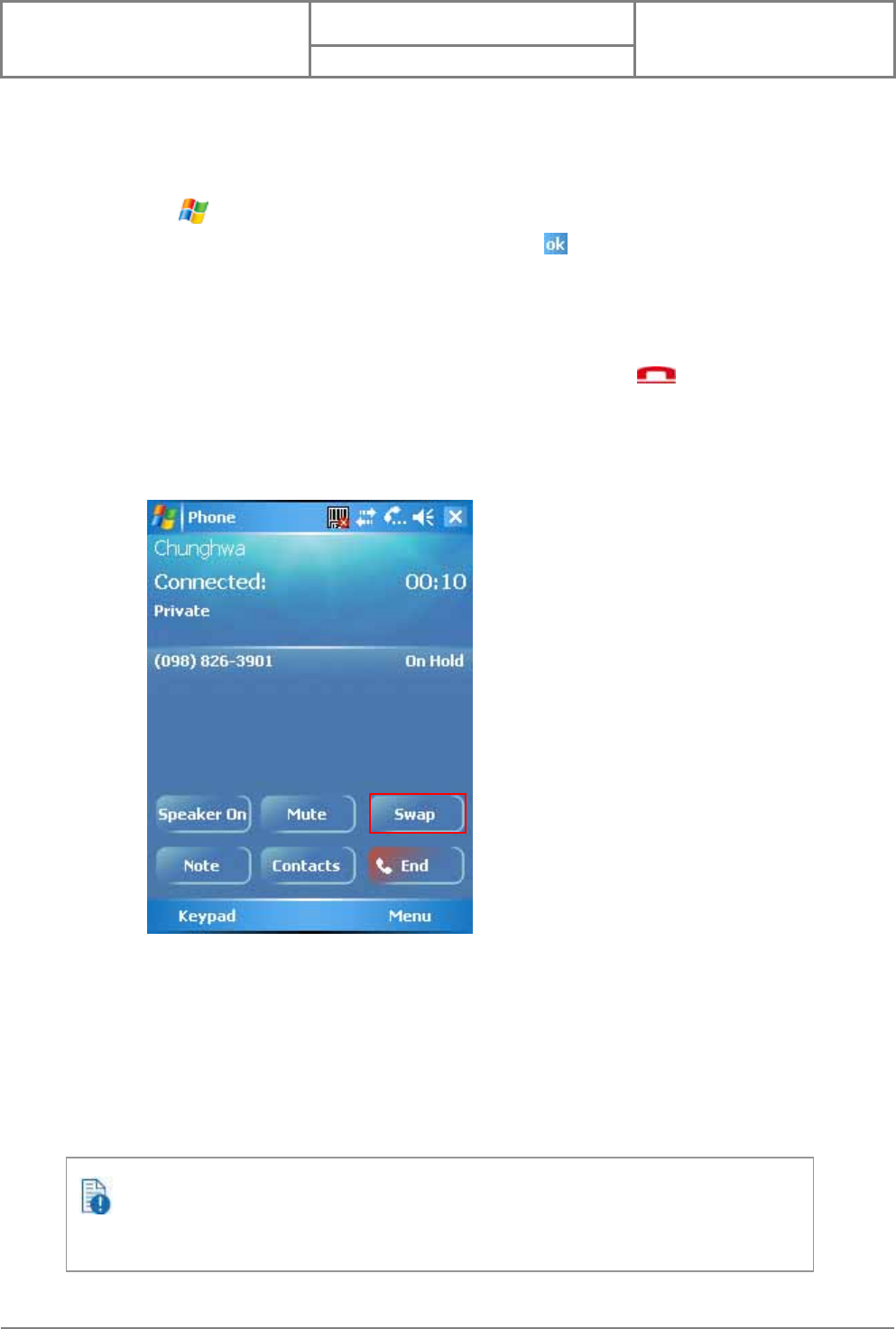

In-Call Options
Answering Another Call
1. Tap Answer to take the second call and put the first call on hold.
2. To switch between two calls, tap Swap.
3. To end the second call and return to the first call, press END ( ).
xxxxxxx
XXX
User Manual
OPTICON Preliminary
Version : 1.0
Date : 2008/05/20
68
Conference Call
1. Either put a call on hold and dial a second number; or accept a second incoming call
when you have one in progress.
2. Tap Menu and select Conference.
Turning On/Off the Speakerphone
Talk hands-free or let others hear your conversation with the built-in speakerphone in your
device.
z Tap Speaker On during a call to turn the speaker on.
z Tap Speaker Off to turn the speaker off.
If the conference connection is successful, the word “Conference” will appear at the
top of the screen. To add additional persons to your conference call, tap Hold, enter the
phone number, and then tap Swap to return and continue.
Not all service providers support conference calling. Contact your service provider for
details.
User Manual
OPTICON Preliminary
Version : 1.0
Date : 2008/05/20
69
Muting the Microphone
The device’s microphone can be turned off during a call. If you turn off the microphone the
caller cannot hear you. However, you can still hear the caller.
z Tap Mute during a call to turn the microphone off.
z Tap Unmute to turn the microphone on.
3.4 SIM Manager
The SIM Manager helps you to manage the phonebook in your SIM card. Using the SIM
Manager, you can easily transfer phonebook entries from your SIM card to Contacts.
Adding a Phonebook Entry to the SIM Card
To avoid damage to your hearing, do not hold your device against your ear when the
Speakerphone is turned on.
XXX
User Manual
OPTICON Preliminary
Version : 1.0
Date : 2008/05/20
70
1. Tap > Programs > SIM Manager.
2. Tap Option > Add Entry and enter the name and phone number you want to add.
3. Tap .
Deleting Phonebook Entries from the SIM Card
1. Tap > Programs > SIM Manager.
2. Select the entries you want to delete by checking the checkboxes in front.
3. Tap Option > Delete Selected.

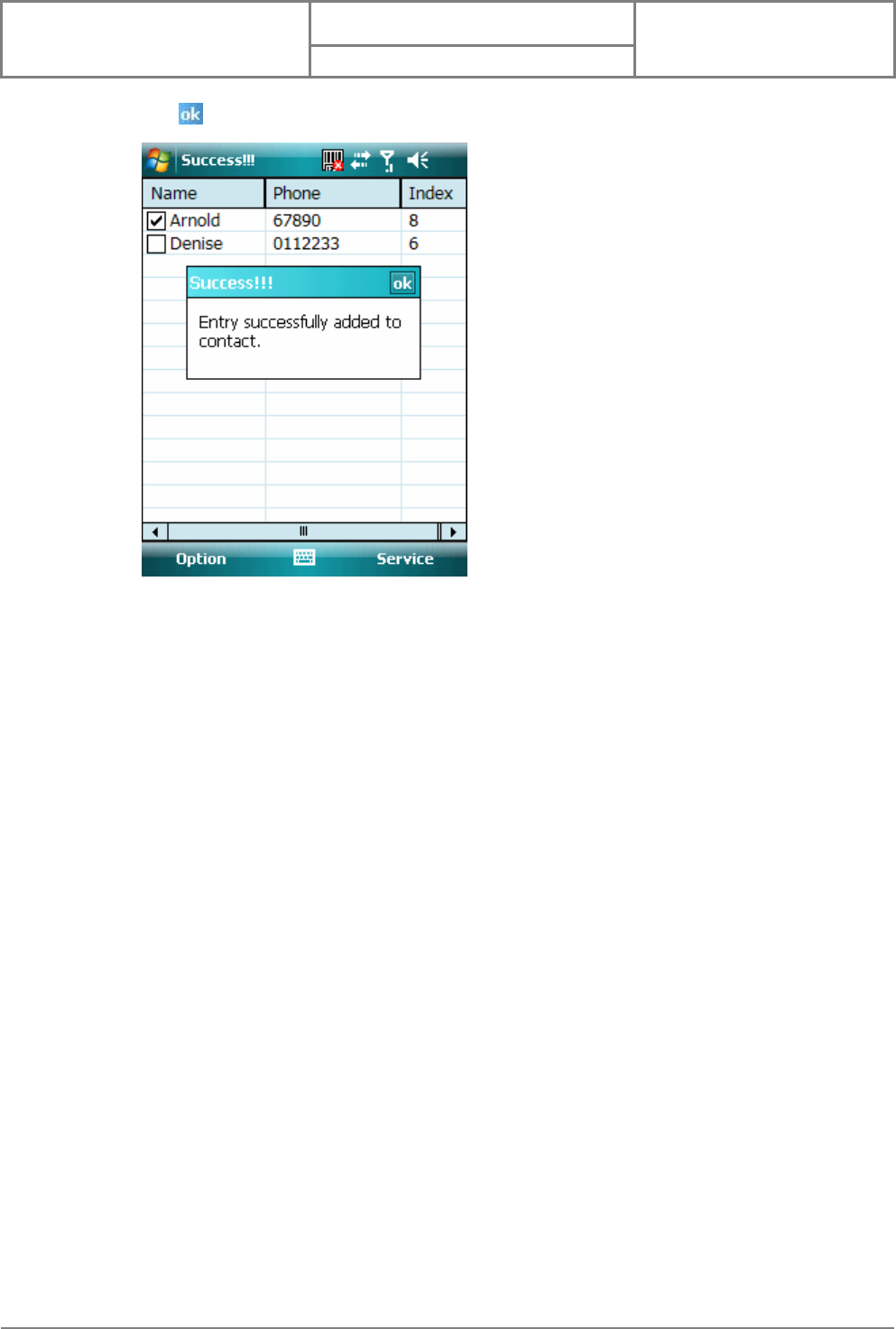

Saving Phonebook Entries to Contacts
1. Tap > Programs > SIM Manager.
2. Select the entries you want to save to Contacts by checking the checkboxes in front.
3. Tap Option > Add to Contacts.
4. Tap to close the notification dialog box.
3.5 Blocking Unwanted Phone Calls
User Manual
OPTICON Preliminary
Version : 1.0
Date : 2008/05/20
71
You can set up a blacklist to block incoming calls from certain phone numbers. If a call is
received from a blacklisted number, your device will not ring or vibrate. Instead, this call will be
blocked automatically.
Rejecting Anonymous Calls
1. Tap > Programs > Blacklist.
2. Select or clear the checkbox in front of Reject anonymous calls to enable or
disable this feature.
3. Tap .
Adding a Phone Number to the Blacklist
1. Tap > Programs > Blacklist.
2. Tap new and do one of the following:
z Tap Contact and select a contact to add to the blacklist.
z Tap Number to add a phone number directly.
3. Select the check box of Enable Blacklist to block numbers listed in the Blacklist.
User Manual
OPTICON Preliminary
Version : 1.0
Date : 2008/05/20
72
Removing a Phone Number from the Blacklist
1. Tap > Programs > Blacklist.
2. Select the number you want to remove from the blacklist.
3. Tap Menu > Delete.
4. Tap .
User Manual
OPTICON Preliminary
Version : 1.0
Date : 2008/05/20
73
Chapter 4. Synchronizing Information
User Manual
OPTICON Preliminary
Version : 1.0
Date : 2008/05/20
74
ActiveSync synchronizes information on your device with information on your PC such as
Outlook content. ActiveSync can also synchronize over a wireless or cellular network with
Exchange Server, if your company or service provider is running Exchange Server with
Exchange ActiveSync.
Specifically, you can use ActiveSync to:
z Synchronize information such as Outlook e-mail, contacts, calendar, or tasks
information on your device with your PC, as well as pictures, video, and music.
z Synchronize Outlook e-mail, contacts, calendar appointments, and tasks on your
device directly with Exchange Server so that you can stay up to date even when your
PC is turned off.
z Copy files between your device and your PC without synchronizing.
z Select which types of information are synchronized and specify how much
information is synchronized. For example, you can choose how many weeks of past
calendar appointments to synchronize.
4.1 Installing and setting up ActiveSync
1. Install ActiveSync on your PC, as described on the Windows Mobile™ Getting Started
Disc. After Setup completes, the Synchronization Setup Wizard automatically starts
when you connect your device to the PC.
2. Follow the instructions on the screen to complete the wizard. In the Sync Setup
Wizard, you can:
z Create a synchronization relationship between your PC and the device.
z Configure an Exchange Server connection to synchronize directly with Exchange
Server. To synchronize your device with Exchange Server, obtain the name of the
Exchange Server, your user name, password, and domain name from your
administrator before completing the wizard.
z Choose information types to synchronize.
4.2 Synchronizing Information
To synchronize using ActiveSync, you must install ActiveSync on your PC before connecting
your device to the PC.
When you finish the wizard, ActiveSync synchronizes your device automatically. Once
synchronization completes, you can disconnect your device from your PC.
User Manual
OPTICON Preliminary
Version : 1.0
Date : 2008/05/20
75
Starting and Stopping Synchronization Manually
1. Turn on the device.
2. Connect your device to your PC using a USB cable or Bluetooth. For more detailed
information, see "Connecting a mobile device to a PC" in ActiveSync Help on your PC.
3. Tap > Programs > ActiveSync.
4. To start synchronizing, tap Sync.
5. To stop synchronizing, tap Stop.
ActiveSync synchronizes a limited amount of information by default to save storage space on
your device. You can change the amount of information that is synchronized by performing the
following steps.
Changing Which Information is Synchronized
1. Tap > Programs > ActiveSync.
2. Tap Menu > Options.
3. Do one or more of the following:
z Select the check box for the items you want to synchronize. If you cannot select
a check box, you might have to clear the check box for the same information
type elsewhere in the list.
z Clear the check box for any items you want to exclude.
z To customize synchronization of a computer, select the computer name then
click Settings.
z To customize synchronization of particular information, select the information
type then click Settings.
z To stop synchronizing with one computer completely, select the computer name
and click Delete.
You can start and stop synchronization only if your device already has a sync relationship
with a PC or Exchange Server.
Some Anti-Virus software may conflict with ActiveSync.
You can change this setting only if your device already has a sync relationship with a PC.
Please disconnect your device from your PC before changing this setting.
User Manual
OPTICON Preliminary
Version : 1.0
Date : 2008/05/20
76
4.3 Changing Settings for an Information Type
1. Tap > Programs > ActiveSync > Menu > Options.
2. Select one of the information types.
3. Do one of the following:
z To view or change settings for an information type (when available), tap
Settings.
z To view or change settings for a computer or Exchange Server, tap Settings.
4. Change the amount of information to be synchronized or other settings.
5. Tap (or Finish in the Exchange Server settings wizard).
4.4 Synchronizing with Exchange Server
To set up your device to synchronize directly with Exchange Server, you will need to get the
name of the server and the server domain name from your service provider or system
administrator. You must also know your Exchange user name and password.
1. On your device screen, tap > Programs > ActiveSync > Menu > Configure
Server. If you have not yet set up sync with Exchange Server, this will say Add
Server Source.
2. In Server address, enter the name of the server running Exchange Server, and tap
Next.
3. Enter your user name, password, and domain name, and tap Next.
4. If you want the device to save your password so that you will not need to enter it
again when connecting, select the Save password check box.
5. Select the check boxes for the types of information items that you want to
synchronize with Exchange Server.
6. To change available synchronization settings, select the type of information, and tap
Settings.
Before changing synchronization settings on the device, disconnect it from your PC.
Outlook e-mail can be synchronized with only one computer.
Before changing settings for an information type on the device, disconnect it from your PC.
User Manual
OPTICON Preliminary
Version : 1.0
Date : 2008/05/20
77
7. To change the rules for resolving synchronization conflicts, tap Advanced.
8. Tap Finish.
4.5 Synchronizing via Bluetooth
Connecting to a PC Using Bluetooth
1. Follow the instructions in ActiveSync Help on the PC for configuring Bluetooth on your
PC to support ActiveSync.
2. Tap > Programs > ActiveSync.
3. Tap Menu > Connect via Bluetooth. Ensure that the device and PC are within
close range.
4. If this is the first time you have connected to this PC via Bluetooth, you must
complete the Bluetooth wizard on the device and set up a Bluetooth partnership with
the PC before synchronizing.
5. Tap Sync.
6. When finished, tap Menu > Disconnect Bluetooth.
You can also use the Sync Setup Wizard to set up the device to synchronize remotely
with the Exchange Server. This wizard is started when you connect your device to your PC
after installing ActiveSync on the PC.
To preserve battery power, turn off Bluetooth.
User Manual
OPTICON Preliminary
Version : 1.0
Date : 2008/05/20
78
Chapter 5. Bluetooth Connections
User Manual
OPTICON Preliminary
Version : 1.0
Date : 2008/05/20
79
5.1 Overview of Bluetooth
Bluetooth is a short-range wireless communications technology. Devices with Bluetooth
capabilities can exchange information over a distance of about 10 metres without requiring a
physical connection. You can even beam information to a device in a different room, as long as
it is within range.
The software included with your device allows you to use Bluetooth in the following ways:
z Beam information, such as files, appointments, tasks, and contact cards, between
devices that have Bluetooth capabilities.
z Create a connection between your device and a Bluetooth phone to use the phone
as a modem.
Bluetooth Modes
Bluetooth on your device operates in three different modes:
1. On. Bluetooth is turned on and you can use Bluetooth features.
2. Off. Bluetooth is turned off. In this mode, you can neither send nor receive
information using Bluetooth. You might want to turn off the radio at times to
conserve battery power, or in situations where radio use is prohibited, such as
onboard an aircraft and in hospitals.
3. Visible. Bluetooth is turned on, and all other Bluetooth-enabled devices within a
range of 10 meters can detect your device.
Turning Bluetooth On or Off
1. Tap > Settings > Connections tab> Bluetooth.
2. Tap Mode tab, check or uncheck the checkbox in front of Turn on Bluetooth to
turn on or off Bluetooth.
By default, Bluetooth is turned off. If you turn it on, and then turn off your device,
Bluetooth also turns off. When you turn on your device again, Bluetooth automatically turns
on.
User Manual
OPTICON Preliminary
Version : 1.0
Date : 2008/05/20
80
Making Your Device Visible
To receive beamed information, beaming devices or computers must be able to detect your
device.
1. Tap > Settings > Connections tab > Bluetooth.
2. Select Make this device visible to other devices, and tap .
Other Bluetooth-enabled devices can now detect your device and attempt to beam information
to it, establish a Bluetooth partnership, or use a Bluetooth service.
Selecting Make this device Visible to other devices also turns on Bluetooth.
Turning off Bluetooth will make your device not visible, and it will also prevent you
from sending a Bluetooth beam.
User Manual
OPTICON Preliminary
Version : 1.0
Date : 2008/05/20
81
5.2 Bluetooth Partnership (Bonding)
A Bluetooth partnership is a relationship that you create between your device and another
Bluetooth-enabled device in order to exchange information in a secure manner. Creating a
partnership between two devices involves entering the same personal identification number
(PIN) on both devices, and this is a one-time process. Once a partnership is created, the
devices can recognize the partnership and exchange information without entering a PIN again.
Make sure the two devices are within a range of 10 meters, and Bluetooth is turned on and in
discoverable mode.
Creating a Bluetooth Partnership
1. Tap > Settings > Connections tab> Bluetooth > Devices tab.
2. Tap Add new device. Your device searches for other Bluetooth-enabled devices and
displays them in the list.
3. Select the device with which you want to create a Bluetooth partnership, and tap
Next. Tap if the device you want to connect is not listed.
4. In Passcode, if you want to use a passcode (recommended for enhanced security),
enter an alphanumeric passcode between 1 and 16 characters, and tap Next.
User Manual
OPTICON Preliminary
Version : 1.0
Date : 2008/05/20
82
Otherwise, leave the passcode blank.
5. Enter the same passcode on the other device.
6. Select the service to use from the device, and tap Finish.
5.3 Beaming Information (Bluetooth)
Receiving Beamed Information
1. Tap > Settings > Connections tab > Beam.
2. Select Receive all incoming beams.
Once you create a partnership, the Bluetooth-enabled devices don't need to be visible
to beam information between them; Bluetooth needs only to be turned on.
User Manual
OPTICON Preliminary
Version : 1.0
Date : 2008/05/20
83
3. To receive beams by using Bluetooth, ensure Bluetooth is turned on and that your
device is discoverable and within close range.
4. Tap .
Beaming an Item
In the Calendar, Contacts, Notes, Tasks, and Pictures programs, you can beam files and
information to other devices using Bluetooth.
1. From the program, select the item you want to beam, such as an appointment in
Calendar, a task in Tasks, a contact card in Contacts, a picture in Pictures, a file in File
Explorer. In Calendar, for example, first open the appointment in Agenda view.
2. Tap Menu > Beam.
3. Your device will search and show visible devices, select the device to which you want
to send the item.
Once you select Receive incoming beams, your device automatically receives beams
until you clear this check box.
Your device can receive all types of beamed files, but you may not be able to view all
types of files on the device. You may need to copy some files to a PC for viewing.
User Manual
OPTICON Preliminary
Version : 1.0
Date : 2008/05/20
84
When using Bluetooth, if the device that you want to beam to doesn't appear in the
list, ensure that the device is turned on, visible, and within close range of your device. Also,
ensure that Bluetooth is turned on.
You can obtain the Bluetooth BD Address of your device. Tap > Settings >
System tab > Device Info > Hardware tab.
User Manual
OPTICON Preliminary
Version : 1.0
Date : 2008/05/20
85
Chapter 6. Transferring Files To and From Your Device
User Manual
OPTICON Preliminary
Version : 1.0
Date : 2008/05/20
86
You may need to transfer application data such as Word documents, Excel spreadsheets,
PowerPoint slides, and/or media files from your PC to your device. This section describes
different methods to transfer files from a PC to your device.
6.1 Using ActiveSync
1. Connect your device to the PC with the USB cable. Microsoft ActiveSync should be
automatically launched on the PC if it is set up correctly.
2. Select an information type under Synchronization Options in the Synchronization
Setup Wizard by checking the checkbox in front of it.
3. Click the Settings button and add the files you want to transfer. Click the OK button
when you finish.
4. Click Next, and then click Finish to start the synchronization process.
5. On your device, tap > Programs > File Explorer. The files should be saved
to My Documents. Check to see if the files have been transferred to your device
successfully.
6.2 Transferring from Memory Cards
1. Insert your memory card into the device’s mini-SD card slot. (See “1.5 Mini-SD
cards” for details.)
2. Tap > Programs > File Explorer.
3. In the Show list, select Storage Card.
To transfer files from PC to your device with ActiveSync, you must install Microsoft
ActiveSync on the PC first. Please refer to Chapter 4 Synchronizing Information for detail on
how to install and set up ActiveSync.
User Manual
OPTICON Preliminary
Version : 1.0
Date : 2008/05/20
87
4. File Explorer should display all the files stored in your memory card. Tap and hold
the file you want to transfer, and select Copy.
5. From the Show list in File Explorer, go to destination folder. (For example, My
Device > My Documents.)
6. Tap Menu > Edit > Paste.
6.3 Using Bluetooth
1. On your PC, locate the file you want to send using Bluetooth with Windows Explorer.
2. Right-click the file and select the device you want to transfer the file to under “Send
To > Bluetooth.”
3. Tap Yes when your device prompts about receiving a file.
Before receiving files, you must turn Bluetooth on and establish a Bluetooth
partnership between your PC and your device. (See “Chapter 5. Bluetooth Connections” for
details.)
User Manual
OPTICON Preliminary
Version : 1.0
Date : 2008/05/20
88
4. After the transmission process is finished, the file should be saved in your device
under My Documents in the File Explorer.
6.4 Transferring to a PC or Other Devices
Please refer to Section 5.3 “Beaming Information (Bluetooth)” for details.
User Manual
OPTICON Preliminary
Version : 1.0
Date : 2008/05/20
89
Chapter 7. Connecting to the Internet
User Manual
OPTICON Preliminary
Version : 1.0
Date : 2008/05/20
90
7.1 Setting up Internet connections
Your device’s powerful networking capabilities allow you to access the Internet or your
corporate network at work through wireless and conventional connections. Specifically, you can
configure your device to establish a connection via GPRS or Proxy.
With an active connection on your device, you can browse the Web, download e-mails, or use
MSN Messenger. Check with your service provider to see if a connection has already been set
up for you, and if over-the-air configuration is supported.
If you need to manually set up a connection, it is important that you obtain the following
information from your Internet Service Provider (ISP) or the company whose intranet you are
trying to access:
z User name
z Password
z Access point name (required for GPRS connection)
z Domain name (required for accessing a corporate network or an intranet)
Creating a GPRS Connection
Every network connection is different. You should gather all of the relevant information or
network settings you need before starting this process.
1. Tap > Settings > Connections tab > Connections.
2. Tap Add a new modem connection.
3. Enter the following information (you may or may not need to enter all of the following
information), and tap Finish.
z Enter a name for the connection.
z In Select a modem, select Cellular Line (GPRS). Then tap Next.
User Manual
OPTICON Preliminary
Version : 1.0
Date : 2008/05/20
91
z In Access point name, enter the access point name, then tap Next.
z In User name, enter your user name for the GPRS network, if required.
z In Password, enter your password, if required.
z Tap Advanced > Servers tab. In DNS, enter the primary Domain Name
System (DNS) address, if required.
z In Alt DNS, enter the secondary DNS address, if required.
z Tap TCP/IP tab. In Use specific IP address, enter the Internet Protocol (IP)
User Manual
OPTICON Preliminary
Version : 1.0
Date : 2008/05/20
92
address for the device, if required. The device uses this connection when you
open a program that connects to the Internet.
Creating a Proxy Connection
Every network connection is different. You should gather all of the relevant information or
network settings you need before starting this process.
1. Tap > Settings > Connections tab > Connections.
2. Tap Set up my proxy server.
3. Check the checkbox in front of This network connects to the Internet.
4. Check the checkbox in front of This network uses a proxy server to connect to
the Internet.
5. Under Proxy server, enter the proxy server name.
6. If the proxy server uses a different port or requires a username and password tap
Advanced, select the proxy type to change its settings, then enter username,
password and/or port number in the proper fields.
7. Tap .

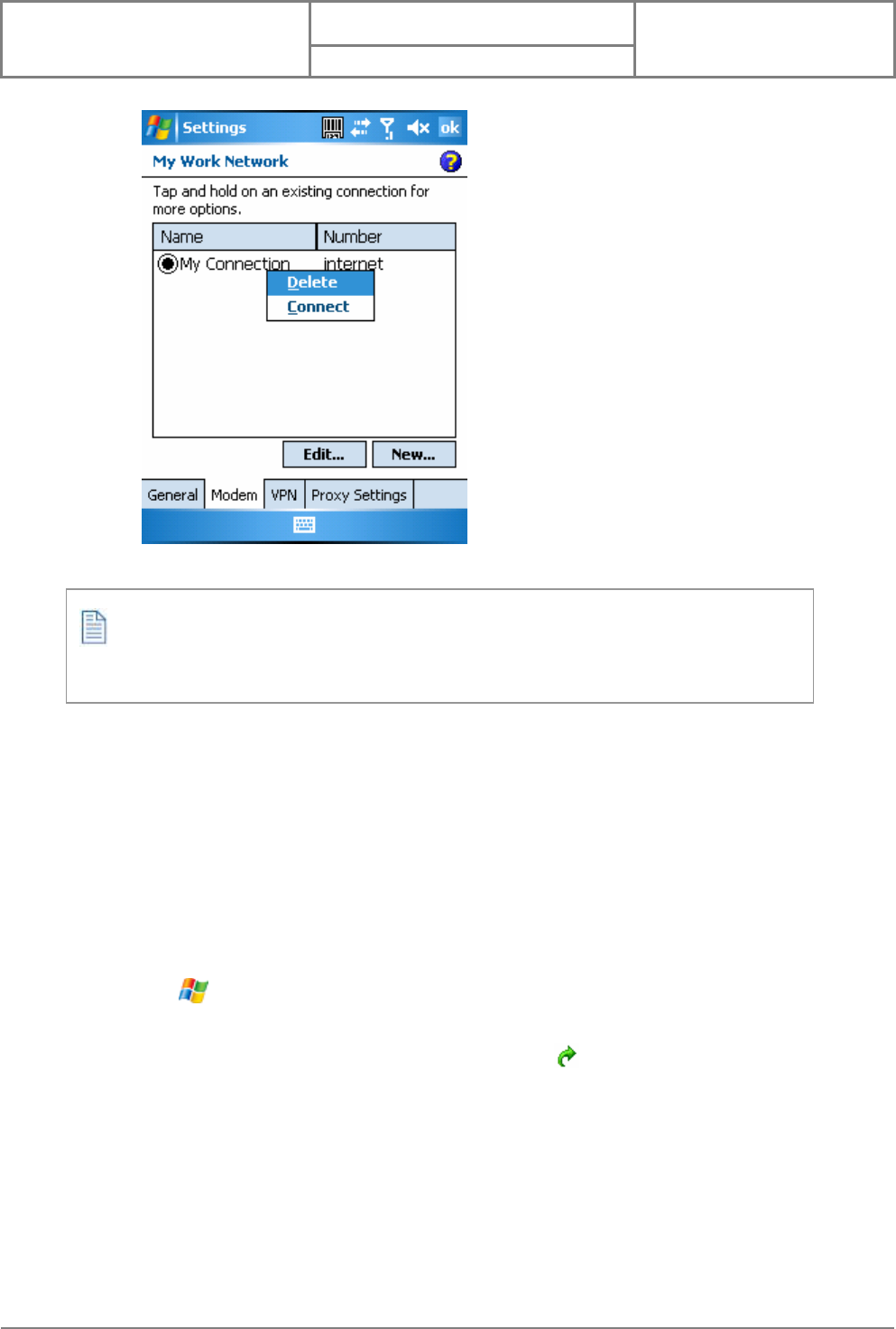

Deleting a Connection
1. Tap > Settings > Connections tab > connections.
2. Tap Manage existing connections.
3. Tap and hold on the connection you want to delete and select Delete.
User Manual
OPTICON Preliminary
Version : 1.0
Date : 2008/05/20
93
The device can no t connec t to a PC through A ctiveSy nc whil e connec ting to t he
Internet using GPRS.
7.2 Using Internet Explorer Mobile
Internet Explorer Mobile is a full-featured Web browser, optimized for use on your device. You
can use Internet Explorer Mobile to browse the Internet once you have set up your Internet
connection (if you haven’t done so, please read the previous chapter before continuing).
Browsing the Internet
1. To browse the Internet you must have a valid connection established.
2. Tap > Internet Explorer.
3. Do any of the following:
z Enter the address in the address bar, then tap .
z Tap Favorites then select a Web Page. You can scroll down the Favorites box
The device cannot connect to a PC through ActiveSync while connecting to the Internet
using GPRS.
User Manual
OPTICON Preliminary
Version : 1.0
Date : 2008/05/20
94
and select one alternatively.
z Highlight the search box and type in a term that you want to search for. Then tap
to begin search.
z Select Menu > History, then select a Web Page. You can scroll down to the
History box and select one alternatively.
User Manual
OPTICON Preliminary
Version : 1.0
Date : 2008/05/20
95
Adding a Web Page to the Favorite List
1. Tap > Internet Explorer.
2. Go to the page you want to add, tap Menu > Add to Favorites.
3. Confirm or change the name and Web page address.
4. In Create in, select a folder for this favorite.
5. Tap Add.
Deleting a Favorite
1. Tap > Internet Explorer.
2. Tap Favorites.
3. Tap Add / Delete tab.
4. Select the favorite to delete.
5. Tap the Delete button.
6. Tap Yes to confirm the deletion.
Changing the Size of Text on Web Pages
1. Tap > Internet Explorer.
2. Tap Menu > View > Text size and select the size you want.
There are five zoom options you can select: Largest / Larger / Medium / Smaller /
Smallest.
Showing or Hiding Pictures on Web Pages
1. Tap > Internet Explorer.
2. Tap Menu > View > Show Pictures.
A check mark next to Show Pictures indicates that pictures will be displayed.
Changing Web Page Display Options
1. Tap > Internet Explorer.
2. Tap Menu > View.
A quick way to add favorites to your device is to synchronize with your PC using
ActiveSync. For more information, see ActiveSync Help on your PC.
To change the Home page, go to a Web page, tap Menu > Tools > Options >
General tab, and choose to use the displayed page as your Home page.
User Manual
OPTICON Preliminary
Version : 1.0
Date : 2008/05/20
96
3. Select one of the following:
z One Column. Arranges the content into one column that is as wide as the
screen. This means that you will rarely have to scroll horizontally.
z Fit To Screen. Maintains a layout similar to what you see on a desktop
computer, but makes items smaller and arranges the content so that you can
see most of it without having to scroll horizontally.
z Desktop. Keeps the same layout and size as on a desktop computer, which will
require both horizontal and vertical scrolling.
Viewing a Page in Full Screen Mode
1. Tap > Internet Explorer.
2. Do either of the following:
z Tap Menu > View > Full Screen.
z Tap and hold on the screen with stylus, and then tap Full Screen on the pop-up
menu.

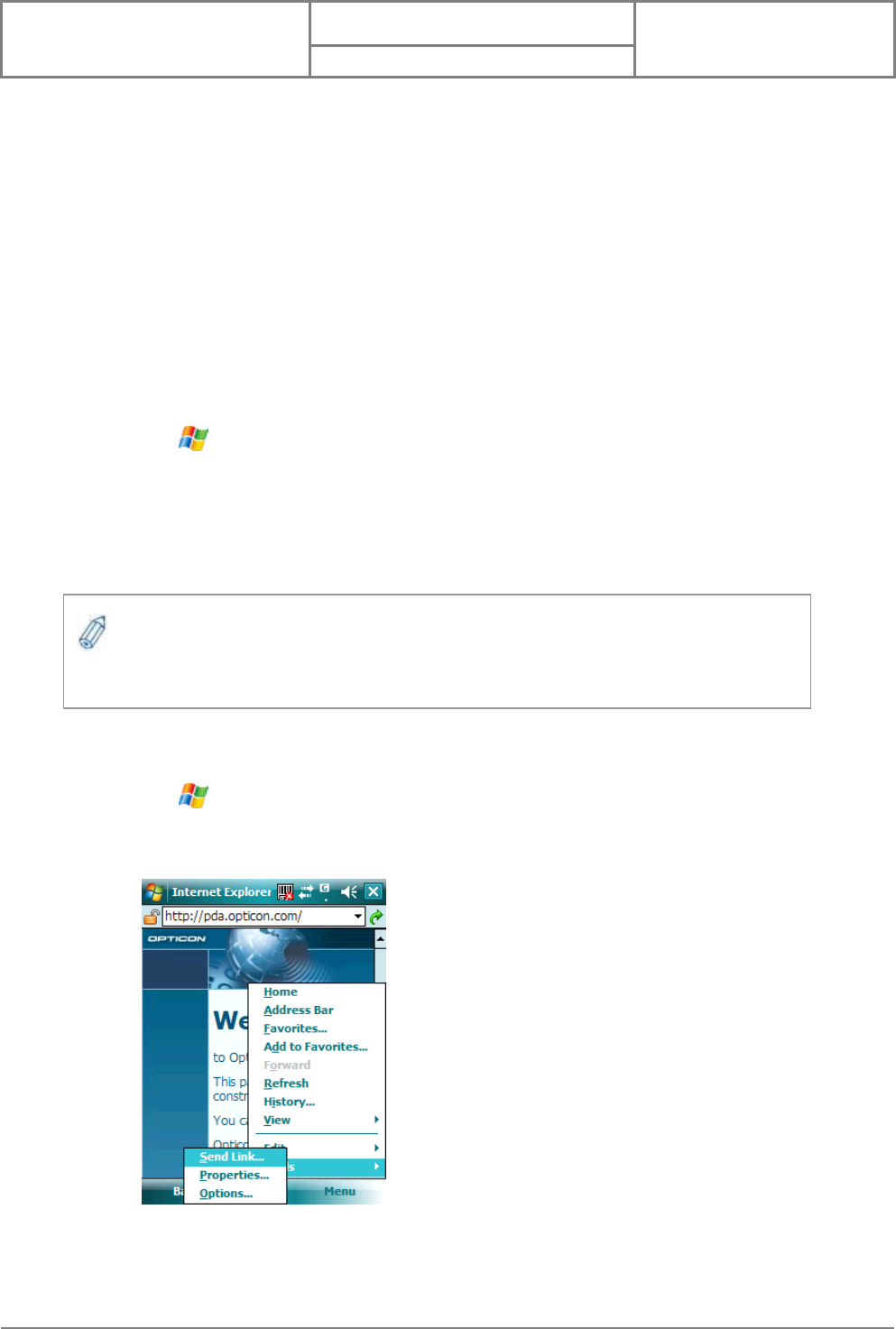

Sending a Link via E-mail
1. Tap > Internet Explorer.
2. Go to the page you want to send.
3. Tap Menu > Tools > Send Link.
To exit full screen mode, press either SOFT KEY, and then tap Menu > View > Full
Screen to cancel the selection.
User Manual
OPTICON Preliminary
Version : 1.0
Date : 2008/05/20
97
4. Select an account.
5. A new message is created with the page address inserted in the message body. You
can then enter the recipient’s phone number and edit the message.
6. Tap Send to send the message.
Copying Text from a Web Page
1. In Internet Explorer Mobile, tap and hold the page, and tap Select All Text.
User Manual
OPTICON Preliminary
Version : 1.0
Date : 2008/05/20
98
2. Tap and hold the page, and tap Copy.
3. Open an application (e.g. open a new Note), tap and hold on the screen, and tap
Paste to save the text.
Clearing History or Temporary Files
1. Tap > Internet Explorer.
2. Tap Menu > Tools > Options.
3. Tap Memory tab.
4. Change the number in the day(s) box if needed..
5. Tap Clear History or Delete Files, then tap .
7.3 Using Wireless Manager
Wireless Manager is a program that allows you to conveniently turn on or off the various
wireless connections on the Windows Mobile-based device, including cellular phone, Bluetooth
and Wi-Fi.
Opening Wireless Manager
To open the Wireless Manager, do one of the following:
z Tap icon on the screen to open the Wireless Manager directly.
z Tap > Settings > Connections tab > Wireless Manager.
z Tap the signal strength icon ( ) at the top of the screen, and tap Wireless
Manager.
To clear cookies, tap Menu > Tools > Options > Security tab, then tap Clear
Cookies.
User Manual
OPTICON Preliminary
Version : 1.0
Date : 2008/05/20
99
Enabling and Disabling a Feature
There are three buttons in the Wireless Manager; each of them represents one certain feature.
You can simply tap a button to activate its corresponding feature.
z Tap the first button to toggle between enabling or disabling the phone.
z Tap the second button to toggle between turning on or off Bluetooth.
z Tap the third button to toggle between turning on or off Wi-Fi.
Changing Regulatory Setting
The regulations for the frequency, channel and power of Wi-Fi and Bluetooth are varied in
different regions. You can adapt a country’s telecommunications regulatory settings while you
use your device to access wireless networks in the country.
1. Open Wireless Manager and then tap Settings > Regulatory.
User Manual
OPTICON Preliminary
Version : 1.0
Date : 2008/05/20
100
2. Select a country/region in which you use this device. Tap Save to confirm the setting.
7.4 Using a Wi-Fi Connection
Wi-Fi is an enabling technology that allows you to quickly access e-mail, the internet, and
broadband multimedia content. When your device encounters a hotspot (a place where you can
access Wi-Fi networks), it can then connect to that network wirelessly. While some hotspots are
free, the most robust public Wi-Fi networks are provided by private internet service providers
(ISPs) that charge a fee for users to connect to the internet.
Connecting to a Wi-Fi Network
1. Tap > Settings > Connections tab > Wireless Manager.
2. Tap the third button to turn on Wi-Fi connection.
Wi-Fi can not be turned on if the Regulatory Setting is not specified.
Your device will restart automatically after you change the regulatory setting.
User Manual
OPTICON Preliminary
Version : 1.0
Date : 2008/05/20
101
3. Available wireless networks will be detected and showed on a pop-up window. Select the
desired wireless network and tap OK.
4. Select The Internet if the wireless network connects your device to the Internet; select
Work if the wireless network connects to a private network. Then tap Connect.
5. Enter a network key if required. Then tap Connect.
6. When Wi-Fi connection is activated, the icon shows on the title bar.
User Manual
OPTICON Preliminary
Version : 1.0
Date : 2008/05/20
102
Checking Wi-Fi Connection
You can check the current wireless connection status via Wi-Fi Network Manager after
connecting to a Wi-Fi Network.
1. Tap > Settings > Connections tab > Wi-Fi Network Manager.
2. In Status tab, you can see information of link status, SSID, Signal strength…etc.
3. In Info tab, you can check values of servers and IP address and renew IP if needed.
4. In Advanced tab, you can refer to MAC address and version information.
Configuring Wi-Fi Settings
You can configure wireless networks on your device by adding new Wi-Fi connections and
editing currently available networks.
Creating a Wireless Connection
1. Open Wireless Manager and then tap Settings > Wi-Fi Settings.
2. In the Wireless tab, tap Add New… on the screen.
You may need to consult your ISP before you try to run this utility.
You can obtain the Wi-Fi address of your device. Tap > Settings > System tab >
Device Info > Hardware tab and refer to WiFi MAC Address.
The screen for wireless networks configuration can only be accessed after a Wi-Fi
network is connected.
User Manual
OPTICON Preliminary
Version : 1.0
Date : 2008/05/20
103
3. Enter the Network name and Network type, then tap Next. If you want to connect to
another device instead of a network through an access point, select This is a
device-to-device (ad-hoc) connection.
4. Select Authentication type and Data Encryption and enter the Network key and
Key index if needed. Tap Next.
5. Select Use IEEE 802.1x network access control to use EAP (Extensible
Authentication Protocol). Select EAP type: PEAP or Smart Card or Certificate.
User Manual
OPTICON Preliminary
Version : 1.0
Date : 2008/05/20
104
6. Tap Finish.
Editing a Wireless Network
1. Open Wireless Manager and then tap Settings > Wi-Fi Settings.
2. In Wireless tab, you can see currently available wireless networks. Tab and hold the
network you want to edit, and then tap Edit on the pop-up screen.
3. Changing settings of this wireless network and tap Finish to save them.
User Manual
OPTICON Preliminary
Version : 1.0
Date : 2008/05/20
105
Chapter 8. Messaging & Contacts
User Manual
OPTICON Preliminary
Version : 1.0
Date : 2008/05/20
106
Messaging is the unified point of access for all message types within your device. With
Messaging, you can send and receive text messages, e-mails, and MMS messages.
Contacts helps you to manage your contact information. Using Contacts you can quickly
communicate with people.
This section describes the procedure on sending and receiving different kinds of messages, and
using Contacts to manage addresses and phone numbers.
8.1 Text Messaging
Creating a Text Message
1. Tap > Messaging > Text Messages.
2. In the message list, tap Menu > New.
3. Do either of the following:
z Enter the recipient’s text message number in the To field. Insert a semicolon (;)
between multiple text message numbers.
z Tapping Menu > Add Recipient, and then select a name.
4. Enter your message and tap Send. Text messages are sent immediately.
Using Preset Text Messages
You can quickly insert preset or frequently used messages into your text message. While
composing a message, tap Menu > My Text and select a preset message to insert.
To edit a preset message:
1. While composing a message, tap Menu > My Text > Edit My Text Messages.
2. Select a message and edit.
User Manual
OPTICON Preliminary
Version : 1.0
Date : 2008/05/20
107

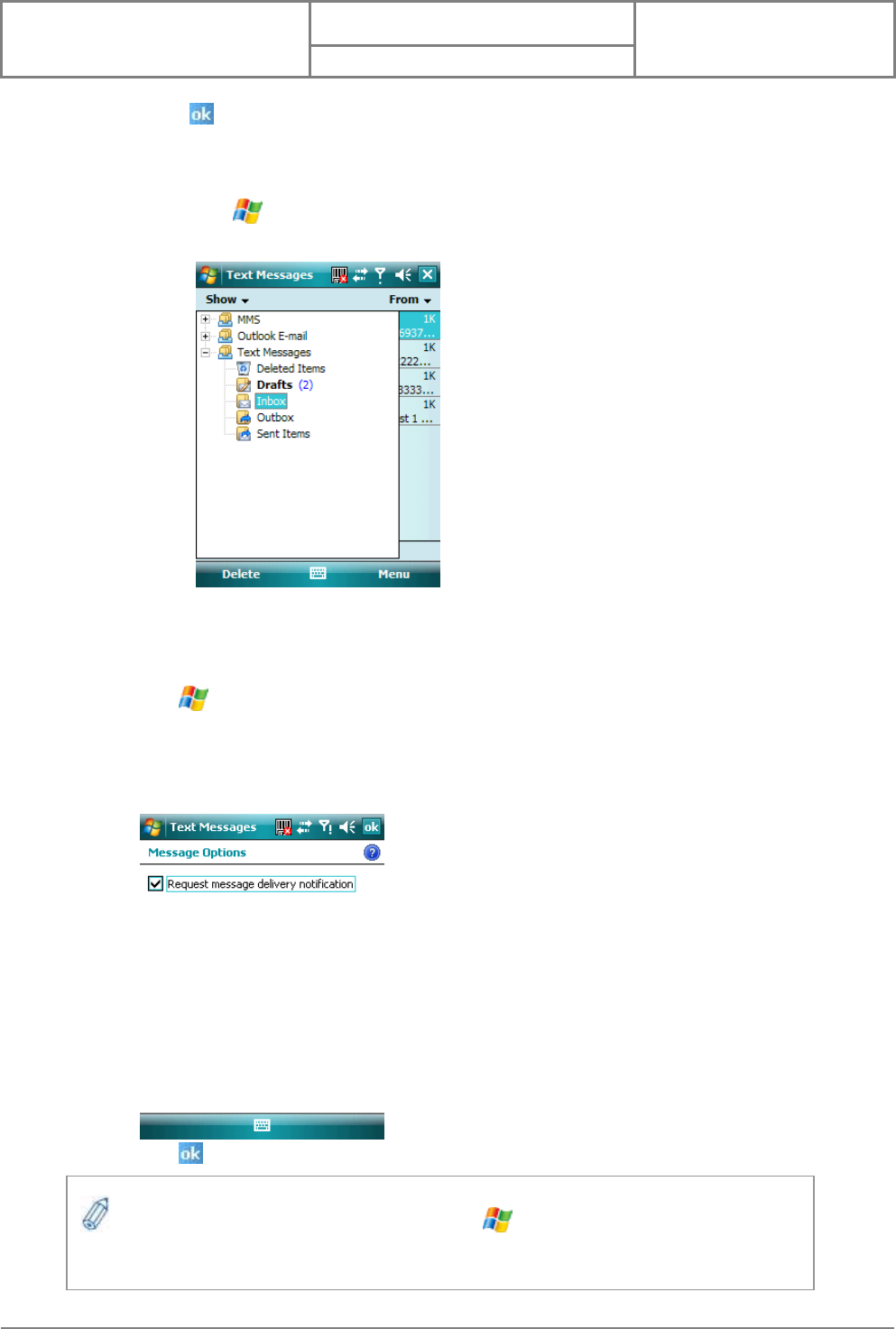

3. Tap .

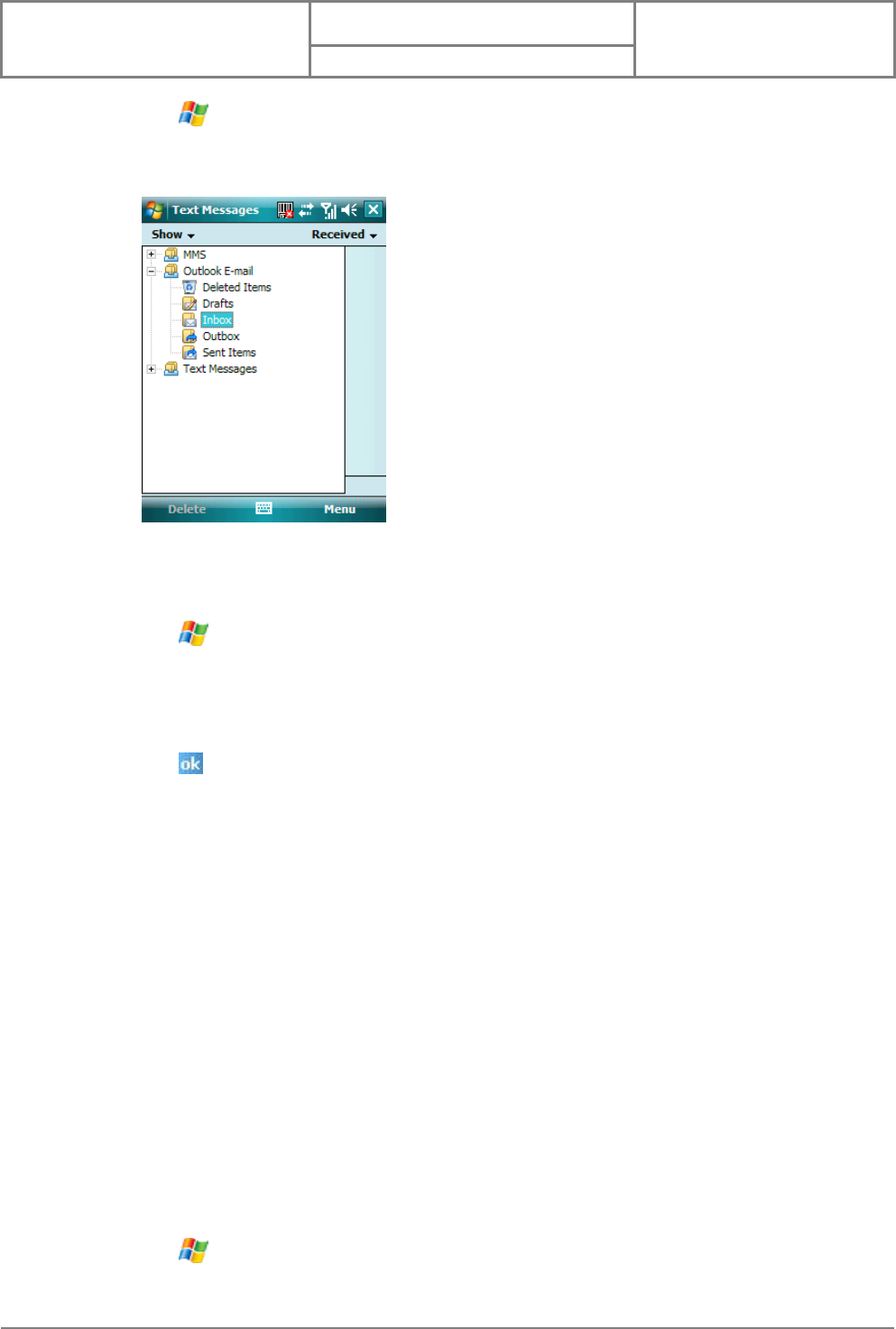

Reading a Text Message
1. Tap > Messaging > Text Message.
2. Select Inbox under Text Messages.
3. In the message list, tap the text message you want to read.
Requesting Message Delivery Notification
1. Tap > Messaging > Text Messages.
2. Tap Menu > New.
3. Tap Menu > Message Options.
4. Select this check box to request a message delivery notification.
5. Tap .
To change options for the Text Message, tap > Messaging > Menu > Tools >
Options, and select the type of options to change.
User Manual
OPTICON Preliminary
Version : 1.0
Date : 2008/05/20
108
8.2 Multimedia Messaging Service
Creating and sending Multimedia Message Service (MMS) messages to your friends and family
is fun and easy. You can include or capture photos or video clips, include or record audio, add
text, then send them along with your MMS message.
Composing a MMS Message
MMS messages can be composed in a combination of various slides where each of the slides
can be any combination of audio or video clip, an image, and/or text.
1. Tap > Messaging, and select MMS.
2. Tap Menu > New.
3. In To, Cc, and/or Bcc, enter recipient e-mail addresses. Insert a semicolon (;)
between multiple addresses. You can tap Menu > Add Recipient to add recipients.
4. In Subject, enter a subject.
5. To create a slide, do any combinations of the following:
z Tap Insert Picture/Video and select a picture or video clip.
z Tap Insert Audio and select an audio clip.
z Tap Insert Text and enter a message.
z Tap Menu > Insert > Sound Recorder and tap RECORD ( ) button to
record a new audio clip. Tap STOP ( ) button to stop recording.
z Tap Menu > Options > Background Color and select a background color for
the slide.
6. Tap Send.
After the first slide is filled with content, you can tap Menu > Slides > Insert to add
another slide to your MMS message.
User Manual
OPTICON Preliminary
Version : 1.0
Date : 2008/05/20
109

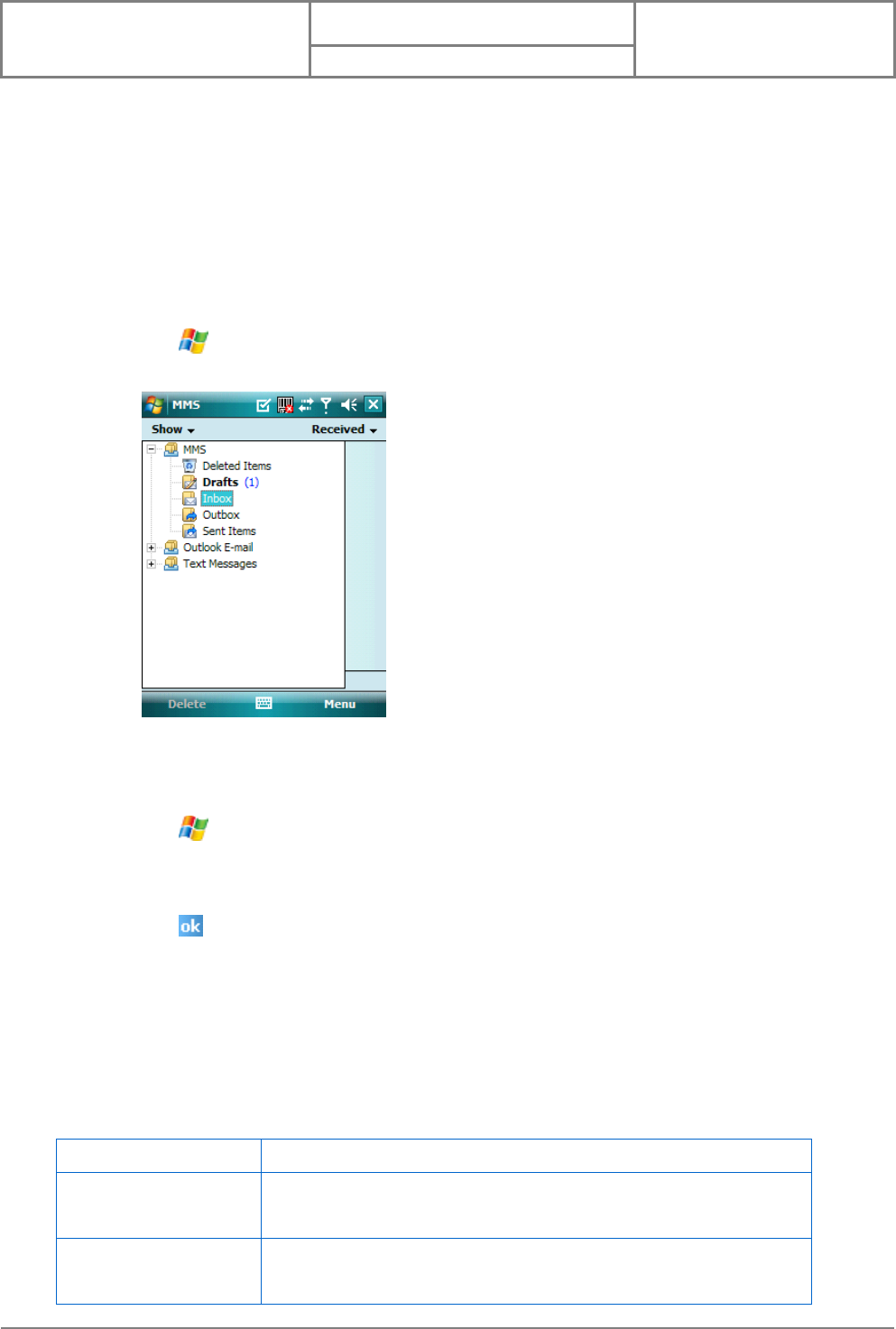

Previewing a MMS Message
You can preview a MMS message before sending it.
1. To preview your MMS message, tap Menu > Preview after you composed your
message.
2. Tap Done or Replay.
Reading a MMS Message
1. Tap > Messaging > MMS.
2. Select Inbox under MMS.
3. In the message list, tap the MMS message you want to read.
Configuring MMS Settings
1. Tap > Messaging > MMS.
2. Tap Menu > MMS Settings.
3. Select the type of options to change.
4. Tap .
8.3 E-mail
Setting Up an Internet E-mail Account Manually
Before you set up your Internet e-mail account, please ensure that you have the necessary
information.
Setting Description
User name Usually the first part of your e-mail address, which appears before
the “at” sign (@).
Password Choose a strong password. You will have the option to save your
password, so that you do not need to enter it each time you
User Manual
OPTICON Preliminary
Version : 1.0
Date : 2008/05/20
110
connect to your e-mail server.
Domain The domain name. This may be required.
Server type The type of e-mail server that hosts your mailbox (POP3 or IMAP4).
Account name A name for this account. You must use a different name for each
account that you set up.
Network The type of network your e-mail server connects to.
Incoming mail server The name of your e-mail server (POP3 or IMAP4).
Require SSL connection Select this to ensure you always receive e-mail for this account
using an SSL connection. This enables you to receive personal
information more securely. Please note that if you select this and
your ISP does not support an SSL connection, you will not be able
to connect to receive e-mail.
Outgoing mail server The name of your outgoing e-mail server (SMTP).
Outgoing server
requires authentication
Your outgoing e-mail server (SMTP) may require authentication.
Note: Your user name and password from above will be used.
Outgoing server
settings
Your outgoing e-mail server may require different authentication
settings than your incoming e-mail server.
Use different user
name for outgoing
server
A check box that lets you enter separate settings for your outgoing
e-mail server.
User name Your user name for the outgoing e-mail server.
Password Your password for the outgoing e-mail server.
Domain The domain name of the outgoing e-mail server.
Require SSL connection
(Outgoing mail server
only)
A connection that enables you to send personal information more
securely. Note that if you select this and your ISP does not support
an SSL connection, you will not be able to send e-mail.
Now you are ready to set up your account:
1. Tap > Messaging > New E-mail Account.
2. Enter your e-mail address, select the check box of Try to get e-mail settings
automatically from the Internet, and tap Next.
3. Tap Next, and the Auto Setup automatically enters your servers settings.
User Manual
OPTICON Preliminary
Version : 1.0
Date : 2008/05/20
111
4. Enter the name you want to appear when you send messages, then tap Next.
5. Enter your password. Select Save password if you want, or you can enter the
password each time you send and receive e-mail. Then tap Next.
6. In Automatic Send/Receive, select a frequency for sending/receiving e-mail. Tap
Review all download settings to change your e-mail settings; otherwise, tap
Finish to start downloading messages.
User Manual
OPTICON Preliminary
Version : 1.0
Date : 2008/05/20
112
Composing an E-mail Message
1. Tap > Messaging.
2. Select an e-mail account.
3. Tap Menu > New.
4. In To, Cc and/or Bcc, enter recipient e-mail addresses. Insert a semicolon (;)
between multiple addresses.
5. In Subject, enter a subject.
6. Enter a message.
7. Tap Send. E-mail messages are stored in Outbox and are sent to recipients the next
time you synchronize or connect to your e-mail server and send and receive mail.
Reading an E-mail Message
If Auto Setup was not successful, enter required information (Incoming mail server,
User name, Password, Outgoing mail server) manually until setup is complete.
To change options for an e-mail account, tap > Messaging > Menu > Tools >
Options, and select the type of options to change.
If you save your password and then lose your device, someone finding your device
might be able to gain access to your e-mail.
You can quickly enter e-mail addresses from your contact cards. Tap on To and select
a recipient from the list. Then, select the recipient’s e-mail address.
User Manual
OPTICON Preliminary
Version : 1.0
Date : 2008/05/20
113
1. Tap > Messaging.
2. Select an e-mail account.
3. Tap Inbox under this e-mail account.
4. In the message list, tap the e-mail message you want to read.
E-mail Message Options
1. Tap > Messaging, and select an e-mail account.
2. Tap Menu > New.
3. Tap Menu > Message Options.
4. Select the type of options to change.
5. Tap .
8.4 Using Contacts
Contacts is your address book and information storage for the people and businesses you
communicate with. It stores phone numbers, e-mail addresses, home addresses, and any other
information that relates to a contact, such as a birthday or an anniversary date. You can also
add a picture or assign a ring tone to a contact.
From the contact list, you can quickly communicate with people. Click a contact in the list for a
summary of contact information. From there, you can call or send a message.
If you use Outlook on your PC, you can synchronize contacts between your device and PC.
Creating a New Contact
1. Tap > Contacts > New.
User Manual
OPTICON Preliminary
Version : 1.0
Date : 2008/05/20
114
2. Select Outlook Contact.
3. Enter information for the new contact.
4. Tap .
Viewing and Editing Contact Information
1. Tap > Contacts.
2. Tap the contact whose information you want to view. You can quickly search through
Contacts by entering the first letter of the contact.
3. To edit the information, tap Menu > Edit.
If someone who isn't in your list of contacts calls you, you can create a contact from
Call History. Tap and hold the item and then select Save to Contacts on the pop-up
submenu.
To save an existing contact to your SIM card, open the contact and tap Menu > Save
to SIM.
User Manual
OPTICON Preliminary
Version : 1.0
Date : 2008/05/20
115
4. Do any of the following:
z Tap Picture and select a picture you want to add.
z Tap Ring tone and select the ring tone you want.
5. When finished making changes, tap .
Sending an E-mail to a Contact
1. Tap > Contacts.
2. Tap the contact you want to send an e-mail to.
3. Tap the e-mail address.
4. Select the e-mail account to use.
5. Enter a subject, compose your message, and then tap Send.
Sending a Text Message to a Contact
1. Tap > Contacts.
2. Tap the contact you want to send a text message to, and tap Menu > Send Text
Message.
3. Compose your message, and tap Send.
User Manual
OPTICON Preliminary
Version : 1.0
Date : 2008/05/20
116
Creating a SIM Contact
Contacts can be created and stored on a subscriber identity module (SIM.) If you move the SIM
to another device, your SIM contacts are moved as well.
1. Tap > Contacts.
2. Tap New > SIM Contact.
3. Enter the name and phone number of the contact and tap .
Remember to install a valid SIM to your device before creating a SIM Contact.
User Manual
OPTICON Preliminary
Version : 1.0
Date : 2008/05/20
117
Chapter 9. Using Barcode Reader
User Manual
OPTICON Preliminary
Version : 1.0
Date : 2008/05/20
118
In the top of your device, a reader for barcode/2D code reading and decoding is built in, with
which various types of barcode/2D code labels are decoded into readable information such as
letters and numbers. Settings of barcode/2D code reader can be changed to fit your specific
requests.
9.1 Setting Barcode Reader
Changing Options in Barcode Reader
Barcode reader is set to be disabled by default, please remember to activate it before scanning.
1. Tap > Settings > System tab > Barcode settings > Options tab.
2. Check the check box of Barcode reader or/and Keyboard hook.
When Keyboard hook is enabled, data is received as key message; when Keyboard hook is
disabled, data is stored in the memory buffer temporarily. To retrieve the data, use
specific software development kit (SDK) and compatible Windows application program
interfaces (APIs). You can download the SDK from http://www.opticon.com.
3. In Read Mode, tap the upward/downward arrow to toggle between Multiple and
Single. Multiple read mode enables reading of multiple barcodes within a specified time
after one time triggering, while being in single read mode needs the reader to be
triggered again to read another label.
Keyboard hook can convert received characters to keyboard messages; therefore, you
can read barcode in applications such as Notes, Tasks, Excel Mobile and Word Mobile as
long as you enable the keyboard hook.
User Manual
OPTICON Preliminary
Version : 1.0
Date : 2008/05/20
119
4. In Buzzer, check the checkbox of Goodread sound. It enables the function of playing a
sound effect after a barcode has been decoded successfully. You can change the sound
effect by tapping the upward/downward arrow and play the sound effect you choose by
tapping the Sound button on the screen.
5. In Additional trigger key, tap the upward/downward arrow to choose another access
key for the reader. Otherwise you can set the additional trigger key to be none.
User Manual
OPTICON Preliminary
Version : 1.0
Date : 2008/05/20
120
Choosing Barcode Types
Your device is capable of scanning and decoding various barcode types; to check what kind of
barcode is readable and to assign specific barcode types to scan for, do as follows:
1. Tap > Settings > System tab > Barcode settings > Barcodes tab.
2. Select specific barcode types or select all of them.
3. Tap .
Advanced Setting
You can set specific configuration to your barcode reader by editing a list of codes in the menu
codes file. The codes you enter will be stored in the menu code file and replace default settings.
For descriptions of menu codes, refer to Universal Menu Book (you can download it from
www.opticon.com). Please note that supported menu codes depend on the module type or the
firmware version of your device.

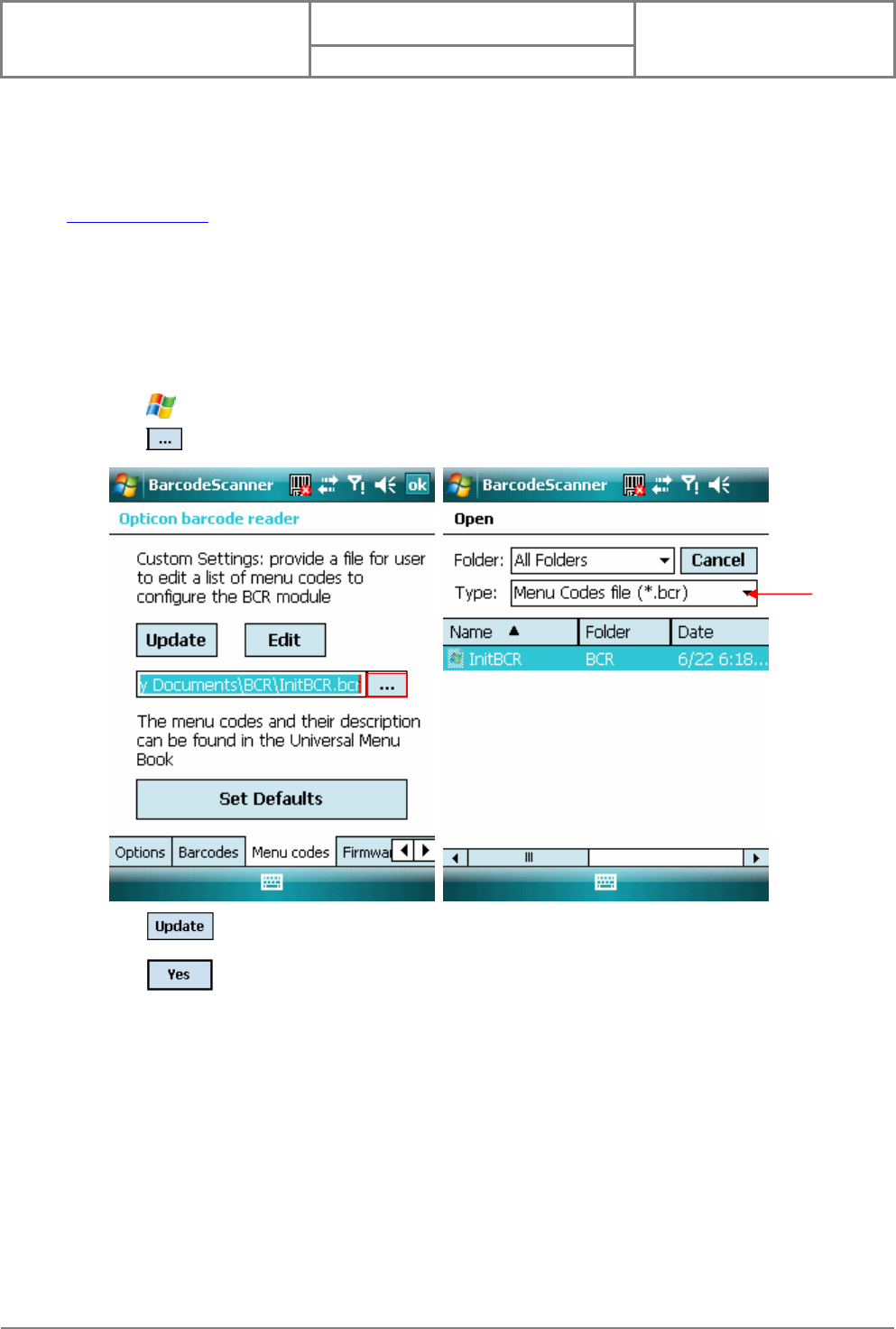

Inputting Menu Codes from a File
You can input menu codes automatically from a file, please do as follow to access the file and
configure the barcode reader.
1. Tap > Settings > System tab > Barcode settings > Menu codes tab.
2. Tap to view available files in your device.
User Manual
OPTICON Preliminary
Version : 1.0
Date : 2008/05/20
121
3. Tap after you select a file.
4. Tap to continue.
5. Tap .
Editing Existent Menu Codes
You can input characters directly to edit an existent menu codes file.
1. Tap > Settings > System tab > Barcode settings > Menu codes tab.
Tap Cancel if
you want to
stop the
procedure.
User Manual
OPTICON Preliminary
Version : 1.0
Date : 2008/05/20
122
2. Tap .
3. Input or delete menu codes.
4. Tap .
Returning to Defaults
You can cancel all personalized settings in the barcode reader.
1. Tap > Settings > System tab > Barcode settings > Menu codes tab.
2. Tap .
User Manual
OPTICON Preliminary
Version : 1.0
Date : 2008/05/20
123
3. Tap to continue.
4. Tap .
Firmware Update
How to update the firmware of your device
You can update the firmware of the barcode reader from an adapted file on your device or a
Mini-SD card inserted to your device. Please connect your device with the AC adapter before
User Manual
OPTICON Preliminary
Version : 1.0
Date : 2008/05/20
124
updating the firmware.
1. Tap > Settings > System tab > Barcode setting > Firmware Update tab.
2. Tap to view available files and select one of them.
3. Tap the file you want to update the firmware from. The selected file will be showed on the
screen then.
4. Input the default password “1234567890AB” and tap . You can then see current
completed percentage of the update to be displayed on the screen.
5. Tap to complete the operation.
Change Password
You can change the default password of firmware update to another one.
1. Tap > Settings > System tab > Barcode setting > Firmware Update tab.
2. Tap .
Tap Cancel if
you want to
stop the
procedure.
User Manual
OPTICON Preliminary
Version : 1.0
Date : 2008/05/20
125
3. Input old password first. In Password Information, input your new password in both of
the boxes in sequence for double confirmation. Then tap .
4. Tap to complete the procedure.
You can see more information about the barcode reader such as scanner version,
please tap > Settings > System tab > Barcode settings > About tab.
User Manual
OPTICON Preliminary
Version : 1.0
Date : 2008/05/20
126
9.2 Scanning and Reading Barcode labels
Your device can scan and decode barcode labels depending on the scanner equipped with your
device. If you prefer to read a barcode on your device right after scanning, open an application
in which letters and numbers can be displayed before you activate the barcode reader.
1. Open an application, e.g. Notes, Tasks and Contacts, in which you want to display
converted barcode information after scanning.
2. Do one of the following to enable barcode reader and keyboard hook:
z Tap > Settings > System tab > Barcode settings > Options tab. Then
check the checkboxes of Barcode reader and Keyboard hook.
z Tap icon on the screen and tap in the dialog box to active barcode reader
and keyboard hook directly.
3. Point the barcode reader to a barcode label and press the scan key (left scan key, right
scan key or the assigned trigger key).
4. Adjust the distance between your device and the label, and make sure the light emitted
from the scanner exceeds the width of the label.
Bar code
User Manual
OPTICON Preliminary
Version : 1.0
Date : 2008/05/20
127
5. A Goodread Sound plays and the content of the barcode shows when the label is decoded
successfully.
User Manual
OPTICON Preliminary
Version : 1.0
Date : 2008/05/20
128
Chapter 10. Other Applications
User Manual
OPTICON Preliminary
Version : 1.0
Date : 2008/05/20
129
10.1 Backing up/Recovering
It is advisable to make backups of your device data regularly in case important data is
accidentally lost or damaged. You can restore your data from those backup copies as needed.
Device data can be backed up to or be restored from DiskOnChip of your device or a compatible
memory card.
Backing up Data
1. Tap > Programs > Backup Manager.
2. Tap the Backup button.
3. Select the check box(es) of the item(s) that you want to backup.
4. Input a file name for the backup copy. To name it automatically, tap
.
DiskOnChip is flash memory device which locates in an independent area of OS.
DiskOnChip keeps the data even after a factory reset.
User Manual
OPTICON Preliminary
Version : 1.0
Date : 2008/05/20
130
5. Select a location for storing the backup copy: Storage Card or DiskOnChip.
6. Tap the Backup Button.
7. Tap .
User Manual
OPTICON Preliminary
Version : 1.0
Date : 2008/05/20
131
Recovering Data
1. Tap > Programs > Backup Manager.
2. Tap the Recover button.
3. Do one of the following to select a file:
z Tap > Program > File Explorer > DiskOnChip/Storage Card > Backup
File folder and select a file. Please note the Backup File may be located under
DiskOnChip or Storage card. It depends on the backup path you had chosen.
z Tap on the screen to view available files. You can then select one of them.
Please note that the selected backup file will be deleted once it has been restored to
your device successfully.
User Manual
OPTICON Preliminary
Version : 1.0
Date : 2008/05/20
132
4. Tap the Recover Button.
5. tap .
10.2 Managing Memory
Checking Available Storage
1. Tap > Settings > System tab > Memory.
2. In Main tab, you can see how much storage is available on the main memory of your
device.
Only items that have already been backed up can be restored on your device.
Your device will be rebooted automatically after you restore Personal Information (Calendar,
Contact and Task) on the device.
Installed applications will not be backed up.
User Manual
OPTICON Preliminary
Version : 1.0
Date : 2008/05/20
133
3. To see how much storage is available on your storage cards, tap Storage Card tab.
4. Use the drop-down menu to select your available storage cards and view their available
memory.
Closing a Running Program
1. Tap > Settings > System tab > Memory > Running Programs tab.
2. In Running Program List, select a program. You can tap Stop on the screen to close
the program or tap Stop All to close all programs.
10.3 Windows Live Messenger
You can send instant messages with Windows Live Messenger.
User Manual
OPTICON Preliminary
Version : 1.0
Date : 2008/05/20
134
Signing In/Out Windows Live Messenger
With Windows Live Messenger, you can send and receive instant messages from other Windows
Live Messenger users.
To sign in Windows Live Messenger
1. Tap > Programs > Messenger.
2. In Sign in as, select a condition which you want to show on your Windows Live
Messenger. Then tap Sign in.
Your device must be connected to the Internet before you can start using Windows
Live Messenger. To connect to the Internet, refer to “Chapter 7. Connecting to the Internet”
for details.
You must have a valid Microsoft .NET Passport or Hotmail account before you can sign
in to Windows Live Messenger.
User Manual
OPTICON Preliminary
Version : 1.0
Date : 2008/05/20
135
3. Tap OK to continue.
4. Tap Accept.
5. Enter your e-mail and password and tap Next.
User Manual
OPTICON Preliminary
Version : 1.0
Date : 2008/05/20
136
6. Select whether to show Windows Live on the Today screen or not. Then tap Next.
7. Select what you want to sync on your device. Then tap Next.
8. System will sign in to Windows Live automatically while all procedures are done.
To sign out Windows Live Messenger
z Tap Menu > Sign out.
Adding/Deleting a Windows Live Messenger Contact
1. Sign in Windows Live Messenger.
2. Do any of the following:
z To add a contact, tap Menu > Add New Contact, and follow the on-screen
instructions.
z To delete a contact, tap and hold the contact name in the Windows Live contact
list, then tap View contacts’ info. Next, Tap Menu > Delete Contact.
Sending an Instant Message
1. Sign into Windows Live Messenger.
User Manual
OPTICON Preliminary
Version : 1.0
Date : 2008/05/20
137
2. Select the contact’s name to whom you want to send a message to. Then tap Send
IM.
3. Enter a message and tap Send.
4. To close the dialog box of instant messages, tap Menu > End conversation.
Changing Windows Live Messenger Display Name
1. Sign in Windows Live Messenger.
2. Tap Menu > Change appearance.
3. Enter a new display name and tap Done.
Blocking/Unblocking a Contact
z To block a contact from seeing you on-line, select the contact and tap Menu >
Contact options > Block contact.
z To unblock a contact, select the contact and tap Menu > Contact options >
Unblock contact.
Changing Windows Live Messenger Settings
1. Sign in Windows Live Messenger.
2. Tap Menu > Options.
3. Select the type of options to change.
4. Tap Done.
If you connect to Window Live Messenger through a Wi-Fi network, please don’t disconnect
the Wi-Fi network before you sign out Windows Live Messenger. Otherwise, your Windows Live
contacts stored in your device may be lost.
User Manual
OPTICON Preliminary
Version : 1.0
Date : 2008/05/20
138
10.4 Windows Media
You can play digital audio and video files that are stored on your device or on a network.
Transferring Your Music and Videos to Your Device
1. On your computer, open Windows Media Player.
2. Connect your device to your computer using a USB cable.
3. In Windows Media Player on your computer, click Sync.
4. Drag each item you want to synchronize to the Sync List on the right side of the
computer screen.
5. Insert a mini-SD card to your device now if you want to synchronize media files to
your device via a storage card.
6. At the bottom of the Sync List, click Start Sync. The file will be synchronized to
your device or the storage card.
7. After transferring your media files, update your mobile device Media Library:
I. Tap > Programs > Windows Media.
II. Tap Menu > Library.
When synchronizing media files via a storage card, your will need a 32 MB or larger
storage card in your device.
User Manual
OPTICON Preliminary
Version : 1.0
Date : 2008/05/20
139
III. Tap Library ▼, then select My Device/Storage Card.
IV. Tap Menu > Update Library.
V. Tap Done when update is completed.
Playing Media File on Your Device
User Manual
OPTICON Preliminary
Version : 1.0
Date : 2008/05/20
140
1. Tap Menu > Library to open the Library screen.
2. Select a category (e.g. My Music > All Music).
3. Select an item, and tap Play.
4. You can then use the following functions when playing audio or video files:
Saving a New Playlist
: Display the video in full screen
: Displays a Web site where you can find music and videos to
play.
: Skip to the beginning of the current file or to the previous file.
: Pause/Play
: Skip to the next file.
: Decrease the volume level.
: Increase the volume level.
: Adjust the playback progress of a
selected file.
User Manual
OPTICON Preliminary
Version : 1.0
Date : 2008/05/20
141
1. Tap > Programs > Windows Media.
2. Tap Menu > Library.
3. Select a category (e.g. My Music > All Music).
4. Select an item, then tap Menu > Queue Up. Selected item will be added to
the Now Playing list immediately.
5. Tap Menu > Now Playing.
6. Tap Menu > Save Playlist.
7. Enter a name for the playlist and tap Done.
10.5 Office Mobile
Excel Mobile
With Excel Mobile, you can create, view and edit spreadsheet on your device. Moreover, you can
edit documents created on your desktop computer.
Creating a New Spreadsheet
1. Tap > Office Mobile > Excel Mobile.
2. Enter text, numbers, and formulas as desired.
3. Tap Menu > File > Save As.
4. Enter a name for the document and tap the Save button.
Excel Mobile Formatting Toolbar
The formatting toolbar in Excel Mobile provides a quick way to apply common functions such as
create a chart or align text to the left.
z In an Excel Mobile workbook, tap View > Toolbar.
A check mark appears next to Toolbar when the toolbar is visible.
Tap To
You can also tap Ok to save a spreadsheet and Excel Mobile gives it a name
automatically.
Unlike Microsoft Excel, you can only have one document open at a time in Excel Mobile.
User Manual
OPTICON Preliminary
Version : 1.0
Date : 2008/05/20
142
Create a chart from the selected cells
Align text to the left
Center the selected text
Align text to the right
Add all contiguous numbers in a column or row
$ Add a currency symbol
Add the default thousands separator
Add a decimal point
Increase and decrease the magnification
PowerPoint Mobile
With PowerPoint Mobile, you can view PowerPoint slides on you device.
Starting a PowerPoint Presentation
1. Tap > Office Mobile > PowerPoint Mobile.
2. Tap the slide show you want to view in the presentation list.
3. Tap the current slide to advance to the next slide if slides don’t advance
automatically.
4. Tap Menu > Rename/Move .
5. Enter a name for the document and tap .
Stopping a PowerPoint Presentation
z In a slide show, tap ▲∣ > End Show.
Navigating Between Slides
z Tap ▲∣ > Next to go to the next slide.
z Tap ▲∣ > Previous to go back to the previous slide.
z To jump to any slide in the slide show, tap ▲∣ > Go to Slide and tap on the slide
you want to view.
Word Mobile
PowerPoint Mobile only supports slides in .ppt and .pps formats.
User Manual
OPTICON Preliminary
Version : 1.0
Date : 2008/05/20
143
With Word Mobile, you can create and edit Microsoft Word documents and templates, plain text
files, and/or rich text format files.
Creating a Document
1. Tap > Office Mobile > Word Mobile.
2. Tap New, if a new document is not opened by itself.
3. Enter text as desired.
4. Tap Menu > File > Save As.
5. Enter a name for the document and tap the Save button.
Word Mobile Formatting Toolbar
The Formatting toolbar in Word Mobile provides a quick way to apply common formatting such
as bold type, bulleted or numbered lists, and paragraph indentation to your text.
z In a Word Mobile document, tap View > Toolbar.
A check mark appears next to Toolbar when the toolbar is visible.
Tap To
Make the selected text bold
Make the selected text italic
Underline the selected text
Align text to the left
Center the text
Align text to the right
Add or remove a numbered list in the selected text
Add or remove bullets in the selected text
Increase the indent of numbered or bulleted list text one tab stop to the right
Decrease the indent of numbered or bulleted list text one tab stop to the left
10.6 Phone Profile
Phone Profile defines how your device reacts when you receive a call or a message, how your
You can also tap Ok to save a document after you finish editing text. This way, the first
few words of the document are used as the filename.
Unlike Microsoft Word, you can only have one document open at a time in Word Mobile.
User Manual
OPTICON Preliminary
Version : 1.0
Date : 2008/05/20
144
keypad sounds when you press a key, and more. Select or customize the most suitable profile
for your situation, such as when you are in a meeting or outdoors. The phone profiles available
are Normal, Silent, Vibrate, Outdoor, Headset, and User define.
Selecting a Profile
1. Tap > Programs > Phone Profile.
2. Select the most suitable profile for your situation from the list.
3. Tap Menu > Select. Then Tap .
4. Tap OK to confirm the selection.
Only User defined profile can be customized.
User Manual
OPTICON Preliminary
Version : 1.0
Date : 2008/05/20
145
Viewing Profile Details
1. Tap > Programs > Phone Profile.
2. Select the profile you want to view its details.
3. Tap Detail.
Defining Your Own Profile
1. Tap > Programs > Phone Profile.
2. Select User Defined, and tap Menu > Edit.
User Manual
OPTICON Preliminary
Version : 1.0
Date : 2008/05/20
146
3. Select the type of options to change.
4. Tap .
10.7 Formatting Storage Card and DiskOnChip
With Format Disk, you can format and check the capacity of an inserted storage card and
DiskOnChip in your device.
1. Tap > Programs > Format Disk.
User Manual
OPTICON Preliminary
Version : 1.0
Date : 2008/05/20
147
2. Select the area and file system.
3. Tap .
4. Tap Yes to continue.
5. Tap the Info tab.
6. Tap and check the capacity of an inserted storage card and/or
DiskOnChip.
User Manual
OPTICON Preliminary
Version : 1.0
Date : 2008/05/20
148
10.8 Setting up GPS
A GPS (Global Positioning System) signal receiver is built in your device. You have to install a
mapping software on your device to start navigating. Please follow the instruction of your
mapping software to install it and use the navigation functions. You may need to specify the
GPS hardware port when installing the mapping software. Select the following value if
requested.
z GPS hardware port: COM4.
z Baud rate: 57600.
Receiving Better Satellite Signals
GPS positioning is limited by bad weather (e.g. rainy or cloudy days) and usage location (e.g.
tall buildings, tunnels, underpasses, trees, bridges…etc). Most GPS do not work indoors, nor
can GPS signals penetrate buildings, car sun shades and heat reflective film with metallic
content.
It can take several minutes the first time you establish a GPS connection. If you find the device
can not detect the satellite signal, try the following:
z Move the device to an open space without tall buildings or trees around it.
z Make sure there are no wireless communication products (e.g. radar-detecting
devices and mobile phones) nearby since these products may cause unstable signal
reception.
z Connect an external Bluetooth GPS receiver (not included in the package) to your
device in order to enhance the reception.
Important Notice about Using GPS
z It is forbidden in most counties to use the GPS system when driving.
z The GPS is built and operated by the US Defense Department. The accuracy of
Only a valid storage card can be formatted with Format Disk.
Some mapping software or GPS navigation software may not be compatible with your
device, please consult with the software provider/retailer before installing the software.
User Manual
OPTICON Preliminary
Version : 1.0
Date : 2008/05/20
149
location data may be affected by changes made by the Department.
z GPS should not be used for precise location measurement. It can only be used as a
navigation aid.
z Do not turn on the car engine when your device is connected to the car charger (not
included in the package) as this may damage your device.
z Make sure the DC voltage provided by your car and the electric current supplied
from your car charger are compatible with your device before using them.
z Using the GPS may drain the battery faster than usual.
User Manual
OPTICON Preliminary
Version : 1.0
Date : 2008/05/20
150
Appendix
User Manual
OPTICON Preliminary
Version : 1.0
Date : 2008/05/20
151
A.1 Regulatory Notices
European Union Notice
Products with CE marking comply with the R&TTE Directive (99/5/EC), the EMC Directive
(89/336/EEC), and the Low Voltage Directive (73/23/EEC) issued by the Commission of the
European Community.
Compliance with these directives implies conformity to the following European Norms (in
parentheses are the equivalent international standards).
z ETSI EN 301 489-1
Electromagnetic compatibility and Radio spectrum Matters (ERM); ElectroMagnetic
Compatibility (EMC) standard for radio equipment and services; Part 1: Common
technical requirements.
z ETSI EN 300 328
Electromagnetic compatibility and Radio spectrum Matters (ERM); Wideband
Transmission systems; data transmission equipment operating in the 2.4 GHz ISM
band and using spread spectrum modulation techniques.
z EN 50360/EN50361
Product standard to demonstrate the compliance of mobile phones with the basic
restrictions related to human exposure to electromagnetic fields (300MHz – 3GHz)
z ETSI EN 301 489-7
Eletromagnetic compatibility and Radio spectrum matters (ERM); ElectroMagnetic
Compatibility (EMC) standard for radio equipment and services; Part 7: Specific
conditions for mobile and portable radio and ancillary equipment of digital cellular
radio telecommunications systems (GSM and DCS).
z ETSI EN 301 489-17
Electromagnetic compatibility and Radio spectrum Matters (ERM); ElectroMagnetic
Compatibility (EMC) standard for radio equipment and services; Part 17: Specific
conditions for 2.4 GHz wideband transmission systems and 5 GHz high performance
RLAN equipment.
z EN 60950-1 (IEC 60950-1)
Safety of information Technology Equipment.
z ETSI EN 301 511
Global system for mobile communications (GSM); Harmonized EN for mobile stations
in the GSM 900 and GSM 1800 bands, covering essential requirements of article 3.2
of the R&TT directive (1995/5/EC).
User Manual
OPTICON Preliminary
Version : 1.0
Date : 2008/05/20
152
Federal Communications Commission Notice
This device complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must accept
any interference received, including interference that may cause undesired operation. This
equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates,
uses, and can radiate radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications. However, there is no
guarantee does cause harmful interference to radio or TV reception, which can be determined
by turning the equipment on and off, the user is encourage to try to correct the interference by
one or more of the following measures:
z Reorient or relocate the receiving antenna.
z Increase the separation between the equipment and receiver.
z Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
z Consult the dealer or an experienced radio or television technician for help.
RF Exposure Information (SAR)
This device meets the government’s requirements for exposure to radio waves. This device is
designed and manufactured not to exceed the emission limits for exposure to radio frequency
(RF) energy set by the Federal Communications Commission of the U.S. Government.
The exposure standard for wireless devices employs a unit of measurement known as the
Specific Absorption Rate, or SAR. The SAR limit set by the FCC is 1.6W/kg. *Tests for SAR are
conducted using standard operating positions accepted by the FCC with the device transmitting
at its highest certified power level in all tested frequency bands. Although the SAR is
determined at the highest certified power level, the actual SAR level of the device while
operating can be well below the maximum value. This is because the device is designed to
operate at multiple power levels so as to use only the poser required to reach the network. In
general, the closer you are to a wireless base station antenna, the lower the power output.
While there may be differences between the SAR levels of various devices and at various
User Manual
OPTICON Preliminary
Version : 1.0
Date : 2008/05/20
153
positions, they all meet the government requirement.
The FCC has granted an Equipment Authorization for this device with all reported SAR levels
evaluated as in compliance with the FCC RF exposure guidelines. SAR information on this device
is on file with the FCC and can be found under the Display Grant section of
http://www.fcc.gov/oet/ea after searching on FCC ID:UFOBC0164AAA390.
For body worn operation, this device has been tested and meets the FCC RF exposure
guidelines for use with an accessory that contains no metal and the positions the handset a
minimum of 1.5 cm from the body. Use of other enhancements may not ensure compliance with
FCC RF exposure guidelines. If you do no t use a body-worn accessory and are not holding the
device at the ear, position the handset a minimum of 1.5 cm from your body when the device is
switched on.
SAR Information
Head 850 1900 2450
Max SAR1g 0.169 0.189 0.032
Body_1.5cm 850 1900 2450
Max SAR1g 0.12 0.354 0.028
Body_Holster 850 1900 2450
Max SAR1g 0.252 0.951 0.102
Volume Scan
Body_Holster 850+2450 1900+2450
Max SAR1g 0.233 1
The maximum standalone SAR is 0.951 W/Kg, and the volume scan SAR for GSM and WLAN
col-transmission is 1 W/Kg.
Exposure to Radio Frequency (RF) Signals
Your wireless device is a radio transmitter and receiver. It is designed and manufactured not to
exceed the emission limits for exposure to radio frequency (RF) energy set by the Federal
Communications Commission of the U.S. Government. These limits are part of comprehensive
guidelines and establish permitted levels of RF energy for the general population. The
guidelines are based on the safety standards previously set by both U.S. and international
standards bodies:
z American National Standards Institute (ANSI) IEEE. C95.1-1992
User Manual
OPTICON Preliminary
Version : 1.0
Date : 2008/05/20
154
z National Council on Radiation Protection and Measurement (NCRP). Report 86. 1986
z International Commission on Non-Ionizing Radiation Protection (ICNIRP) 1996
z Ministry of Health (Canada), Safety Code 6. The standards include a substantial safety
margin designed to assure the safety of all persons, regardless of age and health.
In the U.S. and Canada, the SAR limit for mobile phones used by the public is 1.6 Watts/kg
(W/kg) averaged over one gram of tissue. The standard incorporates a substantial margin of
safety to give additional protection for the public and to account for any variations in usage.
Normal conditions only ensure the radiative performance and safety of the interference. As with
other mobile radio transmitting equipment, users are advised that for satisfactory operation of
the equipment and for the safety of personnel, it is recommended that no part of the human
body be allowed to come too close antenna during operation of the equipment.
Warning!
DANGER OF EXPLOSION IF BATTERY IS INCORRECTLY REPLACED. TO REDUCE RISK OF FIRE
OR BURNS, DO NOT DISASSEMBLE, CRUSH, PUNCTURE, SHORT EXTERNAL CONTACTS,
EXPOSE TO TEMPERATURE ABOVE 60.C (140.F), OR DISPOSE OF IN FIRE OR WATER.
REPLACE ONLY WITH SPECIFIED BATTERIES. RECYCLE OR DISPOSE OF USED BATTERIES
ACCORDING TO THE LOCAL REGULATIONS OR REFERENCE GUIDE SUPPLIED WITH YOUR
PRODUCT.
User Manual
OPTICON Preliminary
Version : 1.0
Date : 2008/05/20
155
A.2 PC Requirement to Run ActiveSync 4.5
To connect your device to the PC, you must have Microsoft® ActiveSync® program installed on
your PC. ActiveSync 4.5 is included in the Installation CD, which is compatible with the following
operating systems and applications:
z Microsoft® Windows® 2000 Service Pack 4
z Microsoft® Windows® Server 2003 Service Pack 1
z Microsoft® Windows® Server 2003 IA64 Edition Service Pack 1
z Microsoft® Windows® Server 2003 x64 Edition Service Pack 1
z Microsoft® Windows® XP Professional Service Packs 1 and 2
z Microsoft® Windows® XP Home Service Packs 1 and 2
z Microsoft® Windows® XP Tablet PC Edition 2005
z Microsoft® Windows® XP Media Center Edition 2005
z Microsoft® Windows® XP Professional x64 Edition
z Microsoft® Outlook® XP and Microsoft® Outlook® 2003 messaging and
collaboration clients
z Microsoft® Office XP
z Microsoft® Office 2003
z Microsoft® Internet Explorer 6.0 or later (required)
z Microsoft® Systems Management Server 2.0
User Manual
OPTICON Preliminary
Version : 1.0
Date : 2008/05/20
156
A.3 Specifications
System Information
CPU Samsung S3C2440A, 400MHz
Operating System Windows Mobile 6 Professional
Memory 128 MB RAM
512 MB ROM
Dimensions and Weight
Dimension 140.8 x 62.3 x 24.5 (25.5) mm
Weight <H-19A> 193±5g with battery
153±5g without battery
Weight <H-19B> 199±5g with battery
159±5g without battery
Key and Indication
Key z 5-way navigation with action input
z 2 Scan key
z Volume up and down
z Power button
z Talk key and End key
z Reset button
z Voice Record (Configurable side key)
z 2 Soft key
z Fn key and Backspace key
z 12 key numeric dial pad
Indication z Vibrate
z Audible
z Visual message
z LED 1: Wi-Fi (Green)/Bluetooth(Blue)
z LED 2: Low Power/Missed Call(Red)/Charging(Orange)/GSM on(Green)
Display
Type Transflective TFT LCD with touch panel and backlight
Mode Portrait/Landscape
Size/Resolution/Color 2.8", 240x320, 65K colors
User Manual
OPTICON Preliminary
Version : 1.0
Date : 2008/05/20
157
Scanner/Barcode Reader
Red laser diode
<H-19A> 1D Model
Supported Symbologies
1D : EAN, JAN, UPC-A, UPC-E, Industrial 2 of 5, IATA, Interleaved 2 of 5,
NW-7 (CODABAR), CODE-39, CODE-93, CODE-128, and so on
CMOS Area Sensor <H-19B> 1D/2D Model
Supported Symbologies
1D : EAN, JAN, UPC-A, UPC-E, Industrial 2 of 5, IATA, Interleaved 2 of 5,
NW-7 (CODABAR), CODE-39, CODE-93, CODE-128, and so on
2D : PDF417, Micro PDF417, QR Code, Data Matrix, Maxi Code, and so on
Connectivity
Bluetooth Bluetooth 1.2 compliant (ISM 2.4GHz)
Wi-Fi IEEE 802.11 b/g compliant
Telecom GSM 850/EGSM 900/DCS 1800/PCS 1900,
GPRS class 12, EDGE class 10
USB mini USB (Revision 1.1 client)
GPS
Built-in GPS module SiRF Star III
Cold Start Time 45s (maximum in open space)
Warm Start Time 45s (maximum in open space)
Hot Start Time 10s (maximum in open space)
Reacquisition Time < 1s
Accuracy Static: 3m Dynamic:30m
External Memory Card
Card Slot Mini-SD card slot (maximum current: 200 mAh)
Battery and Power
Main Battery Li-Ion Polymer 4.2V 1580mAh
Talk Time 4 hours
Standby Time 150 hours
Battery Charging Time 4 hours (AC charger via mini USB)
6 hours (USB cable connected to PC)
Backup Battery 5 minutes RTC after main battery removal
User Manual
OPTICON Preliminary
Version : 1.0
Date : 2008/05/20
158
168 hours RTC in main battery low power
WEEE Notice
The Waste Electrical and Electronic Equipment (WEEE) Directive is designed to encourage and
regulate the collection, reuse, recycling and recovery of waste electrical and electronic
equipment, which entered into force as European law on 13th February 2003. The Directive
aims to improve the level of recycling of electrical and electronic equipment (EEE) and
encourages designers to develop products with recycling efficiency in mind; it also aims to
improve our environment, reduce risks to human health through the proper treatment of
discarded goods.
The WEEE logo ( ) on the product and its accessories or on its box indicates that this
product must not be disposed of or dumped with your other household wastes. You are liable to
dispose of all your electronic or electrical waste equipment by relocating over to the specified
collection point for recycling of such hazardous waste. Isolated collection and proper recovery
of your electronic and electrical waste equipment at the time of disposal will allow us to help
conserving natural resources. Moreover, proper recycling of the electronic and electrical waste
equipment will ensure safety of human health and environment.
For more information about electronic and electrical waste equipment disposal, recovery and
collection point, please contact your local city center, household waste disposal service, shop
from where you purchased the equipment, or manufacturer of the equipment.
RoHS Compliance
This product is in compliance with Directive 2002/95/EC of the European Parliament and of the
Council of 27 January 2003, on the restriction of the use of certain hazardous substances in
electrical and electronic equipment (RoHS) and its amendment.
