Universal menu bookbar code configurationand commands manual Set up your personal configuration

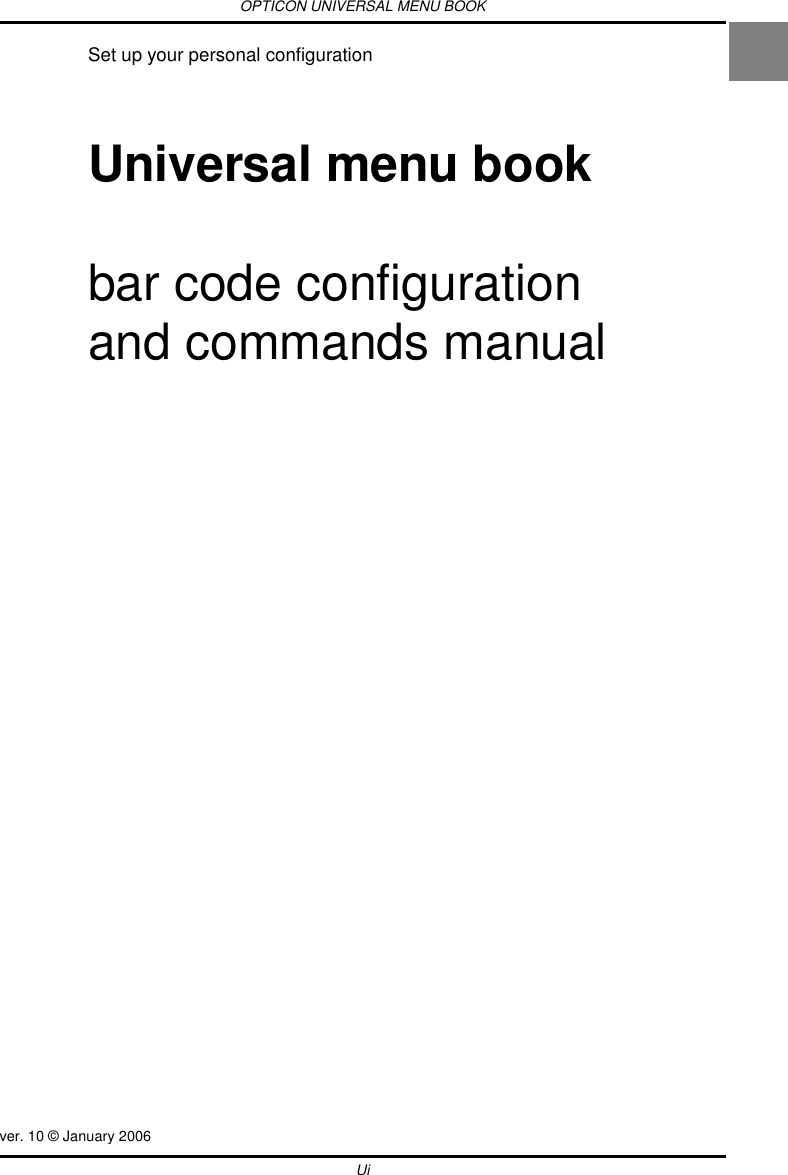

OPTICON UNIVERSAL MENU BOOKUiUniversal menu bookbar code configurationand commands manual ver. 10 © January 2006Set up your personal configuration

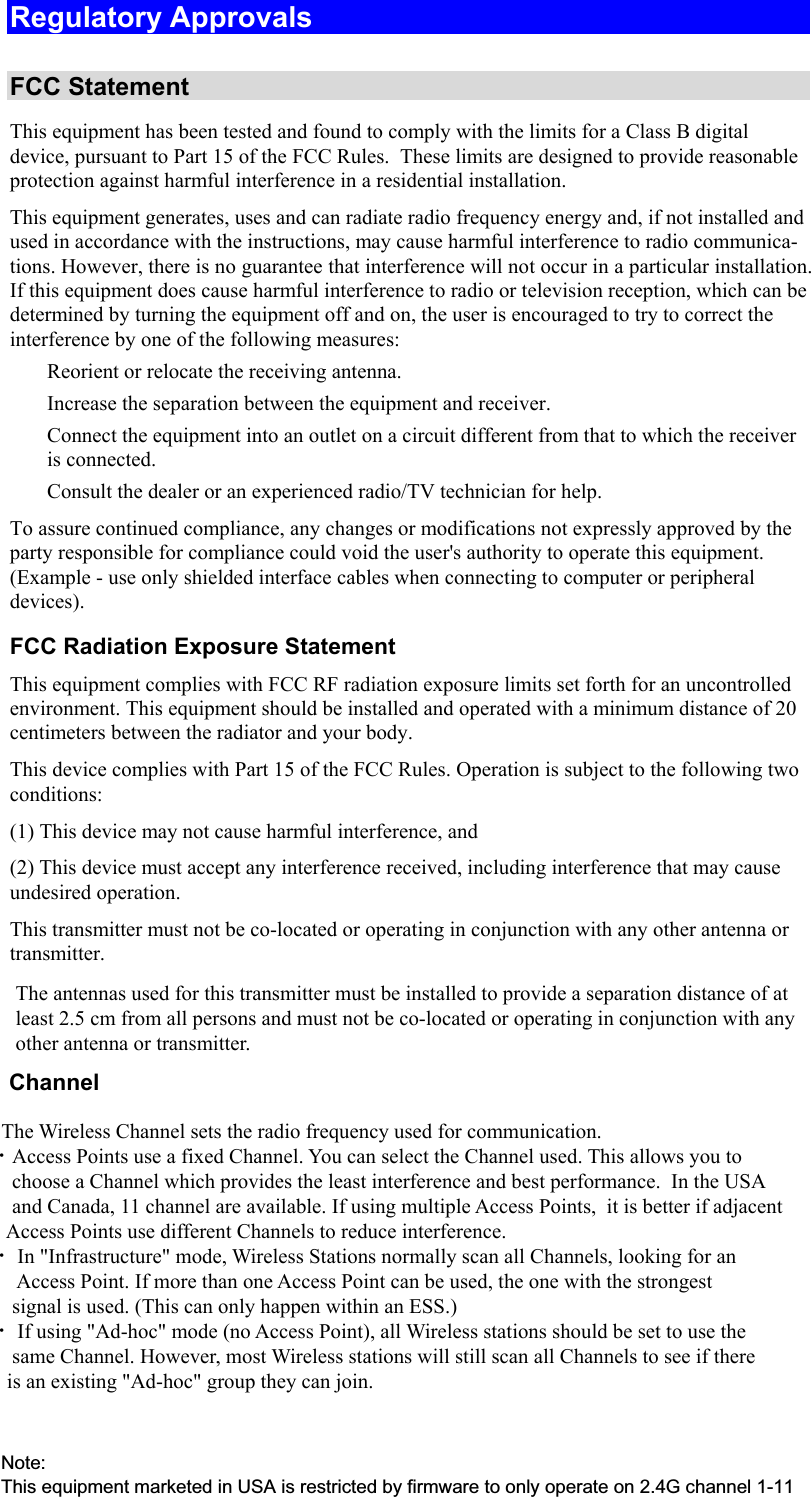

Regulatory Approvals FCC Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communica-tions. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help. To assure continued compliance, any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. (Example - use only shielded interface cables when connecting to computer or peripheral devices). FCC Radiation Exposure Statement This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 20 centimeters between the radiator and your body. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. The antennas used for this transmitter must be installed to provide a separation distance of at least 2.5 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. Channel The Wireless Channel sets the radio frequency used for communication. •Access Points use a fixed Channel. You can select the Channel used. This allows you to choose a Channel which provides the least interference and best performance. In the USA and Canada, 11 channel are available. If using multiple Access Points, it is better if adjacent Access Points use different Channels to reduce interference. • In "Infrastructure" mode, Wireless Stations normally scan all Channels, looking for an Access Point. If more than one Access Point can be used, the one with the strongest signal is used. (This can only happen within an ESS.) • If using "Ad-hoc" mode (no Access Point), all Wireless stations should be set to use the same Channel. However, most Wireless stations will still scan all Channels to see if there is an existing "Ad-hoc" group they can join.Note:This equipment marketed in USA is restricted by firmware to only operate on 2.4G channel 1-11

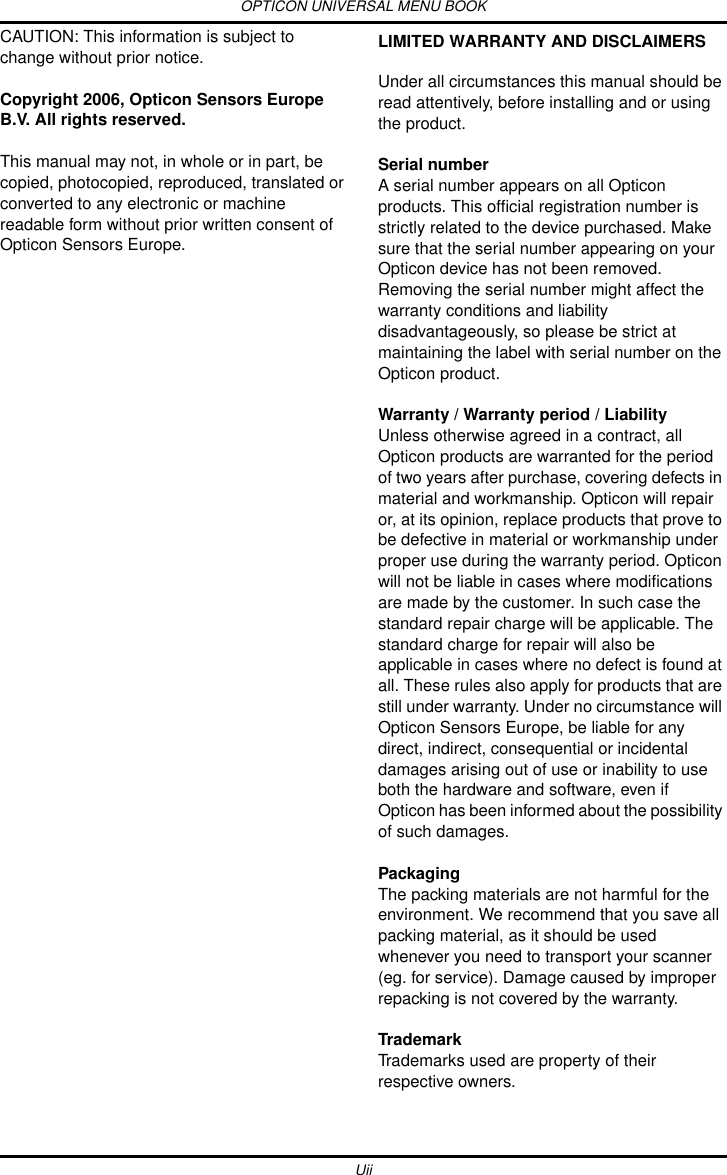

OPTICON UNIVERSAL MENU BOOKUiiCAUTION: This information is subject to change without prior notice. Copyright 2006, Opticon Sensors Europe B.V. All rights reserved.This manual may not, in whole or in part, be copied, photocopied, reproduced, translated or converted to any electronic or machine readable form without prior written consent of Opticon Sensors Europe.LIMITED WARRANTY AND DISCLAIMERSUnder all circumstances this manual should be read attentively, before installing and or using the product.Serial number A serial number appears on all Opticon products. This official registration number is strictly related to the device purchased. Make sure that the serial number appearing on your Opticon device has not been removed. Removing the serial number might affect the warranty conditions and liability disadvantageously, so please be strict at maintaining the label with serial number on the Opticon product.Warranty / Warranty period / LiabilityUnless otherwise agreed in a contract, all Opticon products are warranted for the period of two years after purchase, covering defects in material and workmanship. Opticon will repair or, at its opinion, replace products that prove to be defective in material or workmanship under proper use during the warranty period. Opticon will not be liable in cases where modifications are made by the customer. In such case the standard repair charge will be applicable. The standard charge for repair will also be applicable in cases where no defect is found at all. These rules also apply for products that are still under warranty. Under no circumstance will Opticon Sensors Europe, be liable for any direct, indirect, consequential or incidental damages arising out of use or inability to use both the hardware and software, even if Opticon has been informed about the possibility of such damages.PackagingThe packing materials are not harmful for the environment. We recommend that you save all packing material, as it should be used whenever you need to transport your scanner (eg. for service). Damage caused by improper repacking is not covered by the warranty.TrademarkTrademarks used are property of their respective owners.

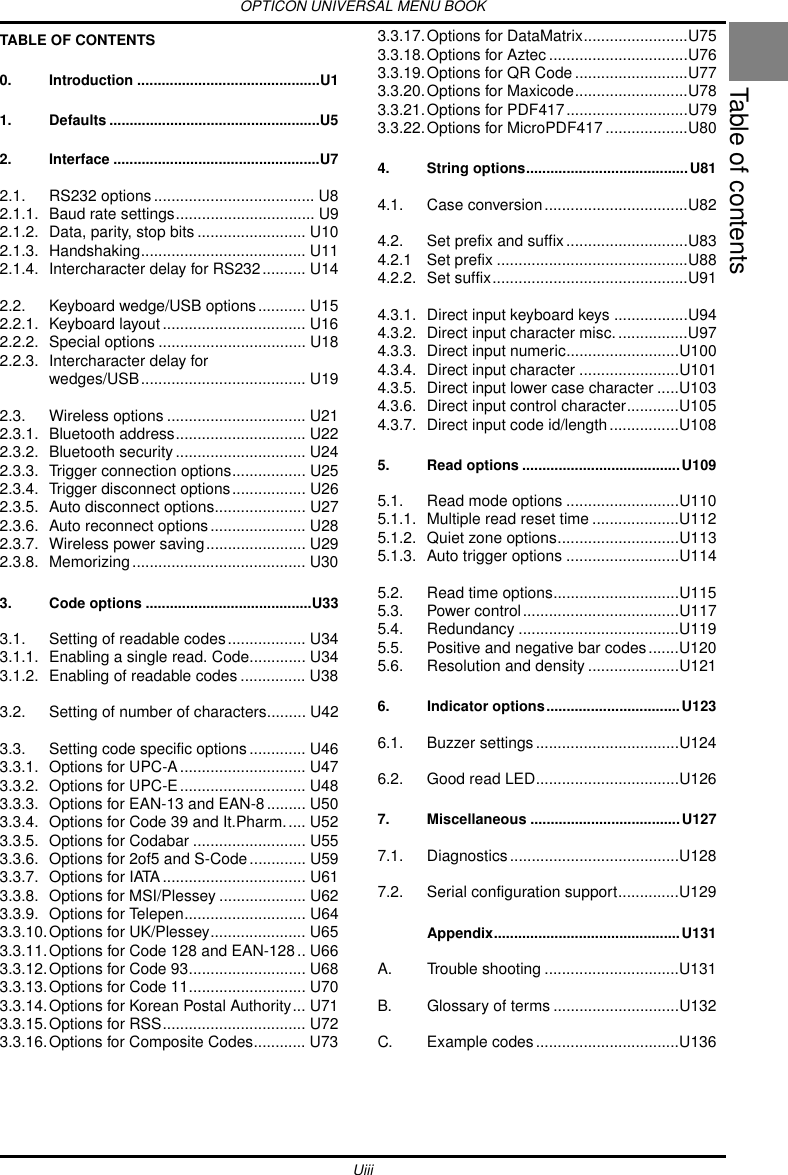

OPTICON UNIVERSAL MENU BOOKUiiiTable of contentsTABLE OF CONTENTS0. Introduction .............................................U11. Defaults ....................................................U52. Interface ...................................................U72.1. RS232 options..................................... U82.1.1. Baud rate settings................................ U92.1.2. Data, parity, stop bits ......................... U102.1.3. Handshaking...................................... U112.1.4. Intercharacter delay for RS232.......... U142.2. Keyboard wedge/USB options........... U152.2.1. Keyboard layout................................. U162.2.2. Special options .................................. U182.2.3. Intercharacter delay for wedges/USB...................................... U192.3. Wireless options ................................ U212.3.1. Bluetooth address.............................. U222.3.2. Bluetooth security .............................. U242.3.3. Trigger connection options................. U252.3.4. Trigger disconnect options................. U262.3.5. Auto disconnect options..................... U272.3.6. Auto reconnect options...................... U282.3.7. Wireless power saving....................... U292.3.8. Memorizing........................................ U303. Code options .........................................U333.1. Setting of readable codes.................. U343.1.1. Enabling a single read. Code............. U343.1.2. Enabling of readable codes ............... U383.2. Setting of number of characters......... U423.3. Setting code specific options............. U463.3.1. Options for UPC-A............................. U473.3.2. Options for UPC-E............................. U483.3.3. Options for EAN-13 and EAN-8......... U503.3.4. Options for Code 39 and It.Pharm..... U523.3.5. Options for Codabar .......................... U553.3.6. Options for 2of5 and S-Code............. U593.3.7. Options for IATA ................................. U613.3.8. Options for MSI/Plessey .................... U623.3.9. Options for Telepen............................ U643.3.10.Options for UK/Plessey...................... U653.3.11.Options for Code 128 and EAN-128.. U663.3.12.Options for Code 93........................... U683.3.13.Options for Code 11........................... U703.3.14.Options for Korean Postal Authority... U713.3.15.Options for RSS................................. U723.3.16.Options for Composite Codes............ U733.3.17.Options for DataMatrix........................U753.3.18.Options for Aztec ................................U763.3.19.Options for QR Code ..........................U773.3.20.Options for Maxicode..........................U783.3.21.Options for PDF417............................U793.3.22.Options for MicroPDF417 ...................U804. String options........................................U814.1. Case conversion.................................U824.2. Set prefix and suffix............................U834.2.1 Set prefix ............................................U884.2.2. Set suffix.............................................U914.3.1. Direct input keyboard keys .................U944.3.2. Direct input character misc.................U974.3.3. Direct input numeric..........................U1004.3.4. Direct input character .......................U1014.3.5. Direct input lower case character .....U1034.3.6. Direct input control character............U1054.3.7. Direct input code id/length................U1085. Read options .......................................U1095.1. Read mode options ..........................U1105.1.1. Multiple read reset time ....................U1125.1.2. Quiet zone options............................U1135.1.3. Auto trigger options ..........................U1145.2. Read time options.............................U1155.3. Power control....................................U1175.4. Redundancy .....................................U1195.5. Positive and negative bar codes.......U1205.6. Resolution and density .....................U1216. Indicator options.................................U1236.1. Buzzer settings.................................U1246.2. Good read LED.................................U1267. Miscellaneous .....................................U1277.1. Diagnostics.......................................U1287.2. Serial configuration support..............U129Appendix..............................................U131A. Trouble shooting ...............................U131B. Glossary of terms .............................U132C. Example codes.................................U136

OPTICON UNIVERSAL MENU BOOKUiv

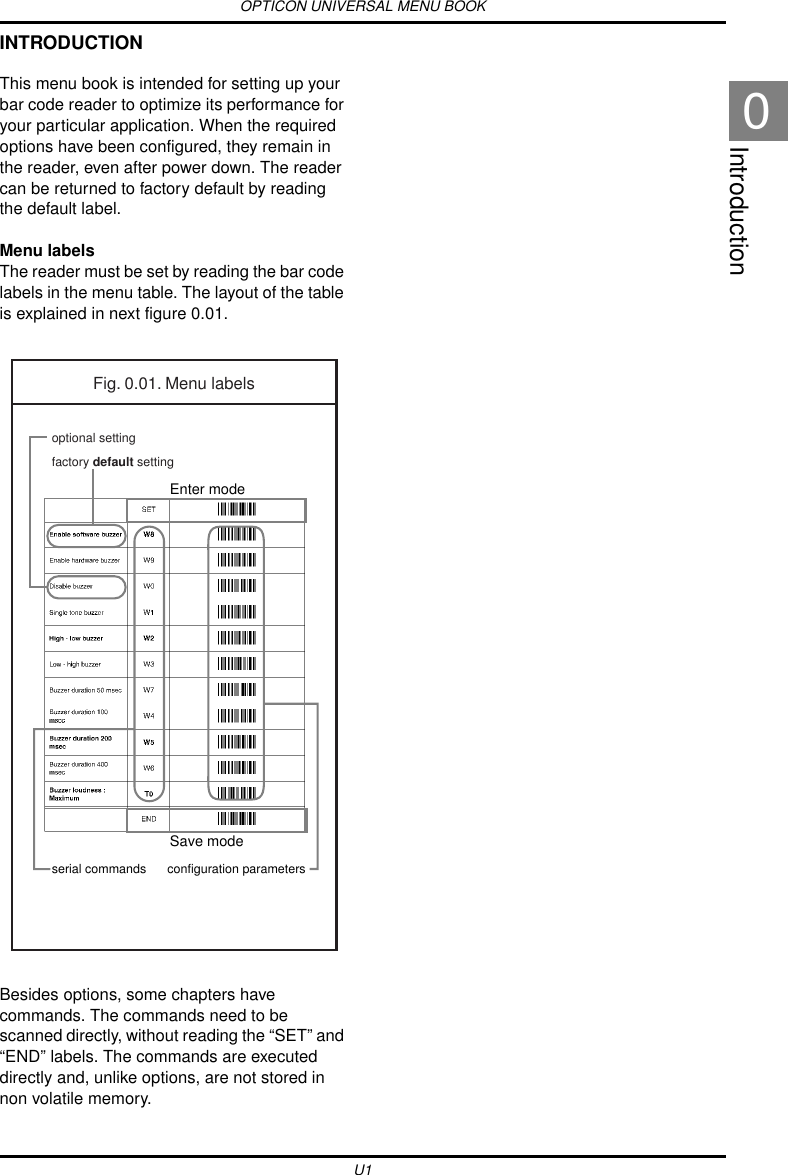

OPTICON UNIVERSAL MENU BOOKU1Introduction0INTRODUCTIONThis menu book is intended for setting up your bar code reader to optimize its performance for your particular application. When the required options have been configured, they remain in the reader, even after power down. The reader can be returned to factory default by reading the default label.Menu labelsThe reader must be set by reading the bar code labels in the menu table. The layout of the table is explained in next figure 0.01.Besides options, some chapters have commands. The commands need to be scanned directly, without reading the “SET” and “END” labels. The commands are executed directly and, unlike options, are not stored in non volatile memory.Fig. 0.01. Menu labelsEnter modeSave modeconfiguration parametersserial commandsoptional settingfactory default setting

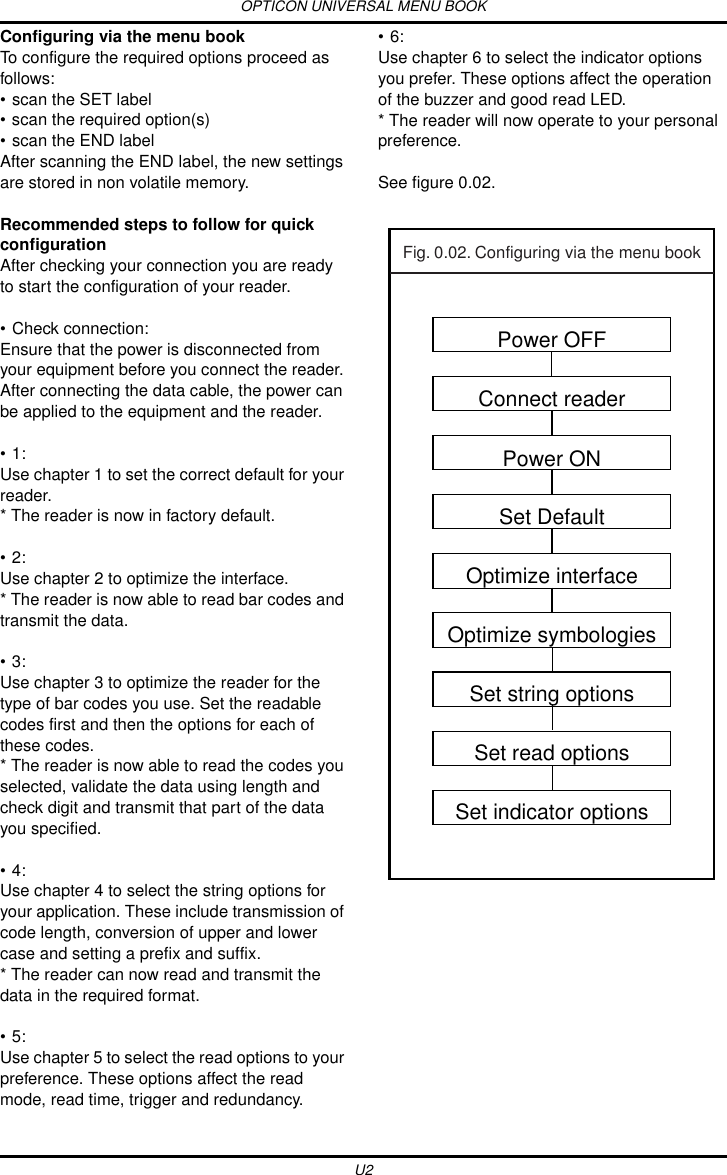

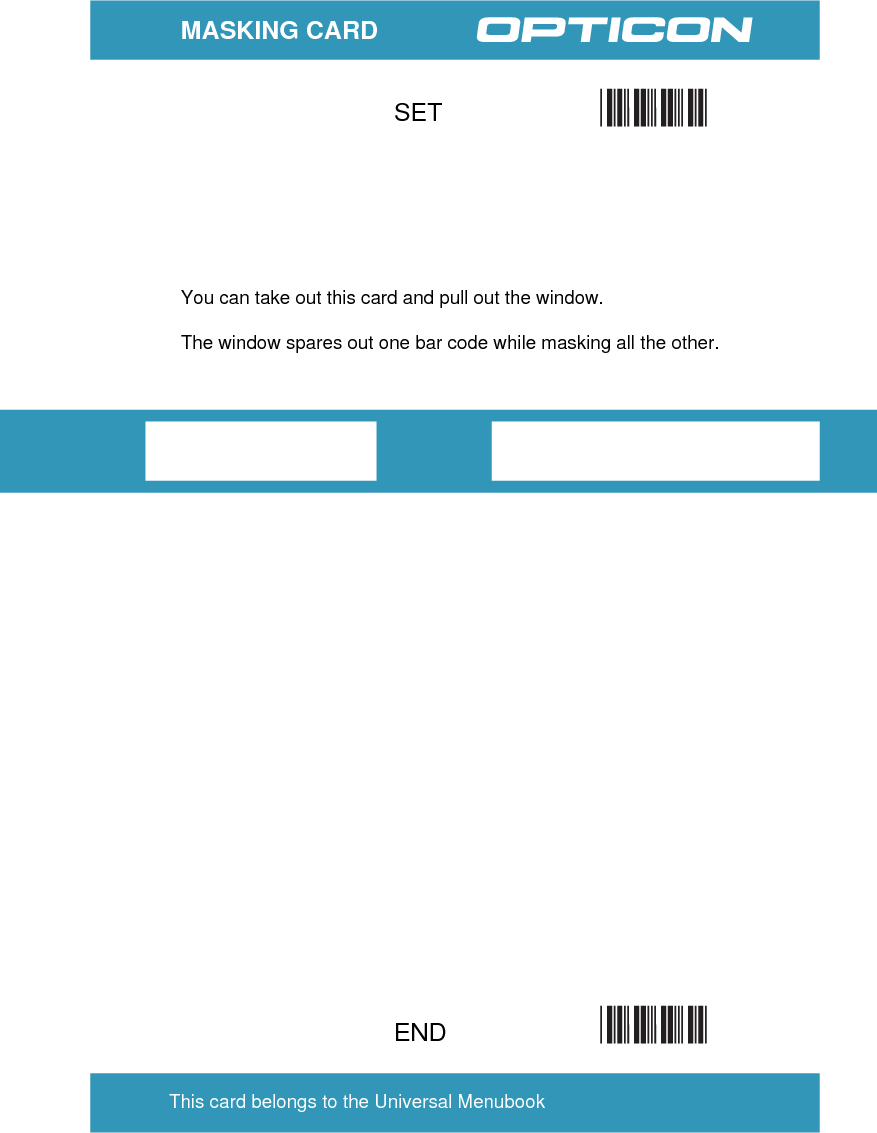

OPTICON UNIVERSAL MENU BOOKU2Configuring via the menu bookTo configure the required options proceed as follows:• scan the SET label• scan the required option(s)• scan the END labelAfter scanning the END label, the new settings are stored in non volatile memory.Recommended steps to follow for quick configurationAfter checking your connection you are ready to start the configuration of your reader.• Check connection:Ensure that the power is disconnected from your equipment before you connect the reader. After connecting the data cable, the power can be applied to the equipment and the reader.•1:Use chapter 1 to set the correct default for your reader.* The reader is now in factory default.•2:Use chapter 2 to optimize the interface. * The reader is now able to read bar codes and transmit the data.•3:Use chapter 3 to optimize the reader for the type of bar codes you use. Set the readable codes first and then the options for each of these codes.* The reader is now able to read the codes you selected, validate the data using length and check digit and transmit that part of the data you specified.•4:Use chapter 4 to select the string options for your application. These include transmission of code length, conversion of upper and lower case and setting a prefix and suffix.* The reader can now read and transmit the data in the required format.•5:Use chapter 5 to select the read options to your preference. These options affect the read mode, read time, trigger and redundancy.•6:Use chapter 6 to select the indicator options you prefer. These options affect the operation of the buzzer and good read LED.* The reader will now operate to your personal preference.See figure 0.02.Power OFFConnect readerPower ONSet DefaultOptimize interfaceOptimize symbologiesSet string optionsSet read optionsSet indicator optionsFig. 0.02. Configuring via the menu book

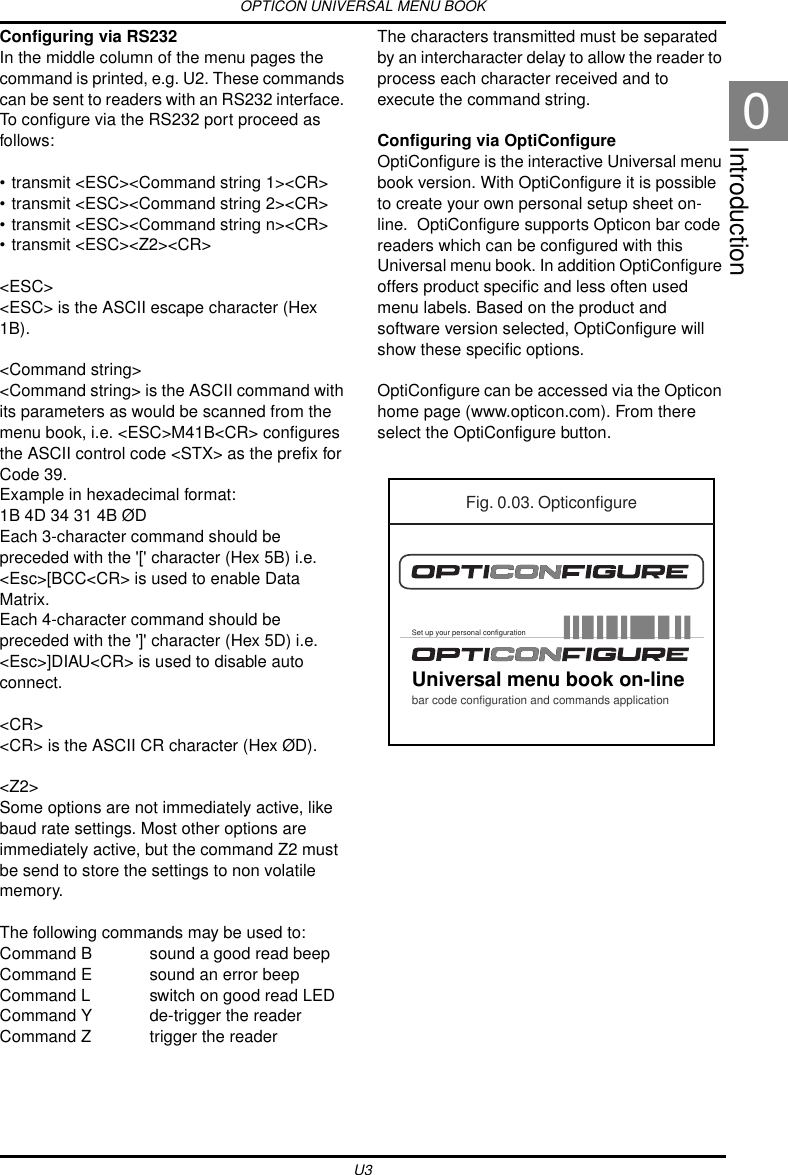

OPTICON UNIVERSAL MENU BOOKU3Introduction0Configuring via RS232In the middle column of the menu pages the command is printed, e.g. U2. These commands can be sent to readers with an RS232 interface. To configure via the RS232 port proceed as follows:• transmit <ESC><Command string 1><CR>• transmit <ESC><Command string 2><CR>• transmit <ESC><Command string n><CR>• transmit <ESC><Z2><CR><ESC><ESC> is the ASCII escape character (Hex 1B).<Command string><Command string> is the ASCII command with its parameters as would be scanned from the menu book, i.e. <ESC>M41B<CR> configures the ASCII control code <STX> as the prefix for Code 39.Example in hexadecimal format: 1B 4D 34 31 4B ØDEach 3-character command should be preceded with the '[' character (Hex 5B) i.e. <Esc>[BCC<CR> is used to enable Data Matrix.Each 4-character command should be preceded with the ']' character (Hex 5D) i.e. <Esc>]DIAU<CR> is used to disable auto connect.<CR><CR> is the ASCII CR character (Hex ØD).<Z2>Some options are not immediately active, like baud rate settings. Most other options are immediately active, but the command Z2 must be send to store the settings to non volatile memory.The following commands may be used to:Command B sound a good read beepCommand E sound an error beepCommand L switch on good read LEDCommand Y de-trigger the readerCommand Z trigger the readerThe characters transmitted must be separated by an intercharacter delay to allow the reader to process each character received and to execute the command string.Configuring via OptiConfigureOptiConfigure is the interactive Universal menu book version. With OptiConfigure it is possible to create your own personal setup sheet on-line. OptiConfigure supports Opticon bar code readers which can be configured with this Universal menu book. In addition OptiConfigure offers product specific and less often used menu labels. Based on the product and software version selected, OptiConfigure will show these specific options.OptiConfigure can be accessed via the Opticon home page (www.opticon.com). From there select the OptiConfigure button.Fig. 0.03. OpticonfigureUniversal menu book on-linebar code configuration and commands applicationSet up your personal configuration

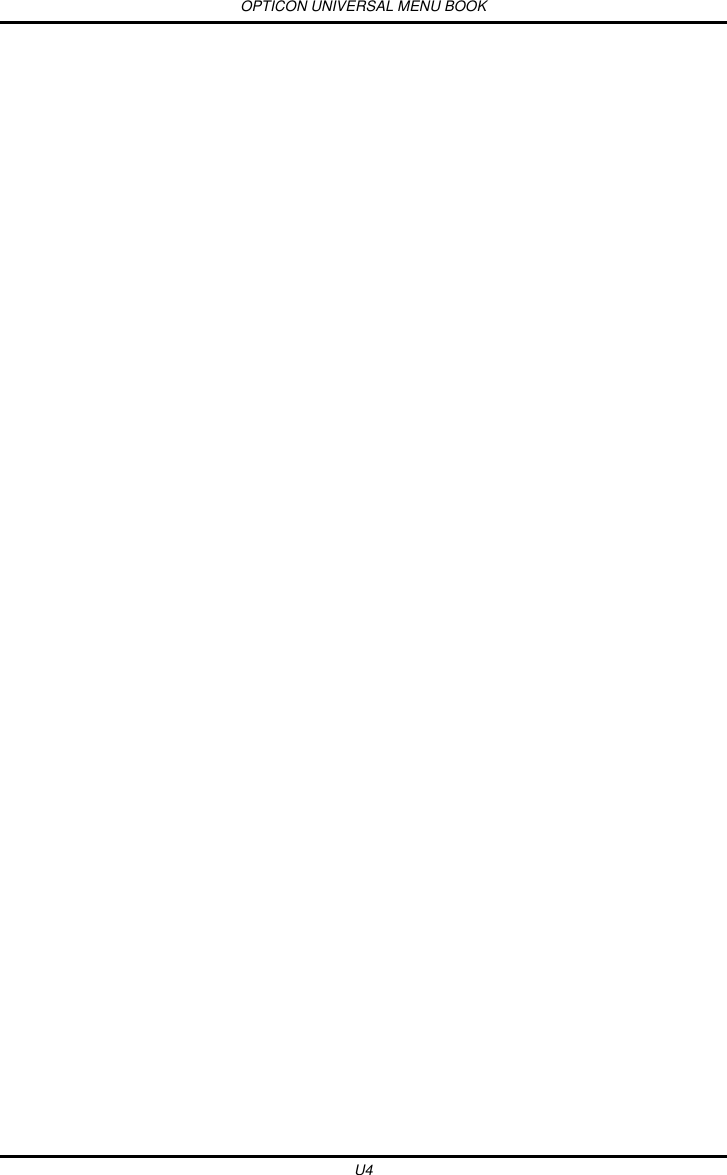

OPTICON UNIVERSAL MENU BOOKU4

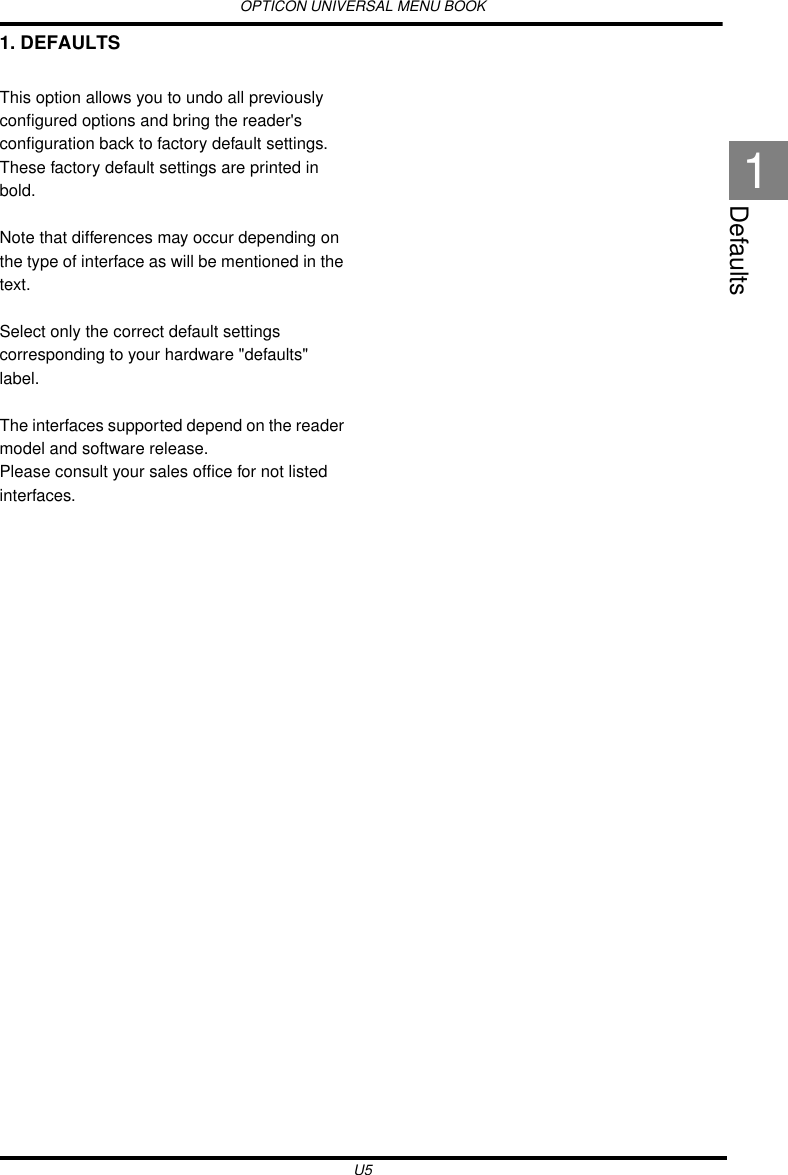

OPTICON UNIVERSAL MENU BOOKU5Defaults11. DEFAULTSThis option allows you to undo all previously configured options and bring the reader's configuration back to factory default settings. These factory default settings are printed in bold.Note that differences may occur depending on the type of interface as will be mentioned in the text.Select only the correct default settings corresponding to your hardware "defaults" label.The interfaces supported depend on the reader model and software release.Please consult your sales office for not listed interfaces.

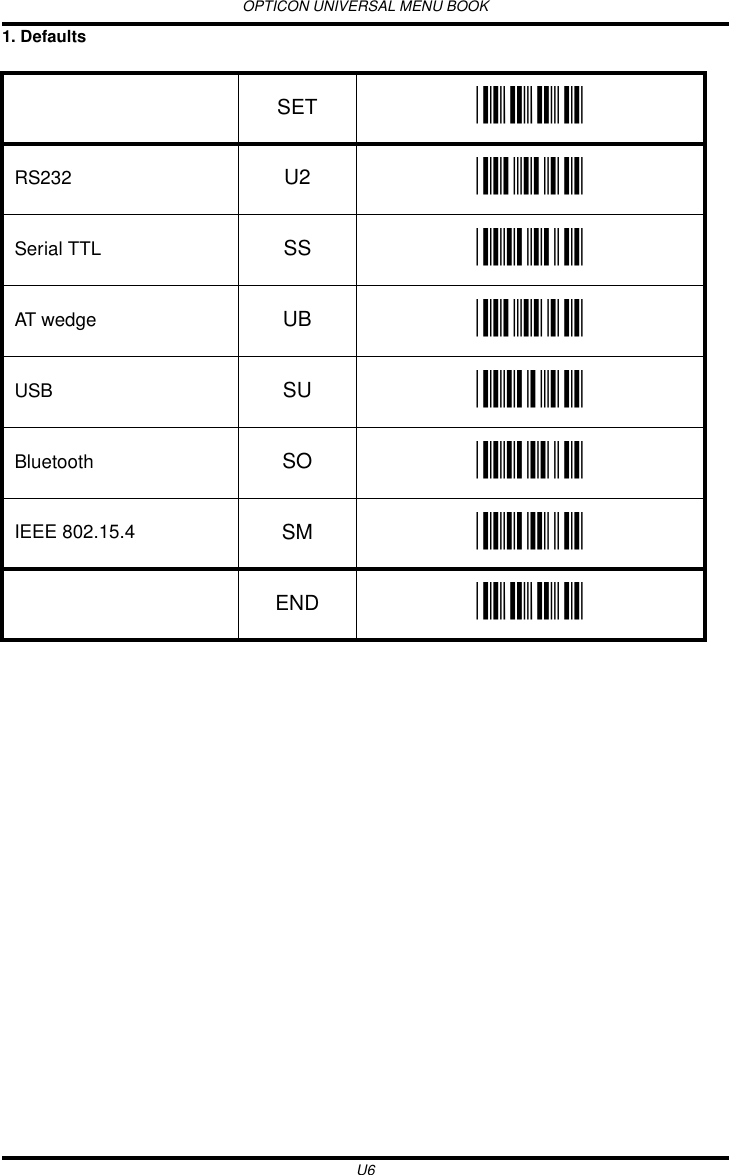

OPTICON UNIVERSAL MENU BOOKU61. Defaults SET _ZZ_RS232 U2 _U2_Serial TTL SS _SS_AT wedge UB _UB_USB SU _SU_Bluetooth SO _SO_IEEE 802.15.4 SM _SM_END _ZZ_

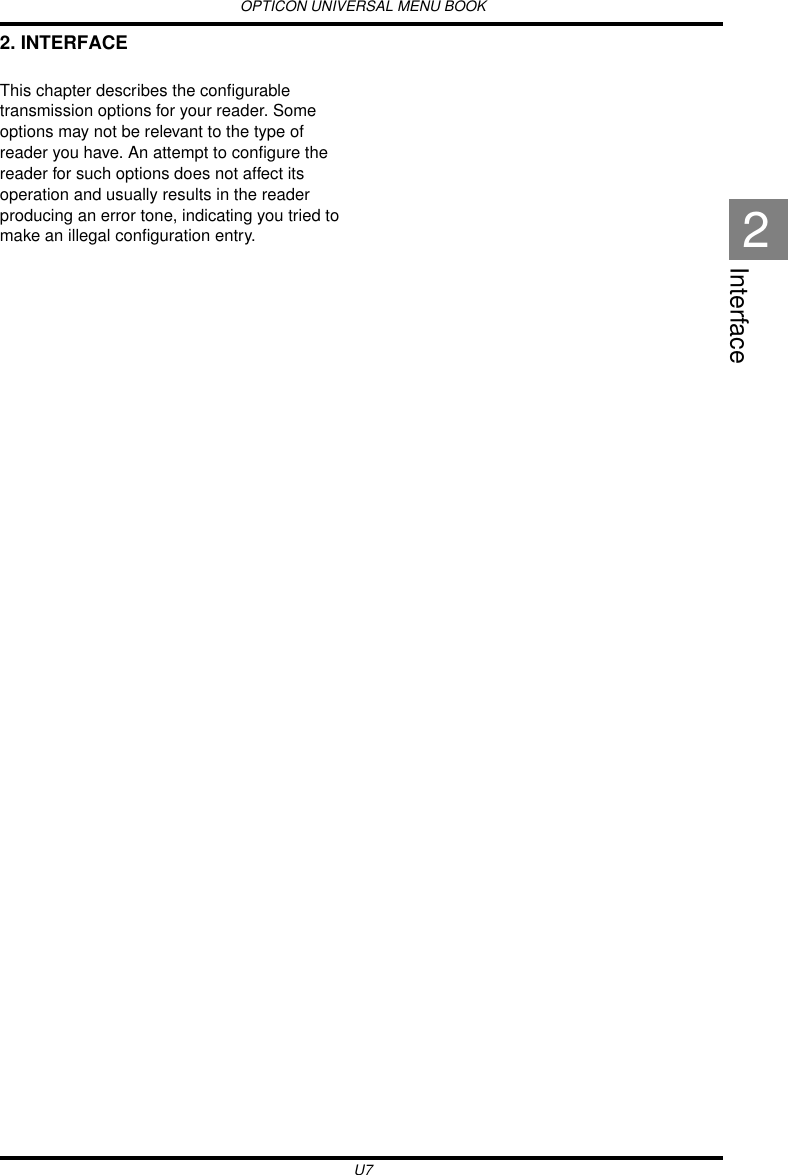

OPTICON UNIVERSAL MENU BOOKU7Interface22. INTERFACEThis chapter describes the configurable transmission options for your reader. Some options may not be relevant to the type of reader you have. An attempt to configure the reader for such options does not affect its operation and usually results in the reader producing an error tone, indicating you tried to make an illegal configuration entry.

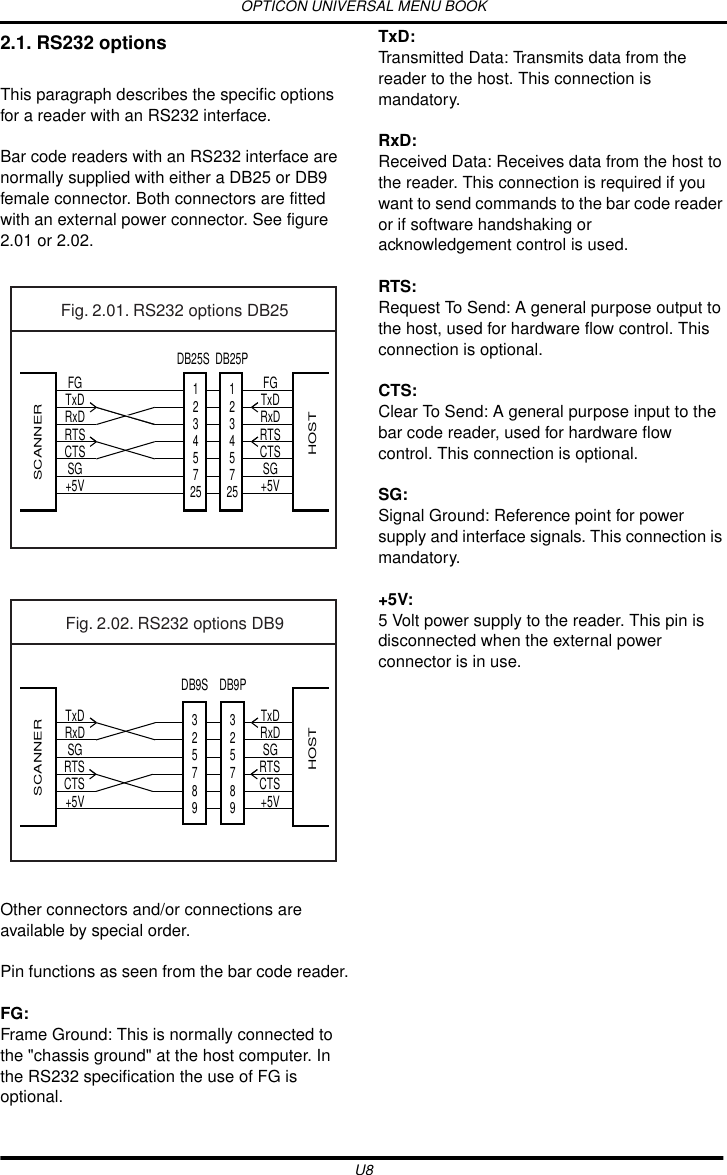

OPTICON UNIVERSAL MENU BOOKU82.1. RS232 optionsThis paragraph describes the specific options for a reader with an RS232 interface.Bar code readers with an RS232 interface are normally supplied with either a DB25 or DB9 female connector. Both connectors are fitted with an external power connector. See figure 2.01 or 2.02.Other connectors and/or connections are available by special order.Pin functions as seen from the bar code reader.FG:Frame Ground: This is normally connected to the "chassis ground" at the host computer. In the RS232 specification the use of FG is optional.TxD:Transmitted Data: Transmits data from the reader to the host. This connection is mandatory.RxD:Received Data: Receives data from the host to the reader. This connection is required if you want to send commands to the bar code reader or if software handshaking or acknowledgement control is used.RTS:Request To Send: A general purpose output to the host, used for hardware flow control. This connection is optional.CTS:Clear To Send: A general purpose input to the bar code reader, used for hardware flow control. This connection is optional.SG:Signal Ground: Reference point for power supply and interface signals. This connection is mandatory.+5V:5 Volt power supply to the reader. This pin is disconnected when the external power connector is in use.FGTxDRxDRTSCTSSG+5VFGTxDRxDRTSCTSSG+5V12345725SCANNERHOSTDB25S12345725DB25PFig. 2.01. RS232 options DB25TxDRxDSG+5VTxDRxDSG+5V325798SCANNERHOSTDB9SRTSCTS RTSCTS325798DB9PFig. 2.02. RS232 options DB9

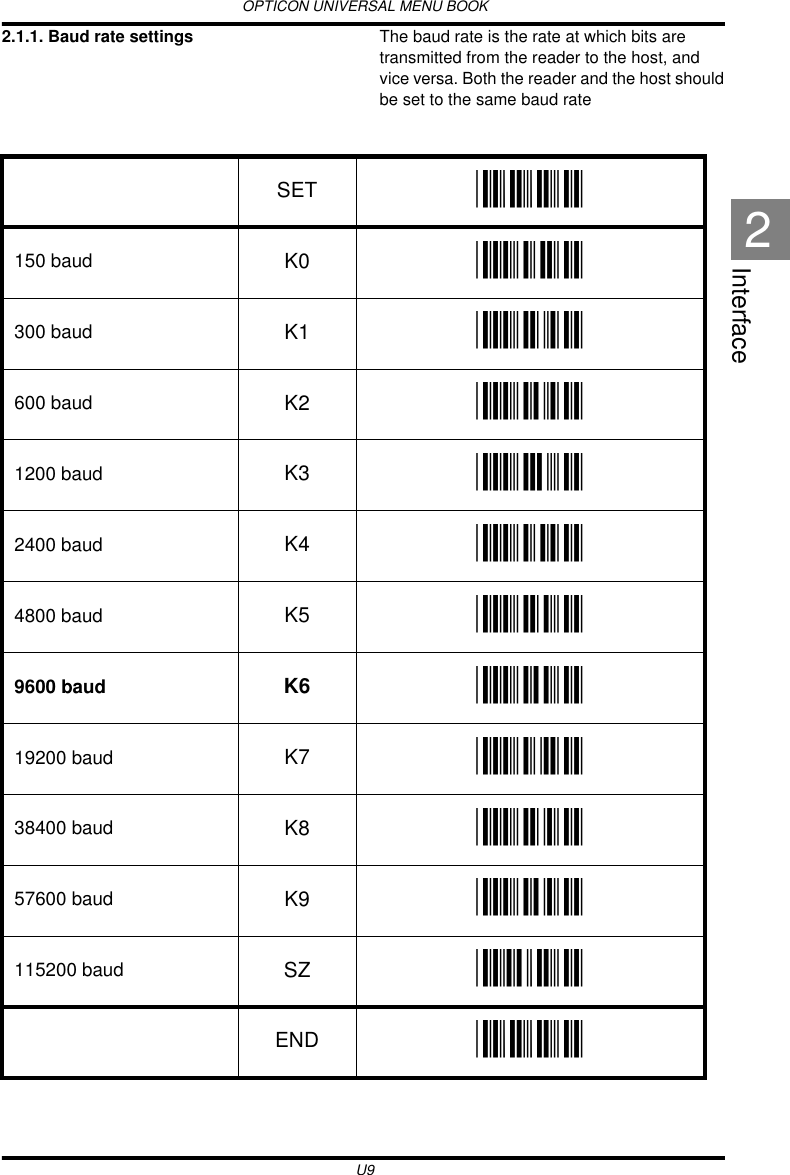

OPTICON UNIVERSAL MENU BOOKU9Interface22.1.1. Baud rate settings The baud rate is the rate at which bits are transmitted from the reader to the host, and vice versa. Both the reader and the host should be set to the same baud rate SET _ZZ_150 baud K0 _K0_300 baud K1 _K1_600 baud K2 _K2_1200 baud K3 _K3_2400 baud K4 _K4_4800 baud K5 _K5_9600 baud K6 _K6_19200 baud K7 _K7_38400 baud K8 _K8_57600 baud K9 _K9_115200 baud SZ _SZ_END _ZZ_

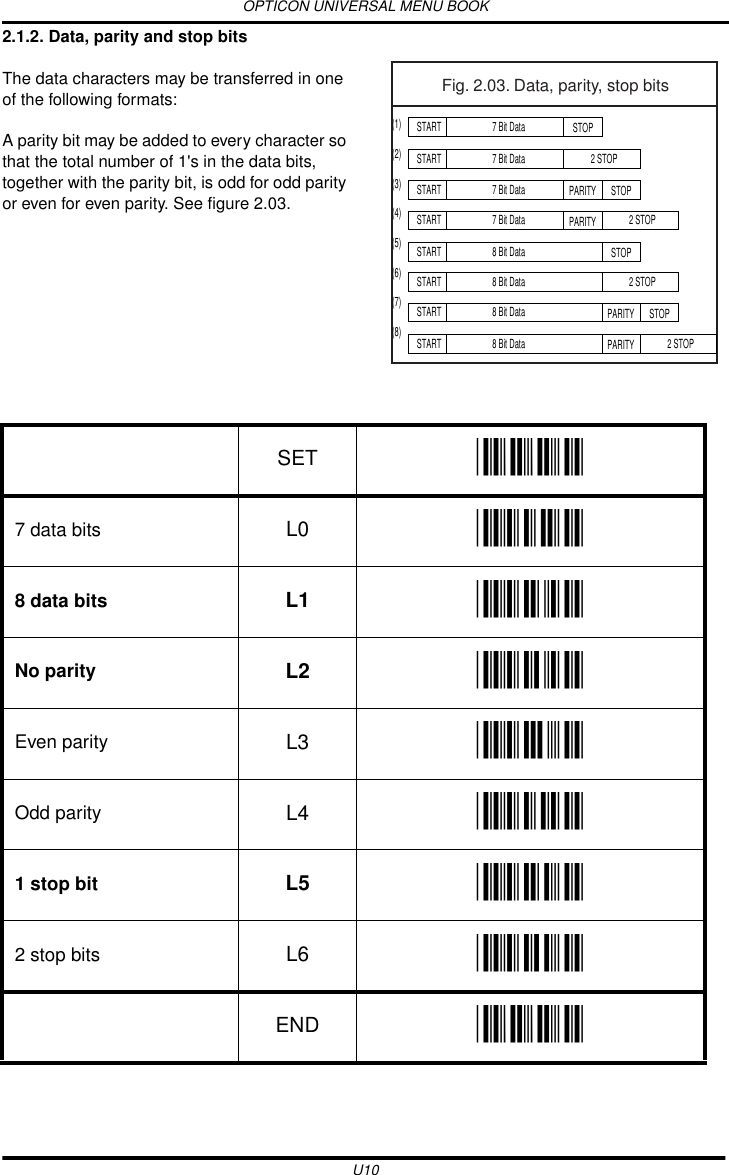

OPTICON UNIVERSAL MENU BOOKU102.1.2. Data, parity and stop bitsThe data characters may be transferred in one of the following formats:A parity bit may be added to every character so that the total number of 1's in the data bits, together with the parity bit, is odd for odd parity or even for even parity. See figure 2.03. (1)(2)(3)(4)(5)(6)(7)(8)STARTSTARTSTARTSTARTSTARTSTARTSTARTSTART7 Bit Data7 Bit Data7 Bit Data7 Bit Data8 Bit Data8 Bit Data8 Bit Data8 Bit Data2 STOPSTOPPARITY STOPPARITY 2 STOPSTOP2 STOPPARITY STOPPARITY 2 STOPFig. 2.03. Data, parity, stop bitsSET _ZZ_7 data bits L0 _L0_8 data bits L1 _L1_No parity L2 _L2_Even parity L3 _L3_Odd parity L4 _L4_1 stop bit L5 _L5_2 stop bits L6 _L6_END _ZZ_

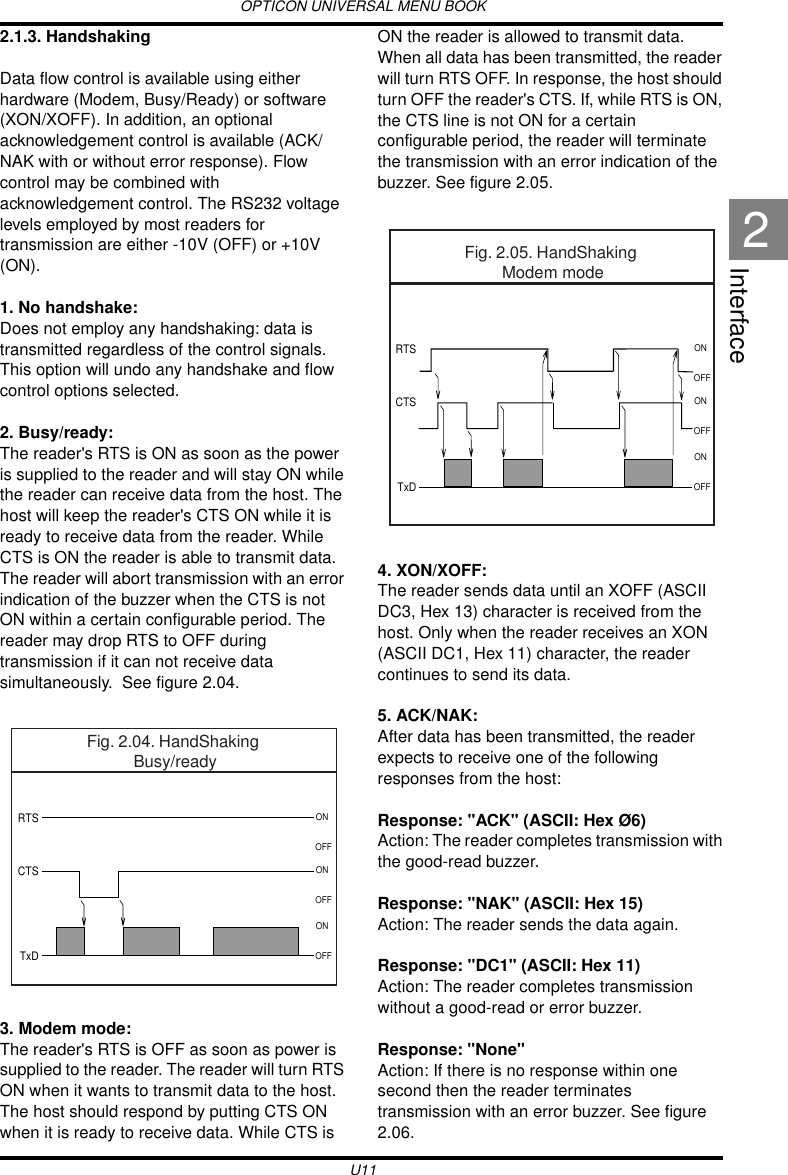

OPTICON UNIVERSAL MENU BOOKU11Interface22.1.3. HandshakingData flow control is available using either hardware (Modem, Busy/Ready) or software (XON/XOFF). In addition, an optional acknowledgement control is available (ACK/NAK with or without error response). Flow control may be combined with acknowledgement control. The RS232 voltage levels employed by most readers for transmission are either -10V (OFF) or +10V (ON).1. No handshake:Does not employ any handshaking: data is transmitted regardless of the control signals. This option will undo any handshake and flow control options selected.2. Busy/ready: The reader's RTS is ON as soon as the power is supplied to the reader and will stay ON while the reader can receive data from the host. The host will keep the reader's CTS ON while it is ready to receive data from the reader. While CTS is ON the reader is able to transmit data. The reader will abort transmission with an error indication of the buzzer when the CTS is not ON within a certain configurable period. The reader may drop RTS to OFF during transmission if it can not receive data simultaneously. See figure 2.04.3. Modem mode:The reader's RTS is OFF as soon as power is supplied to the reader. The reader will turn RTS ON when it wants to transmit data to the host. The host should respond by putting CTS ON when it is ready to receive data. While CTS is ON the reader is allowed to transmit data. When all data has been transmitted, the reader will turn RTS OFF. In response, the host should turn OFF the reader's CTS. If, while RTS is ON, the CTS line is not ON for a certain configurable period, the reader will terminate the transmission with an error indication of the buzzer. See figure 2.05.4. XON/XOFF:The reader sends data until an XOFF (ASCII DC3, Hex 13) character is received from the host. Only when the reader receives an XON (ASCII DC1, Hex 11) character, the reader continues to send its data.5. ACK/NAK:After data has been transmitted, the reader expects to receive one of the following responses from the host:Response: "ACK" (ASCII: Hex Ø6)Action: The reader completes transmission with the good-read buzzer.Response: "NAK" (ASCII: Hex 15)Action: The reader sends the data again.Response: "DC1" (ASCII: Hex 11)Action: The reader completes transmission without a good-read or error buzzer.Response: "None"Action: If there is no response within one second then the reader terminates transmission with an error buzzer. See figure 2.06.RTSCTSTxDONOFFONOFFONOFFFig. 2.04. HandShaking Busy/readyRTSCTSTxDONOFFONOFFONOFFFig. 2.05. HandShaking Modem mode

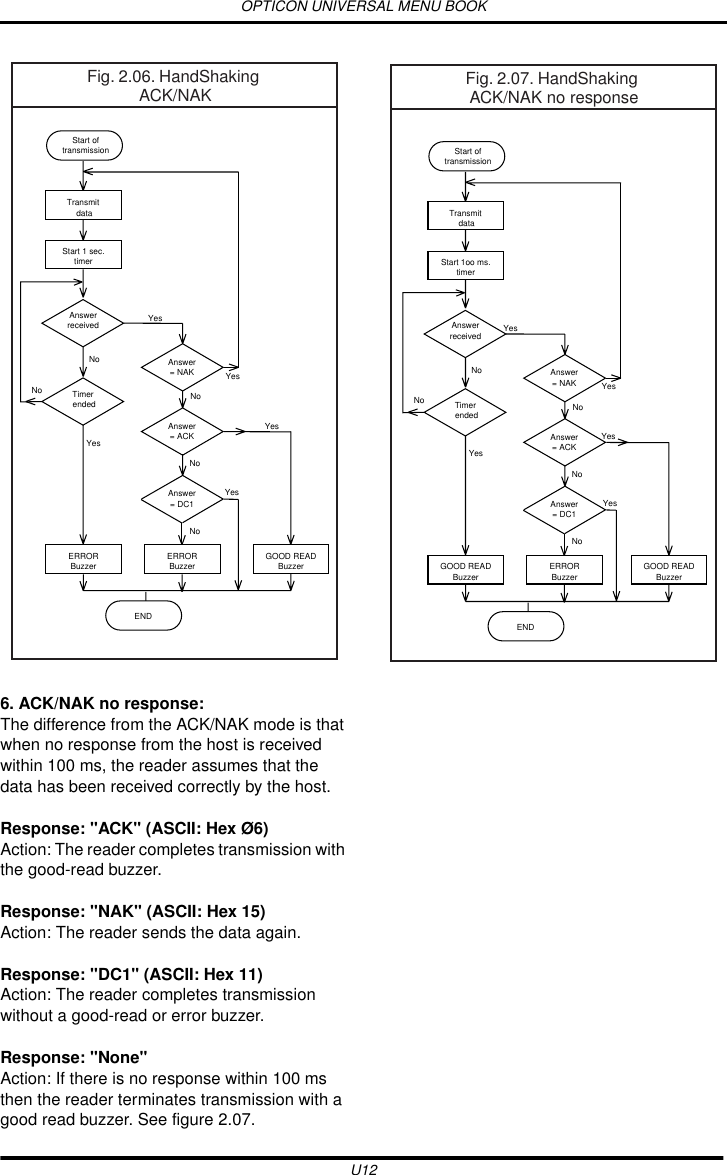

OPTICON UNIVERSAL MENU BOOKU126. ACK/NAK no response:The difference from the ACK/NAK mode is that when no response from the host is received within 100 ms, the reader assumes that the data has been received correctly by the host.Response: "ACK" (ASCII: Hex Ø6)Action: The reader completes transmission with the good-read buzzer.Response: "NAK" (ASCII: Hex 15)Action: The reader sends the data again.Response: "DC1" (ASCII: Hex 11)Action: The reader completes transmission without a good-read or error buzzer.Response: "None"Action: If there is no response within 100 ms then the reader terminates transmission with a good read buzzer. See figure 2.07.Transmit dataStart 1 sec.timerTimer endedERRORBuzzerNoYesYesStart oftransmissionAnswerreceivedNoYesNoAnswer= NAKAnswer= ACKAnswer= DC1NoERRORBuzzerNoGOOD READBuzzerYesYesENDFig. 2.06. HandShaking ACK/NAK Fig. 2.07. HandShaking ACK/NAK no responseTransmit dataStart 1oo ms.timerTimer endedGOOD READBuzzerNoYesYesStart oftransmissionAnswerreceivedNoYesNoAnswer= NAKAnswer= ACKAnswer= DC1NoERRORBuzzerNoGOOD READBuzzerYesYesEND

OPTICON UNIVERSAL MENU BOOKU13Interface22.1.3. Handshaking SET _ZZ_No handshake P0 _P0_Busy/ready P1 _P1_Modem P2 _P2_XON/XOFF ZG _ZG_ACK/NAK P3 _P3_ACK/NAK NO RESPONSE P4 _P4_Flow Control time out indefinitely I0 _I0_Flow Control time out 100ms I1 _I1_Flow Control time out 200ms I2 _I2_Flow Control time out 400ms I3 _I3_END _ZZ_

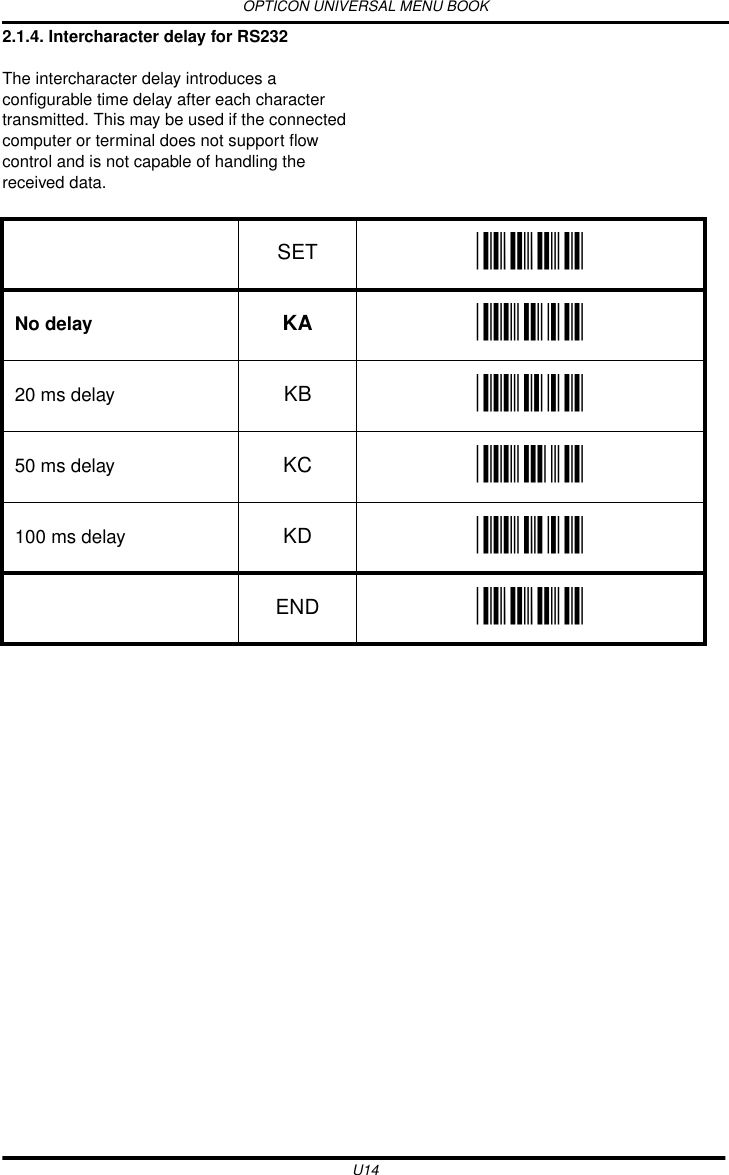

OPTICON UNIVERSAL MENU BOOKU142.1.4. Intercharacter delay for RS232The intercharacter delay introduces a configurable time delay after each character transmitted. This may be used if the connected computer or terminal does not support flow control and is not capable of handling the received data. SET _ZZ_No delay KA _KA_20 ms delay KB _KB_50 ms delay KC _KC_100 ms delay KD _KD_END _ZZ_

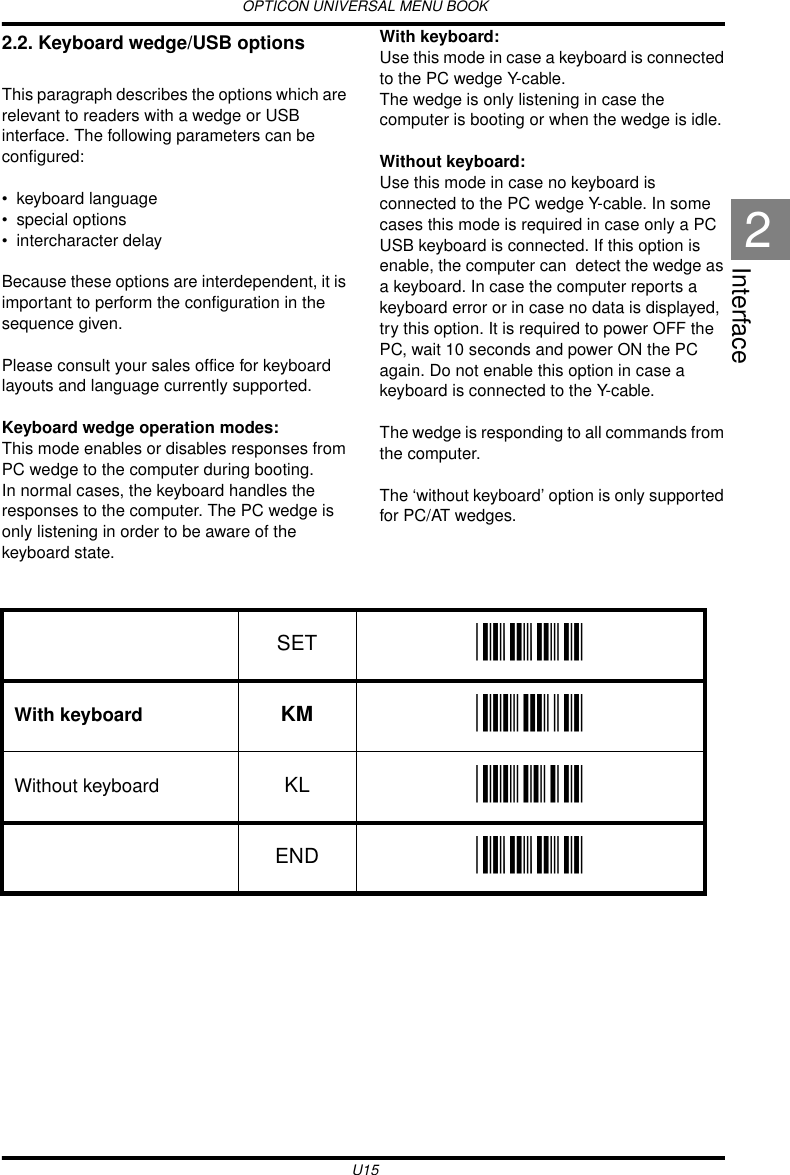

OPTICON UNIVERSAL MENU BOOKU15Interface22.2. Keyboard wedge/USB options This paragraph describes the options which are relevant to readers with a wedge or USB interface. The following parameters can be configured: • keyboard language• special options• intercharacter delayBecause these options are interdependent, it is important to perform the configuration in the sequence given.Please consult your sales office for keyboard layouts and language currently supported.Keyboard wedge operation modes:This mode enables or disables responses from PC wedge to the computer during booting. In normal cases, the keyboard handles the responses to the computer. The PC wedge is only listening in order to be aware of the keyboard state.With keyboard:Use this mode in case a keyboard is connected to the PC wedge Y-cable.The wedge is only listening in case the computer is booting or when the wedge is idle.Without keyboard:Use this mode in case no keyboard is connected to the PC wedge Y-cable. In some cases this mode is required in case only a PC USB keyboard is connected. If this option is enable, the computer can detect the wedge as a keyboard. In case the computer reports a keyboard error or in case no data is displayed, try this option. It is required to power OFF the PC, wait 10 seconds and power ON the PC again. Do not enable this option in case a keyboard is connected to the Y-cable.The wedge is responding to all commands from the computer.The ‘without keyboard’ option is only supported for PC/AT wedges. SET _ZZ_With keyboard KM _KM_Without keyboard KL _KL_END _ZZ_

OPTICON UNIVERSAL MENU BOOKU162.2.1. Keyboard languageKeyboards are also different depending on country or language. Examples are the QWERTY and AZERTY keyboards. Select the same language that has been selected on your PC. The languages supported depend on the reader model and software release. Please consult your sales office for the languages currently supported. SET _ZZ_US KE _KE_UK KV _KV_German KG _KG_French KI _KI_Italian OW _OW_Spanish KJ _KJ_Portuguese PH _PH_Swiss ( French ) PL _PL_Swiss ( German ) PK _PK_END _ZZ_

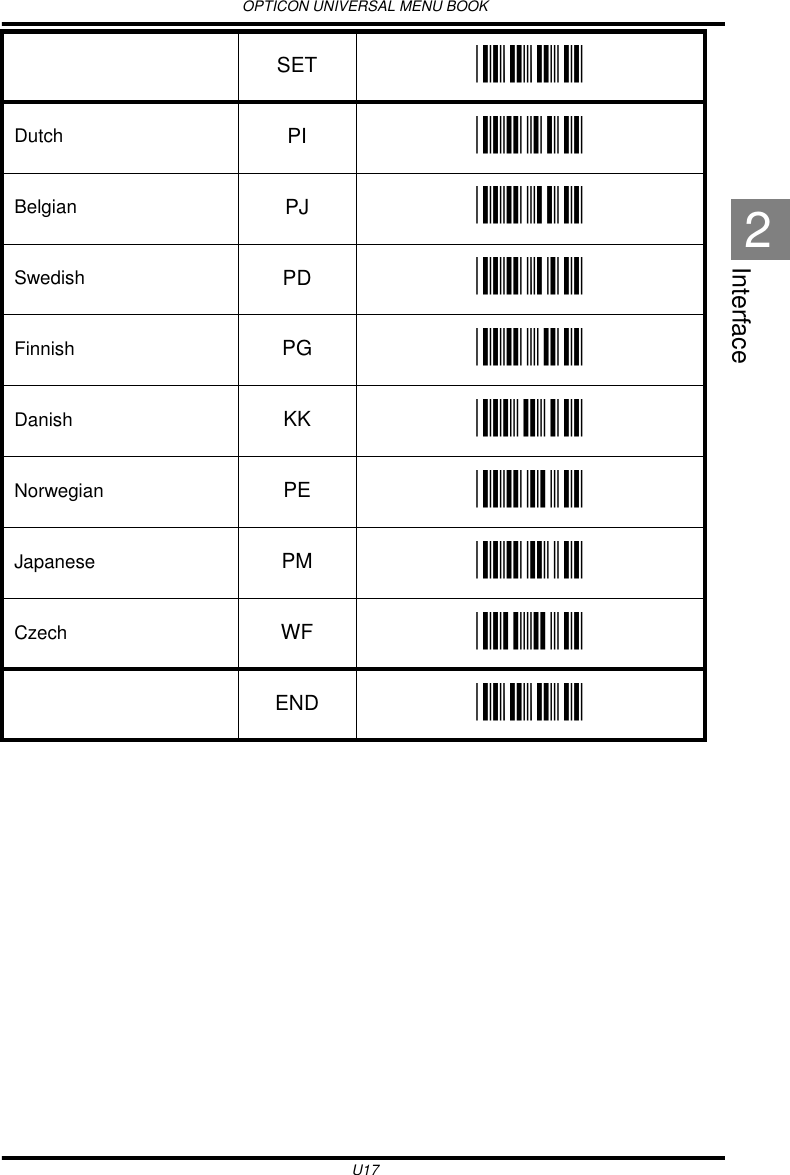

OPTICON UNIVERSAL MENU BOOKU17Interface2Dutch PI _PI_Belgian PJ _PJ_Swedish PD _PD_Finnish PG _PG_Danish KK _KK_Norwegian PE _PE_Japanese PM _PM_Czech WF _WF_SET _ZZ_END _ZZ_

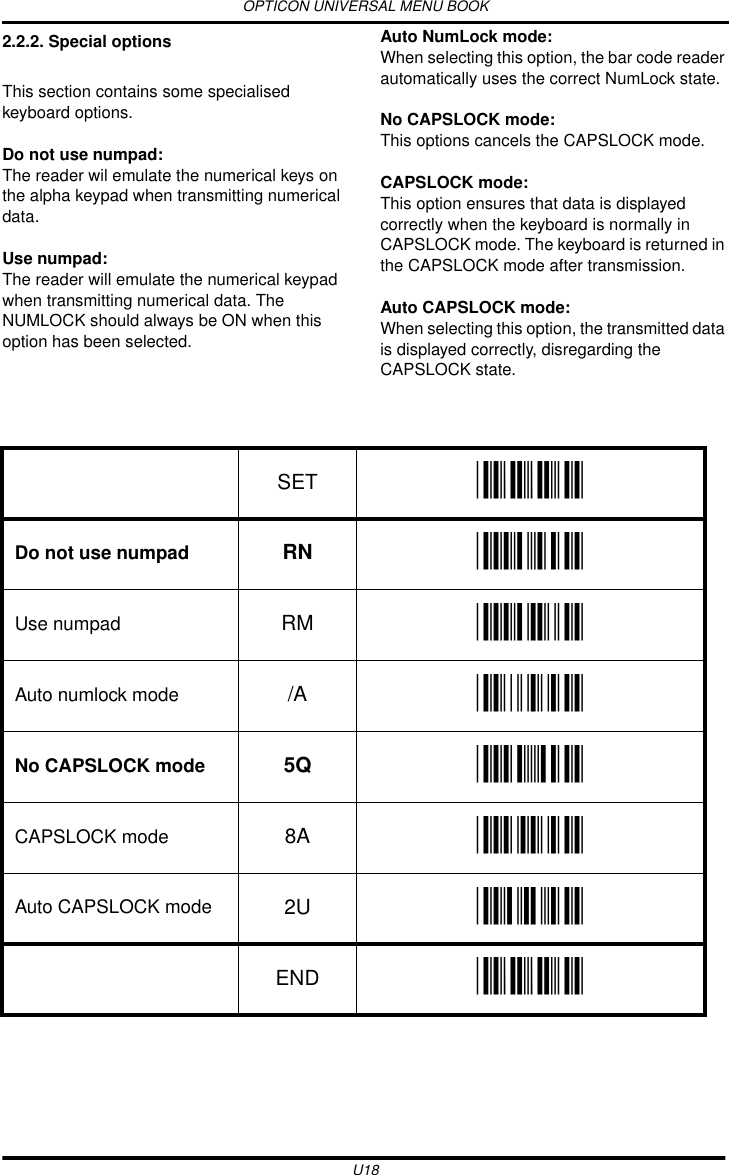

OPTICON UNIVERSAL MENU BOOKU182.2.2. Special optionsThis section contains some specialised keyboard options.Do not use numpad: The reader wil emulate the numerical keys on the alpha keypad when transmitting numerical data.Use numpad: The reader will emulate the numerical keypad when transmitting numerical data. The NUMLOCK should always be ON when this option has been selected.Auto NumLock mode: When selecting this option, the bar code reader automatically uses the correct NumLock state.No CAPSLOCK mode: This options cancels the CAPSLOCK mode.CAPSLOCK mode: This option ensures that data is displayed correctly when the keyboard is normally in CAPSLOCK mode. The keyboard is returned in the CAPSLOCK mode after transmission.Auto CAPSLOCK mode:When selecting this option, the transmitted data is displayed correctly, disregarding the CAPSLOCK state. SET _ZZ_Do not use numpad RN _RN_Use numpad RM _RM_Auto numlock mode /A _/A_No CAPSLOCK mode 5Q _5Q_CAPSLOCK mode 8A _8A_Auto CAPSLOCK mode 2U _2U_END _ZZ_

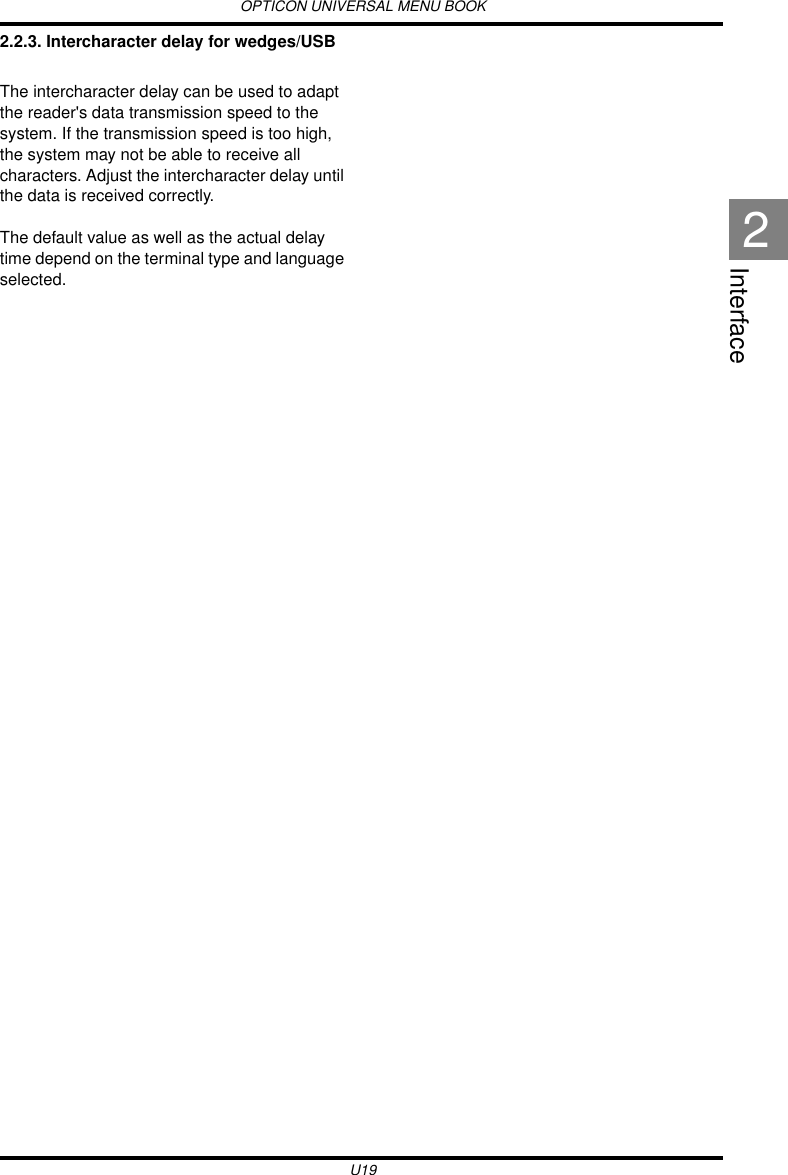

OPTICON UNIVERSAL MENU BOOKU19Interface22.2.3. Intercharacter delay for wedges/USBThe intercharacter delay can be used to adapt the reader's data transmission speed to the system. If the transmission speed is too high, the system may not be able to receive all characters. Adjust the intercharacter delay until the data is received correctly. The default value as well as the actual delay time depend on the terminal type and language selected.

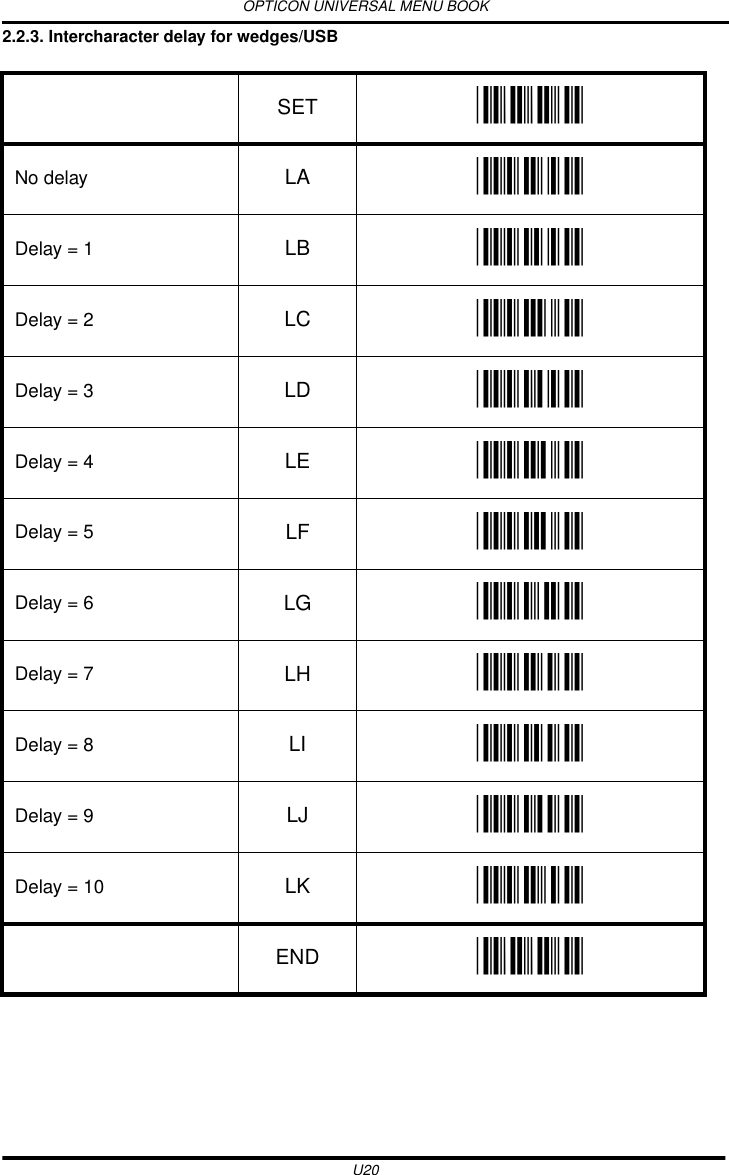

OPTICON UNIVERSAL MENU BOOKU202.2.3. Intercharacter delay for wedges/USB SET _ZZ_No delay LA _LA_Delay = 1 LB _LB_Delay = 2 LC _LC_Delay = 3 LD _LD_Delay = 4 LE _LE_Delay = 5 LF _LF_Delay = 6 LG _LG_Delay = 7 LH _LH_Delay = 8 LI _LI_Delay = 9 LJ _LJ_Delay = 10 LK _LK_END _ZZ_

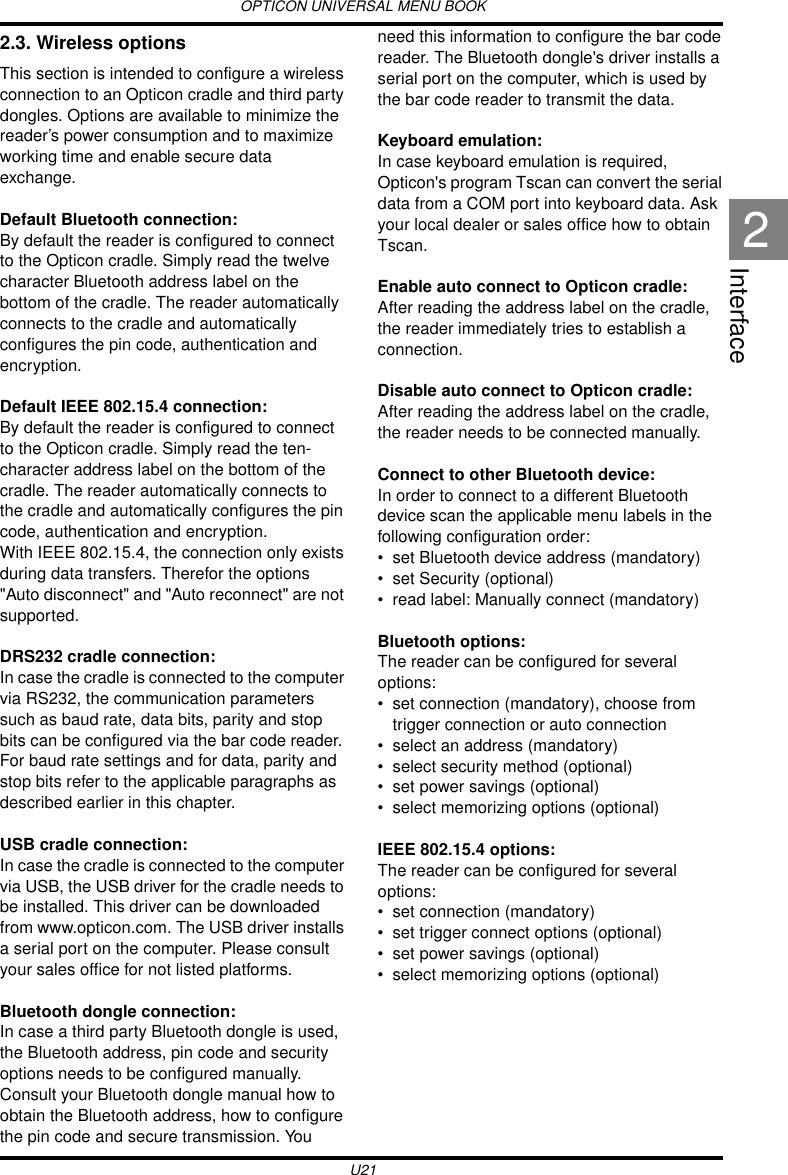

OPTICON UNIVERSAL MENU BOOKU21Interface22.3. Wireless optionsThis section is intended to configure a wireless connection to an Opticon cradle and third party dongles. Options are available to minimize the reader’s power consumption and to maximize working time and enable secure data exchange.Default Bluetooth connection:By default the reader is configured to connect to the Opticon cradle. Simply read the twelve character Bluetooth address label on the bottom of the cradle. The reader automatically connects to the cradle and automatically configures the pin code, authentication and encryption. Default IEEE 802.15.4 connection:By default the reader is configured to connect to the Opticon cradle. Simply read the ten-character address label on the bottom of the cradle. The reader automatically connects to the cradle and automatically configures the pin code, authentication and encryption.With IEEE 802.15.4, the connection only exists during data transfers. Therefor the options "Auto disconnect" and "Auto reconnect" are not supported.DRS232 cradle connection:In case the cradle is connected to the computer via RS232, the communication parameters such as baud rate, data bits, parity and stop bits can be configured via the bar code reader. For baud rate settings and for data, parity and stop bits refer to the applicable paragraphs as described earlier in this chapter.USB cradle connection:In case the cradle is connected to the computer via USB, the USB driver for the cradle needs to be installed. This driver can be downloaded from www.opticon.com. The USB driver installs a serial port on the computer. Please consult your sales office for not listed platforms.Bluetooth dongle connection:In case a third party Bluetooth dongle is used, the Bluetooth address, pin code and security options needs to be configured manually. Consult your Bluetooth dongle manual how to obtain the Bluetooth address, how to configure the pin code and secure transmission. You need this information to configure the bar code reader. The Bluetooth dongle's driver installs a serial port on the computer, which is used by the bar code reader to transmit the data.Keyboard emulation:In case keyboard emulation is required, Opticon's program Tscan can convert the serial data from a COM port into keyboard data. Ask your local dealer or sales office how to obtain Tscan.Enable auto connect to Opticon cradle: After reading the address label on the cradle, the reader immediately tries to establish a connection.Disable auto connect to Opticon cradle: After reading the address label on the cradle, the reader needs to be connected manually.Connect to other Bluetooth device:In order to connect to a different Bluetooth device scan the applicable menu labels in the following configuration order:• set Bluetooth device address (mandatory)• set Security (optional)• read label: Manually connect (mandatory)Bluetooth options:The reader can be configured for several options:• set connection (mandatory), choose from trigger connection or auto connection• select an address (mandatory)• select security method (optional)• set power savings (optional)• select memorizing options (optional)IEEE 802.15.4 options:The reader can be configured for several options:• set connection (mandatory)• set trigger connect options (optional)• set power savings (optional)• select memorizing options (optional)

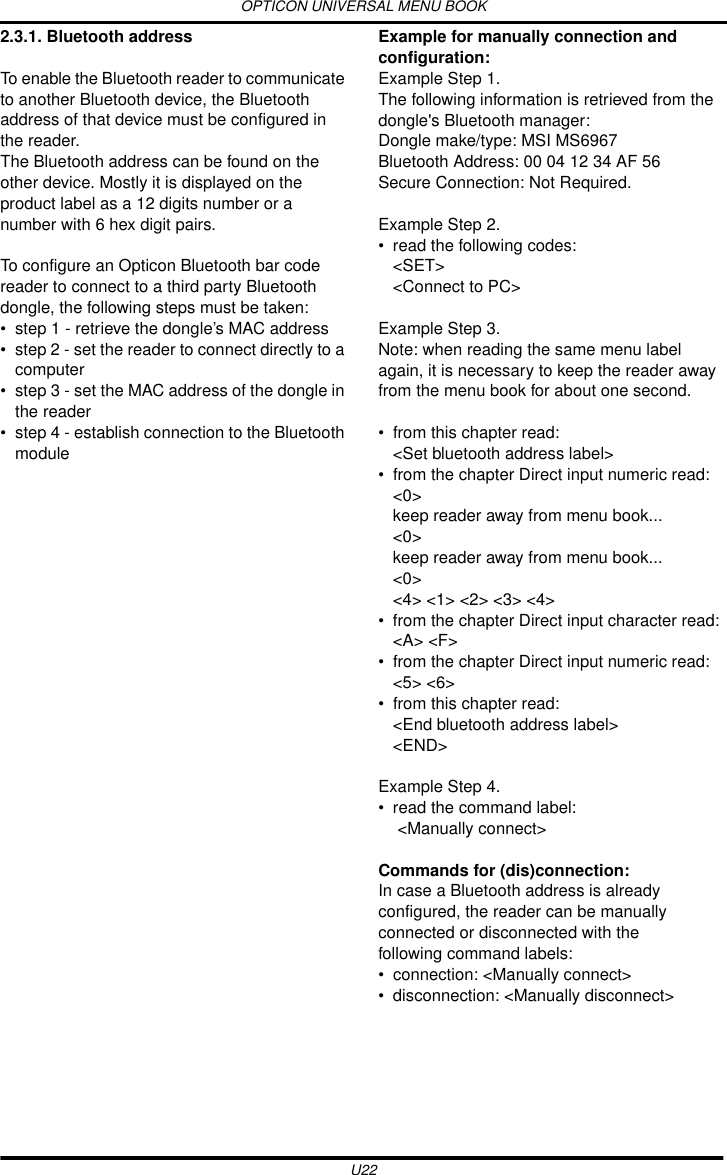

OPTICON UNIVERSAL MENU BOOKU222.3.1. Bluetooth addressTo enable the Bluetooth reader to communicate to another Bluetooth device, the Bluetooth address of that device must be configured in the reader. The Bluetooth address can be found on the other device. Mostly it is displayed on the product label as a 12 digits number or a number with 6 hex digit pairs.To configure an Opticon Bluetooth bar code reader to connect to a third party Bluetooth dongle, the following steps must be taken:• step 1 - retrieve the dongle’s MAC address• step 2 - set the reader to connect directly to a computer• step 3 - set the MAC address of the dongle in the reader• step 4 - establish connection to the Bluetooth moduleExample for manually connection and configuration:Example Step 1.The following information is retrieved from the dongle's Bluetooth manager:Dongle make/type: MSI MS6967Bluetooth Address: 00 04 12 34 AF 56Secure Connection: Not Required.Example Step 2.• read the following codes:<SET><Connect to PC> Example Step 3.Note: when reading the same menu label again, it is necessary to keep the reader away from the menu book for about one second.• from this chapter read:<Set bluetooth address label>• from the chapter Direct input numeric read:<0>keep reader away from menu book...<0>keep reader away from menu book...<0><4> <1> <2> <3> <4>• from the chapter Direct input character read:<A> <F>• from the chapter Direct input numeric read:<5> <6>• from this chapter read:<End bluetooth address label><END>Example Step 4.• read the command label: <Manually connect>Commands for (dis)connection:In case a Bluetooth address is already configured, the reader can be manually connected or disconnected with the following command labels:• connection: <Manually connect> • disconnection: <Manually disconnect>

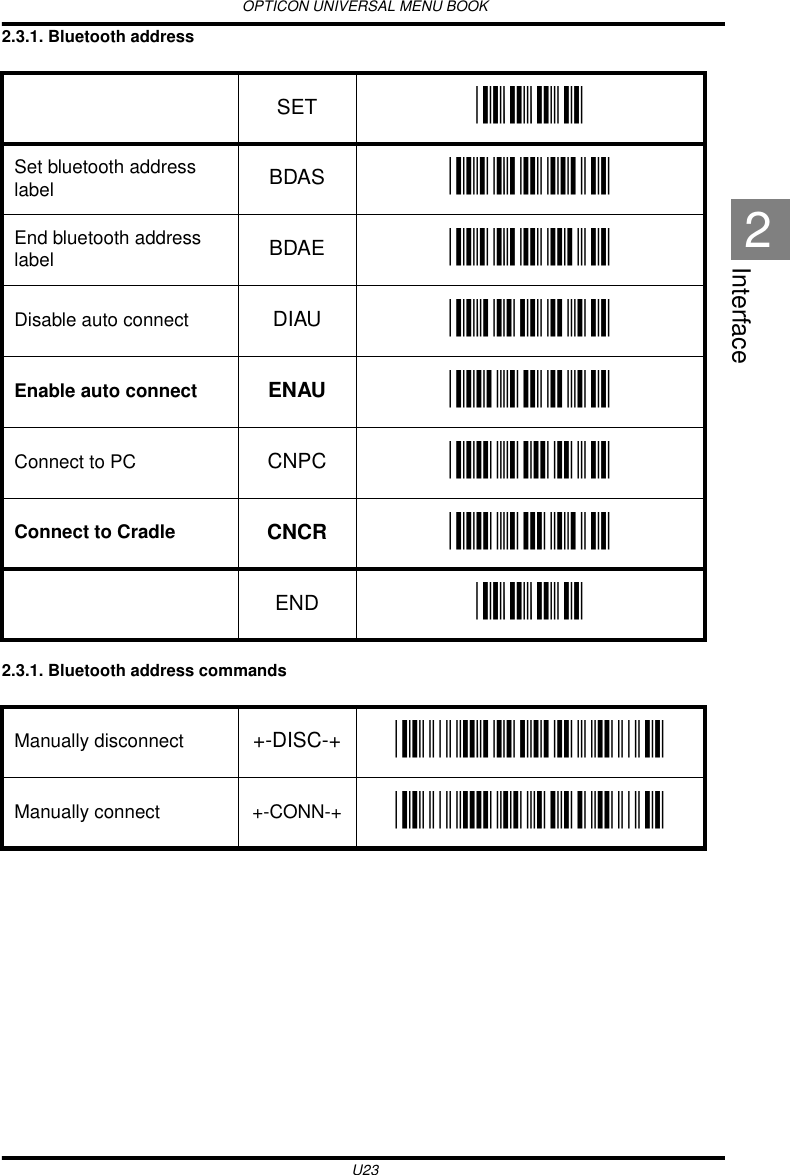

OPTICON UNIVERSAL MENU BOOKU23Interface22.3.1. Bluetooth address 2.3.1. Bluetooth address commands SET _ZZ_Set bluetooth address label BDAS _BDAS_End bluetooth address label BDAE _BDAE_Disable auto connect DIAU _DIAU_Enable auto connect ENAU _ENAU_Connect to PC CNPC _CNPC_Connect to Cradle CNCR _CNCR_END _ZZ_Manually disconnect +-DISC-+ _+-DISC-+_Manually connect +-CONN-+ _+-CONN-+_

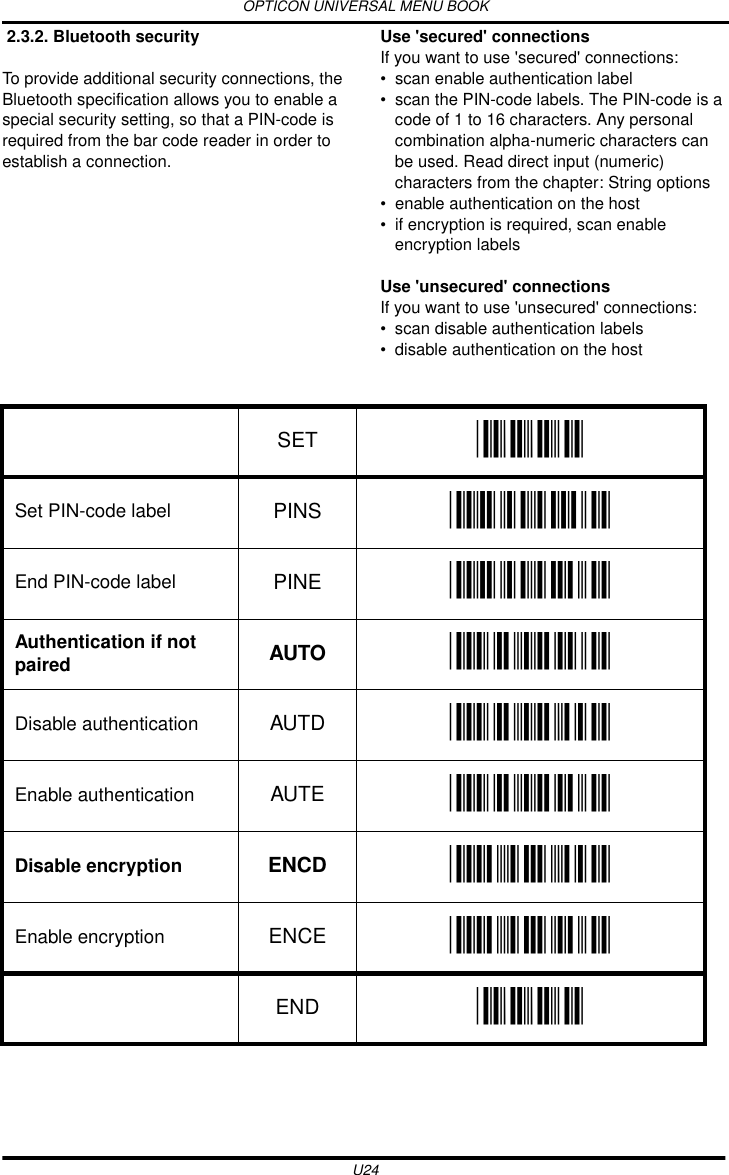

OPTICON UNIVERSAL MENU BOOKU24 2.3.2. Bluetooth securityTo provide additional security connections, the Bluetooth specification allows you to enable a special security setting, so that a PIN-code is required from the bar code reader in order to establish a connection.Use 'secured' connectionsIf you want to use 'secured' connections:• scan enable authentication label• scan the PIN-code labels. The PIN-code is a code of 1 to 16 characters. Any personal combination alpha-numeric characters can be used. Read direct input (numeric) characters from the chapter: String options• enable authentication on the host• if encryption is required, scan enable encryption labelsUse 'unsecured' connectionsIf you want to use 'unsecured' connections:• scan disable authentication labels• disable authentication on the host SET _ZZ_Set PIN-code label PINS _PINS_End PIN-code label PINE _PINE_Authentication if not paired AUTO _AUTO_Disable authentication AUTD _AUTD_Enable authentication AUTE _AUTE_Disable encryption ENCD _ENCD_Enable encryption ENCE _ENCE_END _ZZ_

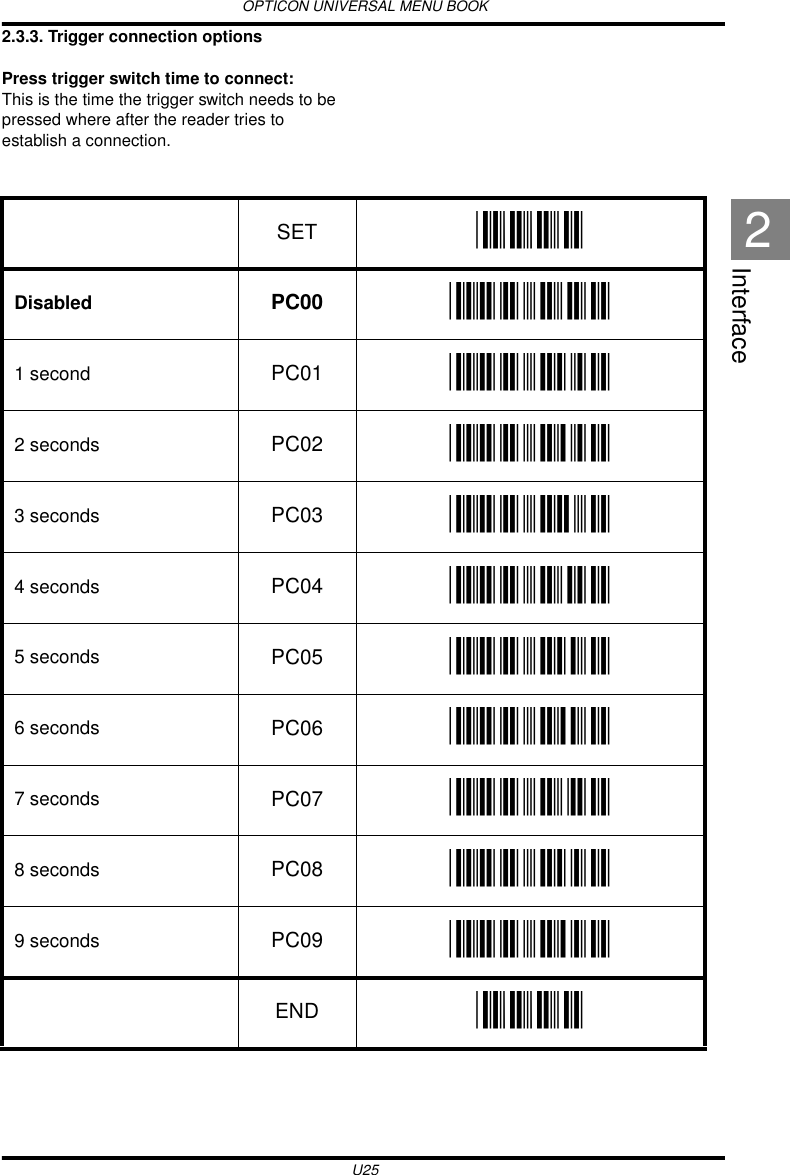

OPTICON UNIVERSAL MENU BOOKU25Interface22.3.3. Trigger connection optionsPress trigger switch time to connect:This is the time the trigger switch needs to be pressed where after the reader tries to establish a connection. SET _ZZ_Disabled PC00 _PC00_1 second PC01 _PC01_2 seconds PC02 _PC02_3 seconds PC03 _PC03_4 seconds PC04 _PC04_5 seconds PC05 _PC05_6 seconds PC06 _PC06_7 seconds PC07 _PC07_8 seconds PC08 _PC08_9 seconds PC09 _PC09_END _ZZ_

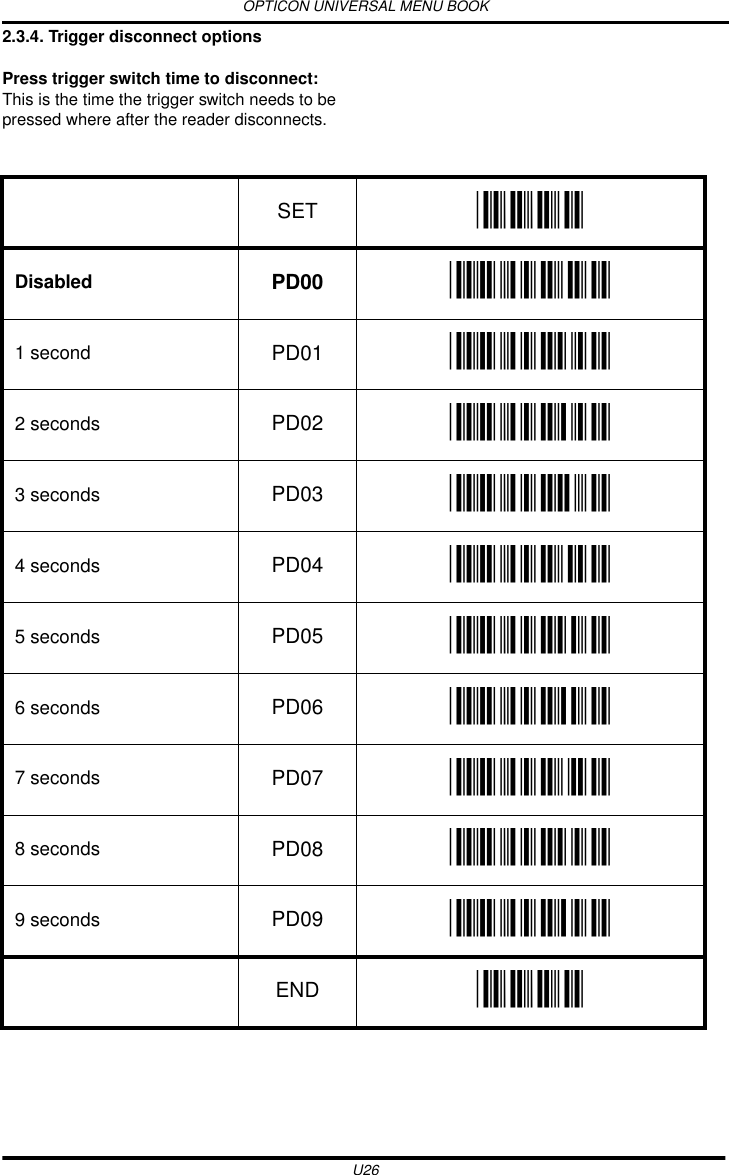

OPTICON UNIVERSAL MENU BOOKU262.3.4. Trigger disconnect optionsPress trigger switch time to disconnect:This is the time the trigger switch needs to be pressed where after the reader disconnects. SET _ZZ_Disabled PD00 _PD00_1 second PD01 _PD01_2 seconds PD02 _PD02_3 seconds PD03 _PD03_4 seconds PD04 _PD04_5 seconds PD05 _PD05_6 seconds PD06 _PD06_7 seconds PD07 _PD07_8 seconds PD08 _PD08_9 seconds PD09 _PD09_END _ZZ_

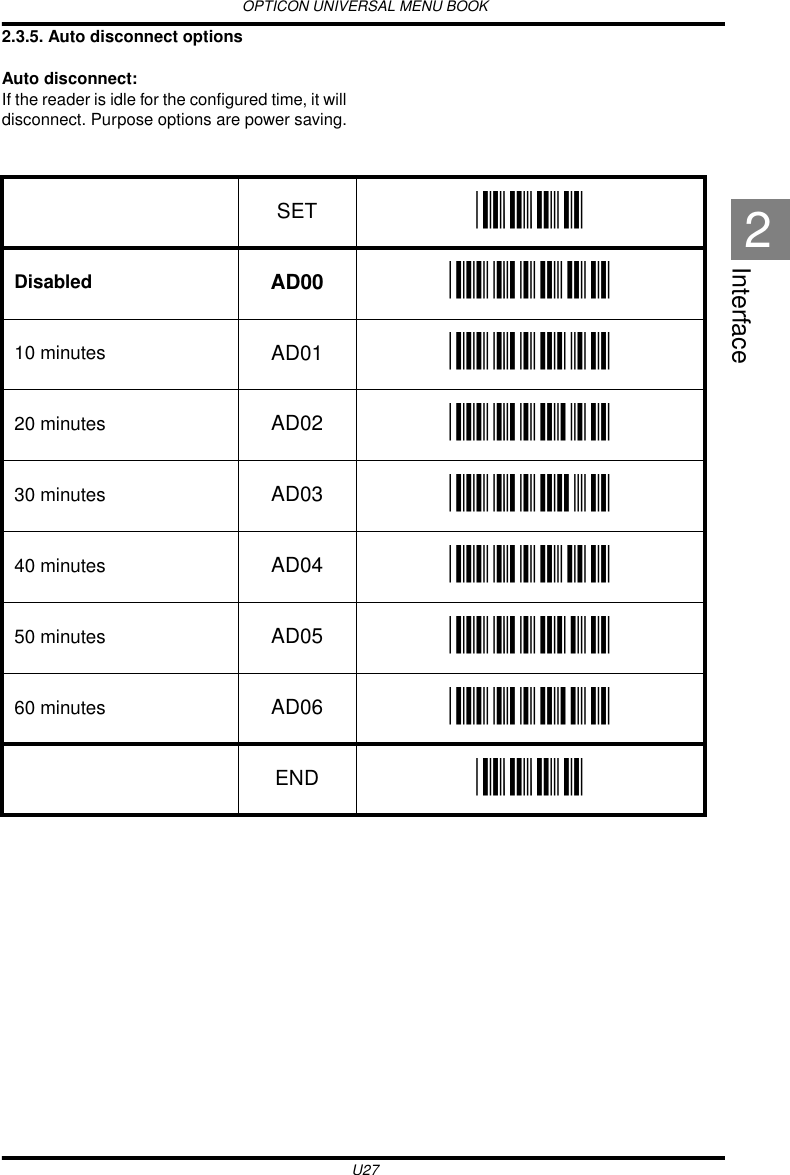

OPTICON UNIVERSAL MENU BOOKU27Interface22.3.5. Auto disconnect optionsAuto disconnect:If the reader is idle for the configured time, it will disconnect. Purpose options are power saving. SET _ZZ_Disabled AD00 _AD00_10 minutes AD01 _AD01_20 minutes AD02 _AD02_30 minutes AD03 _AD03_40 minutes AD04 _AD04_50 minutes AD05 _AD05_60 minutes AD06 _AD06_END _ZZ_

OPTICON UNIVERSAL MENU BOOKU28 2.3.6. Auto reconnect optionsAuto reconnect:If the reader is disconnected because it is out of range or the Bluetooth device is not available, the reader will try to establish the connection during the configured time. If this time is expired, the reader stops trying. The reader will not reconnect after reading the manually disconnect label or after auto disconnection. SET _ZZ_Disabled CA00 _CA00_1 minute CA01 _CA01_2 minutes CA02 _CA02_3 minutes CA03 _CA03_4 minutes CA04 _CA04_5 minutes CA05 _CA05_6 minutes CA06 _CA06_7 minutes CA07 _CA07_8 minutes CA08 _CA08_9 minutes CA09 _CA09_END _ZZ_

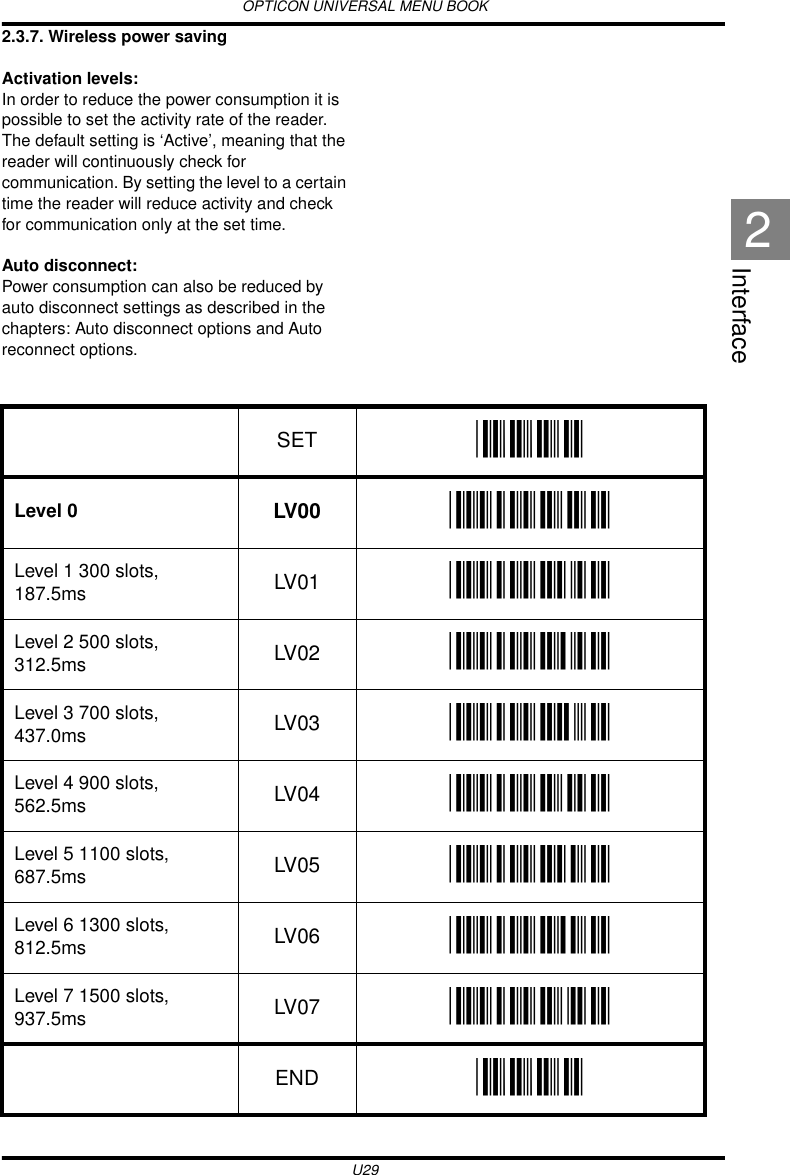

OPTICON UNIVERSAL MENU BOOKU29Interface22.3.7. Wireless power savingActivation levels:In order to reduce the power consumption it is possible to set the activity rate of the reader. The default setting is ‘Active’, meaning that the reader will continuously check for communication. By setting the level to a certain time the reader will reduce activity and check for communication only at the set time.Auto disconnect:Power consumption can also be reduced by auto disconnect settings as described in the chapters: Auto disconnect options and Auto reconnect options. SET _ZZ_Level 0 LV00 _LV00_Level 1 300 slots, 187.5ms LV01 _LV01_Level 2 500 slots, 312.5ms LV02 _LV02_Level 3 700 slots, 437.0ms LV03 _LV03_Level 4 900 slots, 562.5ms LV04 _LV04_Level 5 1100 slots, 687.5ms LV05 _LV05_Level 6 1300 slots, 812.5ms LV06 _LV06_Level 7 1500 slots, 937.5ms LV07 _LV07_END _ZZ_

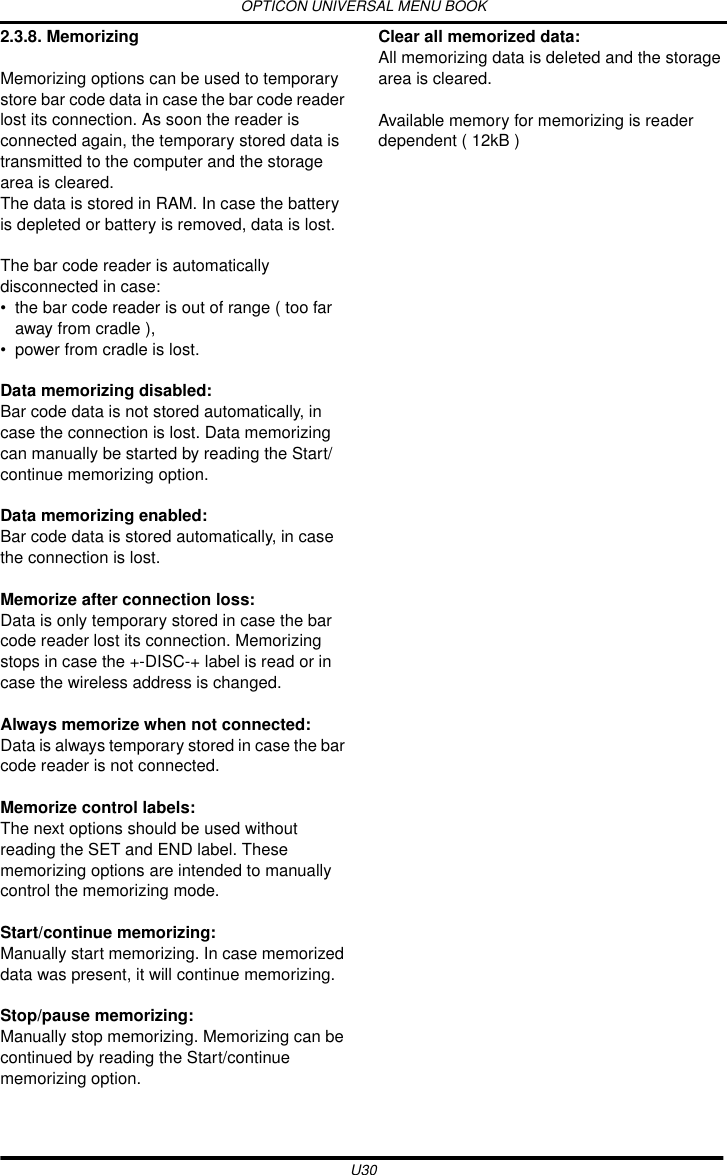

OPTICON UNIVERSAL MENU BOOKU302.3.8. Memorizing Memorizing options can be used to temporary store bar code data in case the bar code reader lost its connection. As soon the reader is connected again, the temporary stored data is transmitted to the computer and the storage area is cleared. The data is stored in RAM. In case the battery is depleted or battery is removed, data is lost.The bar code reader is automatically disconnected in case: • the bar code reader is out of range ( too far away from cradle ),• power from cradle is lost.Data memorizing disabled:Bar code data is not stored automatically, in case the connection is lost. Data memorizing can manually be started by reading the Start/continue memorizing option.Data memorizing enabled:Bar code data is stored automatically, in case the connection is lost. Memorize after connection loss:Data is only temporary stored in case the bar code reader lost its connection. Memorizing stops in case the +-DISC-+ label is read or in case the wireless address is changed.Always memorize when not connected:Data is always temporary stored in case the bar code reader is not connected. Memorize control labels:The next options should be used without reading the SET and END label. These memorizing options are intended to manually control the memorizing mode.Start/continue memorizing:Manually start memorizing. In case memorized data was present, it will continue memorizing.Stop/pause memorizing:Manually stop memorizing. Memorizing can be continued by reading the Start/continue memorizing option.Clear all memorized data:All memorizing data is deleted and the storage area is cleared.Available memory for memorizing is reader dependent ( 12kB )

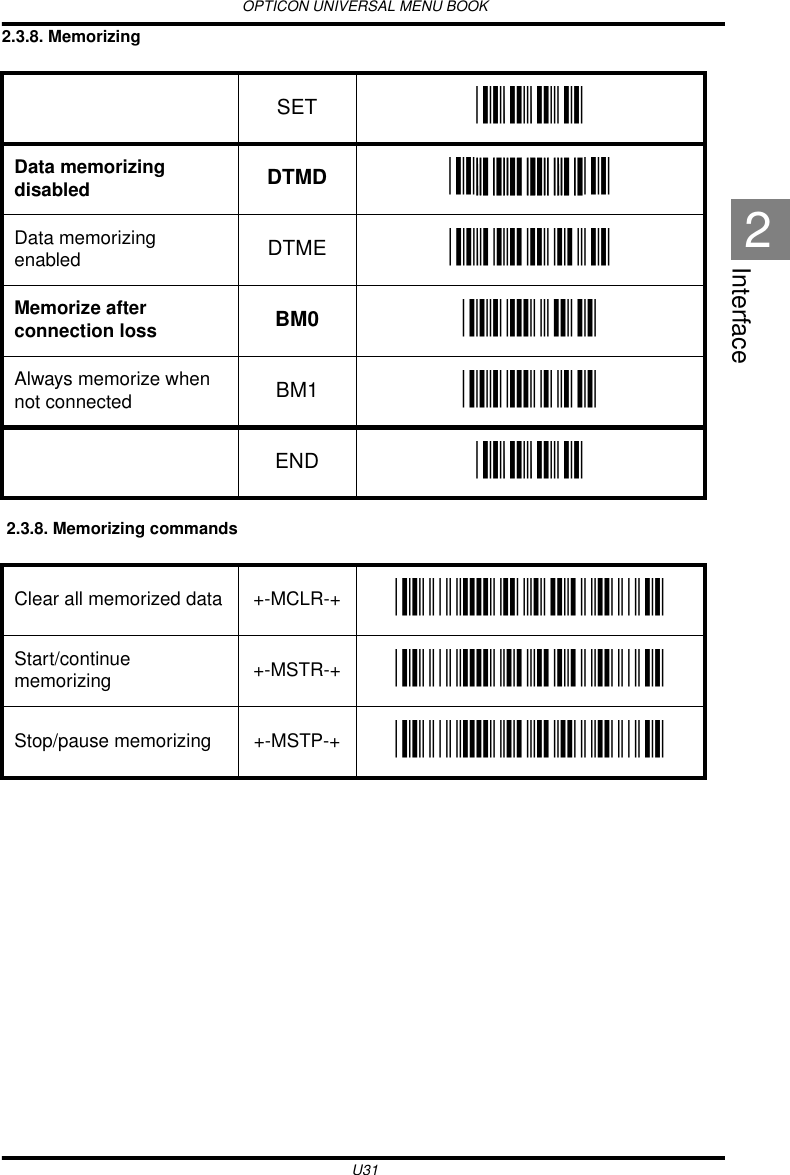

OPTICON UNIVERSAL MENU BOOKU31Interface22.3.8. Memorizing 2.3.8. Memorizing commandsSET _ZZ_Data memorizing disabled DTMD _DTMD_Data memorizing enabled DTME _DTME_Memorize after connection loss BM0 _BM0_Always memorize when not connected BM1 _BM1_END _ZZ_Clear all memorized data +-MCLR-+ _+-MCLR-+_Start/continue memorizing +-MSTR-+ _+-MSTR-+_Stop/pause memorizing +-MSTP-+ _+-MSTP-+_

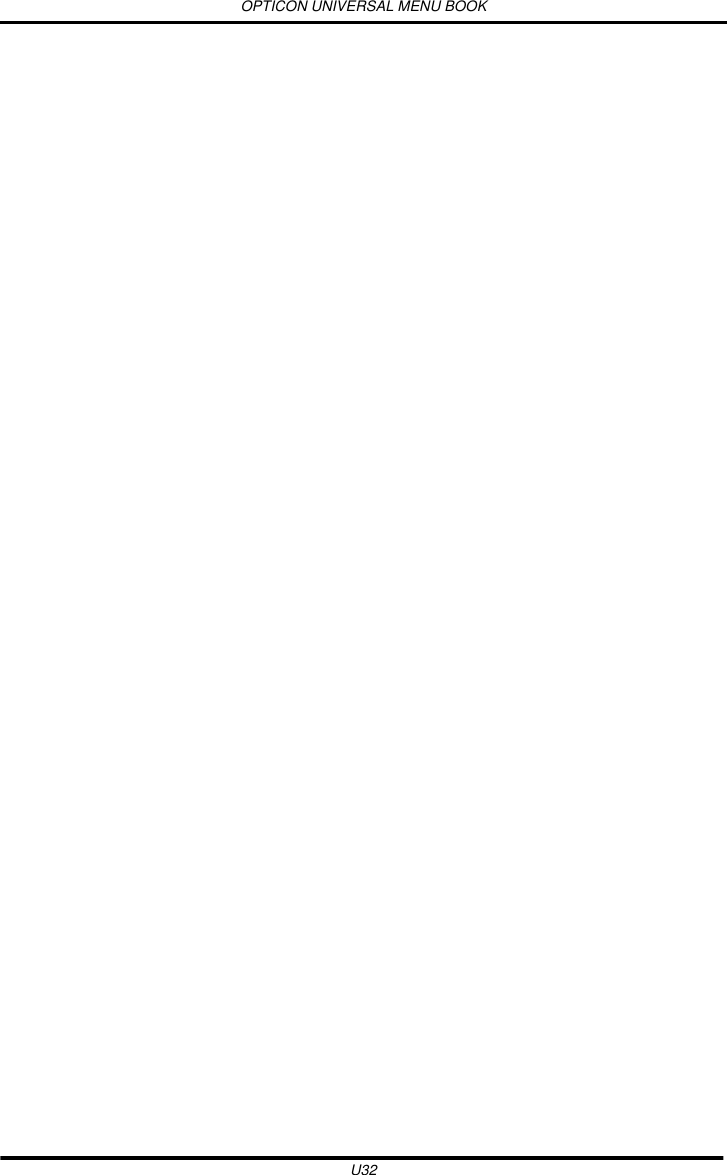

OPTICON UNIVERSAL MENU BOOKU32

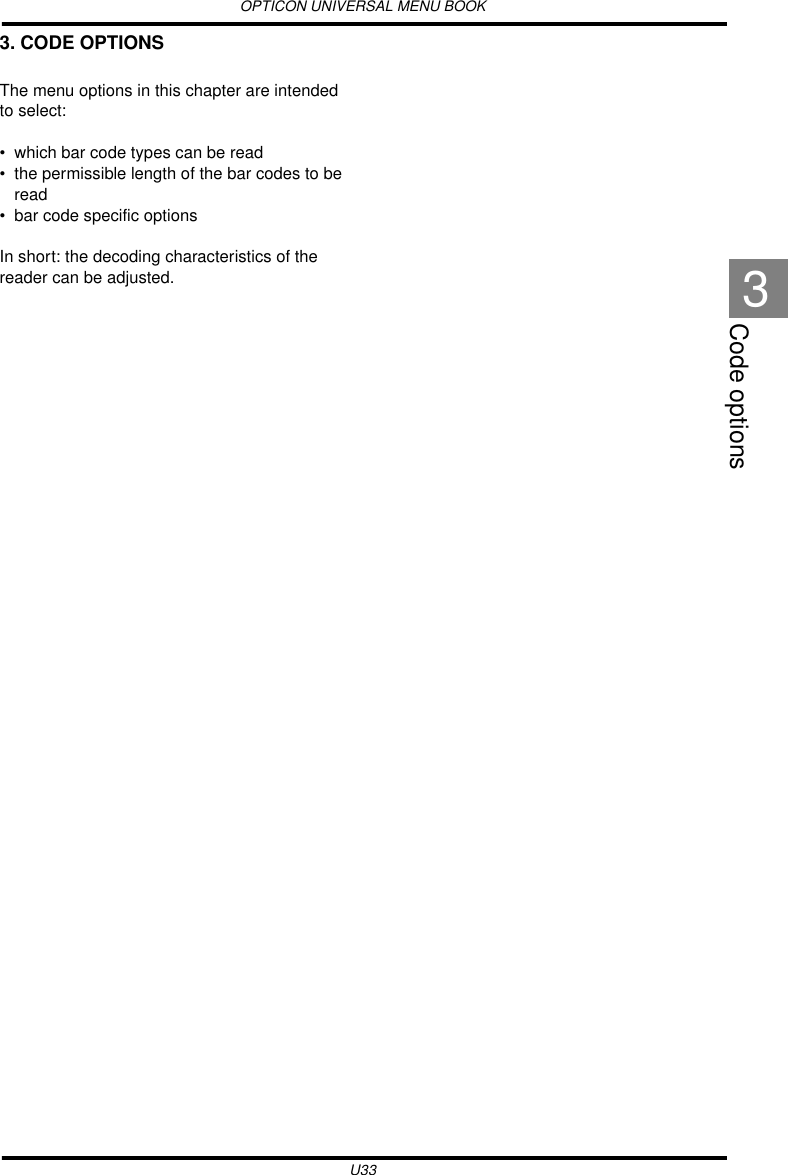

OPTICON UNIVERSAL MENU BOOKU33Code options33. CODE OPTIONSThe menu options in this chapter are intended to select:• which bar code types can be read• the permissible length of the bar codes to be read• bar code specific optionsIn short: the decoding characteristics of the reader can be adjusted.

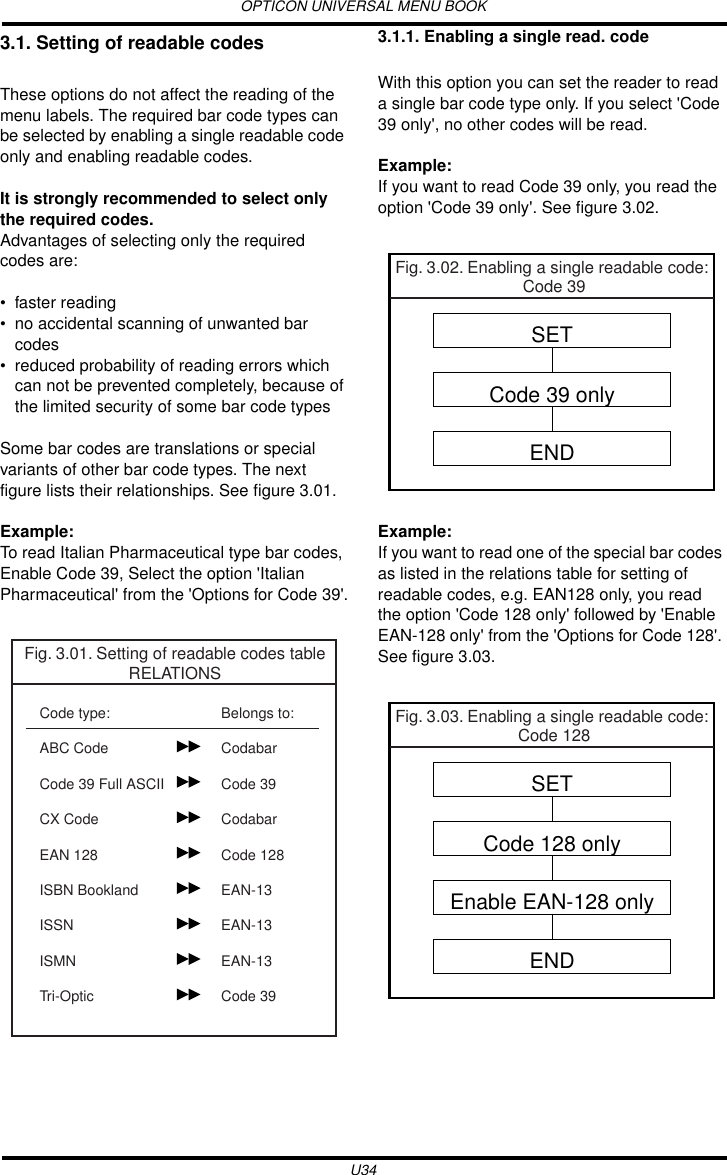

OPTICON UNIVERSAL MENU BOOKU343.1. Setting of readable codesThese options do not affect the reading of the menu labels. The required bar code types can be selected by enabling a single readable code only and enabling readable codes.It is strongly recommended to select only the required codes.Advantages of selecting only the required codes are:• faster reading• no accidental scanning of unwanted bar codes• reduced probability of reading errors which can not be prevented completely, because of the limited security of some bar code typesSome bar codes are translations or special variants of other bar code types. The next figure lists their relationships. See figure 3.01.Example:To read Italian Pharmaceutical type bar codes, Enable Code 39, Select the option 'Italian Pharmaceutical' from the 'Options for Code 39'.3.1.1. Enabling a single read. codeWith this option you can set the reader to read a single bar code type only. If you select 'Code 39 only', no other codes will be read.Example:If you want to read Code 39 only, you read the option 'Code 39 only'. See figure 3.02. Example:If you want to read one of the special bar codes as listed in the relations table for setting of readable codes, e.g. EAN128 only, you read the option 'Code 128 only' followed by 'Enable EAN-128 only' from the 'Options for Code 128'. See figure 3.03.Fig. 3.01. Setting of readable codes tableRELATIONSCode type:ABC CodeCode 39 Full ASCIICX CodeEAN 128ISBN BooklandISSNISMNTri-OpticBelongs to:CodabarCode 39CodabarCode 128EAN-13EAN-13EAN-13Code 39Fig. 3.02. Enabling a single readable code: Code 39SETCode 39 onlyENDFig. 3.03. Enabling a single readable code: Code 128SETCode 128 onlyEnable EAN-128 onlyEND

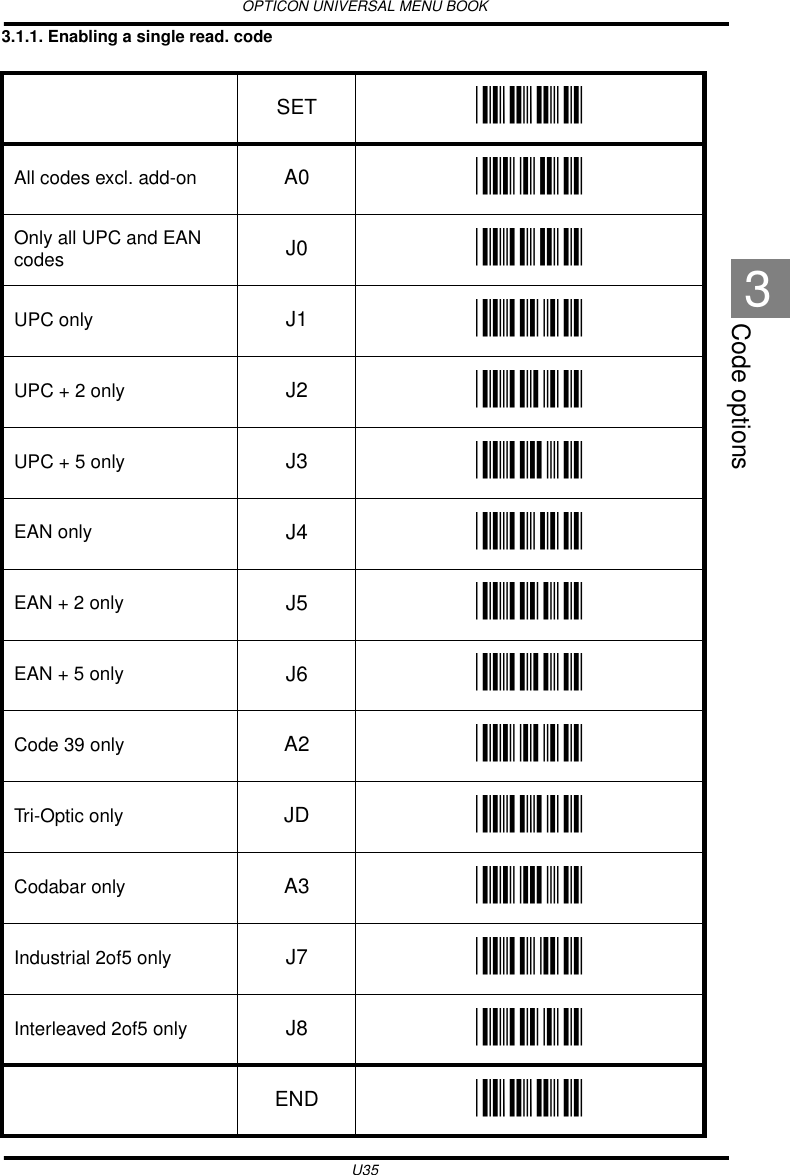

OPTICON UNIVERSAL MENU BOOKU35Code options33.1.1. Enabling a single read. code SET _ZZ_All codes excl. add-on A0 _A0_Only all UPC and EAN codes J0 _J0_UPC only J1 _J1_UPC + 2 only J2 _J2_UPC + 5 only J3 _J3_EAN only J4 _J4_EAN + 2 only J5 _J5_EAN + 5 only J6 _J6_Code 39 only A2 _A2_Tri-Optic only JD _JD_Codabar only A3 _A3_Industrial 2of5 only J7 _J7_Interleaved 2of5 only J8 _J8_END _ZZ_

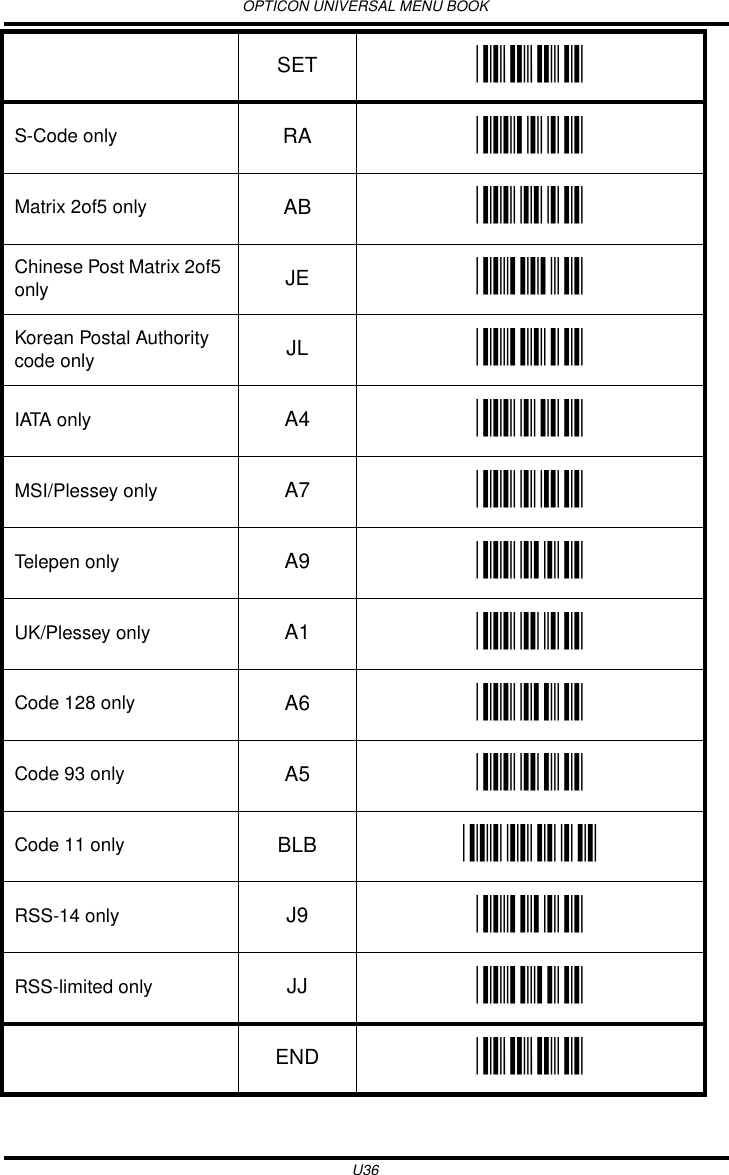

OPTICON UNIVERSAL MENU BOOKU36S-Code only RA _RA_Matrix 2of5 only AB _AB_Chinese Post Matrix 2of5 only JE _JE_Korean Postal Authority code only JL _JL_IATA only A4 _A4_MSI/Plessey only A7 _A7_Telepen only A9 _A9_UK/Plessey only A1 _A1_Code 128 only A6 _A6_Code 93 only A5 _A5_Code 11 only BLB _BLB_RSS-14 only J9 _J9_RSS-limited only JJ _JJ_SET _ZZ_END _ZZ_

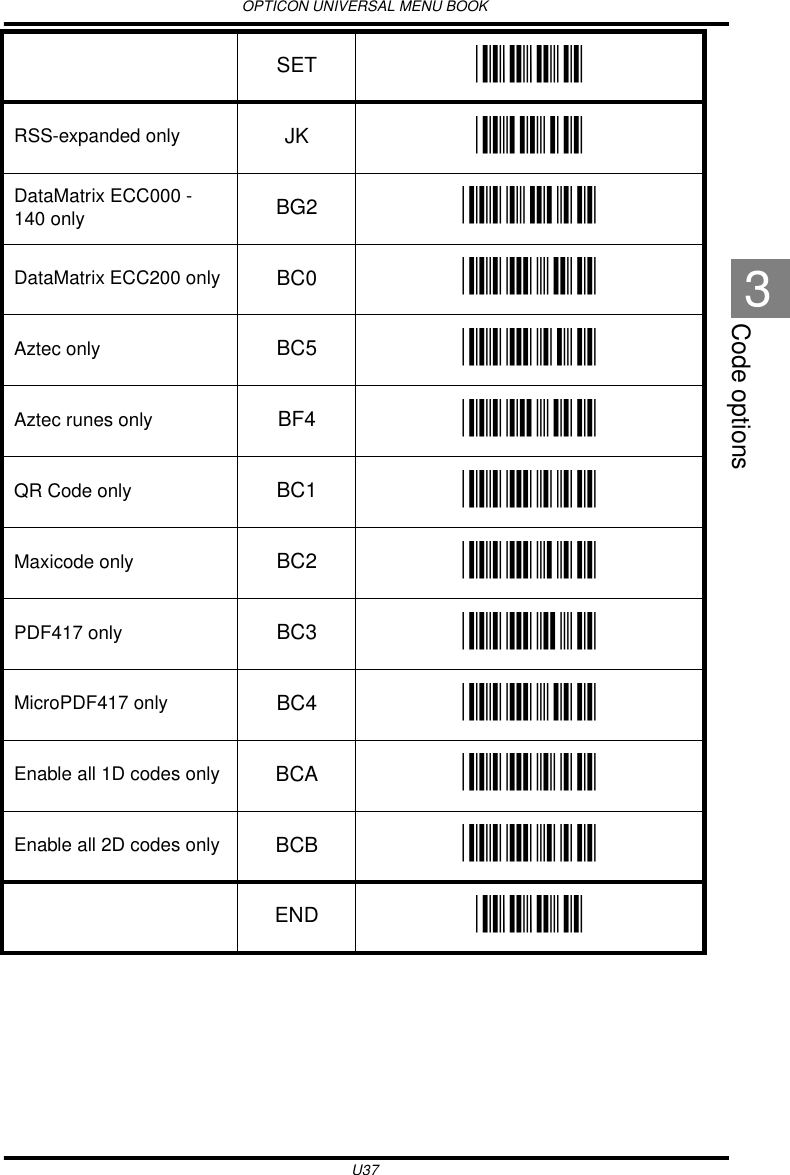

OPTICON UNIVERSAL MENU BOOKU37Code options3RSS-expanded only JK _JK_DataMatrix ECC000 - 140 only BG2 _BG2_DataMatrix ECC200 only BC0 _BC0_Aztec only BC5 _BC5_Aztec runes only BF4 _BF4_QR Code only BC1 _BC1_Maxicode only BC2 _BC2_PDF417 only BC3 _BC3_MicroPDF417 only BC4 _BC4_Enable all 1D codes only BCA _BCA_Enable all 2D codes only BCB _BCB_SET _ZZ_END _ZZ_

OPTICON UNIVERSAL MENU BOOKU383.1.2. Enabling of readable codesWith this option you can set the reader to read a number of bar code types or simply enable additional bar code types.Example:If you only want to read Code 39 and Code 128, you read 'Code 39 only' and 'enable Code 128'. Alternatively you can read 'Disable All', 'Enable Code 39' and 'Enable Code 128'. See figure 3.04.Example:If you want to enable Codabar in addition to what you already have configured, you read 'Enable Codabar'. See figure 3.05.Fig. 3.04. Enabling of readable codesSETCode 39 onlyEnable Code 128ENDSETDisable AllEnable Code 39Enable Code 128ENDFig. 3.05. Enabling of readable codes additionSETEnable CodabarEND

OPTICON UNIVERSAL MENU BOOKU39Code options33.1.2. Enabling of readable codes SET _ZZ_All codes excl. add-on A0 _A0_Enable UPC R1 _R1_Enable UPC + 2 R2 _R2_Enable UPC + 5 R3 _R3_Enable EAN R4 _R4_Enable EAN + 2 R5 _R5_Enable EAN + 5 R6 _R6_Enable Code 39 B2 _B2_Enable Tri-Optic JZ _JZ_Enable Codabar B3 _B3_Enable Industrial 2of5 R7 _R7_Enable Interleaved 2of5 R8 _R8_Enable S-Code R9 _R9_END _ZZ_

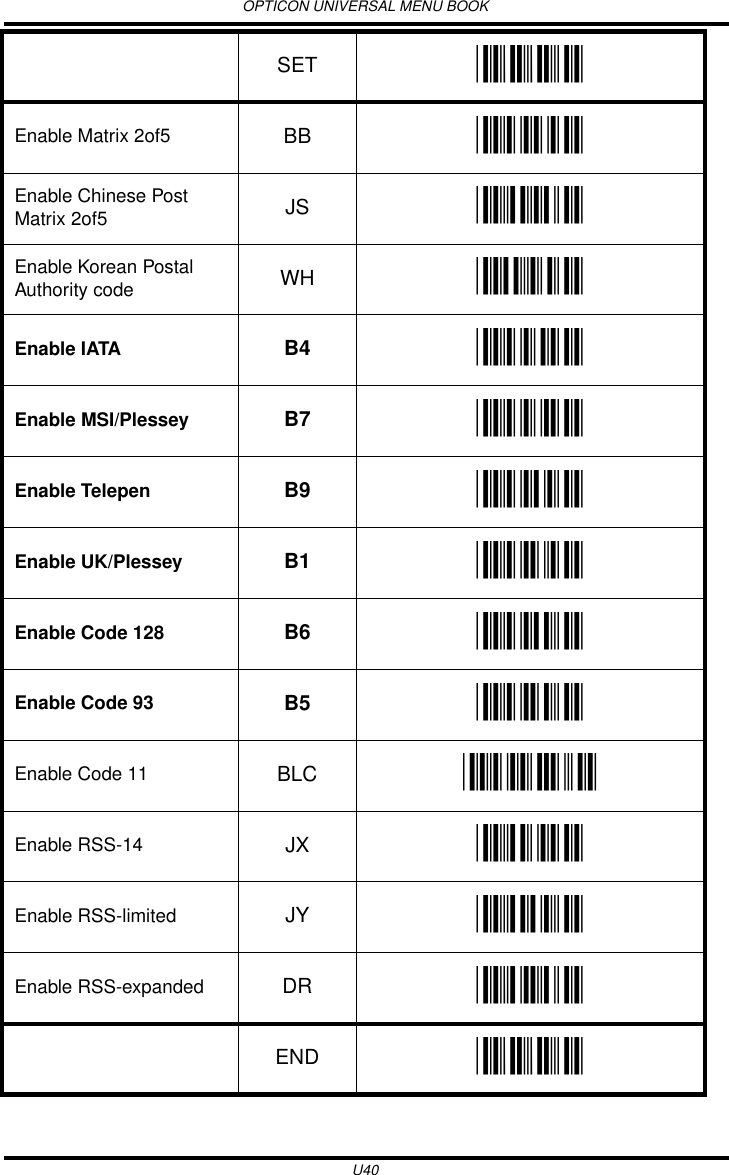

OPTICON UNIVERSAL MENU BOOKU40Enable Matrix 2of5 BB _BB_Enable Chinese Post Matrix 2of5 JS _JS_Enable Korean Postal Authority code WH _WH_Enable IATA B4 _B4_Enable MSI/Plessey B7 _B7_Enable Telepen B9 _B9_Enable UK/Plessey B1 _B1_Enable Code 128 B6 _B6_Enable Code 93 B5 _B5_Enable Code 11 BLC _BLC_Enable RSS-14 JX _JX_Enable RSS-limited JY _JY_Enable RSS-expanded DR _DR_SET _ZZ_END _ZZ_

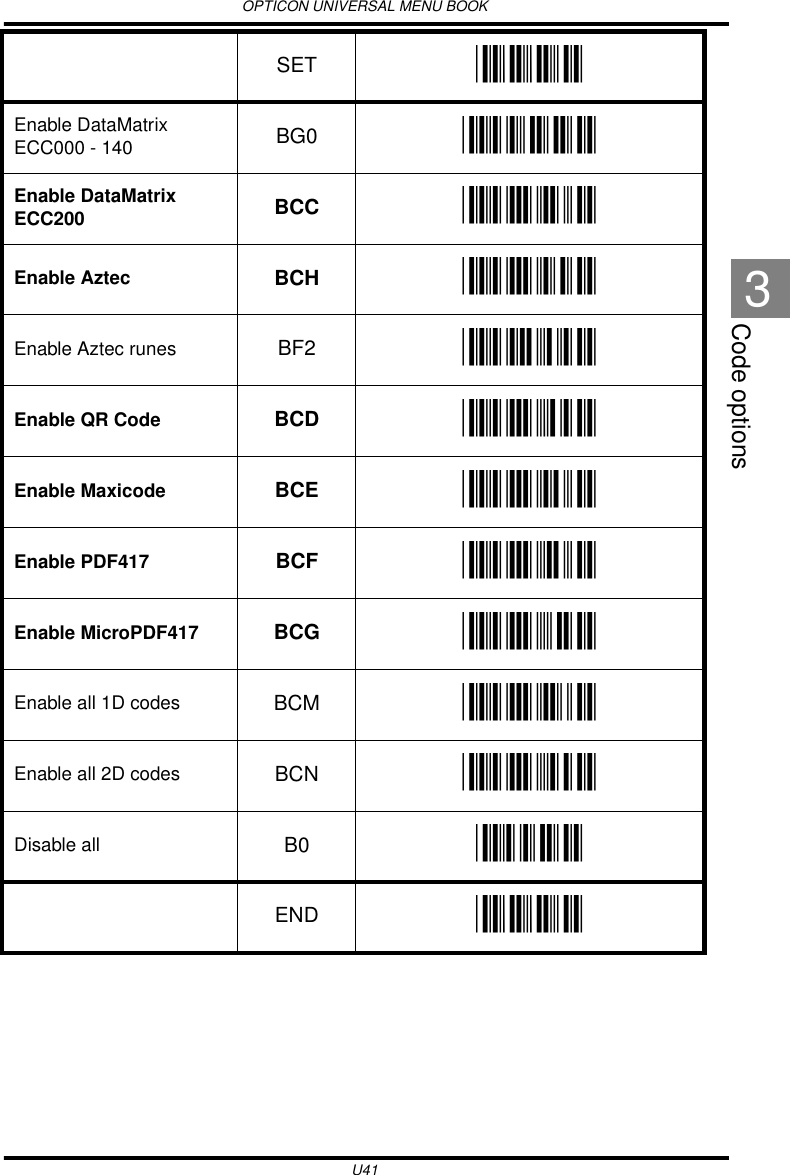

OPTICON UNIVERSAL MENU BOOKU41Code options3Enable DataMatrix ECC000 - 140 BG0 _BG0_Enable DataMatrix ECC200 BCC _BCC_Enable Aztec BCH _BCH_Enable Aztec runes BF2 _BF2_Enable QR Code BCD _BCD_Enable Maxicode BCE _BCE_Enable PDF417 BCF _BCF_Enable MicroPDF417 BCG _BCG_Enable all 1D codes BCM _BCM_Enable all 2D codes BCN _BCN_Disable all B0 _B0_SET _ZZ_END _ZZ_

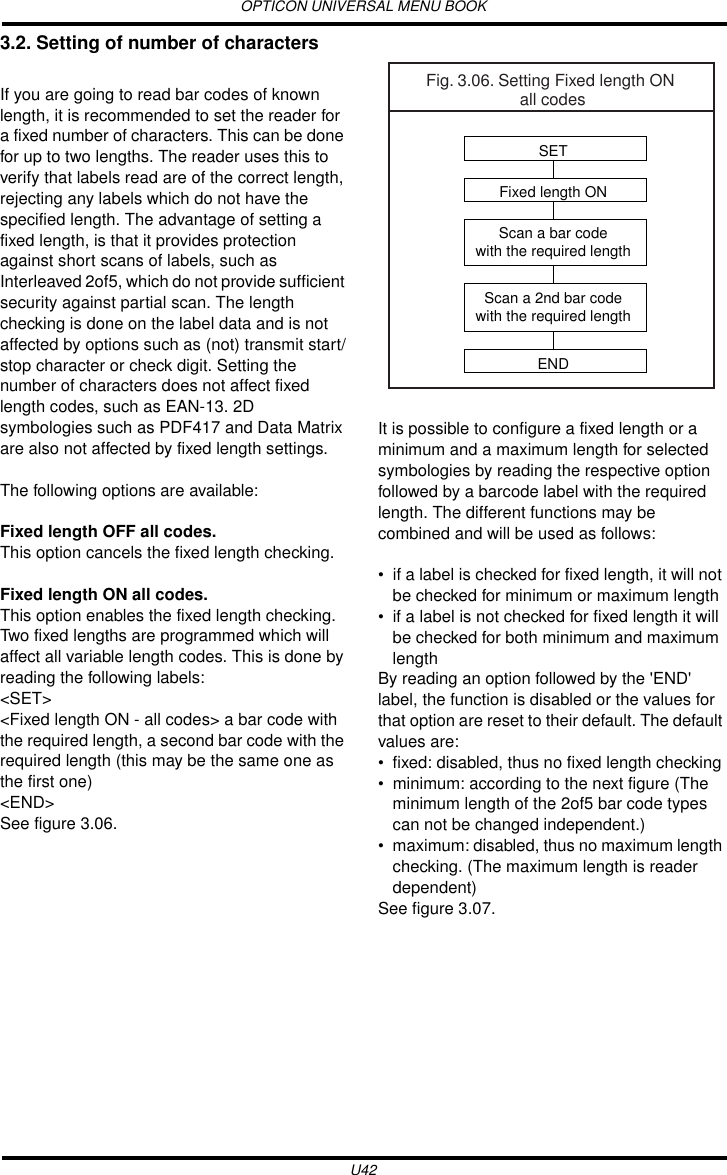

OPTICON UNIVERSAL MENU BOOKU423.2. Setting of number of charactersIf you are going to read bar codes of known length, it is recommended to set the reader for a fixed number of characters. This can be done for up to two lengths. The reader uses this to verify that labels read are of the correct length, rejecting any labels which do not have the specified length. The advantage of setting a fixed length, is that it provides protection against short scans of labels, such as Interleaved 2of5, which do not provide sufficient security against partial scan. The length checking is done on the label data and is not affected by options such as (not) transmit start/stop character or check digit. Setting the number of characters does not affect fixed length codes, such as EAN-13. 2D symbologies such as PDF417 and Data Matrix are also not affected by fixed length settings.The following options are available:Fixed length OFF all codes. This option cancels the fixed length checking.Fixed length ON all codes. This option enables the fixed length checking. Two fixed lengths are programmed which will affect all variable length codes. This is done by reading the following labels:<SET><Fixed length ON - all codes> a bar code with the required length, a second bar code with the required length (this may be the same one as the first one)<END>See figure 3.06.It is possible to configure a fixed length or a minimum and a maximum length for selected symbologies by reading the respective option followed by a barcode label with the required length. The different functions may be combined and will be used as follows:• if a label is checked for fixed length, it will not be checked for minimum or maximum length• if a label is not checked for fixed length it will be checked for both minimum and maximum lengthBy reading an option followed by the 'END' label, the function is disabled or the values for that option are reset to their default. The default values are:• fixed: disabled, thus no fixed length checking• minimum: according to the next figure (The minimum length of the 2of5 bar code types can not be changed independent.)• maximum: disabled, thus no maximum length checking. (The maximum length is reader dependent)See figure 3.07.Fig. 3.06. Setting Fixed length ON all codesSETFixed length ONScan a bar codewith the required lengthScan a 2nd bar codewith the required lengthEND

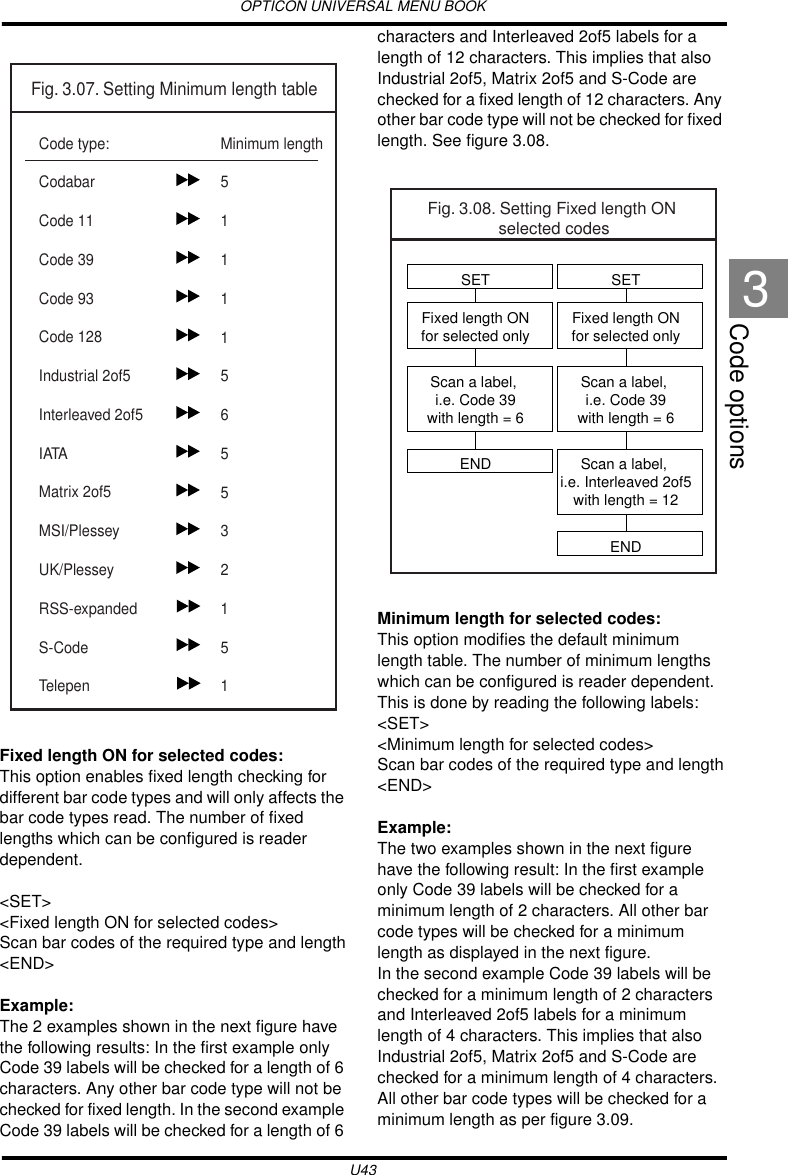

OPTICON UNIVERSAL MENU BOOKU43Code options3Fixed length ON for selected codes:This option enables fixed length checking for different bar code types and will only affects the bar code types read. The number of fixed lengths which can be configured is reader dependent.<SET><Fixed length ON for selected codes>Scan bar codes of the required type and length<END>Example:The 2 examples shown in the next figure have the following results: In the first example only Code 39 labels will be checked for a length of 6 characters. Any other bar code type will not be checked for fixed length. In the second example Code 39 labels will be checked for a length of 6 characters and Interleaved 2of5 labels for a length of 12 characters. This implies that also Industrial 2of5, Matrix 2of5 and S-Code are checked for a fixed length of 12 characters. Any other bar code type will not be checked for fixed length. See figure 3.08.Minimum length for selected codes:This option modifies the default minimum length table. The number of minimum lengths which can be configured is reader dependent. This is done by reading the following labels:<SET><Minimum length for selected codes>Scan bar codes of the required type and length<END>Example:The two examples shown in the next figure have the following result: In the first example only Code 39 labels will be checked for a minimum length of 2 characters. All other bar code types will be checked for a minimum length as displayed in the next figure.In the second example Code 39 labels will be checked for a minimum length of 2 characters and Interleaved 2of5 labels for a minimum length of 4 characters. This implies that also Industrial 2of5, Matrix 2of5 and S-Code are checked for a minimum length of 4 characters. All other bar code types will be checked for a minimum length as per figure 3.09.Fig. 3.07. Setting Minimum length tableCode type:CodabarCode 11Code 39 Code 93Code 128Industrial 2of5Interleaved 2of5IATAMatrix 2of5MSI/PlesseyUK/PlesseyRSS-expandedS-CodeTelepenMinimum length51111565532151Fig. 3.08. Setting Fixed length ON selected codesSETFixed length ONfor selected onlyScan a label, i.e. Code 39with length = 6Scan a label, i.e. Interleaved 2of5with length = 12ENDSETFixed length ONfor selected onlyScan a label, i.e. Code 39with length = 6END

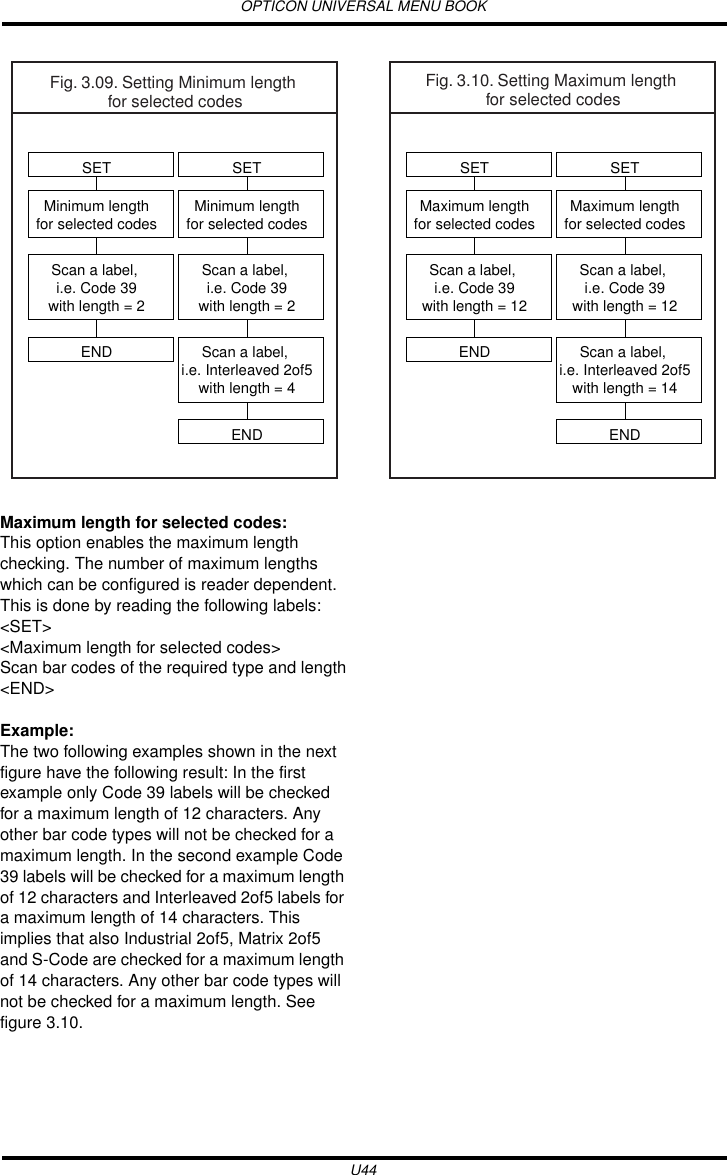

OPTICON UNIVERSAL MENU BOOKU44Maximum length for selected codes:This option enables the maximum length checking. The number of maximum lengths which can be configured is reader dependent. This is done by reading the following labels:<SET><Maximum length for selected codes>Scan bar codes of the required type and length<END>Example:The two following examples shown in the next figure have the following result: In the first example only Code 39 labels will be checked for a maximum length of 12 characters. Any other bar code types will not be checked for a maximum length. In the second example Code 39 labels will be checked for a maximum length of 12 characters and Interleaved 2of5 labels for a maximum length of 14 characters. This implies that also Industrial 2of5, Matrix 2of5 and S-Code are checked for a maximum length of 14 characters. Any other bar code types will not be checked for a maximum length. See figure 3.10.Fig. 3.09. Setting Minimum length for selected codesSETMinimum lengthfor selected codesScan a label, i.e. Code 39with length = 2Scan a label, i.e. Interleaved 2of5with length = 4ENDSETMinimum lengthfor selected codesScan a label, i.e. Code 39with length = 2ENDFig. 3.10. Setting Maximum length for selected codesSETMaximum lengthfor selected codesScan a label, i.e. Code 39with length = 12Scan a label, i.e. Interleaved 2of5with length = 14ENDSETMaximum lengthfor selected codesScan a label, i.e. Code 39with length = 12END

OPTICON UNIVERSAL MENU BOOKU45Code options33.2. Setting of number of characters SET _ZZ_Fixed length OFF all codes H0 _H0_Fixed length ON all codes H1 _H1_Fixed length ON for selected codes HK _HK_Minimum length for selected codes HL _HL_Maximum length for selected codes HM _HM_END _ZZ_

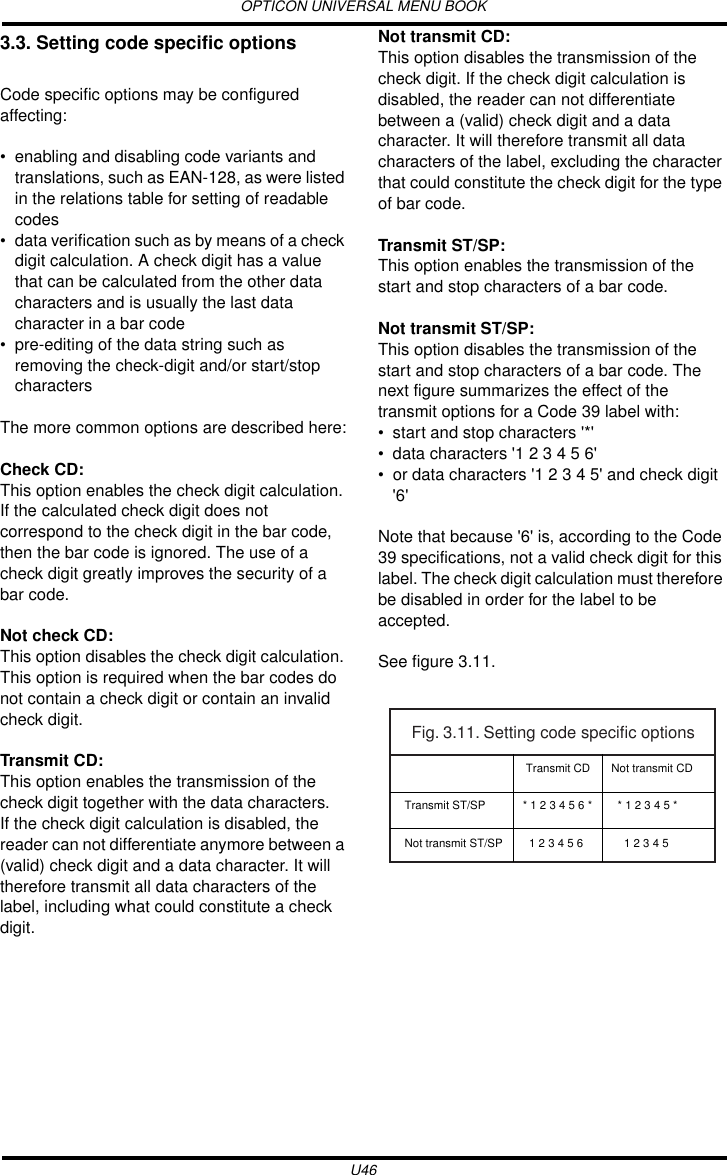

OPTICON UNIVERSAL MENU BOOKU463.3. Setting code specific optionsCode specific options may be configured affecting:• enabling and disabling code variants and translations, such as EAN-128, as were listed in the relations table for setting of readable codes• data verification such as by means of a check digit calculation. A check digit has a value that can be calculated from the other data characters and is usually the last data character in a bar code• pre-editing of the data string such as removing the check-digit and/or start/stop charactersThe more common options are described here:Check CD:This option enables the check digit calculation.If the calculated check digit does not correspond to the check digit in the bar code, then the bar code is ignored. The use of a check digit greatly improves the security of a bar code.Not check CD:This option disables the check digit calculation. This option is required when the bar codes do not contain a check digit or contain an invalid check digit.Transmit CD:This option enables the transmission of the check digit together with the data characters.If the check digit calculation is disabled, the reader can not differentiate anymore between a (valid) check digit and a data character. It will therefore transmit all data characters of the label, including what could constitute a check digit.Not transmit CD:This option disables the transmission of the check digit. If the check digit calculation is disabled, the reader can not differentiate between a (valid) check digit and a data character. It will therefore transmit all data characters of the label, excluding the character that could constitute the check digit for the type of bar code.Transmit ST/SP:This option enables the transmission of the start and stop characters of a bar code.Not transmit ST/SP:This option disables the transmission of the start and stop characters of a bar code. The next figure summarizes the effect of the transmit options for a Code 39 label with:• start and stop characters '*'• data characters '1 2 3 4 5 6'• or data characters '1 2 3 4 5' and check digit '6'Note that because '6' is, according to the Code 39 specifications, not a valid check digit for this label. The check digit calculation must therefore be disabled in order for the label to be accepted.See figure 3.11.Fig. 3.11. Setting code specific optionsTransmit ST/SPNot transmit ST/SP Transmit CD* 1 2 3 4 5 6 * 1 2 3 4 5 6Not transmit CD * 1 2 3 4 5 * 1 2 3 4 5

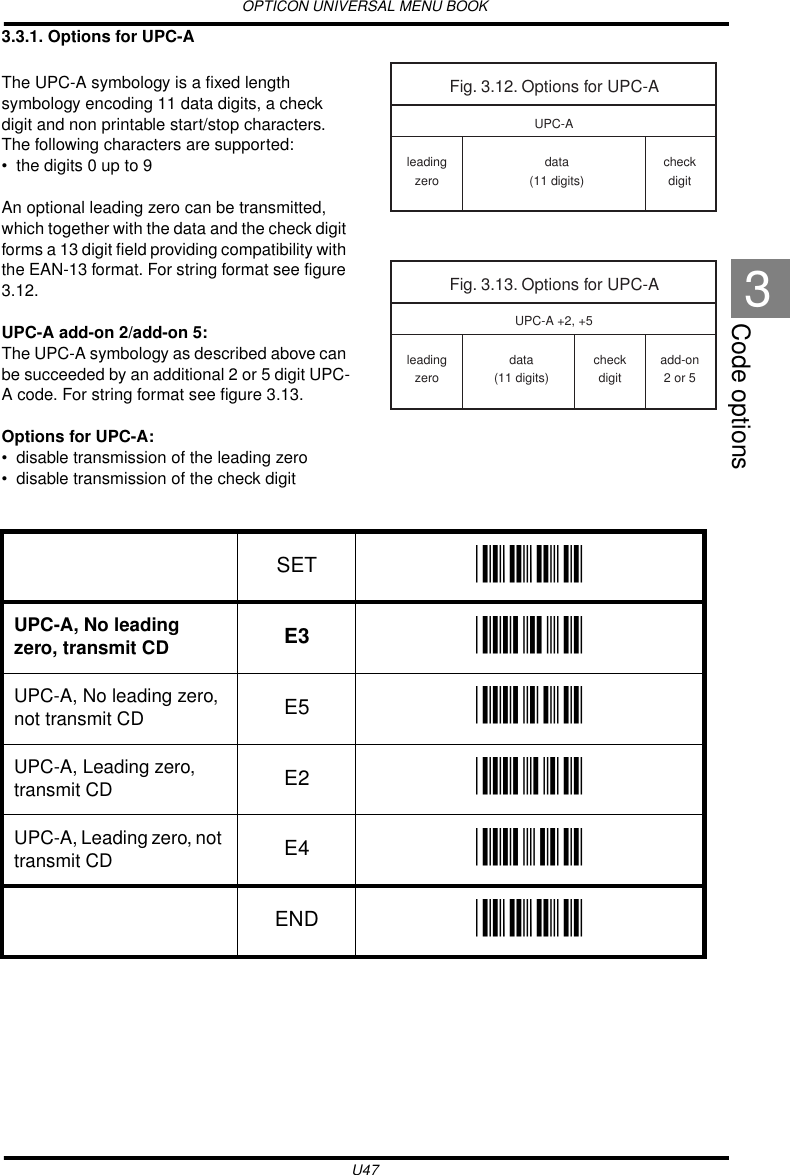

OPTICON UNIVERSAL MENU BOOKU47Code options33.3.1. Options for UPC-AThe UPC-A symbology is a fixed length symbology encoding 11 data digits, a check digit and non printable start/stop characters. The following characters are supported: • the digits 0 up to 9An optional leading zero can be transmitted, which together with the data and the check digit forms a 13 digit field providing compatibility with the EAN-13 format. For string format see figure 3.12.UPC-A add-on 2/add-on 5:The UPC-A symbology as described above can be succeeded by an additional 2 or 5 digit UPC-A code. For string format see figure 3.13.Options for UPC-A:• disable transmission of the leading zero• disable transmission of the check digit Fig. 3.12. Options for UPC-Aleadingzerodata(11 digits)checkdigitUPC-AFig. 3.13. Options for UPC-Aleadingzerodata(11 digits)add-on2 or 5UPC-A +2, +5checkdigitSET _ZZ_UPC-A, No leading zero, transmit CD E3 _E3_UPC-A, No leading zero, not transmit CD E5 _E5_UPC-A, Leading zero, transmit CD E2 _E2_UPC-A, Leading zero, not transmit CD E4 _E4_END _ZZ_

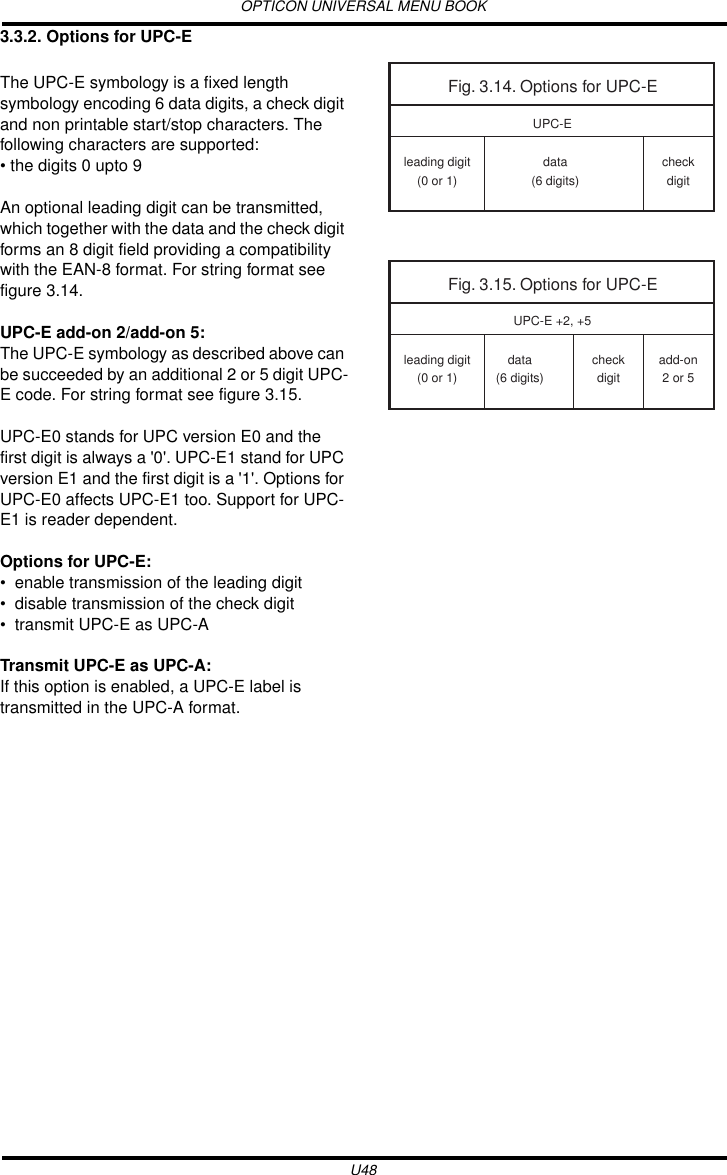

OPTICON UNIVERSAL MENU BOOKU483.3.2. Options for UPC-EThe UPC-E symbology is a fixed length symbology encoding 6 data digits, a check digit and non printable start/stop characters. The following characters are supported: • the digits 0 upto 9An optional leading digit can be transmitted, which together with the data and the check digit forms an 8 digit field providing a compatibility with the EAN-8 format. For string format see figure 3.14.UPC-E add-on 2/add-on 5:The UPC-E symbology as described above can be succeeded by an additional 2 or 5 digit UPC-E code. For string format see figure 3.15.UPC-E0 stands for UPC version E0 and the first digit is always a '0'. UPC-E1 stand for UPC version E1 and the first digit is a '1'. Options for UPC-E0 affects UPC-E1 too. Support for UPC-E1 is reader dependent. Options for UPC-E:• enable transmission of the leading digit• disable transmission of the check digit• transmit UPC-E as UPC-ATransmit UPC-E as UPC-A:If this option is enabled, a UPC-E label is transmitted in the UPC-A format.Fig. 3.14. Options for UPC-Eleading digit(0 or 1)data(6 digits)checkdigitUPC-EFig. 3.15. Options for UPC-Eleading digit(0 or 1)data(6 digits)add-on2 or 5UPC-E +2, +5checkdigit

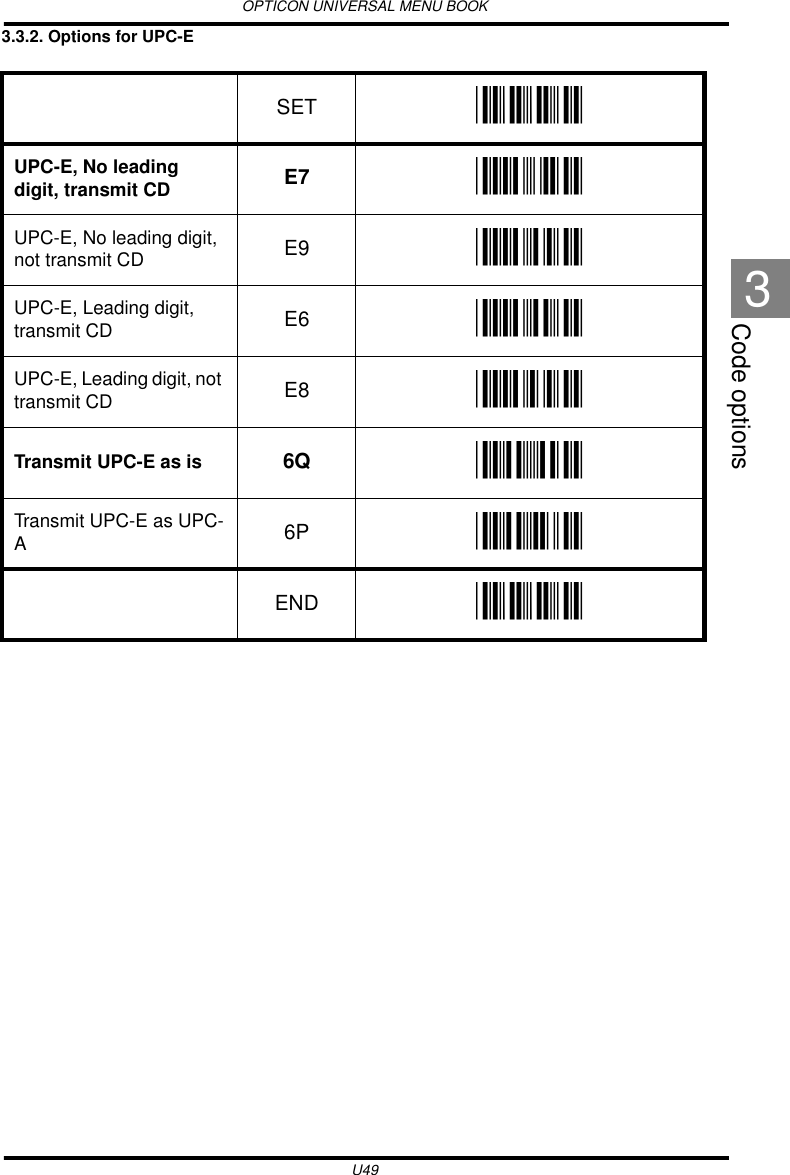

OPTICON UNIVERSAL MENU BOOKU49Code options33.3.2. Options for UPC-E SET _ZZ_UPC-E, No leading digit, transmit CD E7 _E7_UPC-E, No leading digit, not transmit CD E9 _E9_UPC-E, Leading digit, transmit CD E6 _E6_UPC-E, Leading digit, not transmit CD E8 _E8_Transmit UPC-E as is 6Q _6Q_Transmit UPC-E as UPC-A6P _6P_END _ZZ_

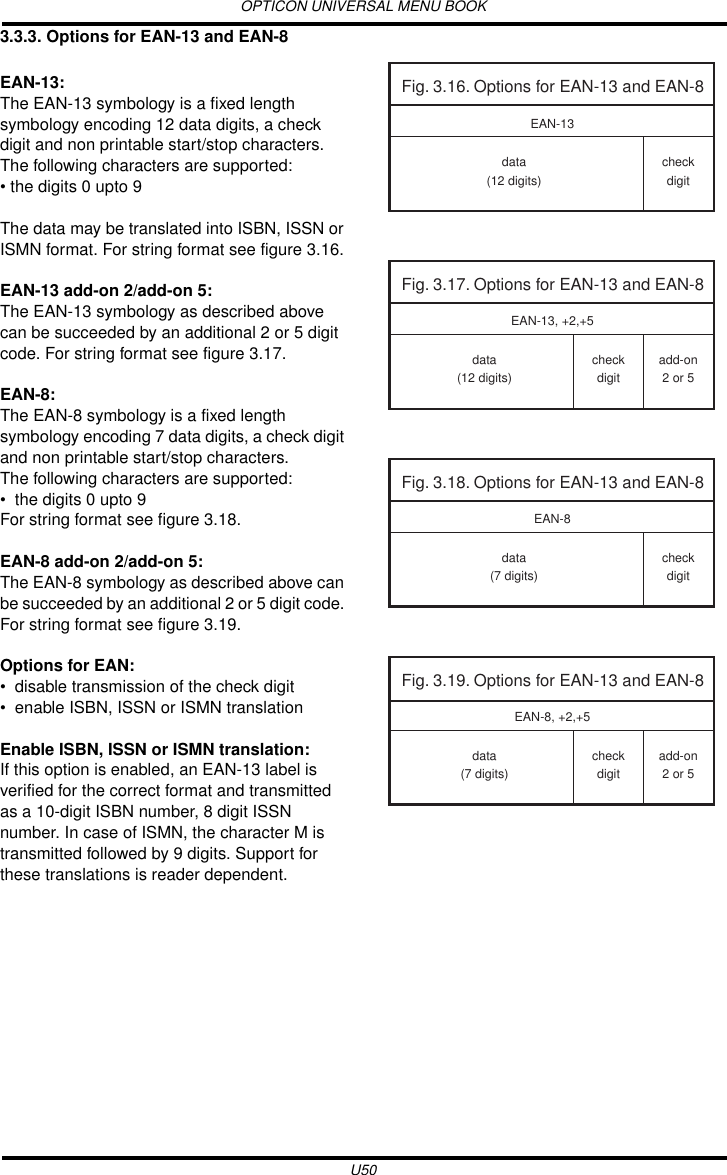

OPTICON UNIVERSAL MENU BOOKU503.3.3. Options for EAN-13 and EAN-8EAN-13:The EAN-13 symbology is a fixed length symbology encoding 12 data digits, a check digit and non printable start/stop characters. The following characters are supported: • the digits 0 upto 9The data may be translated into ISBN, ISSN or ISMN format. For string format see figure 3.16.EAN-13 add-on 2/add-on 5:The EAN-13 symbology as described above can be succeeded by an additional 2 or 5 digit code. For string format see figure 3.17.EAN-8:The EAN-8 symbology is a fixed length symbology encoding 7 data digits, a check digit and non printable start/stop characters.The following characters are supported:• the digits 0 upto 9For string format see figure 3.18.EAN-8 add-on 2/add-on 5:The EAN-8 symbology as described above can be succeeded by an additional 2 or 5 digit code. For string format see figure 3.19.Options for EAN:• disable transmission of the check digit• enable ISBN, ISSN or ISMN translationEnable ISBN, ISSN or ISMN translation:If this option is enabled, an EAN-13 label is verified for the correct format and transmitted as a 10-digit ISBN number, 8 digit ISSN number. In case of ISMN, the character M is transmitted followed by 9 digits. Support for these translations is reader dependent.Fig. 3.16. Options for EAN-13 and EAN-8data(12 digits)checkdigitEAN-13Fig. 3.17. Options for EAN-13 and EAN-8data(12 digits)checkdigitadd-on2 or 5EAN-13, +2,+5Fig. 3.18. Options for EAN-13 and EAN-8data(7 digits)checkdigitEAN-8Fig. 3.19. Options for EAN-13 and EAN-8data(7 digits)checkdigitadd-on2 or 5EAN-8, +2,+5

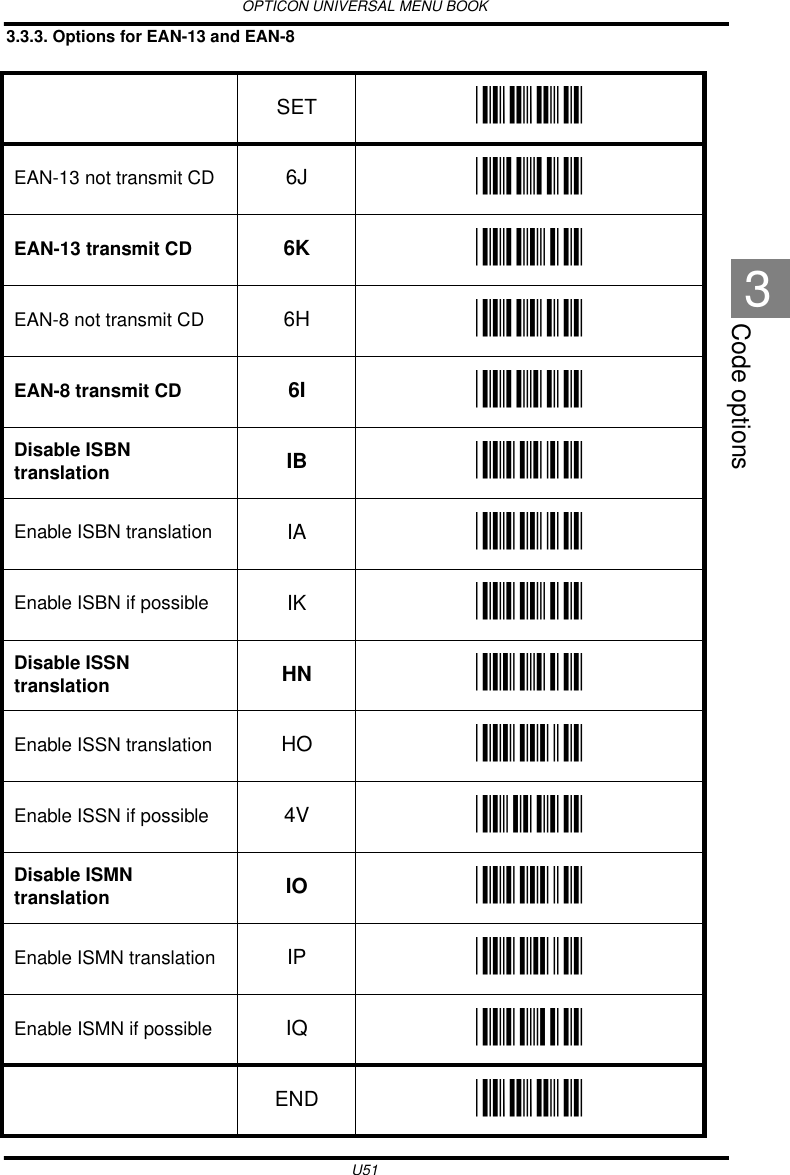

OPTICON UNIVERSAL MENU BOOKU51Code options3 3.3.3. Options for EAN-13 and EAN-8SET _ZZ_EAN-13 not transmit CD 6J _6J_EAN-13 transmit CD 6K _6K_EAN-8 not transmit CD 6H _6H_EAN-8 transmit CD 6I _6I_Disable ISBN translation IB _IB_Enable ISBN translation IA _IA_Enable ISBN if possible IK _IK_Disable ISSN translation HN _HN_Enable ISSN translation HO _HO_Enable ISSN if possible 4V _4V_Disable ISMN translation IO _IO_Enable ISMN translation IP _IP_Enable ISMN if possible IQ _IQ_END _ZZ_

OPTICON UNIVERSAL MENU BOOKU523.3.4. Options for Code 39 and It. Pharm.Code 39:Code 39 is a variable length symbology with an optional check digit and printable start/stop characters. The following characters are supported:• the digits 0 up to 9• the upper case characters A up to Z• the characters - . $ / + % SPACE• start/stop character is *The checksum is calculated as the sum modulo 43 of the numerical value of the data characters. In full ASCII mode, all 128 ASCII characters are supported. This is done by combining one of the characters +, %, $ or / with one of the alpha characters (A upto Z). For string format see figure 3.20.Italian Pharmaceutical:In this mode the Code 39 data is translated to the Italian pharmaceutical format. This format has a fixed length containing 8 numeric data values followed by a single mandatory check digit. An optional leading 'A' can be transmitted. For string format see figure 3.21.Options for Code 39:• enable full ASCII conversion• enable Italian Pharmaceutical conversion• enable check digit • disable transmission of the check digit• enable transmission of start/stop• enable leading A for Italian Pharmaceutical• selection of the minimum number of data charactersNormal Code 39:In this mode the decoded data characters are transmitted without further translation.Full ASCII Code 39:In this mode the decoded data characters are translated to full ASCII Code 39. Full ASCII Code 39 if possible:In this mode the decoded data characters are translated to full ASCII Code 39. Invalid combinations are not translated and are transmitted as is.Italian Pharmaceutical only:In this mode the decoded data characters are translated to the Italian Pharmaceutical format. If the data does not comply with the Italian Pharmaceutical format, the label is rejected.Italian Pharmaceutical if possible:In this mode the decoded data characters are translated to the Italian Pharmaceutical format. If the data does not comply with the Italian Pharmaceutical format, then the data is transmitted as Normal or full ASCII Code 39.Concatenation:If a Code 39 bar code contains a leading space, the data is stored into the reader's buffer without the leading space. As soon as a Code 39 bar code is read without a leading space, the data is appended to the reader's buffer and the entire buffer is transmitted and cleared for new data. In case a non Code 39 bar code is read, the data in the non-Code 39 bar code is transmitted and the buffer is cleared. The buffer size is reader dependent. Fig. 3.20. Options for Code 39 and It.Pharm.startchar.stopchar.data(0 or more char.)checkdigitCode 39Fig. 3.21. Options for Code 39 and It.Pharm.Italian Pharmaceuticalstartchar.stopchar.leadingAcheckdigitdata(8 digits)

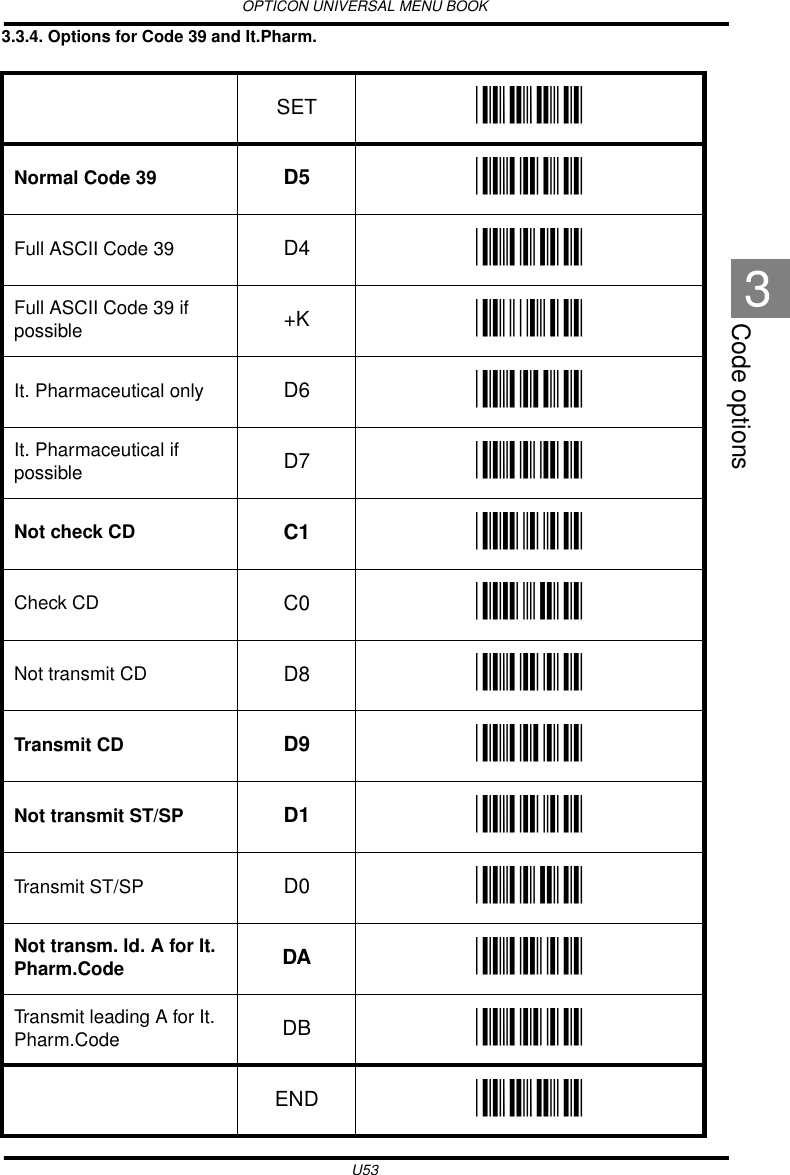

OPTICON UNIVERSAL MENU BOOKU53Code options33.3.4. Options for Code 39 and It.Pharm. SET _ZZ_Normal Code 39 D5 _D5_Full ASCII Code 39 D4 _D4_Full ASCII Code 39 if possible +K _+K_It. Pharmaceutical only D6 _D6_It. Pharmaceutical if possible D7 _D7_Not check CD C1 _C1_Check CD C0 _C0_Not transmit CD D8 _D8_Transmit CD D9 _D9_Not transmit ST/SP D1 _D1_Transmit ST/SP D0 _D0_Not transm. ld. A for It. Pharm.Code DA _DA_Transmit leading A for It. Pharm.Code DB _DB_END _ZZ_

OPTICON UNIVERSAL MENU BOOKU54Minimum 3 digits 8D _8D_Minimum 1 digit 8E _8E_Disable concatenation +M _+M_Enable concatenation +L _+L_SET _ZZ_END _ZZ_

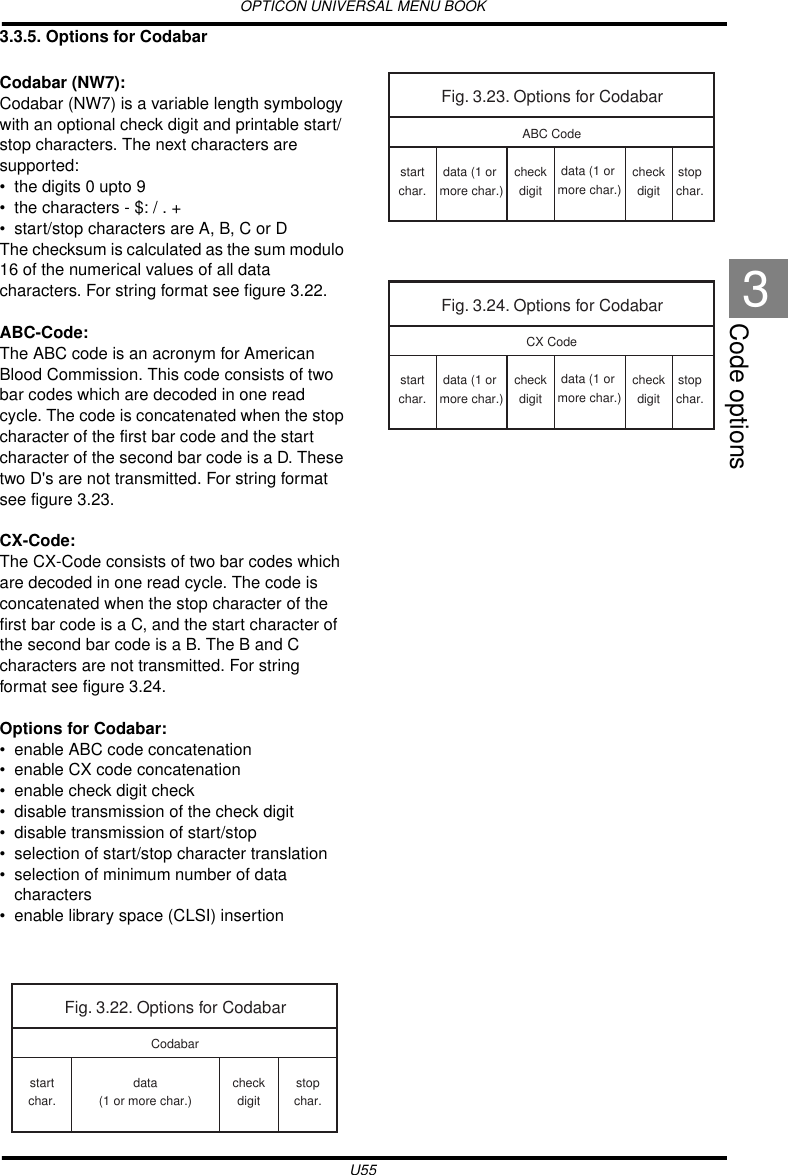

OPTICON UNIVERSAL MENU BOOKU55Code options33.3.5. Options for CodabarCodabar (NW7):Codabar (NW7) is a variable length symbology with an optional check digit and printable start/stop characters. The next characters are supported:• the digits 0 upto 9• the characters - $: / . +• start/stop characters are A, B, C or DThe checksum is calculated as the sum modulo 16 of the numerical values of all data characters. For string format see figure 3.22.ABC-Code:The ABC code is an acronym for American Blood Commission. This code consists of two bar codes which are decoded in one read cycle. The code is concatenated when the stop character of the first bar code and the start character of the second bar code is a D. These two D's are not transmitted. For string format see figure 3.23.CX-Code:The CX-Code consists of two bar codes which are decoded in one read cycle. The code is concatenated when the stop character of the first bar code is a C, and the start character of the second bar code is a B. The B and C characters are not transmitted. For string format see figure 3.24.Options for Codabar:• enable ABC code concatenation• enable CX code concatenation• enable check digit check• disable transmission of the check digit• disable transmission of start/stop• selection of start/stop character translation• selection of minimum number of data characters• enable library space (CLSI) insertionFig. 3.22. Options for Codabarstartchar.stopchar.data(1 or more char.)checkdigitCodabarFig. 3.23. Options for CodabarABC Codestartchar.stopchar.data (1 or more char.)checkdigitcheckdigitdata (1 or more char.)Fig. 3.24. Options for CodabarCX Codestartchar.stopchar.data (1 or more char.)checkdigitcheckdigitdata (1 or more char.)

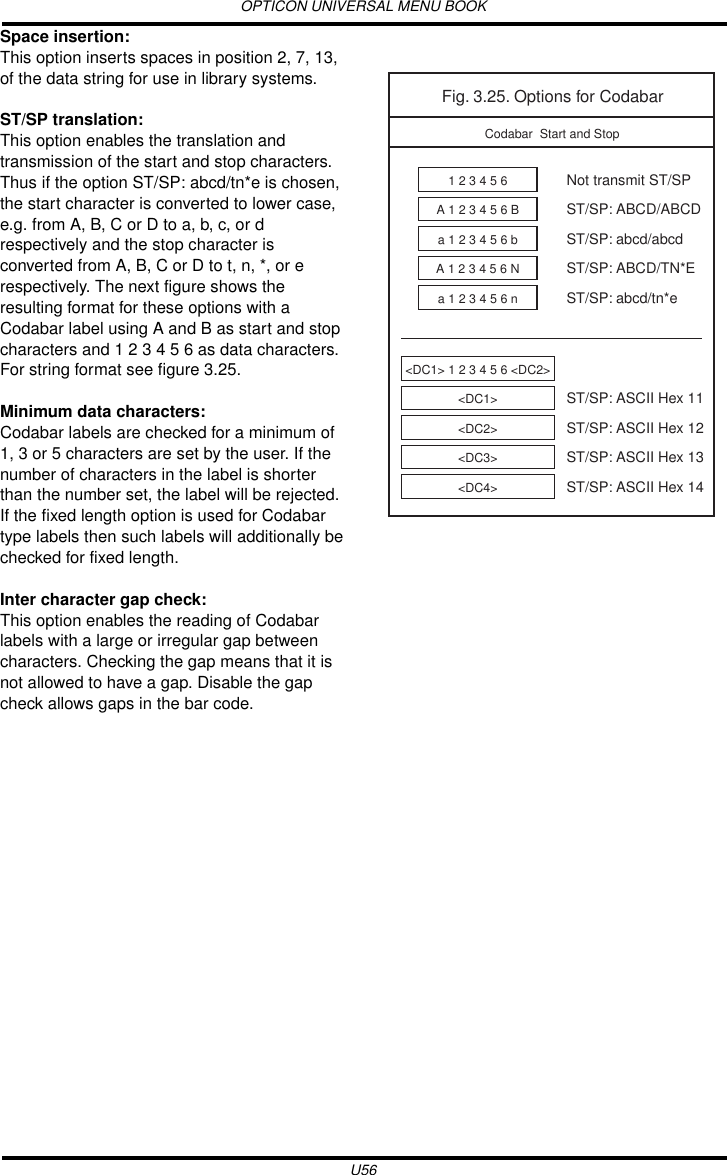

OPTICON UNIVERSAL MENU BOOKU56Space insertion:This option inserts spaces in position 2, 7, 13, of the data string for use in library systems.ST/SP translation:This option enables the translation and transmission of the start and stop characters. Thus if the option ST/SP: abcd/tn*e is chosen, the start character is converted to lower case, e.g. from A, B, C or D to a, b, c, or d respectively and the stop character is converted from A, B, C or D to t, n, *, or e respectively. The next figure shows the resulting format for these options with a Codabar label using A and B as start and stop characters and 1 2 3 4 5 6 as data characters. For string format see figure 3.25.Minimum data characters:Codabar labels are checked for a minimum of 1, 3 or 5 characters are set by the user. If the number of characters in the label is shorter than the number set, the label will be rejected. If the fixed length option is used for Codabar type labels then such labels will additionally be checked for fixed length.Inter character gap check:This option enables the reading of Codabar labels with a large or irregular gap between characters. Checking the gap means that it is not allowed to have a gap. Disable the gap check allows gaps in the bar code.Fig. 3.25. Options for CodabarCodabar Start and Stop1 2 3 4 5 6Not transmit ST/SPA 1 2 3 4 5 6 BST/SP: ABCD/ABCDa 1 2 3 4 5 6 bST/SP: abcd/abcdA 1 2 3 4 5 6 NST/SP: ABCD/TN*Ea 1 2 3 4 5 6 nST/SP: abcd/tn*e<DC1>ST/SP: ASCII Hex 11<DC2>ST/SP: ASCII Hex 12<DC3>ST/SP: ASCII Hex 13<DC4>ST/SP: ASCII Hex 14<DC1> 1 2 3 4 5 6 <DC2>

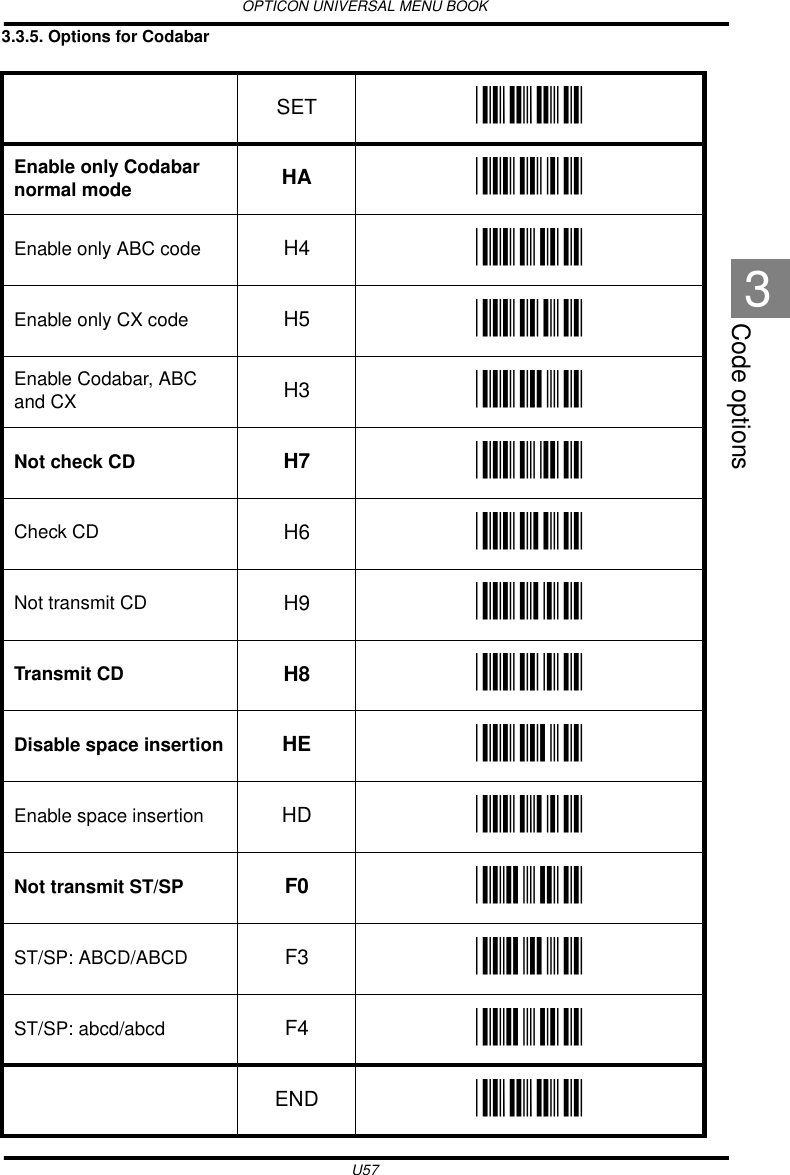

OPTICON UNIVERSAL MENU BOOKU57Code options33.3.5. Options for Codabar SET _ZZ_Enable only Codabar normal mode HA _HA_Enable only ABC code H4 _H4_Enable only CX code H5 _H5_Enable Codabar, ABC and CX H3 _H3_Not check CD H7 _H7_Check CD H6 _H6_Not transmit CD H9 _H9_Transmit CD H8 _H8_Disable space insertion HE _HE_Enable space insertion HD _HD_Not transmit ST/SP F0 _F0_ST/SP: ABCD/ABCD F3 _F3_ST/SP: abcd/abcd F4 _F4_END _ZZ_

OPTICON UNIVERSAL MENU BOOKU58ST/SP: ABCD/TN*E F1 _F1_ST/SP: abcd/tn*e F2 _F2_ST/SP: <DC1><DC2><DC3><DC4>/<DC1><DC2><DC3><DC4>HJ _HJ_Minimum data one character HC _HC_Minimum data three characters HB _HB_Minimum data five characters HF _HF_Disable intercharacter gap check HI _HI_Enable intercharacter gap check HH _HH_SET _ZZ_END _ZZ_

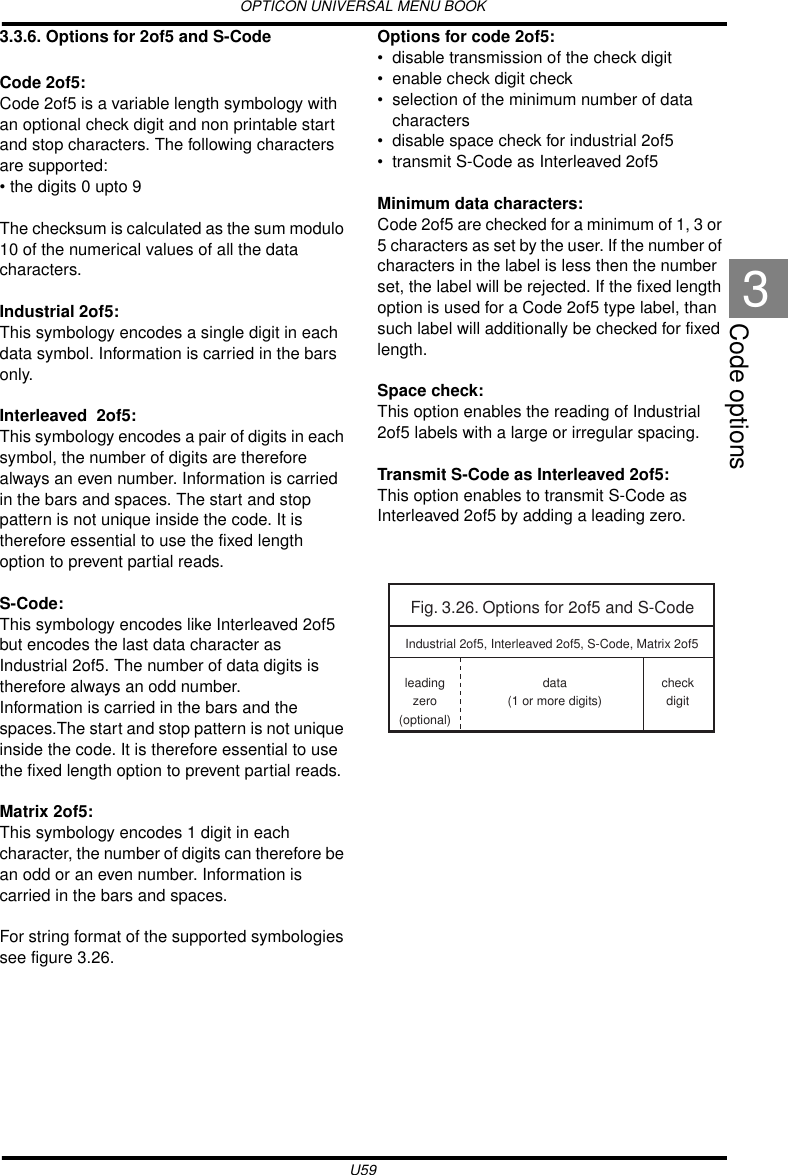

OPTICON UNIVERSAL MENU BOOKU59Code options33.3.6. Options for 2of5 and S-CodeCode 2of5:Code 2of5 is a variable length symbology with an optional check digit and non printable start and stop characters. The following characters are supported:• the digits 0 upto 9The checksum is calculated as the sum modulo 10 of the numerical values of all the data characters.Industrial 2of5:This symbology encodes a single digit in each data symbol. Information is carried in the bars only.Interleaved 2of5:This symbology encodes a pair of digits in each symbol, the number of digits are therefore always an even number. Information is carried in the bars and spaces. The start and stop pattern is not unique inside the code. It is therefore essential to use the fixed length option to prevent partial reads.S-Code:This symbology encodes like Interleaved 2of5 but encodes the last data character as Industrial 2of5. The number of data digits is therefore always an odd number.Information is carried in the bars and the spaces.The start and stop pattern is not unique inside the code. It is therefore essential to use the fixed length option to prevent partial reads.Matrix 2of5:This symbology encodes 1 digit in each character, the number of digits can therefore be an odd or an even number. Information is carried in the bars and spaces. For string format of the supported symbologies see figure 3.26.Options for code 2of5:• disable transmission of the check digit• enable check digit check• selection of the minimum number of data characters• disable space check for industrial 2of5• transmit S-Code as Interleaved 2of5Minimum data characters:Code 2of5 are checked for a minimum of 1, 3 or 5 characters as set by the user. If the number of characters in the label is less then the number set, the label will be rejected. If the fixed length option is used for a Code 2of5 type label, than such label will additionally be checked for fixed length.Space check:This option enables the reading of Industrial 2of5 labels with a large or irregular spacing.Transmit S-Code as Interleaved 2of5:This option enables to transmit S-Code as Interleaved 2of5 by adding a leading zero.Fig. 3.26. Options for 2of5 and S-Codeleadingzero(optional)data(1 or more digits)checkdigitIndustrial 2of5, Interleaved 2of5, S-Code, Matrix 2of5

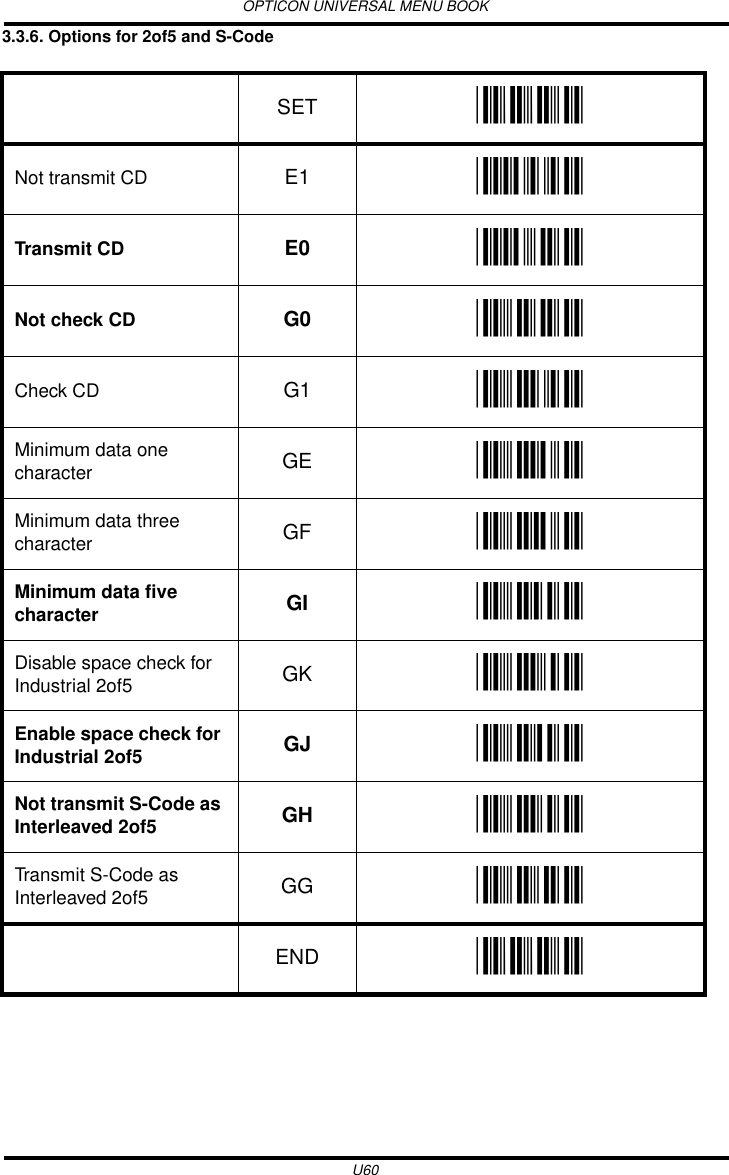

OPTICON UNIVERSAL MENU BOOKU603.3.6. Options for 2of5 and S-Code SET _ZZ_Not transmit CD E1 _E1_Transmit CD E0 _E0_Not check CD G0 _G0_Check CD G1 _G1_Minimum data one character GE _GE_Minimum data three character GF _GF_Minimum data five character GI _GI_Disable space check for Industrial 2of5 GK _GK_Enable space check for Industrial 2of5 GJ _GJ_Not transmit S-Code as Interleaved 2of5 GH _GH_Transmit S-Code as Interleaved 2of5 GG _GG_END _ZZ_

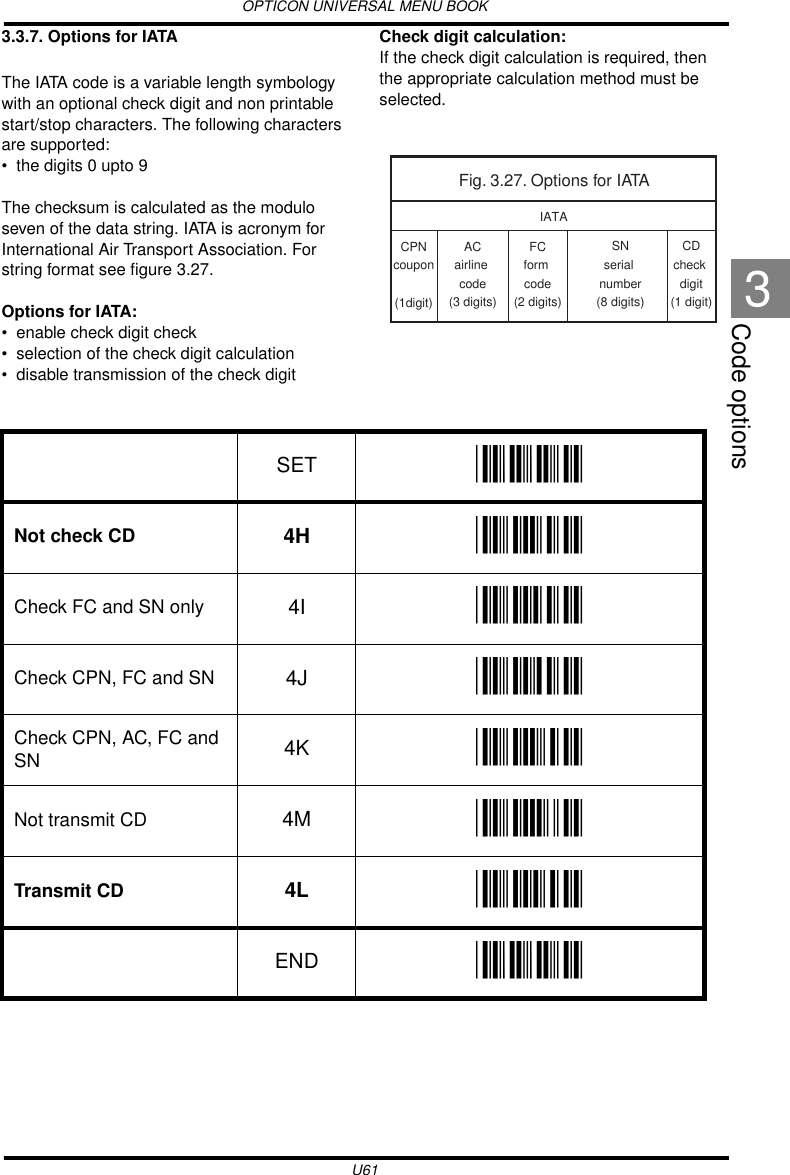

OPTICON UNIVERSAL MENU BOOKU61Code options33.3.7. Options for IATAThe IATA code is a variable length symbology with an optional check digit and non printable start/stop characters. The following characters are supported: • the digits 0 upto 9The checksum is calculated as the modulo seven of the data string. IATA is acronym for International Air Transport Association. For string format see figure 3.27.Options for IATA:• enable check digit check• selection of the check digit calculation• disable transmission of the check digitCheck digit calculation:If the check digit calculation is required, then the appropriate calculation method must be selected. Fig. 3.27. Options for IATAIATACPNcoupon(1digit)ACairline code(3 digits)CDcheck digit(1 digit)FCform code(2 digits)SNserial number(8 digits)SET _ZZ_Not check CD 4H _4H_Check FC and SN only 4I _4I_Check CPN, FC and SN 4J _4J_Check CPN, AC, FC and SN 4K _4K_Not transmit CD 4M _4M_Transmit CD 4L _4L_END _ZZ_

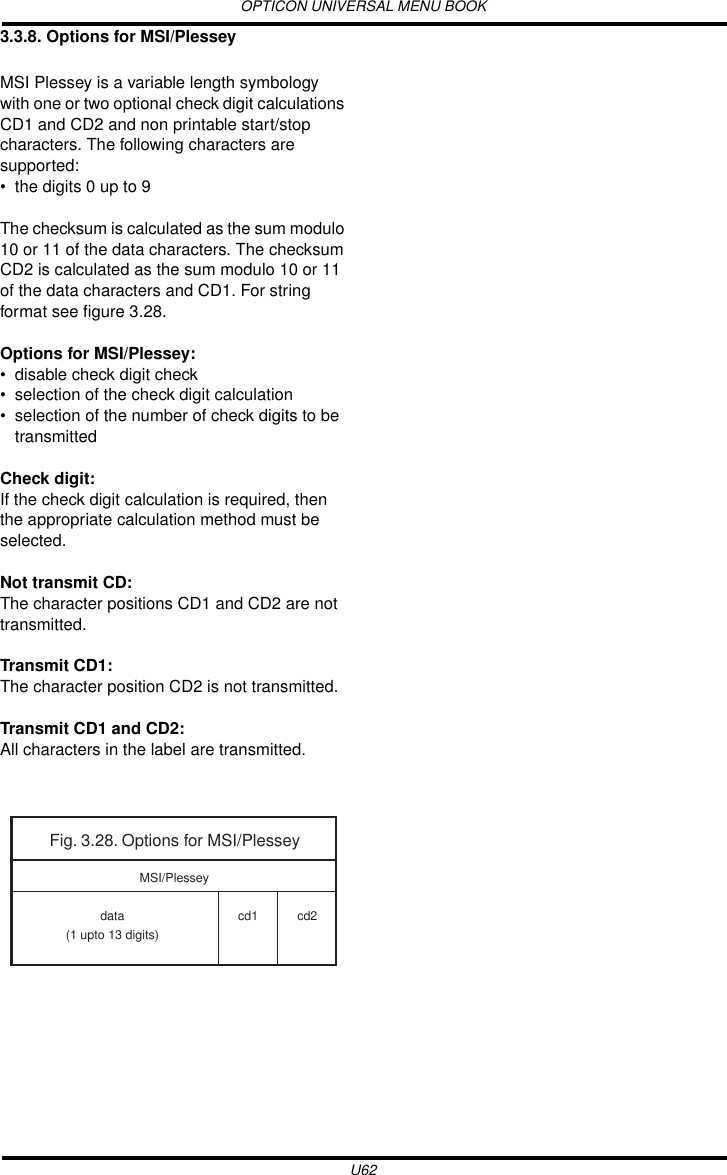

OPTICON UNIVERSAL MENU BOOKU623.3.8. Options for MSI/PlesseyMSI Plessey is a variable length symbology with one or two optional check digit calculations CD1 and CD2 and non printable start/stop characters. The following characters are supported: • the digits 0 up to 9The checksum is calculated as the sum modulo 10 or 11 of the data characters. The checksum CD2 is calculated as the sum modulo 10 or 11 of the data characters and CD1. For string format see figure 3.28.Options for MSI/Plessey:• disable check digit check• selection of the check digit calculation• selection of the number of check digits to be transmittedCheck digit:If the check digit calculation is required, then the appropriate calculation method must be selected.Not transmit CD:The character positions CD1 and CD2 are not transmitted.Transmit CD1:The character position CD2 is not transmitted.Transmit CD1 and CD2:All characters in the label are transmitted.Fig. 3.28. Options for MSI/Plesseydata(1 upto 13 digits)cd1 cd2MSI/Plessey

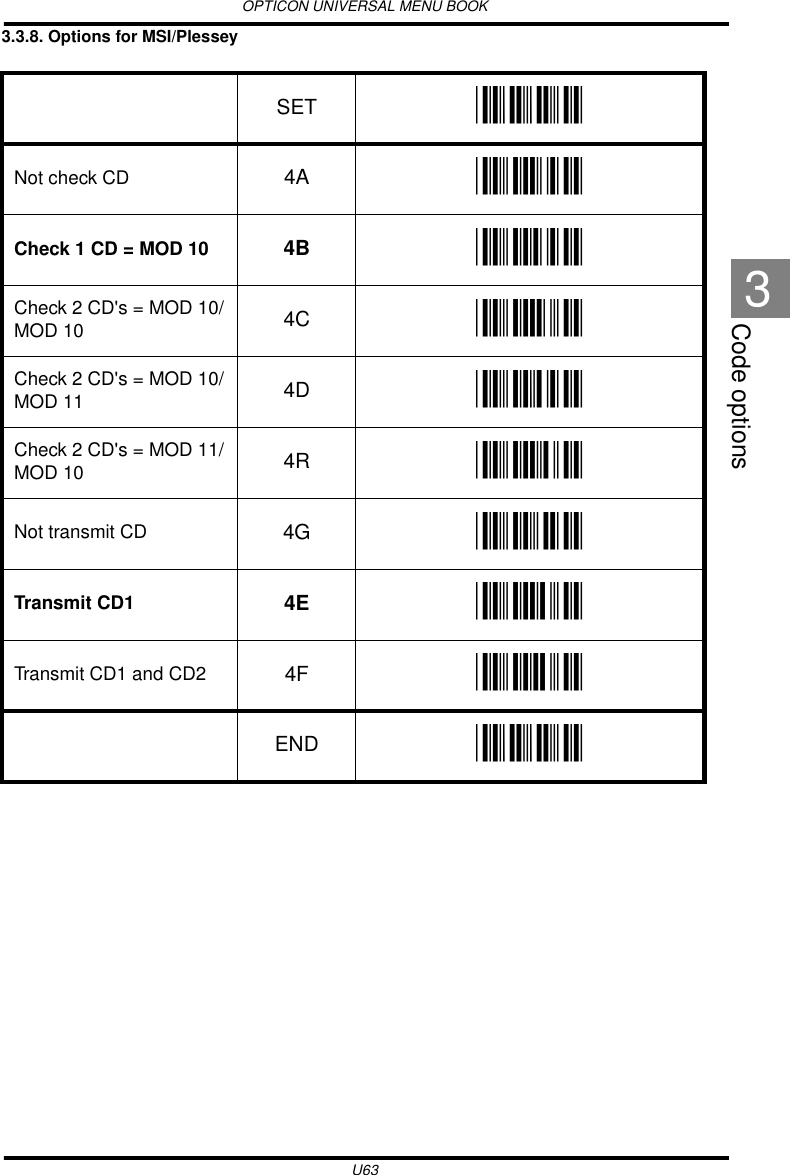

OPTICON UNIVERSAL MENU BOOKU63Code options33.3.8. Options for MSI/Plessey SET _ZZ_Not check CD 4A _4A_Check 1 CD = MOD 10 4B _4B_Check 2 CD's = MOD 10/MOD 10 4C _4C_Check 2 CD's = MOD 10/MOD 11 4D _4D_Check 2 CD's = MOD 11/MOD 10 4R _4R_Not transmit CD 4G _4G_Transmit CD1 4E _4E_Transmit CD1 and CD2 4F _4F_END _ZZ_

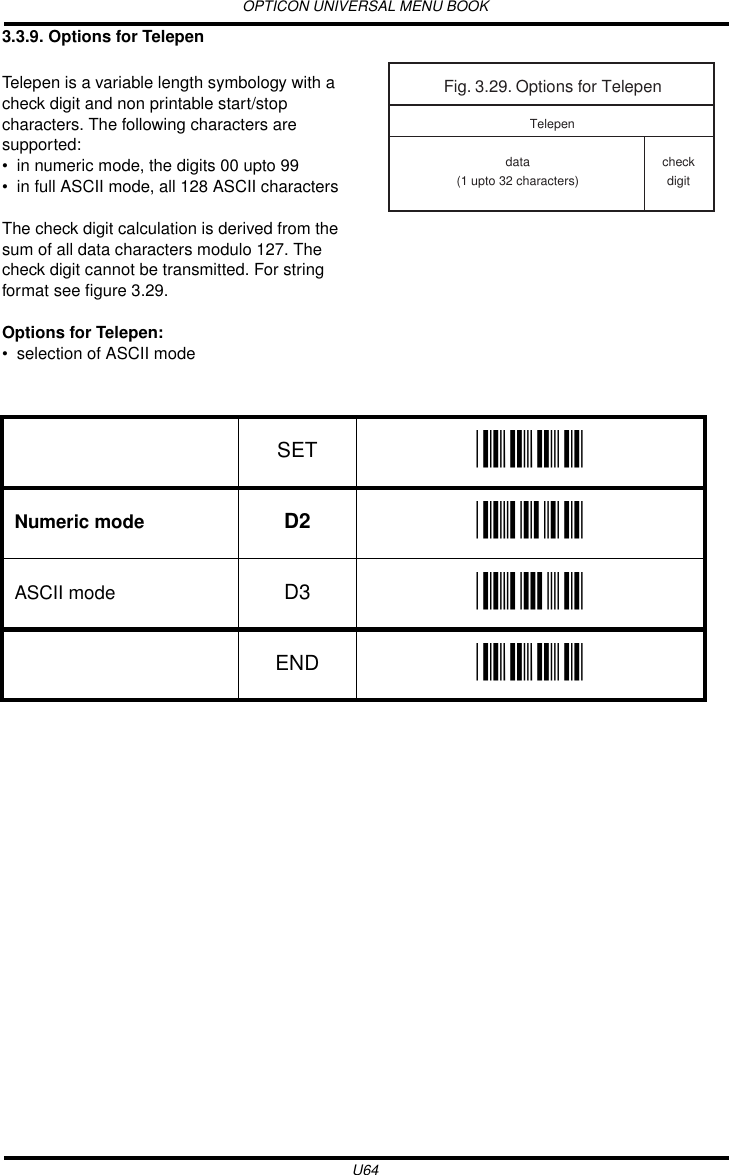

OPTICON UNIVERSAL MENU BOOKU643.3.9. Options for TelepenTelepen is a variable length symbology with a check digit and non printable start/stop characters. The following characters are supported:• in numeric mode, the digits 00 upto 99• in full ASCII mode, all 128 ASCII charactersThe check digit calculation is derived from the sum of all data characters modulo 127. The check digit cannot be transmitted. For string format see figure 3.29.Options for Telepen:• selection of ASCII mode Fig. 3.29. Options for Telependata(1 upto 32 characters)TelepencheckdigitSET _ZZ_Numeric mode D2 _D2_ASCII mode D3 _D3_END _ZZ_

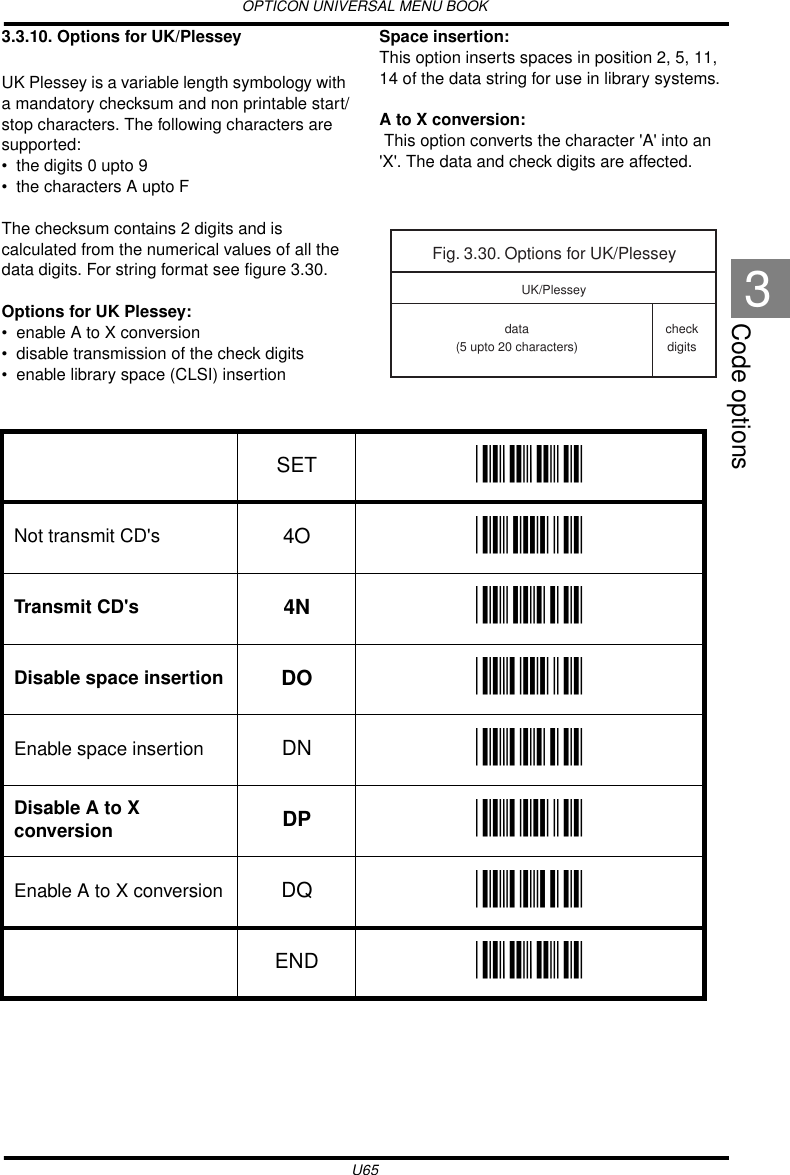

OPTICON UNIVERSAL MENU BOOKU65Code options33.3.10. Options for UK/PlesseyUK Plessey is a variable length symbology with a mandatory checksum and non printable start/stop characters. The following characters are supported:• the digits 0 upto 9• the characters A upto FThe checksum contains 2 digits and is calculated from the numerical values of all the data digits. For string format see figure 3.30.Options for UK Plessey:• enable A to X conversion• disable transmission of the check digits• enable library space (CLSI) insertionSpace insertion:This option inserts spaces in position 2, 5, 11, 14 of the data string for use in library systems.A to X conversion: This option converts the character 'A' into an 'X'. The data and check digits are affected.Fig. 3.30. Options for UK/Plesseydata(5 upto 20 characters)checkdigitsUK/PlesseySET _ZZ_Not transmit CD's 4O _4O_Transmit CD's 4N _4N_Disable space insertion DO _DO_Enable space insertion DN _DN_Disable A to X conversion DP _DP_Enable A to X conversion DQ _DQ_END _ZZ_

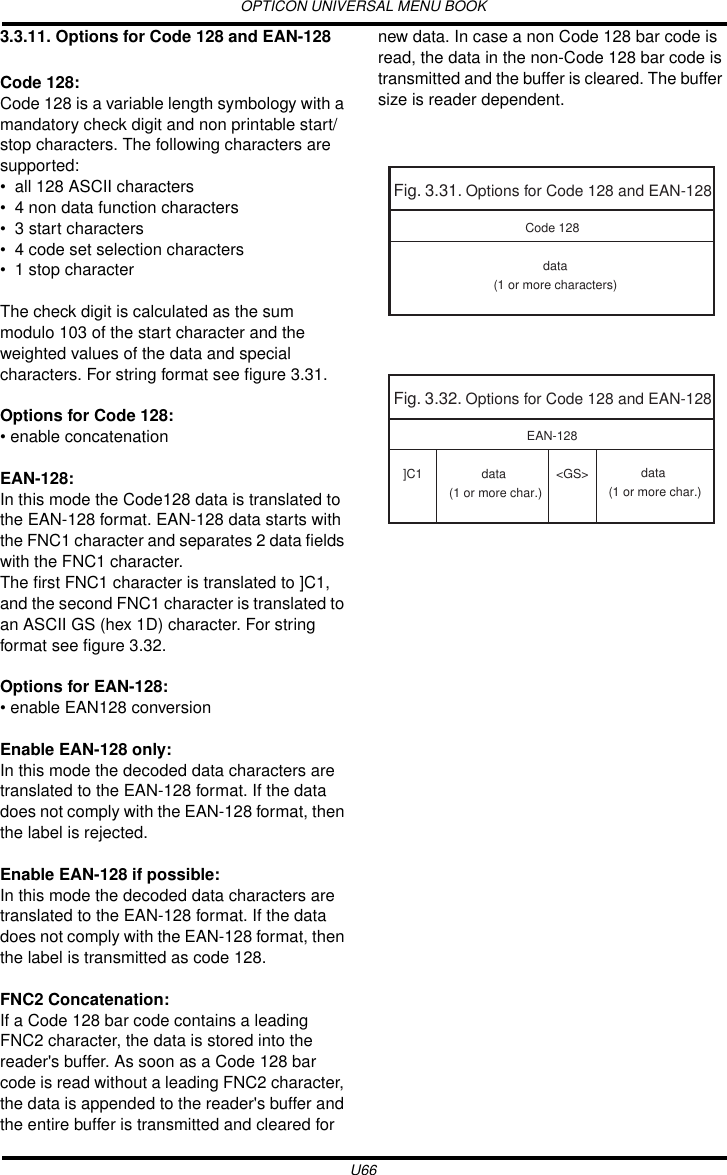

OPTICON UNIVERSAL MENU BOOKU663.3.11. Options for Code 128 and EAN-128Code 128:Code 128 is a variable length symbology with a mandatory check digit and non printable start/stop characters. The following characters are supported:• all 128 ASCII characters• 4 non data function characters • 3 start characters• 4 code set selection characters • 1 stop characterThe check digit is calculated as the sum modulo 103 of the start character and the weighted values of the data and special characters. For string format see figure 3.31.Options for Code 128: • enable concatenationEAN-128:In this mode the Code128 data is translated to the EAN-128 format. EAN-128 data starts with the FNC1 character and separates 2 data fields with the FNC1 character.The first FNC1 character is translated to ]C1, and the second FNC1 character is translated to an ASCII GS (hex 1D) character. For string format see figure 3.32.Options for EAN-128: • enable EAN128 conversionEnable EAN-128 only:In this mode the decoded data characters are translated to the EAN-128 format. If the data does not comply with the EAN-128 format, then the label is rejected.Enable EAN-128 if possible:In this mode the decoded data characters are translated to the EAN-128 format. If the data does not comply with the EAN-128 format, then the label is transmitted as code 128.FNC2 Concatenation:If a Code 128 bar code contains a leading FNC2 character, the data is stored into the reader's buffer. As soon as a Code 128 bar code is read without a leading FNC2 character, the data is appended to the reader's buffer and the entire buffer is transmitted and cleared for new data. In case a non Code 128 bar code is read, the data in the non-Code 128 bar code is transmitted and the buffer is cleared. The buffer size is reader dependent.Fig. 3.31. Options for Code 128 and EAN-128data(1 or more characters)Code 128Fig. 3.32. Options for Code 128 and EAN-128EAN-128]C1 data (1 or more char.)<GS> data (1 or more char.)

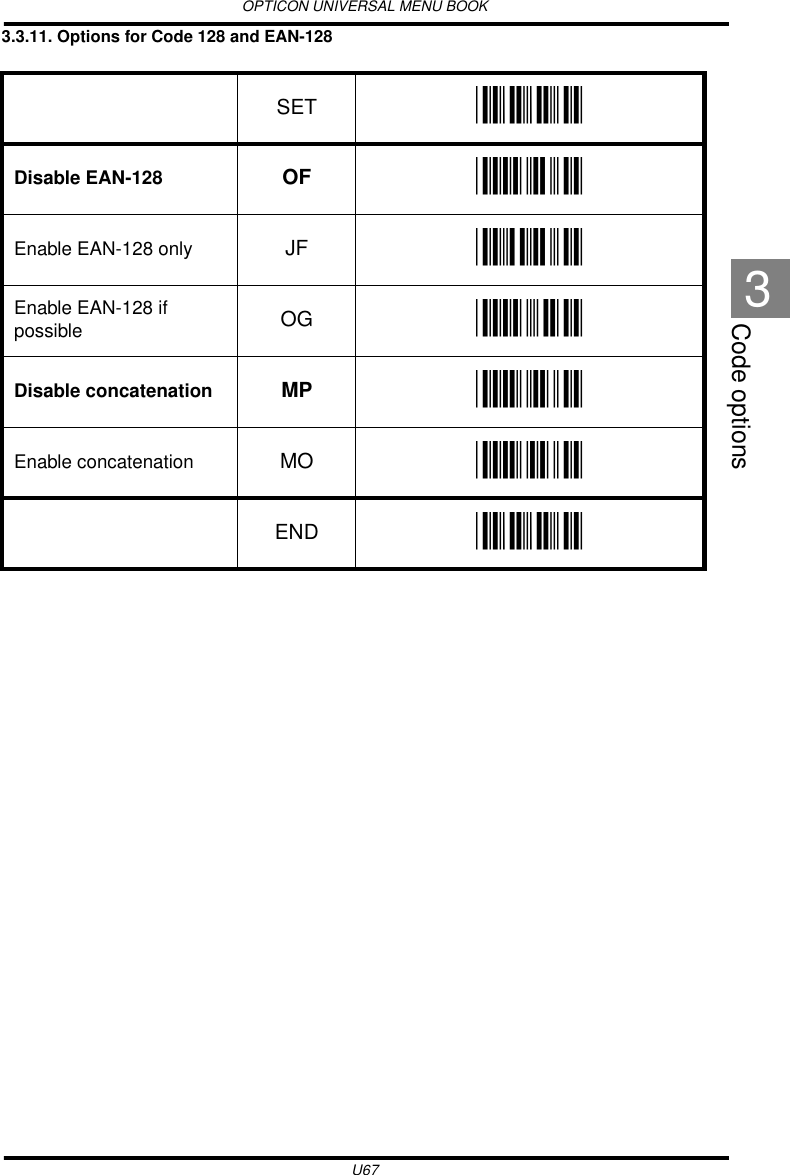

OPTICON UNIVERSAL MENU BOOKU67Code options33.3.11. Options for Code 128 and EAN-128 SET _ZZ_Disable EAN-128 OF _OF_Enable EAN-128 only JF _JF_Enable EAN-128 if possible OG _OG_Disable concatenation MP _MP_Enable concatenation MO _MO_END _ZZ_

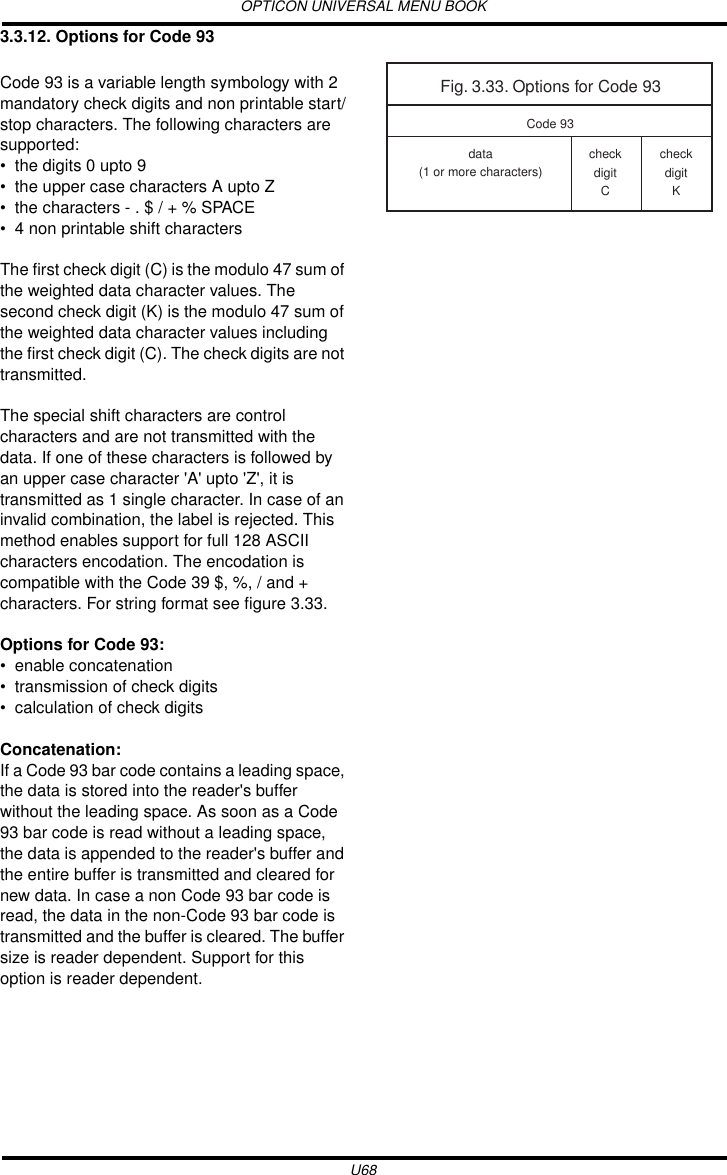

OPTICON UNIVERSAL MENU BOOKU683.3.12. Options for Code 93Code 93 is a variable length symbology with 2 mandatory check digits and non printable start/stop characters. The following characters are supported:• the digits 0 upto 9• the upper case characters A upto Z• the characters - . $ / + % SPACE• 4 non printable shift charactersThe first check digit (C) is the modulo 47 sum of the weighted data character values. The second check digit (K) is the modulo 47 sum of the weighted data character values including the first check digit (C). The check digits are not transmitted.The special shift characters are control characters and are not transmitted with the data. If one of these characters is followed by an upper case character 'A' upto 'Z', it is transmitted as 1 single character. In case of an invalid combination, the label is rejected. This method enables support for full 128 ASCII characters encodation. The encodation is compatible with the Code 39 $, %, / and + characters. For string format see figure 3.33.Options for Code 93:• enable concatenation• transmission of check digits• calculation of check digitsConcatenation:If a Code 93 bar code contains a leading space, the data is stored into the reader's buffer without the leading space. As soon as a Code 93 bar code is read without a leading space, the data is appended to the reader's buffer and the entire buffer is transmitted and cleared for new data. In case a non Code 93 bar code is read, the data in the non-Code 93 bar code is transmitted and the buffer is cleared. The buffer size is reader dependent. Support for this option is reader dependent.Fig. 3.33. Options for Code 93data(1 or more characters)Code 93checkdigitKcheckdigitC

OPTICON UNIVERSAL MENU BOOKU69Code options33.3.12. Options for Code 93 SET _ZZ_Not check CD 9Q _9Q_Check CD AC _AC_Not transmit CD DZ _DZ_Transmit CD DY _DY_Disable concatenation +W _+W_Enable concatenation +V _+V_END _ZZ_

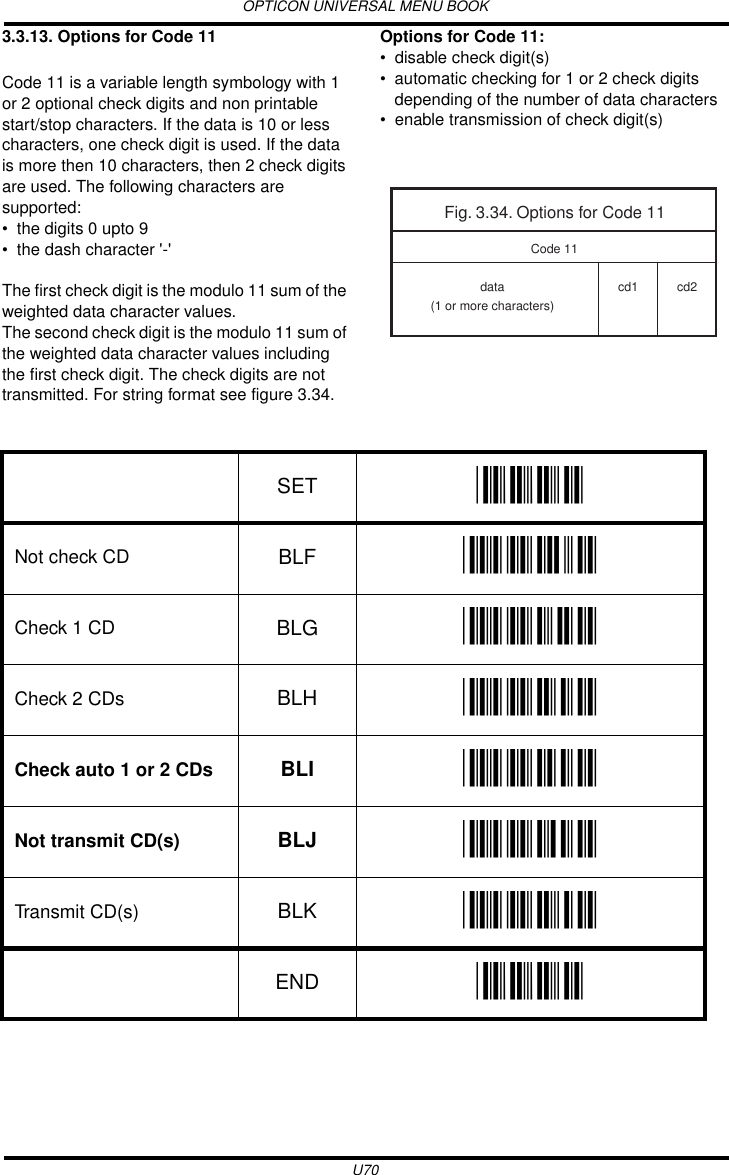

OPTICON UNIVERSAL MENU BOOKU703.3.13. Options for Code 11Code 11 is a variable length symbology with 1 or 2 optional check digits and non printable start/stop characters. If the data is 10 or less characters, one check digit is used. If the data is more then 10 characters, then 2 check digits are used. The following characters are supported:• the digits 0 upto 9• the dash character '-'The first check digit is the modulo 11 sum of the weighted data character values.The second check digit is the modulo 11 sum of the weighted data character values including the first check digit. The check digits are not transmitted. For string format see figure 3.34.Options for Code 11:• disable check digit(s)• automatic checking for 1 or 2 check digits depending of the number of data characters• enable transmission of check digit(s)Fig. 3.34. Options for Code 11data(1 or more characters)cd1 cd2Code 11SET _ZZ_Not check CD BLF _BLF_Check 1 CD BLG _BLG_Check 2 CDs BLH _BLH_Check auto 1 or 2 CDs BLI _BLI_Not transmit CD(s) BLJ _BLJ_Transmit CD(s) BLK _BLK_END _ZZ_

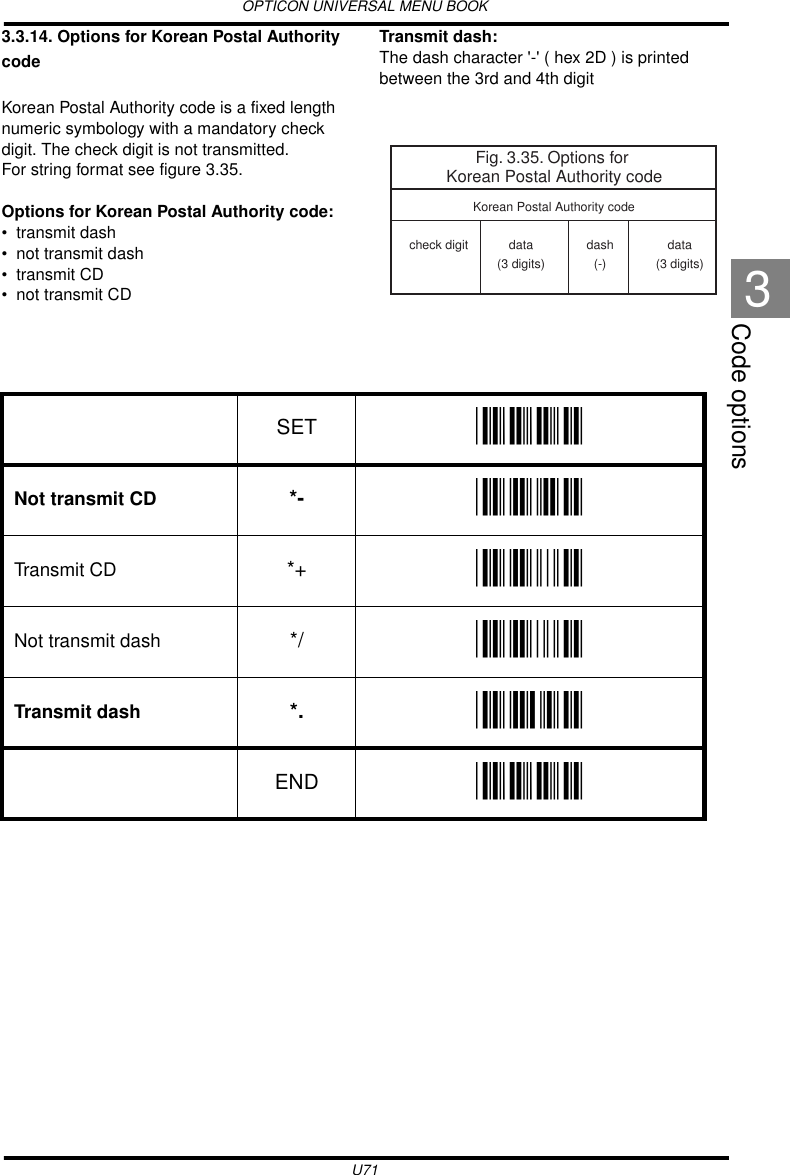

OPTICON UNIVERSAL MENU BOOKU71Code options33.3.14. Options for Korean Postal Authority codeKorean Postal Authority code is a fixed length numeric symbology with a mandatory check digit. The check digit is not transmitted.For string format see figure 3.35.Options for Korean Postal Authority code:• transmit dash• not transmit dash• transmit CD• not transmit CDTransmit dash:The dash character '-' ( hex 2D ) is printed between the 3rd and 4th digit Fig. 3.35. Options for Korean Postal Authority codecheck digit data(3 digits)data(3 digits)Korean Postal Authority codedash(-)SET _ZZ_Not transmit CD *- _*-_Transmit CD *+ _*+_Not transmit dash */ _*/_Transmit dash *. _*._END _ZZ_

OPTICON UNIVERSAL MENU BOOKU723.3.15. Options for RSSSupport for these options is reader dependent.Maximum data capacity:• RSS-14 group and RSS limited: Application Identifier "01" and 14 digits.• RSS Expanded: 74 numeric or 41 alpha charactersChecksums:The RSS family uses a mandatory checksum. The RSS-14 group uses a modulo 79 checksum, RSS Limited uses a modulo 89 checksum and RSS Expanded uses a modulo 211 checksum. The checksum is always calculated and is not transmitted.Encodable characters:• RSS-14 group and RSS limited: digits 0 up to 9• RSS Expanded: subset of ISO 646: upper, lower case characters, digits, 20 punctuation characters and function character FNC1The next RSS versions are supported:• RSS-14 including truncated, stacked, stacked omni directional• RSS Limited• RSS Expanded, Expanded stackedFor string format see figure 3.36 or 3.37.Options for RSS:• transmission of CD• transmission of Application IdentifierNot transmit CD:Do not transmit the last character of RSS. Fig. 3.36. Options for RSSapplication identifier (01)data(13 digits)cd(1 digit)RSS-14, RSS LimitedFig. 3.37. Options for RSSdata(1 upto 73 characters)cd(1 character)RSS ExpandedSET _ZZ_Not transmit CD DM _DM_Transmit CD DL _DL_Not transmit Application Identifier DT _DT_Transmit Application Identifier DS _DS_END _ZZ_

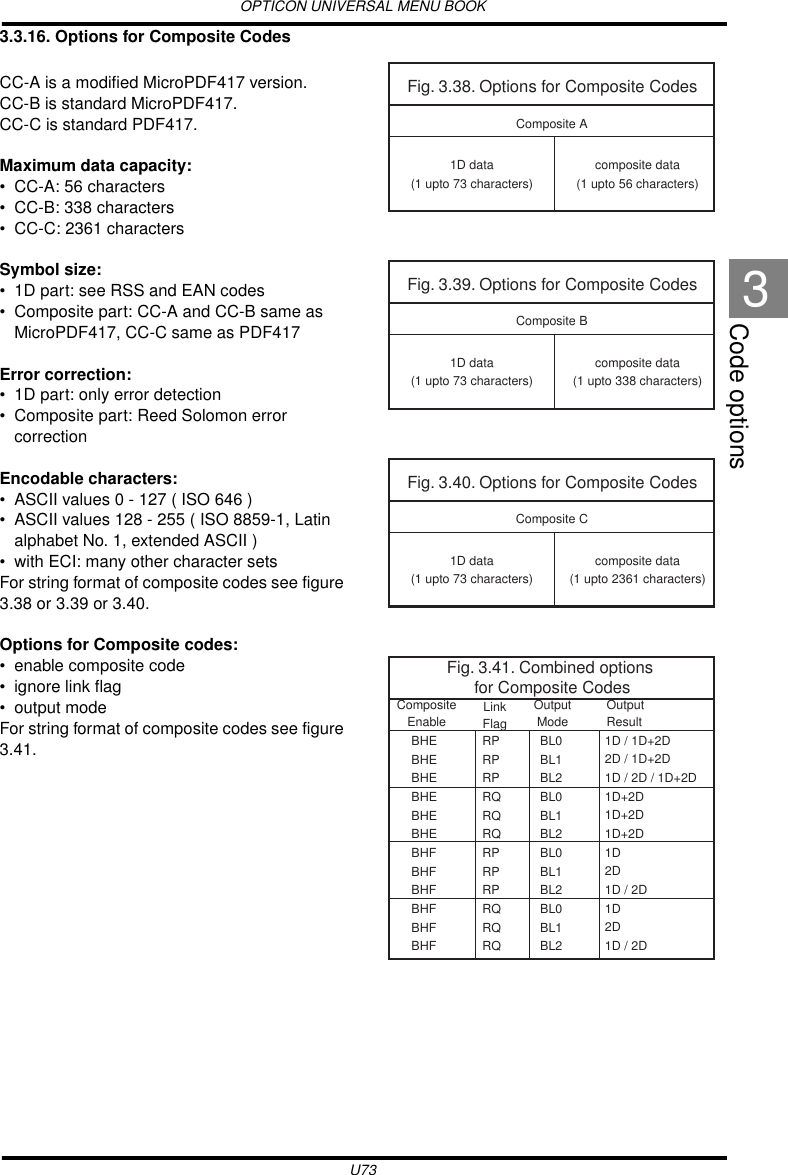

OPTICON UNIVERSAL MENU BOOKU73Code options33.3.16. Options for Composite CodesCC-A is a modified MicroPDF417 version.CC-B is standard MicroPDF417.CC-C is standard PDF417.Maximum data capacity:• CC-A: 56 characters• CC-B: 338 characters• CC-C: 2361 charactersSymbol size:• 1D part: see RSS and EAN codes• Composite part: CC-A and CC-B same as MicroPDF417, CC-C same as PDF417Error correction:• 1D part: only error detection• Composite part: Reed Solomon error correctionEncodable characters:• ASCII values 0 - 127 ( ISO 646 )• ASCII values 128 - 255 ( ISO 8859-1, Latin alphabet No. 1, extended ASCII )• with ECI: many other character setsFor string format of composite codes see figure 3.38 or 3.39 or 3.40.Options for Composite codes:• enable composite code• ignore link flag• output modeFor string format of composite codes see figure 3.41.Fig. 3.38. Options for Composite Codes1D data(1 upto 73 characters)Composite Acomposite data(1 upto 56 characters)Fig. 3.39. Options for Composite Codes1D data(1 upto 73 characters)Composite Bcomposite data(1 upto 338 characters)Fig. 3.40. Options for Composite Codes1D data(1 upto 73 characters)Composite Ccomposite data(1 upto 2361 characters)Fig. 3.40. Options for Composite Codes1D data(1 upto 73 characters)Composite Ccomposite data(1 upto 2361 characters)Fig. 3.41. Combined options for Composite CodesBHEBHEBHEBHEBHEBHEBHFBHFBHFBHFBHFBHFCompositeEnableOutputResultLinkFlagOutputModeRPRPRPRQRQRQRPRPRPRQRQRQBL0BL1BL2BL0BL1BL2BL0BL1BL2BL0BL1BL21D / 1D+2D2D / 1D+2D1D / 2D / 1D+2D1D+2D1D+2D1D+2D1D 2D 1D / 2D1D 2D 1D / 2D

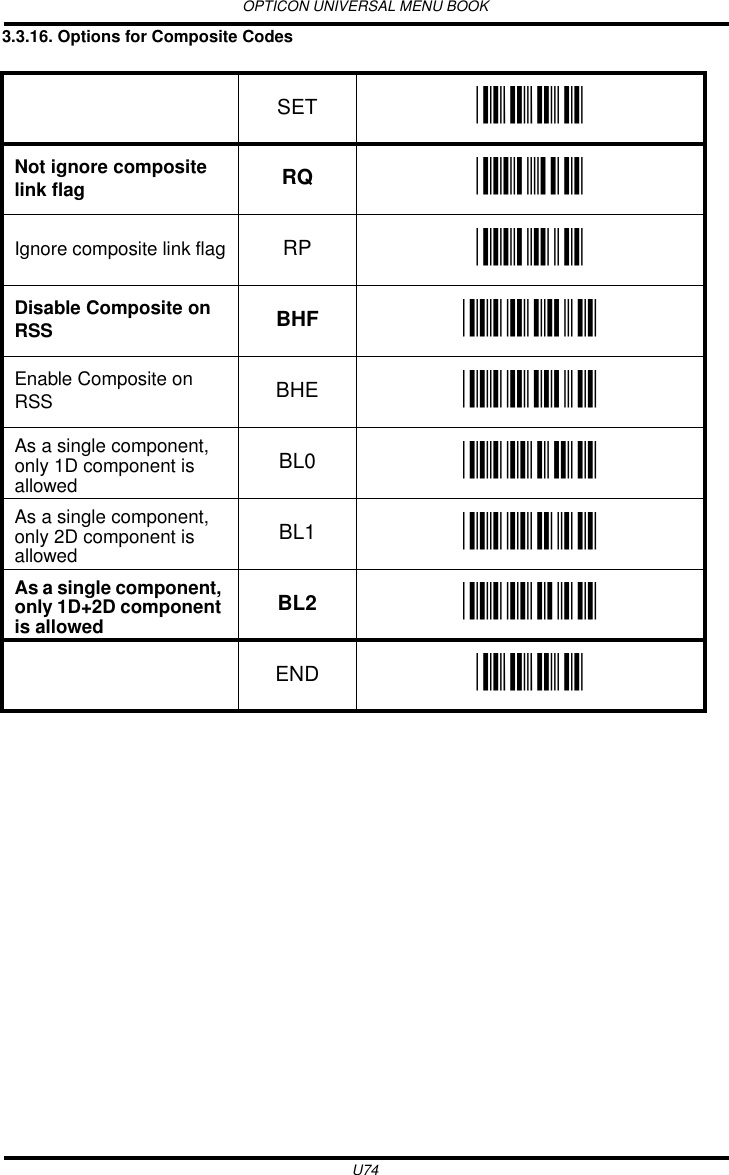

OPTICON UNIVERSAL MENU BOOKU743.3.16. Options for Composite Codes SET _ZZ_Not ignore composite link flag RQ _RQ_Ignore composite link flag RP _RP_Disable Composite on RSS BHF _BHF_Enable Composite on RSS BHE _BHE_As a single component, only 1D component is allowed BL0 _BL0_As a single component, only 2D component is allowed BL1 _BL1_As a single component, only 1D+2D component is allowed BL2 _BL2_END _ZZ_

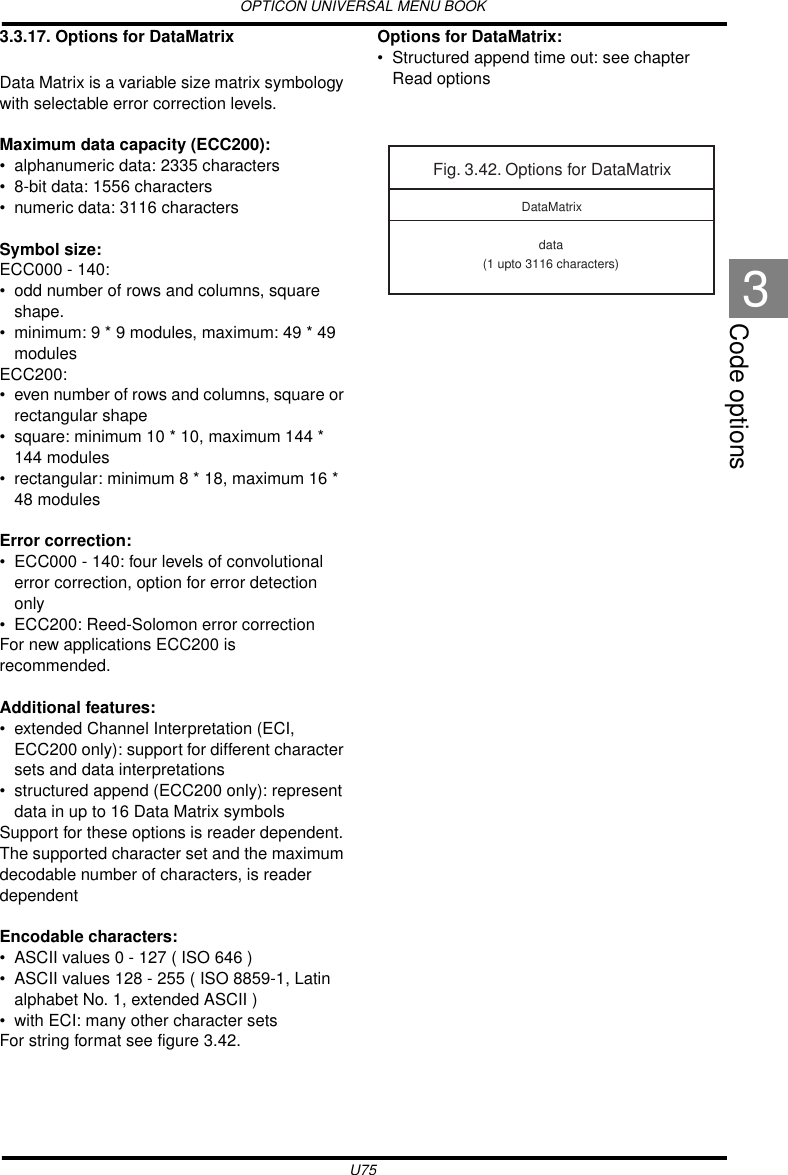

OPTICON UNIVERSAL MENU BOOKU75Code options33.3.17. Options for DataMatrixData Matrix is a variable size matrix symbology with selectable error correction levels.Maximum data capacity (ECC200):• alphanumeric data: 2335 characters• 8-bit data: 1556 characters• numeric data: 3116 charactersSymbol size:ECC000 - 140:• odd number of rows and columns, square shape.• minimum: 9 * 9 modules, maximum: 49 * 49 modulesECC200:• even number of rows and columns, square or rectangular shape• square: minimum 10 * 10, maximum 144 * 144 modules• rectangular: minimum 8 * 18, maximum 16 * 48 modulesError correction:• ECC000 - 140: four levels of convolutional error correction, option for error detection only• ECC200: Reed-Solomon error correctionFor new applications ECC200 is recommended.Additional features:• extended Channel Interpretation (ECI, ECC200 only): support for different character sets and data interpretations• structured append (ECC200 only): represent data in up to 16 Data Matrix symbolsSupport for these options is reader dependent. The supported character set and the maximum decodable number of characters, is reader dependentEncodable characters:• ASCII values 0 - 127 ( ISO 646 )• ASCII values 128 - 255 ( ISO 8859-1, Latin alphabet No. 1, extended ASCII )• with ECI: many other character setsFor string format see figure 3.42.Options for DataMatrix:• Structured append time out: see chapter Read optionsFig. 3.42. Options for DataMatrixdata(1 upto 3116 characters)DataMatrix

OPTICON UNIVERSAL MENU BOOKU763.3.18. Options for AztecAztec code is a variable size matrix symbology with selectable error correction levels.Maximum data capacity:Standard Aztec:• alphanumeric: 3067 characters• numeric: 3832 characters• byte: 1914 charactersAztec runes:• values 000 up to 255 ( 3 digits )Symbol size:Standard Aztec:• minimum: 15 * 15 modules• maximum: 151 * 151 modulesAztec runes:• fixed: 11 * 11 modulesError correction:User selectable Reed-Solomon error correction levels from 5% to 95% of data region.Additional features:• extended Channel Interpretation (ECI): support for different character sets and data interpretations• structured append: represent data in up to 26 Aztec symbols• mirror image: decode symbol in mirror reversal presentationSupport for these options is reader dependent. The supported character set and the maximum decodable number of characters, is reader dependentEncodable characters:• ASCII values 0 - 127 ( ISO 646 )• ASCII values 128 - 255 ( ISO 8859-1, Latin alphabet No. 1, extended ASCII )• with ECI: many other character setsFor string format see figure 3.43.Options for Aztec:• structured append time out: see chapter Read options Fig. 3.43. Options for Aztecdata(1 upto 3832 characters)Aztec

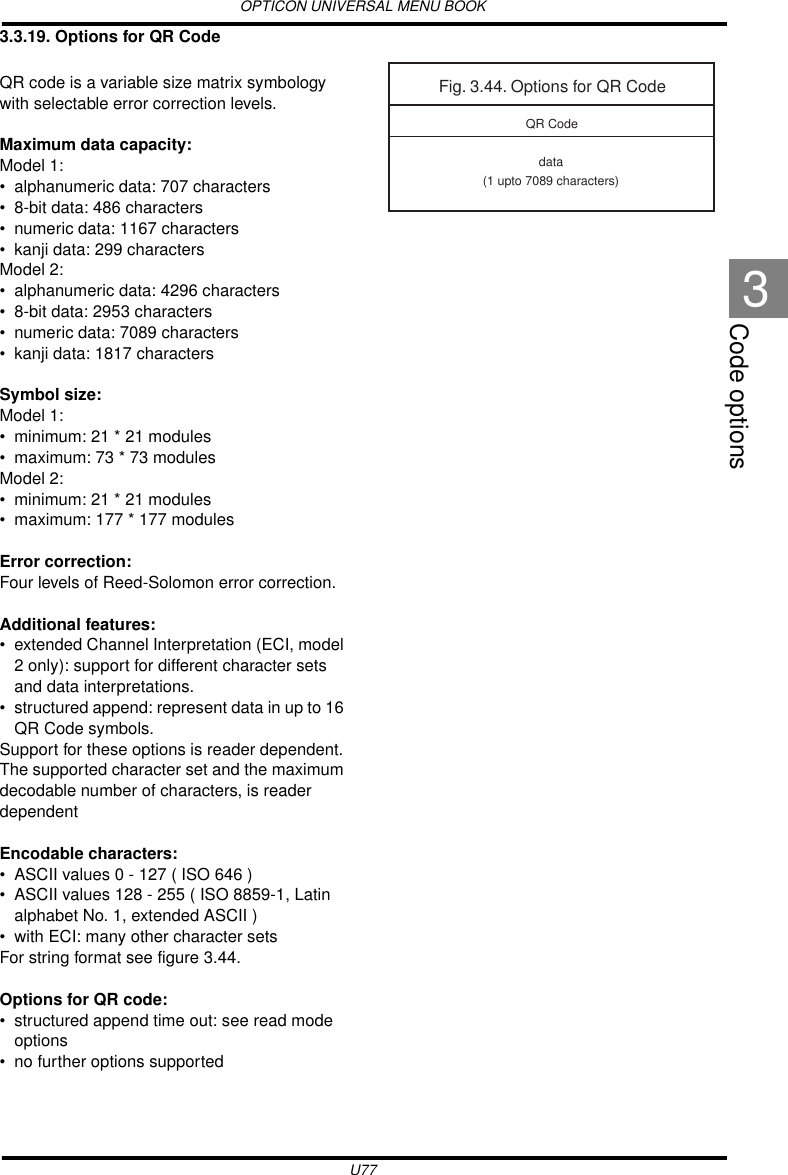

OPTICON UNIVERSAL MENU BOOKU77Code options33.3.19. Options for QR CodeQR code is a variable size matrix symbology with selectable error correction levels. Maximum data capacity:Model 1:• alphanumeric data: 707 characters• 8-bit data: 486 characters• numeric data: 1167 characters• kanji data: 299 charactersModel 2:• alphanumeric data: 4296 characters• 8-bit data: 2953 characters• numeric data: 7089 characters• kanji data: 1817 charactersSymbol size:Model 1:• minimum: 21 * 21 modules• maximum: 73 * 73 modulesModel 2:• minimum: 21 * 21 modules• maximum: 177 * 177 modulesError correction:Four levels of Reed-Solomon error correction.Additional features:• extended Channel Interpretation (ECI, model 2 only): support for different character sets and data interpretations. • structured append: represent data in up to 16 QR Code symbols. Support for these options is reader dependent. The supported character set and the maximum decodable number of characters, is reader dependentEncodable characters:• ASCII values 0 - 127 ( ISO 646 )• ASCII values 128 - 255 ( ISO 8859-1, Latin alphabet No. 1, extended ASCII )• with ECI: many other character setsFor string format see figure 3.44.Options for QR code:• structured append time out: see read mode options• no further options supportedFig. 3.44. Options for QR Codedata(1 upto 7089 characters)QR Code

OPTICON UNIVERSAL MENU BOOKU783.3.20. Options for MaxicodeMaxicode is a fixed size matrix symbology with selectable error correction levels.Maximum data capacity:• alphanumeric data: 93 characters• numeric data: 138 charactersSymbol size:28.14mm wide * 26.91mm high ( including quiet zones )Error correction:2 levels of Reed-Solomon error correction.Additional features:• extended Channel Interpretation (ECI): support for different character sets and data interpretations• structured append: represent data in up to 8 Maxicode symbolsSupport for these options is reader dependent. The supported character set and the maximum decodable number of characters, is reader dependent.Encodable characters:• ASCII values 0 - 127 ( ISO 646 )• ASCII values 128 - 255 ( ISO 8859-1, Latin alphabet No. 1, extended ASCII )• with ECI: many other character setsFor string format see figure 3.45.Options for Maxicode:• structured append time out: see read mode options• no further options supportedFig. 3.45. Options for Maxicodedata(1 upto 138 characters)Maxicode

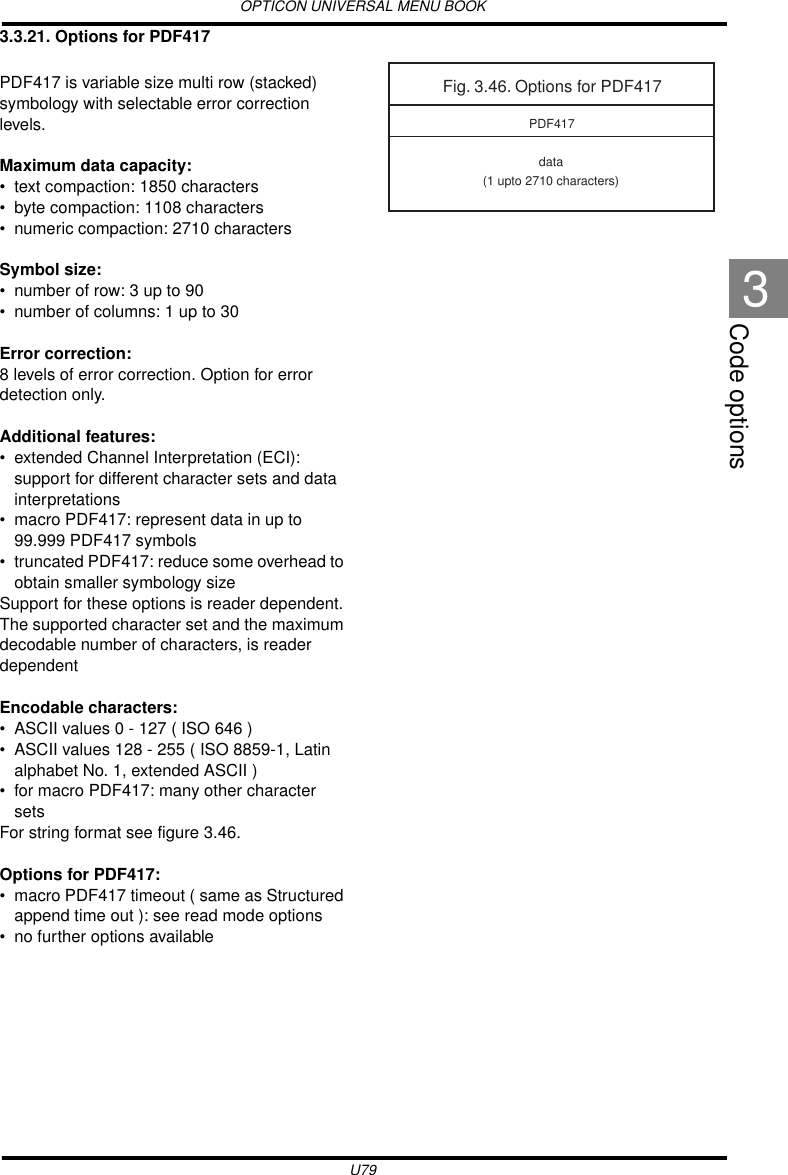

OPTICON UNIVERSAL MENU BOOKU79Code options33.3.21. Options for PDF417PDF417 is variable size multi row (stacked) symbology with selectable error correction levels. Maximum data capacity:• text compaction: 1850 characters• byte compaction: 1108 characters• numeric compaction: 2710 charactersSymbol size:• number of row: 3 up to 90• number of columns: 1 up to 30Error correction:8 levels of error correction. Option for error detection only.Additional features:• extended Channel Interpretation (ECI): support for different character sets and data interpretations • macro PDF417: represent data in up to 99.999 PDF417 symbols • truncated PDF417: reduce some overhead to obtain smaller symbology sizeSupport for these options is reader dependent. The supported character set and the maximum decodable number of characters, is reader dependentEncodable characters:• ASCII values 0 - 127 ( ISO 646 )• ASCII values 128 - 255 ( ISO 8859-1, Latin alphabet No. 1, extended ASCII )• for macro PDF417: many other character setsFor string format see figure 3.46.Options for PDF417:• macro PDF417 timeout ( same as Structured append time out ): see read mode options• no further options availableFig. 3.46. Options for PDF417data(1 upto 2710 characters)PDF417

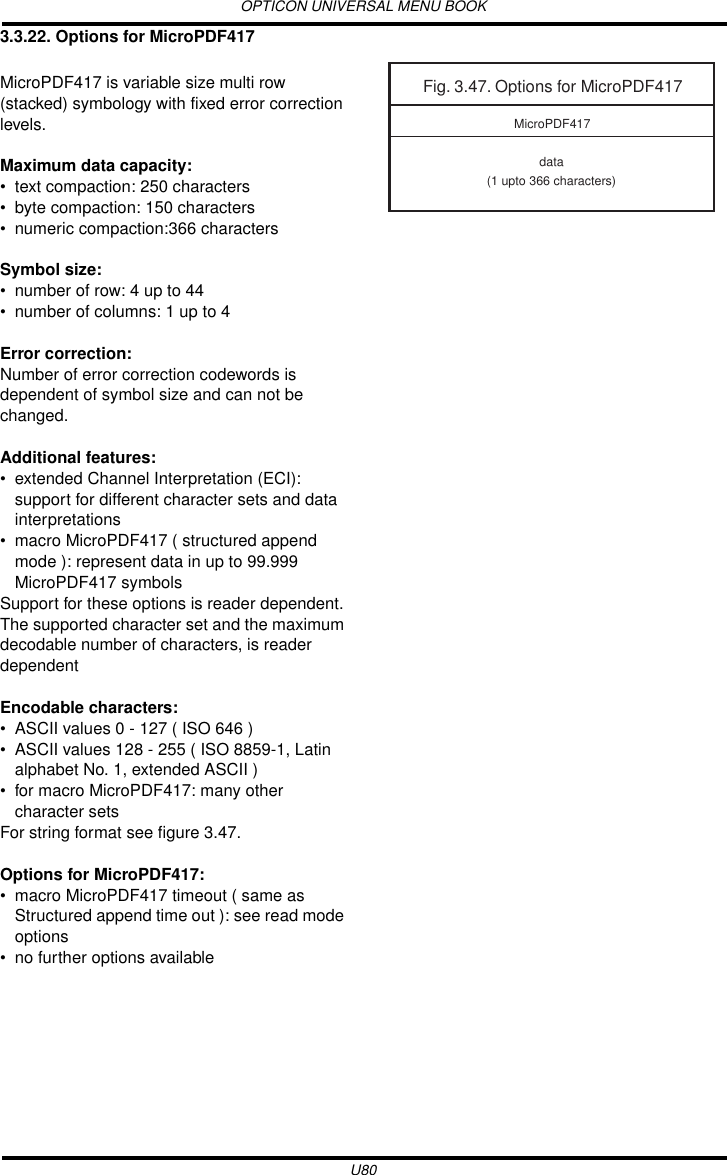

OPTICON UNIVERSAL MENU BOOKU803.3.22. Options for MicroPDF417MicroPDF417 is variable size multi row (stacked) symbology with fixed error correction levels.Maximum data capacity:• text compaction: 250 characters• byte compaction: 150 characters• numeric compaction:366 charactersSymbol size:• number of row: 4 up to 44• number of columns: 1 up to 4Error correction:Number of error correction codewords is dependent of symbol size and can not be changed.Additional features:• extended Channel Interpretation (ECI): support for different character sets and data interpretations• macro MicroPDF417 ( structured append mode ): represent data in up to 99.999 MicroPDF417 symbolsSupport for these options is reader dependent. The supported character set and the maximum decodable number of characters, is reader dependentEncodable characters:• ASCII values 0 - 127 ( ISO 646 )• ASCII values 128 - 255 ( ISO 8859-1, Latin alphabet No. 1, extended ASCII )• for macro MicroPDF417: many other character setsFor string format see figure 3.47.Options for MicroPDF417:• macro MicroPDF417 timeout ( same as Structured append time out ): see read mode options• no further options availableFig. 3.47. Options for MicroPDF417data(1 upto 366 characters)MicroPDF417

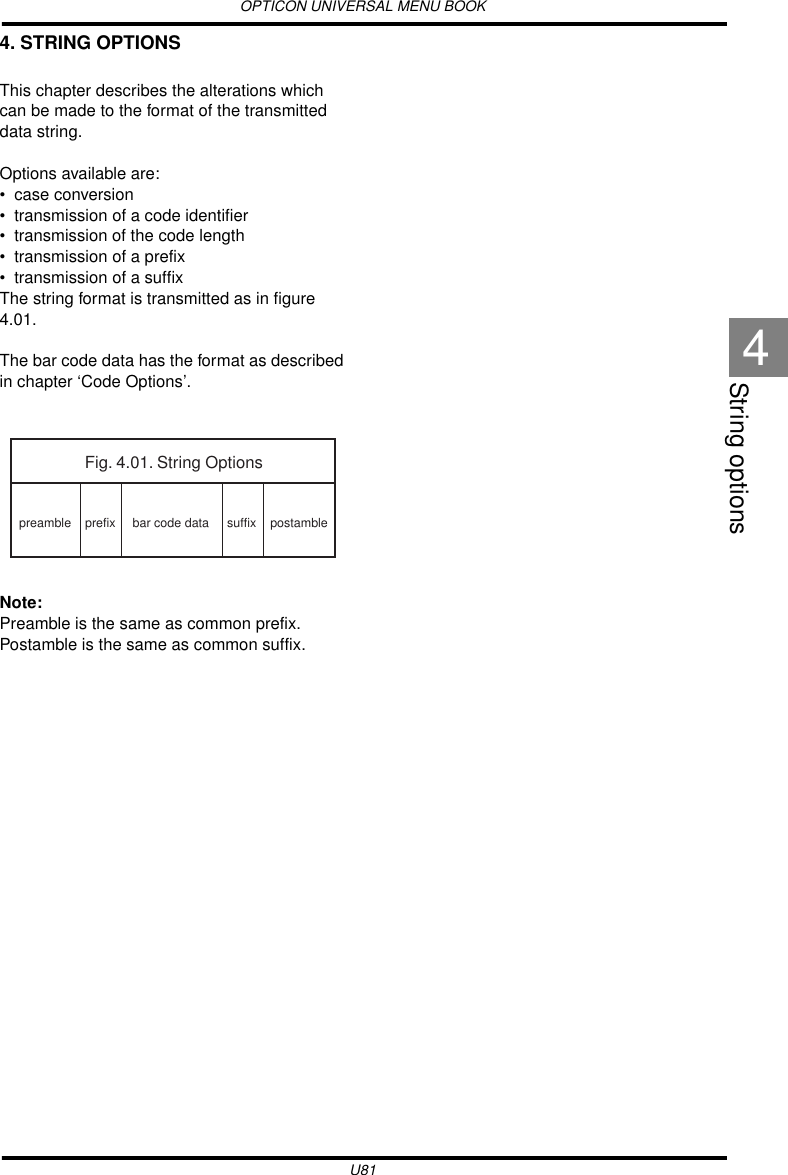

OPTICON UNIVERSAL MENU BOOKU81String options44. STRING OPTIONSThis chapter describes the alterations which can be made to the format of the transmitted data string.Options available are:• case conversion• transmission of a code identifier• transmission of the code length• transmission of a prefix• transmission of a suffixThe string format is transmitted as in figure 4.01.The bar code data has the format as described in chapter ‘Code Options’.Note:Preamble is the same as common prefix.Postamble is the same as common suffix.Fig. 4.01. String Optionspreamble postambleprefix suffixbar code data

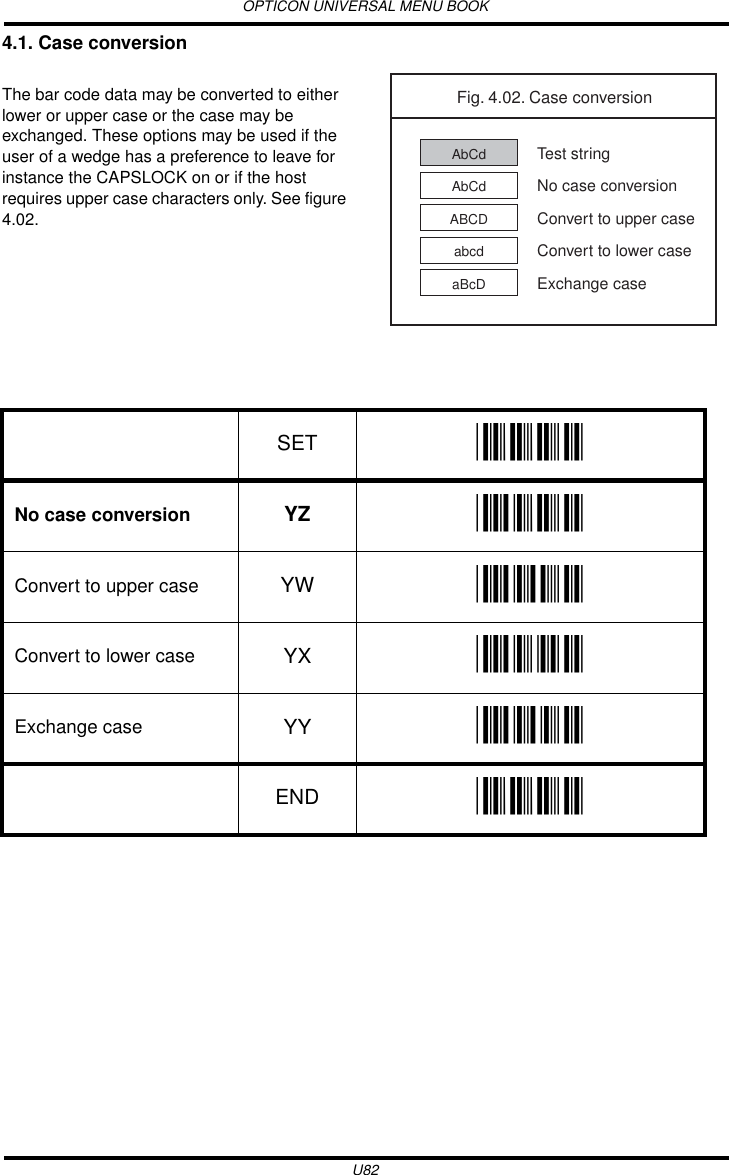

OPTICON UNIVERSAL MENU BOOKU824.1. Case conversionThe bar code data may be converted to either lower or upper case or the case may be exchanged. These options may be used if the user of a wedge has a preference to leave for instance the CAPSLOCK on or if the host requires upper case characters only. See figure 4.02. Fig. 4.02. Case conversionAbCd Test stringAbCd No case conversionABCD Convert to upper caseabcd Convert to lower caseaBcD Exchange caseSET _ZZ_No case conversion YZ _YZ_Convert to upper case YW _YW_Convert to lower case YX _YX_Exchange case YY _YY_END _ZZ_

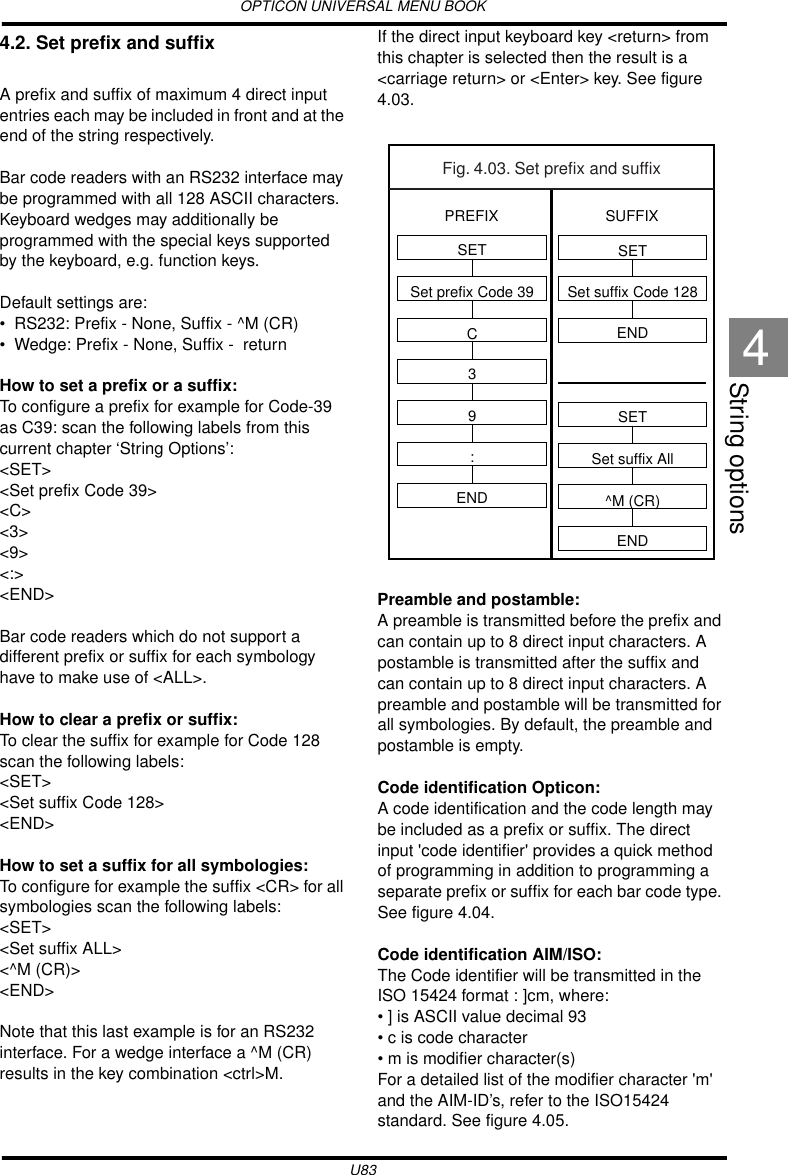

OPTICON UNIVERSAL MENU BOOKU83String options44.2. Set prefix and suffixA prefix and suffix of maximum 4 direct input entries each may be included in front and at the end of the string respectively.Bar code readers with an RS232 interface may be programmed with all 128 ASCII characters. Keyboard wedges may additionally be programmed with the special keys supported by the keyboard, e.g. function keys.Default settings are:• RS232: Prefix - None, Suffix - ^M (CR)• Wedge: Prefix - None, Suffix - returnHow to set a prefix or a suffix:To configure a prefix for example for Code-39 as C39: scan the following labels from this current chapter ‘String Options’:<SET><Set prefix Code 39> <C><3><9><:><END>Bar code readers which do not support a different prefix or suffix for each symbology have to make use of <ALL>.How to clear a prefix or suffix:To clear the suffix for example for Code 128 scan the following labels:<SET><Set suffix Code 128><END>How to set a suffix for all symbologies:To configure for example the suffix <CR> for all symbologies scan the following labels:<SET><Set suffix ALL><^M (CR)><END>Note that this last example is for an RS232 interface. For a wedge interface a ^M (CR) results in the key combination <ctrl>M.If the direct input keyboard key <return> from this chapter is selected then the result is a <carriage return> or <Enter> key. See figure 4.03.Preamble and postamble:A preamble is transmitted before the prefix and can contain up to 8 direct input characters. A postamble is transmitted after the suffix and can contain up to 8 direct input characters. A preamble and postamble will be transmitted for all symbologies. By default, the preamble and postamble is empty.Code identification Opticon:A code identification and the code length may be included as a prefix or suffix. The direct input 'code identifier' provides a quick method of programming in addition to programming a separate prefix or suffix for each bar code type. See figure 4.04.Code identification AIM/ISO:The Code identifier will be transmitted in the ISO 15424 format : ]cm, where:• ] is ASCII value decimal 93 • c is code character• m is modifier character(s)For a detailed list of the modifier character 'm' and the AIM-ID’s, refer to the ISO15424 standard. See figure 4.05. Fig. 4.03. Set prefix and suffixSETSet prefix Code 39C39:ENDSETSet suffix Code 128ENDSETSet suffix All^M (CR)ENDPREFIX SUFFIX

OPTICON UNIVERSAL MENU BOOKU84In case the modifier is an asterix (*), the value depends on the options of the symbology or on the configured Code options. For details refer to their own respective modifier tables. See figures 4.06 up to 4.15.Code length:The code length is transmitted as 2 digits, representing the decimal number of data characters transmitted, excluding prefix and suffix characters. For 2D bar codes the code length is transmitted as 6 digits. It is also possible to send for both 1D and 2D codes the length as 6 digits. These direct input characters count as 1 entry of the 4 permissible entries for a prefix or suffix. Example:If you want to configure the prefix<code identifier>:<code length>:scan the following labels:<SET><Set prefix all><Code identification><:><Code length><:><END>If you want to use the code identifiers, but need another code identifier for Code 39, you scan the following labels:<SET><Set prefix all><Code identification><:><Set prefix Code 39><$><:><END>Fig. 4.04. Set prefix and suffixOPTICON Code identifiersUPC-AUPC-A +2UPC-A +5UPC-EUPC-E +2UPC-E +5EAN-13EAN-13 +2EAN-13 +5EAN-8EAN-8 +2EAN-8 +5Code 39Code 39 Full ASCIIItalian PharmaceuticalCodabarCodabar ABCCodabar CXIndustrial 2of5Interleaved 2of5S-CodeMatrix 2of5IATAMSI/PlesseyTelepenUK/PlesseyCode 128EAN-128Code 93Code 11Korean Postal Authority codeRSSCC-ACC-BCC-CDataMatrixAztecQR codeMaxi CodeMicroPDF417PDF417----------------------------------------CFGDHIBLMAJKVWYRSfONgQPZdaTTUbcymnltouvsr

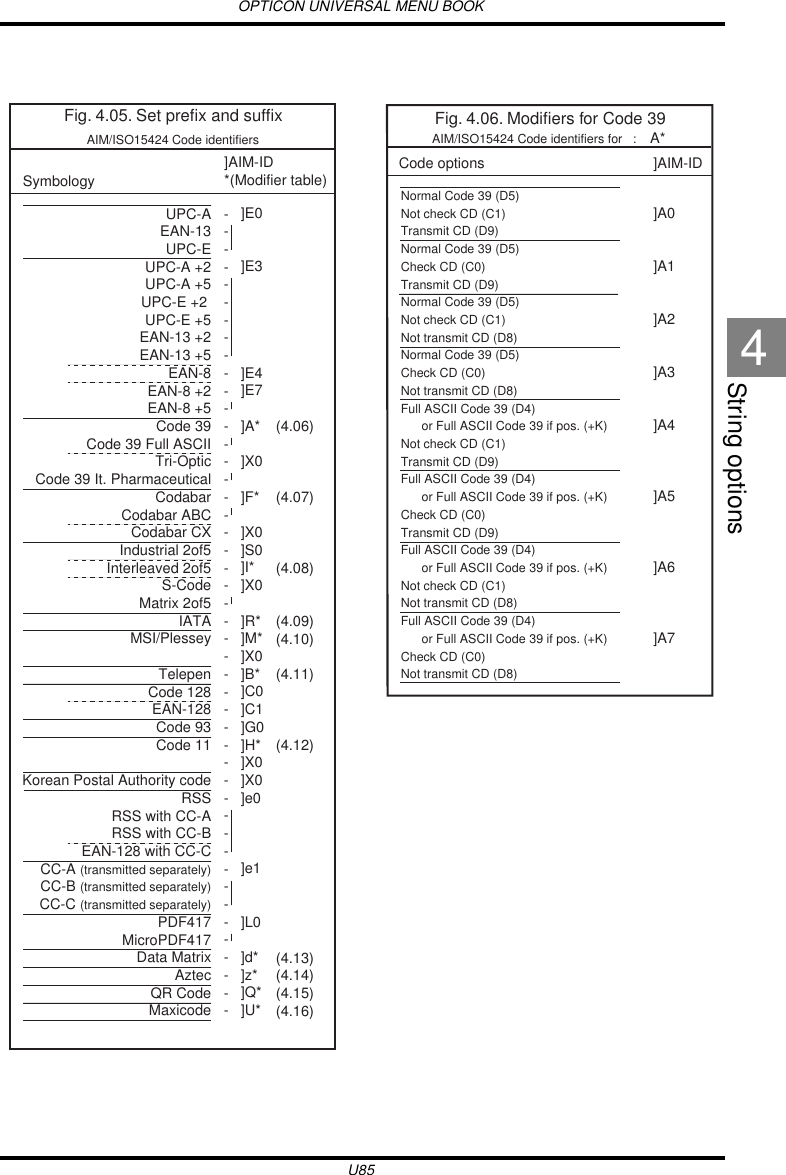

OPTICON UNIVERSAL MENU BOOKU85String options4Fig. 4.05. Set prefix and suffixAIM/ISO15424 Code identifiersUPC-AEAN-13UPC-EUPC-A +2UPC-A +5UPC-E +2 UPC-E +5EAN-13 +2EAN-13 +5EAN-8EAN-8 +2EAN-8 +5Code 39Code 39 Full ASCII Tri-OpticCode 39 It. PharmaceuticalCodabarCodabar ABCCodabar CXIndustrial 2of5Interleaved 2of5S-CodeMatrix 2of5IATAMSI/PlesseyTelepenCode 128EAN-128Code 93Code 11Korean Postal Authority codeRSSRSS with CC-ARSS with CC-BEAN-128 with CC-CCC-A (transmitted separately)CC-B (transmitted separately)CC-C (transmitted separately)PDF417MicroPDF417Data MatrixAztecQR CodeMaxicode----------------------------------------------]E0 ]E3 ]E4]E7 ]A* ]X0 ]F*]X0]S0]I*]X0]R*]M*]X0]B*]C0]C1]G0]H*]X0]X0]e0]e1]L0]d*]z*]Q*]U* (4.06) (4.07)(4.08)(4.09)(4.10)(4.11)(4.12)(4.13)(4.14)(4.15)(4.16)Symbology]AIM-ID *(Modifier table)Fig. 4.06. Modifiers for Code 39Normal Code 39 (D5)Not check CD (C1)Transmit CD (D9)Normal Code 39 (D5)Check CD (C0)Transmit CD (D9)Normal Code 39 (D5)Not check CD (C1)Not transmit CD (D8)Normal Code 39 (D5)Check CD (C0)Not transmit CD (D8)Full ASCII Code 39 (D4) or Full ASCII Code 39 if pos. (+K) Not check CD (C1)Transmit CD (D9)Full ASCII Code 39 (D4) or Full ASCII Code 39 if pos. (+K) Check CD (C0)Transmit CD (D9)Full ASCII Code 39 (D4) or Full ASCII Code 39 if pos. (+K)Not check CD (C1)Not transmit CD (D8)Full ASCII Code 39 (D4) or Full ASCII Code 39 if pos. (+K)Check CD (C0)Not transmit CD (D8)]A0]A1]A2]A3]A4]A5]A6]A7AIM/ISO15424 Code identifiers for : A*Code options ]AIM-ID

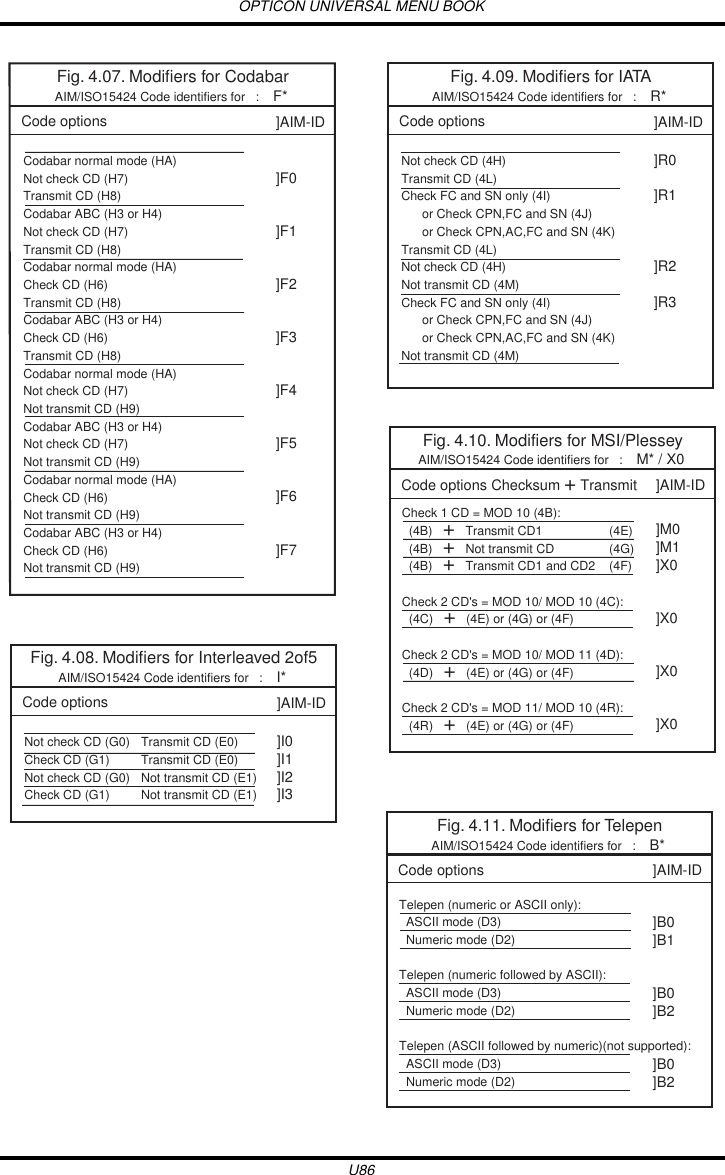

OPTICON UNIVERSAL MENU BOOKU86Fig. 4.07. Modifiers for CodabarCodabar normal mode (HA)Not check CD (H7)Transmit CD (H8)Codabar ABC (H3 or H4)Not check CD (H7)Transmit CD (H8)Codabar normal mode (HA)Check CD (H6)Transmit CD (H8)Codabar ABC (H3 or H4)Check CD (H6)Transmit CD (H8)Codabar normal mode (HA)Not check CD (H7)Not transmit CD (H9)Codabar ABC (H3 or H4)Not check CD (H7)Not transmit CD (H9)Codabar normal mode (HA)Check CD (H6)Not transmit CD (H9)Codabar ABC (H3 or H4)Check CD (H6)Not transmit CD (H9)]F0]F1]F2]F3]F4]F5]F6]F7AIM/ISO15424 Code identifiers for : F*Code options ]AIM-IDFig. 4.08. Modifiers for Interleaved 2of5Not check CD (G0)Check CD (G1)Not check CD (G0)Check CD (G1)]I0]I1]I2]I3AIM/ISO15424 Code identifiers for : I*Code options ]AIM-IDTransmit CD (E0)Transmit CD (E0)Not transmit CD (E1)Not transmit CD (E1)Fig. 4.09. Modifiers for IATANot check CD (4H)Transmit CD (4L)Check FC and SN only (4I) or Check CPN,FC and SN (4J) or Check CPN,AC,FC and SN (4K)Transmit CD (4L)Not check CD (4H)Not transmit CD (4M)Check FC and SN only (4I) or Check CPN,FC and SN (4J) or Check CPN,AC,FC and SN (4K)Not transmit CD (4M)]R0]R1]R2]R3AIM/ISO15424 Code identifiers for : R*Code options ]AIM-IDFig. 4.10. Modifiers for MSI/Plessey]M0]M1]X0]X0]X0]X0AIM/ISO15424 Code identifiers for : M* / X0Code options Checksum + Transmit ]AIM-IDCheck 1 CD = MOD 10 (4B): (4B) + Transmit CD1 (4B) + Not transmit CD (4B) + Transmit CD1 and CD2Check 2 CD's = MOD 10/ MOD 10 (4C): (4C) + (4E) or (4G) or (4F)Check 2 CD's = MOD 10/ MOD 11 (4D): (4D) + (4E) or (4G) or (4F)Check 2 CD's = MOD 11/ MOD 10 (4R): (4R) + (4E) or (4G) or (4F)(4E)(4G)(4F)Fig. 4.11. Modifiers for TelepenAIM/ISO15424 Code identifiers for : B*Code options ]AIM-ID]B0]B1]B0]B2]B0]B2Telepen (numeric or ASCII only): ASCII mode (D3) Numeric mode (D2)Telepen (numeric followed by ASCII): ASCII mode (D3) Numeric mode (D2)Telepen (ASCII followed by numeric)(not supported): ASCII mode (D3) Numeric mode (D2)

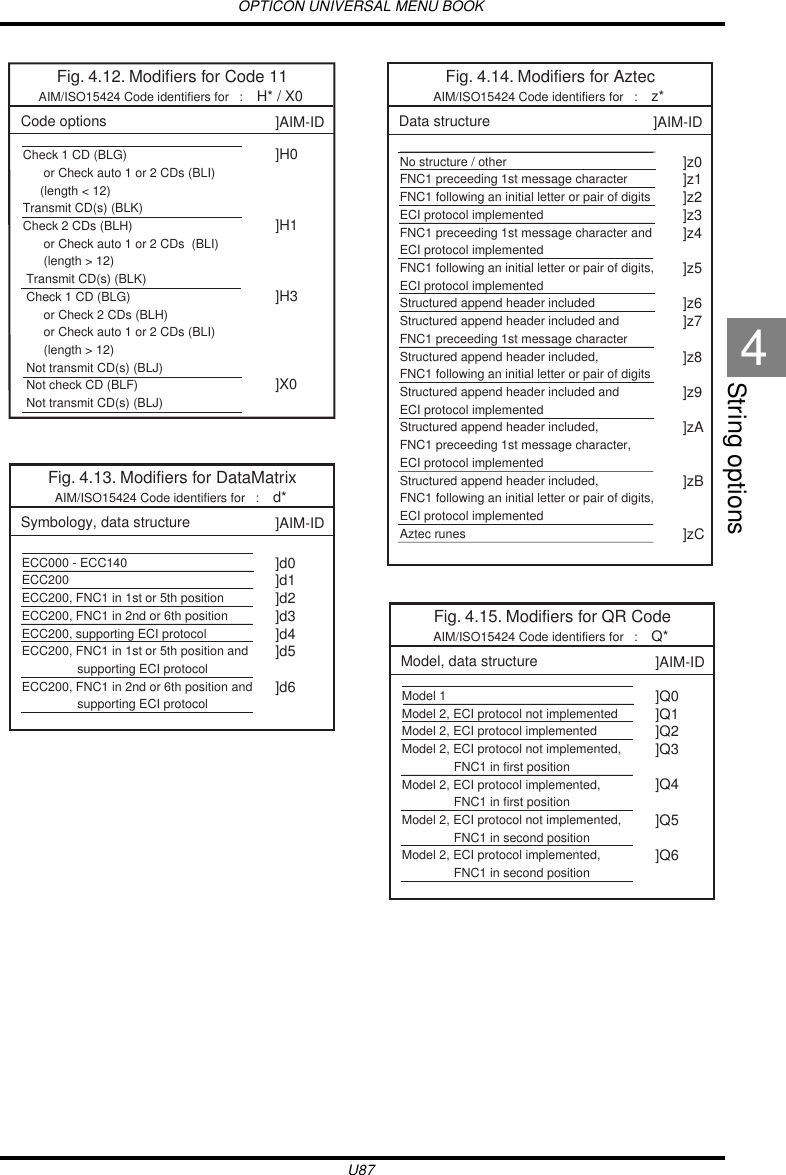

OPTICON UNIVERSAL MENU BOOKU87String options4Fig. 4.12. Modifiers for Code 11AIM/ISO15424 Code identifiers for : H* / X0Code options ]AIM-IDCheck 1 CD (BLG) or Check auto 1 or 2 CDs (BLI) (length < 12) Transmit CD(s) (BLK)Check 2 CDs (BLH) or Check auto 1 or 2 CDs (BLI) (length > 12) Transmit CD(s) (BLK)Check 1 CD (BLG) or Check 2 CDs (BLH) or Check auto 1 or 2 CDs (BLI) (length > 12) Not transmit CD(s) (BLJ)Not check CD (BLF) Not transmit CD(s) (BLJ)]H0]H1]H3]X0Fig. 4.13. Modifiers for DataMatrixAIM/ISO15424 Code identifiers for : d*Symbology, data structure ]AIM-ID]d0]d1]d2]d3]d4]d5]d6ECC000 - ECC140ECC200ECC200, FNC1 in 1st or 5th positionECC200, FNC1 in 2nd or 6th positionECC200, supporting ECI protocolECC200, FNC1 in 1st or 5th position and supporting ECI protocolECC200, FNC1 in 2nd or 6th position and supporting ECI protocolFig. 4.14. Modifiers for AztecAIM/ISO15424 Code identifiers for : z*Data structure ]AIM-ID]z0]z1]z2]z3]z4]z5]z6]z7]z8]z9]zA]zB]zCNo structure / otherFNC1 preceeding 1st message characterFNC1 following an initial letter or pair of digitsECI protocol implementedFNC1 preceeding 1st message character and ECI protocol implementedFNC1 following an initial letter or pair of digits, ECI protocol implementedStructured append header includedStructured append header included and FNC1 preceeding 1st message characterStructured append header included, FNC1 following an initial letter or pair of digitsStructured append header included and ECI protocol implementedStructured append header included,FNC1 preceeding 1st message character, ECI protocol implementedStructured append header included,FNC1 following an initial letter or pair of digits, ECI protocol implementedAztec runesFig. 4.15. Modifiers for QR CodeAIM/ISO15424 Code identifiers for : Q*Model, data structure ]AIM-ID]Q0]Q1]Q2]Q3]Q4]Q5]Q6Model 1Model 2, ECI protocol not implementedModel 2, ECI protocol implementedModel 2, ECI protocol not implemented, FNC1 in first positionModel 2, ECI protocol implemented, FNC1 in first positionModel 2, ECI protocol not implemented, FNC1 in second positionModel 2, ECI protocol implemented, FNC1 in second position

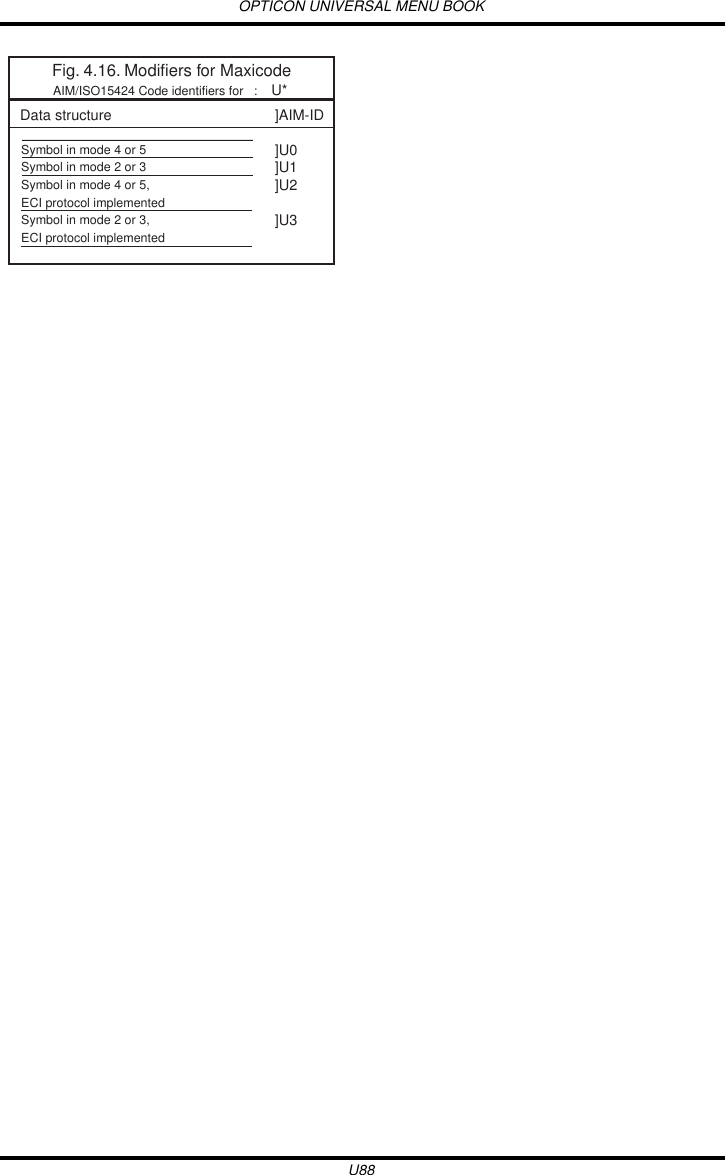

OPTICON UNIVERSAL MENU BOOKU88Fig. 4.16. Modifiers for MaxicodeAIM/ISO15424 Code identifiers for : U*Data structure ]AIM-ID]U0]U1]U2]U3Symbol in mode 4 or 5Symbol in mode 2 or 3Symbol in mode 4 or 5, ECI protocol implementedSymbol in mode 2 or 3, ECI protocol implemented

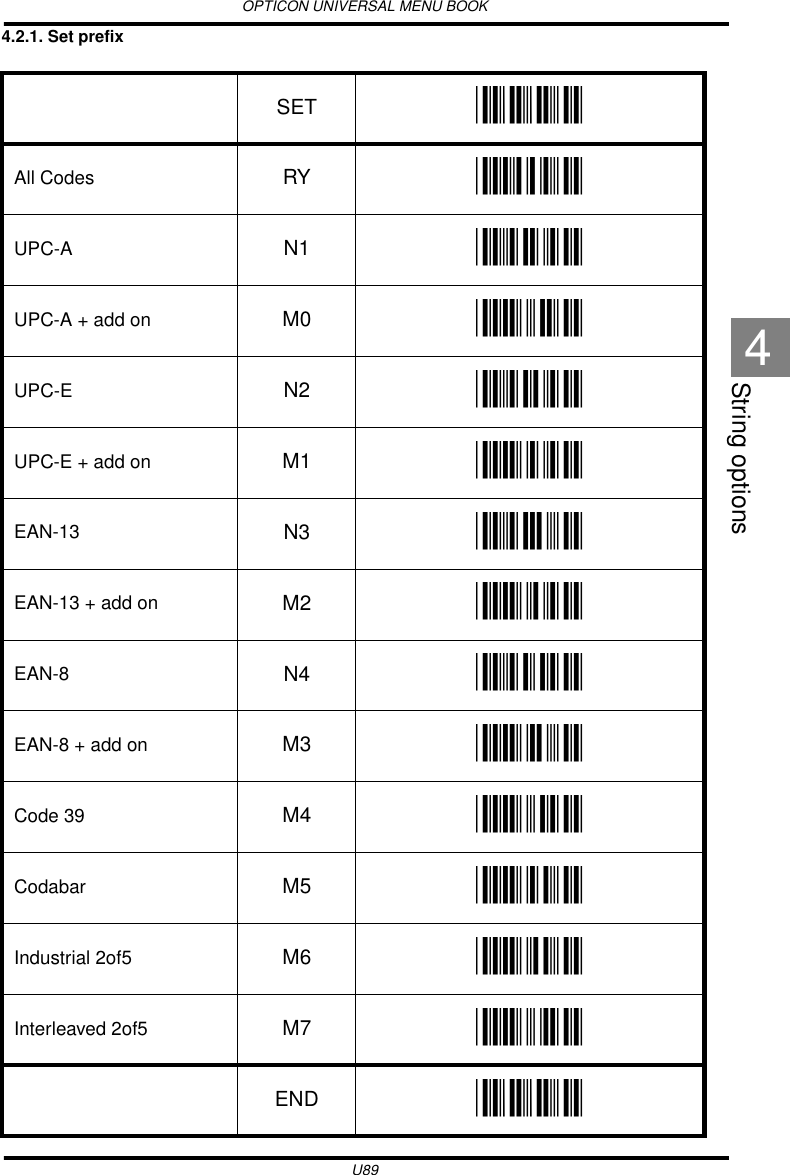

OPTICON UNIVERSAL MENU BOOKU89String options44.2.1. Set prefix SET _ZZ_All Codes RY _RY_UPC-A N1 _N1_UPC-A + add on M0 _M0_UPC-E N2 _N2_UPC-E + add on M1 _M1_EAN-13 N3 _N3_EAN-13 + add on M2 _M2_EAN-8 N4 _N4_EAN-8 + add on M3 _M3_Code 39 M4 _M4_Codabar M5 _M5_Industrial 2of5 M6 _M6_Interleaved 2of5 M7 _M7_END _ZZ_

OPTICON UNIVERSAL MENU BOOKU90S-Code MB _MB_Matrix 2of5 GL _GL_IATA I8 _I8_MSI/Plessey N0 _N0_Telepen L8 _L8_UK/Plessey MA _MA_Code 128 M9 _M9_Code 93 M8 _M8_Code 11 BLD _BLD_Korean Postal Authority code *$ _*$_RSS OE _OE_Composite codes RR _RR_DataMatrix MD _MD_SET _ZZ_END _ZZ_

OPTICON UNIVERSAL MENU BOOKU91String options4Aztec BF0 _BF0_QR Code MK _MK_Maxicode ML _ML_PDF417 OC _OC_MicroPDF417 OD _OD_ISO track 1 (IATA) MH _MH_ISO track 2 (ABA) MI _MI_ISO track 3 (THRIFT) MJ _MJ_Clear all prefixes MG _MG_Preamble MZ _MZ_SET _ZZ_END _ZZ_

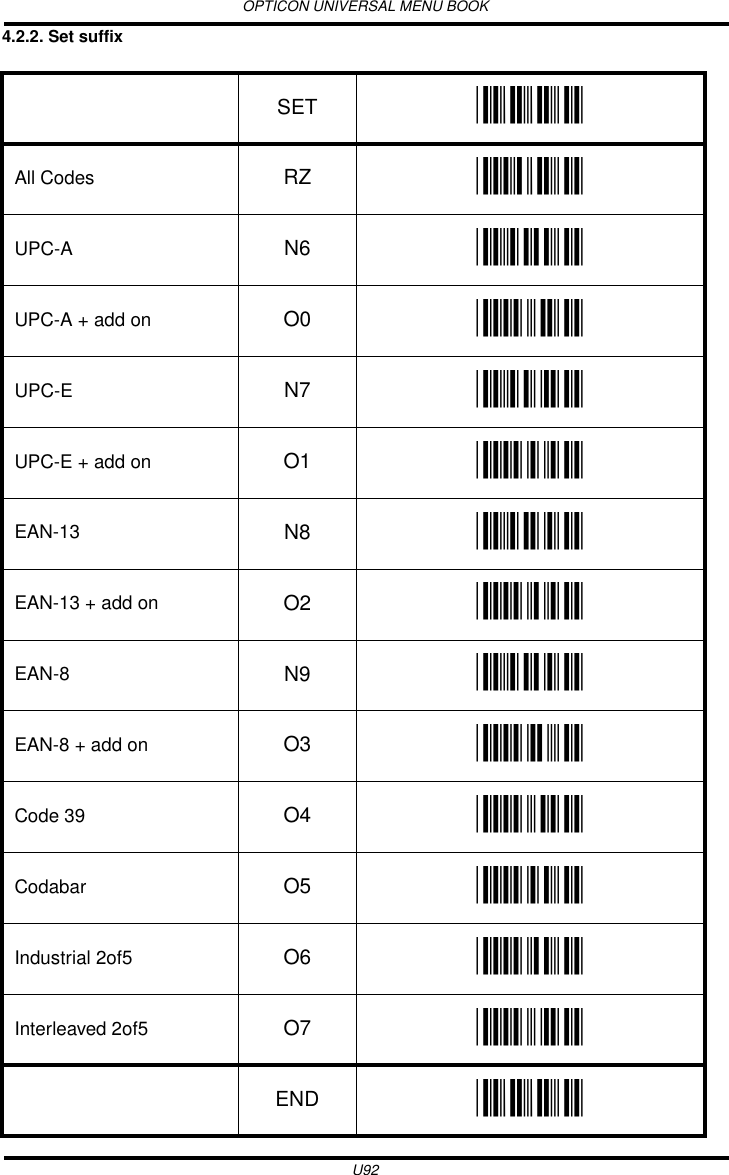

OPTICON UNIVERSAL MENU BOOKU924.2.2. Set suffix SET _ZZ_All Codes RZ _RZ_UPC-A N6 _N6_UPC-A + add on O0 _O0_UPC-E N7 _N7_UPC-E + add on O1 _O1_EAN-13 N8 _N8_EAN-13 + add on O2 _O2_EAN-8 N9 _N9_EAN-8 + add on O3 _O3_Code 39 O4 _O4_Codabar O5 _O5_Industrial 2of5 O6 _O6_Interleaved 2of5 O7 _O7_END _ZZ_

OPTICON UNIVERSAL MENU BOOKU93String options4S-Code OB _OB_Matrix 2of5 GM _GM_IATA I9 _I9_MSI/Plessey N5 _N5_Telepen L9 _L9_UK/Plessey OA _OA_Code 128 O9 _O9_Code 93 O8 _O8_Code 11 BLE _BLE_Korean Postal Authority code *% _*%_RSS PQ _PQ_Composite codes RS _RS_DataMatrix PO _PO_SET _ZZ_END _ZZ_

OPTICON UNIVERSAL MENU BOOKU94Aztec BF1 _BF1_QR Code PW _PW_Maxicode PX _PX_PDF417 PY _PY_MicroPDF417 PZ _PZ_ISO track 1 (IATA) PT _PT_ISO track 2 (ABA) PU _PU_ISO track 3 (THRIFT) PV _PV_Clear all suffixes PR _PR_Postamble PS _PS_SET _ZZ_END _ZZ_

OPTICON UNIVERSAL MENU BOOKU95String options44.3.1. Direct input keyboard keys SET _ZZ_F1 8J _8J_F2 8K _8K_F3 8L _8L_F4 8M _8M_F5 8N _8N_F6 8O _8O_F7 8P _8P_F8 8Q _8Q_F9 8R _8R_F10 8S _8S_F11 8T _8T_F12 8U _8U_Backspace 9X _9X_END _ZZ_

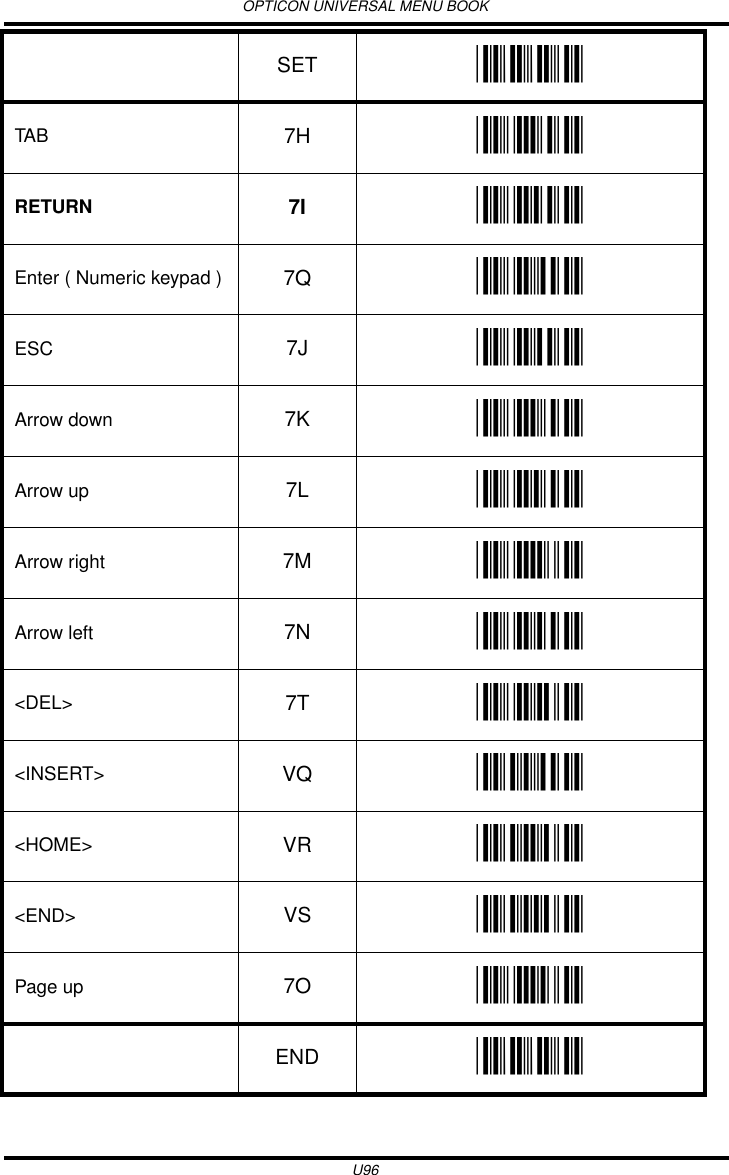

OPTICON UNIVERSAL MENU BOOKU96TAB 7H _7H_RETURN 7I _7I_Enter ( Numeric keypad ) 7Q _7Q_ESC 7J _7J_Arrow down 7K _7K_Arrow up 7L _7L_Arrow right 7M _7M_Arrow left 7N _7N_<DEL> 7T _7T_<INSERT> VQ _VQ_<HOME> VR _VR_<END> VS _VS_Page up 7O _7O_SET _ZZ_END _ZZ_

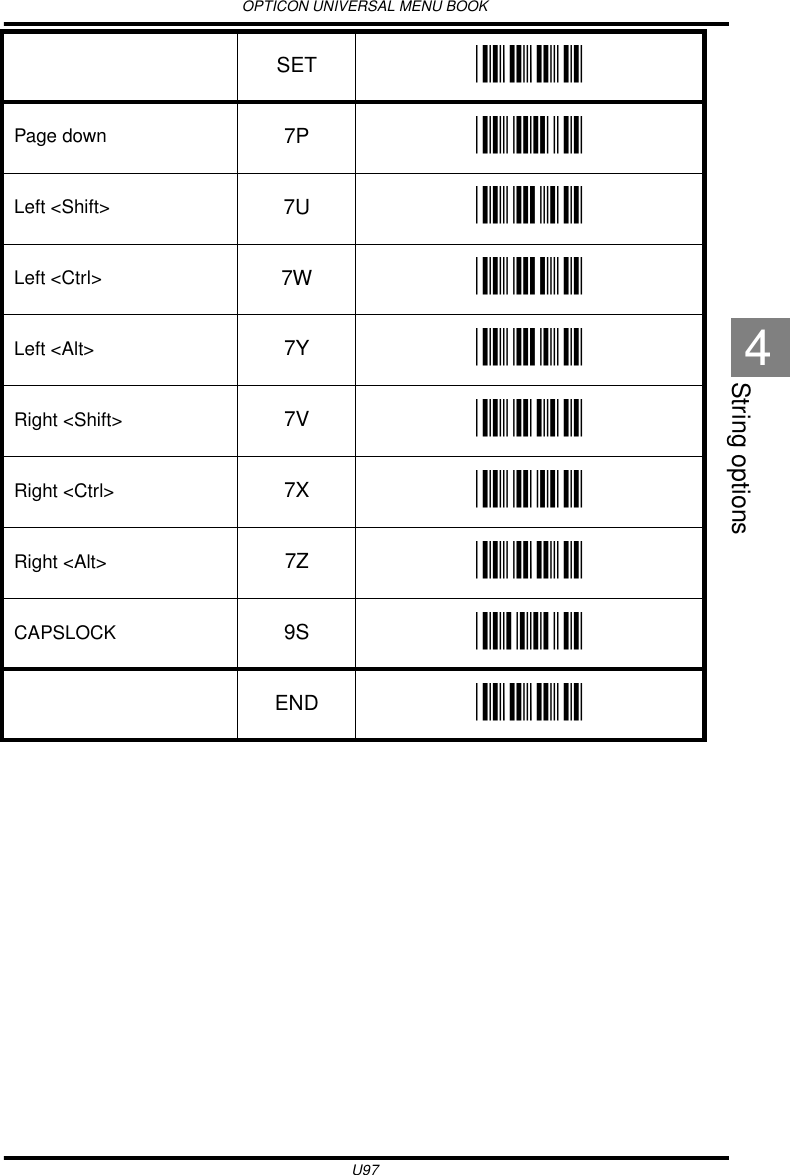

OPTICON UNIVERSAL MENU BOOKU97String options4Page down 7P _7P_Left <Shift> 7U _7U_Left <Ctrl> 7W _7W_Left <Alt> 7Y _7Y_Right <Shift> 7V _7V_Right <Ctrl> 7X _7X_Right <Alt> 7Z _7Z_CAPSLOCK 9S _9S_SET _ZZ_END _ZZ_

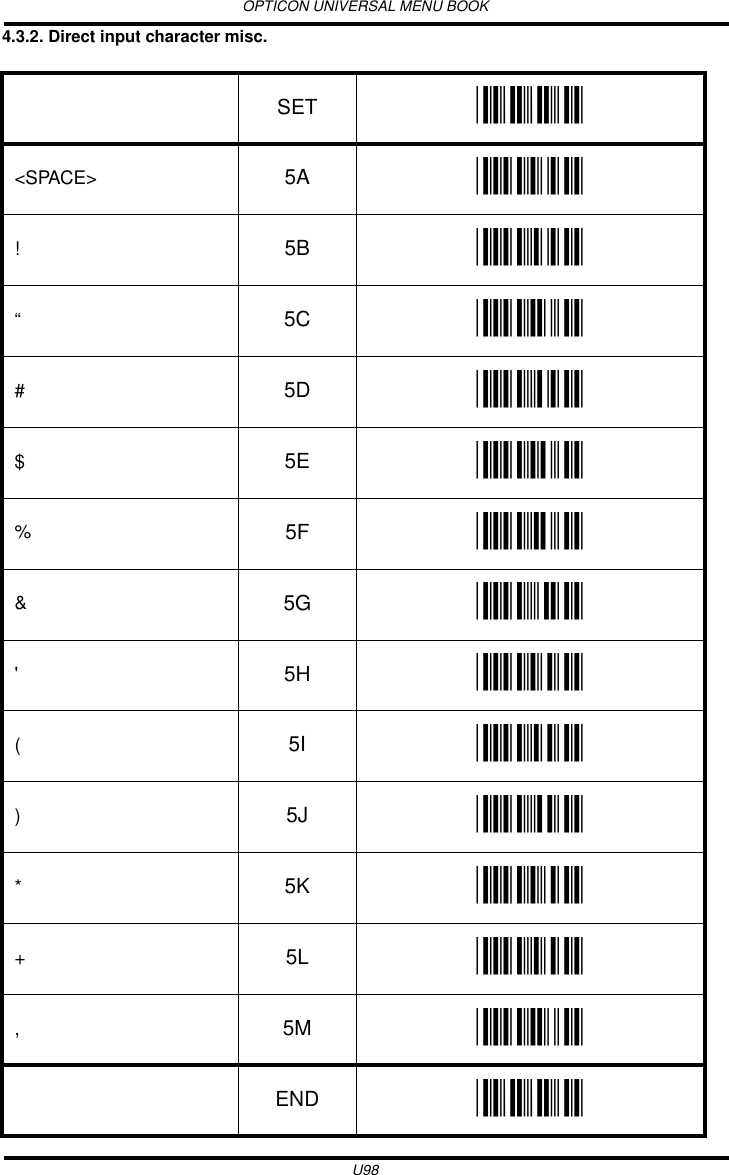

OPTICON UNIVERSAL MENU BOOKU984.3.2. Direct input character misc. SET _ZZ_<SPACE> 5A _5A_!5B _5B_“5C _5C_#5D _5D_$5E _5E_%5F _5F_&5G _5G_'5H _5H_(5I _5I_)5J _5J_*5K _5K_+5L _5L_,5M _5M_END _ZZ_

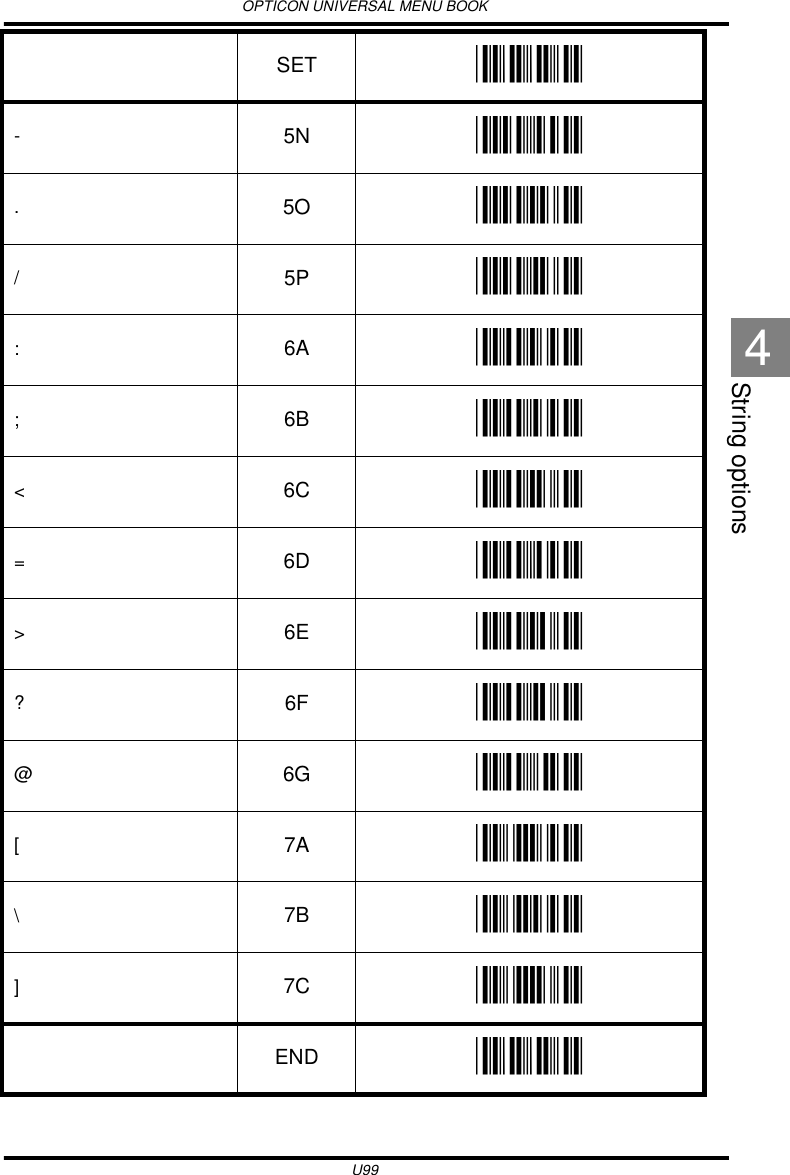

$OPTICON UNIVERSAL MENU BOOKU99String options4-5N _5N_.5O _5O_/5P _5P_:6A _6A_;6B _6B_<6C _6C_=6D _6D_>6E _6E_?6F _6F_@6G _6G_[7A _7A_\7B _7B_]7C _7C_SET _ZZ_END _ZZ_$

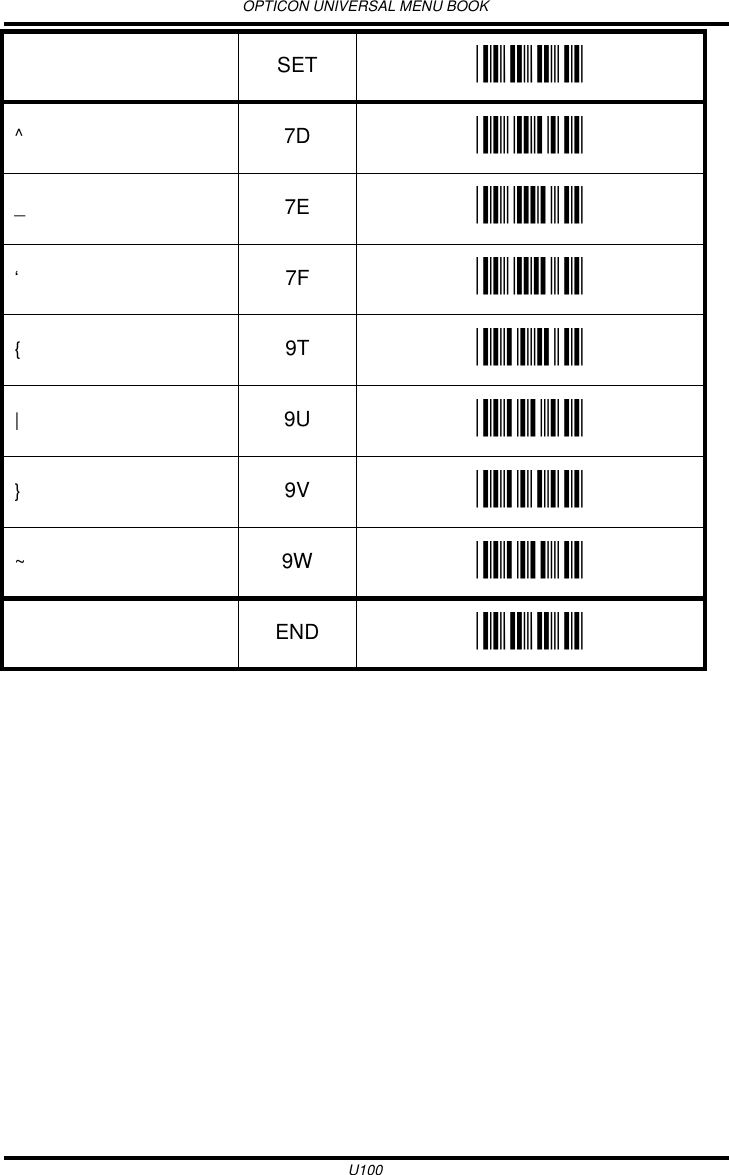

$OPTICON UNIVERSAL MENU BOOKU100^7D _7D__7E _7E_‘7F _7F_{9T _9T_|9U _9U_}9V _9V_~9W _9W_SET _ZZ_END _ZZ_$

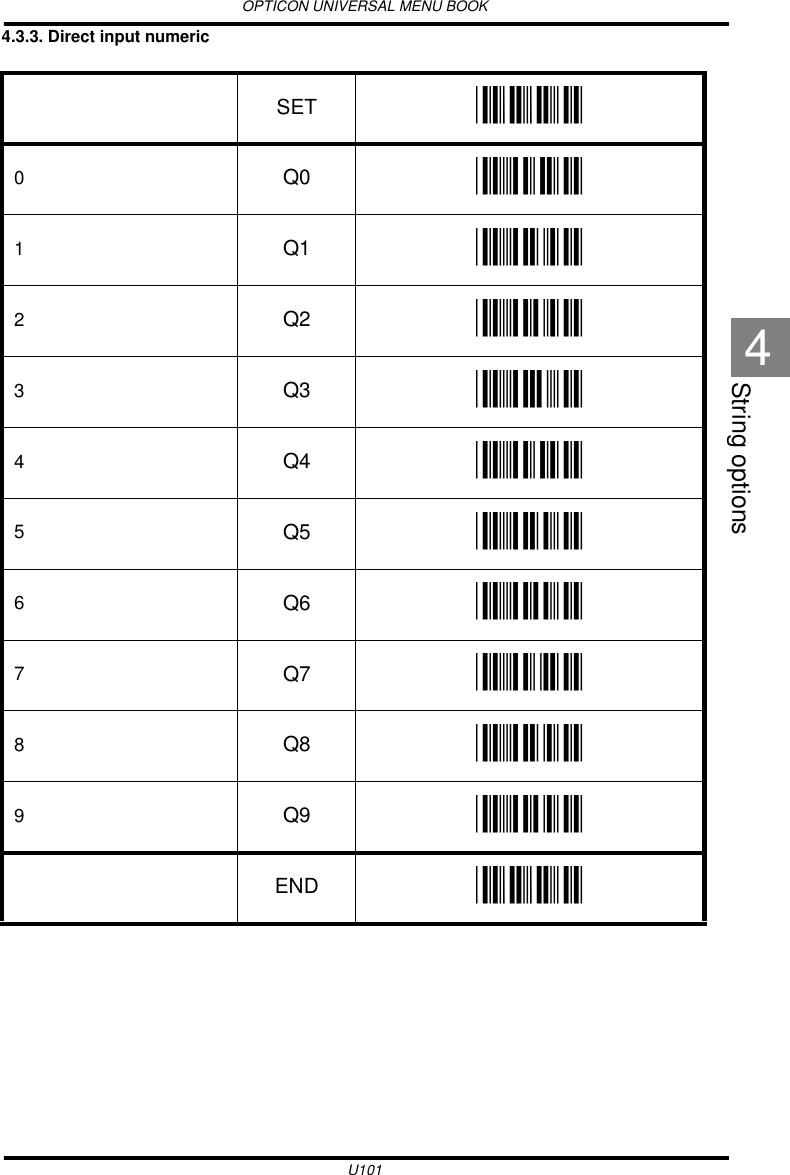

OPTICON UNIVERSAL MENU BOOKU101String options44.3.3. Direct input numeric SET _ZZ_0Q0 _Q0_1Q1 _Q1_2Q2 _Q2_3Q3 _Q3_4Q4 _Q4_5Q5 _Q5_6Q6 _Q6_7Q7 _Q7_8Q8 _Q8_9Q9 _Q9_END _ZZ_

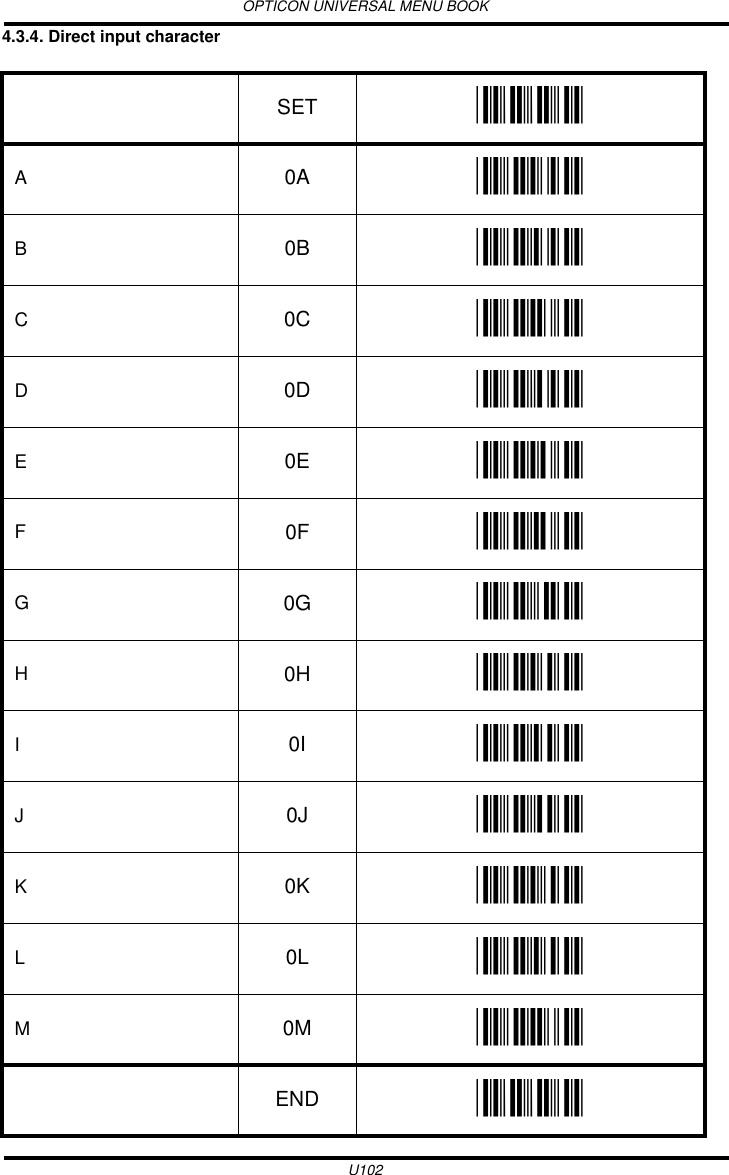

OPTICON UNIVERSAL MENU BOOKU1024.3.4. Direct input character SET _ZZ_A0A _0A_B0B _0B_C0C _0C_D0D _0D_E0E _0E_F0F _0F_G0G _0G_H0H _0H_I0I _0I_J0J _0J_K0K _0K_L0L _0L_M0M _0M_END _ZZ_

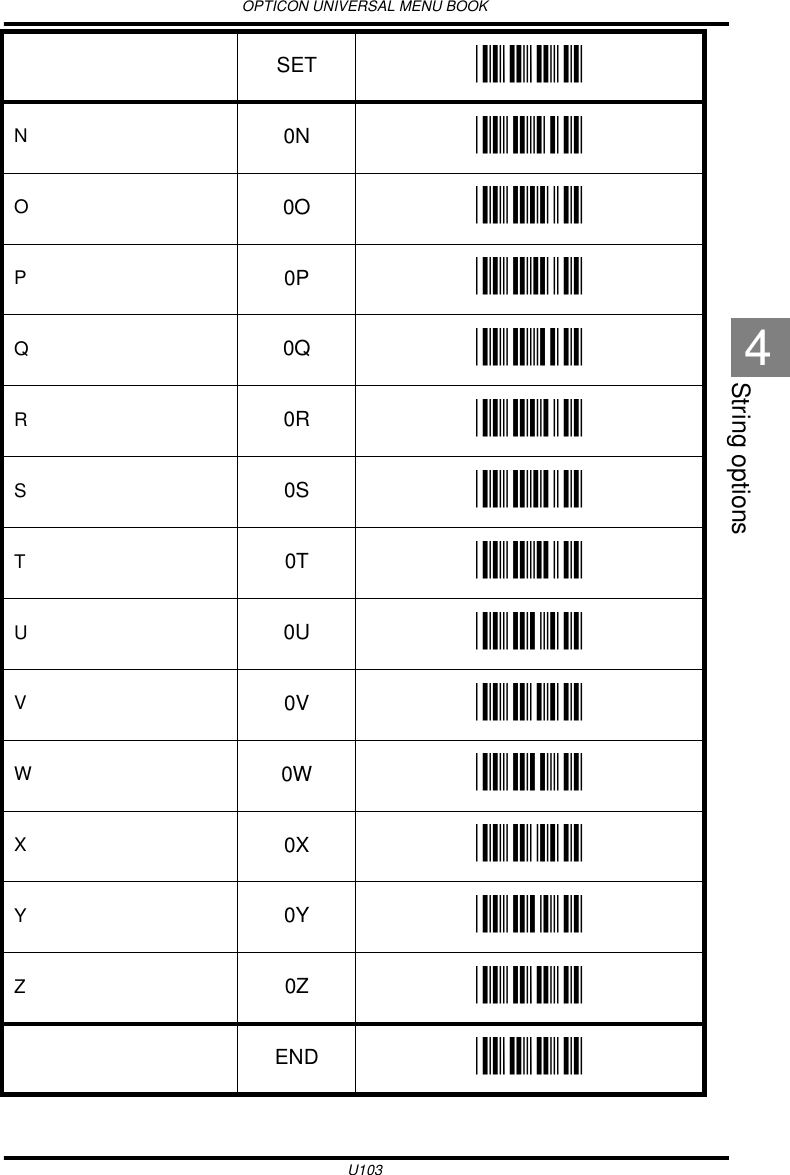

OPTICON UNIVERSAL MENU BOOKU103String options4N0N _0N_O0O _0O_P0P _0P_Q0Q _0Q_R0R _0R_S0S _0S_T0T _0T_U0U _0U_V0V _0V_W0W _0W_X0X _0X_Y0Y _0Y_Z0Z _0Z_SET _ZZ_END _ZZ_

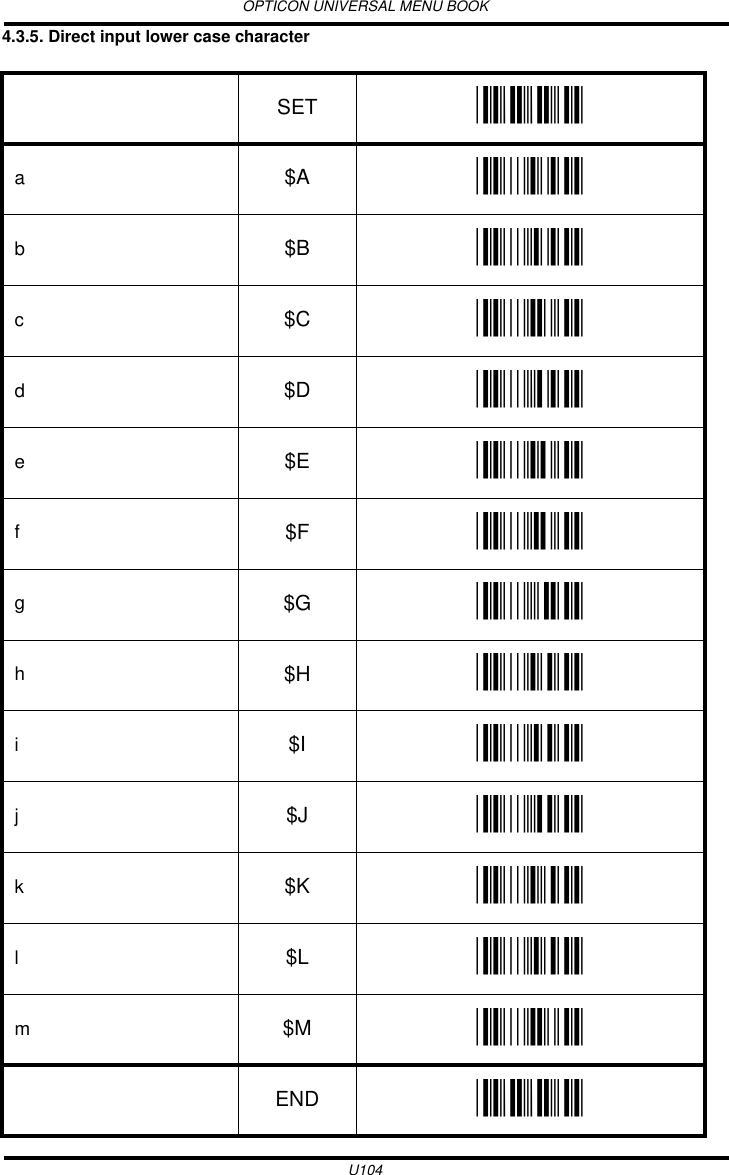

OPTICON UNIVERSAL MENU BOOKU1044.3.5. Direct input lower case character SET _ZZ_a$A _$A_b$B _$B_c$C _$C_d$D _$D_e$E _$E_f$F _$F_g$G _$G_h$H _$H_i$I _$I_j$J _$J_k$K _$K_l$L _$L_m$M _$M_END _ZZ_

OPTICON UNIVERSAL MENU BOOKU105String options4n$N _$N_o$O _$O_p$P _$P_q$Q _$Q_r$R _$R_s$S _$S_t$T _$T_u$U _$U_v$V _$V_w$W _$W_x$X _$X_y$Y _$Y_z$Z _$Z_SET _ZZ_END _ZZ_

OPTICON UNIVERSAL MENU BOOKU1064.3.6. Direct input control character SET _ZZ_^@ (NULL) 9G _9G_^A (SOH) 1A _1A_^B (STX) 1B _1B_^C (ETX) 1C _1C_^D (EOT) 1D _1D_^E (ENQ) 1E _1E_^F (ACK) 1F _1F_^G (BEL) 1G _1G_^H (BS) 1H _1H_^I (HT) 1I _1I_^J (LF) 1J _1J_^K (VT) 1K _1K_^L (FF) 1L _1L_END _ZZ_

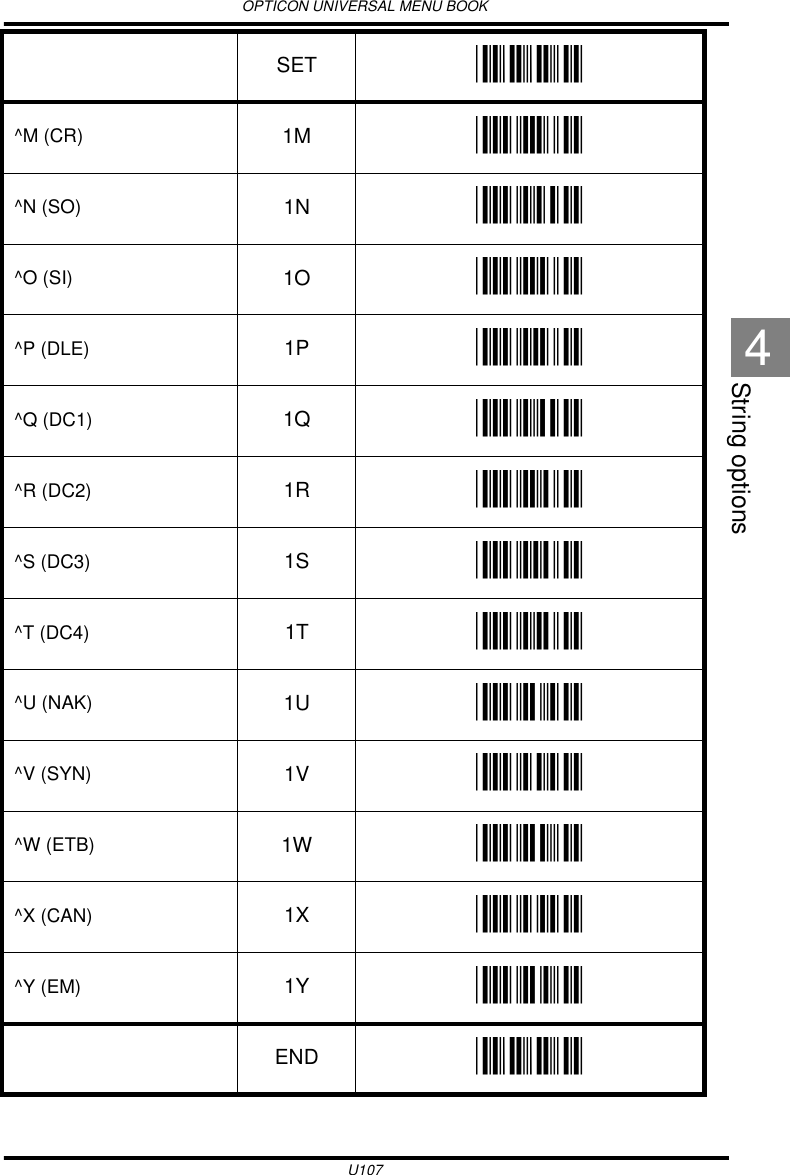

OPTICON UNIVERSAL MENU BOOKU107String options4^M (CR) 1M _1M_^N (SO) 1N _1N_^O (SI) 1O _1O_^P (DLE) 1P _1P_^Q (DC1) 1Q _1Q_^R (DC2) 1R _1R_^S (DC3) 1S _1S_^T (DC4) 1T _1T_^U (NAK) 1U _1U_^V (SYN) 1V _1V_^W (ETB) 1W _1W_^X (CAN) 1X _1X_^Y (EM) 1Y _1Y_SET _ZZ_END _ZZ_

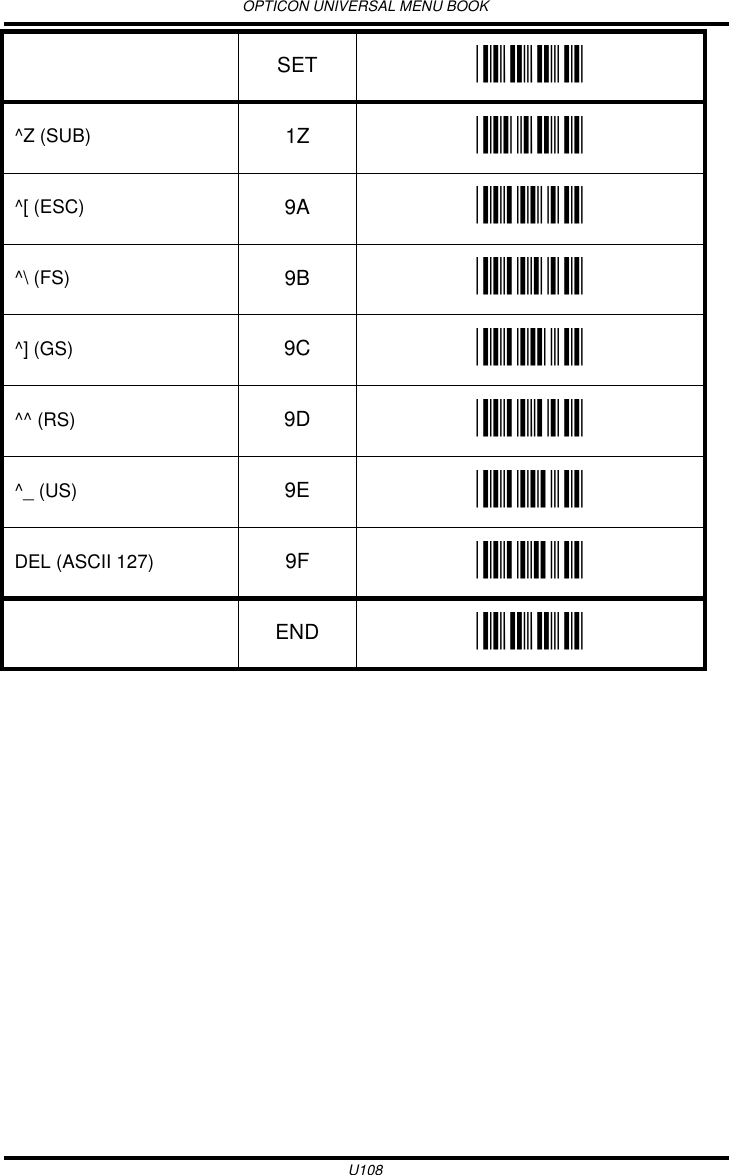

$OPTICON UNIVERSAL MENU BOOKU108^Z (SUB) 1Z _1Z_^[ (ESC) 9A _9A_^\ (FS) 9B _9B_^] (GS) 9C _9C_^^ (RS) 9D _9D_^_ (US) 9E _9E_DEL (ASCII 127) 9F _9F_SET _ZZ_END _ZZ_$

OPTICON UNIVERSAL MENU BOOKU109String options44.3.7. Direct input code id/length SET _ZZ_Code identification $2 _$2_Code identification ISO-15424 / AIM $1 _$1_Code length (1D = 2 digits, 2D = 6 digits) $3 _$3_Code length (1D and 2D = 6 digits) $6 _$6_END _ZZ_

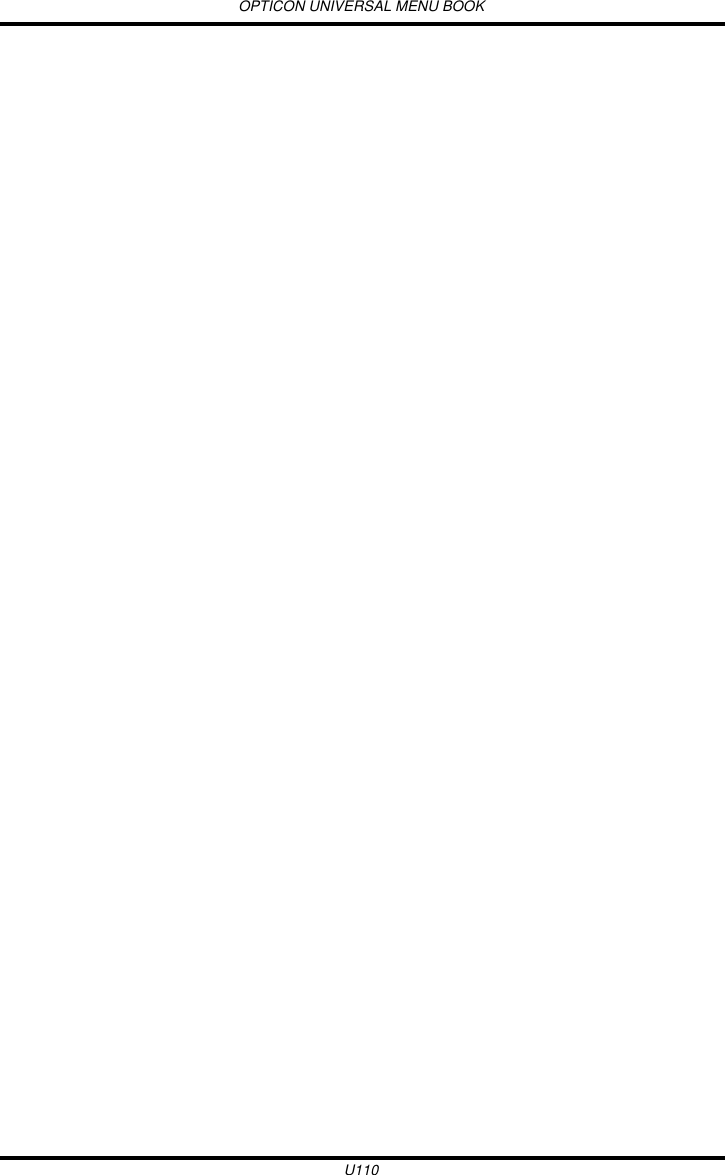

OPTICON UNIVERSAL MENU BOOKU110

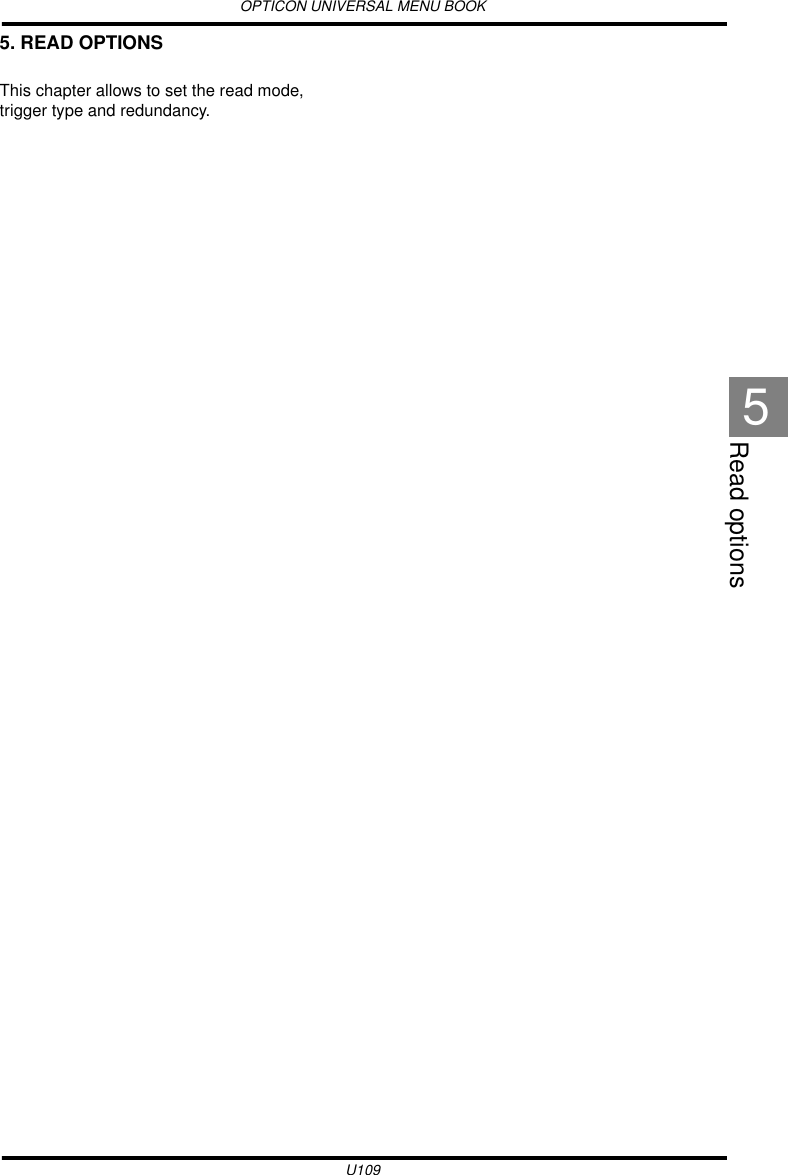

OPTICON UNIVERSAL MENU BOOKU109Read options55. READ OPTIONSThis chapter allows to set the read mode, trigger type and redundancy.

OPTICON UNIVERSAL MENU BOOKU1105.1. Read mode optionsThe following read modes are available:Single read:When a bar code has been decoded, the reader will be turned OFF. The reader must be triggered again to read another label. This option and 'Disable trigger' can not be programmed at the same time.Multiple read:When a bar code has been decoded, the reader will stay ON for a time as set by 'Read time options' or indefinitely if the trigger switch has been disabled. The same label can only be decoded again after the label has not been detected for a number of scans.Continuous read:The reader will produce as much data as it can decode regardless whether it is the same or not. This mode is mainly used for demonstration and diagnosis.Disable trigger:This is applicable to readers which have a trigger switch. When this option is selected, the reader will stay ON all the time.Note: Selecting this option for a laser reader means that the laser diode is ON continuously, which may reduce the lifetime of this component. Also local legislation may require that the trigger switch is always enabled. Therefore it is recommended not to disable the trigger switch for laser readers.Add-on wait mode:Used if UPC/EAN with add-on is enabled. The reader searches within the selected time for a valid add-on code. If a valid add-on code is found, the reader transmits the data immediately. If nothing is found behind the code, the reader will transmit the data without add-on. If something is found behind the code, the reader ignored the code in case it is not a valid add-on.Trigger repeat:This option makes it more easy to select a single bar code from a sheet filled with bar codes. If the trigger switch is pressed once, the laser beam is on during the configured read time. The laser beam can now be moved to the required bar code. If the trigger switch is pressed again, the bar code is decoded and transmitted. If the read time expires, the laser switches off and the trigger sequence should be repeated. If the read time is set to 0, then if the trigger switch is pressed, the laser is on, but does not accept bar codes. As soon the trigger switch is released, the barcode is decoded and transmitted. Support for this option is reader dependent.Structured append time out:When a bar code consists of multiple physical bar codes, this time out value is used. The next bar code must be read before this time out is expired. The time out value is between 1 and 255 seconds. This value can be configured by reading 1 up to 3 direct input numeric characters from chapter: String options.Default the structured append time out is set to 30 seconds.

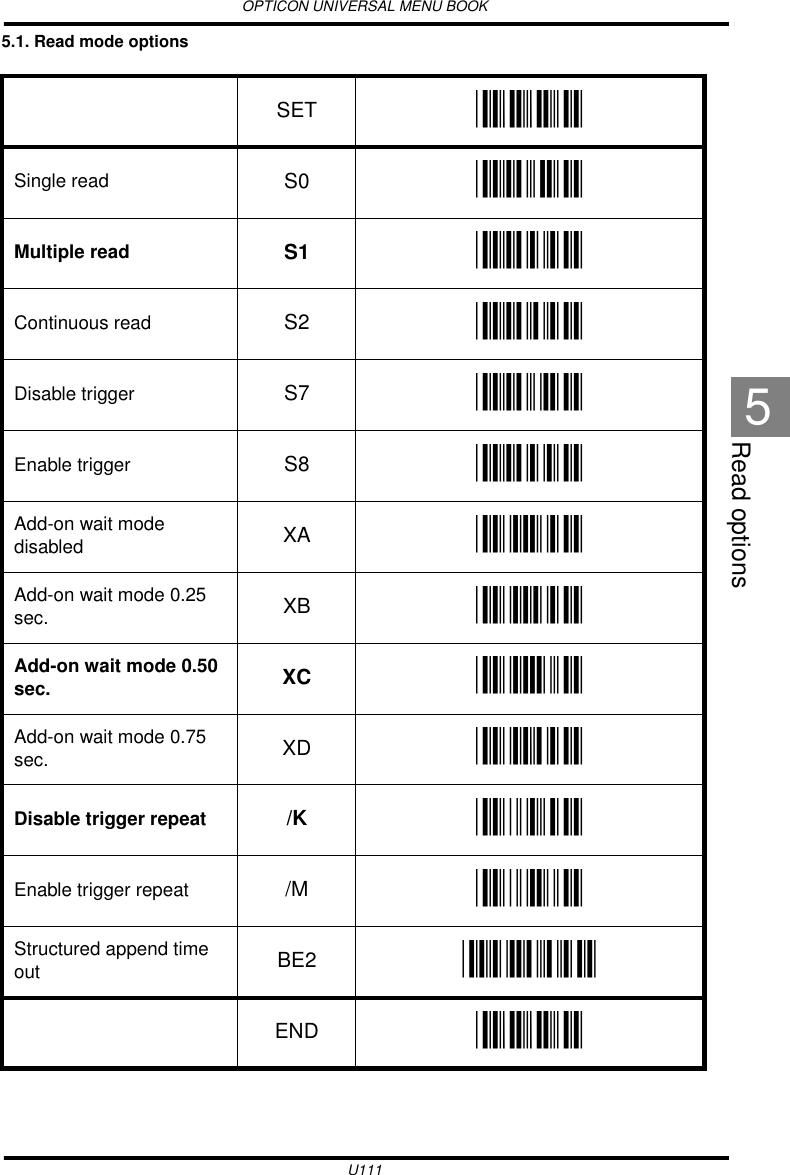

OPTICON UNIVERSAL MENU BOOKU111Read options55.1. Read mode options SET _ZZ_Single read S0 _S0_Multiple read S1 _S1_Continuous read S2 _S2_Disable trigger S7 _S7_Enable trigger S8 _S8_Add-on wait mode disabled XA _XA_Add-on wait mode 0.25 sec. XB _XB_Add-on wait mode 0.50 sec. XC _XC_Add-on wait mode 0.75 sec. XD _XD_Disable trigger repeat /K _/K_Enable trigger repeat /M _/M_Structured append time out BE2 _BE2_END _ZZ_

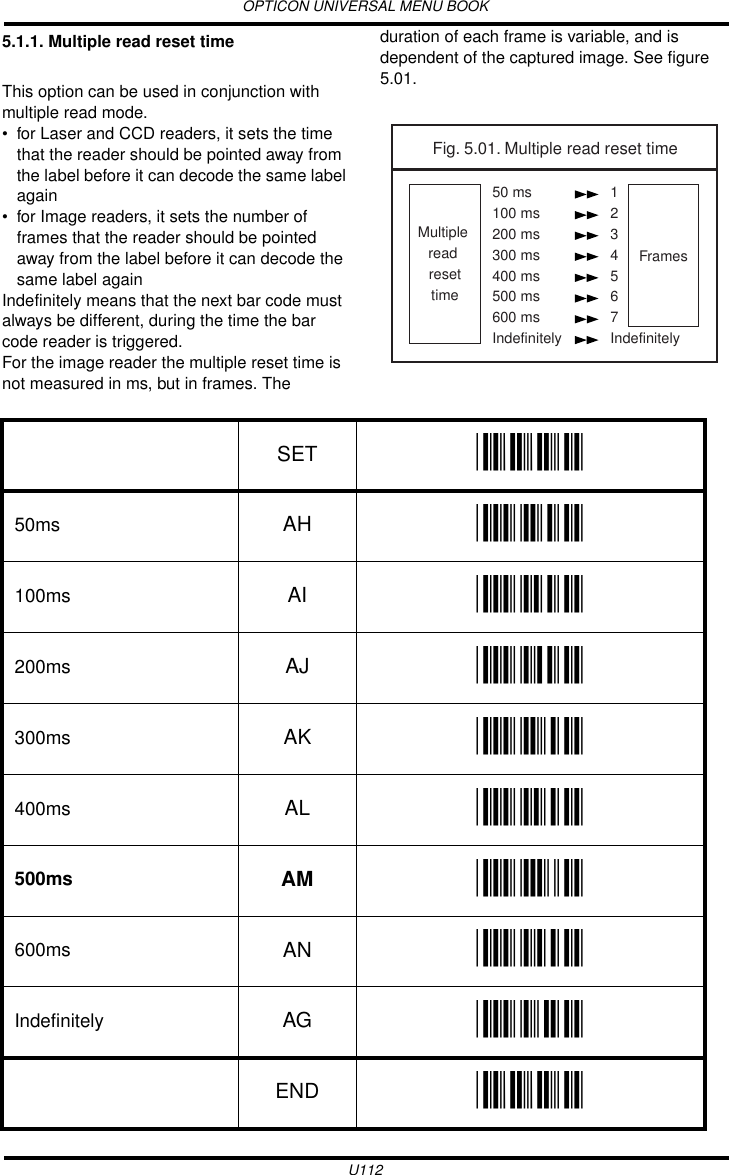

OPTICON UNIVERSAL MENU BOOKU1125.1.1. Multiple read reset timeThis option can be used in conjunction with multiple read mode.• for Laser and CCD readers, it sets the time that the reader should be pointed away from the label before it can decode the same label again• for Image readers, it sets the number of frames that the reader should be pointed away from the label before it can decode the same label againIndefinitely means that the next bar code must always be different, during the time the bar code reader is triggered.For the image reader the multiple reset time is not measured in ms, but in frames. The duration of each frame is variable, and is dependent of the captured image. See figure 5.01. Fig. 5.01. Multiple read reset timeMultiple read resettimeFrames50 ms100 ms200 ms300 ms400 ms500 ms600 msIndefinitely1234567IndefinitelySET _ZZ_50ms AH _AH_100ms AI _AI_200ms AJ _AJ_300ms AK _AK_400ms AL _AL_500ms AM _AM_600ms AN _AN_Indefinitely AG _AG_END _ZZ_

OPTICON UNIVERSAL MENU BOOKU113Read options55.1.2. Quiet zone optionsWith this option the reader can decode bar codes that have smaller start and/or end margins than specified for the symbology. Be careful when using this option. It may increase the possibility of partial reads and ghost reads. Do not use smaller margin checks then necessary. If possible replace the bar code labels by ones that have correct start and end margins. SET _ZZ_No margin check YN _YN_Margin check 1/7 nominal YO _YO_Margin check 2/7 nominal YP _YP_Margin check 3/7 nominal YQ _YQ_Margin check 4/7 nominal YR _YR_Margin check 5/7 nominal YS _YS_Margin check 6/7 nominal YT _YT_Margin check normal YU _YU_END _ZZ_

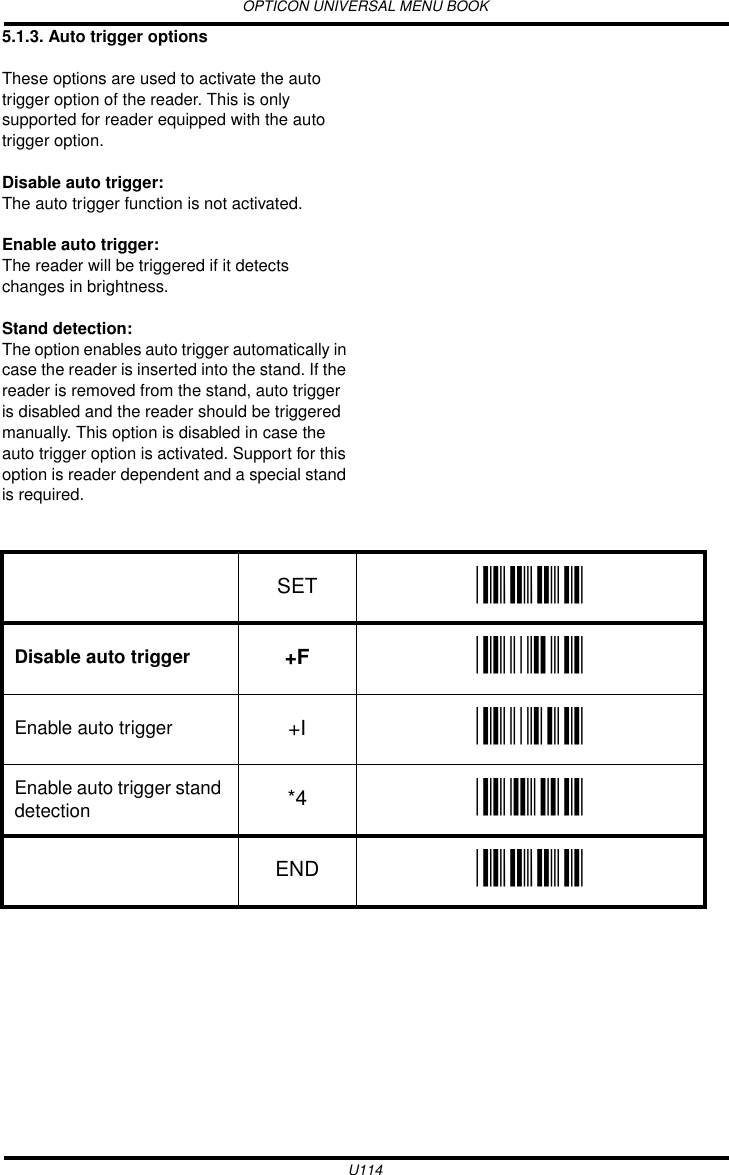

OPTICON UNIVERSAL MENU BOOKU1145.1.3. Auto trigger optionsThese options are used to activate the auto trigger option of the reader. This is only supported for reader equipped with the auto trigger option. Disable auto trigger:The auto trigger function is not activated.Enable auto trigger:The reader will be triggered if it detects changes in brightness.Stand detection: The option enables auto trigger automatically in case the reader is inserted into the stand. If the reader is removed from the stand, auto trigger is disabled and the reader should be triggered manually. This option is disabled in case the auto trigger option is activated. Support for this option is reader dependent and a special stand is required. SET _ZZ_Disable auto trigger +F _+F_Enable auto trigger +I _+I_Enable auto trigger stand detection *4 _*4_END _ZZ_

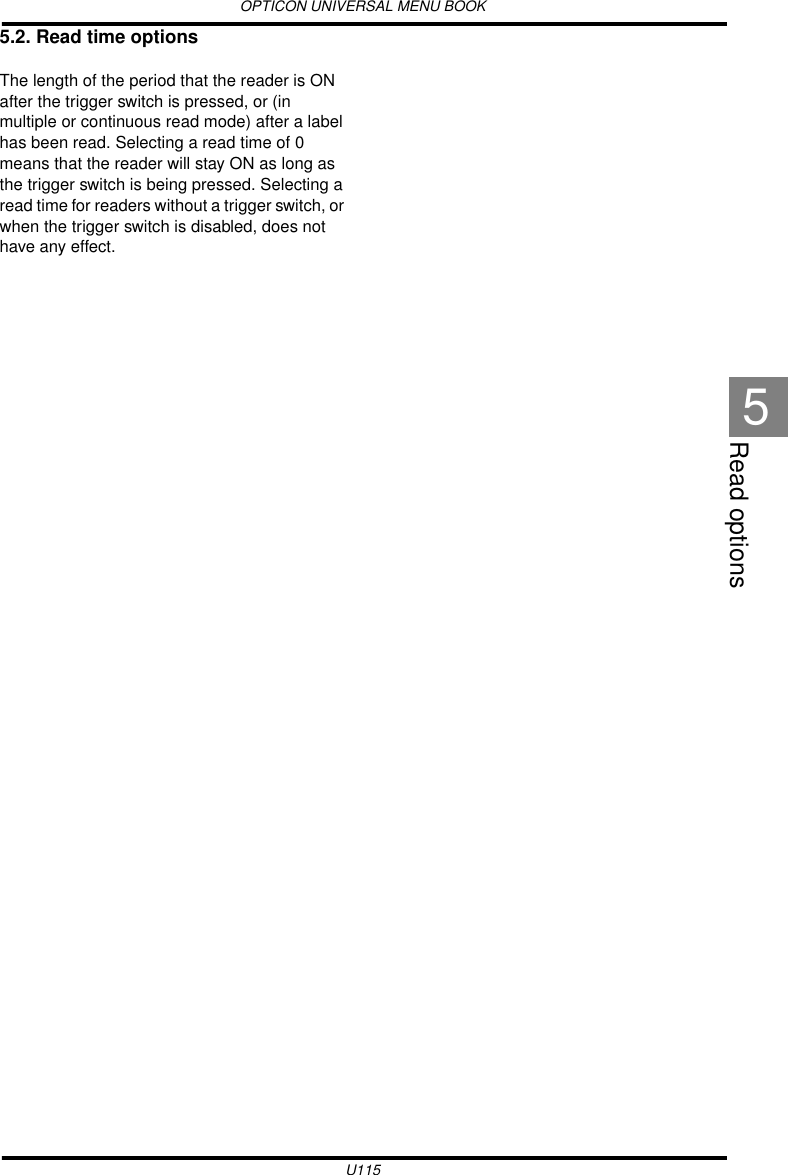

OPTICON UNIVERSAL MENU BOOKU115Read options55.2. Read time optionsThe length of the period that the reader is ON after the trigger switch is pressed, or (in multiple or continuous read mode) after a label has been read. Selecting a read time of 0 means that the reader will stay ON as long as the trigger switch is being pressed. Selecting a read time for readers without a trigger switch, or when the trigger switch is disabled, does not have any effect.

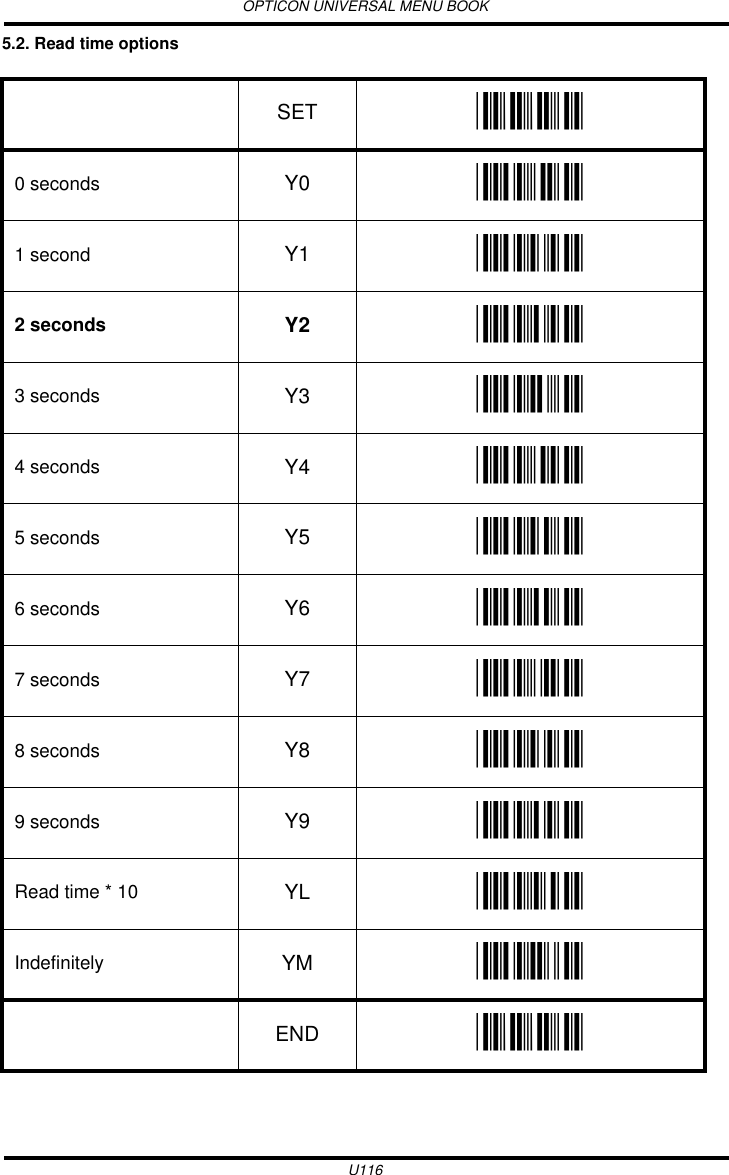

OPTICON UNIVERSAL MENU BOOKU1165.2. Read time options SET _ZZ_0 seconds Y0 _Y0_1 second Y1 _Y1_2 seconds Y2 _Y2_3 seconds Y3 _Y3_4 seconds Y4 _Y4_5 seconds Y5 _Y5_6 seconds Y6 _Y6_7 seconds Y7 _Y7_8 seconds Y8 _Y8_9 seconds Y9 _Y9_Read time * 10 YL _YL_Indefinitely YM _YM_END _ZZ_

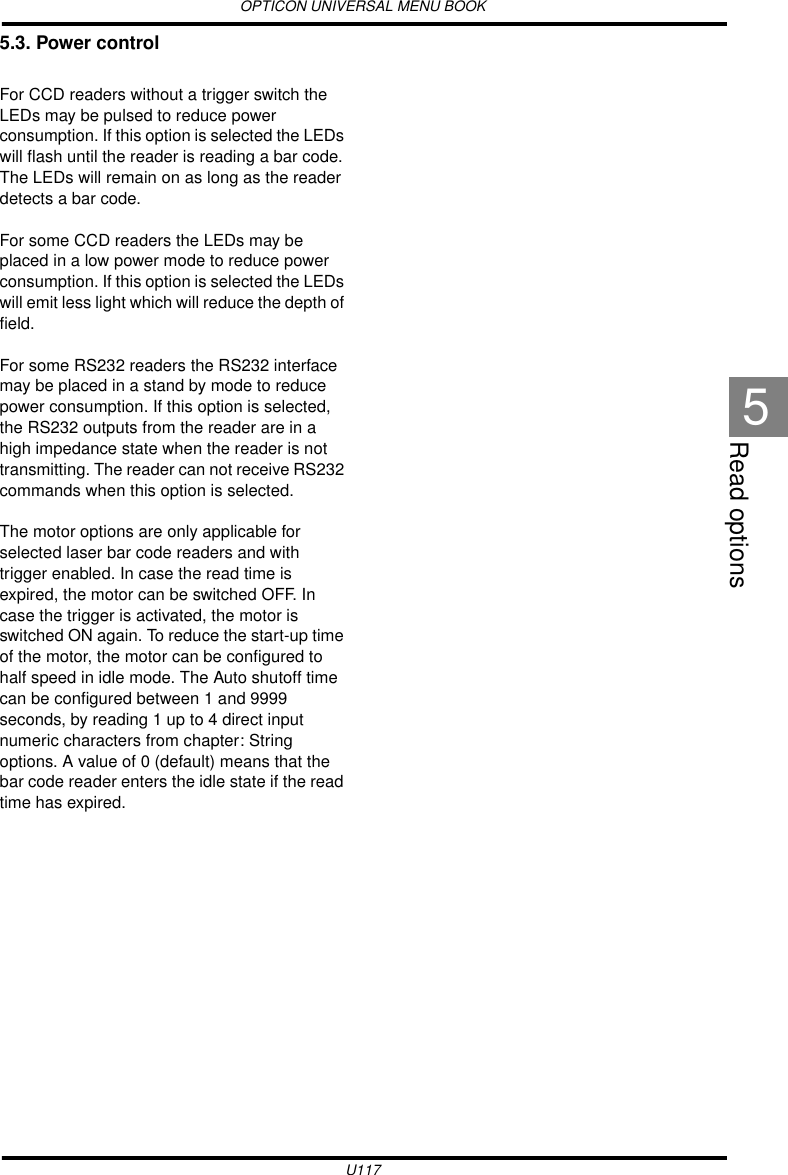

OPTICON UNIVERSAL MENU BOOKU117Read options55.3. Power controlFor CCD readers without a trigger switch the LEDs may be pulsed to reduce power consumption. If this option is selected the LEDs will flash until the reader is reading a bar code. The LEDs will remain on as long as the reader detects a bar code.For some CCD readers the LEDs may be placed in a low power mode to reduce power consumption. If this option is selected the LEDs will emit less light which will reduce the depth of field.For some RS232 readers the RS232 interface may be placed in a stand by mode to reduce power consumption. If this option is selected, the RS232 outputs from the reader are in a high impedance state when the reader is not transmitting. The reader can not receive RS232 commands when this option is selected.The motor options are only applicable for selected laser bar code readers and with trigger enabled. In case the read time is expired, the motor can be switched OFF. In case the trigger is activated, the motor is switched ON again. To reduce the start-up time of the motor, the motor can be configured to half speed in idle mode. The Auto shutoff time can be configured between 1 and 9999 seconds, by reading 1 up to 4 direct input numeric characters from chapter: String options. A value of 0 (default) means that the bar code reader enters the idle state if the read time has expired.

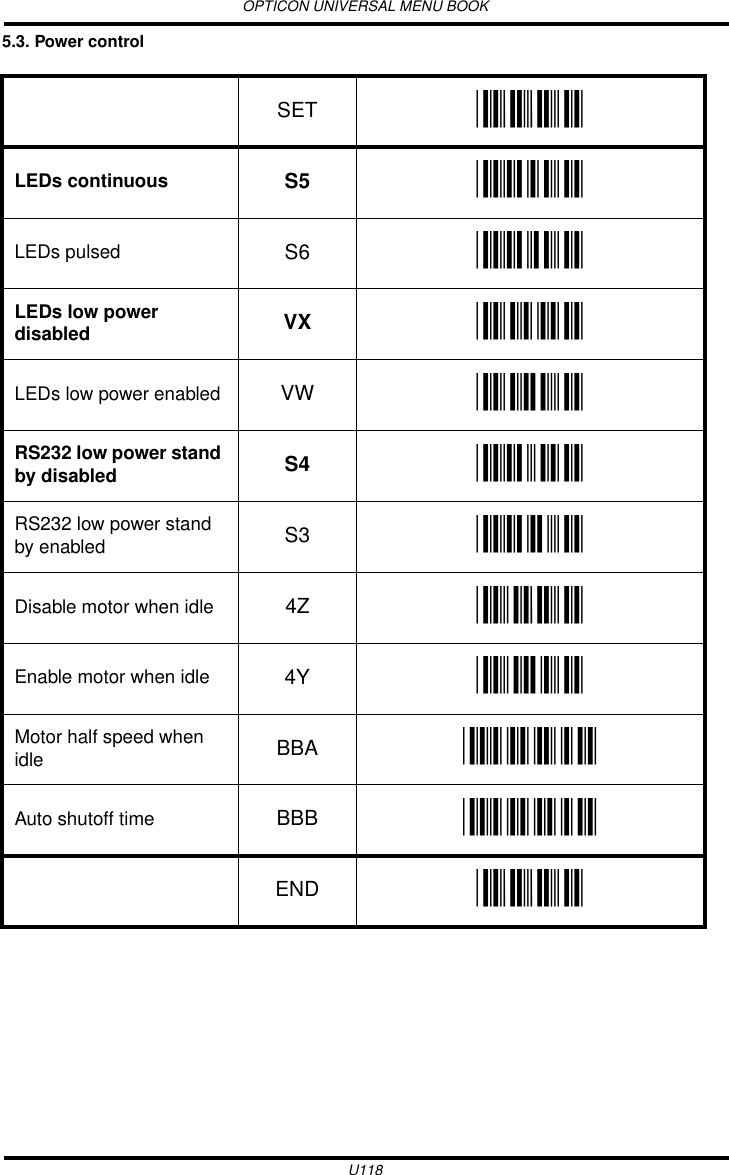

OPTICON UNIVERSAL MENU BOOKU1185.3. Power control SET _ZZ_LEDs continuous S5 _S5_LEDs pulsed S6 _S6_LEDs low power disabled VX _VX_LEDs low power enabled VW _VW_RS232 low power stand by disabled S4 _S4_RS232 low power stand by enabled S3 _S3_Disable motor when idle 4Z _4Z_Enable motor when idle 4Y _4Y_Motor half speed when idle BBA _BBA_Auto shutoff time BBB _BBB_END _ZZ_

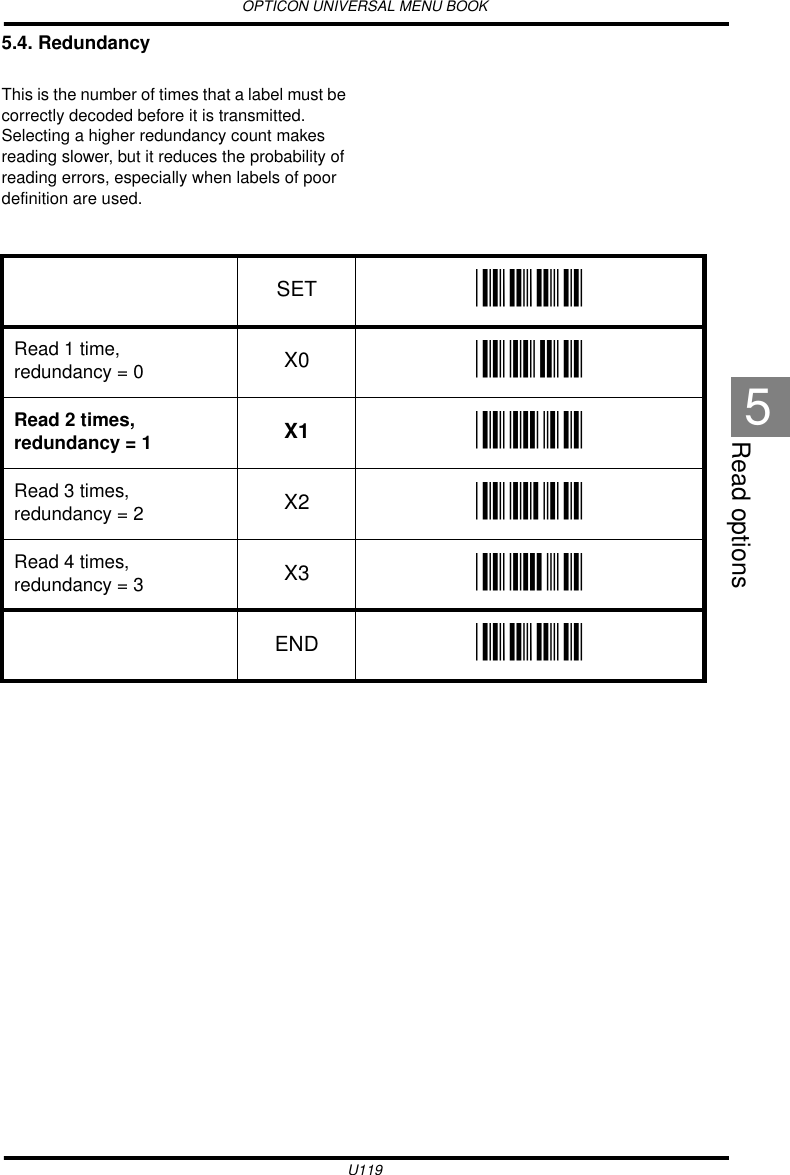

OPTICON UNIVERSAL MENU BOOKU119Read options55.4. RedundancyThis is the number of times that a label must be correctly decoded before it is transmitted. Selecting a higher redundancy count makes reading slower, but it reduces the probability of reading errors, especially when labels of poor definition are used. SET _ZZ_Read 1 time, redundancy = 0 X0 _X0_Read 2 times, redundancy = 1 X1 _X1_Read 3 times, redundancy = 2 X2 _X2_Read 4 times, redundancy = 3 X3 _X3_END _ZZ_

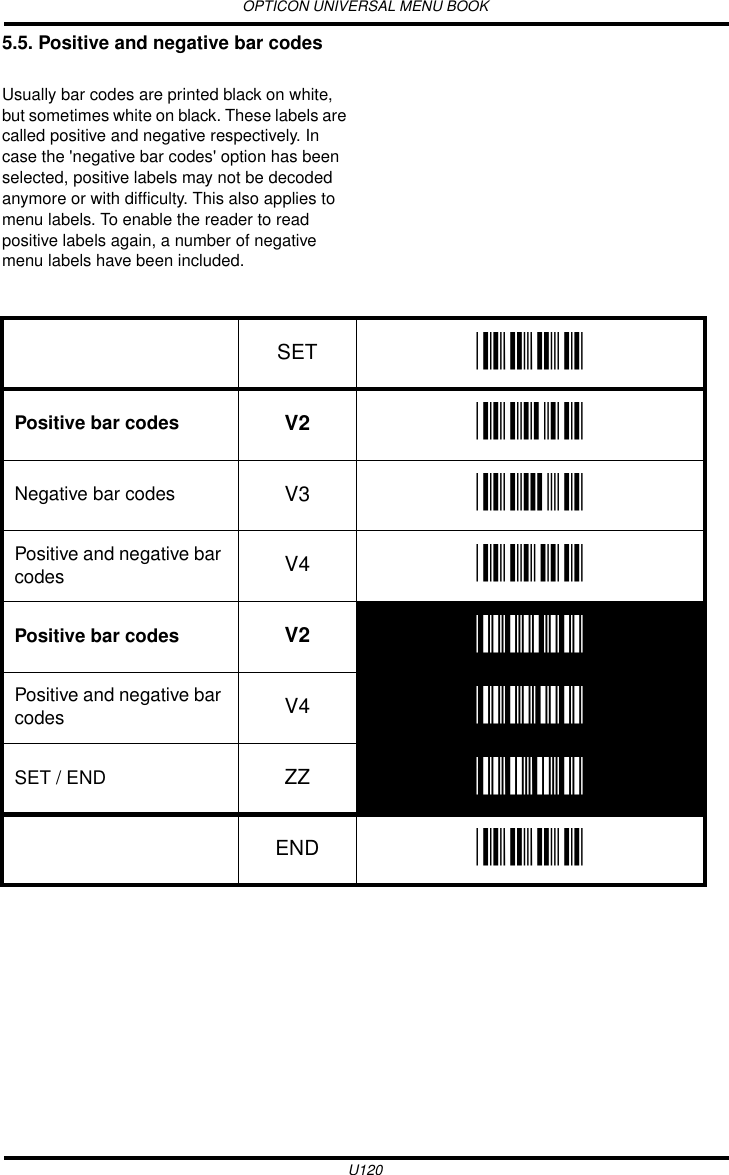

OPTICON UNIVERSAL MENU BOOKU1205.5. Positive and negative bar codesUsually bar codes are printed black on white, but sometimes white on black. These labels are called positive and negative respectively. In case the 'negative bar codes' option has been selected, positive labels may not be decoded anymore or with difficulty. This also applies to menu labels. To enable the reader to read positive labels again, a number of negative menu labels have been included. SET _ZZ_Positive bar codes V2 _V2_Negative bar codes V3 _V3_Positive and negative bar codes V4 _V4_Positive bar codes V2 _V2_Positive and negative bar codes V4 _V4_SET / END ZZ _ZZ_END _ZZ_

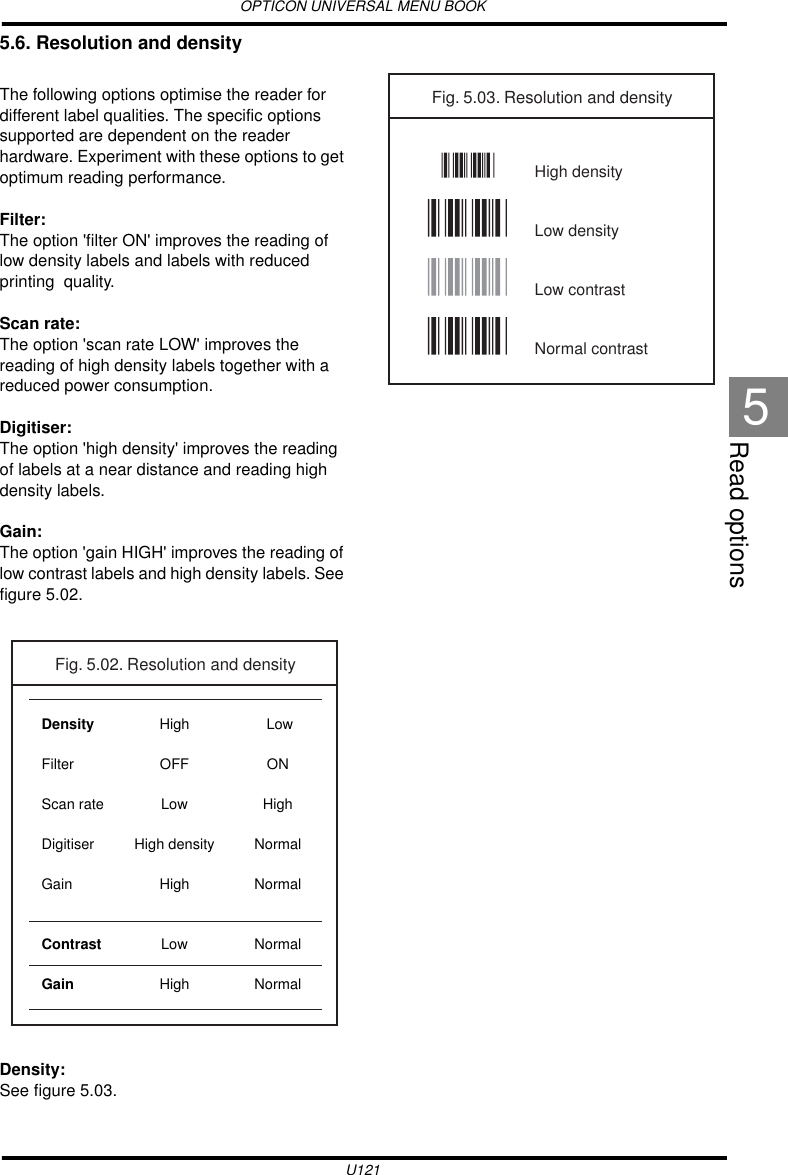

OPTICON UNIVERSAL MENU BOOKU121Read options55.6. Resolution and densityThe following options optimise the reader for different label qualities. The specific options supported are dependent on the reader hardware. Experiment with these options to get optimum reading performance.Filter:The option 'filter ON' improves the reading of low density labels and labels with reduced printing quality.Scan rate:The option 'scan rate LOW' improves the reading of high density labels together with a reduced power consumption.Digitiser:The option 'high density' improves the reading of labels at a near distance and reading high density labels.Gain:The option 'gain HIGH' improves the reading of low contrast labels and high density labels. See figure 5.02.Density:See figure 5.03.HighOFFLowHigh densityHighLowHighDensityFilterScan rateDigitiserGainContrastGainFig. 5.02. Resolution and density LowONHighNormalNormalNormalNormalFig. 5.03. Resolution and densityHigh densityLow densityLow contrastNormal contrast

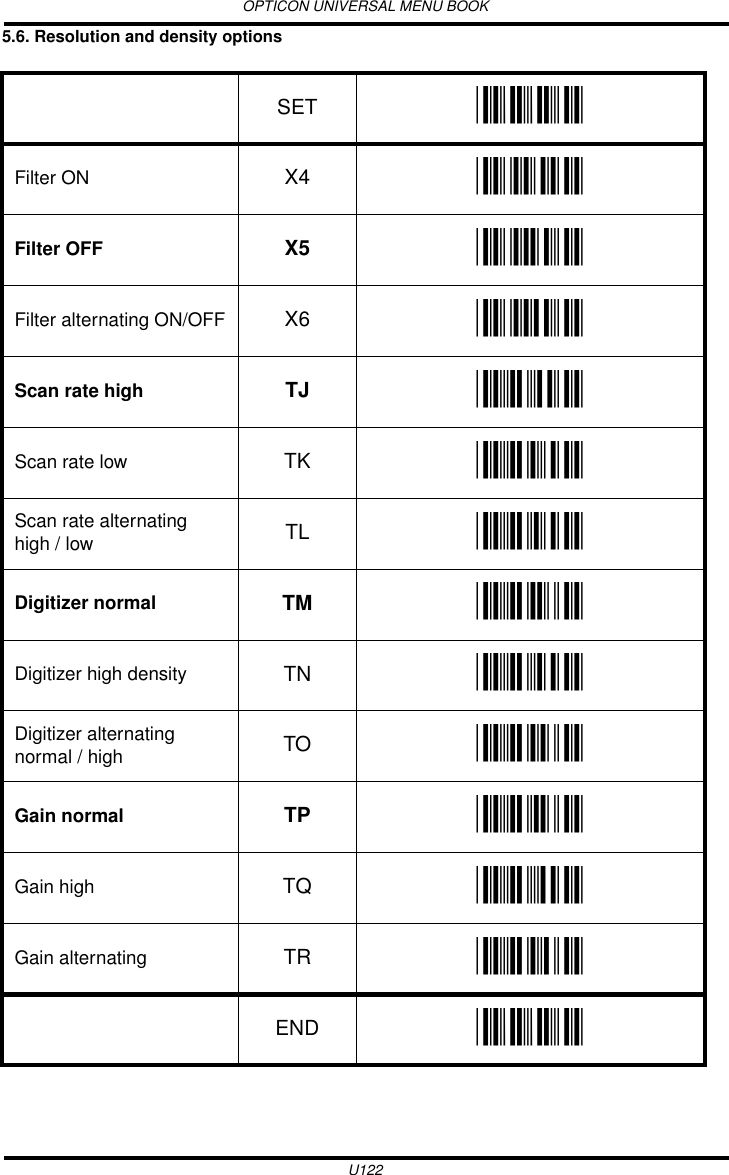

OPTICON UNIVERSAL MENU BOOKU1225.6. Resolution and density options SET _ZZ_Filter ON X4 _X4_Filter OFF X5 _X5_Filter alternating ON/OFF X6 _X6_Scan rate high TJ _TJ_Scan rate low TK _TK_Scan rate alternating high / low TL _TL_Digitizer normal TM _TM_Digitizer high density TN _TN_Digitizer alternating normal / high TO _TO_Gain normal TP _TP_Gain high TQ _TQ_Gain alternating TR _TR_END _ZZ_

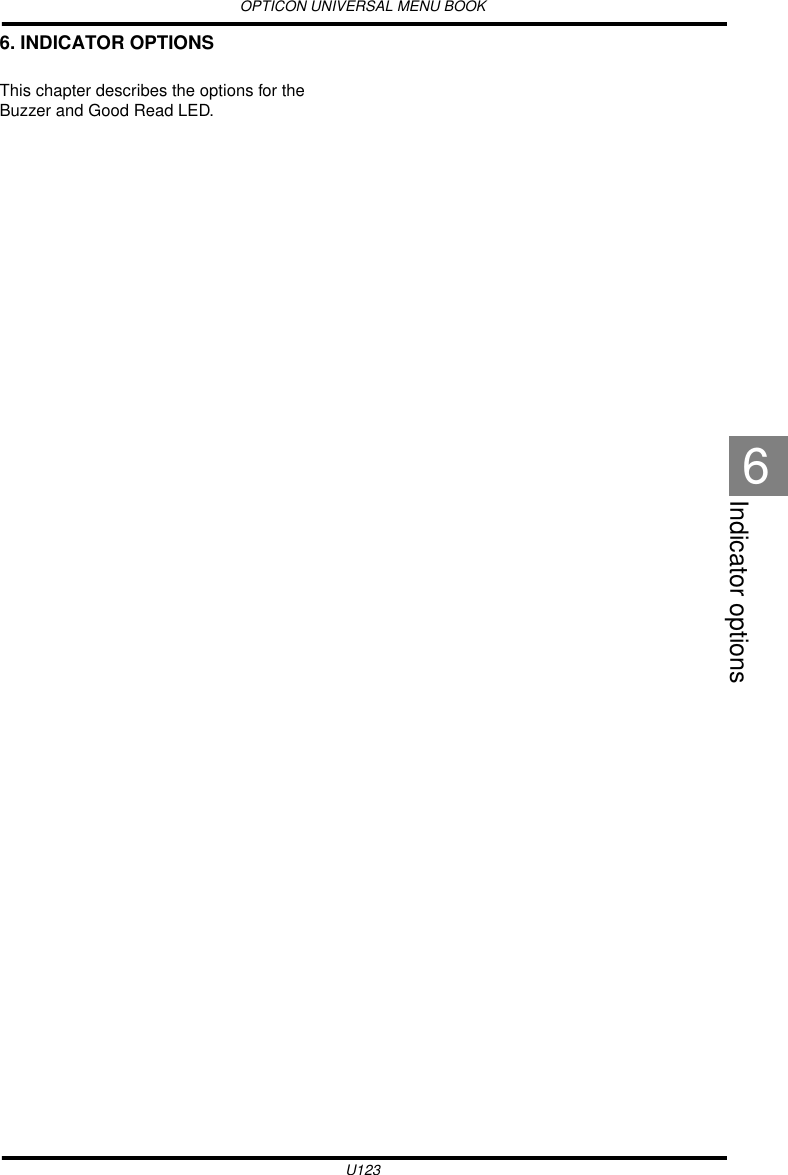

OPTICON UNIVERSAL MENU BOOKU123Indicator options66. INDICATOR OPTIONSThis chapter describes the options for the Buzzer and Good Read LED.

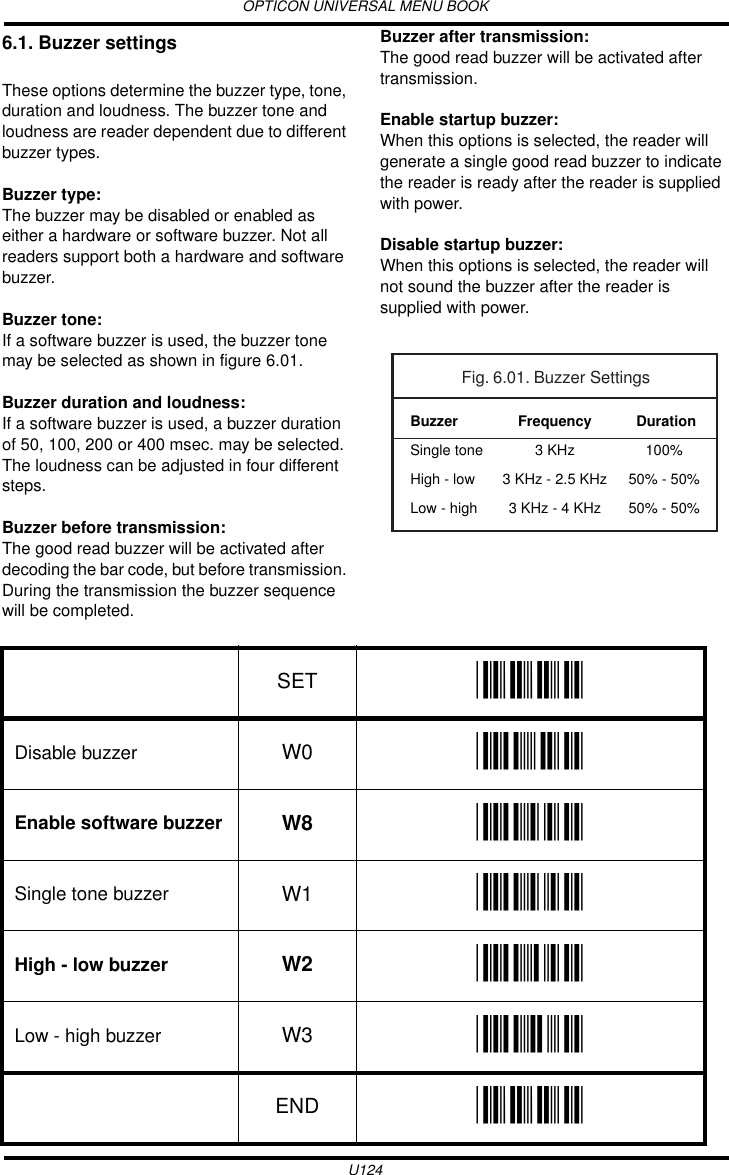

OPTICON UNIVERSAL MENU BOOKU1246.1. Buzzer settingsThese options determine the buzzer type, tone, duration and loudness. The buzzer tone and loudness are reader dependent due to different buzzer types.Buzzer type:The buzzer may be disabled or enabled as either a hardware or software buzzer. Not all readers support both a hardware and software buzzer.Buzzer tone:If a software buzzer is used, the buzzer tone may be selected as shown in figure 6.01.Buzzer duration and loudness:If a software buzzer is used, a buzzer duration of 50, 100, 200 or 400 msec. may be selected. The loudness can be adjusted in four different steps.Buzzer before transmission:The good read buzzer will be activated after decoding the bar code, but before transmission. During the transmission the buzzer sequence will be completed. Buzzer after transmission:The good read buzzer will be activated after transmission. Enable startup buzzer:When this options is selected, the reader will generate a single good read buzzer to indicate the reader is ready after the reader is supplied with power.Disable startup buzzer:When this options is selected, the reader will not sound the buzzer after the reader is supplied with power. Frequency3 KHz3 KHz - 2.5 KHz3 KHz - 4 KHzBuzzerSingle toneHigh - lowLow - highFig. 6.01. Buzzer Settings Duration100%50% - 50%50% - 50%SET _ZZ_Disable buzzer W0 _W0_Enable software buzzer W8 _W8_Single tone buzzer W1 _W1_High - low buzzer W2 _W2_Low - high buzzer W3 _W3_END _ZZ_

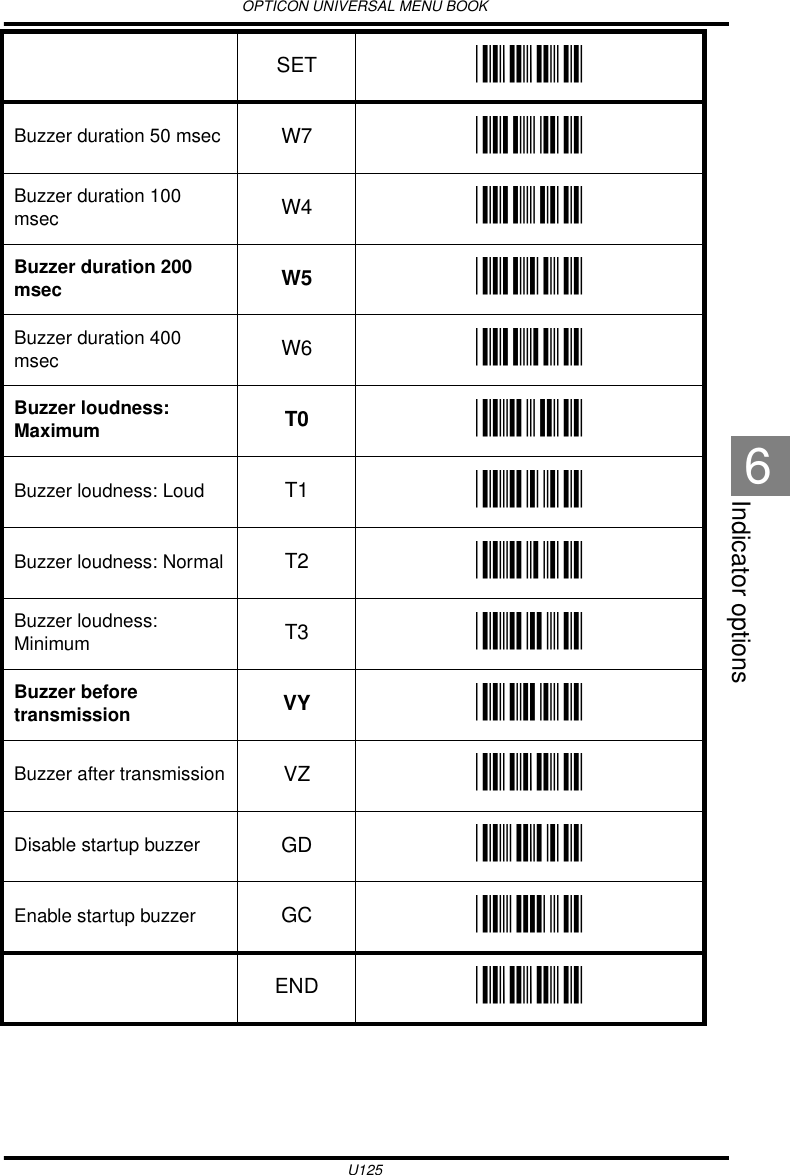

OPTICON UNIVERSAL MENU BOOKU125Indicator options6Buzzer duration 50 msec W7 _W7_Buzzer duration 100 msec W4 _W4_Buzzer duration 200 msec W5 _W5_Buzzer duration 400 msec W6 _W6_Buzzer loudness: Maximum T0 _T0_Buzzer loudness: Loud T1 _T1_Buzzer loudness: Normal T2 _T2_Buzzer loudness: Minimum T3 _T3_Buzzer before transmission VY _VY_Buzzer after transmission VZ _VZ_Disable startup buzzer GD _GD_Enable startup buzzer GC _GC_SET _ZZ_END _ZZ_

OPTICON UNIVERSAL MENU BOOKU1266.2. Good read LEDThe Good Read LED can be disabled or set for several durations. SET _ZZ_Disable indicator T4 _T4_Indicator duration: 0.2 s T5 _T5_Indicator duration: 0.4 s T6 _T6_Indicator duration: 0.8 s T7 _T7_END _ZZ_

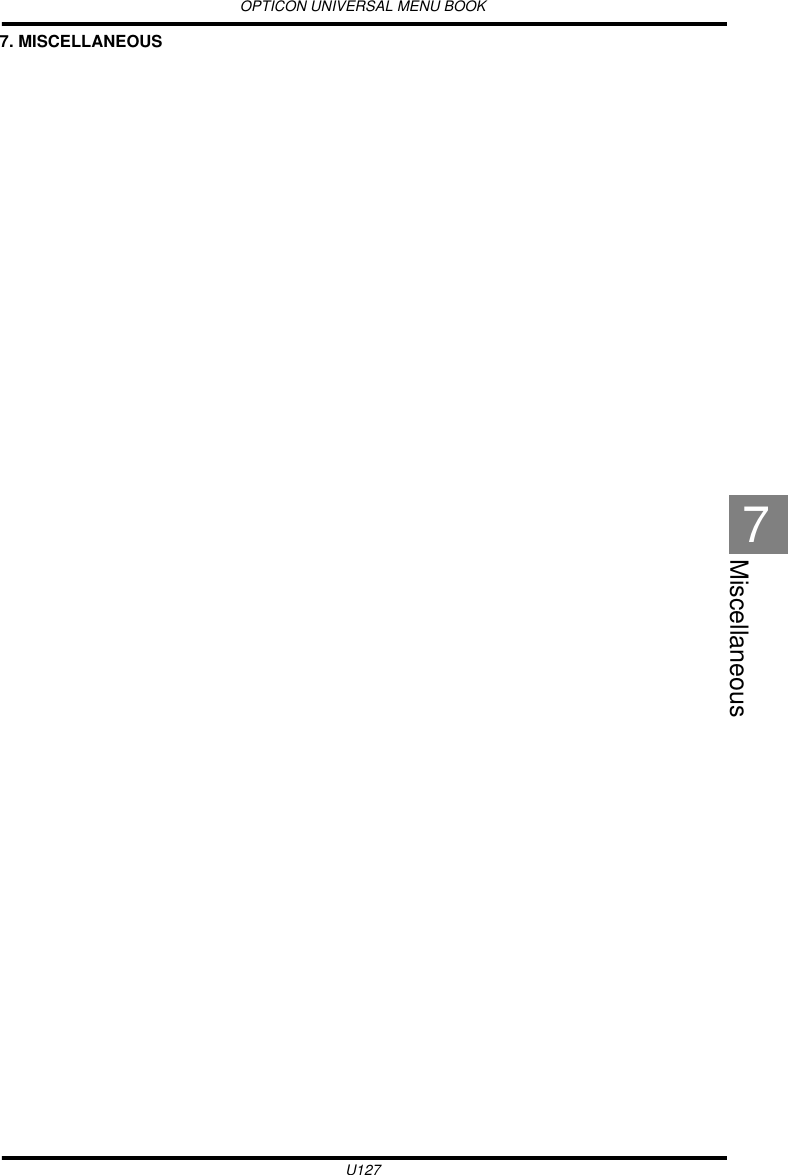

OPTICON UNIVERSAL MENU BOOKU127Miscellaneous77. MISCELLANEOUS

OPTICON UNIVERSAL MENU BOOKU1287.1. DiagnosticsThe options in this part are primarily intended for diagnostic purposes. The following options are available:Transmit software version:The software version is transmitted.Transmit ROM checksum:The software calculated checksum over the internal program is transmitted.Transmit settings:The reader settings are transmitted as a string of hexadecimal numbers.Transmit ASCII printable string:The printable ASCII characters Hex 20 upto Hex 7F are transmitted.Transmit ASCII control string:The non printable ASCII control characters Hex 00 upto Hex 1F are transmitted. SET _ZZ_Transmit software version Z1 _Z1_Transmit ROM checksum ZY _ZY_Transmit settings Z3 _Z3_Transmit ASCII printable string ZA _ZA_Transmit ASCII control string YV _YV_END _ZZ_

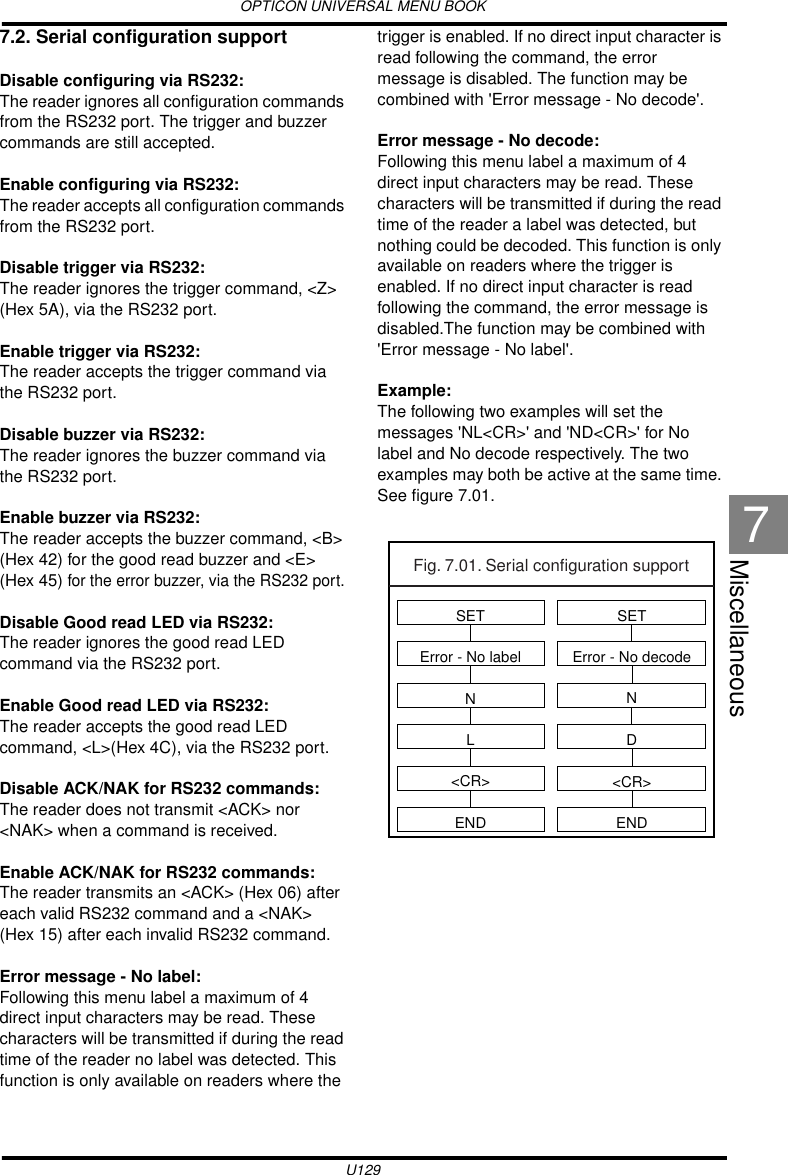

OPTICON UNIVERSAL MENU BOOKU129Miscellaneous77.2. Serial configuration supportDisable configuring via RS232:The reader ignores all configuration commands from the RS232 port. The trigger and buzzer commands are still accepted.Enable configuring via RS232:The reader accepts all configuration commands from the RS232 port.Disable trigger via RS232:The reader ignores the trigger command, <Z> (Hex 5A), via the RS232 port.Enable trigger via RS232:The reader accepts the trigger command via the RS232 port.Disable buzzer via RS232:The reader ignores the buzzer command via the RS232 port.Enable buzzer via RS232:The reader accepts the buzzer command, <B> (Hex 42) for the good read buzzer and <E> (Hex 45) for the error buzzer, via the RS232 port.Disable Good read LED via RS232:The reader ignores the good read LED command via the RS232 port.Enable Good read LED via RS232:The reader accepts the good read LED command, <L>(Hex 4C), via the RS232 port.Disable ACK/NAK for RS232 commands:The reader does not transmit <ACK> nor <NAK> when a command is received. Enable ACK/NAK for RS232 commands:The reader transmits an <ACK> (Hex 06) after each valid RS232 command and a <NAK> (Hex 15) after each invalid RS232 command.Error message - No label:Following this menu label a maximum of 4 direct input characters may be read. These characters will be transmitted if during the read time of the reader no label was detected. This function is only available on readers where the trigger is enabled. If no direct input character is read following the command, the error message is disabled. The function may be combined with 'Error message - No decode'.Error message - No decode:Following this menu label a maximum of 4 direct input characters may be read. These characters will be transmitted if during the read time of the reader a label was detected, but nothing could be decoded. This function is only available on readers where the trigger is enabled. If no direct input character is read following the command, the error message is disabled.The function may be combined with 'Error message - No label'.Example:The following two examples will set the messages 'NL<CR>' and 'ND<CR>' for No label and No decode respectively. The two examples may both be active at the same time. See figure 7.01.Fig. 7.01. Serial configuration supportSETError - No labelNL<CR>ENDSETError - No decodeND<CR>END

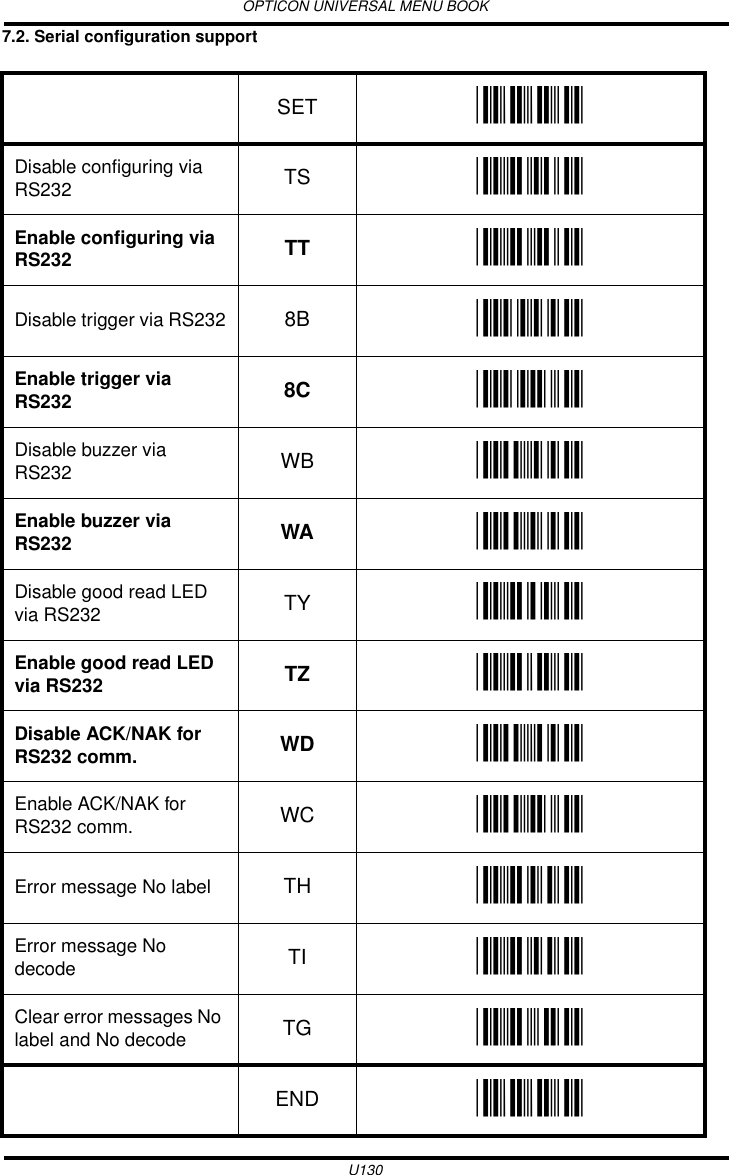

OPTICON UNIVERSAL MENU BOOKU1307.2. Serial configuration support SET _ZZ_Disable configuring via RS232 TS _TS_Enable configuring via RS232 TT _TT_Disable trigger via RS232 8B _8B_Enable trigger via RS232 8C _8C_Disable buzzer via RS232 WB _WB_Enable buzzer via RS232 WA _WA_Disable good read LED via RS232 TY _TY_Enable good read LED via RS232 TZ _TZ_Disable ACK/NAK for RS232 comm. WD _WD_Enable ACK/NAK for RS232 comm. WC _WC_Error message No label TH _TH_Error message No decode TI _TI_Clear error messages No label and No decode TG _TG_END _ZZ_

OPTICON UNIVERSAL MENU BOOKU131AppendixA. TROUBLE SHOOTINGThe trouble shooting diagram can be of help if your reader does not operate as expected. If any problem is not covered or solved with this diagram you need to contact your dealer.Whether the reader operates or not can be checked in the following way:• it should beep after the power has been switched ON• it should either react on a trigger(if any) or it should emit light at the scan side of the reader (LEDs)See figure A.01.CheckcablingReaderoperates?Problemsreading menu? Readsbar codes?Garbageon screen?Reads anylabel?Software and menu do not match.Use matching menubookScansSET/END?Setup reader orcontact dealerSetup bar codeoptionsSetup reader interfaceReader defectcontact dealerLow buzzer indicatesunsupported optionNoNo NoNoNoNoYes YesYesYesYesYesFig. A.01. Trouble shooting

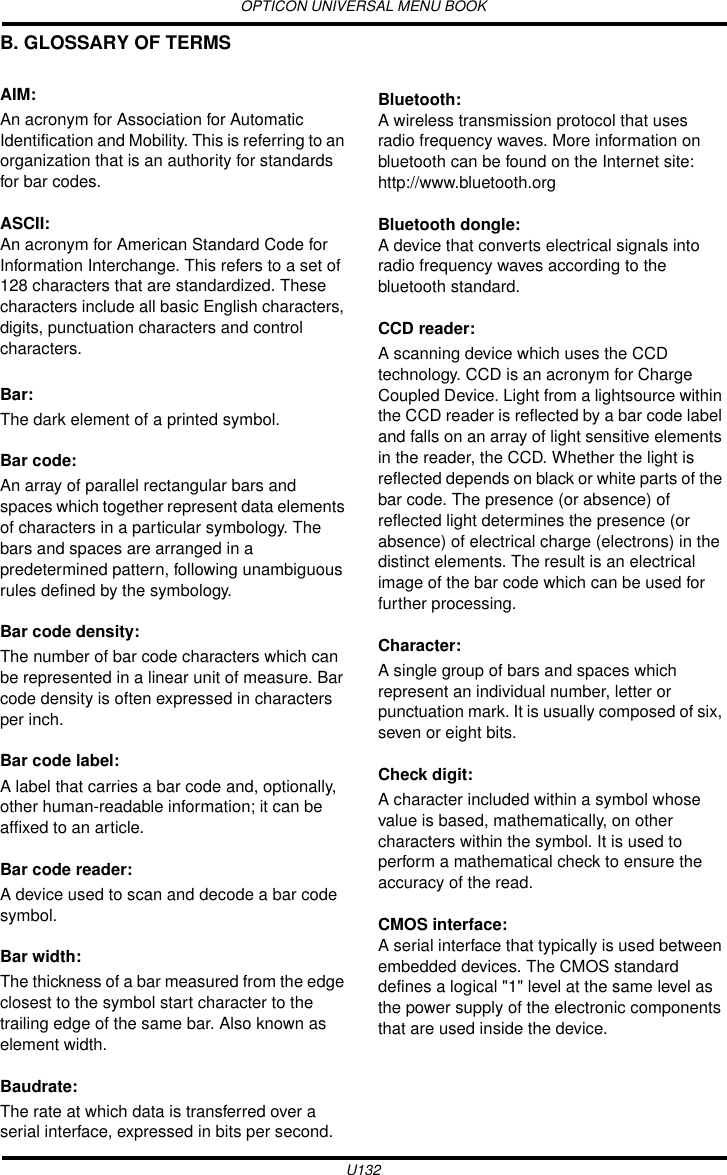

OPTICON UNIVERSAL MENU BOOKU132B. GLOSSARY OF TERMSAIM: An acronym for Association for Automatic Identification and Mobility. This is referring to an organization that is an authority for standards for bar codes.ASCII:An acronym for American Standard Code for Information Interchange. This refers to a set of 128 characters that are standardized. These characters include all basic English characters, digits, punctuation characters and control characters.Bar: The dark element of a printed symbol.Bar code: An array of parallel rectangular bars and spaces which together represent data elements of characters in a particular symbology. The bars and spaces are arranged in a predetermined pattern, following unambiguous rules defined by the symbology.Bar code density: The number of bar code characters which can be represented in a linear unit of measure. Bar code density is often expressed in characters per inch.Bar code label: A label that carries a bar code and, optionally, other human-readable information; it can be affixed to an article.Bar code reader: A device used to scan and decode a bar code symbol.Bar width: The thickness of a bar measured from the edge closest to the symbol start character to the trailing edge of the same bar. Also known as element width.Baudrate: The rate at which data is transferred over a serial interface, expressed in bits per second.Bluetooth:A wireless transmission protocol that uses radio frequency waves. More information on bluetooth can be found on the Internet site: http://www.bluetooth.orgBluetooth dongle:A device that converts electrical signals into radio frequency waves according to the bluetooth standard.CCD reader: A scanning device which uses the CCD technology. CCD is an acronym for Charge Coupled Device. Light from a lightsource within the CCD reader is reflected by a bar code label and falls on an array of light sensitive elements in the reader, the CCD. Whether the light is reflected depends on black or white parts of the bar code. The presence (or absence) of reflected light determines the presence (or absence) of electrical charge (electrons) in the distinct elements. The result is an electrical image of the bar code which can be used for further processing.Character: A single group of bars and spaces which represent an individual number, letter or punctuation mark. It is usually composed of six, seven or eight bits.Check digit: A character included within a symbol whose value is based, mathematically, on other characters within the symbol. It is used to perform a mathematical check to ensure the accuracy of the read.CMOS interface:A serial interface that typically is used between embedded devices. The CMOS standard defines a logical "1" level at the same level as the power supply of the electronic components that are used inside the device.

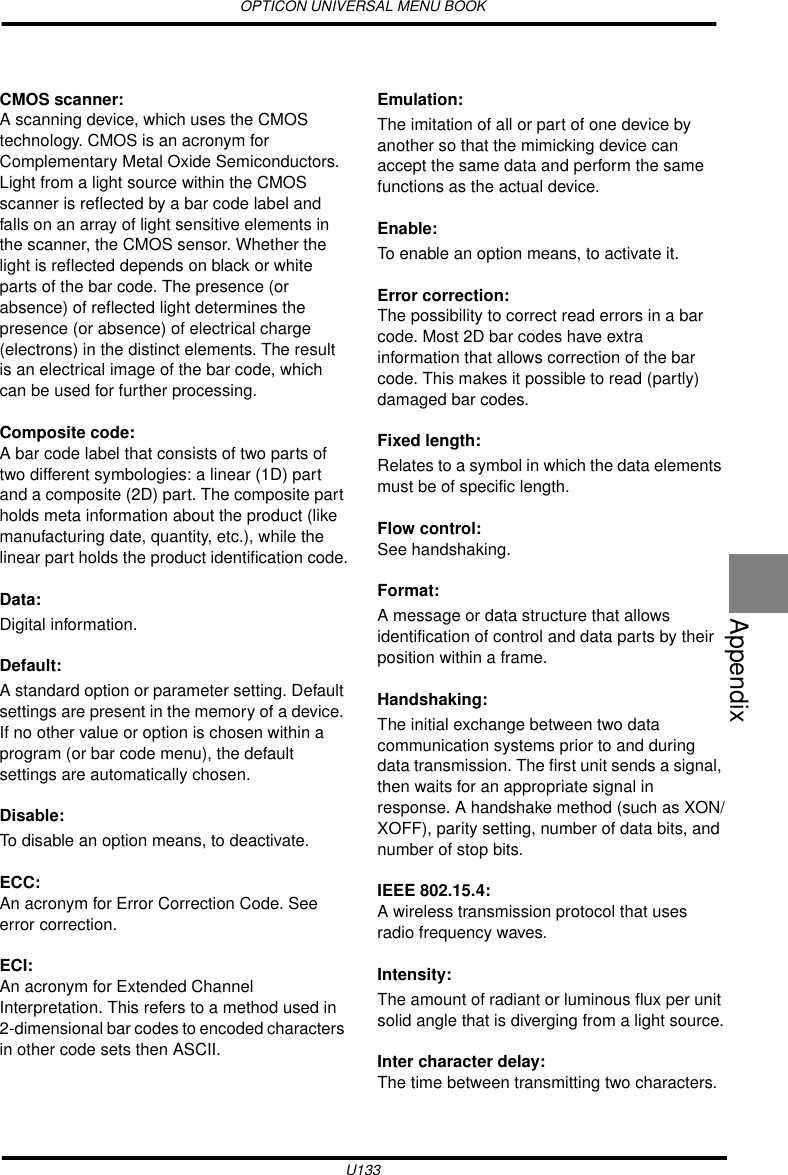

OPTICON UNIVERSAL MENU BOOKU133AppendixCMOS scanner:A scanning device, which uses the CMOS technology. CMOS is an acronym for Complementary Metal Oxide Semiconductors. Light from a light source within the CMOS scanner is reflected by a bar code label and falls on an array of light sensitive elements in the scanner, the CMOS sensor. Whether the light is reflected depends on black or white parts of the bar code. The presence (or absence) of reflected light determines the presence (or absence) of electrical charge (electrons) in the distinct elements. The result is an electrical image of the bar code, which can be used for further processing.Composite code:A bar code label that consists of two parts of two different symbologies: a linear (1D) part and a composite (2D) part. The composite part holds meta information about the product (like manufacturing date, quantity, etc.), while the linear part holds the product identification code.Data: Digital information.Default: A standard option or parameter setting. Default settings are present in the memory of a device. If no other value or option is chosen within a program (or bar code menu), the default settings are automatically chosen.Disable: To disable an option means, to deactivate.ECC:An acronym for Error Correction Code. See error correction.ECI:An acronym for Extended Channel Interpretation. This refers to a method used in 2-dimensional bar codes to encoded characters in other code sets then ASCII.Emulation: The imitation of all or part of one device by another so that the mimicking device can accept the same data and perform the same functions as the actual device.Enable: To enable an option means, to activate it.Error correction:The possibility to correct read errors in a bar code. Most 2D bar codes have extra information that allows correction of the bar code. This makes it possible to read (partly) damaged bar codes.Fixed length: Relates to a symbol in which the data elements must be of specific length.Flow control:See handshaking.Format: A message or data structure that allows identification of control and data parts by their position within a frame.Handshaking: The initial exchange between two data communication systems prior to and during data transmission. The first unit sends a signal, then waits for an appropriate signal in response. A handshake method (such as XON/XOFF), parity setting, number of data bits, and number of stop bits.IEEE 802.15.4:A wireless transmission protocol that uses radio frequency waves.Intensity: The amount of radiant or luminous flux per unit solid angle that is diverging from a light source.Inter character delay: The time between transmitting two characters.

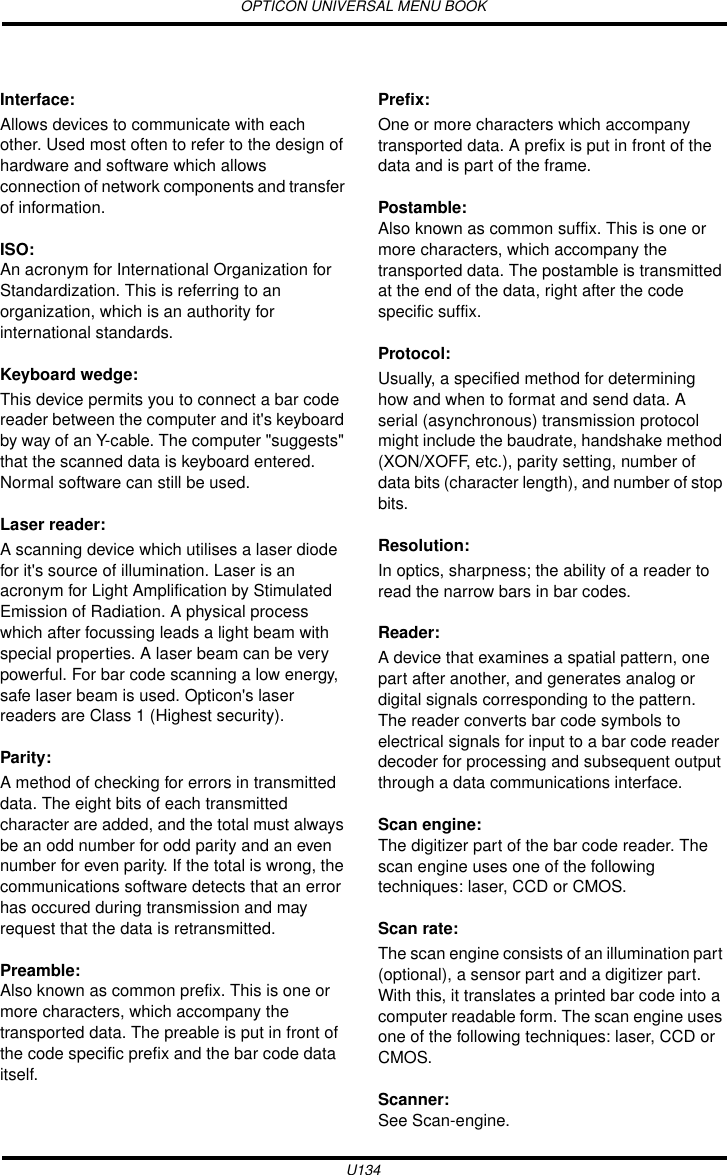

OPTICON UNIVERSAL MENU BOOKU134Interface: Allows devices to communicate with each other. Used most often to refer to the design of hardware and software which allows connection of network components and transfer of information.ISO:An acronym for International Organization for Standardization. This is referring to an organization, which is an authority for international standards.Keyboard wedge: This device permits you to connect a bar code reader between the computer and it's keyboard by way of an Y-cable. The computer "suggests" that the scanned data is keyboard entered. Normal software can still be used.Laser reader: A scanning device which utilises a laser diode for it's source of illumination. Laser is an acronym for Light Amplification by Stimulated Emission of Radiation. A physical process which after focussing leads a light beam with special properties. A laser beam can be very powerful. For bar code scanning a low energy, safe laser beam is used. Opticon's laser readers are Class 1 (Highest security).Parity: A method of checking for errors in transmitted data. The eight bits of each transmitted character are added, and the total must always be an odd number for odd parity and an even number for even parity. If the total is wrong, the communications software detects that an error has occured during transmission and may request that the data is retransmitted.Preamble:Also known as common prefix. This is one or more characters, which accompany the transported data. The preable is put in front of the code specific prefix and the bar code data itself.Prefix: One or more characters which accompany transported data. A prefix is put in front of the data and is part of the frame.Postamble:Also known as common suffix. This is one or more characters, which accompany the transported data. The postamble is transmitted at the end of the data, right after the code specific suffix.Protocol: Usually, a specified method for determining how and when to format and send data. A serial (asynchronous) transmission protocol might include the baudrate, handshake method (XON/XOFF, etc.), parity setting, number of data bits (character length), and number of stop bits.Resolution: In optics, sharpness; the ability of a reader to read the narrow bars in bar codes.Reader: A device that examines a spatial pattern, one part after another, and generates analog or digital signals corresponding to the pattern. The reader converts bar code symbols to electrical signals for input to a bar code reader decoder for processing and subsequent output through a data communications interface.Scan engine:The digitizer part of the bar code reader. The scan engine uses one of the following techniques: laser, CCD or CMOS.Scan rate: The scan engine consists of an illumination part (optional), a sensor part and a digitizer part. With this, it translates a printed bar code into a computer readable form. The scan engine uses one of the following techniques: laser, CCD or CMOS.Scanner:See Scan-engine.

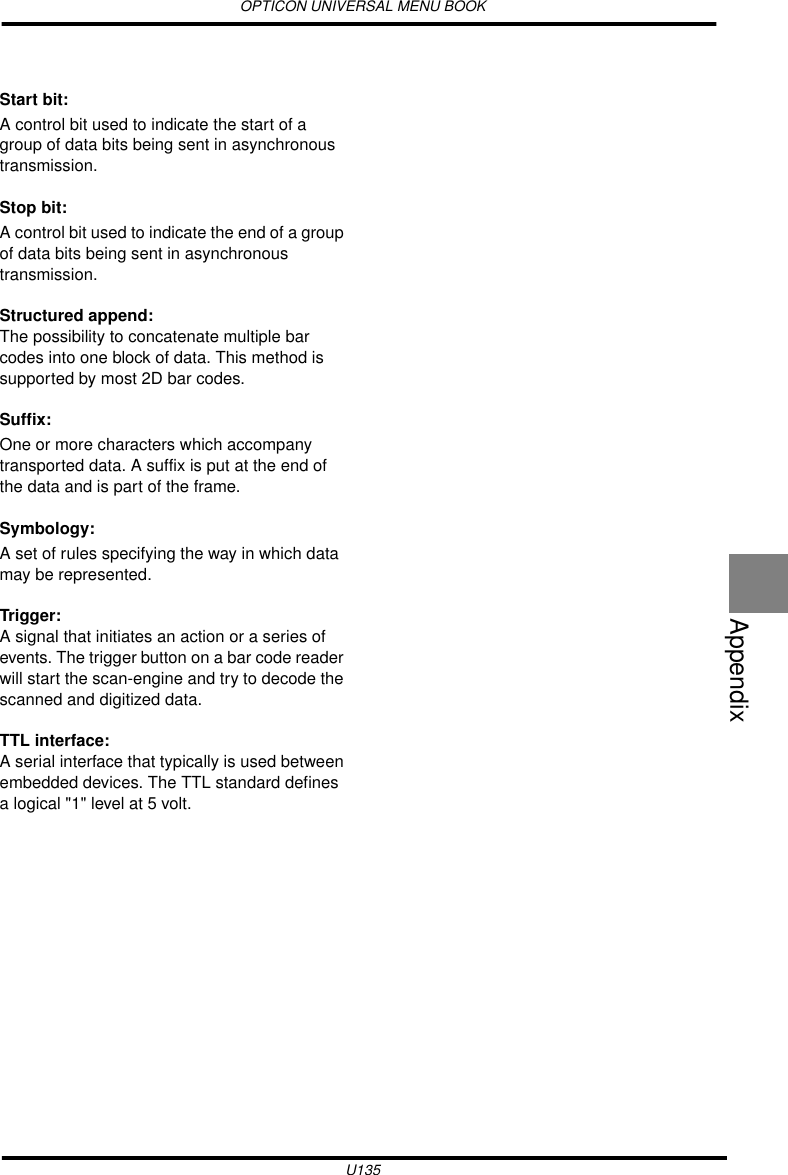

OPTICON UNIVERSAL MENU BOOKU135AppendixStart bit: A control bit used to indicate the start of a group of data bits being sent in asynchronous transmission.Stop bit: A control bit used to indicate the end of a group of data bits being sent in asynchronous transmission.Structured append:The possibility to concatenate multiple bar codes into one block of data. This method is supported by most 2D bar codes.Suffix: One or more characters which accompany transported data. A suffix is put at the end of the data and is part of the frame.Symbology: A set of rules specifying the way in which data may be represented.Trigger:A signal that initiates an action or a series of events. The trigger button on a bar code reader will start the scan-engine and try to decode the scanned and digitized data.TTL interface:A serial interface that typically is used between embedded devices. The TTL standard defines a logical "1" level at 5 volt.

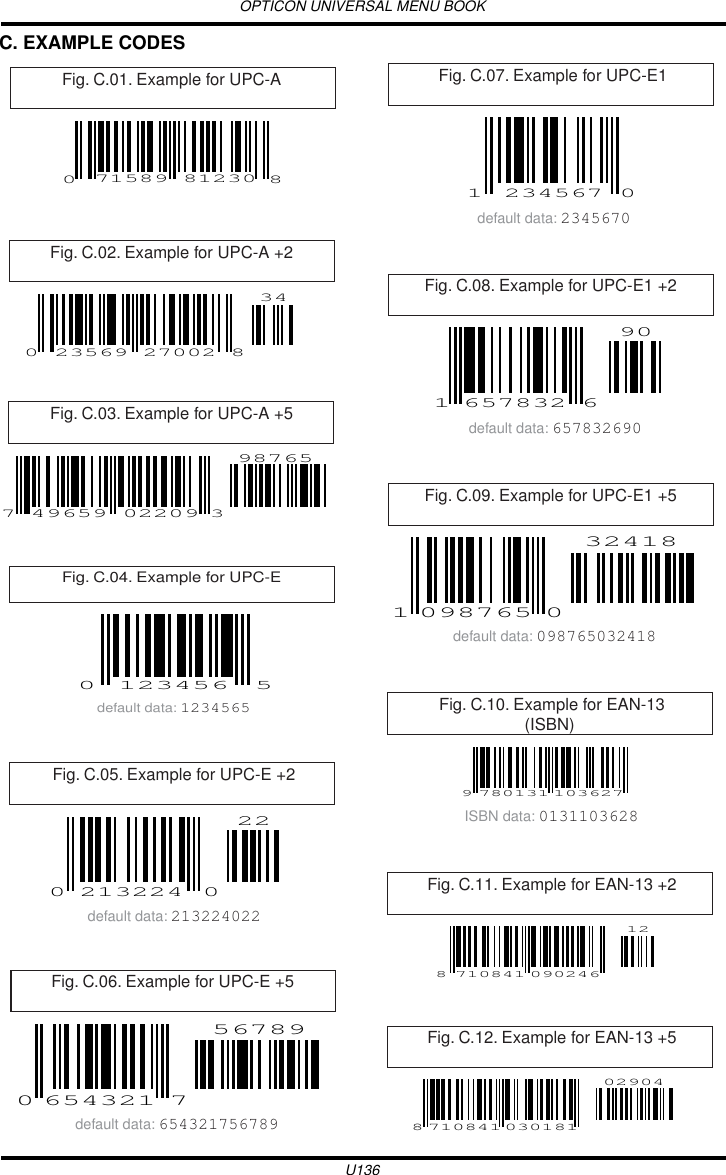

OPTICON UNIVERSAL MENU BOOKU136C. EXAMPLE CODES Fig. C.01. Example for UPC-A 71589 8123008Fig. C.02. Example for UPC-A +2 23569 270020834Fig. C.03. Example for UPC-A +5 49659 022097987653Fig. C.04. Example for UPC-E 0 5123456default data: 1234565Fig. C.05. Example for UPC-E +2022213224 0default data: 213224022Fig. C.06. Example for UPC-E +5 0765432156789default data: 654321756789Fig. C.07. Example for UPC-E11 0234567default data: 2345670Fig. C.08. Example for UPC-E1 +2 1 665783290default data: 657832690Fig. C.09. Example for UPC-E1 +5 1 009876532418default data: 098765032418Fig. C.10. Example for EAN-13(ISBN) 9 780131 103627ISBN data: 0131103628Fig. C.11. Example for EAN-13 +2812710841 090246Fig. C.12. Example for EAN-13 +58 71084102904030181

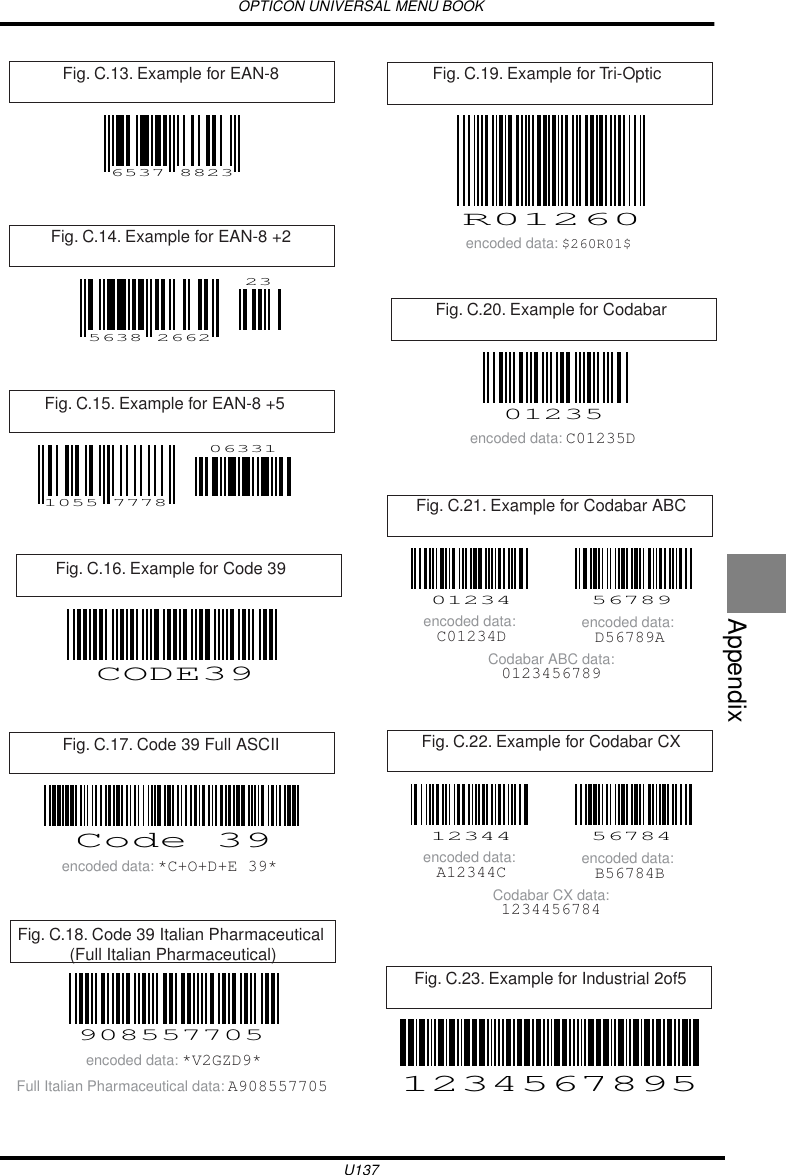

OPTICON UNIVERSAL MENU BOOKU137AppendixFig. C.13. Example for EAN-8 6537 8823Fig. C.14. Example for EAN-8 +2 5638 266223Fig. C.15. Example for EAN-8 +5 063311055 7778Fig. C.16. Example for Code 39 CODE39Fig. C.17. Code 39 Full ASCII Code 39encoded data: *C+O+D+E 39*Fig. C.18. Code 39 Italian Pharmaceutical (Full Italian Pharmaceutical)908557705encoded data: *V2GZD9*Full Italian Pharmaceutical data: A908557705Fig. C.19. Example for Tri-OpticR01260encoded data: $260R01$Fig. C.20. Example for Codabar01235encoded data: C01235DFig. C.21. Example for Codabar ABC01234 56789encoded data: C01234D encoded data: D56789ACodabar ABC data:0123456789Fig. C.22. Example for Codabar CX12344 56784encoded data: A12344C encoded data: B56784BCodabar CX data:1234456784Fig. C.23. Example for Industrial 2of51234567895

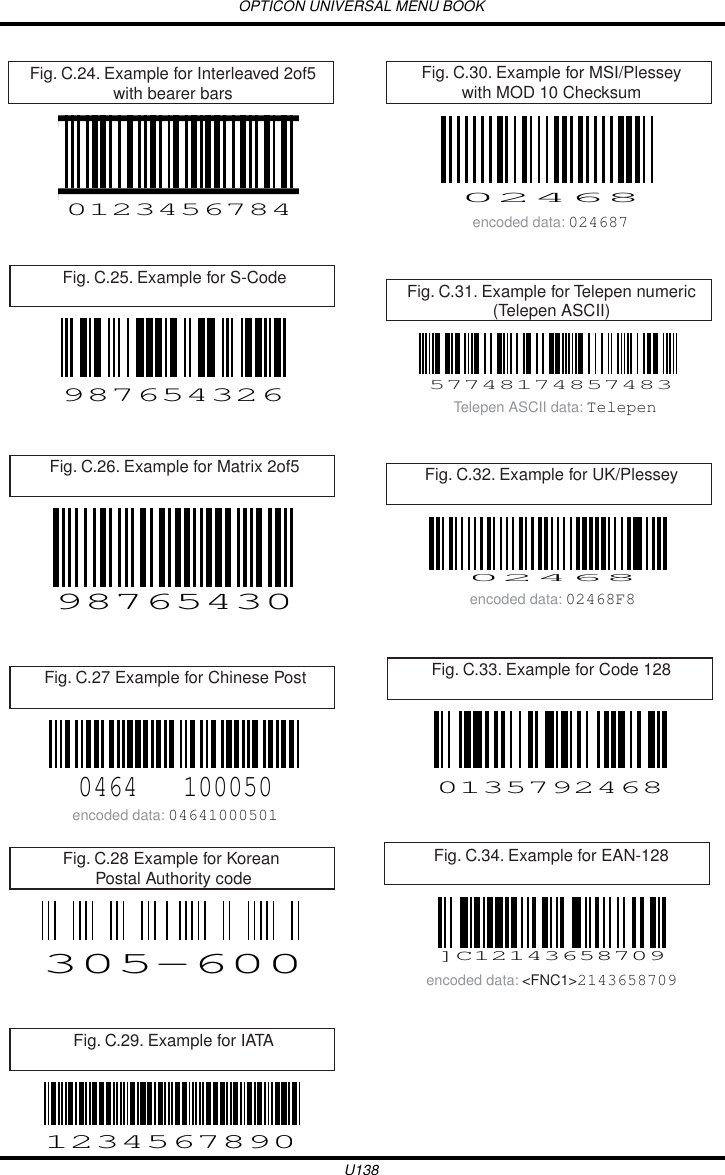

OPTICON UNIVERSAL MENU BOOKU138Fig. C.24. Example for Interleaved 2of5with bearer bars0123456784Fig. C.25. Example for S-Code987654326Fig. C.26. Example for Matrix 2of598765430Fig. C.27 Example for Chinese Postencoded data: 046410005010464 100050Fig. C.28 Example for Korean Postal Authority code305-600Fig. C.29. Example for IATA1234567890Fig. C.30. Example for MSI/Plesseywith MOD 10 Checksum02468encoded data: 024687Fig. C.31. Example for Telepen numeric(Telepen ASCII)57748174857483Telepen ASCII data: TelepenFig. C.32. Example for UK/Plessey02468encoded data: 02468F8Fig. C.33. Example for Code 1280135792468Fig. C.34. Example for EAN-128]C12143658709encoded data: <FNC1>2143658709

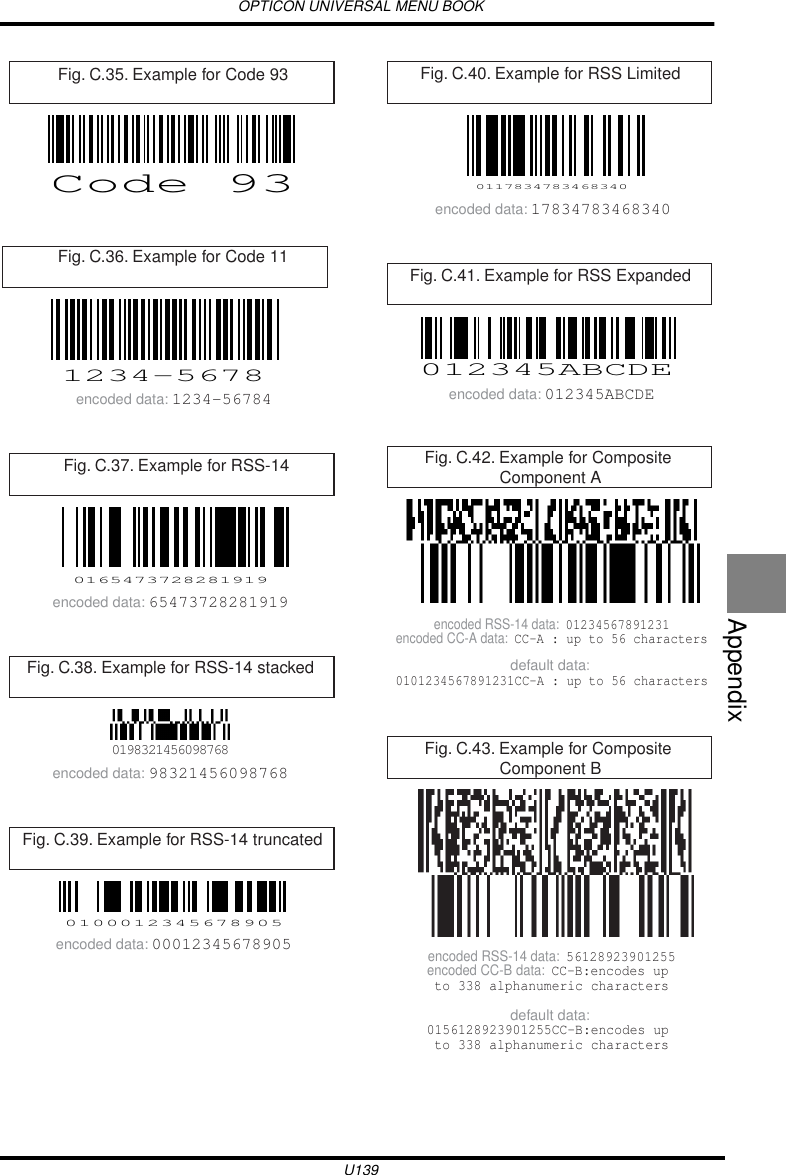

OPTICON UNIVERSAL MENU BOOKU139Appendix Fig. C.35. Example for Code 93Code 93Fig. C.36. Example for Code 111234-5678encoded data: 1234-56784Fig. C.37. Example for RSS-140165473728281919encoded data: 65473728281919Fig. C.38. Example for RSS-14 stacked0198321456098768encoded data: 98321456098768Fig. C.39. Example for RSS-14 truncated0100012345678905encoded data: 00012345678905Fig. C.40. Example for RSS Limited0117834783468340encoded data: 17834783468340Fig. C.41. Example for RSS Expanded012345ABCDEencoded data: 012345ABCDEFig. C.42. Example for Composite Component Adefault data: 0101234567891231CC-A : up to 56 charactersencoded RSS-14 data: 01234567891231encoded CC-A data: CC-A : up to 56 charactersFig. C.43. Example for Composite Component Bdefault data: 0156128923901255CC-B:encodes up to 338 alphanumeric charactersencoded RSS-14 data: 56128923901255encoded CC-B data: CC-B:encodes up to 338 alphanumeric characters

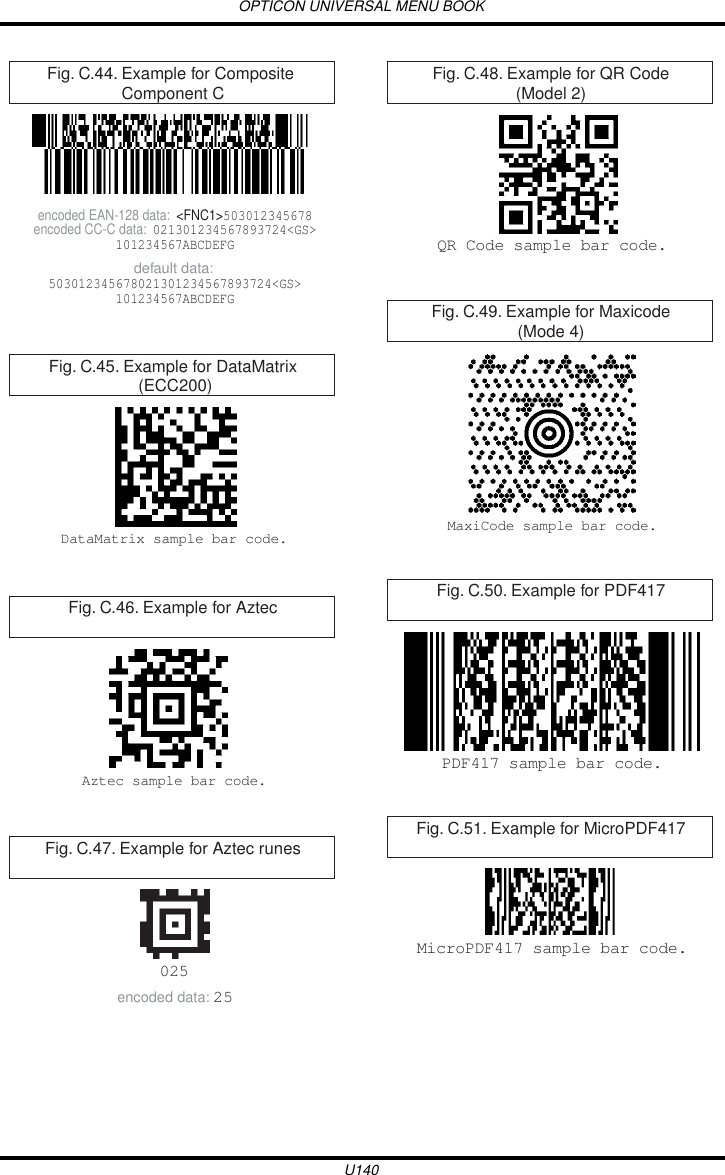

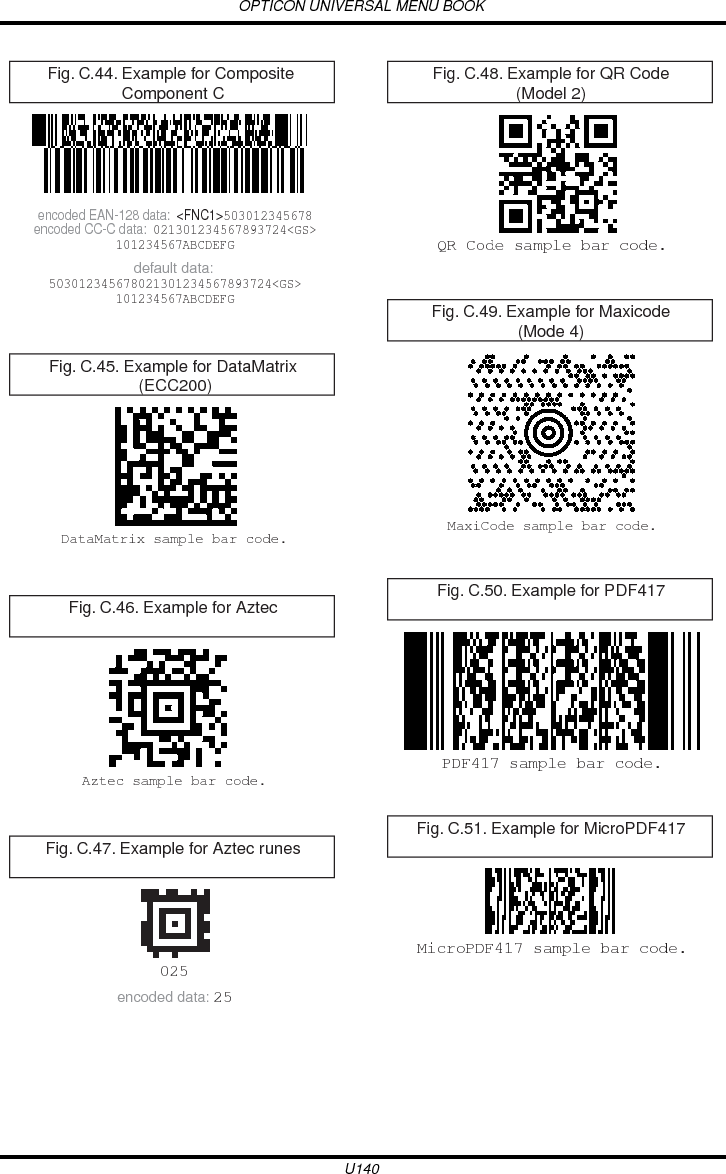

OPTICON UNIVERSAL MENU BOOKU140 Fig. C.44. Example for Composite Component Cdefault data: 503012345678021301234567893724<GS>101234567ABCDEFGencoded EAN-128 data: <FNC1>503012345678encoded CC-C data: 021301234567893724<GS>101234567ABCDEFGFig. C.45. Example for DataMatrix (ECC200)DataMatrix sample bar code.Fig. C.46. Example for AztecAztec sample bar code.Fig. C.47. Example for Aztec runes025encoded data: 25Fig. C.48. Example for QR Code(Model 2)QR Code sample bar code.Fig. C.49. Example for Maxicode(Mode 4)MaxiCode sample bar code.Fig. C.50. Example for PDF417PDF417 sample bar code.Fig. C.51. Example for MicroPDF417MicroPDF417 sample bar code.
