1. Abstract
This document provides specifications on the OPN-2002 compact data collector equipped with
Bluetooth.
2. Overview
・The OPN-2002 is a simplified handheld data collector.
・The decoded text barcode images are output using USB, Bluetooth interfaces or a dedicated cradle
to hosts.
・Implemented Bluetooth SPP and HID profiles
・3.7V 240mAh lithium polymer battery is used as a power source of the OPN-2002.
・The OPN-2002 is rechargeable with a dedicated cradle.
・The OPN-2002 is a RoHS compliant product.
OPN-2002 SS07114
5
3. Basic Specifications
ITEMS SPECIFICATIONS NOTES
MPU 32bit ST MicroSTR710FZx
Control
Section
Clock 48MHz
FROM 1Mbyte
Mem
ory
SRAM 1Mbyte
OS
μITRON
Input
Part
key input 2keys:Torrigar key/ Function key
LED
Indicate
Double color LED (RED/GREEN) :2, Single color LED (Blue) :1
Buzzer
3 volumes (adjustable)
frequency 2402MHz-2480MHz
Specifications Bluetooth Ver1.2
Communication Range 10m It may differ depending on the
environmental conditions.
Transmission Power Class2
Wires
communication
Profile SPP, HID
USB
Ver1.1 Virtual COM Port
RTS
Year, Month, Day, Hour, Minute, Second (lunar equation ±90 seconds)
serial
port
2 ports to a cradle
main battery lithium polymar 240mAh
power source
battery hour more than 7 hours
2 scans per 10 seconds at a
ambient temperarure,
Bluetooth always transmitted
OPN-2002 SS07114
6
ITEMS SPECIFICATIONS NOTES
Scan Method Bi-directional 100 ±20 scan/sec
Light Emitting Element Red laser diode Wavelength: 650±10nm
(at 25 deg. C)
Light Output ≤ 1.0 mW Laser Class 2 Product
Optical
Section
Supported Symbologies
JAN,EAN,UPC-A,UPC-E，NW-7(Codabar),
Industrial 2 of 5,Interleaved 2 of 5,
Code 11，Code 39，Code 93，Code 128，
MSI/Plessey,UK/Plessey,IATA,Telepen,
Matrix 2 of 5,S Code,Tri-Optic,
Chinese Post Matrix 2 of 5,EAN 128,
RSS-14,RSS Limited,RSS Expanded,
PDF417,MicroPDF417
Dimensions
62.0(D) × 32.0(W) × 17.0(H) (mm)
Weight
30g
Operating 0 to 50 degrees C
20%RH～85％RH no ice or condensation
Temperature
Storage -20 to 60 degrees C
20%RH～85％RH no ice or condensation
Drop
Dropped from a height of 120 cm onto
a concrete surface. The drop test was
done 18 times.
Environmental
Spec.
Protective Structure IP42
Laser Safety JIS C 6802：2005 Class 2
IEC 60825-1+A2:2001 Class 2
EMI VCCI Class B, EN55022 Class 2, FCC
Part 15 Subpart C
Product Safety IEC/EN 60950-1
Other Certifications CE Marking
Certifications for Construction Design
of Specified Radio Equipment
Regulations and Safety
Logo Certifications Bluetooth Logo Certification
Development Environment Development language:C Application
Development
OPN-2002 SS07114
7
4. Views of a device

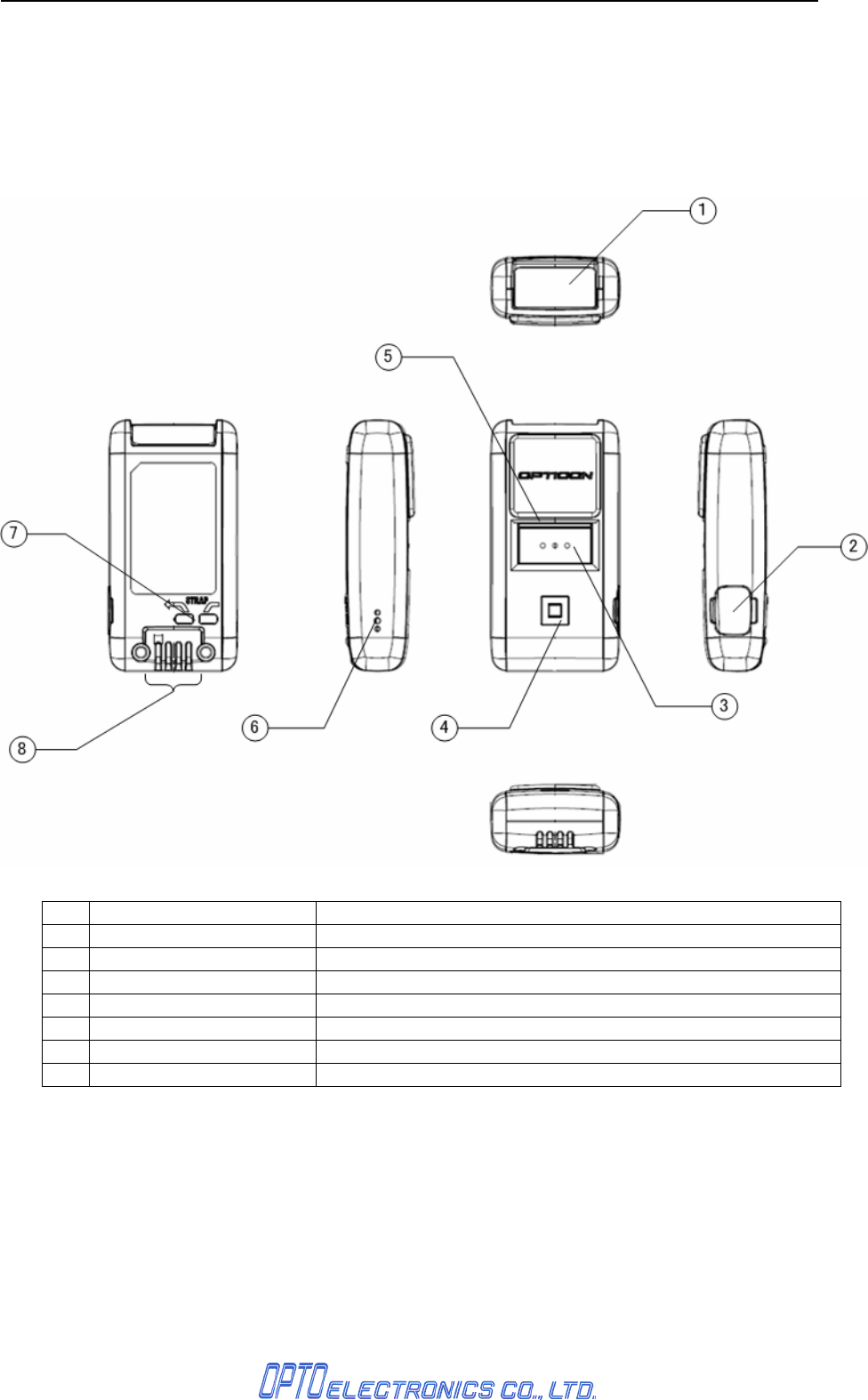

① Reading window The laser beam emits from here to scan the barcode.
② USB connector cap A cap for a USB connector.
③ Trigger key Press the key to scan barcodes
④ Function key A function key configurable by the application.
⑤ LED Indicate the status of barcode reading, Bluetooth connection or warning.
⑥ Buzzer Buzzer
⑦ Eyelet Fix a wrist strap here.
⑧ Connector A connector for recharging and data transmission to a dedicated cradle.
OPN-2002 SS07114
8
5. Optical Specifications
Parameter Feature Unit
Light Emitting Element Red laser diode -
Wavelength 650 ±10 (at 25 deg. C) nm
Light Output Less than 1.0 mW
Scan Method Bi-directional Scan -
Scan Rate 100 ±20 Scan/sec
Scan Angle 54±5 Deg.
Scan Angle Effective Scan Angle 44 (Min.) Deg
5-2. Laser Scanning Standards
5-2-1. Laser Scanning Tilt
Laser scanning tilt is the vertical difference between both ends of a laser scan line. Measure
it in the middle of the laser scan line.
▪ Up to 1.2 degrees angle in vertical direction from the scan origin (mirror motor).
▪ Up to 3.1mm at 150mm from the scan origin. (Measured at 0 degree of Skew Angle.)
5-2-2. Scanning Curvature
The maximum difference between the laser scan line and the line between both ends of the
laser scan line. Measure it in the middle of the laser scan line.
▪ Up to 1.27 degrees angle in vertical direction from the scan origin (mirror motor).
▪ Up to 3.3mm at 150mm from the scan origin.
OPN-2002 SS07114
9
6. Technical Specifications
Except as otherwise noted in each section, conditions for technical specifications are as follows:
<Conditions>
Ambient Temperature and Humidity: Room Temperature and Humidity
Ambient Light: 500 - 900 lx
Background: Black
Scanning Tests: Performance is approved when scanning is successful in all 10 tests. Scanning
is deemed successful when completed in 0.5 second or less.
6-1. Print Contrast Signal (PCS)
0.45 or higher (when the reflectivity of space and the quiet zone is higher than 70%)
6-2. Depth of Field and Resolution
The depth of the field is measured from the front edge of the data collector.
The scan area is a circular area centered around the beam, which appears at various resolutions.
Figure : Depth of Field and Resolution
65～90
55～110
55～200
55～350
Resolution
OPN-2002 SS07114
10
Conditions Resolution DOF (mm)
Symbology PCS Quiet Zone No. of Digits
1.0 mm 75 to 500 Code 39 0.9 25 mm 1
0.5 mm 55 to 350 Code 39 0.9 18 mm 3
0.25 mm 55 to 200 Code 39 0.9 10 mm 8
0.15 mm 55 to 110 Code 39 0.9 7 mm 10
0.127 mm 65 to 90 Code 39 0.9 5 mm 4
Barcode Sample: Optoelectronics Test Sample (N/W Ratio = 1:2.5)
Angle: α = 0°, β = 15°, γ = 0°
Curvature: R = ∞
6-3. Pitch, Skew and Tilt

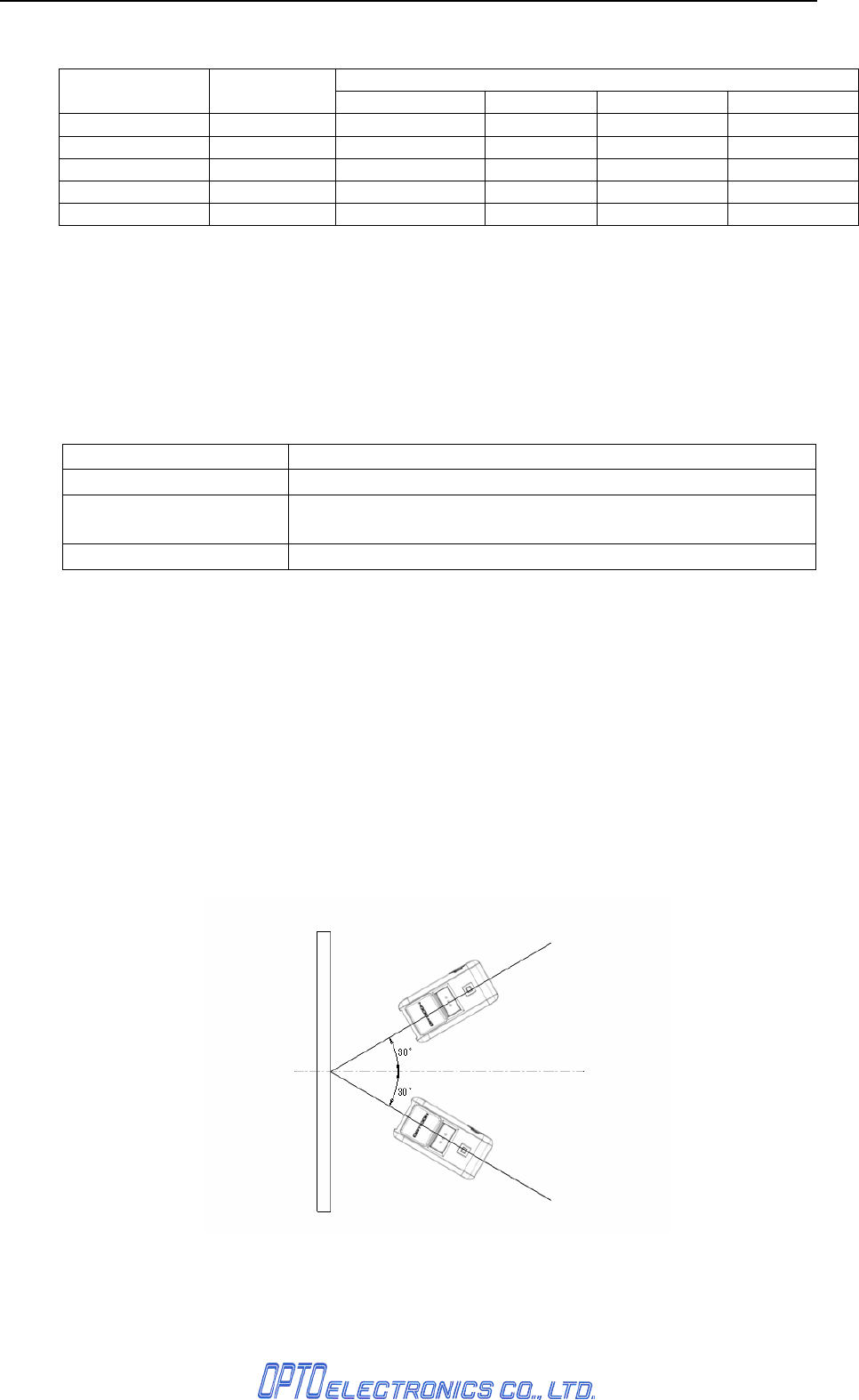

Pitch Angle α=±35°
Skew Angle β=±50°(Except Dead Zone）
Dead Zone (DZ) β=± 8 °(Scanning may fail in the dead zone as a result of
specular reflection）
Tilt Angle γ=±20°
<Conditions>
Barcode sample: Optoelectronics Test Sample
[Pitch angle, Skew angle and Dead zone]
PCS = 0.9, Resolution = 0.25 mm, Symbology = 9-digit Code-39, Quiet zone = 10 mm, N/W ratio
= 1:2.5
[Tilt angle]
PCS = 0.9, Resolution = 0.26 mm, Symbology = 13-digit JAN, Quiet zone = 10 mm
Distance: 100 mm from the front edge of the data collector
Angles: [Pitch angle] Skew angle: β = +15°, Tilt angle: γ = 0°
[Tilt angle] Pitch angle: α = 0°, Skew angle: β = +15°
[Skew angle, Dead zone] Pitch angle: α = 0°, Tilt angle: γ = 0°
OPN-2002 SS07114
11
6-4. Curvature
With 8-digit JAN, scanning performance is guaranteed when R ≥15 mm.
With 13-digit JAN, scanning performance is guaranteed when R ≥ 20 mm.
<Conditions>
Barcode sample: Optoelectronics Test Sample
PCS = 0.9, Resolution = 0.26 mm, Quiet zone = 10 mm
Distance: 100 mm from the front edge of the data collector
Skew angle: β = + 15°
6-5. Ambient Light Immunity
Scanning performance is guaranteed when the illuminance on the barcode surface is between
zero and the following values:
Incandescent 4000 lx
Fluorescent 4000 lx
Sunlight 80000 lx
<Conditions>
Barcode sample: Optoelectronics test sample
PCS = 0.9, Resolution = 0.25 mm, Symbology = 9-digit Code-39, Quiet zone = 10 mm,
N/W ratio = 1:2.5
Distance: 100 mm from the front edge of the data collector
Angle: α = 0°, β = 15°, γ = 0°
Curvature: R = ∞
Performance is guaranteed unless direct light or direct reflection from a light source falls on the
area within which the OPN-2002 detects light.
OPN-2002 SS07114
12
7. Application Development Environment
This is an environment for developing a business oriented application. (Option)
Application development language is C.
【Development Environment】
z A guide for application development
z Application Development Environment
z Library specification
z Compiler(※)
※IAR Embedded Workbench for ARM（EWARM） Ver.5.11
OPN-2002 SS07114
13
8. USB Interface Specifications
The OPN-2002 USB model uses Full Speed USB interface.

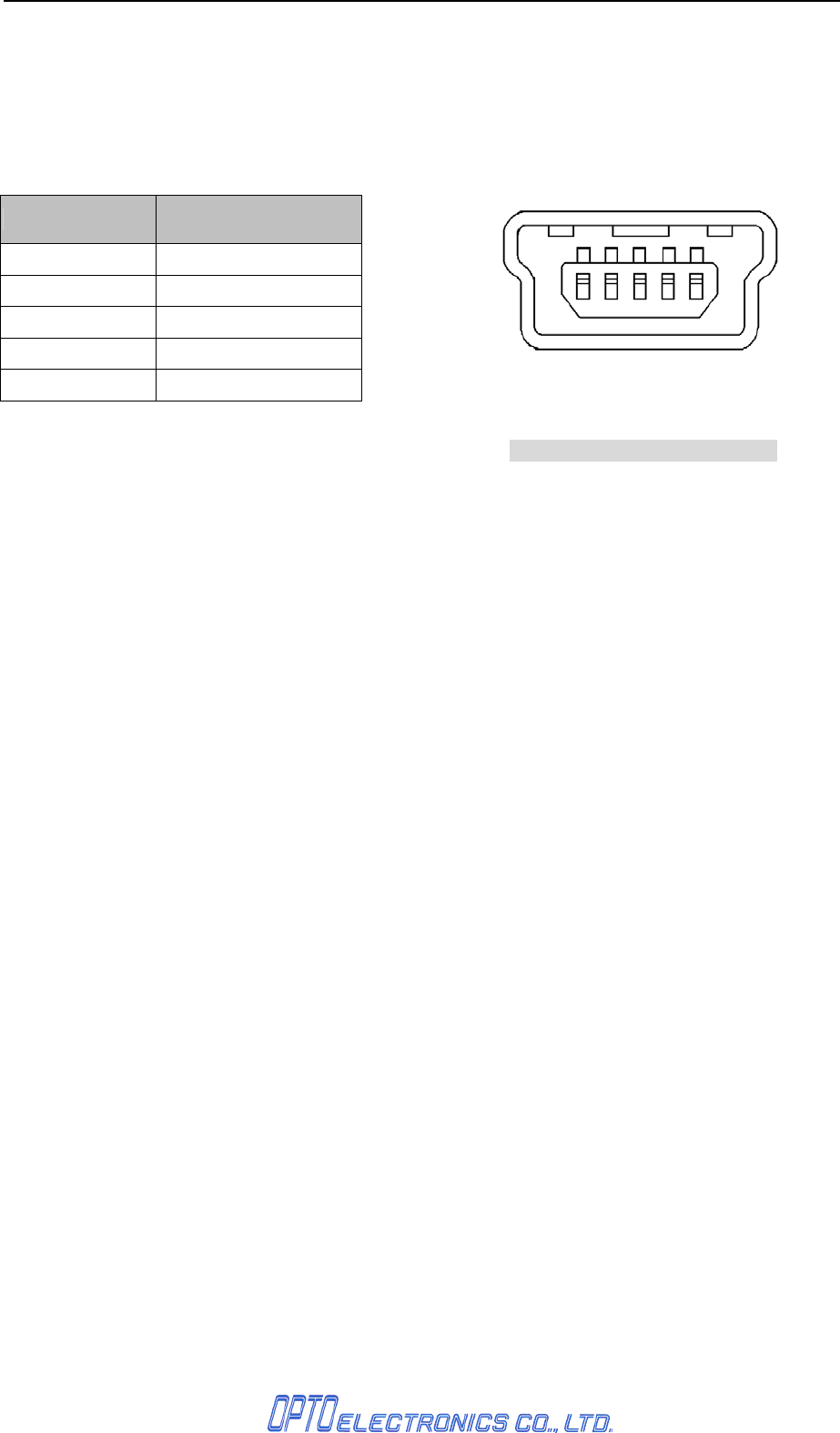

8-1. USB Connector
Figure : MINI USB B Connector
9. Wireless Connection
The wireless interface used by the OPN-2002 complies with Bluetooth Ver. 1.2. SPP (Serial
Port Profile) amd HID (Human Interface Device) is supported to enable OPN-2002 to
communicate with other Bluetooth devices equipped with the same profile.
・Supported Profile
SPP (Serial Port Profile)
HID (Human Interface Device)
・Communication Configuration
Support N(1 to 7) Piconet (s).
After connecting to the piconet, it shifts from master to slave.
・Operation Mode in Connection
Master: OPN-2002
Slave: other Bluetooth devices
・Low Power Mode
Sniff mode
・Security and Encryption
Security and encryption settings are available.
Contact Number Signal Name
1 VCC
2 -DATA
3 +DATA
4 NC
5 GND
OPN-2002 SS07114
14
10. Serial Number

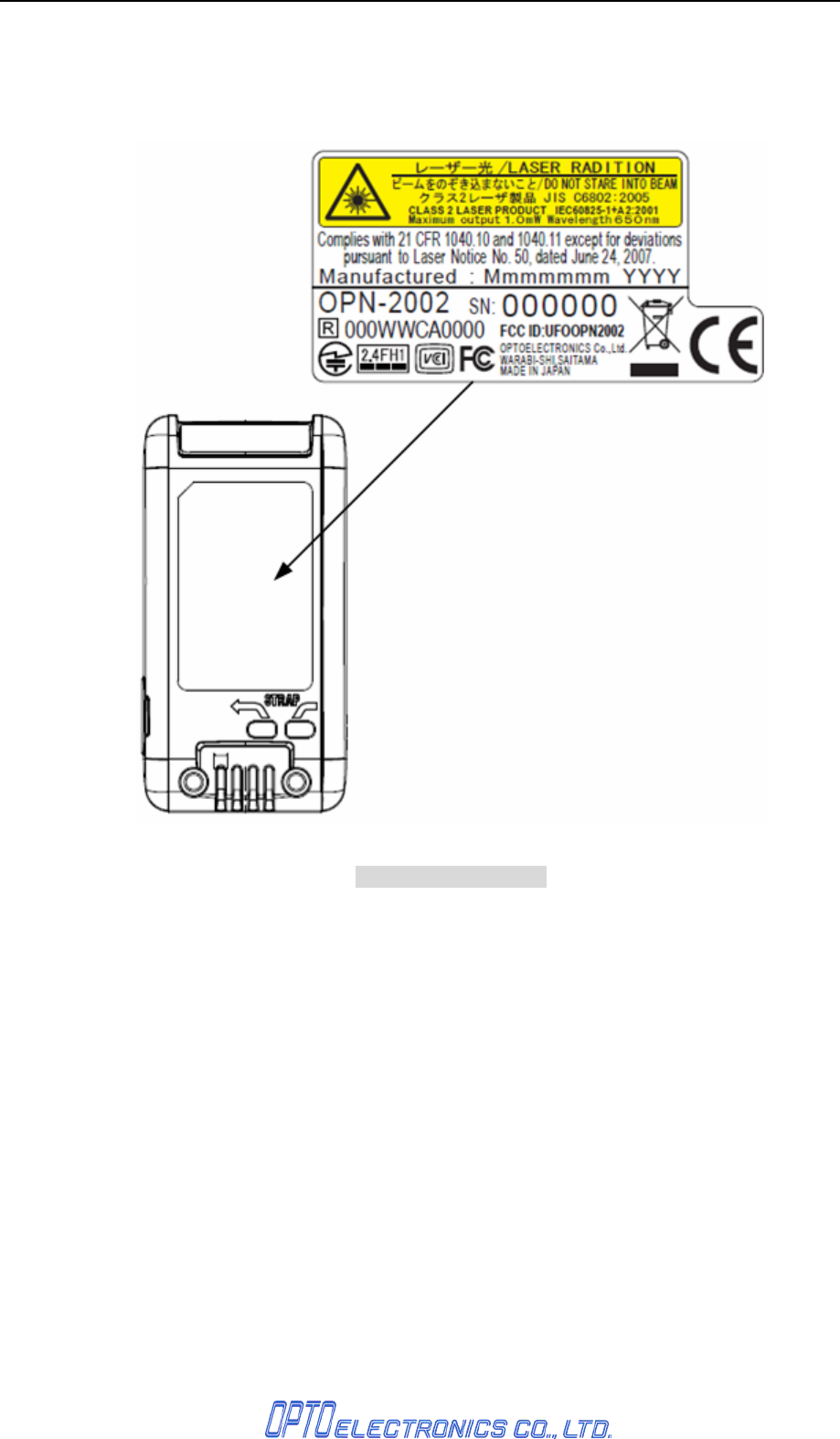

The serial number is stated on a serial label shown below.
Figure: Serial Number
OPN-2002 SS07114
15
11. Packaging Specifications
11-1. Single Packaging Specifications
Put the OPN-2002 data collector in protective foamed bag and put it in the individual packaging
box.
Dimensions of protective foamed bag: (W) 60mm x (D) 135mm
11-2. Collective Packaging Specifications
Put 100 individually packaged OPN-2002 in a collective packaging box.
(1 tray can hold 10pcs of the OPN-2002)
Dimensions (Assembled State): (W) 470 mm x (D) 350 mm x (H) 335 mm (inside dimensions)
Note: The ‘Ro’ mark on the inner and outer packaging indicates that this product does not use any
materials, components or parts that are restricted under RoHS standards (the restriction of the use of
certain hazardous substances in electrical and electronic equipment, 2002/95/EC). This is an internal
determination by Optoelectronics and carries no legal weight in the EU.
OPN-2002 SS07114
16
12. Durability
12-1. Ambient Light Immunity
Scanning performance is guaranteed when the illuminance on the barcode surface is between
zero and the following values:
Incandescent: 3,000 lx
Fluorescent: 3,000 lx
Sunlight: 50,000 lx
<Conditions>
Barcode sample: Optoelectronics test sample
PCS = 0.9, Resolution = 0.25 mm, Symbology = 9-digit Code-39, Quiet zone = 10 mm,
N/W ratio = 1:2.5
Distance: 100 mm from the front edge of the data collector
Angle: α = 0°, β = 15°, γ = 0°
Curvature: R = ∞
Power supply voltage: 3.7V
Performance is guaranteed unless direct light or direct reflection from a light source falls on the
area within which the OPN-2002 detects light.
12-2. Dust and Water Proof
IP42
12-3. Vibration Test (Without Packaging)
There was no sign of malfunction with the data collector’s exterior appearance or its operation
after the following vibration test: In the non-operating state, increased the frequency of the
vibration from 10 Hz to 100 Hz with accelerated velocity 2.0 G (19.6 m/s2) for over 30 minutes
(60 minutes for one cycle). Repeat this routine for X, Y and Z direction, respectively.
12-4. Vibration Test (With Collective Packaging)
There was no sign of malfunction with the data collector’s exterior appearance or its operation
after the following vibration test: With the collective packaging, increased the frequency of the
vibration from 10 Hz to 100 Hz with accelerated velocity 2.0 G (19.6 m/s2) for over 30 minutes
(60 minutes for one cycle). Repeat this routine for X, Y and Z direction, respectively.
OPN-2002 SS07114
17
12-5. Product Drop Test (Without Packaging)
No malfunction should occur after the following drop test.
As shown below, drop the data collector from 120cm above the concrete floor. (three times from
each of its 6 sides)
12-6. Collective Package Drop Test
No malfunction should occur after the following drop test.
Drop the collective package box from 70cm above the concrete floor once its one corner, three
edges and six sides.
12-7. Static Electricity
Air discharge: 8kV max (No malfunction)
15kV max (No destruction)
Contact discharge: 4kV max (No malfunction) （Discharge point: Screws which fix cases）
10kV max (No destruction)
Measurement environment: Use electrostatic testing device compliant with IEC61000-4-2
Discharge resistance: 330Ω
Capacitor charging: 150pF
12-8. Reliability
MTBF: 10,000 hours
OPN-2002 SS07114
18
13. Warranty
13-1. Warranty period
OPTOELECTRONICS Co., Ltd. warrants that this product is free of defects or malfunctions
for a period of twelve (12) months from its shipment. In case of having defects or
malfunctions caused by normal usage in accordance with this specification during the
foregoing warranty period, OPTOELECTRONICS shall repair or adjust the product free of
charge.
Any repair or replacement of the product after the foregoing warranty period shall be
charged at regular repair rates.
If defects or malfunctions were caused by customer mishandling, product repairs or
replacement will be charged at regular repair rates, even during the foregoing warranty
period.
13-2. Delivery
Products for maintenance or repair shall be sent back to OPTOELECTRONICS. The sender
is responsible for all shipping costs.
13-3. Repair Timeframe
Repaired products shall be shipped back to the customer within 20 days after acceptance by
OPTOELECTRONICS.
Expedited repairs may be available, subject to terms agreed to by OPTOELECTRONICS
and the customer.
13-4. Maintenance Period
The maintenance period of this product is 5 years after its shipment.
OPTOELECTRONICS may discontinue maintenance for this product during the 5-year
maintenance period if a satisfactory replacement product or maintenance solution is agreed
to.
13-5. Other
Any additional warranty issues must be discussed with OPTOELECTRONICS on a
case-by-case basis.
OPN-2002 SS07114
19
14. Regulatory Compliance
14-1. Laser Safety
JIS C 6802:2005 Class 2
IEC60825-1+A2:2001 Class 2
CDRH Class II
14-2. Product Safety
IEC60950
EN60950
14-3. EMC
EN55022
EN55024
FCC Part15 Subpart B, and Subpart C
Federal Communications Commission Notices
This product complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that
may cause undesired operation.
Harmful Interference Notice
This product has been tested and complies with the specifications for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses, and can radiate radio frequency
energy and, if not installed and used according to the instructions, may cause
harmful interference to radio communications. However, there is no guarantee
that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which is found by
turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
• Reorient or relocate the receiving antenna
• Increase the separation between the equipment or devices
• Connect the equipment to an outlet other than the receiver's
• Consult a dealer or an experienced radio/TV technician for assistance
Changes or modifications to this equipment that have not been approved by
Ruckus Wireless may void the user's authority to operate this equipment.
OPN-2002 SS07114
20
VCCI Class B
This is a Class B product, to be used in a domestic environment,
based on the Technical Requirement of the Voluntary Control Council
for Interference from Information Technology Equipment (VCCI). If this
is used near a radio or television receiver in a domestic environment,
it may cause radio interference.
14-3. Others
Radio Law 38-24-1
Bluetooth Logo certified
15. Reduction of Environmental Loads
The OPN-2002 is a RoHS compliant product.
RoHS: The restriction of the use of certain hazardous substances in electrical and electronic
equipment, 2002/95/EC.
OPN-2002 SS07114
21
16. Precautions
16-1. Laser-related Caution
Please do not look directly at the laser.
Please do not point the laser at others’ eyes.
Pease do not look directly at the beam of optical instruments.
These things have the potential to damage your eyes.
16-2. Handling
Handle this product carefully. Do not subject it to any of the following:
(1)Shock
Do not drop this device from a height greater than specified in this manual.
Do not swing around the cable.
Do not put heavy items on the cable.
(2)Temperature Conditions
Do not use the device at temperatures outside the specified range.
Do not pour boiling water on the device.
Do not expose the device to open flame.
Do not bend the cable at temperatures lower than the specified range.
(3)Foreign Materials
Do not put the device in water.
Do not expose the device to chemicals.
(4)Other
Do not plug/unplug the connectors before the power is disconnected.
Insert the USB connector correctly.
Do not disassemble this product.
Do not use the data collector near a radio or a TV receiver. It may cause reception
problems.
The data collector may be damaged by
voltage drops caused by lightning.
The data collector may not perform properly in environments when placed near a flickering
light, such as a CRT (computer monitor, television, etc.).
OPN-2002 SS07114
22
16-3. Bluetooth
• Bluetooth is trademark owned by Bluetooth SIG, Inc., U.S.A. and licensed to
OPTOELECTRONICS.
• OPN-2002 supports Bluetooth wireless communication with other Bluetooth device
which has the same profile.
• OPN-2002 complies with Bluetooth Ver. 1.2. However, its communication performance
with equipments other than cradles or devices stated in this manual is not guaranteed.
• The frequency band (2.4 GHz) which is used by Bluetooth devices is also used by
miscellaneous other equipments. The baud rate or the communication range of
OPN-2002 may be degraded by the negative impacts of those other equipment.
• The baud rate or the communication range of OPN-2002 may be degraded by obstacles,
radio wave conditions or the state of the device which OPN-2002 is communicating
with.
• Communication performance of OPN-2002 may be degraded when there is a metal item
extremely close to the back of the scanner.
16-4. Frequency Band
The frequency band of 2.4 GHz is utilized by this scanner. Read carefully the followings before
using this product.
In the frequency band of this scanner, scientific, medical and industrial devices including
microwaves are used. Also other radio stations including local private radio station for mobile
object identification requiring license for such as manufacturing lines at factories, specific
power-saving radio station requiring no license and amatuer radio station are managed.
• Please make sure that “other radio stations” are not operated in the frequency band of 2.4
GHz before using this scanner.
• In case that radio interference occurs between this scanner and “other radio stations,”
change the service space immediately, or stop transmitting radiowave to avoid the
interference.
• If you have any questions or troubles, please contact our marketing group.
OPN-2002 SS07114
23

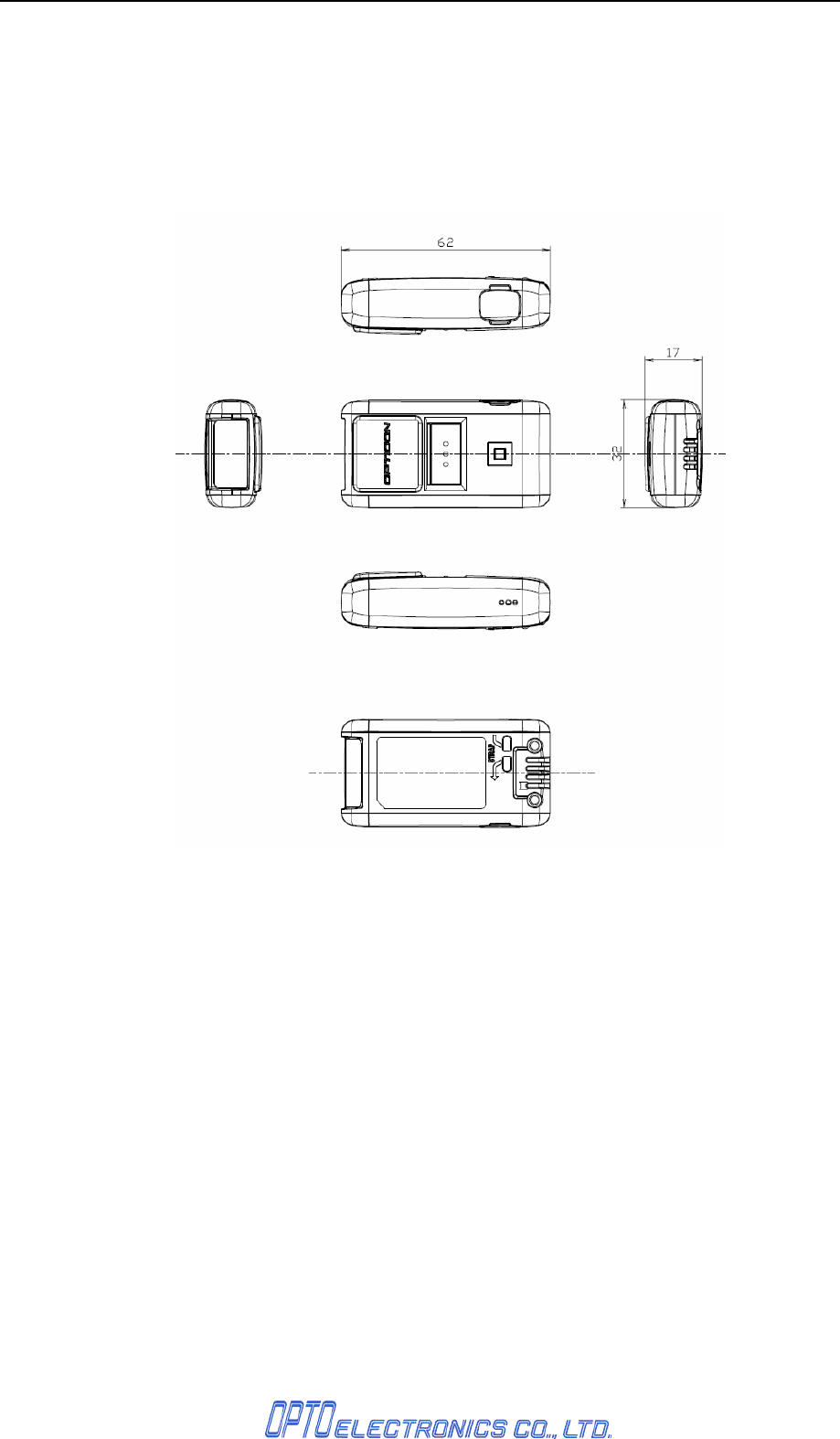

Appendix 1: Mechanical Drawing
Dimensions: 62.0(D) × 32.0(W) × 16.0(H) (mm)
