PX-35 SSxxxxx
Master Specifications
2D Data Collector with Bluetooth
Product Name PX-35
Specification No SSxxxxx
Edition Initial release
Date of Publication Dec 6,2010
Original Doc. No. SS10016
OPTOELECTRONICS Co., Ltd.
4-12-17 Tsukagoshi,
Warabi-shi, Saitama,
335-0002 Japan
TEL: 81+(0)48-446-1183
FAX: 81+(0)48-446-1184
PX-35 SSxxxxx
Revision History
Specification No.: SSxxxxx
Product name : PX-35
Revision Date Section Description of Changes
Initial release 2010/12/6 - -
PX-35 SSxxxxx
Table of Contents
1. Abstract .........................................................................................................................................1
2. Overview .......................................................................................................................................1
3. Physical Features .........................................................................................................................2
4. Basic Specifications ......................................................................................................................4
5. Optical Specifications....................................................................................................................7
6. Technical Specifications................................................................................................................7
7. Bluetooth .....................................................................................................................................11
8. Serial Label .................................................................................................................................12
9. Packaging Specifications............................................................................................................13
10. Durability ...................................................................................................................................13
11. Warranty....................................................................................................................................16
12. Regulatory Compliance ............................................................................................................17
13. RoHS.........................................................................................................................................18
14. Precautions ...............................................................................................................................18
Appendix 1 ......................................................................................................................................21
Appendix 2 ......................................................................................................................................22
PX-35 SSxxxxx
1
1. Abstract
This manual provides specifications for the data collector with an embedded 2D data collector which offers
Bluetooth, PX-35.
2. Overview
・ PX-35 consists of CMOS image sensor and auto focus.
・ Scanned data is output via Bluetooth interface.
・ Bluetooth and IrDA (for the communication with the dedicated cradle) interface enables data
communication with higher models.
・ This product is compliant with RoHS.
2.1. Product / Model Name
Product name: PX-35
2.2. Features of PX-35
・ Compact and handy design
・ The data collector is able to read 2D barcodes.
・ Stored data is sent to the recipient through Bluetooth interface. On the other hand, IrDA can
communicate with host PC via the dedicated cradle.
・ Embedded Bluetooth is compliant to version 1.2 and has installed profile.
・ PX-35 can operate for a long time with a dedicated built-in lithium-ion battery (1880mh).
・ Unit is charged when placing it on the dedicated cradle.
(To directly connect the dedicated adapter to PX-35 can also charge the unit.)
PX-35 SSxxxxx
2
3. Physical Features
3.1. Dimensions

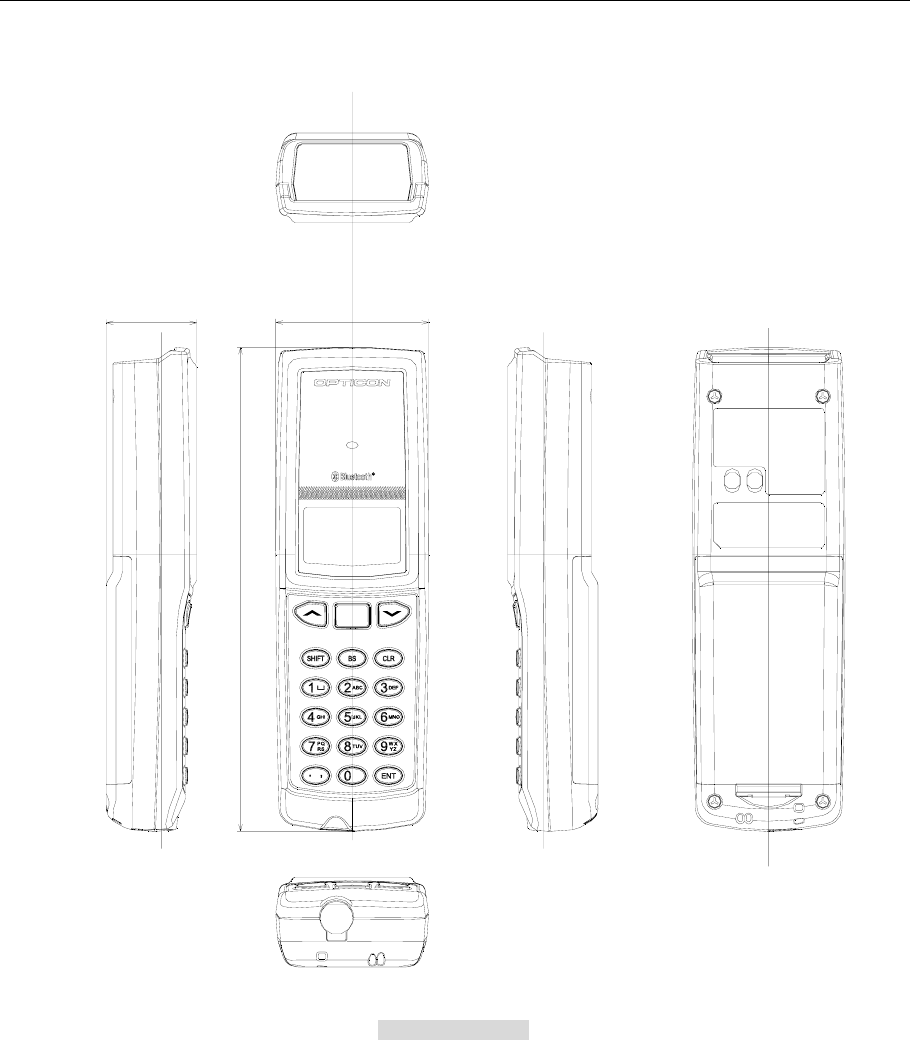

Figure1 : Dimensions
3.2. Weight
Max. 132g (including lithium-ion battery pack)
140
44
26
単位：mm
Unit:mm
PX-35 SSxxxxx
3
3.3. Physical Features

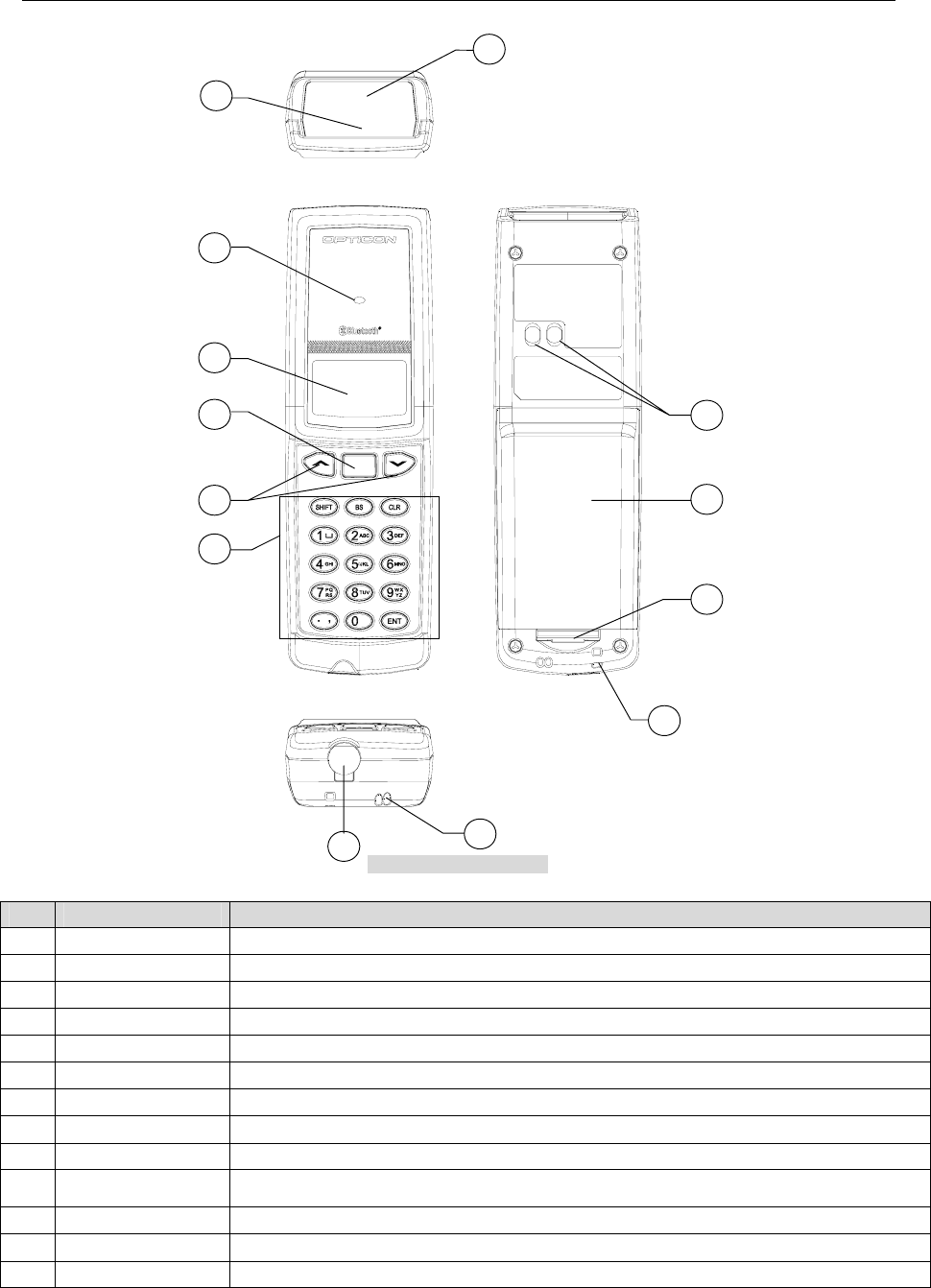

Figure2 : Physical features
No. Item Specification
1. Scanning window LED light for scanning barcode is emitted from the window.
2. IrDA Use for the communication with dedicated cradle
3. LED To notify the status of barcode scanning, Bluetooth communication, and warnings so on.
4. LCD Indicates scanned barcodes and operational items
5. Trigger key Press when scanning barcodes
6. Up / Down keys Used when selecting items from a menu.
7. 10 operational keys Used for numerical, “ENTER”, decimal point input.
8. DC Jack Used for the dedicated power supply
9. Speaker
10. Terminals Used to charge a lithium-ion battery of a unit when placing the unit on the dedicated
terminal
11. Battery cover Remove when replacing the rechargeable battery
12. Battery cover lock Used to lock / open the battery cover
13. Strap hole Hole for attaching a hand strap
8
1
2
3
4
5
6
7
9
1
0
11
12
13
PX-35 SSxxxxx
4
4. Basic Specifications
Item Specification Remark
CPU 32Bit RISC Micro computer (ARM7 Core) Produced by ST Micro
Embedded ROM 256Kbyte + 16Kbyte (for DATA)
Control section
Embedded RAM 64Kbyte
FROM(NOR) 4Mbyte (User area: about 1Mbyte) OS/AP
Memory
SRAM 2Mbyte (User area : about 480kbyte)
4Mbyte (Option) for WORK/DATA
OS μITRON
LCD semi-transmissive LCD
Number of dots 112×64 dots
Display section
Back light Available
Operating section Key type 18 keys
Indication LED Tri-colored emitting elements (red/green/blue)
Buzzer Adjustable volume/tone
Specification Bluetooth Ver1.2 HCI module produced
by Kyocera
Installed profile SPP Stack produced by
iAnywhere
Frequency 2402MHz to 2480MHz
Transmission power Class 2
Communication range Perspective 10m
Communication range
may differ due to the
environments.
Baud rate 115.2kbps
Bluetooth
Antenna 1/4λ (surface mounted)
IrDA IrDA Ver1.2(physical layer compliant) Baud rate: Maximum 115.2Kbps
Main power Lithium-ion secondary battery 1880mAh
Regular voltage 3.7V
How to charge With a dedicated AC adapter or cradle With a rubber pad for the
jack part
With a dedicated AC adapter: about 4 hours
and half
Charging time
With a dedicated cradle: about 7 hours and half
Scanning frequency Over 30,000 times *1
Up-time 25 hours *2
Backup battery MS (Manganeese Silicon) lithium secondary
battery 3.4mAh Without full discharge
Power supply
Data holding time 72 hours or less After main battery has
been discharged.
PX-35 SSxxxxx
5
Item Specification Remark
Scanning method CMOS area sensor (black/white)
Number of
effective pixel
900x512 pixels
MSI-2305
Light source White LED
Scanning angle range Horizontal: 40° Vertical: 23°
2D
PDF417, Micro PDF417, QR Code,
Micro QR Code, Data Matrix (ECC
0-140, ECC200), Maxi Code(mode2~5),
Aztec Code,
EAN / UCC Composite bar code,
Intelligent Mail Barcode, Japanese
Postal, Postnet (US)
2D barcode
scanning section
(MDI-230x
specification)
Supported symbology
1D
WPC (EAN, JAN, UPC-A / UPC-E
UPC-E1), Industrial 2 of 5, IATA,
Interleaved 2 of 5,
NW-7 (CODABAR), Code 39,
Code 93, Code 128, GS1-128,
Tri-Optic, MSI / Plessey, UK / Plessey,
TELEPEN, S-Code,
Code 11, Matrix2 of 5,
Korean Postal Authority code,
CODABLOCK F, GS1 DataBar
Dimensions 140×44×26mm
Weight Max. 132g (including lithium-ion battery pack)
Operation temperature
and humidity
-10°C to 40°C
20%RH to 85%RH
No frost, no
condensation
Storage temperature and
humidity
-20°C to 60°C
20%RH～85%RH
No frost, no
condensation
Conditions
Charging temperature 0 to 40°C
Frequency ６sides, 3cycles

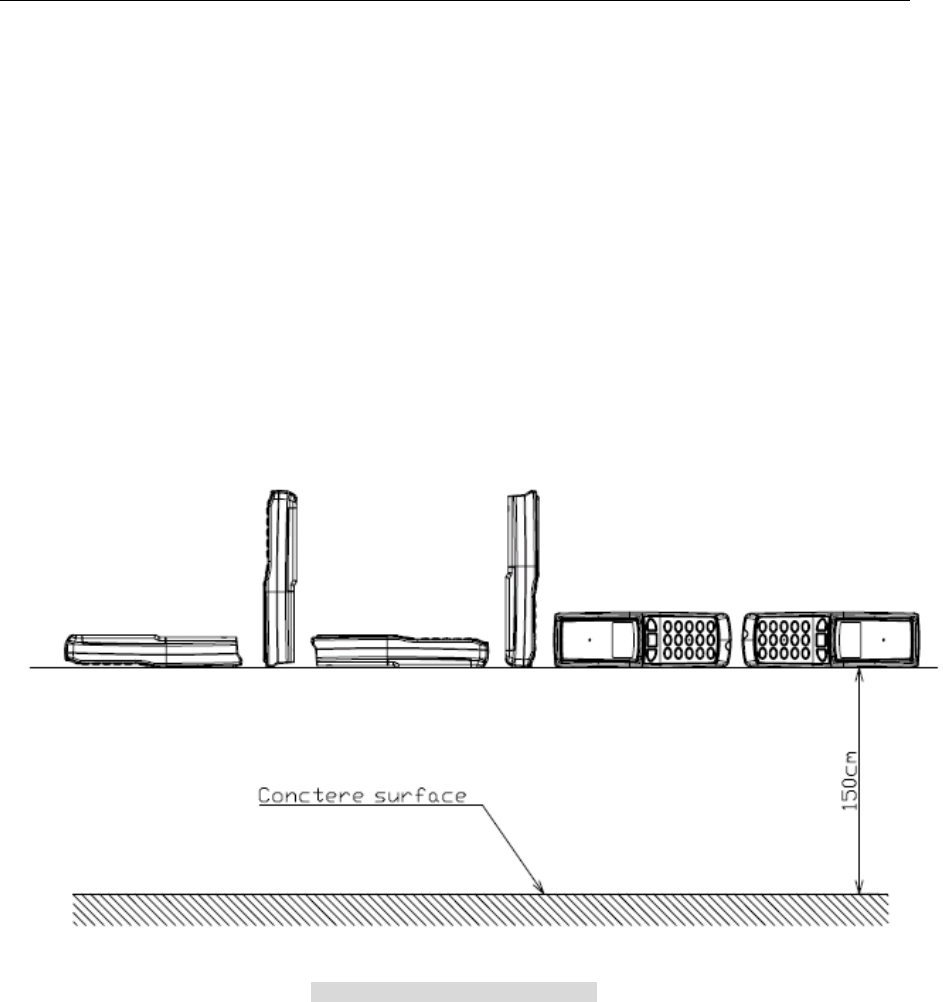

Height 150cm
Drop test *4
Floor Concrete
Dust and drip proof IP42
Regulatory
compliance
IEC 60825-1:2007 Class 1
CE Marking, FCC
Bluetooth logo certification
Accessories
Dedicated lithium-ion battery (1880mAh)
Hand strap
User’s manual
PX-35 SSxxxxx
6
Item Specification Remark
Dedicated cradle
For IrDA
communication /
charging
Option
Dedicated AC adapter [6V/2000mA] For charging
*1 when scanning a barcode once per second at room temperature + frequency of connecting to Bluetooth.
*2 when scanning a barcode twice in 10 seconds at room temperature + frequency of connecting to Bluetooth.
*3 Shock resistance
Conditions of the shock resistance test are:
・ Does not count scratches or whitening on a surface as a malfunction.
・ Shock resistance is approved when no malfunction occurs after the test.
・ Shock resistance is approved if the battery cover is not unhooked after the test
PX-35 SSxxxxx
7
5. Optical Specifications
Item Specifications Unit
Scanning method CMOS area sensor -
Scanning speed 80 fps
Effective pixels 900(H)×512(V) Pixel
Aiming LED color temperature
(White LED x 2) 8200 K
Scan angle Horizontal: 40 Vertical: 23 deg
6. Technical Specifications
The conditions for technical specifications are as follows, unless otherwise specified in each section.
Conditions
Item Conditions
Ambient temperature and humidity Room temperature and humidity
Ambient light 1,000 to 1,500 lx ( barcode surface )
Light source 3 wave lengths inverter fluorescent
Angles α= 0° β= ＋15° γ= 0°
Curvature R = ∞
Power supply voltage 3.3V
Decoding test Approve the performance when decoding
is successful in 70% of ten tests performed.
Barcode sample As specified below
<Bar Code>
Resolution Barcode PCS Size [mm] Digit
0.254mm Code 39 0.9 14×10 2
0.1mm Code 39 0.9 11×10 4
0.26mm JAN-13 0.9 25×19 13
0.26 mm JAN- 8 0.9 17.5×15.5 8
Barcode sample: OPTOELECTRONICS test sample – Resolution = 0.127mm
or
OPTOELECTRONICS test sample – Resolution = 0.26mm
N:W ratio = 1:2.5
<PDF417>
Resolution Error correction PCS Size [mm] Number of
character
0.339mm Level-4 0.9 35×22 17
0.254mm Level-4 0.9 26×16 17
0.127mm Level-4 0.9 13×8 17
Barcodes printed by a normal printer – aspect ratio = 3 : 1
PX-35 SSxxxxx
8
<QR Code (Model-2)>
Resolution Error correction PCS Size [mm] Number of
character
0.339mm M 0.9 10×10 44
0.169mm M 0.9 5×5 44
Barcodes printed by a normal printer
<Data Matrix>
Resolution Error correction PCS Size [mm] Number of
character
0.339mm ECC200 0.9 8×8 40
0.169mm ECC200 0.9 4×4 40
Barcodes printed by a normal printer
*As for the size of each barcode, quiet zone length is excluded.

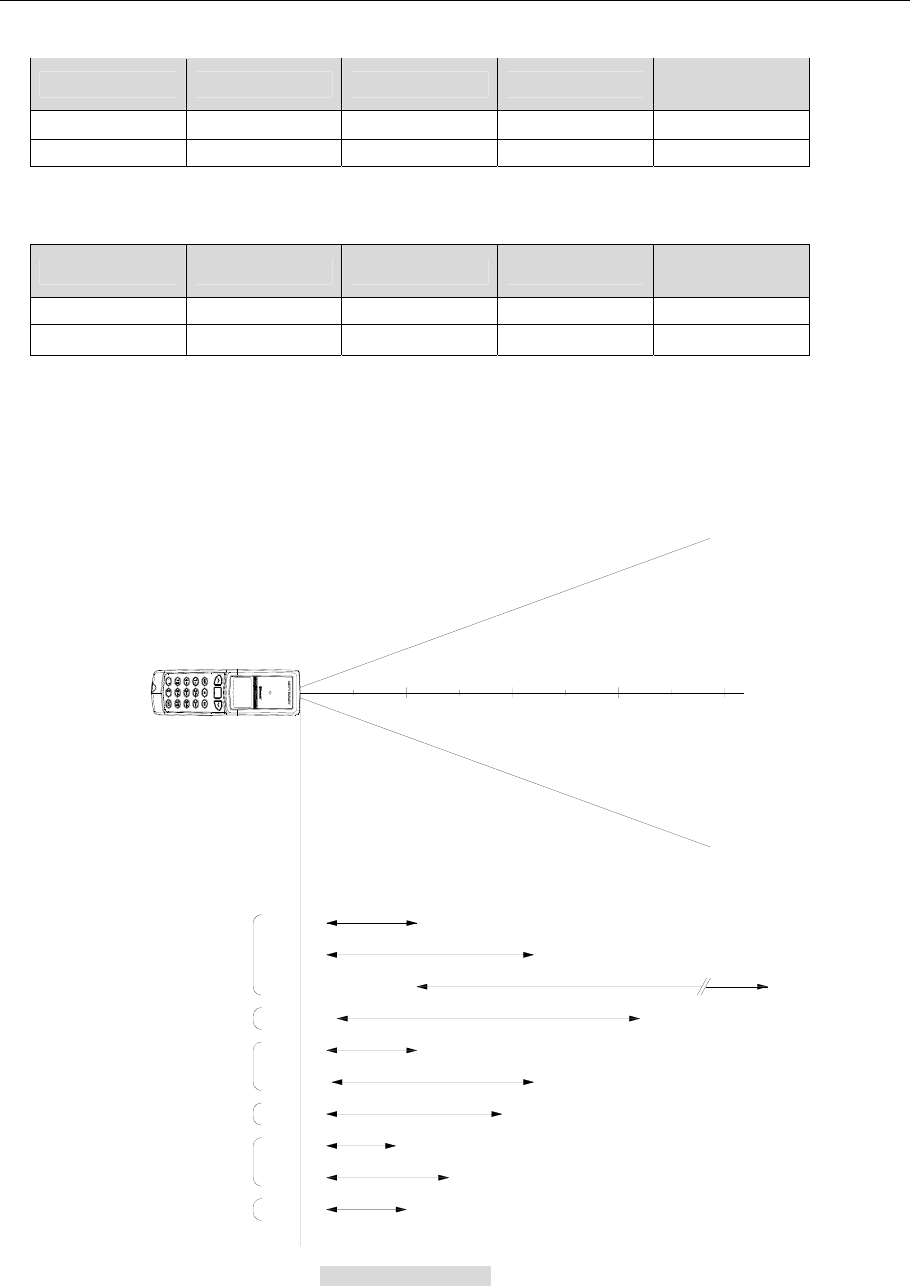

6.1. Decode Depth of Field and Resolution
The depth of decode field is measured from the case front the data collector.
[単位：mm]
40
Code39
JAN13
PDF417
Data Matrix
Micro QR Code
QR Code
100 200 300 400
35 110
35 220
110 900
45 320
35 110
220
35 190
35 90
35 140
35 100
分解能:0.127
分解能:0.254
分解能:1.0
分解能:0.33
分解能:0.127
分解能:0.254
分解能:0.381
分解能:0.169
分解能:0.254
分解能:0.127
Figure3: Scanning field
unit:mm
PX-35 SSxxxxx
9
6.2. Printed Contrast Signal
0.45 (MRD 32%) or higher (over 70% of reflectivity of space and )
*Scanning performance may decline if dirt or scratches mar the optical window. Keep the optical
window clean.
6.3. Pitch, skew and tilt
Pitch angle: α = ±50°
Skew angle β = ±60°
Tilt angle: γ = 360°
Conditions:
Barcode sample: Code39, PDF417, Resolution 0.254mm, PCS0.9 as specified in the section 6.
Distance: 63mm from the focal plane of the data collector
Curvature: R = ∞
(For pitch/tilt angles, skew angle β = +15°)

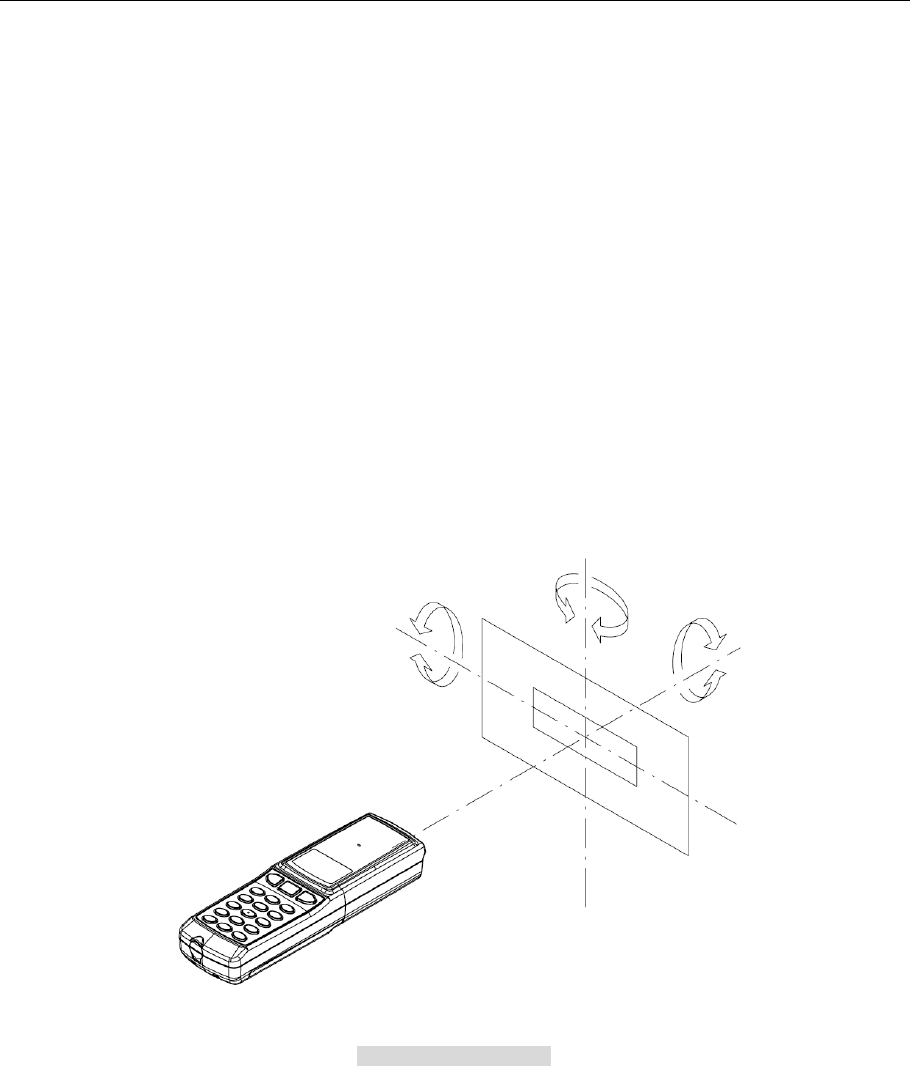

Figure4: Pitch, skew and tilt
*When scanning symbologies printed on highly glazed paper such as glossy paper or card case, scanning
performance of this data collector may decline due to the specular reflection of LEDs. In such cases, adjust
scanning angle by incline the data collector to 15 degrees toward the skew direction to improve scanning
performance. When turning off the lighting LED, it may decline the scanning performance unless the ambient
light is 1000 lx or higher. Also, the light or reflection light caught by the camera may decline scanning
performance, when using codes on the above described paper.
PX-35 SSxxxxx
10
6.4. Curvature
With 8-digit JAN barcode, decoding performance is guaranteed when R≥15 mm.
With 13-digit JAN barcode, decoding performance is guaranteed when R≥20 mm.
Conditions
Barcode sample: Code 39, PDF417, Resolution 0.254mm, PCS0.9 as specified in the section 6.
Distance: 63mm from the focal plane of the data collector
Curvature: R = ∞
(For pitch/tilt angles, skew angle β = +15°)

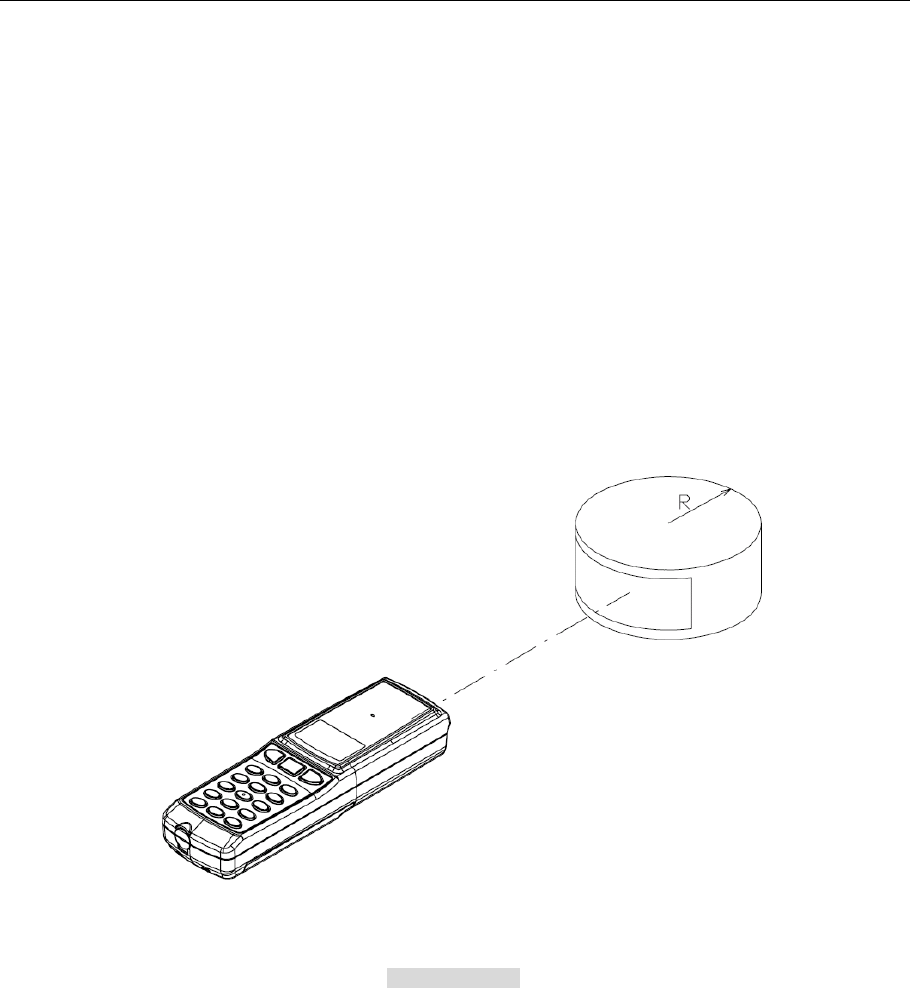

Figure5: Curvature
PX-35 SSxxxxx
11
7. Bluetooth
Bluetooth wireless communication is used as a wireless interface.
7.1. Installed Profile
SPP(Serial Port Profile)
7.2. Communication Configuration
1 to 1 (One data collector to one host system)
7.3. Operating Mode While Connected to the Host System
Master / slave mode ( *1 )
*1 It can be set by the application software.
7.4. Security Mode
Authentication enabled
7.5. Encryption
Encryption enabled
PX-35 SSxxxxx
12
8. Serial Label

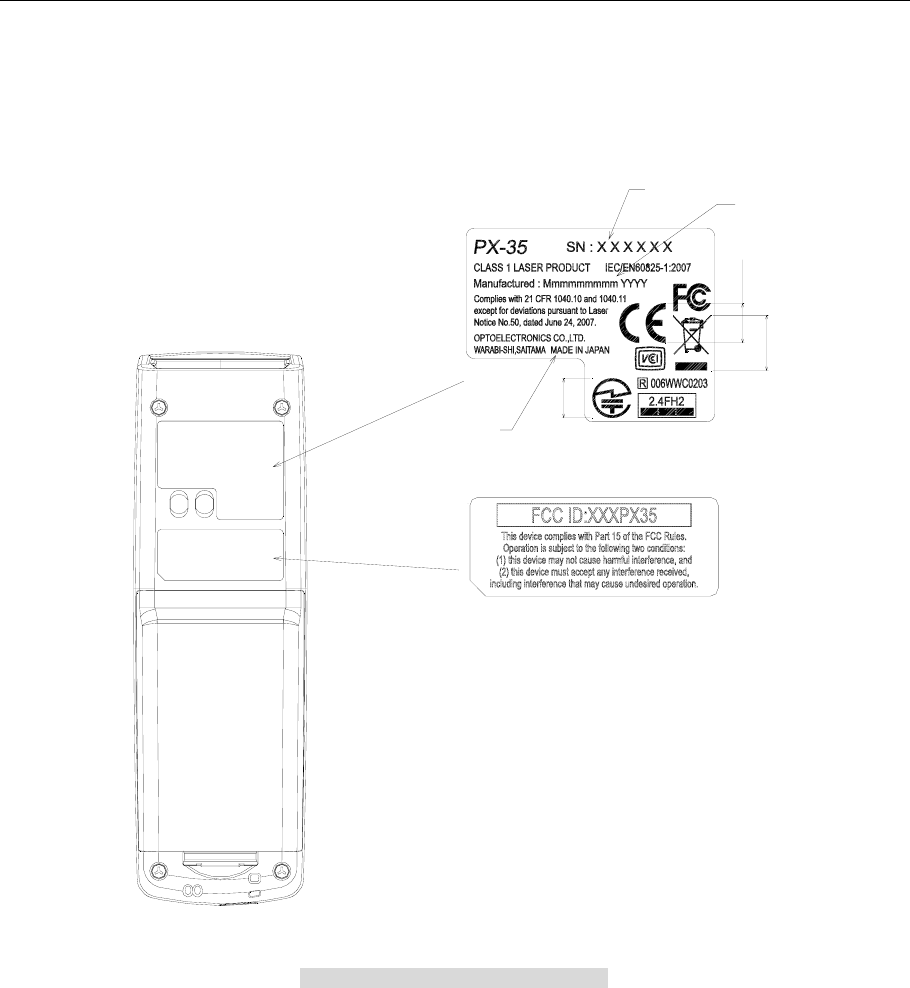

The labels shown below are affixed to the data collector.
生産年・生産月
印刷色：黒
シリアルＮｏ．
印刷色：黒
(H=5)
(H=7)
(H=5)
文字・ロゴ
印刷色：黒
Figure 7: Serial label and FCC caution label
PX-35 SSxxxxx
13
9. Packaging Specifications
9.1. Individual Packaging Specification
Put the data collector in a protective foam bag and place it in an individual packing box.
Size of the package (after assembly) 255(W) × 120(D) × 105(H) mm
Refer to Appendix 1.
9.2. Collective Packaging Specification
Refer to Appendix 2.
Note: The “RO” mark labeled on the package tray or package box guarantees that the applicable
product has passed our test of RoHS restrictions compliance (the restriction of the use of
certain hazardous substances in electrical and electronic equipment, 2002/95 EC).
However, this document does not have any legal weight in the European Union.
10. Durability
10.1. Ambient Light Immunity
Decoding performance is guaranteed when the range of illumination on a barcode surface is
between zero and the following values:
Incandescent light 10,000 lx
Fluorescent light 10,000 lx
Sunlight 1000,000 lx
Conditions
Barcode sample: Code39, Resolution 0.254mm, PCS0.9 as specified in the section 6.
Distance: 63mm from the focal plane of the data collector
Angles: α = 0°, β = +15°, γ = 0°
Curvature: R = ∞
* Direct light or specular reflection from a light source should be prevented from entering the
acceptance area.
10.2. Dust and Drip Proof
IP42
10.3. Vibration Strength (without packaging)
No malfunction occurred after the following test.
Vibration test: Increase the frequency of the vibration from 10Hz to 100 Hz with accelerated
velocity 19.6m2/s (2G) for 60 minutes in non-operating state
Repeat this routine in each X, Y, Z direction once for 60 minutes each.
PX-35 SSxxxxx
14
10.4. Vibration Strength (with individual packaging)
No malfunction occurred after the following test.
Vibration test: Increase the frequency of the vibration from 10Hz to 100 Hz with accelerated
velocity 19.6m2/s (2G) for 60 minutes in individually packaged state.
Repeat this routine in each X, Y, Z direction once for 60 minutes each.
10.5. Drop Test (without packaging)
No malfunction occurred after the following test.
Drop test: Drop the data collector from a height of 150cm onto a concrete floor.
(Three times in each of 6 angles)
Figure 9: Drop Test ( without packaging )
10.6. Drop Test (with individual packaging)
No malfunction occurred after the following test.
Drop test: Drop an individually packaged data collector from a height of 70cm onto a concrete
floor once on its 1 corner, 3edges, and 6 sides. (10 total drop tests)
PX-35 SSxxxxx
15
10.7. Static Electricity
Air discharge: ±10 kV max. (No malfunction)
±15 kV max. (No destruction)
Contact discharge: ±6 kV max. (No malfunction)
±10 kV max. (No destruction)
Measurement
environment: Use electrostatic testing device compliant with IEC 61000-4-2.
Discharge resistance: 330 Ω
Capacitor charging: 150 pF
10.8. Reliability
MTBF 10,000 hours
PX-35 SSxxxxx
16
11. Warranty
11.1. Warranty Period
Optoelectronics Co., Ltd. (hereinafter ‘Optoelectronics’) warrants that this product is free of
defects and malfunctions for a period of 12 (twelve) months beginning on the last day of the
month in which it is shipped. Optoelectronics will repair product defects or malfunctions that arise
in the course of normal usage during the twelve-month warranty period free of charge.
Any repair or replacement of the product after the foregoing warranty period will be charged at
regular rates.
Repair or replacement of the product due to defects or malfunctions that arise as a result of
customer mishandling will be charged at regular rates, even during the foregoing warranty period.
11.2. Delivery
Products for maintenance or repair shall be sent back to Optoelectronics. The sender is
responsible for all shipping costs.
11.3. Repair Timeframe
Repaired products shall be shipped back to the customer within 20 days after acceptance by
OPTOELECTRONICS. However, the time needed for the repair of products with early failures
need to be separately discussed with Optoelectronics.
Expedited repairs may be available, subject to terms agreed to by OPTOELECTRONICS and the
customer.
11.4. Maintenance Period
The maintenance period of this product is 5 years after its shipment.
OPTOELECTRONICS may discontinue maintenance for this product during the 5-year
maintenance period if a satisfactory replacement product or maintenance solution is agreed to.
11.5. Others
Any additional warranty issues must be discussed with OPTOELECTRONICS on a case-by-case
basis.
PX-35 SSxxxxx
17
12. Regulatory Compliance
12.1. LED Safety
Lamp classification: IEC62471:2006 Exempt Group
12.2. LASER Safety
・ IEC 60825-1:2007 Class 1
・
CDRH Class I
12.3. Product Safety
・ IEC60950-1
・ EN60950-1
12.4. EMC
・EN55022
・EN55024
・FCC Part15 subpart B Class B
・FCC Part15 subpart C
This device complies with part 15 of the FCC Rules. Operation is subject to the
following two conditions :
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that
may cause undesired operation.
Federal Communications Commission Notices
This product complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired
operation.
Harmful Interference Notice
This product has been tested and complies with the specifications for a Class B digital device, pursuant to Part
15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference
in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if
not installed and used according to the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment
does cause harmful interference to radio or television reception, which is found by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna
• Increase the separation between the equipment or devices
• Connect the equipment to an outlet other than the receiver's
• Consult a dealer or an experienced radio/TV technician for assistance
Changes or modifications to this equipment that have not been approved by Ruckus Wireless may void the
user's authority to operate this equipment.
This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment.
PX-35 SSxxxxx
18
・VCCI Class B
12.5. R&TTE
・ EN300 328
・ EN301 489-1
・ EN301 489-17
12.6. Others
・ Certification for Construction Design of Specified Radio Equipment
・ Bluetooth logo certification
13. RoHS
RoHS: The restriction of the use of certain hazardous substances in electrical and electronic equipment,
2002/95 EC.
14. Precautions
14.1. Precaution about the LED Light
Do not stare into the laser light from a scanning window. It may harm your eyes.
Caution - Use of controls or adjustments or performance of procedures other than those specified
herein may result in hazardous radiation exposure.
14.2. Radio Low
The data collector has obtained the Certification for Construction Design of Specified Radio
Equipment.
Therefore it does not need to have a radio station license in Japan.
The following activities are prohibited under the Radio Law:
・ Remodeling and disassembly
・ Peeling off the certificate label
Do NOT use the data collector under the following environment:
*Otherwise radio interference may affect other device and end up with causing physical or
material damage.
・ Safety apparatus and medical device for human body protection
・ Environment where is concerned to cause serious damage
This is a Class B product, to be used in a domestic environment, based on the
Technical Requirement of the Voluntary Control Council for Interference from
Information Technology Equipment (VCCI). If this is used near a radio or
television receiver in a domestic environment, it may cause radio interference.
PX-35 SSxxxxx
19
14.3. Handling
Handle this product carefully. Do not deliberately subject it to any of the following.
(1) Shock
・ Do not drop from the non-standard height.
・ Do not place any heavy items on the data collector.
・ Do not squeeze it between any heavy items.
・ Do not swing around the cable.
(2) Temperature Conditions
・ Do not use the data collector at temperatures outside the specified range.
・ Do not pour boiling water on the data collector.
・ Do not throw the data collector into the fire.
(3) Foreign Materials
・ Do not put the data collector into liquid.
・ Do not put the data collector into chemicals.
(4) Others
・ Do not disassemble this product.
・ Do not use the data collector near a radio or a TV receiver. It may cause reception
problems.
・ The data collector may be damaged by voltage drops caused by lightning.
・ The data collector may not perform properly in environments when placed near a
flickering light, such as a CRT
14.4. Export Administration Regulations
This product is subject to the strategically controlled exports regulated under “Foreign Exchange
and Foreign Trade Laws”. Therefore, export of this product may require an export permission of
Japanese government.
14.5. Bluetooth
To communicate via Bluetooth, the device which PX-35 is connected to must support the same
Bluetooth version and profile as PX-35’s.
・ PX-35 is compliant to Bluetooth standards. However, we cannot assure the connection
between PX-35 and other Bluetooth devices which have not been tested.
・ Bluetooth supporting devices use 2.4 GHz frequency band. However, many other sorts of
devices also utilize this frequency band. It may effect the communication speed or
communication range of this data collector.
・ The use of PX-35 outside of the European Union, the United States and Canada is punishable
under the law.
・ Communication speed and communication range of PX-35 may differ due to the obstacles
and radio wave conditions between PX-35 and the device, which PX-35 is connected to.
・ Conditions of the device, which PX-35 is connected to, may also affect the communication
speed and communication range of PX-35.
PX-35 SSxxxxx
20
14.6. Frequency Baud
The frequency band 2.4 GHz is utilized by this scanner. Read carefully the followings before
using this product.
In the frequency band of this scanner, scientific, medical and industrial devices including
microwaves are used. Also other radio stations including local private radio station for mobile
object identification requiring license for such as manufacturing lines at factories, specific
power-saving radio station requiring no license and amateur radio station are managed.
Please make sure that “other radio stations” are not managed in the frequency band 2.4 GHz
before using this scanner.
In case that radio interference occurs between this scanner and “other radio stations,” change
the service space immediately, or stop transmitting radio wave to avoid the interference.
If you have any questions or troubles, please contact our marketing group.
PX-35 SSxxxxx
21

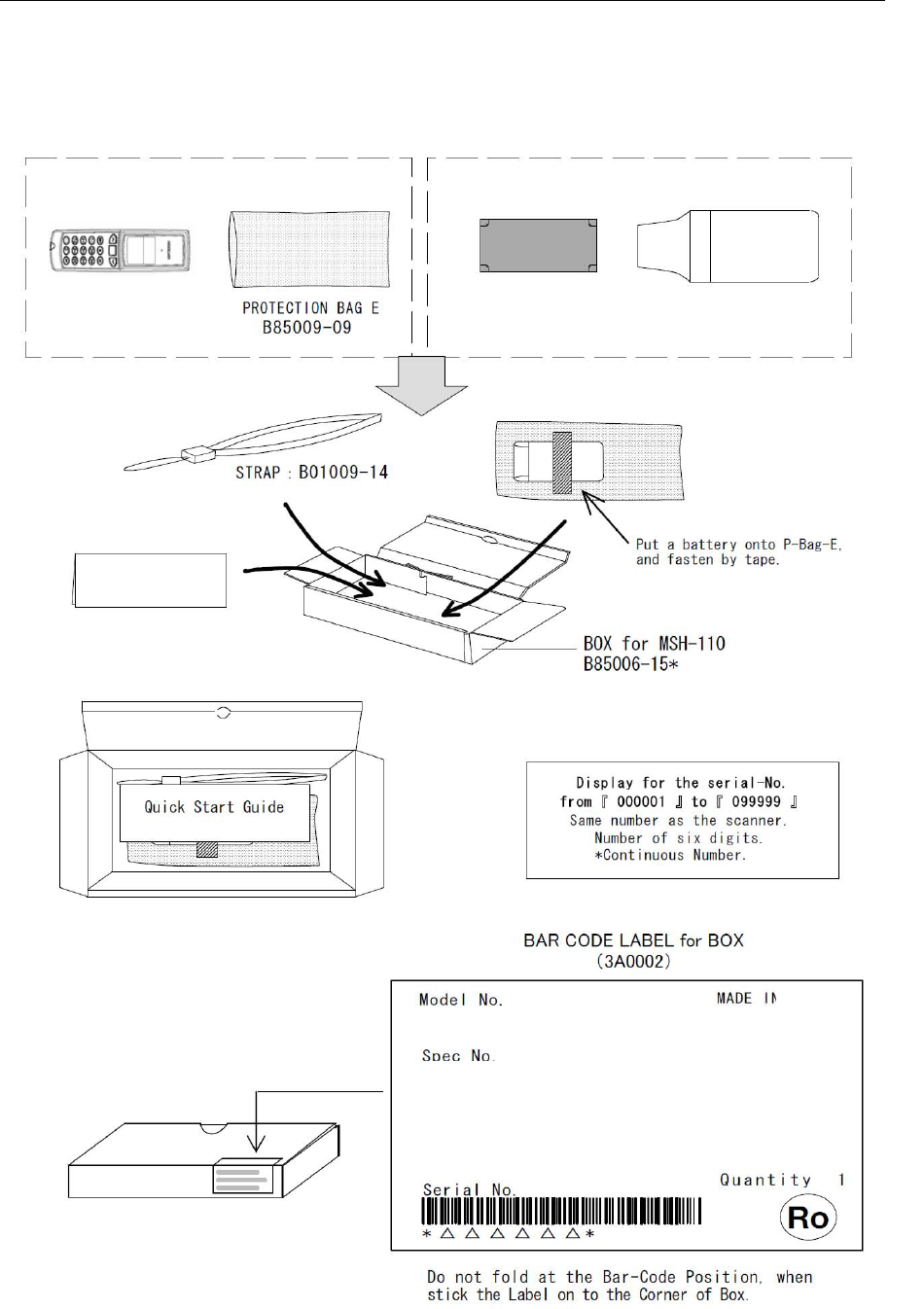

Appendix 1
Individual Packaging Specification
BATTERY
BTR040x
Quick Start Guide
(
P
X
-
35019062
-
0
-
00
)
PX-35
*XF1PX35*
△△△△
PX-35 SSxxxxx
22

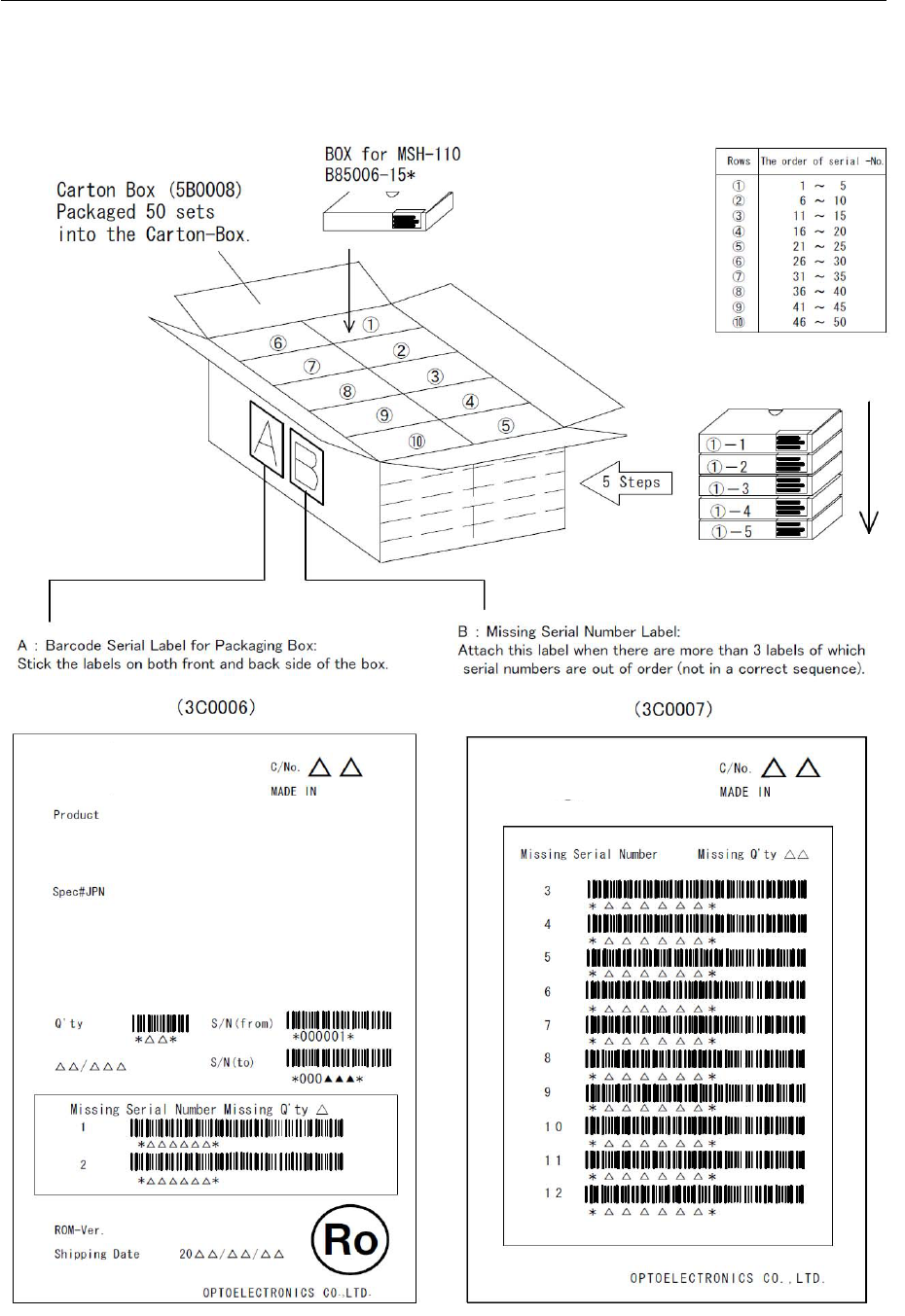

Appendix 2
Collective Packaging Specification
PX-35
*
XF
1
PX
35
*
FM42J△△
△△△△ △△△△
