TRACKPACK USERS MANUAL
T
T
Tr
r
ra
a
ac
c
ck
k
kP
P
Pa
a
ac
c
ck
k
k
Users Manual
Comtech AeroAstro, Inc
20145 Ashbrook Place
Ashburn, VA 20147
Phone: +1(866) 631.6010| +1 (571) 366.7854
Fax: +1 (703)738.7254
www.sensservice.com
Doc #:6013-GD-00001-C
6/11/2009
Comtech AeroAstro, Inc 6013-GD-00001 i
Revision Log
REVISION HISTORY
Revision Date Change Description Section Affected
A 03/17/09 Initial Release ALL
B 05/01/09 Added Passkey instructions 2.2
C 05/27/09 Regulatory Notices Appendix C
D 06/10/09 Regulatory Notices Appendix C
Comtech AeroAstro, Inc 6013-GD-00001 ii
Table of Contents
1. TRACKPACK.........................................................................................1
1.1 TrackPack Basics.................................................................................. 2
1.2 Mechanical .......................................................................................... 3
1.3 Electrical............................................................................................. 3
2. GETTING STARTED ..............................................................................4
2.1 Configuration Software Installation ......................................................... 4
2.2 Connecting the Device .......................................................................... 5
3. TRACKPACK CONFIGURATION TOOL....................................................7
3.1 Unit List.............................................................................................. 8
3.2 Unit Configuration ...............................................................................10
3.2.1 Standard Configuration ...................................................................10
3.2.1.1 Modes .................................................................................11
3.2.1.2 Message Configuration...........................................................12
3.2.2 Support ........................................................................................13
3.2.3 Summary ......................................................................................13
3.2.4 Advanced Configuration...................................................................13
3.2.4.1 Messaging............................................................................14
3.2.4.2 Motion.................................................................................16
3.2.4.3 Engineering..........................................................................17
3.3 Action Button and Feedback Section.......................................................18
4. DEVICE INSTALLATION .....................................................................20
5. MESSAGING PRIORITY......................................................................21
6. SPECIFICIATIONS .............................................................................22
7. GLOSSARY.........................................................................................24
Appendix A: Technical Support.........................................................................25
Appendix B: RF Radiation Exposure Statement ................................................26
Appendix C: REGULATORY NOTICES ...............................................................27
Appendix D: Environmental Specifications .......................................................28
Comtech AeroAstro, Inc 6013-GD-00001 iii
Appendix E: Message Format ...........................................................................29
1. Tracking Message..............................................................................29
1.1 Decoded Tracking Message Sample........................................................30
2. Configuration Message ......................................................................31
2.1 Decoded Configuration Message Sample .................................................32
3. Status Message .................................................................................32
3.1 Decoded Status Message Sample...........................................................33
Comtech AeroAstro, Inc 6013-GD-00001 1
1. TRACKPACK
TrackPack is a fully self contained, highly reliable and environmentally
hardened global satellite based tracking device capable of determining
location using GPS and reporting that location over a low earth orbit (LEO)
satellite network using the AeroAstro patented SENS CPDMA™ satellite
communications system to provide a robust, easy to use asset tracking
solution.
The TrackPack is powered by internal primary batteries and require no wires
or harnesses for use. The TrackPack features a wireless configuration system
using a simple Graphical User Interface (GUI) application and a wireless USB
Dongle. Users can configure TrackPack without cables or lengthy connection
procedures. The Wireless USB Dongle can communicate with multiple
TrackPacks at the same time thus allowing users to configure more than one
TrackPack simultaneously.
The TrackPack communicates data via the Globalstar Simplex Data Service.
This satellite service utilizes low power, one-way transmitters to relay data
from locations globally to a back office server accessible over the internet
through a secure connection. The use of one-way, simplex satellite
communications is a proven, reliable method. This feature is augmented by a
rich configuration capability that enables the TrackPack to automatically
detect situations where a data update is desired, such as start and stop or
while in motion.
This Users Manual describes how the TrackPack is configured and the protocol
for on-air data payload and internet XML packets. This document provides a
generalized overview only. Consult Comtech AeroAstro for more details and
options of relaying data.
1
Comtech AeroAstro, Inc 6013-GD-00001 2

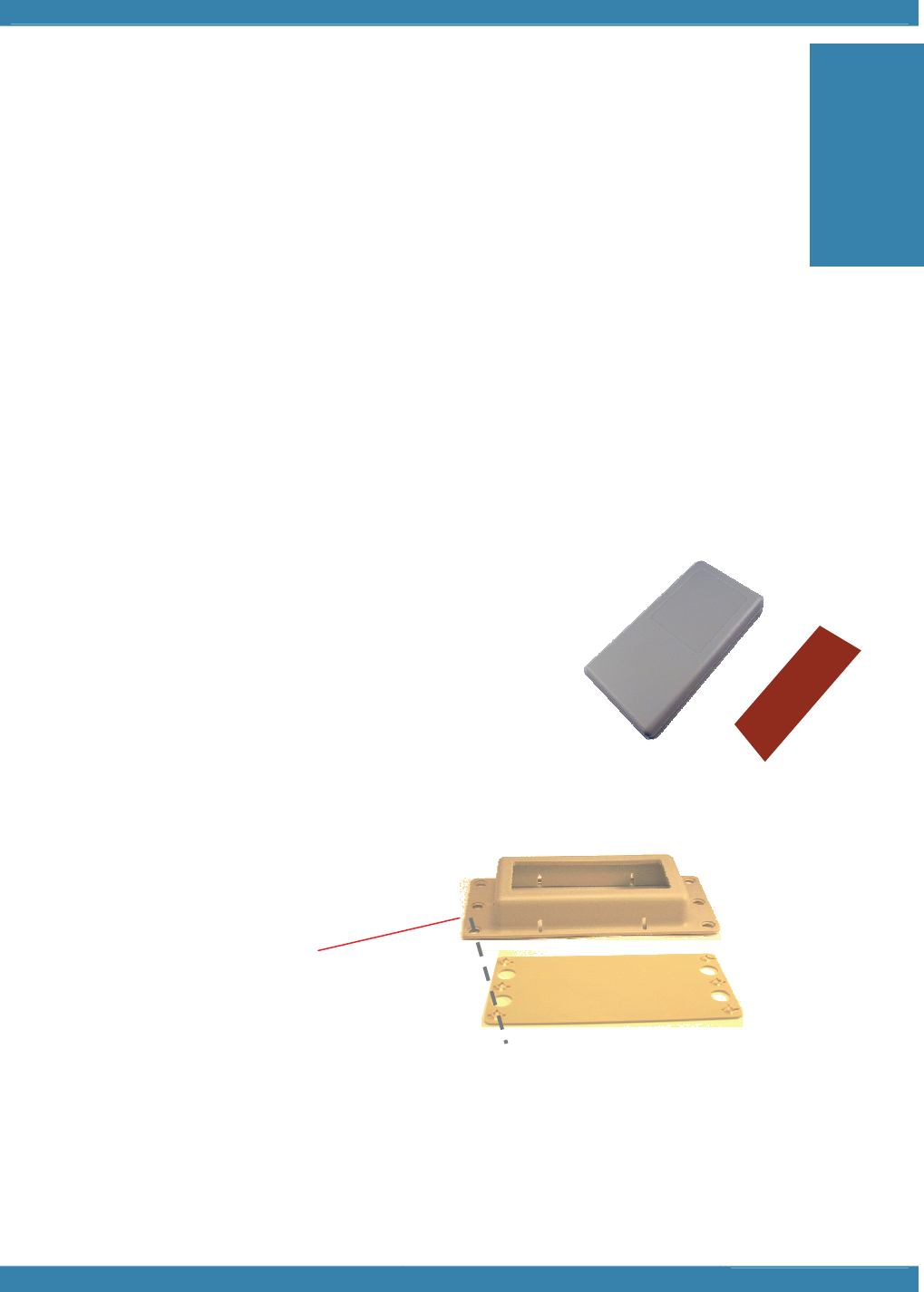

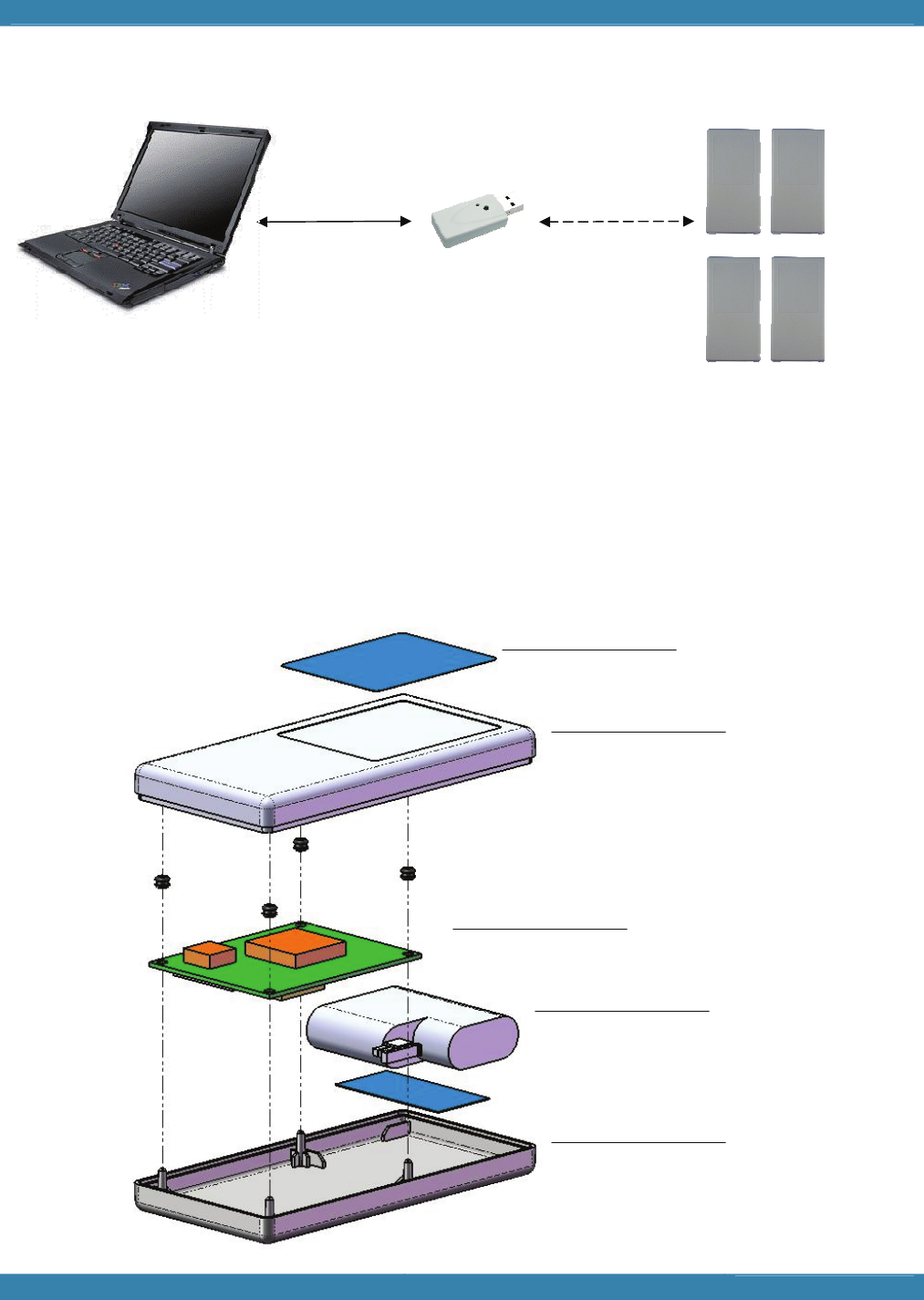

1.1 TrackPack Basics
PC
Wireless
USB
Dongle
Wireless
Link
Multiple
TrackPacks
Label
Top
Board
Battery
Bottom
Comtech AeroAstro, Inc 6013-GD-00001 3
1.2 Mechanical
The TrackPack is a compact assembly containing a GPS receiver, satellite
transmitter, antennae and batteries. The device is a small outline and low
profile. The TrackPack is a fully contained tracking device suitable for
extended exposure to outdoor and industrial environments. It is 5 inches
length, 1.7 inches wide, and 0.82 inches in height. The TrackPack device is
fully enclosed and hermetically sealed to ensure no moisture ingress.
1.3 Electrical
The TrackPack operates using a series of lithium iron disulfide batteries. The
Device uses 4.5V for all battery powered operation.
Comtech AeroAstro, Inc 6013-GD-00001 4
2. GETTING STARTED
TrackPack is designed to allow users to easily
deploy a single or multiple devices. The TrackPack
supports over-the-air configuration provided that
the devices are within 60 ft from the wireless
configuration dongle. Simply attach the Wireless
USB configuration dongle and scan for TrackPacks
that are in the range of the configuration tool.
2.1 Configuration Software Installation
TrackPak is wirelessly configured using a USB dongle and a Simple Graphical
User Interface (GUI) software. The Configuration Kit includes a the USB
dongle and a CD-ROM which contains the TrackPack configuration software
and the drivers needed for the USB dongle. Installation instructions are
described below:

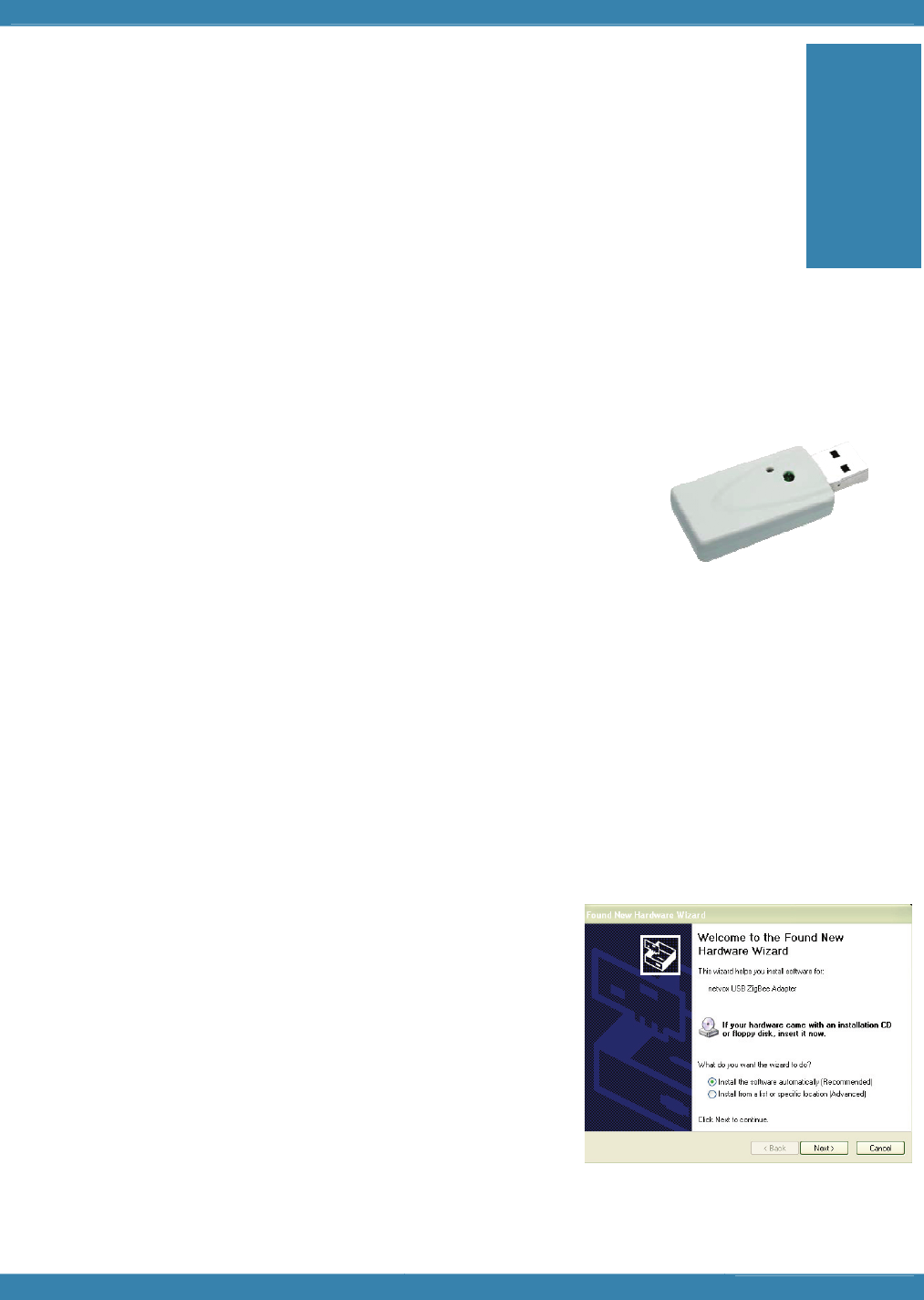

Wireless USB Communicator:
1. Insert the TrackPack
Configuration CD. You can also
download the drivers ahead of
time using the CD-ROM or
through the Customer Support
Center.
2. Insert USB dongle, the
Hardware Wizard will pop up
and you will have the option to install the Drivers automatically or
install from a specific location. Select the “Install software
2
Comtech AeroAstro, Inc 6013-GD-00001 5
automatically” option. The Wizard will detect where the Drivers are
located (in CD-ROM or Saved in Hard drive).
NOTE
If this option does not work, you can select the “Install from
Specific location” and point the wizard to the CD-ROM or the
location where the driver has been saved.

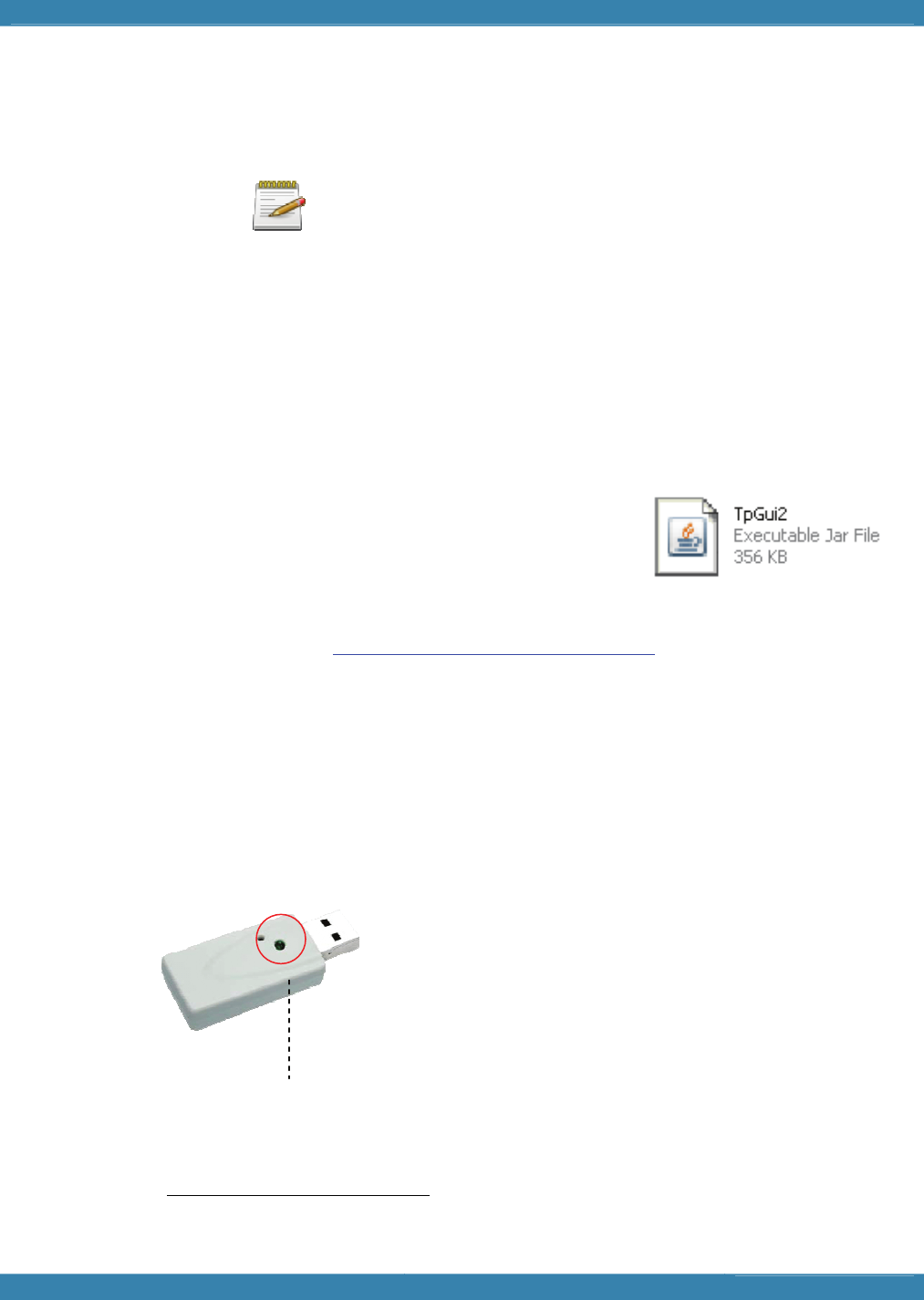

GUI Installation:
1. Download the latest TrackPack Configuration software from the CD-
ROM
2. Run by double-clicking the TrackPack
configuration software.
The Configuration Software and drivers can be downloaded via the Customer
Resource center (www.sensservice.com/senssupport). You will need to login
using your AssetView administrative credentials.
2.2 Connecting the Device
Insert your wireless USB Dongle and run the TrackPack Configuration Tool.
The USB Dongle LED will provide feedback when the
Dongle is active. The Dongle LED is a steady green
light when the Dongle is connected to a PC and will
blink when it is actively searching or communicating
with a TrackPack.1
1 Note: Satcom and wireless radio and are not capable of transmitting simultaneous
LED Feedback
Comtech AeroAstro, Inc 6013-GD-00001 6
The TrackPack unit and the USB Dongle communicate securely using a
passkey. Pre-configured units will only communicate with the USB dongle if
the appropriate passkey has been entered.

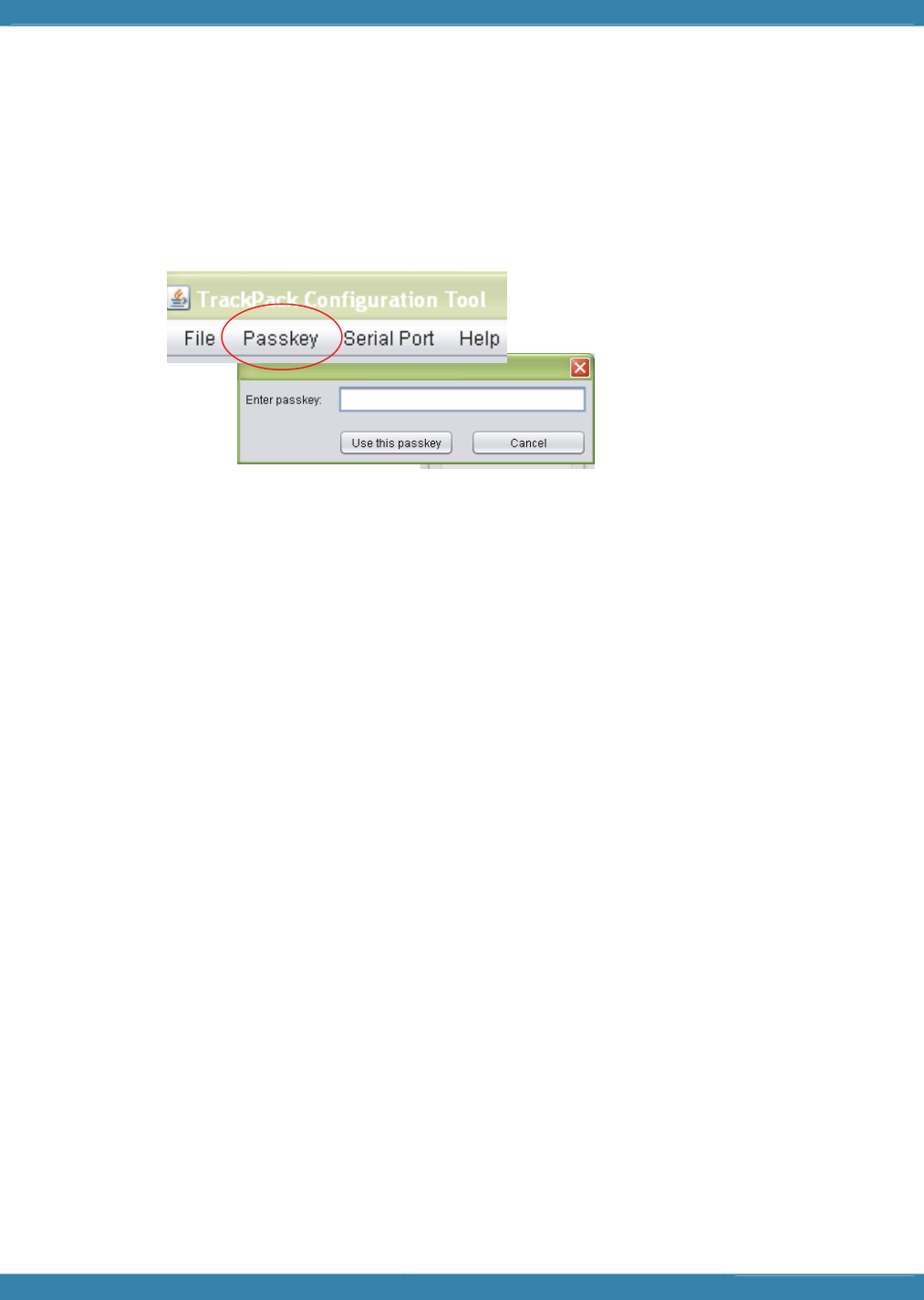

Using the Configuration Tool, Select the “Passkey” option located in the tool
bar.
Enter the passkey that is assigned to your account and press the “Use
this passkey” button.
To communicate with New Units (no Passkey)
Click the “Search for New Units” button. This will retrieve all units that
do not have a passkey assigned.
* Once you Press the Program Button. The Passkey entered in the
Passkey screen will be programmed in the unit.
To communicate with previously configured units:
Click the “Search for Units” button. This will retrieve units that have
the matching passkey.
Comtech AeroAstro, Inc 6013-GD-00001 7
3. TRACKPACK CONFIGURATION TOOL
The TackPack Configuration Tool is a Java based software program designed
to access and configure TrackPack devices. The program can simply be
copied to a directory on the host computer.

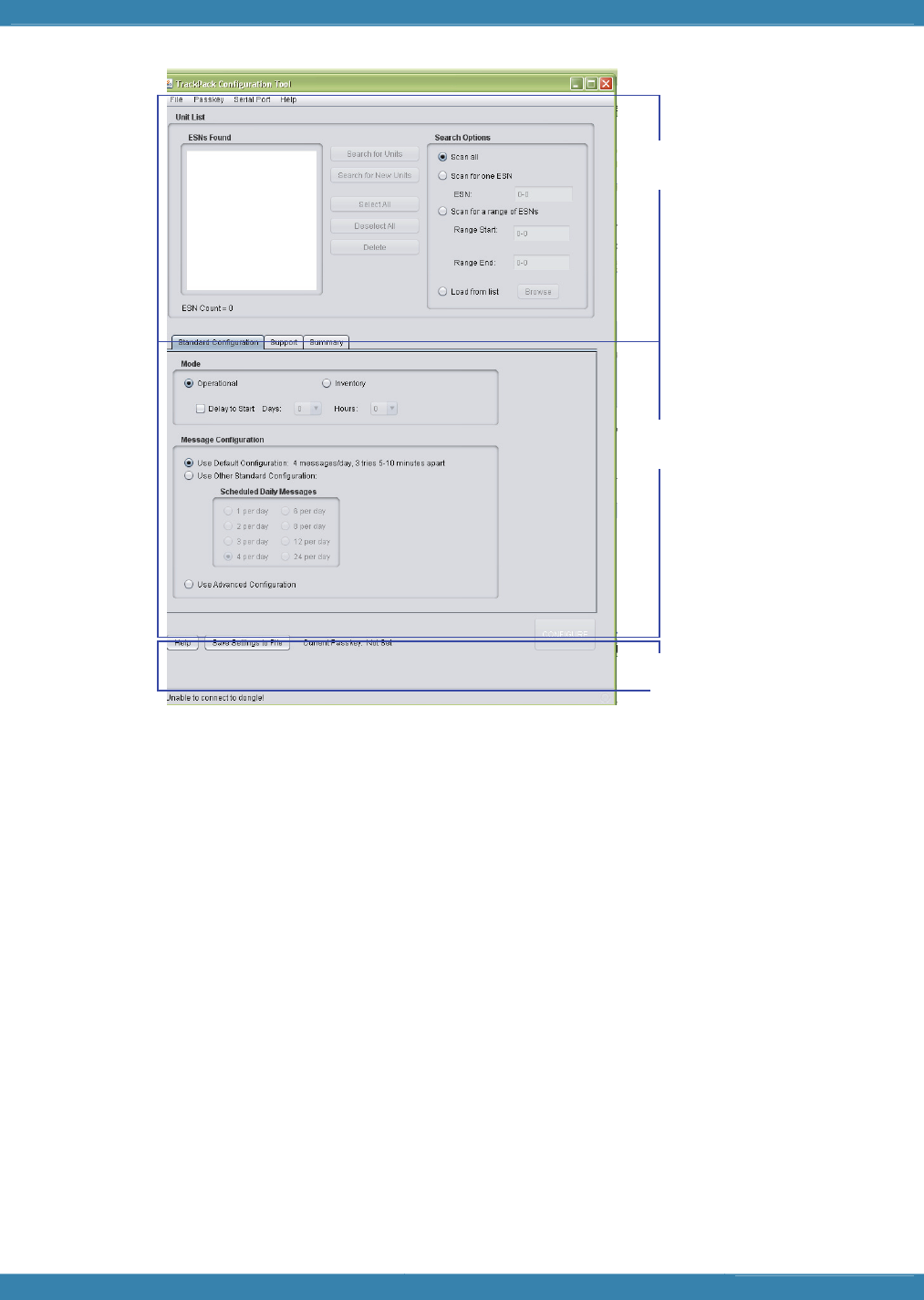

The TrackPack Configuration Tool is grouped in 3 sections.
3
Comtech AeroAstro, Inc 6013-GD-00001 8
3.1 Unit List
The Unit List section is the first place you will need to go once the TrackPack
Configuration Tool is Open. This section is used to connect the TrackPack to
the Wireless USB Dongle. This section has several option to use to connect
the TrackPack. You may choose which option is best for your operation.
The Electronic Serial Number (ESN) uniquely identifies each TrackPack
Device. This Number appears on the TrackPack Label and inside the
TrackPack.
Action Section
Unit List
Configuration Section
Comtech AeroAstro, Inc 6013-GD-00001 9

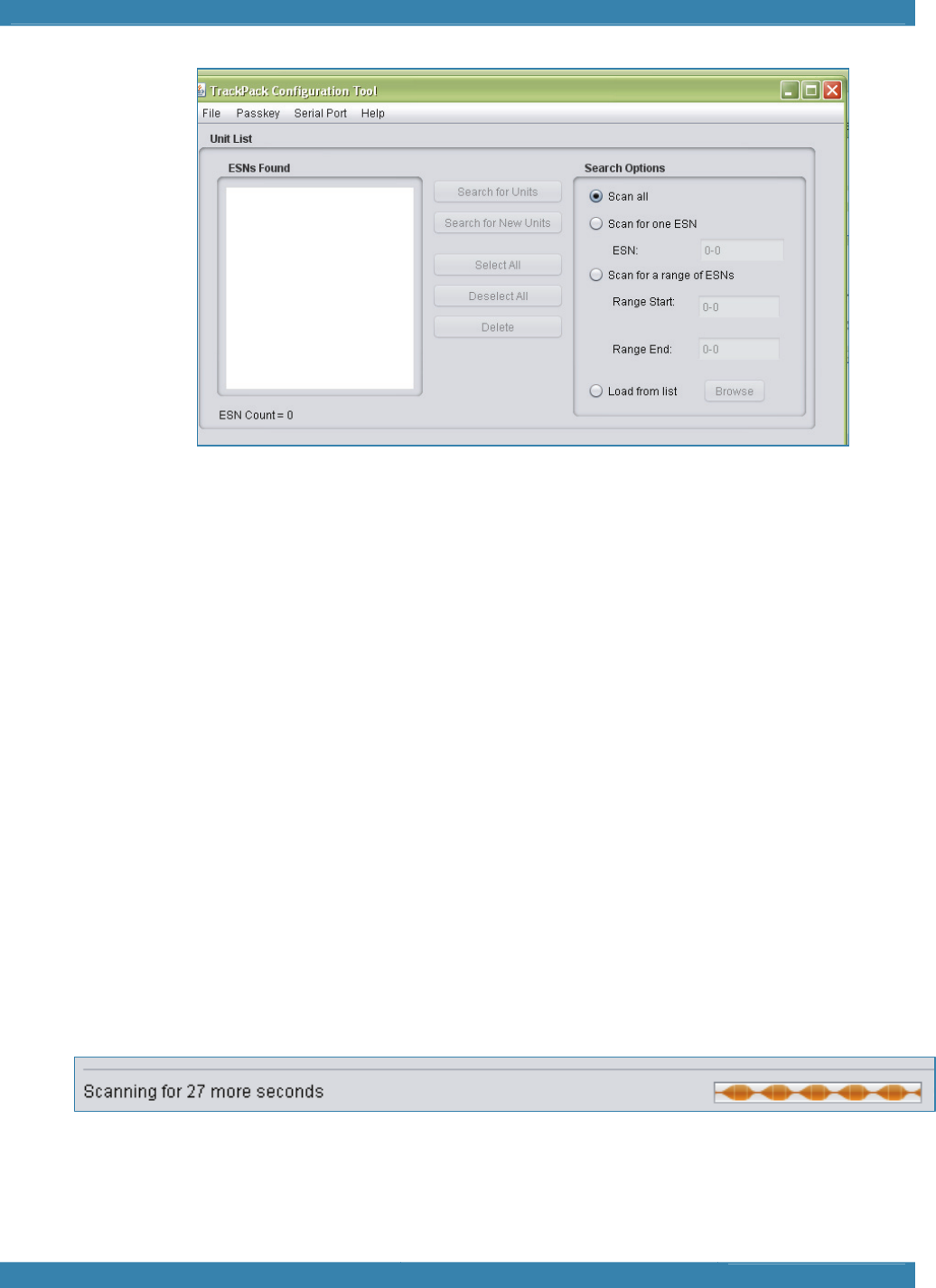

The Search Option Section brings flexibility in searching for TrackPacks.
1. Scan All: This scans for all TrackPacks within configuration range
2. Scan for one ESN: Once this radio button is selected, the ESN Field will be available
for the user to enter the ESN that they would like to program.
3. Scan for a Range of ESNs: This allows the user to scan for a range of ESNs
4. Load from List: This allows the user to load a formatted list of ESNs.
5. Search for New Units Button: By pressing this button, the Wireless USB Dongle will
scan for all TrackPacks that are within range that do not have a passkey assigned. All
TrackPacks scanned will be displayed in the ESN Found Screen.
6. Search for Units Button: By pressing this button, the Wireless USB Dongle will scan
for all TrackPacks that are within range that have a matching passkey. All TrackPacks
scanned will be displayed in the ESN Found Screen.
7. Select All: By pressing this button, ESNs displayed in the ESN Found Screen will be
selected.
8. Deselect All: By pressing this button, selected ESNs displayed in the ESN Found
Screen will be deselected.
9. Delete: By Pressing this button the, ESNs displayed in the ESN Found Screen will be
deleted.

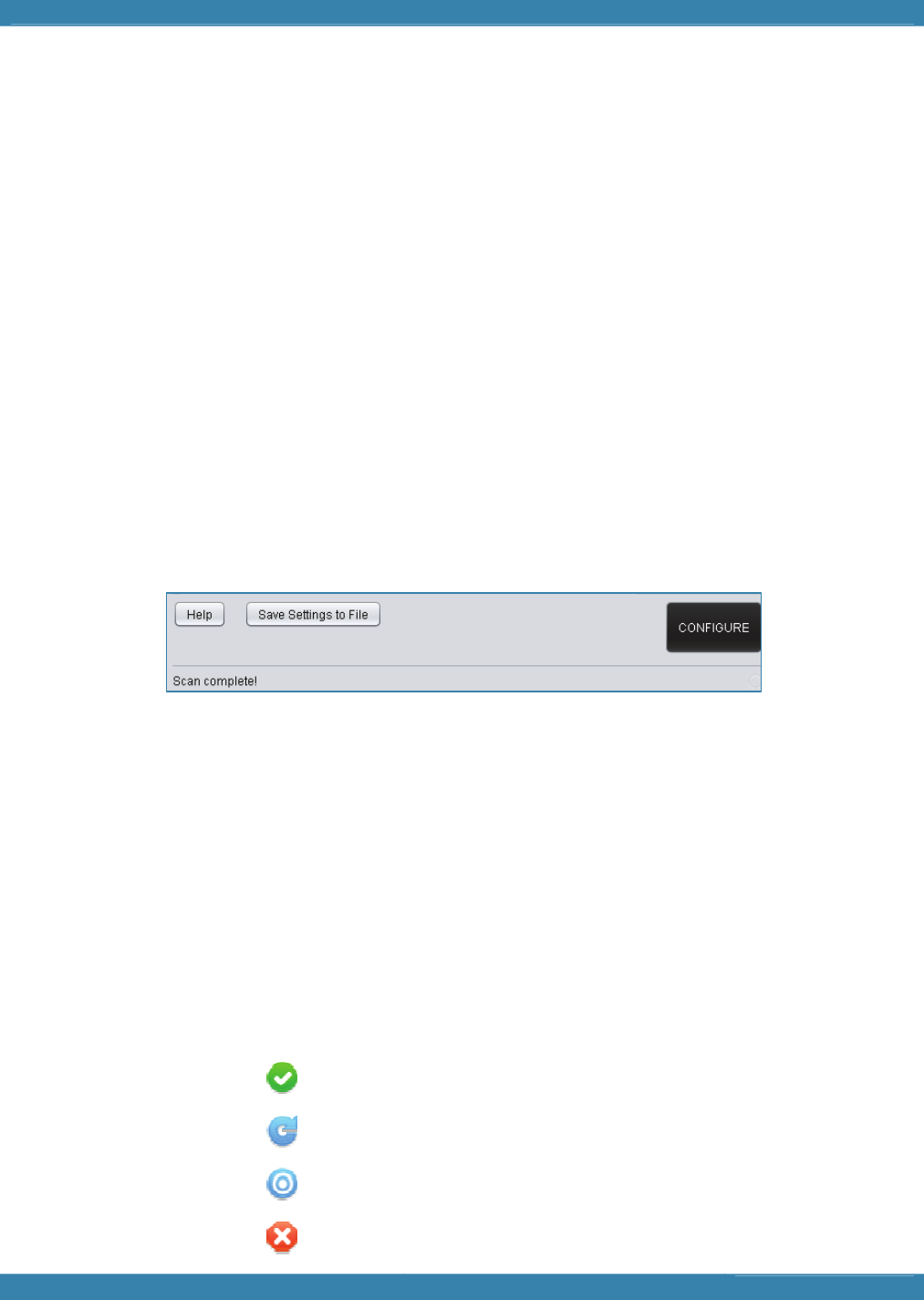

During the scan process, the Feedback window located at the bottom of the
Configuration Tool will display status of the scan.
1. Select all, Deselect All and Delete buttons allows the user to
manipulate the ESN list that the Wireless Dongle found.
2. ESN Count: Displays the number of ESNs the Wireless Dongle
found.
Comtech AeroAstro, Inc 6013-GD-00001 10
Once you have selected the TrackPack or multiple TrackPacks, you can now
begin configuration.

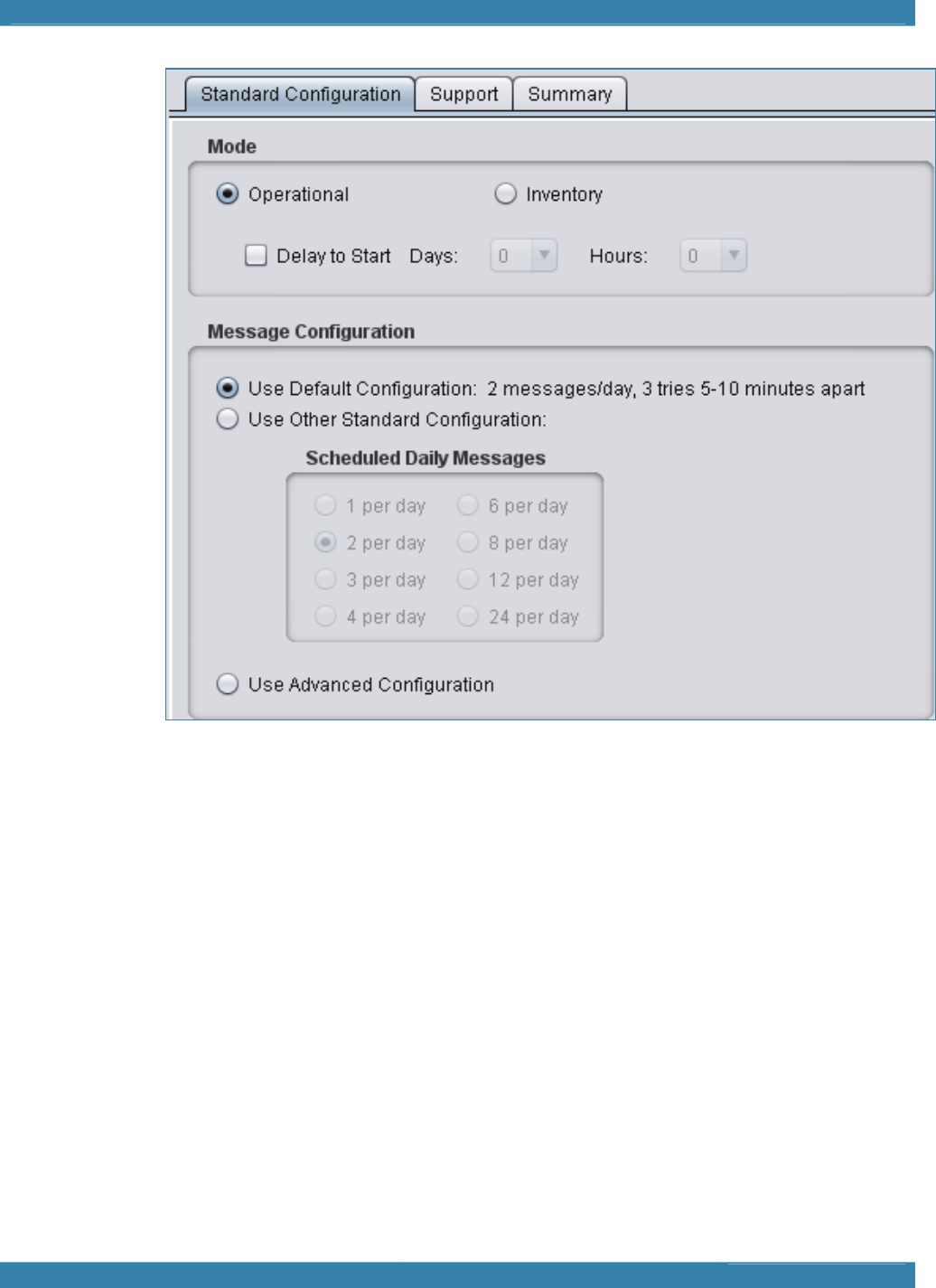

3.2 Unit Configuration

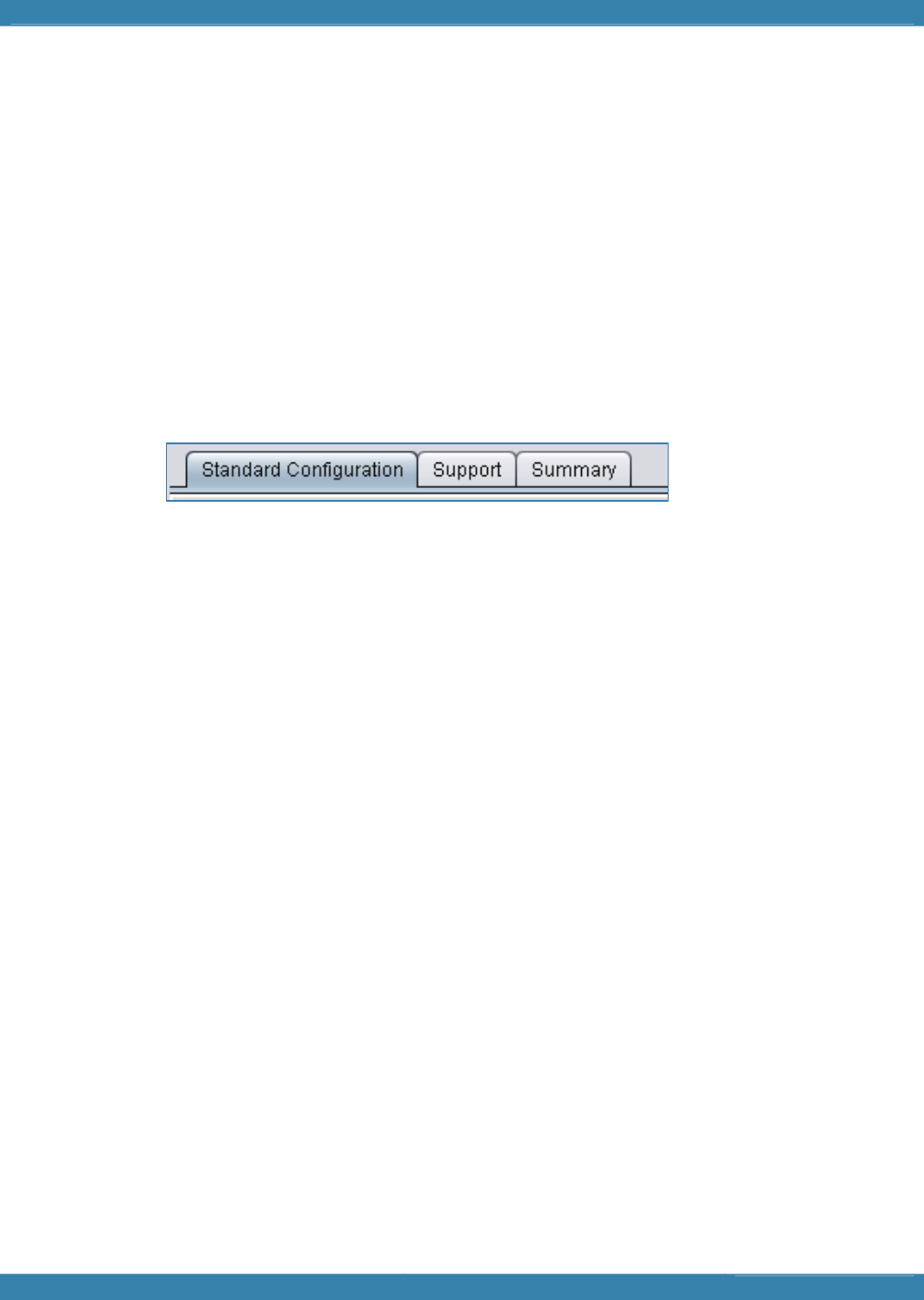

The Configuration section displays the following Tabs as a default Standard
Configuration, Support, and Summary. These tabs allows the user to quickly
configure basic configuration for the selected TrackPacks from the Unit List.
3.2.1 Standard Configuration
The Standard Configuration tab displays a list of basic configurations that the
user can choose from.
Comtech AeroAstro, Inc 6013-GD-00001 11

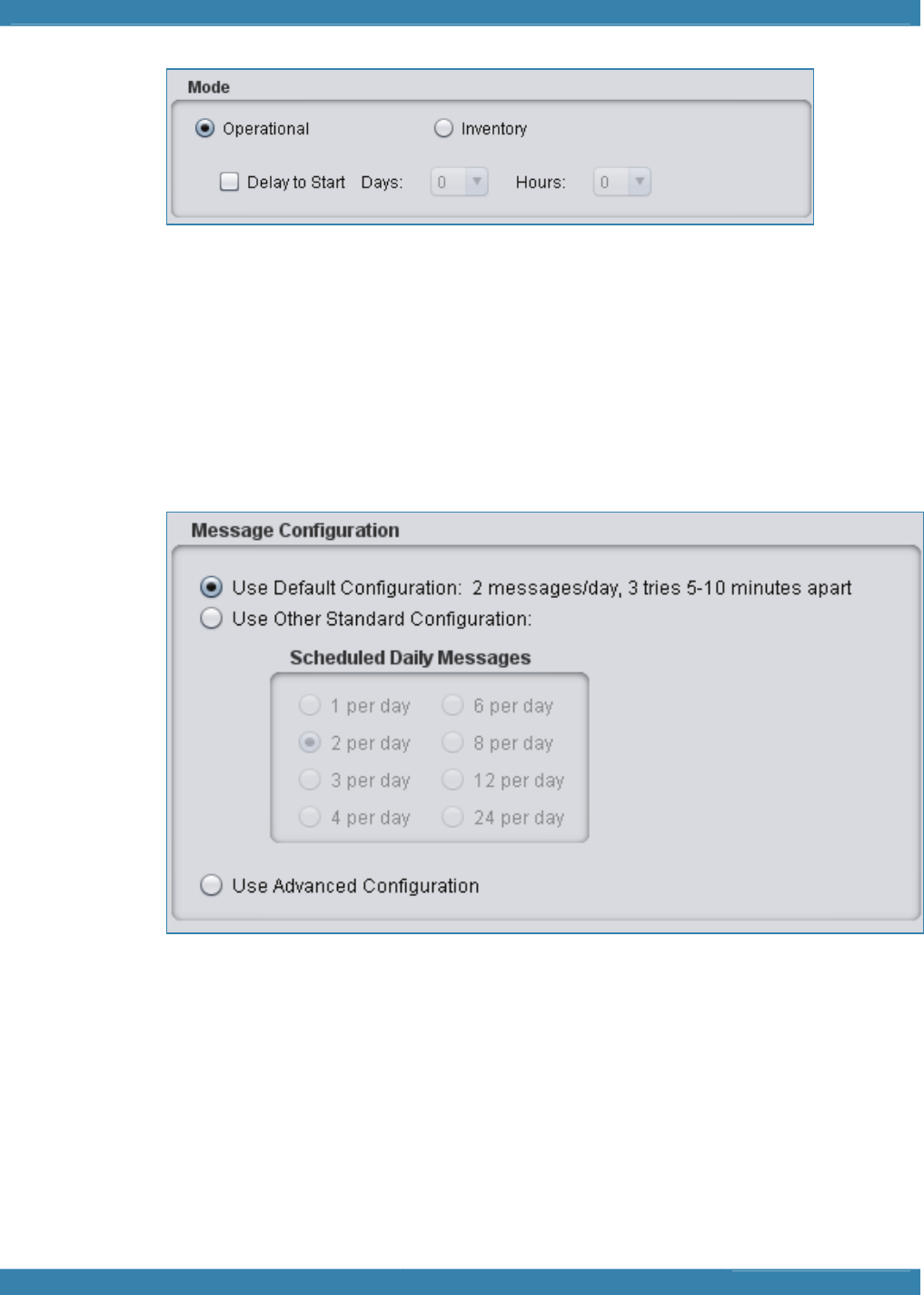

3.2.1.1 Modes
Select Between Operational or Inventory. While in Operational mode the unit
attempts to acquire and report position. While in Inventory mode, the unit is
in a battery saving state.
The Delay to Start Section allows the users to set a delay of Days or Hours
before the unit will begin to operate using it’s configuration.
Comtech AeroAstro, Inc 6013-GD-00001 12
3.2.1.2 Message Configuration
The Message Configuration section allows the user to quickly select from
pre-configured profiles. The User Advanced Configuration will take you to a
more advanced and detailed configuration options.
Comtech AeroAstro, Inc 6013-GD-00001 13

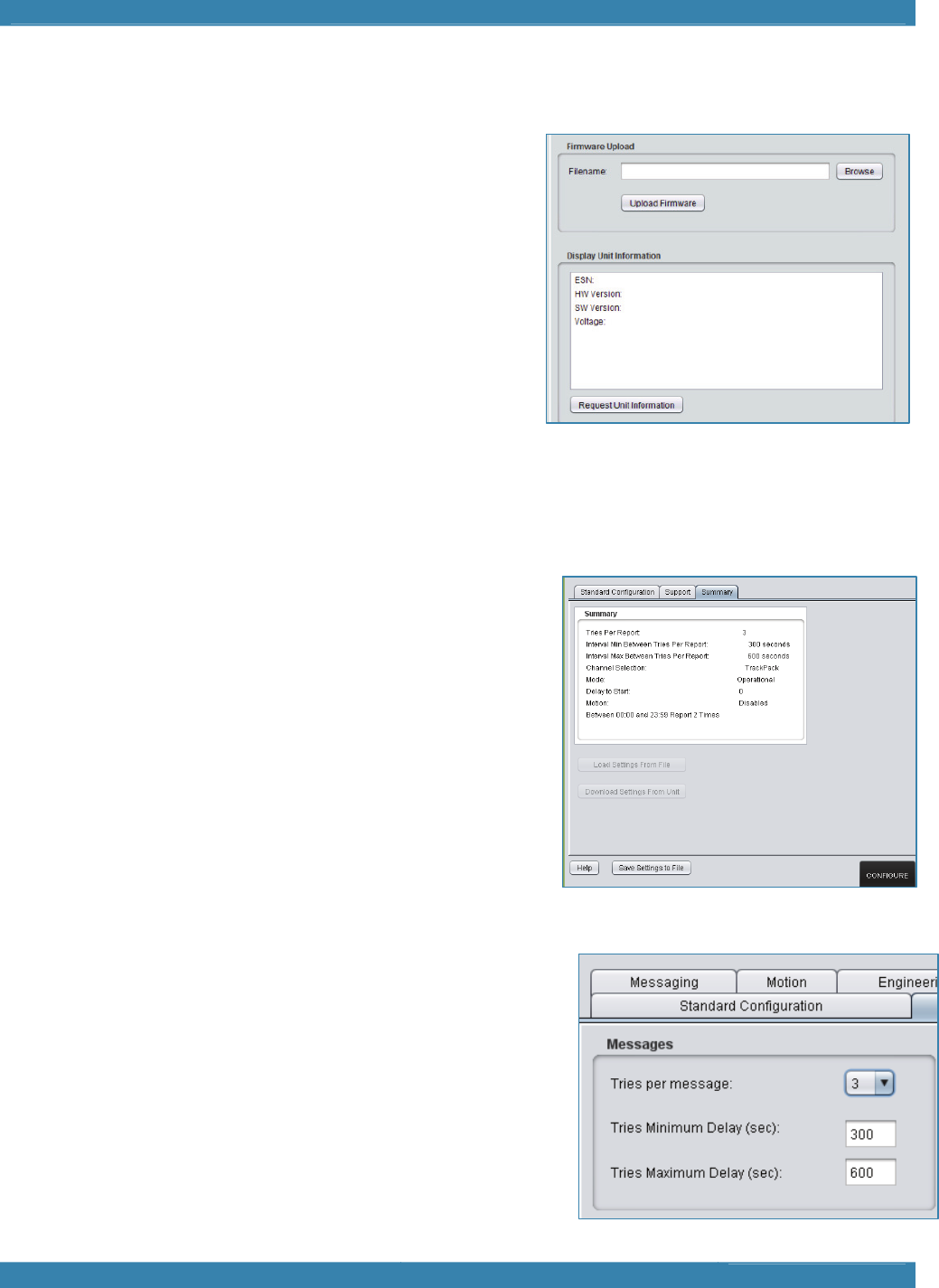

3.2.2 Support
The Support Section allows the user
and Technical support staff to upgrade
TrackPack firmware by using the
Firmware upload section.
The Display Unit Information displays
information about the TrackPack Device
that can be used for troubleshooting
the unit.
3.2.3 Summary
Once the TrackPack or TrackPacks have
been configured, the Summary section
will display configuration parameters for
each TrackPack configured.
In this section, you can Save this settings
to a file for easy configuration in the
future. You may also Download settings
from a unit and view the configuration
settings or load settings from a file.
3.2.4 Advanced Configuration
Selecting the Advanced Configuration
displays additional tabs that are required
for a more advanced set of configurations.
Comtech AeroAstro, Inc 6013-GD-00001 14
The Advanced Configuration begins by selecting the Message Parameters
located in the Messages Section.
These Messaging parameters control the number of repeat messages to be
sent within the selected minimum and maximum seconds for each unique
message. The Default parameter is set to 3 Tries for unique message
between 300 seconds to 600 seconds to ensure reliability of message success
rate. Given that not all applications require the same reliability or
requirements to send messages more quickly, this setting is user configurable
to suit several applications.
Users may select their Tries per message from 1 through 15. The Tries
minimum and maximum is also user configurable but will provide feedback
with the appropriate calculations.

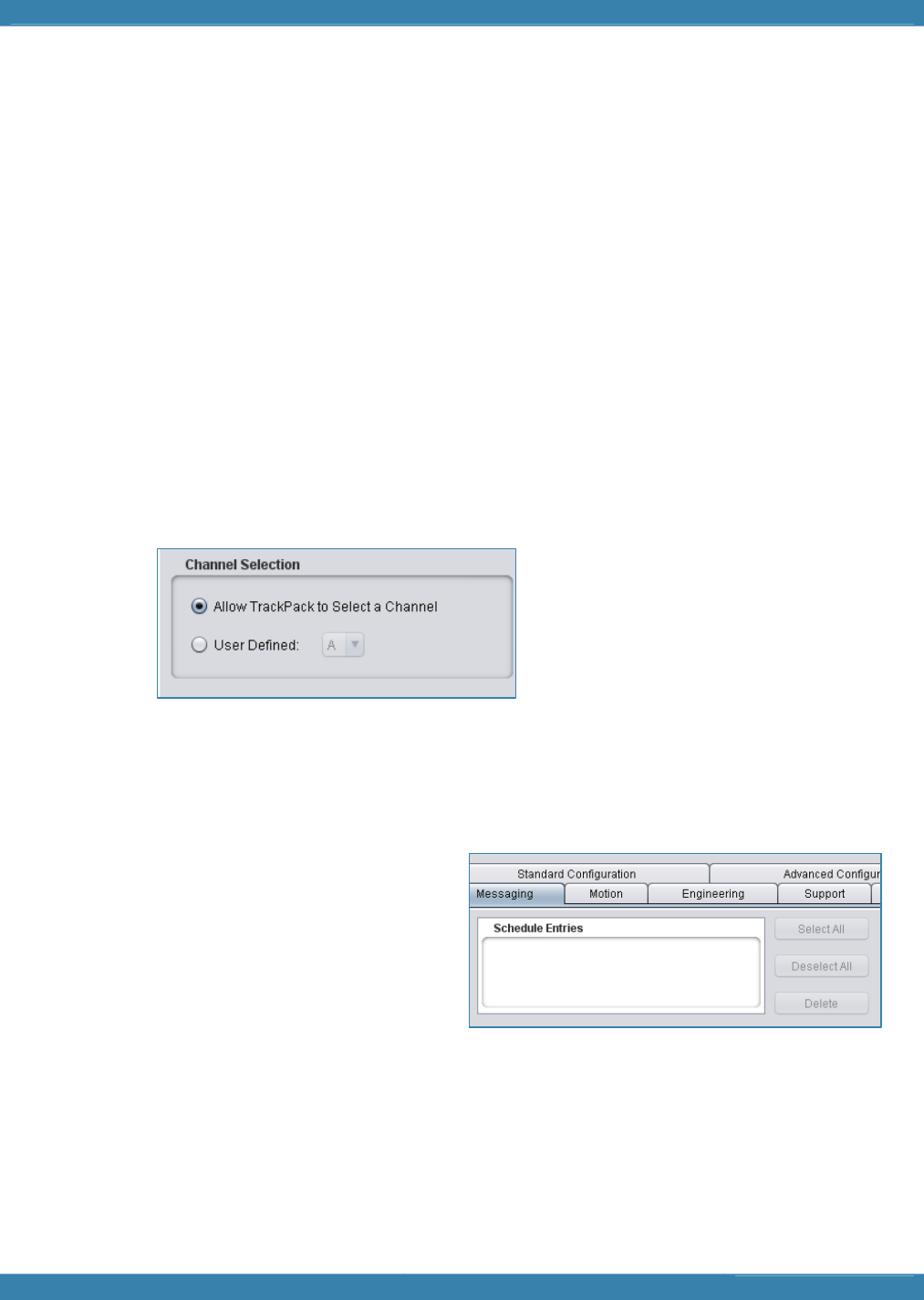

The Channel Selection allows the user
to select which operating channel the
TrackPack will be. It is best to select
the “Allow TrackPack to Select a
Channel” radio button. The TrackPack
comes with Radio Astronomy Site
(RAS) Detection and will switch Channels once a RAS is detected.
3.2.4.1 Messaging
The Messaging Tab is where
Location Messages and Status
messages are set. This tab
allows users to configure from
a Location Message Interval or
a Location Message Schedule.
The Schedule Entries window displays the Message Scheduled selected by the
user. Use the Select All, Deselect All or Delete to manipulate the schedule
entered.
Comtech AeroAstro, Inc 6013-GD-00001 15

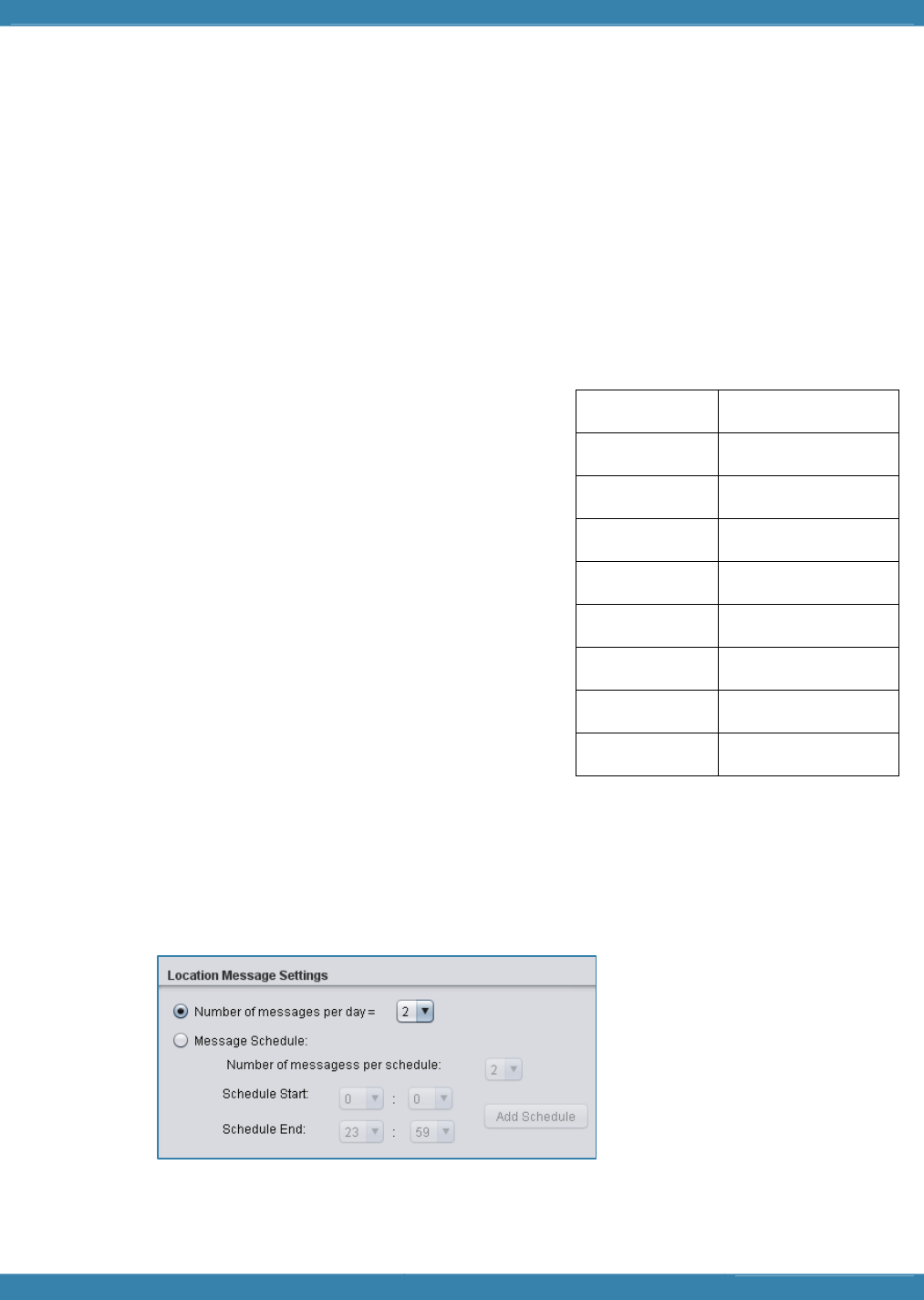

Interval Message Setting
Select the Number of Message per day radio button and select the number of
messages the TrackPack will send within the 24 hour period. Select from 1 to
8 messages per day. Using this option the TrackPack will send a user
specified number of message per day beginning from the 1st message the
TrackPack sends and spread evenly.
e.g: User Configured 8 Messages per
day. The Trackpack sends it’s 1st
message on 01:00 (EST), the next 8
message will be spread evenly within the
next 24 hours as shown below:
Message Schedule Settings
The Message schedule setting
allows the user to set a
number of messages in a
schedule Window. The
Schedule can hold up to 7
schedule windows and up
1,440 messages in 1
schedule window. The TrackPack Configuration Tool will calculate if the
number of messages entered in the window is not permitted based on the
Message Estimated Time
1 01:00 - 01:15
2 04:00 - 04:15
3 07:00 – 07:15
4 10:00 - 10:15
5 13:00 - 13:15
6 16:00 – 16:15
7 19:00 – 19:15
8 22:00 – 22:15
Comtech AeroAstro, Inc 6013-GD-00001 16
Messaging Parameters set in the Messages Section of the Advanced
Configuration Tab.
NOTE
This amount of messages will have an adverse effect on
battery life.
Adding a Schedule Window in a Schedule:
1. Start by Selecting the number of message in the schedule
2. Select the Start and End of the schedule
3. Select the Add Schedule button to populate the Schedule Entries
window above.

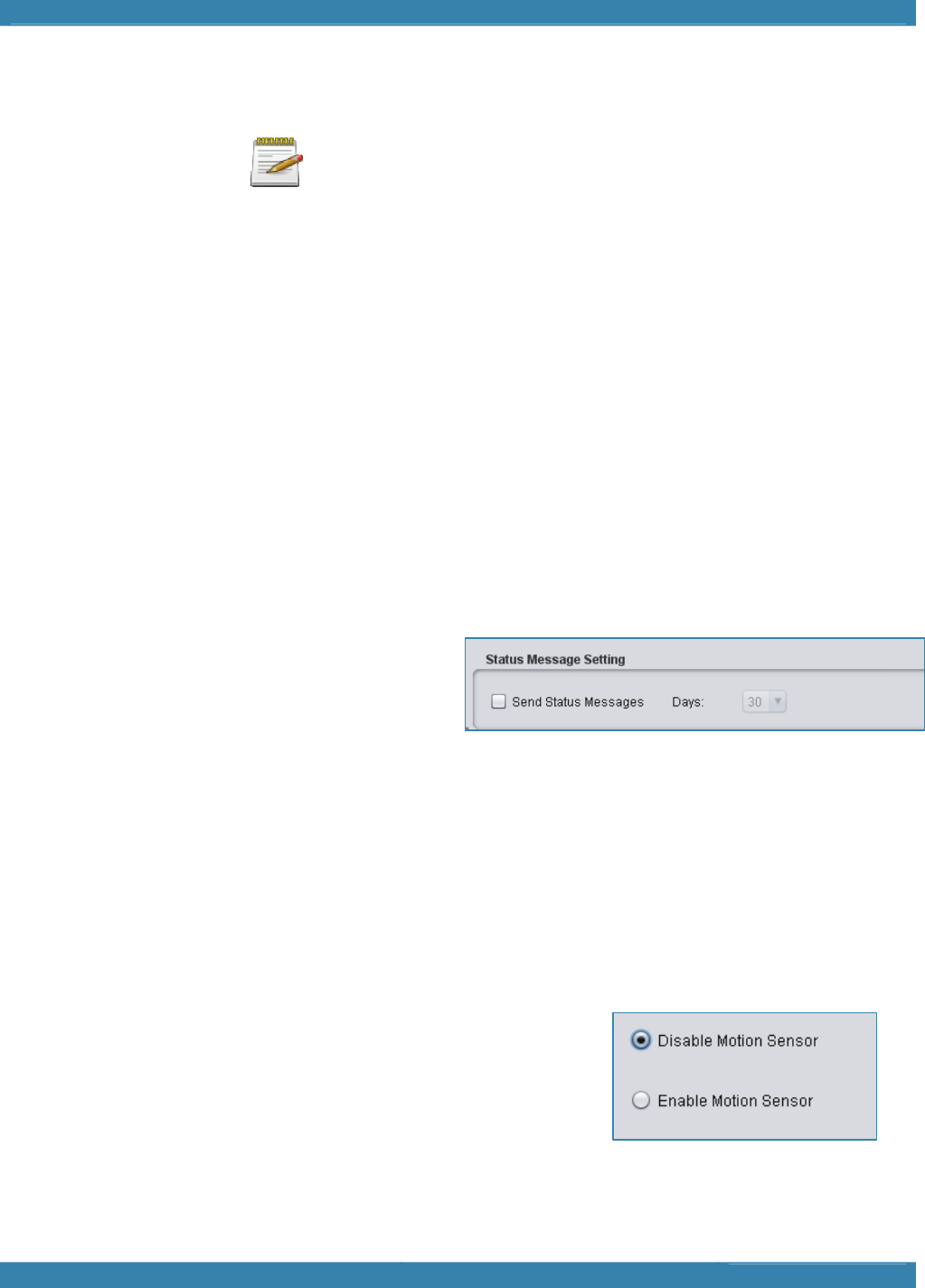

Status Message Setting
Set the TrackPack’s Status
Message by selecting the
Check box and selecting the
number of days for each Status message.
Battery life is determined in AssetView by using the information contained in
the status message. (see AssetView Users Manual for more details).
3.2.4.2 Motion
The Motion Tab enables the user to turn on or
off and configure the Motion Sensor of the
TrackPack or TrackPacks. Turn the Motion
Sensor on or off by selecting the appropriate
radio button.
Comtech AeroAstro, Inc 6013-GD-00001 17

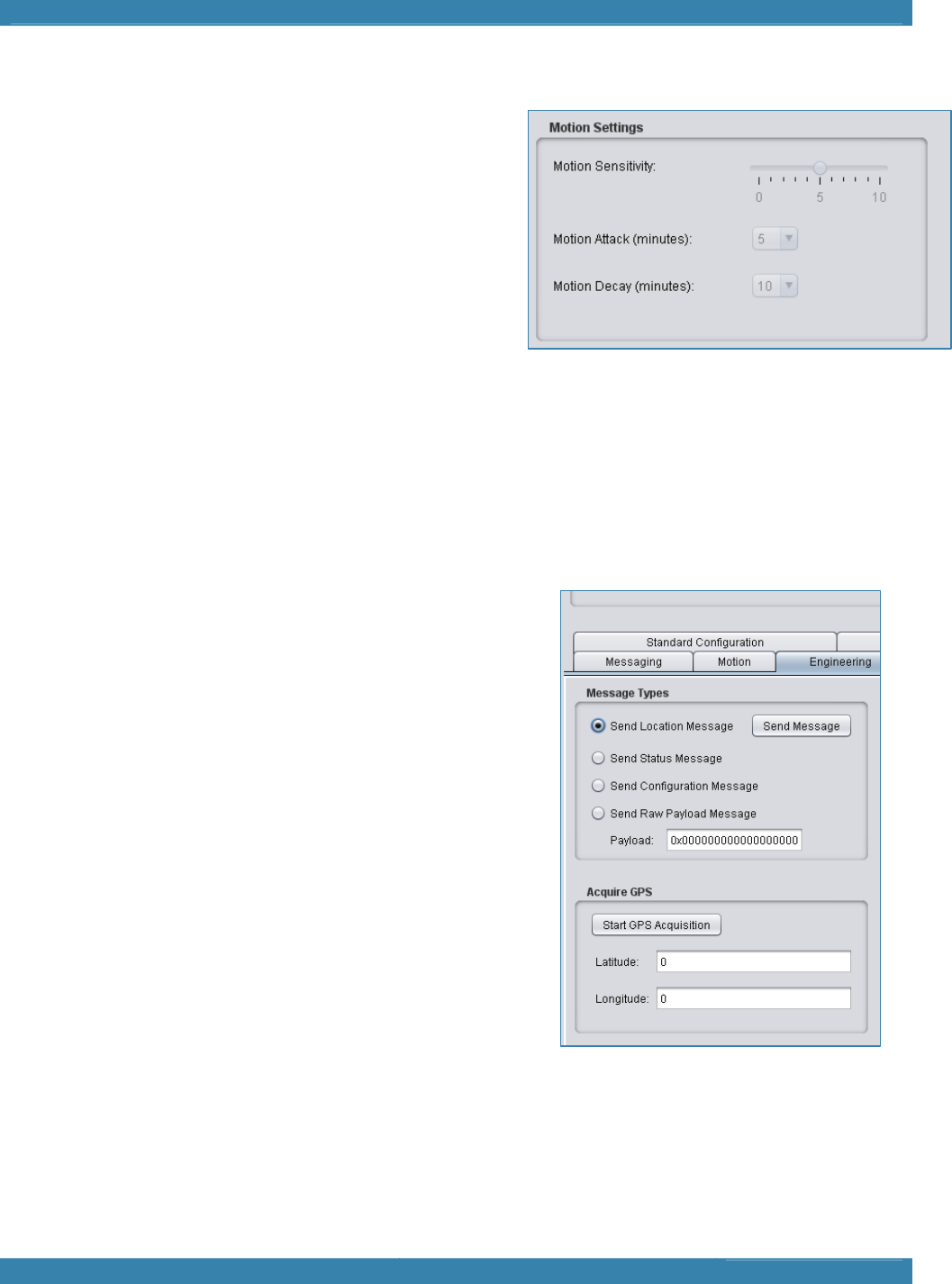

Motion Settings
Configure the Motion Settings by
selecting the motion sensitivity. This
setting ranges from one (1) to ten
(10), one (1) represents the least
sensitive and ten (10) which will be
the most sensitive.
Motion Attack: Select the number of
minutes of continuous motion
between 5 and 60 before the TrackPack is triggered to send a message.
Motion Decay: Select the number of minutes absent of motion between 5
and 60 before the TrackPack is triggered to send a message.
3.2.4.3 Engineering
The Engineering tab allows the users to
force several message types from the
TrackPack for test purposes.
Select the radio button for the type of
message and press the “Send Message”
button.
• Location Message: This option will force
the TrackPack to send a location
message along with all the data included
in a location message.
• Status Message: This option forces the
TrackPack to send a Status message along with all the data included in a
status message.
• Configuration Message: This option forces the TrackPack to send a
Configuration Message along with all the data included in a status message.
Comtech AeroAstro, Inc 6013-GD-00001 18
• Send Raw Payload Message: This option allows the user to send any raw
payload data through the TrackPack.
The Acquire GPS Section allows the user to acquire current GPS position of
the TrackPack. The GPS Coordinates will be displayed in the Latitude and
Longitude fields.
3.3 Action Button and Feedback Section
The Action button section consist of the “Help”, “Save Settings to File” and
most importantly the “Configure Button”. The section below the button is
also called the Feedback section. This section displays feedback when the
Wireless Dongle is configuring a unit.
1. Help: The Help button contains a number of help instructions
2. Save Settings to File: Use this button to save the current
configuration profile for future use.
3. Configure: Use this button to configure TrackPack or TrackPacks.
During the configuration process, the Unit List will display the ESNs of
each TrackPack that are being configured, The Wireless USB dongle
will blink until all units have been configured. The Feedback section
will display the number of units that have been successfully
configured. The Following icons are displayed beside each ESN to
provide a graphical feedback of the configuration process.
- Successfully Configured
- Processing
- Incomplete configuration
- Not Configured
Comtech AeroAstro, Inc 6013-GD-00001 19
- Need to check the unit
Once the TrackPack (s) have been configured, select the Summary tab to
view the configuration (s) see the Summary Tab description in 3.2.2
Comtech AeroAstro, Inc 6013-GD-00001 20
4. DEVICE INSTALLATION
The TrackPack is designed to be mounted to an asset using double-sided
Very High Bond (VHB) adhesive tape. Refer to the VHB installation
instructions to ensure proper installation.
Another option is using the mounting sled.
Make sure you mount the TrackPack label side up. TrackPack works best
when there is a clear, unobstructed path to the sky.
Secures
TrackPack
in sled and
4
Comtech AeroAstro, Inc 6013-GD-00001 21
5. MESSAGING PRIORITY
The TrackPack has 2 types of Location Message. These messages are
Standard Location message which is configured by the user to send in an
interval or a schedule mode and a Motion message which is configured by the
user to be sent based on motion sensitivity, attack and decay settings.
The Messaging priority is set to the Motion Message when this function is
enabled. The TrackPack will send standard location message (s) as
configured even with the motion sensor enabled. Once motion is detected,
the TrackPack will send the Motion message as a priority and will resume
Standard location message configuration.
5
Comtech AeroAstro, Inc 6013-GD-00001 22
6. SPECIFICIATIONS
Enclosure:
Mass:
Volume
5”x2.7”x0.82” (127x69x21mm)
5.9 oz (167g)
11.07 cubic inches
Temperature:
Humidity:
Vibration/Shock:
Water:
-40C (-40 F) to +85 C (+158 F) Operating
100% at 50 C, Salt, Fog Testing per MIL STD 810 MIL STD
810, SAE J1455 and EIC 60521
Waterproof, Full immersion at 1m depth
Battery:
Life Expectancy
Internal (primary), Ultrasonically Welded
Li/FeS2 pack-3000mA-hr, 4.5VDC
>5 Years at 2 messages per day
>10 Year Storage Life (sleep mode)
Provision / Setup:
Mounting:
802.15.4 Wireless Interface for TrackPack Setup
Tape, Magnet, Mounting Plate, Screw, Velcro
Certifications:
FCC part 15 and part 25, CFR
Industry Canada
ETSI EN 304 489-1, and ETSI EN 301 489-3 (CE Mark)
EN61000-4-2
6
Comtech AeroAstro, Inc 6013-GD-00001 23
U.S. UL913, Class 1, division 1
(Group A,B,C,D)
INTRINSIC SAFE OPERATION
Communications:
Direct Sequence Spread Spectrum (DSSS)
1610-1626 MHz in 4 Factory Assigned Channels
2.5MHz bandwidth per Channel
22dBm EIRP (max) for 1.4s Transmit Time
9 byte User Payload per Message
Multiple Message Concatenation Available
Unique Serial Number (ESN) embedded in Each
Transmission
CPDMA™ Simplex Transmission via the Globalstar LEO
Constellation
GPS:
Acquisition and Tracking Sensitivity – 160dBm
Operational to 1000 Knots (515 m/s)
Horizontal Position Accuracy < 5m
(50% CEP, 24 hrs, static, -130dBm)
Comtech AeroAstro, Inc 6013-GD-00001 24
7. GLOSSARY
ESN – Electronic Serial Number, a unique number assigned to each
TrackPack.
Report – A unique tracking message sent by TrackPack. For each report,
there may be one or multiple transmission attempt or tries.
Status Message – An infrequent message detailing TrackPack status. By
default status messages are sent every 30 days.
Configuration Message -- Message detailing TrackPack’s configuration. Sent
any time there is a configuration modification, or when TrackPack shifts from
inventory to operational mode.
Tracking Message – A message showing location and time. TrackPack sends
based on configured schedule or enabled motion detection. Also referred as
location message.
Try – A transmission attempt for each report. The more tries per report, the
higher probability of successful reception at the expense of shorter battery
life.
Tries Minimum Interval – Minimum time elapsed between tries, default 5
minutes.
Tries Maximum Interval – Maximum time elapsed between tries, default 10
minutes.
Message Scheduled – A time range where TrackPack sends a specific number
of reports. Specified by Start Interval, End Interval and number of reports.
By default, TrackPack sends two reports per day.
7
Comtech AeroAstro, Inc 6013-GD-00001 25
APPENDIX A: TECHNICAL SUPPORT
Comtech AeroAstro is committed to customer care and takes great pride in
offering high quality technical and customer support services to all our
customers. Should you need additional assistance, our dedicated team of
Technical and Customer Support group stands ready to answer your questions
quickly and thoroughly.
You may contact us at help@sensservice.com or via phone at (866)
631.6010, +1 (703) 723.9800
Comtech AeroAstro, Inc 6013-GD-00001 26
APPENDIX B: RF RADIATION EXPOSURE STATEMENT
This equipment complies with FCC radiation exposure limits set forth for an
uncontrolled environment. End users must follow the specific operating
instructions for satisfying RF exposure compliance. The antenna(s) used for
this transmitter must be installed to provide a separation distance of at least
20 cm from all persons and must not be co-located or operating in
conjunction with any other antenna or transmitter.
Comtech AeroAstro, Inc 6013-GD-00001 27
APPENDIX C: REGULATORY NOTICES
The FCC Requires the following notification for the device in compliance with
47CFR 15.105 for this Class B digital device.
NOTE: This equipment has been tested and found to comply with the limits
for a Class B digital device, pursuant to part 15 of the FCC Rules. These lim-
its are designed to provide reasonable protection against harmful interfer-
ence in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not in-stalled and used in accordance
with the instructions, may cause harmful interference to radio communica-
tions. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the interfer-
ence by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that
to which the receiver is connected.
• Consult the dealer or an experienced radio/ TV technician for help.
This Class B digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe B est conforme à la norme NMB-003
du Canada.
FCC ID: XGS-6014901
IC : 8262A-6014901
Contains FCC ID : L2V-STX2-1
Contains IC ID : 3989A-STX21
TrackPack contains an 802.15.4 transceiver and a SATCOM transmitter.
The two transmitters are prevented in firmware from simultaneous trans-
missions.
Comtech AeroAstro, Inc 6013-GD-00001 28
APPENDIX D: ENVIRONMENTAL SPECIFICATIONS
The following table is a summary of the environmental requirements for
TrackPack. Contact
Comtech AeroAstro for more detailed information related to environmental
specifications or test.
TEST STANDARD
Temperature SAE J1455 4.1.3.1
Storage Temperature MIL810F 4.5.2
Thermal Shock SAEJ1455 4.1.3.2
Humidity MIL810F 507.4
Vibration SAEJ1455 4.10
Mechanical Shock SAE J1455 4.11
Dust & Sand, Gravel SAE J1455 4.7
Immersion/Splash IEC 60529
Salt Fog MIL810F 509.4
Comtech AeroAstro, Inc 6013-GD-00001 29
APPENDIX E: MESSAGE FORMAT
TrackPack sends messages over the Globalstar satellite network in 16-btye
packets. Nine of the sixteen bytes are reserved for variable user data.
TrackPack employs three different message types: tracking (location) mes-
sage, configuration message, and status message. The user data format for
each message is listed as follows:
1. TRACKING MESSAGE
The tracking message is used to report location that is transmitted on a
schedule or interval. This type of message is also used to indicate if the mes-
sage was triggered by the Motion sensor. The Message Trigger will indicate
the following:
Schedule – Location messages
Motion Start – indicates that motion has started
Motion Stop – indicates that motion has seized.
BYTE BITS NAME DESCRIPTION ENUMERATION
7:5 Message Type Tracking Message - Al-
ways 0b000
4:3 Message Trigger Event Triggering the
Transmission
{3...0} = {Unde-
fined, Motion Stop,
Motion Start,
Schedule}
2:1 GPS Acquisition Attempts
Number Required to Ac-
quire GPS Lock
{3…0} = {3, 2, 1,
No Acquisition}
1
0 GPS Accuracy Fix Quality Indicator {1,0} = {3D Fix,
2D Fix}
2 7:0 Latitude [2] MSB of Latitude Indicator
Comtech AeroAstro, Inc 6013-GD-00001 30
3 7:0 Latitude [1] Center Byte of Latitude
Indicator
4 7:0 Latitude [0] LSB of Latitude Indica-
tor
5 7:0 Longitude [2] MSB of Longitude Indi-
cator
6 7:0 Longitude [1] Center Byte of Longi-
tude Indicator
7 7:0 Longitude [0] LSB of Longitude Indica-
tor
8 7:0
GPS Acquisition Time
[1] MSB of Acquisition Time
9 7:0
GPS Acquisition Time
[0] LSB of Acquisition Time
1.1 Decoded Tracking Message Sample
<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE stuMessages >
<stuMessages timeStamp="20/02/2009 15:17:32 GMT" pack-
etID="16deee05-372a-4a6a-91ee-113b36c3ac76">
<stuMessage>
<Type>tracking_message</Type>
<SeqNo></SeqNo>
<ESN>333148</ESN>
<UnitName>INI Inc TP</UnitName>
<MessageTimeGMT>2009/02/19 21:12:30</MessageTimeGMT>
<Longitude>12.482314</Longitude>
<Latitude>41.895461</Latitude>
<MessageTrigger>Schedule</MessageTrigger>
<GPSAcquisitionAttempts>1</GPSAcquisitionAttempts>
<GPSAccuracy>3D Fix</GPSAccuracy>
<GPSAcquisitionTime>05:26:18</GPSAcquisitionTime>
</stuMessage>
Comtech AeroAstro, Inc 6013-GD-00001 31
2. CONFIGURATION MESSAGE
The configuration message is sent when a unit has been configured or recon-
figured.
BYTE BITS NAME DESCRIPTION ENUMERATION
7:5 Message Type Configuration Message - Al-
ways 0b001
4 Reconfiguration Flag
Toggles Each Time Unit is
Reconfigured
1
3:0 Transmission Tries STU Transmissions per
Message
2 7:0
Minimum TX Interval 5 Second Resolution
3 7:0
Maximum TX Interval 5 Second Resolution
4 7:0
Motion Attack
Minutes of Continuous Mo-
tion Before Motion Alert
5 7:0
Motion Decay
Minutes Without Motion Be-
fore Motion Stop Alert
7:0
Motion Enabled
Notes the Motion Enable
State
{1,0} = {Enabled, Dis-
abled}
6
7:0 Undefined Not Used
7 7:0
Undefined Not Used
Comtech AeroAstro, Inc 6013-GD-00001 32
2.1 Decoded Configuration Message Sample
<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE stuMessages >
<stuMessages timeStamp="20/02/2009 15:17:32 GMT" pack-
etID="16deee05-372a-4a6a-91ee-113b36c3ac76">
<stuMessage>
<Type>configuration_message</Type>
<SeqNo></SeqNo>
<ESN>333148</ESN>
<UnitName>INI Inc TP</UnitName>
<MessageTimeGMT>2009/02/19 21:12:48</MessageTimeGMT>
<Reconfiguration>1</Reconfiguration>
<TransmissionTries>1</TransmissionTries>
<MinTxIntervalsec>300</MinTxIntervalsec>
<MaxTxIntervalsec>600</MaxTxIntervalsec>
<MotionAttack>60</MotionAttack>
<MotionDecay>75</MotionDecay>
<MotionEnabled>Disabled</MotionEnabled>
</stuMessage>
3. STATUS MESSAGE
The Status message provides information regarding the state of the unit. The
Message trigger of “Reset” indicates that the unit has been reset due to con-
figuration and “Time” indicates that the unit has been scheduled to send a
status message.
BYTE BITS NAME DESCRIPTION ENUMERATION
7:5 Message Type
Status Message - Always
0b010
4:3
Message Trigger
Event Triggering the Trans-
mission
{3...0} = {Undefined,
Undefined, Reset,
Time}
1
2 Power Reset
Toggled on Every Power Re-
set
Comtech AeroAstro, Inc 6013-GD-00001 33
1:0 Watchdog Reset
Incremented Each WDT Re-
set
2 7:0
Transmissions [1]
MSB of Number of Transmis-
sions
3 7:0
Transmissions [0]
LSB of Number of Transmis-
sions
4 7:0
GPS On Time [2]
MSB of Total Seconds GPS is
On
5 7:0
GPS On Time [1]
Center Byte of Total Seconds
GPS is On
6 7:0
GPS On Time [0]
LSB of Total Seconds GPS is
On
7 7:0
Mean GPS Acquisition Time
Average of Last 10 Success-
ful Attempts
8 7:0
Failed GPS Acquisition At-
tempts
Number Since Last Status
Message
9 7:0
Undefined Not Used
3.1 Decoded Status Message Sample
<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE stuMessages >
<stuMessages timeStamp="20/02/2009 15:17:32 GMT" pack-
etID="16deee05-372a-4a6a-91ee-113b36c3ac76">
<stuMessage>
<Type>status_message</Type>
<ESN>333148</ESN>
<UnitName>INI Inc TP</UnitName>
<MessageTimeGMT>2009/02/19 21:12:37</MessageTimeGMT>
<MessageTrigger>Reset</MessageTrigger>
<PowerReset>1</PowerReset>
<TotalTransmissions>360</TotalTransmissions>
<TotalGPSOnTimesec>30</TotalGPSOnTimesec>
<MeanGPSAquisitionTimesec>30</MeanGPSAquisitionTimesec>
<FailedGPSAquisitionAttempts>18</FailedGPSAquisitionAttempts>
</stuMessage>
Comtech AeroAstro, Inc 6013-GD-00001 34
NOTES:
