OSEE TECHNOLOGY XCM240LCDM LCD Monitor User Manual
OSEE TECHNOLOGY CO.,LTD. LCD Monitor Users Manual
Users Manual
XCM-240
LCD Monitor
User Manual
Product Information
Model:
XCM-240 LCD Monitor
Version:
V010000
Release Date:
November 10th, 2014
Company
OSEE TECHNOLOGY CO., LTD.
Customer Support
Address:
No.22 Building, No.68 zone, Beiqing Road, Haidian District,
Beijing, China
Post Code:
100094
Tel:
(+86) 010-62434168
Fax:
(+86) 010-62434169
Web:
http://www.osee-dig.com/
E-mail:
sales@osee-dig.com
About this manual
Important
The following symbols are used in this manual:
The further information or know-how for described subjects above which
helps user to understand them better.
The safety matters or operations that user must pay attention to when
using this product.
Contents
The user manual applies to the following device types:
XCM-240-3HSV
The images of XCM-240 are adopted in the following descriptions.
Any of the different specifications between the device types are elaborated.
Before reading the manual, please confirm the device type.
I
Contents
Contents .......................................................................................................... I
Chapter 1 Overview ....................................................................................... 1
Chapter 2 Safety ............................................................................................. 3
Chapter 3 Unpack and Installation ............................................................... 7
Chapter 4 XCM-240 Features ........................................................................ 9
4.1 Front Panel Features ........................................................................ 11
4.1.1 Arrangement of Front Panel ........................................................... 11
4.1.2 Operation of Front Panel ................................................................ 12
4.2 Rear Panel Features .......................................................................... 16
4.2.1 Arrangement of Rear Panel ............................................................ 16
4.2.2 Operations of Rear Panel ............................................................... 17
4.3 Supported Signal Format ................................................................. 21
Chapter 5 Functionality of the Main Menu ................................................. 23
5.1 Main Menu.......................................................................................... 23
5.1.1 STATUS Menu ............................................................................... 26
5.1.2 INPUT SELECT Menu .................................................................... 27
5.1.3 MARKER Menu .............................................................................. 28
5.1.4 AUDIO Menu .................................................................................. 30
5.1.5 DISPLAY Menu .............................................................................. 33
5.1.6 CLOSE CAPTION Menu ................................................................. 35
5.1.7 CONFIG Menu ................................................................................ 36
5.1.8 COLOR TEMP Menu ...................................................................... 40
5.1.9 FUNCTION KEY Menu ................................................................... 41
5.1.10 GPI Menu ...................................................................................... 43
5.1.11 IMD Menu ..................................................................................... 45
5.1.12 KEY INHIBIT Menu ....................................................................... 48
5.2 Menu Settings .................................................................................... 48
Chapter 6 Network Control.......................................................................... 53
6.1 Access the settings........................................................................... 53
6.2 Menu Control ..................................................................................... 54
6.2.1 ADJUST Menu ................................................................................ 55
6.2.2 VIDEO DISPLAY Menu .................................................................. 57
6.2.3 SYSTEM Menu ............................................................................... 57
6.2.4 Other Menus ................................................................................... 58
6.3 Parameter Settings ........................................................................... 59
Chapter 7 Specifications ............................................................................. 63
Overview
1
Chapter 1 Overview
The XCM-240 series LCD Monitor are high performance broadcast monitor
tailoring most applications from program production, intensive
upload/download, playout to studio and intensive monitoring all sorts of
business in TV Stations.
The front frame of the unit comes in a slim bezel design made from rubber
mold. The professional TFT glass at full resolution of 1920 x 1080 with LED
backlight makes the XCM-240 series LCD monitor capable of reproducing a
natural color at quickest response time. In addition, the unit boasts a full wide
viewing angle as well as excellent brightness and contrast ratio.
By adopting the advanced 10-bit digital signal processing technology plus 3D
comb filter, de-interlacing capability and accurate scaling ensures the
XCM-240 series LCD Monitor to achieve a better effect of smoother and more
natural image.
The XCM-240 series LCD Monitor supports up to 2Ch 3G/HD/SD-SDI/analog
input/output, 2Ch CVBS(LINE1, LINE2) input/output, IGRP Y/C input/output,
IGRP YPbPr input/output, and 1Ch HDMI input. Featuring PBP/PIP and
showing two signals simultaneously on the same screen makes the XCM-240
with added value.
The XCM-240 series LCD Monitor delivers much capable display functionality
like waveform/vector scope, audio de-embedding, audio monitoring, audio
metering bar, TC, CC, AFD, IMD and all kinds of markers.

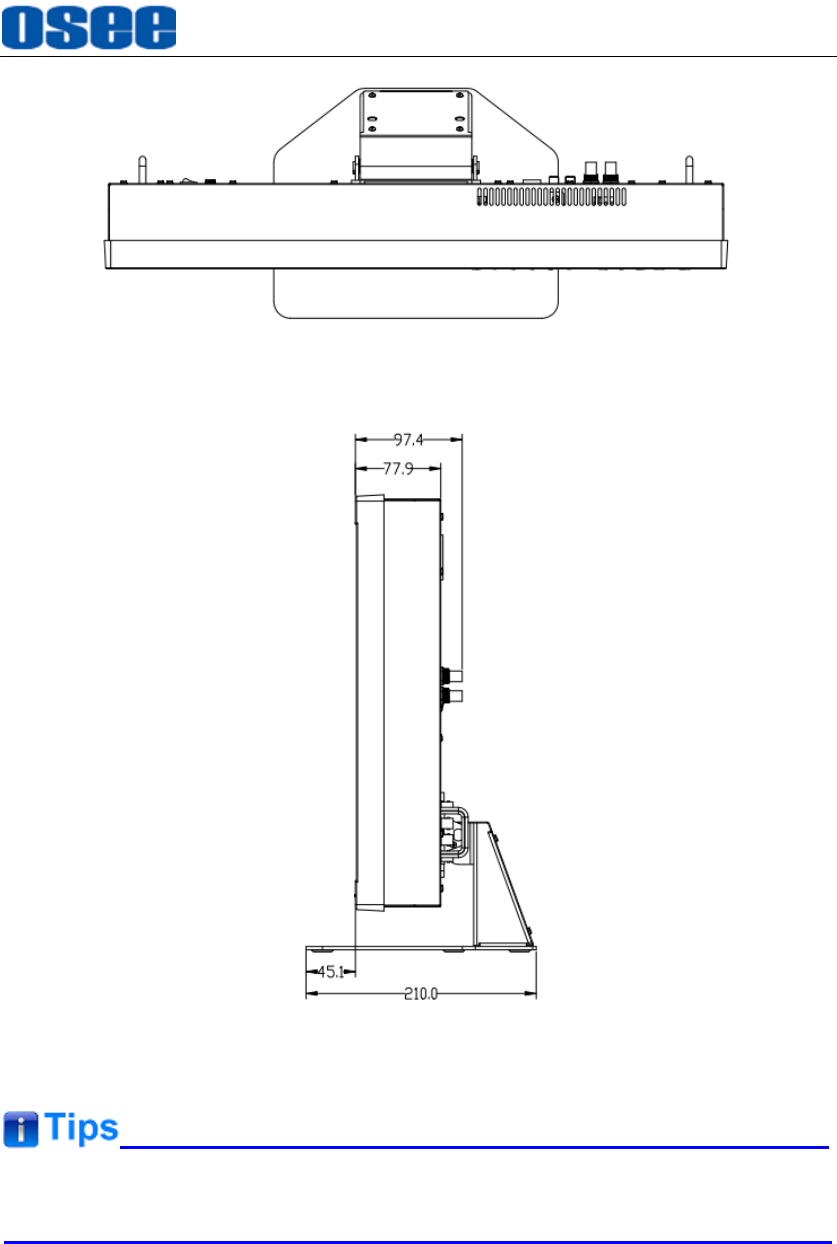

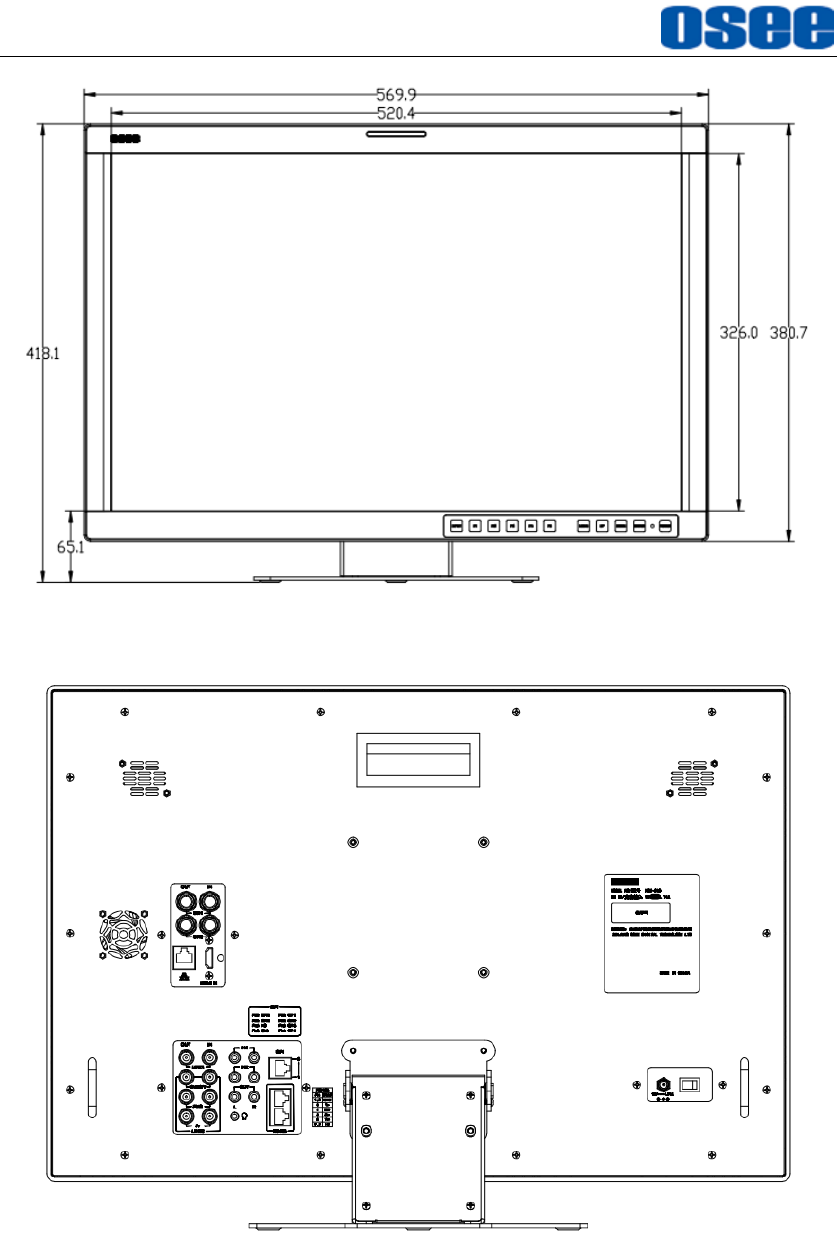

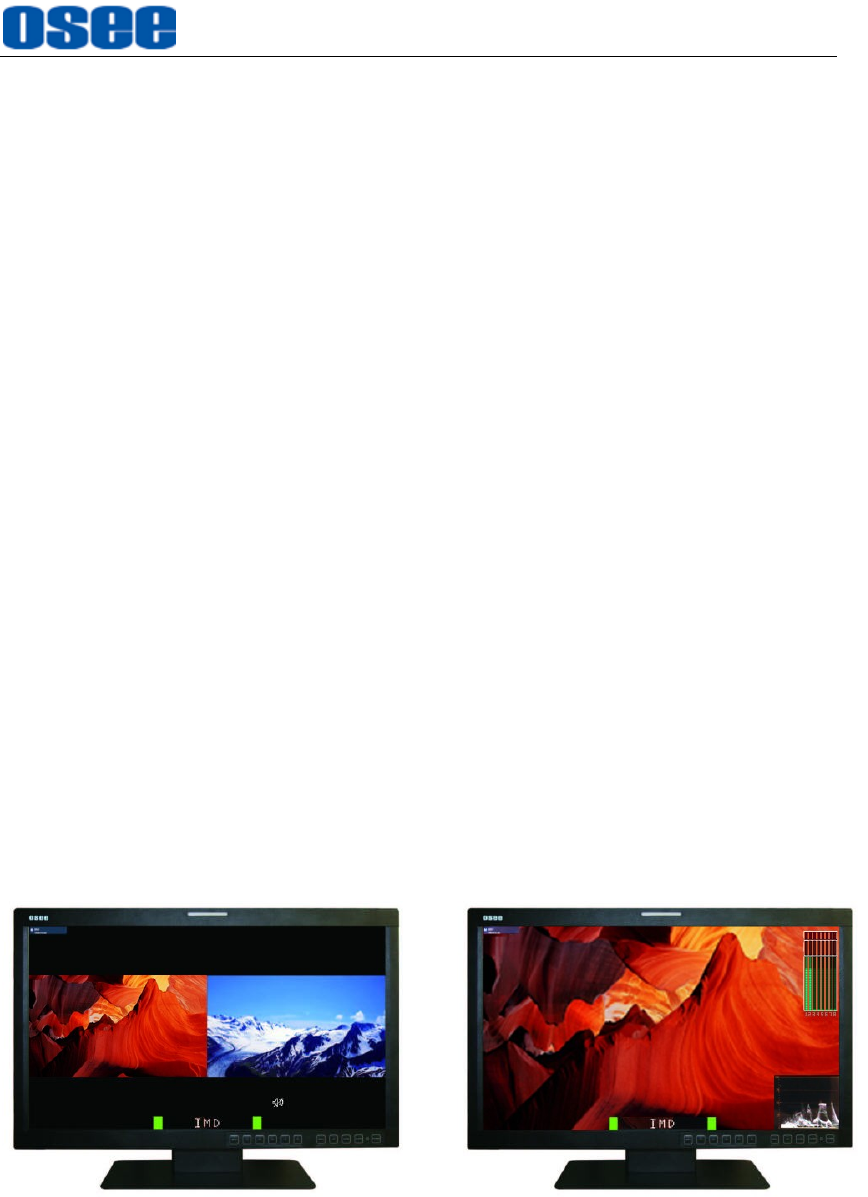

Figure 1 A Diagram of XCM-240
Features
Prevailing slim bezel design
Having multi format input including 3G-SDI
Adopting full HD, wide viewing angle IPS glass
Overview
2
Using 10-bit signal processing technology plus advanced conversion
technology between the interlacing and the progressive
Featuring PBP and PIP, dual 3G-SDI capable under PBP mode
Supporting waveform/vector scope, audio metering bar, TC, IMD and
CC
Supporting varied color temperature, varied scan modes, flexibility in
marker setting, Blue Only/Monochrome mode
Functionality
Supports MARKER, Time Code, MET display
Supports presetting the color temperature using customized values
Safety
3
Chapter 2 Safety
FCC Caution:
Any Changes or modifications not expressly approved by the party responsible
for compliance could void the user's authority to operate the equipment.
This device complies with part 15 of the FCC Rules.
Operation is subject to the following two conditions: (1) This device may not
cause harmful interference, and (2) this device must accept any interference
received, including interference that may cause undesired operation.
Note: This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates uses and can radiate radio
frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications.
However, there is no guaran-tee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and
on, the user is encouraged to try to correct the interference by one or more of
the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
Safety
4
Warnings:
Read, keep and follow all of these instructions for your safety. Heed all
warnings.
Device
Install in accordance with the manufacturer's instructions.
Do not beat with a hard object or scratch the LCD display.
Do not make the freeze picture displaying on the screen time too long,
otherwise, it will leave the afterimage on the screen.
If the brightness is adjusted to the minimum, then it might be hard to
see the display screen.
Refer all servicing to qualified service personnel. Servicing will be
required under all of the following conditions:
The unit has been exposed to rain or moisture.
Liquid had been spilled or objects have fallen onto the unit.
The unit has been damaged in any way, such as when the
power-supply cord or plug is damaged.
The unit does not operate normally.
Clean only with dry cloth.
Specifications are subject to change without notice.
Position
Do not block any ventilation openings.
Do not use this unit near water.
Do not expose the unit to rain or moisture.
Do not use this unit near any heat sources such as radiators, heat
registers, stoves, or other apparatus (including amplifiers) that product
Safety
5
heat.
A nameplate indicating operating voltage, etc., is located on the rear
panel.
The socket-outlet shall be installed near the equipment and shall be
easily accessible.
Power Supply Cord
Do not defeat the safety purpose of the polarized or grounding-type
plug.
Do not damage the power cord, place the heavy objects on the power
cord, stretch the power cord, or bend the power cord.
Protect the power cord from being walked on or pinched, particularly at
plugs, convenience receptacles, and the point where they exit from the
unit.
If the power cord is damaged, turn off the power immediately. It is
dangerous to use the unit with a damaged power cord. It may cause
fire or electric shock.
Unplug this unit during lighting storms or when unused for long periods
of time.
Disconnect the power cord from the AC outlet by grasping the plug, not
by pulling the cord.
Should any solid object or liquid fall into the cabinet, unplug the unit
and have it checked by qualified personnel before operating it any
further.
6
Unpack and Installation
7
Chapter 3 Unpack and Installation
Unpack:
When unpacking the components of XCM-240 monitor, please verify that none
of the components listed in Table 3.1 are damaged or lack. If there is any
missing, contact your distributors or Beijing Osee Digital Technology Ltd. for it.
Table 3-1 Packing List
No.
Item
Quantity
1
Device
1
2
Pedestal with screws
1
3
Power cord
1
4
adapter
1
5
User manual
1
6
warranty card
1
Installation:
1. Prepare for installation
Please follow the procedures below before installing XCM-240:
Check the equipment for any invisible damage that may have occurred
during transit.
Confirm all the items listed on the packing list have been received.
Remove all the packing material including electrostatic-resistant
packing.
Retain these packing materials for future use.
2. Mount a XCM-240 in your desired location of a standard rack.
Adequate ventilation is required when installed to prevent possible
damage to the XCM-240.
3. Connect required cables for signal input and output. For BNC
connections use 75Ω rated connectors.
4. Connect 4.74A19V DC power source using the included power
cord.
5. Connect the power cord to the power interface.
6. Fasten the power protect accessory.
Unpack and Installation
8
7. As a final step, turn on each screen of the device by pressing the
corresponding power switch located on the front panel.
The pedestal and the monitor are packaged separately.
Connect a standard signal lines to the corresponding input port. All BNC
connector impedance must be 75Ω.
Please use the power adapter supplied to avoid unnecessary trouble.
Use the power adapter and cord to connect single-phase three-wire AC
power or following the local power supply conditions. Make sure the power
cord grounding well.
The factory default value for IP address is 192.168.1.86.
XCM-240 Features
9
Chapter 4 XCM-240 Features
This chapter describes the features of XCM-240 monitor. The features of
XCM-240monitor are as shown in Figure 4-1 after installed and powered on:
SDI1
1080I59.94
IMD
--: --: --: --
KEY INHIBIT
1 2 3 4 5 6 7 8
Status Information
Audio Meter
Center Marker
IMD
IMD
Timecode
Safe Marker
Area Marker
Adjust Menu
Wave Form
AFD CC
KEY INHIBIT
F1 NORMALSCAN
F2 OFFNATIVE
FUNCTION
F3 4:3ASPECT
F4 MAIN
WIN SELECT
F5 OFF
PBP

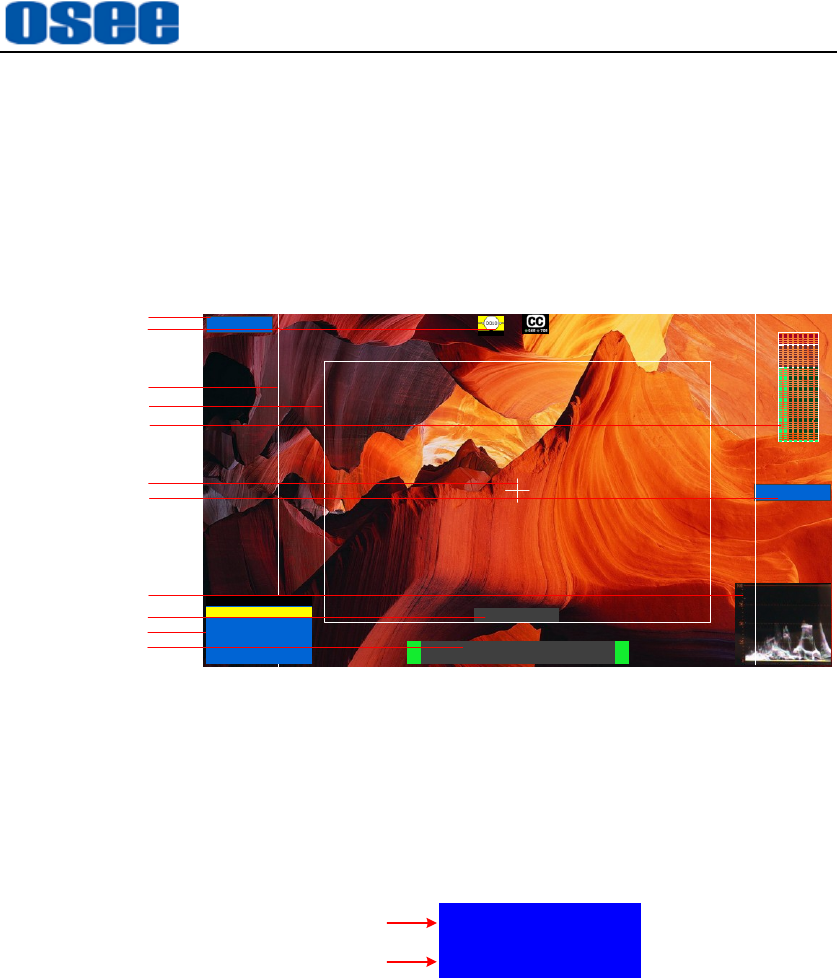

Figure 4-1 Features of XCM-240 Monitor
1. Status Information
It is displayed in the top left corner of the screen, and includes the input
channel and signal format. You can define it in DISPLAY menu.
SDI1
1080I59.94
Source
Signal Format
2. Waveform and Vector
This is effective only for SDI signal. The waveform and vector of the
input signal are configurable in the MAIN Menu.
3. Area Marker
It is used to mark different area of the image. You can set whether to
display it or not and their displaying mode in MARKER menu.
4. Safe Marker
It is used to mark different area of the image. You can set whether to
display it or not and their displaying mode in MARKER menu
5. Center Marker
It is displayed in the center of the screen, and marks the center of the
XCM-240 Features
10
image. You can set whether to display it or not in MARKER menu.
6. Audio Meter
It is displayed for audio monitoring. You can set its groups, direction,
position and mode in AUDIO menu.
7. Timecode
It is displayed at the bottom of the image, the format is HH:MM:SS:FF, if
there is no timecode available, the monitor will display --:--:--:--.
8. IMD
The IMD text displays at the bottom of the screen, the length can’t
exceed 16 characters, and you can choose letter, number or other
character for it.
9. AFD/CC
AFD and CC information will display at the top center of the screen as
an icon.
10. MUTE
The icon for MUTE is . When it is mute, this icon displays at the
bottom right position of the screen. You can set this function in function
key.
The Status Information usually displays as the following situations:
"UNKNOW” appears if an unsupported signal is input.
“NO SIGNAL” appears if no signal is input.
The signal is normal, for example: 1080i59.94, NTSC, 1280X1024,
etc.
The Status Information for the main picture displays at the top left corner
of the screen, and the Status Information for the slave picture displays at
the top right corner of the screen.
The AFD information displays at the top center of the screen.
XCM-240 Features
11
4.1 Front Panel Features
It will introduce the arrangement and the operations of the buttons in front of
the panel in the following.
4.1.1 Arrangement of Front Panel
There are a series of buttons at the bottom of the screen, and these
buttons are used to control the screen menu items.

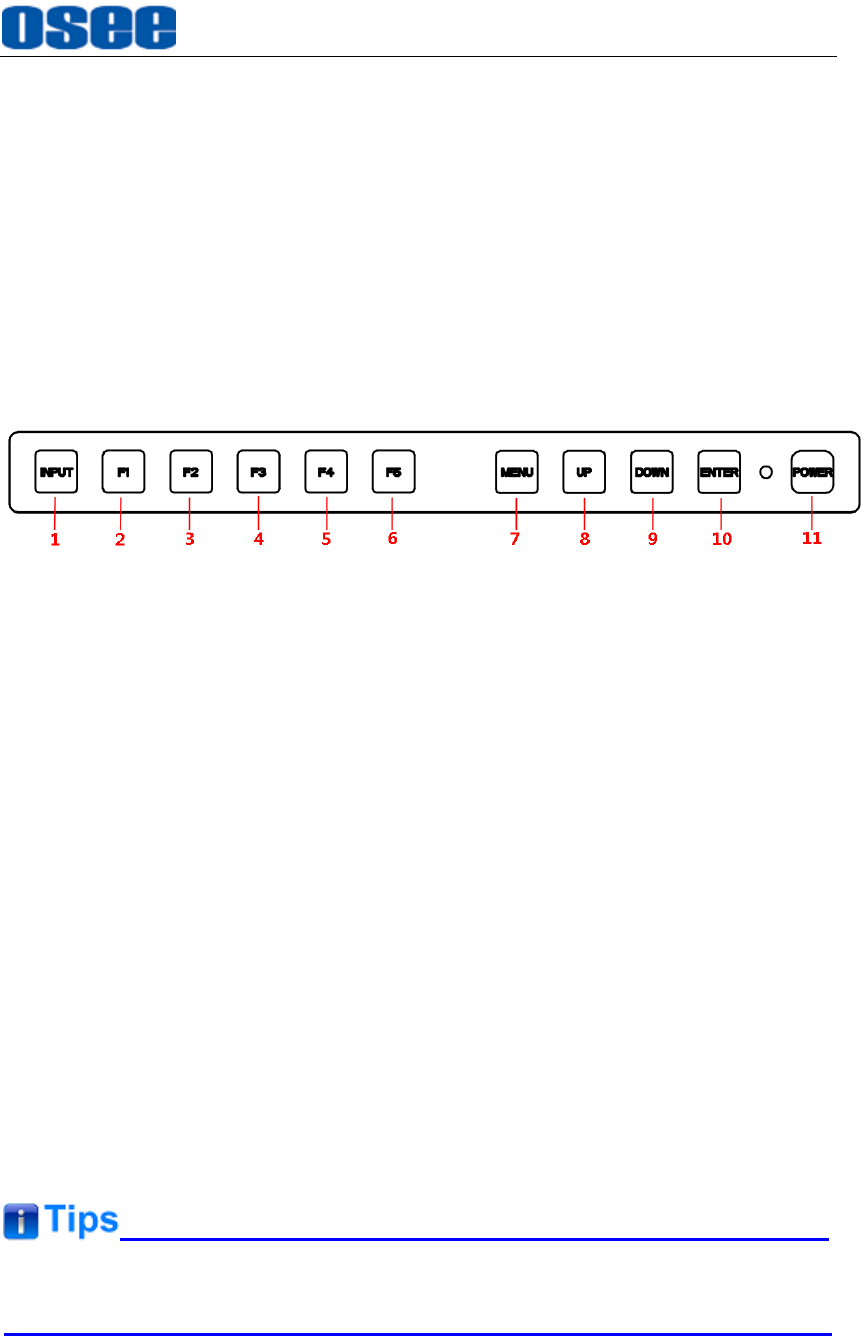

Figure 4.1-1 the Buttons in Front Panel
As shown in Figure 4.1-1, take the left screen of XCM-240 for example,
these buttons are as follows:
1. INPUT
2. F1
3. F2
4. F3
5. F4
6. F5
7. MENU
8. UP
9. DOWN
10. ENTER
11. POWER
Only the POWER button and the AUDIO button have a light indicator.
XCM-240 Features
12
4.1.2 Operation of Front Panel
The functionality and usage of the buttons at the front panel are as
follows:
1. INPUT
Select the input signal. Press this button to display the input source menu
at the right top corner of the screen, as shown in Figure 4.1-2. Use it to
select an input signal source, press it again to toggle among these input
signal items.
SDI1
LINE1(CVBS)
LINE2(CVBS)
LINE2(Y/C)
SOURCE
SDI2
LINE2(YPBPR)
HDMI
Figure 4.1-2 Source Menu

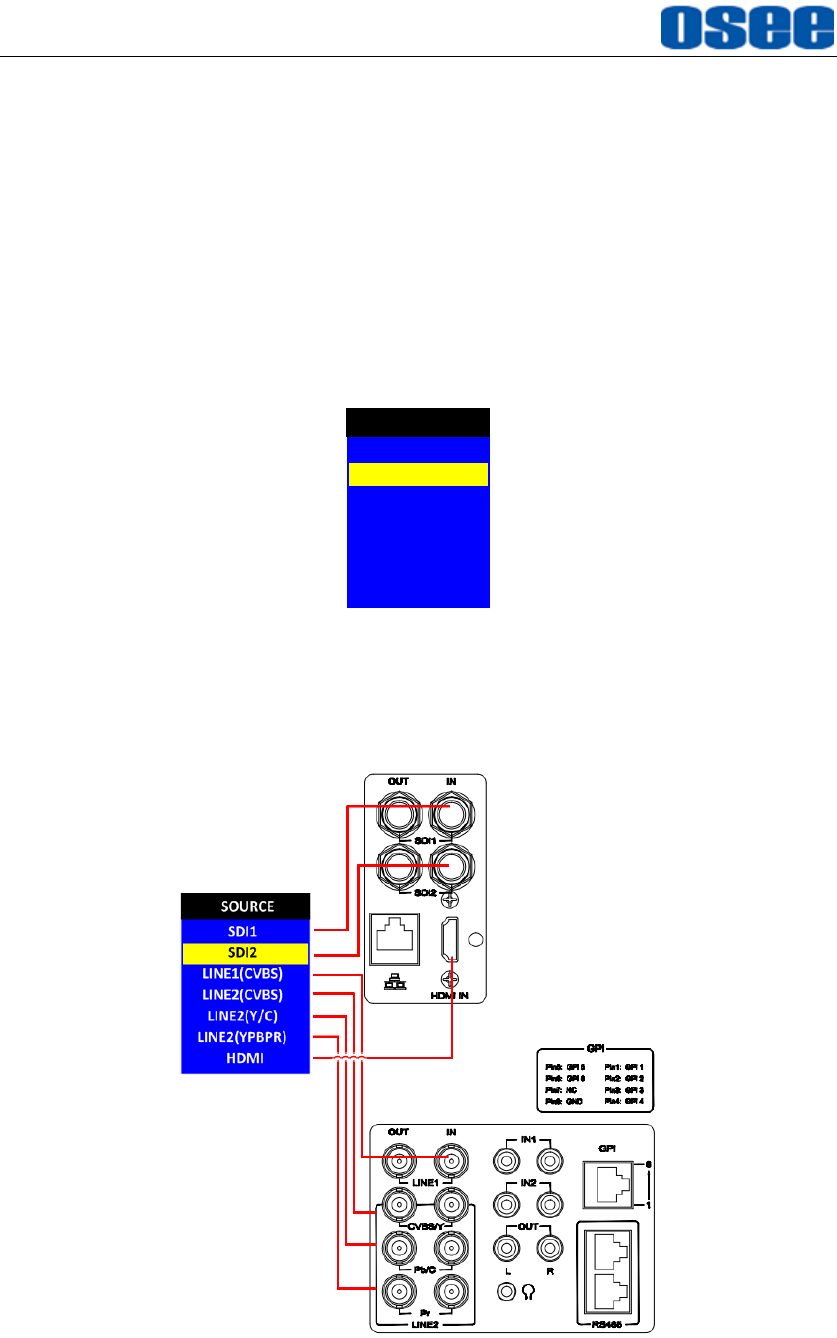

The one-to-one correspondence between the signals in the source menu
list and the interfaces in the back panel are shown in Figure 4.1-3:
Figure 4.1-3 Correspondence between Source Menu and Interface
XCM-240 Features
13
2. F1
This button is a FUNCTION button. The function can be set via the
FUNCTION menu. Open the FUNCTION menu after the first time, the
selected function will remain.
OPERATION: Press F1 to display the function menu list in the center
of the screen, as shown in Figure 4.1-4. Toggle F1 button to change
the value related to this function.
F1 NORMALSCAN
F2 OFFNATIVE
FUNCTION
F3 4:3ASPECT
F4 MAINWIN SELECT
F5 OFFPBP
Figure 4.1-4 Function Menu List
After you have loaded the function menu list, it will be closed automatically
if you do nothing operation with it in 10s.
If the value related to the function button can’t be modified, the value shows
in blue.
Use FUNCTION KEY menu to assign F1~F5. You can assign the function
from among: SCAN, NATIVE, ASPECT, BLUE ONLY, MONO, MARKER,
H/V DELAY, AUDIO METER, FAST MODE, TC, IMD, MUTE, PBP, CC,
FREEZE, WIN SELECT, UNDEF. Refer to "5.1.9 FUNCTION KEY Menu"
for the details.
3. F2
It is used to activate to F2 function button. The operation is as the same as
F1's.
Press and hold the INPUT+F2 button for 3s can reset the menu settings to
XCM-240 Features
14
factory originals, as shown in Figure 4.1-5.

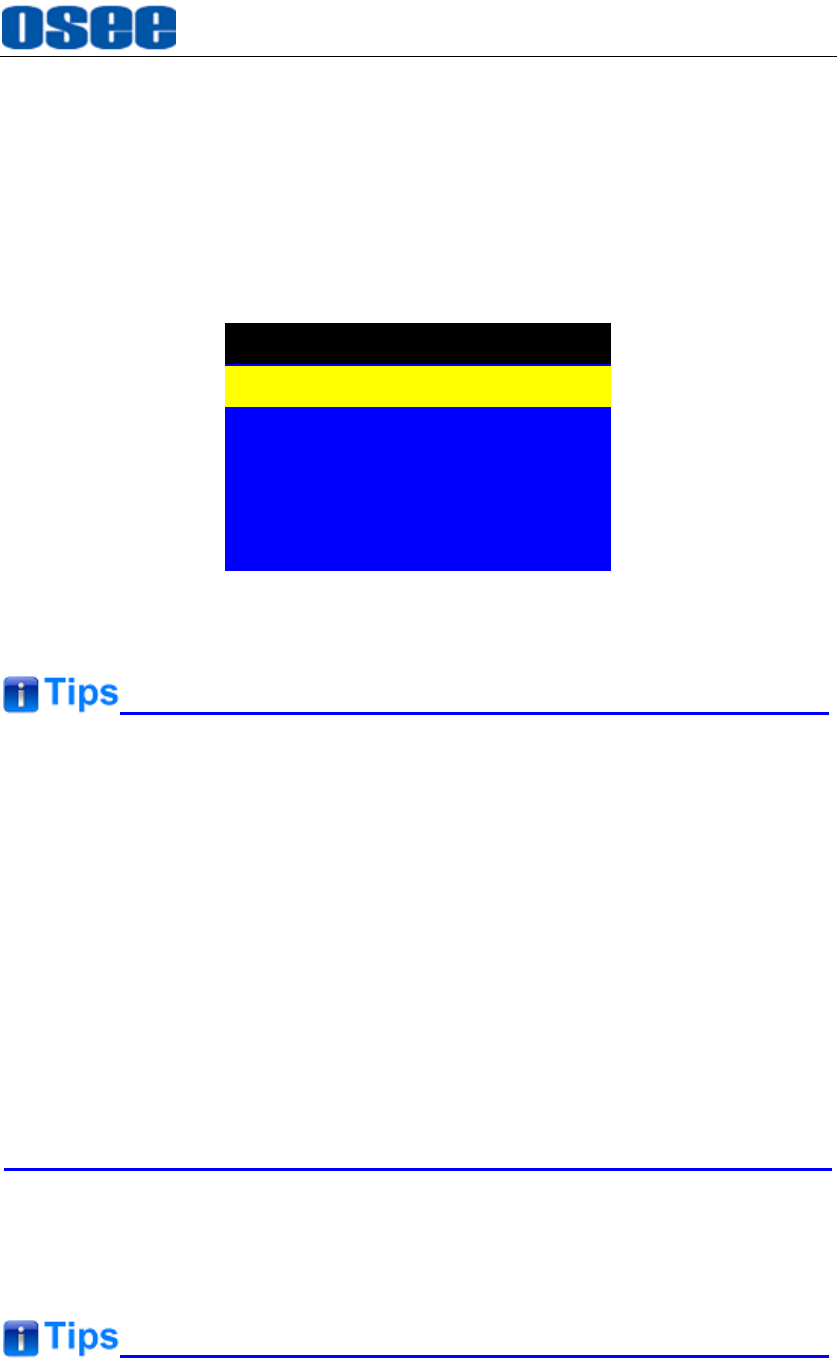

Factory Reset Now?
No Yes
FACTORY RESET
Figure 4.1-5 Reset Menu List
4. F3
It is used to activate to F3 function button. The operation is as the same as
F1's.
5. F4
It is used to activate to F4 function button. The operation is as the same as
F1's.
6. F5
It is used to activate to F5 function button. The operation is as the same as
F1's.
7. MENU
It is used to activate the Main menu. Press this button to do some
operations with the Main menu, it includes the following operations:
Display the Main menu
Back to the higher level menu
Quit the Main menu
Refer to “5.2 Menu Settings” for detail about the main menu operations.
8. UP
It is UP button when working with MENU. Toggle this button to select the
next item or increase the number.
9. DOWN
It is DOWN button when working with MENU. Toggle this button to select
the next item or decrease the number.
10. ENTER
This button can achieve the following two situations:
Work with the Main MENU: when working with the Main menu,
ENTER button achieve the following functions:
XCM-240 Features
15
Enter into the next level menu: press ENTER button, you will enter
into the menu item as this relationship: the Main menu list
sub-menu list sub-menu value list, the current editable object is
in yellow control icon;
Confirm the value selection: press ENTER button to confirm the
value selection.
Adjust Menu: when not displaying the Main menu, press ENTER
button to display the adjust menu list, as shown in Figure 4.1-6, toggle
among these menu items: VOLUME, BRIGHTNESS, CONTRAST,
CHROMA.

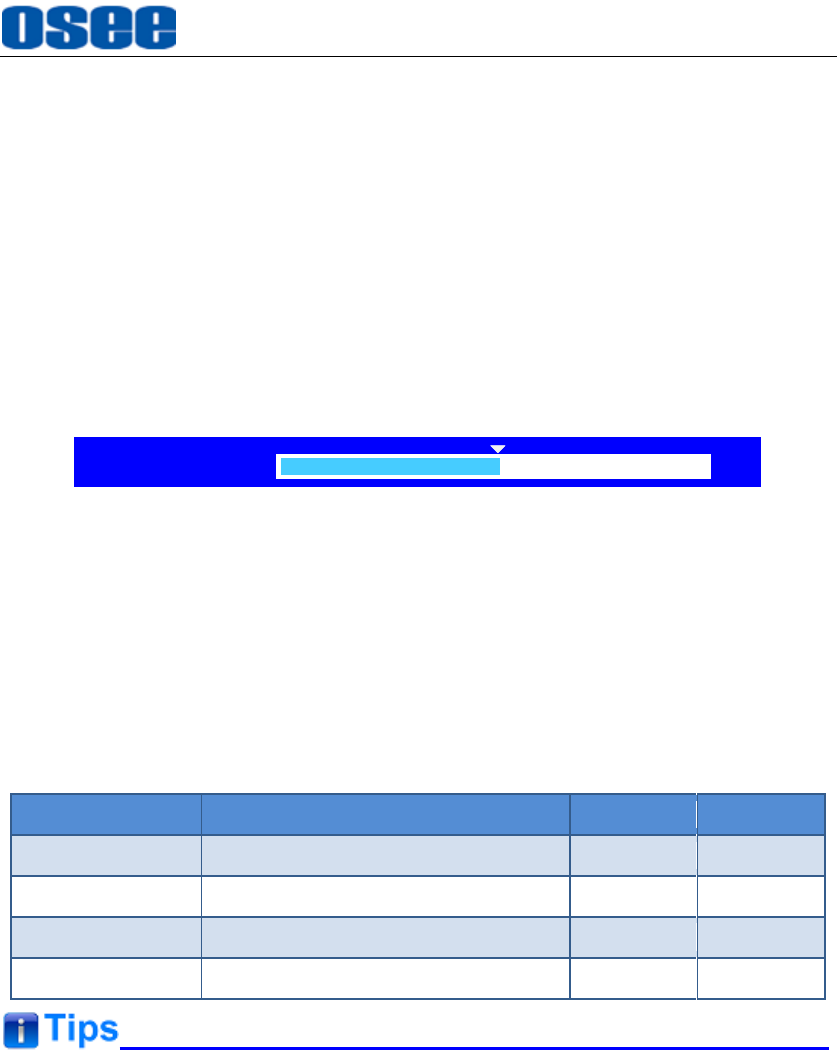

BRIGHTNESS 50
Figure 4.1-6 Adjust Menu List
After displaying the Adjust menu, press UP or DOWN button to adjust the
menu value, and then press ENTER button to confirm the value selection.
The relationship of the menu items and their range is shown in Table
4.1-1:
Table 4.1-1 The Description of Adjust Menu Items
Adjust Menu
Description
Range
Default
VOLUME
Adjust the volume
0~31dB
16
BRIGHTNESS
Adjust the image brightness
0~100
50
CONTRAST
Adjust the image contrast
0~100
50
CHROMA
Adjust the image monochroma
0~100
50
Set these parameter values in the following position: BRIGHTNESS,
CONTRAST, CHROMA.

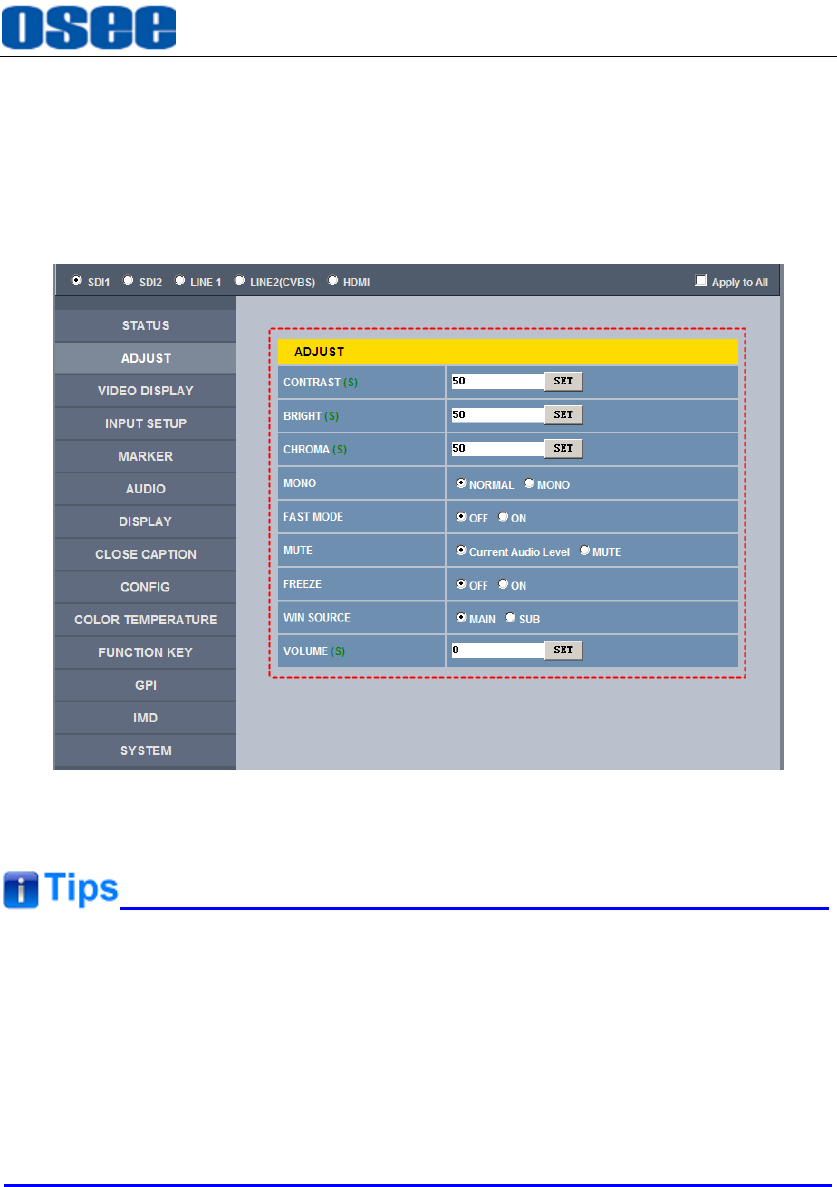

In Adjust Menu List on screen when pressing Enter key.

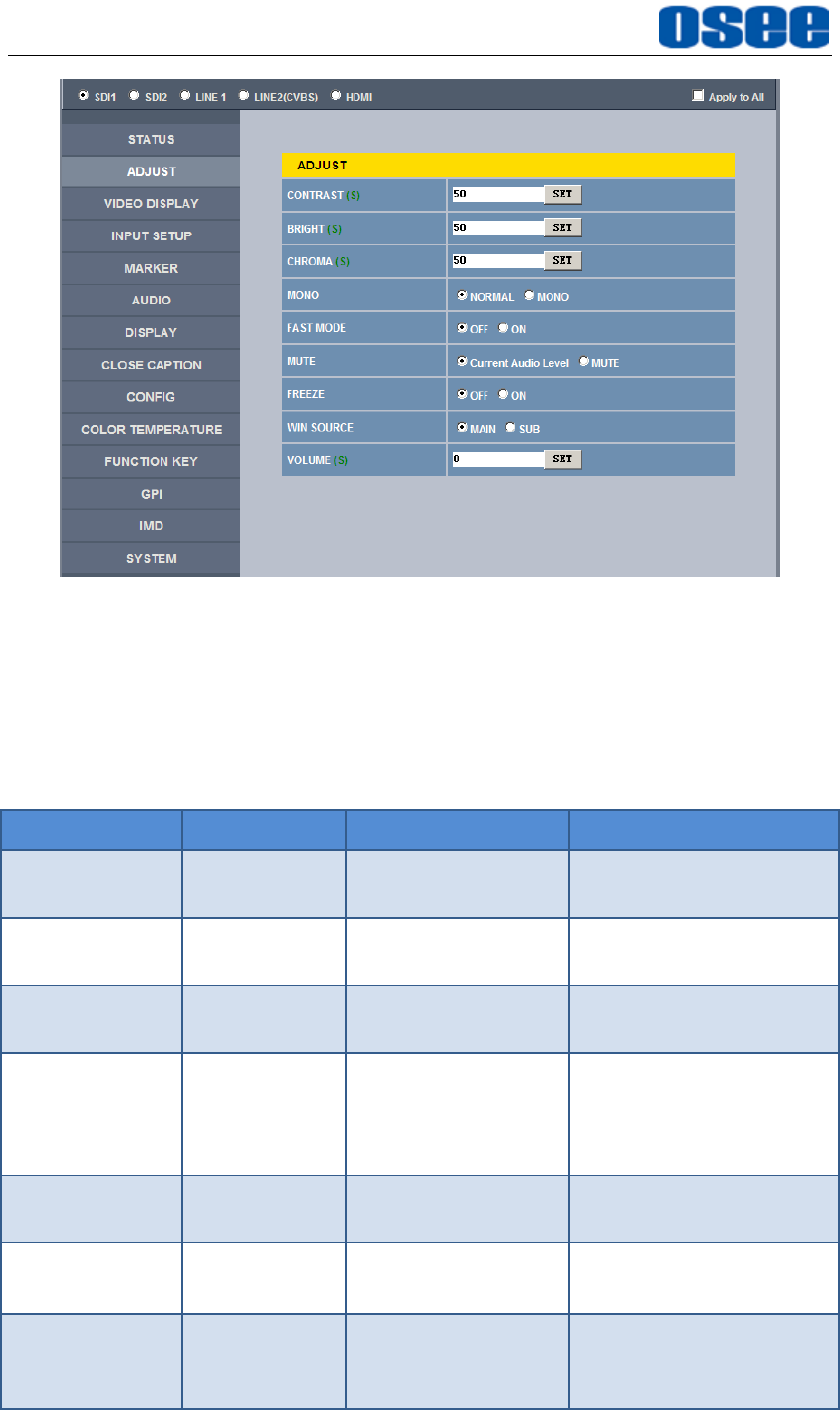

In Adjust menu of network control page.
After you have loaded the adjust menu list, it will be closed automatically if
you do nothing operation with it in 10s.
The main menu, the adjust menu, the function menu and the input signal
XCM-240 Features
16
selection list of a screen may not be shown all simultaneously.
11. Power
Used to power on or standby, and the light in the button will indicate the
status of the power. If the light is green, the monitor is powered on, if the
light is flashing, the monitor is standby.
When the device is standby, cut off the power and restart the device, the
status of the device will be normal but not standby.
4.2 Rear Panel Features
It will introduce the arrangement and the operations of the interfaces in rear of
the panel in the following.
4.2.1 Arrangement of Rear Panel
As shown in Figure 4.2-1, there are various input and output interfaces at
the rear panel of XCM-240 monitor.

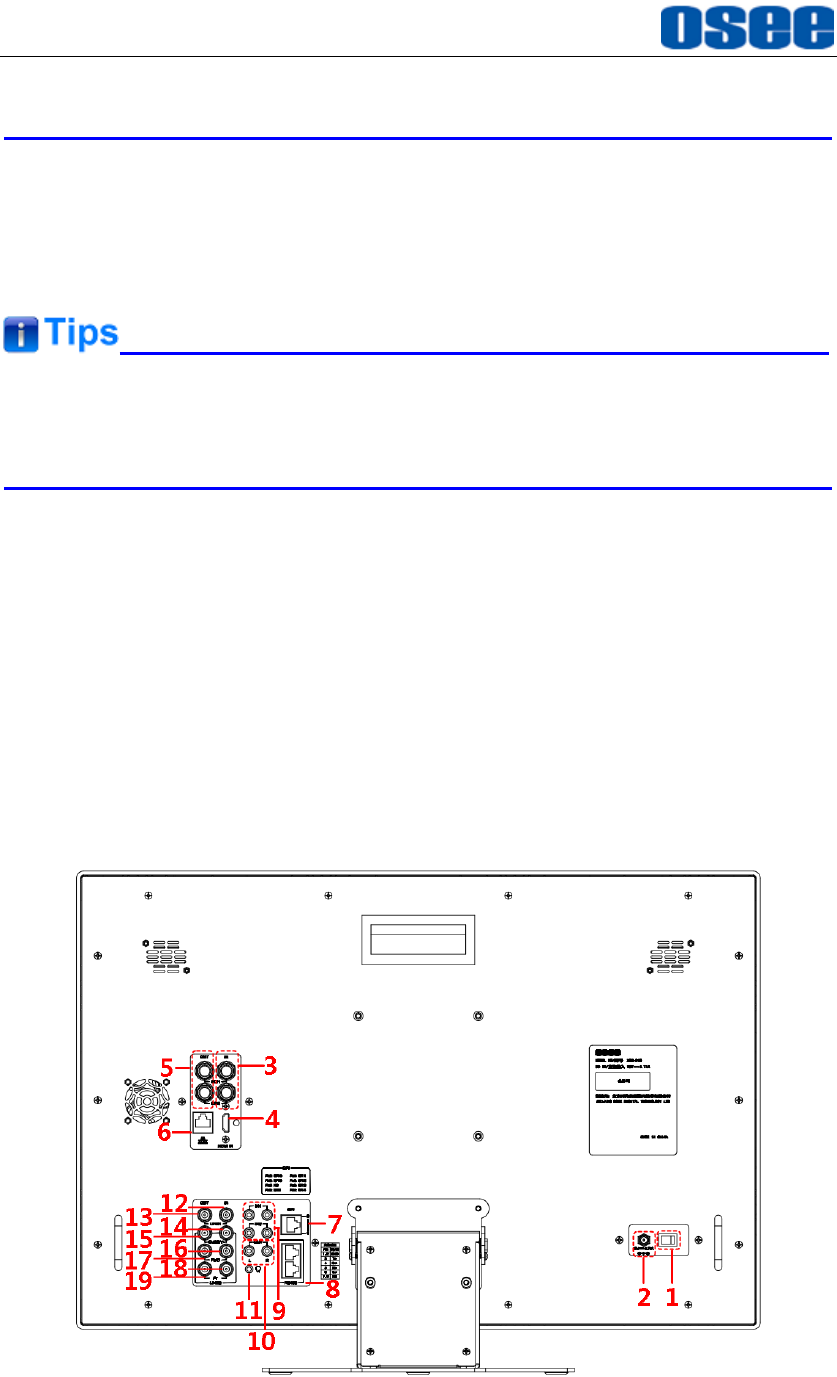

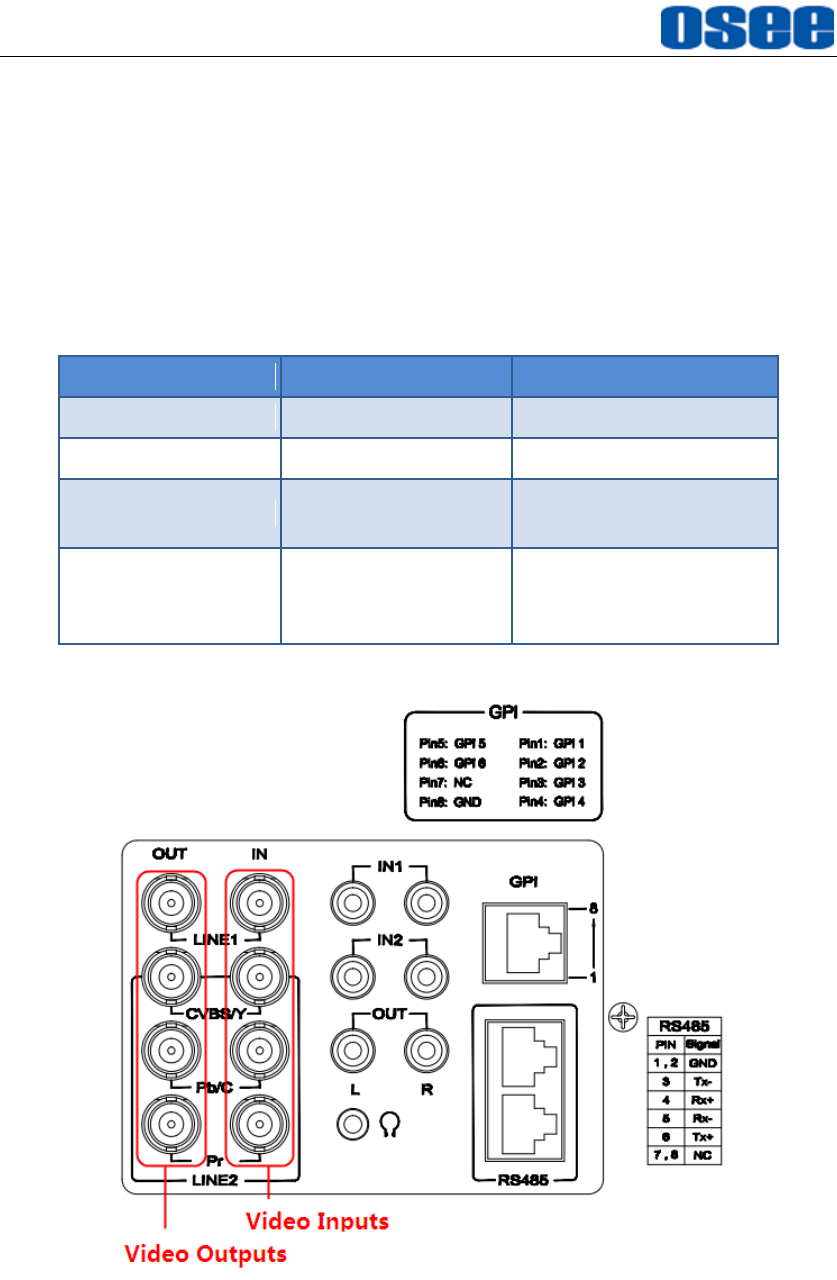

Figure 4.2-1 The Rear Panel of XCM-240 Monitor
XCM-240 Features
17
The interfaces numbered from 1 to 8 in red dotted rectangle are described
as follows:
1. Power Switch
2. Power Input
1. Video Input: SDI1 IN, SDI2 IN
2. HDMI Input
3. Video Output: SDI1 OUT, SDI2 OUT
4. Ethernet
5. GPI interface
6. RS485 In/Out
7. Audio Input
8. Audio Output
9. Headphone Output Connector (3.5mm stereo Jack)
10. Video Input: LINE1 IN
11. Video Output: LINE1 OUT
12. Video Input: LINE2(CVBS/Y) IN, feed the composited LINE2, and
component Y signals.
13. Video Output: LINE2(CVBS/Y) OUT, output the composited LINE2,
and component Y signals.
14. Video Input: LINE2(Pb/C) IN, feed the component Pb, and
component C signals.
15. Video Output: LINE2(Pb/C) OUT, output the component Pb, and
component C signals.
16. Video Input: LINE2(Pr) IN, feed the component Pr signal.
17. Video Output: LINE2(Pr) OUT, output the component Pr signal.
4.2.2 Operations of Rear Panel
The details of these interfaces at the rear panel are described as follows:
1. Power Switch
It provides one power switch to switch on or switch off. As shown in
Figure 4.2-2, push the button to the direction “-” to switch on the power,
or push the button to the direction “” to switch off the power.
XCM-240 Features
18

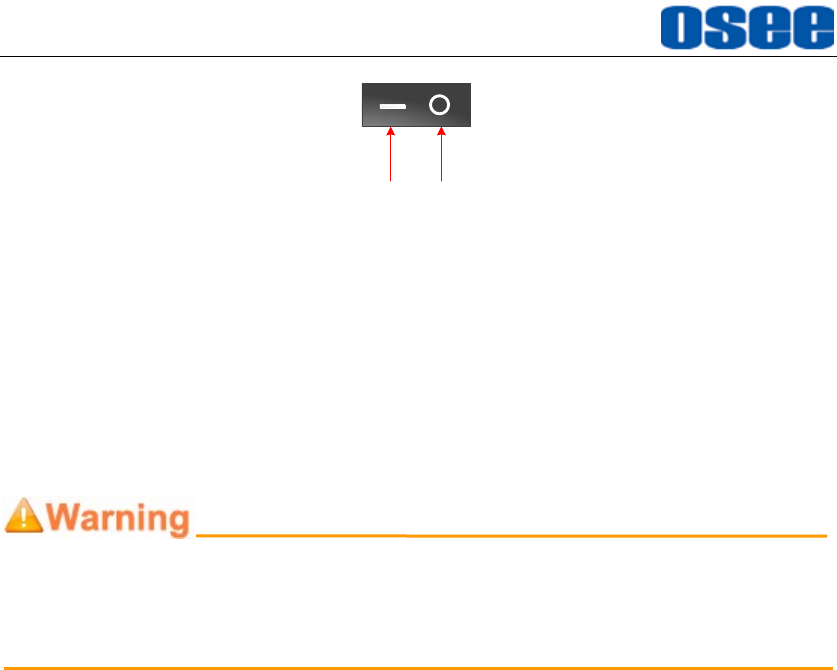

ON OFF
Figure 4.2-2 Power Switch
2. Power Input
It provides one power input interface, the specification is 19V4.74ADC.
The corresponding indicator is at the front panel. If the light is green, the
monitor is powered on, if the light is flashing, the monitor is standby, and
if the light is off, the monitor is powered off.
Only use the adapter and the power cord specified by the manufacture for
your safety！
3. Video Input Interface (BNC)
It provides two SDI input interfaces, one is labeled as SDI1 IN, and the
other is SDI2 IN.
4. HDMI
It provides one HDMI input interface, HDMI Type-A connector with a
fastener.
5. Video Output Interface (BNC)
It provides two SDI output interfaces. One is labeled as SDI1 OUT, the
other is SDI2 OUT, active loop.
6. Ethernet (RJ-45)
It provides one 10/100M Ethernet connector. It is used to connect with a
computer to modify the network settings.
7. GPI(DB9)
It assigns a function to each pin of the GPI interface to realize a remote
control mode. Define a function to the GPI pin. Refer to “5.1.10 GPI
Menu” for the definition of the pins and the functions.
The relationship of the pins of GPI interface and its channel value is
shown in Table 4.2-1.
Table 4.2-1 The Relationship of GPI Pins and Channel Values
XCM-240 Features
19
Pin No.
Channel Value
Pin 1
GPI1
Pin 2
GPI2
Pin 3
GPI3
Pin 4
GPI4
Pin 5
GPI5
Pin 6
GPI6
Pin 7
NC
Pin 8
GND
8. IN/ OUT RS485 Interface (RJ-45)
Support for dynamic IMD and updating the new firmware.

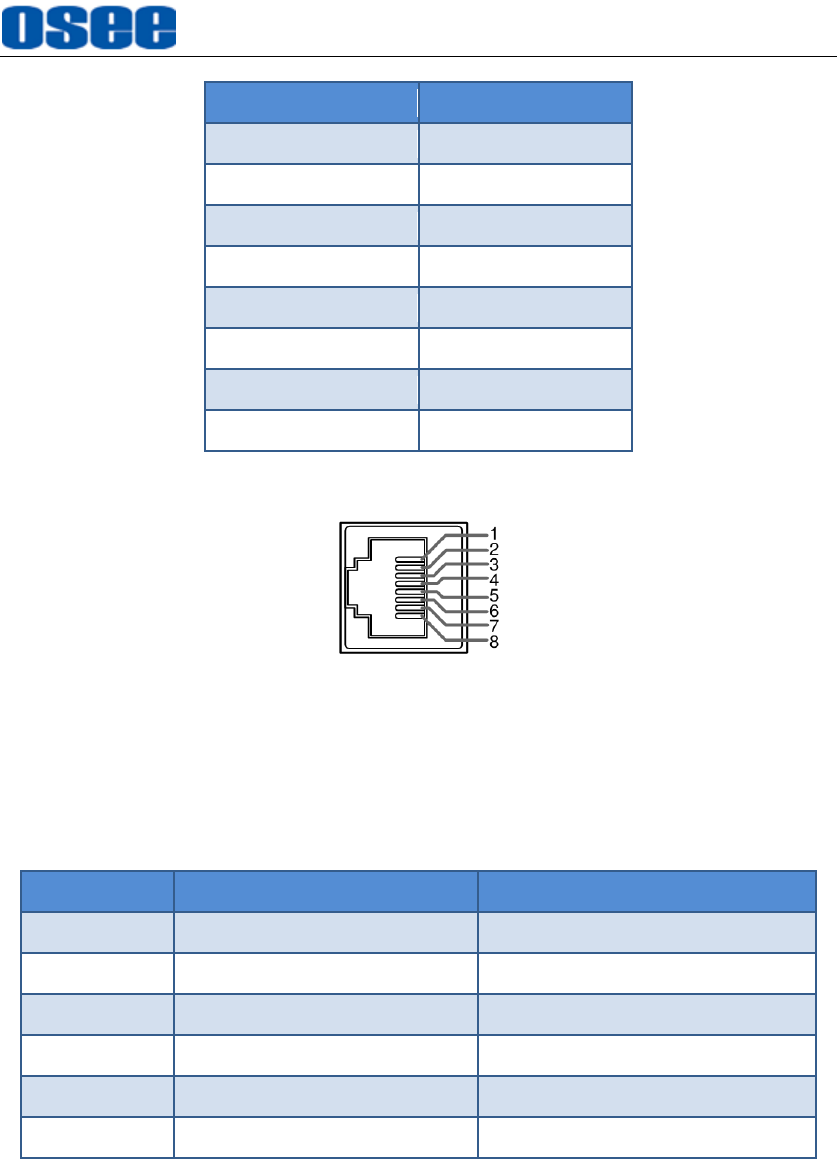

The Comparison of Pins and Input/output connectors for RS485 is
shown as in Table 4.2-2:
Table 4.2-2 The Comparison of Pins and Input/output connectors for
RS485
PIN No.
RS485 IN Terminal Signal
RS485 OUT Terminal Signal
1,2
GND
GND
3
Tx-
Tx-
4
Rx+
Rx+
5
Rx-
Rx-
6
Tx+
Tx+
7,8
NC
NC
9. Audio Input interface
It provides four audio(2 pairs) input interfaces, 5dBu, impedance≥47K,
RCA connector.
10. Audio Output interface
It provides two audio output interfaces, 5dBu, impedance≤500Ω, RCA
connector.
11. Video Input/Output Interface (BNC)
XCM-240 Features
20
It provides two pairs of Composited Video input/output interfaces, and a
group of component signals. It will transmit the corresponding
component signal according to the selection of the signal source.
As shown in Figure 4.2-3, the relationship of the signal sources and the
interfaces are shown as in Table 4.2-3:
Table 4.2-3 The Relationship of the Signal Sources and Input/output
Interfaces
Signal Source
Video Input
Video Output
LINE1
LINE1 IN
LINE1 OUT
LINE2(CVBS)
LINE2(CVBS/Y) IN
LINE2(CVBS/Y) OUT
LINE2(Y/C)
LINE2(CVBS/Y) IN
LINE2(Pb/C) IN
LINE2(CVBS/Y) OUT
LINE2(Pb/C) OUT
LINE2(YPBPR)
LINE2(CVBS/Y) IN
LINE2(Pb/C) IN
LINE2(Pr) IN
LINE2(CVBS/Y) OUT
LINE2(Pb/C) OUT
LINE2(Pr) OUT
Figure 4.2-3 Video Input/Output Interfaces
XCM-240 Features
21
4.3 Supported Signal Format
The supported signal format for this device is as shown in Table 4.3-1:
Table 4.3-1 Supported Signal Format
SDI
VIDEO
HDMI
YC
YPBPR
PAL
NTSC
480I60/59.94
576I50
480P60/59.94
576P50
720P24/23.97
720P25
720P30/29.97
720P50
720P60/59.94
1080SF24/23.97
1035I60/59.94
1080I50
1080I60/59.94
1080P24/23.97
1080P25
1080P30/29.97
1080P50
1080P60/59.94
VGA(640X480)
SVGA(800X600)
XGA(1024X768)
SXGA(1280X1024)
WXGA(1360X768)
WXGA+(1440X900)
WXGA+(1400X1050)
XCM-240 Features
22
SDI
VIDEO
HDMI
YC
YPBPR
UXGA(1600X1200)
UXGA+(1680X1050)
WUXGA(1920X1080)
WUXGA(1920X1200)
Functionality of the Main Menu
23
Chapter 5 Functionality of the Main Menu
This chapter describes the structure and functionality of the main menu, and
introduces how to modify and customize the menu settings.
The main menu includes the following menu items, as shown in Figure5-1.
Figure 5-1 Main Menu
5.1 Main Menu

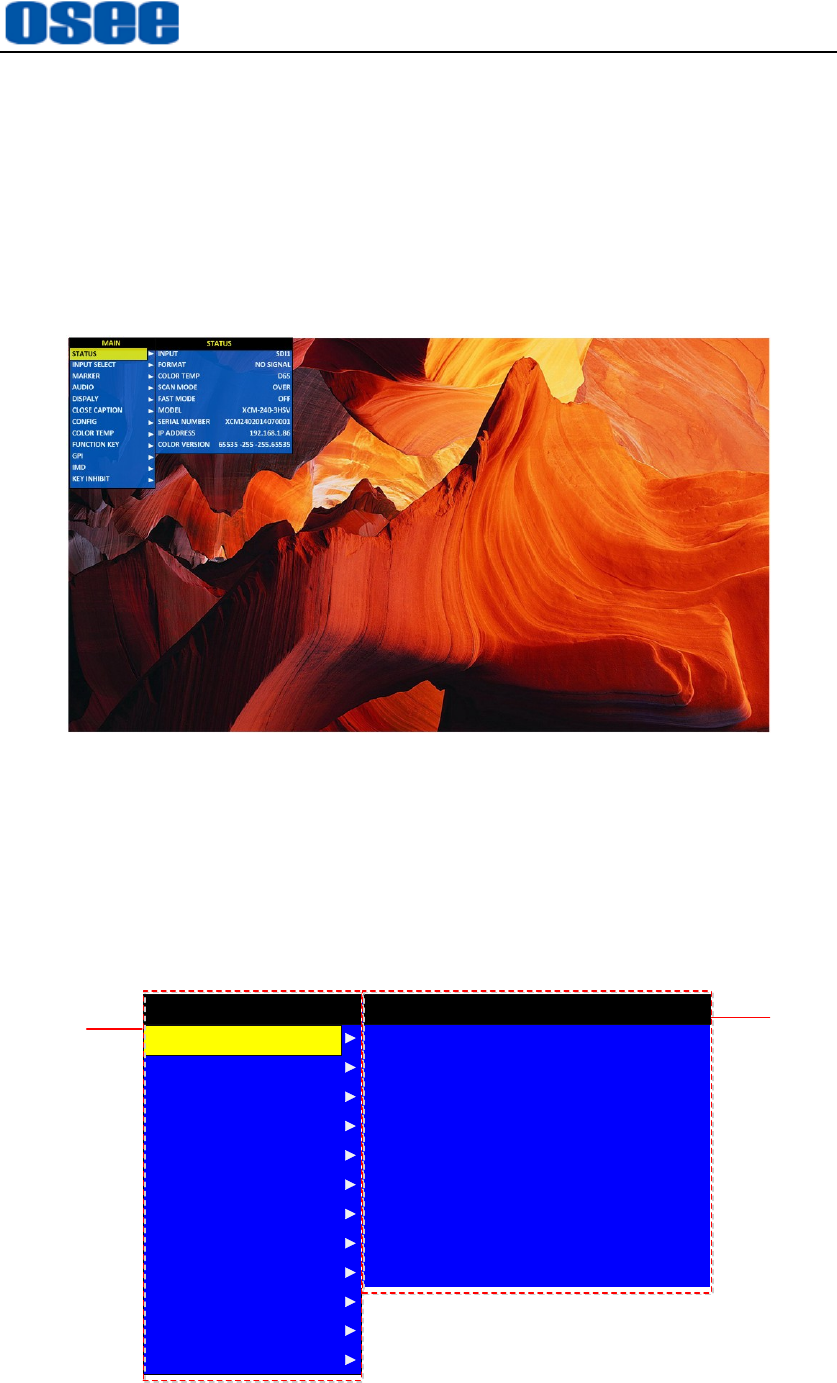

Press the MENU button at the bottom of the front panel, the main menu is
displayed at the top left corner of the screen, as shown in Figure 5.1-1:
CLOSE CAPTION
INPUT SELECT
MARKER
AUDIO
DISPALY
CONFIG
COLOR TEMP
FUNCTION KEY
GPI
MAIN
MODEL
INPUT
FORMAT
COLOR TEMP
SCAN MODE
FAST MODE
SERIAL NUMBER
IP ADDRESS
COLOR VERSION
STATUS
XCM-240-3HSV
SDI1
NO SIGNAL
D65
OVER
OFF
XCM2402014070001
192.168.1.86
65535 -255 -255.65535
STATUS
IMD
KEY INHIBIT
1
12
2
Figure 5.1-1 the Structure of the Main Menu
Functionality of the Main Menu
24
The menu interface is divided into three parts:
1. Main Menu List
It contains the title of the Main menu and several sub-menu items. The
title of this list is MAIN. Press UP or DOWN to access the
corresponding menu item.
2. Sub-menu list
As shown in Figure 5.1-2, it lists the title of the Sub-menu, the
sub-menu item and the value of the item. After pressing Menu button,
press UP, DOWN button and Enter button to modify the value of the
sub-menu. Refer to “5.2 Menu Settings” for details.

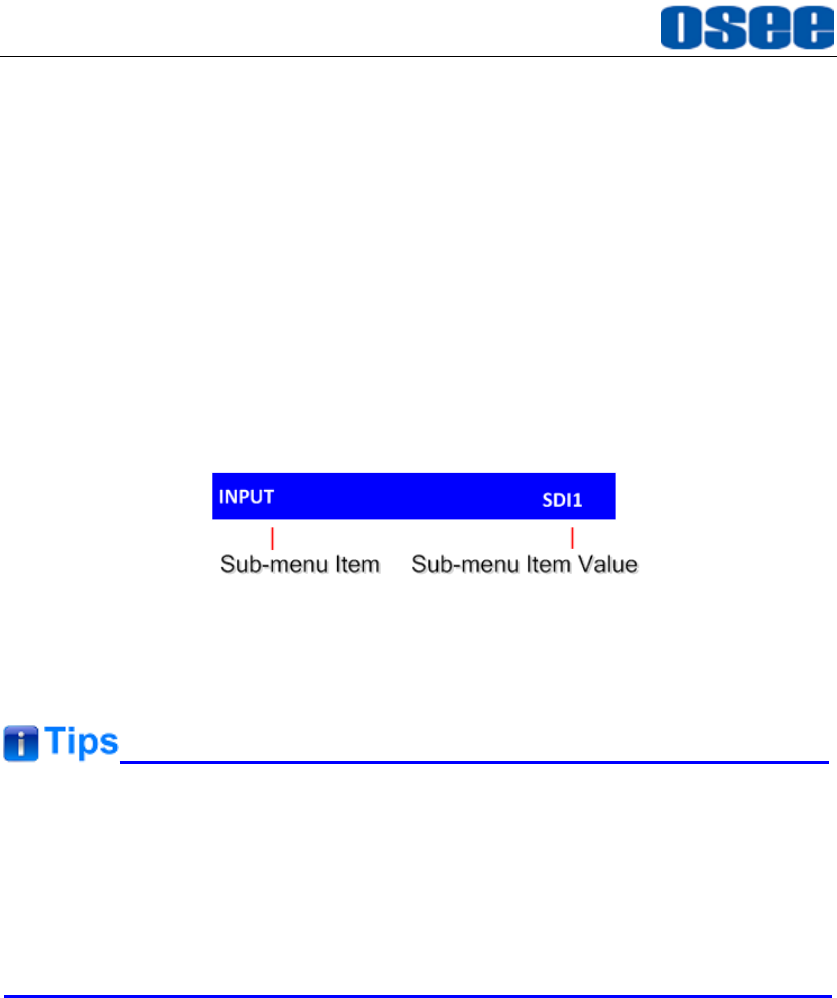

Figure 5.1-2 the Sub-menu Value List
There is a yellow control icon when you select the menu or its value.
The sub-menu item is selected when the control icon which is in yellow
highlight is at the back of the item name.
The sub-menu item value is editable when the control icon which is in
yellow highlight is at the back of the item value.

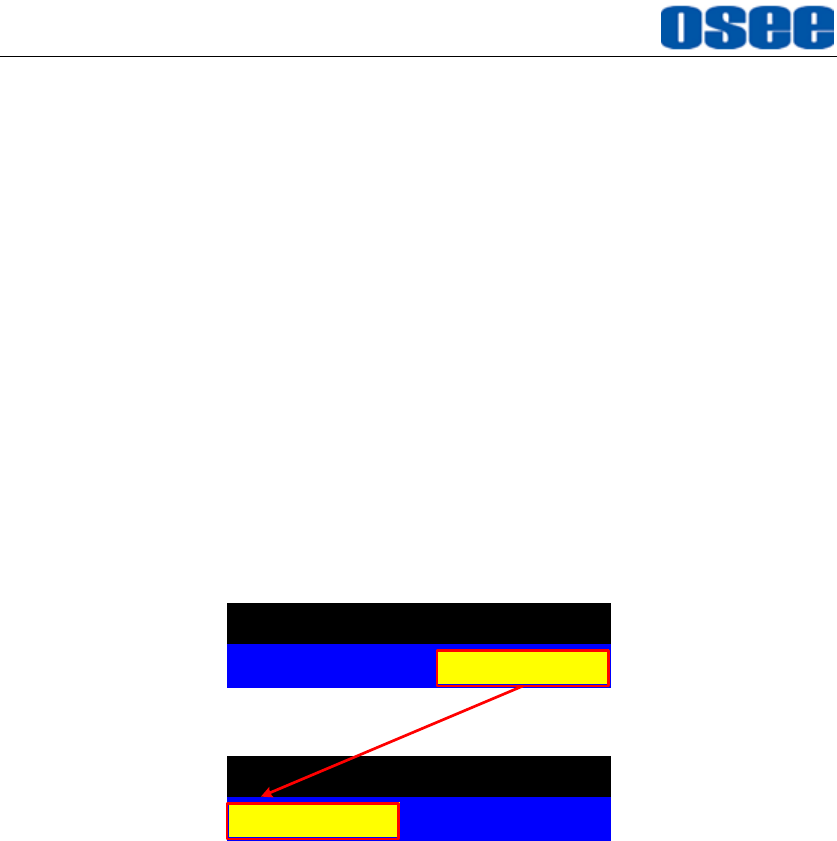

The control icon of the main menu has the following status when in different
positions, as shown in the red rectangle of the following figures:
when in the main menu, it shows that this menu item is selected, as
shown in Figure 5.1-3:
Functionality of the Main Menu
25

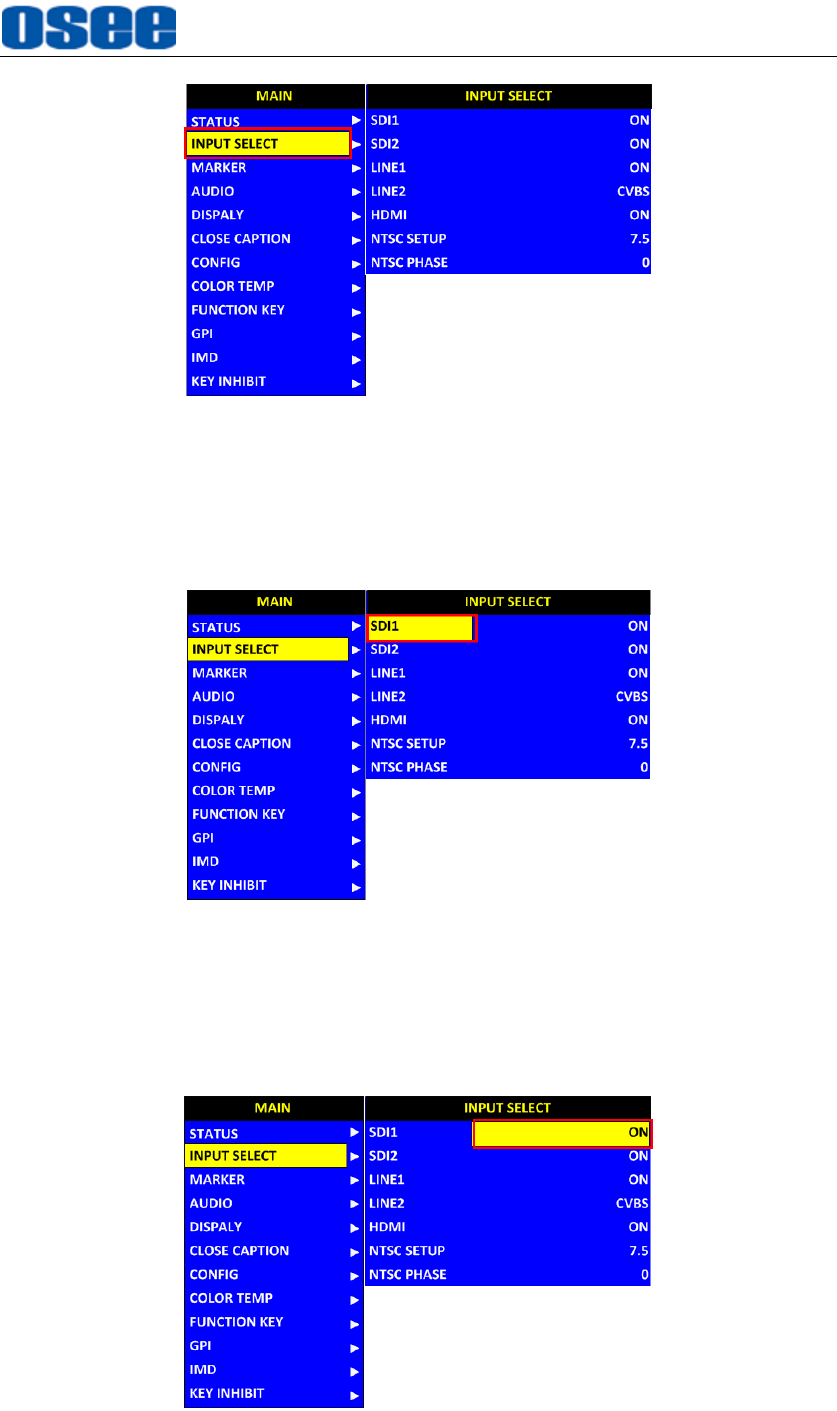

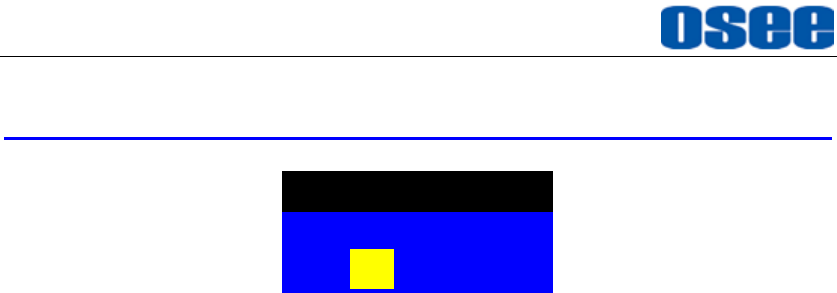

Figure 5.1-3 A Main Menu Item Is Selected
when in the sub-menu item, it shows that this sub-menu item is
selected, and the control icon is displayed as a yellow rectangle in front
of it, as shown in Figure 5.1-4:
Figure 5.1-4 A Sub-menu Item Is Selected
when in the sub-menu item value, it shows that this sub-menu item
value is selected, and the value is displayed in yellow, as shown in
Figure 5.1-5:
Figure 5.1-5 A Sub-menu Item Value Is Selected
Functionality of the Main Menu
26
The following will introduce the contents and functionality of these sub-menu
items in sorts.
5.1.1 STATUS Menu
The STATUS menu items are used to describe the current status
information of the monitor, the menu items are as shown in Figure 5.1-6:
CLOSE CAPTION
INPUT SELECT
MARKER
AUDIO
DISPALY
CONFIG
COLOR TEMP
FUNCTION KEY
GPI
MAIN
MODEL
INPUT
FORMAT
COLOR TEMP
SCAN MODE
FAST MODE
SERIAL NUMBER
IP ADDRESS
COLOR VERSION
STATUS
XCM-240-3HSV
SDI1
NO SIGNAL
D65
OVER
OFF
XCM2402014070001
192.168.1.86
65535 -255 -255.65535
STATUS
IMD
KEY INHIBIT
Figure 5.1-6 STATUS Menu
The relationship of Items, Default Value, Domain Range and Description
of the sub-item is shown in Table 5.1-1:
Table 5.1-1 The Description of STATUS Menu Items
Items
Default Value
Domain Range
Description
INPUT
SDI1
SDI1
SDI2
LINE1(CVBS)
LINE2(CVBS)
HDMI
Show the Input
format
FORMAT
NO SGINAL
--
Show the format of
the input signal
COLOR
TEMP
D65
--
Show the color
temperature.
SCAN
MODE
NORMAL
NORMAL
OVER
UNDER
Show the scan mode.
Functionality of the Main Menu
27
Items
Default Value
Domain Range
Description
FAST
MODE
OFF
OFF/ON
Show the fast mode.
SD ASPECT
16:9
16:9/4:3
Show the screen
Aspect Ratio.
MODEL
XCM-240-3HSV
--
Show the production
model.
SERIAL
NUMBER
XCM2402013070001
--
Show the serial
number.
IP
ADDRESS
192.168.1.86
--
Show the IP address.
COLOR
VERSION
65535-255-255.65535
--
Show the color
version according to
its adjusted date.
The sub-menu values in STATUS menu can’t be modified, they are
displayed the actual status of the monitor.
5.1.2 INPUT SELECT Menu
The INPUT SELECT menu items are used to set the source of the input
signals, the menu items are as shown in Figure 5.1-7:
CLOSE CAPTION
MARKER
AUDIO
DISPALY
CONFIG
COLOR TEMP
FUNCTION KEY
GPI
MAIN
INPUT SELECT
STATUS
IMD
KEY INHIBIT
NTSC SETUP
SDI1
SDI2
LINE1
LINE2
HDMI
NTSC PHASE
INPUT SELECT
7.5
ON
ON
ON
CVBS
ON
0
Figure 5.1-7 INPUT SELECT Menu
Functionality of the Main Menu
28
The relationship of Items, Default Value, Domain Range and Description
of the sub-item is shown in Table 5.1-2:
Table 5.1-2 The Description of INPUT SELECT Menu Items
Items
Default
Value
Domain Range
Description
SDI1
ON
ON/OFF
Enable/Disable SDI1 input
SDI2
ON
ON/OFF
Enable/Disable SDI2 input
LINE1
ON
ON/OFF
Enable/Disable LINE1 input
LINE2
ON
CVBS
LINE2(Y/C)
LINE2(YPBPR)
OFF
Enable/Disable LINE2 input,
and select the input source
HDMI
ON
ON/OFF
Enable/Disable HDMI input
NTSC SETUP
7.5
0/7.5
Select the NTSC mode
NTSC PHASE
0
-50~50
Set the NTSC phase
5.1.3 MARKER Menu
The MARKER menu items are used to adjust the marker parameters, the
menu items are as shown in Figure 5.1-8:
CLOSE CAPTION
AUDIO
DISPALY
CONFIG
COLOR TEMP
FUNCTION KEY
GPI
MAIN
MARKER
INPUT SELECT
STATUS
IMD
KEY INHIBIT
MARKER MAT
MARKER
AREA MARKER
CENTER MARKER
SAFETY MARKER
MARKER LEVEL
CROSS HATCH
MARKER
OFF
OFF
OFF
OFF
OFF
1
OFF
Figure 5.1-8 MARKER Menu
The relationship of Items, Default Value, Domain Range and Description
Functionality of the Main Menu
29
of the sub-item is shown in Table 5.1-3:
Table 5.1-3 The Description of MARKER Menu Items
Items
Default
Value
Domain Range
Description
MARKER
OFF
OFF/ON
Set whether to show all of
the markers.
It is the main switch for
area marker, center
marker and safety
marker.
AREA MARKER
OFF
when the display
aspect is 16:9, images
show with the following
scale:
OFF: close area
marker
4:3
15:9
14:9
13:9
1.85:1
2.35:1
when the display
aspect is 4:3, images
show with the following
scale:
OFF: close area
marker
16:9
Select the area marker
aspect ratio according to
the display aspect ratio.
CENTER
MARKER
OFF
OFF/ON
Set whether to show the
center marker
SAFETY
MARKER
OFF
OFF
80%
85%
88%
90%
93%
95%
Set the safety area size
according to the aspect
ratio and scan mode.
MARKER
LEVEL
1
1: 50%
2: 75%
3: 100%
Set the luminance of
marker line, including
safety marker, center
marker, area marker and
Functionality of the Main Menu
30
Items
Default
Value
Domain Range
Description
cross hatch.
MARKER MAT
OFF
OFF: Normal
background, use
line for area marker
edge only
HALF: 50%
Background
brightness
BLACK: all black
Set the transparency of
area marker mat.
CROSS HATCH
OFF
OFF/ON
Set whether to show the
cross hatch.
When NATIVE is ON, all of the markers will be disabled and hidden.
The AREA MARKER, CENTER MARKER and SAFETY MARKER feature
are available only when the MARKER item is set to ON.
The marker will not display in PBP mode even if you have opened the
marker switch.
5.1.4 AUDIO Menu
The AUDIO menu items are used to adjust the audio parameters, the
menu items are as shown in Figure 5.1-9:
Functionality of the Main Menu
31
CLOSE CAPTION
DISPALY
CONFIG
COLOR TEMP
FUNCTION KEY
GPI
MAIN
AUDIO
MARKER
INPUT SELECT
STATUS
IMD
KEY INHIBIT
METER DIRECTION
AUDIO SOURCE
SPEAK OUT L
SPEAK OUT R
AUDIO METER
METER SELECT
METER POSITION
METER DIS MODE
REF LEVEL
AUDIO
HORIZONTAL
AUDIO1
EBD CH1
EBD CH1
OFF
CH1-2
TOP
MODE1
-20dB
OVER LEVEL -10dB
Figure 5.1-9 AUDIO Menu
The relationship of Items, Default Value, Domain Range and Description
of the sub-item is shown in Table 5.1-4:
Table 5.1-4 The Description of AUDIO Menu Items
Items
Default
Value
Domain Range
Description
AUDIO
SOURCE
EDB
EDB: embedded signal
AUDIO1: external
signal1
AUDIO2: external
signal2
UNDEF: no signal
Select the audio source.
When there is no sync in
and the input signal is
not HDMI/SDI1/SDI2,
you can select only
UNDEF, AUDIO1 or
AUDIO2.
SPEAK
OUT L
EBD CH1
When the audio source is
EBD, the range of this item
is EDB CH1~ EDB CH16.
Left speaker, select a
channel according to the
type of audio source.
SPEAK
OUT R
EDB CH2
When the audio source is
EBD, the range of this item
is EDB CH1~ EDB CH16.
Right speaker, select a
channel according to the
type of audio source.
AUDIO
METER
OFF
OFF/ON
Set whether to display
the audio meter.
METER
SELECT
CH1-2
CH1-2
G1
G2
G3
G4
Select a meter display
mode. Each G* contains
four channels, and each
CH* means a channel
with number.
Functionality of the Main Menu
32
Items
Default
Value
Domain Range
Description
G1+G2
G1+G3
G1+G4
G2+G3
G2+G4
G3+G4
G1-G4
METER
DIRECTION
VERTICAL
VERTICAL
HORIZONTAL
Select the displayed
direction of audio meter.
METER
POSITION
BOT
LEFT/
BOTTOM
When the value of METER
DIRECTION is VERTICAL
, you can choose the
followings for Meter
Position:
BOT LEFT: bottom left
BOT RIGHT: bottom
right
TOP RIGHT: top right
TOP LEFT: top left
When the value of METER
DIRECTION is
HORIZONTAL, you can
choose the followings for
Meter Position:
BOTTOM
TOP
Select the displayed
position of audio meter.
METER DIS
MODE
MODE1
MODE1: simple audio
meter
MODE2: audio meter
with channel number
MODE3: audio meter
with channel number
and dB value
Select the displayed
mode for audio meter.
REF LEVEL
-20dB
-20dB/-18dB
Select the reference
level
OVER
LEVEL
-10dB
-10dB
-8dB
-6dB
-4dB
-2dB
Select the overload level
Functionality of the Main Menu
33
5.1.5 DISPLAY Menu
The DISPLAY menu items are used to adjust the parameters displayed on
the screen, the menu items are as shown in Figure 5.1-10:
CLOSE CAPTION
AUDIO
CONFIG
COLOR TEMP
FUNCTION KEY
GPI
MAIN
DISPALY
MARKER
INPUT SELECT
STATUS
IMD
KEY INHIBIT
LINE WAVE NUMBER
STATUS DISPLAY
AFD DISPLAY
WFM POSITION
WAVE FORM TYPE
LINE WAVE
WAVE OVER LIMIT
WAVE UNDER LIMIT
WFM TRANS
DISPLAY
---
AUTO
OFF
LEFT
WAVE FORM
OFF
50
0
OPAQUE
TIME CODE OFF
Figure 5.1-10 DISPLAY SETUP Menu
The relationship of Items, Default Value, Domain Range and Description
of the sub-item is shown in Table 5.1-5:
Table 5.1-5 The Description of DISPLAY SETUP Menu Items
Items
Default
Value
Domain Range
Description
STATUS
DISPLAY
AUTO
OFF/ON/AUTO
Set whether to display STD
information.
If the signal input is not equal to
"No signal" and this item is auto,
the status information will show
15 seconds when the status
changed, and then closed
automatically.
AFD
DISPLAY
OFF
OFF/ON
Set whether to display AFD
information.
ON is an effective value to AFD
DISPLAY item only if the value
of STATUS DISPLAY is AUTO or
ON.
WFM FORM
NORMAL
MODE1
Switch the display mode among
Functionality of the Main Menu
34
Items
Default
Value
Domain Range
Description
TYPE
MODE2
VECT100
VECT75
WAVE
FORM
OFF
mode1, mode2, vector100,
vector75 and wave form.
LINE WAVE
OFF
OFF/ON
Set whether to show line wave,
as shown in Figure 5.1-11.
LINE WAVE
NUMBER
260
As shown in
Table 5.1-6.
Set the position of line WFM.
WFM
OVERLIMIT
50
50~100
Set the over limit of WFM
WFM
UNDERLIMIT
0
0~50
Set the under limit of WFM
WFM TRANS
OPAQUE
OPAQUE
TRANS1
TRANS2
TRANS3
Set the transparency of the
WFM
WFM
POSITION
LEFT
LEFT: LEFT
BOT
RIGHT: BOT
RIGHT
Select the displayed position for
WFM.
TIME CODE
OFF
OFF
D-VITC
LTC
VITC
Set whether to display TC, and
select a mode for TC display.
Thereinto, the value of LINE WFM is different according to the type of
input signal, as shown in Table 5.1-6.
Table 5.1-6 The Description for LINE WFM Item
Input Signal
Default
Domain Range
576i50
310
23~623
480i60
261
22~524
720p
386
26~745
1080i50
560
21~1123
1080i60/59.94
1080sf23/23.97
1035i60
557
41~1120
Functionality of the Main Menu
35
Input Signal
Default
Domain Range
1080p
561
42~1121

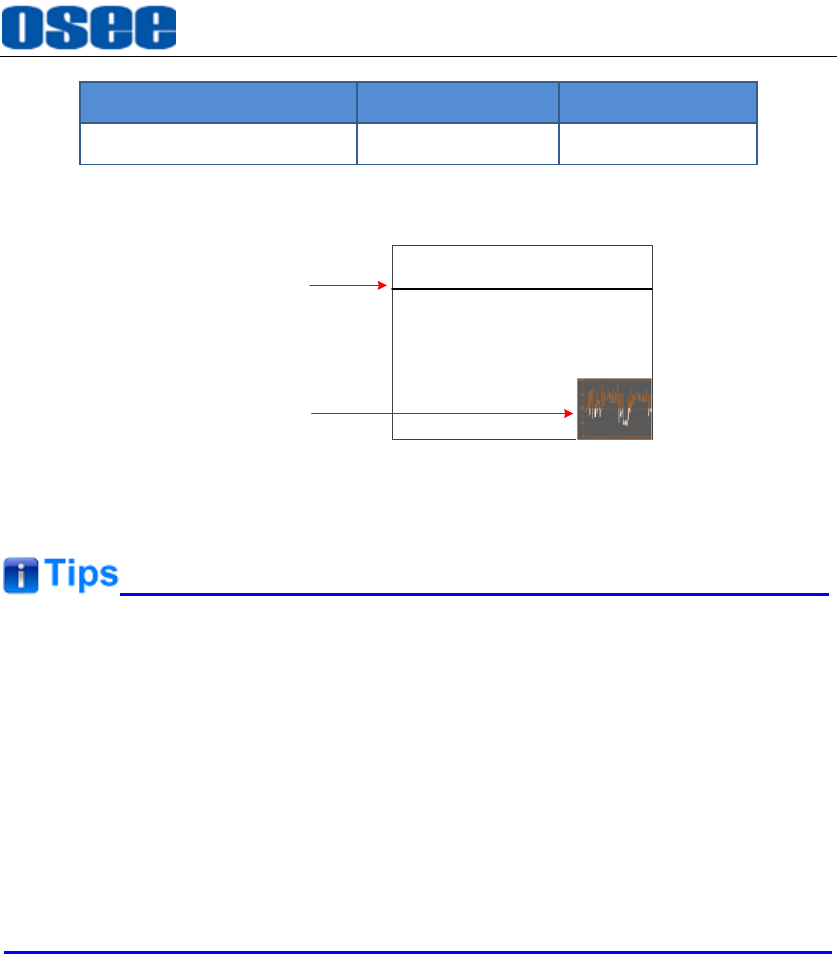

The comparison of a normal WFM/Vector and a Line WFM is as shown
in Figure 5.1-11:
LINE WFM
WFM
Figure 5.1-11 The LINE WFM and the WFM
You can call out the vectorscope or wave form and configure its display
mode through DISPLAYWAVE FORM TYPE, and configure its display
position through DISPLAY WFM POSITION. Use CONFIGSUB IN
TYPE to switch to PIP mode or PBP mode. Refer to "5.1.7 CONFIG Menu"
for details.
Please refer to the international standard SMPTE2016-1-2007 for the
details about AFD display.
5.1.6 CLOSE CAPTION Menu
The CLOSE CAPTION menu items are used to adjust the parameters
displayed on the screen, the menu items are as shown in Figure 5.1-10:
Functionality of the Main Menu
36
AUDIO
CONFIG
COLOR TEMP
FUNCTION KEY
GPI
MAIN
CLOSE CAPTION
DISPALY
MARKER
INPUT SELECT
STATUS
IMD
KEY INHIBIT
CLOSED CAPTION
SDI CC LOG
CLOSE CAPTION
CC1
OFF
Figure 5.1-12 CLOSE CAPTION Menu
The relationship of Items, Default Value, Domain Range and Description
of the sub-item is shown in Table 5.1-7:
Table 5.1-7 The Description of CLOSE CAPTION Menu Items
Items
Default
Value
Domain Range
Description
CLOSE
CAPTION
OFF
CC1
CC2
CC3
CC4
TEXT1
TEXT2
TEXT3
TEXT4
OFF
Set whether to display
caption information, and
select its display mode.
SDI CC LOG
OFF
OFF/ON
Set whether to display
CC information.
5.1.7 CONFIG Menu
The CONFIG menu items are used to adjust the parameters defined by
customers, the menu items are as shown in Figure 5.1-13:
Functionality of the Main Menu
37
AUDIO
FUNCTION KEY
GPI
MAIN
CONFIG
COLOR TEMP
CLOSE CAPTION
DISPALY
MARKER
INPUT SELECT
STATUS
IMD
KEY INHIBIT
PIP POSITION
FAST MODE
FILM MODE DETECT
SUB IN TYPE
SUB IN SELECT
PIP SIZE
BACKLIGHT
AUTO STANDBY
APPEATURE
CONFIG
HORIZONTAL
OFF
OFF
PBP
SDI1
LARGE
15
OFF
0
LOCK NUMBER 0
LANGUAGE ENGLISH
Figure 5.1-13 CONFIG Menu
The relationship of Items, Default Value, Domain Range and Description
of the sub-item is shown in Table 5.1-8:
Table 5.1-8 The Description of CONFIG Menu Items
Items
Default
Value
Domain Range
Description
FAST MODE
OFF
OFF/ON
Set whether in fast
mode.
FILM MODE
DETECT
OFF
OFF/ON
Set whether to detect
film mode.
SUB IN TYPE
PBP
PBP/PIP/OFF
Set the arrangement
mode of screen picture
SUB IN SELECT
SDI1
SDI1
SDI2
LINE1(CVBS)
LINE2(CVBS)
LINE2(Y/C)
LINE2(YPBPR)
HDMI
Set the source of slave
picture, refer to Table
5.1-10 for the details.
PIP SIZE
LARGE
SMALL/LARGE
Set the size of PIP
PIP POSITION
BOT LEFT
BOT LEFT:
bottom left
BOT RIGHT:
bottom right
Set the position of PIP
Functionality of the Main Menu
38
Items
Default
Value
Domain Range
Description
TOP RIGHT
TOP LEFT
BACK LIGHT
15
0~30
Adjust the back light
AUTO STANDBY
OFF
OFF/ON
Set whether open the
standby mode.
APPERTURE
0
0~24
Set the picture
sharpness
LOCK NUMBER
XXXXXXXX
--
Set the lock number
LANGUAGE
ENGLISH
ENGLISH/CHINESE
Select a language
mode
1. PIP and PBP
In PIP mode, the relationship of the main picture and the slave picture
is as shown in Figure 5.1-14 :
Figure 5.1-14 PIP Mode
In PIP mode, it displays the WFM or Audio Meter only for the signal of
the main picture.
In PBP mode, the relationship of the main picture and the slave picture
is as shown Figure 5.1-15:
Functionality of the Main Menu
39
PBP
Main
Slave
Figure 5.1-15 PBP Mode
In PBP mode, it displays the WFM or Audio Meter only for the signal of
the current picture.
The current picture is labeled by a triangle, as shown in Figure 5.1-15,
at the bottom center of the picture. You can select the current picture by
the WIN SELECT command assigned to a function key. The WFM
frame of the main picture displays at the left bottom corner of the screen,
and the WFM frame of the slave picture displays at the bottom right
corner of the screen. Meantime, if Audio Meter was shown up, it could
display at the top position of the screen, just at the top left corner or at
the top right corner, thus to avoid colliding with the WFM.
2. Scope for the slave picture
The selection scope of the signal source for the slave picture will be
changing with the main picture's source, as shown in Table 5.1-10:
Table 5.1-9 The Relationship of the Signal Source for Slave Picture and
Main Picture
Signal Source for
Main Picture
\ Signal Source for
Slave Picture
SDI1
SDI2
LINE1
(CVBS)
LINE2
(CVBS)
LINE2
(Y/C)
LINE2
(YPSPR)
HDMI
SDI1
SDI2
LINE1(CVBS)
LINE2(CVBS)
LINE2(Y/C)
LINE2(YPBPR)
HDMI
The input signal information of the main picture displays at the top left
corner of the screen, and the one of the slave picture displays at the top
Functionality of the Main Menu
40
right corner of the screen.
When the AUTO STANDBY is set to ON, the device will be standby when
the signal is disappeared for 60s.
The length of LOCK NUMBER is up to 8 characters, you can use the
combination of these characters: number (0 to 9) and letter (A to Z). Press
ENTER to edit the LOCK NUMBER, than use UP or DOWN to select
characters, than press ENTER to go to next character, press MENU to exit
editor.
5.1.8 COLOR TEMP Menu
The COLOR TEMP menu items are used to adjust the color temperature
parameters and the color balance, the menu items are as shown in Figure
5.1-16:
AUDIO
CONFIG
FUNCTION KEY
GPI
MAIN
COLOR TEMP
CLOSE CAPTION
DISPALY
MARKER
INPUT SELECT
STATUS
IMD
KEY INHIBIT
GREEN BIAS
COLOR TEMP
RED GAIN
GREEN GAIN
BLUE GAIN
RED BIAS
BLUE BIAS
0
D93
128
128
128
0
0
COLOR TEMP
COPY FROM
RESET
D93
COLOR SPACE AUTO
Figure 5.1-16 COLOR TEMP Menu
The relationship of Items, Default Value, Domain Range and Description
of the sub-item is shown in Table 5.1-10:
Table 5.1-10 The Description of COLOR TEMP Menu Items
Functionality of the Main Menu
41
Items
Default Value
Domain Range
Description
COLOR
TEMP
EDB
USER1:
Customized by user
USER2:
Customized by user
D32: 3200K
D50: 5000K
D56: 5600K
D65: 6500K
D93: 9300K
Set color temperature
RED GAIN
128
0~256
Adjust the Red Gain
GREEN
GAIN
128
0~256
Adjust the Green Gain
BLUE GAIN
128
0~256
Adjust the Blue Gain
RED BIAS
0
-50~50
Adjust the Red Offset
GREEN
BIAS
0
-50~50
Adjust the Green Offset
BLUE BIAS
0
-50~50
Adjust the Blue Offset
COPY
FROM
D65
D32: 3200K
D50: 5000K
D56: 5600K
D65: 6500K
D93: 9300K
Copy this parameter
value to USER
RESET
--
--
Reset the Gain and
Offset values to the
product originals
COLOR
SPACE
EBU
OFF/EBU/SMPTE-C/
ITU-709/AUTO
Select the color matrix
The items about RED/GREEN/BLUE GAIN and BIAS are available only in
USER1 and USER2 mode.
5.1.9 FUNCTION KEY Menu
The FUNCTION KEY menu items are used to define parameters to F1
and F2, the menu items are as shown in Figure 5.1-17:
Functionality of the Main Menu
42
AUDIO
GPI
MAIN
FUNCTION KEY
CONFIG
COLOR TEMP
CLOSE CAPTION
DISPALY
MARKER
INPUT SELECT
STATUS
IMD
KEY INHIBIT
F1
F2
FUNCTION KEY
SCAN
NATIVE
F3
F4
ASPECT
OFF
F5 OFF
Figure 5.1-17 FUNCTION KEY Menu
The relationship of Items, Default Value, Domain Range and Description
of the sub-item is shown in Table 5.1-11:
Table 5.1-11 The Description of FUNCTION KEY Menu Items
Items
Default Value
Domain Range
Description
F1
SCAN
SCAN, NATIVE, ASPECT, BLUE
ONLY, MONO, MARKER, H/V
DELAY, AUDIO METER, FAST
MODE, TC, IMD, MUTE, PBP,
CC, FREEZE, WIN SELECT,
UNDEF
Set a function to
F1 button
F2
NATIVE
the same as F1
Set a function to
F2 button
F3
ASPECT
the same as F1
Set a function to
F3 button
F4
UNDEF
the same as F1
Set a function to
F4 button
F5
UNDEF
the same as F1
Set a function to
F5 button
SCAN
This product supports the following scan modes:
NORMAL OVER UNDER
Set the function button as [SCAN], press the button continuously to
activate various scan modes.
Functionality of the Main Menu
43
OVER: Zooms in/out of the image to 96% of its original size
without changing the aspect ratio.
NORMAL: Zooms in/out of the image without changing the aspect
ratio.
UNDER: Zooms in/out of the image without changing the aspect
ratio. Also, displays the data at the top of the horizontal blanking
block.
ASPECT: Set the aspect ratio of the screen as 4:3 or 16:9.
5.1.10 GPI Menu
The GPI menu items are used to define functions to GPI1~GPI6, the
menu items are as shown in Figure 5.1-17:
AUDIO
MAIN
GPI
FUNCTION KEY
CONFIG
COLOR TEMP
CLOSE CAPTION
DISPALY
MARKER
INPUT SELECT
STATUS
IMD
KEY INHIBIT
GPI1
GPI2
GPI
TALLY GREEN
TALLY RED
GPI3
GPI4
NATIVE
BLUE ONLY
GPI5 MONO
GPI6 H/V DELAY
Figure 5.1-18 GPI Menu
The relationship of Items, Default Value, Domain Range and Description
of the sub-item is shown in Table 5.1-11:
Table 5.1-12 The Description of GPI Menu Items
Items
Default Value
Domain Range
Description
GPI1
TALLY
GREEN
UNDEF, AREA MARKER,
CENTER MARKER, SAFETY
MARKER, ASPECT, NATIVE,
OVER SCAN, UNDER SCAN,
Set a function to GPI1
Functionality of the Main Menu
44
Items
Default Value
Domain Range
Description
BLUE ONLY, MONO,
DELAY, V DELAY, H/V
DELAY, SDI1, SDI2, LINE1,
LINE2, HDMI, TALLY
GREEN, TALLY RED
GPI2
TALLY RED
the same as GPI1
Set a function to GPI2
GPI3
UNDEF
the same as GPI1
Set a function to GPI3
GPI4
UNDEF
the same as GPI1
Set a function to GPI4
GPI5
UNDEF
the same as GPI1
Set a function to GPI5
GPI6
UNDEF
the same as GPI1
Set a function to GPI6
Assign functions to GPI1~GPI6, some is level triggered, and some is edge
triggered, refer to Table 5.1-13 for the details.
GPI control: when it changes it would be as a control value of response
control. If the level does not change, but there are other control caused by
changes in the control value, perform this change. When boot, detect the
GPI input status after initialization. If a GPI value is low, the monitor will
control the corresponding operation. The TALLY is directly control by the
level.
Table 5.1-13 The Description for GPI Items and Their Trigger
Items
Function
Trigger
AREA MARKER
Enable/Disable the display of
area marker.
Low: Enabled; High: Disabled
CENTER
MARKER
Enable/Disable the display of
center marker.
Low: Enabled; High: Disabled
SAFETY
MARKER
Enable/Disable the display of
safety marker.
Low: Enabled; High: Disabled
ASPECT
Set the aspect ratio.
Low: 16:9; High: 4:3
MONO
Switch between the
monochrome and color.
Low: MONO; High: NORMAL
OVER SCAN
Switch scan mode between
over and normal.
Low: OVER; High: NORMAL
Functionality of the Main Menu
45
Items
Function
Trigger
UNDER SCAN
Switch scan mode between
under and normal.
Low: UNDER; High: NORMAL
BLUE ONLY
Switch between blue only
and normal.
Low: BLUE ONLY; High:
NORMAL
NATIVE
Switch between native and
normal.
Low: NATIVE(In center); High:
NORMAL
H DELAY
Switch between H delay and
normal.
Low: H DELAY; High: NORMAL
V DELAY
Switch between V delay and
normal.
Low: V DELAY; High: NORMAL
H/V DELAY
Switch between H/V delay
and normal.
Low: H/V DELAY; High:
NORMAL
SDI1
Switch the input source to
SDI1.
Switch at the falling edge, when
switching to the other input, exit.
SDI2
Switch the input source to
SDI2.
Switch at the falling edge, when
switching to the other input, exit.
LINE1
Switch the input source to
LINE1.
Switch at the falling edge, when
switching to the other input, exit.
LINE2
Switch the input source to
LINE2.
Switch at the falling edge, when
switching to the other input, exit.
HDMI
Switch the input source to
HDMI.
Switch at the falling edge, when
switching to the other input, exit.
TALLY GREEN
Light the green tally.
Low: ON; High: OFF
TALLY RED
Light the red tally.
Low: ON; High: OFF
5.1.11 IMD Menu
The IMD menu items are used to adjust the parameters defined for IMD
display, the menu items are as shown in Figure 5.1-19:
Functionality of the Main Menu
46
AUDIO
CONFIG
FUNCTION KEY
GPI
MAIN
COLOR TEMP
CLOSE CAPTION
DISPALY
MARKER
INPUT SELECT
STATUS
IMD
KEY INHIBIT
IMD NAME
IMD DISPLAY
IMD COLOR
IMD CHARACTER
IMD PROTOCOL
IMD ID
BAUD RATE
LED TALLY
OSD TALLY MODE
IMD
XXXXXXXXXXXXXXXX
ON
RED
XXXXXXXXXXXXXXXX
LOCAL
0
38400
OFF
RG
IMD TALLY MODE T1
TALLY SOURCE STANDARD
Figure 5.1-19 IMD Menu
The relationship of Items, Default Value, Domain Range and Description
of the sub-item is shown in Table 5.1-14:
Table 5.1-14 The Description of IMD Menu Items
Items
Default
Value
Domain Range
Description
IMD DISPLAY
ON
OFF/ON
Set whether to display
IMD CHARACTER on
screen.
IMD COLOR
RED
RED
GREEN
YELLOW
WHITE
Set the color for IMD
CHARACTER.
IMD
CHARACTER
XXXXXXXX
--
Set the IMD string
displayed on the screen.
After entering this item,
press Up or Down to
choose your character
for this IMD string.
IMD
PROTOCAL
LOCAL
LOCAL
TSL3.1
TSL4.0
TSL5.0
IMAGE VIDEO
NETWORK
Select an IMD protocol
Functionality of the Main Menu
47
Items
Default
Value
Domain Range
Description
IMD ID
0
0~255
Set the ID number for
each monitor
IMD NAME
XXXXXXXX
Set an IMD name for
each screen.
BAUD RATE
38400
2400/4800/9600/19200
/38400/57600/115200
Select a baud rate for
communication.
LED TALLY
ON
OFF/ON
Set whether to switch on
tally light.
OSD TALLY
MODE
RG
RG: Red/Green
GR: Green only
RGY:
Red/Green/Yellow
OFF: No tally light
Select the OSD Tally
mode. Only the TALLY
SOURCE is STANDARD
or STANDARD + IV422,
the setting is available.
IMD TALLY
MODE
T1
T1/T2/T1T2/T2T1/T1-/
T2-/T1T2-/T2T1-
Select the IMD Tally
mode.
Use this setting when
using the Image Video
tally control, this setting
will determine the state
which is selected.
TALLY
SOURCE
STANDARD
STANDARD/IMAGE
IDEO/TSL
Select the source for
LED tally source
If IMD DISPLAY item is ON, the IMD CHARACTER in the black bar will
display on the bottom of the screen.
The length of IMD NAME and IMD CHARACTER is up to 16 characters.
The character range is from 0x00 to 0x7F of ASCII. Press ENTER to edit
the IMD characters, than use UP or DOWN to select characters, than press
ENTER to go to next character, press MENU to exit editor. The KEY
INHIBIT is ON, KEY INHIBIT is enabled and press the POWER key, the
device would turn on or off. MENU, UP, DOWN, ENTER key can be
enable but only to set the KEY INHIBIT item, or there is a “KEY INHIBIT”
prompt displayed on the screen when using other keys.
Functionality of the Main Menu
48
5.1.12 KEY INHIBIT Menu
The KEY INHIBIT menu items are used to adjust the parameters
displayed on the screen, the menu items are as shown in Figure 5.1-10:
AUDIO
CONFIG
COLOR TEMP
FUNCTION KEY
GPI
MAIN
CLOSE CAPTION
DISPALY
MARKER
INPUT SELECT
STATUS
IMD
KEY INHIBIT
KEY INHIBIT
KEY INHIBIT
OFF
Figure 5.1-20 KEY INHIBIT Menu
The relationship of Items, Default Value, Domain Range and Description
of the sub-item is shown in Table 5.1-7:
Table 5.1-15 The Description of KEY INHIBIT Menu Items
Items
Default
Value
Domain Range
Description
KEY INHIBIT
OFF
OFF/ON
Enable/Disable the key.
When the KEY INHIBIT is ON, KEY INHIBIT is enabled and press the
POWER key, the device would turn on or off. MENU, UP, DOWN, ENTER
key can be enable but only to set the KEY INHIBIT item, or there is a “KEY
INHIBIT” prompt displayed on the screen when using other keys.
5.2 Menu Settings
When checking or modifying the value of the menu item, cooperating with the
Functionality of the Main Menu
49
following buttons: MENU, UP, DOWN, ENTER.
1. Operations to the Main menu
Display the Main Menu
Press MENU button to enter into the main menu, it displays at the top
left corner of the screen.
Switch menu items
After displaying the main menu, press UP or DOWN button to choose a
menu item, the menu item selected is in yellow. For example, you have
selected Status menu, as shown in Figure 5.2-1.
CLOSE CAPTION
INPUT SELECT
MARKER
AUDIO
DISPALY
CONFIG
COLOR TEMP
FUNCTION KEY
GPI
MAIN
MODEL
INPUT
FORMAT
COLOR TEMP
SCAN MODE
FAST MODE
SERIAL NUMBER
IP ADDRESS
COLOR VERSION
STATUS
XCM-240-3HSV
SDI1
NO SIGNAL
D65
OVER
OFF
XCM2402014070001
192.168.1.86
65535 -255 -255.65535
STATUS
IMD
KEY INHIBIT
Figure 5.2-1 Selecting STATUS Menu
Back to the Main menu
After entering to a sub-menu item or a sub-menu item value, press
MENU button to back to the upper level menu area.
Close the Main menu
Press MENU button to close the Main menu when the control icon is in
the Main menu item.
After you have loaded the Main menu, it will be closed automatically if you
do nothing operation with it in 60s.
2. Operations to sub-menu item
Functionality of the Main Menu
50
Display the sub-menu item
After display the Main menu, press UP or DOWN button to select a
menu item, and the right part displays its sub-menu items according to
the current selected menu item.
Switch sub-menu items
After displaying the sub-menu items list, press ENTER button to enter
into the sub-menu items list, press UP or DOWN button to choose a
sub-menu item, a yellow rectangle is in front of the selected sub-menu
item.
Back to menu item
After entering to the sub-menu item value, press MENU button to back
to menu items, or after setting the sub-menu item value and press Enter
button to firm the modification, the control icon is back to the
corresponding sub-menu item, as shown in Figure 5.2-2:
OFF
INPUT SELECT
SDI1
INPUT SELECT
SDI1 OFF
Figure 5.2-2 The Control Icon Moves from the Sub-menu Item Value to
the Corresponding Sub-menu Item
3. Operations to sub-menu item value
Switch sub-menu item value
When the control icon is in sub-menu item value, press UP or DOWN
button to switch among its value list.
Confirm the modification to sub-menu item value
Press ENTER button to confirm the selection of a value, and the control
icon is back to the corresponding sub-menu item.
Abandon the modification to sub-menu item value
Press MENU button to give up the modification to sub-menu item value,
and the control icon is back to the corresponding sub-menu item.
Functionality of the Main Menu
51
The value in white color is modifiable, and the value in blue color is
unmodifiable.
4. Selecting the Menu Language
You can select one of languages (English or Chinese) for displaying the
menu. The default language for the menu is ENGLISH. The following
will teach you how to switch to Chinese.
Operation:
Step 1 Select CONFIG menu
Press MENU button to display the OSD menu, click DOWN button to
select CONFIG menu.
Step 2 Select the value of the Language item
Press ENTER button to get into the CONFIG menu items, and click
DOWN button to select the sub-item LANGUAGE, then, click ENTER
button to get into the sub-value list, as shown in Figure 5.2-3, the
current control icon is in ENGLISH.
AUDIO
FUNCTION KEY
GPI
MAIN
CONFIG
COLOR TEMP
CLOSE CAPTION
DISPALY
MARKER
INPUT SELECT
STATUS
IMD
KEY INHIBIT
PIP POSITION
FAST MODE
FILM MODE DETECT
SUB IN TYPE
SUB IN SELECT
PIP SIZE
BACKLIGHT
AUTO STANDBY
APPEATURE
CONFIG
HORIZONTAL
OFF
OFF
PBP
SDI1
LARGE
15
OFF
0
LOCK NUMBER 0
LANGUAGE ENGLISH
Figure 5.2-3 Select the Value of Language
Step 3 Confirm the modification of the value of sub-item
Click DOWN button to select the sub-item LANGUAGE to Chinese, as
Functionality of the Main Menu
52
shown in Figure 5.2-4, press ENTER button to confirm the modification.
输入设置
显示设置
色彩配置
功能键设置
GPI设置
主菜单
系统配置
隐藏字幕
音频设置
标记设置
状态显示
IMD设置
按键锁定
PIP位置
快速模式
电影模式检测
子画面类型
子画面输入源
PIP大小
背光
自动关机
清晰度
系统配置
右下
关闭
关闭
PBP
SDI1
小
15
关闭
0
授权码 0
语言 中文
Figure 5.2-4 Switching the Value of LANGUAGE
Step 4 Exit the main menu
Click MENU button to exit the main menu.
Network Control
53
Chapter 6 Network Control
XCM-240 supports network interface. Connect a computer with XCM-240
through this interface to achieve the network control to XCM-240.
The network address of the computer which is connected with XCM-240
and the network address of XCM-240 must be in the same segment.
This chapter will introduce how to set and check the parameters of XCM-240 in
Internet Explorer.
6.1 Access the settings
Use Internet Explorer to enter into a web control page. For example, input
http://192.168.1.86 in address bar, it will display the then, press Enter key, the
management interface of XCM-240 is shown as in Figure 6.1-1:

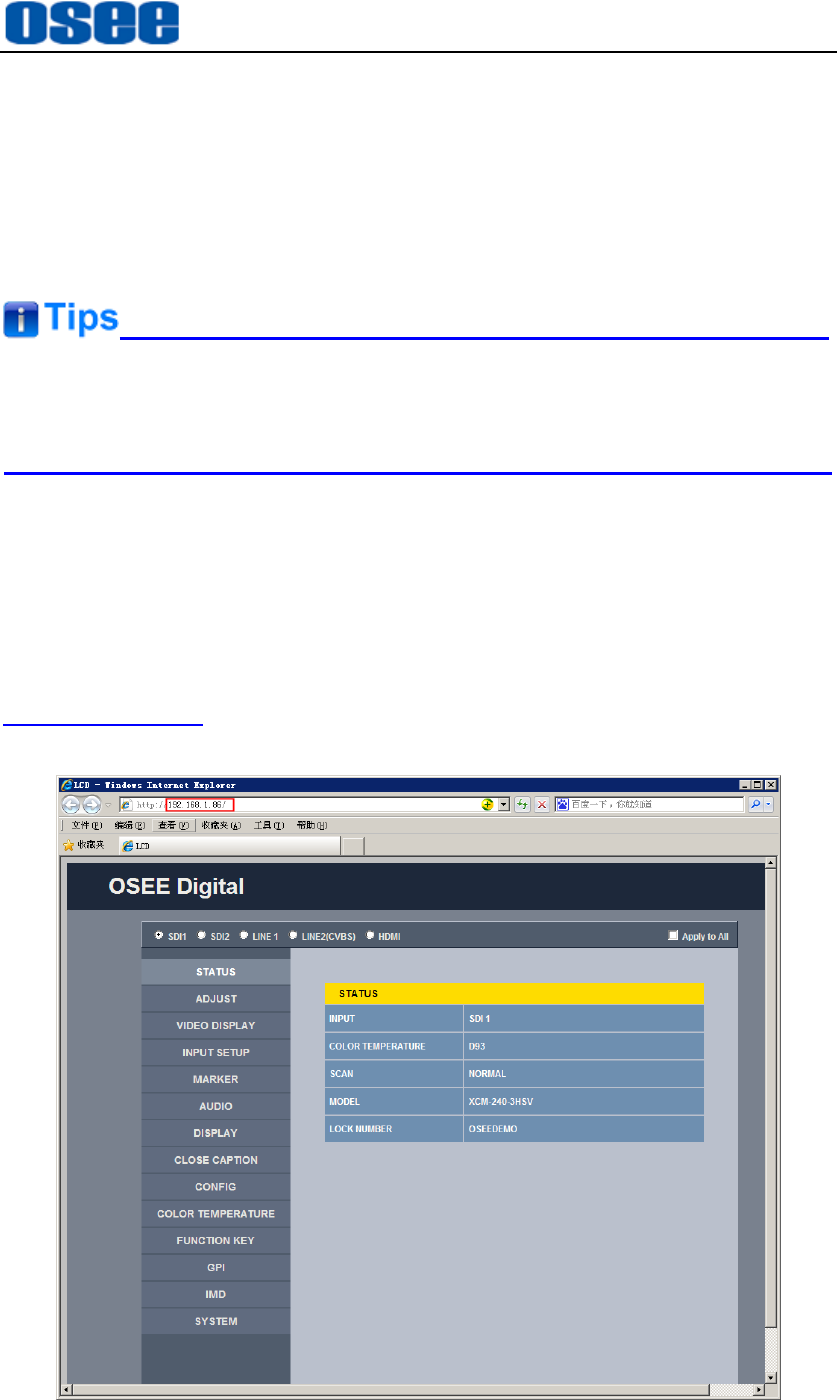

Figure 6.1-1 Network Control Page
Network Control
54
6.2 Menu Control
Open the management interface as shown in Figure 6.2-1, the menu items
listed in the left part are almost as the same as the main menu items.

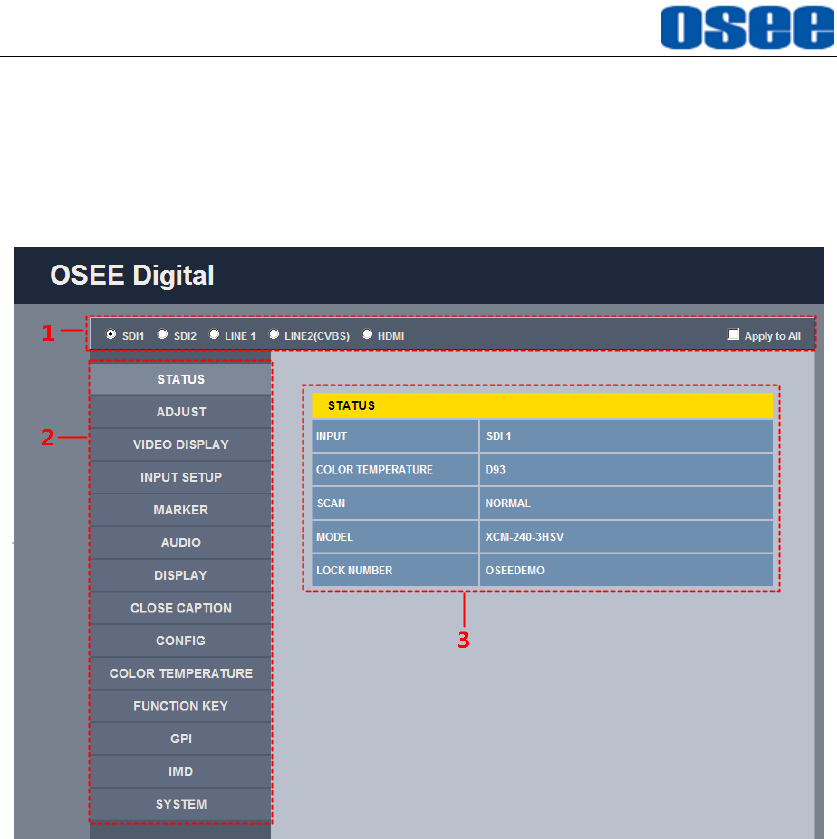

Figure 6.2-1 Management Interface
As shown in Figure 6.2-1, the management interface is divided into the
following parts:
1. Input Source Selection Button
It is used to selecting an input source as the input signal, such as: SDI1,
SDI2, LINE1, LINE2(CVBS), HDMI. The selecting box of "Apply to All"
at the right side is used to synchronize the settings for all the other kinds
of input sources.
2. Navigation menu list
It shows the navigation menus: STATUS, ADJUST, VIDEO DISPLAY,
INPUT SETUP, MARKER, AUDIO, DISPLAY, CLOSE CAPTION,
CONFIG, COLOR TEMPERATURE, FUNCTION KEY, GPI, IMD and
SYSTEM. Click the navigation menu, it will show the corresponding
settings on the right side. The menu items in main menu on screen
display are mostly as the same as the menu items listed in navigation
menus except SYSTEM, ADJUST and VIDEO DISPLAY.
Network Control
55
3. Parameter list
It shows the parameter names, values and operation buttons of the
selected navigation menu, as shown in the red rectangle in Figure 6.2-2.
The title in the yellow rectangle of the parameter list and the parameter
list will change with the navigation menu when switched.
Figure 6.2-2 Parameter List
There may be a “(S)” icon followed by some parameter name in the
parameter list, it is mean that this parameter is only a local parameter for
the current selected signal source, otherwise, the parameter is global and
the modification is valid for all signal sources.
The SET button is used to confirm the modification of the parameter value.
6.2.1 ADJUST Menu
It will introduce ADJUST menu.
Click ADJUST button at the left navigation menu list, it will display the
adjust parameters, as shown in Figure 6.2-5:
Network Control
56
Figure 6.2-3 ADJUST Menu
The relationship of Items, Default Value, Domain Range and Description
of the sub-item is shown in Table 6.2-3:
Table 6.2-1 The Description of ADJUST Menu Items
Items
Default Value
Domain Range
Description
CONTRAST
50
0~100
Adjust the picture
contrast
BRIGHTNESS
50
0~100
Adjust the picture
brightness
CHROMA
50
0~100
Adjust the picture
monochroma
MONO
NORMAL
NORMAL/MONO
Enable/disable
Monochrome mode,
normal mode is actually
the color mode
FASE MODE
OFF
OFF/ON
Enable/disable FAST
MODE
MUTE
Current Audio
Level
Current Audio Level
/MUTE
Enable/disable the audio
monitor
FREEZE
OFF
OFF/ON
Enable/disable the
current picture to be
stopped or played.
Network Control
57
Items
Default Value
Domain Range
Description
WIN SOURCE
MAIN
MAIN/SUB
Set the picture
displaying mode in full
mode or in sub-picture
mode
VOLUME
15
0~31
Adjust the volume
6.2.2 VIDEO DISPLAY Menu
It will introduce VIDEO DISPLAY menu.
Click VIDEO DISPLAY button at the left navigation menu list, it will display
the video display parameters, as shown in Figure 6.2-5:

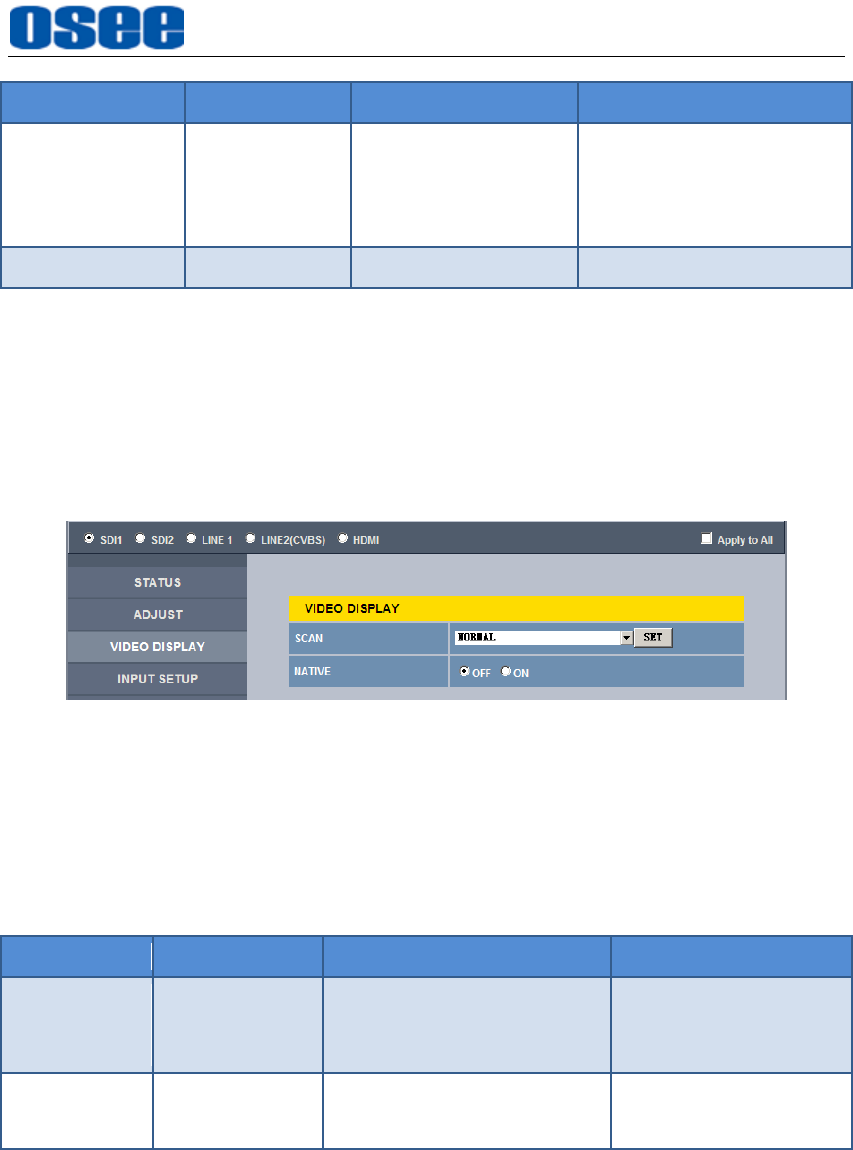

Figure 6.2-4 VIDEO DISPLAY Menu
The relationship of Items, Default Value, Domain Range and Description
of the sub-item is shown in Table 6.2-3:
Table 6.2-2 The Description of VIDEO DISPLAY Menu Items
Items
Default Value
Domain Range
Description
SCAN
NORMAL
NORMAL
OVERSCAN
UNDERSCAN
Set the scan mode
NATIVE
OFF
OFF/ON
Whether to display
the picture dot by dot
6.2.3 SYSTEM Menu
It will introduce SYSTEM menu.
Click SYSTEM button at the left navigation menu list, it will display the
system parameters, as shown in Figure 6.2-5:
Network Control
58

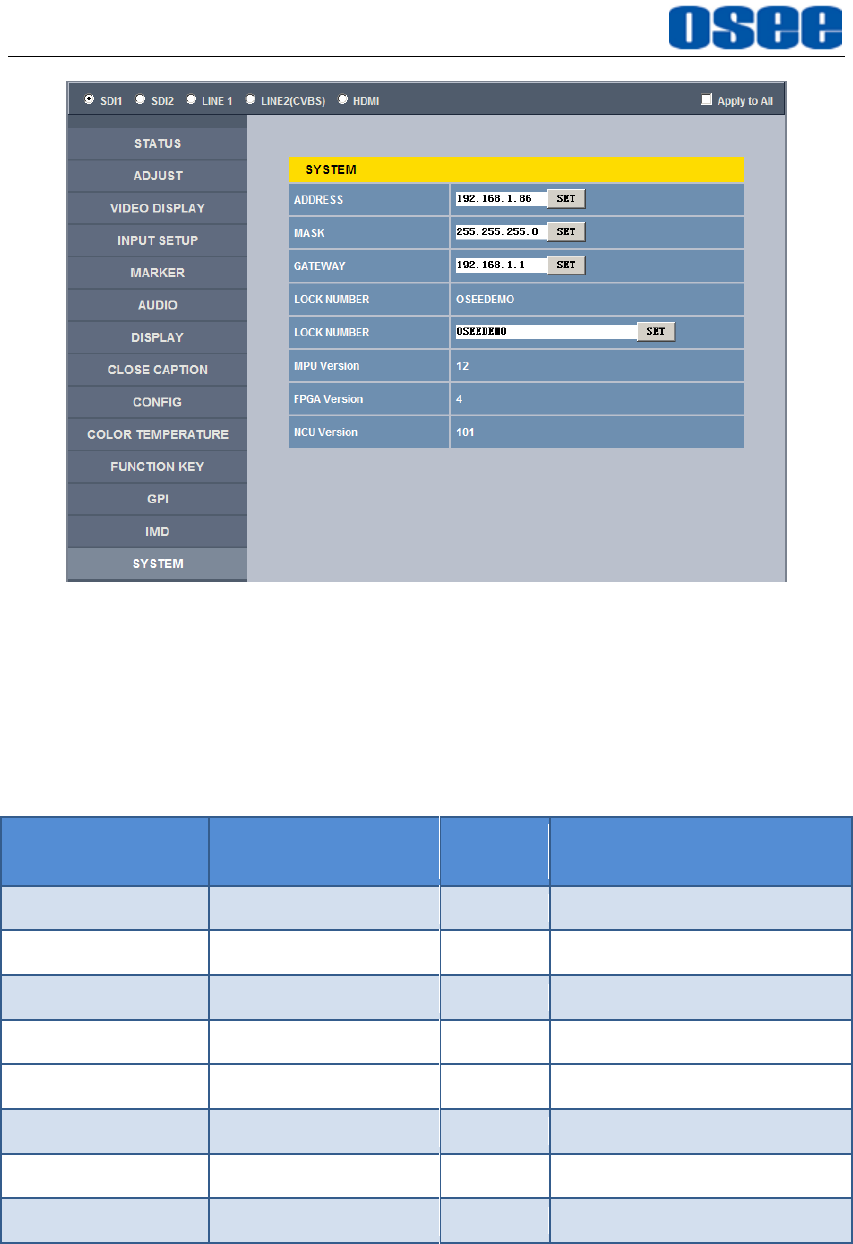

Figure 6.2-5 System Menu
The relationship of Items, Default Value, Domain Range and Description
of the sub-item is shown in Table 6.2-3:
Table 6.2-3 The Description of System Menu Items
Items
Default Value
Domain
Range
Description
IP
192.168.1.86
-
IP address
MASK
255.255.255.0
-
Subnet mask
Gateway
192.168.1.1
-
Gateway address
LOCK NUMBER
XXXXXX
-
Show the Serial Number
LOCK NUMBER
XXXXXX
-
Set the Serial Number
MPU Version
12
-
Product information
FPGA Version
4
-
Product information
NCU Version
101
-
Product information
6.2.4 Other Menus
For the menu items in management interface are almost as the same as
the menu items in the Main menu on screen, there will be no further
description about their meanings and value range in this chapter, refer to
Network Control
59
“Chapter 5 Functionality of the Main Menu” for the details about STATUS,
VIDEO CONFIG, AUDIO CONFIG, MARKER, DISPLAY, USER CONFIG,
and COLOR TEMPERATURE.
6.3 Parameter Settings
It will introduce how to modify parameter values in management interface in
the followings.
For example: modify Meter Select in AUDIO menu. Click AUDIO button to
display its parameter list, as shown in Figure 6.3-1, the corresponding screen
main menu is shown as in Figure 6.3-2:

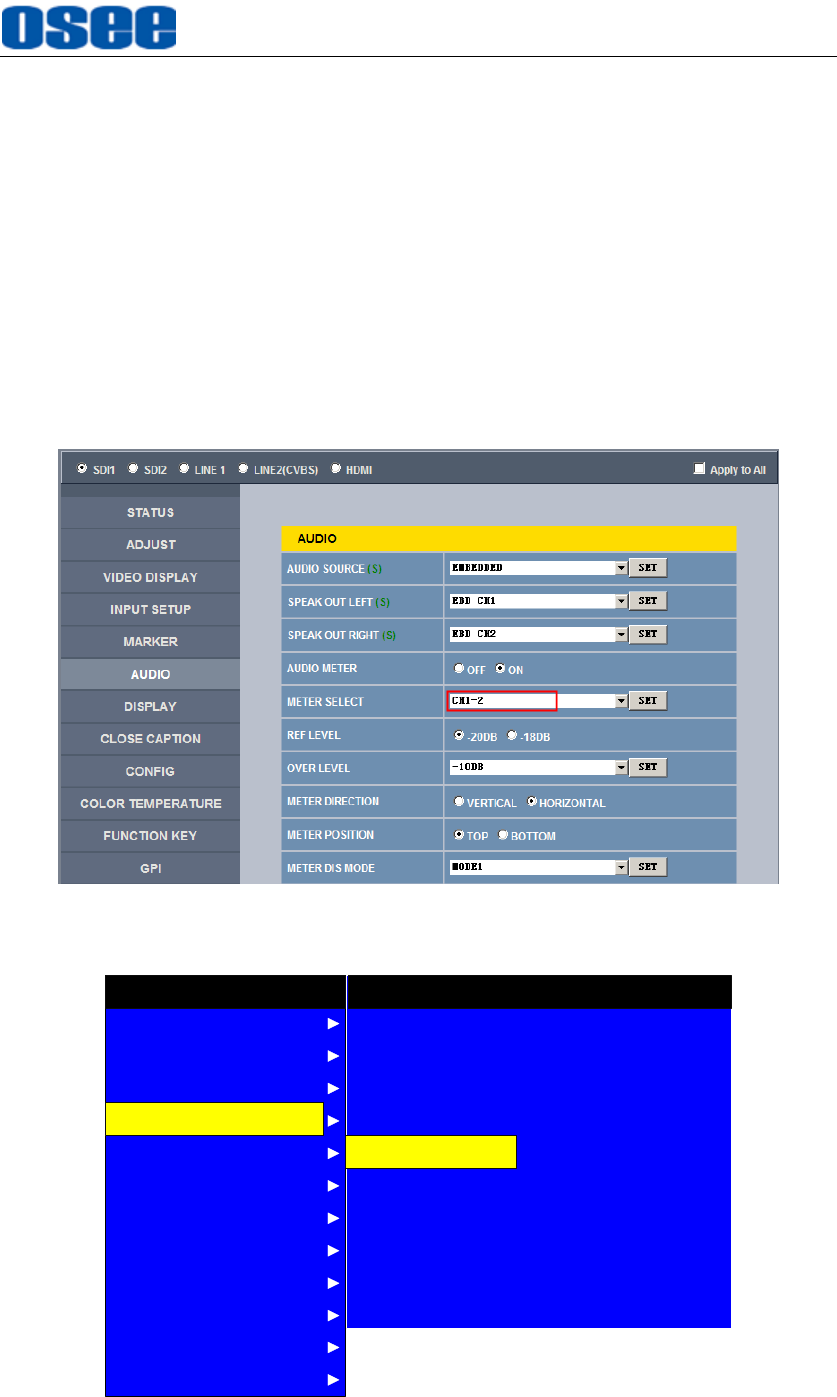

Figure 6.3-1 Parameter List for AUDIO
CLOSE CAPTION
DISPALY
CONFIG
COLOR TEMP
FUNCTION KEY
GPI
MAIN
AUDIO
MARKER
INPUT SELECT
STATUS
IMD
KEY INHIBIT
METER DIRECTION
AUDIO SOURCE
SPEAK OUT L
SPEAK OUT R
AUDIO METER
METER SELECT
METER POSITION
METER DIS MODE
REF LEVEL
AUDIO
HORIZONTAL
AUDIO1
EBD CH1
EBD CH1
OFF
CH1-2
TOP
MODE1
-20dB
OVER LEVEL -10dB
Figure 6.3-2 Screen Main Menu for AUDIO
Network Control
60
Click button to display the drop-down value list for the parameter, as shown
in Figure 6.3-3, for example, modify “CH1-2” to “G1”.

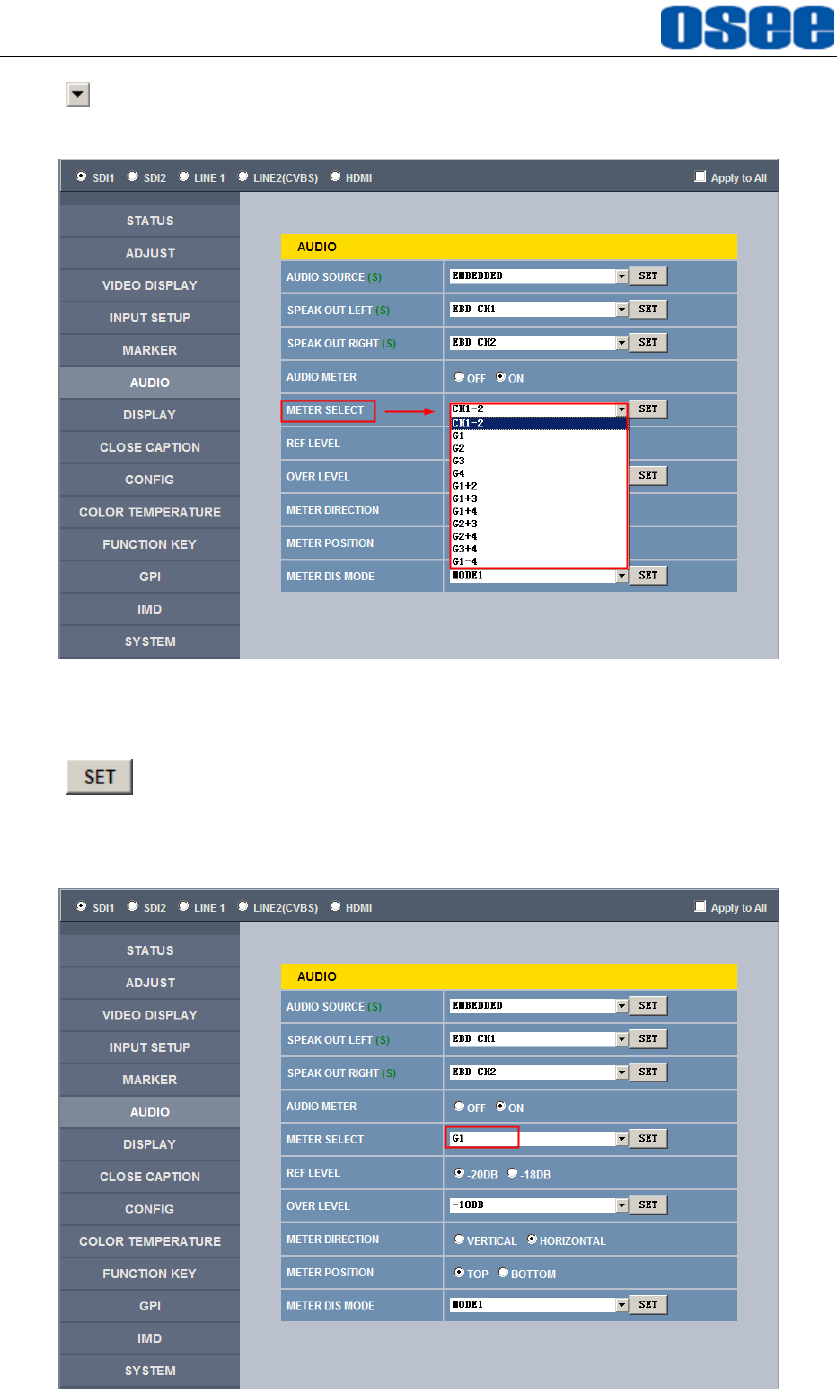

Figure 6.3-3 Display the Drop Down Value List of Meter Select(S)
Click button to confirm the selection and the page is refreshed. You
can check the modification on the screen menu, the results are the same as
shown in Figure 6.3-4 and Figure 6.3-5:
Figure 6.3-4 Modify the Value of a Parameter
Network Control
61
The volume can be checked and modified in adjust menu on screen
adjustment, or in Volume item of ADJUST menu in management interface.
CLOSE CAPTION
DISPALY
CONFIG
COLOR TEMP
FUNCTION KEY
GPI
MAIN
AUDIO
MARKER
INPUT SELECT
STATUS
IMD
KEY INHIBIT
METER DIRECTION
AUDIO SOURCE
SPEAK OUT L
SPEAK OUT R
AUDIO METER
METER SELECT
METER POSITION
METER DIS MODE
REF LEVEL
AUDIO
HORIZONTAL
AUDIO1
EBD CH1
EBD CH1
OFF
G1
TOP
MODE1
-20dB
OVER LEVEL -10dB
Figure 6.3-5 The Value is Modified Simultaneously on Screen Menu
Likewise, if you modify the value of a parameter on screen menu first, you may
check the same changing result in management interface through network
connection.
62
Specifications
63
Chapter 7 Specifications
1. Product detailed information
Specification
Values
LCD Dimension
24”, 569.9(H) x 380.7(V) x 97.4(D)
Aspect Ratio
16:10
Display Area(mm)
518.4(H)×324.0(V)
Viewing Angle
178°(H)x178°(V)
Color Depth
1.073G colors (RGB 10-bits)
Resolution
1920(H)×1200(V)
Pixel Pitch(mm)
0.270(H)×0.270(V)
Contrast
1000:1(Typ.)
Luminance (cd/㎡)
250 (Typ.)
Response Time (ms Typ.)
<6
Backlight
WhiteLED
Backlight Life(Hrs)
50000
Work Temperature
0°C~35°C
Signal Formats
CVBS: PAL, NTSC
SD: 480ip60, 576i50
HD: 1080i50, 1080i59.94, 1080i60, 720p50, 720p
59.94, 720p 60, 1035i59.94, 1035i 60
3G: 1080p50, 1080p60
CVBS Input/Output
Signal Type
NTSC, PAL
Signal Amplitude
1Vp-p+/-3dB
Impedance
75Ω
Return Loss
>40 dB to 5 MHz
DC Offset
0V±0.05 V
Frequency Response
±0.2 dB to 5 MHz
Differential Gain
<1%
Differential Phase
<1.5°
Specifications
64
Specification
Values
3G-SDI /HD-SDI /SDI-SDI Input/Output
Signal Type
SMPTE 424M, SMPTE 292M, SMPTE 259M,
SMPTE 297M
Connector
BNC per IEC 169-8
Impedance
75Ω
Return Loss
>18 dB 5 to 270 MHz
>15 dB 270 MHz to 1.5 GHz
>10 dB up to 3 GHz
Maximum Signal Level
800 mV pk-pk 10%
Signal Amplitude
800 mV pk-pk 10%
DC Offset
0 V ±0.5 V
Overshoot
<10%
Jitter
<0.2 UI
Rise/Fall Time
<700 ps for SD
<270 ps for 1.5 Gb/s HD
<135 ps for 3 Gb/s HD
Extinction Ratio
>8
Back Reflection
<-14 dB
Power Supply
5A12V DC
2. Input/Output Resolution, Frame Refresh Rate and Color Matrix
OVERSCAN
NATIVE
FULL/NORMAL
Refresh
Rate
Color
Matrix
Input
Output
Input
Output
INPUT ALL
OUTPUT
NORMAL
NTSC
684X462
1366X768
1024X768
720X487
720X487
720X487
1366X768
1024X768
60
601
PAL
684X548
1366X768
1024X768
720X576
720X576
720X576
1366X768
1024X768
50
601
SECAM
684X548
1366X768
1024X768
720X576
720X576
720X576
1366X768
1024X768
50
601
NTCS-4.4
3
684X462
1366X768
1024X768
720X487
720X487
720X487
1366X768
1024X768
60
601
PAL-M
684X462
1366X768
1024X768
720X487
720X487
720X487
1366X768
1024X768
60
601
480I60
684X462
1366X768
1024X768
720X487
720X487
720X487
1366X768
1024X768
60
601/70
9
576I50
684X548
1366X768
1024X768
720X576
720X576
720X576
1366X768
1024X768
50
601
480P60
684X462
1366X768
1024X768
720X487
720X487
720X487
1366X768
1024X768
60
601/70
9
576P50
684X548
1366X768
720X576
720X576
720X576
1366X768
50
601
Specifications
65
OVERSCAN
NATIVE
FULL/NORMAL
Refresh
Rate
Color
Matrix
Input
Output
Input
Output
INPUT ALL
OUTPUT
NORMAL
1024X768
1024X768
720P24
1216X684
1366X768
1280x720
1280x720
1280x720
1366X768
48
709
720P25
1216X684
1366X768
1280x720
1280x720
1280x720
1366X768
50
709
720P30
1216X684
1366X768
1280x720
1280x720
1280x720
1366X768
30
709
720P50
1216X684
1366X768
1280x720
1280x720
1280x720
1366X768
50
709
720P60
1216X684
1366X768
1280x720
1280x720
1280x720
1366X768
60
709
1035I60
1824X984
1366X768
1920X1035
1920X1035
1920X1035
1366X768
60
709
1080I60
1824X1026
1366X768
1920X1080
1920X1080
1920X1080
1366X768
60
709
1080I50
1824X1026
1366X768
1920X1080 1920X1080
1920X1080
1366X768
50
709
1080P24
1824X1026
1366X768
1920X1080 1920X1080
1920X1080
1366X768
48
709
1080P25
1824X1026
1366X768
1920X1080 1920X1080
1920X1080
1366X768
50
709
1080P30
1824X1026
1366X768
1920X1080 1920X1080
1920X1080
1366X768
60
709
1080P50
1824X1026
1366X768
1920X1080 1920X1080
1920X1080
1366X768
50
709
1080P60
1824X1026
1366X768
1920X1080 1920X1080
1920X1080
1366X768
60
709
1080SF24
1824X1026
1366X768
1920X1080 1920X1080
1920X1080
1366X768
48
709
VGA
640X480
1366X768
60-75
SVGA
800X600
1366X768
60-75
XGA
1024x768
1366X768
60-75
SXGA
1280x1024
1366X768
60-75
UXGA
1600x1200
1366X768
60
WXGA
1360X768
1360X768
60
WUXGA
1920x1200
1366X768
60
*Don’t display all OSD when SCAN is NATIVE.
*Don’t display MARKER when SCAN is NATIVE.
3. Dimensions
The description of the product dimensions is shown as in the following
figures:
Specifications
66
Figure 7-1 Front Panel(Unit: mm)
Figure 7-2 Rear Panel(Unit: mm)
Specifications
67
Figure 7-3 Top View(Unit: mm)
Figure 7-4 Side View(Unit: mm)
Specifications are subject to change without notice.
------------------No Text Below------------------
FOR MORE INFORMATION PLEASE VISIT: http://www.osee-dig.com/
OSEE TECHNOLOGY CO., LTD. No.22 Building, No.68 zone, Beiqing Road,
Haidian District, Beijing, China
Tel: (+86) 010-62434168, Fax: (+86) 010-62434169
E-mail: sales@osee-dig.com
