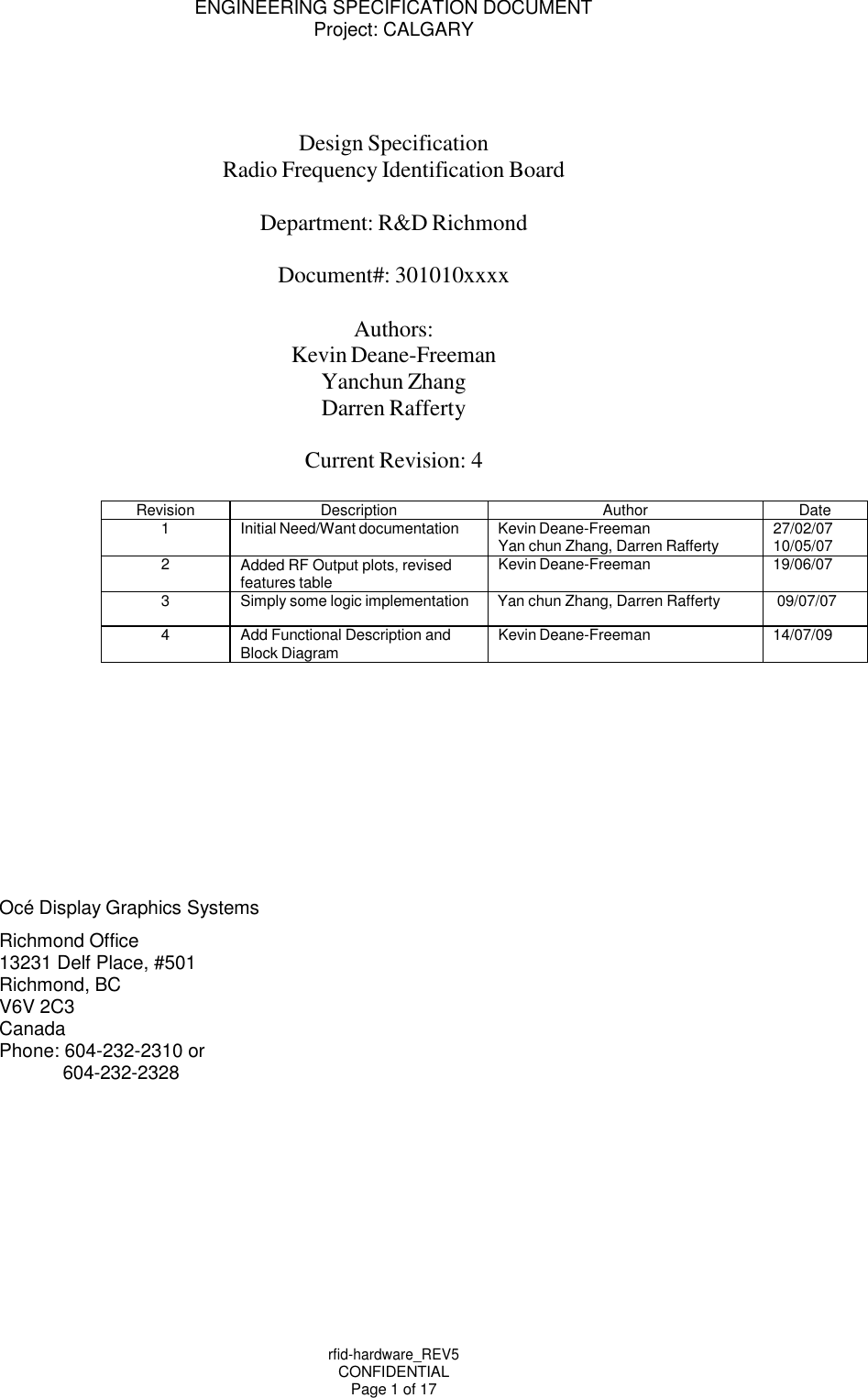

ENGINEERING SPECIFICATION DOCUMENT Project: CALGARY rfid-hardware_REV5 CONFIDENTIAL Page 1 of 17       Design Specification Radio Frequency Identification Board Department: R&D Richmond Document#: 301010xxxx Authors: Kevin Deane-Freeman Yanchun Zhang Darren Rafferty  Current Revision: 4  Revision Description Author Date 1 Initial Need/Want documentation Kevin Deane-Freeman Yan chun Zhang, Darren Rafferty 27/02/07 10/05/07 2 Added RF Output plots, revised features table Kevin Deane-Freeman 19/06/07 3 Simply some logic implementation Yan chun Zhang, Darren Rafferty 09/07/07 4 Add Functional Description and Block Diagram Kevin Deane-Freeman 14/07/09           Océ Display Graphics Systems Richmond Office  13231 Delf Place, #501 Richmond, BC V6V 2C3 Canada Phone: 604-232-2310 or 604-232-2328

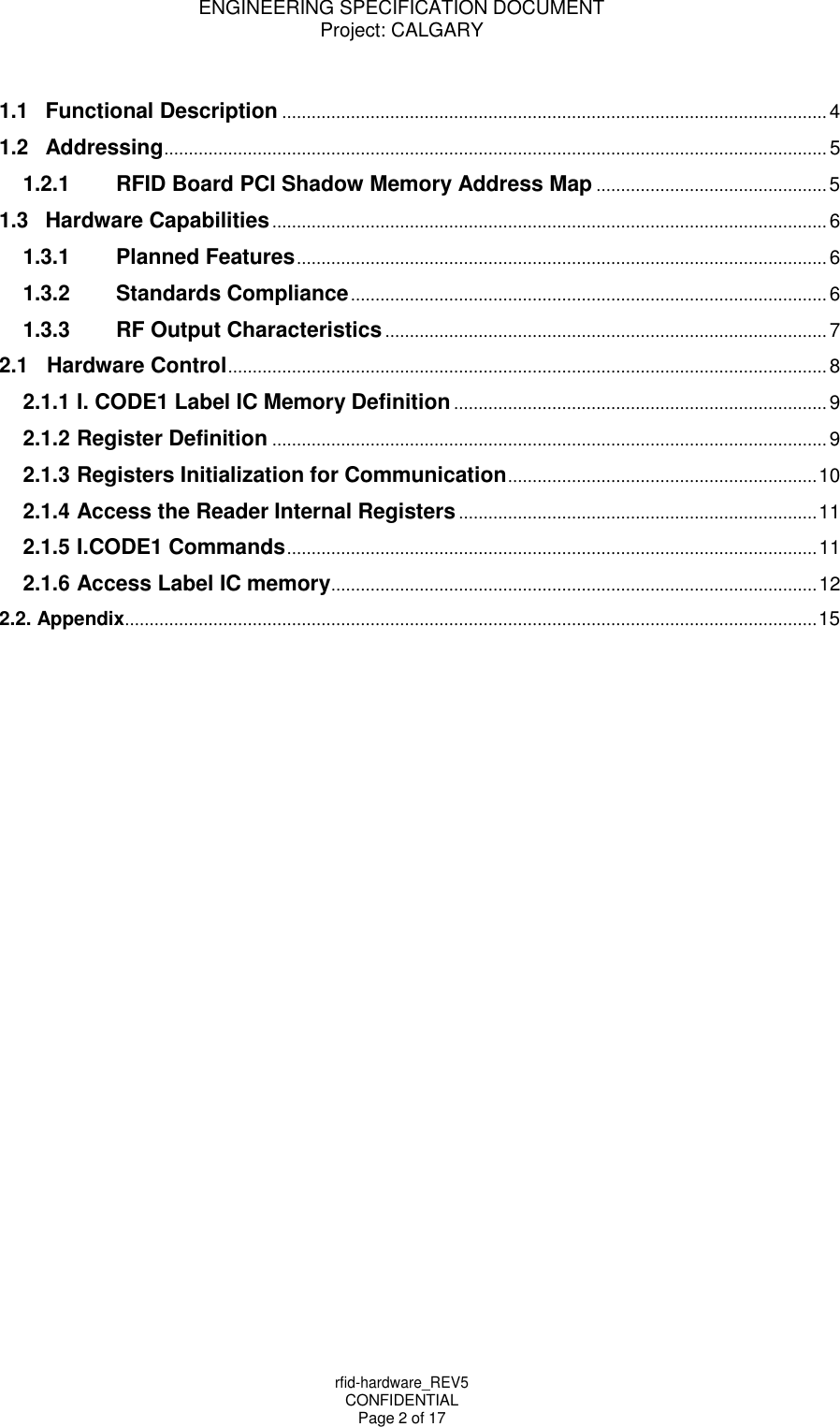

ENGINEERING SPECIFICATION DOCUMENT Project: CALGARY rfid-hardware_REV5 CONFIDENTIAL Page 2 of 17     1.1 Functional Description ............................................................................................................... 4 1.2 Addressing ....................................................................................................................................... 5 1.2.1 RFID Board PCI Shadow Memory Address Map ............................................... 5 1.3 Hardware Capabilities ................................................................................................................. 6 1.3.1 Planned Features ............................................................................................................ 6 1.3.2 Standards Compliance ................................................................................................. 6 1.3.3 RF Output Characteristics .......................................................................................... 7 2.1 Hardware Control .......................................................................................................................... 8 2.1.1 I. CODE1 Label IC Memory Definition ............................................................................ 9 2.1.2 Register Definition ................................................................................................................. 9 2.1.3 Registers Initialization for Communication ............................................................... 10 2.1.4 Access the Reader Internal Registers ......................................................................... 11 2.1.5 I.CODE1 Commands ............................................................................................................ 11 2.1.6 Access Label IC memory ................................................................................................... 12 2.2. Appendix ............................................................................................................................................. 15

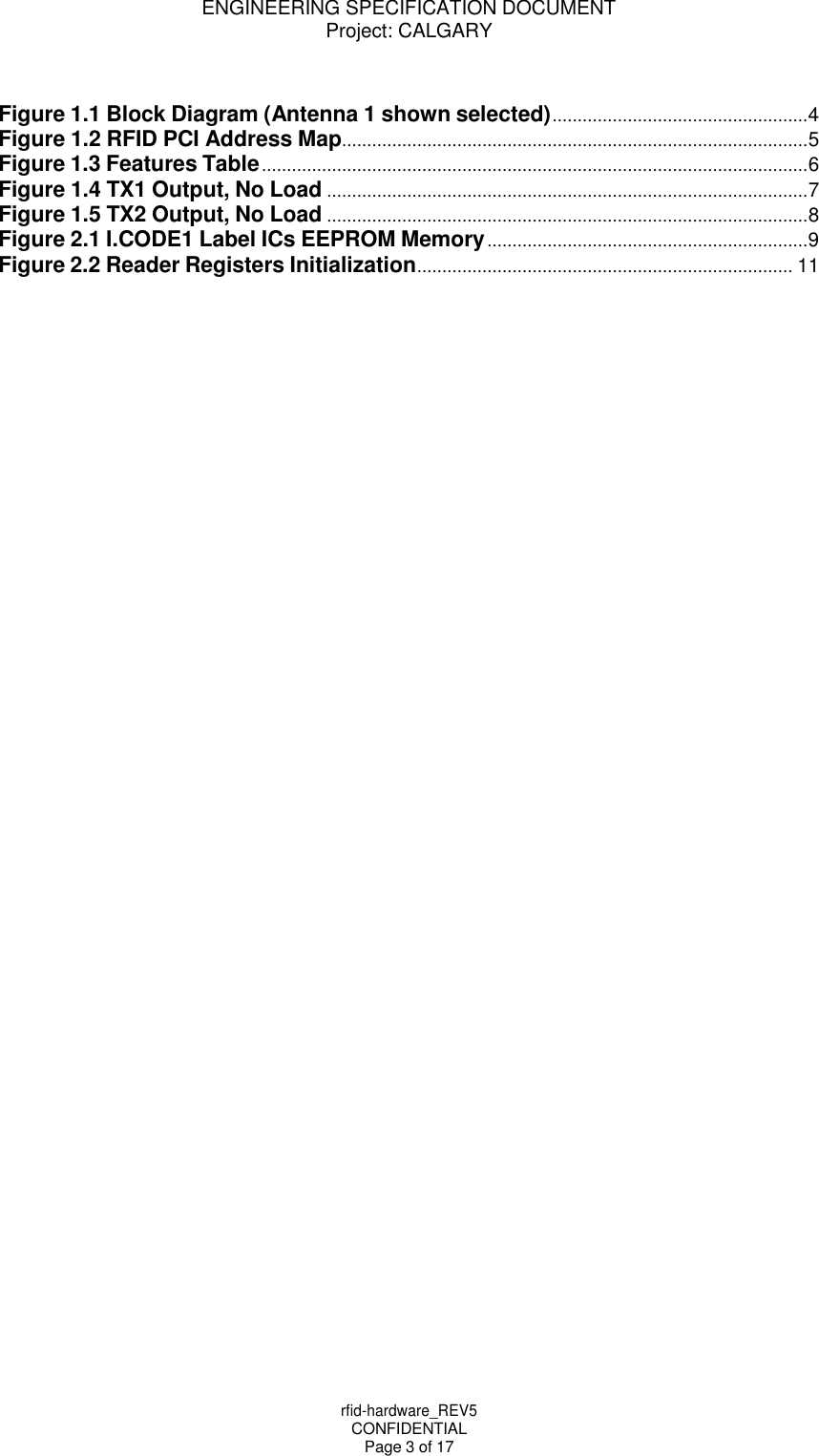

ENGINEERING SPECIFICATION DOCUMENT Project: CALGARY rfid-hardware_REV5 CONFIDENTIAL Page 3 of 17     Figure 1.1 Block Diagram (Antenna 1 shown selected) ................................................... 4 Figure 1.2 RFID PCI Address Map ............................................................................................. 5 Figure 1.3 Features Table ............................................................................................................. 6 Figure 1.4 TX1 Output, No Load ................................................................................................ 7 Figure 1.5 TX2 Output, No Load ................................................................................................ 8 Figure 2.1 I.CODE1 Label ICs EEPROM Memory ................................................................ 9 Figure 2.2 Reader Registers Initialization ........................................................................... 11

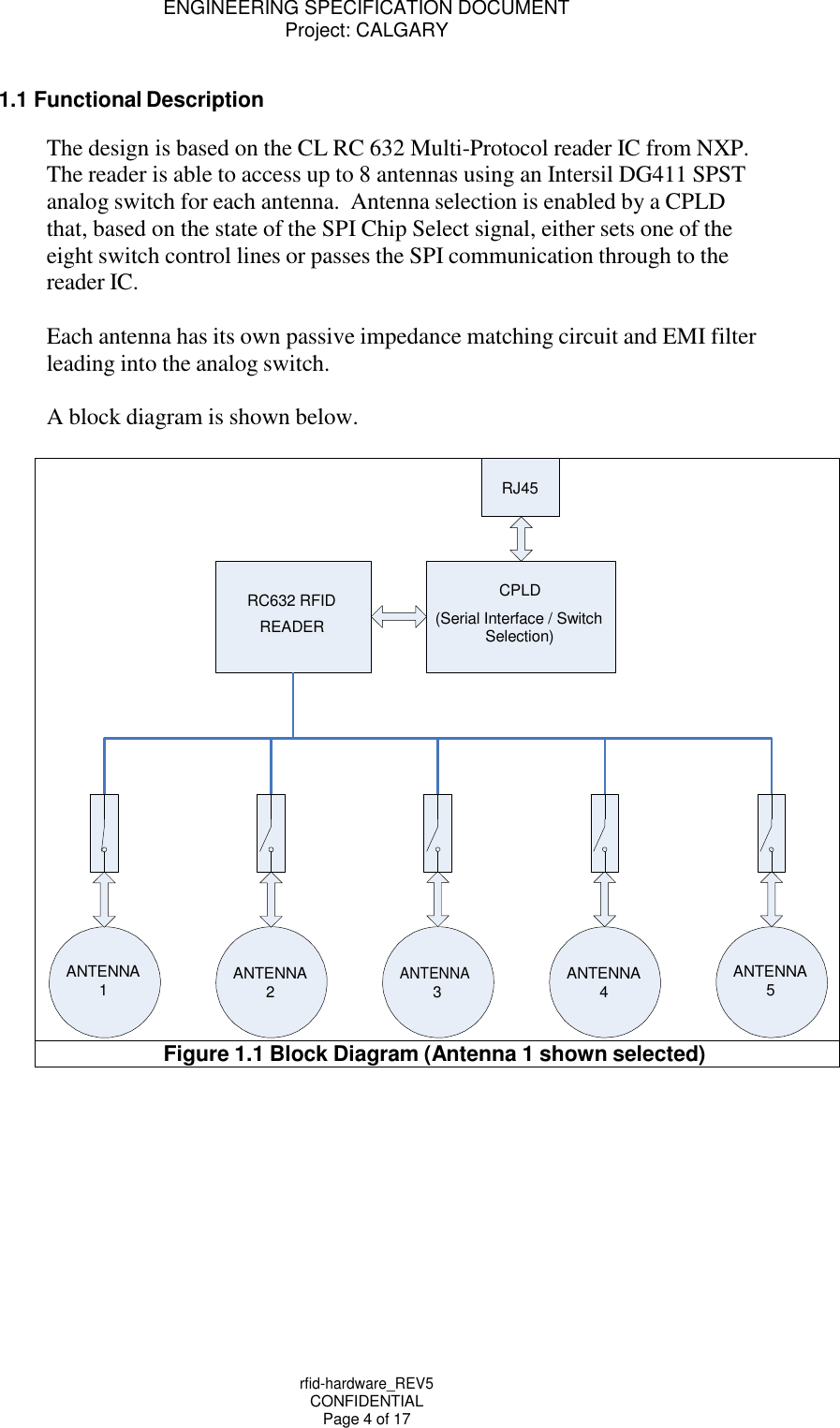

ENGINEERING SPECIFICATION DOCUMENT Project: CALGARY rfid-hardware_REV5 CONFIDENTIAL Page 4 of 17     1.1 Functional Description  The design is based on the CL RC 632 Multi-Protocol reader IC from NXP. The reader is able to access up to 8 antennas using an Intersil DG411 SPST analog switch for each antenna.  Antenna selection is enabled by a CPLD that, based on the state of the SPI Chip Select signal, either sets one of the eight switch control lines or passes the SPI communication through to the reader IC.  Each antenna has its own passive impedance matching circuit and EMI filter leading into the analog switch.  A block diagram is shown below.    RJ45                           ANTENNA 1   RC632 RFID CPLD READER (Serial Interface / Switch Selection)                   ANTENNA ANTENNA ANTENNA 2    3    4                          ANTENNA 5 Figure 1.1 Block Diagram (Antenna 1 shown selected)

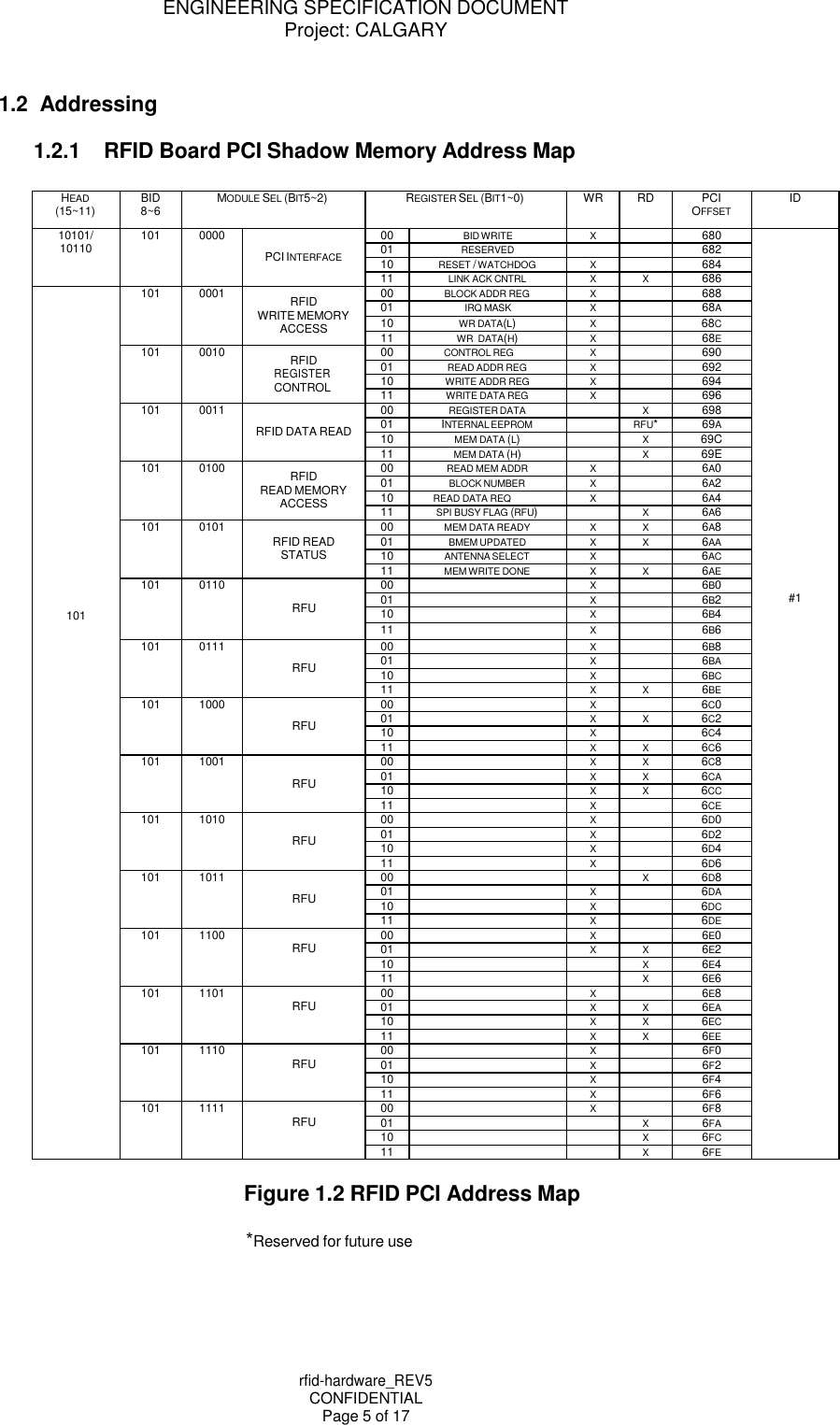

ENGINEERING SPECIFICATION DOCUMENT Project: CALGARY rfid-hardware_REV5 CONFIDENTIAL Page 5 of 17     1.2 Addressing  1.2.1 RFID Board PCI Shadow Memory Address Map  HEAD (15~11) BID 8~6 MODULE SEL (BIT5~2) REGISTER SEL (BIT1~0) WR RD PCI OFFSET ID 10101/ 10110 101 0000  PCI INTERFACE 00 BID WRITE X  680                            #1 01 RESERVED   682 10 RESET / WATCHDOG X  684 11 LINK ACK CNTRL X X 686                         101 101 0001 RFID WRITE MEMORY ACCESS 00 BLOCK ADDR REG X  688 01 IRQ MASK X  68A 10 WR DATA(L) X  68C 11 WR  DATA(H) X  68E 101 0010 RFID REGISTER CONTROL 00 CONTROL REG X  690 01 READ ADDR REG X  692 10 WRITE ADDR REG X  694 11 WRITE DATA REG X  696 101 0011  RFID DATA READ 00 REGISTER DATA  X 698 01 INTERNAL EEPROM  RFU* 69A 10 MEM DATA (L)  X 69C 11 MEM DATA (H)  X 69E 101 0100 RFID READ MEMORY ACCESS 00 READ MEM ADDR X  6A0 01 BLOCK NUMBER X  6A2 10 READ DATA REQ X  6A4 11 SPI BUSY FLAG (RFU)  X 6A6 101 0101  RFID READ STATUS 00 MEM DATA READY X X 6A8 01 BMEM UPDATED X X 6AA 10 ANTENNA SELECT X  6AC 11 MEM WRITE DONE X X 6AE 101 0110  RFU 00  X  6B0 01  X  6B2 10  X  6B4 11  X  6B6 101 0111  RFU 00  X  6B8 01  X  6BA 10  X  6BC 11  X X 6BE 101 1000  RFU 00  X  6C0 01  X X 6C2 10  X  6C4 11  X X 6C6 101 1001  RFU 00  X X 6C8 01  X X 6CA 10  X X 6CC 11  X  6CE 101 1010  RFU 00  X  6D0 01  X  6D2 10  X  6D4 11  X  6D6 101 1011  RFU 00   X 6D8 01  X  6DA 10  X  6DC 11  X  6DE 101 1100  RFU 00  X  6E0 01  X X 6E2 10   X 6E4 11   X 6E6 101 1101  RFU 00  X  6E8 01  X X 6EA 10  X X 6EC 11  X X 6EE 101 1110  RFU 00  X  6F0 01  X  6F2 10  X  6F4 11  X  6F6 101 1111  RFU 00  X  6F8 01   X 6FA 10   X 6FC 11   X 6FE  Figure 1.2 RFID PCI Address Map  *Reserved for future use

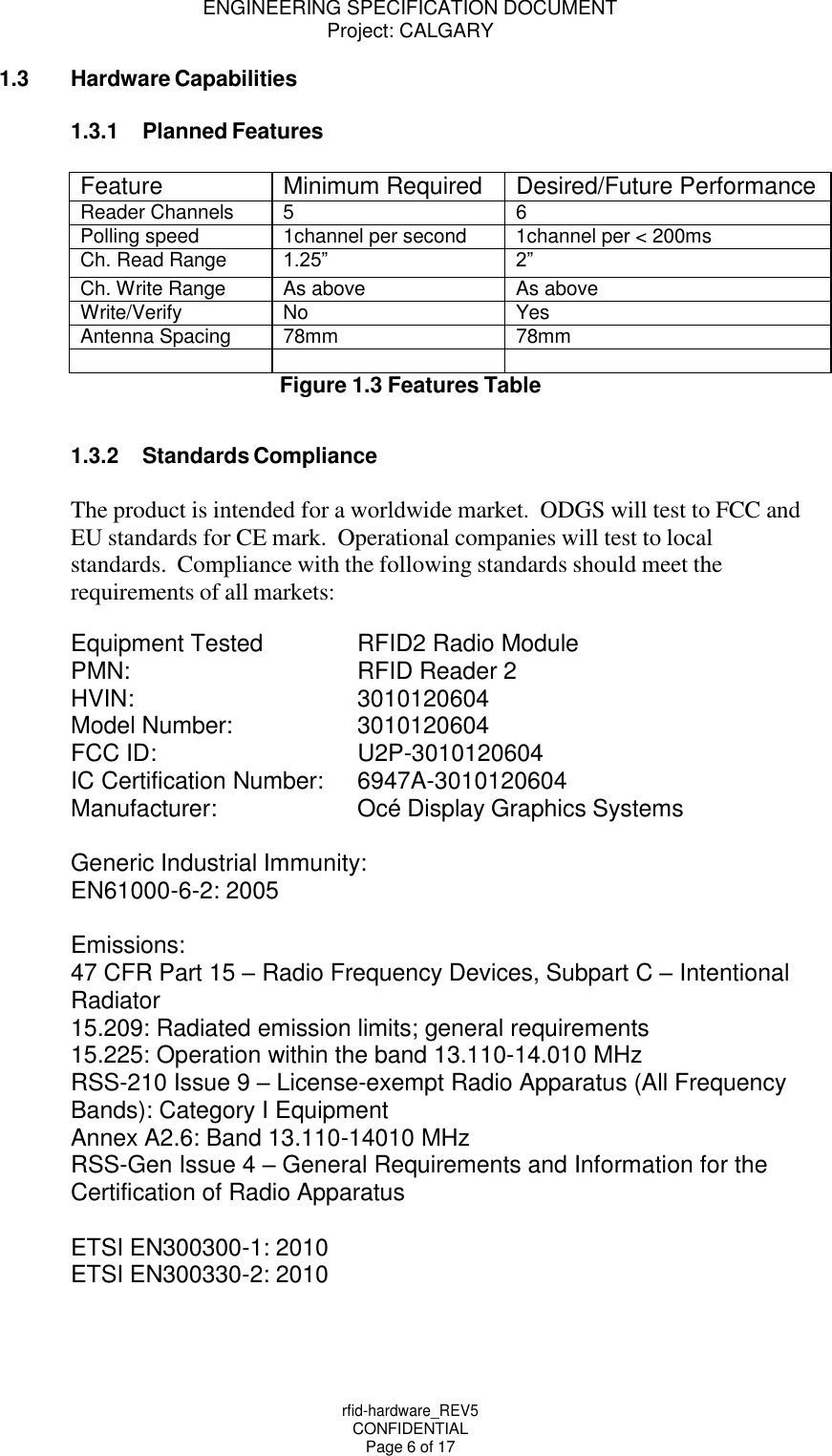

ENGINEERING SPECIFICATION DOCUMENT Project: CALGARY rfid-hardware_REV5 CONFIDENTIAL Page 6 of 17    1.3 Hardware Capabilities  1.3.1 Planned Features  Feature Minimum Required Desired/Future Performance Reader Channels 5 6 Polling speed 1channel per second 1channel per < 200ms Ch. Read Range 1.25” 2” Ch. Write Range As above As above Write/Verify No Yes Antenna Spacing 78mm 78mm    Figure 1.3 Features Table   1.3.2 Standards Compliance  The product is intended for a worldwide market.  ODGS will test to FCC and EU standards for CE mark.  Operational companies will test to local standards.  Compliance with the following standards should meet the requirements of all markets:  Equipment Tested RFID2 Radio Module  PMN:  RFID Reader 2 HVIN:  3010120604 Model Number: 3010120604 FCC ID: U2P-3010120604 IC Certification Number: 6947A-3010120604 Manufacturer: Océ Display Graphics Systems  Generic Industrial Immunity: EN61000-6-2: 2005  Emissions: 47 CFR Part 15 – Radio Frequency Devices, Subpart C – Intentional Radiator 15.209: Radiated emission limits; general requirements 15.225: Operation within the band 13.110-14.010 MHz RSS-210 Issue 9 – License-exempt Radio Apparatus (All Frequency Bands): Category I Equipment Annex A2.6: Band 13.110-14010 MHz RSS-Gen Issue 4 – General Requirements and Information for the Certification of Radio Apparatus  ETSI EN300300-1: 2010 ETSI EN300330-2: 2010
ENGINEERING SPECIFICATION DOCUMENT Project: CALGARY rfid-hardware_REV5 CONFIDENTIAL Page 7 of 17    Warnings for FCC:  FCC Part 15 This device complies with FCC Rules Part 15 operation is subject to the following two conditions: 1. This device may not cause harmful interference. 2. This device must accept any interference, including interference that may cause undesired operation of the device. Changes or modifications to this device, not expressly approved by XXXX. could void the user’s authority to operate the equipment.  Warnings from RSS-Gen Issue 4 Section 8.4 and RSP-100 Issue 11 Section 4:  This device complies with Industry Canada’s license-exempt RSSs. Operation is subject to the following two conditions: (1) This device may not cause interference; and (2) This device must accept any interference, including interference that may cause undesired operation of the device. Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement.  1.3.3 RF Output Characteristics   Figure 1.4 TX1 Output, No Load

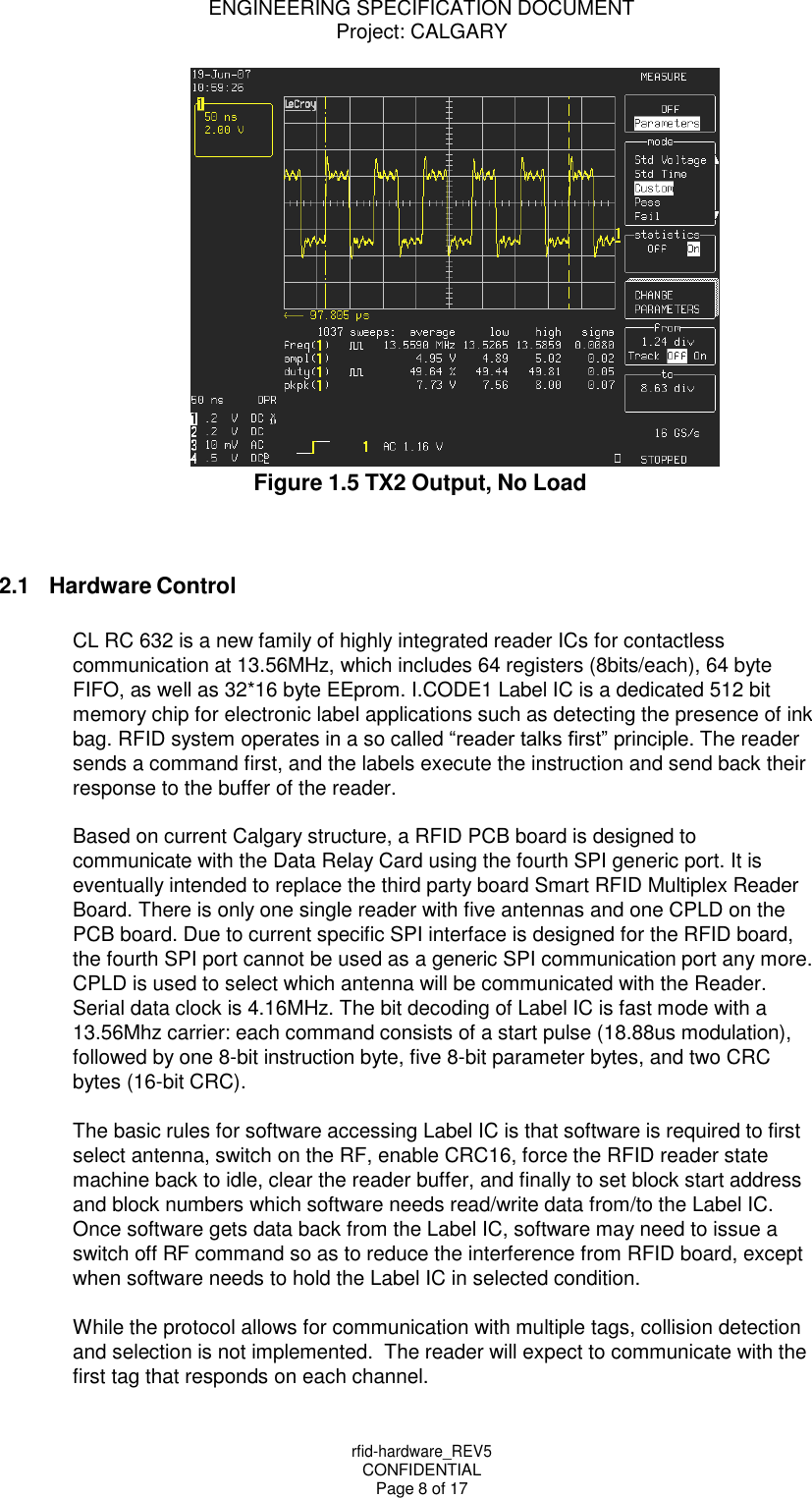

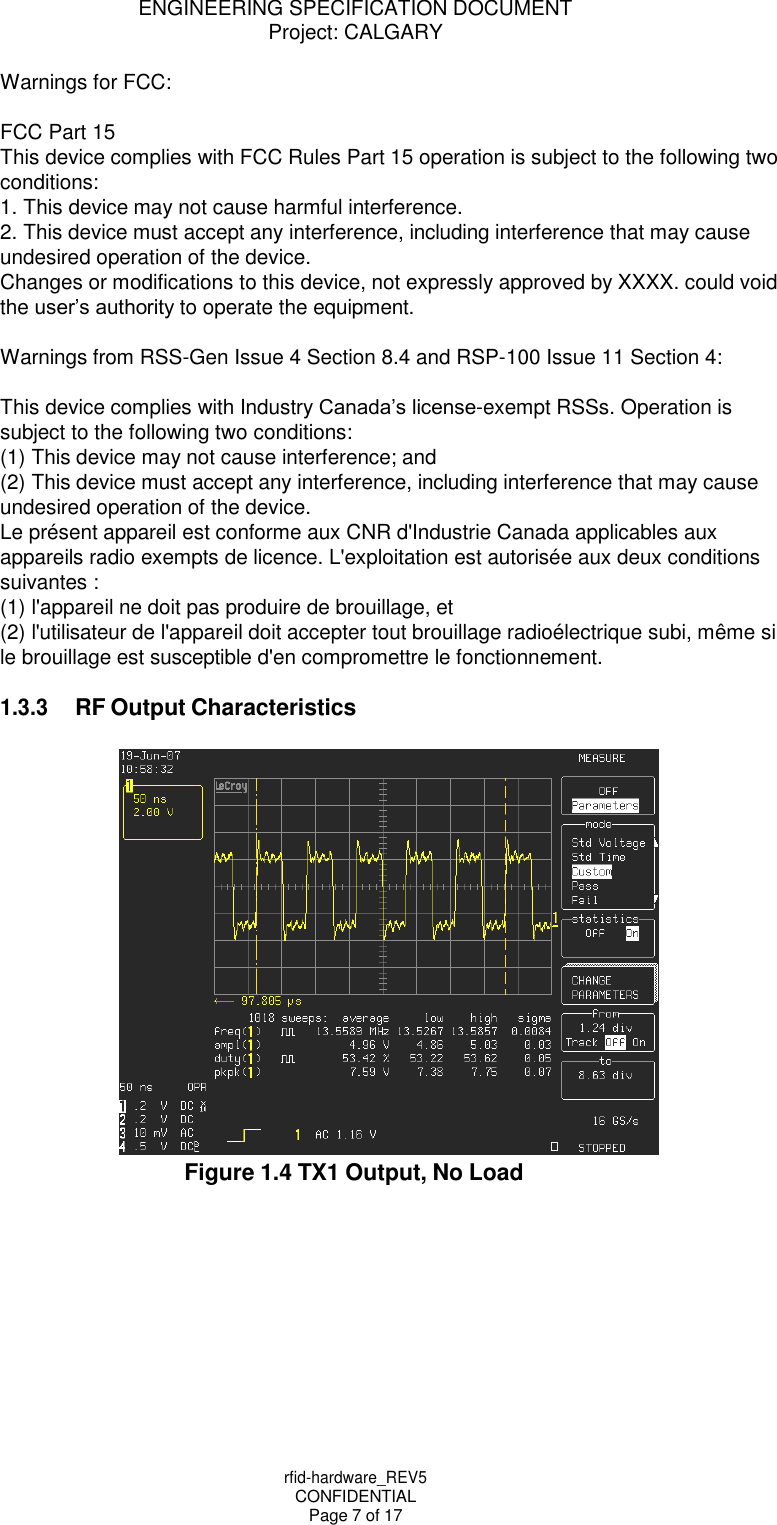

ENGINEERING SPECIFICATION DOCUMENT Project: CALGARY rfid-hardware_REV5 CONFIDENTIAL Page 8 of 17     Figure 1.5 TX2 Output, No Load    2.1 Hardware Control  CL RC 632 is a new family of highly integrated reader ICs for contactless communication at 13.56MHz, which includes 64 registers (8bits/each), 64 byte FIFO, as well as 32*16 byte EEprom. I.CODE1 Label IC is a dedicated 512 bit memory chip for electronic label applications such as detecting the presence of ink bag. RFID system operates in a so called “reader talks first” principle. The reader sends a command first, and the labels execute the instruction and send back their response to the buffer of the reader.  Based on current Calgary structure, a RFID PCB board is designed to communicate with the Data Relay Card using the fourth SPI generic port. It is eventually intended to replace the third party board Smart RFID Multiplex Reader Board. There is only one single reader with five antennas and one CPLD on the PCB board. Due to current specific SPI interface is designed for the RFID board, the fourth SPI port cannot be used as a generic SPI communication port any more. CPLD is used to select which antenna will be communicated with the Reader. Serial data clock is 4.16MHz. The bit decoding of Label IC is fast mode with a 13.56Mhz carrier: each command consists of a start pulse (18.88us modulation), followed by one 8-bit instruction byte, five 8-bit parameter bytes, and two CRC bytes (16-bit CRC).  The basic rules for software accessing Label IC is that software is required to first select antenna, switch on the RF, enable CRC16, force the RFID reader state machine back to idle, clear the reader buffer, and finally to set block start address and block numbers which software needs read/write data from/to the Label IC. Once software gets data back from the Label IC, software may need to issue a switch off RF command so as to reduce the interference from RFID board, except when software needs to hold the Label IC in selected condition.  While the protocol allows for communication with multiple tags, collision detection and selection is not implemented.  The reader will expect to communicate with the first tag that responds on each channel.

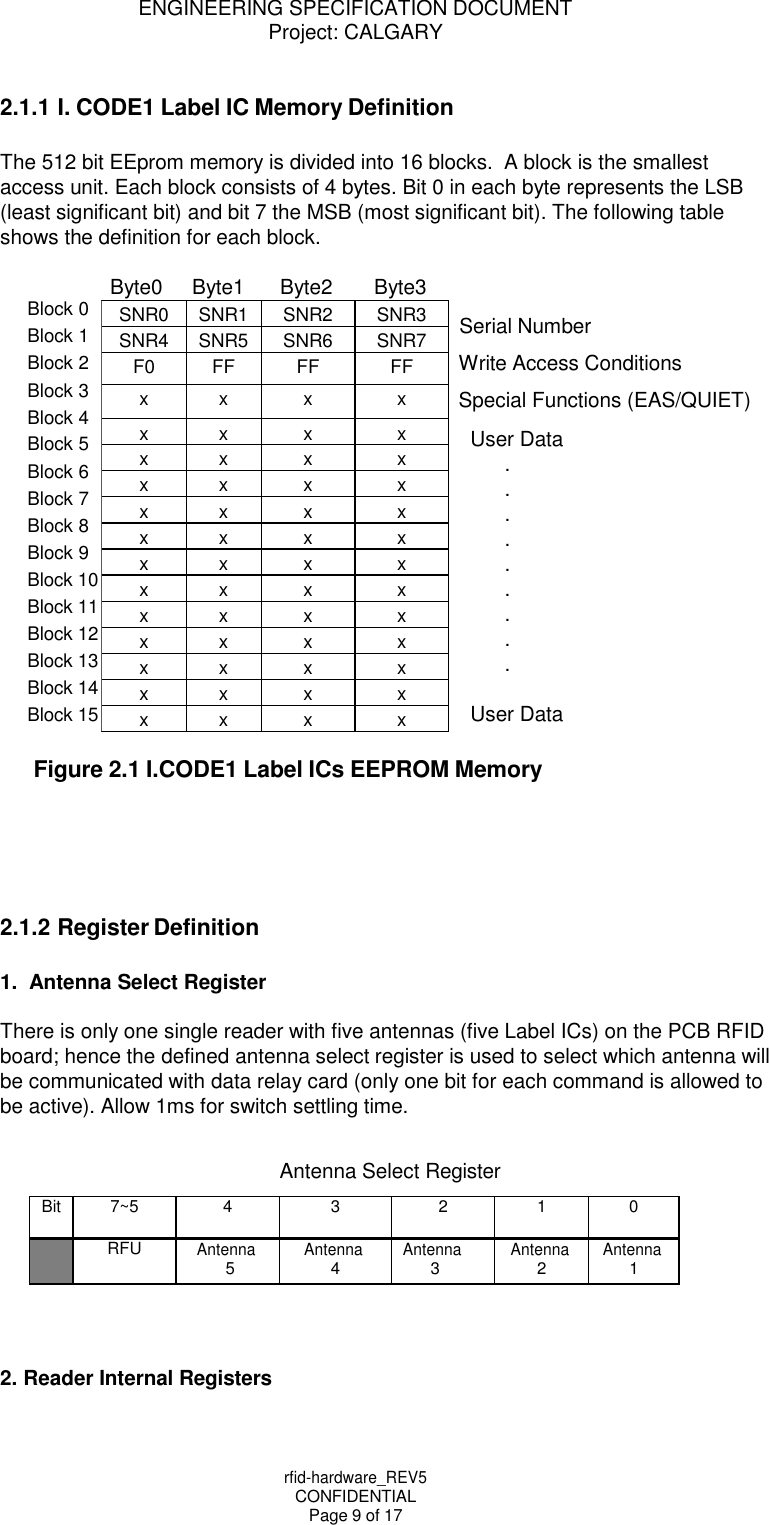

ENGINEERING SPECIFICATION DOCUMENT Project: CALGARY rfid-hardware_REV5 CONFIDENTIAL Page 9 of 17     2.1.1 I. CODE1 Label IC Memory Definition  The 512 bit EEprom memory is divided into 16 blocks.  A block is the smallest access unit. Each block consists of 4 bytes. Bit 0 in each byte represents the LSB (least significant bit) and bit 7 the MSB (most significant bit). The following table shows the definition for each block.   Block 0 Block 1 Block 2 Block 3 Block 4 Block 5 Block 6 Block 7 Block 8 Block 9 Block 10 Block 11 Block 12 Block 13 Block 14 Block 15 Byte0 Byte1 Byte2 Byte3   Serial Number Write Access Conditions Special Functions (EAS/QUIET) User Data . . . . . . . . .  User Data  Figure 2.1 I.CODE1 Label ICs EEPROM Memory      2.1.2 Register Definition  1.  Antenna Select Register  There is only one single reader with five antennas (five Label ICs) on the PCB RFID board; hence the defined antenna select register is used to select which antenna will be communicated with data relay card (only one bit for each command is allowed to be active). Allow 1ms for switch settling time.  Antenna Select Register  Bit 7~5 4 3 2 1 0  RFU Antenna 5 Antenna 4 Antenna 3 Antenna 2 Antenna 1    2. Reader Internal Registers SNR0 SNR1 SNR2 SNR3 SNR4 SNR5 SNR6 SNR7 F0 FF FF FF x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x

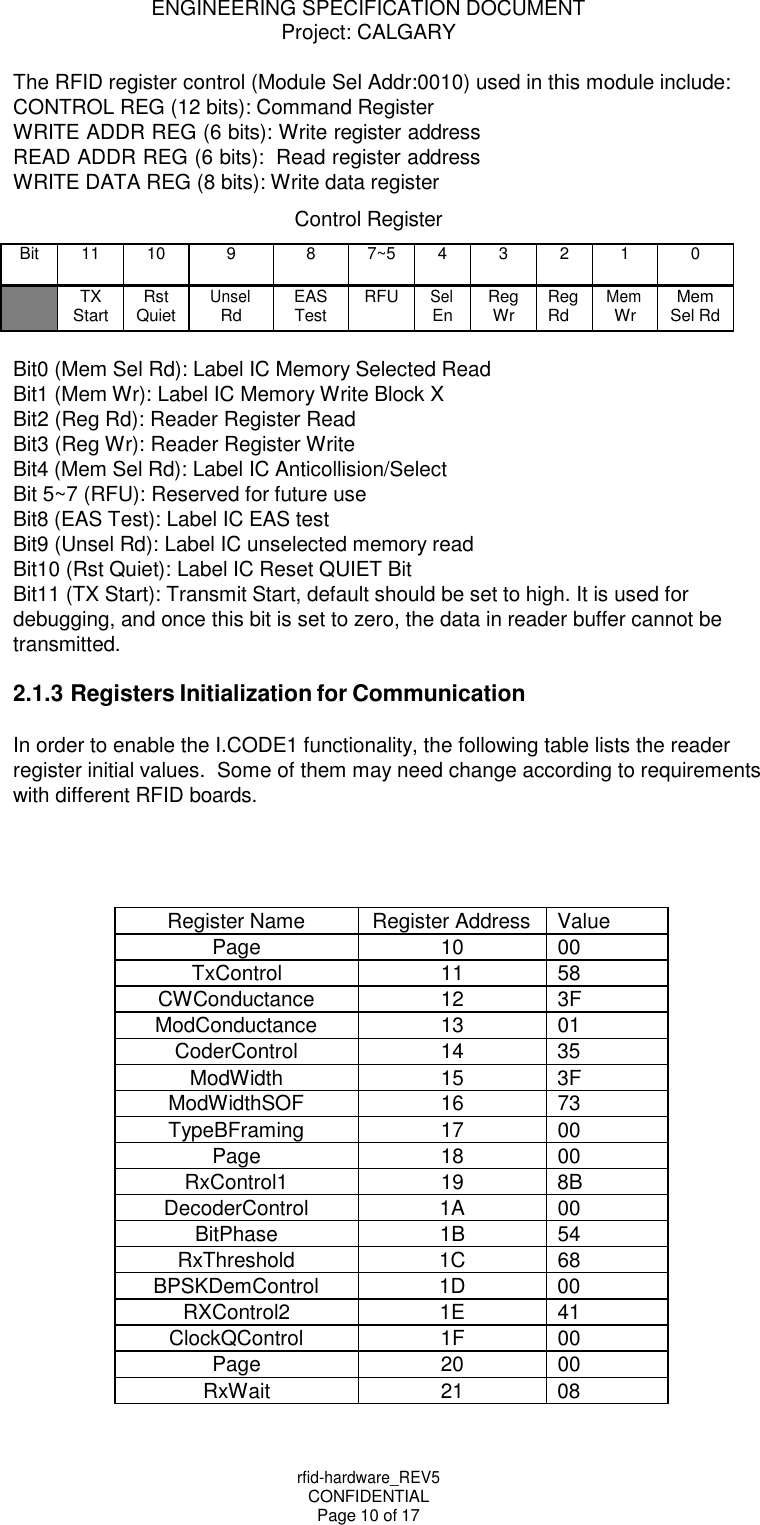

ENGINEERING SPECIFICATION DOCUMENT Project: CALGARY rfid-hardware_REV5 CONFIDENTIAL Page 10 of 17    The RFID register control (Module Sel Addr:0010) used in this module include: CONTROL REG (12 bits): Command Register WRITE ADDR REG (6 bits): Write register address READ ADDR REG (6 bits):  Read register address WRITE DATA REG (8 bits): Write data register Control Register  Bit 11 10 9 8 7~5 4 3 2 1 0  TX Start Rst Quiet Unsel Rd EAS Test RFU Sel En Reg Wr Reg Rd Mem Wr Mem Sel Rd  Bit0 (Mem Sel Rd): Label IC Memory Selected Read Bit1 (Mem Wr): Label IC Memory Write Block X Bit2 (Reg Rd): Reader Register Read Bit3 (Reg Wr): Reader Register Write Bit4 (Mem Sel Rd): Label IC Anticollision/Select Bit 5~7 (RFU): Reserved for future use Bit8 (EAS Test): Label IC EAS test Bit9 (Unsel Rd): Label IC unselected memory read Bit10 (Rst Quiet): Label IC Reset QUIET Bit Bit11 (TX Start): Transmit Start, default should be set to high. It is used for debugging, and once this bit is set to zero, the data in reader buffer cannot be transmitted.  2.1.3 Registers Initialization for Communication  In order to enable the I.CODE1 functionality, the following table lists the reader register initial values.  Some of them may need change according to requirements with different RFID boards.     Register Name Register Address Value Page 10 00 TxControl 11 58 CWConductance 12 3F ModConductance 13 01 CoderControl 14 35 ModWidth 15 3F ModWidthSOF 16 73 TypeBFraming 17 00 Page 18 00 RxControl1 19 8B DecoderControl 1A 00 BitPhase 1B 54 RxThreshold 1C 68 BPSKDemControl 1D 00 RXControl2 1E 41 ClockQControl 1F 00 Page 20 00 RxWait 21 08

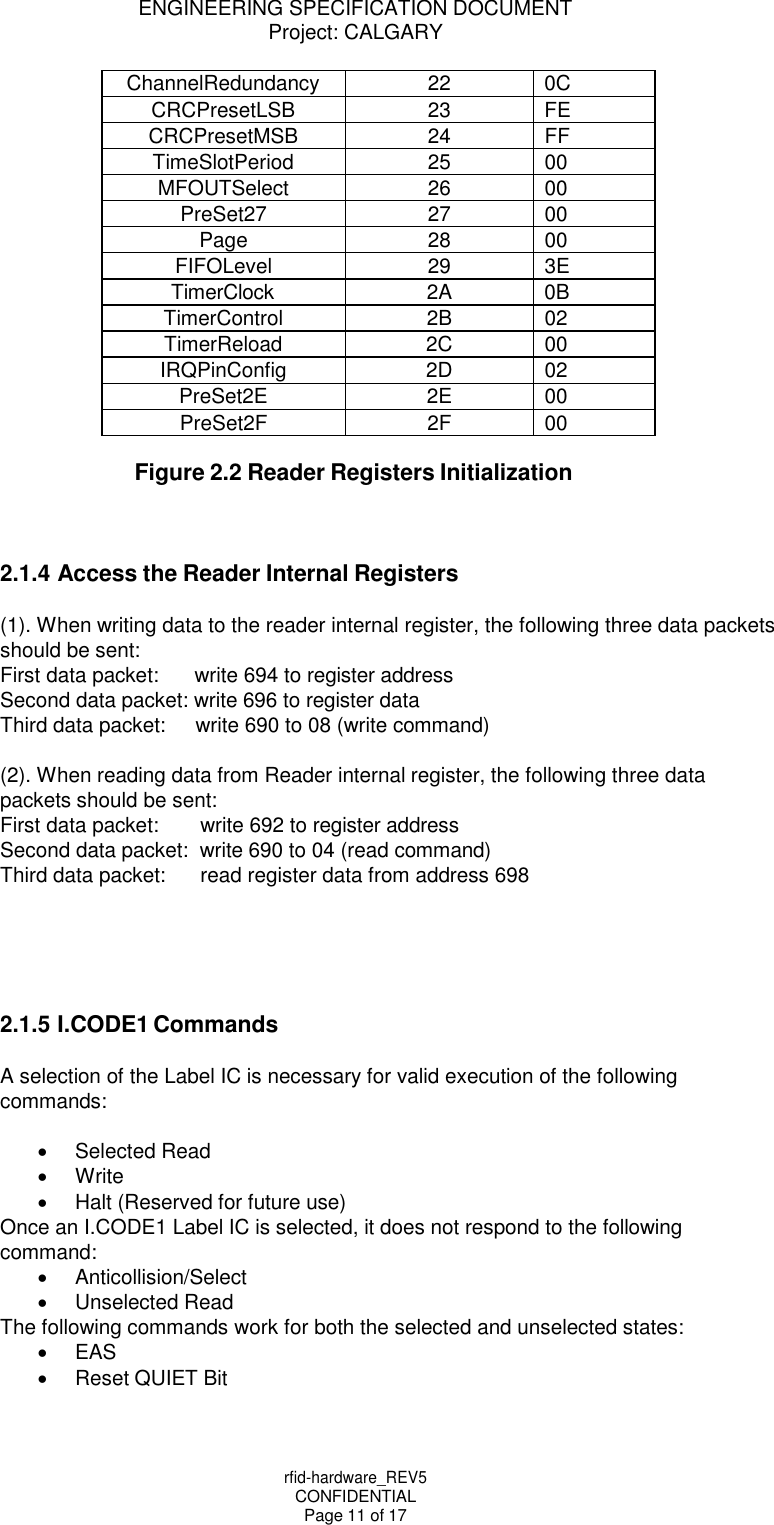

ENGINEERING SPECIFICATION DOCUMENT Project: CALGARY rfid-hardware_REV5 CONFIDENTIAL Page 11 of 17    ChannelRedundancy 22 0C CRCPresetLSB 23 FE CRCPresetMSB 24 FF TimeSlotPeriod 25 00 MFOUTSelect 26 00 PreSet27 27 00 Page 28 00 FIFOLevel 29 3E TimerClock 2A 0B TimerControl 2B 02 TimerReload 2C 00 IRQPinConfig 2D 02 PreSet2E 2E 00 PreSet2F 2F 00  Figure 2.2 Reader Registers Initialization    2.1.4 Access the Reader Internal Registers  (1). When writing data to the reader internal register, the following three data packets should be sent: First data packet: write 694 to register address Second data packet: write 696 to register data Third data packet: write 690 to 08 (write command)  (2). When reading data from Reader internal register, the following three data packets should be sent: First data packet: write 692 to register address Second data packet:  write 690 to 04 (read command) Third data packet: read register data from address 698      2.1.5 I.CODE1 Commands  A selection of the Label IC is necessary for valid execution of the following commands:    Selected Read   Write   Halt (Reserved for future use) Once an I.CODE1 Label IC is selected, it does not respond to the following command:   Anticollision/Select   Unselected Read The following commands work for both the selected and unselected states:  EAS   Reset QUIET Bit

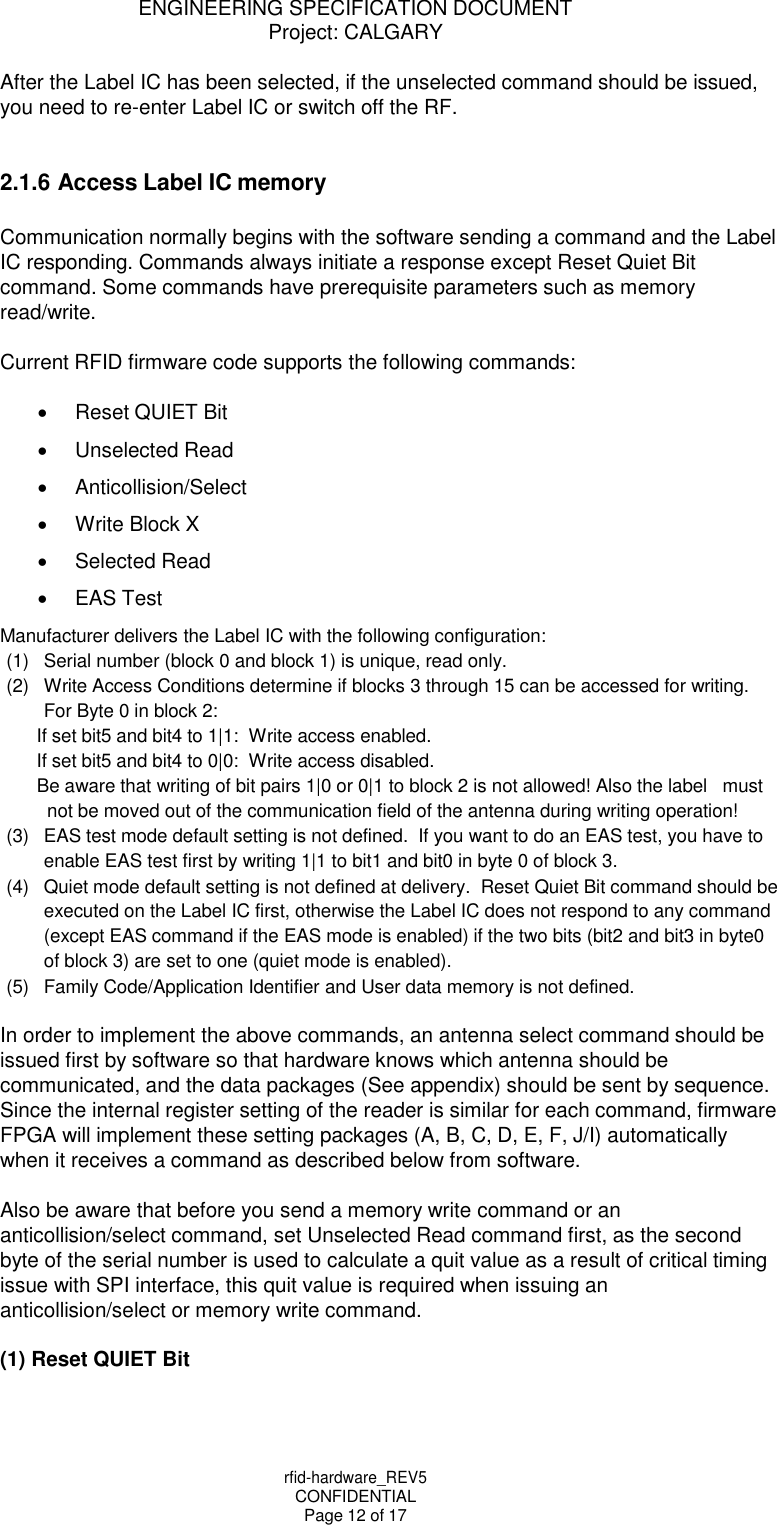

ENGINEERING SPECIFICATION DOCUMENT Project: CALGARY rfid-hardware_REV5 CONFIDENTIAL Page 12 of 17    After the Label IC has been selected, if the unselected command should be issued, you need to re-enter Label IC or switch off the RF.   2.1.6 Access Label IC memory  Communication normally begins with the software sending a command and the Label IC responding. Commands always initiate a response except Reset Quiet Bit command. Some commands have prerequisite parameters such as memory read/write.  Current RFID firmware code supports the following commands:    Reset QUIET Bit   Unselected Read   Anticollision/Select   Write Block X   Selected Read  EAS Test Manufacturer delivers the Label IC with the following configuration: (1)  Serial number (block 0 and block 1) is unique, read only. (2)  Write Access Conditions determine if blocks 3 through 15 can be accessed for writing. For Byte 0 in block 2: If set bit5 and bit4 to 1|1:  Write access enabled. If set bit5 and bit4 to 0|0:  Write access disabled. Be aware that writing of bit pairs 1|0 or 0|1 to block 2 is not allowed! Also the label   must not be moved out of the communication field of the antenna during writing operation! (3)  EAS test mode default setting is not defined.  If you want to do an EAS test, you have to enable EAS test first by writing 1|1 to bit1 and bit0 in byte 0 of block 3. (4)  Quiet mode default setting is not defined at delivery.  Reset Quiet Bit command should be executed on the Label IC first, otherwise the Label IC does not respond to any command (except EAS command if the EAS mode is enabled) if the two bits (bit2 and bit3 in byte0 of block 3) are set to one (quiet mode is enabled). (5)  Family Code/Application Identifier and User data memory is not defined.  In order to implement the above commands, an antenna select command should be issued first by software so that hardware knows which antenna should be communicated, and the data packages (See appendix) should be sent by sequence. Since the internal register setting of the reader is similar for each command, firmware FPGA will implement these setting packages (A, B, C, D, E, F, J/I) automatically  when it receives a command as described below from software.  Also be aware that before you send a memory write command or an anticollision/select command, set Unselected Read command first, as the second byte of the serial number is used to calculate a quit value as a result of critical timing issue with SPI interface, this quit value is required when issuing an anticollision/select or memory write command.  (1) Reset QUIET Bit

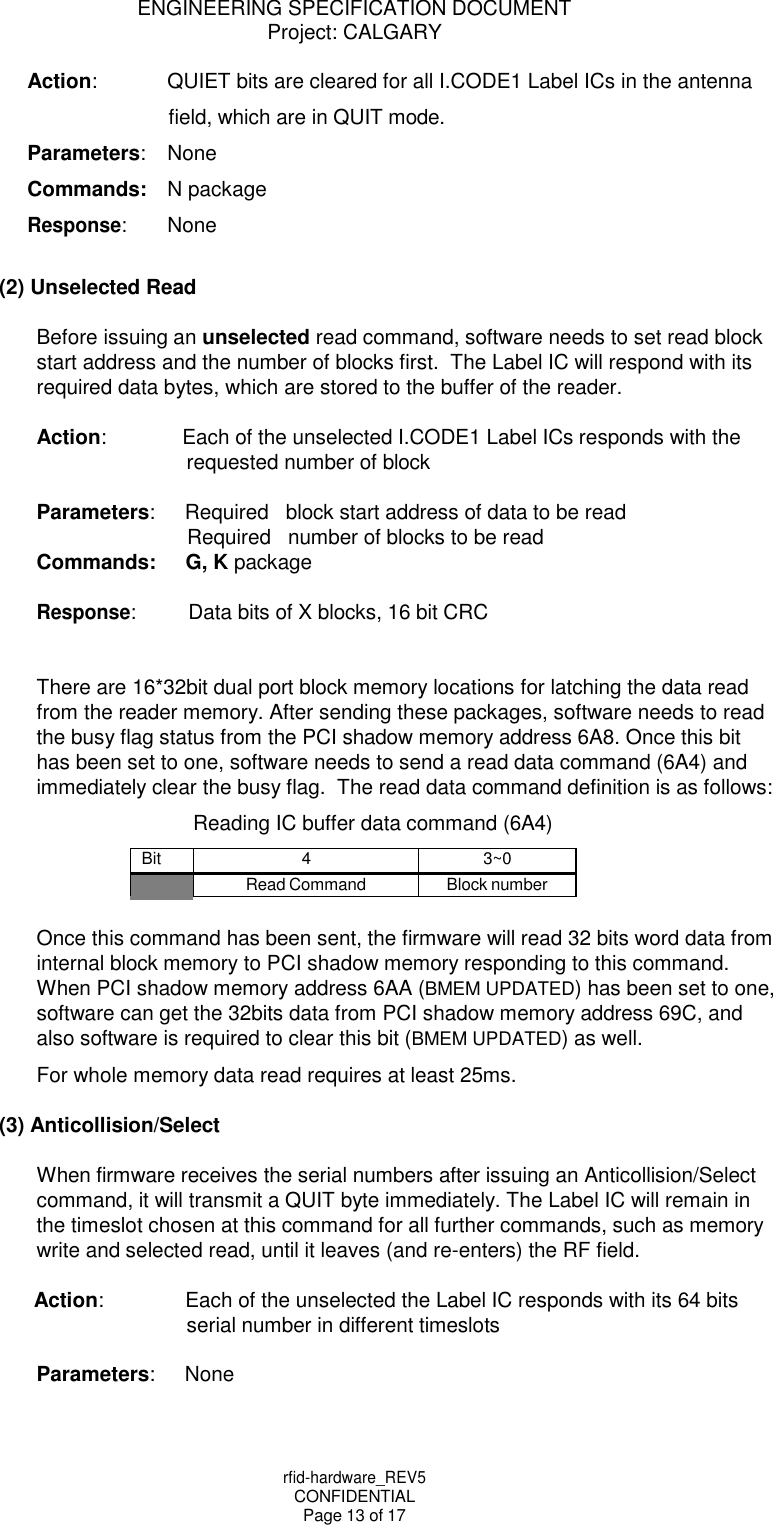

rfid-hardware_REV5 CONFIDENTIAL Page 13 of 17 ENGINEERING SPECIFICATION DOCUMENT Project: CALGARY    Action: QUIET bits are cleared for all I.CODE1 Label ICs in the antenna field, which are in QUIT mode. Parameters: None Commands: N package Response: None  (2) Unselected Read  Before issuing an unselected read command, software needs to set read block start address and the number of blocks first.  The Label IC will respond with its required data bytes, which are stored to the buffer of the reader.  Action: Each of the unselected I.CODE1 Label ICs responds with the requested number of block  Parameters: Required   block start address of data to be read Required   number of blocks to be read Commands: G, K package  Response: Data bits of X blocks, 16 bit CRC   There are 16*32bit dual port block memory locations for latching the data read from the reader memory. After sending these packages, software needs to read the busy flag status from the PCI shadow memory address 6A8. Once this bit has been set to one, software needs to send a read data command (6A4) and immediately clear the busy flag.  The read data command definition is as follows: Reading IC buffer data command (6A4)  Bit 4 3~0  Read Command Block number  Once this command has been sent, the firmware will read 32 bits word data from internal block memory to PCI shadow memory responding to this command. When PCI shadow memory address 6AA (BMEM UPDATED) has been set to one, software can get the 32bits data from PCI shadow memory address 69C, and also software is required to clear this bit (BMEM UPDATED) as well. For whole memory data read requires at least 25ms.  (3) Anticollision/Select  When firmware receives the serial numbers after issuing an Anticollision/Select command, it will transmit a QUIT byte immediately. The Label IC will remain in the timeslot chosen at this command for all further commands, such as memory write and selected read, until it leaves (and re-enters) the RF field.  Action: Each of the unselected the Label IC responds with its 64 bits serial number in different timeslots  Parameters: None

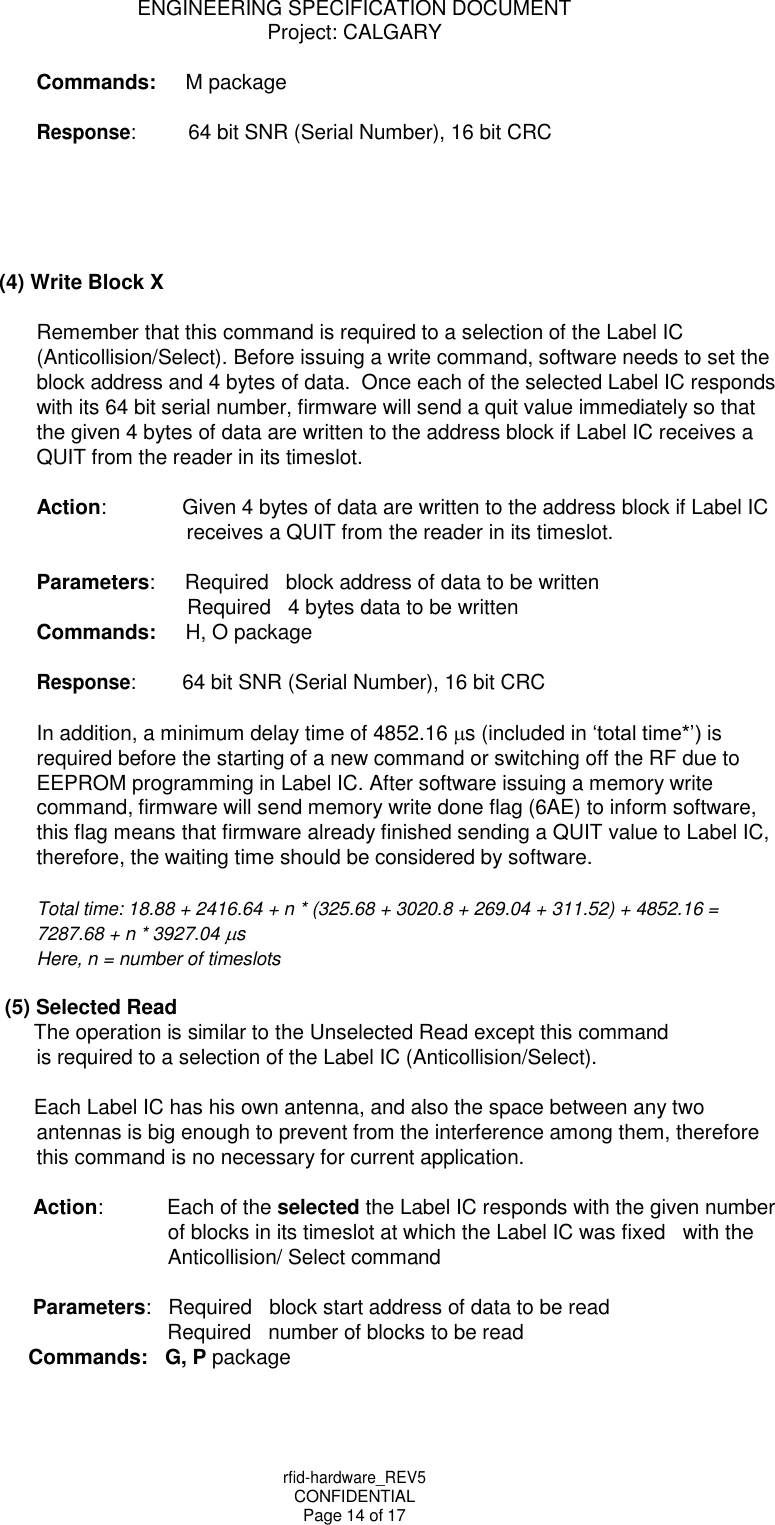

rfid-hardware_REV5 CONFIDENTIAL Page 14 of 17 ENGINEERING SPECIFICATION DOCUMENT Project: CALGARY    Commands: M package  Response: 64 bit SNR (Serial Number), 16 bit CRC      (4) Write Block X  Remember that this command is required to a selection of the Label IC (Anticollision/Select). Before issuing a write command, software needs to set the block address and 4 bytes of data.  Once each of the selected Label IC responds with its 64 bit serial number, firmware will send a quit value immediately so that the given 4 bytes of data are written to the address block if Label IC receives a QUIT from the reader in its timeslot.  Action: Given 4 bytes of data are written to the address block if Label IC receives a QUIT from the reader in its timeslot.  Parameters: Required   block address of data to be written Required   4 bytes data to be written Commands: H, O package  Response: 64 bit SNR (Serial Number), 16 bit CRC  In addition, a minimum delay time of 4852.16 s (included in ‘total time*’) is required before the starting of a new command or switching off the RF due to EEPROM programming in Label IC. After software issuing a memory write command, firmware will send memory write done flag (6AE) to inform software, this flag means that firmware already finished sending a QUIT value to Label IC, therefore, the waiting time should be considered by software.  Total time: 18.88 + 2416.64 + n * (325.68 + 3020.8 + 269.04 + 311.52) + 4852.16 = 7287.68 + n * 3927.04 s Here, n = number of timeslots  (5) Selected Read The operation is similar to the Unselected Read except this command is required to a selection of the Label IC (Anticollision/Select).  Each Label IC has his own antenna, and also the space between any two antennas is big enough to prevent from the interference among them, therefore this command is no necessary for current application.  Action: Each of the selected the Label IC responds with the given number of blocks in its timeslot at which the Label IC was fixed   with the Anticollision/ Select command  Parameters:   Required   block start address of data to be read Required   number of blocks to be read Commands:   G, P package

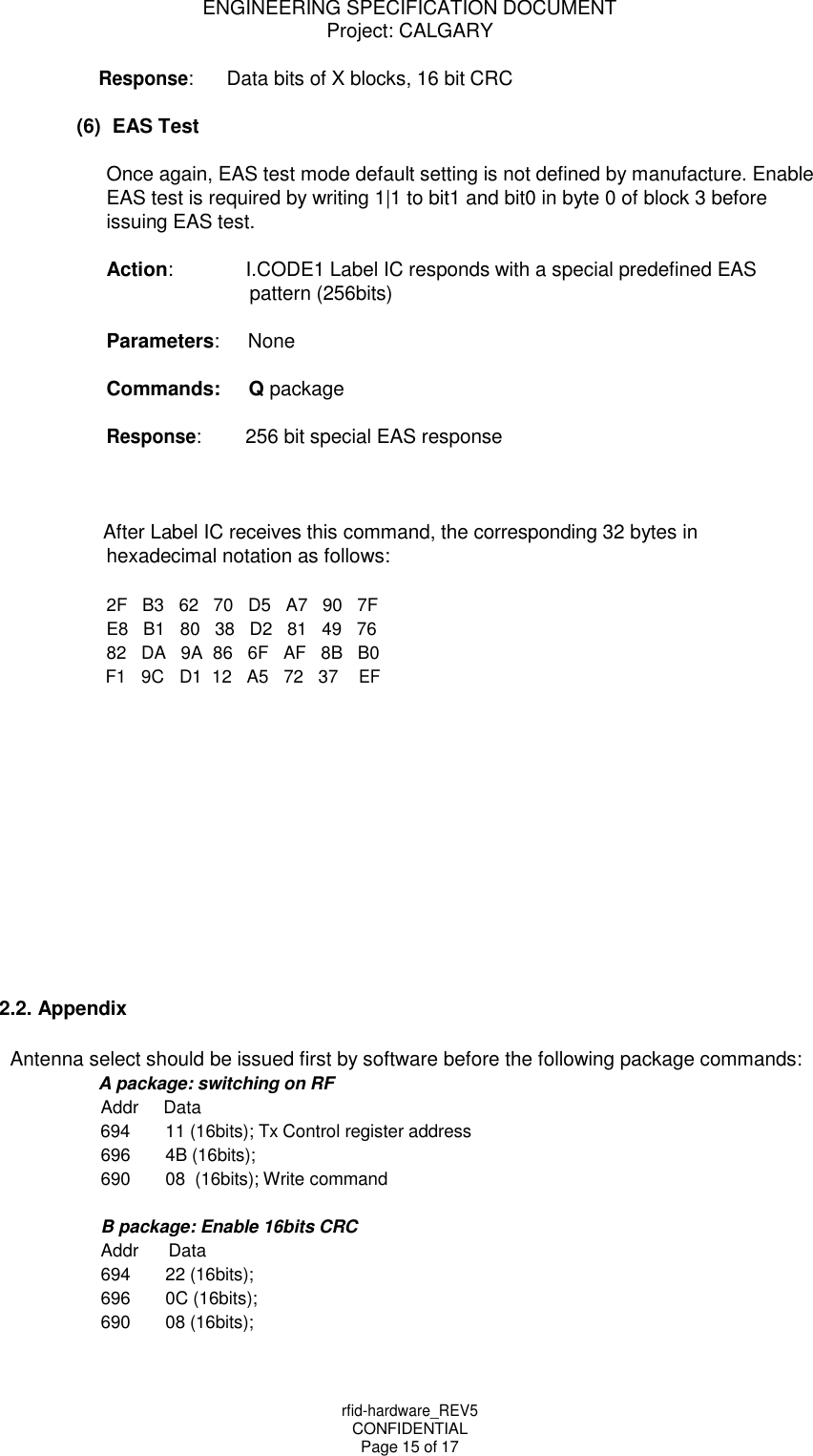

rfid-hardware_REV5 CONFIDENTIAL Page 15 of 17 ENGINEERING SPECIFICATION DOCUMENT Project: CALGARY    Response: Data bits of X blocks, 16 bit CRC  (6)  EAS Test  Once again, EAS test mode default setting is not defined by manufacture. Enable EAS test is required by writing 1|1 to bit1 and bit0 in byte 0 of block 3 before issuing EAS test.  Action: I.CODE1 Label IC responds with a special predefined EAS pattern (256bits)  Parameters: None  Commands: Q package  Response: 256 bit special EAS response    After Label IC receives this command, the corresponding 32 bytes in hexadecimal notation as follows:  2F   B3   62   70   D5   A7   90   7F E8   B1   80   38   D2   81   49   76 82   DA   9A  86   6F   AF   8B   B0 F1   9C   D1  12   A5   72   37 EF                2.2. Appendix  Antenna select should be issued first by software before the following package commands: A package: switching on RF Addr Data 694 11 (16bits); Tx Control register address 696 4B (16bits); 690 08  (16bits); Write command  B package: Enable 16bits CRC Addr Data 694 22 (16bits); 696 0C (16bits); 690 08 (16bits);

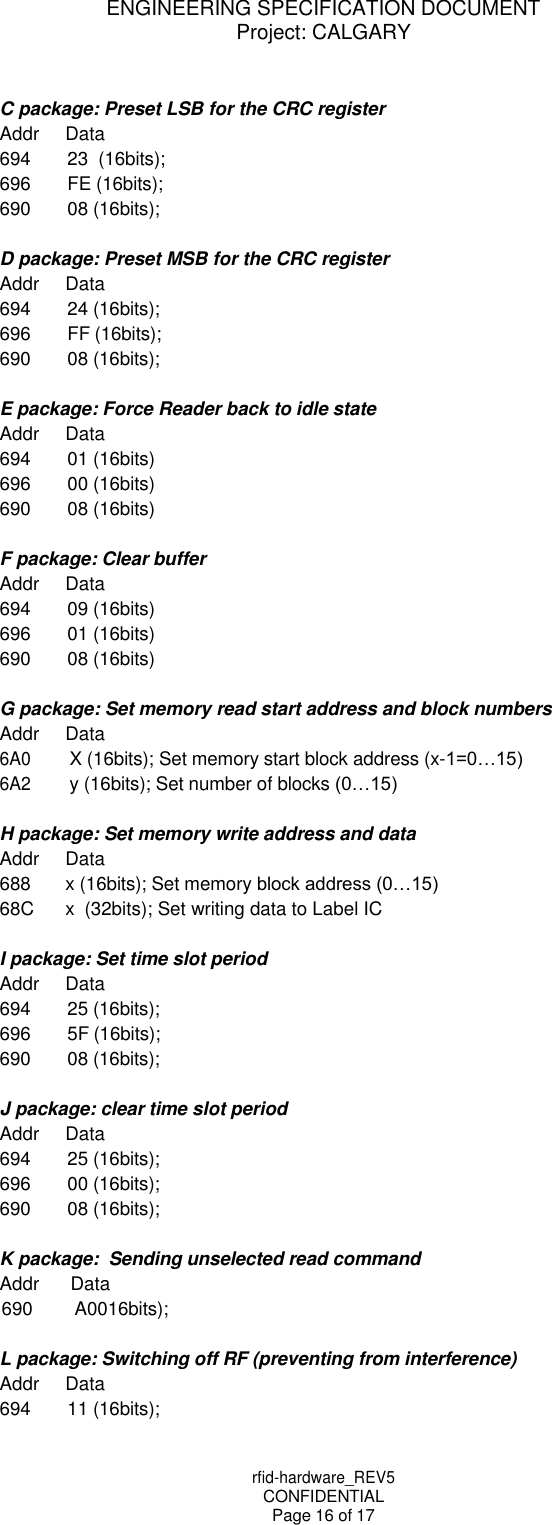

rfid-hardware_REV5 CONFIDENTIAL Page 16 of 17 ENGINEERING SPECIFICATION DOCUMENT Project: CALGARY     C package: Preset LSB for the CRC register Addr Data 694 23  (16bits); 696 FE (16bits); 690 08 (16bits);  D package: Preset MSB for the CRC register Addr Data 694 24 (16bits); 696 FF (16bits); 690 08 (16bits);  E package: Force Reader back to idle state Addr Data 694 01 (16bits) 696 00 (16bits) 690 08 (16bits)  F package: Clear buffer Addr Data 694 09 (16bits) 696 01 (16bits) 690 08 (16bits)  G package: Set memory read start address and block numbers Addr Data 6A0 X (16bits); Set memory start block address (x-1=0…15) 6A2 y (16bits); Set number of blocks (0…15)  H package: Set memory write address and data Addr Data 688 x (16bits); Set memory block address (0…15) 68C x  (32bits); Set writing data to Label IC  I package: Set time slot period Addr Data 694 25 (16bits); 696 5F (16bits); 690 08 (16bits);  J package: clear time slot period Addr Data 694 25 (16bits); 696 00 (16bits); 690 08 (16bits);  K package:  Sending unselected read command Addr Data 690 A0016bits);  L package: Switching off RF (preventing from interference) Addr Data 694 11 (16bits);

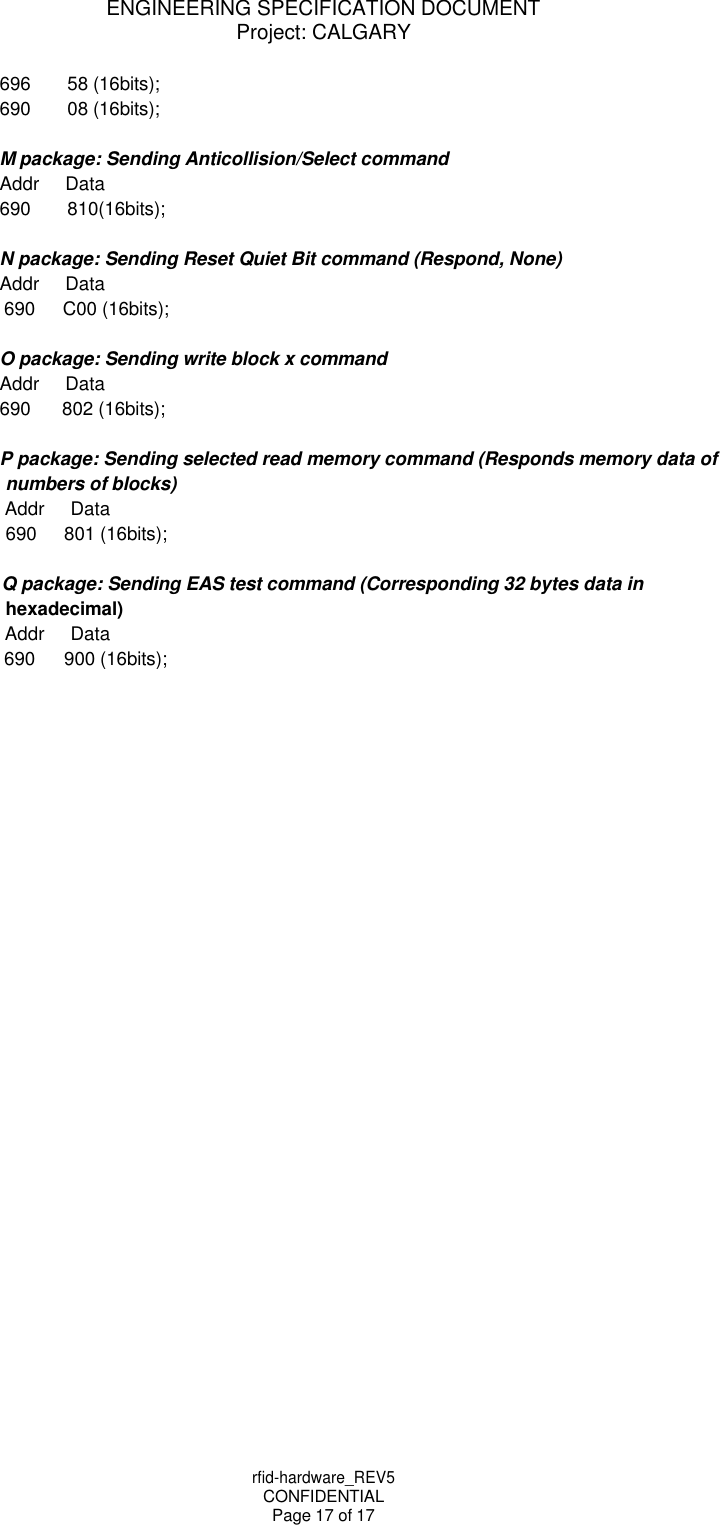

rfid-hardware_REV5 CONFIDENTIAL Page 17 of 17 ENGINEERING SPECIFICATION DOCUMENT Project: CALGARY    696 58 (16bits); 690 08 (16bits);  M package: Sending Anticollision/Select command Addr Data 690 810(16bits);  N package: Sending Reset Quiet Bit command (Respond, None) Addr Data 690 C00 (16bits);  O package: Sending write block x command Addr Data 690 802 (16bits);  P package: Sending selected read memory command (Responds memory data of numbers of blocks) Addr Data 690 801 (16bits);  Q package: Sending EAS test command (Corresponding 32 bytes data in hexadecimal) Addr Data 690 900 (16bits);
