ALEXA ENABLED BLUETOOH/WIFI
WIRELESS STEREO SMART SPEAKER
MODEL: JSB-550
USER MANUAL
PLEASE READ THIS USER MANUAL COMPLETELY BEFORE OPERATI
NG THIS UNIT AND
RETAIN THIS BOOKLET FOR FUTURE REFERENCE.
E1
IMPORTANT SAFETY INSTRUCTIONS
When used in the directed manner, this unit has been designed and manufactured to ensure
your personal safety. However, improper use can result in potential electrical shock or fire
hazards. Please read all safety and operating instructions carefully before installation and use,
and keep these instructions handy for future reference. Take special note of all warnings listed
in these instructions and on the unit.
1. Read these instructions – All the safety and operating instructions should be read
before the appliance is operated.
2. Keep these instructions – The safety and operating instructions should be kept for future
reference.
3. Heed all warnings – All warnings on the appliance and in the operating instructions
should be adhered to.
4. Follow all instructions – All operation and use instructions should be followed.
5. Do not use this apparatus near water – The appliance should not be used near water; for
example, near a bath tub, washbowl, kitchen sink, laundry tub, in a wet basement, or
near a swimming pool.
6. Clean only with dry cloth – The appliance should be cleaned only as recommended by
the manufacturer.
7. Do not block any ventilation openings. Install in accordance with the manufacturer’s
instructions. The appliance should be situated so that its location or position does not
interfere with its proper ventilation. For example, the appliance should not be situated on
a bed, sofa, rug, or similar surface that may block the ventilation openings; or placed in a
built-in installation, such as a bookcase or cabinet that may impede the flow of air through
the ventilation openings.
8. Do not install near any heat sources such as radiators, heat registers, stoves, or other
apparatus (including amplifiers) that produce heat.
9. AC adaptor is used as disconnect device and it should remain readily operable during
intended use. In order to disconnect the apparatus from the mains completely, the AC
adaptor should be disconnected form the mains socket outlet completely.
10. Only use attachments / accessories specified by the manufacturer.
11. Use only with a cart, stand, tripod, bracket, or table specified by the
manufacturer, or sold with the apparatus. When a cart is used, use
caution when moving the cart/apparatus combination to avoid injury
from tip-over.
12. Unplug this apparatus during lightning storms or when unused for long periods of time.
13. Refer all servicing to qualified service personnel. Servicing is required when the
apparatus has been damaged in any way, such as power-supply cord or plug is damaged,
liquid has been spilled or objects have fallen into the apparatus, the apparatus has been
exposed to rain or moisture, does not operate normally, or has been dropped.
14. This appliance shall not be exposed to dripping or splashing water and that no object
filled with liquids such as vases shall be placed on the apparatus.
15. Power Sources – The appliance should be connected to a power supply only of the type
described in the operating instructions or as marked on the appliance. Do not overload
wall outlet.
16. Do not attempt to dismantle, open or repair this product yourself. If a fault occurs, seek
advice from your local qualified service technician or contact the distributor via the
telephone number at the back of this instruction manual.
17. Nameplate is located on the bottom of product.
E2
IMPORTANT NOTES
Avoid installing the unit in locations described below:
Places exposed to direct sunlight or close to heat radiating appliances such as
electric heaters.
Places subject to constant vibration.
Dusty, humid or moist places.
Sources of electrical noise such as fluorescent lamps or motors.
In case of malfunction due to electrostatic discharge, the apparatus has to be reset by
disconnecting it from mains supply, wait at least for 60 seconds before reconnect
COMPLIANCE WITH FCC REGULATIONS
FCC ID: LMZ-31324GC
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may
cause undesired operation.
NOTE: This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This equipment
generates, uses and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If
this equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
- Consult the dealer or an experienced radio/TV technician for help.
CAUTION: Changes or modifications not expressly approved by the party responsible
for compliance could void the user’s authority to operate the equipment.
PROTECT YOUR FURNITURE
This product is equipped with non-skid rubber 'feet' to prevent the product from moving when
you operate the controls. These 'feet' are made from non-migrating rubber material specially
formulated to avoid leaving any marks or stains on your furniture. However certain types of oil
based furniture polishes, wood preservatives, or cleaning sprays may cause the rubber 'feet'
to soften, and leave marks or a rubber residue on the furniture. To prevent any damage to
your furniture we strongly recommend that you purchase small self-adhesive felt pads,
available at hardware stores and home improvement centers everywhere, and apply these
pads to the bottom of the rubber 'feet' before you place the product on fine wooden furniture.
E3
DEAR JENSEN® CUSTOMER
Selecting fine audio equipment such as the unit you've just purchased is only the start of
your musical enjoyment. Now it's time to consider how you can maximize the fun and
excitement your equipment offers. This manufacturer and the Electronic Industries
Association's Consumer Electronics Group want you to get the most out of your equipment
by playing it at a safe level. One that lets the sound come through loud and clear without
annoying blaring or distortion and, most importantly, without affecting your sensitive
hearing.
Sound can be deceiving. Over time your hearing "comfort level" adapts to higher volumes of
sound. So what sounds "normal" can actually be loud and harmful to your hearing. Guard
against this by setting your equipment at a safe level BEFORE your hearing adapts.
To establish a safe level:
Start your volume control at a low setting.
Slowly increase the sound until you can hear it comfortably and clearly, and without
distortion.
Once you have established a comfortable sound level:
Set the dial and leave it there.
Taking a minute to do this now will help to prevent hearing damage or loss in the future.
After all, we want you listening for a lifetime.
We Want You Listening For a Lifetime
Used wisely, your new sound equipment will provide a lifetime of fun and enjoyment. Since
hearing damage from loud noise is often undetectable until it is too late, this manufacturer
and the Electronic Industries Association's Consumer Electronics Group recommend you
avoid prolonged exposure to excessive noise.
Customer's Record:
The serial number of this product is found on its back cover. You should note the serial
number of this unit in the space provided as a permanent record of your purchase to aid in
identification in the event of theft of loss.
Model Number: JSB-550 Serial Number: ____________________
E4
ACCESSORIES
1 x AC Adaptor
1 x Stereo Audio Connection Cable with 3.5mm stereo plugs
1 x User Manual
LOCATION OF CONTROLS
MAIN UNIT
TOP VIEW
<<Replace updated drawing here>>
Controls Press & hold Tap
1. Microphone --- ---
2. Mode/ Tap to talk Button Switch input mode
(Bluetooth/ Line in/ WiFi)
Activate Mic to talk to Alexa
without saying Alexa first
3. Power On/Standby;
Mic ON/OFF Button
Turn unit On/ Off Switch Mic/ Alexa On/ Off
4. Volume - Button Decrease Volume
Continuously
Decrease Volume by step
5. Volume + Button Increase Volume
Continuously
Increase Volume by step
6. Play/ Pause/ Pair In BT mode, enter pairing
mode
Play/ Pause at WiFi/ BT
playback
7. Mode indication LED --- ---
1
4
3
5
6
7
2
E5
BACK VIEW
<<Replace updated drawing here>>
Controls Press & hold Tap
1. DC IN Jack --- ---
2. LINE IN Jack --- ---
3. WPS Button In WiFi mode, press and hold
this button for 5 – 6 seconds
then release it, unit will reset
WiFi to factory setting then
restart for set up.
In WiFi mode, tap this button
once to link up the speaker to
your Wi-Fi network by
following the APP instruction.
GETTING STARTED
CONNECTING THE AC POWER
This unit operates using the included AC adaptor with 12V 2A (center-positive )
output, and is compatible with standard 120V~ 60Hz AC household power
Insert the the DC Plug of the AC Adaptor into the DC IN jack on the back of the unit. Plug the
AC Adaptor into a standard 120V~ 60Hz AC wall outlet.
INITIALIZATION
The unit will initialize when first plugged in. The initialization process could take up to 60
seconds to complete, so please wait for this process to finish before proceeding. The LED
will be flashing White, you will hear a voice prompt of “Ready for a set up” when the
initialization is completed. The unit is now in setup Mode.
NOTE: 1.) The initialization process may take up to 60 seconds or longer when first
connected. This process is normal and only occurs when first plugged in.
2.) If the unit has been setup to connect your Wi-Fi network successfully, the LED will be
solid White after connected. The unit is now in WiFi mode.
WPS
AUX IN
8
9
10
E6
There is a multicolor LED indicator on the top panel. The operation mode is indicated by
different color of the LED. The type of activity is indicated by whether the LED is on or
flashing.
Speaker Mode Mode LED color Flashing Solid ON
Bluetooth Turquoise Disconnected Connected
Blue Alexa thinking Alexa listening
Blue & White Alexa talking ---
WiFi
White Wi-Fi disconnected Wi-Fi Connected
Line in Green --- Line in mode
All modes Red --- Mic Off
All modes (When you say
Alexa or Tap to talk
Yellow --- No network
connection/ Not
signed into Amazon
account
CONNECT JSB-550 TO A NETWORK
1. Download the Muzo Player app to your phone from Play store for Andriod phone and App
store for iOS device.
Android App iOS App
2. Turn On the unit, you will hear the voice indication for the unit in WiFi mode and the Mode
LED will flashing White. Press and hold the MODE button repeatedly to select WiFi mode
if necessary.
3. Run the app and follow on screen guide to setup network.
4. Touch the “WiFi Setup Wizard” button on your
samrtphone screen to add the first speaker to your
network.
E7

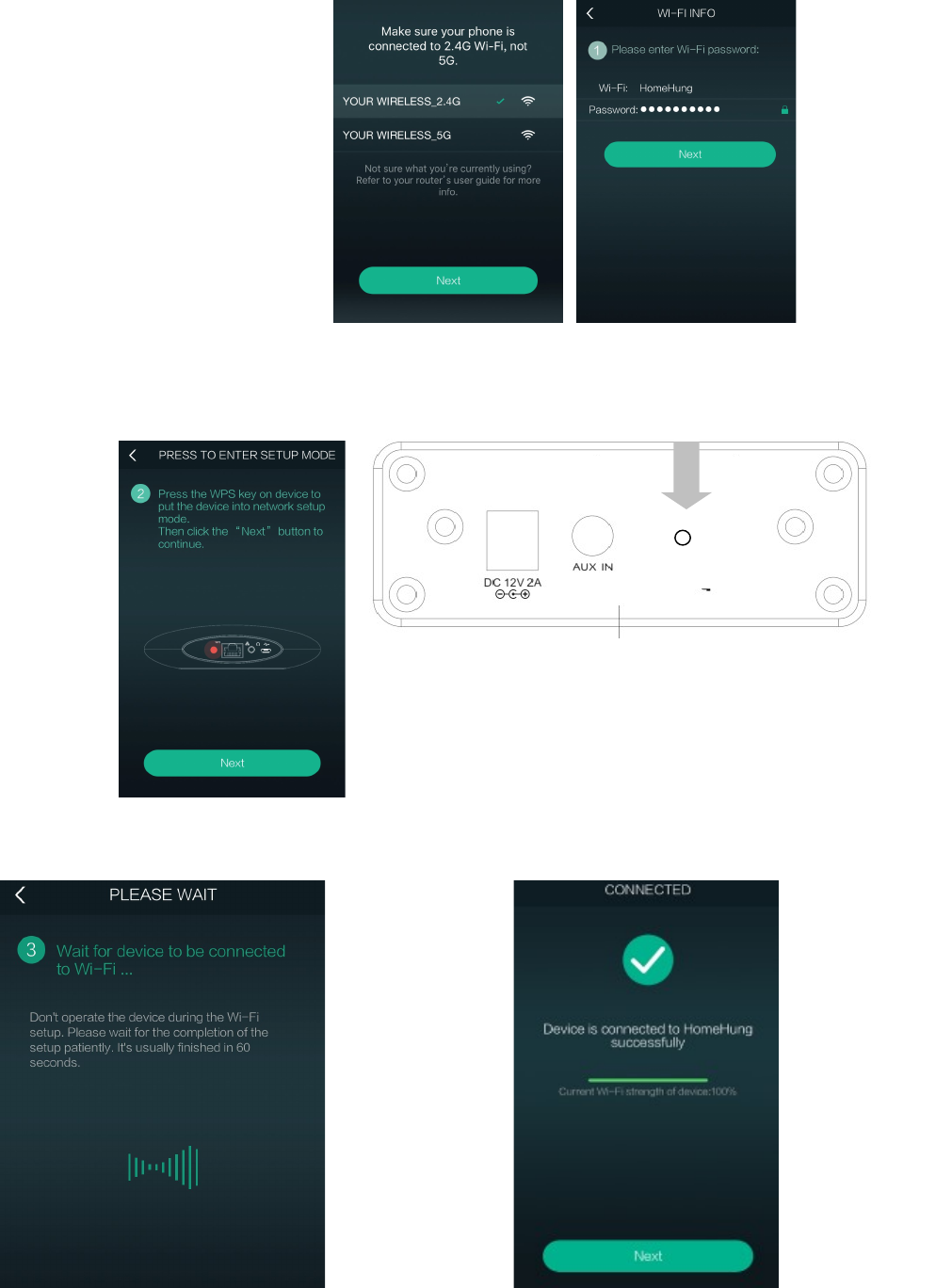

5. Select your WiFi network and touch the “next” button. Type the password of your WiFi
network.
6. Press the WPS button on the back of JSB-550 and touch the “next” button on your
smartphone screen.
<<Replace updated drawings here>>
7. The App will search the speaker and automatically add it to your network.
WPS
E8

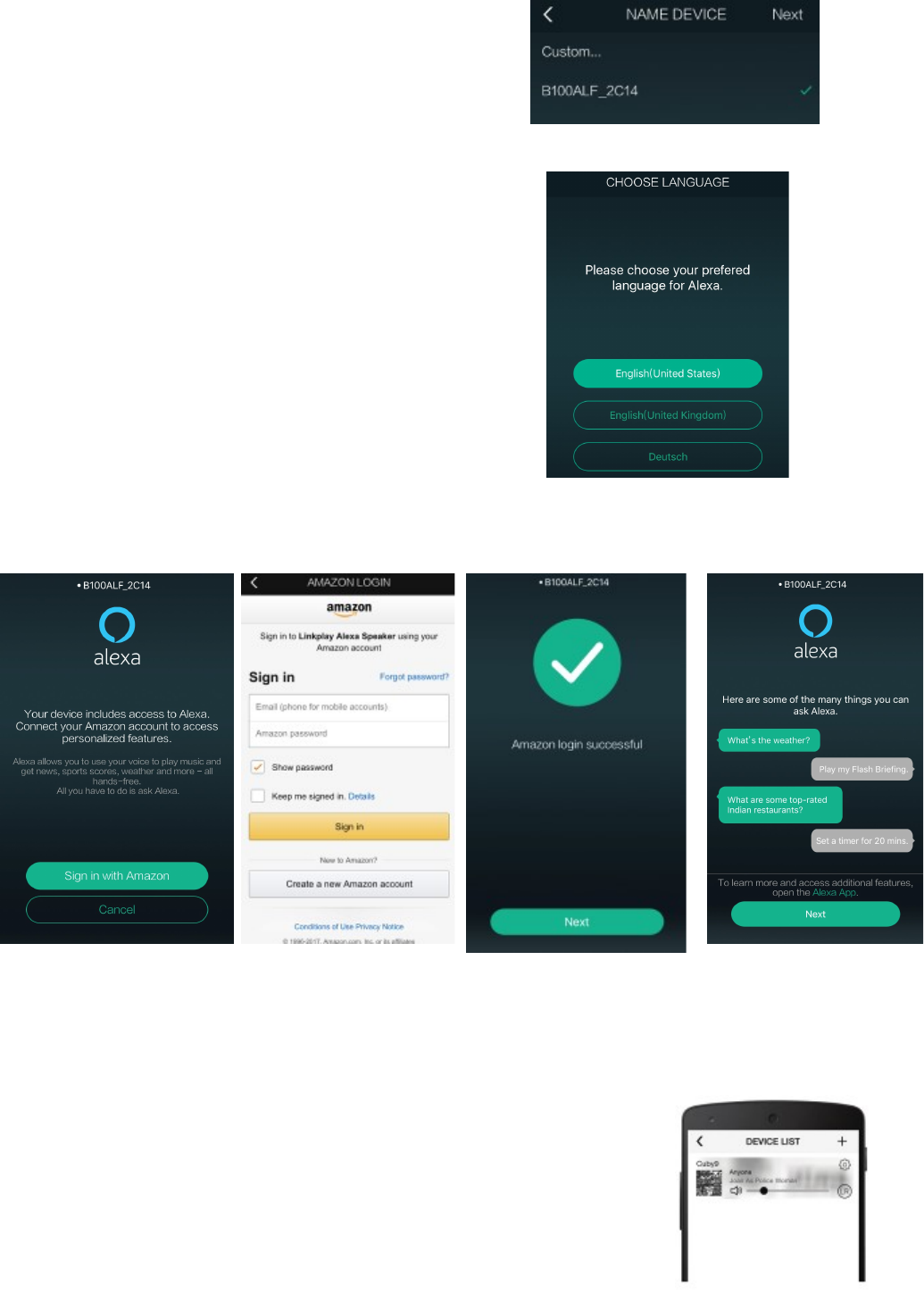

8. After connected to WiFi, touch the “Next” button to select a speaker’s name from the list or
set a custom one.
9. Touch the “Finish” icon to select the preferred language for Alexa.
10. Select Amazon Alexa from Muzo app main menu to sign in your Amazon account, after
finish, you can enjoy the speaker with Alexa voice control features.
Notes:
1.) To use Alexa voice control, you need to have Amazon account, go to
“www.Amazon.com” to register. This can play with basic Alexa voice control function.
2.) To play music with Alexa, you also need to register the Amazon Prime Music service
or upload the music on Amazon sever library.

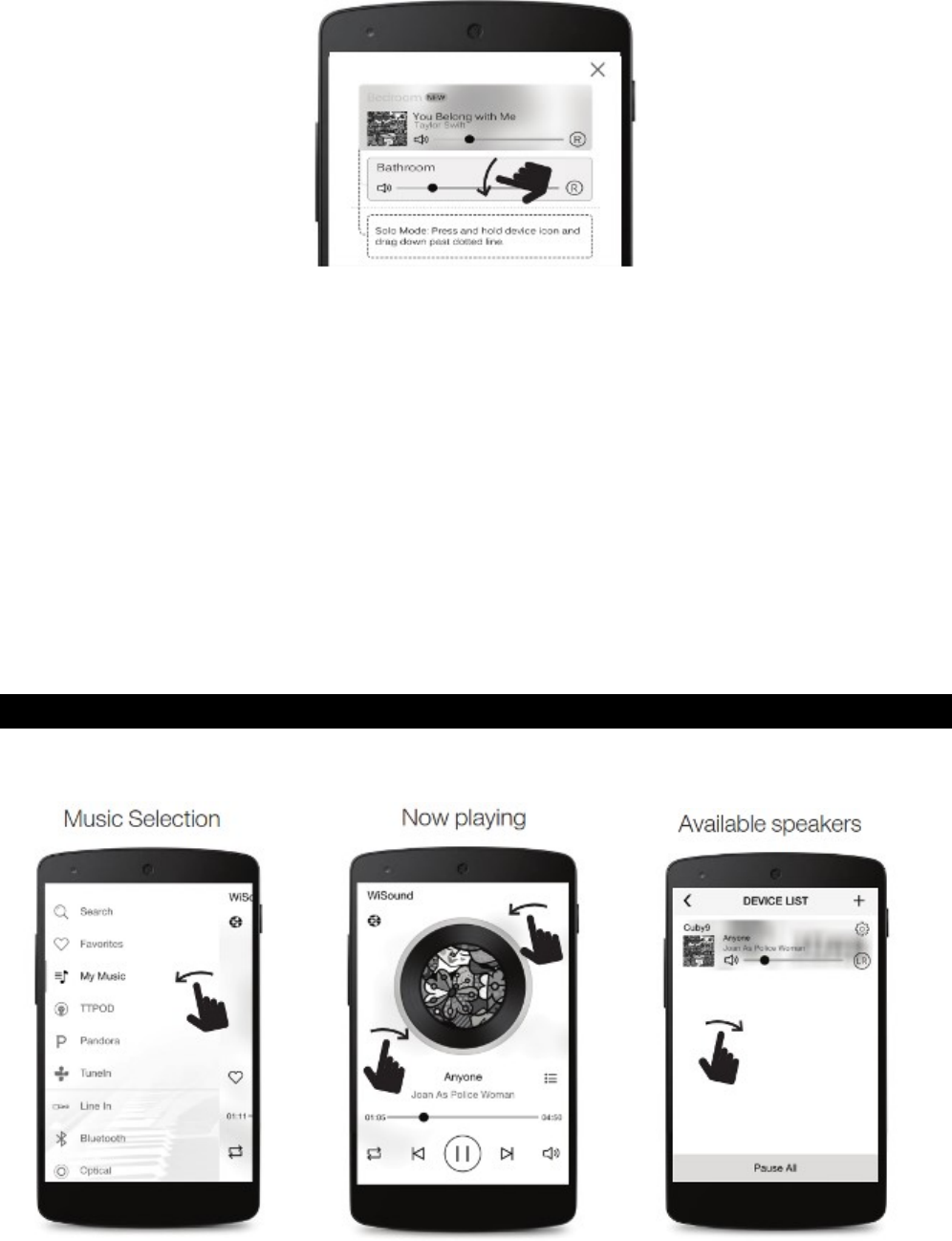

8. To add more speakers, touch the “ + “ icon on top right corner of your
smartphone screen and repeat above steps.
E9
Reconnect JSB-550 to a WiFi network
1. Turn on unit and select WiFi mode, tap the WPS button on the back of JSB-550, you will
hear “Connecting to your network” voice prompt.
2. Follow steps 3-8 above.
Reset JSB-550 WiFi to Factory data reset
1. Turn on unit and select WiFi mode, press and hold the WPS button for 5 – 6 seconds and
release the button, you will hear “Factory data reset” voice prompt.
2. Wait for unit restart until you hear voice prompt for ready to set up.
3. Follow steps 3-8 above.
Note: Always setup WiFi connection in JSB-550 power on and WIFi mode. Press WPS button
in other operation modes or Standby mode will not hear voice prompt and may cause
WiFi setup error.
USE AMAZON ALEXA VOICE CONTROL
When asking Alexa questions always say “Alexa” first or tap the “Tap to talk” button on the top
panel, Mode LED turns Blue, this indicate Alexa is listening.
Play music from Amazon Music, Tuneln and many more apps/ services just by using voice
commands.
Answers questions, such as time and date, find out sports scores and schedules, read
Audible audio books, listen to news, traffic and weather reports, find info on local businesses,
consult Wikipedia
Take notes, prepare shopping lists, shop at Amazon.
Note: To enable voice control, you will need an account to play music from Amazon Music
and some other services
Now by simply say “Alexa” or tap the Tap to talk button, when Mode LED turns to solid blue,
Things to try:
Hello
Who are you
What is the whether today
Who is Michael Jackson
What is the time now
Wikipedia: George Washington
Tell me a joke
Play iHeart Radio
E10
Set Alarm..
Set Timer ..
Play a song (need Amazon Prime Music service registed or have songs at Amazon Music
Library)
For more examples, go to “Thing to Try” in the Alexa App.
INTERACTIVE WITH AMAZON ALEXA
You can download the Amazon Alexa app from Play Store or Apple Store.
Please login your Amazon account. In the settings you can use the menus to connect to apps
like Amazon Music, Live Radio, Tuneln and others as well as reviewing your Alexa history and
check your timer & Alarm settings.
GROUP AND UNGROUP THE SPEAKERS
GROUP THE SPEAKERS
Open the Muzo app, in the list of the available speakers, grab and drag one speaker and drop
it over another speaker. In this way, this speaker (slave) becomes part of a group and Master
speaker’s music is also played through all the Slave speakers.
Mode LED indication when speakers grouped
Speaker Mode Mode LED Color
Master Speaker (BT) Turquoise
Master Speaker (Line
in)
Green
Master Speaker (WiFi)
White
Slave Speaker Red
Note: Only Master speaker in the group has Alexa Voice feature.
E11
UNGROUP THE SPEAKERS
If you want to ungroup, just grab and drag the slave speaker below the middle line. Slave
speaker becomes Master speaker and can play different music
Note:
You can make one or more speaker groups.
You can have more than one Slave speakers under the same Master
In a Group, even if the source is Line in/Bluetooth, you can listen to Slave speakers
playing the same song as Master speaker (Redirect feature)
You can simultaneously control the volume of all the speakers in a group by Volume
buttons of your device
For a group configuration, choose which speaker can play Left (L), Right (R) or
Left/Right (L/R), by touching the relevant icon.
Master Speaker Mode LED – Shows current operation Mode color
Slave Speaker LED – Shows RED color to indicate it is a Slave, voice control and
mode button are disabled.
PLAYBACK MUSIC ON THE SPEAKERS
In Muzo app screen,
E12
Select your local songs through MY MUSIC.
Access Web Radio through Tuneln.
Change Input through Bluetooth or Line In.
Search for online songs through Search.
Access your Favorite songs through Favorites.
Access Web services by touching the corresponding icons.

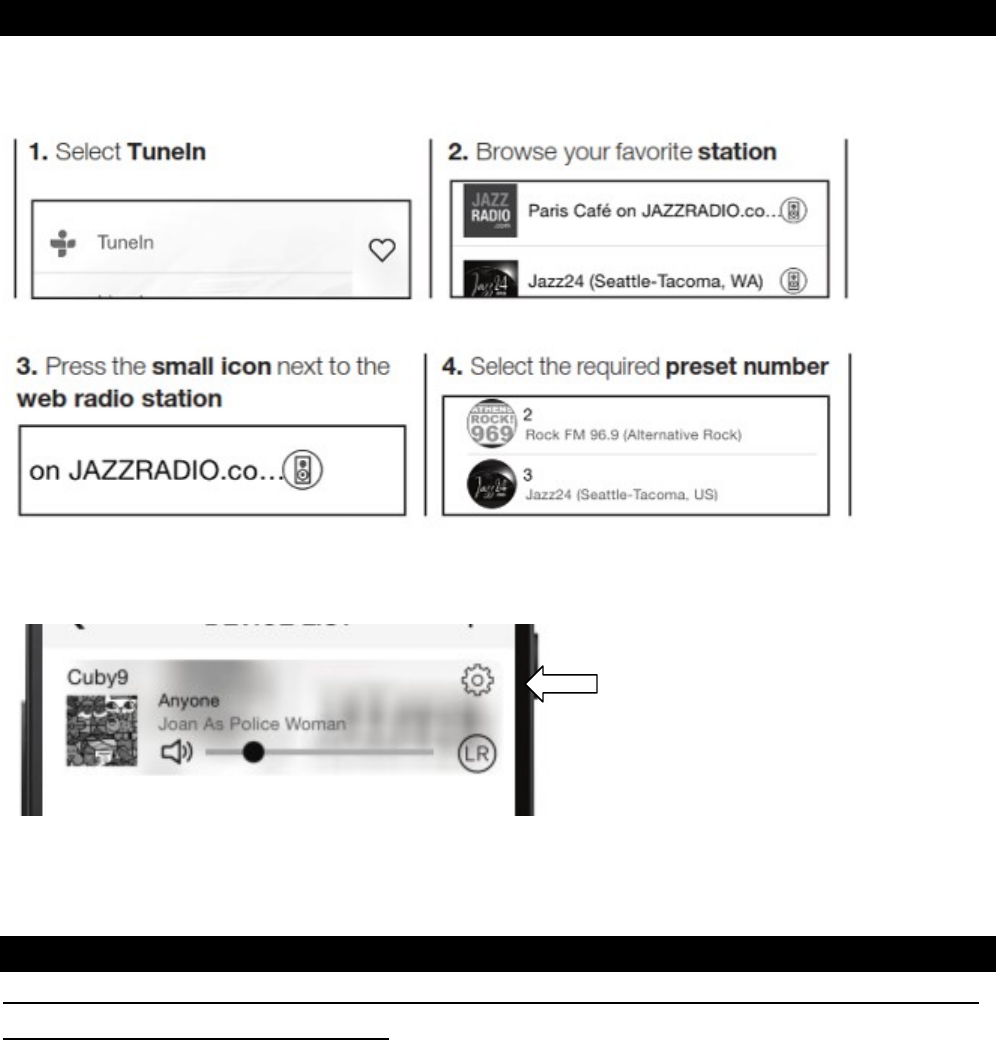

PRESET WEB RADIO STATIONS
To assign web radio stations to preset button (up to 5 stations can be assigned), open the
main menu of Muzo app.
To access the preset web radio stations, in the “DEVICE LIST” page of Muzo app, touch the
setup icon.
Select “PRESET CONTENT” from menu, the stored preset list will show for you to select for
playback.
BLUETOOTH OPERATION
PAIRING (LINKING) A BLUETOOTH ENABLED CELL PHONE OR OTHER BLUETOOTH
ENABLED DEVICE to the JSB-550
1. With the JSB-550 in power ON Mode, press and hold the MODE button to select
Bluetooth mode. The Mode Indicator LED turns Turquoise and will be flashing. The
JSB-550 is now ready to pair (link) with your Bluetooth device.
2. Turn on the Bluetooth feature of your cell phone and turn down the volume to avoid
E13
sudden loud sound bursts from the speaker. Enable the search or scan feature to find the
JSB-550.
Note: If you have more than one JSB-550 within range, make sure you are connecting to
the appropriate speaker.
3. Select "JSB-550" from the device list when it appears on your device screen. If required,
enter the pass code “0000” to pair (link) the JSB-550 with your cell phone.
4. After successfully pairing (linking) your cell phone with the JSB-550, the Mode Indicator
LED stops flashing and remains lit Turquoise. You can now play music from your cell
phone or Bluetooth device wirelessly to the JSB-550.
Note: If you want to connect the JSB-550 to another cell phone after pairing
successfully, then you need to turn off the Bluetooth on the paired cell phone first
if it is in range before going through the above steps. Otherwise, the JSB-550 will
automatically reconnect to the previously linked cell phone or device. Then press
and hold the Bluetooth /PLAY/PAUSE button to put the JSB-550 into
Bluetooth pairing mode, the LED Indicator will be flashing Turquoise.
5. Press the VOLUME +/- button to adjust the volume level.
6. Press the PLAY/PAUSE button to pause or resume playback.
7. To turn off the JSB-550 Bluetooth, press and hold the button on main unit for 2
seconds to turn the unit to standby mode. Mode Indicator LED turns off. Don’t forget to
also turn off the Bluetooth feature on your cell phone or Bluetooth device.
Notes:
1.) Refer to manual of your cell phone or other Bluetooth enabled device for Bluetooth
operation, since it may vary from model to model.
2.) If your Bluetooth enabled device does not support A2DP, it will not play the music
through the speaker, even after it's paired (linked).
3.) If you are pairing (linking) your computer to the JSB-550 using Bluetooth, you may need
to set the JSB-550 as your computer’s default sound device.
Note: In power on mode, If no sound playback or paused by user for 15 minutes, unit will
turn into standby mode automatically for power saving.
Re-linking to a cell phone or Bluetooth device
If your cell phone or Bluetooth device is already paired with the JSB-550, but became
unlinked at some point, even with both Bluetooth devices turned on. You can re-link them by:
1. Press and hold the /PLAY/PAUSE button to re-link your cell phone. The Mode Indicator
LED will turn Turquoise and flash while linking.
2. Select the JSB-550 from the devices list on your cell phone for linking. The Mode Indicator
LED stops flashing and remains lit Turquoise if the JSB-550 and your cell phone have
been re-linked successfully.
3. You can also re-link the JSB-550 by using Bluetooth operation of your cell phone. Please
refer to operation manual of your cell phone for more information.
E14
LINE IN OPERATION
This unit provides a LINE IN jack for connecting external audio devices like MP3 players, CD
players and listen to them through the speakers of this unit.
1. Use an audio cable (included) with one 3.5 mm stereo plug on each end of the cable.
2. To select auxiliary audio input, plug one end into the Aux IN jack on the back of main unit.
3. Plug the other end of the cable into the Line-out Jack or Headphone Jack of your external
audio device.
4. Turn on the external audio device and the main unit.
5. Press and hold the MODE button to select AUX mode, Mode Indicator LED turns Green.
6. The volume level can now be controlled through the main unit. Operate all other functions
on the auxiliary device as usual.
NOTE:
If you connect this unit to the Line-Out Jack of your external device then you only need to
adjust the volume control of this unit. If you connected the Headphone Jack of your
external device then you may need to adjust both the volume control of your external
device and the volume control of this unit to find the most desirable volume setting.
In power on mode, If no sound playback or paused by user for 15 minutes, unit will turn
into standby mode automatically for power saving.
Press and hold the POWER button for 2 seconds to turning off the unit when you finish
listening. Don't forget to switch off the power of your external device as well.
POWER SAVING
To save power, the speaker will automatically turn off if no sound has played through it for 15
minutes.
RESETTING THE JSB-550
In case of malfunction due to electrostatic discharge, the apparatus has to be reset by
disconnecting it from mains supply. Unplug the AC adaptor from main power, wait at least for
60 seconds before reconnect the AC adaptor power.
CARE AND MAINTENANCE
1. Do not subject the unit to excessive force, shock, dust or extreme temperature.
2. Do not tamper the internal components of the unit.
3. Clean your unit with a dry cloth. Solvent or detergent should never be used.
4. Avoid leaving your unit in direct sunlight or in hot, humid or dusty places.
5. Keep your unit away from heating appliances and sources of electrical noise such as
fluorescent lamps or motors.
CLEANING THE UNIT
To prevent fire or shock hazard, disconnect your unit from the AC power source when
cleaning.
The finish on the unit may be cleaned with a dust cloth and cared for as other furniture,
Use caution when cleaning and wiping the plastic parts.
If the cabinet becomes dusty wipe it with a soft dry dust cloth. Do not use any wax or polish
sprays on the cabinet.
E15
If the top panel becomes dirty or smudged with fingerprints it may be cleaned with a soft
cloth slightly dampened with a mild soap and water solution. Never use abrasive cloths or
polishes, as these will damage the finish of your unit.
CAUTION: Never allow any water or other liquids to get inside the unit while cleaning.
Note: This unit is not magnetically shielded and may cause color distortion on the screen of
some TVs or video monitors. To avoid this, you may need to move the unit further away from
the TV or monitor if unnatural color shifts or image distortion occurs.
TROUBLESHOOTING GUIDE
Should you experience difficulties in the use of this player please refer to the following chart or
call 1-800-777-5331 for Product Service and Support.
Symptom Possible Problem Solution
The unit is disconnected
from the AC outlet. Reconnect to the AC outlet. The unit does not
respond (no
power) The AC outlet has not
power. Try the unit on another outlet.
Unit is ON but
there is low or no
volume
The volume control has
been turned all the way
down.
Turn the Volume control to a
higher output.
Speaker is off or not in WiFi
mode.
Turn on speaker and select WiFi
mode.
WiFi network is incorrect or
malfunction.
Select correct Wifi network, Try
your other device to ensure your
WiFi network is working properly.
Cannot connect to
WiFi network
App is not installed properly
Uninstall then reinstall the app,
power the speaker Off, then On,
and restart setup by use WPS
button.
Alexa speaker is not in
same WiFi network of your
smartphone.
Use the same WiFi network for
speaker & your smartphone.
Speaker is not set up for
Amazon Alexa.
Set up speaker by following the
set up steps in the manual.
You have not select casting
to speaker.
Select speaker in your
smartphone screen.
Bluetooth speaker is not
linked with the cell phone.
Go through “Bluetooth
Operations” process to link the
speakers.
No Sound
Speaker placement out of
range.
Relocate the speaker within
Bluetooth operating range
JSB-550 is not connected to
your WiFi network.
Use Muzo app to connect
JSB-550 to your WiFi network.
You have not login your
Amazon Alexa account.
Create and login your Amazon
Alexa account.
Alexa voice
control not
function. JSB-550 microphone is
disabled
Tap the POWER button to
enable the microphone.
E16
Volume level is set too high.
Decrease the volume.
If the external device original
sound source is of poor quality,
distortion and noise are easily
noticed with high-power
speakers. Try a different audio
source such as a music CD .
Sound is distorted
Sound source is distorted. If you are using an external
sound source like older
generation of iPod, try reducing
the output volume on the device
itself. Also try turning bass boost
OFF or change the EQ setting.
Unit gets warm
after extended
play at high
volume
This is normal. Turn the unit off for a period of
time or lower volume.
SPECIFICATION
Power requirement:
Main Unit AC-DC Adaptor DC 12V, 2A
At Spectra, environmental and social responsibility is a core
value of our business. We are dedicated to continuous
implementation of responsible initiatives with an aim to
conserve and maintain the environment through responsible
recycling.
Please visit us at http://www.spectraintl.com/green.htm for more information on Spectra’s
green initiatives or to find a recycler in your area.
The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any
use of such marks by Spectra Merchandising Intl, Inc. is under license. Other trademarks and trade
names are those of their respective owners.
ALEXA legal line?
Spotify legal line?
90 DAY LIMITED WARRANTY AND SERVICE
VALID IN THE U.S.A. ONLY
SPECTRA MERCHANDISING INTERNATIONAL, INC. warrants this unit to be free from defective
materials or factory workmanship for a period of 90 days from the date of original customer purchase
and provided the product is utilized within the U.S.A. This warranty is not assignable or transferable.
Our obligation under this warranty is the repair or replacement of the defective unit or any part thereof,
except batteries, when it is returned to the SPECTRA Service Department, accompanied by proof of
the date of original consumer purchase, such as a duplicate copy of a sales receipt.
You must pay all shipping charges required to ship the product to SPECTRA for warranty service. If the
product is repaired or replaced under warranty, the return charges will be at SPECTRA’s expense.
There are no other express warranties other than those stated herein.
E17
This warranty is valid only in accordance with the conditions set forth below:
1. The warranty applies to the SPECTRA product only while:
a. It remains in the possession of the original purchaser and proof of purchase is demonstrated.
b. It has not been subjected to accident, misuse, abuse, improper service, usage outside the
descriptions and warnings covered within the user manual or non-SPECTRA approved
modifications.
c. Claims are made within the warranty period.
2. This warranty does not cover damage or equipment failure caused by electrical wiring not in
compliance with electrical codes or SPECTRA user manual specifications, or failure to provide
reasonable care and necessary maintenance as outlined in the user manual.
3. Warranty of all SPECTRA products applies to residential use only and is void when products are
used in a nonresidential environment or installed outside the United States.
This warranty gives you specific legal rights, and you may also have other rights which vary from state
to state. TO OBTAIN SERVICE please remove all batteries (if any) and pack the unit carefully and
send it freight prepaid to SPECTRA at the address shown below. IF THE UNIT IS RETURNED
WITHIN THE WARRANTY PERIOD shown above, please include a proof of purchase (dated cash
register receipt) so that we may establish your eligibility for warranty service and repair of the unit
without cost. Also include a note with a description explaining how the unit is defective. A customer
service representative may need to contact you regarding the status of your repair, so please include
your name, address, phone number and email address to expedite the process.
IF THE UNIT IS OUTSIDE THE WARRANTY PERIOD, please include a check for $XXX.00 to cover
the cost of repair, handling and return postage. All out of warranty returns must be sent prepaid.
It is recommended that you contact SPECTRA first at 1-800-777-5331 or by email at
custserv@spectraintl.com for updated information on the unit requiring service. In some cases the
model you have may be discontinued, and SPECTRA reserves the right to offer alternative options for
repair or replacement.
SPECTRA MERCHANDISING INTERNATIONAL, INC.
4230 North Normandy Avenue,
Chicago, IL 60634, USA.
1-800-777-5331
To register your product, visit the link on the website below to enter your information.
http://www.spectraintl.com/wform.htm
0717 Printed in China
