User manual

TOSHIBA
TY-WSP21
Wireless Speaker
Operation Manual
This product is a splash proof speakerand standardized as IPX5. The product isnot waterproof. Do not place the
productinto water. Read the following safetyprecautions carefully before using theproduct.
Thank you for purchasing this product.To use this product safely, read and understandthis operation manualthoroughly
before usingit. After reading this manual, keep it in a safeplace so that it can be used when necessary.
Safety precautions
The information you need to prevent danger to the user and other people as well as propertydamage is described
below. “Description of signs” shows different categories of the degreeof danger or damage that may occur due to
wrong handling. “Description of symbols” showsthe meaning of the symbols.
Description of signs
Indicates that there is a risk of death or serious injury.
Indicates that there is a risk of minor injury or property damage.
Description of symbols
Indicates “Prohibition” or “You mustnot do” with pictures and text.
Indicates “Mandatory Action” or “Do asindicated” with pictures and text.
What to do in the case of an abnormality
• Stop using the device immediately in case of an abnormality or failure.
• Remove the USB cable immediately when water or any foreign object enters theinterior of the device. It may cause a
fire or electric
Usage
To reduce the risk of fire, electric shock or product damage,
• Do not disassemble, repair, or modify the unit . Refer servicing to qualified servicepersonnel.
• Do not step on, throw, or drop battery or the power supply or unit, or expose them to a strong shock.
• Do not throw the unit into fire. The battery could explode causing injury or death.
• Do not install this unit in a confined or built-in space such as a book case or similarunit, and keep a
well-ventilatedconditions. The ventilation should not be impededby covering the ventilation openings with items such
as newspaper, table-cloths,curtains etc.
• Do not expose this unit to rain, moisture, dripping or splashing.
• Do not place objects filled with liquids, such as vases, on this unit.
• Place the unit on a flat surface away from sources of direct sunlight or excessiveheat.
• The unit is not for use by children, and keep it out of reach of children.
Rechargeable battery (Lithium polymer ion)
To reduce the risk of fire, electric shock or product damage,
• Do not attempt to replace the battery by yourself, it is built-in and is notchangeable.
• Do not heat, disassemble, or short-circuit the battery. Doing so may cause thebattery and power supply to generate
heat, rupture, or ignite.
• Do not attempt to charge the battery in temperatures outside the temperaturerange of 0°-40°C .
• Do not continue charging the battery if it does not reach full charge within thespecified charging time. Overcharging
may cause the battery to become hot,rupture, or ignite.
• Do not expose the battery to excessive heat such as under the sun or near the fireor the like.
Overheat, leakage, or rupture may occur, resulting in burns or injury.
If you touch the battery fluid, rinse it off with water and consult with the doctor. If thebattery fluid spills over the device,
wipe it off without touching the fluid.
Disclaimer
• Toshiba shall not be responsible for any damage caused by an earthquake,thunderstorm, flood damage, fire for
which Toshiba is not responsible, acts of a thirdparty, other accidents, or damages caused by the user’s willful acts or
negligence,misuse, or use in abnormal conditions.
•Toshiba shall not be responsible for any damage caused by failure to observe theinformation described in the
operation manual.
Disposal
• When disposing of this device, observe the laws, or ordinances and rules of the localgovernment.
• When disposing of the battery, make a request to a recycle agency for disposal.
About water resistance
To use this unit,
• Do not place the unit into hot or cold water.
• Do not pour large amounts of water onto the unit.
• Do not spray with water intensely.
• Do not place the unit into hot or cold water with soap, detergent, or bath agent.
• Be sure the cover for the Micro USB charge socket/Line-in socket is closed firmlywhen you use the unit.The rubber
seal of the cover is made for water resistance. Do not let the rubber sealbecome dirty or scratched. If any foreign
objects are attached to the rubber seal, wipeit with a clean dry cloth in a dry place.
• Do not open or close the cover for the Micro USB charge socket/Line-in socket in alocation where it will be subject to
water or high humidity.
• If the unit falls into water or is covered with large amounts of raindrops or water,use a dry cloth to wipe it immediately.
Open and close the cover for the Micro USB charge socket/Line-in socket with dryhands in a dry place after the water
has been wiped off sufficiently from the unit.
• Water may remain within the unit after it has been wet. Shake the water off the unitlightly and wipe the unit.
If water remains within the unit and the unit is carried around, your clothes, floor, orbed may become wet due to water
dropped from the unit.The degree of protection against water for this unit is equivalent to IPX5 (IP code).
IPX5 means the product will not be harmfully effected by droplets from anydirection.Toshiba shall not be responsible
for any damage caused by water entering the unitdue to incorrect handling and itwill not be covered by the warranty
even if thewarranty period is still in effect.
A
About using Bluetooth
This unit is designed for use with Bluetooth?wireless devices compatible with the HFP, HSP,A2DP and AVRCP
streaming audio profiles. Refer to your Bluetooth?device’s user manual ortechnical support to determine if your
Bluetooth?device supports these profiles.
Frequency band used
This unit uses the 2.4 GHz frequency band. However other wireless devices may use 2.4 GHzfrequency band as well
and may cause interference with each other. To avoid interference,please refrain from the use of the unit at the same
time with other wireless devices.
Certification of this device
This unit conforms to frequency restrictions and has received certification based onfrequency laws, so a wireless
permit is not necessary.However, the following action is punishable by law in some countries:
• Taking apart/modifying the unit.
Usage restrictions
• Wireless transmission and/or use with all Bluetooth?equipped devices is not guaranteed.
• A device featuring the Bluetooth?function is required to conform to the Bluetooth?standardspecified by Bluetooth SIG,
and be authenticated. Even if the connected device conformsto the above mentioned Bluetooth?standard, some
devices may not be connected or workcorrectly, depending on the features or specifications of the device.
Range of use
Use this device within an unobstructed 10 m range. The range of use or perimeter may beshortened depending on any
obstructions, devices causing interference, other people in theroom, or the construction of the building. Please note
that the range mentioned above isnot guaranteed.
The Bluetoothword mark and logos are owned by the Bluetooth SIG, Inc. and are usedunder license.
Note
• This unit may receive radio interference caused by mobile telephones during use. Ifsuch interference occurs, please
increase separation between this unit and the mobiletelephone.
Usage restrictions
• Wireless transmission and/or usage with all Bluetooth?equipped devices is notguaranteed.
A device featuring the Bluetooth?function is required to conform to the Bluetooth?standard specified by Bluetooth
SIG, and be authenticated. Even if the connected deviceconforms to the above mentioned Bluetooth?standard, some
devices may not beconnected or work correctly, depending on the features or specifications of the device.
Range of use
Use this device within an unobstructed 10 m range. The range of usage or perimetermay be shortened depending on
any obstructions, devices causing interference,other people in the room, or the construction of the building. Please
note that therange mentioned above is not guaranteed.
The Bluetooth?word mark and logos are owned by the Bluetooth SIG, Inc. Andare used under license.
This device complies with Part 15 of the FCC Rules. Operation is subject tothe following two conditions: (1)
this device may not cause harmfulinterference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
NOTE: This equipment has been tested and found to comply with thelimits for a Class B digital device, pursuant to
Part 15 of the FCC Rules.These limits are designed to provide reasonable protection againstharmful interference in a
residential installation. This equipment generates, usesand can radiate radio frequency energy and, if not installed and
used in accordancewith the instructions, may cause harmful interference to radio communications.However, there is
no guarantee that Interference will not occur In a particularinstallation. If this equipment does cause harmful
interference to radio ortelevision reception, which can be determined by turning the equipment off andon, the user is
encouraged to try to correct the interference by one or more of thefollowing measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to whichthe receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
Warning: Changes or modifications to this unit not expressly approved by the partyresponsible for compliance could
void the user’s authority to operate the equipment.
IC Compliance Statement: This device complies with Industry Canada’s licence-exempt RSSs.Operation is subject
to the following two conditions:
(1) this device may not cause interference, and
(2) this device must accept any interference, including interference that may cause undesired operation of the
device.
Maintenance
To clean this system, wipe with a soft, dry cloth.
• Never use alcohol, paint thinner or benzine to clean this system.
• Before using chemical cloth, read the instructions that came with the cloth carefully.
Getting started
This unit has a built-in lithium polymer ion rechargeable battery. Before use, fully charge thebattery by connecting the
unit to a computer or a universal USB mobile charger through theprovided USB charging cable.
The red Charge indicator turns on while the battery is charging. The red indicator will turn offwhen the battery is fully
charged (around 2 hours).
Note
• When the battery voltage is too low, a low voltage sound is heard. Charge the unit.

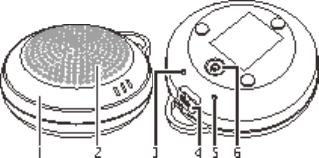

Controls and indicators
1 Decoration ring
2 Speaker driver
3 Charge indicator (Red)
4 Micro USB charge socket / Line-in socket
5 Bluetooth?indicator (Blue)
6 Power button / Play button / Pause button
Using this speaker
Cet appareil est conforme aux CNR exemptes de licence d'Industrie Canada . Son fonctionnement est soumis aux deux conditions suivantes :
( 1 ) Ce dispositif ne peut causer d'interférences ; et
( 2 ) Ce dispositif doit accepter toute interférence , y compris les interférences qui peuvent causer un mauvais fonctionnement de l'appareil.
Listening to Bluetooth?Music
In order to use the unit for music playback functions through Bluetooth? the speaker mustfirst be paired with the
Bluetoothdevice.
Pairing:
1 . Press and hold the Power button on the underside to turn on thespeaker.A Power on sound is heard.
Bluetooth?function will go into pairing mode and the blueLED will keep flashing.
2. Following the instructions in your device's user manual, activateBluetooth?on your device and search for other
devices.Once you have found "TY-WSP21”, pair with the speaker.
•A pass code is not required.
Once connected, a pairing successful sound is heard.
•The blue LED of the speaker will remain lit.
Information:
This speaker will pair with the last connected device when that device is in range.
• The Bluetooth?pairing can be canceled by pressing and holding the Power button for1 second. (Pressing and holding
the Power button for 2 seconds or more turns off thespeaker.)
The speaker will be turned off if no device has been paired for more than 15 minutes.
Playing BluetoothMusic:
Once your device and the speaker are paired, you can play music on this speaker throughBluetooth
1 . Press the Play/Pause button either on your device or this speaker toplay or pause music.The blue LED will flash
once per 5 seconds while in the Play mode.
2 Adjust the volume level on your device.
Note
The speaker will be turned off if it has been in the Pause mode for more than 30 minutes.
Turning off the power
1 Press and hold the Power button on the underside for 2 seconds ormore to turn off the speaker.A Power off sound is
heard.
Playing line-in Music
You can connect an MP3 player or other portable audio device to this speaker via the Line-insocket.
Note
• Use the provided Micro USB – 3.5 mm plug cable. The Line-in socket cannot be used witha commercially available
cable.
1 .Plug the Micro USB plug into the USB socket using the provided Micro USB-3.5mm plug cable. The speaker will
turn on automatically.
2 . Plug the 3.5 mm plug into the headphone or line-out jack on yourdevice.
3. Turn on and play your device.
4. Adjust the volume level on your device.
Note
• Since the USB Charge cable cannot be used while the Micro USB – 3.5 mm plug cable isbeing used, you cannot
charge the speaker.
Changing the decoration ring
You can change the decoration ring according to your preference.
1 . Turn the decoration ring anticlockwise to release it.
2 . Replace the decoration ring and turn it clockwise to lock it.
Outdoor use/using in places where water drops may fall on the speaker
Be sure the cover for the Micro USB Charge socket/Line-in socket
Specification
Bluetoothsection
Bluetoothspec.:Version 4.1 +EDR
Wireless equipmentClassification:Class 2
Supported profile : A2DP, AVRCP
Frequency range:2.402-2.480 GHz (2.4 GHz ISM Segment)
Service distance:Up to 10 m
General
Splash proof: IPX5
Power output:1.8 W RMS
Battery Internal : lithium polymer ion battery (330 mA)
Operating time: Bluetoothmusic play time: Approx. 5.5 hrs at 50% volume level
Line-in music play time: Approx. 8 hrs at 50% volume level
Dimension : 80 x 40 x 92.5 mm (W x H x D)
Weight Approx.:137 g
Speaker:40 mm 3 ohm 3 W speaker driver
Accessories: USB chargingcable x 1, Micro USB – 3.5 mm plug cable x 1,
Decoration Ring x 2, Ring Hook x 1, Operation manual x 1
This user manual may be changed without prior notice to improve product performance.The images included in this
guide may differ from the actual image and may change withoutnotice.

Navigation menu
