1 Overview
COMPACT1.0 is a wireless modem that allows connectivity on
E-GSM/DCS/GSM850/PCS- GPRS networks.
The Open AT Application Framework is the world’s most comprehensive cellular
development environment that allows embedded standard ANSI C applications
to be natively executed directly on the embedded module. For more information
about Open AT Application Framework, refer to the documents listed in section
8.1 Remo Wireless Documentation. With the Open AT Application Framework,
customers can embed their own applications in this device and turn it into a
solution for their specific market need. The operating system of COMPACT1.0
has the ability to fully control the following functions:
AT command processing (refer to document [2] AT Commands
Interface Guide for Open AT Application Framework Firmware 7.47 for
more information)
Full GSM or GSM/GPRS Operating System stack
GPS Plug-In processing
Note: This document does not cover the programmable capabilities available
through Open AT Application Framework.
Product Technical Specification & User Guidelines
High Confidential
7 / 63
1.1. Overall Dimensions

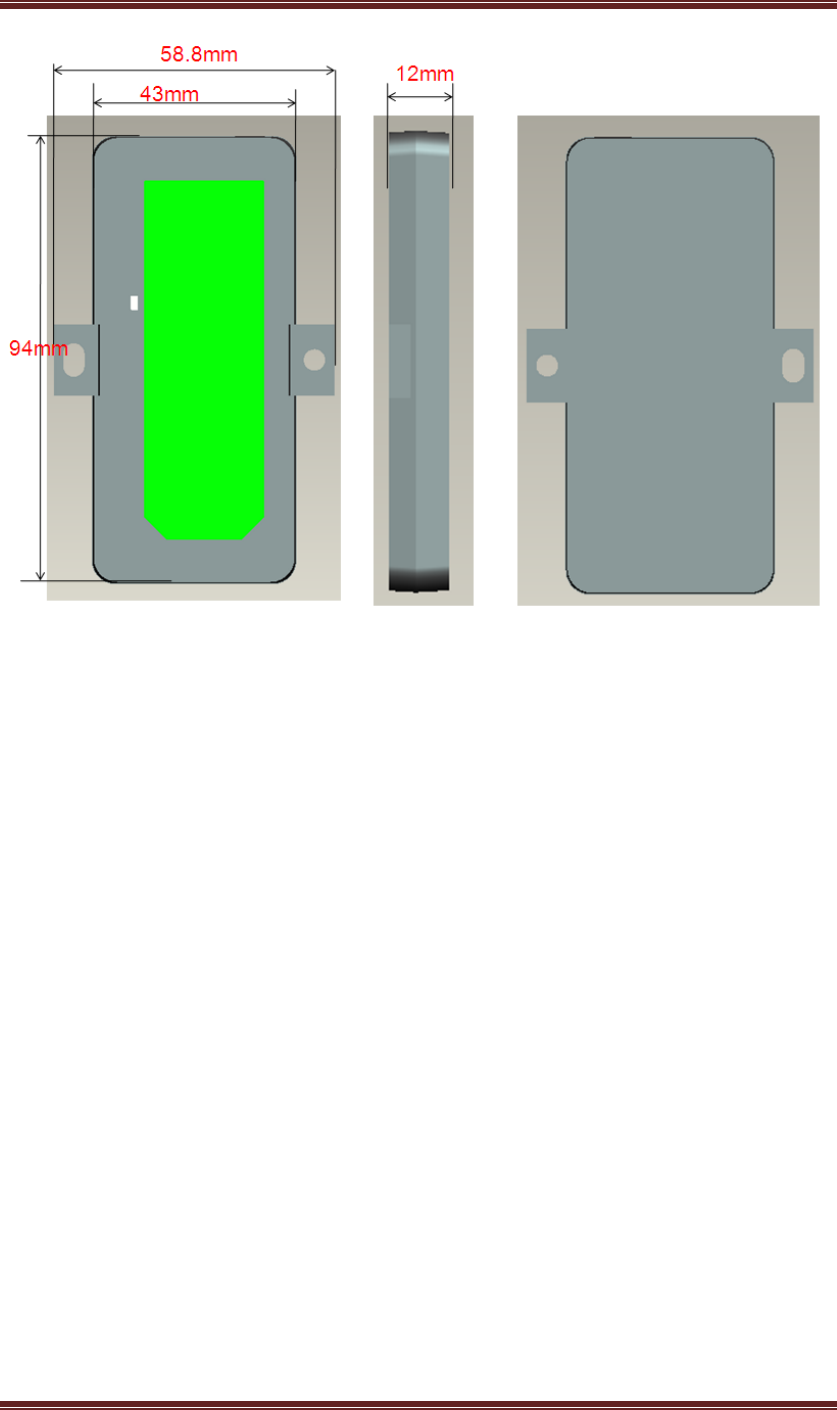

COMPACT1.0 comes in a compact, robust, IP42 grade casing suitable for automotive
environments.

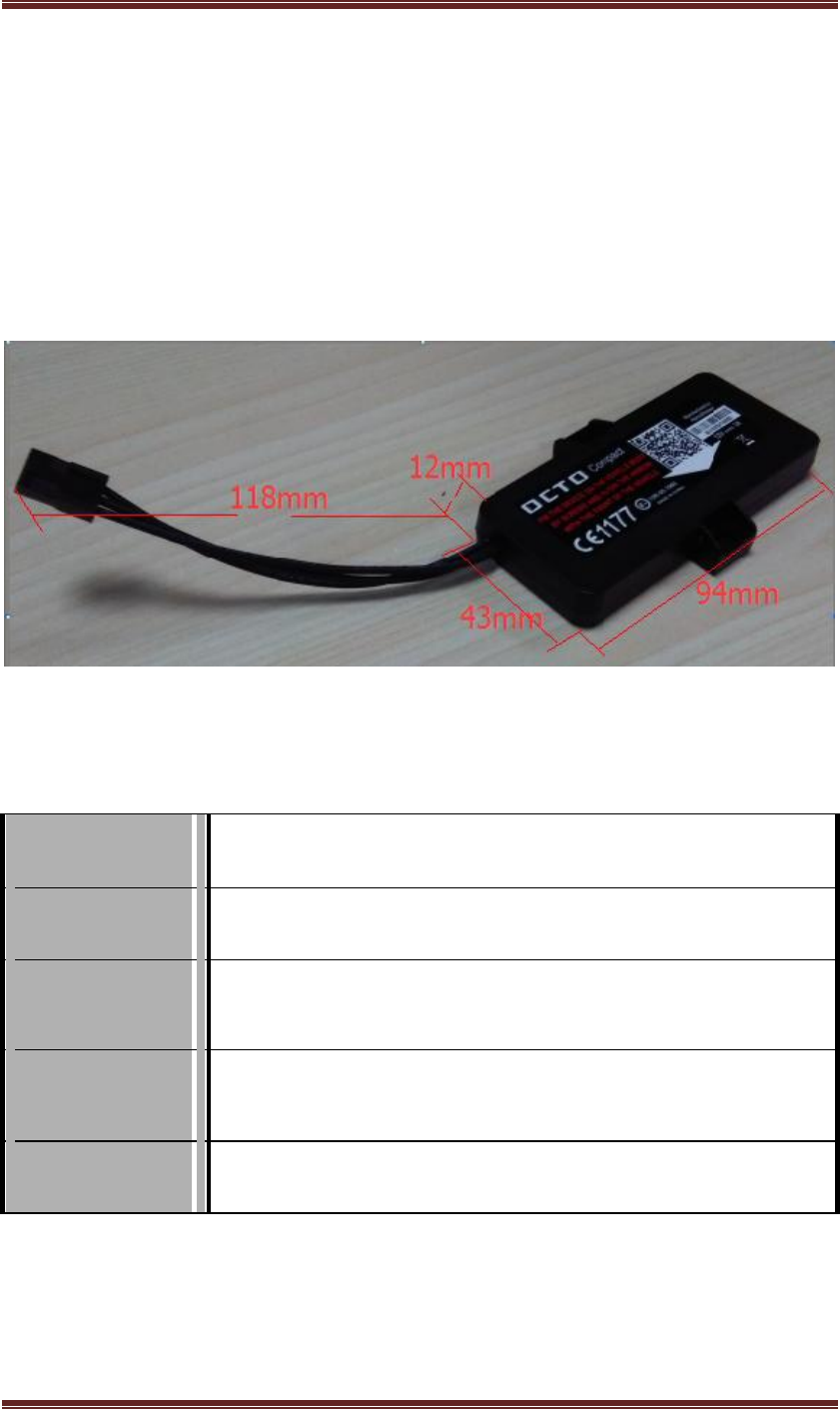

Figure 1. COMPACT1.0 Modem
Table 1. COMPACT1.0 Physical Dimensions
Length
94 mm
Width
43mm
Thickness
12mm
Cable
118mm
Weight
63±5g
1.2. Environmental Compliance
1.2.1. RoHS Compliance
Product Technical Specification & User Guidelines
High Confidential
8 / 63
COMPACT1.0 is compliant with RoHS Directive 2011/65/EU which sets limits for
the use of certain restricted hazardous substances. This directive states that “from
1st July 2006, new electrical and electronic equipment put on the market does not
contain lead, mercury, cadmium, hexavalent chromium, polybrominated biphenyls
(PBB) or polybrominated diphenyl ethers (PBDE)”.
1.2.2. Disposing of the Product
This electronic product is subject to the EU Directive 2002/96/EC for Waste
Electrical and Electronic Equipment (WEEE). As such, this product must not be
disposed off at a municipal waste collection point. Please refer to local
regulations for directions on how to dispose of this product in an environmental
friendly manner.
2. Features
The following table enumerates the features available on the COMPACT1.0.
Table 2. COMPACT1.0 Feature Set
Feature
Description
GSM
Transceiver
AT
Commands
3GPP TS 27.007 and TS 27.005
Remo extended AT command
Supported
Band
GSM850 /EGSM900 /DCS1800 /PCS1900
GPRS
GPRS multi-slot class 12 or class 8
GPRS mobile station class B
SMS
Supporting MO and MT
Supporting TEXT and PDU mode
Data
GPRS class 12: 85.6kbps DL / 85.6kbps UL
SIM Interface
Embedded SIM
GPS Receiver
Cold starts: -145 dBm
Navigation: -160 dBm
Tracking: -162 dBm
Bluetooth BlueNRG
Available output power: Up to +8 dBm
RF link budget: up to 96 dB
Bluetooth specification v4.1 compliant master
and slave single-mode Bluetooth low energy
network processor
Product Technical Specification & User Guidelines
High Confidential
10 / 63
Feature
Description
Accelerometer and Gyro
always-on 3D accelerometer and 3D gyroscope
Watchdog Timer
1.6S
Main Supply
Input Voltage
12V/24V
ENGINE ON
Detection
12V/24V
Emergency Battery
210mAH Li-ion Battery
3．Architecture
Product Technical Specification & User Guidelines
High Confidential
11 / 63
3.1. Test Points and Test PIN

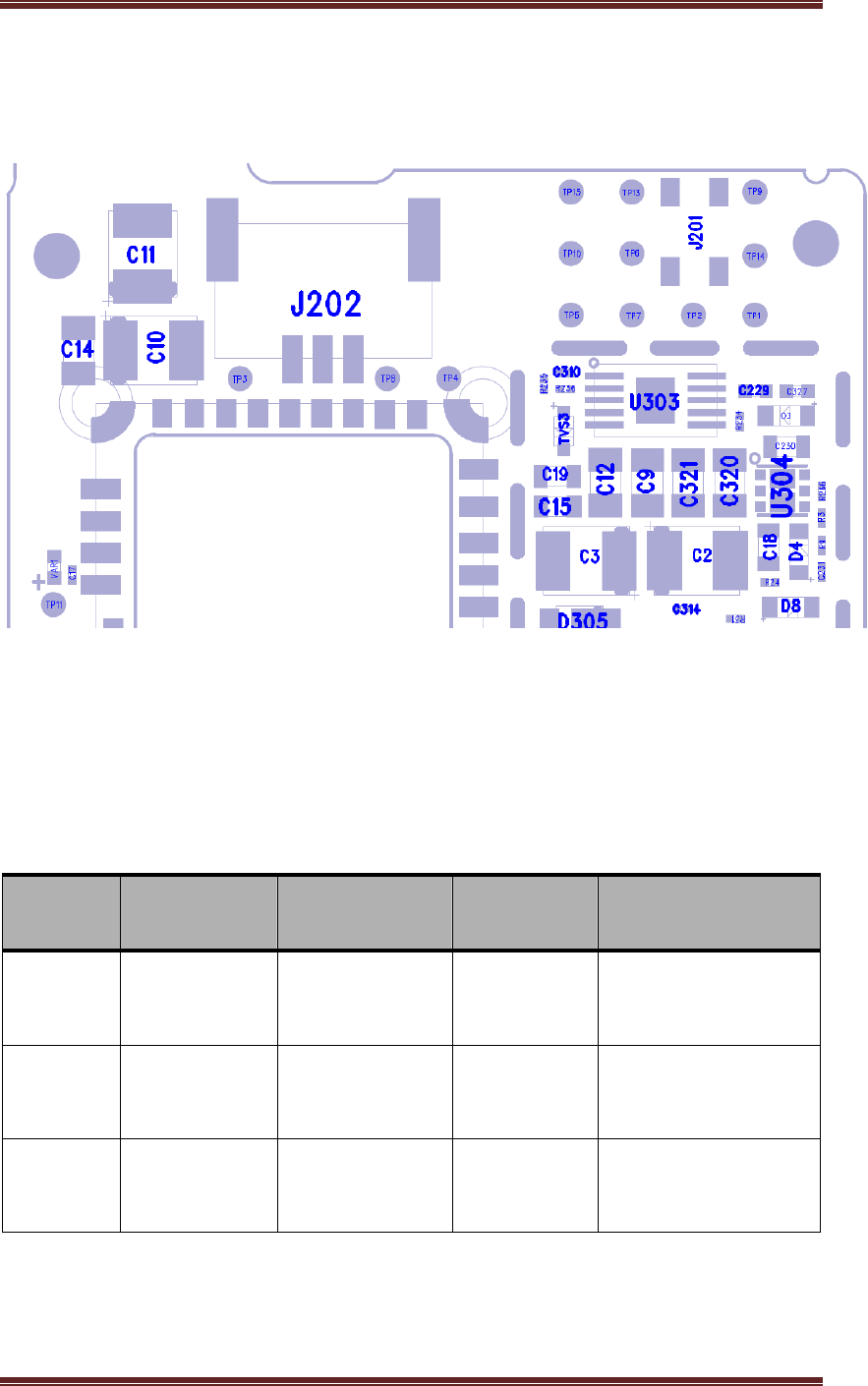

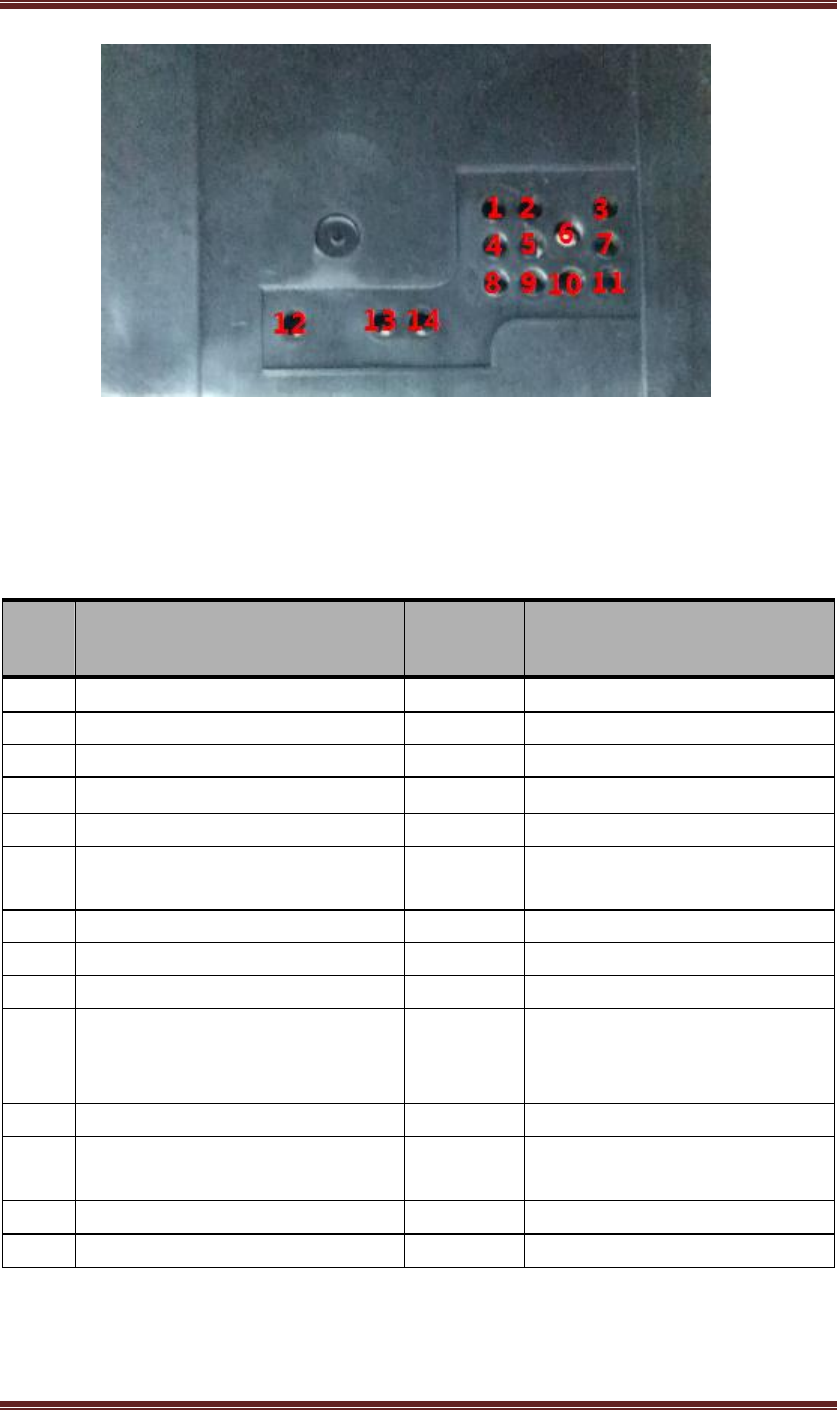

Figure 2.Test points and Test pins
3.2 Power Supply Test Points
Table 3. Power Supply Test Points
TP No.
Signal Name
Viewed As
Level
Comment
TP9
+12V/24V
Vehicle battery
voltage detection
PIN
+6V~32V
Read from ADC_IN1
TP3
V_SYSTEM
COMPACT1.0
system power
supply
+3.6V~+4.2V
TP711
+3V3
COMPACT1.0
3.3V power
supply
3.3V
3.3 Ground Test Points and Test PIN
Table 4. Ground Test Points
Product Technical Specification & User Guidelines
High Confidential
12 / 63
TP No.
Signal Name
Viewed As
Level
Comment
TP4
GND
3.4 T3 Test Points
Table 5. T3 Test Points
TP No.
Signal Name
Viewed As
Level
Comment
TP2
T3_U2TX_DEBUG/T3_BOOT0
T3 uart2 TXD
3.3V
TP1
T3_U2RX_DEBUG
T3 uart2 RXD
3.3V
3.5 2G Test PIN
Table 6. 2G Test Points
TP No.
Signal Name
Viewed As
Level
Comment
TP5
2G_USBDM
2G USB DM
3.3V
TP7
2G_USBDP
2G USB DP
3.3V
3.6 Watchdog Test Points
Table 7. Watchdog Test Points
TP No.
Signal Name
Viewed As
Level
Comment
TP6
2G_BOOT/WDG_DISABLE
2G BOOT Watch
dog disable
3.3V
Product Technical Specification & User Guidelines
High Confidential
13 / 63
3.7 Power reset Test Point
Table 8. Power reset Test Point
TP No.
Signal Name
Viewed As
Level
Comment
TP10
PWR_RST
System power reset
3.8 Logistic (transport) mode Test Point
Table 9. Logistic (transport) mode Test Point
TP No.
Signal Name
Viewed As
Level
Comment
KM1.11
BATT_BKP_DISC
Logistic mode
4. Technical Specifications
4.1. Main Power Supply
COMPACT1.0 is powered by an external DC supply. It has a built in DC/DC converter
to internally regulate the supply for internal functional uses.
The supply inputs are protected from supply line reversal.
Table 10. COMPACT1.0 Power Supply Requirement
Voltage Range
Current
Product Technical Specification & User Guidelines
High Confidential
14 / 63
12V/24V
1A
4.1.1. Supply Terminals
COMPACT1.0 is powered through the available supply terminals. These are
connected to an external DC Supply with voltages from 12V to 24V such as car
batteries.

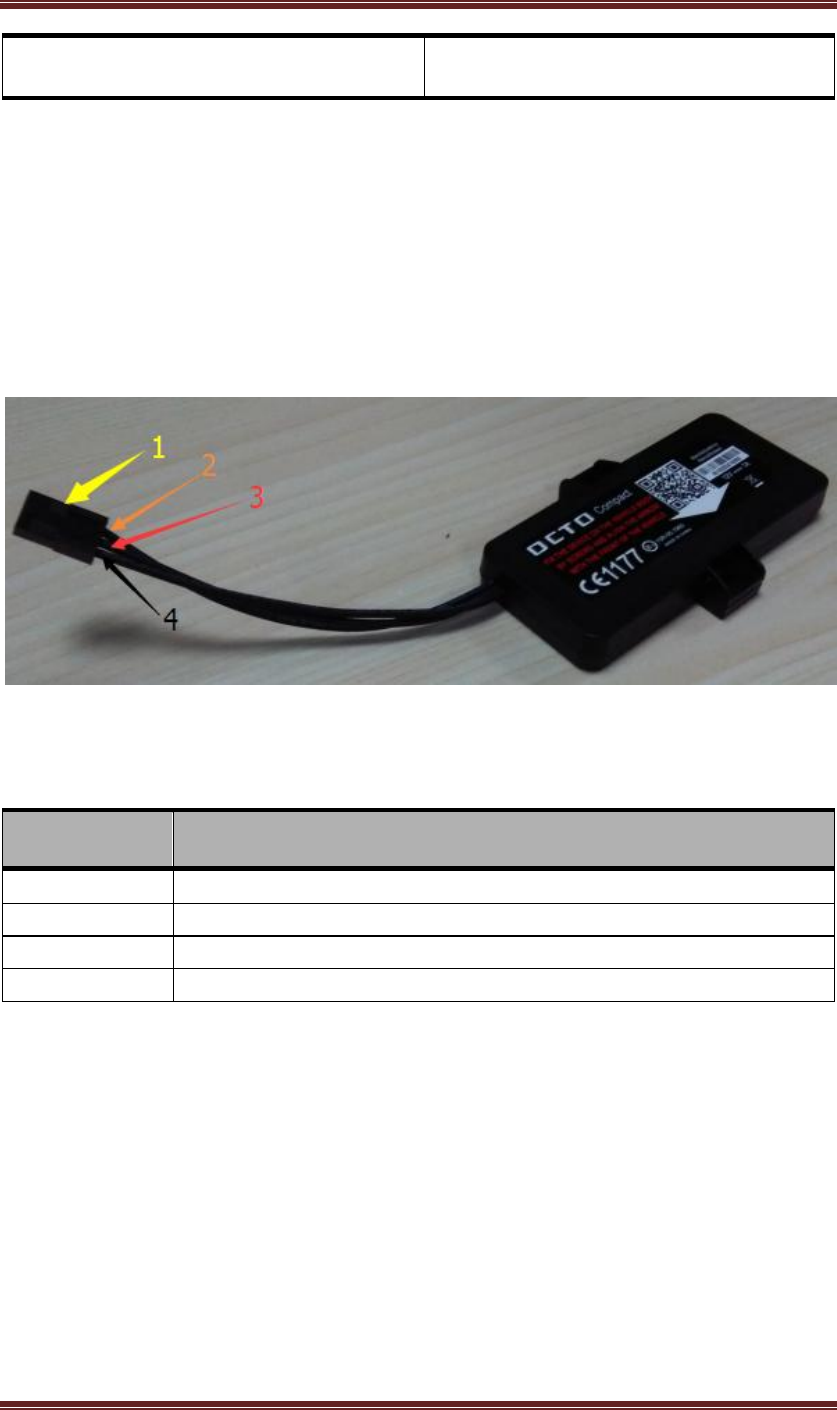

Figure 3. Power Supply Terminals
Table 11. Supply Terminal Specifications
No.
Comments
1
3-pin connector of COMPACT1.0
2
ENGINE_ON
3
V+
4
GND
4.2. ENGINE_ON Monitoring
COMPACT1.0 is equipped with ENGINE_ON monitoring circuit. A level shift circuit
that can sense the ENGINE ON signal and wakeup the device from the stanby model.
Product Technical Specification & User Guidelines
High Confidential
15 / 63
4.3. Watchdog Timer
Teseo III systems inside the COMPACT1.0 are equipped with Watchdog Timer, if
any system application software have mistakes, within a power cycle, the
Watchdog Timer will generate a reset signal, to reset the system.
Referring to Figure 4 Watchdog Timer Circuit, the watchdog timer is activated by
pulling /RST of the STA8090FG to low. Once activated, the watchdog input (WDI)
must be edge toggled every 1.6 seconds to clear the watchdog timer from any
event that may assert the power cycle.
Product Technical Specification & User Guidelines
High Confidential
16 / 63

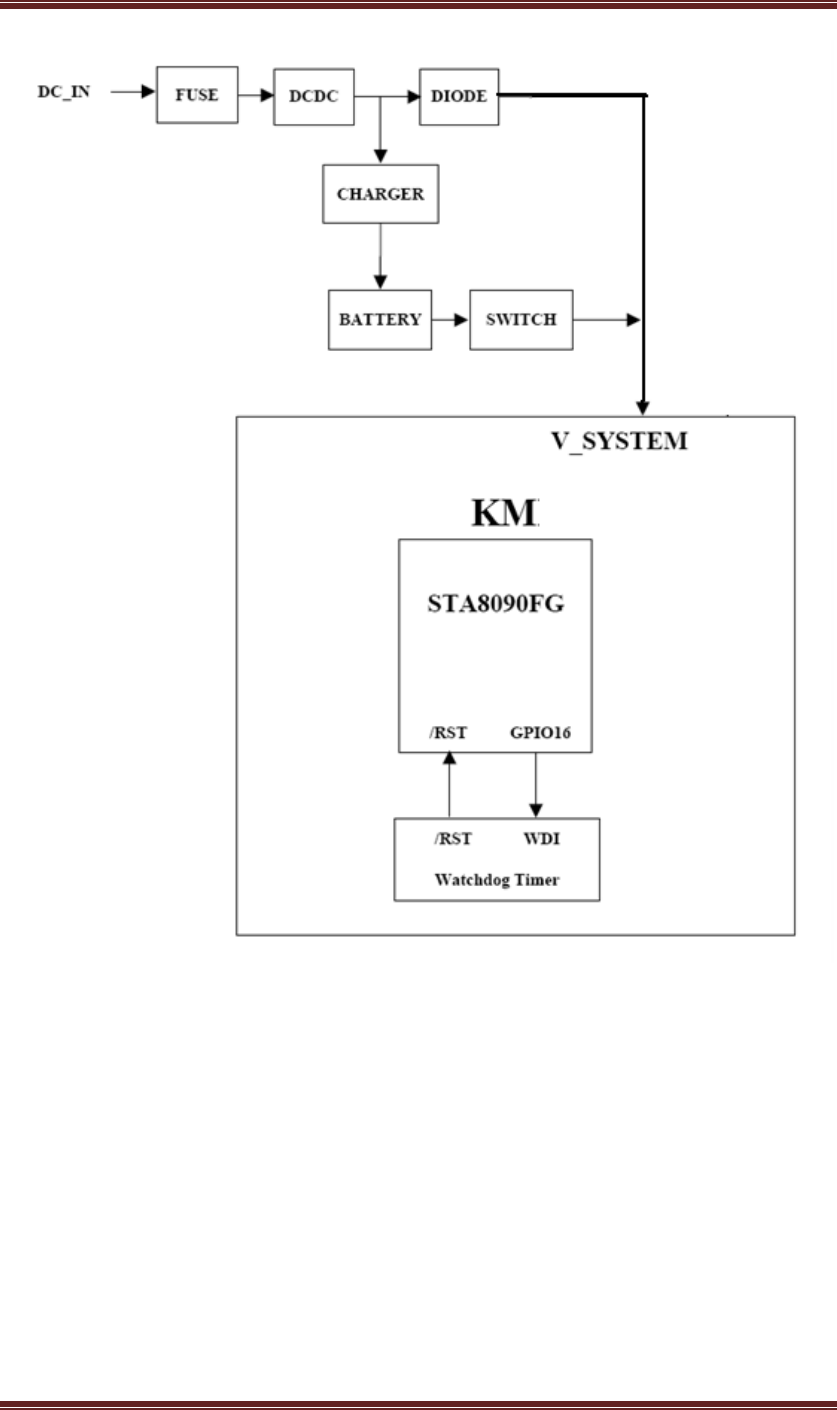

Figure 4. Watchdog Timer Circuit
Product Technical Specification & User Guidelines
High Confidential
17 / 63

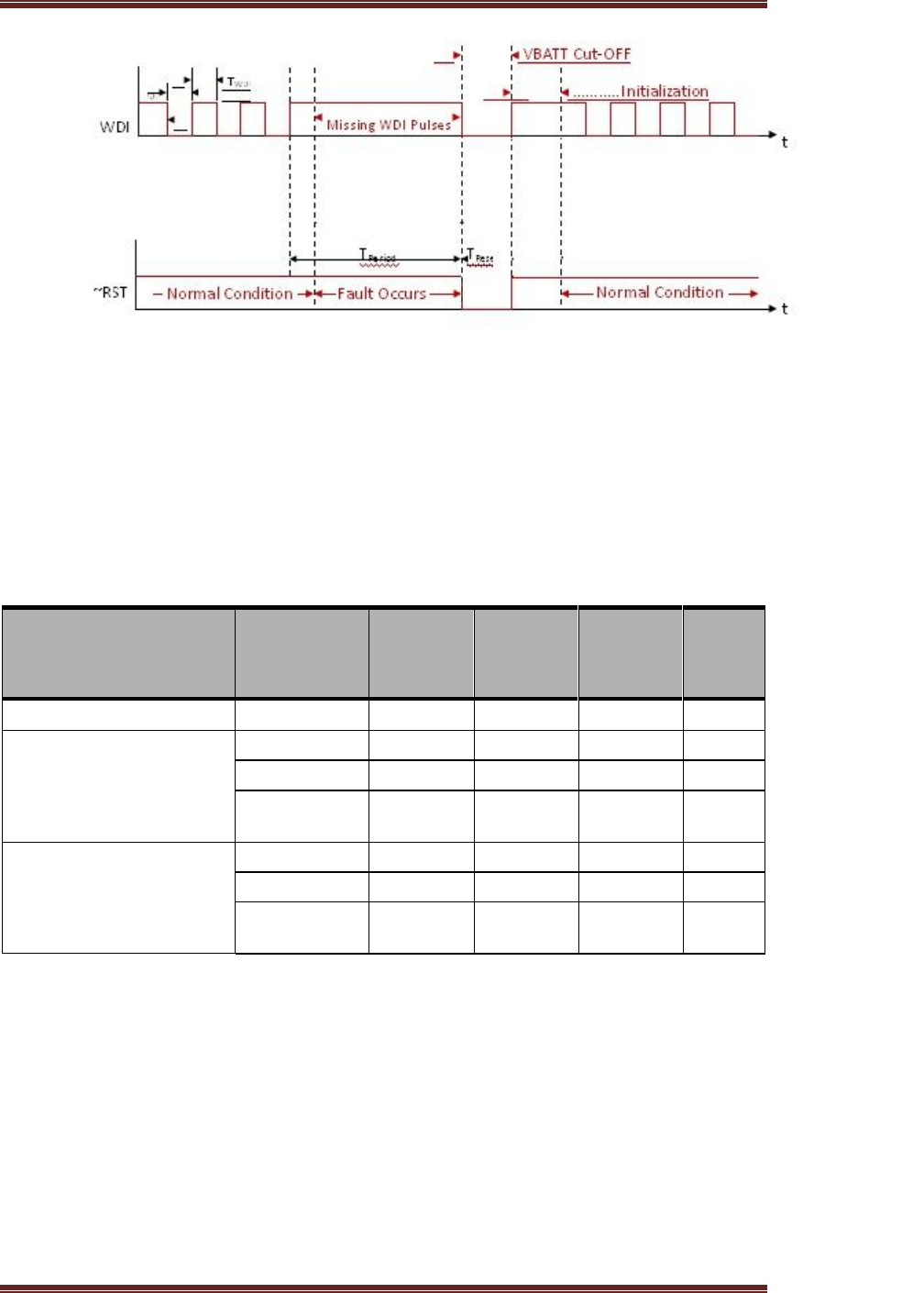

Figure 5. Watchdog Timer Timing Diagram
The following table lists the electrical characteristics of the watchdog timer.
Table 12. Watchdog Timer Electrical Characteristics
Parameter
Temperature
Minimum
Typical
Maximum
Unit
Watchdog Input (TWDI)
+25°C
1
sec
Timeout Period (TPeriod)
+25°C
1.12
1.6
2.24
sec
+85°C
1.68
sec
-40°C
1.66
sec
Reset Period (TReset)
+25°C
0.14
0.2
0.28
sec
+85°C
0.2
sec
-40°C
0.2
sec
4.4. GSM Transceiver
The GSM radio frequency (RF) component of the COMPACT1.0 is based on the
RFMD dual- band module.
Product Technical Specification & User Guidelines
High Confidential
18 / 63
The Radio Frequency (RF) range complies with Phase II EGSM 900/DCS 1800 and
GSM 850/PCS 1900 recommendations. The corresponding frequency
recommendations for both transmission and reception bands are listed in the table
below.
Table 13. Supported RF Frequencies
GSM Band
Transmit Band (Tx)
Receive Band (Rx)
GSM 850
824 to 849 MHz
869 to 894 MHz
EGSM 900
880 to 915 MHz
925 to 960 MHz
DCS 1800
1710 to 1785 MHz
1805 to 1880 MHz
PCS 1900
1850 to 1910 MHz
1930 to 1990 MHz
RF performance is compliant with ETSI recommendation GSM 05.05.
Table 14. Main Receiver
Parameters
Values
GSM850 Reference Sensitivity
-108 dBm typical (Static & TUHigh)
EGSM900 Reference Sensitivity
-108 dBm typical (Static & TUHigh)
DCS1800 Reference Sensitivity
-108 dBm typical (Static & TUHigh)
PCS1900 Reference Sensitivity
-108 dBm typical (Static & TUHigh)
Selectivity @ 200 kHz
> +9 dBc
Selectivity @ 400 kHz
> +41 dBc
Linear dynamic range
63 dB
Co-channel rejection
>= 9 dBc
Table 15. Main Transmitter Parameters
Parameters
Values
Maximum output power
(EGSM900 & GSM850)
33dBm +/- 2dB at ambient temperature
Maximum output power (GSM1800 &
PCS1900)
30dBm +/- 2dB at ambient temperature
Minimum output power
(EGSM 900& GSM850)
5dBm +/- 5dB at ambient temperature
Product Technical Specification & User Guidelines
High Confidential
19 / 63
Minimum output power (GSM1800 &
PCS1900)
0 dBm +/- 5dB at ambient temperature
4.4.1. Built-In Internal GSM Antenna
COMPACT1.0 has a built-in antenna located on the indicated area of the case. It is
recommended to avoid placing metallic objects near this portion of the casing for best
GSM performance.

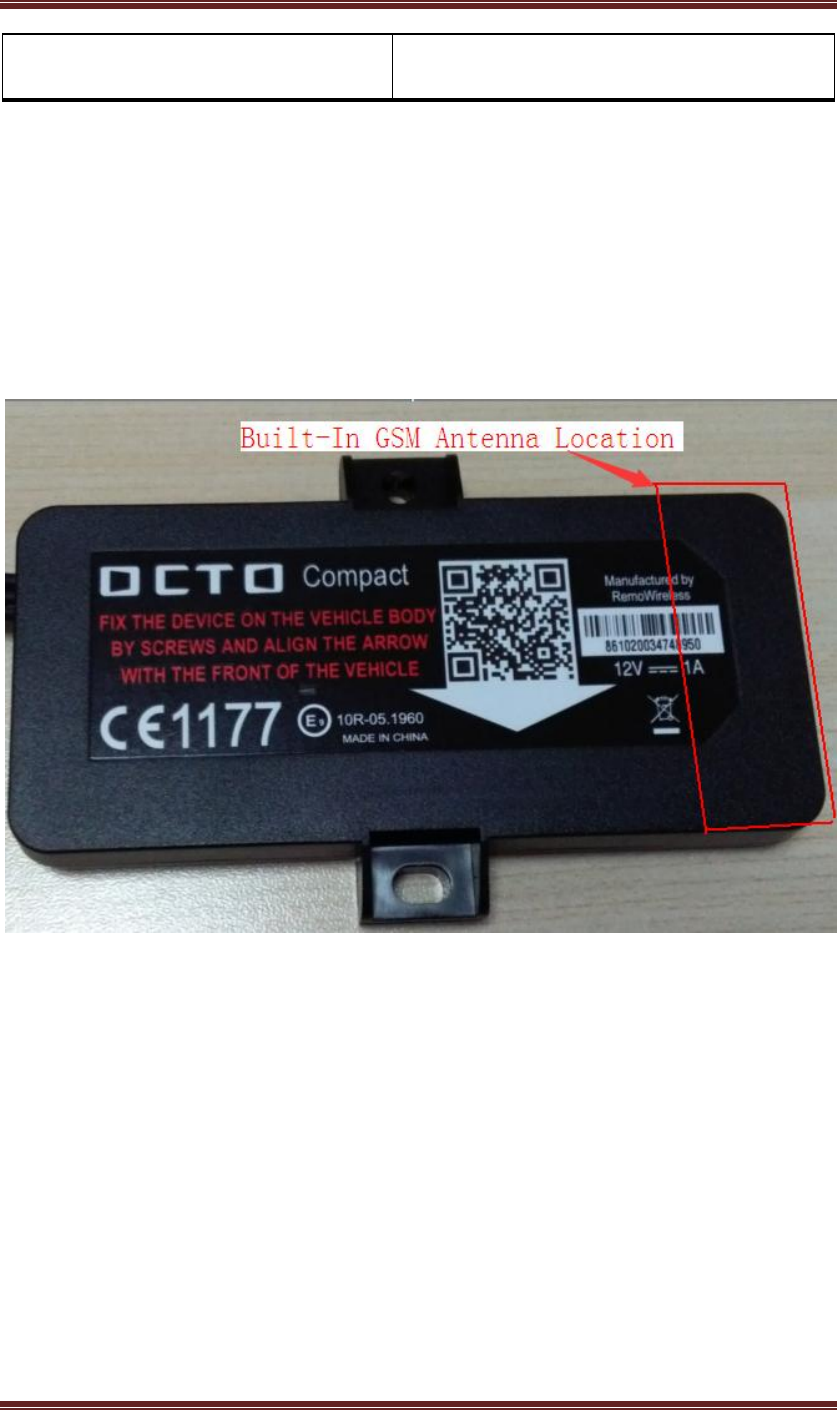

Figure 6. Built-In GSM Antenna
4.5. GPS
The GPS radio frequency (RF) range of COMPACT1.0 complies with GPS L1
frequency recommendations.
4.5.1. Built-In GPS Patch Antenna
Product Technical Specification & User Guidelines
High Confidential
20 / 63
COMPACT1.0 has a built-in GPS patch antenna located on the following area of the
case. It is recommended to avoid placing metallic objects near this area of the casing
for best GPS performance.

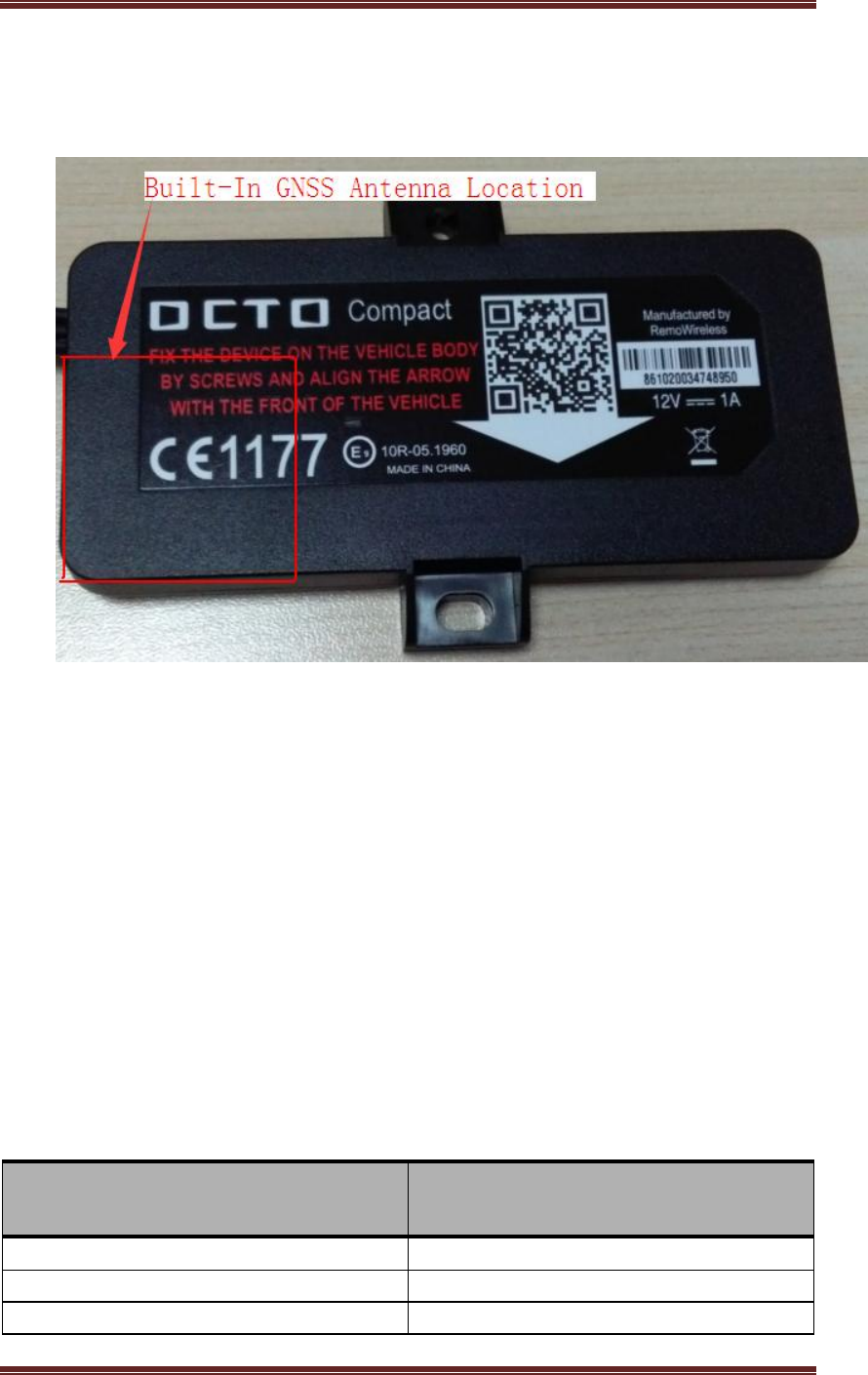

Figure 7. Built-In GNSS Patch Antenna
4.5.2. Receiver Sensitivity
The sensitivity level provided in the following table is the signal strength expected at the RF
input.
Table 16. GPS Receiver Sensitivity
Sensitivity Level
Value
Cold Start
-145 dBm
Warm start
-145 dBm
Hot start
-156 dBm
Product Technical Specification & User Guidelines
High Confidential
21 / 63
Navigation
-160 dBm
Tracking
-162 dBm
4.5.3. Time-To-First-Fix
The following data show only GPS time acquisition without library startup time and
module firmware download period. Depending on the initial state, this period should or
should not be added to the global start time.
Table 17. Time to First Fix
Mode
Signal Level (dB
m)
50 Percentile TTFF (se
c)
95 Percentile TTFF (se
c)
Cold start
-130
35
38
-142
91
102
Warm start
-130
34
38
-142
54
70
Hot start
-130
1.4
1.5
-148
6
8
4.5.4. 2D Position Accuracy
The following table provides the first fix accuracy of COMPACT1.0.
Table 18. First Fix Accuracy
Parameter
Description
Conditions
Value
Unit
Horizontal
accuracy
Cold start
50% CEP accuracy of first fix,
at -130dBm
<1.0
m
Warm start
50% CEP accuracy of first fix,
at -130dBm
<0.9
m
Hot start
50% CEP accuracy of first fix,
at -130dBm
<0.9
m
4.6. Bluetooth BlueNRG
Product Technical Specification & User Guidelines
High Confidential
22 / 63
4.6.1 Features
Bluetooth specification v4.1 compliant master
and slave single-mode Bluetooth low energy
network processor
Embedded Bluetooth low energy protocol
stack: GAP, GATT, SM, L2CAP, LL, RF-PHY
Bluetooth low energy profiles provided
separately
Operating supply voltage: from 1.7 to 3.6 V
8.2 mA maximum TX current (@0 dBm, 3.0 V)
Down to 1.7 μA current consumption with
active BLE stack
Integrated linear regulator and DC-DC stepdown
converter
Up to +8 dBm available output power (at
antenna connector)
Excellent RF link budget (up to 96 dB)
Accurate RSSI to allow power control
Proprietary application controller interface
(ACI), SPI based, allows interfacing with an
external host application microcontroller
Full link controller and host security
High performance, ultra-low power Cortex-M0
32-bit based architecture core
On-chip non-volatile Flash memory
AES security co-processor
Low power modes
16 or 32 MHz crystal oscillator
12 MHz ring oscillator
32 kHz crystal oscillator
32 kHz ring oscillator
Battery voltage monitor and temperature
sensor
Compliant with the following radio frequency
regulations: ETSI EN 300 328,
FCC CFR47 Part 15, ARIB STD-T66
Available in QFN32 (5 x 5 mm) and WLCSP34
(2.66 x 2.56 mm) packages
Operating temperature range: -40 °C to 85 °C
4.6.2 Applications
Product Technical Specification & User Guidelines
High Confidential
23 / 63
Watches
Fitness, wellness and sports
Consumer medical
Security/proximity
Remote control
Home and industrial automation
Assisted living
Mobile phone peripherals
PC peripherals
4.7. Accelerometer&Gyroscope
4.6.1. Accelerometer & Gyroscope
COMPACT1.0 has a built-in accelerometer and gyroscope capable of detecting X, Y, Z
axis movements and inclination. The accelerometer and gyroscope device used on
COMPACT1.0 is LSM6DS3TR. This device communicates with Teseo III through a
4–wire SPI bus. Please refer to document [7] LSM6DS3TR - Accelerometer
Specifications for programming configurations of this device.
Product Technical Specification & User Guidelines
High Confidential
24 / 63

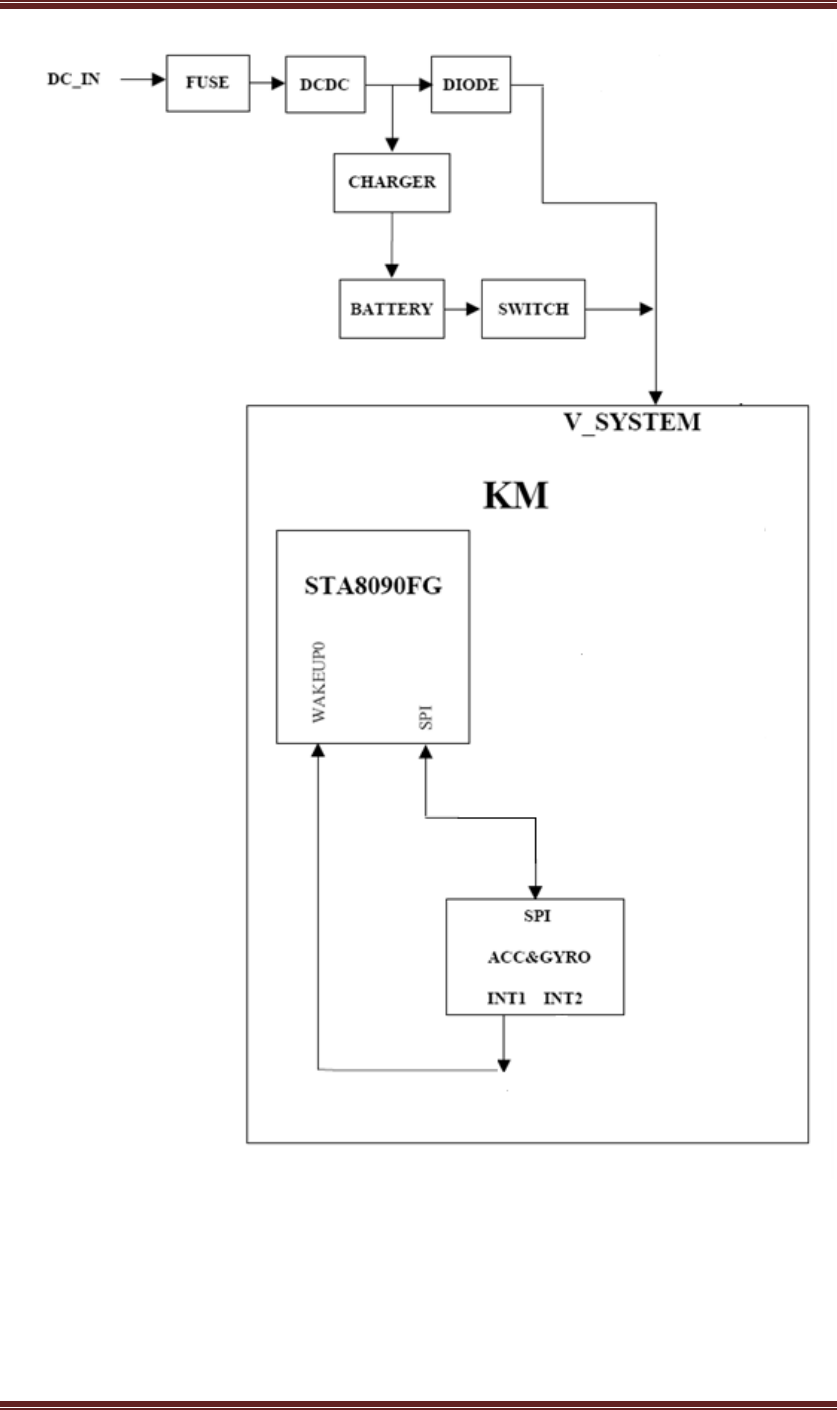

Figure 8 Accelerometer and Gyroscope Communication Interface
Product Technical Specification & User Guidelines
High Confidential
25 / 63

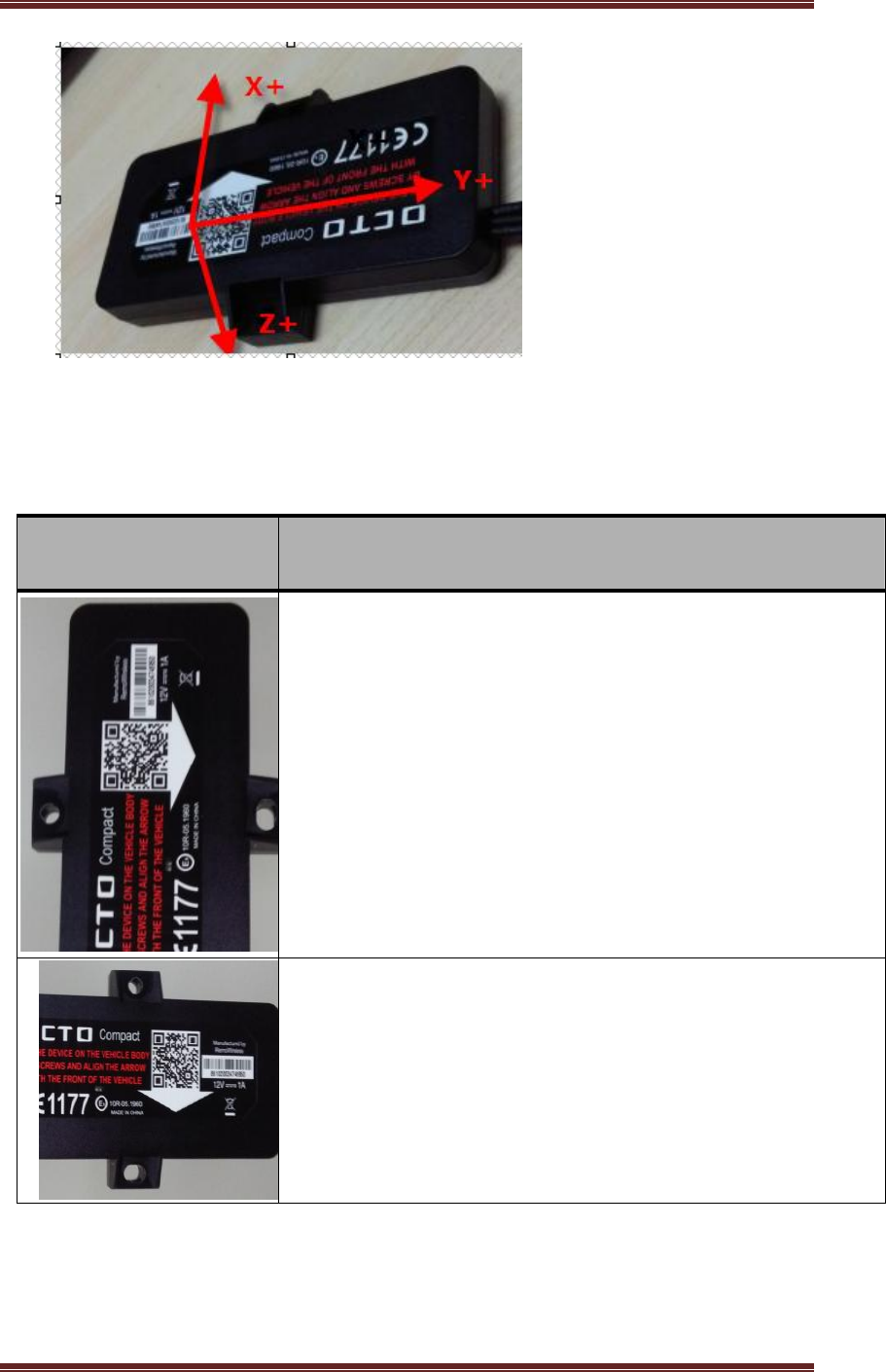

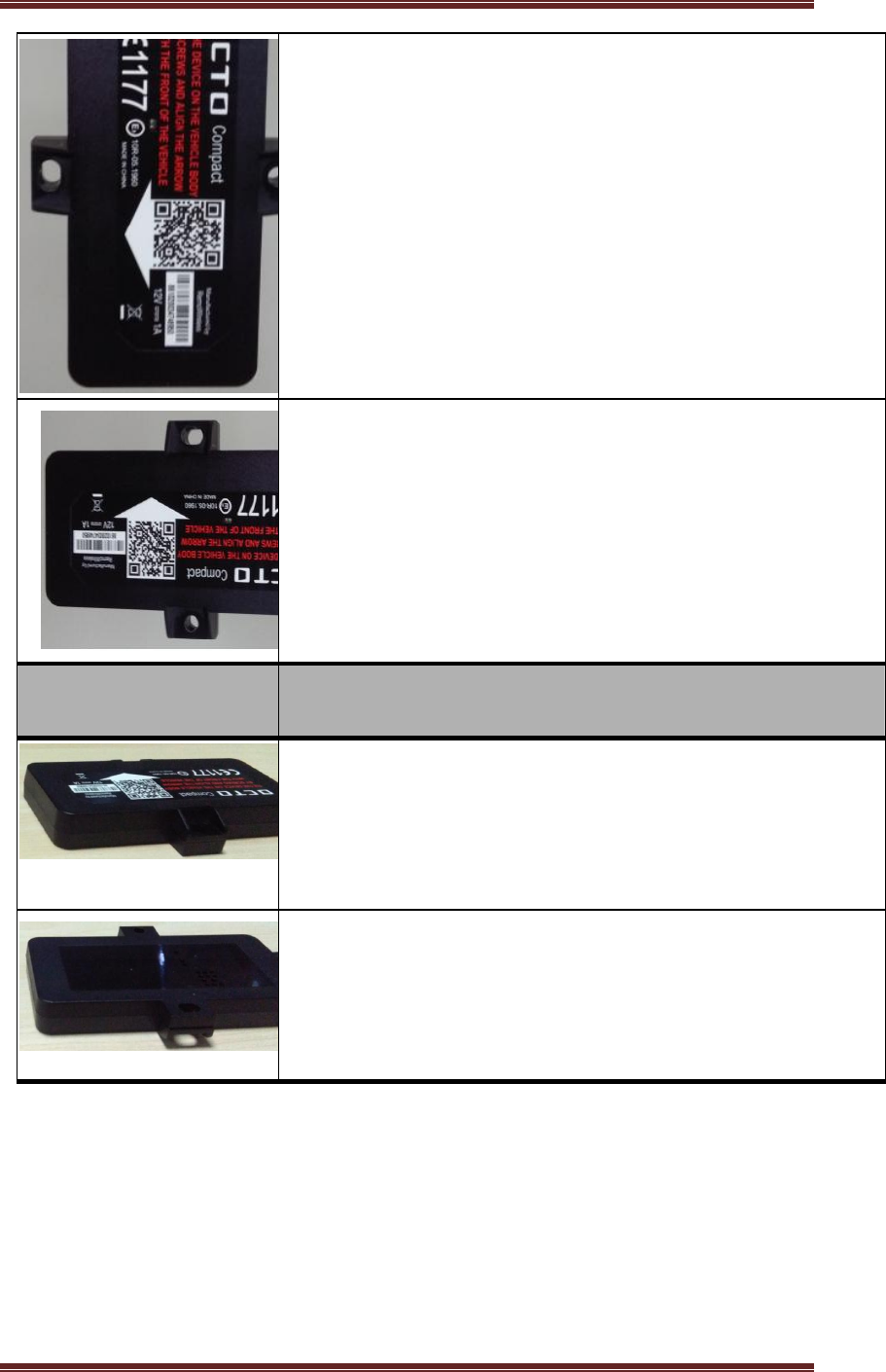

Figure 9. Accelerator Axis with Respect to Casing
Table 19. Output Response vs. Orientation to Gravity
Orientation
Output Response
Xout = 0g
Yout = 1g
Zout = 0g
Xout = 1g
Yout = 0g
Zout = 0g
Product Technical Specification & User Guidelines
High Confidential
26 / 63
Xout = 0g
Yout = -1g
Zout = 0g
Xout = -1g
Yout = 0g
Zout = 0g
Orientation
Output Response
Xout = 0g
Yout = 0g
Zout = -1g
Xout = 0g
Yout = 0g
Zout = +1g
4.8. Auxiliary Power Supply
COMPACT1.0 is supplied with a 210mAh Li-ion battery and it can be charged fast. When
vehicle battery voltage is ON and charged be open, the 210mAh Li-ion battery will be
changed to 4.2V within 3 hours.
Product Technical Specification & User Guidelines
High Confidential
27 / 63

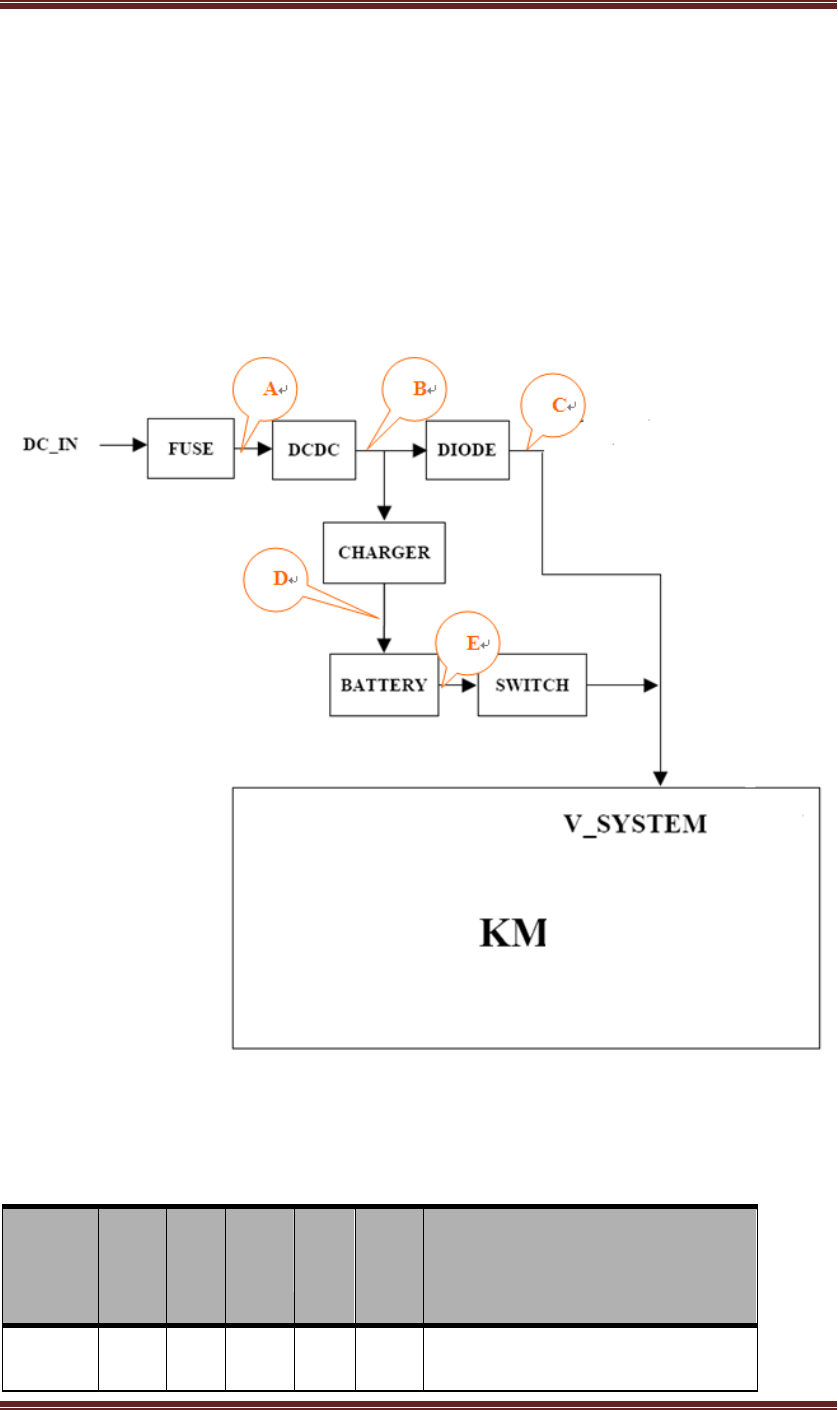

Figure 10. Auxiliary Supply Circuit
Table 20. Emergency Battery Operation
DC_I
N
A
B
C
D
E
Remarks
Available
6-32V
4.6V
4.1V
4.2V
3.6-4.2
V
COMPACT1.0 is supplied by vehicle
battery
Product Technical Specification & User Guidelines
High Confidential
28 / 63
Not
Available
0V
0V
3.6-4.2V
0V
3.6-4.2
V
COMPACT1.0 is supplied by Li-ion
battery
4.8.1. Battery Duration of Use
For reference, the following chart shows the useable battery time when operated
continuously at GSM900 (PCL5). It is important to note that temperature has great
influence on the battery’s useable time.

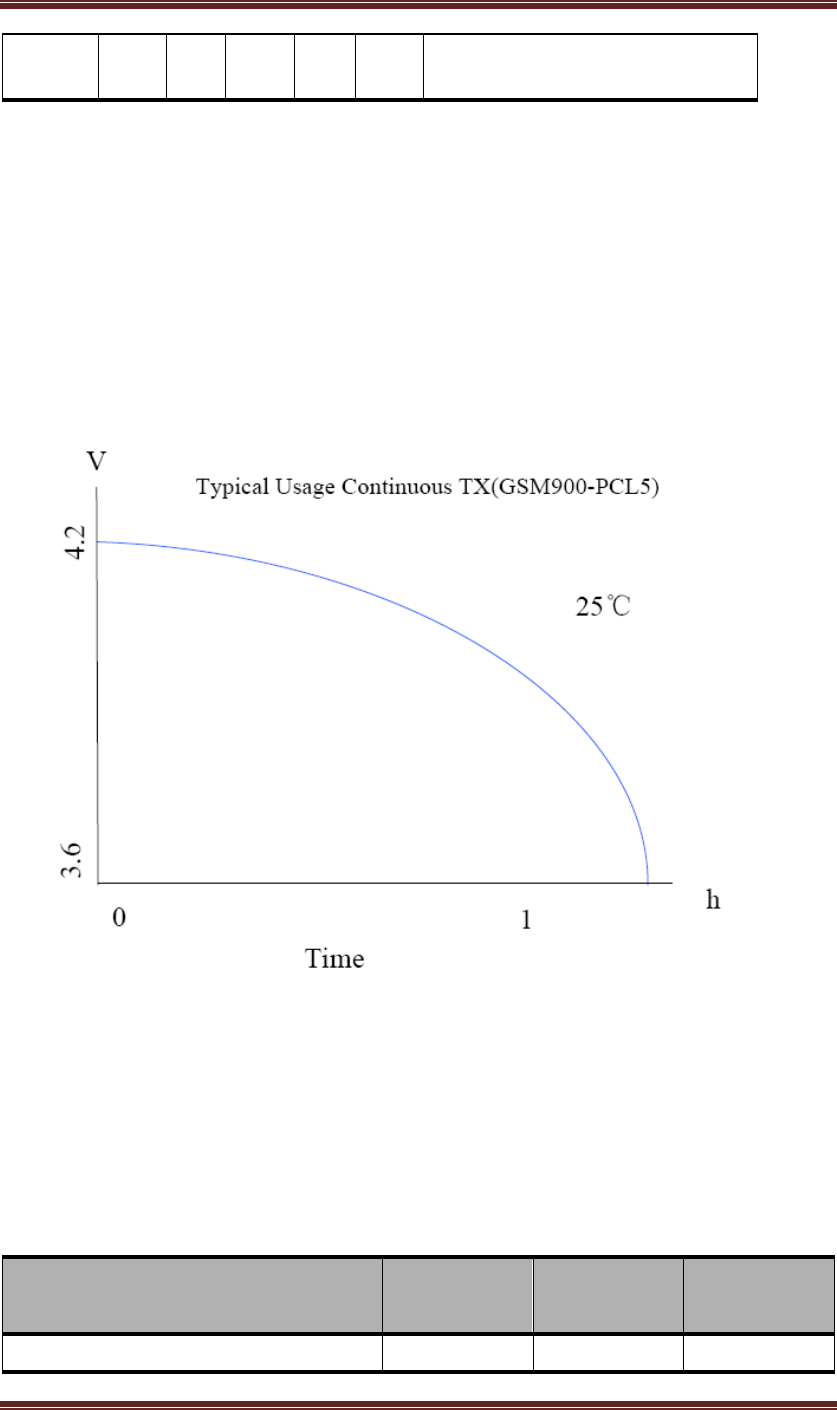

Figure 11. Typical Battery Usage Time at GSM900 (PCL5)
The table below shows the typical useable time of the battery at different operating
temperatures before reaching the minimum voltage of 3.6V.
Table 21. Typical Useable Time of Battery at Different Operating Temperatures
Minimum Battery Voltage
-15°C
+25°C
+55°C
3.6V
>40min
>40min
>40min
Product Technical Specification & User Guidelines
High Confidential
29 / 63
4.9. Embedded SIM
COMPACT1.0 is provided with a pre-provisioned Embedded SIM.
4.10. Connector interface assignment
3-pin Connector
Figure 12. Diagram of 6-pin connector
Table 22. 3-pin Connector assignment
6-pin Connector
1
GND
2
V+
3
ENGINE_ON
4.11. Power Consumption
The following sub-sections details out the power consumption values of COMPACT1.0
Product Technical Specification & User Guidelines
High Confidential
30 / 63
in various operating modes. These consumption values were obtained by performing
measurements on COMPACT1.0 samples at a temperature of 25°C with the
assumption of a 50Ω RF output and a 3V Embedded SIM card.
4.11.1. Various Operating Modes
The power consumption levels of COMPACT1.0 vary depending on the operating
mode used and following table explains the various types of operating modes
available on the COMPACT1.0.
Table 23. Typical Current Consumption vs. Operating Modes
Operating Mode
Temp = +25◦C
DC-IN Supply = 12V
Active
Comm.
(GSM900)
Active
Paging
Active
RF-OF
F
Alarm
Mode
Sleep
Pagin
g
Sleep
RF-OFF
Main PSU (DC/DC
Converter)
ON
ON
ON
ON
ON
ON
Open AT
Running
Running
Running
OFF
Idle
Idle
GSM State
Comm.
Paging
OFF
OFF
Paging
OFF
Accelerometer&Gyro
ON
ON
ON
OFF
ON
ON
GPS Receiver
ON
ON
ON
OFF
OFF
OFF
Watchdog Timer
ON
ON
ON
OFF
ON
ON
Emergency
Battery Charger
FULL
FULL
FULL
FULL
FULL
FULL
Average
Current
Consumption
< 150mA
@ CL10
< 40mA @P9
< 50mA
< 1mA
< 4mA @P9
< 2mA
< 50mA @P2
< 5mA @P2
Caution: Insufficient supply to COMPACT1.0 may affect proper operation of the
device. GSM/GPRS/EDGE communication is not guaranteed when operated at this
condition.
Table 24. Effects of Insufficient Power Supply
Main Supply
Device’s Behavior
Falls below 6V
GSM communication and GPS location
update is not guaranteed
Over 32V (transient peaks)
COMPACT1.0’s protection is guaranteed by internal
clamping diodes and filter circuits.
Product Technical Specification & User Guidelines
High Confidential
31 / 63
Over 32V (continuous over voltage)
COMPACT1.0’s protection is done by a clamping
diode and resettable PTC fuse
(supply voltage is disconnected).
Caution: The minimum input voltage specified here is for COMPACT1.0 input
supply terminals. Voltage drop caused by any additional supply cables must be taken to
account when supplying the device at minimum voltage.
The power supply must withstand a current peak of 1.5A in 6V input voltage.
4.12. Mechanical Specifications
Product Technical Specification & User Guidelines
High Confidential
32 / 63
Figure 13. COMPACT1.0 Mechanical Drawing
5. Communicating with COMPACT1.0
COMPACT1.0 is provided with debug test points for firmware upgrade and application
software download. To utilize communication on this port, it is recommended to use a
proper interface circuit, which is described in the following sub-sections.
After setting up COMPACT1.0, communications can be established by directly
sending AT commands to the device using terminal software such as HyperTerminal
for MS Windows. The following sub- sections also describe how this is done.
5.1. Debug Interface
Product Technical Specification & User Guidelines
High Confidential
33 / 63
Figure 14. Debug Interface
The following table lists the I/O type and electrical characteristics of the debug interface.
Table 25. Debug Interface Description and Electrical Characteristics
Pin
NET
I/O Type
Description
1
BATT_TEMP
IN
BATT Tempture Test Point
2
TS
IN
Charger IC TS Test Point
3
VIN
IN
V+ Input Test Point
4
PWR_RSTN
IN
System Power reset
5
2G_BOOT/WDG_DISABLE
IN
2G_BOOT AND WDG_DISABLE
6
PWR_KEY_RST
IN
Key Botton, System Power reset,
with 2-4s delay
7
GS
OUT
BATT SWITCH GS Test Point
8
2G_USBDM
IN/OUT
2G USB data signal D-
9
2G_USBDP
IN/OUT
2G USB data signal D+
10
T3_U2TX_DEBUG/T3_BOOT0
OUT
T3 GPIO29,UART2 Tx data /
BOOT0,active high T3 will in boot
modes
11
T3_U2RX_DEBUG
IN
T3 GPIO28,UART2 Rx data
12
V_SYSTEM
OUT
SYSTEM power supply,
3.8V-4.2V
13
V_BAT
OUT
V_BAT power supply, 3.6V-4.2V
14
GND
Ground
GND
Product Technical Specification & User Guidelines
High Confidential
34 / 63
5.2. Communication Terminal Set-Up
To perform a communications test after COMPACT1.0 has been setup, do the
following:
1. Connect the RS-232 link between the external application (DTE) and
COMPACT1.0 (DCE).
2. Configure the RS-232 port of the DTE as follows:
Bits per second: 115,200 bps
Data bits: 8
Parity: None
Stop bits: 1
Flow control: hardware
3. Using a communication software such as HyperTerminal, enter:
AT
4. When communications have been established, COMPACT1.0 will
respond with an “OK”, which is displayed in the HyperTerminal window.
If communications cannot be established with COMPACT1.0, do
the following:
Check the RS-232 connection between the application (DTE) and COMPACT1.0
(DCE).
Check the configuration of the COM port used on the DTE.
Refer to the table below for other AT commands that can be used after getting
COMPACT1.0 started.
Table 26. Basic AT Commands for COMPACT1.0
Product Technical Specification & User Guidelines
High Confidential
35 / 63
AT Command
Description
AT+CGMI
To check if the serial link is OK. COMPACT1.0 will respond
with "Remo Wireless" when it is OK.
AT Command
Description
AT+CPIN=xxxx
To enter a PIN code, xxxx (if activated).
AT+CSQ
To verify the received signal strength.
AT+CREG?
To verify the registration of COMPACT1.0 on the network.
ATD<phone number>
To initiate a GSM call.
ATH
To hang up (end of GSM call).
For further information about these AT commands and their associated parameters,
refer to document [2] AT Commands Interface Guide for Open AT Application
Framework Firmware 7.47.
5.3. Verifying the Received Signal Strength
COMPACT1.0 only establishes a call if the received signal strength is strong enough. Using
communication software such as HyperTerminal, enter AT+CSQ to check the received signal
strength. The response returned will follow the format +CSQ: <rssi>,<ber>.
where: <rssi> = received signal strength indication, and <ber> = channel bit error rate.
Refer to the table below for the description of the <rssi> values
returned.
Table 27. <RSSI> Value Description
<rssi> Value
Description
0 – 10
Received signal strength is insufficient.
11 – 31
Received signal strength is sufficient.
Product Technical Specification & User Guidelines
High Confidential
36 / 63
32 – 98
Not defined.
99
No measure available.
Refer to document [2] AT Commands Interface Guide for Open AT Application Framework
Firmware7.47 for more information regarding the AT+CSQ AT Command.
5.4. Verifying the Network Registration
To check the network registration, make sure that the Embedded SIM has been properly
registered. Using a communication software such as HyperTerminal, enter AT+CREG? to
verify the network
registration of COMPACT1.0. Refer to the table below for the list of main responses returned.
Table 28. AT+CREG Main Responses
AT+CREG Response
Description
+CREG: 0,0
Not registered.
+CREG: 0,1
Registered on the home network.
+CREG: 0,5
Registered on a roaming network.
If COMPACT1.0 is not registered on the network, verify the signal strength to
determine the received signal strength (refer to section 5.3 Verifying the Received
Signal Strength).
Refer to document [2] AT Commands Interface Guide for Open AT Application Framework
Firmware7.47 for more information regarding the AT+CREG AT Command and other AT
commands relating to network registration in GPRS mode.
5.5. Checking the Band Selection
Using a communication software such as HyperTerminal, enter AT+WMBS? to check the
band selection of COMPACT1.0. Refer to the table below for the list of main responses
returned.
Product Technical Specification & User Guidelines
High Confidential
37 / 63
Table 29. AT+WMBS Responses
AT+WMBS Response
Description
+WMBS: 0,x
Mono band mode 850MHz is selected
+WMBS: 1,x
Mono band mode extended 900MHz is selected
+WMBS: 2,x
Mono band mode 1800MHz is selected
+WMBS: 3,x
Mono band mode 1900MHz is selected
+WMBS: 4,x
Dual band mode 850/1900MHz are selected
+WMBS: 5,x
Dual band mode extended 900MHz/1800MHz are selected
+WMBS: 6,x
Dual band mode extended 900MHz/1900MHz are selected
+WMBS: 7,x
Quad band mode 850/ extended 900MHz/1800MHz/1900MHz are
selected
Where:
When x = 0, the band has not been modified since the last boot of COMPACT1.0;
When x = 1, the band has been modified since the last boot of COMPACT1.0, and will
have to be reset in order to take the previous modification(s) into account.
Refer to document [2] AT Commands Interface Guide for Open AT Application Framework
Firmware7.47 for more information regarding the AT+WMBS AT Command.
5.6. Switching Bands
Using communication software such as HyperTerminal, enter AT+WMBS to change the
band settings of COMPACT1.0 and switch between EU (EGSM900/DCS1800) and US
(GSM850/ PCS1900) bands and vice versa. Refer to the following table for the list of
AT+WMBS parameters that can be used and their corresponding description.
Table 30. AT+WMBS Band Selection
AT+WMBS Command
Description
Product Technical Specification & User Guidelines
High Confidential
38 / 63
AT+WMBS=0,x
Switch to mono band mode 850MHz
AT+WMBS=1,x
Switch to mono band mode extended 900MHz
AT+WMBS=2,x
Switch to mono band mode 1800MHz
AT+WMBS=3,x
Switch to mono band mode 1900MHz
AT+WMBS=4,x
Switch to dual band mode 850/1900MHz
AT+WMBS Command
Description
AT+WMBS=5,x
Switch to dual band mode extended 900MHz/1800MHz
AT+WMBS=6,x
Switch to dual band mode extended 900MHz/1900MHz
AT+WMBS=7,x
Switch to quad band mode 850/ extended
900MHz/1800MHz/1900MHz
Where:
When x = 0, COMPACT1.0 will have to be reset to start on the specified band(s);
When x = 1, the band switch is effective immediately. However, this mode is forbidden
while in Connected mode and during COMPACT1.0 initialization.
Refer to document [2] AT Commands Interface Guide for Open AT Application Framework
Firmware7.47 for more information regarding the AT+WMBS AT Command.
5.7. Checking the PIN Code Status
Using a communication software such as HyperTerminal, enter AT+CPIN? to check the
PIN code status. Refer to the table below for the list of main responses returned.
Table 31. AT+CPIN Main Responses
AT+CPIN Response
Description
+CPIN: READY
The PIN code has been entered.
+CPIN: SIM PIN
The PIN code has not been entered.
Refer to document [2] AT Commands Interface Guide for Open AT Application Framework
Firmware7.47 for more information regarding the AT+CPIN AT Command.
Product Technical Specification & User Guidelines
High Confidential
39 / 63
5.8. Resetting COMPACT1.0
Resetting COMPACT1.0 could be triggered by the AT command AT+CFUN=1, or by
unplugging and then re-plugging the power supply (Vin).
5.9. Operating System Upgrade Procedure
COMPACT1.0 operating system is stored in flash memory and can be
easily upgraded.
The operating system file can be downloaded into the modem using the X-modem protocol.
The
AT+WDWL command allows the download process to be
launched.
The operating system file can also be downloaded into the modem using the DOTA
(download over the air) feature. This feature is available with the Open AT Application
Framework interface.
Refer to document [2] AT Commands Interface Guide for Open AT Application Framework
Firmware7.47 for more information regarding this procedure.
6. Reliability Compliance and
Recommended Standards
6.1. Reliability Compliance
COMPACT1.0 is compliant with the following requirements:
Table 32. Standards Conformity
Abbreviation
Definition
IEC
International Electro technical Commission
ISO
International Organization for Standardization
Product Technical Specification & User Guidelines
High Confidential
40 / 63
6.2. Applicable Standards Listing
The table hereafter gives the basic list of standards applicable to COMPACT1.0.
Note: References to any features can be found from these standards.
Table 33. Applicable Standards and Requirements
Document
Current
Version
Title
IEC6006826
7.0
Environmental testing - Part 2.6: Test FC: Sinusoidal Vibration.
IEC60068234
73
Basic environmental testing procedures part 2:
Test FD: random vibration wide band - general requirements.
Cancelled and replaced by IEC60068-2-64. For reference only.
IEC60068264
2.0
Environmental testing - part 2-64: Test FH: vibration, broadband
random and guidance.
IEC60068232
2.0
Basic environmental testing procedures - part 2:
Test ED: (procedure 1) Withdrawn &
replaced by IEC60068-2-31. For reference only.
IEC60068231
2.0
Environmental testing part 2-31: Test EC: rough handling shocks,
primarily for equipment-type specimens.
IEC60068229
2.0
Basic environmental testing procedures - part 2: Test EB
and guidance: bump. Withdrawn and
replaced by IEC60068-2-27. For reference only.
IEC60068227
4.0
Environmental testing - part 2-27: Test EA and guidance: shock.
IEC60068214
6.0
Environmental testing - part 2-14: Test N: change of temperature.
IEC6006822
5.0
Environmental testing - part 2-2: Test B: dry heat.
IEC6006821
6.0
Environmental testing - part 2-1: Test A: cold.
IEC60068230
3.0
Environmental testing - part 2-30: Test DB: damp heat, cyclic (12
h + 12 h cycle).
IEC6006823
69 w/A1
Basic environmental testing procedures part 2: Test CA: damp
heat, steady State.
Withdrawn and replaced by IEC60068-2-78. For reference only.
IEC60068278
1.0
Environmental testing part 2-78: Test CAB: damp heat, steady state.
Product Technical Specification & User Guidelines
High Confidential
41 / 63
Document
Current
Version
Title
IEC60068238
2.0
Environmental testing - part 2-38: Test Z/AD:
composite temperature/humidity cyclic test.
IEC60068240
1.0 w/A1
Basic environmental testing procedures - part 2:
Test Z/AM combined cold/low air pressure tests.
ISO167501
2ND
Road vehicles - environmental conditions and testing
for electrical and electronic equipment - part 1: general.
ISO167502
2ND
Road vehicles - environmental conditions and testing
for electrical and electronic equipment - part 2: electrical loads.
ISO167503
2ND
Road vehicles - environmental conditions and testing
for electrical and electronic equipment - part 3: mechanical loads.
ISO167504
2ND
Road vehicles - environmental conditions and testing
for electrical and electronic equipment - part 4: climatic loads.
IEC60529
2.1 w/COR2
Degrees of protection provided by enclosures (IP code).
IEC60068217
4.0
Basic environmental testing procedures - part 2: Test Q: sealing.
IEC60068218
2.0
Environmental testing - part 2-18: Tests - R and guidance: water.
IEC60068270
1.0
Environmental testing - part 2: tests - test XB: abrasion
of markings and letterings caused by rubbing
of fingers and hands.
IEC60068268
1.0
Environmental testing - part 2: tests - test l: dust and sand.
IEC60068211
3.0
Basic environmental testing procedures, part 2: test KA: salt mist.
IEC60068260
2.0
Environmental testing - part 2: Test KE: flowing mixed
gas corrosion test.
IEC60068252
2.0 w/COR
Environmental testing - part 2: Test KB: salt mist,
cyclic (sodium chloride solution).
6.3. Additional Applicable Standard IEC
Table 34. Applicable Standards and Requirements
Document
Current
Version
Title
IEC60529
Edition
2.1
IP65 Test – Degrees of protection provided by enclosures (IP Code)
Product Technical Specification & User Guidelines
High Confidential
42 / 63
2001-02
6.4. Environmental Specifications
COMPACT1.0 is compliant with the operating classes listed in the table below. The ideal
temperature range of the environment for each operating class is also specified.
Table 35. Operating Class Temperature Range
Conditions
Temperature Range
Operating/Class A*
0°C to +50°C
Operating/Class B (usable with restriction)
-20°C to +70°C
Storage (6 months without deep discharge)
-20°C to +35°C
Emergency battery charging
+5°C to +45°C
* Limited by battery characteristics
6.4.1. Function Status Classification
The classes reported below comply with the Annex “ISO Failure Mode Severity
Classification”, ISO Standard 7637, and Section 1.
Note: The word “function” used here only concerns the function performed by COMPACT1.0.
Table 35. ISO Failure Mode Severity Classification
Class
Definition
CLASS A
All equipment/system functions are fulfilled normally (100% functional) during and after
the constraint.
COMPACT1.0 shall exhibit normal function during and after
environmental exposure. COMPACT1.0
performance shall meet the minimum requirements of 3GPP or appropriate wireless
standards.
Product Technical Specification & User Guidelines
High Confidential
43 / 63
CLASS B
All equipment/system functions are fulfilled normally during application of the constraint;
however, one or several of them may be out of the specified tolerances. After
application of the constraint, all functions automatically return within standard limits.
The memories shall remain in compliance with Class A.
COMPACT1.0 shall exhibit the possibility at all times to establish a voice, SMS or DATA
call. Unless otherwise stated, full performance should return to normal after the external
influence has been removed.
6.5. Reliability Prediction Model
6.5.1. Life Stress Test
The following tests COMPACT1.0’s product performance.

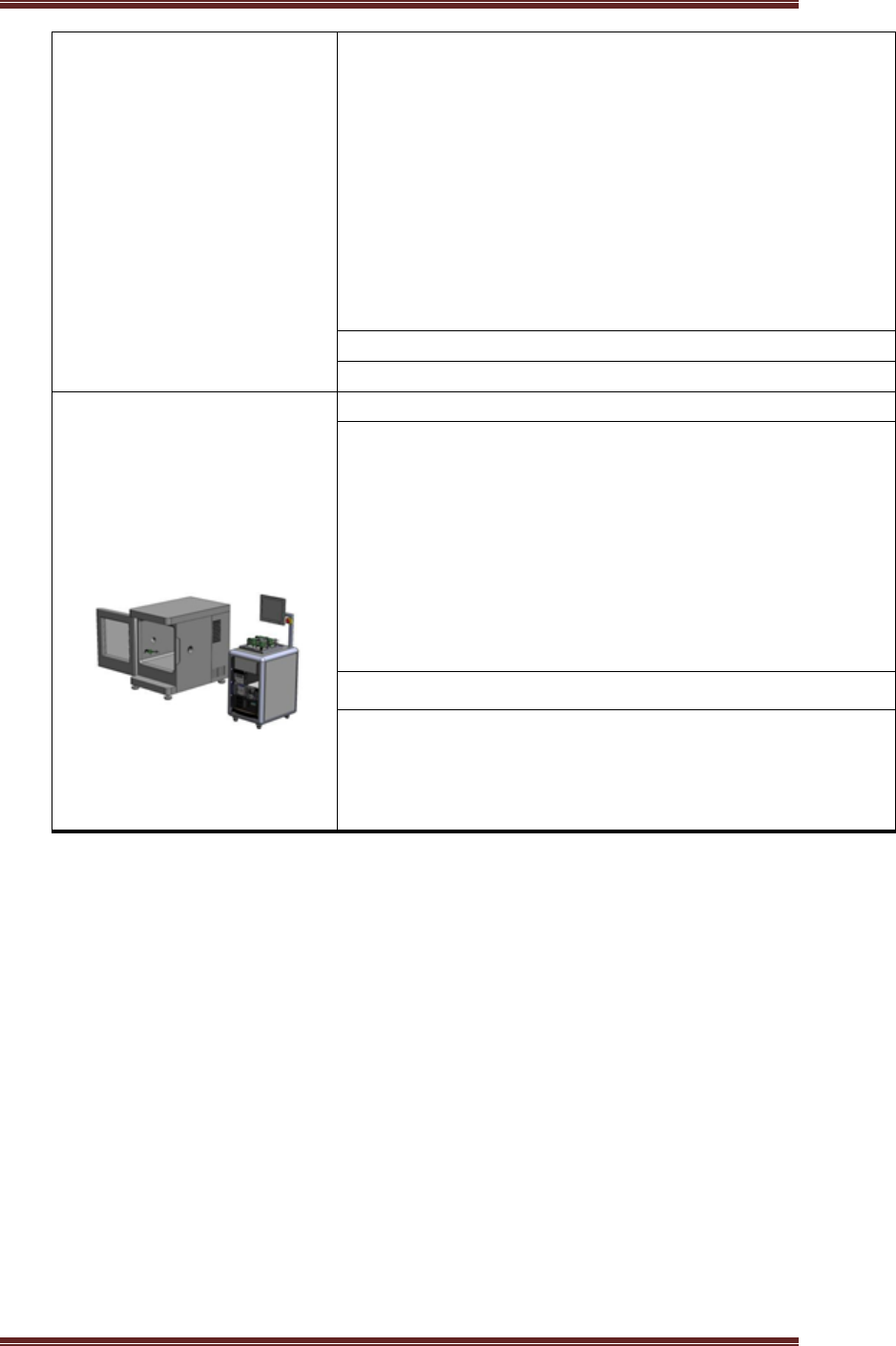

Table 36. Life Stress Test
Designation
Condition
Performance
Test FT3T° &
PT
Standard: N/A
Special conditions:
Temperature:
Class A: -30°C to +70°C
Class B: -40°C to +85°C
Rate of temperature change: ± 3°C/min
Recovery time: 3 hours
Operating conditions: Powered
Duration: 10 days
6.5.2. Thermal Resistance Stress Tests
Product Technical Specification & User Guidelines
High Confidential
44 / 63
The following tests COMPACT1.0’s resistance to extreme
temperature.
Table 37. Environmental Resistance Stress Tests
Designation
Condition
Cold Test A
ctive COTA
Standard: IEC 680068-2-1, Test Ad
Special conditions:
Temperature: -40°C (Automotive)
Temperature -30oC (Industrial)
Rate of temperature change: dT/dt >= ± 3°C/min
Recovery time: 3 hours
Operating conditions: Powered, (Automotive – one
hours duty power cycle; Industrial – one minute on and 2
minutes off power cycle)
Duration: 72 hours

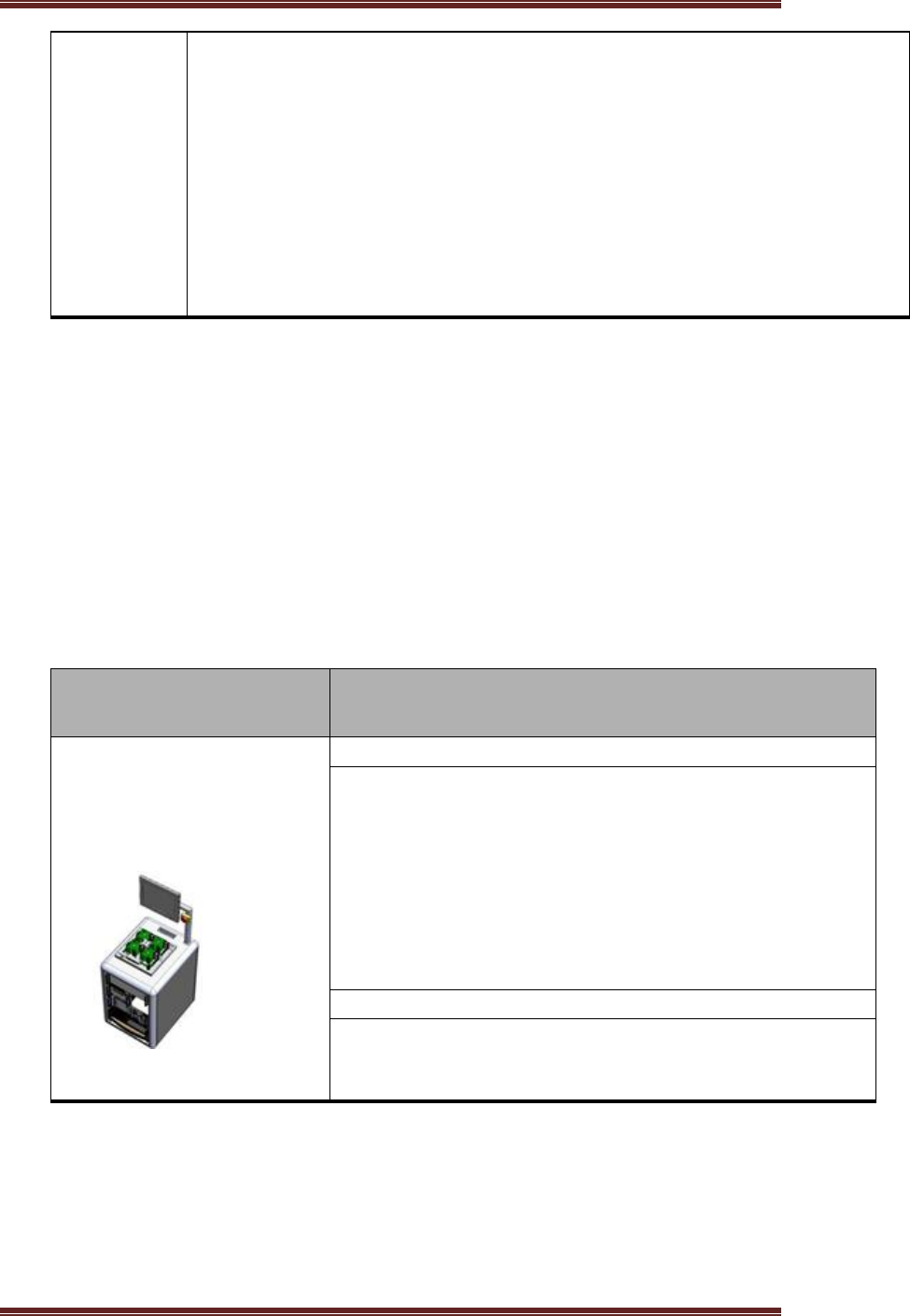

Resistance
to Heat RH
Standard: IEC60068-2-2 Test Db
Special conditions:
Temperature: 85oC
Temperature variation: 1oC / min
Power level: Maximum
Operation conditions: Industrial 1 min power
cycle; Automotive 1 hour power cycle
Duration: Industrial 50 days; Automotive 60 days
6.5.3. Corrosive Resistance Stress Tests
The following tests COMPACT1.0’s resistance to corrosive
atmosphere.
Table 38. Corrosive Resistance Stress Tests
Product Technical Specification & User Guidelines
High Confidential
45 / 63
Designation
Condition

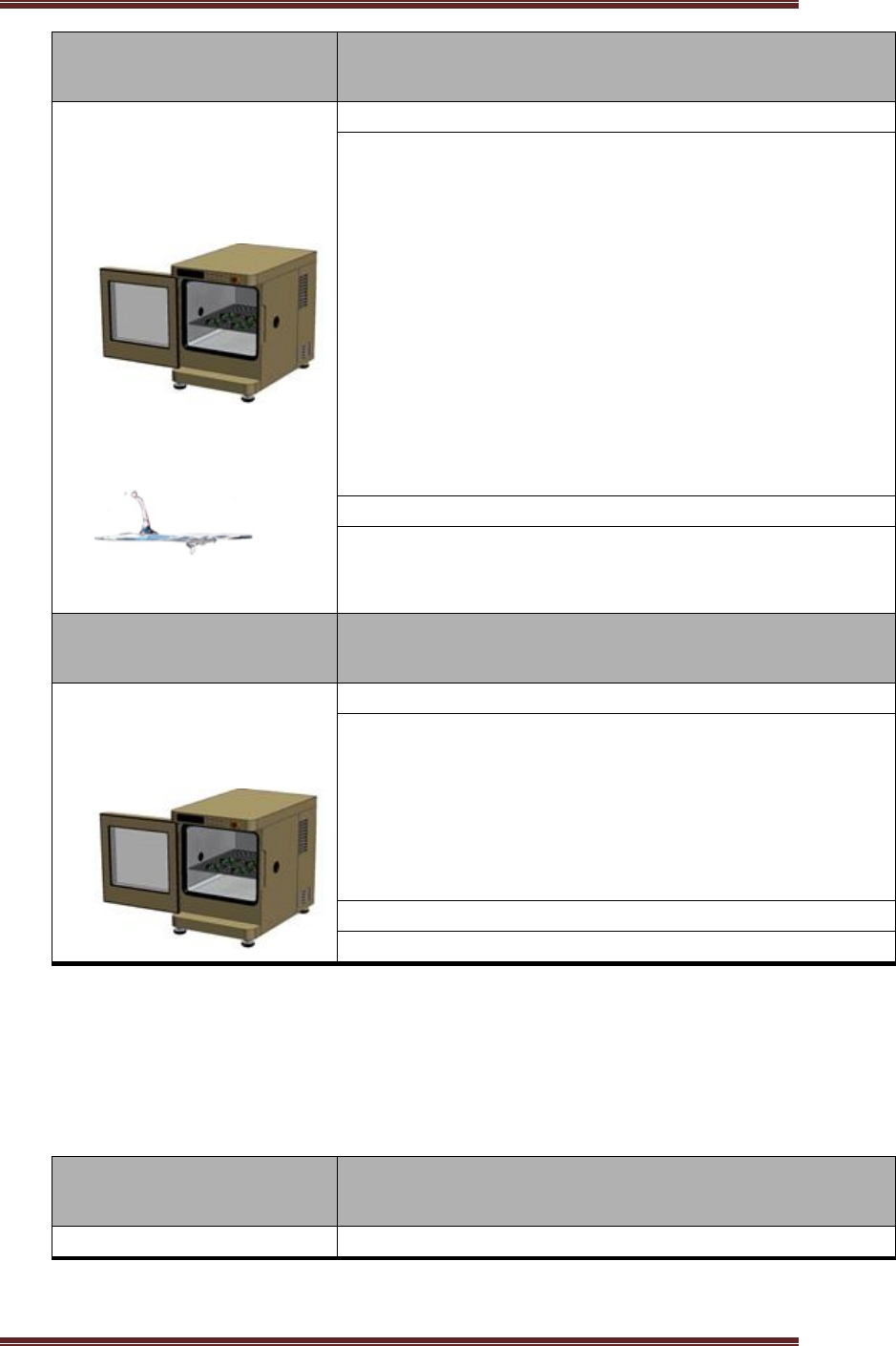

Moist Heat Cyclic
Test MHCT
Standard: IEC 60068-2-30, Test Db
Special con
ditions:
Upper temperature: +40 ± 2°C
Lower temperature: +25 ± 2°C
RH:
Upper temperature: 93%
Lower temperature: 95%
Number of cycles: 21 (1 cycle/24 hours)
Rate of temperature change: dT/dt >= ± 3°C/min
Recovery time: 3 hours
Operating conditions: Un-powered
Duration: 21 days
Designation
Condition
Humidity
Test HUT
Standard: IEC 60068-2-3, Test CA
Special conditions:
Temperature +65oC
Humidity 95%
Recovery time: 1 hour
Power level: Maximum
Operating condition: 15 minutes power cycle
Duration: 10 days
6.5.4. Thermal Resistance Cycle Stress Tests
The following tests COMPACT1.0’s resistance to extreme temperature cycling.
Table 39. Thermal Resistance Cycle Stress Tests
Designation
Condition
Standard: IEC 60068-2-14
Product Technical Specification & User Guidelines
High Confidential
46 / 63

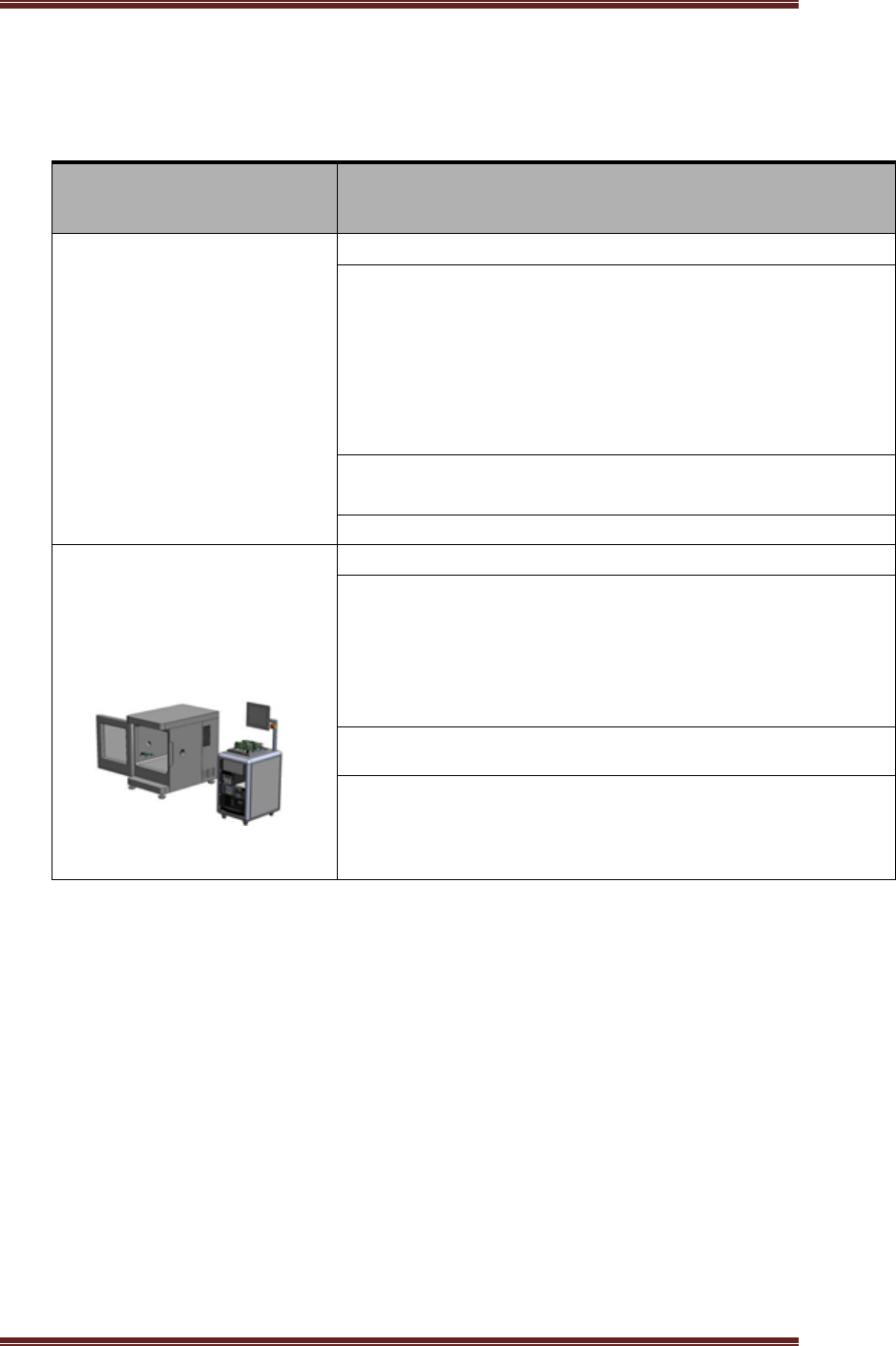

Thermal
Shock Test
TSKT
Special conditions:
Upper temperature: +90°C
Lower temperature: -40°C
Rate of temperature change: 30s
Number of cycles: 300 (industrial)
Number of cycles: 1000 (automotive)
Duration of exposure: 20 minutes
Recovery time: 3 hours
Operating conditions: Un-powered
Duration: 203 hours for industrial and 670 hours for Automotive
Temperature
Change TCH
Standard: IEC 60068-2-4 Test Nb
Special conditions:
Upper temperature: 90oC
Lower temperature: -40oC
Rate of Temperature change: dT/dt=3 ±0.6oC/min
Number of cycles: 400
Duration of exposure: 10 minutes
Recovery period: 1 hour
Operation condition: un-powered
Duration: 400 hours
6.5.5. Mechanical Resistance Stress Tests
The following tests COMPACT1.0’s resistance to vibrations and
mechanical shocks.
Table 40. Mechanical Resistance Stress Tests
Product Technical Specification & User Guidelines
High Confidential
47 / 63
Designation
Condition

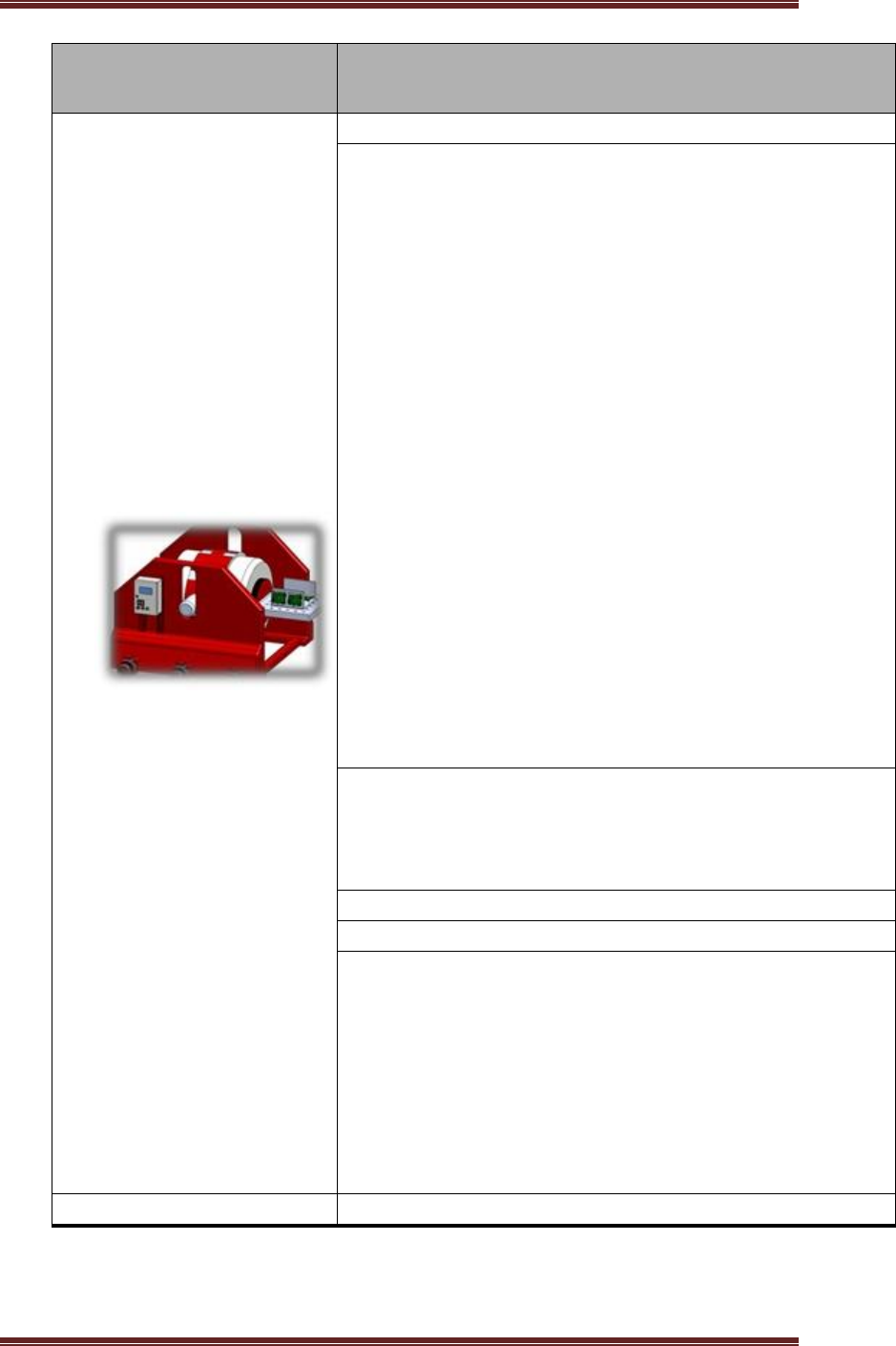

Sinusoidal Vibration
Test SVT
Standard: IEC 60068-2-6, Test Fc
Special conditions:
Industrial:
Frequency range 10Hz to 16kHz
Displacement: 0.35mm (peak-peak)
Frequency range 16Hz to 1000Hz
Acceleration
5g from 16Hz to 62Hz
3g from 62Hz to 200Hz
1g from 200Hz to 1000Hz
Automotive:
Frequency range 10Hz to 30kHz
Displacement: 0.35mm (peak-peak)
Frequency range 30Hz to 500Hz
Acceleration
5g from 30Hz to 62Hz
3g from 62Hz to 200Hz
1g from 200Hz to 500Hz
Sweep rate:
Industrial - 1Octave/ Minute
Automotive - 15 minutes / cycle
Sweep direction: X, Y and Z
Operating conditions: Un-powered
Duration: industrial – 20 sweeps and Automotive 36 sweeps
Standard: IEC 60068-2-64
Product Technical Specification & User Guidelines
High Confidential
48 / 63

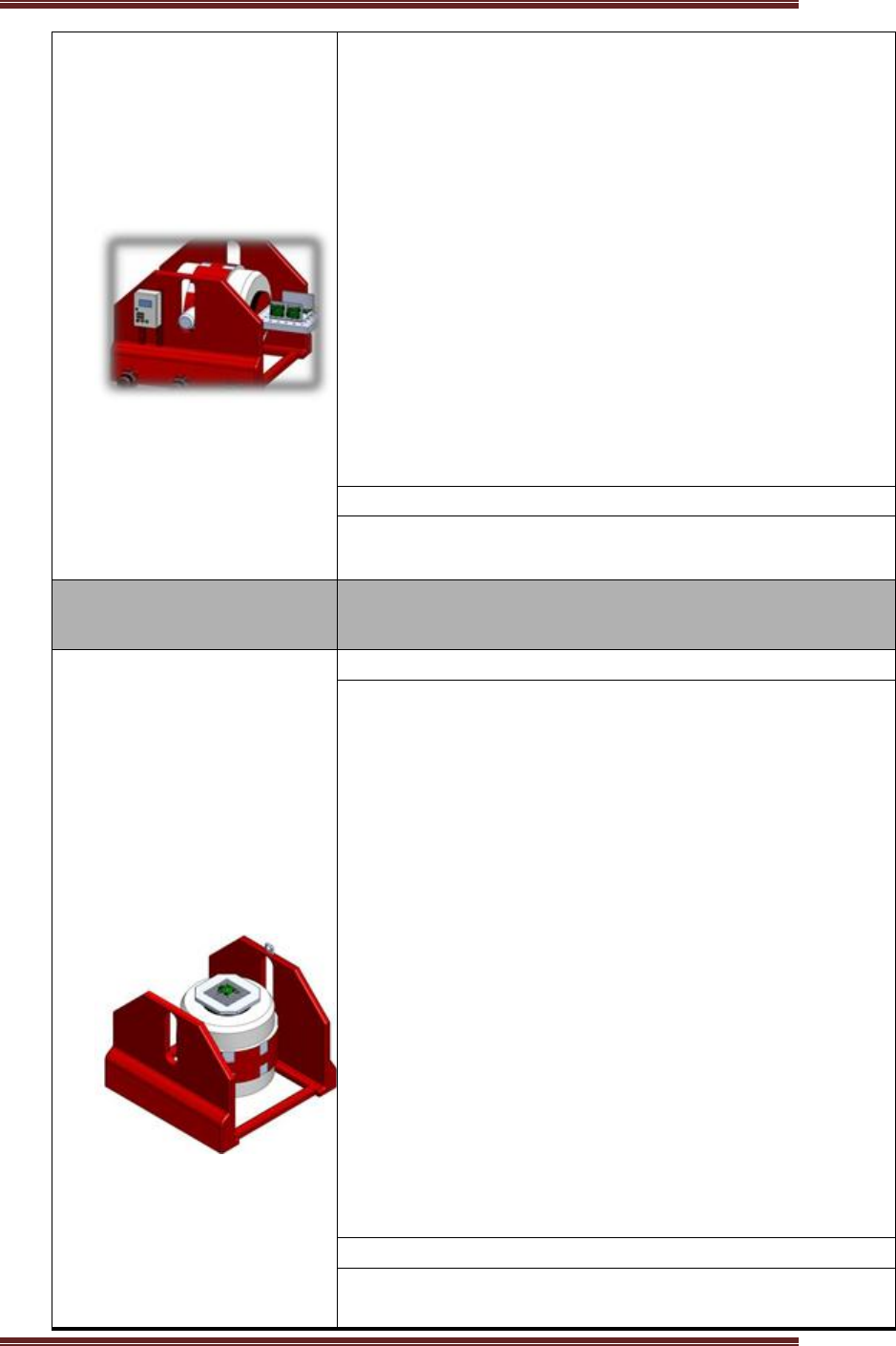

Random Vibration
Test RVT
Special conditions:
Density spectrum: 0.96m²/s3
Frequency range:
0.1 g2/Hz at 10Hz
0.01 g2/Hz at 250Hz
0.0005 g2/Hz at 1000Hz
0.0005 g2/Hz at 2000Hz
Slope: -3dB/octave
Acceleration: 0.9gRMS
Number of axis: 3
Operating conditions: Un-powered
Duration: Industrial 1hr/axis and automotive 8hr/axis
Designation
Condition
Mechanical Shock Test
MST
Standard: IEC 60068-2-27, Test Ea
Special conditions:
Shock Test 1:
Wave form: Half sine
Peak acceleration: 30G
Duration: 11ms
Number of shocks: 8 per direction
Number of directions: 6 (±X, ±Y, ±Z)
Shock Test 2:
Wave form: Half sine
Peak acceleration: 100G
Duration: 6ms
Number of shocks: 3 per direction
Number of directions: 6 (±X, ±Y, ±Z)
Operating conditions: Un-powered
Duration: 72 hours
Product Technical Specification & User Guidelines
High Confidential
49 / 63
6.5.6. Handling Resistance Stress Tests
The following tests COMPACT1.0’s resistance to handling
malfunctions and damages.
Table41. Handling Resistance Stress Tests
Designation
Condition

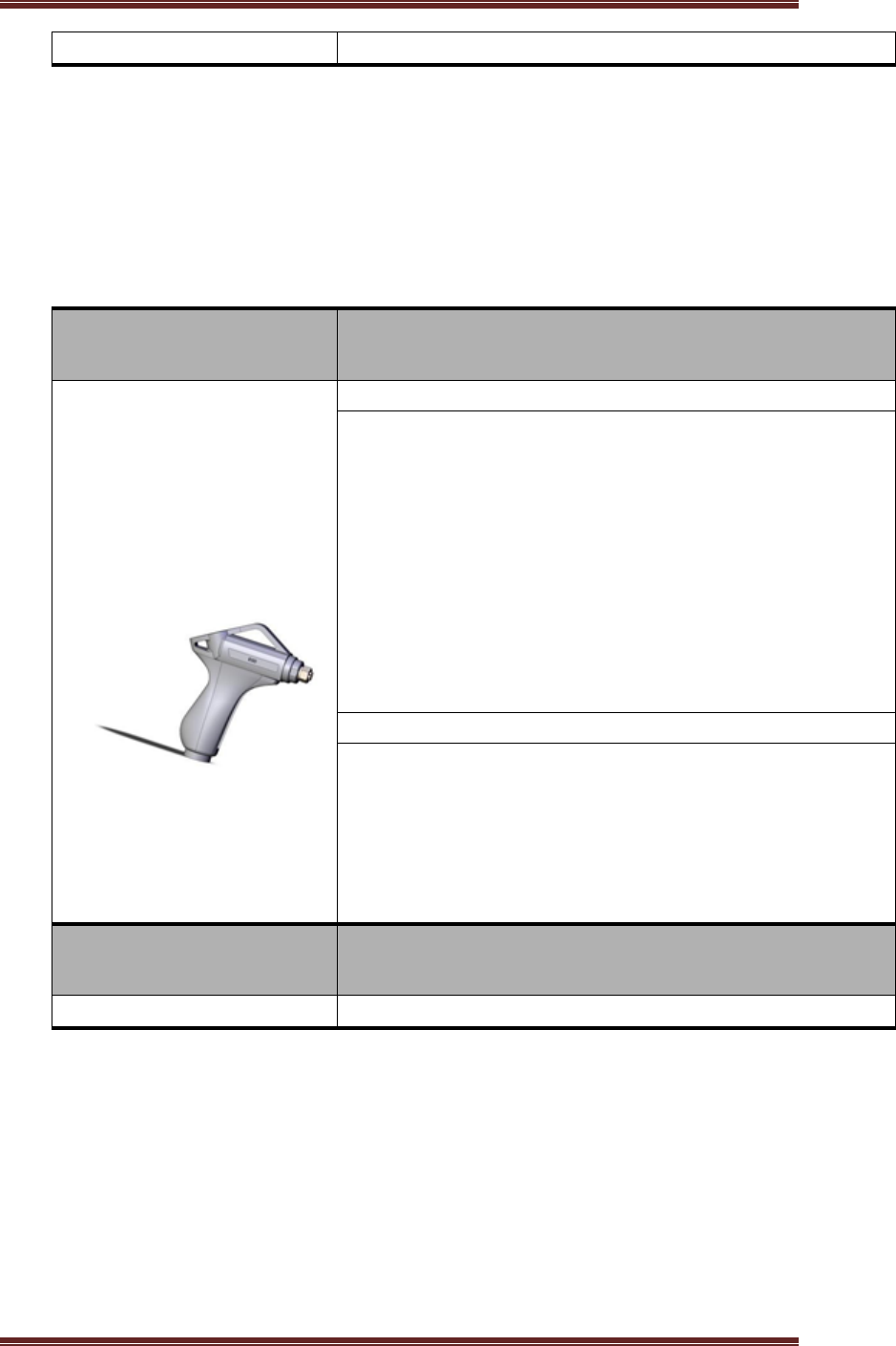

ESD Test
Standard: IEC 1000-4-2
Special conditions:
Contact discharges: 10 positive and 10 negative applied
Industrial:
Contact discharge Voltage: ±2kV, ±4 kV, ±6kV
Air discharge Voltage: ±2kV, ±4kV, ±8kV
Automotive :
Contact discharge Voltage: ±4kV, ±6 kV, ±8kV
Air discharge Voltage: ±4kV, ±8kV, ±1 5kV
Operating conditions: Powered and on call
Duration: 24 hours
Designation
Condition
Standard : N/A
Product Technical Specification & User Guidelines
High Confidential
50 / 63
Operational
Durability OD
Special conditions:
SIM Connector:
Cycles : 20
Repetition Rate : 3s per cycle
Objective : Mating and de-mating
System Connector:
Cycles : 20
Repetition Rate : 3s per cycle
Objective : Mating and de-mating
RF Connector :
Cycles : 10
Repetition Rate : 5s per cycle
Objective : Mating and de-mating
Operating conditions: Un-powered
Duration: 24 hours

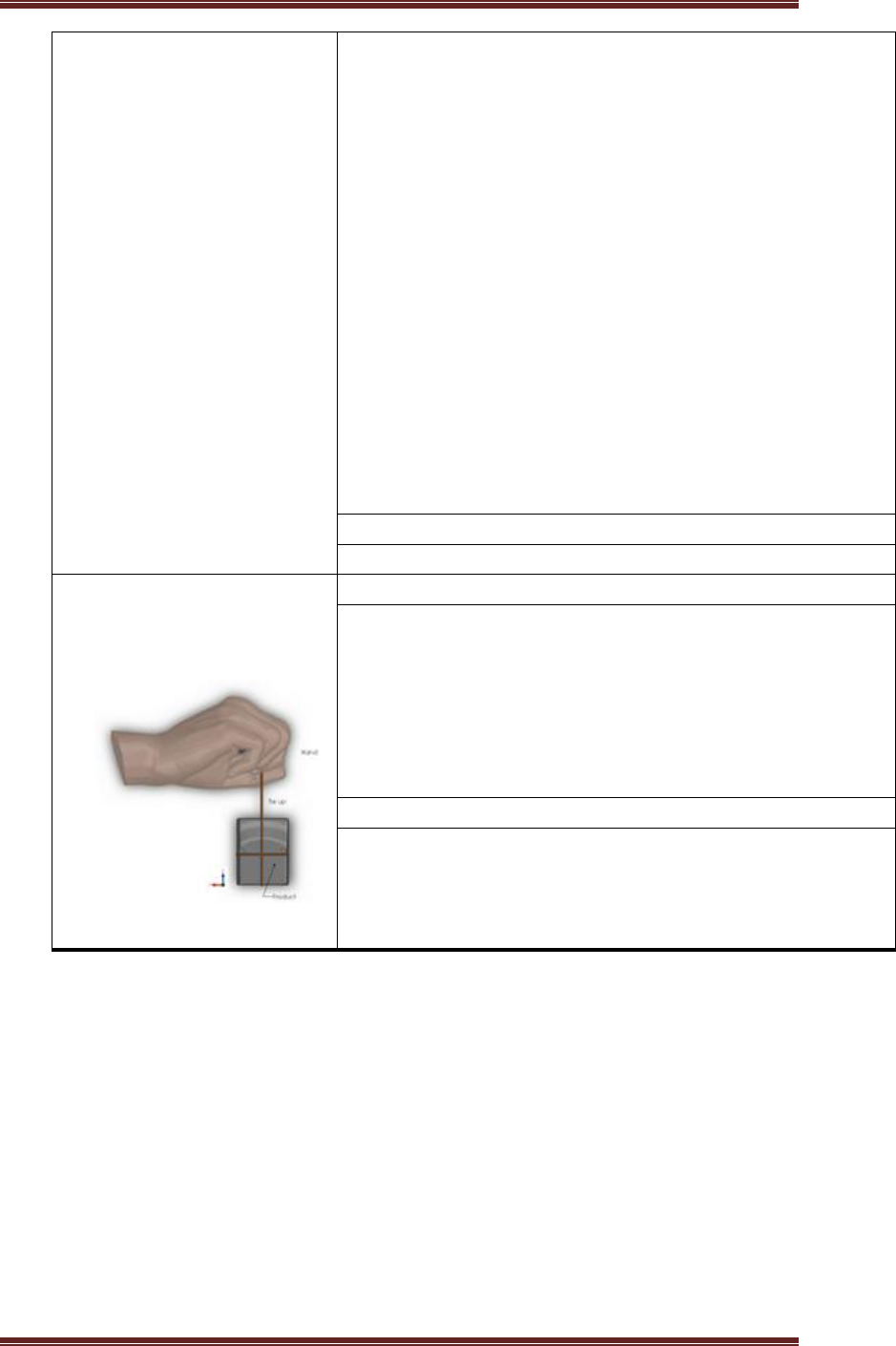

Free Fall
Test FFT
Standard : IEC 60068-2-32, Test Ed
Special conditions:
Drop: 2 samples for each direction
Equivalent drop height: 1m
Number of directions: 6 (±X, ±Y, ±Z)
Number of drops/face: 2
Operating conditions: Un-powered
Duration: 24 hours
7. Certification Compliance and
Recommended Standards
Product Technical Specification & User Guidelines
High Confidential
51 / 63
7.1. Certification Compliance
COMPACT1.0 is compliant with the following requirements.
Table 42. Standards Conformity
Domain
Applicable Standard
Safety standard
EN 60950-1 (ed.2006)
Health standard (EMF Exposure Evaluation)
EN 62311 (ed. 2008)
Efficient use of the radio frequency spectrum
EN 301 511 (V 9.0.2)
EMC
EN 301 489-1 (v1.8.1)
EN 301 489-7 (v1.3.1)
E-Marking
Directive 661/2009/EC
7.2. Applicable Standards Listing
The table hereafter gives the basic list of standards applicable for 2G (R99/Rel.4).
Note: References to any features can be found from these standards.
Table 43. Applicable Standards and Requirements
Document
Current
Version
Title
GCF
3.49.1
GSM Certification Forum - Certification Criteria
TS 51.010-1
10.3.0
3rd Generation Partnership Project; Technical Specification Group
GSM/EDGE Radio Access Network; Digital cellular
telecommunications system (Phase 2+); Mobile Station (MS)
Product Technical Specification & User Guidelines
High Confidential
52 / 63
conformance specification; Part 1: Conformance specification
TS 51.010-2
10.3.0
3rd Generation Partnership Project; Technical Specification Group
GSM/EDGE Radio Access Network; Mobile Station (MS)
conformance specification; Part 2: Protocol Implementation
Conformance Statement (PICS) proforma specification
TS 51.010-4
4.14.1
3rd Generation Partnership Project; Technical Specification Group
GSM/EDGE Radio Access Network; Digital cellular
telecommunications system (Phase 2+); Mobile Station (MS)
conformance specification; Part 4: SIM Application Toolkit
Conformance specification
EN 301 511
9.0.2
Global System for Mobile
Communications (GSM); Harmonized standard for
mobile stations in the GSM 900 and DCS 1800 bands covering
essential requirements under article 3.2 of the R&TTE directive
(1999/5/EC)
8. Reference Documents
For more details, several reference documents can be consulted. The Remo Wireless
documents referenced herein are provided in the Remo Wireless documentation
package; however, the general reference documents which are not Remo Wireless
owned are not provided in the documentation package.
8.1. Remo Wireless Documentation
Product Technical Specification & User Guidelines
High Confidential
53 / 63
[1] ADL User Guide for Open AT Application Framework OS 6.37
[2] AT Commands Interface Guide for Open AT Application Framework Firmware
7.47
[3] Product Technical Specification and Customer Design Guidelines
[4] STA8090 Product Technical Specification and Customer Design Guidelines
8.2. General Reference Documentation
[5] “I2C Bus Specification”, Version 2.0, Philips Semiconductor 1998
[6] ISO 7816-3 Standard
[7] LSM6DS3TR - Accelerometer Specifications
[8] TCA9535RTWR - IO Expander Specifications
9. List of Abbreviations
Abbreviation
Definition
AC
Alternative Current
ADC
Analog to Digital Converter
A/D
Analog to Digital conversion
AF
Audio-Frequency
AT
ATtention (prefix for modem commands)
AUX
AUXiliary
CAN
Controller Area Network
CB
Cell Broadcast
CEP
Circular Error Probable
CLK
CLocK
Product Technical Specification & User Guidelines
High Confidential
54 / 63
CMOS
Complementary Metal Oxide Semiconductor
CS
Coding Scheme
CTS
Clear To Send
DAC
Digital to Analogue Converter
dB
Decibel
DC
Direct Current
DCD
Data Carrier Detect
DCE
Data Communication Equipment
DCS
Digital Cellular System
DR
Dynamic Range
DSR
Data Set Ready
DTE
Data Terminal Equipment
DTR
Data Terminal Ready
EFR
Enhanced Full Rate
E-GSM
Extended GSM
EMC
ElectroMagnetic Compatibility
EMI
ElectroMagnetic Interference
EMS
Enhanced Message Service
EN
ENable
ESD
Electro Static Discharges
FIFO
First In First Out
FR
Full Rate
FTA
Full Type Approval
GND
GrouND
GPI
General Purpose Input
GPC
General Purpose Connector
GPIO
General Purpose Input Output
GPO
General Purpose Output
GPRS
General Packet Radio Service
GPS
Global Positioning System
GSM
Global System for Mobile communications
HR
Half Rate
I/O
Input / Output
JTAG
Joint Test Action Group
LED
Light Emitting Diode
LNA
Low Noise Amplifier
MAX
MAXimum
MIC
MICrophone
MIN
MINimum
MMS
Multimedia Message Service
MO
Mobile Originated
Product Technical Specification & User Guidelines
High Confidential
55 / 63
MT
Mobile Terminated
na
Not Applicable
NF
Noise Factor
NMEA
National Marine Electronics Association
NOM
NOMinal
NTC
Négative Temperature Coefficient
PA
Power Amplifier
Pa
Pascal (for speaker sound pressure measurements)
PBCCH
Packet Broadcast Control CHannel
PC
Personal Computer
PCB
Printed Circuit Board
PDA
Personal Digital Assistant
PFM
Power Frequency Modulation
PSM
Phase Shift Modulation
PWM
Pulse Width Modulation
RAM
Random Access Memory
RF
Radio Frequency
RFI
Radio Frequency Interference
RHCP
Right Hand Circular Polarization
RI
Ring Indicator
RST
ReSeT
RTC
Real Time Clock
RTCM
Radio Technical Commission for Maritime services
RTS
Request To Send
RX
Receive
SCL
Serial CLock
SDA
Serial DAta
SIM
Subscriber Identification Module
SMS
Short Message Service
SPI
Serial Peripheral Interface
SPL
Sound Pressure Level
SPK
SPeaKer
SW
SoftWare
PSRAM
Pseudo Static RAM
TBC
To Be Confirmed
TDMA
Time Division Multiple Access
TP
Test Point
TVS
Transient Voltage Suppressor
TX
Transmit
TYP
TYPical
UART
Universal Asynchronous Receiver-Transmitter
Product Technical Specification & User Guidelines
High Confidential
56 / 63
10. Product Labeling
Two product labels are available at the back of COMPACT1.0.
10.1. Black Label
Figure 15. Black Label
The dimension of the black label is 7.5cm x 2.5cm and provides the following information:
Product name (COMPACT1.0 Telematic Unit)
OCTO label
E-marking
WEEE logo
CE marking with certification number
Warning
USB
Universal Serial Bus
USSD
Unstructured Supplementary Services Data
VSWR
Voltage Standing Wave Ratio
WMP
Wireless MicroProcessor
Product Technical Specification & User Guidelines
High Confidential
57 / 63
10.2. White Label

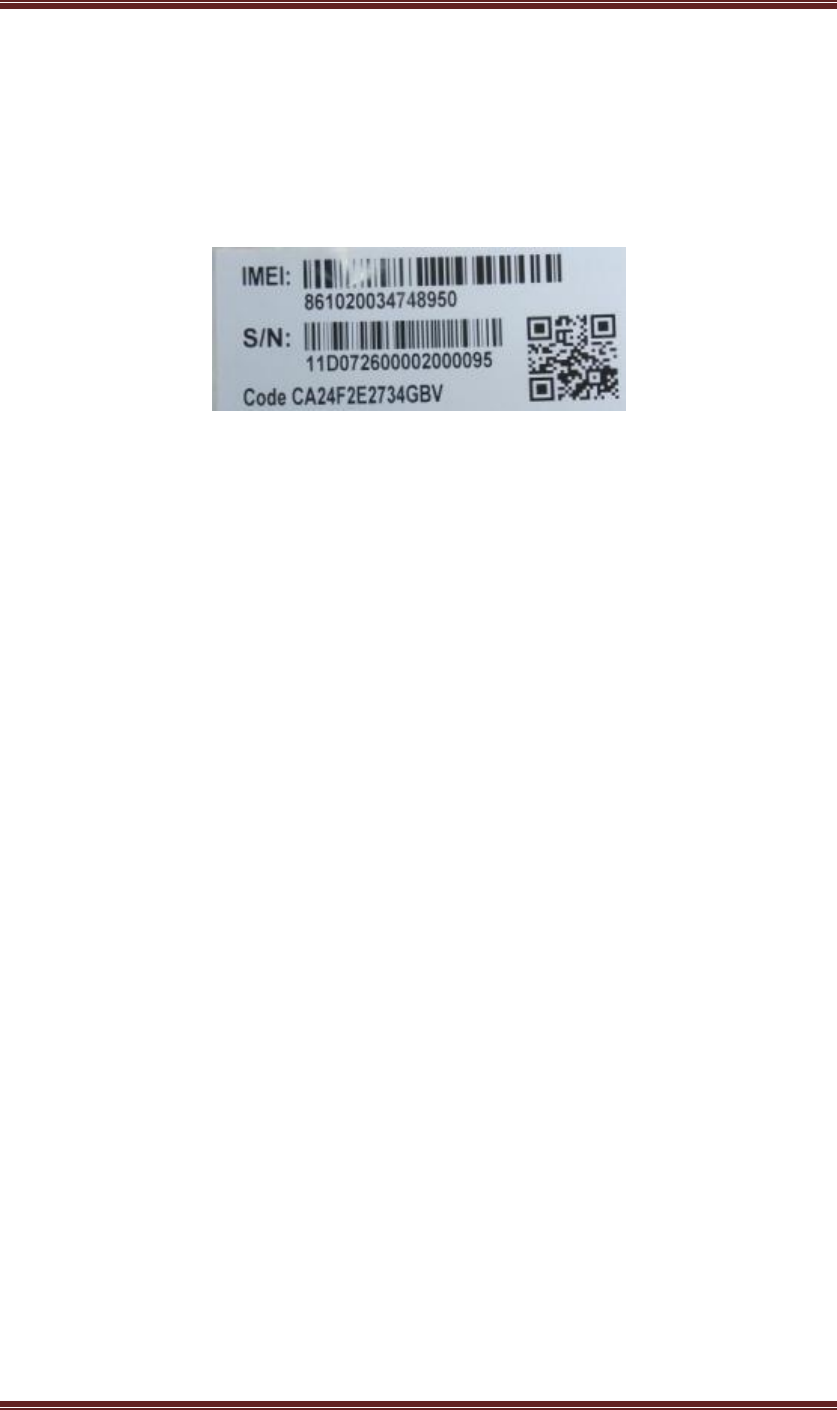

Figure 16. White Label
The dimension of the white label is also 7cm x 3cm and provides the following information:
IMEI number, 2D barcode
Serial number, 2D barcode
Item number
Label specification reference
QR Code
11. Packaging
COMPACT1.0 is packed in heat-sealed ESD bags. These packages are then
packed into an outer box and then sealed with security tape. Each outer box can
contain up to 50 COMPACT1.0 packages.
Product Technical Specification & User Guidelines
High Confidential
58 / 63

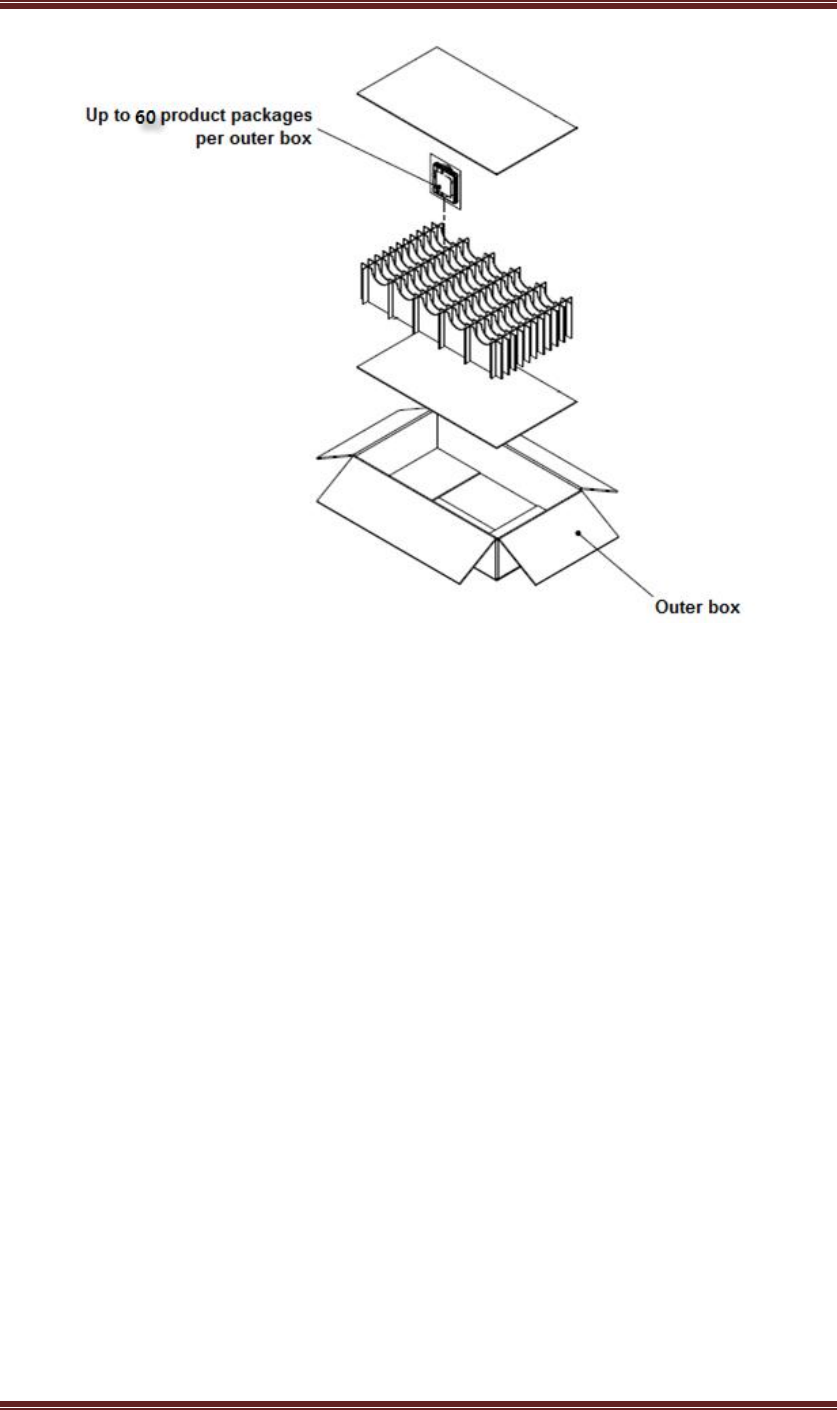

Figure 17. COMPACT1.0 Outer Box Assembly
12. Safety Recommendations
(for Information Only)
For the efficient and safe operation of your GSM device, please read the following
information carefully.
12.1.RF Safety
12.1.1. General
Your GSM terminal is based on the GSM standard for cellular technology. The GSM
standard is spread all over the world. It covers Europe, Asia and some parts of
Product Technical Specification & User Guidelines
High Confidential
59 / 63
America and Africa. This is the most used telecommunication standard.
Your GSM terminal is actually a low power radio transmitter and receiver. It sends out and
receives radio frequency energy. When you use your GSM application, the cellular system
which handles your calls controls both the radio frequency and the power level of your
cellular modem.
12.1.2. Exposure to RF Energy
There has been some public concern about possible health effects from using GSM
terminals. Although research on health effects from RF energy has focused on the
current RF technology for many years, scientists have begun research regarding newer
radio technologies, such as GSM. After existing research had been reviewed, and after
compliance to all applicable safety standards had been tested, it has been concluded
that the product was fit for use.
If you are concerned about exposure to RF energy there are things you can do to
minimize exposure. Obviously, limiting the duration of your calls will reduce your
exposure to RF energy. In addition, you can reduce RF exposure by operating your
cellular terminal efficiently by following the guidelines below.
12.1.3. Efficient Terminal Operation
For your GSM terminal to operate at the lowest power level, consistent with satisfactory
call quality: If your terminal has an extendible antenna, extend it fully. Some models
allow you to place a call with
the antenna retracted. However, your GSM terminal operates more efficiently with the
antenna fully extended.
Do not hold the antenna when the terminal is « IN USE ». Holding the antenna affects call
quality and may cause the modem to operate at a higher power level than needed.
12.1.4. Antenna Care and Replacement
Product Technical Specification & User Guidelines
High Confidential
60 / 63
Do not use the GSM terminal with a damaged antenna. If a damaged antenna comes
into contact with the skin, a minor burn may result. Replace a damaged antenna
immediately. Consult your manual to see if you may change the antenna yourself. If so,
use only a manufacturer-approved antenna. Otherwise, have your antenna repaired by a
qualified technician.
Use only the supplied or approved antenna. Unauthorized antennas, modifications or
attachments could damage the terminal and may contravene local RF emission
regulations or invalidate type approval.
12.2. General Safety
12.2.1. Driving
Check the laws and the regulations regarding the use of cellular devices in the area
where you have to drive as you always have to comply with them. When using your
GSM terminal while driving, please:
give full attention to driving,
pull off the road and park before making or answering a call if driving conditions
so require.
12.2.2. Electronic Devices
Most electronic equipment, for example in hospitals and motor vehicles, is shielded from
RF energy. However, RF energy may affect some improperly shielded electronic
equipment.
12.2.3. Vehicle Electronic Equipment
Check your vehicle manufacturer representative to determine if any on-board electronic
equipment is adequately shielded from RF energy.
12.2.4. Medical Electronic Equipment
Consult the manufacturer of any personal medical devices (such as pacemakers,
Product Technical Specification & User Guidelines
High Confidential
61 / 63
hearing aids, etc...) to determine if they are adequately shielded from external RF
energy.
Turn your terminal OFF in health care facilities when any regulations posted in the area
instruct you to do so. Hospitals or health care facilities may be using RF monitoring
equipment.
12.2.5. Aircraft
Turn your terminal OFF before boarding any aircraft.
Use it on the ground only with crew permission.
Do not use it in the air.
To prevent possible interference with aircraft systems, Federal Aviation Administration
(FAA) regulations require you to have permission from a crew member to use your
terminal while the aircraft is on the ground. To prevent interference with cellular systems,
local RF regulations prohibit using your modem while airborne.
12.2.6. Children
Do not allow children to play with your GSM terminal. It is not a toy. Children could hurt
themselves or others (by poking themselves or others in the eye with the antenna, for
example). Children could damage the modem, or make calls that increase your modem
bills.
12.2.7. Blasting Areas
To avoid interfering with blasting operations, turn your unit OFF when in a « blasting
area » or in areas posted: « turn off two-way radio ». Construction crews often use
remote control RF devices to set off explosives.
12.2.8. Potentially Explosive Atmospheres
Turn your terminal OFF when in any area with a potentially explosive atmosphere. It is
Product Technical Specification & User Guidelines
High Confidential
62 / 63
rare, but your application or its accessories could generate sparks. Sparks in such
areas could cause an explosion or fire resulting in bodily injuries or even death.
Areas with a potentially explosive atmosphere are often, but not always, clearly marked.
They include fuelling areas such as petrol stations; below decks on boats; fuel or
chemical transfer or storage facilities; and areas where the air contains chemicals or
particles, such as grain, dust, or metal powders.
Do not transport or store flammable gas, liquid, or explosives in the compartment of
your vehicle which contains your terminal or accessories.
Before using your terminal in a vehicle powered by liquefied petroleum gas (such as
propane or butane) ensure that the vehicle complies with the relevant fire and safety
regulations of the country in which the vehicle is to be used.
RF Exposure Statement:
For the product,under normal use condition is at least 20cm away from the b ody of the user,the
user must keeping at least 20cm distance to the product.
WARNING:
This device complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may cause
undesired operation. Changes or modifications not expressly approved by the party
responsible for compliance could void the user’s authority to operate the equipment.
NOTE:
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following measures:
Product Technical Specification & User Guidelines
High Confidential
63 / 63
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
-Consult the dealer or an experienced radio/TV technician for help.
IC Caution
Attention IC
This device complies with Industry Canada license-exempt RSS standard(s). Operation is
subject to the following two conditions:
1.this device may not cause interference,
2.and this device must accept any interference, including interference that may cause
undesired operation of the device.
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio
exempts de licence. L'exploitation est autorisée aux deux conditions suivantes:
1.l'appareil ne doit pas produire de brouillage, et
2.l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le
brouillage est susceptible d'en
This Class B digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.
