Ogemray Technology WF3SXXT Wireless USB Adaptor User Manual

Shenzhen Ogemray Technology Co.,Ltd Wireless USB Adaptor

User manual

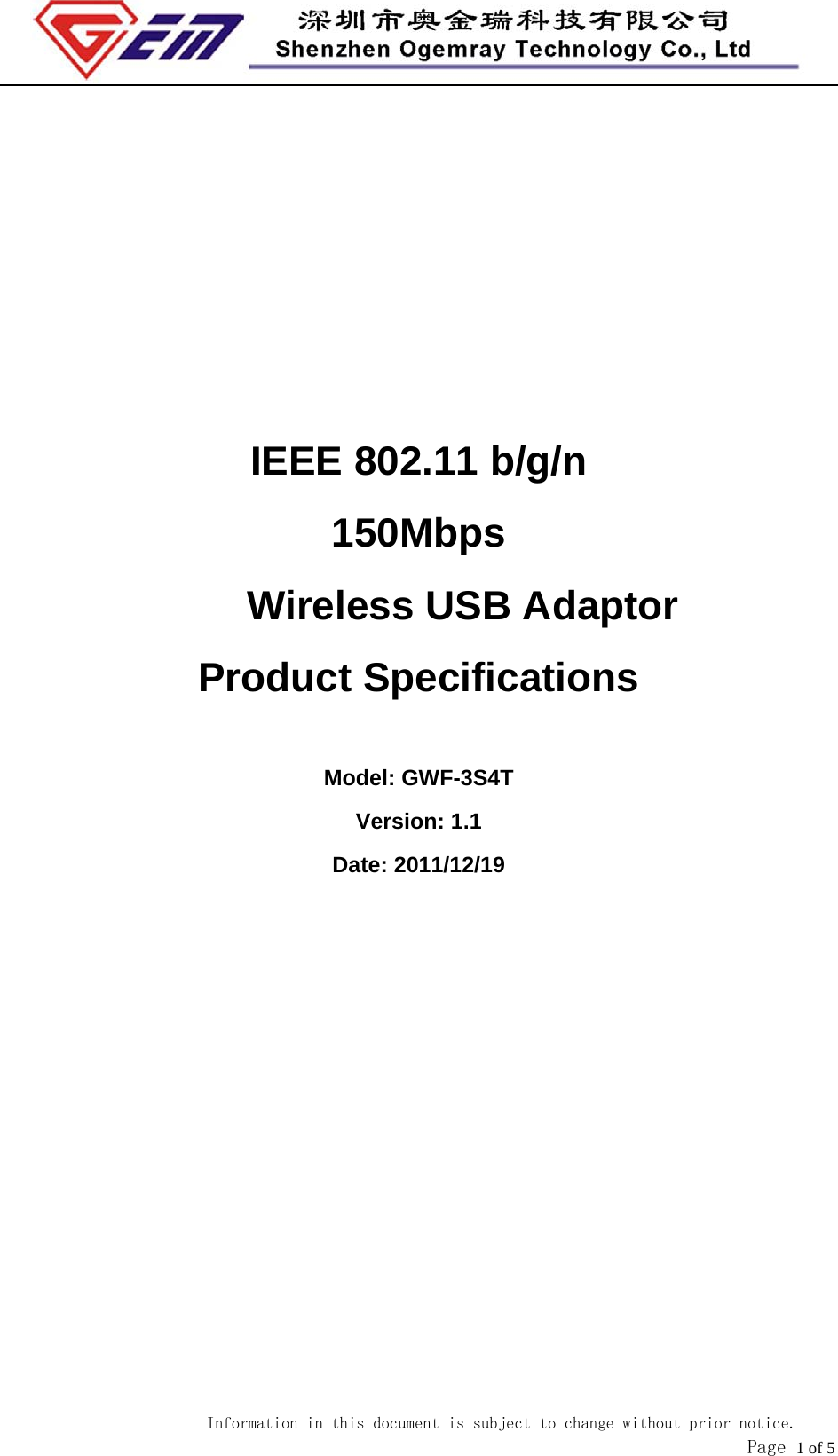

Information in this document is subject to change without prior notice. Page 1 of 5 IEEE 802.11 b/g/n 150Mbps Wireless USB Adaptor Product Specifications Model: GWF-3S4T Version: 1.1 Date: 2011/12/19

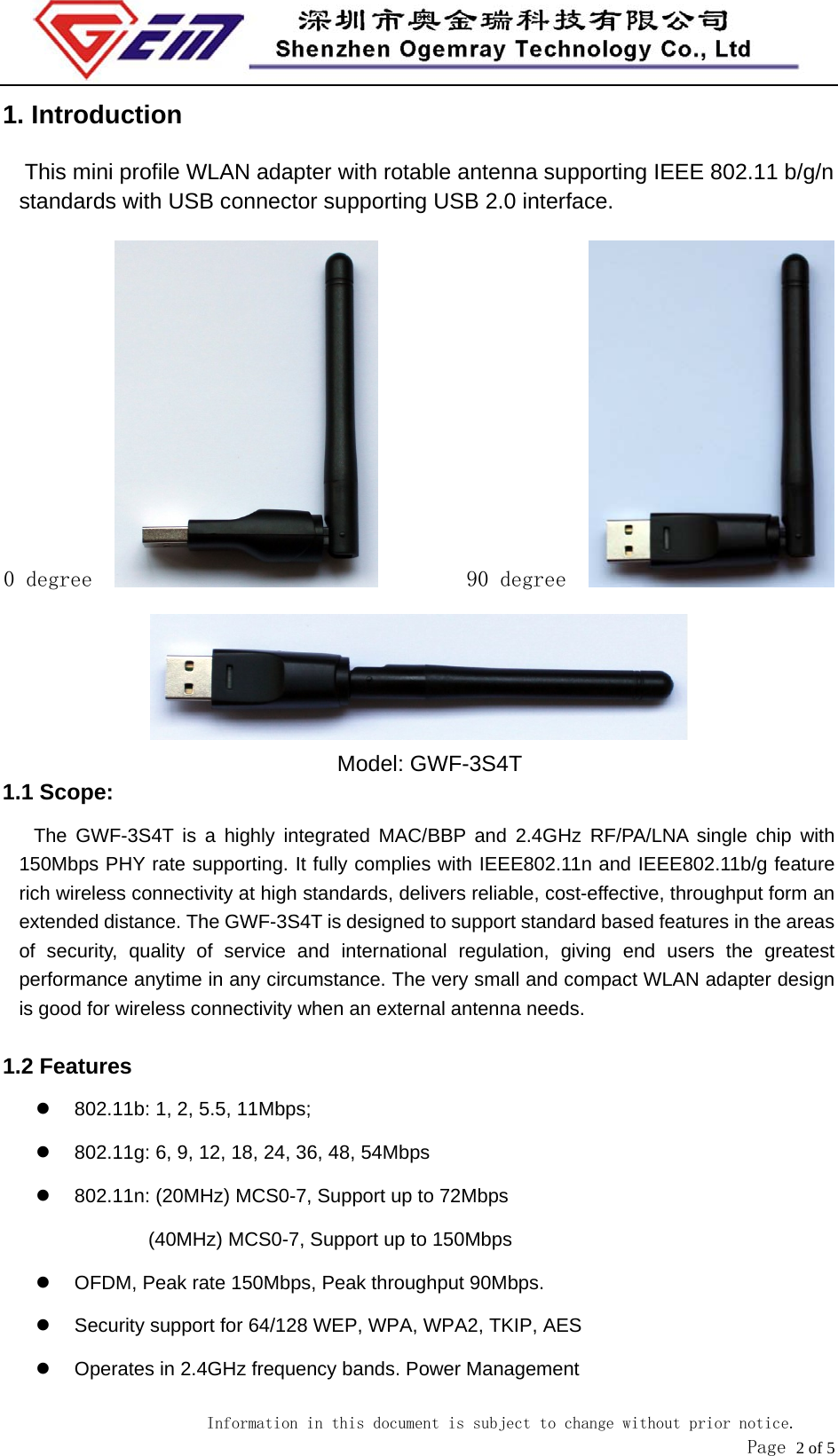

Information in this document is subject to change without prior notice. Page 2 of 5 1. Introduction This mini profile WLAN adapter with rotable antenna supporting IEEE 802.11 b/g/n standards with USB connector supporting USB 2.0 interface. 0 degree 90 degree Model: GWF-3S4T 1.1 Scope: The GWF-3S4T is a highly integrated MAC/BBP and 2.4GHz RF/PA/LNA single chip with 150Mbps PHY rate supporting. It fully complies with IEEE802.11n and IEEE802.11b/g feature rich wireless connectivity at high standards, delivers reliable, cost-effective, throughput form an extended distance. The GWF-3S4T is designed to support standard based features in the areas of security, quality of service and international regulation, giving end users the greatest performance anytime in any circumstance. The very small and compact WLAN adapter design is good for wireless connectivity when an external antenna needs. 1.2 Features  802.11b: 1, 2, 5.5, 11Mbps;  802.11g: 6, 9, 12, 18, 24, 36, 48, 54Mbps  802.11n: (20MHz) MCS0-7, Support up to 72Mbps (40MHz) MCS0-7, Support up to 150Mbps  OFDM, Peak rate 150Mbps, Peak throughput 90Mbps.  Security support for 64/128 WEP, WPA, WPA2, TKIP, AES  Operates in 2.4GHz frequency bands. Power Management

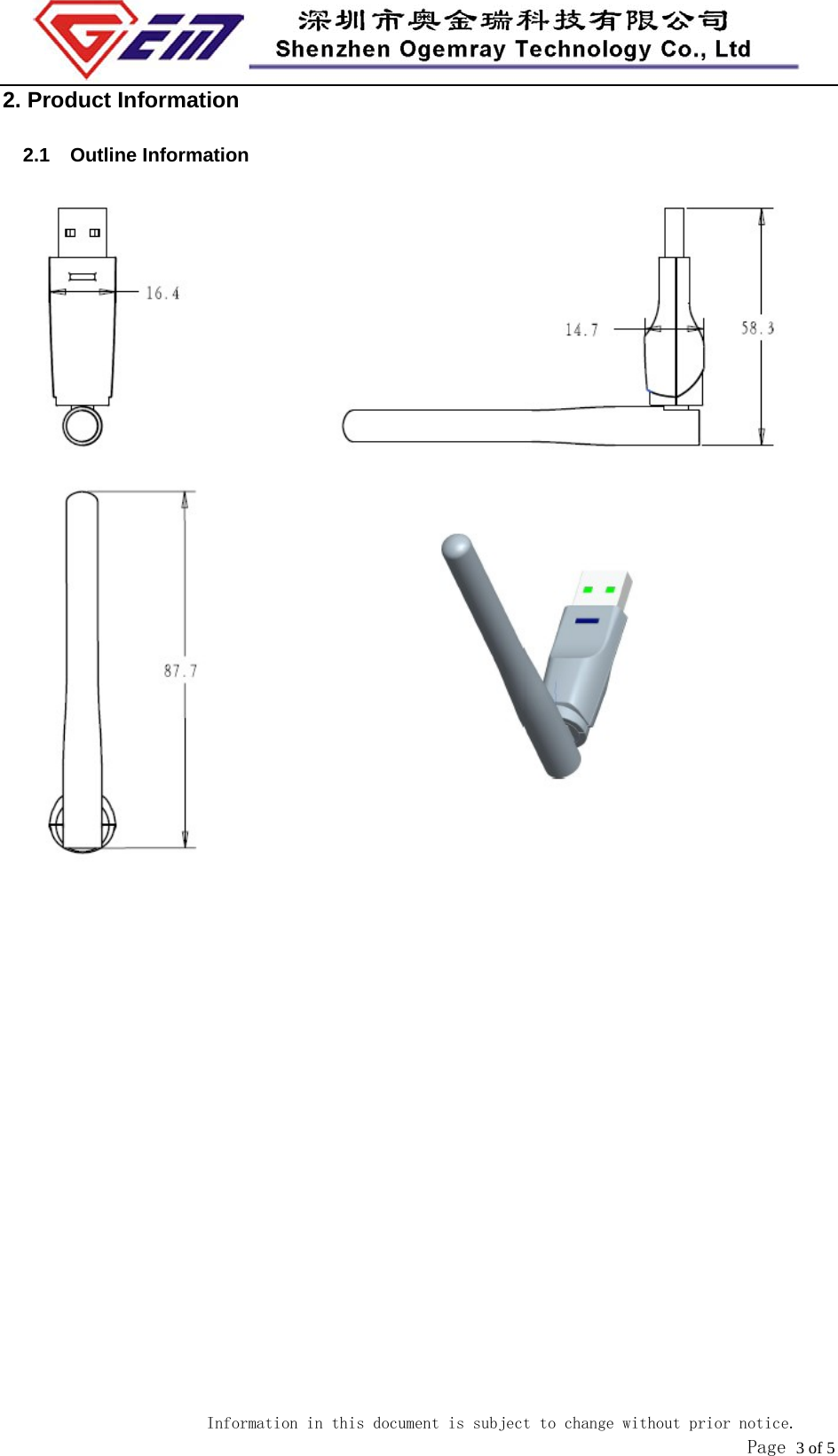

Information in this document is subject to change without prior notice. Page 3 of 5 2. Product Information 2.1 Outline Information

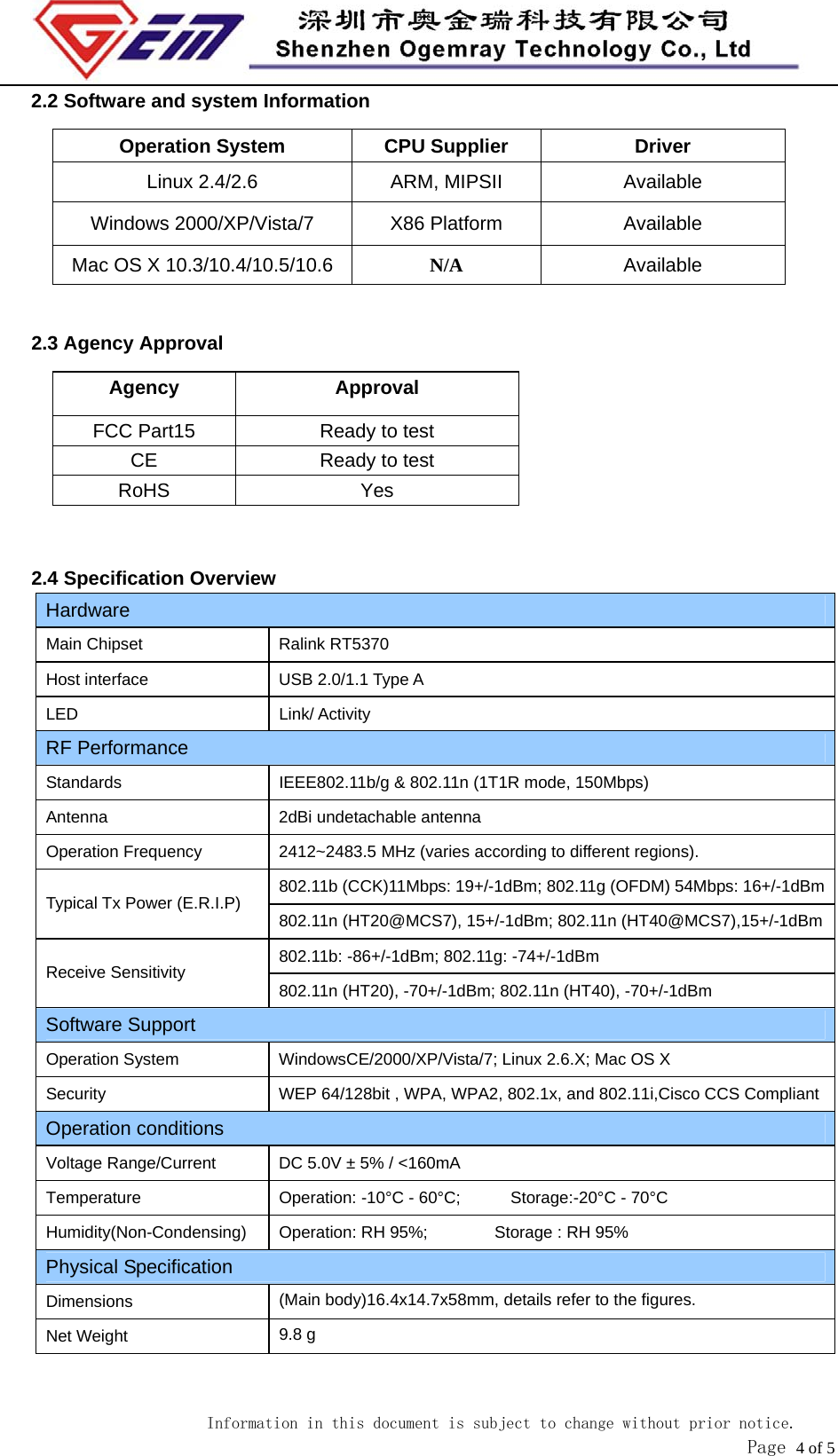

Information in this document is subject to change without prior notice. Page 4 of 5 2.2 Software and system Information Operation System CPU Supplier Driver Linux 2.4/2.6 ARM, MIPSII Available Windows 2000/XP/Vista/7 X86 Platform Available Mac OS X 10.3/10.4/10.5/10.6 N/A Available 2.3 Agency Approval Agency Approval FCC Part15 Ready to test CE Ready to test RoHS Yes 2.4 Specification Overview Hardware Main Chipset Ralink RT5370 Host interface USB 2.0/1.1 Type A LED Link/ Activity RF Performance Standards IEEE802.11b/g & 802.11n (1T1R mode, 150Mbps) Antenna 2dBi undetachable antenna Operation Frequency 2412~2483.5 MHz (varies according to different regions). 802.11b (CCK)11Mbps: 19+/-1dBm; 802.11g (OFDM) 54Mbps: 16+/-1dBmTypical Tx Power (E.R.I.P) 802.11n (HT20@MCS7), 15+/-1dBm; 802.11n (HT40@MCS7),15+/-1dBm802.11b: -86+/-1dBm; 802.11g: -74+/-1dBm Receive Sensitivity 802.11n (HT20), -70+/-1dBm; 802.11n (HT40), -70+/-1dBm Software Support Operation System WindowsCE/2000/XP/Vista/7; Linux 2.6.X; Mac OS X Security WEP 64/128bit , WPA, WPA2, 802.1x, and 802.11i,Cisco CCS CompliantOperation conditions Voltage Range/Current DC 5.0V ± 5% / <160mA Temperature Operation: -10°C - 60°C; Storage:-20°C - 70°C Humidity(Non-Condensing) Operation: RH 95%; Storage : RH 95% Physical Specification Dimensions (Main body)16.4x14.7x58mm, details refer to the figures. Net Weight 9.8 g

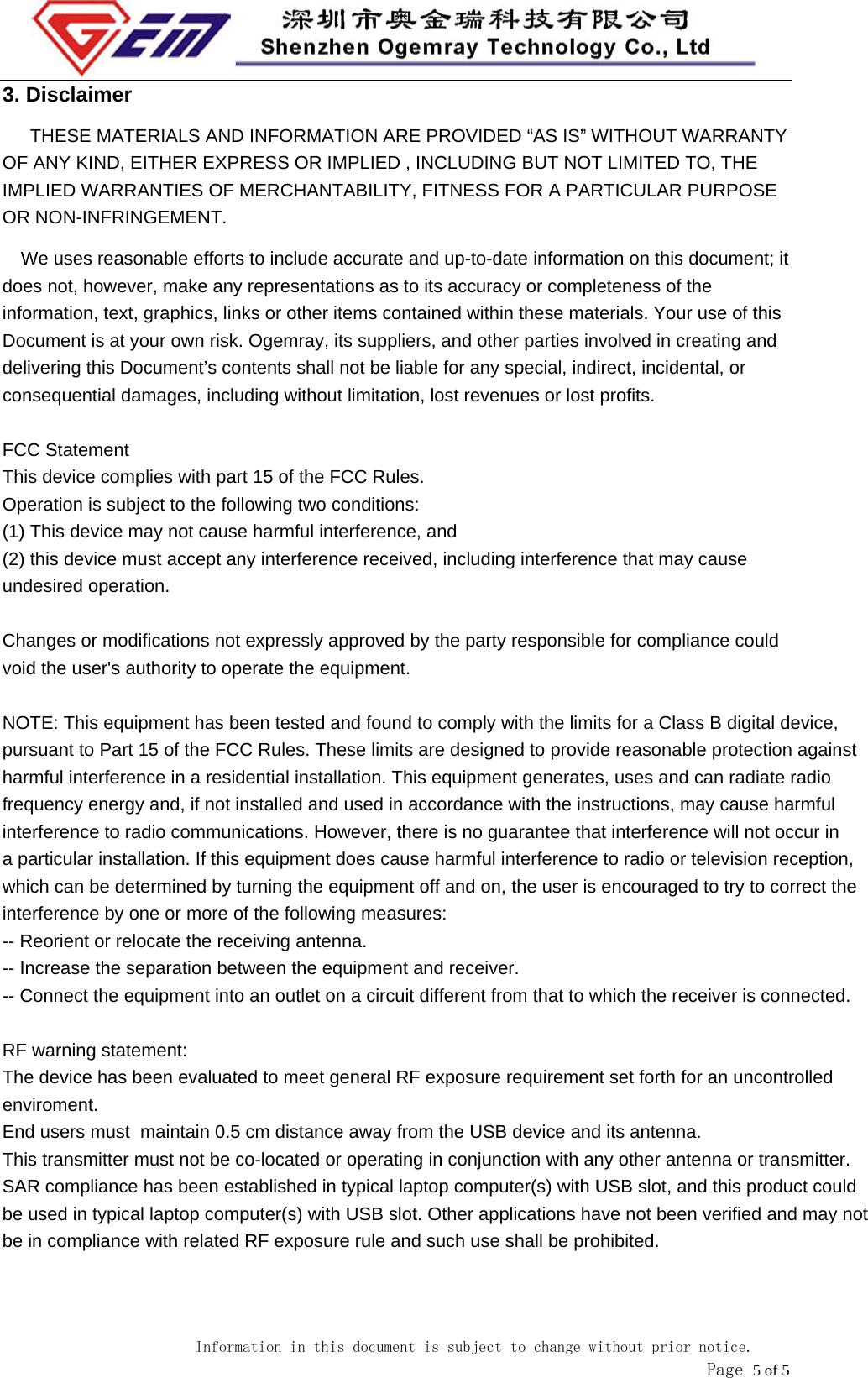

Information in this document is subject to change without prior notice. Page 5 of 5 3. Disclaimer THESE MATERIALS AND INFORMATION ARE PROVIDED “AS IS” WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESS OR IMPLIED , INCLUDING BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE OR NON-INFRINGEMENT. We uses reasonable efforts to include accurate and up-to-date information on this document; it does not, however, make any representations as to its accuracy or completeness of the information, text, graphics, links or other items contained within these materials. Your use of this Document is at your own risk. Ogemray, its suppliers, and other parties involved in creating and delivering this Document’s contents shall not be liable for any special, indirect, incidental, or consequential damages, including without limitation, lost revenues or lost profits. FCC StatementThis device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by the party responsible for compliance couldvoid the user's authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:-- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. RF warning statement:The device has been evaluated to meet general RF exposure requirement set forth for an uncontrolled enviroment. End users must maintain 0.5 cm distance away from the USB device and its antenna.This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.SAR compliance has been established in typical laptop computer(s) with USB slot, and this product couldbe used in typical laptop computer(s) with USB slot. Other applications have not been verified and may notbe in compliance with related RF exposure rule and such use shall be prohibited.
