Ogemray Technology WF3SXXT Wireless USB Adaptor User Manual
Shenzhen Ogemray Technology Co.,Ltd Wireless USB Adaptor
User manual
Information in this document is subject to change without prior notice.
Page 1 of 5
IEEE 802.11 b/g/n
150Mbps
Wireless USB Adaptor
Product Specifications
Model: GWF-3S4T
Version: 1.1
Date: 2011/12/19
Information in this document is subject to change without prior notice.
Page 2 of 5
1. Introduction
This mini profile WLAN adapter with rotable antenna supporting IEEE 802.11 b/g/n
standards with USB connector supporting USB 2.0 interface.

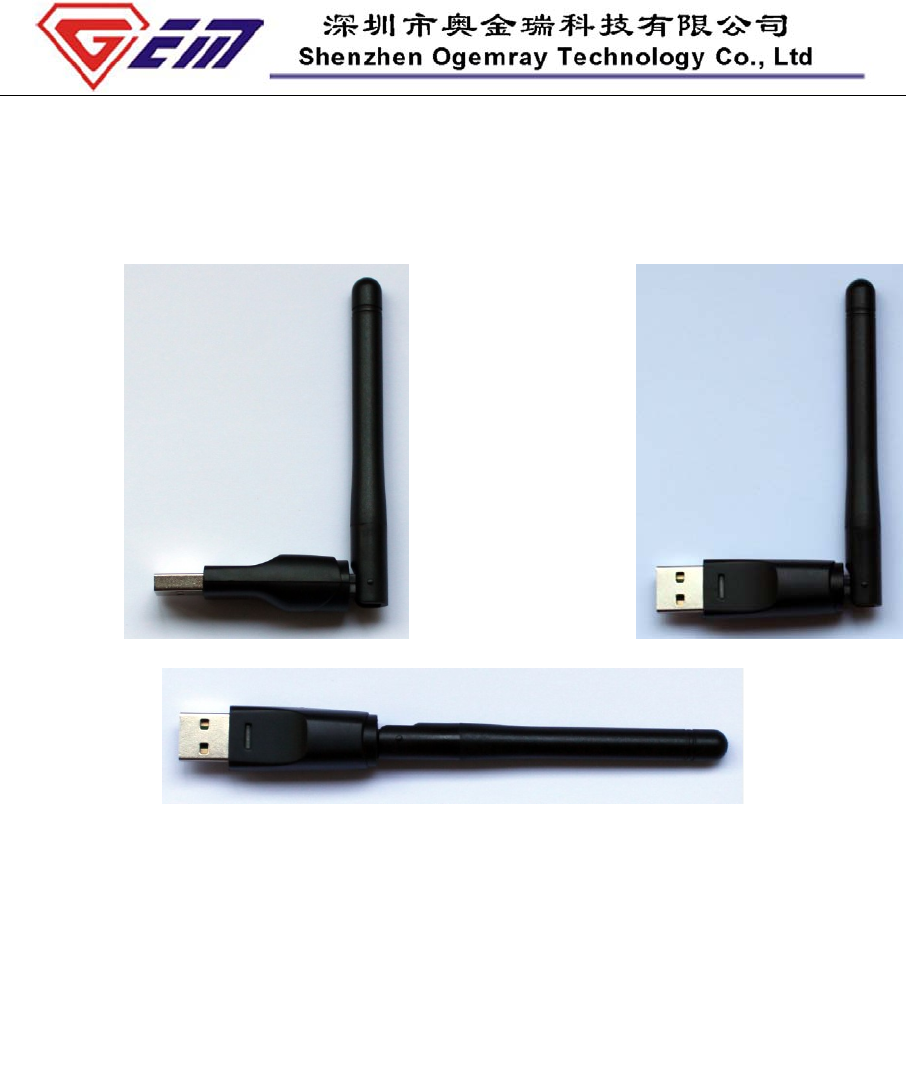

0 degree 90 degree
Model: GWF-3S4T
1.1 Scope:
The GWF-3S4T is a highly integrated MAC/BBP and 2.4GHz RF/PA/LNA single chip with
150Mbps PHY rate supporting. It fully complies with IEEE802.11n and IEEE802.11b/g feature
rich wireless connectivity at high standards, delivers reliable, cost-effective, throughput form an
extended distance. The GWF-3S4T is designed to support standard based features in the areas
of security, quality of service and international regulation, giving end users the greatest
performance anytime in any circumstance. The very small and compact WLAN adapter design
is good for wireless connectivity when an external antenna needs.
1.2 Features
802.11b: 1, 2, 5.5, 11Mbps;
802.11g: 6, 9, 12, 18, 24, 36, 48, 54Mbps
802.11n: (20MHz) MCS0-7, Support up to 72Mbps
(40MHz) MCS0-7, Support up to 150Mbps
OFDM, Peak rate 150Mbps, Peak throughput 90Mbps.
Security support for 64/128 WEP, WPA, WPA2, TKIP, AES
Operates in 2.4GHz frequency bands. Power Management
Information in this document is subject to change without prior notice.
Page 3 of 5
2. Product Information

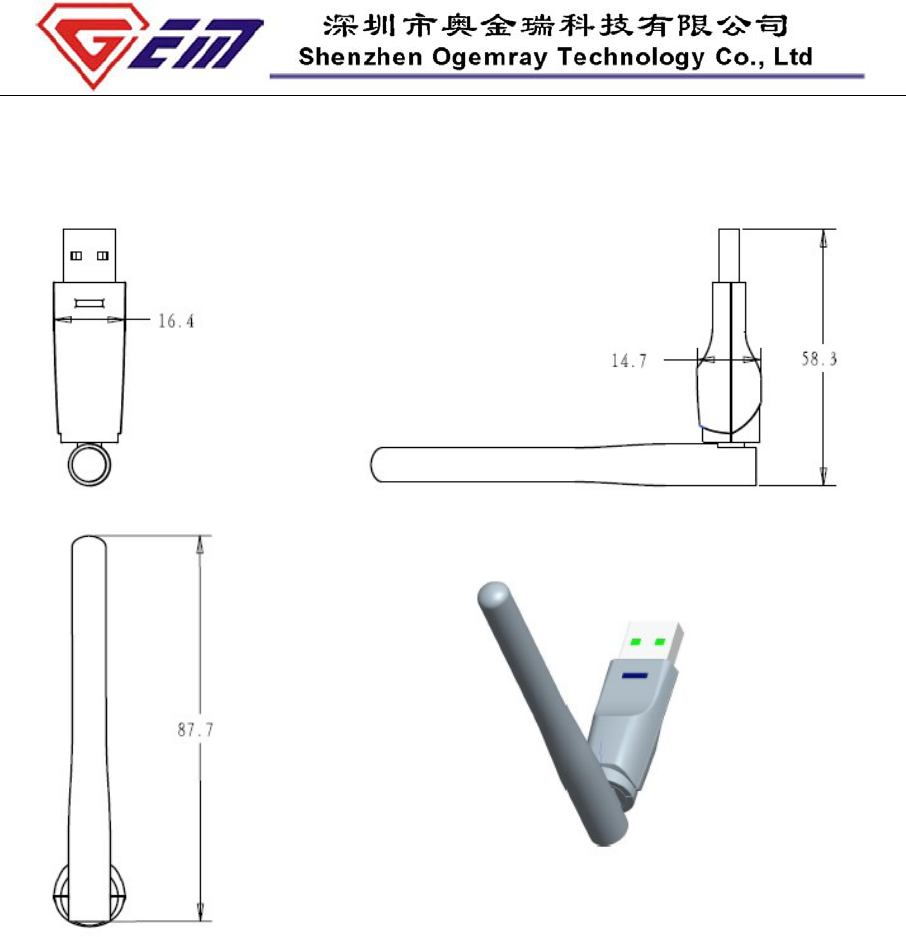

2.1 Outline Information
Information in this document is subject to change without prior notice.
Page 4 of 5
2.2 Software and system Information
Operation System CPU Supplier Driver
Linux 2.4/2.6 ARM, MIPSII Available
Windows 2000/XP/Vista/7 X86 Platform Available
Mac OS X 10.3/10.4/10.5/10.6 N/A Available
2.3 Agency Approval
Agency Approval
FCC Part15 Ready to test
CE Ready to test
RoHS Yes
2.4 Specification Overview
Hardware
Main Chipset Ralink RT5370
Host interface USB 2.0/1.1 Type A
LED Link/ Activity
RF Performance
Standards IEEE802.11b/g & 802.11n (1T1R mode, 150Mbps)
Antenna 2dBi undetachable antenna
Operation Frequency 2412~2483.5 MHz (varies according to different regions).
802.11b (CCK)11Mbps: 19+/-1dBm; 802.11g (OFDM) 54Mbps: 16+/-1dBm
Typical Tx Power (E.R.I.P) 802.11n (HT20@MCS7), 15+/-1dBm; 802.11n (HT40@MCS7),15+/-1dBm
802.11b: -86+/-1dBm; 802.11g: -74+/-1dBm
Receive Sensitivity 802.11n (HT20), -70+/-1dBm; 802.11n (HT40), -70+/-1dBm
Software Support
Operation System WindowsCE/2000/XP/Vista/7; Linux 2.6.X; Mac OS X
Security WEP 64/128bit , WPA, WPA2, 802.1x, and 802.11i,Cisco CCS Compliant
Operation conditions
Voltage Range/Current DC 5.0V ± 5% / <160mA
Temperature Operation: -10°C - 60°C; Storage:-20°C - 70°C
Humidity(Non-Condensing) Operation: RH 95%; Storage : RH 95%
Physical Specification
Dimensions (Main body)16.4x14.7x58mm, details refer to the figures.
Net Weight 9.8 g
Information in this document is subject to change without prior notice.
Page 5 of 5
3. Disclaimer
THESE MATERIALS AND INFORMATION ARE PROVIDED “AS IS” WITHOUT WARRANTY
OF ANY KIND, EITHER EXPRESS OR IMPLIED , INCLUDING BUT NOT LIMITED TO, THE
IMPLIED WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE
OR NON-INFRINGEMENT.
We uses reasonable efforts to include accurate and up-to-date information on this document; it
does not, however, make any representations as to its accuracy or completeness of the
information, text, graphics, links or other items contained within these materials. Your use of this
Document is at your own risk. Ogemray, its suppliers, and other parties involved in creating and
delivering this Document’s contents shall not be liable for any special, indirect, incidental, or
consequential damages, including without limitation, lost revenues or lost profits.
FCC Statement
This device complies with part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause
undesired operation.
Changes or modifications not expressly approved by the party responsible for compliance could
void the user's authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that interference will not occur in
a particular installation. If this equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
-- Reorient or relocate the receiving antenna.
-- Increase the separation between the equipment and receiver.
-- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
RF warning statement:
The device has been evaluated to meet general RF exposure requirement set forth for an uncontrolled
enviroment.
End users must maintain 0.5 cm distance away from the USB device and its antenna.
This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.
SAR compliance has been established in typical laptop computer(s) with USB slot, and this product could
be used in typical laptop computer(s) with USB slot. Other applications have not been verified and may not
be in compliance with related RF exposure rule and such use shall be prohibited.
