Ogemray Technology WF53721MX USB Wireless Module User Manual GWF 1M01 Spec V1 1
Shenzhen Ogemray Technology Co.,Ltd USB Wireless Module GWF 1M01 Spec V1 1
User manual
Information in this document is subject to change without prior notice. Page 1 of 13
IEEE 802.11 b/g/n
300Mbps WiFi Module
Product Specifications
Model: GWF-1M01
Version: 1.1
2012-11-20
Information in this document is subject to change without prior notice. Page 2 of 13
1. Introduction
The GWF-1M01 is a WLAN module supporting IEEE 802.11b/g/n standards with 7-pin or 4-pin connector
supporting USB2.0 interface. This is a small form factor and low cost compact WLAN module designed for
the wireless connectivity. This module operates in 2.4GHz ISM frequency band, it applies a highly integrated
MAC/BBP and RF single chip RT5372 with 300Mbps PHY rate supporting. It fully complies with IEEE802.11n
draft 3.0 and IEEE802.11b/g feature.
2. Features
z 20MHz/40MHz bandwidth support.
z 802.11b: 1, 2, 5.5, 11Mbps; 802.11g: 6, 9, 12, 24, 36, 48, 54Mbps ;
z 802.11n: Support PHY rate up to 300Mbps.
z Security support for WEP 64/128, WPA,WPA2, TKIP,AES
3. Product Information
3.1 Specification:
Main Chipset Ralink RT5372
Operation Frequency 2412~2462MHz, ISM band
Protocols 802.11b: CCK, QPSK, BPSK, 802.11g/n: OFDM
Antennas Two outputs to external antennas
Security WPA/WPA2, 64/128/152-bit WEP, WPS
Typical Transmit Power
(Antenna feed point)
802.11b (CCK) : 20.5+/-1dBm
802.11g (OFDM) : 16.5+/-1dBm
802.11n (HT20@MCS7), 16+/-1dBm; (HT40@MCS7),16+/-1dBm
Receive Sensitivity
(Antenna feed point)
802.11b: -88+/-1dBm
802.11g: -73+/-1dBm
802.11n (HT20), -71+/-1dBm; 802.11n (HT40), -68+/-1dBm
Operating Voltage 5.0VDC ± 5% ; <300mA @802.11g ; or3.3VDV± 5%
Bus Interface USB 2.0
Interface 7-pin or 4-pin, 2.0mm , or 4-pin 2.54 mm pitch pin header
Physical Specification
Dimensions 33* 15*3 mm
Weight 1.6 g
Information in this document is subject to change without prior notice. Page 3 of 13

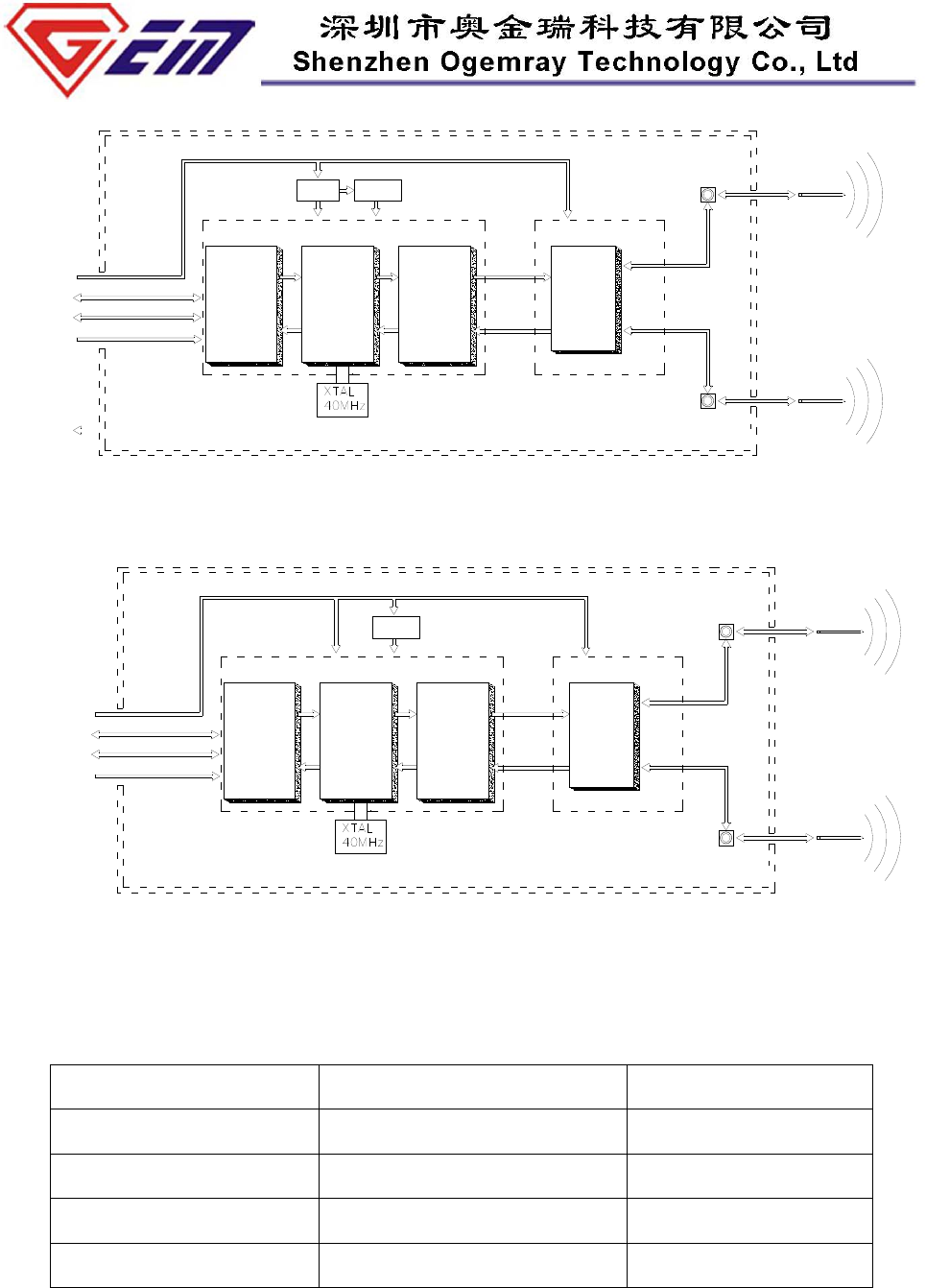

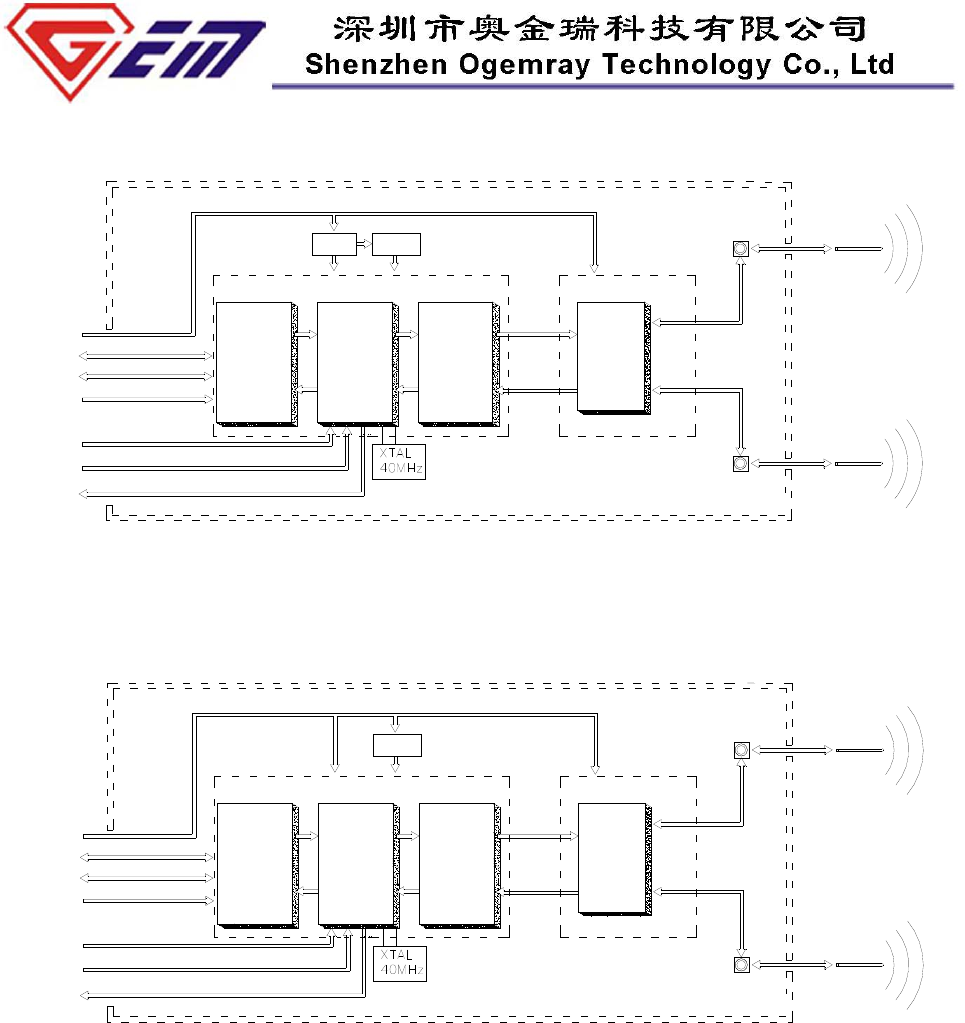

3.2 Block Diagram
RF
Receiver
RF
Transmitter
Baseband
MAC/
Packet
Buffer/
Encrption
Engine
DATA- USB
Interface
VCC (5V)
DATA+
GND
RT5372
3.3V/1.5V
5V/3.3V
I-PEX
Receptacle
USB
Connector
USB WiFi adapter
TX CONTROL
EXTERNAL LED
TX/RX
Front End
WPS CONTROL
I-PEX
Receptacle External antenna
External antenna
2.412~2.462GHz
Figure 1: System Block Diagram of 7 pin GWF-1M01 5.0V WLAN Module
RF
Receiver
RF
Transmitter
Baseband
MAC/
Packet
Buffer/
Encrption
Engine
DATA- USB
Interface
VCC (5V)
DATA+
GND
RT5372
3.3V/1.5V
I-PEX
Receptacle
USB
Connector
USB WiFi adapter
TX CONTROL
EXTERNAL LED
TX/RX
Front End
WPS CONTROL
I-PEX
Receptacle External antenna
External antenna
Figure 2: System Block Diagram of 7 pin GWF-1M04 3.3V WLAN Module
2.412~2.462GHz
2.412~2.462GHz
2.412~2.462GHz
Information in this document is subject to change without prior notice. Page 4 of 13
RF
Receiver
RF
Transmitter
Baseband
MAC/
Packet
Buffer/
Encrption
Engine
DATA- USB
Interface
VCC (5V)
DATA+
GND
RT5372
3.3V/1.5V
5V/3.3V
I-PEX
Receptacle
USB
Connector
USB WiFi adapter
TX/RX
Front End
I-PEX
Receptacle External antenna
External antenna
Figure 3: System Block Diagram of 4 pin GWF-1M04 5.0V WLAN Module
RF
Receiver
RF
Transmitter
Baseband
MAC/
Packet
Buffer/
Encrption
Engine
DATA- USB
Interface
VCC (5V)
DATA+
GND
RT5372
I-PEX
Receptacle
USB
Connector
USB WiFi adapter
TX/RX
Front End
I-PEX
Receptacle External antenna
External antenna
3.3V/1.5V
Figure 4: System Block Diagram of 4 pin GWF-1M04 3.3V WLAN Module
3.3 Software and system Information
Operation System CPU Supplier Driver
Linux 2.4/2.6 ARM, MIPSII Available
Windows XP/Vista/7 X86 Platform Available
Windows CE 5.0/6.0 ARM, MIPSII Available
Mac OS X 10.4~10.7 N/A Available
2.412~2.462GHz
2.412~2.462GHz
2.412~2.462GHz
2.412~2.462GHz
Information in this document is subject to change without prior notice. Page 5 of 13
3.4 Mechanical Information
3.4.1 OUTLINE and Connection Interface (Pictures are for reference only)

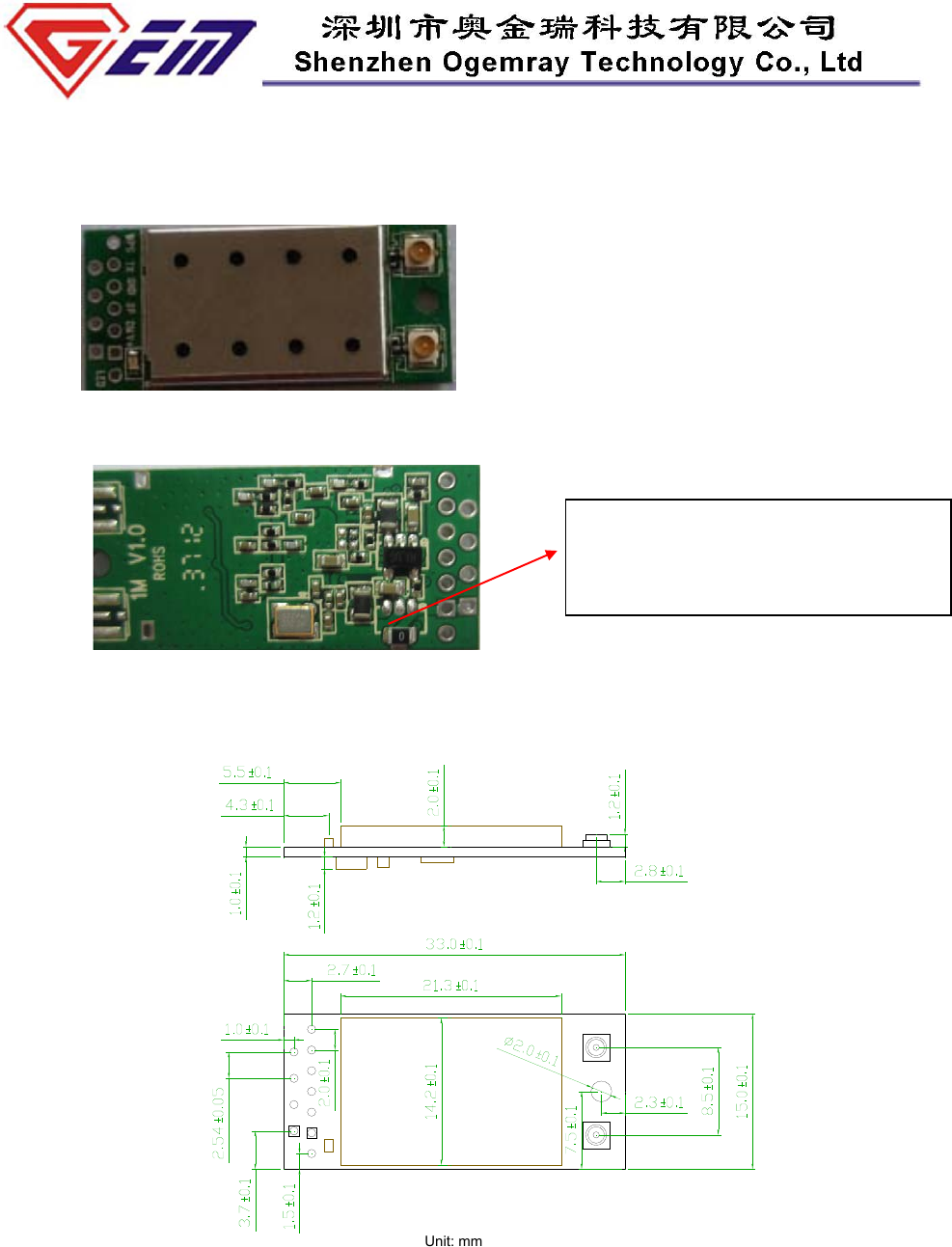

Figure 5: 5.0VDC power input module.
Figure 6: 3.3VDC power input module.
Figure 7: General dimensions
For 3.3 VDC power input, the inductor is
removed and the DC/DC chipset is replaced
with a 0 ohm resistor
Information in this document is subject to change without prior notice. Page 6 of 13

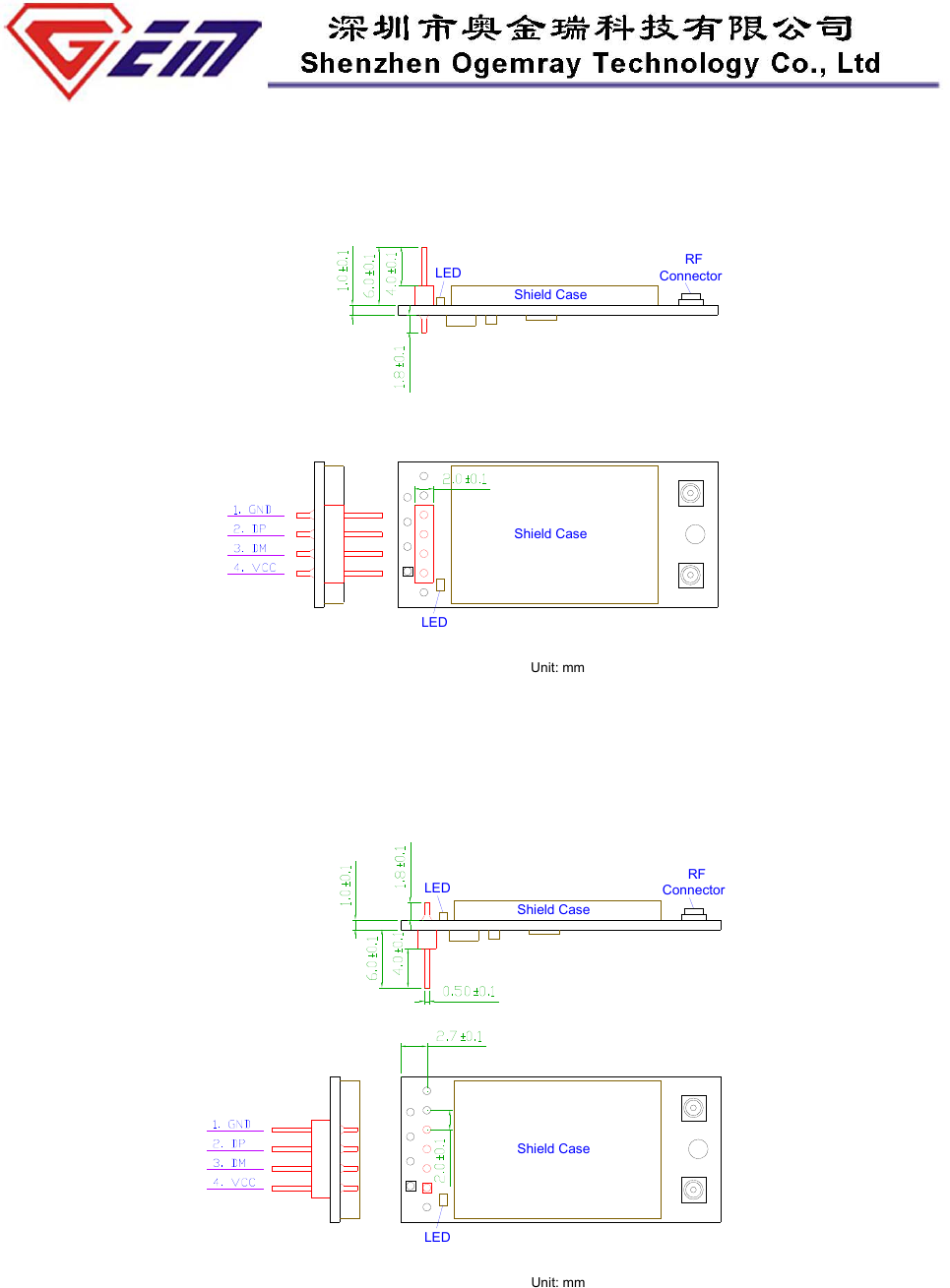

3.4.1.1 4-pin 2.54 mm pitch pin header.
a). Model: GWF-1M01-50-T-2.54-4-1; GWF-1M01-33-T-2.54-4-1
Figure 8: Top side 4–Pin 2.54mm pitch pin header interface.
b). Model: GWF-1M01-50-B-2.54-4-1; GWF-1M01-33-B-2.54-4-1
Figure 9: Bottom side 4–Pin 2.54mm pitch pin header interface.
Information in this document is subject to change without prior notice. Page 7 of 13

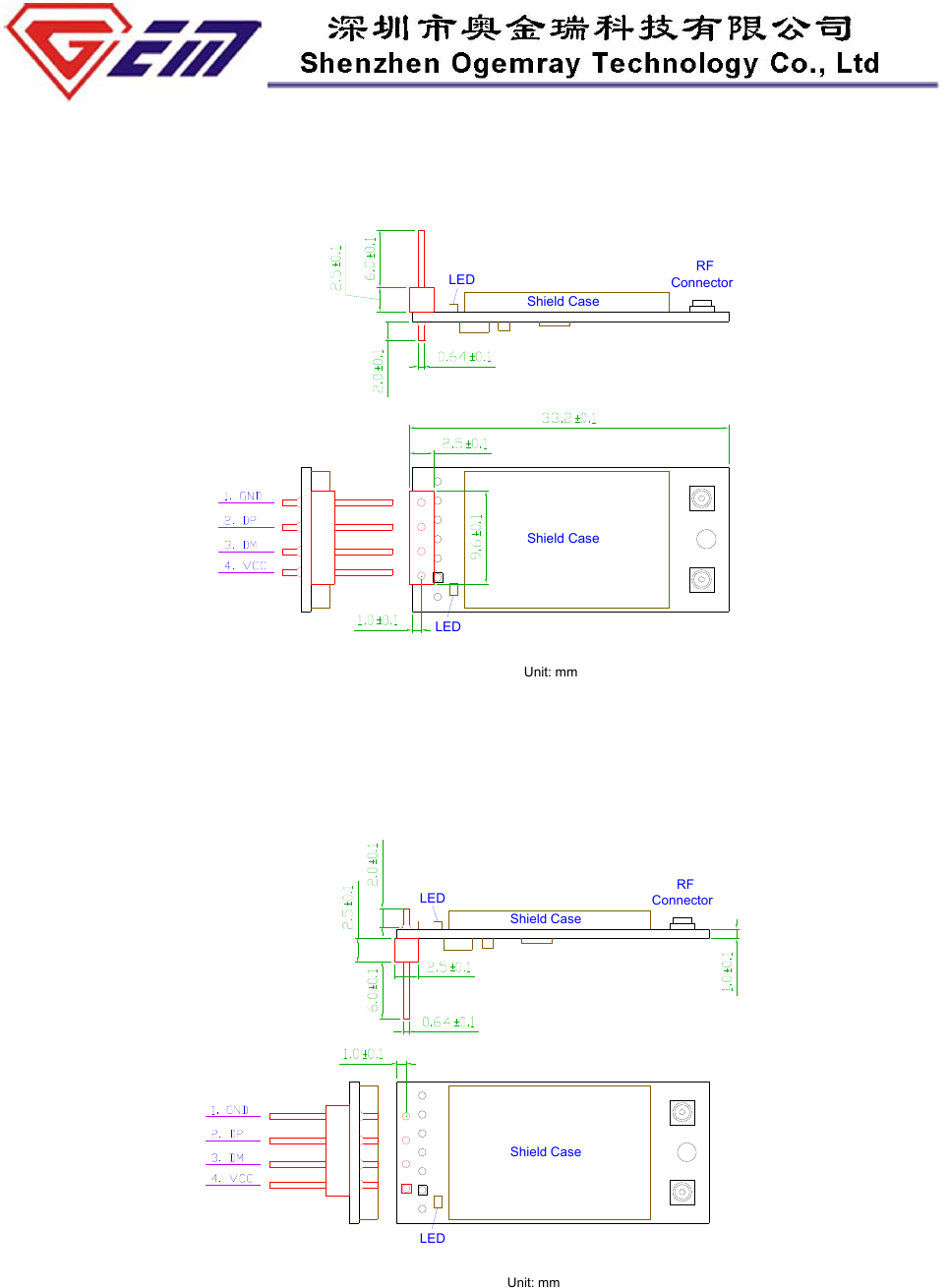

3.4.1.2 4-pin 2.0 mm pitch pin header
a). Model: GWF-1M01-50-T-2.0-4-1; GWF-1M01-33-T-2.0-4-1
Figure 10: Top side 4–Pin 2.0mm pitch pin header interface.
b). Model: GWF-1M01-50-B-2.0-4-1; GWF-1M01-33-B-2.0-4-1
Figure 11: Bottom side 4–Pin 2.0mm pitch pin header interface.
Information in this document is subject to change without prior notice. Page 8 of 13

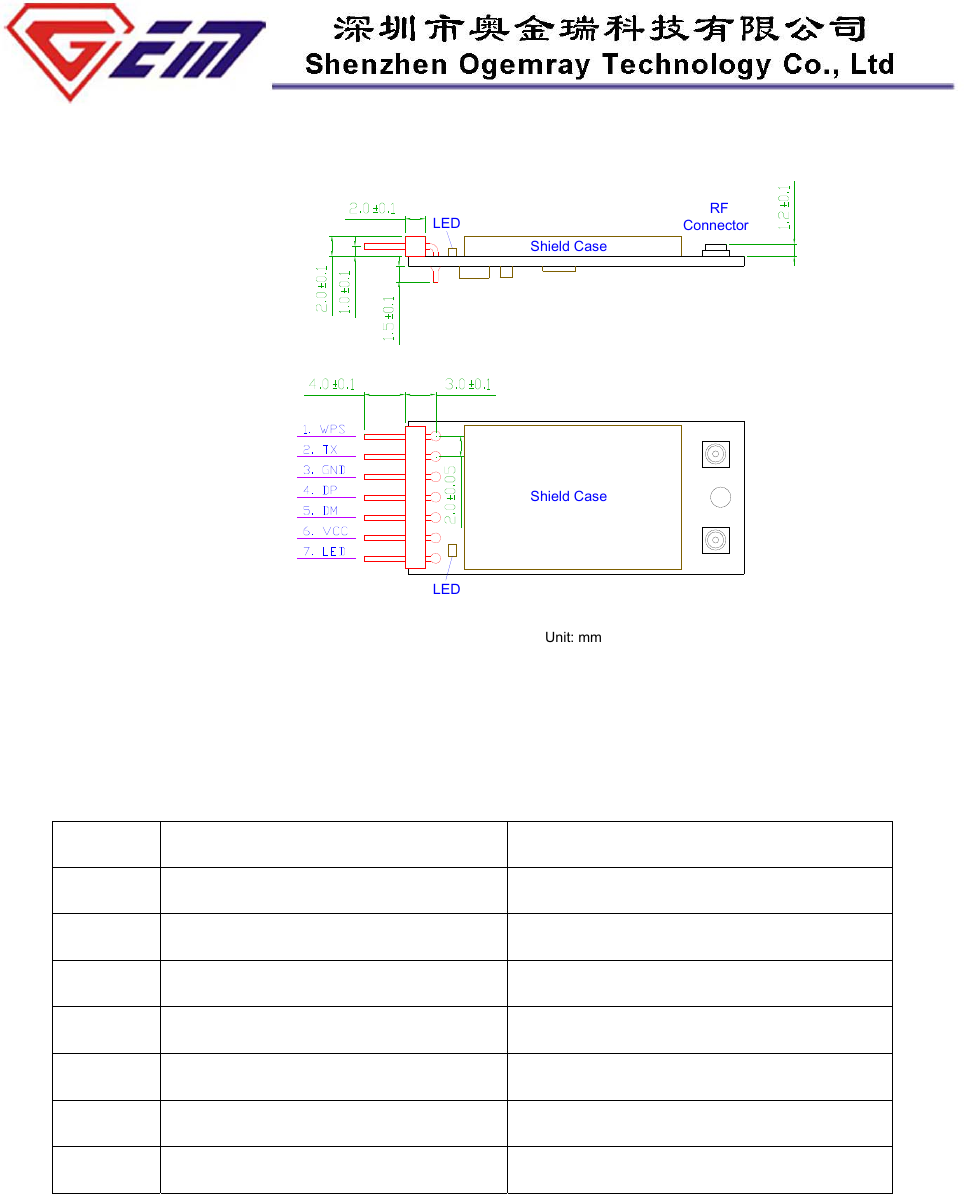

3.4.1.3 7-pin 2.0 mm pitch pin header
a). Model: GWF-1M01-50-T-2.0-7-1; GWF-1M01-33-T-2.0-7-1
Figure 12: Top side RF connector & 7–Pin 2.0mm pitch pin header interface.
b). Model: GWF-1M01-50-T-2.0-7-2; GWF-1M01-33-T-2.0-7-2
Figure 13: Bottom side RF connector & top side 7–Pin 2.0mm pitch pin header interface.
Information in this document is subject to change without prior notice. Page 9 of 13

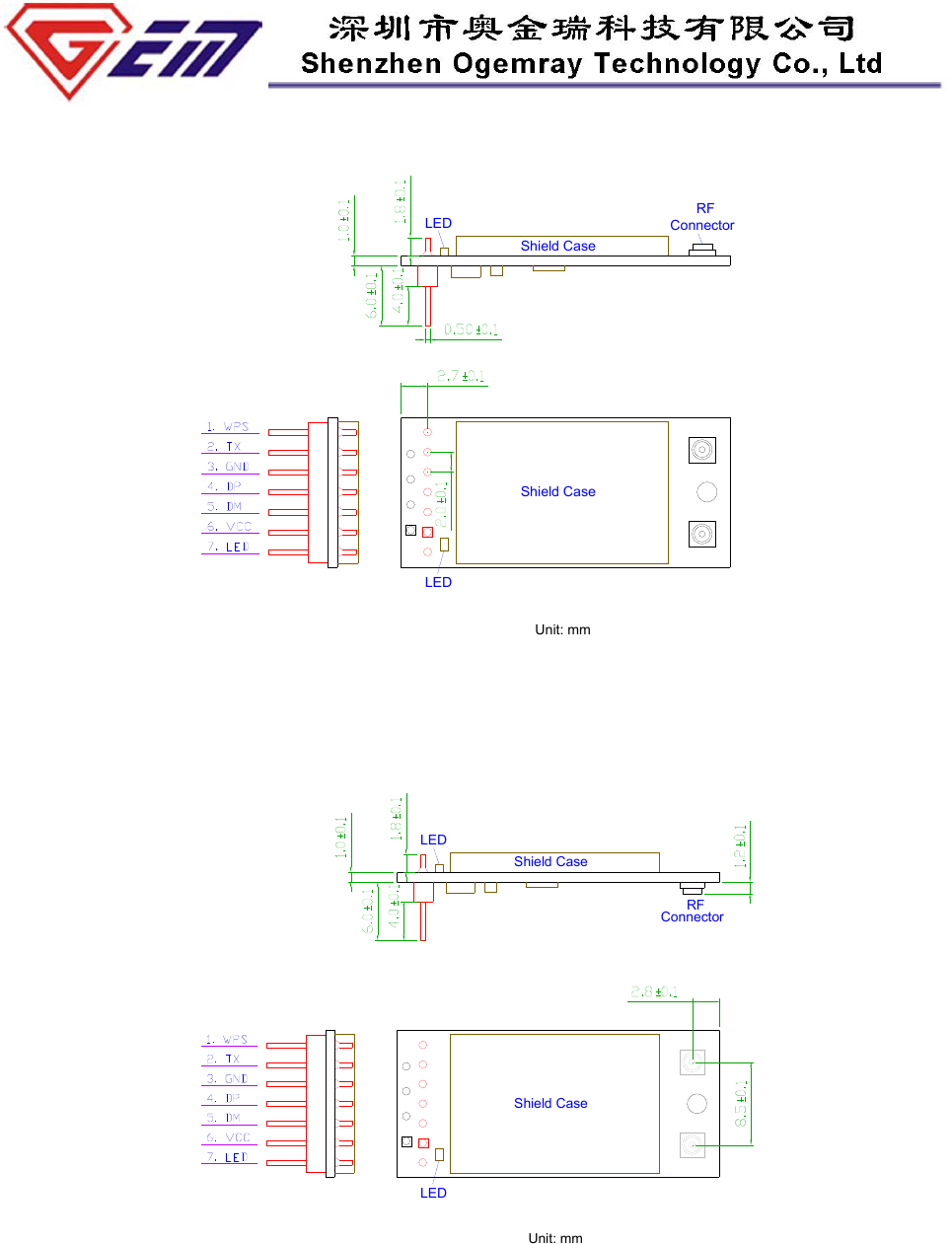

c). Model: GWF-1M01-50-B-2.0-7-1; GWF-1M01-33-B-2.0-7-1
Figure 14: Top side RF connector & Bottom side 7–Pin 2.0mm pitch pin header interface.
d). Model: GWF-1M01-50-B-2.0-7-2; GWF-1M01-33-B-2.0-7-2
Figure 15: Bottom side RF connector & 7–Pin 2.0mm pitch pin header interface.
Information in this document is subject to change without prior notice. Page 10 of 13

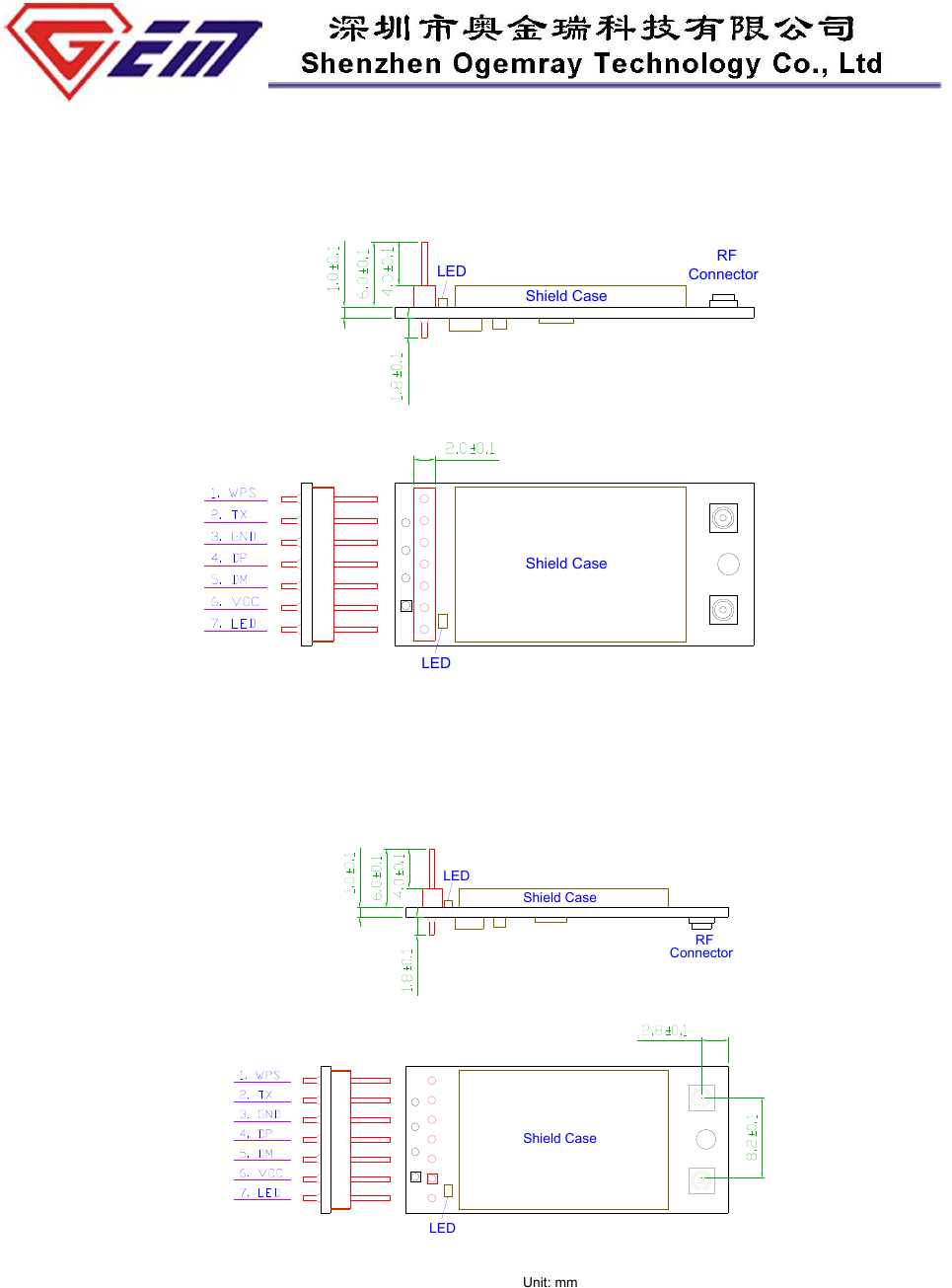

e). Model: GWF-1M01-50-F-2.0-7-1; GWF-1M01-33-F-2.0-7-1
Figure 16: Bottom side 7–Pin 2.0mm pitch 90 degree pin header interface.
3.4.2 Pin definition:
Pin-out 7-pin 2.0mm pitch pin header 4-pin 2.0 or 2.54mm pitch pin header
1 WPS control GND (Ground)
2 RF/TX ON/OFF control DP (USB data+)
3 GND (Ground) DM (USB data-)
4 DP (USB data+) VCC (3.3 VDC or 5.0VDC)
5 DM (USB data-) N/A
6 VCC (3.3 VDC or 5.0VDC) N/A
7 LED* (Wireless TX status) N/A
3.4.3 RF output Connection Information
If the I-PEX RF connection is selected, a 50 ohm external antenna connects to the module
RF output via an I-PEX MHF receptacle (RF connector). ( Part No: 20279-001E-01).
Information in this document is subject to change without prior notice. Page 11 of 13

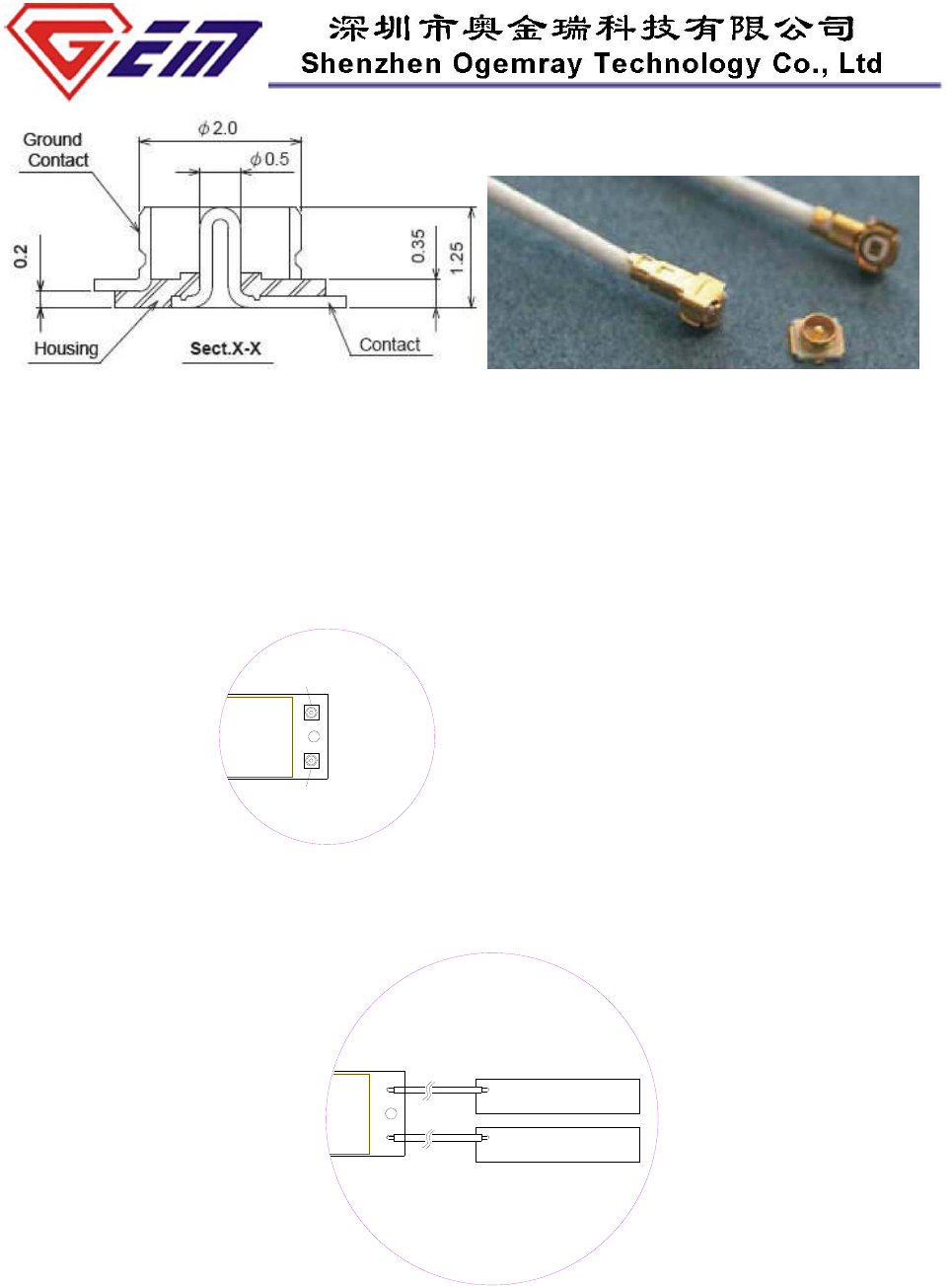

The profile of the I-PEX connector
Note: the MHF receptacle can be mounted at the top side or bottom side of the PCB.
RF Output Type:
Type 1-2
RF Cable be directly
soldered on board
Type 3
RF Receptacle
Antenna
Antenna
RF output via
MHF Receptacle
RF Receptacle
Information in this document is subject to change without prior notice. Page 12 of 13
3.4.4 Ordering information

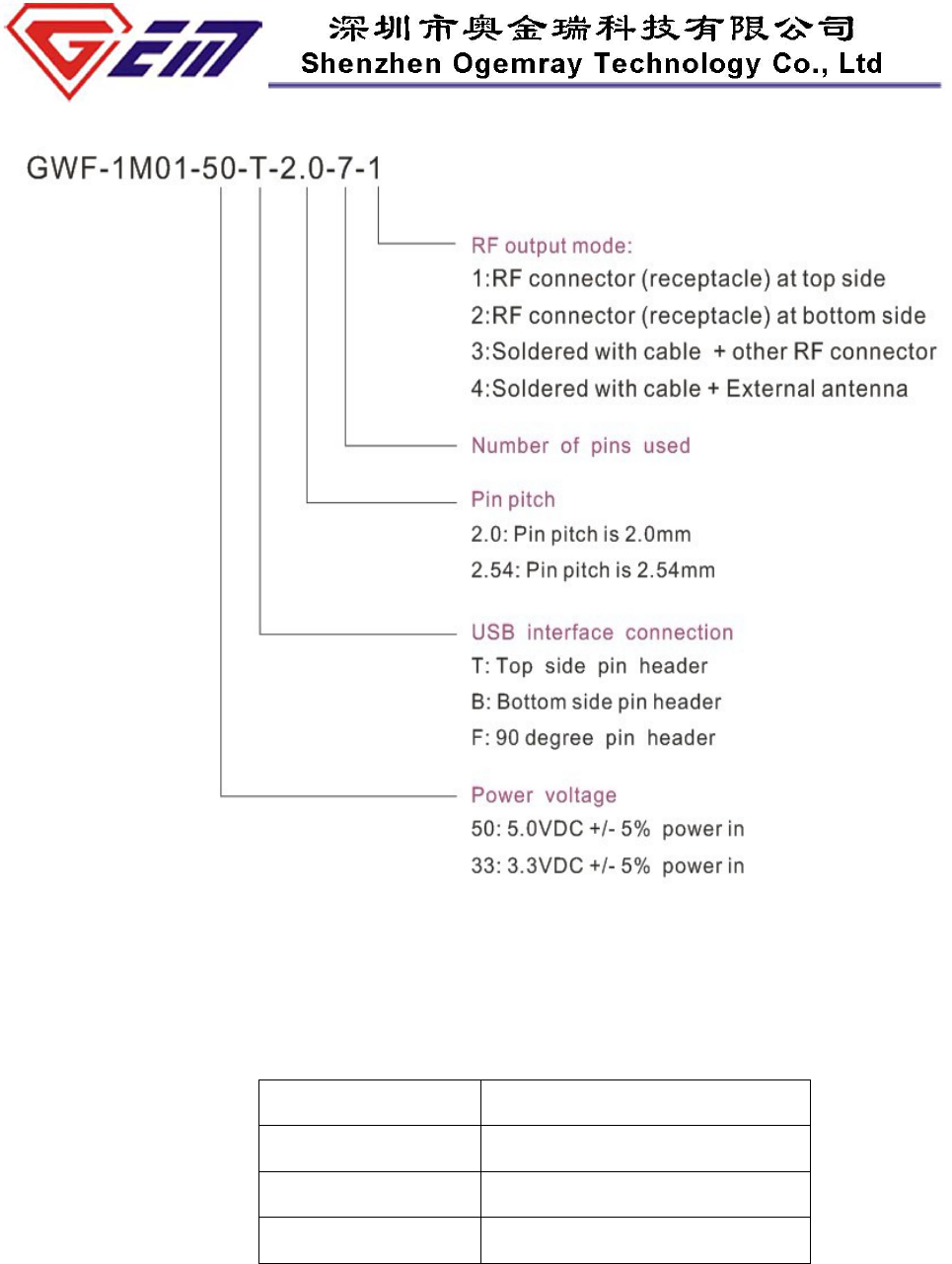

Since there are many different types of pin header might be used, such as: straight pin; 90 degree
bend pin; long pin; short pin…, please mention the detail requirement of the pin header when
ordering. It can be mentioned by part number or by descriptions.
4 Agency Approval
Agency Approval
FCC Part15 Pre-scan undergoing
CE Pre-scan undergoing
RoHS √
Information in this document is subject to change without prior notice. Page 13 of 13
5 Environment
5.1 Temperature
5.1.1 Operating Temperature
Continuous reliable operation in ambient temperature: -10ºC to +60ºC.
5.1.2 Storage Temperature
The product is not damaged or degraded when keeping in -20ºC to +85ºC.
5.2 Humidity
5.2.1 Operating Humidity Conditions
The product should be capable of continuous reliable operation when subjected to relative humidity in
the range of 20% to 80% (non-condensing) .
5.2.2 Non-Operating Humidity Conditions (including warehouse)
The product should not be damaged or degraded when kept in the place (where relative humidity
range is in the range of 20% to 80%) for 36 hours.
6 Disclaimer
THESE MATERIALS AND INFORMATION ARE PROVIDED “AS IS” WITHOUT WARRANTY OF ANY
KIND, EITHER EXPRESS OR IMPLIED , INCLUDING BUT NOT LIMITED TO, THE IMPLIED
WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE OR
NON-INFRINGEMENT.
We uses reasonable efforts to include accurate and up-to-date information on this document; it does not,
however, make any representations as to its accuracy or completeness of the information, text, graphics,
links or other items contained within these materials. Your use of this Document is at your own risk. Ogemray,
its suppliers, and other parties involved in creating and delivering this Document’s contents shall not be liable
for any special, indirect, incidental, or consequential damages, including without limitation, lost revenues or
lost profits.
