Ogemray Technology WFXM05 USB Wifi Adaptor User Manual
Shenzhen Ogemray Technology Co.,Ltd USB Wifi Adaptor
user manual
Shenzhen Ogemray Technology Co., Ltd
Information in this document is subject to change without prior notice. Page 1 of 7
IEEE 802.11 b/g/n WiFi Module
Product Specifications
Model: M05
Version: 1.3
2010-12-27
Shenzhen Ogemray Technology Co., Ltd
Information in this document is subject to change without prior notice. Page 2 of 7
1. Introduction
GWF-M05 is a WLAN module supporting IEEE 802.11 b/g/n standards with 6-pin connector
supporting USB 2.0 interface. This is a low cost compact WLAN module designed in the product
with embedded system for the wireless connectivity.
1.1 Scope:
GWF-M05 WLAN Module is designed to operate in 2.4GHz ISM frequency band, it applies a
highly integrated MAC/BBP and RF single chip RT3070 with 150Mbps PHY rate supporting. It
fully complies with IEEE802.11n draft 3.0 and IEEE802.11b/g feature.
1.2 Features
z 802.11b: 1, 2, 5.5, 11Mbps;
z 802.11g: 6, 9, 12, 18，24, 36, 48, 54Mbps
z 802.11n: (20MHz) MCS0-7, Support up to 72Mbps
(40MHz) MCS0-7, Support up to 150Mbps
z OFDM, Peak rate 150Mbps, Peak throughput 90Mbps.
z Security support for 64/128 WEP, WPA, WPA2, TKIP, AES
z Operates in 2.4GHz frequency bands. Power Management
z Antenna configuration: I-PEX receptacle for external antenna.
2. Product Information
2.1 Specification Overview
Standards IEEE802.11b/g & 802.11n (1T1R mode)
USA (FCC): 2.412GHz ~ 2.462GHz (channel 1 – 11) ISM band
Operating
Frequency Europe (CE): 2.412GHz ~ 2.472GHz (channel 1 – 13) ISM band
Protocols 802.11b: CCK, QPSK, BPSK, 802.11g/n: OFDM
Antenna External Antenna via an I-PEX receptacle
Security WPA/WP2, 64/128/152-bit WEP, WPS
11b: 21±1.0dBm; 11g: 2016±1dBm
Transmit Output
Power (PK Power) 802.11n: (HT20), 20+/-1dBm, 802.11n: (HT40), 20+/-1dBm,
11b: -84dBm @ 11Mbps; 11g: -68dBm @ 54Mpbs.
Receive Sensitivity
(Typical) 802.11n: (HT20), -66dBm@MSC7, (HT40),-62dBm@MSC7
Operating Voltage 5.0VDC ± 5% (or3.3VDV± 5% upon special requirement)
Operating Current <110mA at 5.0V DC input.
Shenzhen Ogemray Technology Co., Ltd
Information in this document is subject to change without prior notice. Page 3 of 7
Bus Interface USB 2.0/USB1.1
USB Interface 6-pin, 2.0mm pitch male jumper , or 1.0mm pitch connector
Antenna Impedance 50 ohm
2.2 Hardware Information
GWF-M05 is low power consumption and low-cost compact WLAN module. This module can
be built-in other embedded applications such as IP Camera, IP set top box, GPS, Internet radio
apparatus.

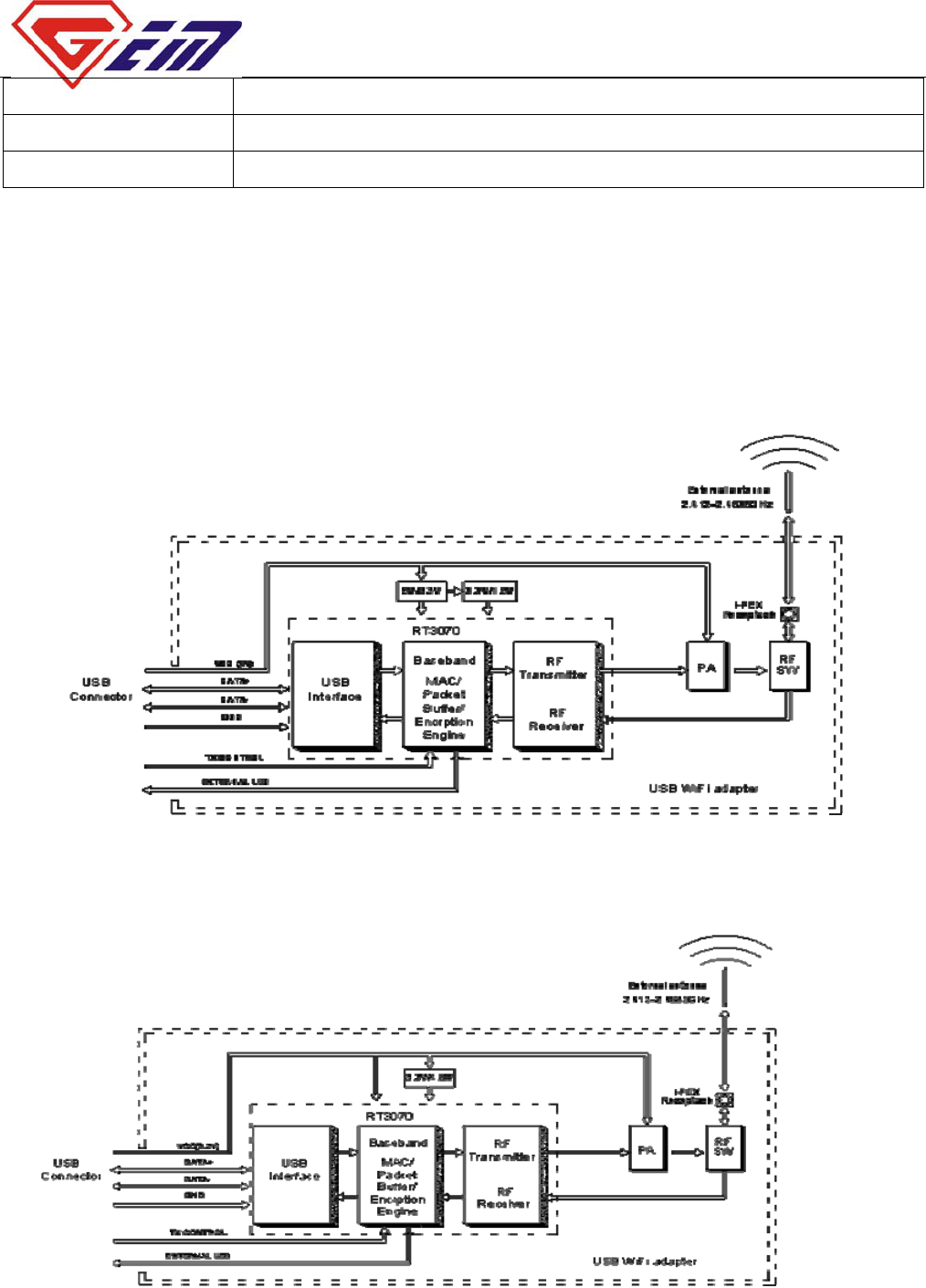

2.2.1 Block Diagram
Figure 1: System Block Diagram of GWF-3M04 5.0V WLAN Module
Figure 2: System Block Diagram of GWF-3M04 3.3V WLAN Module
Shenzhen Ogemray Technology Co., Ltd
Information in this document is subject to change without prior notice. Page 4 of 7
2.3 Software and system Information
Operation System CPU Supplier Driver
Linux 2.4/2.6 ARM, MIPSII Available
Windows 2000/XP/Vista X86 Platform Available
Windows CE 5.0/6.0 ARM, MIPSII Available
2.4 Mechanical Information

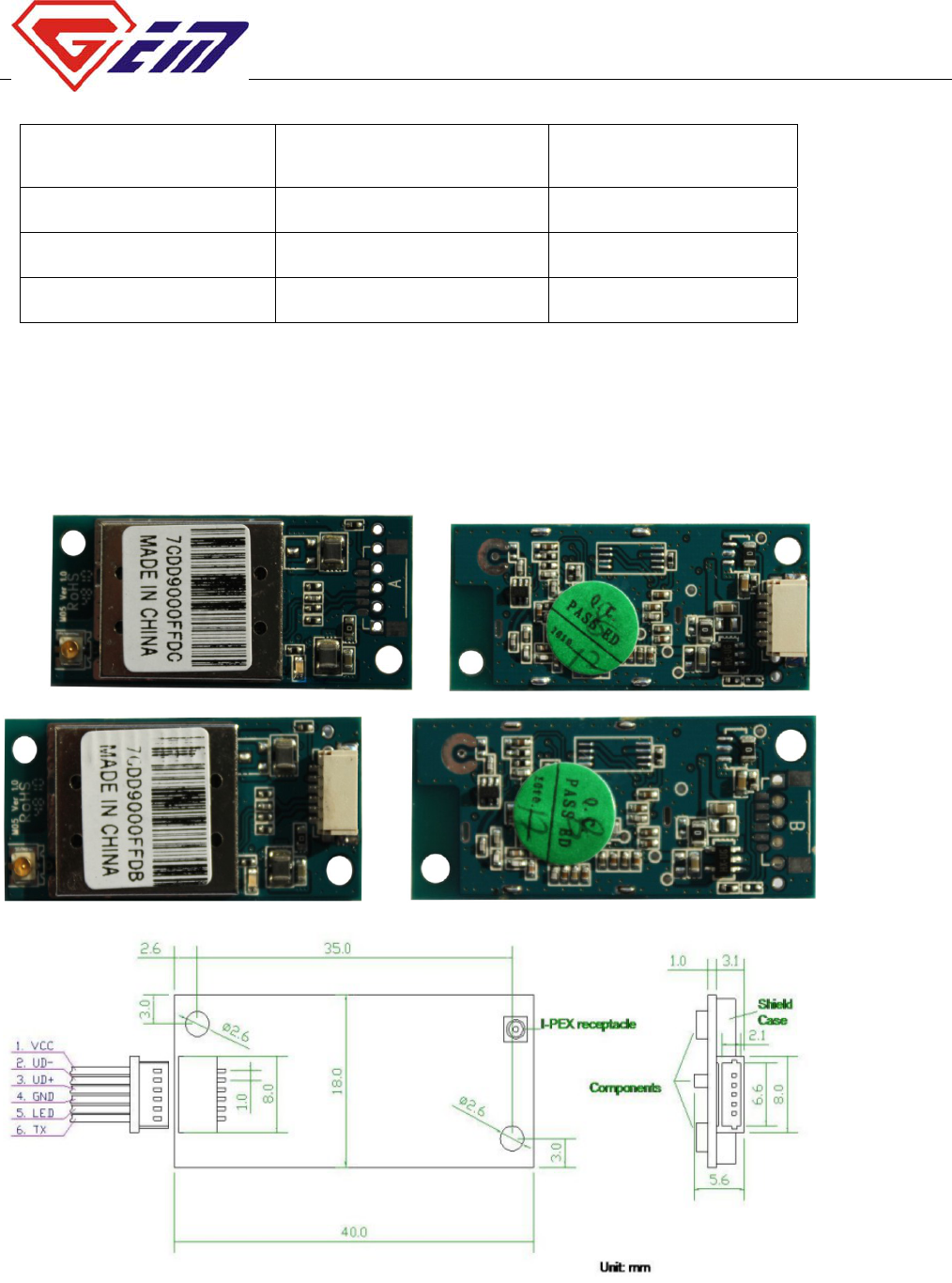

2.4.1 OUTLINE and USB Connection Information （40x18mm）
a). 6-pin 1.0 mm pitch connector.
b). 6-pin 2.0 mm pitch male jumper.
Shenzhen Ogemray Technology Co., Ltd
Information in this document is subject to change without prior notice. Page 5 of 7

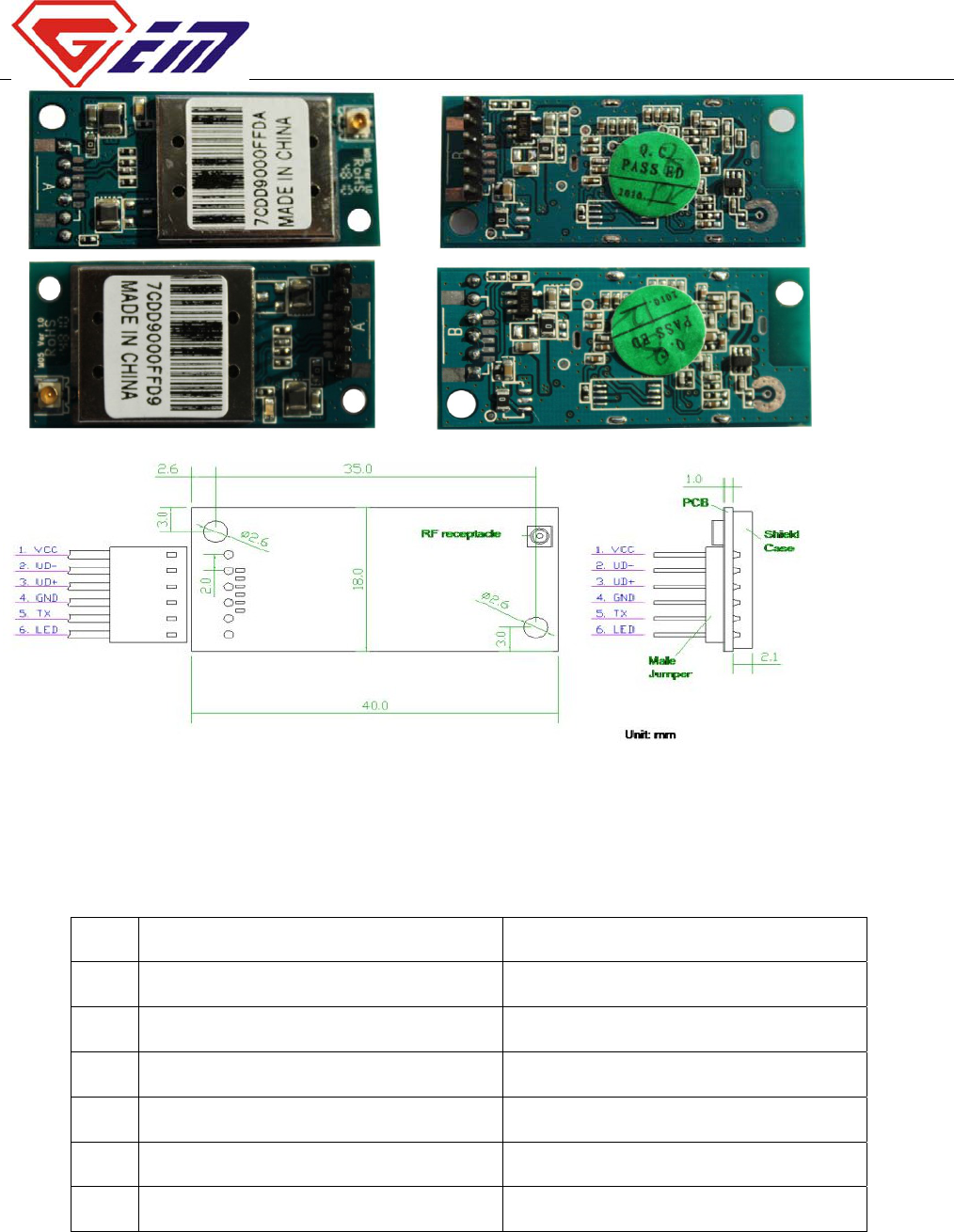

(To be noted: For special application, the direction of the male jumper can be upside
down mounted)
2.4.2 Pin definition:
Pin 6-pin 1.0mm pitch connector 6-pin 2.0mm pitch male jumper
1 VCC (3.3 VDC or 5.0VDC) VCC (3.3 VDC or 5.0VDC)
2 UD- ( USB data-) UD- ( USB data-)
3 UD+ (USB data+) UD+ (USB data+)
4 GND (Ground) GND (Ground)
5 LED (Wireless TX status) TX (RF ON/OFF control)
6 TX (RF ON/OFF control) LED (Wireless TX status)
*The TX ( RF ON/OFF control) is low level activated to OFF.
2.4.3 Antenna Connection Information
An external antenna via an I-PEX receptacle.
2.5 Order information:
Shenzhen Ogemray Technology Co., Ltd
Information in this document is subject to change without prior notice. Page 6 of 7
GWF-3M05-33-T, for 3.3+/-5%VDC, the long pins are at the same side with the shield case.
GWF-3M05-33-B, for 3.3+/-5%VDC, the long pins are at the opposite side with the shield case.
GWF-3M05-33-C, for 3.3+/-5%VDC, Soldered with 6 pin connector.
GWF-3M05-50-T, for 5.0+/-5%VDC, the long pins are at the same side with the shield case.
GWF-3M05-50-B, for 5.0+/-5%VDC, the long pins are at the opposite side with the shield case.
GWF-3M05-50-C, for 5.0+/-5%VDC, Soldered with 6 pin connector.
3. Agency Approval
Agency Approval
FCC Part15 undergoing
CE √
RoHS √
4. Environment
4.1 Temperature
4.1.1 Operating Temperature
Continuous reliable operation in ambient temperature: 0ºC to +50ºC.
4.1.2 Storage Temperature
The product is not damaged or degraded when keeping in -20ºC to +85ºC.
4.2 Humidity
4.2.1 Operating Humidity Conditions
The product is capable of continuous reliable operation when subjected to relative humidity
in the range of 20% to 80% (non-condensing).
4.2.2 Non-Operating Humidity Conditions (including warehouse)
The product is not damaged or degraded when kept in the relative humidity range
from 20% to 80%.
