DMS-100 SINGLE ZONE AMPLIFIER
Congratulations!
You’ve purchased the finest music distribution system available
today. The DMS-100 is a native to the network, CD quality digital
music distribution system with an available range of keypads and
remote controls that not only fully control your music but control
all of your other audio video components.
The DMS-100 distributes music to your speakers and other DMS
components in the system. This makes your system scalable, and
easy to add additional rooms at any time in the future. All you need
is a DMS amplifier connected to the network to make any room a
new DMS Music Room.
The DMS-100 is designed for professional installation only.
Your installer will help you select the right user interface for every
room of your installation. You’ll have a choice of Total Control in-
wall keypads and remote controls.
If you have questions, call your installer:
Company:
Installer Name:
Contact #:
Email address:
The customer service center is also available for any questions
you may have. Contact us at:
1-914-835-4484
or email us at:
techsupport@universalremote.com
Page 3
DMS-100 SINGLE ZONE AMPLIFIER
Features and Benefits
• One audio input streams to other Total Control amplifiers.
• Preamp output for connection to local amplifier.
• Scalable solution; install as an additional zone with a
DMS-1200 system, or install multiple DMS-100s to create
customized multi-zone system.
• 50 Watts per channel amplifier for speakers.
• Can be programmed off premises via the internet and
MRX-10.
Parts Guide
The DMS-100 Single Zone Amplifier includes:
1 - DMS-100 Single Zone Amplifier 1 - Power Cord
1 - Ethernet Cable 1 - Installation Manual
Page 4
DMS-100 SINGLE ZONE AMPLIFIER

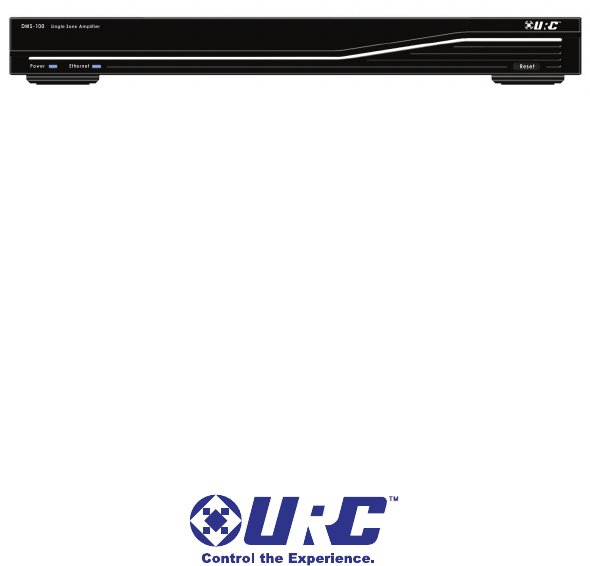

Front Panel Description

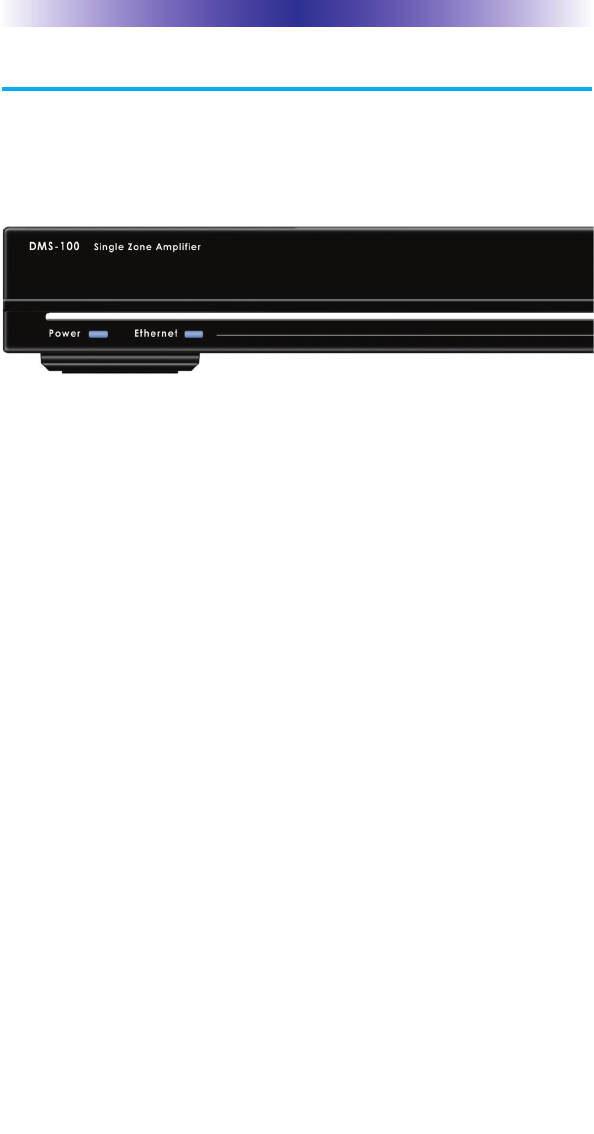

Power and LAN LEDs
LEDs indicate that the DMS-100 is connected to
power and to the local area network.
Automatic Power Off
The DMS-100 is powered off and is in an automatic
stand by state when no zones are active.

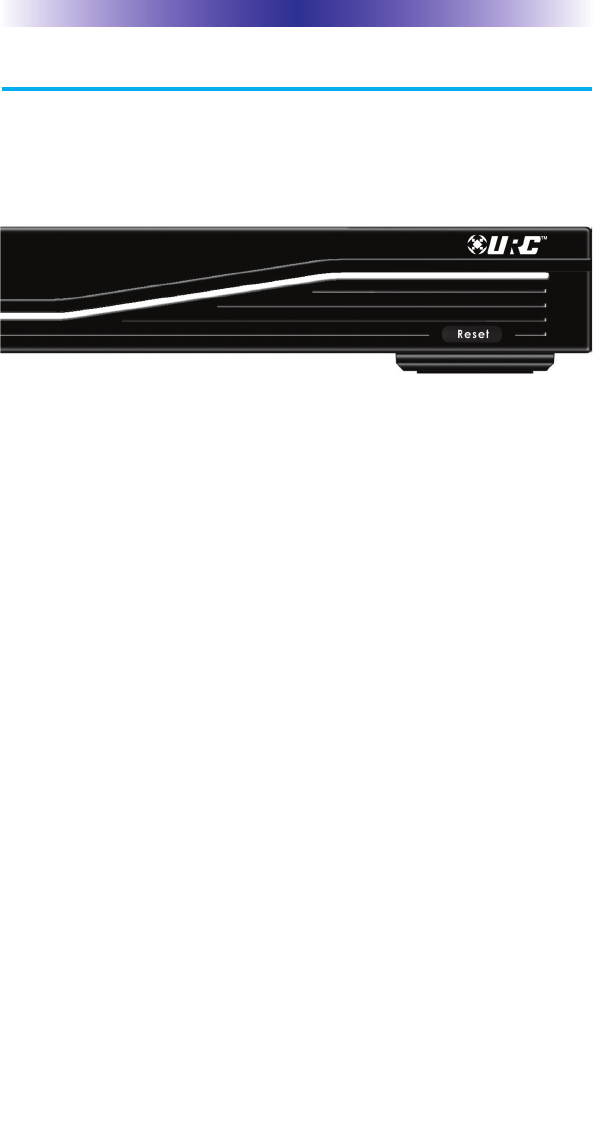

Reset Button
The front panel reset button offers the end user a quick way to
reconnect the DMS-100 to the local area network.
Page 5
DMS-100 SINGLE ZONE AMPLIFIER
System Features
Pristine Audio Quality
Unlike other digital music systems, the DMS system streams
all music uncompressed at pure CD quality levels. You enjoy all
the detail of your original source.
Room Linking
Any room can be linked with any other room to listen to the same
source. This makes it easy for you to entertain by simply linking all
the rooms your guests will be in and controlling the music from any
remote or keypad.
Reliability
The DMS-100 is engineered first and foremost for reliability.
It offers extensive internal protection against failure and is manufac-
tured in our ISO 9000 certified factory with the utmost attention to
quality control at every stage of manufacturing, from parts procure-
ment to final assembly.
Page 6
DMS-100 SINGLE ZONE AMPLIFIER
Rear Panel Description

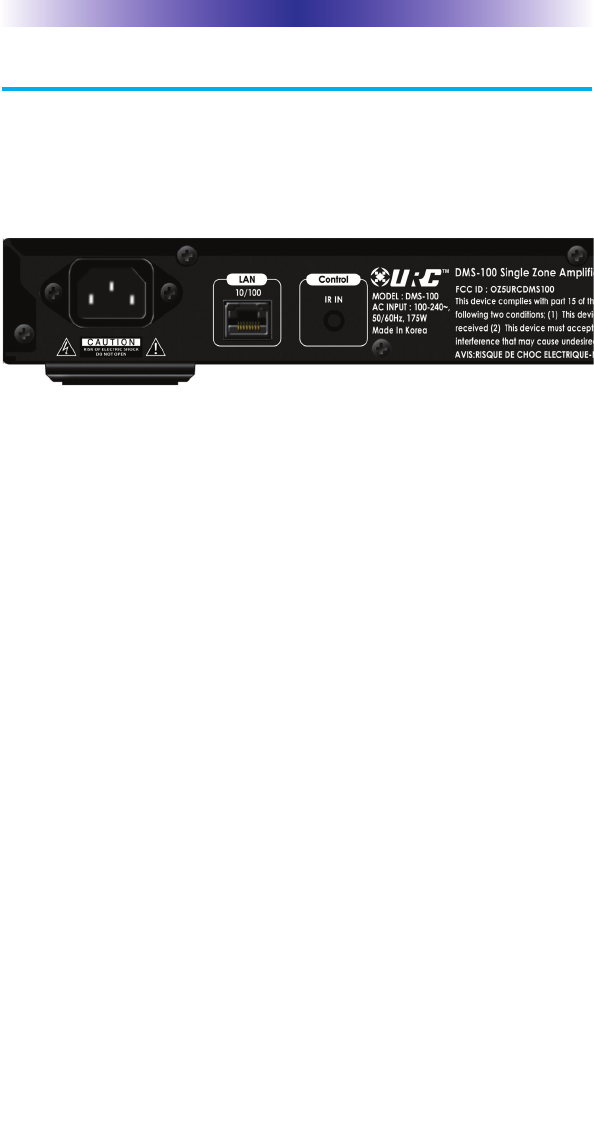

110V-220V Power Connection
The IEC power socket enables either UL/CSA approved
110V power cords or CE approved 220V power cables to
be used with the DMS-100. The internal power supply
automatically switches from 110V to 240V.
Network Connection
A 10/100 LAN connection ensures that the DMS-100 will
receive all network streams from other DMS or SNP sources.
IR In for 1-Way RF Remotes and Base Stations
When connected to a URC RF base station, a one-way URC
remote control can be programmed to control a zone.
Page 7
DMS-100 SINGLE ZONE AMPLIFIER
System Features

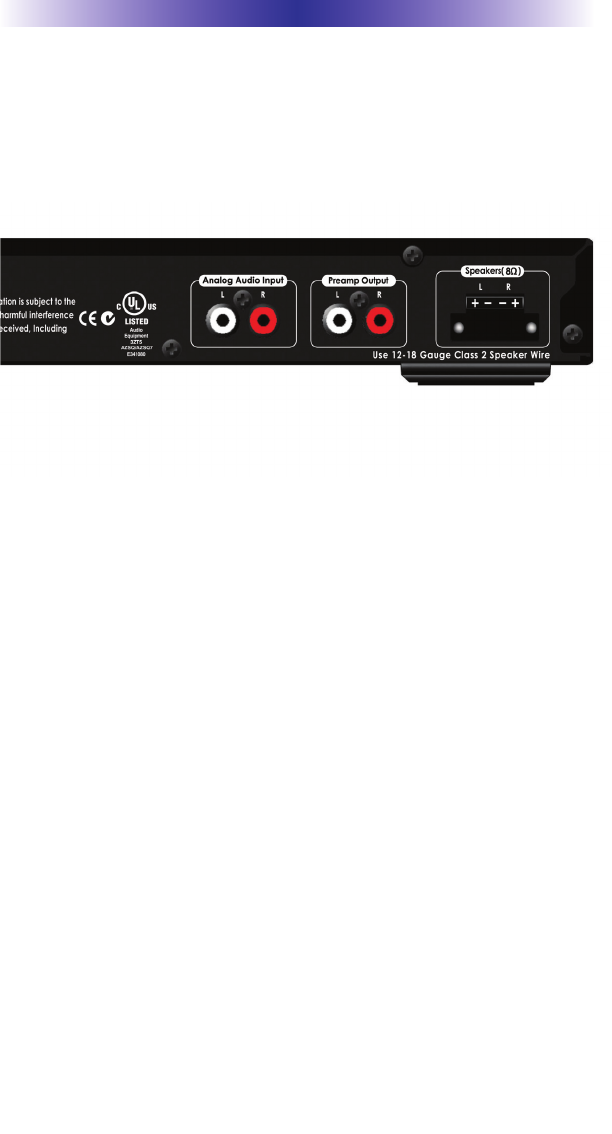

Analog Audio Input
Connect a music source to the DMS-100 to listen locally to
an AV receiver.
Preamp Zone
The preamp zone enables use of external power amplifiers
for a room with a need for more or less power than 50
watts per channel.
Speakers
The DMS-100 internal amplifier powers a pair of 8 ohm
speakers with 50 watts per speaker. The speakers can deliver
output from any DMS source.
Page 8
Important Safety Instructions
This unit shall be connected to a mains socket outlet with a protective
grounded connection or equivalent.
CAUTION:
To completely disconnect this product from the mains, disconnect the
plug from the wall socket outlet. The mains plug is used to completely
interrupt the power supply to the unit and must be within easy access
by the user.
CAUTION:
These servicing instructions are for use by qualified service personnel only.
To reduce the risk of electric shock, do not perform any servicing other than
that contained in the operating instructions unless you are qualified to do
so or equivalent.
IMPORTANT SAFETY INSTRUCTIONS
Page 9
IMPORTANT SAFETY INSTRUCTIONS
Important Safety Instructions
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. In the event of malfunction, un plug lmmediately.
6. Do not use this apparatus near water.
7. Clean only with dry cloth.
8. Do not block any ventilation openings.
Install in accordance with the manufacturer’s instructions.
9. Do not install near any heat sources such as radiators, heat registers,
stoves, or other apparatus(including amplifiers) that produce heat.
10. Do not defeat the safety purpose of the polarized or grounding-type plug.
A polarized plug has two blades with one wider than the other.
A grounding type plug has two blades and a third grounding prong.
The wide blade or the third prong are provided for your safety.
If the provided plug does not fit into your outlet, consult an electrician for
replacement of the obsolete outlet.
11. Protect the power cord from being walked on or pinched particularly at
plugs, convenience receptacles, and the point where they exit from the
apparatus.
12. Only use attachments/accessories specified by the manufacturer.
13. Use only with the cart, stand, tripod, bracket, or table
specified by the manufacturer, or sold with the apparatus.
When a cart is used, use caution when moving the
cart/apparatus combination to avoid injury from
tip-over.
14. Unplug this apparatus during lightning storms or when
unused for long periods of time.
15. Refer all servicing to qualified service personnel.
Servicing is required when the apparatus has been damaged in any way,
such as power-supply cord or plug is damaged, liquid has been spilled or
objects have fallen into the apparatus, the apparatus has been exposed to
rain or moisture, does not operate normally,or has been dropped.
CAUTION:
The ventilation should not be impeded by covering the ventilation
openings with items, such as newspapers, tablecloths, curtains,
etc.
No naked flame sources, such as lighted candles, should be
placed on the unit.
Minimum distances around the apparatus for sufficient
ventilation : 20centimeter
This product is use in moderate climates.
Do not expose the unit to dripping or splashing fluids, do not
place objects filled with liquids, such as vases, on the unit.
Page 10
