KP-4000 Owner’s Manual
Network Keypad
™
Universal Remote Control®
KP-4000 Owner’s Manual ©2009 Universal Remote Control, Inc.
The information in this manual is copyright protected. No part of this man-
ual may be copied or reproduced in any form without prior written consent
from Universal Remote Control, Inc.
UNIVERSAL REMOTE CONTROL, INC. SHALL NOT BE LIABLE FOR OPER-
ATIONAL, TECHNICAL OR EDITORIAL ERRORS/OMISSIONS MADE IN
THIS MANUAL.
The information in this manual may be subject to change without prior
notice.
Complete Control is a registered trademark of Universal Remote Control,
Inc.
All other brand or product names are trademarks or registered trademarks
of their respective companies or organizations.
500 Mamaroneck Avenue, Harrison, NY 10528
Phone: (914) 835-4484 Fax: (914) 835-4532
TABLE OFCONTENTS
Introduction 1
Features and Benefits 2
Parts Guide 2
Network Installation and Control 3
Frequently Asked Questions 4
Specifications 4
USA Limited Warranty Statement 5
Information to the User 6
Warning 6
Page 1
KP-4000 NETWORK KEYPAD
Introduction

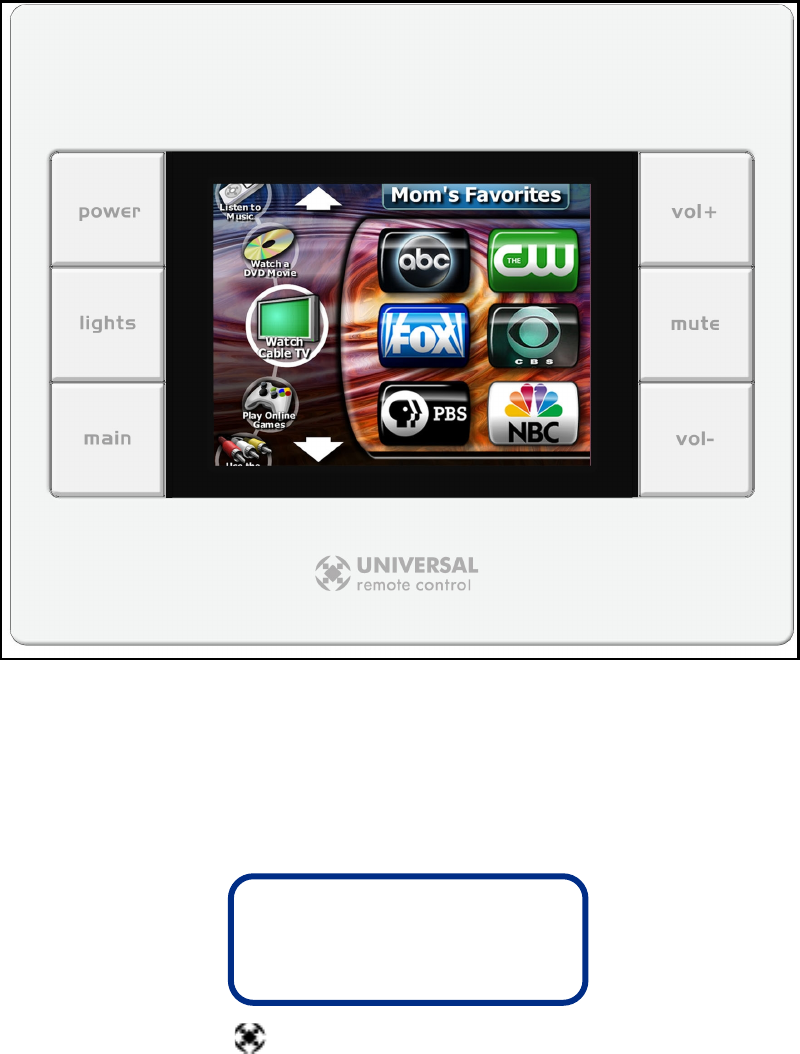

The KP-4000 is a Network Keypad. MAC addressing gives you the
ability to use an unlimited amount of KP-4000’s and allows the con-
trol of many identical components as needed throughout the house.
3. Self-adhesive “Flashers” affix
to the Infrared sensors on the
front panels of your client’s
components. The Flashers
relay commands to compo-
nents. The flashers plug in to
the KP-4000 rear flasher line
outputs via their 10 foot
cables. The KP-4000 can also
connect to components with
rear panel IR Inputs via its
adjustable IR Line Outputs.
2. The MRX-1 receives commands
from the Network via a WiFi
router /WAP; or over an optional
RFX-250 or RFX-250i.

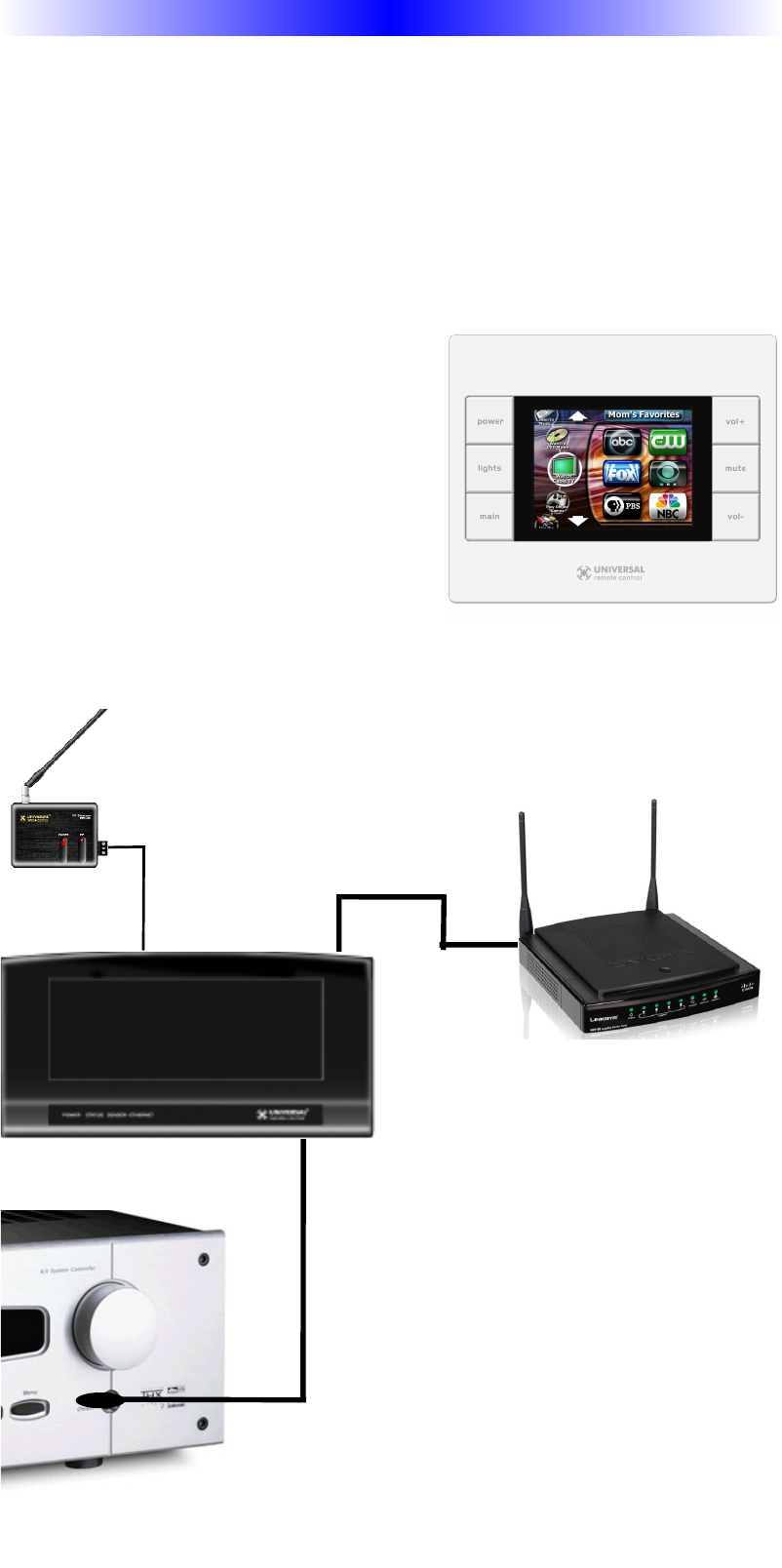

1. The KP-4000 communicates over a POE (Power Over Ethernet)
network switch or directly to URC Lighting over a RFTX-1.
IR over RF
RFX-250
(or RFX-250i)
WiFi Router
IR Controlled Device
Page 2
KP-4000 NETWORK KEYPAD
Features and Benefits
2-Way IP and RS-232 Thermostats, Security Systems, Home
Theater AVRS and Multi-Zone Matrixes
Via the unique URC 2-Way database installers can drag and drop
2-Way pre-programmed modules into a KP-4000 for matrix pre-
amps, multi-zone receivers, alarm and fire systems with either IP or
via the MRX-1, RS-232 control. Prebuilt modules for IP
Thermostats, appliances and security systems natively for the KP-
4000.
IP Camera Modules for Surveillance
User can select from up to six views displayed on one page. Once
the camera is selected, the image fills the screen. Pan, tilt, zoom
cameras are supported with on screen controls. If the user has
more than one camera, the KP-4000 can sequence plyaback each
camera with installer set delays between cameras and camera
names displayed.
Whole House URC Lighting via RFTX-1
Via the RFTX-1 transmitter, the KP-4000 and can relay commands
around the house, creating whole house lighting scenes and paths.
Control Devices with Relays and Utilize MRX-1 Sensor Port to
Automate TOAD IR Devices
The MRX-1 offers KP-4000 important capabilities for legacy
devices. It is equipped with a sensor port compatible with MSC-
400 video or voltage sensors and a NO, NC or Momentary set of
contacts.
LAN Programming (No USB Needed)
The Kp-4000 can be installed and configured completely iva the
Network and, should you have secure access to the client’s network
remotely, can be completely reprogrammed from teh comfort of your
office.
Parts Guide
The KP-4000 Network Keypad includes:
1 - KP-4000 Network Base Station
1 - 12V-1000mA Power Supply
1 - Mounting Plate for wall mounting
the MRX-1
Page 3
Network Installation and Control

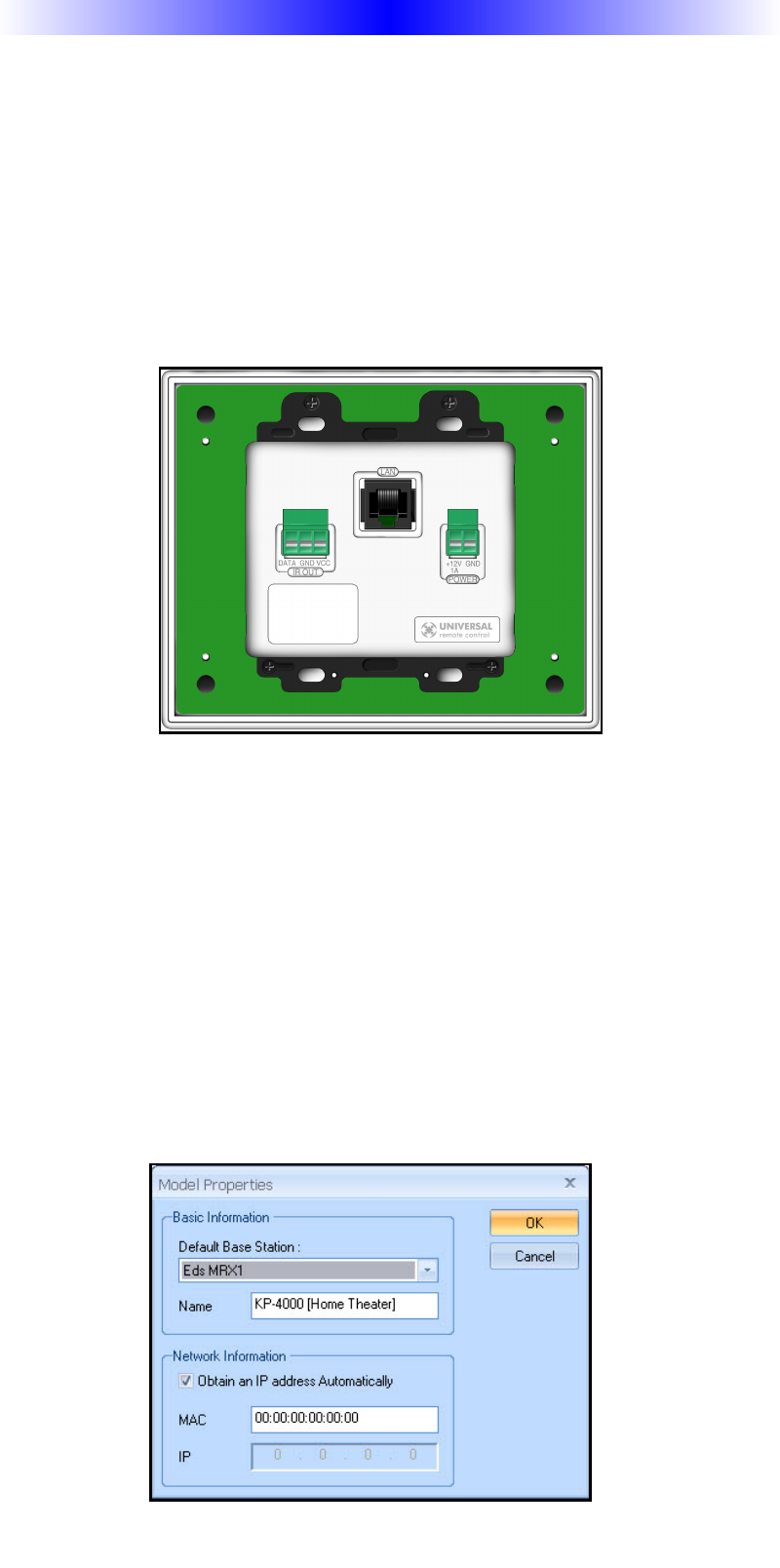

1. Connect the Ethernet cable (RJ45) to the rear of the KP-4000 and
into the rear of the network router.
2. Open the CCP editor.
3. Select Program then Configure Home.
4. Add a KP-4000 Network Keypad and the properties window
opens.
5. Select a Base Station to communicate with the KP-4000.
6. Within the Network Information field, the ‘Obtain and IP address
Automatically’ option should be checked or type in a designated
Static IP.
KP-4000 NETWORK KEYPAD
The KP-4000 is a network keypad that communicates to a MRX-1
base station and allows full control of your components. Once
installed to the network, a button press from the remote will send a
command over POE (power over ethernet)to the MRX-1which sends
IR, RS232 or Relay commands to the devices you specify.
Page 4
KP-4000 NETWORK KEYPAD
Frequently Asked Questions
I’m getting inconsistent operation regardless of flasher level or
position.
Some components are easily overloaded with IR from nearby flash-
ers. Prevent IR from affecting the problem component from other
flashers by setting the device to a specific IR Line Output instead of
ALL, then adjust the Line Output.
I am unable to control my URC Lighting Dimmer/Switch with the
KP-4000. Now what?
Make sure the RF switch on the RFTX-1 is set to the correct fre-
quency for the URC Dimmer or Switch. URC Lighting Models
MRFA is 418MHz and MRFB is 433MHz.
How do I update the firmware?
Make sure the KP-4000 is connected to the Network then open
CCP and click on the Firmware button located within the
Communications tab.
How can I set my KP-4000 to factory default?
Remove the front cover of the KP-4000. Use a pen or pointy device
to depress the button and reset the unit.
Specifications
Microprocessor: 190MHz RISC
Memory: 64 Megabytes of RAM (for User Configuration)
Devices: Supports up to 255 Devices
Pages: Supports up to 255 Pages on each Device
Macro Capability: Up to 255 steps each, however nesting is
allowed
Network: One 10/100 Ethernet port
Weight: 9.84 oz.
Size: 5.75” x 4.7” x 1.8”
Power : DC12V, 1A or Use PoE Power
Page 5
USA Limited Warranty Statement
Your Universal Remote Control, when delivered to you in new
condition, is warranted against defects in materials or work-
manship as follows: UNIVERSAL REMOTE CONTROL, INC.
warrants this product against defects in material or workman-
ship for a period of one (1) year and as set forth below.
Universal Remote Control will, at its sole option, repair the
product using new or comparable rebuilt parts, or exchange the
product for a comparable new or rebuilt product. In the event
of a defect, these are your exclusive remedies.
This Limited Warranty covers only the hardware components
packaged with the Product. It does not cover technical assis-
tance for hardware or software usage and it does not cover any
software products whether or not contained in the Product; any
such software is provided "AS IS" unless expressly provided for
in any enclosed software Limited Warranty.
To obtain warranty service, you must deliver the product,
freight prepaid, in its original packaging or packaging affording
adequate protection to Universal Remote Control at the address
provided in the Owner's Manual. It is your responsibility to
backup any macro programming, artwork, software or other
materials that may have been programmed into your unit. It is
likely that such data, software, or other materials will be lost
during service and Universal Remote Control will not be
responsible for any such damage or loss. A dated purchase
receipt, Bill of Sale, Installation Contract or other verifiable
Proof of Purchase is required. For product support and other
important information visit Universal Remote Control's website:
http://www.UniversalRemoteControl.com or call the Universal
Remote Control Customer Service Center (914) 835-4484.
This Limited Warranty only covers product issues caused by
defects in material or workmanship during ordinary consumer
use. It does not cover product issues caused by any other rea-
son, including but not limited to product issues due to commer-
cial use, acts of God, third-party installation, misuse, limita-
tions of technology, or modification of or to any part of the
Universal Remote Control product. This Limited Warranty does
not cover Universal Remote Control products sold as USED, AS
IS, REFURBISHED, so-called "B STOCK" or consumables (such
as batteries). This Limited Warranty is invalid if the factory-
applied serial number has been altered or removed from the
product. This Limited Warranty is valid only in the United States
of America. This Limited Warranty specifically excludes prod-
ucts sold by unauthorized resellers.
KP-4000 NETWORK KEYPAD
Page 15
KP-4000
Federal Communication Commission Interference
Statement
This equipment has been tested and found to comply with the limits for a Class B dig-
ital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interfer-
ence to radio communications. However, there is no guarantee that interference will
not occur in a particular installation. If this equipment does cause harmful interfer-
ence to radio or television reception, which can be determined by turning the equip-
ment off and on, the user is encouraged to try to correct the interference by one more
of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that
to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
Warning!
Changes or modifications not expressly approved by the manufacturer could void the
user's authority to operate the equipment.
Note : The manufacturer is not responsible for any Radio or TV interference caused by
unauthorized modifications to this equipment. Such modifications could void the user's
authority to operate the equipment.
FCC Caution
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) this device may not cause harmful interference, and (2)
this device must accept any interference received, including interference that may
cause undesired operation.
Any changes or modifications not expressly approved by the party responsible for com-
pliance could void the authority to operate equipment.
The antenna(s) used for this transmitter must not be co-located or operating in
conjunction with any other antenna or transmitter.
Page 6
This equipment has been tested and found to comply with
the limits for a Class B digital device, pursuant to part 15 of
the FCC Rules. These limits are designed to provide reason-
able protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate
radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interfer-
ence to radio communications.
However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one
more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and
receiver.
Connect the equipment into an outlet on a circuit dif-
ferent from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV techni-
cian for help.
Warning
Changes or modifications not expressly approved by the manu-
facturer could void the user's authority to operate the equip-
ment.
Note : The manufacturer is not responsible for any Radio or TV
interference caused by unauthorized modifications to this
equipment. Such modifications could void the user's authority
to operate the equipment.
Information To The User
500 Mamaroneck Avenue, Harrison, NY 10528
Phone: (914) 835-4484 Fax: (914) 835-4532
www.universalremote.com
™
Universal Remote Control®
