MRX-4SEN
Sensor Extender
Owners Manual
MRX-4SEN Sensor Extender Owners Manual ©2013 Universal Remote
Control, Inc.
The information in this manual is copyright protected. No part of this
manual may be copied or reproduced in any form without prior written
consent from Universal Remote Control, Inc.
UNIVERSAL REMOTE CONTROL, INC. SHALL NOT BE LIABLE FOR
OPERATIONAL, TECHNICAL OR EDITORIAL ERRORS/OMISSIONS MADE
IN THIS MANUAL.
The information in this manual may be subject to change without prior
notice.
Total Control is a registered trademark of Universal Remote Control, Inc.
All other brand or product names are trademarks or registered trademarks
of their respective companies or organizations.
500 Mamaroneck Avenue, Harrison, NY 10528
Phone: (914) 835-4484 Fax: (914) 835-4532
TABLE OFCONTENTS
Introduction 1
Features and Benefits 1
Parts Guide 1
Front, Rear, and Bottom Panel Descriptions
2
Network Installation 5
Specifications 6
USA Limited Warranty Statement 7

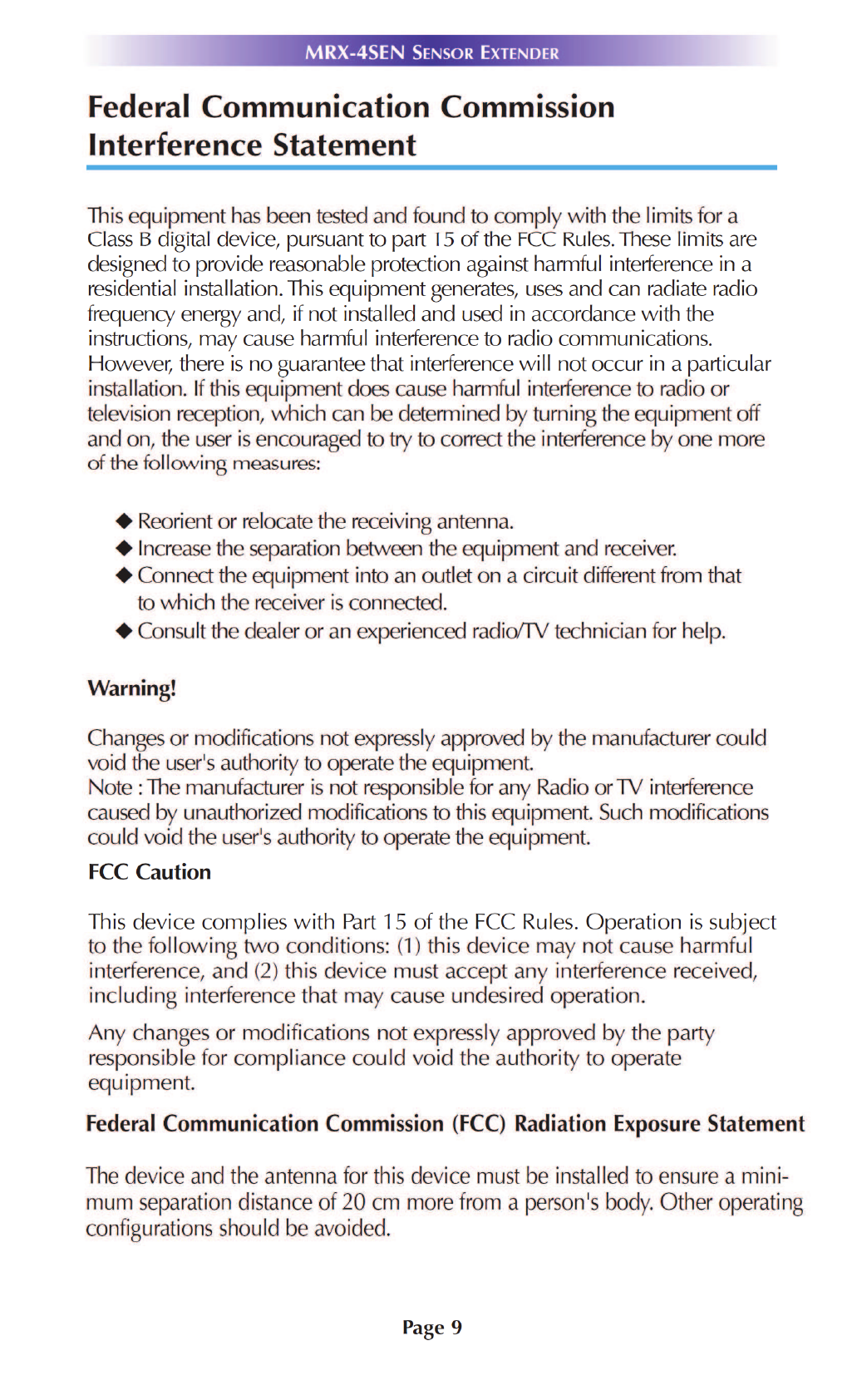

Federal Communication Commission
Interference Statement 9
Declaration of Conformity 10
MRX-4SEN SENSOR EXTENDER
Introduction
Thank you for purchasing the MRX-4SEN Sensor Extender. Expand
your MRX Advanced Network System Controller sensor coverage
beyond four ports by adding additional MRX-4SEN units throughout
the home or office.
Features and Benefits
Expand Sensor Coverage
Add one or more MRX-4SEN throughout your home or office
to detect changes in a connected sensor, which may be used to
trigger system events.
No Cables, No Mess, No Fuss
Connect a MRX-4SEN virtually anywhere in the home or office
without the mess of cables while communicating over URC’s
2.4GHz wireless connection.
Compact Size
The small size of the MRX-4SEN allows it to easily fit behind
equipment or into places where a traditional base station would not.
Page 1
Parts Guide
The MRX-4SEN includes:
1 - MRX-4SEN Sensor Extender
1 - AC Power Adapter
4 - Mounting Screws
1 - Mounting Plate
1 - Owner’s Manual
Page 2
MRX-4SEN SENSOR EXTENDER
Front, Rear, and Bottom Panel Descriptions

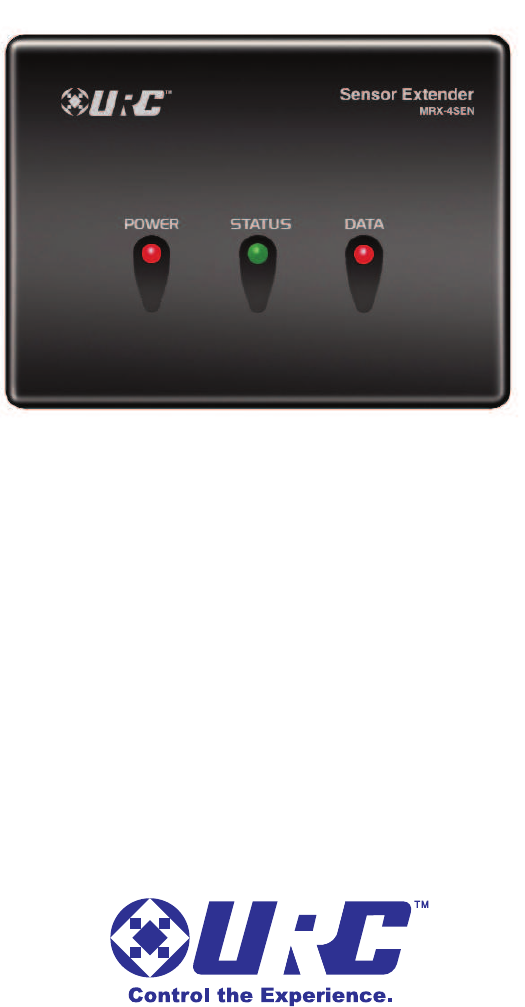

Front Panel
The front panel consists of 3 indicator lights:
Power LED: The Power LED illuminates when the unit is powered.
Status LED: The Status LED color will vary depending upon its
connected state:
Connected: Illuminates green
Low Signal: Illuminates orange
Not Connected: Not illuminated
Data LED: The Data LED flashes as the MRX-4SEN transmits data to
a MRX Advanced Network System Controller.
Page 3

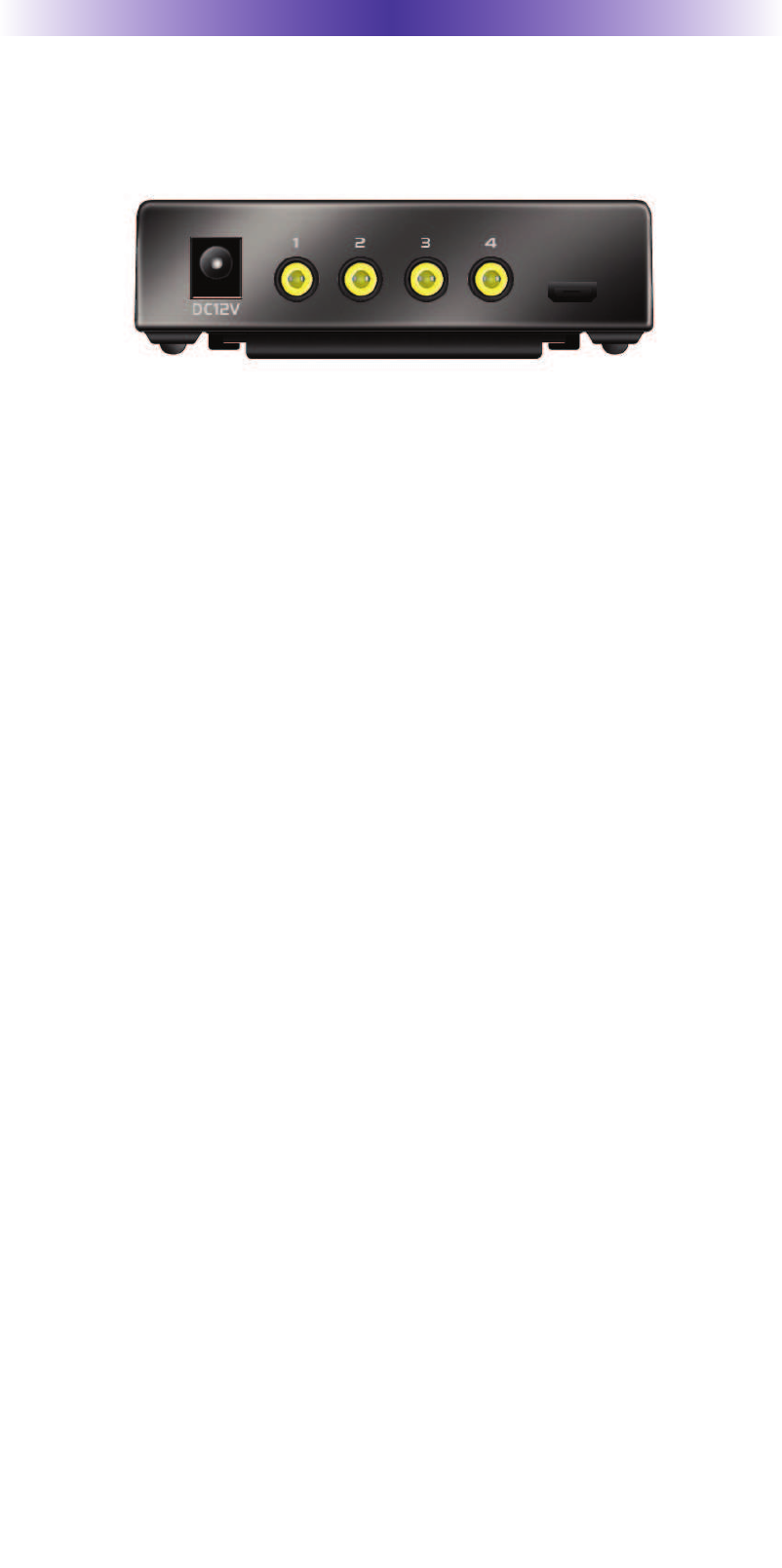

Rear Panel
The rear panel consists of:
DC 12V Power: Plug in the included 12V DC 1A power supply.
Sensor Inputs: Connect the sensors 3.5mm plug to an available port.
The following URC sensors, with their respective model numbers, are
compatible with the MRX-4SEN:
Voltage Sensor SEN-VOLT
Video Sensor SEN-VID
Contact Closure Sensor SEN-CCLS
Light Sensor SEN-LITE
Current Sensor (Magnetic Field) SEN-CMF
Audio Sensor SEN-AUD
Mini-USB connector: For future firmware upgrade use!
MRX-4SEN SENSOR EXTENDER
Page 4
MRX-4SEN SENSOR EXTENDER

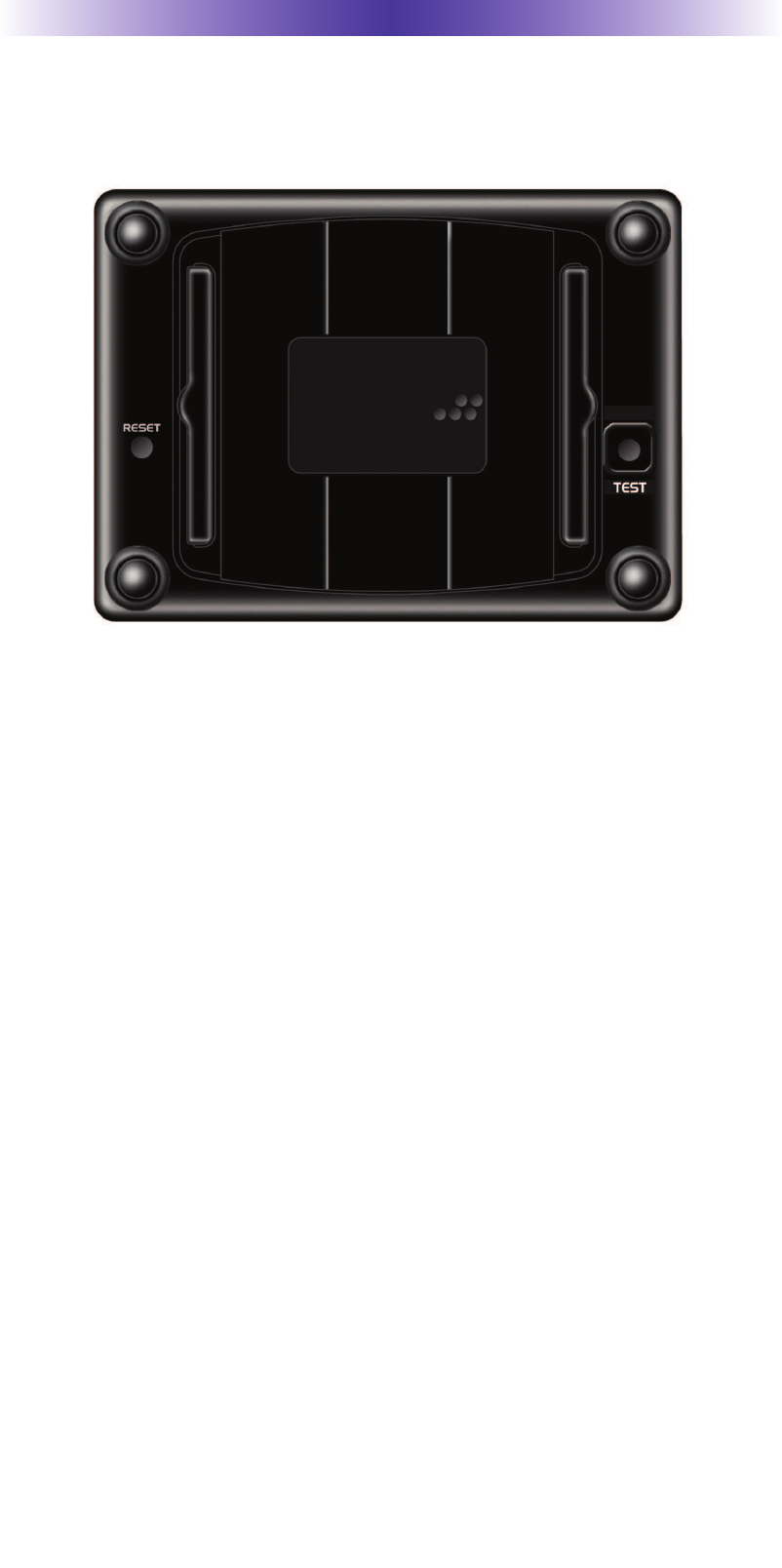

Bottom Panel
The bottom panel consists of:
MAC Address Sticker: The MAC Address (16 characters) identifies this
wireless device when connected to the network.
Serial Number Sticker: The serial number, located at the bottom of the
unit, uniquely identifies the product.
Test button: Press to test the signal strength between the MRX
Advanced Network System Controller and the MRX-4SEN. While
testing, the Status LED will update and display its current connection
setting. (Refer to page 2 for Status LED information.)
Reset button: Turns the unit OFF then ON again, and reconnects to
the URC 2.4GHz RF signal.
Page 5
Network Installation
WARNING!! Before proceeding, a Custom Professional is required
to install and configure your MRX-4SEN.
Connect the 3.5mm sensor plug to the rear of the MRX-4SEN. When
a change is sensor is detected, the MRX-4SEN sends a signal to the
MRX Advanced Network System Controller and triggers a series of
commands.

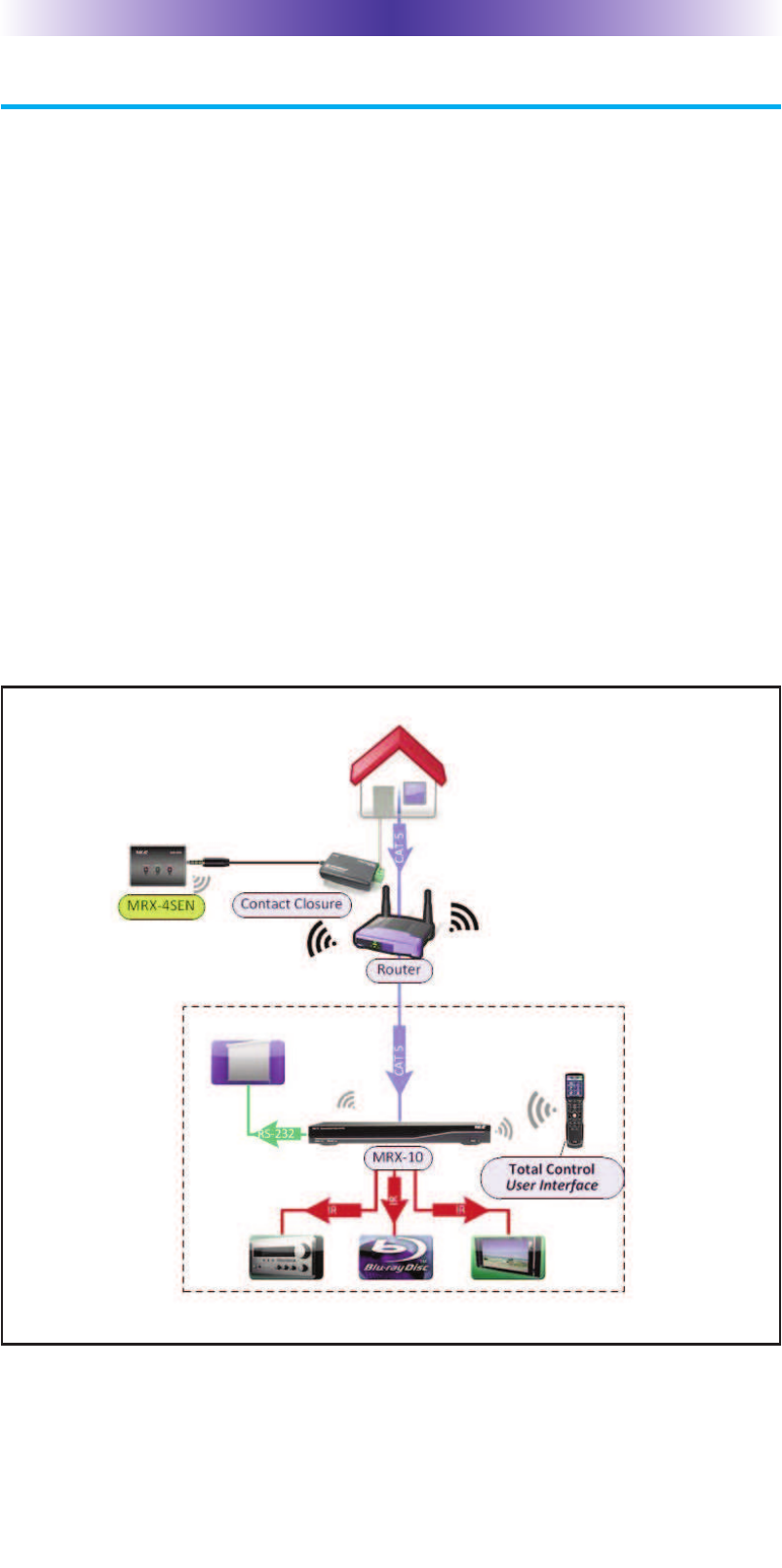

The example below showcases a voltage sensor connected to the
home’s front door and the MRX-4SEN. Whenever the door bell is
pressed, a signal is sent over URC’s RF 2.4GHz to the MRX
Advanced Network System Controller. The MRX unit, previously
programmed by the Custom Professional, will trigger a series of
commands or an event to gain your attention. A programmed
event, such as Watch Movie/TV, may pause the movie, mute the
audio and display the front door’s video camera.
MRX-4SEN SENSOR EXTENDER
Page 6
MRX-4SEN SENSOR EXTENDER
Specifications
Sensor : Four sensor supports Video, Current, Contact Closure,
Ambient Light, Audio, Voltage Sensing via URC sensors.
USB : Mini_USB for future firmware upgrade use.
RF Range(radio frequency) : 50 to 100 feet, depending upon the
environment
RF Frequency : 2.405 ~ 2.480 GHz
Weight : 2.98oz
Size : 3.74” X 2.7” X 1.1”
Power : 12V DC 1A
Page 7
MRX-4SEN SENSOR EXTENDER
USA Limited Warranty Statement
Your Universal Remote Control, when delivered to you in new condition,
is warranted against defects in materials or workmanship as follows:
UNIVERSAL REMOTE CONTROL, INC. warrants this product against
defects in material or workmanship for a period of one (1) year and as set
forth below. Universal Remote Control will, at its sole option, repair the
product using new or comparable rebuilt parts, or exchange the product
for a comparable new or rebuilt product. In the event of a defect, these
are your exclusive remedies.
This Limited Warranty covers only the hardware components packaged
with the Product. It does not cover technical assistance for hardware or
software usage and it does not cover any software products whether or
not contained in the Product; any such software is provided "AS IS" unless
expressly provided for in any enclosed software Limited Warranty.
To obtain warranty service, you must deliver the product, freight prepaid, in
its original packaging or packaging affording adequate protection to
Universal Remote Control at the address provided in the Owner's Manual.
It is your responsibility to backup any macro programming, artwork,
software or other materials that may have been programmed into your
unit. It is likely that such data, software, or other materials will be lost
during service and Universal Remote Control will not be responsible for
any such damage or loss. A dated purchase receipt, Bill of Sale, Installation
Contract or other verifiable Proof of Purchase is required. For product
support and other important information visit Universal Remote Control's
website: http://www.UniversalRemote.com or call the Customer Service
Center (914) 835-4484.
This Limited Warranty only covers product issues caused by defects
in material or workmanship during ordinary consumer use. It does
not cover product issues caused by any other reason, including but
not limited to product issues due to commercial use, acts of God,
third-party installation, misuse, limitations of technology, or modification of
or to any part of the Universal Remote Control product. This
Limited Warranty does not cover Universal Remote Control
products sold as USED, AS IS, REFURBISHED, so-called “B STOCK”
or consumables (such as batteries). This Limited Warranty is invalid
if the factory-applied serial number has been altered or removed
from the product. This Limited Warranty is valid only in the United
States of America. This Limited Warranty specifically excludes
products sold by unauthorized resellers.
Page 8
MRX-4SEN SENSOR EXTENDER
LIMITATION OF REMEDIES
UNIVERSAL REMOTE CONTROL SHALL NOT BE LIABLE FOR ANY
INCIDENTAL OR CONSEQUENTIAL DAMAGES FOR BREACH OF
ANY EXPRESS OR IMPLIED WARRANTY OR CONDITION ON THIS
PRODUCT. IN NO EVENT SHALL UNIVERSAL REMOTE CONTROL
BE LIABLE, WHETHER IN CONTRACT OR IN TORT(INCLUDING
NEGLIGENCE) FOR DAMAGES IN EXCESS OF THE PURCHASE PRICE
OF THE PRODUCT, ACCESSORY OR SOFTWARE, OR FOR ANY
INDIRECT, INCIDENTAL, SPECIAL OR CONSEQUENTIAL DAMAGES
OF ANY KIND, OR LOSS OF REVENUE OR PROFITS, LOSS OF
BUSINESS, LOSS OF INFORMATION OR DATA, SOFTWARE OR
APPLICATIONS OR OTHER FINANCIAL LOSS ARISING OUT OF OR
IN CONNECTION WITH THE ABILITY OR INABILITY TO USE THE
PRODUCTS, ACCESSORIES OR SOFTWARE TO THE FULL EXTENT
THESE DAMAGES MAY BE DISCLAIMED BY LAW.
EXCEPT TO THE EXTENT PROHIBITED BY APPLICABLE LAW, THERE
IS NO OTHER WARRANTY EXPRESSED OR IMPLIED. UNIVERSAL
REMOTE CONTROL WILL NOT BE HELD RESPONSIBLE FOR
STATEMENTS MADE BY OTHERS CONCERNING THE
MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE
ON THIS PRODUCT. Some states or jurisdictions do not allow the
exclusion or limitation of incidental or consequential damages, or
allow limitations on how long an implied warranty lasts, so the above
limitations or exclusions may not apply to you. This Limited Warranty
gives you specific legal rights and you may have other rights which
vary from state to state or jurisdiction to jurisdiction.
REV020708
Page 10
MRX-4SEN SENSOR EXTENDER
Declaration of Conformity
Company Name : OH SUNG ELECTRONICS CO., LTD.
Company Address : #181 GONG DAN-DONG, GUMI, GYEONG BUK,
REPUBLIC OF KOREA
Contact Information : Phone: +82-54-468-7281, Fax: +82-54-461-8368
Brand Name : UNIVERSAL remote control
Product Name : Sensor Extender
Model Name : MRX-4SEN
This product herewith complies with the requirements of EMC Directive (2004/108/EC)
and R&TTE Directive(1995/5/EC) issued by the Commission of the European Community
Compliance with these directives implies conformity to the following European Community
EMC Directive
EN 55022 (2010)
EN 55024 (2010)
EN 61000-3-2 (2006) + A1 (2009) + A2 (2009)
EN 61000-3-3 (2008)
R&TTE Directive
EN 60950-1 (2006) + A11 (2009) + A1 (2010) + A12 (2011)
ETSI EN 301 489-1 V1.9.2 (2011), ETSI EN 301 489-17 V2.1.1 (2012)
ETSI EN 300 328 V1.7.1 (2006)
List of test reports and/or certificate verified compliance with the standards above
Date of issue : March 1, 2013
Name and signature of authorized person :
EMC Directive
Report No.
Testing Laboratory : Gumi College EMC Center
R&TTE Directive
Certificate No.
Certificate Body : SIEMIC (No. 2200)
Hak-Ki Kim
General Manager
OH SUNG ELECTRONICS CO., LTD.
Page 11
NOTE
500 Mamaroneck Avenue, Harrison, NY 10528
Phone: (914) 835-4484 Fax: (914) 835-4532
www.universalremote.com
OCE-0131D Rev 01
