Ohsung Electronics Co., Ltd. RF Remote Controller EMISSION TEST REPORT
Users Manual
Order Number
: GETEC-C1-12-048
FCC Part 15 subpart C
Test Report Number
: GETEC-E3-12-022
Page 1 / 1
EUT Type: RF REMOTE CONTROLLER
FCC ID.: OZ5URCMXW920I
APPENDIX H
: USER’S MANUAL

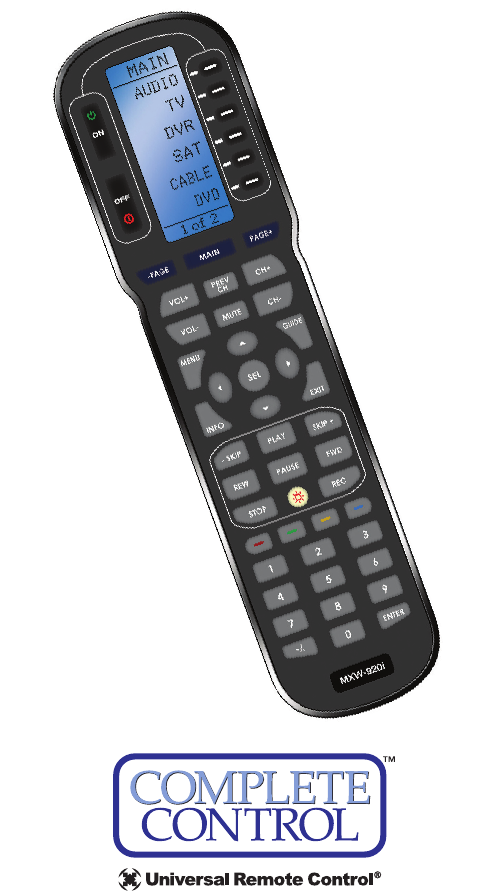

MXW-920i
Splash Proof Controller
Owner's Manual
MXW-920i Owner’s Manual ©2011 URC, Inc.
The information in this manual is copyright protected. No part of this man-
ual may be copied or reproduced in any form without prior written consent
from Universal Remote Control, Inc.
UNIVERSAL REMOTE CONTROL, INC. SHALL NOT BE LIABLE FOR OPER-
ATIONAL, TECHNICAL OR EDITORIAL ERRORS/OMISSIONS MADE IN
THIS MANUAL.
The information in this manual may be subject to change without prior
notice.
Complete Control is a registered trademark of Universal Remote Control, Inc.
Entertainment Made Simple is a trademark of Universal Remote Control, Inc.
All other brand or product names are trademarks or registered trademarks of
their respective companies or organizations.
Universal Remote Control, Inc.
500 Mamaroneck Avenue, Harrison, NY 10528
Phone: (914) 835-4484 Fax: (914) 835-4532
TABLE OFCONTENTS
Congratulations! 1
Using the MXW-920i 2
Displaying the Settings Screen 3
Selecting from the Setup Screen 3
Setting the LCD 4
Light Settings 6
Sound Volume 6
System Settings 7
Version Information Displays 7
Selecting from the Edit Screen 8
Adjusting the Text 8
Learn commands 9
Erasing learned data 9
Performing a Factory Default 9
Battery Installation 10
USA Limited Warranty Statement 11
Federal Communication Commission
Interference Statement 13
Regulatory Information to the user 14
Declaration of Conformity 15
Page 1
MXW-920i OWNER’SMANUAL
Congratulations!
Thank you for purchasing the Complete Control MXW-920i splash
proof wand-style controller. This unit can directly control every
IR device in your home. You can also control devices located in
different rooms by integrating an MRF base station. Controlling your
home is simple with the MXW-920i remote.
Splash Proof IR/RF wand-style controller
The Splash Proof MXW-920i wand-style controller can be used
outside as well as indoors. It’s the perfect controller for kitchen, bath
and poolside use. It is not intended for underwater use or exposure
to sugar-based substances (e.g., soda or lemonade). Make sure the
MXW-920i is dry when changing batteries. IP Code 54, JIS Class 4.
Ideally suited for poolside control
Entertain your guests by controlling your sound system or more
while poolside. Use the MXW-920i by the pool without the worry
of damaging your remote.
Controls up to 40 devices
The MXW-920i has the capacity to control up to 40 devices
throughout your home. Turn off devices that are not in use when
walking by a room. It’s like having a master key for your electronic
devices.
Ultra-reliable narrow band RF - compatible with URC
433 MHz RF Base Stations
The MXW-920i can communicate directly to RF base stations, such
as the MRF-350i and the MRF-260i. It also natively communicates
with URC Lighting via 433.92 MHz RF. This gives the MXW-920i the
ability to control your system without being in direct line-of-sight.
Fast setup of complex systems via Complete Control PC editor
To fully automate an audio/video system, and integrate two-way
automation of servers etc., the programmer must have detailed
knowledge of each component, LAN configuration, WiFi
optimization and how the system is connected and operated. Only
a trained and certified professional audio/video installer can install
an MXW-920i remote control in a timely and efficient manner.
MXW-920i OWNER’SMANUAL

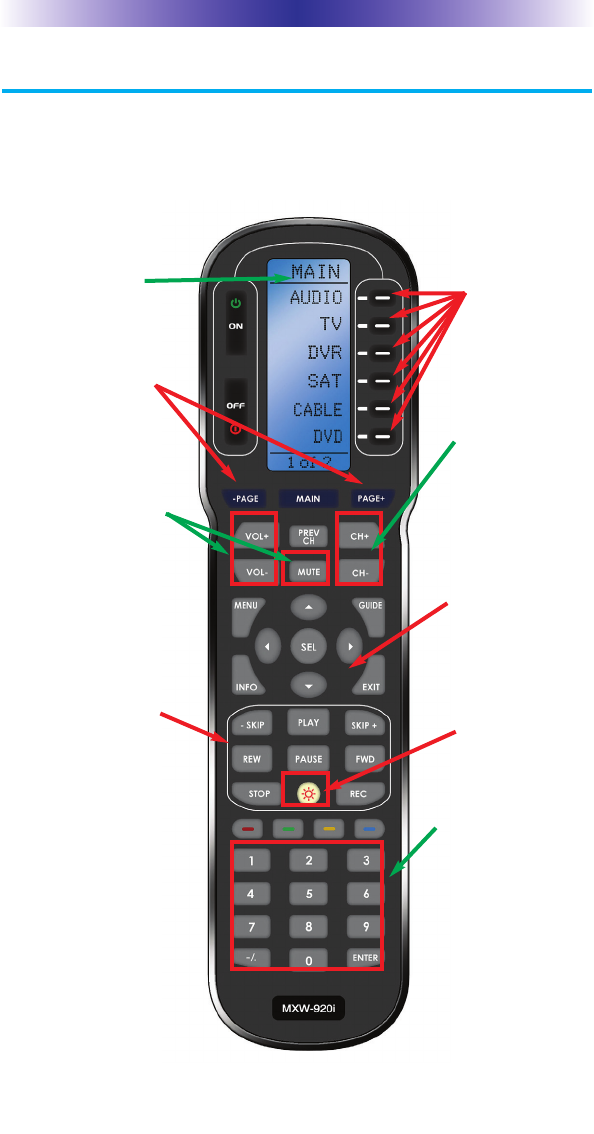

Using the MXW-920i
The MXW-920i displays the Main or Device page at the top of the
screen. Below the title, the LCD displays the device or command names.
All the hard buttons of the MXW-920i are changed to control the functions
of the selected device.
The Title displays
the Main or Device
pages you can
control.
Press either of the
Page buttons to see
any other available
choices.
The LCD button
labels describes
the functions
available for the
current activity or
device.
The Channel and
Previous Channel
buttons adjust
channels for devices
with channel functions
(i.e. cable boxes)
The 5-way cursor
buttons enable you
to navigate on
screen guides and
menus with ease.
The Number keypad
enters numbers for
the devices you’ve
selected. When
watching Cable TV,
use the number
keypad to enter
channel numbers.
When listening to a
CD, the number
keypad enters track
numbers.
The Volume and
Mute buttons always
control the sound
regardless of what
screen is displayed.
The Transport buttons
(Play, Stop, Skip-,
Skip+, FF, REW and
Pause) operate when
the selected device
requires them. When
watching Cable
TV, use the number
keypad to enter
channel numbers.
When listening to a
CD, the number
keypad enters track
numbers.
The Light button
backlights all the
buttons and activates
the LCD screen
Page 2
MXW-920i OWNER’SMANUAL

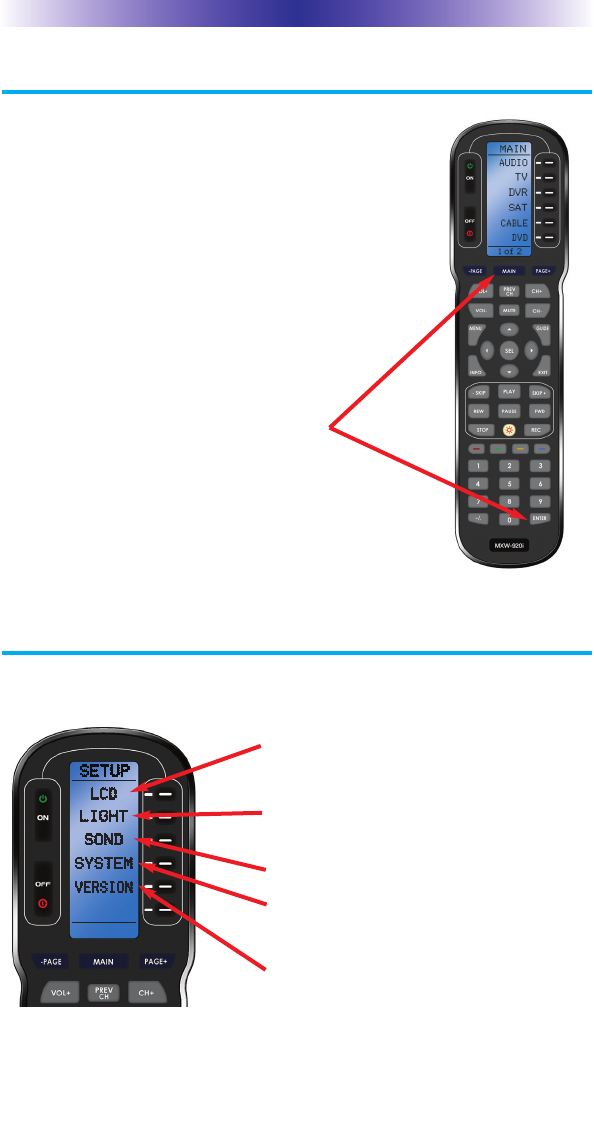

Displaying the Setup Screen
You can adjust the settings of the MXW-920i
controller whenever you like. Simply press and
hold both the Main and the Enter buttons at the
same time for three seconds. The screen displays
the Setup and the Edit screens. Press the Page +
and - buttons to toggle between both screens.
If you do not press any button on the Setup screen
within 30 seconds, the MXW-920i times out and
automatically returns to normal operation. You can
return to normal operation before that by pressing
the Main button.
Selecting from the Setup Screen
Simply touch the button for the setting you’d like to adjust:
At the same time, press and
hold both the Main and the
Enter buttons. When the Setup
screen appears, release the two
buttons.
Page 3
LCD - Adjustments for the LCD screen
(brightness, contrast, light)
Light - Adjustments for backlight of the
buttons.
Sound - The volume of the beeps.
System - Set the threshold for the low
battery warning
Version - Displays factory info.
Page 4

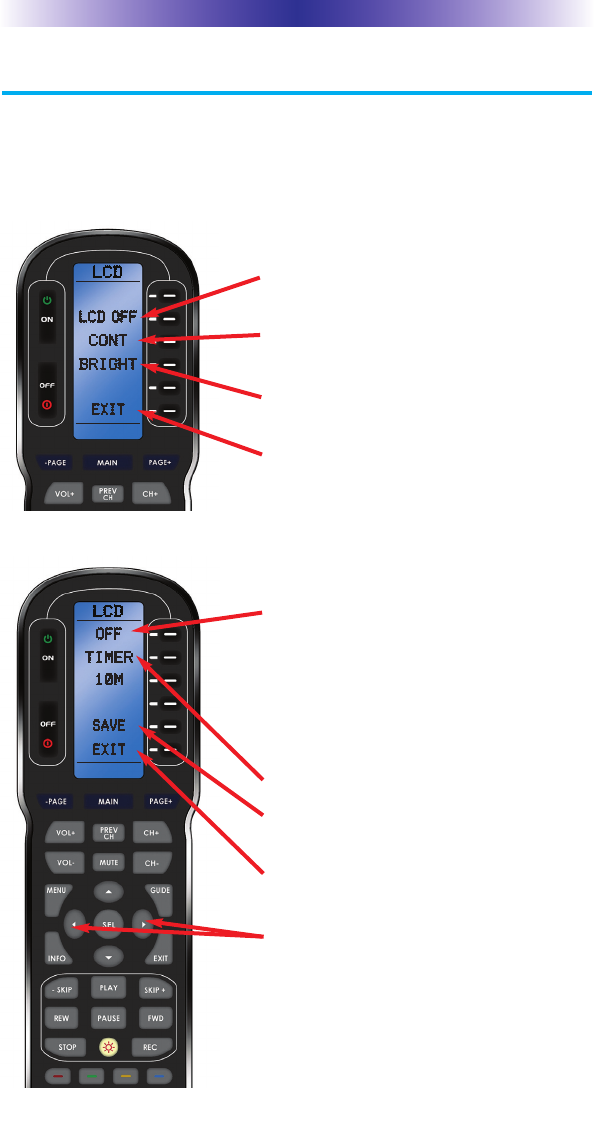

Setting the LCD
With these settings, you can set the MXW-920i to constantly display
the LCD or have it turn off when not in use. Additionally, you can control
the contrast of the screen and the color of the backlighting.
MXW-920i OWNER’SMANUAL
To activate the LCD On/Off setting, press
this button. See below.
To activate the Contrast setting, press this
button. See the next page.
To activate the Brightness setting, press
this button. See the next page.
To exit without saving any changes you
have made, press Exit.
LCD Timer Setting:
If you set the LCD to OFF, the timer settings
appear. The LCD turns off after the set
amount of time set by adjusting the Left
and Right arrow keys.
The timer can be set to turn off the LCD
between 10 seconds and 20 minutes.
The Timer Interval is displayed here.
To save any changes you have made,
press Save.
To exit without saving any changes you
have made, press Exit.
To change the timer interval, press the
Left or Right arrow keys.
Page 5
MXW-920i OWNER’SMANUAL

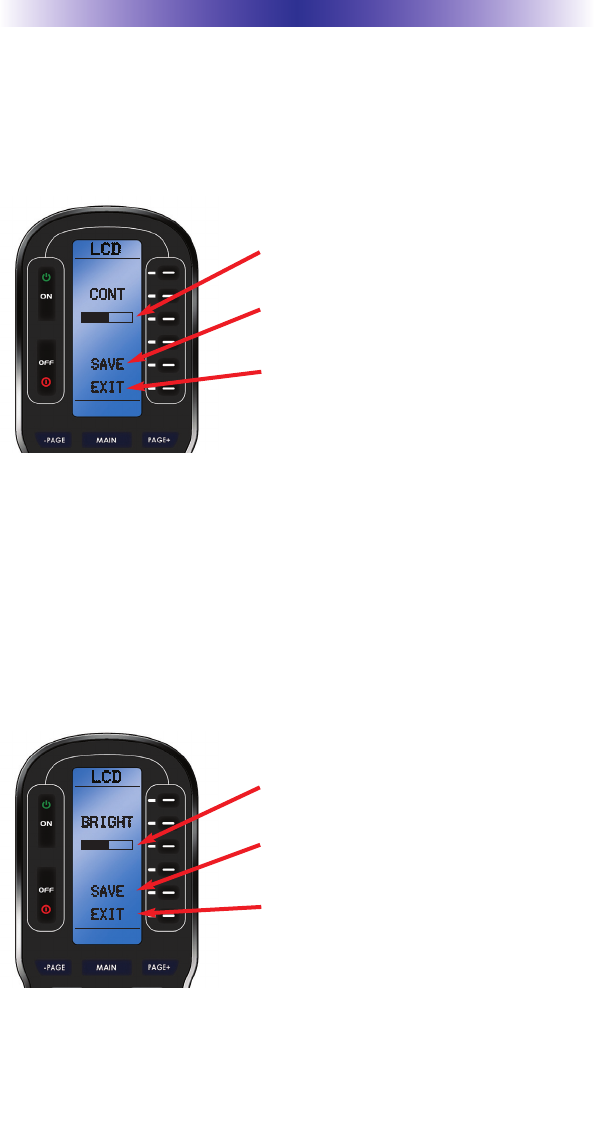

Setting LCD Contrast
You can adjust the contrast of the LCD screen using the Left and
Right arrow keys once the LCD Contrast screen has been selected
(shown on the previous page).
Setting LCD Brightness
You can adjust the brightness of the LCD screen using the Left and
Right arrow keys once the LCD Brightness screen has been selected
(shown on the previous page).
The current contrast is displayed here
via a bar graph.
To save any changes you have made,
press Save.
To exit without saving any changes you
have made, press Exit.
Adjust the Contrast setting with the Left
and Right keys as shown in the previous
pages.
The current brightness is displayed here
as a bar graph.
To save any changes you have made,
press Save.
To exit without saving any changes you
have made, press Exit.
Adjust the LCD brightness with the Left
and Right keys as shown in the previous
pages.
MXW-920i OWNER’SMANUAL
Page 6

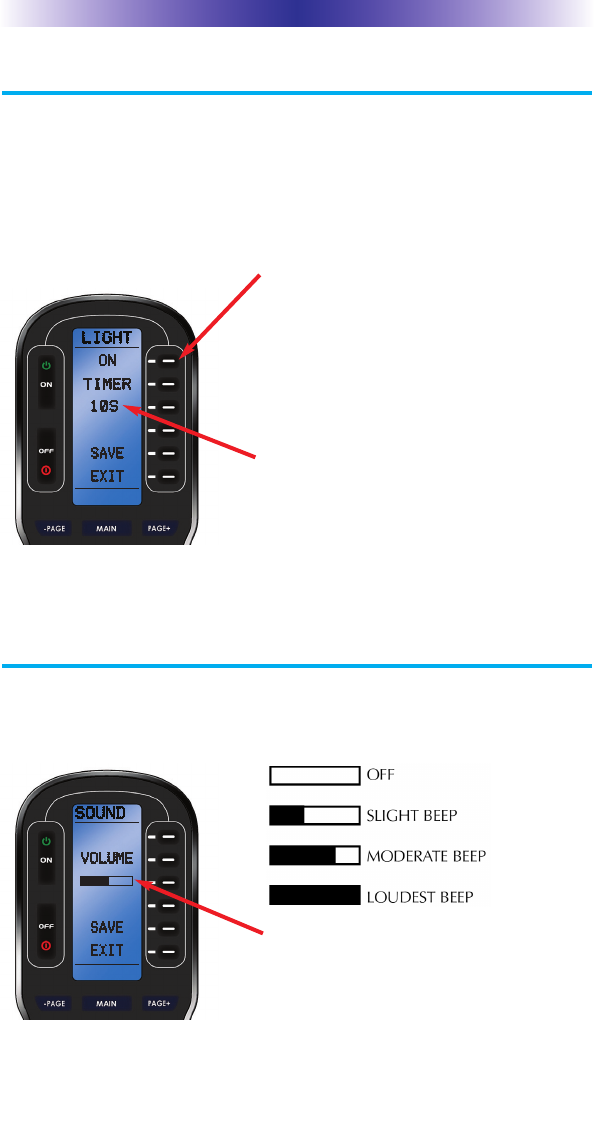

Light Settings
You can adjust the backlighting of the remote in two additional ways:
1. You can turn on/off the LCD and the hard button backlighting.
2. You can select the length of time the lighting stays on after the
last button press from a range of values between 10 seconds
and 90 seconds.
Sound Volume
Your MXW-920i beeps whenever a button is pressed. However, you
can adjust the volume of the beep to one of four levels as shown here.
Change whether the backlighting is on or
off by pressing this button.
If you want the backlighting always off,
set it to OFF.
If you would like the backlighting on,
select ON.
The current timer setting is displayed
here in seconds.
Adjust the backlighting timer setting with
the Left and Right keys as shown in the
previous pages.
The current Beep volume is displayed
here as a “bar.”
Adjust the volume of the beep by
tapping the Left and Right (use capitals)
arrow keys as shown in the previous
pages.
MXW-920i OWNER’SMANUAL
Page 7

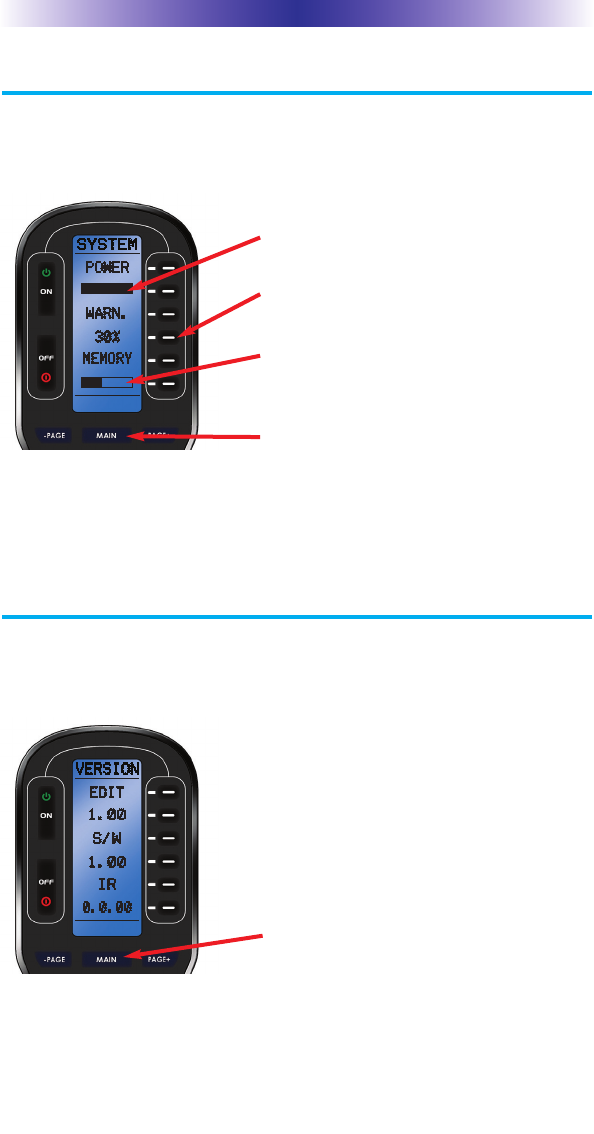

System Settings
You can set your MXW-920i to display the Low Battery warning at a
power level between 0% and 20% (in 5% increments).
Version Information Displays
Should you be curious, the Version indicates what firmware and
software versions were used to program your MXW-920i.
The Power bar indicates available power
in black.
Press here to adjust the battery warning
level.
The Memory bar indicates available
memory in black. The memory in use is
white.
To exit, press Main.
To exit, press Main.
Selecting from the Edit Screen
This section is for CUSTOM INSTALLER USE ONLY. Touch the button
for the setting you’d like to adjust:
Adjusting the Text
Select Text from the Edit screen to modify any labels.
Text - Change the label of a device or
button.
Learn - Transfer IR data from remote to
MXW-920i.
Erase - Remove learned data.
Factory - Installer ONLY. Do not press
unless instructed by a custom
installer. All data will be lost
once the sequence has begun.
Device - Select a device to rename by
pressing an adjacent button.
Use the arrow and number
buttons to add letters.
Button - Changes the label of a button
within a device.
To exit, press Main.
MXW-920i OWNER’SMANUAL
Page 8
Page 9
MXW-920i OWNER’SMANUAL

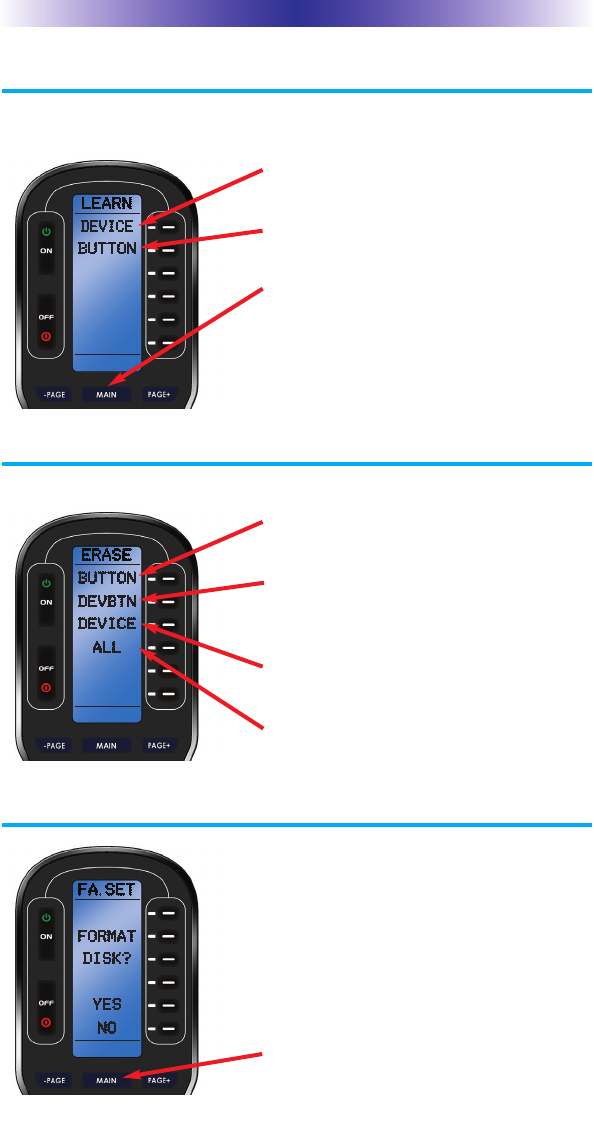

Learn commands
Transfer commands from a component remote to the MXW-920i
using the Learn feature.
Erasing learned data
Remove any unwanted learned commands from the remote.
Performing a Factory Default
Device - Copy a command to a device
button.
Button - Copy a command to a button
within a device.
To exit, press Main.
Button - Erases a specific command resid-
ing on a button within a device.
DevBtn - Removes any learned commands
on a device button label such as
Cable.
Device - Erases all learned commands for
one device.
All - Erases all learned data on the remote.
To exit, press Main.
WARNING: DO NOT PROCEED
UNLESS SPECIFICED BY YOUR
CUSTOM INSTALLER! THIS
SECTION WILL ERASE ALL DATA
ON THE REMOTE.
Pressing Yes will format the remote’s disk
and set it back to the factory settings.
To exit, press No or Main.
MXW-920i OWNER’SMANUAL
Page 10
Battery Installation
Open the battery cover by using a Phillips screwdriver to remove each
of the four screws. Remove the cover. Observe the + and - polarity
indications inside the battery compartment. Place the four AAA batteries
into their positions in the battery compartmentobserving the + and -
polarity indicators on the batteries. Now, replace the battery cover by
replacing the 4 screws into their slots.
Specifications
Memory: 4 Megabits of Flash Memory (for User Configuration)
Devices: Flexible, typically can support up to 40 Devices
Pages: Flexible, typically can support up to 40 Pages on each Device
Learning Capability: Standard frequencies (15kHz to 460kHz)
Macro Capability: Up to 255 steps each, however nesting is allowed
IR Range (Line of Sight via Infrared): 30-50 feet, depending on the environment
RF Range (radio frequency): 50 to 100 feet, depending upon the environment
RF Frequency: 433.92MHz
Weight: 5.68 ounces (without batteries)
Size: 8.9” H x 2.34” W x 1.1” D
Batteries: 4 AAA Batteries
Page 11
MXW-920i OWNER’SMANUAL
USA Limited Warranty Statement
Your Universal Remote Control, when delivered to you in new condition,
is warranted against defects in materials or workmanship as follows:
UNIVERSAL REMOTE CONTROL, INC. warrants this product against
defects in material or workmanship for s period of one (1) year and as set
forth below. Universal Remote Control will, at its sole option, repair the
product using new or comparable rebuilt parts, or exchange the product
for a comparable new or rebuilt product. In the event of a defect, these
are your exclusive remedies.
This Limited Warranty covers only the hardware components packaged
with the Product. It does not cover technical assistance for hardware or
software usage and it does not cover any software products whether or
not contained in the Product; any such software is provided "AS IS" unless
expressly provided for in any enclosed software Limited Warranty.
To obtain warranty service, you must deliver the product, freight prepaid,
in its original packaging or packaging affording adequate protection to
Universal Remote Control at the address provided in the Owner's Manual.
It is your responsibility to backup any macro programming, artwork,
software or other materials that may have been programmed into your
unit. It is likely that such data, software, or other materials will be lost
during service and Universal Remote Control will not be responsible for
any such damage or loss. A dated purchase receipt, Bill of Sale, Installation
Contract or other verifiable Proof of Purchase is required. For product
support and other important information visit Universal Remote Control's
website: http://www.UniversalRemote.com or call the Customer Service
Center (914) 835-4484.
This Limited Warranty only covers product issues caused by defects
in material or workmanship during ordinary consumer use. It does
not cover product issues caused by any other reason, including but
not limited to product issues due to commercial use, acts of God, third-
party installation, misuse, limitations of technology, or modification of
or to any part of the Universal Remote Control product. This Limited
Warranty does not cover Universal Remote Control products sold
as USED, AS IS, REFURBISHED, so-called “B STOCK” or consumables
(such as batteries). This Limited Warranty is invalid if the factory-applied
serial number has been altered or removed from the product. This Limited
Warranty is valid only in the United States of America. This Limited
Warranty specifically excludes products sold by unauthorized resellers.
Page 12
MXW-920i OWNER’SMANUAL
LIMITATION OF REMEDIES
UNIVERSAL REMOTE CONTROL SHALL NOT BE LIABLE FOR ANY
INCIDENTAL OR CONSEQUENTIAL DAMAGES FOR BREACH OF
ANY EXPRESS OR IMPLIED WARRANTY OR CONDITION ON THIS
PRODUCT. IN NO EVENT SHALL UNIVERSAL REMOTE CONTROL
BE LIABLE, WHETHER IN CONTRACT OR IN TORT (INCLUDING
NEGLIGENCE) FOR DAMAGES IN EXCESS OF THE PURCHASE
PRICE OF THE PRODUCT, ACCESSORY OR SOFTWARE, OR FOR
ANY INDIRECT, INCIDENTAL, SPECIAL OR CONSEQUENTIAL
DAMAGES OF ANY KIND, OR LOSS OF REVENUE OR PROFITS,
LOSS OF BUSINESS, LOSS OF INFORMATION OR DATA, SOFT-
WARE OR APPLICATIONS OR OTHER FINANCIAL LOSS ARISING
OUT OF OR IN CONNECTION WITH THE ABILITY OR INABILITY
TO USE THE PRODUCTS, ACCESSORIES OR SOFTWARE TO THE
FULL EXTENT THESE DAMAGES MAY BE DISCLAIMED BY LAW.
EXCEPT TO THE EXTENT PROHIBITED BY APPLICABLE LAW, THERE
IS NO OTHER WARRANTY EXPRESSED OR IMPLIED. UNIVERSAL
REMOTE CONTROL WILL NOT BE HELD RESPONSIBLE FOR STATE-
MENTS MADE BY OTHERS CONCERNING THE MERCHANTABILITY
OR FITNESS FOR A PARTICULAR PURPOSE ON THIS PRODUCT.
Some states or jurisdictions do not allow the exclusion or limitation of
incidental or consequential damages, or allow limitations on how
long an implied warranty lasts, so the above limitations or exclusions
may not apply to you. This Limited Warranty gives you specific legal
rights and you may have other rights which vary from state to state or
jurisdiction to jurisdiction.
REV020708
Page 13
MXW-920i OWNER’SMANUAL
Federal Communication Commission
Interference Statement
This equipment has been tested and found to comply with the limits for
a Class B digital device, pursuant to part 15 of the FCC Rules. These
limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses
and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to
radio communications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged
to try to correct the interference by one more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from
that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
Warning!
Changes or modifications not expressly approved by the manufacturer
could void the user's authority to operate the equipment.
Note : The manufacturer is not responsible for any Radio or TV
interference caused by unauthorized modifications to this equipment.
Such modifications could void the user's authority to operate the
equipment.
FCC Caution
This device complies with Part 15 of the FCC Rules. Operation is
subject to the following two conditions: (1) this device may not cause
harmful interference, and (2) this device must accept any interference
received, including interference that may cause undesired operation.
Any changes or modifications not expressly approved by the party
responsible for compliance could void the authority to operate equipment.
The antenna(s) used for this transmitter must not be co-located or operating in
conjunction with any other antenna or transmitter.
Federal Communication Commission (FCC) Radiation Exposure Statement
The device and the antenna for this device must be installed to ensure a
minimum separation distance of 20 cm more from a person’s body. Other
operating configurations should be avoided.
Page 14
MXW-920i OWNER’SMANUAL
Regulatory Information to the user
CE conformity Notice
Products with “CE” marking comply with the R&TTE Directive
1995/5/EC, EMC Directive 2004/108/EC and Low Voltage
Directive 2006/95/EEC issued by the commission of the European
Community.
1) R&TTE Directive
EMC : ETSI EN 301 489-1,3
RF : ETSI EN 300 220-1,2
: ETSI EN 300
2) EMC Directive
Emission : EN 55022
Immunity : EN 55024
Power : EN-61000-3-2, 3
Declaration of Conformity
“Hereby, Universal Remote Control Inc. declares that this MXW-920i
is in compliance with the Essential requirements and other relevant
provisions of Directive 1999/5/EC.”
Certification
Type No.(Model No.) MXW-920i
Batch/Serial No. -
Power Rating 6.0V [AAA BATTERY 4EA]
Frequency band 433.92 MHz
Page 15
MXW-920i OWNER’SMANUAL
Declaration of Conformity
Company Name : Universal Remote Control Inc.
Company Address : 500Mamaroneck Avenue, Harrison, NY 10528, U.S.A
Contact Information : www.universalremote.com
Phone: (914)835-4484 Fax: (914)835-4532
Brand Name : UNIVERSAL remote control
Product Name : RF Remote Controller
Model Name : MXW-920i
This product herewith complies with the requirements of EMC Directive (2004/108/EC)
and R&TTE Directive(1995/5/EC) issued by the Commission of the European Community
Compliance with these directives implies conformity to the following European Community
EMC Directive
EN 55022
EN 55024
EN 61000-3-2
EN 61000-3-3
R&TTE Directive
ETSI EN 301-489-1,3
ETSI EN 300 220-1,2
ETSI EN 300
List of test reports and/or certificate verified compliance with the standards above
Date of issue : March 16, 2012
Name and signature of authorized person :
EMC Directive
Report No.
Testing Laboratory : Gumi College EMC Center
R&TTE Directive
Certificate No.
Certificate Body : SIEMIC (No. 2200)
James Novak
Senior Product Manager
Universal Remote Control Inc.
500 Mamaroneck Avenue, Harrison, NY 10528
Phone: (914) 835-4484 Fax: (914) 835-4532
www.universalremote.com
OCE-0124A Rev 01
