Ohsung Electronics URCRF20N RF REMOTE CONTROLLER User Manual User s Manual I

Order Number : GETEC-C1-09-209 FCC Part 15 subpart C

Test Report Number : GETEC-E3-09-121 Page 1 / 1

EUT Type: RF Remote Controller

FCC ID.: OZ5URCRF20N

APPENDIX I

: USER’S MANUAL

1

Congratulations on purchas-

ing Universal Remote

Control’s

MASTERCONTROL™

RF20 Pre-programmed and

Learning Remote Control!

You now have the power to

control your entire home

entertainment system with

one easy-to-use remote.

The RF20 can be used with

thousands of audio/video

Components because of the

extensive code library

pre-programmed into the

remote. And, the RF20’s

impressive lineup of special

advanced features can

automate and customize the

operation of your system

in many ways. So... get

ready to sit back, relax

and simplify your home

entertainment experience.

The Quick Setup DVD

Program Guide supplied

with the RF20 will assist you

in programming your remote

by guiding you through an

easy step-by-step process.

This Owner’s Manual is

designed as a companion

reference source to the

DVD Guide, should you

need to refer back to a

particular section, or review

certain instruction detail not

covered in the DVD.

However, if you are unable

to watch the DVD Guide for

some reason, everything

you need to know about

programming the RF20 is

contained in this Manual.

Congratulations!

500 Mamaroneck Avenue, Harrison, NY 10528

Phone: (914) 835-4484 Fax: (914) 835-4532

MASTERCONTROL™ RF20 Owner’s Manual

The information in this manual is copyright protected. No part of this manual

may be copied or reproduced in any form without prior written consent from

Universal Remote Control, Inc. UNIVERSAL REMOTE CONTROL, INC. SHALL

NOT BE LIABLE FOR OPERATIONAL, TECHNICAL OR EDITORIAL ERRORS /

OMISSIONS MADE IN THIS MANUAL. The information in this manual may be

subject to change without prior notice. MASTERCONTROL, PowerBlaster,

MacroPower, and SimpleSound are trademarks of Universal Remote Control,

Inc. All other brand or product names are trademarks or registered trademarks

of their respective companies or organizations.

WELCOME

The RF20 Remote

2

CONTNETS

The RF20 Remote

LOCATION OF

CONTROLS

Keypad Layout 3

GETTING

STARTED

Overview 4

Battery Installation 4

Activating Component Commands 5

Light Button 6

BASIC SETUP Overview 7

Pre-Programmed Code Method 7

Learning Method 15

Transmitting (Busy Signal) Icon. 19

Child Lock Feature 19

CUSTOMIZING

YOUR RF20

WITH SPECIAL

ADVANCED

FEATURES

Customizing the LCD Screen 20

Favorite Channel Setup 23

MacroPower™ Setup 26

SimpleSound™ Setup &

Other 'Punch Throughs' 30

Setting Backlight Options 32

Hiding & Adding Pages 33

Recalling Pre-programmed

Setup Code Numbers 35

Cloning other RF20s 36

ERASING

COMMANDS

Overview 37

Erasing Learned Button,

Macro or Favorite

Channel Commands 37

Re-setting RF20 to Original

Factory Default Settings 39

THE OPTIONAL

POWERBLASTERTM

PowerBlasterTM 41

PRE-

PROGRAMMED

CODE TABLES

TV 45

CABLE 48

DVD 50

VCR 53

AUDIO 55

SAT 58

CD 59

DVR 61

AUX 62

Pre-Programmed Code Tables 44

PREPROGRAMMED

CODE NOTES

Pre Programmed Code Notes 43

OTHER

INFO

FAQ 64

Warranty 65

Specifications 66

Federal Communication Commission

Interference Statement 74

Warning 74

FCC Caution 74

3

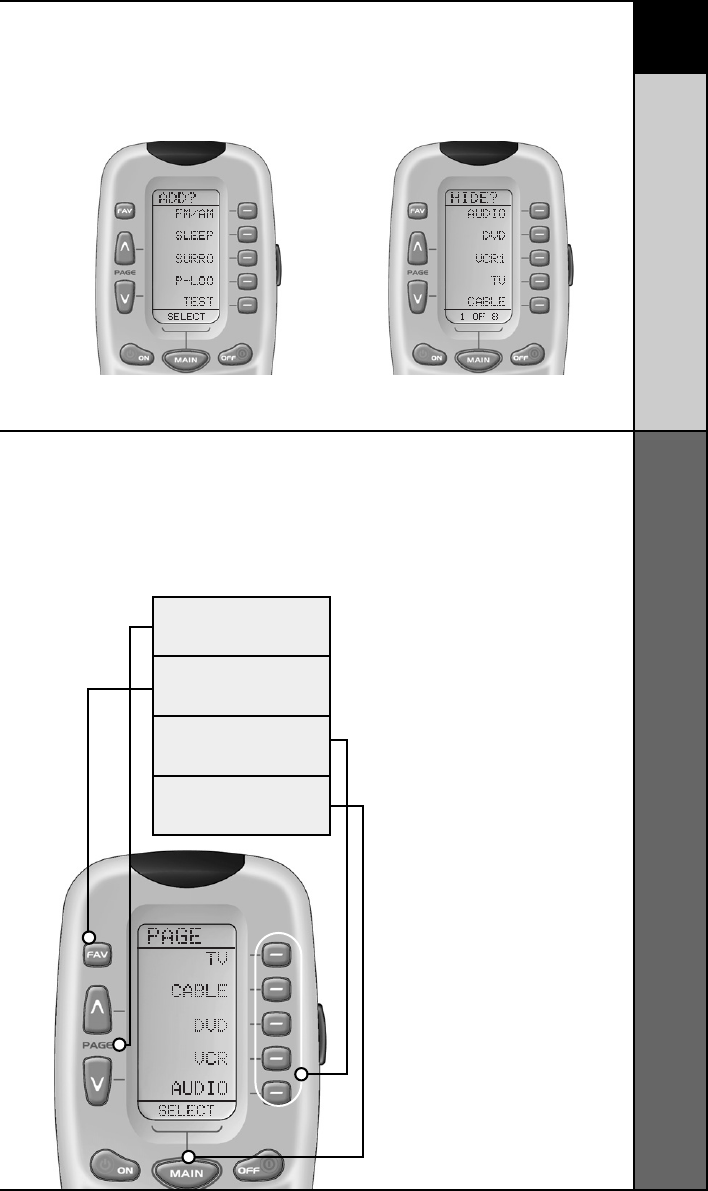

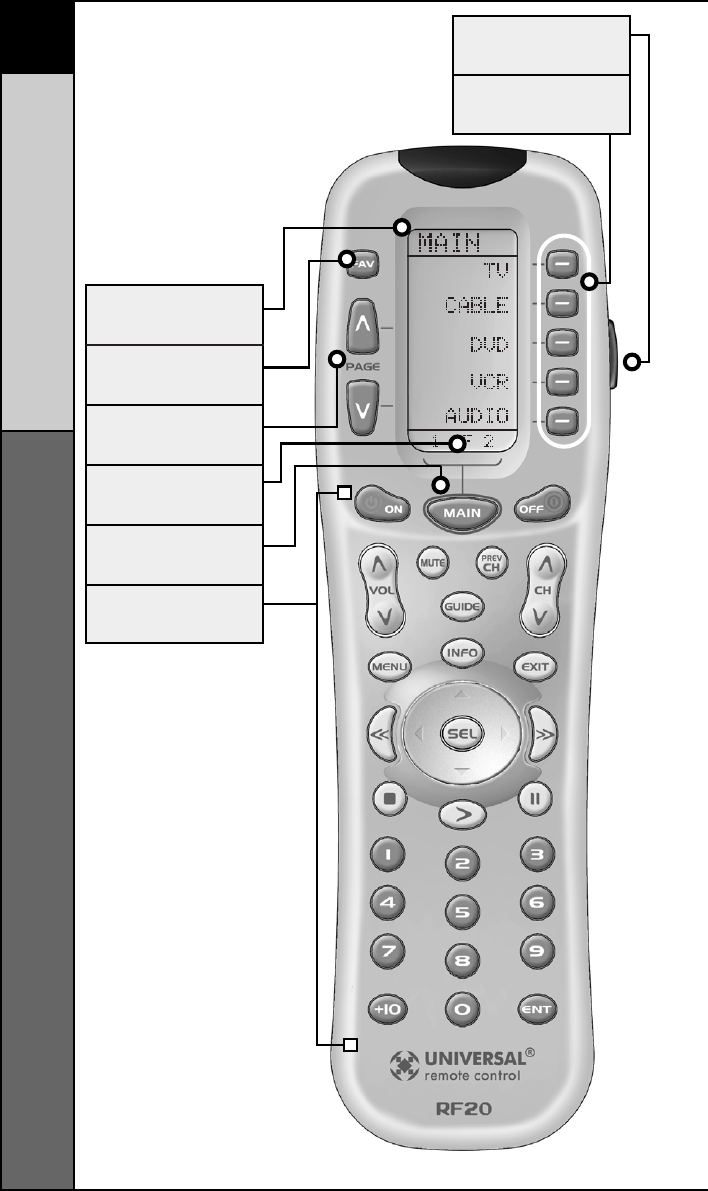

Keypad Layout

CONTROL LOCATIONS

TITLE

FAVORITE

CHANNEL

PAGE

BUTTONS

changes the page of

buttons displayed

PAGE

NUMBERS

LIGHT

BUTTON

SCREEN-LABELED

DISPLAY BUTTONS

MAIN

BUTTON

takes you to the main menu

FUNCTION

BUTTONS

4

GETTING STARTED

Overview & Battery Installation

Getting Started-Overview

This is what MASTERCONTROL™ RF20 is all about!

The RF20 is designed to operate up to 10 different

Audio/Video Components and is pre-programmed to

operate virtually all brands of TV, VCR, DVD and CD Players,

Cable Set Top Boxes, Satellite Receivers, TiVo and other

DVRs, Audio Components, Tape Decks, Multimedia PCs,

XM Radio, Ipod, X-Box, Lighting Controls and other custom

installation products. It also offers an impressive lineup of

special features designed to provide you with many

time-saving conveniences and enhance your overall

entertainment experience. However, we strongly

recommend that you fully complete all of the Basic Setup

steps before proceeding to customize your RF20 with any of

the special advanced features.

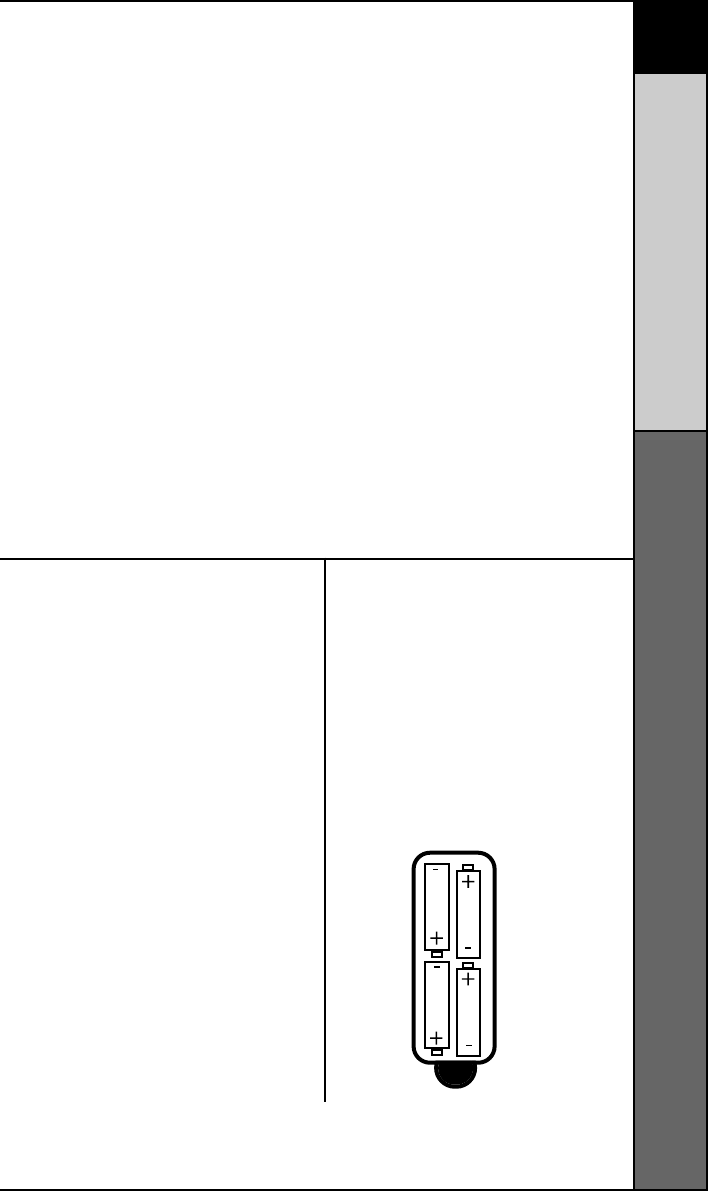

Battery Installation

The very first step is to

insert the four AAA

batteries that are included

in the package into the

battery compartment

located in the back of the

remote. Just press the tab

and lift off the cover.

Please be sure to insert the

batteries correctly as you

see in the diagram.

Remember, there is a

positive and negative end to

each battery and you can

tell by the + (positive) and

- (negative) symbols. Once

the batteries are correctly

installed, replace the cover.

Now you’re ready to start!

5

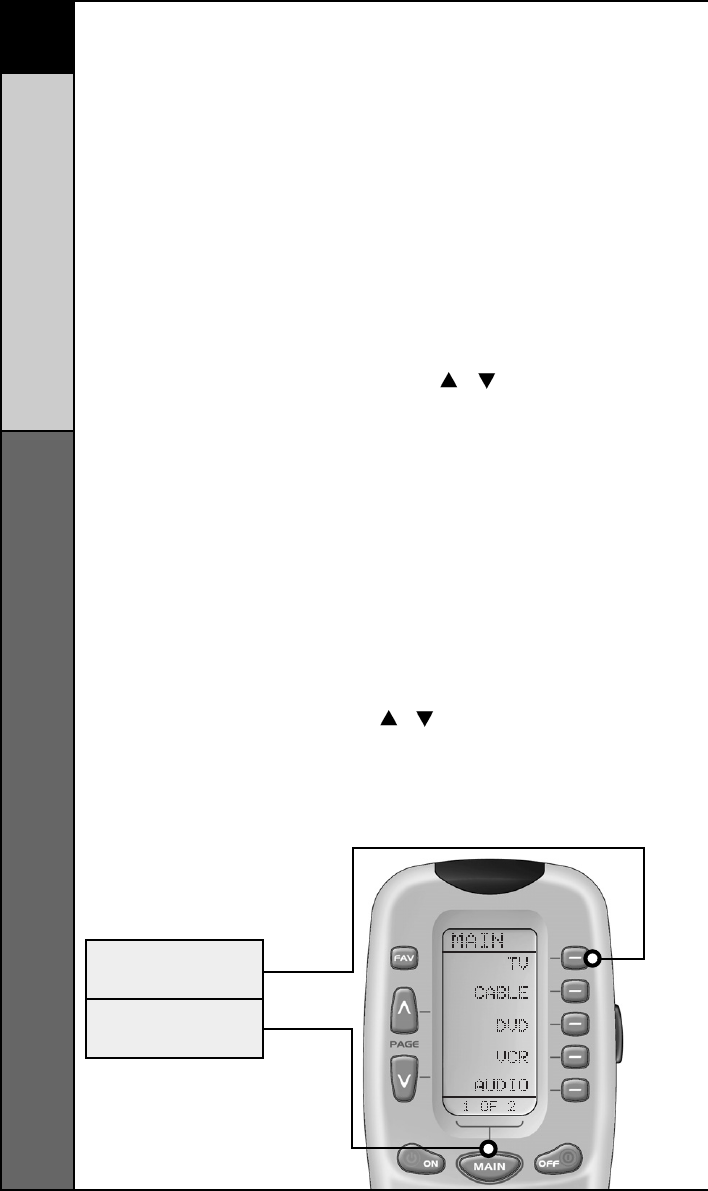

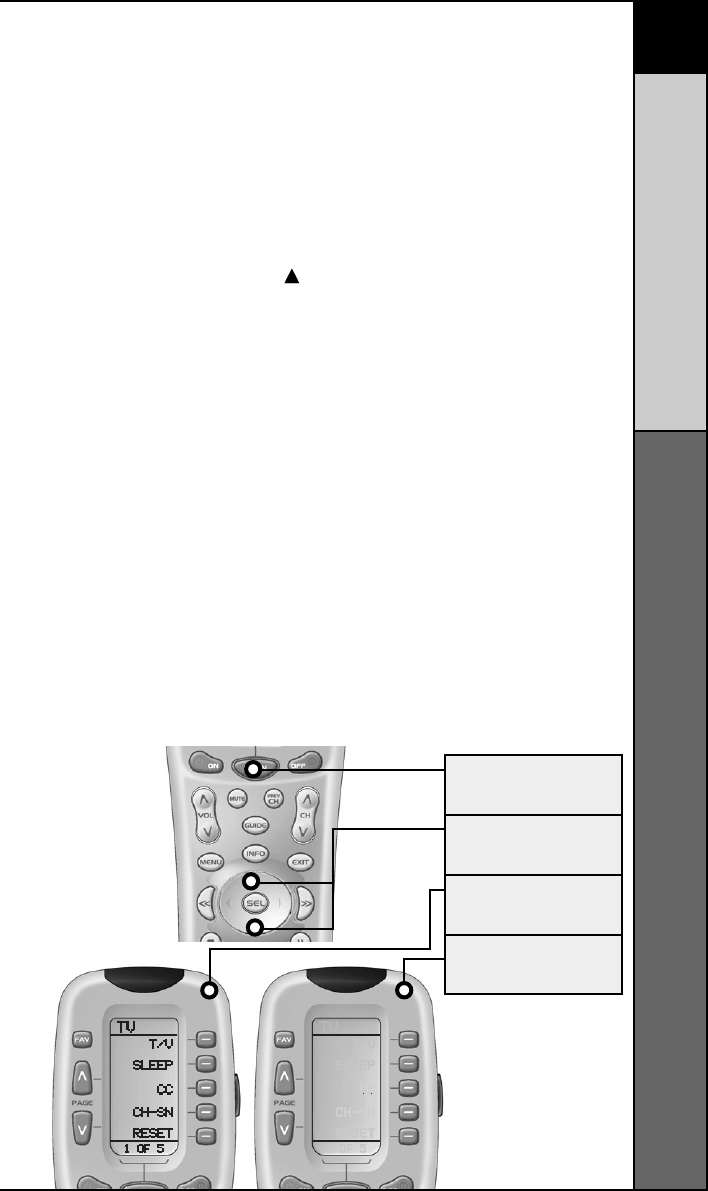

Activating Component Commands

GETTING STARTED

Activating Component Commands –

Simple, Easy, Intuitive

Once you’ve programmed

RF20 for your Components,

all you have to do to operate

a specific Component is

first, press the MAIN but-

ton. This will display Page 1

of the MAIN menu on the

LCD screen. Page 1 of the

MAIN menu displays five

Components. Then, simply

select the Component you

want to operate by pressing

the corresponding Screen-

Labeled Component Display

Button on the right side of

the LCD Screen. As an

example, if you press the TV

Display Button, the display

label at the top of the

screen will change from

MAIN to TV, and all the but-

tons on RF20 will work your

TV. To operate another

Component, simply press

the MAIN button again to

return to Page 1 of the

MAIN menu and select the

next Component you want

to operate.

If you don’t see the

Component you want to

control on Page 1 of the

MAIN menu, just use the

PAGE ( ) ( ) buttons on the

left side of the screen to

bring up Page 2 of the MAIN

menu which displays an

additional five Components.

Each Component is

provided with five pages of

pre-labeled command

display buttons (or space

for additional command

display buttons). Once

again, simply use the PAGE

() ( ) buttons to take you to

the next command page, or

return you to the previous

command page.

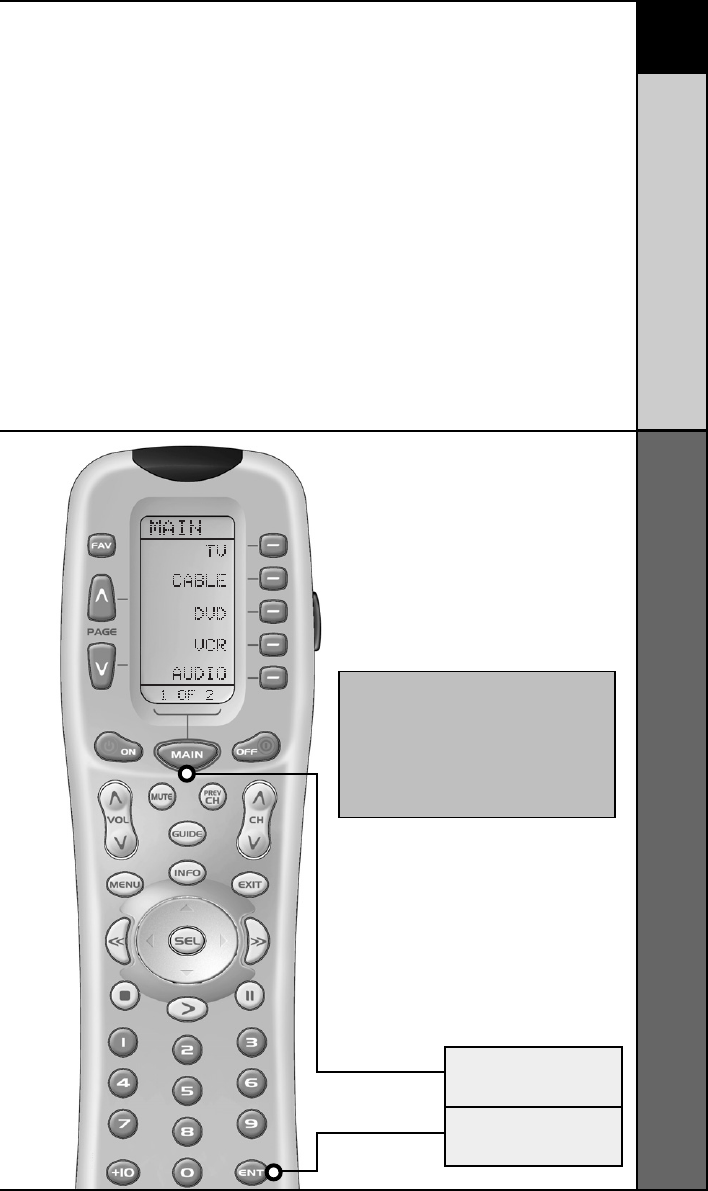

TV DEVICE

BUTTON

MAIN

BUTTON

6

GETTING STARTED

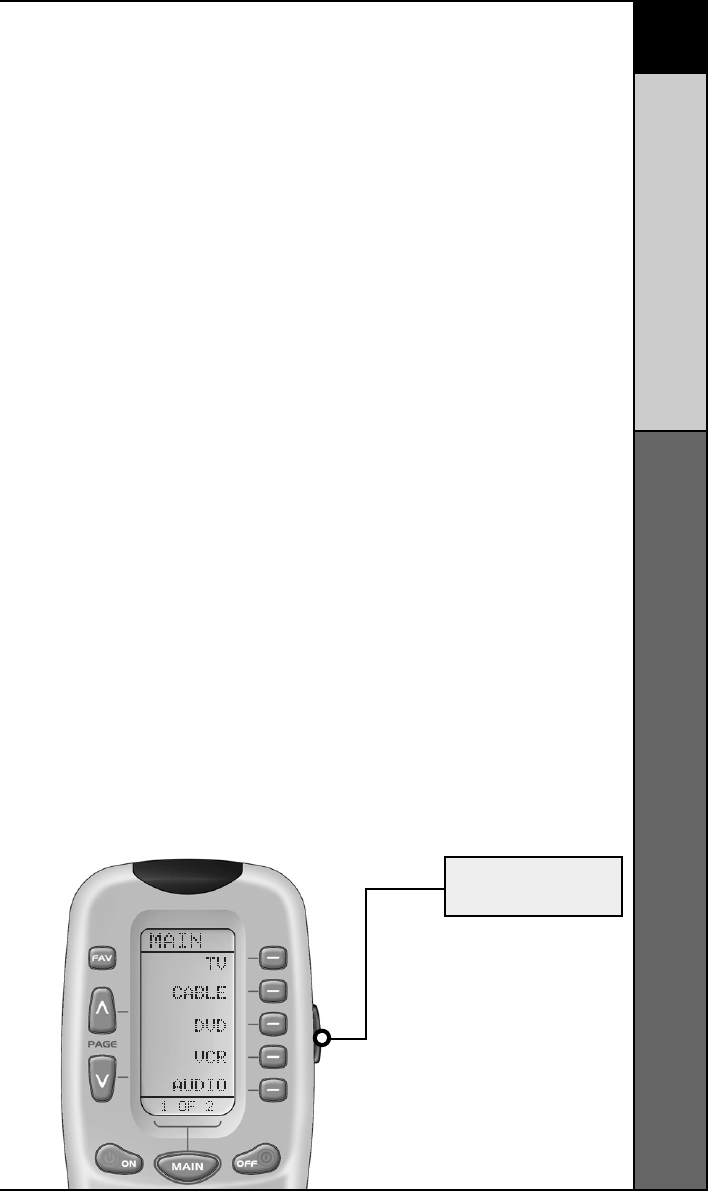

LIGHT BUTTON

Light Button

The fully backlit keypad makes the RF20 easy to use in the

dark or dim lighting conditions. Simply press the LIGHT

button to backlight all the keypad buttons and LCD screen.

To turn off the backlight, press the LIGHT button again, or

just wait ten seconds (the backlight automatically shuts

itself off). Lights out!

Try it out!

LIGHT

BUTTON

7

Overview &

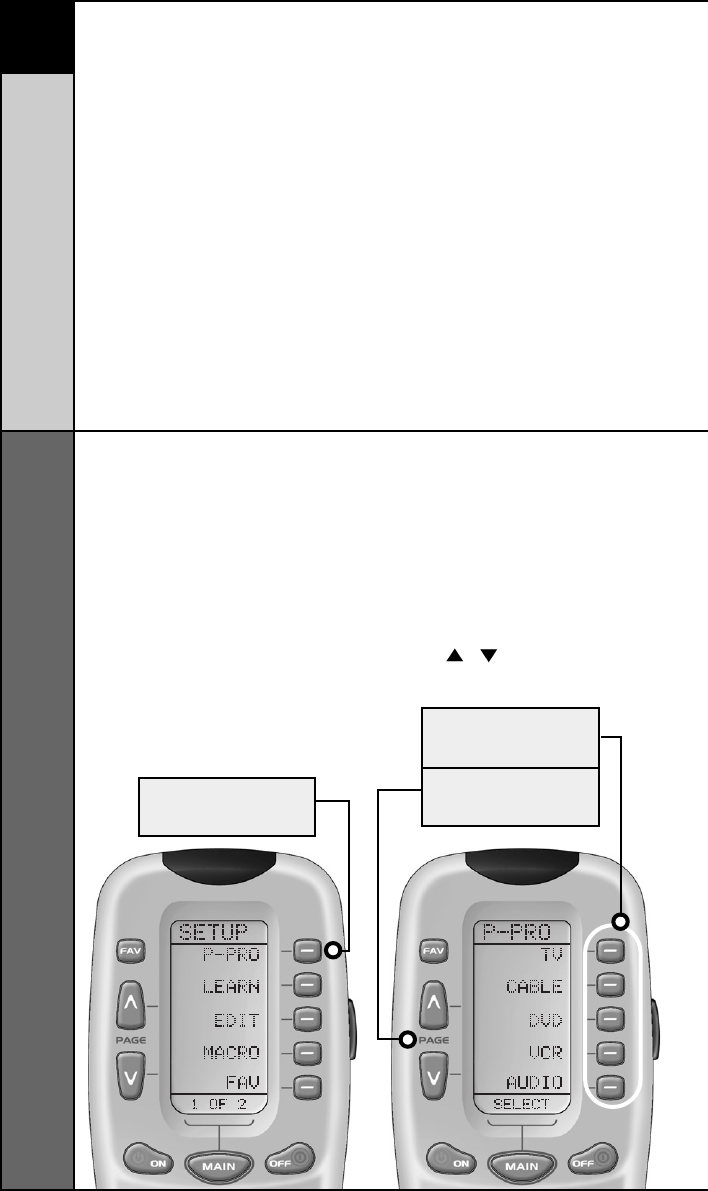

Pre-Programmed Code Method

BASIC SETUP

STEP 1:

The pre-programmed 3-digit

codes are found in the back of

this Manual on page 45. The

codes are listed by Component

category (i.e., TV, VCR, DVD,

etc.), then by brand name. For

instance, if you want to locate

a code for a Sony TV, first

locate the TV category, and

then look for the Sony brand.

Once you have located the

3-digit code (or in some cases,

several code numbers) for the

Component that you want to

operate with your RF20, write

them ALL down on a piece of

note paper. It’s important that

you write down all the codes

because only one code is going

to work for you.

STEP 2:

Now, turn on the Component

you want to program... let’s say

your TV to start. Look up your

TV’s manufacturer setup code

from your reference list.

Pre-Programmed Code Method

Basic Setup - Overview

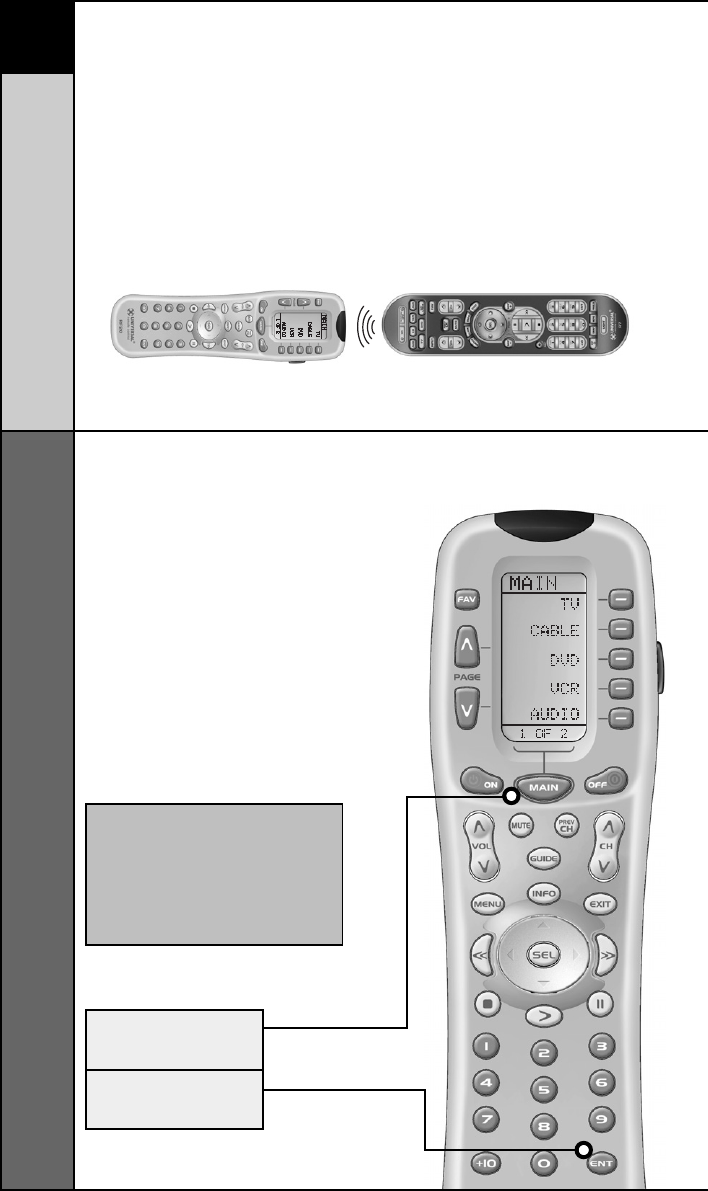

There are two ways to program the RF20:

• The Pre-Programmed Code Method

• The Learning Method

The Pre-Programmed Code Method allows you to set up

all the buttons at once, so it’s the fastest and easiest of

the two methods. The Learning Method allows you to

transfer functions from other remotes (old or new), one

button at a time.

8

BASIC SETUP

Pre-Programmed Code Method

STEP 3:

Press and hold the MAIN and ENT

(Enter) buttons at the same time

for approximately 3 seconds, until

the word “SETUP” is displayed at

the top of the LCD screen. This

signals that you are now in setup

mode.

IMPORTANT:

You now have 30 seconds to perform

the next step while you are in SETUP

mode. If you don’t press a button

within 30 seconds, SETUP will disap-

pear from the screen, signaling that

you have exited setup mode and you

will need to start over.

MAIN

BUTTON

ENTER

BUTTON

9

Pre-Programmed Code Method

BASIC SETUP

The screen will then display the

five Components from Page 1 of

the MAIN menu.

To display Page 2 of the MAIN

menu that lists an additional five

Components, simply press the

PAGE ( ) ( ) buttons.

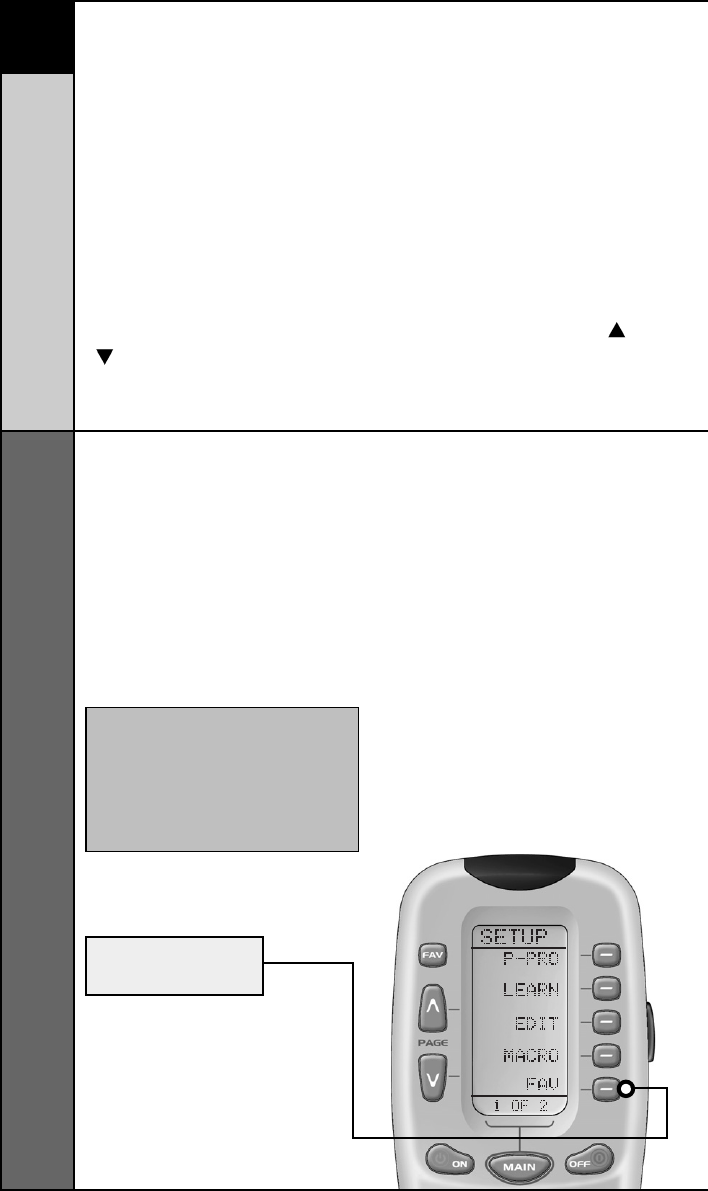

STEP 4:

Press the P-PRO display button

to select the Pre-Programmed

Method.

FIRST FIVE

DEVICE NAMES

PAGE

BUTTONS

P-PRO

BUTTON

10

BASIC SETUP

Pre-Programmed Code Method

STEP 6:

In this step you verify the type

of component you plan to

operate with this component

button. For example: If you plan

to operate the TV component

with the TV button, simply press

the TV display button once

again. However, if for example

you are setting up AUX to

operate a second DVD Player,

you would first need to press

AUX in Step 5, and then DVD

in Step 6.

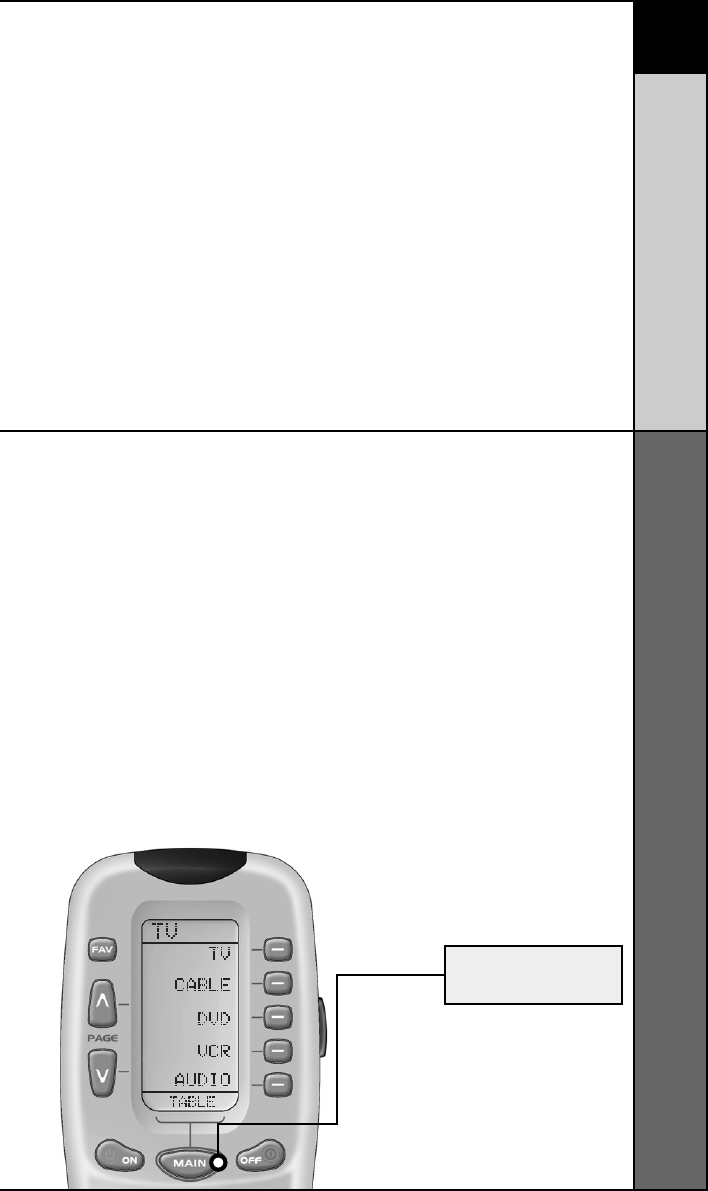

STEP 5:

Press the Component display

button you want to program.

For example: If you want to

setup the TV Component

button, press the TV Compo-

nent display button. The display

at the bottom of the LCD screen

will flash “FROM - TABLE”.

11

Pre-Programmed Code Method

BASIC SETUP

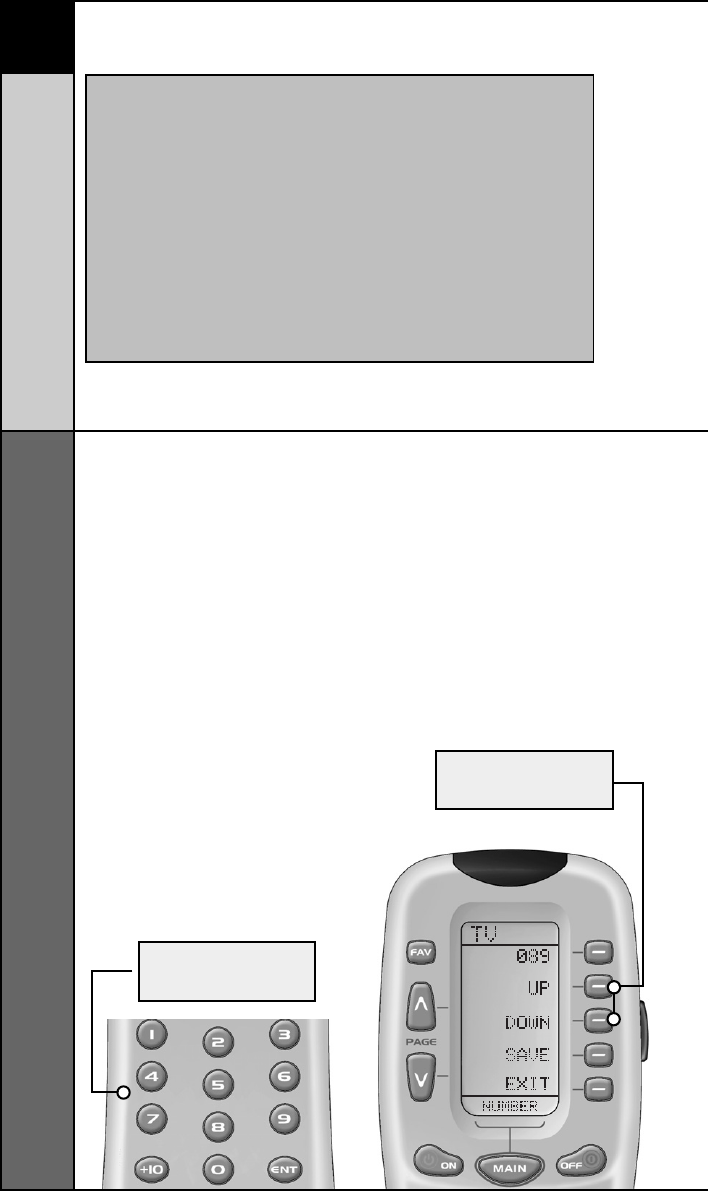

NOTE:

If the Component fails to turn off after you have

entered all the code numbers listed for your brand,

you can scan through all the other code numbers

that are pre-loaded into the RF20 for that Component

(in this case TV) by using the UP or DOWN display

buttons on the screen. (There is a chance that your

Component was actually manufactured by another

brand.) However, most of the code tables are so

large that it is usually faster to use the Learning

Method on Page 15.

STEP 7:

Point the RF20 toward the

Component you want to

program, (in this example, TV),

and punch in the 3-digit code

that you wrote down for that

specific Component. Use the

Number buttons 0-9 on the

remote to punch in the code.

If the 3-digit code number that

you just punched in is correct,

the Component will turn off.

If the Component does not turn

off, continue entering code

numbers from your list until the

Component turns off. Some

brands have several possible

code numbers.

STEP 8:

When the Component turns off,

press the ON button to turn the

Component back on. Now you

can test the Volume and

Channel buttons (for TV), or

PLAY and STOP (for VCR and

DVD) to make sure they all

work. If any of the buttons do

not work properly, you need to

find a new correct code. For

UP & DOWN

BUTTONS

NUMBER

BUTTONS

12

BASIC SETUP

Pre-Programmed Code Methoda

example, maybe your Sony TV

turned off with code number 147,

but the volume controls did not

work properly. If this is the case,

try the next code number listed

for that Component until you find

a perfect match.

ON

BUTTON

VOLUME

BUTTONS

CHANNEL

BUTTONS

PLAY

BUTTON

STOP

BUTTON

13

Pre-Programmed Code Method

BASIC SETUP

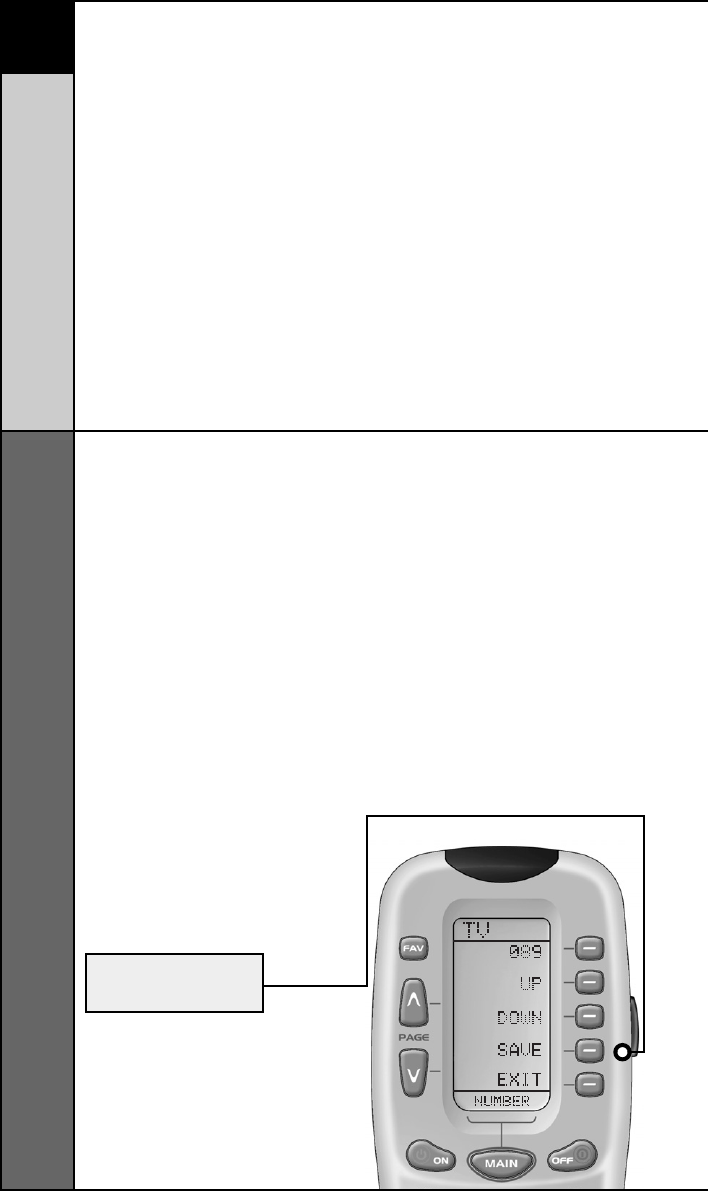

STEP 9:

Once you have found the right

code, save the code number by

pressing the SAVE display

button that appears on the LCD

screen. The LCD screen will

blink “SAVED” two times,

signaling that the code number

has been successfully saved.

SAVE

BUTTON

14

BASIC SETUP

Pre-Programmed Code Methoda

MAIN

BUTTON

STEP 10:

Exit SETUP mode by pressing

the MAIN button two times.

When the LCD screen displays

MAIN, you are back in normal

operating mode.

NOW, PROGRAM THE REST OF YOUR

COMPONENTS BY REPEATING STEPS 1

THROUGH 9. IN MOST SYSTEMS,YOU

CAN FINISH BASIC SETUP IN JUST A

FEW MINUTES AND PUT ALL YOUR OLD

REMOTES AWAY.

IF YOU ARE STILL MISSING

COMMANDS TO CONTROL ANY OF

YOUR COMPONENTS, USE THE

LEARNING METHOD

ON PAGE 15.

15

Learning Method

BASIC SETUP

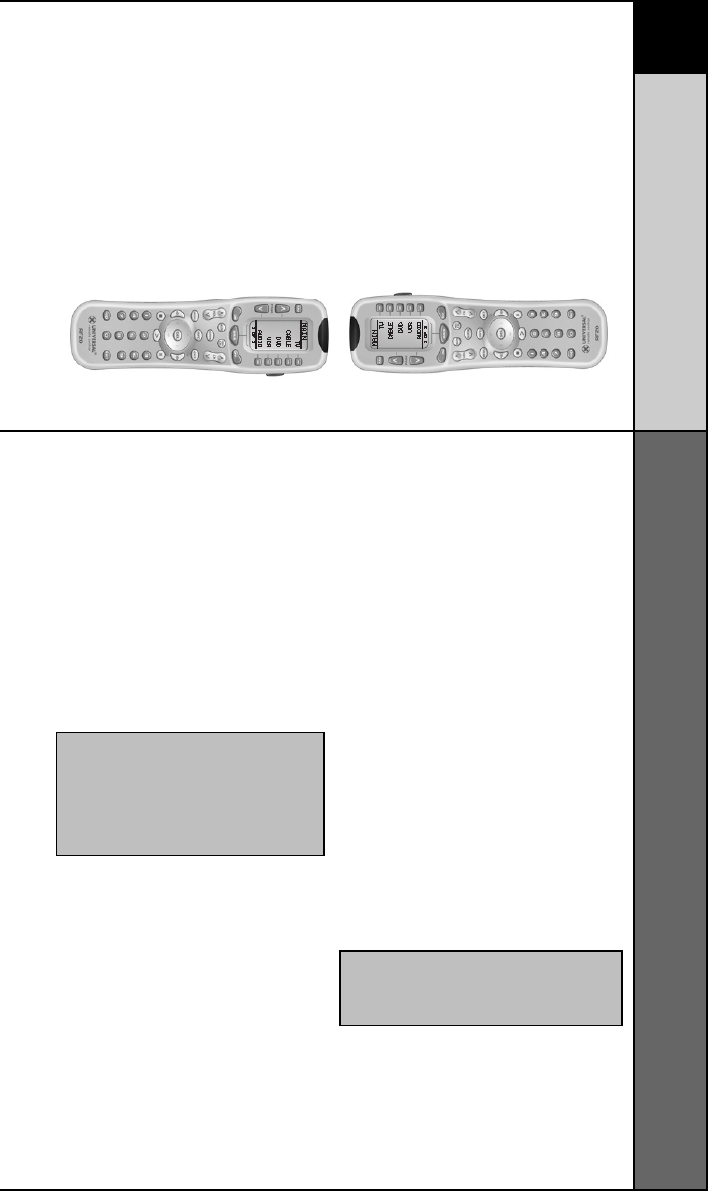

STEP 1:

Line-up the RF20 with the other

remote control, head-to-head,

one or two inches apart.

STEP 2:

On the RF20, press and hold

the MAIN and ENT (Enter)

buttons at the same time for

approximately three seconds,

until the word “SETUP” is

displayed at the top of the LCD

screen. This signals you are

now in SETUP mode.

IMPORTANT

You now have 30 seconds to perform

the next step while you are in SETUP

mode. If you don’t press a button

within 30 seconds, SETUP will disap-

pear from the screen, signaling that

you have exited setup mode and you

will need to start over.

MAIN

BUTTON

ENTER

BUTTON

Learning Method

The RF20 can actually ‘learn’ commands from other remote

controls (old or new), one-button-at-a-time, so it will never

become obsolete. RF20 is the last remote you’ll ever need!

Just follow these simple steps:

16

BASIC SETUP

Learning Method

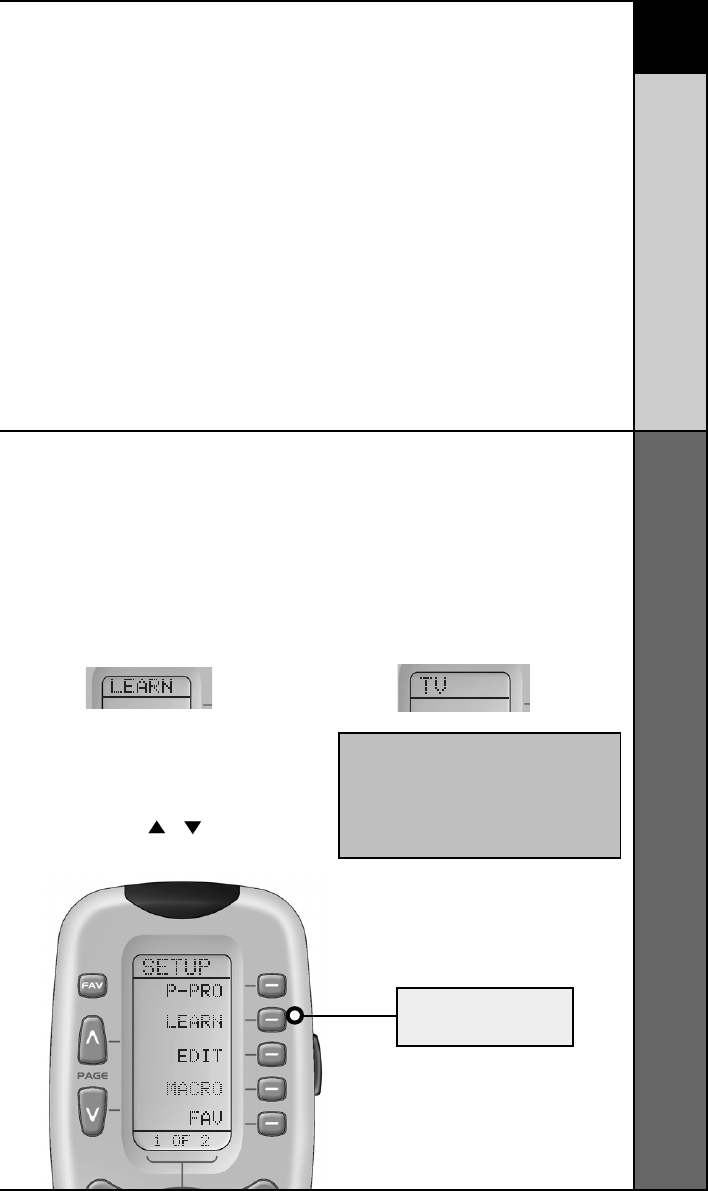

STEP 3:

Press the LEARN display button

on the LCD screen. The top of

the screen will change to

“LEARN” and display the five

Components from Page 1 of the

MAIN menu.

STEP 4:

Select the Component you

want to teach commands to

by pressing that Component

display button on the LCD

screen (in this example, TV).

The top of the TV screen will

change to “TV”.

To display Page 2 of the MAIN

menu that lists an additional

five Components, simply press

the PAGE ( ) ( ) buttons.

NOTE: If you want to teach any command

to a Component button, press the desired

Component display button once the top

of the screen displays “MAIN”, by pressing

the PAGE button.The top of the screen

wil change to “READY”. Then go to STEP 6.

LEARN

BUTTON

17

Learning Method

BASIC SETUP

STEP 5:

Press any button on the RF20

that you want to teach a com-

mand to. The top of the screen

will change to “READY” and

the bottom of the screen will

display the button name you

pressed.

STEP 6:

Press and hold the button on the

other remote control that you

want to ‘teach’ to the RF20 until

the LCD display on the RF20

changes to either “GOOD” or

“FAILD”. If the “GOOD” label

appears on top of the display,

you were successful. If the

“FAILD” label appears on top

of the display, try ‘teaching’ the

same button to the RF20 once

again by repeating STEPS 5

and 6.

STEP 7:

Now, continue to teach the RF20

any other commands from your

other remotes by repeating

STEPS 4 through 6 (to go back

to STEP 4, simply press MAIN

once).

STEP 8:

Once you have completed

teaching all the button commands

to the RF20, return to normal

operation by pressing the MAIN

button twice.

NOTE: If you don't see the display

button you would like to teach on

the LCD screen, use the PAGE

() ( ) buttons. The only

buttons you can't teach are the

PAGE and MAIN buttons.

18

BASIC SETUP

Learning Method

• Move to another room. Plasma

TVs, sunlight, halogen or quartz

lighting can interfere with the

learning process.

• Even though the old remote

seems to be working fine, put in

fresh alkaline batteries.

• Gradually vary the distance

between the remote controls.

Try 1”, 2” and so on, up to 4 feet.

• Try tapping the button on your

old remote instead of pressing

and holding it during the learning

process.

Some additional Information

regarding the Learning Process:

• Learned functions override

any existing pre-programmed

functions on the remote control.

• All buttons can be learned

except for the PAGE, MAIN

and LIGHT buttons.

• Learned functions are

automatically erased when

a new function is learned on

the same button.

• Learned functions are retained

even after a different Setup Code

Number is programmed into

the remote.

• To return to an original

pre-programmed function, a

learned function must be erased.

NOTE: Test all your new commands.

If any of them don’t work, try the

Learning Method again, following

these suggestions:

19

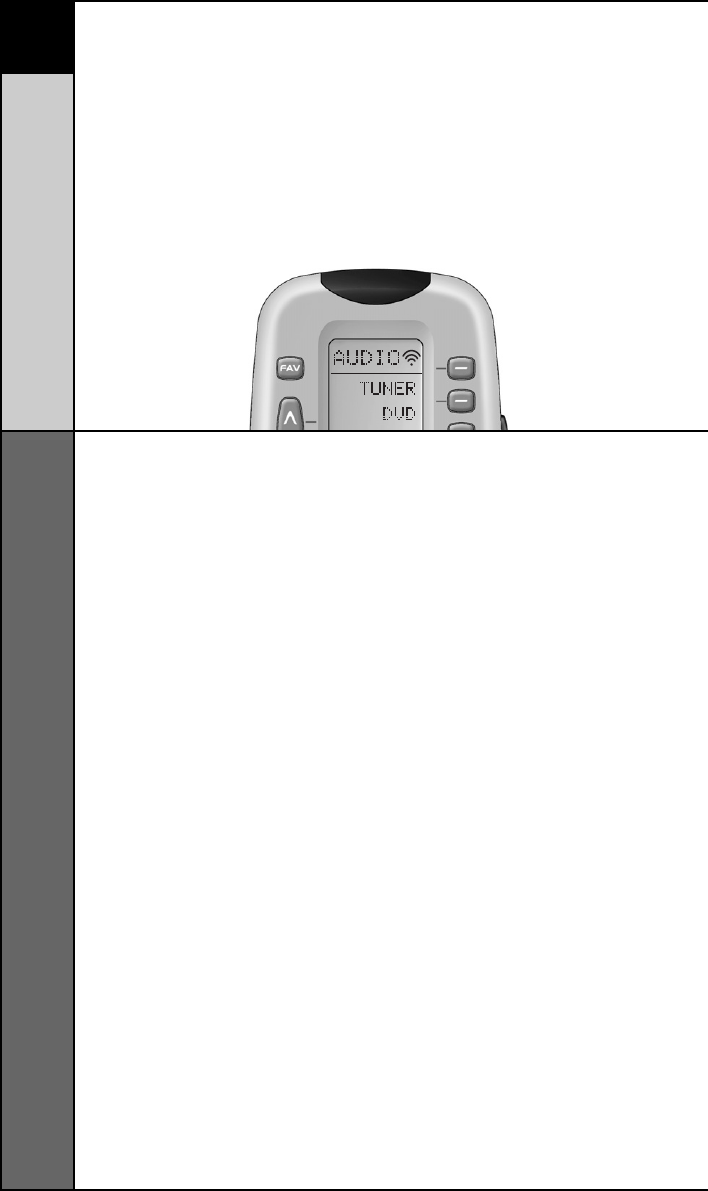

Transmitting (Busy Signal) Icon

BASIC SETUP

Transmitting (Busy Signal) Icon

When a command is being transmitted, an icon will appear

in the upper right corner of the LCD screen. This indicates

that a signal is being sent. This is particularly useful when

setting up Macros and FAVs, since it flashes with every step

of a sequence of commands.

CHILD LOCK FEATURE

This ‘child-lock’ feature prevents the unauthorized use of

the remote control by children. It blocks all operations of

the remote control.

To Activate:

Press the +10 and ENT (Enter) buttons simultaneously for

3 seconds. The bottom of the LCD will blink “LOCKED” three

times and then display “LOCKED”.

To Return to Normal Operation:

Press the +10 and ENT (Enter) buttons simultaneously again

for 3 seconds. The LCD will display the last use mode.

20

CUSTOMIZING

Customizing the LCD Screen

Customizing Your RF20 with Special

Advanced Features

After you’ve finished all your basic setup, you can choose

to make operation easier by customizing the RF20 just the

way you want, using the Special Advanced Setup Features

described in this section.

Customizing the LCD Screen

You can easily edit or change the name of any of the

display buttons (including Favorite Channels) on the LCD

screen by following these steps:

STEP 1:

Press and hold the MAIN and

ENT (Enter) buttons at the same

time for approximately 3 seconds,

until the word “SETUP” is dis-

played at the top of the LCD screen.

This signals that you are now in

setup mode.

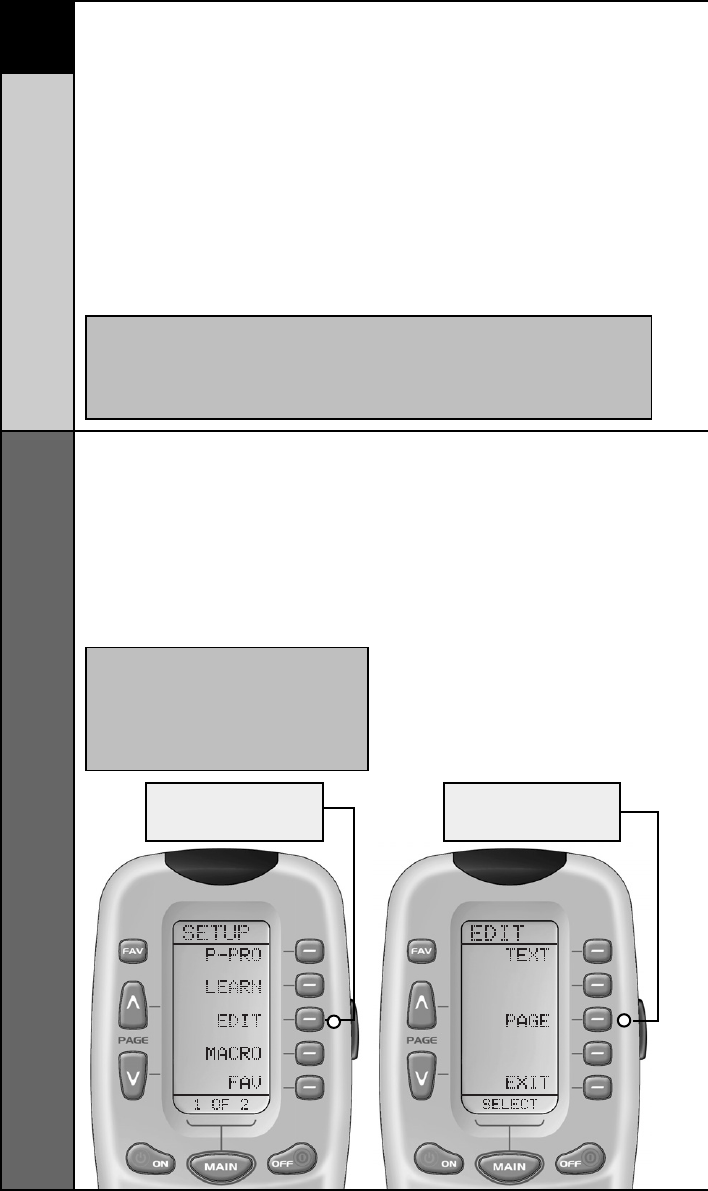

STEP 2:

Press the EDIT display button.

The LCD display will change to

the EDIT menu.

STEP 3:

Press the TEXT display button.

The screen will display the list of

Components and “EDIT” will

appear at the top of the screen.

STEP 4:

Navigate to the Component and

page where there is a button

label you want to EDIT, selecting

between the FAV, MAIN, COM-

PONENT display buttons; then

using the PAGE button.

IMPORTANT:You now have 30 seconds to

perform the next step while you are in

SETUP mode. If you don’t press a button

within 30 seconds, SETUP will disappear

from the screen, signaling that you have

exited setup mode and you will need to

start over.

NOTE: If you wish to change the name of

a Component button, press the Page ( )

Up button twice.The top of the display

will change to MAIN, and you can navi-

gate to MAIN page 1 or page 2 before

going on to Step 5.

21

Customizing the LCD Screen

CUSTOMIZING

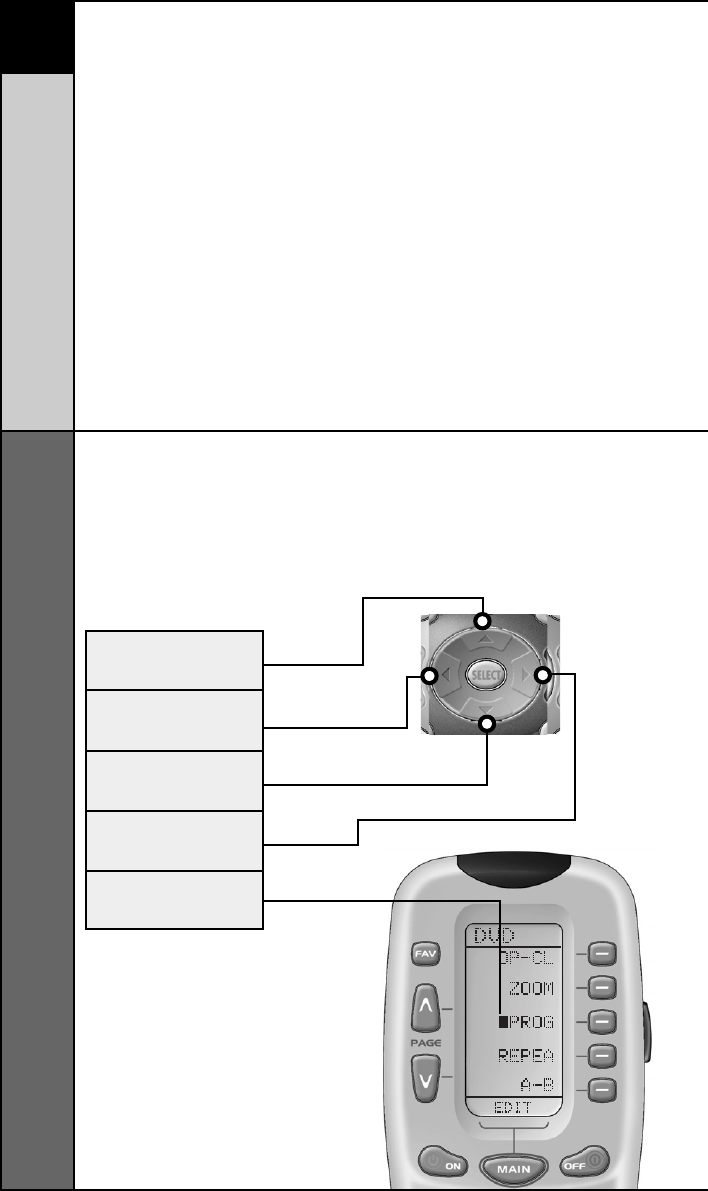

UP CURSOR

Button deletes all test

LEFT CURSOR

Moves blinking

character left

DOWN CURSOR

deletes the currently

blinking character

RIGHT CURSOR

Moves blinking

character right

BLINKING

CHARACTER

STEP 5:

Press the button you wish to

edit. The first character space

of your button label will start

to blink.

22

CUSTOMIZING

Customizing the LCD Screen

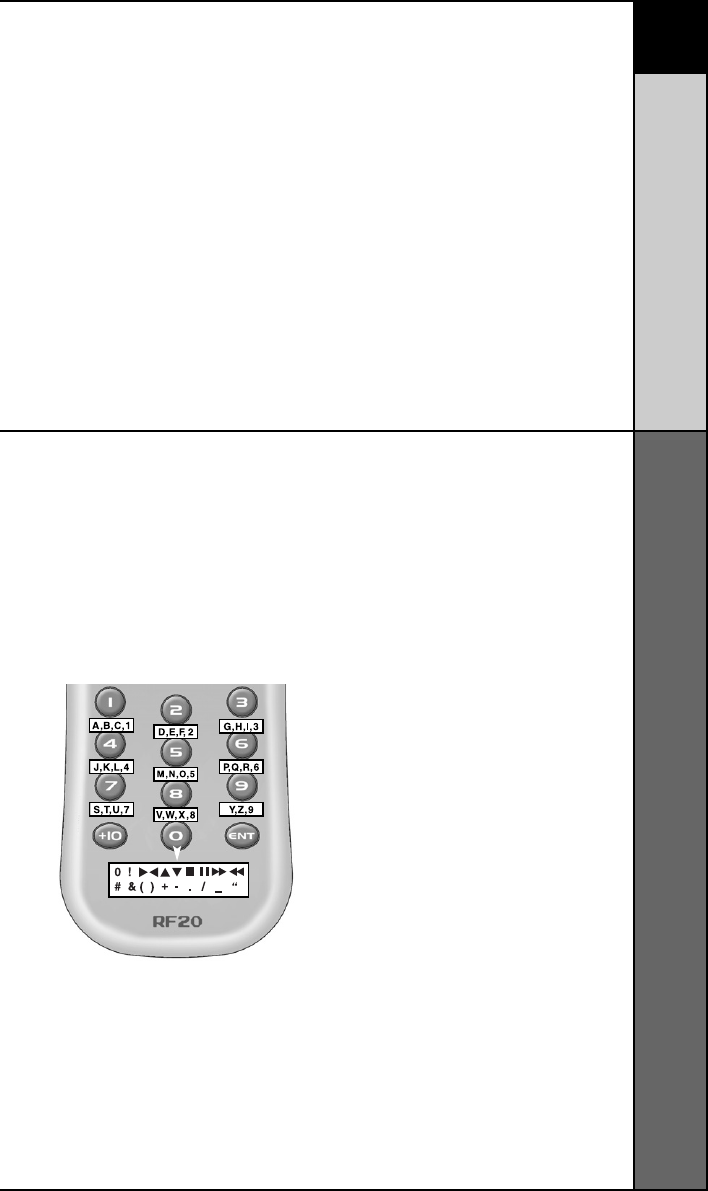

STEP 6:

Change the character by

using any of the number keys.

Each press of the same number

button selects the next

character of that number’s

group, as shown in the

diagram below.

STEP 7:

Once the character you want

appears, move to the next space

by pressing the Right cursor button.

STEP 8:

When you are finished editing

the button, press the button you

edited and “SAVED” will flash at

the bottom of the display.

To change any other button

labels on the same Component,

press the next button, then

repeat steps 6-8. If you wish to

edit a button on another Com-

ponent, press the MAIN button

once, then repeat Steps 4-8.

STEP 9:

Once you’ve finished editing

buttons, press the MAIN button

four times to return to normal

operation.

23

Favorite Channel Setup

CUSTOMIZING

Favorite Channel Setup

This is one of RF20’s most desirable features. Once it’s set

up, you can select up to 40 favorite channels with the press

of a button - without the need to remember or type in a

channel number. Let the channel surfing begin!

To access Favorite Channel listings, simply press the FAV

button to display Page 1 of Favorite Channel listings. There

are eight pages of Favorite Channels, with five Channels on

each page, for a total of 40 Channels. Just use the PAGE ( )

() buttons to locate the Channel you want to setup. Each

Channel can be setup to be instantly selected with the press

of one button.

To setup a Favorite Channel button, follow these steps:

STEP 1:

Press and hold the MAIN and

ENT (Enter) buttons at the same

time for approximately 3 seconds,

until the word “SETUP” is

displayed at the top of the LCD

screen. This signals that you are

now in setup mode.

IMPORTANT:

You now have 30 seconds to perform

the next step while you are in SETUP

mode. If you don’t press a button

within 30 seconds, SETUP will disap-

pear from the screen, signaling that

you have exited setup mode and you

will need to start over.

FAV

BUTTON

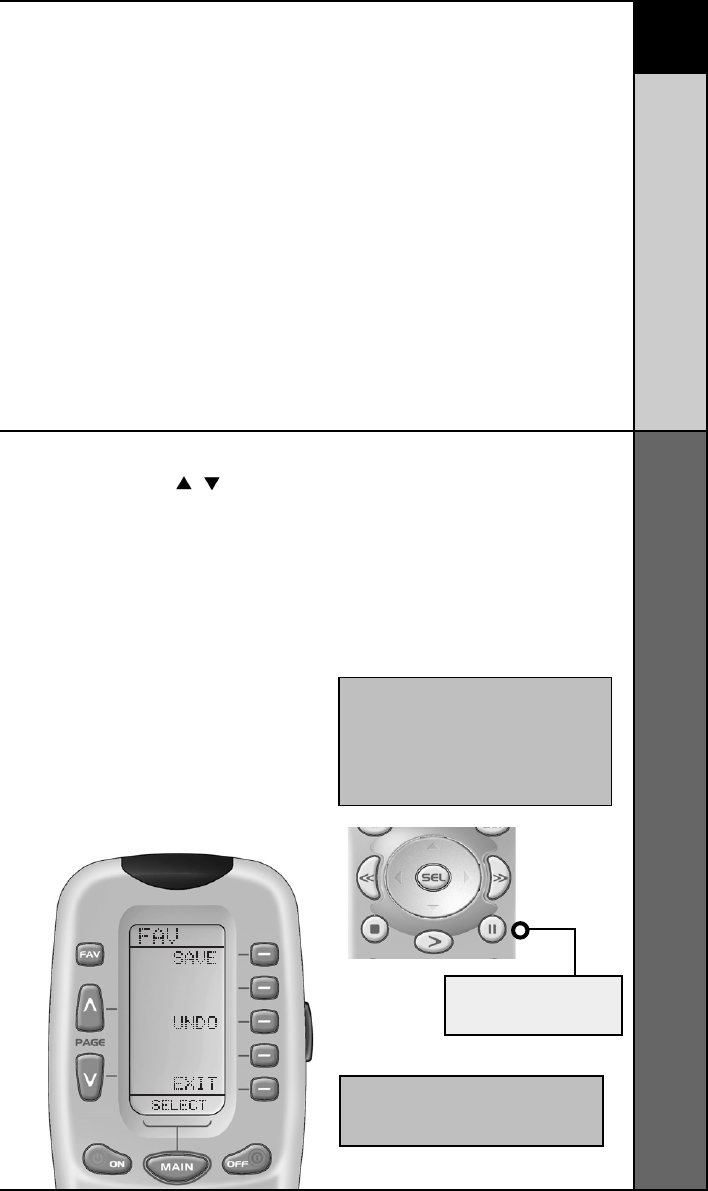

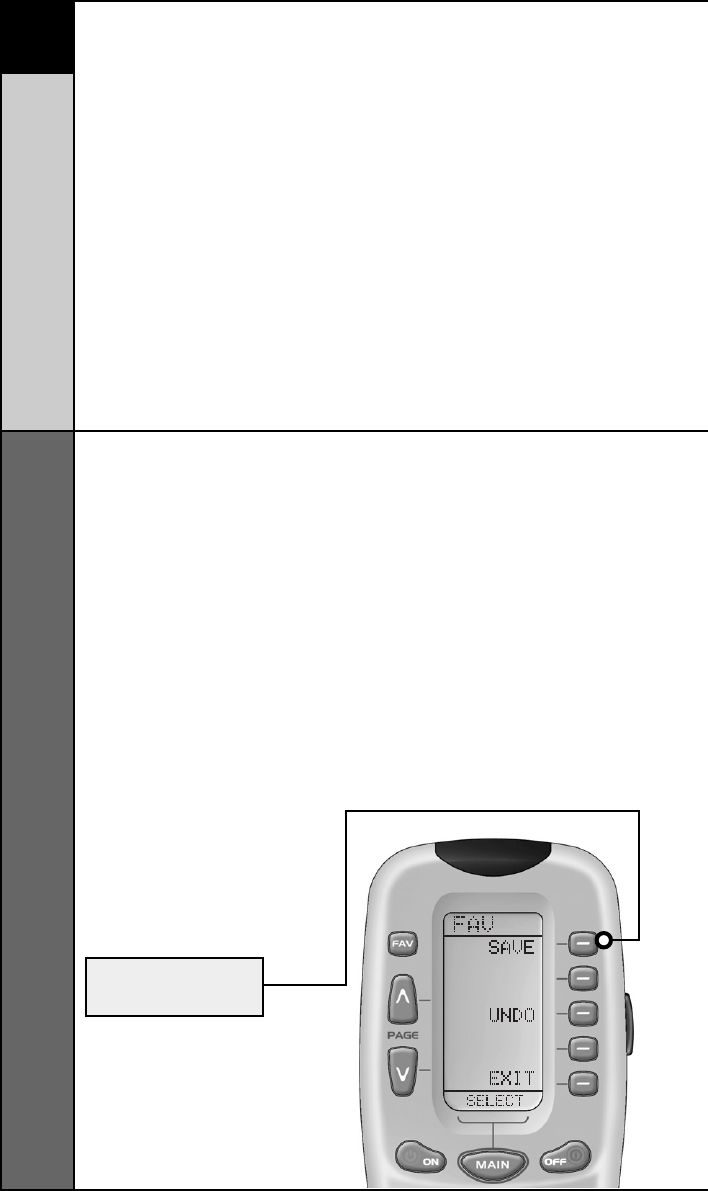

STEP 2:

Press the FAV display button.

The top of the display will show

“FAV”. The bottom of the display

will flash “SELECT”

24

Favorite Channel Setup

CUSTOMIZING

STEP 5:

Press either the TV, SAT or

CABLE Component button (select

the Component you use to enter

channel numbers).

STEP 6:

Press each of the number buttons

for the channel.

Note: If a number is repeated when set-

ting the channel (for example, channel

“33” or “522”), it is usually best to set a

half second delay in between the identi-

cal numbers by pressing the (II) PAUSE

button. Each press of the PAUSE button

increases the delay by a half second.

NOTE: Some brands of television

require an ENT (Enter) command after

the channel numbers.

PAUSE

BUTTON

STEP 3:

Use the PAGE ( )( ) buttons

until you locate the name

(i.e.,ABC, CBS, NBC) of the

favorite channel you want to

setup.

STEP 4:

Press the favorite channel

display button you want to setup.

The top of the screen will

change to show the channel

name. The bottom of the screen

displays “STEP0”, indicating that

you have not entered the

channel number yet.

STEP 7:

Press the LIGHT button after you

enter the channel number.

A new screen appears displaying

SAVE, UNDO or EXIT.

STEP 8:

To save the channel you

entered, press the SAVE display

button. The UNDO display button

lets you erase the last entry. The

EXIT display button erases all

entries for this button.

STEP 9:

When you are finished setting

up Favorite Channel buttons,

press the MAIN button twice to

return to normal operation.

SAVE

BUTTON

CUSTOMIZING

Favorite Channel Setup

25

26

CUSTOMIZING

MacroPower

™

Setup

STEP 1:

Press and hold the MAIN and

ENT (Enter) buttons at the same

time for approximately 3 seconds,

until the word “SETUP” is

displayed at the top of the LCD

touch screen. This signals that

you are now in setup mode.

STEP 4:

Press the first component dis-

play button you want the Macro

to turn on (in this example, TV)

and “TV” will display at the top

of the screen and “STEP 1” at

the bottom.

STEP 5:

Then, press the ON button to

confirm the command and “STEP

2” will display at the bottom of

the screen. (NOTE: Whenever a

button is pressed, another

Macro step is counted and dis-

played at the bottom of the

screen.)

STEP 6:

Now, press the MAIN button to

return to the Main Component

listing. (“STEP 3” will display at

the bottom of the screen.)

STEP 2:

Press the MACRO display button

on the LCD screen. The top of

the screen will display “MACRO”.

The bottom of the display will

flash “SELECT”.

STEP 3:

Press the ON button. “ON” will

display at the top of the LCD

screen. “STEP0” will display at

the bottom of the screen indicating

that no macro steps have been

entered yet.

MacroPower™ Setup

MacroPower™ is a unique feature that enables you to turn

all of your Components ON or OFF, at the same time, simply

with the press of one button.

We call that a “Macro”. What would normally take multiple

remotes and button pushes, the RF20 can accomplish with

the press of one button. In addition to the Power ON or OFF

buttons, any of the Display buttons (on any Component or

Page) can be set to be Macro buttons as well. Feel the

power!

To setup a Power ON macro button that will turn ON several

components at the same time (for example, TV, VCR and

CABLE), follow these easy steps:

IMPORTANT: You now have 30 seconds to

perform the next step while you are in

SETUP mode. If you don’t press a button

within 30 seconds, SETUP will disappear

from the screen, signaling that you have

exited setup mode and you will need to

start over.

27

MacroPower

™

Setup

CUSTOMIZING

STEP 7:

Press the second component

display button that you want the

Macro to turn on (in this example,

VCR) and “VCR” will display

at the top of the screen. (“STEP

4” will display at the bottom of

the screen.)

STEP 8:

Then, press the ON button to

confirm the command. (“STEP

5” will display at the bottom of

the screen.)

STEP 9:

Now, press the MAIN button to

return to the Main Component

listing. (“STEP 6” will display at

the bottom of the screen.)

STEP 10:

Press the third component dis-

play button that you want the

Macro to turn on (in this exam-

ple, CABLE) and “CABLE” will

display at the top of the screen.

(“STEP 7” will display at the bot-

tom of the screen.)

STEP 11:

Then, press the ON button to

confirm the command. (“STEP

8” will display at the bottom of

the screen.)

You can also program delays in

between commands by pressing

the (II) PAUSE button. Each

press adds half a second to the

delay.

NOTE : Don’t worry about the number of

steps. Each macro button can store up to

190 steps, so you are not likely to run out

of steps!

28

CUSTOMIZING

MacroPower

™

Setup

UNDO

BUTTON

EXIT

BUTTON

SAVE

BUTTON

STEP 12:

Press the LIGHT button to end

your macro. A new screen will

appear:

STEP 13:

If you are satisfied with your

macro, press the SAVE display

button. The UNDO display button

lets you erase the last step.

The EXIT display button erases

all the macro steps.

STEP 14:

Press the MAIN button twice to

return to normal operation.

29

MacroPower

™

Setup

CUSTOMIZING

Advanced Macro Options:

SETTING UP A POWER OFF MACRO:

Simply follow the same steps as outlined above, except

press the OFF button in place of the ON button.

SETTING A COMPONENT BUTTON AS MACRO:

If you wish to set one of the Component buttons as a

macro, in STEP 3, press the Page Up button twice. The top

of the display will change to MAIN, and you can navigate to

MAIN page 1 or page 2. Press the Component button you

want to set as a Macro button. The top of the screen will

display the button label you selected. Select the

Component and Page that has a button you want in your

Macro using the MAIN, Component and Page buttons.

Simply press the button(s) with the command(s) you want

in your Macro. Then complete and save the Macro by

following STEPs 12 and 13 as outlined above.

PROGRAMMING A “PRESS & HOLD” MACRO:

Another option for Component button macros is to only

send the macro if the button is pressed and held. This is

setup by entering a delay as the first step of the macro.

The amount of delay determines how long the user must

press the button before the macro is sent. The advantage

of this option is that a normal press of the COMPONENT

button will simply switch Components without sending the

macro command.

30

CUSTOMIZING

SimpleSound Setup &

Other ‘Punch Throughs’

SimpleSound™ Setup & Other ‘Punch Throughs’

SimpleSound™ is a dynamic feature that gives you total

volume control over all the Components in your system,

even those without their own built-in volume control, such

as TiVo, DVD and VCR... saving you the hassle and

inconvenience of constantly needing to switch between

Component modes on the remote. With SimpleSound™,

you can set the RF20’s volume control buttons to always

control the sound in your system, even when you’re in VCR

or DVD mode, without switching back to AUDIO or TV.

Even more exciting, SimpleSound™ is what is called a

‘Punch Through’ feature and is not limited strictly to volume

control. Click and enjoy!

time for approximately 3 seconds,

until the word “SETUP” is dis-

played at the top of the LCD screen.

This signals that you are now

in setup mode.

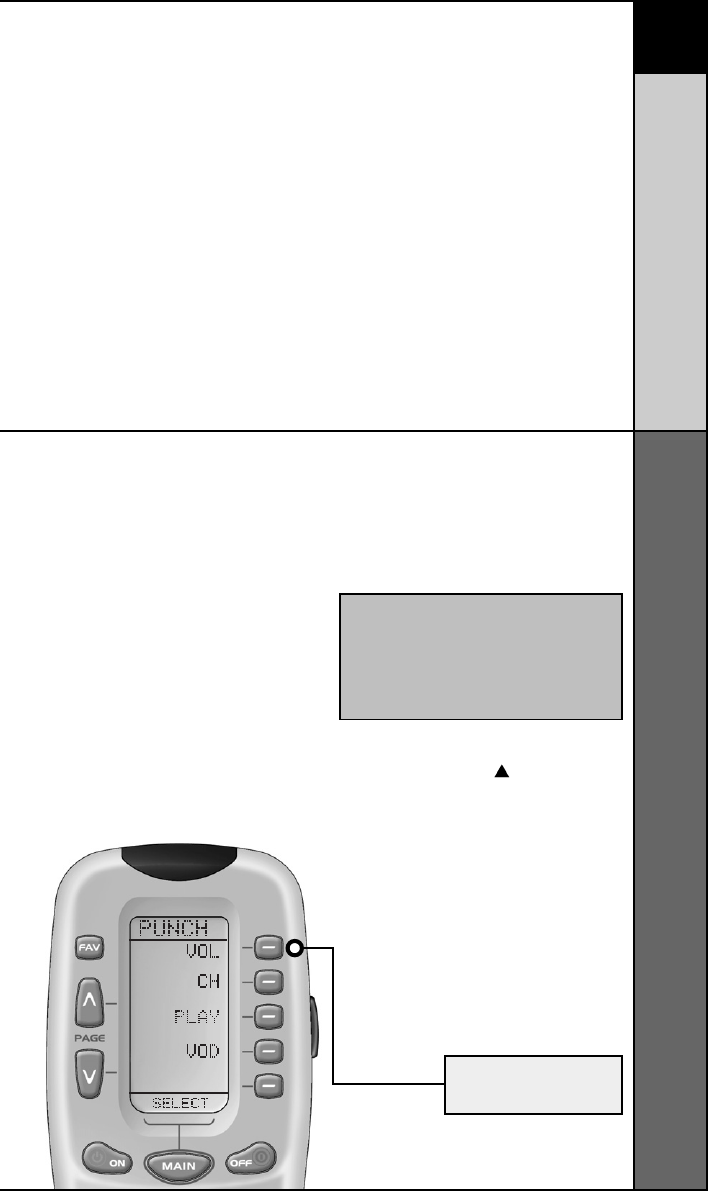

STEP 3:

Press the PAGE ( ) UP button to

display Page 2 of the Setup

Menu on the LCD screen. Press

the PUNCH display button.

STEP 4:

Then press the VOL (Volume)

display button. The screen will

display “VOL” at the top. This

sets up the group of three

buttons (Volume Up, Volume

Down and Mute) in one action!

IMPORTANT:You now have 30 seconds to

perform the next step while you are in

SETUP mode. If you don’t press a button

within 30 seconds, SETUP will disappear

from the screen, signaling that you have

exited setup mode and you will need to

start over.

VOLUME

BUTTON

STEP 1:

In a basic home entertainment

system, the sound may come

from your TV. In a more

advanced system, the sound

may come from your audio

Component such as a Surround

Sound Receiver or Home

Theatre system. So, first, you

need to identify which Com-

ponent you want to use in your

system for sound.

STEP 2:

Press and hold the MAIN and

ENT (Enter) buttons at the same

31

SimpleSound Setup &

Other "Punch Throughs"

CUSTOMIZING

The bottom of the display flashes

“PUNCH TO”. Press the button

for the Component that doesn’t

have volume control commands

yet (i.e.,DVD). This is the Com-

ponent you are going to PUNCH

TO for the volume and mute

commands.

STEP 5:

The bottom of the display will

then flash “PUNCH FROM”. Now

select the Component that has

the volume commands you want

to use (i.e.,TV for systems using

the TV speakers, AUDIO for sys-

tems with surround sound

receivers). The bottom of the dis-

play will flash “SAVED”.

STEP 6:

Repeat STEPS 4-5 until all your

Components operate the volume

perfectly.

STEP 7:

Press the MAIN button twice to

return to normal operating

mode and test your SimpleSound™

settings.

Simply perform the steps outlined

above, but in STEP 4, press one

of the control options (CH, PLAY or

VOD).

NOTE: If you want to PUNCH TO the MAIN

Component, press the POWER OFF button

at this time.

NOTE:The Punch Through feature is not

limited to volume and can also be applied

to channel selection or other functions. If

you find yourself switching to a particular

Component frequently to use a group of

controls, consider using Punch Through for

another group, as listed here:

VOL Volume Up,Volume Down

and Mute

CH Channel Up, Channel Down,

Previous Ch and Channel

(0-9) buttons.

PLAY Play, Stop, Pause, Rewind

and Fast Forward

VOD Guide, Menu, Info, Exit, Up,

Down, Left, Right, Select

32

CUSTOMIZING

Setting Backlight Options

You can customize the backlighting feature to suit your

specific preferences by following these simple steps:

Adjusting Length of Backlight Time

You can adjust the amount of time that the RF20 backlight

stays on by entering the SETUP mode and proceeding to

page 2 (using the PAGE ( ) UP button), then pressing the

LIGHT display button on the LCD screen (not the Backlight

button). Then enter the amount of time you would like the

light to stay on using the number pad (0-99 seconds). After

making your selection, press the SAVE display button.

Adjusting Contrast

You can make the text darker by pressing both the MAIN and

cursor UP buttons at the same time. To make the text appear

lighter, press both the MAIN and cursor DOWN buttons at the

same time.

Turning OFF Backlighting

If you don’t want backlighting at all (this extends battery

life), press the ON display button that appears on the

screen. The ON will change to OFF. Press the SAVE display

button. Exit the setup mode by pressing the MAIN button.

UP & DOWN

CURSOR

HIGH

CONTRAST

LOW

CONTRAST

MAIN

BUTTON

33

Hiding and Adding Pages

CUSTOMIZING

IMPORTANT:You now have 30 seconds to

perform the next step while you are in

SETUP mode. If you don’t press a button

within 30 seconds, SETUP will disappear

from the screen, signaling that you have

exited setup mode and you will need to

start over.

EDIT

BUTTON

PAGE

BUTTON

NOTE: Be sure to program your Macros before you hide pages

with potential macros in them. You can’t access hidden pages

during macro setup. However, after you finish Macro setup, you

can hide pages without affecting operation of your macros.

Hiding and Adding Pages

Each of your RF20 Components actually contains eight

pages. However, only five pages are visible in the factory

default setting. Three page are hidden in each Component.

If you wish to use the hidden pages, you can ADD it. If you

don’t want to use some of the existing pages, you can HIDE

them. You can add or hide pages on Components OR on

your favorite channel pages using this simple process:

STEP 2:

Press the EDIT display button on

the LCD screen.

STEP 3:

Press the PAGE display button

once the screen changes to

EDIT mode.

STEP 1:

Press and hold the MAIN and

ENT (Enter) buttons at the same

time for approximately 3 seconds,

until the word “SETUP” is dis-

played at the top of the LCD screen.

This signals that you are now

in setup mode.

34

CUSTOMIZING

Hiding and Adding Pages

FAV

BUTTON

COMPONENT

BUTTONS

MAIN

BUTTON

PAGE

BUTTON

This page is hidden. To ADD

it, press the LIGHT button. This page is visible.To HIDE

it, press the LIGHT button.

STEP 6:

You can continue to ADD or

HIDE pages on other

Components by repeating

Steps 4 and 5.

STEP 7:

When you are finished

adding and hiding pages,

press the MAIN button four

times to return to normal

operation.

STEP 5:

When you select a page, the top

of the screen indicates whether

you want to “ADD?” or “HIDE?”

the page displayed. When you

want to change a page’s visibility

(i.e., either ADD or HIDE), simply

press the LIGHT button.

STEP 4:

“PAGE” appears at the top of the

screen. Now, you can navigate

to any page, using the MAIN,

COMPONENT, FAV, and PAGE

display but-

tons.

35

Recalling Pre-Programmed

Setup Code Numbers

CUSTOMIZING

Recalling Pre-Programmed Setup Code

Numbers

In case you didn’t write down the Pre-Programmed Code

Numbers that you used to set up your RF20, you can easily

recall them using this simple process:

STEP 1:

Press and hold the MAIN and

ENT (Enter) buttons at the same

time for approximately 3 seconds,

until the word “SETUP” is

displayed at the top of the LCD

touch screen. This signals that

you are now in setup mode.

STEP 4:

Write down the code numbers

as they appear for future refer-

ence. Page 43 of this manual

provides a convenient space for

you to record your code

numbers.

STEP 5:

Return to normal operation by

pressing the MAIN button twice.

STEP 2:

Go to Page 2 of the Setup Menu

by pressing the PAGE ( ) button.

STEP 3:

Press the RECAL display button

on the LCD screen. The display

will change to the Recall

screens. The screen automati-

cally switches between four

screens, alternately flashing

Page 1 components and code

numbers, then Page 2 compo-

nents and code numbers.

IMPORTANT:You now have 30 seconds to

perform the next step while you are in

SETUP mode. If you don’t press a button

within 30 seconds, SETUP will disappear

from the screen, signaling that you have

exited setup mode and you will need to

start over.

36

CUSTOMIZING

Cloning Other RF20s

STEP 4:

Align the two RF20s head-to-

head, about an inch apart.

STEP 5:

Press the RECV display button

on the unprogrammed RF20 that

you want to setup by cloning.

STEP 6:

Press the SEND display button

on the programmed RF20 that

you want to clone.

STEP 7:

Press the START button on the

unprogrammed RF20, and then

press the START button on the

programmed RF20 that you want

to clone.

STEP 8:

Return to normal operation by

pressing the MAIN button twice.

STEP 2:

Press a PAGE button on each

remote to bring up Page 2 of

Setup and display the CLONE

button.

STEP 3:

Press the CLONE button on each

remote.

Cloning Other RF20s

If you are fortunate enough to own more than one RF20,

you’ll be happy to know that you can easily copy and trans-

fer all the setup from one RF20 to another. Just follow these

easy steps:

STEP 1:

For both the programmed RF20

that you want to clone, and

unprogrammed RF20, press and

hold the MAIN and ENT (Enter)

buttons at the same time for

approximately 3 seconds, until

the word “SETUP” is displayed

at the top of their respective LCD

screens. This signals that both

remotes are now in setup mode.

IMPORTANT:You now have 30 seconds to

perform the next step while you are in

SETUP mode. If you don’t press a button

within 30 seconds, SETUP will disappear

from the screen, signaling that you have

exited setup mode and you will need to

start over.

NOTE: Cloning typically takes about 40

seconds. After successful cloning is com-

pleted, the newly cloned RF20 will flash

“GOOD”.

37

Erasing Learned Buttons, Macros or

Favorite Channels

ERASING COMMANDS

Erasing Commands - Overview

You can erase an individual button with a learned com-

mand, a macro or a favorite channel. You can erase an

ENTIRE Component’s learned command or macro buttons.

You can also erase ALL your learned commands on all

Components or all your macros or favorite channels every-

where.

If you really want a fresh start, it is possible to reset every-

thing to the factory default settings.

Erasing Learned Buttons, Macros or Favorite Channels

STEP 1:

Press and hold the MAIN and

ENT (Enter) buttons at the same

time for approximately 3 sec-

onds, until the word “SETUP” is

displayed at the top of the LCD

screen. This signals that you are

now in setup mode.

IMPORTANT:You now have 30 seconds to

perform the next step while you are in

SETUP mode. If you don’t press a button

within 30 seconds, SETUP will disappear

from the screen, signaling that you have

exited setup mode and you will need to

start over.

STEP 2:

Press a PAGE button to display

Page 2 of Setup.

STEP 3:

Press the ERASE display button

on the LCD screen.

STEP 4:

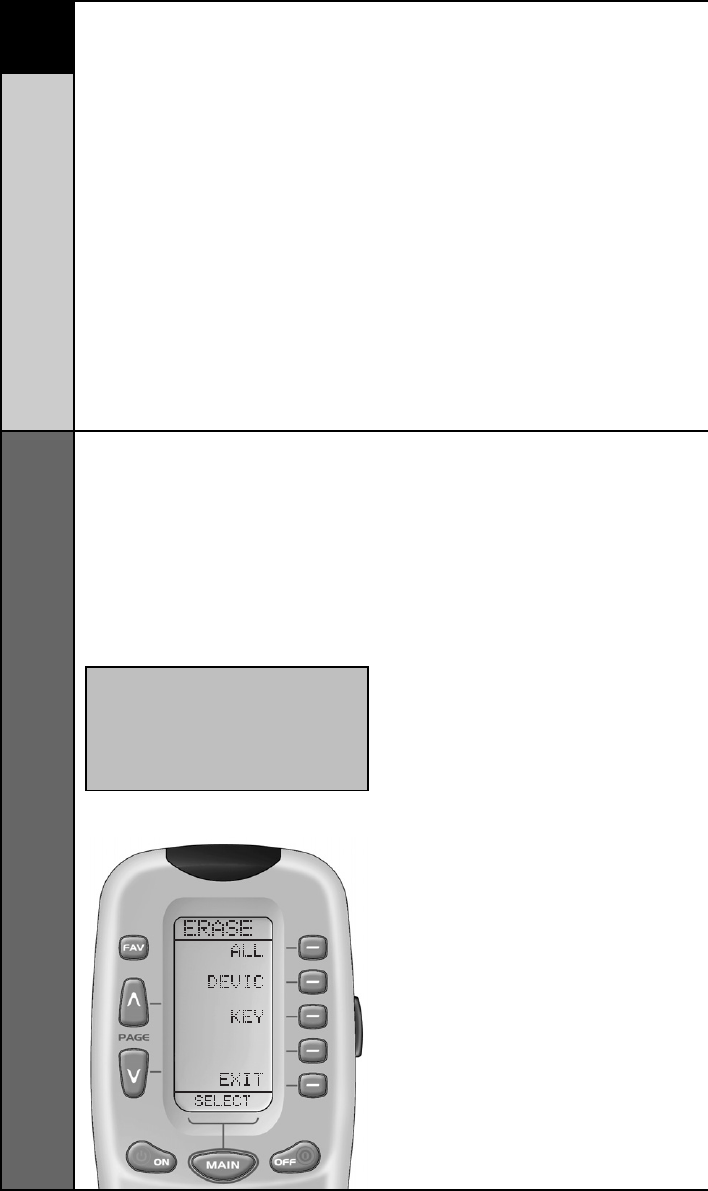

Press either the LEARN, MACRO

or FAV button. The following

screen appears:

ALL - Erases ALL of the speci-

fied (Learned, Macro or FAV but-

tons everywhere in the RF20)

DEVICE - Erases all learned or

Macro buttons in a single

Component (NOTE: This option

is not available for FAVs.)

KEY - Erases one button only.

38

ERASING COMMANDS

Erasing Learned Buttons, Macros or

Favorite Channels

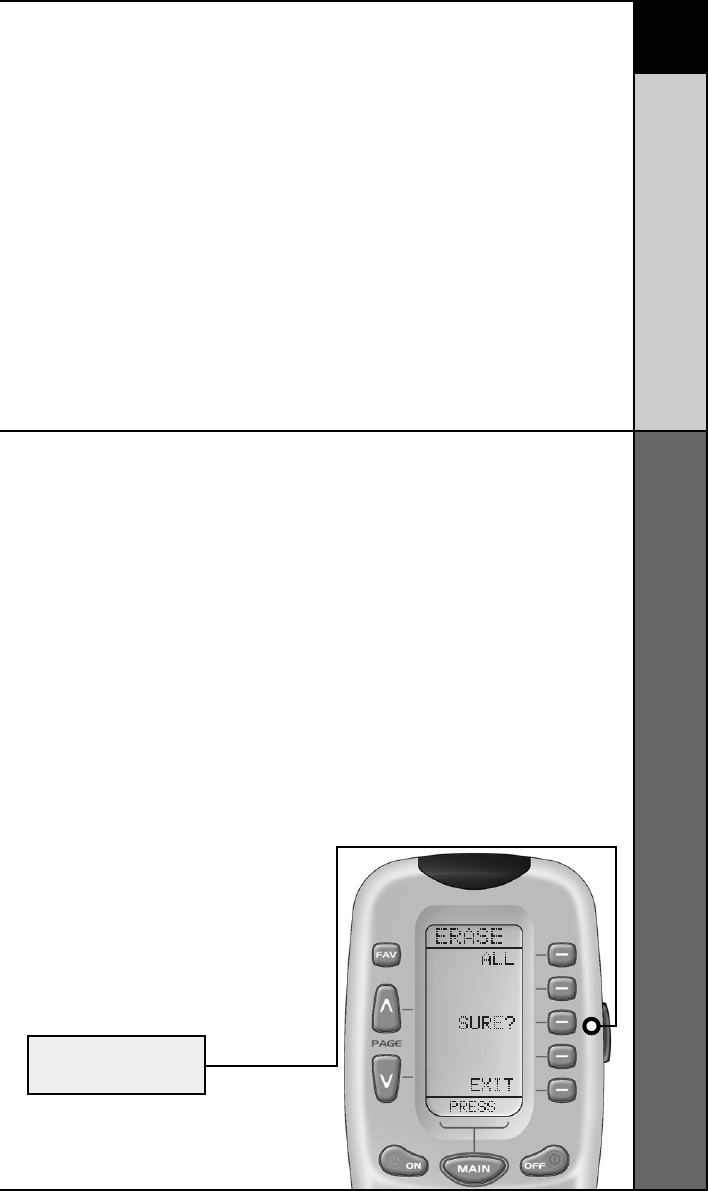

STEP 5:

If you press ALL, the RF20 dis-

plays a “SURE?” button. After

the SURE button is pressed, all

the buttons will be erased.

If you press DEVICE, a list of

Components will appear. Press

the Component button that you

wish to erase. The bottom of the

screen will flash ERASE twice,

then ERASED.

If you press KEY, you’ll have to

navigate to the Component and

Page you want using the MAIN,

COMPONENT and PAGE buttons.

Press a button to erase it. The

bottom of the display will flash

ERASE twice, then ERASED.

STEP6:

To return to normal operating

mode, press the MAIN button

four times.

SURE

BUTTON

39

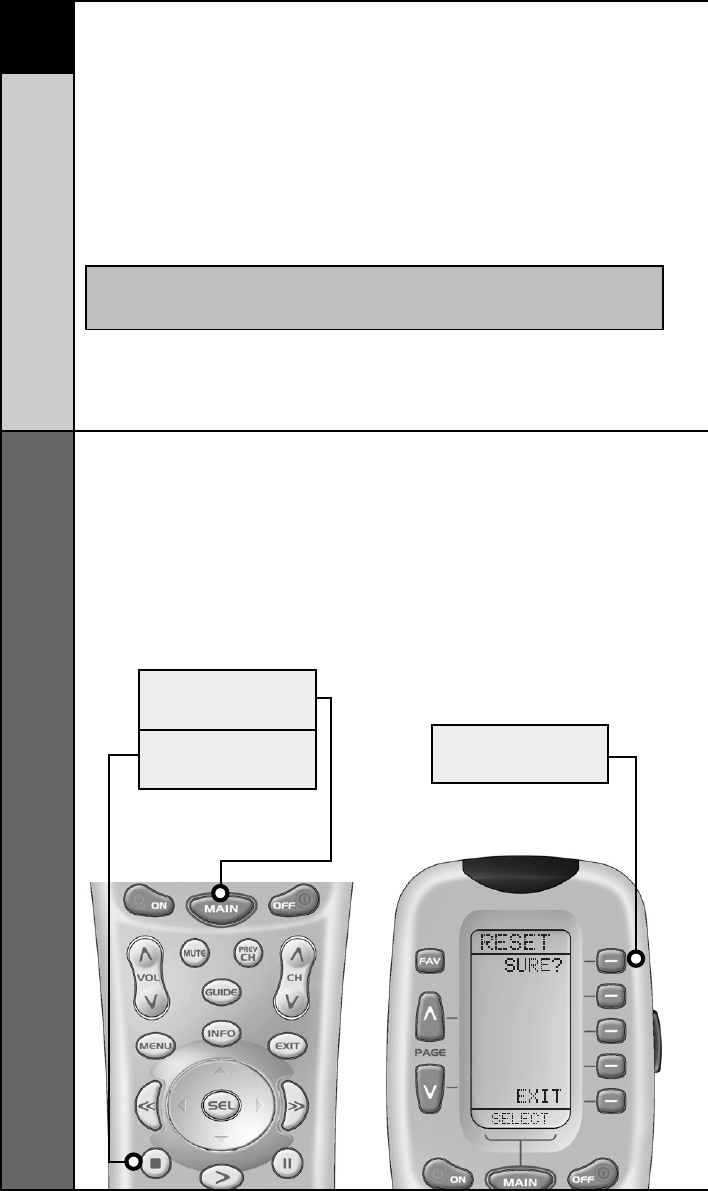

Re-setting RF20 to Original

Factory Default Settings

ERASING COMMANDS

STEP 1:

Press and hold both the

MAIN and the STOP buttons

for 10 seconds.

MAIN

BUTTON

STOP

BUTTON

SURE

BUTTON

NOTE: This process will essentially erase EVERYTHING

you have programmed into the RF20.

Re-setting RF20 to Original

Factory Default Settings

If you want to start with a clean slate, you can re-set the

RF20 its original factory default settings by performing the

following steps.

STEP 2:

After 10 seconds, the RESET

screen appears. Press the ALL

button. The RF20 will display a

“SURE?” button. Press the

SURE button to erase all of your

settings and return to the factory

default setup

40

ERASING COMMANDS

Re-setting RF20 to Original

Factory Default Settings

41

‘Barrier -Free’ RF control

THE POWER BLASTER

The Optional PowerBlasterTM

(for ‘barrier-free’ RF control)

[Sold separately]

Of all the fabulous RF20 features, this is probably the most

exciting. When used in combination with the optional

PowerBlasterTM, the RF20 becomes an amazing remote

control powerhouse that sends multi-directional RF (Radio

Frequency) signals that pass through walls, doors and

floors - both indoors and outdoors.

This changes everything! It enables you to control

Components that are completely out-of-sight, up to 100’

away. The PowerBlasterTM picks up RF20’s radio frequency

signals from any direction, regardless of distance, so RF20

doesn’t need to be pointed directly at any Component. Just

imagine - no more pointing! Now you can close your

entertainment center doors, hide your Components, and

still control them with ease. Control outdoor speakers on

your patio. Control your Components anywhere!

One of the best things about this is -- nothing has to be

done to the RF20 for this feature to work.

Every time you press a button on the RF20, it sends both a

standard IR (Infrared Command) AND an RF (Radio Fre-quen-

cy) signal. If you install the PowerBlasterTM kit, it will automat-

ically receive RF20’s radio signals and translate them into the

infrared commands that control your Components.

NOTE: The RF20's radio signals will not control Components

directly. You must have a PowerBlasterTM to receive the

RF20's radio signals. Components that came with "no point-

ing" radio remote controls cannot be operated by the RF20

unless the Component can be switched to standard IR

(Infrared Control) via its internal menus. Some remote con-

trol ceiling fans are radio only and cannot be operated by

the RF20.

42

THE POWER BLASTER

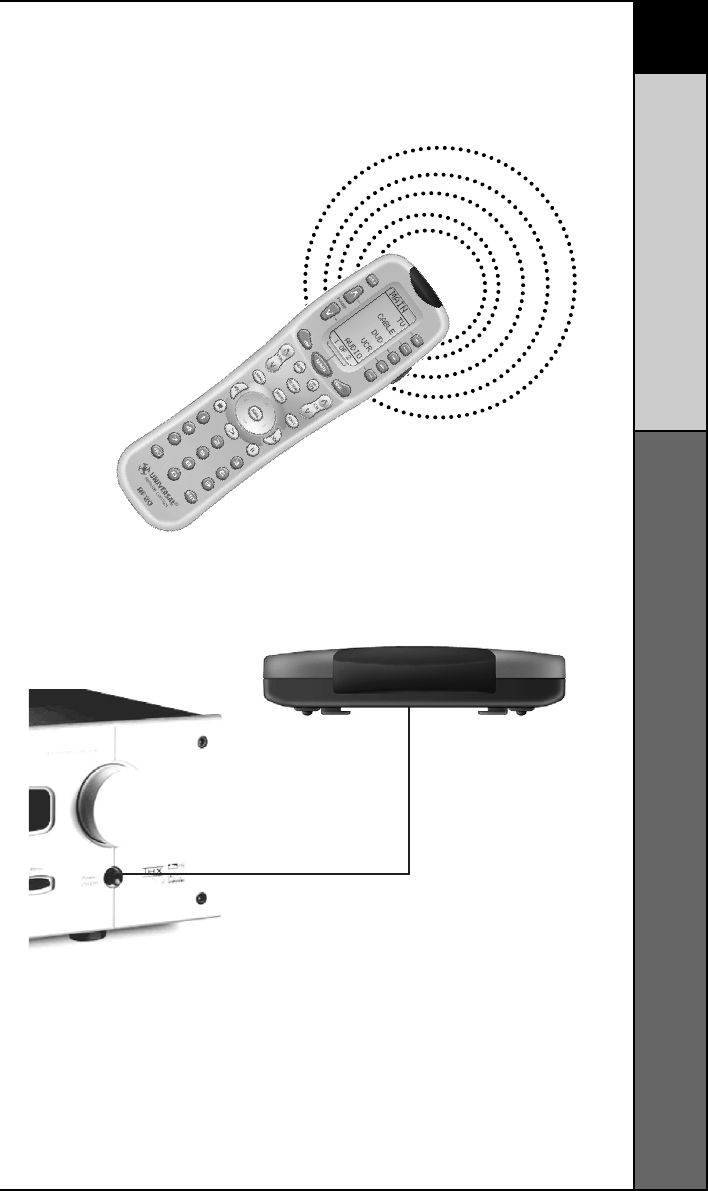

The RF20 sends radio signal to the PowerBlasterTM, which

is a radio receiver

The PowerBlasterTM converts radio signals to standard

infrared commands and sends them out via a built-in front

blaster to Components in the same cabinet space.

Self-adhesive “flashers” (included in the PowerBlasterTM

kit) affix to the front panels of your Components. The

flashers relay infrared commands to Components out-of-

sight of the PowerBlaster’s front blaster. The flashers plug

into PowerBlaster’s rear flasher line output jacks. Each

flasher has a 10’ cable to easily reach Components on

nearby shelves.

‘Barrier -Free’ RF control

43

Pre-Programmed Code Notes

PRE-PROGRAMMED CODE NOTES

Pre-Programmed Code Notes

Record the three digit codes for your system here

AUDIO

DVD

CD

SAT

TV

VCR

CABLE

AUX

LIGHT

TAPE

PHONO

TV2

VCR2

DVR

LDP

XM RADIO

IPOD

X-BOX

44

PRE-PROGRAMMED CODE TABLES

Pre-Programmed Code Tables

The RF20’s Pre-Programmed code library is divided into cate-

gories (TV, VCR, AUX, etc.). Each category actually includes

many types of Components. For example, the VCR category

includes TV/VCR combo units.

Within each category, the code numbers are listed in rows by

brand (Sony, Panasonic, B & K, etc.). Some brands have more

than one three digit code for you to try. Just circle the correct

row and refer to it while you setup (step by step instructions

for using Pre-Programmed codes are found on page 7).

TV TVs, Plasmas, Projectors and Monitors

CABLE Cable TVs and Web TVs

DVD DVD Players and TV/DVD Combos

VCR VCRs and TV/VCR Combos

AUDIO Amps, Preamps, A/V Receivers and XM Radios

SAT Satellite Receivers

CD CD Players and CD Changers

DVR TiVo, Replay and other DVR’s

AUX Tape Decks, Lighting Controls, Multimedia PCs,

Xbox, iPod and Custom Installation Products

45 BRAND CODE NUMBERS

TV

CODE TABLES

ADMIRAL 072 081 161 160

ADVENT 247

AKAI 197 146 248 404 405

A MARK 112 143

AMPRO 167 073 157 183

AMSTRAD 052

ANAM 043 054 056 080 112 131

AOC 197 004 112 058

APEX DIGITAL 006 310

AUDIOVOX 076 273

BARCO 233

BLAUPUNKT 088

BROKSONIC 238

CAIRN 201

CANDLE 197 002 003 004

CAPEHART 058

CETRONIC 043

CITIZEN 197 002 003 004 043 101 103 143

CLASSIC 043

CONCERTO 004

CONTEC 043 050 051

CORONADO 143

CRAIG 043 054

CROWN 043 143

CURTIS MATHES 197 101 004 143

CXC 043

DAEWOO 004 016 043 044 076 103 114 125 127 143

DAYTRON 004 143

DELL 320 319 321

DREAMVISION 235 345

DWIN 177 257

DYNASTY 043

DYNATECH 062

EIKI 187

ELECTROHOME 143 024 076 196

EMERSON 028 048 043 155 005 197 004 047 050 051 076 096 143

151 153 154

EPSON 324

ESA 323

FISHER 007 057

FUJITSU 246 198 346

FUNAI 028 043

FUTURETECH 043

GATEWAY 242 268

GE 160 144 165 073 197 008 009 034 056 074 130 155 161

004 091 157 183

GEM 387

GOLDSTAR 113 116 102 004 106 112 119 127 143

HALL MARK 004

HANNSPREE 381

HITACHI 011 163 166 004 009 010 012 023 075 143 158 072

HP 378 316 327

HYUNDAI 337 338

INFINITY 164

INFOCUS 333 230 330

INSIGNIA 350 399 403 052 164

JBL 164

JCPENNEY 004 024 197 008 009 030 065 101 143 156 160

JENSEN 013

JVC 038 034 070 083 145 199 210 240 241

46

CODE TABLES

TV

KEC 043

KENWOOD 197 070

KLOSS 002 059

KMC 143

KTV 043 197 143 154

LG 363 113 116 102 004 106 112 119 127 143 243 284 365

LODGENET 072

LOEWE 164

LOGIK 072

LUXMAN 004

LXI 166 007 015 052 081 160 164

MAGNAVOX 164 059 197 003 060 061 004 063 064 127 022 160 094 239

226 273 390

MARANTZ 197 164 184

MATSUI 164

MAXENT 242

MEMOREX 007 072 004

METZ 088

MGA 197 004 024 028 042

MINERVA 088

MINTEK 362

MITSUBISHI 124 109 024 004 028 040 042 146 191

MTC 197 004 062 101

NAD 015 025

NEC 272 132 130 134 197 040 016 024 056 019 236 262

NIKEI 043

NUVISION 351

ONKING 043

ONWA 043

OPTOMA 265 270

OPTONICA 019 081

ORION 096

PANASONIC 080 034 056 092 164 208

PHILCO 197 003 059 060 064 164 004 024 056 063

PHILIPS 164 005 093 038 197 003 004 059 127 184 206 239 259

PIONEER 335 135 025 197 018 023 116 393 272

POLAROID 138 268 328 353 354 356 388

PORTLAND 004 143

PROSCAN 144 160 161 165 167

PROTON 004 131 058 143 171 173 193

PROTRON 392 398

QUASAR 034 056 092

RADIO SHACK 019 004 143 043 127

RCA 333 160 165 065 156 144 161 197 004 024 056 152 023 074

REALISTIC 007 019 043 047

ROCTEC 186

RUNCO 168 169 178 179 180 181 182 183 073 157 340 395

SAMPO 197 058 004 202

SAMSUNG 258 050 089 101 105 004 127 143 160 228 229

SANYO 166 007 020 053 057 082 187

SCEPTRE 276

SCOTT 028 043 004 048 143

SEARS 015 030 004 007 028 057 143 094 160 082 165 166

SELECO 189 200 205 227

SHARP 251 081 019 014 170 028 029 004 022 143 175

SIEMENS 088

SIM2 189 200 205 227

SIGNATURE 072

SOLE 231 232

SONY 277 070 139 147 126 185 194 085 213 279

BRAND CODE NUMBERS

47 BRAND CODE NUMBERS

TV

CODE TABLES

SOUNDESIGN 028 004 003 043

SPECTRICON 112

SSS 004 043

SUPRE MACY 002

SVA 328

SYLVANIA 197 003 059 060 063 064 164 044 160 127

SYNTAX OLEVIA 376 363

TANDY 081

TATUNG 056 062

TECHNICS 034 080

TECHWOOD 004

TEKNIKA 002 003 004 024 028 043 072 101 143

TELEFUNKEN 037 046 086 087

TELERENT 072

TERA 172

TMK 004

TOSHIBA 138 015 030 007 040 062 101 325

TOTEVISION 143

UNIVERSAL 008 009

VIDEO CONCEPTS 146

VIDIKRON 174 184 188 192 340

VIDTECH 004

VIEWSONIC 242 389 390

VIZIO 386 387

WARDS 004 008 009 019 028 060 061 063 064 072 074 143 164

034

WESTING HOUSE 076 280

WINBOOK 339

YAMAHA 197 004

YORK 004

YUPITERU 043

ZENITH 073 072 095 103 157 183 243 284

ZONDA 112

48

CODE TABLES

CABLE / WEBTV

BRAND CODE NUMBERS

ABC 004 103 003 039 042 046 053

ADELPHIA 043 074

ADVANCED NEWHOUSE

043

ALTRIO 043

AMERICAST 099

ARCHER 005 007 014

ARMSTONG 074

AT&T BROADBAND 074

ATLANTIC BROADBAND

043 074

BELL SOUTH 099

BLUE RIDGE 043 074

BRESNAN 074

BRIGHT HOUSE 043 110

BUCKEYE COMM 074

CABLEVISION 043 074 108

CENTURION 092

CENTURY 007

CHARTER 043 074

CITIZEN 007

COGECO 074

COMBANO 080 081

COMCAST 043 074 110

COMSAT 074

COX DIGITAL 043 074

DIGICABLE 101

EAGLE 020 030 040

EASTERN 057 066

ECHOSTAR 106

ELECTRICORD 032

GEMINI 008 054

GENERAL ELECTRIC 072

GENERAL INSTRUMENT

074 103 104

GNC 099

GOLDEN CHANNEL 030

HAMLIN 049 050 055

HITACHI 103 055

INSIGHT 074

JERROLD 074 004 103 002 003 008 009 010 069

MAGNAVOX 010 012 064 079 095 094

MASSILLON 074

MEDIA ONE 107

MEDICOM 074

MEMOREX 052

MITSUBISHI 102

MOTOROLA 074 110 109 111

MOVIE TIME 028 032

MOXI 111

NCTC 074

NSC 015 028 038 071

OAK 031 037 053

PACE 043 074

PANASONIC 044 047

PARAGON 052

PHILIPS 006 012 013 020 085 095

PIONEER 043 103 034 051 063 076 105

PRUCER 059

PULSAR 052

RCA 047

RCN 074

RECOTON 098

49 BRAND CODE NUMBERS

CABLE / WEBTV

CODE TABLES

REGAL 049 050

REGENCY 057

RODGERS 043

SAMSUNG 030

SCIENTIFIC ATLANTA 043 011 003 041 042 045 046

SEREN 043

SERVICE ELECTRIC 074

SHAW 074

SIGECOM 043

SONY 096 108

SPRUCER 047 078

STARCOM 002 004 008 009

STARGATE 008 030 097 104

SUSQUEHANNA 043 074

TIME WARNER 043 074

TOCOM 039 040 056

TOSHIBA 052

UNITED CABLE 004 053

UNIVERSAL 005 007 014 032 035

VIDEOTRON 043

VIEWSTAR 012 015 018 086 087 088 089

WIDE OPEN WEST 043 099

ZENITH 052 060 093 100

50

CODE TABLES

DVD

BRAND CODE NUMBERS

AIWA 146

AKAI 281

ALPINE 098

APEX DIGITAL 087 111 115 112 116

ARCAM 122

CAMBRIDGE AUDIO 215

CARY AUDIO DESIGN 174

CLASSE 167

COBY 258

DENON 007 080 173

FUNAI 143

GATEWAT 175

GE 026 027

GO VIDEO 137 218 220 221 222

HARMAN KARDON 084 140

HITACHI 101

ILO 268

INSIGNIA 143

INTEGRA 142 180

JVC 012

KENWOOD 151

KLH 135

KISS 179 279

KRELL 104

LEXICON 148

LG 091 057 074

LITEON 264 265

MAGNAVOX 066 096 143

MALATA 267

MARANTZ 083 095

MERIDIAN 153

MITSUBISHI 017

MYRYAD 102 134

NAD 088 155

NAKAMICHI 103

ONKYO 076 035 180

OPPO 266

PANASONIC 021 042 138 139 144 150

PHILIPS 066 083 095 105 166

PIONEER 023 092 099 107 108 131

POLAROID 233 234 237

PRIMARE 193 194

PROCEED 086

PROSCAN 026 027

RCA 026 027

RJTECH 269

ROTEL 204

SAMSUNG 056 070 119 165 170 137 159

SANSUI 154

SANYO 147

SENSORY SCIENCE 222 223

SHARP 094

SONY 033 118 145 126 191

SYLVANIA 143

SYMPHONIC 143

TAG MCLAREN 156

TATUNG 102

TEAC 270

THOMPSON 026 027

THULE 177

51 BRAND CODE NUMBERS

DVD

CODE TABLES

TOSHIBA 035 034 130 141 164 188 273

VENTURER 149

VINC 161

YAMAHA 042 089 166 195 197

ZENITH 057 074 091

DVD-TV/DVD Combos

AIWA 146

AKAI 281

FUNAI 143

INSIGNIA 143

SAMSUNG 165

SYLVANIA 143

SYMPHONIC 143

TOSHIBA 130

DVD-TV/DVD/VCR Combos

MAGNAVOX 143

PANASONIC 144

SYLVANIA 143

TOSHIBA 164

DVD-DVD/VCR Combos

GO VIDEO 137 218

PANASONIC 150

PHILIPS 105 (VCR Functions for VCR 067)

POLAROID 234

SAMSUNG 137 159

SANSUI 154

SONY 145

TOSHIBA 141

ZENITH 091 (VCR Functions for VCR171)

DVD-DVD Recorders

GATEWAY 175

GO VIDEO 220 221 222

ILO 268

KISS 279

LITEON 265

PANASONIC 139

SENSORY SCIENCE 222

SONY 191

TOSHIBA 188

DVD-DVD-LD

DENON 206 207

FUNAI 120

KENWOOD 152 013

MAGNAVOX 032 121

MARANTZ 211

MITSUBISHI 121

NAD 121

OPTIMUS 049 013

PANASONIC 113

PHILIPS 032

PIONEER 106 117 121

RADIO SHACK 120

RCA 002

REALISTIC 049

RUNCO 127

52

CODE TABLES

DVD

BRAND CODE NUMBERS

SANYO 075

SHARP 152 013

SONY 053 110

TECHNICS 113

THETA DIGITAL 032

TOSHIBA 152 106

YAMAHA 043 129

53 BRAND CODE NUMBERS

VCR

CODE TABLES

AIWA 034 161

AKAI 016 146 043 046 124 125 142

AMPRO 072

ANAM 031

AUDIO DYNAMICS 012 023 039 043

BROOKSONIC 035 037 129

CANON 028 031

CAPEHART 108

CRAIG 003 040 135

CURTIS MATHES 031 041

DAEWOO 111 116 117 119 005 007 010 065 108 110 112

DAYTRON 108

DBX 012 023 039 043

DYNATECH 034 053

ELECTROHOME 059

EMERSON 006 029 035 017 025 027 031 034 036 037 046 101 129

131 138 153 162 116

FISHER 003 010 008 009

FUNAI 034

GE 031 072 147 063 107 109 144

GO VIDEO 132 136 155 040 115

GOLDSTAR 101 106 114 013 020 012 123

HARMAN KARDON 012 045

HITACHI 004 026 150 018 034 043 063 137 160 013

INSTANTREPLAY 031

JCL 031

JCPENNEY 012 013 015 040 066 101

JENSEN 043

JVC 048 043 130 150 055 060 012 031 050 152 166

KENWOOD 014 048 034 047

LG 101 106 114 013 020 012 123

LLOYD 034

LXI 034 003 009 017 106

MAGIN 040

MAGNAVOX 067 031 034 068 041 156 164

MARANTZ 067 069 012 031 156

MARTA 101

MATSUI 027 030

MEI 031

MEMOREX 101 003 010 014 031 034 053 072 102 134 139

MGA 045 046 059

MINOLTA 013 020

MITSUBISHI 059 061 151 013 020 045 046 051 142 049 168

MTC 034 040

MULTITECH 024 034

NEC 012 023 039 043 048

NORDMENDE 043

OPTONICA 053 054

ORION 025

PANASONIC 066 070 145 083 133 140 157 163 074 167

PENTAX 013 020 031 063

PHILCO 031 034 067

PHILIPS 031 067 034 101 054 071 156

PILOT 101

PIONEER 021 013 048

PORTLAND 108

PULSAR 072

QUARTZ 002 014

QUASAR 066 145 075

RADIO SHACK 123

54

CODE TABLES

VCR

BRAND CODE NUMBERS

RCA 107 109 144 147 158 041 145 013 020 140 034 040

REALISTIC 003 008 010 014 031 034 040 053 054 101

RICO 058

RUNCO 148

SALORA 014

SAMSUNG 102 104 113 115 112 120 032 040 066 107 109 122 125

SANSUI 022 043 048 135

SANYO 003 010 007 014 134 102

SCOTT 017 037 112 129 131

SEARS 003 008 010 014 081 013 101 009 017 073 112

SHARP 149 054 031 159 165

SHINTOM 024

SIGNATURE 034

SONY 056 057 058 077 052 003 078 076 031 149 154

SOUNDESIGN 034

STS 013

SYLVANIA 031 034 059 067

SYMPHONIC 034

TANDY 010 034

TATUNG 039 043

TEAC 034 039 043

TECHNICS 031 070

TEKNIKA 031 019 034 101

THOMAS 034

TMK 006

TOSHIBA 112 131 079 008 059 047 082 013 042 081

TOTEVISION 040 101

UNITECH 040

VECTOR RESEARCH 012

VICTOR 048

VIDEO CONCEPTS 012 034 046 141

VIDEOSONIC 040

WARDS 003 013 017 024 031 034 040 053 054 131

YAMAHA 012 034 039 043

ZENITH 072 080 056 048 101 034 058

VCR-TV/VCR Combos

DAEWOO 005 117

EMERSON 153

FUNAI 034

GOLDSTAR 101 123

HITACHI 034

JCPENNEY 101

LG 101 123

LLOYD 034

MAGNAVOX 034 067

MEMOREX 101

PANASONIC 070 167

PHILIPS 034 067

RADIO SHACK 123

RCA 034

SEARS 101

SONY 057 154

SYLVANIA 067

SYMPHONIC 034

THOMAS 034

ZENITH 034

55 BRAND CODE NUMBERS

AUDIO

CODE TABLES

ADC 007

ADCOM 082 092 225 161 269 355 356 366

AIWA 170 018 104 202 203 213 211 188

AKAI 138 189

AMC 125 126 127 128 258 281 282 038

AMEND 054

AMX 196

ANGSTROM 142

ANTHEM 335 336 337 338 339

ARCAM 141 418 419

ATLANTIC TECHNOLOGY

342

AUDIO ACCESS 147

AUDIO ALCHEMY 135

AUDIO DESIGN 194 221 011

AUDIO EASE 021 196 207

AUDIO FILE 071

AUDIO MATRIX 167

AUDIO SOURCE 273

AUDIO TECHNICA 134

B & K 096 097

BOSE 070 170 224 347 409 459 460 532

BOSTON ACOUSTICS 447

BRYSTON 023

CAMBRIDGE AUDIO 522

CARVER 006 028 061 071 201 214 226 180 185 022 029 077 284

CASIO 076

CHIRO 140

CINEMA SOUND 034 134

CITATION 148 272

CLARION 026

CLASSE 537

COMPAQ 382

CURTIS MATHES 076

DELPHI 415 515

DENON 002 034 109 215 229 230 027 037 234 259 330 340 341 349

350 400 401 402 444 564

EAD 466

EIGER 149

ELAN 057 290

ENLIGHTENED AUDIO 099 098

ESCIENT 368 381 451 452 453 454

FANFARE 352

FISHER 047 214 180 182 297

FLEXTRONICS 378

FOSGATE 062 231

FOSGATE AUDIONICS 342

GE 056 260

GOLDSTAR 008

HAFLER 174

HARMAN KARDON 231 233 254 153 154 118 121 227 277 317 318 365

HITACHI 020

IMERGE 371

INKEL 197

INSIGNIA 589

INTEGRA 354 438

JAMO 398

JBL 263

JCPENNEY 076 216

JEFF ROWLAND 206

JENSEN 058

56

CODE TABLES

AUDIO

BRAND CODE NUMBERS

JVC 240 163 191 114 266 279 291

KENWOOD 026 066 145 146 181 190 197 192 182 199 151 222 180 005

280 374 550

KINERGETICS 220 140

KLH 331

KOSS 216 573

KRELL 150 072 376 384

KYOCERA 007

LEXICON 120 235 236 237 357 358 359 360 361 362 363 364

LINN 124 377

LUXMAN 137 139 052 165 115 004 009

LXI 076 056

MAGNAVOX 086 164 152 208

MARANTZ 006 028 031 040 063 185 186 251 265 119 289 296 492

MCINTOSH 238 286

MCS 076

MERIDIAN 100 012 013

MITSUBISHI 242 243 204

MONDIAL 157 158 042 043 081 112

MYRYAD 276 293

NAD 186 113 283 478 479

NAKAMICHI 111 244 245 172 183 287

NEC 176

NIRO 343

NILES 403

ONKYO 017 046 064 107 108 187 079 080 090 179 209 270 275 438

OPTIMUS 026 041 138

OUTLAW 342

PANASONIC 032 195 219 177 292 383 516

PARASOUND 129 130 132 261 294 295 333 334

PHAST 196

PHILIPS 249 250 251 063 119

PIONEER 014 033 039 044 045 050 069 159 168 116 035 078 198 480

POLKAUDIO 029 515

PRIMARE 464

PROCEED 144 268

RCA 010 048 117 156 067 288

REALISTIC 019 056 073 075 095

REQUEST 351

REVOX 162

ROTEL 074 083 085

RUSSOUND 379 391 392

SAMSUNG 016 571

SANSUI 040 048 110 119 065 228

SANYO 047 059

SCOTT 019 091

SEARS 076

SHARP 026 094 131 175 181

SHERWOOD 024 038 055 102 103 105 106 051 030 447

SIRIUS 585

SONY 018 093 223 247 248 160 166 015 101 184 218 271 353 369

372 380 417 421

SOUNDESIGN 036

SOUNDMATTERS 375

SOUNDSTREAM 084 088

SSI 068

SUMO 171

SUNFIRE 344 345 346 494

TAEKWANG 138

TEAC 005 019 049 111 212 217

57 BRAND CODE NUMBERS

AUDIO

CODE TABLES

TECHNICS 122 176 193 219 178 177 200 257 262

THETA DIGITAL 136

TOSHIBA 060 087 198 278

WARDS 180

XM SATELLITE RADIO 415 515

YAMAHA 026 253 169 067 173 205 264 232 089 264 274 285 332

373 432 433

ZENITH 143 210

AUDIO-XM Radios & Tuners

BOSE 170 532

DELPHI 415 515

FANFARE 352

KENWOOD 550

POLKAUDIO 515

SIRIUS 585

SONY 380

XM SATELLITE RADIO 415 515

58

CODE TABLES

SAT

BRAND CODE NUMBERS

CABLEVISION / VOOM 148

DIRECTV 173

ECHOSTAR / DISH 122 167 168

EXPRESSVU 122

GENERAL ELECTRIC 151 106 150

GENERAL INSTRUMENT

148

GOI 122

HITACHI 139 140

HTS 122

HUGHES 161 162 068 154 165 166 108 117

JVC 122

LG 170

MAGNAVOX 136

MEMOREX 136

MITSUBISHI 068 154

MOTOROLA 148

NEXT LEVEL 148

PANASONIC 142 160

PANSAT 172

PAYSAT 136

PHILIPS 152 153 156 068 154 136 108 117

PROSCAN 151 106 150

RADIOSHACK 148

RCA 151 106 150

SAMSUNG 123 155 163 169 175

SKY 164

SONY 103

STAR CHOICE 148

TOSHIBA 127 068 154 157 158

UNIDEN 136

ZENITH 159

59 BRAND CODE NUMBERS

CD

CODE TABLES

ADCOM 062 042

AIWA 059 065 088 089 105 122 170 187

AKAI 085 195 202

AMC 231 232

AMEND 118

ARCAM 238

AUDIO ACCESS 119 147

AUDIO EASE 165

AUDIO TECHNICA 046

BSR 037 057

CALIFORNIA AUDIO 103 008

CAPETRONIC 063

CARRERA 057 080

CARVER 185 041 044 050 086 107 130 134 135 138 139 203 204

167

CASIO 111 182

CLARINETTE 182

CREEK 159

CROWN 035

DENON 002 123

EMERSON 042 069 102

FISHER 050 185 134 008

FRABA 111

GENEXXA 010 069 102

GOLDSTAR 080

HAITAI 093

HARMAN KARDON 018 033 047 208

HITACHI 042 175

INKEL 130 143 144

JCPENNEY 014 061 092 141

JENSEN 158

JVC 004 022 136 163 213 214 242 243

KENWOOD 185 007 023 055 071 072 142 137 254

KOSS 061

KRELL 241

KYOCERA 005

LOTTE 102

LUXMAN 011 028 070 076 249 252

LXI 059

MAGNAVOX 044 107

MARANTZ 027 041 044 051 077 107 209 246

MCINTOSH 212 247

MCS 014 073 092

MEMOREX 010

MISSION 044 107

MITSUBISHI 179

MITSUMI 153

MODULAIRE 182

MONDIAL 147

MYRYAD 244 155

NAD 006 005 067 178

NAKAMICHI 217 218 219 095

NEC 014 062

NIKKO 046

NSM 044 107

ONKYO 030 038 039 168 169

OPTIMUS 010 050 057 058 081 082 083 085 093 195

PANASONIC 103 201 172 008 068 248

PARASOUND 233 240

PHILIPS 041 044 107 246 253

60

CODE TABLES

CD

BRAND CODE NUMBERS

PIONEER 010 020 025 056 174 175 176

PROCEED 239

PROTON 044 107 228

QUASAR 103 008

RADIO SHACK 182

RCA 017 042 150

REALISTIC 042 050 051 102 181 182 187

ROTEL 044 107 161 178 250

SAE 044 107

SANSUI 044 069 107 128 171 190 125

SANYO 050

SCOTT 069 102

SHARP 026 031 051 066

SHERWOOD 003 019 051 096 112 115 119 166

SIGNATURE 033

SONY 048 081 097 126 133 177 225 226 164

SOUNDESIGN 251

SUMO 155

SYLVANIA 044 107

SYMPHONIC 052 181

TAEKWANG 195 085

TANDY 010

TEAC 015 034 036 051 052 101 131 140 079

TECHNICS 060 103 200 172 184 008 068

TECHWOOD 076

THETA DIGITAL 234 235

TOSHIBA 006 067 091 160 148

VECTOR RESEARCH 080

VICTOR 004 022 114 124

WARDS 185 033

YAMAHA 024 046 054 186 183 245

YORX 182

61 BRAND CODE NUMBERS

DVR

CODE TABLES

DISH 122

ECHOSTAR 122

HUGHES 108 117

HUMAX 117

JVC 122

PHILIPS 108 090 117

RCA 109

REPLAY NETWORKS 075

SONY 104 105

TIVO 090 117

TOSHIBA 117

62

CODE TABLES

AUX

BRAND CODE NUMBERS

3M 152

AIWA 164

APPLE/iPod 412 401

ARCHER 155

AURORA MULTIMEDIA 220

AUTON 191

BOSE 409

CELADON 221

CRESTRON 213 214 215 216 217 218

DELL 261 262

DMX 156

DRAPER SCREEN 204

DREAMVISION 097

DWIN 080 253

EVERQUEST 206

EXTRON 151

FAROUDJA 184

FUJI 209

GATEWAY 261 262

HAUPPAUGE 294 295

HP 261 262

HUNTERDOUGLAS 219

JERROLD 153

JVC 185

KENWOOD 185

KENSINGTON 406

KEYSPAN 297

LITE-TOUCH 208 257

LUTRON 158 159 077

MAKITA 186 201

MICROSOFT/XBOX 408 107

MINDPATH 205

NILES 160 187

NSM 161

PIANO DISC PLUS 085

POLKAUDIO 162

RUSSOUND 081

SCIENTIFIC ATLANTA 163 156

SIMA 082

SOLO ELECTRONICS 207

SOMFY 078 079

SONY 164 165 166 261 262

STARCOM 153

TURBOSCAN 167

VELODYNE 203

X-10 183 093

XANTECH 168 169 170 171 172 188 189

AUX-TAPE

AIWA 015 071 100 114

CARVER 006 008 027 024 036

DENON 105 227 229

FISHER 064

GOLDSTAR 011

HARMAN KARDON 233

JVC 106 116 239 240

KENWOOD 005 013 023 026 064 145 146 181 190

LINN 124

LUXMAN 035 137 139

MAGNAVOX 027

63 BRAND CODE NUMBERS

AUX

CODE TABLES

MARANTZ 014 027 056 065 087

MCINTOSH 238

MITSUBISHI 242 243

NAD 029 048

NAKAMICHI 244 245 025

ONKYO 002 012 016 017 018 019 115

OPTIMUS 026 054 055

PANASONIC 007 010 032 088 195

PHILIPS 027 087

PIONEER 003 039 047 050 066 098 222

QUASAR 007 088

SANSUI 027 113 119 224

SHARP 026 057 131 175 181

SHERWOOD 038 004 028 030 033 034

SONY 020 022 052 084 089

TEAC 009 059 212

TECHNICS 007 010 076 088 109 122 193

TOSHIBA 112

VICTOR 106

YAMAHA 021 026 031 067 040

AUX-Media PC Controls

DELL 261 262

GATEWAY 261 262

HAUPPAUGE 294 295

HP 261 262

KEYSPAN 297

SONY 261 262

TOSHIBA 261 262

WINBOOK 261 262

AUX - Gaming System Controls

MICROSOFT/XBOX 408 107

SONY/PS2 414

AUX-iPod Controls

APPLE/iPod 412 401

BOSE 409

KENSINGTON 406

64

Frequently Asked Questions

OTHER INFO

Frequently Asked Questions

What is a “macro” button?

A “macro” is a button on the RF20 that you setup to make

a lot of things happen when you press it. For example, to

watch a DVD in most home theaters requires several

remote controls and many button presses (power up the

TV, power up the surround sound, power up the DVD

player, set the TV to the correct video input, set the

surround sound to the correct audio input and finally;

press play on the DVD player remote control).

Instead of pressing all of those buttons one at a time, the

RF20 enables you to setup one button that does all those

steps automatically with one press. For more information

on how and why you should setup macro buttons,

watch the Quick Setup DVD Program Guide or refer to

pages 26-29 in this Manual.

If the batteries run out, will I lose my settings?

No. The RF20 stores all of your settings in non-volatile

FLASH memory. You could remove the batteries for

months, replace them at your convenience, and the RF20

would still remember your settings.

Who can I call for more answers?

The Universal Remote Control Technical Support and

Customer Service staff are ready to answer any questions

you might have.

Call us at 1-914-835-4484

Monday - Friday, 9AM to 6PM (EST)

65

Warranty/ Specifications

OTHER INFO

USALimited Warranty Statement

Your Universal Remote Control, when delivered to you in new condi-

tion, is warrantedagainst defects in materials or workmanship as fol-

lows: UNIVERSALREMOTE CONTROL,INC. warrants this product

against defects in material or workmanship for a period of one(1) year

and as set forth below. Universal Remote Control will, at its sole

option, repair theproduct using new or comparable rebuilt parts, or

exchange the product for a comparablenew or rebuilt product. In the

event of a defect, these are your exclusive remedies.

This Limited Warranty covers only the hardware components pack-

aged with the Product. Itdoes not cover technical assistance for hard-

ware or software usage and it does not coverany software products

whether or not contained in the Product; any such software is pro-

vided "AS IS" unless expressly provided for in any enclosed software

Limited Warranty.

To obtain warranty service, you must deliver the product, freight pre-

paid, in its originalpackaging or packaging affording adequate protec-

tion to Universal Remote Control at theaddress provided in the

Owner's Manual. It is your responsibility to backup any macropro-

gramming, artwork, software or other materials that may have been

programmed intoyour unit. It is likely that such data, software, or other

materials will be lost during serviceand Universal Remote Control will

not be responsible for any such damage or loss. Adated purchase

receipt, Bill of Sale, Installation Contract or other verifiable Proof

ofPurchase is required. For product support and other important

information visit UniversalRemote Control's website:

http://www.UniversalRemoteControl.com or call the UniversalRemote

Control Customer Service Center (914) 835-4484.

This Limited Warranty only covers product issues caused by defects

in material or work-manship during ordinary consumer use. It does not

cover product issues caused by anyother reason, including but not

limited to product issues due to commercial use, acts ofGod, third-

party installation, misuse, limitations of technology, or modification of

or to anypart of the Universal Remote Control product. This Limited

Warranty does not coverUniversal Remote Control products sold as

USED, AS IS, REFURBISHED, so-called "BSTOCK" or consumables

(such as batteries). This Limited Warranty is invalid if the factory-

applied serial number has been altered or removed from the product.

This LimitedWarranty is valid only in the United States of America.

66

OTHER INFO

The Rf30 Remote

This Limited Warranty specificallyexcludes products sold by unautho-

rized resellers.

UNIVERSALREMOTE CONTROLSHALLNOT BE LIABLE FOR ANYINCI-

DENTALORCONSEQUENTIALDAMAGES FOR BREACH OF ANYEX-

PRESS OR IMPLIED WARRANTYOR CONDITION ON THIS PRODUCT.

EXCEPT TO THE EXTENT PROHIBITED BYAPPLICABLE LAW, THERE IS

NO OTHER WARRANTYEXPRESSED OR IMPLIED. UNIVER-SALRE-

MOTE CONTROLWILLNOT BE HELD RESPONSIBLE FOR STATEMENTS

MADEBYOTHERS CONCERNING THE MERCHANTABILITYOR FITNESS

FOR APARTICULARPURPOSE ON THIS PRODUCT. Some states or

jurisdictions do not allow the exclusion orlimitation of incidental or

consequential damages, or allow limitations on how long animplied

warranty lasts, so the above limitations or exclusions may not apply to

you. ThisLimited Warranty gives you specific legal rights and you may

have other rights which varyfrom state to state or jurisdiction to juris-

diction.

Specifications

Learning Capability - 825 IR commands at standard

frequencies (15kHz to 100kHz)

Macro Capability - 453 Macros of up to 190 steps each

IR Range (Line of Sight via Infrared): 30-50 feet,

depending on the environment

RF Range (radio frequency): 50 to 100 feet, depending

upon the environment

RF Frequency: 418MHz

Weight: 7.1 oz. (with batteries)

Size: 8.5” x 2.5” x 1”

Batteries: Four AAA Alkaline batteries included

LCD Size: 0.88” x 1.88”

67

The Rf30 Remote

OTHER INFO

Federal Communication Commission

Interference Statement

This equipment has been tested and found to comply with the limits

for a Class B digital device, pursuant to part 15 of the FCC Rules.

These limits are designed to provide reasonable protection against

harmful interference in a residential installation. This equipment gen-

erates, uses and can radiate radio frequency energy and, if not

installed and used in accordance with the instructions, may cause

harmful interference to radio communications. However, there is no

guarantee that interference will not occur in a particular installation. If

this equipment does cause harmful interference to radio or television

reception, which can be determined by turning the equipment off and

on, the user is encouraged to try to correct the interference by one

more of the following measures:

Reorient or relocate the receiving antenna.

Increase the separation between the equipment and receiver.

Connect the equipment into an outlet on a circuit different from that

to which the receiver is connected.

Consult the dealer or an experienced radio/TV technician for help.

Warning!

Changes or modifications not expressly approved by the manufacturer

could void the user's authority to operate the equipment.

Note : The manufacturer is not responsible for any Radio or TV inter-

ference caused by unauthorized modifications to this equipment. Such

modifications could void the user's authority to operate the equip-

ment.

FCC Caution

This device complies with Part 15 of the FCC Rules. Operation is sub-

ject to the following two conditions: (1) this device may not cause

harmful interference, and (2) this device must accept any interference

received, including interference that may cause undesired operation.

Any changes or modifications not expressly approved by the party

responsible for compliance could void the authority to operate equip-

ment.

The antenna(s) used for this transmitter must not be co-located or

operating in conjunction with any other antenna or transmitter.

68

OTHER INFO

Information To The User/Warning

Ohsung Electronics URCRF20N RF REMOTE CONTROLLER User Manual User s Manual I

Ohsung Electronics Co., Ltd. RF REMOTE CONTROLLER User s Manual I

Users Manual

Navigation menu

Namespaces

Views

Navigation
