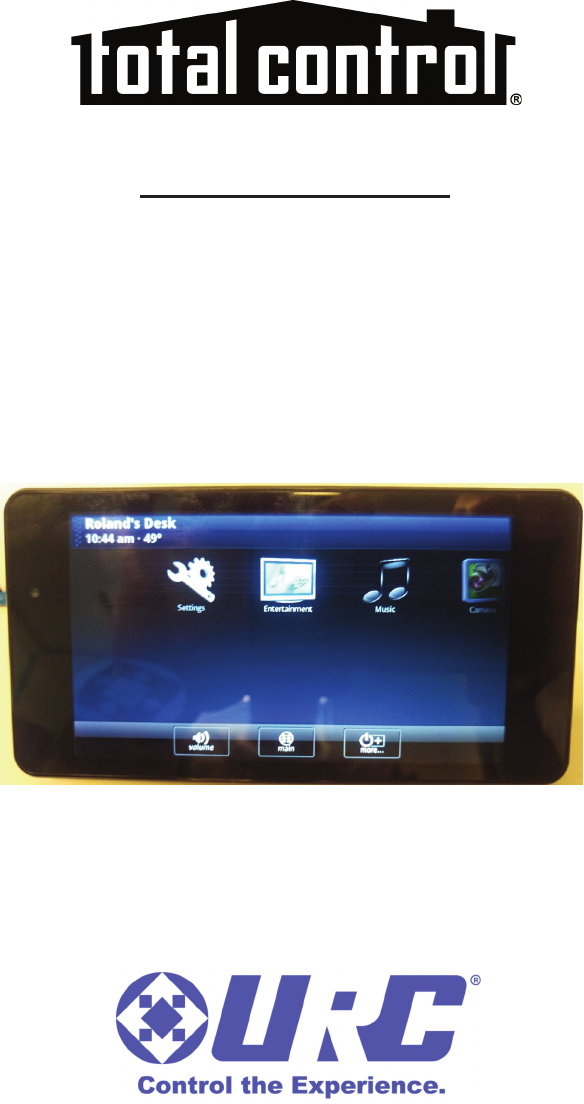

Owner’s Manual
TKP-5500
Network Keypad
TKP-5500 Installation Manual ©2011-2014 Universal Remote Control, Inc.
The information in this Owner’s Manual is copyright protected. No part of this
manual may be copied or reproduced in any form without prior written
consent from Universal Remote Control, Inc.
UNIVERSAL REMOTE CONTROL, INC. SHALL NOT BE LIABLE FOR OPER-
ATIONAL, TECHNICAL OR EDITORIAL ERRORS/OMISSIONS MADE IN
THIS MANUAL.
The information in this Owner’s Manual may be subject to change without
prior notice.
Total Control is a registered trademark of Universal Remote Control,
Inc.
URC Control the Experience is a registered trademark of Universal
Remote Control, Inc.
All other brand or product names are trademarks or registered trademarks
of their respective companies or organizations.
Universal Remote Control,Inc.
500 Mamaroneck Avenue, Harrison, NY 10528
Phone: (914) 835-4484 Fax: (914) 835-4532
TABLE OFCONTENTS
Congratulations! 1
Features and Benefits 2
Parts List 2
TKP-5500 Product Description 3
Displaying the Settings Screen 4
Adjusting Sleep Settings 4
Button Light Settings 4
Setting Date and Time 4
Sound 5
Adjusting Brightness 5
System 5
Network 5
Factory Default 6
Exit 6
Frequently Asked Questions 7
Specifications 7
Limited Warranty Statement 8
End User Agreement 10
Federal Communication Commission
Interference Statement 11
Regulatory Information to the user 12
Declaration of Conformity 13
Page 1
TKP-5500 NETWORK KEYPAD
Congratulations!
You've purchased a unique synthesis of hardware and software engineering,
the Total Control TKP-5500 Network Keypad. The TKP-5500 achieves a
magnificent combination of power and flexibility by simplifying and
automating the operation of even the most complex systems.
The TKP-5500 has the ability to control audio video components, energy
management devices, multi-zone matrixes, PCs, iPods and whole house
URC Lighting. It communicates over the Local Area Network (LAN) to the
MRX Advanced System Controller.
An MRX Advanced System Controller is REQUIRED for the TKP-5500 to
operate. The combination of the TKP-5500 and MRX-10 create a robust and
powerful system to control the Total Control product line and your home
theatre equipment.
Page 2
TKP-5500 NETWORK KEYPAD
Features and Benefits
Two-Way Control Of Devices
With the URC two-way database you can control (with feedback)
all compatible brands of receivers, lighting systems, alarms and thermostats.
Two-Way Control of Media on PSX-2 and SNP-1
The high speed of the LAN enables the TKP-5500 to display lists of
artists, albums or songs and to display the cover art of the selected
album on the Now Playing screen of the remote control from the
PSX-2 Personal Server or from the SNP-1 Streaming Network Player.
Backlit Color LCD screen
The TKP-5500 has a programmable 5” color LCD screen and backlit
"hard" buttons. When any button is pressed the color LCD screen
will turn on, and the "hard" buttons will illuminate.
User Configurable Information Feeds for News, Sports, Stocks and
Weather
The well known URC modules for News, Sports, Weather and Stocks
are all available, configured for the TKP-5500 screen. Of course these
are all user configurable.
No batteries to replace...Ever!
The TKP-5500 is powered over the Ethernet cable it's connected to,
so you never have to worry about replacing batteries.
Parts List
The TKP-5500 Network Keypad includes:
1 - TKP-5500 In-Wall Network Keypad
1 - Mounting Bracket
1 - Warranty Card
4 - Screws for mounting to a wall box

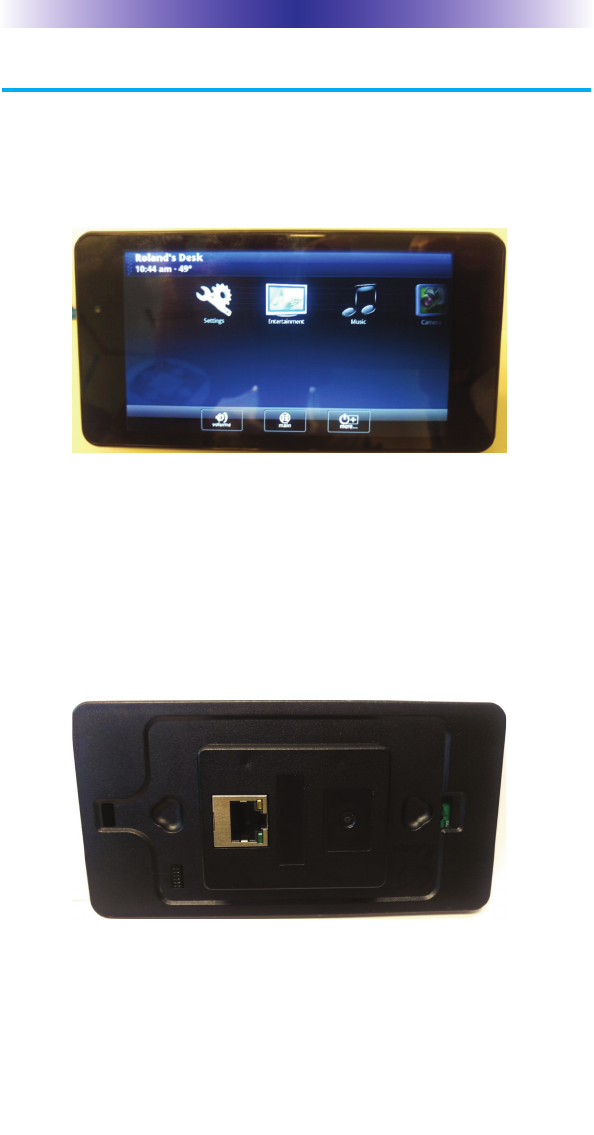

TKP-5500 Product Description
The TKP-5500 consists of a 5” color touchscreen. Your whole house cus-
tom installer can request custom buttons specific to your Total Control
setup.
Power: Turn ON the room where the TKP-5500 is located (or any other
room if using the Rooms Menu)
Lights: Press to control URC Lighting throughout your home.
Main: Press to view the main screen and control the Total Control system.
Vol+, Vol- and Mute: Easily adjust the volume settings for any zone.
LAN port: This is connected by your whole house custom installer to
your home network via Ethernet cable to a PoE (Power over
Ethernet) switch.
Page 3
TKP-5500 NETWORK KEYPAD

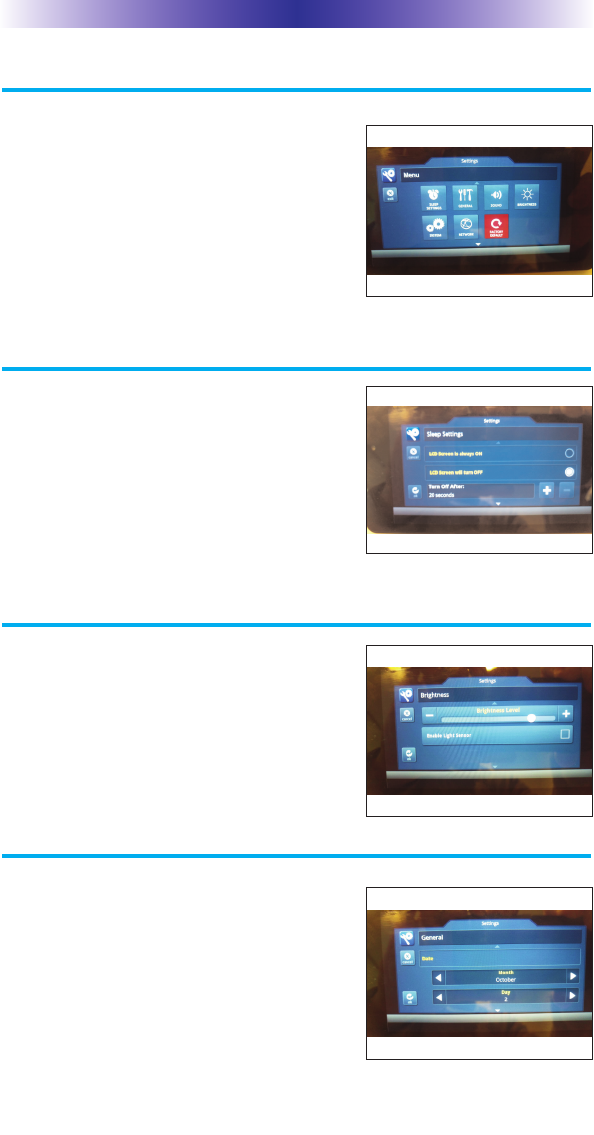

Displaying the Settings Screen
You can adjust the settings of the TKP-5500
whenever you like by pressing and holding
both the MAIN and MUTE buttons for five
seconds. When you do, the screen will change
to the SETTINGS screen. If you do not press
any button on the SETTINGS screen within
1 minute, the TKP-5500 will time out and
automatically return to normal operation.
Adjusting Sleep Settings
Conserve energy by configuring the
keypad to fall asleep after a specified
amount of time. Select a time from the
drop down list.
Button Light Settings
Conserve energy by opting to turn
off the LED lighting behind the buttons.
Setting Date and Time
Your TKP-5500 may have been programmed
to display the date or time on the touch screen.
If you need to, you can adjust the time displayed
by changing the settings on this screen.
TKP-5500 NETWORK KEYPAD
Page 4
Page 5
TKP-5500 NETWORK KEYPAD

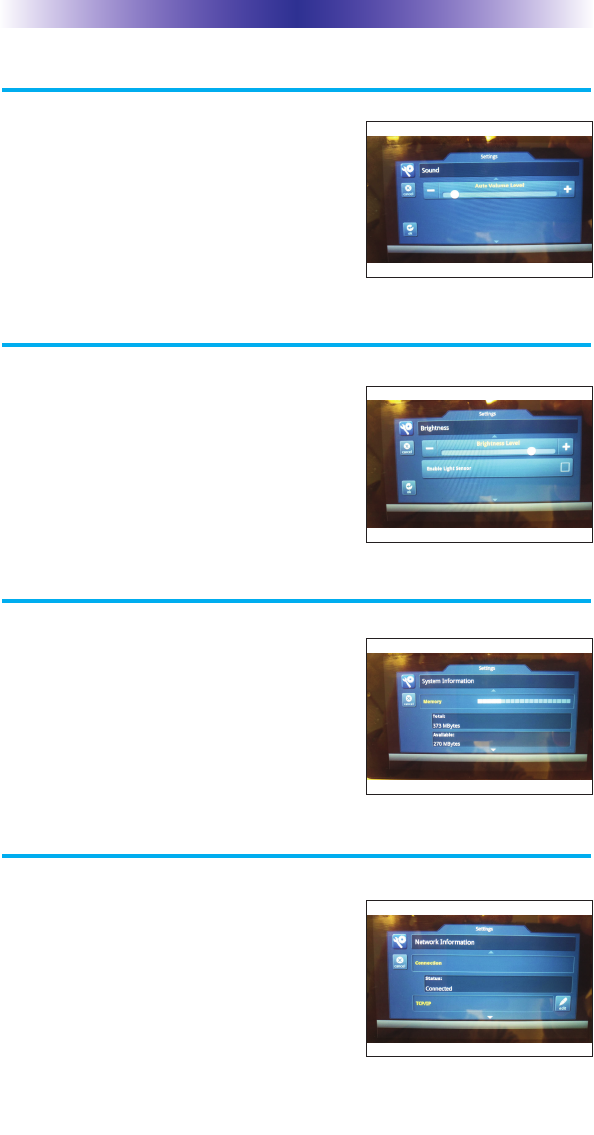

Sound
Your TKP-5500 may have been programmed
to make acknowledgement tones. This is
optional, and some professional installers
may prefer to keep it silent. However, you
can adjust the volume to any level you like
by touching and dragging the volume
control here.
Adjusting Brightness
Simply touch and drag the brightness
slider to the desired level.
System
The System Information screen displays
data about your TKP-5500's operating
system, memory etc.
Network
The Network screen displays network
information about your TKP-5500 and
the network it is connected to.
Page 6
TKP-5500 NETWORK KEYPAD
Factory Default
WARNING!
Only use this button when instructed to
by Technical Support.
It resets the memory of the TKP-5500 to
the factory condition. All your programming
will be lost!
Exit
When you have finished adjusting Settings, simply tap the EXIT button
to return to normal operation.
Page 7
TKP-5500 NETWORK KEYPAD
Frequently Asked Questions
How do I update the firmware?
Periodically there will be firmware updates for the TKP-5500. As the
TKP-5500 is connected to your home network, your installer has
the ability to update the firmware via Off-Site programming.
How do I reset a TKP-5500?
Remove the front cover of the TKP-5500. Use a pen or pointed object
device to depress the button and reset the unit.
How do I erase a TKP-5500?
Press and hold Main + Mute for 3 seconds then select the Factory
Default button.
Specifications
Microprocessor: 190MHz RISC
Memory: 128MB Flash
Devices: Supports up to 255 Devices
Pages: Supports up to 255 Pages on each Device
Macro Capability: Up to 255 steps
Network: One 10/100 Ethernet port (PoE)
LCD : 3.5 inch (320x240 )
Weight: 9.84 oz
Size: 5.75” x 4.7” x 1.8”
Power : Standard PoE Injector or PoE Switch (Purchased separately)
