EUT Type: Base Station
FCC ID.: OZ5URCTRFUZ1
APPENDIX H
: USER’S MANUALG

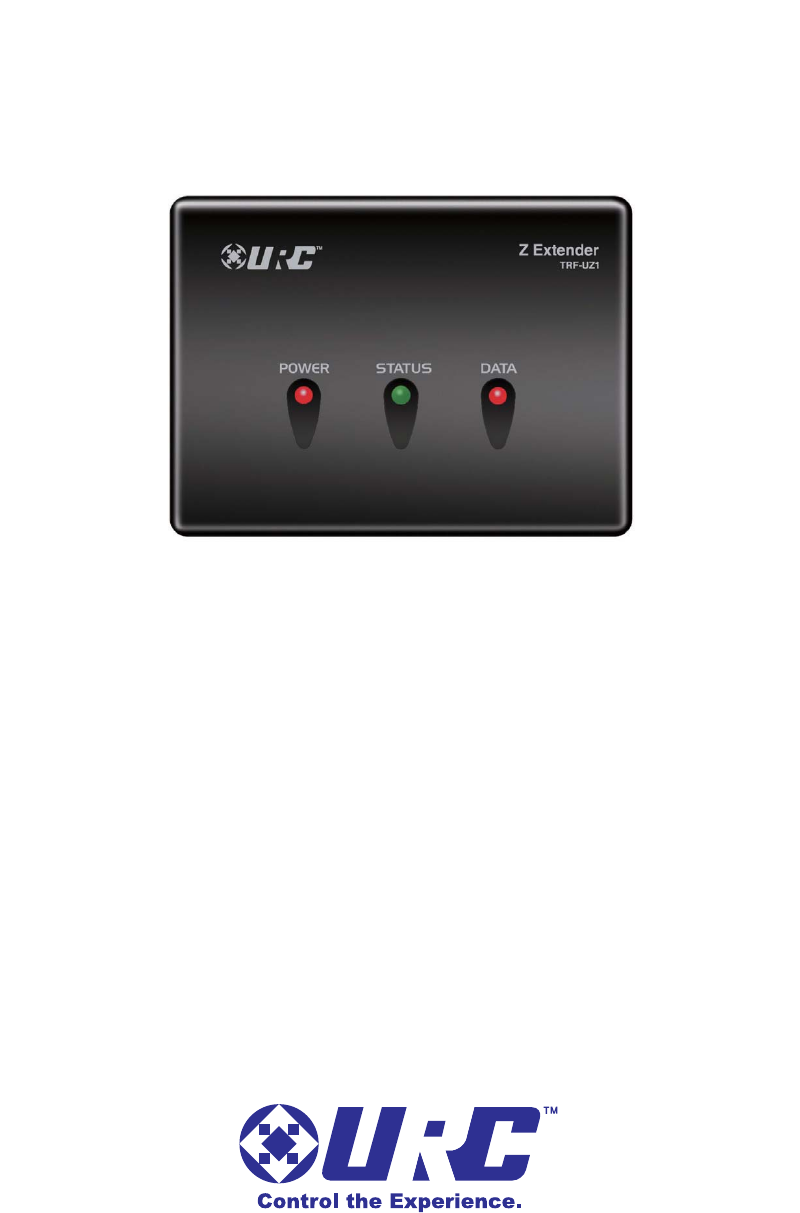

TRF-UZ1 Z Extender
Owner’s Manual
TRF-UZ1 Z EXTENDER
500 Mamaroneck Avenue, Harrison, NY 10528
Phone: (914) 835-4484 Fax: (914) 835-4532
TRF-UZ1 Z Extender Owner's Manual © 2012 Universal Remote Control, Inc.
The information in this manual is copyright protected. No part of this manual may be
copied or reproduced in any form without prior written consent from Universal
Remote Control, Inc.
UNIVERSAL REMOTE CONTROL, INC. SHALL NOT BE LIABLE FOR OPERATIONAL,
TECHNICAL OR EDITORIAL ERRORS/OMISSIONS MADE IN THIS MANUAL.
The information in this manual may be subject to change without prior notice.
URC - Control the Experience is a registered trademark of Universal Remote Control, Inc.
All other brand or product names are trademarks or registered trademarks of their
respective companies or organizations.
TRF-UZ1 Z EXTENDER
Congratulations! 1
Features and Benefits 1
Parts Guide 1
TRF-UZ1 Panel Descriptions 2
Specifications 3
USA Limited Warranty Statement 4
Federal Communication Commission
Interference Statement 6
Regulatory Information to the user 7
Delaration of Conformity 8
Page 1
TRF-UZ1 Z EXTENDER
Congratulations!
Thank you for purchasing the Total Control TRF-UZ1 Z Extender for
use with an MRX Advanced Network System Controller. This device
allows for optimal placement of the system’s RF antenna, allowing
for more robust coverage in all corners of the home or small office
space. Designed to work on URC’s 2.4GHz wireless network, this
compact device works with other devices that use the same network
protocol, like the MRX-10 Controller, TRC-780 Remote and the
THZ-100 Thermostat.
Features and Benefits
Replaces the internal antenna on the MRX-10 to allow for
optimal placement and communication, through the wired
network, between devices operating on URC’s 2.4GHz
network.
Using the optional TRF-UZ1 Z disables the internal antenna on
the MRX-10 and uses its own internal antenna as the new
“point of origin” for the RF signal. This feature provides an
abundance of placement options, minimizes the need for ZR
series repeaters, and ensures a robust signal to auxiliary devices.
Adds a 2.4GHz network antenna to the MRX-20 Advanced
Network System Controller
Without an included 2.4GHz antenna, the MRX-20 requires
the use of the TRF-UZ1 Z to enable communication, over the
2.4GHz network, to compatible devices (TRC-780, THZ-100,
etc.). Using this external antenna allows for optimal placement
in the home or small office space.
Compact design for easy installation
Easily and discretely install the TRF-GE1 Extender. Maintain
your home decor while controlling your Total Control MRX
Advanced Network System Controller.
Parts Guide
The TRF-UZ1 Z Extender includes:
1 - TRF-UZ1 Z Extender 1 - Owner’s Manual

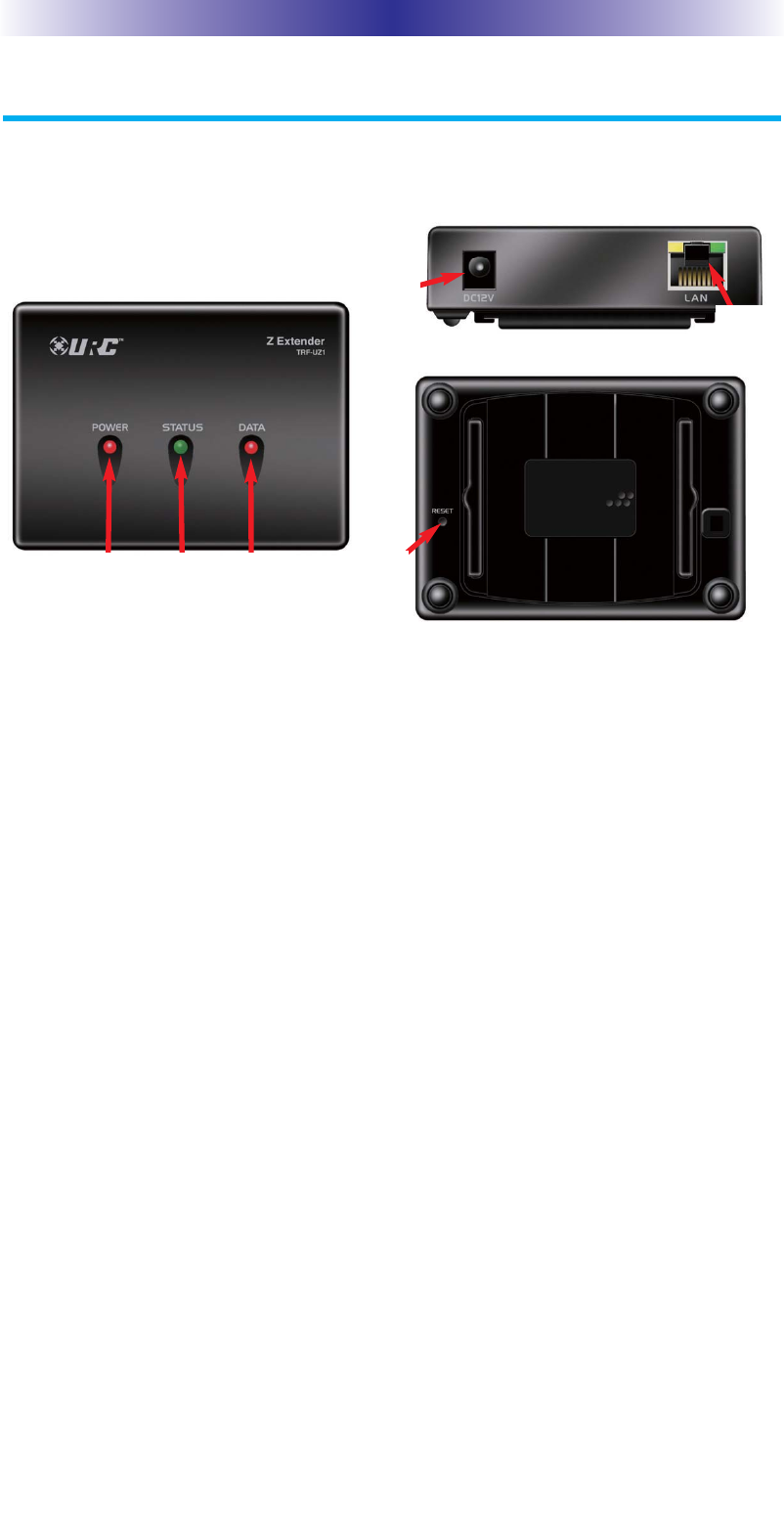

TRF-UZ1 Panel Descriptions
The front, rear and bottom panel consists of:
Power LED: When illuminated this light indicates the TRF-UZ1 is ON.
Status LED: The Status LED signifies when the TRF-UZ1 is connected
to the network:
Connected: Illuminates green.
Not Connected: Remains OFF.
Pairing: Illuminates orange.
Data LED: The Data LED flashes as the TRF-UZ1 receives and
transmits data.
DC 12V (1A): Plug in the included AC/DC adapter to power up the
TRF-UZ1.
LAN: Communicate over the network to an MRX-10/20 using an
Ethernet cable.
Reset: Pressing the Reset button, with a stylus or paper clip, refreshes
the TRF-UZ1. Unplugging and re-plugging the power cable also
resets the unit.
Pressing and holding the Reset button for 10 seconds, factory defaults
the TRF-UZ1 and places the unit back to its original factory condition.
Page 2
TRF-UZ1 Z EXTENDER
POWER
LED STATUS
LED
DATA
LED
DC 12V
LAN
Reset
TRF-UZ1 Z EXTENDER
Specifications
Microprocessor: ARM32-bit Cortex- M3(120MHz)
Power Supply: 12V DC 1A
RAM: 128Mbyte Mobile DDR
RF Range(radio frequency): 50 to 100 feet, depending upon the environment
RF Freqency: 2.405~2.480 GHz
NAND: 128Mbyte
FLASH: 768Kbytes
SRAM: 128 + 4 Kbyte
Weight: 3.058 oz
Size: 3.74” X 2.7” X 1.1”
Power: 12V DC 1A
Page 3
TRF-UZ1 Z EXTENDER
USA Limited Warranty Statement
Your Universal Remote Control, when delivered to you in new condition,
is warranted against defects in materials or workmanship as follows:
UNIVERSAL REMOTE CONTROL, INC. warrants this product against
defects in material or workmanship for a period of one (1) year and as set
forth below. Universal Remote Control will, at its sole option, repair the
product using new or comparable rebuilt parts, or exchange the product
for a comparable new or rebuilt product. In the event of a defect, these
are your exclusive remedies.
This Limited Warranty covers only the hardware components packaged
with the Product. It does not cover technical assistance for hardware or
software usage and it does not cover any software products whether or
not contained in the Product; any such software is provided "AS IS" unless
expressly provided for in any enclosed software Limited Warranty.
To obtain warranty service, you must deliver the product, freight prepaid,
in its original packaging or packaging affording adequate protection to
Universal Remote Control at the address provided in the Owner's Manual.
It is your responsibility to backup any macro programming, artwork,
software or other materials that may have been programmed into your
unit. It is likely that such data, software, or other materials will be lost
during service and Universal Remote Control will not be responsible for
any such damage or loss. A dated purchase receipt, Bill of Sale, Installation
Contract or other verifiable Proof of Purchase is required. For product
support and other important information visit Universal Remote Control's
website: http://www.UniversalRemote.com or call the Customer Service
Center (914) 835-4484.
This Limited Warranty only covers product issues caused by defects
in material or workmanship during ordinary consumer use. It does
not cover product issues caused by any other reason, including but
not limited to product issues due to commercial use, acts of God, third-
party installation, misuse, limitations of technology, or modification of
or to any part of the Universal Remote Control product. This Limited
Warranty does not cover Universal Remote Control products sold as
USED, AS IS, REFURBISHED, so-called “B STOCK” or consumables
(such as batteries). This Limited Warranty is invalid if the factory-applied
serial number has been altered or removed from the product. This Limited
Warranty is valid only in the United States of America. This Limited
Warranty specifically excludes products sold by unauthorized resellers.
Page 4
LIMITATION OF REMEDIES
UNIVERSAL REMOTE CONTROL SHALL NOT BE LIABLE FOR ANY
INCIDENTAL OR CONSEQUENTIAL DAMAGES FOR BREACH OF
ANY EXPRESS OR IMPLIED WARRANTY OR CONDITION ON THIS
PRODUCT. IN NO EVENT SHALL UNIVERSAL REMOTE CONTROL
BE LIABLE, WHETHER IN CONTRACT OR IN TORT (INCLUDING
NEGLIGENCE) FOR DAMAGES IN EXCESS OF THE PURCHASE
PRICE OF THE PRODUCT, ACCESSORY OR SOFTWARE, OR FOR
ANY INDIRECT, INCIDENTAL, SPECIAL OR CONSEQUENTIAL
DAMAGES OF ANY KIND, OR LOSS OF REVENUE OR PROFITS,
LOSS OF BUSINESS, LOSS OF INFORMATION OR DATA,
SOFTWARE OR APPLICATIONS OR OTHER FINANCIAL LOSS
ARISING OUT OF OR IN CONNECTION WITH THE ABILITY OR
INABILITY TO USE THE PRODUCTS, ACCESSORIES OR SOFTWARE
TO THE FULL EXTENT THESE DAMAGES MAY BE DISCLAIMED BY
LAW.
EXCEPT TO THE EXTENT PROHIBITED BY APPLICABLE LAW, THERE
IS NO OTHER WARRANTY EXPRESSED OR IMPLIED. UNIVERSAL
REMOTE CONTROL WILL NOT BE HELD RESPONSIBLE FOR
STATEMENTS MADE BY OTHERS CONCERNING THE
MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE
ON THIS PRODUCT. Some states or jurisdictions do not allow the
exclusion or limitation of incidental or consequential damages, or
allow limitations on how long an implied warranty lasts, so the above
limitations or exclusions may not apply to you. This Limited Warranty
gives you specific legal rights and you may have other rights which
vary from state to state or jurisdiction to jurisdiction.
REV020708
TRF-UZ1 Z EXTENDER
Page 5
Page 6
TRF-UZ1 Z EXTENDER
Federal Communication Commission
Interference Statement
This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one more
of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from
that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for
help.
Warning!
Changes or modifications not expressly approved by the manufacturer could
void the user's authority to operate the equipment.
Note : The manufacturer is not responsible for any Radio or TV interference
caused by unauthorized modifications to this equipment. Such modifications
could void the user's authority to operate the equipment.
FCC Caution
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) this device may not cause harmful interference,
and (2) this device must accept any interference received, including interference
that may cause undesired operation.
Any changes or modifications not expressly approved by the party responsible
for compliance could void the authority to operate equipment.
Federal Communication Commission (FCC) Radiation Exposure Statement
The device and the antenna for this device must be installed to ensure a mini-
mum separation distance of 20 cm more from a person's body. Other operating
configurations should be avoided.
Regulatory Information to the user
CE conformity Notice
Products with “CE” marking comply with the R&TTE Directive
1995/5/EC, EMC Directive 2004/108/EC and Low Voltage
Directive 2006/95/EEC issued by the commission of the European
Community.
1) R&TTE Directive
Safety : EN 60950-1
EMC : ETSI EN 301 489-1,17
RF : ETSI EN 300 328
2) EMC Directive
Emission : EN 55022
Immunity : EN 55024
Power : EN-61000-3-2, 3
3) Low Voltage Directive
Product safety : EN 60950-1
Safety instruction for charging internal rechargeable battery of
remote control
Use only with EN60950-1 approved as Linited power source and
double insulation() marked power adaptor & same ratings described
on the product label(12V DC 1A).
Declaration of Conformity
“Hereby, Universal Remote Control Inc. declares that this TRF-UZ1 is
in compliance with the Essential requirements and other relevant
provisions of Directive 1999/5/EC.”
Page 7
TRF-UZ1 Z EXTENDER
Certification
Type No.(Model No.) TRF-UZ1
Batch/Serial No. -
Power Rating 12V DC 1A
Frequency band 2.405~2.480 GHz
Page 8
TRF-UZ1 Z EXTENDER
Declaration of Conformity
Company Name : Universal Remote Control Inc.
Company Address : 500 Mamaroneck Avenue, Harrison, NY 10528, U.S.A
Contact Information : www.universalremote.com
Phone: (914)835-4484 Fax: (914)835-4532
Brand Name : UNIVERSAL remote control
Product Name : BASE STATION
Model Name : TRF-UZ1
This product herewith complies with the requirements of EMC Directive (2004/108/EC)
and R&TTE Directive(1995/5/EC) issued by the Commission of the European Community
Compliance with these directives implies conformity to the following European Community
EMC Directive
EN 55022
EN 55024
EN 61000-3-2
EN 61000-3-3
R&TTE Directive
EN 60950-1
ETSI EN 301-489-1, 17
ETSI EN 300 328
Low Voltage Directive
EN 60950-1
List of test reports and/or certificate verified compliance with the standards above
EMC Directive
Report No.
Testing Laboratory : Gumi College EMC Center
R&TTE Directive
Certificate No.
Certificate Body : SIEMIC (No. 2200)
Date of issue : March 16, 2012
Name and signature of authorized person : James Novak
Senior Product Manager
Universal Remote Control Inc.
Page 9
NOTE
Page 10
NOTE
Page 11
NOTE
Page 12
NOTE
Page 13
NOTE
Page 14
NOTE
Page 15
NOTE
Declaration of Conformity
Code of Federal Regulations (CFR) 47, Part 2.906
Equipment Class : Computing device peripheral
EUT Type : Base Station
Rule Part(s) : FCC Part 15 subpart B
Test Procedure(s) : ANSI C63.4 (2009)
This device complies with part 15 of the FCC Rules. Operation is subject to the following
two conditions: (1) this device may not cause harmful interference, and (2) this device must
accept any interference received, including interference that may cause undesired operating.
We hereby declare that this device bearing the trade name and model specified above
has been shown to be in compliance with the applicable FCC rules under the most accurate
measurement standards possible, and that all the necessary steps have been taken and are
in force to assure that production units of the same equipment will continue to comply
with the commission’s requirement
Date of issue :
Name and signature of authorized person :
James Novak
Universal Remote Control Inc.
MODEL NAME:
TRF
-UZ1
TRADE NAME:
UNIVERSAL Remote Control
RESPONSIBLE PARTY:
Universal Remote Contr
ol Inc.
ADDRESS:
500Mamaroneck Avenue, Harrison, NY 10528, U.S.A
CONTACT PERSON:
James Novak
TELEPHONE NUMBER:
(914)835
-4484
Duties of the Responsible Party
The responsible party upon signing or accepting the Declaration of Conformity as specified in Section 2.906 of
the FCC Rules hereby agrees to the duties listed below:
§ 2.1073(a).
The responsible party warrants that each unit of equipment marketed under DoC is identical to the unit tested and
found acceptable with the standards; and that the records maintained by the responsible party continue to reflect
the equipment being produced are within the variation that can be expected due to quantity production and testing
on a statistical basis.
§ 2.1073(b).
The responsible party must have a written statement from the manufacturer or accredited test laboratory that the
equipment complies with the appropriate technical standards.
§ 2.1073(c).
In case of transfer of control of equipment, as in the case of sale or merger, the new responsible party shall bear the
responsibility of continued compliance of the equipment.
§ 2.1073(d).
Equipment shall be retested if any modifications or changes are made that could adversely affect the emanation
characteristics of the equipment.
§ 2.1073(e).
If ay modifications or changes made by anyone other than the responsible party, the party making the
modifications or changes, if located within the U.S., becomes the new responsible party. The new responsible party
must comply with all provisions for the DoC, including having test data on files demonstrating that the product
continues to comply with all of the applicable technical standards.
§ 2.1075(a)(1).
The responsible party shall maintain records of the original design drawings and specifications and all changes
made to the product that may affect compliance.
§ 2.1075(a)(2).
The responsible party shall maintain records of the procedures used for production inspection and testing to insure
the conformance with the FCC Rules.
§ 2.946(a)(1).
The test report data shall be provided to the FCC within 14 days of delivery of request. The test sample(s) shall be
provided within 60 days of delivery of request.
§ 2.946(b).
In cases involving harmful interference of safety of life or property, the production sample must be provided within
60 days, but not less than 14 days. Failure to comply with such a request with the time frame shown may be cause
for forfeiture, pursuant to Section 1,80 of Part 1 of the FCC Rules.
500 Mamaroneck Avenue, Harrison, NY 10528
Phone: (914) 835-4484 Fax: (914) 835-4532
www.universalremote.com
OCE-0132B Rev 01
