User Manual
Order Number : GETEC-C1-10-220 FCC Part 15 subpart C
Test Report Number : GETEC-E3-10-149 Page 1 / 1
EUT Type: Zigbee Router
FCC ID.: OZ5URCZR1
APPENDIX H
: USER’S MANUAL

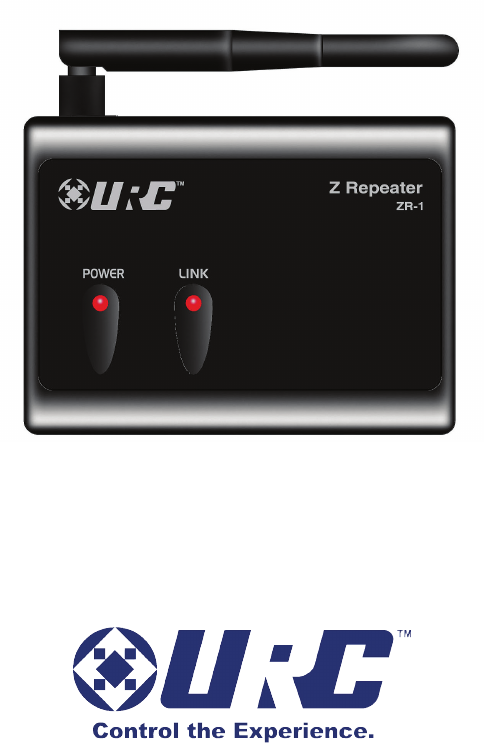

ZR-1 Z Repeater
Owners Manual
ZR-1 Z Repeater Owners Manual ©2010 Universal Remote Control,Inc.
The information in this manual is copyright protected.No part of this manual may be
copied or reproduced in any form without prior written consent from Universal
Remote Control,Inc.
Universal Remote Control,INC.shall not be liable for operational,technical or edito-
rial errors/omissions made in this manual.
The information in this manual may be subject to change without priornotice.
Complete Control is a registered trademark of Universal Remote Control,Inc.
All other brand or product names are trademarks or registered trademarks of their
respective companies or organizations.
500 Mamaroneck Avenue, Harrison, NY 10528
Phone: (914) 835-4484 Fax: (914) 835-4532
TABLE OFCONTENTS
Introduction 1
Features and Benefits 1
Parts Guide 1
ZR-1 Front and Side Panel Descriptions 2
Specifications 2
USA Limited Warranty Statement 3
Federal Communication Commission
Interference Statement 4
Regulatory Information to the user 5
Declaration of Conformity 6
Page 1
ZR-1 Z REPEATER
Introduction
Congratulations on your purchase of the ZR-1 Z Repeater! The ZR-1
is used to extend the operational range between Total Control proucts
such as the TRC-780 and the MRX-10. Once joined to the MRX-10 it
will wirelessly relay communication between an TRC-780 and multi-
ple ZR-1 repeaters.
Features and Benefits
Wirelessly extends the range between Total Control products
Extend the operational range between a MS-780 remote and
a MRX-10 Advanced Network System Controller. Control lighting,
music and more from throughout the home.
Additional ZR-1 Repeaters can be joined to create a wireless mesh
network throughout the home.
Parts Guide
The ZR-1 Z Repeater includes:
1 - ZR-1 Z Repeater 1 - AC Power Adapter
1 - Wall Mount and 4 Screws 1 - Owner’s Manual
Page 2
ZR-1 Z REPEATER

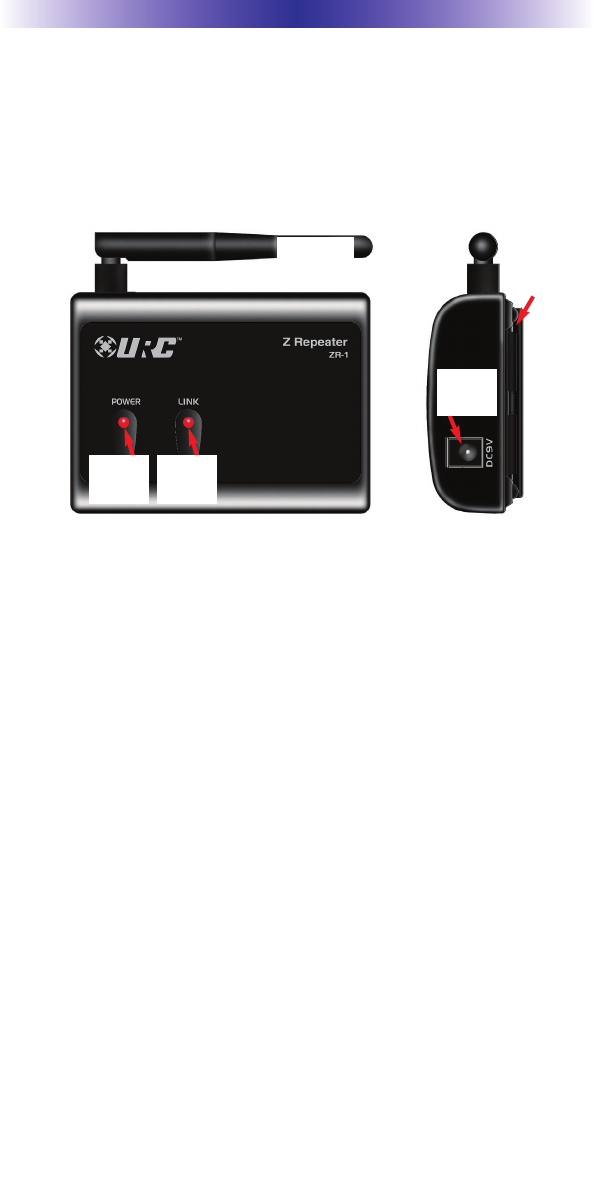

ZR-1 Front and Side Panel Descriptions
Front and Side Panel
The front panel consists of 2 indicator lights which will illuminate
when in u
Power LED: Indicates that the ZR-1 is powered on whenilluminated.
Link LED: Indicates the status of the Z communication connectionto
the MRX-10. Off = not connected, Blinking = attempting to con-
nect, On Steady = connected.
Antenna: Omnidirectional antenna. Adjust the antenna for best per-
formance. Usually vertical positioning works well.
DC9V Power: Attach the included 9V DC power supply here.
Mounting Plate: May be attached to a wall or other surface with the
included screws for easy slide on/off mounting.
Specifications
RF Frequency: 2.45GHz (ZigBee-Pro)
Effective Range: Typically 50-75 ft, depending on environment
Size: L x D x H = 3.625" x 1.125" x 6.625" (with antenna vertical)
Weight: 3 oz.
Power Supply: 9V DC .300mA
Power
LED
Link
LED
DC9V
Power
Mounting
Plate
Antenna
Page 3
USA Limited Warranty Statement
Your Universal Remote Control, when delivered to you in new con-
dition, is warranted against defects in materials or workmanship as
follows: UNIVERSAL REMOTE CONTROL, INC. warrants this prod-
uct against defects in material or workmanship for s period of one
(1) year and as set forth below. Universal Remote Control will, at its
sole option, repair the product using new or comparable rebuilt
parts, or exchange the product for a comparable new or rebuilt
product. In the event of a defect, these are your exclusive reme-
dies.
This Limited Warranty covers only the hardware components pack-
aged with the Product. It does not cover technical assistance for
hardware or software usage and it does not cover any software
products whether or not contained in the Product; any such soft-
ware is provided “AS IS” unless expressly provided for in any
enclosed software Limited Warranty.
To obtain warranty service, you must deliver the product, freight
prepaid, in its original packaging or packaging affording adequate
protection to Universal Remote Control at the address provided in
the Owner’s Manual. It is your responsibility to backup any macro
programming, artwork, software or other materials that may have
been programmed into your unit. It is likely that such data, soft-
ware, or other materials will be lost during service and Universal
Remote Control will not be responsible for any such damage or
loss. A dated purchase receipt, Bill of Sale, Installation Contract or
other verifiable Proof of Purchase is required. For product support
and other important information visit Universal Remote Control’s
website: http://www.UniversalRemote.com or call the Customer
Service Center (914) 835-4484.
This Limited Warranty only covers product issues caused by defects
in material or workmanship during ordinary consumer use. It does
not cover product issues caused by any other reason, including but
not limited to product issues due to commercial use, acts of God,
third-party installation, misuse, limitations of technology, or modifi
-cation of or to any part of the Universal Remote Control product.
This Limited Warranty does not cover Universal Remote Control
products sold as USED, AS IS, REFURBISHED, so-called “B STOCK”
or consumables (such as batteries). This Limited Warranty is invalid
if the factory-applied serial number has been altered or removed
from the product. This Limited Warranty is valid only in the United
States of America. This Limited Warranty specifically excludes prod-
ucts sold by unauthorized resellers.
ZR-1 Z REPEATER
Page 4
Federal Communication Commission
Interference Statement
This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the instruc-
tions, may cause harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a particular installa-
tion. If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one more of the follow-
ing measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from
that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for
help.
Warning!
Changes or modifications not expressly approved by the manufacturer could
void the user's authority to operate the equipment.
Note : The manufacturer is not responsible for any Radio or TV interference
caused by unauthorized modifications to this equipment. Such modifications
could void the user's authority to operate the equipment.
FCC Caution
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) this device may not cause harmful interference,
and (2) this device must accept any interference received, including interference
that may cause undesired operation.
Any changes or modifications not expressly approved by the party responsible
for compliance could void the authority to operate equipment.
The antenna(s) used for this transmitter must not be co-located or operating in
conjunction with any other antenna or transmitter.
ZR-1 Z REPEATER
Federal Communication Commission (FCC) Radiation Exposure Statement
The device and the antenna for this device must be installed to ensure a
minimum separation distance of 20 cm or more from a person's body. Other
operating configurations should be avoided.
Page 5
Regulatory Information to the user
CE conformity Notice
Products with “CE” marking comply with the R&TTE Directive
1995/5/EC, EMC Directive 2004/108/EC and Low Voltage
Directive 2006/95/EEC issued by the commission of the European
Community.
1) R&TTE Directive
LVD : EN 60950-1
EMC : ETSI EN 301 489-1,3
RF : ETSI EN 300 220-1,2
: ETSI EN 300
2) EMC Directive
Emission : EN 55022
Immunity : EN 55024
Power : EN-61000-3-2, 3
Safety instruction for charging internal rechargeable battery of
remote control Caution
Use only with EN60950-1 approved as Limited power source and
double insulation( ) marked power adaptor & same ratings
described on the product label (9DVdc, 300mA).
Declaration of Conformity
“Hereby, Universal Remote Control Inc. declares that this ZR-1 is in
compliance with the Essential requirements and other relevant provi-
sions of Directive 1999/5/EC.”
ZR-1 Z REPEATER
Certification
Type No.(Model No.) ZR-1
Batch/Serial No. -
Power Rating 9.0V , 300mA
Frequency band 2.45GHz (ZigBee-Pro)
Page 6
ZR-1 Z REPEATER
Declaration of Conformity
Company Name : Universal Remote Control Inc.
Company Address : 500Mamaroneck Avenue, Harrison, NY 10528, U.S.A
Contact Info rmation : www.universalremote.com
Phone: (914)835-4484 Fax: (914)835-4532
Brand Name : UNIVERSAL remote control
Product Name : Zig Bee REPEATER
Model Name : ZR-1
This product herewith complies with the requirements of EMC Directive (2004/108/EC)
and R&TTE Directive(1995/5/EC) issued bythe Commission of the European Community
Compliance with these directives implies conformity to the following European Community
EMC Directive
EN 55022
EN 55024
EN 61000-3-2
EN 61000-3-3
R&TTE Directive
EN 60950-1
ETSI EN 301-489-1,3
ETSI EN 300 220-1,2
ETSI EN 300
List of test reports and/or certificate verified compliance with the standards above
Date of issue : May 30, 2010
Name and signature of authorized person :
EMC Directive
Report No.
Testi ng Labora tory : Gumi College EMC Center
R&TTE Directive
Certificate No.
Certificate Body : TUV Rheinland (No. 0197)
James Novak
Senior Product Manager
Universal Remote Control Inc.
500 Mamaroneck Avenue, Harrison, NY 10528
Phone: (914) 835-4484 Fax: (914) 835-4532
www.universalremote.com
OCE-0097A Rev 01
