Oki Electric Industry RX4004A RFID Reader Module User Manual

Oki Data Corporation RFID Reader Module Users Manual

User Manual

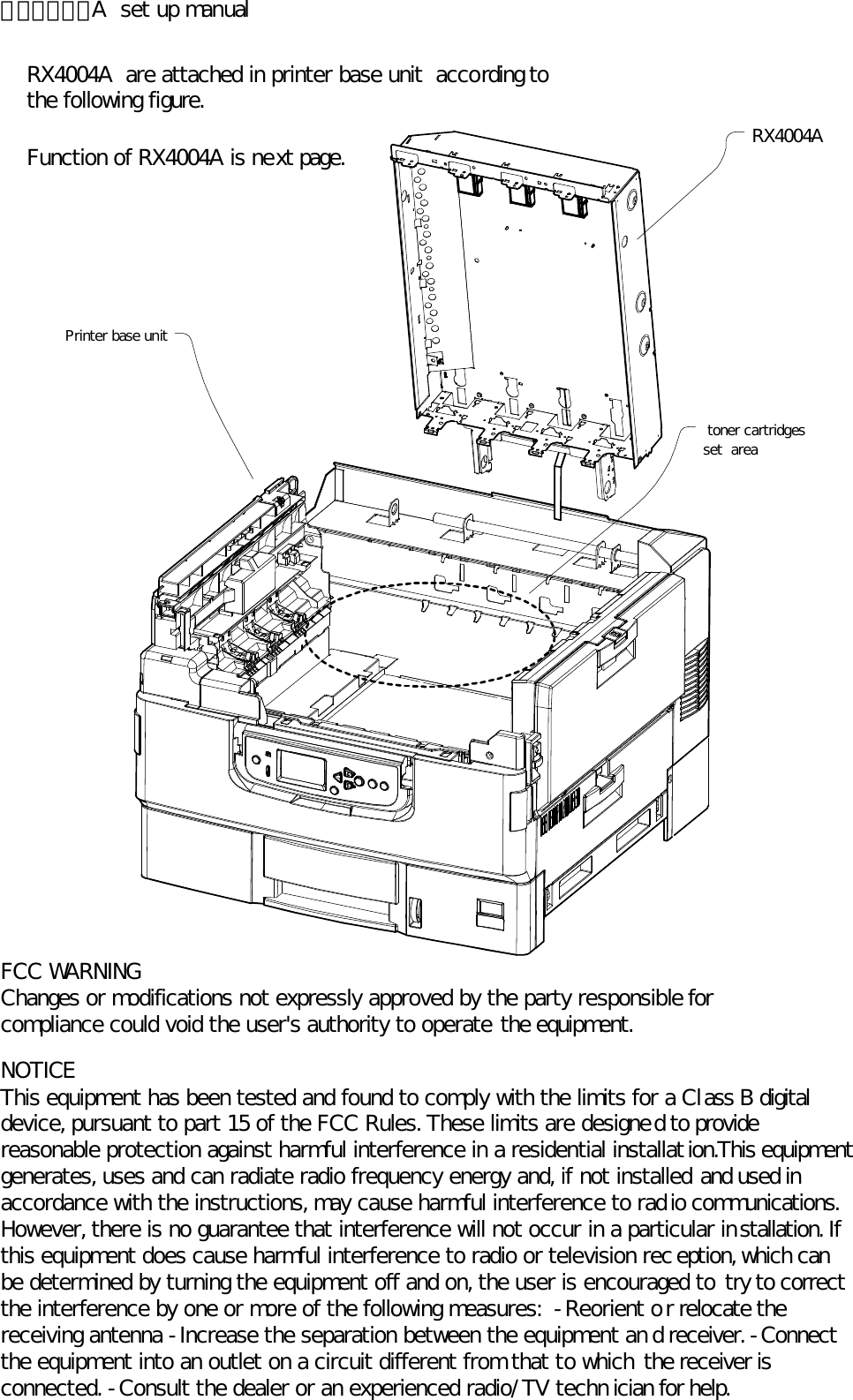

ＲＸ４００４A set up manual RX4004A are attached in printer base unit according tothe following figure.FCC WARNINGChanges or modifications not expressly approved by the party responsible forcompliance could void the user's authority to operate the equipment.NOTICEThis equipment has been tested and found to comply with the limits for a Class B digitaldevice, pursuant to part 15 of the FCC Rules. These limits are designed to providereasonable protection against harmful interference in a residential installation.This equipmentgenerates, uses and can radiate radio frequency energy and, if not installed and used inaccordance with the instructions, may cause harmful interference to radio communications.However, there is no guarantee that interference will not occur in a particular installation. Ifthis equipment does cause harmful interference to radio or television reception, which canbe determined by turning the equipment off and on, the user is encouraged to try to correctthe interference by one or more of the following measures: -Reorient or relocate thereceiving antenna -Increase the separation between the equipment an d receiver. -Connectthe equipment into an outlet on a circuit different from that to which the receiver isconnected. -Consult the dealer or an experienced radio/TV techn ician for help.RX4004A toner cartridgesset areaFunction of RX4004A is next page.Printer base unitPrinter base unit

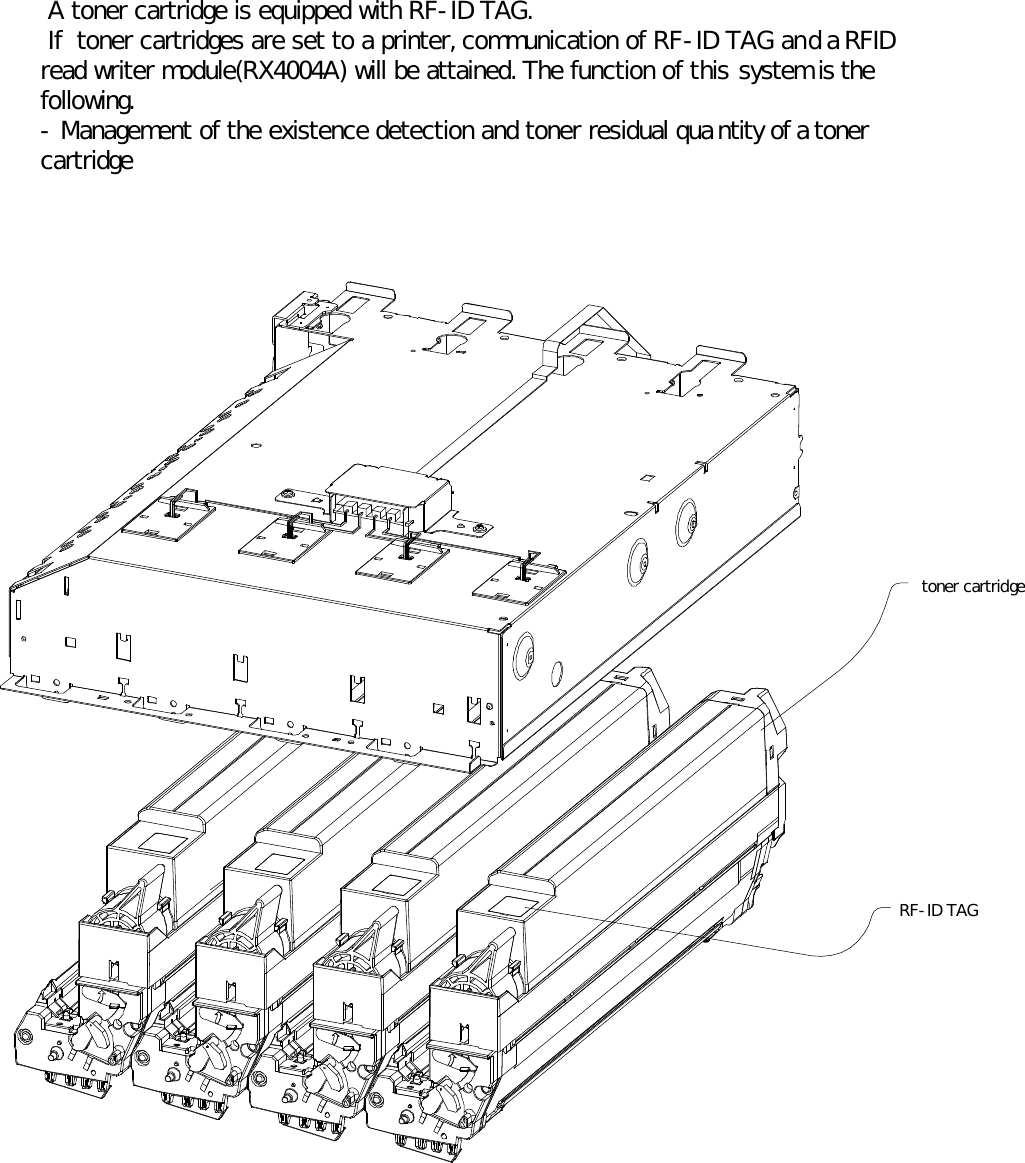

A toner cartridge is equipped with RF-ID TAG. If toner cartridges are set to a printer, communication of RF-ID TAG and a RFIDread writer module(RX4004A) will be attained. The function of this system is thefollowing.- Management of the existence detection and toner residual qua ntity of a tonercartridge toner cartridgeRF-ID TAG
