OLYMPUS BFTYPE 160

EVIS EXERA Bronchovideoscope

EVIS EXERA Video System Center (CV-160)

EVIS EXERA Light Source (CLV-160)

Single-use Biopsy Valve (MAJ-210) 

or Biopsy Valve (MD-495)

Suction Pump (

ＫＶ‐４ / ＳＳＵ‐２

)

*Videoscope Cable 100 (MD-680 or MD-146)

Videoscope Cable EXERA (MAJ-843)

*EVIS Video System Center (ＣＶ‐100 / 14０

)

*EVIS Universal Light Source (ＣＬＶ‐Ｕ20 / ４０

)

*BF-P160 is not compatible

Single-use Suction Valve (MAJ-209) 

or Suction Valve (MAJ-207)

BF-160 Endoscopic Equipment Combinations

San-Ei Building, 22-2, Nishi Shinjuku 1-chome, Shinjuku-ku, Tokyo, Japan

Postfach 10 49 08, 20034 Hamburg / Wendenstrasse 14-16, 20097 Hamburg, Germany

2 Corporate Center Drive, Melville, N.Y. 11747-3157, U.S.A.

Keymed House, Stock Road, Southend-on-Sea, Essex SS2 5QH, England

491B River Valley Road #12-01/04,Valley Point Office Tower,Singapore 248373

Rm. 818, South Tower, Beijing Kerry Centre, No.1 Guanghua Road, Chaoyang District, Beijing, 100020, China

117071, Moscow, Malaya Kaluzhskaya 19, bld. 1, fl.2, Russia

1/104 Ferntree Gully Road, Oakleigh, VIC 3166, Australia

Revolutionary Observation

Capability

http://www.olympus.com

Printed in Japan R264SB-0400

BF-160* Doc.00.3/6 00.5.24 1:29 PM ページ 1

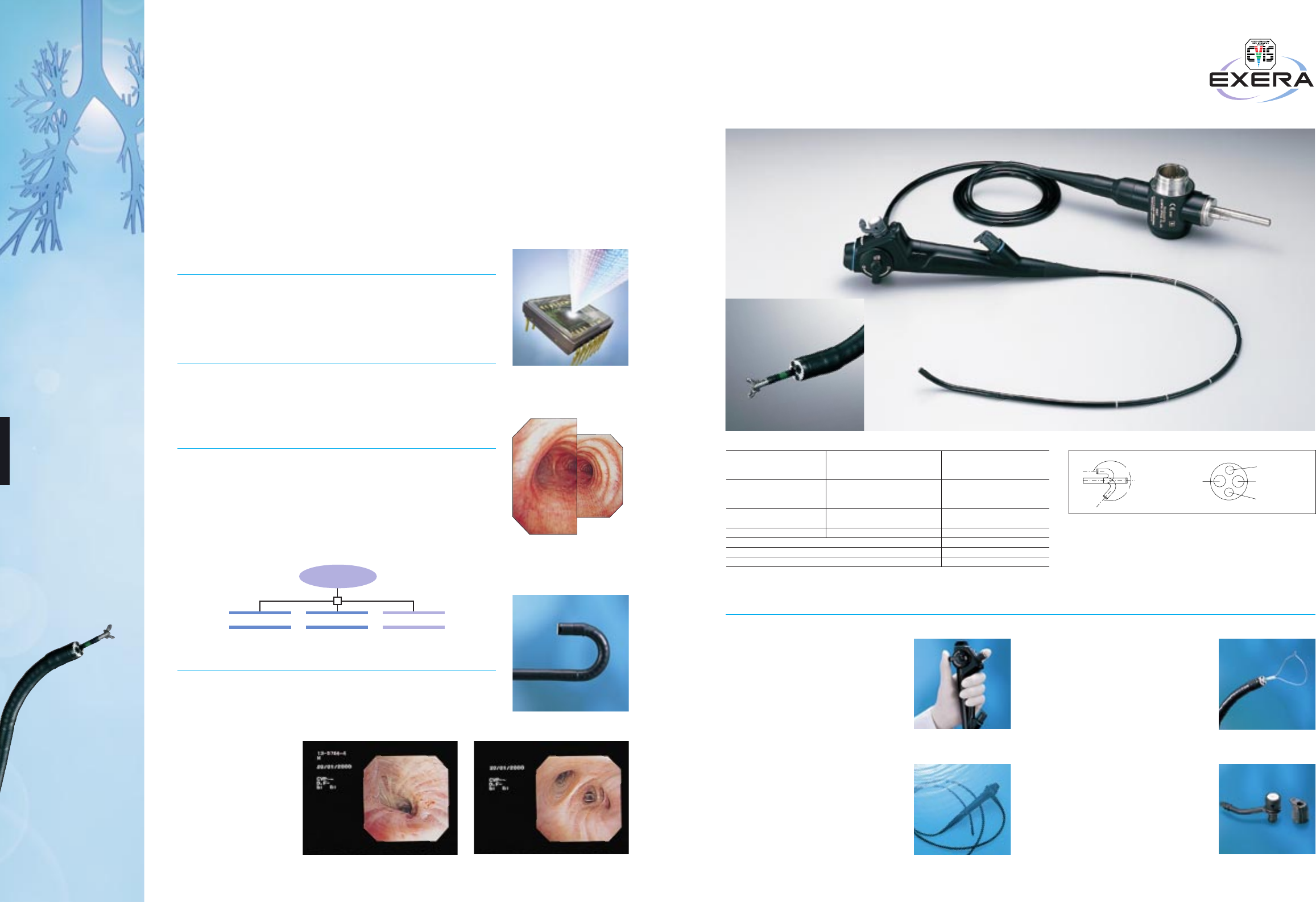

A 5.3mm Diameter Distal End, Newly

Developed High-Resolution CCD, And

Compatibility With The EVIS 100/140 Systems

With its slim 5.3mm diameter distal end, 2.0mm diameter channel, and newly developed

high-resolution CCD, the Olympus BFTYPE160 makes it easy to obtain the precision

manipulation and detailed imaging you need for examination of the tracheobronchial tree.

Equally well-suited for routine endoscopic applications, this versatile scope is fully

compatible with the CV-160 as well as the CV-100/140, offering you a cost-effective

solution to all your endoscopic requirements.

EVIS EXERA

Bronchovideoscope

BF-160

The BF-160 incorporates a newly developed compact color-chip CCD in the scope

tip capable of delivering the same level of high-resolution image quality as a

gastrointestinal videoscope. Details are sharp and clear throughout the image area,

assuring precise, and accurate observation.

High-Quality, High-Resolution Images

For Accurate Observation

Designed to minimize operator fatigue and

maximize efficiency, the control section is

contoured to fit comfortably in the operator’s left

hand. Switch functions can be user-defined and all

switches and knobs are arranged on the control

section in a simple, easy-to-remember

configuration that facilitates single-handed

operation.

Ergonomically Designed Control Section And Switch Layout

Efficient, Ergonomic Design Is Easy To Use And Maintain

EVIS EXERA Bronchovideoscope

OLYMPUS BF TYPE 160

Optical System

Insertion Tube

Instrument Channel

Bending Section

High Frequency Compatibility

Laser Compatibility

Total Length

Field of view

Direction of view

Depth of field

Distal end outer diameter

Insertion tube outer diameter

Working length

Channel inner diameter

Minimum visible distance

Angulation range

120°

0° (Forward viewing)

3 ~ 100 mm

5.3 mm

5.2 mm

600 mm

2.0 mm

3 mm from distal end

UP 180°,DOWN 130°

YES

YAG, 810 nm diode

870 mm

Specifications

130。

DOWN

180。

UP Instrument

and Suction

Channel

Light Guide

Objective Lens

Light Guide

Fully insulated to minimize any potential risk, this

scope is compatible with electrocautery — an

advanced treatment system that produces less

smoke than laser treatment and is widely used for

specialized surgery such as removal of elevated

tumors in the bronchi.

Compatibility With Electrocautery For Added Versatility

To make the scope easier to wash and brush and

to optimize the effect of disinfectant immersion, the

exterior is designed to minimize surface protrusions

and indentations while the interior features a

simplified, jointless channel configuration. For

added convenience, all reprocessing accessories

are either autoclavable or disposable.

Reprocessing Capability For Reliability You Can Count On

The accessories are designed to the same

specifications as those for Olympus’s previous and

current bronchovideoscopes and

bronchofiberscopes. This makes it easy to use the

same accessory with different scopes, reducing

equipment costs and simplifying accessory

management.

Standardized Accessories Can Be Used With All Scopes

Monitoring the image while you work is much easier with the BF-160 thanks to its

larger image display. Since this increased size does not come at the expense of

image quality, you’ll easily spot tiny details that you might otherwise have missed.

Larger Image Size For Easier Viewing

Fully compatible with our earlier CV-100 and CV-140 video system centers, the

BF-160 can be easily integrated into the EVIS 100/140 systems used in GI endoscopy

suite. On the other hand, if you’re ready to upgrade and want to maximize the cost-

efficiency of your endoscopy suite, you’ll appreciate the versatility of the BF-160’s

dedicated video system — the CV-160. Designed to accommodate both

bronchovideoscopes and gastrointestinal videoscopes, the CV-160 allows you to

interchange the BF-160 with an EVIS EXERA Gastrointestinal Videoscope, enabling

your EVIS EXERA System to be used for both bronchoscopic and gastrointestinal

endoscopic procedures.

Backward Compatibility And Dual-Purpose Design For

Optimal Cost-Efficiency

Because the distal end’s outer diameter measures only 5.3mm, insertion is smooth

and easy — even when penetrating tight recesses of the tracheobronchial tree. At

the same time, this narrower outer diameter also allows you to use the BF-160 for

routine examination of the bronchi.

5.3mm Diameter Distal End Achieves Excellent Insertion

Capability

CV-100 CV-140

BF TYPE 160

VIDEOSCOPE

CV-160

BF-160* Doc.00.3/6 00.5.24 1:29 PM ページ 3
