Omron Automotive Electronics Korea OKA-110R Remote Control Security Receiver User Manual OSLOKA 620R Manual
Omron Automotive Electronics Korea Co., Ltd. Remote Control Security Receiver OSLOKA 620R Manual
User Manual
RECEIVER, RF Keyless Entry System
OMRON
AUTOMOTIVE
ELECTRONICS
KOREA
OKA-110R
Table of contents
1. Constitution of the Radio Frequency Keyless Entry system Controller for vehicle - 1
2. User's manual (provisionally) -------------------------------------------------------------------- 2
3. Specification ----------------------------------------------------------------------------------------- 3
4. Features ----------------------------------------------------------------------------------------------- 4
5. Derivatives -------------------------------------------------------------------------------------------- 4
- 1 -

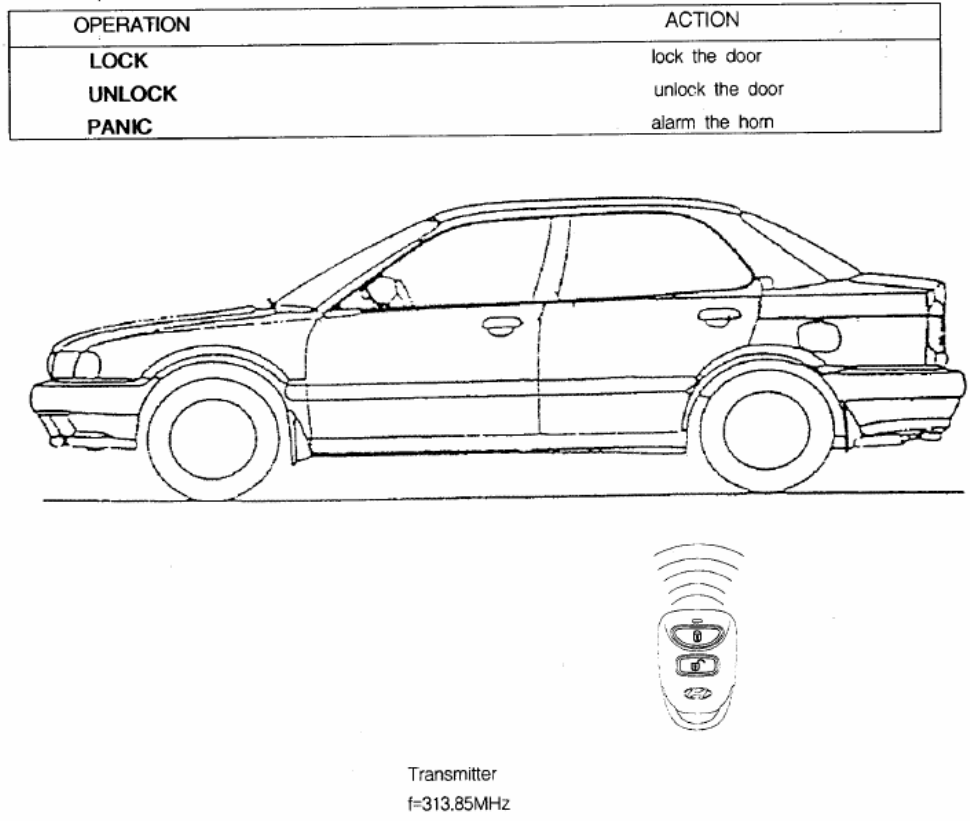

1. Constitution of the Radio Frequency Keyless Entry System for vehicle
The radio frequency keyless entry is a system that it controls locking and unlocking the door by wireless
remote controller. This system consists of three components. The TRANSMITTER is a device that transmits
the signal when the button is pressed. The transmission signal consists of several synchronous codes, unique
identification code, security code and function code. The RECEIVER is fixed inside the vehicle. It works
intermittently to prevent the battery exhaustion. When the receiver detects the synchronous code, it runs
continuously to receive the signals completely. After receiving the signal, the receiver decides which
operation will be performed. The user can select the following operations by pressing the button of the remote
transmitter.
- 2 -
2. User's manual (provisionally)

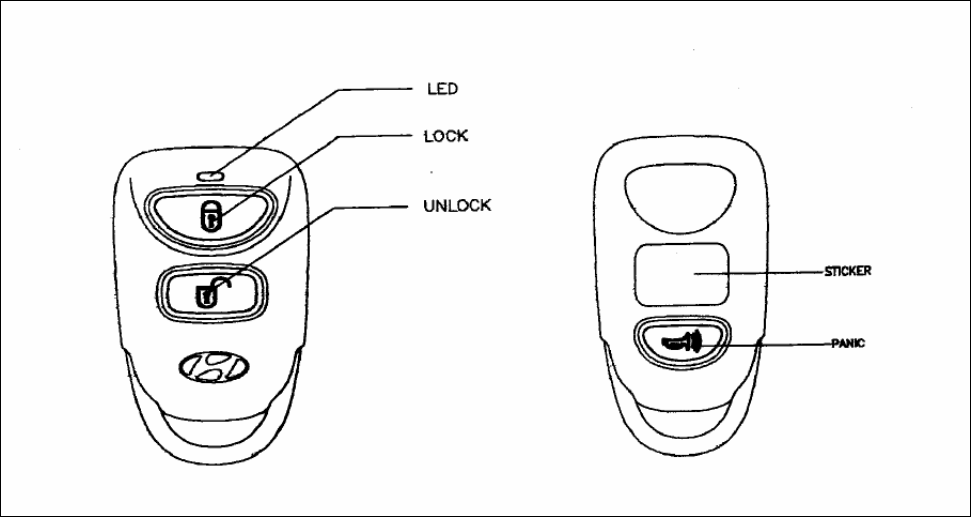

REMOTE TRANSMITTER
You can lock and unlock your vehicle with the remote transmitter.
LOCK
When you push the LOCK button, all the doors will lock.
You cannot lock any of the doors with the remote transmitter if any door is open or the key is the ignition
switch.
UNLOCK
When you push the UNLOCK button, all the doors will unlock.
You cannot unlock any of the doors with the remote transmitter if any door is open or the key is in the
ignition switch.
PANIC
When you push the PANIC button, horn will alarm.
- 3 -
3. Specification
3.1 CPU
3.2 EEPROM
Type
Memory
Package
S-93C46XXX
Manufacturer: Seiko. Elec.
1Kbit
8pin SOP
3.3 RF Receiver Module
Type
Local clock frequency
Frequency generation
Modulation Scheme
Bandwidth
Carrier Detect Sensitivity
G8X-21RXIAM
Manufacturer: OMRON IIDA
313.85MHz
Crystal resonator
FM (Superheterodyne)
±200kHz
11dBuVemf
4.4 Others
Dimension
Weigh
Battery
Operation Voltage, Current
Operation Temperature
112mm × 92mm × 36mm
324g
CAR Battery (DC 12V)
DC12V, 50mA (4mA on standby)
-40 °C~+150 °C
Type
ROM
RAM
Clock frequency
Clock frequency generation
Package
MB90F548GLSPF (16bit)
Manufacturer : Fujitsu
128Kbytes
4Kbytes
4MHz
CRYSTAL resonator
100pin QFP
- 4 -
4.Features
4.1 Door Lock Control
The LOCK relay in the receiver drives the door lock actuators to “LOCK”-side when LOCK button of
transmitter was pressed. The UNLOCK relay in the receiver drives the door lock actuators to
“UNLOCK”-side when UNLOCK button of transmitter was pressed. These facility doesn’t work if the key
is inserted the key cylinder or door is open
4.2 Battery saving
Because of the power source of the receiver is car Battery, it is very important problem to minimize a power
consumption. The receiver’s CPU works intermittently to prevent the battery exhaustion.
5. Derivatives
OKA-110R is an integrated controller for a car body control, includes the keyless entry receiver.
The integrated controller consists of the multiple control functions as follows, centralized door lock,
turn-signal lamp, room-lamp, intermitted wiper, power window timer, ignition key illumination, warning
buzzer and so on.
WARNING
Any changes or modifications not expressly approved by the manufacturer could void the user’s authority to operate the
equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device
may not cause harmful interference, and (2) this device must accept any interference received, including interference that
may cause undesired operations.
