Omron Automotive Electronics Korea OKA-202W UNIT ASSY-WIRELESS CHARGING User Manual OKA 202W ENG
Omron Automotive Electronics Korea Co., Ltd. UNIT ASSY-WIRELESS CHARGING OKA 202W ENG
User Manual
1. Constitution of the Unit Assy-Wireless Charging ( WPC ) for vehicle
Wireless Charger Unit, it’s possible to charge the receiver based upon WPC( Wireless Power Consortium )
Standard.
WPC detects the receiver based upon the WPC standard being put on the surface of charge, and begins to charge
it.
WPC detects conditions of the receiver and controls the transmission electric power by the state of the battery of
it.
When the receiver is removed,WPC will suspend the transmission electric power.
When the receiver is full charge, WPC will suspend the transmission electric power.
2. User's manual (provisionally)

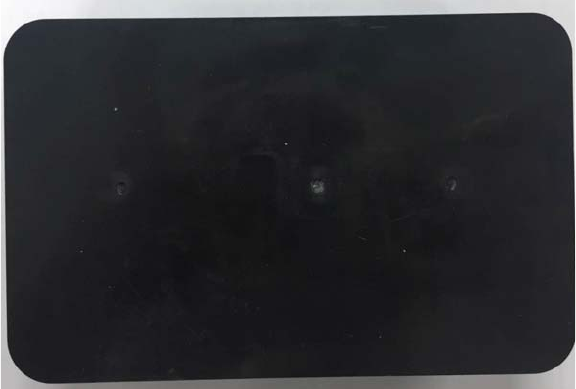

◎ Unit Assy - Wireless Charging ( OMRON KOREA : OKA-202W )
You can charger a mobile phone or the battery pack and the like to Qi
-
compliant Wireless Charger Unit
You
can
charger
a
mobile
phone
or
the
battery
pack
and
the
like
to
Qi
-
compliant
Wireless
Charger
Unit
.
※ Wireless Charger Unit is abbreviated as WPC.
Frequency: 111kHz
Voltage: 12V DC
Power: 5W
1. Once a receiver is placed on the product, it transmits the power wirelessly.
2. The LED connected to the product, signals the status as below.
Charging: Amber
Discharging: Green
Error: Amber Blink
Power state of vehicle is ACC or IGN, the product will be stand-by status. If a receiver such as
smart phone is not placed properly, it emits Amber LED and receiver must be relocated.
FCC Part 15.19
This device complies with part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference, and (2)
this device must accept any interference received, including interference that may
cause undesired operation.
FCC Part 15.21
Any changes or modifications (including the antennas) to this device that are not
expressly approved by the manufacturer may void the user’s authority to operate the
equipment.
FCC RF Radiation Exposure Statement
This equipment complies with FCC RF Radiation exposure limits set forth for an
uncontrolled environment. This device and its antenna must not be co-located or
operating in conjunction with any other antenna or transmitter.
The equipment is installed in a vehicle with a minimum distance of 20 cm to any
direction between the radiator and users. During normal usage, it should be at
least 20 cm away from the users.
This device complies with Industry Canada licence-exempt RSS standard(s).
Operation is subject to the following two conditions:
(1) this device may not cause interference, and
(2) this device must accept any interference, including interference that may cause
undesired operation of the device.
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux
appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions
suivantes :
(1) l'appareil ne doit pas produire de brouillage, et
(2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même
si le brouillage est susceptible d'en compromettre le fonctionnement.
IC RF Radiation Exposure Statement
This equipment complies with IC RF Radiation exposure limits set forth for an
uncontrolled environment.
This device and its antenna must not be co-located or operating in conjunction with
any other antenna or transmitter.
This equipment should be installed and operated with a minimum distance of 20cm
between the radiator and your body.
Déclaration d'Industrie Canada sur l'exposition aux radiofréquences
Cet équipement est conforme aux limites établies par Industrie Canada en matière
d'exposition aux radiofréquences dans un environnement non contrôlé. Cet appareil
et son antenne ne doivent pas être colocalisés ou fonctionner en conjonction avec
tout autre antenne ou émetteur.
Cet équipement doit être installé et utilisé avec une distance minimale de 20cm
entre le radiateur et votre corps.
