Omron Automotive Electronics Korea OKA-672R RF Keyless Entry System (Receiver) User Manual LD US RX
Omron Automotive Electronics Korea Co., Ltd. RF Keyless Entry System (Receiver) LD US RX
Users Manual
OKA-672R
Receiver, RF Keyless Entry System
OMRON AUTOMOTIVE
ELECTRONICS KOREA
Table of contents
1. Constitution of the Radio Frequency Keyless Entry system Controller for vehicle
1
2. User's manual (provisionally) ……………………………………………………………
2
3. Block diagram ………………………………………………………………………………
3
4. Specification …………………………………………………………………………………
4
5. Features ………………………………………………………………………………………
5
6. PCB ……………………………………………………………………………………………
6
6.1 Circuit diagram ……………………………………………………………………………
6
6.2 Parts layout ………………………………………………………………………………
7
6.3 Parts list ……………………………………………………………………………………
9
6.4 Connector …………………………………………………………………………………
10
6.5 Photographs ………………………………………………………………………………
11
7. Sticker …………………………………………………………………………………………
11

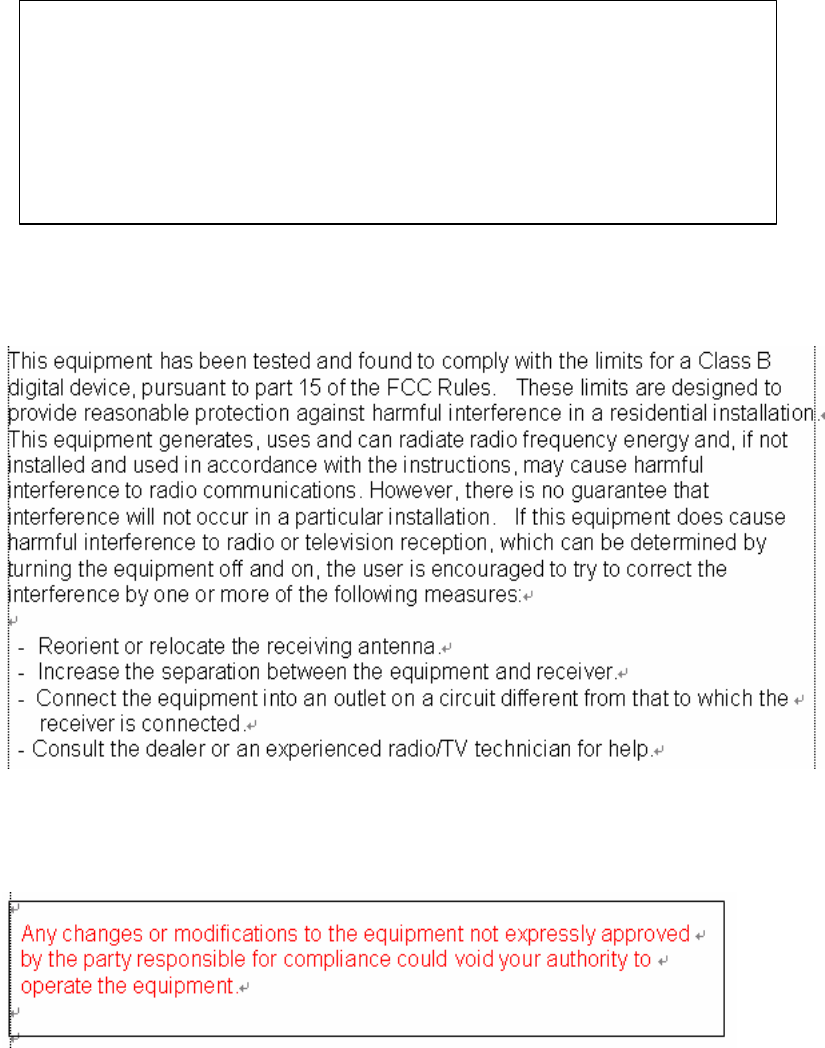

FCC Operation Statement
FCC Compliance Statement
Caution !
This device complies with part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference
(2) This device must accept any interference received, including
interference that may cause undesired operation.
1. Constitution of the Radio Frequency Keyless Entry System for vehicle
The radio frequency keyless entry is a system that it controls locking and unlocking the door and the trunk by
wireless remote controller. This system consists of three components. The TRANSMITTER is a device that
transmits the signal when the button is pressed. The transmission signal consists of several synchronous
codes , unique identification code , security code and function code. The RECEIVER is fixed inside the vehicle.
It works intermittently to prevent the battery exhaustion. When the receiver detects the synchronous code, it
runs continuously to receive the signals completely. After receiving the signal, the receiver decides which
operation will be performed. The user can selectthe following operations by pressing the button of the remote
transmitter.
OPERATION ACTION
LOCK lock the door
UNLOCK unlock the door
PANIC alarm the siren
TRUNK open the trunk
Transmitter
f = 315.1MHz

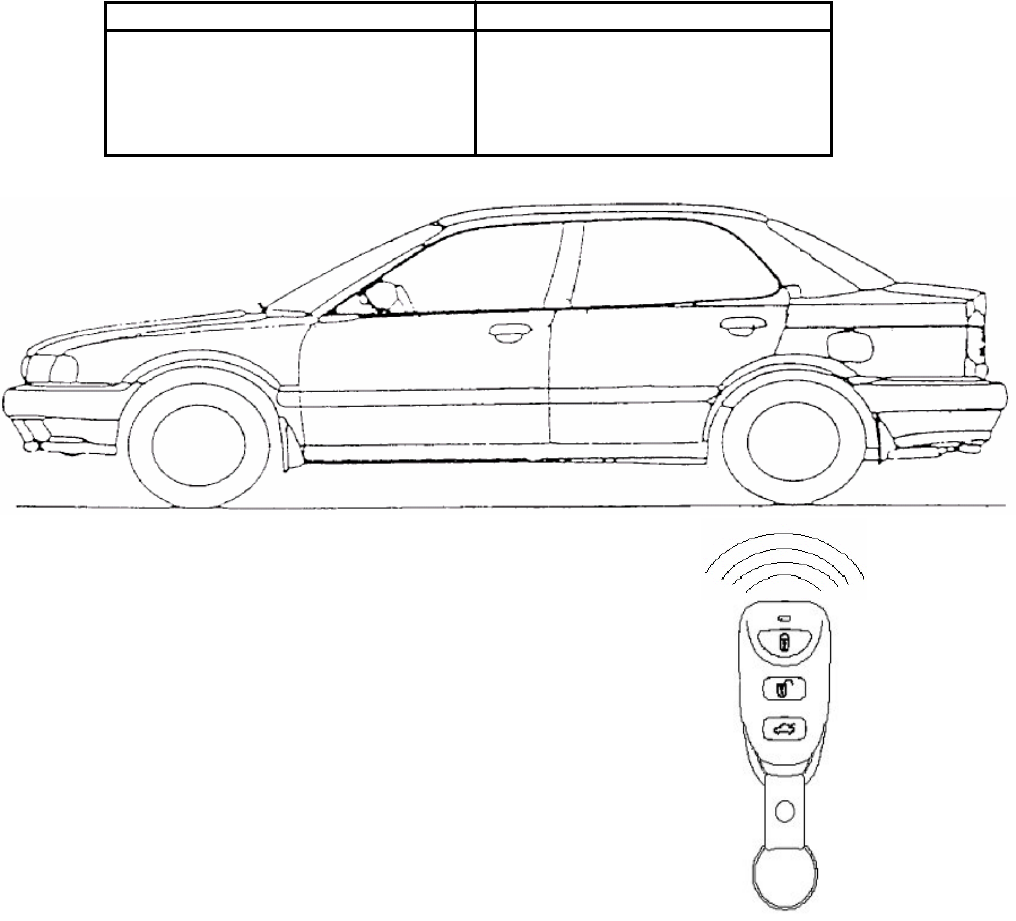

2. User's manual (provisionally)
REMOTE TRANSMITTER
You can lock and unlock your vehicle with the remote transmitter.
LOCK
When you push the LOCK button, all the doors will lock.
You cannot lock any of the doors with the remote transmitter if any door is open or the key is the
ignition switch.
UNLOCK
When you push the UNLOCK button, all the doors will unlock.
You cannot unlock any of the doors with the remote transmitter if any door is open or the key is in the
ignition switch.
PANIC
When you push the PANIC button during 0.5s, Siren will alarm.
TRUNK
When you push the TRUNK button during 0.5s, trunk will open.
LOCK
UNLOCK
PANIC
(??)
3. Block diagram

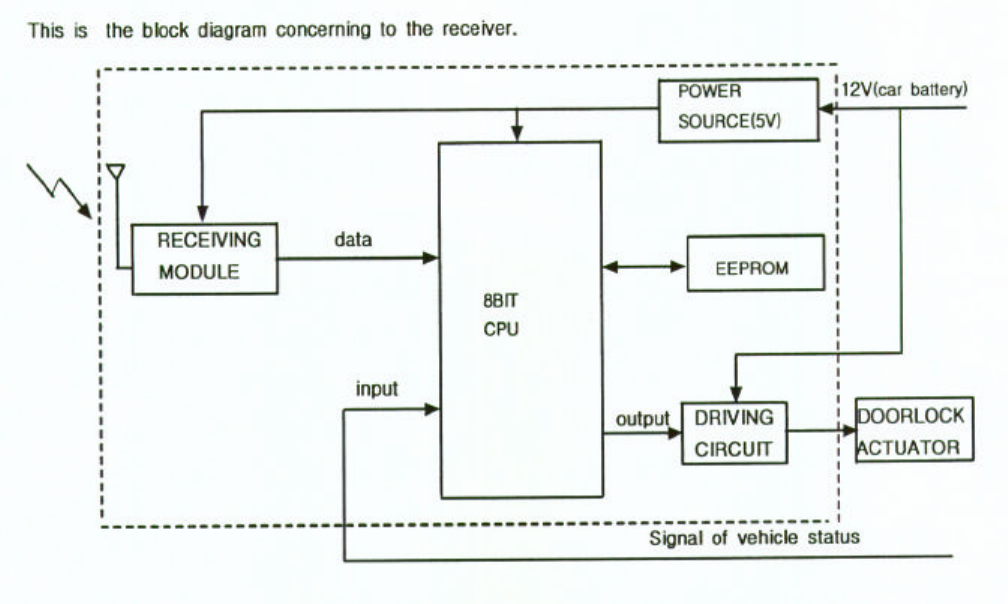

This is block diagram concerning to the transmitter
figure 3.1 block diagram of the transmitter
4. Specification
4.1 CPU
Type uPD78F9116B
Manufacturer : NEC Corporation
ROM 16 Kbytes
RAM 256 bytes
Clock frequency 4MHz
Clock frequency generation Crystal resonator
Package 30pin SSOP
4.2 EEPROM
Type S-93C46XXX
Manufacture : Seiko, Elec
Memory 1Kbit
Package 8pin SOP
4.3 RF Receiver Module
Type G8X-73RX
Manufacture : OMRON - IIDA
Local clock frequency 315.1MHz
Frequency generation Crystal resonator
Modulation Scheme FM (Single Superheterodyne)
Bandwidth ±200KHz
Carrier Detect Sensitivity 11dBuVemf
4.4 Others
Dimension 81.5mm×63mm×35mm
Weigh 89g
Battery CAR Battery (DC12V)
Operation Voltage DC12V
Operation Temperature -30℃～+80℃
5.Features
5.1 Transmission frame
The transmission begins immediately in case of LOCK and UNLOCK button is pressed.
but TRUNK and PANIC buttonis begun after 0.5s.
The transmission frame consists of the synchronous frame and the data frame. The synchronous frame
has 320bit synchronous codes that it will be used for the receiver to wake up. The data frame consists
of 24bit length identification code, 16bit security code and 4bit function code and 8bit crc code. 16million
different identification codes are available.
The security code is always changed in case of any of the buttons is pressed. The transmission time is
typically 300 milliseconds.
5.2 Battery saving
To prevent the battery exhaustion , the micro-computer of the transmitter is usually inactive. When the
button will be pressed, the micro-computer wakes up immediately and judges which button is pressing.
Then the micro-computer constructs the transmission frame and radiates it from the antenna .After trans-
mitting, the micro-computer switches stand-by mode by itself.
