ENGLISH
7 series
Automatic Wrist Blood
Pressure Monitor
Model BP652
INSTRUCTION MANUAL
2
TABLE OF CONTENTS
Before using the Monitor
Introduction ......................................................................................................... 3
Safety Information ................................................................................................ 4
Operating the Device .......................................................................... 4
Care and Maintenance ......................................................................... 5
Operating Instructions
Before Taking a Measurement .............................................................................. 6
Know Your Unit ...................................................................................................7
Unit Display .........................................................................................................8
Display Symbols ................................................................................................... 9
Irregular Heartbeat Symbol .................................................................. 9
Movement Error Symbol .................................................................... 9
Battery Installation ............................................................................................. 11
Setting the Date and Time .................................................................................. 13
Setting the Advanced Positioning Sensor (APS) ................................................. 15
Setting the Positioning Indicator ........................................................ 15
Setting for Right or Left Wrist Measurement ................................... 16
Setting the Buzzer ..............................................................................16
Resetting to the Default Setting ......................................................... 17
Applying the Wrist Cuff ..................................................................................... 18
Applying the Cuff on the Left Wrist ..................................................18
Applying the Cuff on the Right Wrist ................................................ 19
Taking a Measurement .......................................................................................20
Using the Memory Function ............................................................................... 22
Averaging Function ............................................................................ 22
To Display the Measurement Values ................................................. 22
To Delete All Values Stored in the Memory ..................................... 23
Care and Maintenance ...............................................................................................24
Error Indicators ................................................................................................... 25
Troubleshooting Tips ........................................................................................... 26
FCC Statement ....................................................................................................27
Limited Warranty ................................................................................................ 28
6SHFL¿FDWLRQV ..................................................................................................... 29
TABLE OF CONTENTS
3
INTRODUCTION
Thank you for purchasing the OMRON® BP652 IntelliSense® Automatic Wrist Blood
Pressure Monitor.
The monitor is compact and easy-to-use at home, at work, and during travel. Perfect for
people who frequently monitor their own blood pressure.
Your new digital blood pressure monitor uses the oscillometric method of blood pres-
sure measurement. This means the monitor detects your blood’s movement through
your brachial artery and converts the movements into a digital reading. An oscillomet-
ric monitor does not need a stethoscope so the monitor is simple to use.
Clinical research has proven a direct relationship between blood pressure in the wrist
DQGEORRGSUHVVXUHLQWKHDUP&KDQJHVLQZULVWEORRGSUHVVXUHUHÀHFWFKDQJHVLQDUP
blood pressure because the arteries in the wrist and the arm are close to each other.
Frequently measuring the blood pressure in your wrist will provide your physician with
an accurate indication of changes in your blood pressure.
The BP652 comes with the following components:
0RQLWRU6WRUDJH&DVH³$$$´$ONDOLQH%DWWHULHV
,QVWUXFWLRQ0DQXDOSULQWHGLQ(QJOLVKDQG6SDQLVK4XLFN6WDUW*XLGH
The BP652 IntelliSense® Automatic Wrist Blood Pressure Monitor is intended for home use.
Fill in for future reference.
DATE PURCHASED:__________________
SERIAL NUIMBER:___________________
s 3TAPLE YOUR PURCHASE RECEIPT HERE
s 2EGISTER YOUR PRODUCT ONLINE AT
WWWREGISTEROMRONCOM
SAVE THESE INSTRUCTIONS
4
SAFETY INFORMATION
To assure the correct use of the product, basic safety measures should always be
followed including the warnings and cautions listed in this instruction manual.
SAFETY SYMBOLS USED IN THIS INSTRUCTION MANUAL
WARNING Indicates a potentially hazardous situation which, if not avoided,
could result in death or serious injury.
CAUTION
Indicates a potentially hazardous situation which, if not avoided,
may result in minor or moderate injury to the user or patient or
damage to the equipment or other property.
OPERATING THE DEVICE
&RQWDFW\RXUSK\VLFLDQIRUVSHFL¿FLQIRUPDWLRQDERXW\RXUEORRGSUHVVXUH
Self-diagnosis and treatment using measured results may be dangerous. Follow the
instructions of your physician or licensed healthcare provider.
DO NOT adjust medication based on measurement results from this blood pressure
monitor. Take medication as prescribed by your physician. Only a physician is
TXDOL¿HGWRGLDJQRVHDQGWUHDW+LJK%ORRG3UHVVXUH
The monitor is not intended to be a diagnostic device.
,IEDWWHU\ÀXLGVKRXOGJHWLQ\RXUH\HVLPPHGLDWHO\ULQVHZLWKSOHQW\RIFOHDQ
water. Contact a physician immediately.
If you have a condition that may compromise circulation, you may get an inaccurate
reading with this device. Consult your physician before using this device.
Read all of the information in the instruction manual and any other literature in the
box before operating the unit.
This device is intended for use in measuring blood pressure and pulse rate in the
adult population. Do not use this device on infants or persons who cannot express
their intentions.
Operate the device only as intended. Do not use the device for any other purpose.
Dispose of the device, components and optional accessories according to applicable
local regulations. Unlawful disposal may cause environmental pollution.
5
SAFETY INFORMATION
Do not use a cellular phone near the device. It may result in an operational failure.
Use only Omron authorized parts and accessories. Parts and accessories not
approved for use with the device may damage the unit.
8VHRQO\9³$$$´DONDOLQHEDWWHULHVZLWKWKLVGHYLFH'RQRWXVHRWKHUW\SHVRI
batteries. This may damage the unit.
CARE AND MAINTENANCE
'RQRWVXEMHFWWKHPRQLWRUWRVWURQJVKRFNVVXFKDVGURSSLQJWKHXQLWRQWKHÀRRU
Do not submerge the device or any of the components in water.
Store the device and the components in a clean, safe location.
&KDQJHVRUPRGL¿FDWLRQQRWDSSURYHGE\WKHPDQXIDFWXUHUZLOOYRLGWKHXVHU
warranty. Do not disassemble or attempt to repair the unit or components.
6
BEFORE TAKING A MEASUREMENT
To ensure a reliable reading follow these recommendations:
1. Avoid eating, drinking alcohol, smoking, exercising, and bathing for 30 minutes
before taking a measurement. Rest for at least 15 minutes before taking the
measurement.
2. Stress raises blood pressure. Avoid taking measurements during stressful times.
3. The cuff can be applied to your left or right wrist.
4. Measurements should be taken in a quiet place.
5. Position the unit at heart level throughout the measurement.
6. Remain still and do not talk during the measurement.
7. Wait 2-3 minutes between measurements. The wait time allows the arteries to return
to the condition prior to taking the blood pressure measurement. You may need to
increase the wait time depending on your individual physiological characteristics.
8. Keep a record of your blood pressure and pulse readings for your physician. A
single measurement does not provide an accurate indication of your true blood
pressure. You need to take and record several readings over a period of time. Try to
measure your blood pressure at the same time each day for consistency.
7
KNOW YOUR UNIT

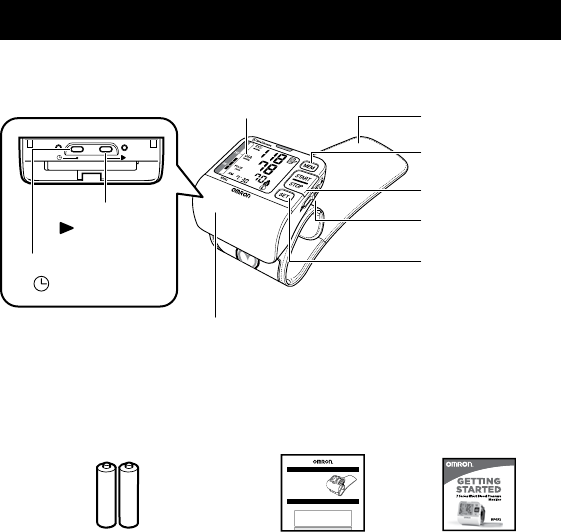

Main Unit:
Components:
2 “AAA” Alkaline Batteries Instruction
Manual
Quick Start
Guide
Date/Time setting
( ) button
Display Wrist cuff
Memory (MEM)
button
START/STOP button
User ID selection
switch
SET button
Battery compartment
Date/Time setting
( ) button
INTRODUCTION
Thank you for purchasing the OMRON® BP652 IntelliSense® Automatic Wrist Blood
Pressure Monitor .
Fill in for future reference.
DATE PURCHASED:__________________
SERIAL NUMBER:____________________
s3TAPLEYour PURCHASerECEIPTHERE
INSTRUCTION MANUAL
Model BP652
5329415-9A
7 series
Automatic Wrist Blood
Pressure Monitor
8
UNIT DISPLAY
Positioning indicator
Diastolic blood pressure
Irregular heartbeat symbol
Memory symbol
(Displayed when viewing
values stored in memory)
Average value symbol
(Refer to “Using the
Memory Function” .)
Movement error symbol
(Displayed if you move
your body during the
measurement)
User ID symbol (A or B)
(If ³GUEST´ is selected, A
or B will not be displayed.)
Wrist symbol
Battery low symbol
Pulse display
Heartbeat symbol
(Flashes during
measurement)
Date/Time display
Buzzer symbol
Blood pressure level
indicator
Deflation symbol
Systolic blood pressure
9
DISPLAY SYMBOLS

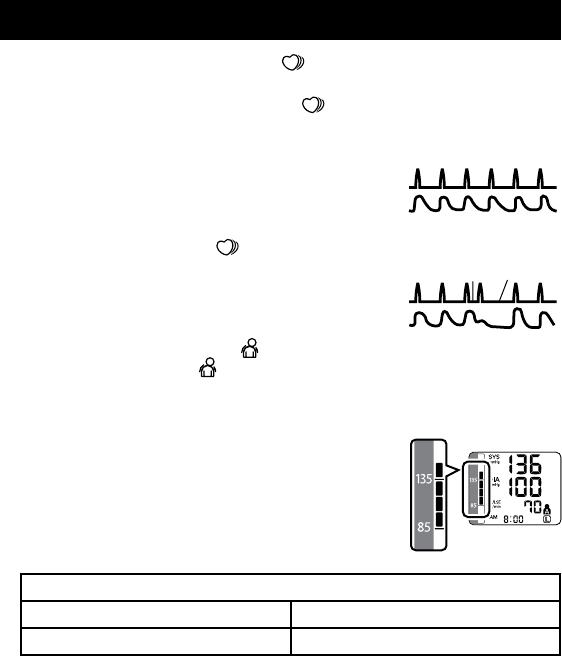

IRREGULAR HEARTBEAT SYMBOL ( )
When the monitor detects an irregular rhythm two or more times during the
measurement, the Irregular Heartbeat Symbol ( ) will appear on the display with the
measurement values.
$QLUUHJXODUKHDUWEHDWUK\WKPLVGH¿QHGDVD
rhythm that varies by less than 25% from the
average rhythm or 25% more than the average
rhythm detected while the monitor is measuring
the systolic and diastolic blood pressure.
If the irregular heartbeat symbol ( )
displays with your measurement results,
we recommend you consult your
physician. Follow the directions of your
doctor.
MOVEMENT ERROR SYMBOL ( )
The Movement Error Symbol ( ) is displayed if you move your body during the
measurement. Please remove the wrist cuff, and wait 2-3 minutes. Reapply the wrist
cuff and take another measurement.
Internationally recognized guidelines for upper limit of
normal home blood pressure readings are as follows:
Home Guideline for Upper Limit of Normal BP
Systolic Blood Pressure 135 mmHg
Diastolic Blood Pressure 85 mmHg
.ORMAL (EARTBEAT
)RREGULAR (EARTBEAT
Pulse
Pulse
Short Long
Blood
pressure
Blood
pressure
10
This is a general guideline because blood pressure depends on age and morbidity.
A lower home blood pressure goal may be recommended for certain patients,
including diabetic patients, pregnant women, and patients with renal failure.
WARNING
&RQWDFW\RXUSK\VLFLDQIRUVSHFL¿FLQIRUPDWLRQDERXW\RXUEORRGSUHVVXUH
Self-diagnosis and treatment using measured results may be dangerous.
Follow the instructions of your physician or licensed healthcare provider.
WARNING
DO NOT adjust medication based on measurement results from this blood
pressure monitor. Take medication as prescribed by your physician. Only
DSK\VLFLDQLVTXDOL¿HGWRGLDJQRVHDQGWUHDW+LJK%ORRG3UHVVXUH
WARNING
The monitor is not intended to be a diagnostic device.
DISPLAY SYMBOLS
11
BATTERY INSTALLATION
CAUTION
8VHRQO\9³$$$´DONDOLQHEDWWHULHVZLWKWKLVGHYLFH

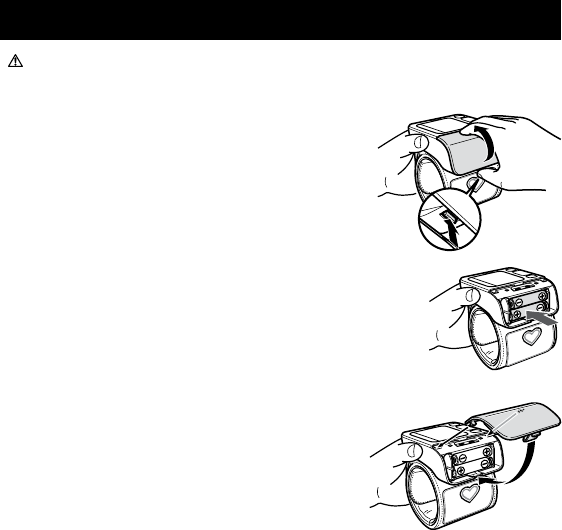

1. Press the hook on the bottom of the battery cover
and lift the cover off in the direction of the arrow.
,QVWDOO³$$$´VL]HEDWWHULHVVRWKHSRVLWLYHDQG
(negative) polarities match the polarities of the battery
compartment as indicated.
3. Set the date and time.
5HIHUWR³6HWWLQJWKH'DWHDQG7LPH´
4. Replace the battery cover.
NOTE: Make sure that the battery cover is securely in
position.
12
BATTERY REPLACEMENT
Low Battery Indicator
When the Low Battery Indicator appears on the display, turn the monitor off and
remove all the batteries. Replace with 2 new batteries at the same time. Long-life
alkaline batteries are recommended.
WARNING
,IEDWWHU\ÀXLGVKRXOGJHWLQ\RXUH\HVLPPHGLDWHO\ULQVHZLWK
plenty of clean water. Contact a physician immediately.
NOTES: 7XUQWKHXQLWRIIEHIRUHUHSODFLQJWKHEDWWHULHV,IWKHEDWWHULHVDUHUHPRYHG
while the unit is still on, the date and time will be reset to that of the
previous use. The measurement results are not deleted.
:KHQWKHEDWWHULHVDUHUHSODFHG\RXPD\QHHGWRUHVHWWKHGDWHDQGWLPH,I
WKH\HDULVÀDVKLQJRQWKHGLVSOD\UHIHUWR³6HWWLQJWKH'DWHDQG7LPH´
7KHEDWWHULHVLQFOXGHGZLWKWKHGHYLFHPD\KDYHDVKRUWHUOLIH
CAUTION
Dispose of the device, components and optional accessories according to
applicable local regulations. Unlawful disposal may cause environmental
pollution.
BATTERY INSTALLATION
13

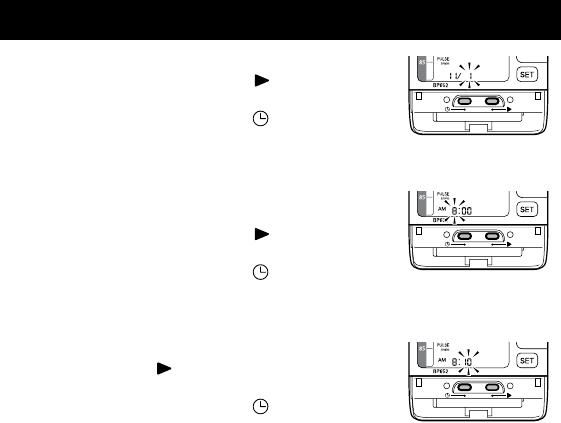

SETTING THE DATE AND TIME
6HWWKHPRQLWRUWRWKHFXUUHQWGDWHDQGWLPHEHIRUHWDNLQJDPHDVXUHPHQWIRUWKH¿UVW
time.

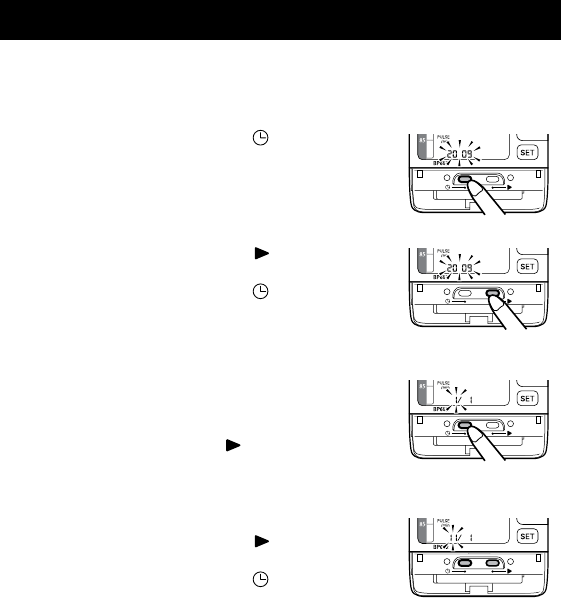

1. TO START THE SETTING
Press the Date/Time Setting button ( ) to adjust the date
and time.
7KH\HDUÀDVKHVRQWKHGLVSOD\
2. SETTING THE YEAR
Press the Date/Time Setting button ( ) to advance by
increments of one year.
Press the Date/Time Setting button ( ) to set the current
year.
7KHPRQWKÀDVKHVRQWKHGLVSOD\
NOTES: 7KH\HDUFDQEHVHWEHWZHHQDQG
2030. When the display reaches 2030, it
will return to 2009.
3UHVVDQGKROGWKH ) button to
increase the date and time values faster.
3. SETTING THE MONTH
Press the Date/Time Setting button ( ) to advance by
increments of one month.
Press the Date/Time Setting button ( ) to set the current
month.
7KHGD\ÀDVKHVRQWKHGLVSOD\
14
4. SETTING THE DAY
Press the Date/Time Setting button ( ) to advance by
increments of one day.
Press the Date/Time Setting button ( ) to set the current
day.
7KHKRXUÀDVKHVRQWKHGLVSOD\
5. SETTING THE HOUR
The time is set using AM or PM.
Press the Date/Time Setting button ( ) to advance by
increments of one hour.
Press the Date/Time Setting button ( ) to set the current
hour.
7KHPLQXWHÀDVKHVRQWKHGLVSOD\
6. SETTING THE MINUTE
Press the Up button ( ) to advance by increments of one
minute.
Press the Date/Time Setting button ( ) to set the minute
setting.
7. TO TURN THE MONITOR OFF
Press the START/STOP button.
SETTING THE DATE AND TIME
15
SETTING THE ADVANCED POSITIONING SENSOR (APS)
You can change the options for various settings on your monitor. Pressing the SET
button to change a setting. Press the MEM button to select the options for that setting.
$IWHUVHOHFWLQJDVHWWLQJSUHVVWKH67$576723EXWWRQWRFRQ¿UPWKHVHWWLQJDQGWXUQ
the power off.
SETTING THE POSITIONING INDICATOR
1. Select your User ID.
2. Press the SET button.
NOTE:7KHGHIDXOWVHWWLQJLV³RQ´
3UHVVWKH0(0EXWWRQWRVHOHFWWKH3RVLWLRQLQJLQGLFDWRU³RQ´³RQ´RU³R))´
on1: After the Positioning indicator lights in blue for more than 2 seconds, or
in orange for more than 5 seconds, measurement starts automatically, even
though the monitor is not in the proper position.
on2: The Positioning indicator lights in blue for more than 2 seconds, measurement
starts automatically.
Measurement will not start if it lights in orange.
oFF: Measurement starts without the Positioning indicator.
User A User B
16

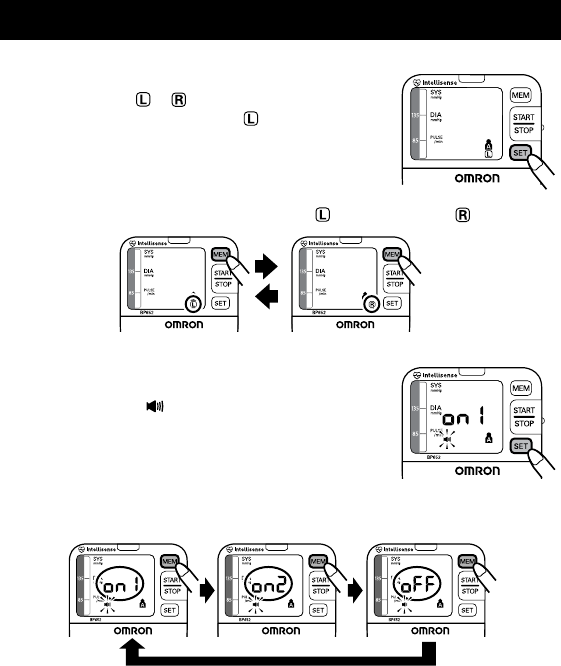

SETTING FOR RIGHT OR LEFT WRIST MEASUREMENT
1. While in the setting mode, press the SET button until
the wrist symbol ( or ) appears on the display.
127(6 7KHGHIDXOWVHWWLQJLV³ ´
$IWHU\RXFKRRVH³R))´IRUWKH
Positioning indicator, the monitor skips
this process.
2. Press the MEM button to select the left wrist ( ) or the right wrist ( ).
SETTING THE BUZZER
1. While in the setting mode, press the SET button until
the buzzer symbol ( ) appears on the display.
NOTE:7KHGHIDXOWVHWWLQJLV³RQ´RU³RQ´
depending on the Positioning indicator you
set.
2. Press the MEM button to select the buzzer setting.
SETTING THE ADVANCED POSITIONING SENSOR (APS)
17
,IWKH3RVLWLRQLQJLQGLFDWRULV³RQ´RU³RQ´
on1: The buzzer sounds only when the monitor is in proper position.
on2: The buzzer sounds a series of two short blips if your wrist is too far away from
the measuring position, and beeps when your wrist is in the proper position.
oFF: The buzzer will not sound.
,IWKH3RVLWLRQLQJLQGLFDWRULV³R))´
on: The buzzer sounds when pressing any buttons.
oFF: The buzzer will not sound.
RESETTING TO THE DEFAULT SETTING
7KHSRVLWLRQLQJLQGLFDWRULVVHW³RQ´WKHZULVWIRUPHDVXUHPHQWLVVHW³ ´DQGWKH
EX]]HULVVHW³RQ´DVGHIDXOW
To reset to the default setting, press and hold the SET button while in the setting mode,
then press the START/STOP button simultaneously for more than 2 seconds.
SETTING THE ADVANCED POSITIONING SENSOR (APS)
18
CAUTION
Read all of the information in the instruction manual and any other
literature in the box before operating the unit.
CAUTION
This device is intended for use in measuring blood pressure and
pulse rate in the adult population. Do not use this device on infants
or persons who cannot express their intentions.

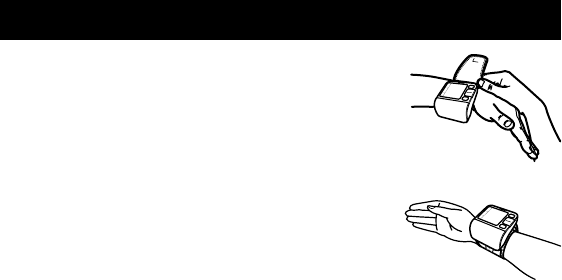

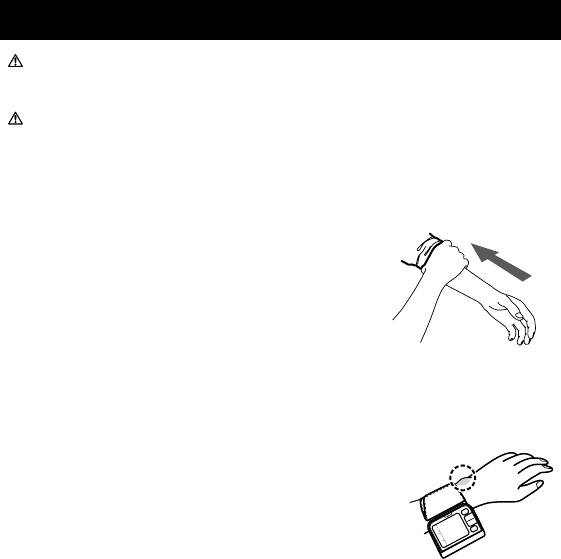

APPLYING THE CUFF ON THE LEFT WRIST
1. Roll up sleeve. Make sure your sleeve is not rolled up too
WLJKWO\RQ\RXUDUP7KLVPD\FRQVWULFWWKHÀRZRIEORRG
in your arm.
2. Wrap the cuff directly against your skin.
Do not apply over clothing. Place the cuff over your left
wrist with your left thumb facing upward.
3. Position the cuff leaving a clearance of approximately 1/2
to 1 inch between the cuff and the bottom of your palm.
4. Hold the bottom part of the cuff and wrap it around the
ZULVWVRLW¿WVFRPIRUWDEO\DQGVHFXUHO\DURXQG\RXUZULVW
NOTE: Make sure the wrist cuff does not cover the
protruding part of the wrist bone on the outside of
the wrist.
APPLYING THE WRIST CUFF
19
5. Fold the remaining part of the wrist cuff back out of the
way.
APPLYING THE CUFF ON THE RIGHT WRIST
When taking a measurement using the right wrist position the
cuff as shown in the illustration.
5HIHUWR³6HWWLQJIRU5LJKWRU/HIW:ULVWIRU0HDVXUHPHQW´
APPLYING THE WRIST CUFF
20

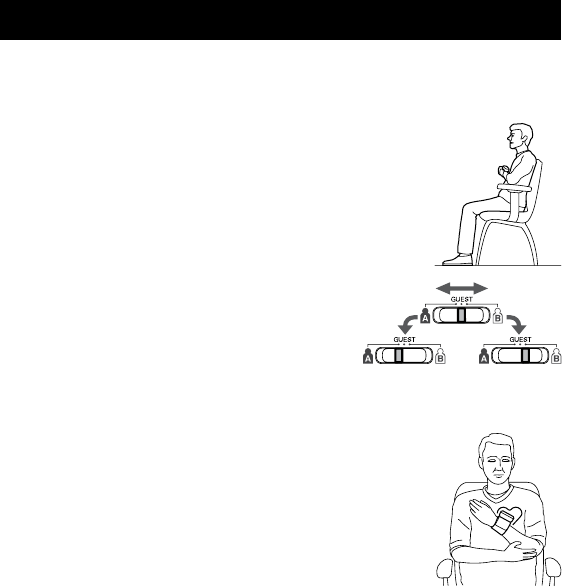

The monitor is designed to take measurements and store the measurement values in
memory for two people using USER ID A and USER ID B. The monitor can be used to
WDNHDVLQJOHPHDVXUHPHQWXVLQJWKH*8(67PRGHDUHQRWVWRUHGLQWKHPHPRU\
6LWFRPIRUWDEO\LQDFKDLUZLWK\RXUIHHWÀDWRQWKHÀRRU
2. Select your User ID (A or B).
3. Hold your arm across your chest at heart level.
+ROG\RXUHOERZ¿UPO\WRDYRLGERG\PRYHPHQW
Sit still and do not talk or move during the measurement.
4. When arm is in correct position orange light will turn on.
TAKING A MEASUREMENT
User A User B
21
TAKING A MEASUREMENT

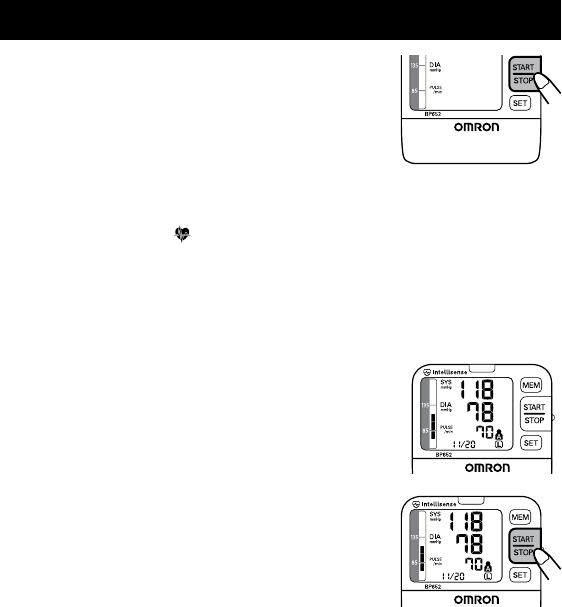

5. Press the START/STOP button.
All symbols appear on the display.
7KHFXIIVWDUWVWRLQÀDWHDXWRPDWLFDOO\
$VWKHFXIILQÀDWHVWKHPRQLWRUDXWRPDWLFDOO\GHWHUPLQHV\RXULGHDOLQÀDWLRQOHYHO
7KLVPRQLWRUGHWHFWV\RXUEORRGSUHVVXUHDQGSXOVHUDWHGXULQJLQÀDWLRQ
The Heartbeat Symbol ( ÀDVKHVDWHYHU\KHDUWEHDW
Remain still and do not move until the entire measurement process is completed.
NOTE:7RVWRSWKHLQÀDWLRQRUPHDVXUHPHQWSXVKWKH67$576723EXWWRQ7KH
PRQLWRUZLOOVWRSLQÀDWLQJVWDUWGHÀDWLQJDQGZLOOWXUQRII
5. After the monitor has detected your blood pressure
DQGSXOVHUDWHWKHFXIIDXWRPDWLFDOO\GHÀDWHV<RXU
blood pressure and pulse rate are displayed.
6. Press the START/STOP button to turn the monitor off.
NOTE: The monitor will automatically turn off after two minutes.
22
USING THE MEMORY FUNCTION
Every time you complete a measurement the monitor stores the blood pressure and
pulse rate for each user (A and B) in the memory. The monitor automatically stores up
to 100 sets of measurement values (blood pressure and pulse rate) for each user (A and
B). When 100 sets of measurement values are stored, the oldest record is deleted to
save the most recent values.
AVERAGING FUNCTION
The monitor calculates the average reading based on up to the three most recent sets of
measurement values taken within 10 minutes of the most recent reading.
NOTE: If two sets of measurement values are stored in the memory for the 10 minute
period, the average is based on the two sets of measurement values. If only
one set of measurement values is stored, this is displayed as the average.

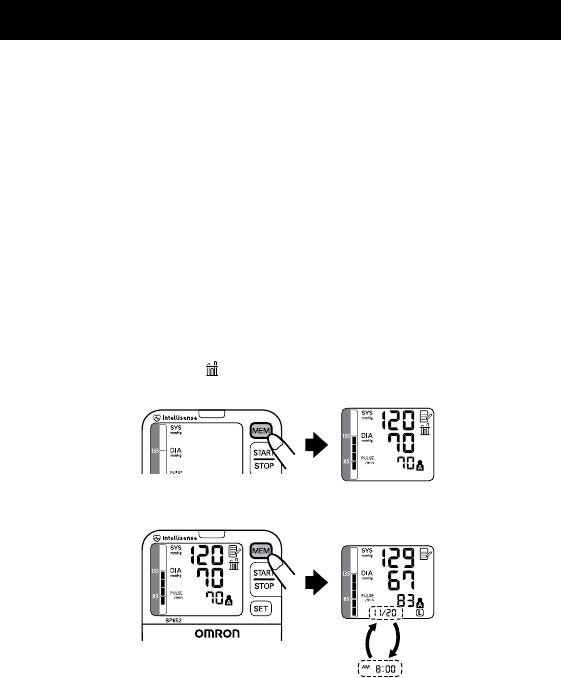

TO DISPLAY THE MEASUREMENT VALUES
1. Press the MEM button to display the average reading based on the three most recent
sets of measurement values taken within 10 minutes of the most recent reading.
The Average Value Symbol ( ) appears on the display when the average reading is
shown.
2. Press the MEM button to display the set of measurement values from the most
recent to the oldest.
Alternating date/time
display
23
USING THE MEMORY FUNCTION
NOTES:7KHGDWHDQGWLPHDUHDOWHUQDWHO\GLVSOD\HGZLWKWKHPHDVXUHPHQW
values.
3UHVVWKH0(0EXWWRQUHSHDWHGO\WRGLVSOD\WKHQH[WYDOXHV
3UHVVDQGKROGWKH0(0EXWWRQWRGLVSOD\WKHYDOXHVIDVWHU
3. Press the START/STOP button to turn the monitor off.

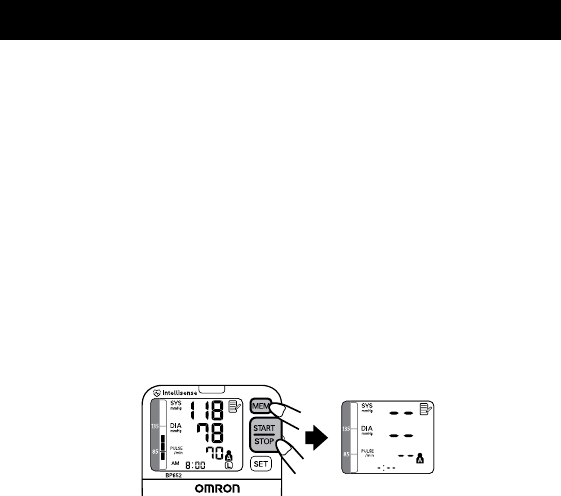

TO DELETE ALL VALUES STORED IN THE MEMORY
The values stored in the memory are deleted by User ID. You cannot partially delete
values stored in the memory. All values for the user you select will be deleted.
1. Select your User ID (A or B).
2. Press the MEM button to turn the monitor on.
3. While holding the MEM button, press the START/STOP button down for more than
5 seconds until the display appears as it does in the following illustration.
4. Press the START/STOP button to turn the monitor off.
NOTE: The monitor will automatically turn off after two minutes.
24
CARE AND MAINTENANCE
To keep your digital blood pressure monitor in the best condition and protect the unit
from damage, follow the directions listed below:
Do not forcefully bend the cuff. Do not fold tightly.
Clean the monitor with a soft dry cloth.
Do not use any abrasive or volatile cleaners.
Do not attempt to clean the cuff.
CAUTION
Do not submerge the device or any of the components in water. Do not subject
the monitor to extreme hot or cold temperatures, humidity or direct sunlight.
CAUTION
Store the device and the components in a clean, safe location.
CAUTION
Do not subject the monitor to strong shocks, such as dropping the unit on the
ÀRRU
Remove the batteries if the unit will not be used for three months or longer. Always
replace all the batteries with new ones at the same time.
Use the unit consistent with the instruction provided in this manual.
Use only authorized parts and accessories.
Use the unit in a manner consistent with the instructions provided in this manual.
CAUTION
Use only Omron authorized parts and accessories. Parts and accessories
not approved for use with the device may damage the unit.
CAUTION
&KDQJHVRUPRGL¿FDWLRQQRWDSSURYHGE\WKHPDQXIDFWXUHUZLOOYRLGWKHXVHU
warranty. Do not disassemble or attempt to repair the unit or components.
25

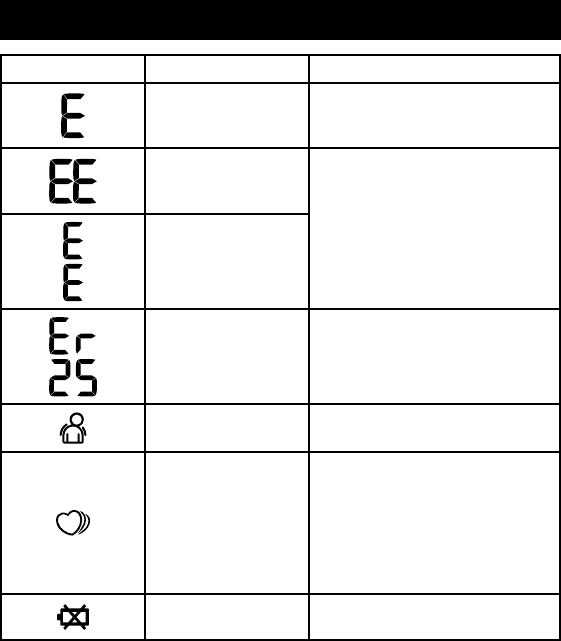

ERROR INDICATORS
SYMBOL CAUSE CORRECTION
Monitor could not
detect pulse wave.
Take another measurement and
remain still until the measurement is
complete.
&XIIXQGHULQÀDWHG
Cuff not applied
correctly.
Remove the monitor from your
wrist.
5HDG³7DNLQJD0HDVXUHPHQW´
Wait 2-3 minutes.
Take another measurement.
&XIIRYHULQÀDWHG
Device error. Contact Customer Service.
Movement during
measurement.
Keep still and take another
measurement.
Irregular or weak
pulses are detected.
Remove the monitor from your
wrist. Wait 2-3 minutes and then
take another measurement. Repeat
WKHVWHSVLQVHFWLRQ³$SSO\LQJ
WKH:ULVW&XII´,IWKLVV\PERO
continues to appear, contact your
doctor.
Batteries are worn. Replace the batteries.
5HIHUWR³%DWWHU\,QVWDOODWLRQ´
26
TROUBLESHOOTING TIPS
PROBLEM CAUSES AND SOLUTIONS
No power.
No display appears on the unit.
Replace both batteries with new ones at the same
time. Check the battery installation for proper
placement of the battery polarities.
Measurement values appear too
high or too low.
Blood pressure varies constantly. Many factors
including stress, time of day, how you wrap the
cuff, may affect your blood pressure.
5HYLHZWKHVHFWLRQV³%HIRUH7DNLQJD
0HDVXUHPHQW´DQG³7DNLQJD0HDVXUHPHQW´
27
FCC STATEMENT
Note:
POTENTIAL FOR RADIO/TELEVISION INTERFERENCE (for U.S.A. only)
This product has been tested and found to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC rules.
These limits are designed to provide reasonable protection against harmful interference
in a residential installation. The product generates, uses, and can radiate radio
frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If the product does
cause harmful interference to radio or television reception, which can be determined by
turning the product on and off, the user is encouraged to try to correct the interference
by one or more of the following measures:
5HRULHQWRUUHORFDWHWKHUHFHLYLQJDQWHQQD
,QFUHDVHWKHVHSDUDWLRQEHWZHHQWKHSURGXFWDQGWKHUHFHLYHU
&RQQHFWWKHSURGXFWLQWRDQRXWOHWRQDFLUFXLWGLIIHUHQWIURPWKDWWRZKLFKWKH
receiver is connected.
&RQVXOWWKHGHDOHURUDQH[SHULHQFHGUDGLR79WHFKQLFLDQIRUKHOS
POTENTIAL FOR RADIO/TELEVISION INTERFERENCE (for Canada only)
This digital apparatus does not exceed the Class B limits for radio noise emissions
from digital apparatus as set out in the interference-causing equipment standard entitled
³'LJLWDO$SSDUDWXV´,&(6RIWKH&DQDGLDQ'HSDUWPHQWRI&RPPXQLFDWLRQV
Cet appareil numérique respecte les limites de bruits radioeléctriques applicables aux
appareils numériques de Clase B prescrites dans la norme sur le materiel brouilleur:
³$SSDUHLOV1XPpULTXHV´,&(6pGLFWpHSDUOHPLQLVWHUGHVFRPPXQLFDWLRQV
&KDQJHVRUPRGL¿FDWLRQVQRWH[SUHVVO\DSSURYHGE\WKHSDUW\UHVSRQVLEOHIRU
compliance could void the user’s authority to operate the equipment.
28
Your BP652 IntelliSense® Automatic Wrist Blood Pressure Monitor, excluding
the wrist cuff and batteries, is warranted to be free from defects in materials and
workmanship appearing within 5 years from the date of purchase, when used in
accordance with the instructions provided with the monitor. The above warranties
extend only to the original retail purchaser.
We will, at our option, repair or replace without charge any monitor or wrist cuff
covered by the above warranties. Repair or replacement is our only responsibility and
your only remedy under the above warranties.
To obtain warranty service contact Customer Service by calling 1-800-634-4350 for the
address of the repair location and the return shipping and handling fee.
Enclose the Proof of Purchase. Include a letter, with your name, address, phone
QXPEHUDQGGHVFULSWLRQRIWKHVSHFL¿FSUREOHP3DFNWKHSURGXFWFDUHIXOO\WRSUHYHQW
damage in transit. Because of possible loss in transit, we recommend insuring the
product with return receipt requested.
THE FOREGOING IS THE SOLE WARRANTY PROVIDED BY OMRON IN
CONNECTION WITH THIS PRODUCT, AND OMRON HEREBY DISCLAIMS
ANY OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING
IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A
PARTICULAR PURPOSE. IMPLIED WARRANTIES AND OTHER TERMS
THAT MAY BE IMPOSED BY LAW, IF ANY, ARE LIMITED IN DURATION
TO THE PERIOD OF THE ABOVE EXPRESS WARRANTY.
OMRON SHALL NOT BE LIABLE FOR LOSS OF USE OR ANY OTHER
SPECIAL, INCIDENTAL, CONSEQUENTAIL OR INDIRECT COSTS,
EXPENSES OR DAMAGES.
7KLVZDUUDQW\SURYLGHV\RXZLWKVSHFL¿FOHJDOULJKWVDQG\RXPD\KDYHRWKHUULJKWV
that vary by jurisdiction. Because of special local requirements, some of the above
limitations and exclusions may not apply to you.
FOR CUSTOMER SERVICE
Visit our web site at: www.omronhealthcare.com
Call toll free: 1-800-634-4350
LIMITED WARRANTY
29
SPECIFICATIONS
Model: BP652 (HEM-6052-Z)
Display: LCD Digital Display
Measurement Range: Pressure: 0 to 299 mmHg, Pulse: 40 to 180/min.
Accuracy/Calibration: Pressure: ±3mmHg or 2% of reading
Pulse: ±5% of reading
Inflation: Automatic by electric pump
Deflation: Automatic pressure release valve
Rapid Air Release: Automatic exhaust valve
Measurement Method: Oscillometric method
Power Source: 9³$$$´EDWWHULHV
Battery Life: Approx. 300 uses with 2 new alkaline batteries
Operating Temperature
/Humidity:
50ºF to 104ºF (10ºC to 40ºC) /15 to 90% RH
Storage Temperature /
Humidity/Air Pressure:
-4ºF to 140ºF (-20ºC to 60ºC) /10 to 95% RH
700-1060 hPa
Main Unit Weight: Approximately 4 oz. (114g)
not including batteries
Main Unit Dimensions: $SSUR[´Oî´Zî´K
PPîPPîPPQRWLQFOXGLQJWKHZULVWFXII
Measurable circumfer-
ence of wrist:
$SSUR[LPDWHO\´WR´WRFP
Memory: Up to 100 readings per user
Contents: 0DLQ8QLW6WRUDJH&DVH³$$$´$ONDOLQH%DWWHULHV
,QVWUXFWLRQ0DQXDODQG4XLFN6WDUW*XLGH
127(7KHVHVSHFL¿FDWLRQVDUHVXEMHFWWRFKDQJHZLWKRXWQRWLFH
Omron Healthcare, Inc.
1200 Lakeside Drive
Bannockburn, IL 60015
www.omronhealthcare.com
Copyright © 2010 Omron Healthcare, Inc.
Made in China 5329415-9A
