On Track Innovations OTI-SAT6700 Ultra-compact, multi-purpose NFC reader User Manual UNO Specifications
On Track Innovations Ltd Ultra-compact, multi-purpose NFC reader UNO Specifications
User manual
Confidential & Proprietary
Version 1.9

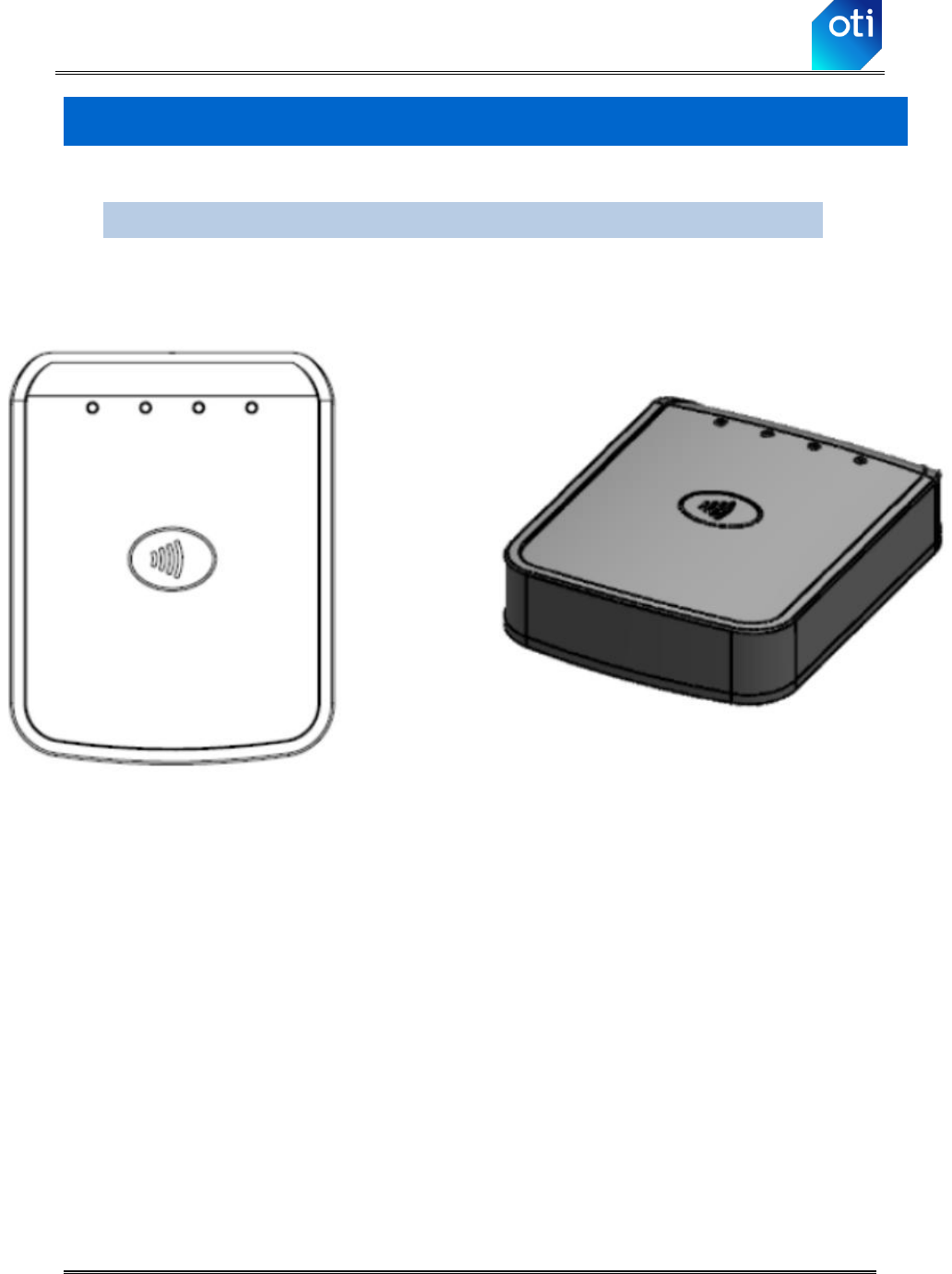

UNO
Specifications
Version 1.9
Notice
This manual contains intellectual property including,
but not limited to, trade secrets and know-how,
operation procedures and production procedures that
belong solely to oti.
Disclosure, use, and/or production of any part of
the above are strictly forbidden, except under a
written license from oti.
Uno Specifications Version 1.9
FCC Compliance
Confidential & Proprietary Page 1
FCC Compliance
This device (Saturn 6700) complies with Part 15, of the FCC Rules.
Operation is subject to the following two conditions:
1. This device may not cause harmful interference,
and
2. This device must accept any interference received, including interference that
may cause undesired operation
NOTE:
This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to part 15, subpart C of the FCC Rules.
These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment
generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful
interference to radio communications.
However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference
to radio or television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
Changes or modifications in this equipment, not expressly approved by the
party responsible for compliance (On Track Innovations Ltd,) could void the
user’s authority to operate the equipment.
FCC ID: JNX-OTI-SAT6700
Responsible Party:
On Track Innovations LTD..
Z.H.R Industrial Zone.
Rosh Pina 12000
ISRAEL
Phone: +972-4-6868000
Email: Supportoti@otiglobal.com
Uno Specifications Version 1.9
Table of Contents
Confidential & Proprietary Page 2
Table of Contents
FCC COMPLIANCE ...................................................................................................................................... 1
TABLE OF CONTENTS ................................................................................................................................ 2
TABLE OF FIGURES .................................................................................................................................... 3
VERSIONS TABLE ........................................................................................................................................ 4
1 INTRODUCTION .................................................................................................................................. 5
1.1 CERTIFIED AND SUPPORTED APPLICATIONS...................................................................................... 6
1.2 SUPPORTED STANDARDS .................................................................................................................. 7
2 BASIC CONTACTLESS OPERATION .............................................................................................. 8
3 TECHNICAL SPECIFICATIONS ....................................................................................................... 9
3.1 PRODUCT FEATURES ......................................................................................................................... 9
3.2 PRODUCT TECHNICAL SPECIFICATIONS .......................................................................................... 10
4 READER MODELS ............................................................................................................................. 12
4.1 RS232 MODEL ................................................................................................................................ 12
4.2 USB MODEL ................................................................................................................................... 12
4.3 INTERFACE CABLES ......................................................................................................................... 13
4.3.1 RS232 cable ............................................................................................................................... 13

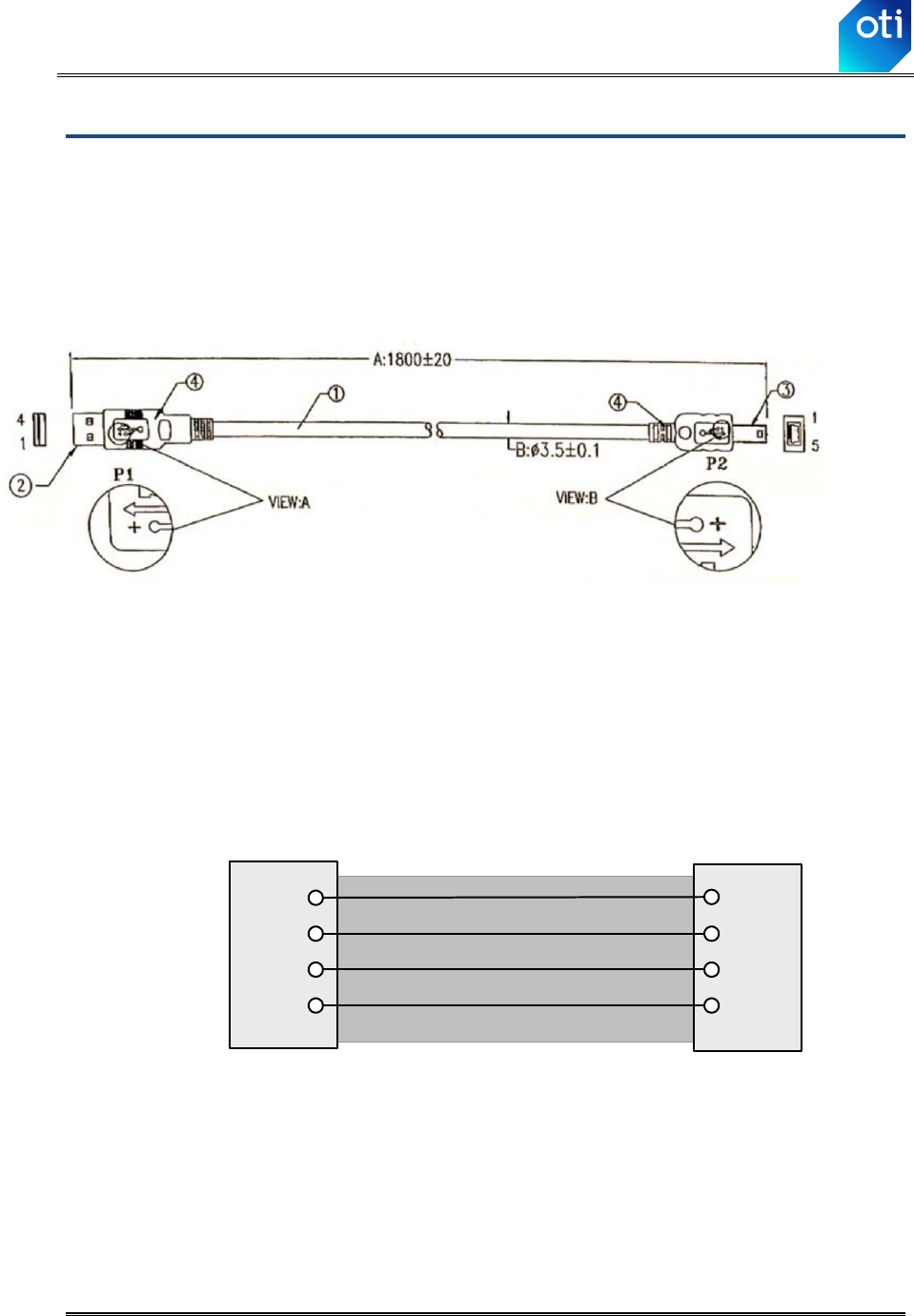

4.3.2 USB Cable ................................................................................................................................. 14
5 DIMENSIONS ...................................................................................................................................... 15
5.1 FRONT VIEW ................................................................................................................................... 15
5.2 SIDE VIEW ...................................................................................................................................... 16

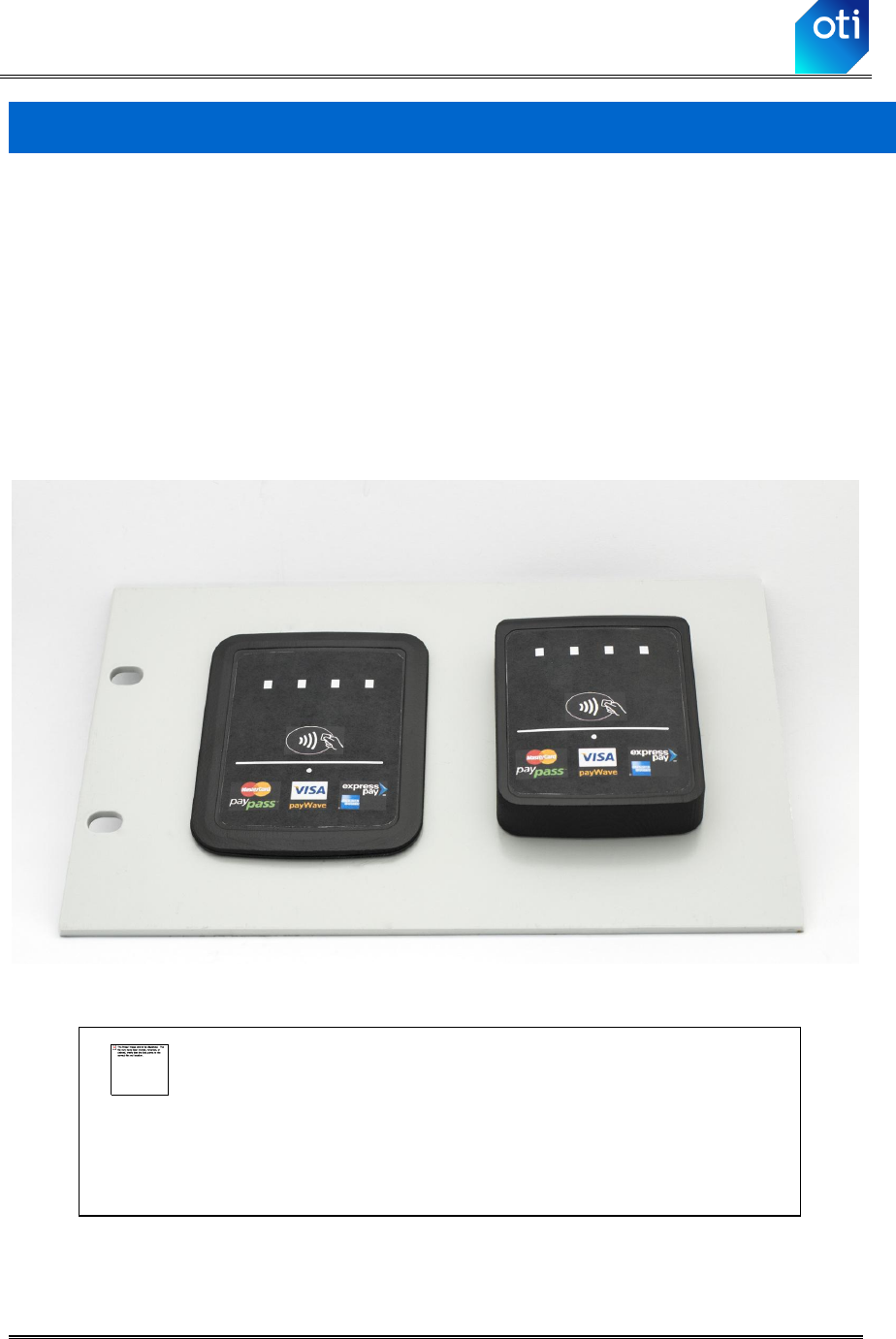

6 UNO MOUNTING................................................................................................................................ 17
6.1 ON PANEL MOUNTING .................................................................................................................... 18
6.2 FLUSH MOUNTING .......................................................................................................................... 20
6.3 COUNTERTOP (DESKTOP) MOUNTING ............................................................................................. 25
7 CONTACT US ...................................................................................................................................... 26
Uno Specifications Version 1.9
Table of Figures
Confidential & Proprietary Page 3
Table of Figures
Figure 2-1: Card Presentation ............................................................................................................ 8
Figure 5-1: Front View ..................................................................................................................... 15
Figure 5-2: Side View ...................................................................................................................... 16
Figure 5-3: UNO Size Scale ....................................................................................................... 16
Figure 6-1: Flush and On Panel Mounting ............................................................................ 17

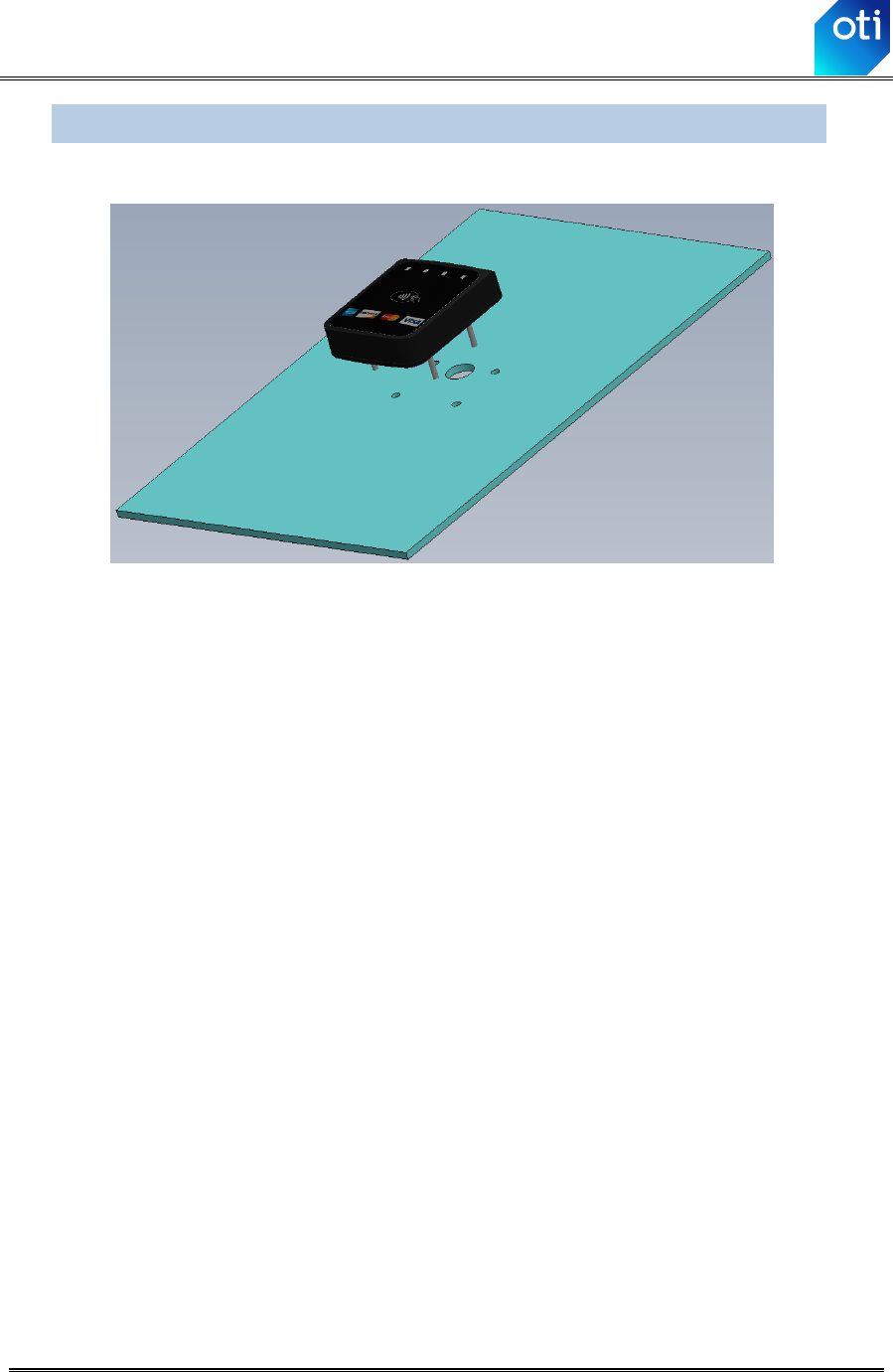

Figure 6-2: UNO Mounting Studs .................................................................................................... 18
Figure 6-3: UNO Panel Mounting view ................................................................................... 19

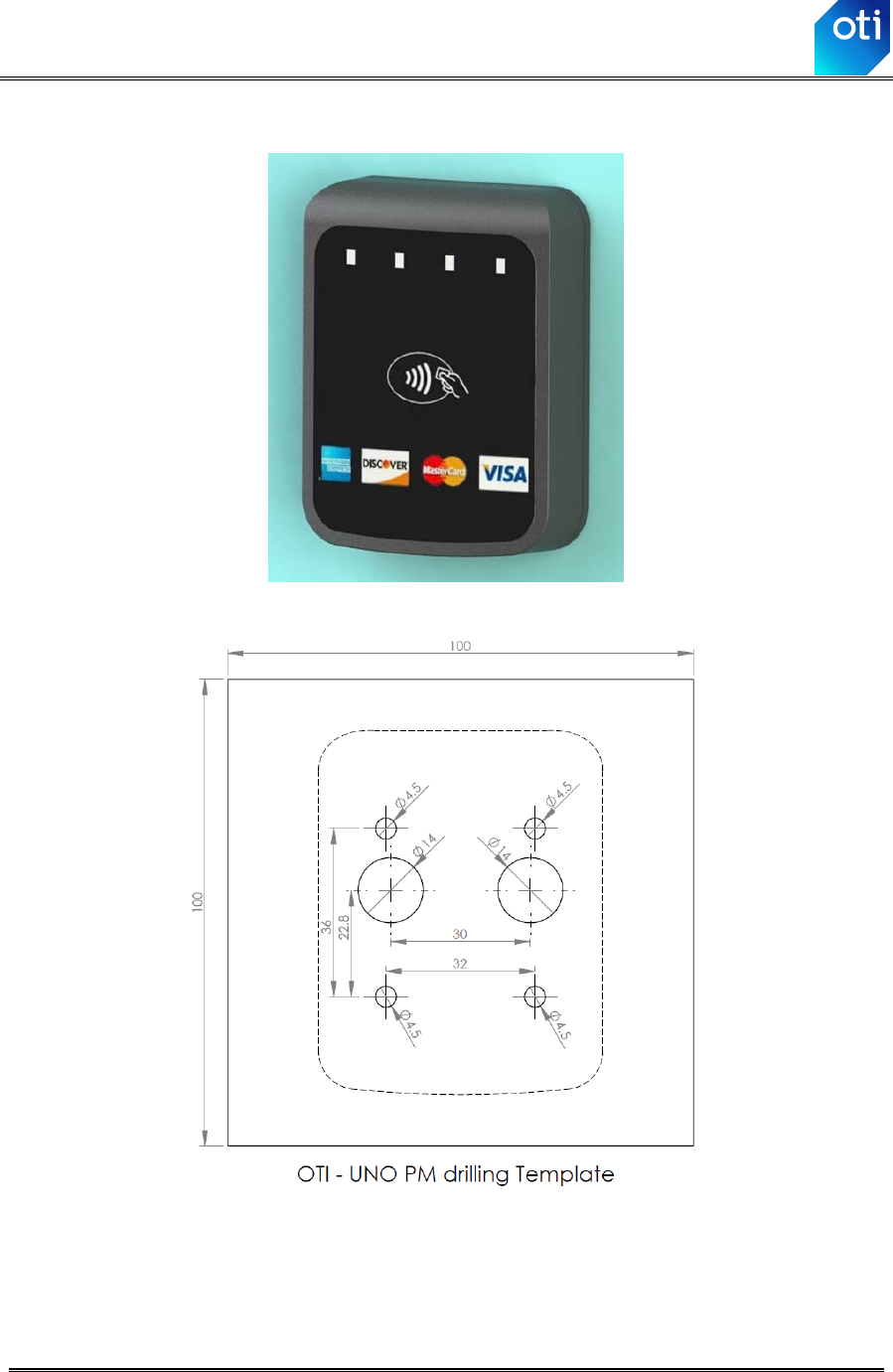

Figure 6-4: UNO Panel Mounting Drilling Template ...................................................................... 19

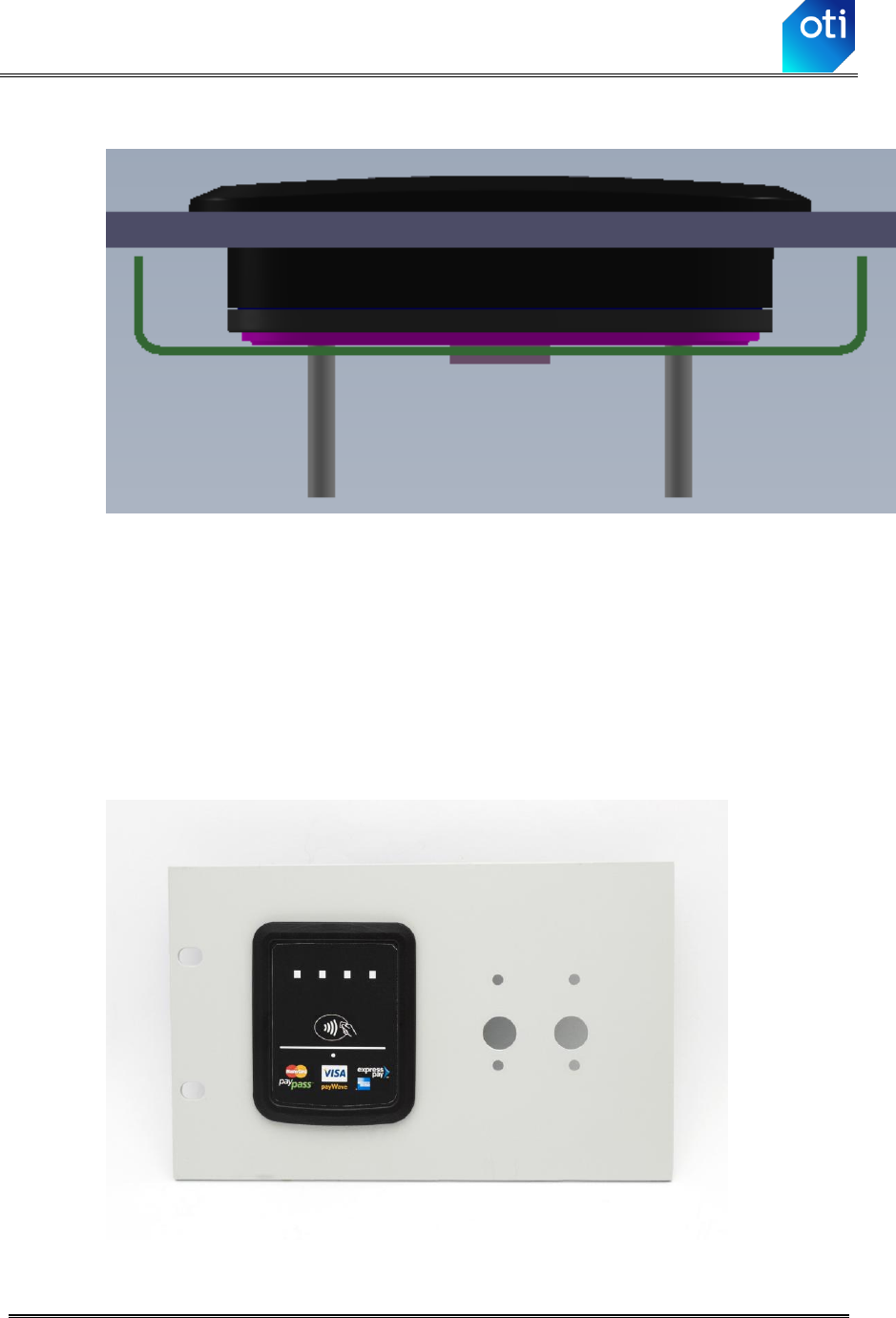

Figure 6-5: UNO Flush Mounting – Front View .................................................................... 20
Figure 6-6: UNO Flush Mounting – Side View ............................................................................... 21
Figure 6-7: UNO Flush Mounting – Front View .................................................................... 21
Figure 6-8: UNO Flush Mounting – Side View ...................................................................... 22
Figure 6-9: UNO Flush Mounting – Angular View ............................................................... 23
Figure 6-10: UNO Flush Mounting – Rear View ................................................................... 24
Figure 6-11: Uno Flash Mounting - Cutout...................................................................................... 24
Figure 6-12: UNO Countertop (Desktop) Mounting – Front View ................................... 25
Uno Specifications Version 1.9
Versions Table
Confidential & Proprietary Page 4
Versions Table
Version
Description
Date
Name
1.1
First version
2014-11-02
Moshe
Cohen
1.2
Supporting operation voltage
of 8 - 45VDC instead of 2 -
15 VDC
Adding a note regarding
"Behind Panel" mounting
Having only one
thickness configuration
(17mm thickness) instead
of 17 or 25 mm
2014-11-10
Moshe
Cohen
1.3
Reader structural update
New connectors
Updates about the mounting
options
2014-11-30
Moshe
Cohen
1.4
New pinout for the full
interface connector
New pictures of the UNO
prototype
Update contact information
of the oti America support
team
2015-01-13
Moshe
Cohen
1.5
New warning regarding
power supply stability
New warning regarding
mounting on metal
Replacing "flat" wording by
"flush"
2015-07-14
Aharon
Binur
1.51
Decrease the input voltage range to
40Vdc
2015-09-29
Aharon
Binur
1.6
Add Recommended Cutout and
Drilling for installation
2015-12-03
Aharon
Binur
1.7
Adding notes to FCC compliance
statement.
2016-04-14
Avner
1.8
Update total power sonsumption and
IP rating
2016-05-10
Hemy
1.9
Add clear distinction between USB
and RS232 models.
2016-05-16
Hemy
Uno Specifications Version 1.9
Introduction
Confidential & Proprietary Page 5

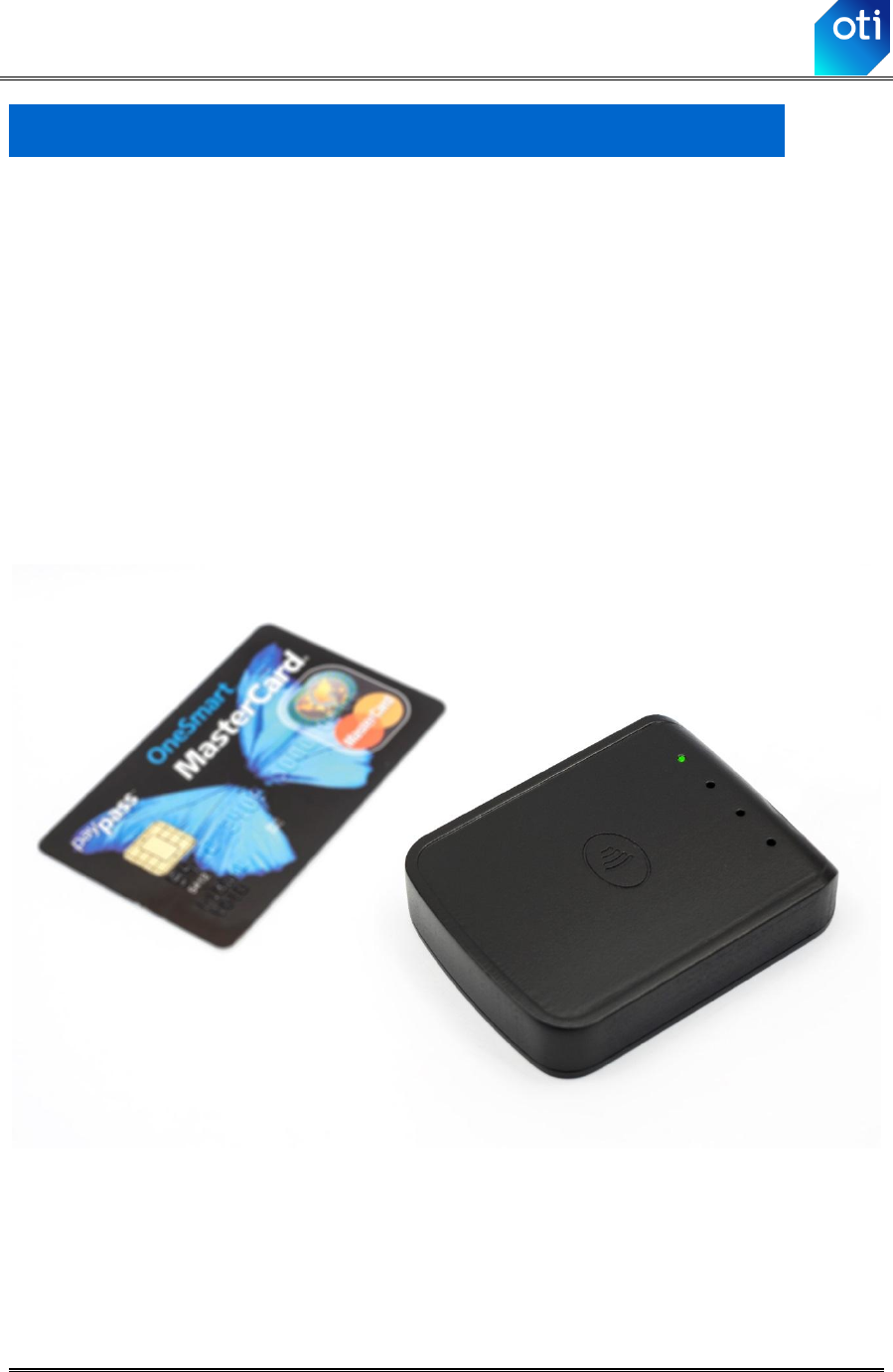

1 Introduction
The UNO is an ultra-compact, certified payment NFC Reader based on oti’s field proven
technology which is specifically designed for payment and mass transit applications. Its compact
design enables easy integration and installation in unattended self-service payment stations, such
as ATMs, AVMs, TVMs, gaming and gambling machines, kiosks, access control gates and more.
The UNO uses oti’s patented matched antenna technology.
The UNO supports SAM house that allows the reader to access its own or external security
elements such as Mifare Authentication SAM.
The UNO is designed to be seated on any counter as an attended reader or alternatively can be
installed as part of an unattended vending or service machine.
UNO’s plug-and-play design makes it easy to connect to any existing infrastructure and POS
terminal, quickly upgrading it to contactless operations without disrupting ongoing business
operations. In its USB configuration, the UNO is USB powered, this option contributes to the easy
installation and maintenance of the reader.
Uno Specifications Version 1.9
Introduction
Confidential & Proprietary Page 6

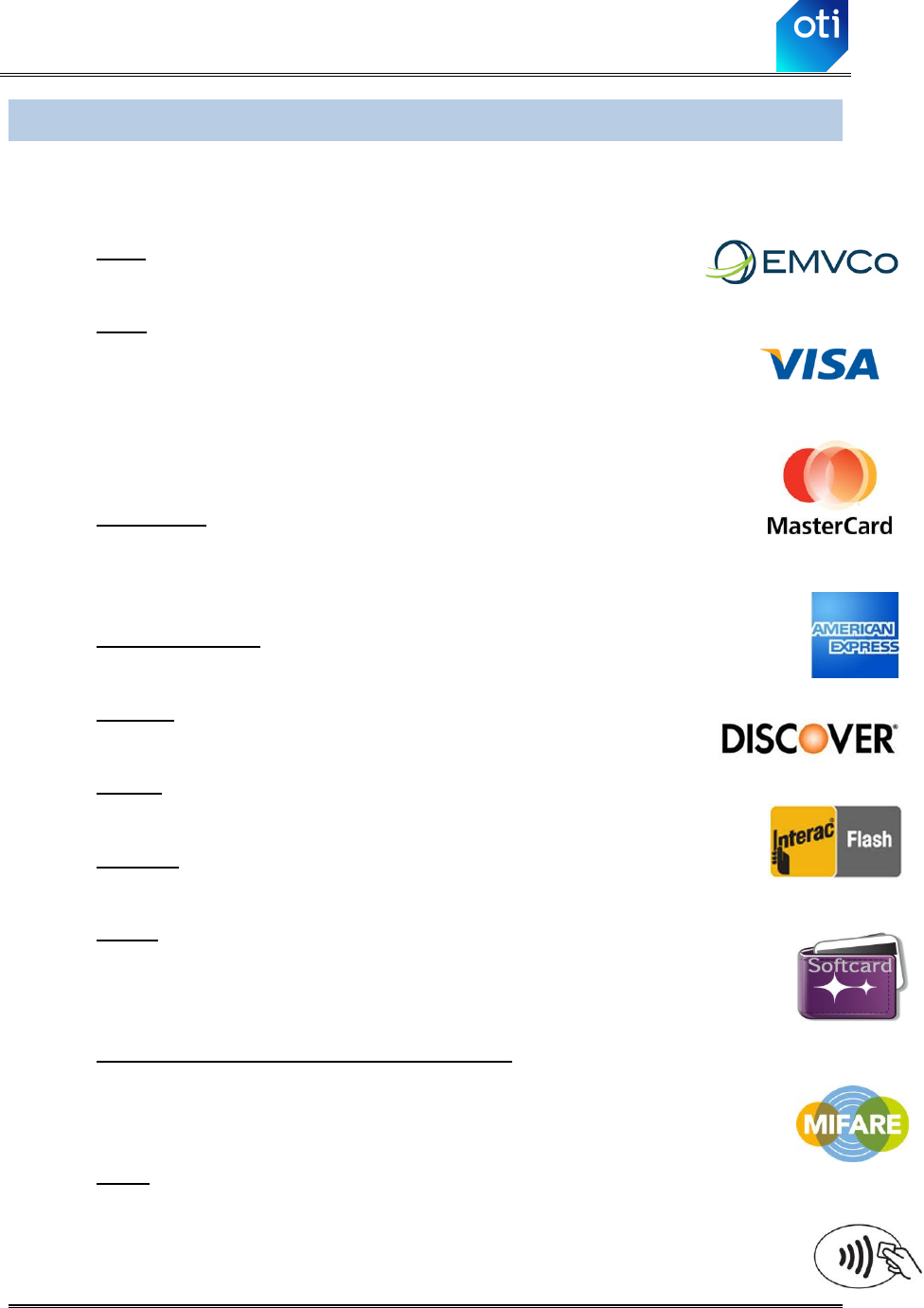

1.1 Certified and Supported Applications
The UNO is certified and supports the following contactless
applications:
EMV
o Contactless EMV L1
VISA
o VISA PayWave MSD
o VISA PayWave qVSDC
o NDOT over VISA for transportation
o VISA Global Transit Payment Pilot Specification
o VISA Pilot Visa PayWave Ticketing Extension Specification
o VISA Asia Pacific WAVE 2
MasterCard
o MasterCard PayPass M/Chip (including Data Exchange)
o MasterCard PayPass Mag Stripe
o NDOT over MasterCard for transportation
American Express
o AMEX ExpressPay
Discover
o Discover ZipNetwork
Interac
o Interac Flash
SoftCard
o SoftCard (ISIS) SmartTap
Mifare
o Mifare Ultralight
o Mifare Classic
o Mifare DESFire (optional)
Transparent (Pass-Through) Communication
o ISO/IEC 14443 Type A - Transparent Proximity
o ISO/IEC 14443 Type B - Transparent Proximity
o ISO/IEC 15693 Vicinity (optional) - Transparent Vicinity
Other
o Additional proprietary applications
*In process of certification
Uno Specifications Version 1.9
Introduction
Confidential & Proprietary Page 7
1.2 Supported Standards
The UNO is compatible with the following standards:
FCC
CE
UL
RoHS compliance
ISO 9001: 2008
ISO/IEC 14443 Proximity Type A&B
ISO/IEC 15693 Vicinity
Mifare
MasterCard TQM label
IPX5
Uno Specifications Version 1.9
Basic Contactless Operation
Confidential & Proprietary Page 8
2 Basic Contactless Operation
When a valid contactless payment card is presented to the reader, the reader performs a
payment transaction with the contactless card. If the transaction is accepted, the unit
will display a row of 4 LEDs that light up in sequence and the reader buzzer will
inform the user about the transaction verdict. The reader then communicates the
transaction data to the Host (POS).
A landing zone logo, lighted by the reader, on the graphic overlay indicates where the
contactless card or tag should be presented.
The interactive LEDs and Buzzer give the user an indication of the transaction status.

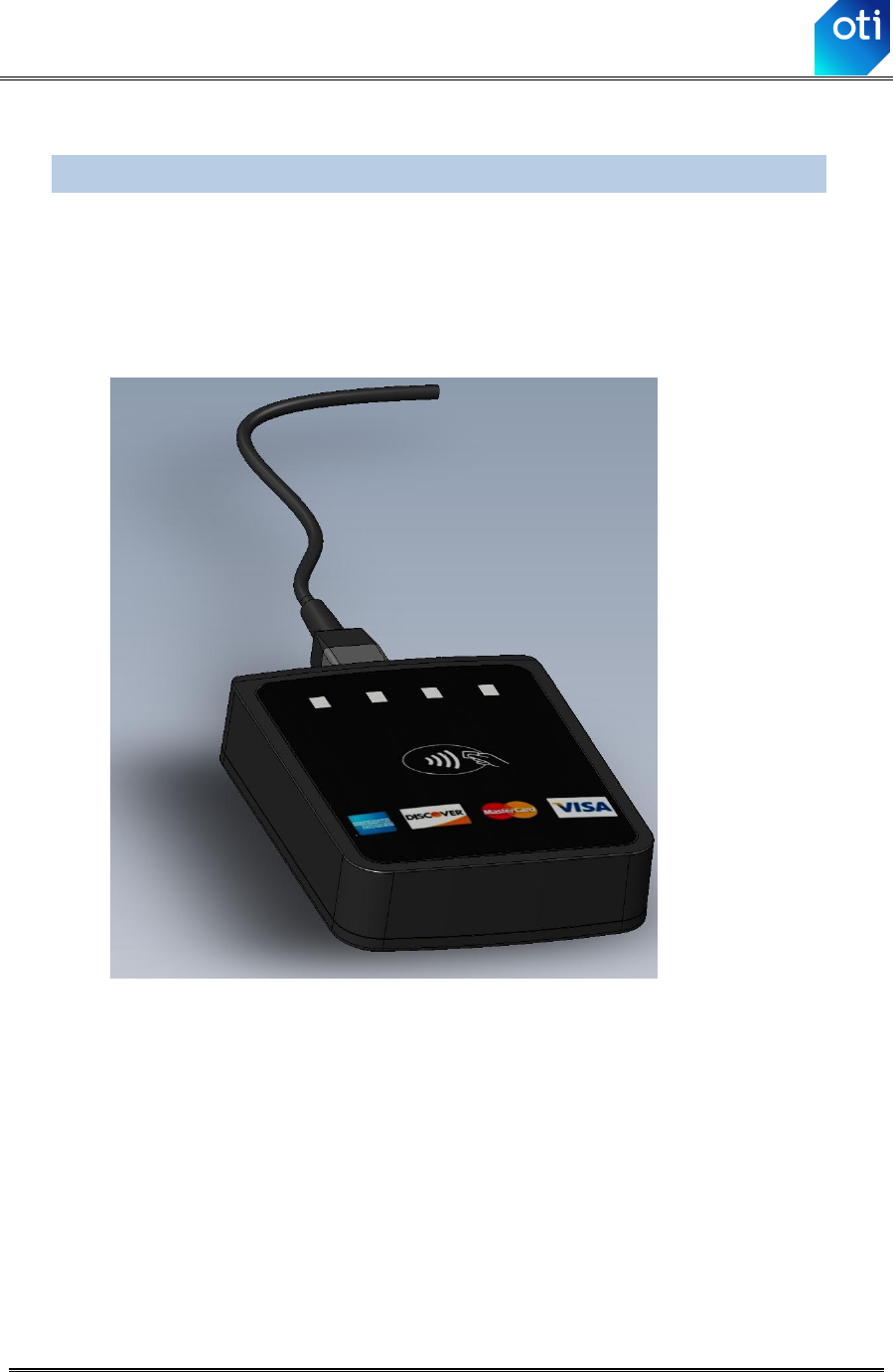

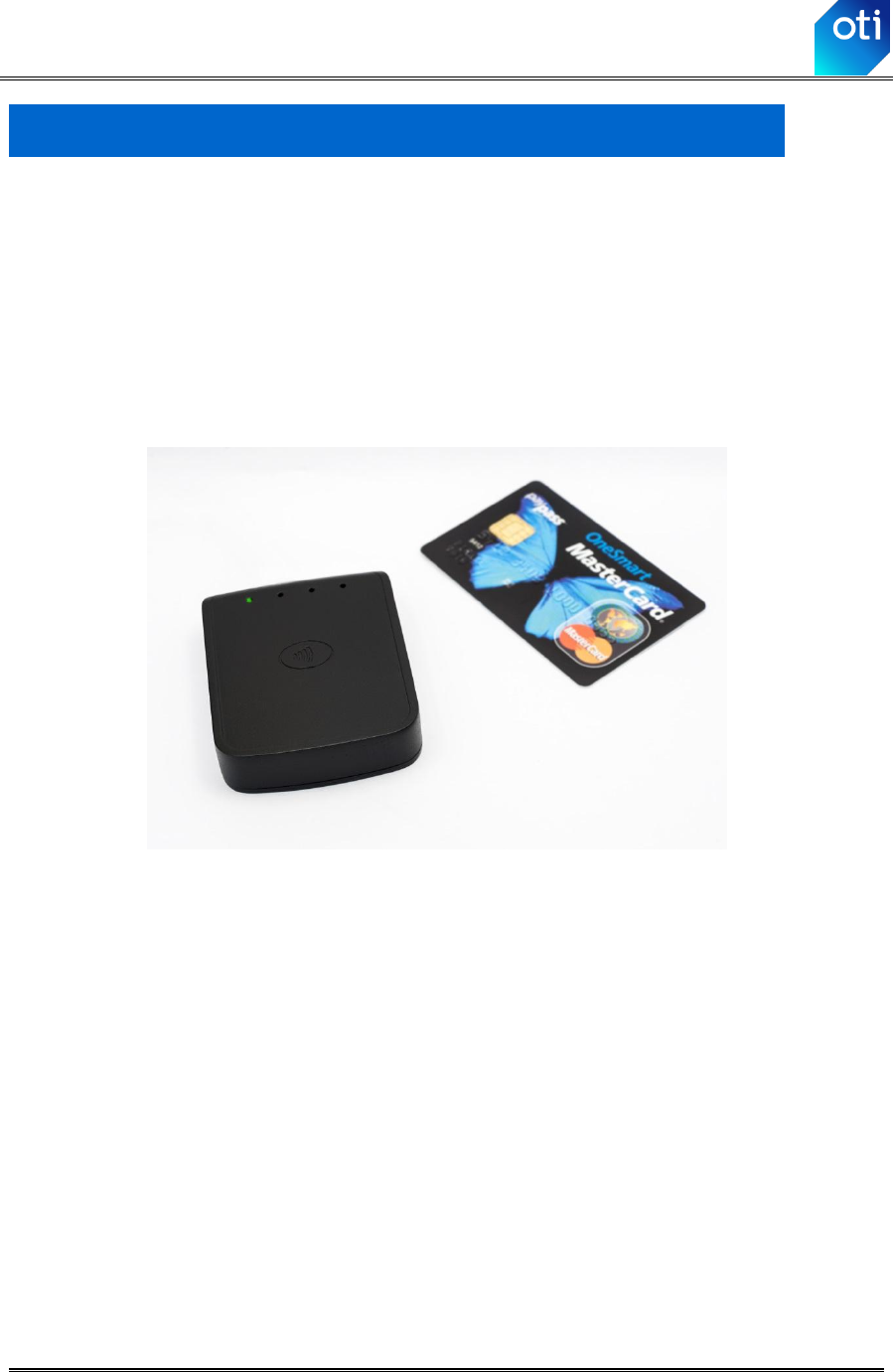

Figure 2-1: Card Presentation
Uno Specifications Version 1.9
Technical Specifications
Confidential & Proprietary Page 9
3 Technical Specifications
3.1 Product Features
General
Flexible, software configurable, certified
intelligent reader solution
oti advanced Host – Reader TLV based
protocol
Contactless transparent communication
support
Modular design by Hardware and Software
Tamper-proof remote software update
Available as OEM
RF Interface
Bi-directional RF interface between Reader
and Contactless Smart Cards
Carrier frequency: 13.56 MHz
ISO/IEC 14443 Type A/B and Mifare full
support
Optional I-Code and ISO/IEC 15693 support
Communication Links
USB 2.0 – full speed, CDC, mini USB
connector
RS 232, 8 data bits, no parity, 1 stop bit, full
8-bit binary data. Client defined baud rate
Connectors:

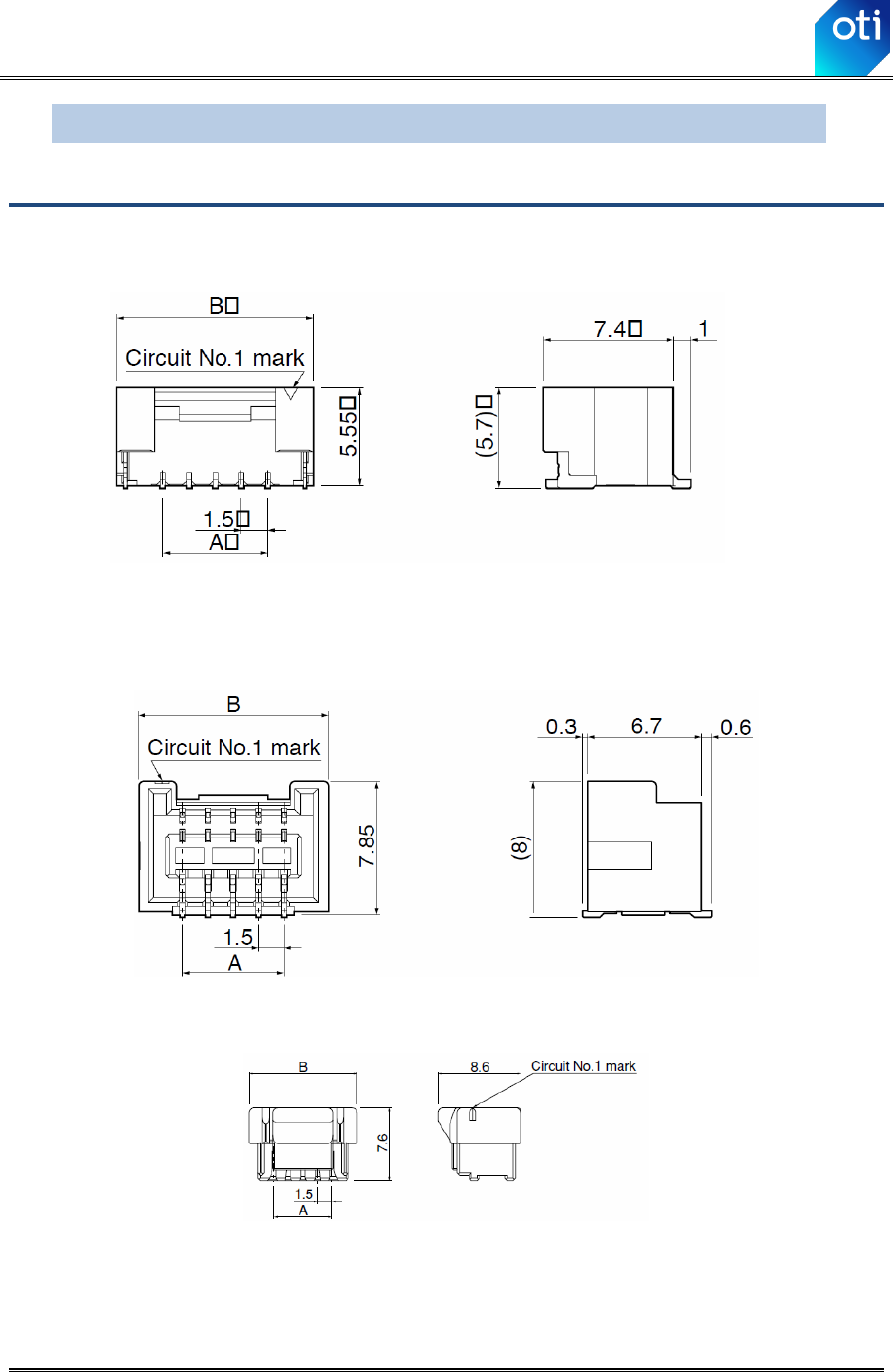

Either a JST 10 pin ZPD interface, located in
the back of the reader and contains a Power,
RS232, USB and External buzzer lines.
Or a mini USB connector located at the back
of the reader and supports USB only. In this
configuration the reader is 5VDC USB
powered.
User Interface
4 LED indicators
Buzzer
Electronic Board Power Requirements
8VDC - 40VDC (Onboard Switch Mode
Power Supply) or 5VDC via USB connector.
Max power consumption
Less than 3W (RF signal on) with 8-40VDC
supply.
Less than 2.5W (RF signal on) with 5VDC
supply from USB bus.
SAM Interface
One micro SIM Slot
Security
High security encryption system
(3DES/AES/RSA) protects the reader’s
operating system
Vandalism-proof PKI protected software
update mechanism
DUKPT (Derived Unique Key Per
Transaction) support
Offline PIN Authentication support
Secure boot loader (firmware update)
protocol
Environmental Conditions
Operating: -20° to 70°C (-4° to 158°F)
Uno Specifications Version 1.9
Technical Specifications
Confidential & Proprietary Page 10
3.2 Product Technical Specifications
The performance/electrical specifications for each feature of the UNO reader are given in
the table below.
Table 3-1: Performance/Electrical Specifications
Feature
Specification
RF Interface:
RF Carrier Frequency
13.56 MHz
RF Output
450mW
ISO/IEC 14443 A&B and Mifare
Full compliance
ISO/IEC 15693 Vicinity
Optional
Micro SIM push-push Interface
Communication Links:
USB, RS232
USB:
2.0 Full speed
CDC
Connectors
Standard mini-USB connector
USB only
Mini USB connector
Full interface
JST 10 pin P/N BM10B-ZPDSS
Indicators:
LEDs
Four programmable on-board LEDs
Buzzer
Multi tone differential drive buzzer
Electronic Board Power Requirements:
8VDC – 40VDC, Pmax<3W
On-board switching power supply
5VDC, Pmax<2.5W
From USB bus in USB only
Mechanical:
Dimensions
(See Figure 5-1: Front View and
Figure 5-2: Side View)
H – 0.66” (17mm)
W – 2.40” (61mm)
D – 3.07” (78mm)
Weight
125 gr.
Vibrations
10 200 Hz @ 2.0G
IP rating
IPX5
Temperature:
Operating
-20°C to 70°C (-4°F to 158°F)
Uno Specifications Version 1.9
Technical Specifications
Confidential & Proprietary Page 11
Warning: Power supply minimum requirements
Keeping the DC supply voltage within the specified allowed range is crucial
to guarantee proper operation of the equipment. The use of AC rectified
power supply source, which is not properly filtered, forms a risk of too low
voltage dips and hence should be avoided. It is highly recommended to
check this issue with proper tools (e.g. oscilloscope) during the reader
installation. For more details contact oti technical team via oti’s sales
representatives.
Uno Specifications Version 1.9
Reader models
Confidential & Proprietary Page 12
4 Reader models
4.1 RS232 model
The RS232 interface is implemented using a JST 10 pin connector (JST P/N
BM10B-ZPDSS).
The connector exposes 10 lines according to the following:
1. RS223 Rx
2. RS232 Tx
3. USB D-
4. Buzser 1
5. USB D+
6. Buzzer 2
7. GND (direct)
8. Vin
9. 5V
10. GND Ext (via common mode chock)
Note: the 10 pin connector optionaly support USB communication and
extranl buzzer activation. This option is not in OTI standard products
portfolio.
4.2 USB model
A mini-USB connector on the back of the reader provides communication to
the host terminal (POS). It can be used to provide either USB or RS232
serial interface depending on the reader’s hardware configuration.
DC power to the unit can be provided either through the mini-USB
connector or through the power jack which is part of the communication
cable.
Uno Specifications Version 1.9
Reader models
Confidential & Proprietary Page 13
4.3 Interface cables
4.3.1 RS232 cable
A JST 10 pin connector (JST P/N BM10B-ZPDSS) is available to access the
reader full interface.
Figure 4-1: BM10B-ZPDSS Connector – Top Entry Type
Figure 4-2: BM10B-ZPDSS Connector – Side Entry Type
Figure 4-3: BM10B-ZPDSS Connector housing
Uno Specifications Version 1.9
Reader models
Confidential & Proprietary Page 14
4.3.2 USB Cable
The USB cable (1.8m) has a mini-USB upstream connector on the reader
side and a USB downstream connector on the host side.
This cable can be in use while the reader is in USB only configuration.
In this hardware configuration, the reader is USB powered, no additional
power supply is required.
Figure 4-4: USB Cable
Figure 4-5: USB Connection
1
2
3
VCC
D-
D+
GND
Saturn
Mini USB
Upstream Connector
2
3
4GND
D+
D-
Host
USB
Downstream Connector
USB Cable
1
5
VCC
Uno Specifications Version 1.9
UNO Mounting
Confidential & Proprietary Page 17
6 UNO Mounting
While the UNO can be placed simply on the counter as a countertop reader connected
to a terminal, the UNO can also be mounted as part of an unattended machine. This
chapter specifies the mounting options and procedures.
The UNO mounting possibilities include 3 main options, as illustrated below:
1. On panel mounting
2. Flush mounting
3. Countertop (Desktop) mounting
The different mounting configuration allows to install the UNO on top of the machine surface,
leveled with the machine surface or over the counter.

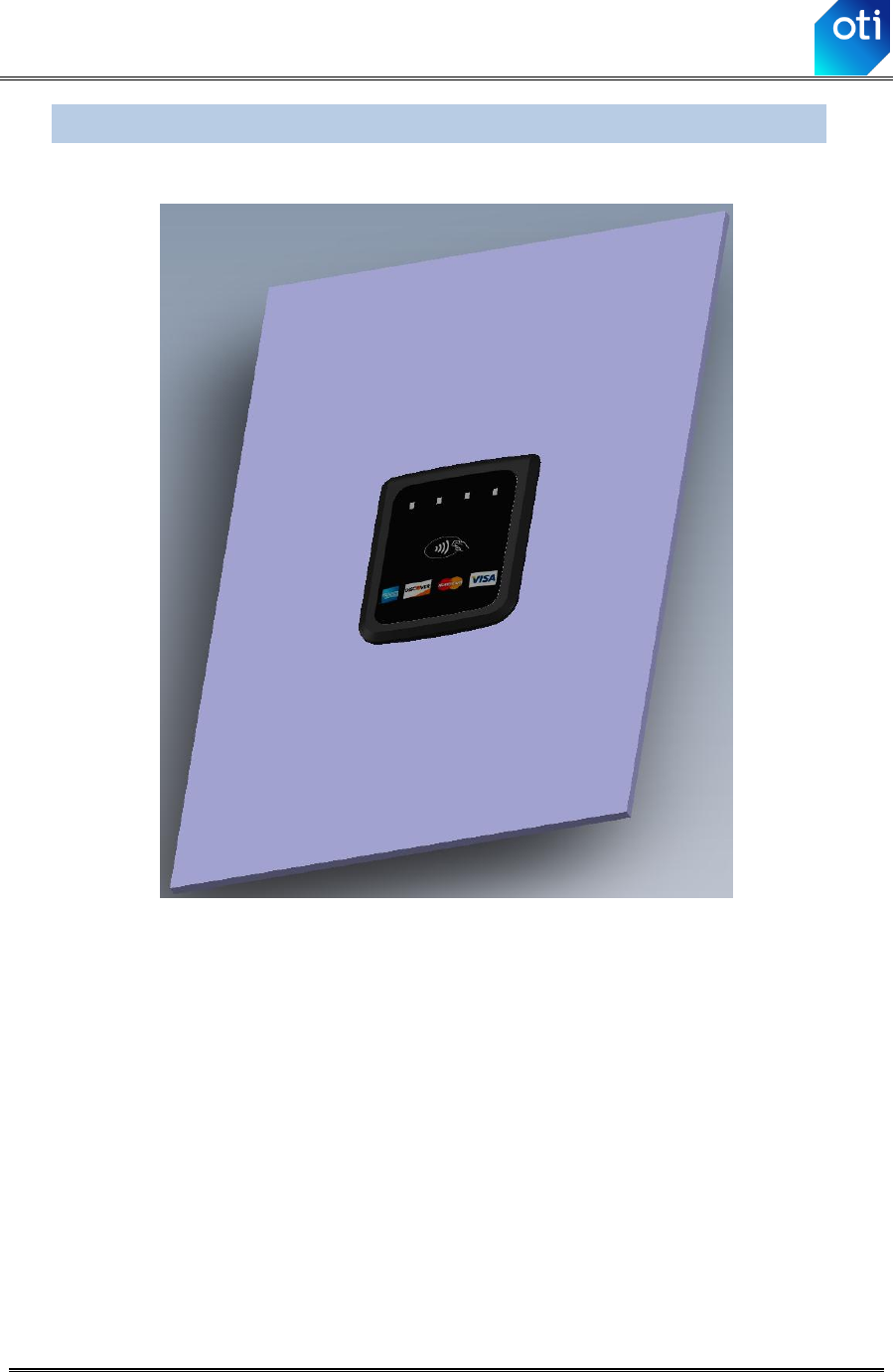

Figure 6-1: Flush and On Panel Mounting
Warning: Mounting on metal
Direct mounting of the reader on metallic/conductive panel requires special
attention as it negatively affects the reader contactless performance. For
more details contact oti technical team via oti’s sales representatives.
Uno Specifications Version 1.9
UNO Mounting
Confidential & Proprietary Page 18
6.1 On Panel Mounting
The image below illustrates the UNO’s on panel mounting option.
Figure 6-2: UNO Mounting Studs
1. The UNO is equipped with 4 mounting studs for front panel mounting.
2. The studs and cable are inserted through holes in the front panel. The
nuts are fastened over the studs from the back of the front panel,
protecting against potential attempts to dismantle the unit from the
front.
Uno Specifications Version 1.9
UNO Mounting
Confidential & Proprietary Page 19
3.

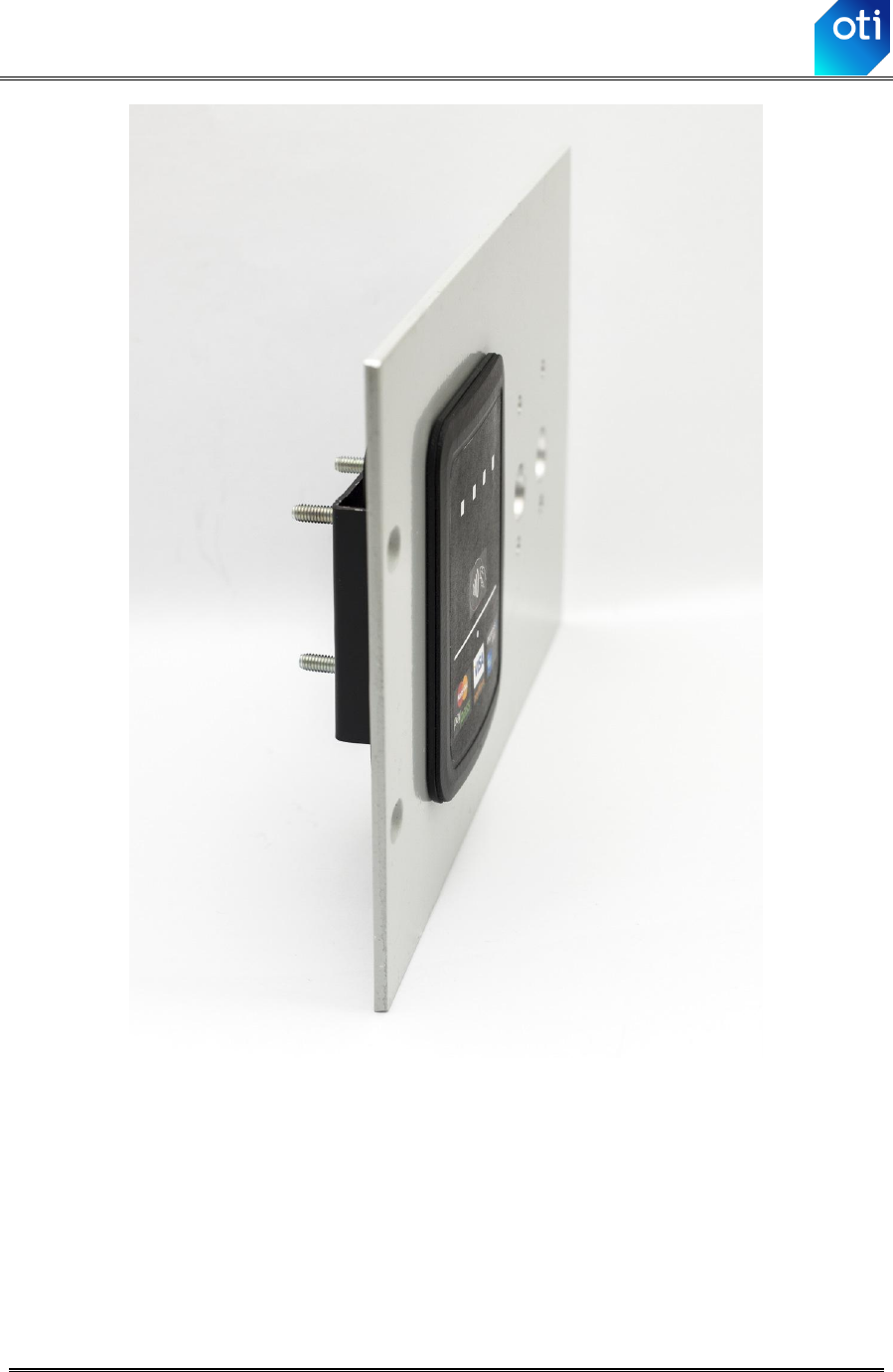

Figure 6-3: UNO Panel Mounting view
Figure 6-4: UNO Panel Mounting Drilling Template
Uno Specifications Version 1.9
UNO Mounting
Confidential & Proprietary Page 20
6.2 Flush Mounting
The image below illustrates the UNO’s flush mounting option.
Figure 6-5: UNO Flush Mounting – Front View
Uno Specifications Version 1.9
UNO Mounting
Confidential & Proprietary Page 21

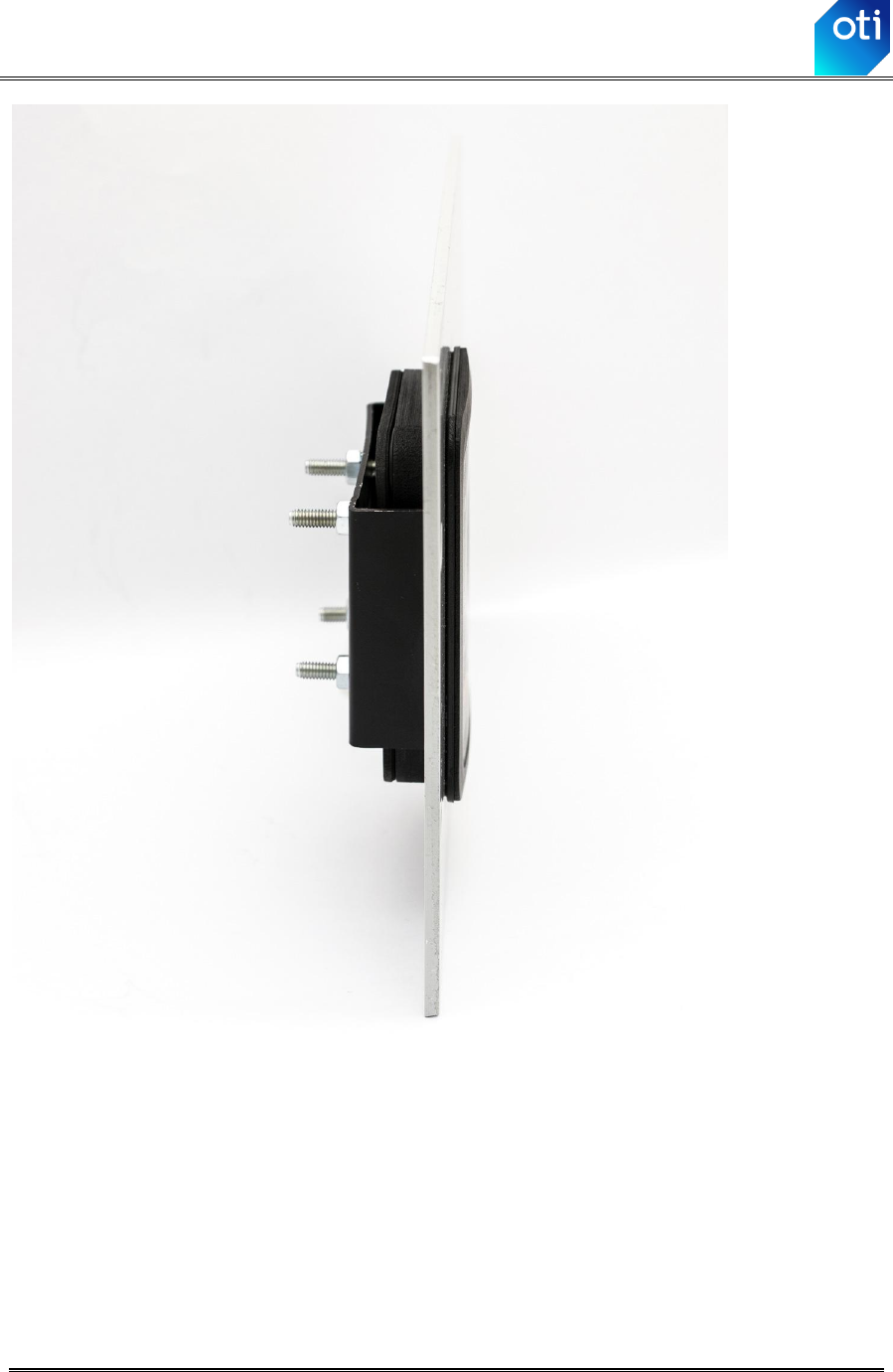

Figure 6-6: UNO Flush Mounting – Side View
1. The UNO can be mounted flush with the front panel surface.
2. The flush mounting option requires a 63x80 mm cutout in the center of
the non-metallic section of the front panel.
3. A mounting holder (green) in the back of the reader is tighten the device
to the panel. A gasket that is separated between the device cover and the
panel keep it waterproof.
Figure 6-7: UNO Flush Mounting – Front View
Uno Specifications Version 1.9
UNO Mounting
Confidential & Proprietary Page 22
Figure 6-8: UNO Flush Mounting – Side View
Uno Specifications Version 1.9
UNO Mounting
Confidential & Proprietary Page 23
Figure 6-9: UNO Flush Mounting – Angular View
Uno Specifications Version 1.9
UNO Mounting
Confidential & Proprietary Page 24
Figure 6-10: UNO Flush Mounting – Rear View
Figure 6-11: Uno Flash Mounting - Cutout
Uno Specifications Version 1.9
UNO Mounting
Confidential & Proprietary Page 25
6.3 Countertop (Desktop) mounting
As the product software supports both attended and unattended usage
profiles, the UNO can be used also as attended reader.
In order to use the UNO in its countertop configuration you should connect
it to the POS using the full interface to via the USB interface and to place it
over the counter or alternatively in its cradle (if available).
Figure 6-12: UNO Countertop (Desktop) Mounting – Front
View
Uno Specifications Version 1.9
Contact Us
Confidential & Proprietary Page 26
7 Contact Us
For oti America Technical Support (US and Canada):
Phone: +1-732-429-1900 9:00 am to 5:00 pm Eastern time
Monday – Friday
Email: support@otiamerica.com
For oti Technical Support (International):
Phone: +972-4-6868000 (Ext. 8090)
Email: info@otiglobal.com
