Users Manual_Plus
Confidential & Proprietary
Version 0.3
SATURN 8700
Plus USB
Specifications
Version 0.3f
Notice
This manual contains intellectual property including, but
not limited to, trade secrets and know-how, operation
procedures and production procedures that belong solely to
oti.
Disclosure, use, and/or production of any part of the
above are strictly forbidden, except under a written
license from oti.
Saturn 8700 Plus Usb Specifications Version 0.3
FCC Compliance
Confidential & Proprietary Page 1
1 FCC Compliance
This device (Saturn 8700) complies with Part 15, of the FCC Rules and with
Industry Canada’s licence-exempt RSSs.
Operation is subject to the following two conditions:
1. This device may not cause harmful interference,
and
2. This device must accept any interference received, including interference that
may cause undesired operation
Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux
appareils radio exempts de licence. L’exploitation est autorisée aux deux conditions
suivantes :
1. l’appareil ne doit pas produire de brouillage;
2. l’utilisateur de l’appareil doit accepter tout brouillage radioélectrique
subi, même si le brouillage est susceptible d’en compromettre le
fonctionnement.
NOTE:
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to part 15, subpart C of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following
measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
Saturn 8700 Plus Usb Specifications Version 0.3
FCC Compliance
Confidential & Proprietary Page 2
Changes or modifications in this equipment, not expressly approved by the party
responsible for compliance (On Track Innovations Ltd,) could void the user’s
authority to operate the equipment.
This Class B digital apparatus complies with Canadian ICES-003.
Cet appareil numerique de la classe B est conforme a la norme NMB-003 du
Canada.
Certificates identifiers:
FCC ID: JNX-OTI-SAT8700P
IC:10533A-OTISAT8700P
Responsible Party:
On Track Innovations LTD..
Z.H.R Industrial Zone.
Rosh Pina 12000
ISRAEL
Phone: +972-4-6868000
Email: Supportoti@otiglobal.com
Saturn 8700 Plus Usb Specifications Version 0.3
Table of Contents
Confidential & Proprietary Page 3
2 Table of Contents
1 FCC COMPLIANCE .............................................................................................................................. 1
2 TABLE OF CONTENTS ........................................................................................................................ 1
3 TABLE OF FIGURES ............................................................................................................................ 4
4 REVISION HISTORY ............................................................................................................................ 5
5 INTRODUCTION ................................................................................................................................... 6
5.1 SUPPORTED APPLICATIONS ................................................................................................................ 7
5.2 SUPPORTED STANDARDS ................................................................................................................... 8
6 TECHNICAL SPECIFICATIONS ........................................................................................................ 9
6.1 PRODUCT FEATURES .......................................................................................................................... 9
6.2 PRODUCT TECHNICAL SPECIFICATIONS ............................................................................................10
7 INTERFACE CABLE ............................................................................................................................11
8 DIMENSIONS ........................................................................................................................................12
8.1 SATURN 8700 PLUS USB DIMENSIONS..............................................................................................12
8.2 MOUNTING BRACKET DIMENSIONS ...................................................................................................13
9 SATURN 8700 PLUS USB MOUNTING .............................................................................................14
9.1 BRACKET MOUNTING .......................................................................................................................14
10 CONTACT US ........................................................................................................................................17
Saturn 8700 Plus Usb Specifications Version 0.3
Table of Figures
Confidential & Proprietary Page 4
3 Table of Figures
Figure 5-1: Saturn 8700 Plus USB ..................................................................................................... 6
Figure 8-1: Saturn 8700 Plus USB reader dimensions ...................................................................... 12
Figure 8-2: Saturn 8700 Plus USB mounting bracket dimensions .................................................... 13
Figure 9-1: Saturn 8700 Plus USB Bracket Mount ........................................................................... 14

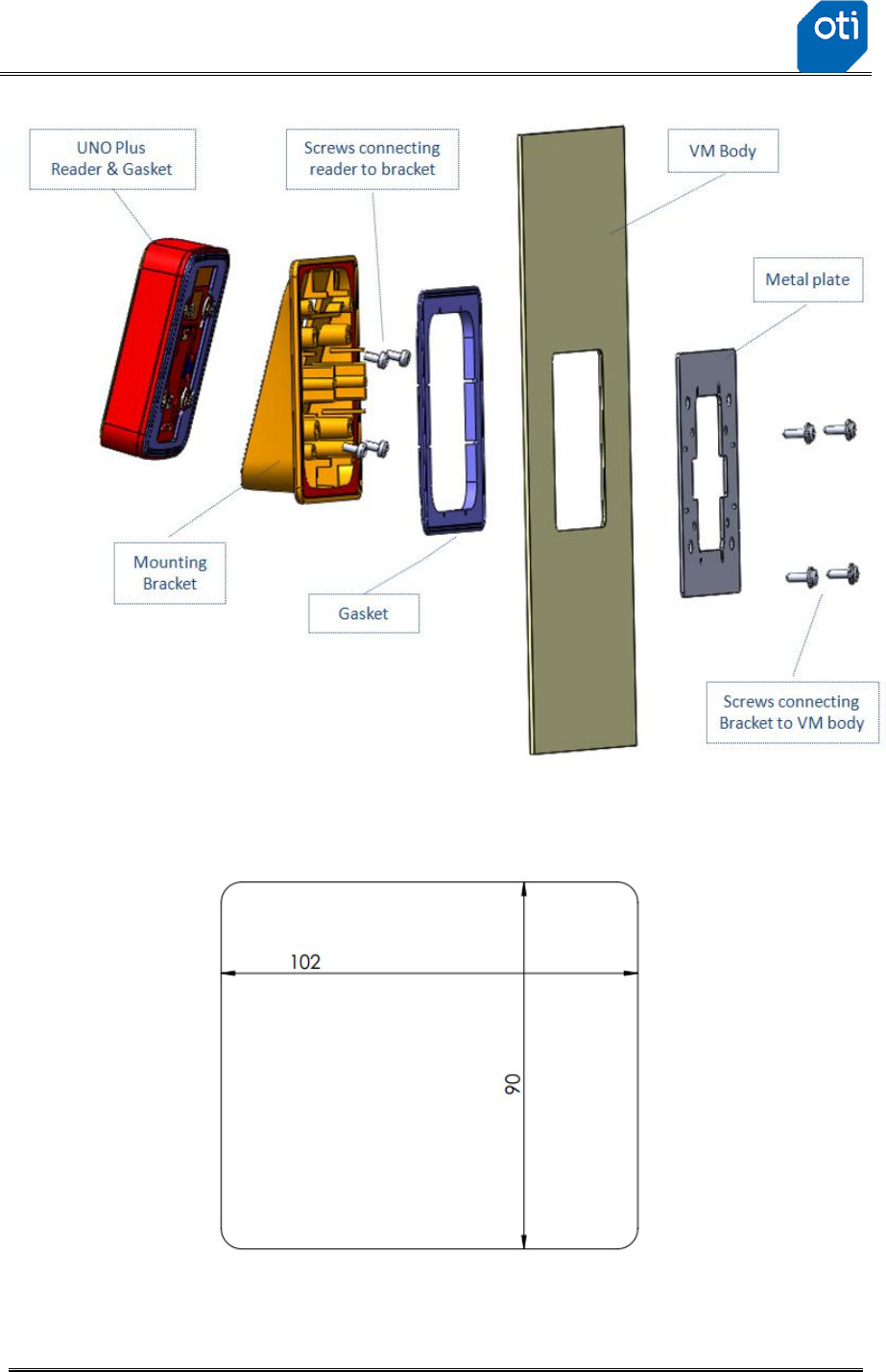

Figure 9-2: Bracket mount – explode view ....................................................................................... 15
Figure 9-3: Bracket mount – vending machine panel cutout ............................................................ 15

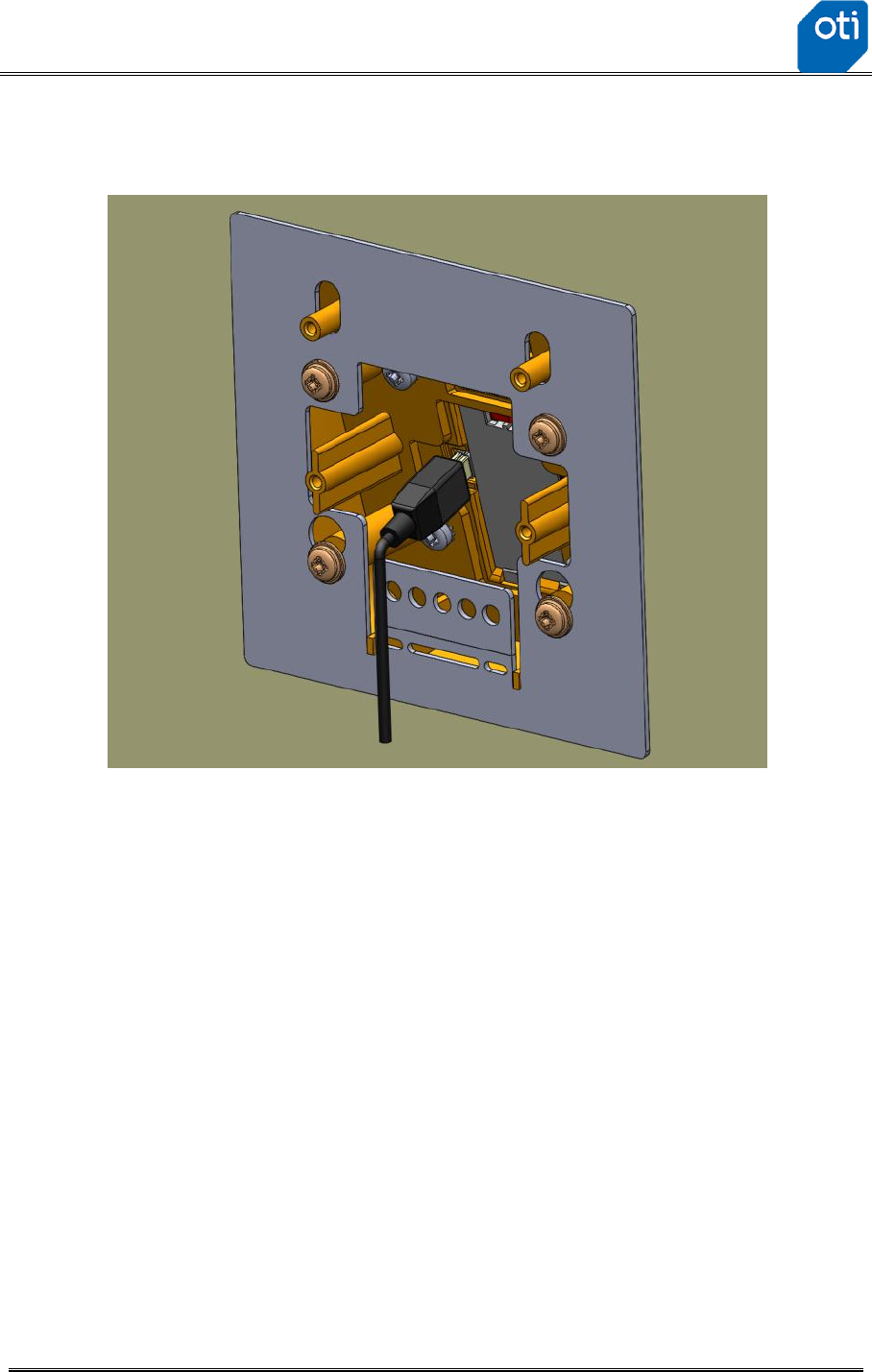

Figure 9-4: Bracket mount – Back View .......................................................................................... 16
Saturn 8700 Plus Usb Specifications Version 0.3
Revision history
Confidential & Proprietary Page 5
4 Revision history
Version
Description
Date
0.1
First version
01-March-2017
0.2
OTI Internal review
20-March-2017
0.3
OTI new logo update
27-Nov-2017
0.3f
Updated FCC declaration
11-Dec-2017
Saturn 8700 Plus Usb Specifications Version 0.3
Introduction
Confidential & Proprietary Page 6
5 Introduction
The Saturn 8700 Plus USB is a FeliCa and NFC contactless reader that includes a visual display and
is compatible with EVA mounting standards.
The Saturn 8700 Plus USB is designed specifically for unattended retail environments and supports
an extensive range of applications including vending machines, ticketing, toll roads, gaming and
gambling machines, kiosks, access control, mass transit gates and more.
Saturn 8700 Plus USB plug-and-play design makes it easy to connect to any existing infrastructure,
quickly upgrading it to contactless operations without disrupting ongoing business operations.

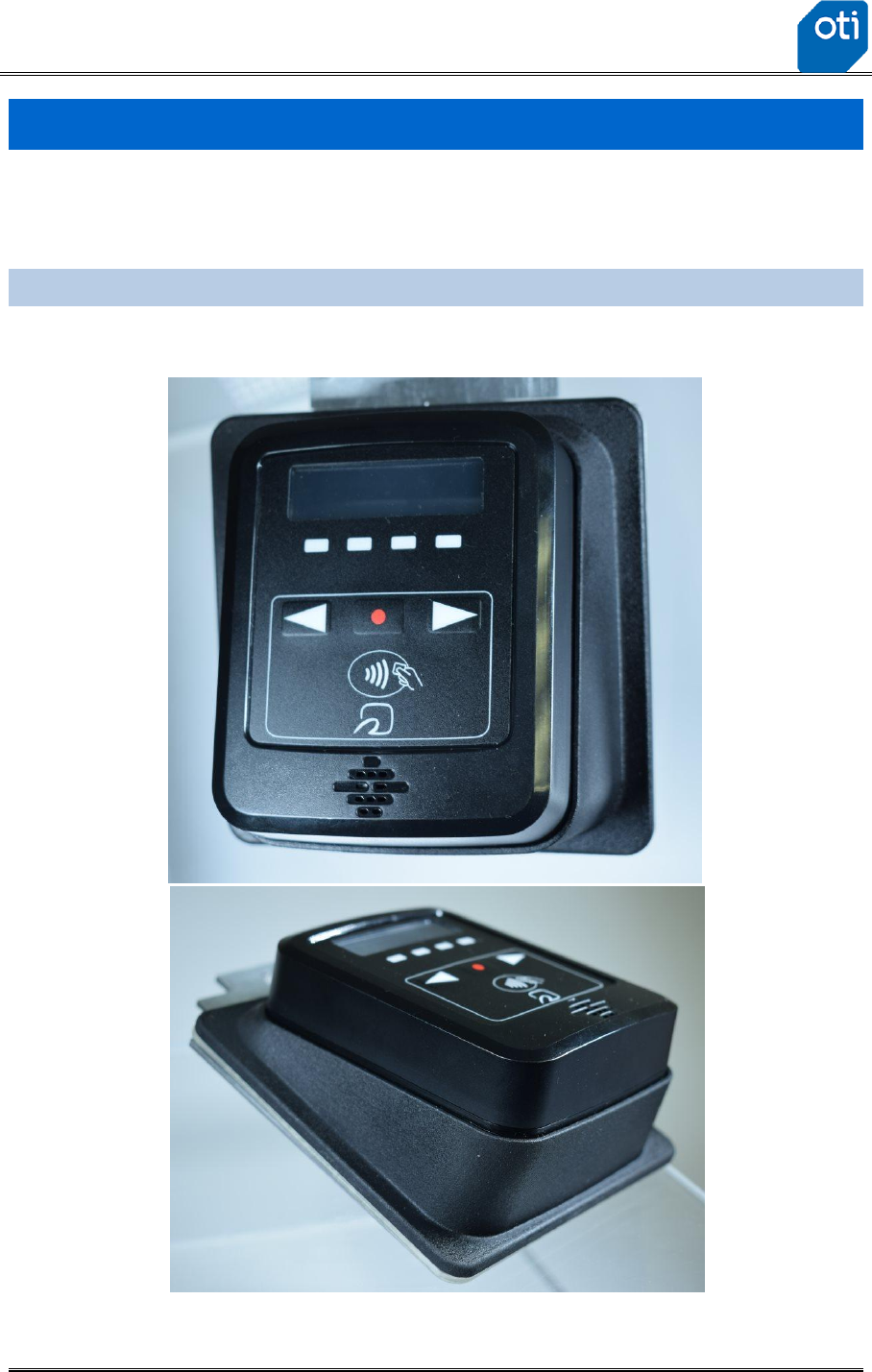

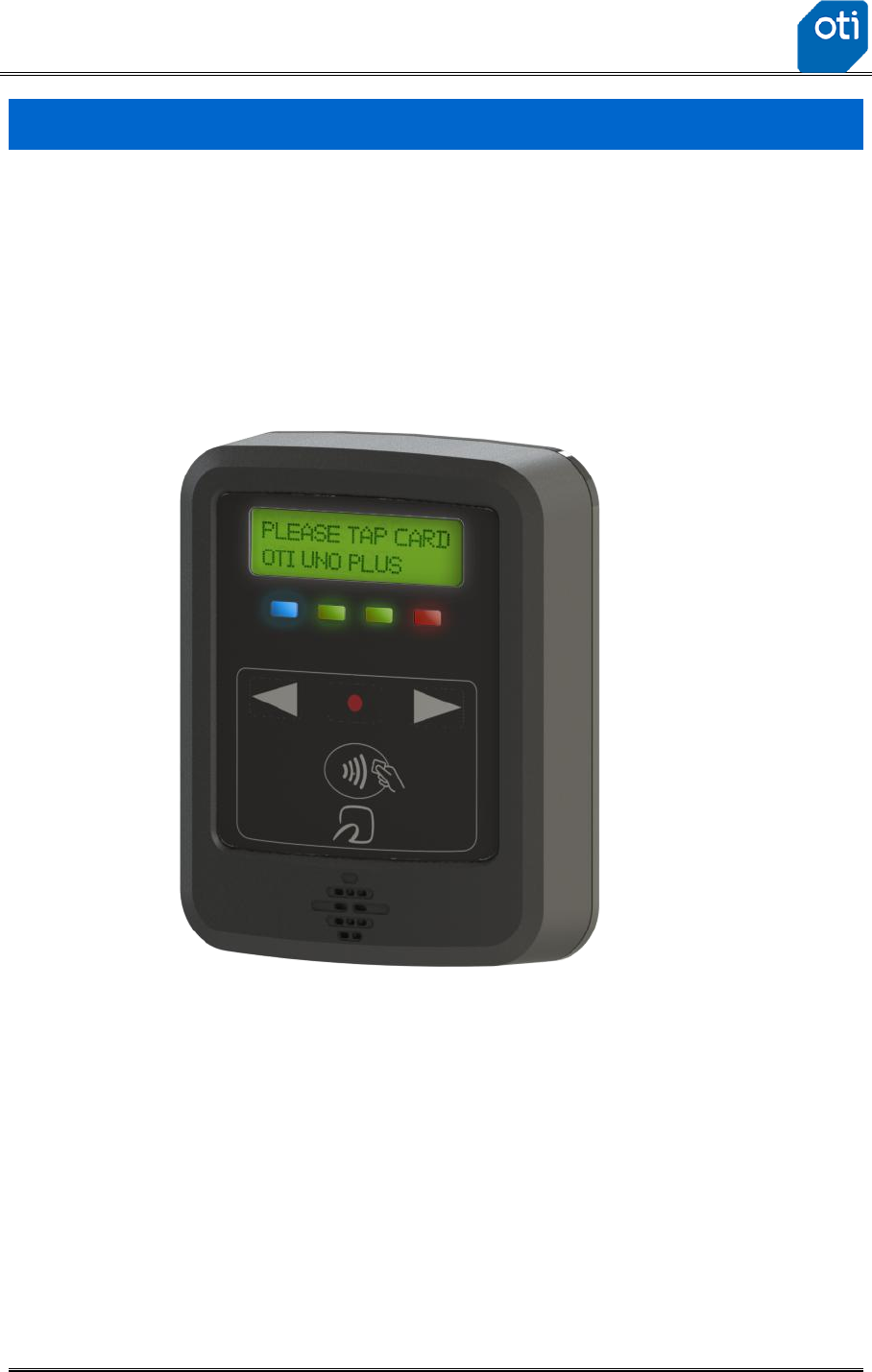

Figure 5-1: Saturn 8700 Plus USB
Saturn 8700 Plus Usb Specifications Version 0.3
Introduction
Confidential & Proprietary Page 7
5.1 Supported Applications
The Saturn 8700 Plus USB supports the following contactless applications:
EMVCo
o Book A – Modular architecture - Certified
o Book C kernel 2 - MasterCard
o Book C kernel 3 – Visa
o Book D – L1 certified
Apple Pay
Android Pay
Felica
o M-Class device certified
Technologies
o ISO/IEC 14443 Type A
o ISO/IEC 14443 Type B
o ISO/IEC 15693 Vicinity
o Felica JIS: X6319-4
o ISO 18092 Active P2P1
o Mifare Ultralight
o Mifare Classic
o Mifare DESFire2
1 Supported by hardware. Please contact oti for latest status of firmware support.
2 Supported by hardware. Please contact oti for latest status of firmware support.
Saturn 8700 Plus Usb Specifications Version 0.3
Introduction
Confidential & Proprietary Page 8

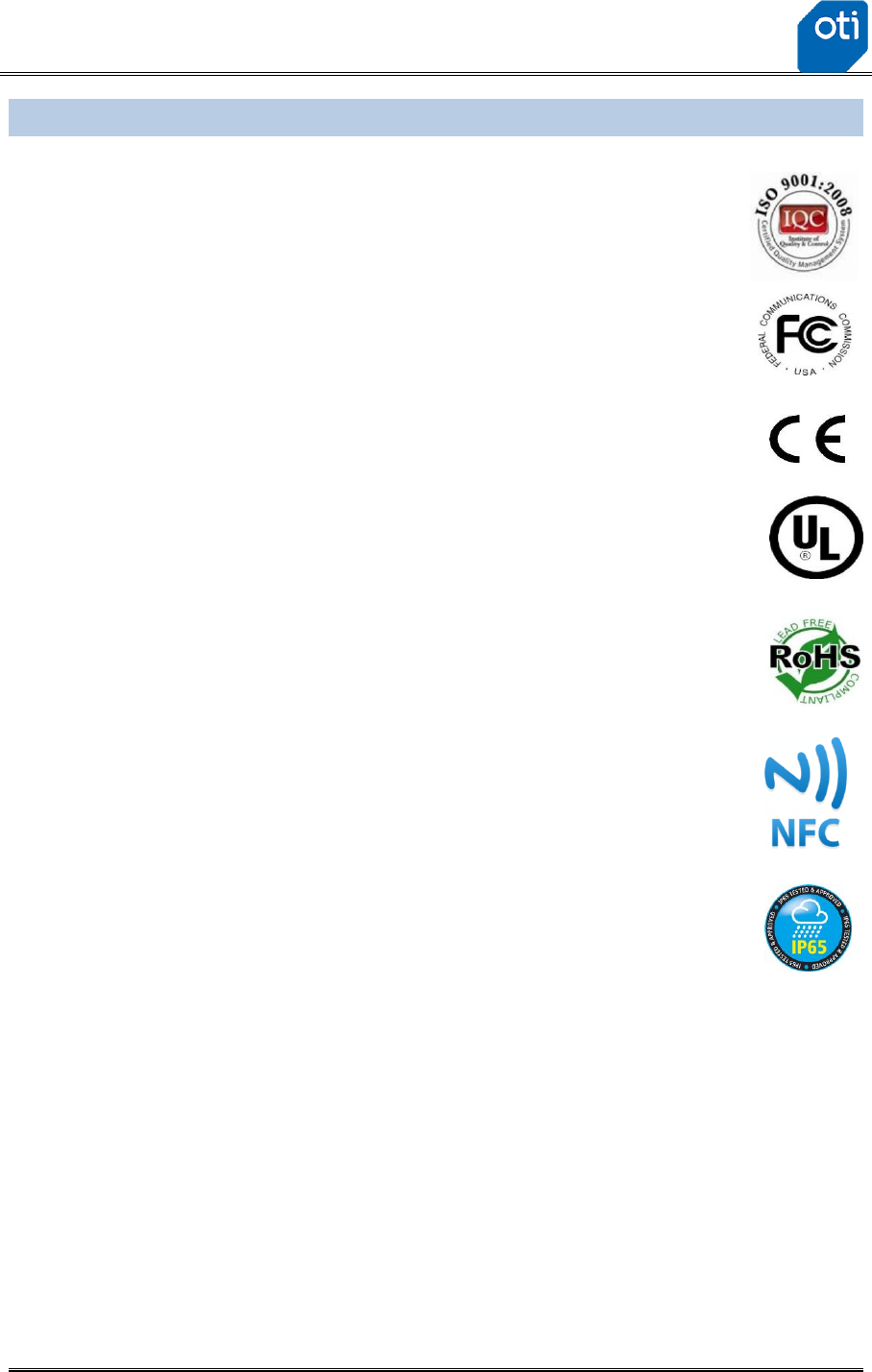

5.2 Supported Standards
The SATURN 8700 PLUS USB is compatible with the following standards:
FCC
CE
UL
RoHS compliance
ISO 9001: 2008
ISO/IEC 18092
ISO/IEC 14443 Type A&B
ISO/IEC 15693
Mifare
IP65
Saturn 8700 Plus Usb Specifications Version 0.3
Technical Specifications
Confidential & Proprietary Page 9
6 Technical Specifications
6.1 Product Features
General
Software configurable, certified smart reader
oti advanced Host – Reader TLV based
protocol
Contactless transparent communication
support
Modular design by Hardware and Software
Secured remote software update
RF Interface
Bi-directional RF interface between Reader
and Contactless devices
Carrier frequency: 13.56 MHz
Data rate: Up to 848Kbs
Bluetooth v4.1 BLE (optional)
Communication Links
USB 2.0 – full speed, HID, MSD
Connectors:
Mini USB
User Interface
Charcter Display 2x16 (Japanese + English)
3 Push Buttons
Indication LEDs:
4 green LEDs for open loop payment
2 blue + 2 red for FeliCa payment
3 button indication LEDs
RGB LED on the contactless logo
Audio: Speaker
Power Requirements
USB bus powered
5VDC, 2.5W
SAM Interface
Two micro SIM Slots
Security
Cryptographic algorithms - 3DES, AES, RSA
DUKPT (Derived Unique Key Per
Transaction)
Secure boot loader
Warning: Power supply minimum requirements
Keeping the DC supply voltage within the specified allowed range is crucial to guarantee
proper operation of the equipment. The use of AC rectified power supply source, which
is not properly filtered, forms a risk of too low voltage dips and hence should be avoided.
It is highly recommended to check this issue with proper tools (e.g. oscilloscope) during
the reader installation. For more details contact oti technical team via oti’s sales
representatives.
Saturn 8700 Plus Usb Specifications Version 0.3
Technical Specifications
Confidential & Proprietary Page 10
6.2 Product Technical Specifications
The performance/electrical specifications for each feature of the SATURN 8700 PLUS USB reader
are given in the table below.
Table 6-1: Performance/Electrical Specifications
Feature
Specification
RF Interface:
RF Carrier Frequency
13.56 MHz
RF Output
450mW (@50ohm load)
Bluetooth
Bluetooth Low Energy (BLE) v4.1 (Optional)
Micro SIM Interface
USB Communication:
USB 2.0 Full speed
Composite HID, MSD
Connectors
USB
Mini USB connector
Display:
Character Dsiplay
2 lines of 16 characters each
Character set
Japanese Kana and Western Latin
Indicators:
Monochrome LED
8 programmable on-board LEDs (GB | GB | GR | GR)
Monochrome LED
3 button indication LEDs
RGB LED
Contactless logo illumination
Audio
Speaker
Electronic Board Power Requirements:
5VDC, Pmax<2.5W
From USB bus in USB only
Mechanical:
Dimensions
(See Figure 8-1 Error!
Reference source not found.)
H – 105.0
W – 85.0
D – 26.8
Weight (reader with gasket)
170 gr.
Temperature:
Operating
-20°C to 70°C (-4°F to 158°F)
Environment:
IP rating
IP65
Saturn 8700 Plus Usb Specifications Version 0.3
Interface cable
Confidential & Proprietary Page 11
7 Interface cable
The Saturn 8700 Plus USB uses standard USB cable (1.8m) with a mini-USB upstream connector
on the reader side and a USB Type A downstream connector on the host side.
The reader is USB powered; no additional power supply is required.

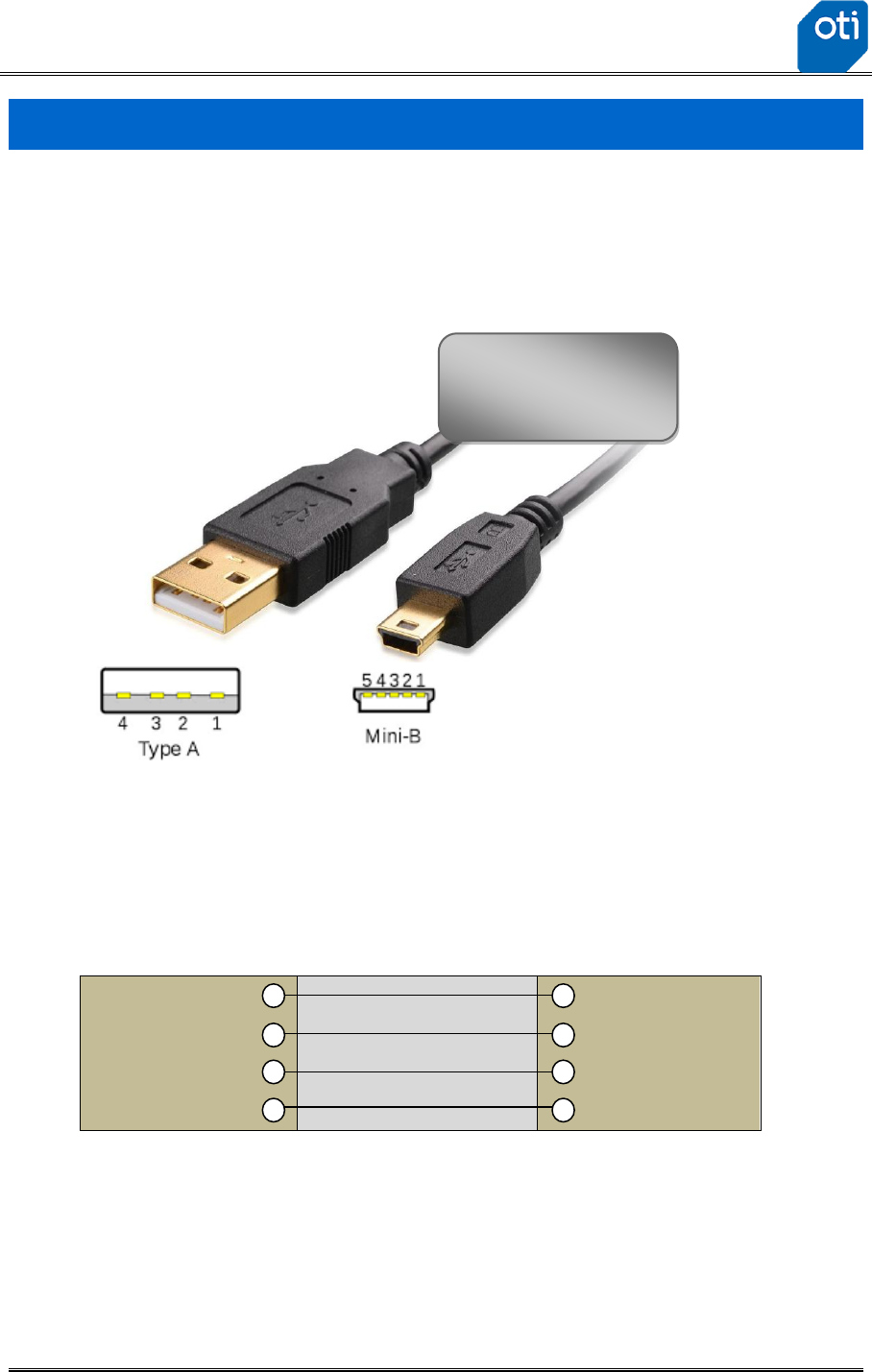

Figure 7-4: USB Cable
Host USB
Downstream Connector
Reader Mini USB
Upstream Connector
VCC
1
1
VCC
D-
2
2
D-
D+
3
3
D+
GND
4
5
GND
Figure 7-5: USB Connection chart
USB Cable
1.8 m
3.5mm diameter
Saturn 8700 Plus Usb Specifications Version 0.3
Dimensions
Confidential & Proprietary Page 12
8 Dimensions
The reader and the mounting bracket dimensions are given in the charts below.
All the dimensions are in millimeters.
8.1 Saturn 8700 Plus USB dimensions

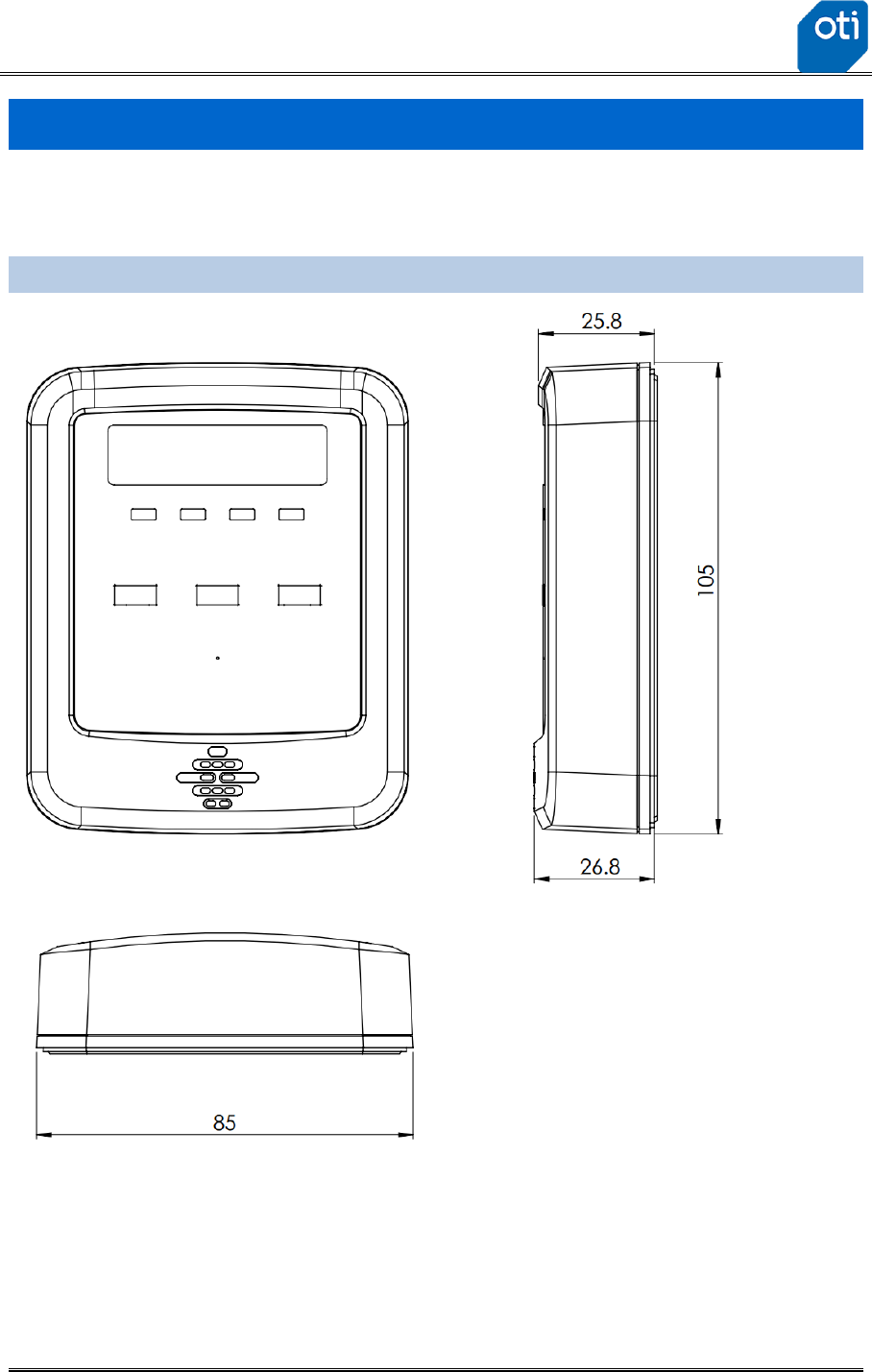

Figure 8-1: Saturn 8700 Plus USB reader dimensions
Saturn 8700 Plus Usb Specifications Version 0.3
Dimensions
Confidential & Proprietary Page 13
8.2 Mounting Bracket dimensions

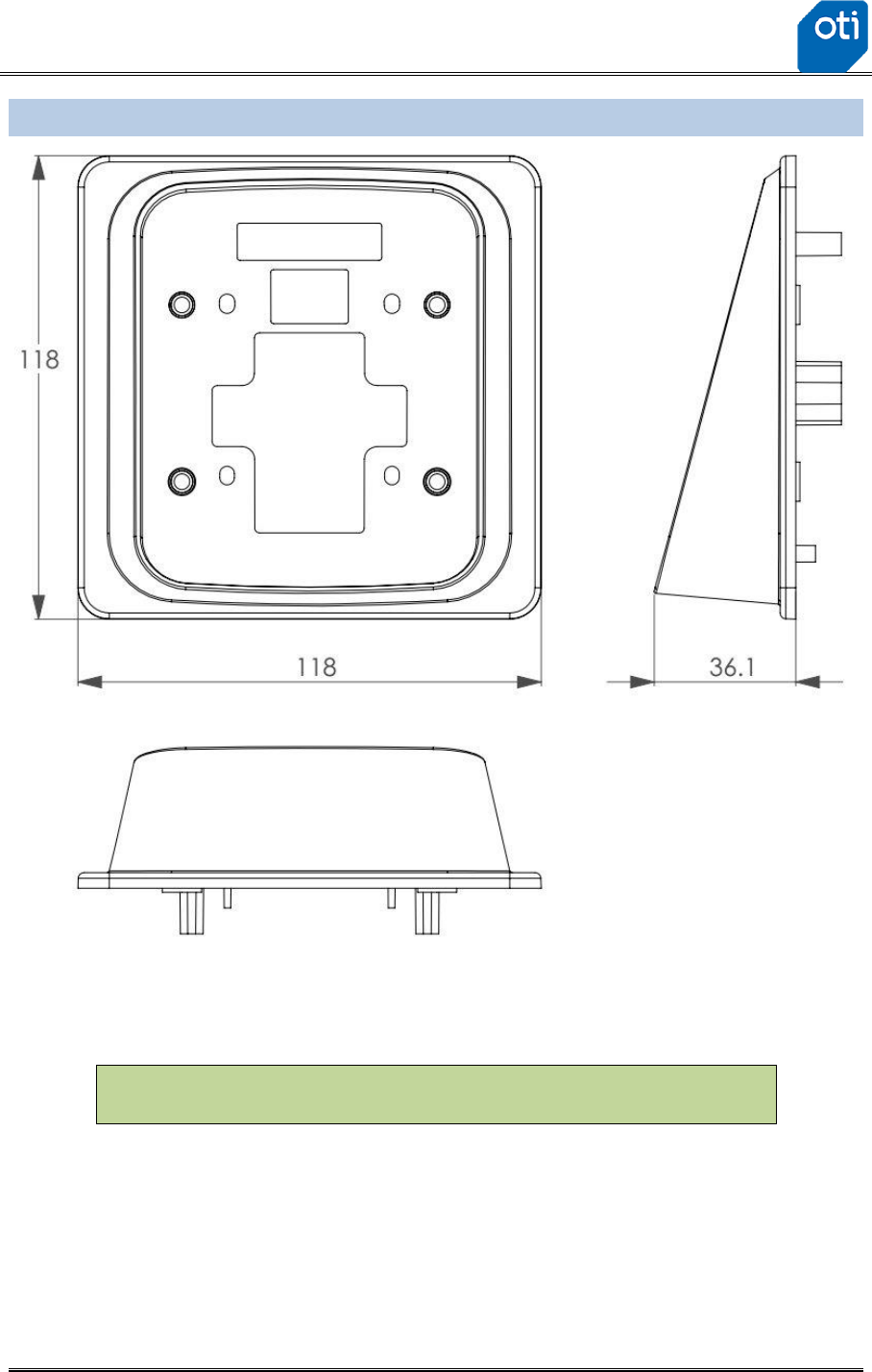

Figure 8-2: Saturn 8700 Plus USB mounting bracket dimensions
Note: The sealing gasket adds 1.1 mm to the depth, so the total
maximum depth is 37.2 mm
Saturn 8700 Plus Usb Specifications Version 0.3
Saturn 8700 Plus USB Mounting
Confidential & Proprietary Page 14
9 Saturn 8700 Plus USB Mounting
Saturn 8700 Plus USB can be mounted to the vending machine with a angular mounting bracket.
Both, the reader and the bracket supplied with a sealing gasket that prevents water leaking into the
machine after mounting is completd.
9.1 Bracket Mounting
Using the special mounting bracket allows mounting the Saturn 8700 Plus USB at 15 degress from
the mounting surface. The images below illustrates the Saturn 8700 Plus USB Bracket mounting.
.
Figure 9-1: Saturn 8700 Plus USB Bracket Mount
Saturn 8700 Plus Usb Specifications Version 0.3
Saturn 8700 Plus USB Mounting
Confidential & Proprietary Page 15
Figure 9-2: Bracket mount – explode view
The Bracket mounting option requires a 102x90 mm cutout in the vending machine front panel.
Figure 9-3: Bracket mount – vending machine panel cutout
Saturn 8700 Plus Usb Specifications Version 0.3
Saturn 8700 Plus USB Mounting
Confidential & Proprietary Page 16
A metal plate at the internal side of the vendig machines’ panel is used for tightening the device to
the panel.
Figure 9-4: Bracket mount – Back View
Saturn 8700 Plus Usb Specifications Version 0.3
Contact Us
Confidential & Proprietary Page 17
10 Contact Us
For oti America Technical Support (US and Canada):
Phone: +1-732-429-1900 9:00 am to 5:00 pm Eastern time
Monday – Friday
Email: support@otiamerica.com
For oti Technical Support (International):
Phone: +972-4-6868000 (Ext. 8090)
Email: info@otiglobal.com
