Users Manual
Confidential & Proprietary
Version 1.4f
SATURN 8700
USB
Specifications
Version 1.4f
Notice
This manual contains intellectual property including, but
not limited to, trade secrets and know-how, operation
procedures and production procedures that belong solely to
oti.
Disclosure, use, and/or production of any part of the
above are strictly forbidden, except under a written
license from oti.
Saturn 8700 Usb Specifications Version 1.4f
FCC Compliance
Confidential & Proprietary Page 1
FCC Compliance
This device (Saturn 8700) complies with Part 15, of the FCC Rules and with
Industry Canada’s licence-exempt RSSs.
Operation is subject to the following two conditions:
1. This device may not cause harmful interference,
and
2. This device must accept any interference received, including interference that
may cause undesired operation
Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux
appareils radio exempts de licence. L’exploitation est autorisée aux deux conditions
suivantes :
1. l’appareil ne doit pas produire de brouillage;
2. l’utilisateur de l’appareil doit accepter tout brouillage radioélectrique
subi, même si le brouillage est susceptible d’en compromettre le
fonctionnement.
NOTE:
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to part 15, subpart C of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on, the user
is encouraged to try to correct the interference by one or more of the following
measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
Saturn 8700 Usb Specifications Version 1.4f
FCC Compliance
Confidential & Proprietary Page 2
Changes or modifications in this equipment, not expressly approved by the party
responsible for compliance (On Track Innovations Ltd,) could void the user’s
authority to operate the equipment.
This Class B digital apparatus complies with Canadian ICES-003.
Cet appareil numerique de la classe B est conforme a la norme NMB-003 du
Canada.
Certificates identifiers:
FCC ID: JNX-OTI-SAT8700P
IC:10533A-OTISAT8700
Responsible Party:
On Track Innovations LTD..
Z.H.R Industrial Zone.
Rosh Pina 12000
ISRAEL
Phone: +972-4-6868000
Email: Supportoti@otiglobal.com
Saturn 8700 Usb Specifications Version 1.4f
Table of Contents
Confidential & Proprietary Page 3
Table of Contents
FCC COMPLIANCE ...................................................................................................................................... 1
TABLE OF CONTENTS ................................................................................................................................ 1
TABLE OF FIGURES .................................................................................................................................... 4
REVISION HISTORY .................................................................................................................................... 5
1 INTRODUCTION .................................................................................................................................. 6
1.1 SUPPORTED APPLICATIONS ............................................................................................................... 7
1.2 SUPPORTED STANDARDS .................................................................................................................. 8
2 TECHNICAL SPECIFICATIONS ....................................................................................................... 9
2.1 PRODUCT FEATURES ......................................................................................................................... 9
2.2 PRODUCT TECHNICAL SPECIFICATIONS .......................................................................................... 10
3 READER MODELS ............................................................................................................................. 12
3.1 RS232 MODEL ................................................................................................................................ 12
3.2 USB MODEL ................................................................................................................................... 12
3.3 INTERFACE CABLES ......................................................................................................................... 13
3.3.1 RS232 cable ............................................................................................................................... 13
3.3.2 USB Cable ................................................................................................................................. 14
4 DIMENSIONS ...................................................................................................................................... 15
4.1 ON PANEL DIMENSIONS .................................................................................................................. 15
4.2 FLUSH MOUNT DIMENSIONS ............................................................................................................ 16
5 SATURN 8700 USB MOUNTING ..................................................................................................... 18
5.1 ON PANEL MOUNTING .................................................................................................................... 19
5.2 FLUSH MOUNTING .......................................................................................................................... 21
6 CONTACT US ...................................................................................................................................... 24
Saturn 8700 Usb Specifications Version 1.4f
Table of Figures
Confidential & Proprietary Page 4
Table of Figures
Figure 1-1: SATURN 8700 USB ....................................................................................................... 6

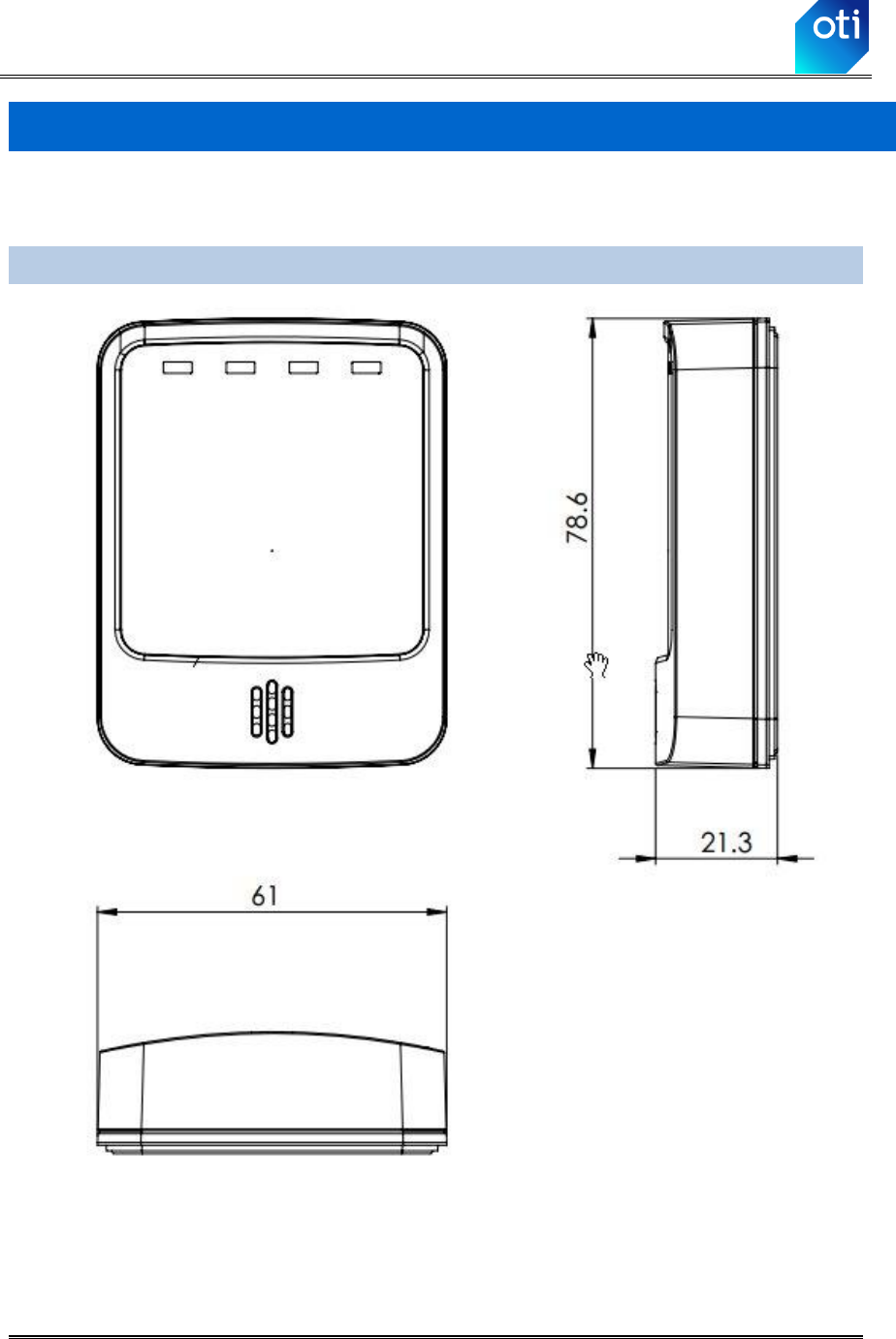

Figure 4-1: On Panel dimensions ..................................................................................................... 15

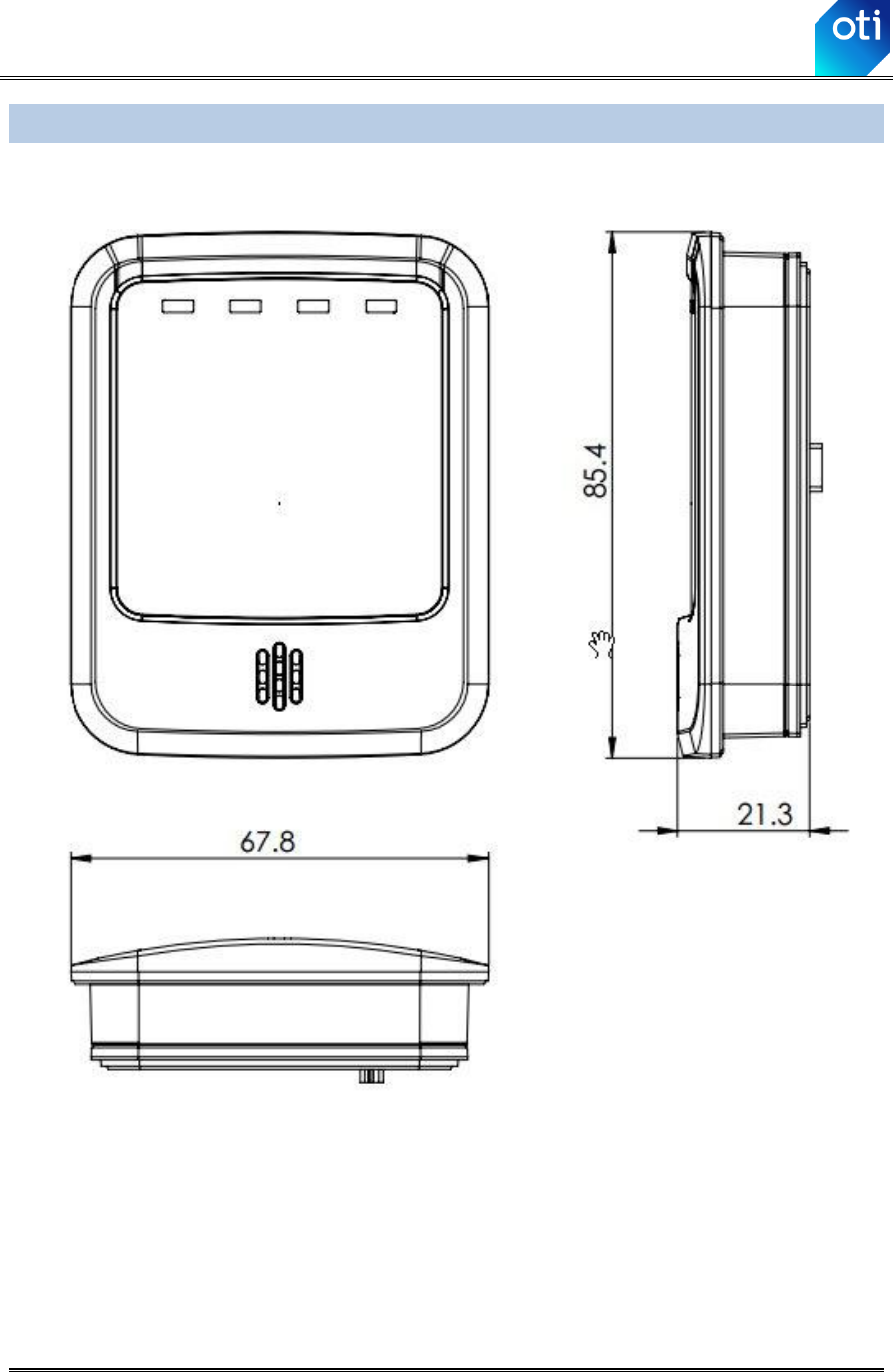

Figure 4-2:: Flush mount dimensions ............................................................................................... 16
Figure 4-3: SATURN 8700 USB Size Scale ................................................................................... 17
Figure 5-2: SATURN 8700 USB Mounting Studs .......................................................................... 19

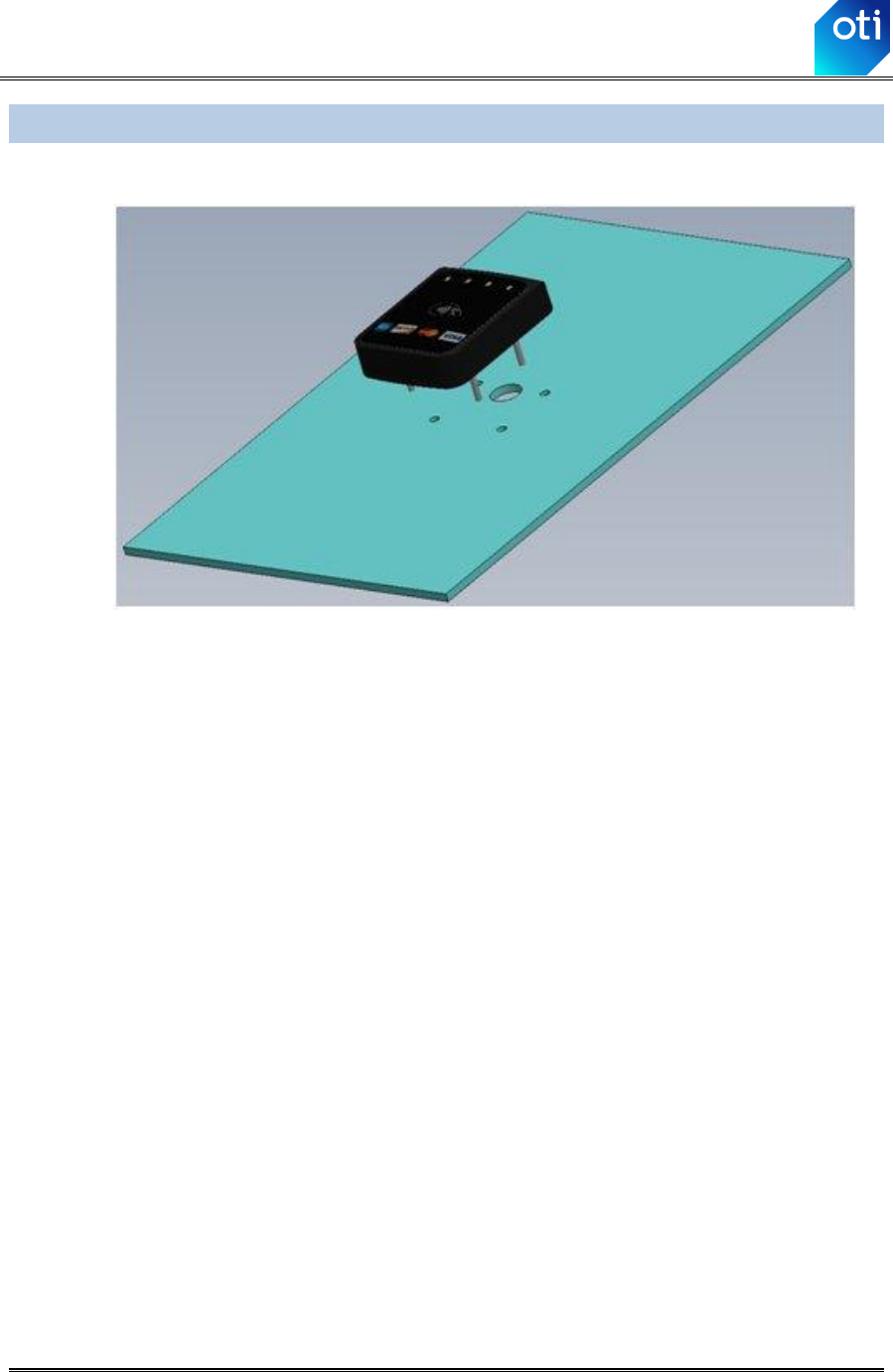

Figure 5-3: SATURN 8700 USBPanel Mounting view ................................................................... 20

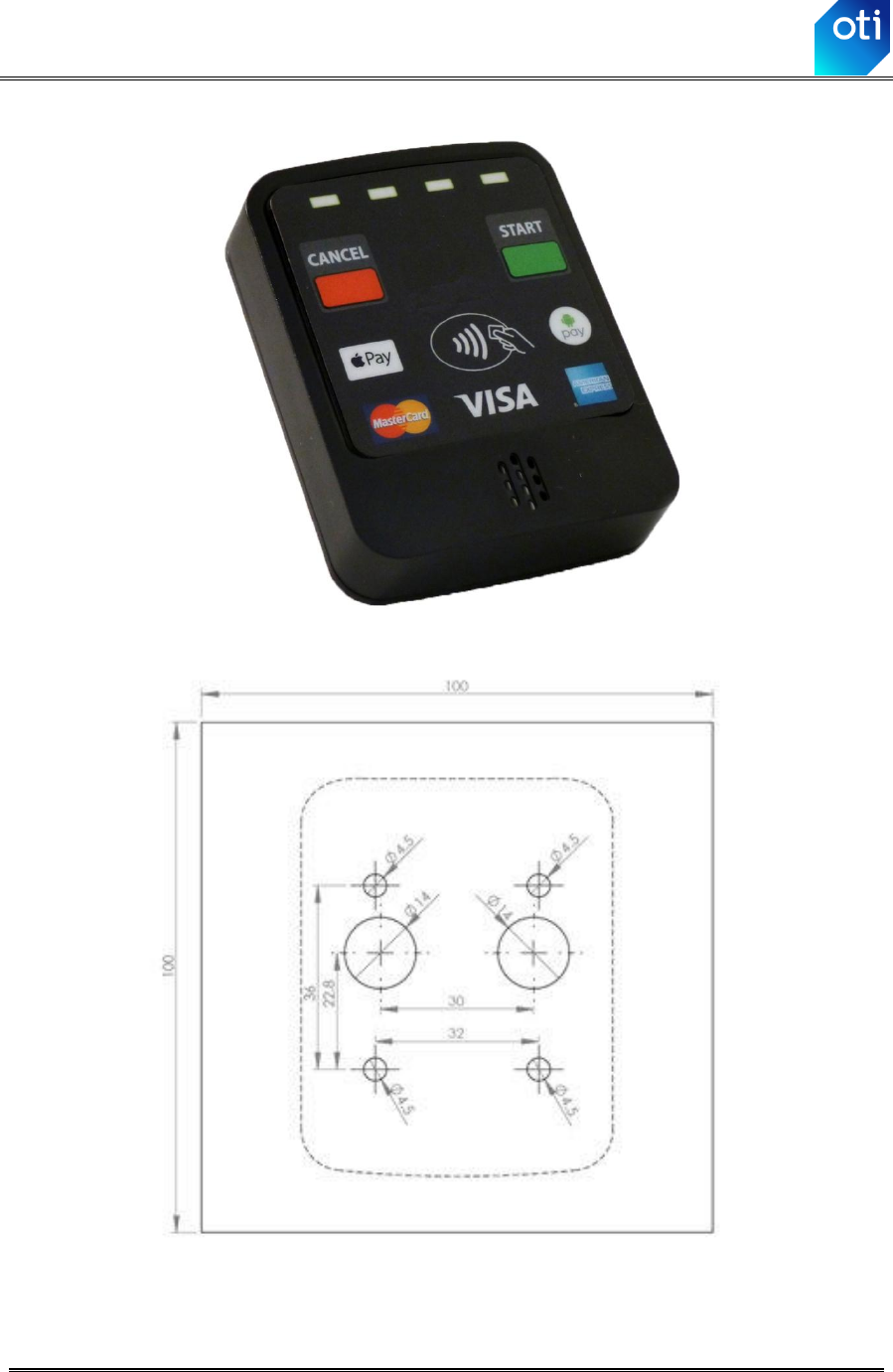

Figure 5-4: SATURN 8700 USB Panel Mounting Drilling Template ............................................ 20

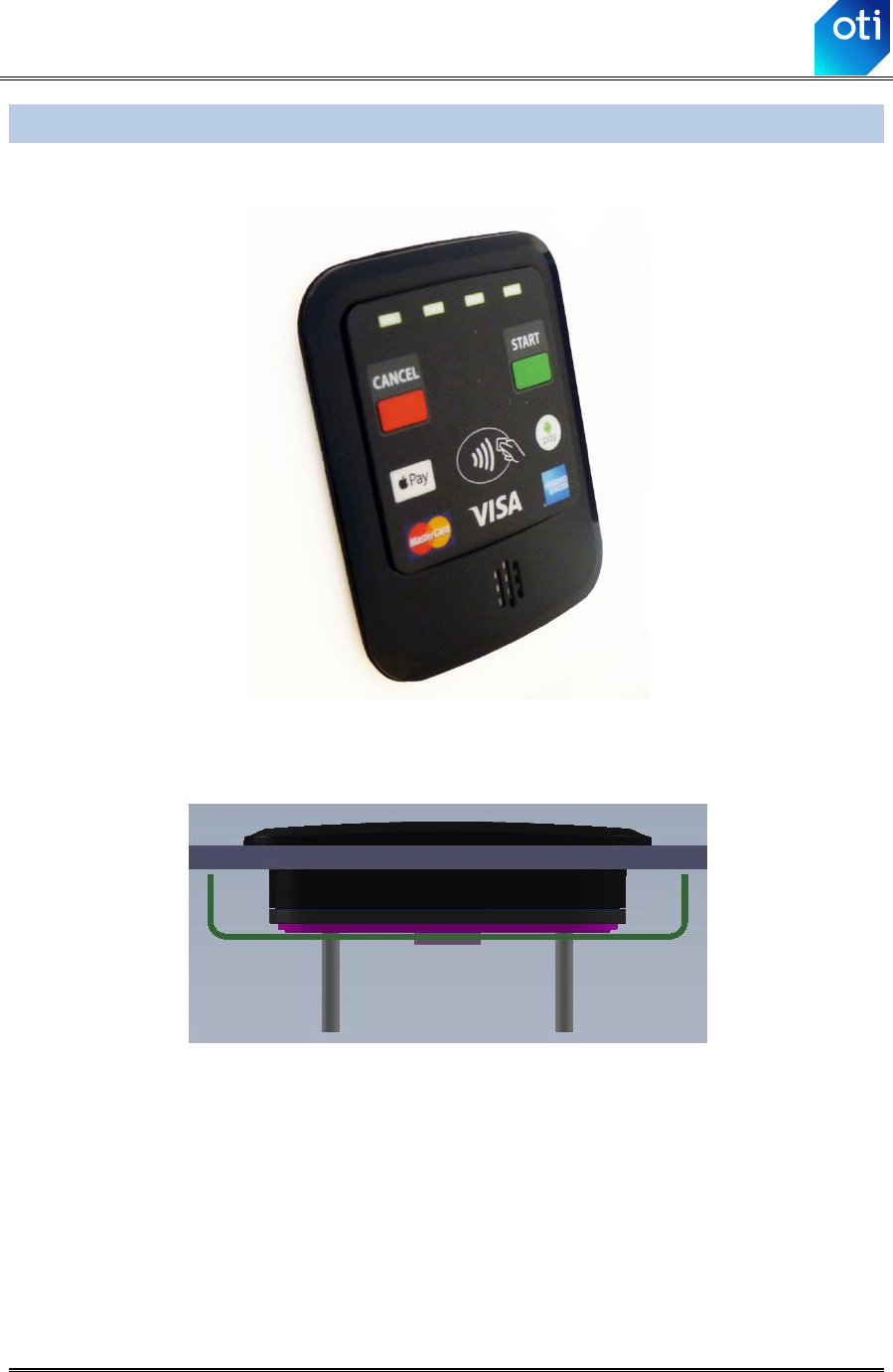

Figure 5-5: SATURN 8700 USB Flush Mount ............................................................................... 21
Figure 5-6: SATURN 8700 USB Flush Mounting – Top View ...................................................... 21

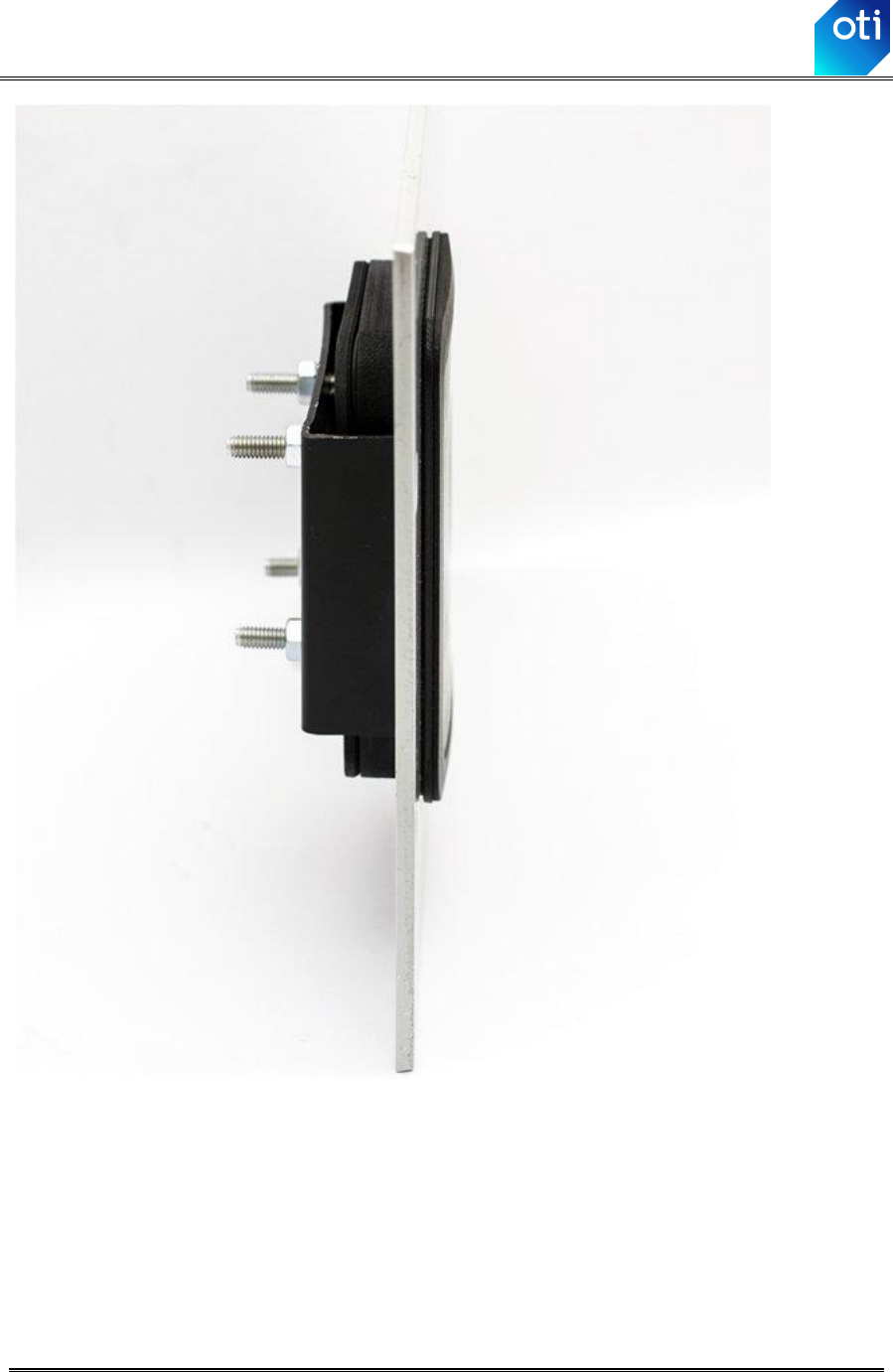

Figure 5-7: SATURN 8700 USB Flush Mounting – Side View ..................................................... 22
Figure 5-8: SATURN 8700 USB Flush Mounting – Rear View..................................................... 23

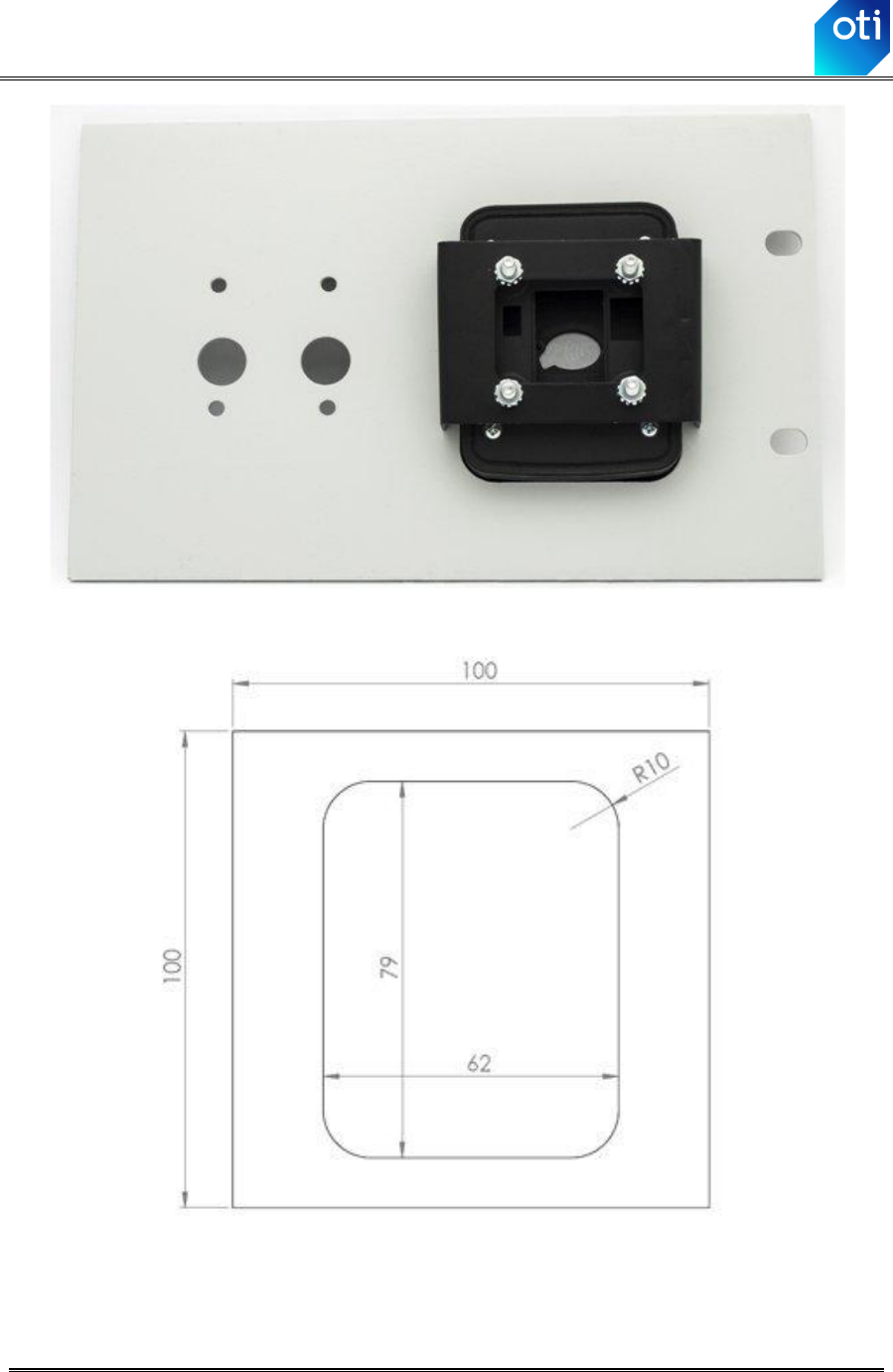

Figure 5-9: SATURN 8700 USB Flash Mounting - Cutout ............................................................ 23
Saturn 8700 Usb Specifications Version 1.4f
Revision history
Confidential & Proprietary Page 5
Revision history
Version
Description
Date
1.1
First version
28-Jun-2016
1.2
Updated photos, dimensions and technical specifications
10-Jul-2016
1.3
Updated product photos and Supported application logos
17-Jan-2017
1.4
Added reference for Bluetooth (optional), spelling and type errors fixes
18-Jan-2017
1.4F
Updated FCC declaration
11-Dec-2017
Saturn 8700 Usb Specifications Version 1.4f
Introduction
Confidential & Proprietary Page 6
1 Introduction
The SATURN 8700 USB is an ultra-compact, certified payment NFC Reader based on oti’s field
proven technology which is specifically designed for unattended payment and mass transit
applications.
Its compact design enables easy integration and installation in unattended self-service payment
stations, such as ATMs, AVMs, TVMs, gaming and gambling machines, kiosks, access control
gates and more.
SATURN 8700 USB’s plug-and-play design makes it easy to connect to any existing infrastructure
and POS terminal, quickly upgrading it to contactless operations without disrupting ongoing
business operations.

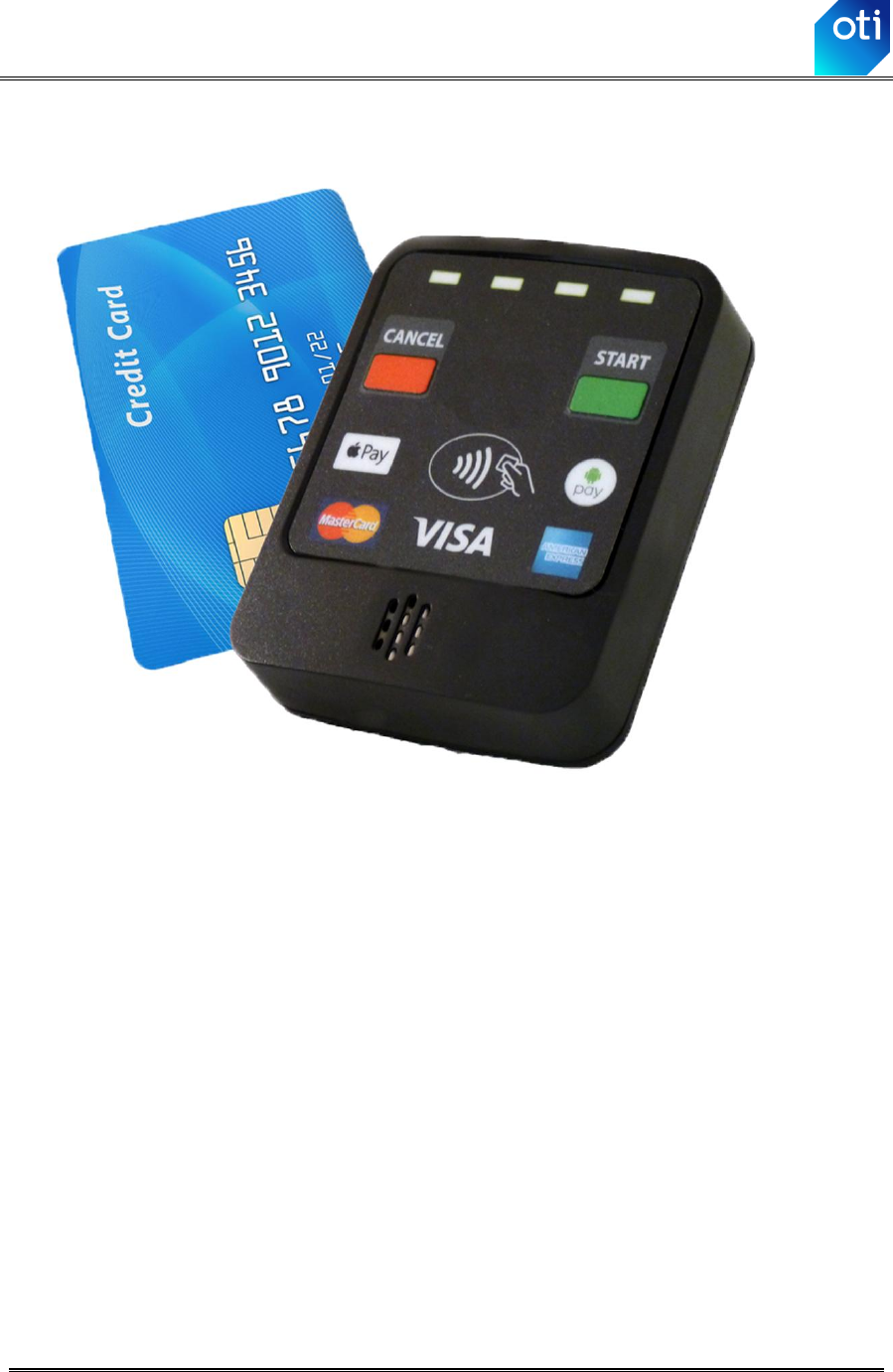

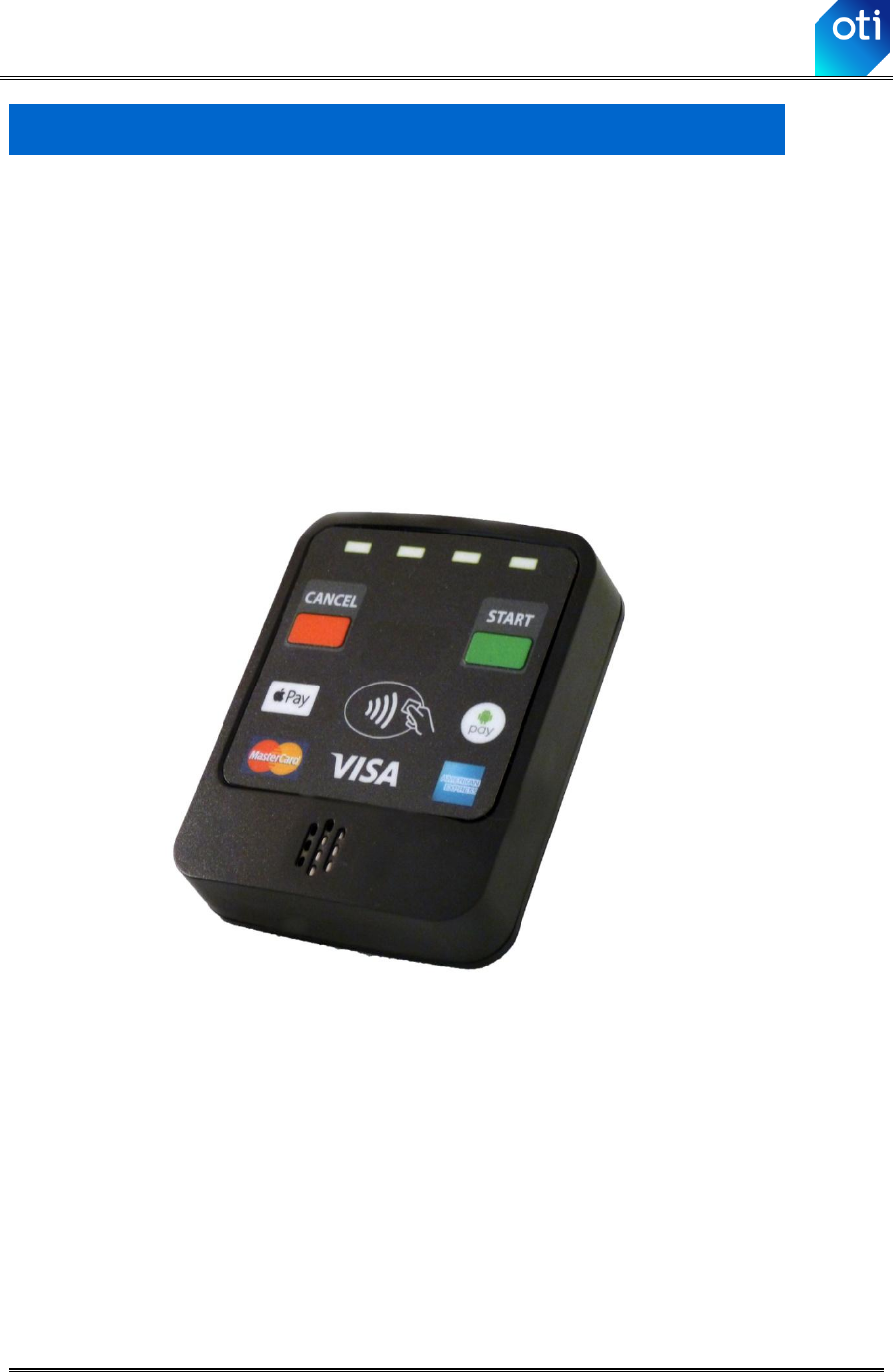

Figure 1-1: SATURN 8700 USB
Saturn 8700 Usb Specifications Version 1.4f
Introduction
Confidential & Proprietary Page 7
1.1 Supported Applications
The SATURN 8700 USB is certified and supports the following contactless applications:
EMVCo
o Book A – Modular architecture
o Book B – Entry Point
o Book C kernel 2 - MasterCard
o Book C kernel 3 – Visa
o Book D – L1 certified
Apple Pay
Android Pay
Felica
o M-Class device certified
Technologies
o ISO/IEC 14443 Type A
o ISO/IEC 14443 Type B
o ISO/IEC 15693 Vicinity
o Felica JIS: X6319-4
o ISO 18092 Active P2P
o Mifare Ultralight
o Mifare Classic
o Mifare DESFire
Saturn 8700 Usb Specifications Version 1.4f
Introduction
Confidential & Proprietary Page 8
1.2 Supported Standards
The SATURN 8700 USB is compatible with the following standards:
FCC
CE
UL
RoHS compliance
ISO 9001: 2008
ISO/IEC 18092
ISO/IEC 14443 Type A&B
ISO/IEC 15693
Mifare
Bluetooth
IPX5
Saturn 8700 Usb Specifications Version 1.4f
Technical Specifications
Confidential & Proprietary Page 9
2 Technical Specifications
2.1 Product Features
General
Flexible, software configurable, certified
intelligent reader solution
oti advanced Host – Reader TLV based
protocol
Contactless transparent communication
support
Modular design by Hardware and Software
Secured remote software update
RF Interface
Bi-directional RF interface between Reader
and Contactless devices
Carrier frequency: 13.56 MHz
Data rate: Up to 848Kbs
Bluetooth v4.1 BLE (optional)
Communication Links
USB 2.0 – full speed, HID, MSD
RS 232 / RS485 / TTL , 8 data bits, no
parity, 1 stop bit, Client defined baud rate
Connectors:
JST ZPD 10 pin
Mini USB
User Interface
Push Button: x2
Payment indication LEDs: Green x4
Contactless logo: RGB
Audio: Speaker
IN/OUT Signals (optional):
Audio OUT
Digital IN
Digital OUT
Power Requirements
8VDC - 40VDC (Onboard Switch Mode
Power Supply) or 5VDC via USB connector
Max power consumption
2.5W @ 5VDC
SAM Interface
Two micro SIM Slots
Security
Cryptographic algorithms - 3DES, AES, RSA
DUKPT (Derived Unique Key Per
Transaction)
Secure boot loader
Saturn 8700 Usb Specifications Version 1.4f
Technical Specifications
Confidential & Proprietary Page 10
2.2 Product Technical Specifications
The performance/electrical specifications for each feature of the SATURN 8700 USB
reader are given in the table below.
Table 2-1: Performance/Electrical Specifications
Feature
Specification
RF Interface:
RF Carrier Frequency
13.56 MHz
RF Output
450mW (@50ohm load)
Bluetooth
Bluetooth Low Energy (BLE) v4.1
Micro SIM Interface
Communication Links:
USB, RS232 / RS485 / TTL 8N1, configurable baud rate
USB:
2.0 Full speed
Composite HID, MSD
Connectors
USB
Mini USB connector
Full interface
JST 10 pin P/N BM10B-ZPDSS
Indicators:
Monochrome LED
Four programmable on-board LEDs
RGB LED
Contactless logo illumination
Audio
Speaker
Electronic Board Power Requirements:
8VDC – 40VDC, Pmax<3W
On-board switching power supply
5VDC, Pmax<2.5W
From USB bus in USB only
Mechanical:
Dimensions (On panel / Flush)
(See Figure 4-1and Figure 4-2)
H – 78.6 / 85.4 mm
W – 61.0 / 67.8 mm
D – 21.3 / 21.3 mm
Weight
125 gr.
Temperature:
Operating
-20°C to 70°C (-4°F to 158°F)
Environment:
IP rating
IPX5
Vibrations
10 200 Hz @ 2.0G
Static pressure
Front panel: >50N/cm2
Side panels: >100N/cm2
Saturn 8700 Usb Specifications Version 1.4f
Technical Specifications
Confidential & Proprietary Page 11
Warning: Power supply minimum requirements
Keeping the DC supply voltage within the specified allowed range is crucial to
guarantee proper operation of the equipment. The use of AC rectified power
supply source, which is not properly filtered, forms a risk of too low voltage
dips and hence should be avoided. It is highly recommended to check this issue
with proper tools (e.g. oscilloscope) during the reader installation. For more
details contact oti technical team via oti’s sales representatives.
Saturn 8700 Usb Specifications Version 1.4f
Reader models
Confidential & Proprietary Page 12
3 Reader models
3.1 RS232 model
The RS232 interface is implemented using a JST 10 pin connector (JST P/N BM10B-ZPDSS).
Connector pin designation:
1. RS232 Rx
2. RS232 Tx
3. USB D-*
4. Audio OUT (Optional, pre-Amp)*
5. USB D+*
6. Digital OUT OC (Optional)*
7. GND (direct)
8. Vin
9. 5V*
10. GND Ext (via common mode choke)
* Optional configurations.
3.2 USB model
The USB model has a mini-USB connector on the back in the panel mount options or at the bottom
of the reader in the desk top models. The USB connector provides communication and power to
the reader.
Saturn 8700 Usb Specifications Version 1.4f
Reader models
Confidential & Proprietary Page 13
3.3 Interface cables
3.3.1 RS232 cable
A JST 10 pin connector (JST P/N BM10B-ZPDSS) is available to access the reader full interface.

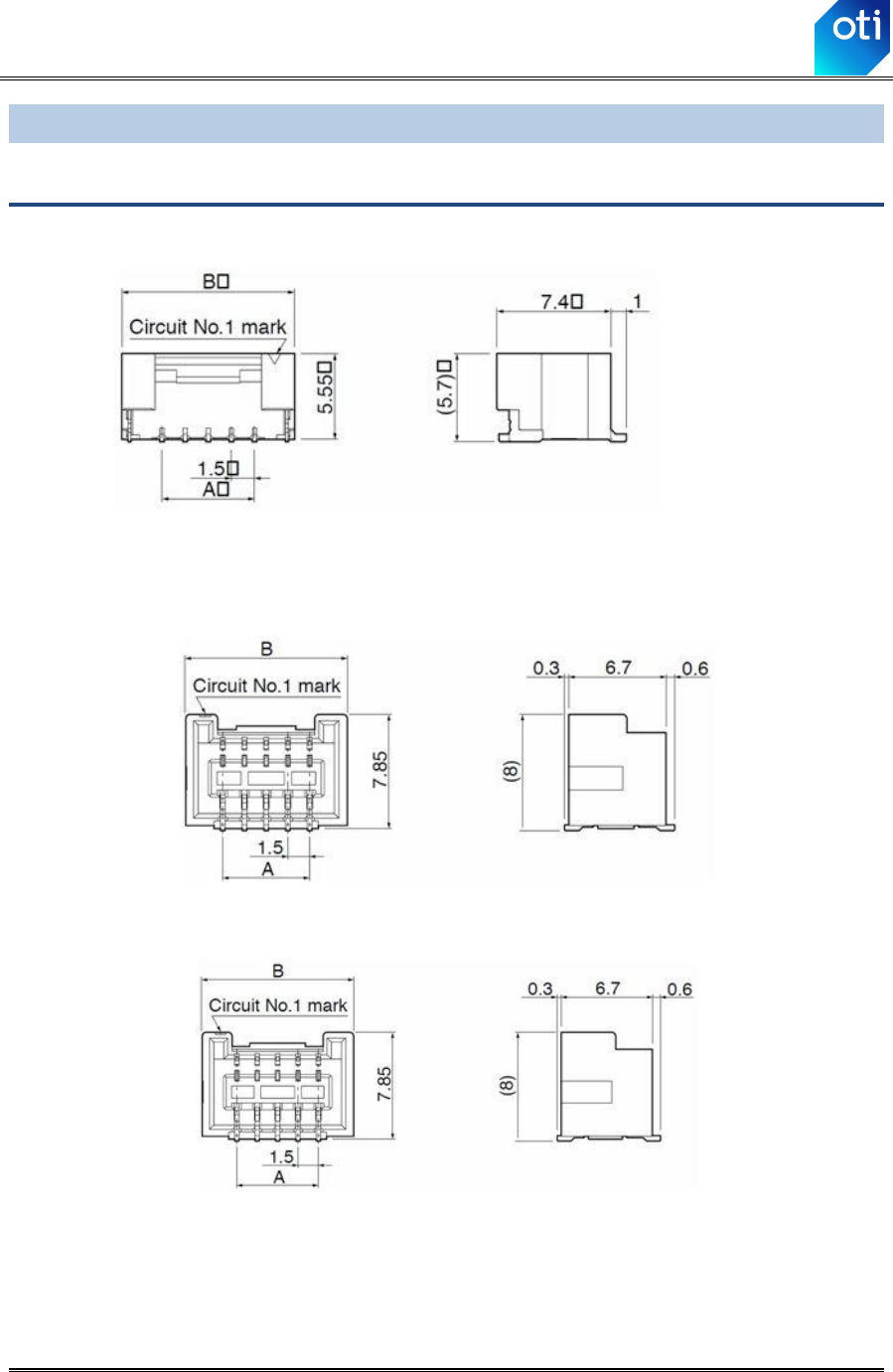

Figure 3-1: BM10B-ZPDSS Connector – Top Entry Type
Figure 3-2: BM10B-ZPDSS Connector – Side Entry Type
Figure 3-3: BM10B-ZPDSS Connector housing
Saturn 8700 Usb Specifications Version 1.4f
Reader models
Confidential & Proprietary Page 14
3.3.2 USB Cable
The USB cable (1.8m) has a mini-USB upstream connector on the reader side and a USB
downstream connector on the host side.
In this hardware configuration, the reader is USB powered; no additional power supply is required.
Figure 3-4: USB Cable
Figure 3-5: USB Connection
Saturn 8700 Usb Specifications Version 1.4f
Dimensions
Confidential & Proprietary Page 15
4 Dimensions
The reader’s front and side view dimensions are given in this chapter.
All the dimensions are in millimeters.
4.1 On Panel dimensions
Figure 4-1: On Panel dimensions
Saturn 8700 Usb Specifications Version 1.4f
Dimensions
Confidential & Proprietary Page 16
4.2 Flush mount dimensions
Figure 4-2: Flush mount dimensions
Saturn 8700 Usb Specifications Version 1.4f
Dimensions
Confidential & Proprietary Page 17
Figure 4-3: SATURN 8700 USB Size Scale
Saturn 8700 Usb Specifications Version 1.4f
SATURN 8700 USB Mounting
Confidential & Proprietary Page 18
5 SATURN 8700 USB Mounting
SATURN 8700 USB support two mounting options: On panel and Flush
Figure 5-1: Flush and On Panel Mounting
Warning: Mounting on metal
Direct mounting of the reader on metallic/conductive panel requires special
attention as it negatively affects the reader contactless performance. For more
details contact oti technical team via oti’s sales representatives.
Saturn 8700 Usb Specifications Version 1.4f
SATURN 8700 USB Mounting
Confidential & Proprietary Page 19
5.1 On Panel Mounting
The image below illustrates the SATURN 8700’s on panel mounting option.
Figure 5-2: SATURN 8700 USB Mounting Studs
1. The SATURN 8700 USB is equipped with 4 mounting studs for front panel mounting.
2. The studs and cable are inserted through holes in the front panel. The nuts are fastened over
the studs from the back of the front panel, protecting against potential attempts to dismantle
the unit from the front.
Saturn 8700 Usb Specifications Version 1.4f
SATURN 8700 USB Mounting
Confidential & Proprietary Page 20
Figure 5-3: SATURN 8700 USB - Panel mounting view
Figure 5-4: SATURN 8700 USB - Panel Mounting Drilling Template
Saturn 8700 Usb Specifications Version 1.4f
SATURN 8700 USB Mounting
Confidential & Proprietary Page 21
5.2 Flush Mounting
The image below illustrates the SATURN 8700’s flush mounting option.
Figure 5-5: SATURN 8700 USB - Flush Mount
Figure 5-6: SATURN 8700 USB Flush Mounting – Top View
1. The SATURN 8700 USB can be mounted flush with the front panel surface.
2. The flush mounting option requires a 63x80 mm cutout in the center of the non-metallic
section of the front panel.
3. A mounting holder (green) in the back of the reader is tightening the device to the panel. A
gasket that is separated between the device cover and the panel keep it waterproof.
Saturn 8700 Usb Specifications Version 1.4f
SATURN 8700 USB Mounting
Confidential & Proprietary Page 22
Figure 5-7: SATURN 8700 USB Flush Mounting – Side View
Saturn 8700 Usb Specifications Version 1.4f
SATURN 8700 USB Mounting
Confidential & Proprietary Page 23
Figure 5-8: SATURN 8700 USB Flush Mounting – Rear View
Figure 5-9: SATURN 8700 USB Flash Mounting - Cutout
Saturn 8700 Usb Specifications Version 1.4f
Contact Us
Confidential & Proprietary Page 24
6 Contact Us
For oti America Technical Support (US and Canada):
Phone: +1-732-429-1900 9:00 am to 5:00 pm Eastern time
Monday – Friday
Email: support@otiamerica.com
For oti Technical Support (International):
Phone: +972-4-6868000 (Ext. 8090)
Email: info@otiglobal.com
