User Manual

687 N. Pastoria Avenue, Sunnyvale, CA 94085, 888-350-9994 (Main)

Full Spectrum Inc. Confidential as per Non-Disclosure Agreement



FullMaxSystem

UserGuide

February 2014, Version 4.0



FullMaxSystemUserGuide:4.0

TABLEOFCONTENTS

AboutThisGuide........................................................................................................................v

IntendedAudience.................................................................................................................v

DocumentConventions..........................................................................................................v

HowThisGuideisOrganized.................................................................................................vi

ObtainingDocumentation.....................................................................................................vi

DocumentationFeedback.....................................................................................................vi

Chapter1:Overview.................................................................................................................1

FullMaxSystemArchitecture................................................................................................2

FullMaxBaseStationsandRemoteStations.........................................................................4

FullMaxBaseStation.........................................................................................................4

FullMaxFixedRemoteStations.........................................................................................5

FullMaxMobileStation.....................................................................................................6

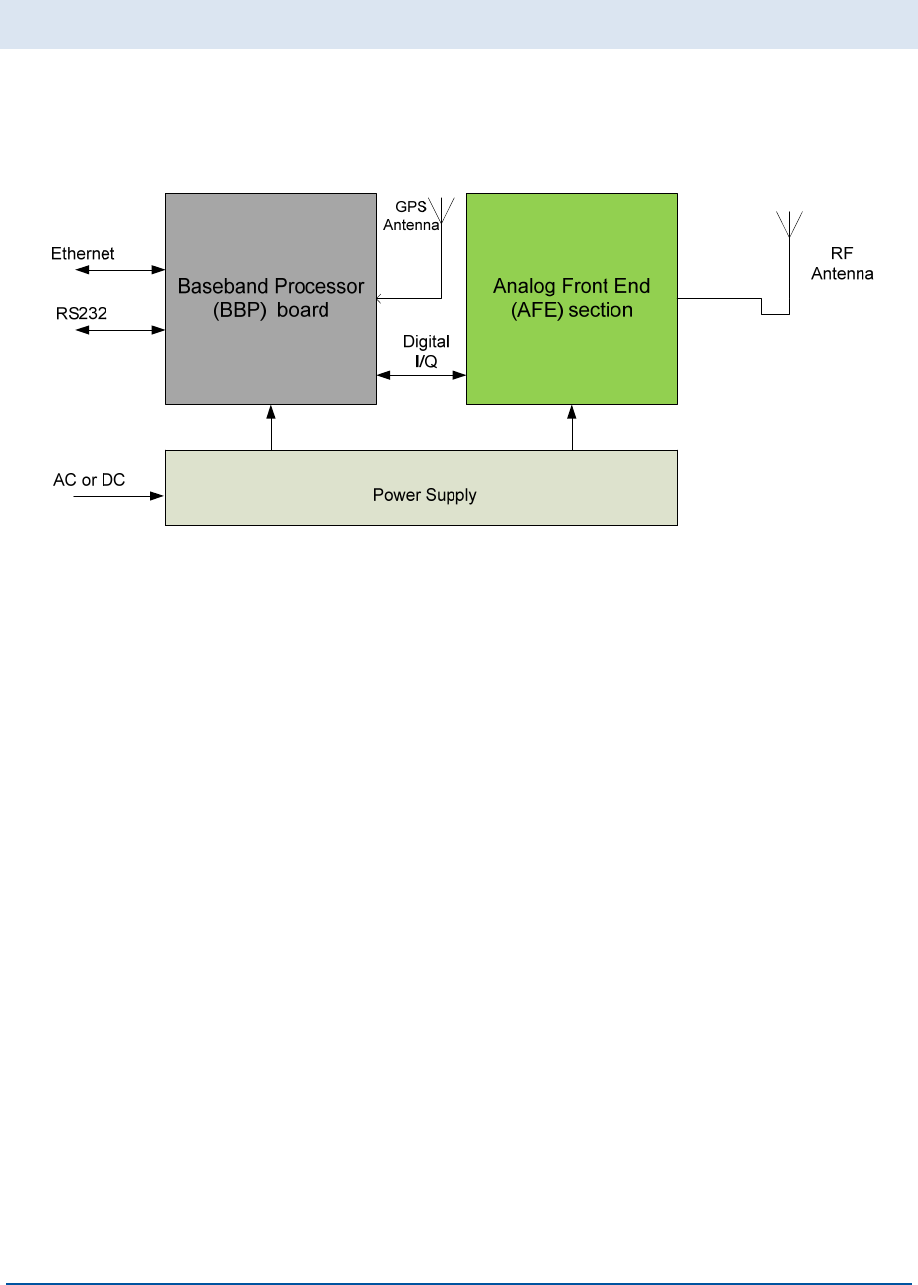

FullMAXBaseStationandRemoteStationHardwareArchitecture.....................................7

Chapter2:InstallingtheFullMaxSystem...............................................................................10

BaseStationInstallation......................................................................................................10

SingleBaseStationinstallation........................................................................................10

MultipleBaseStationInstallation...................................................................................11

IndoorFS4000/FS4010Installation.................................................................................11

OutdoorFS4500/FS4510Installation..............................................................................12

FullMaxBaseStationsandRemoteStationConfiguration.............................................12

CommandLineInterface(CLI)forFullMAXBaseStations..................................................14

General............................................................................................................................14

DownlinkConfiguration...................................................................................................14

FullMaxSystemUserGuide:4.0

IPAddressConfiguration.................................................................................................15

CLICommandsforremoteStations....................................................................................16

General............................................................................................................................16

ChannelAcquisitionTableConfiguration........................................................................16

IPAddressConfiguration.................................................................................................17

InstallingFullMaxNMS........................................................................................................18

HardwareRequirements.................................................................................................18

DatabaseRequirements..................................................................................................18

ClientRequirements........................................................................................................18

InstallProcedure..............................................................................................................18

Chapter3:OperatingFullMaxSystem....................................................................................19

GettingStartedwithFullMaxNMS.....................................................................................19

WebClient.......................................................................................................................19

InvokingFullMaxNMSClient...........................................................................................19

LoggingIn.........................................................................................................................20

LoggingOut......................................................................................................................21

ClientUserInterface........................................................................................................21

AddingNewDevicestotheNMSdatabase.....................................................................22

ConfiguringtheFullMaxSystem.........................................................................................23

WorkingwithProfiles......................................................................................................23

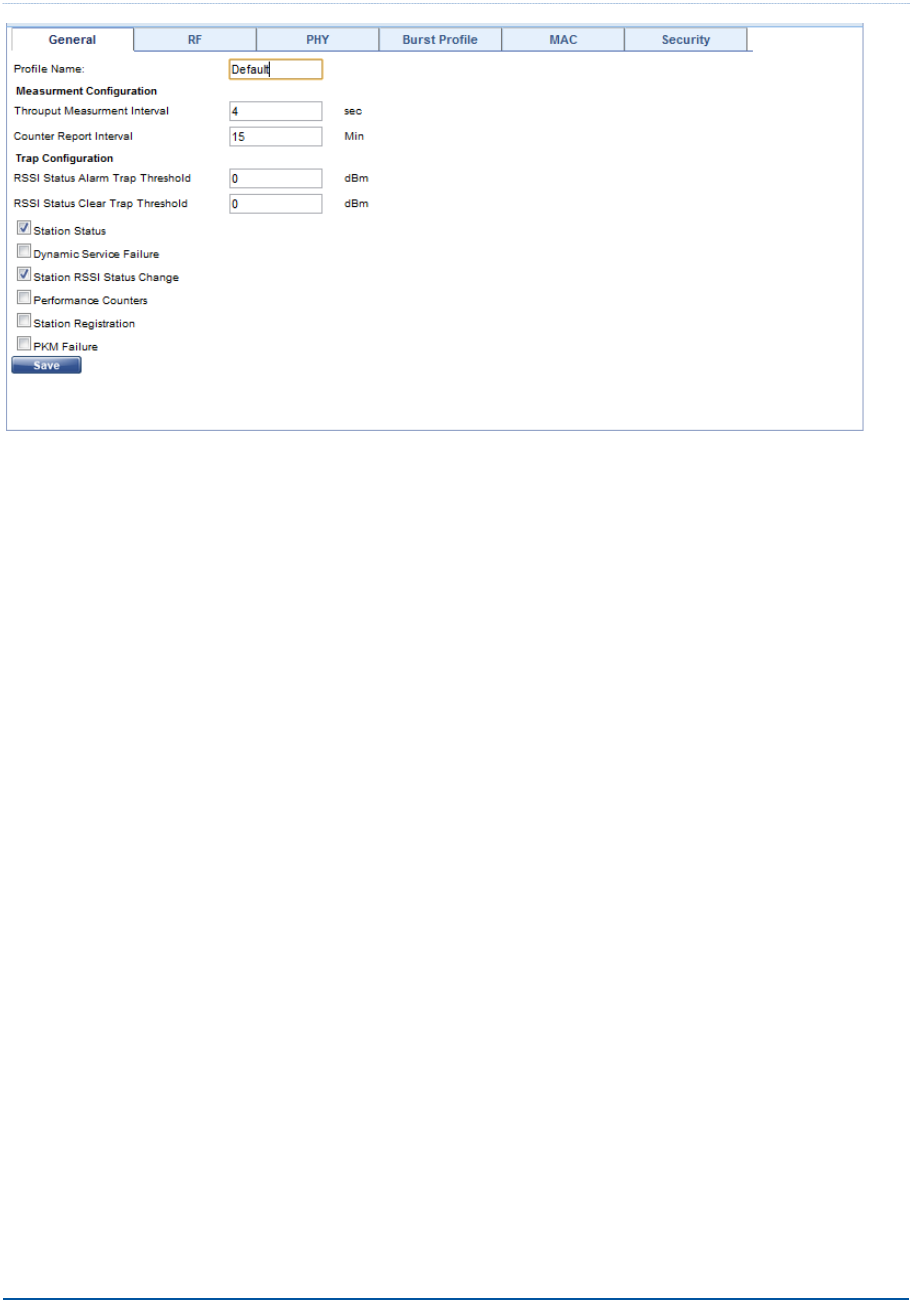

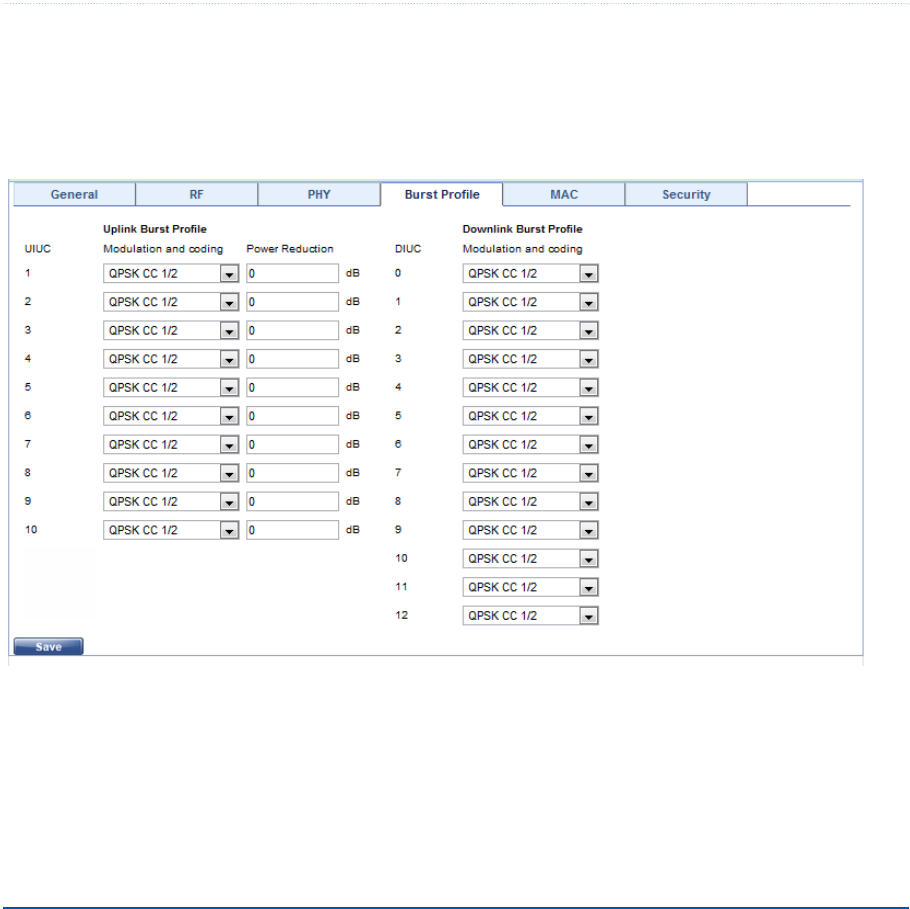

CreatingandEditingtheBaseStationConfigurationProfile..........................................23

ApplyingBaseStationConfigurations.............................................................................32

ConfiguringSubscriberStations......................................................................................33

ApplyingSubscriberStationsConfiguration....................................................................34

FullMaxSystemUserGuide:4.0

QualityofService................................................................................................................35

ServiceClasses.................................................................................................................35

ServiceFlows...................................................................................................................39

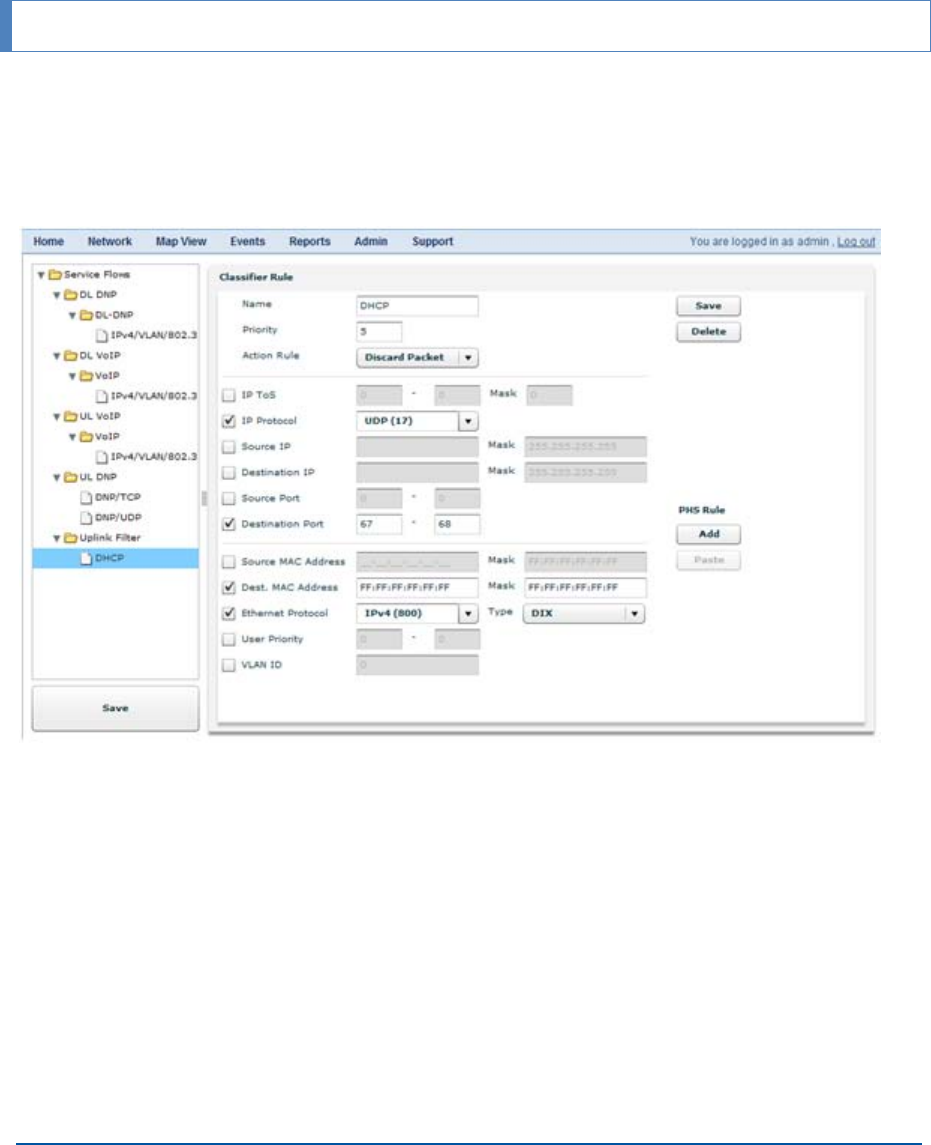

Classifiers.........................................................................................................................41

PayloadHeaderSuppression(PHS).................................................................................44

PacketFiltering................................................................................................................47

Chapter4:MonitoringFullMaxSystem..................................................................................48

MonitoringDeviceStatus....................................................................................................48

MonitoringDeviceStatus................................................................................................48

DisplayingDeviceStatus..................................................................................................48

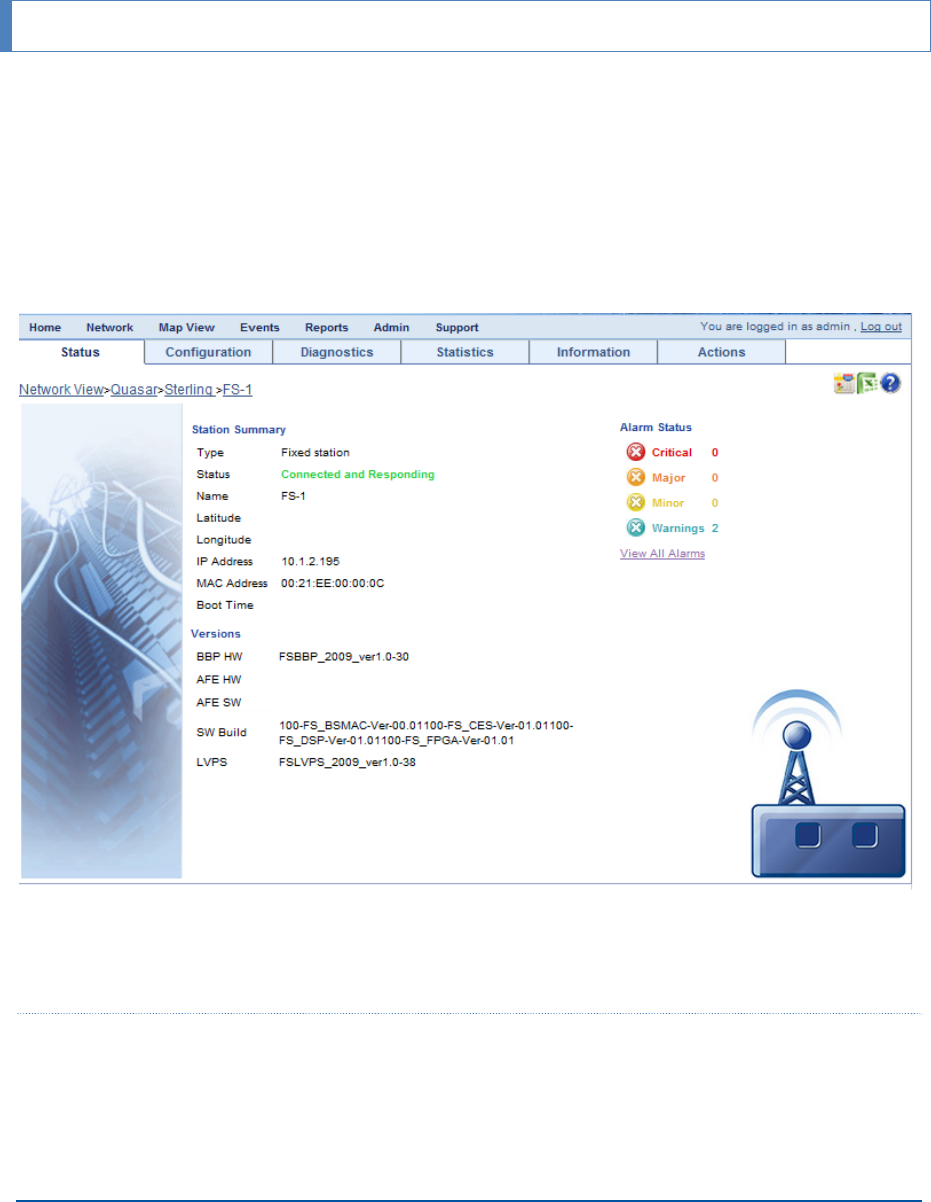

DeviceStatusTab............................................................................................................49

MonitoringNetworkChanges.............................................................................................51

EventsFeatures...............................................................................................................51

MajorSystemEvents.......................................................................................................53

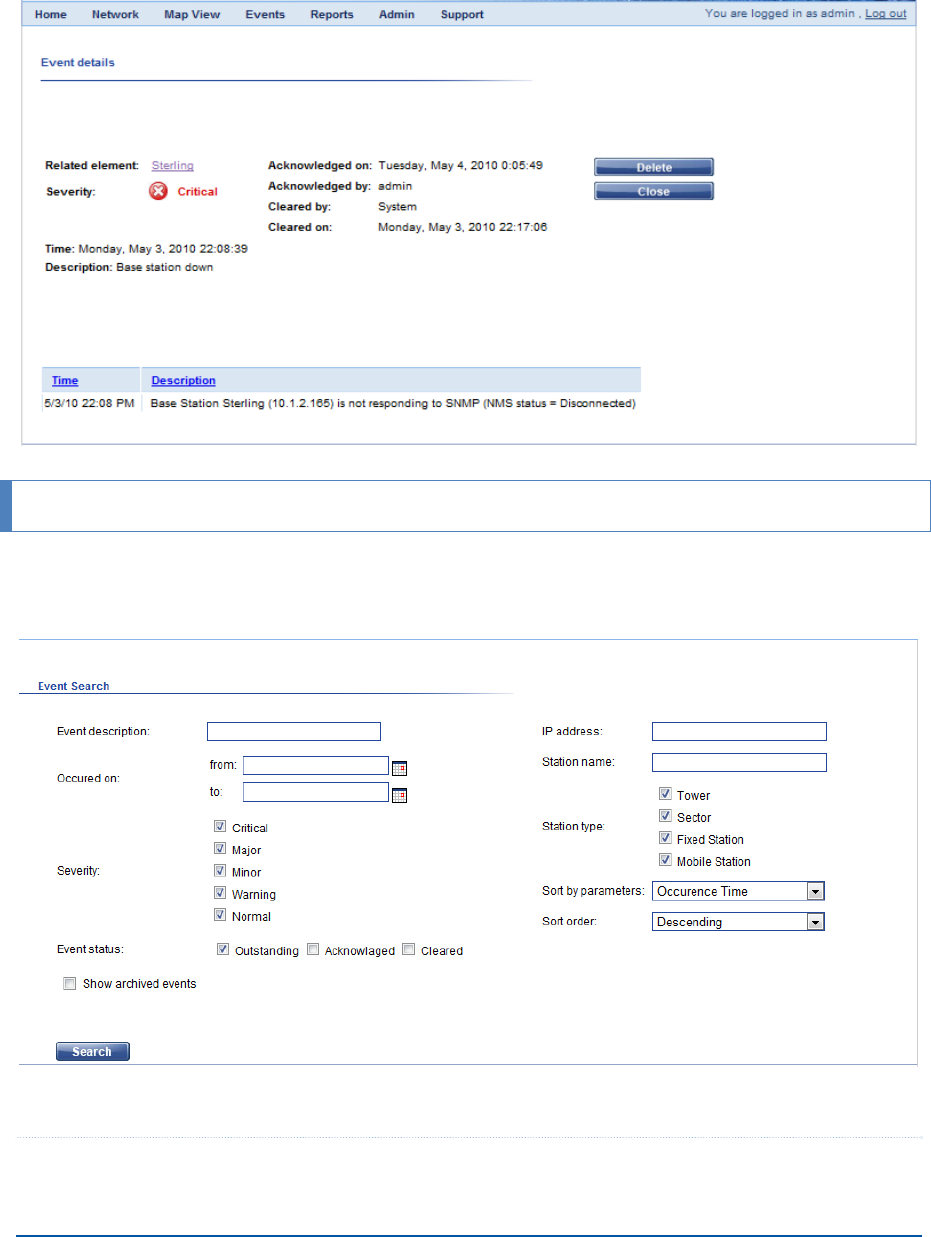

EventDetails....................................................................................................................54

SearchingforEvents........................................................................................................55

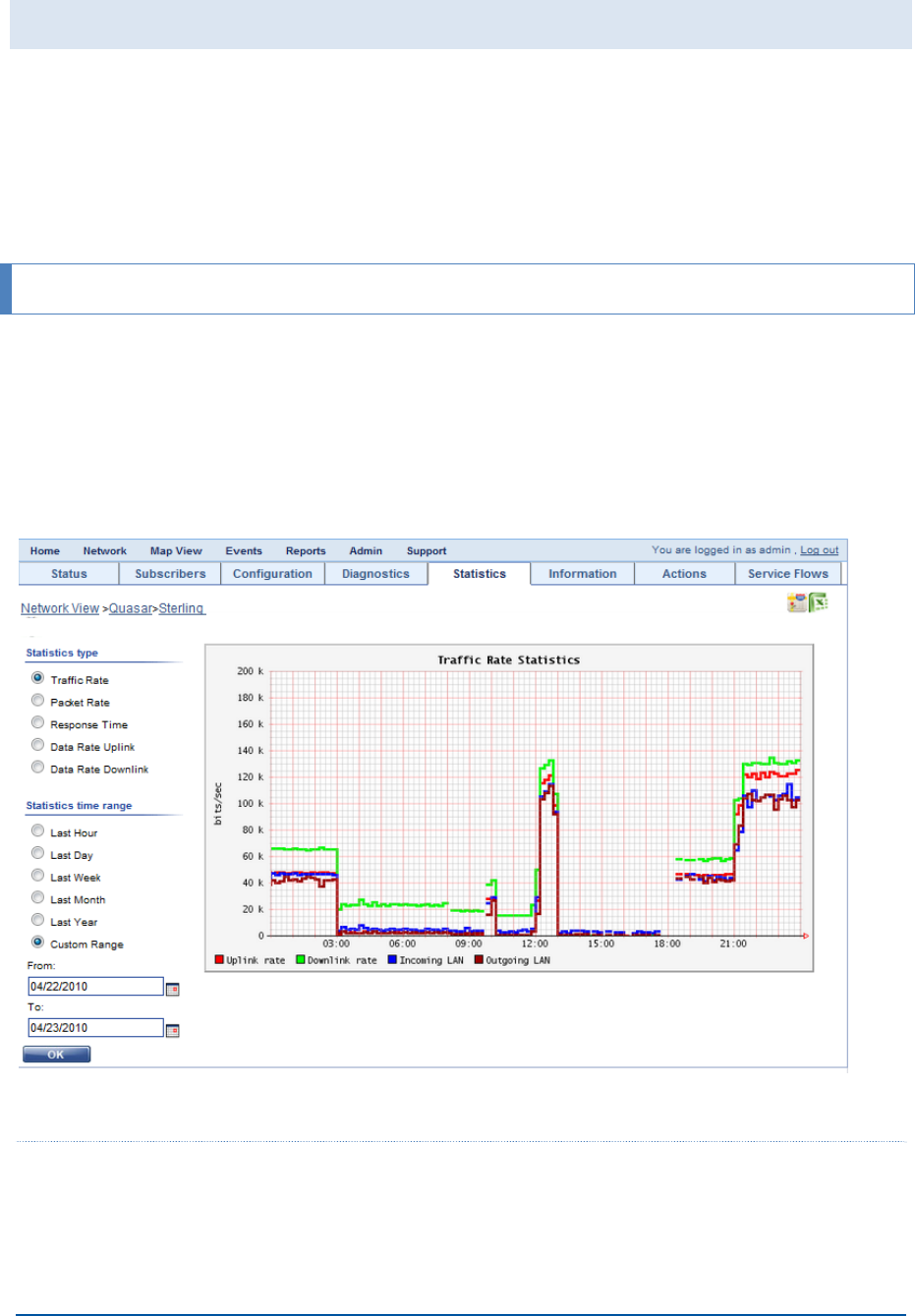

PerformanceMonitoring.....................................................................................................57

DisplayingDevicePerformance.......................................................................................57

SelectingGraphTimeRange............................................................................................58

Chapter5:FullmaxSecurity....................................................................................................59

SecurityAssociations...........................................................................................................59

AuthenticationandAuthorization......................................................................................60

EncryptionKeyEstablishment.............................................................................................64

DataConfidentiality............................................................................................................66

FullMaxSystemUserGuide:4.0

NetworkManagementSecurity..........................................................................................66

UsersandRoles...............................................................................................................67

SecuredDeviceCLI..............................................................................................................68

SecuredRemoteSoftwareUpgrade....................................................................................68

ANNEXA:FullMAXSpecifications...........................................................................................69

RFSpecifications..................................................................................................................69

PHYSpecifications...............................................................................................................70

MACSpecifications..............................................................................................................70

Security................................................................................................................................71

RemoteManagementandControl.....................................................................................71

Interface..............................................................................................................................71

MechanicalEnvironment....................................................................................................71

FCCcompliancestatement(UnitedStates)........................................................................73



FullMaxSystemUserGuide:4.0



ABOUTTHISGUIDE



TheFullMaxSystemUserGuideisthecompleteuserguidedocumentationfortheFullMax

System.ThisguidedescribestheFullMaxnetworkentities(BaseStation,FixedandMobile

StationsandNetworkManagementSystem)andtheiruse.

IntendedAudience

Thisguideisintendedtoinstructservicepersonnelabouthowtoinstall,configureand

operateandmaintaintheFullMaxSystem.

DocumentConventions

Thefollowingiconsappearthroughoutthisguide:

 Note:Thisisanote.Itprovidesadditionalinformationonthecurrenttopic.



 Warning:Thisisawarning.Itcontainscautionaryinformationonthecurrent

topic.

FullMaxSystemUserGuide:4.0



HowThisGuideisOrganized

Chapter1:Overview

ThischapterprovidesanoverviewoftheFullMaxSystem,definitionofkeyparametersin

thesystemandFullMaxSystemdescription.

Chapter2:InstallingtheFullMaxSystem

ThechapterprovidesanoverviewofhowtoinstallFullMaxbasestationsandfixed/mobile

stationsandperformessentialconfigurationforinitialoperation.Thechapteralsodetails

theFullMaxNMSinstallationprocess.

Chapter3:OperatingtheFullMaxSystem

Inthischaptertheusercanlearnhowtoconfigurethesystem,provisionnewservicesand

monitortheinstalledsystem.

Chapter4:MonitoringFullMaxSystem

Thechapterprovidesdetailsonhowtomonitordevicestatuses,detectfailuresandchanges

inthenetworkandhowtomonitorthenetworkperformance.

Chapter5:FullMaxSystemSecurity

ThechapterprovidesadetailedexplanationontheFullMaxsecuritymechanisms.

AnnexA:BaseStationandSubscriberStationSpecifications

AnnexB:RegulatoryInformation

ObtainingDocumentation

Toobtainadditionaldocumentation,pleasecontactinfo@fullspectrumnet.com.

DocumentationFeedback

Wewelcomeyourcommentsaboutthisguide.Pleasesendcommentsto:

info@fullspectrumnet.comorcallcustomerserviceat(1)888‐350‐9994.

Pleaseincludeinthecommentthenameandversionnumberoftheguide.



CHAPTER1:OVERVIEW



FullMaxisamulti‐cell,Point‐to‐Multipoint(PtMP)broadbandwirelesssystembasedonthe

WiMax‐e(IEEE802.16e‐2005)protocolwithmodificationstoenableitsoperationinawide

rangeoffrequenciesbelow1GHz.Thesystemisusedtoestablishaprivate,broadband

wirelessserviceforelectricalutilitiesandothermissioncriticalindustries.Itsupportsboth

fixedandmobileapplications.

ThemaincharacteristicsoftheFullMaxSystemincludethefollowing:

FullMaxoperatesinunpairedspectrumusingTimeDivisionDuplexing(TDD).FullMaxalso

operatesinpairedspectrumemployingeachportionofthepairedspectrumasindependent

unpairedspectrum.FullMaxBaseStationsemployGPSforTDDframingsynchronization.

FullMaxiscapableofoperatinginanyfrequencybandbetween40MHzand958MHz1and

inanychannelsizebetween200KHzand5MHz2.

TheFullMaxsystemofferstheprivatesystemoperatorwideareacoveragebyleveraging

thefollowing:

■ HightransmitpowerfromboththeBaseStationandSubscriberStations

■ Exceptionalreceiversensitivity

■ Superiorpropagationduetotheoperationinnarrowernon‐standardWiMaxchannel

sizesandlowbandfrequencies

TheFullMaxsystemoffersexcellentfrequencyutilizationthroughthefollowingcapabilities:

■ AdaptiveModulationandCodinginboththedownlinkanduplink

■ Optimizationofthedownlinkanduplinkratiofortheuser’smainapplications.For

example,inthecaseofSCADAapplications,theFullMaxframeisconfiguredasreverse



1 Currently, FullMax has FCC certification to operate in United States NPCS band (FCC Part 24), in the 700

MHz guard band (FCC Part 27) in the AMTS band (FCC Part 80) and in the IVDS band (FCC Part 95). FCC

certification for other bands will be acquired upon demand.

2 FullMax has been fully tested to operate in 500 KHz wide channel, 700 KHz wide channel and 1 MHz wide

channels. Other channel sizes should be verified with Full Spectrum engineering support before implementation

to guarantee proper network configuration.

FullMaxSystemUserGuide:4.0

asymmetrical,i.e.,morebandwidthisallocatedtotheuplinkthantothedownlink.

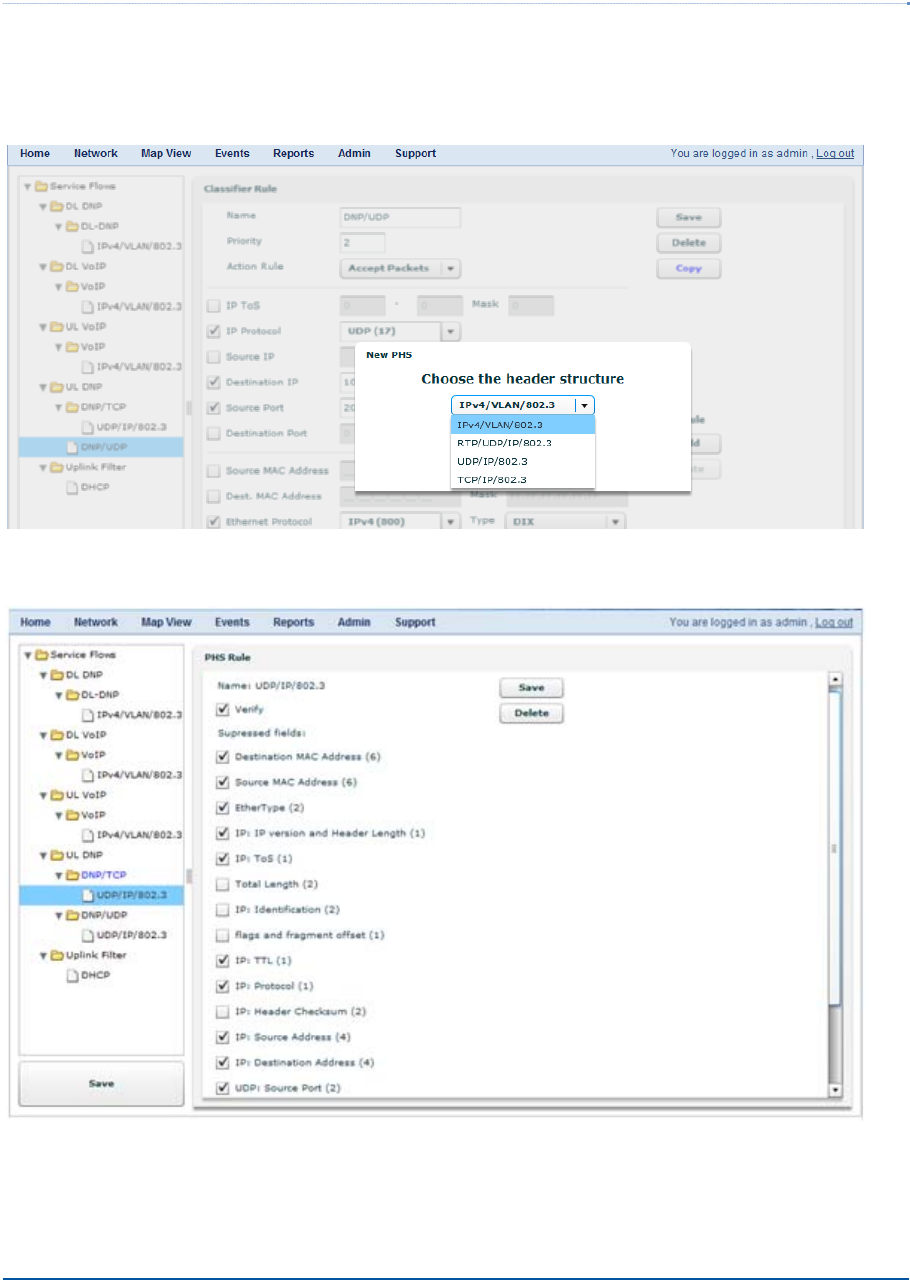

■ Packetheadersuppression(PHS)andothercompressiontechniques.

FullMaxincludesaversatilesetofQoStoolsthatcanoptimizetrafficperformanceforeach

applicationandprioritizetheaccesstotheavailablebandwidthaccordingtotheoperator’s

requirements.QoStoolsincludevariousschedulingmethods,serviceflowswithvariousQoS

parameterssuchasminimumandmaximumtrafficrates,guaranteeddelay,jitter,etc.

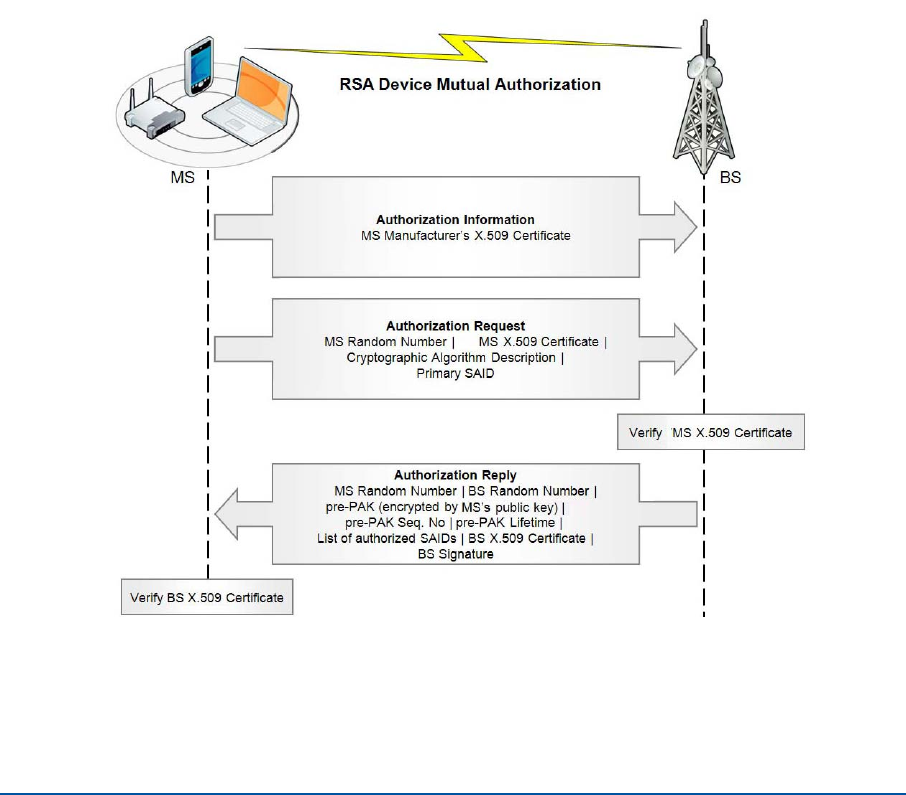

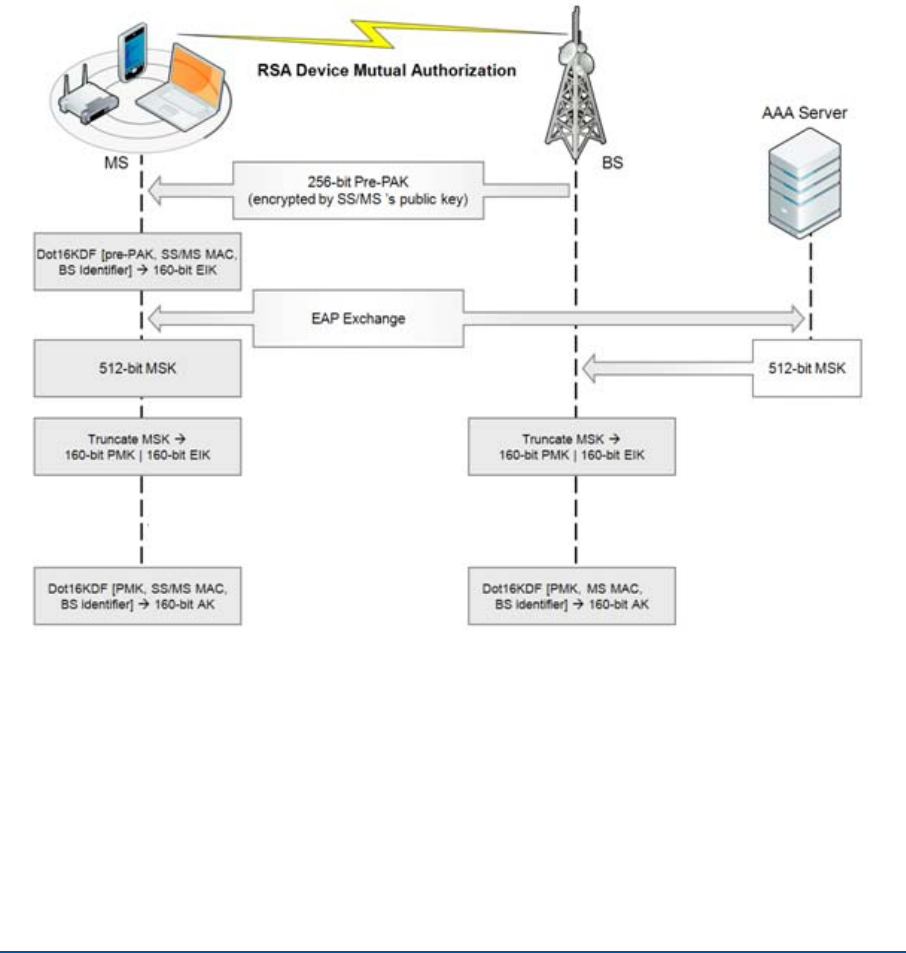

FullMaxprovidessecuredconnectionswithstrongencryption(AES‐128),strong

authentication(EAPafterRSAwithX.509certificates)andadvancedkeymanagement

protocol(PKMv2).

FullMaxsupportsvariousfrequencyreusemethodsincludingfullchannelbasedfrequency

reuse,sub‐channelbasedfrequencyreuseandtimesegregationbasedfrequencyre‐use.

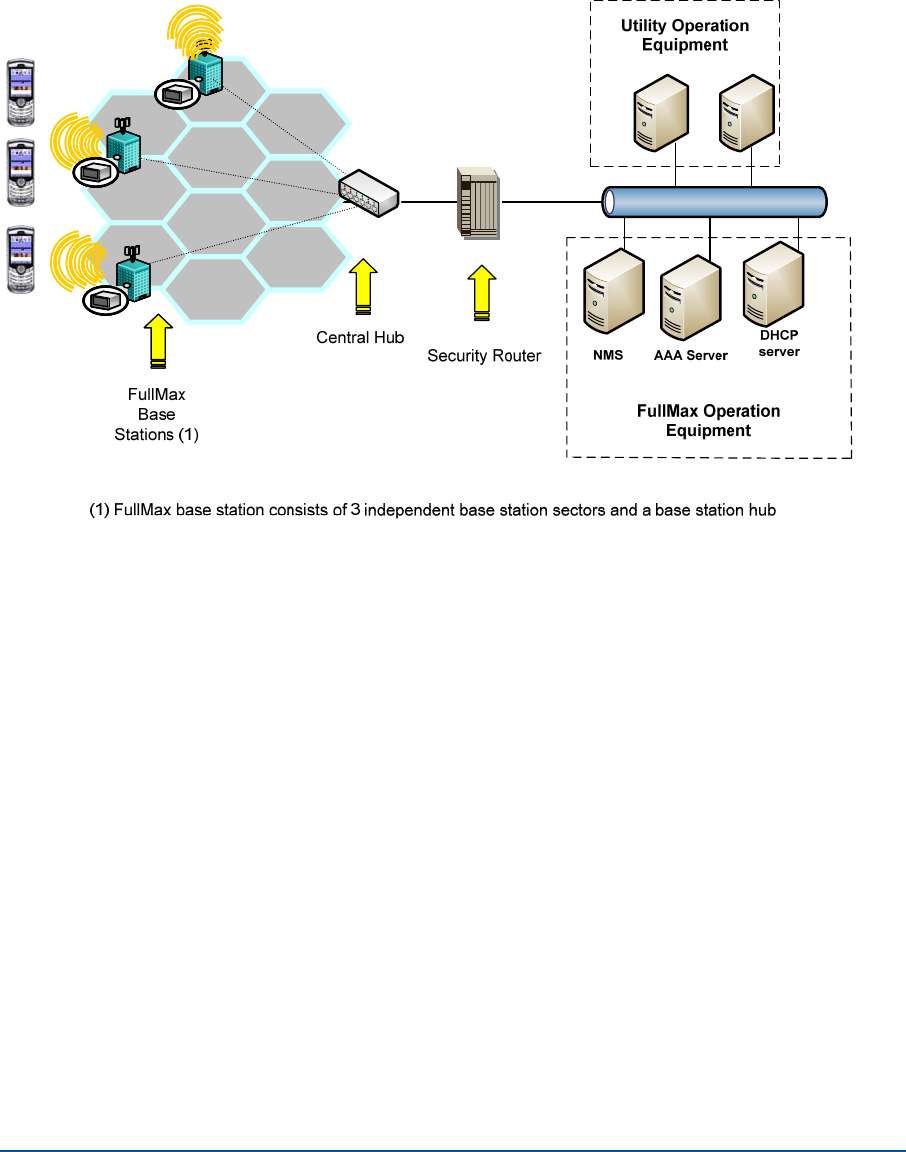

FullMAXcomprisesofoneormoreBaseStations,FixedRemoteStationsandMobile

Stations.Theterm“RemoteStations”whenused,referstoboththefixedRemoteStations

andMobileStations.

TheFullMaxRemoteStationssupportapre‐configuredchannelacquisitionplan,i.e.,a

preconfiguredlistofchannelalternatives,characterizedbytheircenterfrequencyandthe

bandwidth.Duringstartup,theMS4000orFS4000goesthroughthelistandperform

successivechannelacquisitionattemptsuntilanattemptissuccessful.

FullMaxhasanadvancedremotemanagementsystemthatenablesthesystemoperatorto

monitor,configure,manage,detectfailuresanddiagnoseproblems.TheFullMaxsystem

configurationandFullMaxsystemprovisioningsupportcentralmanagementprofiles.



FullMaxSystemArchitecture

TheFullMaxsystemarchitectureisdescribedinFigure1below.ItconsistsofBaseStations,

FixedSubscriberStations,MobileStations,backhaulnetworkingequipmentconnectingthe

BaseStationstotheNetworkOperationsCenter(NOC)andaNetworkManagementSystem

(NMS).

FullMaxBaseStationsaretypicallyinstalledintheexistingPrivateLandMobileRadio

(PLMR)towersservingtheirrespectivecells.

TheBaseStationisdesignedasasinglesectordevice.Anynumberofsectorscanbe

designedpertowerandanynumberofBaseStationunitscanbeusedinthesamesector.

FullMaxSystemUserGuide:4.0

Themostcommonconfigurationhoweverisa3sectordesignwithasingleBaseStationunit

persector.Thesectorconfigurationdictatesthetypeofantennathatshouldbeused.A

routerisusedatthetowertoconnectallBaseStationunitstotheNetworkOperating

Center(NOC)viabackhaulfacilities.FullMaxfixedandmobileRemoteStationsaredeployed

throughoutthetower’sservingarea.

BSBS



Figure1:FullMaxSystemArchitecture



FullMaxSystemUserGuide:4.0



FullMaxBaseStationsandRemoteStations

FullMaxBaseStation

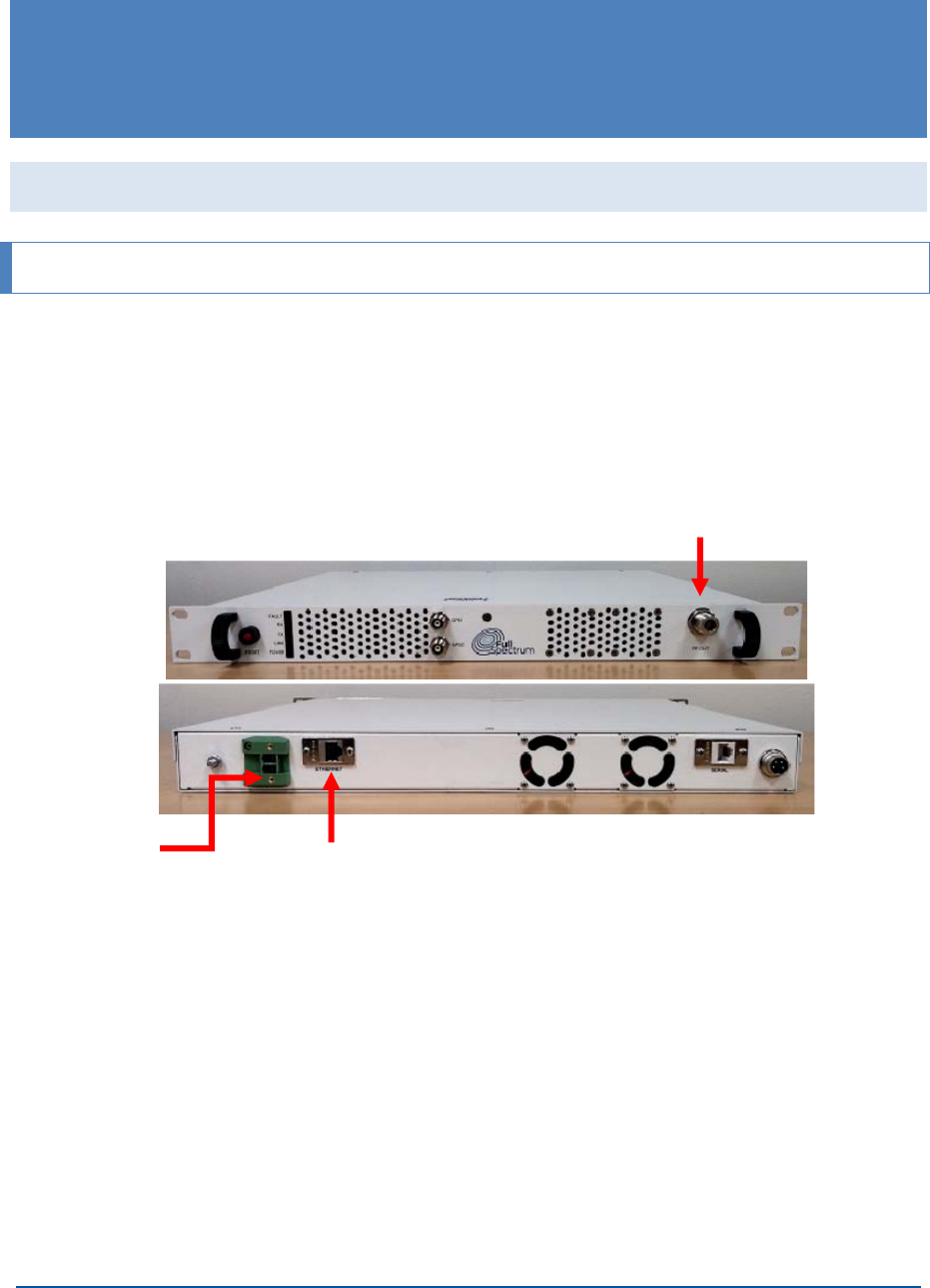

TheFullMaxBaseStationisshowninPicture.Itishousedina1U,19”rackmountenclosure

designedforindooroperation.



FrontView



RearView



Picture2:BaseStationFrontandRearViewontop,FrontPanelonBottom

TheBaseStationemploysaDCpowersupplywhichcantakeanyDCvoltagebetween9VDC

to36VDC.

AFullMAXsystemwithmorethanasingleBaseStationunit,requiresGPSsynchronization

toensureframesynchronizationacrosstheentiresystem.TovariantswithrespecttoGPS

synchronizationareavailable:

■ TheBS1000:MultiportGPSreceiverisusedtoprovideanexternal10MHzclockanda1

PPSsignaltoalltheBS1000unitsinthetower.Thisistypicallyusedwhenmultiplesector

areinstalledinthesametower.

■ TheBS1010:ThishasaninternalsingleportGPSmodulewhichisconnecteddirectlyto

theGPSantenna.



TheFullMaxBaseStationhasthefollowingexternalinterfaces:

■ AnEthernet10/100BaseTinterface.

■ AnRS232serialinterfaceforCommandLineInterface(CLI)access.

■ AnRFinterfacewhichisconnectedviaanRFcableandanexternalRFbandpassfilterto

theoutdoorantennaonthetower.

■ 2GPSinterfacesmarkedGPS1andGPS2asfollows:

■ BS1000:GPS1isconnectedtoaGPSantenna.GPS2isunused.

■ BS1010:GPSisconnectedto1PPSsignalfromGPSreceiver,GPS2isconnectedto

external10MHzclockfromGPSreceiver.



FullMaxSystemUserGuide:4.0

TheFullMaxBaseStationemploysahighpoweramplifier(PA)withaP1dBof44dBm.A

backoffof8dBisneededforproper64QAMoperationandthereforethemaximum

recommendeddownlinktransmitpoweris36dBm(or4watts).IfModulationisrestricted

toQPSK,theTXpowercanbeincreasedupto10watts(40dBm).Anoptionalhigherpower

PAcanbeprovidedwithupto20watts(43dBm)TXpower.

FullMaxFixedRemoteStations

TheFullMaxfixedremoteStationshastwovariants:

■ FS4000/FS4010:Anindoorunitasshowninpicture3below.

■ FS4500/FS4510:Asealedoutdoorunitasshowninpicture4below. 



 

Picture3



 

Picture4



ThefixedRemoteStationemploysaDCpowersupplywhichcantakeanyDCvoltage

between9VDCto36VDC.



TheRemoteFixedStationhasanoptionalGPSmodule(unlikeinthecaseoftheBase

Station,thisisnotmandatory).TheindoorfixedRemoteStationwithnoGPSmoduleis

referredtoastheFS4000whilethesameunitwhenequippedwiththeGPSmoduleis

referredtoasFS4010.Similarly,theoutdoorfixedRemoteStationwithnoGPSmoduleis

referredtoastheFS4500whilethesameunitwhenequippedwiththeGPSmoduleis

referredtoasFS4510



FullMaxRemoteStationhasthefollowingexternalinterfaces:

■ AnEthernet10/100BaseTinterface.

■ AnRS232serialinterfaceforCLI/console

■ AnRFinterfacewhichisconnectedviaanRFcabletotheantennaonthePole.

■ AGPSinterfacewhichinthecaseoftheFS4010/FS4510isconnectedtoaGPSantenna.

FullMaxSystemUserGuide:4.0



FullMaxMobileStation

FullMaxMS4000isidenticaltothehighpowerFS4000.Itisdesignedforinstallationina

UtilitytruckandassuchitemploystheDCpowersupplyconfiguration.

FullMaxMS4000hasthesameinterfacesastheFS4000buttheGPSinterfaceisusedfor

AutomaticVehicleLocation(AVL).



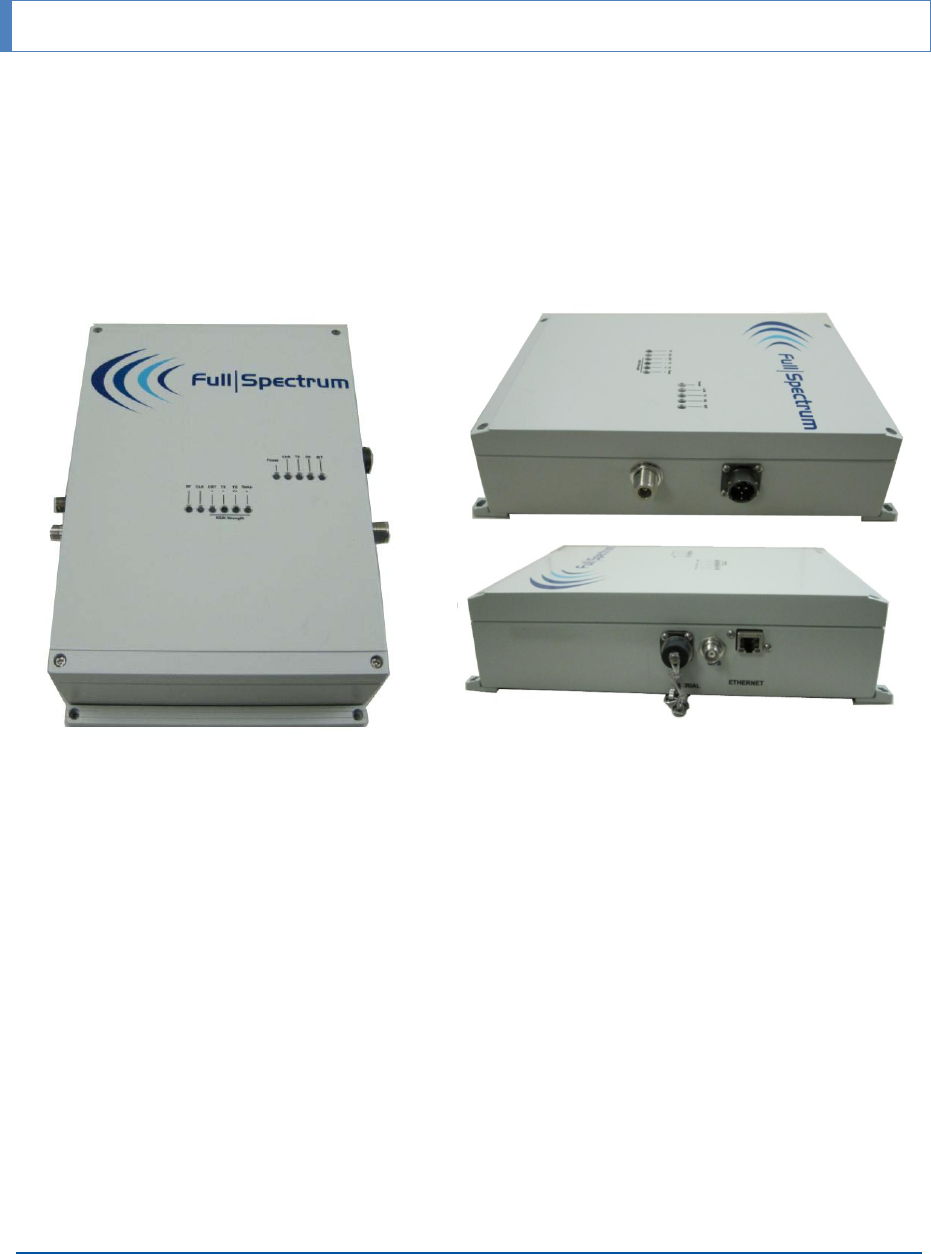

Picture5:FS4000OutdoorViews:Front(left),RightSide(top‐right)andLeftSide(bottom‐right)

FullMaxSystemUserGuide:4.0



FullMAXBaseStationandRemoteStationHardwareArchitecture

TheFullMaxBaseStationandRemoteStationarchitectureisdescribedinthefigure6

below.TheyconsistofaBasebandProcessorBoard(BBP),anAnalogFrontEnd(AFE)

sectionandaPowerSupply.



Figure6:FullMaxBaseStationadnRemoteStationHighLevelArchitecture

TheBBPisthemaincontrolboardoftheFullMaxradio.ItisdesignedtoperformMAC,PHY,

networking,networkmanagementandotherkeyfunctionsrequiredbybroadbandwireless

BaseStationandRemoteStations.TheBBPhasthefollowingmaincharacteristics:

■ Processingresources:



 ATexas Instruments(TI)DigitalSignalProcessor(DSP)andaXilinxSpartan3A

FPGAtoexecutethePHYlayerfunctions

 AFreescalePQ3processortoexecutetheMAClayerandcomplementary

embeddedsoftwarefunctions



■ 10/100BaseTandRS232userinterfaces



■ AdigitalI/Qinterface

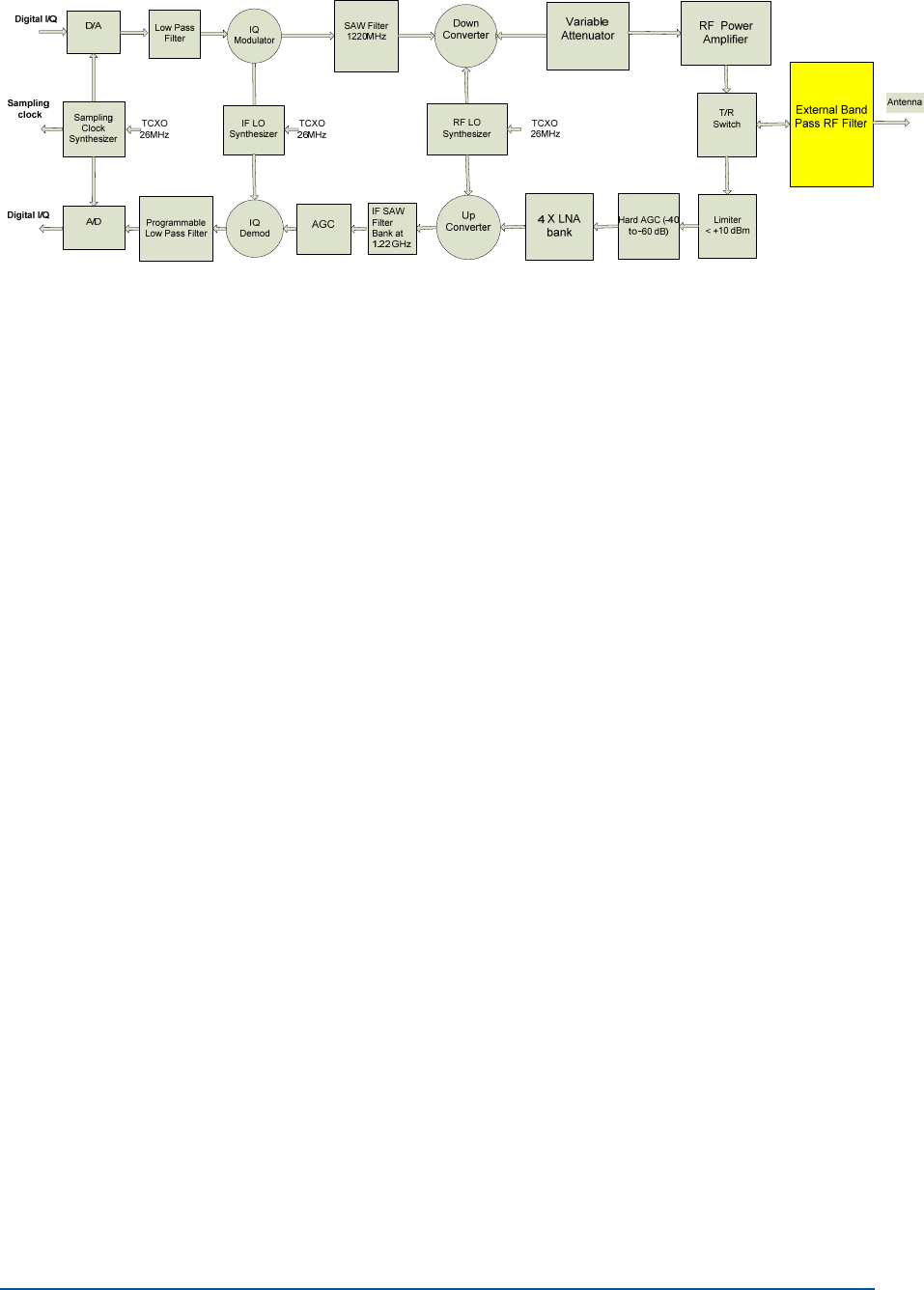

TheAnalogFrontEnd(AFE)sectionblockdiagramisdescribedthefigure7below.TheAFE

sectionperformssignalprocessingfunctionsneededtodeliverthesignaltotheantenna

andtoreceivethesignalfromtheantenna.TheAFEconsistsofanRFSmallSignal(RFSS)

boardandaRFFrontEnd(RFFE)board.

FullMaxSystemUserGuide:4.0



Figure7:AnalogFrontEnd(AFE)BlockDiagram



TheRFSSperformsanalogtodigitalconversion(ADC),digitaltoanalogconversion(DAC),

receiveandtransmitsignalfiltering,up/downfrequencyconversionandAutomaticGain

Control(AGC).

TheRFSSemploysatwostageup/downfrequencyconversionincludinganIFstageat1.22

GHzandanRFstage.TheIFstageemploysaSAWfilterbankforreceivesignalfiltering

independentoftheRFfrequencyused.TheindividualSAWfilterinthebankisselected

basedonthechannelbandwidthused.TheRFstagedownconvertsthefrequencyofthe

signalinthetransmit(TX)directionfromthe1.22GHzIFfrequencytotheselectedRF

frequencyinanyrangebetween40MHzand958MHz.ThisisdonethroughtheRF

synthesizerwhichcanbetunedbetweenafrequencyof1.26GHzandafrequencyof2.178

GHzin10KHzsteps.Similarly,theRFsynthesizerisusedtoupconvertthefrequencyofthe

receivedsignaltotheIFfrequency.

InadditiontothefilteringattheIFstage,theRFSShasaprogrammablereceiveanalog

basebandfilterwhichisprogrammedtotheprecisebandwidthofthechannelused.This

programmableanalogbasebandfilteringalongwiththeprogrammablebasebanddigital

filterattheBBPisneededtoenabletheAFEtotransmitandreceiveoverawiderangeof

channelbandwidths.Furthermore,theRFSShasasamplingclocksynthesizerwhichis

programmedtogeneratethesamplingclockneededforeachchannelbandwidth.

TheRFSSAGCisusedtomapawiderangeofreceivepowerlevelstoanoptimalprocessing

windowattheinputtotheADC.TheAGCisusedintheRemoteStationtoadjustthe

demodulatorgaindependingonitsdistanceandpath‐lossfromtheBaseStation.

TheRFFrontEnd(RFFE)boardperformsamplificationinbothtransmitandreceive

directions.

FullMaxSystemUserGuide:4.0

Inthetransmitdirection,theRFFEcontainsawide‐rangevariableattenuatorandanRF

PowerAmplifier(PA).ThevariableattenuatordeterminesthepowerlevelintothePA

which,inturn,determinestheTXpoweroutoftheradio.ConsideringthattheBaseStation

transmitstoallRemoteStationsinitssector,theTXpowerattheBaseStationistypically

maintainedataconstant36dBm.TheTXpowerattheRemoteStationhoweveris

determinedbyaclosedlooppowercontrolalgorithmintheBaseStationdependingonthe

pathlosstoeachremoteStation.

Inthereceivedirection,theRFFEhasabankofLowNoiseAmplifiers(LNAs).EachLNAis

optimizedforaportionofthe40to958MHzrange.

ATransmit/Receive(T/R)switchattheRFFEisusedtoswitchtheAFEfromreceivemodeto

transmitmodeandvice‐versaasneededfortheimplementationofTimeDivisionDuplexing

(TDD).TheTDDframeisdividedbetweenadownlinksub‐frameandanuplinksub‐frame.

Thelengthofeachsub‐frameisconfigurable.NotethatwhiletheBaseStationalways

transmitsinthedownlinksub‐frame,theRemoteStationsonlytransmitsintheuplinksub‐

frameintimeslotsallocatedbytheBaseStation.

TheAFEemploys8051microcontrollersformonitoringandcontrolofallaspectsoftheAFE

operation.Aserialinterfaceprotocolisavailabletosupportcontrolofthemaster

microcontrollerontheRFSSboardbythemainPQ3processorontheBBPboard.

Note:TheAFEemploysanon‐agileexternalRFband‐passfilterwhichisshowninyellow

blockintheAFEblockdiagraminFigure7above.

FullMaxSystemUserGuide:4.0



CHAPTER2:INSTALLINGTHEFULLMAXSYSTEM



BaseStationInstallation

SingleBaseStationinstallation

1. InstalltheBaseStationonashelfinastandard19”rack.Makesurethataircanrun

freelytothefansontherearsideoftheenclosureandtotheholesonthesidesandthe

frontoftheenclosure.

2. ConnectanRFcablefromtheRFconnectoronthefrontpaneloftheenclosuretothe

antennaonthetower.



3. ConnectaCat5cabletotheEthernetportonthefrontpaneltoarouteratthetower.

4. Connectapowercablefromthepowerconnectorontherearsideoftheenclosuretoa

DCpowersource.TheBaseStationwillstarttoboot.

5. BaseStationLEDDescription:

 PWR–OnwhentheBaseStationispoweredon

 FAULT–Onwhenafaultconditionisdetected

 RX–IndicatestrafficisreceivedfromremoteSubscriberStations

 TX–IndicatestrafficistransmittedtoremoteSubscriberStations

 Link–OnwhenoneormoreRemoteStationisconnectedtotheBaseStation.

EthernetPor

Powerconnector

RFConnector

FullMaxSystemUserGuide:4.0



MultipleBaseStationInstallation

ABaseStationfunctionsasasinglesectorinthetower.Atypicalinstallationincludes

multiple(typically3)sectorsinatower.Inthiscase,eachoftheBS1000unitswillbeplaced

onadifferentshelfintherackandtheinstallationprocedureoutlinedintheabove

paragraphwillberepeatedforeachoftheBS1000units.

Inadditiontotheabove,multipleBS1000operationrequirestheuseofaGPSantennafor

TDDframesynchronization.TheGPSconnectorsofeachBS1000unitwillbeconnectedto

anexternalGPSbasedtimesynchronizationdevice(OctoClock).Thetimesynchronization

deviceprovidestimereference(GPSsynchronizedexternal10MHzclockand1PPSsignal)

toallBS1000unitsinthetowerandconnectstoasingleGPSantenna.

IndoorFS4000/FS4010Installation

1. FS4000/FS4010installationprocedureisthesameastheBaseStationinstallation

describedabove.



2. TheFS4000doesnothaveanon/offswitch.Theunitisturnedonwhenconnected

tothepowersupply.



3. FS4000/FS4010LEDDescription:

 Power–OnwhenFS4000ispoweredon

 BIT–Onwhenafaultconditionisdetected

 RX–Indicatestrafficisbeingreceived

 TX–Indicatestrafficisbeingtransmitted

 Link–OnwhenFS4000isconnectedtotheBS1000.

 FaultLED:OnindicatesanAFEfault.Thespecificfaultisindicatedbyoneof

theother5LEDs(GreenColor)asfollows(fromlefttoright):

 Oneofthesynthesizersisunlocked

 Overcurrent

 TXPWRleakage

 TXPWRmismatch

 Overtemperature

 WhentheAFEOK,the4leftLEDsindicateRSSIasfollows:

 OneLEDoniftheRSSI>‐105dBm

 TwoLEDsoniftheRSSI>‐95dBm

FullMaxSystemUserGuide:4.0

 ThreeLEDsoniftheRSSI>‐85dBm

 FourLEDsoniftheRSSI>‐75dBm



OutdoorFS4500/FS4510Installation



1. MounttheFS4500onapoleorwallbyinserting4screwsatthe4cornersofthe

mountingplate



2. ConnectanRFcablefromtheRFconnectorontheenclosureleftsidetotheoutdoor

antenna.



3. UseaCat5cabletoconnecttheEthernetportontheenclosuretotheendequipment



4. Connectapowercablefromthepowerconnectorontherearsideoftheenclosuretoa

9to36VDCpowersource.



FullMaxBaseStationsandRemoteStationConfiguration



TheFullMAXBaseStationsandRemoteStationsareshippedwithagenericconfiguration

donethroughconfigurationfilesatFullSpectrum.Thegenericconfigurationcontainsthe

valuesofallparameterswhicharethesameacrosstheentiresystemareaportionofthe

systemsuchas:

■ CenterRFfrequency

RFconnector

Ethernetconnector

FullMaxSystemUserGuide:4.0

■ Channelbandwidth

■ BaseStationtransmitpower

■ #ofsymbolsfordownlinksubframe

■ #ofsymbolsforuplinksubframe

■ Gaps(RTG,TTG)duration

■ Frameduration

■ BaseStationdemodgain

■ BaseStationandremoteStationsectorconfiguration

■ Anautomaticchannelacquisitiontablewithupto10entries.Eachentryincludesthe

centerfrequency,thechannelbandwidthandotherparametersforeachavailable

channelinthesystem.



TheconfigurationofeachBaseStationandRemoteStationiscustomizedtothespecificsof

eachsite.Themostcommonconfigurationinvolvesthespecificnetworkingparameters:



■ TypeofIPaddress(dynamicorstatic)

■ IPAddress

■ SubnetMask

■ DefaultGateway

BoththeFullMAXBaseStationandRemoteStationsemployanon‐agileRFband‐passfilter.

ThisisanadditionalsafeguardwhichguaranteesthattheFullMAXBaseStationandRemote

Stationwillnottransmitoutsidetheband.

FullMaxSystemUserGuide:4.0



CommandLineInterface(CLI)forFullMAXBaseStations

General



CLIcommandscanbeusedtomonitortheFullMAXBaseStationperformanceandconfigure

someofitsparameterwhiletheBaseStationisupandrunning.



CLIcommandsaregroupedtogethertocreateastructuralhierarchy.Inordertoruna

specificCLIcommand,youshouldfirstgetintoitsgroup.Aparametervaluecanbeshowed

byusingthe'SHOW'command.Someoftheparameterscanbechangedbyusingthe'SET'

command.

Afterlogginginthroughtelnet

[FULLMAX]$ Promptforuserisdisplayed.

Typehelpor?tolookatdifferentgroups.



DownlinkConfiguration

Gotodownlinkconfigurationgroup

Locktodl‐configgroupbytypingdl‐configontheprompt:

[FULLMAX]$

[FULLMAX]$ dl-config

You are locked to dl-config group.

Only dl-config operations are allowed.

Use help or ? for help.

[FULLMAX (dl-config)]$

CenterFrequency

[FULLMAX (dl-config)]$ show center-freq

center-freq 940500 khz

FullMaxSystemUserGuide:4.0

[FULLMAX (dl-config)]$ set center-freq 930800

updated center-freq 930800 khz

TransmitPower

[FULLMAX (dl-config)]$ show tx_power

tx_power 9 dbm

[FULLMAX (dl-config)]$ set tx_power 16

updated tx_power 16 dbm

ChannelBandwidth

[FULLMAX (dl-config)]$ show bandwidth

bandwidth 500 khz

[FULLMAX (dl-config)]$ set bandwidth 500 khz

Updated bandwidth 500 khz

IPAddressConfiguration

IPAcquisitionMethod

TheIPacquisitionmethodcanbeeitherdynamic(1),meaningtheBS1000willuseDHCP

protocoltoacquireitsIPaddress,orstatic(0)meaningtheBS1000willuseitslocally

configuredCLI.

[FULLMAX$] show ip-status

ip-status 0

[FULLMAX$] set ip-status

Updated ip-status to static

StaticIPAddress

[FULLMAX$] show ip-address

ip-address 192.168.0.1

[FULLMAX$] set ip-address 192.168.0.2

Updated ip-address 192.168.0.2

SubnetMask

[FULLMAX$] show subnet-mask

Updated subnet-mask 255.255.255.0

[FULLMAX$] set subnet-mask 255.255.255.0

Updated subnet-mask 255.255.255.0

DefaultGateway

[FULLMAX$] show gateway-ip

FullMaxSystemUserGuide:4.0

gateway-ip 192.168.0.10

[FULLMAX$] set gateway-ip 192.168.1.1

Updated gateway-ip 192.168.1.1

CLICommandsforremoteStations

General



CLIcommandscanbeusedtomonitortheFullMAXRemoteStationperformanceand

configuresomeofitsparameterwhiletheremoteStationisupandrunning.



ChannelAcquisitionTableConfiguration

GotoSubscriberChannelConfigurationGroup

Locktosubscriberchannelconfigurationgroupbytypingss‐chconfigattheprompt:

FullMax#

FullMax# ss-chconfig

FullMax(ss-chconfig)#

You are locked to ss-chconfig group.

Only ss-chconfig operations are allowed.

Use help or ? for help.

[FULLMAX (ss-chconfig)]$

ShowChanneltable

Toshowalineinthetabletype:showchannel‐config‐table<line‐number>.Forexamplethe

followingcommandwilldisplaythefirstlineofthetable:

[FULLMAX (ss-chconfig)]$ show channel-config-table 1

center-freq for chn-index 1 is 217775 kHz

bandwidth for chn-index 1 is 500 kHz

center-config-status for chn-index 1 is ACTIVE

Settableentry



FullMaxSystemUserGuide:4.0

[FULLMAX (ss-chconfig)]$ set center-freq 900000 1

Updated center frequency for chn-index 1 to 900000 khz

[FULLMAX (ss-chconfig)]$ set bandwidth 500 khz 1

Updated bandwidth for chn-index 1 to 500 khz

IPAddressConfiguration

IPAcquisitionMethod

TheIPacquisitionmethodcanbeeitherdynamic(1),meaningtheFS4000willuseDHCP

protocoltoacquireitsIPaddress,orstatic(0)meaningtheFS4000willuseitslocally

configuredCLI.

[FULLMAX$] show ip-status

ip-status 0

[FULLMAX$] set ip-status

Updated ip-status to static

StaticIPAddress

[FULLMAX$] show ip-address

ip-address 192.168.0.1

[FULLMAX$] set ip-address 192.168.0.2

Updated ip-address 192.168.0.2

SubnetMask

[FULLMAX$] show subnet-mask

subnet-mask 255.255.255.0

[FULLMAX$] set subnet-mask 255.255.255.0

Updated subnet-mask 255.255.255.0

DefaultGateway

[FULLMAX$] show gateway-ip

gateway-ip 192.168.0.10

[FULLMAX$] set gateway-ip 192.168.1.1

Updated gateway-ip 192.168.1.1

FullMaxSystemUserGuide:4.0

InstallingFullMaxNMS

HardwareRequirements

■ Dualcorebasedmachine

■ Minimum2GBRAM

■ 100GBfreediskspace+1MBforeachmanagedelement–allonthesystemdrive.

DatabaseRequirements

TheFullMaxNMSapplicationrequiresSQLdatabase.ThesystemsupportsanyJDBC

compliantSQLdatabase.

ClientRequirements

■ AdobeFlashPlug‐in

■ Webbrowsers:InternetExplorer(IE)version7or8,FireFox,GoogleChrome

InstallProcedure

■ SeeNMSInstallationInstructions(separatedocument)

FullMaxSystemUserGuide:4.0



CHAPTER3:OPERATINGFULLMAXSYSTEM



GettingStartedwithFullMaxNMS

WebClient

Theservercanbeaccessedfromanyclientwithappropriatesystemrequirements.Theonly

clientsoftwarerequiredisasupportedwebbrowser.ThiscanbeMicrosoftInternet

Explorer,MozillaFireFoxorGoogleChrome.

Note:TheNMSisbestviewedwith1024x768resolutions.

InvokingFullMaxNMSClient

ToinvoketheFullMaxNMS,entertheURLforyourFullMaxNMSserverinyourweb

browser:

http://server_ip_address

where the SERVER_IP_ADDRESS istheIPaddressoftheFullMaxNMSServer.

FullMaxNMSdisplaystheLoginpage.YoucanproceedbyloggingintoFullMaxNMS.

FullMaxSystemUserGuide:4.0



LoggingIn

Figure2:NMSLoginPage

IfyouhaveinstalledtheFullMaxNMSandarelogginginforthefirsttime,usethe

reservedadminusernameandpassword.Tologin:

Enter“admin”inthe“Username”fieldandthedefaultpasswordforadminwhichis

“qazwsx”inthepasswordfieldoftheLoginManager.

Note:TheUserNameandPasswordarecasesensitive.

ClicktheLoginbuttonorpressEnter.

YouarenowloggedintoFullMaxNMS.Bydefault,theFullMaxHomePageisdisplayed.

YoucanchangetheadminpasswordthroughAdmin>UserAccounts>useroptions

 WARNING!Theadminusercannotbedeleted.Itishighlyrecommended,for

securitypurposes,thatyouchangetheadminuserpassword.



 Note:Loginsessionstimeoutafterthirtyminutesofinactivity.Ifthesessionis

notusedforthirtyminutes,youwillbepromptedtologinagain

FullMaxSystemUserGuide:4.0

LoggingOut

TheLogoutlinkappearsonthetoprighthandsideofyourbrowser.ClickingtheLogoutlink,

logsouttheuserfromFullMaxNMSClient.TheLoginpageappears.

ClientUserInterface

ThefollowingarethemainpanesintheFullMaxNMSclient:

HeaderPane

ApplicationPane

HeaderPane

TheheaderpaneoftheFullMaxNMSclientislocatedatthetopofthescreenandcontains

linkstovariousapplications.Whenyouclickonalink,thatapplication,oritstasks/sub‐tasks

aredisplayedintheapplicationpane.

Theheaderincludesthefollowing:

Timeofday–thetimeshowedisthetimeintheFullMaxNMSserver

Searchbox–thisisusedtolocatenewdevices

Logininformation

Logoutlink

Menu



TheFullMaxNMSmenuincludesthesemenuitems:

■ Home

■ Network

■ MapView

■ Events

■ Reports

■ Admin

■ Support

FullMaxSystemUserGuide:4.0

ApplicationPane

TheapplicationpaneoftheFullMaxNMSclientislocatedbelowtheheaderpaneand

containsdifferentviewsforthevariousapplications.

AddingNewDevicestotheNMSdatabase

AddingaNewTowertotheNMSDatabase

InthemenugotoAdmin>newBSTower

Theonlymandatoryfieldisthetowername.

■ Towername

■ RouterIPaddress

■ Latitude

■ Longitude

■ Towerheight

■ Installername

■ Installationdate

AddingaNewBaseStationSectortotheNMSDatabase

InthemenugotoAdmin>newBSSector

Mandatoryfieldsare:sectorname,towerandIPaddress

■ Sectorname

■ Tower

■ IPAddress

■ Latitude

Ifnotmanuallyconfigured,theNMSwillusethelatitudeofoneoftheBSsectors

associatedwiththistower.

■ Longitude

Ifnotmanuallyconfigured,theNMSwillusethelongitudeofoneoftheBSsectors

associatedwiththistower.

■ AntennaHeight

■ AntennaGain

FullMaxSystemUserGuide:4.0

■ Installername

■ Installationdate

AddingaNewFixed/MobileStationtotheNMSDatabase

TheNMSwillautomaticallylearntheFixedandMobileStationifnotmanuallyinserted.

InthemenugotoAdmin>NewStation

MandatoryfieldsarestationnameandMACaddress

■ StationName

■ BaseStation

■ MACAddress

■ IPAddress

■ Type

ConfiguringtheFullMaxSystem

WorkingwithProfiles

TheFullMaxNetworkManagementsystemusesprofilestoapplythesameconfiguration

parameterstoagroupofbasestationsoragroupoffixed/mobilestations.Thesystem

administratormaygenerateoneormoreconfigurationprofiles.

CreatingandEditingtheBaseStationConfigurationProfile

ToaddnewBSSectorconfigurationprofileuseAdmin>BSConfigurationProfile.

ClicktheAddbutton.

FullMaxSystemUserGuide:4.0

BaseStationManagementConfiguration



■ ProfileName:

Thenameoftheprofileisusedasreferencewhenassociatingaprofilewithabase

stationorasubscriberstation.

■ ThroughputMeasurementInterval:

ThisparameterdeterminestheintervalthattheBS1000usestomeasurethepeakand

averagedataratestatistics

■ CounterReportInterval:

‐ ThisparameterdeterminestheintervaloftheBS1000resetperformancecounters.

‐ RSSIStatusAlarmTrapThreshold

‐ AnRSSIalarmtrapisgeneratedwhenthebasestationmeasuresanRSSIvaluethatis

lowerthanthesetthreshold.Thisparameterisusedfordefaultvalue,andcanbe

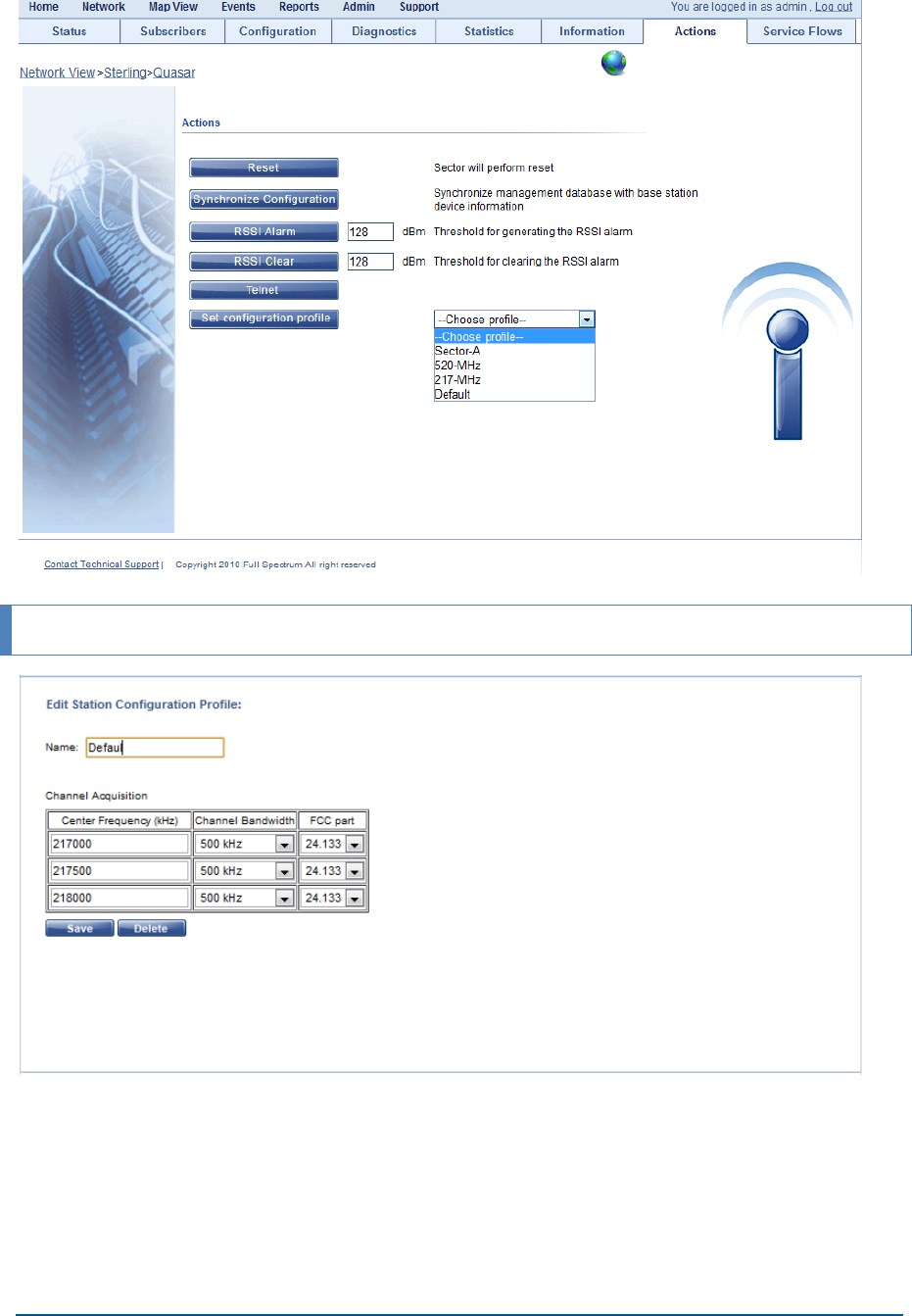

overwritteninthebasestationactiontabscreen.

■ RSSIStatusClearTrapThreshold

ARSSIStatusClearTrapissentthefirsttimeitmeasuresaRSSIvaluethatishigherthan

thisthresholdafterthebasestationhassentanRSSIalarm.Thisparameterisusedfor

defaultvalue,andcanbeoverwritteninthebasestationactiontabscreen.

FullMaxSystemUserGuide:4.0



■ Sendtraps:

TheseparametersareusedtoenableordisableBaseStationtraps.Basestationtraps

include:

 StationStatus

 DynamicServiceFailure

 StationRSSIStatusChange

 PerformanceCounters

 StationRegistration

 PKMFailure

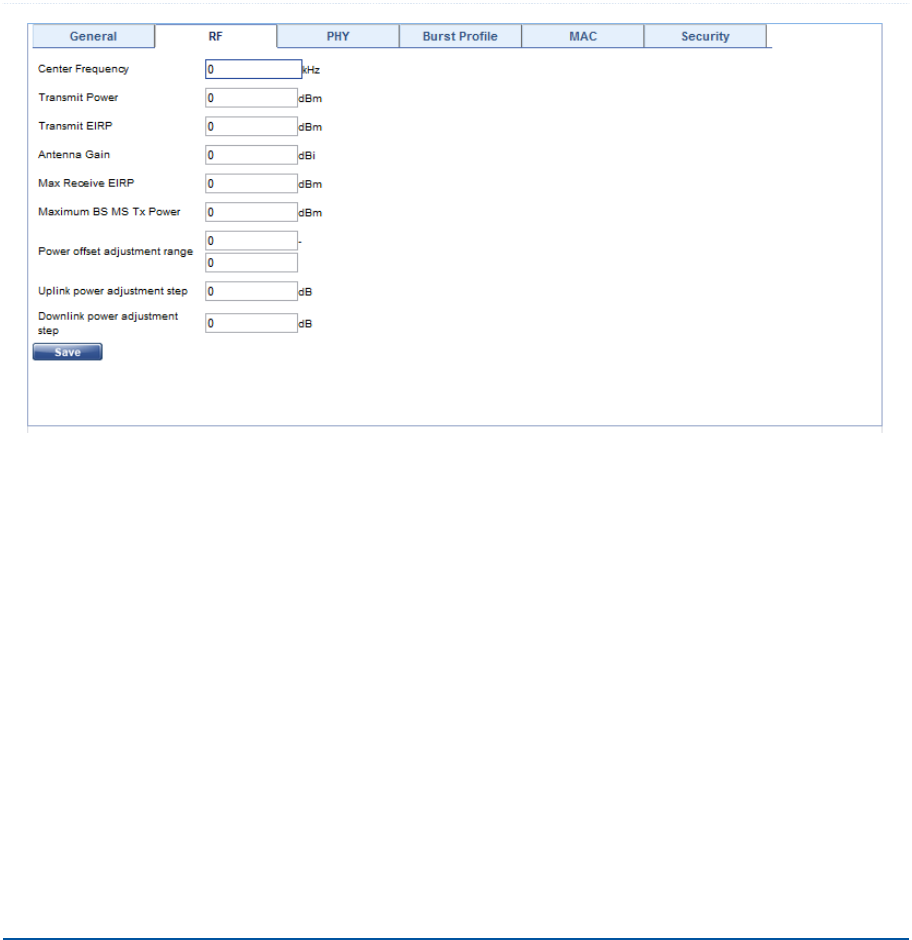

BaseStationRFConfiguration



■ CenterFrequency

■ TransmitPower

■ TransmitEIRP

■ AntennaGain

■ MaxReceiveEIRP

■ PowerOffsetAdjustmentRange

■ UplinkPowerAdjustmentStep

■ DownlinkPowerAdjustmentStep

FullMaxSystemUserGuide:4.0

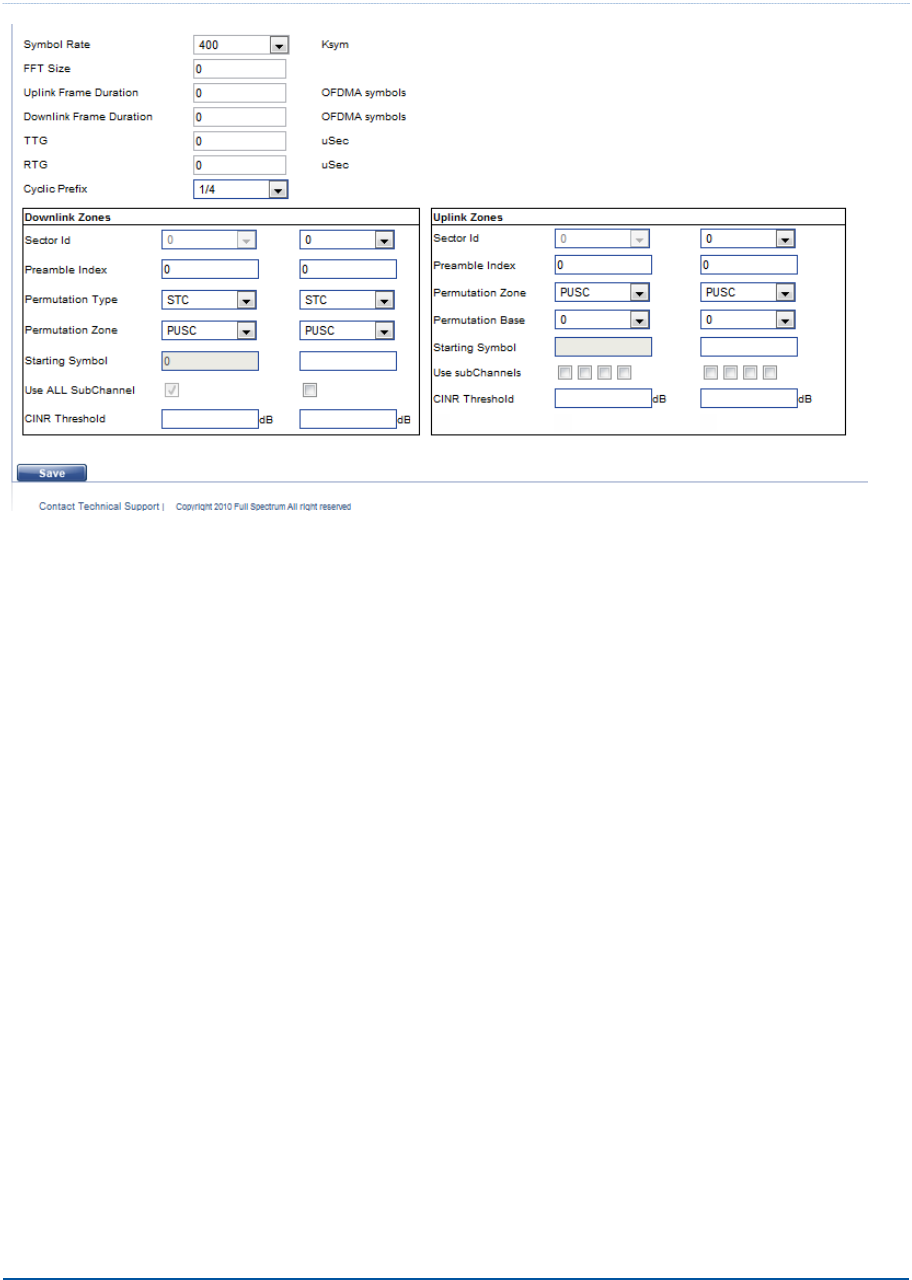

BaseStationPHYConfiguration



■ SymbolRate

■ FFTSize:

TheFastFourierTransform(FFT)value.

■ DownlinkFrameDuration:

ThenumberofOFDMAcodesallocatedforthedownlinktransmission

■ UplinkFrameDuration:

ThenumberofOFDMAcodesallocatedfortheuplinktransmission

■ TTG:

TheTTGisagapbetweenthedownlinkburstandthesubsequentuplinkburst.Thisgap

allowstimeforthebasestationtoswitchfromtransmittoreceivemode.Duringthis

gap,thebasestationisnottransmittingmodulateddatabutsimplyallowingthebase

stationtransmittercarriertorampdown,thetransmit/receiveantennaswitchto

actuate,andthebasestationreceiversectiontoactivate.Afterthegap,thebasestation

receivershalllookforthefirstsymbolsoftheuplinkburst.Thegapismeasuredinunits

ofmicroseconds.

FullMaxSystemUserGuide:4.0



■ RTG:

TheRTGisagapbetweentheuplinkburstandthesubsequentdownlinkburst.Thisgap

allowstimeforthebasestationtoswitchfromreceivetotransmitmode.Duringthis

gap,thebasestationisnottransmittingmodulateddatabutsimplyallowingthebase

stationtransmittercarriertorampupthetransmit/receiveantennaswitchtoactuate.

Afterthegap,thesubscriberstationreceiverslookforthefirstsymbolsofQPSK

modulateddatainthedownlinkburst.Thegapismeasuredinunitsofmicroseconds.

■ CyclicPrefix

Theparameterindicatestheratioofcyclicprefixtimeto'useful'time.

BaseStationBurstProfileConfigurations

Thedownlinkanduplinkchannelssupportadaptiveburstprofilingontheuserdataportion

oftheframe.Thesystemcandefineuptotwelvedownlinkburstprofilesandtenuplink

burstprofiles.Theparametersofeacharecommunicatedtothesubscriberstationthrough

internalMACmessagesduringtheframecontrolsectionofthedownlinkframe.



Eachoftheburstprofilesincludesthefollowingparameters:

■ Modulationtype:

EitherQPSK,16QAMor64QAM

■ ForwardErrorCorrection(FEC)Type:

FullMaxSystemUserGuide:4.0

TheFullMaxsystemcurrentlysupportsConvolutionalCoding(CC)FEC.Inthefuture,

FullMaxwillalsosupportConvolutionalTurboCoding(CTC)FEC.

■ Codingratios:

1/2or3/4arecurrentlysupported.

Inaddition,theuplinkburstprofileincludes:

■ PowerReduction:

‐ Powerreductionin1dBunitsbetweenthepowerusedfortheburstprofileandthe

powerusedforCDMARanging.

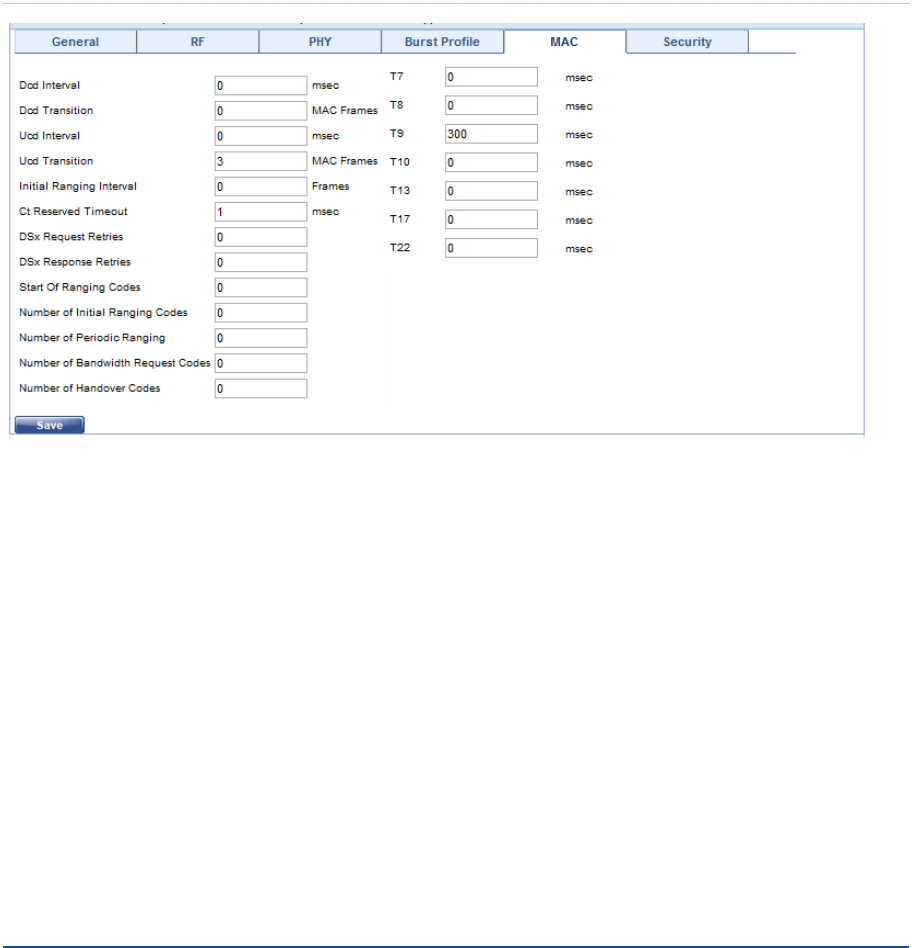

BaseStationMACConfiguration



■ DownlinkChannelDescriptor(DCD)Interval:

ThetimebetweentransmissionsofDCDmessagesmeasuredinunitsofmilliseconds.

■ DCDTransition:

ThenumberofframesthebasestationwillwaitaftertransmittingaDCDmessagewith

anincrementedConfigurationChangeCountbeforeissuingadownlinkMAPmessage

referringtothedownlinkburstprofilesdefinedinthatDCDmessagefromtheendofthe

framecarryingtheDCDmessage.

Theminimumvalueforthisparameteris20millisecondsfollowingthelastfragmentof

themessage.



■ UplinkChannelDescriptor(UCD)Interval:

FullMaxSystemUserGuide:4.0

ThetimebetweentransmissionsofUCDmessagesmeasuredinunitsofmilliseconds.

■ UCDTransition:

ThenumberofframesthebasestationwillwaitaftertransmittingaUCDmessagewith

anincrementedConfigurationChangeCountbeforeissuingadownlinkMAPmessage

referringtotheuplinkburstprofilesdefinedinthatUCDmessagefromtheendofthe

framecarryingtheUCDmessage.

Theminimumvalueforthisparameteris20millisecondsfollowingthelastfragmentof

themessage.

■ InitialRangingInterval:

ThetimebetweenInitialRangingregionsassignedbythebasestationmeasuredinunits

ofmilliseconds.

■ Ct.ReservedTimeout



■ DSxRequestRetries:

NumberofTimeoutRetriesonDynamicServiceAddRequest,DynamicServiceChange

RequestandDynamicServiceDeleteRequest.

Systemdefaultvalueis3retries.

■ DSxResponseRetries:

NumberofTimeoutRetriesonDynamicServiceAddResponse,DynamicServiceChange

ResponseandDynamicServiceDeleteResponse.

Systemdefaultvalueis3retries.

■ StartofRangingCodes



■ NumberofInitialRangingCodes:

NumberofinitialrangingCDMAcodes.

■ NumberofPeriodicRangingCodes:

NumberofperiodicrangingCDMAcodes

■ NumberofBandwidthRequestCodes:

NumberofbandwidthrequestCDMAcodes

Note:thesumofNumberofInitialRangingCodes,NumberofPeriodicRangingCodesand

NumberofBandwidthRequestCodesmustnotexceed256

■ T7:

FullMaxSystemUserGuide:4.0

ThetimethebasestationwillwaitforDynamicServiceAddResponse,DynamicService

ChangeResponseandDynamicServiceDeleteResponsebeforetimeout.Thetimeis

measuredinunitsofmilliseconds.

■ T8:

ThetimethebasestationwillwaitforDynamicServiceAddAcknowledge,Dynamic

ServiceChangeAcknowledgeandDynamicServiceDeleteAcknowledgebeforetimeout.

Thetimeismeasuredinunitsofmilliseconds.

■ T9:

RegistrationTimeout,thetimeallowedbetweenthebasestationsendingaRanging

Response(success)toasubscriberstation,andreceivingaSubscriberBasicCapabilities

Request(SBC‐REQ)fromthatsamesubscriberstation.Thetimeoutismeasuredinunits

ofmilliseconds.

■ T10:

ThetimethebasestationwillwaitforDynamicServiceTransactiontoendbefore

timeout.Thetimeismeasuredinunitsofmilliseconds.

■ T13:

Thetimeallowedforasubscriberstation,followingreceiptofaRegistrationResponse

messagetosendaTFTPcompletemessagetothebasestation.

Thetimeismeasuredinunitsofminutes.

■ T17:

TimeallowedforasubscriberstationtocompletetheSubscriberAuthorizationprocess

andthekeyexchange.

Thetimeismeasuredinunitsofminutes.

■ T22:

ThewaittimeforanARQReset.Thetimeismeasuredinunitsofminutes.

FullMaxSystemUserGuide:4.0

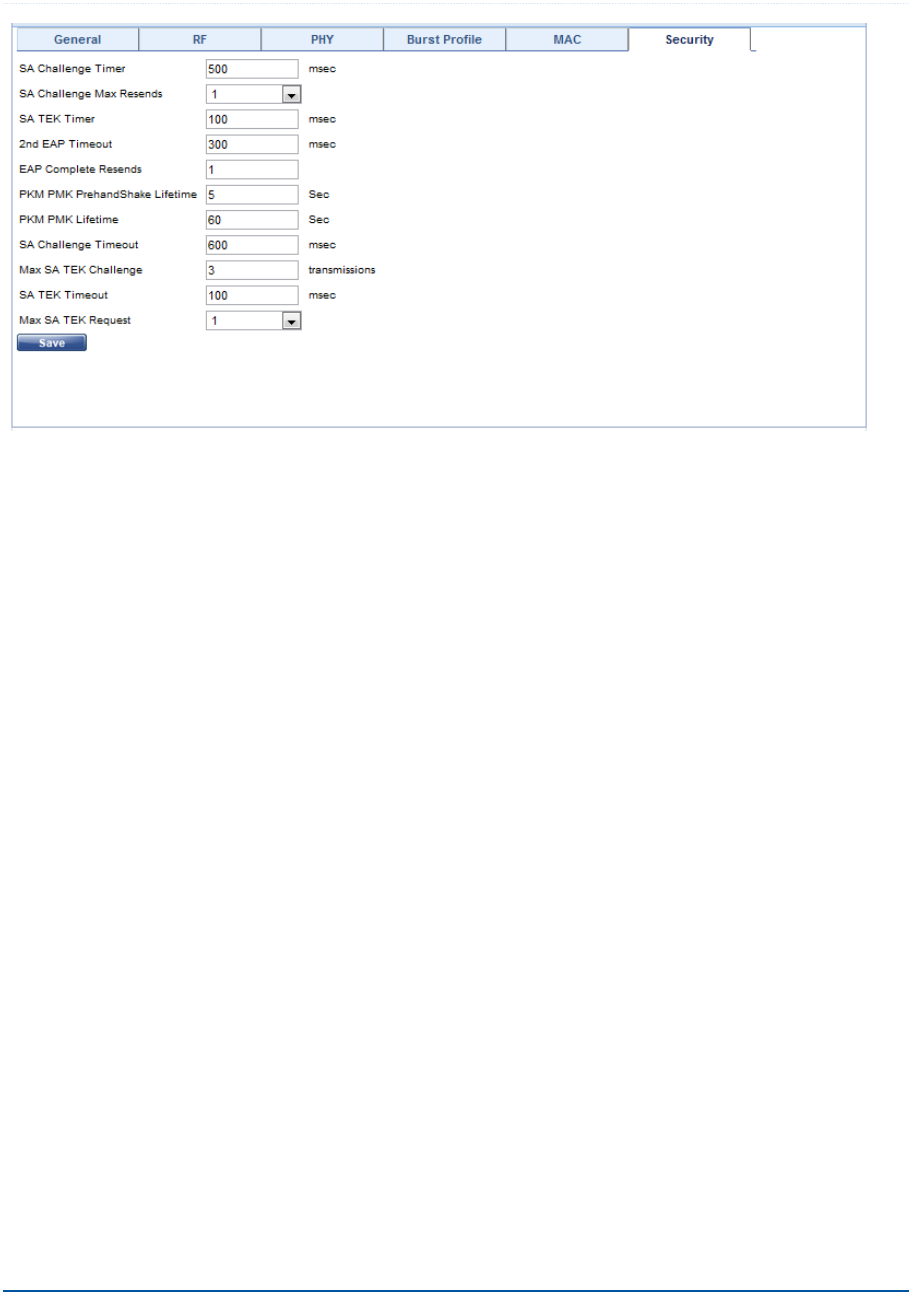

BaseStationSecurityConfiguration



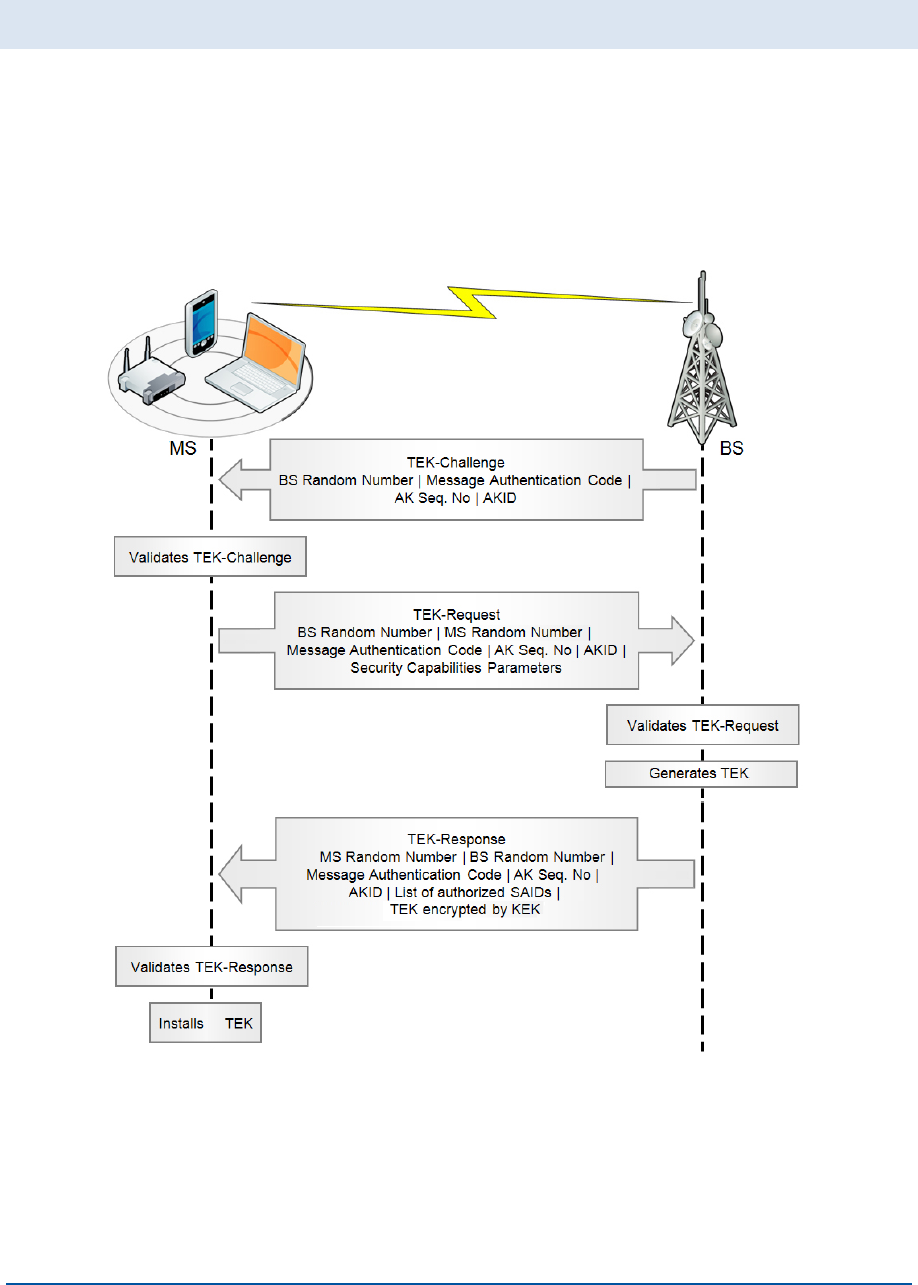

■ SAChallengeTimer:

TimepriortoSA‐TEKChallenge

Theparameterismeasuredinmilliseconds.TheFullMaxsystemdefaultisonesecond

(=1,000milliseconds).

■ SAChallengeMaxResends:

MaximumnumberoftransmissionsofSA‐TEK‐Challenge

TheFullMaxsystemdefaultis3resends.

■ SATEKTimer:

Timepriortore‐sendofSA‐TEKRequest.

Theparameterismeasuredinmilliseconds.TheFullMaxsystemdefaultis300

milliseconds.

■ 2ndEAPTimeout

Time,inseconds,thebasestationwillwaitforPKMv2_EAP_Startor

PKMv2_Authenticated_EAP_StartafterthesuccessofthefirstEAPindoubleEAPmode.

Theparameterismeasuredinmilliseconds.TheFullMaxsystemdefaultisonesecond

(=1,000milliseconds).

■ EAPCompleteResends

TotalnumberofsendingPKMv2_EAP_CompletemessageindoubleEAPmode.

TheFullMaxsystemdefaultis3resends.

FullMaxSystemUserGuide:4.0



■ PrivateKeyManagement:PKMPMKPre‐handshakeLifetime

ThePMKorPAKpre‐handshakelifetime.

Theparameterismeasuredinunitsofseconds.TheFullMaxsystemdefaultvalueis10

seconds.

■ PKMPMKLifetime

WhentheMSKlifetimeisunspecifiedthisparameterdefinesthePMKlifetime.

Theparameterismeasuredinunitsofseconds.TheFullMaxsystemdefaultvalueisone

hour(=3600seconds).

■ SAChallengeTimeout

ThetimeoutvalueforSA‐TEKChallengeretransmission

Theparameterismeasuredinmilliseconds.

■ MaxSATEKChallenge

ThemaximumnumberofSA‐TEK‐Challengetransmissions.TheFullMaxsystemdefault

valueis3transmissions.

■ SATEKTimeout

MaxSATEKRequest

ApplyingBaseStationConfigurations

ToapplyaBaseStationconfigurationprofiletoaspecificbasestation:

■ GototheBaseStationwindow

■ SelecttheActionstab

■ ClicktheonthelistselectionrighttotheSetConfigurationProfilebutton

■ Selecttheprofileyouwanttoassociatewiththisbasestation

■ ClicktheSetConfigurationProfilebutton

 Note:thenewconfigurationparametersarenowsavedinthebasestationbut

arenotyetactive.Thenewparameterswillbeactivatedoncethebasestationis

reset.



FullMaxSystemUserGuide:4.0



ConfiguringSubscriberStations



FullMaxSystemUserGuide:4.0



ApplyingSubscriberStationsConfiguration

Toapplyasubscriberstationconfigurationprofiletoaspecificstation:

■ Gotothesubscriberstationwindow

■ SelecttheActionstab

■ ClicktheonthelistselectionrighttotheSetConfigurationProfilebutton

■ Selecttheprofileyouwanttoassociatewiththisstation

■ ClicktheSetConfigurationProfilebutton

 Note:thenewconfigurationparametersarenowsavedinthebasestationbut

arenotyetactive.Thenewparameterswillbeactivatedoncethebasestationis

reset.



FullMaxSystemUserGuide:4.0



QualityofService

SupportforQualityofService(QoS)isafundamentalpartoftheFullMaxsystemdesign.

StrongQoScontrolisachievedbyusingaconnection‐orientedarchitecturewhereall

downlinkanduplinkconnectionsarecontrolledbytheservingBS1000.Beforeanydata

transmissionhappens,theBS1000andtheFS4000establishaunidirectionallogicallink,

calledaconnection,betweenthetwoMAC‐layerpeers.Eachconnectionisidentifiedbya

connectionidentifier(CID),whichservesasatemporaryaddressfordatatransmissionsover

theparticularlink.Inadditiontoconnectionsfortransferringuserdata,FullMAXdefines

threemanagementconnections—thebasic,primary,andsecondaryconnections—thatare

usedforfunctionssuchasranging.

ServiceClasses

QoSsetsofparametersaresavedinaserviceclass.DifferentQoSparametersareusedfor

differentapplicationstypes.

Scheduling

Tosupportawidevarietyofapplications,FullMAXdefinesfiveschedulingservicesthatare

supportedbythebasestationMACschedulerfordatatransportoveraconnection:

Unsolicitedgrantservices(UGS):Thisisdesignedtosupportfixed‐sizedatapacketsata

constantbitrate(CBR).ExamplesofapplicationsthatmayusethisserviceareVoIPwithout

silencesuppression.Themandatoryserviceflowparametersthatdefinethisserviceare:

maximumsustainedtrafficrate,maximumlatency,toleratedjitter,andrequest/

transmissionpolicy.

Extendedreal‐timePollingService(ErtPS)service:Thisserviceisdesignedtosupportreal‐

timeapplications,suchasSCADAorVoIPwithsilencesuppression,thathavevariabledata

ratesbutrequireguaranteeddatarateanddelay.Themandatoryserviceflowparameters

thatdefinethisservicearemaximumsustainedtrafficrate,maximumlatency,tolerated

jitter,andrequest/transmissionpolicy.

Real‐timepollingservices(rtPS):Thisserviceisdesignedtosupportreal‐timeserviceflows,

suchassurveillancecamerasthatgeneratevariable‐sizedatapacketsonaperiodicbasis.

Themandatoryserviceflowparametersthatdefinethisserviceareminimumreserved

FullMaxSystemUserGuide:4.0

trafficrate,maximumsustainedtrafficrate,maximumlatency,andrequest/transmission

policy.

Non‐real‐timepollingservice(nrtPS):Thisserviceisdesignedtosupportdelay‐tolerant

datastreams,suchasanFTP,thatrequirevariable‐sizedatagrantsataminimum

guaranteedrate.Themandatoryserviceflowparameterstodefinethisserviceare

minimumreservedtrafficrate,maximumsustainedtrafficrate,trafficpriority,and

request/transmissionpolicy.

Best‐effort(BE)service:Thisserviceisdesignedtosupportdatastreams,suchasWeb

browsing,thatdonotrequireaminimumservice‐levelguarantee.Themandatoryservice

flowparameterstodefinethisservicearemaximumsustainedtrafficrate,trafficpriority,

andrequest/transmissionpolicy.

FullMaxSystemUserGuide:4.0

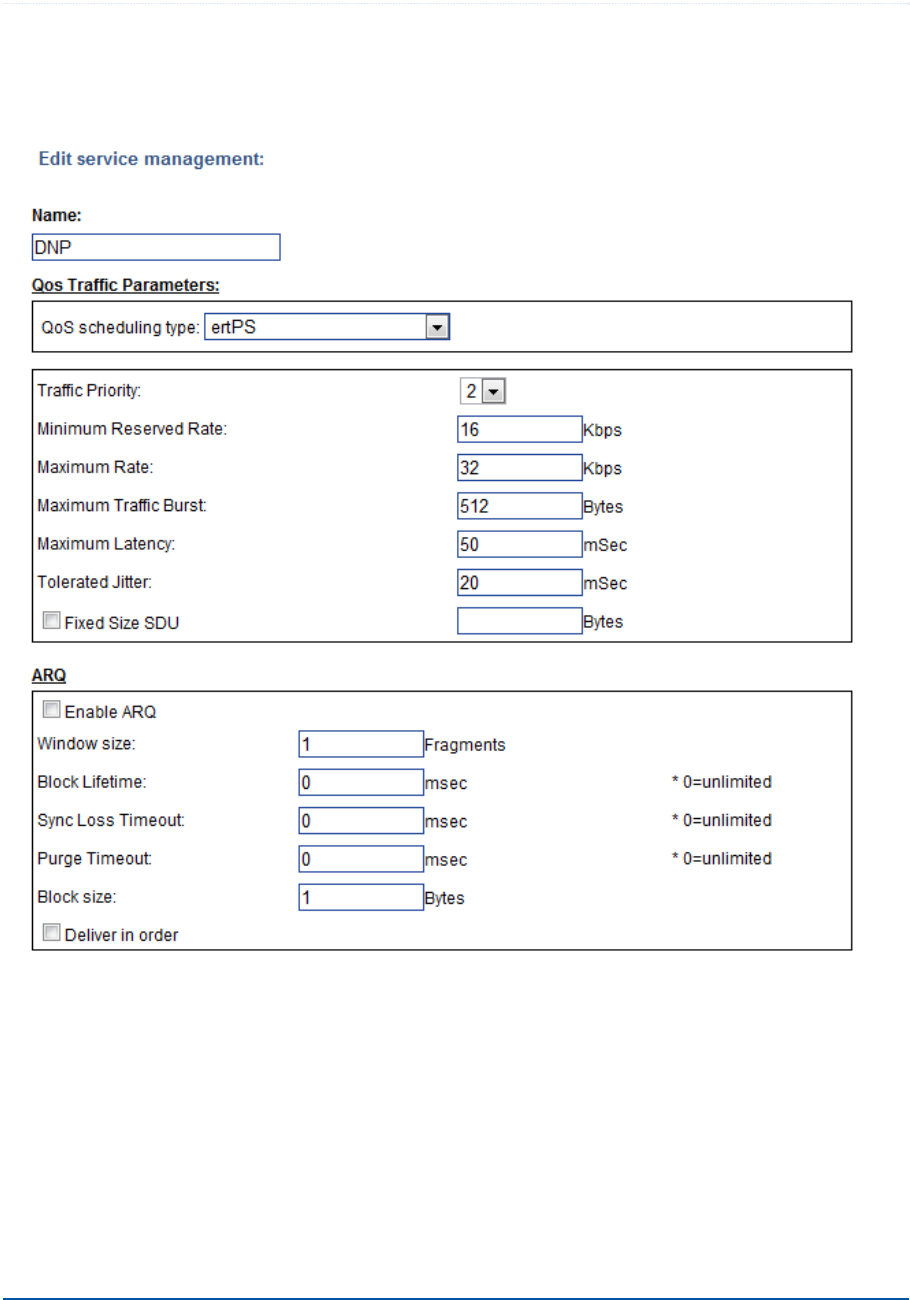

ServiceClassesConfigurationinFullMax

Tocreate/delete/editserviceclassesintheFullMaxsystemgotoAdmin>ServiceClass.

ClicktheAddbuttontoaddanewserviceclass.



■ Name:

Theserviceclassnameisusedasareferencewhenassociatingaserviceflowwitha

serviceclass.

■ SchedulingType:

Thisparameterspecifieswhichschedulingservicetypeisassociatedwiththeservice

flow.

■ TrafficPriority:

FullMaxSystemUserGuide:4.0

Thevalueofthisparameterspecifiesthepriorityofanassociatedserviceflow.This

parameterisavailableincaseofadownlinkoruplinkserviceflowwhichisassociated

withanyotheruplinkschedulingtypeexceptUGS.

■ MinimumReservedTrafficRate:

TheMinimumReservedTrafficRateparameterspecifiestheminimumrate,inkilobits

persecond(kbps),reservedforthisserviceflow.Thebasestationshouldbeableto

satisfyconnectionbandwidthdemanduptoitsminimumreservedtrafficrate.Ifless

bandwidthisrequestedforaconnectionthanitsMinimumReservedTrafficRate,the

basestationwillreallocatetheexcessreservedbandwidthforotherpurposes.A

MinimumReservedTrafficRatesettozeroshallmeannominimumreservedtrafficrate

requirement.

■ MaximumTrafficRate:

TheMaximumTrafficRateparameterdefinesthepeakinformationrateoftheservice.

Therateisexpressedinkilobitspersecond(kbps)andpertainstotheservicedataatthe

inputtothesystem.Thisparameterdoesnotlimittheinstantaneousrateoftheservice

sincethisisgovernedbythephysicalattributesoftheingressport.However,atthe

destinationnetworkinterfaceintheuplinkdirection,theserviceshallbepolicedto

conformtothisparameter,ontheaverage,overtime.Onthenetworkinthedownlink

direction,itmaybeassumedthattheservicewasalreadypolicedattheingresstothe

network.Ifthisparameterissettozero,thenthereisnoexplicitlymandatedmaximum

rate.Themaximumtrafficratefieldspecifiesonlyabound,notaguaranteethatthe

rateisavailable.

■ MaximumTrafficBurst:

TheMaximumtrafficburstparameterdefinesthemaximumburstsizethatmustbe

accommodatedfortheservice.Sincethephysicalspeedofingress/egressports,theair

interface,andthebackhaul,willingeneralbegreaterthanthemaximumtrafficrate

parameterforaservice,thisparameterdescribesthemaximumcontinuousburstthe

systemshouldaccommodatefortheserviceassumingtheserviceisnotcurrentlyusing

anyofitsavailableresources.MaximumTrafficBurstsettozeromeansnoMaximum

TrafficBurstreservationrequirement.

■ MaximumLatency:

Thevalueofthisparameterspecifiesthemaximumintervalbetweenthereceptionofa

packetatthebasestationorthesubscriberstationandtheforwardingofthepacketto

itsAirInterface.AvalueofzeroforMaximumLatencyisinterpretedasnocommitment.

■ Tolerated Jitter:

FullMaxSystemUserGuide:4.0

Thevalueofthisparameterspecifiesthemaximumdelayvariation(jitter)forthe

connection.Thisparameterisavailableincaseofadownlinkoruplinkserviceflow

whichareassociatedwithUplinkGrantSchedulingType=UGSorertPS.Avalueofzero

forToleratedJitterisinterpretedasnocommitment.

■ EnableARQ:

ThisparameterindicateswhethertheAutomaticRepeatRequest(ARQ)useisrequested

fortheconnectionthatisbeingsetup.

■ WindowSize:

Windowsizeindicatesthemaximumnumberofunacknowledgedfragmentsatanytime.

■ BlockSize:

ThevalueofthisparameterspecifiesthesizeofanARQblock.

■ BlockLifetime:

ThemaximumtimeintervalanARQfragmentwillbemanagedbythetransmitterARQ

machine,onceinitialtransmissionofthefragmenthasoccurred.Iftransmissionor

retransmissionofthefragmentisnotacknowledgedbythereceiverbeforethetime

limitisreached,thefragmentisdiscarded.Avalueof0meansinfinite.

■ SyncLossTimeout:

Thisparameterindicatesthemaximumintervalbeforedeclaringalossof

synchronizationofthesenderandreceiverstatemachines.Avalueof0meansinfinite.

■ PurgeTimeout:

IndicatesthetimeintervaltheARQwindowisadvancedafterafragmentisreceived.A

valueof0meansinfinite.

■ DeliverinOrder:

Whenchecked,thedataofthisservicewillbedeliveredbythereceivingMACtoits

clientapplicationintheorderinwhichdatawashandedofftotheoriginatingMAC.

ServiceFlows

FullMAXalsodefinesaconceptofaserviceflow.Aserviceflowisaunidirectionalflowof

packetswithaparticularserviceclass.TheserviceflowisprovisionedthroughtheNetwork

ManagementSystem(NMS).



ServiceFlowsConfigurationinFullMax

FullMaxSystemUserGuide:4.0

Tocreate/delete/editserviceflowsintheFullMaxsystemgotoAdmin>ServiceFlow

Profiles.Theapplicationmaytakesometimetoloadduringthefirsttimeitrunsina

browser.



ClicktheAddbuttontoaddanewserviceflow.Clickoneoftheserviceflowsinthelistto

edittheserviceflowordeleteit.



Theserviceflowwindowdisplaysthefollowingparameters.

FullMaxSystemUserGuide:4.0

■ Name:

Theserviceflownameisusedasareferencewhenassociatingasubscriberstationwith

aserviceflow.

■ ServiceClass:

ThesetofQualityofService(QoS)parametersassociatedwiththeserviceflow.

■ Direction:

Thisparameterindicateswhetherthedirectionoftheserviceflowisuplinkordownlink

■ State:

Thisparameterdeterminestherequestedstateofaserviceflow.Thefollowingstates

areavailable:

 AuthorizedState:aserviceflowisprovisionedbutnoresourceisreserved

yet

 AdmittedState:aserviceflowhasresourcesreserved.

 ActiveState:aserviceflowhasresourcescommittedbytheBS1000



■ ConvergenceSublayer:

Ethernetissupportedatthisstage.

Classifiers

Classificationistheprocessbywhichapacketismappedontoaparticulartransport

connectionfortransmissionbetweenpeers.Themappingprocessassociatesapacketwitha

transportconnection,whichalsocreatesanassociationwiththeserviceflowcharacteristics

ofthatconnection.ThisprocessfacilitatesthedeliveryofpacketswiththeappropriateQoS

constraints.Aclassificationruleisasetofmatchingcriteriaappliedtoeachpacketentering

theFullMaxnetwork.Itconsistsofsomeprotocol‐specificpacketmatchingcriteria

(destinationIPaddress,forexample),aclassificationrulepriority,andareferencetoa

ConnectionID(CID).Ifapacketmatchesthespecifiedpacketmatchingcriteria,itisthen

deliveredontheconnectiondefinedbytheCID.Theserviceflowcharacteristicsofthe

connectionprovidetheQoSforthatpacket.Severalclassificationrulesmayeachreferto

thesameserviceflow.Theclassificationrulepriorityisusedfororderingtheapplicationof

classificationrulestopackets.Explicitorderingisnecessarybecausethepatternsusedby

classificationrulesmayoverlap.Thepriorityneednotbeunique,butcareshouldbetaken

withinaclassificationruleprioritytopreventambiguityinclassification.Downlink

classificationrulesareappliedbythebasestationtopacketsitistransmittinganduplink

classificationrulesareappliedatthesubscriberstation.

FullMaxSystemUserGuide:4.0

ClassifiersConfigurationinFullMax

Toaddaclassifiertoaserviceflow,clicktheAddbuttonintheserviceflowwindow.Toedit

ordeleteaserviceflow'sclassifier,clicktheclassifierfromtheclassifiers'listintheservice

flowwindow.



■ Name:

Classifiername

■ Priority:

ThevaluespecifiesthepriorityfortheClassifier,whichisusedfordeterminingtheorder

oftheClassifier.Ahighervalueindicateshigherpriority.

■ ActionRule:

Specifiesanactionassociatedwiththisclassifier.Ifsettoaccept,apacketthatmatches

allcriteriadefinedintheclassifierrulewillbedeliveredwiththeserviceflowthatis

associatedwiththisclassifierrule.Ifsettodiscard,apacketthatmatchesallcriteria

definedintheclassifierrulewillbediscarded.

FullMaxSystemUserGuide:4.0



IPHeaderFields

■ ToS:low–highmask

TheseparametersspecifythematchingcriteriafortheIPtypeofserviceorDSCPinthe

IPheaderofthepacket.AnIPpacketwithIPtypeofservice(ToS)bytevalueip‐tos

matchesthisparameterif:

Low≤ip‐tosANDmask≤high

■ IPProtocol:

ThisparameterindicatesthevalueoftheIPProtocolfieldrequiredforIPpacketsto

matchthisrule.



■ SourceIP:addressmask:

TheseparametersspecifythevalueoftheIPsourceaddressrequiredforpacketsto

matchthisrule.AnIPpacketwithsourceIPaddressvaluesrc‐addrmatchesthis

parameterif:



src‐addrANDmask=address

■ DestinationIP:addressmask:

TheseparametersspecifythevalueoftheIPdestinationaddressrequiredforpacketsto

matchthisrule.AnIPpacketwithdestinationIPaddressvaluedst‐addrmatchesthis

parameterif:

dst‐addrANDmask=address

■ SourcePort:lowhigh:

TheseparametersspecifytherangematchingcriteriafortheTCP/UDPsourceport.A

TCP/IPpacketorUDP/IPpacketwithTCP/UDPvaluesrc_portmatchesthisparameterif:

Low≤src_port≤high

■ DestinationPort:lowhigh:

TheseparametersspecifytherangematchingcriteriafortheTCP/UDPdestinationport.

ATCP/IPpacketorUDP/IPpacketwithTCP/UDPvaluedst_portmatchesthisparameter

if:

Low≤dst_port≤high

FullMaxSystemUserGuide:4.0

EthernetFields

■ SourceMAC:addressmask:

TheseparametersspecifythevalueoftheEthernetsourceaddressrequiredforpackets

tomatchthisrule.AnEthernetpacketwithsourceEthernetaddressvaluesrc‐addr

matchesthisparameterif:

src‐addrANDmask=address

■ DestinationMAC:addressmask:

TheseparametersspecifythevalueoftheEthernetdestinationaddressrequiredfor

packetstomatchthisrule.AnEthernetpacketwithdestinationEthernetaddressvalue

dst‐addrmatchesthisparameterif:

dst‐addrANDmask=address

■ EthernetProtocol:protocoltype:

Theseparametersindicatethelayer‐threeprotocolIDanditsformatintheEthernet

packet.

AtypevalueDIXmeansthattheruleappliesonlytoframesthatusetheDec‐Intel‐Xerox

(DIX)encapsulationortheRFC‐1042Sub‐NetworkAccessProtocol(SNAP)

encapsulationformat.ADIXorSNAPencapsulatedEthernetframewithlayer‐three

protocolvalueether_protocolmatchesthisparameterif:

type=DIXANDether_protocol=protocol

AtypevalueofDSAPmeansthattheruleappliesonlytoframeusingtheIEEE‐802.3

encapsulationformatwithDestinationServiceAccessPoint(DSAP)otherthen0xAA

(whichisreservedtoSNAP).ADSAPencapsulatedEthernetframewithDSAPvaluedsap

matchesthisparameterif:

type=DSAPANDdsap=protocol



Iftheheadercontainsan802.1P/QTagheader(i.e.Ethernettype=0x8100),thetype

parameterappliestotheembeddedEtherTypefieldwithinthe802.1P/Qheader.

PayloadHeaderSuppression(PHS)

TheFullMaxsystemenablestheusertoassociateapayloadheadersuppression(PHS)rule

withaclassifier.InPHS,arepetitiveportionofthepayloadheaderissuppressedbythe

sendingentityandrestoredbythereceivingentity.IfPHSisenabledatFullMaxconnection,

eachpacketisprefixedwithaPHSindex.Thesendingentityusesclassificationrulestomap

packetsintoaserviceflow.Theclassificationruleuniquelymapspacketstoitsassociated

PHSRule.ThereceivingentityusestheCIDandthePHSindextorestoretheoriginal.

FullMaxSystemUserGuide:4.0

ThePHSconfigurationfunctionallowstheFullMaxNMSusertorequestthefieldstobe

suppressedonaspecificclassifier.Thefirstpacketthatmatchestheclassifiercausesthe

sendingentitytolearnthesuppressedfields'valuesandtoupdatethereceivingentitywith

thevalues.ThePHShasapayloadheadersuppressionvalidoptiontoverifyornotverifythe

payloadheaderbeforesuppressingit.Ifvalidationfails,thesendingentitywillchangethe

PHSfields'valuesandwillupdatethereceivingentity.Theuserisexpectedtoselectheader

fieldsthatremainstaticwithinahigherlayersession(e.g.,IPaddresses)tobesuppressed,

whileenablingtransmissionoffieldsthatchangefrompackettopacket(e.g.,IPTotal

Length).

PHSTemplates

Packetheaderfieldsarehighlydependentonthepacketformat.TheFullMaxsystemhasa

setoftemplatesthatcatchesstandardframe/packetstructures.Theseinclude:

■ TCP/Ethernet

■ TCP/VLAN/Ethernet

■ DNP/TCP/Ethernet

■ DNP/TCP/VLAN/Ethernet

■ UDP/Ethernet

■ UDP/VLAN/Ethernet

■ DNP/UDP/Ethernet

■ DNP/UDP/VLAN/Ethernet

■ RTP/UDP/Ethernet



AtemplateisanXMLfilethatincludesthelistoffieldsandtheirsizes.Newtemplatescanbe

generatedandaddedtothesystemwithoutanychangetotheFullMaxNMSsoftware.

FullMaxSystemUserGuide:4.0

PHSConfigurationinFullMax

ToaddaclassifiertoaPHSruletoaclassifier,clicktheAddbuttonintheclassifierwindow.

Toeditordeleteaclassifier'sPHSrule,clickthePHSlinkintheclassifierswindoworusethe

treenavigationontheleftsideofthewindow.



WhenclickingtheAddbuttonthelistofheaderstructuretemplatesisopen.



ThePHSwindowdisplaysallheaderfieldsoftheselectedframes/packetsalongwiththeir

sizes.Theusermayselectwhichofthefieldsshouldbesuppressedandwhichshouldbe

FullMaxSystemUserGuide:4.0

transferreduntouched.Theusermustcheckthe'Verify'checkboxiftheclassifierruleisnot

completelyspecific.ForexampleiftheUDPportmayvarybetweensessions,andthe

classifierstatesarangeofUDPports,itisrequiredthatthesendingentitywillverifythe

valueandupdatethereceivingentitywhenanewsessionstartsandtheportvaluehas

changed.

PacketFiltering

Packetfilteringistheselectivepassingorblockingofdatapacketsastheypassthroughthe

FullMaxnetworkinterface.TheFullMaxsystemenablestheoperatortodefinepacket

filteringusingserviceflowsandclassifiers.Ifyoudefineaclassifierwiththeactionrule

'DiscardPackets',allpacketsthatmatchtheclassifierwillbediscarded.



FullMaxSystemUserGuide:4.0



CHAPTER4:MONITORINGFULLMAXSYSTEM



MonitoringDeviceStatus

FullMaxNMSmonitorsFullMaxdevicestotracktheirstatus.Thisisdonethroughpolling.

Therearedifferentmechanismstomonitorthestatusofbasestationsandthestatusof

subscribers'stations.BothmechanismsareoperatedbythePollermoduleintheFullMax

NMS.

MonitoringDeviceStatus

BaseStations

FullMaxNMSPollerisaperiodicprocess.Thepollerwakes‐upeveryconfigurabletime,

connects to a FullMax base stations and performs a simple test to see if the resource is responding

correctly. If not, the process is repeated several more times. If the base station is still not responding

correctly, FullMax NMS will change its status to disconnected.

SubscribersStations

Subscribers'stationsstatusmonitoringisperformedintwostages:

■ BaseStationsmonitorthesubscribers'stationstatusbyperiodicallyrequestingthe

subscribers'toperformranging.Ifseveralperiodicrangingrepliesremainunanswered,

thebasestationderegistersthesubscriberstationandremovesthesubscriberfromits

registeredsubscriberstable.

■ FullMaxNMSperiodicallyreadsthebasestation'sregisteredsubscriberstableand

comparesitwiththecurrentstatusofthesubscribersandupdateditaccordingtothe

subscriber'snewstatus.

DisplayingDeviceStatus

Therearetwowaystoviewthecurrentstatusofadevice:

 Thedevicecolor,asdisplayedinseveraldifferentwindowssuchas:thehomepagetree,

devicepage,subscriber`spageandmapview.

Thecolorgreenindicatesthatthedeviceisconnected.

FullMaxSystemUserGuide:4.0

Thecolorredindicatesthatthedeviceisdisconnected.

 Thestatustabofthedevicepagealwaysdisplaysthedevicestatus(e.g.connected/

disconnected)

DeviceStatusTab

Mostofthedevicestatusparametersarereadonceeverytimeitboots‐up,other

parametersupdatedperiodically.

Parametersthatareperiodicallyupdatedarethestationstatusandformobilestationonly

thelatitudeandlongitude.Otherparameters,suchasboottime,IPaddressandsoftware

versionareupdatedafterthedevicerebootsorasubscriberstationperformsregistration

withanewbasestation.



Thedevicestatustabdisplaysthefollowingstatusparameters:

StationSummary

■ Type–isthestationtype,e.g.basestation,fixedsubscriberstationormobilesubscriber

station.

■ Status–currentstatusofthestatione.g.connectedordisconnected.

■ Name–thenameassignedtothestation.

FullMaxSystemUserGuide:4.0

■ Latitude/Longitude–thestationgeographicallocation

■ IPAddress‐IPaddressassignedtothestation

■ MACAddress–MACaddressofthestation

■ BootTime–latesttimethestationhasstarted.



Version

■ BBPHW–BasebandProcessorhardwareversion.

■ AFEHW–AnalogFrontEndhardwareversion.

■ AFESW–AnalogFrontEndhardwareversion

■ SWBuild–SoftwareBuildnumber

■ LVPS–LowVoltagePowerSupplyversion

AlarmStatus

Displayscountofoutstandingalarmsrelatedtothestationdevice.

Alarmsareeventsofseveritywarning,minor,majororcritical.Alarmsareoutstandingifthe

problemstillexists(thealarmwasnotcleared)andnouserhadyetacknowledgedit.

Thealarmstatusonabasestationsectorcountsalarmsofthebasestationdeviceitselfand

alsoalarmsofallitsassociatedfixedandmobilestations.



FullMaxSystemUserGuide:4.0

MonitoringNetworkChanges

OneofthemainfunctionsoftheFullMaxNMSistheprocessofdetectingchangeswithin

thenetwork.EverychangeinthenetworkistranslatedbytheFullMaxNMStoanevent.

Therearetwomaintypesofevents:thosegeneratedinternallybytheFullMaxNMSserver

andthosegeneratedbythedevicesandsenttoFullMaxNMSusingSNMPtraps.AFullMax

devicemaygenerateatrapwhenoneofitsfansismalfunctioning,whileFullMaxNMSmay

generateaneventwhenanewunknownsubscriberstationappearsinabasestation's

registeredsubscriberstable.

EventsFeatures

Severity

Eacheventhasalevelofseverity.Anevent'sseverityindicatestheorderinwhichthe

FullMaxNMSclientsshouldhandlethateventrelativetoeventsofotherseverities.Levels

ofseverityareintendedtohelptheFullMaxclientstoprioritizetheirwork.

ThefollowingseveritiesareavailableforFullMaxevents:

 Critical

This event means a base station device on the network is down.

If such an event is outstanding in the system, all FullMax NMS clients will show a flashing critical

warning on the page header.

 Major

A subscriber's fixed station is down or in danger of going down.

 Minor

A part of a device (a service, and interface, a fan, etc.) has stopped functioning.

 Warning

An event has occurred that may require action. This severity can also be used to indicate a

condition that should be noted (logged) but does not require direct action.

FullMaxSystemUserGuide:4.0

 Normal

The event carries informational message. No action required.

Status

Aneventwithseveritynormalisaninformationaleventanditisnotrequiredtomonitorits

status.Eventsofhigherseveritiesmayrequiremonitoring.Toassistwithmonitoringevents

FullMaxNMSmaintainsstatustrackingontheseevents.Whenaneweventisgeneratedthe

event'sstatusissetto'outstanding'.AFullMaxNMSusermayacknowledgeanevent,

statingthattheproblemreportedbytheeventishandledbytheacknowledginguser.The

statusoftheeventwillbesetto'acknowledged'.WhenFullMaxNMSdetectsthatthe

problemreportedbytheeventisfixed,itwillchangethestatusoftheeventto'cleared'.A

FullMaxNMSusermayalsomanuallycleartheevent.

Theeventstatusisdisplayedinalleventlistpages(e.g.MajorSystemEvents).Detailson

thetimewhentheeventwasacknowledgedandcleared,andtheacknowledgingusercan

bedisplayedintheEventDetailspage.

EventsCorrelation

SomeoftheFullMaxsystemeventsindicateastepinaprocess.Suchaneventcanbea

subscriber'sstationinitializationprocess,whichincludesthestepsofranging,registration,

serviceflowcreationetc.FullMaxNMSidentifytheseprocessesandcorrelatealleventsthat

arerelatedtoasingleprocessandsetthemunderasinglerootevent.



FullMaxSystemUserGuide:4.0

Eventslistswillonlydisplaytherootevents.Thedetailsofthedifferenteventsinthe

processaredisplayedintheEventDetailspageasshownabove.

MajorSystemEvents

TodisplaythesystemmajoreventsgotoAdmin>MajorEvents.TheNMSwilldisplaythe

followinglist:



Thelistincludesthefollowingcolumns:

 Selectallowstheusertoselectseveraleventsandperformanactionontheselected

events.

 Timeisthefirstoccurrenceoftheevent

 Relatedelementisthenetworkelement/deviceonwhichthechangewasdetected

 Typeisthenetworkelementtype(tower,sector,mobilesubscriberstationorfixed

subscriberstation)

 Severityindicatesthelevelofattentiononeshouldpaytothechangethatoccurredin

thesystem.SeesectionError!Referencesourcenotfound.fordetails.

 Descriptionisashorttextexplainingthenatureofthechangedetectedinthenetwork.

FullMaxSystemUserGuide:4.0

 Statusoftheevent.

EventsListsNavigation

Whenthelistofeventsdoesnotfitintoasinglepage,FullMaxNMSwillshowatthebottom

ofthepage:

 Pagenumber–thenumberofthelistpagecurrentlydisplayed

 Previouspage–alinktopreviousevents

 Nextpage–alinktomoreevent

EventsActions

Thefollowingactionscanbeperformedonasingleeventoralistofselectedevents:

 Acknowledge–changestheevent'sstatusto'acknowledged'andstoresthe

acknowledginguserandactiontimeintheFullMaxNMSdatabase.

 Clear–changestheevent'sstatusto'cleared'andstorestheclearinguserandaction

timeintheFullMaxNMSdatabase.

 Delete–deletetheeventfromFullMaxNMSdatabase.

 SelectAll–selectsalleventsdisplayedinaneventslistpage.

EventDetails

Eventslistsdisplayashortdescriptionofeachevent.Toshowamoredetaileddescription,

enhancedstatus(includingacknowledginguserandtime,clearinguserandtime)orthelist

ofeventscomposingacorrelatedevent,clickthedescriptionlinkintheeventslist.This

actionwillopentheEventDetailspage.

Thefollowingactionscanbeperformed:

 Acknowledge–changestheevent'sstatusto'acknowledged'andstoresthe

acknowledginguserandactiontimeintheFullMaxNMSdatabase.Iftheeventis

alreadyacknowledgedorcleared,theactionisnotavailable.

 Clear–changestheevent'sstatusto'cleared'andstorestheclearinguserandaction

timeintheFullMaxNMSdatabase.Iftheeventisalreadycleared,theactionisnot

available.

FullMaxSystemUserGuide:4.0

 Delete–deletetheeventfromFullMaxNMSdatabase.

 Close–closetheeventdetailspageandgobacktoeventslist.



SearchingforEvents

FullMaxNMSallowstheusertofiltereventsaccordingtospecificparameters.Tofilter

eventsclickEvents>searchfromtheNMSmenu.



FilterParameters

Thefollowingparameterscanbeusedforfilteringevents:

FullMaxSystemUserGuide:4.0

■ EventDescription–filterouteventsthatthistextisnotpartoftheirdescription.

■ Occurredon–filterouteventsthatoccurredbeforethefromfieldandafterthetofield

■ Severity–filtereventswithrequestedseverities

■ EventStatus–filtereventswithrequestedstatus

■ Showarchivedevents–FullMaxNMScachesthelatesteventsforquickaccessand

optimizationpurposes.Othereventsarearchived.Bydefaulteventswillbesearchedon

recenteventscache.Checkingthe'showarchivedevents'checkboxwillextendthe

searchtothearchivedevents.Notethatthismayinduceaslowersearchoperation.

■ IPAddress–filtereventsthatarerelatedtoadevicewithIPaddressthatcontainsthe

textinthisfield.

■ StationName–filtereventsthatarerelatedtoadevicewithnamethatcontainsthe

textinthisfield.

■ StationType–filtereventsthatarerelatedtoadeviceofthistype.

SortingParameters

Theusercancontroltheorderbywhichthefilteredeventsaredisplayed.Sortingoptions

include:

■ SortbyParameter–eventslistcanbesortedby:occurrencetime(default),severity,

descriptionorstatus.

■ SortOrder–youmaysorttheresultsineitherascendingordescendingorder.



FullMaxSystemUserGuide:4.0

PerformanceMonitoring

FullMaxNMSisequippedwiththeabilitytoconstantlymonitorawiderangeof

performanceparameterssuchastrafficthroughput,signalqualityandmore.Themonitored

parametersarecollectedandkeptadesignateddatabaseforaperiodofuptooneyear.

Thesedetailsprovidethenetworkoperatoranin‐depthanalysisandvisibilityintothe

performanceoftheFullMaxdevices.

DisplayingDevicePerformance

Performanceparametersaredisplayedinagraphicalpresentation.Parametersaregrouped

accordingtodifferentperformancegroups.Theusercanselecttheperformancegroupand

thetimerangeoverwhichtheperformancewillbegraphed.

TodisplayperformancestatisticsofaFullMaxdevice,gotothedevicepageandselectthe

Statisticstab.



BaseStationPerformanceParameters

■ TrafficRategroupincludesreceiveduplinktrafficrate,transmitteddownlinktrafficrate,

receivedLANtrafficrateandtransmittedLANtrafficrate.Theseparametersare

measuredinunitsofbits/sec.

■ PacketRategroupincludesreceiveduplinkpacketrate,transmitteddownlinkpacket

FullMaxSystemUserGuide:4.0

rate,receivedLANpacketrateandtransmittedLANpacketrate.Theseparametersare

measuredinunitsofpackets/sec.

■ ResponseTimeparametermeasuresthetimepassedsinceFullMaxNMSsentaPING

messagetotheFullMaxdeviceuntilaPINGresponsewasreceivedattheFullMaxNMS.

Responsetimeismeasuredinunitsofmilliseconds.

■ DataRateUplinkandDataRateDownlinkdisplaytheamountofclearuserdataversus

theamountofallFullMaxdatatraversingontheuplinkanddownlinkchannels.All

FullMaxdataincludesuserdata,WiMaxheadersandoverhead,FullMaxmanagement

messagesandoverhead.Theseparametersaremeasuredinunitsofbits/sec.

 Note!Whenchangingperformanceparameteronbasestationorsubscriber

stationstatisticstab,itisnecessarytoclicktheOKbuttontoactivatethequery.

SubscriberStationPerformanceParameters

■ TrafficRategroupincludesreceiveddownlinktrafficrate,transmitteduplinktrafficrate,

receivedLANtrafficrateandtransmittedLANtrafficrate.Theseparametersare

measuredinunitsofbits/sec.

■ PacketRategroupincludesreceiveddownlinkpacketrate,transmitteduplinkpacket

rate,receivedLANpacketrateandtransmittedLANpacketrate.Theseparametersare

measuredinunitsofpackets/sec.

■ ResponseTimeparametermeasuresthetimepassedsinceFullMaxNMSsentaPING

messagetotheFullMaxdeviceuntilaPINGresponsewasreceivedattheFullMaxNMS.

Responsetimeismeasuredinunitsofmilliseconds.

■ SignalQualitygroupdisplaythedownlinkanduplinkRSSIandCINRofthesubscriber

station.

SelectingGraphTimeRange

Youmayselectatimerangeforthedisplayedperformanceparameters.Youmayrequestto

seedatacollectedon:thelasthour,lastday,lastweek,lastmonth,lastyearoraddyour

owntimerange,startingfromaspecificdatetoaspecificdate.

 Note!WhenaskingforspecificdatesitisnecessarytoselecttheCustomRange

optionaswellasselectingthestartandenddatesforthetimerange.

FullMaxSystemUserGuide:4.0



CHAPTER5:FULLMAXSECURITY



ThissectionreviewsthesecuritymechanismsincludedintheFullMaxsystem.TheFullMax

systemprovidestwobasicsecurityservices:authenticationandconfidentiality.

AuthenticationinvolvestheprocessofverifyingtheidentityclaimedbyaFullMaxdevice.

Confidentialityinvolvespreventingthedisclosureofinformationbyensuringthatonly

authorizeddevicescanviewthecontentsofFullMaxdatamessages.

TheFullMaxsystemprovidessecurecommunicationsbyperformingthreesteps:

authentication,keyestablishment,anddataencryption.Theauthenticationprocedure

providescommonkeyingmaterialfortheBaseStationsandRemoteStationsandfacilitates

thesecureexchangeofdataencryptionkeysthatensuretheconfidentialityofFullMaxdata

communications.

SecurityAssociations

Asecurityassociation(SA)isasharedsetofsecurityparametersthataBaseStationandits

Remotesusetofacilitatesecurecommunications.SimilarinconcepttoInternetProtocol

Security(IPsec),anSAdefinesthesecurityparametersofaconnection,i.e.,encryptionkeys

andalgorithms.SA’sfallintooneoftwocategories:authorizationanddata.AdistinctSAis

establishedforeachserviceofferedbytheBaseStation.

AuthorizationSA’sfacilitateauthenticationandkeyestablishmenttoconfiguredataSA’s.

AuthorizationSA’scontainthefollowingattributes:

■ X.509certificates.X.509digitalcertificatesallowFullMAXcommunicationcomponents

tovalidateoneanother.TheFullMaxmanufacturercertificateisusedforinformational

purposesandtheBaseStationandRemoteStationcertificatescontaintherespective

devices’publickeys.ThecertificatesaresignedbyFullSpectrumormaybesignedbya

third‐partycertificationauthority.



■ Authorizationkey(AK).AK’sareexchangedbetweentheBaseStationanditsRemote

Stationstoauthenticateoneanotherpriortothetrafficencryptionkey(TEK)exchange.

TheauthorizationSAincludesanidentifierandakeylifetimevalueforeachAK.



■ Keyencryptionkey(KEK).DerivedfromtheAK,theKEKisusedtoencryptTEKsduring

theTEKexchange,asdiscussedlaterinthischapter.

■ Messageauthenticationkeys.DerivedfromtheAK,themessageauthenticationkeys

FullMaxSystemUserGuide:4.0

validatetheauthenticityofkeydistributionmessagesduringkeyestablishment.These

keysarealsousedtosignmanagementmessagestovalidatemessageauthenticity.



■ AuthorizeddataSAlist.TheauthorizeddataSAlistprovidedtotheRemoteStationsby

theBaseStationanindicationofwhichdataencryptionSAstheRemoteStationsare

authorizedtoaccess.

DataSA’sestablishtheparametersusedtoprotectdatamessagesbetweenBaseStations

andRemoteStations.AdataSAcontainsthefollowingsecurityattributes:

■ SAidentifier(SAID).ThisuniquevalueidentifiestheSAtodistinguishitfromotherSA’s.



■ Encryptionciphertobeemployed.Theconnectionwillusethisencryptioncipher

definitiontoprovidewirelesslinkconfidentiality.



■ Trafficencryptionkey(TEK).TEK’sarerandomlygeneratedbytheBaseStationandare

usedtoencryptFullMAXdatamessages.TwoTEKsareissuedtoprevent

communicationsdisruptionduringTEKrekeying;thefirstTEKisusedforactive

communications,whilethesecondTEKremainsdormant.



■ DataencryptionSAtypeindicator.ThisindicatoridentifiesthetypeofdataSA.There

arethreetypes:



PrimarySA.ThisSAisestablishedasauniqueconnectionforeachRemoteStationupon

initializationwiththeBaseStation.ThereisonlyoneprimarySAperRemoteStation.



StaticSA.ThisSAsecuresthedatamessagesandisgeneratedforeachservicedefined

bytheBaseStation.



DynamicSA.ThisSAiscreatedandeliminatedinresponsetotheinitiationand

terminationofspecificserviceflows.

AuthenticationandAuthorization

FullMaxsecuritygenerallyreferstoauthorizationastheprocessofauthenticatingFullMAX

nodesandgrantingthemaccesstothenetwork.Theauthorizationprocessesimplicitly

includeauthentication.TheFullMAXsystemimplementsthePrivacyKeyManagement

Version(PKMV2)protocolasthesetofrulesresponsibleforauthenticationand

authorizationtofacilitatesecurekeydistributioninFullMAX.PKMusesauthorizationSA’sto

authenticatesystementitiessothatdataencryptionSA’scanbeestablished.PKM’s

authenticationenforcementfunctionprovidestheRemoteStationsandBaseStationswith

FullMaxSystemUserGuide:4.0

identicalAK’s;eachAKisthenusedtoderivethemessageauthenticationkeysandKEKs

thatfacilitatethesecureexchangeoftheTEK’s.FullMaxdevicesderivetheAKusingPKMv2.

PKMv2requiresmutualauthenticationbetweentheBaseStationandtheRemoteStation.

PKMv2startswithwhatisknownasRSAdevicemutualauthentication.Thefigurebelow

illustratesitschallenge‐responseverificationscheme.Itfacilitatestheexchangeofapre‐

PrimaryAK(pre‐PAK)toultimatelyderiveacommonAK.Theexchangebeginswiththe

RemoteStationsendinganauthorizationinformationmessagecontainingthemanufacturer

X.509certificatetotheBaseStation.Themessageisstrictlyforinformationalpurposes.

Theauthorizationinformationmessageisfollowedbyanauthorizationrequestmessage

sentfromtheRemoteStationtotheBaseStation.Itcontainsthefollowinginformation:

■ A64‐bitrandomnumbergeneratedbytheRemoteStation

■ TheRemoteStationFullMax‐issueduniqueX.509certificate

■ AdescriptionoftheRemoteStationsupportedcryptographicalgorithms

■ TheprimarySAID



Uponreceiptoftheauthorizationrequestmessage,theBaseStationverifiestheRemote

StationX.509certificate.Ifthecertificateisvalid,theBaseStationsendsanauthorization

replymessagetotheRemoteStationcontainingthefollowing:

FullMaxSystemUserGuide:4.0

■ The64‐bitRemoteStationgeneratedrandomnumbersentintheauthorizationrequest

messageandanother64‐bitrandomnumbergeneratedbytheBaseStation.

■ The256‐bitpre‐PAKencryptedusingtheRemoteStation’spublickey

■ ThePre‐PAKsequencenumberusedtodifferentiatebetweensuccessivegenerationsof

pre‐PAKs

■ ThePre‐PAKlifetime

■ AlistofSAIDsthattheRemoteStationisauthorizedtoaccessandtheirassociated

properties

■ TheBaseStation’sFullMax‐issuedX.509certificate

■ TheBaseStation’ssignatureprovidedbytheBaseStation’sprivatekey.

TheRemoteStationverifiestheBaseStation’sX.509certificate.Ifthecertificateisvalid,the

BaseStationandRemoteStationproceedtothenextauthenticationproceduretoderive

theAK.

FullMaxSystemUserGuide:4.0

AfterRSAdevicemutualauthenticationoccurs,thereisaprocessofEAPaftertheRSA

devicemutualauthorizationprocedure.Theprocessisdepictedinthefigurebelow.The

pre‐PAKisdeliveredtotheRemoteStationandthenusedtoderivetheEAPintegritykey

(EIK)tosecurethefirstEAPexchange.ThefirstEAPexchangeresultsintheproductionofa

512‐bitmastersessionkey(MSK)thatisdisclosedtotheauthentication,authorization,and

accounting(AAA)server,theBaseStationandtheRemoteStation.TheBaseStationandthe

RemoteStationtruncatetheMSKto320bits—160bitsforthepairwisemasterkey(PMK)

and160bitstocreateanotherEIK.ThePMK,theRemoteStationMACaddress,andthe

BaseStationidentifierarethenusedtoderivetheAK.Devicemutualauthenticationonly

takesplaceduringinitialnetworkentry.Fornetworkreentryorre‐authentication,onlyEAP

authenticationisrequired.



FullMaxSystemUserGuide:4.0



EncryptionKeyEstablishment

Onceauthenticationiscomplete,theBaseStationandtheRemoteStationsharean

activatedAK.PKMthenusesthe160‐bitAKtoderivethe128‐bitKEKandthe160‐bit

messageauthenticationkeys,whichareusedtofacilitateasecureexchangeofTEKs.The

secureTEKexchangeusesathree‐wayhandshakebetweentheBaseStationandthe

RemoteStation,asillustratedinthefigurebelow.



ThefirststepinthisprocedureistheTEK‐ChallengesentfromtheBaseStationtothe

RemoteStation.TheTEK‐Challengeissentduringinitialnetworkentryorduring

reauthorization.

FullMaxSystemUserGuide:4.0

TheTEK‐Challengeincludesthefollowingattributes:

■ BaseStationrandomnumber.ThisnumberisattachedtotheTEK‐Challengetoprevent

replayattacksbyvalidatingmessagefreshness.



■ Messageauthenticationcode.Thesevalidatedataauthenticityofthekeydistribution

messagessentfromtheBaseStationtotheRemoteStation.



■ AKsequencenumberandAKidentifier(AKID).TheseattributesidentifywhichAKis

usedfortheTEKexchange.

UponreceiptoftheTEK‐Challenge,theRemoteStationvalidatestheauthenticityofthe

TEK‐Challengeusingthemessageauthenticationkeys.AftertheTEK‐Challengehasbeen

validated,theRemoteStationsendstheTEK‐RequesttotheBaseStation,whichcontains

thefollowingattributes:

■ BaseStationandtheRemoteStationsrandomnumbers.Inadditiontosendingbackthe

BaseStationrandomnumberfromtheTEK‐Challenge,theRemoteStationattachesits

ownrandomvalue.



■ Messageauthenticationcode.Thesevalidatedataauthenticityofthekeydistribution

messagessentfromtheRemoteStationtotheBaseStation.



■ AKsequencenumberandAKID.TheseidentifywhichAKisusedfortheTEKexchange.



■ Securitycapabilitiesparameters.ThesedescribethesecuritycapabilitiesoftheRemote

Station,includingsupportedcryptographicsuites.Duringinitialnetworkentry,theTEK‐

RequestwillalsoincludearequestforSAdescriptorstoidentifytheprimary,static,and

dynamicSAsthattheRemoteStationisauthorizedtoaccess.FullMaxBaseStationand

theRemoteStationsupporttheEAS‐128cryptographicsuite.

UponreceiptoftheTEK‐Request,theBaseStationverifiesthattheBaseStationrandom

numbermatchesthenumbersentintheTEK‐Challengeandvalidatesthemessage

authenticationkeys.TheBaseStationnextconfirmsthattheAKIDreferstoanavailableAK

andthatthesecuritycapabilitiesparametersprovidedbytheRemoteStationsare

supported.OncetheTEK‐Requestisvalidated,theBaseStationwillgeneratetwoTEKs.The

BaseStationthensendstheTEK‐ResponsetotheRemoteStations,whichcontainsthe

followingattributes:

■ BaseStationandtheRemoteStationsrandomnumber.TheBaseStationattachesits

randomnumbergeneratedintheTEK‐ChallengeandtheRemoteStationsrandom

numbergeneratedintheTEK‐Request.

FullMaxSystemUserGuide:4.0



■ Messageauthenticationcode.Thesevalidatedataauthenticityforthekeydistribution

messagessentfromtheBaseStationtotheRemoteStations.



■ AKsequencenumberandAKID.TheseattributesidentifywhichAKisusedfortheTEK

exchange.



■ ListofauthorizedSAIDs.Thisisthelistofprimary,static,anddynamicSAsthatthe

RemoteStationisauthorizedtoaccess.



■ TEKs.UsingtheKEKderivedfromtheAK,theBaseStationencryptsthetwoTEKs.These

keysincludealloftherequiredkeyingmaterialneededtofacilitatesecure

communicationsbetweentheBaseStationandtheRemoteStations.

UponreceiptoftheTEK‐Response,theRemoteStationensurestheBaseStationrandom

numbermatchesthevaluegivenintheTEK‐ChallengeandthattheRemoteStationsrandom

numbermatchesthevaluedeliveredintheTEK‐Request.TheRemoteStationsthen

validatesthemessageauthenticationkeys.Oncevalidationiscomplete,theRemoteStation

installstheappropriateTEKsandsecurecommunicationscanbegin.



DataConfidentiality

ThecompletionoftheTEKexchangeprovidestheBaseStationandtheRemoteStationwith

theTEKsrequiredtoencryptFullMAXdatacommunications.Thetypeofencryption

employedbytheTEKis128bitsAES.

NetworkManagementSecurity

TheNMSserverisauserrole‐basedwebapplicationcentric.Itusesrole‐based

authorizationtomanageaccess.Accesspermissionsaregrantedtoanabstractentitycalled

asecurityrole,andaccessisallowedonlytousersorgroupsofuserswhohavethatrole.

NMSclient‐servertrafficisoverHTTPS(HTTPoverSSL).HTTPS(HTTPoverSSL)allowsweb

browsersandthewebservertocommunicateoverasecuredconnection.Italsoprovides

authentication:duringtheinitialattempttocommunicatewiththewebserver,thatserver

willpresentthewebbrowserwithasetofcredentials,intheformofaCertificate,asproof

thesiteiswhoandwhatitclaimstobe.TheCertificatecanbepurchasedfromawell‐known

CertificateAuthority(CA)suchasVeriSign,orcanbemanuallygeneratedbytheFullMax

customer.

FullMaxSystemUserGuide:4.0

UsersandRoles

AccesstotheNMSrequiresusernameandpasswordbasedauthentication.TheNMS

providesaninterfacefordefiningusersandroles.Thefollowingrolesaresupported:

■ AdministratorcanchangetheNMSconfiguration.



■ Advancedusercanperformactionsonmanagedelements,butcannotchangetheNMS

configuration.



■ Viewercanviewallinformation,butcannotperformanyaction

OnlyauserwithanAdministratorrolecanadd,deleteoreditusers'properties.Toadd,

deleteoreditusers'propertiesusethemenutogotoAdmin>UsersAccounts.Alistofall

existingusersisdisplayed.



Toaddanewuser,clicktheAddbuttononthebottomofthelist.

FullMaxSystemUserGuide:4.0

Todeleteauserortochangetheuserpasswordorotherproperty,clickthelinkontheright

column.TheNMSwilldisplaythefollowingscreen:



Clickthedeletebuttontoremovetheuser.

Edittherelevantfieldsandclickthesavebuttontokeepthechanges.

SecuredDeviceCLI

TheCLIonFullMaxdevicesarepasswordprotected.ThedevicesprovidetwolevelsofCLIs

fortwodifferentusers:administratorandoperator.Eachhasitsownpassword.

SecuredRemoteSoftwareUpgrade

FullMaxsupportssecureremoteSWdownloadtotheBaseStationandtheRemoteStation

asfollows:

TheflashmemoryintheBaseStationandtheRemoteStationshavetwopartitions.Eachof

thesepartitionsaccommodatesonefullload.

ThedownloadedfilehasachecksumcodeusedattheBaseStationandtheRemoteStation

toverifyitsintegrity.

Thenewloaddoesnotoverridethecurrentoperationalloadinthenon‐volatilememory

beforeitsintegrityisverifiedbymeansofachecksum.Ifanerrorisdetected,thenewload

isdiscarded.

FullMaxSystemUserGuide:4.0



ANNEXA:FULLMAXSPECIFICATIONS



RFSpecifications

DuplexingmodeTimeDivisionDuplexing(TDD)

SpectrumallocationEitherpairedorunpaired

OperationalFrequencyrangeConfigurablefrom40MHzto958MHz

FrequencyResolution3Hz



FrequencyAccuracy1ppmMax(1ppbifGPSsynchronizedexternalclockis

used)

IFFrequency1,220MHz

RFFrontEndPhaseNoise‐97dBc/Hz@10kHzoffset

ChannelBandwidthProgrammablefrom200kHzto5MHz,including:200kHz,

400kHz,500kHz,1MHz.

MulticarrierScheme128FFT

PermutationsDownlink:PUSC,AMC2X3;Uplink:PUSC,AMC2X3

SupportofMultipleZonesYes

Sub‐channelizationPUSC:3downlinksub‐channelsand4uplinksub‐

channels;AMC2X3:6downlinkanduplinksub‐

channels

CyclicPrefix1/8

TDDdownlink/uplinkratioProgrammable.

Forareversesymmetricalapplication(e.g.SCADA),more

bandwidthcanbeallocatedtotheuplink.

TTG,RTGProgrammable

Distance Determinedbypathlossonly.

MaxEffectiveTXPowerBaseStation:Upto40dBmwithdefaultPA,upto43dBm

withhighpowerPA

RemoteStation:Upto40dBmwithdefaultPA,upto43dBm

withhighpowerPA

TXPowerRange79dB(‐43dBmto+36dBm)

TXPowerResolution0.5dB

NoiseFigure5dB

FullMaxSystemUserGuide:4.0



CINRforAWGNchannelQPSK1/2:5dB

QPSK3/4:8dB

16QAM1/2:11 dB

16QAM3/4:14 dB

64QAM1/2:16 dB

64QAM2/3:18 dB

64QAM3/4:20 dB



RXSensitivity@500kHz

channelbandwidth

QPSK1/2:‐107 dBm 

Thereceiver

sensitivitycanbe

furtherimproved

withtheuseof

subchannelsand

ARQ/HARQ

QPSK3/4:104dBm

16QAM1/2:100dBm

16QAM3/4:98dBm

64QAM1/2:98dBm

64QAM2/3:94dBm

64QAM3/4:92dBm



PHYSpecifications

Protocolieee802.16e‐2005withextensions.

TypeMultiCarrier

NumberofSubcarriers128,512,1024,2048dependingonchannelbandwidth

ModulationSchemesBPSK,QPSK,16QAM,64QAM

FECConvolutionalCoding(CC)withrates:1/2,2/3,3/4

AdaptiveModulationand

Coding(AMC)

FullMaxsupportsAMConanindividualMobileandFixed

SubscriberStationbasisforboththedownlinkanduplink

(i.e.,eachMSandFSisallocatedthehighestAMCscheme

dynamicallydependingonitsCINRinanypointintime.The

LinkAdaptationandPowerControlalgorithmisdesignedfor

maximumthroughputandnotforminimumpower.

RetransmissionsARQ

MACSpecifications

MultipleAccessMethodTwodimensionalTDMAandOFDMA

Standardieee802.16e‐2005

SchedulingMethodsBesteffort(BE),NonRealTimePolling(nrTPS),RealTime

Polling(rtPS),ExtendedRealtimePolling(ErtPS),Unsolicited

GrantService(UGS)

QoSParametersPriority,minimumrate,maximumrate,maximumburst

size,jitter,latency

QoSPriorities7

QoSClassifiers Upto16classifierspersubscriberstation

 Classifierfields:Ethernet,IP,UDP/TCPheaderfields

CompressionPayloadHeaderSuppression(PHS).

FullMaxSystemUserGuide:4.0

Upto256bytesoflayertwo,layerthreeandhigher

headerfields.

Security

AirLinkEncryption128bitsAES

KeyManagementProtocolPKMv2

AuthenticationEAP‐TLSafterRSA

X.509certificates

RemoteManagementandControl

ArchitectureWebbased

ManagementProtocolSNMPv2,CLI

MIBStandardWiMAXMIBs+FullMaxprivateMIB

FaultManagementTraps,eventsandauditlogs.

Real‐timeremotediagnostictool

Configuration Profilebasedconfiguration.

Securityhttps

RemoteSWdownloadYes,OvertheAir

Interface

LAN RJ45,100BaseT

RFN‐Connector,50ohm

RS232DB‐9(indoor)orRJ45(outdoor)

FullMaxRS232interfacesupportsallRS232control

functionforlegacySCADAinterface

GPSTNC

GPSisusedfortimesynchronization(externalclock

and1PPS).ItismandatoryattheBaseStationand

optionalattheRemoteStation

PowerTheBaseStationandtheRemoteStationare

designedforDCpowersourcebetween9VDCand36

VDC.

MechanicalEnvironment

BaseStation Rackmount19",1UEnclosure

Indoorunit

FixedStationLength=27.8mm(11")

Width=19.8mm(7.8")

Height=7.2mm(2.83")

WallMount(indoor)orPoleMount(outdoor)



FullMaxSystemUserGuide:4.0

TemperatureIndoorBaseStationandFixedRemoteStation:‐40°C

to+70°C

OutdoorRemoteStation:‐30°Cto+75°C

Humidity95%



FullMaxSystemUserGuide:4.0

FCCcompliancestatement(UnitedStates)

FCC CLASS B PART 15

This device complies with Part 15 of the Federal Communications Commission (FCC) Rules. The FCC ID for

this device is X27-FS-218. Operation is subject to the following two conditions:

 This device may not cause harmful interference.

 This device must accept any interference received, including interference that may cause undesired

operation.

CAUTION:

Changes or modifications to this unit not expressly approved by the party responsible for compliance could void

the user’s authority to operate this equipment.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to

Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful

interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy

and, if not installed and used in accordance with the manufacturer’s instructions, may cause interference

harmful to radio communications.

There is no guarantee, however, that interference will not occur in a particular installation. If this equipment

does cause harmful interference to radio or television reception, which can be determined by turning the

equipment off and on, the user is encouraged to try to correct the interference by one or more of the following

measures:

 Reorient or relocate the receiving antenna.

 Increase the separation between the equipment and receiver.

 Connect the equipment to an outlet on a circuit different from that to which the receiver is connected.

 Consult the dealer for help



Ondas Networks FS-218 Point to Multipoint Licensed Wireless Broadband Data Radio User Manual

Full Spectrum Inc. Point to Multipoint Licensed Wireless Broadband Data Radio

User Manual

Navigation menu

Namespaces

Views

Navigation
